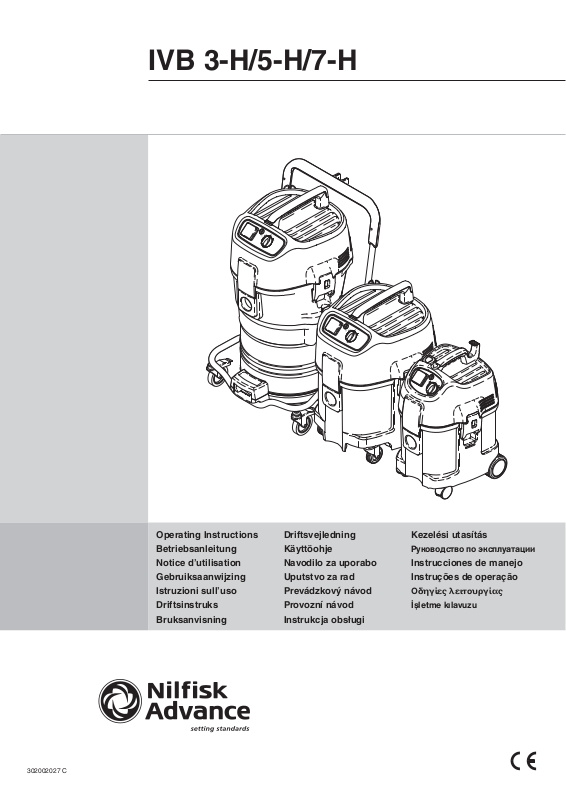

IVB 3-H/5-H/7-H
a
u
to
auto
a
u
auto
to
Operating Instructions
Betriebsanleitung
Notice d’utilisation
Gebruiksaanwijzing
Istruzioni sull’uso
Driftsinstruks
Bruksanvisning
Driftsvejledning
Käyttöohje
Navodilo za uporabo
Uputstvo za rad
Prevádzkový návod
Provozní návod
Instrukcja obsługi
auto
Kezelési utasítás
Руководство по эксплуатации
Instrucciones de manejo
Instruções de operação
Οδηγίες λειτουργίας
Ýþletme kýlavuzu
302002027 C
IVB 3-H
IVB 5-H
IVB 7-H
IVB 3-H
3
11
14
9
8
10
1
3
auto
4
5
6
IVB 5-H
10
1
7
14
9
a
u
to
auto
3
4
5
6
1
8
10
14
9
8
IVB 7-H
a
u
to
auto
2
7
3
4
5
12
5
6
12
13
Contents
1 Important safety
instructions
IVB 3-H
IVB 5-H
IVB 7-H
english
............................................................................................2
2 Description
3 Before start-up
4 Operation
5 Applications and
techniques
6 After finishing work
7 Maintenance
2.1 Purpose ................................................................................5
2.2 Operating elements ..............................................................5
3.1 Assembling the cleaner ........................................................6
4.1 Connections .........................................................................6
4.1.1 Connecting the suction hose ................................................6
4.1.2 Electrical connection ............................................................6
4.1.3 Connecting electrical appliances ..........................................7
4.2 Switching on the vacuum cleaner .........................................7
4.2.1 Switch position “I” .................................................................7
4.2.2 Switch position „auto“ ...........................................................7
4.2.3 Suction power control ...........................................................7
4.3 Check volume flow monitor ..................................................7
4.4 Acoustic warning ..................................................................8
4.5 Cleaning the filter element (IVB 3-H) ....................................8
4.6 Cleaning the filter element (IVB 5-H/7-H) .............................8
5.1 Techniques ...........................................................................9
5.1.1 Picking up dry substances....................................................9
5.1.2 Picking up liquids ..................................................................9
6.1 Switching the vacuum cleaner off and storage ...................10
7.1 Maintenance plan ...............................................................10
7.2 Maintenance work ..............................................................11

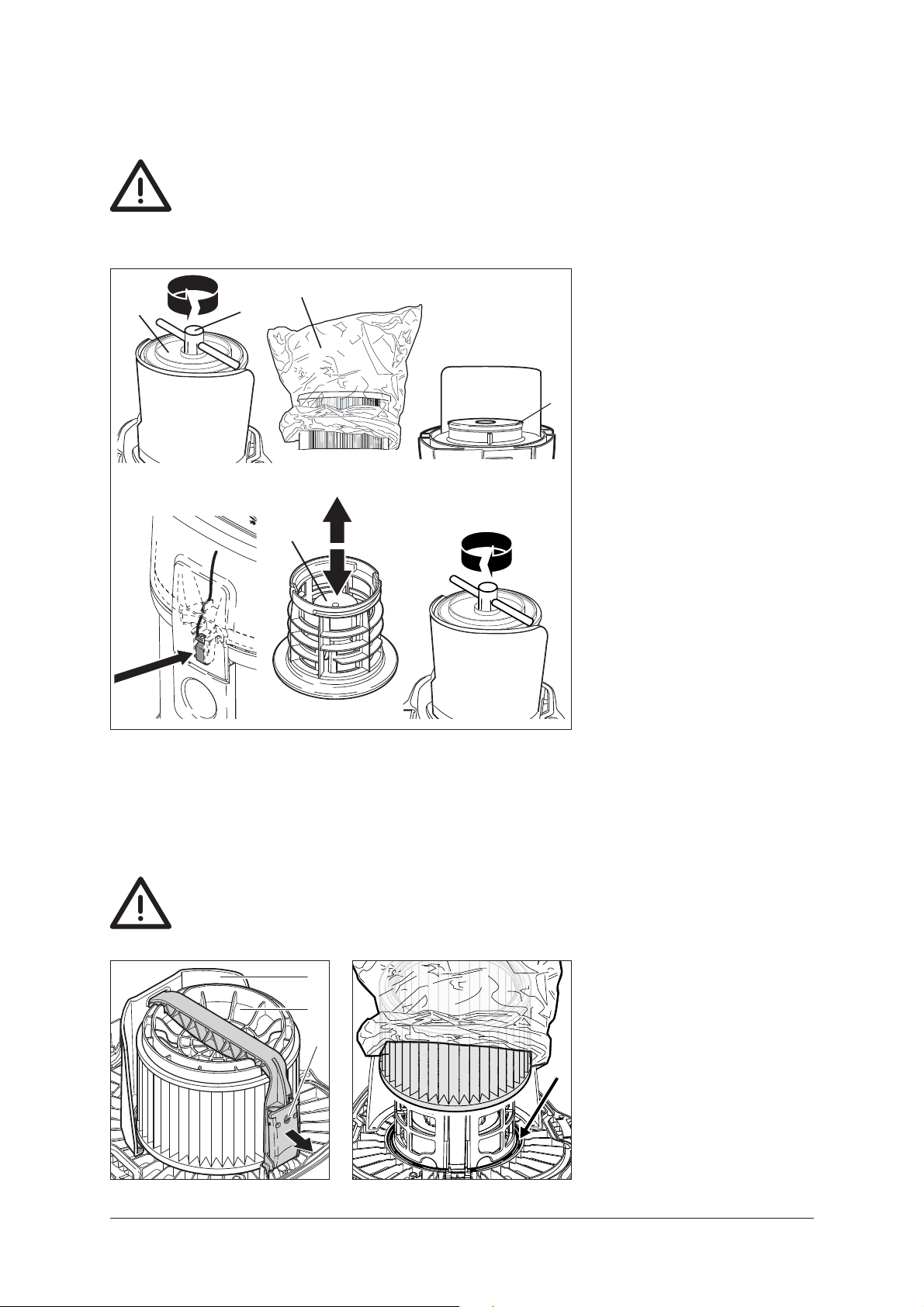

7.2.1 Replacing the waste bag ....................................................11
7.2.2 Replacing the filter bag .......................................................11
7.2.3 Replacing filter element „H“ (IVB 3-H) ................................12
7.2.4 Replacing filter element „H“ (IVB 5-H/7-H) .........................12
7.2.5 Emptying dirt tank (IVB 3-H/5-H) ........................................13
7.2.6 Emptying dirt tank (IVB 7-H) ..............................................13
8 Troubleshooting
9 Further information
..........................................................................................14
9.1 Recycling the vacuum cleaner ...........................................15
9.2 Guarantee ..........................................................................15
9.3 Tests and approvals............................................................15
9.4 Technical data ....................................................................16
9.5 Accessories ........................................................................16
9.6 EC declaration of conformity ..............................................16
01
IVB 3-H
IVB 5-H
IVB 7-H
english
1 Important safety instructions
Symbols used to mark
instructions
For your own safety
Before using the
vacuum cleaner,
always read the
operating instructions and
keep them read-
ily available.
This symbol is
used to mark
safety instructions
that must be observed to prevent
damage to persons.
Only allow the vacuum cleaner
to be used by persons who have
been trained in its use and who
have been explicitly authorized
to use it.
Despite its simple handling the
vacuum cleaner is not suitable
for children.
This symbol is
used to mark
safety instructions that must
be observed to
prevent damage
to the vacuum cleaner and its
performance.
This symbol indicates tips and
instructions to
simplify work and to ensure safe
operation.
lations. Besides the operating
instructions and the binding
accident prevention regulations
valid in the country of use, observe recognized regulations for
safety and proper use.
Do not use any unsafe work
techniques.
Purpose and intended use
The use of the vacuum cleaner
is subject to valid national regu-
The vacuum cleaners described
in this operating manual are
suitable for
– commercial use, e.g. in
hotels, schools, hospitals,
factories, shops, offices and
rental businesses.
– for separation of any kind
of dust with exposure limits,
including carcinogenic dust
and hazardous dust (dust
class H).
Permanent filters should be
replaced by a specialist only in
suitable rooms (e.g. contamination stations).
The following materials should
not be picked up by the vacuum
cleaner:
- hot materials (burning ciga-
rettes, hot ash, etc.)
- flammable, explosive, ag-
gressive liquids (e.g. petrol,
solvents, acids, alkalis, etc.)
- flammable, explosive dust
(e.g. magnesium or aluminium dust, etc.)
When dust removers are used,
the rate at which air is exchanged in the room must be
adequate if the exhaust air from
the vacuum cleaner is blown into
the room (please observe regulations valid in your country).
Before starting work, the operating staff must be informed on
- use of the vacuum cleaner
- risks associated with the ma-
terial to be picked up
- safe disposal of the picked
up material.
02
Dust Class H (high). The
dusts which belong to
this class are: dusts with
OEL values, all carcinogenic
dusts and dusts which are mixed
with pathogenic agents. Vacu-
ums for Dust Class H are tested
in their entirety and have a maximum degree of permeability of
0.005%. The disposal must be
dust free.
IVB 3-H
IVB 5-H
IVB 7-H
english
Precautions and safety
regulations when using the
vacuum cleaner
Before start-up
Inspect power cord regularly
to detect signs of damage, e.g.
cracks or ageing.
If the power cord is damaged, it
must be replaced by Nilfisk-Advance-Service or an electrician
to avoid danger before use of
the vacuum cleaner is continued.
Use only the type of power
cord specified in the operating
manual.
Do not damage the power cord
(e.g. by moving over it or pulling
or crushing it).
Disconnect the power cord by
pulling the plug only (do not pull
or tug the power cord).
Electrical components
Check the rated voltage of the
vacuum cleaner before connecting it to the mains supply
system. Ensure that the voltage
shown on the rating plate corresponds to the voltage of the
local mains power supply.
If you are using an extension
cord, use only those specified
by the manufacturer or higher
quality ones (see section 9.4
„Technical data“).
It is recommended that the
vacuum cleaner should be connected via a residual current
circuit breaker. This stops the
supply of electricity if the leakage current to earth exceeds 30
mA for 30 ms or it has an earth
tester circuit.
Inspect the vacuum cleaners to
ensure that they are in proper
condition. Plugs and couplings
in power cords must at least
have splash protection.
Never use the vacuum cleaner if
the filter element is damaged.
Picking up liquids
If foam develops or liquid
emerges, stop work immediately
and empty the dirt tank.
Regularly clean the built in float
(IVB 3-H) and level indicator
hose (IVB 5-H/7-H) to limit the
water level and check that they
are not damaged.
See section 5 for information on
handling liquids and (hazardous) dust.
When using an extension lead,
check the minimum cross-sections of the cable:
Cable lengthmCross section
<16 A <25 A
up to 20 m
20 to 50 m
ø1.5mm² ø2.5mm²
ø2.5mm² ø4.0mm²
Arrange the electrical parts
(sockets, plugs and couplings)
and lay down the extension lead
so that the protection class is
maintained.
Never spray water on to the
upper section of the vacuum
cleaner. Danger for persons,
risk or short-circuiting.
Observe the latest edition of the
IEC regulations.
03
IVB 3-H
IVB 5-H
IVB 7-H
english
Tool socket
Use the socket on the vacuum
cleaner for the purpose defined
in the operating instructions
only.
Before plugging an appliance
into the appliance socket:
1. Switch off the vacuum clean-
er
2. Switch off the appliance to
be connected.
CAUTION!
Follow the operating instructions
and safety instructions for appliances connected to the power
tool socket.
Maintenance, cleaning and
repair
Only carry out maintenance
work described in the operating
instructions.
Always pull out the mains plug
before cleaning and maintenance of the vacuum cleaner.
During maintenance and cleaning, handle the vacuum cleaner
in such a manner that there is
no danger for maintenance staff
or other persons.
In the maintenance area
– use filtered compulsory ven-
tilation
– wear protective clothing
– clean the maintenance area
so that no harmful substanc-
es get into the surroundings.
Before removing the vacuum
cleaner from the area contaminated with harmful substances:
– clean the outside of the vac-
uum cleaner, wipe it clean or
pack the vacuum cleaner in
well sealed packaging
– and avoid spreading depos-
ited harmful dust.
During maintenance and repair
work all contaminated parts that
could not be cleaned satisfactorily must be:
– packed in well sealed bags
– disposed of in a manner that
complies with valid regulations for such waste removal.
A dust test must be performed at
least once every year by NilfiskAdvance service or a trained
person. This test includes, for
example, whether there is damage to the filter, the vacuum
cleaner is sealed to the air and
the control equipment works
properly.
04
Accessories and spare parts
Use only the brushes supplied
with the vacuum cleaner or
specified in the operating manual. The use of other brushes can
adversely affect safety.
Use only original Nilfisk-Advance accessories and spare
parts (see section 9.5). The use
of other parts can adversely affect safety.
2 Description
IVB 3-H
IVB 5-H
IVB 7-H
english
2.1 Purpose
2.2 Operating elements
The vacuum cleaners IVB 3-H/
IVB 5-H/IVB 7-H are suitable to
pick up dry, nonflammable dust,
nonflammbale liquids, sawdust and hazardous dusts with
maximum room concentration
values, carcinogenic dusts and
other dusts containing germs
(dust class H).
See fold-out page at the front of
these operating instructions.
1 Handle
2 Suction pipe support
3 Accessory holder
4 Applicance switch with suc-
tion power control
5 Retaining clamp
6 Dirt tank
To pick up dust with maximum
room concentration values use
the filter bag.
To pick up harmless dust use
the waste bag. See section
9.5 “Accessories” for ordering
number.
7 Grip to empty tank
1)
8 Inlet fitting
9 Appliance socket
10 Cable hook
11 Operating knob for filter
cleaning
1)
12 Tank locks
13 Castor with brake
14 Hose diameter setting
1)
Option depending on model
05
IVB 3-H
IVB 5-H
IVB 7-H
english
3 Before start-up
3.1 Assembling the cleaner
CAUTION!
On delivery some of the accessories are lying in the tank and must
be removed before the vacuum
cleaner is used for the first time.
Remove the upper section of the
vacuum cleaner:
The mains plug should not be inserted into a socket.
1. Open the retaining clamps
and lift off the upper section
of the cleaner.
2. Take the accessories out of
the dirt tank and the packaging.
3. To pick up dust with maximum room concentration
values:
Insert the filter bag into the
dirt tank according to the
instructions (instructions included).
To pick up harmless dust:
Insert the disposal bag (in-
structions included) into the
tank.
IMPORTANT: Press
the filter bag connection
firmly on to the inlet fitting.
4. Fit the upper section of the
vacuum cleaner and close
the retaining clamps.
NOTE: Ensure that the
retaining clamps fit properly.
4 Operation
4.1 Connections
4.1.1 Connecting the suction
hose
4.1.2 Electrical connection
The operating voltage shown on the
rating plate must correspond to the
voltage of the mains power supply.
1. Connect the suction hose.
The suction hose diameter must
suit the position of the switch in
order to pick up dry, nonflammable dust with maximum room
concentration values.
1. Ensure that the vacuum
cleaner is switched off.
2. Insert the power cord into a
properly installed and fused
socket with an earthing contact.
06
4.1.3 Connecting electrical
appliances
T o comply with regulations, only approved dust producing tools should
be connected.
The maximum power consumption
of the connected power tool is stated in section 9.4 “Technical data”.
1. Ensure that the electrical
appliance is switched off.
2. Connect the electrical appliance to the appliance socket
on the control panel.
IVB 3-H
IVB 5-H
IVB 7-H
english
4.2 Switching on the
vacuum cleaner
4.2.1 Switch position “I”
The hose diameter and the setting
for the suction hose diameter must
be the same.
Hose
ø
Hose diameter
setting
ø27 ø27
ø32 ø32
ø38 ø38
ø50 ø50
4.2.2 Switch position „auto“
The hose diameter and the setting
for the suction hose diameter must
be the same.
Hose
ø
ø27 ø27
ø32 ø32
ø38 ø38
ø50 ø50
Hose diameter
setting
1. Turn the switch to position
„I“.
0
2
3
0
3
6
0
7
5
2
0
0
0
2
3
0
3
0
7
5
2
0
0
The vacuum cleaner motor
starts.
Before switching the switch to position
„auto“, ensure that the tool connected
to the appliance socket is switched off.
1. Turn the switch to position
„auto“. The vacuum cleaner motor starts when the connected
appliance is switched on.
2. When the power tool is switched
off the vacuum cleaner continues to run for a short moment
so that any dust in the suction
hose is conveyed to the safety
filter bag.
4.2.3 Suction power control
4.3 Check volume flow
monitor
0
2
3
0
3
6
0
7
5
2
0
0
Before picking up dust with maximum room concentration values:
The motor speed and the suction power can be varied with
the suction power control. This
allows precise adaptation of
the suction power for different
cleaning tasks.
1. Check that all the filters are
present and properly fitted.
2. When the motor is running,
hold the suction hose shut.
An acoustic warning sounds
after approx. 1 second.
07
IVB 3-H
IVB 5-H
IVB 7-H
english
4.4 Acoustic warning
For safety reasons, an acoustic
warning sounds if the air speed
in the suction hose drops to below 20 m/s. See section “Troubleshooting”.
4.5 Cleaning the filter
element (IVB 3-H)
NOTE:
If the acoustic signal sounds again
after repeated cleaning, replace the
filter element (see section 7.2.3).
0
1
Iauto
Push & Clean
Filter Cleaning System
Only after picking up harmless dust
using the waste bag.
If suction performance drops:
1. Set the suction power to
maximum.
2. Close the nozzles or suction
hose opening with the palm
of your hand.
3. Press the button to start filter
2
x3
cleaning three times. The resulting stream of air removes
attached dust from the slats
of the filter elements.
4.6 Cleaning the filter
element (IVB 5-H/
IVB 7-H)
To ensure that suction performance
is always at its best, the filter element is automatically cleaned during operation. We recommend complete cleaning if the filter element
becomes extremely dirty.
NOTE:
If the acoustic signal sounds again
after repeated cleaning, replace the
filter element (see section 7.2.4).
Only after picking up harmless dust
using the waste bag.
1. Switch off the vacuum cleaner
2. Close the nozzles or suction
hose opening with the palm
of your hand.
3. Turn the switch to position „I“
and let the cleaner operate
for approx. 10 seconds with
the suction hose opening
closed.
08
5 Applications and techniques
IVB 3-H
IVB 5-H
IVB 7-H
english
5.1 Techniques
5.1.1 Picking up dry
substances
If used correctly, additional accessories, suction nozzles and
suction hoses can enhance the
cleaning action and reduce the
cleaning effort.
CAUTION:
Do not pick up flammable
substances.
The suction hose diameter must
suit the position of the switch in
order to pick up dry, nonflammable dust with maximum room
concentration values.
There must always be a safety
filter bag in the tank before dry
substances with maximum room
concentration values are picked
up. See section 9.5 “Accessories” for ordering number.
Effective cleaning is achieved if
you follow just a few guidelines
in combination with your own
practical experience in special
fields.
Here are some basic tips.
ries” for ordering number. Disposal of the picked up material
is then simple and hygienic.
After picking up liquids, the filter
element is wet. A damp filter element clogs more quickly when
dry substances are picked up.
For this reason the filter element
should be washed and dried or
replaced by a dry element before dry substances are picked
up.
To pick up harmless dust we
recommend the use of a waste
bag. See section 9.5 “Accesso-
5.1.2 Picking up liquids CAUTION:
Do not pick up flammable
substances.
Before liquids are picked up, always remove the filter bag/waste
bag and check that the float (IVB
3-H) or the water level limit (IVB
5-H/7-H) works properly. (See
section 7.2.3 and 7.2.4 “Replacing the filter element“.)
The use of a separate filter element or filter screen is recommended.
If foam appears, stop work immediately and empty the tank.
To reduce the amount of foam,
use foam killer Nilfisk-Advance
Foam Stop (see section 9.5
„Optional Accessories“ for order
number).
09
IVB 3-H
IVB 5-H
IVB 7-H
english
6 After finishing work
6.1 Switching the vacuum
cleaner off and storage
2
IVB 5-H
1. After picking up hazardous
dust, vacuum clean the outside of the cleaner.
2. Switch off the vacuum cleaner and pull the mains plug
out of the socket.
3. Remove the suction hose
IVB 3-H
1
IVB 7-H
form the vacuum cleaner and
close the inlet fitting (1) with
the plug (2).
4. Wind up the power cord and
hang it on the handle.
5. Empty the tank and clean the
vacuum cleaner.
6. After picking up liquids: Store
the upper section of the
cleaner separately so that
the filter element can dry.
7. Store the vacuum cleaner
in a dry room where it is
protected from unauthorized
use.
7 Maintenance
7.1 Maintenance plan
7.2.1 Replacing the waste bag
7.2.2 Replacing the safety filter bag
7.2.3 Replacing filter element „H“ (IVB 3-H)
7.2.4 Replacing filter element „H“ (IVB 5-H/7-H)
7.2.5 Emptying dirt tank (IVB 3-H/IVB 5-H)
7.2.6 Emptying dirt tank (IVB 7-H)
7.2 Maintenance work
7.2.1 Replacing the waste
bag
Only after picking up harmless dust.
After finishing work As required
1
2
IVB 3-H/IVB 5-H:
1. Open the retaining clamps
and remove the upper section of the cleaner from the
dirt tank.
2. Carefully remove the waste
bag connection (1) from the
inlet fitting.
3. Close the waste bag connection with the slide (2).
4. Close the waste bag using
the cable binder (3).
10
IVB 3-H
3
3
1
1
2
IVB 5-H
IVB 7-H
5. Dispose of the dirt in accordance with legal regulations.
6. Insert a new filter bag into the
cleaned tank as described in
the instructions enclosed.
IMPORTANT:
Press the filter bag connection
firmly on to the inlet fitting.
IVB 7-H:
1. Remove the upper section of
2
1
1
3
cleaner from the dirt tank.
2. Open the retaining clamps
(1) and remove the intermediate ring (2) from the tank.
3. Close the waste bag using
the cable binder (3).
4. Dispose of the dirt in accordance with legal regulations.
5. Insert a new filter bag into the
cleaned tank as described in
the instructions enclosed.
IMPORTANT: Press the filter
bag connection firmly on to
the inlet fitting.
english
7.2.2 Replacing the safety
filter bag
During the following work, ensure that dust is not unnecessarily
spread around. Wear a P2 breathing mask.
1. Clean the filter element (see
4.5 and 4.6).
1
2
2. Switch off the vacuum cleaner and wait approx. 5 minutes
so that the dust can settle in
the tank.
3. Open the retaining clamps
and remove the upper section of the cleaner from the
dirt tank.
4. Remove the filter bag connection (1) from the inlet fitting.
5. Close the safety filter bag
connection (2) with the slide.
6. Remove the plastic sleeve
from the tank rim and close it
using a cable binder (3).
7. Remove the safety filter bag
from the tank and dispose
of it in accordance with legal
regulations.
8. Insert a new safety filter bag
into the tank according to the
instructions (in the filter bag
packaging).
IMPORTANT:
Press the filter bag connection
on the inlet fitting as far as possible.
11
IVB 3-H
IVB 5-H
IVB 7-H
english
7.2.3 Replacing filter element
„H“ (IVB 3-H)
During the following work,
ensure that dust is not
unnecessarily spread
around. Wear a P2
breathing mask.
3
1
2
6
5
Never use the vacuum cleaner without a filter.
1. Clean the filter element (see
4.5).
2. Switch off the vacuum cleaner and wait approx. 5 minutes
so that the dust can settle in
the tank.
4
3. Open the retaining clamps and
remove the upper section of the
cleaner from the dirt tank. Lay
the upper section of the cleaner
down with the filter element facing upwards.
4. Using the enclosed tool (2), turn
the filter holder (1) anticlockwise
and remove it.
5. Place the protective filter bag
over the filter element (3).
6. Carefully remove the filter element and close the protective
filter bag with a knot.
7. Clean the filter seal (4). Check it
for damage and replace it if necessary.
8. Check the antistatic clamp (5)
for damage and have it replaced
by Nilfisk-Advance Service if
necessary.
9. Fit a new filter element.
10. Check that the float (6) works
properly. When the filter holder
is turned, the float inside must
move about easily.
11. Using the enclosed tool, attach
the filter holder and turn it clockwise to lock it.
12. Dispose of the used filter element in accordance with legal
regulations.
12
7.2.4 Replacing filter element
„H“ (IVB 5-H/7-H)
During the following
work, ensure that dust
is not unnecessarily
spread around. Wear a
1
3
2
P2 breathing mask.
Never use the vacuum cleaner without a filter.
1. Remove the upper section
of cleaner from the dirt tank.
Lay the upper section of the
4
cleaner down with the filter element facing upwards. Do not
place the upper section of the
cleaner on the guard (1) and do
not damage the filter element.
2. Unscrew the screw (2), open the
bar handle and remove it.
3. Remove the filter holder (3).
4. Place the protective filter bag
over the filter element.
5. Carefully remove the filter element and close the protective
filter bag with a knot.
6. Clean the filter seal (4). Check it
for damage and replace it if necessary.
7. Check the antistatic clamp (5)
for damage and have it replaced
by Nilfisk-Advance Service if
necessary.
IVB 3-H
1
3
1
5
5
4
4
2
IVB 5-H
IVB 7-H
8. Check that the control flap (6)
6
7
5
for filter cleaning works properly.
The control flap should move
back and forwards easily.
9. Clean the level hose (7).
10. Fit a new filter element.
11. Fit the filter holder. Ensure that it
is in the correct position.
12. Fit bar and close bar handle.
13. Dispose of the used filter element in accordance with legal
regulations.
english
7.2.5 Emptying dirt tank
(IVB 3-H/IVB 5-H)
Only after picking up harmless dust
without a filter bag.
7.2.6 Emptying the dirt tank (IVB 7-H)
2
1
3
Only after picking up
harmless dust without a filter bag.
1
To empty the dirt
tank after picking
up liquids: remove
the intermediate ring as a proper
seal is only ensured during suction.
After emptying the tank: clean the
rim of the tank and the seals in the
intermediate ring and the upper
section of cleaner before refitting
them.
If the seal or groove is dirty or damaged, the suction performance will
be reduced.
Before reinserting the suction hose:
clean the inlet fitting and hose collar.
1. Remove the upper section of
cleaner from the dirt tank.
2. Using one hand, take hold of the
dirt tank underneath and tip out
the dirt.
3. Dispose of the dirt in accordance
with legal regulations.
4. Clean the rim of the tank before
fitting the upper section of cleaner.
Before reinserting the suction hose:
5. Clean the inlet fitting and hose
collar.
1. Remove the upper section of
cleaner from the dirt tank.
2. Open the retaining clamps
(1) and remove the intermediate ring (2) from the tank.
3. Pull the lever in the handle
(3) upwards and tilt the tank.
4. Tip out the collected dirt.
5. Dispose of the dirt in accord-
ance with legal regulations.
or:
3. Open the tank locks (4).
4. Use the handles (5) to lift the
tank out of the frame.
5
4
4
5
5. Tip out the collected dirt.
6. Place the empty tank in the
frame and close the locks
(4).
7. Dispose of the dirt in accordance with legal regulations.
13
IVB 3-H
IVB 5-H
IVB 7-H
english
8 Troubleshooting
Fault Cause Remedy
‡ Motor does not start > Fuse of the mains socket has
blown.
> Overload protection switch
has tripped.
> Self-acting carbon brush is
worn.
‡ Motor does not run in auto-
matic mode
‡ The acoustic warning
sounds. (Reduced suction
power)
‡ No suction power during
wet cleaning
‡ The vacuum cleaner swit-
ches off during wet cleaning
‡ Voltage fluctuations > Impedance of power supply is
> Power tool is defective or not
connected properly.
> The power rating of the elec-
trical tool is too low.
> Suction power selected with
suction power control is too
low.
> Hose diameter is not right for
switch position.
> Clogged suction hose/nozzle. • Clean suction hose/nozzle
> The safety filter bag is full. • See section 7.2.2 „Replacing
> Filter element is clogged. • See section 4.5 „Cleaning filter
> Defective cleaning mecha-
nism
> Tank is full. (Float is blocking
the suction opening).
> Tank is full. • Switch off the cleaner. Empty
too high.
• Connect mains fuse.
• Switch off the vacuum cleaner
and allow it to cool for approx.
5 minutes. If the cleaner cannot be started again, contact
the Nilfisk-Advance service
department.
• Have carbon brushes changed
by Nilfisk-Advance Service.
• Check that the power tool
works or that the plug is inserted correctly.
• Note that minimum power rating is P>40W
• Set suction power in accordance with section 4.2.3. „Setting suction power“.
• Set correct switch position for
hose diameter.
filter bag“.
element“ and 7.2.3 „Replacing
filter element“.
• Contact Nilfisk-Advance Service
• Switch off the cleaner. Empty
the tank.
the tank.
• Connect the cleaner to another
socket closer to the fuse box.
Voltage fluctuations over 7%
should not occur if the impedance at the transfer point is
≤ 0.15 Ω .
14
9 Further information
IVB 3-H
IVB 5-H
IVB 7-H
english
9.1 Recycling the vacuum
cleaner
9.2 Guarantee
9.3 Tests and approvals
Make the old cleaner unusable
immediately.
1. Unplug the cleaner and cut
the power cord.
Do not discard of electrical appliances with household waste.
As specified in European Directive 2002/96/EC on old electrical
Our general conditions of business are applicable with regard
to the guarantee. Subject to
change as a result of technical
advances.
The vacuum cleaners have been
tested as specified in IEC/EN
60335-2-69 including appendix
AA. All the requirements were
fulfilled for equipment in dust
class H.
The vacuum cleaners must be
inspected regularly in accordance with national accident prevention regulations (in Germany
as specified in VBG 4 and DIN
VDE 0701 Part 1 and Part 3, at
regular intervals and after repairs or modifications).
and electronic appliances, used
electrical goods must be collected separately and recycled
ecologically.
Contact your local authorities or
your nearest dealer for further
information.
A dust test must be performed
at least once every year by the
manufacturer or a trained person. This test covers, for example, whether there is damage to
the filter, the vacuum cleaner is
sealed to the air and the control
equipment works properly.
15
IVB 3-H
IVB 5-H
IVB 7-H
english
9.4 Technical data
IVB
3-H 5-H 7-H
EU
GB
230/240VGB110V
EU
Voltage V 230 230/240 110 230 230/240 110 230 230/240 110
Mains frequency Hz 50/60
Fuse A 16 13 16 13 16 13 16
Power consumption W 1200
Connected load for
appliance socket
W 2400 1800 560 2400 1800 560 2400 1800 560
Total connected load W 3600 3000 1760 3600 3000 1760 3600 3000 1760
Air flow rate l/min 3600
Vacuum mbar/kPa 230/23
Measurement area sound
pressure level at a distance of 1
dB(A) 62 60
m, EN 60704-1
Sound level dB(A) 59 57
Power cord: Length m 7.5
Power cord: Type H05RR- F3G1.5
H07BQ-
F3G1.5
H05RR- F3G1.5
Protection class I
Type of protection
(splash water protected)
Radio interference level EN 55014-1
Tank volume l 27 45 70
Width mm 380 476 580
Depth mm 390 506 605
Height mm 570 655 970
Weight kg 10 14 27
GB
230/240VGB110V
H07BQ-
F3G1.5
IP X4
EU
GB
230/240VGB110V
H05RR- F3G1.5
H07BQ-
F3G1.5
Suction hose diameter
mm
Minimum air flow volume
l/min
27 690 16300
32 970 15700
38 1360 13900
50 2360 7800
9.5 Optional accessories
Description Order No.
IVB 3-H IVB 5-H IVB 7-H
Safety filter bag
(5 pcs.)
Waste bag (5 pcs.) 302001310 302001311 302001480
Filter element „H“ 302000462 302001137
Protective filter bag
(10 pcs.)
Filter screen 15475 –
Cloth insert filter 302001370 302001371
Nilfisk-Alto-Foam-Stop
(6 x 1 l)
302001910 302001143 302001912
30082
8469
Associated negative pressure
between suction hose/tool
Pa
9.6 EC declaration of conformity
EC declaration of conformity
NILFISK-ADVANCE A/S
Sognevej 25
DK-2605 Brøndby
Product:
Model:
Description:
The design of the appliance
corresponds to the following
pertinent regulations:
Applied harmonized standards:
Applied national standards and
technical specifications:
Vacuum cleaner for wet and dry operation
IVB 3-H/5-H/7-H
110/230-240 V~, 50/60 Hz, 1200 W, Dust class H
EC Machine Directive 98/37/EC
EC Low Voltage Directive 73/23/EC
EC EMC Directive 2004/108/EC
EN 12100-1, EN 12100-2
EN 60335-1
EN 60335-2-69
EN 55014-1, EN 55014-2, EN 61000-3-2
DIN EN 60335-1
DIN EN 60335-2-69
16
Jørgen Jensen
Brøndby, 04.07.2005
Nilfi sk-Advance A/S
Sognevej 25
DK-2605 Brøndby
Denmark
Tel.: +45 43 23 81 00
Fax: +45 43 43 77 00
www.nilfi sk-advance.com
Loading...
