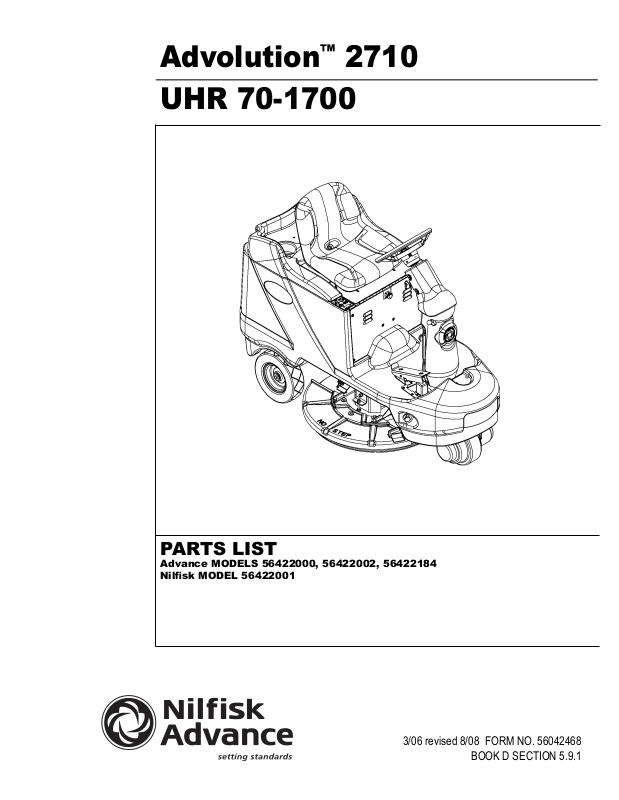

NILFISK Advolution 2710 Parts List
Advolution™ 2710
UHR 70-1700
PARTS LIST
Advance MODELS 56422000, 56422002, 56422184
Nilfi sk MODEL 56422001
3/06 revised 8/08 FORM NO. 56042468
BOOK D SECTION 5.9.1
06-3
* Use the 8 digit numbers from the “Ref. No.” columns in this parts list.
TABLE OF CONTENTS
Advolution
DESCRIPTION PAGE
Body System ...................................................................................................... 2-3
Chassis System ................................................................................................. 4-5
Decal System ..................................................................................................... 6-7
Electrical System ............................................................................................... 8-9
Pad Drive System .......................................................................................... 10-11
Steering System ............................................................................................ 12-13
Wiring Diagram .............................................................................................. 14-15
Options and Accessories .................................................................................... 16
™
2710 / UHR 70-1700
WHEN ORDERING PARTS
BOOK D
D
5.9.1
1
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model Serial No.
FORM NO. 56042468
BOOK D
5.9.1D

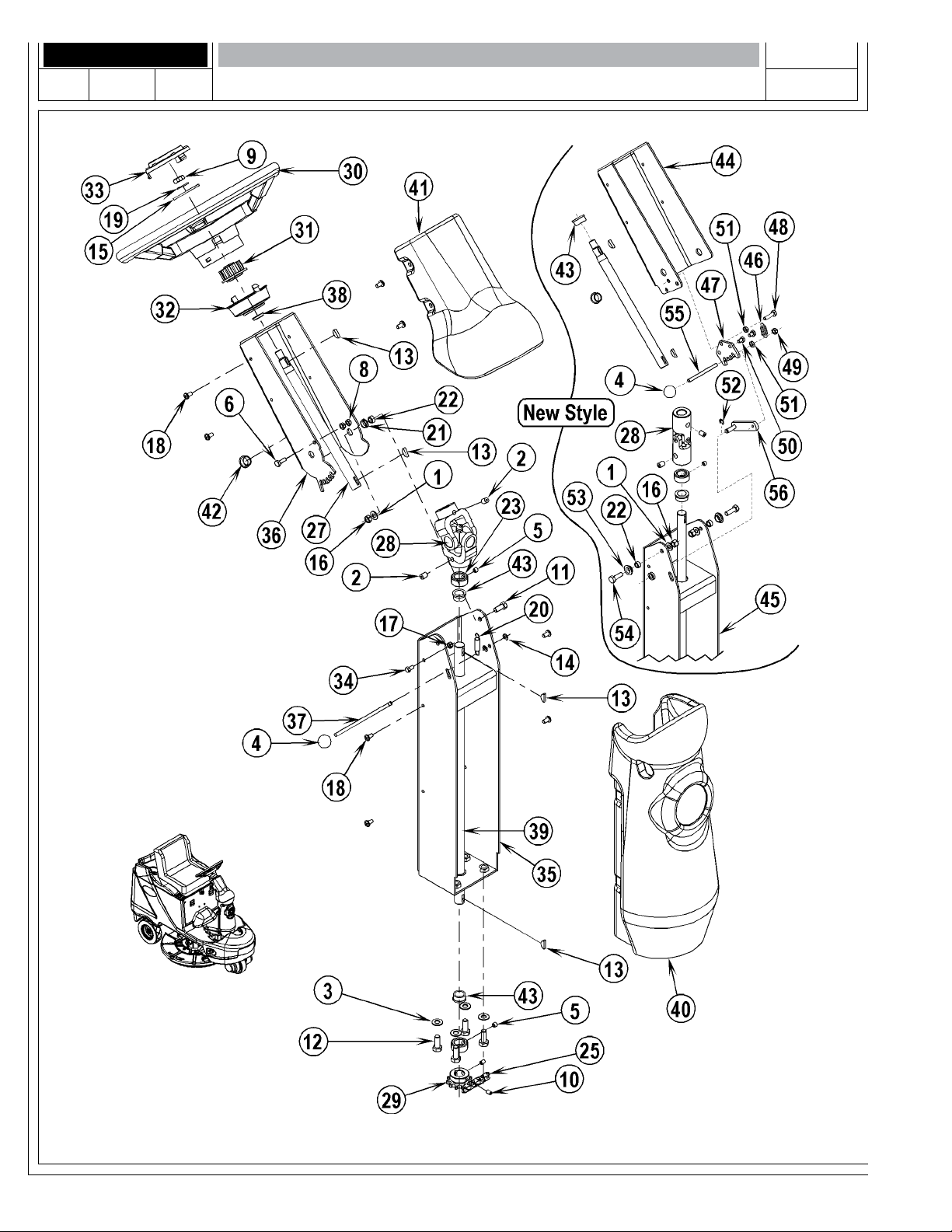

BODY SYSTEM
2
Advolution™ 2710 / UHR 70-1700
06-3
08-8
FORM NO. 56042468
06-3
08-8
BODY SYSTEM
Advolution
™
2710 / UHR 70-1700
BOOK D
D
5.9.1
3
Item Ref. No. Qty Description
1 56001939 4 Wsh, Flt SAE 5/16
2 56002043 2 Scr, Pan Phil 10-24 X .38
3 56002066 4 Scr, Pan Phil 1/4-20 X .62
4
# 56002098 15 Wsh, Flt SAE 1/4
5 56002145 7 Scr, Pan Phil 1/4-20 X .50
6 56002171 1 Scr, Pan Phil 10-24 X 2.00
7 56002667 4 Scr, Hex 5/16-18 X .75
8 56002733 1 Scr, Pan Phil 10-24 X .88
9 56002768 1 Nut, Hex Nyl Loc 10-24
10 56003119 5 Scr, Pan Phil SS 1/4-20 X .50
11 56002035 4 Scr, Hex 5/16-18 x .62
# 56003268 2 Ring, Ret Ext Type E Reinf. 0.25 Dia
12
13 56003358 1 Scr, Hex M6-1 X 25mm
14 56003403 3 Nut, Hex Nyl Loc M6-1
15 56003428 2 Scr, Hex M6-1 X 75mm
16 56009030 2 Scr, Pan Phil Thd Form 10-24 X .38
17
# 56009060 3 Wsh, Flt SS .260 X 1.000 X .074 (qty of 5 after SN 2054896)
18 56009122 4 Wsh, Flt .344 X .938 X .125
19 56003263 2 Rivet, Nylon Tree Push-In (.25)
20 56249946 2 Insert, Brass 10-24
21 56261421 1 Plug, Hex Pipe
22 8-69-00022 1 Seat
23 56314037 1 Spring, Torsion
24 NA 1 Bracket, Foot Pedal NOTE #3
25 NA 1 Foot Pedal NOTE #3
26 56314176 1 Mat, Pedal
# 56380439 1 Bushing
27
28 56314608 1 Clamp, Cable
29 56323277 2 Clamp, P
30 56324505 1 Bearing, Flange
31 56368989 1 Bushing
32 56409378 1 Spacer, Nylon
33 56409471 1 Lever, Throttle
34 56409610 1 Link Weldment
35 56412094 1 Housing, Potentiometer
36 56412331 1 Wire Assy.
37 56422029 1 Cover, Electrical Compartment
38 56422056 1 Body, Main
39 56422067 1 Cover, Battery
40 56422073 1 Weldment, Seat Panel
41 56422080 1 Prop Rod
42 56422082 1 Cover, Spindle
43 56454740 1 Potentiometer, 5K (R1)
44 56478246 3 Tie, Cable
45 56478523 6 Tie, Cable
46 56756318 2 Bearing, Flange
47 7-82-00050 1 Switch
48 7-13-07096 1 Clamp, Adjustable
49 56001972 2 Scr, Flt Phil 1/4-20 x 1.50 NOTE #1
50 56422165 1 Bracket, Connector NOTE #1
51 56009204 2 Scr, Button Soc 1/4-20 x .50 NOTE #1
52 56314119 2 Spacer, Battery NOTE #1
53 56002708 2 Nut, Hex Ny Loc 1/4-20 NOTE #1
54 56002674 2 Scr, Pan Phil 10-24 x 1.00 NOTE #1
55 56314155 2 Clamp, Cable NOTE #1
56 56163872 2 Bushing NOTE #1
Item Ref. No. Qty Description
57# 56413421 1 Pedal Assembly NOTE #2
(items 8-9, 13-17, 23-27, 30, 33-36, 43, 46 & 58-62)
58
59
60# 56009025 1 Wsh, Flt .266 x .750 x .036 NOTE #2
61# 56380438 2 Spacer, Spring NOTE #2
62# 56380440 1 Bushing, M6 x .375 x .295 NOTE #2
# = Revised or new since last update
NOTE #1: These parts are only used on the Nilfi sk UHR 70-1700.
NOTE #2: These parts are only used after serial number 2054895.
NOTE #3: If you need to replace either of these items please order Pedal Assembly
56413421.
# 56003268 1 Ring, Ret Ext Type E Reinf. 0.25 Dia NOTE #2
# 56002098 1 Wsh, Flt SAE 1/4 NOTE #2
FORM NO. 56042468
BOOK D
5.9.1D
CHASSIS SYSTEM
4
Advolution™ 2710 / UHR 70-1700
06-3
07-5
FORM NO. 56042468
