Advenger
2800ST, 3400ST
PARTS LIST
Advance MODELS 56601000, 56601001, 56601002, 56601003, 56601004
56601005, 56601006, 56601007, 56601008, 56601009, 56601010, 56601011
56601012, 56601013, 56601019, 56601020
11/08 revised 3/10 FORM NO. 56042495
08-11
10-3
TABLE OF CONTENTS
Advenger
DESCRIPTION PAGE
Chassis System-STD / EcoFlex .........................................................................2-3
Chassis System-ST ........................................................................................... 4-5
Control System .................................................................................................. 6-7
Decal System ..................................................................................................... 8-9
Electrical System ........................................................................................... 10-11
Onboard Charger Assembly .......................................................................... 12-13
Recovery System ........................................................................................... 14-15
Scrub System-Cylindrical ............................................................................... 16-17
Scrub System-Cylindrical-Skirt Assemblies ................................................... 18-19
Scrub System-28” Disk .................................................................................. 20-21
Scrub System-34” Disk .................................................................................. 22-23
Scrub System-Disk- Skirt Assemblies ............................................................24-25
Solution System-EcoFlex ............................................................................... 26-27
Solution System-STD .................................................................................... 28-29
Solution System-ST ....................................................................................... 30-31
Squeegee System-STD / EcoFlex ................................................................. 32-33
Squeegee System-ST .................................................................................... 34-35
Squeegee Assembly ...................................................................................... 36-37
Wiring Diagram-STD / EcoFlex ...................................................................... 38-39
Wiring Diagram-ST ........................................................................................ 40-41
Optional Kits and Accessories ............................................................................ 42
Brush Selector Guide-Disk ................................................................................. 43
Brush Selector Guide-Cylindrical ........................................................................ 44
Squeegee Blade Selector Guide ........................................................................ 45
™
1
WHEN ORDERING PARTS
* Use the part numbers from the “Ref. No.” columns in this parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model __________________________ Serial No. _____________________________
FORM NO. 56042495
CHASSIS SYSTEM-STD / ECOFLEX
2
Advenger
™
08-11
10-1
FORM NO. 56042495
08-11
10-1
CHASSIS SYSTEM-STD / ECOFLEX
Advenger
™
3
Item Ref. No. Qty Description
1 56001879 2 Wsh, Flt SAE 1/2
2 56002129 1 Scr, Soc Hd 5/16-18 X 1.00
3 56002155 1 Scr, Hex 1/4-20 X .75
4 56002684 1 Scr, Hex 3/8-16 X 1.75
5 56002826 1 Nut, Hex Nyl Loc-Thin 5/16-18
6 56002840 1 Nut, Hex Nyl Loc-Thin 1/4-20
7 56002841 1 Nut, Hex Nyl Loc-Thin 3/8-16
8 56002959 1 Pin, Cotter Hair
9 56003008 1 Scr, Hex Thd To Hd 5/16-18 X 3.50
10 56003040 4 Scr, Hex Hd Loc 3/8-16x.62
11 56003120 1 Pin, Cotter Hair .0915 X .375
12 56003220 1 Nut, Hex Nyl Loc-Thin 1-14
13 56003412 2 Scr, Hex Loc M12-1.75 X 35mm
14 56003442 2 Scr, Hex Loc M10-1.5 X 20mm
15 56003491 4 Scr, Hex M10-1.5 X 40mm
16 56003679 1 Pin, Ring .50 X 1.63
17 56009012 1 Scr, Hex Thd Form 10-24 X .38
18 56009122 1 Wsh, Flt .344 X .938 X .125
19 56158143 1 Bearing Cup
20 56158151 1 Bearing Cone
21 56171081 1 Seal, Shaft
22 56244941 1 Bushing
23 56314032 1 Block, Bearing
24 56003803 1 Pin-Clevis SS .375 x 2.50
25 56601482 2 Wheel
26 56317071 1 Ring
27 56367117 2 Wsh, Flt .406 X 1.5 X .1875
28 56367206 2 Bushing
29 56378380 1 Bearing Ball
30 56412122 2 Trim Edge
31 56412177 1 Horn/Backup Alarm (H2)
32 56420160 2 Bearing, Flange
33 56486112 1 Clamp, P
Item Ref. No. Qty Description
34 56601050 1 Motor / Drive Wheel (M1)
[ ] 56601472 1 Tire With Hub
[ ] 56601473 1 Motor
[ ] 56601509 1 Carbon Brush Kit
[ ] 56601471 1 Tire
[ ] 56601507 1 Electromagnetic Brake
[ ] 56422174 1 Tire Puller Kit
[ ] 56601506 1 Drive Motor Cover
35 56601073 1 Chassis, Weldment
36 56601077 1 Spindle Weldt
37 56601159 1 Plate, Steering
38 56601239 1 Deck Linkage, Weldt
39 56601328 1 Yoke, Actuator
40 56601432 1 Lift Actuator Assembly (M4)
40a 56009019 2 Scr, Hex Thd Form 1/4-20 X .38
40b 56009062 4 Scr, Pan Phil Thd Form 1/4-20 X .50
40c 56393303 1 Actuator, Motor
40d 56396268 1 Spring Housing Guide
40e 56412071 1 Compression Spring
40f 56412262 1 Housing, Spring
40g 56420019 1 Nut Retainer
40h 56420020 1 Nut Retainer
40i 56601470 1 Compression Spring
41 56477613 1 Tie-Cable
42 56009039 1 Scr, Hex Thd Form 10-24 x .50
43 56001954 1 Wsh, Flt SAE 10
44 56601716 1 Ground Chain
45 56009011 1 Wsh, Int Shprf 10
46 56009112 1 Wsh, Int Shprf 3/8
[ ] = Not Shown
FORM NO. 56042495
CHASSIS SYSTEM-ST
4
Advenger
™
08-11
09-3
FORM NO. 56042495
08-11
09-3
CHASSIS SYSTEM-ST
Advenger
™
5
Item Ref. No. Qty Description
1 56001879 2 Wsh, Flt SAE 1/2
2 56001939 1 Wsh, Flt SAE 5/16
3 56002037 1 Scr, Hex 5/16-18 X .88
4 56002063 2 Wsh, Flt SAE 3/8
5 56002129 1 Scr, Soc Hd 5/16-18 X 1.00
6 56002155 1 Scr, Hex 1/4-20 X .75
7 56002476 1 Scr, Flt Phil 5/16-18 X .62
8 56002529 1 Pin, Cotter 1/8 X 1
9 56002826 1 Nut, Hex Nyl Loc-Thin 5/16-18
10 56002840 1 Nut, Hex Nyl Loc-Thin 1/4-20
11 56003008 1 Scr, Hex Thd To Hd 5/16-18 X 3.50
12 56003040 4 Scr, Hex Hd Loc 3/8-16x.62
13 56003120 1 Pin, Cotter Hair .0915 X .375
14 56003220 1 Nut, Hex Nyl Loc-Thin 1-14
15 56003412 2 Scr, Hex Loc M12-1.75 X 35mm
16 56003442 2 Scr, Hex Loc M10-1.5 X 20mm
17 56003491 4 Scr, Hex M10-1.5 X 40mm
18 56003589 1 Pin, Clevis .375 X 1.25
19 56003674 1 Scr, Hex Loc SS 3/8-24 X .62
20 56009012 1 Scr, Hex Thd Form 10-24 X .38
21 56009103 1 Nut, Hex Jam 3/8-24
22 56009122 1 Wsh, Flt .344 X .938 X .125
23 56158143 1 Bearing Cup
24 56158151 1 Bearing Cone
25 56171081 1 Seal, Shaft
26 56244941 1 Bushing
27 56314032 1 Block, Bearing
28 56601482 2 Wheel
29 56320595 1 Bushing .32 x .50 x .28
30 56364527 1 Knob
Item Ref. No. Qty Description
31 56367117 2 Wsh, Flt .406 X 1.5 X .1875
32 56367206 2 Bushing
33 56378380 1 Bearing Ball
34 56397385 1 Rod End
35 56412122 2 Trim Edge
36 56412177 1 Horn/Backup Alarm (H2)
37 56420160 2 Bearing, Flange
38 56486112 1 Clamp,P
39 56601050 1 Motor / Drive Wheel (M1)
[ ] 56601472 1 Tire With Hub
[ ] 56601473 1 Motor
[ ] 56601509 1 Carbon Brush Kit
[ ] 56601471 1 Tire
[ ] 56601507 1 Electromagnetic Brake
[ ] 56422174 1 Tire Puller Kit
[ ] 56601506 1 Drive Motor Cover
40 56601073 1 Chassis, Weldment
41 56601077 1 Spindle Weldt
42 56601159 1 Plate, Steering
43 56601293 1 Spring, Comp
44 56601342 1 Yoke, .375-24
45 56601354 1 Linkage, Weldt
46 56601356 1 Connecting Rod
47 56601358 1 Connecting Rod Weldt
48 56601381 1 Lift Lever Weldt
49 56477613 1 Tie-Cable
50 56009039 1 Scr, Hex Thd Form 10-24 x .50
51 56001954 1 Wsh, Flt SAE 10
52 56601716 1 Ground Chain
53 56009011 1 Wsh, Int Shprf 10
54 56009112 1 Wsh, Int Shprf 3/8
[ ] = Not Shown
FORM NO. 56042495
CONTROL SYSTEM
6
Advenger
™
08-11
09-3
FORM NO. 56042495
08-11
10-1
CONTROL SYSTEM
Advenger
™
Item Ref. No. Qty Description
1 8-69-00022 1 Seat (STD/EcoFlex)
2 56001879 1 Wsh, Flt SAE 1/2
3 56001939 2 Wsh, Flt SAE 5/16
4 56002063 4 Wsh, Flt SAE 3/8 (qty of 8 on ST)
5 56002086 2 Scr, Soc Set Loc 5/16-18 X .25
6 56002098 4 Wsh, Flt SAE 1/4
7 56002145 3 Scr, Pan Phil 1/4-20 X .50
8 56002507 3 Scr, Pan Phil 1/4-20 X .75
9 56002843 1 Nut, Hex Nyl Loc-Thin 1/2-13
10 56002933 3 Scr, Hex Hd Loc 1/4-20x.38
11 56003081 2 Scr, Soc Set Loc 3/8-16 X .38
12 56003179 2 Scr, Hex Thd To Hd M8-1.25 X 20mm
13 56003186 4 Scr, Hex Thd To Hd M10-1.5 X 25mm
14 56003227 1 Key, Wdf .62 X .19
15 56003228 3 Key, Wdf .75 X .19
16 56003261 1 Ring, Ret Ext Type E 0.31 Dia
17 56003268 3 Ring, Ret Ext Type E Reinf. 0.25 Dia
18 56003389 2 Nut, Hex Nyl Loc M8-1.25
19 56003730 3 Scr, Soc Shd .38 X .25 X 5/16-18 (STD/EcoFlex)
20 56009051 2 Scr, Pan Phil Thd Form 8-32 X .38
21 56009062 4 Scr, Pan Phil Thd Form 1/4-20 X .50
22 56100393 1 Bushing
23 56250414 2 Bearing, Flange
24 56320595 2 Bushing .32 x .50 x .28
25 56362778 1 Knob
26 56367095 2 Collar, Shaft
27 56412198 1 Chain, Roller
28 56413211 2 Bearing, Flange .625 X .500 X .250
29 56413658 1 Ratchet, Steering Column
30 56454081 1 Universal Joint
31 56471148 1 Sprocket
32 56578222 1 Spring, Compression
33 56601052 1 Foot Pedal Assy
34 56601060 1 Steering Wheel
35 56601163 1 Lower Column Weldment
36 56601169 1 Upper Column Weldment
37 56601223 1 Shaft, Lower Steering
38 56601224 1 Shaft, Upper Steering
39 56601271 1 Knob, 5/16 Stud (STD/EcoFlex)
40 56601284 1 Steering Pawl Weldment
41 56601292 1 Pull Lever
42 56601362 1 Seat Panel Weldment
43 56601484 1 Shroud, Lower Column
44 56601500 1 Boot, Steering
45 7-82-00050 1 Switch (S2)
46 56601683 1 Plug-Cap (STD/EcoFlex)
47 56386407 1 Clip-Conduit
48 56478246 1 Tie, Cable (ST)
49 56002962 4 Scr, Soc Shd .38 x .62 x 5/16-18 (ST)
50 56601149 1 Seat, Low Back (ST)
51 56601601 1 Foot Pedal Plate
52 56366633 2 Bearing-Sleeve (ST)
7
FORM NO. 56042495
DECAL SYSTEM
8
Advenger
™
08-11
08-12
FORM NO. 56042495
08-11
10-1
Item Ref. No. Qty Description
1 56014601 1 Decal, Caution
2 56016730 1 Decal, Advance
3 56601176 1 Decal, Ladder Diagram (STD / EcoFlex)
56601178 1 Decal, Ladder Diagram (ST)
4 56601298 2 Decal, 2800 ST (ST)
56601299 2 Decal, 3400 ST (ST)
56601300 2 Decal-Advenger (STD)
56601301 2 Decal-Advenger EcoFlex (EcoFlex)
5 56601414 1 Decal, Circuit Breaker
6 56601416 1 Decal, Battery Wiring
7 56601418 1 Decal (ST)
8 56601579 1 Decal-Error Codes (STD / EcoFlex)
DECAL SYSTEM
Advenger
™
9
FORM NO. 56042495
10
ELECTRICAL SYSTEM
Advenger
™
08-11
09-3
FORM NO. 56042495
08-11
10-1
ELECTRICAL SYSTEM
Advenger
™
Item Ref. No. Qty Description
1 56009020 2 Stud
2 56372673 8 Boot, Battery Post
3 56407130 1 Disconnect, Emergency (S4)
4 56409485 3 Cable, Battery
5 56469858 3 Electrical Mount
6 56002099 4 Scr, Flt Phil 10-24 X .62
7 56002145 4 Scr, Pan Phil 1/4-20 X .50
8 56002146 2 Scr, Pan Phil 8-32 X .62
9 56002561 3 Nut, Hex W/ Shprf 1/4-20
10 56002840 2 Nut, Hex Nyl Loc-Thin 1/4-20
11 56002859 1 Wsh, Flt SAE SS 1/4
12 56002997 2 Scr, Pan Phil 1/4-20 X 1.75
13 56009012 1 Scr, Hex Thd Form 10-24 X .38
14 56009060 2 Wsh, Flt SS .260 X 1.000 X .074
15 56009203 1 Stud, 1/4-20
16 56046309 2 Spacer, Phenolic
17 56157376 2 Grommet
18 56321540 1 Grommet (STD/EcoFlex)
56157376 1 Grommet (ST)
19 56412089 1 Fuse, 150 Amp (F1)
20 56454429 1 Circuit Breaker, 70 Amp (CB1)
21 56459369 1 Boot, Reset Button
22 56477613 9 Tie, Cable
23 56478246 9 Tie, Cable
24 56507644 1 Circuit Breaker, 10 Amp (CB2)
25 56601061 1 Speed Control (A2)
26 56601105 1 Panel (STD/ EcoFlex)
56601420 1 Panel (ST)
27 56601171 1 Connector Assy
28 56601172 1 Connector Assy
[29] 56601174 1 Main Harness (STD/ EcoFlex)
[ ] 56601323 1 Main Harness (ST)
[30] 56601175 1 Traction Drive Harness
31 56601183 1 Contactor 24v, 100 Amp (K1)
32 56412179 1 Contactor 24v (K2)
33 56601185 1 Panel
34 56601215 1 Prop Rod, Seat
35 56601251 1 Gasket
36 56601252 1 Gasket
[37] 56601431 1 Cable, Jumper
38 56601434 1 Emergency Button Guard
40 56601565 1 Interface Panel Assy (STD/ EcoFlex) (A1)
[ ] 56601096 1 Kit, Interface Panel (STD/ EcoFlex)
[ ] 56303553 1 Key Switch (S1)
[ ] 56303526 A/R Replacement Key Set
40 56601566 1 Interface Panel Assy (ST) (A1)
[ ] 56601097 1 Kit, Interface Panel (ST)
[ ] 56303553 1 Key Switch (S1)
[ ] 56303526 A/R Replacement Key Set
41 56900144 1 Plug, Cap
42 56601600 1 Foam Insert
11
[ ] = Not Shown
FORM NO. 56042495
12
ONBOARD CHARGER ASSEMBLY
Advenger
™
08-11
09-1
FORM NO. 56042495
08-11
10-3
Item Ref. No. Qty Description
# NA 1 Onboard Charger Assembly NOTE 1
1 56001836 1 Scr, Hex 1/4-20 X .62
2 56001854 4 Scr, Hex 1/4-20 X .50
3 56009019 1 Scr, Hex Thd Form 1/4-20 X .38
4 56157376 1 Grommet
5 56172017 1 Clamp, P
6# 56315124 1 Charger, On-Board 24V TSBUS2008-984
7 56315270 1 Charger Cord, US
8 56601417 1 Charger Mount Bracket
9 56478246 1 Cable Tie
# = Revised or new since last update
NOTE 1: Standard on the following models: 56601008, 56601009, 56601010, 56601011, 56601012, 56601013, 56601019, 56601020
ONBOARD CHARGER ASSEMBLY
Advenger
™
13
FORM NO. 56042495
14
RECOVERY SYSTEM
Advenger
™
08-11
FORM NO. 56042495
08-11
10-3
RECOVERY SYSTEM
Advenger
™
Item Ref. No. Qty Description
1 56324497 2 Cage, Float
2 56002098 6 Wsh, Flt SAE 1/4
3
# 56002603 6 Scr, Hex 1/4-20 X 3.00
4 56002733 2 Scr, Pan Phil 10-24 X .88
5 56002859 2 Wsh, Flt SAE SS 1/4
6 56002896 6 Scr, Pan Phil SS 10-24 X .62
7 56002898 4 Scr, Pan Phil SS 10-24 X 1.00
8 56002916 6 Wsh, Flt SAE SS #10
9 56003799 2 Scr, Pan Phil SS Plastite 1/4-10 X .50
10 56009005 4 Scr, Pan Phil SS Type Ab 10-16 X .75 (STD/ EcoFlex)
# 56003817 4 Wsh-Flt SS .281 x 1.25 x .05 (STD/ EcoFlex)
11
12 56212143 1 Gasket, Vacuum Duct
13 56264103 1 Gasket, Vacuum Motor
14 56314760 1 Gasket, Vacuum Duct
15 56315375 1 Foam, Acoustical
16 56315847 1 Foam Tube Assembly (STD/ EcoFlex)
17 56391690 1 Ball, Float
18 56407361 2 Clamp, Plastic
19 56440213 2 Clamp, Hose SAE #32
20 56477613 2 Tie, Cable
21 56601120 1 Tank, Recovery
22 56601121 2 Gasket, Vac Filter
23 56601125 1 Filter
24 56601126 1 Gasket, Exhaust
25 56601127 1 Gasket, Vac
26 56601128 2 Hinge Clamp
27 56601130 1 Gasket, Recovery Lid
28 56601131 1 Vac Plate, Standard
29 56601132 1 Motor, Vac 24vdc (M5)
[ ] 56397098 1 Carbon Brush (set of 2)
30 56601136 1 Recovery Hose
31 56601137 1 Cover, Vac Motor
32 56601138 1 Strainer Basket (STD/ EcoFlex)
33 56601139 1 Recovery Lid
34 56601204 1 Hook, Drain Hose
35 56601250 2 Strap, Filter Cover
36 56601253 1 Filter Box
37 56601404 1 Drain Hose
38 56601421 1 Cover, Debris (STD/ EcoFlex)
39 56601451 1 Cover, Fltr Box W/Gskt
40 9096672000 2 Filter (STD/ EcoFlex)
15
[ ] = Not Shown
# = Revised or new since last update
FORM NO. 56042495
16
SCRUB SYSTEM-CYLINDRICAL
Advenger
™
08-11
09-3
FORM NO. 56042495
08-11
10-3
SCRUB SYSTEM-CYLINDRICAL
Advenger
™
17
Item Ref. No. Qty Description
1 56401783 2 Leveler
2 56407114 4 Knob
3 56407334 4 Knob
4 56409462 1 Hose, Spiral
5 56002086 4 Scr, Soc Set Loc 5/16-18 X .25
6 56002948 6 Scr,Hex Hd Loc 1/4-20x.75
7 56002959 2 Pin, Cotter Hair
8 56003403 1 Nut, Hex Nyl Loc M6-1
9 56003426 8 Nut, Hex Nyl Loc SS M6-1
10 56003431 2 Scr, Hex SS M6-1 X 16mm
11 56003492 1 Scr, Hex M6-1 X 95mm
12 56003603 2 Scr, Pan Phil Thd Form 1/4-20 X .38
13 56003657 4 Nut, Hex Jam SS M12-1.75
14 56003658 4 Scr, Hex Thd To Hd SS M12-1.75 X 70mm
15 56003671 2 Pin, Ring .50 X 1.25
16 56009045 2 Wsh, Bowed .375x.578x.060
17 56009086 4 Nut, Hex Jam 5/16-18
18 56112771 2 Clamp, Hose SAE #10
19 56262549 1 Tee,Barb
20 56314436 2 Strap
21 56315061 2 Motor, 24 Vdc, .5 Hp, 1800 Rpm (M7 / M8)
[ ]# 56412287 1 Motor Brush / Spring Kit
[ ]# 56412258 4 Brush Assy
[ ]# 56412259 4 Brush Spring
22 56315321 2 Belt, Auto Tension
23 56315408 2 Drive End Assy
Item Ref. No. Qty Description
23a 56002119 2 Scr, Soc Set Loc 1/4-20 x .50
23b 56003237 1 Key, Sq .19 x .62
23c 56106070 2 Bearing, Ball
23d 56109527 1 Spindle
23e 56315405 1 Bearing, Plate
23f 56407389 1 Spacer
23g 56407442 1 Sheave, Poly-V
23g 56407558 1 Washer, Bearing
24 56315445 2 Cover, Belt
25 56315448 2 Idler End Assy
25a 56106070 1 Bearing, Ball
25b 56407558 1 Washer, Bearing
25c 56315447 1 Idler Beraing Plate
25d 56396254 1 Knob
25e 56407551 1 Hub
26 56315625 1 Barb, Coupler 1/2 X 3/4
27 56316089 1 Wheel
28 56316210 2 Harness, Brush Motor (Not Shown)
29 56316553 2 Manifold, Pvc 28 Adv
30 56601688 1 Hopper Weld’t
31 56407391 2 Blade
32 56407433 2 Sheave, Poly-V
33 56412176 1 Bushing
34 56493357 2 Insulator, Terminal
35 56601107 1 Housing Weld’t
36 56601468 1 Left Skirt Assy
37 56601476 1 Right Skirt Assy
38 56002667 2 Scr-Hex 5/16-18 x .75
39 56601675 1 Bracket
40 56002701 2 Nut-Hex Nyl Loc 5/16-18
[ ] = Not Shown
# = Revised or new since last update
FORM NO. 56042495
18
SCRUB SYSTEM-CYLINDRICAL-SKIRT ASSEMBLIES
Advenger
™
08-11
FORM NO. 56042495
08-11
09-3
SCRUB SYSTEM-CYLINDRICAL-SKIRT ASSEMBLIES
Advenger
™
Item Ref. No. Qty Description
56601468 1 Left Skirt Assy (1-8)
56601476 1 Right Skirt Assy (1-6, 9, 10)
1 56003426 8 Nut, Hex Nyl Loc SS M6-1
2 56003430 1 Scr, Hex SS M6-1 X 25mm
3 56003431 1 Scr, Hex SS M6-1 X 16mm
4 56003454 6 Scr, Hex Thd To Hd SS M6-1 X 20mm
5 56009060 2 Wsh, Flt SS .260 X 1.000 X .074
6 56316194 1 Blade Kit-Gum NOTE 2
* 56601538 1 Blade Kit-PU Cyl NOTE 2
* 56601681 1 Blade Kit-Red Gum NOTE 2
7 56601464 1 Skirt Bracket Weld’t (Left)
8 56601467 1 Retainer, Skirt (Left)
9 56601690 1 Retainer, Skirt (Right)
10 56601477 1 Skirt Bracket Weld’t (Right)
* = Optional, Not Included
NOTE 1: Quantities shown for items 1-7 are for one skirt assembly. There are two skirt assemblies on the machine.
NOTE 2: All deck blade kits include all blades necessary.
19
FORM NO. 56042495
20
SCRUB SYSTEM-28” DISK
Advenger
™
08-11
08-12
FORM NO. 56042495
08-11
09-3
SCRUB SYSTEM-28” DISK
Advenger
™
21
Item Ref. No. Qty Description
1 56407114 4 Knob
2 56407334 4 Knob
3 56002192 2 Scr, Pan Phil 10-24 X .75
4 56002667 3 Scr, Hex 5/16-18 X .75
5 56002701 3 Nut, Hex Nyl Loc 5/16-18
6 56002959 2 Pin, Cotter Hair
7 56003012 2 Scr, Hex SS 5/16-18 X .75
8 56003211 8 Scr, Hex SS M6-1 X 12mm
9 56003335 2 Scr, Hex Loc SS 5/16-18 X .88
10 56003426 6 Nut, Hex Nyl Loc SS M6-1
11 56003454 6 Scr, Hex Thd To Hd SS M6-1 X 20mm
12 56003526 2 Key, Square .25 X 1.44
13 56003657 4 Nut, Hex Jam SS M12-1.75
14 56003658 4 Scr, Hex Thd To Hd SS M12-1.75 X 70mm
15 56003786 2 Pin, Ring .500 X 1.18
16 56003798 2 Scr, Soc Hd 5/16-18 X 1.25 Zinc Plated
17 56009029 2 Scr, Pan Phil Thd Form 10-24 X .50
18 56009057 2 Wsh, Flt Harden .344x1.000x.120/.135
19 56003264 2 Ring-Ret Ext Type E .50 Dia
20 56016163 1 Decal, No Step
21 56266108 2 Hose, Spiral .500
22 56305760 1 Tee, Barb 3/4 X 1/2 X 1/2
23 56314359 2 Key, 6mm Sq
25 56328064 2 Clamp,P
26 56407006 1 Wheel, Roller
27 56601580 1 Pin
28 56601113 1 Scrub Deck, Cast
Item Ref. No. Qty Description
29 56601134 2 Motor Gearbox Assy (M7 / M8)
[ ] 56601533 1 Gearbox
[ ] 56314580 1 Bearing (fan end)
[ ] 56601537 1 Bearing (brush end)
[ ] 56601534 2 Carbon Brush
[ ] 56601535 1 Key-6mm Square
[ ] 56601508 1 Brush Motor Cover
[ ] 56601536 1 Motor Fan
30 56601248 1 Blade-Front Gum NOTE 2
* 56601521 1 Blade-Front PU NOTE 2
31 56601276 1 Brush Plate Assy NOTE 1
32 56601289 2 Rod, Up Stop
33 56601319 2 Shaft, Hub Mount
34 56601364 1 Roller Brkt 28
35 56601384 1 Brush Plate Assy
35a 61658a 1 Collar, Brush Driver
35b 56366455 1 Plate, Stop
35c 56366463 1 Spring Retainer
35d 56009002 1 Wsh, Flt .266 X .906 X .060
35e 56009247 3 Scr, Pan Phil Plastite 10-14 X .38
35f 56601056 1 Spring, Brush Holder
35g 56601118 1 Brush Plate
35h 56601520 1 Gimbal, Motor
36 56601388 2 Up Stop Mount
37 56601389 2 Bracket, Motor
38 56601541 1 Skirt Assembly Lt 28
39 56601543 1 Skirt, Assy Rt
[ ] 56477613 1 Tie-Cable
* = Optional, Not Included
[ ] = Not Shown
NOTE 1: Item 31 (56601276) consists of the exact same components as item 35 (56601384).
NOTE 2: All disk deck blade kits include all side skirt blades.
FORM NO. 56042495
22
SCRUB SYSTEM-34” DISK
Advenger
™
08-11
08-12
FORM NO. 56042495
08-11
09-3
SCRUB SYSTEM-34” DISK
Advenger
™
23
Item Ref. No. Qty Description
1 56407114 4 Knob
2 56407334 4 Knob
3 56002192 2 Scr, Pan Phil 10-24 X .75
4 56002667 3 Scr, Hex 5/16-18 X .75
5 56002701 3 Nut, Hex Nyl Loc 5/16-18
6 56002959 2 Pin, Cotter Hair
7 56003012 2 Scr, Hex SS 5/16-18 X .75
8 56003211 8 Scr, Hex SS M6-1 X 12mm
9 56003263 7 Rivet, Nylon Tree Push-In (.25)
10 56003335 2 Scr, Hex Loc SS 5/16-18 X .88
11 56003426 9 Nut, Hex Nyl Loc SS M6-1
12 56003454 9 Scr, Hex Thd To Hd SS M6-1 X 20mm
13 56003526 2 Key, Square .25 X 1.44
14 56003657 4 Nut, Hex Jam SS M12-1.75
15 56003786 2 Pin, Ring .500 X 1.18
16 56003798 2 Scr, Soc Hd 5/16-18 X 1.25 Zinc Plated
17 56009029 2 Scr, Pan Phil Thd Form 10-24 X .50
18 56009057 2 Wsh, Flt Harden .344x1.000x.120/.135
19 56003264 2 Ring-Ret Ext Type E .50 Dia
20 56009119 4 Scr, Hex Thd To Hd M12-1.75 X 25mm
21 56016163 1 Decal, No Step
22 56305760 1 Tee, Barb 3/4 X 1/2 X 1/2
23 56314359 2 Key, 6mm Sq
25 56328064 2 Clamp,P
26 56387302 2 Hose, Spiral .500
27 56407006 1 Wheel, Roller
28 56601580 1 Pin
29 56601113 1 Scrub Deck, Cast
Item Ref. No. Qty Description
30 56601134 2 Motor Gearbox Assy (M7 / M8)
[ ] 56601533 1 Gearbox
[ ] 56314580 1 Bearing (fan end)
[ ] 56601537 1 Bearing (brush end)
[ ] 56601534 2 Carbon Brush
[ ] 56601535 1 Key-6mm Square
[ ] 56601508 1 Brush Motor Cover
[ ] 56601536 1 Motor Fan
31 56601275 1 Blade-Front Gum NOTE 2
* 56601522 1 Blade-Front PU NOTE 2
32 56601276 1 Brush Plate Assy NOTE 1
33 56601278 1 Skirt Bracket, Front 34
34 56601289 2 Rod, Up Stop
35 56601319 2 Shaft, Hub Mount
36 56601365 1 Roller Brkt 34
37 56601384 1 Brush Plate Assy
37a 61658a 1 Collar, Brush Driver
37b 56366455 1 Plate, Stop
37c 56366463 1 Spring Retainer
37d 56009002 1 Wsh, Flt .266 X .906 X .060
37e 56009247 3 Scr, Pan Phil Plastite 10-14 X .38
37f 56601056 1 Spring, Brush Holder
37g 56601118 1 Brush Plate
37h 56601520 1 Gimbal, Motor
38 56601388 2 Up Stop Mount
39 56601389 2 Bracket, Motor
40 56601452 1 Brush Cover
41 56601502 2 Side Skirt Weldment
42 56601542 1 Skirt Assembly Lt 34
43 56601543 1 Skirt, Assy Rt
[ ] 56477613 1 Tie-Cable
* = Optional, Not Included
[ ] = Not Shown
NOTE 1: Item 32 (56601276) consists of the exact same components as item 37 (56601384).
NOTE 2: All disk deck blade kits include all side skirt blades.
FORM NO. 56042495
24
SCRUB SYSTEM-DISK-SKIRT ASSEMBLIES
Advenger
™
08-11
FORM NO. 56042495
08-11
09-3
SCRUB SYSTEM-DISK-SKIRT ASSEMBLIES
Advenger
™
Item Ref. No. Qty Description
56601541 1 Left Skirt Assy (28” / 1-8)
56601542 1 Left Skirt Assy (34” / 1-8)
56601543 1 Right Skirt Assy (All Models / 1-4, 7, 8, 9, 10)
1 56003426 9 Nut, Hex Nyl Loc SS M6-1
2 56003454 2 Scr, Hex Thd To Hd SS M6-1 X 20mm
3 56003695 7 Scr, Hex Thd To Hd SS M6-1 X 25mm
4 56003696 2 Wsh, Flt SS .33 X 1.00 X.060
5 56601327 1 Frame, Skirt Lh 34 (34” / Left)
[ ] 56601279 1 Frame, Skirt Lh 28 (28” / Left)
6 56601337 1 Retainer, Skirt (34” / Left)
[ ] 56601315 1 Retainer, Skirt (28” / Left)
7 56601092 1 Blade Kit-Gum NOTE 2
* 56601091 1 Blade Kit-PU NOTE 2
* 56601678 1 Blade Kit-Red Gum NOTE 2
8 56601315 1 Retainer, Skirt (All Models / Right)
9 56601157 1 Frame, Skirt Rh (All Models / Right)
* = Optional, Not Included
[ ] = Not Shown
NOTE 1: Quantities shown for items 1-4 and 7-8 are for one skirt assembly. There are two skirt assemblies on the machine.
NOTE 2: All disk deck blade kits include all side skirt blades.
25
FORM NO. 56042495
26
SOLUTION SYSTEM-ECOFLEX
Advenger
™
08-11
10-1
FORM NO. 56042495
08-11
10-1
SOLUTION SYSTEM-ECOFLEX
Advenger
™
Item Ref. No. Qty Description
1 56001954 7 Wsh, Flt SAE #10
2 56001993 5 Scr, Pan Phil 10-24 X .50
3 56002098 3 Wsh, Flt SAE 1/4
4 56002145 8 Scr, Pan Phil 1/4-20 X .50
5 56002539 2 Scr, Pan Phil Thd Form 6-32 X .31
6 56002667 4 Scr, Hex 5/16-18 X .75
7 56002832 2 Nut, Hex Nyl Loc-Thin 10-24
8 56002859 2 Wsh, Flt SAE SS 1/4
9 56002989 2 Scr, Pan Phil SS 1/4-20 X .62
10 56003699 3 Bushing, 1/4 Id Snub
11 56009122 4 Wsh, Flt .344 X .938 X .125
12 56009139 6 Scr, Pan Phil Loc 10-24 X .38
13 56016331 1 Decal, Chemical Ratio
14 56601599 1 Cap, Raw W/ Tether
15 56244969 5 Clamp, Hose SAE #12
16 56255076 1 Cap, Pipe Ght Nylon
17 56261265 1 Hose, .75 Clear Pvc, 25.00
19 56314757 1 Barb, 90 Elbow 3/4 X 1/2npt
20 56314942 1 Hose, Chem Resistant
21 56314991 1 Hose, Chem Resistant 14”
22 56315241 1 Pump, Chemical (M2)
23 56601598 2 Hose Clip
24 56315285 1 Hinge
25 56315296 1 Solution Filter
* 56601594 A/R Solution Filter Kit
26 56315517 1 Cap, Raw
27 56315523 1 Cap, Dry Break, 1/8 Barb, 90 $
28 56315527 1 Insert, Dry Break
29 56315607 1 Ball Valve
30 56368776 1 Washer, Rubber
31 56379139 1 Hose
32 56380132 2 Latch, 1/4 Turn
33 56380137 2 Retainer
34 56380141 2 Nut, Clamp
35 30445A 1 Hose-Solution
36 56410097 3 Clamp, P
37 56412182 1 Nipple, Hex 3/4-14
38 56601064 1 Solenoid Valve Assy (L1)
39 56601076 1 Solution Tank
40 56601106 1 Panel
41 56601202 1 Chemcial Bottle Cover
42 56601212 1 Nipple, Reducer 3/4”Npt X 1/2”Npt
43 56601213 1 Battery Box
44 56601236 1 Tee, Special,3/4 X 3/16 X 1/2npt
45 56601246 1 Mat
46 56601268 1 Plate
47 56601273 1 Hose
48 56601339 1 Charger Cover Weldment
49 56601398 1 Bracket
50 56601481 1 Tube, Pressure Sensing
51 56601511 1 Plate
52 56601544 1 Chemical Bottle Assy
* 56601545 A/R Chemical Bottle Assy (26, 28 & 52)
53 56601569 1 Gasket
54 56601570 1 Gasket
55 56900273 1 Barb, Adapter 3/4 X 3/4ght
56 56003039 1 Scr, Hex Hd Loc 1/4-20 x .50
57 56601685 1 Gasket
* = Optional, Not Included
27
FORM NO. 56042495
28
SOLUTION SYSTEM-STD
Advenger
™
08-11
09-3
FORM NO. 56042495
08-11
09-3
SOLUTION SYSTEM-STD
Advenger
™
Item Ref. No. Qty Description
1 56001954 5 Wsh, Flt SAE #10
2 56001993 5 Scr, Pan Phil 10-24 X .50
3 56002098 4 Wsh, Flt SAE 1/4
4 56002145 10 Scr, Pan Phil 1/4-20 X .50
5 56002667 4 Scr, Hex 5/16-18 X .75
6 56009122 4 Wsh, Flt .344 X .938 X .125
7 56009139 2 Scr, Pan Phil Loc 10-24 x .38
8 56601599 1 Cap, Raw W/ Tether
9 30445A 1 Hose, Solution
10 56244969 5 Clamp, Hose SAE #12
11 56255076 1 Cap, Pipe Ght Nylon
12 56261265 1 Hose, .75 Clear Pvc, 25.00
14 56314757 1 Barb, 90 Elbow 3/4 X 1/2npt
15 56601598 2 Hose Clip
16 56315296 1 Solution Filter
* 56601594 A/R Solution Filter Kit
17 56315607 1 Ball Valve
18 56601236 1 Barb, Adaptor 3/4 X 1/2 Npt
19 56368776 1 Washer, Rubber
20 56379139 1 Hose
21 56380132 1 Latch, 1/4 Turn
22 56380137 1 Retainer
23 56380141 1 Nut, Clamp
24 56410097 3 Clamp, P
25 56412182 1 Nipple, Hex 3/4-14
26 56601064 1 Solenoid Valve Assy (L1)
27 56601076 1 Solution Tank
28 56601212 1 Nipple, Reducer 3/4”Npt X 1/2”Npt
29 56601213 1 Battery Box
30 56601246 1 Mat
31 56601268 1 Plate
32 56601273 1 Hose
33 56601339 1 Charger Cover Weldment
34 56601387 1 Electrical Cover Panel
35 56601481 1 Tube, Pressure Sensing
36 56601511 1 Plate
37 56601670 1 Bracket, L
38 56601569 1 Gasket
39 56601570 1 Gasket
40 56900273 1 Barb, Adapter 3/4 X 3/4ght
41 56051209 1 Rubber Tip-Black
42 56003039 1 Scr, Hex Hd Loc 1/4-20 x .50
43 56601685 1 Gasket
29
* = Optional, Not Included
FORM NO. 56042495
30
SOLUTION SYSTEM-ST
Advenger
™
08-11
09-10
FORM NO. 56042495
08-11
09-10
SOLUTION SYSTEM-ST
Advenger
™
Item Ref. No. Qty Description
1 56001954 8 Wsh, Flt SAE #10
2 56001993 7 Scr, Pan Phil 10-24 X .50
3 56002098 4 Wsh, Flt SAE 1/4
4 56002145 10 Scr, Pan Phil 1/4-20 X .50
5 56002667 4 Scr, Hex 5/16-18 X .75
6 56002832 1 Nut, Hex Nyl Loc-Thin 10-24
7 56009122 4 Wsh, Flt .344 X .938 X .125
9 56601599 1 Cap, Raw W/ Tether
10 30445A 1 Hose, Solution
11 56244969 3 Clamp, Hose SAE #12
12 56305053 1 Sensor, Proximity
13 56305547 2 Plug, 1/2 Hex Pipe
15 56315296 1 Solution Filter
* 56601594 A/R Solution Filter Kit
16 56315607 1 Ball Valve
17 56315634 1 Barb, Adaptor 3/4 X 1/2 Npt
18 56379139 1 Hose
19 56380132 1 Latch, 1/4 Turn
20 56380137 1 Retainer
21 56380141 1 Nut, Clamp
22 56410097 3 Clamp, P
23 56412182 1 Nipple, Hex 3/4-14
24 56601064 1 Solenoid Valve Assy (L1)
25 56601076 1 Solution Tank
26 56601212 1 Nipple, Reducer 3/4”Npt X 1/2”Npt
27 56601213 1 Battery Box
28 56601246 1 Mat
29 56601339 1 Charger Cover Weldment
30 56601713 1 Handle Cover-Top Panel NOTE 1
31 56601387 1 Electrical Cover Panel
32 56601511 1 Plate
33 56601670 1 Bracket, L
34 56601569 1 Gasket
35 56601570 1 Gasket
36 56507793 1 Clip-Conduit
37 56003039 1 Scr-Hex Hd Loc 1/4-20 x .50
38 56601685 1 Gasket
39 56601714 1 Handle Cover Weldt. NOTE 1
40 56321540 1 Grommet
41 56009029 2 Scr-Pan Phil Thd Form 10-24 x .50
31
* = Optional, Not Included
NOTE 1: Handle Cover 56601344 is no longer used in production. If you order 56601344 you will receive Handle Panel Kit 56601730 which contains items (1,
30, 39, 40 & 41).
FORM NO. 56042495
32
SQUEEGEE SYSTEM-STD / ECOFLEX
Advenger
™
08-11
10-1
FORM NO. 56042495
08-11
10-3
SQUEEGEE SYSTEM-STD / ECOFLEX
Advenger
™
Item Ref. No. Qty Description
1 56412088 1 Pin
2 56412248 2 Spacer, Squeegee Cable
3 56453691 1 Spacer
4 56002491 1 Nut, Hex Nyl Loc SS 1/4-20
5 56002856 1 Nut, Hex Nyl Loc SS 5/16-18
6 56002883 1 Scr, Hex SS 1/4-20 X 1.00
7 56002886 2 Scr, Hex SS 3/8-16 X 1.00
8 56002910 4 Wsh, Flt SAE SS 3/8
9 56002938 2 Wsh, Flt SAE SS 5/16
10 56002951 2 Nut, Hex Nyl Loc 3/8-24
11 56003219 2 Nut, Hex Nyl Loc SS 3/8-16
12 56003222 3 Pin, Cotter Hair
13 56003223 1 Pin, Cot Hair .148 X Dia .62/1.00
14 56003262 2 Ring, Ret Ext Type E 0.38 Dia
15 56003264 1 Ring, Ret Ext Type E 0.50 Dia
16 56003486 1 Scr, Hex Thd To Hd SS 5/16-18 X 4.00
17 56003656 3 Pin, Clevis .375 X 2.25
18 56003696 2 Wsh, Flt SS .33 X 1.00 X.060
19 56003713 2 Pin, Clevis .38 X 3.75
20 56009103 2 Nut, Hex Jam 3/8-24
21 56009141 1 Nut, Hex Jam SS 5/16-18
22 56324505 6 Bearing, Flange
23 56381818 1 Bushing .32x.44x.15
24 56407303 1 Knob
25 56412124 1 Wheel
26 56412208 1 Roller
27 56412216 1 Spring, Extension
28 56601147 1 Actuator, Motor 24v (M3)
29 56601257 1 Cable Assembly
30 56601436 1 Squeegee Pivot Bracket Weld’t
31 56601438 1 Squeegee Mount Bracket Weld’t
32 56601442 1 Shaft
# 56601449 1 Squeegee Assy (28”) (Includes Gum Rubber Blades)
33
# 56601454 1 Squeegee Assy (34”) (Includes Gum Rubber Blades)
34 56601460 2 Bar Weldment
35 56601463 1 Washer, Polyurethane
36 56601469 2 Rod End
37 56601512 2 Hose
33
# = Revised or new since last update
FORM NO. 56042495
34
SQUEEGEE SYSTEM-ST
Advenger
™
08-11
08-12
FORM NO. 56042495
08-11
10-3
SQUEEGEE SYSTEM-ST
Advenger
™
Item Ref. No. Qty Description
1 56001821 1 Scr, Hex 1/4-20 X .88
2 56001854 5 Scr, Hex 1/4-20 X .50
3 56001939 1 Wsh, Flt SAE 5/16
4 56002098 2 Wsh, Flt SAE 1/4
5 56002491 1 Nut, Hex Nyl Loc SS 1/4-20
6 56002840 1 Nut, Hex Nyl Loc-Thin 1/4-20
7 56002856 1 Nut, Hex Nyl Loc SS 5/16-18
8 56002858 2 Scr, Pan Phil 6-32 X 1.00
9 56002859 2 Wsh, Flt SAE SS 1/4
10 56002883 1 Scr, Hex SS 1/4-20 X 1.00
11 56002886 2 Scr, Hex SS 3/8-16 X 1.00
12 56002910 2 Wsh, Flt SAE SS 3/8
13 56002938 2 Wsh, Flt SAE SS 5/16
14 56002951 2 Nut, Hex Nyl Loc 3/8-24
15 56003219 2 Nut, Hex Nyl Loc SS 3/8-16
16 56003222 2 Pin, Cotter Hair
17 56003223 1 Pin, Cot Hair .148 X Dia .62/1.00
18 56003264 1 Ring, Ret Ext Type E 0.50 Dia
19 56003486 1 Scr, Hex Thd To Hd SS 5/16-18 X 4.00
20 56003656 2 Pin, Clevis .375 X 2.25
21 56003713 2 Pin, Clevis .38 X 3.75
22 56009103 2 Nut, Hex Jam 3/8-24
23 56009141 1 Nut, Hex Jam SS 5/16-18
24 56324505 6 Bearing, Flange
25 56364527 1 Knob
26 56376015 1 Nut Plate
27 56381818 1 Bushing .32x.44x.15
28 56407303 1 Knob
29 56412124 1 Wheel
30 56412208 1 Roller
31 56412216 1 Spring, Extension
32 56601160 1 Switch, Snap, Spst No
33 56601190 1 Bushing, Cable
34 56601218 1 Linkage Arm
35 56601221 1 Linkage, Weldment
36 56601233 1 Bracket, Cable
37 56601234 1 Bracket, Cable
38 56601235 1 Cable
39 56601436 1 Squeegee Pivot Bracket Weld’t
40 56601438 1 Squeegee Mount Bracket Weld’t
41 56601442 1 Shaft
# 56601449 1 Squeegee Assembly (28”) (Includes Gum Rubber Blades)
42
# 56601454 1 Squeegee Assembly (34”) (Includes Gum Rubber Blades)
43 56601460 2 Bar Weldment
44 56601463 1 Washer, Polyurethane
45 56601469 2 Rod End
46 56601512 2 Hose
47 56453849 1 Bushing
35
# = Revised or new since last update
FORM NO. 56042495
36
SQUEEGEE ASSEMBLY - 28”
Advenger
™
08-11
10-3
Item Ref. No. Qty Description
# 56601449 1 Squeegee Assembly (28”)
(Includes Gum Rubber Blades)
1 56002851 2 Nut, Hex Nyl Loc-Thin SS 5/16-18
2 56002884 2 Scr, Hex SS 5/16-18 X 1.25
3 56002907 2 Nut, Hex Nyl Loc SS 6-32
4 56002909 2 Scr, Pan Phil SS 6-32 X .38
5 56002938 2 Wsh, Flt SAE SS 5/16
6 56003302 1 Scr, Hex Thd To Hd SS 5/16-18 X 1.25
7 56003792 1 Scr, Thumb SS 5/16-18 X 1.25
8 56009141 1 Nut, Hex Jam SS 5/16-18
9 56111444 2 Button Plug-1.25
10 56370711 2 Nut, Thumb
NOTE 1: All squeege blade kits include both front and rear squeegee blades.
NOTE 2: The squeegee casting is not available for sale separately. If you need to replace your squeegee casting please order a new
Squeegee Assembly part number 56601449.
Item Ref. No. Qty Description
11 56471194 1 Latch
12 NA 1 Squeegee Casting (28”) NOTE 2
13 56601450 2 Wheel, 4.00 Od
14 56601531 1 Blade Kit-Squeegee-Standard (28”) NOTE 1
* 56601529 1 Blade Kit-Squeegee-Polyurethane (28”) NOTE 1
* 56601083 1 Blade Kit-Squeegee-Red Gum (28”) NOTE 1
15 56601489 1 Front Strap Weldment (28”)
16 56601591 1 Strap, Rear (28”)
17 56601499 2 Bushing, Nylon
18 56009111 2 Nut-Wing SS 1/4-20
* = Optional, Not Included
# = Revised or new since last update
FORM NO. 56042495
08-11
10-3
SQUEEGEE ASSEMBLY - 34”
Advenger
™
37
Item Ref. No. Qty Description
# 56601454 1 Squeegee Assembly (34”)
(Includes Gum Rubber Blades)
1 56002851 2 Nut, Hex Nyl Loc-Thin SS 5/16-18
2 56002884 2 Scr, Hex SS 5/16-18 X 1.25
3 56002907 2 Nut, Hex Nyl Loc SS 6-32
4 56002909 2 Scr, Pan Phil SS 6-32 X .38
5 56002938 2 Wsh, Flt SAE SS 5/16
6 56003302 1 Scr, Hex Thd To Hd SS 5/16-18 X 1.25
7 56003792 1 Scr, Thumb SS 5/16-18 X 1.25
8 56009141 1 Nut, Hex Jam SS 5/16-18
9 56111444 2 Button Plug-1.25
10 56370711 2 Nut, Thumb
NOTE 1: All squeege blade kits include both front and rear squeegee blades.
NOTE 2: The squeegee casting is not available for sale separately. If you need to replace your squeegee casting please order a new Squeegee Assembly part
number 56601454.
NOTE 3: Only used before October 30, 2009.
NOTE 4: Only used after October 29, 2009.
Item Ref. No. Qty Description
11 56471194 1 Latch
12 NA 1 Squeegee Casting (34”) NOTE 2
13 56601450 2 Wheel, 4.00 Od
14 56601532 1 Blade Kit-Squeegee-Standard (34”) NOTE 1
* 56601530 1 Blade Kit-Squeegee-Polyurethane (34”) NOTE 1
* 56601094 1 Blade Kit-Squeegee-Red Gum (34”) NOTE 1
15 56601495 1 Front Strap Weldment (34”)
16 56601496 1 Strap, Rear (34”) NOTE 4
56601593 1 Strap, Rear (34”) NOTE 3
17 56601499 2 Bushing, Nylon
18 56009111 2 Nut-Wing SS 1/4-20 NOTE 3
* = Optional, Not Included
# = Revised or new since last update
FORM NO. 56042495
38
WIRING DIAGRAM-STD / ECOFLEX
Advenger
™
08-11
10-1
FORM NO. 56042495
08-11
10-1
WIRING DIAGRAM-STD / ECOFLEX
Advenger
™
Item Ref. No. Qty Description
A1 56601565 1 Control PCB Assy
A2 56601061 1 Controller, Speed
BAT N/A Battery
F1 56412089 1 Fuse, 150 Amp
CB1 56454429 1 Circuit Breaker, 70 Amp
CB2 56507644 1 Circuit Breaker, 10 Amp
H1 56307166 1 Beacon, Warning (optional)
H2 56412177 1 Horn/Backup Alarm
K1 56601183 1 Contactor 24v, 100 Amp
K2 56412179 1 Contactor 24v
L1 56601064 1 Solenoid Valve Assy
M1 56601050 1 Motor / Drive Wheel
M2 56315241 1 Pump, Chemical
M3 56601147 1 Actuator, Motor 24v
M4 56601432 1 Lift Actuator Assembly
M5 56601132 1 Motor, Vac 24vdc
M6 56601132 1 Motor, Vac 24vdc (optional)
M7 56315061 1 Motor, 24 Vdc, .5 Hp, 1800 Rpm (cylindrical)
56601134 2 Motor Gearbox Assy (disk)
M8 56315061 1 Motor, 24 Vdc, .5 Hp, 1800 Rpm (cylindrical)
56601134 2 Motor Gearbox Assy (disk)
R1 N/A 1 Part of 56601052
S1 56303553 1 Key Switch
* 56303526 A/R Replacement Key Set
S2 7-82-00050 1 Switch, Seat
S4 56407130 1 Disconnect, Emergency
Y1 56601507 1 Brake, Electromagnetic
39
56315124 1 Charger, On-Board 24v TSBUS2008-984
FORM NO. 56042495
40

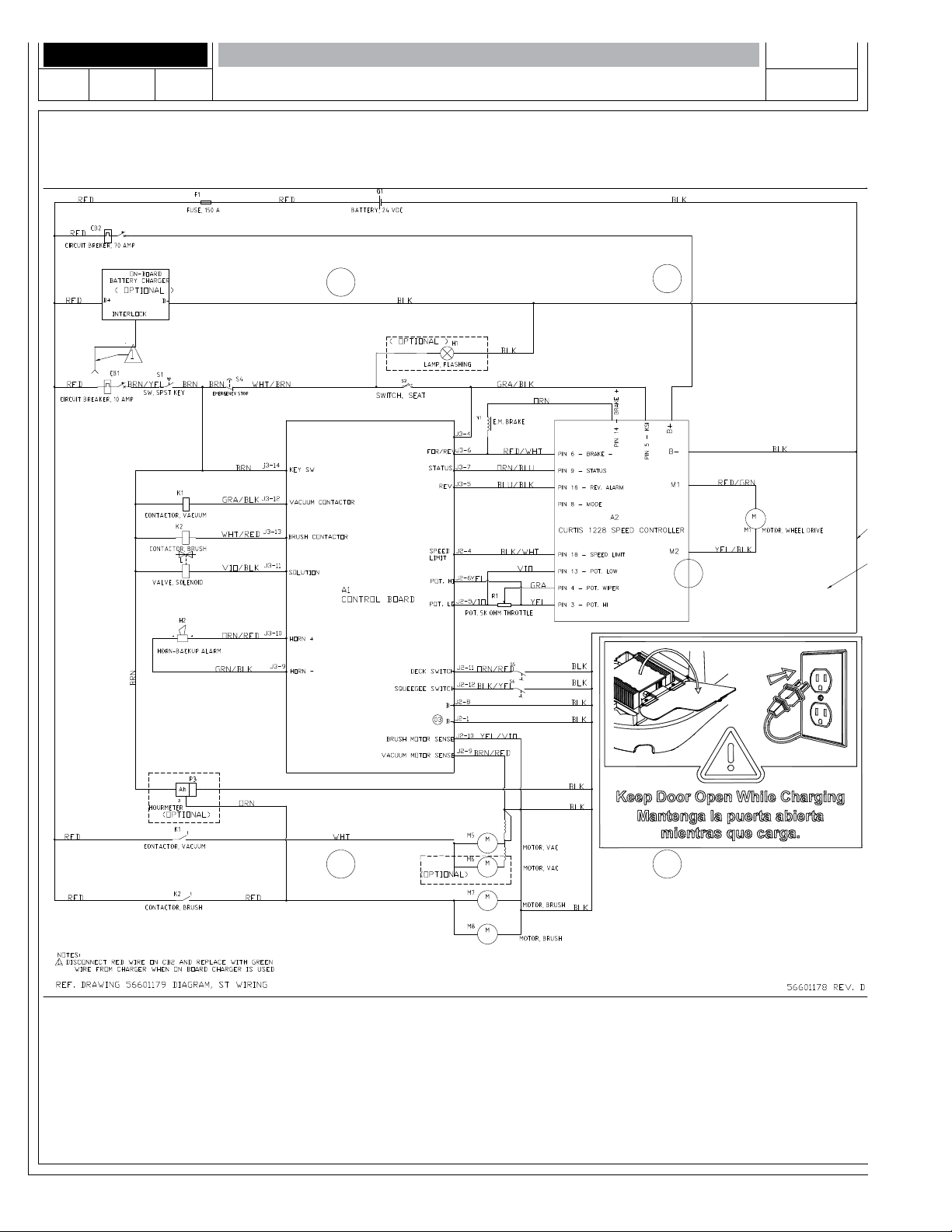

WIRING DIAGRAM-ST
Advenger
™
08-11
FORM NO. 56042495
08-11
09-10
WIRING DIAGRAM-ST
Advenger
™
Item Ref. No. Qty Description
A1 56601566 1 Control PCB Assy
A2 56601061 1 Speed Control
BAT N/A Battery
F1 56412089 1 Fuse, 150 Amp
CB1 56454429 1 Circuit Breaker, 70 Amp
CB2 56507644 1 Circuit Breaker, 10 Amp
H1 56307166 1 Beacon, Warning (optional)
H2 56412177 1 Horn/Backup Alarm
K1 56601183 1 Contactor 24v, 100 Amp
K2 56412179 1 Contactor 24v
L1 56601064 1 Solenoid Valve Assy
M1 56601050 1 Motor / Drive Wheel
M5 56601132 1 Motor, Vac 24vdc
M6 56601132 1 Motor, Vac 24vdc (optional)
M7 56601134 2 Motor Gearbox Assy
M8 56601134 2 Motor Gearbox Assy
R1 N/A 1 Part of 56601052
S1 56303553 1 Key Switch
* 56303526 A/R Replacement Key Set
S2 7-82-00050 1 Switch, Seat
S4 56407130 1 Disconnect, Emergency
S5 56305053 1 Sensor-Proximity (Deck)
S6 56601160 1 Switch, Squeegee
Y1 56601507 1 Brake, Electromagnetic
41
56315124 1 Charger, On-Board 24v TSBUS2008-984
FORM NO. 56042495
42
OPTIONAL KITS AND ACCESSORIES
Advenger
™
08-11
10-3
Item Ref. No. Qty Description
Kits
* 56397453 1 Kit-Battery Fill Indicator
* 7-03-04249 1 Kit-Seat Armrests
* 56601085 1 Kit-Warning Beacon
* 56601087 1 Kit-Vacuum Wand With Caddy
* 56422162 1 Kit-Seat Belt
* 56601098 1 Kit-Dual Vac Motor
* 56601527 1 Battery Watering Kit
* 56302198 1 Kit-Hour Meter
* 56315732 1 Quiq Programmer Kit
* 56601086 1 Kit-Debris Tray
* 56601088 1 Kit-Vacuum Sound Reduction
* 56601089 1 Kit-Seat Upgrade
* 56601093 1 Kit-Solution Drain Hose
* 56601546 A/R Kit-28” Disk Deck
* 56601547 A/R Kit-34” Disk Deck
* 56601548 A/R Kit-28” Cylindrical Deck
* 56601084 A/R Kit-Battery Rollout
Replacement parts for the kits listed above can be found on each kit’s associated instruction
sheet.
28” Squeegee Blade Kits
# 56601531 1 Blade Kit-Squeegee-Standard NOTE 1
* 56601529 1 Blade Kit-Squeegee-Polyurethane NOTE 1
* 56601083 1 Blade Kit-Squeegee-Red Gum NOTE 1
34” Squeegee Blade Kits
56601532 1 Blade Kit-Squeegee-Standard NOTE 1
* 56601530 1 Blade Kit-Squeegee-Polyurethane NOTE 1
* 56601094 1 Blade Kit-Squeegee-Red Gum NOTE 1
Disk Deck Blade Kits
# 56601092 1 Blade Kit-Gum NOTE 2
* 56601091 1 Blade Kit-PU NOTE 2
* 56601678 1 Blade Kit-Red Gum NOTE 2
Cylindrical Deck Blade Kits
# 56316194 1 Blade Kit-Gum NOTE 3
* 56601538 1 Blade Kit-PU NOTE 3
* 56601681 1 Blade Kit-Red Gum NOTE 3
Optional Batteries
* 56391391 4 Battery, 6V, 305A/H TSBUS2008-984
* 56206079 4 Battery, 6V, 235A/H TSBUS2008-984
* 56315959 4 Battery, 6V, 315A/H AGM TSBUS2008-984
* 56388582 4 Battery, 6V, 395A/H TSBUS2008-984
Optional Battery Chargers
* 56372947 A/R Battery Charger, 24VDC, Auto, 20Amp, 120VAC/60HZ
* 56388109 A/R Battery Charger, 24VDC, Auto, 25Amp, 120VAC/60HZ
* 56412272 A/R Battery Charger, 24VDC, Auto, 36Amp, 120VAC/60HZ
* 56372203 A/R Battery Charger, 24VDC, 20Amp, 230VAC/50HZ
* 56412271 A/R Battery Charger, 24VDC, 40Amp, 230VAC/50HZ
Accessories
* 56409441 A/R Programmer, 1311 User
* 56409823 A/R Programmer Cable
* 56044418 A/R Literature Pack
Item Ref. No. Qty Description
28” Disk Scrub Brushes (See Brush Selector Guide)
*# 56505800 2 Short Trim Pad Holder
*# 56505195 2 Pad Retainer for 56505750
*# 56505805 2 ProLite
*
# 56505804 2 Prolene
# 56505806 2 Union Mix
*
*# 56505803 2 AgLite Grit 500
*# 56505807 2 MidGrit 240
*# 56505808 2 MidLite Grit 180
*# 56505802 2 Dyna Grit 80
*# 56505801 2 Magna Grit 46
34” Disk Scrub Brushes (See Brush Selector Guide)
*# 56505780 2 Short Trim Pad Holder
*# 56505195 2 Pad Retainer for 56505750
*# 56505785 2 ProLite
*# 56505784 2 Prolene
*
# 56505786 2 Union Mix
# 56505783 2 AgLite Grit 500
*
*# 56505787 2 MidGrit 240
*# 56505788 2 MidLite Grit 180
*# 56505782 2 Dyna Grit 80
*# 56505781 2 Magna Grit 46
28” Cylindrical Scrub Brushes (See Brush Selector Guide)
*# 56412191 2 Soft Nylon
*# 56412192 2 Hard Nylon
*# 56412046 2 Prolene
*# 56412193 2 MidLite Grit 180
*# 56412194 2 Dyna Grit 80
*# 56412195 2 Magna Grit 46
* = Optional, Not Included
# = Revised or new since last update
NOTE 1: All squeegee blade kits include both front and rear squeegee blades.
NOTE 2: All disk deck blade kits include all side skirt blades.
NOTE 3: All cylindrical deck blade kits include all blades necessary.
FORM NO. 56042495
08-11
10-3
BRUSH SELECTOR GUIDE-DISK
Advenger
™
43
We provide brushes and pad holders that will give you the best possible performance between machine and fl oor. Following are descriptions
of the materials and their applications.
ProLite: Bristles are made from light-duty polypropylene for general scrubbing when you do not want to scratch or remove fi nish from
the fl oor. Recommended for use in place of red pads.
Prolene: Polypropylene material for medium-duty scrubbing on concrete, terrazzo and vinyl fl oor tile. Recommended for use in place of
green or blue pads.
Union Mix: Medium grade natural fi bers for polishing fi nished fl oors with standard-speed equipment. Recommended for use in place of
white pads.
AgLite Grit 500: For light scrubbing when used wet; buffi ng or polishing when used dry on urethane coated, sealed concrete or other resilient
hard surface fl oors. Recommended for use in place of red or white pads.
MidGrit 240: For general purpose scrubbing when you need a lighter action for sealed or unsealed concrete, stone, terrazzo, quarry tile and
other resilient hard fl oor surfaces. Recommended for use in place of green or blue pads.
MidLite Grit 180: For general purpose scrubbing of sealed or unsealed concrete, stone, terrazzo, quarry tile and other resilient hard fl oor surfaces.
Recommended for use in place of green or blue pads.
Dyna Grit 80: For aggresive, heavy-duty scrubbing or stripping of fl oors. Recommended for use in place of brown pads.
Magna Grit 46: For extreme heavy-duty scrubbing or stripping of fl oors. This brush has extra large diameter silicon carbide grit impregnated
synthetic bristles. Recommended for use in place of black pads.
Short Trim
Pad Holder: Made with a structural foam block and center ring for correct pad centering. It has a “shower feed” design for getting solution
to the fl oor.
28” BRUSHES
56505800 - Short Trim Pad Holder
56505195 - Pad Retainer for 56505800
56505805 - ProLite
56505804 - Prolene
56505806 - Union Mix
56505803 - AgLite Grit 500
56505807 - MidGrit 240
56505808 - MidLite Grit 180
56505802 - Dyna Grit 80
56505801 - Magna Grit 46
34” BRUSHES
56505780- Short Trim Pad Holder
56505195 - Pad Retainer for 56505780
56505785 - Prolite
56505784 - Prolene
56505786 - Union Mix
56505783 - AgLite Grit 500
56505787 - MidGrit 240
56505788 - MidLite Grit 180
56505782 - Dyna Grit 80
56505781 - Magna Grit 46
DISC BRUSH APPLICATION GUIDE (SUGGESTION ONLY)
46 80 180 240 500 Union
Application Grit Grit Grit Grit Grit Prolene Prolite Mix
Stripping:
Concrete X X
Terrazzo X X
Ceramic/Quarry tile X
Vinyl tile X
General Scrubbing:
Concrete X X X X X
Terrazzo X X X X
Ceramic/Quarry tile X X X X
Marble X X
Vinyl tile X X X
Raised-rubber tile X X
Polishing:
Raised Disc Tile X
Marble X
Vinyl tile X
FORM NO. 56042495
BRUSH SELECTOR GUIDE-CYLINDRICAL
44
We provide brushes and pad holders that will give you the best possible performance between machine and fl oor. Following are descriptions
of the materials and their applications.
Advenger
™
08-11
10-3
Soft Nylon: Least aggressive brush available. Used on soft-fi nish fl oors where a more aggressive brush would leave
scratch marks, or in applications requiring very light cleaning.
Stiff Nylon: Cleaning action similar to polypropylene. More durable and wear-resistant than polypropylene.
Prolene: Low cost, yet effective in cleaning many common fl oor surfaces.
MidLite Grit 180: Least aggressive grit brush. Used for daily cleaning of hard-fi nished fl oors.
Dyna Grit 80: Medium aggressive grit brush. Good all-around brush for medium to heavy buildup removal. Can also be
used for general stripping operations.
Magna Grit 46: Most aggressive grit brush. Used primarily to clean heavy buildup on concrete fl oors in factories, or for
heavy stripping of fi nish.
28” BRUSHES
56412191 - Soft Nylon
56412192 - Hard Nylon
56412046 - Prolene
56412193 - MidLite Grit 180
56412194 - Dyna Grit 80
56412195 - Magna Grit 46
CYLINDRICAL BRUSH APPLICATION GUIDE (SUGGESTION ONLY)
46 80 180 Polypro- Stiff Soft
Application Grit Grit Grit pylene Nylon Nylon
Stripping:
Concrete X X
Terrazzo X X
Ceramic/Quarry tile X
Vinyl tile X
General Scrubbing:
Concrete X X X X X
Terrazzo X X X X
Ceramic/Quarry tile X X X X
Marble X X X
Vinyl tile X X X X
Raised-rubber tile X X
FORM NO. 56042495
08-11
10-3
SQUEEGEE BLADE SELECTOR GUIDE
Advenger
™
Gum Rubber: Provides superior wiping action on tile, terrazzo, and polished fl oors.
Linatex™: Provides longest life on fi nished or unfi nished concrete fl oors.
Polyurethane: Oil resistance provides superior life in applications with oily fl oors.
SQUEEGEE BLADE APPLICATION GUIDE(SUGGESTION ONLY)
45
Gum Rubber
Performance Traits
Resilience X X
Tear Strength X X
Abrasion Resistance X X X
Wear Resistance X X
Low Temp Flexibility X X
High Temp Flexibility X X
Ozone Resistance
Chemical Resistance X
Applications
Oil Resistant Applications X
General Purpose X X X
Hot Water Applications X X
Chemical Applications X
Color Tan Red Translucent
(Natural Rubber)
Linatex™
(Natural Rubber)
Polyurethane/
Pentathane
FORM NO. 56042495
A Nilfi sk-Advance Brand
14600 21st Avenue North
Plymouth, MN 55447-3408
www.advance-us.com
Phone: 800-989-2235
Fax: 800-989-6566
©2010 Nilfi sk-Advance, Inc.
Loading...
