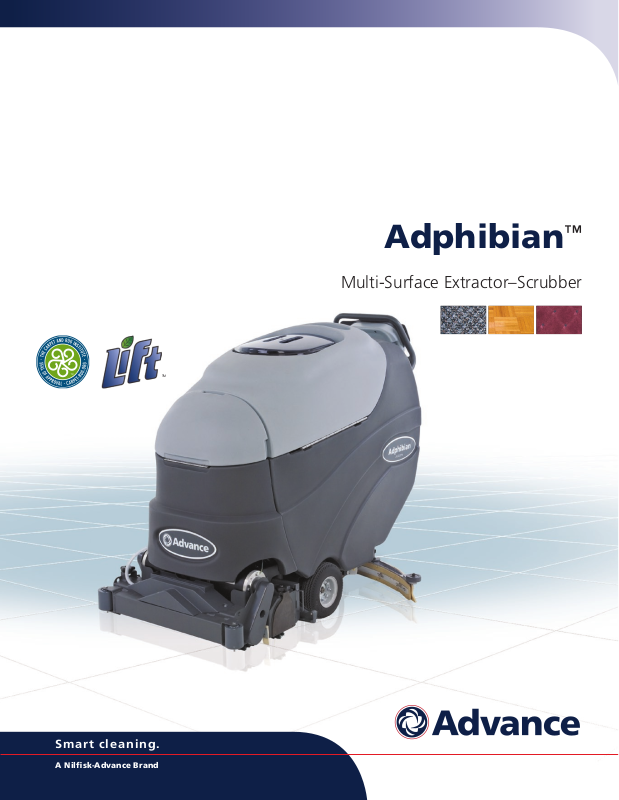

NILFISK Adphibian User Manual

™

Adphibian

Multi-Surface Extractor–Scrubber

TM

Smart cleaning.

A Nilfisk-Advance Brand

Adphibian

™

Advance’s Adphibian™ soft and hard-floor
machine is the answer for the multiple cleaning

Multi-Surface
Extractor–Scrubber

demands you face today. Demands like getting
maximum efficiency and flexibility from your
operators and your equipment. The Adphibian
enables cleaning staff to use one machine to
extract carpets and scrub hard floors.

With the touch of a button and a simple hose change, operators are

able to switch between using a full-functioning carpet extractor and a

full-functioning cylindrical scrubber in just 30 seconds. Even the special

antimicrobial brushes are designed to work on all surface types.

Detergent dispensing, perfected

The patented AXP™ Onboard Detergent Dispensing System controls

solution flow and lets the operator choose the perfect cleaning solution

for all floor surfaces. And the machine’s ease-of-use means fast

training and consistent cleaning performance by all of your operators.

The result? Time and equipment savings you can take to the bank.

Give your carpets a LIFT

™

Ideal applications include:

• Hospitals/Healthcare Facilities

• Schools and Universities

•

Churches and Religious Facilities

• Hotels

• Large Retail Facilities

• Government Buildings

• Airports, Train Stations,

Bus Depots

• Casinos

• Office Buildings

• Health Clubs

Daily carpet cleaning has never been more efficient with Advance’s

patented LIFT

time, True cleaning). A unique indirect spray leaves carpets clean and

dry in less than 30 minutes while increasing per-tank productivity. For

heavily soiled areas, Adphibian’s Deep Treat™ prespray applies and

agitates detergent on the carpet surface. A push of a button allows

the same area to be extracted with clean water in deep-cleaning

extraction mode. In either mode, you can be sure carpets

will be cleaned to the highest industry standards

because Adphibian is the first machine of its kind

to be awarded the CRI Seal of Approval for both

low-moisture and deep-cleaning extraction.

Hard floors are clean and dry

Adphibian is the ideal answer for facilities with multiple floor surface

types. This hardworking machine delivers excellent performance

thanks to dual counter-rotating brushes for effective scrubbing and

a unique squeegee that provides 100 percent water pickup, leaving

floors clean, dry and safe for building occupants.

™ technology (Low-moisture, Indirect spray, Fast dry

A Nilfisk-Advance Brand

Ergonomic control

paddle

Onboard battery

charger

Large recovery tank

opening allows for more

complete and thorough

cleaning out of the tank

AXP™ onboard detergent-

dispensing system allows

for any brand of detergent,

including green-certified

A single touch to the orange button tells
the user what mode the Adphibian™ is
changing to.

For a full-functioning scrubber, move the hose
to the squeegee and lower the squeegee to
the floor.

For a full-functioning extractor, move the
hose to the vacuum shoe inlet and raise
the squeegee.

Debris hopper is

easy to remove

and empty

LIFT

™ low-moisture technology utilizes a patented

indirect spray feature that provides superior cleaning
while increasing per tank productivity and reducing
water consumption. Operators will experience faster
dry times and true cleaning with LIFT technology.

Air Quality: Carpets that dry within 30 minutes of extraction

reduce the risk of mold and other airborne allergens.

Safety: With low sound level and quick dry time, the

Adphibian is safe for daytime cleaning. 100 percent
water pickup on turns minimizes slip-and-fall accidents.

Sustainability: Dual counter-rotating brushes don’t

wear down carpet fibers as extensively as a vacuum
would, preserving the life of the carpet.

Environmental Impact: The AXP onboard detergent-dispensing

FEATURES AND BENEFITS

system minimizes the use of both chemicals and water, which in
turn, reduces your waste-stream contribution.

Single spray

jet eliminates

streaking

TM

Technical specifications

Model Adphibian
Solution System
Solution Capacity 20 gal (76 L)
Solution Pump 100 psi diaphragm demand
Flow Rates
Hard Floor Mode 0.26 gpm (1 L/min)
Restoration Mode 0.81 gpm (3.1 L/min)
LIFT
Deep Treat™ Pre-Spray Mode 0.92 gpm (3.5 L/min)
Recovery Capacity 16 gal (61 L)
Vacuum System
Vacuum Motor Dual 3 stage bypass
Airflow 93 cfm (44 L/sec) (Extraction) / 67 cfm (32 L/sec) (Scrubbing)
Waterlift 70 in H2O (17.4 km/hr)
Vacuum Shoes Dual 13.5 in (34 cm) dual pivoting laminar flow 45 lb down pressure
Squeegee 36 inch (91 cm) curved laminar flow
Brush System
Brushes Dual 24 in (61 cm) counter rotating anti-microbial, multi-surface with debris hopper
Brush Motors Dual 1/2 horsepower permanent magnet
Brush Speed 960 RPM
Sound Level 69 dB A (Extraction) / 66 dB A (Scrubbing)
Electrical System 24 V (4) X 6 V batteries
Batteries 250 Ah wet-acid (optional 255 Ah AGM)
Machine Speed
Hard Floor Mode 220 ft/min (4 km/hr)
Transport 220 ft/min (4 km/hr)
LIFT
Restoration Mode 50 ft/min (0.9 km/hr)
Light Deep Treat™ Mode 150 ft/min (2.7 km/hr)
Heavy Deep Treat™ Mode 100 ft/min (1.8 km/hr)
Coverage Rate 10,800 ft2/hour (LIFT
CRI Approval Bronze for Deep Cleaning Extractors in both Restoration Mode and LIFT
Machine Dimensions L = 56 in (142 cm) x W (without squeegee) = 27 in (69 cm) x H = 43.5 in (110 cm)
Machine Weight 650 lb (295 kg) with batteries / 370 lb (168 kg) without batteries
Shipping Weight 680 lb (308 kg)
Part Number 56317010 Adphibian™ with four 6 V/250 Ah batteries
56317011 Adphibian™ with four 6 V/255 Ah maint-free (AGM) batteries

Specifications are subject to change without notice.

™ Mode 0.26 gpm (1 L/min)

™ Mode 90 ft/min (1.6 km/hr)

™

™ Mode) 6,000 ft2/hour (Restoration Mode) 26,000 ft2/hour (Hard Floor Mode)

™ Mode

Accessories and options:

• 255 Ah AGM Maintenance

Free Batteries

• Multi-Surface Wand Kits

• Multi-Surface CRI Approved

AXP™ Detergents

Smart cleaning.

Our products are designed using innovative technology that
increases productivity and drives down the cost to clean.

Maintain peak performance with Nilfisk Genuine OEM Parts.
