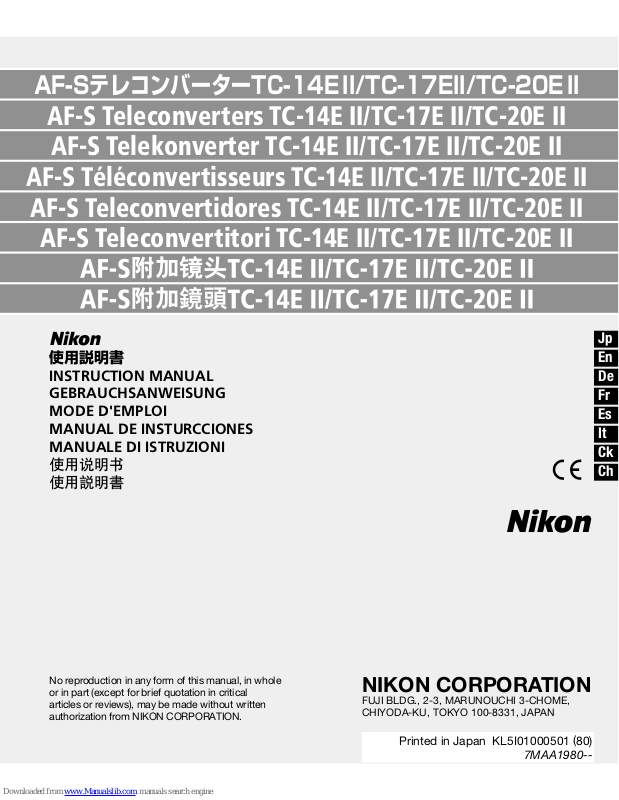

Nikon TC-14E II, TC-17E II, TC-20E II Instruction Manual
AF-SテレコンバーターTC-14E II/TC-17EII/TC-20E II
AF-S Teleconverters TC-14E II/TC-17E II/TC-20E II
AF-S Telekonverter TC-14E II/TC-17E II/TC-20E II
AF-S Téléconvertisseurs TC-14E II/TC-17E II/TC-20E II
AF-S Teleconvertidores TC-14E II/TC-17E II/TC-20E II
AF-S Teleconvertitori TC-14E II/TC-17E II/TC-20E II
N
使用説明書
INSTRUCTION MANUAL
GEBRAUCHSANWEISUNG
MODE D'EMPLOI
MANUAL DE INSTURCCIONES
MANUALE DI ISTRUZIONI
Jp
En
De
Fr
Es
It
Ck
Ch
N
No reproduction in any form of this manual, in whole
or in part (except for brief quotation in critical
articles or reviews), may be made without written
authorization from NIKON CORPORATION.
NIKON CORPORATION
FUJI BLDG., 2-3, MARUNOUCHI 3-CHOME,
CHIYODA-KU, TOKYO 100-8331, JAPAN
Printed in Japan KL5I01000501 (80)
7MAA1980--
1
開放F値連動ガイド
Aperture indexing post
Lichtstärkeneingabe
Coupleur de l'ouverture'
2
露出計連動ガイド
Meter coupling ridge
AI-Kupplung
Index de coulage photométrique
3
レンズ取り外しレバー
Lens release tab
Objektiventriegelung
Languette de levier de
déclenchement de l'objectif
4
レンズ取り付け指標
Lens mounting index
Index zum Ansetzen des Objektivs
Index de montage de l'objectif
5
ＣＰＵ信号接点
CPU contacts
CPU-Kontakte
Contacts CPU
6
最小絞り信号ガイド(EE連動ガイド
)
Minimum aperture signal post
(EE servo coupling post)
Eingabe kleinster Blende
(EE-Servo-Kupplungsstift)
Index de signal d'ouverture
minimale (Index de
servocommande diaphragme)
7
カメラ取り付け指標
Teleconverter-camera index
Index zum Ansetzen an die Kamera
Index de l'appareil
téléconvertisseur
TC-14E II
TC-17E II TC-20E II
English
Thank you for purchasing your new AF-S Teleconverter.
Nikon AF-S Teleconverters TC-14E II, TC-17E II and TC-20E II are precision optical accessories, mounted
between the camera body and lens. The TC-14E II provides a 1.4X increase in the prime lens' effective
focal length with a one f/stop loss in effective aperture, and the TC-17E II provides a 1.7X increase in the
prime lens' effective focal length with a one and half f/stop loss in effective aperture, whereas the TC-20E
II doubles the prime lens' effective focal length with a two f/stop loss in effective aperture.
Because your AF-S Teleconverter has CPU contacts, you can take advantage of features such as metering
system, exposure mode, etc.
Before using your new teleconverter, carefully read the following instructions so you get the most out of
your teleconverter now and for years to come.
Usable lenses
Nikon AF-S Teleconverters are designed exclusively for use with AF-S and AF-I Nikkor lenses.
• Following lenses cannot be used with the AF-S Teleconverters TC-14E II/TC-17E II/TC-20E II (The rear
elements of the lens will touch and may damage the elements in the teleconverter.):
AF-S DX 12-24mm f/4G IF-ED AF-S 24-85mm f/3.5-4.5G IF-ED
AF-S 17-35mm f/2.8D IF-ED AF-S VR 24-120mm f/3.5-5.6G IF-ED
AF-S DX 17-55mm f/2.8G IF-ED AF-S 28-70mm f/2.8D IF-ED
AF-S DX 18-55mm f/3.5-5.6G ED AF-S DX 55-200mm f/4-5.6G ED
AF-S DX 18-70mm f/3.5-4.5G IF-ED
• Autofocus cannot be used with the AF-S Teleconverter TC-17E II and TC-20E II attached with the
following lenses:
AF-S VR 200-400mm f/4G IF-ED AF-S 600mm f/4D II IF-ED
AF-S 300mm f/4D IF-ED AF-S 600mm f/4D IF-ED
AF-S 500mm f/4D II IF-ED AF-I 500mm f/4D IF-ED
AF-S 500mm f/4D IF-ED AF-I 600mm f/4D IF-ED
• Vibration Reduction function can be used with the VR (Vibratioin Reduction) lens used with the F6, F5,
F100, F80-series/N80-series*, F75-series/N75-series*, F65-series/N65-series*, D2-series, D1-series,
D100, D70-series or D50 camera body.
• When the AF-S Teleconverter TC-17E II attached with the AF-S 300mm f/2.8D IF-ED or AF-S 400mm
f/2.8D IF-ED is used with the F6, F5, F100, D2-series, D1-series, D100, D70-series or D50 camera body,
focal length of the shooting data is not displayed correctly (it is displayed correctly with the AF-S
300mm f/2.8D II IF-ED and AF-S 400mm f/2.8D II IF-ED).
* The Nikon N80-series, N75-series and N65-series are sold exclusively in the U.S.A.
Recommended focusing screens
Nikon offers a variety of interchangeable focusing screens for Nikon cameras, to suit any type of lens or
picture-taking situation. Those recommended for your teleconverter/lens combination are listed on the far
right side of this sheet.
Attaching to the lens
When removing the lens from the camera body to attach the teleconverter, make sure that the camera's
power is turned off and avoid direct sunlight.
Attach the teleconverter to the lens so that the teleconverter's lens mounting index is aligned with the
aperture index on the lens. Taking care not to press the lens release tab, turn the teleconverter
counterclockwise (with the lens facing away from you) until it clicks into place.
To remove: Slide back the teleconverter's lens release tab gzand turn the teleconverter clockwise (with
the lens facing away from you).
Attaching teleconverter to camera body
Make sure that the camera's power is turned off and avoid direct sunlight.
Attach the camera to the lens/teleconverter assembly so that the camera's mounting index is aligned with
the teleconverter-camera index on the teleconverter. Taking care not to press the camera's lens release
button, turn the camera body counterclockwise (with the camera body facing away from you) until it
clicks into place.
• If your camera has a lift-up meter coupling lever, make sure that the meter coupling lever is correctly
positioned. (For details, see your camera instruction manual.)
To remove: While pressing the lens release button on the camera body, turn the camera body clockwise
(with the camera body facing away from you).
Determining exposure
Using a teleconverter decreases the effective aperture by one f/stop with the TC-14E II, by one and a half
f/stop with the TC-17E II or by two f/stops with the TC-20E II.
• With AI-type cameras with/without CPU contacts: Determine exposure in the same manner as using the
prime lens only. (However, exposure cannot be determined with the G-type lens.)
• With non-AI-type cameras: Perform stop-down method. (However, exposure cannot be determined with
the G-type lens.)
• See your camera instruction manual for available exposure modes and metering systems.
Focusing
Camera
F6, F5, F4-series, F100, F90X/N90s*1,
F90-series/N90*
N80-series*
N75-series*
F65-series/N65-seires*
PRONEA600i/6i*1, PRONEA S,
D2-series, D1-series, D100,
D70-series, D50
Other AF (autofocus ) cameras
(except for F3AF*
1
, F80-series/
1
, F75-series/
1
, F70-series/N70*1,
1
,
3
)
Camera’s
focus mode
C, S, AF
Autofocus with Manual focus
manual priority*2(Focus assist is available*2)
M Manual focus only (Focus assist is available*2)
C, S, AF, M Manual focus only (Focus assist is available*
Lens’ focus mode
M/A M
4
)
Other Nikon cameras Manual focus only
*1 The Nikon N90s, N90, N80-series, N75-series, N70, N65-series and PRONEA 6i are sold exclusively in the
U.S.A.
*2 Both autofocus and manual focus using electronic rangefinder are possible with an AF-S/AF-I Nikkor lens
having maximum aperture of f/4 or brighter with TC-14E II, f/3.36 or brighter with TC-17E II, or f/2.8 or
brighter with TC-20E II.
*3 The Nikon F3AF camera cannot be used.
*4 With TC-14E II, manual focus using electronic rangefinder is possible with an AF-S/AF-I Nikkor lens having
maximum aperture of f/4 or brighter, or maximum aperture of f/2.8 with F-501/N2020*
5
attached. With TC17E II, manual focus using electronic rangefinder is possible with an AF-S/AF-I Nikkor lens having maximum
aperture of f/3.36 or brighter, or maximum aperture of f/2.37 with F-501/N2020 attached. With TC-20E II,
manual focus using electronic rangefinder is possible with an AF-S/AF-I Nikkor lens having maximum aperture
of f/2.8 or brighter, or maximum aperture of f/2 with F-501/N2020 attached.
*5 The Nikon N2020 is sold exclusively in the U.S.A. and Canadian markets.
Teleconverter care
• Although you should always keep the teleconverter's lens surfaces clean, rough cleaning must be
avoided. Wipe with a soft, clean cotton cloth moistened with alcohol to remove grease or fingerprints
from the lens surfaces.
• Be careful not to soil or scratch the teleconverter's lens surface.
• Keep both front and rear lens caps in place when you are not using the teleconverter.
• If you do not intend to use the teleconverter for a long time, protect it from rust and mold by storing it
in a cool, dry place. Also, do not store it in direct sunlight, and keep it away from naphthalene or
camphor.
• Be careful not to get the teleconverter wet or drop it in water. Water may cause it to malfunction.
Specifications
Lens construction
Diaphragm
Exposure
measurement
Mount
Dimensions
Weight
TC-14E II
5 elements in 5 groups
Via full-aperture method with AI cameras or cameras having a CPU; via stop-down method for
other cameras
Front: Special mount for AF-S/AF-I Nikkor lenses
Rear: Nikon bayonet mount
Approx. 66mm (2.6 in.) dia. x
24.5mm (1.0 in.) extension
from camera's lens mounting
flange; overall length is
approx. 36.5mm (1.4 in.)
Approx. 200g (7.1 oz.) Approx. 355g (12.5 oz.)
7 elements in 4 groups
Approx. 66mm (2.6 in.) dia. x
31.5mm (1.2 in.) extension
from camera's lens mounting
flange; overall length is
approx. 43.5mm (1.7 in.)
Approx. 250g (8.8 oz.)
TC-17E II
Fully automatic
TC-20E II
7 elements in 6 groups
Approx. 66mm (2.6 in.) dia. x
55mm (2.2 in.) extension from
camera's lens mounting
flange; overall length is
approx. 68mm (2.7 in.)
With a prime lens
Focal length
Aperture
coupling range
Reproduction
ratio
Depth of field
Minimum
focusing distance
1.4x that of a prime lens
f/2 ~ f/32 (Effective aperture:
f/2.8 ~ f/45)
1.4x that of a prime lens
1/1.4x that of a prime lens
Accessories
Standard
Optional
To attach the teleconverter cap: Position the cap in the teleconverter's bayonet mount so that the dot on the
cap is aligned with the teleconverter's mounting index; then turn the cap counterclockwise (with the
teleconverter facing you) until it clicks into place.
Teleconverter cap BF-3A
Rear lens cap LF-1
Flexible lens pouch CL-S1
Hard lens case CL-30S
TC-14E II
1.7x that of a prime lens
f/2 ~ f/32 (Effective aperture:
f/3.36 ~ f/53.82)
1.7x that of a prime lens
1/1.7x that of a prime lens
TC-17E II
Same as that of a prime lens
TC-20E II
Double that of a prime lens
f/2 ~ f/32
(Effective aperture: f/4 ~ f/64)
Double that of a prime lens
1/2x that of a prime lens
TC-14EII TC-17EII TC-20E II
Teleconverter cap BF-3A
Rear lens cap LF-1
Flexible lens pouch CL-0715
—
Teleconverter cap BF-3A
Rear lens cap LF-1
Flexible lens pouch CL-S1
Hard lens case CL-31S
