Nikon MONARCH HG Instruction Manual
BINOCULARS/BINOCULARES/JUMELLES/BINÓCULOS
8×30/10×30/8×42/10×42
Instruction manual/Manual de instrucciones/
Manuel d’utilisation/Manual de instruções
En
Es
Fr
Pb
English .................................................... 3
Español ................................................. 10
Français ................................................17
Português brasileiro ............................ 24
2
Nomenclature
1
2
4
3
9
7
6
2
8
1 Eyecup
2 Neck strap eyelet
3 Focusing ring
4 Objective lens
5 Interpupillary distance
6 Diopter ring
7 Diopter index
8 0 (zero) diopter position
9 Central shaft
En
5
Es
Fr
Pb
ITEMS SUPPLIED
Binoculars ×1
Eyepiece cap ×1
Objective lens cap ×2
Objective rubber ring
×2
Case ×1
Neck strap ×1
3
En
Es
Pb
Eyecups
For directions in which to turn the eyecups, please refer to the image on page 3.
Fr
• For eyeglass wearers, use fully retracted. To accurately adjust your view, you can also use either of the
two click stops before reaching the fully retracted position.
• For non-eyeglass wearers, use fully extended. To accurately adjust your eye position, you can also use
either of the two click stops before reaching the fully extended position.
Diopter and diopter lock mechanism
1. When using 8×30/10×30, rotate the eyecup as illustrated in (A) to extend it. When using 8×42/10×42,
proceed to “2.”.
2. Pull up the diopter ring as illustrated in (B) to unlock it. Adjust the diopter by rotating it clockwise or
counterclockwise (C).
3. After adjusting the diopter on the right side, pull down the diopter ring as illustrated in (D) to lock it.
A B C D
Diopter ringEyecup
4
Diopter ring
Neckstrap and caps during observation
Neck Strap
Attach the neckstrap as illustrated in (E), paying special attention to avoid
twisting the strap.
En
E
Es
Fr
Pb
Flipdown objective lens caps
Attach the objective lens caps as illustrated in (F), making sure the cap
part hinges open downward from the binocular tube when folded open.
(correctly attached when supplied).
F
5
En
Es
Pb
Eyepiece cap
Remove the eyepiece cap from the eyepieces, then allow the cap to hang
G
from the left neckstrap as illustrated in (G).
Fr
6

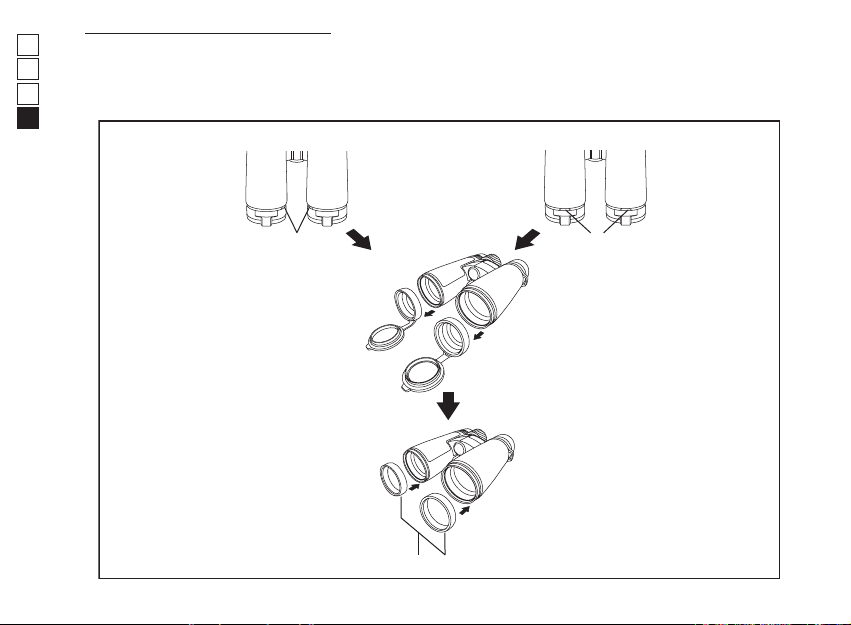

Objective rubber ring
You can insert your fingers into the notches to remove the objective lens caps, and attach the objective
rubber rings as replacement parts (H).
If you store the binoculars in the case with the objective rubber rings attached, dirt or dust may adhere to
the objective lens.
H
•8×30/10×30 •8×42/10×42
NotchesNotches
Objective rubber ring
En
Es
Fr
Pb
7
En
Es
Pb
Specifications
Type: Dach prism central focusing type
Fr
Model
Magnification (×)
Effective diameter of objective
lens (mm)
Angular field of view (real) (˚)
Angular field of view (apparent) (˚)*
Field of view at 1,000m/yd. (m/ft)
Exit pupil (mm)
Brightness
Eye relief (mm)
Close focusing distance (m/ft)
Length (mm/in.)
Width (mm/in.)
Depth (mm/in.)
Weight (g/oz.)
Interpupillary distance
adjustment (mm/in.)
Structure
* The number calculated by the formula [tan ω' = Γ × tanω ]: Apparent field of view: 2ω', Magnification: Γ ,
Real field of view: 2ω
8
8×30 10×30 8×42 10×42
8 10 8 10
30 30 42 42
8.3 6.9 8.3 6.9
60.3 62.2 60.3 62.2
145/435 121/362 145/435 121/362
3.8 3.0 5.3 4.2
14.4 9.0 28.1 17.6
16.2 15.2 17.8 17.0
2/6.6 2/6.6 2/6.6 2/6.6
119/4.7 119/4.7 145/5.7 145/5.7
126/5.0 126/5.0 131/5.2 131/5.2
47/1.9 47/1.9 56/2.2 56/2.2
450/15.9 450/15.9 665/23.5 680/24.0
56-74
2.2-2.9
56-74
2.2-2.9
56-74
2.2-2.9
Waterproof (up to 5 m (16.4 ft) for 10 minutes) and nitrogen gas filled
56-74
2.2-2.9
About waterproof and defogging:
• All models shown are waterproof, and will suffer no damage to the optical system if submerged or
dropped in water to a maximum depth of 5 m (16.4 ft) for up to 10 minutes.
• Can be used in conditions of high humidity, dust and rain without risk of damage.
• Nitrogen-filled design makes them resistant to condensation and mold.
Observe the following when using these products:
• The binoculars cannot be used underwater. Also, do not subject it to strong water pressure such as
from running water.
• Any moisture should be wiped off before adjusting movable parts of these products to prevent
damage and for safety reasons.
To keep your binoculars in excellent condition, regular servicing by authorized dealer is recommended.
Cleaning lens
When cleaning the binoculars’ objective lenses using an aerosol-type dust cleaner, make sure to hold
the can upright at least 30 cm (11.8 in.) from the lens surface while moving the can to avoid focusing
the vaporized liquid gas on one point.
• Specifications and design are subject to change without notice.
• No part of the manual may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form, by any means, without Nikon’s prior written permission.
Notice for customers in the State of California
WARNING:
This product contains chemicals including Lead which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go to www.
P65Warnings.ca.gov.
En
Es
Fr
Pb
9
En
1
2
4
3
9
7
6
2
8
Es
Pb
Nomenclatura
1 Ojera
Fr
2 Ojal para la correa al cuello
3 Anillo de enfoque
4 Lente del objetivo
5 Distancia interpupilar
6 Anillo de dioptrías
7 Índice de dioptrías
8 Posición de dioptrías 0 (cero)
9 Eje central
5
ARTÍCULOS SUMINISTRADOS
Binoculares ×1
Tapa de los oculares ×1
Tapas de la lente del objetivo
Anillo de goma del objetivo
×2
×2
Estuche blando ×1
Correa al cuello ×1
10
