Nikon Fun Touch 5 Instruction Manual

Nikon Fun >Tbuch

Instruction Manual

Manual de instrucciones

Contents

English Espanol Fig.

1-11

13-24

C, D, E,

G, H, l&J 25-31

Fig.

English

Foreword

Thank you for purchasing the Nikon Fun Touch 5/Fun Touch 5 QD. It is a very enjoyable, easy-to-use camera. However, in order to obtain the best results, be sure to read this instruction manual thoroughly before you begin.

Camera parts

(Fig.

©Film frame counter ©Shutter release button ©Red-eye reduction lamp ©Auto exposure metering

window ©Lens ©Lens cover ©Strap eyelet ©Viewfinder window ©Flash

©Autofocus windows ©Flash cancel button ©Anytime flash button ©Power (lens cover) switch

(Fig.

©Film take-up spool ©Flash ready LED (green) ©Viewfinder eyepiece ©Film rewind fork ©Camera back lock-release

lever

©Film chamber ©Film cartridge

confirmation window ©Camera back ©Film guides ©Battery chamber ©Film rewind switch

(Viewfinder)

©Picture frame ©Autofocus frame marks

lid

Precautions

•

Please

ensure that you are fully conversant with the operations and features of your new camera by reading these instructions before using it for special occasions (holidays, wedding, etc.)

•Do not leave your camera in an excessively hot place; store it in a place.

Battery power weakens in extremely low temperatures.

•When not in use, be sure to close the camera's lens cover to turn OFF the power and keep the camera in a safe place.

•In the event of camera failure, do not attempt to disassemble or repair the camera yourself. First, replace the batteries. If that does not work, take the camera to your nearest authorized Nikon service center.

— 2 —

cool,

dry

Attaching the strap (See Fig. C — page 25.)

Thread the wrist strap through the eyelet, then pass the other end through the loop and pull it tight.

Installing batteries (See Fig. D — page 25.)

Pull the battery chamber lid in the direction of the arrow to open.

Install two AA-size batteries, with the + and - poles oriented as shown inside

the battery chamber.

3. Push the battery chamber lid back into place until it clicks shut.

Notes

• Do not use NiCd batteries.

• Remove batteries from the camera when not in use for a long time.

• Do not break open or try to recharge batteries.

• Do not throw batteries into a fire.

• Keep batteries out of the reach of children.

— 3 —

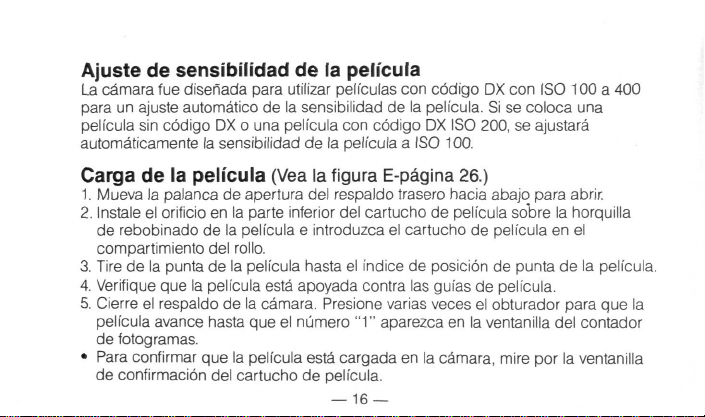

Film speed setting

The camera is designed to use DX-coded ISO 100 to 400 films, and correct film speed is automatically set. If non DX-coded or DX-coded ISO 200 film is loaded, film speed is automatically set to ISO 100.

Loading film (See Fig.

Slide the camera back lock-release lever downward to open.

Position the hole in the bottom of the film cartridge over the film rewind fork and

slip the film cartridge into the film chamber.

3. Pull the film leader across to the film leader position index.

Make sure the film lies flat between the film guides.

5. Close the camera back. Press the shutter release button repeatedly to advance the film until the number

•

confirm that film is loaded in the camera, glance at the film cartridge

confirmation window.

E —

page 26.)

"1"

appears in the frame counter window.

— 4 —

Taking pictures (See

Turn the power ON and open the lens cover by sliding the power switch in the

direction of the arrow.

Hold the camera steady with both hands. Be careful not to block the flash,

autofocus window or lens with your fingers.

3. To ensure sharp pictures, make sure your subject is at least 1.3m (4.3 ft) away from the camera*

Look through the viewfinder and position the autofocus frame marks on the

main subject.

5. Press the shutter release button lightly to focus the subject.

*Note:

If the camera-to-subject distance is closer than 1.3m (4.3 ft), an out-of-

focus picture may result.

6. Fully depress the shutter release button to take the picture.

• The lens cover is interlocked with the camera's safety mechanism. You can take pictures only when the lens cover is open all the way.

Fig.

F —

page 27.)

— 5 —

Flash photography (See Fig. G — page 28.) Auto flash mode (default)

The camera determines when flash

Recommended flash shooting range is as follows:

Flash shooting distance range

Film speed ISO 100 ISO 200 ISO 400

As soon as the flash is fully charged, the flash-ready LED lights up; matically goes out after approx. 120 seconds; the shutter release button lightly. To take a picture with flash, fully depress shutter release button. Recharging takes approx. 6 seconds.

Flash shooting range

1.3 to 2.4m

1.3 to 3.3m (4.3 to

1.3 to 4.8m

needed and fires the flash automatically.

(4.3

7.9

ft)

10.8

ft)

(4.3

15.7

ft)

the

— 6 —

lights up again when you press

LED auto-

the

Flash cancel mode (See Fig. G-2 — page 28.) When you don't wish to use flash to achieve a more natural lighting effect, press the flash cancel button while shooting.

Anytime flash mode (See Fig. G-3 — page 28.) Whenever you want to use fill-flash for backlit situations, press the anytime flash button while shooting.

Red-eye reduction

In flash photography, the subject's eyes sometimes appear bright red in color pictures (white in b/w ones) due to a phenomenon known as "red-eye." To counteract this effect, your camera comes with a red-eye reduction lamp. When the shutter release button is pressed lightly, the red-eye reduction lamp lights up, causing the size of the subject's pupil to grow smaller, thus reducing the possibility of red-eye effect. Hold down the shutter release button halfway for a few seconds before pressing the button all the way to fire the flash.

— 7 —

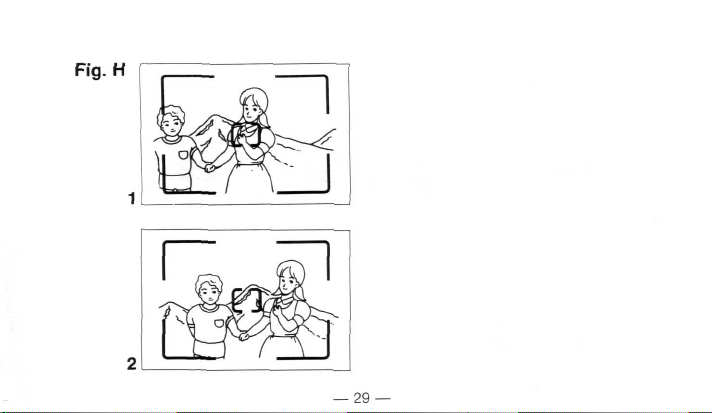

How to use focus lock (See Fig. H — page 29.)

Center the autofocus frame marks on the subject.

Lightly press the shutter release button to lock focus on the subject. At this time

the flash ready LED (green) goes out.

3. Keeping the shutter release button lightly pressed, recompose the scene. Then fully depress the shutter release button.

Note:

To cancel focus lock, simply remove your finger from the shutter

release button.

Special focusing situations (See Fig. I — page 30.)

The following subjects may be too difficult to focus: a. Subjects too small to fully cover the autofocus frame marks b. Subjects behind glass c. Dark subjects with no reflection d.

Glossy, light-reflecting surfaces, such as shiny cars or water

e. Subjects without solid content

In the above

cases,

use focus

(i.e.

candle flame, fireworks, etc.)

lock.

— 8 —

Rewinding the film (See Fig. J — page 31.)

At the end of the

To rewind the

the film rewinds automatically.

3. Check to see if the frame counter has returned to "S".

Open the camera back and remove the film for processing without delay. Open

the camera back to release the film rewind switch.

rewind the film in mid

the

arrow.

roll,

the film advance motor stops and the shutter is locked.

film,

slide the film rewind switch in the direction of the arrow, and

roll,

also slide the film rewind

— 9 —

switch

in the direction of
