Nikon E4800 User Manual

Page 1
Trad emark I nformation
Apple, the Apple logo, Macintosh, Mac OS, and QuickTime are registered trademarks of Apple Computer, Inc. Micro­soft and Windows are registered trademarks of Microsoft Corporation. The SD logo is a trademark of the SD Card Association. PictBridge is a trademark. All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or registered trademarks of their respective holders.
For Your Safety
To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equip­ment. Keep these safety instructions where all those who use the product will read them.
The consequences that could result from failure to observe the precautions listed in this section are indicated by the following symbol:
This icon marks warnings, information that should be read before using this Nikon product to prevent possible injury.
WARNINGS
Do not look at the sun through the view-
fi nder
Viewing the sun or other strong light source through the viewfi nder could cause permanent visual impairment.
Turn off immediately in the event of
malfunction
Should you notice smoke or an unusual smell coming from the equipment or from the AC adapter (available sepa­rately), unplug the AC adapter and re­move the battery immediately, taking care to avoid burns. Continued opera­tion could result in injury. After remov­ing the battery, take the equipment to a Nikon-authorized service representative for inspection.
Do not use in the presence of fl ammable
gas
Do not use electronic equipment in the presence of fl ammable gas, as this could result in explosion or fi re.
Observe caution when using the camera
strap
Never place the strap around the neck of an infant or child.
Do not disassemble
To uching the product’s internal parts could result in injury. In the event of malfunction, the product should be repaired only by a qualifi ed technician. Should the product break open as the result of a fall or other accident, take the product to a Nikon-authorized ser­vice representative for inspection after unplugging the AC adapter and remov­ing the battery.
Observe proper precautions when han-
dling batteries
Batteries may leak or explode if improp­erly handled. Observe the following precautions when handling batteries for use in this product:
• Before replacing the battery, turn the product off and make sure the power­on lamp has gone out. If you are using an AC adapter, be sure it is unplugged.
• Use only rechargeable Nikon EN-EL1 lithium-ion batteries (supplied) or six­volt 2CR5 (DL245) lithium batteries (available separately).
• When inserting the battery, do not at­tempt to insert it upside down or back­wards.
• Do not short or disassemble batteries.
• Do not expose batteries to fl ame or to excessive heat.
i
$00_Q02145_En b-i 2004.6.1, 4:11:12 PM
Page 2
• Do not immerse in or expose to water.
• Replace the terminal cover when trans­porting the battery. Do not transport or store with metal objects such as neck­laces or hairpins.
• Batteries are prone to leakage when fully discharged. To avoid damage to the product, be sure to remove the bat­tery when no charge remains.
• When the battery is not in use, at tach the terminal cover and store in a cool place.
• Immediately after use, or when the product is used on battery power for an extended period, the battery may become hot. Before removing the bat­tery, turn the camera off and allow the battery to cool.
• Discontinue use immediately should you notice any change in the battery, such as discoloration or deformation.
Use appropriate cables
When connecting cables to the input and output jacks, use only the cables provided or sold by Nikon for the pur­pose, to maintain compliance with product regulations.
Keep out of reach of children
Particular care should be taken to pre­vent infants from putting the batteries or other small parts into their mouths.
Removing memory cards
Memory cards may become hot during use. Observe due caution when remov­ing memory cards from the camera.
CD-ROMs
The CD-ROMs on which the software and manuals are distributed should not be played back on audio CD equip­ment. Playing CD-ROMs on an audio CD player could cause hearing loss or damage the equipment.
Observe caution when operating the
fl ash
Using the fl ash close to your subject’s eyes could cause temporary visual impairment. Particular care should be observed if photographing infants, when the fl ash should be no less than one meter (39˝) from the subject.
Avoid contact with liquid crystal
Should the monitor break, care should be taken to avoid injury due to broken glass and to prevent liquid crystal from the monitor touching the skin or enter­ing the eyes or mouth.
Notices
• No part of the manuals included with this product may be reproduced, trans­mitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without Nikon’s prior written permission.
• Nikon reserves the right to change the specifi cations of the hardware and soft­ware described in these manuals at any time and without prior notice.
Notice for customers in the U.S.A.
Federal Communications Commission (FCC) Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digi­tal device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer­ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful in­terference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour­aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving an­tenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
• Nikon will not be held liable for any damages resulting from the use of this product.
• While every effort has been made to ensure that the information in these manuals is accurate and complete, we would appreciate it were you to bring any errors or omissions to the attention of the Nikon representative in your area (address provided separately).
E4800
CAUTIONS
Modifi cations
The FCC requires the user to be notifi ed that any changes or modifi cations made to this device that are not expressly approved by Nikon Corporation may void the user’s authority to operate the equipment.
Interface Cables
Use the interface cables sold or provided by Nikon for your equipment. Using other interface cables may exceed the limits of Class B Part 15 of the FCC rules.
Notice for customers in the State of California WARNING: Handling the cord on this
product will expose you to lead, a chemi­cal known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.
Nikon Inc., 1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A. Tel.: 631-547-4200
ii iii
$00_Q02145_En ii-iii 2004.6.1, 4:11:15 PM
Page 3
Notice for customers in Canada
CAUTION
This class B digital apparatus meets all re­quirements of the Canadian Interference Causing Equipment Regulations.
Notice Concerning Prohibition of Copying or Reproduction
Note that simply being in possession of material that has been digitally copied or repro­duced by means of a scanner, digital camera or other device may be punishable by law.
• Items prohibited by law from being copied or reproduced
Do not copy or reproduce paper money, coins, securities, government bonds, or local government bonds, even if such copies or reproductions are stamped “Sample.”
The copying or reproduction of paper money, coins, or securities which are circulated in a foreign country is pro­hibited.
Unless the prior permission of the gov­ernment has been obtained, the copy­ing or reproduction of unused postage stamps or post cards issued by the government is prohibited.
The copying or reproduction of stamps issued by the government and of cer­tifi ed documents stipulated by law is prohibited.
ATTENTION
Cet appareil numérique de la classe B res­pecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
• Cautions on certain copies and re­productions
The government has issued cautions on copies or reproductions of securities is­sued by private companies (shares, bills, checks, gift certifi cates, etc.), commuter passes, or coupon tickets, except when a minimum of necessary copies are to be provided for business use by a com­pany. Also, do not copy or reproduce passports issued by the government, licenses issued by public agencies and private groups, ID cards, and tickets, such as passes and meal coupons.
• Comply with copyright notices
The copying or reproduction of copy­righted creative works such as books, music, paintings, woodcut prints, maps, drawings, movies, and photographs is governed by national and international copyright laws. Do not use this product for the purpose of making illegal copies or to infringe copyright laws.
Table of Contents
For Your Safety.................................................................................................. i
Notices.............................................................................................................. iii
Introduction 1
Parts of the Camera .......................................................................................... 2
Monitor / Electronic Viewfi nder ........................................................................ 4
Button..................................................................................................... 6
The
The Shutter-Release Button.............................................................................. 6
The Mode Dial................................................................................................... 7
Navigating the Menus ...................................................................................... 7
First Steps 8
Inserting Batteries............................................................................................. 8
Inserting Memory Cards.................................................................................... 10
Turning the Camera On.................................................................................... 12
Basic Setup......................................................................................................... 13
Basic Photography 15
Step 1 —Select Mode.................................................................................. 15
Step 2 — Frame the Picture................................................................................ 16
Step 3 — Focus and Shoot .................................................................................. 18
Step 4 — View the Results.................................................................................. 21
Scene Mode 24
Assist and Scene Modes .................................................................................... 24
Framing Assist.................................................................................................... 25
Portrait Assist................................................................................................ 26
Landscape Assist ........................................................................................... 28
Sports Assist ................................................................................................. 30
Night Portrait Assist....................................................................................... 31
Scene Mode .............................................................................................. 32
Taking Pictures for a Panorama.................................................................... 36
More on Photography 38
Using the Flash: Flash Mode .......................................................................... 38
Taking a Self-Portrait: Self-Timer Mode ...................................................... 40
Easy Close-ups: Macro Close-up Mode......................................................... 41
Controlling Exposure: Exposure Compensation .......................................... 42
iv v
$00_Q02145_En iv-v 2004.6.1, 4:11:17 PM
Page 4
Movies 43
Choosing a Movie Mode .............................................................................. 43
Recording Movies.............................................................................................. 46
Viewing Movies................................................................................................. 47
More on Playback 48
Viewing Pictures on the Camera...................................................................... 48
Viewing Multiple Pictures: Thumbnail Playback.................................................. 48
Taking a Closer Look: Playback Zoom ................................................................ 49
Cropping Pictures.............................................................................................. 50
Voice Memos: Recording and Playback.............................................................. 51
Viewing Pictures on TV..................................................................................... 52
Viewing Pictures on a Computer...................................................................... 53
Printing Pictures ................................................................................................ 57
Print Set ............................................................................................................ 58
Printing Via Direct USB Connection ................................................................... 60
Menu Guide 64
The Shooting Menu .......................................................................................... 64
Image Mode...................................................................................................... 65
White Balance ................................................................................................... 67
Continuous ....................................................................................................... 69
Best Shot Selector (BSS)..................................................................................... 70
Sensitivity .......................................................................................................... 71
Image Adjustment............................................................................................. 72
Image Sharpening ............................................................................................. 73
AF Area Mode................................................................................................... 74
Color Options.................................................................................................... 75
The Playback Menu........................................................................................... 76
Slide Show ................................................................................................... 77
Delete............................................................................................................ 80
Protect..................................................................................................... 82
Auto Transfer............................................................................................ 83
Small Picture ................................................................................................ 85
Copy........................................................................................................... 86
Sort by Date................................................................................................. 88
Instant Index ................................................................................................ 89
The Setup Menu................................................................................................ 91
Welcome Screen ......................................................................................... 92
Date.............................................................................................................. 93
Date Imprint................................................................................................. 95
Monitor Settings.......................................................................................... 96
Sound Settings .............................................................................................. 97
Auto Off ...................................................................................................... 98
Format memory / Format Card .................................................................. 98
Language....................................................................................................... 99
Video Mode ................................................................................................ 99
Reset All ........................................................................................................ 99
Firmware Version........................................................................................ 100
Technical Notes 101
Optional Accessories ......................................................................................... 101
Caring for Your Camera.................................................................................... 102
Error Messages .................................................................................................. 105
Troubleshooting................................................................................................ 108
Specifi cations..................................................................................................... 111
Index .................................................................................................................. 113
vi vii
$00_Q02145_En vi-vii 2004.6.1, 4:11:20 PM
Page 5
Introduction
Before Taking Important Pictures
Before taking pictures on important occasions (such as at weddings or before taking the camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for damages or lost profi ts that may result from product malfunction.
Life-Long Learning
As part of Nikon’s “Life-Long Learning” commitment to ongoing prod uct sup port and ed u ca tion, con tin u al ly-updated information is avail able on-line at the following sites:
• For users in the U.S.A.: http://www.nikonusa.com/
• For users in Europe: http://www.europe-nikon.com/support
• For users in Asia, Oceania, the Middle East, and Africa: http://www.nikon-asia.com/ Visit these sites to keep up-to-date with the latest product in for ma tion, tips, an swers to fre quent ly-asked ques tions (FAQs), and gen er al advice on digital imaging and pho tog ­ra phy. Ad di tion al information may be available from the Nikon rep re sen ta tive in your area. See the URL below for contact in for ma tion:
http://nikonimaging.com/
Use Only Nikon Brand Electronic Accessories
Nikon COOLPIX cameras are designed to the highest standards and include com­plex electronic circuitry. Only Nikon brand electronic accessories (including battery chargers, batteries, AC adapters, and Speedlights) certifi ed by Nikon specifi cally for use with this Nikon digital camera are engineered and proven to operate within the operational and safety requirements of this electronic circuitry.
THE USE OF NON-NIKON ELECTRONIC ACCESSORIES COULD DAMAGE THE CAMERA AND MAY VOID YOUR NIKON WARRANTY. The use of third-party rechargeable Li-ion batteries not approved by Nikon could interfere with normal operation of the camera or result in the batteries overheating, igniting, rupturing, or leaking.
For more information about Nikon brand accessories, contact a local authorized Nikon dealer.
viii 1
Thank you for your purchase of a Nikon COOLPIX 4800 digital camera. This manual has been written to help you enjoy taking pictures with your Nikon digital camera. Read this manual thoroughly before use, and keep it where all those who use the product will read it.
To make it easier to fi nd the informa­tion you need, the following symbols
Introduction
and conventions are used:
This icon marks cautions, informa­tion that should be read before use to prevent damage to the camera.
This icon marks notes, information that should be read before using the camera.
This icon marks tips, additional in­formation that may be helpful when using the camera.
This icon indicates that more infor­mation is available elsewhere in this manual or in the Quick Start Guide.
First Steps
Basic Photography
Scene Mode
More on Photography
Movies
More on Playback
Memory Cards
Pictures taken with this camera can be stored in the camera’s internal memory or on removable memory cards. If a memory card is inserted, all new pictures will be stored on the memory card and delete, playback, and format operations will apply only to the pictures on the memory card. The memory card must be removed before the internal memory can be formatted or used to store, delete, or view pictures.
Menu Guide
Technical Notes
$00_Q02145_En viii-1 2004.6.1, 4:11:22 PM
Page 6
Parts of the Camera
Power switch
12)
(
Microphone ( 43, 46, 51)
Introduction
Shutter-release button (
6, 18)
Lens not extended
Lens cover
Lens
103, 111)
(
Power-on lamp (
12)
DC-IN connector
9, 101)
(
USB (digital I/O) (
55, 61)/
Audio / video (A/V) out
52) connector
(
Self-timer lamp ( AF-Assist illuminator (LED; 19, 102, 111)
Speaker (
47, 51, 97)
Built-in Speedlight (
40)/
38)
Eyelet for camera strap
Interface con­nector cover ( 52, 55, 61)
Diopter-adjustment control ( 17)
Electronic viewfi nder ( 4, 6)
Monitor
4, 6)
(
Tripod socket
(display) button ( 6)
Mode dial (
Battery-chamber cover (
Battery-chamber cover latch (
7)
Zoom buttons ( 16)
Eyelet for camera strap
Memory card­slot cover (
Memory card slot ( 10)
8)
8)
Introduction
10)
Attaching the Camera Strap
Attach strap as shown below. Repeat for second eyelet.
2
$00_Q02145_En 2-3 2004.6.1, 4:11:26 PM
(menu) button
( 24, 32, 44, 64, 76)
(playback) button
( 21, 48, 76)
(delete) button
( 21, 48, 51)
Center of multi selector / transfer button (
Multi selector (
7, 53)
7)
3
Page 7
0008
100
10
2004
00
01
08
Monitor / Electronic Viewfi nder
1.0
17
Shooting
The following indicators appear in the monitor and electronic viewfi nder dur­ing shooting.
4
2
20
1 23 22 21 19 18 17
Introduction
1 Shooting mode................... 7, 15
2 Exposure lock.......................... 36
3 Zoom indicator 1...................... 16
4 Focus indicator 2...................... 18
5 Flash indicator 2....................... 18
6 Battery level indicator 3............ 15
7 Internal memory / memory card
indicator ................................. 15
8 Camera shake
icon 4......................... 33, 39, 105
9 “Date not set” icon 5............... 13
10 Time zone indicator ................ 94
11 Self-timer indicator.................. 40
12 Date imprint indicator ............. 95
1 Displayed when zoom buttons are pressed. 2 Displayed when shutter-release button is pressed
halfway. 3 Appears when batteries are running low. 4 Appears at slow shutter speeds to warn that pic-
tures may be blurred. 5 Appears when camera clock has not been set.
1.0
1.0
3
5
6
7 8 910
11 12
17
131416 15
13 Number of exposures
remaining ......................... 15, 66
Maximum total movie
length............................... 43, 46
14 Flash mode .............................38
15 Focus areas and focus-area
selection guide.................. 27, 74
16 Image mode............................ 65
17 Exposure compensation ..........42
18 Sensitivity gain indicator.... 27, 71
19 Continuous shooting mode..... 69
20 Best Shot Selector (BSS)........... 70
21 White balance......................... 67
22 Color option ...........................75
23 Macro close-up mode .............41
Playback
The following indicators appear in the monitor during playback.
18
13
17
16 15 14
2004
2004000108
10
10
12 11 9
00
08
01
1 Current folder......................... 23
2 File number and type ..............23
3 Internal memory / memory card
indicator ................................. 15
4 Battery level indicator1............. 15
5 Volume indicator............... 47, 51
6 Voice memo recording guide... 51
7 Voice memo playback guide.... 51
8 Current frame number/
total number of frames ........... 23
Movie length........................... 47
1 Appears when batteries are running low.
100
100N I K
0008
0008
8/14
10
9 Quick playback zoom indicator..22
10 Movie playback indicator......... 47
11 Voice memo icon .................... 51
12 Image mode............................ 65
13 Movie indicator....................... 43
14 Protect icon............................. 82
15 Print-order icon....................... 58
16 Transfer icon ........................... 83
17 Time of recording.................... 13
18 Date of recording.................... 13
N I KON
O
1
N
2 3
4
5
7
6 8
Introduction
4
$00_Q02145_En 4-5 2004.6.1, 4:11:28 PM
5
Page 8
The Button
14
14
Th
The Mode Dial
The electronic viewfi nder can be used to frame pictures when bright ambient lighting conditions make it diffi cult to see the display in the monitor. Use the
button to switch between the monitor and electronic viewfi nder, and to
view and hide indicators in the shooting display.
Monitor on;
indicators displayed
Introduction
14
Viewfi nder on;
indicators hidden
Monitor on;
indicators hidden
14
Viewfi nder on;
indicators displayed
The Shutter-Release Button
The camera has a two stage shutter-release button. When the button is pressed halfway, the camera sets focus and exposure and the focus indicator is displayed in monitor or electronic viewfi nder ( 18). Focus and exposure will remain locked while the shutter-release button is pressed halfway. To take the picture, press the shutter-release button the rest of the way down.
To select a mode, align the mode icon with the “ ” mark next to the mode dial.
Scene ( 32)
Choose from eleven “scenes” suited to different subjects or shooting conditions and let the camera do the rest.
A simple “point-and-shoot” mode in which the majority of settings are controlled by the camera. A shooting menu offers control over nine shoot­ing options.
Choose from three movie modes.
Portrait Assist Landscape Assist Sports Assist Night Portrait Assist
Use framing assist to compose pictures suited to a particular type of subject ( 25–31).
Setup ( 91)
Choose this mode to display the setup menu, where you can perform such tasks as set­ting the camera clock and ad­justing monitor brightness.
Navigating the Menus
e multi selector is used to navigate through the camera menus.
Move cursor up
Introduction
Press center (
to make selection
Cancel and return to previous menu,
or move cursor left
6
$00_Q02145_En 6-7 2004.6.1, 4:11:50 PM
Move cursor down
Display sub-menu, move cursor right,
or make selection
)
7
Page 9
First Steps
Inserting Batteries
Your camera uses either of the following batteries:
Battery Description
• Provided with camera
Rechargeable Nikon
EN-EL1 lithium-ion
batteries (×1)
Six-volt 2CR5 (DL245)
First Steps
lithium batteries (×1)
1
EN-EL1
2CR5
• Can be recharged using supplied MH-53 battery charger (be sure to charge battery before using camera for fi rst time or after long period of disuse). About two hours are required to charge battery when no charge remains.
• Available at many retail outlets
• Not rechargeable
Open the battery-chamber cover
1
Pressing battery-chamber cover latch, slide the cover in the direction shown () and open the cover ().
2
Insert the battery
2
Insert the battery as shown in the label at the en­trance to the battery chamber, making sure that the positive (“+”) and negative (“–”) terminals are in the correct orientation.
Inserting Batteries
Inserting the battery upside down or backwards could damage the camera. Check to be sure the battery is in the correct orientation.
Close the battery-chamber cover
3
Close the cover () and slide it in until it latches
1
2
Replacing Batteries
Turn the camera off before removing or inserting batteries. Do not open the battery­chamber cover while the power-on lamp is lit. To remove the battery, open the battery­chamber cover and slide the battery out. Note that the battery may become hot during use; observe due caution when removing the battery.
Read Battery Warnings
Read and follow the battery warnings and cautions on pages i–ii and 104of this manu­al, together with any warnings and instructions supplied by the battery manufacturer.
Alternative Power Sources
To power the camera continuously for extended periods, use an EH-54 AC adapter. Do not, under any circumstances, use another make or model of AC adapter. Failure to observe this precaution could result in overheating or in damage to the camera.
().
First Steps
8
$00_Q02145_En 8-9 2004.6.1, 4:11:58 PM
9
Page 10
Inserting Memory Cards
Pictures are stored on the camera’s 13.5 MB internal memory or on removable Secure Digital (SD) memory cards. For information on compatible memory cards, see “Technical Notes: Optional Accessories” ( 101).
If no memory card is inserted, pictures are recorded to, and played back and deleted from, the camera’s internal memory. Formatting ( 98) affects inter­nal memory only.
If a memory card is inserted, the card is used for recording, playback, and de­letion. Formatting affects only the memory card, not internal memory. The memory card must be removed from the camera before internal memory
First Steps
can be formatted or used to record, delete, or view pictures.
To insert a memory card:
Confi rm that the camera is off
1
The power-on lamp should be off.
Open the memory card slot cover
2
Insert the memory card
3
Insert the memory card as shown in the label at the entrance to the memory card slot.
Inserting Memory Cards
Terminals
Direction of insertion
Insert the memory card ter­minals fi rst. Inserting the card upside down or back­wards could damage the camera or the card. Check to be sure the card is in the correct orientation.
Formatting Memory Cards
Memory cards must be formatted before fi rst use. Use the format option in the camera setup menu to format memory cards; the camera may be unable to access
memory cards that have been formatted in a computer or other device. For information on formatting memory cards, see “The Setup Menu: Format Card” ( 98).
The Write Protect Switch
SD cards are equipped with a write protect switch to prevent accidental loss of data. When this switch is in the “lock” position, pictures can not be recorded, deleted, or edited, and the card can not be formatted. Do not lock the card when taking, deleting, or editing pictures or when transferring pictures to a computer (
Write protect switch
When card is locked, pictures can be played back but can not be recorded, deleted, or edited. Locking card also prevents pictures from being trans­ferred using center of multi selector ( button) when Mass Storage is selected for USB ( 53).
Removing Memory Cards
Memory cards can be removed without loss of data when the camera is off. To remove memory cards, turn the camera off and confi rm that the power-on lamp is off. Do not open the memory card slot cover while the power-on lamp is lit. Open the memory card slot cover and press the card in to partially eject the card. The card can then be removed by hand.
53).
First Steps
Close the memory card slot cover
4
10
$00_Q02145_En 10-11 2004.6.1, 4:12:02 PM
11
Page 11
Turning the Camera On Basic Setup
DATE
Set time and date?
DATE
Set time and date?
HOME TIME ZONE
a
ack
TIME ZONE
Press the power switch until the power-on lamp lights. The fi rst time the camera is turned on, the language-se­lection dialog shown opposite will be displayed; choose a language and set the time and date as described on the following pages.
First Steps
Tur ning the Camera Off
To turn the camera off, press the power switch again. The camera is off when the power-on lamp is off. Do not remove the battery or memory card or disconnect the AC adapter until the power-on lamp has gone out.
Auto Power Off ( Standby Mode)
If no operations are performed for one minute, the monitor and electronic viewfi nder will turn off automatically and the camera will enter standby mode to reduce the drain on the battery. While the camera is in standby mode, the power-on lamp will fl icker. The camera will be reactivated when you:
• Press the power-on switch
• Press the button or press the shutter-release button halfway
• Press the button to play pictures back
• Press the button to display the menu for the current mode
• Rotate the mode dial to select a new mode The length of time before the camera enters standby mode can be changed using the Auto off option in the setup menu ( 98).
If no operations are performed for three minutes after the camera enters standby mode, the camera will turn off automatically and the power-on lamp will go out.
The Power-on Lamp
The power-on lamp shows camera status as follows:
Power-on lamp Camera
On On
Flickers
Blinks Battery exhausted ( 15)
Off Off
12
Auto power off (standby mode)
The fi rst time the camera is turned on, a language-selection dialog will be displayed. Choose a language and set the time and date as follows:
1
* Press button to exit to without selecting language.
Deutsch English Español Français Italiano Nederlands
2
Confi rmation dialog displayed.
* Select No to exit to mode selected with mode dial. If time and date are not set,
(“date not set”) icon will fl ash in monitor during shooting and all pictures will have time stamp of “0000.00.00 00:00.” Movies will be dated “2004.01.01 00:00.”
4
TIME ZONE menu displayed.
† To turn daylight saving time on or off, press multi selector down to highlight
DaylightSaving and press center of multi selector. When DaylightSaving is checked, time will automatically be advanced one hour ( 94). To return to Step 4, press multi selector up to highlight current time zone.
The Camera Clock
The camera clock is less accurate than most watches or household clocks. Check the clock regularly against more accurate timepieces and reset as necessary.
Svenska
日本語
Cancel S et
DATE
Set time and date?
No
Yes
TIME ZONE
01. 01 . 2004 00 : 00
London, Casablanca
DaylightSaving
Highlight Deutsch (German), English, Español (Spanish), Français (French), Italiano (Italian), Nederlands (Dutch), Svenska (Swedish),
nese), (Simplifi ed Chinese),
(Traditional Chinese), or
(Korean).
*
3
Highlight Yes.
5
Display map of world time zones.
DATE
Set time and date?
No
Yes
*
HOME TIME ZONE
London, Casablanc
B
(Japa-
Set
13
First Steps
$00_Q02145_En 12-13 2004.6.1, 4:12:05 PM
Page 12
DATE
DATE
DATE
DATE
DATE
14
HOME TIME ZONE
6
Select home time zone.
HOME TIME ZONE
Madrid, Paris, Berlin
Back Set
7
Display DATE menu.
DATE
D M YDM Y
01
200401
00 00
8
First Steps
Edit Day (order of Day, Month, and
Year may differ in some areas).
10
DATE
D M YDM Y
01
200401
00 00
DATE
9
Select Month. Repeat steps 8–9 to
edit Month, Year, hour, and minute.
11
D M YDM Y
01
Highlight D M Y.
12
The Clock Battery
When the main battery is installed or an AC adapter is connected, the clock battery will charge in about 10 hours. When fully charged, the clock battery can provide several days of backup power. The DATE menu will automatically be displayed when the bat­tery is exhausted.
14
200408
10 00
Choose order in which Day, Month,
and Year will be displayed.
Exit to mode currently selected with mode dial. Note that time and date of recording will not be imprinted on pictures unless Date or Date and time is selected for Date imprint ( 95).
14
DATE
D M YDM Y
01
200408
00 00
DATE
M D YMD Y
08
200401
10 00
$00_Q02145_En 14 2004.6.1, 4:12:06 PM
Page 13
Basic Photography
Basic Photography
14
This section describes how to take pictures in (auto) mode, an automatic, “point-and-shoot” mode recommended for fi rst-time users of digital cam­eras.
Step 1 —Select Mode
Rotate the mode dial to and turn the camera on
The power-on lamp will light and a welcome screen will appear in the monitor or electronic viewfi nder. The camera is ready to shoot when the view through the camera lens is displayed.
Battery indicator: ap­pears when battery is running low.
Shooting mode: indi- cates auto mode.
fi ve options depending on how picture will be used
65). Default is .
(
Flash mode: choose from fi ve modes according to light­ing and creative intent ( 38). Default is AUTO.
Internal memory / memory card indicator: indicates whether
internal memory ( ) or memory card ( ) is used ( 10).
Number of exposures remain­ing: depends on capacity of
14
internal memory or memory card and on option chosen for Image Mode ( 65).
The Battery Indicator
Display Description
NO ICON
The Shooting Menu
(auto) mode offers a shooting menu of nine options that give full control over such
settings as white balance and image sharpening ( 64).
$00_Q02145_En 15 2004.6.1, 4:12:15 PM
Battery fully charged.
Low battery; ready spare battery. If fl ash fi res, mon­itor will turn off while fl ash recharges.
Display Description
WARNING!!
BATTERY
EXHAUSTED
* Power on lamp blinks when battery is
exhausted.
Battery exhausted. * Re­place with fully-charged battery.
15
Page 14
14
14
Step 2 — Frame the Picture
A
B
Basic Photography
Zoom
Zoom
out
Indicator shows
amount of zoom
Digital zoom
in
Ready the camera
1
Hold the camera steadily in both hands. Photo­graphs can be framed in the monitor A or the electronic viewfi nder B.
Don’t Block the Shot
To avoid muffl ed sound or dark or partially obscured pictures, keep your fi ngers and other objects away from the microphone, lens, and fl ash window.
Frame your subject
2
Your Nikon digital camera is equipped with two types of built-in zoom: optical zoom, in which the camera’s telescoping lens can be used to magnify the subject up to 8.3 ×, and digital zoom, in which digital processing is used to further magnify the image up to 4 ×, for a total of about 33 ×. Use the zoom buttons to frame your subject in the monitor or electronic viewfi nder:
• Press the button to zoom out from your subject, increasing the area visible in the frame.
14
14
Press the button to zoom in on your subject so that it fi lls a larger area of the frame. Press the buttons fully for high-speed zoom, halfway for normal zoom.
• When the camera is zoomed in to maximum magnifi cation, holding the button down for about one second will trigger digital zoom. The zoom indicator will turn yellow. Use the and
range. To cancel digital zoom, press until the zoom indicator turns white.
buttons to adjust zoom in the digital zoom
Digital Zoom
In digital zoom, data from the camera’s image sensor are processed digitally, enlarging the center portion of the picture to fi ll the frame. Unlike optical zoom, digital zoom does not increase the amount of detail visible in the picture. Instead, details visible at maximum optical zoom are simply enlarged, producing a slightly “grainy” image.
When Lighting Is Poor
When lighting is poor, sensitivity is raised to compensate and the image in the monitor may be slightly mottled. This is normal and does not indicate a malfunction.
Viewfi nder Focus
If the image in the electronic viewfi nder seems blurred, rotate the diopter adjustment control until the image is in sharp fo­cus. When operating the diopter control with your eye to the viewfi nder, care should be taken to avoid accidentally putting your fi nger in your eye.
Basic Photography
16
$00_Q02145_En 16-17 2004.6.1, 4:12:18 PM
17
Page 15
Step 3 — Focus and Shoot
Erase 1 image (s)?
14
Focus
1
Press the shutter-release button halfway to set focus and exposure. At default settings, the camera will automatically focus on the subject in the center of the display. Focus and exposure will lock while the shutter-release button is pressed halfway ( 6).
Focus indicator
Basic Photography
Flash indicator
With the shutter-release button pressed halfway, check the focus and fl ash indicators in the monitor or electronic viewfi nder.
indicator
14
indicator
Take the picture
2
Press the shutter release button the rest of the way down to take the picture. To prevent blur, press the
shutter-release button down smoothly.
On (green) Subject in focus.
Focus
Blinks red
On (red) Flash will fi re when picture is taken.
Flash
Blinks red Flash charging.
Off Flash off or not required.
Camera unable to focus. Change composition and try again.
During Recording
While pictures are being recorded, the internal memory / memory card indicator ( or ) will blink. The camera can continue to take pictures until the (wait) icon is displayed. Do not turn the camera off, eject the memory card, or remove or dis-
connect the power source while the internal memory / memory card indicator is blinking or the icon is displayed. Cutting power or removing the memory card in
these circumstances could result in loss of data or in damage to the camera or card.
The AF-Assist Illuminator
If lighting is poor, the built-in AF-assist illuminator will light when the shutter-release button is pressed halfway, allow­ing the camera to focus even when the subject is poorly lit. The AF-assist illuminator has a range of about 0.4 m–2.0 m / 1´4˝– 6´7˝ (widest angle) to 1.0 m–1.5 m /3´3˝–4´11˝ (maximum zoom). The AF-assist illuminator will not light if:
• (portrait assist), (landscape assist), (sports assist), or (night portrait assist) mode is selected or if (Dusk / Dawn), (Night landscape), (Close up), (Mu­seum), or (Fireworks show) is selected in scene mode ( 24–37)
Manual is selected for AF-area mode ( 74) and the center focus area is not se­lected
Getting Good Results with Autofocus
Autofocus performs best when there is contrast between the subject and the back­ground and the subject is evenly lit. It does not perform well if the subject is very dark or moving rapidly, if there are objects of sharply differing brightness in the scene (e.g., the sun is behind your subject and their features are in deep shadow), or if there are several objects at different distances from the camera at the center of the frame (e.g., your subject is inside a cage).
Deleting Pictures in Shooting Mode
In shooting mode, pictures can be deleted one at a time by pressing the button. A confi rmation dialog will be displayed; press the multi selector up or down to highlight an option and press the center of the multi selector.
Yes : Delete the picture shown in the monitor and return to shooting mode
No: Return to shooting mode without deleting the picture
Basic Photography
“Out of Memory”
If the camera displays the message “OUT OF MEMORY,” no further pictures can be taken. You may be able to take additional pictures if you:
• change the image mode setting ( 65)
delete some pictures ( 19, 48, 80)
18
$00_Q02145_En 18-19 2004.6.1, 4:12:21 PM
• insert a new memory card ( 10)
• remove the memory card and use inter­nal memory ( 10)
 Erase 1 image (s)?
No
Yes
Done
19
Page 16
Step 4 — View the Results
000 1
100
10
08
00
2 0 0 4
0 1
14
14
14
Erase 1 image (s)?
Erase 1 image (s)?
AF / AE Lock
Focus and exposure are locked when the shutter-release button is pressed halfway, and remain locked while the shutter-release button is held in this position (focus lock). Focus lock can be used to take pictures of off-center subjects or in situations in which the camera is unable to focus using autofocus.
Focus
1
14
Position subject in center of frame and press shutter-release button halfway.
Basic Photography
Recompose picture
3
14
Focus and exposure are locked while shut­ter-release button is pressed halfway.
* Do not change distance between camera and subject while focus lock is in effect. If
subject moves, release shutter-release button and focus again at new distance.
*
Check focus indicator
2
Check that focus indicator glows steadi­ly, indicating that subject is in focus.
Take picture
4
Press shutter-release button rest of way down to take picture.
14
Press the button
1
A picture will be displayed in the monitor.
08
01
00
10
100800
2004
200401
100N I K
100
N I KON
0001
0001
View additional pictures
O
N
2
Press the multi selector down or right to view pictures in the order recorded, up or left to view pictures in reverse order. Keep the multi selector
1/1
pressed to scroll quickly to the desired frame.
To r eturn to shooting mode, press the
button
again.
Deleting Unwanted Pictures
To delete the picture currently displayed in the monitor:
1
Confi rmation dialog displayed.
* To exit without deleting picture, highlight No and press center of multi selector.
 Erase 1 image (s)?
No
Yes
3
Done
2
Delete picture and return to playback.
Erase 1 image (s)?
Highlight Yes.
No
Yes
*
Basic Photography
The Button
Pressing the button for about one second will turn the camera on. Press again to return to the mode selected with the mode dial.
20
$00_Q02145_En 20-21 2004.6.1, 4:12:27 PM
21
Page 17
Quick Playback Zoom
0001
100
10
08
00
2 0 0 4
0 1
For an enlarged (× 3) view of the picture currently displayed in the monitor:
1
Zoom picture in × 3. Center of pic-
ture is displayed in monitor.
Basic Photography
3
The zoom buttons can be used to zoom the picture in or out while quick playback zoom is in effect ( 49).
Playback Tips
Pictures are displayed briefl y at low resolution while being read from memory. This makes it possible to scroll rapidly through pictures without waiting for each image to be displayed at full resolution.
More About Playback
For more information on playback, see “More on Playback” ( 48).
22
3.0
Scroll Zoom
08
2004
01
200401
00
10
100800
100N I K
100
N I KON
0001
0001
1/1
2
View other areas of picture. Area
currently visible indicated by display
in bottom right corner of monitor.
End zoom and return to playback.
O
N
3.0
Scroll Zoom
Image File and Folder Names
On the memory card, pictures are identifi ed by fi le names with three parts: a four letter identifi er, a four-digit fi le number assigned automatically by the camera in ascending order, and a three-letter extension (e.g., “DSCN0001.JPG”).
Type
Original
When a picture is viewed in the monitor, the fi le number and extension appear in the top right corner of the display. The identifi er is not displayed, but is visible when the picture is transferred to a computer.
Pictures are stored in folders created automatically by the camera and named with a three-digit folder number followed by an identifi er: “INDEX” for index prints created using the instant index option ( pictures taken using panorama assist (e.g., “101P_001”; 36), and “NIKON” for all other photographs (e.g., “100NIKON”). Folders can hold up to 200 pictures; if you take a picture when the current folder contains 200 pictures, a new folder will be created by adding one to the current folder number. A new folder is created for each sequence of pictures taken using panorama assist. If you take a picture when the current folder contains a picture numbered 9999, a new folder will be created and fi le numbering will begin again from 0001. If the current folder is numbered 999 and contains 200 pictures or a picture numbered 9999, no further pictures can be taken until the internal memory or memory card is formatted ( 98) or a new memory card inserted.
The picture displayed when the button is pressed is the picture with the highest fi le number in the highest-numbered folder.
Still picture
Movie
Cropped copy 50
Copy
Small copy
Audio
fi le
89), “P_” plus a three-digit sequence number for
Identifi er Extension
DSCN
DSCN
RSCN
SSCN
DSCN .WAV 51Voice memo appended to original still
RSCN .WAV 51Voice memo appended to cropped copy
SSCN .WAV 51Voice memo appended to small copy
.JPG
.MOV
.JPG
.JPG
21
46
85
23
Basic Photography
$00_Q02145_En 22-23 2004.6.1, 4:12:32 PM
Page 18
Scene Mode
14
14
Portrait
Portrait
14
Portrait
Party/Indoor
Framing Assist
Assist and Scene Modes
The COOLPIX 4800 offers a choice of eleven “scene” and four “assist” modes. In these modes, camera settings are automatically optimized for the selected subject type, sparing the user the necessity of adjusting settings one by one.
Assist Modes ( 25–31)
Assist modes are chosen by rotating the mode dial to the desired mode. Framing assist options are available to help you compose your shots.
Mode
Portrait assist 26–27
Landscape assist 28–29
Sports assist 30
Scene Mode
Scene Modes ( 32–37)
Scene modes are selected by rotating the mode dial to and selecting the desired scene from a menu.
Mode
Party / Indoor 33
Beach / Snow 33
Sunset 33
Dawn / Dusk 34
Mode
Night landscape 34
Close up 34
Museum 34
Fireworks show 35
Night portrait assist 31
Party/Indoor
Exit Set
Mode
Copy 35
Back light 35
Panorama assist
36–
37
The four assist modes offer a selection of framing assist options that allow you to compose pictures with the help of framing guides displayed in the monitor.
1
14
Select mode.
3
Highlight composition type.
Portrait
Portrait
left
Exit Set
5
14
Return to shooting mode with fram-
ing guides displayed in monitor.
2
Display framing assist menu.
4
Make selection.
6
Position subject in framing guides
and take picture.
Portrait
Exit Set
Portrait
Portrait
left
Exit Set
14
Depending on the mode selected, restrictions may apply to fl ash mode ( ;
38), the self-timer ( ; 40), or macro close-up ( ; 41). These restrictions are noted on the pages that follow. The AF-assist illuminator ( 19) is not available in framing assist mode.
Scene Mode
Assist and Scene Modes
Depending on your subject, assist and scene modes may not always produce the de­sired results. If results are not satisfactory, choose (auto) mode and try again.
24
$00_Q02145_En 24-25 2004.6.1, 4:12:51 PM
Using the Guides
Your subject does not have to fi t exactly in the framing guides. When framing pic­tures, pay attention to your surroundings; be careful not to trip and fall.
25
Page 19
Portrait Assist
SENSITIVITY
Portrait
Portrait
Portrait
Portrait
Portrait
Portrait
14
14
14
14
IMAGE MODE
1/2
(portrait assist) mode is used to frame portraits in which the main subject stands out clearly while back­ground details are softened, lending the composition a sense of depth (the degree of softening depends on the amount of light available). A framing assist menu helps frame off-center subjects and compose tall or wide shots and two-person portraits.
PORTRAIT
No guides are displayed. Use multi selector to choose focus area ac­cording to position of subject in frame.
Scene Mode
Portrait right
Compose shot with sub­ject centered in right half of frame. Camera will focus on subject in fram­ing guide.
**
Off
Portrait
Exit Set
Portrait
Exit Set
Portrait
right
Off
Portrait left
Compose shot with sub­ject centered in left half of frame. Camera will focus on subject in fram­ing guide.
Portrait close-up
Compose shot with sub­ject’s face in top half of frame. Camera will fo­cus on face area in fram­ing guide.
Portrait
Portrait
Exit Set
Portrait
Portrait
close-up
Exit Set
In addition to the options on the preceding page, the portrait-mode framing assist menu contains Sensitivity and Image mode options.
Sensitivity
The Sensitivity menu contains the following options:
Option Description
If lighting is poor, camera automatically raises sensitivity (ISO equivalency) to compensate.
Auto
(default)
left
ISO icon is displayed when sensitivity is raised. “Noise” (mottling) may appear in pictures taken when ISO icon is displayed.
Sensitivity (ISO equivalency) fi xed at value
Fixed
roughly equivalent to ISO 50.
SENSITIVITY
Auto
Fixed
50
Image Mode
Choose from High (2288★), Normal (2288),
Normal (1600), PC screen (1024), and TV
screen (640).
IMAGE MODE
High(2288
Normal(2288
Normal(1600
1/2
)
Scene Mode
)
)
Portrait couple
Compose shot with two subjects side-by-side. Camera will focus on closest subject.
Portrait
Portrait
couple
Exit Set
Portrait fi gure
Compose shot with camera held as shown below at right and sub-
frame. Camera will fo­cus on face area in fram-
Portrait
Portrait
figure
Exit Set
Manual Focus Area Selection
To select the focus area when PORTRAIT is selected in portrait assist mode:
1
2
3
ing guide.
* Other modes can be selected.
14
Active focus area
shown in gray.
Active focus area
highlighted in red.
14
Highlight new
focus area.
14
Selected focus area
shown in gray.
14
Flash mode, the self timer, macro mode, and exposure compensation can not be ad­justed while the focus area is highlighted in red. Press the center of the multi selector to select the focus area before adjusting these settings.
26
$00_Q02145_En 26-27 2004.6.1, 4:13:00 PM
27
Page 20
Landscape Assist
Landscape
Landscape
Landscape
Flash turns off (
) automatically in
LANDSCAPE
Scenic view
and
Architecture
Landscape
Landscape
EXPOSURE BSS
IMAGE MODE
1/2
(landscape assist) mode is used for vivid landscape shots that enhance outlines, colors, and contrast. A framing assist menu helps frame not only natural land­scapes but also cityscapes and portrait shots featuring a landmark in the background.
*
/ AUTO
LANDSCAPE
No guides are displayed. Use to focus on distant objects through foreground objects such as windows or a screen of branches. Camera focuses at infi nity; AF indicator lights whenever shutter-release button is pressed halfway.
Scenic view
Compose shot with sky in top third of frame.
Scene Mode
Match skyline with wavy yellow guide. Camera focuses at infi nity; AF indicator lights whenever shutter-release button is pressed halfway.
Group right
Compose shot with por­trait subjects at right and landmark or other object in background at left of frame. Camera focuses on portrait subject.
Off
Landscape
Exit Set
Landscape
Exit Set
Scenic
view
Group
right
Off
Architecture
Photograph buildings. Framing gird helps keep verticals and horizontals aligned with the frame. Camera focuses at infi nity; AF indicator lights whenever shutter-release button is pressed halfway.
Group left
Compose shot with por­trait subjects at left and landmark or other object in background at right of frame. Camera focuses on portrait subject.
Landscape
Exit Set
Landscape
Architecture
Exit Set
Landscape
Exit Set
Group
left
In addition to the options on the preceding page, the landscape-mode fram­ing assist menu contains Exposure BSS and Image mode options.
Exposure BSS
The Exposure BSS menu contains the following op- tions:
Option Description
Camera takes fi ve shots each time shutter-re­lease button is pressed (to prevent blurring, hold camera steady until shooting is complete). Picture with overall exposure closest to optimum
On
is then selected from pictures with least under­and over- exposure. Remaining four pictures are discarded. Flash turns off automatically while exposure BSS is on
Off
(default)
Exposure BSS off.
EXPOSURE BSS
On
Off
Image Mode
Choose from High (2288★), Normal (2288),
Normal (1600), PC screen (1024), and TV
screen (640).
IMAGE MODE
High(2288
Normal(2288
Normal(1600
1/2
)
)
)
Scene Mode
,
, modes. In Group right and Group left modes, fl ash mode is automatically set to AUTO; other modes can be selected.
† Other modes can be selected.
28
$00_Q02145_En 28-29 2004.6.1, 4:13:06 PM
29
Page 21
Sports
Sports
Sports
Sports Assist
(sports assist) mode is used for dynamic action shots that capture moving objects. The options in the assist menu can be used to freeze the action in a single shot or record motion in a series of pictures.
Off
SPORTS
While shutter-release button is held down, pictures are recorded at rate of about 1.5 frames per second (fps) until icon is displayed. Camera focuses continuously until shutter-release button is pressed halfway to lock focus.
Off
Sports
Exit Set
Night Portrait Assist
(night portrait assist) mode is used for taking portrait shots at night, when it provides a natural balance be­tween the main subject and the background. Pictures taken at slow shutter speeds are adjusted to reduce noise, slightly increasing processing time; to prevent blurring, mount the camera on a tripod or rest it on a fl at, stable surface. For more information on the options available in the framing assist menu, see “ Portrait Assist” ( 26–27).
* Other modes can be selected.
Off
*
Off
Sport spectator
Shutter-release button can be pressed in one motion without pausing
Sports
halfway to check focus. Camera focuses at about 5 m (16´) to infi nity at widest angle, 6 m (20´) to infi nity at maximum zoom; AF indicator
Scene Mode
lights whenever shutter-release button is pressed halfway. Pictures
Exit Set
will be taken at rate of about 1.5 fps while shutter-release button is fully pressed.
Sport composite
Each time shutter-release button is pressed, camera takes 16 shots in
Sports
about 2 seconds and arranges them in 4 rows to form single picture 1600 × 1200 pixels in size. Focus, exposure, and white balance are determined by fi rst shot in each series. Camera focuses continuously
Exit Set
until shutter-release button is pressed halfway to lock focus.
In addition to the options list above, the sports-mode framing assist menu contains Sensitivity and Image mode options ( 27).
Focus, Exposure, and White Balance
In sports assist mode, focus, exposure, and white balance for all pictures are determined by the fi rst shot in each series.
30
Sport
spectator
Sport
composite
Scene Mode
31
$00_Q02145_En 30-31 2004.6.1, 4:13:11 PM
Page 22
Scene Mode
14
Beach/Snow
14
Beach/Snow
IMAGE MODE
Party/Indoor
(scene) mode offers a menu of eleven “scenes,” each corresponding to a common situation, such as a backlit subject, sunset, or interior shot. Cam­era settings are automatically adjusted to suit the selected scene, sparing the user the necessity of adjusting each setting separately.
To select a scene:
1
3
Scene Mode
Select .
Beach/Snow
2
14
Display scene menu.
Highlight scene. Highlighted scene shown by large icon and caption. To exit without changing current selec­tion, press .
Party/Indoor
Exit Set
The following scenes are available:
Party/Indoor
Use for shots that include details of the background, or to capture the effects of candlelight and other indoor back­ground lighting.
• AF-assist illuminator (
*
19) lights when lighting is poor.
Off
Beach/Snow
Captures the brightness of such subjects as snowfi elds, beaches, or sunlit expanses of water.
• AF-assist illuminator ( 19) lights when lighting is poor.
*
OffAuto
Sunset
Preserves the deep hues seen in sunsets and sunrises.
• AF-assist illuminator ( 19) lights when lighting is poor.
Off
Off
Scene Mode
Exit Set
4
Select highlighted scene.
Beach/Snow
Exit Set
5
14
Return to shooting mode. Icon for
selected scene appears in display.
Depending on the scene selected, restrictions may apply to fl ash mode ( ; 38), the self-timer ( 40), macro close-up ( ; 41), or focus area selection ( ). These restrictions are noted on the pages that follow.
32
$00_Q02145_En 32-33 2004.6.1, 4:13:22 PM
* Other modes can be selected. † Center focus area selected automatically.
Camera Shake ( )
At slow shutter speeds, a icon appears in the monitor to warn that pictures may be blurred. In this section, precautions appropriate for avoiding blur are indicated by stars: ✭ hold camera in both hands and brace elbows against body
✭ ✭
use tripod or rest camera on fl at, level surface
Image Mode
Image mode ( 65) can be selected in the scene menu. The current setting is shown when the image mode icon is high­lighted.
*
Off
IMAGE MODE
Exit Set
Off
33
Page 23
14
Dusk / Dawn
Preserves the colors seen in the weak natural light before sunrise or after sunset.
• Noise reduction ( 35) turns on at slow shutter speeds.
• Camera focuses at infi nity. AF indicator lights whenever shutter-release button is pressed halfway.
Off
Night landscape
A slow shutter speed is used to produce stunning night landscapes.
• Noise reduction ( 35) turns on at slow shutter speeds.
• Camera focuses at infi nity. AF indicator lights whenever shutter-release button is pressed halfway.
Off
✭ ✭
Close up
Scene Mode
Use to photograph fl owers, insects, and other small objects at ranges as close as 1 cm (0.4˝), with the background artisti­cally blurred.
• Camera automatically zooms to macro close up position; macro close-up icon ( ) turns green. Zoom can only be adjusted in macro close-up range. Note that fl ash may be unable to light entire subject at ranges of under 40 cm / 15.7˝ (widest angle) or 60 cm / 23.6˝ (maximum zoom). Take test shot and examine results in monitor.
• Camera focuses continuously until shutter-release button is pressed halfway.
*
OnAuto
Manual ( 27)
Museum
Use indoors where fl ash photography is prohibited (for ex­ample, in museums and art galleries) or in other settings in which you do not want to use the fl ash.
• The Best Shot Selector (BSS; 70) turns on automatically, reducing the effects of inadvertent camera movement.
Courtesy of AMIUM
• Photography may be prohibited in some settings. Obtain permission fi rst.
*
Off
* Other modes can be selected. † Center focus area selected automatically.
34
Off
Fireworks show
Slow shutter speeds are used to capture the expanding burst of light from a fi rework.
• Focus is fi xed at infi nity. AF indicator lights whenever shut­ter-release button is pressed halfway.
• Self-timer and exposure compensation can not be used.
Off
✭ ✭
Copy
Provides clear pictures of text or drawings on a white board or in printed matter such as a business card.
• Use macro close-up ( 41) to focus at short ranges.
• AF-assist illuminator ( 19) lights when lighting is poor.
• Colored text and drawings may not show up well.
* *
Off
Off
Back light
Use when light is coming from behind a portrait subject,
Scene Mode
throwing their features into shadow.
• AF-assist illuminator ( 19) lights when lighting is poor.
Off
* Other modes can be selected. † Center focus area selected automatically.
Noise Reduction
“ Noise” in the form of randomly-spaced, brightly-colored pixels tends to appear in pic­tures taken at slow shutter speeds. This effect is particularly noticeable in dark areas of the picture. At settings of Dusk / Dawn and Night landscape, pictures taken at slow shutter speeds are processed to reduce noise (this more than doubles the time needed to process pictures before they are saved).
Sensitivity ( ISO Equivalency)
When lighting is poor and the fl ash is off, the camera auto­matically increases sensitivity, permitting faster exposures and minimizing blur caused by inadvertent camera movement (camera shake). An ISO icon will be displayed to warn that pictures may be slightly mottled.
Off
14
35
$00_Q02145_En 34-35 2004.6.1, 4:13:27 PM
Page 24
13
14
Panorama assist
Use when taking a series of pictures that will later be joined to form a single scene (for example, a panorama or 360 ° virtual-reality image).
• White balance and exposure are fi xed at values for fi rst shot in series. Flash mode, macro mode, exposure compensation, and zoom can not be changed after fi rst shot.
• AF-assist illuminator (
* Other modes can be selected until fi rst shot in each series is taken. † Center focus area selected automatically.
19) lights when lighting is poor.
* *
Off
Off
5
6
Take fi rst picture. About one third of picture is shown superimposed on view through lens (if pan direction is left to right, picture will appear on left side of monitor). AE-L icon turns white to show that white balance and exposure settings for this picture apply to all pic­tures in series.
7
Taking Pictures for a Panorama
Select (Panorama assist)
1
Scene Mode
in scene menu as described in steps 1–4 of “Scene Mode” ( 32).
3
Right
to left
Top to
bottom
Bottom
to top
Left to
4
36
2
Default pan direction displayed.
Select how pictures will be joined to­gether in completed panorama. This is the direction in which to pan the camera after each shot.
right
Make selection (to change selected pan direction, press center of multi selector and repeat steps 3–4). Pan direction displayed in white. Yellow AE-L icon in monitor shows that white balance and exposure will lock with fi rst shot.
13
14
Compose next shot to overlap with
previous picture.
8
Panorama Assist
Flash mode ( 38), macro close-up mode ( 41), self-timer mode ( 40), and expo­sure compensation ( 42) can be adjusted after the pan direction is selected. Once the fi rst shot in each series is taken, the pan direction, zoom, fl ash mode, macro close-up mode, exposure compensation, and image mode ( 65) can not be adjusted nor pic­tures deleted until the series is complete.
Storage Locations for Panoramas
Each series of pictures taken at Panorama assist is stored in a separate folder with a name consisting of “P_” preceded by a three-digit folder number and followed by a three-digit sequence number (e.g., “101P_002”).
Use a Tripod
Using a tripod makes it easier to compose overlapping shots.
Take next shot. Repeat steps 6–7 un-
til all shots in series have been taken.
End series. Shooting will also end if a new mode is selected or camera enters standby mode.
37
Scene Mode
$00_Q02145_En 36-37 2004.6.1, 4:13:40 PM
Page 25
More on Photography
14
14
14
14
14
Using the Flash: Flash Mode
The following fl ash modes are available:
Mode How it works
AUTO
Auto
Auto with
red-eye
reduction
Flash Cancel
(off)
Anytime Flash
( fi ll fl ash)
More on Photography
Slow sync
Flash fi res when lighting is poor.
Flash fi res several times at low intensity before main fl ash, reducing “red-eye.”
Flash will not fi re even when lighting is poor.
Flash fi res whenever pic­ture is taken.
Auto fl ash combined with slow shutter speeds.
1
Display fl ash-mode menu.
3
When to use it
Best choice in most situations.
Use for portraits. Works best when sub­ject looks directly at fl ash. Not recom­mended when quick shutter response is required.
Use to capture natural lighting under dim light or where use of fl ash is prohibited. If (camera shake) icon appears, care should be taken to avoid blurring.
Use to “fi ll-in” (illuminate) shadows and back-lit subjects.
Use to capture both subject and back­ground at night or under dim light. If (camera shake) icon appears, care should be taken to avoid blurring.
2
14
Highlight mode.
Exit menu (to exit without changing mode, wait two seconds). Selection is shown by icon at bottom of display.
14
Don’t Block the Flash Window
When using the fl ash, be sure that your fi ngers or other objects do not obstruct the fl ash window.
Auto Flash Off
The fl ash turns off ( ) automatically when BSS is enabled ( 70) or an option other than Single is selected for Continuous (
Low Battery
If the fl ash fi res when the low battery icon is displayed, the monitor will turn off while the Speedlight recharges.
Sensitivity ( ISO Equivalency)
When lighting is poor and the fl ash is off ( ), the camera will automatically increase sensitivity, permitting faster exposures and minimizing blur caused by inadvertent camera movement (camera shake). An ISO icon is displayed to warn that the picture may be slightly mottled.
The (Camera Shake) Icon
When lighting is poor and the fl ash is off ( ), shutter speeds will slow and pictures may be blurred. If the shutter speed required for exposure is very slow, a (camera shake) warning be displayed. Use of a tripod or support is recommended.
Flash Range
Flash range varies with zoom position. When the camera is zoomed all the way out, the fl ash has a range of 0.4 – 4.3 m (1´4˝ – 14´). The range at maximum zoom is 0.6 –2.6 m (2´ – 8´6˝). As a result, the fl ash may not be able to light the entire subject at distances of less than 40 cm/15.7˝ (widest angle) or 60 cm/23.6˝ (maximum zoom). When taking close-ups, play each picture back after shooting to check the results.
Default Flash Mode
When the camera is turned on in (auto) mode, the most recent fl ash setting will be restored; in other modes, the fl ash will be reset to the default for the selected mode. Reset all ( 99) resets the fl ash to AUTO ( mode) or to the default for the current mode (assist and scene modes).
69).
14
14
More on Photography
14
38
$00_Q02145_En 38-39 2004.6.1, 4:13:51 PM
39
Page 26
Taking a Self-Portrait: Self-Timer Mode
14
14
14
14
14
14
14
14
14
Easy Close-ups: Macro Close-up Mode
The camera is equipped with a ten-second timer for portraits or to avoid blur­ring that may result from the camera moving when the shutter-release button is pressed.
1
Display self-timer menu.
3
Exit menu (to exit without changing
mode, wait two seconds). Selection
More on Photography
is shown by icon in display.
5
2
14
Highlight ON.
4
14
Set focus and exposure.
Start timer. Camera counts down sec­onds until timer is released. To stop timer before picture is taken, press shutter-release button again or press multi selector left.
14
14
14
Macro close-up mode is used for taking close-up shots of small objects at very short distances (minimum 1cm/0.4˝).
1
Display macro close-up menu.
3
4
2
14
Highlight ON.
Exit menu (to exit without changing mode, wait two seconds). Selection is shown by icon in display.
14
Frame picture. If camera is zoomed out to position, camera can focus at distance of 1cm/
0.4˝. If icon turns red, camera may not be able to focus at short range.
14
icon turns green and
14
More on Photography
The self-timer lamp on the front of the camera will blink until one second before the picture is taken, stay­ing lit during the fi nal second to warn that the shutter is about to be released.
The Self-Timer
When using the self-timer, mount the camera on a tripod (recommended) or rest it on a fl at, level surface. Selecting ON in the self-timer menu automatically turns BSS off and sets the Continuous option in the shooting menu to Single.
40
$00_Q02145_En 40-41 2004.6.1, 4:14:00 PM
Macro Close-up Mode
The fl ash may not be able to light the entire subject at distances of less than 40 cm/15.7˝ (widest angle) or 60 cm/23.6˝ (maximum zoom). When taking close-ups, play each picture back after shooting to check the results.
In macro close-up mode, the camera focuses continuously, even when the shutter-re­lease button is not pressed halfway.
41
Page 27
Controlling Exposure: Exposure Compensation
0.3
0
0.3
14
0.7
0
0.3
14
0.3
14
Exposure compensation is used to alter exposure from the value suggested by the camera. Exposure compensation can be set to values between –2.0 EV (underexposure) and +2.0 EV (overexposure) in increments of
1
3 EV.
1
000
Display exposure compensation menu.
3
0.3
0.3
More on Photography
Cancelling Exposure Compensation
To cancel exposure compensation, choose a value of 0.
Choosing a Value for Exposure Compensation
As a rule of thumb, select positive values when large areas of the frame are very brightly lit (for example, when photographing an expanse of sunlit water, sand, or snow) or when the background is much brighter than the main subject. Choose negative values when large areas of the frame are very dark (for example, when photographing a forest of dark green leaves) or when the background is much darker than the main subject. This is because the camera, in order to avoid extreme under- or over-exposure, tends to lower exposure when the frame is very bright and raise exposure when the frame is very dark, which can make naturally bright subjects look dim and naturally dark subjects appear over-bright, or “washed out.”
42
2
14
Highlight desired value.
Exit menu (to exit without changing mode, wait two seconds). icon is dis­played at settings other than 0.
14
000
14
$00_Q02145_En 42 2004.6.1, 4:14:06 PM
Page 28
Movies
Choosing a Movie Mode
The camera can record the following types of movie. All movies are recorded in color at a frame rate of 15 frames per second, with sound recorded via the built-in microphone.
Max. length
Internal
Option Description
Vertical interlacing is used for a frame
TV movie 640
Small size 320
(default)
Smaller size
160
pproximate maximum total length. Shooting can continue to limit of available
memory; actual length of individual movies may vary with make of memory card.
size of 640 × 480 pixels, suitable for television playback.
Movies are recorded at a size of 320 × 240.
Movies are recorded at a size of 160 × 120. Small size allows longer movies to be recorded.
memory
(13.5 MB)
24 s 440 s
49 s 880 s
197 s 3520 s
*
256 MB
memory
card
Movies
43
$00_Q02145_En 43 2004.6.1, 4:14:15 PM
Page 29
MOVIE
AUTO-FOCUS MODE
AUTO-FOCUS MODE
AUTO-FOCUS MODE
MOVIE OPTIONS
MOVIE OPTIONS
MOVIE OPTIONS
MOVIE
MOVIE
To select a movie mode:
The movie menu also includes the following focus options:
1
Select mode.
3
Highlight Movie options.
5
Movies
Highlight mode.
* To exit without changing mode, press
button.
MOVIE
Movie options
Auto-focus mode
MOVIE OPTIONS
TV movie 640
Small size 320
Smaller size 160
*
7
2
49s
Display MOVIE menu.
4
Display MOVIE OPTIONS menu.
6
Make selection.
† To return to MOVIE menu after making
selection, press multi selector to left.
Return to shooting mode. Selected movie mode indicated by icon in dis­play.
MOVIE
Movie options
Auto-focus mode
MOVIE OPTIONS
TV movie 640
Small size 320
Smaller size 160
MOVIE OPTIONS
TV movie 640
Small size 320
Smaller size 160
Option Description
Single AF
Continuous AF
(default)
Camera focuses when shutter-release button is pressed halfway. Focus locks when focus operation is complete.
Camera adjusts focus continuously.
To choose a focus option from the MOVIE menu:
1
Highlight Auto-focus mode.
3
Highlight desired focus mode.
5
MOVIE
Movie options
Auto-focus mode
AUTO-FOCUS MODE
Single AF
Continuous AF
2
4
Return to shooting mode.
AUTO-FOCUS MODE
Single AF
Continuous AF
Display options.
AUTO-FOCUS MODE
Single AF
Continuous AF
Movies
Make selection.
49s
24s
44
$00_Q02145_En 44-45 2004.6.1, 4:14:44 PM
45
Page 30
Recording Movies
Viewing Movies
Rotate the mode dial to and turn the cam-
1
era on
The exposure count display shows the maximum total length of the movie that can be recorded.
Start recording
2
Press the shutter-release button all the way down to start recording. The
icon will blink and progress will be shown by an indicator at the bot­tom of the display.
28s
End recording
3
Press the shutter-release button all the way down a second time to end recording. Recording will end automatically when the internal memory or memory card is full.
Movies
Zoom
Optical zoom can not be adjusted during recording. Digital zoom (maximum 2 ×) can be used at any time, both before and during recording.
Movies
During recording, do not touch the built-in microphone. To prevent the sound of the camera focusing from interfering with recording, select a focus mode of Single AF.
The fl ash turns off ( ) automatically when movie mode is selected ( 38). The self­timer ( 40) and exposure compensation ( 42) can not be used.
The progress indicator stops at 999 s. Recording can continue past this point if enough memory is available.
Movies are recorded as QuickTime movie fi les with the extension “.MOV” and names consisting of “DSCN” plus a four-digit fi le number assigned by adding one to the high­est fi le number in the current folder (e.g., “DSCN0015.MOV”). Movies can be played back on a computer after transfer.
46
In full-frame playback ( 48), movies are indicated by a icon and can be viewed by pressing the center of the multi selector. Playback controls appear at the top of the display; press the multi selector left or right to highlight a control, then press the center of the multi selector to perform the selected operation.
Control Description
Rewind
Advance
Pause
Jog rewind
Jog advance
Resume
Stop
Direct Print
Movies can not be printed via direct USB connection ( 60).
Playback Volume
The zoom buttons control volume during playback. Press to decrease volume, to increase.
Deleting Movies
To delete a movie, press the button. A confi rmation dialog will be displayed; press the multi selector up or down to highlight an option, then press the center of the multi selector.
Yes : delete movie and return to full-frame playback
No: exit to full-frame playback without deleting movie
Highlight and press and hold center of multi selector to rewind movie. Playback resumes when multi selector is released.
Highlight and press and hold center of multi selector to fast forward through movie. Playback resumes when multi selector is released.
Pause playback.
When movie is paused, rewind one frame.
When movie is paused, advance one frame.
Resume playback.
End movie and return to full-frame playback.
ovie paused
12s
Playback display
47
Movies
$00_Q02145_En 46-47 2004.6.1, 4:15:01 PM
Page 31
More on Playback
000 1
100
10
08
00
2 0 0 4
0 1
Erase 1 image (s)?
Save this image as displayed?
Viewing Pictures on the Camera
To view pictures, press the button (if the camera is off, pressing the button for about a second will turn the camera on and start playback). Pictures will be dis­played full-frame in the monitor (full-frame playback). Images can be viewed at about × 3 magnifi cation by pressing the center of the multi selector (
Viewing Multiple Pictures: Thumbnail Playback
Pressing the (W) button in full-frame playback dis­plays pictures in “contact sheets” of four thumbnail images. The following operations can be performed while thumbnails are displayed:
To DescriptionPress
Highlight
pictures
Change
number of
pictures
displayed
More on Playback
Delete
highlighted
Press multi selector up, down, left, or right to highlight pictures.
With four thumbnails displayed, press (W) button once to view nine thumbnails. Press (T) to “zoom in”
(W)/
from nine to four thumbnails or, when four thumbnails
(T)
are displayed, to view highlighted picture full frame.
Confi rmation dialog will be displayed. Press multi selector up or down to highlight option, press center to select.
• Select Ye s to delete picture
• Select No to exit without deleting picture
22).
08
2004
01
200401
00
10
100800
11
33
 Erase 1 image (s)?
Yes
Taking a Closer Look: Playback Zoom
N
0001
0001
1/1
22
44
No
full-frame playback ( 48).
To DescriptionPress
Zoom increases each time button is pressed, to a maximum
Zoom in
View other
areas of
Zoom out
Cancel
zoom
Crop picture ( 50)
Shutter
button
of 10 ×. While image is zoomed in, icon and zoom ratio
(T)
are displayed in top left corner of monitor.
Use multi selector to scroll to areas of picture not visible in monitor. To use multi selector to view other pictures, can­cel zoom.
Zoom decreases each time button is pressed. To cancel
(W)
zoom, zoom picture out until entire picture is displayed.
Cancel zoom and return to full-frame playback.
Confi rmation dialog will be displayed. Press multi selector up or down to highlight option, press center to select.
• Select Ye s to create new picture con­taining only area visible in monitor
• Select No to exit without creating cropped copy
100N I K
Use the (T) button to zoom in on images displayed in
100
N I KON
O
4.0
Scroll Zoom
Save this image as displayed?
No
Yes
More on Playback
View high-
lighted picture
full frame
Exit to current
mode
48
$00_Q02145_En 48-49 2004.6.1, 4:15:34 PM
View picture highlighted in four- or nine-thumbnail dis­play full frame.
Exit to mode selected with mode dial.
Playback Zoom
Playback zoom is not available with movies ( 47) or copies created using the small picture option ( 85).
49
Page 32

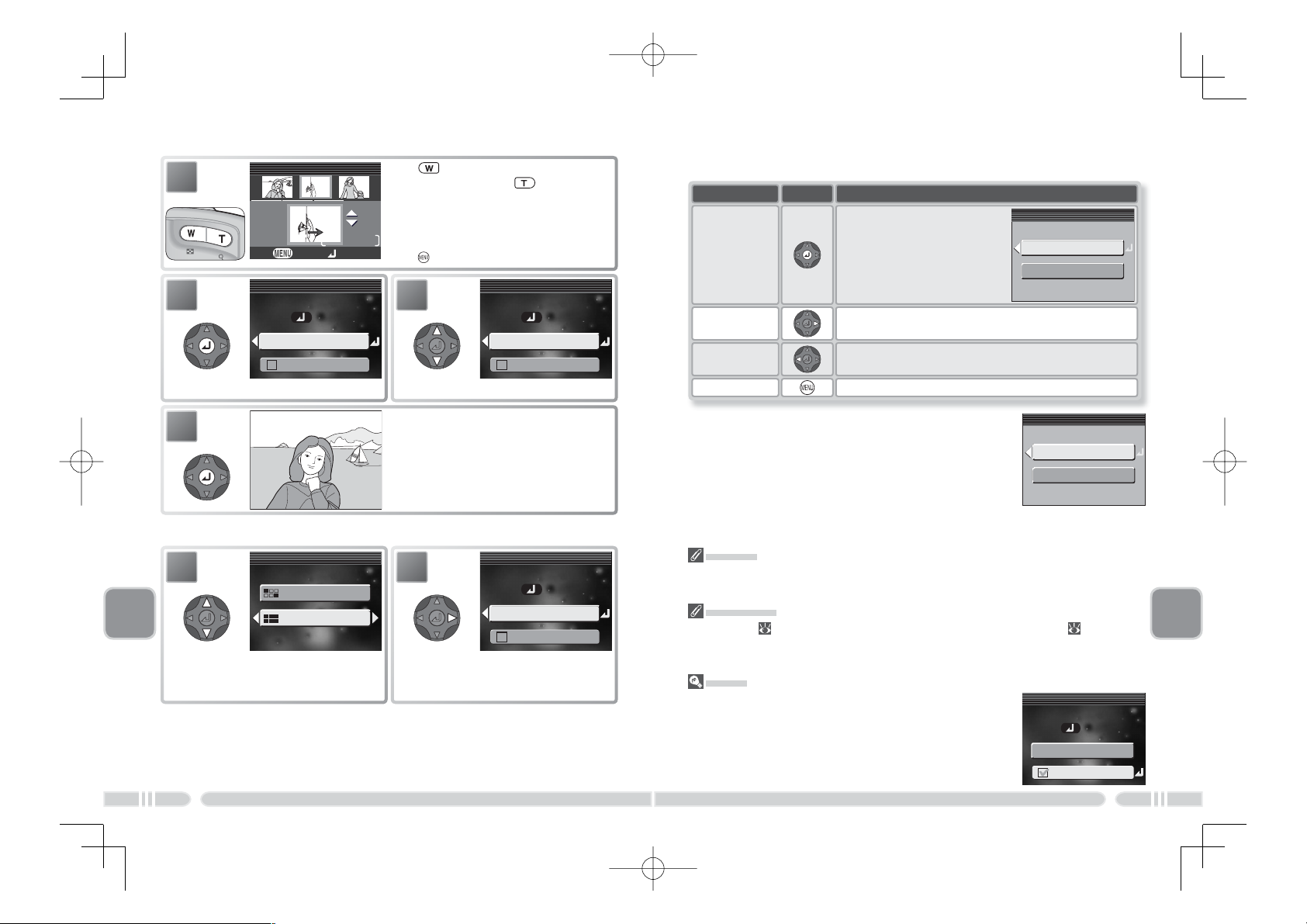

Cropping Pictures
Save this image as displayed?
Save this image as displayed?
000 1
100
10
08
00
2 0 0 4
0 1
20s
Erase 1 image (s)?
0001
100
100000
200 4
When a picture is zoomed in, the portion of the picture visible in the monitor can be saved in a separate fi le, creating a cropped copy of the image. To cre­ate a cropped copy, press the shutter-release button after using the (T) and
(W) buttons and multi selector to display the desired portion of the picture
in the monitor (
1
Confi rmation dialog displayed.
* To exit without creating copy, highlight No and press center of multi selector.
3
Cropped copies are stored as JPEG fi les (compression ratio 1 : 8) with names of the form “RSCNnnnn.JPG,” where “nnnn” is a four-digit number as­signed automatically by the camera, and are created with the same transfer
More on Playback
marking and time and date of creation as the original (print and protect at­tributes are not set; 58, 82). Depending on the size of the original and the zoom ratio at the time the copy was created, copies will be 2,288 × 1,712 ( ), 1,600 × 1,200 ( ), 1,024 × 768 ( ), 640 × 480 ( ), 320 × 240 ( ), or 160 × 120 ( ) pixels in size. Copies are independent of the original: deleting the copy has no effect on the original, and deleting the original has no effect on the copy.
49).
Save this image as displayed?
No
Yes
Done
2
Highlight Yes.
Create cropped copy and return to full­frame playback.
Save this image as displayed?
No
Yes
*
Voice Memos: Recording and Playback
A voice memo can be recorded and appended to any picture marked with a (voice memo recording guide) icon in full-frame playback ( 21, 48). If a voice memo already exists for the current picture, it must be deleted before a new memo can be recorded. Voice memos can not be recorded for movies or during thumb­nail playback (
To DescriptionPress
Record
voice
memo
Play voice
memo
Change volume
Delete
or voice
memo
48) or playback zoom ( 22, 49).
If icon is displayed on current picture, memo will be recorded while shutter-release button is held down.
Shutter
button
Shutter
button
During recording, icon blinks. Re­cording ends after about 20 s or when shutter-release button is released. Do not touch microphone during recording.
Pictures for which voice memo exists are marked by (voice memo play­back guide) and icons. Press shut­ter-release button to play voice memo. Playback ends when voice memo ends or shutter-release button is pressed again.
Zoom buttons control volume during playback. Press to lower volume, to increase.
Confi rmation dialog will be displayed. Press multi selector up or down to highlight option, press center to select.
• Select Ye s to delete both picture and voice memo
• Select to delete voice memo only
• Select No to exit without deleting pic­ture or voice memo
08
2004
01
200401
00
10
100800
2004
2004
010101080808
10
10
00
 Erase 1 image (s)?
Yes
100N I K
100
N I KON
O
N
0001
0001
1/1
20s
100
N I KON
O
N
100N I K
0001
0001
1/4
More on Playback
No
Cropping Pictures
Copies can only be created if suffi cient memory is available. Cropped copies may not display or transfer correctly when viewed on other models of Nikon camera. Cropping is not available with movies ( 47), small pictures ( 85), or cropped copies.
50
$00_Q02145_En 50-51 2004.6.1, 4:15:48 PM
Voice Memos
Voice memo fi le names have the same identifi er and four-digit fi le number as the associ­ated picture, followed by the extension “.WAV” (e.g., “DSCN0015.WAV”).
51
Page 33
Viewing Pictures on TV
Viewing Pictures on a Computer
The EG-CP14 audio / video (A / V) cable included with the camera can be used to connect the camera to a television or video-cassette recorder (VCR).
Choosing a Video Mode
The Video mode item in the setup menu offers a choice of NTSC and PAL ( 99). Be sure that the mode selected matches the standard used in the video device.
Turn the camera off
1
Turn the camera off before connecting or disconnecting the A / V cable.
Connect the A / V cable
2
Open the interface connector cover as shown at right and insert the black plug into the camera’s interface connector. Insert the yellow plug into the video-in jack on the television or VCR. Connect the white plug to the audio-in jack.
Tune the television to the video channel
More on Playback
3
If in doubt, consult the documentation for your television or VCR.
Turn the camera on
4
Press the button for about a second to turn the camera on. The camera monitor will remain off and the television will show the image normally shown in the monitor.
Using the UC-E6 USB cable and PictureProject software provided with your camera, you can view your photographs and movies on a computer. Before you can transfer (copy) pictures to your computer, you will need to install PictureProject. For more information on installing PictureProject and transfer­ring pictures to your computer, see the PictureProject Reference Manual (on CD) and the Quick Start Guide.
Before Connecting the Camera
Pictures can be copied from the camera to the computer by:
• Pressing the center of the multi selector ( button)
• Clicking the Tr ansfer button in PictureProject Which method you will use depends on your comput­er’s operating system and the USB option selected in the camera setup menu. After consulting the follow­ing table, select the appropriate option using the USB item in the camera setup menu. The default option is Mass Storage.
Pictures transferred using:
Operating system
Windows XP Home Edition
Windows XP Professional
Windows 2000 Professional
Windows Millennium Edition (Me)
Windows 98 Second Edition (SE)
Mac OS X 10.1.5 or later
Camera multi selector
( button)
Choose Mass Storage or PTP.
Choose Mass Storage.
Choose PTP.
Center of multi selector
( button)
PictureProject
Transfer button
Choose Mass
Storage or PTP.
More on Playback
PAL
If PAL is selected for Video mode and the camera connected to a video device, video output will be suspended and the camera monitor or electronic viewfi nder will turn on when the camera is in movie mode.
52
$00_Q02145_En 52-53 2004.6.1, 4:16:07 PM
“Mass Storage”
If Mass Storage is selected for USB, the center of the multi selector ( button) can not be used to transfer pictures from internal memory or from “locked” (write-pro­tected) memory cards ( 11). Use the PictureProject Transfer button.
53
Page 34
Choosing a USB Option
USB
USB
SET-UP
1/4
SET-UP
3/4
USB
1
SET-UP
Welcome screen
Date
Date imprint
1/4
Connecting the USB Cable
2
SET-UP
Format memory
Language
USB
3/4
Turn the computer on and wait for it to start up. After confi rming that the camera is off, connect the UC-E6 USB cable as shown below. Connect the camera directly to the computer; do not connect the cable via a USB hub or keyboard.
Select SET UP mode.
3
Display USB menu.
5
More on Playback
54
USB
PTP
Mass storage
USB
PTP
Mass storage
Highlight USB.
4
Mass storage
Highlight PTP or Mass Storage.
Make selection.
USB
PTP
UC-E6 USB cable
The lens will extend when the camera is turned on.
Windows 2000 Professional, Windows Millennium Edition (Me),
Windows 98 Second Edition (SE)
Do NOT select PTP when connecting the camera to a computer running one of the above operating systems. If you have connected the camera to a computer running one of the above operating systems with PTP selected in the USB menu, disconnect the camera as described below. Be sure to select Mass Storage before reconnecting the camera.
Windows 2000 Professional
A dialog will be displayed welcoming you to the Found New Hardware Wizard. Click
Cancel to close the dialog, and then disconnect the camera.
Windows Millennium Edition (Me)
After displaying a message stating that the hardware information database is being updated, the computer will start the Add New Hardware Wizard. Click Cancel to exit the wizard, and then disconnect the camera.
Windows 98 Second Edition (SE)
The Add New Hardware Wizard will be displayed. Click Cancel to exit the wizard, and then disconnect the camera.
55
More on Playback
$00_Q02145_En 54-55 2004.6.1, 4:16:08 PM
Page 35
Printing Pictures
Disconnecting the Camera
If PTP is selected in the USB menu, you can turn the camera off and discon­nect the USB cable once transfer is complete. If you have not changed the
USB option in the camera setup menu from its default setting of Mass Stor- age, you must remove the camera from the system as shown below before
turning the camera off or disconnecting the cable.
Windows XP Home Edition/Windows XP Professional
Click the “Safely Remove Hardware” icon ( ) in the taskbar and select Safely remove USB Mass Storage Device from the menu that appears.
Windows 2000 Professional
Click the “Unplug or Eject Hardware” icon ( ) in the taskbar and select Stop USB Mass Storage Device from the menu that appears.
Windows Millennium Edition (Me)
Click the “Unplug or Eject Hardware” icon ( ) in the taskbar and select Stop USB Disk from the menu that appears.
Windows 98 Second Edition (SE)
In My Computer, click with the right mouse button on the removable disk corresponding to the camera and select Eject from the menu that appears.
More on Playback
Macintosh
Drag the untitled camera volume (“NO NAME” or “NO_NAME”) into the Trash.
To print pictures:
• select pictures for printing using Print set ( 58) and take the memory card to a digital print service center or insert the card into a personal photo printer equipped with a card slot. To print the pictures in internal memory, copy them to a memory card before selecting pictures using Print set. Some print services may be able to print pictures directly from the camera.
• use the USB cable to connect the camera to a printer that supports Pict­Bridge and print pictures directly from the camera (
61)
• transfer the pictures using PictureProject and print them from a computer (see the PictureProject Reference Manual, on CD)
To print the time and date of recording on pictures:
• take pictures using the Date imprint option in the setup menu, which im- prints the date or date and time of recording directly on pictures as they are taken ( 95)
if the photo printer or print service supports Digital Print Order Format
(DPOF), use the Date option in the Print set > Print selection menu ( 58)
• transfer the pictures using PictureProject and print them using the “Print Metadata” option (see the PictureProject Reference Manual, on CD)
“ Print Set” and Digital Print Order Format ( DPOF)
The Print set option in the playback menu is used to create a digital “print order” list- ing the pictures to be printed, the number of prints, and the information to be included on each print. This print order is stored on the camera memory card in Digital Print Order Format (DPOF). Once a print order has been created, the memory card can be inserted in a DPOF-compatible device and the pictures printed directly from the card. Before using this option, check that the printer or print service supports DPOF. Note that if the Print set option has not been used to create a print order, one copy of all the pictures on the memory card will be printed.
“Date Imprint” Versus the Print Set “Date” Option
Date imprint Print selection > Date
Must be set before picture is taken
Date permanently imprinted on picture Date stored separately
Date appears whenever picture is
printed
Set after picture is taken
Date only appears when picture is print-
ed on DPOF-compatible printer
More on Playback
56
$00_Q02145_En 56-57 2004.6.1, 4:16:11 PM
57
Page 36
Print Set
PRINT SELECTION
PRINT SET
PRINT SELECTION
PRINT SELECTION
PRINT SELECTION
PLAYBACK MENU1/1/
PRINT SET
0001
100NIKON
10
2004000108
PRINT SET
The Print set option in the playback menu is used to create digital “print or- ders” for devices that support DPOF ( 57). The camera must be in playback mode to create or modify print orders ( 76).
1
Display playback menu.
PLAYBACK MENU
3
Highlight Print selected.
Print set
Slide show
Delete
PRINT SET
Print selected
Delete print set
3
2
Display PRINT SET menu.
4
Display selection dialog.
PRINT SET
Print selected
Delete print set
PRINT SELECTION
08 . 01. 2004 12
:
20
Back Set
44/
8
Press center of multi selector to complete print order and display menu of print options.
• To print date of recording on all pictures in print order, highlight Date and press center of multi selector. will appear in box next to item.
• To print shutter speed and aperture on all pictures in print order, highlight Info and press center of multi selector. will appear in box next to item.
• To turn selected item off, highlight and press center of multi selector.
To complete print order and return to playback, highlight Done and press center of multi selector. To exit without altering print order, press button.
PRINT SET
Done
Date Info
Done
5
More on Playback
Scroll through pictures. Current pic-
ture shown at bottom of display.
7
58
$00_Q02145_En 58-59 2004.6.1, 4:16:16 PM
PRINT SELECTION
08 . 01. 2004 12
:
10
Back Set
PRINT SELECTION
08 . 01. 2004 12
:
10
Back Set
3
3
6
43/
Select current picture and set num­ber of prints to 1. Selected pictures
marked by icon.
Use multi selector to specify number of prints (up to 9). To deselect picture, press multi selector down when num­ber of prints is 1. Repeat steps 5–7 to select additional pictures.
43/
PRINT SELECTION
08 . 01. 2004 12
:
10
Back Set
1
1
43/
Print Set
If the menu shown in Step 8 is displayed after a print order is created, the Date and Info options will be reset.
“Date”
If Date is selected in the print set menu, the date of recording will appear on any pictures printed using devices that support the DPOF date function. Note that the information printed on the image will not be correct unless the camera clock was set correctly when the picture was taken ( 13).
The date stamp recorded when Date or Date and time is selected for Date imprint ( 95) forms a permanent part of the image and will appear whenever the image is printed, even if the printer does not support the DPOF date function. Print set can not be used to print the time and date of recording on pictures recorded when Date or
Date and time is selected for Date imprint.
The Print-Order Icon
During playback, a print-order icon appears on all pictures in the current print order.
1/1
More on Playback
59
Page 37
Printing Via Direct USB Connection
PictBridge
PictBridge
PRINT
PRINT SELECTION
PRINT
When the camera is connected to a PictBridge-compatible printer via the UC­E6 USB cable, selected pictures can be printed directly from the camera.
Step 2 — Connect the USB Cable
After confi rming that the camera is off, connect the UC-E6 USB cable as shown below.
Step 1
Step 2
Step 3
Set the USB option to PTP ( 60)
Connect the USB Cable ( 61)
Print
• Print selected pictures ( 61)
• Print DPOF print order ( 63)
Step 1 — Set the USB Option to PTP
Before pictures can be printed via direct USB connection, the USB option in the setup menu must be set to PTP ( 54; the default option is Mass stor-
age). Be sure to change the USB option before connecting the printer.
Before Printing
Before printing via direct USB connection, check printer settings and make sure that the printer supports PictBridge. See the printer manual for details.
Use a Reliable Power Source
When printing pictures via direct USB connection, be sure the battery is fully charged. If
More on Playback
in doubt, recharge the battery before printing or use the optional EH-54 AC adapter.
Error Messages
If the dialog shown at right is displayed, an error has occurred. After checking the printer and resolving any problems as di­rected in the printer manual, highlight Resume and press the center of the multi selector to resume printing. Select Cancel to exit without printing the remaining images.
PictBridge
PictBridge is an industry standard for direct printing that ensures compatibility when different devices are connected.
60
PRINTER ERROR CHECK PRINTER STATUS
Resume
Cancel
UC-E6 USB cable
Turn the camera and printer on. The menu shown at right will be displayed in the camera monitor.
PictBridge
Print
DPOF printing
Cancel
Step 3 — Print Pictures
To print selected pictures:
1
Highlight Print.
3
Highlight Print selection.
* To print one copy of all pictures, highlight Print all images and press multi selector to
right.
PictBridge
Print
DPOF printing
Cancel
PRINT
Print selection
Print all images
Cancel
2
Display options.
4
*
Display selection dialog.
PRINT
Print selection
Print all images
Cancel
PRINT SELECTION
08 . 01. 2004 12
:
20
Back Set
44/
61
More on Playback
$00_Q02145_En 60-61 2004.6.1, 4:16:18 PM
Page 38
PRINT SELECTION
PRINT SELECTION
5
PRINT SELECTION
CONFIRM
Printer ready?
prints
Print selection
Printer ready?
prints
DPOF PRINTING
Printer ready?
prints
DPOF PRINTING
CONFIRM
Printer ready?
prints
DPOF PRINTING
PictBridge
Scroll through pictures. Current pic-
ture shown at bottom of display.
7
8
PRINT SELECTION
08 . 01. 2004 12
:
10
Back Set
PRINT SELECTION
08 . 01. 2004 12
:
10
Back Set
CONFIRM
3
3
142
5
Exit
9
More on Playback
Display confi rmation dialog. Press multi selector up or down to highlight op­tion, press center to select.
• Select Start print to start printing. To interrupt printing, press center of multi selector, then turn camera off and disconnect USB cable.
• Select Back to return to print selection dialog shown in Step 4.
• Select Cancel to exit without printing pictures.
Message shown above at right is displayed when printing is complete. Turn camera off and disconnect USB cable.
62
Print selection
Printer ready?
prints
006
Start print
Back
Cancel
6
43/
Select current picture and set num­ber of prints to 1. Selected pictures
Use multi selector to specify number of prints (up to 9). To deselect picture, press multi selector down when num­ber of prints is 1. Repeat steps 5–7 to select additional pictures.
43/
View selected pictures. Press multi se­lector up, right, left, or down to view pictures not visible in display.
3
6
Printing 001/006
marked by icon.
Cancel
PRINT SELECTION
08 . 01. 2004 12
:
10
Back Set
Done
YOU MAY TURN OFF THE CAMERA
Resume
1
1
To print the current print order:
1
43/
Highlight DPOF printing.
3
Highlight Confi rm (to exit without printing pictures, highlight Cancel
and press center of multi selector).
5
Display confi rmation dialog. Press multi selector up or down to highlight op­tion, press center to select.
• Select Start Print to start printing. To interrupt printing, press center of multi selector, then turn camera off and disconnect USB cable.
• Select Cancel to exit without printing pictures.
Message shown above at right is displayed when printing is complete. Turn camera off and disconnect USB cable.
DPOF Printing
The DPOF printing option is only available if pictures have previously been selected for printing using Print set ( 58–59). Date and shooting information ( 59) will only be printed if the printer supports DPOF.
DPOF PRINTING
PictBridge
DPOF printing
DPOF PRINTING
Printer ready?
006
Start print
Confirm
Printer ready?
prints
006
Start print
Confirm
Cancel
Print
Cancel
prints
Cancel
2
Display options.
4
Display print order. Press multi selec­tor up, right, left, or down to view
pictures not visible in display.
Printing
001/006
Cancel
DPOF PRINTING
Printer ready?
prints
006
Start print
Confirm
Cancel
CONFIRM
142
5
Exit
Done
YOU MAY TURN OFF THE CAMERA
Resume
3
6
More on Playback
63
$00_Q02145_En 62-63 2004.6.1, 4:16:20 PM
Page 39
Menu Guide
SHOOTING MENU
1/3
SHOOTING MENU
1/3
CONTINUOUS
1/2
CONTINUOUS
1/2
IMAGE MODE
1/2
Image mode
SelectSelect Press
The Shooting Menu
The following shooting menu options are available in (auto) mode:
Option Description
Image mode Choose image size and quality. 65–66
White balance Match white balance to the light source. 67–68
Continuous Take pictures one at a time or in a sequence. 69
BSS Tu rn the Best Shot Selector (BSS) on or off. 70
Sensitivity Control camera’s sensitivity to light. 71
Image adjustment Control contrast. 72
Image sharpening Control how much the camera sharpens outlines. 73
AF area mode Determines how the focus area is selected. 74
Color options Control color. 75
To display the shooting menu, rotate the mode dial to button. To make a selection from the shooting menu:
1
Highlight menu item.
SHOOTING MENU
Image mode
White balance
Continuous
1/3
2
Display options.
and press the
SHOOTING MENU
Image mode
White balance
Continuous
1/3
Image Mode
Pictures taken with a digital camera are recorded as im­age fi les. The size of the fi les, and with it the number of images that can be recorded, depends on the size and quality of the images (image mode). Before shoot­ing, choose an image mode according to how you plan to use the picture.
Compression
Option Description
High
(2288★)
Normal
(2288)
Normal
(1600)
PC screen
(1024)
TV screen
(640)
Size
(pixels)
2,288 ×
1,712
2,288 ×
1,712
1,600 ×
1,200
1,024 ×
768
640 ×
480
ratio
1 : 4
1 : 8
1 : 8
1 : 8
1 : 8
*
High quality, suitable for en­largements or high-quality prints.
Best choice in most situa­tions.
Smaller size allows more pic­tures to be stored on memory card.
Suited to printing at smaller sizes (for example, in a let­ter or report) or to display on computer monitors 17˝ or larger.
Can be displayed full screen on television or 13˝ monitor. Suited to distribution by e­mail or web.
IMAGE MODE
High(2288
Normal(2288
Normal(1600
Print size
(cm)
19 × 14
(7½˝ × 5˝)
19 × 14
(7½˝ × 5˝)
14 × 10
(5˝ × 4˝)
9 × 7
(3½˝ ×
2½˝˝)
5 × 4
(2˝ × 1½˝)
1/2
)
)
)
*
3
The Shooting MenuMenu Guide
CONTINUOUS
Single
Continuous
Multi-shot 16
Highlight option.
1/2
4
Make selection.
CONTINUOUS
Single
Continuous
Multi-shot 16
1/2
To exit the menu and return to shooting mode, press the button again. De­faults can be restored using the Reset all option in the setup menu ( 99).
64
$00_Q02145_En 64-65 2004.6.1, 4:16:26 PM
To reduce the amount of memory each shot occupies, pictures are compressed as they are saved. Compression selectively reduces the quality of the image. The more a picture is compressed, the more noticeable this loss of quality is likely to be. The fi gures in pa­rentheses show the approximate compression ratio for each setting.
† All fi gures are approximate. Print sizes assume a printer resolution of approximately
300 dpi.
Assist and Scene Modes
The image mode menu is also available in assist and scene modes ( 27, 29, 33).
The Shooting MenuMenu Guide
65
Page 40
14
WHITE BALANCE
1/3
White balance
SelectSelect Press
The following table shows the approximate number of pictures that can be stored in internal memory and on a 256-megabyte memory card in different image modes.
Image mode
High (2288★) 125 7 1.9 MB
Normal (2288)
Normal (1600)
PC screen (1024)
TV screen (640)
* All fi gures are approximate. File size of pictures depends on scene recorded, produc-
ing wide variations in number of images that can be stored. If memory remains for more than 999 pictures, camera exposure count display will show 999.
Image Size
Smaller images create smaller fi les suited to transmission by e-mail or use in web pages. When printed at larger sizes, however, small images will be rough and uneven in ap­pearance.
Print Size
The size of images when printed depends on the printer resolution: the higher the
The Shooting MenuMenu Guide
resolution, the smaller the fi nal print size.
Image Mode
The current image mode is shown by an icon at the bottom left corner of the display.
256 MB memory cardInternal memory (13.5 MB) File size
250 14 1.0 MB
480 27 500 KB
1035 57 230 KB
2220123 110 KB
White Balance
The color of the light refl ected from an object varies with the color of the light source. The human brain is able to adapt to such changes in color, with the re­sult that we see white objects as white, regardless of whether they are in the shade, direct sunlight, or under
WHITE BALANCE
Auto
White bal. preset
Daylight
incandescent lighting. Digital cameras can mimic this adjustment by processing information from the camera’s image sensor (CCD) according to the color of the light source. This process is known as a “white balance adjustment.”
Option
Auto
White bal. preset
Daylight White balance adjusted for direct sunlight.
Incandescent Use under incandescent lighting.
Fluorescent Use under most types of fl uorescent lighting.
Cloudy
Speedlight Use with the fl ash.
White balance automatically adjusted to suit lighting conditions. Best choice in most situations.
Gray object used as reference to set white balance under unusual lighting conditions.
Use when taking pictures under overcast skies.
Description
1/3
The Shooting MenuMenu Guide
66
$00_Q02145_En 66-67 2004.6.1, 4:16:30 PM
67
Page 41
WHITE BAL PRESET
14
CONTINUOUS
1/2
Continuous
SelectSelect Press
Preset White Balance
Preset white balance is used when shooting under mixed lighting or to compensate for light sources with a strong color cast (for example, to make pictures taken under a lamp with a red shade look as though they had been taken under white light). When (White bal. preset) is selected from the white-balance menu, the camera will zoom in and the menu shown above at right will be displayed in the monitor.
Option
Cancel
Recalls the most recent value for preset white balance from the memory and sets white balance to this value.
To measure a new value for white balance, place a neutral gray object, such as a piece of cardboard, under the lighting that will be used in the fi nal picture. Frame this object so that it fi lls the square in the center
Measure
of the menu shown above. Highlight Measure and press the center of the multi selector to measure a new value for white balance (shutter will be released and camera will return to original zoom position, but no picture will be recorded).
Preset White Balance
The Shooting MenuMenu Guide
Preset white balance can not be measured with the fl ash.
White Balance
At settings other than (Auto), white balance is shown by an icon in the display.
Description
WHITE BAL PRESET
Cancel
Measure
Continuous
Use the options in this menu to capture a fl eeting expression on a portrait subject, photograph a subject that is moving unpredictably, or capture motion in a series of pictures.
Option
Description
CONTINUOUS
Single
Continuous
Multi-shot 16
Single One shot is taken each time shutter-release button is pressed.
Continuous
While shutter-release button is pressed, camera takes pictures at rate of up to 1.5 fps until (wait) icon is displayed.
Each time shutter-release button is pressed, camera takes sixteen consecutive pictures
Multi-shot
16
572 × 428 pixels in size at rate of about 2 fps and arranges them in four rows to form a single picture measuring 2288 × 1712 pixels. Image mode automatically set to Normal (2288).
3 shot
buffer
Camera shoots at up to 1 fps while shutter-release button is pressed, but only last few shots are saved (number of pictures recorded depends on current image mode setting).
Restrictions on Camera Settings
At settings other than Single, the fl ash ( 38) and BSS ( 70) turn off and focus, ex­posure, and white balance for all pictures are determined by the fi rst shot in each series. Continuous is automatically set to Single when the self-timer is activated ( 40) or BSS is enabled ( 70). Digital zoom ( 16) can not be used with Multi-shot 16.
The Memory Buffer
During shooting, pictures are stored in a temporary memory buffer before being trans­ferred to internal memory or to the memory card for permanent storage. You can continue to take pictures as long as room is available in the buffer. When the buffer is full, a (wait) icon will be displayed and shooting will be suspended. More pictures can be taken as soon as enough memory becomes available in the buffer.
Continuous
At settings other than Single, the current “continuous” set­ting is shown by an icon in the display.
1/2
The Shooting MenuMenu Guide
68
$00_Q02145_En 68-69 2004.6.1, 4:16:34 PM
69
Page 42
14
BEST SHOT SELECTOR
EXPOSURE BSS
SENSITIVITY
1/2
14
BSS
SelectSelect Press
Sensitivity
SelectSelect Press
Best Shot Selector (BSS)
The options in the “best-shot selector” (BSS) menu are recommended for situations in which inadvertent camera movement can produce blurred pictures, or when parts of the image are prone to under- or over­exposure.
Option Description
Off BSS off; camera functions normally.
Camera takes shots while shutter-release button is pressed, to a maximum of ten, but only sharp­est picture (picture with highest level of detail) is saved. Flash turns off automatically and focus,
On
Exposure
The Shooting MenuMenu Guide
BSS
70
exposure, and auto white balance for all pho­tos are determined by the fi rst picture in each series. Recommended for situations in which inadvertent camera movement can produce blurred pictures, for example when:
• the camera is zoomed in • macro close-up is in effect
• lighting is poor and the fl ash can not be used
Selecting this option displays sub-menu shown at right. Choose from:
Highlight BSS: picture with smallest area of overexposure is selected.
Shadow BSS: picture with smallest area of underexposure is selected.
Histogram BSS: of pictures with least under- and over-exposure, camera chooses picture with overall exposure closest to optimum.
Camera takes fi ve shots each time shutter-release button is pressed, but only picture that best meets selected criterion is saved. Flash turns off automatically and focus and auto white balance for all pho­tos are determined by the fi rst picture in each series. Recommended for subjects containing areas of high contrast, when it is diffi cult to set exposure correctly.
BEST SHOT SELECTOR
Off
On
Exposure BSS
EXPOSURE BSS
Highlight BSS
Shadow BSS
Histogram BSS
Sensitivity
Sensitivity (ISO equivalency) is a measure of how quick-
SENSITIVITY
ly the camera reacts to light. The higher the sensitivity, the less light needed to make an exposure. Much as fi lm with a high ISO rating tends to produce “grainy” images, high sensitivities may however be associated
Auto
50
100
with “noise”—randomly spaced, brightly colored pixels concentrated in dark parts of the image.
Option
Equivalent to 50 under normal conditions; when lighting is poor, however, camera compensates by raising sensitivity to maximum of ISO 400 equiva-
Auto
lent. ISO icon displayed in monitor when sensitivity is raised.
Approximately equivalent to ISO 50. Recommended unless lighting is poor or faster shutter speeds are required (e.g., when the subject is moving).
50
Noise may appear in pictures taken at settings above this value.
100 Approximately equivalent to ISO 100.
200 Approximately equivalent to ISO 200.
400 Approximately equivalent to ISO 400.
Restrictions on BSS ( 70)
BSS can not be used with the self timer ( 40) or at Continuous settings other than Single ( 69). On may not produce the desired results with a moving subject or if the
composition is changed while the shutter-release button is pressed all the way down.
BSS ( 70)
At settings other than Off, the current BSS setting is indicated by an icon in the display.
Sensitivity
At settings other than Auto, the current sensitivity setting is indicated by an icon in the display.
Description
50 100 200 400
505050
1/2
71
The Shooting MenuMenu Guide
$00_Q02145_En 70-71 2004.6.1, 4:16:38 PM
Page 43
IMAGE SHARPENING
1/2
IMAGE ADJUSTMENT
1/2
Image adjustment
SelectSelect Press
Image sharpening
SelectSelect Press
Image Adjustment
The options in the image adjustment menu control contrast.
Option Description
Auto
Normal
More
contrast
Less
contrast
Camera automatically adjusts contrast according to shooting condi­tions.
Camera performs same standard contrast adjustment on all pictures. Suitable for a wide variety of scenes, from dark to bright.
Picture processed to emphasize difference between light and dark areas, enhancing contrast. Useful when shooting under overcast skies or shooting low contrast subjects such as landscapes.
Picture processed to decrease difference between light and dark ar­eas, reducing contrast. Recommended when light is very bright, creating strong shadows on subject.
IMAGE ADJUSTMENT
Auto
Normal
More contrast
1/2
Image Sharpening
This option controls how the camera processes pictures to emphasize the borders between light and dark areas of the image, making edges seem sharper. As this pro­cessing takes place after shooting, its effects can not be previewed in the monitor or electronic viewfi nder, but they will be visible in the fi nal picture.
Option
Auto
High
Camera sharpens edges for optimal results; amount of sharpening varies from shot to shot.
Pictures processed to increase sharpness, making edges more dis­tinct.
Normal Camera performs same standard level of sharpening on all images.
Low Sharpening reduced below normal level.
Off No sharpening performed.
Description
IMAGE SHARPENING
Auto
High
Normal
1/2
The Shooting MenuMenu Guide
Taking Pictures for Retouching on a Computer
When taking pictures that will later be retouched, choose Off.
72
$00_Q02145_En 72-73 2004.6.1, 4:16:43 PM
The Shooting MenuMenu Guide
73
Page 44
AF AREA MODE
14
14
14
14
COLOR OPTIONS
1/2
14
AF area mode
SelectSelect Press
Color Options
SelectSelect Press
AF Area Mode
AF area mode determines how the focus area is se-
lected.
Option
Auto
Manual
Off
Camera automatically selects focus area containing subject closest to camera. Selected focus area is displayed when shutter-release button is pressed halfway.
User selects focus area manually using multi selector. Exposure set by metering lighting in selected focus area only (spot AF area meter­ing). Can be used instead of focus lock ( 20) to focus on off-cen­ter subjects.
Camera focuses on subject in center focus area. Can be used in com­bination with focus lock ( 20) to focus on off-center subjects.
Description
Manual Focus Area Selection
To select the focus area when Manual is selected for AF area mode:
2
14
Highlight new
focus area.
Active focus area
14
shown in gray.
1
Active focus area
highlighted in red.
Flash mode, the self timer, macro mode, and exposure compensation can not be adjusted while the focus area is highlighted in red. Press the center of the
The Shooting MenuMenu Guide
multi selector to select the focus area before adjusting these settings.
AF AREA MODE
Auto
Manual
Off
3
14
Selected focus area
shown in gray.
Color Options
This option is used to heighten the vividness of colors or to record pictures in monochrome. The effects of the current setting are visible in the monitor or elec­tronic viewfi nder during shooting.
Option
Description
COLOR OPTIONS
Standerd color
Vivid color
Black-and-white
Standard color Subjects are recorded in their natural colors.
Vivid color Use for a vivid, photoprint effect.
Black-and-white Pictures are recorded in black-and-white.
Sepia Pictures are recorded in sepia.
Cyanotype Pictures are recorded in blue-tinted monochrome.
14
White Balance
Selecting Black-and-white, Sepia, or Cyanotype automatically sets white balance (
67) to Auto. The original white balance setting is restored when Standard color or
Vivid color is selected.
Color Options
At settings other than Standard color, the current color op­tion setting is indicated by an icon in the display.
1/2
The Shooting MenuMenu Guide
Restrictions on Focus Area Selection
The center focus area is used when digital zoom ( 16) is in effect.
74
$00_Q02145_En 74-75 2004.6.1, 4:16:47 PM
75
Page 45
The Playback Menu
PLAYBACK MENU1/1/
0001
100
10
08
00
2 0 0 4
0 1
SLIDE SHOW
SLIDE SHOW
SELECT IMAGE
SELECT IMAGE
SELECT IMAGE
Slide show
SelectPressPress
The playback menu contains the following options:
Option Description
Select pictures for printing on DPOF-compatible devices;
Print set
Slide show View pictures in an automatic slide show. 77–79
Delete Delete all or selected pictures. 80–81
Protect Protect selected pictures from accidental deletion. 82
Auto transfer
Small pic. Create small copies of current picture. 85
Copy
Sort by date Group pictures into folders by date. 88
Instant index Create index prints of sixteen pictures each. 89–90
specify number of copies and information to be included on prints.
Mark all or selected pictures for transfer to a computer; turn auto transfer marking on or off.
Copy pictures from internal memory to memory card or vice versa.
To display the playback menu:
100N I K
100
08
2004
01
1
Start playback.
To exit the menu and return to playback mode, press the
The Playback MenuMenu Guide
00
10
100800
200401
N I KON
0001
0001
1/1
O
N
2
Display playback menu.
PLAYBACK MENU
Print set
Slide show
Delete
button again.
58–59
83–84
86–87
Slide Show
SELECT IMAGE
08 . 01. 2004 12
:
20
SLIDE SHOW
Select image(s)
Select all
(S)
ON
OFF
44/
Back Set
The Playback MenuMenu Guide
This option is used to play pictures back in an auto­mated “slide show” with about three seconds between each picture.
Option
Select image(s)
Select all View all pictures in order recorded.
View chosen pictures in selected order.
Description
Viewing Chosen Pictures in the Order Selected
1
Highlight Selected image(s).
3
3
4
SLIDE SHOW
Select image(s)
Select all
SELECT IMAGE
08 . 01. 2004 12
:
05
Back Set
SELECT IMAGE
08 . 01. 2004 12
:
05
Back Set
2
Display selection dialog.
Scroll through pictures. Current picture
(S)
displayed at bottom of monitor.
ON
OFF
42/
Select picture. Selected picture marked
(S)
11
1 1
by number showing position in slide show; press multi selector up or down
ON
to change order. To deselect picture,
OFF
press multi selector down until number
42/
is no longer displayed.
76
$00_Q02145_En 76-77 2004.6.1, 4:16:59 PM
77
Page 46
PAUSE
PAUSE
SELECT IMAGE
5
Pause
SLIDE SHOW
Pause
SLIDE SHOW
Pause
SLIDE SHOW
SLIDE SHOW
Pause
SLIDE SHOW
6
SELECT IMAGE
08 . 01. 2004 12
:
05
SLIDE SHOW
Loop
Starting screen displayed.
(S)
11
1 1
Back Set
Pause
Start
Press to rotate picture 90 ° left ( appears on picture) or to rotate pic­ture 90 ° right (appears on picture).
ON
Movies can not be rotated. Repeat
OFF
steps 3–5 to select additional pictures.
42/
To exit without changing selection, press
button.
7
SLIDE SHOW
Pause
Start
Loop
Highlight Start.
The following operations can be performed during the show:
To DescriptionPress
Menu shown at right will be dis­played. Highlight Restart and
Pause slide
show
Skip to next
frame
Return to
previous frame
End slide show End slide show and return to playback.
press multi selector to right to resume show. Highlight End and press multi selector to right to end show.
Press multi selector right to skip to next slide. Hold multi selector down to fast forward through show.
Press multi selector left to return to previous slide. Hold multi selector down to rewind through show.
PAUSE
End
Restart
8
Begin slide show.
When the slide show ends, the pause menu shown at right will be displayed. Press the multi selector up or down to highlight an option, then press to the right to select:
PAUSE
End
Restart
End: end slide show and return to playback menu
Restart: restart slide show from fi rst frame
Viewing All Pictures in the Order Recorded
1
The Playback MenuMenu Guide
SLIDE SHOW
Select image(s)
Select all
Highlight Select all.
2
Starting screen displayed. Start
SLIDE SHOW
Pause
Start
Loop
slide show as described in steps 7–8,
above.
78
$00_Q02145_En 78-79 2004.6.1, 4:17:04 PM
Auto Off
The camera will enter standby mode if no operations are performed for thirty minutes during a slide show.
Slide Shows
Index prints ( 89) and copies created with the small picture option ( 85) are not displayed during slide shows. Movies are displayed as still images showing the movie’s fi rst frame.
“Loop”
If Loop is selected in the starting screen, the slide show will
SLIDE SHOW
repeat automatically. To select or deselect the loop option, highlight Loop and press the center of the multi selector. A check mark next to Loop indicates that the loop option is selected.
Pause
Start
Loop
The Playback MenuMenu Guide
79
Page 47
DELETE
DELETE
DELETE
ERASE SELECTED IMAGES
ERASE SELECTED IMAGES
ERASE SELECTED IMAGES
DELETE
Erase 1 image (s)?
DELETE
Delete
SelectPressPress
Delete
The delete menu contains the following options:
Option
Erase selected images Delete selected pictures.
Erase all images Delete all pictures.
Description
If no memory card is inserted, pictures will be deleted from internal memory. If a memory card is inserted, pictures will be deleted from the memory card.
Deleting Selected Pictures
1
DELETE
Erase selected images
Erase all images
Highlight Erase selected images.
3
ERASE SELECTED IMAGES
08 . 01. 2004 12
:
05
Back Set
ON
OFF
Scroll through pictures. Current pic-
ture displayed at bottom of monitor.
2
Display selection dialog.
4
42/
Select current picture. Selected pic-
tures marked by icon.
ERASE SELECTED IMAGES
08 . 01. 2004 12
ERASE SELECTED IMAGES
08 . 01. 2004 12
DELETE
Erase selected images
Erase all images
:
20
Back Set
:
05
Back Set
ON
OFF
44/
ON
OFF
42/
Deleting All Pictures
1
2
DELETE
Erase selected images
Erase all images
DELETE
Erasing all images ( excluded)
No
Yes
Highlight Erase all images.
Confi rmation dialog displayed. Press multi selector up or down to highlight option, press center to select:
• Select Ye s to delete all unprotected pictures
• Select No to exit without deleting pictures
The Playback MenuMenu Guide
and press multi selector down. To exit without changing selection, press
Repeat steps 3–4 to select additional pictures. To deselect picture, select
5
button.
6
DELETE
Erase 1 image (s)?
Erase 1 image (s)?
No
Yes
Confi rmation dialog displayed. Press multi selector up or down to highlight option, press center to select:
• Select Ye s to delete selected pictures
• Select No to exit without deleting pictures
Before Deletion
Once deleted, pictures can not be recovered. If desired, transfer pictures to a com­puter before deletion ( 53).
Protected Pictures
Pictures marked with a icon are protected and can not be deleted ( 82).
80
$00_Q02145_En 80-81 2004.6.1, 4:17:07 PM
The Playback MenuMenu Guide
81
Page 48
PROTECT
PROTECT
PROTECT
0001
100NIKON
10
2004000108
AUTO TRANSFER
000 1
100
10
08
00
2 00 4
0 1
Auto transfer
Protect
SelectPressPress
SelectPressPress
Protect
This option is used to protect pictures from accidental deletion. Protected fi les can not be deleted by pressing the button or using the options in the Delete menu. Note, however, that protected pictures will be deleted when the memory card or internal memory is format-
98).
ted (
08 . 01. 2004 12
:
05
PROTECT
Back Set
1
Scroll through pictures. Current pic-
ture displayed at bottom of monitor.
Repeat steps 1–2 to select ad-
3
ditional pictures. To deselect picture, select and press multi selector down. To exit without changing selection, press button.
The Playback MenuMenu Guide
ON
OFF
2
42/
Select current picture. Selected pic-
tures marked by icon.
4
PROTECT
08 . 01. 2004 12
:
20
Back Set
PROTECT
08 . 01. 2004 12
:
05
Back Set
Done
Complete operation.
Auto Transfer
This option is used to mark pictures for transfer to a computer. Pictures tagged using this option can be
ON
OFF
44/
ON
OFF
42/
transferred using PictureProject. See the PictureProject Reference Manual (on CD) for details.
Option
All on
(default option)
All existing pictures are marked for transfer. Pictures taken while this option is in effect will be marked for transfer.
Remove transfer marking from all
All off
taken while this option is in effect will not be marked for transfer.
Select image(s) Mark selected pictures for transfer.
Restrictions on Auto Transfer
No more than 999 pictures can be transferred using Auto transfer. To transfer more than 999 pictures, use PictureProject or select and transfer pictures in batches of 999 or less.
The COOLPIX 4800 can not be used to transfer pictures selected for transfer with an­other model of Nikon digital camera. Use the COOLPIX 4800 to reselect the pictures.
The Icon
Pictures that have been selected for transfer are identifi ed by a icon.
100N I K
100
08
01
00
10
100800
2004
200401
N I KON
0001
0001
O
N
Description
AUTO TRANSFER
All on
All off
Select image(s)
existing pictures
11
. Pictures
The Playback MenuMenu Guide
22
33
The Protect Icon
During playback, a protect icon appears on all protected pictures.
1/1
1/1
Full-frame playback
Thumbnail playback
When you connect the camera to a computer via the UC-E6 USB cable and press the center of the multi selector ( button) to transfer pictures, only pictures marked with a icon will be transferred.
82
$00_Q02145_En 82-83 2004.6.1, 4:17:11 PM
44
83
Page 49
AUTO TRANSFER
AUTO TRANSFER
AUTO TRANSFER
AUTO TRANSFER
SMALL PIC
Save this image as displayed?
SMALL PIC
Small pic.
SelectPressPress
Marking Selected Pictures for Transfer
1
Highlight Selected image(s).
3
Scroll through pictures. Current pic-
ture displayed at bottom of monitor.
Repeat steps 3–4 to select ad-
5
ditional pictures. To deselect picture, select and press multi selector down. To exit without changing selection, press button.
The Playback MenuMenu Guide
84
AUTO TRANSFER
All on
All off
Select image(s)
AUTO TRANSFER
08 . 01. 2004 12
:
05
Back Set
ON
OFF
2
Display selection dialog.
4
42/
Select current picture. Selected pic-
tures marked by icon.
AUTO TRANSFER
08 . 01. 2004 12
:
20
Back Set
AUTO TRANSFER
08 . 01. 2004 12
:
05
Back Set
6
Done
Complete operation.
Small Picture
To create a small copy of a picture, select Small pic. after displaying the image in full-frame playback or selecting it in the thumbnail display.
ON
OFF
44/
ON
OFF
42/
Option
640 × 480 Can be displayed full frame on TV.
Suited to display on web pages. Small fi le
320 × 240
160 × 120
size reduces time needed to display pic­ture in web browser.
Can be sent and received quickly as e-mail attachment.
1
Highlight option.
SMALL PIC
Description
2
Confi rmation dialog displayed. Press multi selector up or down to high­light option, press center to select:
Yes : create resized copy
No: exit without creating copy
Copies are stored as JPEG fi les (compression ratio 1 : 16) with names of the form “SSCNnnnn.JPG,” where “nnnn” is a four-digit fi le number assigned by adding one to the largest fi le number in the current folder. Copies are created with the same transfer marking and date and time of creation as the original, but are otherwise independent of the original image and can be modifi ed or deleted separately. Print ( 58) and protect ( 82) attributes are not set when copies are created. During playback, copies are indicated by a gray bor­der; a , , or icon is displayed when copies are viewed full-frame.
Small Pictures
Copies can only be created if suffi cient memory is available. Small copies may not dis­play or transfer correctly when viewed on other models of Nikon camera. Small copies can not be created from movies ( 43), small pictures, or cropped copies.
SMALL PIC
Save this image as displayed?
No
Yes
The Playback MenuMenu Guide
85
$00_Q02145_En 84-85 2004.6.1, 4:17:16 PM
Page 50
COPY
COPY
COPY
COPY
CAMERA TO CARD
CAMERA TO CARD
COPY
COPY
Selected images will be copied. OK?
COPY
All images will be copied. OK? ( excluded)
Copy
SelectPressPress
Copy
To copy pictures from internal memory to a memory card or from a memory card to internal memory, insert a memory card in the camera and follow the steps be­low. This option is only available when a memory card is inserted.
Copying Selected Pictures
1
Highlight (copy from inter­nal memory to memory card) or
(copy from memory card to
internal memory).
3
Highlight Selected images.
5
The Playback MenuMenu Guide
Scroll through pictures. Current pic-
ture displayed at bottom of screen.
86
COPY
CAMERA TO CARD
Selected images
All images
COPY
08 . 01. 2004 12
:
05
Back Set
2
4
6
ON
OFF
42/
Select current picture. Selected pic-
tures marked by icon.
CAMERA TO CARD
Selected images
All images
Display menu.
COPY
08 . 01. 2004 12
:
20
Back Set
Display pictures.
COPY
08 . 01. 2004 12
:
05
Back Set
COPY
Repeat steps 5–6 to select additional pictures. To deselect picture, select
7
and press multi selector down. To exit without changing selection, press
button.
8
COPY
Selected images
Selected images
will be copied.
will be copied.
OK?
OK?
No
Yes
Confi rmation dialog displayed. Press multi selector up or down to highlight option, press center to select:
• Select Ye s to copy selected pictures
• Select No to exit without copying pic­tures
Copying All Pictures
To copy all pictures, select the source as described in Steps 1–2 on the preceding page. Highlight All im- ages and press the multi selector to the right. The confi rmation dialog shown at right will be displayed; press the multi selector up or down to highlight an op­tion and press the center to select:
• Select Yes to copy all pictures
• Select No to exit without copying pictures
ON
OFF
44/
ON
OFF
42/
Restrictions on Copying
If the message “IMAGE CANNOT BE SAVED” is displayed, the destination does not have enough memory to complete the operation. Delete pictures or, if copying to a memory card, insert a new memory card.
The camera may be unable to copy pictures that were created with another make of camera or that have been modifi ed on a computer.
File Names
Pictures copied using Selected images are copied to the current folder, where they are assigned new fi le numbers in ascending order starting from the largest fi le number in memory. All images copies all folders from the source device; fi le names do not change but new folder numbers are assigned in ascending order starting from the larg­est folder number on the destination device.
Print, Transfer, and Protect Marking
Copied pictures lose all print ( 58) and transfer ( 83) marking. Protect marking (
82) is not affected.
COPY
All images will be
All images will be
copied. OK?
copied. OK?
( excluded)
( excluded)
No Yes
The Playback MenuMenu Guide
87
$00_Q02145_En 86-87 2004.6.1, 4:17:19 PM
Page 51
INSTANT INDEX
INSTANT INDEX
INSTANT INDEX
INSTANT INDEX
INSTANT INDEX
INSTANT INDEX
SORT BY DATE
Instant index
Sort by date
SelectPressPress
SelectPressPress
Sort by Date
To sort pictures into separate folders by date, select Sort by date in the playback menu. The confi rmation dialog shown at right will be displayed; press the multi selector up or down to highlight an option and press the center to select:
No: exit without sorting pictures.
Yes : sort pictures into folders by date. A new folder will be created for each day that pictures were taken. Folders are named by adding the date (month and day) to a three-digit sequence number (e.g., “101_0123” for pictures taken on January 23rd). All pictures taken on that date are moved to this folder and assigned new fi le numbers starting from 0001; any associated voice memos are moved to the same folder and renamed accordingly (note that pictures taken on the same day and month but in different years will be sorted to the same folder).
Pictures taken after sorting are stored in the folder used before sorting began.
After SortingBefore Sorting
100NIKON
DSCN0001 DSCN0002
DSCN0003 DSCN0004 DSCN0005
Pictures taken on January 23
Pictures taken on January 24
101_0123
DSCN0001 DSCN0002
102_0124
DSCN0001 DSCN0002 DSCN0003
SORT BY DATE
Sort pictures into folders by date?
No
Yes
New pictures stored in 100NIKON
100NIKON
DSCN0006 DSCN0007 DSCN0008…
Instant Index
This option creates “index prints” that show sixteen pictures arranged in four rows to form a single image.
Option
Select images Select up to 16 pictures for index print.
Select all
Create index prints for all pictures ex­cept movies and existing index prints.
Selecting Pictures for an Index Print
1
Highlight Select images.
3
Scroll through pictures. Current pic-
ture displayed at bottom of monitor.
INSTANT INDEX
Select images
Select all
INSTANT INDEX
08 . 01. 2004 12
:
05
Back Set
Description
2
Display selection dialog.
4
ON
OFF
42/
Select current picture. Number shows
position of picture in print.
INSTANT INDEX
INSTANT INDEX
08 . 01. 2004 12
:
20
INSTANT INDEX
08 . 01. 2004 12
:
05
Select images
Select all
Back Set
11
11
Back Set
ON
OFF
44/
ON
OFF
42/
Sort by Date
The Playback MenuMenu Guide
Sort by date permanently renames all affected fi les and folders; the original names can not be restored. Print ( 58) and transfer ( 83) marking is lost, but protect marking ( 82) is not affected.
Restrictions on Sorting
Pictures will not be sorted if the current folder is numbered 999. The following types of picture are not moved when pictures are sorted: pictures taken using Panorama assist and stored in folders beginning with “P_” ( 36), copies created with the small picture option ( 85), cropped copies ( 50), index prints ( 89), pictures that have already
Repeat steps 3–4 to select additional pictures (maximum 16). To de-
5
select picture, select and press multi selector down. To exit without changing selection, press button.
6
INSTANT INDEX
Save instant index image?
No
Yes
Create index print.
been sorted, and pictures for which the date of creation was not recorded ( 13).
88
$00_Q02145_En 88-89 2004.6.1, 4:17:23 PM
The Playback MenuMenu Guide
89
Page 52
Creating Index Prints for All Pictures
INSTANT INDEX
INSTANT INDEX
1
2
INSTANT INDEX
Select images
Select all
INSTANT INDEX
Save instant index image?
No
Yes
Highlight All images.
Confi rmation dialog displayed. Press multi selector up or down to highlight option, press center to select:
• Select Ye s to create index prints for all pictures, starting from fi le with low­est fi le number in folder with lowest folder number. Each print contains up to 16 pictures; if more than 16 pic­tures are present in internal memory or on memory card, multiple index prints will be created.
• Select No to exit without creating index prints
Index prints have an image mode setting of Normal (2288) and are stored in folders consisting of a three-digit folder number followed by “INDEX” (e.g., “101INDEX”; if the highest numbered folder is not already an index folder, a new folder will be created by adding one to the highest folder number). If an index print contains less than sixteen pictures, the remaining space will be fi lled by white squares.
The Playback MenuMenu Guide
Index Print
Index prints will not be created from movies ( 43) or other index prints. Index prints are not displayed during slide shows.
90
$00_Q02145_En 90 2004.6.1, 4:17:26 PM
Page 53
The Setup Menu
SET-UP
1/4
The setup menu contains the following options:
Option Description
Welcome screen Select a start-up screen. 92
Date
Date imprint
Monitor settings
Sound settings Adjust sound and volume settings 97
Auto off
Format memory /
Format card
Language
USB
Video mode Select video mode from NTSC and PAL. 99
Reset all Restore camera settings to default values.
Firmware version Display camera fi rmware version. 100
The setup menu is displayed when the mode dial is rotated to .
Set the camera clock and choose home and travel destination time zones.
Imprint pictures with the date and/or time of re­cording.
Adjust display brightness and specify when dis­play turns on.
Choose how long display will remain on before turning off automatically to save power.
Format internal memory or memory card. 98
Choose a language for camera menus and mes­sages.
Choose USB setting used when copying pictures to computer or printing on PictBridge printer.
SET-UP
Welcome screen
Date
Date imprint
1/4
13,
93–94
95
96
98
99
54
99–100
The Setup MenuMenu Guide
To exit the setup menu, rotate the mode dial to another setting.
91
$00_Q02145_En 91 2004.6.1, 4:17:29 PM
Page 54
WELCOME IMAGE SELECT
WELCOME IMAGE SELECT
1/2
SELECT IMAGE
DATE
HOME TIME ZONE
HOME TIME ZONE
a
ack
TIME ZONE
TIME ZONE
Welcome screen
SelectSelect
Date
SelectSelect
Welcome Screen
Choose the welcome screen displayed when the cam­era is turned on.
Option
Disable welcome No welcome screen is displayed when camera is turned on.
Nikon
Animation
Image shown at right is displayed when cam­era is turned on.
Animation shown at right is displayed when camera is turned on.
Choose welcome screen from pictures in internal memory or on memory card. Press
Select an image
multi selector left or right to scroll through pictures, press center to select. To exit without changing welcome screen, press button.
Welcome Screen
Reset all ( 99) resets Welcome screen to Animation. The image last selected for Select an image will be restored the next time Select an image is selected.
If Select an image is chosen after a custom welcome screen
The Setup MenuMenu Guide
has been selected, the confi rmation dialog shown at right will be displayed. Select Reset to replace the existing picture with the new welcome screen, No to exit leaving the welcome screen unchanged.
Description
WELCOME IMAGE SELECT
Disable welcome
Nikon
Animation
SELECT IMAGE
08 . 01. 2004 12
:
05
Back Set
WELCOME IMAGE SELECT
Replace current image?
No
Reset
Date
1/2
This option is used to set the camera clock and to choose home and travel destination time zones.
Date
Date is used to set the camera clock to the current date
and time. See “First Steps: Basic Setup” (
13).
Time Zone
The camera can display the time for two time zones: a home time zone and the time zone at a travel destina­tion.
(Home Time Zone)
To set the clock to the home time zone, highlight and press the center of the multi selector. To choose a new home location, highlight and press the multi selector to the right, then select a location:
1
42/
2
Choose time zone.
HOME TIME ZONE
London, Casablanc
B
HOME TIME ZONE
Madrid, Paris, Berlin
Back Set
*
* Travel destination time zone can not be same as home time zone (
Select time zone.
Set
3
Return to time zone menu.
DATE
Date
Time zone
TIME ZONE
08. 01 . 2004 15 : 00
Madrid, Paris, Berlin
DaylightSaving
London, Casablanca
DaylightSaving
Dot marks
selected item
TIME ZONE
08. 01 . 2004 15 : 00
Madrid, Paris, Berlin
DaylightSaving
London, Casablanca
DaylightSaving
106).
The Setup MenuMenu Guide
Small Pictures and Cropped Copies
Copies created with the small picture and cropping options can only be selected for the welcome screen if they are 640 × 480 pixels or larger.
92
$00_Q02145_En 92-93 2004.6.1, 4:17:35 PM
The Camera Clock
The camera clock is less accurate than most watches or household clocks. Check the clock regularly against more accurate timepieces and reset as necessary.
93
Page 55
14
14
DATE IMPRINT
Date imprint
SelectSelect
(Travel Destination Time Zone)
To set the clock to the travel destination time zone, highlight and press the center of the multi selector. While the travel destination time zone selected, a icon will be displayed when the camera is in shooting mode (see illustration at right). To choose a new travel destination, highlight
and press the multi selector to the right, then choose a location as described on the previous page.
DaylightSaving (Daylight Saving Time)
To turn daylight saving time on or off, highlight DaylightSaving and press the center of the multi selector. Selecting daylight saving time automatically advances the time one hour.
The camera supports the following time zones:
GMT +/–
GMT –11 Midway, Samoa GMT –10 Hawaii, Tahiti GMT –9 Alaska, Anchorage GMT –8 PST (PDT): Los Angeles, Seattle, Vancouver GMT –7 MST (MDT): Denver, Phoenix, La Paz GMT –6 CST (CDT): Chicago, Houston, Mexico City GMT –5 EST (EDT): New York, Toronto, Lima GMT –4 Caracas, Manaus GMT –3 Buenos Aires, São Paulo GMT –2 Fernando de Noronha GMT –1 Azores
GMT London, Casablanca GMT +12 Auckland, Fiji
The Setup MenuMenu Guide
Location
Time Zones
The time zone can not be selected if the date and time have not been set.
Time zone increments of less than one hour are not supported. When travelling to or from destinations at half- or quarter-hour increments from Greenwich Mean Time (GMT), such as Afghanistan, Central Australia, India, Iran, Nepal, or Newfoundland, set the camera clock to local time ( 13).
94
GMT +/–
GMT +1 Madrid, Paris, Berlin GMT +2 Athens, Helsinki GMT +3 Moscow, Nairobi GMT +4 Abu Dhabi, Dubai GMT +5 Islamabad, Karachi GMT +6 Colombo, Dhaka GMT +7 Bangkok, Jakarta GMT +8 Beijing, Hong Kong, Singapore GMT +9 Tokyo, Seoul GMT +10 Sydney, Guam GMT +11 New Caledonia
Location
14
Date Imprint
The date imprint option is used to imprint the date or the date and time of recording on pictures as they are recorded to the memory card. It can not be used to imprint a date stamp on pictures after recording.
Option
Off Time and date do not appear on pictures.
Date
Date and time
Date is imprinted at bottom right corner of all pictures taken while this option is in effect.
Date and time are imprinted at bottom right corner of all pic­tures taken while this option is in effect.
Image Mode
Data imprinted at an Image mode setting of TV screen (640) may be diffi cult to read. Choose a setting of PC screen (1024) or larger when using the date imprint option ( 65).
Restrictions on Date Imprint
Date imprint turns off in Panorama assist ( 36) and movie modes ( 43), when Continuous or 3 shot buffer is selected in the Continuous menu ( 69), and when
BSS is enabled ( 70).
Date Imprint
Imprinted data forms a permanent part of the image and will appear whenever the image is printed, regardless of whether the date option is chosen in the Print set menu. At settings other than Off, a DATE icon is displayed during shooting. Check before shooting to make sure that the camera clock is set to the correct time and date.
The date is recorded in the order selected in the DATE menu. Date imprint can not be selected if the camera clock has not been set ( 13–14).
Print Set
The Print set option can be used to print the date and time of recording on images taken with Off selected for Date imprint ( 58–59).
Description
DATE IMPRINT
Off
Date
Date and time
14
95
The Setup MenuMenu Guide
$00_Q02145_En 94-95 2004.6.1, 4:17:40 PM
Page 56
SOUND SETTINGS
1/2
START-UP DISPLAY
REVIEW OPTIONS
BRIGHTNESS
MONITOR SETTING
BUTTON SOUND
SHUTTER SOUND
START-UP SOUND
VOLUME
Monitor settings
SelectSelect
Sound settings
SelectSelect
Monitor Settings
This option controls the monitor settings described below.
Start-up Display
Start-up display controls whether the monitor or the
electronic viewfi nder lights when the camera is turned on.
Option
Viewfi nder On Viewfi nder turns on at startup.
Monitor On Monitor turns on at startup.
Review Options
This option controls whether pictures are displayed after shooting.
Option
Review OnPictures are displayed for about one second af-
Review
ter shooting.
Pictures are not displayed after shooting.
Off
Brightness
Press the multi selector up or down to increase or de-
The Setup MenuMenu Guide
crease the brightness of the monitor or electronic view­fi nder by moving the arrow to the left of the display up or down. Press the center of the multi selector to put the new setting into effect.
Description
Description
MONITOR SETTING
Start-up Display
Review Options
Brightness
START-UP DISPLAY
Viewfinder On
Monitor On
REVIEW OPTIONS
Review On
Review Off
BRIGHTNESS
Sound Settings
The options in this menu control the sound settings listed below.
Option Description
If On is selected, beep will sound once if memory card is inserted, data are deleted, memory card or internal
Button
sound
Shutter
sound
Sel start
sound
Volume
memory is formatted, or new mode is selected. Beep will sound three times if battery is exhausted, or if memory card is locked or memory card or internal memory is full when shutter is released.
Choose sound played when shutter is released. If Off is selected, no sound will be played when shutter is released. Regardless of setting chosen, no sound is played in (Sports) mode ( 30), at Continuous set- tings other than Single ( 69), when fl ash fi res, or when BSS is enabled ( 70).
If On is selected, startup sound will play when camera is turned on. Startup sound will not play if USB cable is connected ( 55).
Choose volume for shutter and start sounds from Loud or Normal. Choosing Off mutes shutter and start sounds .
SOUND SETTINGS
Button sound
Shutter sound
Start-up sound
BUTTON SOUND
On Off
SHUTTER SOUND
1 2 3
Off
START-UP SOUND
On Off
VOLUME
Loud
Normal
Off
1/2
The Setup MenuMenu Guide
96
$00_Q02145_En 96-97 2004.6.1, 4:17:45 PM
97
Page 57
AUTO OFF
Auto off
SelectSelect
Language
Format memory
Video mode
Reset all
SelectSelect
Auto Off
The time the camera remains active when no opera­tions are performed can be chosen from 30 seconds, 1 minute (the default setting), 5 minutes, or 30 minutes. Regardless of the option chosen, the camera will re­main active for 3 minutes when menus are displayed, and for 30 minutes during a slide show.
AUTO OFF
30s
1m 5m
30m
Format Memory / Format Card
If no memory card is inserted, this option is named mat memory and formats internal memory. Other­wise it is named Format card and formats the current memory card for use in the camera. Note that for-
matting permanently deletes all data, including protected pictures and any other data that may be present. Before formatting, be sure to transfer any
valued pictures to a computer ( 53).
Option
No Exit without formatting internal memory or memory card.
Format internal memory or memory card. Message shown at right displayed while formatting is in progress.
Format
Do not turn camera off, remove batteries or memo­ry card, or unplug AC adapter (available separately) while message is displayed.
Description
Format Card
Memory card performance drops as pictures are recorded and deleted. For best performance, format memory cards regularly.
The Setup MenuMenu Guide
Auto Off
When powered by a six-volt 2CR5 (DL245) lithium battery, the camera may become hot if left on for an extended period. We recommend that you set Auto off to fi ve min­utes or less when using this type of battery. When powered by an optional EH-54 AC adapter, the camera will remain on for thirty minutes if no operations are performed, regardless of the setting chosen for Auto off. If the video cable is connected, video output will continue indefi nitely after the display has turned off.
98
WARNING! All images will be deleted!
No
Format
FORMATTING
Language
Choose the language for camera menus and mes­sages from Deutsch (German), English, Español (Spanish), Français (French), Italiano (Italian), Neder- lands (Dutch), Svenska (Swedish), (Japanese),
(Simplifi ed Chinese), (Traditional
Chinese), and (Korean).
Video Mode
as a television or VCR ( 52), choose a video mode setting that matches the video standard used in the de­vice. The camera supports NTSC and PAL standards.
Reset All
their original state.
Option
No Exit menu, leaving settings unchanged.
Reset Restore settings to default values.
The following settings are affected:
Setting Default
Flash mode Auto
Self-timer Off
Macro close-up Off
Exposure
compensation
Movie options Small size 320
Auto-focus mode Continuous AF
Description
±0
Setting Default
Scene mode Party/ Indoor
Portrait assist PORTRAIT
Sensitivity Auto
Landscape assist
AE-BSS Off
Sports assist SPORTS
Sensitivity Auto
Deutsch English Español Français Italiano Nederlands
Back S et
NTSC
PAL
RESET ALL
Reset all settings to default values
No
Reset
LANDSCAPE
Svenska
日本語
The Setup MenuMenu Guide
99
$00_Q02145_En 98-99 2004.6.1, 4:17:55 PM
Page 58
Setting
Firmware version
Night portrait
assist
Sensitivity Auto
Image mode Normal (2288)
White balance Auto
Continuous Single
Best Shot Selector Off
Sensitivity Auto
Image adjustment Auto
Image sharpening Auto
AF area mode Off
Color options Standard color
Default Setting Default
NIGHT PORTRAIT
Welcome screen Animation
Date imprint Off
Monitor options
Start-up display
Review options Review On
Brightness 3
Sound settings
Button sound On
Shutter sound 1
Select start sound On
Volume Normal
Auto off 1 m
Monitor On
Choosing Reset also clears the current fi le number ( 23) from memory. Numbering will continue from the lowest number available. All other settings are unaffected.
Resetting File Numbering to 0001
To reset fi le numbering to 0001, select Reset all after either deleting all pic­tures ( 80) or formatting the memory card or internal memory ( 98).
Firmware Version
Select this option to display the current camera fi rm­ware version. Press the multi selector to the left to return to the setup menu.
The Setup MenuMenu Guide
Back
100
$00_Q02145_En 100 2004.6.1, 4:18:02 PM
Page 59
Technical Notes
ated for 10 MB/s o
Optional Accessories
At the time of writing, the following optional accessories were available for your Nikon digital camera. Contact your local retailer or Nikon representative for details.
Rechargeable
battery
Battery charger MH-53 battery charger for EN-EL1 batteries
AC adapter EH-54 AC adapter
Carrying case Soft case for COOLPIX 4800 cameras
Optional Speedlight SB-30 Speedlight
Flash bracket SK-9 fl ash bracket for SB-30 Speedlights
* Maximum range: 3.5 m / 11´6˝ (maximum zoom) to 6 m / 19´8˝ (widest angle). May be
unable to light entire subject at distances of less than 1 m (3´3˝).
Additional EN-EL1 Li-ion batteries are available from your re­tailer or local Nikon representative
*
Approved Memory Cards
The following cards have been tested and approved for use with the COOLPIX 4800:
SanDisk
Panasonic
Toshiba
cards are r
16 MB, 32 MB, 64 MB, 128 MB, 256 MB, 512 MB
16 MB, 32 MB, 64 MB, 128 MB, 256 MB*, 512 MB*, 1GB*
16 MB, 32 MB, 64 MB, 128 MB, 128 MB*, 256 MB, 256 MB*, 512 MB
r more.
Operation is not guaranteed with other makes of card. For more details on the above cards, please contact the manufacturer.
Memory Cards
• Use only Secure Digital (SD) memory cards.
• Do not disassemble or modify.
• Do not drop, bend, or expose to water or strong physical shocks.
• Do not touch the metal terminals with your fi ngers or metal objects.
• Do not affi x labels or stickers to the memory card.
• Do not leave in direct sunlight in a closed vehicle or in other areas exposed to high temperatures.
• Do not expose to high levels of humidity or to corrosive gas.
101
Technical Notes
$00_Q02145_En 101 2004.6.1, 4:18:06 PM
Page 60
Caring for Your Camera
To ensure continued enjoyment of your Nikon product, observe the following precautions when storing or using the device:
Keep dry
The device will be damaged if immersed in water or subjected to high levels of moisture.
Handle the lens and all moving parts with care
Do not apply force to the lens, monitor, or viewfi nder or to the connector, card slot, battery chamber, or lens covers. These parts are especially susceptible to damage. Applying force to the lens cover could result in camera malfunc­tion or damage to the lens.
Do not point the lens at strong light sources for extended periods
Avoid pointing the lens at the sun or other strong light sources for extended periods when using or storing the cam­era. Intense light may cause deteriora­tion in the CCD image sensor, produc­ing a white blur effect in photographs.
Turn the product off before removing or disconnecting the power source
Do not unplug the product or remove
Technical Notes
the batteries while the product is on, or while images are being recorded or deleted. Forcibly cutting power in these circumstances could result in loss of data or in damage to product memory or internal circuitry. To prevent an ac­cidental interruption of power, avoid carrying the product from one place to another while the AC adapter (available separately) is connected.
102
Do not drop
The product may malfunction if sub­jected to strong shocks or vibration.
Keep away from strong magnetic fi elds
Do not use or store this device in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fi elds. Strong static charges or the magnetic fi elds produced by equip­ment such as radio transmitters could interfere with the monitor, damage data stored on the memory card, or affect the product’s internal circuitry.
Avoid sudden changes in temperature
Sudden changes in temperature, such as occur when entering or leaving a heated building on a cold day, can cause condensation inside the device. To prevent condensation, place the device in a carrying case or a plastic bag before exposing it to sudden changes in temperature.
The AF-Assist Illuminator LED
The light-emitting diode (LED) used in the AF-assist illuminator conforms to the following IEC standard:
CLASS 1 LED PRODUCT
IEC60825-1 Edition 1.2
-2001
Cleaning
Lens/ Viewfi nder
One key to preserving the condition of these glass parts is to not touch them with your fi ngers. Remove dust or lint with a blower (typically a small device with a rubber bulb attached to one end that is pumped to produce a stream of air out the other). To remove fi ngerprints or other stains that can not be removed with a blower, wipe the lens or viewfi nder with a soft cloth, using a spiral motion that starts in the center of the lens and works out to the edges.
Monitor
Remove dust or lint with a blower. To remove fi ngerprints and other stains, clean the monitor with a soft, dry cloth, being careful not to apply pressure.
Avoid contact with liquid crystal
Should the monitor or electronic viewfi nder break, care should be taken to avoid injury due to broken glass and to prevent the liquid crystal from the display touching the skin or entering the eyes or mouth.
Body
Use a blower to remove dust and lint, then wipe gently with a soft, dry cloth. After using the camera at the beach or seaside, wipe off any sand or salt with a cloth lightly dampened with fresh water, then dry thoroughly.
Do not use alcohol, thinner, or other volatile chemicals.
Notes on the Monitor and Electronic Viewfi nder
• The monitor and electronic viewfi nder may contain a few pixels that are always lit or that do not light. This is a characteristic common to all TFT LCD displays, and does not indicate a malfunction. Images recorded using the product will not be affected.
• When you frame bright subjects, vertical comet-like streaks that whiten toward either end may appear in the display. This phenomenon, known as “ smear,” does not ap­pear in the fi nal photograph and does not indicate a malfunction. Some smear may appear in movies.
• Images in the monitor may be diffi cult to see in a bright light.
• The monitor is lit by an LED backlight. Should the monitor begin to dim or fl icker, contact your Nikon service representative.
103
Technical Notes
$00_Q02145_En 102-103 2004.6.1, 4:18:08 PM
Page 61
Error Messages
Storage
Turn the camera off when not in use and check that the power-on lamp is off before putting the camera away. To prevent mold or mildew, store the camera in a dry, well-ventilated area. If you will not be using the product for long periods, remove the battery to prevent leakage and store the camera in a plastic bag containing a desiccant. Do not store the camera case (available separately) in a plastic bag, as this may cause the material to deteriorate. Note that desiccant gradually loses its capacity to absorb moisture and should be replaced at regular intervals. Do not store the camera with naptha or cam­phor moth balls or in locations that:
• are poorly ventilated or damp
• are next to equipment that produces strong electromagnetic fi elds, such as televisions or radios
• are exposed to temperatures below –10 °C (14 °F) or above 50 °C (122 °F; for example near a space heater or in a closed vehicle on a sunny day)
• are subject to humidities of over 60%
To prevent mold or mildew, take the camera out of storage at least once a month. Turn the camera on and release the shutter a few times before put­ting the camera away again.
Store the battery in a cool, dry place.
Technical Notes
Batteries
• When turning the camera on, check that the battery is charged. The monitor will display a warning when batteries are low.
• Carry a fresh 2CR5 or a fully-charged spare EN-EL1 battery as a replacement when taking pictures on important occasions. You may fi nd it diffi cult to purchase replace­ment batteries on short notice. Do not use 2CR5 batteries after their expiry date.
• On cold days, the capacity of batteries tends to decrease. Be sure that the battery is fully charged before heading outside to take pictures in cold weather. Keep spare batteries in a warm place and exchange as necessary. Once warmed, a cold battery may recover some of its charge.
• If the battery terminals are dirty, wipe them off with a clean, dry cloth before use.
• Used batteries are a valuable resource. Please recycle used batteries in accordance with local regulations.
104
The following table lists the error messages and other warnings that appear in the monitor and how to deal with them.
Display Problem Solution
(Flashes)
WARNING ! !
BATTERY
EXHAUSTED
AF
( fl ashes red)
WARNING ! ! Please wait for camera to fi nish recording
MEMORY CARD IS
WRITE PROTECTED
THIS CARD CANNOT BE USED
WARNING ! !
This card cannot be read
CARD IS NOT
FORMATTED
FORMAT NO
Clock not set.
Battery exhausted.
Camera cannot focus.
Slow shutter speed. Pictures may be blurred.
Camera turned off or button pressed during re­cording.
Write-protect switch is in “lock” position.
Error accessing memory card.
Memory card has not been formatted for use in camera.
Set clock to current date and time.
Turn camera off and replace batteries.
Use focus lock to focus on another subject at same dis­tance, then recompose pic­ture. Use fl ash, or steady camera using tripod, by placing cam­era on level surface, or by holding camera in both hands with elbows against torso.
Message clears from display automatically when recording is complete.
Slide write-protect to “write” position.
• Use approved card.
• Check that connectors are clean.
• Turn camera off and confi rm that memory card is correctly inserted.
Press multi selector up to highlight FORMAT and press to right to format card, or turn camera off and replace card.
13
8
20
33,
39
19
11
101
10
11,
98
105
Technical Notes
$00_Q02145_En 104-105 2004.6.1, 4:18:11 PM
Page 62
Display Problem Solution
OUT OF MEMORY
(or )
FILE CONTAINS NO IMAGE DATA
CANNOT RECORD MOVIE
NEW CITY IS IN THE
Technical Notes
CURRENT TIME ZONE
WARNING ! THE MODE DIAL IS NOT IN THE PROPER POSITION
TRANSFER ERROR
TRANSFER CANCELLED
CARD CONTAINS NO IMAGES
ALL IMAGES ARE HIDDEN
THIS IMAGE CANNOT BE DELETED
Camera in shooting mode: Insuffi cient memory to re­cord pictures at current settings.
Camera connected to com­puter: Not enough memory
to record information need for transfer.
• Camera has run out of fi le numbers.
• Not enough memory to copy pictures.
• Camera can not copy picture using small pic­ture or crop options.
• Invalid image chosen for welcome screen.
File created by computer or different make of camera. Time out error while re­cording movie.
Travel destination is in same time zone as home location.
Mode dial is positioned be­tween two modes.
Error occurred when pic­tures were transferred to computer. Transfer cancelled. No pictures on memory card or in internal mem­ory. Pictures can not be viewed on COOLPIX 4800. Attempt to delete protect­ed picture.
• Choose new image mode.
• Insert new memory card or delete pictures.
• Insert new memory card or delete pictures.
• Format destination or delete pictures. If copying pictures to memory card, insert new memory card.
• Copies can not be created from movies or from other copies.
• Choose image 640 × 480 pixels or larger.
View fi le on computer or cor­rect make of camera. Choose memory card with better performance. No need to specify new time zone if travel destination is in same time zone as home location.
Adjust mode dial to select de­sired mode.
Restart transfer after check­ing that camera is connected and that batteries are fully charged.
Press
button to return to
shooting mode.
Remove protection before de­leting picture.
65
10, 80
10, 80
10, 80,
98
50, 85
92
101
94
7
15, 55
21
82
Display Problem Solution
• PictureProject is not run­ning.
• Start PictureProject before pressing center of multi se­lector.
COMMUNICATIONS
ERROR
• USB cable disconnected or memory card removed while pictures are being transferred to computer.
USB option set incorrectly.
• If error appears in computer monitor, click OK to exit PictureProject. Turn cam­era off, reconnect cable or replace memory card, then turn camera on and transfer pictures.
• Turn camera off and discon­nect cable, then choose new USB setting in camera setup menu and reconnect cam­era. If error persists, use Transfer button in Picture Project to transfer pictures.
No pictures selected for
NO IMAGES ARE MARKED FOR TRANSFER
transfer when center of multi selector pressed to transfer pictures to com-
Disconnect camera and select at least one picture for trans­fer, then begin transfer again.
puter.
Turn camera off, unplug op­tional AC adapter (if using),
SYSTEM ERROR
Error has occurred in cam­era’s internal circuitry.
remove and reinsert batteries, and turn camera on. If error persists, contact retailer or Nikon representative. Turn camera off and then on
LENS ERROR
Error has occurred during lens operation.
again. If error persists, con­tact retailer or Nikon repre­sentative.
53–56
53
53, 83
8–9
Technical Notes
106
$00_Q02145_En 106-107 2004.6.1, 4:18:12 PM
107
Page 63
Troubleshooting
If your camera fails to function as expected, check the list of common prob­lems below before consulting your retailer or Nikon representative. Refer to the page numbers listed in the right-most column for information on solving the problems listed here.
Electronically-Controlled Cameras
In extremely rare instances, unusual characters may appear in the monitor and the camera may stop functioning. In most cases, this phenomenon is caused by a strong external static charge. Turn the camera off, remove and replace the batteries, and turn the camera on again, or, if you are using an AC adapter (available separately), disconnect and reconnect the adapter, and turn the camera on again. In the event of continued malfunction, contact your retailer or Nikon representative. Note that disconnecting the power source as de­scribed above may result in the loss of any data not recorded to the memory card at the time the problem occurred. Data already recorded to the memory card will not be affected.
Problem Solution
Monitor is blank
Technical Notes
Camera turns off
without warning
No indicators appear
in monitor
Monitor is hard to
read
108
• Camera is off.
• Batteries are not correctly inserted or battery-chamber cover is not properly latched.
• Batteries are exhausted.
• AC adapter (available separately) is not properly con­nected.
• Camera is in standby mode. Press shutter-release but­ton halfway.
• Electronic viewfi nder is on. Press button.
• USB cable is connected.
• Audio / video cable is connected.
• Batteries are low.
• Batteries are cold.
• Indicators are hidden. Press
button until indicators are displayed. Ambient lighting is too bright: use electronic viewfi nder.
• Monitor brightness needs adjustment.
• Monitor is dirty: clean monitor.
12
8
15
9
12
6
55, 61
52 15
104
6
6
96
103
Problem Solution
• Camera is in playback mode.
• Batteries are exhausted.
• Flash indicator blinks: fl ash is charging.
No picture is taken
when shutter-release
button is pressed
• Message “CARD IS NOT FORMATTED” is displayed: memory card is not formatted for use in camera.
• Message “OUT OF MEMORY” is displayed: insuffi cient memory to record picture at current Image mode set­ting.
• Message “MEMORY CARD IS WRITE PROTECTED” is displayed: memory card is locked.
• Flash is off.
• Flash window is blocked.
Pictures are too dark
(underexposed)
• Subject is outside range of fl ash.
• Exposure compensation is too low.
• Subject is backlit: select scene mode setting of Back light or use fi ll fl ash.
Pictures are too
bright (overexposed)
Pictures are out of
focus
• Exposure compensation is too high. 42
• Camera can not focus on selected subject using auto­focus. Use focus lock.
• Camera shook during shot. Blurring caused by camera shake can be reduced by:
Pictures are blurred
Randomly-spaced
bright pixels
(“noise”) appear in
Using the fl ash
Using the Best Shot Selector (BSS)
Using the self-timer with a tripod
• Shutter speed too slow. Noise can be reduced by:
Using the fl ash
Selecting scene mode and choosing Night portrait,
Night landscape, or Dusk/Dawn as appropriate to
subject and lighting conditions
• Flash is off. Flash turns off automatically when:
LANDSCAPE, Scenic view, or Architecture is se-
lected in landscape assist mode
Camera is in sports assist mode
Flash does not fi re
Sunset, Night landscape, Museum, Fireworks
show, Copy, Panorama assist, or Dusk/Dawn se- lected in scene mode
Camera is in movie mode
Setting other than Single is selected for Continu-
ous
BSS is enabled
48 15 18 98
65
11
38 16 39 42
35, 38
20
38 70 40
38
31, 34
28
30
33-36
43 69
70
109
Technical Notes
$00_Q02145_En 108-109 2004.6.1, 4:18:16 PM
Page 64
Specifi cations
Problem Solution
Colors are unnatural • White balance does not match light source. 67
File can not be
played back
Can not create copy
using small picture
or crop options
Can not zoom in on
• File has been overwritten or renamed by computer or other make of camera.
• Picture is a movie.
• Picture is an resized or cropped copy.
• Memory is insuffi cient. Delete pictures.
• Picture is a movie.
• Picture was created with small picture option.
• Picture has been cropped to below 320 × 240.
• Camera is off.
• AC adapter (available separately) is not properly connected, or batteries are exhausted.
PictureProject does
not start when cam-
era is connected or memory card insert­ed in card reader or
card slot
• USB cable is not correctly connected, or card not properly inserted in card reader or card slot.
USB item in setup menu set to PTP when camera connected to computer running Windows 2000 Professional, Windows Millennium Edition (Me), or Windows 98 Second Edition (SE).
• Camera is not registered in Device Manager (Win­dows only).
See PictureProject Reference Manual (on CD) for fur- ther information.
Pictures are not
transferred when
center of multi se-
Technical Notes
lector is pressed
USB option is set to Mass Storage and no memory card is inserted
110
43
50, 85
80 43 85 50 12
9
55
53
53
Type E4800 digital camera
Effective pixels 4.0 million
CCD Image size (pixels)
1
2.5˝ high-density CCD; total pixels: 4.24 million
2,288 × 1,712 (2288★, 2288)
• 1,600 × 1,200 (1600)
• 1,024 × 768 (1024) • 640 × 480 (640)
Lens 8.3 × Zoom Nikkor Focal length F=6.0 – 49.5 mm (35-mm [135] camera-format equivalent: 36 – 300 mm) f/-number f/2.7 – f/4.4 Construction 11 elements in 9 groups
Digital zoom Up to 4 × (35-mm [135] camera-format equivalent: 1200 mm)
Autofocus (AF) Focus range
Contrast-detect through-the-lens (TTL) AF with AF-assist illuminator 40 cm (1´4˝) – ∞; macro mode 1 cm/0.4˝ – [W]
Focus-area selection Five-area multi AF with automatic and manual selection AF-assist illuminator
CLASS 1 LED PRODUCT (IEC60825-1 Edition 1.2
-2001
)
Max. output: 2000 µW
Viewfi nder Frame coverage Approximately 97% horizontal and 97% vertical Diopter adjustment -3–+1 m
Monitor
0.44˝, 235,000-dot, polysilicon TFT color viewfi nder
-1
1.8˝, 118,000-dot, low-temperature polysilicon TFT LCD mon­itor with brightness adjustment
Frame coverage
Approximately 97% horizontal and 97% vertical (shooting mode)
Storage Media SD (Secure Digital) memory cards, internal memory File system Compliant with Design Rule for Camera File System (DCF),
Exif 2.2, and Digital Print Order Format (DPOF)
File formats Compressed: JPEG-baseline-compliant
Movies: QuickTime
Exposure Metering 256-segment matrix metering linked to AF area Exposure control Programmed auto exposure with exposure compensation
(–2.0 – +2.0 EV in steps of
Range (ISO 100 equivalent)
Shutter Speed 4 –
W: +2.9 – +15.3 EV T: +4.3 – +14.3 EV
Mechanical and charge-coupled electronic shutter
1
2,000 s
1
3 EV)
111
Technical Notes
$00_Q02145_En 110-111 2004.6.1, 4:18:21 PM
Page 65
Aperture
Electronically-controlled preset aperture
Range Two steps
Sensitivity Approximately equivalent to ISO 50 (auto gain to ISO 400
equivalent)
Self-timer Approximately 10 seconds
Built-in Speedlight Range (approx.) 0.4 – 4.3 m/1´ 4˝ – 14´1˝ (W) 0.6 – 2.6 m/2´ – 8´6˝ (T) Flash control Sensor fl ash system
Interface USB 2.0 full speed
Video output Can be selected from NTSC and PAL
I/O terminals DC in; audio / video (A / V) out with digital I/O
Power sources • One rechargeable Nikon EN-EL1 lithium-ion battery (supplied)
• One 2CR5 lithium battery
• EH-54 AC adapter
Approximate battery life (based on CIPA standard)
EN-EL1: 240 shots 2CR5: 360 shots
Dimensions (W × H × D) 106 × 66 × 54 mm (4.17˝ × 2.60˝ × 2.13˝)
Approximate weight 255 g (9.0 oz) without battery or memory card
Operating environment Temperature 0 – 40 °C (32 – 104 °F)
Technical Notes
Humidity Less than 85% (no condensation)
* Unless otherwise stated, all fi gures are for a camera with a fully-charged EN-EL1 bat-
tery operated at an ambient temperature of 25 °C (77 °F).
Design Rule for Camera File System (DCF)
Your camera conforms to the Design Rule for Camera File System (DCF), a standard widely used in the digital camera industry to ensure compatibility among different makes of camera.
Exif Version 2.2
Your camera supports Exif (Exchangeable Image File Format for Digital Still Cameras) version 2.2, a standard that allows information stored with pictures to be used for opti­mal color reproduction when images are output on Exif-compliant printers.
112
Index
Symbols
(auto) mode, 7, 15, 64
(delete) button, 21, 48, 51
(internal memory) indica-
tor, 15
(landscape assist) mode, 28 (memory card) indicator, 15
(menu) button, 24, 32, 44,
64, 76
(monitor) button, 6 (movie) mode, 7, 43
(night portrait assist) mode,
31
(playback) button, 21,
48, 76
(portrait assist) mode, 26 (sports assist) mode, 30
(transfer) button, 53 (transfer) icon, 83
(wait) icon, 19
A
AC adapter, 9, 60, 101 AF, see Focus indicator AF/AE lock, 20 AF area, 27, 32, 74 AF area mode, 74 Assist modes, 24–31 Audio/Video-out connector,
2, 52
Auto off, 12, 98 Auto transfer, 83
B
Back light, 35 Backlit subjects, 35, 38 Batteries, 8, 101, 104, 112
2CR5, 8, 104 EN-EL1, 8, 101, 104
charging, 8 Beach/Snow, 33 Best Shot Selector, 70 Black-and-white, 75 Blur, 33, 39
BSS, see Best Shot Selector
C
Clock, see Date Close-ups, 34, 41 Color options, 75
Computer, 53
copying pictures to, 53–56
Continuous, 69 Copy (playback menu), 86
Copy (scene mode), 35 Cropping pictures, 50 Cyanotype, 75
D Date, 13, 93 Date imprint, 57, 95
DCF, see Design rule for Cam-
era File system Delete, 80–81 Deleting pictures, 19, 21, 48,
51, 80–81
all pictures, 81 during shooting, 19 in full-frame playback, 21 selected pictures, 80
Design rule for Camera File
system, 112 Digital Print Order Format, 57 Direct Print, see USB Direct DPOF, see Digital Print Order
Format Dusk/Dawn, 34
E
E-mail, 65 Electronic viewfi nder, 3, 4,
6, 16 EN-EL1, see Batteries Error messages, 105–107 Exif 2.2, 112 Exif Print, see Exif 2.2 Exposure BSS, 29, 70 Exposure compensation, 42
F
File numbering, 5, 23 Fill fl ash, 38 Fireworks show, 35 Firmware, 100 Firmware version, 100 Flash, 2, 18, 38
mode, 38–39 Flash indicator, 18 Focus, 6, 18 Focus area, 27, 32, 74
Focus indicator, 18 Focus lock, 20
Format card, 98 Format memory, 98
Framing assist, 24–31 Framing guides, 25 Framing pictures, 16, 25
I Image adjustment, 72 Image mode, 65 Image sharpening, 73 Image size, see Image mode Instant index, 89
J
JPEG, 23 JPG, 23
L Language, 99
Language, choosing, 13, 99 Lens, 2, 102, 103, 111 Lens cover, 2, 102
M
Macro mode, 41 Memory cards, 10–11
approved, 101 capacity of, 66 formatting, 98 insertion and removal of,
10–11 MH-53 battery charger, 8, 101 Mode dial, 3, 7 Monitor, 3, 6
indicators in, 4–5
turning on and off, 6 MOV, see Movies Movies, 43–47
recording, 46
viewing, 47 MOVIE menu, 43 Multi selector, 3, 7 Museum, 34
N
Night landscape, 34 NTSC, see Video mode Number of exposures remain-
ing, 4, 15, 66
113
Technical Notes
$00_Q02145_En 112-113 2004.6.1, 4:18:26 PM
Page 66
O
On/off, see Power switch
P
PAL , see Video mode Panorama assist, 36 Party/Indoor, 33 PictBridge, 57, 60–63 PictureProject, 53 PLAYBACK MENU, 76–90 Playback, 21, 48–63
full-frame, 21, 48 movies, 47 on TV, 52 thumbnail, 48
voice memo, 51 Power-on lamp, 2, 12 Power switch, 2, 12 Printing pictures, 57–63. See
also Date imprint, Digital Print Order Format
via direct USB connection,
60–63 Print set, 58–59 Print size, 65 Protect, 82 Protected pictures, 81, 82
Q
Quick playback zoom, 22 QuickTime, 46
Technical Notes
R
Red-eye reduction, see Flash Reset all, 99 Resizing pictures, 85 Rotating pictures, 78
S
(scene) mode, 24, 32–37 Scene selection, 32 Secure Digital (SD), see Mem-
ory cards Self-timer, 40 Self-timer lamp, 2, 40 Sensitivity, 27, 39, 71 Sepia, 75 Setup menu, 91–100
(setup) mode, 7, 91
SHOOTING menu, 64–75
114
Shutter-release button, 6, 18 Size, see Image mode
Slide show, 77–79 Small pic., 85
Smear, 103 Sort by date, 88 Sound, 97 Sound settings, 97 Speedlight, see Flash Standard color, 75 Standby mode, see Auto off Strap, camera, 2 Sunset, 33 Support information, viii
T
Telephoto, see Zoom Television, 43, 52
connecting to, 52 Thumbnail playback, 48 Time zone, 94 Timer, see Self-timer Transfer, 53–56
marking pictures for,
83–84
Tripod, 3, 33
T button, see Zoom buttons
U
USB, 53
cable (UC-E6), 55, 61
connector, 2
V
VCR, 52 Video cable (EG-CP14), 52 Video mode, 99 Video output, 2, 52 Viewfi nder, 3, 4, 6, 16 Vivid color, 75 Voice memo, 51 Volume, 97
playback, 47, 51, 97
W
WAV, 23
Welcome screen, 92 White balance, 67–68
preset, 68 Wide angle, see Zoom
W button, see Zoom buttons
Z
Zoom, 16
digital, 16, 46 indicator, 16 optical, 16 playback, 22, 49
Zoom buttons, 16
$00_Q02145_En 114 2004.6.1, 4:18:27 PM
