Nikon AF-S DX NIKKOR 16-85mm Repair manual

JAA80051-R.3741.A

Ｍ

サービス

計画課

INC

作成承認印 配布許可印

AF-S DX Nikkor

16-85mm f/3.5-5.6G ED VR

JAA80051

REPAIR MANUAL

Printed in Japan February 2008

Copyrightｃ2008 by Nikon Corporation.
All Rights Reserved.
無断転載を禁ず

!!

JAA80051-R.3741.A

INC

※ Before Disassembly / Reassembly / Adjustment

This lens will require optical lens alignment after assembly, in case the 4th lens-group unit is removed.

At repair service facilities, therefore, where this alignment work can not be performed, do NOT remove the

4th lens-group unit.

This lens also has the VR (vibration-reduction) unit mounted in order to correct camera shake.

To keep the accuracy of this function for stabilizing the image, in case VR unit or the main PCB is replaced,

be sure to make the VR adjustment by using the VR lens adjustment equipment (J15380).

Except for disassembling the above components, the VR adjustment is NOT necessary, but check VR

operations by attaching this lens to the camera.

At repair service facilities where the "VR lens adjustment equipment" is not prepared, do NOT disassemble

NOR repair the products of the above cases.

Caution:

󳉗

When disassembling/(re)assembling, be sure to use the conductive mat (J5033) and wrist strap
(J5033-5) for static protection of electrical parts.

󳉗

When disassembling, make sure to memorize the processing state of wires, screws to be fi xed and
their types, etc.

󳉗

Because prototypes are used for "1. Disassembly" and "2. Assembly/Adjustment", they may differ
from the actual products in forms, etc.

󳉗

Because pictures are processed by a special method, they may differ from the actual ones in texture.

Points to notice for Lead-free solder products

　・Lead-free solder is used for this product.

　・For soldering work, the special solder and soldering iron are required.

　・Do NOT mix up lead-free solder with traditional solder.

　・Use the special soldering iron respectively for lead-free solder and lead solder.

They cannot be used in common.

- Ｄ1・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

1.Disassembly

Protection sheet

Peel off the protection sheet (#60) by inserting tweezers from the outside into the cutout of attaching face as

・

below.

#60

Filter ring

Take out the three screws (#119) and remove the fi lter ring (#35).

・

#119×3

#35

- Ｄ2・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

1st lens group unit

Set the zoom ring to WIDE.

・

Take out the three screws (#120) and remove the 1st lens-G unit (B2041) and washer (#133).

・

Peel off the sheet (#62).

・

#120×3

B2041

#133

#62

- Ｄ3・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

2nd lens group unit

Set the zoom ring to WIDE-end.

・

Set the focus index (#49) to "∞" position.

・

Mount the fi xing tool for 2nd lens-G (★J11356) by fi tting its protrusions in the holes of the 1st lens-G cam

・

ring (#38) and the 2nd lens-G cam ring (#25).

J11356

★

Index

Insert the wrench for the 2nd lens-G (★J11358) into the 2nd lens-group unit (B2043).

・

★

J11356

- Ｄ4・AF-S DX 16-85/3.5-5.6G VR -

J11358

★

JAA80051-R.3741.A

INC

Turn the wrench for 2nd lens-G (★J11358) counterclockwise, and remove the 2nd lens-group unit (B2043).

・

J11356

★

B2043

J11358

★

Name plate/Focus window

Remove the rubber ring (#37).

・

Remove the name plate (#75) and focus window (#76).

・

Caution: Remove the name plate (#75) and focus window (#76) ONLY when they must be replaced because of

defects, etc.

#37

#76

#75

- Ｄ5・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

VR name plate / Serial No.label

Remove VR name plate (#69) and serial number label (#168 or #169).

・

Caution: Remove VR name plate (#69) and serial number label (#168 or #169) ONLY when they must be

replaced because of defects, etc.

#69

Rear cover ring

Take out the three screws (#118) and remove the rear cover ring (#39).

・

#169
#168

#39

#118×3

- Ｄ6・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

4th lens-group unit

Caution: When the 4th lens-group unit is removed, the lens alignment work will be necessary after assembly.

Therefore, at service facilities where the alignment work can not be performed, do NOT remove the 4th

lens-group unit.

Set the zoom ring to WIDE.

・

Peel off the sheet (#70) from the 4th lens-G unit (B2046).

・

Take out the three screws (#124), and remove the 4th lens group unit (B2046) and washer (#139).

・

Top view

#70

#124×3

Caution

Lens alignment is made for the 4th

lens-G unit, so do NOT touch the

three screws (#125).

B2046

#139

Take out the two screws (#117).

・

#117×2

- Ｄ7・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Bayonet mount unit

Take out the three screws (#115) and the one screw (#114), and remove the bayonet mount unit (B30).

・

#115×3

#114

B30

B29

Caution:

Do NOT remove the bayonet mount unit (B30) and the rear fi xed tube unit (B29) together.

The main PCB is connected by the FPC of the rear fi xed tube (B29), so do NOT pull the FPC by force.

Otherwise the FPC will be damaged.

Remove the washer (#79).

・

#79

- Ｄ8・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Rear fi xed tube unit

Disconnect the FPC of the rear fi xed tube unit (B29) from the connector of the main PCB (B1001).

・

Remove the rear fi xed tube unit (B29).

・

B29

Main PCB

Disconnect the FPC of GMR unit (#1011) from the connector of the main PCB (B1001).

・

- Ｄ9・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Disconnect the connection-FPC (#1001) from the connector of the main PCB (B1001).

・

Caution:

Be sure to release the locks of the connector before pulling the FPCs.

Disconnect the FPC of the contact unit (B1007) from the connector of the main PCB (B1001).

・

#1001

Release lock here.

B1007

MF ring

Remove MF ring (#26).

・

Caution:

Be sure to release the locks of the connector before pulling the FPCs.

#26

- Ｄ10・AF-S DX 16-85/3.5-5.6G VR -

Lug plate unit

INC

Take out the screw (#123), and remove the lug plate unit (B1028).

・

#123

JAA80051-R.3741.A

B1028

MF brush unit

Take out the screw (#587),and remove MF brush unit (#2533) from SWM unit.

・

#587

#2533

- Ｄ11・AF-S DX 16-85/3.5-5.6G VR -

SWM unit

INC

Take out the two screws (#145), and remove SWM unit and main PCB (B1001).

・

Caution: Do NOT touch "A" area.

JAA80051-R.3741.A

#145×2

Back side has double-

stick tape attached

Remove the three lead wires of SWM unit from the main PCB (B1001).

・

Lead wire (red) (#1029)

Lead wire (yellow）(#1030)

"A" area

Lead wire (black) (#1031)

- Ｄ12・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

GMR sensor

Peel off the tape (#138).

・

Take out the two screws (#91). Remove the FPC from the double-stick tape and remove GMR sensor

・

(#1011).

#138

Double-stick tape

#1011

Focus brush

Turn the focus brush in the direction of CLOSE.

・

Take out the screw (#145), and remove the focus brush (B105).

・

#91×2

#145

B105

- Ｄ13・AF-S DX 16-85/3.5-5.6G VR -

Focus key

INC

Move the key (#54) in the direction of the arrow.

・

Take out the screw (#122), and remove the plate spring (#157) and focus key (#54).

・

JAA80051-R.3741.A

#122

#157

Fixed ring unit

Peel off the tape (#135).

・

#54

#135

- Ｄ14・AF-S DX 16-85/3.5-5.6G VR -

Fixed ring unit (continued)

INC

△ (Revision)

Take out the two screws (#123),and remove the zoom index ring the xed ring unit.



JAA80051-R.3741.A

#123×2

△ (Revision)

Zoom index ring
Fixed ring unit

Take out the screw (#144).



Remove the zoom control key unit (B140) from the xed ring unit.



B140

󲦑

#144

󲥻󲥻󲥻󲥻󲥻󲥻△× 2

Remove the zoom ring unit (B27) and gear unit (B40) from the fi xed ring (#55).

INC

・

JAA80051-R.3741.A

B27

B40

#55

Zoom brush

Take out the two screws (#109), and remove the reinforcing plate (#106) and zoom brush (#104).

・

#104

#106

#109×2

- Ｄ16・AF-S DX 16-85/3.5-5.6G VR -

Cover ring unit

INC

Take out the three screws (#110).

・

Take out the screws carefully because sometimes the adjustment washer (#107) is put.

#107 (Adjustment washer)

JAA80051-R.3741.A

#110×3

Remove the cover ring unit (B36) and support ring unit (B101).

・

B36

B101

- Ｄ17・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Fixed tube

Take out the three screws (#67), and remove the fi xed tube (#50) from the 2nd lens-G straight ring (B52).

・

#50

#67×3

B52

- Ｄ18・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

VR unit-assembly

Remove the connection-FPC (#1001) from the double-stick tape adhered to the fi xed tube (#50).

・

#50

#1001

Double-stick tape

Remove the three roller units (B68), and detach VR unit-assembly (B2306).

・

B68×3

B2306

- Ｄ19・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Aperture unit

Take out the three screws (#56), and remove the aperture unit (B34).

・

Remove the connection-FPC (#1001) from the double-stick tape, and disconnect it from the connector of VR

・

unit in numeric order from ① to ②.

#1001

①

②

Double-stick
tape

#56×3

B34

- Ｄ20・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

4th lens-G sliding ring

Remove the three roller units (B81), and remove the 4th lens-G sliding ring (#48) from the 3-4 lens-G cam



ring (#24).

Remove the two roller units (B83), roller unit (B99), roller unit (B102) and three washers (#82), then remove



△ (Addition)

the 3-4 lens-G cam ring (#24) from the xed tube (#50).

#48

B81×3

#24

#82×3

#50

B83×2

△× 2

B99

△ (Addition)

B102



󲥻󲥻󲥻󲥻󲥻󲥻

JAA80051-R.3741.A

INC

2. Assembly / Adjustment

Encoder FPC

Place the encoder-FPC (#1006) on the fi xed tube (#50) based on the below reference position, and attach it

・

by pressing in the direction of the arrow for positioning.

#50

Reference position

Place the encoder-FPC (#1006) on the fi xed tube (#50) based on the below reference position each, and

・

attach it by pressing in the direction of the arrow for positioning.

Reference position

#1006

#1006

#50

Reference position

- Ａ1・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Tape

Place the two pieces of the double-stick tape (#149 and #150) on the fi xed tube (#50) based on the below

・

reference position each, and attach it by pressing in the direction of the arrow for positioning.

Reference position

#50

Caution:

When the tape is attached, it must

NOT cross the dot lines which show

the edges of the cam groove.

Reference position

Adhere the three pieces of the tape to cover the screw holes.

・

TA-0012
5×3.5

#150

#149

#50

TA-0012
5×3.5

TA-0012
5×3.5

- Ａ2・AF-S DX 16-85/3.5-5.6G VR -

Fixed tube

INC

Assemble the 3-4 lens-G cam ring (#24) into the xed tube (#50).

・

#24

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the overall sliding surfaces of the

three cam grooves.

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the overall sliding surfaces of the

three cam grooves.

JAA80051-R.3741.A

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the overall surface of

the inside.

#50

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the overall sliding surfaces of the

three cam grooves.

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the overall surface sliding with [#24].

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the overall sliding surfaces of the

three lead grooves.

Changed page △× 6

- 󲦎3・AF-S DX 6-85/3.5-5.6G VR -

March�3�008�3�0083�008�008008

JAA80051-R.3741.A

INC

Roller unit

Mount the 3-4 lens-G cam ring (#24) on the fi xed tube (#50), and secure them with the two roller units (B83)

・

and two washers (#82).

#82×2

B83×2

#83×2

Attach the roller unit (B99) and washer (#82) to the 3-4 lens-G ring (#24).

・

#84×2

#24

#24

#50

Adhesive: Lockend (R)

Screw hole ×2

If the adhesive of [#24] is
squeezed out to the inside, wipe
it out.

#50

#94

#82

#99

Check the operations by sliding the roller unit (B99).

・

Adhesive: Lockend (R)

Screw hole

If the adhesive of [#24] is
squeezed out to the inside, wipe
it out.

B99

B99

- Ａ4・AF-S DX 16-85/3.5-5.6G VR -

VR unit-assembly

INC

Make a valley-fold along the dotted line of the connection-FPC (#1108).

・

JAA80051-R.3741.A

90°

Valley-fold

Peel off the backing paper of the double-stick tape.

・

Connect the connection-FPC (#1108) to the connector of VR unit-assembly (B2308) in numeric order from

・

to②.

①

Double-stick tape

②

①

#1108

B2308

#1108

Push the double-stick tape from above with the fi ngers to fi xate the connection-FPC (#1108)

・

Double-stick tape

Insert FPC all the way
seated in.

Do NOT insert FPC sideways.

- Ａ5・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Aperture unit

Position the aperture unit (B34) in the direction of the arrow, and tighten the three screws (#56) in numeric

・

order ①, ②, and ③.

#56×3

②

③

①

B34

Direction of positioning

Assemble VR unit (B2308) into the 3-4 lens-G cam ring (#24).

・

#48

#24

B2308

B2308

Be careful NOT to

hold the lever when

assembling, in order to

prevent deformation.

Changed page △× 1

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the two lateral and inner

surfaces of the protrusions.

- 󲦎6・AF-S DX 6-85/3.5-5.6G VR -

March�3�008�3�0083�008�008008

JAA80051-R.3741.A

INC

Assemble the fi xed tube (#50), 3-4 lens-G cam ring (#24), and VR unit-assembly (B2308) together by using

・

the three roller units (B68).

#68×3

The head of the roller unit (B68) must be

positioned against the lead groove as below.

GOOD

＜

＜

BAD

＞

＞

#147×3

#148×3

#24

B68×3

#50

Through this hole, pass the

#1008

Peel off the backing papers of the double-stick tapes (#149 and #150) and attach the connection-FPC

・

connection-FPC (#1008) from

the inside of the fi xed tube (#50)

toward the outside.

(#1008).

#1008

Edge line of the cam groove

Attach the FPC based on the refer-

ence position and dot line (edge of

cam groove), being careful of the

corner as shown in the right picture.

Reference position

- Ａ7・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

4th lens-G sliding ring

Mount the 4th lens-G sliding ring (#48) by fi tting its two cutouts with the two protrusions of VR unit.

・

Attach the three roller units (B81) to the 4th lens-G sliding ring (#48) through the cam groove of the 3-4

・

lens-G cam ring (#24) and fasten them.

Be careful of up/downward
direction for mounting.

Screw hole

Cutout×2

#48

Adhesive: Lockend （B

Screw hole ×3

Protrusion×2 of VR unit

）

Attach the roller unit (B102) to the roller unit (B99) and fasten it.

・

Check operations by sliding the roller unit (B99).

・

Grease: PL-22SEL

Pattern surface

B81×3

#24

#84×3

Grease: PL-22SEL

Pattern surface

#81×3

B99

Adhesive: Lockend （R

Screw hole

- Ａ8・AF-S DX 16-85/3.5-5.6G VR -

#103

#102

）

B102

JAA80051-R.3741.A

INC

2nd lens-G straight ring

Align the position of the roller unit (B99) with "U-groove" of the 2nd lens-G straight ring unit (B52).

・

Align the three roller units (B68) with three cutouts of the 2nd lens-G straight ring unit (B52), and make

・

assembly.

B68

B99

Grease: GP-1RS

Apply to the six surfaces sliding

with [B52].

Attach the three screws (#67) to the 2nd lens-G straight ring unit (B52) and fasten them.

・

Cutout×3

U-groove

B52

Adhesive: Lockend （R

Apply to the screw head ×3

- Ａ9・AF-S DX 16-85/3.5-5.6G VR -

）

B52

#67×3

JAA80051-R.3741.A

INC

Zoom operation check

Rotate the 2nd lens-G turning-ring (#53), and check operations of the 2nd lens-G straight ring unit (B52).

・

#1008

During rotating the 2nd lens-G turning-ring

・

(#53), the lever section of the 2nd lens-G cam

ring (#25) must be positioned in the shaded por-

tion.

If the lever gets stuck with the connection-FPC

・

Lever section of [#25]

(#1008), change the double-stick tape and re-

attach the connection-FPC.

#53

- Ａ10・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Zoom brush

Set the zoom ring to WIDE.

・

Attach the zoom brush (#104) and reinforcing plate (#106) to the 2nd lens-G straight ring unit (B52), and

・

secure them with the two screws (#109).

Activate zooming. Check the contacting condition on the overall pattern of the encoder-FPC (#1008) and

・

the start position of the brush.

After checking the brush start position, apply the adhesive to the head of the two screws (#109) and fasten

・

them.

#1008

B52

Brush attaching (start) position at WIDE-end

Set "R" section which is the head of the zoom brush

at the start position.

"R" section

#104

#106 #109×2

Caution:

Do NOT deform the brush.

・

Do NOT use a deformed brush.

・

Cover ring unit

Mount the cover ring unit (B36) with the holes facing upwards by fi tting in the three screw holes of the

・

#109×2

Adhesive: Screwlock

2nd lens-G straight ring unit (B52).

Mount the support ring unit (B101).

・

When [B36] is mounted, the three

convex portions of the 2nd lens-G

straight ring must not get stuck

with the fi ne tape (#78) of the cover

ring unit

Convex

portion ×3

Screw hole ×3

B101

B36

#78

B52

- Ａ11・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Tighten the three screws (#110) and fi x the cover ring unit (B36) and 2nd lens-G straight ring unit (B52).

・

Adhesive: Lockend （B

Screw hole ×3

Confi rm that after tightening the screw (#110), the slot’s angle is within the appropriate range.

・

If the slot’s angle is wihin the adjustable range, adjust it by tightening the screw (#110) and washer (#107)

・

）

B36

#110×3

B52

together so as that it becomes in the appropriate range.

Appropriate range (45°

Adjustable range

(135°～180°)

180°

～

135°)

Adjustable range

(0°～45°)

0°

Slot

#107

#110

- Ａ12・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Gear unit

Mount the gear unit (B40) by tting the three protrusions with the three cutouts of the xed tube (#55).

・

Turn the gear unit (B40) from side to side, so that it is xed in the xed ring (#55).

・

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the surface sliding
with gear unit.

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the surfaces sliding

with [B40] and [B27].

Protrusion×3

B40

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the surface sliding with [#55].

Grease: PL-22SEL

Apply to the magnetic tape.

#55

Protrusion×3

Cutout×3

Changed page △× 3

- 󲦎3・AF-S DX 6-85/3.5-5.6G VR -

March�3�008�3�0083�008�008008

JAA80051-R.3741.A

INC

Zoom ring unit

Mount the zoom ring unit (B27) by tting its three protrusions with the three cutouts of the xed ring (#55)

・

and sit in the groove .

Turn the zoom ring unit (B27) clockwise, and align "85" of zoom index with the index of the xed ring

・

(#55).

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T
Apply to the overall three surfaces sliding

with [#110].

B27

Protrusion×3

Cutout×3

#55

Assemble the zoom control key (#140) by tting its lower part in the groove section (white dotted area) of

・

the xed ring (#55), and secure it with the screw (#144).

#144

#140

Leave as it is 15 mins. or more after

applying the adhesive.

Adhesive: Screwlock

Changed page △× 1

Index

- 󲦎・AF-S DX 6-85/3.5-5.6G VR -

Groove section

March�3�008�3�0083�008�008008

JAA80051-R.3741.A

INC

Zoom ring unit (continued)

Attach the focus window (#76) to the fi xed ring (#55).

・

#55

#76

Attach the polyester tape (approx. 10×50 mm) on the focus window (#76) so as not to block [1.5 mm across]

・

hole.

φ1.5 hole

Attach the double-stick tape on the fi xed ring (#55) based on the reference position.

・

TA-0027

5×3

Reference
position

TA-0003

2×10

Reference position

#76

#55

Reference position

Approx. 1mm

Approx. 4mm

- Ａ15・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Zoom ring unit (continued)

Set the fi xed tube (#50) to WIDE.

・

Set the zoom ring unit (B27) to WIDE.

・

Set the gear unit (B40) to "∞" (infi nity).

・

Align the positions of the three screws (#110) with the three inner straight grooves of the fi xed ring (#55),

・

and mount the zoom ring unit.

Tighten the three screws (#123) in numeric

・

order of ①, ②, and ③ by turning the zoom

①

②

#123×3

③

index ring clockwise for positioning and fi x it.

B27

B27

B40

Inner straight groove of [#55]

Wrap the tape around the support ring unit (B101) and zoom ring (#27) to fi x them.

・

B40

#55

#50

#110×3

B101

TA-0012

6×30

#27

- Ａ16・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Focus key

Insert the focus key (#54) into the groove of the lever section of the 2nd lens-G cam ring (#25).

・

Turn the gear unit (B40) to "∞" (infi nity).

・

Fit the head of the focus key (#54) with the four protrusions of the gear unit (B40).

・

Place the plate spring (#157) on the focus key (#54).

・

Secure the focus key (#54) and plate spring (#157) with the screw (#122).

・

Apply the adhesive to the head of the screw (#122) and fi x it.

・

#122

#157

Lever section of

[#25]

Insert the lower part (spring section)

#54

Protrusion×2 of [B40]

B40

Protrusion×2

Adhesive: Screwlock

of the plate spring (#157) into the

cutout of the zoom ring unit (B27)

fi rst, then move [#157] to be inside

the groove as shown in the right

picture.

- Ａ17・AF-S DX 16-85/3.5-5.6G VR -

Spring section

#122

#157

Lever section of [#25]

JAA80051-R.3741.A

INC

Focus brush

Move the focus key (#54) in the direction of the arrrow (CLOSE).

・

Put the focus brush (B105) by fi tting the protrusion of the gear unit (B40) in the groove section of [B105].

・

Tighten the screw (#145).

・

#54

Rear view of [B105]

Groove section

Protrusion of [B40]

Positioning of Focus encoder

Move the focus key (#54) and align "∞" position of the focus index (#49) with the below index.

・

Insert the reference pin (J11349) into "φ1.5 hole" of the fi xed ring (#55) and fi x the focus index.

・

Set the zoom ring (#27) to WIDE.

・

#145

B105

Caution:

Do NOT deform the brush.

・

Do NOT use a deformed brush.

・

#49

Index

- Ａ18・AF-S DX 16-85/3.5-5.6G VR -

#55

#27

J11349

JAA80051-R.3741.A

INC

Match "∞" position of the focus encoder’s pattern with the brush tip ("R" section) of the focus brush (B105)

・

as below.

"∞" position of Focus-encoder’s pattern

Brush tip ("R" section) of [B105]

Tighten the screw (#145).

・

#145

Set the focus brush (B105) to CLOSE-end, and apply the adhesive to the head of the screw (#145).

・

Adhesive: Screwlock

#145

- Ａ19・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

GMR sensor

Insert the edge of GMR sensor (#1011) into the gap of the fi xed ring (#55) and fi t the two cutouts of GMR

・

sensor with the two protrusions of the fi xed ring (#55).

Tighten the two screws (#91).

・

Attach the double-stick tape (TA-0003) on the FPC of GMR sensor.

・

Cutout×2

#1011

TA-0003

2×10

Protrusion ×2

#91×2

- Ａ20・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Inspection and Adjustment of GMR output waveform

● When GMR unit is disassembled and replaced, be sure to make inspection and adjustment.

1. Device:





Caution:



Single-output rated voltage power-supply
Oscilloscope

    



GMR output inspection tool 1 unit Self-made tool (ref. T3)

1 unit: 5V 100mA
1 unit

If there are problems with conduction between the contacts of the GMR output inspection
tool and the relay-FPC, the contacting surface of the relay FPC may be dirty, eroded, or
oxidized. So polish the contacts and connect them.

2. Preparation of the lens for measurement



Connect the xed tube, which has GMR unit assembled, to each measuring instrument.

Refer to T3 for wiring on Main PCB.)

󲥵

Rated voltage
power-supply

△ (Revision)



󲥸

Oscilloscope
(2ch type)

Set value

5.0 V
100 mA

△× 1 󲥻󲥻󲥻󲥻󲥻󲥻

󲦎

JAA80051-R.3741.A

INC

3󲥻How to inspect and adjust:

Conrm that the electric current and voltage of the connected rated voltage power-supply are set



values, then turn it ON.

Set the oscilloscope, and turn the focus turning-tube with hand.





In case large waveform-noise is detected, use the FILTER function.

How to set FILTER function (e.g. DL1540 manufactured by YOKOGAWA

1. Press the FILTER button.



2. Select “Smooth” of the menu on screen and turn it ON.



1 m s / d i v

●

Oscilloscope setting

V/Div (ch1) : 100 mV



V/Div (ch2) : 100 mV



Coupling : AC



Time/Div : 20ms/div



1ms/div

Trigger Mode : NORMAL



Trigger Coupling : AC



Trigger Source : : CH1



Trigger Position : + 4 div



Trigger Type : EDGE



Trigger Level : 0V



INPUT (ch1) : AC



INPUT (ch2) : AC



△ (Revision)

󲥶

Standard: Amplitude of all pulses/waveforms is 150mV or more.

Note: Check the waveform by rotating the focus turning-tube all the way around back and forth.

If there is no problem with the waveform of GMR sensor, apply the adhesive to the head of the two screws



(#91) to x.

Attach the tape (#138) on the GMR sensor.



Reference position for

attaching [#138]

Adhesive: Screwlock

#91×2

FPC of [#1011]

#138

△× 1 󲥻󲥻󲥻󲥻󲥻󲥻

󲦎

Main PCB

INC

Make six pre-solderings on the main PCB (B1001).

・

JAA80051-R.3741.A

Pre-soldering here

Make a fold on the FPC of SWM unit (B501) as below.

・

Solder the three lead wires of SWM unit and the lead wire of the lug plate unit (B1028) on the main PCB.

・

Caution: Do NOT touch "A" area.

"A" area

Pre-soldering here

#1030（yellow

#1029（red

）

）

#1031（black

B1001

）

FPC of [B501]

Mountain-fold

B1028

- Ａ23・AF-S DX 16-85/3.5-5.6G VR -

Connect the FPC of the contact unit to the connector of the main PCB (B1001).

INC

・

Caution: After connecting the FPC, be sure to lock the connector.

Lock here.

Lock

here.

JAA80051-R.3741.A

B1001

Insert FPC all the way
seated in.

Assemble SWM unit and gear unit by fi tting "A" area with "B" area.

・

"A" area

Do NOT insert FPC sideways.

"B" area

- Ａ24・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

A

INC

Push SWM unit (B501) toward outside by turning clockwise for positioning, and tighten the two screws

・

(#145).

Apply the adhesive to the head of the screw (#145).

・

Caution: Do NOT touch "A" area.

#145×2

A

Adhesive: Screwlock

#145

Direction of positioning

Peel off the backing paper of the double-stick tape, and attach the SWM-FPC by pressing it with a fi nger.

・

SWM FPC

B501

Adhesive: Screwlock

#145

Double-stick tape

- Ａ25・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Being careful NOT to touch the GMR-FPC, mount the main PCB (#1001) on the fi xed ring (#55) by fi tting

・

with four cutouts.

Cutout at 2 places

Cutout at 2 places

Take out the screw (#123) and attach the lug plate unit (B1028) and tighten the screw again.

・

#123

B1028

- Ａ26・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

MF brush

Attach the MF brush (B2533) to SWM unit (B501) by fi tting the two bosses of [B2533] in the hole and

・

groove of [B501], and tighten the screw (#587).

#587

B2533

Boss×2

B501

Caution:

Do NOT deform the brush.

・

Groove

Hole

Do NOT use a deformed brush.

・

Apply the adhesive to the below locations, and fi x the main PCB (#1001).

・

Adhesive: SX720B

- Ａ27・AF-S DX 16-85/3.5-5.6G VR -

Adhesive: SX720B

JAA80051-R.3741.A

INC

Solder the lead wire (pink: #1025) of MF brush (B2533) and the lead wire (white: #1026) on the main PCB

・

(#1001).

#1025

#1026

Turn MF gear (#535) and confi rm the contacting condition between MF brush (B2533) and M/A-PCB

・

(#1012).

Apply the adhesive to the head of the screw (#587) to fi x.

・

Adhesive: Screwlock

#587

#535

Check whether to contact

M/A-PCB.

#1012

- Ａ28・AF-S DX 16-85/3.5-5.6G VR -

Check whether to contact the pattern

surface of M/A-PCB.

MF ring

INC

Mount MF ring (#26).

・

△ (Revision)

Grease: MZ-400EL

Grease: MZ-400T

Apply to the overall

inner surface.

JAA80051-R.3741.A

Be careful of up/downward

direction for mounting.

Cross-section view of [#26]

#26

Turn MF ring (#26) and check whether MF gear (#535) and gear unit (B40) move subsequently.

・

#535

Changed page △× 1

- 󲦎・AF-S DX 6-85/3.5-5.6G VR -

#26

B40

March�3�008�3�0083�008�008008

JAA80051-R.3741.A

INC

GMR FPC

Pass the GMR-FPC (#1011) under the lead wire (#1027) of the lug plate unit and the lead wire (#1031) of

・

SMW-FPC.

#1011

#1031

Connect the GMR-FPC (#1011) to the connector of the main PCB.

・

Connect the connection-FPCs (#1008) to the connectors of the main PCB.

・

Caution: After connecting the connection-FPCs (#1008), be sure to lock the connectors.

#1011

#1027

#1008

Insert FPC all the way
seated in.

Lock here.

Do NOT insert FPC
sideways.

- Ａ30・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Check conduction between the white screw hole of the fi xed tube (#50) and the screw (#123) that attaches

・

the lug plate unit (B1028).

Apply the head of the three screws (#123) to fi x.

・

Adhesive: Screwlock

White screw hole of [#50]

Do NOT touch "A" area.

"A" area

Check conduction

Value read by tester － Internal resistance value＜0.5Ω

#123

Adhesive: Screwlock

#123×2

Fixed ring unit

Connect the FPC of the fi xed ring to the connector of the main PCB (B1001).

・

Mount the fi xed ring unit (B29) on MF ring (#26).

・

B29

#26

Insert FPC all the way
seated in.

Do NOT insert FPC
sideways.

- Ａ31・AF-S DX 16-85/3.5-5.6G VR -

Bayonet mount unit

INC

Put the washer (#79) on the rear cover unit (B29) by tting the boss in the hole.

・

If more than one washer is used, put a thicker washer on the other(s).

・

Shear-drooped
side upward

Boss

JAA80051-R.3741.A

#79 (A-J)

Mount the bayonet mount unit (B30) on the rear cover unit (B29).

・

Tighten the three screws (#115) and one screw (#114).

・

#114

B30

B29

#115×3

#61

△ (Revision)

Grease: I-40

Grease: G8240

Apply to the overall surface.

Insert the lever(#61) section’s head

into the cutout of the blade actuating

plate (#33) to assemble.

Changed page △× 1

B29

- 󲦎3・AF-S DX 6-85/3.5-5.6G VR -

#33

March�3�008�3�0083�008�008008

JAA80051-R.3741.A

INC

Aperture lever adjustment

Set the zoom ring to TELE-end.

󳉗

When the lock pin of [J18004-1] is put into the lock hole of the bayonet, confi rm that the aperture blades

󳉗

become fully open.

J18004-1

Lock pin

Lock hole

If the aperture blades open quickly or slowly, adjust the position of the aperture lever with the two screws

󳉗

(#121).

When the position of the aperture lever is adjusted, apply the adhesive to the head of the two screws (#121)

・

to fi x.

#121×2

Aperture lever

Set the zoom ring to TELE.

󳉗

Place the contact unit (B1007) on the bayonet mount unit (B30) by pressing in the direction (clockwise)

󳉗

for positioning.

Tighten the two screws (#117).

󳉗

Turn MF ring (#26) and check operations.

󳉗

Caution: Contact unit (B1007) must not be tilted,

slackened, nor gapped from the bayonet mount

(B30).

Adhesive: Screwlock

B1007

B30

#117×2

#26

- Ａ33・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

4th lens group unit

Mount the 4th lens-G unit (B2046) by fi tting in the cutouts two each of the washer (#139) and the 4th lens-G

・

sliding ring (#48).

Secure the 4th lens-G unit (B2046) with the three screws (#124).

・

Note that when the 4th lens group is removed, lens alignment work will be necessary.

・

#124×3

B2046

#139

#48

Adhere the sheet (#70) on the 4th lens-G unit (B2046).

・

Cutout×2

Cutout×2

Cutout×2

#70

B2046

- Ａ34・AF-S DX 16-85/3.5-5.6G VR -

Rubber ring

INC

Mount the rubber ring (#37).

・

JAA80051-R.3741.A

#37

Turn over the rubber ring (#37) and apply the adhesive as below.

・

Adhesive Adhesive

Apply the adhesive to 2 places which are

positioned perpendicular (90°) to the index.

Adhesive: SX720B

90°

Index

#37

Index

- Ａ35・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

2nd lens group unit

Set the zoom ring to WIDE-end.

・

Align "∞" position of the focus index (#49) with the below index.

・

Mount the fi xing tool for the 2nd lens-G (★J11356) by fi tting its protrusions in the holes of the 1st lens-G

・

cam ring (#38) and the 2nd lens-G cam ring (#25).

J11356

★

#25

#38

Index

#49

Turn clockwise the wrench for the 2nd lens-G (★11358), into which the 2nd lens-G unit (B2043) and the

・

washer (#80) are assembled, and fi x them into the 2nd lens-G cam ring (#25).

B2043

#80

- Ａ36・AF-S DX 16-85/3.5-5.6G VR -

J11358

★

Set the zoom ring to WIDE, and adhere the sheet (#62).

INC

・

B2043

JAA80051-R.3741.A

#62

NOTE:
If dust/dirt is attached to the lens surface of the 2nd lens-G(B2043), blow them away with a
blower as much as possible.
If impossible, dip a wiping cloth (Savina Minimax) a little in ethanol, and wipe the surface
lightly.

- Ａ37・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

1st lens group unit

Set the zoom ring to WIDE.

・

Mount the 1st lens-G unit (B204) by placing the boss ("Mold cavity no.) halfway around from the index.

・

Secure the 1st lens-G unit (B204) with the three screws (#120) by turning clockwise from the index.

・

Note: When the washer (#133) is put, place a thin washer between thick washers.

Shear-drooped
side upward

Boss faces upwards.

"Mold cavity No." faces
downwards.

#120×3

B204

#133

Slotted hole for
assembly

#62

Index position

- Ａ38・AF-S DX 16-85/3.5-5.6G VR -

Filter ring

INC

Align the index of the fi lter ring (#35) with the index of the fi xed ring (#55).

󳉗

Tighten the three screws (#119).

󳉗

#119×3

JAA80051-R.3741.A

#35

Index

Index of [#55]

- Ａ39・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Adjustment of Focus movement (T, W)

★：

Start up the adjustment software (★J18444).

・

Perform "Positioning to infi nity for FFD adjustment" on the main menu for performing "∞" positioning.

・

New tool

Being careful NOT to move the fi lter ring, mount the lens on the horizontal-type collimator.

・

Looking through the eyepiece of the horizontal-type collimator, rotate the mirror micromotion-control

・

handle to adjust focus, then measure focus position at WIDE (16 mm), MIDDLE (35 mm), and TELE

(85 mm).

The focus position to be measured is the numeric number of the boundary line at the moment when the color

of cross lines change from green to orange.

Horizontal-type collimator

＜

Eyepiece lens

＞

Mirror micromotion-control handle

- Ａ40・AF-S DX 16-85/3.5-5.6G VR -

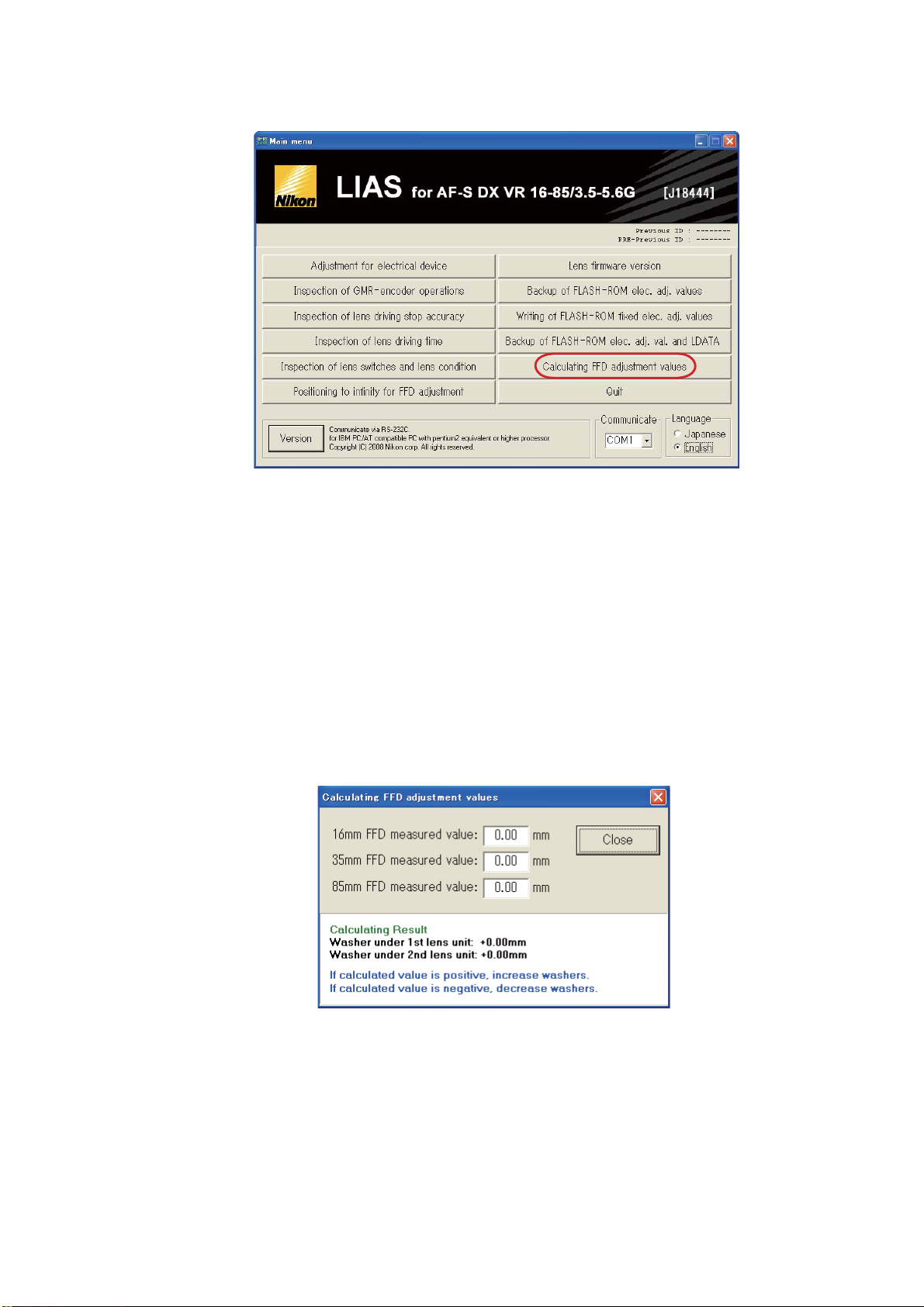

Click "Calculating FFD adjustment values" on the main menu.

INC

・

JAA80051-R.3741.A

Input the focus positions which were measured by the horizontal-type collimator at WIDE (16 mm),

・

MIDDLE (35 mm), and TELE (85 mm) into the below fi elds.

Calculate the adjustment amounts of (1) the washer (#133) which is under the 1st lens group and (2) the

・

washer (#80) which is under the 2nd lens group.

Adjust thickness by increasing/decreasing washers. If the result is positive, increase the thickness, while it

・

is negative, decrease the thickness. (ref. Page A36, A38)

- Ａ41・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Adjustment of F.F.D (Back focus)

New tool

★：

Start up the adjustment software (★J18444).

・

Perform "Positioning to infi nity for FFD adjustment" on the main menu for performing "∞" positioning.

・

Being careful NOT to move the fi lter ring, mount the lens on the horizontal-type collimator.

・

Looking through the eyepiece of the horizontal-type collimator, rotate the mirror micromotion-control

・

handle to adjust focus, then measure focus position at WIDE or TELE.

The focus position to be measured is the numeric number of the boundary line at the moment when the color

of cross lines change from green to orange.

In case the measured value is out of standard, follow the below procedure.

Horizontal-type collimator

＜

Eyepiece lens

＞

Mirror micromotion-control handle

Focal length (f) Standard (mm)

16

ｍｍ

35

ｍｍ

85

ｍｍ

Remove the bayonet mount unit (B30).

・

Adjust thickness by increasing/decreasing washers (#79) by a difference from the standard value.

・

0.01～+0.19

0.01～+0.19

-0.09～+0.21

If the difference is positive, increase the thickness, while it is negative, decrease the thickness. (ref. Page

A32).

- Ａ42・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Lens Alignment

Caution: This adjustment is required when the 4th lens group is removed.

(1) Preparation of Lens optical alignment equipment

Fix the attachment holder of the rear lens group (J19127T) on the lens equipment.

・

How to Fix: Move down the holder-moving lever slowly so that the attachment holder of the rear lens group

(J19127T) touches the stage.Then tighten four screws to fi x it.

Move down slowly.

Holder-moving lever

Stage

Create the center positioning tool.

・

Refer to [Create positioning tool of Rear lens-group holder for lens alignment] (Page A57) for

Screw×4

Attachment holder of the rear
lens group (J19127T)

how to create.

Create cardboards with which "Lens alignment chart" and "Viewers" are fi t.

・

Refer to [Create Setting board of "Lens alignment chart" and "Viewer"] (Page from A58 to A60) for

how to create.

【

Create Setting board of "Lens alignment chart" and "Viewer"

】

< Lens optical alignment equipment >

CCD camera

Lens alignment equipment
(for center)

LINE GENERATOR

Monitor

- A43・AF-S DX 16-85/3.5-5.6G VR -

MEGALIGHT
100

Lens alignment equipment
(for periphery)

Attachment holder
of the rear lens group
(J19127T)

JAA80051-R.3741.A

INC

<Back view of Lens optical alignment equipment>
Connect each cable to the appropriate equipment with the same number. (e.g. Connect up ① to ①' )

Power cable for CCD camera

④

'Pinhole chart

③

' Cross line chart

③

Power cable for CCD camera

④

VIDEO cable

①

②

VIDEO OUT

' VIDEO IN

①

' VIDEO IN of 'LINE A

Fiber-optic cable

③

②

< Chart shooting equipment for 4th lens-group alignment >

Slide rail for lens alignment equipment

' Power cable for

④

CCD camera

The chart is embeddied in cardboards.

- A44・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

(2) Center positioning of rear lens-group holder

Mount the (self-made) center positioning tool on the lens alignment equipment (for center) by setting the

・

groove in place slightly to the left (in a counterclockwise direction) from the below 12 o’clock position.
Then turn the tool clockwise all the way to the right, and move the lever to the left to fi x it.

12 o'clock position

Fixing lever

Groove for release pin

Lens alignment
equipment

Unlock the holder-moving lever, and move the holder down slowly by the lever.

・

Holder-moving lever

Unlock.

Move down slowly.

Center positioning tool

12 o'clock position

Micrometer for Y-axis

Micrometer for X-axis

・

Adjust the attachment holder (J19127T) position by rotating the micrometers for X-axis or Y-axis so that the

Fixing lever

center of the attachment holder coincides with that of the rear cover ring of the (self-made) center position­ing tool.

Caution: Without this alignment, the 4th lens may be damaged by the attachment holder.

・

Move the holder-moving lever of the alignment equipment upwards, and remove the (self-made) center

positioning tool from the equipment by moving the fi xing lever rightwards.

- A45・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

(3) Temporary positioning of the 4th lens group

Mount the lens on the lens alignment equipment (for center). Set the focus ring to "infi nity-end".

・

Refer to [(2) Center positioning of rear lens-group holder] (Page A45) for how to mount the lens.
Set the Zoom ring to "16 mm".

・

Place the zoom-fi xing base with the spacer"C", then turn the zoom ring towards TELE until the lens touches

・

the zoom fi xing base.

Focus ring

Zoom-fi xing base

Zoom ring

Spacer"C"

・

Turn each power of the monitor, LINE GENERATOR, and MEGALIGHT 100 to ON.

・

Rotate the "LIGHT CONT."knob of "MEGALIGHT 100" and adjust brightness.

Rotate the focus ring. Adjust the shape of point image so that the point image on the monitor is like bellow.

・

Focus ring

Point image

- A46・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Check the point image on the monitor.

・

In case the shape is like "Fig.1", remove the lens from the alignment equipment.
In case the point image is like "Fig.2" or "Fig.3", go to the next procedure, and perform "adjustment of 4th

lens group point image".

< 4th lens group point image >

OK

Fig.1 Fig.2

Unlock the holder-moving lever, and move the holder down slowly by the lever.

・

Caution: Be careful NOT to damage the 4th lens group by the attachment holder (J19127T).

Insert the three alignment screwdrivers in the screw holes of the 4th lens unit, and loosen the screws.

・

Caution: When inserting the alignment screwdrivers, move the holder-moving lever up to lock the

holder. Then put them straight down in the screw holes so that the screws can be easily
found. After inserting the alignment screwdrivers, unlock the holder-moving lever and
move the holder down slowly by the lever.

NG

Alignment screwdrivers

NG

Fig.3

Rotate the micrometer (X-axis and Y-axis) so that the point image on the monitor is like "Fig.1".

・

When the point image becomes like the above "Fig.1", tighten the three (loosened) screws of the 4th lens-G

・

unit with the below three alignment screwdrivers.

Remove the three alignment screwdrivers from the attachment holder (J19127T).

・

Move the holder-moving lever up slowly to lock the holder, and remove the lens from the equipment (for

・

center).

- A47・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

󲦚



󱶹󱅚󱸷

INC

(4) Chart shooting for the rear lens group alignment

Prepare a camera (D200). Set the shutter speed to "M1/60", aperture to "full open", and the focus mode to



"S". On the shooting menu, set "Image Quality" mode to "RAW", "WB" to "Preset" and "ISO" to "200".

Set the VR mode of the lens to "OFF".



Insert CF card into the camera



△（Deletion）

Check that the counter shows “2” or more.



Set up the camera (D200) on a tripod on the slide rail. Set the indication pointer of the tripod to 30 cm.



△（Deletion）

counter

△（Deletion）

Set the alignment chart (J19128) as shown below.

Focal plane mark of camera

Rail tool

Back

30 cm

Alignment chart
(J19128)

Magnications: 40

(Zoom position: 16 mm)

75 cm±2 cm

Front

Changed page

△× 3

30 cm



󲥻󲥻󲥻󲥻󲥻󲥻

JAA80051-R.3741.A

INC

・

Turn the power of viewers (5 pcs.) to ON.

Caution: If the batteries of viewers are exhausted causing decreased brightness, the shooting data

cannot be obtained correctly.

Viewer× 5 pcs.

Front

Attach the suspected lens to the camera (D200). Set the A/M change SW to "M", the zoom ring to "24 mm",

・

and the focus ring to "infi nity".

Set the A/M change SW to "M/A".

・

By looking through the viewfi nder, adjust the height and tilt to make the chart fi ll the entire fi nder fi eld

・

frame.
Adjust the tilt of the slide rail to make the three chart lines position in the center of the viewfi nder, when the

・

tripod is slid all the way to the front and back.

Back

Connect the PC and camera via USB cable (Camera setting for USB: PTP).

・

Start the adjustment software (LWM_AFSDXVR16_85.exe).

・

Click "OK".

・

- A49・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

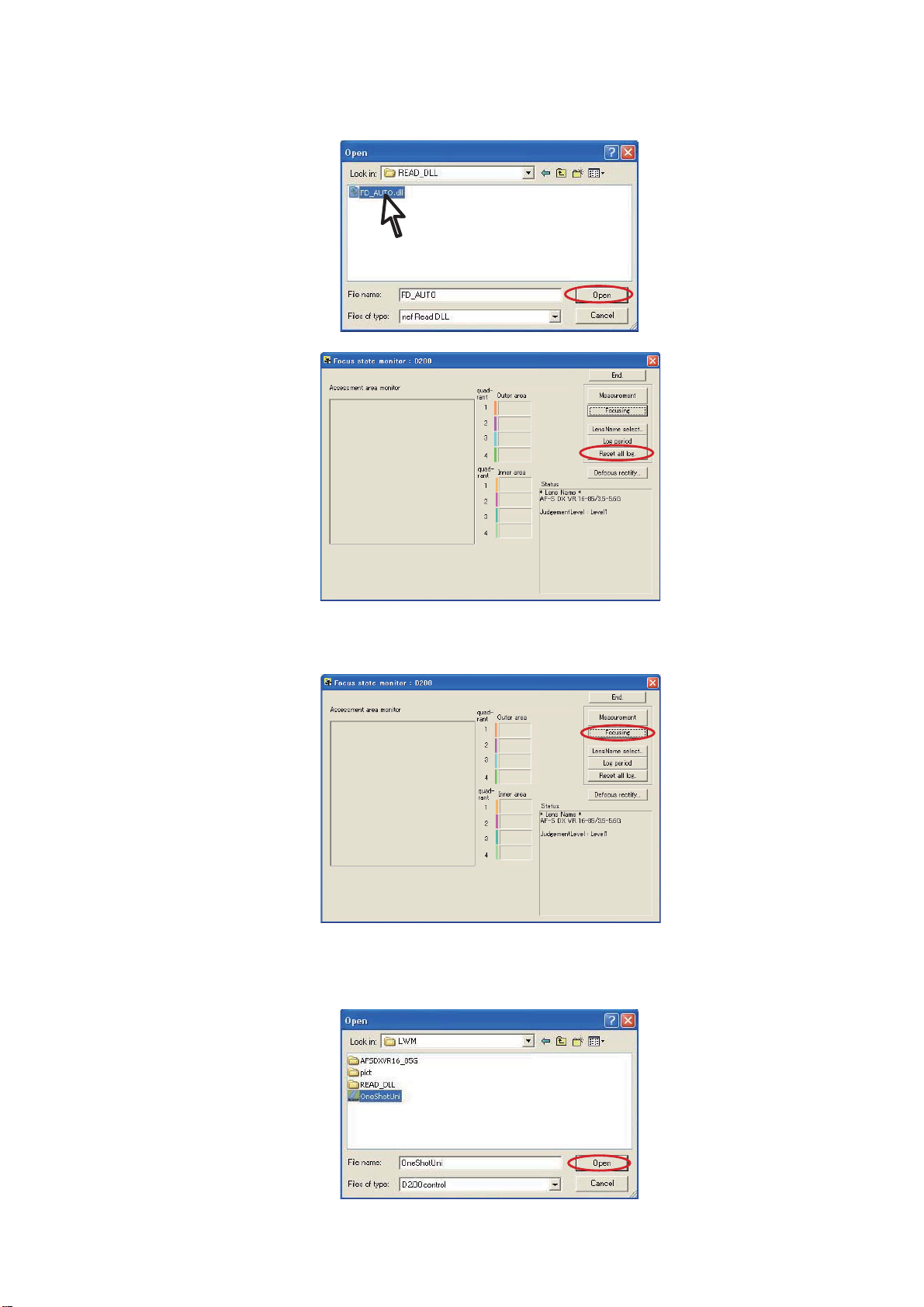

If this software is used for the fi rst time, the selection screen of reading data will appear. This does not

※

appear after the 2nd-time usage. Select "FD_AUTO.dll" and click "Open".

Click "Reset all Log".

・

・After darken the room, click "Focusing". AF is activated to focus and the shutter is released.

If this software is used for the fi rst time, the software selection screen will appear. This does not appear

※

after the 2nd-time usage.Select "OneShotUni" and click "Open".

- A50・AF-S DX 16-85/3.5-5.6G VR -

Set the A/M change SW to "M".

INC

・

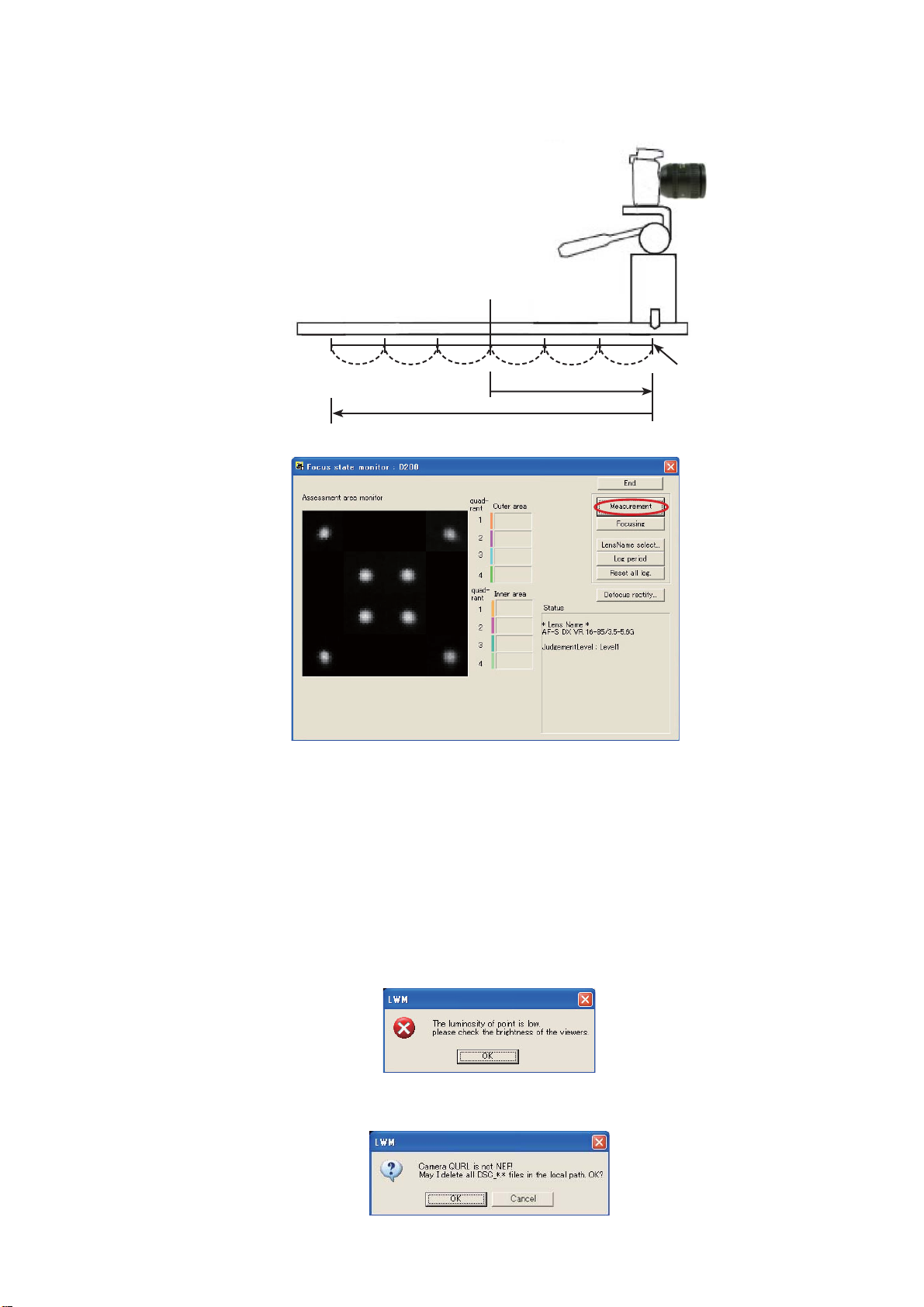

Slide the tripod to the front by 18±0.1 cm. Click "Measurement".

・

Focusing Position

To Back

JAA80051-R.3741.A

To Front

6cm

When the shutter of the camera is released, slide the tripod to the back by 6±0.1 cm and click "Measurement"

・

again.

6cm

6cm

36cm

6cm 6cm 6cm

18cm

Measuring Position

Repeat this procedure (of sliding the tripod in increments of 6±0.1 cm and clicking "Measurement"

・

at 7 measuring positions). The total sliding distance is 36 cm. (ref. Illustration of previous page)

Note 1: When the below warning is given, there may be some defects in the brightness of the viewers

and/or parallelism of the chart and camera, etc. So correct the above and make a remeasure­ment.

Note 2: When the below warning is given, recheck that the Quality mode of the camera is set to RAW.

- A51・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

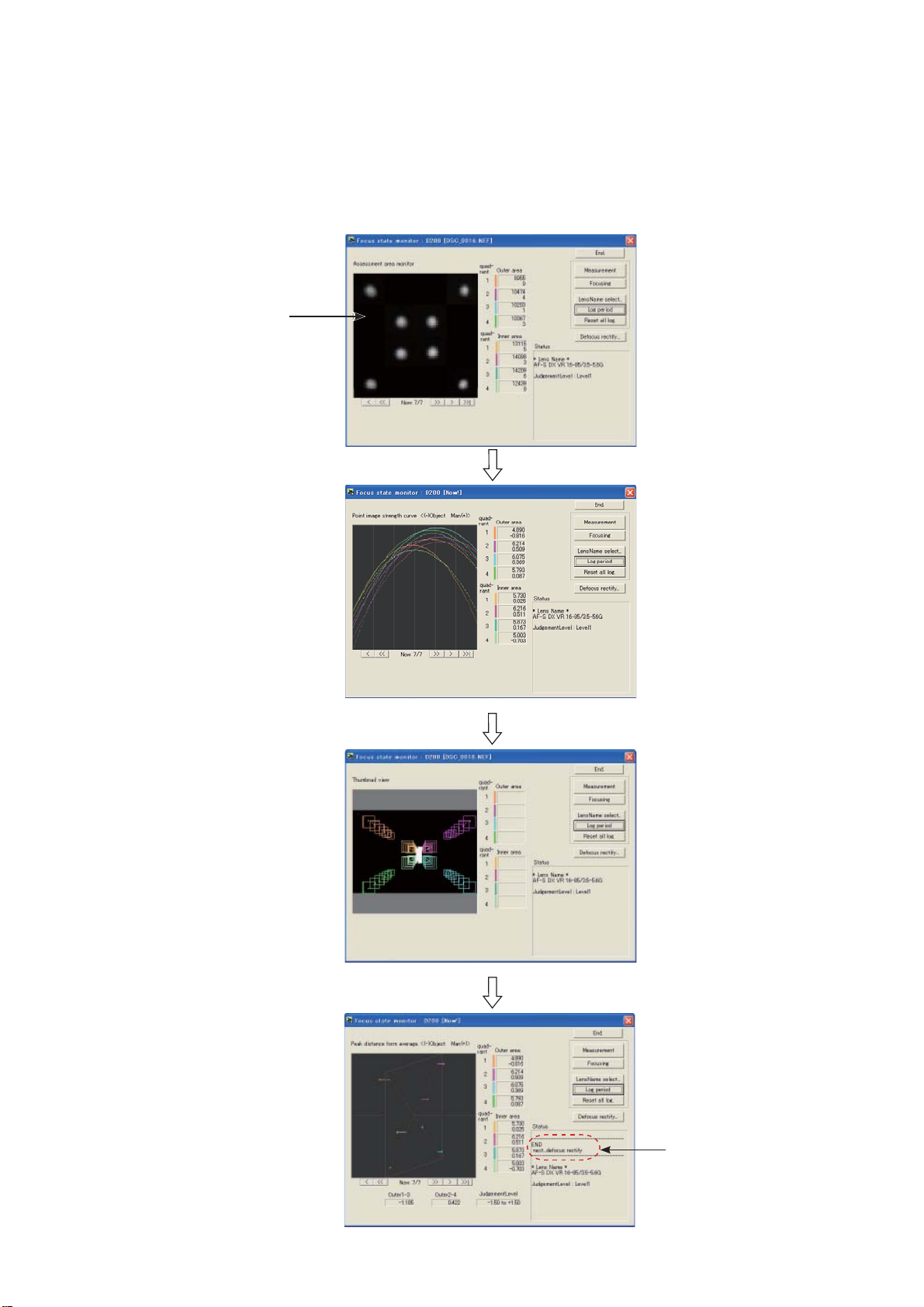

After the seven measurements, point the cursor to the confi rmation screen of the software. Click it three

・

times.
If "Information" displays "END", the lens optical alignment is completed.
If "Information" displays other than "END", go to the next "(5) 4th lens group alignment" (Page A53) to

readjust.

Confi rmation screen

Information display

- A52・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

(5) 4th lens group alignment
・Mount the lens on the equipment (for periphery).

Refer to [(2) Center positioning of rear lens-group holder] (Page A45) for how to mount the lens.

Set the zoom ring to "16 mm"

・

Place the zoom-fi xing base with the spacer"C", then turn the zoom ring towards TELE until the lens touches

・

the zoom fi xing base..

Focus ring

Zoom-fi xing base

Zoom ring

Spacer"C"

・

Turn each power of the monitor, LINE GENERATOR, and MEGALIGHT 100 to ON.

Adjust the calibrated cross lines by rotating the "LIGHT CONT." knob of "MEGALIGHT 100" and rotating

the focus ring from "infi nity"-end so that the intersection of the cross lines can be seen clearly.

Y-axis

X-axis

Focus ring

Caution:
In case the cross lines are tilted, adjust them by
turning the chart, which is screwed in the rear
tube of the equipment.

Unlock the holder-moving lever, and move the holder down slowly by the lever.

・

Caution: Be careful NOT to damage the 4th lens group by the attachment holder (J19127P).

- A53・AF-S DX 16-85/3.5-5.6G VR -

Cross lines

JAA80051-R.3741.A

INC

Press the "LINE ON/OFF" button of LINE GENERATOR. Turn the knobs of "X1" and "Y1" until X- and

・

Y-lines are displayed on the monitor.
Move these X- and Y-lines so that they coincide with the cross lines of the CCD camera.
Then press "LINE LOCK" button to fi x these X- and Y-lines.

"LINE LOCK" button

X1 knob

LINE GENERATOR

X-line

Insert the three alignment screwdrivers in the screw holes of the 4th lens unit, and loosen the screws.

・

Caution: When inserting the alignment screwdrivers, move the holder-moving lever up to lock the

Y-line

Y1 knob

"LINE ON/OFF" button

holder. Then put them straight down in the screw holes so that the screws can be easily
found. After inserting the three alignment screwdrivers, unlock the holder-moving lever,
and move the holder down slowly by the lever.

Alignment screwdrivers

- A54・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

・Rotate the knobs of the micrometer (X and Y axes), and shift the calibrated cross lines based on the result

(values) of the chart shooting of the rear lens group alignment.

Caution: When the knobs of the micrometer (X and Y axes) are rotated but the calibrated cross lines

are unable to move, do not forcedly rotate them.

Result (values)

If more accuracy is preferable even if "END" is displayed, adjust by using the value of "Outer 1-3" as the
adjustment amount for "X-axis", while the value of "Outer 2-4" as the adjustment amount for "Y-axis".

< e.g. (X directions:+1, Y directions:-1) >

・After completing the above shift, tighten three screws of the 4th lens unit with the alignment screwdrivers.

Remove the alignment screwdrivers from the attachment holder (J19127T).

・

- A55・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Move the holder-moving lever up to lock the holder.

・

Check that shift amounts (caused by differences between the calibrated cross lines and the X/Y lines) are

・

equal to the result (values) (1= 1 scale amount of the calibrated cross lines) of "Chart shooting of the rear

lens group alignment".

Caution: After fi xing the three screws of the 4th lens unit, if the shift amounts are different from the

result of the chart shooting, repeat the rear lens group alignment until they become equal.

Turn each power of the monitor, LINE GENERATOR, and MEGALIGHT 100 to OFF.

・

Remove the lens from the equipment (for periphery).

Go back to [(4) Chart shooting for the rear lens group alignment] (Page A48).

・

Repeat this procedure of [(4) Chart shooting for the rear lens group alignment] (Page A48) and

[(5) 4th lens group alignment] (Page A53) until the result become "END".

- A56・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Create positioning tool of Rear lens-group holder for lens alignment

【

1.Summery

This is a positioning tool of the rear lens group holder for lens alignment, in order to secure the position for
attaching the rear lens group temporarily.

2.Preparation

The following devices are used:
*Rear cover ring (#39. :1K631-959) ×1
*Bayonet mount unit (1C999-645) ×1

For use, remove the other components than the bayonet mount section from the bayonet mount unit of RP.

*Screw (#118. :1K010-002-1) ×3

3.Procedure

Put the bayonet mount as below.

・

】

Put with the groove, in which the lock pin of camera body enters, facing upwards.

Mount the rear cover ring on the bayonet mount, and fi x them with three screws.

・

Large cutout of rear cover ring.

- A57・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

How to create Setting board for "Lens alignment chart" and "Viewer"

INC

How to create Setting board for "Lens alignment chart" and "Viewer"

1. Summary
In order to take pictures of the special chart with a digital camera and get necessary data for lens alignment, this
board is created to use for setting a special chart and light viewers (for chart illumination).

2. Preparation
Device

Light viewer (for J19134): J19128A

・

(Size: 154×245mm) 5 pcs.

Lens alignment chart (for D3): J19128

・

Size: 840×1250mm) 1 pc.

Board or cardboard box

・

(Size: 840×1250×20mm) 1 pc.
(Note) Because it is necessary to cut out for fi tting the light viewers, choose cardboard boxes or material which

can be easily cut.

3. Procedure(In this document, 2 cardboard boxes (840×1250×10mm) are used.)
As for the 1st fl attened cardboard box, check the positions which the light viewers fi t in, and cut out

①

at 5 locations (shaded parts/size 154 x 245 mm) as shown below.

(Note) Cutting the shape slightly smaller than the actual size of viewers makes it easier to fi t the positions of

viewers tightly.

1250

625 625

420

154×245

100

145

146

343

the shape

840

420

175

146

175

420

Dimensioned drawing

- A58・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Put

②

1st cut-out
cardboard

③ As for the above cardboards (② ), cut out the same shape again as the cut-out size (ref. ① ) from the 2nd

the 1st cut-out cardboard ( ① ) and the 2nd fl attened cardboard together as one, and fi x them by taping at

four sides.

2nd fl attened cardboard

Tape

fl attened cardboard for each viewer at fi ve places.

Cut out at 5 places

Fit the viewers in the created boards so that each viewer's switch is positioned as below.

④

⑤ Reinforce the edges of cut-out parts with double-stick tape.

Viewer

Switch

Double-stick tape (at 5 places)

- A59・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Light up the viewers. Set and attach the alignment chart (J19134) so that all the pinholes are located on the

⑥

viewer.
If the setting board is larger than the alignment chart, blacken the area around the setting board with black

spray, etc, after attaching the chart.

Caution:
T o prevent the chart from being slackened around the pinholes, secure the chart by adhering the double-stick tape
around the pinholes.

Pinhole

4. Prevent Viewers from falling off (In this document, 2-mm width Velcro tape is used.)
After viewers are put in position, secure them with Velcro tape (hook and loop fastener) on the back of the
cardboard to prevent viewers falling off.

Viewer

To prevent viewers falling off, attach Velcro tape
on the back of the cardboard. Here in this docu­ment, 2mm-width tape is used.

- A60・AF-S DX 16-85/3.5-5.6G VR -

Rear cover ring

INC

Mount the rear cover ring (#39) on the bayonet mount unit (B30).

・

JAA80051-R.3741.A

#39

B30

While pressing the rear cover ring (#39) from above, tighten the three screws (#118) in numeric order (①,

・

, and ③).

②

②

#118×3

#39

①

- A61・AF-S DX 16-85/3.5-5.6G VR -

Index

③

Adhere the sheet (#60) on the fi lter ring.

INC

󳉗

JAA80051-R.3741.A

#60

- A62・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Name plate

Peel off the tape that attaches the window (#76) temporarily. Peel off the backing paper of the name plate

・

(#68) and attach [#68].

#75

Peel off the backing paper of VR name plate (#69) and attach [#69].

・

#69

Peel off the backing paper of the serial number label (#168 or #169), and attach [#168 or #169].

・

#168
#169

- A63・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Preparation for Inspection & Adjustment

New tool

★：

● In case of replacing the main PCB unit or SWM unit, etc, be sure to make the adjustments by using the

adjustment software (★J18444).

Required device:

　・Single output rated voltage power supply: 1 unit (6.0V 3.0A)

　・Oscilloscope: 1 unit For inspecting lens driving time

　・AF-I communication box (J15306-1): 1 unit

　・AF-I communication adapter (J15307): 1 unit

● When the main PCB is replaced, be sure to perform "Writing of FLASH-ROM fi xed elec. adj. values".

AF-S DX 16-85/3.5-5.6G VR Inspection and adjustment program (★J18444)

The below hardware requirements are necessary for installing the program on a computer.

Ensure them before installation.

PC IBM PC/AT compatible
OS Windows XP Home Edition, Windows XP Professional, Windows 2000

CPU Pentium Ⅱ 266MHz ～ Pentium Ⅳ 2GHz

RAM (Memory) 32MB or more

HD 6 MB-or-more free space is necessary when installation

Monitor resolution 800×600 or more pixels

Interface Serial interface

※ USB interface cannot be used.

As long as the above requirements are met, either desktop or notebook PC is available.

- Ａ64・AF-S DX 16-85/3.5-5.6G VR -

【System confi guration】

INC

Constant-voltage power supply
(Set voltage: 6V)

（＋）

JAA80051-R.3741.A

New tool

★：

（－）

If the RS232C terminal of PC is a 9-pin type,

connect it by using the 25-pin/9-pin conversion

connector. This connector is NOT supplied as RJ,

so use commercial products on the market.

Oscilloscope

AF-I communication box
(J15306-1)

AF-I communication adapter
(J15307)

To RS232C

terminal

AF-S DX 16-85 VR
Inspection & adjustment software
(★J18444

）

AF-S DX 16-85 VR

PC:
As long as PC is IBM PC/AT compatible,

any CPU type is available.

- Ａ65・AF-S DX 16-85/3.5-5.6G VR -

Adjustment for electrical device

INC

●

When the main PCB unit or SWM unit is replaced, be sure to make this adjustment.

JAA80051-R.3741.A

・

Click "Adjustment for electrical device" on the main menu

・

Follow the instructions on the screen for preparation. Then click "Next".

.

Click "Yes" if the main PCB was replaced, while click "No" if it was NOT replaced.

・

Clicking "Yes" goes on to "Writing of FLASH-ROM elec.adj.values" (on Page A83).

- Ａ66・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

・

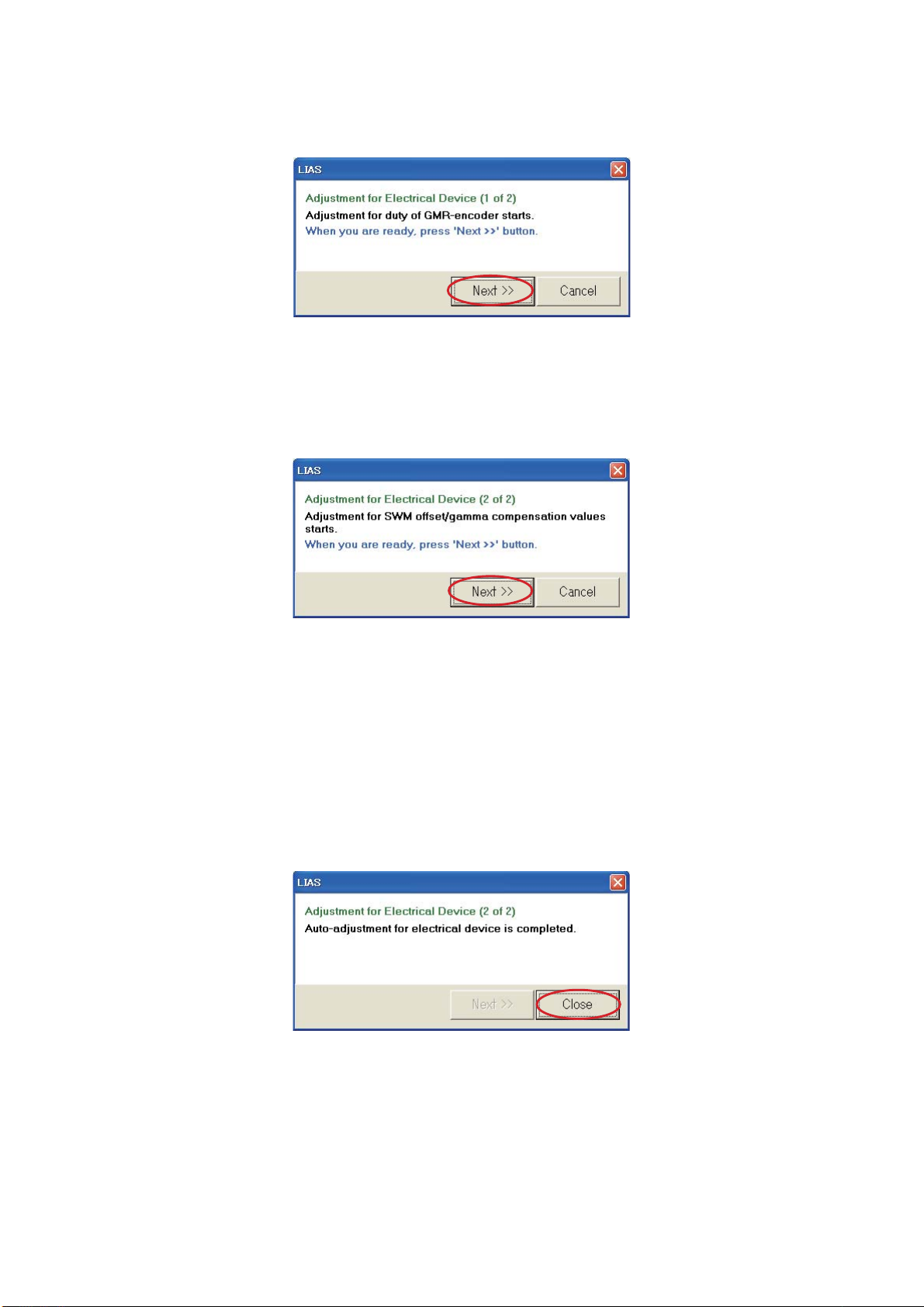

Click "Next"

・

Click "Next"

.

.

・

When adjustment is completed, click “Close” to end the procedure.

- Ａ67・AF-S DX 16-85/3.5-5.6G VR -

Inspection of GMR-encoder operations

INC

Click "Inspection of GMR-encoder operations" on the main menu.

・

JAA80051-R.3741.A

Follow the instructions on the screen. When prepared, click "Next".

・

- Ａ68・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

・

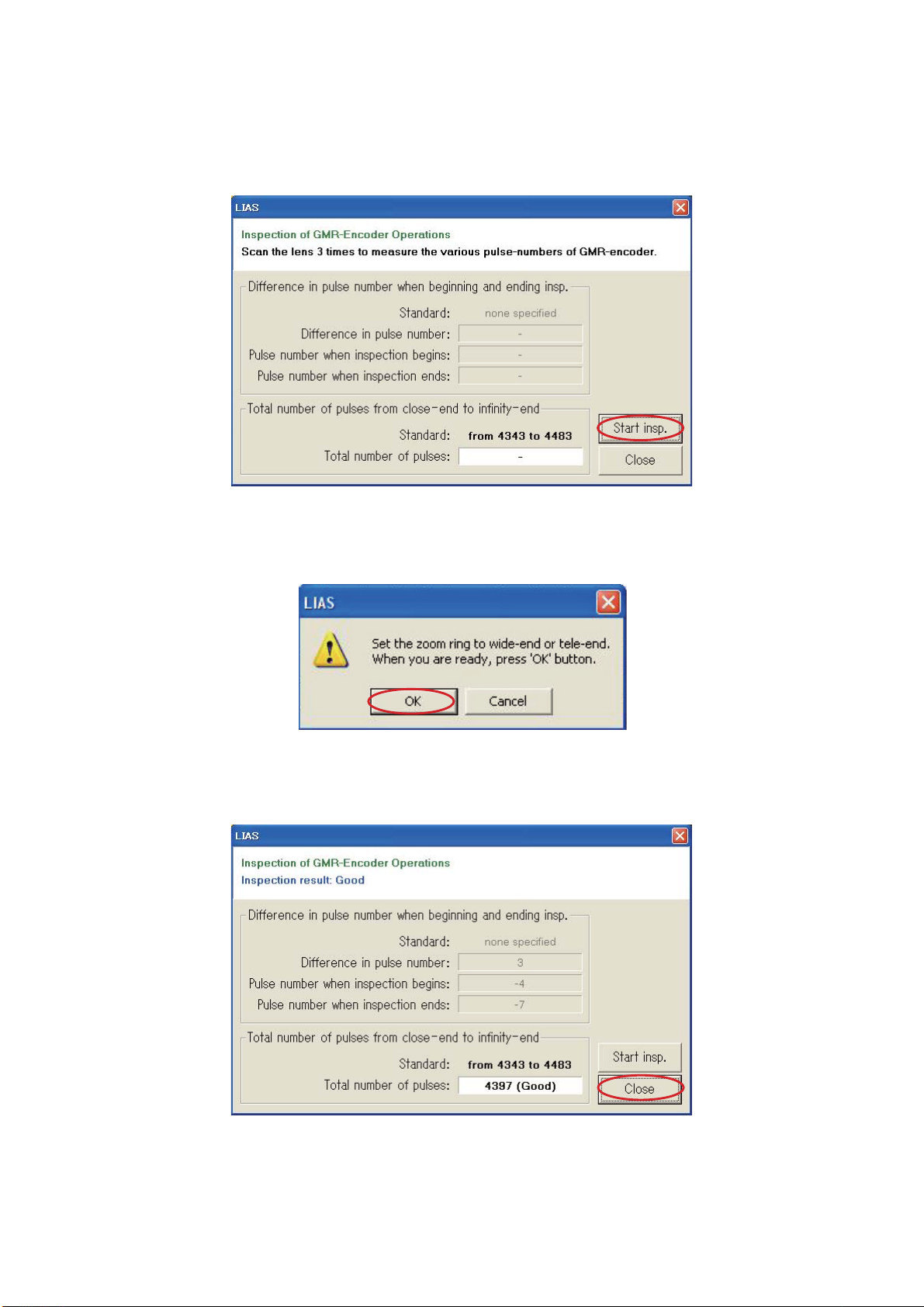

Click "Start insp.".

Caution：If the zoom ring is rotated while the lens scanning is driven, the pulse shows an abnormal value.

Do NOT touch the zoom ring during operations.

Set the zoom ring to WIDE-end or TELE-end, and click "OK".

・

・

If "Inspection result" shows "Good", click "Close".

< Standard > Total pulses

　：　

4343 - 4483 PULSE(S)

- Ａ69・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

Inspection of lens driving stop accuracy

●

Make the inspections by focal length 16mm (W) or 85m (T) at the following fi ve lens positions.

(Lens position in inspecting)

Lens position Index position

Horizontal lens position Index facing (1)

(4) Front lens group 60° angle upward

(5) Front lens group 60° angle downward

・

Click "Inspection of lens driving stop accuracy" on the main menu

up / (2) right / (3) left

.

・

Click "Start insp.".

Tick here when measuring with the front lens group facing 60° angle up/downward.

- Ａ70・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

・

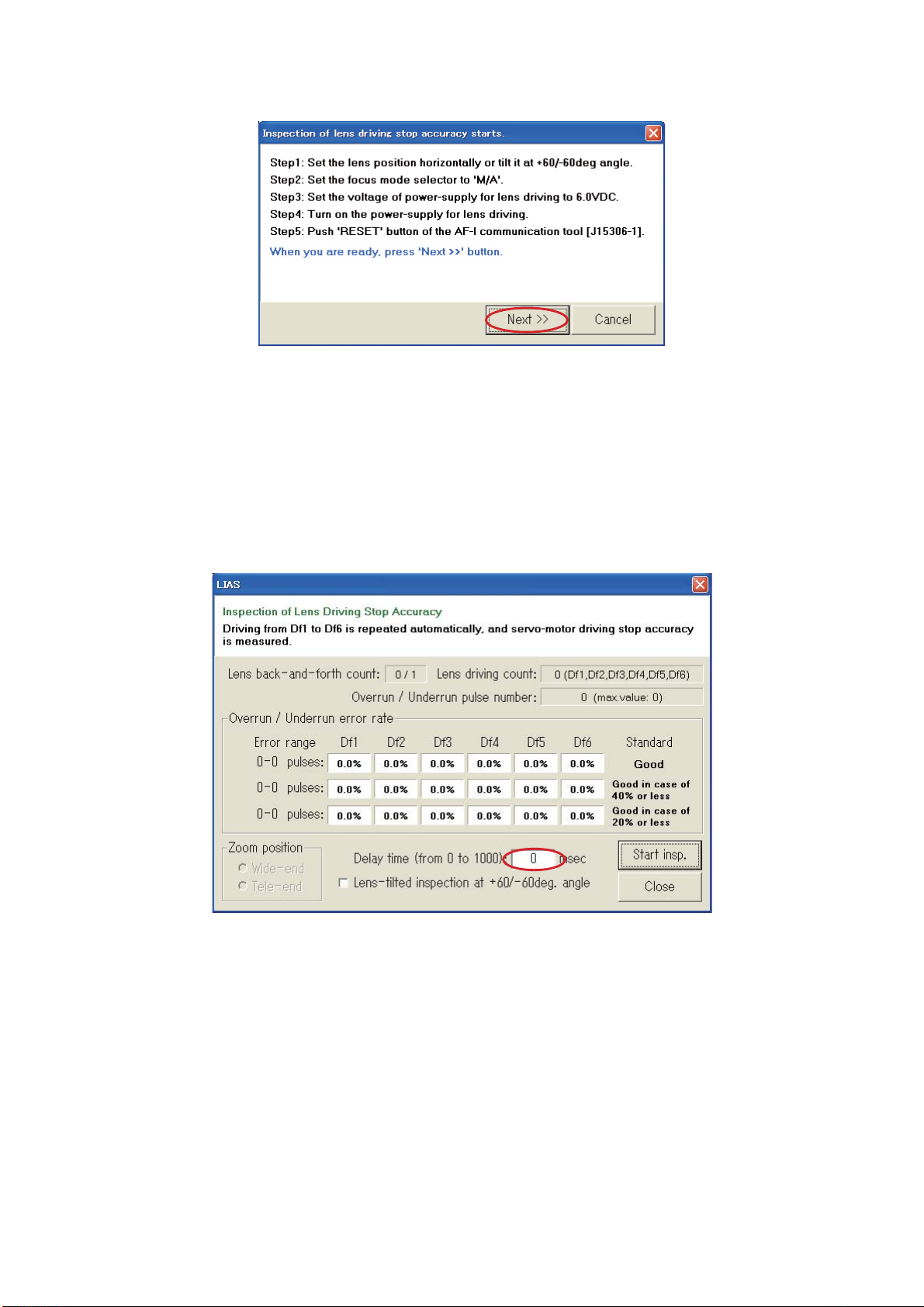

Follow the instructions on the screen. When prepared, click "Next".

If the lens stops, input a numeric number into "Delay time (from 0 to 1000 msec.) so that the lens does

・

NOT stop.

Caution: The value of "Delay time" is set by the adjustment software. So, as far as the lens does not

stop during the inspection of "Lens Driving Stop Accuracy", any value can be input without
problem.
However, the larger the value of "Delay time" gets, the longer the inspection time becomes.

- Ａ71・AF-S DX 16-85/3.5-5.6G VR -

・

INC

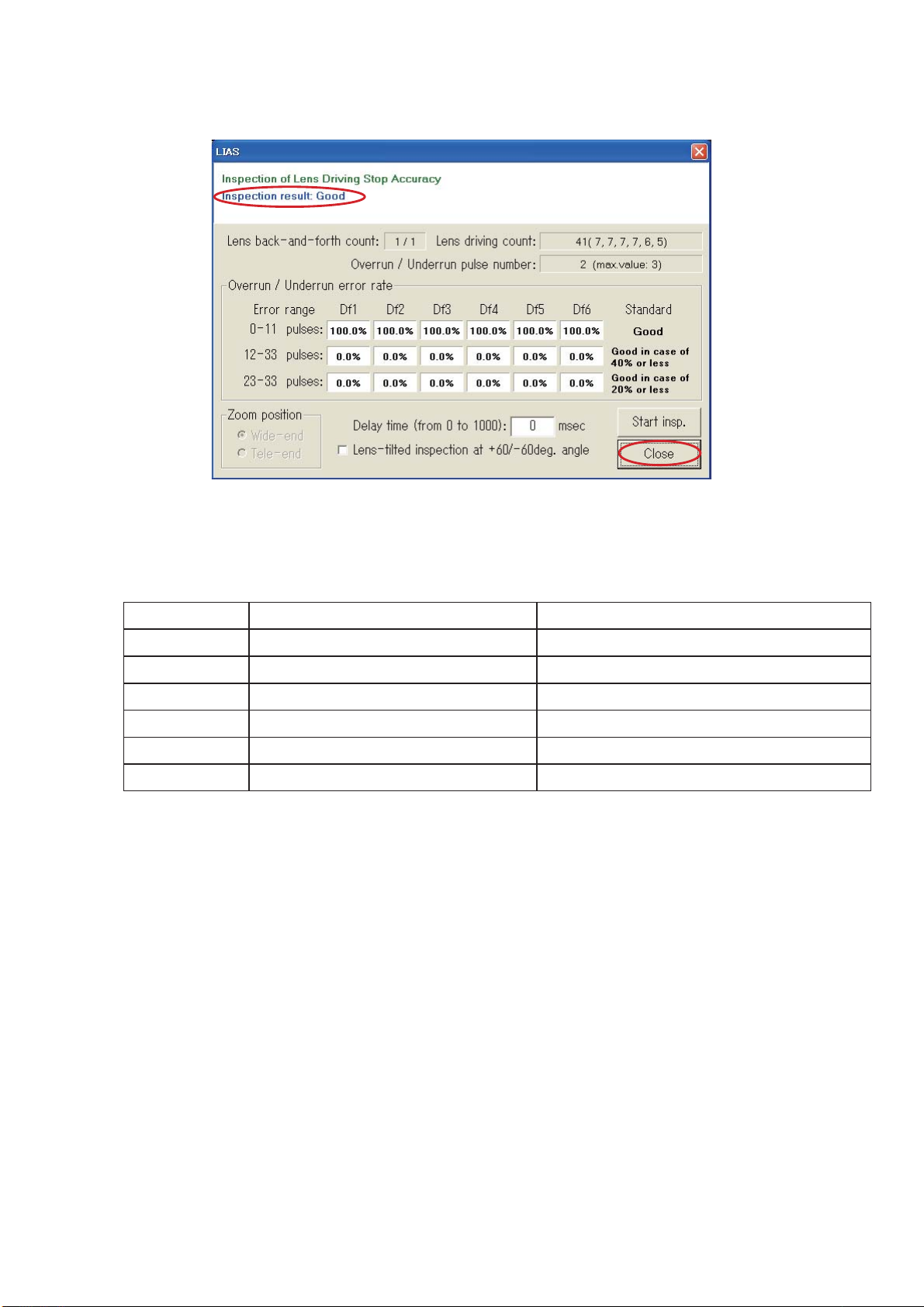

If "Inspection result" shows "Good", click "Close" to end the procedure.

JAA80051-R.3741.A

The number of overrun/underrun pulses must be within the following standards after the lens back-and-forth

driving 1-motion.

Lens position Error range of Df1 - Df6 (No. of occurrence) Error pulse occurrence ratio: Judgment

Horizontal 0～11 GOOD

Horizontal 12～33 GOOD if 40% or less

Horizontal 23～33 GOOD if 20% or less

±60° 0～11 GOOD

±60° 12～33 GOOD if 40% or less

±60° 23～33 GOOD if 20% or less

※

"Df1~Df6" shows the lens driving amount.

- Ａ72・AF-S DX 16-85/3.5-5.6G VR -

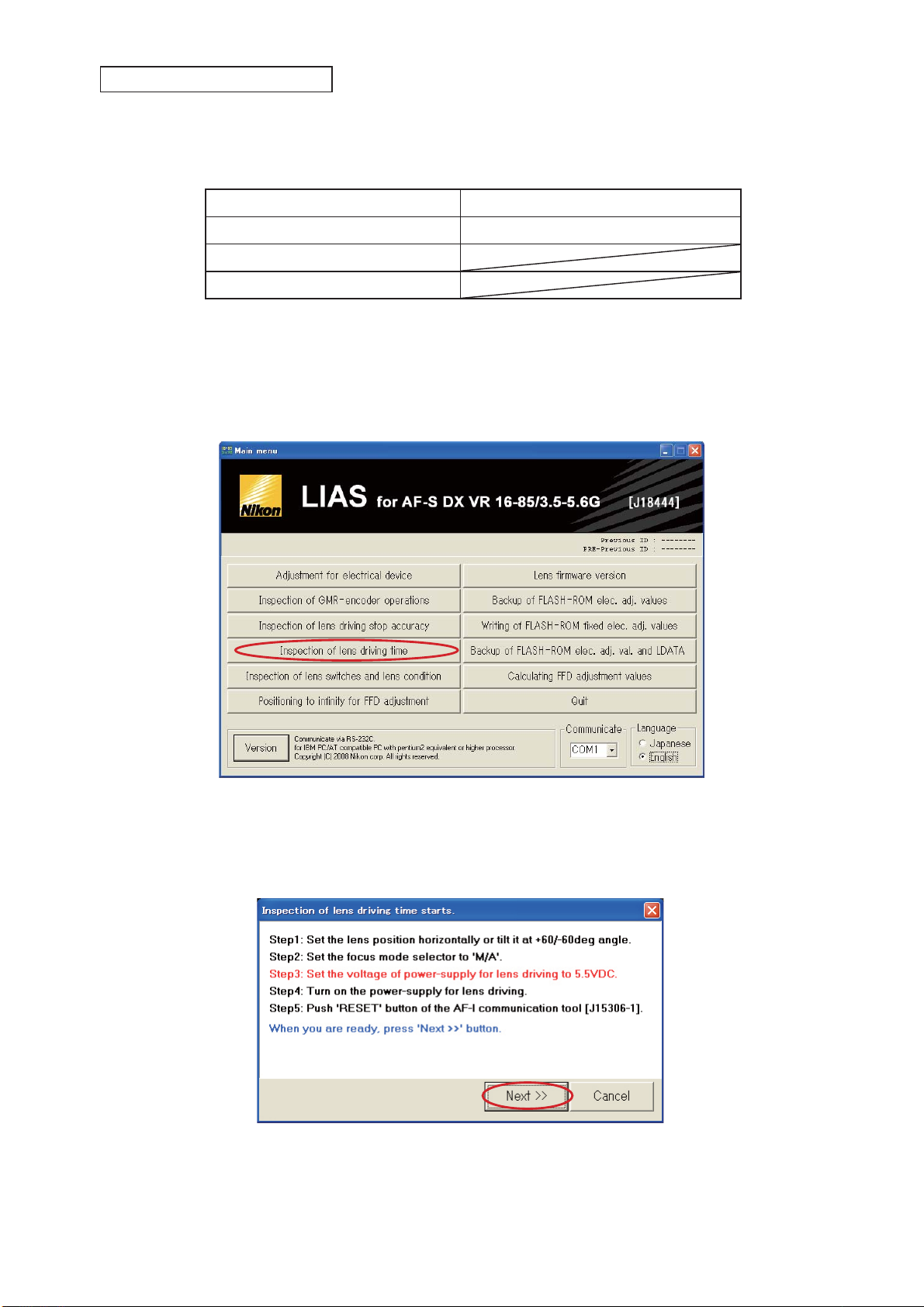

Inspection of lens driving time

INC

●

Make inspections by focal length 16mm (W) or 85m (T) at the following fi ve lens positions.

(Lens position in inspecting)

Lens position Index position

JAA80051-R.3741.A

Horizontal lens position Index facing (1)

(4) Front lens group 60° angle upward

(5) Front lens group 60° angle downward

Click "Inspection of lens driving time" on the main menu.

・

up / (2) right / (3) left

・

Follow the instructions on the screen. When prepared, click "Next".

- Ａ73・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

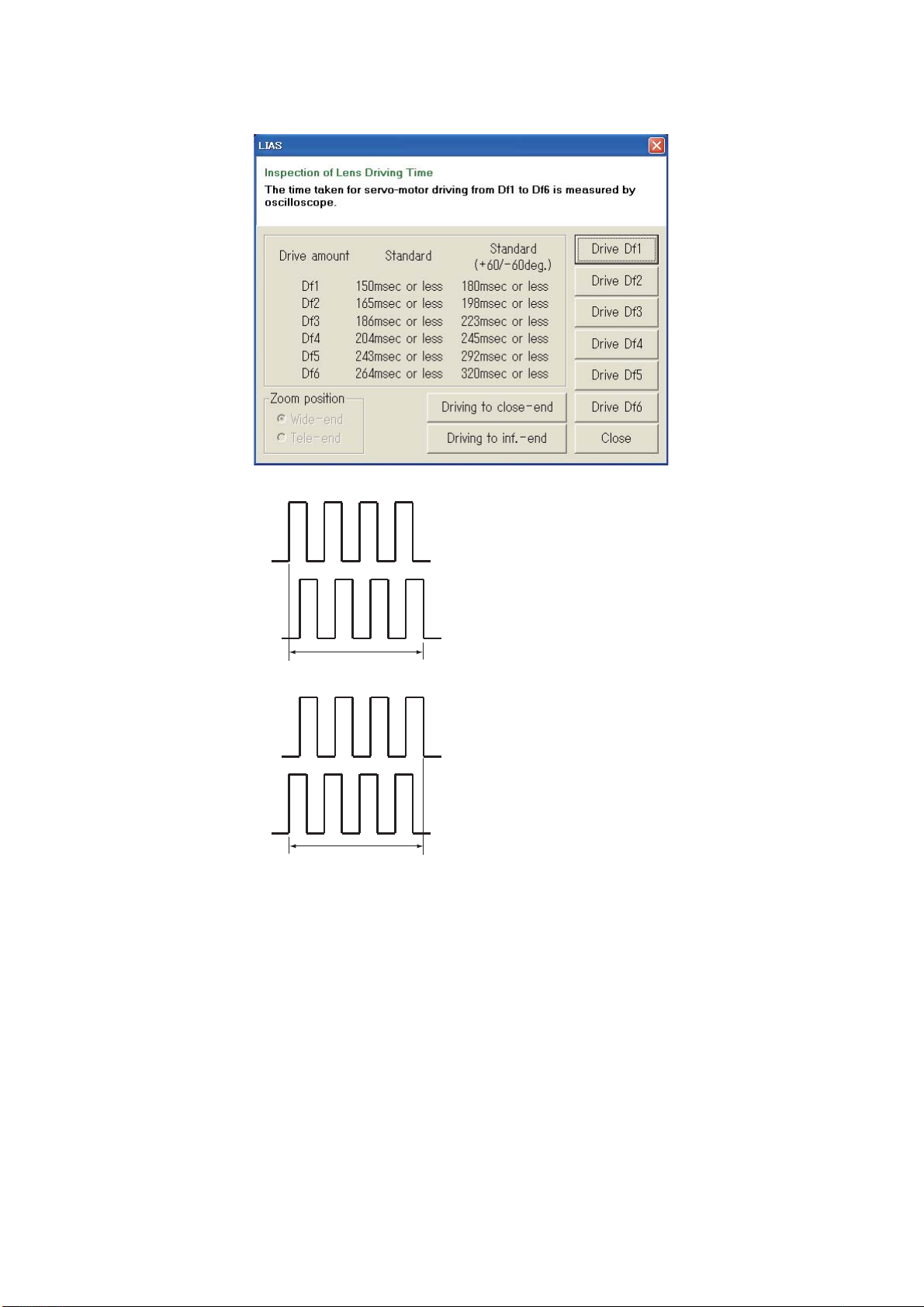

・ Select the driving amount respectively. Each lens driving time must be within the standard.

E terminal

H terminal

E terminal

H terminal

Driving time

Driving time

●Oscilloscope setting

V/Div

Coupling

Time/Div

Trigger Mode

Trigger Coupling

Trigger Source

※ There are two types in shape of waveforms of E and H terminals:

Waveform (1) starts and goes up (2) starts and goes down.

5V

：

DC

：

20m Sec

：

SGL (S)

：

DC

：

CH1

：

- Ａ74・AF-S DX 16-85/3.5-5.6G VR -

Inspection of Lens switches and Lens conditions

INC

Click "Inspection of lens switches and lens condition" on the main menu.

・

JAA80051-R.3741.A

Follow the instructions on the screen. When prepared, click "Next".

・

If there is no problem with each check item, click "Close" to end the procedure.

・

- Ａ75・AF-S DX 16-85/3.5-5.6G VR -

Lens fi rmware version

INC

Click "Lens fi rmware version" on the main menu.

・

JAA80051-R.3741.A

Click "Read data".

・

Follow the instructions on the screen. When prepared, click "Next".

・

- Ａ76・AF-S DX 16-85/3.5-5.6G VR -

JAA80051-R.3741.A

INC

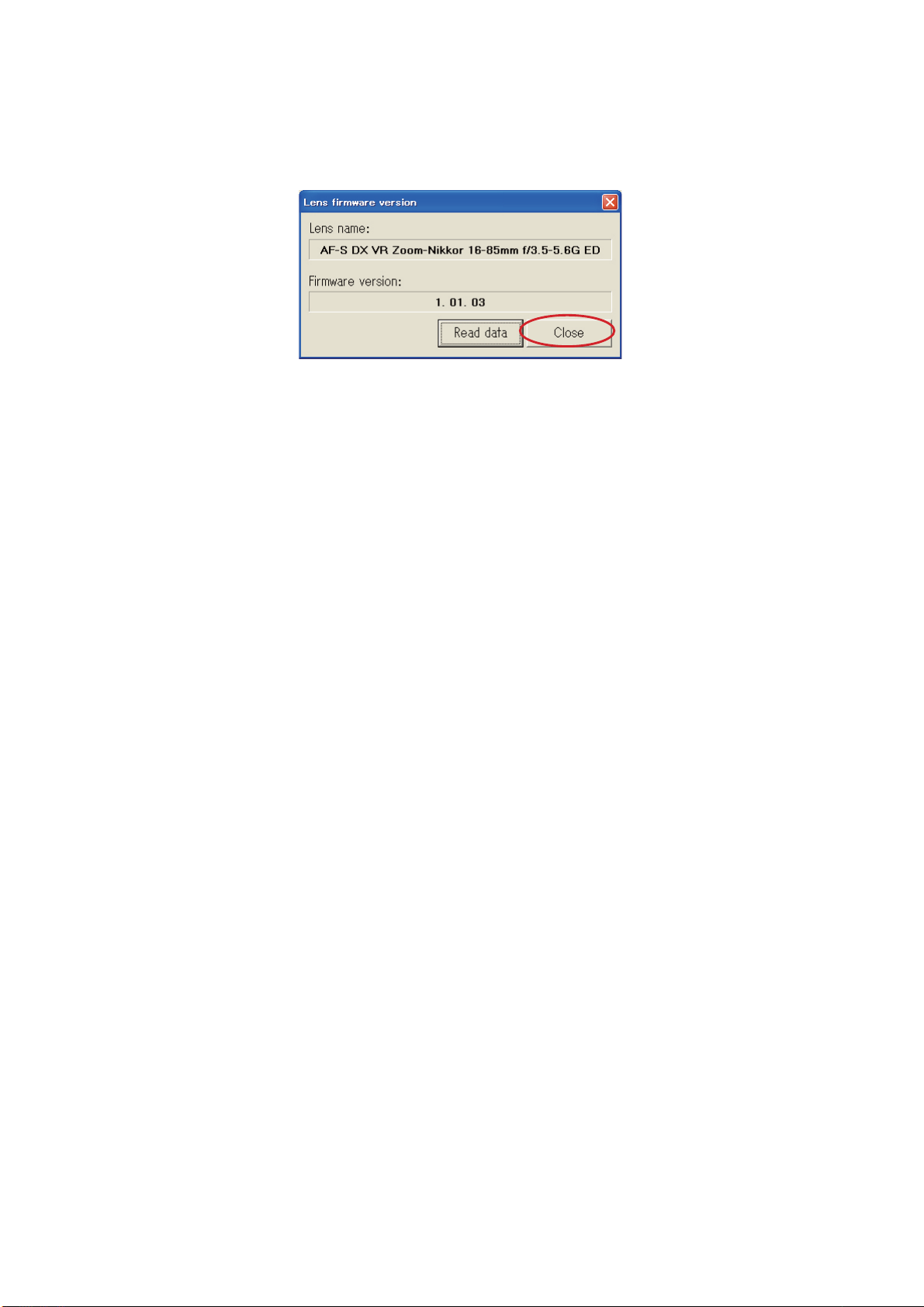

Confi rm that there is no mistake in the lens name and fi rmware version. Then click "Close" to end the

・

procedure.

- Ａ77・AF-S DX 16-85/3.5-5.6G VR -

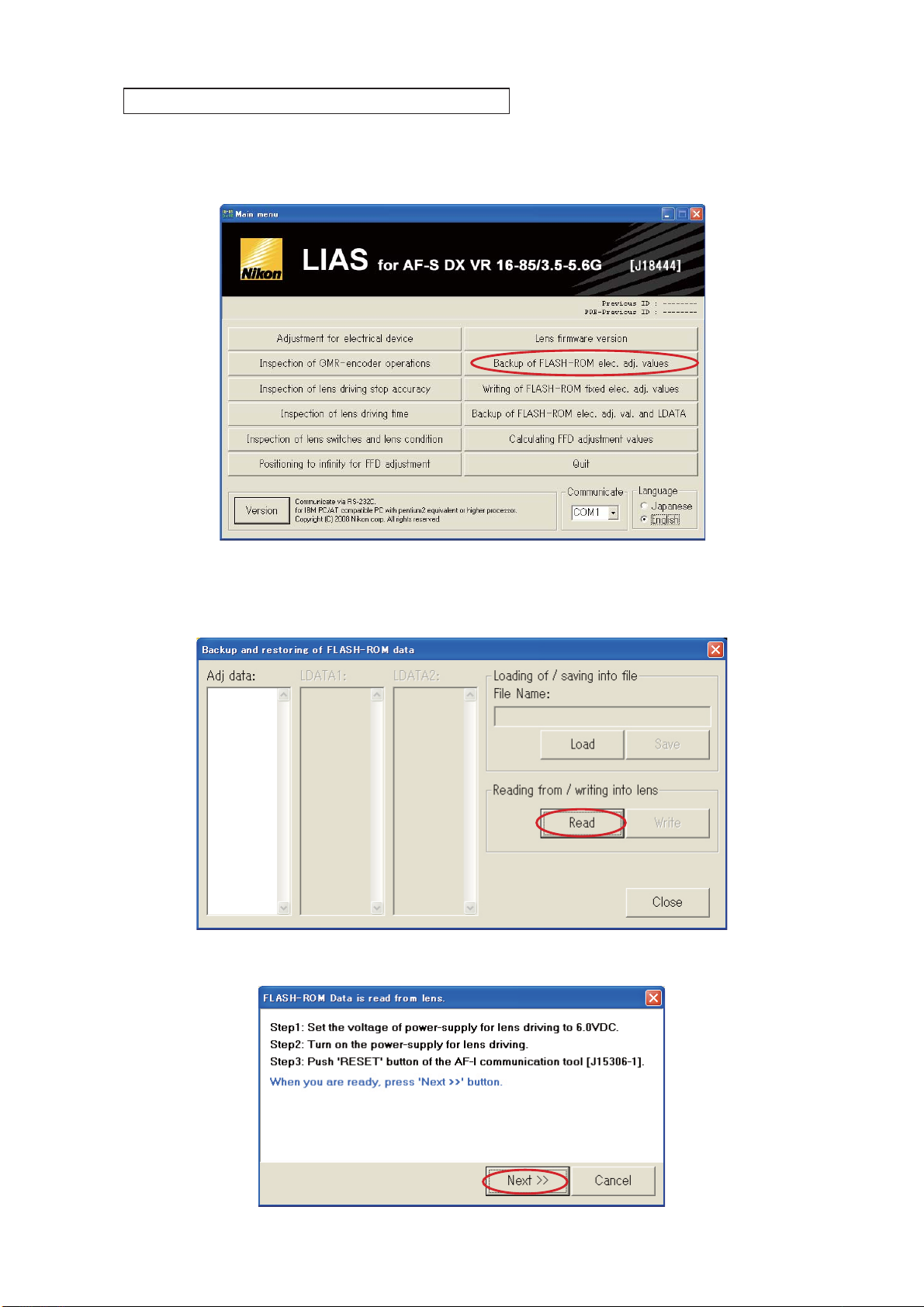

Backup of FLASH-ROM electrical adjustment values

INC

How to back up:

Click "Backup of FLASH-ROM elec. adj. values" on the main menu.

・

JAA80051-R.3741.A

Click "Read" of "Reading from/Writing into lens".

・

・

Follow the instructions on the screen. When prepared, click "Next".

- Ａ78・AF-S DX 16-85/3.5-5.6G VR -
