Nikon 1 S1 User's Manual

DIGITAL CAMERA
En

Table of Contents

Getting the Most from Your Camera .........................................3
Product Documentation .............................................................. 5
For Your Safety...............................................................................6
Notices.............................................................................................9
Introduction 14
Package Contents........................................................................14
Parts of the Camera.....................................................................15
The Camera Body .................................................................................15
The Monitor............................................................................................17
The G Button..................................................................................18
First Steps......................................................................................23
Auto Mode 27
Taking Photos in Auto Mode.....................................................27
Live Image Control...............................................................................31
Viewing Photographs .................................................................33
Deleting Pictures ..................................................................................34
Recording Movies in Auto Mode ..............................................35
Creative Mode 36
Choosing a Creative Mode.........................................................36
Choosing a Scene ........................................................................37
Taking Photos in P, S, A, and M Modes......................................39
P Programmed Auto............................................................................39
S Shutter-Priority Auto........................................................................40
A Aperture-Priority Auto ....................................................................41
M Manual .................................................................................................42
Backlighting .................................................................................44
Recording Movies in Creative Mode ........................................45
Best Moment Capture Mode 46
Slow View......................................................................................46
Smart Photo Selector..................................................................48
Viewing Photos Taken with the Smart Photo Selector ........50
Choosing the Best Shot ..................................................................... 50
Deleting Pictures.................................................................................. 51
Motion Snapshot Mode 52
Shooting in Motion Snapshot Mode .......................................52
Viewing Motion Snapshots ....................................................... 55
Deleting Motion Snapshots............................................................. 55
Recording and Viewing Movies 56
Recording HD Movies.................................................................57
Recording Slow-Motion Movies ............................................... 61
Viewing Movies ...........................................................................64
Deleting Movies ...................................................................................65
More on Photography 66
Single-Frame, Continuous, and Self-Timer Modes ...............66
Continuous Mode................................................................................ 66
Self-Timer Modes................................................................................. 68
The Built-in Flash......................................................................... 70
Choosing a Flash Mode .....................................................................71
Menu Options 74
Playback Menu Options ............................................................ 74
Shooting Menu Options............................................................ 75
Movie Menu Options ................................................................. 76
Image Processing Menu Options ............................................ 76
Setup Menu Options.................................................................. 77
1
Connecting to a Computer 78
Installing the Supplied Software ..............................................78
System Requirements.........................................................................79
Viewing and Editing Pictures on a Computer ........................80
Transferring Pictures...........................................................................80
Viewing Pictures ...................................................................................81
Technical Notes 83
Optional Accessories ..................................................................83
Approved Memory Cards ..................................................................84
Storage and Cleaning .................................................................85
Storage..................................................................................................... 85
Cleaning...................................................................................................85
Caring for the Camera and Battery: Cautions ........................86
Troubleshooting ..........................................................................90
Battery/Display......................................................................................90
Shooting (All Modes) ..........................................................................91
Movies ...................................................................................................... 91
Playback...................................................................................................92
Miscellaneous........................................................................................92
Error Messages.............................................................................93
Specifications ...............................................................................95
Nikon 1 S1 Digital Camera ................................................................95
Battery Life........................................................................................... 102
Index ........................................................................................... 103
2

Getting the Most from Your Camera

Take ph otos with the shutter-release button.
Photos can be taken in any mode by pressing the shutter­release button. See page 19 for more information.
Shutter-release button
Shoot movies with the movie-record button.
Movies can be recorded by pressing the movie-record but­ton in auto (0 35), creative (0 45), and advanced movie (0 56) modes.
Movie-record button
3
Thank you for your purchase of a Nikon digital camera. For a complete guide to using your digital camera, see the Reference Manual (0 5). To get the most from your camera, please be sure to read this User’s Manual thoroughly and keep it where it will be read by all who use the product.
Camera Settings
The explanations in this manual assume that default settings are used.
Symbols and Conventions
To make it easier to find the information you need, the following sym­bols and conventions are used:
This icon marks cautions; information that should be read before
D
use to prevent damage to the camera.
This icon marks notes; information that should be read before
A
using the camera.
This icon marks references to other pages in this manual.
0
The lens generally used in this manual for illustrative purposes is a 1 NIKKOR VR 10–30mm f/3.5–5.6.
Digitutor
“Digitutor”, a series of “watch and learn” manuals in movie form, is avail­able from the following website:
http://www.nikondigitutor.com/index_eng.html
A Fo r Your Safety
Before using the camera for the first time, read the safety instructions in “For Your Safety” (0 6–8) and “Caring for the Camera and Battery: Cau­tions” (0 86).
4

Product Documentation

The following documentation is supplied with the camera.
DIGITAL CAMERA
User’s Manual
(this manual)—Describes how
to take and view pictures.
Reference Manual (on CD)—A complete guide to using your digital camera, included as a pdf file on the supplied Ref­erence Manual CD-ROM.
The Reference Manual can be viewed using Adobe Reader or Adobe Acrobat Reader 5.0 or later, available for free download from the Adobe website.
1 Start the computer and insert the reference manual CD. 2 Double-click the CD (Nikon 1 S1) icon in Computer or My
Computer (Windows) or on the desktop (Mac OS).
3 Double-click the INDEX.pdf icon to display a language selec-
tion screen and click a language to display the Reference Man- ual.
User's Manual
En
5

For Your Safety

To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equip­ment. Keep these safety instructions where all those who use the produc t will read them.
The consequences that could result from failure to observe the precautions listed in this section are indicated by the following symbol:
This icon marks warnings. To prevent possible injury, read all warn-
A
ings before using this Nikon product.
❚❚WARNINGS
Keep the sun out of the frame. Keep the
A
sun well out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame could cause a fire.
Turn off immediately in the event of mal-
A
function. Should you notice smoke or an unusual smell coming from the equipment or AC adapter (available separately), unplug the AC adapter and remove the battery immediately, taking care to avoid burns. Continued operation could result in injury. After removing the battery, take the equip­ment to a Nikon-authorized service center for inspection.
Do not use in the presence of flammable
A
gas. Do not use electronic equipment in the presence of flammable gas, as this could result in explosion or fire.
Do not disassemble. Touching the prod-
A
uct’s internal parts could result in injury. In the event of malfunction, the product should be repaired only by a qualified technician. Should the product break open as the result of a fall or other accident, remove the bat­tery and/or AC adapter and then take the product to a Nikon-authorized service center for inspection.
Keep out of reach of children. Failure to
A
observe this precaution could result in injury. In addition, note that small parts constitute a choking hazard. Should a child swallow any part of this equipment, consult a physician immediately.
Do not place the strap around the neck of
A
an infant or child. Placing the camera strap around the neck of an infant or child could result in strangulation.
6
Do not remain in contact with the camera,
A
battery, or charger for extended periods while the devices are on or in use. Parts of
the device become hot. Leaving the device in direct contact with the skin for extended periods may result in low-temperature burns.
Do not aim the flash at the operator of a
A
motor vehicle. Failure to observe this precaution could result in accidents.
Observe caution when using a flash.
A
Using the camera with the flash in
close contact with the skin or other objects could cause burns.
Using a flash close to the subject’s
eyes could cause temporary visual impairment. Particular care should be observed when photographing infants, when the flash should be no less than one meter (39 in.) from the subject.
Avoid contact with liquid crystal. Should
A
the display break, care should be taken to avoid injury due to broken glass and to prevent the liquid crystal from the display touching the skin or entering the eyes or mouth.
Observe proper precautions when handling
A
batteries. Batteries may leak or explode if improperly handled. Observe the following precautions when handling batteries for use in this product:
Use only batteries approved for use
in this equipment.
Do not short or disassemble the
battery.
Be sure the product is off before
replacing the battery. If you are using an AC adapter, be sure it is unplugged.
Do not attempt to insert the batter y
upside down or backwards.
Do not expose the battery to flame
or to excessive heat.
Do not immerse in or expose to
water.
Replace the terminal cover when
transporting the battery. Do not transport or store the battery with metal objects such as necklaces or hairpins.
Batteries are prone to leakage when
fully discharged. To avoid damage to the product, be sure to remove the battery when no charge remains.
When the battery is not in use,
attach the terminal cover and store in a cool, dry place.
The battery may be hot immedi-
ately after use or when the product has been used on battery power for an extended period. Before remov­ing the battery turn the camera off and allow the battery to cool.
Discontinue use immediately
should you notice any changes in the battery, such as discoloration or deformation.
7
Observe proper precautions when handling
A
the charger:
Keep dry. Failure to observe this
precaution could result in fire or electric shock.
Do not short the charger terminals.
Failure to observe this precaution could result in overheating and damage to the charger.
Dust on or near the metal parts of
the plug should be removed with a dry cloth. Continued use could result in fire.
Do not go near the charger during
thunderstorms. Failure to observe this precaution could result in elec­tric shock.
Do not handle the plug or charger
with wet hands. Failure to observe this precaution could result in elec­tric shock.
Do not use with travel converters or
adapters designed to convert from one voltage to another or with DC­to-AC inverters. Failure to observe this precaution could damage the product or cause overheating or fire.
Use appropriate cables. When connect-
A
ing cables to the input and output jacks, use only the cables provided or sold by Nikon for the purpose to maintain compliance with product regulations.
CD-ROMs: CD-ROMs containing soft-
A
ware or manuals should not be played back on audio CD equipment. Playing CD-ROMs on an audio CD player could cause hearing loss or damage the equipment.
8

Notices

No part of the manuals included
with this product may be repro­duced, transmitted, transcribed, stored in a retrieval system, or trans­lated into any language in any form, by any means, without Nikon’s prior written permission.
Nikon reserves the right to change the specifications of the hardware and software described in these manuals at any time and without prior notice.
Notice for Customers in Canada
CAUTION
This Class B digital apparatus com­plies with Canadian ICES-003.
Notice for Customers in Europe
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
This symbol indicates that electrical and electronic equipment is to be col­lected separately.
The following apply only to users in European countries:
This product is designated for sepa­rate collection at an appropriate col­lection point. Do not dispose of as household waste.
Separate collection and recycling helps conserve natural resources and prevent negative consequences for human health and the environ­ment that might result from incor­rect disposal.
For more information, contact the retailer or the local authorities in charge of waste management.
Nikon will not be held liable for any damages resulting from the use of this product.
While every effort has been made to ensure that the information in these manuals is accurate and complete, we would appreciate it were you to bring any errors or omissions to the attention of the Nikon representa­tive in your area (address provided separately).
ATTENTION
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This symbol on the battery indicates that the battery is to be collected separately.
The following apply only to users in European countries:
All batteries, whether marked with this symbol or not, are designated for separate collection at an appro­priate collection point. Do not dis­pose of as household waste.
For more information, contact the retailer or the local authorities in charge of waste management.
9
Notice for Customers in the U.S. A.
The Battery Charger
IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS DANGER—TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS
For connection to a supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet if needed. This power unit is intended to be correctly oriented in a vertical or floor mount position.
Federal Communications Commission (FCC) Radio Frequenc y Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable pro­tection against harmful interference in a residential installation. This equip­ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particu­lar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an out­let on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
10
CAUTIONS
Modifications
The FCC requires the user be notified that any changes or modifications made to this device that are not expressly approved by Nikon Corpo­ration may void the user’s authority to operate the equipment.
Interface Cables
Use the interface cables sold or pro­vided by Nikon for your equipment. Using other interface cables may exceed the limits of Class B Part 15 of the FCC rules.
Notice for Customers in the State of California
WARNIN G: Handling the cord on this product may expose you to lead, a chemical known to the State of Cali­fornia to cause birth defects or other reproductive harm. Wash hands after handling.
Nikon Inc., 1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A. Tel.: 631-547-4200
Notice Concerning Prohibition of Copying or Reproduction
Note that simply being in possession of material that has been digitally cop­ied or reproduced by means of a scanner, digital camera, or other device may be punishable by law.
Items prohibited by law from being copied or reproduced
Do not copy or reproduce paper money, coins, securities, govern­ment bonds, or local government bonds, even if such copies or repro­ductions are stamped “Sample.”
The copying or reproduction of paper money, coins, or securities which are circulated in a foreign country is prohibited.
Unless the prior permission of the government has been obtained, the copying or reproduction of unused postage stamps or post cards issued by the government is prohibited.
The copying or reproduction of stamps issued by the government and of certified documents stipu­lated by law is prohibited.
Disposing of Data Storage Devices
Please note that deleting images or formatting memory cards or other data storage devices does not completely erase the original image data. Deleted files can sometimes be recovered from discarded storage devices using com­mercially available software, potentially resulting in the malicious use of per­sonal image data. Ensuring the privacy of such data is the user’s responsibility.
Before discarding a data storage device or transferring ownership to another person, erase all data using commercial deletion software, or format the device and then completely refill it with images containing no private infor­mation (for example, pictures of empty sky). Care should be taken to avoid injury when physically destroying data storage devices.
Cautions on certain copies and reproduc-
tions
The government has issued cautions on copies or reproductions of securities issued by private companies (shares, bills, checks, gift certificates, etc.), com­muter passes, or coupon tickets, except when a minimum of necessary copies are to be provided for business us e by a company. Also, do not copy or repro­duce passports issued by the govern­ment, licenses issued by public agencies and private groups, ID cards, and tickets, such as passes and meal coupons.
Comply with copyright notices
The copying or reproduction of copyrighted creative works such as books, music, paintings, woodcuts, prints, maps, drawings, movies, and photographs is governed by national and international copyright laws. Do not use this product for the purpose of making illegal copies or to infringe copyright laws.
11
AVC Patent Portfolio License
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL
AND NON-COMMERCIAL USE OF A CONSUM ER TO (I) ENCODE VIDEO IN COMPLIANCE WITH THE
AVC STANDARD (“AVC VIDEO”) AND/OR (II) DECODE AVC VIDEO THAT WAS ENCODED
A CON SUMER ENGAGED IN A PERSONAL AND NON-CO MMERCIAL ACTIVITY AND/OR WAS
BY OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHE R USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE http://www.mpegla.com
Temperature Warnings
The camera may become warm to the touch during use; this is normal and does not indicate a malfunction. At high ambient temperatures, after extended periods of continuous use, or after several photographs have been taken in quick succession, a temperature warning may be displayed, follow­ing which the camera will turn off automatically to minimize damage to its internal circuits. Wait for the camera to cool before resuming use.
Use Only Nikon Brand Electronic Accessories
Nikon cameras are designed to the highest standards and include complex electronic circuitry. Only Nikon brand electronic accessories (including charg­ers, batteries, AC adapters, and lens accessories) certified by Nikon specifically for use with this Nikon digital camera are engineered and proven to operate within the operational and safety requirements of this electronic circuitry.
The use of non-Nikon electronic accessories could damage the camera and may void your Nikon warranty. The use of third­party rechargeable Li-ion batteries not bearing the Nikon holo­graphic seal shown at right could interfere with normal operation of the cam­era or result in the batteries overheating, igniting, rupturing, or leaking.
For more information about Nikon brand accessories, contact a local autho­rized Nikon dealer.
12
Use Only Nikon Brand Accessories
D
Only Nikon brand accessories certified by Nikon specifically for use with your Nikon digital camera are engineered and proven to operate within its operational and safety requirements. T
ACCESSORIES RANTY.
A
The camera is a precision device and requires regular servicing. Nikon recommends that the camera be inspected by the original retailer or a Nikon-authorized service representative once every one to two years, and that it be serviced once every three to five years (note that fees apply to these services). Frequent inspection and servicing are particu­larly recommended if the camera is used professionally. Any accesso­ries regularly used with the camera, such as lenses, should be included when the camera is inspected or serviced.
A
Before taking pictures on important occasions (such as at weddings or before taking the camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for dam­ages or lost profits that may result from product malfunction.
A
As part of Nikon’s “Life-Long Learning” commitment to ongoing prod­uct support and education, continually-updated information is avail­able on-line at the following sites:
For users in the U.S. A.: http://www.nikonusa.com/
For users in Europe and Afric a: http://www.europe-nikon.com/support/
For users in Asia, Oceania, and the Middle East: http://www.nikon-asia.com/
Visit these sites to keep up-to-date with the latest product information, tips, answers to frequently-asked questions (FAQs), and general advice on digital imaging and photography. Additional information may be available from the Nikon representative in your area. For contact infor­mation, visit http://imaging.nikon.com/
COULD DAMAGE YOUR CAMERA AND MAY VOI D YOU R NIKON WAR-
Servicing the Camera and Accessories
Before Taking Important Pictures
Life-Long Learning
HE USE OF NON-NIKON
13

Introduction

s

Package Contents

Confirm that the package contains the following items:
s
BF-N1000 body cap
Nikon 1 S1 digital camera
EN-EL20 rechargeable Li-ion battery
(with terminal cover)
Lens (supplied only if lens kit is purchased with camera; comes with front and rear lens caps)
AN-N1000 strap UC-E19 USB cable ViewNX 2/Short Movie Creator CD
Memory cards are sold separately.
14
Warra nty User’s Manual
(this manual)
MH-27 battery charger (AC wall
adapter supplied in countries or regions where required; shape depends on country of sale)
Reference manual CD (contains the
Reference Manual)

Parts of the Camera

Take a few moments to familiarize yourself with camera controls and displays. You may find it helpful to bookmark this section and refer to it as you read through the rest of the manual.

The Camera Body

s
31 2 54
15
16
14 1213
1 Movie-record button
.................................... 35, 45, 56, 58, 62
2 Shutter-release
button ....................... 29, 47, 49, 53, 60
3 Power switch........................................ 25
4 Power lamp .......................................... 25
5 Microphone 6 Focal plane mark (E) 7 AF-assist illuminator
Self-timer lamp ................................... 68
Red-eye reduction lamp ................... 72
8 Eyelet for camera strap......................23
17
6 5
7 8
9
10
11
9 Flash pop-up button.......................... 70
10 HDMI connector cover
11 USB connector cover ......................... 80
12 Lens release button
13 Dust shield .................................... 85, 86
14 Lens mount
15 Mounting mark ................................... 25
16 Body cap ............................................... 83
17 Built-in flash......................................... 70
18 HDMI mini-pin connector
19 USB connector..................................... 80
18
19
15
The Camera Body (Continued)
2
1
s
3 4 5
6 7
8
1011
1 Monitor .......................................... 17, 25
2 K (playback) button ............33, 50, 55
3 G (menu) button ........................ 18
4 Multi selector
J (OK) button
& (feature) ...........................................21
E (exposure compensation)
M (flash mode).....................................71
C (continuous shooting/
self-timer)..................................... 66, 68
* Camera does not support TA-N100 tripod mounting spacer.
Holding the Camera
A
When framing photographs, hold the camera as shown below.
Hold the camera in
your right hand.
Keep your elbows
propped lightly
against your torso.
9
5 Memory card access lamp ................29
6 O (delete) button............ 34, 51, 55, 65
7 Power connector cover
for optional power connector
8 Battery-chamber/memory card slot
cover latch........................................... 24
9 Battery-chamber/
memory card slot cover ................... 24
10 Tripod socket 11 Speaker
J button
Press the multi selector up, down, left, or right (1,3, 4, or 2), or rotate it as shown above.
*
Cradle the lens with your left hand.
16

The Monitor

421 3 5 6 7 8 9 10 11
35 34 33
Battery fully charged or
NO ICON
partially discharged.
H Low battery.
32
31 30 29 28
27 222325 2426 20
1 Shooting mode ...................................19
2 Live image control ..............................31
Creative mode ............................. 36, 37
Best moment capture
selection ....................................... 46, 48
Advanced movie selection ........ 56, 61
Exposure mode ...................................75
3 Flexible program indicator...............39
4 Flash mode...........................................70
5 Self-timer ..... .................................. 66, 68
Continuous mode*............................. 66
6 Active D-Lighting*............................. 75
7 Picture Control*..................................76
8 White balance*...................................76
9 Movie settings (HD movies)*...........76
Frame rate
(slow-motion movies)*....................76
10 Image size*..........................................75
11 Image quality*....................................75
12 Focus mode*................................. 75, 76
13 AF-area mode*............................. 75, 76
14 Face-priority*................................ 30, 75
15 Focus area.............................................29
16 AF-area brackets
17 Flash compensation ...........................75
* Available only when Detailed is selected for Display > Shooting in the
setup menu (0 77).
*
18 Exposure compensation
19 Flash-ready indicator .........................70
20 “K” (appears when memory remains
for over 1000 exposures)
21 Number of exposures remaining....25
Number of shots remaining
before memory buffer fills
White balance
recording indicator
Card warning indicator
22 Time available............................... 58, 62
23 ISO sensitivity ......................................76
24 ISO sensitivity indicator.....................76
Auto ISO sensitivity indicator
25 Aperture......................................... 41, 42
26 Shutter speed ............................... 40, 42
27 Metering ............................................... 75
28 Battery indicator
29 Sound settings*.................................. 77
30 HDR ........................................................ 44
31 Eye-Fi connection indicator 32 Autoexposure (AE) lock indicator 33 Microphone sensitivity
34 Time elapsed................................. 58, 62
35 Recording indicator..................... 58, 62
*
*
21
12 13 14
15 16 17
18 19
*
s
17
The G Button
The shooting mode and most shooting, playback, and setup options can be accessed from the camera menus. Press
s
the G button to display the menu selection dialog shown below, then use the multi selector to highlight the icon for the desired menu and press J.
Playback menu (0 74): Shooting menu (0 75):
Adjust playback settings.
Shooting mode menu (0 19):
Choose a shooting mode.
Movie menu (0 76): Setup menu (0 77): Adjust movie-recording options. Adjust basic camera settings.
Image processing menu (0 76): Adjust white balance, ISO sensitivity, Picture Controls, and other image
processing settings for photographs and movies.
Adjust settings for still photography.
G button
18
❚❚ Choosing a Shooting Mode
To display the shooting mode menu, press the G button, highlight Shoot- ing mode, and press J. Use the multi selector to highlight a shooting mode and press J to select the highlighted option.
z Motion Snapshot mode (0 52): Each time the shutter is released, the camera records a still image and about 1.6 s of movie footage. When the resulting “Motion Snapshot” is viewed on the camera, the movie will play back in slow motion over approximately 4 s, followed by the still image.
u Best moment capture mode (0 46): Choose the moment to release the shutter as the scene plays back in slow motion (slow view), or let the camera choose the best shot based on composi­tion and motion (Smart Photo Selector).
z
u
C Auto mode (0 27): Let the camera pick the set- tings for photographs and movies.
C
s
w Creative mode (0 36): For photographs in which you want to use special effects, match set­tings to the scene, or control shutter speed and aperture.
v Advanced movie mode (0 56): Choose the shutter speed and aperture for HD movies or shoot slow-motion movies.
w
v
19
Options for each mode can be displayed by highlighting the mode and pressing 2. Press 4 to return to the shooting mode menu.
z Motion Snapshot mode: Choose a theme (0 54).
s
Beauty (1) Relaxation (3)
Wav es (2) Tenderness (4)
u Best moment capture mode: Choose between slow view and Smart Photo Selector modes (0 46).
Slow view (t)
Smart Photo Selector (y)
C Auto mode: Take photographs using live controls (0 31).
Active D-Lighting (Y) Motion control (6)
Background softening (5) Brightness control (E)
20
w Creative mode: Choose a scene (0 36).
Programmed auto (P) Night portrait (o)
Shutter-priority auto (S) Backlighting (m)
Aperture-priority auto (A) Soft (q)
Manual (M) Miniature effect (r)
Night landscape (j) Selective color (s)
v Advanced movie mode: Choose between HD (0 56) and slow- motion movies (0 61).
Programmed auto (P) Manual (M)
Shutter-priority auto (S) Slow motion (y)
Aperture-priority auto (A)
& (Feature)
A
The options for each mode can also be dis­played by pressing the & key on the multi selector after selecting the shooting mode.
s
21
❚❚ Using the Menus
Use the multi selector to navigate the playback, shooting, movie, image pro­cessing, and setup menus.
s
Multi selector
Select an item.
1
Press 1 or 3 to highlight menu items and press 2 to view options for the highlighted item.
Select an option.
2
Press 1 or 3 to highlight the desired option and press J to select.
Using the Menus
A
The items listed may vary with camera settings. Items displayed in gray are not currently available. To exit the menus and return to shooting mode, press the shutter-release button halfway (0 29).
Choosing a Menu
A
To display another menu, press 4 in Step 1 and then press 1 or 3 to highlight the desired icon. Press 2 to position the cursor in the highlighted menu.
22

First Steps

Attach the camera strap.
1
Attach the strap securely to the two camera eyelets.
Charge the battery.
2
Insert the battery into the charger q and plug the charger in
w. An exhausted battery fully charges in about two hours.
Unplug the charger and remove the battery when charging is complete.
Battery charging
Charging complete
The Plug Adapter
A
Depending on the country or region of purchase, a plug adapter may be sup­plied with the charger. adapter varies with the country or region of purchase. If a plug adapter is supplied, raise the wall plug and connect the plug adapter as shown at right, making sure the plug is fully inserted. adapter could damage the product.
The shape of the
Attempting to forcibly remove the plug
s
23
s
Insert the battery and a memory card.
3
Check to be sure the battery and card are in the correct orien­tation. Using the battery to keep the orange battery latch pressed to one side, slide the battery in until it latches, and then slide in the memory card until it clicks into place.
Rear
Formatting Memory Cards
A
If this is the first time the memory card will be used in the camera or if the card has been formatted in another device, select Format memory card in the setup menu and follow the on-screen instruc­tions to format the card (0 77). Note that
this permanently deletes any data the card may contain. Be sure to copy any photo-
graphs and other data you wish to keep to a computer before proceeding (0 80).
24
Attach a lens.
4
Be careful to prevent dust from entering the camera when the lens or body cap is removed.
Mounting mark (lens)
s
Mounting mark (camera)
Mounting mark (lens)
Turn the camera on.
5
Press the power switch to turn the camera on. The power lamp will briefly light green and the monitor will turn on. Be sure to remove the lens cap before shooting.
Check the battery level and number of exposures remaining in the monitor (0 17).
Keeping marks aligned, position lens on camera, then rotate until it clicks into place.
Battery level
Exposures remaining
25
❚❚ Choosing a Language and Setting the Camera Clock
A language-selection dialog will be dis­played the first time the camera is turned on. Use the multi selector to choose a lan-
s
guage, time zone, and date format, turn daylight saving time on or off, and set the camera’s 24-hour clock, pressing J after each step to proceed to the next dialog.
Lenses with Retractable Lens Barrel Buttons
A
Lenses with retractable lens barrel buttons can not be used when retracted. To unlock and extend the lens, keep the retractable lens barrel button pressed (q) while rotating the zoom ring (w). The camera will turn on auto­matically when the retractable lens barrel lock is released. The lens can be retracted and the zoom ring locked by pressing the retractable lens barrel button and rotating the ring in the opposite direction. If the view through the lens is displayed or the monitor is off, the camera will turn off automatically when the lens barrel is locked (in the case of 1 NIKKOR VR 10–30mm f/3.5–5.6 and 1 NIKKOR VR 30–110mm f/3.8–5.6 lenses, firmware ver­sion 1.10 or later is required if locking the lens barrel is to turn the cam­era off when the monitor is off; for information on updating lens firmware, visit the Nikon website for your area). Be careful not to press the retractable lens barrel button while attaching or removing the lens. Retract the lens before removal.
Turning the Camera Off
A
To turn the camera off, press the power switch again. The monitor will turn off.
26

Auto Mode

z
Shoot photographs and movies. The camera automatically adjusts settings to suit the subject.

Taking Photos in Auto Mode

Select C mode.
1
Press the G button to display the menus and select C (auto) for Shoot- ing mode (0 19).
Ready the camera.
2
Hold the camera securely with both hands, being careful not to obstruct the lens, AF-assist illuminator, or microphone. Rotate the camera as shown at lower right when taking pic­tures in “tall” (portrait) orientation.
z
27
Frame the photograph.
3
Position your subject in the center of the frame.
z
Using a Zoom Lens
A
Use the zoom ring to zoom in on the subject so that it fills a larger area of the frame, or zoom out to increase the area visible in the final photo­graph (select longer focal lengths on the lens focal length scale to zoom in, shorter focal lengths to zoom out).
Zoom in
Zoom ring
The Framing Grid
A
A framing grid can be displayed by selecting On for Display > Grid display in the setup menu (0 77).
28
Zoom out
Focus.
4
Press the shutter-release button half­way to focus. If the subject is poorly lit, the flash may pop up (0 70) and the AF-assist illuminator (0 15) may light to assist the focus operation.
If the camera is able to focus, the selected focus area will be highlighted in green and a beep will sound (a beep may not sound if the subject is moving).
If the camera is unable to focus, the focus area will be displayed in red.
Shoot.
5
Smoothly press the shutter-release button the rest of the way down to release the shutter and record the photograph. The memory card access lamp will light and the photograph will be displayed in the monitor for a few seconds (the photo will automati­cally clear from the display when the shutter-release button is pressed half­way). Do not eject the memory card or
remove or disconnect the power source until the lamp has gone out and record­ing is complete.
Focus area
z
Memory card access
lamp
29
Face P riorit y
A
The camera detects and focuses on portrait subjects (face priority). A double yellow bor­der will be displayed if a portrait subject is detected facing the camera (if multiple faces, up to a maximum of five, are detected, the camera will select the closest subject). Press
z
the shutter-release button halfway to focus on the subject in the double yellow border. The border will clear from the display if the camera can no longer detect the subject (because, for example, the subject has looked away).
Automatic Scene Selection
A
In auto mode, the camera automatically ana­lyzes the subject and selects the appropriate scene. The selected scene is shown in the monitor.
c Portrait: Human portrait subjects. d Landscape: Landscapes and cityscapes. f Night portrait: Portrait subjects framed against dark backgrounds. e Close up: Subjects close to the camera. g Night landscape: Poorly-lit landscapes and cityscapes. Z Auto: Subjects that do not fall into the categories listed above.
Auto Power Off
A
If no operations are performed for about a minute, the display will turn off and the power lamp start to flash. The camera can be reactivated by operating the shutter-release button. If no operations are performed for about three minutes after the display has turned off, the camera will turn off automatically.
Scene icon
30

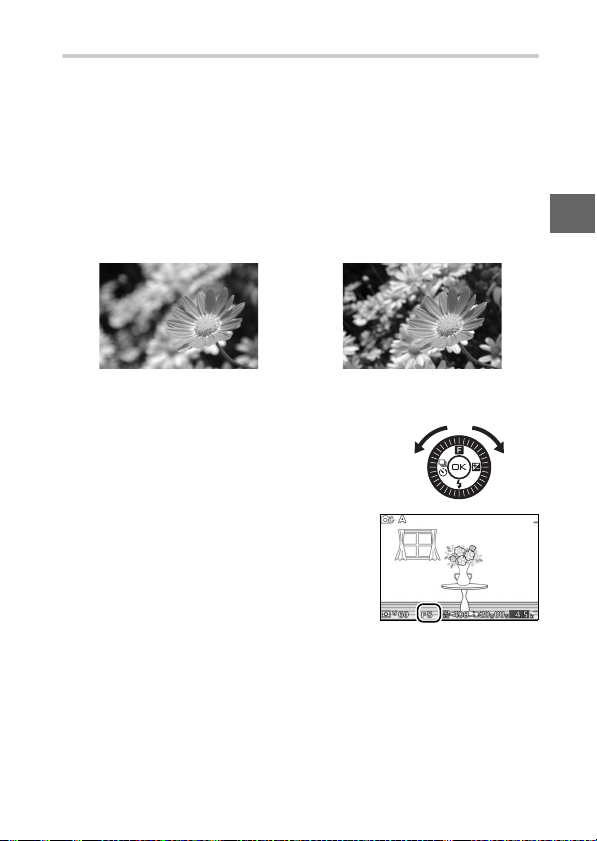

Live Image Control

Live image controls let you preview how changes to each control will affect the final photograph. To choose a live image control for auto mode, press 1 (&), use the multi selector to highlight a control, and press J to view the effect.
Rotate the multi selector to choose a set­ting and press J to select. To cancel live image controls, press 1 (&) again.
z
Active D-Lighting: Preserve details in high­lights and shadows for natural contrast.
Background softening: Soften background details to make your subject stand out, or bring both background and foreground into focus.
Background sharp Background softened
Increase effect
Reduce effectActive D-Lighting: High Active D-Lighting: Low
Sharpen background
Soften background
31
Motion control: Suggest motion by blurring moving objects, or “freeze” motion to capture moving objects clearly.
z
Freeze motion Blur motion
Brightness control: Make pictures brighter or darker.
Live Image Control
D
Continuous shooting is not available (0 66) and the built-in flash can not be used when live image control is in effect. Pressing the movie­record button cancels live image control.
Freeze motion
Blur motion
Brighter
DarkerBrighter Darker
32

Viewing Photographs

Press K to display your most recent pho­tograph full frame in the monitor (full­frame playback).
K button
Press 4 or 2 or rotate the multi selector to view additional pictures.
To zoom in on the center of the current image, press J and rotate the multi selector clockwise. Rotate counterclock­wise to zoom out. To view multiple images, rotate the multi selector counter­clockwise when the picture is displayed full frame.
To end playback and return to shooting mode, press the shutter­release button halfway.
z
See Also
A
The Display > Playback option in the setup menu can be used to tog­gle photo info on or off (0 77). See page 74 for slide show options.
33

Deleting Pictures

To delete the current picture, press O. Note that once deleted, pic- tures can not be recovered.
Display the photograph.
1
Display the photograph you wish to delete as described on
z
the preceding page.
Press O.
2
A confirmation dialog will be dis­played.
Delete the photograph.
3
Press O again to delete the picture and return to playback, or press K to exit without deleting the picture.
O button
Deleting Multiple Pictures
A
The Delete option in the playback menu (0 74) can be used to delete all or selected pictures.
34

Recording Movies in Auto Mode

In auto mode, the movie-record button can be used to shoot HD movies with sound at an aspect ratio of 16 : 9 (the movie crop is shown in the display). Press the movie-record button to start and stop recording.
Taking Photographs During Recording
A
Photographs with an aspect ratio of 16 : 9 can be taken at any time during recording by pressing the shutter-release button all the way down. Movie recording is not inter­rupted.
See Also
A
See page 64 for information on viewing movies.
z
Movie-record button
35

Creative Mode

6
Choose creative mode when to take photos using special effects, match settings to the scene, or control shutter speed and aper­ture.

Choosing a Creative Mode

Select w mode.
1
6
Press the G button to display the menus and select w (creative mode) for Shooting mode (0 19).
Choose a scene.
2
Press 1 (&) and highlight a scene using the multi selector (0 37).
Press J to select the highlighted scene. Your selection is indicated by an icon in the display.
36

Choosing a Scene

Creative mode offers a choice of the following scenes:
Option Description
The camera sets shutter speed and aperture for opti-
Programmed auto (P)
Shutter-priority auto (S)
Aperture-priority auto (A)
Manual (M) You control both shutter speed and aperture (0 42).
Night landscape (j)
mal exposure (0 39). Recommended for snapshots and in other situations in which there is little time to adjust camera settings. You choose the shutter speed; the camera selects an aperture for best results (0 40). Use to freeze or blur motion. You choose the aperture; the camera selects a shut­ter speed for best results (0 41). Use to blur the background or bring both foreground and back­ground into focus.
Each time the shutter-release button is fully pressed, the camera takes a series of shots and combines them to capture low lighting in night scenes; during processing, a message is displayed and no pictures can be taken. The flash does not fire and the edges of photos are cropped out. Note that the desired results may not be obtained if the camera or subject moves during shooting; if the camera is unable to combine the images, a warning will be displayed and only one picture will be taken.
6
37
Option Description
Each time the shutter-release button is fully pressed, the camera takes a series of shots, some with the flash and some without, and combines them to cap­ture background lighting in portraits taken at night or under low light; during processing, a message is
Night portrait (o)
6
Backlighting (m) Photograph backlit subjects (0 44).
Soft (q)
Miniature effect (r)
Selective color (s)
displayed and no pictures can be taken. Note the edges of photos are cropped out and that desired results may not be obtained if the camera or subject moves during shooting; if the camera is unable to combine the images, a warning will be dis­played and the camera will take a single picture using the flash.
Shoot photographs with a soft filter effect. To choose the amount of softening, press
J
when the view through the lens is dis­played, highlight an option using the multi selector, and press The top and bottom of each photo is blurred so that the subject appears to have been a diorama photo­graphed at short range. Works best when shooting from a high vantage point. Take photos in which only a selected hue appears in color. To choose the hue, press through the lens is dis­played and use the multi selector and
J
to select.
J
when the view
J
button.
that
the
38

Taking Photos in P, S, A, and M Modes

P, S, A, and M modes offer varying degrees of control over shutter
speed and aperture. Choose a mode and adjust settings accord­ing to your creative intent.

P Programmed Auto

In this mode, the camera automatically adjusts shutter speed and aperture for optimal exposure in most situations. This mode is recommended for snapshots and other situations in which you want to leave the camera in charge of shutter speed and aperture.
❚❚ Choosing a Combination of Shutter Speed and Aperture
Although the shutter speed and aperture chosen by the camera will produce opti­mal results, you can also choose from other combinations that will produce the same exposure (“flexible program”). Rotate the multi selector clockwise for large apertures (low f-numbers) that blur background details or fast shutter speeds that “freeze” motion. Rotate the multi selector counterclockwise for small aper­tures (high f-numbers) that increase depth of field or slow shutter speeds that blur motion. U is dis­played while flexible program is in effect.
Restoring Default Shutter Speed and Aper ture Settings
A
To restore default shutter speed and aperture settings, rotate the multi selector until U is no longer displayed or turn the camera off. The default shutter speed and aperture is automatically restored when the camera enters standby mode.
6
39

S Shutter-Priority Auto

In shutter-priority auto, you choose the shutter speed while the camera automatically selects the aperture that will produce the optimal exposure. Use slow shutter speeds to suggest motion by blurring moving subjects, fast shutter speeds to “freeze” motion.
6
Fast shutter speed (
1
/
160 0 s) Slow shutter speed (1 s)
❚❚ Choosing a Shutter Speed
Rotate the multi selector to choose from shutter speeds between 30 s and
1
/
16,000 s.
Rotate the selector clockwise for faster shutter speeds, counterclockwise for slower shutter speeds.
Continuous Shooting
A
The selected shutter speed may change when continuous shooting (0 66) is in effect.
40

A Aperture-Priority Auto

In aperture-priority auto, you choose the aperture while the camera automatically selects the shutter speed that will produce the optimal exposure. Large apertures (low f-numbers) reduce depth of field, blurring objects behind and in front of the main subject. Small apertures (high f-numbers) increase depth of field, bringing out details in the background and foreground. Short field depths are generally used in portraits to blur back­ground details, long field depths in landscape photographs to bring the foreground and background into focus.
Large aperture (f/5.6) Small aperture (f/16)
❚❚ Choosing an Aperture
Rotate the multi selector counterclock­wise for larger apertures (lower f-num­bers), clockwise for smaller apertures (higher f-numbers). The minimum and maximum values depend on the lens cur­rently in use.
6
41

M Manual

A
In manual mode, you control both shutter speed and aperture.
❚❚ Choosing Shutter Speed and Aperture
Adjust shutter speed and aperture with reference to the exposure indicator (see below). Press 2 to highlight shutter speed or aperture and rotate the multi selector to choose a value, then repeat
6
for the remaining item. Rotate the selec­tor clockwise for faster shutter speeds or smaller apertures (higher f-numbers), counterclockwise for slower shutter
Shutter speed
speeds and larger apertures (lower f­numbers). Shutter speeds can be set to values as fast as
1
/
16,000 s or as slow as 30 s,
or to “Bulb” to hold the shutter open indefinitely for a long time-exposure. Aperture can be set to values between the minimum and maximum for the lens.
Press 2 to highlight
aperture.
perture
Press 2 to highlight
shutter speed.
42
The Exposure Indicator
A
When shutter speeds other than “Bulb” are selected, the exposure indi­cator shows whether the photograph would be under- or over­exposed at current settings.
Optimal exposure Underexposed by
1
/
3 EV O verexposed by over 2 EV
6
43

Backlighting

The method used to capture details in shaded areas of back-lit subjects depends on the option selected for HDR in the shoot­ing menu (0 75).
Details in highlights and shadows are preserved using HDR (high dynamic range); Z appears in the display. Each time the shutter- release button is fully pressed, the camera takes two shots in quick
6
succession and combines them to preserve details in highlights and shadows in high-contrast scenes; the built-in flash does not fire. While the shots are combined, a message will be displayed and the shutter release will be disabled. The final photograph will be
On
displayed when processing is complete.
+
First exposure
(darker)
The flash fires to “fill in” (illuminate) shadows in back-lit subjects.
Off
Only one shot is taken when the shutter-release button is fully pressed, and the flash fires with each shot.
Framing HDR Photographs
D
The edges of the image will be cropped out. The desired results may not be achieved if the camera or subject moves during shooting. Depending on the scene, shading may be uneven and shadows may appear around bright objects or halos around dark objects. If the cam­era is unable to successfully combine the two images, a single image will be recorded at normal exposure and Active D-Lighting (0 75) will be applied.
Second exposure
(brighter)
Combined HDR
44

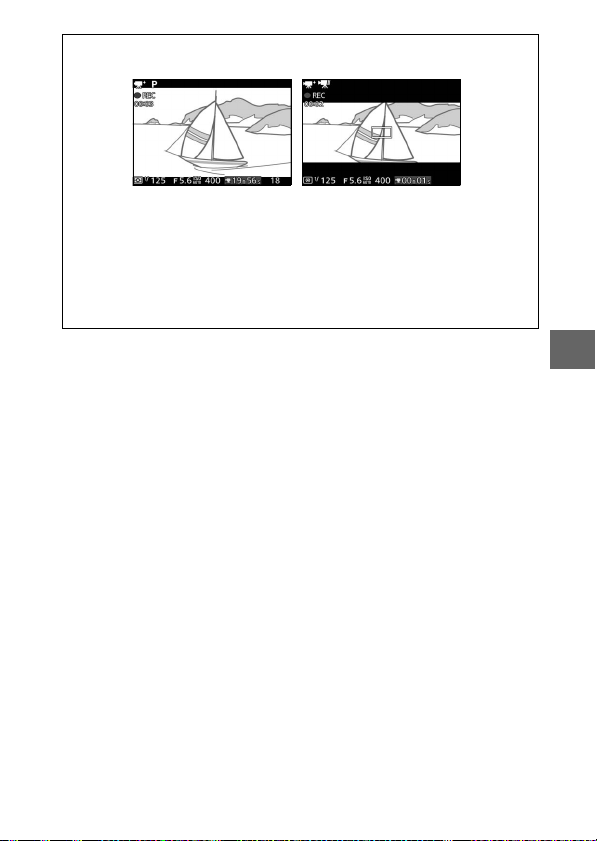

Recording Movies in Creative Mode

In creative mode, the movie-record but­ton can be used to shoot HD movies with sound at an aspect ratio of 16 : 9 (the corners of the movie crop are shown in the display). Press the movie-record button to start and stop recording. Note that regardless of the mode selected, movies are recorded using programmed auto exposure; to adjust exposure when shooting movies, select advanced movie mode (0 56).
Taking Photographs During Recording
A
Photographs with an aspect ratio of 16 : 9 can be taken at any time dur­ing recording by pressing the shutter-release button all the way down. Movie recording is not interrupted.
See Also
A
See page 64 for information on viewing movies.
Movie-record button
Movie crop
6
45

Best Moment Capture Mode

b
This mode is ideal for fast-changing, hard-to-capture subjects. Choose when to release the shutter as the scene plays back in slow motion (slow view), or let the camera choose the best shot based on composition and motion (Smart Photo Selector; 0 48).

Slow View

In this mode, the camera captures a short sequence of still images and plays them back in slow motion so that you can
b
choose the precise moment for a photograph. While the shutter­release button is pressed halfway, the camera records up to 15 frames over about 1 s and plays them back in a continuous slow­motion loop. When the frame you want to keep is displayed, press the shutter-release button the rest of the way down to record the current frame and discard the remaining images. To use slow view, select Slow view from the 1 (&) button menu in best moment capture mode.
Select u mode.
1
Press the G button to display the menus and select u (best moment capture) for Shooting mode (0 19). If Smart Photo Selector is selected, choose Slow view.
46
Frame the photograph.
2
Compose the photograph with your subject in the center of the frame.
Press the shutter-release button halfway.
3
The camera will focus (0 29) and then, over a span of about 1 s, record 15 frames to a temporary memory buffer.
View the buffer contents.
4
Keep the shutter-release button pressed halfway to play the frames in the buffer back in a continuous loop about 5 s long. The position of the cur­rent frame is shown by a progress indi­cator.
Record the desired frame.
5
Press the shutter-release button all the way down to record the current frame and discard the remaining images; the selected frame will be dis­played for a few seconds when record­ing is complete. To exit without recording a photograph, release the button without pressing it all the way down.
b
Progress indicator
Viewing and Deleting Photos Taken in Slow View
A
Photos taken in slow view can be viewed as described on page 33 or deleted as described on page 34.
47

Smart Photo Selector

Choose Smart Photo Selector mode to let the camera help you take photos that capture a fleeting expression on the face of a portrait subject or other hard-to-time shots such as group pho­tos in party scenes. Each time the shutter is released, the camera automatically selects the best shot and a number of best shot candidates based on composition and motion. To use the Smart Photo Selector, select Smart Photo Selector from the 1 (&) button menu in best moment capture mode.
b
Select u mode.
1
Press the G button to display the menus and select u (best moment capture) for Shooting mode (0 19). If
Slow view is selected, choose Smart Photo Selector.
48
Frame the photograph.
2
Compose the photograph with your subject in the center of the frame.
Begin buffering photographs.
3
Press the shutter-release button half­way to focus (0 29). An icon will be displayed as the camera begins recording images to the memory buffer. The camera continuously adjusts focus to account for changes in the distance to the subject while the shutter-release button is pressed halfway.
Shoot.
4
Smoothly press the shutter-release button the rest of the way down. The camera will compare shots recorded to the buffer both before and after the shutter-release button was pressed all the way down, and select five to copy to the memory card. Note that some time may be required. The best pic­ture is displayed in the monitor when recording is complete.
Best Moment Capture Mode
A
The camera automatically chooses a scene mode appropriate to the subject. Movies can not be recorded, and pressing the movie-record button has no effect. The flash can not be used.
b
49

Viewing Photos Taken with the Smart Photo Selector

Press K and use the multi selector to display photographs taken with the Smart Photo Selector (0 33; pictures taken with the Smart Photo Selector are indicated by a y icon). Of the photo­graphs recorded by the Smart Photo Selector, only the best shot will be dis­played (when you press the multi selec­tor right to view the next picture, the
b
camera will skip over the best shot can­didates, with the result that the next pic­ture displayed will not have a file number that immediately follows that of the current picture). To end playback and return to shooting mode, press the shutter-release button halfway.

Choosing the Best Shot

When a photograph taken with the Smart Photo Selector is displayed, you can choose the best shot by pressing 3. Press 4 or 2 to view the other pictures in the sequence and press J to select the current picture as the best shot. To return to normal playback, press D.
K button
50

Deleting Pictures

Pressing O when a picture taken with the Smart Photo Selector is selected displays a confirmation dialog; press O again to delete the best shot and the best shot candidates, or press K to exit without deleting the pictures. Note that once deleted, pictures can not be recovered.
Deleting Individual Photographs
A
Pressing the O button in the best shot selec­tion dialog displays the following options; highlight an option using the multi selector and press J to select.
This image: Delete the current photo (note that the picture currently selected as the best shot can not be deleted).
All except best shot: Delete the best shot candidates, but not picture cur­rently selected as the best shot.
A confirmation dialog will be displayed; to delete the selected image or images, highlight Yes and press J.
O button
b
51

Motion Snapshot Mode

9
Record brief movie vignettes with your photographs. Each time the shutter is released, the camera records a still image and about 1.6 s of movie footage. When the resulting “Motion Snap­shot” is viewed on the camera, the movie will play back in slow motion over approximately 4 s, followed by the still image; play­back is accompanied by a background track about 10 s long.
9

Shooting in Motion Snapshot Mode

Select z mode.
1
Press the G button to display the menus and select z (Motion Snap­shot mode) for Shooting mode (0 19).
Frame the picture.
2
Compose the photograph with your subject in the center of the frame.
52
Begin buffering.
3
Press the shutter-release button half­way to focus (0 29). An icon will be displayed as the camera begins recording footage to the memory buffer.
Shoot.
4
Smoothly press the shutter-release button the rest of the way down. The camera will record a photograph, together with about 1.6 s of movie footage beginning before and ending after the time the shutter-release but­ton was pressed all the way down. Note that some time may be required. When recording is complete, the pho­tograph will be displayed for a few seconds.
Ending the Vignette with a Photograph
A
To make the photograph the same as the last frame in the movie vignette, select 1.6 s : 0 s for Movie before/after (0 75).
Shutter-release button pressed halfway
Shutter-release button
pressed all the way down
9
Movie footage
53
❚❚ Choosing a Theme
To choose the background music for the movie, press 1 (&) and use the multi selector and J button to select from
Beauty, Waves , Relaxation, and Te nd e r­ness.
To play the background music for the highlighted theme, press 2 and rotate the multi selector to adjust volume.
9
Motion Snapshot Mode
A
Live audio is not recorded. Movies can not be recorded using the movie-record button and the flash can not be used.
See Also
A
Use the File fo rmat option in the shooting menu to save Motion Snap­shots in a format that can be viewed in most movie playback software (0 75).
54

Viewing Motion Snapshots

Press K and use the multi selector to dis­play a Motion Snapshot (0 33; Motion Snapshots are indicated by a z icon). Pressing 3 when a Motion Snapshot is displayed plays back the movie portion in slow motion over a period of about 4 s, followed by the photo; the background track plays for about 10 s (to choose a new background track, use the Change theme option in the playback menu; 0 74). To end playback and return to shooting mode, press the shutter-release button halfway.

Deleting Motion Snapshots

To delete the current Motion Snapshot, press O. A confirmation dialog will be dis- played; press O again to delete the photo and movie and return to playback, or press K to exit without deleting the file.
Note that once deleted, Motion Snapshots can not be recovered.
K button
9
O button
55

Recording and Viewing Movies

y
The camera can record high-definition (HD) movies with an aspect ratio of 16 : 9 and slow-motion movies with an aspect ratio of 8 : 3. Movies can be recorded by pressing the movie-record button in the following shooting modes:
Mode Movie type Description
C Auto mode (0 35)
y
w Creative mode (0 45)
v
Advanced movie mode ( 0 57,
61)
Programmed auto (P)
Shutter­priority auto
(S)
Aperture­priority auto
(A)
Manual (M)
Slow motion
(y)
HD (16 : 9)
Slow motion (8 : 3)
The camera automatically optimizes settings for the current subject or scene. Shoot movies. Regardless of the scene selected with the camera, movies are recorded in mode P; shutter speed and aperture are controlled by the camera. Shutter speed and aperture are controlled by the camera. You choose the shutter speed; the camera automati­cally adjusts aperture for optimal exposure (0 40). You choose the aperture; the camera automatically adjusts shutter speed for optimal exposure (0 41). You choose the shutter speed and aperture (0 42). Record silent slow-motion movies. Movies are recorded at 400 fps and play back at about 30 fps (0 61).
Movie-record button
56

Recording HD Movies

Record movies with sound at an aspect ratio of 16 : 9.
Choose a shooting mode.
1
Press the G button to display the menus (0 18) and choose an option for Shooting mode that supports HD movie recording (0 56).
For greater control of exposure, select v (advanced movie mode), press 1 (&), and choose from P Programmed auto, S
Shutter-priority auto, A Aperture-priority auto, and M Manual (0 56).
Frame the opening shot.
2
Frame the opening shot with your subject in the center of the display.
y
The 0 Icon
A
A 0 icon indicates that movies can not be recorded.
57
y
Start recording.
3
Press the movie-record button to begin recording. A recording indica­tor, the time elapsed, and the time available are displayed while record­ing is in progress.
Audio Recording
A
Be careful not to cover the microphone and note that the built-in microphone may record sounds made by the camera or lens. By default, the camera focuses continuously. The Movie sound options item in the movie menu offers micro­phone sensitivity and wind noise options (0 76).
End recording.
4
Movie-record button
Recording indicator/ Tim e elap sed
Time available
Press the movie-record button again to end recording. Recording will end automatically when the maximum length is reached, the memory card is full, the lens is removed, or the camera becomes hot (0 12).
Maximum Length
A
At default settings, HD movies can be up to 4 GB in size and 20 min­utes in length; note that depending on memory card write speed, shooting may end before this length is reached (0 84).
Movie-record button
58
The Movie Crop
A
The movie crop is shown in the monitor.
HD crop (16 : 9) Slow-motion movie crop
Focus Lock
A
If Single AF is selected for Focus mode in the movie menu for advanced movie mode, focus will lock while the shutter-release button is pressed halfway (0 76).
(8 : 3)
y
59
❚❚ Taking Photographs During HD Movie Recording
Press the shutter-release button all the way down to take a photograph without interrupting HD movie recording. Photo­graphs taken during movie recording have an aspect ratio of 16 : 9.
Taking Photographs During Movie Recording
A
Up to 18 photographs can be taken with each movie shot. Please note that photographs can not be taken with slow-motion movies.
Recording Movies
D
y
Flicker, banding, or distortion may be visible in the display and in the final movie under fluorescent, mercury vapor, or sodium lamps or if the camera is panned horizontally or an object moves at high speed through frame (flicker and banding can be reduced in HD movies by choosing a Fli cker reducti on option that matches the frequency of the local AC power supply as described on page 77, but note that the slow­est shutter speed available is tion is not available with slow-motion movies). Bright light sources may leave after-images when the camera is panned. Jagged edges, color fringing, moiré, and bright spots may also appear. When recording movies, avoid pointing the camera at the sun or other strong light sources. Failure to observe this precaution could result in damage to the camera’s internal circuitry.
See Also
A
Use the Movie settings option in the movie menu to choose the frame size and rate for HD movies (0 76).
1
/
100 s at 50 Hz,
1
/
60 s at 60 Hz; flicker reduc-
60

Recording Slow-Motion Movies

Silent slow-motion movies with an aspect ratio of 8 : 3 can be recorded by selecting y Slow motion from the 1 (&) button menu in advanced movie mode. Slow-motion movies are recorded at 400 fps and play back at about 30 fps.
Select v mode.
1
Press the G button to display the menus and select v (advanced movie mode) for Shooting mode (0 19). If an option other than y
Slow motion is selected, choose y Slow motion.
Frame the opening shot.
2
Frame the opening shot with your subject in the center of the display.
y
61
y
Focus.
3
Start recording.
4
Press the movie-record button to begin recording. A recording indica­tor, the time elapsed, and the time available are displayed while record­ing is in progress. The camera focuses on the subject at the center of the dis­play; face detection (0 30) is not available and focus and exposure can not be adjusted.
Focus area
Movie-record button
Recording indicator/ Tim e elap sed
Time available
62
End recording.
5
Press the movie-record button again to end recording. Recording will end automatically when the maximum length is reached, the memory card is full, the lens is removed, or the camera becomes hot (0 12).
Maximum Length
A
Up to 2.5 seconds of footage can be recorded; note that depending on memory card write speed, shooting may end before this length is reached (0 84).
See Also
A
Use the Frame rate option in the movie menu to choose the frame rate for slow-motion movies (0 76).
Movie-record button
y
63

Viewing Movies

Movies are indicated by a 1 icon in full-frame playback (0 33). Press 3 to start playback.
1 icon/Length
The following operations can be performed:
y
To Use Description
Pause Pause playback.
Movie playback indicator/
Current position/total length
Guide Volume
64
Play J
Advance/
rewind
Adjust
volume
Return to
full-frame
playback
Resume playback when the movie is paused or during rewind/advance. Press 4 to rewind, 2 to advance. Speed increases with each press, from 2× to 4× to 8× to 16×. If playback is paused, the movie rewinds or advances one frame at a time; keep the button pressed for continuous rewind or advance.
Rotate the multi selector to adjust volume.
/K Press 1 or K to exit to full-frame playback.

Deleting Movies

To delete the current movie, press O. A confirmation dialog will be displayed; press O again to delete the movie and return to playback, or press K to exit without deleting the movie. Note that once deleted, movies can not be recovered.
See Also
A
The Edit movie option in the playback menu can be used to trim unwanted footage from existing movies (0 74).
O button
y
65

More on Photography

t

Single-Frame, Continuous, and Self-Timer Modes

Pressing 4 (C) on the multi selector displays a choice of shutter­release modes for still photography:
8 The camera takes pictures one at a time.
5 fps 15 fps 30 fps 60 fps
E 10 s The shutter is released about 10, 5, or 2 seconds E 5 s
E 2 s

Continuous Mode

t
To take pictures in continuous mode:
Display release mode options.
1
Press 4 (C) to display release mode options.
Select a frame rate.
2
Highlight 5fps, 15 fps, 30 fps, or 60 fps and press J.
Continuous: The camera records photographs at about 5, 15, 30, or 60 fps while the shutter-release button is pressed all the way down.
after the shutter-release button is pressed all the way down. Choose 10 s or 5 s for self-portraits, 2 s to reduce camera shake.
Compose the shot and start shooting.
3
The camera takes pictures while the shutter-release button is held all the way down.
66
Continuous Mode
D
The maximum number of shots that can be taken in a single burst var­ies with the release mode. At frame rates of 30 and 60 fps, the maxi­mum number of shots that can be taken in a single burst is 15.
The built-in flash can be used when 5fps is selected, but only one pic- ture will be taken each time the shutter-release button is pressed; at settings of 15, 30, and 60 fps, the built-in flash will not fire.
While photographs are being recorded to the memory card, the mem­ory card access lamp will light. Depending on shooting conditions and memory card write speed, recording may take some time. If the battery is exhausted before all photographs are recorded, the shutter release will be disabled and the remaining images transferred to the memory card.
Continuous shooting is not available in creative modes other than P, S, A, or M, in best moment capture, advanced movie, or Motion Snapshot mode, or when live image control is used in auto mode (0 31).
t
67

Self-Timer Modes

The self-timer can be used to reduce camera shake or for self­portraits.
Display release mode options.
1
Press 4 (C) to display release mode options.
Select the desired self-timer option.
2
Use the multi selector to highlight E 10 s, E 5 s, or E 2 s and press J.
Mount the camera on a tripod.
3
t
Mount the camera on a tripod or place the camera on a sta­ble, level surface.
Frame the photograph and shoot.
4
Press the shutter-release button half­way to focus, and then press the but­ton the rest of the way down. The self­timer lamp will start to flash and a beep will begin to sound. Two sec­onds before the photo is taken, the lamp will stop flashing and the beep­ing will become more rapid.
68
Note that the timer may not start or a photograph may not be taken if the camera is unable to focus or in other situations in which the shutter can not be released. Turning the camera off cancels the self-timer.
Movie Mode
A
In self-timer mode, start and stop the timer by pressing the movie­record button instead of the shutter-release button.
Raising the Flash
A
In P, S, A, or M mode, press the flash pop-up button to raise the flash before shooting. Shooting will be interrupted if the flash is raised while the timer is counting down.
See Also
A
The Sound settings option in the setup menu controls the beeps that sound when the self-timer is used (0 77).
t
69

The Built-in Flash

Use the built-in flash for additional lighting when the subject is poorly lit or to “fill-in” (illuminate) back-lit subjects. The camera offers a choice of flash modes; choose a mode according to light­ing conditions and your creative intent. The built-in flash is avail­able in the following shooting modes:
❚❚ Auto Pop-up Modes
In C (auto) and in night portrait, backlighting, soft, miniature effect, and selective color w (creative) modes, the flash will pop-up automatically and fire when required.
Choose a flash mode (0 71).
1
Tak e pictur es.
2
The flash will pop up and fire as required. In night
t
portrait (0 38) and (if HDR is off) in backlighting (0 44) mode, the flash will pop up and fire with every shot.
❚❚ Manual Pop-up Modes
When P, S, A, or M is selected in w (creative) mode, the flash must be raised manually. The flash will not fire if it is not raised.
Raise the flash.
1
Press the flash pop-up button to raise the flash.
Choose a flash mode (0 71).
2
Tak e pictur es.
3
The flash will fire with every shot. To disable the flash, press it gently down­ward until it latches (0 73).
70
Flash pop-up button

Choosing a Flash Mode

The options available vary with the shooting mode.
Auto, Soft (q
o Auto N Fill flash n Auto+red- eye reduction NY Red-eye reduction
s Off
N Fill flash s Off
NY Red- eye reduction
N Fill flash NY Red- eye reduction Nq Rear-curtain sync
s Off
1 Select to disable built-in flash. 2 Available only when built-in flash is raised.
),
Miniature effect (r
Selective color (s
1
Night portrait (o),
Backlighting (m)
S, M
2
),
)
NYp
Np Fill flash + slow sync Nr Rear curtain + slow sync
P, A
Red-eye reduction + slow sync
2
To choose a flash mode:
Display flash modes.
1
Press 3 (N) on the multi selector to
display a list of the available flash
modes.
Select a flash mode.
2
Use the multi selector to highlight a
flash mode and press J to select.
t
Charging begins when the flash is raised; once charging is com­plete, a flash-ready indicator (N) will be displayed when the shut­ter-release button is pressed halfway.
71
Raising the Flash
D
When using the flash, be sure it is fully raised as shown at right. Do not touch the flash dur­ing shooting.
Flash Modes
A
The flash modes listed on the previous page may combine one or more of the following settings, as shown by the flash mode icon:
AUTO (auto flash): When lighting is poor or subject is backlit, flash pops up automatically when shutter-release button is pressed halfway and fires as required.
Y (red-eye reduction): Use for portraits. Red-eye reduction lamp lights before flash fires, reducing “red-eye.”
s (off): Flash does not fire even when lighting is poor or subject is backlit.
SLOW (slow sync): Shutter speed slows automatically to capture back-
t
ground lighting at night or under low light. Use to include back­ground lighting in portraits.
REAR (rear-curtain sync): Flash fires just before shutter closes, creating a stream of light behind moving light sources (below at right). If this icon is not displayed, flash will fire as the shutter opens (front-curtain sync; the effect this produces with moving light sources is shown below at left).
72
Front-curtain sync Rear-curtain sync
Lowering the Built-in Flash
A
To save power when the flash is not in use, press it gently downward until the latch clicks into place. Do not use force. Failure to observe this precaution could result in prod­uct malfunction.
Using the Built-in Flash
A
The built-in flash can not be used with live image control (0 31) and will not fire during continuous shooting at frame advance rates faster than 5 fps (0 66) or when On is selected for HDR in the shooting menu (0 44). If the flash is fired multiple times in quick succession, the flash and shutter may be temporarily disabled to protect the flash. Shooting can be resumed after a brief pause.
Objects close to the camera may be overexposed in photographs taken with the flash at high ISO sensitivities.
To avoid vignetting, remove lens hoods and shoot at ranges of at least
0.6 m (2 ft). Some lenses may cause vignetting at greater distances or obstruct the red-eye reduction lamp, interfering with red-eye reduc­tion. The following illustrations show the effect of vignetting caused by shadows cast by the lens when the built-in flash is used.
Shadow Shadow
Aperture, Sensitivity, and Flash Range
A
Flash range varies with sensitivity (ISO equivalency) and aperture. With the standard zoom lens at maximum aperture and ISO sensitivity set to ISO 100 to 6400, the range is approximately 0.6 m–7.0 m (2 ft–23 ft) when the lens is zoomed all the way out, 0.6 m–4.2 m (2 ft–13.8 ft) at maximum zoom.
t
73

Menu Options

U
To display the playback, shooting, movie, image processing, and setup menus, press the G button. Following menu options are available:

❚❚ Playback Menu Options

Option Description
Delete Delete multiple images. Slide show View movies and photos in a slide show.
Image review
Rotate tall
DPOF print order Create digital “print orders”. Protect Protect pictures from accidental deletion.
U
Rating Rate pictures.
D-Lighting
Resize Create small copies of selected pictures. Crop Create cropped copies of selected pictures.
Face -priori ty zoom
Edit movie
Change theme Change the themes for existing Motion Snapshots.
Choose whether pictures are displayed after shooting. Rotate “tall” (portrait-orientation) pictures for display during playback.
Brighten shadows in dark or back-lit photos, creating a retouched copy that is saved separately from the unmodified original.
Choose whether 4 and 2 can be used during playback zoom to select faces detected with face priority. Create copies of movies from which unwanted footage has been trimmed.
G button
74

❚❚ Shooting Menu Options

Option Description Reset shooting options
Exposure mode
Image quality Choose a file format and compression ratio. Image size Choose a size for new photos. Number of shots saved
Movie before/after
File format
Metering Choose how the camera meters exposure. Auto distortion control Color space Choose a color space for new pictures. Active D-Lighting Avoid loss of detail in highlights and shadows.
HDR
Long exposure NR Reduce noise in long time-exposures.
Optical VR
Electronic VR
Focus mode Choose how the camera focuses. AF-area mode Choose how the focus area is selected. Face -prior ity Turn face priority on or off. Built-in AF assist Control the built-in AF-assist illuminator. Flash compensation Control flash output.
Reset shooting options to default values.
Choose how the camera sets shutter speed and aperture in Motion Snapshot mode (0 52).
Choose the number of shots selected by the Smart Photo Selector (0 48). Choose when the movie portion of Motion Snapshots is recorded (0 52). Choose a file format for new Motion Snapshots (0 52).
Choose whether the camera corrects barrel and pincushion distortion.
Enhance detail in highlights and shadows when photographing high-contrast scenes with Backlighting selected in creative mode.
Adjust settings for 1 NIKKOR lenses with vibration reduction. Choose whether to use vibration reduction in Motion Snapshot mode (0 52). This feature is available even if vibration reduction is not offered by the attached 1 NIKKOR lens.
U
75

❚❚ Movie Menu Options

Option Description
Reset movie options Reset movie menu options to their default values. Frame rate Choose a frame rate for slow-motion movies (0 61). Movie settings Choose HD movie frame size and frame rate (0 57). Metering Choose how the camera meters exposure. Movie sound options Choose sound recording options.
Optical VR
Focus mode Choose how the camera focuses. AF-area mode Choose how the focus area is selected. Face -prior ity Turn face priority on or off.
Adjust settings for 1 NIKKOR lenses with vibration reduction.

❚❚ Image Processing Menu Options

Option Description Reset processing options White balance Adjust settings for different types of lighting. ISO sensitivity Control the camera’s sensitivity to light.
U
Picture Control Choose how the camera processes pictures. Custom Picture Control High ISO noise reduction
Reset image processing options to their default values.
Create custom Picture Controls.
Reduce noise at high ISO sensitivities.
76

❚❚ Setup Menu Options

Option Description Reset setup options Format memory card Slot empty release lock
Display
Sound settings Auto power off Choose the auto power off delay. Shutter button AE lock
HDMI device control
Flicker reduction Reduce flicker or banding. Reset file numbering Reset file numbering. Time zone and date Set the camera clock. Language Choose a language for the camera displays. Auto image rotation Record camera orientation with pictures. Wireless mobile adapter
Pixel mapping
Firmware version Display the current firmware version.
Reset setup menu options to default values. Format the memory card. Allow the shutter to be released when no memory card is inserted in the camera. Adjust display brightness, view or hide a framing grid, and choose the information displayed in the monitor. Choose the sounds made during shooting.
Choose whether exposure locks when the shutter­release button is pressed halfway. Choose whether remote controls for HDMI-CEC devices to which the camera is connected can be used to operate the camera.
Enable or disable the wireless mobile adapter.
Check and optimize the camera image sensor and image processors.
U
77

Connecting to a Computer

Q

Installing the Supplied Software

Install the supplied software to copy pictures to your computer for viewing and editing pictures and creating short movies. Before installing the software, confirm that your system meets the requirements on page 79.
Launch the installer.
1
Start the computer, insert the ViewNX 2/Short Movie Creator installer CD, and launch the installer.
Select a language.
2
Select a language and click Next. If the desired language is not available, click Region Selection to choose a different region and then choose the desired language (region selec­tion is not available in the European release).
Start the installer.
3
Click Install and follow the on-screen instructions.
Exit the installer.
4
Q
Click Ye s (Windows) or OK (Mac OS) when installation is com­plete. The following software is installed:
ViewNX 2
Short Movie Creator
Apple QuickTime (Windows only)
Remove the installer CD from the CD-ROM drive.
5
Supplied Software
A
Be sure to update to the latest versions of the supplied software. Nikon Message Center 2 will periodically check for updates while the computer is connected to the Internet.
78

System Requirements

The system requirements for ViewNX 2 are:
Windows
Photos/JPEG movies: Intel Celeron, Pentium 4, or Core series,
1.6 GHz or better
CPU
H.264 movies (playback): 3.0 GHz Pentium D or better
H.264 movies (editing): 2.6 GHz Core 2 Duo or better
Pre-installed versions of Windows XP, Windows Vista, Win-
OS
dows 7, and Windows 8; only 32-bit versions of Windows XP are supported
Windows 8/Windows 7/Windows Vista: 1 GB or more (2 GB or more rec-
RAM
ommended)
Windows XP: 512 MB or more (2GB or more recommended)
Hard-disk
Hard-disk
A minimum of 500 MB available on the startup disk (1 GB or m ore rec-
space
ommended)
Resolution: 1024 × 768 pixels (XGA) or more (1280 ×1024 pixels/SXGA
Monitor
space
Monitor
or more re commended)
Color: 24-bit color (True Color) or more
Mac OS
Photos/JPEG movies: Intel Core or Xeon series
CPU
H.264 movies (playback): 2 GHz Core Duo or better
H.264 movies (editing): 2.6 GHz Core 2 Duo or better
OS Mac OS X version 10.6, 10.7, or 10.8
RAM 512 MB or more (2 GB or more recom mended)
A minimum of 500 MB available on the startup disk (1 GB or m ore rec­ommended)
Resolution: 1024 × 768 pixels (XGA) or more (1280 ×1024 pixels/SXGA
or more re commended)
Color: 24-bit color (millions of colors) or more
Q
Motion Snapshots
A
ViewNX 2 is required to view Motion Snapshots saved using the File format > NMS files option in the shooting menu (0 75).
Supported O perating Systems
A
See the websites listed on page 13 for the latest information on sup­ported operating systems.
79

Viewing and Editing Pictures on a Computer

Transferring Pictures

Choose how pictures will be copied to the computer.
1
Choose one of the following methods:
Direct USB connection: Turn the camera off and ensure that the memory card is inserted in the camera. Connect the camera to the computer using the supplied USB cable (do not use force or insert the connectors at an angle) and then turn the camera on.
SD card slot: If your computer is equipped with an SD card slot, the card can be inserted directly in the slot.
SD card reader: Connect a card reader (available separately from third-party suppliers) to the computer and insert the
Q
80
memory card.
Start the Nikon Transfer 2 component of ViewNX 2.
2
If a message is displayed prompting you to choose a pro­gram, select Nikon Transfer 2.
Windows 7
A
If the following dialog is displayed, select Nikon Transfer 2 as described below.
1 Under Import pictures and
videos, click Change pro­gram. A program selection
dialog will be displayed; select
Import File using Nikon Transfer 2 and click OK.
2 Double-click Import file.
Click Start Transfer.
r
3
At default settings, all the pictures on the memory card will be copied to the computer.
Click Start Transfe
Terminate the connection.
4
If the camera is connected to the computer, turn the camera off and disconnect the USB cable. If you are using a card reader or card slot, choose the appropriate option in the com­puter operating system to eject the removable disk corre­sponding to the memor y card and then remove the card from the card reader or card slot.

Viewing Pictures

Pictures are displayed in ViewNX 2 when transfer is com­plete.
Starting ViewNX 2 Manually
A
Window s: Double-click the ViewNX 2 shortcut on the desk­top.
Mac OS: Click the ViewNX 2 icon in the Dock.
Q
81
❚❚ Retouching Photographs
To crop pictures and perform such tasks as adjusting sharp­ness and tone levels, click the Edit button in the toolbar.
❚❚ Printing Pictures
Click the Print button in the toolbar. A dialog will be dis­played, allowing you to print pictures on a printer connected to the computer.
For More Information
A
Consult online help for more infor­mation on using ViewNX 2.
Q
82

Technical Notes

n
Read this chapter for information on compatible accessories, cleaning and storing the camera, and what to do if an error mes­sage is displayed or you encounter problems using the camera.

Optional Accessories

At the time of writing, the following accessories were available for your camera.
Lenses 1 mount lenses
Mount adapters
Power sources
Waterpr oof cases
Body caps Body Cap BF-N1000: The body cap keeps the dust shield free of
Wireless mobile adapters
Mount Adapter FT1
Rechargeable Li-ion Battery EN-EL20 (0 23–24): Additional
EN-EL20 batteries are available from local retailers and Nikon-authorized service representatives.
Battery Charger MH-27 (0 23): Recharge EN-EL20 batteries.
Power Connector EP-5C, AC Adapter EH-5b: These accessories can
be used to power the camera for extended periods (EH-5a and EH-5 AC adapters can also be used). An EP-5C power connector is required to connect the camera to the EH-5b, EH-5a, or EH-5.
Waterproof Case WP-N2: In addition to protecting the camera from rain, snow, and spray, this waterproof case can be used to take photographs underwater.
dust when a lens is not in place. Wireless Mobile Adapter WU-1b: Create a wireless connection that
can be used by smart devices running the Wireless Mobile Utility to download pictures or control the camera remotely.
n
83

Approved Memory Cards

The following cards have been tested and approved for use in the camera. Cards with class 6 or faster write speeds are recom­mended for movie recording. Recording may end unexpectedly when cards with slower write speeds are used.
SD cards SDHC c ards SanDisk Tos hi ba
Panasonic 48 GB, 64 GB
Lexar Media
Platinum II
Professional
Full-HD Video 4GB, 8GB, 16GB
1 Check that any card readers or other devices with which the card will be
used support 2 GB cards.
2 Check that any card readers or other devices with which the card will be
used are SDHC-compliant. The camera supports UHS-1.
3 Check that any card readers or other devices with
which the card will be used are SDXC-compliant. The camera supports UHS-1.
1
4GB, 8GB, 16GB, 32GB
2GB
4GB, 8GB, 16GB
4GB, 8GB, 16GB, 32GB
2
Other cards have not been tested. For more details on the above cards, please contact the manufacturer.
n
SDXC cards
64 GB
3
84

Storage and Cleaning

Storage

If the camera will not be used for an extended period, remove the battery and store it in a cool, dry area with the terminal cover in place. To prevent mold or mildew, store the camera in a dry, well-ventilated area. Do not store your camera with naphtha or camphor moth balls or in locations that:
are poorly ventilated or subject to humidities of over 60%
are next to equipment that produces strong electromagnetic
fields, such as televisions or radios
are exposed to temperatures above 50 °C (122 °F) or below –10 °C (14 °F)

Cleaning

Use a blower to remove dust and lint, then wipe gently with a soft, dry cloth. After using the camera at the beach or sea-
Camera body
Lens
Monitor
Dust shield
side, wipe off sand or salt with a cloth lightly dampened in distilled water and dry thoroughly. Important: Dust or other
foreign matter inside the camera may cause damage not cov­ered under warranty.
Lenses are easily damaged. Remove dust and lint with a blower. If using an aerosol blower, keep the can vertical to prevent the discharge of liquid. To remove fingerprints and other stains, apply a small amount of lens cleaner to a soft cloth and clean with care.
Remove dust and lint with a blower. When removing finger­prints and other stains, wipe the surface lightly with a soft cloth or chamois leather. Do not apply pressure, as this could result in damage or malfunction.
The dust shield is easily damaged. Remove dust and lint with a blower.
Do not use alcohol, thinner, or other volatile chemicals.
n
85

Caring for the Camera and Battery: Cautions

Do not drop: The product may mal­function if subjected to strong shocks or vibration.
Keep dry: This product is not water­proof, and may malfunction if immersed in water or exposed to high levels of humidity. Rusting of the internal mechanism can cause irreparable damage.
Avoid sudden changes in temperature: Sudden changes in temperature, such as those that occur when entering or leaving a heated build­ing on a cold day, can cause con­densation inside the device. To prevent condensation, place the device in a carrying case or plastic bag before exposing it to sudden changes in temperature.
Keep away from strong magnetic fields
Do not use or store this device in the vicinity of equi pment that generates strong electromagnetic radiation or
n
magnetic fields. Strong static charges or the magnetic fields pro­duced by equipment such as radio transmitters could interfere with the display, damage data stored on the memory card, or affect the product’s internal circuitry.
Keep the lens mount covered: Be sure to attach the body cap if the camera is without a lens.
Do not touch the dust shield: The dust shield covering the image sensor is easily damaged. Under no circum-
86
stances should you exert pressure on the shield or poke it with clean­ing tools. These actions could scratch or otherwise damage the shield.
Turn the product off before removing or disconnecting the power source: Do not
unplug the product or remove the battery while the product is on or while images are being recorded or deleted. Forcibly cutting power in these circumstances could result in loss of data or in damage to prod­uct memory or internal circuitry. To prevent an accidental interruption of power, avoid carrying the prod­uct from one location to another while the AC adapter is connected.
Cleaning: When cleaning the camera body, use a blower to gently
:
remove dust and lint, then wipe gently with a soft, dry cloth. After using the camera at the beach or seaside, wipe off any sand or salt using a cloth lightly dampened in pure water and then dry the cam­era thoroughly.
Lenses are easily damaged. Dust and lint should be gently removed with a blower. When using an aero­sol blower, keep the can vertical to prevent discharge of liquid. To remove fingerprints and other stains from the lens, apply a small amount of lens cleaner to a clean, soft cloth and wipe the lens care­fully.
Storage: To prevent mold or mildew, store the camera in a dry, well-ven­tilated area. If you are using an AC adapter, unplug the adapter to pre­vent fire. If the product will not be used for an extended period, remove the battery to prevent leakage and store the camera in a plastic bag containing a desiccant. Do not, however, store the camera case in a plastic bag, as this may cause the material to deteriorate. Note that desiccant gradually loses its capacity to absorb moisture and should be replaced at regular inter­vals.
To prevent mold or mildew, take the camera out of storage at least once a month. Turn the camera on and release the shutter a few times before putting it away.
Store the battery in a cool, dry place. Replace the terminal cover before putting the battery away.
Notes on the monitor: The monitor is constructed with extremely high precision; at least 99.99% of pixels are effective, with no more than
0.01% being missing or defective.
Hence while these displays may contain pixels that are always lit (white, red, blue, or green) or always off (black), this is not a mal­function and has no effect on images recorded with the device.
Images in the monitor may be diffi­cult to see in a bright light.
Do not apply pressure to the dis­play, as this could cause damage or malfunction. Dust or lint on the display can be removed with a blower. Stains can be removed by wiping lightly with a soft cloth or chamois leather. Should the moni­tor break, care should be taken to avoid injury from broken glass and to prevent liquid crystal from the display touching the skin or enter­ing the eyes and mouth.
Do not leave the lens pointed at the sun: Do not leave the lens pointed at the sun or other strong light source for an extended period. Intense light may cause the image sensor to deteriorate or produce a white blur effect in photographs.
Moiré: Moiré is an interference pat­tern created by the interaction of an image containing a regular, repeating grid, such as the pattern of weave in cloth or windows in a building, with the camera image sensor grid. In some cases, it may appear in the form of lines. If you notice moiré in your photographs, try changing the distance to the subject, zooming in and out, or changing the angle between the subject and the camera.
Lines: Noise in the form of lines may in rare cases appear in pictures of extremely bright or backlit sub­jects.
n
87
Batteries: Batteries may leak or explode if improperly handled. Observe the following precautions when handling batteries:
Use only batteries approved for use in this equipment.
Do not expose the battery to flame or excessive heat.
Keep the battery terminals clean.
Turn the product off before
replacing the battery.
Remove the battery from the camera or charger when not in use and replace the terminal cover. These devices draw minute amounts of charge even when off and could draw the battery down to the point that it will no longer function. If the battery will not be used for some time, insert it in the camera and run it flat before removing it and storing it in a location with an ambient temper­ature of 15 °C to 25 °C (59 °F to 77 °F; avoid hot or extremely cold locations). Repeat this process at
n
least once every six months.
Turning the camera on and off repeatedly when the battery is fully discharged will shorten bat­tery life. Batteries that have been fully discharged must be charged before use.
The internal temperature of the battery may rise while the battery is in use. Attempting to charge the battery while the internal temperature is elevated will impair battery performance, and the battery may not charge or charge only partially. Wait for the battery to cool before charging.
Continuing to charge the battery after it is fully charged can impair battery performance.
A marked drop in the time a fully charged battery retains its charge when used at room temperature indicates that it requires replace­ment. Purchase a new EN-EL20 battery.
Charge the battery before use. When taking photographs on important occasions, ready a spare EN-EL20 battery and keep it fully charged. Depending on your location, it may be difficult to pur­chase replacement batteries on short notice. Note that on cold days, the capacity of batteries tends to decrease. Be sure the battery is fully charged before taking photographs outside in cold weather. Keep a spare bat­tery in a warm place and exchange the two as necessary. Once warmed, a cold battery may recover some of its charge.
Used batteries are a valuable resource; recycle in accord with local regulations.
88
Do not use the battery at ambient temperatures below 0°C (32 °F) or above 40°C (104 °F); failure to observe this precaution could damage the battery or impair its performance. Capacity may be reduced and charging times may increase at battery temperatures from 0°C (32°F) to 10°C (50°F) and from 45°C (113°F) to 60 °C (140°F); the battery will not charge if its temperature is below 0°C (32°F) or above 60 °C (140°F).
The battery charger: Charge the bat­tery at ambient temperatures between 5°C (41°F) and 35°C (95°F). If the CHARGE lamp flashes quickly during charging, cease use immediately and take battery and charger to your retailer or a Nikon­authorized service representative.
Do not move the charger or touch the battery during charging. Fail­ure to observe this precaution could in very rare instances result in the charger showing that charg­ing is complete when the battery is only partially charged. Remove and reinsert the battery to begin charg­ing again.
Servicing the Camera and Accessories
D
The camera is a precision device and requires regular servicing. Nikon recommends that the camera be inspected by the original retailer or Nikon-authorized service representative once every one to two years, and that it be serviced once every three to five years (note that fees apply to these services). Frequent inspection and servicing are particu­larly recommended if the camera is used professionally. Any accesso­ries regularly used with the camera, such as lenses, should be included when the camera is inspected or serviced.
Use the charger with compatible batteries only. Unplug when not in use.
Memory Cards:
The camera stores pictures on SD, SDHC, and SDXC memory cards (available separately).
Do not remove memory cards from the camera, turn the camera off, or remove or disconnect the power source during formatting or while data are being recorded, deleted, or copied to a computer. Failure to observe these precau­tions could result in loss of data or in damage to the camera or card.
Do not touch the card terminals with your fingers or metal objects.
Do not bend, drop, or subject to strong physical shocks.
Do not apply force to the card casing. Failure to observe this pre­caution could damage the card.
Do not expose to water, heat, high levels of humidity, or direct sunlight.
Do not format memory cards in a computer.
n
89

Tro ub les ho ot ing

If the camera fails to function as expected, check this list of com­mon problems before consulting your retailer or Nikon repre­sentative.

Battery/Display

The camera is on but does not respond: Wait for recording or any other process­ing to end. If the problem persists, turn the camera off. If the camera still does not respond, remove and replace the battery or disconnect and reconnect the AC adapter, but note that this will delete any data not yet saved. Data already saved to the memory card are unaffected. The display is off:
The camera is off (0 25) or the battery is exhausted (0 17).
The display has turned off automatically to save power. The display can
be reactivated by pressing the shutter-release button.
The camera is connected to a computer (0 80) or television. The camera turns off without warning:
The battery is low (0 17).
The display has turned off automatically to save power (0 30). The dis-
play can be reactivated by pressing the shutter-release button.
The camera’s internal temperature is high (0 12, 94). Wait for the cam-
era to cool before turning it on again.
Indicators are not displayed: Use the Display > Shooting and Display > Playback options in the setup menu to choose the information dis-
played (0 77).
n
90

Shooting (All Modes)

The camera takes time to turn on: Delete files or format the memory card. The shutter-release is disabled:
The battery is exhausted (0 17).
The memory card is locked or full.
The flash is charging (0 70).
The camera is not in focus (0 29).
You are currently filming a slow-motion movie (0 60).
Only one picture is taken each time the shutter-release button is pressed in continuous release mode: 5 fps is selected for Continuous/self-timer and the built-in
flash is raised. Smudges appear in photographs: Clean the front and rear lens elements or the dust shield (0 85).
Flicker or banding appears in movies or in the display: Choose a Flicker reduc- tion setting that matches the local AC power supply (0 77).
No flash: See page 73. The flash will not fire when off (0 71); in P, S, A, and M modes, the flash will not fire when lowered. Menu items are unavailable: Some options are only available in particular
shooting or exposure modes or when wireless mobile adapter is attached (0 83).

Movies

Cannot record movies: The movie-record button can not be used to record movies in best moment capture or Motion Snapshot mode (0 49, 54). No sound is recorded for movies:
Microphone off is selected for Movie sound options > Microphone
(0 77).
Live audio is not recorded with slow-motion movies (0 61) or Motion Snapshots (0 52).
n
91

Playback

“Tall” (portrait) orient ation photos are displayed in “wide” (landscape) orientation:
Select On for Rotate tall (0 74).
The photos were taken with Auto image rotation off (0 77).
Camera was pointed up or down when the photo was taken.
Photo is displayed in image review.
Cannot hear movie sound:
Rotate the multi selector clockwise to raise the volume (0 64). If the
camera is connected to a television, use the controls for the TV to adjust the volume.
Live audio is not recorded with slow-motion movies (0 61) or Motion Snapshots (0 54).
Cannot delete images:
Remove protection from the files before deletion (0 74).
The memory card is locked.

Miscellaneous

The date of recording is not correct: Set the camera clock. Menu items are unavailable: Some options are only available at particular
settings or when a memory card is inserted.
n
92

Error Messages

This section lists the error messages that appear in the display.
Message Solution
If the subject is too bright, lower ISO sensitivity
(Shutter-speed or aperture display flashes)
Keeping the zoom ring button pressed, rotate the zoom ring to extend the lens. Check lens. Pictures can only be taken when a lens is attached. Start-up error. Turn the camera off and then on again. The clock has been reset.
No memory card.
This memory card is not formatted. Format the memory card? Memor y card is locked (write protected).
Memory card is full.
or choose a faster shutter speed or smaller aper­ture (higher f-number). If the subject is too dark, raise ISO sensitivity, use the flash, or choose a slower shutter speed or larger aperture (lower f-number). A lens with a retractable lens barrel button is attached with the lens barrel retracted. Press the retractable lens barrel button and rotate the zoom ring to extend the lens.
Attach a lens.
Turn the camera off, remove and replace the battery, and then turn the camera on.
Set the camera clock.
Turn the camera off and confirm that the card is correctly inserted.
Select Yes to format the card, or turn the camera off and insert another memory card.
Turn the camera off and slide the card write-pro­tect switch to the “write” position.
You may be able to record additional images if you reduce image quality or size.
Delete unwanted images.
Insert another memory card.
n
93
This memory card cannot be used. Card may be damaged; insert a different card.
Cannot create additional folders on memory card.
The movie-record button cannot be used in this mode. Photographs cannot be recorded in this mode. The camera’s internal temperature is high. The camera will now turn off. Memory card contains no images.
n
Cannot display this file.
Message Solution
Use an approved card.
Format the card. If the problem persists, the
card may be damaged. Contact a Nikon­authorized service representative.
Insert a new memory card. If the current folder is numbered 999 and contains either 999 photographs or a photograph num­bered 9999, the shutter-release button will be dis­abled and no further photographs can be taken. Choose
Ye s
for either format the current memory card or insert a new memory card. The movie-record button can not be used in best moment capture or Motion Snapshot modes. The shutter-release button can not be used to take photographs while a slow-motion movie is being recorded.
Wait for the camera to cool.
To view pictures, insert a memory card contain­ing images. The file has been created or modified on a com­puter or different make of camera, or is corrupt.
Reset file numbering
and then
94

Specifications

Nikon 1 S1 Digital Camera

Type
Type Digital camera with support for interchangeable
Lens mount Nikon 1 mount Effective angle of view Approx. 2.7× lens focal length (35 mm format
Effective pixels
Image sensor
Image sensor 13.2 mm × 8.8 mm CMOS sensor (Nikon CX for-
Storage
Image size (pixels) Still images (aspect ratio 3 : 2)
File format NEF (RAW): 12-bit, compressed
Picture Control system Standard, Neutral, Vivid, Monochrome, Portrait,
Media SD (Secure Digital), SDHC, and SDXC memory cards File system DCF (Design Rule for Camera File System) 2.0, DPOF (Digi-
lenses
equivalent)
10.1 million
mat)
3872 × 2592 2896 × 1944
1936 × 1296
Still images (aspect ratio 16 : 9)
3840 × 2160 (Motion Snapshot mode or 1080/ 60i, 1080/30p selected in advanced movie mode)
1280 × 720 (720/60p, 720/30p selected in advanced movie mode)
JPEG: JPEG-Baseline compliant with fine (approx. 1:4), normal (approx. 1: 8), or basic (approx. 1: 16)
compression
Landscape; selected Picture Control can be mod­ified; storage for custom Picture Controls
tal Print Order Format), Exif (Exchangeable Image File Format for Digital Still Cameras) 2.3, PictBridge
n
95
Shooting modes
C auto; w creative, with a choice of the follow- ing options: P, S, A, M, j night landscape, o night portrait, m backlighting, q soft, r miniature effect, and s selective color; u best moment capture (t slow view and y Smart Photo Selec­tor), v advanced movie (HD—P, S, A, M only— and y slow motion), z Motion Snapshot
Shutter
Type Electronic shutter Speed
Flash sync speed Synchronizes with shutter at X=
1
/
16,000 –30s in steps of
Note: Bulb ends automati cally after approximately 2 minutes
1
/
3 EV; Bulb
1
/
Release
Mode Single frame, continuous
Self-timer
Frame advance rate Approx. 5, 15, 30, or 60 fps Self-timer 2 s, 5 s, 10 s
Exposure
Metering TTL metering using image sensor Metering method • Matrix
Center-weighted: Meters 4.5 mm circle in center of frame
Spot: Meters 2 mm circle centered on selected focus area
Mode P programmed auto with flexible program;
n
Exposure compensation –3– +3 EV in increments of
S shutter-priority auto; A aperture-priority auto; M manual; h scene auto selector
1
/
3 EV
Exposure lock Luminosity locked at metered value when shut-
ter-release button is pressed halfway
ISO sensitivity (Recommended Exposu re Index)
ISO 100– 6400 in steps of 1 EV; auto ISO sensitiv­ity control (ISO 100–6400, 100–3200, 100–800) available
(user controlled in P, S, A, and M modes)
Active D-Lighting On, off
60 s or slower
96
Focus
Autofocus Hybrid autofocus (phase-detection/contrast-
Lens servo Autofocus (AF): Single AF (AF-S); continuous AF
AF-area mode Single-point, auto-area, subject tracking Focus area Single-point AF: 135 focus areas; the center 73
Focus lock Focus can be locked by pressing shutter-release
Face p riorit y On, off
Flash
Built-in flash Auto; Soft, Miniature effect, Selective color (Creative
Guide Number (GN) Approx. 5/16 (m/ft, ISO 100, 20 °C/68 °F) Control i-TTL flash control using image sensor Mode Auto, auto + red-eye reduction, fill flash, fill flash
Flash compensation –3–+1 EV in increments of Flash-ready indicator Lights when built-in flash unit is fully charged
White balance
detect AF); AF-assist illuminator
(AF-C); auto AF-S/AF-C selection (AF-A); full­time AF (AF-F)
Manual focus (MF)
areas support phase-detection AF
Auto-area AF: 41 focus areas
button halfway (single AF)
mode): Flash pops up automatically and fires as required
Night portrait, Backlighting (Creative mode): Flash pops up automatically and fires with every shot
P programmed auto, S shutter-priority auto, A aperture­priority auto, M manual (Creative mode): Manual pop-
up
+ slow sync, red-eye reduction, red-eye reduction + slow sync, rear-curtain sync, rear curtain + slow sync, off
Auto, incandescent, fluorescent, direct sunlight, flash, cloudy, shade, underwater, preset manual, all except preset manual with fine tuning
1
/
3 EV
n
97
Movie
Metering TTL metering using image sensor Metering method • Matrix
Frame size (pixels)/ recording rate
File format MOV Video compression H.264/MPEG-4 Advanced Video Coding Audio recordin g format AAC Audio recording d evice Built-in stereo microphone; sensitivity adjustable
* Sensor output is about 60 fps.
Monitor
Playback
n
Interface
USB Hi-Speed USB HDMI output Type C mini-pin HDMI connector
Center-weighted: Meters 4.5 mm circle in center of frame
Spot: Meters 2 mm circle centered on selected focus area
HD movies (aspect ratio 16 : 9)
1920 × 1080/60i (59.94 fields/s*)
1920 × 1080/30p (29.97 fps)
1280 × 720/60p (59.94 fps)
1280 × 720/30p (29.97 fps )
Slow-motion movies (aspect ratio 8 : 3)
640 × 240/400 fps (plays at 30p/29.97 fps)
320 × 120/1200 fps (plays at 30p/29.97 fps)
Motion Snapshot (aspect ratio 16 : 9)
1280 × 720/60p (59.94 fps) (plays at 24p/23.976 fps)
7.5 cm (3-in.), approx. 460k-dot, TFT LCD with
brightness adjustment
Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, movie playback, slide show, histogram display, auto image rotation, and rating option
98
