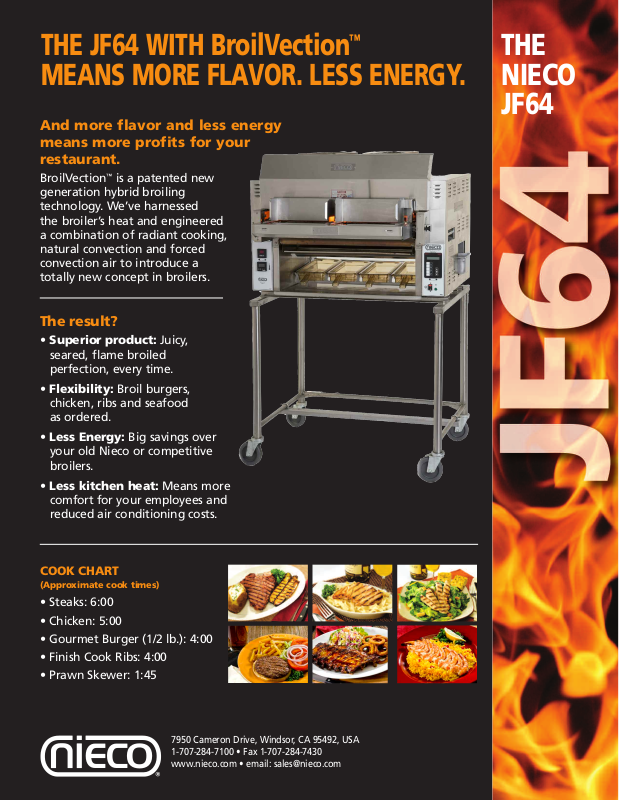

Nieco JF64E User Manual

™

THE JF64 WITH BroilVection

THE

MEANS MORE FLAVOR. LESS ENERGY.

And more flavor and less energy
means more profits for your
restaurant.

BroilVection™is a patented new
generation hybrid broiling
technology. We’ve harnessed
the broiler’s heat and engineered
a combination of radiant cooking,
natural convection and forced
convection air to introduce a
totally new concept in broilers.

The result?

• Superior product: Juicy,

seared, flame broiled
perfection, every time.

NIECO
JF64

• Flexibility: Broil burgers,

chicken, ribs and seafood
as ordered.

• Less Energy: Big savings over
your old Nieco or competitive
broilers.

• Less kitchen heat: Means more
comfort for your employees and
reduced air conditioning costs.

COOK CHART

(Approximate cook times)

• Steaks: 6:00

• Chicken: 5:00

• Gourmet Burger (1/2 lb.): 4:00

• Finish Cook Ribs: 4:00

• Prawn Skewer: 1:45

7950 Cameron Drive, Windsor, CA 95492, USA
1-707-284-7100 • Fax [phone]
www.nieco.com • email: [e-mail]

THE

SPECIFICATIONS

NIECO
JF64

The Jet Flow Broiler, JF64, is designed
to broil multiple products at the
same time, while being simple to
operate and maintain with lower
energy use. It’s one of the new
generation of broilers.

DIMENSIONS Inches mm

Length 32.50 825
Height 60.41 1534
Width 40.23 1022

ENERGY

Gas Models, Natural or LP
Average usage:
75,000 BTU/hour
Connection size: 3/4” NPT
Electric connection:
115V 1A
220V 1A

Electric Models:
Electrical connection (specify exact voltage)

Domestic
CE 380-415V 3Ø 25A

Ratings are based on Nieco factory testing.
Energy ratings are expected average consumption.
Refer to factory as needed for details.

AVERAGE WEIGHT LBS KG

Broiler weight will vary depending on options ordered

208-240V 3Ø 60Hz 55A

525 238

AVAILABLE OPTIONS:

• Single or dual belt

• Incendalyst™(catalyst)

• Stand

• Automated Feeder is standard, but
we have push bar (stack) feeders and

e belt feeders, or a combination

wir
on the dual belt machines

• Product discharge options; plastic
pans or product catch pan

• Natural Gas, LP or Electric

• Domestic or Export voltages

Patents pending.

7950 Camer
1-707-284-7100 • Fax [phone]
www

©2013 Nieco Corporation All Rights Reserved

on Drive, W

.nieco.com • email: [e-mail]

All Nieco equipment is backed
by a worldwide sales and
service network, with local
parts inventories.

APPROVALS:

, CA 95492, USA

indsor
