NEXCOM PEAK 886VL2 User Manual

NEXCOM International Co., Ltd.

Industrial Computing Solutions

PICMG Single Board Computer (PICMG 1.3) PEAK 886VL2

User Manual

NEXCOM International Co., Ltd.

Published October 2012

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiv

Ordering Information .............................................................................xv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

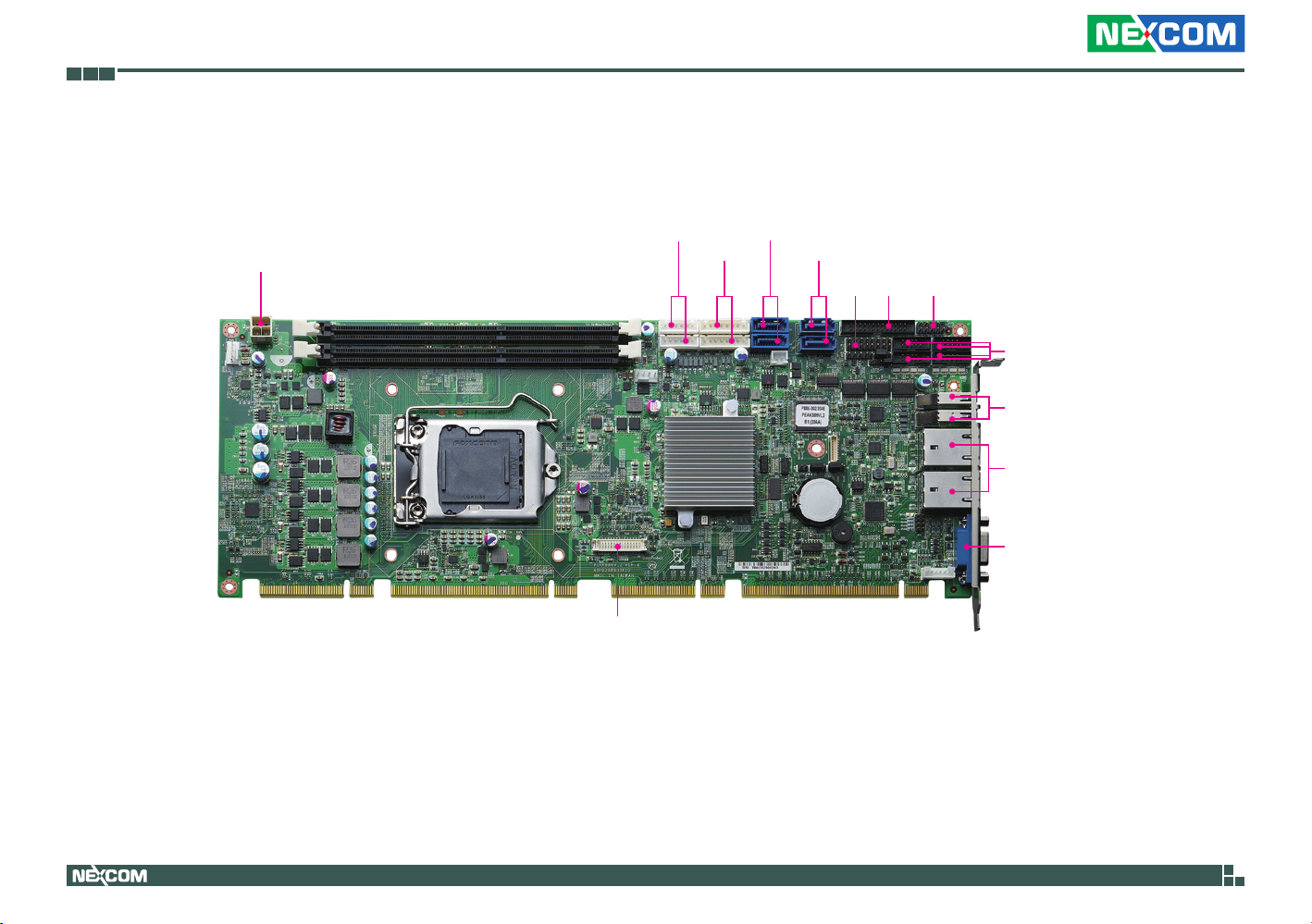

Knowing Your PEAK 886VL2 ................................................................... 4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions ............................................................................................5

Jumper Settings ......................................................................................6

Locations of the Jumpers and Connectors ............................................... 7

Jumpers .................................................................................................. 8

CMOS Connector ................................................................................ 8

AT/ATX Pin Header ..............................................................................8

ME Connector ..................................................................................... 9

Connector Pin Definitions .....................................................................10

External Connectors ..........................................................................10

VGA Port .......................................................................................10

LAN1 Port ......................................................................................10

LAN2 Port ......................................................................................11

USB3.0 Ports .................................................................................. 11

Internal Connectors ........................................................................... 12

USB 3.0 Ports ................................................................................. 12

USB 2.0 Ports ................................................................................. 12

Smart FAN Connectors ...................................................................13

+12V Power Connector .................................................................. 13

Keyboard and Mouse Connector ....................................................14

Serial Port Box Headers ..................................................................14

RS232/ RS422/ RS485 Serial Port Box Header .................................15

Parallel Port Box Header .................................................................16

DVI/ HDMI Port Connector .............................................................16

SATA 2 Connectors ........................................................................17

SATA 3 Connectors ........................................................................17

IrDA Pin Header .............................................................................18

ii

PEAK 886VL2 User Manual

Content

RI Pin Header .................................................................................18

SATA DOM Power Connector .........................................................19

LAN LED Pin Header ....................................................................... 19

2x8 Pin Header ...............................................................................20

Chapter 3: BIOS Setup

About BIOS Setup ................................................................................. 21

When to Configure the BIOS .................................................................21

Default Configuration ........................................................................... 22

Entering Setup ...................................................................................... 22

Legends ................................................................................................ 22

BIOS Setup Utility .................................................................................. 24

Main .................................................................................................24

Advanced .......................................................................................... 25

Chipset ..............................................................................................37

Boot .................................................................................................. 39

Security .............................................................................................40

Save & Exit ........................................................................................40

Appendix A: Watchdog Timer

WDT Programming Guide .....................................................................42

iii

PEAK 886VL2 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

PEAK 886VL2 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

PEAK 886VL2 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

This publication, including all photographs, illustrations and software, is protected under international copyright

laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

PEAK 886VL2 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

PEAK 886VL2 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

PEAK 886VL2 User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

PEAK 886VL2 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

PEAK 886VL2 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

PEAK 886VL2 User Manual

Preface

Global Service Contact Information

Headquarters Taiwan

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 http://www.nexcom.com.tw

USA NEXCOM USA

3758 Spinnaker Court Fremont, CA, 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com

France NEXCOM France

La Grande Arche-Paroi Nord, 92044 Paris La Défense, France Tel: +33 (0)1 40 90 33 35 Fax: +33 (0)1 40 90 31 01 http://www.nexcom.eu

Germany NEXCOM GmbH

Leopoldstraße Business Centre, Leopoldstraße 244, 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu

xi

PEAK 886VL2 User Manual

Preface

China NEXCOM China

2F, Block 4, Venus Plaza, Building 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Road, Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 http://www.nexcom.cn

China-Shanghai Office

Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn

China-Nanjing Office

Hall C, Block 17, Tian Xing Cui Lang Building, No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 http://www.nexcom.cn

China-Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 http://www.nexcom.cn

China-Chengdu Office

9F, Shuxiangxie,Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061,China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 http://www.nexcom.cn

China-Shenzhen Office

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China TEL: +86-755-833 7203 FAX: +86-755-833 7213 http://www.nexcom.cn

xii

PEAK 886VL2 User Manual

Preface

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com

xiii

PEAK 886VL2 User Manual

Preface

Package Contents

Before continuing, verify that the PEAK 886VL2 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 20P0886VL00X0 ASSY PEAK 886VL2 PICMG 1.3 computing board 1 2 60177A0289X00 PEAK 886VL2 Quick Reference Guide VER:A KRAMER 1 3 60233ATA73X00 SATA cable ACMELUX: 19922413 Standard L:300mm 1 4 60233PRT15X00 Cable CONNTEK: A02-C016-V01 Print 25 TO 2.0mm 26-pin PIT:1.0mm L:260mm w/bracket 1 5 60233PS215X00 PS2 Y cable VERA TECH: GSE090505B W/bracket PS2 to JST 6-pin 2.0mm L:250mm+-10mm 1

6 60233SIO03X00 Cable EDI: 13420901511-RS

7 60233USB60X00 USB cable CONNTEK: A02-B001-V01 USB CONx2+bracket to JST 6-pin 2.5mm L:240+-15mm 1

8 6029900037X00

DOW CORNING 340 Silcone Heat Sink Compound(3g)

9 602DCD0555X00 PEAK 886VL2 DVD driver VER2.0 JCL 1

Optional Accessories

COM port 9-pin to housing 10-pin PIT: 2.0mmx2 L:150mm+-10mm

1

Item Part Number Name Description

1 60233DVI32X00 DVI cable ST:MD-6301035 DVI 24+5P/F + bracket to DF13 2x15P PH:1.25 L:250mm 2 60233HDM01X00 HDMI cable CONNTEK:A02-A039_V24 HDMI 19P/F + bracket to DF13 2x15P PH:1.25 L:250mm 3 60233US119X00 (N) USB3.0 CABLE ST:13-450-E007 USB A/Fx2 TO 2x10P L=380mm 4 5050300481X00 LGA1156 CPU cooler USE:FHSA9025S-1288 88x88x36.7mm AL6063 7010FAN 4300RPM L:200mm

xiv

PEAK 886VL2 User Manual

Preface

Ordering Information

The following information below provides ordering information for PEAK 886VL2.

PEAK 886VL2 (P/N: 10P0886VL00X0) RoHS Compliant

PICMG1.3 Single computing board, 3rd generation Intel® Core™ processor family with VGA/HDMI/DVI-D/ 2x Gigabit LAN/ 10x USB / 4x SATA / PCIe x16 / TPM (optional)

xv

PEAK 886VL2 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Overview

Key Features

▪ Scalable platform 3rd generation Intel® Core™ i7/ i5/ i3 processor,

non-ECC

▪ Intel® Q77 PCH chipset support PICMG 1.3 specification

▪ Support dual channel DDR3 with non-ECC DIMMs 1333/1600MHz up

to 16GB

▪ Support PCIe x16, 4 PCIe x1, 4 USB 3.0/ 4 USB 2.0, 2 SATA 3.0/

2 SATA 2.0 and GbE

▪ Display support for VGA, DVI, HDMI, DisplayPort

▪ Dimension 338.58 x 126.39 mm2 (W x L) (8 layers single side)

1

PEAK 886VL2 User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ Support Intel® LGA1155, 3rd generation Intel® Core™ processor

Intel® Core™ i7-3770 (4C/ 8M cache/ 3.4GHz/ Max. TDP 77W) Intel® Core™ i5-3550S (4C/ 6M cache/ 3.0GHz/ Max. TDP 65W) Intel® Core™ i3-3220 (2C/ 3M cache/ 2.4GHz/ Max. TDP 55W) Intel® Pentium® G2120 (2C/ 3M cache/ 1.6GHz/ Max. TDP 65W)

Main Memory

▪ Dual DDR3/ DIMMs, support 1333/1600MHz Non-ECC system memory

up to 16GB

Platform Control Hub

▪ Intel® Q77 PCH chipset

BIOS

▪ AMI System BIOS ▪ Plug and play support ▪ Advanced Power Management and Advanced Configuration & Power

Interface support

Display

▪ Intel® HD graphics with DX11 support up to two independent displays ▪ One PCI Express X 16 Lane down to PICMG1.3 golden finger ▪ Supports VGA and DVI/ HDMI/ DisplayPort interface

Audio

▪ HDA interface with pin header (reserved function)

On-board LAN

▪ Intel® 82579LM Gigabit Ethernet, support iAMT 8.0 ▪ Intel® 82574l Gigabit Ethernet ▪ Support PXE boot from LAN, wake on LAN function

I/O Interface

▪ 4x USB 3.0: 2 ports through I/O bracket / 2 ports through 2.5mm JST

connector

4x USB 2.0: 4 ports through 2.5mm JST connector

▪ Six SATA ports: two SATA 3.0 / four SATA 2.0 (Support RAID0/ 1/ 5/ 10

and Intel® Rapid Storage Technology AHCI) ▪ One PCI-EXPRESS X 16 / Four PEI-EXPRESS X 1 ▪ Two RJ45 Gigabit Ethernet LAN ports ▪ Four serial ports (COM2 Supports RS232/422/485, RI pin can supply

5V/12V voltage) ▪ Parallel port through box header ▪ Keyboard / Mouse interface ▪ HDA Interface through pin header for audio function ▪ On-board pin header for IRDA ▪ TPM support (optional)

Power Requirements

▪ +12V, +5V , +3.3V , +5VSB, +3.3V RTC power ▪ Power source form backplane through golden finger and AUX +12V ▪ Support ATX / AT power supplies

Dimensions

▪ 338mm (W) x 126mm (L)

2

PEAK 886VL2 User Manual

Chapter 1: Product Introduction

Environment

▪ Board Level Operating temperatures: -15°C to 60°C ▪ Storage temperatures: -20°C to 80°C

▪ Relative humidity: 10% to 90% (operating, non-condensing) 5% to 95% (non-operating, non-condensing)

Certifications

▪ Meet CE

▪ FCC Class A

3

PEAK 886VL2 User Manual

Chapter 1: Product Introduction

Knowing Your PEAK 886VL2

ATX-4P

USB2.0 x 4

DVI/DP/HDMI

USB3.0 x 4

SATA3 x 2

SATA2(DOM) x 2

MIS LPT HDA

ComPort x 4

USB3.0

LAN

VGA

4

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the PEAK 886VL2 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

5

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

6

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

CN2

CN1

CN3

J2

J1

CN5

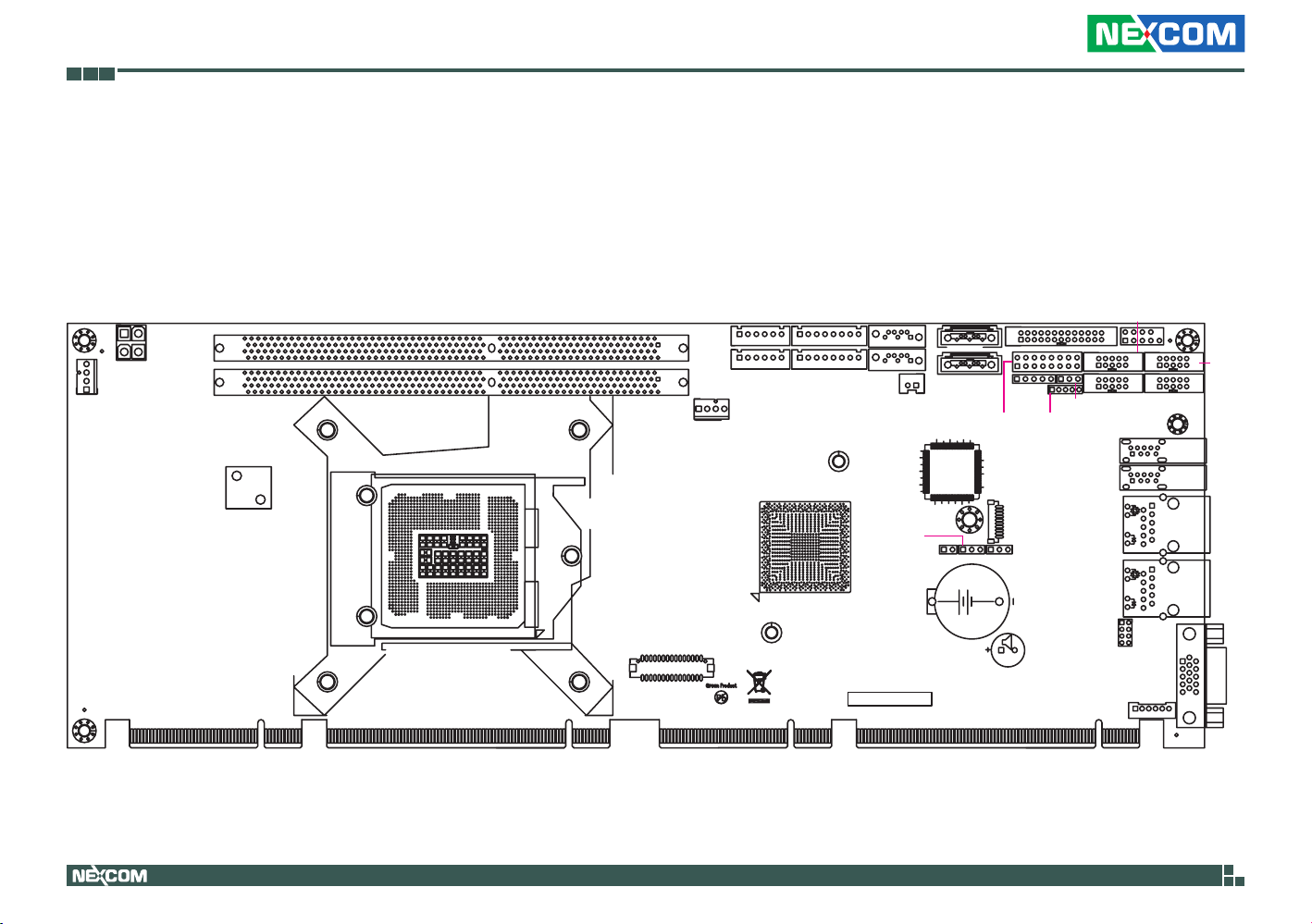

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors for PEAK 886VL2.

H1

4

1

FAN1

H5

1

3

CON1

J12

5

1

JP4

26

C16

16

15

3

5

CN8

CN10

CN11

LAN1

LAN2

JP1

H2

10

2

9

1

13

2

CN6

CN5

1

111214 13

12 11

13

14

7

91012 1012

9

1

8

CN9

192

10

192

2

10

CN6

9101 1012

9

H3

549

1

11

JP9

VGA1

J8

61

A1A11A12A82

5

15

33

128

H4

1

JP2

U22 32

1

J6

3

14

1

2

1

JP3

JP5

1

10

3

1

JP8

BAT1

BZ1

J4

81

1

7

81

+

CN4

7

1

7

CN7

1

J5

64

65

96

97

JP7

U26

1

JP6

2

1

BU

M44

A1A11A12A49

2

4

120

240 120

240

DIMM2

DIMM1

1

121 1

FAN2

4

1

121

61

J3

J7

57

1

A

U28

1

2

CN12

VER:A

29

30

J11

L20

26

36353234 3339403738

J9

A1A12A11A49

A82

C640

AY AW

AV AU AT

AR AP

AN AM

AL AK

AJ AH

AG AF

AE AD

AC AB

AA Y

W V

U T

R P

N M

L

K

J H

G F E D C B A

21384765141312

10201916

911

15171824 232522213130 292827

PEAK886VL2 4BP00886A1X10

J10

MADE IN TAIWAN

A1A11A12

7

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

CMOS Connector

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP7

1 3 1 3

Pin Settings

1-2 On Normal 2-3 On Clear CMOS

1-2 On: default

Pin Definition

1 NC 2 RTCRST# 3 GND

AT/ATX Pin Header

Connector type: 1x3 3-pin header, 2.00mm pitch Connector location: JP4

Pin Settings

1-2 On ATX 2-3 On AT

1-2 On: default

Pin Definition

1 AT_PWRBT# 2 PCH PWRBT# 3 EXTAL PWRBT#

8

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

ME Connector

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP8

1 3

Pin Settings

1-2 On Normal 2-3 On Clear CMOS

1-2 On: default

Pin Definition

1 NC 2 SRTCRST# 3 GND

9

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External Connectors

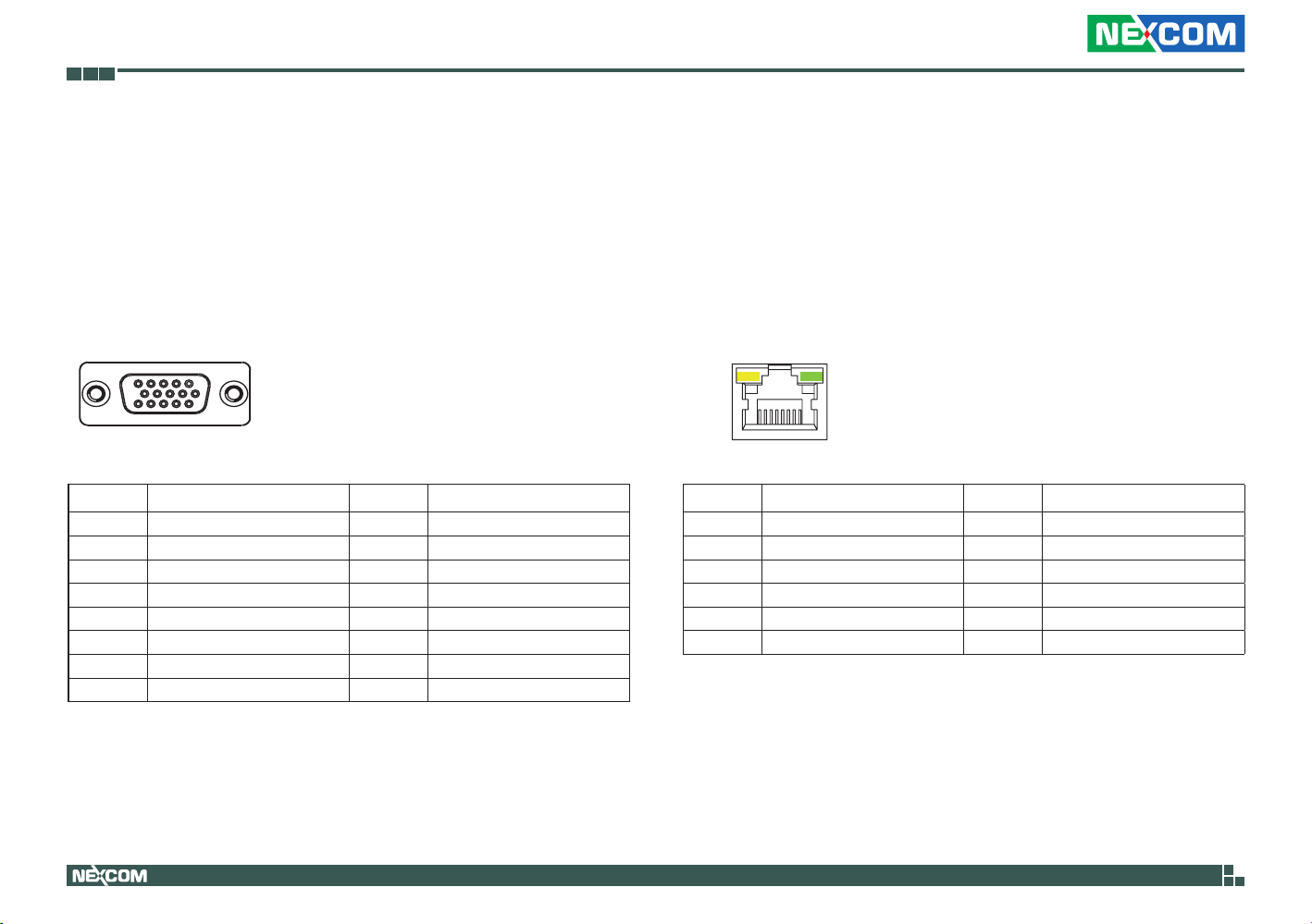

VGA Port

Connector type: DB-15 port, 15-pin D-Sub Connector location: VGA1

Pin Definition Pin Definition

1 CRT_RED 2 CRT_GREEN 3 CRT_BLUE 4 NC 5 GND 6 GND 7 GND 8 GND

9 5V 10 GND 11 NC 12 CRT_SDA 13 CRT_HSYNC 14 CRT_VSYNC 15 CRTDDCCLK

LAN1 Port

Connector type: RJ45 port with LEDs Connector location: LAN1

ACT LINK

Pin Definition Pin Definition

1 LAN1_M0P 2 LAN1_M0N 3 LAN1_M1P 4 LAN1_M2P 5 LAN1_M2N 6 LAN1_M1N 7 LAN1_M3P 8 LAN1_M3N 9 LAN1LINK# 10 LAN LED1+

11 LAN1_LED_LNK#_ACT 12 LAN LED2+

10

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

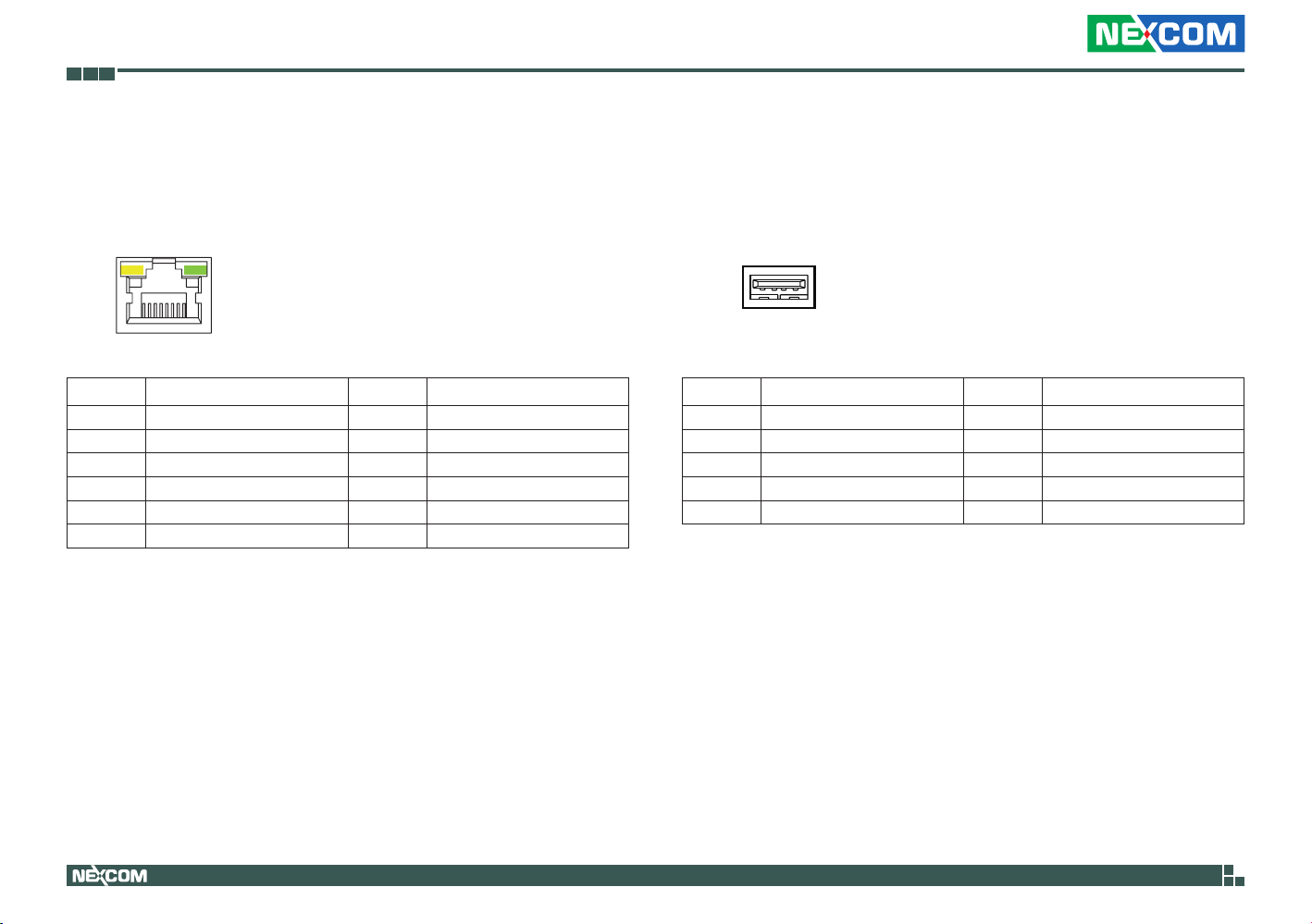

LAN2 Port

Connector type: RJ45 port with LEDs Connector location: LAN2

ACT LINK

Pin Definition Pin Definition

1 LAN2_M0P 2 LAN2_M0N 3 LAN2_M1P 4 LAN2_M2P 5 LAN2_M2N 6 LAN2_M1N 7 LAN2_M3P 8 LAN2_M3N 9 LAN2LINK# 10 LAN LED1+

11 LAN2_LED1 12 LAN LED2+

USB3.0 Ports

Connector type: USB 3.0/2.0 port, Type A Connector location: CN10 and CN11

Pin Definition Pin Definition

1 VCC(+5V) 2 USBN 3 USBP 4 GND 5 USB3.0_RXN 6 USB3.0_RXP 7 GND 8 USB3.0_TXN 9 USB3.0_TXP

11

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

18

16

Internal Connectors

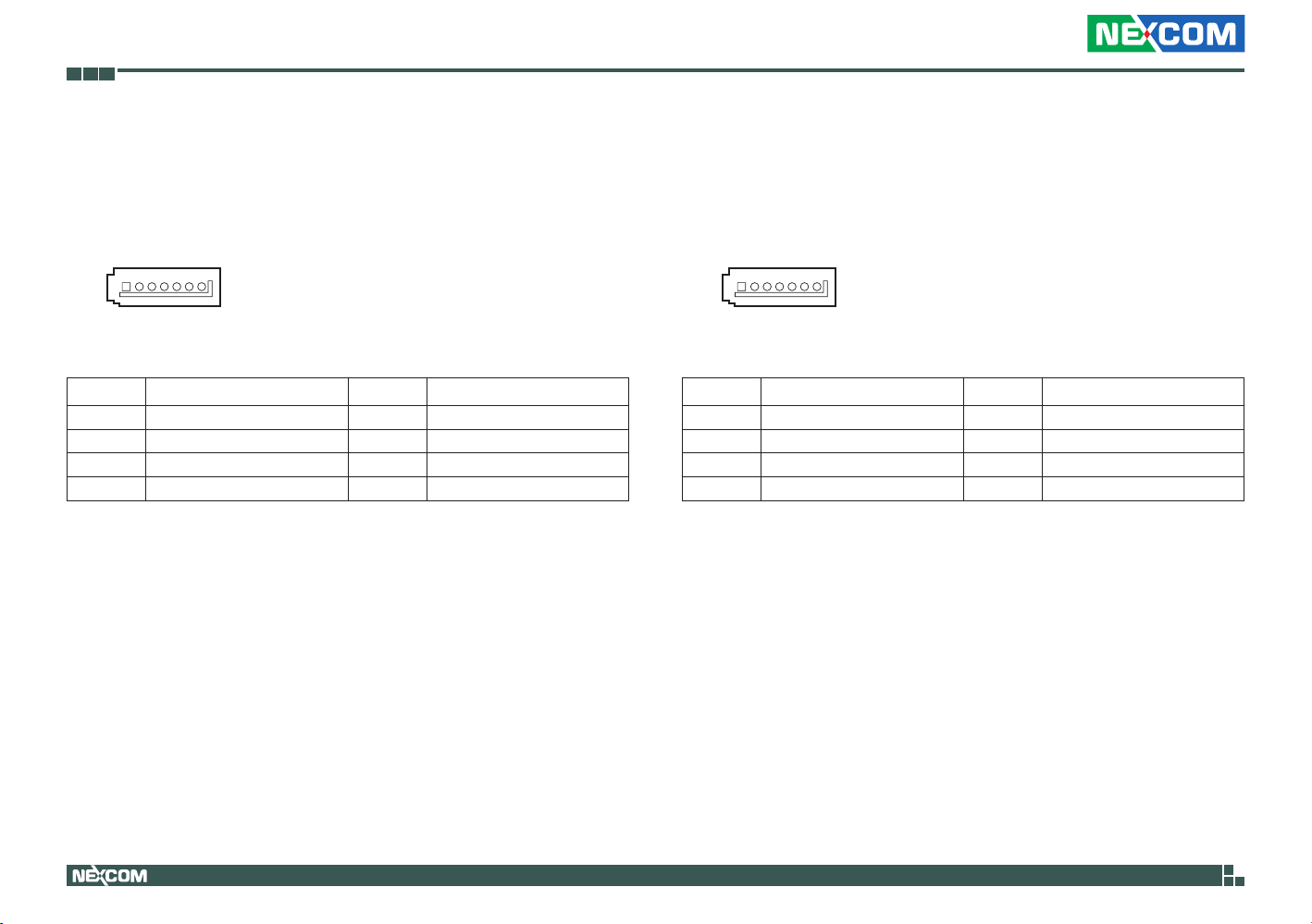

USB 3.0 Ports

Connector type: 1x8 8-pin header, 2.5mm pitch Connector location: J2 and J4

Pin Definition Pin Definition

1 GND 2 USBP 3 USBN 4 USB3.0_TXP 5 USB3.0_TXN 6 USB3.0_RXP 7 USB3.0_RXN 8 VCC(+5V)

USB 2.0 Ports

Connector type: 1x6 6-pin header, 2.5mm pitch Connector location: J1 and J3

Pin Definition Pin Definition

1 VCC(+5V) 2 USBN 3 USBP 4 USBN 5 USBP 6 GND

12

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

14

12

34

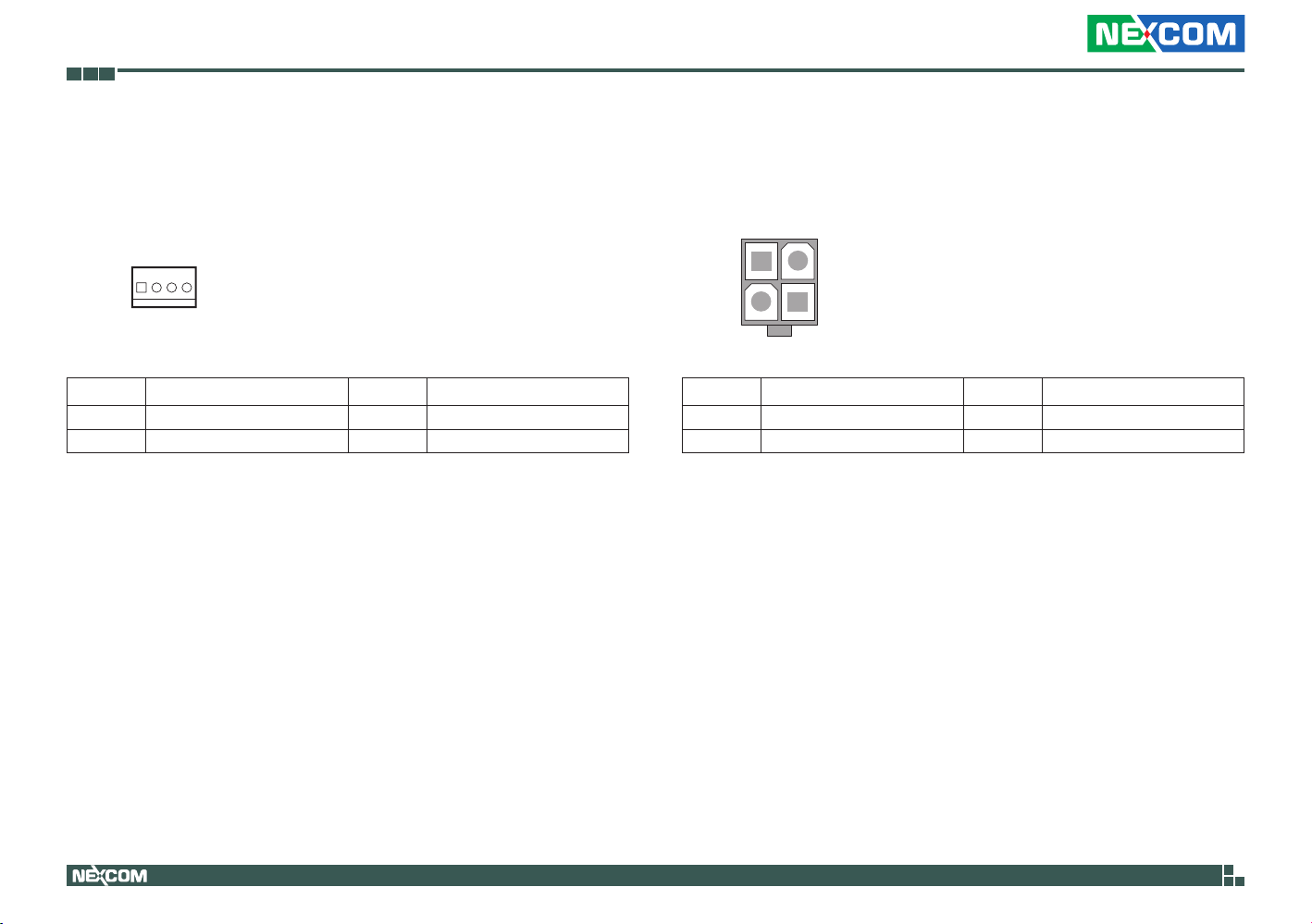

Smart FAN Connectors

Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: FAN1 and FAN2

Pin Definition Pin Definition

1 GND 2 +12V 3 S1_FANIO1 4 S1_FANPWN1

+12V Power Connector

Connector type: 2x2 4-pin header, 4.2mm pitch Connector location: CON1

Pin Definition Pin Definition

1 GND 2 GND 3 +12V 4 +12V

13

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

16

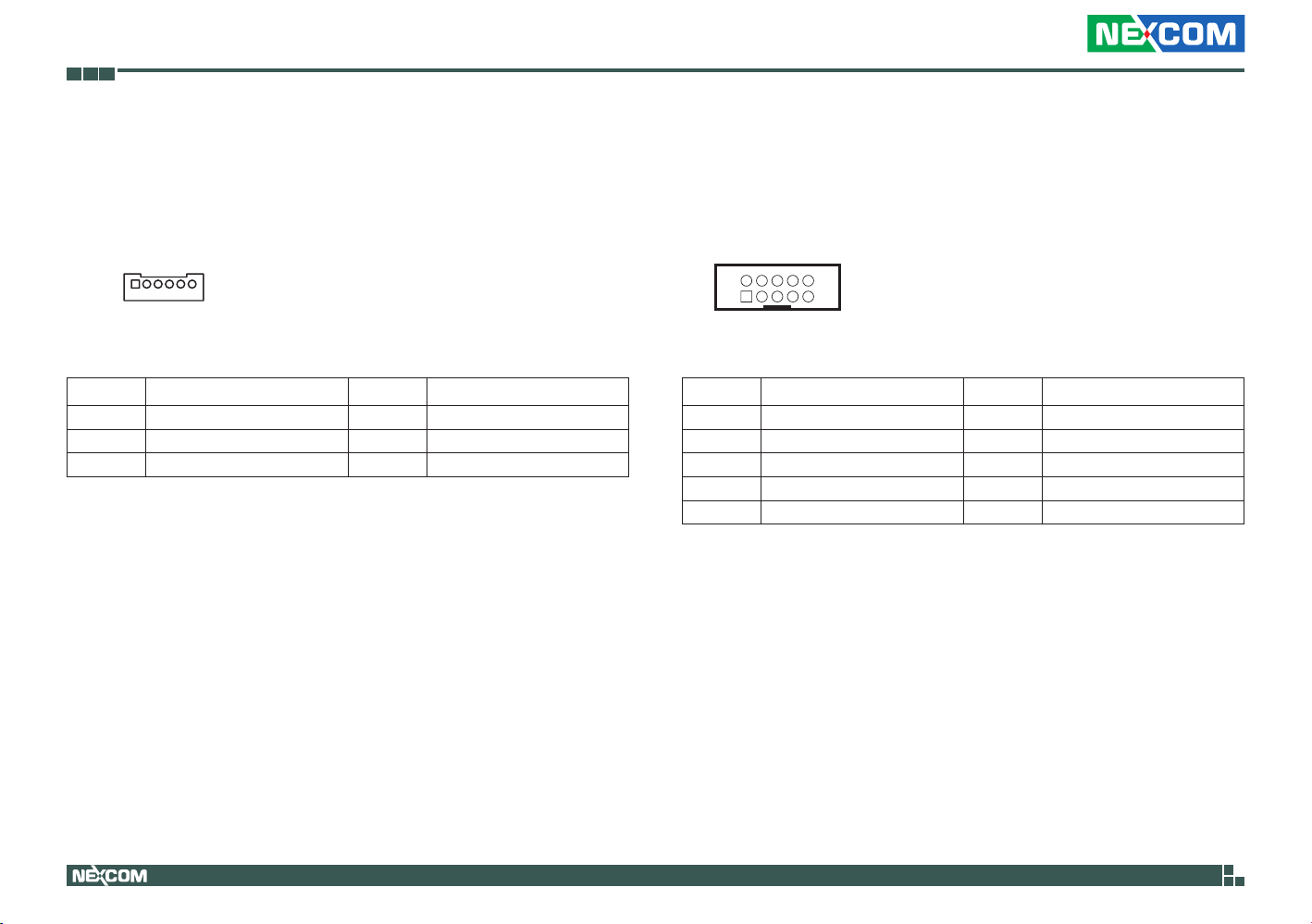

Keyboard and Mouse Connector

Connector type: 1x6 6-pin header, 2.0mm pitch Connector location: J8

Pin Definition Pin Definition

1 VCC(+5V) 2 KDAT 3 KCLK 4 MDAT 5 MCLK 6 GND

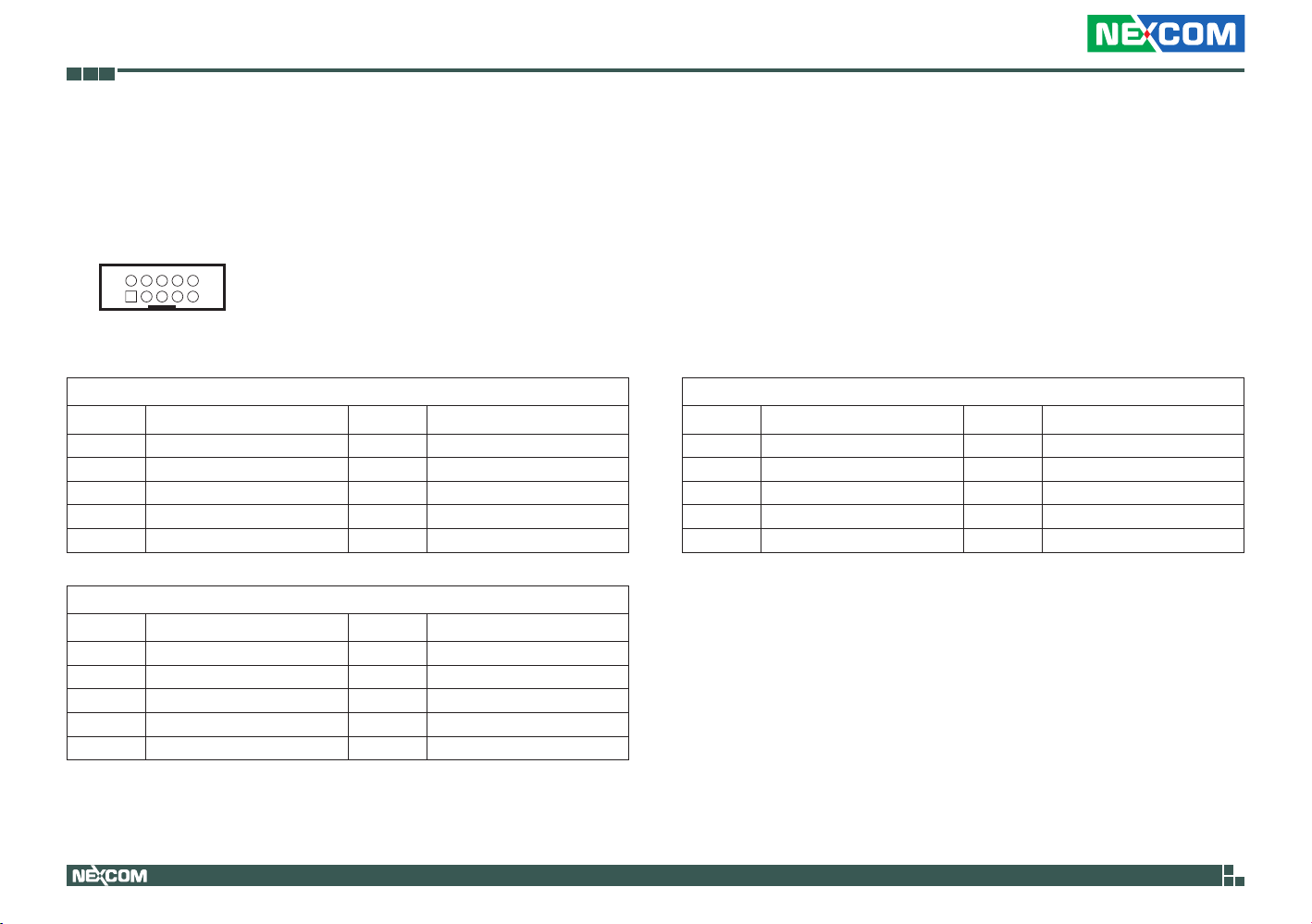

Serial Port Box Headers

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM1 (CN8), COM4 (CN6), COM3 (CN9)

2 1

Pin Definition Pin Definition

1 DCD# 2 RX 3 TX 4 DTR# 5 GND 6 DSR# 7 RTS# 8 CTS# 9 RI# 10 NC

10 9

14

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

RS232/ RS422/ RS485 Serial Port Box Header

Connector type: 2x5 10-pin header, 2.00mm pitch Connector location: COM2(CN5)

2 1

10

9

RS232

Pin Definition Pin Definition

1 DCD# 2 RX 3 TX 4 DTR# 5 GND 6 DSR# 7 RTS# 8 CTS# 9 RI# 10 NC

RS422

Pin Definition Pin Definition

1 TX# 2 TX 3 RX 4 RX# 5 GND 6 RTS# 7 RTS 8 CTS 9 CTS# 10 NC

RS485

Pin Definition Pin Definition

1 TX# / RX# 2 TX / RX 3 NC 4 NC 5 NC 6 NC 7 NC 8 NC 9 NC 10 NC

15

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

1

14

13

26

12

23

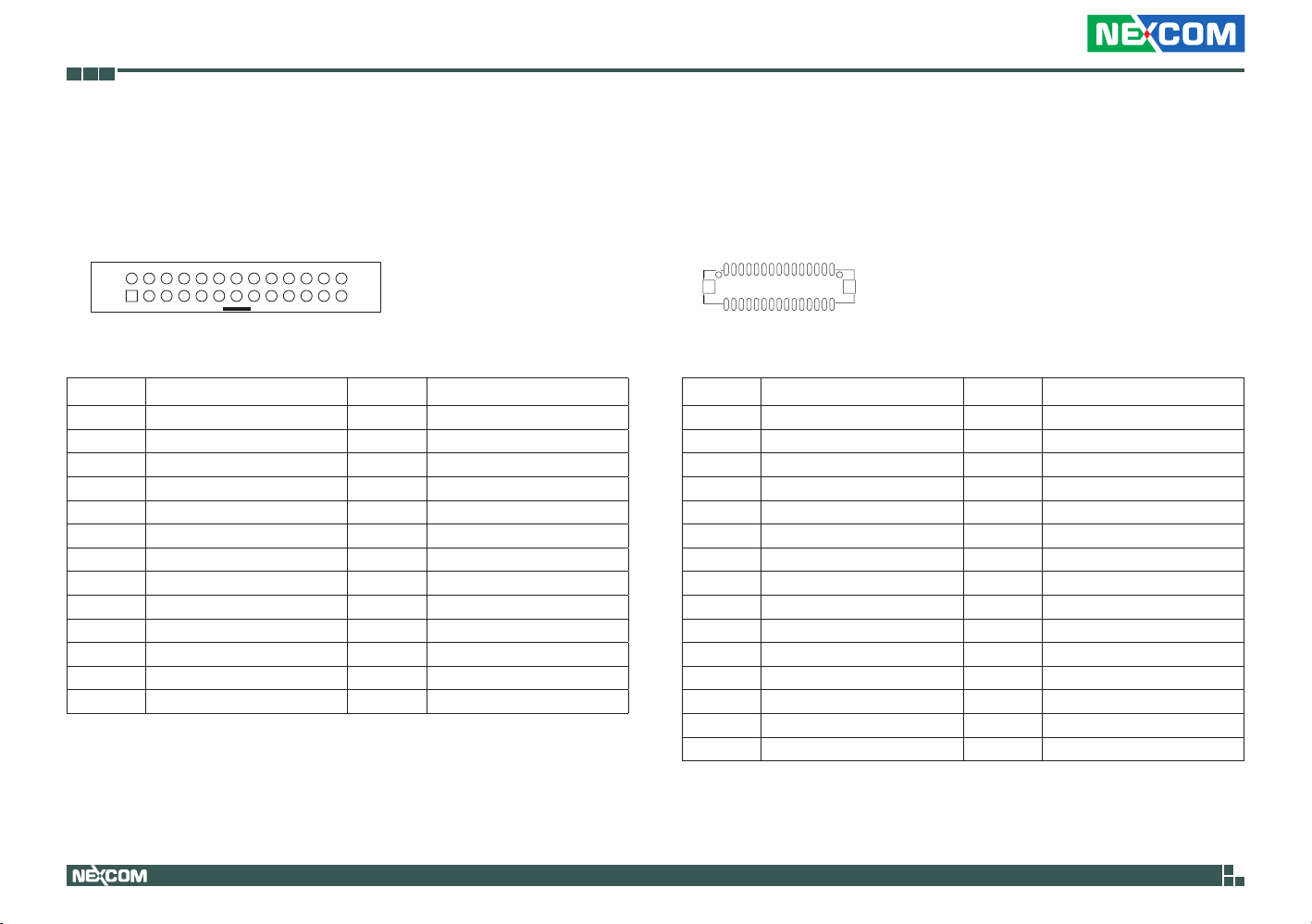

Parallel Port Box Header

Connector type: 2x13 26-pin header, 2.54mm pitch Connector location: CN2

Pin Definition Pin Definition

1 Line Print Strobe 2 Parallel Data 0 3 Parallel Data 1 4 Parallel Data 2 5 Parallel Data 3 6 Parallel Data 4 7 Parallel Data 5 8 Parallel Data 6

9 Parallel Data 7 10 Acknowledge# 11 Busy 12 Paper empty 13 Select 14 Auto Feed# 15 Error# 16 Initialize# 17 Select Input# 18 GND 19 GND 20 GND 21 GND 22 GND 23 GND 24 GND 25 GND 26 NC

DVI/ HDMI Port Connector

Connector type: 2x15 30-pin header, 1.25mm pitch Connector location: CN12

9

0

Pin Definition Pin Definition

1 DPB0 P 2 HDMI POWER(+5V) 3 DPB0 N 4 HDMI POWER(+5V) 5 GND 6 DPB POWER(+3.3V) 7 DPB1 P 8 DPB POWER(+3.3V)

9 DPB1 N 10 HDMI_DIS 11 GND 12 HDMI_CTRL_CLK 13 DPB2 P 14 GND 15 DPB2 N 16 HDMI_CTRL_DATA 17 GND 18 GND 19 DPB3 P 20 GND 21 DPB3 N 22 GND 23 GND 24 HDMI_HPD 25 DPB AUX P 26 GND 27 DPB AUX N 28 DPB_HPD 29 GND 30 GND

16

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

SATA 2 Connectors

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN3 and CN7

1 7

Pin Definition Pin Definition

1 GND 2 TXP0 3 TXN0 4 GND 5 RXN0 6 RXP0 7 GND 8

SATA 3 Connectors

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN1 and CN4

1 7

Pin Definition Pin Definition

1 GND 2 TXP1

3 TXN1 4 GND

5 RXN1 6 RXP1

7 GND 8

17

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

15

IrDA Pin Header

Connector type: 1x5 5-pin header, 2.54mm pitch Connector location: JP3

Pin Definition Pin Definition

1 VCC5 2 CIR RX 3 IR RX 4 GND 5 IR TX

RI Pin Header

Connector type: 1x5 5-pin header, 2.00mm pitch Connector location: JP5

Pin Definition Pin Definition

1 VCC5 2 CON_9

3 +12V 4 CON_9

5 COM_RI

18

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

17

28

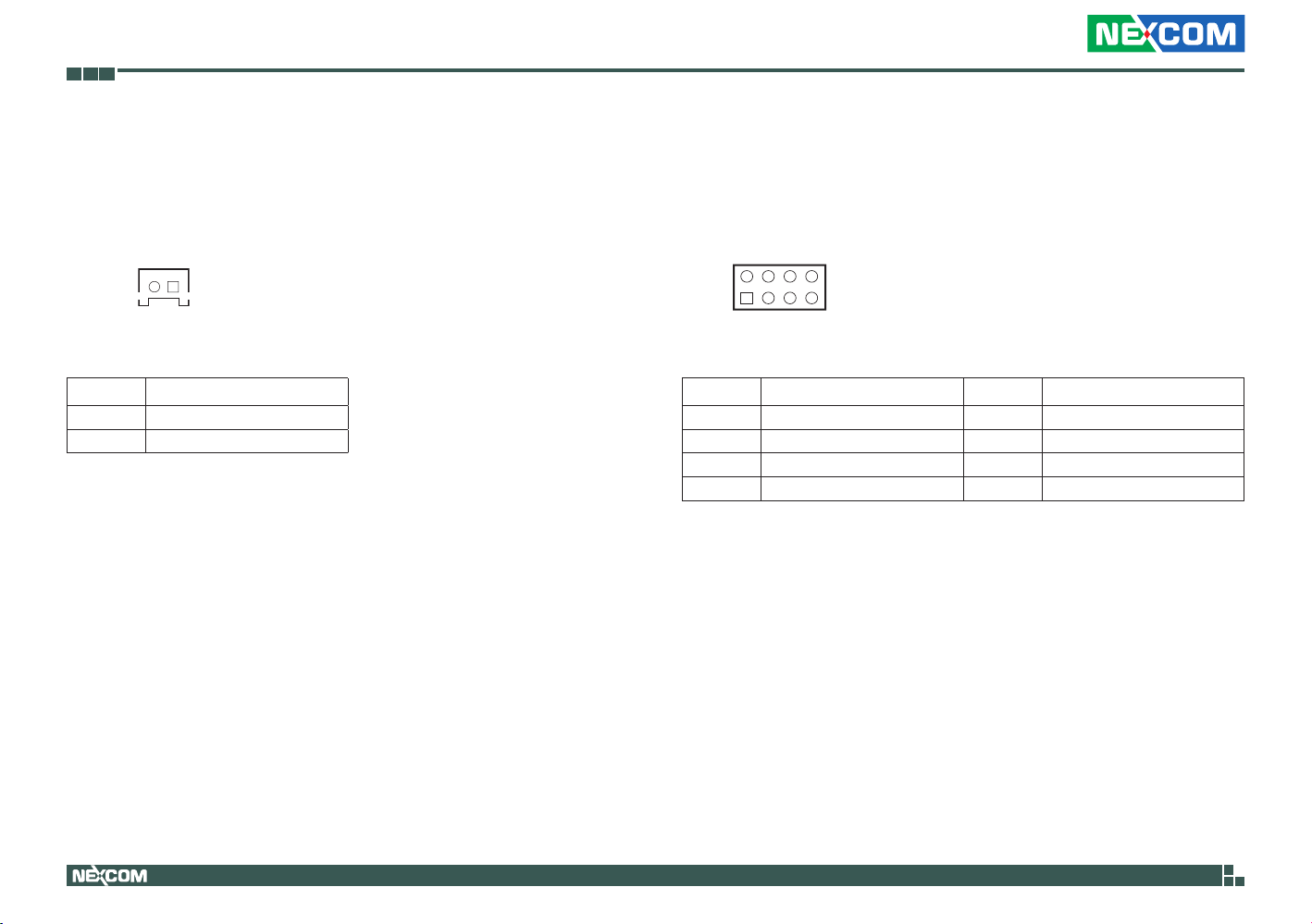

SATA DOM Power Connector

Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: J5

12

Pin Definition

1 VCC5 2 GND

LAN LED Pin Header

Connector type: 2x4 8-pin header, 2.00mm pitch Connector location: JP9

Pin Definition Pin Definition

1 LAN1 ACT LED- 2 LAN2 ACT LED-

3 LAN1 ACT LED+ 4 LAN2 ACT LED+

5 LAN1 LINK 1G 6 LAN2 LINK 1G

7 LAN1 LINK 100 8 LAN2 LINK 100

19

PEAK 886VL2 User Manual

Chapter 2: Jumpers and Connectors

11

21

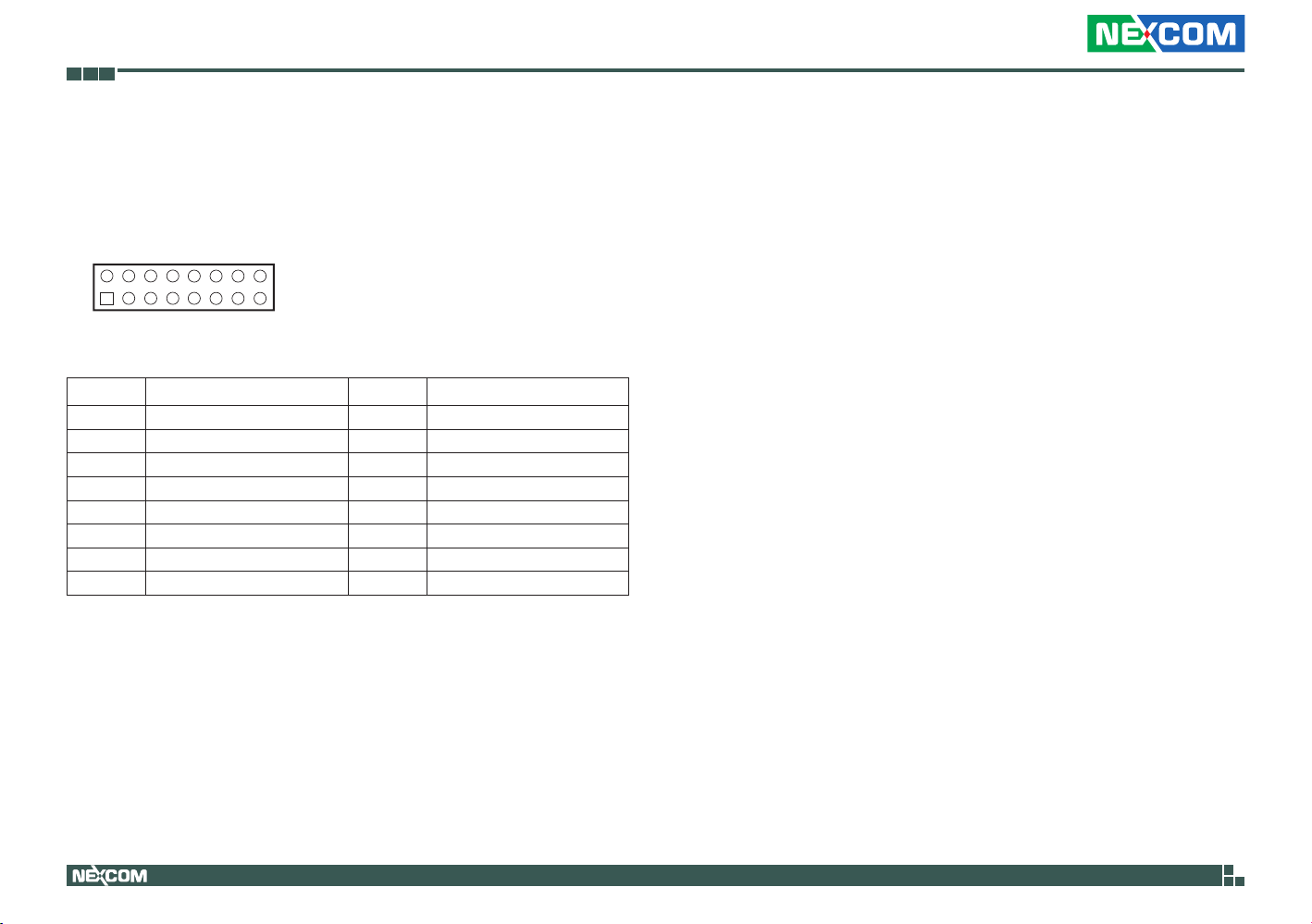

2x8 Pin Header

Connector type: 2x8 16-pin header, 2.54mm pitch Connector location: JP2

6

5

Pin Definition Pin Definition

1 SATA_LED+ 2 POWER_LED+ 3 SATA_LED- 4 POWER_LED5 POWER BOTTON- 6 POWER BOTTON+ 7 RESET BOTTON+ 8 RESET BOTTON-

9 SPKR OUT 10 SMB_CLK 11 N/A 12 SMB_DATA 13 N/A 14 SYSTEM TEMP 15 SPKR IN 16 TEMP GND

20

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

ChaPter 3: BIos setuP

This chapter describes how to use the BIOS setup program for the PEAK 886VL2. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

21

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

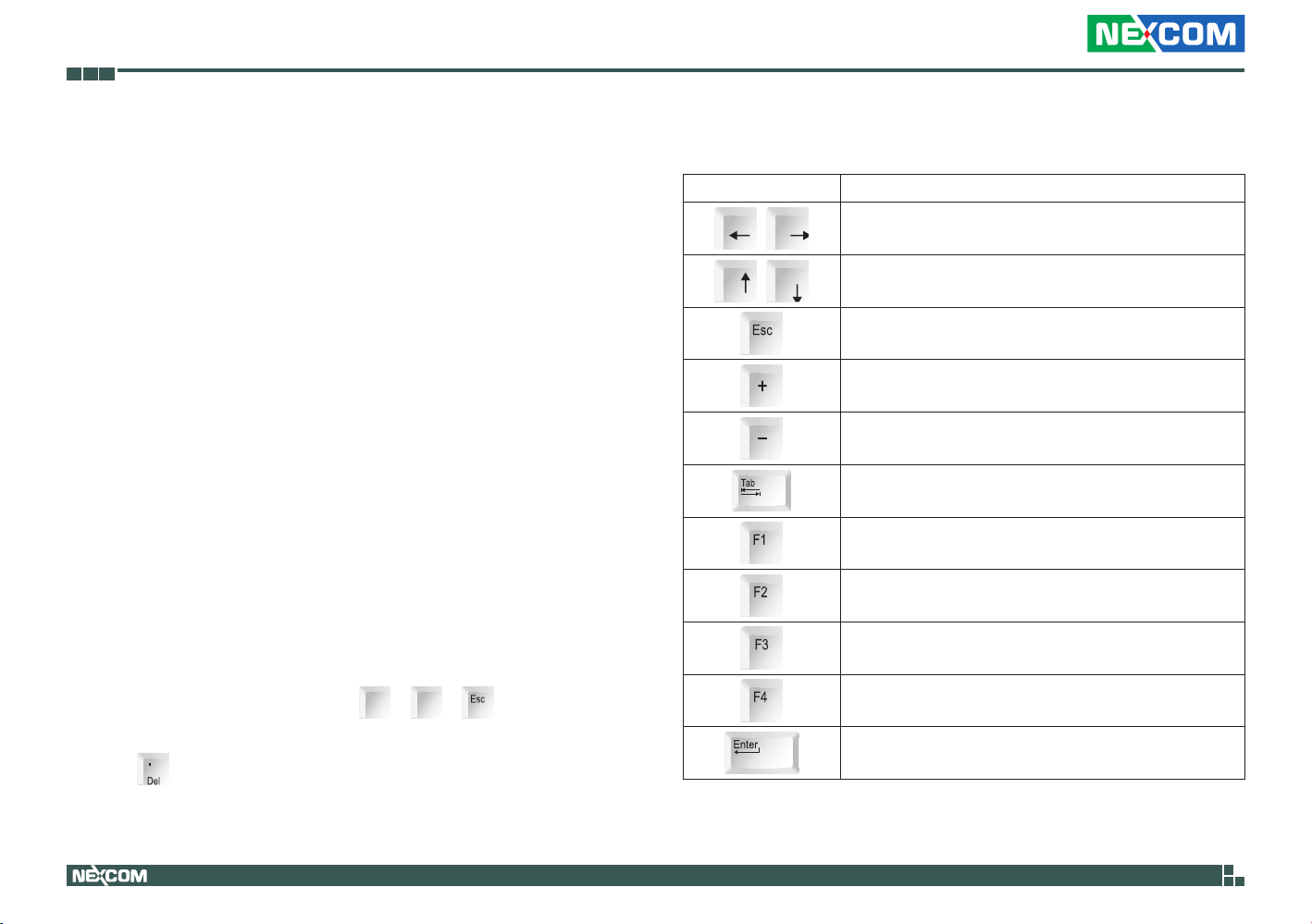

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menus or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

TO ENTER SETUP BEFORE BOOT PRESS

Ctrl

Press the key to enter Setup:

+

Alt

+

22

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

23

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Chipset Boot SecurityMain

BIOS Information BIOS Vendor Core Version Compliancy BIOS Version Build Date and Time

Memory Information Memory Frequency Total Memory DIMM#1 DIMM#3

ME Firmware Information ME FW Version ME Firmware Mode ME Firmware SKU

System Date

System Time

American Megatrends

4.6.5.3 UEFI 2.3; PI 1.2 P886-008 09/04/2012 13:53:43

1600 Mhz 16384 MB (DDR3) 8192 MB (DDR3) 8192 MB (DDR3)

8.0.0.1351 Normal Mode 5MB

[Mon 09/24/2012] [01:18:35]

Save & Exit

Set the Date. Use Tab to switch between Date elements.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

24

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Advanced Chipset Boot SecurityMain

Legacy OpROM Support

Launch PXE OpROM

ACPI Settings

CPU Conguration SATA Conguration AMT Conguration USB Conguration IT8783F Super IO Conguration

IT8783F H/W Monitor Smart Fan Function

CPU PPM Conguration

[Disabled]

Save & Exit

Controls the execution of UEFI and Legacy PXE OpROM

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Launch PXE OpROM

Enables or disables the boot option for legacy network devices connected to the LAN port.

25

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

ACPI Settings

This section is used to configure ACPI Settings.

Main

ACPI Settings

Enable Hibernation [Enabled]

ACPI Sleep State [S3 only (Suspend to ...]

Advanced Chipset PCIPnP Security

Exit

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Enable Hibernation

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are S1 (CPU Stop Clock) and S3 (Suspend to RAM).

CPU Configuration

This section is used to configure the CPU.

Advanced

CPU Conguration

Intel(R) Core(TM) i7-3770 CPU @ 3.40GHz

CPU Signature Microcode Patch CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit

Hyper-Threading

Intel Virtualization Technology

306a9 c 3400 MHz 4

Supported Supported Supported Supported

[Enabled]

Enabled for Windows XP and Linux (OS optimized for HyperThreading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Hyper-Threading

This field is used to enable or disable hyper-threading.

Intel® Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

26

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

SATA Configuration

This section is used to configure the SATA drives.

Advanced

SATA Controller(s) [Enabled]

SATA Mode Selection [RAID] Alternate ID [Disabled]

Serial ATA Port 0 Empty Software Preserve Unknown Port 0 [Enabled]

Hot Plug [Disabled] Spin Up Device [Disabled]

Serial ATA Port 1 Empty Software Preserve Unknown

Port 1 [Enabled] Hot Plug [Disabled] Spin Up Device [Disabled]

Serial ATA Port 2 ST3160318AS (160.0 Software Preserve SUPPORTED

Port 2 [Enabled] Hot Plug [Disabled] Spin Up Device [Disabled]

Serial ATA Port 3 ST3160318AS (160.0 Software Preserve SUPPORTED

Port 3 [Enabled] Hot Plug [Disabled] Spin Up Device [Disabled]

SATA Controller(s)

Enables or disables the SATA controller.

Enable or disable SATA Device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SATA Mode Selection

Configures the SATA as IDE, AHCI or RAID mode.

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. RAID This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

Port 0 to Port 3

Enables or disables Serial ATA port 0 to port 3.

Hot Plug

Enables or disables hot plugging feature on Serial ATA port 0 to port 3.

Spin Up Device

Enables or disables staggered spin up on devices connected to Serial ATA port 0 to port 3.

27

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

AMT Configuration

This section is used to configure Active Management Technology (AMT) options.

Advanced

Intel AMT [Enabled]

BIOS Hotkey Pressed [Disabled] MEBx Selection Screen [Disabled]

Enable/Disable Intel (R) Active Mangement Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires addtional

rmware in the SPI device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel® AMT

Enables or disables Intel® Active Management Technology.

BIOS Hotkey Pressed

Enables or disables BIOS hotkey press.

MEBx Selection Screen

Enables or disables MEBx selection screen.

28

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Devices: 1 Keyboard, 1 Mouse, 2 Hubs

Legacy USB Support

USB3.0 Support Port 60/64 Emulation

[Enabled]

[Enabled] [Enabled]

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

Port 60/64 Emulation

Enables the 60h/64h I/O port emulation. You must enable this to fully support USB keyboard legacy for non-USB OSes.

USB3.0 Support

Enables or disables USB 3.0 controller support.

29

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

IT8783F Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

IT8783F Super IO Conguration

IT8783F Super IO Chip



Serial Port 1 Conguration



Serial Port 2 Conguration



Serial Port 3 Conguration



Serial Port 4 Conguration



IR Device



Parallel Port Conguration

IT8783F

Set Parameters of Serial Port 1 (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ITB8783 Super IO Chip

Displays the Super I/O chip used on the board.

Serial Port 1 Configuration

This section is used to configure serial port 1.

Advanced

Serial Port 1 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

30

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

Serial Port 2 Configuration

This section is used to configure serial port 2.

Advanced

Serial Port 2 Conguration

Serial Port

Device Settings

Change Settings Onboard Serial Port 2 Mode Onboard Serial Port Max Baud Rate RS-485/422 receiver termination

[Enabled]

IO=2F8h; IRQ=3;

[Auto] [RS232] [115200 bps] [Disabled]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Onboard Serial Port Max Baud Rate

Select this to change the max baud rate of the serial port.

RS-485/422 Receiver Termination

Enables or disables RS-485/422 receiver termination.

Change Settings

Selects an optimal setting for the Super IO device.

Onboard Serial Port 2 Mode

Select this to change the serial port mode to RS232, RS422 or RS485.

31

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

Serial Port 3 Configuration

This section is used to configure serial port 3.

Advanced

Serial Port 3 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3E8h; IRQ=10;

[Auto]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 4 Configuration

This section is used to configure serial port 4.

Advanced

Serial Port 4 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=2E8h; IRQ=11;

[Auto]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change Settings

Selects an optimal setting for the Super IO device.

Change Settings

Selects an optimal setting for the Super IO device.

32

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

IR Device

This section is used to configure the IR device.

Advanced

IR Device

Serial Port

[Disabled]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Parallel Port Configuration

This section is used to configure the parallel port.

Advanced

Parallel Port Conguration

Parallel Port

Device Settings

Change Settings Device Mode

[Enabled]

IO=378h; IRQ=7;

[Auto] [Standard Parallel ...]

Parallel Port

Enables or disables the parallel port.

Enable or Disable Parallel Port (LPT/LPTE)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change Settings

Selects an optimal setting for the Super IO device.

Device Mode

Configures the operating mode of the parallel port. The options are Standard Parallel Port Mode, EPP Mode, ECP Mode, EPP Mode & ECP Mode.

33

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

IT8783F H/W Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Advanced

Pc Health Status

SYS temperature CPU temperature Fan1 Speed Fan2 Speed Vcore

3.3V 5V 12V

: +27 C : +28 C : 4411 RPM : N/A : +1.040 V : +3.192 V : +5.107 V : +11.592 V

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SYS Temperature

Detects and displays the current system temperature.

Fan2 Speed

Detects and displays system fan2 speed.

Vcore

Detects and displays the Vcore CPU voltage.

3.3V

Detects and displays 3.3V voltage.

5V

Detects and displays 5V voltage.

12V

Detects and displays 12V voltage.

CPU Temperature

Detects and displays the current CPU temperature.

Fan1 Speed

Detects and displays system fan1 speed.

34

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

Smart Fan Function

This section is used to configure the fan’s function.

Advanced

Pc Health Status

FAN Setting

[Always Full Speed]

FAN Setting

Configures the speed of the fan.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU PPM Configuration

This section is used to configure the Processor Power Management (PPM) configuration.

Advanced

CPU PPM Conguration

EIST

Turbo Mode CPU C3 Report CPU C6 Report CPU C7 Report

[Enabled]

[Enabled] [Enabled] [Enabled] [Enabled]

Enable/Disable Intel SpeedStep

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

EIST

Enables or disables Intel® SpeedStep.

Turbo Mode

Enables or disables turbo mode.

CPU C3 Report

Enables or disables C3 report to the operating system.

35

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

CPU C6 Report

Enables or disables C6 report to the operating system.

CPU C7 Report

Enables or disables C7 report to the operating system.

36

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

Chipset

This section is used to configure the system based on the specific features of the chipset.

Advanced

PCH-IO Conguration

System Agent (SA) Conguration

Chipset Boot SecurityMain

Setting incorrect field values may cause the system to malfunction.

Save & Exit

PCH Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH-IO Configuration

Advanced

USB Conguration

PCH LAN Controller Wake on LAN

RTC RAM Lock Restore AC Power Loss

Chipset Boot SecurityMain

[Enabled] [Enabled]

[Enabled] [Power On]

Save & Exit

USB Conguration

settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH LAN Controller

Enables or disables onboard NIC.

Wake on LAN

Enables or disables integrated LAN to wake the system.

RTC RAM Lock

Enables or disables RTC RAM lock.

Restore AC Power Loss

Select AC power state when power is re-applied after a power failure.

37

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

System Agent (SA) Configuration

Advanced

Chipset Boot SecurityMain

Save & Exit

VT-d

DIMM prole Graphics Conguration NB PCIe Conguration

[Enabled]

[Default DIMM prole]

Check to enable VT-d function on MCH.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

VT-d

Enables or disables VT-d function on MCH.

DIMM Profile

Select DIMM timing profile that should be used. The options are Default DIMM profile, Custom Profile, XMP Profile 1 and XMP Profile 2.

Graphics Configuration

Configures the graphic chip settings.

NB PCIe Configuration

Configures the NB PCI Express settings.

38

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

Boot

This section is used to configure the boot features.

Advanced

Quiet Boot

Boot Option Priorities

Boot Option #1

Hard Drive BBS Priorities

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Chipset

Boot

[Disabled]

[Intel Raid1]

SecurityMain

Save & Exit

Enables or disables Quiet Boot option

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Hard Drive BBS Priorities

Sets the order of the legacy devices in this group.

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

39

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

Security

Advanced Chipset Boot SecurityMain

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Save & Exit

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save & Exit

Advanced

Save Changes and Reset

Discard Changes and Reset

Restore Defaults

Boot Override

Intel Raid1

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility and reboot the system without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Chipset

Boot SecurityMain

Save & Exit

Reset the system after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

40

PEAK 886VL2 User Manual

Chapter 3: BIOS Setup

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Boot Override

To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>.

41

PEAK 886VL2 User Manual

Appendix A: Watchdog Timer

aPPendIx a: WatChdog tImer

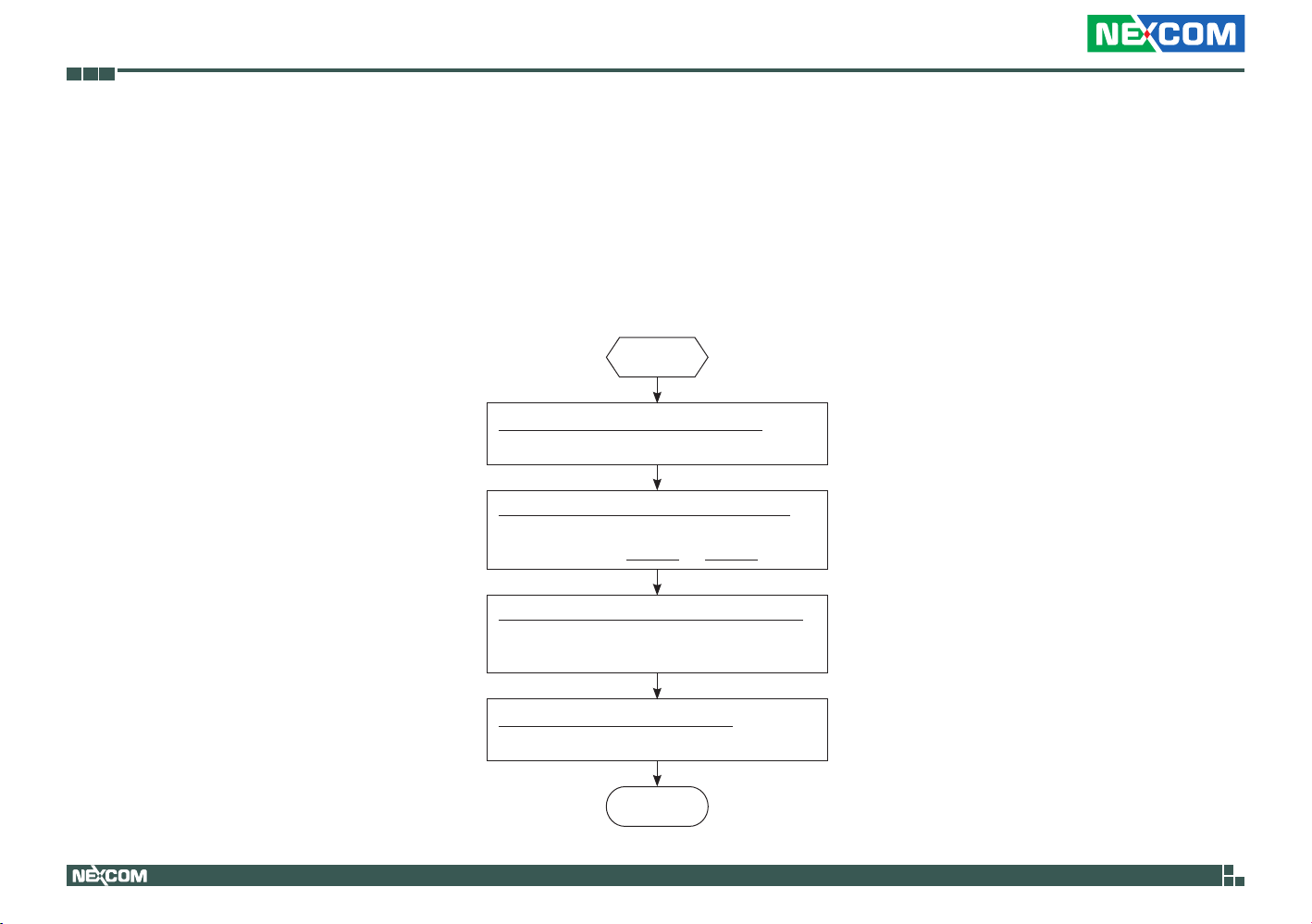

WDT Programming Guide

PEAK 886VL2 Watch Dog Function Configuration Sequence Description:

Step1. See “SetupWDT” procedure #Setup Watchdog Timer Environment

Step2. See “TimeBaseWDT” procedure #Initial Watchdog Timer. Users can select second or minute.

Start

Step3. See “TimeCountWDT” procedure #Set Watchdog Timer Time-out Value. Users can set time-out value.

Step4: See ExitSetup procedure #Exit Setup Environment

End

42

PEAK 886VL2 User Manual

Appendix A: Watchdog Timer

#define SUPERIO_PORT 0x2E #define WDT_SET 0x72 #define WDT_VALUE 0x73

void main(void) { #Enter SuperIO Configuration outportb(SUPERIO_PORT, 0x87); outportb(SUPERIO_PORT, 0x01); outportb(SUPERIO_PORT, 0x55); outportb(SUPERIO_PORT, 0x55);

# Set LDN outportb(SUPERIO_PORT, 0x07); outportb(SUPERIO_PORT+1 ,0x07);

# Set WDT setting outportb(SUPERIO_PORT, WDT_SET); outportb(SUPERIO_PORT+1, 0xC0); # Use the second # Use the minute, change value to 0x40 # Set WDT sec/min outportb(SUPERIO_PORT, WDT_VALUE); outportb(SUPERIO_PORT+1, 0x05); #Set 5 seconds }

43

PEAK 886VL2 User Manual
