Page 1
NEXCOM International Co., Ltd.
Industrial Computing Solutions
Video Intelligent Surveillance NViS 3540/3540H/3540P4/3540P8 NViS 3542/3542H/3542P4/3542P8
User Manual
NEXCOM International Co., Ltd.
Published August 2012
www.nexcom.com
Page 2
Contents
Contents
Preface
Copyright .............................................................................................. v
Disclaimer .............................................................................................. v
Acknowledgements ............................................................................... v
Regulatory Compliance Statements ........................................................ v
Declaration of Conformity ....................................................................... v
RoHS Compliance .................................................................................. vi
Warranty and RMA ................................................................................vii
Safety Information ...............................................................................viii
Installation Recommendations ..............................................................viii
Safety Precautions .................................................................................. ix
Technical Support and Assistance ............................................................ x
Conventions Used in this Manual ............................................................ x
Global Service Contact Information ........................................................ xi

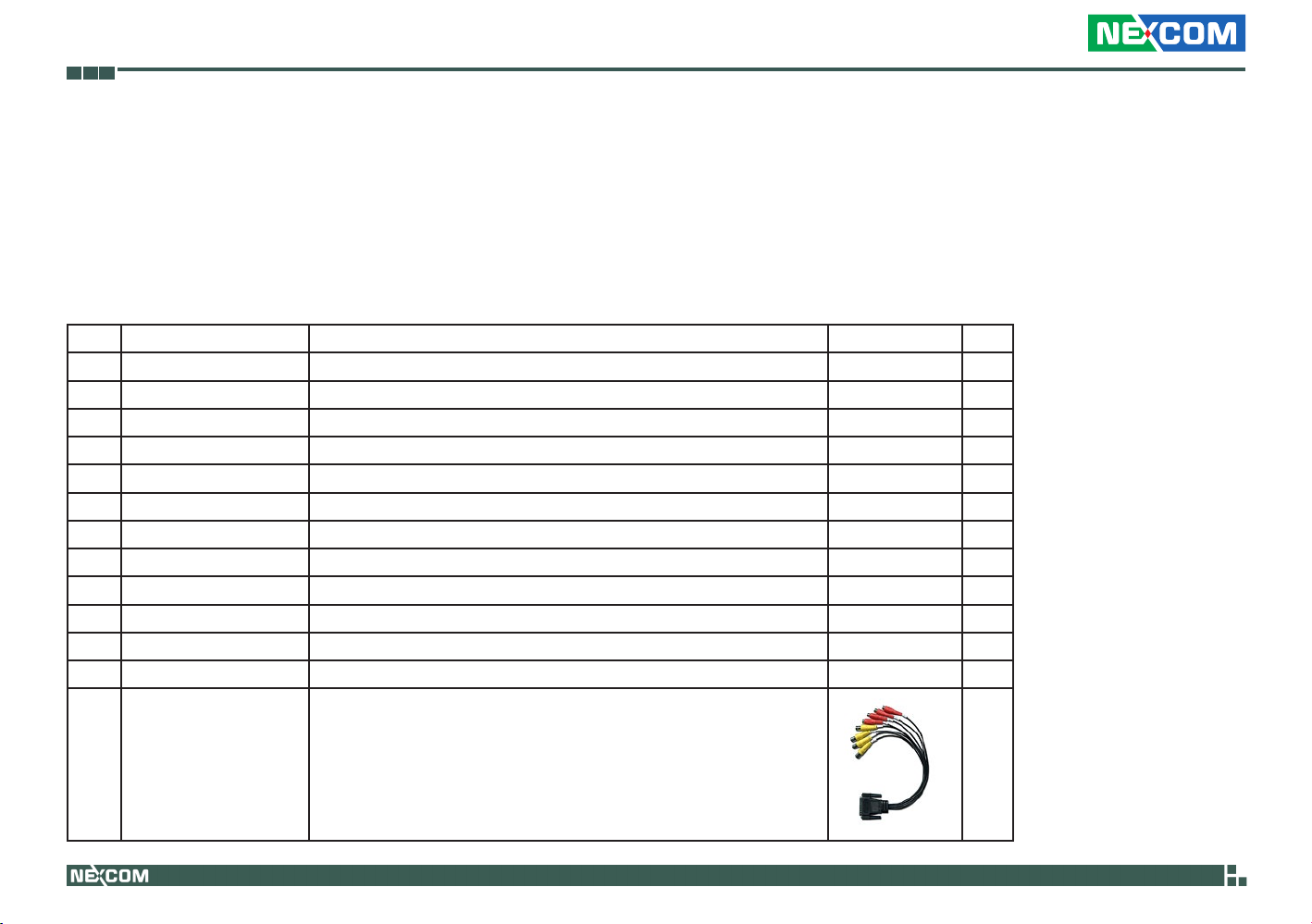

Package Contents ................................................................................. xiv
Ordering Information ............................................................................xvi
Chapter 1: Product Introduction
Overview ................................................................................................1
Hardware Specifications ..........................................................................9
Hardware Specifications ........................................................................11

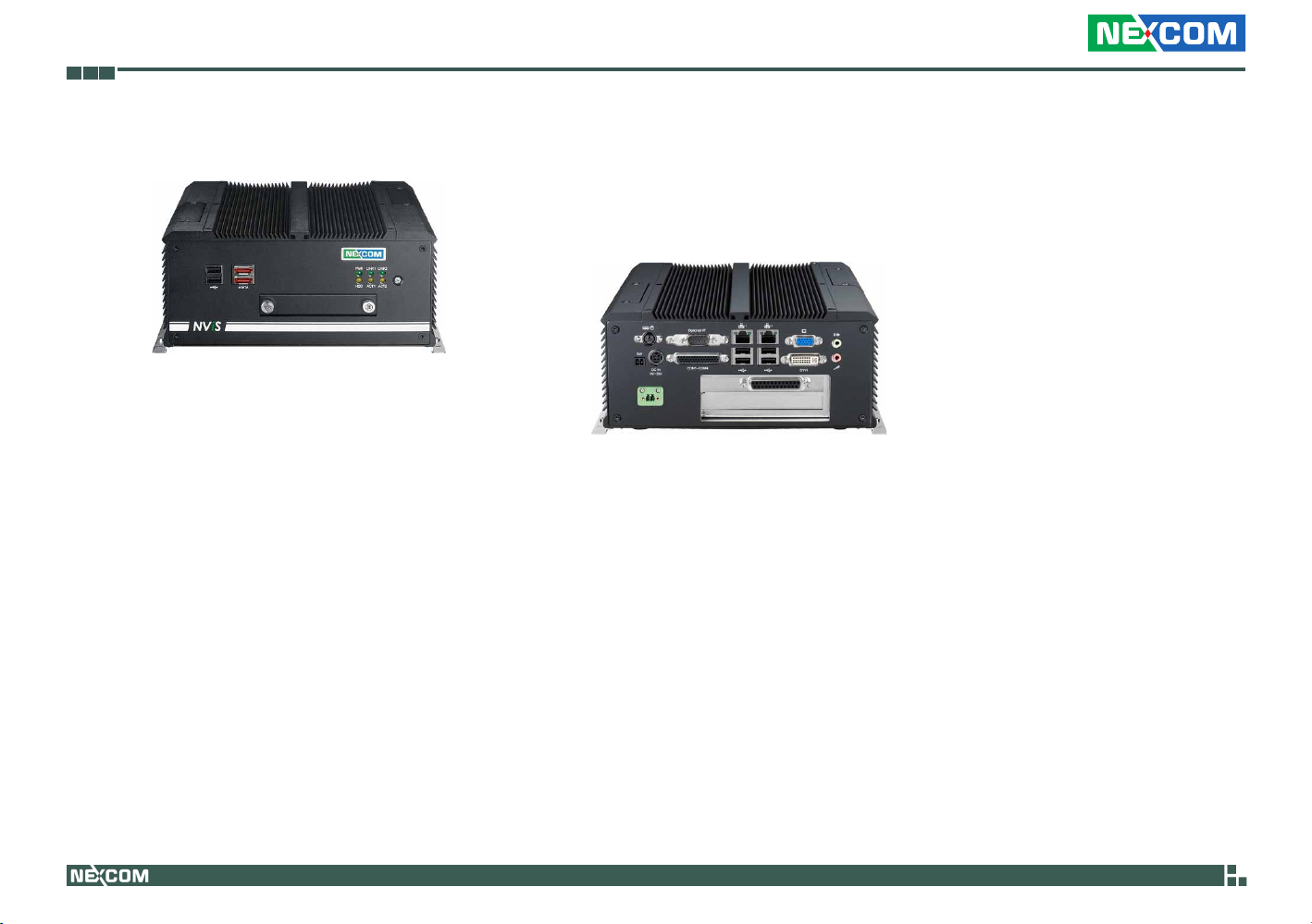

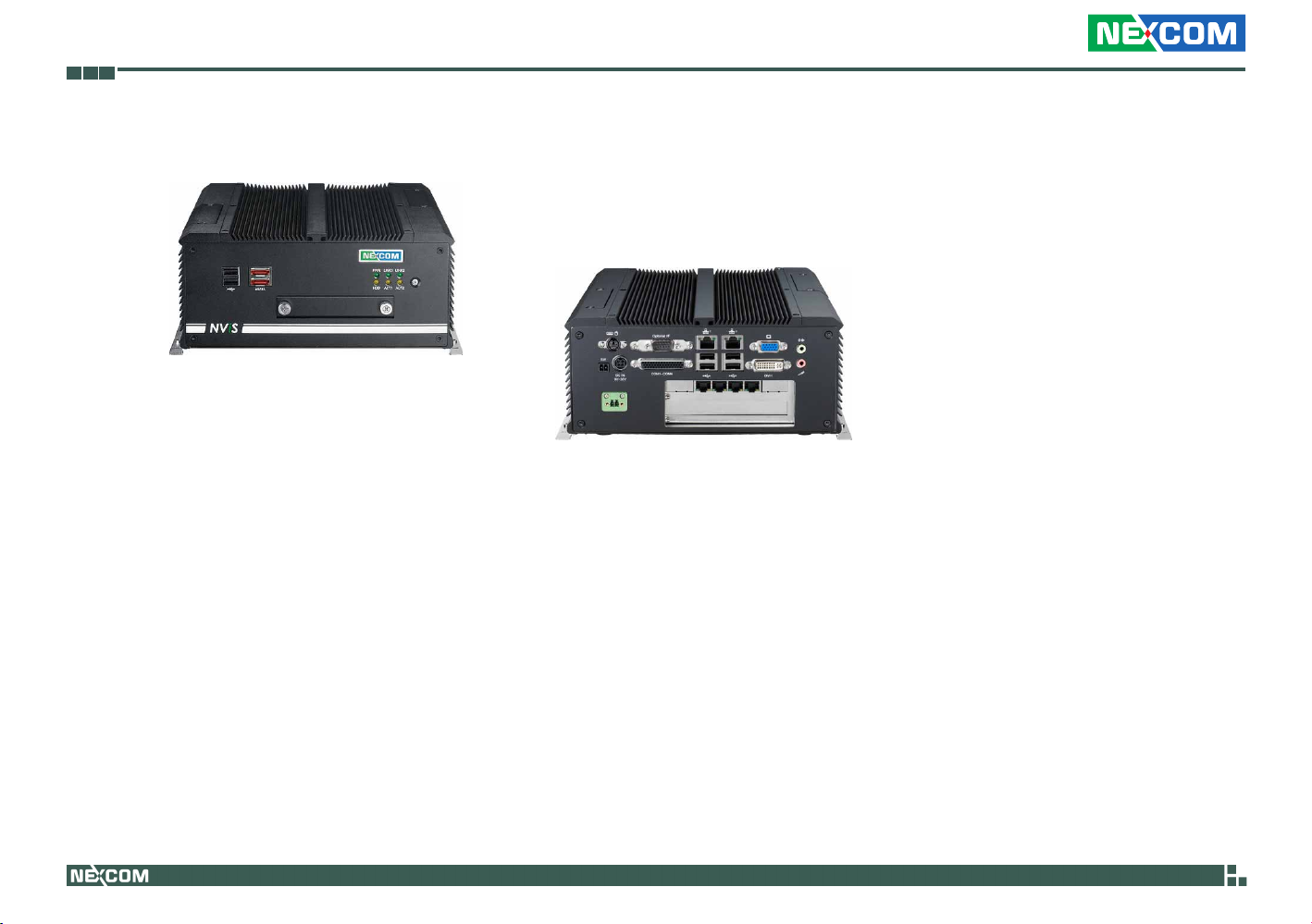

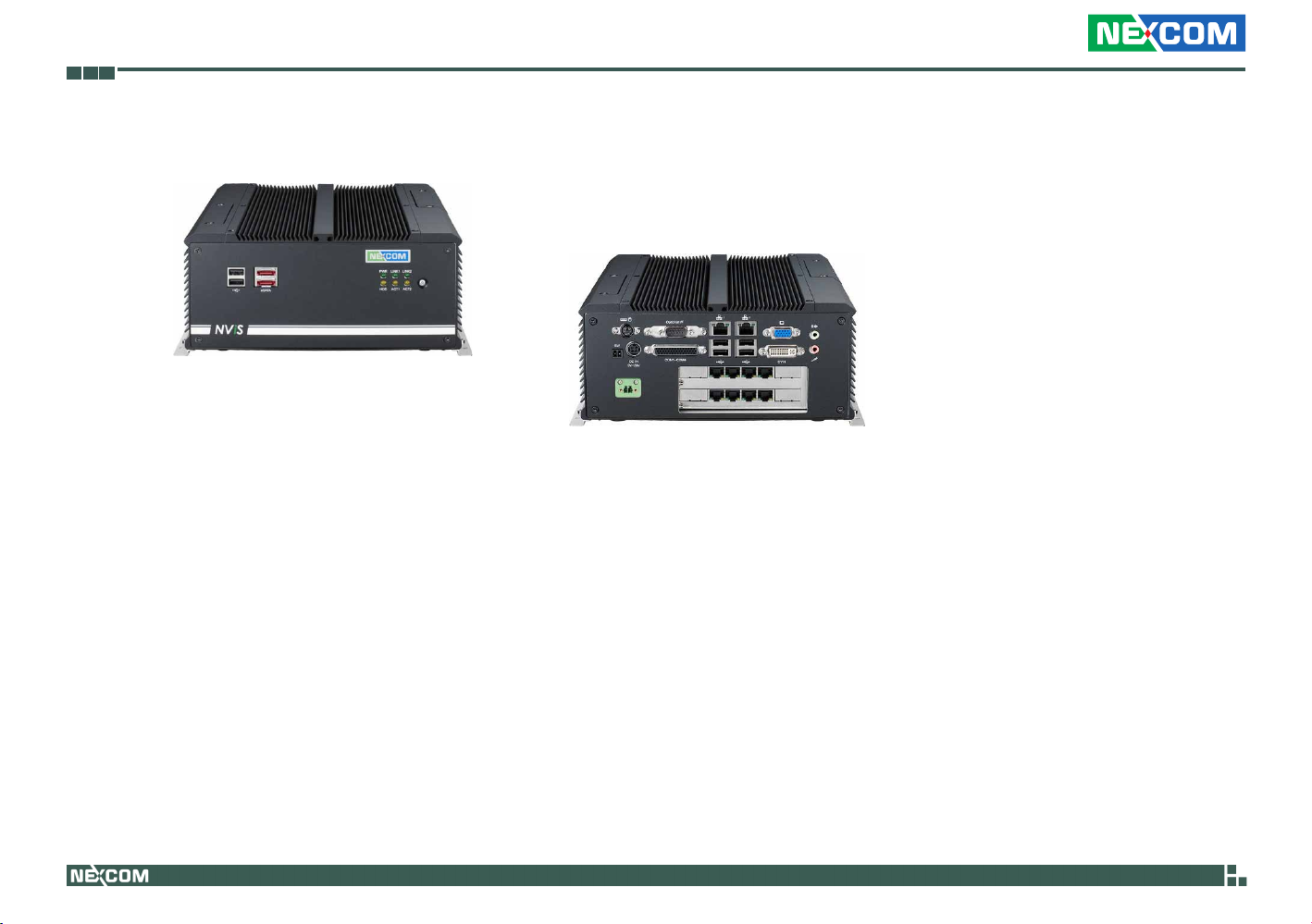

Getting to Know NViS 3540 Series ........................................................ 13
Getting to Know NViS 3542 Series ........................................................ 18

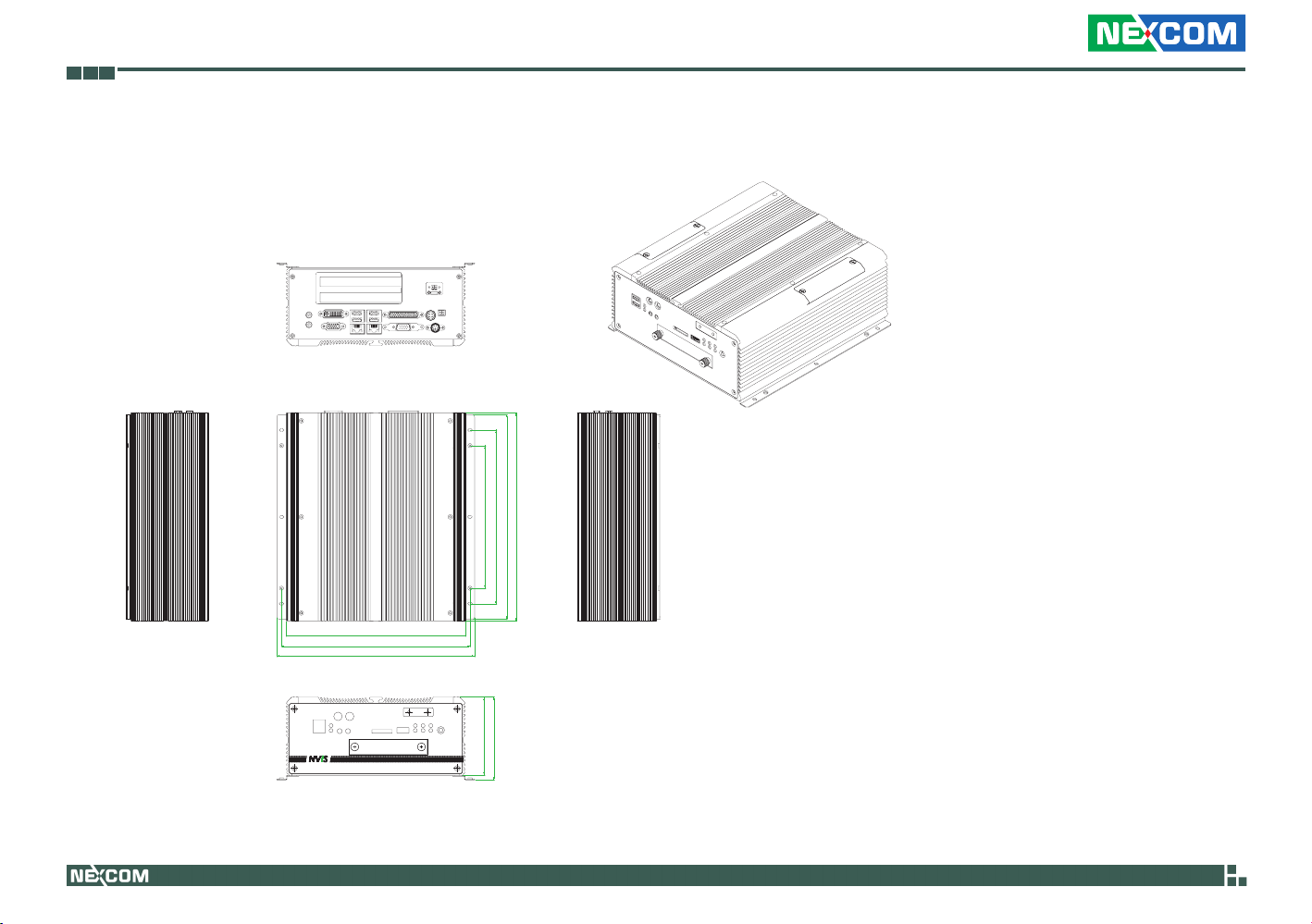

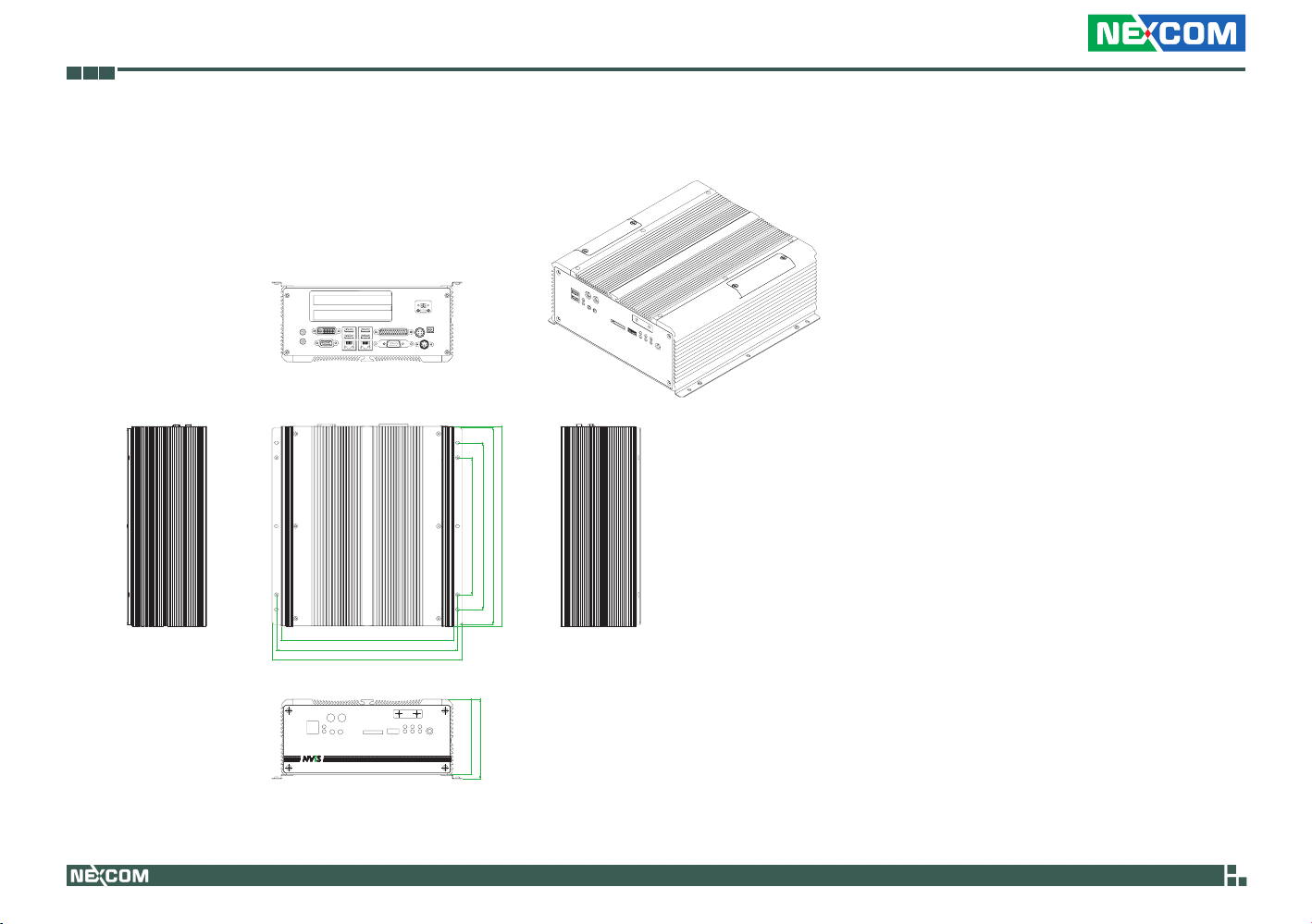

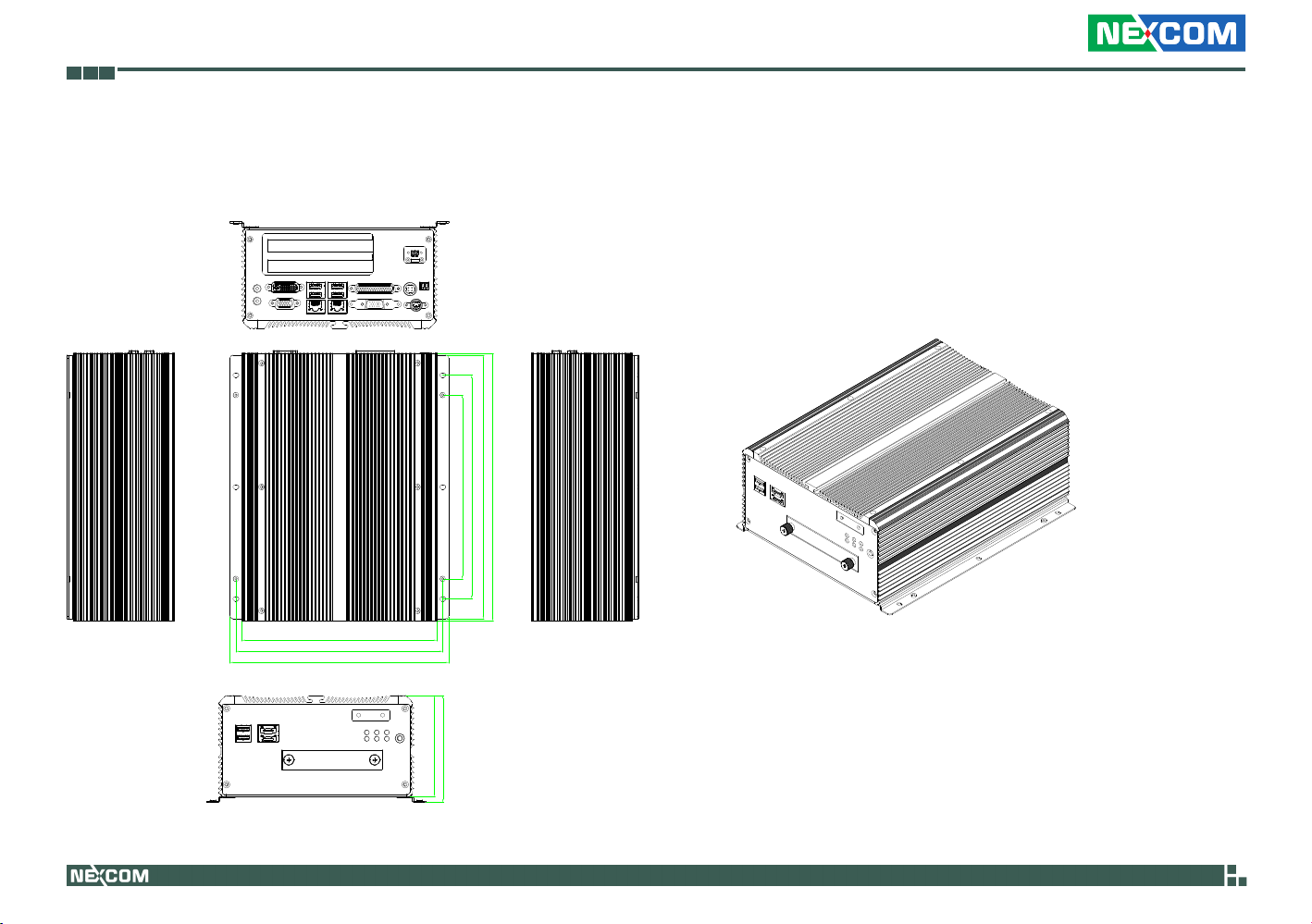

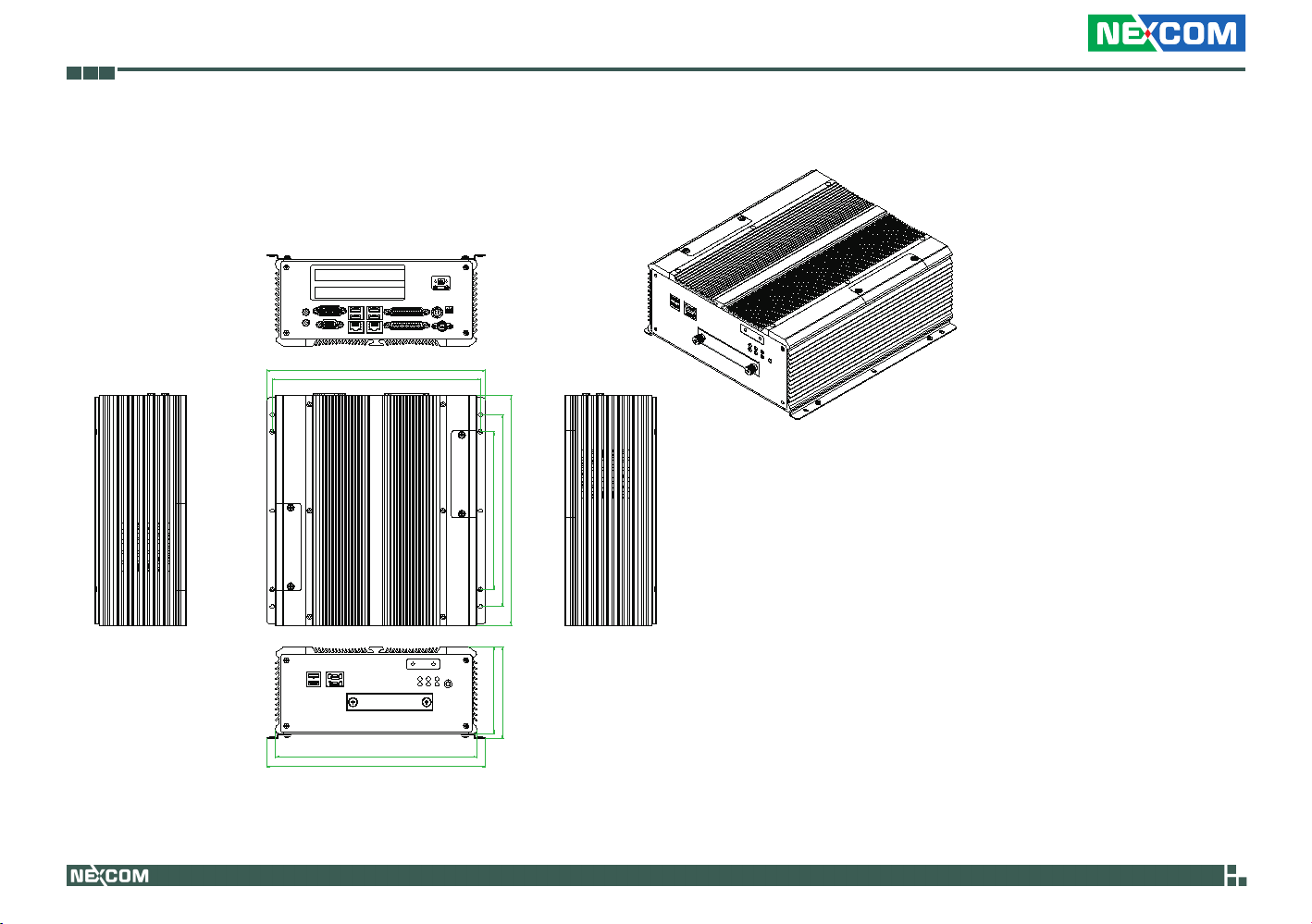

Mechanical Dimensions .........................................................................26
Chapter 2: Jumpers and Connectors
Before You Begin .................................................................................31
Precautions ..........................................................................................31
Jumper Settings ....................................................................................32

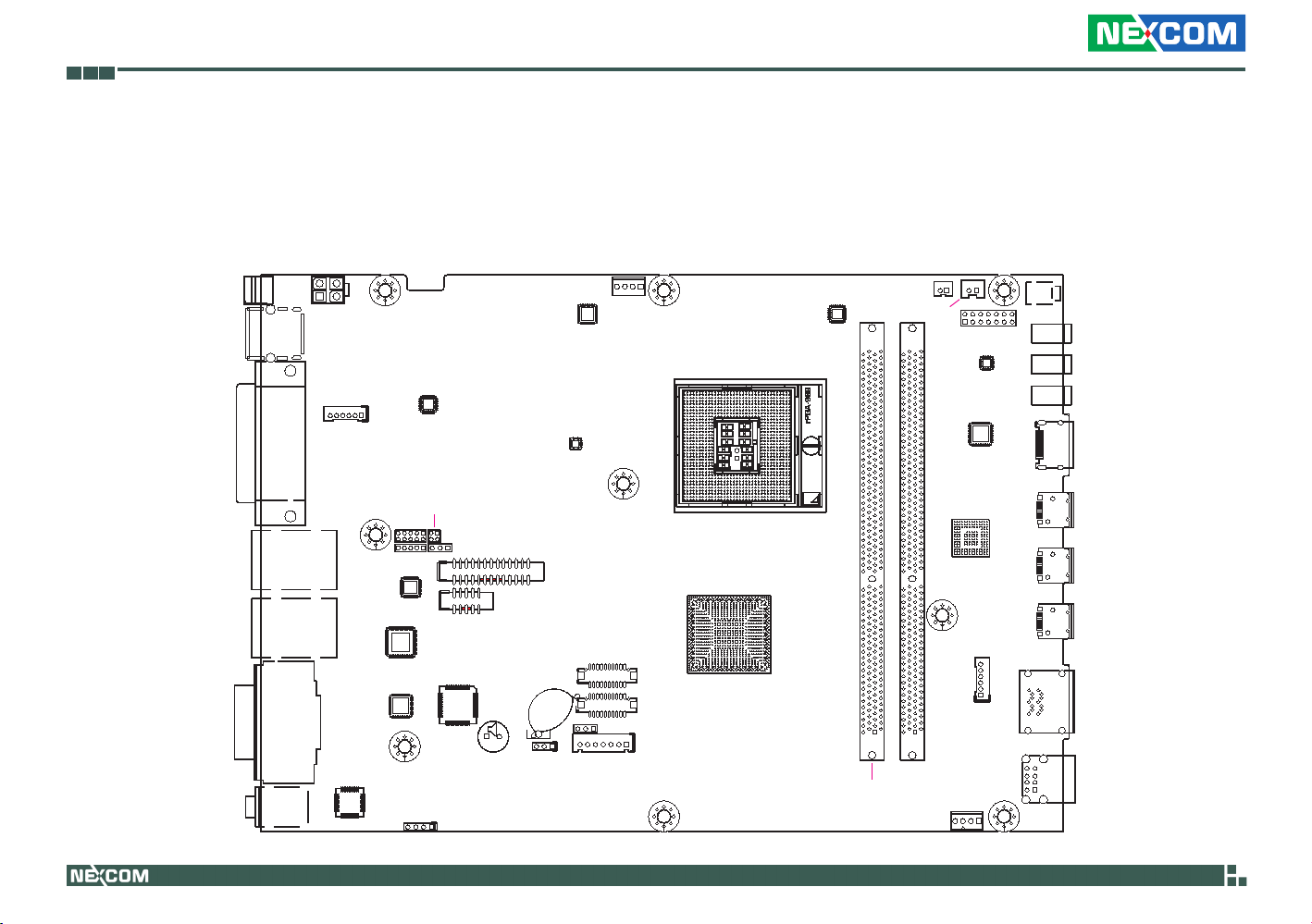

Locations of the Jumpers and Connectors ............................................. 33
Jumpers ................................................................................................ 35
Clear CMOS ................................................................................35
Connector Pin Definitions .....................................................................36

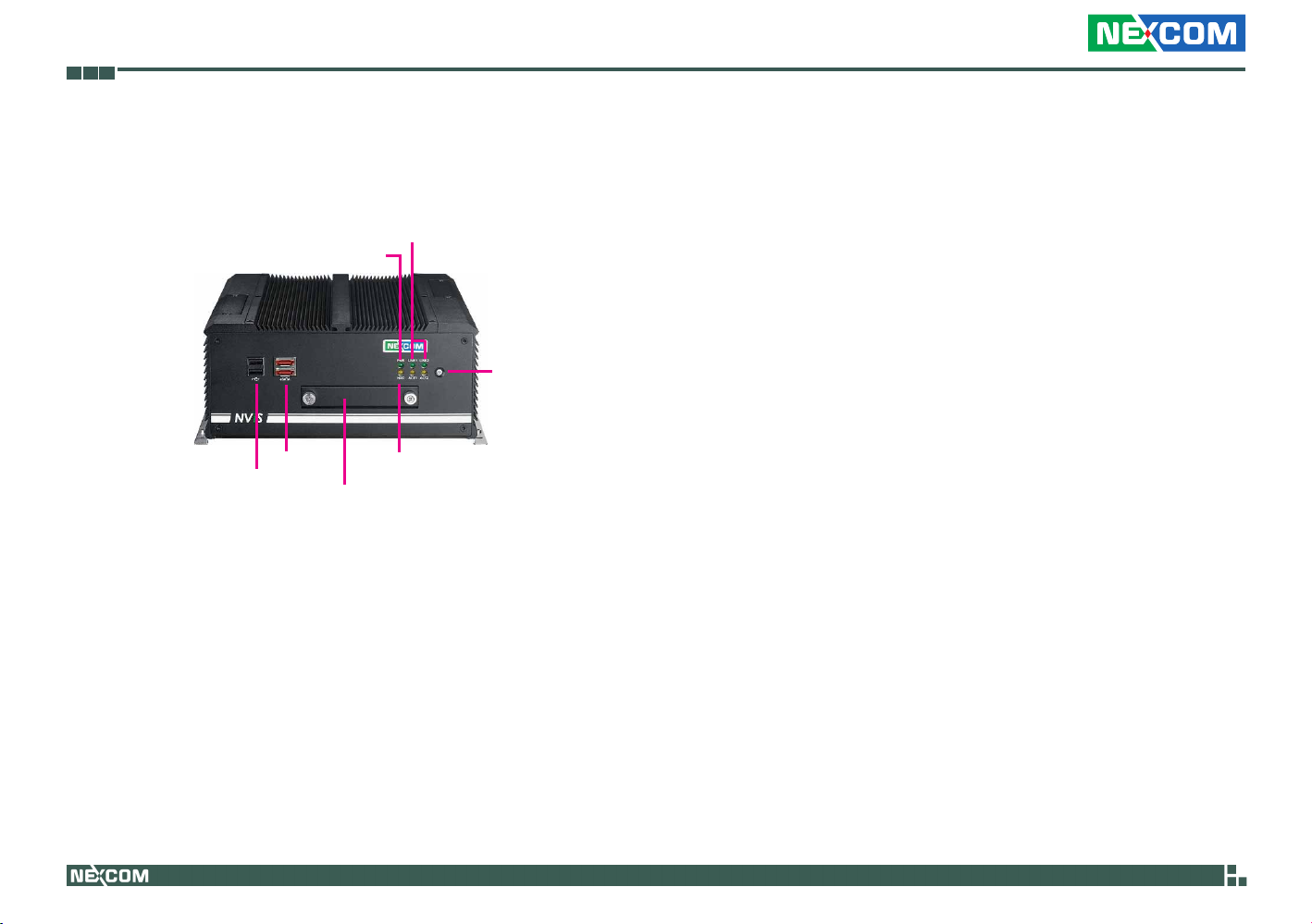

External I/O Interface - Front Panel .................................................... 36
USB Ports ..................................................................................... 36
eSATA Ports .................................................................................36
Status Indicators ..........................................................................37
LAN1/LAN2 Link/Active LED .........................................................37
ATX Power On/Off Switch ............................................................ 38

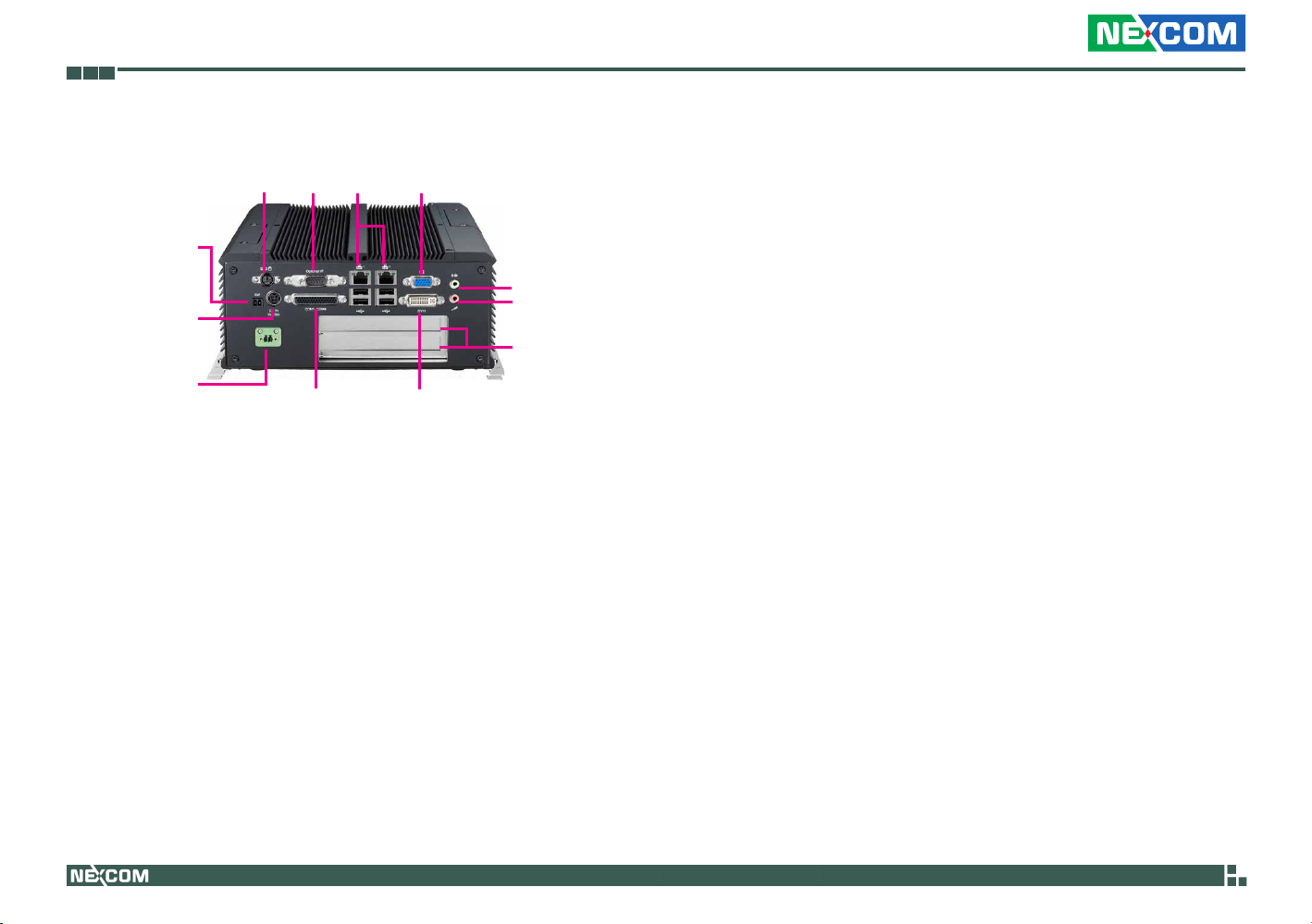

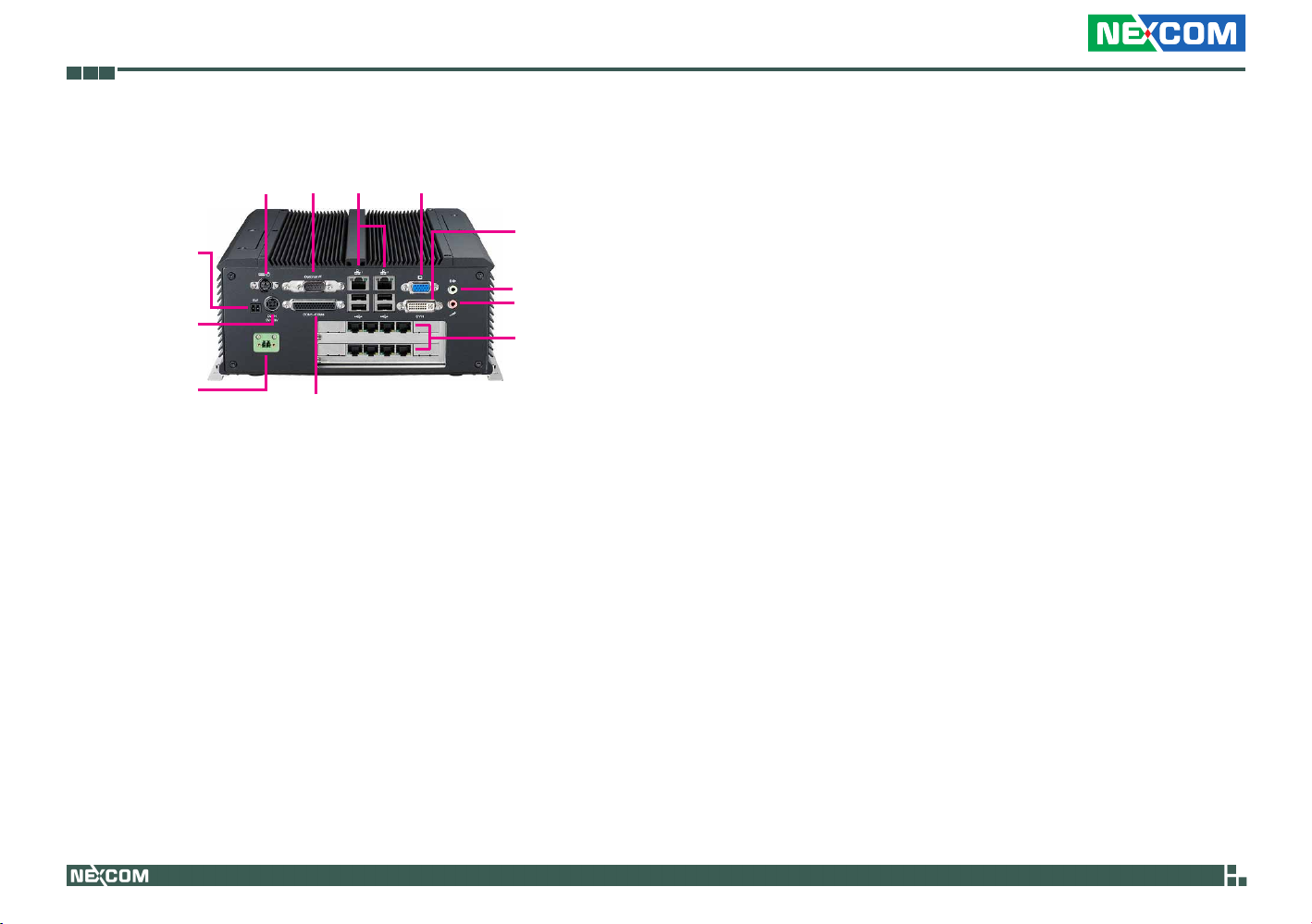

External I/O Interface - Rear Panel ..................................................... 39
Remote Power On/Off Switch ......................................................39

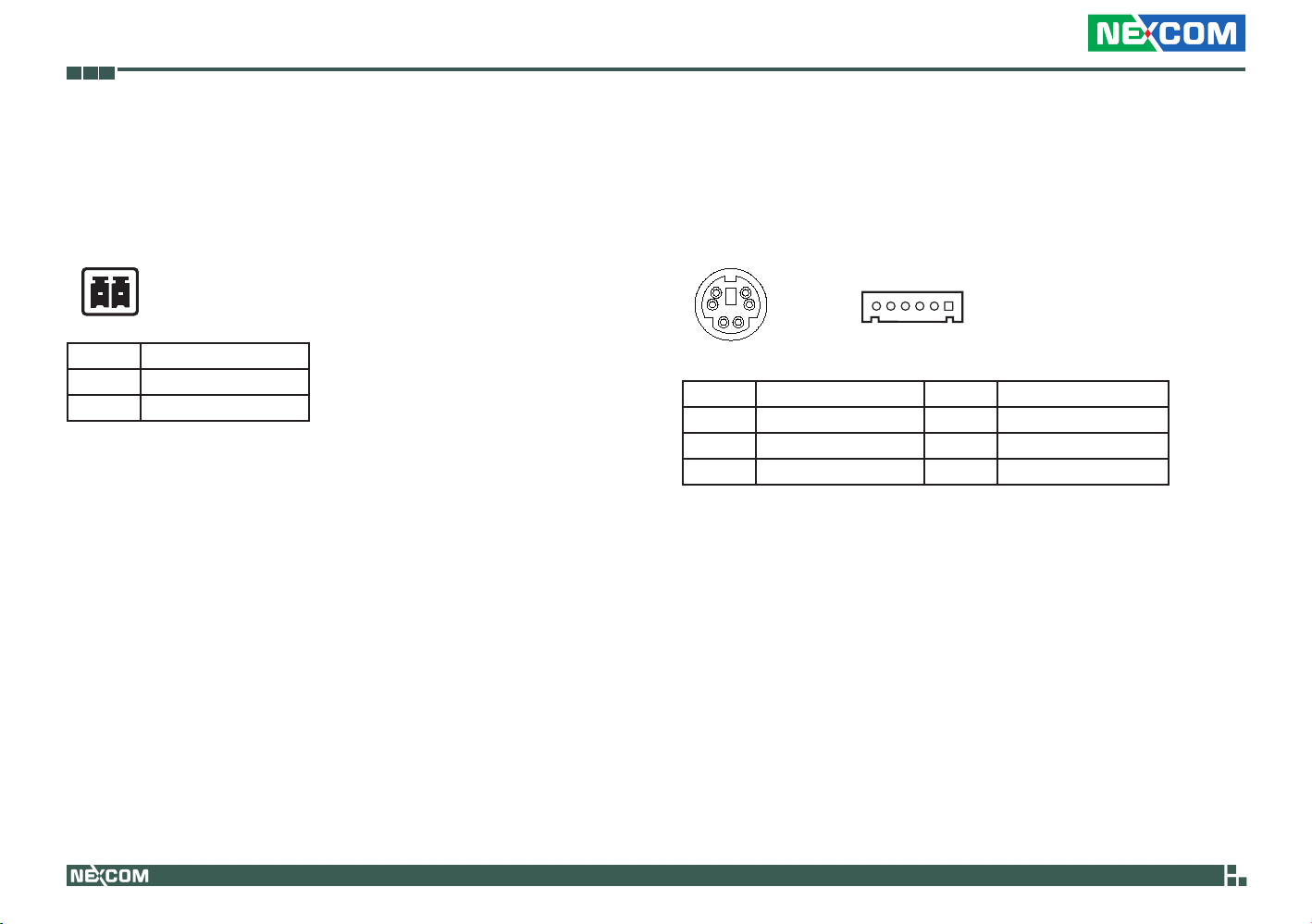

PS/2 Keyboard/Mouse Port ..........................................................39
9V-30V DC Input .........................................................................40
GPIO Connector ..........................................................................40
Serial Interface (COM 1 - COM 4) ...............................................41

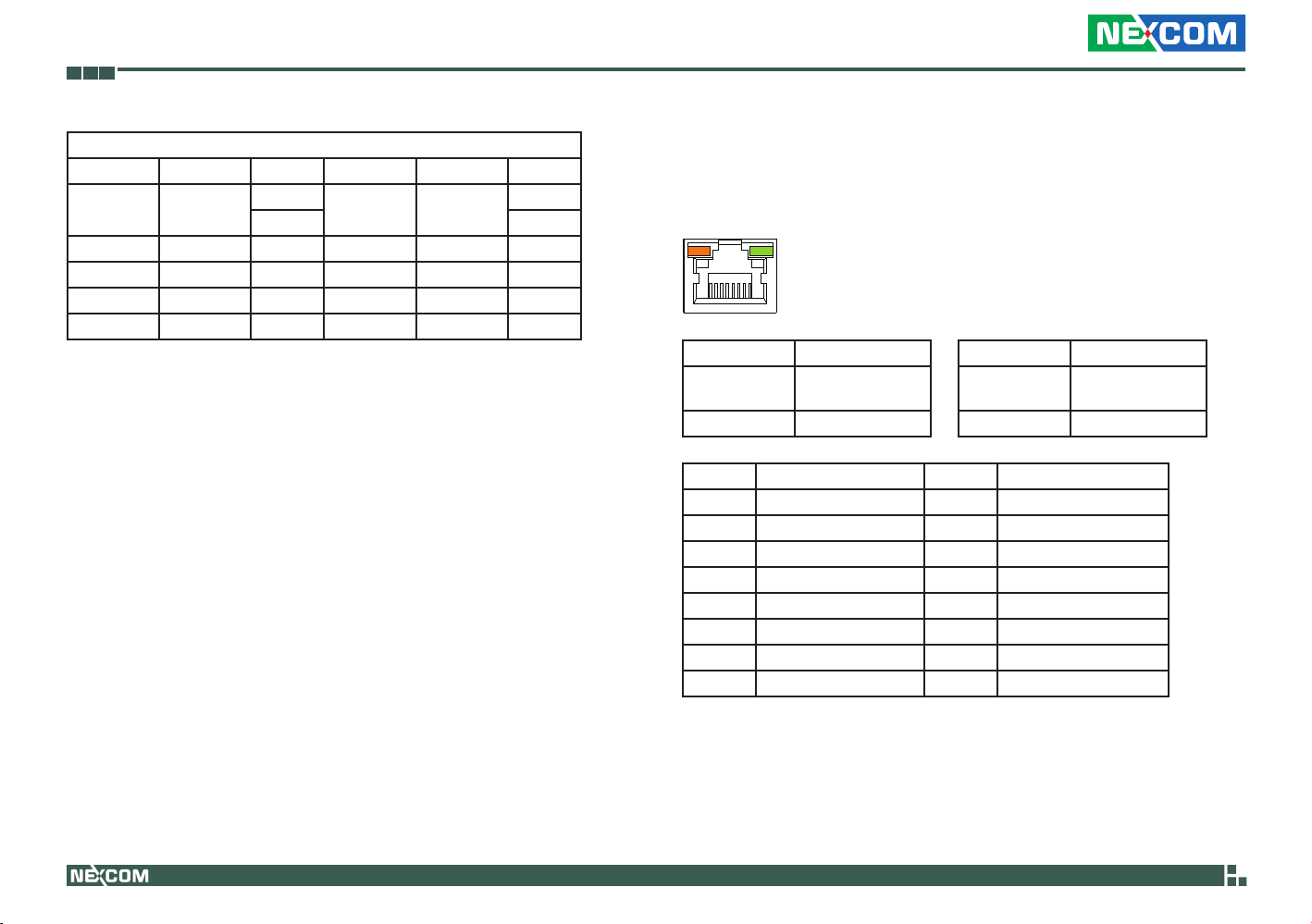

LAN Ports ...................................................................................43
USB Ports ..................................................................................... 44
VGA Port .................................................................................... 44
DVI-I Port .................................................................................... 45
Speaker-out Jack .........................................................................45
Mic-in Jack .................................................................................46
ii
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 3
Contents
Internal Connectors .......................................................................... 47
Reset Connector .......................................................................... 47
SMBus DATA/CLK Pin Header .......................................................48
LVDS Backlight Power Select ........................................................48
LVDS Channel A Connector .........................................................49
LVDS Channel B Connector .......................................................... 49
LVDS Backlight Connector ............................................................50
SATA Ports ..................................................................................51
SATA Power Connectors ..............................................................51
SATA DOM Power Connectors .....................................................52
USB Port Connector ..................................................................... 52
COM4 RI Pin Header .................................................................... 53
GPIO LED Connector .................................................................... 53
Line-in Connector ........................................................................ 54
Internal Power/HDD/LAN Power/LAN Active LED ..........................54
Smart Fan Connectors..................................................................55
COM5 Connector ........................................................................ 55
Parallel Connector ......................................................................56
Chapter 3: System Setup

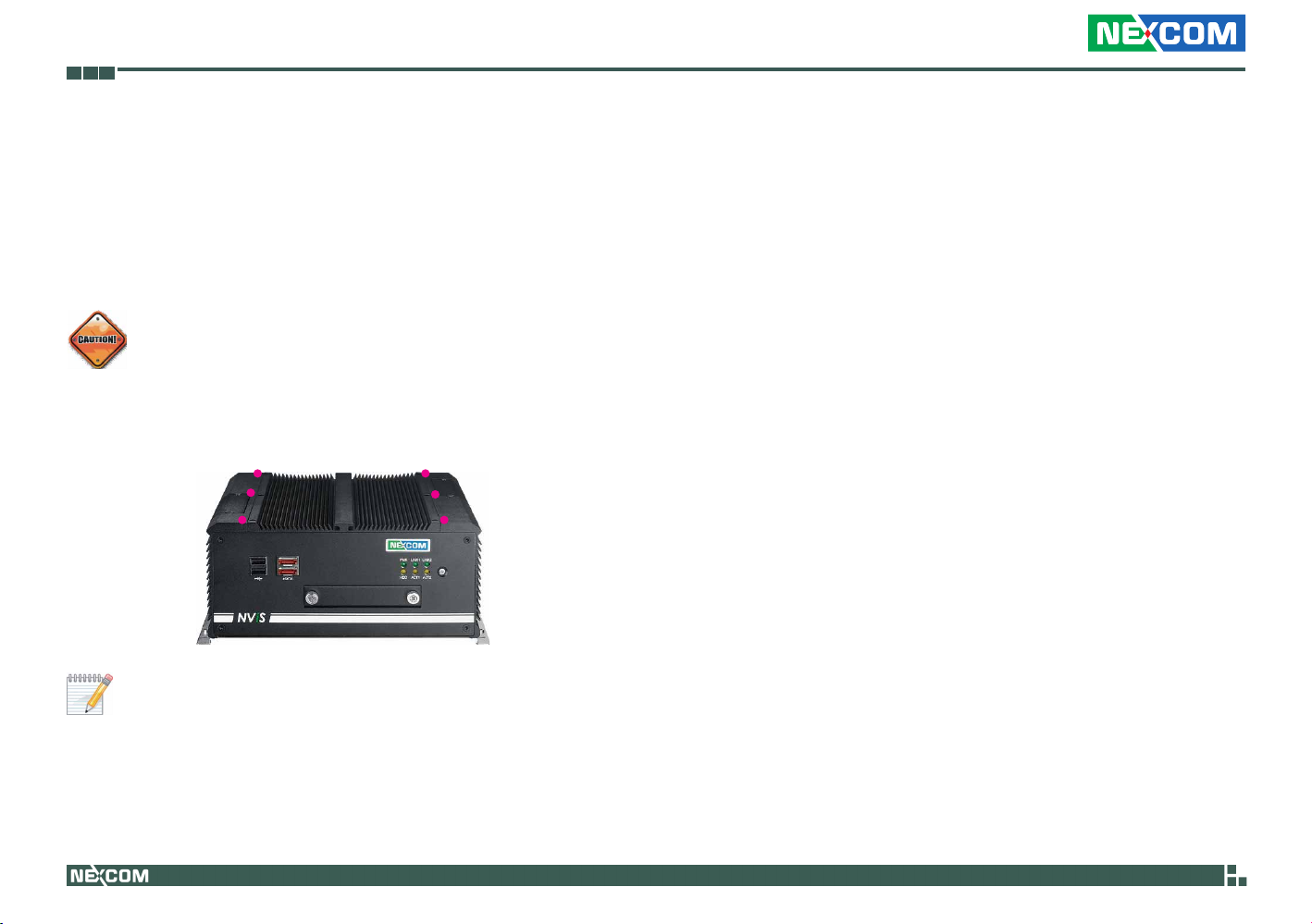

Removing the Chassis Cover .................................................................57

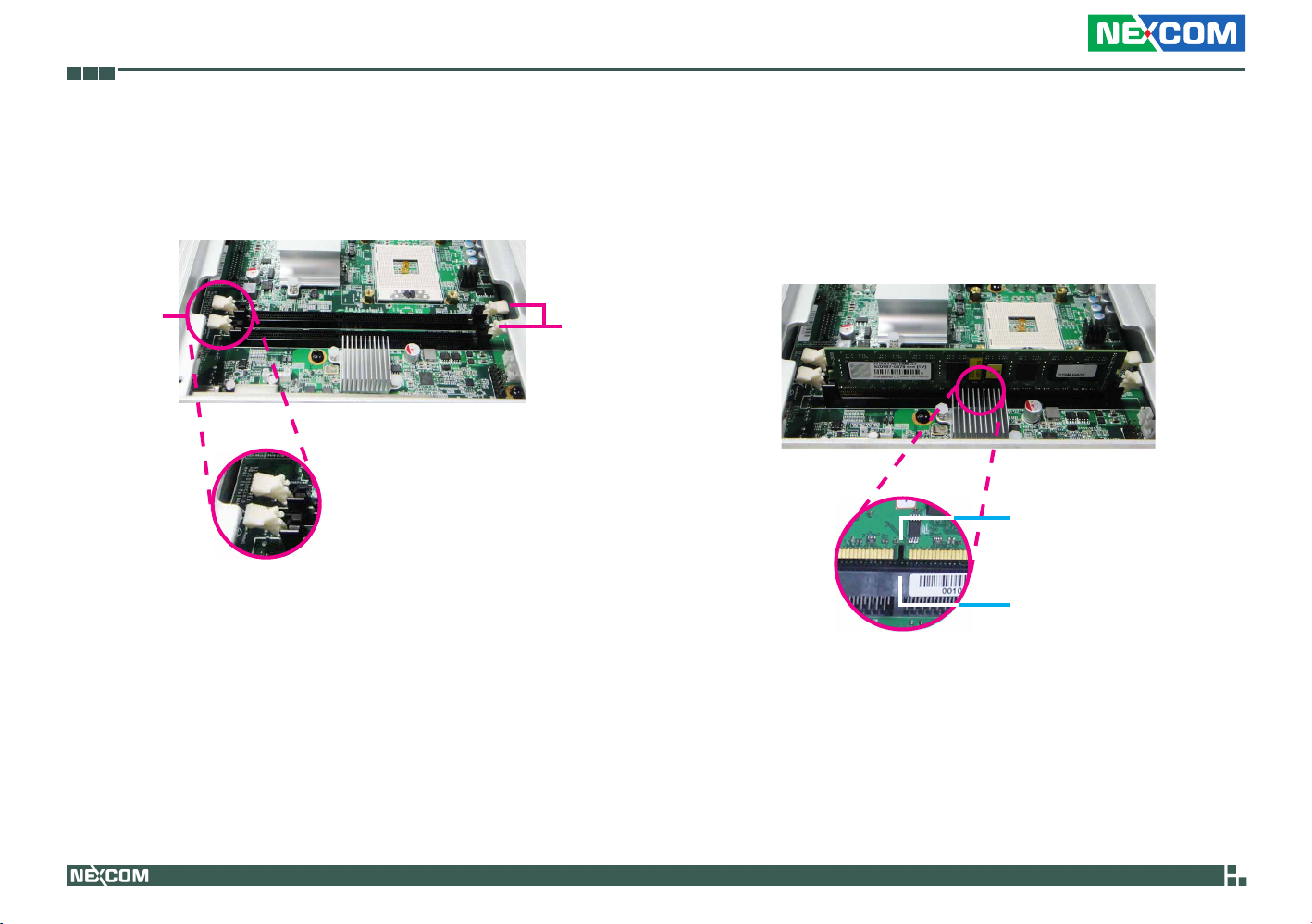

Installing a DIMM ..................................................................................58

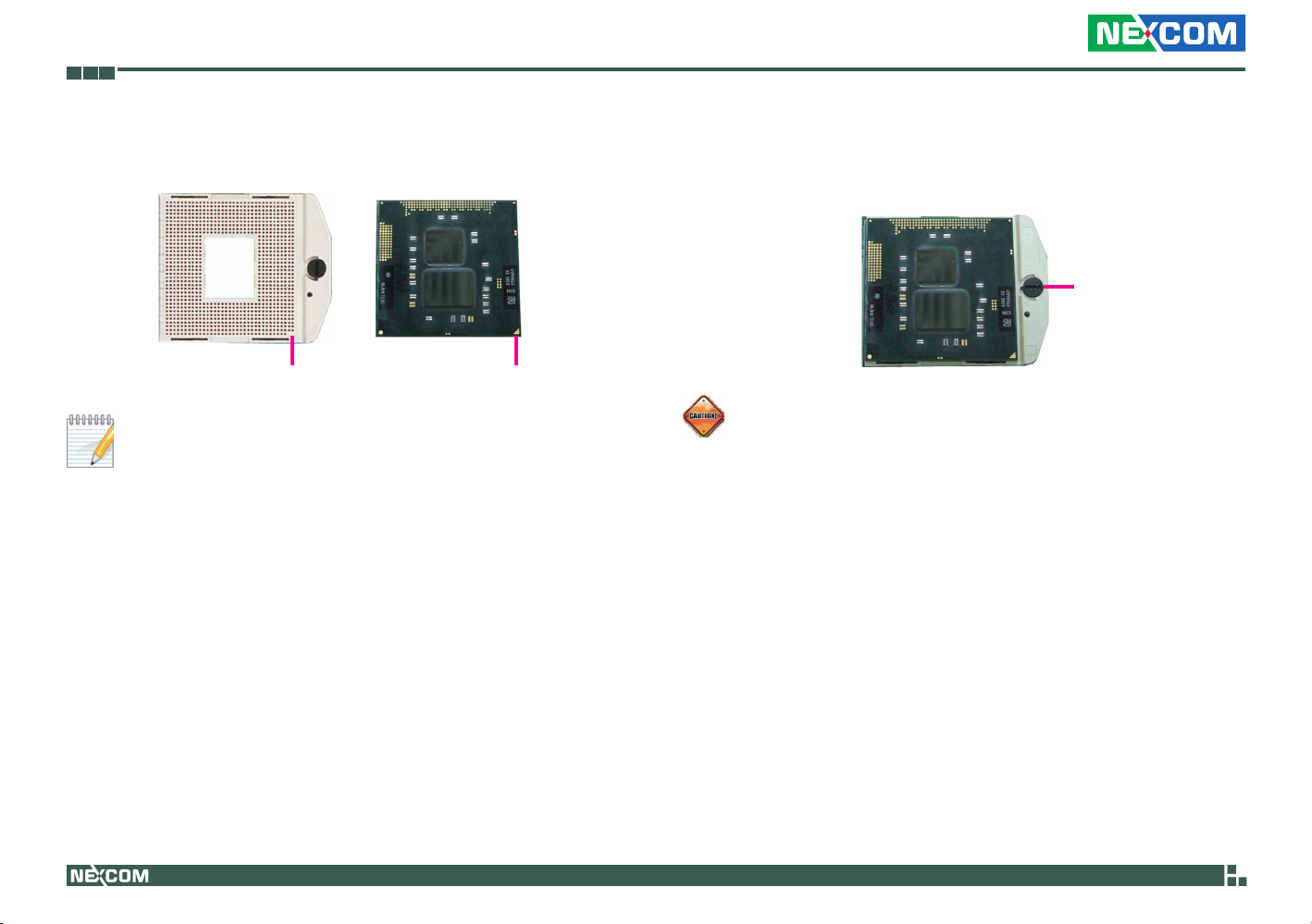

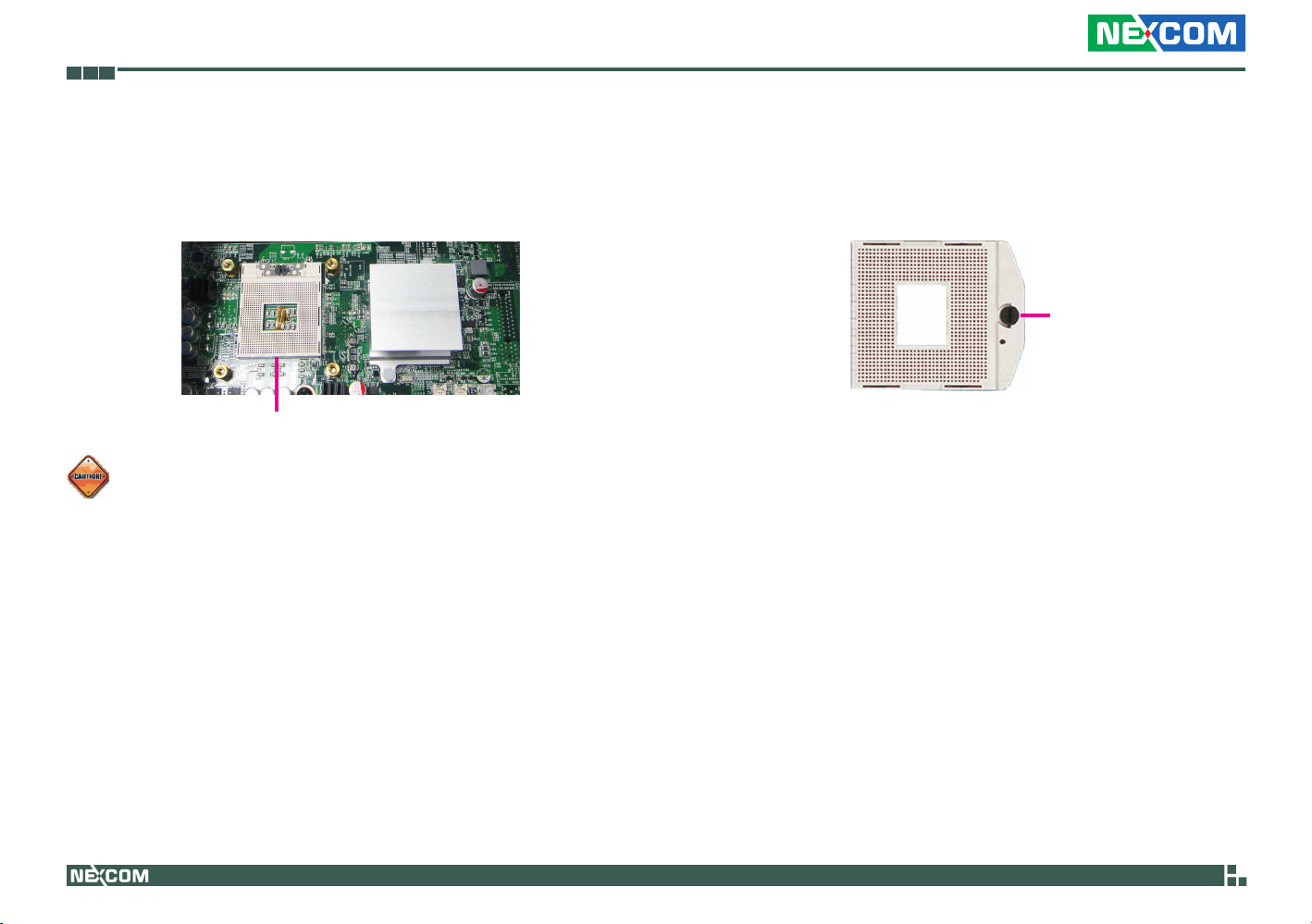

Installing the CPU .................................................................................60

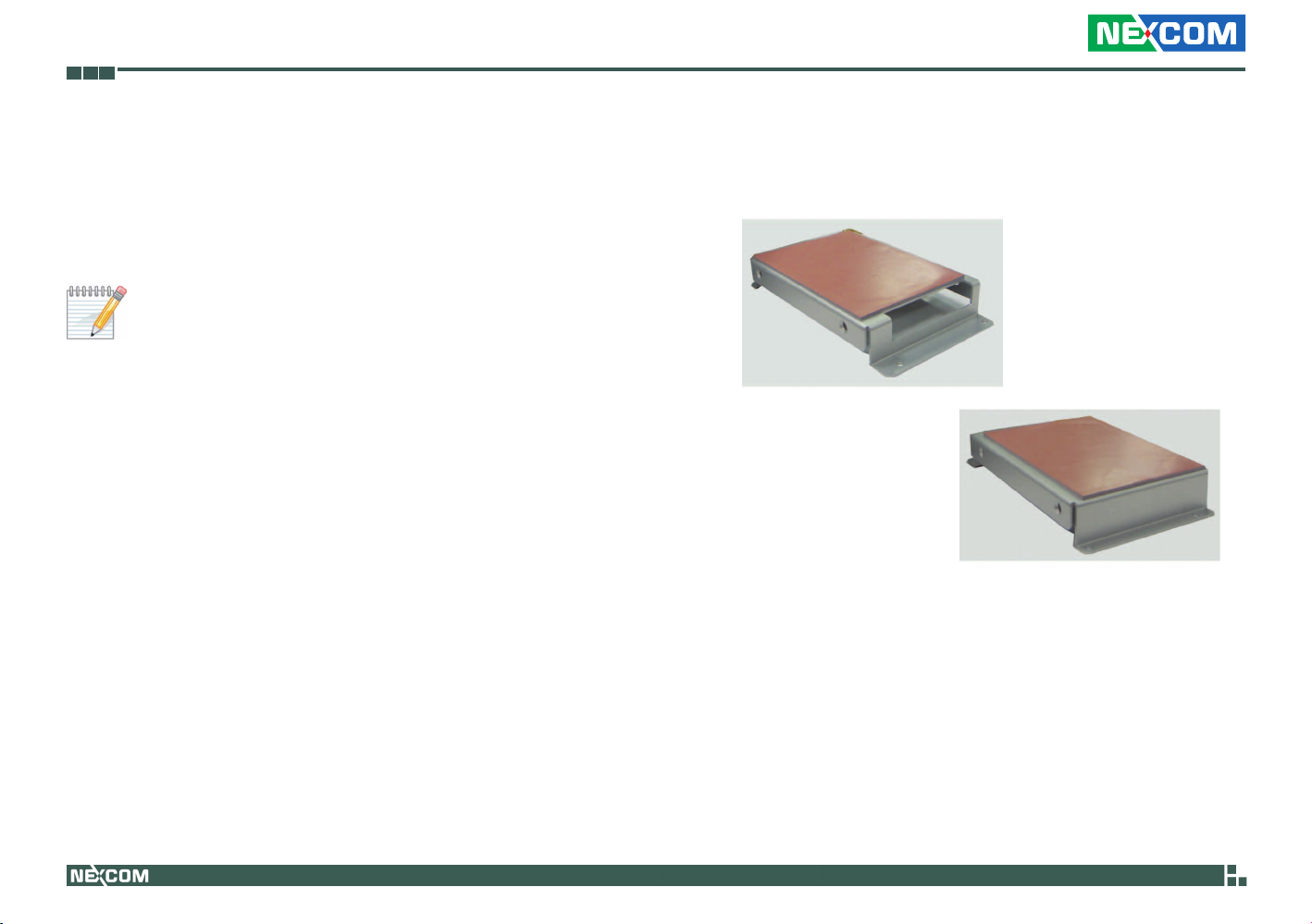

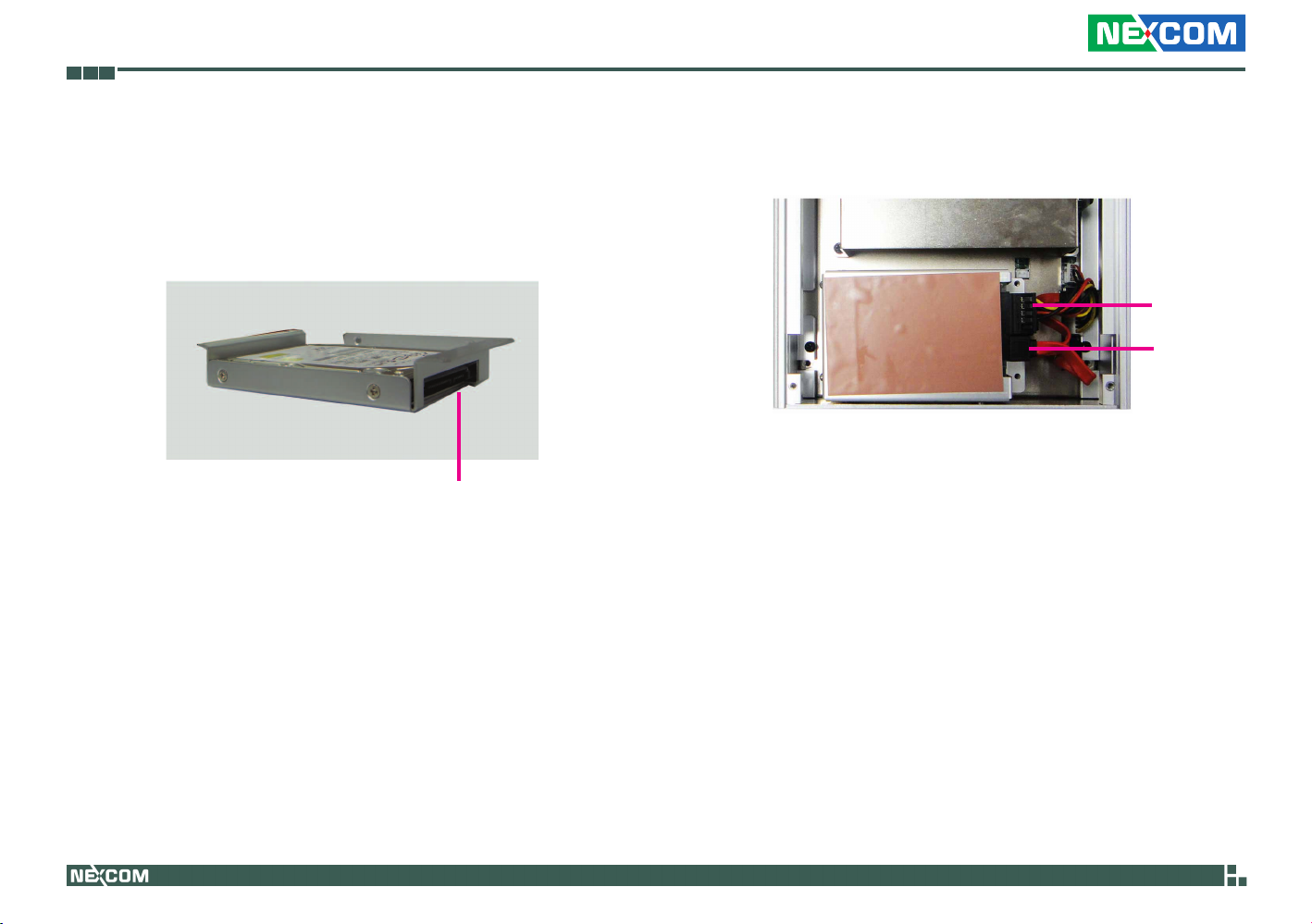

Installing a SATA Hard Drive ..................................................................63

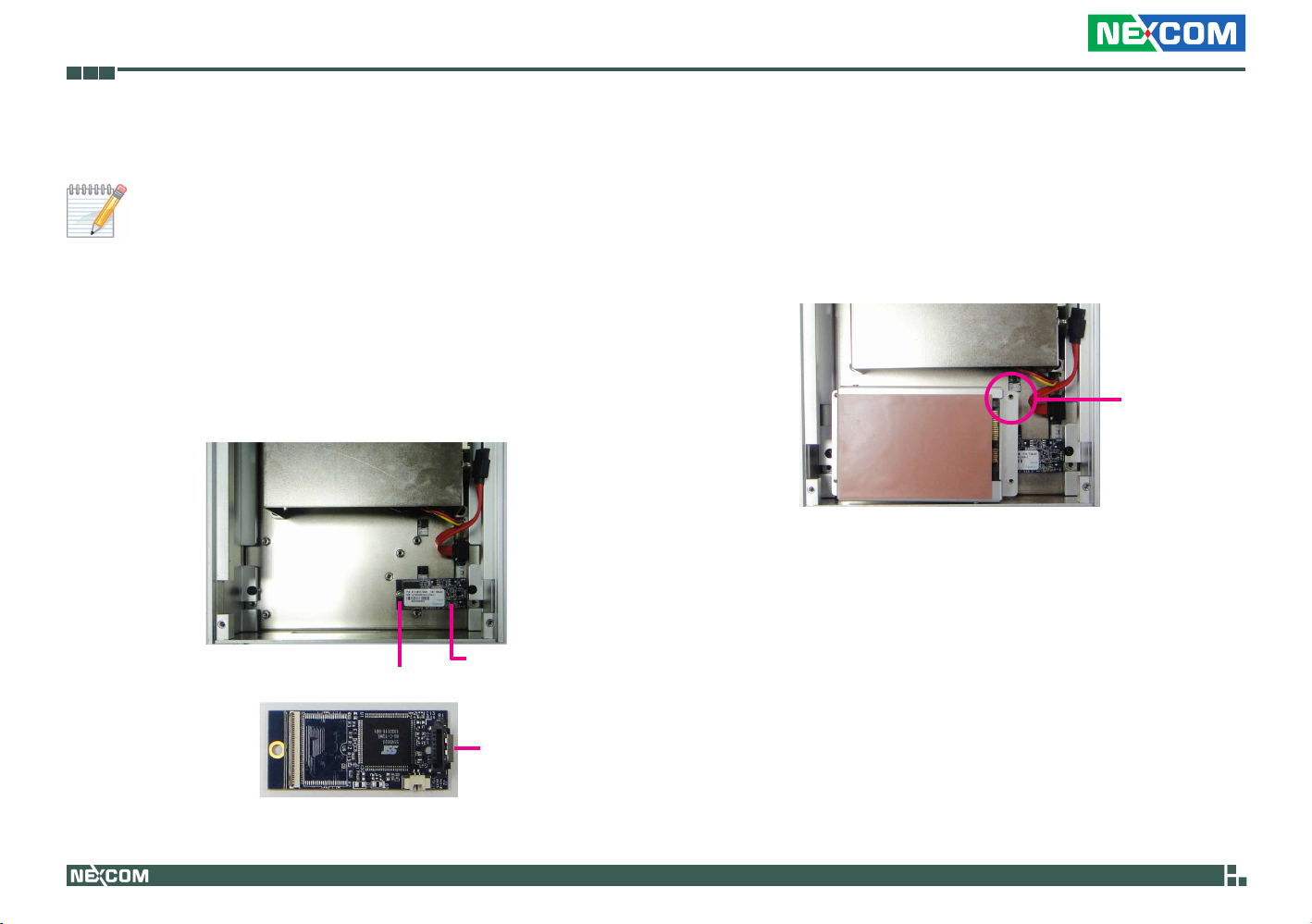

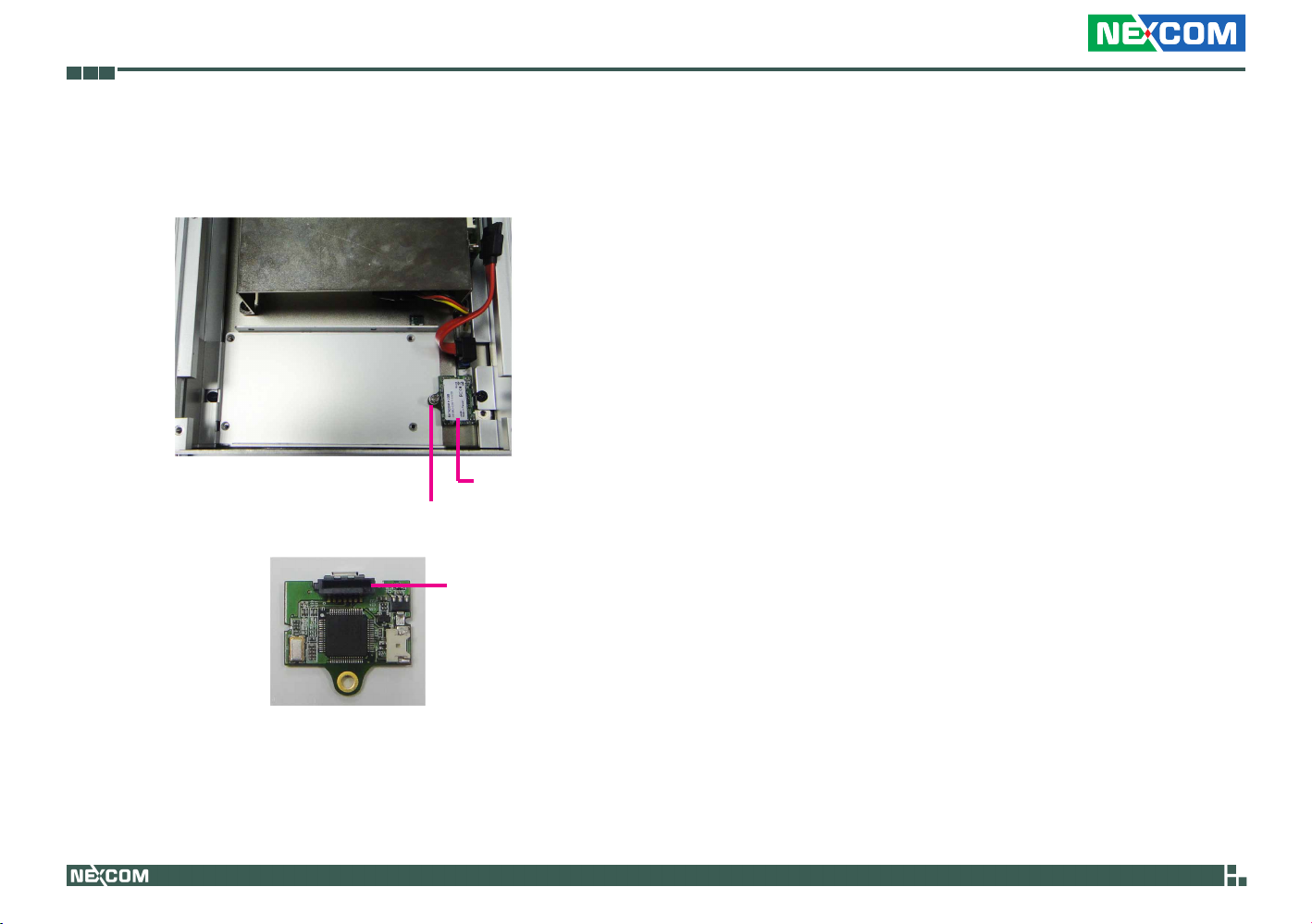

Installing a Half Length SATA DOM with SATA HD .................................66
Installing a Full Length SATA DOM ........................................................68

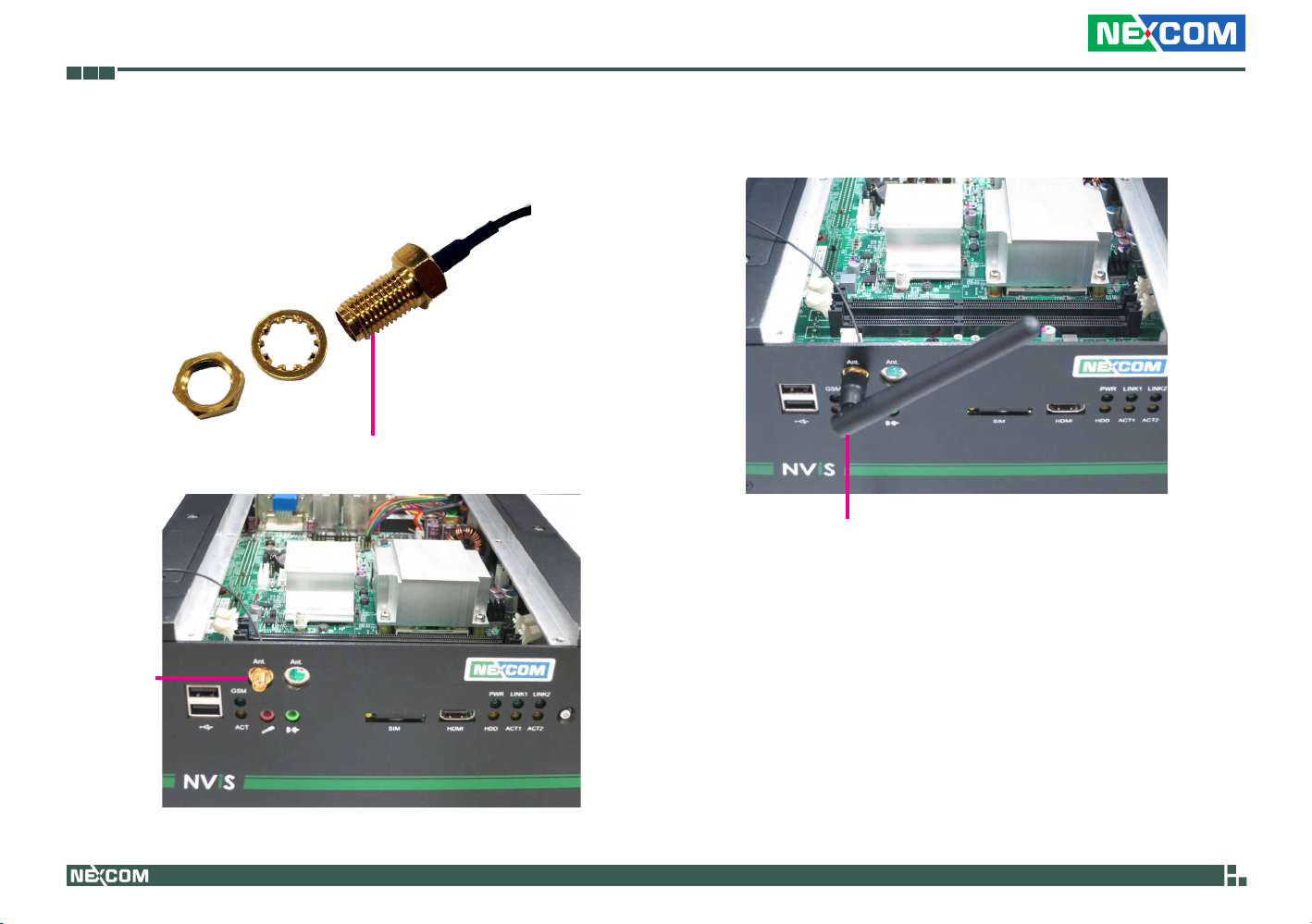

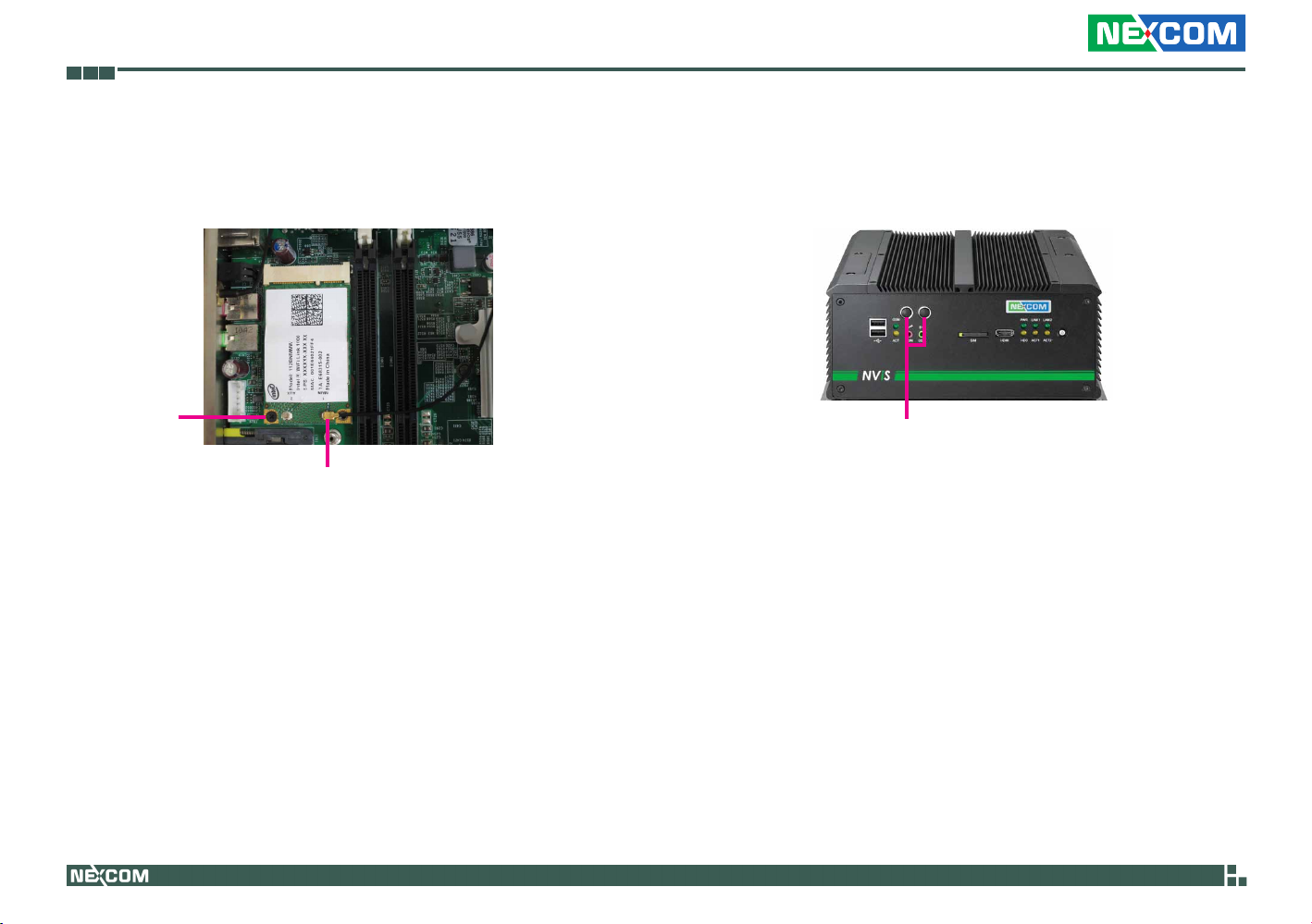

Installing a Wireless LAN Module (NViS 3542 Series Only) .....................70
Installing a GPS Module (NViS 3542 Series Only) ...................................73

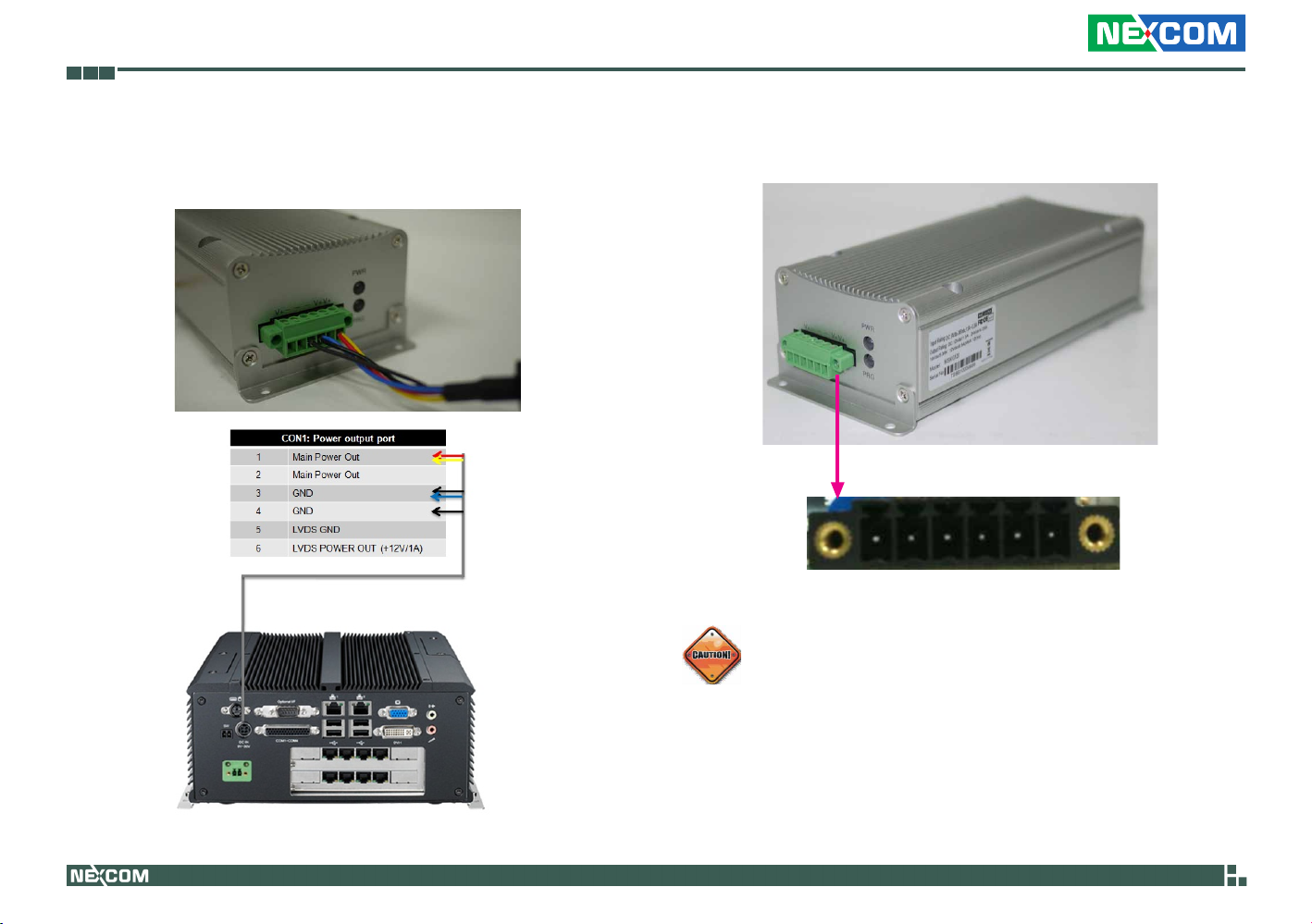

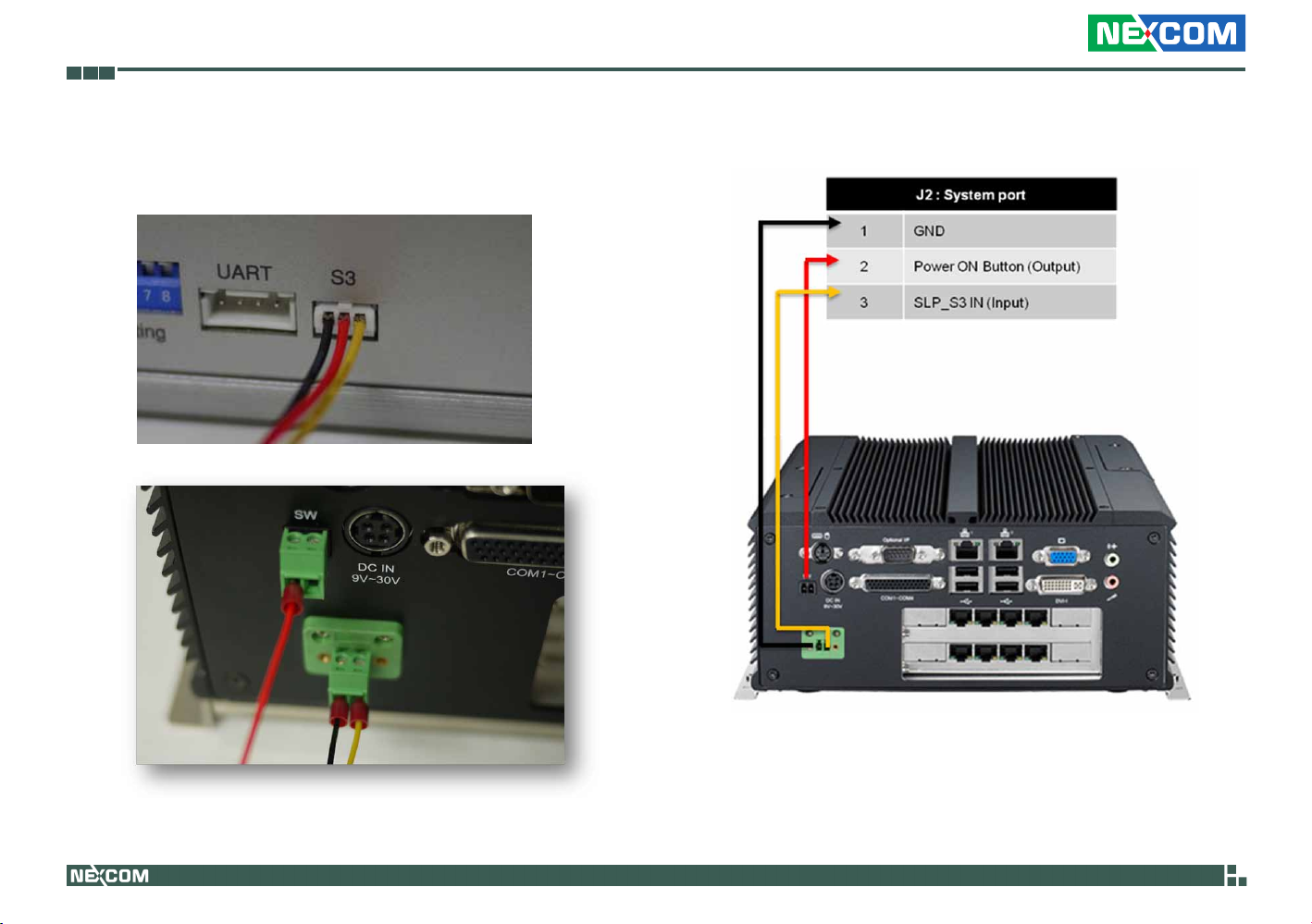

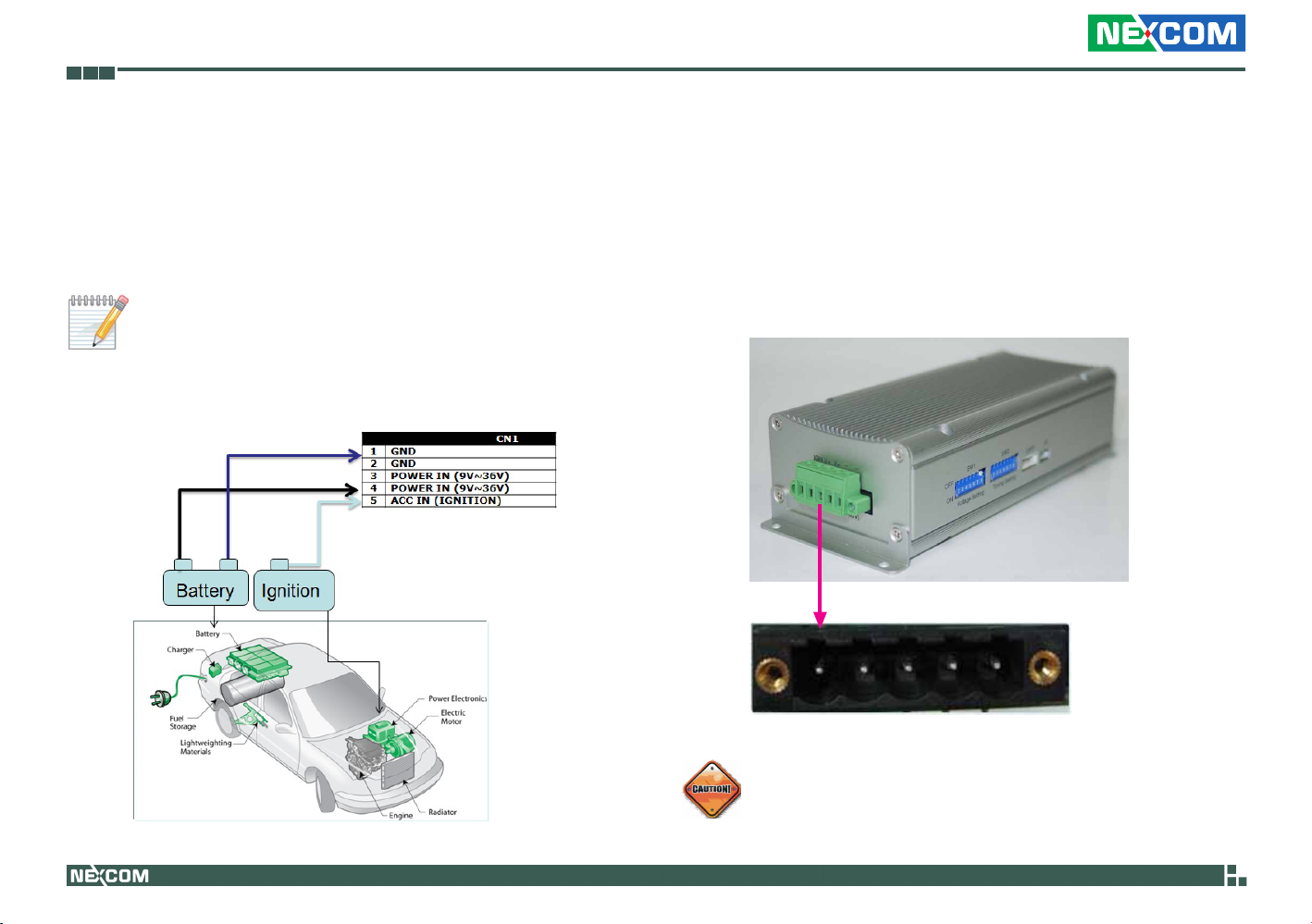

Connecting to the Power Ignition Module (NISKIG120) ......................... 74
Chapter 4: BIOS Setup
About BIOS Setup ................................................................................ 77
When to Configure the BIOS ................................................................77
Default Configuration ........................................................................... 58
Entering Setup ..................................................................................... 58
Key ....................................................................................................... 58
Function ...............................................................................................58
BIOS Setup Utility ................................................................................. 59
Main ................................................................................................59
Advanced ......................................................................................... 60
Chipset ............................................................................................68
Boot ................................................................................................. 71
Security ............................................................................................ 72
Save & Exit .......................................................................................72
Chapter 5: AMT Settings
Enable Intel® AMT in the AMI BIOS .......................................................73
Configure the Intel
Unconfigure AMT/ME ...........................................................................92
®
ME Setup ..............................................................74
Appendix A: Power Consumption.........................94
Appendix B: GPI/O Programming guide................96
Appendix C: Watchdog Timer Setting...................97
Appendix D: Intel Embedded AMT Management
Express KVM............................................................99
iii
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 4
Contents
Appendix E: Intel Manageability Command
Tool - KVM..................................................................106
Appendix F: PoE Device Setup..................................112
Appendix G: Voltage Low Shut-down Setting
(NISKIG120).................................................................119
Appendix H: DC Input & Output Setting
(NISKIG120).................................................................120
Appendix I: Power On/Off Delay Timer Setting
(NISKIG120).................................................................121
Appendix J: MCU Programming (NISKIG120)...........122
iv
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 5
Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by con­stantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equip­ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interfer­ence, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable Euro­pean Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
v
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 6
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
NEXCOM is a global citizen for building the digital infra­structure. We are committed to providing green products
and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <
0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suf­fix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compli­ant. They will use the usual NEXCOM naming convention.
vi
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 7
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
? Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
? Customers must collect all the information about the problems encoun-
tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
? Customers can send back the faulty products with or without acces-
sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the prob­lems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
? Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
? Any products returned by NEXCOM to other locations besides the cus-
tomers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
? Component fee: NEXCOM will only charge for main components such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
? Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
? Replace with 3rd party products if needed.
? If RMA goods can not be repaired, NEXCOM will return it to the cus-
tomer without any charge.
Board Level
? Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
? If RMA goods can not be repaired, NEXCOM will return it to the cus-
tomer without any charge.
vii
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 8
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are incon­sistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the de­scribed procedures only at an ESD workstation. If no such station is avail­able, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the device, note the following precautions:
▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-
er. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally dam­aging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
• A Philips screwdriver
• A flat-tipped screwdriver
• A grounding strap
• An anti-static pad
Using your fingers can disconnect most of the connections. It is recommend­ed that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
viii
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 9
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping
it or letting it fall may cause damage.
7. Do not leave this equipment in either an unconditioned environment
or in a above 40 equipment.
8. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source is correct before connect-
ing the equipment to the power outlet.
10. Place the power cord in a way so that people will not step on it. Do
not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
o
C storage temperature as this may damage the
12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electri­cal shock.
14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
15. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTER­IES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
19. The computer is provided with CD drives that comply with the ap­propriate safety standards including IEC 60825.
ix
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 10
Preface
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEX­COM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:
– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning prod­ucts or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
x
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 11
Preface
Global Service Contact Information
Headquarters Taiwan
15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 http://www.nexcom.com.tw
USA
3758 Spinnaker Court, Fremont, CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com
France NEXCOM France
La Grande Arche-Paroi Nord, 92044 Paris La Défense, France Tel: +33 (0)1 40 90 33 35 Fax: +33 (0)1 40 90 31 01 http://www.nexcom.eu
Germany
Leopoldstraße Business Centre, Leopoldstraße 244 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu
Italy
Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu
United Kingdom
10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu
xi
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 12
Preface
China NEXCOM China
2F, Block 4, Venus Plaza, Building 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Road, Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 http://www.nexcom.cn
China-Shanghai Office
Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn
China-Nanjing Office
Hall C, Block 17, Tian Xing Cui Lang Building, No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 http://www.nexcom.cn
China-Wuhan Office
1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 http://www.nexcom.cn
China-Shenzhen Office
Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China TEL: +86-755-833 7203 FAX: +86-755-833 7213 http://www.nexcom.cn
China-Chengdu Office
9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061,China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 http://www.nexcom.cn
xii
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 13
Preface
Japan
9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014 Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com
xiii
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 14
Preface
Package Contents
NViS 3540 Series
Before continuing, verify that the NViS 3540/3540H/3540P4/3540P8 package that you received is complete. Your package should have all the items listed in the following table.
Item Part Number Description Qty
1 60233POW33X00 DC Power Cable 1
2 6023344361X00 DB44 to 4x DB9 COM port cable 1
3 6029900037X00 DOW CORNING 340 Silcone Heat Sink Compound (3g) 1
4 4NCPM00203X00 2 Pin Phoenix Contact: MC 1.5/2-ST-3.81(1803578), 3.81mm pitch 1
5 50311F0110X00 Flat Head Screw for HDD F3x5 ISO+NYLOK NIGP 4
6 602DCD0269X00 NISB3500 CD DRIVER VER:1.0 1
7 7800000014X00 DVI-I TO VGA Adapter 1
8 5060600087X00 Mylar for PCI bracket 1
9 60177A0205X00 NISB3500 Quick Reference Guide VER:A 1
10 50311P0001X00 Plastic Screw for PCI card use 1
11 60233MK202X00 PS/2 Y Cable for Keyboard / Mouse, L:150mm 1
12 50322P0001X00 Plastic Nut for PCI card use 1
13 1. D-Type integrated cable Video & Audio input x4 TV-out x2
2. Surveillance system user manual
3. Surveillance CD/driver
Note: For NViS 3540H only.
1
xiv
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 15
Preface
NViS 3542 Series
Before continuing, verify that the NViS 3542/3542H/3542P4/3542P8 package that you received is complete. Your package should have all the items listed in the following table.
Item Part Number Description Qty
1 19C00354202X0 NViS3542 ASSY 1
2 60233POW33X00 DC Power Cable 1
3 6012200053X00 PE ZIPPER BAG #3 1
4 6012200052X00 PE ZIPPER BAG #8 1
5 6023344361X00 CABLE EDI:231441090251-RS 1
6 6029900037X00 DOW CORNING 340 Silcone Heat Sink Compound(3g) 1
7 7800000014X00 DVI-I to VGA adapter for PE260 XIAN YI:DA001-001
Note: For NViS 3542/3542P4 only.
8 60233MK202X00 CABLE EDI:281062060152-RS 1
9 60177B0065X00 NISE3500 Quick Reference Guide VER:B 1
10 602DCD0388X00 NISB3500 DVD Driver VER:2.0 1
11 50311F0110X00 (H)Flat Head Screw LONG FEI:F3x5ISO+NYLOK NIGP 8
12 4NCPM00203X00 2 Pin Phoenix Contact 2
1
xv
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 16
Preface
Ordering Information
The following provides ordering information for NViS 3540/3540H/3540P4/3540P8.
• Barebone
NViS 3540 (P/N: 10C0035400X0) RoHS Compliant
- Mobile Surveillance with Intel
®
Core™ i7/ i5 System
- 1 PCIe x1 expansion slot
- 19V, 120W AC/DC power adapter w/o power cord (P/N:
7410120002X00)
NViS 3540H (P/N: 10C03540H00X0) RoHS Compliant
- 4-channel Mobile Surveillance with Intel
®
Core™ i7/ i5 System
- 19V, 120W AC/DC power adapter w/o power cord
(P/N: 7410120002X00)
NViS 3540P4 (P/N: 10C0354P0X0) RoHS Compliant
- Intel
®
Core™ i7/i5 system
- 4 PoE ports
- 2180 24V, 180W power adapter w/o power core
(P/N:7400180002x00)
NViS 3540P8 (P/N:10C03540P01X0) RoHS Compliant
- Mobile NVR Surveillance with Intel
®
Core™ i7/ i5 System
- 8 PoE ports
- 24V, 180W AC/DC power adapter w/o power cord
(P/N:7400180002X00)
xvi
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 17
Preface
The following provides ordering information for NViS 3542/3542H/3542P4/3542P8
• Barebone
NViS 3542 (P/N: 10C00354202X0) RoHS Compliant
- ANPR/LPR Mobile NVR Surveillance System with Intel® Core™ i7/i5
processor, 1x PCIe slot, WWAN supported
NViS 3542W (P/N: 10C00354205X0) RoHS Compliant
- ANPR/LPR Mobile NVR Surveillance System with Intel® Core™ i7/i5
processor, 1x PCIe slot, WLAN supported
NViS3542H (P/N: 10C00354208X0) RoHS Compliant
- Mobile Hybrid DVR Surveillance with Intel® Core™ i5/i7processor,
WWAN supported
NViS3542HW (P/N: 10C00354209X0) RoHS Compliant
- Mobile Hybrid DVR Surveillance with Intel® Core™ i5/i7processor,
WLAN supported
NViS 3542P4 (P/N: 10C00354201X0) RoHS Compliant
- In-vehicle Mobile NVR surveillance system with Intel® Core™ i7/i5 and
4 PoE ports, WWAN supported
NViS 3542P8 (P/N: 10C00354200X0) RoHS Compliant
- In-vehicle Mobile NVR surveillance system with Intel® Core™ i7/i5 and
8 PoE ports, WWAN supported
NViS 3542WP4 (P/N: 10C00354204X0) RoHS Compliant
- In-vehicle Mobile NVR Surveillance System with Intel® Core™ i7/i5 and
4 PoE ports, WLAN supported
NViS 3542WP8 (P/N: 10C00354203X0) RoHS Compliant
- In-vehicle Mobile NVR Surveillance System with Intel® Core™ i7/i5 and 8 PoE ports, WLAN supported
xvii
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 18
Chapter 1: Product Introduction
Chapter 1: Product Introduction

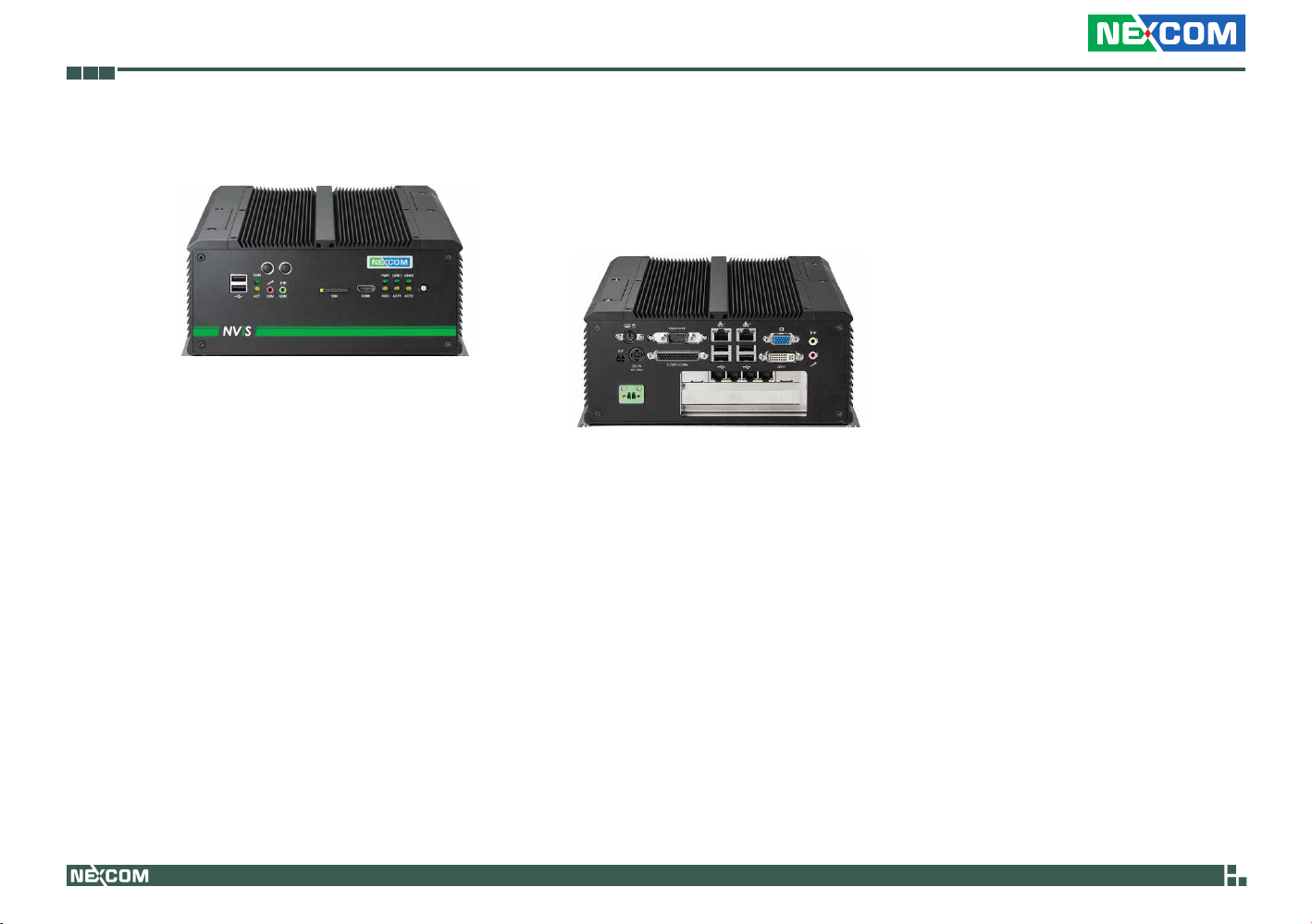

Overview

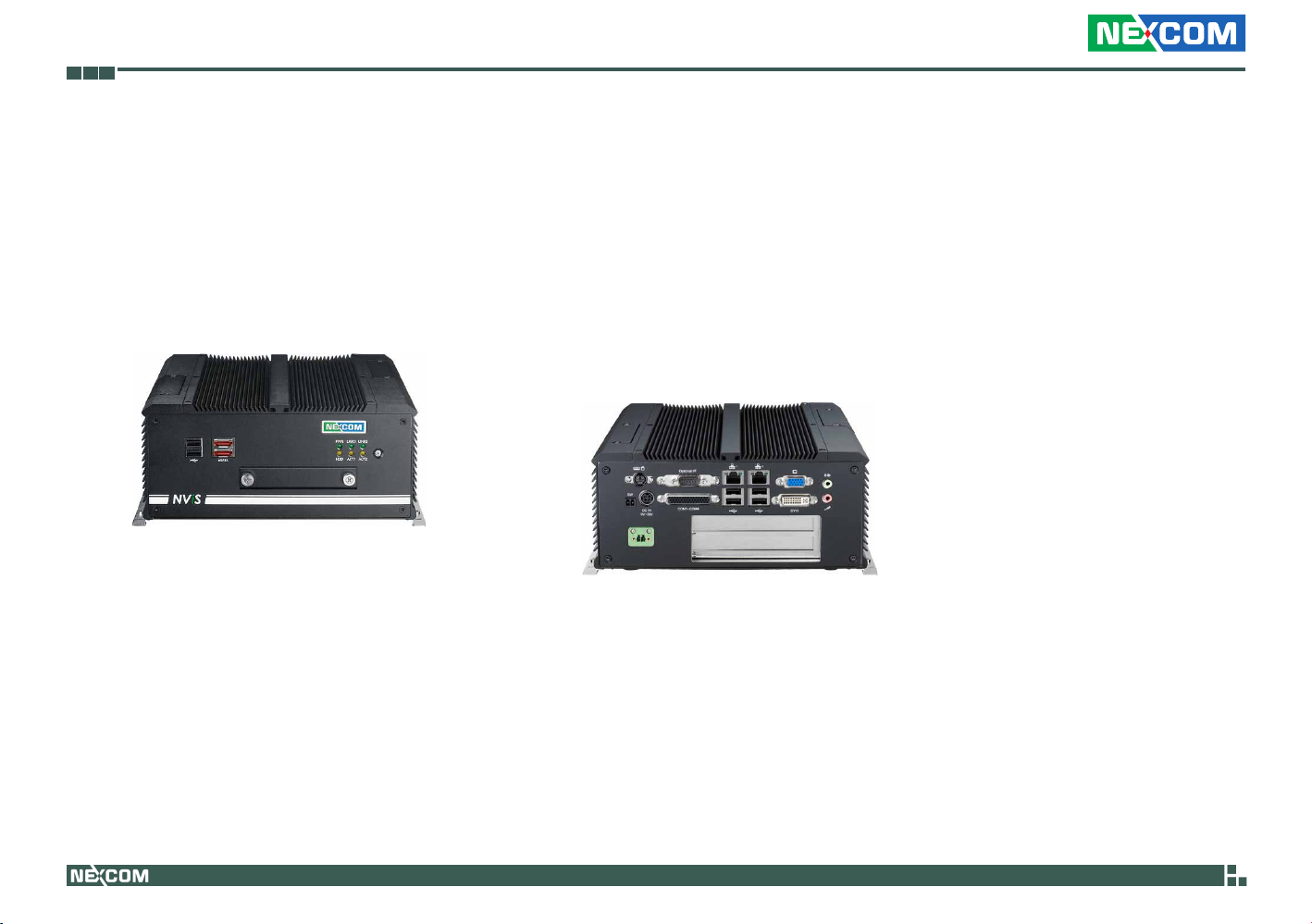

NViS 3540
Front
Key Features
®
• Intel
• Mobile Intel
• Dual Intel
Core™ i7/i5 socket processor
®
QM57 PCH
®
Gigabit Ethernet ports
• Dual VGA or VGA/DVI Independent Display
• 3x RS232 and 1x RS232/422/485 with Auto Flow
Control
Rear
• Fanless
• 1 PCI expansion slot
• Onboard DC to DC power design to support
9V to 30V DC power input
1
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 19
Chapter 1: Product Introduction
NViS 3540H
Key Features
®
• Intel
• Mobile Intel
• Dual Intel
• Dual VGA or VGA/DVI Independent Display
• 3x RS232 and 1x RS232/422/485 with Auto Flow
• Fanless
Core™ i7/i5 socket processor
®
Control
Front
®
QM57 PCH
Gigabit Ethernet ports
Rear
• Onboard DC to DC power design to support 9V to 30V DC power input
• 4-Channel Full D1 (720x480 NTSC, 720x576 PAL) Display/Recording
• Total 120 FPS (NTSC), 1000 FPS (PAL)
• NViS Hybrid Software
2
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 20
Chapter 1: Product Introduction
NViS 3540P4
Key Features
®
• Intel
• Mobile Intel
• Dual Intel
• Dual VGA or VGA/DVI Independent Display
• 3x RS232 and 1x RS232/422/485 with Auto Flow
Core™ i7/i5 socket processor
®
Control
Front
®
QM57 PCH
Gigabit Ethernet ports
Rear
• Smart fan
• 4 ports PoE switch
• Onboard DC to DC power design to support 9V to
30V DC power input
3
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 21
Chapter 1: Product Introduction
NViS 3540P8
Key Features
®
• Intel
• Mobile Intel
• Dual Intel
• Dual VGA or VGA/DVI Independent Display
• 3x RS232 and 1x RS232/422/485 with Auto Flow
Core™ i7/i5 socket processor
®
Control
Front
®
QM57 PCH
Gigabit Ethernet ports
Rear
• Smart fan
• 8 ports PoE switch
• Onboard DC to DC power design to support 9V to
30V DC power input
4
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 22
Chapter 1: Product Introduction
NViS 3542
Key Features
• Support Intel® Core™ i7/i5 socket processor
• Mobile Intel® QM57 PCH
• Dual Intel® Gigabyte Ethernet ports
• Dual VGA/ DVI or VGA/ HDMI or DVI/ HDMI display
• 3x RS-232 and 1x RS-232/422/485 with auto flow
control
• On-board DC to DC power design to support 9V to 30V DC power input
• Support ATX power mode and PXE/WoL
• Support 3G/ Wi-Fi/ GPS communications
• 1x PCIe x1 slot for ANPR / LPR video capture
• Optional Anti-Vibration kit for tough environment
5
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 23
Chapter 1: Product Introduction
NViS 3542H
Key Features
• Hybrid solution for 4PoE and optional video capture card
• Support Intel® Core™ i5/i7 socket processor
• Dual Intel® Gigabyte Ethernet
• Dual local display by VGA/DVI or VGA/HDMI or DVI/
HDMI
• Support 3G/ Wi-Fi/ GPS communications
• Support ATX power mode and PXE/WoL
• Optional Anti-Vibration kit for tough environment
6
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 24
Chapter 1: Product Introduction
NViS 3542P4
Key Features
• Support Intel® Core™ i7/ i5 socket processor
• Mobile Intel® QM57 PCH
• Dual Intel® Gigabit Ethernet ports
• Dual VGA/ DVI or VGA/ HDMI or DVI/ HDMI display
• 3x RS-232 and 1x RS-232/422/485 with auto flow
control
• On-board DC to DC power design to support 9V to 30V DC power input
• Support ATX power mode and PXE/WoL
• 4x PoE ports
• Support 3G/ Wi-Fi/ GPS communications
• Optional Anti-Vibration kit for tough environment
7
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 25
Chapter 1: Product Introduction
NViS 3542P8
Key Features
• Support Intel® Core™ i7/ i5 socket processor
• Mobile Intel® QM57 PCH
• Dual Intel® Gigabit Ethernet ports
• Dual VGA/ DVI or VGA/ HDMI or DVI/ HDMI display
• 3x RS-232 and 1x RS-232/422/485 with auto flow
control
• On-board DC to DC power design to support 9V to 30V DC power input
• Support ATX power mode and PXE/WoL
• 8x PoE ports
• Support 3G/ Wi-Fi/ GPS communications
• Optional Anti-Vibration kit for tough environment
8
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 26
Chapter 1: Product Introduction
Hardware Specifications
NViS 3540 Series
Main Board
• NISB 3500
• Onboard Mobile Intel
• Supports Intel
• Supports Intel
• Supports Intel
®
®
®
Main Memory
• 2x 240-pin memory DIMM, up to 4GB DDR3 800/1066MHz SDRAM, unbuffered and non-ECC
Note: The actual memory size is dynamic. It is based on the OS I/O re-
source allocation.
I/O Interface - Front
• ATX power on/off switch
• HDD Access / Power status LEDs
• 2x USB 2.0 ports
• 2x eSATA ports
• 1x 2.5” HDD with Hot Swap (NViS 3540/3540H/3540P4 only)
®
QM57 Platform Controller Hub Core™ i7-620M PGA Processor (2.66GHz, 4M Cache) Core™ i5-520M PGA Processor (2.4GHz, 3M Cache) P4500 PGA Processor (1.86GHz, 2M Cache)
I/O Interface - Rear
• 2-pin Remote Power on/off switch
• 9 ~ 30V DC input
• 1 x PS/2 for Keyboard/Mouse
• 1 x DB15 male connector for GPIO (4x digital-input and 4x digital-out-
put)
• 1 x DB44 Serial Port for 4x RS232 (COM2: RS232/422/485 with Auto Flow Control)
• 2 x Gbe LAN ports
• 4 x USB 2.0 ports
• 1 x DB15 VGA port
• 1 x DVI-D Port
• 1 x Speaker-out
• 1 x Mic-in
Device
• 2x 2.5” HDD drive bays (NViS 3540P8 only)
• 1x 2.5” HDD drive bay and 1x 2.5” hot swappable drive bay (NViS
3540/3540H/3540P4 only)
Expansion
• 1 PCI expansion slot (NViS 3540 only)
• 1x 4-channel Hybrid capture card (NViS 3540H only)
• 4 ports PoE switch (NViS 3540P4 only)
• 8 ports PoE switch (NViS 3540P8 only)
9
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 27
Chapter 1: Product Introduction
Power Requirements
• ATX power mode
• Onboard DC to DC power support from 9V to 30V DC
• Optional power adapter

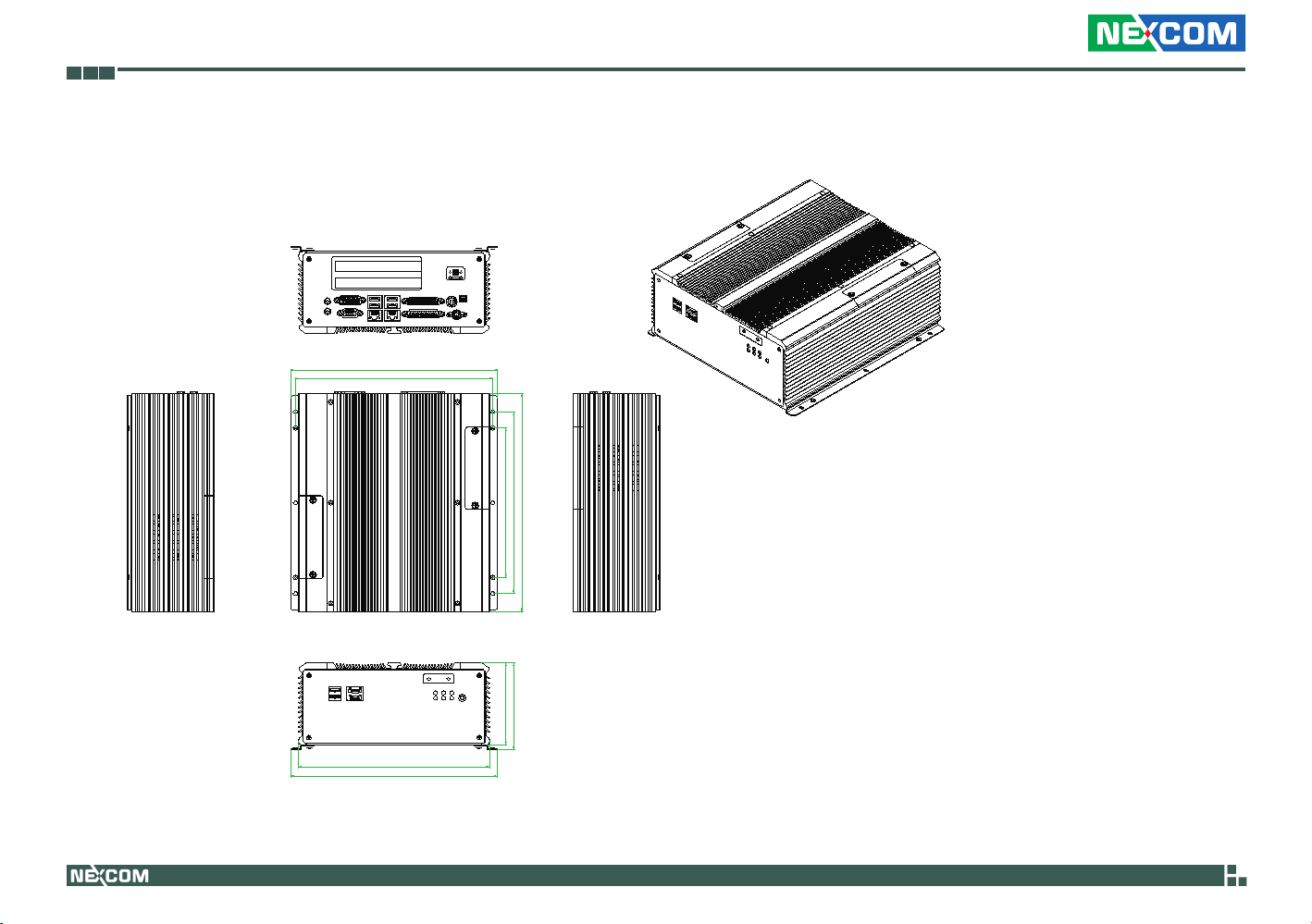

Dimensions
• 195mm (W) x 268mm (D) x 80mm (H) - NViS 3540/3540H only
• 235mm (W) x 268 mm (D) x 80mm (H) - NViS 3540P4/3540P8 only
Construction
• Aluminum chassis
- Fanless (NViS 3540/3540H only)
- With Smart Fan (NViS 3540P4/3540P8 only)
Environment
• Operating temperature: Ambient with airflow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -20°C to 80°C
• Relative humidity: 10% to 93% (Non-Condensing)
Certifications
• CE approval
• FCC Class B
• e13 Mark
10
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 28
Chapter 1: Product Introduction
Hardware Specifications
NViS 3542 Series
Main Board
• On-board Mobile Intel® QM57 Platform Controller Hub
• Support Intel® Core™ i7-620M PGA processor (2.66GHz, 4M cache)
• Support Intel® Core™ i5-520M PGA processor (2.4GHz, 3M cache)
Main Memory
• 2x 240-pin memory DIMM, up to 8GB DDR3 800/1066MHz SDRAM, un-buffered and non-ECC
I/O Interface - Front
• ATX power on/off switch
• HDD access/ power status LEDs
• Wireless active LEDs
• 2x antenna holes
• 2x USB2.0 ports
• 1x Line-out and 1 x Mic-in
• 1x HDMI
• 1x External SIM card holder
I/O Interface - Rear
• 2-Pin remote power on/off switch (support power ignition module)
• 9~30V DC input
• 1x PS/2 for keyboard/ mouse
• 1x DB15 male connector for GPIO
(4 x input and 4 x output)
• 1 x DB44 serial port for 4 x RS232 (COM2: RS232/ 422/ 485 with auto flow control)
• 2x GbE LAN ports
• 4x USB2.0 ports
• 1x DB15 VGA port
• 1x DVI-D port
• 1x Speaker-out and 1x Mic-in
Storage
• 2x 2.5” HDD drive bays (NViS 3542 and 3542P4 support 1x hot-swappable)
• 2x 2.5” internal HDD drive bays (NViS 3542H and 3542P8)
Expansion
• 1x mini-PCIe socket for 3G/Wi-Fi (depend on SKU# selected)
Dimensions
• 235mm(W) x 268mm(D) x 101mm(H)
Power Input
• 9~30V DC power input
Construction
• Aluminum chassis
11
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 29
Chapter 1: Product Introduction
Environment
• Operating temperature: -5 to 55°C (Ambient with air flow)
• Storage temperature: -20 to 80°C
• Relative humidity: 10% to 93% (non-condensing)
• Vibration (random, w/o Anti-vibration kit):
SSD: 2G@5~500Hz HDD: 1G@5~500Hz
• Vibration (w/ Anti-vibration kit): SSD: STD-810F-514.5 Class3 HDD: STD-810F-514.5 Class1
Certifications
• CE approval
• FCC Class A
• e13 Mark
12
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 30
Chapter 1: Product Introduction

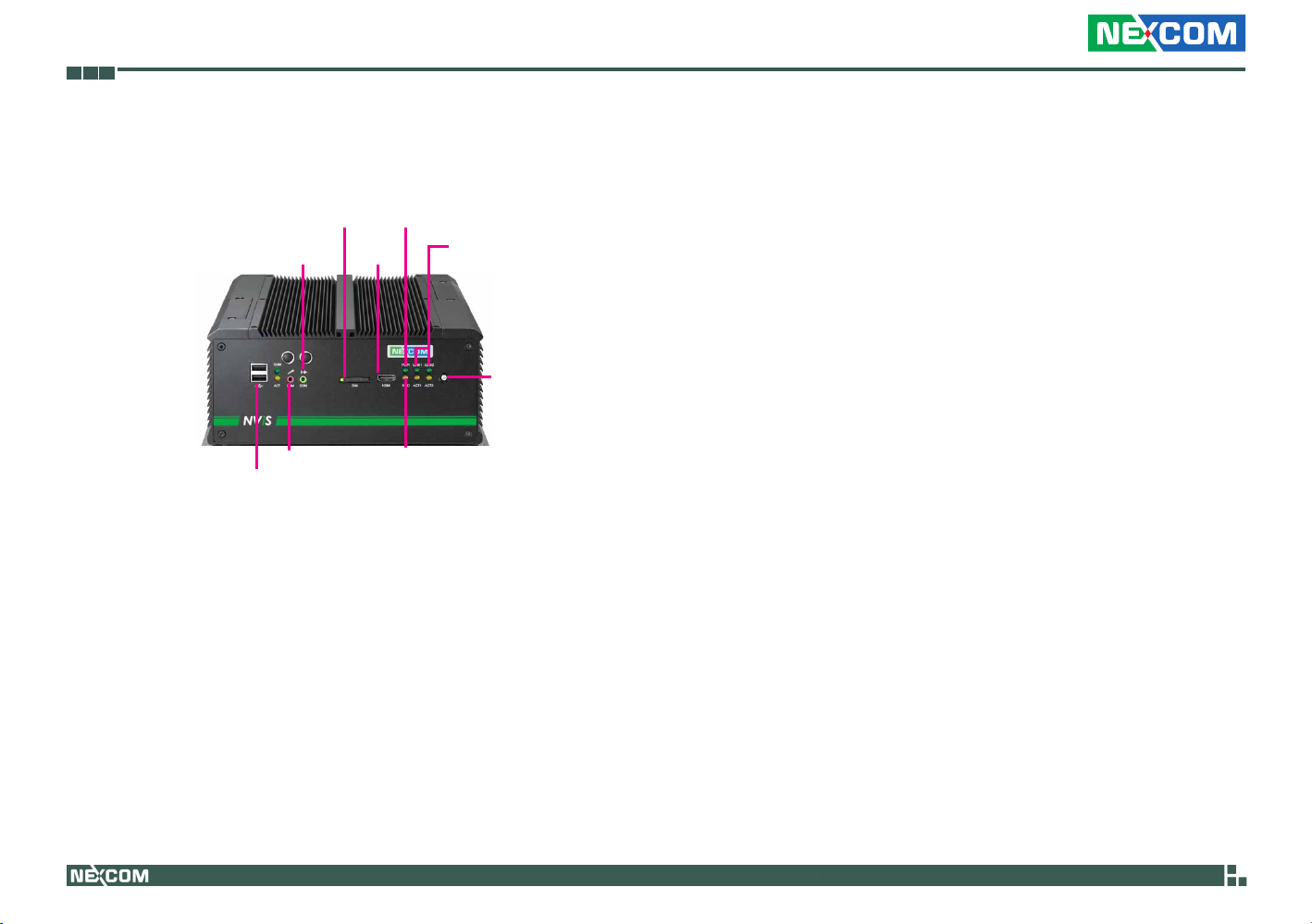

Getting to Know NViS 3540 Series
Front Panel
LAN LEDs
Power LED
Power on/off switch
eS ATA
USB
Hot swappable
2.5” HDD bay
HDD LED
USB
Used to connect USB 2.0/1.1 devices.
eSATA
Used to connect eSATA devices.
Hot Swappable 2.5” HDD Bay (NViS 3540/3540H/3540P4 only)
Used to install a hot swappable 2.5” HDD drive.
Power LED
Indicates the power status of the system.
HDD LED
Indicates the status of the hard drive.
LAN LEDs
Indicate the status of the LAN ports.
Power On/Off Switch
Press to power-on or power-off the system.
13
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 31
Chapter 1: Product Introduction

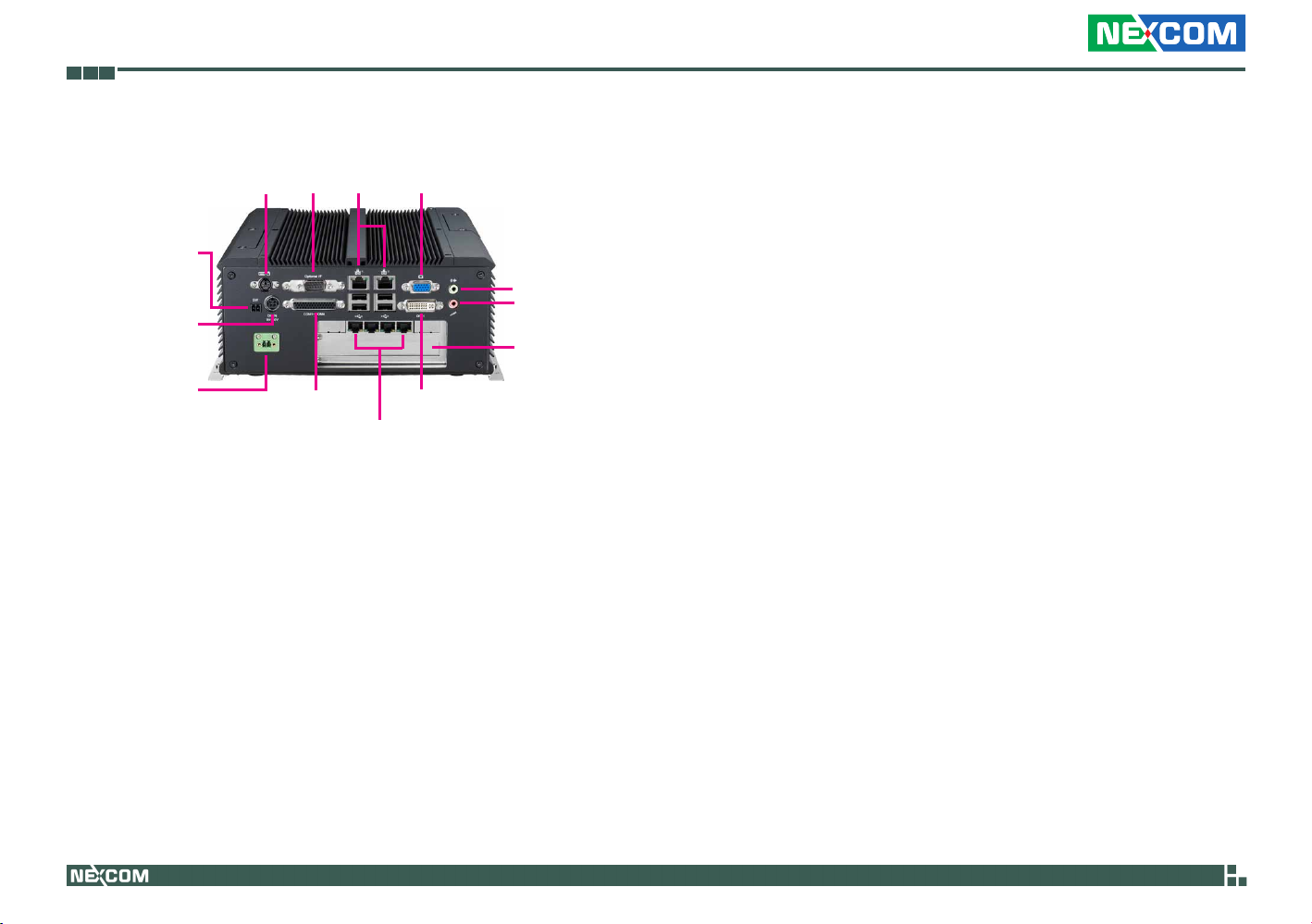

Rear Panel of NViS 3540
PS/2 KB/Mouse
Output for
remote power
on/off swtich
9V-30V
DC Input
Power
Ignition
Output for Remote Power On/Off Switch
Used to connect a remote to power on/off the system.
PS/2 Keyboard/Mouse
Used to connect a PS/2 keyboard and PS/2 mouse via a cable.
9V-30V DC Input
Used to plug a DC power cord.
GPIO
The GPIO connector supports 4 digital input and 4 digital output.
GPIO
LAN/USB VGA
COM1-COM4
Speaker-out Mic-in
Expansion card slots
DVI
LAN
Used to connect the system to a local area network.
USB
Used to connect USB 2.0/1.1 devices.
VGA
Used to connect an analog VGA monitor.
DVI
Used to connect a digital LCD panel.
Speaker-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
Expansion Slots
One PCIex1 expansion slot.
Power Ignition
Used to connect to power ignition module (NISKIG120).
COM1 to COM4
The DB44 port supports 3 RS232 and 1 RS232/422/485 compatible serial devices.
14
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 32
Chapter 1: Product Introduction

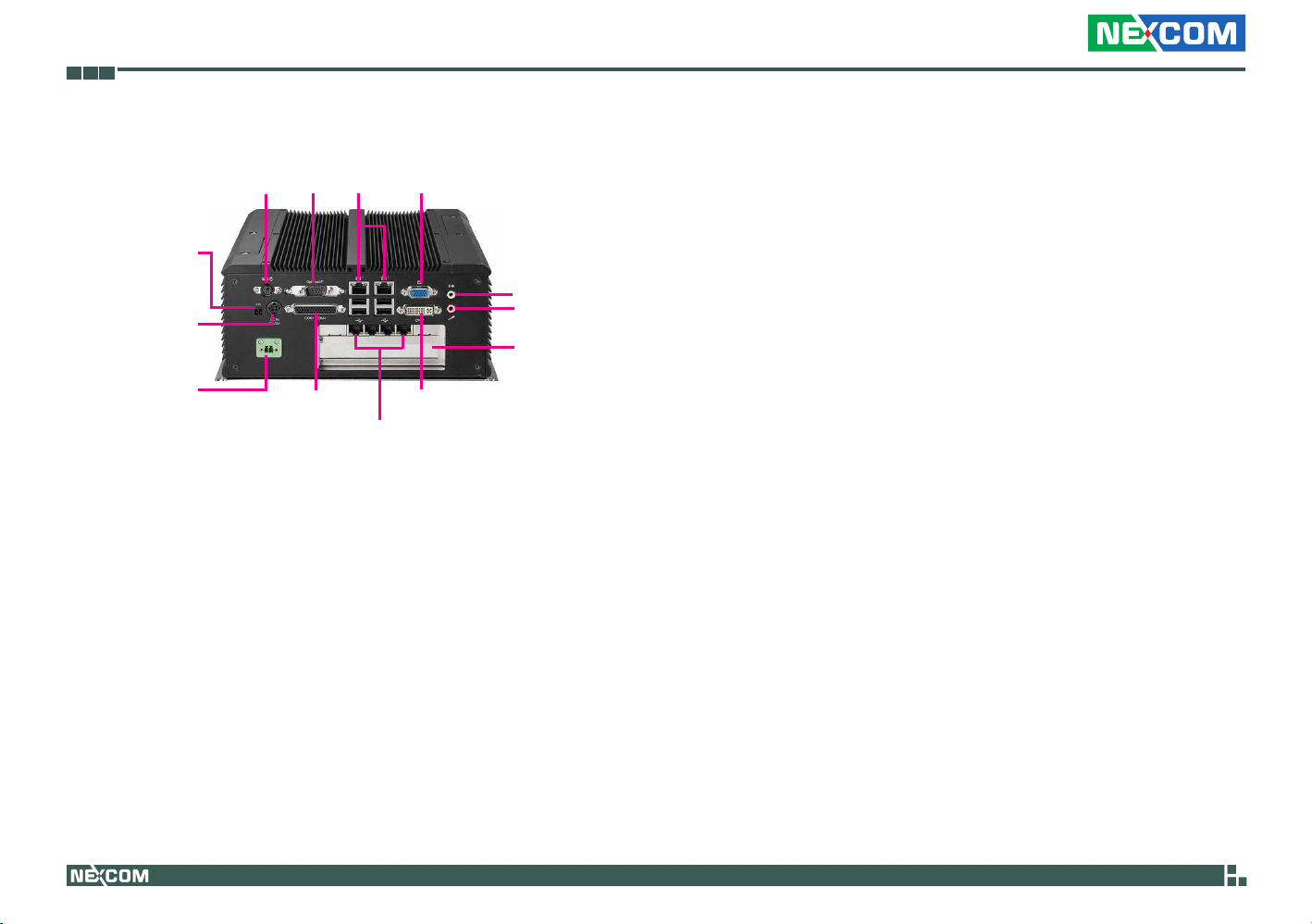

Rear Panel of NViS 3540H
PS/2 KB/Mouse LAN/USB VGA
Output for
remote power
on/off swtich
9V-30V
DC Input
Power
Ignition
Output for Remote Power On/Off Switch
Used to connect a remote to power on/off the system.
PS/2 Keyboard/Mouse
Used to connect a PS/2 keyboard and PS/2 mouse via a cable.
9V-30V DC Input
Used to plug a DC power cord.
GPIO
The GPIO connector supports 4 digital input and 4 digital output.
GPIO
COM1-COM4
DVI
Speaker-out Mic-in
Expansion card slot
Capture card connector for cameras
LAN
Used to connect the system to a local area network.
USB
Used to connect USB 2.0/1.1 devices.
VGA
Used to connect an analog VGA monitor.
DVI
Used to connect a digital LCD panel.
Speaker-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
Capture Card
Supports 4-channel full-D1 SD feature.
Power Ignition
Used to connect to power ignition module (NISKIG120).
COM1 to COM4
The DB44 port supports 3 RS232 and 1 RS232/422/485 compatible serial devices.
15
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 33
Chapter 1: Product Introduction
Rear Panel of NViS 3540P4
PS/2 KB/Mouse LAN/USB
Output for
remote power
on/off swtich
9V-30V
DC Input
Power
Ignition
Output for Remote Power On/Off Switch
Used to connect a remote to power on/off the system.
PS/2 Keyboard/Mouse
Used to connect a PS/2 keyboard and PS/2 mouse via a cable.
9V-30V DC Input
Used to plug a DC power cord.
GPIO
The GPIO connector supports 4 digital input and 4 digital output.
GPIO VGA
COM1-COM4
4 ports PoE switch
Speaker-out Mic-in
Expansion card slot
DVI
LAN
Used to connect the system to a local area network.
USB
Used to connect USB 2.0/1.1 devices.
VGA
Used to connect an analog VGA monitor.
DVI
Used to connect a digital LCD panel.
Speaker-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
4 Ports PoE Switch
Allows connecting 4 IP security cameras.
Power Ignition
Used to connect to power ignition module (NISKIG120).
COM1 to COM4
The DB44 port supports 3 RS232 and 1 RS232/422/485 compatible serial devices.
16
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 34
Chapter 1: Product Introduction

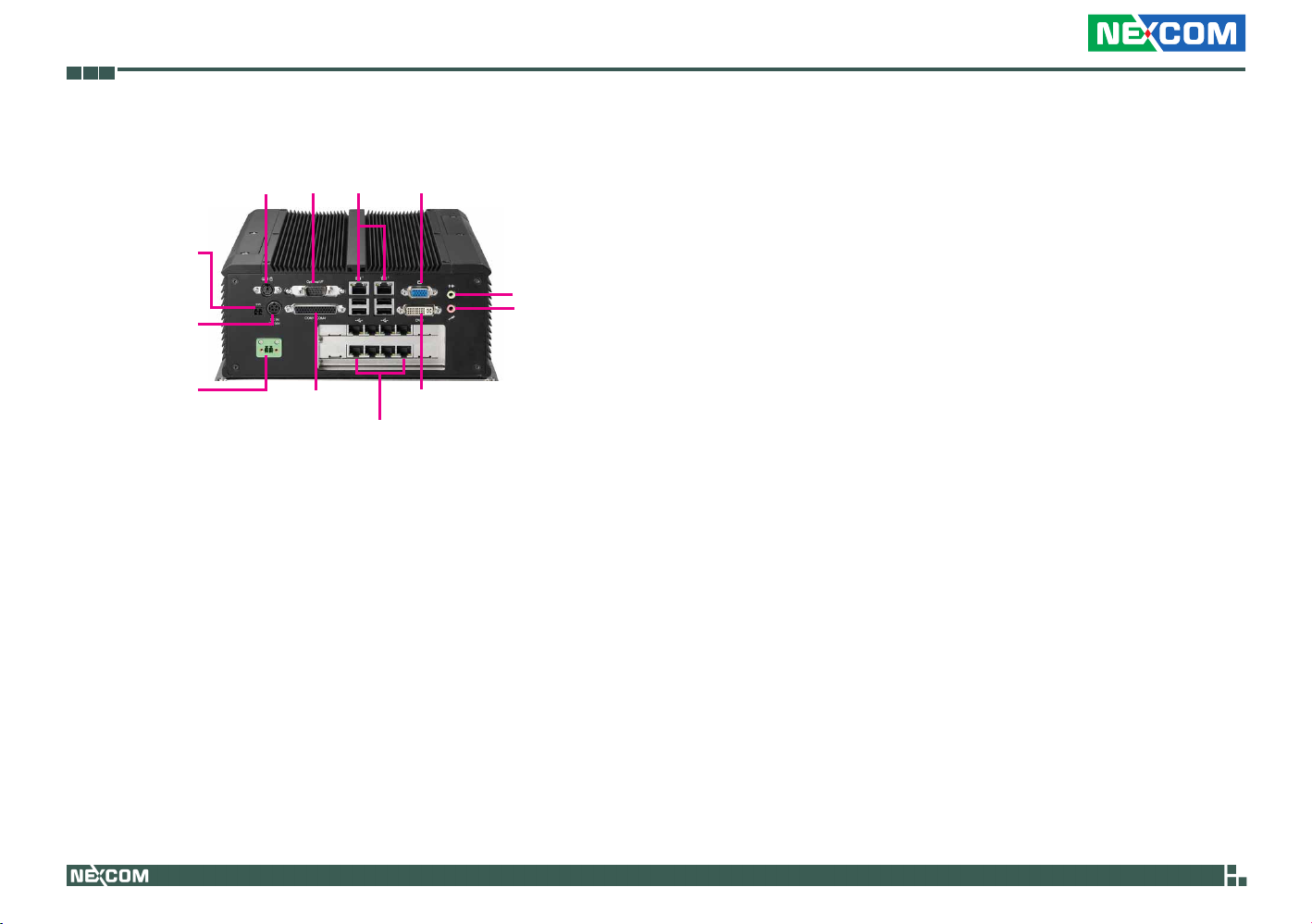

Rear Panel of NViS 3540P8
PS/2 KB/Mouse LAN/USB
Output for
remote power
on/off swtich
9V-30V
DC Input
Power
Ignition
Output for Remote Power On/Off Switch
Used to connect a remote to power on/off the system.
PS/2 Keyboard/Mouse
Used to connect a PS/2 keyboard and PS/2 mouse via a cable.
9V-30V DC Input
Used to plug a DC power cord.
GPIO
The GPIO connector supports 4 digital input and 4 digital output.
GPIO VGA
DVI
Speaker-out Mic-in
8 ports PoE switch
COM1-COM4
LAN
Used to connect the system to a local area network.
USB
Used to connect USB 2.0/1.1 devices.
VGA
Used to connect an analog VGA monitor.
DVI
Used to connect a digital LCD panel.
Speaker-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
8 Ports PoE Switch
Allows connecting 8 IP security cameras.
Power Ignition
Used to connect to power ignition module (NISKIG120).
COM1 to COM4
The DB44 port supports 3 RS232 and 1 RS232/422/485 compatible serial devices.
17
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 35
Chapter 1: Product Introduction
Getting to Know NViS 3542 Series
Front Panel of NViS 3542
HDMI
HDD LED
Power LED
LAN LEDs
Power on/off switch
SIM Slot
Line-out
Mic-in
USB
Hot swappable
2.5” HDD bay
USB
Used to connect USB 2.0/1.1 devices.
Mic-in
Used to connect an external microphone.
SIM Slot
Used to insert a SIM card.
HDMI
Used to connect a high-definition display.
Power LED
Indicates the power status of the system.
HDD LED
Indicates the status of the hard drive.
LAN LEDs
Indicate the status of the LAN ports.
Power On/Off Switch
Press to power-on or power-off the system.
Line-out
Used to connect a headphone or a speaker.
Hot Swappable 2.5” HDD Bay (NViS 3542/3542P4 only)
Used to install a hot swappable 2.5” HDD drive.
18
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 36
Chapter 1: Product Introduction
Rear Panel of NViS 3542
PS/2 KB/Mouse
Output for
remote power
on/off swtich
9V-30V
DC Input
Power
Ignition
Output for Remote Power On/Off Switch
Used to connect a remote to power on/off the system.
PS/2 Keyboard/Mouse
Used to connect a PS/2 keyboard and PS/2 mouse via a cable.
9V-30V DC Input
Used to plug a DC power cord.
GPIO
The GPIO connector supports 4 digital input and 4 digital output.
GPIO
LAN/USB VGA
COM1-COM4
Speaker-out Mic-in
Expansion card slots
DVI
LAN
Used to connect the system to a local area network.
USB
Used to connect USB 2.0/1.1 devices.
VGA
Used to connect an analog VGA monitor.
DVI
Used to connect a digital LCD panel.
Speaker-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
Expansion Slots
One PCI expansion slot.
Power Ignition
Used to connect to power ignition module (NISKIG120).
COM1 to COM4
The DB44 port supports 3 RS232 and 1 RS232/422/485 compatible serial devices.
19
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 37
Chapter 1: Product Introduction
Front Panel of NViS 3542H
SIM Slot
Line-out
Mic-in
USB
USB
Used to connect USB 2.0/1.1 devices.
Mic-in
Used to connect an external microphone.
HDMI
Power LED
HDD LED
LAN LEDs
Power on/off switch
HDMI
Used to connect a high-definition display.
Power LED
Indicates the power status of the system.
HDD LED
Indicates the status of the hard drive.
LAN LEDs
Indicate the status of the LAN ports.
Power On/Off Switch
Press to power-on or power-off the system.
Line-out
Used to connect a headphone or a speaker.
SIM Slot
Used to insert a SIM card.
20
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 38
Chapter 1: Product Introduction
Rear Panel of NViS 3542H
PS/2 KB/Mouse LAN/USB
Output for
remote power
on/off swtich
9V-30V
DC Input
Power
Ignition
Output for Remote Power On/Off Switch
Used to connect a remote to power on/off the system.
PS/2 Keyboard/Mouse
Used to connect a PS/2 keyboard and PS/2 mouse via a cable.
9V-30V DC Input
Used to plug a DC power cord.
GPIO
The GPIO connector supports 4 digital input and 4 digital output.
GPIO VGA
COM1-COM4
4 ports PoE switch
Speaker-out Mic-in
Expansion card slot
DVI
LAN
Used to connect the system to a local area network.
USB
Used to connect USB 2.0/1.1 devices.
VGA
Used to connect an analog VGA monitor.
DVI
Used to connect a digital LCD panel.
Speaker-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
4 Ports PoE Switch
Allows connecting 4 IP security cameras.
Expansion Slots
One PCIex4 expansion slot.
Power Ignition
Used to connect to power ignition module (NISKIG120).
COM1 to COM4
The DB44 port supports 3 RS232 and 1 RS232/422/485 compatible serial devices.
21
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 39
Chapter 1: Product Introduction
Front Panel of NViS 3542P4
SIM Slot
Line-out
Mic-in
USB
Hot swappable
2.5” HDD bay
USB
Used to connect USB 2.0/1.1 devices.
Mic-in
Used to connect an external microphone.
HDMI
Power LED
HDD LED
LAN LEDs
Power on/off switch
SIM Slot
Used to insert a SIM card.
HDMI
Used to connect a high-definition display.
Power LED
Indicates the power status of the system.
HDD LED
Indicates the status of the hard drive.
LAN LEDs
Indicate the status of the LAN ports.
Power On/Off Switch
Press to power-on or power-off the system.
Line-out
Used to connect a headphone or a speaker.
Hot Swappable 2.5” HDD Bay (NViS 3542/3542P4 only)
Used to install a hot swappable 2.5” HDD drive.
22
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 40
Chapter 1: Product Introduction
Rear Panel of NViS 3542P4
PS/2 KB/Mouse LAN/USB
Output for
remote power
on/off swtich
9V-30V
DC Input
Power
Ignition
Output for Remote Power On/Off Switch
Used to connect a remote to power on/off the system.
PS/2 Keyboard/Mouse
Used to connect a PS/2 keyboard and PS/2 mouse via a cable.
9V-30V DC Input
Used to plug a DC power cord.
GPIO
The GPIO connector supports 4 digital input and 4 digital output.
GPIO VGA
COM1-COM4
4 ports PoE switch
Speaker-out Mic-in
Expansion card slot
DVI
LAN
Used to connect the system to a local area network.
USB
Used to connect USB 2.0/1.1 devices.
VGA
Used to connect an analog VGA monitor.
DVI
Used to connect a digital LCD panel.
Speaker-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
4 Ports PoE Switch
Allows connecting 4 IP security cameras.
Power Ignition
Used to connect to power ignition module (NISKIG120).
COM1 to COM4
The DB44 port supports 3 RS232 and 1 RS232/422/485 compatible serial devices.
23
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 41
Chapter 1: Product Introduction
Front Panel of NViS 3542P8
SIM Slot
Line-out
Mic-in
USB
USB
Used to connect USB 2.0/1.1 devices.
Mic-in
Used to connect an external microphone.
HDMI
Power LED
HDD LED
LAN LEDs
Power on/off switch
HDMI
Used to connect a high-definition display.
Power LED
Indicates the power status of the system.
HDD LED
Indicates the status of the hard drive.
LAN LEDs
Indicate the status of the LAN ports.
Power On/Off Switch
Press to power-on or power-off the system.
Line-out
Used to connect a headphone or a speaker.
SIM Slot
Used to insert a SIM card.
24
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 42
Chapter 1: Product Introduction
Rear Panel of NViS 3542P8
PS/2 KB/Mouse LAN/USB
Output for
remote power
on/off swtich
9V-30V
DC Input
Power
Ignition
Output for Remote Power On/Off Switch
Used to connect a remote to power on/off the system.
PS/2 Keyboard/Mouse
Used to connect a PS/2 keyboard and PS/2 mouse via a cable.
9V-30V DC Input
Used to plug a DC power cord.
GPIO
The GPIO connector supports 4 digital input and 4 digital output.
GPIO VGA
COM1-COM4
8 ports PoE switch
Speaker-out Mic-in
DVI
LAN
Used to connect the system to a local area network.
USB
Used to connect USB 2.0/1.1 devices.
VGA
Used to connect an analog VGA monitor.
DVI
Used to connect a digital LCD panel.
Speaker-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
8 Ports PoE Switch
Allows connecting 8 IP security cameras.
Power Ignition
Used to connect to power ignition module (NISKIG120).
COM1 to COM4
The DB44 port supports 3 RS232 and 1 RS232/422/485 compatible serial devices.
25
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 43
Chapter 1: Product Introduction
Mechanical Dimensions
NViS 3540/3540H
184,00
224,00
264,00
268,00
195,00 207,00 219,00
101,00
107,00
26
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 44
Chapter 1: Product Introduction
NViS 3540P4
255.00
243.00
184.00
224.00
268.00
235.00
255.00
101.00
107.00
27
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 45
Chapter 1: Product Introduction
NViS 3540P8
255.00
243.00
184.00
224.00
268.00
235.00
255.00
101.00
107.00
28
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 46
Chapter 1: Product Introduction
NViS 3542 and NViS 3542P4
184.00
224.00
264.00
268.00
231.00
243.00
255.00
101.00
107.00
29
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 47
Chapter 1: Product Introduction
NViS 3542H and NViS 3542P8
184.00
224.00
264.00
268.00
231.00
243.00
255.00
101.00
107.00
30
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 48
Chapter 2: Jumpers and Connectors
Chapter 2: Jumpers and Connectors

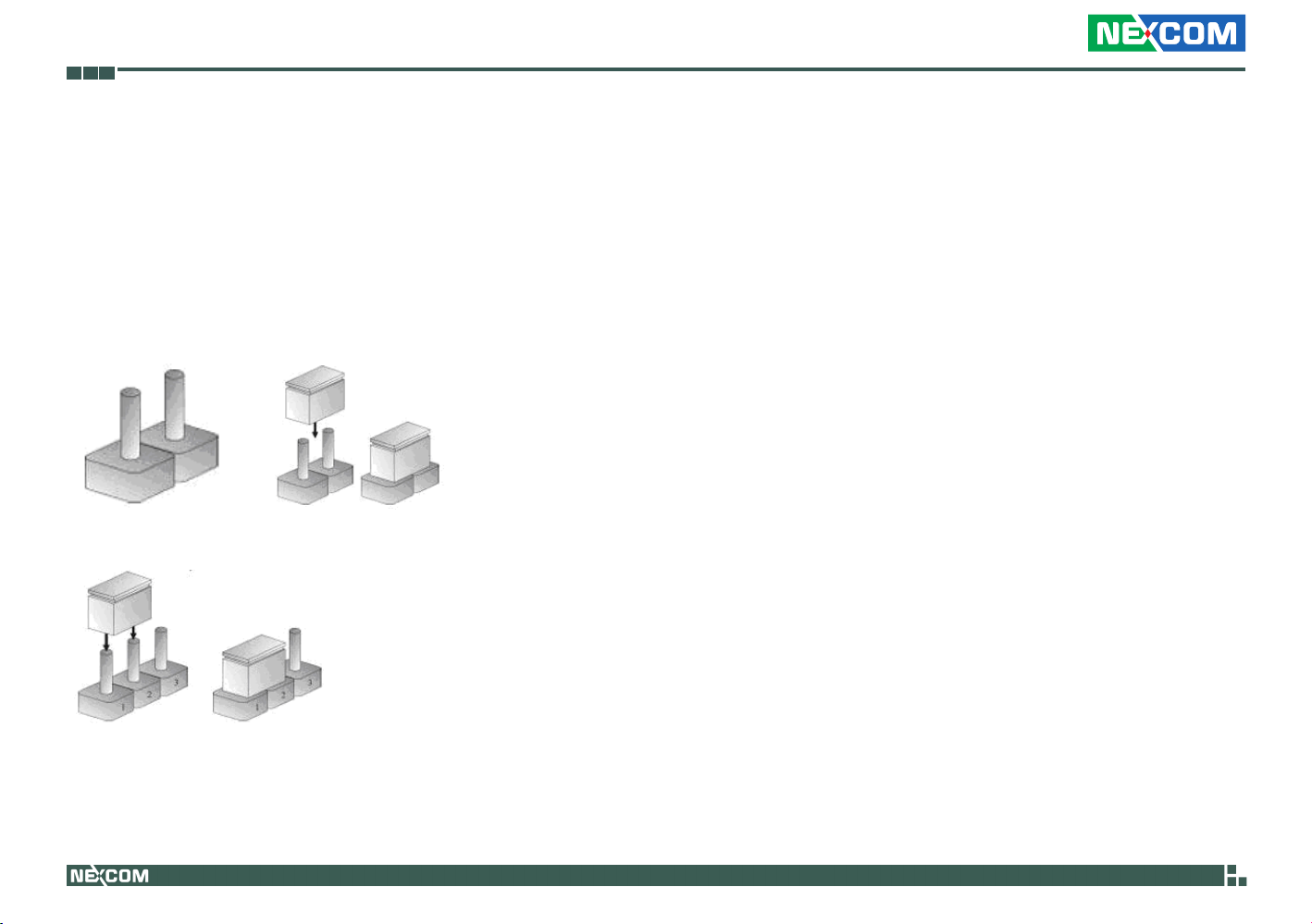

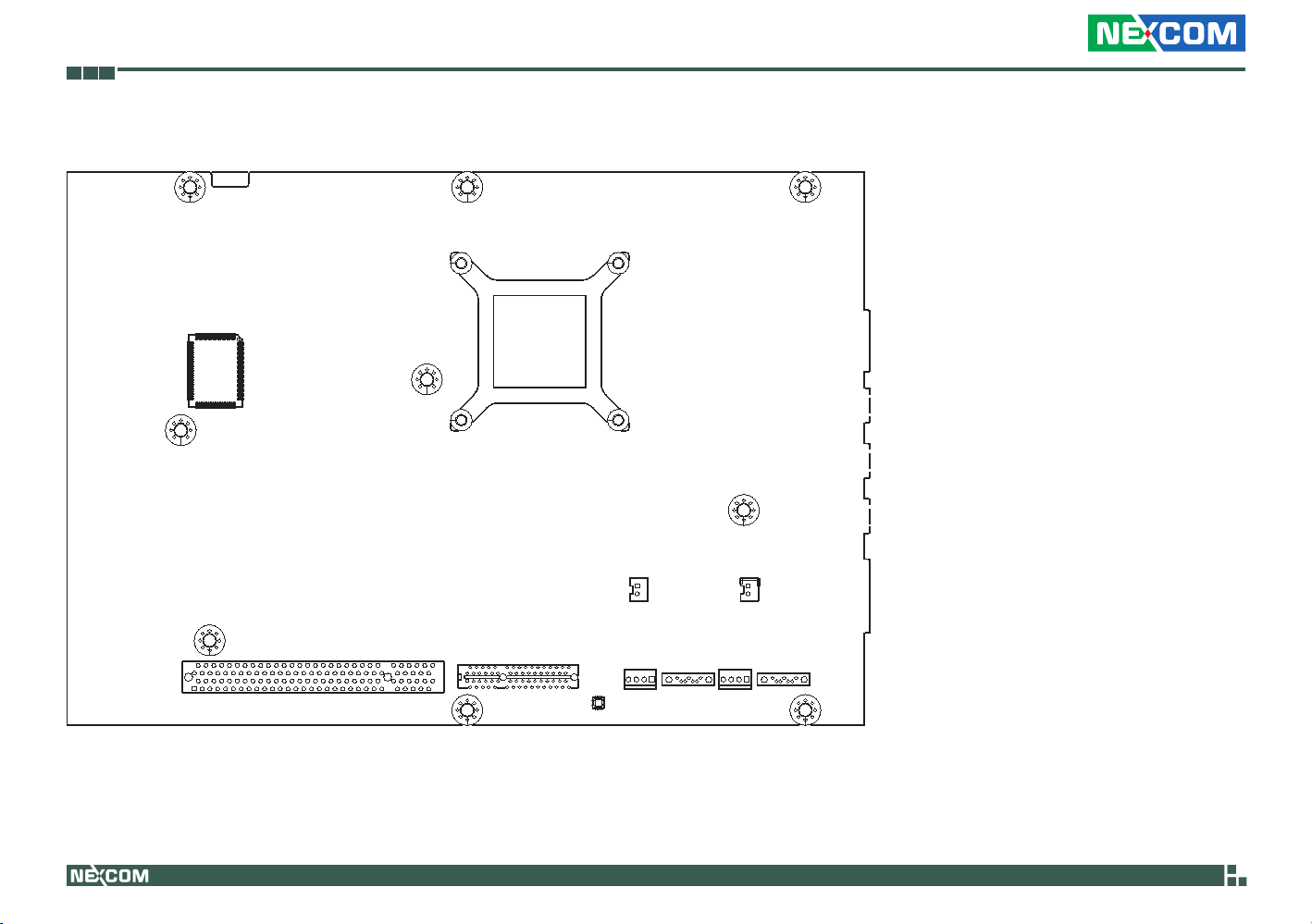

This chapter describes how to set the jumpers on the motherboard. Note that the following procedures are generic for all NViS 3540 series.
Before You Begin
• Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep small components separated.
• Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
• A Philips screwdriver
• A flat-tipped screwdriver
• A set of jewelers Screwdrivers
• A grounding strap
• An anti-static pad
• Using your fingers can disconnect most of the connections. It is recom-
mended that you do not use needle-nosed pliers to disconnect connec­tions as these can damage the soft metal or plastic parts of the connec­tors.
• Before working on internal components, make sure that the power
is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-
tronic components. Humid environment tend to have less static electric­ity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still con­nected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or your­self:
• Always disconnect the unit from the power outlet whenever you are
working inside the case.
• If possible, wear a grounded wrist strap when you are working inside
the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.
• Hold electronic circuit boards by the edges only. Do not touch the com-
ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.
• Leave all components inside the static-proof packaging that they
shipped with until they are ready for installation.
• Use correct screws and do not over tighten screws.
31
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 49
Chapter 2: Jumpers and Connectors
Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 Are Short
32
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 50
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors
NISB 3500
The figure below is the top view of the NISB 3500 main board which is the main board used in the NViS 3540 Series system. It shows the locations of the jumpers and connectors.
CN1
CN2
CN3
CN6
CN9
CN1 1
J3
1
CON1
J1
J18
J2
SW 1
J4
LED1
LED2
LED3
J5
1
J6
JP2
J9
J15
JP1
J8
CN4
CN5
1
J13
JP3
CN7
CN8
DIMM2
J12
DIMM1
J14
BAT1
JP4
J7
J10
J11
CON2
CN1 0
33
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 51
Chapter 2: Jumpers and Connectors
The figure below is the bottom view of the NISB 3500 main board.
CN1 6
CN1 7
J17
J16
CN1 2
9
CN1 5
34
CN1 3
CN1 4
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 52
Chapter 2: Jumpers and Connectors
Jumpers

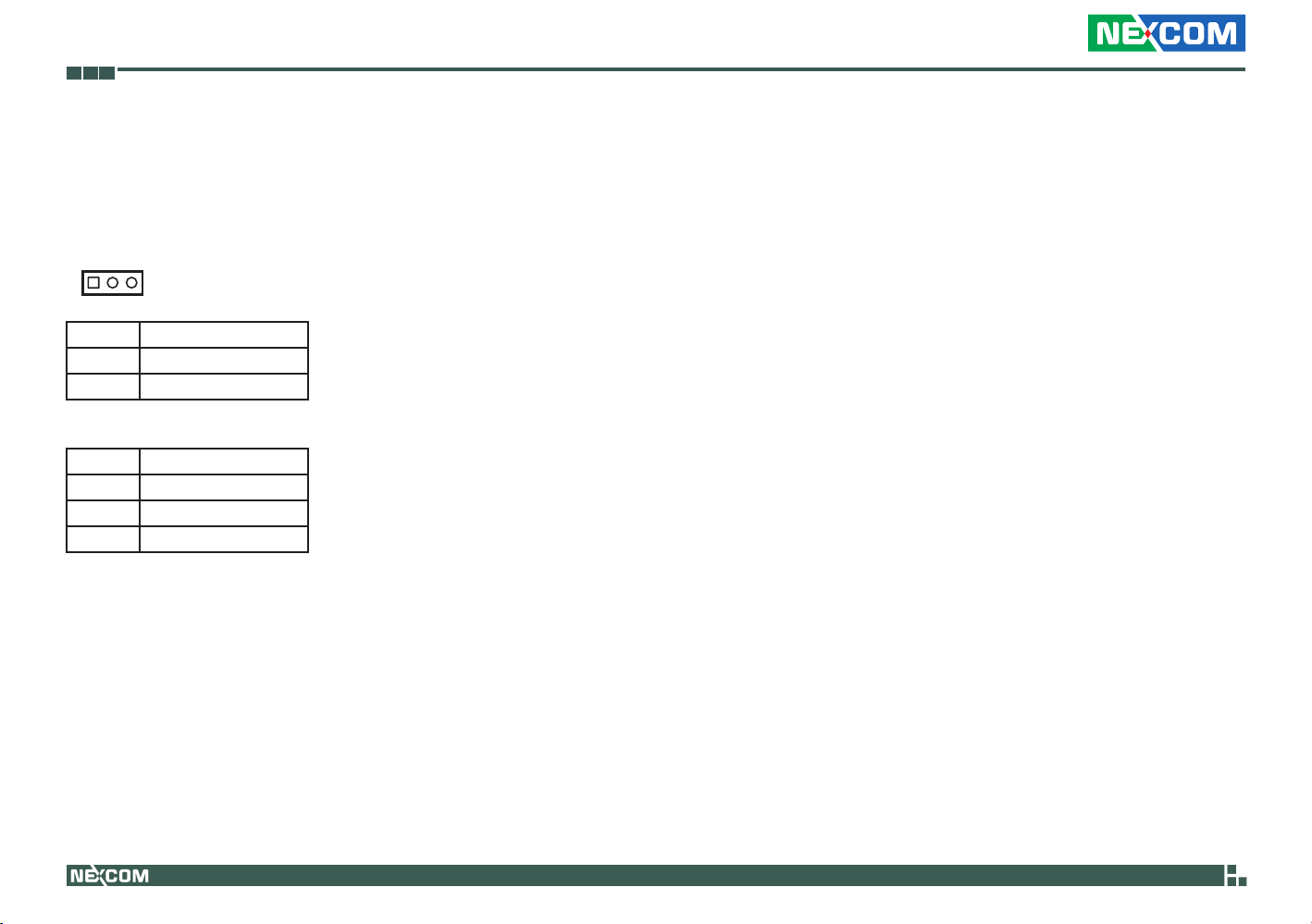

Clear CMOS
Connector size: 1x3 3-pin header, 2.54 mm pitch Connector location: JP4
1
Pin Settings
1-2 On *Normal
2-3 On CMOS Clear
1-2 On: default
Pin Definition
3
1 RTCRST#_PU
2 RTCRST#
3 CLR_CMOS
35
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 53
Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External I/O Interface - Front Panel

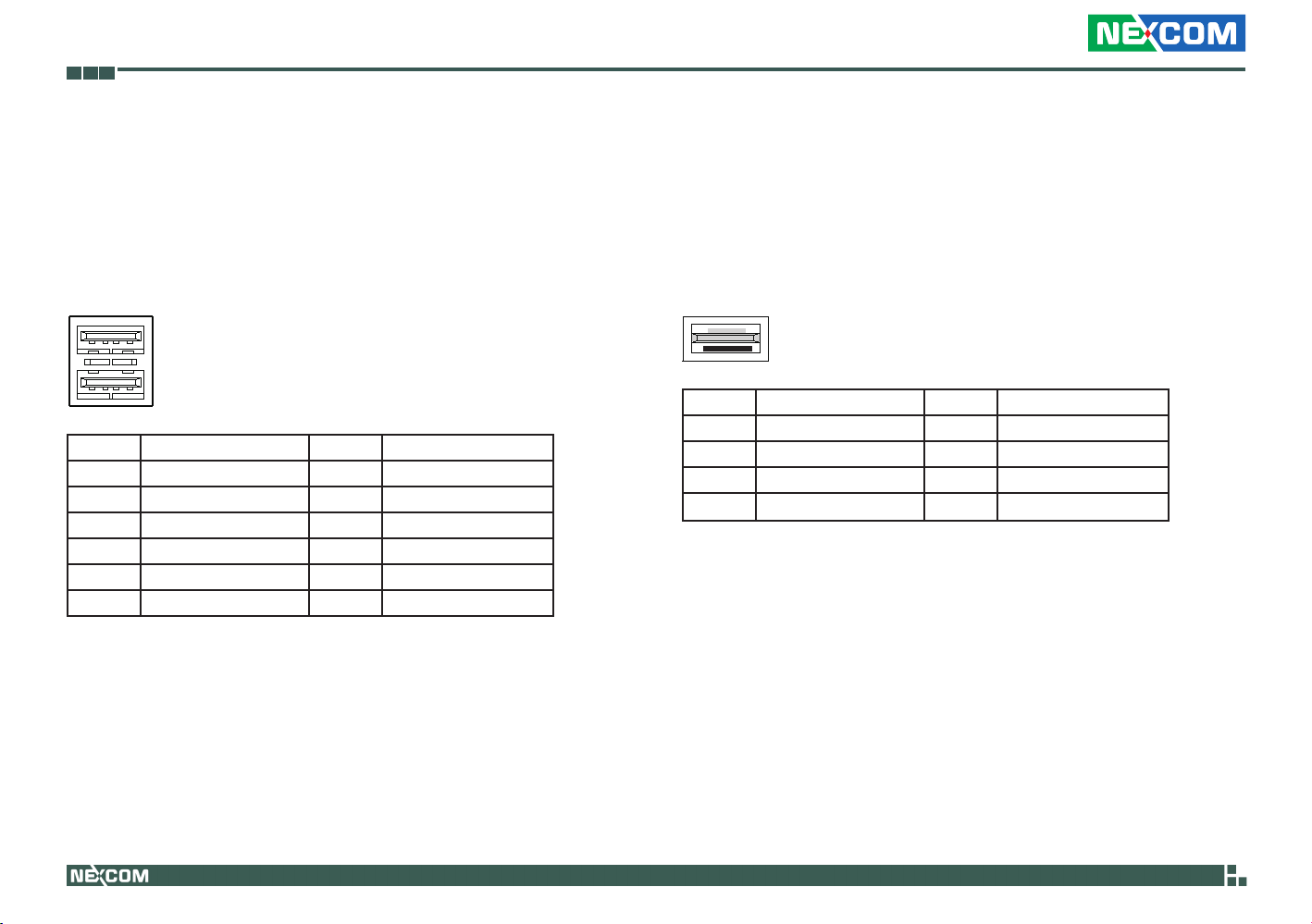

USB Ports
Connector type: Dual USB port Connector location: CN10
Pin Definition Pin Definition
1 +5V 7 USB1+
2 USB0- 8 GND
3 USB0+ 22 GND
4 GND 23 GND
5 +5V 26 GND
6 USB1- 27 GND
eSATA Ports
Connector type: eSATA port Connector location: CON2A and CON2B
Pin Definition Pin Definition
1 GND 5 SATA_RXN4
2 SATA_TXP4 6 SATA_RXP4
3 SATA_TXN4 7 GND
4 GND
36
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 54
Chapter 2: Jumpers and Connectors

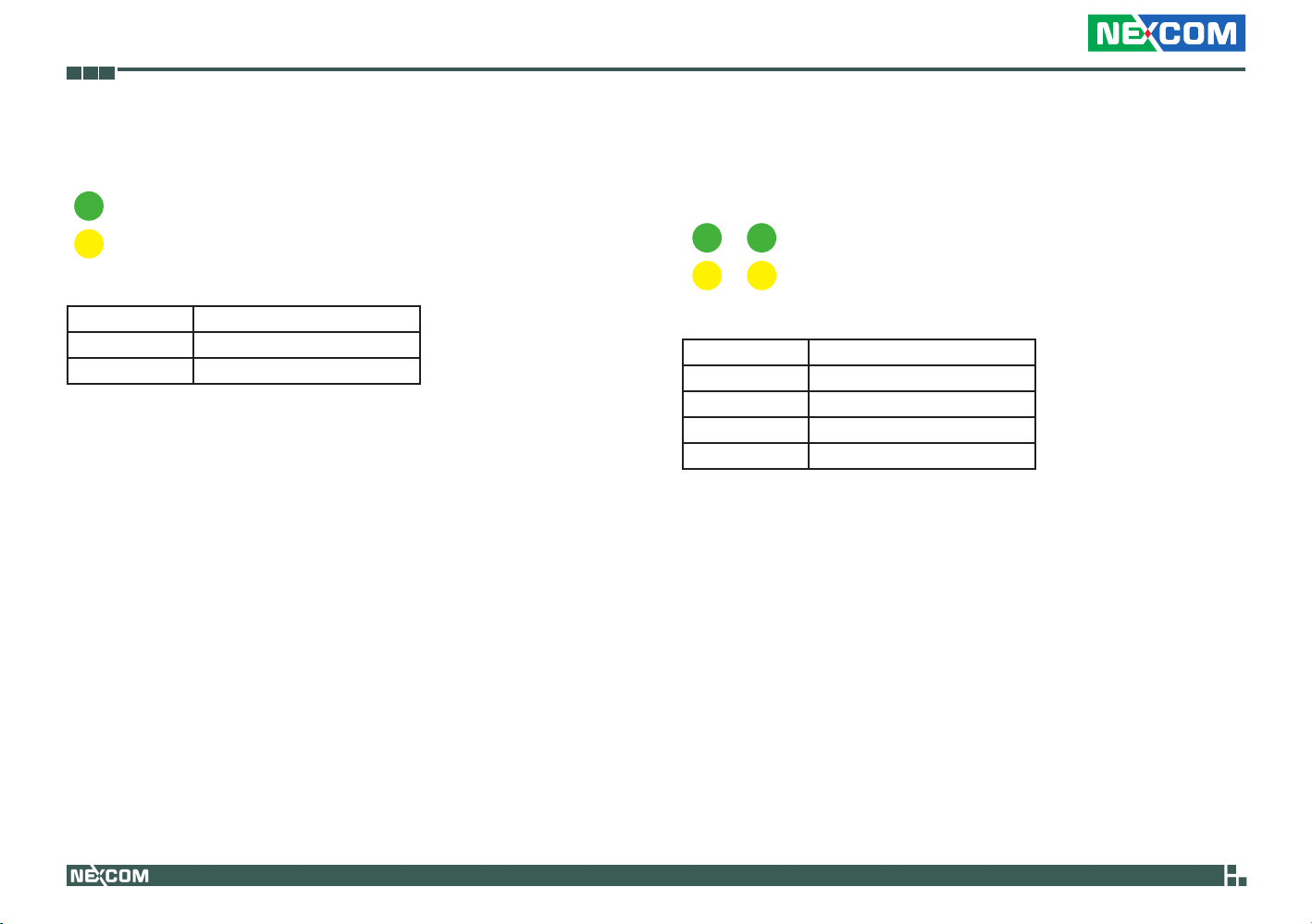

Status Indicators
PWR
HDD
Status LED Color
PWR Green
HDD Yellow
LAN1/LAN2 Link/Active LED
Connector location: LED1 and LED2
LINK1
LINK2
ACT1
ACT2
Pin Definition
C1 LAN2_LINK_N
C2 LAN2_ACT_N
A1 LAN2_LINK_P
A2 LAN2_ACT_P
37
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 55
Chapter 2: Jumpers and Connectors

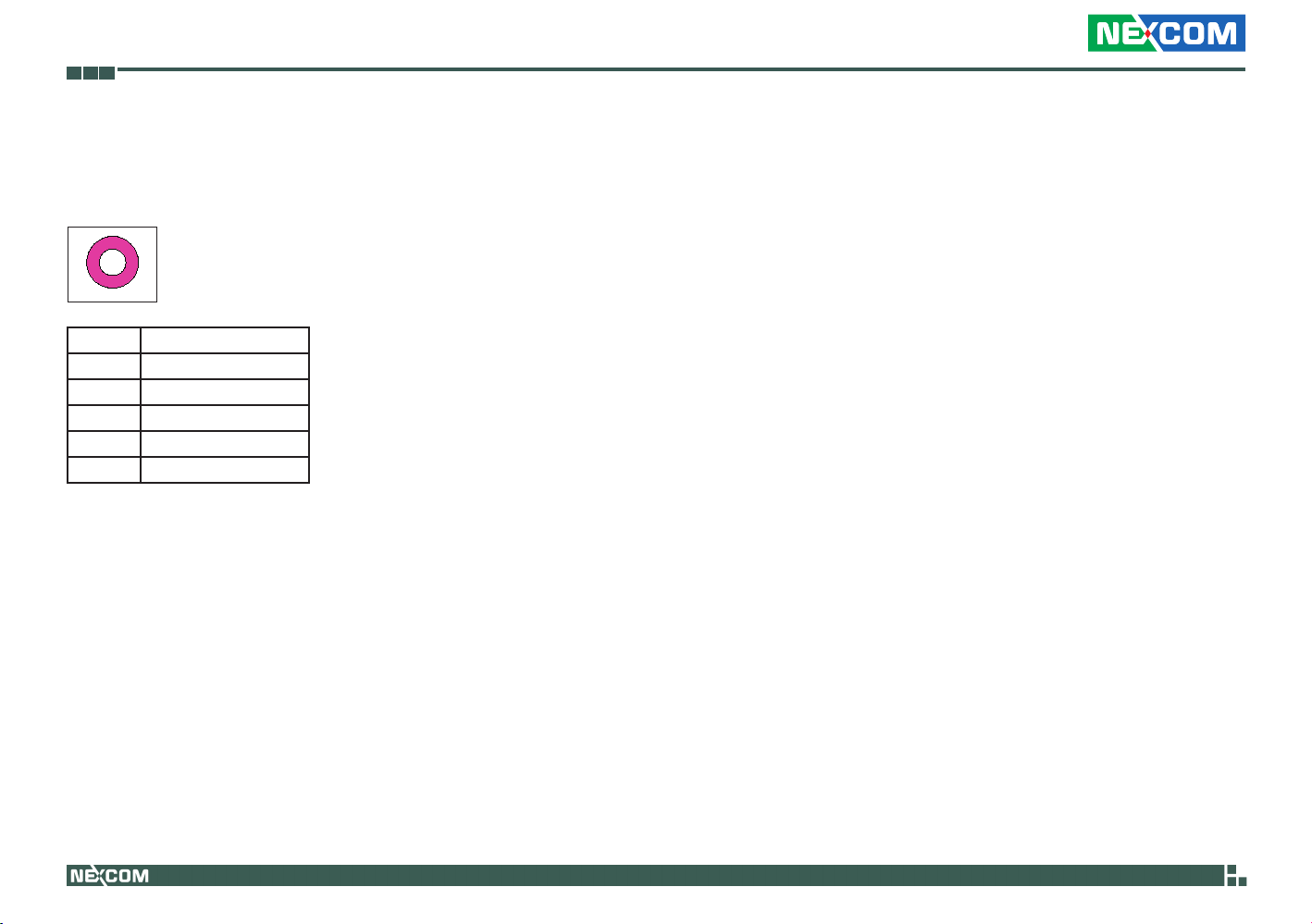

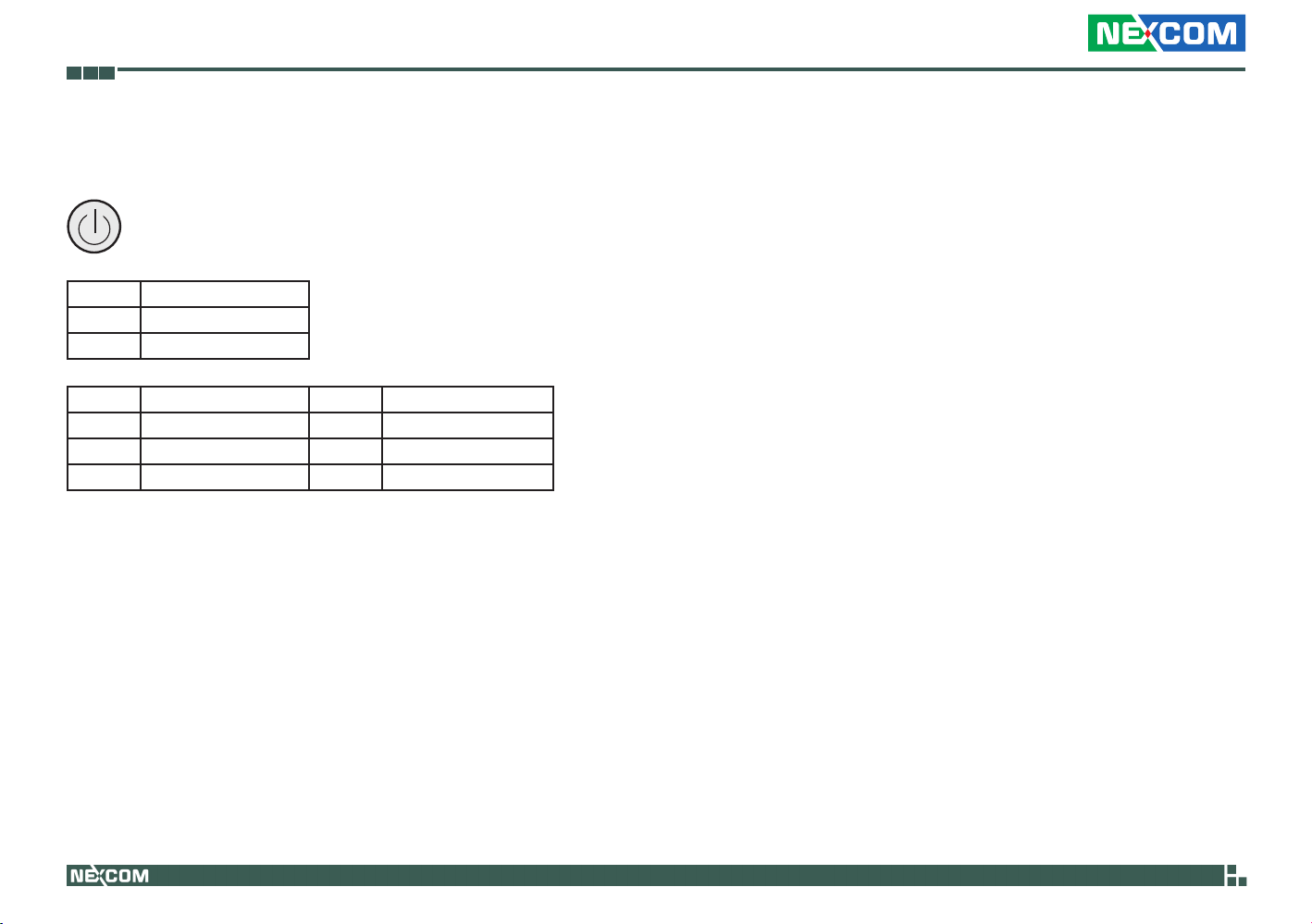

ATX Power On/Off Switch
Connector location: SW1
Pin Definition
On Blue light
Off Red light
Pin Definition Pin Definition
1 GND 2 PBT_PU
3 PBT_PU 4 GND
A1 PWRLED_N C1 PWRLED_P
38
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 56
Chapter 2: Jumpers and Connectors
External I/O Interface - Rear Panel
Remote Power On/Off Switch
Connector type: 2-pin switch Connector location: J3
1 2
Pin Definition
1 GND
2 PBT_PU

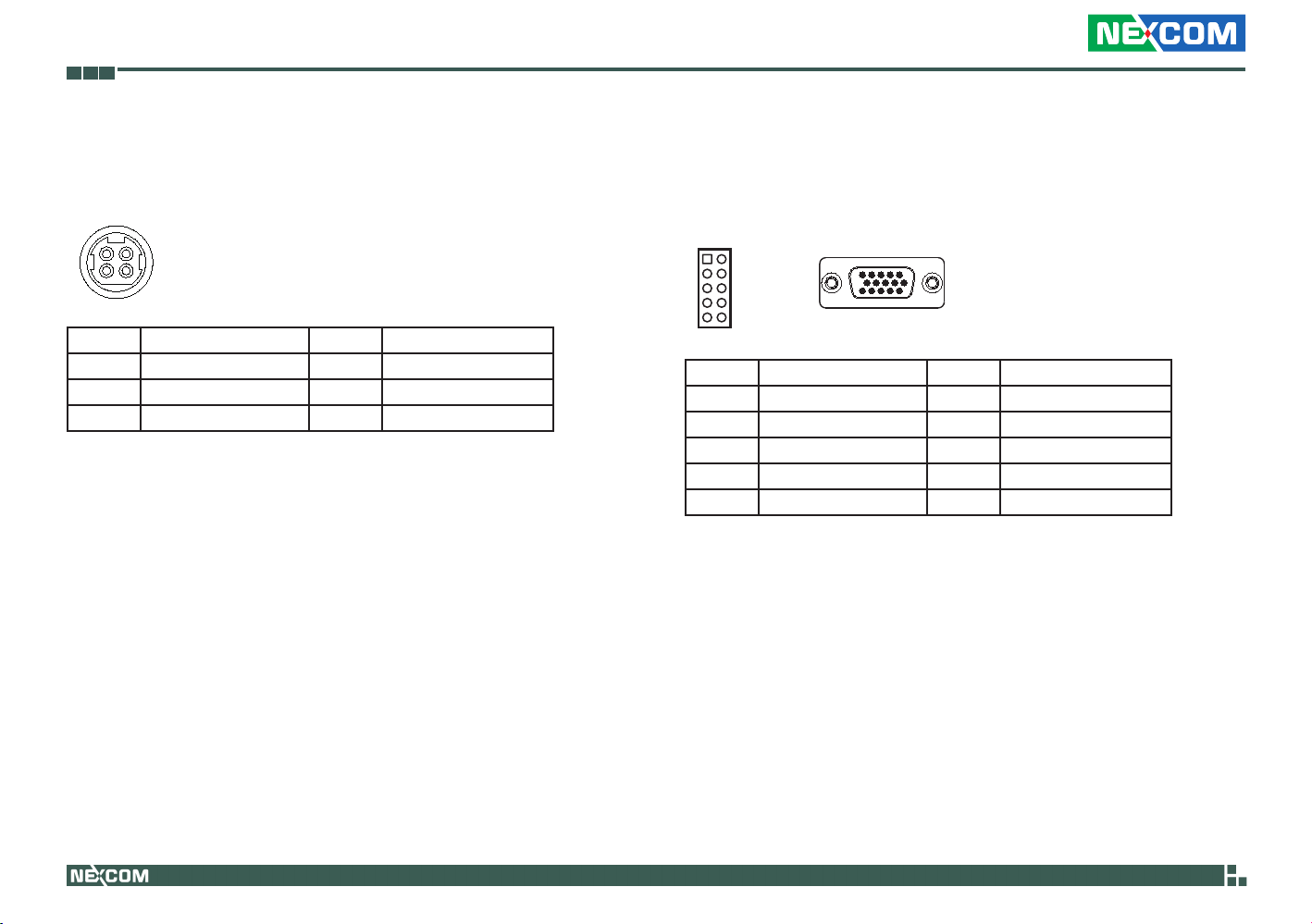

PS/2 Keyboard/Mouse Port
Connector type: PS/2, Mini-DIN-6, JST-2.0mm-M-180 Connector location: J5
6 4
Pin Definition Pin Definition
5 3
2
1
1 5VSB 2 KDAT
3 KCLK 4 MDAT
5 MCLK 6 GND
16
39
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 57
Chapter 2: Jumpers and Connectors
9V-30V DC Input
Connector type: POWER-F-90 Connector location: CN1
1
3
Pin Definition Pin Definition
1 VIN 2 VIN
3 GND 4 GND
5 GND
2 4
GPIO Connector
(4 digital input and 4 digital output)
Connector type: DB-15 port, 2x5 10-pin header, 2.0 mm-M-180 Connector location: JP2
2
1
10
9
Pin Definition Pin Definition
1 VCC5 2 GND
3 SIO_GPO24 4 SIO_GPI20
5 SIO_GPO25 6 SIO_GPI21
7 SIO_GPO26 8 SIO_GPI22
9 SIO_GPO27 10 SIO_GPI23
15
1115
40
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 58
Chapter 2: Jumpers and Connectors

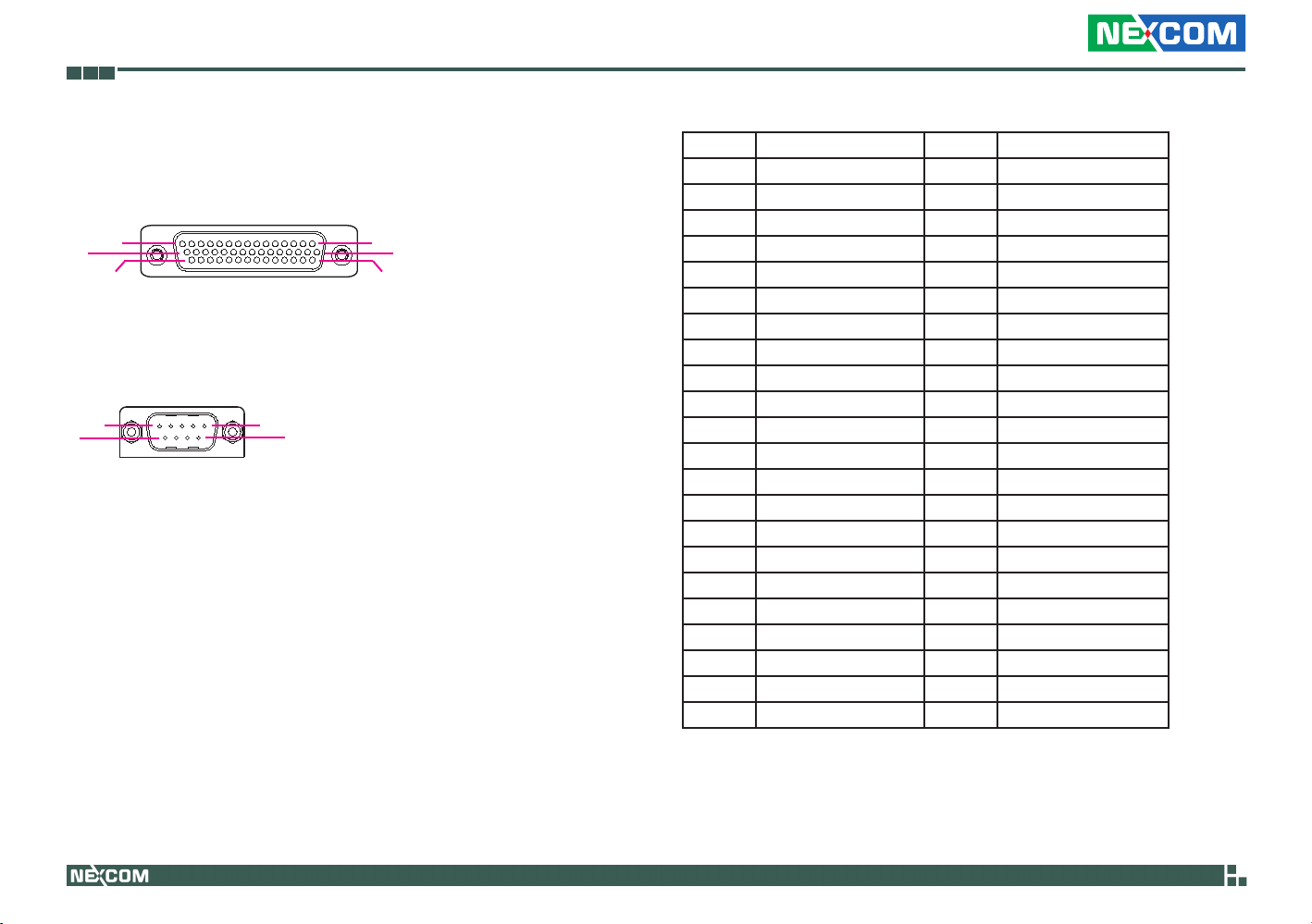

Serial Interface (COM 1 - COM 4)
Connector type: 44-pin D-Sub, 2x22 (12.55mm x 53.04mm) Connector location: CN4
30
15
44
44-pin D-Sub
1
16
31
The 44-pin D-Sub connector is used to connect 4 external serial devices. Use the COM ports on the provided “DB44 to 4x DB9 COM port cable” (included in the package) to connect the devices.
1 5
6
COM port
9
Pin Definition Pin Definition
1 CN10_1 2 CN10_2
3 CN10_3 4 CN10_4
5 GND 6 CN10_6
7 CN10_7 8 CN10_8
9 CN10_9 10 GND
11 CN10_11 12 CN10_12
13 CN10_13 14 CN10_14
15 GND 16 CN10_16
17 CN10_17 18 CN10_18
19 CN10_19 20 GND
21 CN10_21 22 CN10_22
23 CN10_23 24 CN10_24
25 GND 26 CN10_26
27 CN10_27 28 CN10_28
29 CN10_29 30 GND
31 CN10_31 32 CN10_32
33 CN10_33 34 CN10_34
35 GND 36 CN10_36
37 CN10_37 38 CN10_38
39 SP4_RI_TI 40 GND
41 NC 42 NC
43 NC 44 NC
41
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 59
Chapter 2: Jumpers and Connectors
COM1 (RS232) labelled “A“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
1 1 DCD1 2 2 RXD1
3 3 TXD1 4 4 DTR1
5 5 GND 6 6 DSR1
7 7 RTS1 8 8 CTS1
9 9 RI1 10 GND
COM2 (RS232) labelled “B“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
11 1 DCD2 12 2 RXD2
13 3 TXD2 14 4 DTR2
15 5 GND 16 6 DSR2
17 7 RTS2 18 8 CTS2
19 9 RI2 20 GND
COM3 (RS232) labelled “C“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
21 1 DCD3 22 2 RXD3
23 3 TXD3 24 4 DTR3
25 5 GND 26 6 DSR3
27 7 RTS3 28 8 CTS3
29 9 RI3 30 GND
COM1 (RS232) labelled “D“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
31 1 DCD1 32 2 RXD1
33 3 TXD1 34 4 DTR1
35 5 GND 36 6 DSR1
37 7 RTS1 38 8 CTS1
39 9 RI1 40 GND
Note: Pin 39 is defined as an external power source, which can be selected for 5V or 12V using JP10.
COM2 (RS422) labelled “B“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
11 1 TXD- 12 2 TXD+
13 3 RXD+ 14 4 RXD-
15 5 GND 16 6 RTS-
17 7 RTS# 18 8 CTS+
19 9 CTS- 20 GND
42
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 60
Chapter 2: Jumpers and Connectors
COM2 (RS485) labelled “B“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
11 1 TXD- 12 2 TXD+
RXD- RXD+
13 3 Reserved 14 4 Reserved
15 5 Reserved 16 6 Reserved
17 7 Reserved 18 8 Reserved
19 9 Reserved 20 Reserved
LAN Ports
Connector type: RJ45 port with LEDs Connector location: CN3B and CN6B
Act Link
Act Status
Orange Blinking
Off No Acitivity
Pin Definition Pin Definition
09 LAN1_M0P 10 LAN1_M0N
11 LAN1_M1P 12 LAN1_M2P
13 LAN1_M2N 14 LAN1_M1N
15 LAN1_M3P 16 LAN1_M3N
17 LAN1_LED1P 18 LAN1_LED_ACT#
19 LAN1_LED2P 20 LAN1_LINK#
21 GND 24 GND
25 GND 28 GND
Data Activity
Link Status
Green Always Lighted
Off No Link
Linked
43
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 61
Chapter 2: Jumpers and Connectors

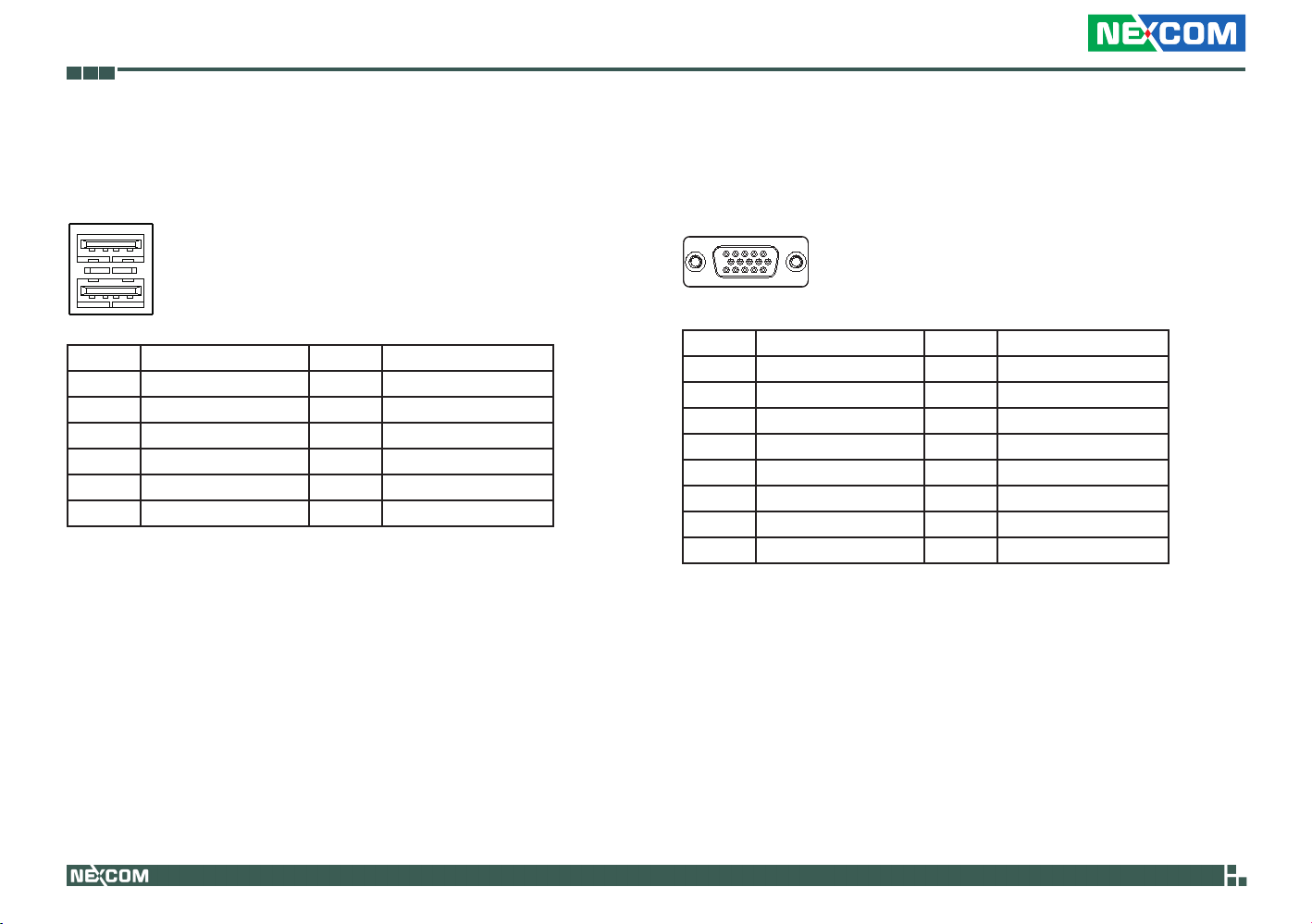

USB Ports
Connector type: Dual USB port Connector location: CN3A and CN6A
Pin Definition Pin Definition
1 +5V 7 USB1+
2 USB0- 8 GND
3 USB0+ 22 GND
4 GND 23 GND
5 +5V 26 GND
6 USB1- 27 GND
VGA Port
Connector type: DB-15 port, 15-pin D-Sub Connector location: CN9B
15
1115
Pin Definition Pin Definition
25 RED_VGA 26 GREEN_VGA
27 BLUE_VGA 28 GND
29 GND 30 GND
31 GND 32 GND
33 VGA_+5V 34 GND
35 GND 36 DATA_V
37 HS_VGA 38 VS_VGA
39 CLK_V
44
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 62
Chapter 2: Jumpers and Connectors

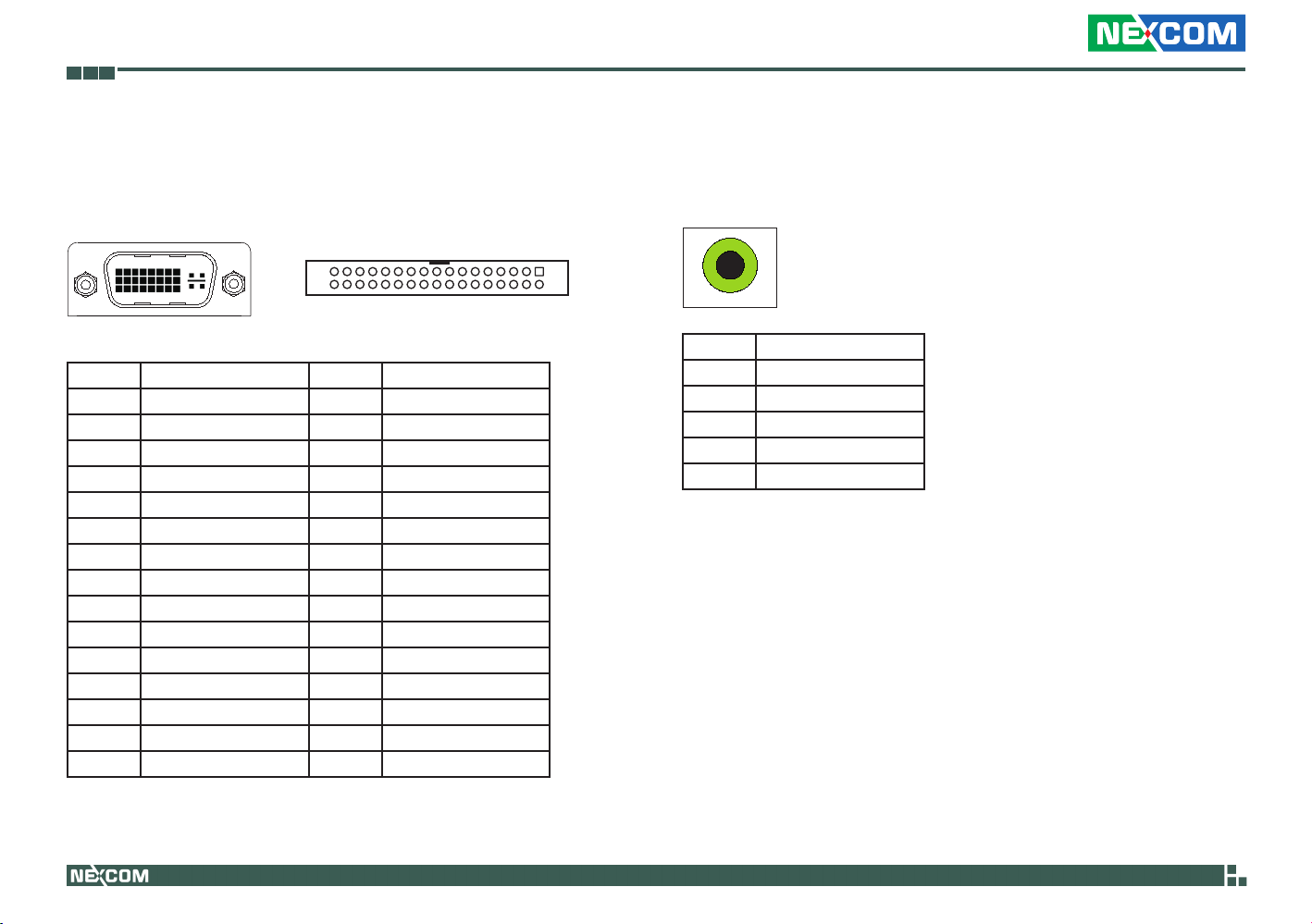

DVI-I Port
Connector type: 30-pin D-Sub, 2.0mm-M-180 Connector location: CN9A
81
2417
Pin Function Pin Function
01 HDMI_DATA2_N 2 HDMI_DATA2_P
03 DVI_GND 4 NC
05 NC 6 HDMI_CTL_CLK
07 HDMI_CTL_SDA 8 DC_VSYNC_VGA
09 HDMI_DATA1_N 10 HDMI_DATA1_P
11 DVI_GND 12 NC
13 NC 14 HDMIC_PWR_S
15 DVI_GND 16 HDMIC_HPDET
17 HDMI_DATA0_N 18 HDMI_DATA0_P
19 DVI_GND 20 DC_DATA_VGA
21 DC_CLK_VGA 22 NC
23 HDMI_LKP 24 HDMI_LKN
C1 DC_RED_VGA C2 DC_GREEN_VGA
C3 DC_BLUE_VGA C4 DC_HSYNC_VGA
C5A DVI_GND C5B DVI_GND
Speaker-out Jack
Connector type: 5-pin jack Connector location: CN11B
342
331
Pin Definition
1 GND
2 SPK_Out_R
3 NC
4 NC
5 SPK_Out_L
45
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 63
Chapter 2: Jumpers and Connectors

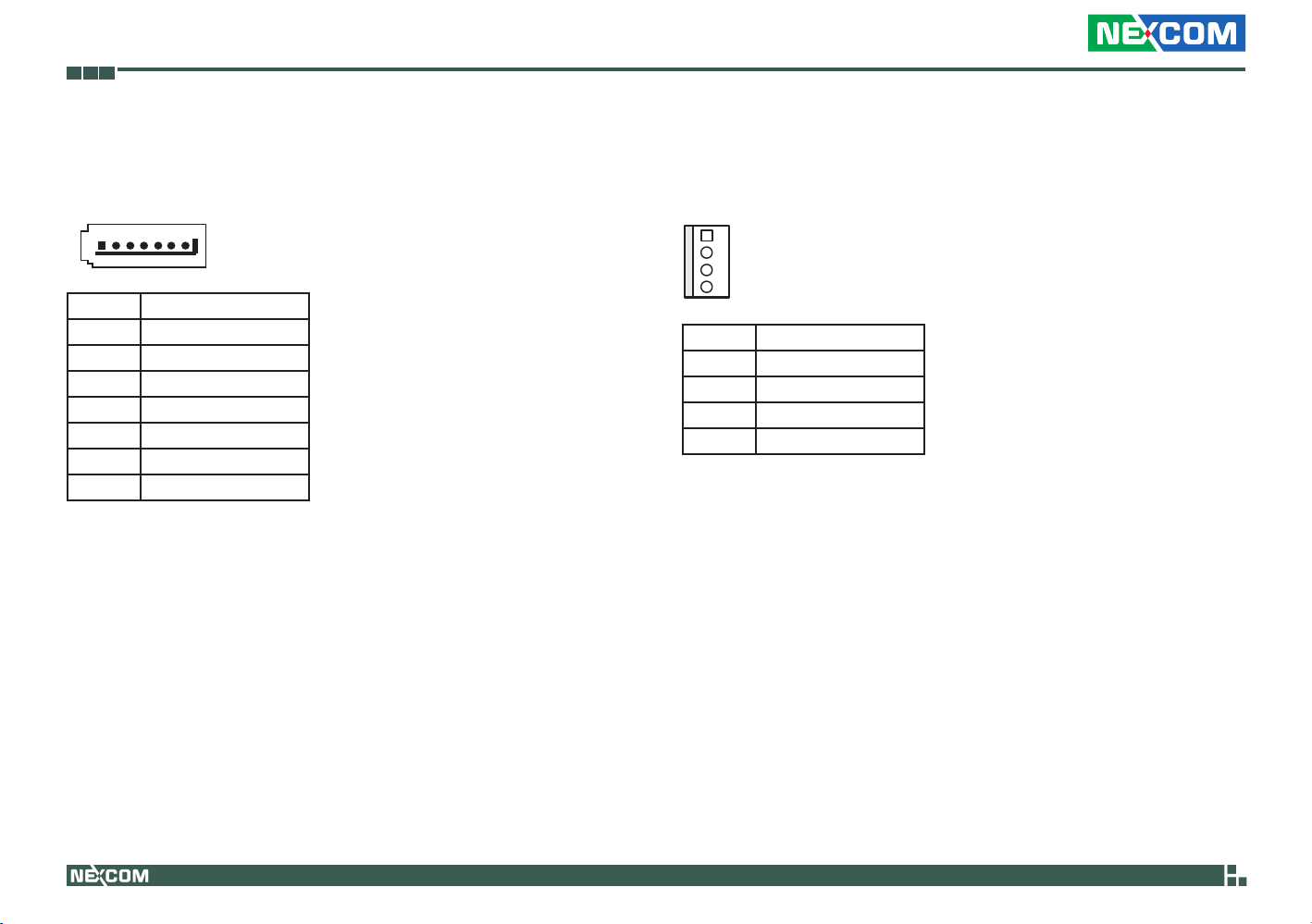

Mic-in Jack
Connector size: 5-pin jack, 25.9x12.6x17.0mm Connector location: CN11A
Pin Definition
1 AU_GND
2 MIC_OUT-L
3 AU_GND
4 MIC_JD1
5 MIC_OUT-R
46
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 64
Chapter 2: Jumpers and Connectors
Internal Connectors

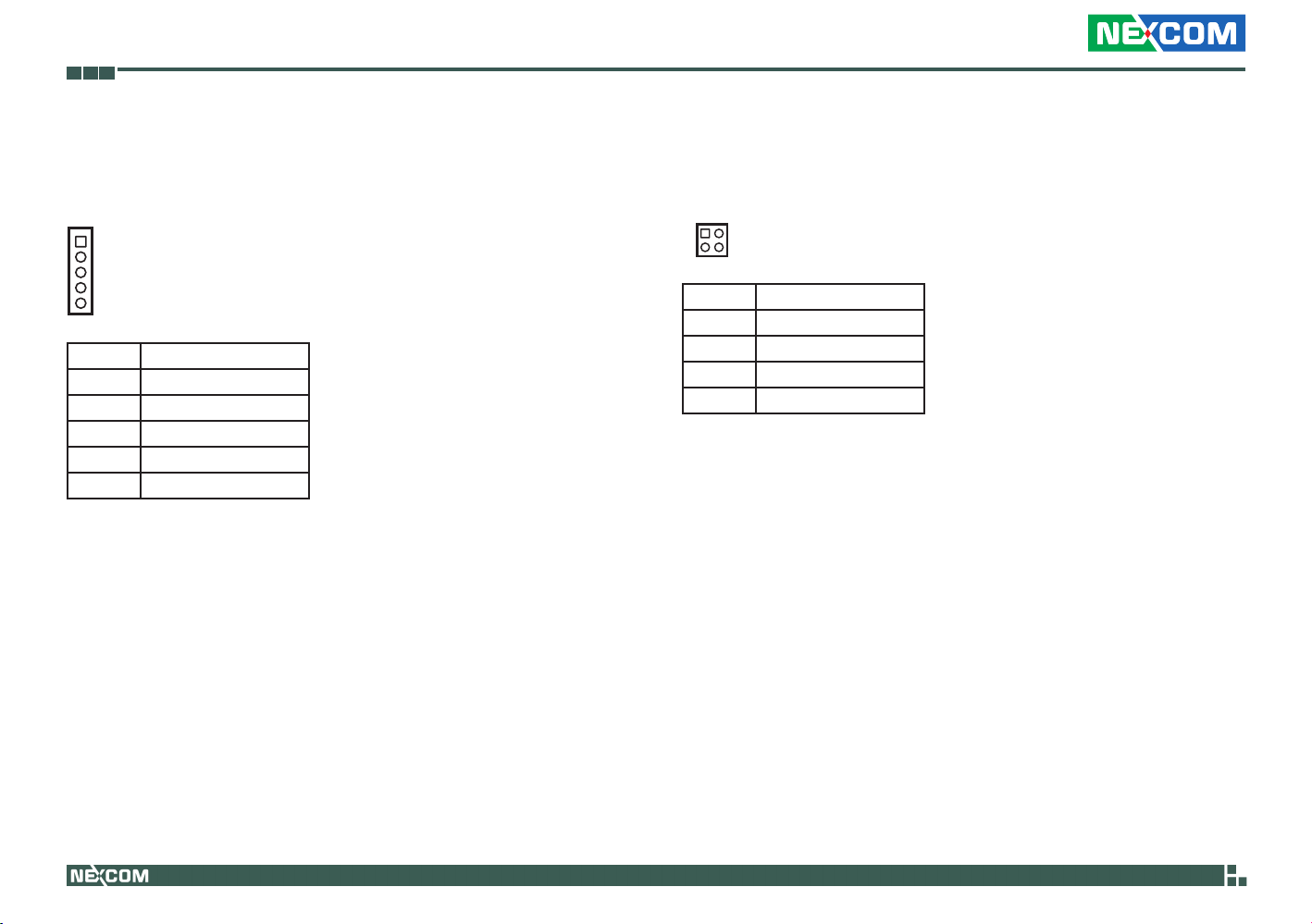

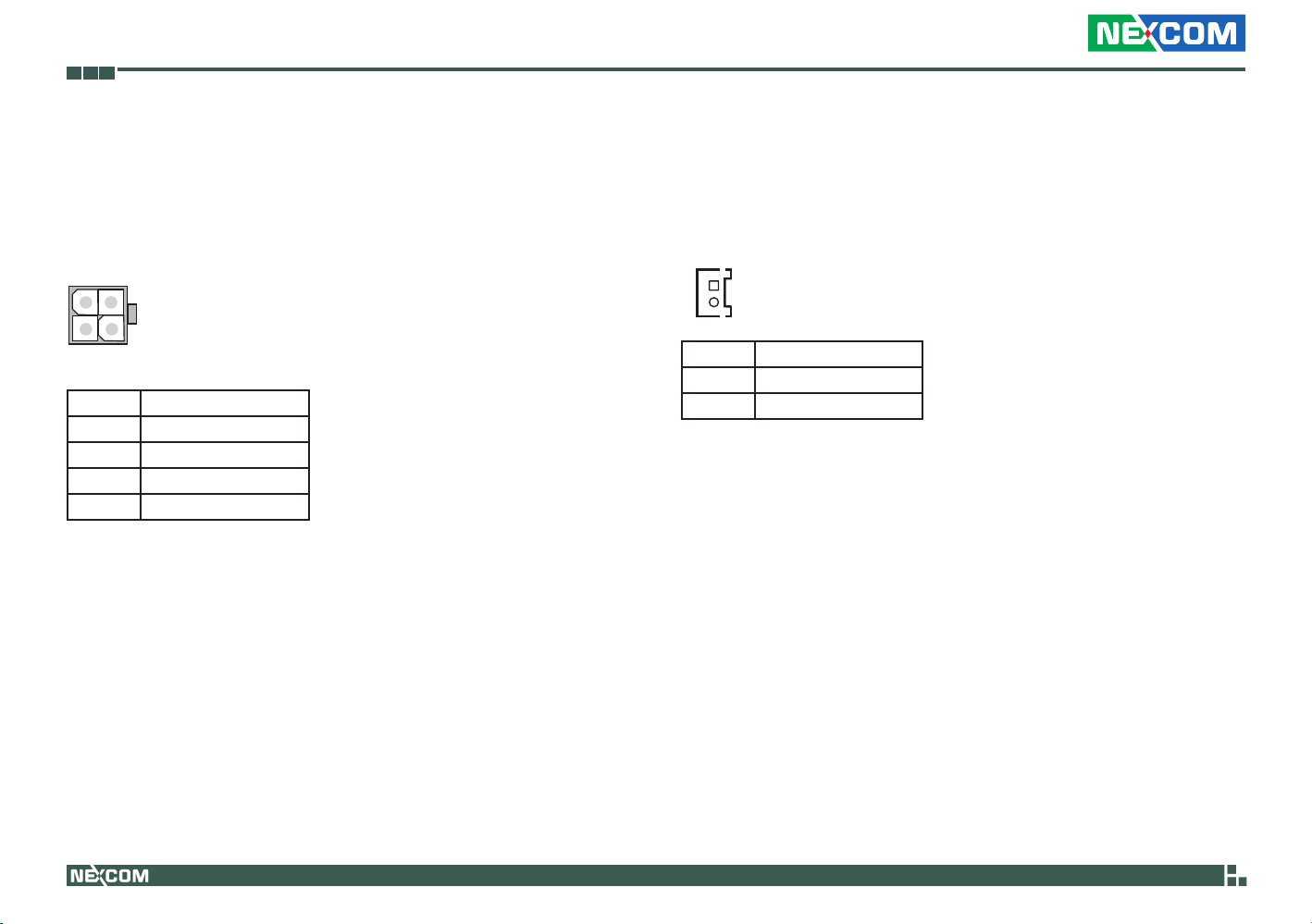

ATX Power Output Connector
Connector type: 2x2 Aux power connector Connector location: CON1
123
4
Pin Definition
1 GND
2 GND
3 VIN
4 VIN
Reset Connector
Connector type: 1x2 2-pin header, JST 2.5mm-M-90 Connector location: J2
1 2
Pin Definition
1 RESET#
2 GND
47
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 65
Chapter 2: Jumpers and Connectors

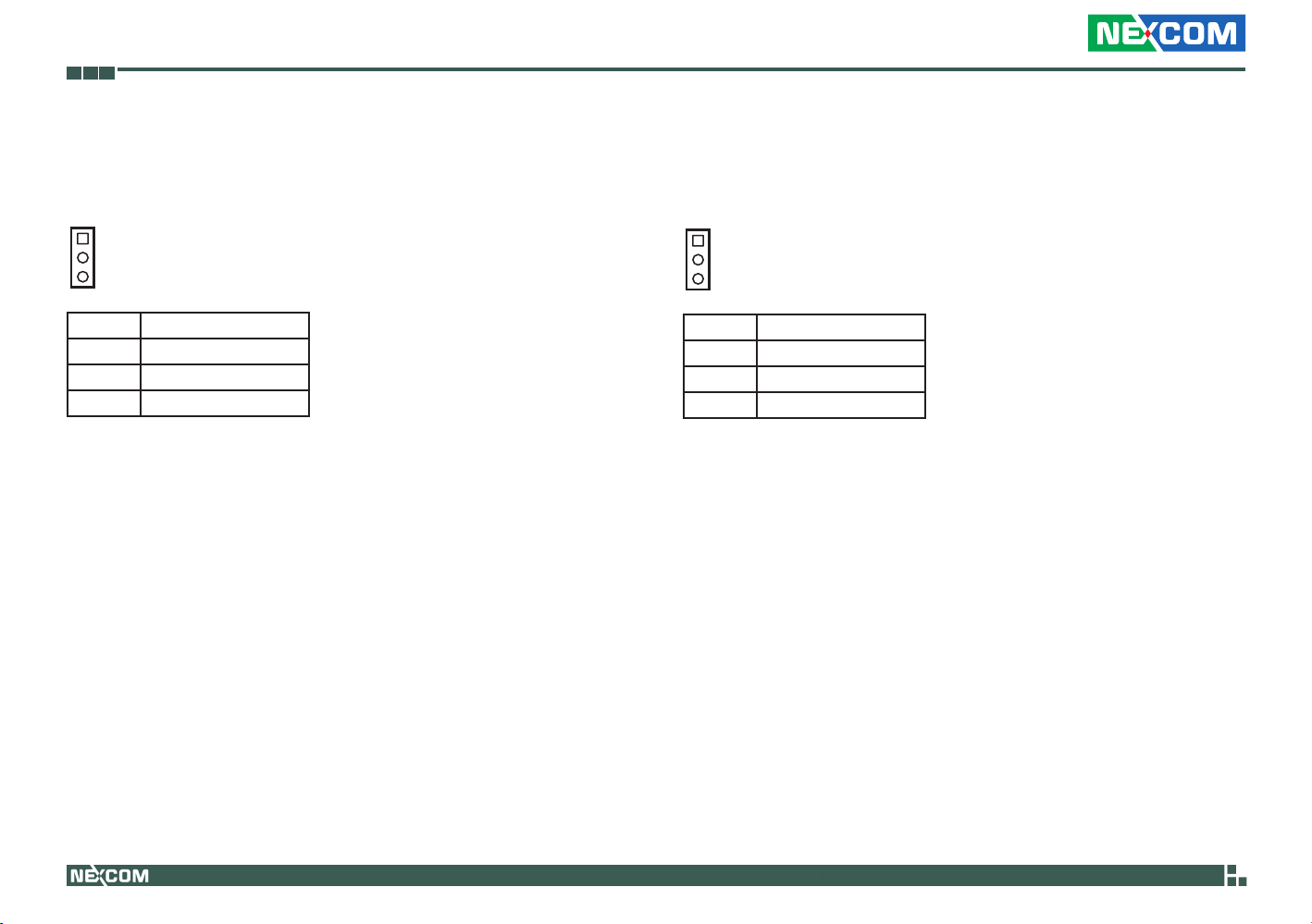

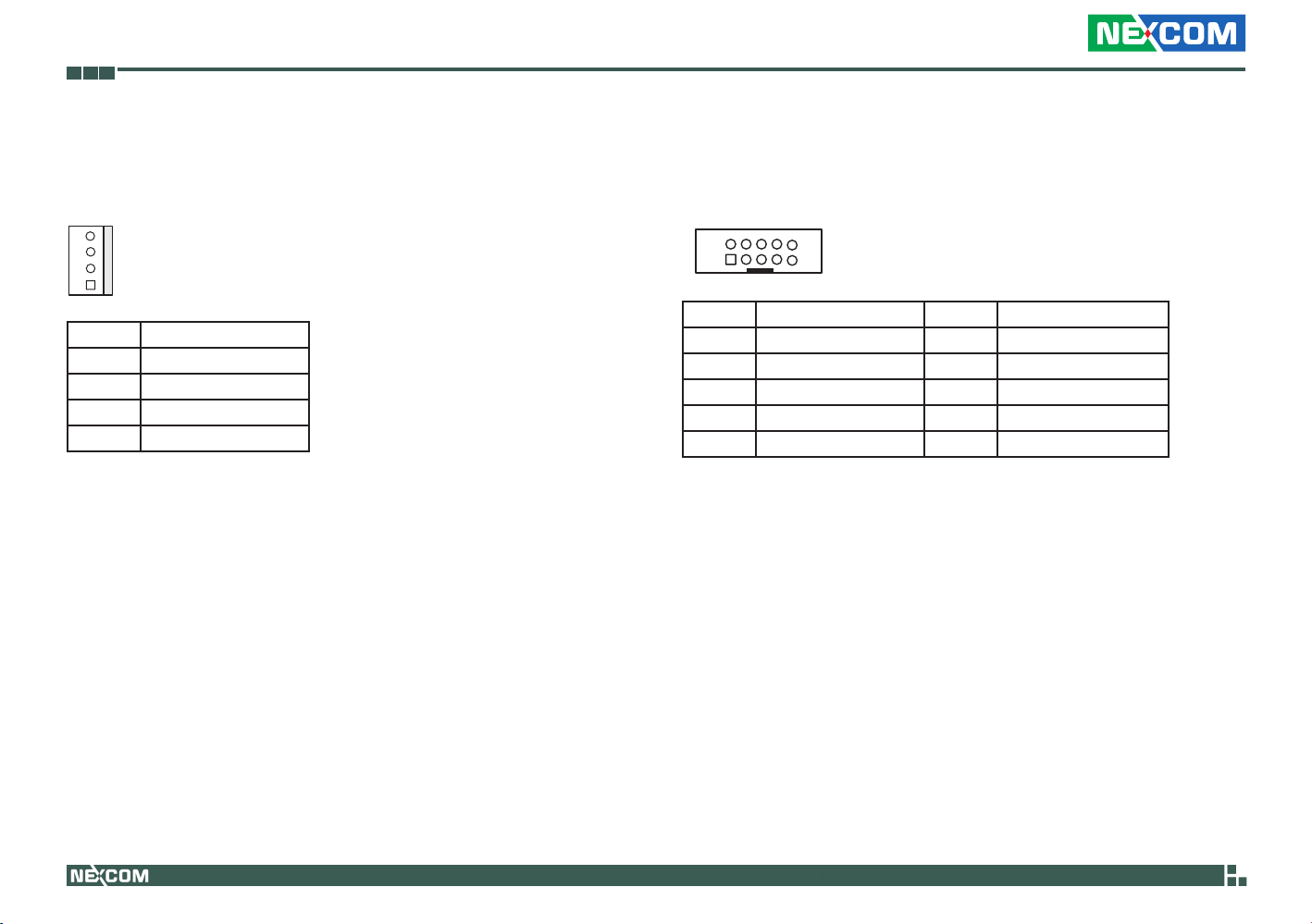

SMBus DATA/CLK Pin Header
Connector type: 1x3 3-pin header 2.54mm-M-180 Connector location: J8
1
3
Pin Definition
1 SMB_CLK
2 SMB_DATA
3 GND
LVDS Backlight Power Select
Connector type: 1x3 3-pin header 2.54mm-M-180 Connector location: JP3
1
3
Pin Definition
1 VCC5
2 PANEL1_VDD
3 VCC3
48
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 66
Chapter 2: Jumpers and Connectors

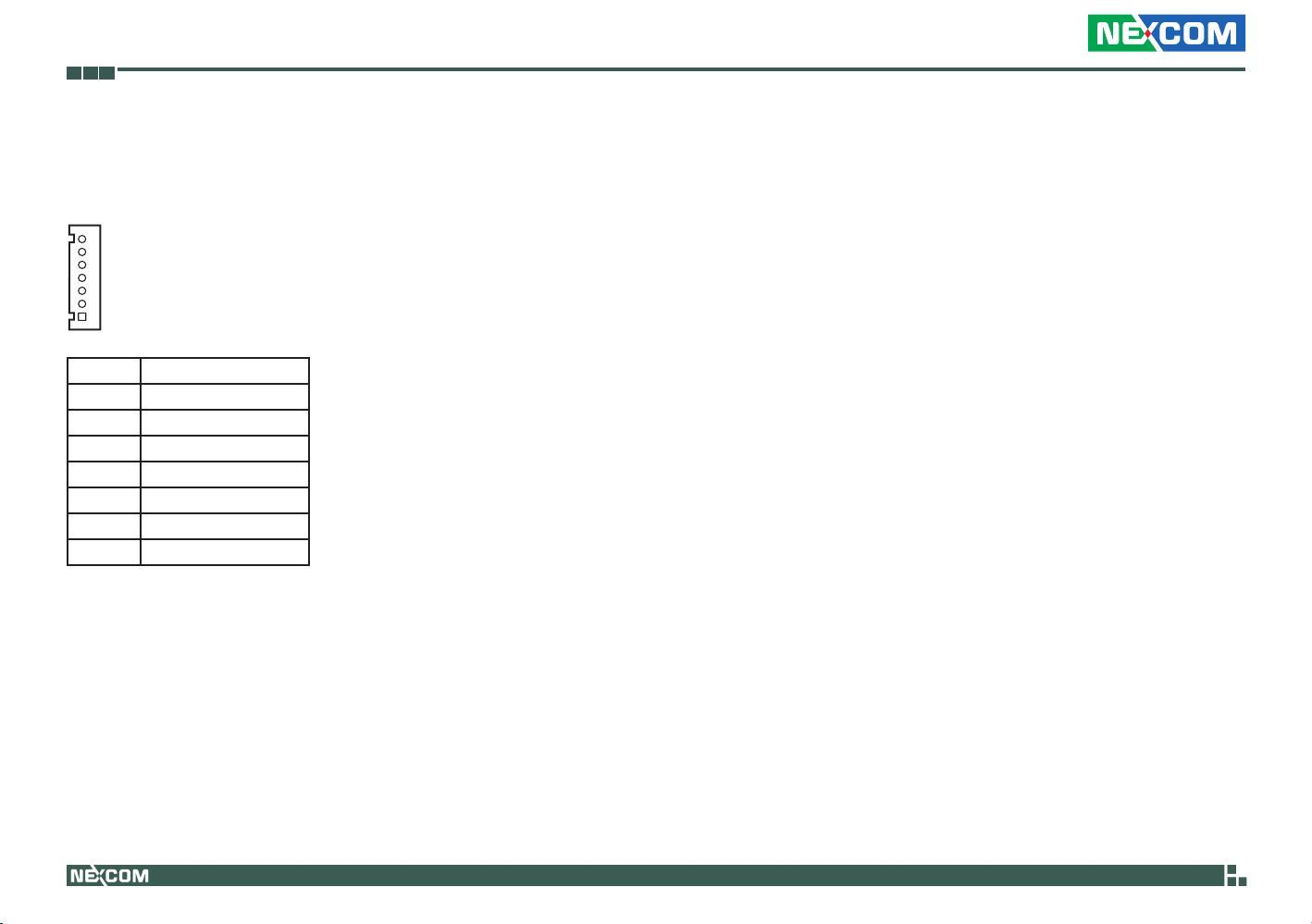

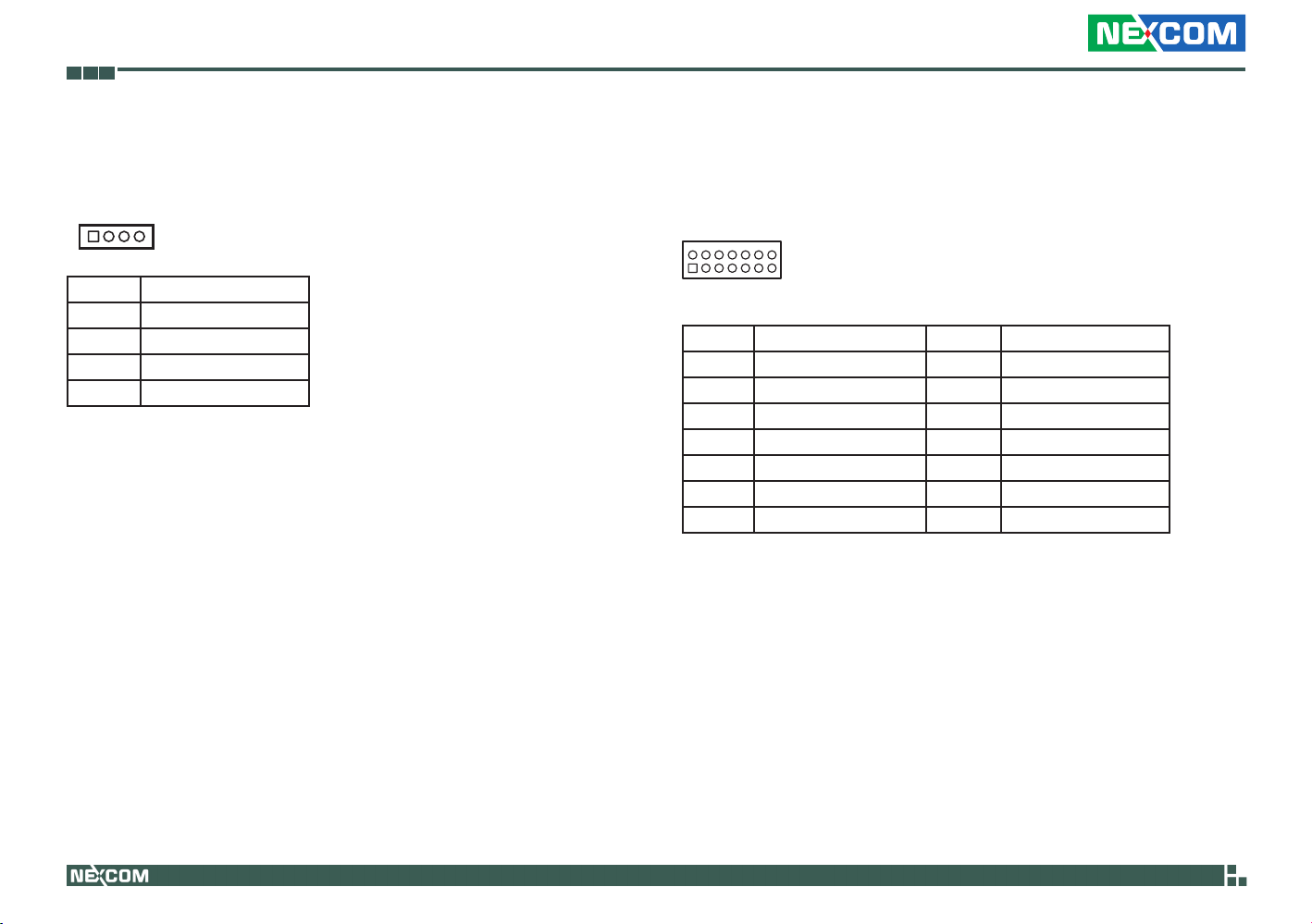

LVDS Channel A Connector
Connector type: LCD-1.25mm-M-180 Connector location: CN7
MH1
1
2
Pin Definition Pin Definition
1 L_DDC_CLK 2 L_DDC_DATA
3 VDD 4 LA_DATAP0
5 LA_DATAP3 6 LA_DATAN0
7 LA_DATAN3 8 VDD
9 GND_LVDS 10 LA_DATAP1
11 LA_CLKP 12 LA_DATAN1
13 LA_CLKN 14 GND_LVDS
15 GND_LVDS 16 PANEL1_BACKLIGHT
17 LA_DATAP2 18 PANEL1_BACKLIGHT
19 LA_DATAN2 20 GND_LVDS
19
20
MH2

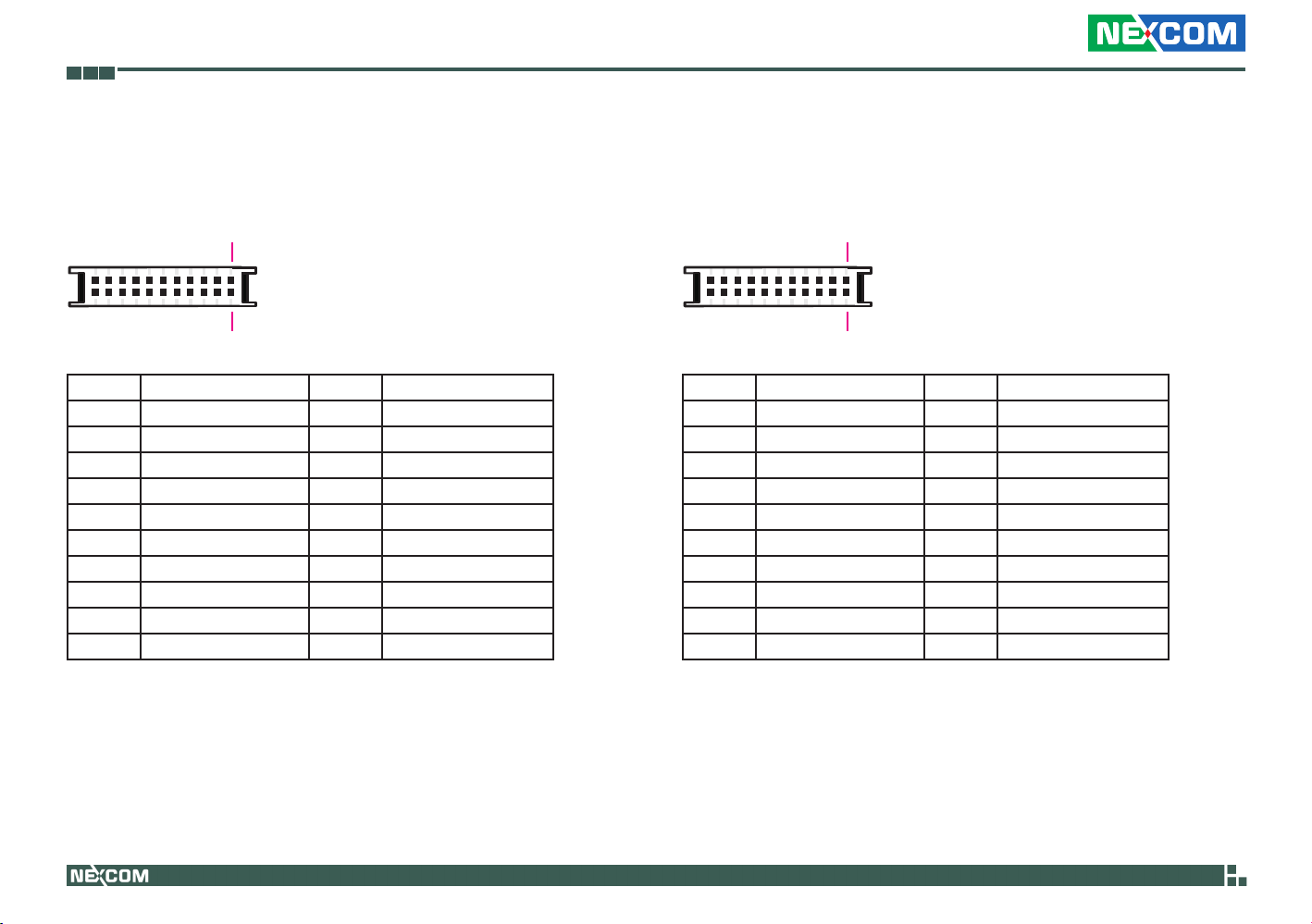

LVDS Channel B Connector
Connector type: LCD-1.25mm-M-180 Connector location: CN8
MH1
1
2
Pin Definition Pin Definition
1 L_DDC_CLK 2 L_DDC_DATA
3 VDD 4 LB_DATAP0
5 LB_DATAP3 6 LB_DATAN0
7 LB_DATAN3 8 VDD
9 GND_LVDS 10 LB_DATAP1
11 LB_CLKP 12 LB_DATAN1
13 LB_CLKN 14 GND_LVDS
15 GND_LVDS 16 PANEL1_BACKLIGHT
17 LB_DATAP2 18 PANEL1_BACKLIGHT
19 LB_DATAN2 20 GND_LVDS
19
20
MH2
49
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 67
Chapter 2: Jumpers and Connectors
LVDS Backlight Connector
Connector type: 1x7 7-pin header JST-2.5mm-M-180 Connector location: J13
7
1
Pin Definition
1 VCC5
2 PANEL1_BACKLIGHT
3 PANEL1_BACKLIGHT
4 L_BKLTCTL_R
5 GND
6 GND
7 L_BKLTEN
50
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 68
Chapter 2: Jumpers and Connectors
SATA Ports
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN12 and CN13
1
Pin Definition
1 GND
2 SATA_TXP1
3 SATA_TXN1
4 GND
5 SATA_RXN1
6 SATA_RXP1
7 GND
7
SATA Power Connectors
Connector type: 4-pin Wafer, 2.54mm-M-180 Connector location: CN14 and CN15
1
4
Pin Definition
1 +12V
2 GND
3 GND
4 VCC5
51
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 69
Chapter 2: Jumpers and Connectors

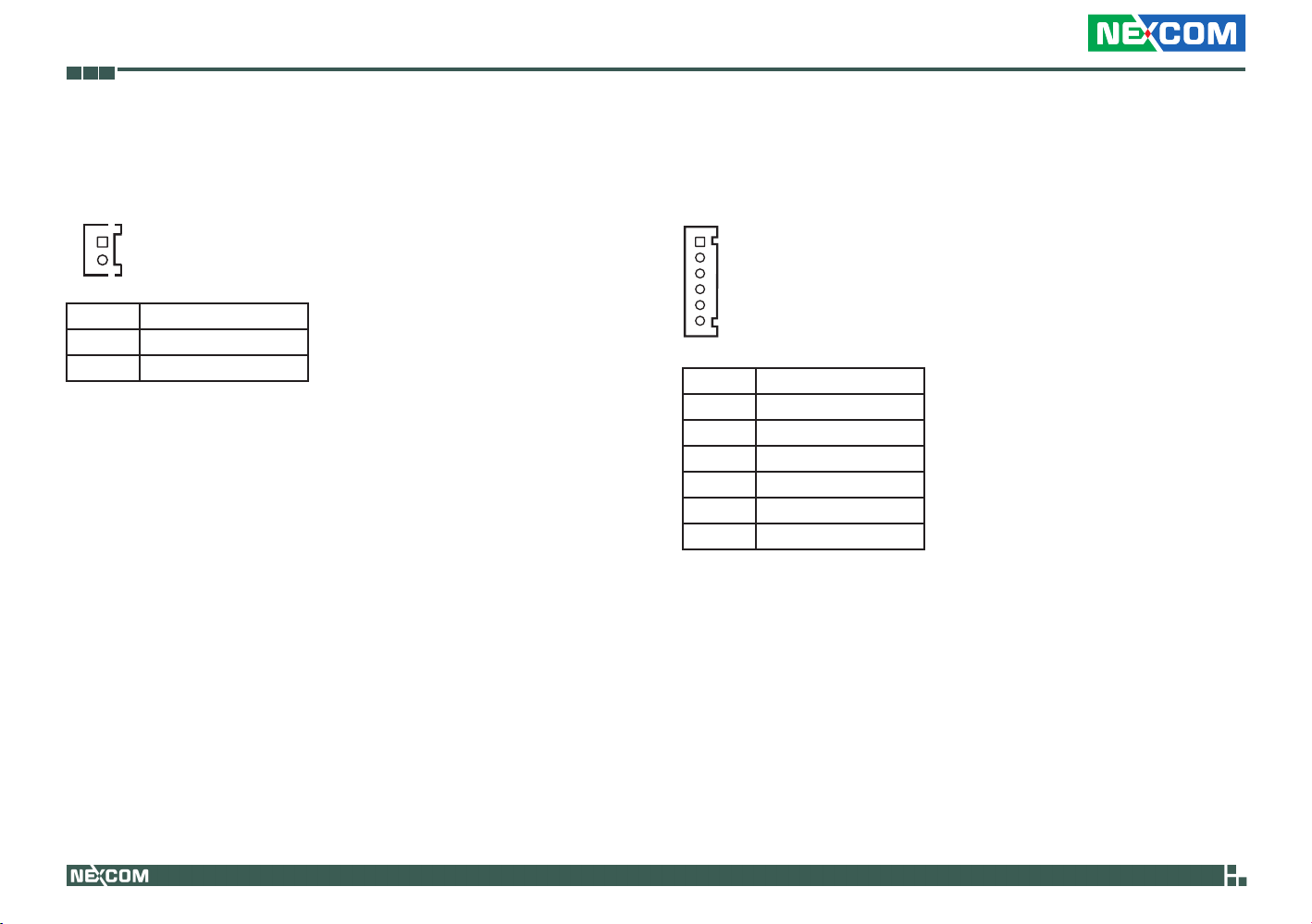

SATA DOM Power Connectors
Connector type: 1x2 2-pin JST wafer, 2.54mm pitch Connector location: J16 and J17
1 2
Pin Definition
1 +12V
2 GND
USB Port Connector
Connector type: 6-pin boxed header, JST-2.0mm-M-180 Connector location: J12
1
6
Pin Definition
1 +5V
2 GND
3 USB10+
4 USB11-
5 USB11+
6 USB2_GND
52
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 70
Chapter 2: Jumpers and Connectors
COM4 RI Pin Header
Connector type: 1x5 5-pin header 2.0mm -M-180 Connector location: J9
1
5
Pin Definition
1 VCC5
2 SP4_RI_T
3 +12V
4 SP4_RI_T
5 SP4_R
GPIO LED Connector
Connector type: 2x2 4-pin 2.0mm -M-180 Connector location: JP1
1 2 3 4
Pin Definition
1 GPO_LED0
2 GND
3 GPO_LED1
4 GND
53
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 71
Chapter 2: Jumpers and Connectors
Line-in Connector
Connector type: 1x4 4-pin header 2.5mm-M-180 Connector location: J15
1
Pin Definition
1 LINE1-LP
2 GND
3 LINE1-JD
4 LINE1-RP
4
Internal Power/HDD/LAN Power/LAN Active LED
Connector type: 2x7 14-pin header 2.54mm-M-180 Connector location: J4
2
1
Pin Description Pin Description
14
13
1 LED_PWRN 2 LED_PWRP
3 HD_LEDN 4 LED_HDDP
5 LAN1_LINK# 6 LAN1_LINKP
7 LAN1_LED_ACT# 8 LAN1_ACTP
9 LAN2_LINK# 10 LAN2_LINKP
11 LAN2_LED_ACT# 12 LAN2_ACTP
13 NC 14 NC
54
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 72
Chapter 2: Jumpers and Connectors
Smart Fan Connectors
Connector size: 4-pin Wafer, 2.54mm-M-180 Connector location: J1 and J14
4
1
Pin Definition
1 GND
2 +12V
3 CPUFANIN_P
4 CPUFANOUT_R
COM5 Connector
Connector type: 2x5 10-pin boxed header, 2.0mm-M-180 Connector location: CN5
2 1
Pin Definition Pin Definition
1 SP5_DCD 2 SP5_RXD
3 SP5_TXD 4 SP5_DTR
5 GND 6 SP5_DSR
7 SP5_RTS 8 SP5_CTS
9 SP5_RI 10 GND
10
9
55
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 73
Chapter 2: Jumpers and Connectors

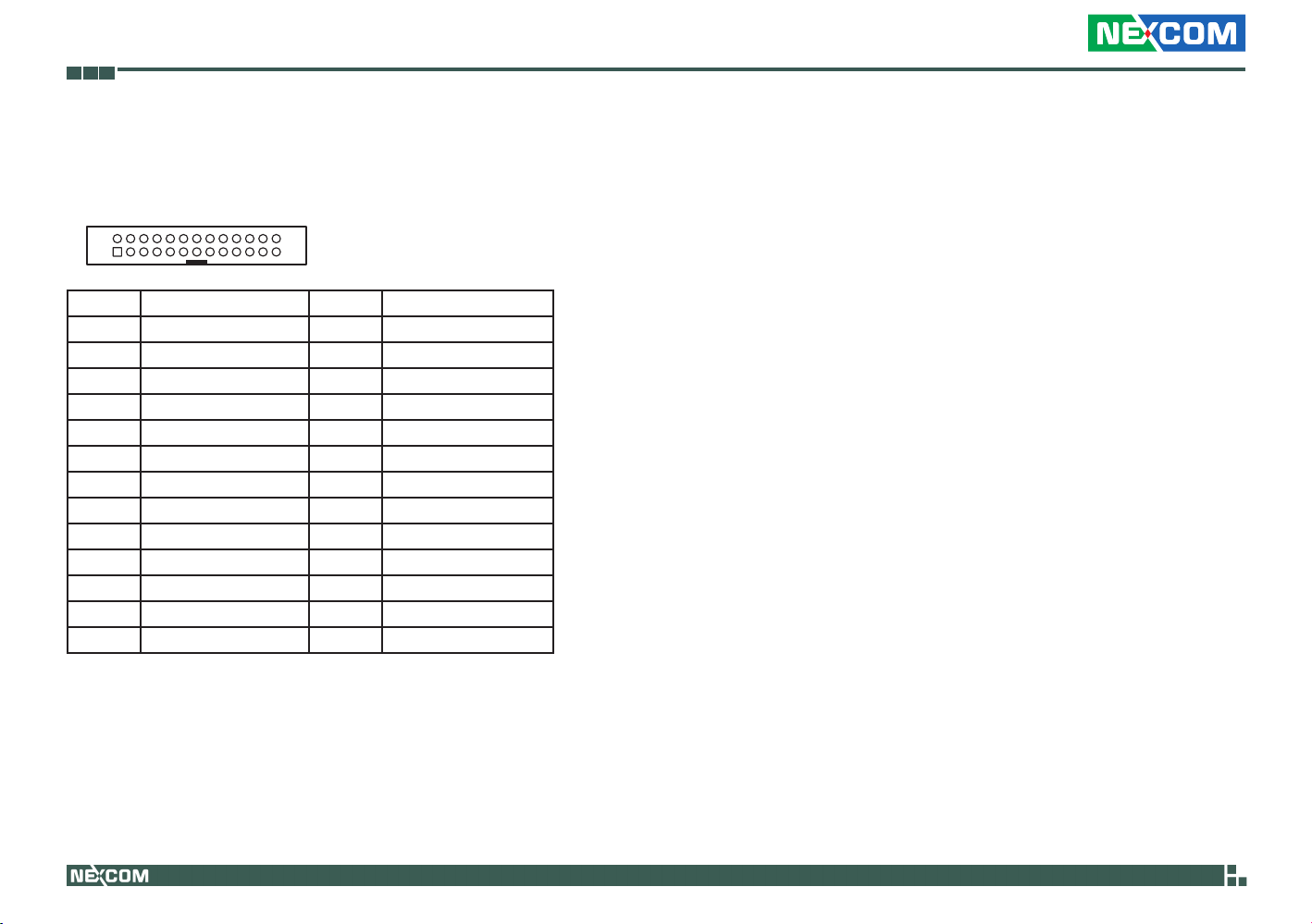

Parallel Connector
Connector size: 2x13 26-pin box header, 2.0mm-M-180 Connector location: CN4
14
1
Pin Definition Pin Definition
1 LPT_RP_STB# 14 LPT_AFD#R
2 LPT_RP_PRD0 15 LPT_ERR#
3 LPT_RP_PRD1 16 LPT_INIT#R
4 LPT_RP_PRD2 17 LPT_SLIN#R
5 LPT_RP_PRD3 18 GND_LPT
6 LPT_RP_PRD4 19 GND_LPT
7 LPT_RP_PRD5 20 GND_LPT
8 LPT_RP_PRD6 21 GND_LPT
9 LPT_RP_PRD7 22 GND_LPT
10 LPT_ACK#R 23 GND_LPT
11 LPT_BUSY 24 GND_LPT
12 LPT_PE 25 GND_LPT
13 LPT_SLCT 26 NC
26 13
56
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 74
Chapter 3: System Setup
Chapter 3: System Setup
Removing the Chassis Cover
Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.
1. The screws on the cover are used to secure the cover to the chassis.
2. Remove these screws and then put them in a safe place for later use.
The dots denote the locations of the screws.
3. Lift up the cover and then remove it from the chassis.
57
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 75
Chapter 3: System Setup

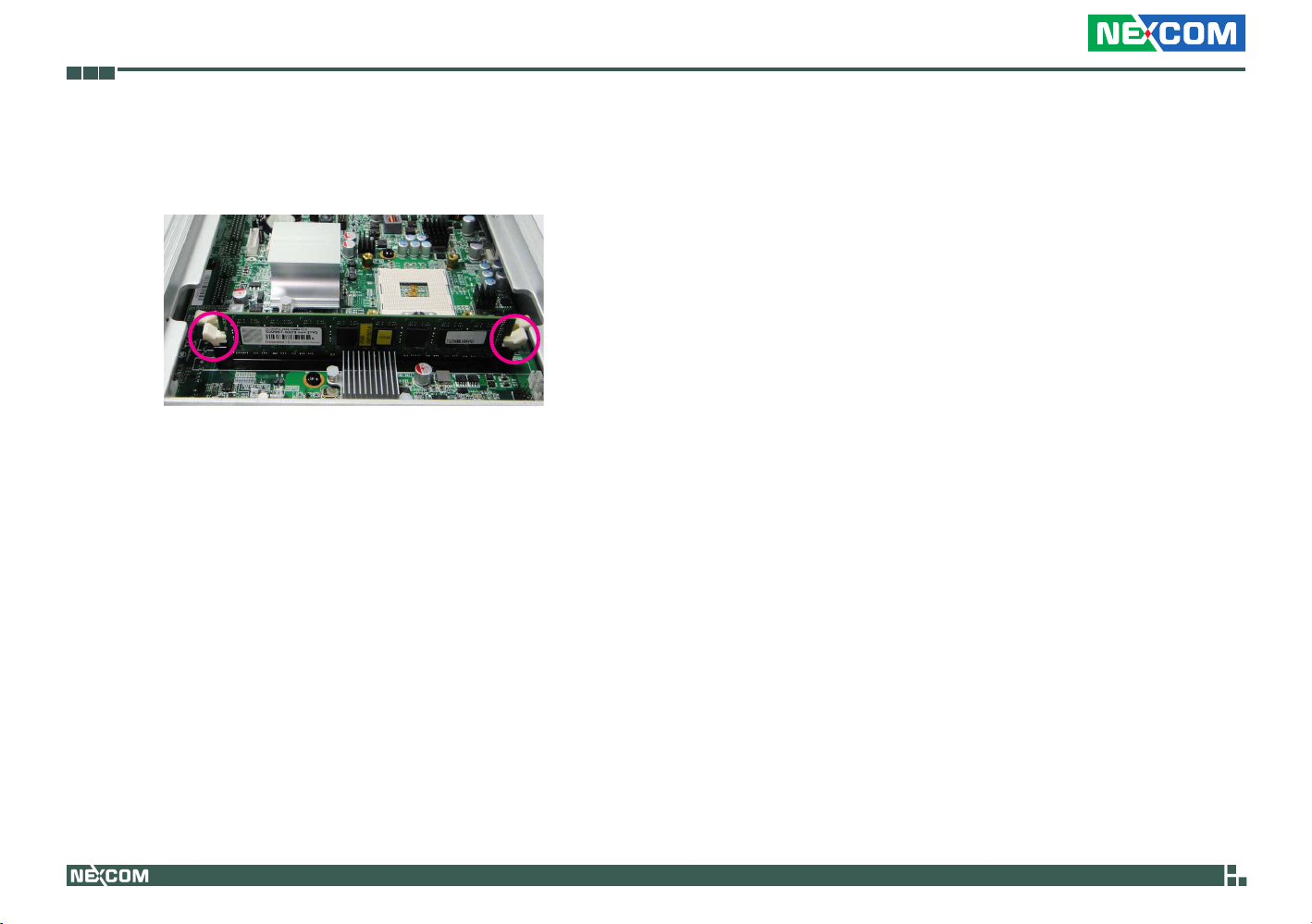

Installing a DIMM
1. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.
Ejector
tab
DIMM sockets
2. Note how the module is keyed to the socket. Grasping the module by its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.
Notch on the module
Key on the socket
58
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 76
Chapter 3: System Setup
3. Seat the module vertically, pressing it down firmly until it is completely seated in the socket. The ejector tabs at the ends of the socket will au­tomatically snap into the locked position to hold the module in place.
59
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 77
Chapter 3: System Setup
Installing the CPU
1. The CPU socket is readily accessible after you have removed the chassis cover.
CPU socket
• Make sure all power cables are unplugged before you install the CPU.
• The CPU socket must not come in contact with anything other than the CPU. Avoid unnecessary exposure.
2. Make sure the screw is in its unlock position. If it’s not, use a screw­driver to turn the screw to its unlock position.
Screw in unlocked position
60
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 78
Chapter 3: System Setup
3. Position the CPU above the socket. The gold triangular mark on the CPU must align with pin 1 of the CPU socket.
Pin 1
Gold triangular mark
Handle the CPU by its edges and avoid touching the pins.
4. Insert the CPU into the socket until it is seated in place. The CPU will fit in only one orientation and can easily be inserted without exerting any force. Use a screwdriver to turn the screw to its lock position.
Screw in locked position
Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.
61
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 79
Chapter 3: System Setup

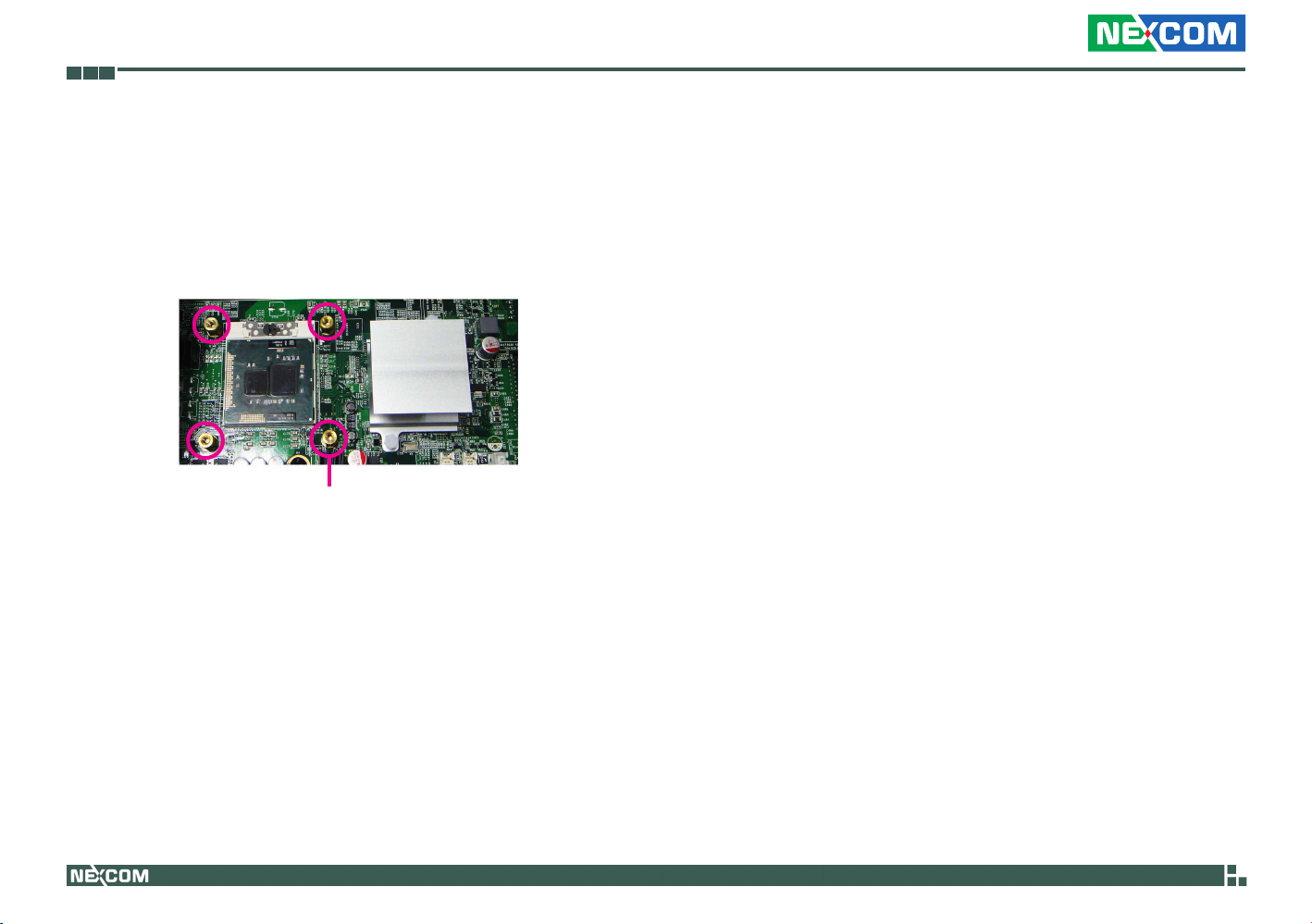

5. Before you install the heat sink, apply thermal paste onto the top of the CPU. Do not spread the paste all over the surface. When you later place the heat sink on top of the CPU, the compound will disperse evenly.
6. Align the mounting holes of the heat sink with the mounting studs on the board and then secure the heat sink with the provided screws.
Mounting stud
62
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 80
Chapter 3: System Setup

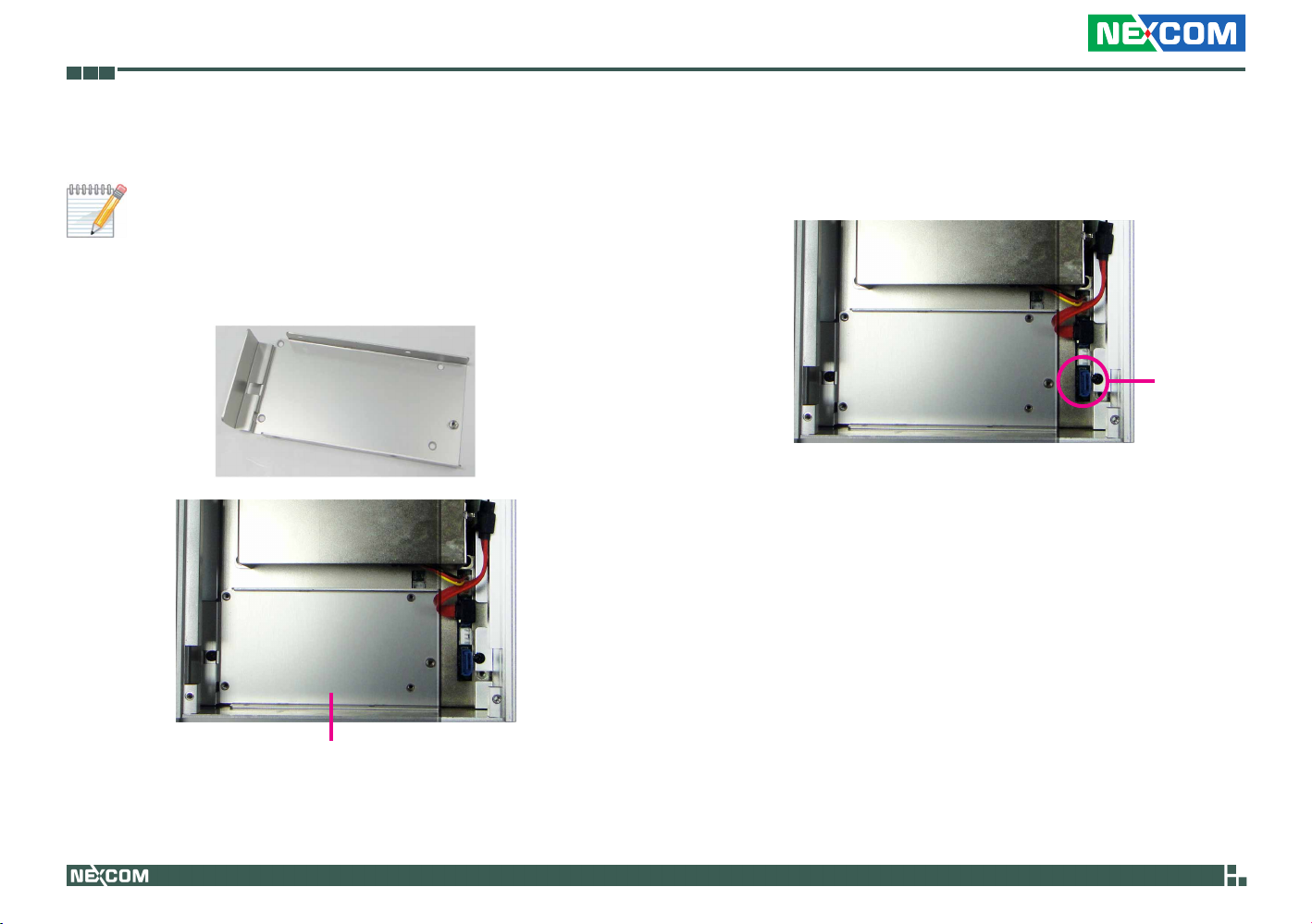

Installing a SATA Hard Drive
1. With the bottom side of the chassis facing up, remove the screws of the bottom cover.
2. Remove the 4 mounting screws that secure the drive bay to the chassis.
If you are installing one SATA drive only, the system will allow you to install an optional CompactFlash card, a half length SATA DOM or a full length SATA DOM.
3. Remove the drive bay. The drive bay is used to hold a SATA hard drive.
63
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 81
Chapter 3: System Setup
4. Place the SATA hard drive on the drive bay. Make sure the connector side of the SATA drive is facing the opening of the drive bay.
5. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bay then use the provided mounting screws to secure the drive in place.
Connector side of the SATA drive
6. Connect the SATA data cable and SATA power cable to the connectors on the SATA drive.
SATA power cable
SATA data cable
64
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 82
Chapter 3: System Setup

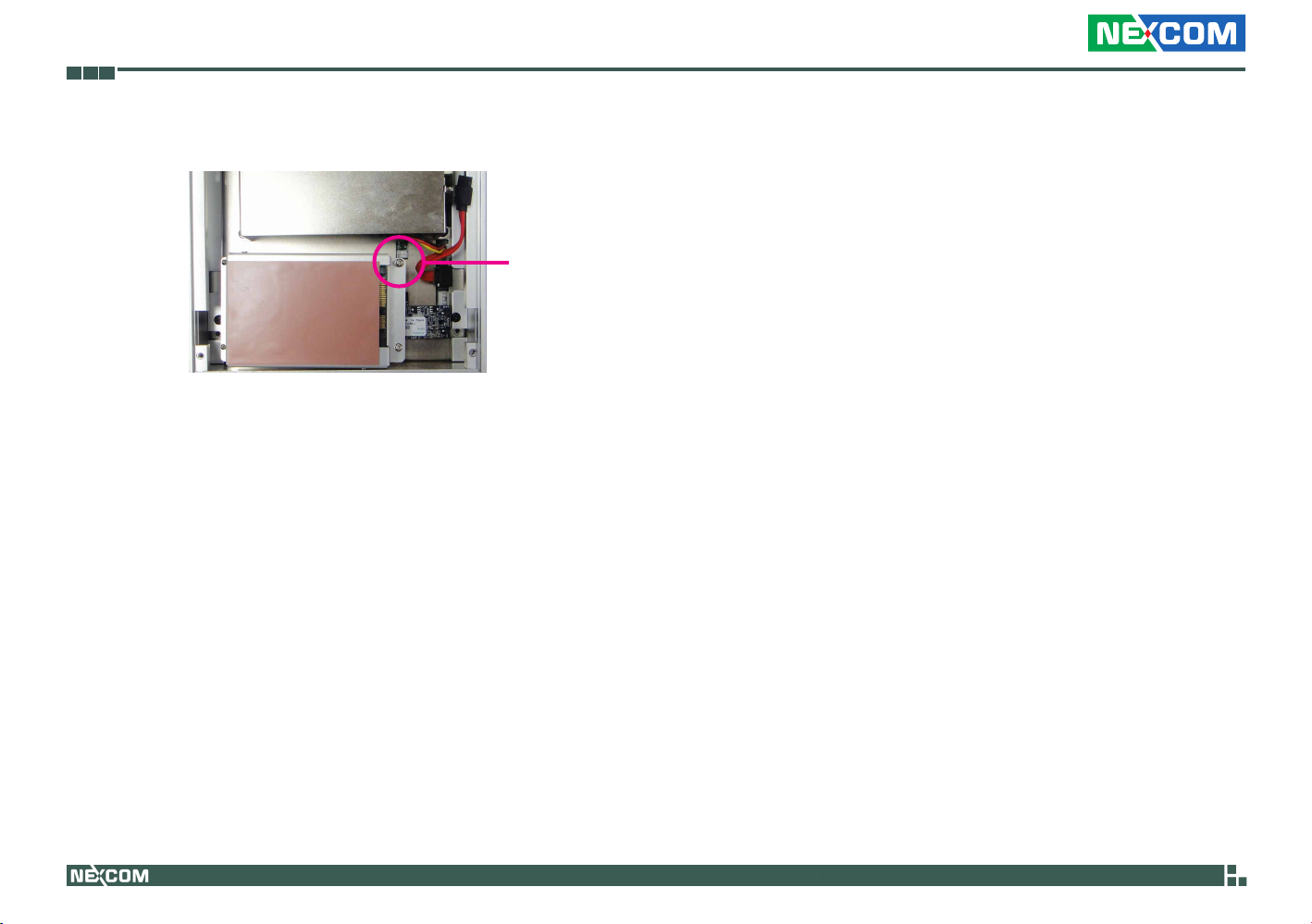

7. Use the provided mounting screws to secure the drive bay to the chas­sis.
65
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 83
Chapter 3: System Setup
Installing a Half Length SATA DOM with SATA HD
If you intend to install a half length SATA DOM, you may install one SATA hard drive only.
1. Prior to installing the SATA DOM, you must first place the drive bay shown below into the chassis.
2. Locate for the SATA connector on the board.
SATA connector
Drive bay
66
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 84
Chapter 3: System Setup
3. Align the SATA connector located on the solder side of the SATA DOM to the SATA connector that is on the board and then press it down firmly. Secure the SATA DOM with the provided mounting screw.
SATA DOM
Mounting screw
Solder side of
SATA DOM
SATA connector
67
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 85
Chapter 3: System Setup
Installing a Full Length SATA DOM
If you intend to install a full length SATA DOM, you may install one SATA hard drive only.
1. Prior to installing the full length SATA DOM, remove any drive bay that may have been previously installed.
2. Locate for the SATA connector on the board.
3. Align the SATA connector located on the solder side of the SATA DOM to the SATA connector that is on the board and then press it down firmly. Secure the SATA DOM with the provided mounting screw.
SATA DOM
Mounting screw
4. Before installing the single drive bay back, you must first replace the 4 mounting studs.
Now place the single drive bay by aligning the mounting holes of the
drive bay with the mounting studs.
Mounting hole
Solder side of
SATA DOM
SATA connector
68
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 86
Chapter 3: System Setup
5. Secure the drive bay with the provided mounting screws.
Mounting screw
69
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 87
Chapter 3: System Setup
Installing a Wireless LAN Module (NViS 3542 Series Only)
1. Locate the Mini PCI Express slot on the board.
Mini PCI
Express Slot
2. Insert the wireless LAN module into the Mini PCI Express slot at a 45 de-
grees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.
Wireless LAN Module
Mini PCI Express Slot
Mini PCI
Express Slot
70
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 88
Chapter 3: System Setup
3. Push the module down and then secure it with mounting screws.
Attach one end of the RF cable onto the module.
Mounting
screw
RF Cable
4. Remove the antenna hole covers that is located at the front panel of the
chassis.
Antenna hole covers
71
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 89
Chapter 3: System Setup
5. Insert the antenna jack end of the cable through the antenna hole. Insert the 2 rings (ring 1 and then ring 2) onto the antenna jack end of the cable.
Ring1
Ring2
Jack end of
the cable
Antenna jack
6. Connect an external antenna to the antenna jack.
Antenna
72
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 90
Chapter 3: System Setup

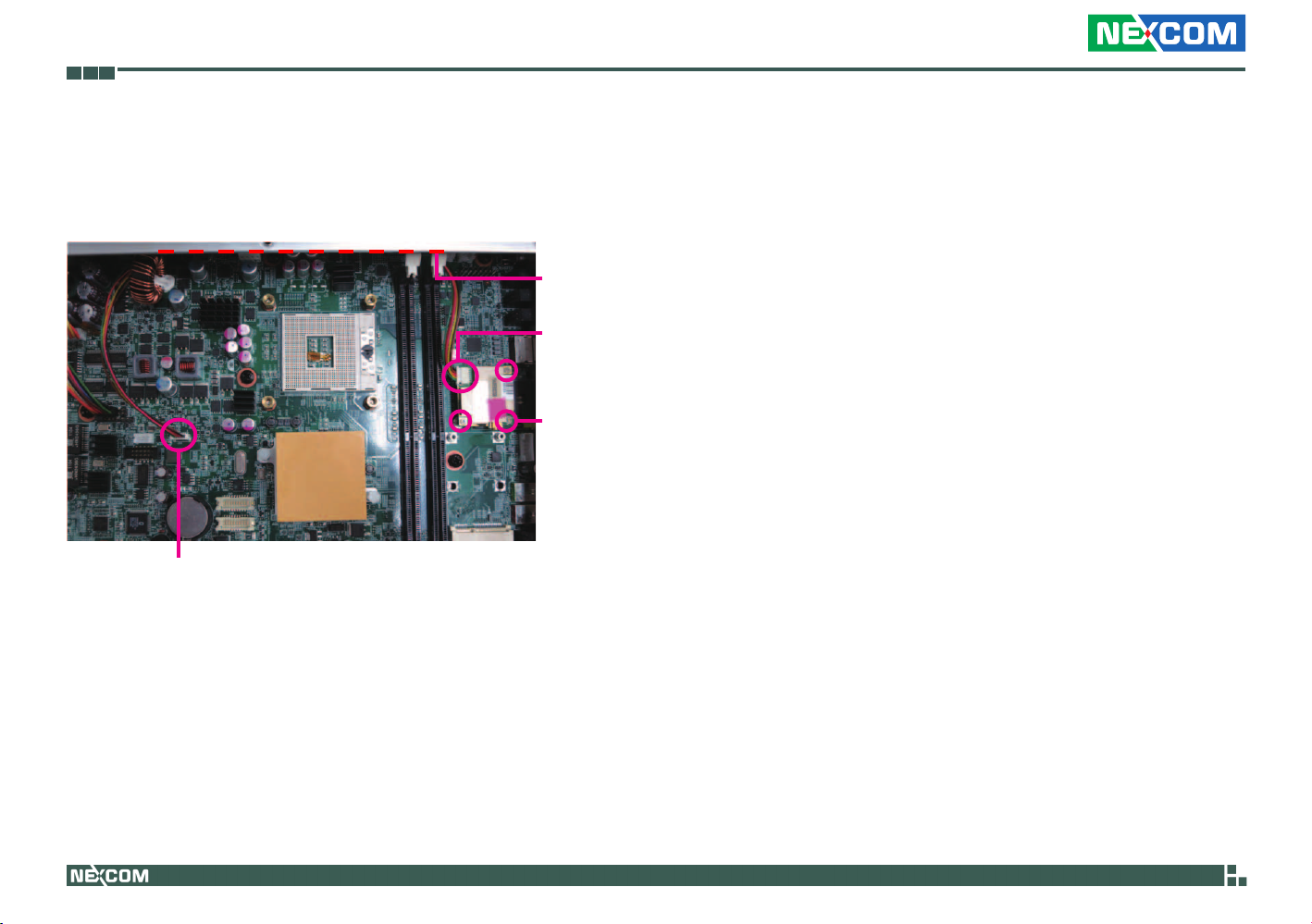

Installing a GPS Module (NViS 3542 Series Only)
1. Locate the GPS module’s mounting hole on the motherboard.
GPS cable way
GPS module connector
Mounting holes
GPS connector
2. Place and align the mounting holes on the GPS module with the mounting holes on the chassis.
3. Tighten screws on the mounting holes to secure the module.
4. Connect the GPS module connector to the GPS connector on the motherboard.
73
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 91
Chapter 3: System Setup
Connecting to the Power Ignition Module (NISKIG120)
Introduction
The NISKIG120 is an external power ignition module that provides stable power to NViS 3540 series. Using this module will ensure that the device is well shielded against premature failure at boot/shutdown phase. The following instructions will guide you on how to connect the NISKIG120 to the vehicle’s bat­tery/ignition and NViS 3540 series.
The following instructions use NViS 3540P8 as an example, but can be applied to all other NViS 3540 series.
1. Connect the vehicle battery and ignition to the module’s power input socket, refer to the pin/wiring definition table below:
Close-up view of the power input:
1 5
Recommended wire gauge range: minimum of 10 AWG or above, maximum length of 3 meters.
74
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 92
Chapter 3: System Setup
1
2. Connect the module’s DC output to NViS 3540’s DC input, refer to the pin/wiring definition table below:
Close-up view of the DC output:
6
Recommended wire gauge range: minimum of 16 AWG or above, maximum length of 3 meters.
1
75
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 93
Chapter 3: System Setup
3. Connect the S3 control port to the Power Ignition port, refer to the pin/ wiring definition table below:
76
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 94
Chapter 4: BIOS Setup
Chapter 4: BIOS Setup
This chapter describes how to use the BIOS setup program for the NViS 3540 series. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.
To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.
About BIOS Setup
The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.
These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.
With easy-to-use pull down menus, you can configure such items as:
▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use ▪ Power management features
The settings made in the setup program affect how the computer per­forms. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.
When to Configure the BIOS
This program should be executed under the following conditions:
▪ When changing the system configuration ▪ When a configuration error is detected by the system and you are
prompted to make changes to the Setup program
▪ When resetting the system clock ▪ When redefining the communication ports to prevent any conflicts ▪ When making changes to the Power Management configuration ▪ When changing the password or making other changes to the security
setup
Normally, CMOS setup is needed when the system hardware is not con­sistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.
77
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 95
Chapter 4: BIOS Setup
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.
Entering Setup
When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:
▪ If the error occurs before the display device is initialized, a series of
beeps will be transmitted.
▪ If the error occurs after the display device is initialized, the screen will
display the error message.
Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:
TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:
Legends
Key Function
Right and Left arrows Moves the highlight left or right to select a
menu.
Up and Down arrows Moves the highlight up or down between sub-
menus or fields.
<Esc> Exits to the BIOS Setup Utility.
+ (plus key) Scrolls forward through the values or options of
the highlighted field.
- (minus key) Scrolls backward through the values or options of the highlighted field.
Tab Selects a field.
<F1> Displays General Help.
<F10> Saves and exits the Setup program.
<Enter> Press <Enter> to enter the highlighted sub-
menu.
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.
Submenu
When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.
58
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 96
Chapter 4: BIOS Setup
BIOS Setup Utility
Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.
Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Main
BIOS Information BIOS Vendor Core Version Project Version Build Date
Memory Information Total Memory
System Date System Time
Access Level
Advanced PCIPnP Boot Security
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
American Megatrends
4.6.3.7 N350-010 x64 07/28/2010 16:52:57
1024 MB (DDR3 1066)
[Wed 08/11/2010] [16:51:35]
Administrator
ExitChipset
Use [ENTER], [TAB] or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system Time.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Memory Information
Displays the detected system memory information.
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to De­cember. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second dis­plays seconds from 00 to 59.
BIOS Information
Displays the detected BIOS information.
59
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 97
Chapter 4: BIOS Setup
Advanced
The Advanced menu allows you to configure your system for basic opera­tion. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Setting incorrect field values may cause the system to malfunc­tion.
Legacy OpROM Support
Launch PXE OpROM
u
S5 RTC Wake Settings
u
CPU Conguration
u
SATA Conguration
u
Intel IGD SWSCI OpRegion
u
Intel TXT(LT) Conguration
u
USB Conguration
u
Super IO Conguration
u
H/W Monitor
u
Thermal Conguration
u
AMT Conguration
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
PCIPnP Boot SecurityMain Advanced
[Disabled]
Enable or Disable Boot Option for Legacy Network Devices.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
ExitChipset
CPU Configuration
This section is used to configure the CPU. It will also display detected CPU information.
SATA Configuration
This section is used to configure the SATA drives.
Intel IGD SWSCI OpRegion
Configures the Intel graphics display.
Intel TXT(LT) Configuration
Configures the Intel Trusted Execution technology.
USB Configuration
Configures the USB devices.
Super IO Configuration
This section is used to configure the I/O functions supported by the on­board Super I/O chip.
H/W Monitor
This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.
Thermal Configuration
Configures the intelligent power sharing function.
Launch PXE OpROM
Enables or disables the boot option for legacy network devices.
S5 RTC Wake Settings
Configures the S5 RTC wake up setting.
AMT Configuration
Configures the AMT function.
60
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 98
Chapter 4: BIOS Setup
S5 RTC Wake Settings
This section is used to configure the wake up function.
Advanced
Wake System with Fixed Time
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[Disabled] Enable or Disable
system wake on alarm event. When enabled, system will wake on the hr::min::sec specied.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Wake System with Fixed Time
Enables or disables the system’s wake on alarm event. When enabled, the system will wake up on the specified time.
CPU Configuration
This section is used to configure the CPU. It will also display detected CPU information.
Advanced
CPU Conguration
Intel(R) Core(TM) i5 CPU M 540 @ 2.53GHz EMT64 Processor Speed Processor Stepping Microcode Revision Processor Cores Intel HT Technology
Hyper-Threading
Active Processor Cores Limit CPUID Maximum Hardware Prefetcher Adjacent Cache Line Prefetch Intel Virtualization Technology Power Technology TDC Limit TDP Limit
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
Supported 2527 MHz 20652 9 2 Supported
[Enabled]
[A11] [Disabled] [Enabled] [Enabled] [Disabled] [Energy Efcient] 0 0
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Hyper-Threading
Enable this field for Windows XP and Linux which are optimized for Hyper­Threading technology. Select disabled for other OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.
Active Processor Cores
Used to enter the number of cores to enable in each processor package.
61
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 99
Chapter 4: BIOS Setup
Limit CPUID Maximum
The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, en­able this field to limit the return value to 3 or lesser than 3.
Hardware Prefetcher
Turns on or off the MLC streamer prefetcher.
Adjacent Cache Line Prefetch
Enables or disables the adjacent cache line prefetch.
Intel Virtualization Technology
When this field is set to Enabled, the VMM can utilize the additional hard­ware capabilities provided by Vanderpool Technology.
Power Technology
Configures the power management features.
TDC Limit
Used to select the TDC limit.
TDP Limit
SATA Configuration
This section is used to configure the SATA drives.
Advanced
SATA Conguration
SATA Port 1 SATA Port 2 SATA Port 3 SATA Port 4
SATA Mode
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
Not Present Not Present Not Present Not Present
[IDE Mode]
(1) IDE Mode. (2) AHCI Mode. (3) RAID Mode.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
SATA Mode
IDE Mode This option configures the Serial ATA drives as Parallel ATA
storage devices.
AHCI Mode This option allows the Serial ATA devices to use AHCI (Ad-
vanced Host Controller Interface).
RAID Mode This option allows you to create RAID or Intel Matrix Stor-
age configuration on Serial ATA devices.
Used to select the TDP limit.
62
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
Page 100
Chapter 4: BIOS Setup
Intel IGD SWSCI OpRegion
This section is used to configure the Intel graphics display.
Advanced
Intel IGD SWSCI OpRegion Conguration
DVMT/FIXED Memory
IGD - Boot Type LCD Panel Type
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[256MB]
[CRT + DVI] [VBIOS Default]
Select DVMT/FIXED Mode Memory size used by Internal Graphics Device
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
DVMT/FIXED Memory
Selects the DVMT/FIXED mode memory size used by the internal graphics device.
IGD - Boot Type
Intel TXT(LT) Configuration
This section is used to configure the Intel Trusted Execution technology.
Advanced
Intel Trusted Execution Technology Conguration
Intel TXT(LT) Support
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[Disabled]
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Intel TXT(LT) Support
The options are Enabled and Disabled.
Selects the video device that will be activated during POST. This will not affect any external graphics that may be present.
LCD Panel Type
Selects the LCD panel used by the internal graphics device.
63
NViS 3540/3540H/3540P4/3540P8 and NViS 3542/3542H/3542P4/3542P8 User Manual
