NEXCOM PEAK 876VL2 User Manual

NEXCOM International Co., Ltd.

Industrial Computing Solutions

PICMG Single Board Computer (PICMG 1.3) PEAK 876VL2/877VL2

User Manual

NEXCOM International Co., Ltd.

Published August 2011

www.nexcom.com

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................vii

Installation Recommendations ................................................................vii

Safety Precautions .................................................................................viii

Technical Support and Assistance ........................................................... ix

Conventions Used in this Manual ........................................................... ix

Global Service Contact Information ......................................................... x

Package Contents ..................................................................................xii

Ordering Information ............................................................................xiii

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features .......................................................................................1

Hardware Specifications ..........................................................................2

Getting to Know PEAK 876VL2/877VL2 .................................................. 4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions .............................................................................................5

Jumper Settings ......................................................................................6

Locations of the Jumpers and Connectors ............................................... 7

Jumpers .................................................................................................. 8

CMOS Clear Select ............................................................................. 8

Power Type Select ............................................................................... 8

Connectors Pin Definitions ...................................................................... 9

External I/O Interface .......................................................................... 9

USB 1 Port ..................................................................................... 9

USB 2 Port ..................................................................................... 9

LAN 1 Port ................................................................................... 10

LAN 2 Port ................................................................................... 10

VGA Port ..................................................................................... 11

Internal Connectors .......................................................................... 12

USB Connector ............................................................................ 12

PS/2 Keyboard/Mouse Connector .................................................12

+12V Power Connector ...............................................................13

Smart Fan Connector ................................................................... 13

Fan Connector ............................................................................. 14

COM 1 Connector ....................................................................... 14

ii

PEAK 876VL2/877VL2 User Manual

Contents

COM 2 Connector ....................................................................... 15

GPIO Connector ..........................................................................15

2x8 Pin Connector ....................................................................... 16

SATA DOM Power Connector .......................................................16

IrDA Pin Header ........................................................................... 17

Parallel Connector .......................................................................17

SATA Port (J4) ..............................................................................18

SATA Port (J5) ..............................................................................18

SATA Port (J6) ..............................................................................19

SATA Port (J7) ..............................................................................19

LAN LED Connector ..................................................................... 20

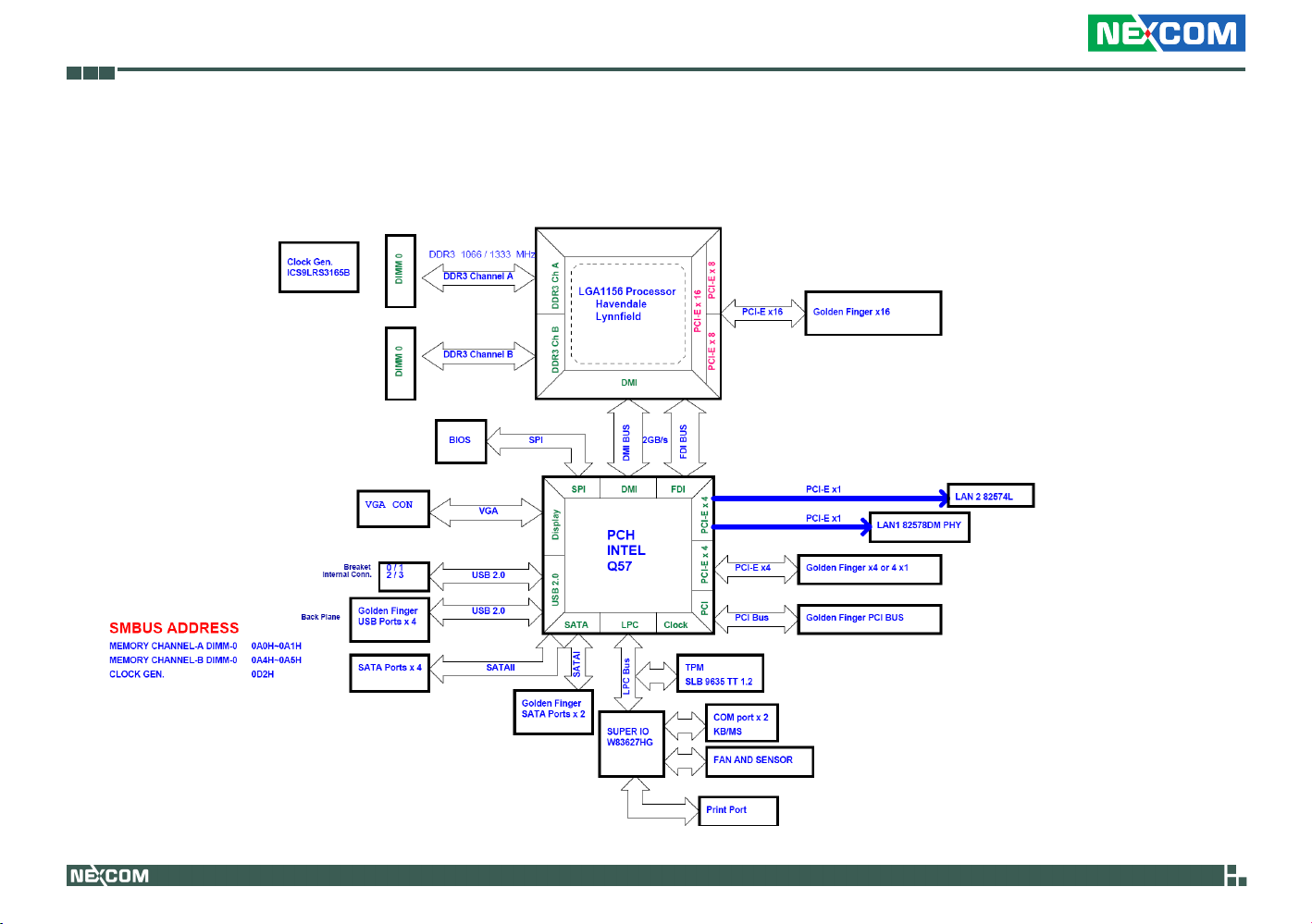

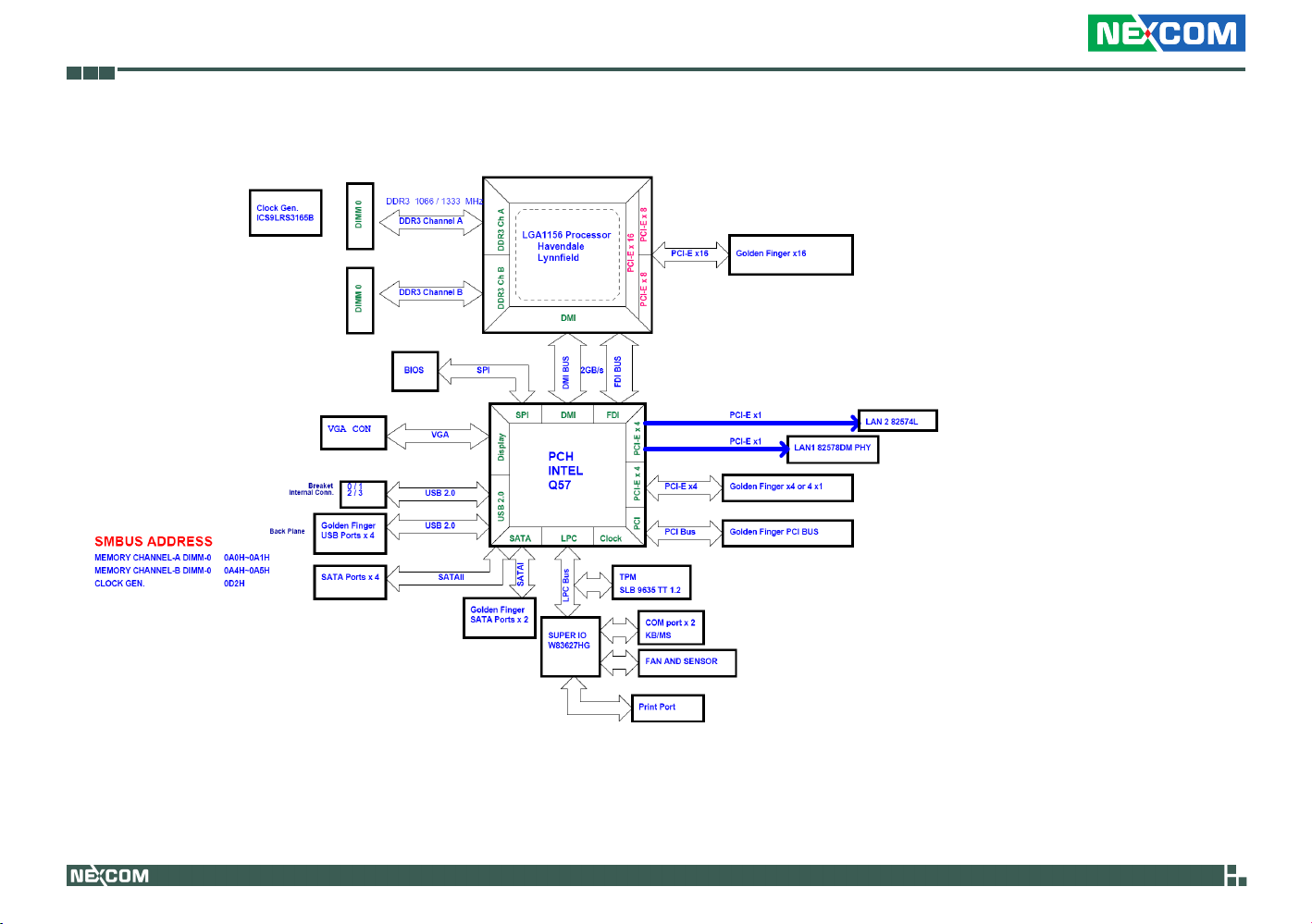

Block Diagram .................................................................................. 21

Chapter 3: BIOS Setup

About BIOS Setup ................................................................................. 23

When to Configure the BIOS .................................................................23

Entering Setup ...................................................................................... 24

Legends ................................................................................................ 24

BIOS Setup Utility .................................................................................. 25

Main ................................................................................................25

Advanced ......................................................................................... 26

PCIPnP .............................................................................................36

Boot ................................................................................................. 37

Security ............................................................................................ 39

Chipset ............................................................................................40

Exit ................................................................................................... 45

Appendix A: Watchdog Timer

Watchdog Timer Setting .......................................................................46

Appendix B: Power Consumption

Power Consumption .............................................................................48

Power Supply Must Consumed Watts and Currents ...............................49

Appendix C: GPI/O Programming Guide

GPI/O Programming Guide ....................................................................50

iii

PEAK 876VL2/877VL2 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

PEAK 876VL2/877VL2 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

PEAK 876VL2/877VL2 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products

and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

PEAK 876VL2/877VL2 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

? Customers must collect all the information about the problems encoun-

tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without acces-

sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the cus-

tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3rd party products if needed.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

vi

PEAK 876VL2/877VL2 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-

er. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

vii

PEAK 876VL2/877VL2 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect the equipment from an AC power outlet prior to install-

ing a component inside the chassis.

4. To prevent electrostatic build-up, leave the board in its anti-static bag

until you are ready to install it.

5. Keep the board away from humidity.

6. Put the board on a stable surface. Dropping it or letting it fall may

cause damage.

7. Do not leave the board in either an unconditioned environment or in

a above 60oC storage temperature as this may damage the board.

8. Wear an antistatic wrist strap.

9. Do all preparation work on a static-free surface.

10. Hold the board only by its edges. Be careful not to touch any of the

components, contacts or connections.

11. All cautions and warnings on the board should be noted.

12. Use the correct mounting screws and do not over tighten the screws.

13. Keep the original packaging and the anti-static bag; in case the board has to be returned for repair or replacement.

viii

PEAK 876VL2/877VL2 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

ix

PEAK 876VL2/877VL2 User Manual

Preface

Global Service Contact Information

Headquarters Taiwan

18F, No. 716, Chung-Cheng Rd. Chung-Ho City, Taipei County 235, Taiwan, R.O.C. Tel: +886-2-8228-0606 Fax: +886-2-8228-0501 http://www.nexcom.com.tw

USA

3758 Spinnaker Court, Fremont, CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com

France

Z.I. des Amandiers, 17, Rue des entrepreneurs 78420 Carrières sur Seine, France Tel: +33 (0)1 71 51 10 20 Fax: +33 (0)1 71 51 10 21 http://www.nexcom.eu

Germany

Leopoldstrase Business Centre, Leopoldstrase 244 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu

Italy

Via Gaudenzio Ferrari 29, 21047 Saronno (VA) Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu

United Kingdom

10 Vincent Avenue, Crownhill Business Centre Milton Keynes, Buckinghamshire, MK8 0AB United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu

x

PEAK 876VL2/877VL2 User Manual

Preface

China-Beijing

Room 301, Block E, Power Creative Building, No. 1 Shangdi East Rd. Haidian Dist., Beijing, 100085, China Tel: +86-10-5885-6655 Fax: +86-10-5885-1066 http://www.nexcom.cn

China-Shanghai Office

Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd. Shanghai, 200063, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn

China-Nanjing Office

Room 1206, Hongde Building, No. 20 Yunnan Rd. Nanjing, 210018, China Tel: +86-25-8324-9606 Fax: +86-25-8324-9685 http://www.nexcom.cn

China-Shenzhen Office

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, China 518040 TEL: +86-755-833 27203 FAX: +86-755-833 27213 http://www.nexcom.cn

Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku Tokyo, Japan 108-0014 Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com

xi

PEAK 876VL2/877VL2 User Manual

Preface

PaCkage Contents

Before continuing, verify that the PEAK 876VL2/877VL2 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 60233PS215X00 PS2 Y CABLE VERA TECH:GSE090505B W/BRACKET PS2 TO JST 6PIN 2.0mm L:250mm+-10mm 1

2 60233PRT15X00 PRINT CABLE BEST W/BRACKET PRINT 25 TO 2.0mm 26PIN L:150mm 1

3 60233SIO03X00 CABLE EDI:13420901511-RS W/BRACKET COM PORT. 9PIN TO HOUSING 10PIN

PIT:2.0mmx2 L:150mm+-10mm

4 60233USB60X00 USB CABLE CONNTEK:A02-B001-V01 USB CONx2+BRACKET TO JST 6PIN 2.5mm L:240+-15mm 1

5 60233ATA17X00 SATA CABLE BEST:148-0707-300R Standard L:300mm 1

1

xii

PEAK 876VL2/877VL2 User Manual

Preface

ordering information

The following provides ordering information for PEAK 876VL2/877VL2.

• PEAK 876VL2 (P/N : 10P0876VL00X0) RoHS Compliant

PICMG 1.3 Full-Size SHB, Intel® LGA 1156, Core™ i5/i3/Pentium® processors with Max 8GB DDR3 DIMM, VGA, Intel® 82574L PCI Express Gigabit Ether-

net x 1, 82578DM Gigabit Ethernet x 1, Serial ATA x 6

• PEAK 877VL2 (P/N : 10P0877VL00X0) RoHS Compliant

PICMG 1.3 Full-Size SHB, Intel® LGA 1156, Core™ i7/i5/i3/Pentium® processors with Max 8GB DDR3 DIMM, VGA, Intel® 82574L PCI Express Gigabit

Ethernet x 1, 82578DM Gigabit Ethernet x 1, Serial ATA x 6

xiii

PEAK 876VL2/877VL2 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt introduCtion

Overview

Key Features

• Intel® Core™ i5/ i3/ Pentium Integrated Graphics (PEAK 876VL2) Onboard XGI Z11 graphics for Intel® Core™ i7 processors (PEAK 877VL2)

• Intel® LGA 1156, Core™ i7/ i5/ i3/ Pentium

• 1 x 82574 PCI Express Gigabit Ethernet

• 1 x 82578DM Gigabit Ethernet

• 6 x SATA, 8 x USB 2.0, 2 x COM, 1 x Parallel

®

1

• Non-ECC Dual Channel DIMM DDR3 1066/1333MHz up to 8GB

• Intel® AMT 6.0

PEAK 876VL2/877VL2 User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU

• Intel® LGA1156, Core™ i7/ i5/ i3/ Pentium® processors

Chipset

• Intel® Q57 Express Chipset PCH

• Main Memory

• 2x 240-pin DDR3 DIMM sockets

• Supports up to 8GB 1066/1333 dual channel DIMM

• Supports non-ECC unbuffered DIMM

Onboard LAN

• 1 x Intel® 82578DM PHY for AMT 6.0

• 1 x Intel® 82574L PCI Express Gigabit Ethernet

• Support boot from LAN (PXE)

• 2x RJ45 with LED

Display

• PEAK 876VL2

- Intel® Core™ i5/ i3/ Pentium® processors Integrated graphics

- Analog display support up to 2048x1536 @ 75Hz for CRT

• PEAK 877VL2

- Intel® Core™ i7/ i5/ i3/ Pentium® processors Integrated graphics

- Integrated graphic engine by XGI Volari Z11 GPU with DDR2 SDRAM through PCIe x1 Interface

- Analog VGA Interface: 230MHz pixel clocksupports CRT display up to 1600x1200 @ 70Hz 16M colors

I/O Interfaces

• USB 2.0: 8 ports (2 onboard, 4 to backplane), 2 ports through I/O bracket

• Serial port: 2 ports, with 2x5 pin headers (COM 1 and COM 2)

• SATA HDD: 6 ports (4 onboard, 2 to backplane), supports RAID 0/1/5/10

and Intel® Matrix Storage Technology (Intel® MST)

• Parallel port: 1 x 26-pin connector

• IrDA: 1 x 5-pin header

• GPIO: supports 4 sets of general purpose I/O each with TTL level (5V)

interface

• Onboard buzzer x 1

• Power LED/Power On/Reset/SMBUS: 2x8 pin header

• 1 x 4-pin fan connector (for CPU); 1 x 3-pin fan connector (for System)

• IPMB interface through PICMG 1.3 Golden-finger

• I/O On SBC Bracket

- 1 x VGA DB-15 connector

- 2 x RJ45 Gigabit Ethernet LAN ports

- 2 x USB 2.0 Ports

2

PEAK 876VL2/877VL2 User Manual

Chapter 1: Product Introduction

BIOS

• AMI BIOS

• Plug and play support

• Advanced Power Management and Advanced Configuration & Power

Interface support

Watchdog Timer

• 1-minute increment from 1 to 255 minutes

• 1-second increment from 1 to 255 seconds

• On-chip RTC with battery backup

• 1 x External Li-lon battery

System Monitor

• 4 Voltages (+3.3V, +5V, +12V, Vcore)

• 2 Temperatures (For CPU and System)

• 2 FAN speed monitors (1 for CPU and 1 for System FAN)

Power Input

• Power source from backplane through golden finger and AUX +12V

• Supports ATX/AT power supplies

• +12V/+5V/+3.3V/+5Vsb

Dimensions

• PICMG 1.3 SHB

• 338.58mm (L) x 126.39mm (W) (13.3’’ x 4.9’’)

Environment

• Board level operating temperatures: 0°C to 60°C

• Storage temperature: -20°C to 85°C

• Relative humidity: 10% to 90%, (Non-condensing)

Certifications

• CE approval

• FCC Class A

3

PEAK 876VL2/877VL2 User Manual

Chapter 1: Product Introduction

Getting to Know PEAK 876VL2/877VL2

FAN1

+12V Power

KB/MS

JP2

SATA

FAN2

USB SATA DOM

Power

SATA

Parallel

COM 1

COM 2 IrDA GPIO

USB 1 USB 2

LAN 1

LAN 2

VGA

LAN LED

4

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers and connectors on the PEAK 876VL2/877VL2 motherboard.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the connections. It is recom-

mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power

is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-

tronic components. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are

working inside the case.

• If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the com-com-

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

• Use correct screws and do not over tighten screws.

5

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

6

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The figure below shows the locations of the jumpers and connectors.

FAN1

CON1

FAN2

J2

J4

JP2

J9 J1 JP5

J7

J5

J6

JP4

CN1

JP1

CN2

CN3 JP3 J3

USB 1 USB 2

LAN 1

LAN 2

VGA1

7

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

CMOS Clear Select

Connector type: 1x3 3-pin header, 2.0 mm pitch Connector location: JP4

1

Pin Settings

1-2 On Normal

2-3 On Clear BIOS

1-2 On: default

Pin Definition

3

1 NC

2 RTCRST#

3 GND

Power Type Select

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP3

1

Pin Definition

1-2 On AT

2-3 On ATX

Pin Definition

3

1 AT_PWRBT#

2 PWRBT#

3 PWRBTOUT1

8

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

USB 1 Port

Connector type: Single USB port, Type A Connector location: USB1

Pin Definition Pin Definition

1 VCC5 MH1 GND

2 USB0N MH2 GND

3 USB0P MH3 GND

4 GND

USB 2 Port

Connector type: Single USB port, Type A Connector location: USB2

Pin Definition Pin Definition

1 VCC5 MH1 GND

2 USB1N MH2 GND

3 USB1P MH3 GND

4 GND

9

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

LAN 1 Port

Connector type: RJ45 port with LEDs Connector location: LAN1

Pin Definition Pin Definition

1 LAN1_M0P 2 LAN1_M0N

3 LAN1_M1P 4 LAN1_M2P

5 LAN1_M2N 6 LAN1_M1N

7 LAN1_M3P 8 LAN1_M3N

9 LAN1LINK# 10 3V3M_LAN

11 LAN1_LED_LNK#_ACT 12 3V3M_LAN

MH1 GND MH2 GND

LAN 2 Port

Connector type: RJ45 port with LEDs Connector location: LAN2

Pin Definition Pin Definition

1 LAN2_M0P 2 LAN2_M0N

3 LAN2_M1P 4 LAN2_M2P

5 LAN2_M2N 6 LAN2_M1N

7 LAN2_M3P 8 LAN2_M3N

9 LAN2_LINK# 10 3VSB

11 LAN2_LED1 12 3VSB

MH1 GND MH2 GND

10

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

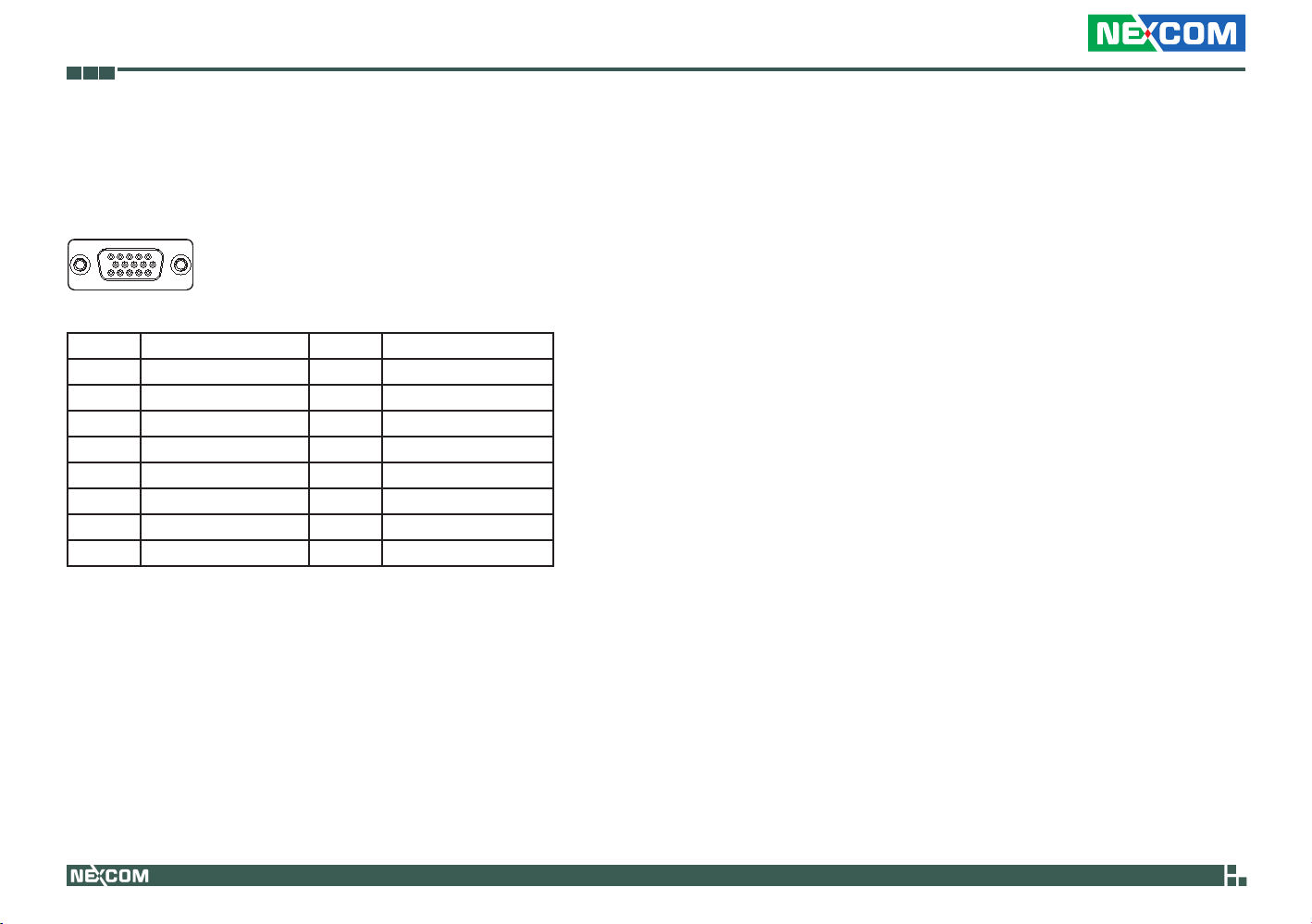

VGA Port

Connector type: DB-15 port, 15-pin D-Sub Connector location: VGA1

15

1115

Pin Definition Pin Definition

1 CRT_RED 2 CRT_GREEN

3 CRT_BLUE 4 NC

5 GND 6 GND

7 GND 8 GND

9 5V 10 GND

11 NC 12 CRT_SDA

13 CRT_HSYNC 14 CRT_VSYNC

15 CRTDDCCLK

11

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

USB Connector

Connector type: 1x6 6-pin, 2.5 mm JST Connector location: J9

1

Pin Definition

1 VCC5

2 USB2N

3 USB2P

4 USB3N

5 USB3P

6 GND

6

PS/2 Keyboard/Mouse Connector

Connector size: 1x6 6-pin, 2.0 mm JST Connector location: J2

16

Pin Definition Pin Definition

1 VCC5 2 KDAT

3 KCLK 4 MDAT

5 MCLK 6 GND

12

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

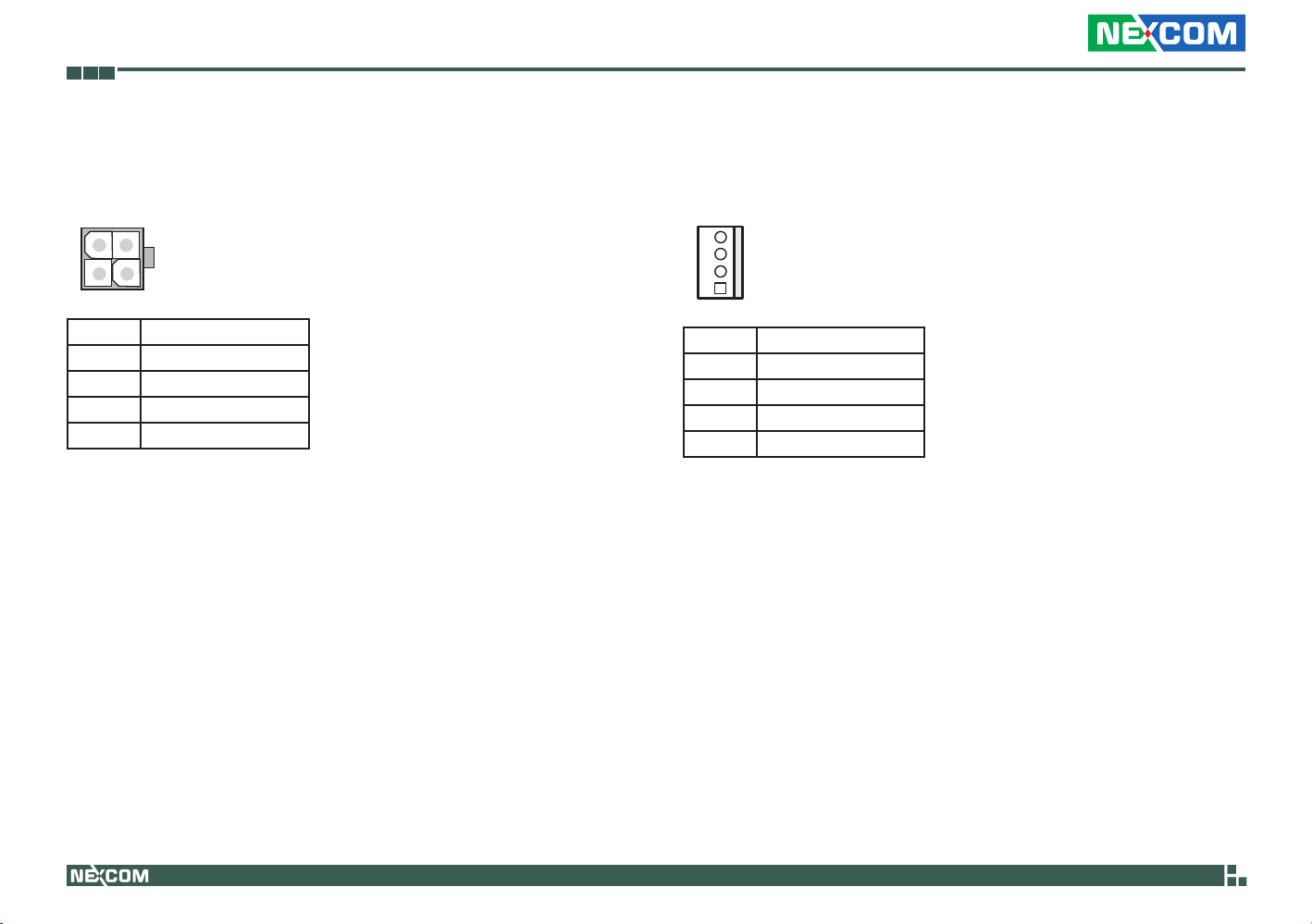

+12V Power Connector

Connector size: 2x2 4-pin Wafer (4.2mm) Connector location: CON1

1

3

Pin Definition

1 GND

2 GND

3 +12V

4 +12V

2

4

Smart Fan Connector

Connector type: 1x4 4-pin Wafer, 2.54 mm pitch Connector location: FAN1

4

1

Pin Definition

1 GND

2 +12V

3 S1_FANIO1

4 S1_FANPWM1

13

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

Fan Connector

Connector type: 1x3 3-pin Wafer, 2.54 mm pitch Connector location: FAN2

1

3

Pin Definition

1 GND

2 +12V

3 S1_FANIO3

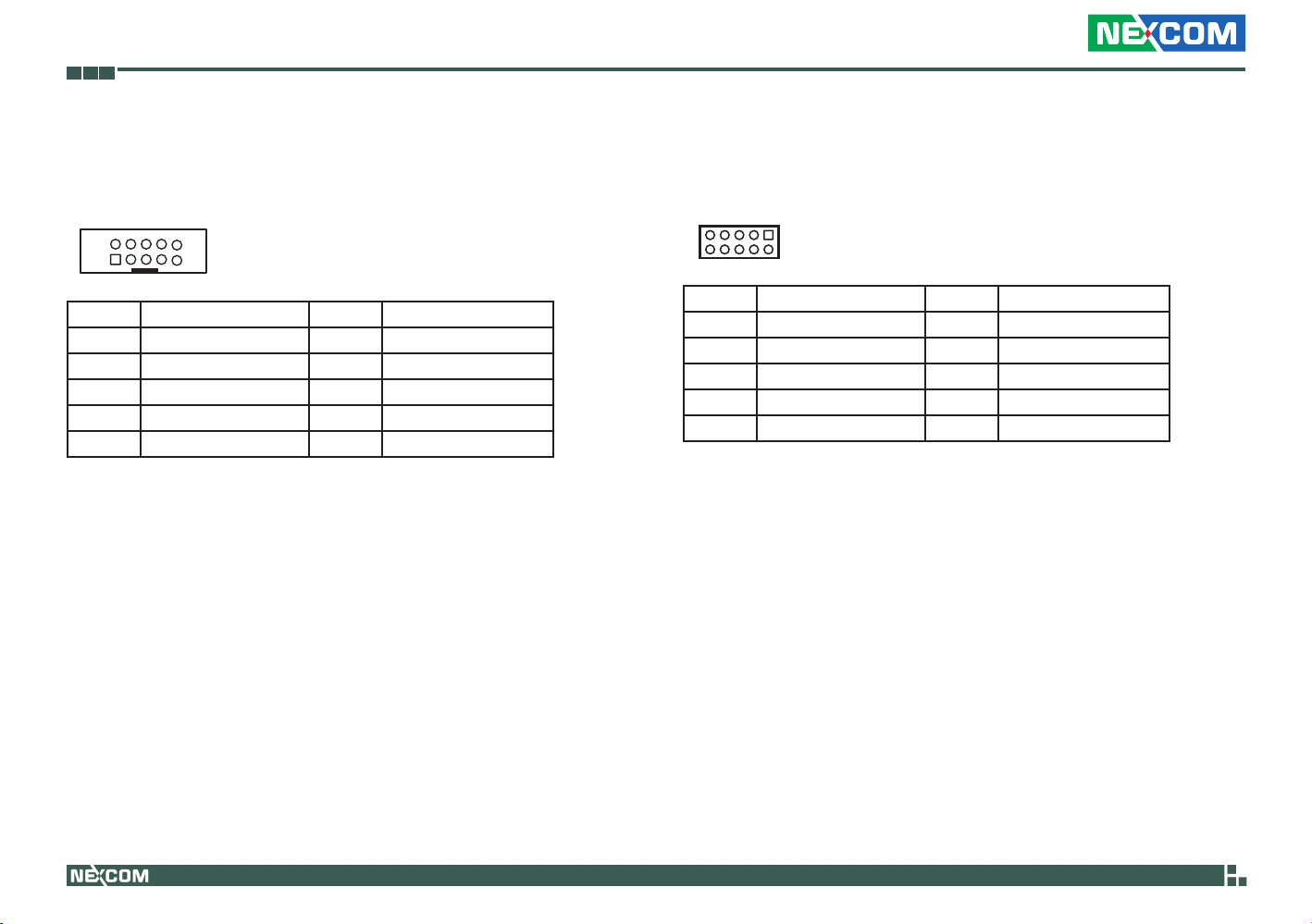

COM 1 Connector

Connector type: 2x5 10-pin boxed header, 2.0 mm Connector location: CN3

2 1

Pin Definition Pin Definition

1 COM1DCD# 2 COM1RX

3 COM1TX 4 COM1DTR#

5 GND 6 COM1DSR#

7 COM1RTS# 8 COM1CTS#

9 COM1RI# 10 NC

10

9

14

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

COM 2 Connector

Connector type: 2x5 10-pin boxed header, 2.0 mm Connector location: CN2

2 1

Pin Definition Pin Definition

1 COM2DCD# 2 COM2RX

3 COM2TX 4 COM2DTR#

5 GND 6 COM2DSR#

7 COM2RTS# 8 COM2CTS#

9 COM2RI# 10 NC

10

9

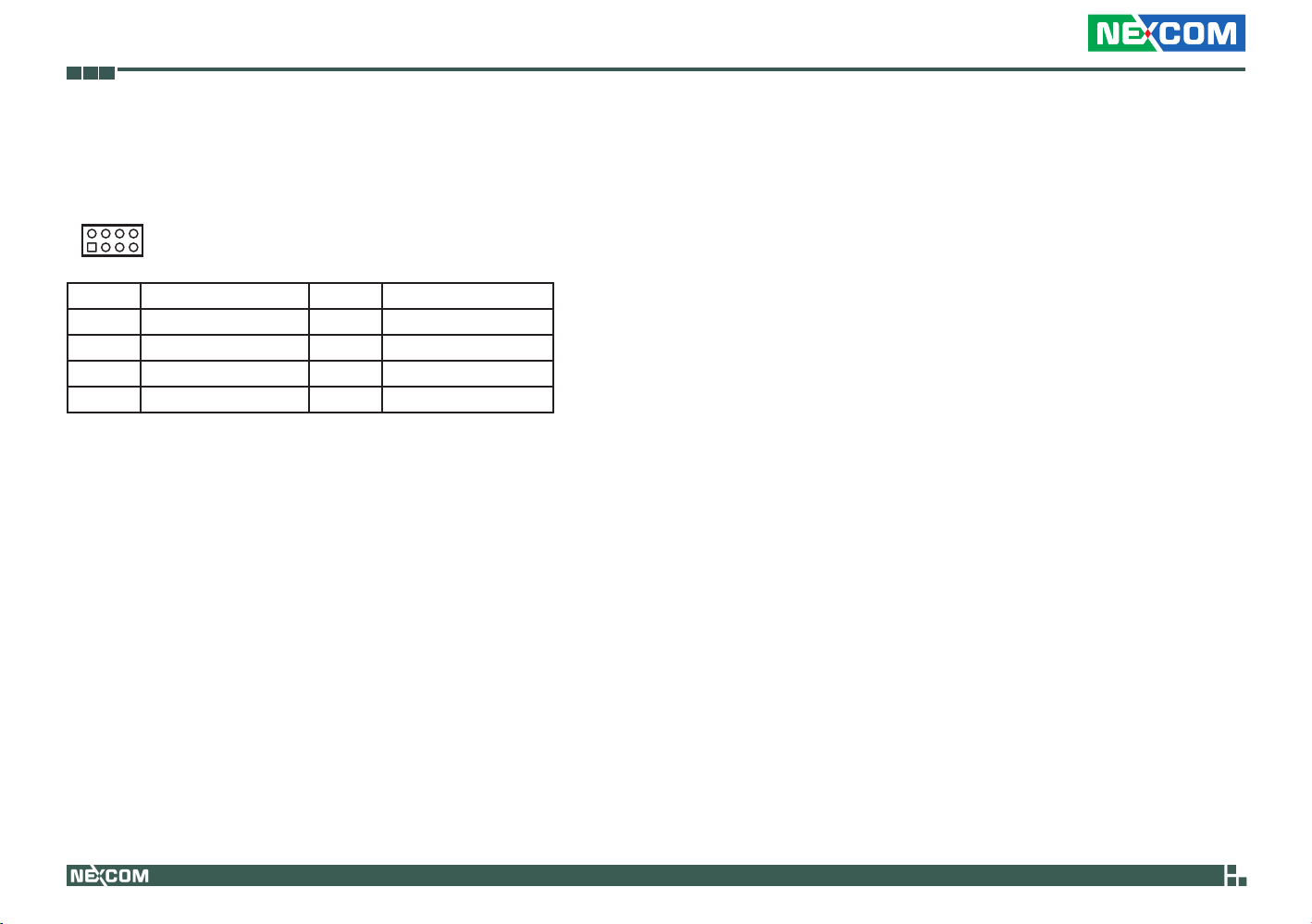

GPIO Connector

Connector type: 2x5 10-pin header, 2.0 mm Connector location: J3

9

10

Pin Definition Pin Definition

1 VCC5 2 GND

3 S1GPIO10 4 S1GPIO14

5 S1GPIO11 6 S1GPIO15

7 S1GPIO12 8 S1GPIO16

9 S1GPIO13 10 S1GPIO17

1

2

15

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

2x8 Pin Connector

Connector type: 2x8 16-pin header, 2.54 mm Connector location: JP2

2 1

Pin Definition Pin Definition

1 GND 2 VCC5

3 SATALED# 4 VCC5

5 GND 6 PWRBT#

7 GND 8 RESET#

9 VCC5 10 SMB_DATA

11 GND 12 SMB_CLK

13 GND 14 S1_VIN2

15 SPKR 16 SI_AGND

16

15

SATA DOM Power Connector

Connector type: 1x2 2-pin boxed header, 2.5 mm JST Connector location: J1

1 2

Pin Definition

1 VCC5

2 GND

16

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

IrDA Pin Header

Connector size: 1x5 5-pin, 2.54mm Connector location: JP1

1

Pin Definition

1 VCC5

2 S1CIRRX

3 S1RRX

4 GND

5 S1IRTX

5

Parallel Connector

Connector size: 2x13, 26-pin box header, 2.54 mm pitch Connector location: CN1

14

1

Pin Definition Pin Definition

1 Line Print Strobe 14 Auto Feed#

2 Parallel Data 0 15 Error#

3 Parallel Data 1 16 Initialize#

4 Parallel Data 2 17 Select Input#

5 Parallel Data 3 18 GND

6 Parallel Data 4 19 GND

7 Parallel Data 5 20 GND

8 Parallel Data 6 21 GND

9 Parallel Data 7 22 GND

10 Acknowledge# 23 GND

11 Busy 24 GND

12 Paper empty 25 GND

13 Select 26 NC

26 13

17

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

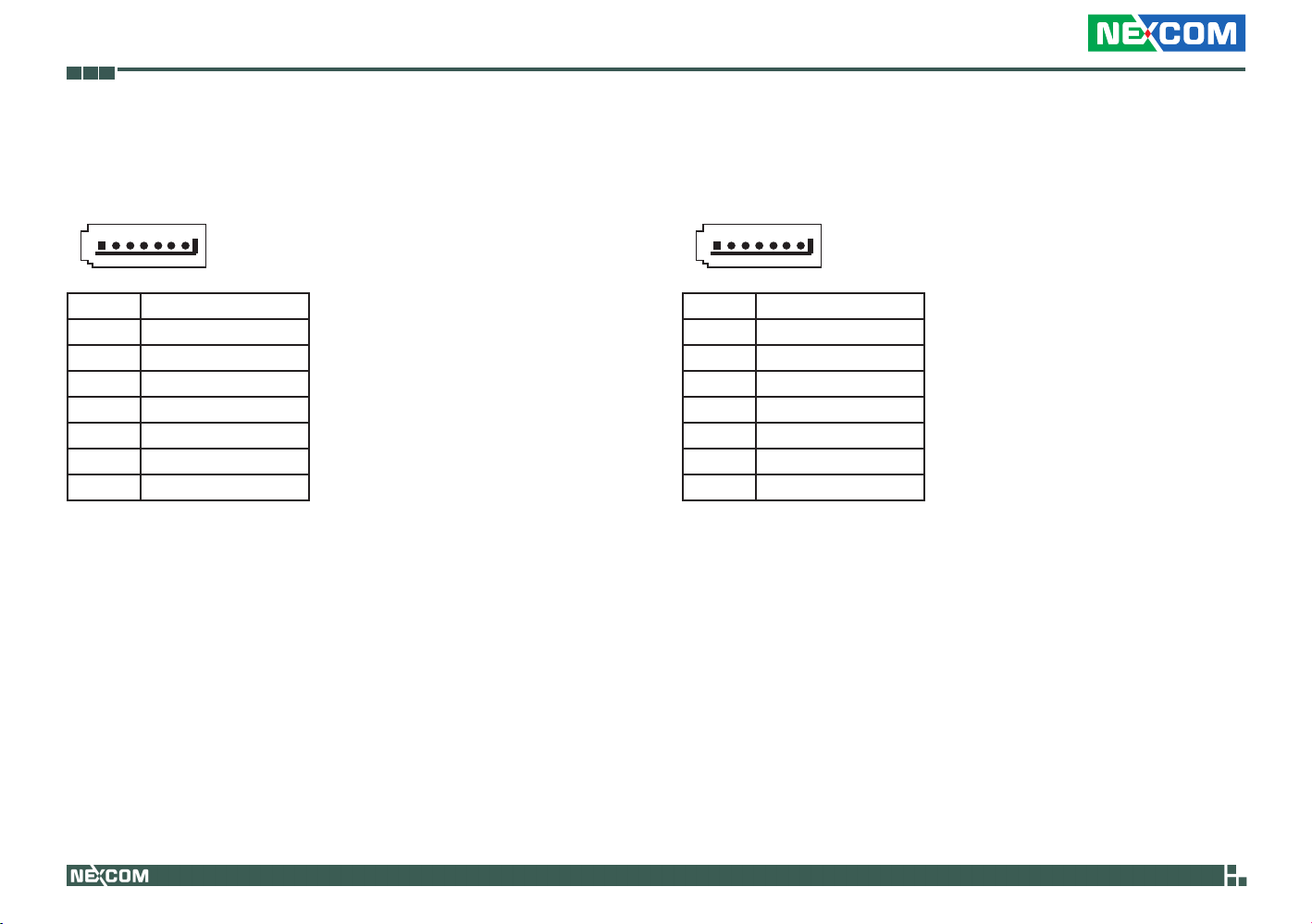

SATA Port

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: J4

1

Pin Definition

1 GND

2 TXP0

3 TXN0

4 GND

5 RXN0

6 RXP0

7 GND

7

SATA Port

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: J5

1

Pin Definition

1 GND

2 TXP1

3 TXN1

4 GND

5 RXN1

6 RXP1

7 GND

7

18

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

SATA Port

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: J6

1

Pin Definition

1 GND

2 TXP2

3 TXN2

4 GND

5 RXN2

6 RXP2

7 GND

7

SATA Port

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: J7

1

Pin Definition

1 GND

2 TXP3

3 TXN3

4 GND

5 RXN3

6 RXP3

7 GND

7

19

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

LAN LED Connector

Connector size: 2x4, 8-pin box header, 2.54 mm pitch Connector location: JP5

2 1

Pin Definition Pin Definition

8 7

1 3V3M_LAN 2 LAN1_LED_LNK#_ACT

3 3V3M_LAN 4 LAN1LINK#

5 3VSB 6 LAN2_LED1

7 3VSB 8 LAN2_LINK#

20

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

Block Diagram

PEAK 876VL2

21

PEAK 876VL2/877VL2 User Manual

Chapter 2: Jumpers and Connectors

PEAK 877VL2

22

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

ChaPter 3: Bios setuP

This chapter describes how to use the BIOS setup program for the PEAK 876VL2/877VL2. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use ▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

▪ When changing the system configuration ▪ When a configuration error is detected by the system and you are

prompted to make changes to the Setup program

▪ When resetting the system clock ▪ When redefining the communication ports to prevent any conflicts ▪ When making changes to the Power Management configuration ▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

23

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of

beeps will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:

Legends

Key Function

Right and Left arrows Moves the highlight left or right to select a

menu.

Up and Down arrows Moves the highlight up or down between sub-

menus or fields.

<Esc> Exits to the BIOS Setup Utility.

+ (plus key) Scrolls forward through the values or options of

the highlighted field.

- (minus key) Scrolls backward through the values or options of the highlighted field.

Tab Selects a field.

<F1> Displays General Help.

<F10> Saves and exits the Setup program.

<Enter> Press <Enter> to enter the highlighted sub-

menu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

24

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced PCIPnP Boot SecurityMain

System Overview

AMIBIOS

Version : 08.00.15 Build Date : 07/15/11 ID : P876-007

Processor

Intel(R) Core(TM) i3 CPU Speed : 3066MHz Count : 1

System Memory

Size : 3896MB

System Time

System Date

BIOS SETUP UTILITY

540 @ 3.076GHz

[14:06:01]

[Fri 07/19/2011]

AMI BIOS

Displays the detected BIOS information.

Use [ENTER], [TAB] or [SHIFT-TAB] to

select a eld.

Use [+] or [-] to

congure system Time.

← → Select Screen ↑↓ Select Item

+- Change Field

Tab Select Field F1 General Help F10 Save and Exit ESC Exit

ExitChipset

Processor

Displays the detected processor information.

System Memory

Displays the detected system memory information.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

25

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

BIOS SETUP UTILITY

PCIPnP Boot SecurityMain Advanced

Advanced Settings

WARNING: Setting wrong values in below sections may

u

u u u u u u u u u u u

cause system to malfunction.

CPU Conguration

IDE Conguration SuperIO Conguration Hardware Health Conguration ACPI Conguration AHCI Conguration ASF Conguration Intel AMT Conguration Intel TXT(LT) Conguration Intel VT-d Conguration Trusted Computing USB Conguration

ExitChipset

Congure CPU.

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

26

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

CPU Configuration

This section is used to configure the CPU. It will also display detected CPU information.

Advanced

Congure Advanced CPU Settings

Module Version: 01.0A

Manufacturer: Intel Intel(R) Core(TM) i5 CPU Frequency: 3.33GHz BCLK Speed: 133MHz Cache L1: 128KB Cache L2: 512KB Cache L3: 4096KB Ratio Status: Unlocked (Min:09, Max:25) Ratio Actual Value: 25

Max CPUID Value Limit

Intel(R) Virtualization Tech Enable-Disable Bit Capability Intel(R) HT Technology Active Processor Cores Intel(R) SpeedStep(TM) Tech Intel(R) C-STATE Tech

BIOS SETUP UTILITY

660 @ 3.33GHz

[Disabled]

[Enabled] [Enabled] [Enabled]

[All]

[Disabled] [Disabled]

Disabled for Windows XP

→ ←: Select Screen ↑↓: Select Item

+/-: Change Opt. F1: General Help F10: Save and Exit ESC: Exit

Max CPUID Value Limit

Set this field to Disabled when using Windows XP. Set this field to Enabled when using legacy operating systems so that the system will boot even when it doesn’t support CPUs with extended CPUID function.

Execute-Disable Bit Capability

When this field is set to Disabled, it will force the XD feature flag to always return to 0.

Intel(R) HT Technology

Enable this field for Windows XP and Linux which are optimized for HyperThreading technology. Select disabled for other OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.

Active Processor Cores

Used to enter the number of cores to enable in each processor package.

Intel(R) SpeedStep(tm) Tech

Enables or disables GV3.

Intel(R) C-STATE Tech

When enabled, CPU idle is set to C2/C3/C4.

Intel(R) Virtualization Tech

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

27

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

IDE Configuration

This section is used to configure the IDE drives.

Advanced

IDE Conguration

Mirrored IDER Conguration [Enabled]

Congure SATA as [IDE]

SATA1 IDE Conguration [Compatible] SATA2 IDE Conguration [Enhanced]

u

Primary IDE Master : [Not Detected]

u

Primary IDE Slave : [Not Detected]

u

Secondary IDE Master : [Not Detected]

u

Secondary IDE Slave : [Not Detected]

u

Third IDE Master : [128M]

u

Fourth IDE Master : [Not Detected]

IDE Detect Time Out (Sec) [35]

BIOS SETUP UTILITY

Options

IDE RAID AHCI Disabled

← → Select Screen ↑↓ Select Item

+- Change Field

F1 General Help F10 Save and Exit ESC Exit

Mirrored IDER Configuration

The options are Enabled and Disabled.

Configure SATA As

IDE This option configures the Serial ATA drives as Parallel ATA physi-

cal storage device.

RAID This option allows you to create RAID or Intel Matrix Storage

configuration on Serial ATA devices.

AHCI This option configures the Serial ATA drives to use AHCI (Ad-

vanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

SATA1 IDE Configuration and SATA2 IDE Configuration

Configures the Serial ATA controller to Compatible or Enhanced mode

Primary IDE Master to Fourth IDE Master

When you enter the BIOS Setup Utility, the BIOS will auto detect the existing IDE devices then displays the status of the detected devices. To configure an IDE drive, move the cursor to a field then press <Enter>.

IDE Detect Time Out (Sec)

Selects the time out value for detecting ATA/ATAPI devices.

28

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

Congure Win627 Super IO Chipset

Serial Port1 Address [3F8/IRQ4]

Serial Port2 Address [2F8/IRQ3] Serial Port2 Mode [Normal] Parallel Port Address [378] Parallel Port Mode [Normal] Parallel Port IRQ [IRQ7]

BIOS SETUP UTILITY

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Serial Port1 Address and Serial Port2 Address

Auto The system will automatically select an I/O address for the on-

board serial port.

3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3 Allows you to manually select

an I/O address for the onboard serial port.

Disabled Disables the onboard serial port.

Serial Port2 Mode

COM port functions as a serial port or IrDA. You cannot use both at the same time.

Normal Sets the COM port to serial port mode. IrDA Sets the COM port to IrDA mode. ASK IR Sets the COM port to ASK IR mode.

Parallel Port Address

This field is used to select an I/O address for the parallel port.

Parallel Port Mode

This field is used to select normal, ECP or EPP mode of the parallel port.

Parallel Port IRQ

This field is used to select an IRQ for the parallel port.

29

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Hardware Health Configuration

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

Advanced

Hardware Health Conguration

H/W Health Function [Enabled]

Hardware Health Event Monitoring

CPU Temperature : 28oC/82oF System Temperature : 24oC/75oF

CPU FAN Speed : 4218 RPM System FAN Speed : N/A

CPU:Vcore : 1.274 V +3Vin : 3.387 V +5Vin : 5.214 V +12Vin : 11.776 V

BIOS SETUP UTILITY

Enables Hardware Health Monitoring Device.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

H/W Health Function

Enables or disables the hardware monitoring function.

CPU Temperature and System Temperature

CPU Fan Speed and System Fan Speed

Detects and displays the fan speed.

CPU:Vcore to +12Vin

Detects and displays the output voltages.

Detects and displays the current temperature of the CPU and the internal temperature of the system.

30

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

ACPI Configuration

This section is used to configure the ACPI features.

Advanced

ACPI Settings



Suspend Mode [S1 (POS)]

BIOS SETUP UTILITY

Advanced ACPI Conguration settings

Use this section to congure additional ACPI options.

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Suspend Mode

Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.

S1(POS) Enables the Power On Suspend function. S3(STR) Enables the Suspend to RAM function.

AHCI Configuration

This section is used to configure the AHCI features.

Advanced

AHCI Settings

AHCI BIOS Support [Enabled]

u

AHCI Port0 [Not Detected]

u

AHCI Port1 [Not Detected]

u

AHCI Port2 [Not Detected]

u

AHCI Port3 [Not Detected]

u

AHCI Port4 [Not Detected]

u

AHCI Port5 [Not Detected]

BIOS SETUP UTILITY

AHCI BIOS Support

Enables the AHCI controller to operate in AHCI mode.

Enables for supporting AHCI controller operates in AHCI mode during BIOS control otherwise operates in IDE mode.

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

31

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

ASF Configuration

This section is used to configure the ASF features.

BIOS SETUP UTILITY

Advanced

Congure ASF Parameters

ASF Support [Enabled]

ASF Support

Enables or disables the ASF feature.

Options

Disabled Enabled

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Intel AMT Configuration

This section is used to configure the AMT features.

Advanced

Intel AMT Conguration

Intel AMT Support [Enabled]

AMT/ME BIOS Extension (MEBx) Conguration

ME BIOS Extension (MEBx) [Enabled]

Uncongure AMT/ME [Disabled] MEBx Ctrl+P Delay (Seconds) [0]

BIOS SETUP UTILITY

Intel AMT Support

Enables or disables the AMT function.

ME BIOS Extension (MEBx)

Enables or disables the ME BIOS Extension.

Options

Disabled Enabled

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Unconfigure AMT/ME

Used to unconfigure AMT/ME even without a password.

MEBx Ctrl+P Delay (Seconds)

Selects the MEBx delay time.

32

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Intel TXT(LT) Configuration

This section is used to configure the Intel TXT(LT).

BIOS SETUP UTILITY

Advanced

Congure Intel TXT(LT) Parameters

Intel TXT Initialization [Disabled]

Intel TXT Initialization

Enables or disables Intel TXT(LT).

Options

Disabled Enabled

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Intel VT-d Configuration

This section is used to configure the Intel VT-d.

BIOS SETUP UTILITY

Advanced

Intel VT-d [Disabled]

Intel VT-d

Enables or disables Intel VT-d.

Options

Disabled Enabled

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

33

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Trusted Computing

This section is used to configure Trusted Computing.

Advanced

BIOS SETUP UTILITY

Trusted Computing

TCG/TPM SUPPORT [No]

TCG/TPM Support

Enables or disables TPM TCG support in the BIOS.

Enable/Disable TPM TCG (TPM 1.1/1.2) support in BIOS

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

34

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

USB Configuration

This section is used to configure USB devices.

Advanced

USB Conguration

Module Version - 3.0.0-14.4

USB Devices Enabled:

1 Keyboard, 2 Hubs

Legacy USB Support [Enabled]

USB 2.0 Controller Mode [HiSpeed] BIOS EHCI Hand-Off [Enabled] USB Beep Message [Disabled]

BIOS SETUP UTILITY

Enables support for legacy USB. AUTO option disables legacy support if no USB devices are connected.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Legacy USB Support

Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.

USB 2.0 Controller Mode

Sets the USB 2.0 controller mode to HiSpeed (480 Mbps) or FullSpeed (12 Mbps).

BIOS EHCI Hand-Off

Enable this field when using operating systems without the EHCI hand-off support.

USB Beep Message

Enables or disables the USB beep message.

If a PS/2 keyboard is not available and you need to use a USB keyboard to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.

35

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

PCIPnP

This section is used to configure settings for PCI/PnP devices.

Setting incorrect field values may cause the system to malfunction.

BIOS SETUP UTILITY

Boot SecurityMain Advanced PCIPnP

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

Plug & Play O/S [No]

PCI Latency Timer [64]

NO: let the BIOS congure all the devices in the system. YES: lets the operating system congure Plug and Play (PnP) devices not required for boot if your system has a Plug and Play operating system.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Plug & Play O/S

Yes Configures Plug and Play (PnP) devices that are not required to boot in

a Plug and Play supported operating system.

No The BIOS configures all the devices in the system.

ExitChipset

PCI Latency Timer

This feature is used to select the length of time each PCI device will control the bus before another takes over. The larger the value, the longer the PCI device can retain control of the bus. Since each access to the bus comes with an initial delay before any transaction can be made, low values for the PCI Latency Timer will reduce the effectiveness of the PCI bandwidth while higher values will improve it.

36

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Boot

Boot Settings

u

Boot Settings Conguration

BIOS SETUP UTILITY

Boot

SecurityMain Advanced PCIPnP

ExitChipset

Congure settings during system boot.

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Boot Settings Configuration

This section is used to configure settings during system boot.

BIOS SETUP UTILITY

Boot

Boot Settings Conguration

Quick Boot

Quiet Boot Bootup Num-Lock PS/2 Mouse Support Wait for ‘F1’ If Error Hit ‘DEL’ Message Display Interrupt 19 Capture

[Enabled]

[Disabled] [On] [Auto] [Enabled] [Enabled] [Disabled]

Allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Quick Boot

When Enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

Quiet Boot

37

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Bootup Num-Lock

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

PS/2 Mouse Support

Enables or disables the PS/2 mouse.

Wait for ‘F1” If Error

When enabled, the system will wait for the <F1> key to be pressed when an error occurs.

Hit ‘DEL’ Message Display

When enabled, the system displays the “Press DEL to run Setup” message during POST.

Interrupt 19 Capture

When enabled, it allows the optional ROM to trap interrupt 19.

38

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Security

Main Advanced PCIPnP

Security Settings

Supervisor Password : Not Installed User Password : Not Installed

Change Supervisor Passwordmig

Change User Password

BIOS SETUP UTILITY

Boot Security

Install or Change the password.

← → Select Screen ↑↓ Select Item

Enter Change F1 General Help F10 Save and Exit ESC Exit

Change Supervisor Password

This field is used to set or change the supervisor password.

To set a new password:

1. Select the Change Supervisor Password field then press <Enter>.

2. Type your password in the dialog box then press <Enter>. You are limited to eight letters/numbers.

3. Press <Enter> to confirm the new password.

4. When the Password Installed dialog box appears, select OK.

ExitChipset

To clear the password, select Change Supervisor Password then press <Enter>. The Password Uninstalled dialog box will appear.

If you forgot the password, you can clear the password by erasing the CMOS RTC (Real Time Clock) RAM using the RTC Clear jumper. Refer to chapter 2 for more information.

Change User Password

This field is used to set or change the user password.

To set a new password:

1. Select the Change User Password field then press <Enter>.

2. Type your password in the dialog box then press <Enter>. You are limited to eight letters/numbers.

3. Press <Enter> to confirm the new password.

4. When the Password Installed dialog box appears, select OK.

To change the password, repeat the same steps above.

39

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Chipset

This section is used to configure the system based on the specific features of the chipset.

Setting incorrect field values may cause the system to malfunction.

BIOS SETUP UTILITY

Advanced Chipset Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

u

North Bridge Conguration

u

South Bridge Conguration

u

ME Subsystem Conguration

Boot SecurityMain Advanced PCIPnP Chipset

Congure North Bridge features.

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Exit

North Bridge Configuration

This section is used to configure the north bridge features.

BIOS SETUP UTILITY

North Bridge Chipset Conguration

Initiate Graphic Adapter [PEG/PCI]

IGD Graphics Mode Select [Enabled, 32MB]

IGD GTT Graphics Memory Size [No VT mode, 2MB]

MB PCIE Conguration

PEG Port [Auto] PEG Force GEN1 [Disabled]

u

Video Function Conguration

Chipset

Select which graphics controller to use as the primary boot device.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Initiate Graphic Adapter

Selects the graphics controller to use as the primary boot device.

IGD Graphics Mode Select

Selects the amount of system memory used by the internal graphics device.

IGD GTT Graphics Memory Size

Selects the internal graphics device’s shared memory size.

40

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

PEG Port

Enables or disables the PCI Express port.

PEG Force Gen1

Enables or disables the PCI Express port Force Gen1.

Video Function Configuration

This section is used to configure the north bridge features.

BIOS SETUP UTILITY

Video Function Conguration

DVMT Mode Select [DVMT Mode]

DVMT/FIXED Memory [256MB]

PAVP Mode [Lite]

Chipset

Options

Fixed Mode DVMT Mode

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

DVMT Mode Select

The options are Fixed mode and DVMT mode.

DVMT/Fixed Memory

This field is used to select the graphics memory size used by DVMT/Fixed mode.

PAVP Mode

Configures the PAVP mode.

41

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

South Bridge Configuration

This section is used to configure the south bridge features.

BIOS SETUP UTILITY

South Bridge Chipset Conguration

USB Functions [Enabled]

EHCI Controller#1 [Enabled] EHCI Controller#2 [Enabled]

GbE Controller [Enabled]

GbE LAN Boot [Disabled] GbE Wake Up From S5 [Disabled] LAN2 Boot [Disabled] HDA Controller [Enabled] SMBUS Controller [Enabled]

Restore on AC Power Loss [Power On]

Power-Supply Type [ATX]

PCIE Ports Conguration

PCIE Port 0 [Auto] PCIE Port 1 [Auto] PCIE Port 2 [Auto] PCIE Port 3 [Auto] PCIE Port 4 [Auto] PCIE Port 5 [Auto] PCIE High Priority Port [Auto]

Chipset

Enable/Disable USB controller in system.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

USB Functions

Enables or disables the USB controller.

EHCI Controller#1 and EHCI Controller#2

GbE Controller

Enables or disables the Gigabit LAN controller.

GbE LAN Boot

Select Enabled to allow the system to boot from LAN.

GbE Wake Up From S5

Select Enabled to allow the system to wake up from S5 using LAN.

LAN2 Boot

Select Enabled to allow the system to boot via LAN2.

HDA Controller

Enables or disables the HDA controller.

SMBUS Controller

Enables or diasbles the SMBUS controller.

Enables or disables the Enhanced Host Controller Interface (USB 2.0).

42

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Restore on AC Power Loss

Power Off When power returns after an AC power failure, the system’s

power is off. You must press the Power button to power-on the system.

Power On When power returns after an AC power failure, the system

will automatically power-on.

Former-Sts When power returns after an AC power failure, the system

will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Power-Supply Type

Selects the type of power used.

PCIE Port 0 and PCIE Port 5

Enables or disables the PCIE port.

PCIE High Priority Port

Selects the USB port to detect first.

43

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

ME Subsystem Configuration

This section is used to configure the south bridge features.

BIOS SETUP UTILITY

ME Subsystem Conguration

BootBlock HECI Message [Disabled]

HECI Message [Enabled]

End of Post S5 HECI Message [Enabled]

ME HECI Conguration ME-HECI [Enabled]

Management Engine Version: 6.1.1.1045

Chipset

Disabled Enabled

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

BootBlock HECI Message

Enables or disables the BootBlock HECI message.

HECI Message

ME-HECI

Enables or disables ME-HECI.

Options

Enables or disables the HECI message.

End of Post S5 HECI Message

Enables or disables the end of post message.

44

PEAK 876VL2/877VL2 User Manual

Chapter 3: BIOS Setup

Exit

BIOS SETUP UTILITY

Boot SecurityMain Advanced PCIPnP

Exit Options

Save Changes and Exit

Discard Changes and Exit Discard Changes

Load Optimal Defaults Load Failsafe Defaults

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F10> to save and exit Setup.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Chipset

Exit system setup after saving the changes.

F10 key can be used for this operation.

← → Select Screen ↑↓ Select Item

Enter Go to Sub

Screen

F1 General Help F10 Save and Exit ESC Exit

Exit

Discard Changes

To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.

Load Optimal Defaults

Loads the optimal default values from the BIOS ROM.

Load Failsafe Defaults

Loads the optimal default values from the BIOS ROM.

45

PEAK 876VL2/877VL2 User Manual

Appendix A: Watchdog Timer Setting

aPPendix a: WatChdog timer setting

Start

Step 1

See “SetupWDT” procedure #Setup Watchdog Timer Environment

Step 2

See “TimeBaseWDT” procedure #Initial Watchdog Timer Users can select second or minute

Step 3

See “TimeCountWDT” procedure #Set Watchdog Timer Time-out Value Users can set time-out value

Step 4

See ExitSetup procedure #Exit Setup Environment

End

46

PEAK 876VL2/877VL2 User Manual

Appendix A: Watchdog Timer Setting

SetupWDT PROC mov dx, 2eh mov al, 087h out dx, al nop nop out dx, al ;Write operations to special address port (2E) for entering MB PnP Mode.

mov al, 07h out 2eh, al mov al, 08h ;Select logical device for Watch Dog. out 2fh, al ret SetupWDT ENDP

=============================================== TimeBaseWDT PROC mov al, 0F5h out 2eh, al mov al, 04h ; Here!! set 04h for second, set 0Ch for minute(WDT output through WDTO) out 2fh, al ret TimeBaseWDT ENDP

out 2fh, al ret TimeCountWDT ENDP

=============================================== ExitSetup PROC mov al, 0AAh out 2eh, al ret ExitSetup ENDP ===============================================

=============================================== TimeCountWDT PROC mov al, 0F6h ;WDT Time-out register. out 2eh, al mov al, 03h ;Here!! Set count 3.

47

PEAK 876VL2/877VL2 User Manual

Appendix B: Power Consumption

aPPendix B: PoWer ConsumPtion

Power Consumption

Onboard Chips Vcore 1.1 +1.05V +1.5V +1.8V VTT +3.3V +5V VAXG +12V 0.75V 5VSB 3VSB

CPU 95W 100 2.3 35 20

DDRIII DIMM 2x 3.163W 16.5 1.25

Q57 (PCH) 4.766W 7.8 0.2 0.45 0.01 0.01 0.5

Clock Gen (ICS9LR3165B) 0.3

82574LX2 0.73X2=1.46W 0.6

FAN 2x 1 1

Super IO (W83627HG-AW) 0.3W 0.06

Z11 1

SATA DOM 0.6

USB 4x 2

PS/2 (KB/MS) 0.5

Total Consumption (A) 100 7.8 16.5 2.5 35 1.75 4.7 20 1 1.25 0.01 1.1

Total Watt (Unit:W) 100 8.2 25 4.5 35 5.8 23.5 20 12 1 0.05 3.43

Source Power +12V VCC5 +12V VCC5 +12V VCC3 VCC5 +12V +12V +12V 5VSB VCC3

Source Power Current (A) 12 3.6 2.56 1.5 10.6 1.75 4.7 2.6 1 0.1 0.01 1.1

48

PEAK 876VL2/877VL2 User Manual

Appendix B: Power Consumption

Power Supply Must Consumed Watts and Currents

Power Type ATX Power Supply

Consumed Watts (W) 12VDC 5VDC 3.3VDC 5VSB

Consumed Currents 28.86 9.8 2.85 0.01

Actual Required Currents 36.1 12.25 3.56 0.0125

Actual Required Watt (W) 433.2 61.25 11.75 0.0625

49

PEAK 876VL2/877VL2 User Manual

Appendix C: GPI/O Programming Guide

aPPendix C: gPi/o Programming guide

PEAK 876VL2 GPIO

PIN Description PIN Description

1 +5V 2 GND

3 GPI10 4 GPO14

5 GPI11 6 GPO15

7 GPI12 8 GPO16

9 GPI13 10 GPO17

SetGPIO PROC

mov dx, 2eh

mov al, 087h

out dx, al

nop

mov dx, 2eh

mov al, 087h

out dx, al ;Enter MB PnP Mode.

mov al, 07h

out 2eh, al

mov al, 07h ;Select logical device for GPIO1.

out 2fh, al

ret

SetGPIO ENDP

===============================================

50

PEAK 876VL2/877VL2 User Manual

Appendix C: GPI/O Programming Guide

GetInput PROC

mov al, 0F1h

out 2eh, al

in 2fh ;Get GPIO1 input values.

ret

GetInput ENDP

Bit0 : GPI10

Bit1 : GP I11

Bit2 : GP I12

Bit3 : GP I13

Bit4 : Don’t care

Bit5 : Don’t care

Bit6 : Don’t care

Bit7 : Don’t care

===============================================

SetOutput PROC

mov al, 0F1h

out 2eh, al

mov al, 0xxh

out 2fh, al ;Set GPIO1 output values.

ret

SetOutput ENDP

xxh

Bit0 : Don’t care

Bit1 : Don’t care

Bit2 : Don’t care

Bit3 : Don’t care

Bit4 : GPO14

Bit5 : GPO15

Bit6 : GPO16

Bit7 : GPO17

ExitSetup PROC

mov al, 0AAh

out 2eh, al

ret

ExitSetup ENDP

51

PEAK 876VL2/877VL2 User Manual
