Peak 650 User's Guide Rev. A October 2000
PEAK 650
Single Board Computer
User
s Guide
′′′′
NEXCOM
Peak 650 User's Guide Rev. A October 2000
@Copyright 2000
All Rights Reserved
Manual edition 1, October 2000
The information in this document is subject to change without prior notice in order to improve reliability,
design and function and does not represent commitm ent on the part of the m anufacturer .
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages
arising out of the use or the possibility of such damages.
This docum ent contains proprietar y information protected by copyr ight. All rights are reserved. No part of
this manual may be reproduced by any mechanical, electronic, or other means in any form without prior
written permission of the m anufacturer .
Trademarks
PEAK 650 is registered trademarks of NEX COM Co., Ltd., IBM PC i s a regi stered tradem ark of International
Business Machines Cor poration. Intel and Pentium are regi stered trademarks of Intel Corpor ation. Award
is a registered trademark of Award Software, Inc. Other product names mentioned herein are used for
identification purposes only and may be trademarks and/or registered trademarks of their respective
companies.
NEXCOM
Peak 650 User's Guide Rev. A October 2000
How to use this guide
This manual is written to help you use Peak 650. It describes how to arrange various settings on the
Pentium CPU board to m eet your requirements. It is briefed as follows:
Chapter 1, ntroduction”
included in the product package.
Chapter 2, witches and Co nnect ors”
that you may easily configur e and set up per your requirement.
Chapter 3, apability Expanding”
system memory and CPU to get more power out f rom the C PU boar d.
Chapter 4, ward BIOS Setup”
every feature of the Peak 650.
The Appendix A describes how to s et up the Watch Dog T im er ( W DT ) and gi ves an exam ple to progr am the
WDT.
gives an overview of the product specifications. It also tells you what are
describes the definitions and positions of Jumpers and Connectors
describes how to change or expand the CPU Board by changi ng the
describes how to use the advanced PCI/Green BIOS to control almost
NEXCOM
Peak 650 User's Guide Rev. A October 2000
Contents
CHAPTER 1INTRODUCTION........................................................................................1-1
1-1 S
1-2 W
PECIFICATIONS
HAT YOU'LL HAVE FROM THE PACKAGE
.................................................................................................................................1-2
.............................................................................................1-2
CHAPTER 2SWITCHES AND CONNECTORS..............................................................2-1
2-1 M
2-2 S
2-3 C

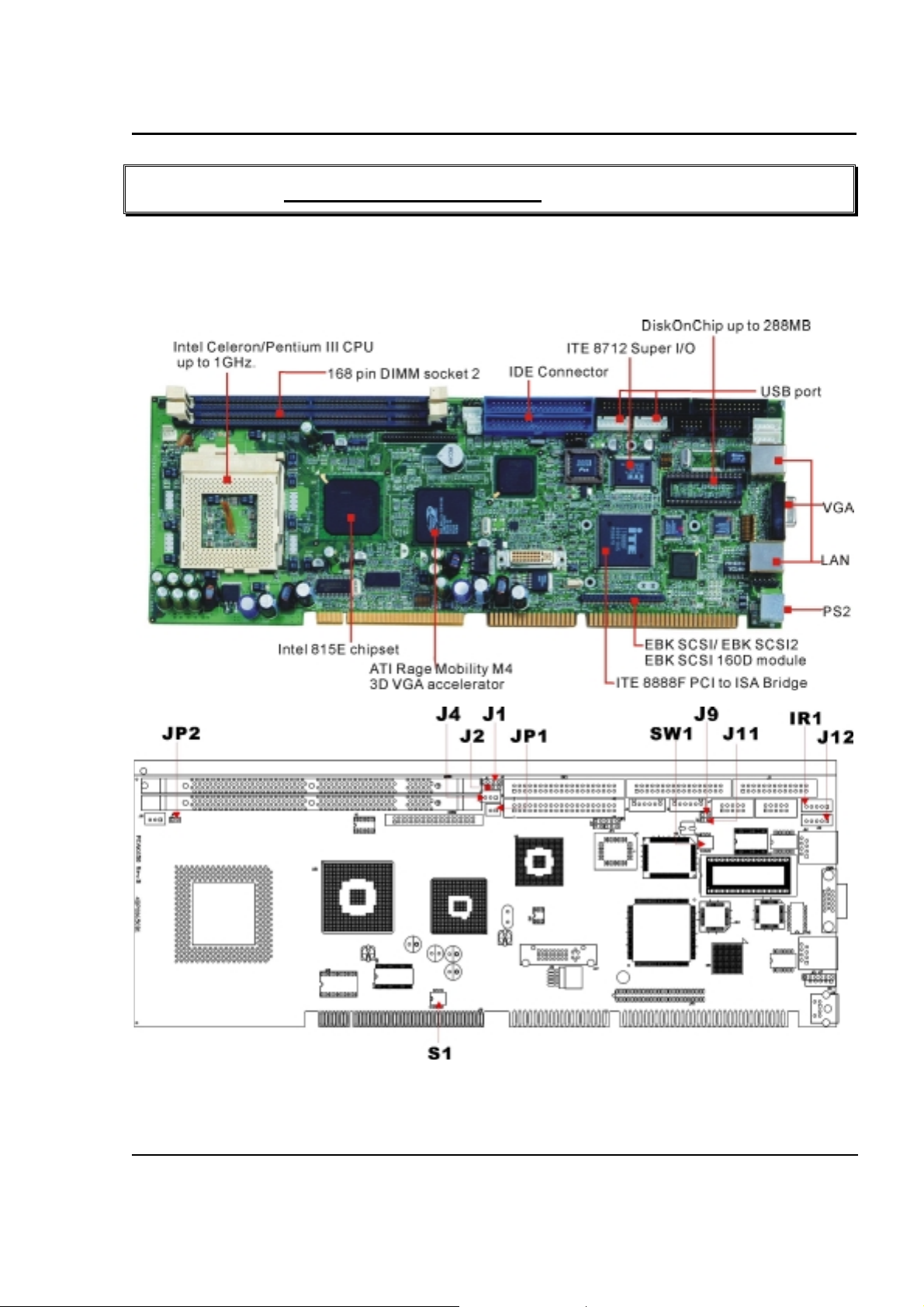

AINBOARDLAYOUT
WITCHES
ONNECTORS
.........................................................................................................................................2-2
....................................................................................................................................2-3
.........................................................................................................................2-1
CHAPTER 3CAPABILITY EXPANDING.........................................................................3-1
3-1 S
3-2 C

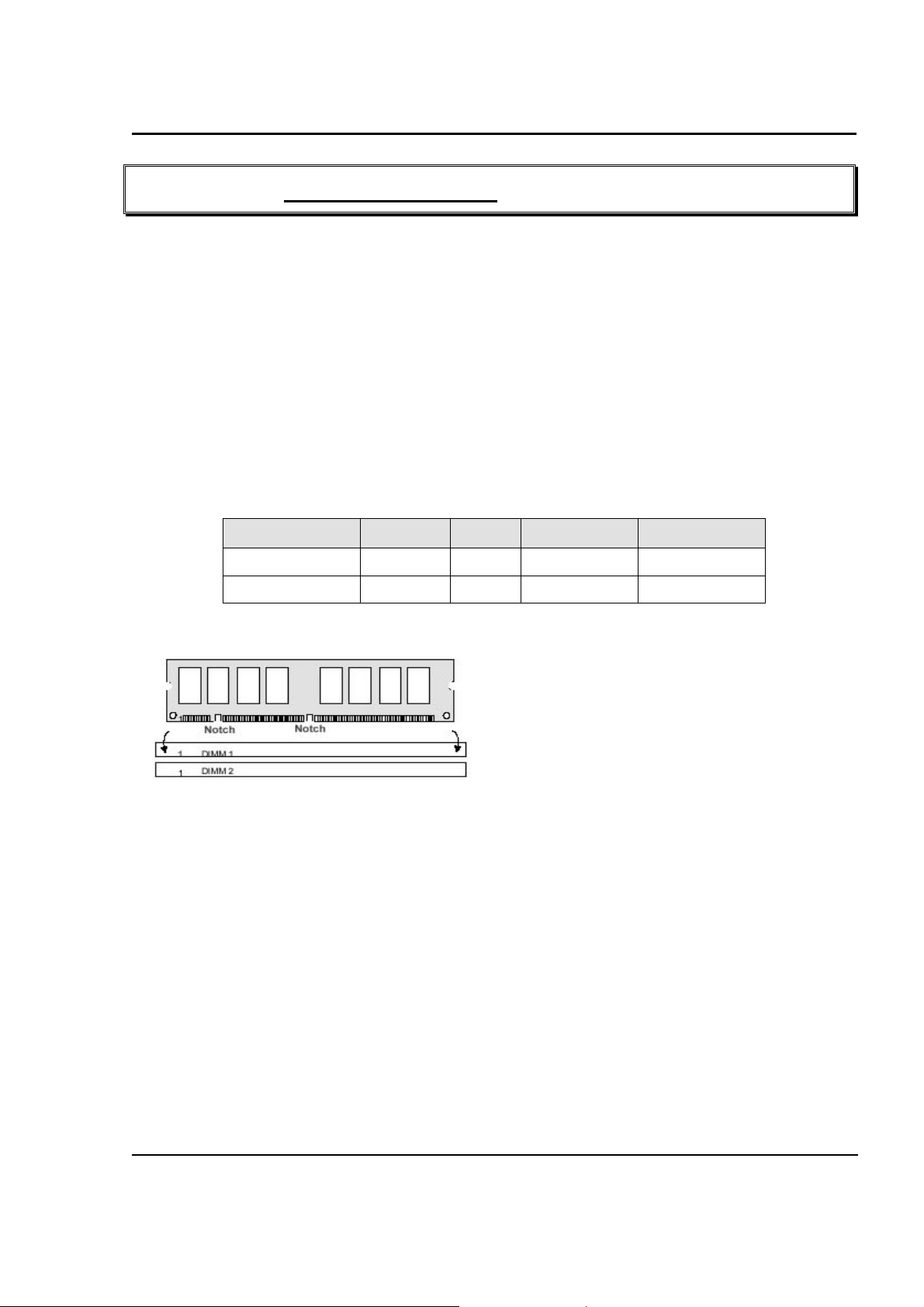

YSTEMMEMORY
HANGE
CPU....................................................................................................................................3-2
..............................................................................................................................3-1
CHAPTER 4AWARD BIOS SETUP................................................................................ 4-1
4-1 BIOS S
Entering Setup ............... ................ ............ ................ .................... ............ ................ ..............................4-1

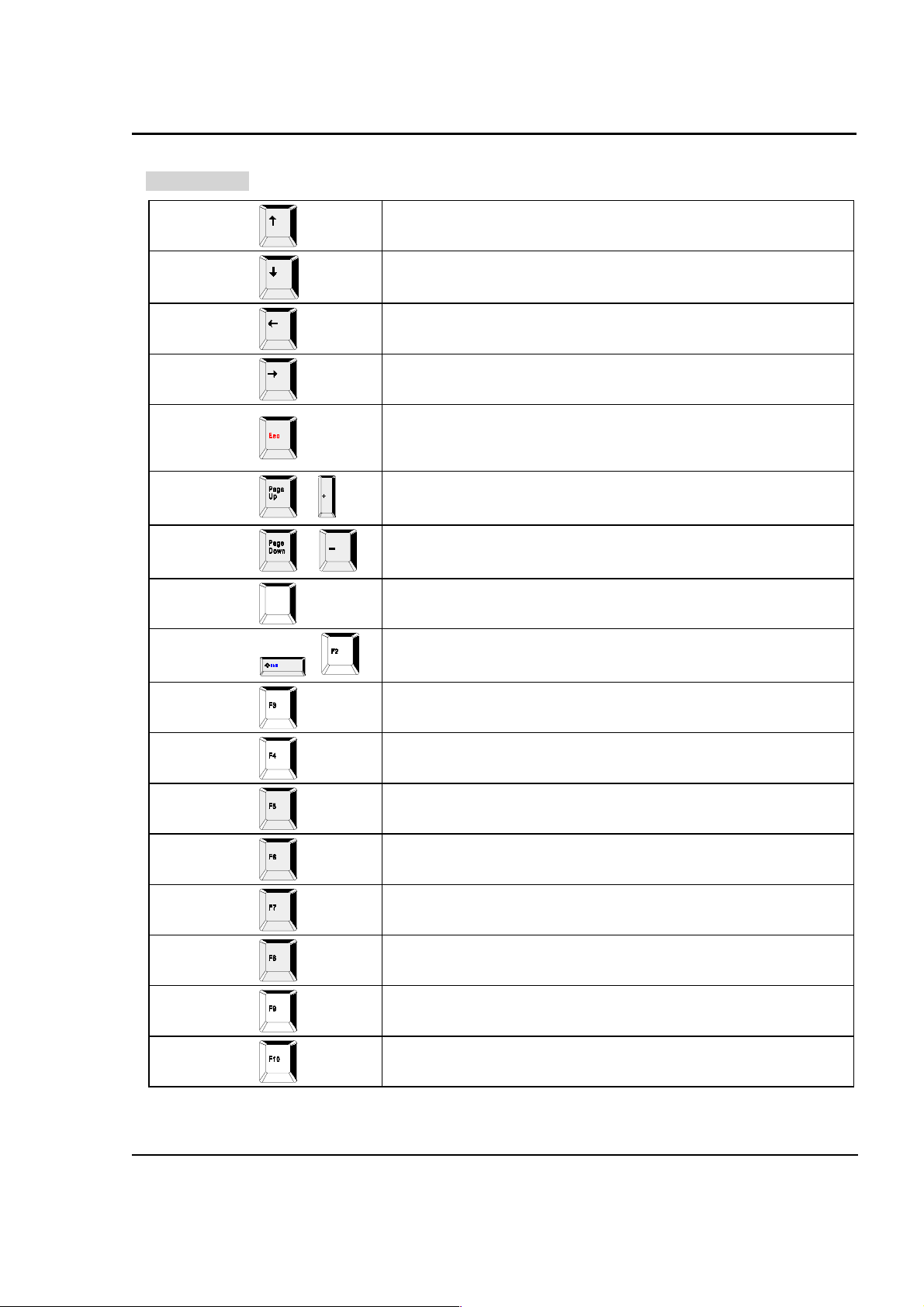

Control Keys....... ............ ............ ............ ........ ............ ............ ............ ........ ................ .............................4-2
Getting Help................... ............ ........ ............ ............ ................ ........ ............ ............ ..............................4-3

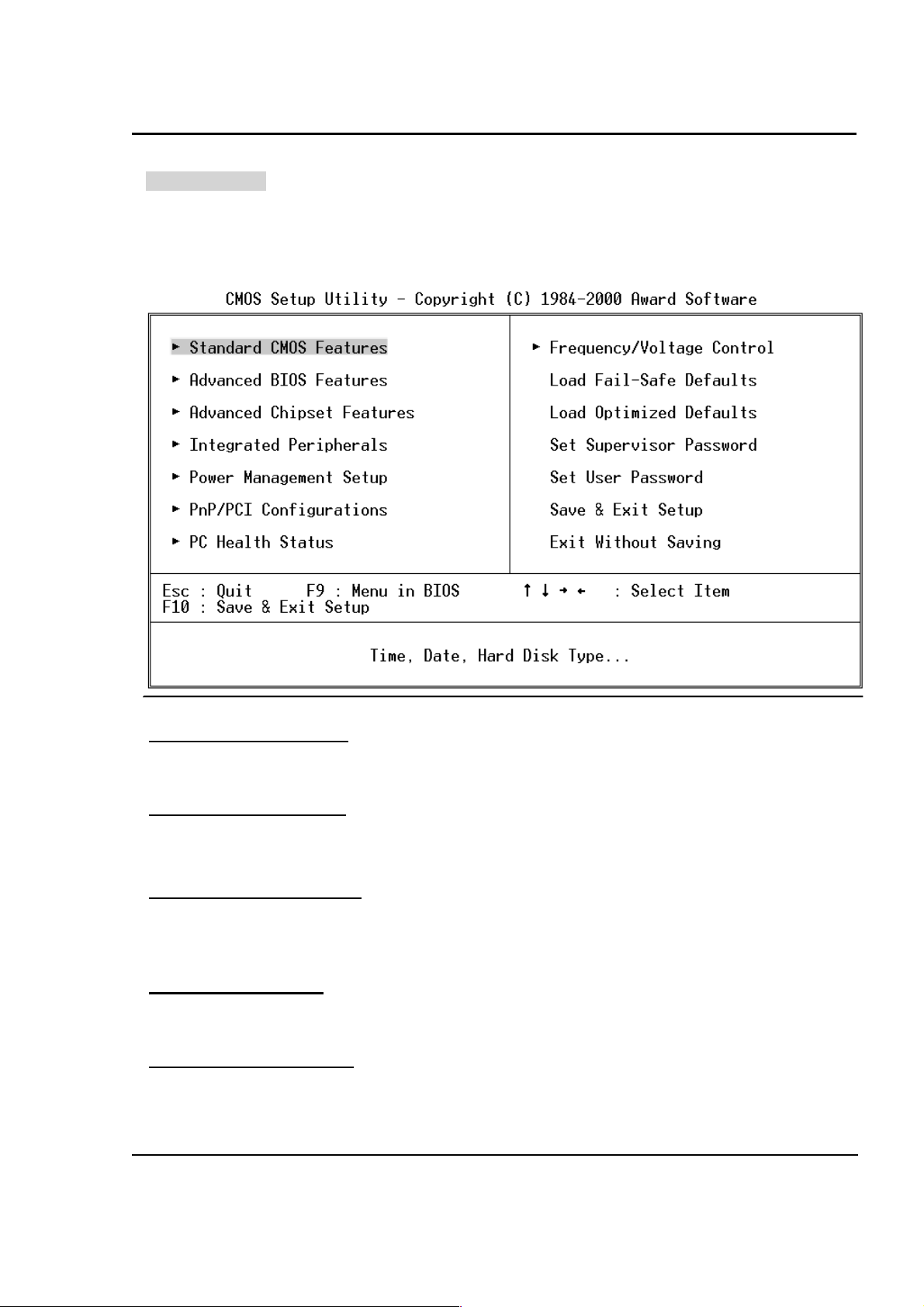

The Main Menu........................................................................................................................................4-4
Standard CMOS Features... ............ ........ ............ ............ ........ ................ ............ ........ ........... .................4-6

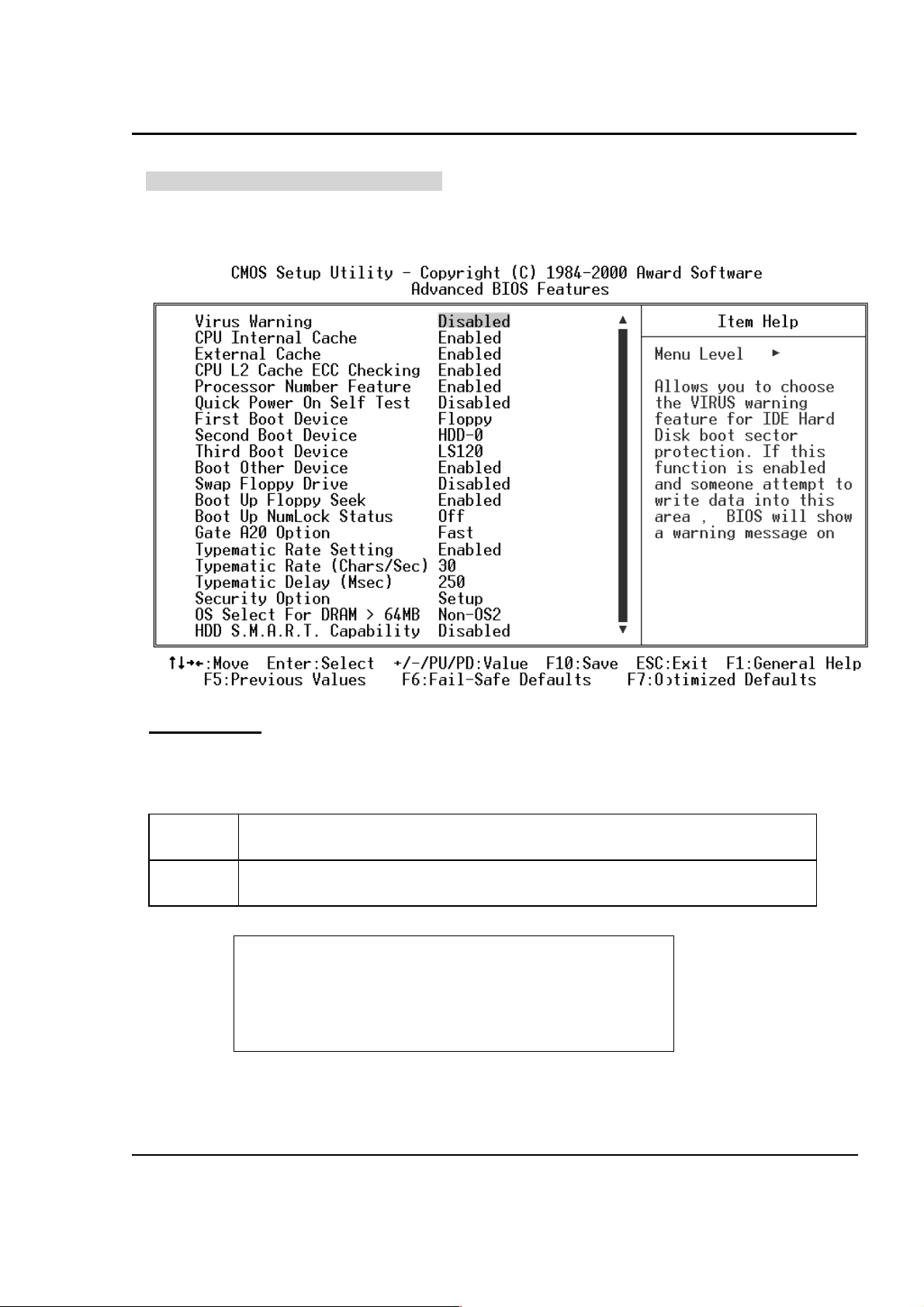

Advanced BIOS Features Setup Menu................... ............ ............ ............ ........ ................ ........ ............4-9

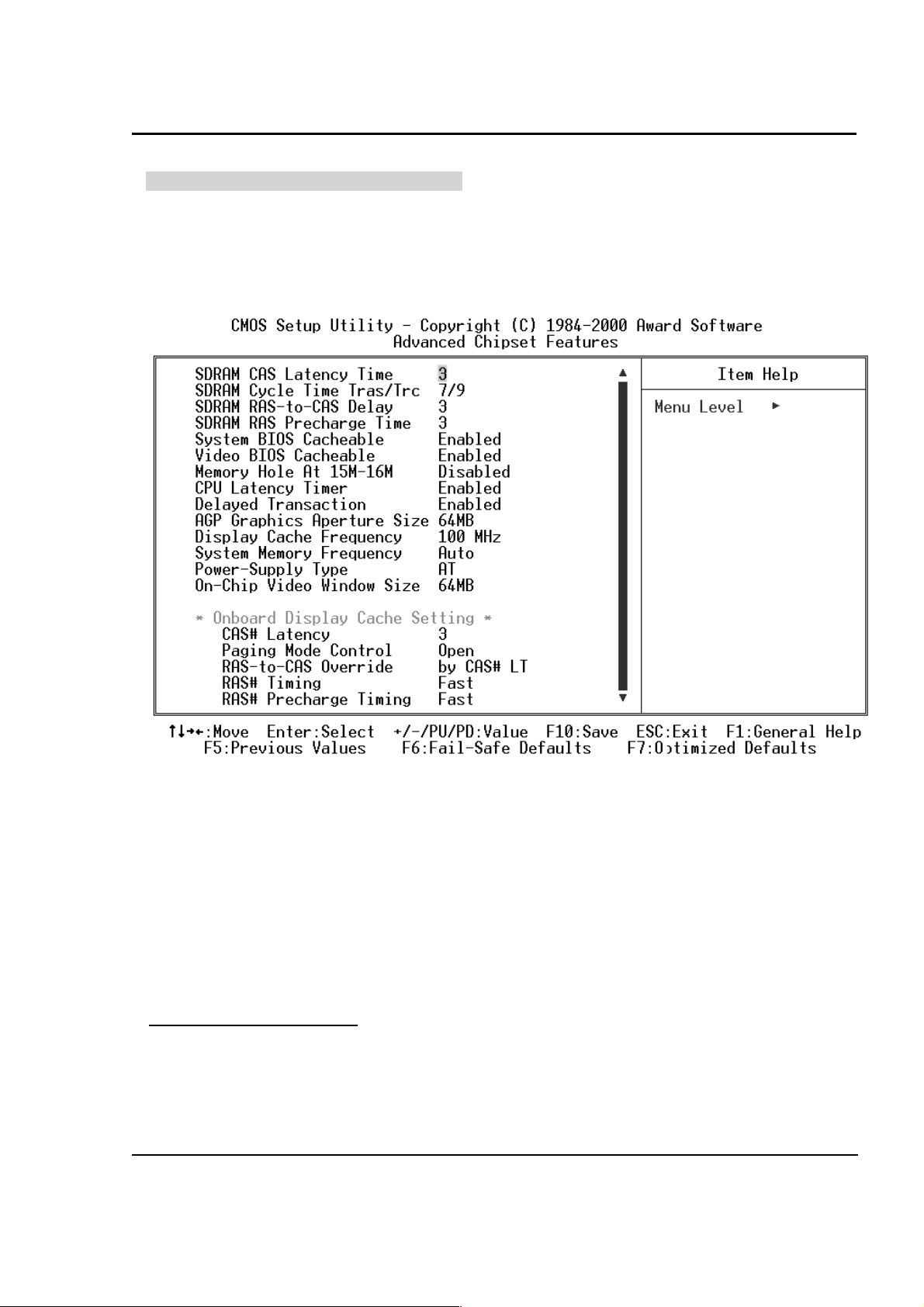

Advanced Chipset Features Setup Menu... ............ ............ ............ ............ ............ ........ ............. ..........4-13
Integrated Peripherals....................... ............................ .................... ........................ ............................4-17
Power Management Setup....................................... ............ ............ ............ ........ ............ .....................4-21
PnP/PCI Configuration ........... ................ .................... ........................ ................ ...................................4-25

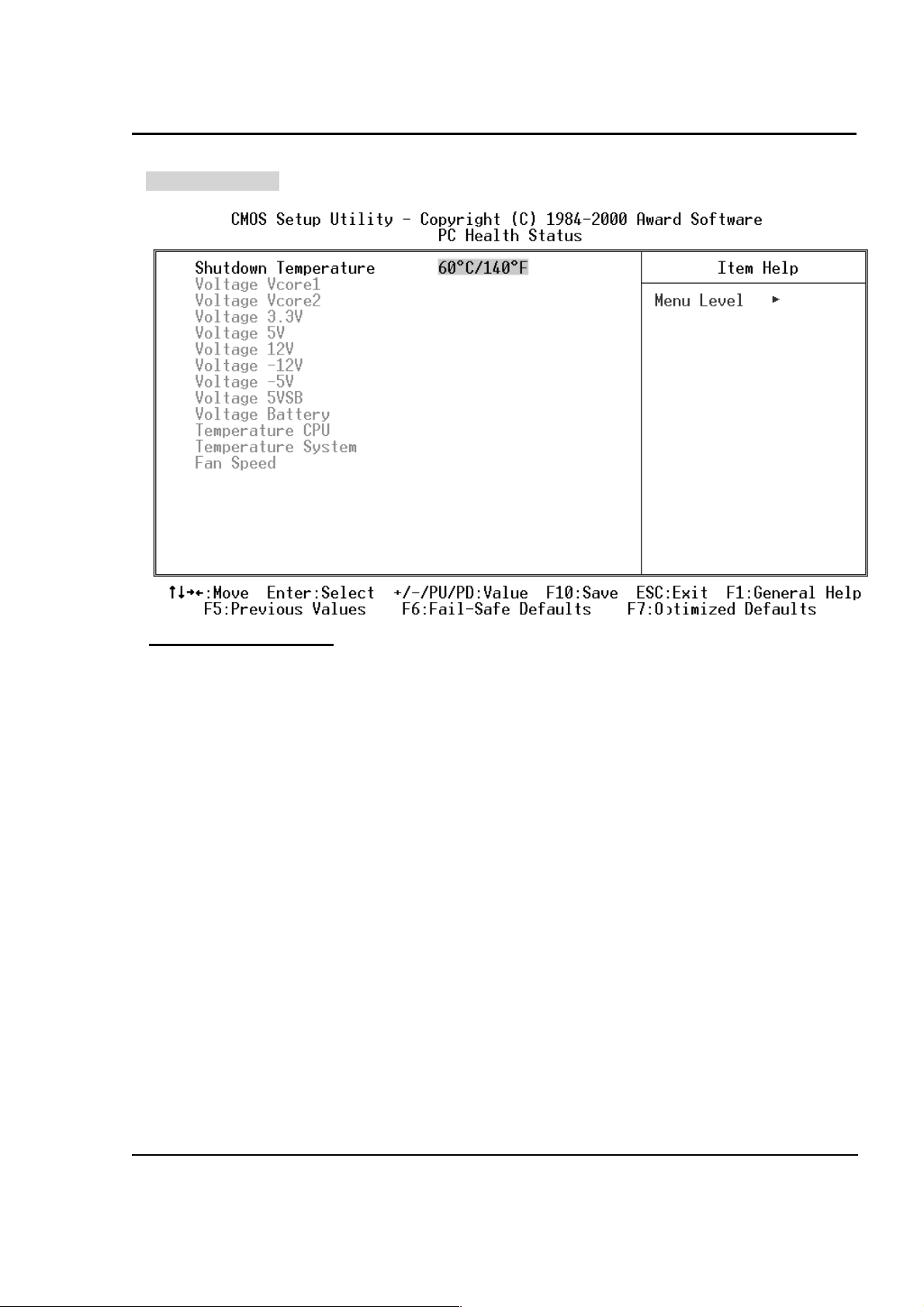

PC Health Status... ........ ........ .... ........ ........ .... ........ ........ ............ .... ........ ........ ........ .... ........ ....................4-27

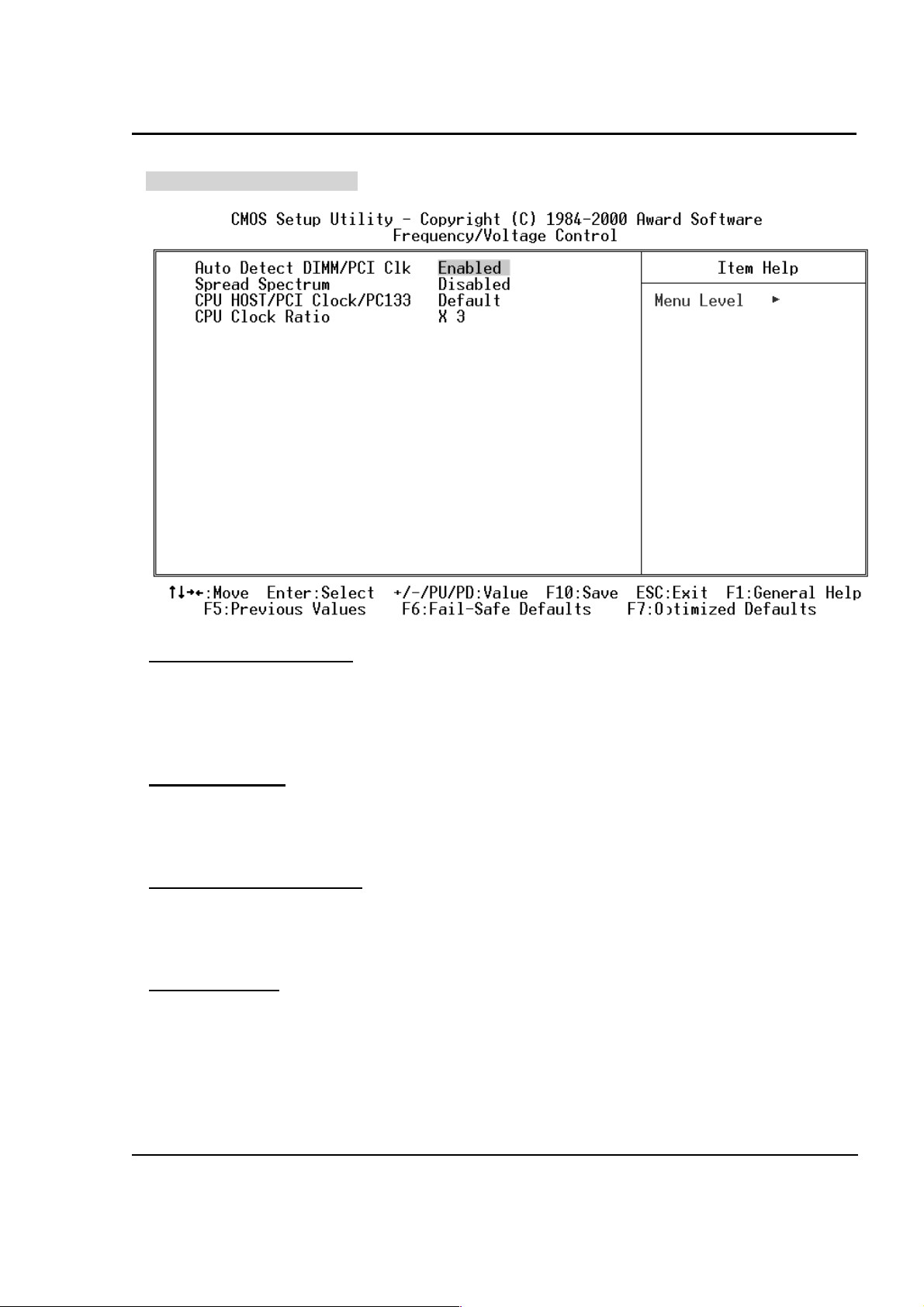

Frequency/Voltage Control ........................... .................................... ............................ .........................4-28
Supervisor/User Password Setting... .................... ................ .................... .................... ................ .........4-29
Power-On Boot....... ........ ............ ............ ............ ........ ................ ............ ........ ............ ...........................4-30
4-2 BIOS R
ETUP
......................................................................................................................................4-1
EFERENCE
-POST M
ESSAGE
..............................................................................................4-31
POST Beep ................... ........ ............ ............ ............ ............ ............ ............ ............ ............................4-31
Error Messages................................... ................ ................ ............ ................ ......................................4-31
4-3 BIOS R
EFERENCE
-POST C
ODES
..................................................................................................4-35
APPENDIX ..................................................................................................................... 43
PPENDIX
A
AW
Watch Dog Timer W ork ing Procedur e ............................... ............ .... ........ ........ ........ .... ........ ........ ..........43
Content
ATCHDOGTIMER
..............................................................................................................43
Peak 650 User's Guide Rev. A October 2000
Watch Dog Tim er character and function........... ........ ........ .... ............ ........ ........ .... ........ ........ .... ..............43

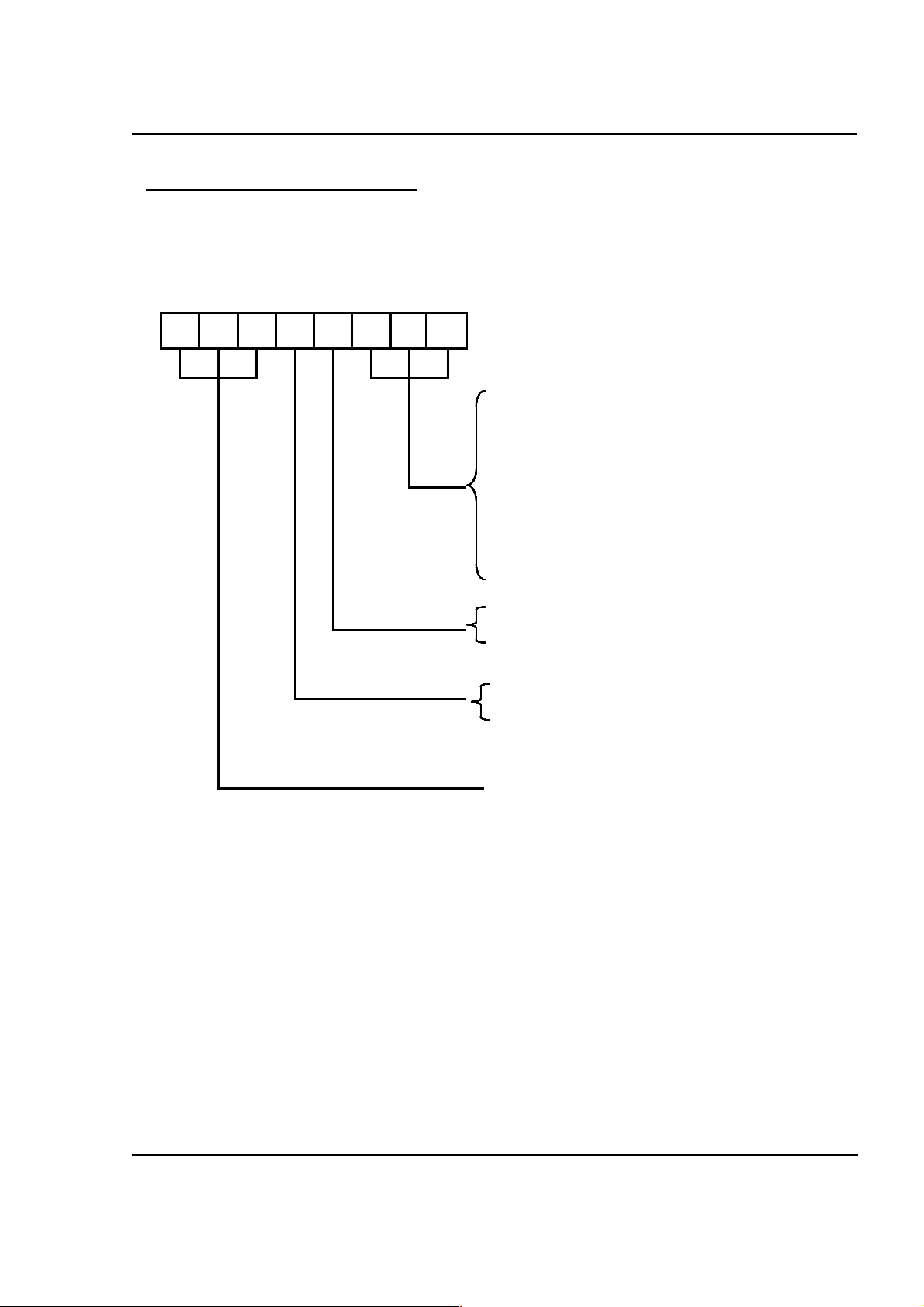

Watch Dog Timer Control Register ............................... ............ ........ .... ........ ........ ........ .... ........ .... ...........44
Watch Dog Timer Pr ogramm ing Procedur e ............... ........ ........ ........ ........ ........ .... ........ ........ ........ .... ......45

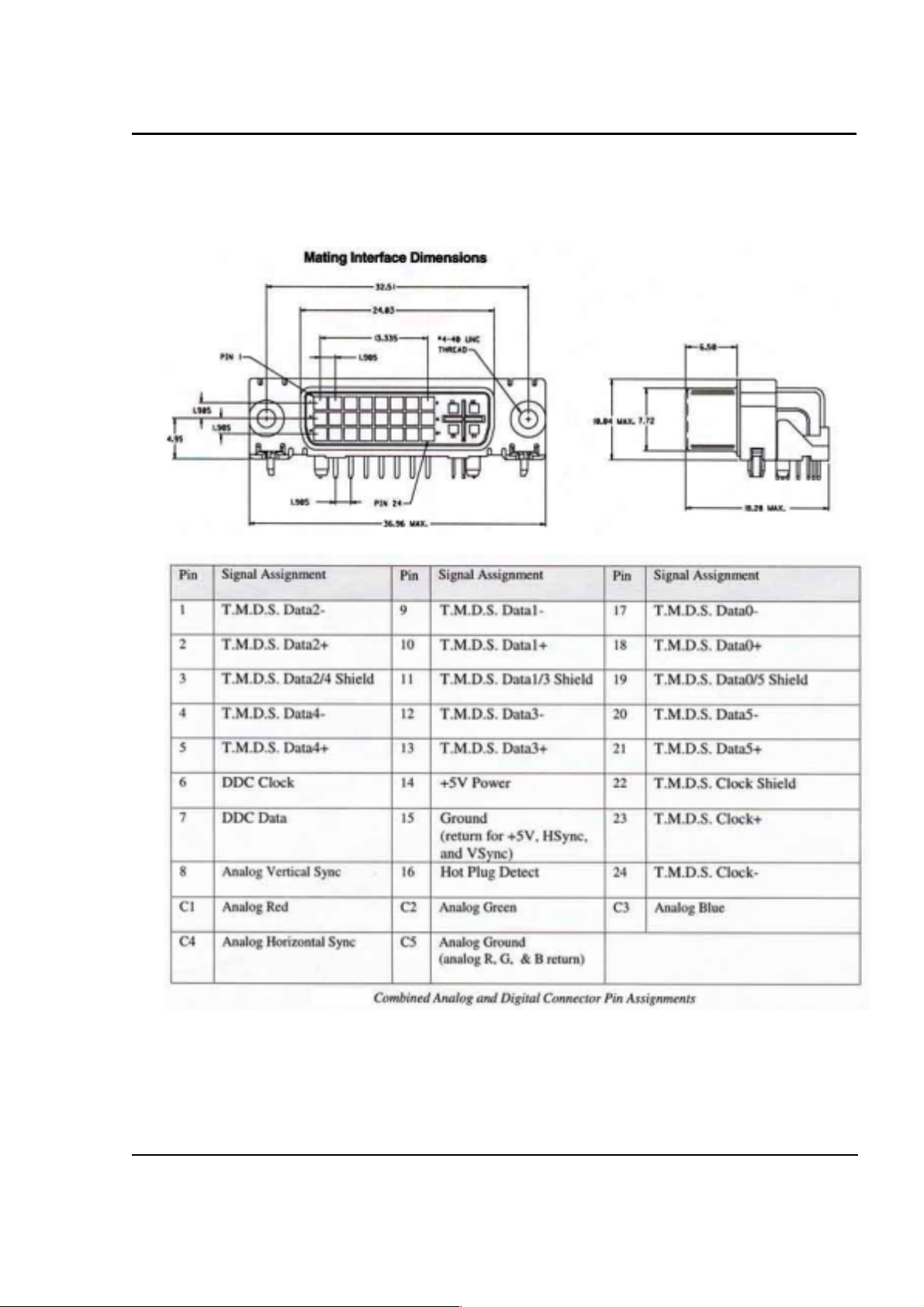

Appendix B DVI Interface Pin Assignment
Appendix C CON1: Digital Video Signals Interface ( 12 bi t)..
...
Content
Peak 650 User's Guide Rev. A October 2000
Chapter 1 Introduction
Welcom e to the PEAK 650 the most powerf ul Intel 815E based single boar d com puter.
NEXCOM’s PEAK 650 series combines the high performance and exceptional value of Intel Celeron /
Pentium III CPU and 815E chipset with a full-featured, new generation, f ull-size single board computer . The
Intel 815E chipset, which combining inter nal graphics, LAN, and support for 4 USB ports, Ul tra DMA66/100
IDE interface, that meets the performance, stability and reliability requirements. Moreover, In order to meet
the network requirement, the PEAK 650 series add one more Ethernet Controller Intel 82559 to support dual
channel Ethernet.
For the Display solution, not only the Intel 82815 (GMCH) chipset integrated Graphics control ler, PEAK 650
series also provide On Board Optional ATI Rage Mobility M4 3D VGA accelerator with on die 8MB or 16MB
memory to support 4X AGP, which is compatibl e with DVI spec if icati on to support LCD panel.
The Intel 82815 (GMCH) chipset integrated Graphics with Intel Dynamic Video Memory Technology , the
D.V.M.T. employs direct AGP and intelligent arbitration to dynamically allocate and de-allocate memory for
textures for appl ications requiring addi tional texture memor y. The operating system requir es allocation of up
to 1MB of system memory to support legacy VGA. System properties will display up to 1MB less than
physical system memory avai labl e to the operating system . The graphi cs dri v er f or the Intel 815 conf i guration
will request up to 4MB of memory from the OS to implement a maximum 1024x 768 screen resolution, 2MB
for a command buffer and 4MB used for Z-buffering. For high-end 3D applications, the drivers request
allocation of system mem ory fr om the O/S for AGP graphics textures . W hen the 3D appli cation is closed, the
O/S will re-allocate system memory back for generic use.
With the on board NEXC OM proprietar y PCI Interface, the optional EBK SCSI 2 m odule desi gn with Adaptec
AIC-7890 Ultra 2 SCSI controller , and the module EBK SCSI 160D design with Adaptec AIC 7899 Dual Ultra
160 SCSI controller, giving the PEAK 650A a unique f eatur e as a full function single board computer,
The board is suitable and valuable for all the embedded applications, which also well support with the
Windows 2000, Windows NT and Li nux Oper ation system .
Introduction
1-1
Peak 650 User's Guide Rev. A October 2000
1-1 Specifications
Product Feature
! Intel Socket 370 Celeron/Pentium III CPU running at 66/100/133MHz FSB up to 1GHz.
! Support SDRAM up to 512MB (Max.), with 100/133MHz SDRAM interface. Non Register Modul e.
! Dual Channel Ethernet by Intel 82801 (ICH2) chipset integrated LAN c ontroll er and Intel 82559 Ethernet
Controller, support Alert-on-LA N.
! Intel 82815 (GMCH) c hipset integrated Gr aphics c ontroll er.
! On Board Optional ATI Rage Mobility M4 3D VGA accelerator, support 4X AGP.
! ITE 8712 Enhanced Super I/O on board .
! On Board Nexcom pr oprietar y PCI inter face, Reserv ed 32bit PCI interface f or EBK SCSI / EBK SCSI2 /
EBK SCSI 160D module (Optional)
! On Chip enhanced IDE x 2, suppor t Ultra D M A/66/100.
! On Chip Two USB controllers double the bandwidth to 24Mbps acr oss f our por ts .
! ACPI Function Support
! Hardware Monitor for system Voltage and Temperature.
! On Board Solid State Disk Socket f or D isk OnChi p up to 288MB, and reser ved Power header bes ide
IDE connector to support DOM ( DiskOnModule )
! ISAMAX Support, Max im i ze ISA si gnal s to support ISA Card up to 20
! Full-size SBC with PCI and ISA gol den F i nger
Specification
System Architecture
!
!
Full size SBC with PCI/ISA Golden f i nger
!
Intel Socket 370 Celeron/Pentium III with 66/1 00/133MHz FSB
!
PCI V2.1 complied
!
PICMG 1.0 (Rev.2.0) compli ed
CPU Support
!
!
Intel Brand New Socket 370 FC-PGA Celeron / Pentium III CPU with 128/256K cache on di e,
running at 66/100/133MHz FSB up to 1GHz
!
Support streaming SIMD instruc tion
Main Memory
!
!
Support SDRAM up to 512MB (Max.), without ECC and Non-R egi s ter Mode SDRAM
!
168 pin DIMM socket×2
!
Support 100/133MHz SDRAM interface
!
Intel DVMT (Dynamic Video M emory Tec hnology) of f ers a m ore eff ic ient way to manage system
memory, enabling software drivers, working in concert with the intelligent arbiter and the operating
Introduction
1-2
Peak 650 User's Guide Rev. A October 2000
system, utilize all of the system memory to support richer graphics applications.
BIOS
!
!
Award System BIOS
!
Plug & Play support
!
Advanced Power Management support
!
Advanced Configurati on & Power Interface suppor t
!
Jumperless for CPU FSB
!
2M bits flash ROM, upgr ade able to 4M bits
Chip Set
!
!
Intel 815E chipsets
82815×1 Graphics and Memory Controll er Hub (G MCH )
82801×1 I/O Controller Hub ( IC H 2)
82802×1 Firmware Hub (F WH)
!
ITE 8888F×1 PCI to ISA Bridge
On Board VGA
!
!
Intel 82815 (GMCH) c hipset integr ated with Gr aphics c ontroll er
!
Hardware motion compensation assist for softwar e MPEG/DVD decode
!
15 pin CRT connector×1
On Board optional VGA
!
!
ATI Rage Mobility M4 3D VGA accelerator. 4X AGP
!
Fully PC 98 and PC 99 Compliant.
!
Integrated 8MB of SDR Memor y, upgradeable to 16M B
!
15 pin CRT connector×1, DVI interface connector×1
On Board LAN
!
!
Dual channel Ethernet support
!
Intel 82801 (ICH2) chipset integrated LAN control ler
!
Intel 82559 Single Ethernet control ler
!
Alert-on-LAN by Intel 82801 ( ICH2)
!
10 Base T/100 Base TX support, f ull dupl ex
!
Complied with PCI V2.1, IEEE802.3, IEEE 802.3U
!
Drivers supportDOS/W i ndows, W i ndows 95/98/2000, W indows NT4.0, Netwar e, SCO Open Serv er
5.0, Linux.
!
RJ45 connector×2
Introduction
1-3
Peak 650 User's Guide Rev. A October 2000
On Board Nexcom proprietary PCI interface
!
!
Reserved 32bit PCI interface for EBK SCSI / EBK SCSI2 / EBK SCSI 160D module
On Board I/O
!
!
ITE 8712 Enhanced Super I/O on board
!
SIO×2, with 2x16C550 UARTs , 10 pin header×2, Optional RS422/485×1 for COM2
!
PIO×1, bi-directional, EPP/ECP support, 26 pin connector×1
!
Floppy Disk controll er5.25360KB/1.2MB, 3.5720KB/1.2MB/1.44MB/2.88MB support, 34 pin
connector×1
!
On chip enhanced IDE x 2, PIO up to mode 4, DMA master up to mode 2, Ul tra DMA/66/100 s upport,
40 pin connector×2, total 4 E.IDE devices support
!
On chip Keyboard, mouse controller , 5 pin connector x 1( f or other keyboard) 6 pin mini DIN
connector×1, for PS/2 keyboard/mouse
!
On board USB port×4 (6pin header×2)
!
On Board buzzer×1
!
On board 2 pin header f or I2C
!
On board 5 pin header for IrDA
!
On Board 2 pin header for reset SW , 4 pin for speaker , 5 pin for k eylock, 2 pin power SW
ACPI Function
!
!
Soft Power off
!
Wake On LAN
!
Wake On Keyboard
!
Wake On Ring
!
RTC alarm wake up
On Board Solid State Disk Socket
!
!
On board reserved socket for DOC of M -syst em s2MB~288MB, etc
!
Power header beside IDE connector to support DOM
System Monitor
!
!
Derived from Super IO ITE 8712 to support system monitor.
!
7 voltage (For +3.3V, +5V, -5V , 5V STBY, +12 V,−12V, and Vcore×1)
!
One Fan speed (For CPU)
!
Two temperature
!
Drivers s upportWindows 95/98, W indows NT4.0/2 000
ISAMAX Support
!
!
Maximize ISA signals to support ISA cards up to 20
Watchdog Timer
!
Introduction
1-4
Peak 650 User's Guide Rev. A October 2000
!
1,2,44 seconds time-out intervals
Dimensions
!
!
340mm(L)×122mm(W)
Power Requirements
!
!
TBD for ( Max. Typical )
Environments
!
!
Operating temperatures0°C to 60°C
!
Storage temperatures-20°C to 80°C
!
Relative humidity10% to 90% (Non-condens ing)
Certification
!
!
CE Verification
!
FCC Class A
Model Available
!
!
PEAK 650VL2 -- Full- size Socket 370 C eleron/Penti um III C PU car d w/VGA/Dual LAN
!
PEAK 650M8 –Full-size Socket 370 Celeron/Pentium III CPU card w/ATI M4 VGA w8MB /LANWha t
you'll have from the pac kage
!
In addition to this manual, the PEAK 650 package incl udes the fol lowi ng item s
Items 650VL2 650M8
PEAK 650 Board 1 1
Cable Set, include UDMA66 IDE Cable x 1; FDD
Cable x1 ; Internal Keyboar d C onnector x1 ;
11
COM and LPT Cable w/Bracket
Y CABLE PS/2 1 TO 2 KEYBOARD/MO US E 1 1
ATX Power Cabl e connect SBC and BackPl ane 1 1
Driver CD 1 1
PEAK 650 Quick Reference Gui de Rev .A 1 1
If any of these items is mis sed or damaged, pl ease contact your vendor for what you want
Introduction
1-5
Peak 650 User's Guide Rev. A October 2000
Chapter 2 Switches and Connectors
2-1 Main Board Layout
This chapter giv es the def ini tions and s hows where to l ocate the posi tions of swi tches and c onnectors .
Capability Expand
2-1
Peak 650 User's Guide Rev. A October 2000
2-2 Switches
Switches on the CPU board are used to select options f or dif fer ent func tions used. The switch-on or off is
to accommodate the variati ons of the f oll owing tabl e.
Switch Setting Table ( * : def ault set up)
S1 (*: Default setting)
1 2 3 4 CPU FSB / Memory
ON ON OFF OFF * Auto detect
OFF OFF ON ON 66MHZ / PC100 SDRAM
OFF O F F OFF ON 100MHZ / PC100 SDRAM
OFF O F F ON OFF 133M H Z / PC 133 SD R AM
OFF OFF OFF OFF Reserve
SW2 (*: Default setting)
SW2 1 2345678910
RS232 (*)
RS422
RS485
SW1 (*: Default setting)
SW1/M- System Disable (*) C0000 C8000 D0000 D8000
1 OFF ON ON ON ON
2 X ON ON OFF OFF
3XONOFFONOFF
4 XXXXX
OFF OFF OFF ON OFF ON OFF OFF OFF OFF
ON ON ON OFF ON OFF ON ON ON ON
ON ON OFF ON ON OFF OFF OFF OFF ON
Capability Expand
2-2
Peak 650 User's Guide Rev. A October 2000
2-3 Connectors
Jumper/Connector Define
J1: External speaker connector
Pin 1 Pin 2, 3 Pi n 4
Speaker signal GND VCC5
J2: Power supply type select:
Pin1-2 short AT power
Pin2-3 short ATX power
J4: 5VSB power cable connect or
Pin 1 Pin 2 Pin3
5VSB GND ATX power supply S_ON”
Jp1: VCC5 power co nnect or ( for D OM)
Pin 1 Pin 2
VCC5 GND
Jp3: Keylock connector
Pin 1 Pin 3,5 Pin 4
VCC5 GND keylock signal
J13: Reset butt on
Pin 1-2 Reset
JP4: CMOS set up
Pin 1-2 Pin 2-3
Normal Clear CMOS
J9: Power On button (ATX)
Pin 1-2 Power on
J11: IDE LED connector
Pin 1 Pin 2
VCC5 IDE LED signal
Capability Expand
2-3
Peak 650 User's Guide Rev. A October 2000
IR1: IR connector
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
VCC5 NC IR_RX GND IR_TX
J12: External keyboard connector
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
Keyboard CLK Keyboard DAT NC GND 5 VCC5
JP2: I2C connecto r
Pin 1 Pin2
SMB DAT SMB CLK
J17: NEXCOM Reserved
Note
: For Model Peak 650VL and Peak 650M 8, the Nexcom plug i n Module EBK SCSI2 or EBK
SCSI160D cannot use Ad24 for IDSEL.
EBK SCSI 160D Jumper Setting
ON Board Active Terminal Resistor
Enable Disable
Channel A S1.1 OFF ON
Channel B S1.2 OFF ON
IDSEL Jumper
AD20 JP1.1, JP1.2 Short
AD24 JP1.2, JP1.3 Short
SCSI LED Jumper
Channel A
LED+: JP2.1
LED-: JP2.2
LED+: JP2.3Channel B
LED-: JP2.4
Capability Expand
2-4
Peak 650 User's Guide Rev. A October 2000
Chapter 3 Capability Expanding
This chapter explains how you can expand capability of your CPU board in such aspects as system memory
and CPU.
3-1 System Memory
Peak650 support 2 slots f or 168-pin 3.3V Non-regi stered DIMM modules , providing suppor t for up to 512M B
of main memory using DIMM modules from 8MB to 256MB. The following is the example to install the
system SDRAM mem ory module combinati on.
Note:
1. It is highly recommended to use the PC-100 or PC-133 Specification DIM M module.
2. Due to limitation of Intel 815E chipset, th e board can support the ECC memory module.
Q y of Module DIMM1 DIMM2
1 1 st 8~256 MB 256 MB
2 1 st 2 nd 8~256 MB 512 MB
To insert the DIMMs, the m odul es mus t be oriented in
the correct way. Notice the notches of the DIMM.
Align these notches as shown in the diagr am bel ow.
Gently push the DIMM until the r etai ner s on both
sides of the socket lock the m odule in pl ace.
To remove a DIMM , push the retainer s outwards to
release the module then pull the m odule out of the
socket.
Module Size
Max. Size
Capability Expand
3-1
Peak 650 User's Guide Rev. A October 2000

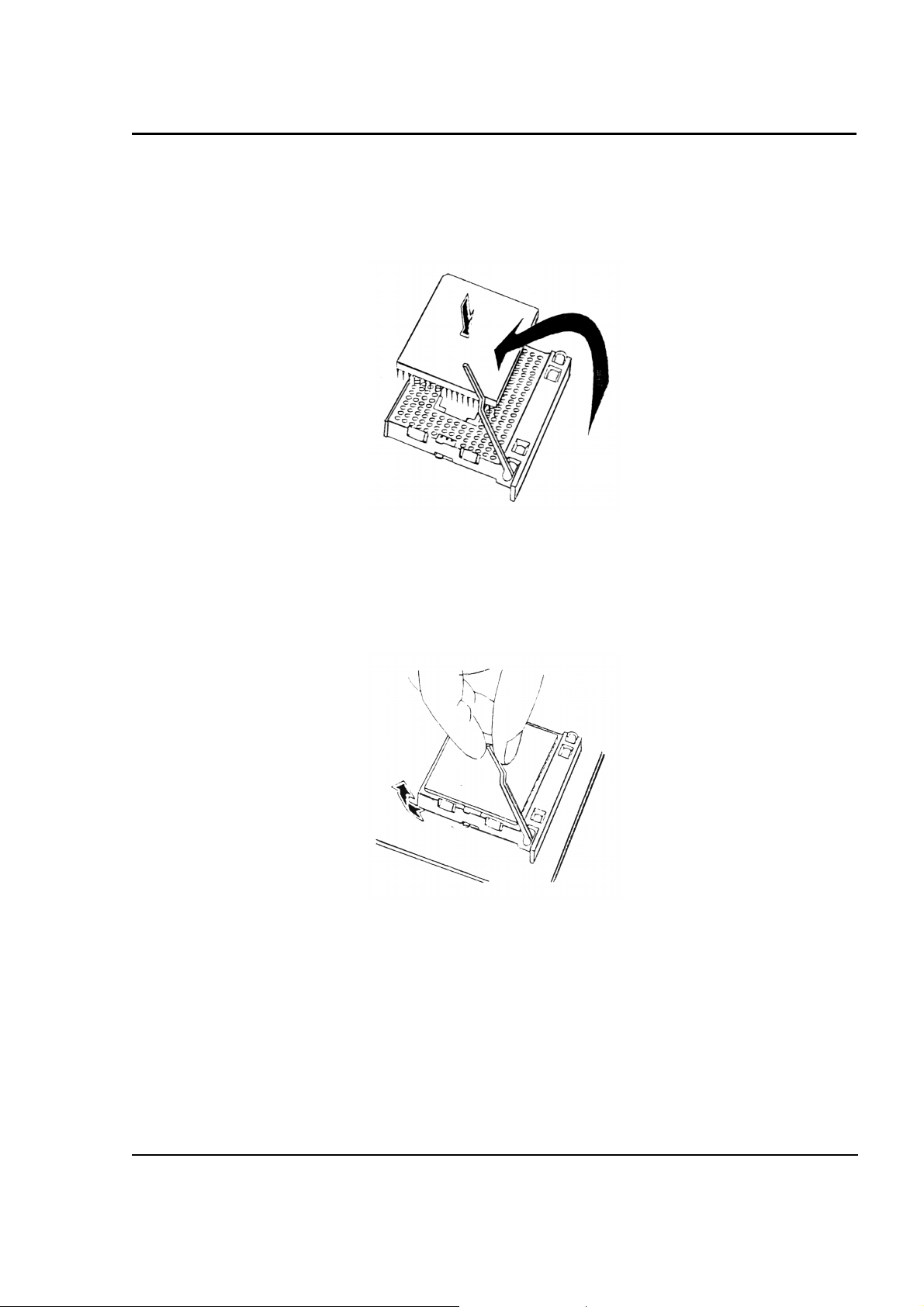

3-2 Change CPU
To change the CPU, pull the handling bar of the socket upward to the other end to loosen the socket's
openings. Carefully lift the existing C PU up to r em ove it from the s ock et.
Removing CPU
Place the new CPU on the middle of the socket, orienting its beveled corner to line up with the socket's
beveled corner. Make s ure the pins of the CPU fit ev enly to the socket openi ngs. Replace the handling
bar to fasten the CPU to the socket. Be sure to re-arrange the jumper setting for the correct external
clock.
Installing CPU
Capability Expand
3-2
Peak 650 User's Guide Rev. A October 2000
Chapter 4 AWARD BIOS Setup
Award's BIOS ROM has a built-in Setup program that all ows user s to modi fy the basi c system conf igur ation.
This type of inf or m ati on is st or ed i n batter y-back ed R AM ( C M OS R AM ) s o that i t r etai ns the Setup
information when the power i s turned of f .
4-1 BIOS Setup
Entering Setup
Power on the computer and press
enter Setup is to power on the computer, when the below message appears briefly at the bottom of the
screen during the POST (Power On Self Test), press
<Esc>
and
If the message disappear s before you respond and you still wish to enter Setup, restart the system to tr y
again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also
restart by simultaneous ly pressing
correct time and the system does not boot, an error message will be displayed and you will again be asked
to,
keys.
TO ENTER SETUP BEFORE BOOT
PRESS <CTRL-ALT- ESC> OR <DEL> KEY
PRESS <F1> TO CONTINUE,
<CTRL-ALT-ESC> OR <DEL> TO ENTER SETUP
<Del>
<Ctrl>,<Alt>
immediately will allow you to enter Setup. The other way to
, and
<Del>
<Delete>
key or simultaneously press
keys. If you do not press the keys at the
<Ctrl>,<Alt>
,
BIOS Setup
4-1
Peak 650 User's Guide Rev. A October 2000
Control Keys
Up arrow
Down arro w
Left arrow
Right arrow
Esc key
PgUp / key
PgDn / “
F1 key
(Shift)F2 key
key
−
Move to previous i tem
Move to next item
Move to the item in the l eft hand
Move to the item in the r i ght hand
Main Menu -- Quit and not sav e changes into CM OS
Status Page Setup Menu and Option Page Setup Menu -- Exit
current page and r etur n to M ai n M enu
.
Increase the numeric val ue or make changes
/
Decrease the numeric v alue or make changes
/
F1
General help, only for Status Page Setup Menu and Option Page
Setup Menu
Change color from total 16 colors. F2 to select color forward, ( Shif t)
( )
F2 to select color backward
F3 key
F4 key
F5 key
F6 key
F7 key
F8 key
F9 key
F10 key
Reserved
Reserved
Restore the previ ous CM OS v alue f rom CM OS, only f or Option Page
Setup Menu
Load the default CMOS value from BIOS default table, only for
Option Page Setup Menu
Load the Setup default val ue, onl y for Option Page Setup Menu
Reserved
Reserved
Save all the CMOS changes, only for Mai n M en u
Table 4-1 Control Keys
BIOS Setup
4-2
Peak 650 User's Guide Rev. A October 2000
Getting Help
Main Menu
The on-line desc ripti on of the highl ighted setup f uncti on is displ ayed at the bottom of the scr een.
Status Page Setup Menu/Option Page Set up M enu
<F1>
Press
selections for the hi ghl i ghted i tem . To exit the H el p Window press
to pop up a small help window that des cribes the appropriate keys to use and the possi ble
<F1>or<Esc>
.
BIOS Setup
4-3
Peak 650 User's Guide Rev. A October 2000
The Main Menu
Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figur e 1) will appear on the screen.
The Main Menu allows you to s elect from ten setup functions and two exi t choices. Use arrow keys to
select among the items and press
<Enter>
to accept or enter the sub-men u.
Standard CMOS Features
Use this menu for basic syst em conf igur ation. See Page 4-6 for details.
Advanced BIOS Features
Use this menu to set the Advanced Features av ailabl e on your system. See Page 4- 9 for details.
Advanced Chipset features
Use this menu to change the values in the chipset registers and optimize your system's performance.
See Page 4 -13 for details.
Integrated Peripheral s
Use this menu to specify your sett ings f or integr ated peri pherals . See Page 4-17 for details.
Power Management setup
Use this menu to specif y your settings for power m anagement See Page 4-21 for details.
BIOS Setup
4-4
Peak 650 User's Guide Rev. A October 2000
PnP/PCI Configurati on
This entry appears i f your system supports PnP / PC I C onf i gur ati on. See Page 4-25 for detai l s.
PC health Status
Display CPU/System T emperature, Fan s peed and Voltages Value. See Page 4-27 f or details.
Frequency/Voltage Control
Use this menu to specify your settings f or fr equency/v oltage contr ol . See Page 4-28 for details.
Load Fail-Safe Defaults
Use this menu to load the BIOS default values for the minimal/stable performance for your system to
operate.
Load Optimized Defaults
Use this menu to load the BIOS default values that are f actory settings for optimal performance system
operations. W hile Award has designed the custom BIOS to maximize perf ormance, the factory has the
right to change these defaults to meet thei r needs .
Set Supervisor/User Password
Change, set, or disable pass word of supervisor or user. It allows you to limit ac cess to the system and
Setup, or just to Setup. See Page 4-29 for details.
Save & Exit Setup
Save CMOS val ue c hanges to C M OS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit s etup.
BIOS Setup
4-5
Peak 650 User's Guide Rev. A October 2000
Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into 11 categories. Each category includes no,
one or more than one setup items. Use the arrow keys to highl ight the item and then use the
<PgDn>
keys to select the value you want in each item.
<PgUp>
or
Main Menu Selections
Item Options Description
Set the system date. Note that the eek
Date MMM DD YYYY
dayautomatically changes when you set the
date
Time HH : MM : SS Set the system time
IDE Primary Master
IDE Primary Slave
IDE Secondary
Master
IDE Secondary
Slave
Drive A None
BIOS Setup
Options are in its sub menu
(Described in T able 4-3)
Options are in its sub menu
(Described in T able 4-3)
Options are in its sub menu
(Described in T able 4-3)
Options are in its sub menu
(Described in T able 4-3)
Press <Enter> to enter the sub menu of
detailed options
Press <Enter> to enter the sub menu of
detailed options
Press <Enter> to enter the sub menu of
detailed options
Press <Enter> to enter the sub menu of
detailed options
Select the type of floppy disk drive installed in
your system
4-6
Peak 650 User's Guide Rev. A October 2000
Drive B 360K, 5.25 in
1.2M, 5.25 in
720K, 3.5 in
1.44M, 3.5 in
2.88M, 3.5 in
3 Mode floppy disk drives (FDD) are 3 1/2”
Floppy 3 Mode Disabled, Drive A, Drive B,
Both
drives used in Japanese computer systems.
If you need to access data stor ed in this kind
of floppy, you must select this mode, and of
course you must have a 3 Mode floppy drive.
LCD
CRT
LCD&CRT
Select the default v ideo device
AUTO
LCD&CRT
All Errors
No Errors
Halt On
All, but Keyboard
Select the situation in which you want the
BIOS to stop the POST process and notify you
All, but Diskette
All, but Disk/Key
Base Memory N/A Displays the amount of conventional memory
detected during boot up
Extended Memory N/A Displays the amount of extended memory
detected during boot up
Total Memory N/A Displays the total memory available in the
system
Table 4-2 Main Menu Selections
BIOS Setup
4-7
Peak 650 User's Guide Rev. A October 2000
IDE Adapters
The IDE adapters control the hard disk driv e. Use a separate sub m enu to conf igur e eac h har d disk dr iv e.
Use the legend keys to navigate through this menu and exit to the main menu. Use below table to
configure the hard disk.
Item Options Description
IDE HDD Autodetection
Press Enter Press Enter to auto-detect the HDD on this
channel. If detection is successful, it fills the
remaining fi elds on this menu.
IDE Primary Master None
Auto
Manual
Selecting anuallets you set the remaining
fields on this scr een. Selects the type of f ixed
disk. "User Type" will let you select the
number of cylinders, heads, etc. Note:
PRECOMP=65535 means NONE !
Capacity Auto Display your disk drive
size
Disk drive capaci ty (Approximated). Note that
this size is usually slightly greater than the size
of a formatted disk given by a disk checking
program.
Access Mode Normal
Choose the access mode for this hard dis k
LBA
Large
Auto
The following opt ions are selectable o nly if the DE Primary Master
Cylinder Min = 0
Set the number of cylinders for this hard di sk.
Max = 65535
Head Min = 0
Set the number of r ead/writ e heads
Max = 255
Precomp Min = 0
Max = 65535
Landing zone Min = 0
**** Warning: Setting a value of 65535 means
no hard disk
****
Max = 65535
Sector Min = 0
Number of sectors per track
Max = 255
Table 4-3 Hard disk selections
item is set to anual’
BIOS Setup
4-8
Peak 650 User's Guide Rev. A October 2000
Advanced BIOS Features Setup Menu
This section all ows you to configure your system for basic operation. You have the opportunity to selec t
the system defaul t speed, boot-up sequence, keyboar d operation, shadowing and secur ity.
Virus Warning
Allows you to choose the VIRUS Warning feature for IDE Har d Dis k boot sector protecti on. If this
function is enabled and someone attempt to write data into this area, BIOS will show a warning message
on screen and alarm beep.
Enabled Activates automatically when the system boots up causing a warning message to
appear when anything attempts to access the boot sec tor or har d disk par titi on table.
Disabled No warning message will appear when anything attempts to access the boot sector
or hard disk partition table .
! W ARNING!
Disk boot sector is to be m odif ied
Type "Y" to accept write or "N" to abort wr i te
Award Software, Inc.
ote: This function is available only for DOS and other OSes that do not trap IN T13.
N
BIOS Setup
4-9
Peak 650 User's Guide Rev. A October 2000
CPU Internal Cache/External Cache
These two categories speed up memory access. However, it depends on CPU/chipset design. The
default value is Enabl e. If your CPU without Internal Cache then this item PU Internal Cachewill not
be show.
The Choice: Enabled/D is able d
CPU L2 Cache ECC Checking
This category could turn on the ECC of Pentium III L2 Cache or just disable it.
The Choice: Enabled/D isa ble d
Processor Number Feature
Intel included a serial number in their Pentium III processors as a unique system identifier. For privacy
reasons, you can disable this setting to prev ent the release of this identifier .
The Choice: Enabled/D isa ble d
Quick Power On Self Test
This category speeds up Power On Self Test (POST) after you power on the computer. If it is set to
Enable, BIOS will shorten or skip some check items during POST .
The Choice: Enabled/D isa ble d
First / Second / Third Boot Device
The BIOS attempts to load the operating system f rom the devic es in the sequence sel ected in these item s.
The Choice: Floppy, LS/ZIP, HDD, SCSI, CDROM, Disabled.
Boot Other Device
If all the selected boot devices fai led to boot, select
devices (in a predefined s equence) which are present but not selected as boot devices in the setup (and
hence have not yet been tried for booting). If select
devices in setup.
Enabled
Disabled
the BIOS will try to boot from the other boot
, that may be present but not selected as boot
Swap Floppy drive
If the system has two floppy dri ves, you can swap the l ogi cal drive name assignments.
The choice: Enabled/Dis abled.
Boot Up Floppy Seek
Seeks disk drives dur ing boot up. Disabling speeds boot up.
The Choice: Enabled/D isabled.
Boot Up NumLock Status
Select power on state for NumLock.
The Choice: Enabled/ Di sabl ed.
BIOS Setup
4-10
Peak 650 User's Guide Rev. A October 2000
Gate A20 Option
Select if chipset or k eyboard contr oll er shoul d control GateA20.
Normal A pin in the keyboard control ler cont rol s GateA20
Fast Lets chipset control Gate A20
Typematic Rate Setting
Key strokes repeat at a rate deter mined by the keyboard controller. When enabled, the typematic rate
and typematic delay can be selected.
The Choice: Enabled/D isabled.
Typematic Rate (Chars/Sec)
Sets the number of times a second to repeat a key strok e when you hold the key down.
The Choice: 6, 8, 10, 12, 15, 20, 24, 30
Typematic Delay (Msec)
Sets the delay time after the key is held down before it begins to repeat the keystrok e.
The Choice: 250, 500, 750, 1000.
Security Option
Select whether the password is requir ed ever y time the system boots or only when you enter setup.
System The system will not boot and access to Setup will be denied if
the correct pass word is not enter ed at the pr ompt .
Setup The system will boot, but access to Setup will be denied if the
correct password is not ent ered at the prompt.
Note:
To disable security, select PASSWORD SETTING at M ain M enu and then you will be asked to enter
password. D o not type anything and just press
is disabled, the system will boot and you can enter Setup freely.
<Enter>
, it will disable security. Once the security
MPS Version control For OS
This field s pec i f i es the version of M PS used by the motherboard.
The Choice: 1.1, 1.4
OS Select for DRAM > 64MB
Select the operating system that is running with greater than 64MB of RAM on the system.
The Choice: Non-OS2, OS2
BIOS Setup
4-11
Peak 650 User's Guide Rev. A October 2000
HDD S.M.A.R.T. Capability
S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a technology developed to manage
the reliability of the hard disk by predicting future device failures. The hard disk needs to be S.M .A.R.T.
capable. The settings for thi s opti on are Dis abled or Enabled.
* Note: S.M.A.R.T. cannot predict all futur e device failures. S.M .A.R.T. should be us ed as a warning tool,
not as a tool to predict the device reliability.
The Choice: Enabled/D isabled.
BIOS Setup
4-12
Peak 650 User's Guide Rev. A October 2000
Advanced Chipset Features Setup Menu
Since the features in thi s sec ti on ar e related to the chipset in the C PU boar d and al l ar e opti m i zed, you are
not recommended to change the default settings in the setup tabl e, unless you know v ery detailed of the
chipset features.
This section allows you to configure the system based on the specific features of the installed chipset.
This chipset manages bus speeds and access to system memory resources, such as DRAM and the
external cache. It also coordi nates communications between the conv entional ISA bus and the PCI bus.
It must be stated that these items should never need to be altered. The default settings have been
chosen because they provide the best operating conditions for your system. The only time you might
consider making any changes would be if you discov ered that data was being los t while usi ng your system.
The first chipset settings deal with CPU acces s to dynamic random ac cess mem ory (DRA M). The default
timings have been carefully chosen and should only be altered if data is being lost. Such a scenario
might well occur if your system had mixed speed DRAM chips installed so that greater delays may be
required to preserve the integrity of the data held in the slower m em or y chi ps .
SDRAM CAS Latency Time
Wh en synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM
timing.
The Choice: 2, 3
BIOS Setup
4-13
Peak 650 User's Guide Rev. A October 2000
SDRAM Cycle Time Tras/Trc
Select the number of SCLKs for an acces s cycle.
The Choice: 5/7, 7/9.
SDRAM RAS-to-CAS Delay
This field l et you inser t a timing delay between the CAS and RAS strobe s ignals, used when DRAM is
written to, read from, or refreshed. Fast gives faster performance; and Slow gives more stable
performance. This field appl i es onl y when s ynchr onous D RA M i s installed in the system.
The Choice: 2, 3.
SDRAM RAS Precharge Time
If an insufficient number of cycles is allowed for the RAS to accumulate its charge before DRAM refresh,
the refresh may be incomplete and the DRAM may fail to retain data. Fast gives faster performance; and
Slow gives more s table performanc e. This field appli es only when synchronous DRAM is instal led in the
system.
The Choice: 2, 3.
System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system
performance. However, if any program wri tes to this memory ar ea, a system err or may res ult.
The choice: Enabled, Disabled.
Video BIOS Cacheable
Select Enabled allows caching of the video BIOS, resulting in better system performance. However, if
any pr ogram writ es to this memor y area, a system er ror may res ult.
The Choice: Enabled, Disabled.
Memory Hole At 15M-16M
You can reserve this area of s ystem m emor y for ISA adapter ROM . When this area is reser v ed, i t cannot
be cached. The user information of peripherals that need to use this area of system memory usually
discusses their memory requi rements.
The Choice: Enabled, Disabled.
CPU Latency Timer
When enabled this item, the CPU cycle will only be deferr ed after it has been held in a noop Stallfor 31
clocks and another ADS# has arrived. W hen disabled, the CPU cycle will be deferred im mediately after
the GMCH receives another AD S#.
The Choice: Enabled, Disabled.
BIOS Setup
4-14
Peak 650 User's Guide Rev. A October 2000
Delayed Transaction
The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select
Enabled to support compliance wi th PCI speci fi cation v er sion 2.1.
The Choice: Enabled, D isabl ed
AGP Graphics Aperture Size
This field determ ines the effective s ize of the Graphic Aperture used for a particul ar GMCH confi guration.
It can be updated by the GMCH-specific BIOS configuration sequence before the PCI standard bus
enumeration sequence takes place. If it is not updated then a default value will select an aperture of
maximum size.
The choice: 4, 8, 16, 32, 64, 128, 256
Display Cache Frequency
You can use this item to select the frequency of the display cac he.
The Choice: 100MH Z, 133MH Z.
System Memory Frequency
You can use this item to select the operati ng fr equency f or the mai n system memor y.
The Choice: Auto, 100MHZ, 133MHZ.
On-Chip Video Window Size
Select the on-chip video window size for VGA dr i ves use.
The Choice: 32MB, 64MB, Di sabled.
Onboard Display Cache Setting
Setting the onboard display cache tim ing.
CAS # Latency
Select the local mem ory c lock per iods .
The Choice: 2, 3
Paging Mode Control
Select the paging mode control.
The Choice: Close, Open.
RAS-to -CAS Overrid e
Select the display cache cloc k peri ods contr ol.
The Choice: Fast, Slow.
BIOS Setup
4-15
Peak 650 User's Guide Rev. A October 2000
RAS# Timing
This item controls RAS# activ e to Protegr a, and ref resh to RAS# active delay ( in local memory clocks).
The Choice: Fast, Slow.
RAS# Precharge Timing
This item controls RAS# precharge (in local memory clocks).
The choice: Fast, Slow.
BIOS Setup
4-16
Peak 650 User's Guide Rev. A October 2000
Integrated Peripheral s
Onboard LAN2 H/W Active
This setting enables or dis ables the onboard LAN2.
The choice: Enabled, Disabled.
Onboard SCSI H/W Active
This setting enables or disabl es the onboar d SCSI.
The choice: Enabled, Disabled.
Onboard LAN Boot ROM
Decide whether to invoke the boot ROM of the onboar d LAN chip.
The choice: LAN1, LAN2, Disabled.
BIOS Setup
4-17
Peak 650 User's Guide Rev. A October 2000
Onboard SCSI Boot ROM
Decide whether to invoke the boot ROM of the onboard SCSI.
The choice: Enabled, Disabled.
On-Chip Primary/Secondary PCI IDE
The chipset contains a PCI IDE interf ace with support f or two IDE channels. Sel ect Enabled to activ ate the
primary/secondary IDE interf ace. Select Disabled to deactivate the prim ary/sec ondary IDE
The choice: Enabled, Disabled.
Note:
1. On-chip Secondary PCI IDE:
Enabled: enable secondary IDE port and BIOS will assign IRQ15 for this port.
Disabled: disable s econdar y IDE port and IRQ15 is av ai l able for other devi ce. The item is optional
only for PCI BIOS.
2. Some of the sound cards have an onboard CD-ROM control ler , which uses ID E Secondary Port.
In order to avoid PCI IDE conflict, the IDE secondary channel control has to select isabl edthen
CD-ROM can work.
IDE Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Out put) fields let you set a PIO mode (0-4) for each of the four IDE
devices that the on-Board IDE interface supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatical ly determines the best mode for each devi ce.
The Choice: Auto, Mode 0, M ode 1, Mode 2, Mode 3 and Mode 4.
IDE Primary/Secondary Master/Slave UDMA
Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating
environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driv er). If your
hard drive and your system softwar e both support Ultra D MA/33, s elect Auto to enable BIOS support.
The Choice: Auto, Disabled.
USB Controller
Select
peripherals.
The Choice: Enabled, Di sabled.
Enabled
if your system contains a Universal Serial Bus (USB) controller and you have USB
USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB
keyboard.
The Choice: Enabled, Di sabled.
BIOS Setup
4-18
Peak 650 User's Guide Rev. A October 2000
Init Display First
This item allows you to decide to active whether PCI Slot or on- c hi p VGA first
The Choice: PCI Slot, Onboard.
IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or m ultiple sector read/write. If your IDE
hard drive supports block mode (most new drives do), select Enabled for automatic detection of the
optimal number of bl ock read/wr ites per sector the drive can support.
The Choice: Enabled, Di sabled
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FD C) installed on the system board and you
wish to use it. If you install add-on FDC Controller Card or the system has no floppy drive, select
Disabled in this f i eld.
The Choice: Enabled, Disabled.
Onboard Serial Port 1/Port 2
Select an address and corr esponding i nterr upt for the fi rs t and sec ond seri al ports .
The Choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IR Q3, Disabled, Auto.
UART Mode Select
This item allows you to select UART mode.
The Choice: Normal, .IrDA, ASKIR
UR2 Duplex Mode
This item allows you to select the IR half/f ul l dupl ex function.
The Choice: Half, Full.
Onboard Parallel Port
This item allows you to determ ine access On- Board paral lel por t control ler with which I/O addr ess.
The Choice: 3BC/IRQ7, 378/IRQ7, 278/IRQ5, D isabled.
Parallel Port Mode
Select an operating mode for the On-Board parallel (printer) port. Select
unless you are certain your hardware and s oftwar e both support one of the other avai labl e modes.
Normal, Compatible,orSPP
The Choice: SPP, EPP, ECP, EC P+ EPP.
BIOS Setup
4-19
Peak 650 User's Guide Rev. A October 2000
ECP Mode Use DMA
Select a DMA channel for the parallel por t for use during ECP mode.
The Choice: 3, 1.
BIOS Setup
4-20
Peak 650 User's Guide Rev. A October 2000
Power Management Setup
The Power Management Setup allows you to configure your s ystem to most eff ectively save energy while
operating in a manner consistent wi th your own style of c omputer use.
ACPI Function
This item allows you to Enable/Disabl e the Adv anced Conf igur ation and Power Inter fac e (AC PI).
The Choice: Enabled, Disabled.
ACPI Suspend Mode
This item will allow you to select the ACPI suspend type. You can select S3 (STR) for suspending to
DRAM or S1 (POS) for power on suspend under W i ndows 98 ACPI mode.
The choice: S1(POS), S3(STR).
BIOS Setup
4-21
Peak 650 User's Guide Rev. A October 2000
Power Management
This category allows you to select the type (or degree) of power saving and is directly related to the
following modes:
1. HDD Power Down
2. Doze Mode
3. Suspend Mode
There are four s electi ons f or Power M anagement, thr ee of whi ch hav e fi x ed mode setti ngs.
Disabled (def ault) No power management. Disables all four m odes
Min. Power Saving Minimum power management. Doze Mode = 1 hr. Standby M ode = 1 hr .,
Suspend Mode = 1 hr., and HDD Power Down = 15 min.
Max. Power Saving
User Defi ne Allows you to set eac h m ode i ndi v i dual l y. When not dis abl ed, each of the
Maximum power management -Mode = 1 min., Standby Mode = 1 m i n., Suspend M ode = 1 min., and HDD
Power Down = 1 min.
ranges are from 1 min. to 1 hr. except for HDD Power Down which ranges from
1 min. to 15 min. and Disabled.
ONLY AVAILABLE FOR SL CPU
. Doze
Video Off Method
This determines the m anner in whic h the m onitor is bl anked.
V/H SYNC+Blank This selection will cause the system to turn off the v er tical and hor izontal
synchronization ports and write blanks to the video buf f er.
Blank Sc r een This option onl y wri tes bl ank s to the video buff er .
DPMS Initi al di splay power m anagement signal ing.
Video Off In Suspend
This deter mines the m anner in which the monitor is blanked.
The Choice: Yes, No.
Suspend Type
Select the Suspend Type.
The Choice: PWRON Suspend, Stop Grant.
MODEM Use IRQ
This determines the IRQ i n which the MOD EM can use.
The Choice: 3, 4, 5, 7, 9, 10, 11, N A.
BIOS Setup
4-22
Peak 650 User's Guide Rev. A October 2000
Suspend Mode
When enabled and after the set time of system inactivi t y, all devices except the CPU will be shut off.
The Choice: Enabled, Disabled.
HDD Power Down
When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all
other devices remain activ e.
The Choice: Enabled, Disabled.
Soft-Off by PWR-BTTN
Pressing the power button for m ore than 4 seconds for ces the system to enter the Soft-Of f s tate when the
system has ung
The Choice: Delay 4 Sec, Instant-Of f.
Wake-Up by PCI card
When enabled, you can ake-upyour system using a PCI r ev2.2 card, when a ME#event occurring.
The Choice: Enabled, Disabled.
PowerOn by Ring
An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem)
awakens the system f rom a sof t of f s tate.
The choice: Enabled, Disabled.
USB KB Wake-Up From S3
This item will enable you to wake-up the system by USB keyboard when you shut down the computer in S3
mode.
The choice: Enabled, Disabled.
Resume by Alarm
When Enabled, your can set the date and time at which the RTC (real-time clock) alarm awakens the
system from Suspend m ode.
The choice: Enabled, Disabled.
BIOS Setup
4-23
Peak 650 User's Guide Rev. A October 2000
PM Events (Reload Global Timer Events)
PM events are I/O events whose occurrence can prev ent the system from entering a power saving m ode
or can awaken the system from such a mode. In effect, the system remains alert for anything which
occurs to a device which is conf igur ed as Enabled, even when the system is in a power down mode.
Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
FDD, COM, LPT Port
PCI PIRQ[A-D] #
BIOS Setup
4-24
Peak 650 User's Guide Rev. A October 2000
PnP/PCI Configuration
This section describes configuring the PCI bus system.PeripheralComponentInterface, is a system
which allows I/O devices to operat e at speeds nearing the speed the CPU itself uses when comm unicating
with its own special components. This section covers some very technical items and it is strongly
recommended that only experienced us ers should mak e any changes to the default settings.
PNP OS Installed
Select Yes if the system operati ng environment is Plug- and- Play aware (e.g. Windows 95).
The Choice: Yes, No.
Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data
(ESCD) when you exit Setup if you hav e installed a new add-on C ard and the system reconfi guration has
caused such a serious conf l ict that the oper ating system c an not boot.
The choice: Enabled, Dis abled .
BIOS Setup
4-25
Peak 650 User's Guide Rev. A October 2000
Resources Controlled by
The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and
Play compatible devices. However , this capability means absolutely nothing unless you are using a Plug
and Play operating system such as Windows95. If you set this field to anualchoose specific
resources by going into each of the sub menu that foll ows thi s field.
The Choice: Auto (ESCD), Manual.
M-System Memory Base
This function will be available when “
The Choice: N/A, C000, C800, D000, D800
IRQ/DMA Assigned To
This item allows you to determine the IR Q / DM A as s i gned to the ISA bus and i s not available to any PCI
slot. (Legacy ISA) or PnP for both ISA and PC I.
Choices are
Memory Resources
Used MEM Base Addr
Some add-in c ards as k for a s pecif ic address space in the system m emor y. Thi s fiel d speci fi es the
memory base (start address) of the reser ved memor y space.
The Choice: N/A, C800, CC00, D000, D400, D 800, DC00
Used MEM Length
This item is available only when the Used MEM Base Addr has been assigned a base address. It
specifies the mem ory size for the add- in c ard used.
The Choice: 8K, 16K, 32K, 64K
Legacy ISA
and
Resources Controlled b y”
PCI/ISA PnP
.
set to Manual
PCI/VGA Palette Snoop
Leave this field at Di s abl ed.
The Choice: Enabled, Disabled.
Assign IRQ For VGA/USB
Enabled/Disable to assign a IRQ for VGA/US B.
The Choice: Enabled, Disabled.
BIOS Setup
4-26
Peak 650 User's Guide Rev. A October 2000
PC Health Status
Shutdown Temperature
This item allows you to set up the CPU shutdown T emperature. This item only ef fective under Windows
98 ACPI mode.
The Choice: Disabl ed, 60/140, 65/149.
BIOS Setup
4-27
Peak 650 User's Guide Rev. A October 2000
Frequency/Volt age Control
Auto Detect DIMM/PCI Clk
When enabled, this item will auto detect if the DIMM and PCI socket have devices and will send clock
signal to DIMM and PCI devices. When disabled, it wi l l s end the cl oc k s i gnal to all DIMM and PCI s ock et.
The choice: Enabled, Disabled.
Spread Spectrum
This item al lows you to enable/di sable the s pread spectr um modul ate.
The choice: Enabled, Disabled.
CPU Host/PCI Clock/PC133
This item allows you to sli ghtly adjust the clock f requenc y.
The choice: 66MHZ~166MHZ.
CPU Clock Ratio
This item allows you to set up the CPU cloc k rati o, but this f unction depends on di ff er ent CPU perf orm ance.
It is only effecti ve for those c l ock r ati o haven been lock ed.
The choice: X3~X8
BIOS Setup
4-28
Peak 650 User's Guide Rev. A October 2000
Supervisor/User Password Sett ing
You can set either supervisor or user passwor d, or both of then. The differences between ar e:
supervisor password :
user password :
Type the password, up to eight character s in length, and press <Enter>. The password typed now will
clear any previously entered password from CMOS memory. You will be asked to confirm the password.
Type the password again and press <Enter>. You may also press < Esc> to abort the selection and not
enter a password.
To disable a password, just press <Enter> when you are prompted to enter the password. A message
will confirm the password will be disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
When a password has been enabled, you will be prompted to enter it every time you try to enter Setup.
This prevents an unauthor ized pers on fr om c hanging any part of your system conf igur ation.
Additionally, when a password is enabled, you can al so requir e the BIOS to r equest a passwor d ev ery tim e
your system is rebooted. This would pr event unauthorized use of your computer.
can enter and change the options of the s etup menus.
just can only enter but do not have the r ight to change the options of the setup
menus. When you select this function, the following message will appear at the
center of the screen to assist you i n creati ng a password.
ENTER PASSWORD:
ENTER PASSWORD:
ENTER PASSWORD:ENTER PASSWORD:
PASSWORD DISABLED
PASSWORD DISABLED
PASSWORD DISABLEDPASSWORD DISABLED
You determine when the password is required within the BIOS Features Setup Menu and its Security
option (see Section 3). If the Security option is set to ystem the password will be required both at boot
and at entry to Setup. If set to etup prompting only occurs when tr ying to enter Setup.
BIOS Setup
4-29
Peak 650 User's Guide Rev. A October 2000
Power-On Boot
After you have made all the changes to CMOS val ues and the system cannot
boot with the CMOS values selected in Setup, restar t the system by turning it
OFF then ON or Pressing the "RESET" button on the system case. You may
also restart by simul taneously pr ess
<Ctrl>,<Alt>
, and
<Delete>
keys.
Upon restart the system, immediately pr ess
CMOS value for boot up.
<Insert>
to load BIOS default
BIOS Setup
4-30
Peak 650 User's Guide Rev. A October 2000
4-2 BIOS Reference - POST Message
During the Power On Self Test (POST ), if the BIOS detects an error r equiri ng you to do something to fix , it
will either sound a beep code or display a message.
If a message is displayed, it will be accompanied by:
PRESS
PRESS <<<<F1
PRESSPRESS
POST Beep
Currently there is only one beep code in BIOS. This code indicates that a vi deo error has occur red and
the BIOS cannot initialize the video scr een to display any additi onal inf ormation. T his beep code consists
of a single long beep f ol lowed by two s hor t beeps.
Error Messages
One or more of the following messages may be displayed if the BIOS detects an error during the POST.
This list incl udes messages for both the ISA and the EISA BIOS.
F1>>>> TO CONTINUE,
TO CONTINUE, <<<<CTRL
F1F1
TO CONTINUE,TO CONTINUE,
CTRL>>>>----<<<<ALT
CTRLCTRL
ALT>>>>----<<<<ESC
ALTALT
ESC>>>>OR
OR <<<<DEL
ESCESC
OROR
DEL>>>> TO ENTER SETUP
TO ENTER SETUP
DELDEL
TO ENTER SETUPTO ENTER SETUP
BIOS ROM
The checksum of ROM addr ess F0000H-FFFFFH is bad.
CMOS BATTERY HAS FAILED
CMOS battery is no longer functional. It should be replaced.
CMOS CHECKSUM ERROR
Checksum of CMOS is incorrect. T his can indicate that CMOS has become corrupt. This error may
have been caused by a weak batter y. Check the battery and repl ac e i f nec es sar y.
DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER
No boot device was f ound. This could mean that either a boot dri v e was not detected or the dr iv e does
not contain proper system boot files. Insert a system disk into Drive A: and press <Enter>. If you
assumed the system would boot from the hard drive, make sur e the controller is inserted corr ectly and
all cables are properly attached. Also be sure the di sk is f ormatted as a boot dev ice. Then reboot the
system.
DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP
Type of diskette drive installed in the system is different from the CMOS definition. Run Setup to
reconfigure the drive type correctly.
DISPLAY SWITCH IS SET INCORRECTLY
Display switch on the motherboard can be set to either monochrom e or color. This indicates the swi tch
is set to a different setting than indicated in Setup. Determine which setting is correct, and then
either turn off the system and c hange the jumper , or enter Setup and change the VID EO selec tion.
checksum error-System halted.
BIOS Setup
4-31
Peak 650 User's Guide Rev. A October 2000
DISPLAY TYPE HAS CHANGED SINCE LAST BOOT
Since last powering off the system, the display adapter has been changed. You must configure the
system for the new display type.
EISA Configuration Checksum Error
PLEASE RUN EISA CONFIGURATION UTILITY
The EISA non-volatile RAM checksum is incorrect or cannot correctly read the EISA slot. This can
indicate either the EISA non-volatile memory has become corrupt or the slot has been configured
incorrectly. Also be sure the card is installed fir m l y in the sl ot.
EISA Configuration Is Not Complete
PLEASE RUN EISA CONFIGURATION UTILITY
The slot configur ation inf orm ation st ored in the EISA non- v olatil e memory is incom pl ete.
Note: W hen either of these errors appear, the system will boot in ISA m ode, which allows you to
run the EISA Configuration Utility.
ERROR ENCOUNTERED INITIALIZING HARD DRIVE
Hard drive cannot be initial ized. Be sure the adapter is i nstalled correctly and all cables are correctl y
and firmly attached. Also be sure the correct har d drive type is selec ted i n Setup.
ERROR INITIALIZING HARD DISK CONTROLLER
Cannot initialize controll er. M ake sure the cord is corr ectly and fi rmly ins talled in the bus. Be sure the
correct hard drive type is sel ected in Setup. Also check to see if any jumper needs to be set correctly
on the hard drive.
FLOPPY DISK CONTR OLLER ER ROR OR N O C ONTR OLLER PRESENT
Cannot find or initialize the floppy drive controller. Make sure the controller is installed correctly and
firmly. If there are no floppy drives installed, be sure the Diskette Drive selection in Setup is set to
NONE.
FLOPPY DISK(S) fail (80)
Unable to reset floppy subs ystem.
FLOPPY DISK(S) fail (40)
Floppy Type mismatch.
Hard Disk(s) fail (80)
HDD reset failed
Hard Disk(s) fail (40)
HDD controller diagnostics failed.
Hard Disk(s) fail (20)
HDD initialization error.
Hard Disk(s) fail (10)
Unable to recalibrate Hard Disk.
BIOS Setup
4-32
Peak 650 User's Guide Rev. A October 2000
Hard Disk(s) fail (08)
Sector Verify failed.
Invalid EISA Configuration
PLEASE RUN EISA CONFIGURATION UTILITY
The non-volati le memory containing EISA conf iguration informati on was programmed incor rectly or has
become corrupt. Re-run EISA configuration utility to correctly program the memory.
NOTE: W hen this error appears, the system will boot in ISA mode, which allows you to run the
EISA Configuration Utility.
KEYBOARD ERROR OR NO KEYBOARD PRESENT
Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being
pressed during the boot.
If you are purposely configur ating the system wi thout a keyboard, set the error halt condition in Setup to
ALT ON item to LL BUT KEYBOARD This will cause the BIOS to ignore the missing keyboard
and continue the boot.
KEYBOARD IS LOCKED OUT-UNLOCK THE KEY
BIOS detect the keyboard is locked. P17 of keyboard controller is pulled low.
MANUFACTURING POST LOOP
System will repeat POST procedure infinitely while the P15 of keyboard controller is pulled low. This is
also used for M/B burn in test.
MEMORY ADDRESS ERROR AT ...
Indicates a memory address error at a specific location. You can use this location along with the
memory map for your syst em to fi nd and replac e the bad mem ory chips .
MEMORY TEST FAIL
BIOS reports the memory test fai l if the On-Board memory is tested er ror.
MEMORY PARITY ERROR AT ...
Indicates a memory parity error at a specifi c location. You can use this location along with the m emory
map for your system to find and r eplac e the bad memory chi ps.
MEMORY SIZE HAS CHANGED SINCE LAST BOOT
Memory has been added or removed since the last boot. In EISA mode use Configuration Utility to
reconfigure the memory configuration. In ISA mode enter Setup and enter the new memory size in
the memory fields.
MEMORY VERIFY ERROR AT ...
Indicates an error verifying a value already written to memory. Use the location along with your
system's memory map to f i nd and r eplace the bad mem ory chips
OFFENDING ADDRESS NOT FOUND
This message is used in conjunction with the I/O CHANNEL CHECK and RAM PARITY ERROR
messages when the Address that has caused the problem cannot be isol ated.
BIOS Setup
4-33
Peak 650 User's Guide Rev. A October 2000
OFFENDING SEGMENT:
This message is used in conjunction with the I/O CHANNEL CHECK and RAM PARITY ERROR
messages when the segment that has caused the problem has been isolated.
PRESS A KEY TO REBOOT
This will be displayed at the bottom screen when an error occurs that requires you to reboot. Press any
key and the system will reboot.
PRESS F1 TO DISABLE NMI, F2 TO REBOOT
When BIOS detects a Non-maskable Interrupt condition during boot, this will allow you to disable the
NMI and continue to boot, or you can reboot the system with the N M I enabled.
RAM PARITY ERROR - CHECKING FOR SEGMENT ...
Indicates a parity error in Random Acces s Mem ory.
Should Be Empty But EISA Board Found
PLEASE RUN EISA CONFIGURATION UTILITY
A valid board ID was f ound i n a s l ot that was configurated as hav i ng no board ID.
NOTE; When this error appear s , the s ystem wi l l boot in ISA mode, whic h all ows you to r un the
EISA Configuration Utility.
Should Have EISA Board But Not Found
PLEASE RUN EISA CONFIGURATION UTILITY
The board installed is not responding to the ID request, or no board ID has been found in the i ndicated
slot.
NOTE: When this error appears, the system will boot in ISA mode, which allows you to run the
EISA Configuration Utility.
Slot Not Empty
Indicates that a slot designated as empty by the EISA Configur ation Utility actually contains a boar d.
NOTE: When this error appear s , the s ystem wi l l boot in ISA mode, whic h all ows you to r un the
EISA Configurat ion Utility.
SYSTEM HALTED, (CTR L-ALT-D EL) TO REBOOT ...
Indicates the present boot attempt has been aborted and the system must be rebooted. Press and
hold down the CTRL and ALT keys and press DEL.
Wrong Board In Slot
PLEASE RUN EISA CONFIGURATION UTILITY
The board ID does not match the ID stored in the EISA non-vol atile m emor y.
NOTE: When this error appear s , the s ystem wi l l boot in ISA mode, whic h all ows you to r un the
EISA Configuration Utility.
BIOS Setup
4-34
Peak 650 User's Guide Rev. A October 2000
4-3 BIOS Reference - POST Codes
POST (hex) Description
CFh Test CMOS R/W functionality.
C0h Early chipset initializ ation:
-Disable shadow RAM
-Disable L2 cache (sock et 7 or below).
-Program basic chipset r egisters.
C1h Detect memory
-Auto-detection of D R AM si ze, type and ECC.
-Auto-detection of L2 c ache (s ocket 7 or bel ow).
C3h Expand com pressed BIOS code to DRAM .
C5h Call c hipset hook to copy BIOS back to E000h & F000h shadow RAM..
01h Ex pand the Xgr oup codes l ocatin g in physic al addres s 1000h:0.
02h Reserved.
03h Initi al Super i o_Ear l y_Init swi tch.
04h Reserved.
05h 1. Blank out screen.
2. Clear CMOS err or flag.
06h Reserved.
07h 1. Cl ear 8042 interf ace.
2. Initialize 8042 self-t e st.
08h 1. Test special keyboard controller f or Winbond 977 ser ies Super I/O chi ps.
2. Enable keyboard interface.
09h Reserved.
0Ah 1. Disable PS/2 mouse interface (optional) .
2. Auto detect ports for keyboard & mouse followed by a port & interface swap (optional ).
3. Reset keyboard for Winbond 977 series Super I/O chi ps.
0Bh Reserved
0Ch Reserved
0Dh Reserved
0Eh Test F000h segment shadow to see whether i t is R/W-able or not. If tes t fai ls, keep beepi ng
the speaker.
0Fh Reserved
10h Auto detect fl ash type to load appropri ate flash R /W codes into the run time area in F000
BIOS Setup
4-35
Peak 650 User's Guide Rev. A October 2000
POST (hex) Description
for ESCD & DMI s uppor t.
11h Reserved
12h Us e walk i ng 1 algorithm to check out i nter face in CMOS cir c ui tr y. Also set real-time
clock power status, and t hen check f or ov er ri de.
13h Reserved
14h Progr am c hi pset default values into c hi pset. Chipset default values are M OD BIN abl e by
OEM customers.
15h Reserved
16h Initi al Early_Init_Onboard_Generator swi tch.
17h Reserved
18h Detec t CPU i nformation including br and, SM I type (C yri x or Intel) and CPU level (586 or
686).
19h Reserved
1Ah Reserved
1Bh Initial interrupts vector table. If no special speci fi ed, all H/W interrupts are di rected to
SPURIOUS_INT_HDLR & S/W interrupts to SPURIOUS_soft_HDLR.
1Ch Reserved
1Dh Initial EAR LY_PM_INIT switch.
1Eh Reserved
1Fh Load keyboard matrix (notebook platf orm).
20h Reserved
21h HPM initialization (notebook platform).
22h Reserved
23h 1. Check validity of RTC value:
e.g. a value of 5Ah is an invali d value for RTC m i nute.
2. Load CMOS settings into BIOS stack. If CMOS checksum fails, use def ault v alue
instead.
3. Prepare BIOS resource m ap for PCI & PnP use. If ESC D i s valid, take into considerati on
of the ESCD legac y infor mati on.
4. Onboard clock generator initialization. Disable respective c lock r esour ce to empty PCI
& DIMM slots.
BIOS Setup
5. Early PCI initialization:
-Enumerate PCI bus number
-Assign memory & I/O resource
-Search for a val i d VGA device & VGA BIOS, and put it into C000h:0.
4-36
Peak 650 User's Guide Rev. A October 2000
POST (hex) Description
24h Reserved
25h Reserved
26h Reserved
27h Initi al i ze INT 09h buffer
28h Reserved
29h 1. Program CPU i nter nal MTRR (P6 & PII) for 0-640KB memory address.
2. Initialize the APIC for Pentium class CPU.
3. Program early chipset according to CM OS setup. Ex ampl e: On-Boar d IDE controller .
4. Measure CPU speed.
5. Invoke video BIOS.
2Ah Reserved.
2Bh Reserved.
2Ch Reserved.
2Dh 1. Initialize multi-l anguage .
2. Put information on screen display, i ncl udi ng Awar d ti tl e, C PU type, CPU s peed
2Eh Reserved.
2Fh Reserved.
30h Reserved.
31h Reserved.
32h Reserved.
33h Reset keyboard ex cept Winbond 977 series Super I/O chips.
34h Reserved.
35h Reserved.
36h Reserved.
37h Reserved.
38h Reserved.
39h Reserved.
3Ah Reserved.
3Bh Reserved.
3Ch Test 8254.
3Dh Reserved.
3Eh Test 8259 interrupt m ask bi ts for channel 1.
3Fh Reserved.
BIOS Setup
4-37
Peak 650 User's Guide Rev. A October 2000
POST (hex) Description
40h T est 8259 inter rupt m as k bi ts f or channel 2.
41h Reserved.
42h Reserved.
43h T est 8259 func tionali ty.
44h Reserved.
45h Reserved.
46h Reserved.
47h Initialize EISA slot.
48h Reserved.
49h 1. Calculate total memor y by testing the last double word of each 64KB page.
2. Program write allocation for AM D K5 CPU.
4Ah Reserved.
4Bh Reserved.
4Ch Reserved.
4Dh Reserved.
4Eh 1. Program MTRR of M 1 CPU.
2. Initialize L2 cache for P6 class CPU & program C PU with proper cacheable r ange.
3. Initialize the APIC for P6 class CPU.
4. On MP platform, adjust the cacheable range to sm all er one i n case the cac heable
ranges between each CPU are not identic al.
4Fh Reserved.
50h Initialize U.SB
51h Reserved.
52h T est al l memor y (cl ear all ex tended mem ory to 0).
53h Reserved.
54h Reserved.
55h Display number of processors (multi-processor platform).
56h Reserved.
57h 1. Display PnP logo.
2. Early ISA PnP initialization.
-Assign CSN to every ISA PnP devic e.
58h Reserved.
59h Initi ali ze the combined T rend Anti - Vir us c ode.
BIOS Setup
4-38
Peak 650 User's Guide Rev. A October 2000
POST (hex) Description
5Ah Reserved.
5Bh (Optional Feature).
Show message for entering AW DFLASH.EX E from FDD ( optional).
5Ch Reserved.
5Dh 1. Initialize Init_Onboard_Super_IO s witch.
2. Initialize Init_Onboard_AUDIO switch.
5Eh Reserved
5Fh Reserved
60h Okay to enter Setup utility; i.e. not until this POST stage users can enter the CMOS setup
utility.
61h Reserved.
62h Reserved.
63h Reserved.
64h Reserved.
65h Initi al i ze PS/2 M ouse.
66h Reserved.
67h Prepar e mem ory size inf ormati on for f uncti on call :
INT 15h ax=E820h.
68h Reserved.
69h T urn on L2 cache.
6Ah Reserved.
6Bh Program chipset regis ters accordi ng to i tems descr ibed in Setup & Auto-configur ation table.
6Ch Reserved.
6Dh 1. Assign resources to all ISA PnP devices.
2. Auto assign ports to onboard COM ports if the correspondi ng item in Setup i s set to
UTO
6Eh Reserved.
6Fh 1. Initialize Floppy controller.
2. Setup Floppy related fields in 40:hardware.
70h Reserved.
71h Reserved.
72h Reserved.
73h (Opti onal Feature).
BIOS Setup
4-39
Peak 650 User's Guide Rev. A October 2000
POST (hex) Description
Enter AWDF LASH.EXE if :
-AWDF LASH i s f ound in F loppy D r i ve.
-LT+F2is pressed.
74h Reserved.
75h Detect & install all IDE devices: HDD, LS120, ZIP, CDROM.
76h Reserved.
77h Detect Ser ial ports & Parallel ports .
78h Reserved.
79h Reserved.
7Ah Detect & install Co-process or.
7Bh Reserved.
7Ch Reserved.
7Dh Reserved.
7Eh Reserved.
7Fh 1. Switch back to text mode if ful l s creen l ogo is suppor ted.
-If errors occur , repor t errors & wait for keys.
-If no errors occur or 1key is pressed to conti nue.
2. Clear EPA or customization logo.
80h Reserved.
81h Reserved.
E8POST.ASM starts
82h 1. Call chipset power management hook.
2. Rec ov er the text fond used by EPA logo ( not for full sc r een l ogo) .
3. If password is s et, ask for passwor d.
83h Sav e all data in stack back to CMOS.
84h Initi al i ze ISA PnP boot dev i ces .
85h 1. USB final Initialization.
2. NET PC: Build SYSID structure.
3. Switc h screen back to text m ode.
BIOS Setup
4. Set up ACPI table at top of memor y.
5. Inv oke ISA adapter ROMs.
6. Assi gn IRQs to PCI devic es.
7. Initialize APM.
4-40
Peak 650 User's Guide Rev. A October 2000
POST (hex) Description
8. Cl ear nois e of IRQs.
86h Reserved.
87h Reserved.
88h Reserved.
89h Reserved.
90h Reserved.
91h Reserved.
92h Reserved.
93h Read HDD boot sector infor mation f or T rend Anti -Vir us code.
94h 1. Enable L2 cac he.
2. Progr am boot up speed.
3. Chipset final initialization.
4. Power m anagement final initial ization.
5. Cl ear sc reen & displ ay summar y table.
6. Progr am K6 wri te all ocation.
7. Progr am P6 class wr ite com bining.
95h 1. Progr am dayli ght sav ing.
2. Update keyboar d LED & typematic r ate.
96h 1. Build M P table.
2. Buil d & U pdate ESC D .
3. Set CM OS c entur y to 20h or 19h.
4. Load CM OS time i nto DOS timer ti ck.
5. Build MSIRQ routing table.
FFh Boot attempt (INT 19h).
BIOS Setup
4-41
Peak 650 User's Guide Rev. A October 2000
This page is i ntentional l y l eft blank.
BIOS Setup
4-42
Peak 650 User's Guide Rev. A October 2000
Appendix
Appendix A Watch Dog Timer
Watch Dog Timer Working Procedure
The Watch Dog Timer (WDT) is the special hardware device. The WDT function is to monitor the
computer system whether work normally, otherwise, it will have some m easures to fix up the system.
It contains a receivable SQW signal from RTC, and could set time and can clear the counter function.
When time is up, WDT can s end Reset or NM I signal .
Operator has to write a value into WDT Conf igurati on Register ( Write the control v al ue to the C onfi guration
Port), and clear W D T counter ( r ead the Conf igurati on Port) .
Watch Dog Timer character and functi on
WDT Confi guration port F2h Default at F2h
Watch D og T im er Disabled 1. Default at Disabled
Enabled
WDT Tim e out activ e for Reset Default at Reset
NMI
WDT Active Time 1 sec
2 sec
4 sec
8 sec
16 sec
32 sec
64 sec
2. Enabled for user′s programming
Default at 64 sec
Apendix
Peak 650 User's Guide Rev. A October 2000
Watch Dog Timer Control Register
The Watc h Dog Timer Control Register is to control the WDT working m ode. You can write the value to
WDT Confi guration Por t.
The following i s the C ontr ol R egi s ter bi t definition.
76543210
XXX
111 : N/A
110 : Select 1 second
101 : Select 2 second
100 : Select 4 second
011 : Select 8 second
010 : Select 16 second
001 : Select 32 second
000 : Select 64 second
1 : Enable Watch Dog T im er
0 : Disable Watc h Dog T im er
1 : Select NMI
0 : Select Reset
Don care
Apendix
Peak 650 User's Guide Rev. A October 2000
Watch Dog Timer Programming Procedure
Power on or reset the system
••••
The initial v alue of W DT Control Register (D4~D0) is zero, when power is on or reset the syst em. The
following means the i ni ti al value of WDT ( 00000000b ) :
Bit Value Mean
4 0 Select Reset
3 0 Disable W atch Dog Ti mer
2, 1, 0 0 0 0 Select 64 s econd
Initialize the SQW of RTC (set SQW output period=0.5 second)
••••
To initialize the SQW of RT C Component is to set the SQW signal which is output peri od=0.5 second.
It offers the basic f requency of the W DT counter.
The following i s an example of
; (G
; (Generate SQW = 0.5 Sec.)
enerate SQW = 0.5 Sec.)
; (G; (G
enerate SQW = 0.5 Sec.)enerate SQW = 0.5 Sec.)
Mov
Mov dx, 70h
MovMov
Mov
Mov dx, 70h
MovMov
dx, 70h
dx, 70hdx, 70h
Mov
Mov ax, 0Ah
MovMov
Out
Out dx, al
OutOut
Mov
Mov dx, 71h
MovMov
Mov
Mov ax, 2Fh
MovMov
Out
Out dx, al
OutOut
; (enable the SQW output)
; (enable the SQW output)
; (enable the SQW output); (enable the SQW output)
dx, 70h
dx, 70hdx, 70h
Mov
Mov ax, 0Bh
MovMov
Out
Out dx, al
OutOut
Mov
Mov dx, 71h
MovMov
Mov
Mov ax, 0Ah
MovMov
Out
Out dx, al
OutOut
ax, 0Ah
ax, 0Ahax, 0Ah
dx, al ; Out port 70h = 0Ah
dx, aldx, al
dx, 71h
dx, 71hdx, 71h
ax, 2Fh
ax, 2Fhax, 2Fh
dx, al ; Out port 71h = 2Fh
dx, aldx, al
ax, 0Bh
ax, 0Bhax, 0Bh
dx, al ; Out port 70h = 0Bh
dx, aldx, al
dx, 71h
dx, 71hdx, 71h
ax, 0Ah
ax, 0Ahax, 0Ah
dx, al ; Out port 71h = 0Ah
dx, aldx, al
initializing the SQW signal program
; Out port 70h = 0Ah
; Out port 70h = 0Ah; Out port 70h = 0Ah
; Out port 71h = 2Fh
; Out port 71h = 2Fh; Out port 71h = 2Fh
; Out port 70h = 0Bh
; Out port 70h = 0Bh; Out port 70h = 0Bh
; Out port 71h = 0Ah
; Out port 71h = 0Ah; Out port 71h = 0Ah
in Intel 8086 assembly language.
Apendix
Peak 650 User's Guide Rev. A October 2000
Clear the WDT
••••
Repeatedly read WDT Configuration Port and the interval cannot be longer than the preset time,
otherwise, the WD T will generate NMI or Reset signal f or the system.
The following i s an example of
; ( Clear the WDT)
; ( Clear the WDT)
; ( Clear the WDT); ( Clear the WDT)
Mov dx, F2h ; Setting the WDT configuration port
Mov dx, F2h ; Setting the WDT configuration port
Mov dx, F2h ; Setting the WDT configuration portMov dx, F2h ; Setting the WDT configuration port
In al, dx
In al, dx
In al, dxIn al, dx
Note:
Before running WD T, you must clear the WDT. It means to make sure the i nitial value is zero
clear the WDT program
in Intel 8086 assembly language.
before enabling the W DT.
WDT Control Register (Write to WDT configuration port)
••••
You can set the WDT Contr ol Regist er to control the WDT work ing mode.
The initial value of the WDT C ontr ol R egi s ter is as the fol l owi ng.
; (Setting the WDT Control Register as AL)
; (Setting the WDT Control Register as AL)
; (Setting the WDT Control Register as AL); (Setting the WDT Control Register as AL)
Mov
Mov al, 0h ; Setti
MovMov
al, 0h ; Setting initial value = 0 for the WDT Control Register
al, 0h ; Settial, 0h ; Setti
ng initial value = 0 for the WDT Control Register
ng initial value = 0 for the WDT Control Registerng initial value = 0 for the WDT Control Register
You must plan the option of following:
1.Select NMI or Reset: decide D4 val ue i n F2h.
i.e. Setting D4 = 0, then it select R eset
AND
AND al, 11101111b ; Select Reset
ANDAND
al, 11101111b ; Select Reset
al, 11101111b ; Select Resetal, 11101111b ; Select Reset
i.e. Setting D4 = 1, then it select NMI
OR
OR aaaal, 00010000b ; Select NMI
OROR
l, 00010000b ; Select NMI
l, 00010000b ; Select NMIl, 00010000b ; Select NMI
2.Select the time-out intervals of WDT ( dec i de the val ues of D2, D1, D0 in F2h).
Example: D2~D0 = 0, the time-out interval will be 64 sec.
AND
AND al, 11111000b ; Setting the time
ANDAND
al, 11111000b ; Setting the time----out interval as 64 sec.
al, 11111000b ; Setting the timeal, 11111000b ; Setting the time
out interval as 64 sec.
out interval as 64 sec.out interval as 64 sec.
3.Enabled or Disabled the WDT ( decide D3 value in F 2h) .
i.e. D3=0, Disabled the WDT
AND
AND al, 11110111b ; Disable the WDT
ANDAND
al, 11110111b ; Disable the WDT
al, 11110111b ; Disable the WDTal, 11110111b ; Disable the WDT
i.e. D3=1, Enabled the W DT
OR
Apendix
OR al, 00001000b ; Enable the WDT
OROR
al, 00001000b ; Enable the WDT
al, 00001000b ; Enable the WDTal, 00001000b ; Enable the WDT
Peak 650 User's Guide Rev. A October 2000
After finishing the above setting, you mus t be output for the Control Regi s ter value to the WDT
Configuration Port. Then W DT will start according to the above setting.
MOV
MOV dx, F2h ; Setting WDT Configuration Port
MOVMOV
OUT
OUT dx, al
OUTOUT
dx, F2h ; Setting WDT Configuration Port
dx, F2h ; Setting WDT Configuration Portdx, F2h ; Setting WDT Configuration Port
dx, al ; Output the Control Register Value
dx, aldx, al
; Output the Control Register Value
; Output the Control Register Value; Output the Control Register Value
You should build in a mechanism in the pr ogram to continue to read the WDT Configur at ion Port f or
clearing W DT bef ore the tim e out.
Apendix
Peak 650 User's Guide Rev. A October 2000
Appendix B : DVI Interface Pin Assignment ( for ATI Mobility M4 model only)
Apendix
Peak 650 User's Guide Rev. A October 2000
Appendix C: CON1 Digital Video Signals Interface (12 bit)
1 LTV DATA 0 2 Vcc 1.8
3 LTV DATA 1 4 Vcc 1.8
5 LTV DATA 2 6 Vcc 1.8
7 LTV DATA 3 8 Vcc 1.8
9 LTV DATA 4 10 GND
11 LTV DATA 5 12 GN D
13 LTV DATA 6 14 GN D
15 LTV DATA 7 16 GN D
17 LTV DATA 8 18 GN D
19 LTV DATA 9 20 Vcc 3
21 LTV DATA 10 22 Vcc 3
23 LTV DATA 11 24 Vcc 3
25 LTV HSYNC 26 Vcc 3
27 LTV VSYNC 28 Vcc 5
29 LTV BLANK# 30 Vcc 5
31 LTV CLKOUT [ 0 ] 32 Vcc 5
33 LTV CLKOUT [ 1 ] 34 GND
35 TV CLKIN / INT# 36 PCI_RST#
37 LTV DA 38 5VFTSDA
39 LTV CK 40 5VFTSCL
Apendix
Loading...
