Nexcom IPPC 1960TP2E-DC, IPPC 1960 Series, IPPC 1560TP2E-AC, IPPC 1560TE, IPPC 1960TP2E-AC User Manual

NEXCOM International Co., Ltd.

Published December 2016

www.nexcom.com

IoT Automation Solutions Business Group

Industrial Panel PC IPPC 1560T/1960T/2160P Series and APPC 1560T

User Manual

ii

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Content

Contents

Preface

Copyright .............................................................................................. v

Disclaimer ............................................................................................... v

Acknowledgements ................................................................................ v

Regulatory Compliance Statements ......................................................... v

Declaration of Conformity ....................................................................... v

RoHS Compliance .................................................................................. vi

Warranty and RMA ................................................................................vii

Safety Information .................................................................................. x

Installation Recommendations ................................................................. x

Safety Precautions .................................................................................. xi

Technical Support and Assistance ...........................................................xii

Conventions Used in this Manual ...........................................................xii

Global Service Contact Information .......................................................xiii

Package Contents ..................................................................................xv

Ordering Information ........................................................................... xvii

Chapter 1: Product Introduction

IPPC 1560T Series ...................................................................................1

Specifications ..........................................................................................2

IPPC 1960T Series ...................................................................................4

Specifications ..........................................................................................5

IPPC 2160P .............................................................................................7

Specifications ..........................................................................................8

APPC 1560T .........................................................................................10

Specifications ........................................................................................11

Knowing Your IPPC 1560T Series ..........................................................13

IPPC 1560TP2E-DC Rear Top ..............................................................13

IPPC 1560TP2E-DC Rear Bottom ........................................................13

IPPC 1560TP2E-AC Rear Bottom ........................................................14

IPPC 1560TP2E-AC Rear Top ..............................................................14

IPPC 1560TE Rear Bottom ..................................................................16

IPPC 1560TE Rear Top ........................................................................16

Knowing Your IPPC 1960T Series ..........................................................17

IPPC 1960TP2E-DC Rear Top ..............................................................17

IPPC 1960TP2E-DC Rear Bottom ........................................................17

IPPC 1960TP2E-AC Rear Bottom ........................................................18

IPPC 1960TP2E-AC Rear Top ..............................................................18

Knowing Your IPPC 2160P .................................................................... 20

IPPC 2160P Rear Top .........................................................................20

IPPC 2160P Rear Bottom ...................................................................20

Knowing Your APPC 1560T ..................................................................22

APPC 1560T Rear Top ........................................................................22

APPC 1560T Rear Bottom ..................................................................22

IPPC 1560T Series Rear .........................................................................23

IPPC 1960T Series Rear .........................................................................24

IPPC 2160P Rear ...................................................................................25

APPC 1560T Rear ..................................................................................26

Mechanical Dimensions .........................................................................27

IPPC 1560TP2E-DC ............................................................................27

iii

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Content

IPPC 1560TP2E-AC ............................................................................28

IPPC 1560TE ......................................................................................29

IPPC 1960TP2E-DC ............................................................................30

IPPC 1960TP2E-AC ............................................................................31

IPPC 2160P ........................................................................................32

APPC 1560T ......................................................................................33

Chapter 2: Jumpers and Connectors

Before You Begin ..................................................................................34

Precautions ..........................................................................................34

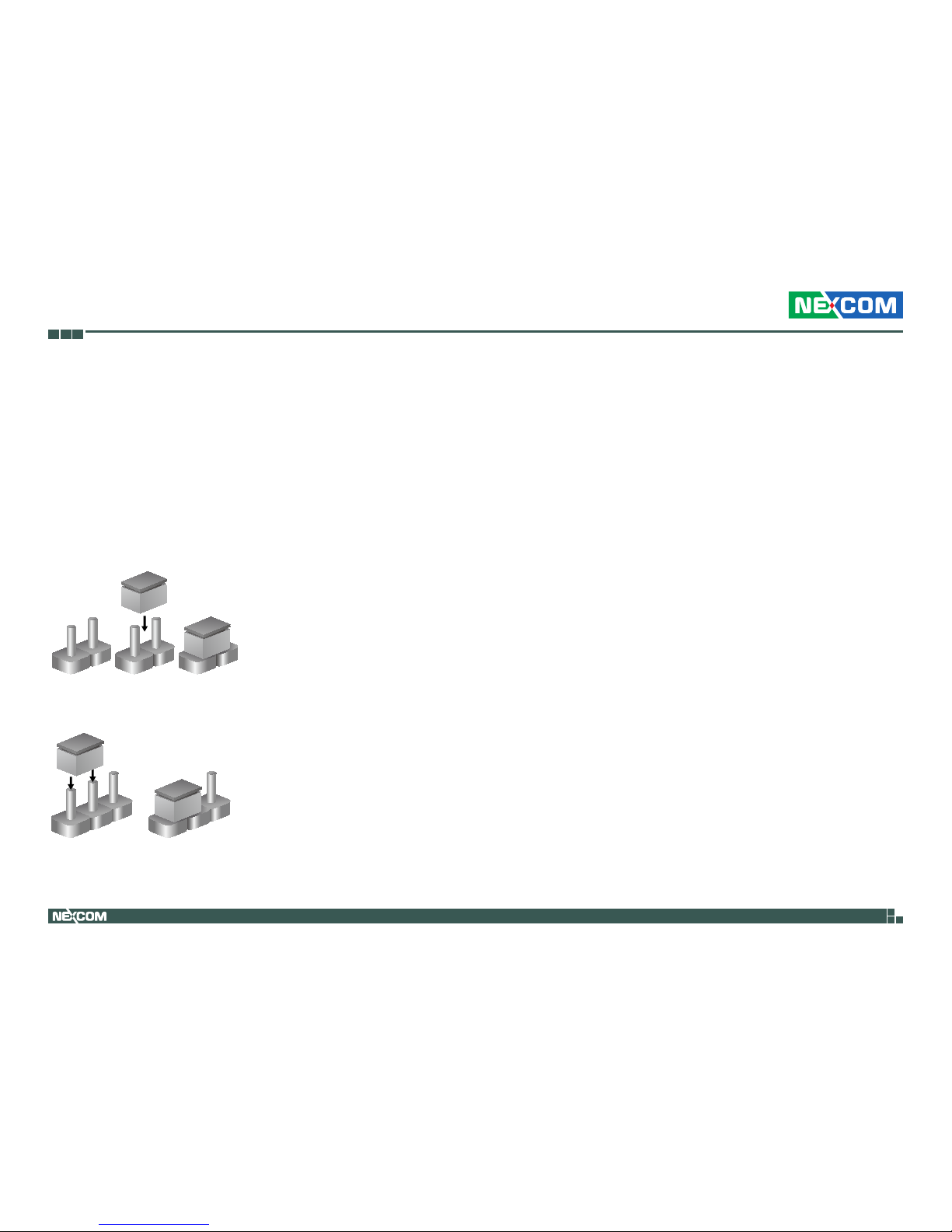

Jumper Settings ....................................................................................35

Locations of the Jumpers and Connectors .............................................36

Jumpers and DIP Switch Settings ...........................................................37

AT/ATX Power Type Select ..................................................................37

LCD Power Select ..............................................................................37

CCFL Power Select .............................................................................38

Touch Panel Type Select .....................................................................38

CMOS Clear Select ............................................................................39

RI Feature Selection (COM1) ...........................................................39

RI Feature Selection (COM2) ...........................................................40

RI Feature Selection (COM3) ...........................................................40

RI Feature Selection (COM4) ...........................................................41

Dimming Type Select .........................................................................41

LVDS Resolution Select ......................................................................42

PWN Reverse/Function Key Dimming Select .......................................42

Connector Pin Definitions .....................................................................43

External I/O Interfaces ........................................................................ 43

Keyboard/Mouse Ports ...................................................................43

COM 1 and COM 2 Ports ...............................................................43

COM 3 and VGA Port ....................................................................44

LAN 1 and USB Ports ......................................................................44

LAN 2 and USB Ports ......................................................................45

Audio Connectors ..........................................................................45

Connector Pin Definitions .....................................................................46

Internal Connectors ........................................................................... 46

PoE Power Connector ....................................................................46

Power Button .................................................................................46

DC Power Button (AT) ....................................................................47

COM 4 ...........................................................................................47

COM 5 ...........................................................................................48

COM 6 ...........................................................................................48

USB Connectors .............................................................................49

Speaker-out Connector ..................................................................49

CFast Card Slot ..............................................................................50

SATA Connector .............................................................................50

SATA Connector .............................................................................51

SATA Power Connector ..................................................................51

SATA Power Connector ..................................................................52

LVDS Connector A .........................................................................52

LVDS Connector B .......................................................................... 53

LVDS Panel Inverter Connector ....................................................... 53

Touch Panel Control Connector ......................................................54

SATA/Power LED ............................................................................54

MCU Debug I/F ..............................................................................55

MCU LED Indicator Connector .......................................................55

Function Key-in Connector .............................................................56

System FAN2 Connector .................................................................56

System FAN1 Connector .................................................................57

Reset Button ..................................................................................57

Bluetooth Connector ......................................................................58

Digital I/O .......................................................................................58

GPIO ..............................................................................................59

Bluetooth Connector ......................................................................59

Parallel Port Box Header .................................................................60

iv

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Content

Mini-PCIe Connector ......................................................................61

Mini-PCIe Connector ......................................................................62

Chapter 3: System Setup

Installing a Primary SATA Hard Drive .....................................................63

Installing a Secondary SATA Hard Drive .................................................67

Installing a CFast Card ..........................................................................70

Installing a Mini-PCIe Module ................................................................72

Installing a Riser Card ............................................................................87

Installing a PCI Card ..............................................................................92

Installing a CPU and SO-DIMM ..............................................................94

Panel Mounting ....................................................................................98

Chapter 4: BIOS Setup

About BIOS Setup ...............................................................................100

When to Configure the BIOS ...............................................................100

Default Configuration .........................................................................101

Entering Setup ....................................................................................101

Legends ..............................................................................................101

BIOS Setup Utility ................................................................................103

Main ...............................................................................................103

Advanced .......................................................................................104

Chipset ............................................................................................115

Boot ................................................................................................119

Security ...........................................................................................121

Save & Exit ......................................................................................121

Appendix A: GPI/O Programming Guide.............122

Appendix B: Watchdog Timer Setting.................124

v

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

IPPC 1560T/1960T/2160P and APPC 1560T are trademarks of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

vi

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vii

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

1. NEXCOM makes products in accordance with the Industry standard and,

NEXCOM warrants that all her Industry-grade IPC and System products will be free from defect in neither material nor workmanship for twentyfour (24) months from the day of invoice issued.

2. For NEXCOM Panel PC product lines (the APPC, MPPC series), they are

also guaranteed against defect in materials and workmanship for the period of twenty-four (24) months in their motherboard design. For 3rd party parts, it follows with original suppliers’ standard: 12 months for battery pack and LCD, 24 months for adaptor / add on modules (including GSM module, RFID module, and antenna).

3. If NEXCOM determines customer’s warranty claim is valid, NEXCOM

will repair or replace product(s) without additional charge for parts and labor. An extended Warranty Program will extend the warranty period of the product accordingly.

Warranty Coverage

The warranty applies only to products manufactured or distributed by NEXCOM and her subsidiaries. This warranty covers all the products/ shipments except for:

1. Any claimed defect, products that have been repaired or modified by

persons who have not been authorized by NEXCOM or, products which have been subjected to misuse, abuse, accident, improper installation, or usage not in accordance with the product instruction. NEXCOM assumes no liability as a consequence of such events under the term of this warranty.

One example is the replacement of Tablet’s or Hand-held’s LCD display

due to scratching stains or other degradation; these will not be covered under this warranty.

2. Damages caused by customers’ delivery/shipping of the product or, product failure resulted from electrical power/voltage shock, or, installation of parts/components which are not supplied/approved by NEXCOM in advance.

3. Third-party products:

a. Software, such as the device drivers,

b. External devices such as HDD, printer, scanner, mouse, LCD panel,

battery, and so on,

c. Accessory/parts that were not approved by NEXCOM and,

d. Accessory/parts were added to products after they were shipped

from NEXCOM.

Product will be treated as “Out of Warranty “ if:

a. It expires the warranted 24 months period from the day it was purchased.

b. It had been altered by persons other than an authorized NEXCOM

service person or, which have been subjected to misuse, abuse, accident, or improper installation.

c. It doesn’t have the original NEXCOM Serial Number labeling for

NEXCOM’s warranty period identification or, tracking.

viii

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

RMA that NEXCOM has determined not to be covered by the warranty will be charged the NEXCOM Standard Repair Fee for the repairing. If a RMA is determined to be not repairable, customer will be notified and product(s) may be returned to customer at their request; a minimum service fee may be charged however.

NEXCOM Return Merchandise Authorization (RMA) Procedure

For the RMA (Return Merchandise Authorization) shipment, customer is responsible for packaging and shipping the product to the designated NEXCOM service sites, with shipping charges prepaid by the customer. The original NEXCOM shipping box should be used whenever possible. NEXCOM shall pay for the return of the product to the customer’s location. In case of expedited shipping request, an extra service charge shall be assessed and the customer is responsible for this extra return shipping charge.

1. Customers should enclose the “NEXCOM RMA Service Form” with the returned products.

2. Customers need to write down all the information related to the problem on the “ NEXCOM RMA Service Form “ when applying for the RMA service; information will help to understand the problem, including the fault description, on-screen messages, and pictures if possible.

3. Customers could send back the faulty product with or without the accessories and key parts such as the CPU and DIMM. If the key parts are included, please be noted clearly within the return form. NEXCOM takes no responsibility for the parts which are not listed in the return form.

4. Customers hold the responsibility to ensure that the packing of defective products is durable enough to be resistant against further damage due to the transportation; damage caused by transportation is treated as “ Out of Warranty “ under our Warranty specification.

5. RMA product(s) returned by NEXCOM to any location other than the

customer registered delivery address will incur an extra shipping charge, the customer is responsible for paying the extra shipping charges, duties, and taxes of this shipment.

Product Repairing

1. NEXCOM will repair defective products covered under this limited warranty that are returned to NEXCOM; if products do prove to be defective, they will be repaired during their warranty period unless other warranty terms have been specified.

2. NEXCOM owns all parts removed from repaired products.

3. NEXCOM will use parts made by various manufacturers in performing the repair.

4. The repaired products will be warranted subjected to the original warranty coverage and period only.

5. For products returned as defective but, proved to be no defect/fault after the RMA process, NEXCOM reserves the right to claim for a NDF (No Defect Found) Service Charge.

6. NEXCOM will issue RMA Report which included Repair Detailed Information to the customer when the defective products were repaired and returned.

7. In addition to the above, NEXCOM may authorize Independent/Thirdparty suppliers to repair the defective products for NEXCOM.

ix

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Out Of Warranty Service

There will be a service charge from NEXCOM for the “Out Of Warranty” product service; they are the Basic Diagnostic Service Fee and the Advanced Component Replacement Fee respectively. And, if the product can not be repaired, NEXCOM will either return the product to the customer or, just scrap it, followed by customer’s instruction.

1. Testing and Parts Replacement

NEXCOM will have the following Handling Charges for those OoW

products that returned:

a. Basic Labor Cost and Testing Fee: as Table listed.

b. Parts Fee: NEXCOM will charge for main IC chipsets such as the N.B.,

S.B., Super-IO, LAN, Sound, Memory, and so on.

c. 3rd-party Device Fee: products replacement for CPU, DIMM, HDD,

Chassis, and UPS.

2. Out of Warranty product will have a three months warranty for the fixed issues. If the product failed with different problem within 3 months, they will still incur the service charge of “Out of Warranty”.

3. Out of Warranty “products will not be repaired without a signed PI from the customer, the agreement of the repair process.

Add-on card, 3rd Party Device and board level repair cost higher than

new product prices, customer can abandon to sign PI to repair and, please contact with sales to buy new products.

x

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ Maximum surrounding air temperature should not exceed 50°C.

▪ For use in Pollution Degree 2 Environment.

▪ Follow all mounting guidelines and instructions on Chapter 3 of the

manual.

▪ Suitable for mounting on the flat surface of Type 2 and Type 4X indoor

use only enclosure.

CAUTION!

CAUTION!CAUTION!

Caution: FOR USE IN A CONTROLLED ENVIRONMENT, REFER TO MANUAL FOR ENVIRONMENTAL CONDITIONS.

Attention: POUR UTILISATION EN ATMOSPHERE CONTROLEE, CONSULTER LA NOTICE TECHNIQUE.

xi

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

xii

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

Safety Warning: This equipment is intended for installation in a Restricted Access Location only.

xiii

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: sales@nexcom.com.tw www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: sales@nexcom.cn www.nexcom.cn

xiv

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625 570 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

NEXCOM Surveillance Technology

Room 209, Floor 2 East, No.2, Science & Technology industrial park of privately owned enterprises, Xili, Nanshan Dist., Shenzhen, 518055, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: steveyang@nexcom.com.tw www.nexcom.cn

NEXCOM United System Service

Hui Yin Ming Zun Building Room 1108, Building No. 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: frankyang@nexcom.cn www.nexcom.cn

xv

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Package Contents

Before continuing, verify that the package you received is complete. Your IPPC series package should have all the items listed in the table.

IPPC 1560T

Item Description Qty

1 Panel Mount Kit 8 2 Driver CD 1 3 Touch Pen 1 4 Flat Head for HDD Installation 8 5 *Terminal blocks 3-pin Phoenix Contact Plug 1

IPPC 1960T

Item Description Qty

1 Panel Mount Kit 8 2 Driver CD 1 3 Touch Pen 1 4 Flat Head for HDD Installation 8 5 *Terminal blocks 3-pin Phoenix Contact Plug 1

IPPC 2160P

Item Description Qty

1

Driver CD 1 2 Flat Head for HDD Installation 8 3 *Terminal blocks 3-pin Phoenix Contact Plug 1

* Terminal blocks 3-pin Phoenix Contact Plug is only for DC input model.

Panel Mount Kit Driver CD Touch Pen

Note: Package contents may vary depending on your country region. Some items may be optional. Please contact your local distributor for more information.

Flat Head for HDD Installation Terminal blocks

3-pin Phoenix

Contact Plug

xvi

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Your APPC 1560T package should have all the items listed in the table.

APPC 1560T

Item Description Qty

1 Panel Mount Kit 12 2 Driver CD 1 3 Touch Pen 1 4 Flat Head for HDD Installation 4 5 *Terminal blocks 3-pin Phoenix Contact Plug 1

6 Panel Mount Hole Block 12

* Terminal blocks 3-pin Phoenix Contact Plug is only for DC input model.

Flat Head Screw

Panel Mount Kit Driver CD

Touch Pen

Terminal blocks

3-pin Phoenix

Contact Plug

Panel Mount Hole Block

Note: Package contents may vary depending on your country region. Some items may be optional. Please contact your local distributor for more information.

xvii

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

Ordering Information

The following provides ordering information for the Industrial Panel PC series.

IPPC 1560T Series

• IPPC 1560TP2E-DC (P/N: 10II1560T00X0)

15” XGA LED backlight fanless touch panel PC, Intel

®

Core™ i5-3610ME

2.7GHz, touch screen, 4GB DDR3, 3 x COMs, DC power input

• IPPC 1560TP2E-AC (P/N: 10II1560T01X0)

15” XGA LED backlight fanless touch panel PC, Intel

®

Core™ i5-3610ME

2.7GHz, touch screen, 4GB DDR3, 6 x COMs, 4 x 4GPIO, 4 x 4DIO with isolated protection, AC power input

• IPPC 1560TE (P/N: 10II1560T02X0)

15” XGA LED backlight fanless touch panel PC, Intel

®

Core™ i5-3610ME

2.7GHz, touch screen, 4GB DDR3, 3 x COMs, isolated protection DC Power

Optional

• 24V/5A, 120W AC to DC DIN rail power adapter w/ o power cord (P/N: 7440120001X00) (for IPPC 1560TP2EDC and IPPC 1560TE)

• Riser card 2 x PCI slots (P/N: 20JK036P200X0)

• Riser card 2 x PCIe x4 slots (P/N: 20JK036E200X2)

• Fieldbus module universal kit (for IPPC 1560TP2E-DC and IPPC 1560TE)

88J50090E00X0 FBI 90E-PNM kit (w/ 25 cm cable) PROFINET master

88J50090E01X0 FBI 90E-EP kit (w/ 25 cm cable) EtherNet/IP master

88J50090E02X0 FBI 90E-ECM kit (w/ 25 cm cable) EtherCAT master

88J50090E03X0 FBI 90E-PBM kit (w/ 25 cm cable) PROFIBUS master

88J50090E04X0 FBI 90E-DNM kit (w/ 25 cm cable) DeviceNET master

IPPC 1960T Series

• IPPC 1960TP2E-DC (P/N: 10II1960T00X0)

19” SXGA LED backlight fanless touch panel PC, Intel

®

Core™ i5-3610ME

2.7GHz, touch screen, 4GB DDR3, 3 x COMs, DC power input

• IPPC 1960TP2E-AC (P/N: 10II1960T01X0)

19” SXGA LED backlight fanless touch panel PC, Intel

®

Core™ i5-3610ME

2.7GHz, touch screen, 4GB DDR3, 6 x COMs, 4 x 4GPIO, 4 x 4DIO with isolated protection, AC power input

Optional

• 24V/5A, 120W AC to DC DIN rail power adapter w/ o power cord (P/N: 7440120001X00) (for IPPC 1960TP2EDC only)

• Riser card 2 x PCI slots (P/N: 20JK036P200X0)

• Riser card 2 x PCIe x4 slots (P/N: 20JK036E200X2)

• Fieldbus module universal kit (for IPPC 1960TP2E-DC only)

88J50090E00X0 FBI 90E-PNM kit (w/ 25 cm cable) PROFINET master

88J50090E01X0 FBI 90E-EP kit (w/ 25 cm cable) EtherNet/IP master

88J50090E02X0 FBI 90E-ECM kit (w/ 25 cm cable) EtherCAT master

88J50090E03X0 FBI 90E-PBM kit (w/ 25 cm cable) PROFIBUS master

88J50090E04X0 FBI 90E-DNM kit (w/ 25 cm cable) DeviceNET master

xviii

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Preface

IPPC 2160P

• IPPC 2160PP2E-AC (P/N: 10II2160P00X0)

21.5” Full HD LED backlight fanless touch panel PC, Intel

®

Core™ i5-3610ME

2.7GHz, ten points P-Cap touch screen, 4GB DDR3, 6 x COMs, 4 x 4 GPIO, 4 x 4 DI/O with isolated protection, AC power input

Optional

• Riser card 2 x PCI slots (P/N: 20JK036P200X0)

• Riser card 2 x PCIe x4 slots (P/N: 20JK036E200X2)

APPC 1560T

• APPC 1560T-ET (P/N: 10IA1560T00X2)

15” XGA LED backlight fanless touch panel PC, Intel

®

Celeron® B810

1.6GHz, touch screen, 4GB DDR3, 3 x COMs, AC power input

Optional

• 24V/5A, 120W AC to DC DIN rail power adapter w/o power cord (P/N: 7440120001X00) (for APPC 1560T-DC)

1

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 1: Product Introduction

Key Features

▪ 4:3 15” XGA Fanless Panel Computer

▪ Powerful 2nd/3rd generation Intel

®

Core™ processor

▪ Two expansion slots for add-on PCI or/and PCIe cards

▪ Optional 3.5G/Wi-Fi module/2.5” HDD/3 x Coms/GPIO/DIO/Dimming

Control Button

▪ Front accessible USB 2.0 for easy of field maintenance (hidden on IPPC

1560TE)

▪ Metal housing with robust aluminum front bezel for harsh environment

▪ IP65 compliant front panel

▪ Support fieldbus module, JMobile HMI, Citect SCADA and CODESYS

(optional)

▪ Optional: wide range DC power input model/isolation protection DC

power input model

▪ For Class I, Division 2 Hazardous Locations (IPPC 1560TE)

IPPC 1560T Series

IPPC 1560TP2E-DC

IPPC 1560TE

IPPC 1560TP2E-AC

2

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Specifications

System

▪ CPU: Support 2nd/3rd gen. Intel® Core™ processor family, rPGA 988

– Intel

®

Core™ i7-3520ME (2 x 2.9GHz, 4M cache, Max. TDP 35W)

– Intel

®

Core™ i5-3610ME (2 x 2.7GHz, 3M cache, Max. TDP 35W)

(Default)

– Intel

®

Core™ i3-3120ME (2 x 2.4GHz, 3M cache, Max. TDP 35W)

– Intel

®

Celeron® B810 (2 x 1.6GHz, 2M cache, Max. TDP 35W)

– Intel

®

Pentium® B950 (2 x 2.1GHz, 2M cache, Max. TDP 35W) ▪ BIOS: AMI BIOS ▪ System chipset: Intel

®

HM76 Express chipset

▪ System memory: 1x 204-pin DDR3 SO-DIMM socket, 4G DDR3 (default),

support up to 8GB DDR3-1066/1333, non-ECC and un-buffered

▪ Storage Device:

– 1x external locked CFast socket – 2x hard drive bay: optional 2x 2.5” SATA HDD

▪ Watchdog timer: Watchdog timeout can be programmed by software

from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)

▪ H/W status monitor: Monitoring system temperature, and voltage ▪ Expansion:

– 2x Mini-PCIe sockets (support optional Wi-Fi or 3.5G module) – 2x expansion slots for add-on PCI or/and PCIe cards – 1x PCI and 1x PCIe x4 slots (default) – 2x PCIe x4 slots – 2x PCI slots

▪ Panel backlight control button: increase brightness/decrease brightness/

backlight on/off (for IPPC 1560TP2E-AC only)

Rear I/O

For All

▪ 2x PS2 keyboard/mouse (not supported on IPPC 1560TE) ▪ 2nd display VGA port: 1x DB15 ▪ Ethernet: 2x RJ45

For IPPC 1560TP2E-DC only

▪ USB: 5x USB 2.0 (1 in front) ▪ Audio port: 1x Line-out; 1x Line-in; 1x MIC-in ▪ COM #1: RS232/422/485 w/ RI or 5V or 12V selection ▪ COM #2: RS232/422/485 w/ RI or 5V or 12V selection ▪ COM #3: RS232 w/ RI or 5V or 12V selection ▪ ATX power switch ▪ Reset button

For IPPC 1560TP2E-AC only

▪ USB: 5x USB 2.0 (1 in front) ▪ Audio port: 1x Line-out; 1x Line-in; 1x MIC-in ▪ COM #1: RS232/422/485 w/ 2.5kv isolated protection ▪ COM #2: RS232/422/485 w/ 2.5kv isolated protection ▪ COM #3: RS232 w/ RI or 5V or 12V selection ▪ COM #4: RS232 w/ RI or 5V or 12V selection ▪ COM #5: RS232 ▪ COM #6: RS232 ▪ DIO w/ 2.5kv isolated protection:

4x digital input (source type)

– Input voltage (dry contact): Logic 0: Close to GND

Logic 1: open

– Input voltage: Logic 0: 3V max. Logic 1: +5 to 30V 4x digital output (sink type)

– Output voltage: +3.6 to 5V

– Sink current: 200mA max. per channel

3

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

▪ GPIO: 4x digital in/4x digital out ▪ LPT: Parallel port ▪ AC Power switch ▪ Reset button

For IPPC 1560TE only

▪ USB: 4x USB2.0 (Hidden) ▪ COM #1: RS232/422/485 w/ 2.5kv isolated protection ▪ COM #2: RS232/422/485 w/ 2.5kv isolated protection ▪ COM #3: RS232 w/ RI or 5V or 12V selection ▪ ATX Power switch ▪ Reset button

Audio

▪ AC97 codec: Realtek ALC886-GR ▪ Audio interface: Line-out/Line-in/MIC-in audio Jack

Ethernet

▪ LAN chip: dual Intel® 82574L Gigabit LAN ▪ Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Fieldbus

▪ IPPC 1560TP2E-DC/IPPC 1560TE: support up to two fieldbus module

(1 universal kit and 1 special kit)

▪ IPPC 1560TP2E-AC: support one special fieldbus module kit

Mechanical & Environment

▪ Color: pantone 432C\ RAL 70 24 front bezel ▪ Enclosure: aluminum front bezel with SPPC nickel plated housing ▪ IP protection: IP65 front ▪ Mounting: panel/wall/stand/VESA 100mm x 100mm ▪ Power

For IPPC 1560TP2E-DC

– Power input: 12-30 V dc, 7-2.5 A, Class 2 – Power adapter: optional AC to DC DIN rail power adapter (+24V,

120W)

For IPPC 1560TP2E-AC

– Power input: 100-240V~, 1.5A, 50-60Hz; fuse: 250VAC/3A

– Power connector: AC inlet (IEC60320 C14) – Power supply: 120W

For IPPC 1560TE

– Power input: 24 V dc, 4A, Class 2 – Power protection: +-20% with 1.5kv isolated protection – Fuse: 250V/10A

▪ Vibration:

– IEC 68 2-64 (w/ HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

▪ Shock:

– IEC 68 2-27 – HDD: 20G @ wall mount, half sine, 11ms

▪ Operating temperature: -10°C to 50°C

* Intel® Core™ i7/Intel® Celeron® B810/Intel® Pentium® B950: -10°C to 40°C

▪ Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing

Limits to be at 90% RH at max 50°C

▪ Dimension: 477.64 x 310 x 95.72mm ▪ Weight: -AC: 9.75Kg

-DC: 9.34Kg

-TE: 9.51Kg

Certifications

▪ CE (including EN61000-6-2/EN61000-6-4) ▪ FCC Class A ▪ -AC: LVD 60950-1 ▪ -DC/TE: UL508

IPPC 1560TE is certified for explosion protection. For more information on the relevant safety standards and installation instructions, please refer to the dedicated IPPC 1560TE user manual.

4

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Key Features

▪ 4:3 19” SXGA Fanless Panel Computer

▪ Powerful 2nd/3rd generation Intel

®

Core™ processor

▪ Two expansion slots for add-on PCI or/and PCIe cards

▪ Optional 3.5G/Wi-Fi module/2.5” HDD/3x Coms/GPIO/DIO/Dimming

Control Button

▪ Front accessible USB 2.0 for easy of field maintenance

▪ Metal housing with robust aluminum front bezel for harsh environment

▪ IP66 compliant front panel

▪ Support fieldbus module, JMobile HMI, Citect SCADA and CODESYS

(optional)

▪ Wide range DC power input model

IPPC 1960T Series

IPPC 1960TP2E-DC

IPPC 1960TP2E-AC

5

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Specifications

System

▪ CPU: Support 2nd/3rd gen. Intel® Core™ processor family, rPGA 988

– Intel

®

Core™ i7-3520ME (2 x 2.9GHz, 4M cache, Max. TDP 35W)

– Intel

®

Core™ i5-3610ME (2 x 2.7GHz, 3M cache, Max. TDP 35W)

(Default)

– Intel

®

Core™ i3-3120ME (2 x 2.4GHz, 3M cache, Max. TDP 35W)

– Intel

®

Celeron® B810 (2 x 1.6GHz, 2M cache, Max. TDP 35W)

– Intel

®

Pentium® B950 (2 x 2.1GHz, 2M cache, Max. TDP 35W) ▪ BIOS: AMI BIOS ▪ System chipset: Intel

®

HM76 Express chipset

▪ System memory: 1x 204-pin DDR3 SO-DIMM socket, 4G DDR3 (default),

support up to 8GB DDR3-1066/1333, non-ECC and un-buffered

▪ Storage Device:

– 1x external locked CFast socket – 2x hard drive bay: optional 2x 2.5” SATA HDD

▪ Watchdog timer: Watchdog timeout can be programmed by software

from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)

▪ H/W status monitor: Monitoring system temperature, and voltage ▪ Expansion:

– 2x Mini-PCIe sockets (support optional Wi-Fi or 3.5G module) – 2x expansion slots for add-on PCI or/and PCIe cards – 1x PCI and 1x PCIe x4 slots (default) – 2x PCIe x4 slots – 2x PCI slots

▪ Panel backlight control button: increase brightness/decrease brightness/

backlight on/off (for IPPC 1960TP2E-AC only)

Rear I/O

For All

▪ 2x PS2 keyboard/mouse ▪ 2nd display VGA port: 1x DB15 ▪ Ethernet: 2x RJ45 ▪ USB: 5x USB 2.0 (1 in front) ▪ Audio port: 1x Line-out; 1x Line-in; 1x MIC-in

For IPPC 1960TP2E-DC only

▪ COM #1: RS232/422/485 w/ RI or 5V or 12V selection ▪ COM #2: RS232/422/485 w/ RI or 5V or 12V selection ▪ COM #3: RS232 w/ RI or 5V or 12V selection ▪ ATX power switch ▪ Reset button

For IPPC 1960TP2E-AC only

▪ COM #1: RS232/422/485 w/ 2.5kv isolated protection ▪ COM #2: RS232/422/485 w/ 2.5kv isolated protection ▪ COM #3: RS232 w/ RI or 5V or 12V selection ▪ COM #4: RS232 w/ RI or 5V or 12V selection ▪ COM #5: RS232 ▪ COM #6: RS232 ▪ DIO w/ 2.5kv isolated protection:

4x digital input (source type) – Input voltage (dry contact): Logic 0: Close to GND Logic 1: open

– Input voltage: Logic 0: 3V max. Logic 1: +5 to 30V 4x digital output (sink type)

– Output voltage: +3.6 to 5V

– Sink current: 200mA max. per channel

6

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

▪ GPIO: 4x digital in/4x digital out ▪ LPT: Parallel port ▪ AC Power switch ▪ Reset button

Audio

▪ AC97 codec: Realtek ALC886-GR ▪ Audio interface: Line-out/Line-in/MIC-in audio Jack

Ethernet

▪ LAN chip: dual Intel® 82574L Gigabit LAN ▪ Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Fieldbus

▪ IPPC 1960TP2E-DC: support up to two Fieldbus Module (1 universal kit

and 1 special kit)

▪ IPPC 1960TP2E-AC: support one special Fieldbus Module kit

Mechanical & Environment

▪ Color: pantone 432C\ RAL 70 24 front bezel ▪ Enclosure: aluminum front bezel with SPPC nickel plated housing ▪ IP protection: IP66 front ▪ Mounting: panel/wall/stand/VESA 100mm x 100mm ▪ Power

For IPPC 1960TP2E-DC

– Power input: 12-30 V dc, 7-2.5 A, Class 2 – Power adapter: optional AC to DC DIN rail power adapter (+24V,

120W)

For IPPC 1960TP2E-AC

– Power input: 100-240V~, 1.5A, 50-60Hz; Fuse: 250VAC/3A – Power connector: AC inlet (IEC60320 C14) – Power supply: 120W

▪ Vibration:

– IEC 68 2-64 (w/ HDD)

– 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)

– 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating)

– 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

▪ Shock:

– IEC 68 2-27

– HDD: 20G @ wall mount, half sine, 11ms

▪ Operating temperature: -10°C to 50°C

* Intel® Core™ i7/Intel® Celeron® B810/Intel® Pentium® B950: -10°C to 40°C

▪ Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing

Limits to be at 90% RH at max 50°C

▪ Dimension: 477.64 x 399.24 x 99.38mm

Weight: -AC: 11.2Kg

-DC: 10.6Kg

Certifications

▪ CE (including EN61000-6-2/EN61000-6-4) ▪ FCC Class A ▪ -AC: LVD 60950-1

7

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Key Features

▪ 16:9 21.5” Full HD fanless LED panel computer

▪ Powerful 2nd/3rd generation Intel

®

Core™ processor

▪ Two expansion slots for add-on PCI or/and PCIe cards

▪ Optional 3.5G/Wi-Fi module/2.5” HDD/3x Coms/GPIO/DIO/Dimming

control button

▪ 10 points P-Cap multi-touch with zero bezel flush front design

▪ Metal housing with robust aluminum front bezel for harsh environment

▪ IP66 compliant front panel

▪ Anti-scratch surface: 7H hardness

▪ Support fieldbus module, JMobile HMI, Citect SCADA and CODESYS

(optional)

▪ Optional: AC power input model/DC power input model

IPPC 2160P

8

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Specifications

Panel

▪ LED size: 21.5”, 16:9 ▪ Resolution: Full HD 1920 x 1080 ▪ Luminance: 300cd/m

2

▪ Contrast ratio: 5000 ▪ LCD color: 16.7M ▪ Viewing angle: 89(U), 89(D), 89(L), 89(R) ▪ Backlight: LED

Touch Screen

▪ Ten points P-Cap (Projected Capacitive Touch) ▪ Touch light transmission: 87% ▪ Anti-scratch surface: 7H hardness ▪ Touch interface: USB ▪ Windows 8 compliance

System

▪ CPU: Support 2nd/3rd gen. Intel® Core™ processor family, rPGA 988

– Intel

®

Core™ i7-3520ME (2 x 2.9GHz, 4M cache, Max. TDP 35W)

– Intel

®

Core™ i5-3610ME (2 x 2.7GHz, 3M cache, Max. TDP 35W)

(Default)

– Intel

®

Celeron® 1020E (2.2GHz, 2M cache, Max. TDP 35W) ▪ BIOS: AMI BIOS ▪ System chipset: Intel

®

HM76 Express chipset

▪ System memory: 1x 204-pin DDR3 SO-DIMM socket, 4G DDR3 (default),

support up to 8GB DDR3-1066/1333, non-ECC and un-buffered

▪ Storage Device:

– 1x external locked CFast socket – 2x hard drive bay: optional 2x 2.5” SATA HDD

▪ Watchdog timer: Watchdog timeout can be programmed by software

from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)

▪ H/W status monitor: Monitoring system temperature, and voltage ▪ Expansion:

– 2x Mini-PCIe sockets (support optional Wi-Fi or 3.5G module) – 2x expansion slots for add-on PCI or/and PCIe cards – 1x PCI and 1x PCIe x4 slots (default) – 2x PCIe x4 slots – 2x PCI slots

▪ Panel backlight control button: increase brightness/decrease brightness/

backlight on/off (for IPPC 2160PP2E-AC only)

Rear I/O

For All

▪ 2x PS2 keyboard/mouse ▪ 2nd display VGA port: 1x DB15 ▪ Ethernet: 2x RJ45 ▪ USB: 4x USB 2.0 ▪ Audio port: 1x Line-out; 1x Line-in; 1x MIC-in

For IPPC 2160PP2E-DC only

▪ COM #1: RS232/422/485 w/ RI or 5V or 12V selection ▪ COM #2: RS232/422/485 w/ RI or 5V or 12V selection ▪ COM #3: RS232 w/ RI or 5V or 12V selection ▪ ATX power switch ▪ Reset button

For IPPC 2160PP2E-AC only

▪ COM #1: RS232/422/485 w/ 2.5kv isolated protection ▪ COM #2: RS232/422/485 w/ 2.5kv isolated protection ▪ COM #3: RS232 w/ RI or 5V or 12V selection ▪ COM #4: RS232 w/ RI or 5V or 12V selection

9

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

▪ COM #5: RS232 ▪ COM #6: RS232 ▪ DIO w/ 2.5kv isolated protection:

4x digital input (source type)

– Input voltage (dry contact): Logic 0: Close to GND

Logic 1: open

– Input voltage: Logic 0: 3V max. Logic 1: +5 to 30V 4x digital output (sink type)

– Output voltage: +3.6 to 5V

– Sink current: 200mA max. per channel

▪ GPIO: 4x Digital In/4x Digital Out ▪ LPT: parallel port ▪ AC power switch ▪ Reset button

Audio

▪ AC97 codec: Realtek ALC886-GR ▪ Audio interface: Line-out/Line-in/MIC-in audio Jack

Ethernet

▪ LAN chip: dual Intel® 82574L Gigabit LAN ▪ Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Fieldbus

▪ IPPC 2160PP2E-DC: support up to two Fieldbus Module (1 universal kit

and 1 special kit)

▪ IPPC 2160PP2E-AC: support one special Fieldbus Module kit

Mechanical & Environment

▪ Color: pantone 432C\ RAL 70 24 front bezel ▪ Enclosure: aluminum front bezel with SPPC nickel plated housing ▪ IP protection: IP66 front

▪ Mounting: panel/wall/stand/VESA 100mm x 100mm ▪ Power

For IPPC 2160PP2E-DC

– Power input: 12-30 V dc, 7-2.5 A, Class 2 – Power adapter: optional AC to DC DIN rail power adapter (+24V,

120W)

For IPPC 2160PP2E-AC

– Power input: 100-240V~, 1.5A, 50-60Hz; Fuse: 250VAC/3A – Power connector: AC inlet (IEC60320 C14) – Power supply: 120W

▪ Vibration:

– IEC 68 2-64 (w/ HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

▪ Shock:

– IEC 68 2-27 – HDD: 20G @ wall mount, half sine, 11ms

▪ Operating temperature: -10°C to 50°C

* Intel® Core™ i7/Intel® Celeron® B810/Intel® Pentium® B950: -10°C to 40°C

▪ Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing ▪ Dimension: 562.4mm x 382.4mm x 92.27mm ▪ Weight: 11.9Kg for IPPC 2160PP2E-DC

12.51Kg for IPPC 2160PP2E-AC

Certifications

▪ CE (including EN61000-6-2/EN61000-6-4) ▪ FCC Class A ▪ AC: LVD 60950-1

10

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Key Features

▪ 4:3 15” XGA fanless LED panel computer

▪ Powerful 2nd/ 3rd generation Intel

®

Core™ processor

▪ DDR3 4GB

▪ Flush Panel by 5-wire Touch Screen

▪ Optional 3.5G/ Wi-Fi module/ 2.5” HDD

▪ IP65 compliant front panel

▪ Support fieldbus module, JMobile HMI, Citect SCADA and CODESYS

(optional)

▪ Optional: AC power input model/ DC power input model

APPC 1560T

11

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Specifications

Panel

▪ LED Size: 15” 4:3 ▪ Resolution: XGA 1024x768 ▪ Luminance: 400cd/m

2

▪ Contract Ratio: 700 ▪ LCD Color: 16.2M ▪ Viewing Angle: 60(U), 80(D), 80(L), 80(R) ▪ Backlight: LED

Touch Screen

▪ 5-wire resistive (flush panel type) ▪ Light transmission: 80% ▪ Interface: USB

System

▪ CPU: Support 2nd/3rd gen. Intel® Core™ processor family, rPGA 988

– Intel

®

Core™ i7-3520ME (2 x 2.9GHz, 4M cache, Max. TDP 35W)

– Intel

®

Core™ i5-3610ME (2 x 2.7GHz, 3M cache, Max. TDP 35W)

– Intel

®

Core™ i3-3120ME (2 x 2.4GHz, 3M cache, Max. TDP 35W)

– Intel

®

Celeron® B810 (2 x 1.6GHz, 2M cache, Max. TDP 35W)

(Default)

– Intel

®

Pentium® B950 (2 x 2.1GHz, 2M cache, Max. TDP 35W) ▪ BIOS: AMI BIOS ▪ System chipset: Intel

®

HM76 Express chipset

▪ System memory: 1x 204-pin DDR3 SO-DIMM socket, 4G DDR3 (default),

support up to 8GB DDR3-1066/1333, non-ECC and un-buffered

▪ Storage Device:

– 1x external locked CFast socket – 1x hard drive bay – 1x SATA DOM (Optional)

▪ Watchdog timer: Watchdog timeout can be programmed by software

from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)

▪ H/W status monitor: Monitoring system temperature, and voltage ▪ Expansion:

– 2x Mini-PCIe sockets (support optional Wi-Fi or 3.5G module)

Rear I/O

For All

▪ 2x PS2 keyboard/mouse ▪ 2nd display VGA port: 1x DB15 ▪ Ethernet: 2x RJ45 ▪ USB: 4x USB 2.0 ▪ Audio port: 1x Line-out; 1x Line-in; 1x MIC-in ▪ COM #3: RS232 w/ RI or 5V or 12V selection ▪ Reset button

For APPC 1560T-DC

▪ COM #1: RS232/422/485 w/ RI or 5V or 12V selection ▪ COM #2: RS232/422/485 w/ RI or 5V or 12V selection ▪ ATX Power switch

For APPC 1560T-AC (Default)

▪ COM #1: RS232/422/485 w/ 2.5kv isolated protection ▪ COM #2: RS232/422/485 w/ 2.5kv isolated protection ▪ AC Power switch

Audio

▪ AC97 codec: Realtek ALC886-GR ▪ Audio interface: Line-out/Line-in/MIC-in Audio Jack

12

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Ethernet

▪ LAN chip: dual Intel® 82574L Gigabit LAN ▪ Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Fieldbus

▪ Support one special fieldbus module kit

Mechanical & Environment

▪ Color: pantone black\ RAL 15 00 front bezel ▪ Enclosure: Plastic front bezel ▪ IP protection: IP65 front ▪ Mounting: panel mounting ▪ Power

For APPC 1560T-DC

– Power input: 12-30 V dc, 7-2.5 A, Class 2 – Power adapter: Optional AC to DC DIN Rail Power Adapter (+24V, 120W)

For APPC 1560T-AC

– Power input: 100-240V~, 1.5A, 50-60Hz; Fuse: 250VAC/3A – Power connector: AC Inlet (IEC60320 C14) – Power supply: 120W

▪ Vibration:

– IEC 68 2-64 (w/ HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

▪ Shock:

– IEC 68 2-27 – HDD: 20G @ wall mount, half sine, 11ms

▪ Operating temperature: -10°C to 50°C

* Intel® Core™ i7 / Intel® Celeron® B810 / Intel® Pentium® B950: -10°C to 40°C

▪ Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing

▪ Limits to be at 90% RH at max 50°C ▪ Dimension: 384.37 x 309.95 x 92.62 mm ▪ Weight: -AC: 7.7Kg

-DC: 7.1Kg

Certifications

▪ CE ▪ FCC Class A ▪ AC: LVD 60950-1

13

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Knowing Your IPPC 1560T Series

IPPC 1560TP2E-DC Rear Top

IPPC 1560TP2E-DC Rear Bottom

Fieldbus (Universal Kit) Fieldbus (Special Kit) 2.5” HDD/SDD

Drive Bay

Power &

Reset Switch

PS/2

KB/MS

LAN & USB Audio Connectors

DC Input VGA

COM1~3

Fieldbus (Universal Kit and Special Kit)

Expansion slots for add-on fieldbus modules.

2.5” HDD/SDD Drive Bay

Used to install a 2.5” HDD/SSD.

Power Switch

Press to power-on or power-off the system.

Reset Switch

Press this button to restart the system.

DC Input

Used to plug a DC power cord (terminal block connector).

PS/2 KB/MS

Used to connect a PS/2 keyboard and a PS/2 mouse.

COM 1 to COM 3

COM 1 and COM 2 ports have 2.5kV isolated protection and support RS232/422/485 compatible serial devices. COM 3 supports RS232 and 5V, 12V or RI by selection.

VGA

Used to connect an analog VGA monitor.

LAN

Used to connect the system to a local area network. LAN1 supports Wake up on LAN.

USB

Used to connect USB 2.0/1.1 devices.

Audio Connectors

Line-in, mic-in and line-out ports used to connect audio devices such as external microphones, speakers and headphones.

CAUTION!

CAUTION!CAUTION!

Please use 12-28 AWG wire size and tighten the terminal block with a torque value of 4.5 lb-in.

14

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

IPPC 1560TP2E-AC Rear Top

IPPC 1560TP2E-AC Rear Bottom

Fieldbus (Special Kit)DIO

LPT

GPIO

COM4 COM5

COM6

2.5 HDD

Drive Bay

PS/2

KB/MS

LAN & USB Audio Connectors

AC

Input

VGA

COM1~3

COM 4 to COM 6

These COM ports support RS232 compatible serial devices. COM 4 supports

5V, 12V or RI by selection.

GPIO

The GPIO connector supports 4 digital input and 4 digital output.

DIO

The GPIO connector supports 4 digital input and 4 digital output with

2.5kV isolated protection.

LPT

Parallel port used to connect LPT devices.

Fieldbus (Special Kit)

Expansion slot for add-on fieldbus modules.

2.5” HDD/SDD Drive Bay

Used to install a 2.5” HDD/SSD.

Power Switch

Press to power-on or power-off the system.

Reset Switch

Press this button to restart the system.

AC Input

Used to plug an AC power cord.

PS/2 KB/MS

Used to connect a PS/2 keyboard and a PS/2 mouse.

Power &

Reset Switch

15

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

COM 1 to COM 3

COM 1 and COM 2 ports have 2.5kV isolated protection and support RS232/422/485 compatible serial devices. COM 3 supports RS232 and 5V, 12V or RI by selection.

VGA

Used to connect an analog VGA monitor.

LAN

Used to connect the system to a local area network. LAN1 supports Wake up on LAN.

USB

Used to connect USB 2.0/1.1 devices.

Audio Connectors

Line-in, mic-in and line-out ports used to connect audio devices such as external microphones, speakers and headphones.

16

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

IPPC 1560TE Rear Top

IPPC 1560TE Rear Bottom

Fieldbus (Universal Kit) Fieldbus (Special Kit) 2.5 HDD

Drive Bay

Fieldbus (Universal Kit and Special Kit)

Expansion slots for add-on fieldbus modules.

2.5” HDD/SDD Drive Bay

Used to install a 2.5” HDD/SSD.

Power Switch

Press to power-on or power-off the system.

Reset Switch

Press this button to restart the system.

DC Input

Used to plug a DC power cord.

COM 1 to COM 3

COM 1 and COM 2 ports have 2.5kV isolated protection and support RS232/422/485 compatible serial devices. COM 3 supports RS232 and 5V, 12V or RI by selection.

VGA

Used to connect an analog VGA monitor.

LAN

Used to connect the system to a local area network. LAN1 supports Wake up on LAN.

CAUTION!

CAUTION!CAUTION!

Please use 12-28 AWG wire size and tighten the terminal block with a torque value of 4.5 lb-in.

Power &

Reset Switch

LAN

DC Input

VGA

COM1~3

17

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Knowing Your IPPC 1960T Series

IPPC 1960TP2E-DC Rear Top

IPPC 1960TP2E-DC Rear Bottom

Fieldbus (Universal Kit) Fieldbus (Special Kit) 2.5” HDD/SDD

Drive Bay

Power &

Reset Switch

PS/2

KB/MS

LAN & USB Audio Connectors

DC Input VGA

COM1~3

Fieldbus (Universal Kit and Special Kit)

Expansion slots for add-on fieldbus modules.

2.5” HDD/SDD Drive Bay

Used to install a 2.5” HDD/SSD.

Power Switch

Press to power-on or power-off the system.

Reset Switch

Press this button to restart the system.

DC Input

Used to plug a DC power cord (terminal block connector).

PS/2 KB/MS

Used to connect a PS/2 keyboard and a PS/2 mouse

COM 1 to COM 3

COM 1 and COM 2 ports have 2.5kV isolated protection and support RS232/422/485 compatible serial devices. COM 3 supports RS232 and 5V, 12V or RI by selection.

VGA

Used to connect an analog VGA monitor.

LAN

Used to connect the system to a local area network. LAN1 supports Wake up on LAN.

USB

Used to connect USB 2.0/1.1 devices.

Audio Connectors

Line-in, mic-in and line-out ports used to connect audio devices such as external microphones, speakers and headphones.

CAUTION!

CAUTION!CAUTION!

Please use 12-28 AWG wire size and tighten the terminal block with a torque value of 4.5 lb-in.

18

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

IPPC 1960TP2E-AC Rear Top

IPPC 1960TP2E-AC Rear Bottom

Fieldbus (Special Kit)DIO

LPT

GPIO

COM4 COM5

COM6

2.5 HDD

Drive Bay

PS/2

KB/MS

LAN & USB Audio Connectors

AC

Input

VGA

COM1~3

Power &

Reset Switch

COM 4 to COM 6

These COM ports support RS232 compatible serial devices. COM 4 supports

5V, 12V or RI by selection.

GPIO

The GPIO connector supports 4 digital input and 4 digital output.

DIO

The GPIO connector supports 4 digital input and 4 digital output with

2.5kV isolated protection.

LPT

Parallel port used to connect LPT devices.

Fieldbus (Special Kit)

Expansion slot for add-on fieldbus modules.

2.5” HDD/SDD Drive Bay

Used to install a 2.5” HDD/SSD.

Power Switch

Press to power-on or power-off the system.

Reset Switch

Press this button to restart the system.

AC Input

Used to plug an AC power cord.

PS/2 KB/MS

Used to connect a PS/2 keyboard and a PS/2 mouse.

19

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

COM 1 to COM 3

COM 1 and COM 2 ports have 2.5kV isolated protection and support RS232/422/485 compatible serial devices. COM 3 supports RS232 and 5V, 12V or RI by selection.

VGA

Used to connect an analog VGA monitor.

LAN

Used to connect the system to a local area network. LAN1 supports Wake up on LAN.

USB

Used to connect USB 2.0/1.1 devices.

Audio Connectors

Line-in, mic-in and line-out ports used to connect audio devices such as external microphones, speakers and headphones.

20

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Knowing Your IPPC 2160P

IPPC 2160P Rear Top

IPPC 2160P Rear Bottom

Fieldbus (Special Kit)DIO

LPT

GPIO

COM4 COM5

COM6

2.5 HDD

Drive Bay

PS/2

KB/MS

LAN & USB Audio Connectors

AC

Input

VGA

COM1~3

Power &

Reset Switch

COM 4 to COM 6

These COM ports support RS232 compatible serial devices. COM 4 supports

5V, 12V or RI by selection.

GPIO

The GPIO connector supports 4 digital input and 4 digital output.

DIO

The GPIO connector supports 4 digital input and 4 digital output with

2.5kV isolated protection.

LPT

Parallel port used to connect LPT devices.

Fieldbus (Special Kit)

Expansion slot for add-on fieldbus modules.

2.5” HDD/SDD Drive Bay

Used to install a 2.5” HDD/SSD.

Power Switch

Press to power-on or power-off the system.

Reset Switch

Press this button to restart the system.

AC Input

Used to plug an AC power cord.

PS/2 KB/MS

Used to connect a PS/2 keyboard and a PS/2 mouse.

21

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

COM 1 to COM 3

COM 1 and COM 2 ports have 2.5kV isolated protection and support RS232/422/485 compatible serial devices. COM 3 supports RS232 and 5V, 12V or RI by selection.

VGA

Used to connect an analog VGA monitor.

LAN

Used to connect the system to a local area network. LAN1 supports Wake up on LAN.

USB

Used to connect USB 2.0/1.1 devices.

Audio Connectors

Line-in, mic-in and line-out ports used to connect audio devices such as external microphones, speakers and headphones.

22

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Knowing Your APPC 1560T

APPC 1560T Rear Top

APPC 1560T Rear Bottom

Fieldbus (Special Kit) 2.5” HDD/SDD

Drive Bay

Power &

Reset Switch

PS/2

KB/MS

LAN & USB Audio Connectors

AC Input

VGA

COM1~3

Fieldbus (Special Kit)

Expansion slots for add-on fieldbus modules.

2.5” HDD/SDD Drive Bay

Used to install a 2.5” HDD/SSD.

Power Switch

Press to power-on or power-off the system.

Reset Switch

Press this button to restart the system.

AC Input

Used to plug a AC power cord.

PS/2 KB/MS

Used to connect a PS/2 keyboard and a PS/2 mouse.

COM 1 to COM 3

COM 1 and COM 2 ports have 2.5kV isolated protection and support RS232/422/485 compatible serial devices. COM 3 supports RS232 and 5V, 12V or RI by selection.

VGA

Used to connect an analog VGA monitor.

LAN

Used to connect the system to a local area network. LAN1 supports Wake up on LAN.

USB

Used to connect USB 2.0/1.1 devices.

Audio Connectors

Line-in, mic-in and line-out ports used to connect audio devices such as external microphones, speakers and headphones.

23

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

IPPC 1560T Series Rear

VESA Mounting Hole

VESA Mounting Holes

These are mounting holes for VESA mount (100x100mm)

24

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

IPPC 1960T Series Rear

VESA Mounting Hole

VESA Mounting Holes

These are mounting holes for VESA mount (100x100mm)

25

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

IPPC 2160P Rear

VESA Mounting Hole

VESA Mounting Holes

These are mounting holes for VESA mount (100x100mm)

26

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

APPC 1560T Rear

VESA Mounting Hole

VESA Mounting Holes

These are mounting holes for VESA mount (100x100mm)

27

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Mechanical Dimensions

IPPC 1560TP2E-DC

477.64 (OUTLINE)

84.72

308.2 (BEZEL OPENING)

38.95

310 (OUTLINE)

232.1 (BEZEL OPENING)

Active Area (304.1x228.1)

Active Center

95.72

6

29.3

290 (MOUNTING LINE)

10

100 186.02

92.75100

450 (MOUNTING LINE) 13.82

A

28

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

IPPC 1560TP2E-AC

477.64 (OUTLINE)

84.72

308.2 (BEZEL OPENING)

38.95

310 (OUTLINE)

232.1 (BEZEL OPENING)

Active Area (304.1x228.1)

Active Center

95.72

6

29.3

290 (MOUNTING LINE)

10

100 186.02

92.75100

450 (MOUNTING LINE) 13.82

A

29

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

IPPC 1560TE

92.75100

477.64 (OUTLINE)

84.72

308.2 (BEZEL OPENING)

38.95

310 (OUTLINE)

232.1 (BEZEL OPENING)

Active Area (304.1x228.1)

95.72

6

29.3

290 (MOUNTING LINE)

10

100 186.02

450 (MOUNTING LINE) 13.82

A

295.00

455.00

4.00 (Max.)

CUT DUT SIZE T=4MM(MAX)

30

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

33.36

6.00

477.64

450.00

398.42

99.38

399.24

269.60

380.00

IPPC 1960TP2E-DC

31

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

IPPC 1960TP2E-AC

33.36

6.00

477.64

450.00

398.42

99.38

399.24

269.60

380.00

32

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

562.40

382.40

92.27

6.70

19.15

542.00

362.00

IPPC 2160P

33

Chapter 1: Product Introduction

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

APPC 1560T

384.37 (OUTLINE)

309.95 (OUTLINE)

26.2

92.62

100

92,38

86,11

285.88

259.7

Active Area(304.1*228.1)

Active Center

231.4 (V/A)

307.5 (V/A)

49.94

12.63

170.5 170.521.69

80.8580.85 74.08

38.44

39.28

10.4

A

366.32 (MOUNTING LINE)

292.2 (MOUNTING LINE)

34

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the motherboard in the IPPC 1560T/1960T/2160P series and APPC 1560T.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

35

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

1

2

3

1

2

3

36

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

JP11

JP8

JP7

JP9

CON2

U42

CON1

CN7

CN6

KM1

CN2

JP13

CN13

J13

CN16

CN15

CN14

JP15

CN17

CN11

CN10

CN12

SW5

JDB1

J8

J11

JP6

SW6

SW1

JP4

J6

J4

CN1

JP1

JP3

J1

J5

JP2

J3

J2

J7

JP5

CN4

CN3

PWR1

J9

J10

CN5

CN8

JP10

CN19

CN18

SLOT1

37

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Jumpers and DIP Switch Settings

AT/ATX Power Type Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP5

Pin Settings

1-2 On AT 2-3 On ATX

Pin Definition

1 ATMODE 2 MODE_SEL 3 ATXMODE

LCD Power Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP2

Pin Settings

1-2 On VCC3 2-3 On VCC5

1-2 On: default

Pin Definition

1 VCC3 2 VCCLCDIN 3 VCC5

1 3 1 3

38

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

CCFL Power Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP3

Touch Panel Type Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP4

Pin Settings

1-2 On VCC3 2-3 On VCC5

1-2 On: default

Pin Definition

1 VCC3 2 P_BKLTCTRL3 3 VCC5

Pin Settings

1-2 On 5 Wire 2-3 On 4 Wire

1-2 On: default

Pin Definition

1 NC 2 TOUCH_YU 3 SENSE

1 3 1 3

39

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

CMOS Clear Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP10

Pin Settings

1-2 On Normal 2-3 On Clear CMOS

1-2 On: default

Pin Definition

1 3VSB 2 VBAT 3 GND

1 3

RI Feature Selection (COM1)

Connector type: 2x3 6-pin header, 2.0mm pitch Connector location: JP7

Pin Settings

1-2 On RI (Default) 3-4 On VCC5 5-6 On +12V

1-2 On: default

Pin Definition Pin Definition

1 SP1_PSRI# 2 SP1_RI# 3 SP1_PSRI# 4 ISO_VCC5 5 SP1_PSRI# 6 ISO_+12V

15

26

40

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

RI Feature Selection (COM2)

Connector type: 2x3 6-pin header, 2.0mm pitch Connector location: JP8

RI Feature Selection (COM3)

Connector type: 2x3 6-pin header, 2.0mm pitch Connector location: JP9

Pin Settings

1-2 On RI (Default) 3-4 On VCC5 5-6 On +12V

1-2 On: default

Pin Definition Pin Definition

1 SP2_PSRI# 2 SP2_RI# 3 SP2_PSRI# 4 ISO_VCC5_A 5 SP2_PSRI# 6 ISO_+12V

Pin Settings

1-2 On RI (Default) 3-4 On VCC5 5-6 On +12V

1-2 On: default

Pin Definition Pin Definition

1 SP3_PSRI# 2 SP3_RI# 3 SP3_PSRI# 4 ISO_VCC5 5 SP3_PSRI# 6 ISO_+12V

15

26

15

26

41

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Dimming Type Select

Connector type: 2-pin DIP switch Connector location: SW1

SW1-1 SW1-2 Settings

OFF ON CCFL Mode

ON OFF PWM Mode

Pin Definition Pin Definition

1 PWM_dimming 2 CCFL_dimming 3 PL_BKLTCTRL 4 PL_BKLTCTRL

1

O

N

2

RI Feature Selection (COM4)

Connector type: 2x3 6-pin header, 2.0mm pitch Connector location: JP13

Pin Settings

1-2 On RI (Default) 3-4 On VCC5 5-6 On +12V

1-2 On: default

Pin Definition Pin Definition

1 SP4_PSRI# 2 SP4_RI# 3 SP4_PSRI# 4 ISO_VCC5 5 SP4_PSRI# 6 ISO_+12V

15

26

42

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

LVDS Resolution Select

Connector type: 2-pin DIP switch Connector location: SW5

PWN Reverse/Function Key Dimming Select

Connector type: 4-pin DIP switch Connector location: SW6

SW5-1 SW5-2 Resolution

OFF OFF 1024 x 768

ON OFF 1280 x 1024

OFF ON 1366 x 768

ON ON 1920 x 1080

SW6-1 SW6-2 SW6-3 SW6-4 Settings

ON OFF X X PWN Dimming OFF ON X X PWN Dimming Reverse

X X ON OFF IPPC Dimming X X OFF ON MPPC Dimming

1

O

N

2 1

O

N

2

43

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

Keyboard/Mouse Ports

Connector type: PS/2, Mini-DIN6 Connector location: KM1

Pin Definition Pin Definition

1 KDAT 2 NC 3 GND 4 5VSB 5 KCLK 6 NC 7 MDAT 8 NC 9 GND 10 5VSB

11 MCLK 12 NC

PS/2 Mouse

PS/2 Keyboard

7

9

8

10

1112

1

5

3

2

4

6

COM 1 and COM 2 Ports

Connector type: DB-9 port, 9-pin D-Sub Connector location: CN6A (COM1) and CN6B (COM2)

Pin Definition Pin Definition

1 DCD1 2 RXD1 3 TXD1 4 DTR1 5 GND 6 DSR1 7 RTS1 8 CTS1

9 RI1 10 DCD2 11 RXD2 12 TXD2 13 DTR2 14 GND 15 DSR2 16 RTS2 17 CTS2 18 RI2

COM 1

COM 2

5 9

1 6

14 18

10 15

44

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

COM 3 and VGA Port

Connector type: DB-9 port, 9-pin D-Sub (COM) DB-15 port, 15-pin D-Sub (VGA) Connector location: CN7A (COM3) and CN7B (VGA)

LAN 1 and USB Ports

Connector type: RJ45 port with LEDs Dual USB 2.0 ports, Type A Connector location: CON1A (USB0/1) and CON1B (LAN1)

Pin Definition Pin Definition

1 RED_VGA 2 GREEN_VGA 3 BLUE_VGA 4 NC 5 GND 6 VGADET 7 GND 8 GND

9 VCC5 10 NC 11 NC 12 DDCDATA_VGA 13 HSYNC_VGA 14 VSYNC_VGA 15 DDCCLK_VGA 16 DCD3 17 RXD3 18 TXD3 19 DTR3 20 GND 21 DSR3 22 RTS3 23 CTS3 24 RI3

Pin Definition Pin Definition

1 5VSB 2 USB_0N 3 USB_0P 4 GND 5 5VSB 6 USB_1N 7 USB_1P 8 GND

9 V25_LAN1 10 LAN1_MDI0P 11 LAN1_MDI0N 12 LAN1_MDI1P 13 LAN1_MDI1N 14 LAN1_MDI2P 15 LAN1_MDI2N 16 LAN1_MDI3P 17 LAN1_MDI3N 18 GND 19 LAN1_LED3P 20 LAN1_LED2P 21 LAN1_ACTLED# 22 LAN1_LED1P

COM 3

VGA

20 24

16 21

1

17

1

5

10

4

8

11

5

15

ACT LINK

Act Status

Flashing Yellow Data activity

Off No activity

Link Status

Steady Green 1G network link

Steady Orange 100Mbps network link

Off No link

45

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

LAN 2 and USB Ports

Connector type: RJ45 port with LEDs Dual USB 2.0 ports, Type A Connector location: CON2A (USB0/1) and CON2B (LAN2)

Audio Connectors

Connector type: 3.5mm Earphone Jack Connector location: U42A (MIC), U42B (Line-out) and U42C (Line-in)

Pin Definition Pin Definition

1 5VSB 2 USB_2N 3 USB_2P 4 GND 5 5VSB 6 HUBUSB_DN3 7 HUBUSB_DP3 8 GND

9 LAN2P1V9 10 LAN2_MDI0P 11 LAN2_MDI0N 12 LAN2_MDI1P 13 LAN2_MDI1N 14 LAN2_MDI2P 15 LAN2_MDI2N 16 LAN2_MDI3P 17 LAN2_MDI3N 18 GND 19 LAN2_LED3P 20 LAN2_LED2P 21 LAN2_ACTLED# 22 LAN2_LED1P

Pin Definition Pin Definition

1 GND 2 MIC1-L 3 MIC-JD 4 GND

5 MIC1_R3 22 LINE_OUT_L 23 FRONT-JD 24 GND 25 LINE_OUT_R 32 LINE1-L 33 LINE1-JD 34 GND 35 LINE1-R

17

1

5

10

4

8

ACT LINK

Act Status

Flashing Yellow Data activity

Off No activity

Link Status

Steady Green 1G network link

Steady Orange 100Mbps network link

Off No link

Line-in

Line-out

Mic-in

46

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

PoE Power Connector

Connector type: 2x2 4-pin connector, 4.2mm pitch Connector location: PWR1

Pin Definition Pin Definition

1 GND 2 GND 3 VIN 4 VIN

Pin Definition

1 PWRBTN#

2 GND

Power Button

Connector type: 1x2 JST, 2-pin header, 2.0mm pitch Connector location: J2

12

34

1 2

47

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

DC Power Button (AT)

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: J3

Pin Definition

1 AT_IN 2 VIN_M

12

COM 4

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: CN16

Pin Definition Pin Definition

1 DCD4 2 RXD4

3 TXD4 4 DTR4

5 GND 6 DSR4

7 RTS4 8 CTS4

9 RI4 10 GND

2 1

10

9

48

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

COM 5

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: CN15

Pin Definition Pin Definition

1 DCD5 2 RXD5 3 TXD5 4 DTR5 5 GND 6 DSR5 7 RTS5 8 CTS5 9 RI5 10 GND

2 1

10

9

COM 6

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: CN14

Pin Definition Pin Definition

1 DCD6 2 RXD6

3 TXD6 4 DTR6

5 GND 6 DSR6

7 RTS6 8 CTS6

9 RI6 10 GND

2 1

10

9

49

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

1 5VSB 2 HUBUSB_DN1 3 HUBUSB_DP1 4 GND

Pin Definition Pin Definition

1 AUDIO-OUT-LR+ 2 AUDIO-OUT-LR-

3 AUDIO-OUT-RR+ 4 AUDIO-OUT-RR-

USB Connectors

Connector type: 1x4 4-pin header JST, 2.0mm pitch Connector location: J9 & J10

14

Speaker-out Connector

Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: JP11

14

50

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

S7 PC17PC1S1

CFast Card Slot

Connector type: Standard CFast connector Connector location: CN5

Pin Definition Pin Definition

S1 GND PC6 NC S2 SATA_TXP2 PC7 GND S3 SATA_TXN2 PC8 TEST POINT S4 GND PC9 NC S5 SATA_RXN2 PC10 NC S6 SATA_RXP2 PC11 NC

S7 GND PC12 NC PC1 GND PC13 +3.3V PC2 GND PC14 +3.3V PC3 NC PC15 GND PC4 NC PC16 GND PC5 NC PC17 NC

SATA Connector

Connector type: Standard Serial ATA, 1.27mm pitch Connector location: CN8

Pin Definition Pin Definition

1 GND 2 SATA_TXP0 3 SATA_TXN0 4 GND 5 SATA_RXN0 6 SATA_RXP0 7 GND

1 7

51

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

SATA Connector

Connector type: Standard Serial ATA, 1.27mm pitch Connector location: CN13

Pin Definition Pin Definition

1 GND 2 SATA_TXP1 3 SATA_TXN1 4 GND 5 SATA_RXN1 6 SATA_RXP1 7 GND

1 7

Pin Definition

1 VCC5 2 GND

SATA Power Connector

Connector type: 1x2 JST, 2-pin header, 2.5mm pitch Connector location: J11

1 2

52

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Pin Definition

1 VCC5 2 GND

SATA Power Connector

Connector type: 1x2 JST, 2-pin header, 2.5mm pitch Connector location: J13

1 2

LVDS Connector A

Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN3

1 19 2 20

Pin Definition Pin Definition

1 LVDS_DDC_CLK 2 LVDS_DDC_DATA 3 Panel_VDD 4 LVDSA_DATA0 5 LVDSA_DATA3 6 LVDSA_DATA#0 7 LVDSA_DATA#3 8 Panel_VDD

9 GND 10 LVDSA_DATA1 11 LVDSA_CLK 12 LVDSA_DATA#1 13 LVDSA_CLK# 14 GND 15 GND 16 Panel_backlight 17 LVDSA_DATA2 18 Panel_backlight 19 LVDSA_DATA#2 20 GND

53

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

LVDS Connector B

Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN4

1 19 2 20

Pin Definition Pin Definition

1 LVDS_DDC_CLK 2 LVDS_DDC_DATA 3 Panel_VDD 4 LVDSB_DATA0 5 LVDSB_DATA3 6 LVDSB_DATA#0 7 LVDSB_DATA#3 8 Panel_VDD

9 GND 10 LVDSB_DATA1 11 LVDSB_CLK 12 LVDSB_DATA#1 13 LVDSB_CLK# 14 GND 15 GND 16 Panel_backlight 17 LVDSB_DATA2 18 Panel_backlight 19 LVDSB_DATA#2 20 GND

LVDS Panel Inverter Connector

Connector type: 1x7 JST, 7-pin header, 2.5mm pitch Connector location: J5

7 1

Pin Definition Pin Definition

1 VCC5 2 +12V

3 +12V 4

Panel Backlight

Brightness Control 5 GND 6 GND 7 Panel Backlight Enable

54

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Touch Panel Control Connector

Connector type: 1x5 5-pin header JST, 2.54mm pitch Connector location: J6

SATA/Power LED

Connector type: 1x5 5-pin header JST, 2.0mm pitch Connector location: J1

Pin 4-wire 5-wire

1 Left LL (L) 2 To p UL (Y) 3 N/A Sense (S) 4 Right LR (X) 5 Bottom UR (H)

Pin Definition Pin Definition

1 TOUCH_YD 2 TOUCH_XR 3 SENSE 4 TOUCH_YU 5 TOUCH_XL

Pin Definition Pin Definition

1 HDDLED# 2 HDDLED 3 GND 4 STBYLED 5 PWRLED

51

5 1

55

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

1 VCC3 2 MCU_SBWTCK 3 MCU_SBWTDIO 4 GND

MCU Debug I/F

Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: JP1

14

MCU LED Indicator Connector

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: CN1

Pin Definition Pin Definition

1 MCU_LSENPW 2 MCU_LED_5 3 MCU_LSEN 4 MCU_LED_4 5 MCU_PIRC 6 MCU_LED_3 7 MCU_BKC 8 MCU_LED_2 9 GND 10 MCU_LED_1

2 1

10

9

56

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Function Key-in Connector

Connector type: 1x6 6-pin header JST, 2.0mm pitch Connector location: J4

Pin Definition Pin Definition

1 MCU_KEYIN_1 2 MCU_SCAN_1 3 MCU_SCAN_2 4 MCU_SCAN_3 5 MCU_SCAN_4 6 MCU_SCAN_5

Pin Definition Pin Definition

1 GND 2 12V 3 FANIN 4 FANOUT

6 1

System FAN2 Connector

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: CN19

1 4

57

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

1 GND 2 12V 3 SYSFANIN 4 SYSFANOUT

System FAN1 Connector

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: CN18

1 4

Pin Definition

1 HW_R_RST# 2 GND

Reset Button

Connector type: 1x2 JST, 2-pin header, 2.0mm pitch Connector location: J7

1 2

58

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Bluetooth Connector

Connector type: 1x10 10-pin header JST, 1.0mm pitch Connector location: J8

Pin Definition Pin Definition

1 GND 2 USB_6P 3 USB_6N 4 NC 5 NC 6 BT_AUDIO_EN 7 NC 8 BT_3.3V 9 NC 10 GND

110

Digital I/O

Connector type: 2x8 16-pin header, 2.54mm pitch Connector location: CN17

Pin Definition Pin Definition

1 DI0 2 DO0 3 DI1 4 DO1 5 DI2 6 DO2 7 DI3 8 DO3 9 NC 10 NC

11 COM1 12 NC 13 GND 14 GND 15 GND 16 GND

1

2

15

16

59

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

GPIO

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: JP15

Pin Definition Pin Definition

1 VCC5 2 GND 3 ICH_GPO0_OUT 4 ICH_GPI0_IN 5 ICH_GPO1_OUT 6 ICH_GPI1_IN 7 ICH_GPO2_OUT 8 ICH_GPI2_IN 9 ICH_GPO3_OUT 10 ICH_GPI3_IN

19

21

0

Bluetooth Connector

Connector type: 1x10 10-pin header JST, 1.0mm pitch Connector location: JDB1

Pin Definition Pin Definition

1 GND 2 SIO_RESET# 3 LPC_PORT80_CLK 4 LPC_FRAME# 5 LPC_AD3 6 LPC_AD2 7 LPC_AD1 8 LPC_AD0 9 VCC3 10 VCC3

110

60

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

Parallel Port Box Header

Connector type: 2x13 26-pin header, 2.0mm pitch Connector location: CN12

Pin Definition Pin Definition

1 Line Print Strobe 2 Parallel Data 0 3 Parallel Data 1 4 Parallel Data 2 5 Parallel Data 3 6 Parallel Data 4 7 Parallel Data 5 8 Parallel Data 6

9 Parallel Data 7 10 Acknowledge# 11 Busy 12 Paper empty 13 Select 14 Auto Feed# 15 Error# 16 Initialize# 17 Select Input# 18 GND 19 GND 20 GND 21 GND 22 GND 23 GND 24 GND 25 GND 26 NC

1

14

13

26

61

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

12

51 52

Pin Definition Pin Definition

1 WAKE# 2 +3VSB

3 NC 4 GND

5 NC 6 +1.5V

7 CLKREQ# 8 UIM_PWR

9 GND 10 UIM_DATA 11 REF CLK- 12 UIM_CLK 13 REF CLK+ 14 UIM_RESET 15 GND 16 UIM_VPP 17 NC 18 GND 19 NC 20 Disable# 21 GND 22 PERST# 23 PCIERX1N 24 +3VSB 25 PCIERX1P 26 GND

Mini-PCIe Connector

Connector location: CN10

Pin Definition Pin Definition

27 GND 28 +1.5V 29 GND 30 SMBCLK 31 PCIETX- 32 SMBDATA 33 PCIETX+ 34 GND 35 GND 36 USB_5N 37 GND 38 USB_5P 39 +3VSB 40 GND 41 +3VSB 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 +1.5V 49 NC 50 GND 51 NC 52 +3VSB

62

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 2: Jumpers and Connectors

12

51 52

Pin Definition Pin Definition

1 WAKE# 2 +3VSB

3 NC 4 GND

5 NC 6 +1.5V

7 CLKREQ# 8 UIM_PWR

9 GND 10 UIM_DATA 11 REF CLK- 12 UIM_CLK 13 REF CLK+ 14 UIM_RESET 15 GND 16 UIM_VPP 17 NC 18 GND 19 NC 20 Disable# 21 GND 22 PERST# 23 PCIERX1N 24 +3VSB 25 PCIERX1P 26 GND

Mini-PCIe Connector

Connector location: CN11

Pin Definition Pin Definition

27 GND 28 +1.5V 29 GND 30 SMBCLK 31 PCIETX- 32 SMBDATA 33 PCIETX+ 34 GND 35 GND 36 USB_5N 37 GND 38 USB_5P 39 +3VSB 40 GND 41 +3VSB 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 +1.5V 49 NC 50 GND 51 NC 52 +3VSB

63

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

Installing a Primary SATA Hard Drive

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

CAUTION!

CAUTION!CAUTION!

1. Remove the 4 screws around the HDD cover. 2. Remove the HDD cover.

64

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

3. Remove the mounting screws on the drive bay. 4. Push toward right and pull up the drive bay.

65

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

5. Place the SATA hard drive on the drive bay. 6. Use the provided mounting screws to secure the drive in place.

66

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

7. Push toward right then push down the drive bay into the chassis. 8. Secure the drive bay in the chassis and secure the HDD cover.

67

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

Installing a Secondary SATA Hard Drive

1. Remove the 6 screws on the right back cover.

68

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

2. Remove the mounting screws on the drive bay. 3. Place the SATA hard drive on the drive bay.

69

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

4. Use the provided mounting screws to secure the drive in place. 5. Secure the drive bay in the chassis and replace the right back cover.

70

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

Installing a CFast Card

1. The CFast card is located on the rear top side of the chassis. Remove this cover to install CFast card and change battery. Change this cover to support other interface connector, such as fieldbus.

2. Remove the mounting screw on the cover.

3. Insert the CFast card until it is completely seated in the socket.

71

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

4. Push the CFast card to remove it.

72

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

Installing a Mini-PCIe Module

The Mini-PCIe module package includes the following items: RALINK 802.11b/g/n 2T2R wireless mini card module kit QCOM: Q802XKN5F

Mini-PCIe Module

RF-Cable

Antenna

3.5G module kit Sierra Wireless MC8705

802.11b/g/n wireless mini card module kit INTEL:2200BNHMW

73

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

Fieldbus Mini-PCIe module

Mini PCIe

Card

Connection

Cable

Connector Board

Dual RJ45

PROFINET EtherNet/IP EtherCAT

DB9 PROFIBUS

5-pin

Connector

DeviceNet

74

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

Universal PROFIBUS I/O Bracket IPPC xx60 Series Special PROFIBUS I/O Bracket

Universal DeviceNet I/O Bracket IPPC xx60 Series Special DeviceNet I/O Bracket

Universal PROFINET, EtherNET/IP and EtherCAT I/O Bracket IPPC xx60 Series Special PROFINET, EtherNET/IP and EtherCAT I/O Bracket

75

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

If you are installing the 802.11b/g/n INTEL: 2200BNHMW mini card module (half size), before processing with the installation, please assemble the Wi-Fi module bracket first to full size module by following the instructions below:

1. Align the mounting holes on the Wi-Fi mini card module to the mounting holes on the Wi-Fi module bracket.

Wi-Fi module bracketMounting holes

2. Tighten screws onto the mounting holes to secure the bracket.

76

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

3. Insert the Mini-PCIe module into the Mini-PCIe slot at the 45 degrees angle until the gold-plated connector on the edge of the module completely disappear inside the slot.

Mini-PCIe Module

Mini-PCIe Slot

4. Secure the module with mounting screws.

77

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

5. Wi-Fi or 3G Mini-PCIe module:

A. Remove the left back cover.

78

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

B. Attach one end of the RF cables onto the module. C. Remove the antenna hole block.

79

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

D. Insert the ring onto the antenna jack end of the cable.

Ring

Antenna jack

80

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

E. Connect external antennas to the antenna jacks.

81

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

F. 3G Mini-PCIe module.

82

IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual

Chapter 3: System Setup

6. Fieldbus Mini-PCIe module.

A. Remove the Universal Fieldbus I/O cover or the Optional I/F cover.

B. Secure the Universal FBI I/O bracket or the Special FBI I/O bracket.
