NexCom EBC575 User Manual

Download

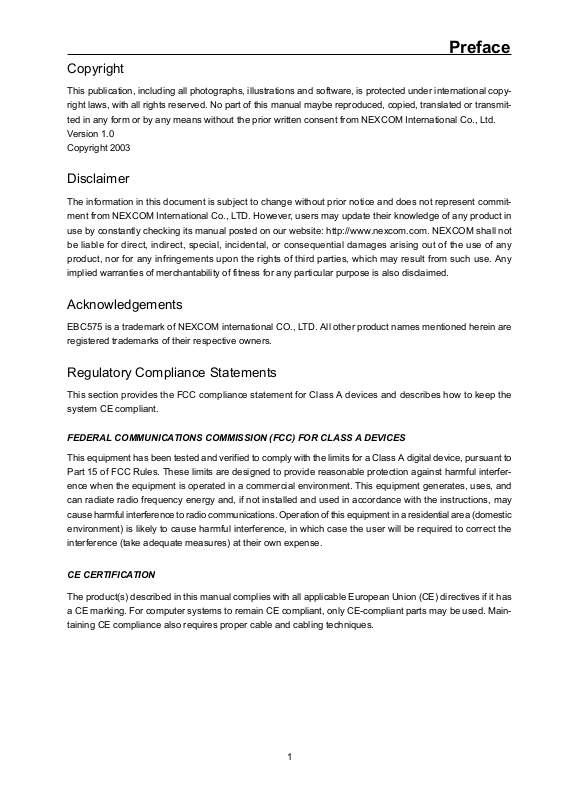

Preface

This publication, including all photographs, illustrations and software, is protected under international copy-

ted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Version 1.0

Disclaimer

The information in this document is subject to change without prior notice and does not represent commit-

ment from NEXCOM International Co., LTD. However, users may update their knowledge of any product in

use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not

be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any

product, nor for any infringements upon the rights of third parties, which may result from such use. Any

implied warranties of merchantability of fitness for any particular purpose is also disclaimed.

Acknowledgements

EBC575 is a trademark of NEXCOM international CO., LTD. All other product names mentioned herein are

registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the

system CE compliant.

FEDERAL COMMUNICATIONS COMMISSION (FCC) FOR CLASS A DEVICES

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to

Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-

ence when the equipment is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic

environment) is likely to cause harmful interference, in which case the user will be required to correct the

interference (take adequate measures) at their own expense.

CE CERTIFICATION

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has

a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Main-

taining CE compliance also requires proper cable and cabling techniques.

WARNINGS

Read and adhere to all warnings, cautions, and notices in this guide and the

documentation supplied with the chassis, power supply, and accessory modules.

If the instructions for the chassis and power supply are inconsistent with these

instructions or the instructions for accessory modules, contact the supplier to

find out how you can ensure that your computer meets safety and regulatory

CAUTION

Electrostatic discharge (ESD) can damage EBC components. Do the described

procedures only at an ESD workstation. If no such station is available, you can

provide some ESD protection by wearing an antistatic wrist strap and attaching

it to a metal part of the computer chassis.

Safety Information

Before installing and using the EBC575, note the following precautions:

 Read all instructions carefully.  Do not place the unit on an unstable surface, cart, or stand.  Follow all warnings and cautions in this manual.  When replacing parts, ensure that your service technician uses parts specified by the manufacturer.  Avoid using the system near water, in direct sunlight, or near a hearing device.

Table of Contents

Preface .............................................................................................................................1

Chapter ............................................................................................................................5

1.1 Features .......................................... .....................................................................................................6

1.2 Specification ..........................................................................................................................................6

1.3 Checklist ................................................................................................................................................8

1.4 Board Layout .........................................................................................................................................9

1.4.1 Front Layout ....................................................................................................................................9

1.4.2 Rear Layout ...................................................................................................................................10

1.5 Board Dimensions ................................................................................................................................11

Chapter 2 Jumper Setting ...........................................................................................12

2.1 Before You Begin ..................................................................................................................................13

2.2 Precautions ...........................................................................................................................................13

2.3 Setting Jumpers .............................. ....................................................................................................14

2.4 Functions of Jumpers ...........................................................................................................................15

2.5 Locating Jumpers and Switches ..........................................................................................................16

2.6 Panel Power Select (J1) ......................................................................................................................17

2.7 CPU Type Select (J25) ........................................................................................................................17

2.8 CMOS clear (JP1) ................................................................................................................................17

2.9 H/W Reset (JP2) ..................................................................................................................................17

2.10 Power LED (JP3) ................................................................................................................................18

2.11 CF Card Master (JP4) ........................................................................................................................18

2.12 Power Connector (JP5 ......................................................................................................................18

Chapter 3 Capability Expanding .................................................................................19

3.1 System Memory ....................................................................................................................................20

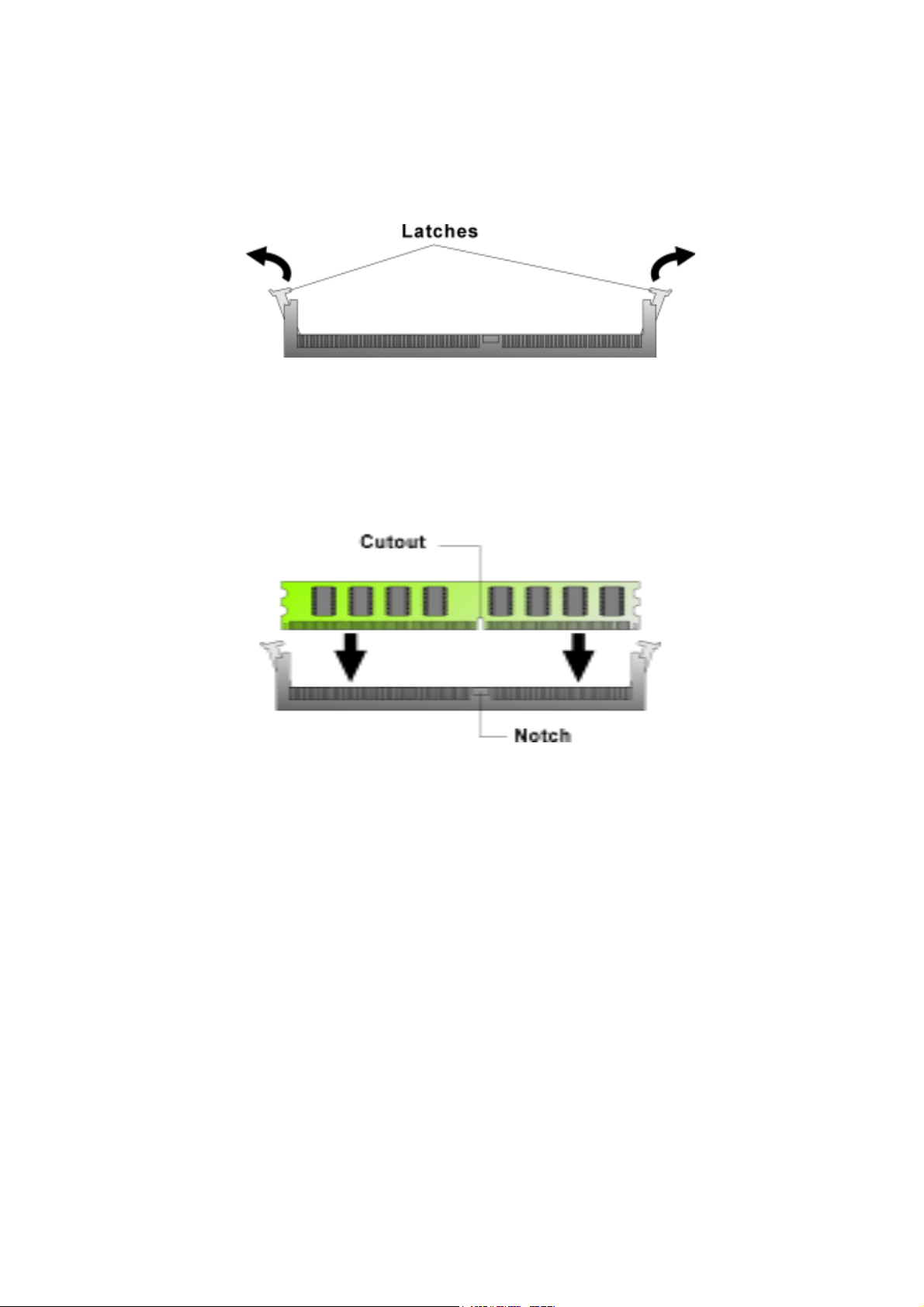

3.2 Installing DIMM .....................................................................................................................................21

3.3 Installing Compact Flash ......................................................................................................................23

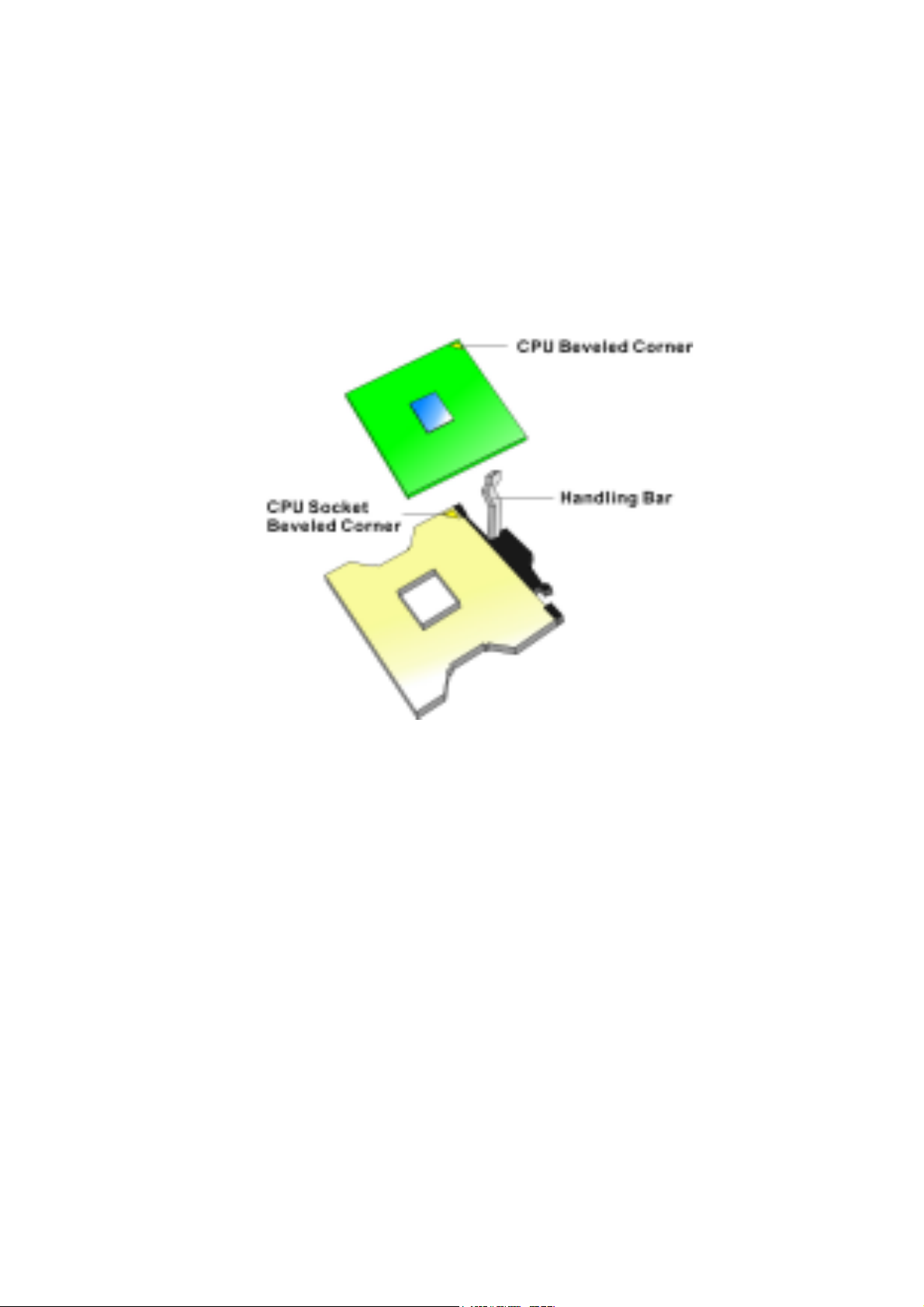

3.4 Change CPU .........................................................................................................................................24

3.5 Installing the Fan Heatsink ..................................................................................................................25

Chapter 4 Award BIOS Setup ......................................................................................28

4.1 About the BIOS ....................................................................................................................................29

4.2 When to Run BIOS ..............................................................................................................................29

4.3 Entering Setup .....................................................................................................................................30

4.4 The Main Menu ....................................................................................................................................30

4.5 Getting Help .........................................................................................................................................31

4.6 Control Keys .........................................................................................................................................32

4.7 Standard CMOS Features ....................................................................................................................33

4.8 Advanced BIOS Features ....................................................................................................................36

4.9 Advanced Chipset Features .................................................................................................................39

4.10 Integrated Peripherals .........................................................................................................................42

4.11 Power Management Setup .................................................................................................................45

4.12 PnP/PCI Configurations ......................................................................................................................48

4.13 PC Health Status ................................................................................................................................50

4.14 Load Fail-Safe Defaults ......................................................................................................................51

4.15 Load Optimized Defaults ....................................................................................................................51

4.16 Set Supervisor/User Password ..........................................................................................................52

4.17 Save & Exit Setup ..............................................................................................................................52

4.18 Exit Without Saving ............................................................................................................................52

Chapter 5 Driver Installation .......................................................................................53

5.1 Installation CD .......................................................................................................................................54

5.2 Installing Drivers for EBC575 ...............................................................................................................55

5.3 Installing Intel Chipset ..........................................................................................................................55

5.4 Installing the On-board VGA ................................................................................................................57

5.5 Installing the Intel ATA Driver ...............................................................................................................58

5.6 Installing the Audio Driver ....................................................................................................................60

5.7 Installing the On-board USB ................................................................................................................61

5.8 Installing the On-board LAN ................................................................................................................63

Appendix A Connectors Pin Definition ......................................................................67

J1: Panel Volt Select Connector ................................................................................................................68

J2: LVDS Panel ..........................................................................................................................................68

J3: LVDS Panel ..........................................................................................................................................68

J4: AC’97 Connector ...................................................................................................................................69

J7: IDE Active LED .....................................................................................................................................69

J9: Fan Connector ......................................................................................................................................69

J10: GPI/O ..................................................................................................................................................69

J11: ASK IR Connector ..............................................................................................................................69

J12: Printer Connector ................................................................................................................................70

J14: USB 2.0 Connector .............................................................................................................................70

J15: Floppy Disk Connector .......................................................................................................................71

J16: COM2 ..................................................................................................................................................71

J17: VGA Connector ..................................................................................................................................71

J22: Keyboard/Mouse Connector ...............................................................................................................72

J23: COM1 .................................................................................................................................................72

J25: CPU Type ...........................................................................................................................................72

J26: Extra Keyboard Connector .................................................................................................................72

J27: SMBus Connector ...............................................................................................................................73

J28: Fan Connector ....................................................................................................................................73

Appendix B Watchdog Timer Setting .........................................................................74

B.1 Watchdog Timer Working Procedure ..................................................................................................74

B.2 Watchdog Timer Control Register .......................................................................................................75

B.3 Watch Dog Timer Programming Procedure ........................................................................................75

Appendix C Programming the GPI/O .........................................................................78

Chapter 1

General Information

1.1 Features

EBC575 Series is a member of NEXCOM’s P4-based Industrial Embedded Main Board Computer family.

The features of this series are as follows:

 Intel

Pentium® 4 processor, Intel® Celeron® processor, or Intel® Pentium® -M processor, up to 3.06

GHz, with Hyper-Threading Technology

845GV Chipset, supporting 400/533 MHz FSB, 266 MHz DDR SDRAM

 DDR 266 memory, up to 2GB, DIMM Socket x 2  Built-in fast Ethernet LAN port x 3

1.2 Specification

System Architecture

 5.25” drive form factor  PCI V2.2 compliant  ACPI 1.0b compliant

CPU support

 Socket 478 for Intel

up to 3.06 GHz, with Hyper-Threading Technology

 400/533 MHz FSB

Pentium® 4 processor, Intel® Celeron® processor, or Intel® Pentium® -M processor,

 512K L2 cache on-die

Memory

 On-board two 184-pin DIMM socket support up to 2GB PC2100/PC1600 DDR ECC/Non Ecc momory

BIOS

 Award system BIOS  Plug & Play  ACPI 1.0b compliant  4M bits flash ROM

Chipset

 Intel  Intel

845GV

82801DBx I/O controller Hub (ICH4)

 Firmware Hub (FWH) 4M bits flash ROM x 1

On-board LAN

 Intel

82551 QM x 2 + ICH4 integrated LAN

 Compliant with PCI V2.1/V2.2

6 Chapter 1EBC575 User’s Manual

On-board VGA

 Intel

82845GV chipset integrated with graphics controller

 Hardware motion compensation assist for software MPEG/DVD decode  64MB VGA share memory  AGP 4X interface (1.5V)  Fully PC98 and PC99 compliant  On-board LVDS transmitters

I/O ports

 VGA: 15-pin CRT connector x 1 / 2.0mm box header 8 x 2 CRT connector / RHS FD 14-pin connector

for LVDS panel output

 LAN: RJ45 with LED connector x 3  USB port x 2, JST 2.0mm 6 pin Connector x 1  SMBus 2.0 controller: 2.0mm 4-pin pin-header connector x 1  Audio: on-board AC’97 2.2 interface connector, 10-pin header x 1  HDD: Ultra ATA support, 40-pin connector x 1, Compact Flash connector x 1  Serial port: 16C550 UARTs, 10-pin box-header x 1, D-Sub connector x 1  Parallel port: Bi-directional, EPP/ECP support, 26-pin connector x 1  FDD: Slim type connector x 1  PS/2 KB/Mouse: 6-pin mini-DIN connector x 1  External KB/Mouse: 8-pin connector x 1  On-board buzzer x 1  GPIO (4 bit TTL input/output with Power & GND), 10-pin pin-header connector x 1  Standard 32-bit PCI slot  ATX Power: 12V power 4-pin connector x 1, 20-pin connector x 1

System Monitor

 Derived from Super I/O ITE 8712F-A to support system monitor  Monitor voltage, fan speed, and temperature

Real time clock

 On-chip RTC with Lithiom battery for data retention

Power Source

 ATX Power Connector x 1  12V Power 4 pin connector x 1

7 Chapter 1EBC575 User’s Manual

Watchdog Timer

 Watchdog timeout can be programmable by software from 1 ~ 128 seconds

Dimensions

 203mm (L) x 146mm (W)

Power Requirements

 +5V / +12V / +3.3V / +3.3VSB / 5VSB

Note: Make sure that your ATX 12V power supply can provide at least 8 mA on the 12V lead and at least

1 mA on the +5 volt standby lead (+5VSB).

The system may become unstable and may experience difficulty powering up if the

power supply in inadequate.

Environment

 Operating temperatures: 0  Storage temperatures: -20

C to 60oC

C to 80oC

 Relative humidity: 10% to 90% (Non-condensing)

Certification

 CE  FCC

1.3 Checklist

 One EBC575 Embedded CPU Board  One EBC575 Quick Reference Guide  One Printer Cable  One 9-pin COM Cable  One FFC Cable  One IDE Cable  One PS/2 Keyboard/Mouse Y-Cable  One EBC575 Driver/Manual CD

8 Chapter 1EBC575 User’s Manual

1.4 Board Layout

1.4.1 Front Layout

Figure 1-1: EBC575 Front Layout

9 Chapter 1EBC575 User’s Manual

1.4.2 Rear Layout

Compact Flash Connector

Figure 1-2: EBC575 Rear Layout

10 Chapter 1EBC575 User’s Manual

1.5 Board Dimensions

Physical Dimensions: 203mm (L) x 146mm (W)

This concludes Chapter 1. The next chapter covers setting up the EBC575.

11 Chapter 1EBC575 User’s Manual

Chapter 2

Jumper Setting

This chapter of the User’s Manual describes how to set jumpers.

2.1 Before You Begin

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a

malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components.

Most of the procedures that follow require only a few simple tools, including the following:

 A Philips screwdriver  A flat-tipped screwdriver  A set of jewelers screwdrivers  A grounding strap  An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-

nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Before working on internal components, make sure that the power is off. Ground yourself before touching

any internal components, by touching a metal object. Static electricity can damage many of the electronic

components. Humid environment tend to have less static electricity than dry environments. A grounding

strap is warranted whenever danger of static electricity exists.

2.2 Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity.

Working on the computers that are still connected to a power supply can be extremely dangerous. Follow the

guidelines below to avoid damage to your computer or yourself:

 Always disconnect the unit from the power outlet whenever you are working inside the case.  If possible, wear a grounded wrist strap when you are working inside the computer case. Alternatively,

discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal

body of any other grounded appliance.

 Hold electronic circuit boards (such as the EBC575 board) by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

 Leave all components inside the static-proof packaging that they shipped with until they are ready for

installation.

 Use correct screws and do not over tighten screws.

EBC575 User’s Manual

Chapter 2

2.3 Setting Jumpers

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the

jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both

pins, the jumper is SHORT. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper

is OPEN. Please see the following illustrations:

The illustrations on the right show

a 2-pin jumper. When the jumper

cap is placed on both pins, the

jumper is SHORT. If you remove

the jumper cap, or place the

jumper cap on just one pin, the

jumper is OPEN.

These illustrations show a 3-pin

jumper. Pins 1 and 2 are SHORT.

Open (Off) Short (On)

Table 2-1: Setting Jumpers

EBC575 User’s Manual

Chapter 2

2.4 Functions of Jumpers

You can use jumpers to set configuration options. The table below defines function of each jumper:

rotcennoC noitcnuF

1JrotcennoCtceleStloVlenaP

2J lenaPSDVL

3JlenaPSDVL

4J rotcennoC79'CA

6JtolSICP

7J DELevitcAEDI

8JrotcennoCrewoPXTAV21

9J rotcennoCnaF

01JO/IPG

11J rotcennoCRIKSA

21JrotcennoCretnirP

41J 0.2BSU

51JrotcennoCksiDyppolF

61J 2MOC

71JrotcennoCAGVlanretxE

22J rotcennoCesuoM/draobyeK

32J1MOC

52J epyTUPC

62JrotcennoCesuoM/BKlanretxE

72J rotcennoCsuBMS

82JrotcennocnaF

92J rotcennoCEDI

1NOCrotcennoCrewoPXTA

1PJ raelCSOMC

2PJnottuBteseR

3PJ DELrewoP

4PJdraCFC

5PJ nottuBrewoP

EBC575 User’s Manual

Table 2-2: Function of Jumpers

Chapter 2

2.5 Locating Jumpers and Switches

This and the following pages show the location of the main board jumpers and switches:

EBC575 User’s Manual

Figure 2-1: EBC575 Board Main Jumpers and Switchs

Chapter 2

2.6 Panel Power Select (J1)

.oNNIPnoitpircseD

2-1*

3-2

* Default

V3.3

2.7 CPU Type Select (J25)

.oNniPnoitpircseD

2-1*

3-2

* Default

2.8 CMOS clear (JP1)

.oNNIPnoitpircseD

2-1*

3-2

lamroN

rossecorP4P

rossecorPM-4P

SOMCraelC

* Default

Note: Clear CMOS procedure:

1. Turn off the system power

2. Short pin 2 and pin 3 on Jumper JP1. Wait 1~2 seconds.

3. Return the jumper back to the normal setting (short pin 1 and 2)

4. Turn the system on. The BIOS is returned to the default settings.

2.9 H/W Reset (JP2)

.oNNIPnoitpircseD

dnuorG

teseRW/H

EBC575 User’s Manual

Chapter 2

J1: LVDS Panel

.oNniPnoitpircseD.oNniPnoitpircseD

J2: LVDS Panel

KLCLENAP

DDV_DCL

P7A

M7A

DNG

P1KLC

M1KLC

DNG

P6A

M6A

P4A

M4A

P5A

M5A

DNG

ATADLENAP

DDV_DCL

rewoP_LKB

.oNniPnoitpircseD.oNniPnoitpircseD

P3A

M3A

DNG

P2A

M2A

KLCLENAP

DDV_DCL

P1KLC

M1KLC

ATADLENAP

P0A

M0A

DDV_DCL

P1A

M1A

DNG

rewoP_LKB

DNG

EBC575 User’s Manual

Chapter 2

2.10 Power LED (JP3)

.oNNIPnoitpircseD

dnuorG

2.11 CF Card Master/Slave Select (JP4)

.oNNIPnoitpircseD

trohS2-1

nepO2-1

retsaM

evalS

2.12 Power Connector (JP5)

.oNNIPnoitpircseD

dnuorG

ffO/nOrewoP

For detail jumper setting information, please refer to Appendix A.

This ends Chapter 2. The next chapter covers EBC575 expending capabilities.

EBC575 User’s Manual

Chapter 2

Chapter 3

Capability Expanding

3.1 System Memory

Your system memory is provided by DIMM’s (Dual In-Line Memory Modules) on the CPU board. The board

contains two memory banks: Bank 0 and 1, corresponds to connector DIMM1, DIMM2.

The table below shows possible DIMM Configurations for the memory banks. Please notice that the EBC575

support Double Data Rate Ram (DDR266). Configurations using different brands of memory modules are

not recommended.

1MMID2MMIDyromeMlatoT

BM821ytpmEBM821

ytpmEBM821BM821

BM821BM821BM652

BM652ytpmEBM652

ytpmEBM652BM652

BM652BM652BM215

BM215ytpmEBM215

ytpmEBM215BM215

BM215BM215BM4201

BM4201ytpmEBM4201

ytpmEBM4201BM4201

BM4201BM4201BM8402

Table 3-1: EBC575 DIMM Configurations

21 Chapter 3EBC575 User’s Manual

3.2 Installing DIMM

To install DIMM

1. Make sure the two handles of the DIMM sockets are in the “open” position, i.e. the handles stay outward.

Figure 3-1: How to Install DIMM (1)

2. Slowly slide the DIMM modules along the plastic guides in the both ends of the socket.

Figure 3-2: How to Install DIMM (2)

22 Chapter 3EBC575 User’s Manual

3. Then press the DIMM module down right into the socket, until a click is heard. That means the two handles

automatically locked the memory modules into the right position of the DIMM socket.

Figure 3-3: How to Install DIMM (3)

4. To take away the memory module, just push the both handles outward, the memory module will be ejected

by the mechanism in the socket.

Figure 3-4: How to Install DIMM (4)

23 Chapter 3EBC575 User’s Manual

3.3 Installing Compact Flash

1. To install a Compact Flash memory card into EBC575, reverse the main board. Align the notches on the

Compact Flash memory card with the Compact Flash socket in the EBC575. Firmly insert the card into the

socket until it is completely seated.

Figure 3-5: How to Install Compact Flash Memory (1)

2. To remove the Compact Flash memory card from EBC575, pull out the memory card from the Compact

Flash socket.

Figure 3-6: How to Install Compact Flash Memory (2)

24 Chapter 3EBC575 User’s Manual

3.4 Change CPU

To change the CPU:

1. Pull the handling bar of the socket upward to the other end to loosen the socket’s openings. Carefully lift

the existing CPU up to remove it from the socket.

2. Place the new CPU on the middle of the socket, orienting its beveled corner to line up with the socket’s

beveled corner. Make sure the pins of the CPU fit evenly to the socket openings. Replace the handling bar to

fasten the CPU to the socket.

Figure 3-7: How to Change CPU

25 Chapter 3EBC575 User’s Manual

3.5 Installing the Fan Heatsink

Use the following instructions for installing the fan heatsink:

1. The heatsink has a thermal interface material attached to the bottom, shown in Figure 3-10. Do not

damage the thermal interface material while installing.

2. Align the fan heatsink and slip assembly (A in Figure 3-9) with the retention mechanism (the fan heatsink

is symmetrical) and place it on the processor (as shown in Figure 3-10). Allow the heatsink base to compress

(without rotating or twisting) the thermal interface material over the surface of the processor’s integrated heat

spreader.

3. With the clip levers (C in Figure 3-9) in the upward position, push down on all four clip frame corners (D in

Figure 3-9) to secure the clip frame latches (E in Figure 3-9) to the retention mechanism hooks (F in Figure

3-9), as shown in Figure 3-11.

Note: Make sure the processor fan cable is free from any obstruction and is not trapped under slip frame (B

in Figure 3-9)

4. Close the clips levers in the opposite direction, one at a time (levers require force to be completely closed),

as shown in Figure 3-12a, in the same time, hold the topside of th fan heatsink with your other hand, please

refer to Figure 3-12b.

Note: It is important to prohibit the heatsink from rotate or twist on the processor’s integrated heat spreader.

Securing the fan heatsink while closing the clip levers will prevent the thermal interface material from

damage and the processor will operate correctly.

5. Close the clip lever (2 in Figure 3-12c), while holding the topside of the fan heatsink with your other hand

(B in Figure 3-12c).

6. Once the clip levers are closed, verify that the heatsink is securely retained and that the clip frame latches

are properly engaged with the retention mechanism hooks.

7. Lastly, connect the processor fan cable to the motherboard fan power header (Figure 3-13). Consult the

motherboard manual to determine the correct fan header to use.

26 Chapter 3EBC575 User’s Manual

Figure 3-9: Installing the Fan Heatsink (1)

Fan Heatsink and Clip Assembly Terminology

Figure 3-10: Installing the Fan Heatsink (2)

Align Fan Heatsink and Clip Assembly

Figure 3-11: Installing the Fan Heatsink (3)

Push Down Clip Frame Corners to

Secure the Retention Mechanism Hooks

27 Chapter 3EBC575 User’s Manual

Figure 3-12a: Installing the Fan Heatsink (4)

Close Clip Levers. One at a Time

Figure 3-12b: Installing the Fan Heatsink (5)

Close Clip Lever (1). While Holding

the Topside of Fan Heatsink (A)

Figure 3-12c: Installing the Fan Heatsink (6)

Close Clip Lever (2), while Holding

the Topside of Fan Heatsink (B)

This concludes chapter 3. The next chapter covers Award BIOS Setup.

Figure 3-13: Installing the Fan Heatsink (7)

Connect Fan Cable to the Main board

28 Chapter 3EBC575 User’s Manual

Chapter 4

Award BIOS Setup

This chapter explains how to use the BIOS Setup program for the EBC 575. The current BIOS setup pictures

in the chapter is for reference only, which may change by the BIOS modification in the future. User can

download any major updated items or reversion from NEXCOM web site http://www.nexcom.com.tw. If any

unclear message occurs, please contact NEXCOM customer service representative for help or log onto

http://www.nexcom.com.tw/contact/contact.htm.

4.1 About the BIOS

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make

changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-

based configuration utility that displays the system’s configuration status and provides you with a tool to set

system parameters. These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves

this information even when the power is turned off. When the system is turned back on, the system is

configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

 Hard drives, diskette drives, and peripherals  Video display type and display options  Password protection from unauthorized use  Power management features

The settings made in the Setup program intimately affect how the computer performs. It is important, therefore,

first try to understand all the Setup options, and second, to make settings appropriate for the way you use the

computer.

4.2 When to Run BIOS

This program should be executed under the following conditions:

 When changing the system configuration  When a configuration error is detected by the system and you are prompted to make changes to the

Setup program

 When resetting the system clock  When setting the CPU clock speed so that it automatically runs either fast or slow  When redefining the communication ports to prevent any conflicts  When making changes to the Power Management configuration  When changing the password or making other changes to the security setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained

in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

30 Chapter 4EBC575 User’s Manual

4.3 Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These rou-

tines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two

different ways:

 If the error occurs before the display device is initialized, a series of beeps will be transmitted.  If the error occurs after the display device is initialized, the screen will display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter

Setup is to power on the computer and wait for the following message during the POST:

TO ENTER SETUP BEFORE BOOT

PRESS <CTRL-ALT-ESC> OR <DEL> KEY

Press the <Del> key or press the <Ctrl>, <Alt>, and <Esc> keys to enter Setup:

4.4 The Main Menu

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 4-1) will appear on the screen. The

main menu allows you to select from ten setup functions and two exit choices. Use arrow keys to select

among the items and press <Enter> to accept or enter the sub-menu.

Figure 4-1: BIOS Setup Utility Main Menu

Standard CMOS Features

Use this menu for basic system configuration.

Advanced BIOS Features

Use this menu to set the Advanced Features available on the system.

31 Chapter 4EBC575 User’s Manual

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize the system’s performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

PnP/PCI Configurations

This entry appears if your system supports Plug and Play and PCI Configuration.

PC Health Status

Displays CPU, System Temperature, Fan Speed, and System Voltages Value.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable performance for your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values, i.e., factory settings for optimal performance system operations.

While Award has designed the custom BIOS to maximize performance, the factory has the option to change

these defaults to meet their needs.

Set Supervisor/User Password

Enables you to change, set, or disable the supervisor or user password.

Save & Exit Setup

Saves CMOS value changes to CMOS and exits setup

Exit Without Saving

Ignores all CMOS value changes and exits setup.

4.5 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selec-

tions for the highlighted item. To exit the Help Window press <F1> or <Esc>.

32 Chapter 4EBC575 User’s Manual

4.6 Control Keys

The table below lists the keys that help you navigate the setup program.

Up arrow

Down arrow

Left arrow

Right arrow

Esc key

Enter Key

PgUp/plus key

Move to previous item

Move to next item

Move to the item to the left

Move to the item to the right

Main Menu: Quit without saving changes to CMOS

Status/Option Page Setup Menus: Exit current page

and return to Main Menu.

Select or Accept an Item

Increase the numeric value or make changes

PgDn/minus key

F1 key

F2/Shift + F2

key

F5 key

F6 key

F7 key

F9 Key

F10 key

Decrease the numeric value or make changes

General help, only for Status Page Setup Menu and

Option Page Setup Menu

Change color from total 16 colors. F2 to select color

forward, (Shift) F2 to select color backward

Restore the previous CMOS value from CMOS

(only for Option Page Setup Menu)

Load the default CMOS value from BIOS default

table (only for Option Page Setup Menu)

Load the Setup default value (only for Option Page

Setup Menu)

Menu in BIOS

Save all the CMOS changes (only for Main Menu)

Table 4-1: BIOS Control Keys

33 Chapter 4EBC575 User’s Manual

4.7 Standard CMOS Features

Selecting Standard CMOS Features on the main program screen displays the following menu:

Figure 4-2: BIOS - Standard CMOS Features

The Standard CMOS Setup utility is used to configure the following features:

Date (mm:dd:yy)

The BIOS determines the day of the week from the other data information. This field is for information only.

Press the left or right arrow key to move to the desired field (date, month, year). Press the PgUp or PgDn key

to increment the setting, or type the desired value into the field.

Time (hh:mm:ss)

The time format is based on the 24-hour military time clock. For example, 1 p.m. is 13:00:00. Press the left or

right arrow key to move to the desired field. Press the PgUp or Pg Dn key to increment the setting, or type the

desired value into the field.

IDE Devices:

Your computer has two IDE channels (Primary and Secondary) and each channel can be installed with one

or two devices (Master and Slave). Use these items to configure each device on the IDE channel. Press

<Enter> to display the IDE submenu:

34 Chapter 4EBC575 User’s Manual

Figure 4-3: BIOS – IDE Primary Master

IDD HDD Auto Detection

Press <Enter> while this item is highlighted if you want the Setup Utility to automatically detect and configure

a hard disk drive on the IDE channel.

If your system has an IDE hard drive, you can use this utility to detect its parameters and enter them into the

Standard CMOS Setup automatically.

If the auto-detected parameters displayed do not match the one that should be used for your hard drive, do

not accept them. Press <N> key to reject the values and enter the correct one manually in the Standard

CMOS Setup screen.

Note: If you are setting up a new hard disk drive that supports LBA mode, more than one line will appear in

the parameter box. Choose the line that lists LBA for an LBA drive.

Do not choose Large or Normal if the hard disk drive is already fully formatted when you installed it. Select the

mode that was used to format it.

IDE Primary/Secondary Master/Slave

If you leave this item at Auto, the system will automatically detect and configure any IDE devices it finds. If it

fails to find a hard disk, change the value to Manual and then manually configure the drive by entering the

characteristics of the drive in the items below:

 Capacity Approximate hard disk drive capacity  Cylinder Number of cylinders  Head Number of heads  Precomp Write pre-compensation cylinder  Landing Zone Landing zone  Sector Number of sectors

Refer to your drive’s documentation or look on the drive if you need to obtain this information. If no device is

installed, change the value to None.

35 Chapter 4EBC575 User’s Manual

Access Mode

This item defines some special ways that can be used to access IDE hard disks such as LBA (Logical Block

Addressing). Leave this value at Auto and the system will automatically decide the fastest way to access the

hard disk drive.

Press <Esc> to close the IDE device submenu and return to the Standard CMOS Features page.

Floppy Drive A

Select this field to the type of floppy disk drive installed in your system. The choices are:

 None No floppy drive installed  360K, 5.25 in 5-1/4 inch PC type standard drive; 360 kilobyte capacity  1. 2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2 megabyte capacity  720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte capacity  1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 megabyte capacity  2. 88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 megabyte capacity

Note: The None option could be used for diskless workstations.

Floppy 3 Mode Support

Floppy 3 mode refers to 3.5” diskette with a capacity of 1.2 MB. This mode is sometimes used in Japan.

Video

Set this field to the type of graphics card installed in your system. If you are using a BGA or higher resolution

card, choose the EGA/VGA option. The options are:

 EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For EGA, VGA, SEGA or PGA

monitor adapters

 CGA40 Color Graphics Adapter, power up in 40 column mode  CGA80 Color Graphics Adapter, power up in 80 column mode  MONO Monochrome adapter, includes high resolution monochrome adapters

Halt On

During the Power-On Self-Test (POST), the computer stops if the BIOS detect a hardware error. This setting

determines which type of error will cause the system to halt during boot. The options are:

 All Error: Whenever the BIOS detects a non-fatal error, the system will be stopped and you will be

prompted.

 No Errors: The system boot will not stop for any error that may be detected.  All, But Keyboard: The system boot will not stop for a keyboard error, but it will stop for all others.  All, But Diskette: The system boot will not stop for a disk error, but it will stop for all others.  All, But Disk/Key: The system boot will not stop for a keyboard or disk error, but it will stop for all others.

36 Chapter 4EBC575 User’s Manual

Base/Extended/Total Memory

This category is display-only. The contents are determined by the POST (Power-On Self-Test) of the BIOS.

You cannot make changes to these fields.

 Base Memory: Also called conventional memory. The DOS operating system and conventional

applications use this area.

 Extended Memory: The POST of the BIOS will determine the amount of extended memory installed in

the system.

 Total Memory: This option shows system memory capacity.

After you have made your selections in the Standard CMOS Setup screen, press <ESC> to go back to the

main screen.

4.8 Advanced BIOS Features

Selecting Advanced BIOS Feature on the main program screen displays this menu, which allows you to

define advanced information about your system. You can make modifications to most of these items to

improve your system performance or set up system features according to your preference, without causing

fatal errors to your system.

Figure 4-4: BIOS – Advanced BIOS Features

The following explains the options for each feature:

Virus Warning

Allow you to choose the Virus Warning feature for IDE Hard Disk boot sector protection. If this function is

enabled and someone attempts to write data into this area, BIOS will show a warning message on screen

and an alarm will beep.

37 Chapter 4EBC575 User’s Manual

 Enabled: Activates automatically when the system boots up causing the following warning message to

appear when anything attempts to access the boot sector or hard disk partition table:

! WARNING !

Disk boot sector is to be modified

Type “Y” to accept write or “N” to abort write

Award Software, Inc.

 Disabled: No warning message will appear when an attempt is made to access the boot sector or hard

disk partition table.

Note: This function is available only for DOS and other operating systems that do not trap INT13. For

complete protection against viruses, install virus software in your operating system and update the

virus definitions regularly.

Many disk diagnostic programs that access the boot sector table can trigger the virus warning message.

If you plan to run such a program, we recommend that you disable the virus warning.

CPU L1 & L2 Cache

Cache memory is additional memory that is much faster than conventional DRAM (system memory). This

BIOS feature is used to enable or disable the processor’s Level 1 and Level 2 cache. Naturally, the default

and recommended setting is Enabled.

Hyper Threading Technology

The Intel Hyper-Threading Technology allows a single processor to execute two or more separate threads

concurrently. When hyper-threading is enabled, multi-threaded software applications can execute their threads

in parallel, thereby improving the processor’s performance.

Quick Power-On Self-Test

Select Enabled to reduce the amount of time required to run the Power-On Self-Test (POST). A quick POST

skips certain steps. We recommend that you normally enable quick POST.

First/Second/Third Boot Device

BIOS attempts to load the operating system from the devices in the sequence selected. The available choices

are: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-2, HDD-3, ZIP100, USB-FDD, USB-ZIP, USB-

CDROM, USB-HDD, LAN, and Disabled.

Boot Other Device

If the selected boot devices fail to boot, selecting Enabled for this item allows the BIOS to boot from other

boot devices (in a predefined sequence) which are present but not selected as boot devices in the setup.

Boot Up Floppy Seek

Enable this to allow the system to search for floppy drives during the POST. Disable this item to boot faster.

Boot Up NumLock Status

Toggle between On or Off to control the state of the NumLock key when the system boot. If On, the numeric

keypad is in numeric mode. If Off, the numeric keypad is in cursor control mode.

38 Chapter 4EBC575 User’s Manual

Gate A20 Option

Gate A20 refers to the way the system addresses memory above 1MB (extended memory). This feature

enables you to select whether the chipset or the keyboard controller should control Gate A20. The options

are:

 Normal: A pin in the keyboard controller controls Gate A20  Fast: Let system chipsets control Gate A20. The fast setting improves system speed, particularly with

OS/2 and windows.

Typematic Rate Setting

If set to Enabled, enables you to set the Typematic Rate and Typematic Delay. When Disabled, the following

two items (Typematic Rate and Typematic Delay) are irrelevant. Keystroke repeats at a rate determined by

the keyboard controller in your system.

 Typematic Rate (Chars/Sec): When the typematic rate setting is Enabled, you can select a typematic

rate (the rate at which character repeats when you hold down a key) of 6, 8, 10, 12, 15, 20, 24, or 30

characters per second.

 Typematic Delay (Msec): This setting controls the time between the display of the first character and

successive characters. There are four delay choices: 250ms, 500ms, 750ms and 1000ms.

Security Option

Enables you to select whether the password is required every time the system boots or only when you enter

Setup.

 System: The system will not boot and access to Setup will be denied if the correct password is not

entered at the prompt.

 Setup: The system will boot, but access to Setup will be denied if the correct password is not entered

at setup.

APIC Mode

The APIC Mode BIOS feature is used to enable or disable the motherboard’s APIC (Advanced Program-

mable Interrupt Controller). If your single-processor motherboard supports APIC and you are using a Win32

operating system (Windows NT, 2000 and XP), it’s recommended that you enable this feature to allow faster

and better IRQ handling. If you are using a multiprocessor motherboard, you must enable this feature be-

cause it’s required for IRQ handling in multiprocessor systems.

MPS Version Control for OS

This feature is only applicable to multiprocessor motherboards as it specifies the version of the Multi-Proces-

sor Specification (MPS) that the motherboard will use. The MPS is a specification by which PC manufactur-

ers design and build Intel architecture systems with two or more processors.

MPS version 1.4 is required for a motherboard to support a bridgeless secondary PCI bus.

OS Select for DRAM>64MB

Set to OS2 if the system memory size is greater than 64 MB and the operating system is OS/2, otherwise

select Non-OS2 option.

39 Chapter 4EBC575 User’s Manual

HDD S.M.A.R.T. Capability

Built in problem-detection capability (Self Monitoring Analysis and Reporting Technology) of hard disk drives

signals warning of any foreseen problem. The choices are: Enable, Disable.

For using the S.M.A.R.T. feature you would require an operating system that supports the S.M.A.R.T. feature

i.e. Windows 95 or higher.

Summary Screen Show

This item allows you to enable/ disable the summary screen. Summary screen means system configuration

and PCI device listing. The Choices: Enabled, Disabled.

Spread Spectrum Modulated

This item allows you to enable/disable the spread spectrum modulate to reduce EMI. The choices are En-

abled and Disabled.

After you have made your selections in the Advanced BIOS Features setup, press <ESC> to go back to the

main screen.

4.9 Advanced Chipset Features

Since the features in this section are related to the chipset in the CPU board and all are optimized, you are not

recommended to change the default settings in the setup table, unless you understand the chipset features.

This section allows you to configure the system based on the specific features of the installed chipset. This

chipset manage bus speeds and access to system memory resources, such as DRAM and the external

cache. It also coordinates communications between the conventional ISA bus and the PCI bus. The default

settings have been chosen because they provide the best operating conditions for your system. The only

time you might consider making any changes would be if you discovered that data was being lost while using

your system.

The first chipset settings deal with CPU access to dynamic random access memory (DRAM). The default

timings have been carefully chosen and should only be altered if data is being lost. Such a scenario might

well occur if your system has mixed speed DRAM chips installed so that greater delays may be required to

preserve the integrity of the data held in the slower memory chips.

Selecting Advanced Chipset Features on the main program screen displays this menu:

40 Chapter 4EBC575 User’s Manual

Figure 4-5: BIOS – Advanced Chipset Features

DRAM Timing Selectable

The choices are: Manual, and By SPD. The option “By SPD” enables the system to automatically set the

SDRAM timing by Serial Presence Detect (SPD). SPD is an EEPROM chip on the DIMM module that stores

information about the memory chips it contains, including size, speed, voltage, row and column addresses,

and manufacturer. Select “Manual” allows users manually set the following four timing parameters for the

system memory.

CAS Latency Time

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM

timing. Do not reset this field from the default value specified by the system designer. The choices are: 1.5,

2, 2.5, 3.

Active to Precharge Delay

This item controls the number of DRAM clocks for TRAS. The choices: 5, 6, 7.

DRAM RAS# to CAS# Delay

This field let you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written

to, read from, or refreshed. Fast gives faster performance; and slow gives more stable performance. This

field applies only when synchronous DRAM is installed in the system. The choices are: 2, 3.

DRAM RAS# Precharge

If an insufficient number of cycles is allowed for the RAS to accumulate its charge before DRAM refresh, the

refresh may be incomplete and the DRAM may fail to retain data. Fast gives faster performance; and Slow

gives more stable performance. This field applies only when synchronous DRAM is installed in the system.

The choices are 2 and 3.

System BIOS cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system

performance. However, if any program writes to this memory area, a system error may result. The available

choices are Enabled, Disabled.

41 Chapter 4EBC575 User’s Manual

Video BIOS Cacheable

Selecting Enabled allows caching of the video BIOS ROM at C0000h, resulting in better video performance.

However, if any program writes to this memory area, a system error may result. The choices: Enabled,

Disabled.

Memory Hole At 15M – 16M

In order to improve performance, certain space in memory is reserved for ISA cards; This memory must be

mapped into the memory. The choices: Enabled, Disabled.

Delayed Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled

to support compliance with PCI specification version 2.1.

AGP Aperture Size (MB)

This item defines the size of the aperture if you use an AGP graphics adapter. The AGP aperture refers to a

section of the PCI memory address range used for graphics memory. The available choices are: 4MB, 8MB,

16MB, 32MB, 64MB, 128MB and 256MB.

On-Chip VGA

By default, the On-Chip VGA or chipset-integrated VGA is Enabled.

On-Chip Frame Buffer Size

The On-Chip Frame Buffer Size can be set as 1MB or 8MB. This memory is shared with the system memory.

Boot Display

Boot Display determines the display output device where the system boots. The options are Auto, CRT and

LVDS.

Panel Scaling

This field allows user to decide the panel scaling. The available choices are: Auto, on and off.

Panel Type

This field allows user to decide the LVDS panel resolution. The available choices are: 800 x 600, 1024 x 768,

1280 x 1024, 1400 x 1050, and 1600 x 1200

After you have made your selections in the Advanced Chipset Features setup, press <ESC> to go back to the

main screen.

42 Chapter 4EBC575 User’s Manual

4.10 Integrated Peripherals

Figure 4-6: BIOS – Integrated Peripherals

Onboard LAN1/2/3 H/W Active

Enables and disables the onboard LAN modules.

Onboard LAN Boot ROM

Decides whether to invoke the boot ROM of the onboard LAN chip. The available choices are LAN1, LAN2,

LAN3 and Disabled.

On-Chip Primary/Secondary PCI IDE

The system chipset contains a PCI IDE interface with support for an IDE channel. Select Enabled to activate

the primary IDE interface. Select Disabled to deactivate this interface.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIC (Programmable Input/Output) fields let you set a PIC mode (0-1) for each of the four IDE

devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased

performance. In Auto mode, the system automatically determines the best mode for each device. The choices

are: Auto, Mode 0, Mode 1, Mode 2, Mode 3, and Mode 4.

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA implementation is possible only if your IDE hard drive supports it and the operating environment

includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your

system software both support Ultra DMA, select Auto to enable BIOS support. The choices are Auto, and

Disabled.

43 Chapter 4EBC575 User’s Manual

USB Controller

Select Enabled if your system contains a Universal Serial Bus controller and you have USB peripherals.

USB 2.0 Controller

Select Enabled if your system contains a Universal Serial Bus 2.0 controller and you have USB peripherals.

USB Keyboard Support

Select Enabled if your USB controller is enabled and it needs USB keyboard support in legacy OS operating

systems such as DOS.

AC’97 Audio

Selecting Auto will enable the AC’97 audio if it is detected on-board.

AC’97 Modem

Selecting Auto will enable the AC’97 modem, if it is detected on-board.

Init Display First

This feature allows you to select whether to boot the system using the on-board AGP graphics card or the

PCI graphics card.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard

drive supports block mode (most new drives do), select Enabled for automatic detection of the optional

number of block read/write per sector the drive can support. The available choices are Enabled, Disabled.

Power ON Function

Select the different manners for powering on the system. The choices: Password, Hot KEY, Mouse Move,

Mouse Click, Any KEY, BUTTON ONLY, and Keyboard 98.

KB Power ON Password

Set a desired password here if user selects “Password” for the power on function. When the system is in soft-

off mode, suspend to RAM or suspend to HDD, entering the correct password to start the system.

Hot Key Power ON

Select a desired hot key if user selects “Hot KEY” for the power on function. When the system is in soft-off

mode, suspend to RAM or suspend to HDD, entering the correct hot key to start the system. The choices are:

Ctrl + F1, Ctrl + F2, ….. Ctrl + F12.

Onboard FDC Controller

This feature allows you to enable or disable the onboard floppy drive controller. If you are using a floppy drive

connected to the motherboard's built-in floppy drive controller, leave it at the default setting of Enabled. But if

you are using an add-on floppy drive controller card or if you are not using any floppy drives at all, set it to

Disabled to save an IRQ. Other devices can then use the free IRQ.

44 Chapter 4EBC575 User’s Manual

Onboard Serial Ports (1, 2)

This feature allows you to manually select the I/O address and IRQ for the first and second serial ports. It is

recommended that you leave it as Auto so that the BIOS can select the best settings for it. But if you need a

particular I/O port or IRQ that's been taken up by this serial port, you can manually select an alternative I/O

port or IRQ for it. You can also disable this serial port if you do not need to use it. Doing so frees up the I/O

port and IRQ used by this serial port. Those resources can then be reallocated for other devices to use.

UART Mode Select

Select an operating mode for the serial port.

The choices are: Normal, IrDA, ASKIR, SCR.

UR2 Duplex Mode

In an infrared port mode, this field appears. Full-duplex mode permits simultaneous two-direction transmission.

Half-duplex mode permits transmission in one direction only at a time. Select the value required by the IR

device connected to the IR port.

Onboard Parallel Port

This feature allows you to select the I/O address and IRQ for the onboard parallel port. The default I/O

address of 378h and IRQ of 7 should work well in most cases. Unless you have a problem with the parallel

port, you should leave it at the default settings. The choices: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, and Disabled.

Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. There are four options: SPP (Standard

Parallel Port), EPP (Enhanced Parallel Port), ECP (Extended Capabilities Port) and ECP+EPP.

ECP Mode Use DMA

When the on-board parallel port is set to ECP mode, the parallel port can use DMA3 or DMA1.

After you have made your selections in the Integrated Peripherals setup, press the <ESC> key to go back to

the main program screen.

45 Chapter 4EBC575 User’s Manual

4.11 Power Management Setup

This option lets you control system power management. The system has various power-saving modes in-

cluding powering down the hard disk, turning off the video, suspending to RAM, and software power down

that allows the system to be automatically resumed by certain events.

The power-saving modes can be controlled by timeouts. If the system is inactive for a time, the timeouts

begin counting. If the inactivity continues so that the timeout period elapses, the system enters a power-

saving mode. If any item in the list of Reload Global Timer Events is enabled, then any activity on that item will

reset the timeout counters to zero.

If the system is suspended or has been powered down by software, it can be resumed by a wake up call that

is generated by incoming traffic to a modem, a LAN card, a PCI card, or a fixed alarm on the system real-time

clock.

Selecting Power Management Setup on the main program screen displays this menu:

Figure 4-7: BIOS – Power Management Setup

Soft-Off by PWR-BTTN

This function can turn the system off with the on/off button places the system in a very low-power-usage

state, with only enough circuitry receiving power to detect power button activity or Resume by Ring activity.

The choices are Delay 4 seconds, and Instant-Off.

PWRON After PWR-Fail

This setting specifies whether your system reboots after a power failure, when using ATX power supply.

There are three selections:

Off: The system will remain off when power comes back after a power failure.

On: The System will switch on when power comes back after a power failure.

Former-Sts: The system will return to the last state before the power failure when power returns.

46 Chapter 4EBC575 User’s Manual

ACPI Function

The ACPI standard (Advanced Configuration and Interface power) allows the operating system directly to

check the functions of energy saving and the PnP (Plug and Play) functionality. The ACPI functions are

normally activated by the BIOS. The choices are: Enabled and Disabled.

Power Management

This category allows you to select the type (or degree) of power saving and is directly related to the following

modes: HDD Power Down, Doze Mode and Suspend Mode

 Min. Saving: Minimum power management.  Max. Saving: Maximum power savings. Only Available for SL CPUs.  User Define: Allows you to set each mode individually.

Video Off Method

This determines the manner in which the monitor is blanked. There are three choices:

 V/H SYNC+Blank: This selection will cause the system to turn off the vertical and horizontal synchro

nization port and write blanks to the video buffer.

 Blank Screen: This option only writes blanks to the video buffer.  DPMS Support: Select this option if your monitor supports the Display Power Management signaling

(DPMS) standard of the Video Electronics Standard to select video power management values.

Video Off In Suspend

This determines the manner in which the monitor is blanked. The choices: Yes, No.

Suspend Type

Select the Suspend Type. The choices: PwrOn Suspend, Stop Grant.

MODEM Use IRQ

This determines the IRQ in which the MODEM can use. The choices are 3, 4, 5, 7, 9, 10, 11, and NA.

Suspend Mode

When enabled and after the set time of system inactivity, all devices except the CPU will be shut off. After the

selected period of system inactivity, the chipset enters hardware suspend mode. Stopping the CPU clock will

possibly cause other system devices to enter power management modes.

 Disabled: The system will never enter Suspend mode  1 Min ~ 1 Hour: Defines the continuous idle time before the system entering Suspend mode.

HDD Power Down

When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all

other devices remain active.

 Disabled: HDD’s motor will not be off.  I Min ~ 15 Mins: Defines the continuous HDD idle time before the HDD entering power saving mode

(motor off).

47 Chapter 4EBC575 User’s Manual

Power Supply Type

ATX supports a smarter power supply, which can turn on and off in response to port activity and software

control. Select ATX mode enable you to set soft off type and state after power failure.

State After Power Failure

This field determines the state that your PC returns to after a power failure. If set to Off, the PC will not boot

after a power failure. If set to On, the PC will restart after a power failure.

PM Control by APM

Power Management Control by Advanced Power Management. Enables and disables APM. When enabled,

an APM device activate enhanced maximum Power Saving mode and stop the CPU internal clock.

Video Off Option

This option defines if the video is powered down when the system turns into suspend mode.

 Always on: System BIOS will never turn off the screen  Suspend => Off: Screen off when system is in SUSPEND mode  All mode => Off: Screen off when system is in DOZE, STANDBY or SUSPEND mode

HDD Power Down

After the selected period of drive inactivity, the hard disk drive powers down while all other devices remain

active.

Wake-Up by Onboard LAN/PCI

When the system enters a Soft-off mode (Standby power exist but system is not working), it will wake up

system when specific signals occurred. The BIOS monitors the system for “activity” to determine when to

enable power management.

If you enable this feature, the computer specifies that any signal noticed on the LAN and PCI (Peripheral

Component Interconnect) bus channel must make go out from the hibernation state. The choices: Enabled,

Disabled.

Power On by Ring

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem) awakens

the system from a soft off state. The choices: Enabled, Disabled.

Resume by Alarm

When enabled, you can set the data and time at which the RTC (real-time clock) alarm awakens the system

from Suspend mode. The choices are Enabled, and Disabled. If you enabled this function, set the date and

time for the followings.

Reload Global Timer Events

Primary IDE 0

Primary IDE 1

Secondary IDE 1

FDD, COM, LPT Port

PCI PIRQ [A-D]#

48 Chapter 4EBC575 User’s Manual

The events are I/O events whose occurrence can prevent the system from entering a power saving mode or

can awaken the system from such a mode. In effect, the system remains alert for anything, which occurs to

a device, which is configured as Enabled, even when the system is in a power down mode. The choices are

Enabled, and Disabled.

After you have made your selections in the Power Management setup, press the <ESC> key to go back to

the main program screen.

4.12 PnP/PCI Configurations

This section describes configuring the PCI bus system. Peripheral Component Interface, is a system which

allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its

own special components. This section covers some very technical items and it is strongly recommended that

only experienced users should make any changes to the default settings.

Selecting PnP/PCI Configurations on the main program screen displays this menu:

Figure 4-8: BIOS – PnP/PCI Configurations

PNP OS Installed

Select Yes if the system operating environment is Plug and Play aware (e.g. Windows 95 and up). The

available choices are: Yes and No.

Note: BIOS will automatically disable all PnP resources except the boot device card when you select Yes on

Non-PnP operating system.

Reset Configuration Data

Normally, you leave this field Disabled, Select Enabled to reset Extended System Configuration Data (ESCD)

when you exit Setup if you have installed a new add-on Card and the system reconfiguration has caused

such a serious conflict that the operating system can not boot. The choices are Enabled and Disabled.

49 Chapter 4EBC575 User’s Manual

Resources Controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play

compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play

operating system such as going into each of the submenus that follows this field. The choices are Auto

(ESCD) and Manual.

IRQ Resources

When User select Manual for Resource Controlled, this setting allow the user to specify what IRQ will be

assigned to PCI devices in the chosen slot. Options available: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14 and 15.

Memory Resource

Memory length can be reserved as 8 KB, 16 KB, 32 KB or 64 KB and its address can be selected from C800

to DC00. Reserved memory address can not be modified when "Resource Controlled" is Auto.

PCI/VGA Palette Snoop

This setting is used only to solve the visualization problems with dedicated MPEG decompression cards. In

such specific case, setup the voice on Enabled to allow the BIOS to monitor the visualization passages

between the principal card and the card of decodes. The default setting is Disabled.

Assign IRQ for VGA

Enable this setting assigns an IRQ channel to the graphic card, allows the revival of the system from a

hibernation state when activity is noticed on the graphic card. If you are not using your system’s VGA controller,

select Disabled to free the IRQ resource.

Assign IRQ for USB

Select Enabled if your system has a USB controller and you have one or more USB devices connected. If you

are not using your systems USB controller, select Disabled to free the IRQ resource.

PCI Latency Timer (CLK)

The latency timer defines the minimum amount of time, in PCI clock cycles, that the bus master can retain

the ownership of the bus. The Choices are from 0 to 255. The default value is 32.

After you have made your selections in the PnP/PCI Configuration setup, press the <ESC> key to go back to

the main program screen.

50 Chapter 4EBC575 User’s Manual

4.13 PC Health Status

When main boards support hardware monitoring, this item lets you monitor the parameters for critical voltages,

critical temperatures, and fan speeds.

Selecting PC Health Status on the main program screen displays this menu:

Figure 4-9: BIOS – PC Health Status

System Monitor Device

Enables/Disables the System Monitor device. When enabled, the system will monitor some system states

such as temperature and power supplies.

Shutdown Temperature

The system will automatically shutdown when it reaches the temperature you selected. The choices are:

60oC/140oF, 65oC/149oF, 70oC/158oF, and disabled.

After you have made your selections in the PC Health Status setup, press the <ESC> key to go back to the

main program screen.

51 Chapter 4EBC575 User’s Manual

4.14 Load Fail-Safe Defaults

Figure 4-10: BIOS – Load Fail-Safe Defaults

This option opens a dialog box that lets you install fail-safe defaults for all appropriate items in the whole

setup utility. Press the <Y> key and then <Enter> to install the defaults. Press the <N> key and then <Enter>

to not install the defaults.

Use this option if you have changed your system and it does not operate correctly or does not power up.

4.15 Load Optimized Defaults

Figure 4-11: BIOS – Load Optimized Defaults

52 Chapter 4EBC575 User’s Manual

This option opens a dialog box that lets you install optimized defaults for all appropriate items in the whole

setup utility. Press the <Y> key and then <Enter> to install the defaults. Press the <N> key and then <Enter>

to not install the defaults. The optimized defaults place demands on the system that may be greater than the

performance level of the components, such as the CPU and the memory. You can cause fatal errors or

instability if you install the optimized defaults when your hardware does not support them. If you only want to

install setup defaults for a specific option, select and display that option, and then press the <F7> key.

4.16 Set Supervisor/User Password

The Supervisor/User Password utility sets the password. The main board is shipped with the password

disabled. If you want to change the password, you must first enter the current password, then at the prompt

enter your new password. The password is case sensitive. You can use up to eight alphanumeric characters.

Press <Enter> after entering the password. At the next prompt, confirm the new password by retyping it and

pressing <Enter> again.

To disable the password dialog box appears. A message appears confirming that the password has been

disabled. If you have set supervisor and user Password, only the supervisor password allows you to enter the

BIOS setup program.

Note: If you forget your password, the only way to solve this problem is to discharge the CMOS memory by

turning power off and placing a shunt (jumper cap) on jumper JP2 to short pin 2 and pin 3 for five

seconds, then putting the shunt back to pin 1 and pin 2 of JP2.

4.17 Save & Exit Setup

Selecting this option and pressing <Enter> will save the new setting information in the CMOS memory and

continue with the booting process.

4.18 Exit Without Saving

Selecting this option and pressing <Enter> will exit the Setup utility without recording any new values or

changing old ones.

This concludes Chapter 4. The next chapter covers drivers installing.

53 Chapter 4EBC575 User’s Manual

Chapter 5

Driver Installation

EBC575 Series comes with a bundled drivers CD that enables you to install Intel chipset, Intel Ata, VGA, LAN

and Audio drivers. These drivers may be updated or re-versioned without any further notice. Please visit

NEXCOM web site http://www.nexcom.com.tw frequently for new information.

Note: The installation instructions in this manual are based on Windows 2000 operation system.

5.1 Installation CD

Please follow the below instructions to find Intel chipset, VGA, USB and LAN drivers in the driver CD to

implement installation.

Step 5.1.1

Place the Driver CD into your CD-ROM drive.

Open My Computer on your desktop.

Step 5.1.2

My computer menu appears. Double click your

CD-ROM drive to open.

55 Chapter 5EBC575 User’s Manual

5.2 Installing Drivers for EBC575

The following sections cover the drivers installation for the EBC575. Refer the following for the section

numbers for each driver:

Intel Chipset --- 5.3

VGA --- 5.4

Intel ATA --- 5.5

Audio --- 5.6

USB --- 5.7

LAN --- 5.8

Note: You should install the Intel chipset patch and then install Intel Ata, before installing other drivers.

You may be prompted for your Windows Installation CD during setup.

5.3 Installing Intel Chipset

The chipset patch updates the chipset and enables user to adjust the advanced chipset components.

Step 5.3.1

Point to the INF folder. Double click to open it.

Step 5.3.2

The INF folder opens; double click to open

95_98(SE)_ME_2K_XP folder.

Step 5.3.3

Double click to open the icon of

INFINST_AUTOL; it will start to run the

installation program.

56 Chapter 5EBC575 User’s Manual

Step 5.3.4

The Welcome Screen appears, click Next

button.

Step 5.3.5

Read the License Agreement. If you accept it,

click Yes to continue.

Step 5.3.6

Read the readme file and click Next button to

continue the installation process.

Step 5.3.7

The program updates your computer driver

files, and you are prompted to restart your

computer. Click Yes, I want to restart my

computer now and then click Finish button to

reboot.

57 Chapter 5EBC575 User’s Manual

5.4 Installing the On-board VGA

After installing Intel chipset, repeat steps 5.1.1 and 5.1.2 to open VGA folder.

Step 5.4.1

Double click to open the VGA folder.

Step 5.4.2

Point to the right folder according to your

computer operation system. Double click to

open the folder.

Step 5.4.3

Double click on the win2k_xp131 icon to start

the installation process.

Step 5.4.4

The InstallShield Wizard starts, click Next

button to continue.

Step 5.4.5

The Welcome Screen appears. Click Next

button to continue.

58 Chapter 5EBC575 User’s Manual

Step 5.4.6

Read the License Agreement. If you agree it,

click Yes to continue.

Step 5.4.7

The complete installation screen appears.

Select Yes, I want to restart my computer

now, and click Finish button to reboot your

computer.

5.5 Installing the Intel ATA Driver

For installing Intel ATA Driver, go back to computer desktop and open My computer.

Step 5.5.1

Point to the IAA folder. Double click to open it.

Step 5.5.2

The IAA folder opens; double click to open

ALL_OS folder.

59 Chapter 5EBC575 User’s Manual

Step 5.5.3

Double click on ITAT_CD icon to start the

installation process.

Step 5.5.4

The welcome screen appears, click Next

button to continue.

Step 5.5.5

Read the License Agreement. If you accept it,

click Yes to continue.

Step 5.5.6

Point to the location where you like to install

the driver. Click Next button to continue.

Step 5.5.7

You may use the default folder name, Intel

Application Accelerator (recommended) or

name the folder. Click Next button to continue.

60 Chapter 5EBC575 User’s Manual

Step 5.5.8

Click Yes button to continue the installation

process. The setup program copies files into

your computer.

Step 5.5.9

The complete installation screen appears.

Select Yes, I want to restart my computer

new, and click Finish button to reboot your

computer.

5.6 Installing the Audio Driver

For installaing Audio driver for your EBC575, go back to computer desktop and open My computer.

Step 5.6.1

Double click to open the Audio folder.

Step 5.6.2

When the wdm folder appears, double click to

open it.

Step 5.6.3

Double click on the Setup icon to start the

installation process.

61 Chapter 5EBC575 User’s Manual

Step 5.6.4

The welcome screen appears, click Next

button to continue.

Step 5.6.5

Click Yes to continue the installation process.

The setup program copies files into your

computer.

Step 5.6.6

The program updates your computer driver

files, and you are prompted to restart your

computer. Click Yes, I want to restart my

computer now and then click Finish button to

reboot.

5.7 Installing the On-board USB

After installing the Audio driver, go back to computer desktop and open My computer.

Step 5.7.1

Double click the Control Panel icon to open it.

Step 5.7.2

Double click the System icon.

62 Chapter 5EBC575 User’s Manual

Step 5.7.3

In the system properties dialog, click to open

the Hardware page and then click Device

Manager button on the page.

Step 5.7.4

Click the Plus sign (+) next to Other devices.

The system detects the Universal Serial Bus

(USB) Controller. Double click it to view its

properties.

Step 5.7.5

Open Driver page in the Universal Serial Bus

Controller properties dialog. Click Update

Driver button to start the Upgrade Device

Driver Wizard.

Step 5.7.6

Click Next to continue the Upgrade Device

Driver Wizard.

Step 5.7.7

Check the radio button next to Search for a

suitable drive for my device

(recommended), and then click Next to

continue.

63 Chapter 5EBC575 User’s Manual

Step 5.7.8

Click CD-ROM drives for system to search for

driver. Click Next to continue.

Step 5.7.9

The wizard found the driver for the USB

device. Click Next button. The setup program

will start coping files into your computer.

Step 5.7.10

You have completed the upgrade device driver

wizard. Click Finish button to return to your

system.

5.8 Installing the On-board LAN

After installing USB driver, open My Computer again and repeat step 5.7.1 and 5.7.2.

Step 5.8.1

Click the Plus sign (+) next to Network

Adapters. The system will show the network

Ethernet card you are suing. Double click on

the Ethernet card.

64 Chapter 5EBC575 User’s Manual

Step 5.8.2

Open the Driver page, and click Update

Driver button to start the Upgrade Device

Driver Wizard.

Step 5.8.3

Click Next button to continue the Upgrade

Device Driver Wizard.

Step 5.8.4

Check the radio button next to Search for a

suitable driver for my device

(recommended), and then click Next to

continue.

Step 5.8.5

Check CD-ROM drives for system to search

for driver. Click Next button to continue.

Step 5.8.6

The wizard found the driver for the Ethernet

device. Click Next button.

65 Chapter 5EBC575 User’s Manual

Step 5.8.7

Make sure you have the driver CD inserted in

your CD-ROM, and Click OK button to

continue the installation process.

Step 5.8.8

Browse to the path:

D:\DRIVER\LAN\PC6.1\WINDOWS\

DRIVERS\IA32 where D: is your CD-ROM

drive letter. Click OK button to continue.

Step 5.8.9

Click Yes button to continue the installation

process. The setup program copies files into

your computer.

Step 5.8.10

You have completed the upgrade device driver

wizard. Click Finish to return to your system.

Step 5.8.11

Repeat step 5.6.1 to 5.6.10, until you have

installed all three Ethernet drivers.

66 Chapter 5EBC575 User’s Manual

Appendix

Appendix A Connectors Pin Definition

The following tables list EBC575 connectors:

rotcennoC noitcnuF

1JrotcennoCtceleStloVlenaP

2J lenaPSDVL

3JlenaPSDVL

4J rotcennoC79'CA

6JtolSICP

7J DELevitcAEDI

8JrotcennoCrewoPXTAV21

9J rotcennoCnaF

01JO/IPG

11J rotcennoCRIKSA

21JrotcennoCretnirP

41J 0.2BSU

51JrotcennoCksiDyppolF

61J 2MOC

71JrotcennoCAGVlanretxE

22J rotcennoCesuoM/draobyeK

32J1MOC

52J epyTUPC

62JrotcennoCesuoM/BKlanretxE

72J rotcennoCsuBMS

82JrotcennocnaF

92J rotcennoCEDI

1NOCrotcennoCrewoPXTA

1PJ raelCSOMC

2PJnottuBteseR

3PJ DELrewoP

4PJdraCFC

5PJ nottuBrewoP

Table A-1: EBC575 Connectors

68 Appendix AEBC575 User’s Manual

J1: Panel Volt Select Connector

.oNNIPnoitpircseD

2-1*

3-2

J2: LVDS Panel Connector

.oNniPnoitpircseD.oNniPnoitpircseD

P7A

M7A

DNG

P1KLC

M1KLC

DNG

P6A

V3.3

KLCLENAP

DDV_DCL

P4A

M4A

P5A

M5A

DNG

ATADLENAP

DDV_DCL

rewoP_LKB

J3: LVDS Panel Connector (Master)

M6A

.oNniPnoitpircseD.oNniPnoitpircseD

P3A

M3A

DNG

P2A

M2A

KLCLENAP

DDV_DCL

P1KLC

M1KLC

DNG

ATADLENAP

P0A

M0A

DDV_DCL

P1A

M1A

DNG

rewoP_LKB

DNG

69 Appendix AEBC575 User’s Manual

J4: AC’97 Connector

.oNniPnoitpircseD.oNniPnoitpircseD

J7: IDE Active LED

.oNniPnoitpircseD.oNniPnoitpircseD

J9: Fan Connector

.oNniPnoitpircseD.oNniPnoitpircseD

TUODS

#TSR

CNYS

0NIDS

KLCTB

CCV

DNG

5CCV

DNG

V21+

1NIDS

RKPS

EVITCA

V21+

J10: GPI/O

.oNniPnoitpircseD.oNniPnoitpircseD

J11: ASK IR Connector

.oNniPnoitpircseD.oNniPnoitpircseD

CAT_NAF

02OIPG

12OIPG

22OIPG

32OIPG

CCV

42OIPG

52OIPG

62OIPG

72OIPG

DNG

XRRIC

XRRI

XTRI

70 Appendix AEBC575 User’s Manual

DNG

J12: Printer Connector

.oNniPnoitpircseD.oNniPnoitpircseD

#BTS

0DRP

1DRP

2DRP

3DRP

4DRP

5DRP

6DRP

7DRP

#KCA

YSUB

TCLS

#DFA

#RRE

#TINI

#NILS

DNG

J14: USB 2.0 Connector

.oNniPnoitpircseD.oNniPnoitpircseD

CCV

+0ATAD

+1ATAD

-0ATAD

-1ATAD

DNG

71 Appendix AEBC575 User’s Manual

J15: Floppy Disk Connector

.oNniPnoitpircseD.oNniPnoitpircseD

CCV

#XEDNI

CCV

#AVRD

CCV

#GHCKSD

#AETOM

#RID

#LESNED

#PETS

DNUORG

#ATADW

DNUORG

#ETAGW

DNUORG

#00KT

DNUORG

#TPW

DNUORG

#ATADR

DNUORG

#1EDIS

J16: COM2

.oNniPnoitpircseD.oNniPnoitpircseD

J17: VGA Connector

.oNniPnoitpircseD.oNniPnoitpircseD

DCD

DXT

DNG

STR

DER

EULB

DNUORG

DXR

RTD

RSD

STC

DNG

NEERG

DNUORG

5CCV

RCNYSH

LCCDD

DNUORG

ADCDD

RCNYSV

72 Appendix AEBC575 User’s Manual

J22: Keyboard/Mouse Connector

.oNniPnoitpircseD.oNniPnoitpircseD

J23: COM1

TADK

DNG

KLCK

DNG

TADM

CCV

KLCM

DNG

.oNniPnoitpircseD.oNniPnoitpircseD

DCD

DXT

DNG

STR

DXR

RTD

RSD

STC

DNG

J25: CPU Type

.oNniPnoitpircseD

2-1*

3-2

J26: Extra Keyboard Connector

.oNniPnoitpircseD.oNniPnoitpircseD

CCV

TADK

KLCK

DNG

rossecorP4P

rossecorPM-4P

CCV

TADM

KLCM

DNG

73 Appendix AEBC575 User’s Manual

J27: SMBus Connector

.oNniPnoitpircseD.oNniPnoitpircseD

J28: Fan Connector

.oNniPnoitpircseD.oNniPnoitpircseD

CCV

KLCBMS

DNG

ATADBMS

DNG

V21+

CAT_NAF

74 Appendix AEBC575 User’s Manual

Appendix B Watchdog Timer Setting

The EBC575 series features a watchdog timer that reset the CPU or generates an interrupt if the processor

stops operating for any reason. This feature ensures system reliability in industrial standalone or unmanned

environments.

B.1 Watchdog Timer Working Procedure

The Watchdog Timer (WDT) is a special hardware device that monitors the computer system during normal

operation. The WDT has a clock circuit that times down from a set number to zero. If a monitored item occurs

before the timer reaches zero, the WDT resets and counts down again. If for some reason the monitored

item doesn’t occur before the timer reaches zero, the WDT performs an action, such as a diagnostic opera-

tion (rebooting the computer) or generate an NMI.

You must enter timer values into the WDT Configuration Register (Write the control value to the Configura-

tion Port), and clear (read the Configuration Port).

WDT Configuration Port F2 Default at F2

Disabled 1. Default at disabled Watch Dog Timer

Enabled 2. Enabled for user’s programming

WDT Active Time 1 second

2 seconds

4 seconds

8 seconds

16 seconds

32 seconds

64 seconds

128 seconds

Table B-1: Watchdog Timer Character and Function

Default at 64 seconds

75 Appendix BEBC575 User’s Manual

B.2 Watchdog Timer Control Register

The Watchdog Timer Control Register controls the EDT working mode. Write the value to the WDT Configu-

ration Port.

The following table describes the Control Register bit definition.

Table B-2: Control Register Bit Definition

B.3 Watch Dog Timer Programming Procedure

Power on or reset the system

The initial value of WDT Control Register (D4~D0) is zero, when power is on or reset the system. The

following shows the initial value of WDT (00000000b):

Bit Value Mean

4 0 Select Reset

3 0 Disable watch dog timer

2, 1, 0 0 0 0 Select 64 second

Table B-3: WDT Control Register Initial Value

76 Appendix BEBC575 User’s Manual

Initialize the SQW of RTC (set SQW output period = 0.5 second)

To initialize the SQW of RTC processor is to set the SQW signal which is output period = 0.5 second. It offers

the basic frequency of the WDT counter.

The following is an example of initializing the SQW signal program in Intel 8086 assembly language.

; (General SQW = 0.5 Sec.)

Mov dx, 70h

Mov ax, 0Ah

Out dx, al ; Out port 70h = 0Ah

Mov dx 71h

Mov as 2Fh

Out dx, al ; Out port 71h = 2Fh

; (enable the SQW output)

Mov dx, 70h

Mov ax, 0Bh

Out dx, al ; Out port 70h = 0Bh

Mov dx, 71h

Mov ax, 0Ah

Out dx, al ; Out port 71h = 0Ah

Clear the WDT

Repeatedly read WDT Configuration Port and the interval cannot be longer than the preset time, otherwise,

the WDT will generate NMI or Reset signal for the system. The following is an example of clear the WDT

program in Intel 8086 assembly language.

; (Clear the WDT)

Mov dx, F2h ; Setting the WDT configuration port

In al, dx

Note: Before running WDT, you must clear WDT working mode. The initial value of WDT Control Register

is shown as follows:.

WDT Control Register (Write to WDT configuration port)

You can set the WDT Control Register to control the WDT working mode.

The initial value of the WDT Control Register is as the following:

; Setting the WDT Control Register as AL

Mov al, 0h ; Setting initial value = 0 for the WDT Control

77 Appendix BEBC575 User’s Manual

Follow these instructions below to set the register:

1. Select the time-out intervals of WDT (decide the values of D2, D1, D0 in F2)

Exampe: If D2~D0 = 0, the time-out internal is 64 seconds.

AND al, 11111000b ; Setting the time-out internal as 64 seconds.

2. Enable or Disable WDT (decide D3 value in F2)

Example: D3 = 0, Disables WDT

OR al, 11110111b ; Disable the WDT

Example: D3 = 1, Enables WDT

OR al, 00001000b ; Enable the WDT

After finishing the above setting, you must be output for the Control Register’s value to the WDT Configura-

tion Port. Then WDT will start according to the above setting.

MOV dx, F2h ; Setting WDT Configuration Port

OUT dx, al ; Output the Control Register Value

78 Appendix BEBC575 User’s Manual

Appendix C Programming the GPI/O

GPI/O (General Purpose Input/Output) pins are provided for custom system design. This appendix provides

definitions and its default setting for the ten GPI/O pins in the EBC575 series. The pin definition is shown in

the following table:

niP

.oN

1IPGhgiHdaeR)0(H1082OPGhgiH)4(H108

3IPGhgiHdaeR)1(H1084OPGhgiH)5(H108

5IPGhgiHdaeR)2(H1086OPGhgiH)6(H108

7IPGhgiHdaeR)3(H1088OPGhgiH)7(H108

9CCV--01DNG--

Read the GPI Pin (1/3/5/7) status form I/O port 801H bit (0/1/2/3).

The bit is Set/Clear indicated High/Low

Control the GPO pin (2/3/6/8) level from I/O port 801H bit (4/5/6/7).

The bit is Set/Clear indicated output High/Low

edomO/IPG

nOrewoP

tluafeD

Table C-1: J10 – GPI/O Connector

sserddA

niP

.oN

edomO/IPG

nOrewoP

tluafeD

sserddA

Note: All of these GPIO pins are 8mA digital open-drain buffer and internal pull-up.

79 Appendix CEBC575 User’s Manual

NexCom EBC575 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
