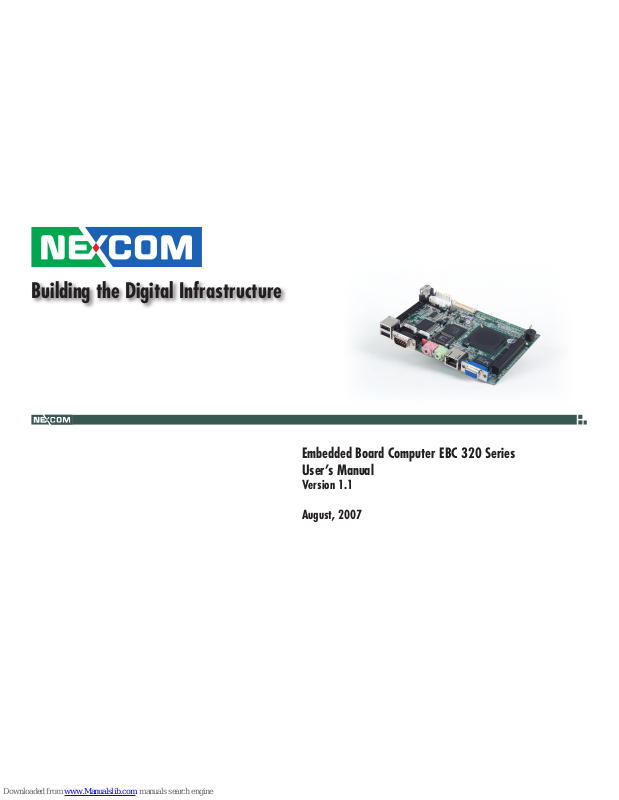

Nexcom EBC320-LX8 User Manual

Building the Digital Infrastructure

Embedded Board Computer EBC 320 Series
User’s Manual

Version 1.1

August, 2007

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

2

Embedded Board Computer EBC 320 Series User’s Manual

Preface

Packing Materials Checklist

Description Q’ty

M/B: EBC320-LX8 1

Print Cable 1

IDE Cable 1

PS/2 Y Cable 1

Power Cable 1

COM Port Cable 1

USB Cable Dual Port USB Con 1

CD Driver 1

Quick Reference Guide 1

Copyright Notice

Copyright © 2006 NEXCOM

All rights reserved. No part of this manual may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language or computer language, in any
form or by any means (electronic, mechanical, photocopying, recording, or otherwise),
without the express written permission of NEXCOM Information provided in this manual
is intended to be accurate and reliable. However, the original manufacturer assumes no
responsibility for its use, nor for any infringements upon the rights of third parties that
may result from such use.

Acknowledgements

Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.

Declaration of Conformity

CE

This product has passed the CE test for environmental specifications when shielded
cables are used for external wiring. We recommend the use of shielded cables. Please
contact your local supplier for ordering information.

This product has passed the CE test for environmental specifications. Test conditions for
passing included the equipment being operated within an industrial enclosure. In order
to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI
leakage, we strongly recommend the use of CE-compliant industrial enclosure products.

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

3

Embedded Board Computer EBC 320 Series User’s Manual

Preface

FCC Class A

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.

Installation Suggestions

Ensure you have a stable, clean working environment. Dust and dirt can get into compo­nents and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the
internal components. Most of the procedures that follow require only a few simple tools,
including the following:

A Philips screwdriver
A flat-tipped screwdriver
A grounding strap
An anti-static pad

Using your fingers can disconnect most of the connections. It is
recommended that you do not use needlenose pliers to disconnect connections as these
can damage the soft metal or plastic parts of the connectors.

Handling Precautions

1. Always disconnect the unit from the power outlet whenever you are installing or fixing
a component inside the chassis.

2. If possible, always wear a grounded wrist strap when you are installing or fixing
a component inside the chassis. Alternatively, discharge any static electricity by
touching the bare metal chassis of the unit case, or the bare metal body of any other
grounded appliance.

3. Hold electronic circuit boards by the edges only. Do not touch the components on the
board unless it is necessary to do so. Do not flex or stress the circuit board.

4. Use the correct screws and do not overly tighten them.

5. Keep the original packaging and static-protective bag in case the unit has to be
returned.

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

4

Embedded Board Computer EBC 320 Series User’s Manual

Warranty and RMA

NEXCOM RMA Policy

1. Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with
industry standard. NEXCOM warrants that products will be free from defect in material
and workmanship for 24 months beginning on the date of invoice by NEXCOM. HCP
series products (Blade Server) which are manufactured by NEXCOM are covered by a
three year warranty period.

2. RMA (Return Merchandise Authorization)

2.1 Customers shall enclose the “NEXCOM RMA Service Form” with the returned pack­ages.

2.2 Customers must collect all the information about the problems encountered and note
anything abnormal or, print out any on-screen messages, and describe the problems on
the “NEXCOM RMA Service Form” for the RMA number apply process.

2.3 Customers can send back the faulty products with or, without accessories (manuals,
cable, etc.) and any unnecessary components from the card, such as CPU and DRAM. If
the components were suspected as part of the problems, please note clearly that which
components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

2.4 Customers are responsible to for the safe packaging of defective products are durable
enough to be resistant against further damage and deterioration during transportation.
In case of damages occurred during the transportation, the repair is treated as “Out of
Warranty.”

2.5 Any products returned by NEXCOM to other locations besides the customers’ site will
bear an extra charge and will be billed to the customer.

3. Repair service charges for out of warranty products

NEXCOM will charge for out of warranty products in two categories, one is basic diag­nostic fee and another is component (product) fee.

3.1 System level

a. Component fee: NEXCOM will only charge for main components, such as SMD chip,
BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

b. Items will be replaced with NEXCOM products if the original one is not able to be
repaired. Ex: motherboard, power supply, etc.

c. Replaced with 3rd party products if needed.

d. If RMA goods can not be repaired, NEXCOM will return it to customer without any
charge.

3.2 Board level

a. Component fee: NEXCOM will only charge for main components, such as SMD chip,
BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

b. If RMA goods can not be repaired, NEXCOM will return it to customer without any
charge.

Global Service Contact Information

Headquarters

NEXCOM International Co. Ltd.
18F, No.716, Chung-Cheng Road
Chung-Ho City, Taipei County 235, Taiwan, R.O.C.
Tel: [phone] (for English Service)
Tel: [phone] (for Chinese Service)
Fax: [phone]
Email: [e-mail]
Website: www.nexcom com.tw

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

5

Embedded Board Computer EBC 320 Series User’s Manual

Warranty and RMA

USA

NEXCOM USA
1100 Auburn Street
Fremont, CA 94538, US A.
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.nexcom.com

Europe

NEXCOM UK
Cromwell Business Centre 12 Howard Way
Newport Pagnell MK16 9QS, U.K.
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.nexcomuk.co.uk

Japan

NEXCOM Japan
10F, Nakagin-Shiroyama Building,
8-16-13 Ginza Chuou-Ku,
Tokyo, Japan 104-0061
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Website: wwwnexcom-jp.com

China

NEXCOM China
1508 Anzhen Plaza, No.2 Andingmenwai Street
DongCheng District, Beijing, 100013, China
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.nexcom.cn

Asia

NEXCOM International Co. Ltd.
18F, No.716, Chung-Cheng Road
Chung-Ho City, Taipei County 235, Taiwan, R.O.C..
Tel: [phone] (for English Service)
Tel: [phone] (for Chinese Service)
Fax: [phone]
Email: [e-mail]
Website: www.nexcom.com.tw

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

Nexcom is a global citizen for building the digital infrastructure. We are committed to
providing green products and services, which are compliant with European Union RoHS
(Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/
EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or
1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or
1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated
diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

6

Embedded Board Computer EBC 320 Series User’s Manual

Warranty and RMA

In order to meet the RoHS compliant directives, NEXCOM has established an engineer­ing and manufacturing task force in to implement the introduction of green products. The
task force will ensure that we follow the standard NEXCOM development procedure and
that all the new RoHS components and new manufacturing processes maintain the high­est industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will

ensure that all designed components will be RoHS compliant.

How do you recognize NEXCOM RoHS Prod­ucts?

For existing products where there are non-RoHS and RoHS
versions, the suffix “(LF)” will be added to the compliant product

name. For example, PEAK 7220VL2G RoHS version will become PEAK 7220VL2G(LF).

All new product models launched after January 2006 will be RoHS compliant. They will
use the usual NEXCOM naming convention. For example, PEAK 870VL2, EBC 320-LX8
etc.

All RoHS compliant model and component manufacturing part numbers will be suffixed
“XO”. For Example:

10P0870VL00X0 PEAK870VL2

10E00032000X0 EBC320-LX8

Manual Revision History

Revision Date Description

1.0 June, 5th, 2006 First edition

1.1 August, 24th, 2007 Page 10, correct SM BUS description to 2 x 3 pin header

for SM Bus, two pin for GND

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

7

Embedded Board Computer EBC 320 Series User’s Manual

Table of Contents

Table of Contents

Packing Materials Checklist ........................................................2

Copyright Notice .........................................................................2

Acknowledgements ....................................................................2

Declaration of Conformity ...........................................................3

Installation Suggestions .............................................................3

Handling Precautions .................................................................3

NEXCOM RMA Policy ................................................................4

Global Service Contact Information............................................5

RoHS Compliance ......................................................................6

Manual Revision History .............................................................6

Chapter 1 General Information ..............................................8

1.1 Main Features ......................................................................9

1.2 Specifications ......................................................................9

Figure 1.1: Block Diagram of EBC 320 .....................................................................9

1.3 Board Layout .....................................................................11

Figure 1.2: Overview of EBC 320 ............................................................................11

1.4 Board Dimensions ..............................................................12

Figure 1.3: Mechanical Drawing of the EBC 320 .....................................................12

Chapter 2 Jumper Setting ....................................................13

2.1 Before You Begin ..............................................................14

2.2 Precautions ......................................................................14

2.3 Setting Jumpers .................................................................15

Table 2-1: Setting Jumpers .....................................................................................15

2.4 Location of Jumpers ...........................................................15

Figure 2-1: Jumper Location ..................................................................................15

2.5 Functions of Jumpers and Connectors ..............................16

Chapter 3 Expansion ...........................................................20

3.1 System Memory .................................................................21

3.2 Installing Compact Flash ...................................................21

Figure 3-1: How to Install Compact Flash (1) .........................................................21

Figure 3-2: How to Uninstall Compact Flash (2) ...................................................21

Appendix A Watchdog Timer ...............................................22

Chapter 1 General Information

Embedded Board Computer EBC 320 Series

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

9

Chapter 1 General Information

Embedded Board Computer EBC 320 Series User’s Manual

1.1 Main Features

EBC 320 is a 3.5" embedded board featuring AMD LX800 processor supporting one
DDR SO-DIMM socket, up to 1GB Non-ECC Non-Registered DDR SDRAM. The EBC 320
incorporates AMD CS 5536 chipsets supporting un-registered non-ECC DDR 200 MHz
SDRAM with maximum memory up to 1GB and integrated graphic controller supporting
both standard VGA and TFT.

The EBC 320 embedded board supports a various range of Operating Systems such as
Windows XP embedded, Win CE, and Linux. The EBC 320 with low power processor,
small footprint, and versatile I/O port to offer the best solution for industrial applications.

The main features are listed as follow:

AMD Geode™ LX800 Processor with 128 KB L2 cache
VIA CS5536 Integrated Chipset
1 x 200-pin SO-DIMM socket, up to 1GB Non-ECC/Non-Registered DDR SDRAM
1 x Realtek 8139C+ 10/100 Ethernet Controller
Support CRT/TTL LCD
CompactFlash Socket / PCI 104 interface

•

•

•

•

•

•

Figure 1.1: Block Diagram of EBC 320

CPU AMD Geode

LX Processor

DDR S ODIMM

VGA

24 bit

TFT LCD

PCI 104 Plus Connector

(PCI only)

South Bridge

AMD Geode

CS 5536

Memory

BUS

PCI

Arbiter

LAN 10/100

Reltek8139CL+

IDE 44 pin

connector

CF Socket

USB 2.0

4 x USB 2.0

AC' 97

CODEC

SIO

Winbond 83627HG

Flash BIOS
(SST F WH)

LPC BUS

PCI BUS

COM1/COM2 PIO KB/MS

Speaker

Out

Mic In

Line In

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

10

Chapter 1 General Information

Embedded Board Computer EBC 320 Series User’s Manual

1.2 Specifications

CPU Support

AMD Geode LX800,500 MHz on Board

128 KB L2 cache (64 KB I-cache/64 KB D-cache)

Main Memory

1 x 200-pin SO-DIMM socket, up to 1GB Non-ECC/Non-Registered DDR SDRAM (64-bit, 200 MHz)

Chipset

AMD Geode LX800 / AMD CS 5536

BIOS

Award system BIOS

Plug & Play support

Advanced Power Management and Advanced Configuration & Power Interface support

4M bits flash ROM ACPI

ACPI support: Only support Software Shutdown by 5Vsb Provided

On Board LAN

1 x Realtek 8139C+ 10/100 Fast Ethernet Controller

Support Boot From LAN (PXE)

Support Wake on LAN

1 x RJ45 with LED

Display

The Geode LX800 integrated Graphic, supports both standard VGA and TFT

CRT Supports up to 1920x1440x32 bpp at 85 Hz

1 x DB15 VGA Connector































TTL LCD supports up to 24bit, 1600x1200x32 bpp at 60 Hz for TFT

Audio

REALTEK,ALC203 CODEC for AC97 v. 2.0

Mic in and Speaker out connector, Line in with pin header

I/O interface

4 x USB 2.0 port (USB 1/2 on front, USB 3/4 via one JST connector), bandwidth: 480 Mb/s

2 x SIO, 16C550 UARTs (One on front support RS-232, one onboard with 10-pin header support
RS-422/485)

Parallel ports:Bi-directional, EPP/ECP support, 1 x Box header 26-pin connector

PS/2: 1 x 6-pin Box Header

FAN:1 x FAN JST connector (for CPU)

IrDA: 1 x 5-pin Box Header for IrDA,TX,RX

1 x On Board buzzer

2 x 3 pin header for SM Bus, two pin for GND

1 x 2 pin header for Reset switch

1 x 2 pin header Power LED

1 x 3 pin header for I2C BUS, one pin for GND

Storage Support

CF: 1x Internal CompactFlash socket

Support One Type I& II Compact Flash Card (Primary Master)

IDE: 1 x 44-pin IDE connector,support Ultra DMA 33/66/100

1 x 2-pin IDE Active LED Header

























Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

11

Chapter 1 General Information

Embedded Board Computer EBC 320 Series User’s Manual

Watchdog Timer

Watchdog Timer is programmable by software from 0 to 255 seconds and from 0 minute to 255 minutes
(Tolerance 15% under room temperature 25°C)

On-board RTC

On chip RTC with battery back up

1 x External Li-Lon Battery

Power Input

Support both AT and ATX Mode (BIOS and H/W is default to AT mode)

AT mode: +5V Power in,No Power On push Button, Software Shutdown function and LAN remote wake up

ATX mode:Power Required: +5V / -5V / 5Vsb Power In

When Change to ATX Mode, the BIOS default setting is as follow:

POWER -SUPPLY TYPE -->[ATX]

AUTO PWR-FAILURE RESUME-->[ON]

Dimensions

3.5" form factor

146 mm (L) x 105 mm (W) (5.7”x 4.1”)

Environment

Board level operating temperature:0°C to 60°C

Storage temperature:-20°C to 85°C

Relative humidity: 10% to 90% (Non-condensing)

Certifications

CE approval

FCC Class A

























1.3 Board Layout

VGA

Speaker out

LAN

Mic In

PIO USB 2.0

COM1

COM2

44-pin IDE

CF (rear)

PCI 104

AMD LX800

SO DIMM socket

(rear)

AMD CS5536

TFT

Power connector

Figure 1.2: Overview of EBC 320

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

12

Chapter 1 General Information

Embedded Board Computer EBC 320 Series User’s Manual

1.4 Board Dimensions

Figure 1.3: Dimension Drawing of EBC 320

Chapter 2 Jumper Setting

Embedded Board Computer EBC 320 Series

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

14

Chapter 2 Jumper Setting

Embedded Board Computer EBC 320 Series User’s Manual

This chapter of the User’s Manual describes how to set jumpers.

Note: The procedures that follow are generic for all EBC 320 series.

2.1 Before You Begin

Ensure you have a stable, clean working environment. Dust and dirt can get into compo­nents and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the
internal components. Most of the procedures that follow require only a few simple tools,
including the following:

A Philips screwdriver
A flat-tipped screwdriver
A set of jewelers Screwdrivers
A grounding strap
An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you
do not use needle-nosed pliers to disconnect connections as these can damage the soft
metal or plastic parts of the connectors.

Before working on internal components, make sure that the power is off. Ground yourself
before touching any internal components, by touching a metal object. Static electricity
can damage many of the electronic components. Humid environment tend to have less
static electricity than dry environments. A grounding strap is warranted whenever danger
of static electricity exists.

•

•

•

•

•

2.2 Precautions

Computer components and electronic circuit boards can be damaged by discharges of
static electricity.

Working on the computers that are still connected to a power supply can be extremely
dangerous. Follow the guidelines below to avoid damage to your computer or yourself:

Always disconnect the unit from the power outlet whenever you are working inside the
case.

If possible, wear a grounded wrist strap when you are working inside the computer
case. Alternatively, discharge any static electricity by touching the bare metal chassis
of the unit case, or the bare metal body of any other grounded appliance.

Hold electronic circuit boards (such as the EBC 320 board) by the edges only. Do
not touch the components on the board unless it is necessary to do so. Don’t flex or
stress the circuit board.

Leave all components inside the static-proof packaging that they shipped with until
they are ready for installation.

Use correct screws and do not over tighten screws.

•

•

•

•

•

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

15

Chapter 2 Jumper Setting

Embedded Board Computer EBC 320 Series User’s Manual

2.3 Setting Jumpers

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap.
When setting the jumpers, ensure that the jumper caps are placed on the correct pins.
When the jumper cap is placed on both pins, the jumper is SHORT. If you remove the
jumper cap, or place the jumper cap on just one pin, the jumper is OPEN. Please see the
following illustrations

The illustrations on the right
show a 2-pin jumper. When the
jumper cap is placed on both
pins, the jumper is SHORT. If you
remove the jumper cap, or place
the jumper cap on just one pin,
the jumper is OPEN.

Open (Off) Short (On)

These illustrations show a 3-pin
jumper. Pins 1 and 2 are SHORT.

Table 2-1: Setting Jumpers

2.4 Location of Jumpers

Figure 2-1: Jumper Location

CPU+NB

SB

COM1

USB2.0

(port 1&2)

LAN

VGA

PIO

1

1

1

1

1

1

1

IDE

1

1

1

1

11

TFT

1

39

2

40

A1 B1 C1 D1

COM2

MIC

In

Speaker

Out

12

PCI
104

1

1

J5

JP2CN7

J36

CN8CN1

1

1

CMOS1

CN11

J34

J31

J32

J30

J33 J35

USB3_4

LED1

61

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

16

Chapter 2 Jumper Setting

Embedded Board Computer EBC 320 Series User’s Manual

2.5 Functions of Jumpers and Connectors

Power Connector: (J30, J31, J32, CN6)

connector

Pin Definition

Pin1 +12V

Pin2, Pin3, Pin4 GND

Pin5, Pin6 5V

Pin1 5VSB

Pin2 GND

Pin3 PS-ON#

Pin1 -12V

Pin2 GND

Pin3 -5V

HD_LED: (LED1) 1x2 Pin header (2.54 mm)

Pin Definition Pin Definition

1 VCC 2 HDLED#

USB port 3, Port 4 (USB3_4): 1x6 JST Connector (2.0mm)

Pin Definition

1 5Vsb

2 D2-

3 D2+

4 D3-

5 D3+

6 GND

>

>

>

44 pin IDE Connector (IDE1): 2x22 box header (2.0mm)

Pin Definition
Pin1:RST# Pin2:GND
Pin3:D7 Pin4:D8
Pin5:D6 Pin6:D9
Pin7:D5 Pin8:D10
Pin9:D4 Pin10:D11
Pin11:D3 Pin12:D12
Pin13:D2 Pin14:D13
Pin15:D1 Pin16:D14
Pin17:D0 Pin18:D15
Pin19:GND Pin20:KEY
Pin21:DRQ Pin22:GND
Pin23:IOW# Pin24:GND
Pin25:IOR# Pin26:GND
Pin27:RDY Pin28:NC
Pin29:ACK# Pin30:GND
Pin31:IRQ Pin32:ICS16#
Pin33:A1 Pin34:P66DETECT
Pin35:A0 Pin36:A2
Pin37:CS0 Pin38:CS1
Pin39:IDE_LED Pin40:GND
Pin41:5V Pin42:5V
Pin43:GND Pin44:NC

>

6

1

1

1

1

6

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

17

Chapter 2 Jumper Setting

Embedded Board Computer EBC 320 Series User’s Manual

PS2 KB/MS (CN1) :1x6 JST Connector (2.0mm)

Pin Definition

1 5V

2 KB_DAT

3 KB_CLK

4 MS_DAT

5 MS_CLK

6 GND

IR CONNECTOR (CN8): 1x5 JST (2.0 mm)

Pin Definition

1 5V

2 NC

3 IR_RX

4 GND

5 IR_TX

COM2 RS232/422/485 select (J5): 2x3 pin header (2.0 mm)

Pin Function

1-2 * RS232

3-4 RS422

5-6 RS485

>

>

>

SM Bus / I2C (CN11): 2x3 pin header (2.0 mm)

CN11

Pin Function

1 SMB_SCL

2 I2CDAT

3 GND

4 GND

5 SMB_SDA

6 I2CCLK

Print port (PNT1): 2x13 box header (2.0mm)

Pin Function Pin Function

1 STB# 14 AFD#

2 D0 15 ERROR#

3 D1 16 NIT#

4 D2 17 SLIN#

5 D3 18 GND

6 D4 19 GND

7 D5 20 GND

8 D6 21 GND

9 D7 22 GND

10 ACK# 23 GND

11 BUSY 24 GND

12 PE 25 GND

13 SLCT 26 GND

>

>

1

6

1

5

1

1

1

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

18

Chapter 2 Jumper Setting

Embedded Board Computer EBC 320 Series User’s Manual

COM2: 2x5 box header (2.0mm)

Pin Definition Pin Definition

1 DCD#: Data Carrier

Detect.

2 RXD#: Receive Data

3 TXD: Transmit Data 4 DTR#: Data Terminal Ready

5 GND 6 DSR#: Data Set Ready

7 RTS#: Request To Send 8 CTS#: Clear To send

9 RI#: Ring Indicator 10 NC

COM2 RS422/485 Connector (J36): 2x2 pin header (2.0 mm)

Pin Definition Pin Definition

1 485(RX/TX)+ or 422TX+ 3 422RX+

2 485(RX/TX)- or 422TX- 4 422RX-

COM 1 Pin#9 function select (CN7): 1x3 pin header (2.54mm)

Pin Definition

1-2 R1#

2-3* +5V

CMOS clear (CMOS): 1x3 pin header (2.00mm)

Pin Definition

1-2 R1#

2-3* +5V

>

>

>

>

Power button (J33): 1x2 pin header (2.54 mm)

Pin Definition Pin Definition

1 PWRBTN# 2 GND

Power LED (J34): 1x2 pin header (2.54 mm)

Pin Definition Pin Definition

1 LED+ 2 GND

Reset button (J35): 1x2 pin header (2.54 mm)

Pin Definition Pin Definition

1 Reset_SW 2 GND

>

>

>

1

1

1

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

19

Chapter 2 Jumper Setting

Embedded Board Computer EBC 320 Series User’s Manual

TFT Cconnector(CN9): DF13-40DP connector

Pin Definition
Pin 1 : +5V Pin 2 : +5V
Pin 3 : GND Pin 4 : GND
Pin 5 : +3.3V Pin 6 : +3.3V
Pin 7 : asserted Hi= BACKLIGHT

ENABLE,
Low= BACKLIGHT DISABLE

Pin 8 : GND

Pin 9 : B0 Pin 10 : B1
Pin 11 : B2 Pin 12 : B3
Pin 13 : B4 Pin 14 : B5
Pin 15 : B6 Pin 16 : B7
Pin 17 : G0 Pin 18 : G1
Pin 19 : G2 Pin 20 : G3
Pin 21 : G4 Pin 22 : G5
Pin 23 : G6 Pin 24 : G7
Pin 25 : R0 Pin 26 : R1
Pin 27 : R2 Pin 28 : R3
Pin 29 : R4 Pin 30 : R5
Pin 31 : R6 Pin 32 : R7
Pin 33 : GND Pin 34 : GND

Pin 35 : FLAT PANEL CLOCK

Pin 36 : FLAT PANEL VERTI­CAL SYNC

Pin 37 : asserted Hi= Flat Panel
Display Enable,
Low= Flat Panel Display Disable

Pin 38 : FLAT PANEL HORI­ZONTAL SYNC

Pin 39 : +12V

Pin 40 : asserted Hi= Flat Panel
power Enable,
Low= Flat Panel power Disable

>

1

2

39

40

2 x USB 2.0 connector

Pin Definition Pin Definition

1 5Vsb 5 5Vsb
2 USBD0- 6 USBD1­3 USBD0+ 7 USBD1+
4 GND 8 GND

Serial port: 9 pin D-SUB

Pin Definition Pin Definition

1 DCD# 2 RXD
3 TXD 4 DTR#
5 GND 6 DSR#
7 RTS# 8 CTS#

9

RI# or 5V

(slsect by CN7)

LAN 1 connector

Pin Definition Pin Definition

1 TX+ 2 TX­3 RX+ 4 Terminal plane
5 Terminal plane 6 RX­7 Terminal plane 8 Terminal plane
9 LAN Link LED Indicator 10 Pull up to 3V_STBY

11 LAN Active LED Indicator 12 Pull up to 3V_STBY

>

>

>

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

20

Chapter 2 Jumper Setting

Embedded Board Computer EBC 320 Series User’s Manual

VGA connector

10

15

5

6

11

1

10

15

5

6

11

1

Pin Definition Pin Definition

1 Red 2 GREEN

3 Blue 4 NC
5 GND 6 GND
7 GND 8 GND

9 +5V 10 GND
11 NC 12 DDC_Data
13 HSYNC 14 VSYNC
15 DDC_CLK

PCI-104 connector

Pin Definition Definition Definition Definition

A B C D

1 GND Reserved +5V AD00

2 +5V AD02 AD01 +5V

3 AD05 GND AD04 AD03

4 C/BE0# AD07 GND AD06

5 GND AD09 AD08 GND

6 AD11 +5V AD10 M66EN

7 AD14 AD13 GND AD12

8 +3.3V C/BE1# AD15 +3.3V

9 SERR# GND NC PAR
10 GND PERR# +3.3V NC
11 STOP# +3.3V LOCK# GND
12 +3.3V TRDY# GND DEVSEL#
13 FRAME# GND IRDY# +3.3V
14 GND AD16 +3.3V C/BE2#
15 AD18 +3.3V AD17 GND

>

>

16 AD21 AD20 GND AD19
17 +3.3V AD23 AD22 +3.3V
18 IDSEL0 GND IDSEL1 IDSEL2
19 AD24 C/BE3# +5V IDSEL3
20 GND AD26 AD25 GND
21 AD29 +5V AD28 AD27
22 +5V AD30 GND AD31
23 REQ0# GND REQ1# +5V
24 GND REQ2# +5V GNT0#
25 GNT1# +5V GNT2# GND
26 +5V CLK0 GND CLK1
27 CLK2 +5V CLK3 GND
28 GND INTD# +5V RST#
29 +12V INTA# INTB# INTC#
30 +12V RPEQ3# GNT3# GND

CF socket

Pin Description Pin Description
1 GND 26 GND
2 Data 3 27 Data 11
3 Data 4 28 Data 12
4 Data 5 29 Data 13
5 Data 6 30 Data 14
6 Data 7 31 Data 15
7 HDCCS1# 32 HDCCS3#
8 GND 33 N/C
9 GND 34 IOR#
10 GND 35 IOW#
11 GND 36 +5V
12 GND 37 Interrupt
13 +5V 38 +5V
14 GND 39 Pull down 1K to GND

>

A1 B1 C1 D1

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

21

Chapter 2 Jumper Setting

Embedded Board Computer EBC 320 Series User’s Manual

15 GND 40 NC
16 GND 41 Reset#
17 GND 42 IOCHRDY
18 Disk Address 2 43 DMA REQ
19 Disk Address 1 44 DMA ACK#
20 Disk Address 0 45 HDD Active#
21 Data 0 46 DMA66 Dectec
22 Data 1 47 Data 8
23 Data 2 48 Data 9
24 NC 49 Data 10
25 GND 50 GND

Chapter 3 Expansion

Embedded Board Computer EBC 320 Series

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

23

Chapter 3 Expansion

Embedded Board Computer EBC 320 Series User’s Manual

3.1 System Memory

The EBC 320 incorporates one 200-pin SO-DIMM socket, up to 1GB Non-ECC Non­Registered DDR SDRAM (64-bit, 200 MHz)

WARNING: Install the memory module by line up the memory pins correctly and
tilt the memory module at a 45 degree angle with the board. Push the memory module
in and down until both side of the memory module snaps into the clip. Be sure to read
the memory installation instructions from the manufacture to prevent the damage to the
memory and the board during installation.

3.2 Installing Compact Flash

1. To install a Compact Flash memory card into EBC 320, align the notches on the card
with the Compact Flash socket in the EBC 320. Then firmly insert the card into the
socket until it is completely seated.

Figure 3-1: How to Install Compact Flash Memory (1)

2. To remove the Compact Flash memory card from EBC 320, pull out the memory card
from the Compact Flash socket.

Figure 3-2: How to Uninstall Compact Flash Memory (2)

Appendix A Watchdog Timer

Embedded Board Computer EBC 320 Series

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

25

Appendix A Watchdog Timer

Embedded Board Computer EBC 320 Series User’s Manual

The EBC 320 features a watchdog timer that reset the CPU or generates an interrupt if
the processor stops operating for any reason. This feature ensures system reliability in
industrial standalone or unmanned environments.

PLED mode register. Default 0x00

Bit Description

7-6

PLED mode select
00: Power LED pin is tri-stated.
01: Power LED pin is drived low.
10: Power LED pin is a 1Hz toggle pulse with 50 duty cycle.
11: Power LED pin is a 1/4Hz toggle pulse with 50 duty cycle.

5-4 Reserved

3

WDTO count mode select
0: Second
1: Minute

2

Enable the rising edge of keyyboard Reset (P20) to force Time-out event.
0: Disable
1: Enable

1-0 Reserved

Default 0x00

Watch Dog Timer Time-out value. Writing a non-zero value to this register causes the
counter to load the value to Watch Dog Counter and start counting down. If the Bit 7 and
Bit 6 are set, any Mouse Interupt or Keyboard Interupt event will also cause the reload of
previously-loaded non-zero value to Watch Dog Counter and start counting down. Read­ing this register teturnt current value in Watch Dog Counter instesd of Counter Timer
Time-out value.

Bit Description

7-0

0x00 Time-out Disable
0x01 Time-out occurs after 1 sec / min
0x02 Time-out occurs after 2 sec / min
0x03 Time-out occurs after 3 sec / min

·

·

·

·

·
0xFF Time-out occurs after 255 sec / min

Default 0x00

Bit Description

7

Mouse interupt reset Enable or Disable
1: Watch Dog Timer is reset upon a Mouse interupt
0: Watch Dog Timer is not affected by Mouse interupt

6

Keyboard interupt reset Enable or Disable
1: Watch Dog Timer is reset upon a Mouse interupt
0: Watch Dog Timer is not affected by Mouse interupt

5

Force Watch Dog Timer Time-out, Write only
1: Force Watch Dog Timer time-out event; this bit is self-clearing.

4

Watch Dog Timer Status, R/W
1: Watch Dog Timer time-out occurred
0: Watch Dog Timer occurred

3-0 These bits select IRQ resource for Watch Dog. Setting of 2 selects SMI.
