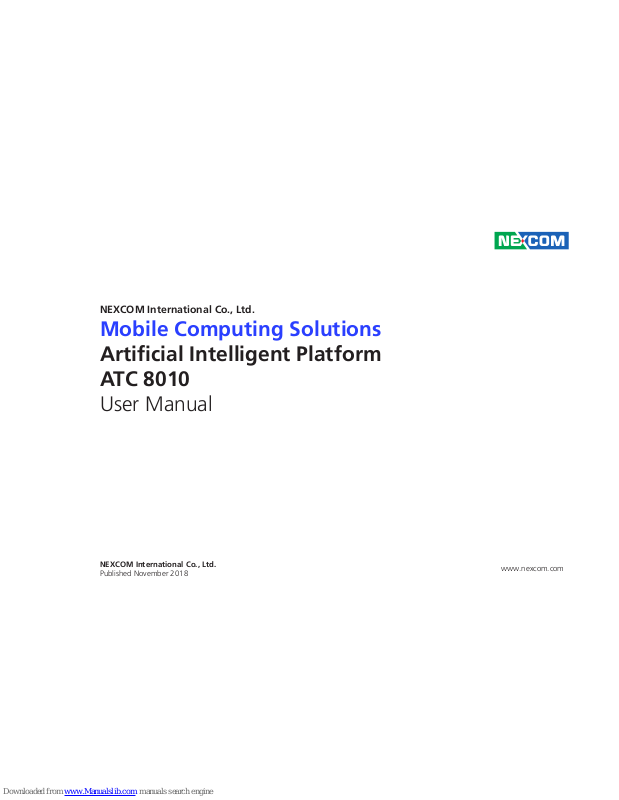

Nexcom ATC 8010 User Manual

NEXCOM International Co., Ltd.

Published November 2018

www.nexcom.com

Mobile Computing Solutions

Artificial Intelligent Platform ATC 8010

User Manual

ii

Contents

ATC 8010 User Manual

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Technical Support and Assistance ........................................................... ix

Conventions Used in this Manual ........................................................... ix

Global Service Contact Information ......................................................... x

Package Contents ..................................................................................xii

Chapter 1: Product Introduction

Physical Features .....................................................................................1

Front View ...........................................................................................1

Rear View ............................................................................................ 1

Overview ................................................................................................2

Key Features ...........................................................................................2

Hardware Specifications ..........................................................................3

Connector Numbering ............................................................................5

Chapter 2: External Connectors Pinout Description

Dual HDMI Connector .........................................................................6

Dual HDMI Connector .........................................................................7

ultraONE+ Connector ..........................................................................8

VGA Connector ...................................................................................8

Dual USB 3.1 Port ................................................................................9

HDMI Connector .................................................................................9

SIM2 and SIM3 Sockets .....................................................................10

Reset Button ......................................................................................10

Power Button ....................................................................................11

Mic-in Connector ..............................................................................11

Line-out Connector ...........................................................................12

Dual USB 3.1 Port ..............................................................................12

Dual USB 3.1 Port ..............................................................................13

CAN/DIO Multiport Connector ...........................................................13

COM1 RS232 Connector ...................................................................14

COM3 RS-232/RS422/RS485 Connector ............................................14

COM2 RS232 Connector ...................................................................15

DC Out Connector ............................................................................15

9V-36V DC Power Input ...................................................................16

LAN Port ............................................................................................16

PoE1 to PoE4 Ports ............................................................................17

PoE5 to PoE8 Ports ............................................................................17

Chapter 3: Jumpers and Switches

Before You Begin .................................................................................18

Precautions ..........................................................................................18

Jumper Settings ....................................................................................19

Locations of the Jumpers and Connectors for the Motherboard .........20

iii

Contents

ATC 8010 User Manual

Top View ........................................................................................ 20

Bottom View .................................................................................. 21

DIP Switch Settings ............................................................................22

RTC Clear Selection ........................................................................ 22

CAN Bus Impedance Control ..........................................................22

Input Voltage Setup Selection .........................................................23

LVDS Resolution Control .................................................................23

Internal Connectors ........................................................................... 24

COM1 RS232 DB9 Connector ........................................................24

SIM Card Slot ................................................................................24

GPS Wire to Board Connector ........................................................25

GPS Battery Connector ...................................................................26

RTC Battery Connector ...................................................................26

RTC Battery Connector ...................................................................27

Debug 80 Port Connector ..............................................................27

USB Connectors (Reserved) ............................................................28

CAN-MCU Update Port ..................................................................28

CAN-MCU Debug Port ...................................................................29

MCU Debug Port ...........................................................................29

MCU Download Port ......................................................................30

Mini-PCIe Connector ......................................................................31

Mini-PCIe Connector ......................................................................32

Mini-PCIe Connector ......................................................................33

M.2 B-Key Connector .....................................................................34

M.2 B-Key Connector .....................................................................35

PoE Power & Low Speed Signal Connector .....................................36

PoE High Speed Signal Connector ..................................................37

Locations of the Jumpers and Connectors

for the PoE Expansion Module (VIOB-POE8-03) .....................................38

Top View ........................................................................................ 38

Internal Connectors ........................................................................... 39

SATA Connectors (7-pin and 15-pin) .............................................. 39

Low Speed Board to Board Connector ............................................40

High Speed Board to Board Connector ...........................................41

Chapter 4: System Setup

Removing the Chassis Cover ................................................................42

Removing the MXM Module .................................................................44

Removing the CPU ................................................................................45

Removing the Memory Module .............................................................46

Installing a WWAN Module (Mini-PCIe) .................................................46

Installing a WWAN Module (M.2) ..........................................................47

Installing a WLAN Module (Half Mini-PCIe) ............................................47

Installing a SIM Card .............................................................................48

Installing a SSD/HDD Drive ....................................................................49

Replacing the System Fan ......................................................................51

Appendix A: Software Demo Utility for I/O Ports of Function Control

Menu Screen ........................................................................................54

1. Config1 ........................................................................................54

2. Config2 ........................................................................................56

3. Config3 .......................................................................................58

4. G-Sensor ......................................................................................59

5. PoE ...............................................................................................60

6. System Event ................................................................................61

iv

Preface

ATC 8010 User Manual

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

ATC 8010 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

PrefaCe

v

Preface

ATC 8010 User Manual

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment. RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm. In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name. All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

Preface

ATC 8010 User Manual

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vii

Preface

ATC 8010 User Manual

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

4. SIM: Do not insert or remove the SIM card when the system is powered on. Always power off the system before inserting or removing the SIM card.

viii

Preface

ATC 8010 User Manual

Safety Precautions

▪ Read these safety instructions carefully.

▪ Keep this User Manual for later reference.

▪ Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

▪ For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

▪ Keep this equipment away from humidity.

▪ Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

▪ Do not leave this equipment in either an unconditioned environment or

in a above 40

o

C storage temperature as this may damage the equipment.

▪ The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

▪ Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

▪ Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

▪ All cautions and warnings on the equipment should be noted.

▪ If the equipment is not used for a long time, disconnect it from the power

source to avoid damage by transient overvoltage.

▪ Never pour any liquid into an opening. This may cause fire or electrical

shock.

▪ Never open the equipment. For safety reasons, the equipment should be

opened only by qualified service personnel.

▪ If one of the following situations arises, get the equipment checked by

service personnel: a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

▪ Do not place heavy objects on the equipment.

▪ The unit uses a three-wire ground cable which is equipped with a third

pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

▪ CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY

REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

Preface

ATC 8010 User Manual

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

x

Preface

ATC 8010 User Manual

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: sales@nexcom.com.tw www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China

NEXCOM China

Floor 5, No.4, No.7 fengxian middle Rd., (Beike Industrial Park), Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: sales@nexcom.cn www.nexcom.cn

xi

Preface

ATC 8010 User Manual

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625 570 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

NEXCOM Surveillance Technology Corp.

Room202, Building B, the GuangMing Industrial Zone Zhonghua Rd., Minzhi Street, Longhua District, Shenzhen 518131, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: steveyang@nexcom.com.tw www.nexcom.cn

NEXCOM United System Service

Hui Yin Ming Zun Building Room 1108, Building No. 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: frankyang@nexcom.cn www.nexcom.cn

xii

Preface

ATC 8010 User Manual

Package Contents

Before continuing, verify that the ATC 8010 package that you received is complete. Your ATC 8010 package should have all the items listed in the following table.

Item P/N Name Specification Qty

1 603ANT0115X00 GPS/GLONASS Antenna SANAV:SM-76G SMA Male L=5000mm 1

2 ATC8101-7A DVD Driver VER:1.0 1

3 4NCPF00510X00 Terminal Blocks 5P Phoenix Contact:1778014 5.08mm Female DIP Green 1

4 50333P0028X00 Washer for SMA CONN KANG YANG:WS6-0.8(B) 12.8x6.4x0.8mm PC Black 8

5 50333P0027X00 Washer for SMA CONN KANG YANG:TW-181 13x1.8mm Nylon 66 Natural 8

6 603POW0234X00

Power Cable 8-pin to 6-pin 12V DC OUT SUNJET:SLNEX822910

ATX 2x4 PIT:3.0mm to ATX 2x3 PIT:4.2mm UL1007 22AWG L=200mm

1

7 50311F0581X00 I Head Bolts Screw LONG FEI:I3x15.8 ISO NIGP I3x5.8 AXISx2.8mm SCREWx3mm 8

8 5061000004X00 Damper Anti-Vibrate Grommet KANG YANG:TGM-50G(B) D7xH2.8mm TPE COLOR: Black 8

1

Chapter 1: Product Introduction

ATC 8010 User Manual

ChaPter 1: ProduCt IntroduCtIon

Physical Features

Front View

SSD/HDD

USB 3.1 USB 3.1 CAN/DIO COM1 COM2

SSD/HDD

SIM2 SIM3

ultraONE+ VGA

Power Button

Reset

Button

HDMI

HDMI DC OUT DC IN 9V-36V

PoE 1-4 PoE 5-8

GbE LAN COM3Antenna Hole

Antenna Hole Antenna Hole Antenna Hole Antenna Hole

Antenna HoleAntenna Hole Antenna Hole Antenna Hole

LED Indicators

Rear View

Line-out

Mic-in

2

Chapter 1: Product Introduction

ATC 8010 User Manual

Overview

ATC 8010, powerful and reliable Artificial Intelligent (AI) platform, is specially designed for applications, such as ANPR, AFR and highly-demanding on graphics performance. Its updated Intel

®

Coffee Lake desktop 35W CPU, and NVIDIA 1050Ti graphics card guarantee the graphics performance, which satisfies most of the Automated Intelligent (AI) requirements. 8-Port

802.3af/at PoE, offers wide bandwidth and precise control to the analysis of big video data. Besides, ultraONE+ technology commits the transmission of video and audio, up to 10 meters distance. 5 x HDMI and 1 x VGA let users monitor the immediate video without any delay and blind spot. RAID 0, 1, 5, 10 guarantee the safety of video data in the 2 x external SSD, and 2 x mSATA. The design of swappable fans makes it easier to maintain.

Key Features

• Intel® Coffee Lake-S Desktop, i7-8700T, 2.4GHz

• NVIDIA GTX 1050Ti MXM graphic module supported

• 8 x 10/100/1000 PoE 802.3af/at

• 1 x VGA and 5 x HDMI video output

• ultraONE+ for 10-Meter video + audio output

• 2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10

• 2 x WWAN module and 3 x SIM socket with eSIM option

• Swappable fan kit

• 3 x mini-PCIe and 1 x M.2

• CE/FCC/E-mark

3

Chapter 1: Product Introduction

ATC 8010 User Manual

Hardware Specifications

CPU

▪ Intel® Coffee Lake-S, i7-8700T, 2.4GHz, 35W, 6 core

Memory

▪ 2-Channel 204-pin DDR4 SO-DMIM sockets up to 16GB/channel

(32G for two channels), default 8GB industrial grade memory

GPU

▪ NVIDIA GeForce GTX 1050Ti MXM module ▪ Memory size: 4GB GDDR5 ▪ CUDA core: 768 ▪ GPU clock: 1493 MHz ▪ Memory clock: 7.0 GHz ▪ Memory interface width: 128-bit

Storage

▪ 2 x 2.5” SATA 3.0 external SSD ▪ 2 x mSATA

Expansion

▪ 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0) ▪ 1 x Full size mini-PCIe socket (USB 2.0, USB 3.1), optional M.2 key B (3042) ▪ 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0 [optiona]) ▪ 1 x M.2 key B (USB 2.0, USB 3.1)

GNSS and Onboard Sensor

▪ 1 x Default U-blox NEO-M8N GNSS module for GPS/Glonass/QZSS/

Galileo/Beidou ▪ Optional modules with dead reckoning available ▪ Built-in TPM 2.0

Power over Ethernet

▪ 8-Port LAN, 10/100/1000 Mbps, PoE 802.3af/at, max. 60W ▪ 1-Port LAN, 10/100/1000 Mbps

I/O Interface-Front

▪ 24 x LED indicators (including 4 x programmable LEDs) ▪ 1 x HDMI 1.4b. 4 x HDMI 2.0 ▪ 1 x VGA ▪ 1 x ultraONE+ for 10M video + audio output ▪ 2 x USB 3.1 type A (5V/1A) ▪ 2 x Externally accessible SIM card sockets ▪ 2 x 2.5” removable SSD trays ▪ 1 x Reset button ▪ 1 x Power button ▪ 5 x SMA antennas

I/O Interface-Rear

▪ 8 x PoE 802.3af/at (Max. 60W) ▪ 1-Port LAN, 10/100/1000 Mbps ▪ 1 x 5-pin terminal block for 9V~36V DC ▪ 1 x Mic-in, 1 x Line-out ▪ 4 x 2 connector for 12VDC/2A output, RS232 for VTK62B, power button,

2 x MDI ▪ 2 x DB9 for full RS232 ▪ 1 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A) ▪ 1 x DB15

- 1 x Isolated CANBus 2.0B

- 1 x GPS DR

- 4 x DI and 4 x DO ▪ 4 x SMA antennas ▪ 4 x USB 3.1 type A (5V/1A)

4

Chapter 1: Product Introduction

ATC 8010 User Manual

Power Management

▪ Selectable boot-up & shut-down voltage for low power protection by

software ▪ Setting 8-level power on/off delay time by software ▪ Support S3/S4 suspend mode

Operating System

▪ Windows 10/YOCTO (by request)

Dimensions

▪ 260 x 196 x 99 (W x D x H) (mm)

Weight

▪ 4kg

Environment

▪ Operating temperatures

- 30°C~70°C (w/industrial SSD) with air flow ▪ Storage temperatures: -40°C~80°C ▪ Relative humidity: 90% (non-condensing) ▪ Vibration (random)

- 2g@5~500 Hz (in operation, SSD) ▪ Vibration (SSD)

- Operating: MIL-STD-810G, Method 514.6, Category 4, common

carrier US highway truck vibration exposure

- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum

integrity test

▪ Shock (SSD)

- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional

shock=40g

- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash

hazard shock test=75g

Certifications

▪ CE approval ▪ FCC Class A ▪ E13 Mark

5

Chapter 1: Product Introduction

ATC 8010 User Manual

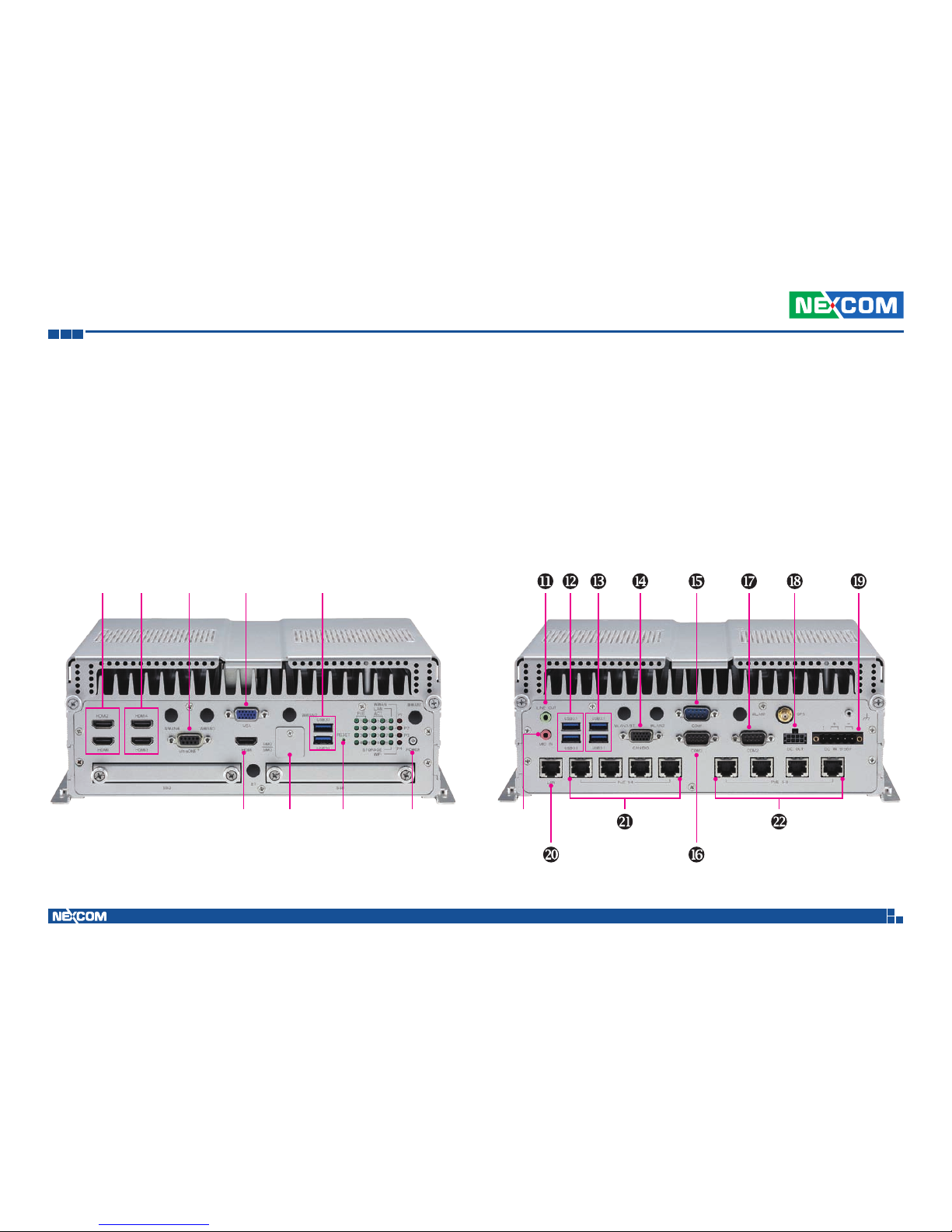

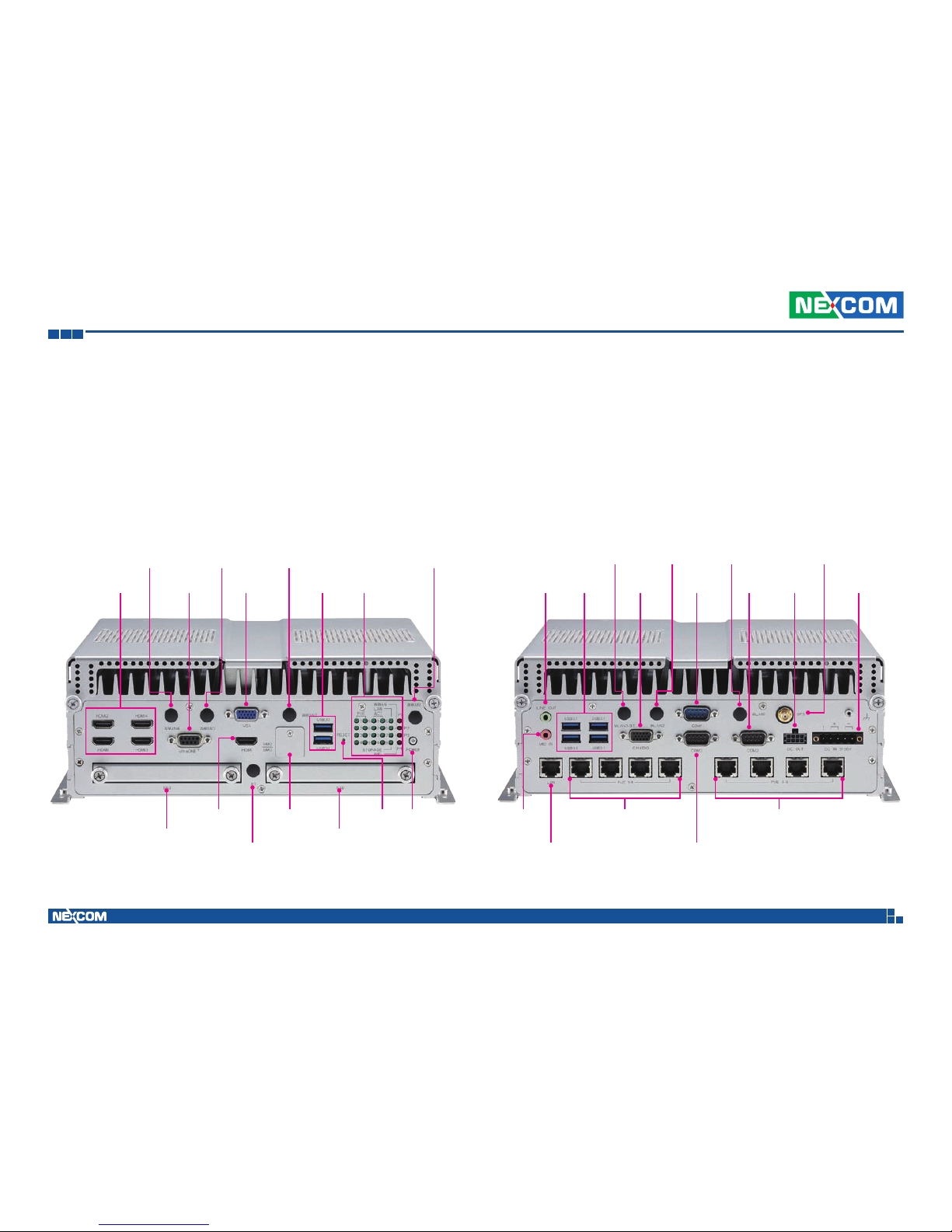

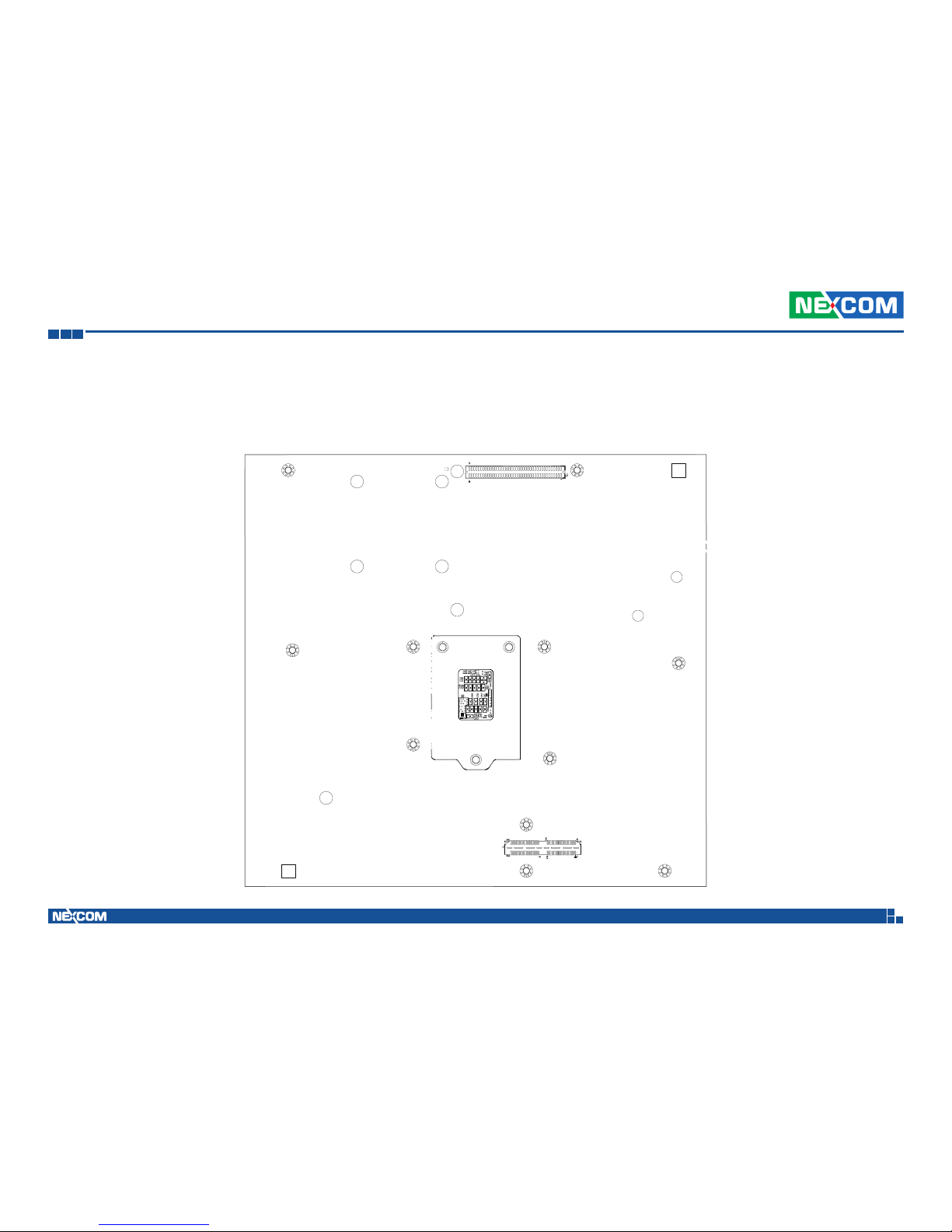

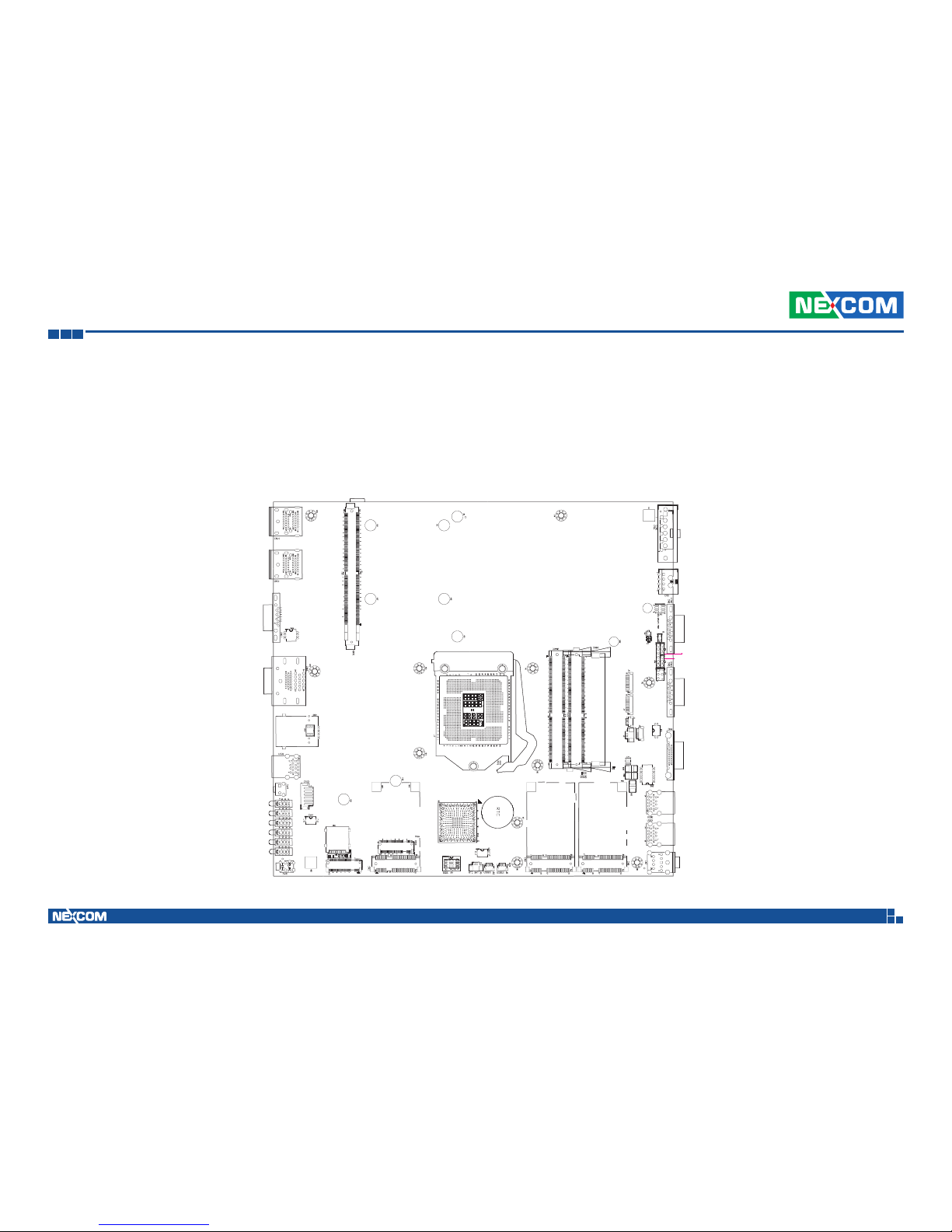

Connector Numbering

The following diagrams indicate the numbers of the connectors. Use these numbers to locate the connectors’ respective pinout assignments on chapter 2 of the manual.

 





  

6

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

ChaPter 2: external ConneCtors PInout desCrIPtIon

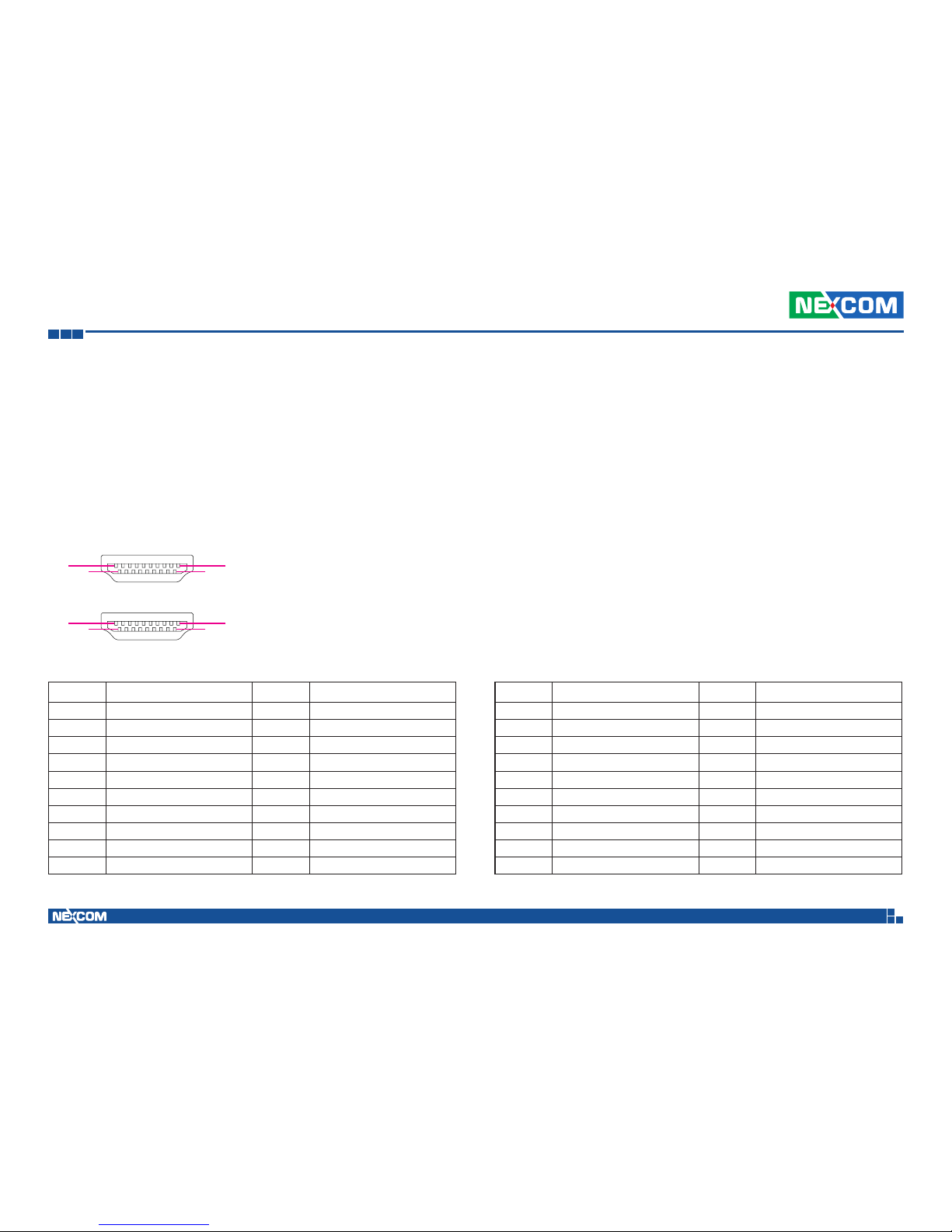

Dual HDMI Connector

Connector number: 1

A19

B19

A18

B18

A2

B2

A1

B1

Pin Definition Pin Definition

A1 HDMI_A_TX2P A2 GND A3 HDMI_A_TX2N A4 HDMI_A_TX1P A5 GND A6 HDMI_A_TX1N A7 HDMI_A_TX0P A8 GND

A9 HDMI_A_TX0N A10 HDMI_A_CLKP A11 GND A12 HDMI_A_CLKN A13 NC A14 NC A15 HDMI_A_SCL A16 HDMI_A_SDA A17 GND A18 HDMI_P5V A19 HDMI_A_HPD

Pin Definition Pin Definition

B1 HDMI_B_TX2P B2 GND B3 HDMI_B_TX2N B4 HDMI_B_TX1P B5 GND B6 HDMI_B_TX1N B7 HDMI_B_TX0P B8 GND

B9 HDMI_B_TX0N B10 HDMI_B_CLKP B11 GND B12 HDMI_B_CLKN B13 NC B14 NC B15 HDMI_B_SCL B16 HDMI_B_SDA B17 GND B18 HDMI_P5V B19 HDMI_B_HPD

7

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

Dual HDMI Connector

Connector number: 2

A19

B19

A18

B18

A2

B2

A1

B1

Pin Definition Pin Definition

A1 HDMI_C_TX2P A2 GND A3 HDMI_C_TX2N A4 HDMI_C_TX1P A5 GND A6 HDMI_C_TX1N A7 HDMI_C_TX0P A8 GND

A9 HDMI_C_TX0N A10 HDMI_C_CLKP A11 GND A12 HDMI_C_CLKN A13 NC A14 NC A15 HDMI_C_SCL A16 HDMI_C_SDA A17 GND A18 HDMI_P5V A19 HDMI_C_HPD

Pin Definition Pin Definition

B1 HDMI_D_TX2P B2 GND B3 HDMI_D_TX2N B4 HDMI_D_TX1P B5 GND B6 HDMI_D_TX1N B7 HDMI_D_TX0P B8 GND

B9 HDMI_D_TX0N B10 HDMI_D_CLKP B11 GND B12 HDMI_D_CLKN B13 NC B14 NC B15 HDMI_D_SCL B16 HDMI_D_SDA B17 GND B18 HDMI_P5V B19 HDMI_D_HPD

8

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

ultraONE+ Connector

Connector number: 3

Pin Definition Pin Definition

1 USB D- 2 GND 3 FPT LINKIII D- 4 POWER BUTTON 5 24V 6 USB D+ 7 FPT LINKIII D+ 8 24V ENABLE DETECT 9 GND

1 5

6 9

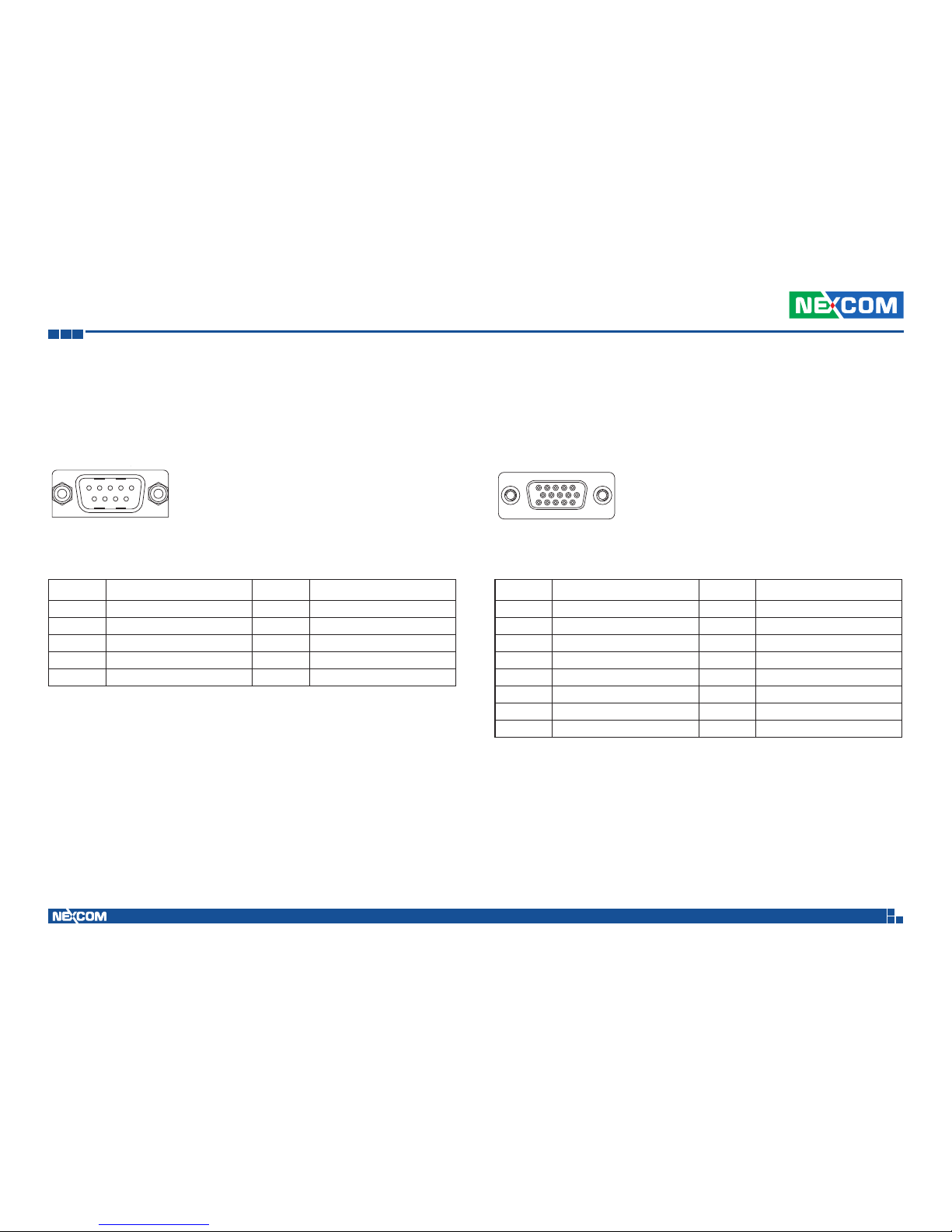

VGA Connector

Connector number: 4

Pin Definition Pin Definition

1 VGA_RED 2 VGA_GREEN 3 VGA_BLUE 4 NC 5 GND 6 GND 7 GND 8 GND

9 +5V 10 GND 11 NC 12 VGA_DATA 13 VGA_HS 14 VGA_VS 15 VGA_CLK

5 1

15

1115

9

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

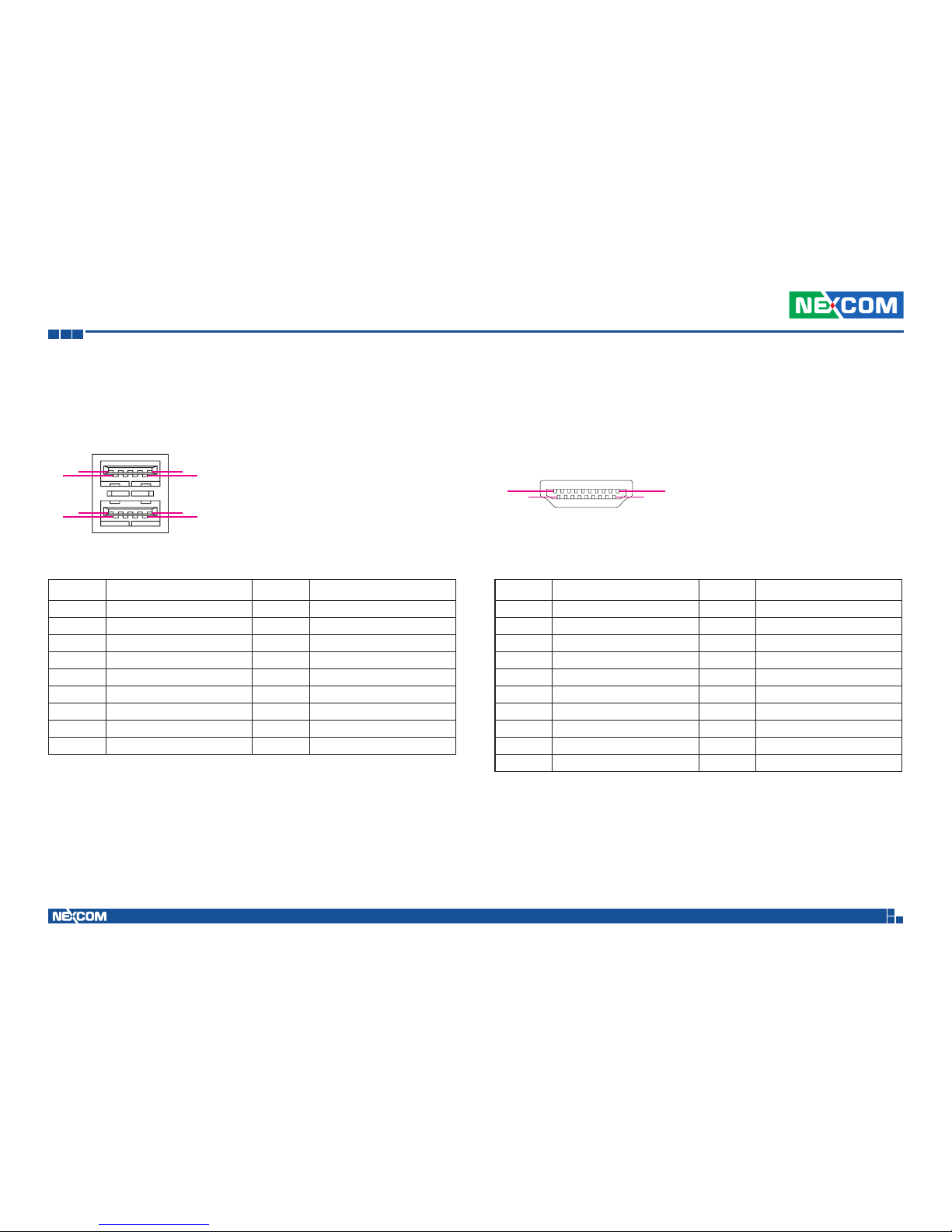

Dual USB 3.1 Port

Connector number: 5

Pin Definition Pin Definition

1 5V 2 USB_1N 3 USB_1P 4 GND 5 USB3_RX1N 6 USB3_RX1P 7 GND 8 USB3_TX1N

9 USB3_TX1P 10 5V 11 USB_2N 12 USB_2P 13 GND 14 USB3_RX2N 15 USB3_RX2P 16 GND 17 USB3_TX2N 18 USB3_TX2P

9

1

10 13

1418

4

5

HDMI Connector

Connector number: 6

Pin Definition Pin Definition

1 HDMI_TX2P 2 GND 3 HDMI_TX2N 4 HDMI_TX1P 5 GND 6 HDMI_TX1N 7 HDMI_TX0P 8 GND

9 HDMI_TX0N 10 HDMI_CLK_P 11 GND 12 HDMI_CLK_N 13 NC 14 NC 15 HDMI_SCL 16 HDMI_SDA 17 GND 18 HDMI_P5V 19 HDMI_HPD

19

18

2

1

10

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

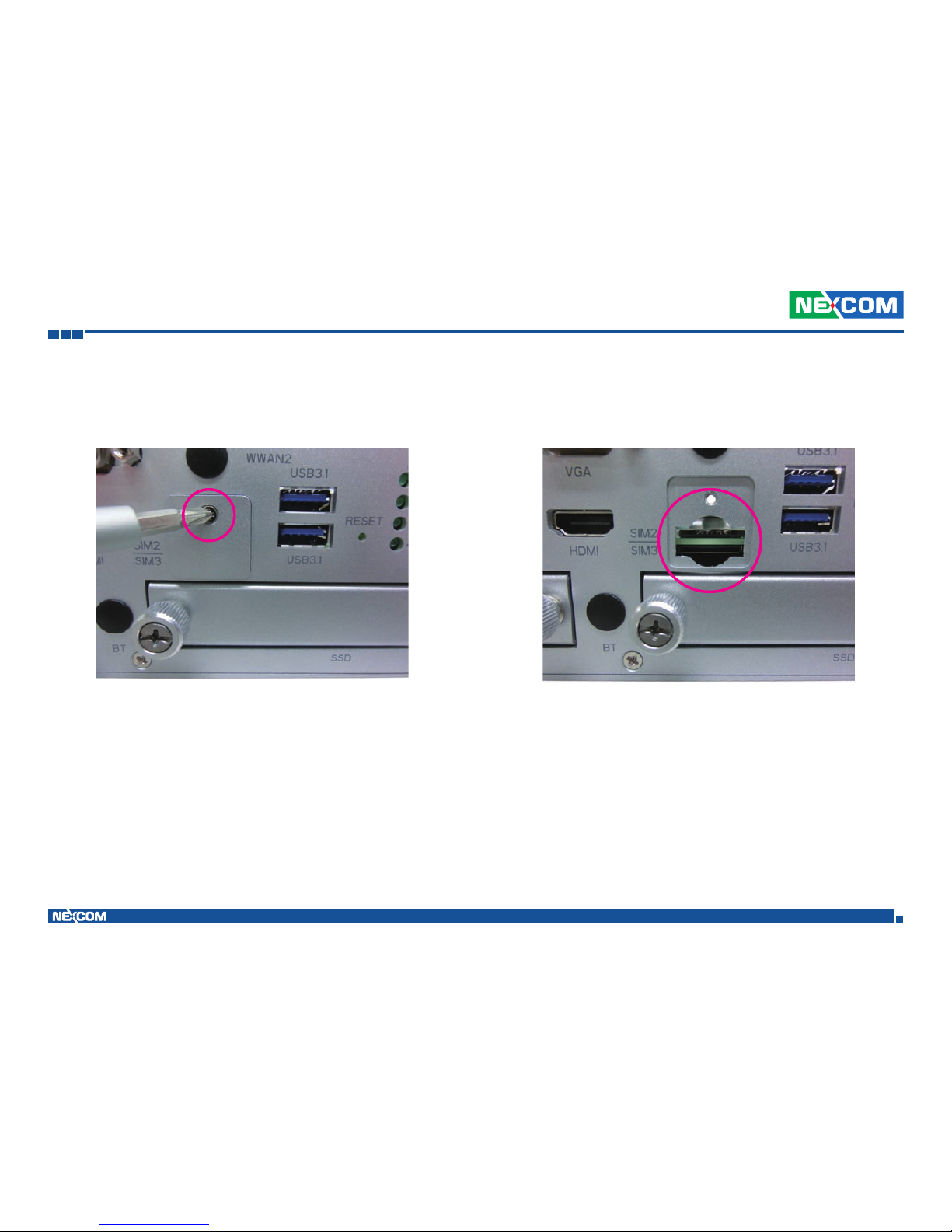

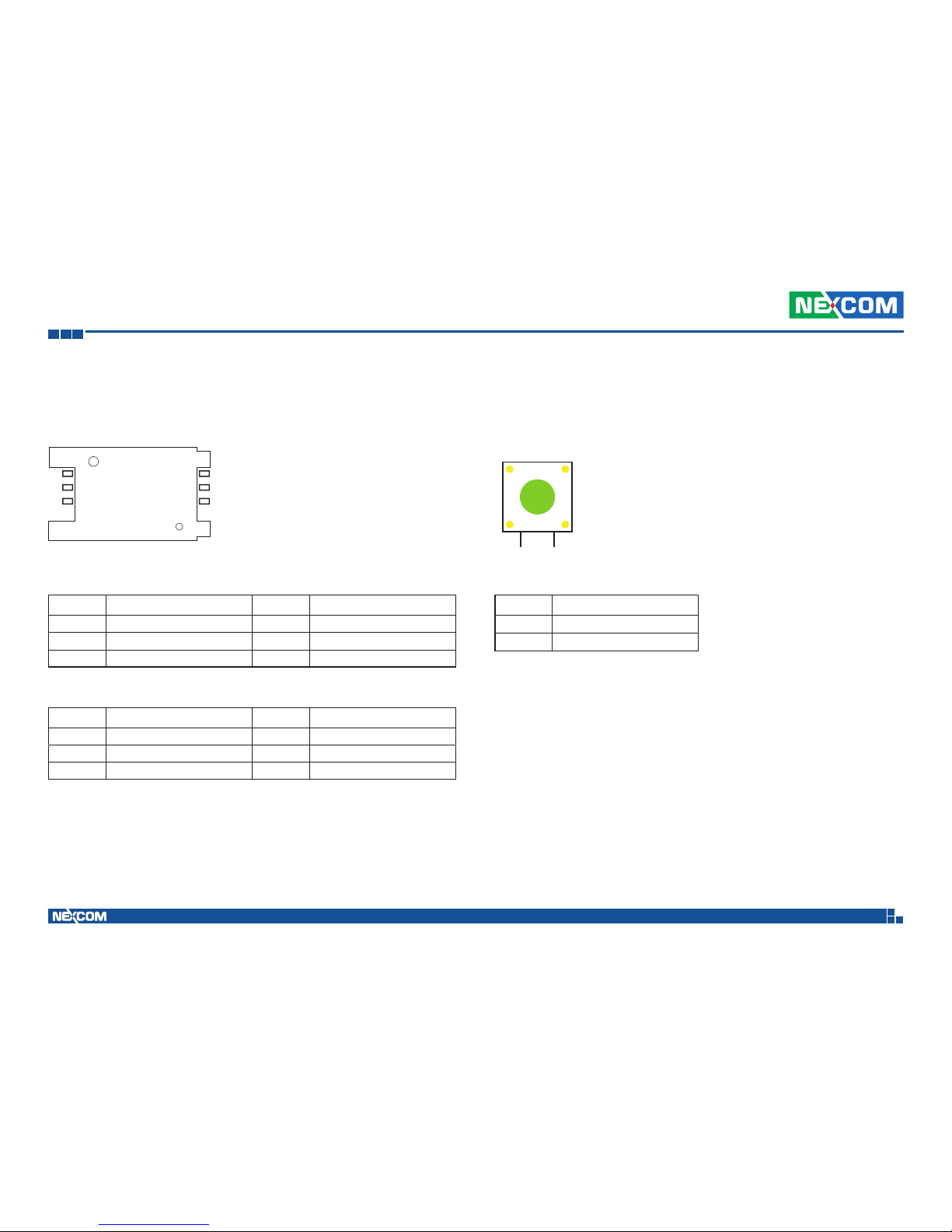

SIM2 and SIM3 Sockets

Connector number: 7

SIM2

Pin Definition Pin Definition

C1 UIM_PWR C5 NC C2 UIM_RST C6 UIM_DAT C3 UIM_CLK C7 NC

SIM3

Pin Definition Pin Definition

C1 UIM_PWR C5 NC C2 UIM_RST C6 UIM_DAT C3 UIM_CLK C7 SIM SELECT

C3 C2 C1

C7 C6 C5

Reset Button

Connector number: 8

Pin Definition

1 GND

2 RST_BTN#

1 2

11

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

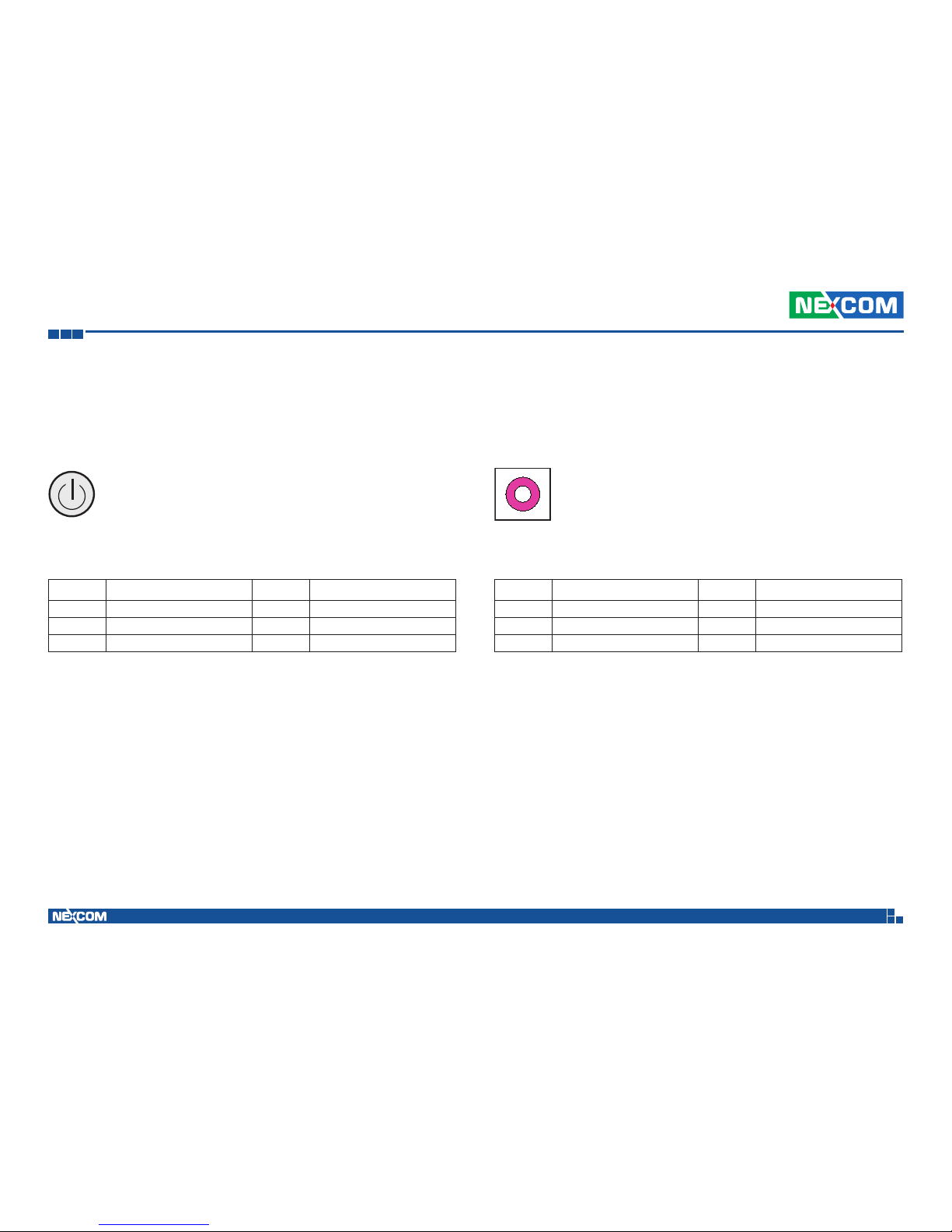

Power Button

Connector number: 9

Pin Definition Pin Definition

1 GND 2 HW_BT# 3 HW_BT# 4 GND

A1 PWRLED_A C1 PWRLED_C

Pin Definition Pin Definition

1 GND 2 MIC RIGHT

3 GND 4 MIC DETECT

5 MIC LIFT

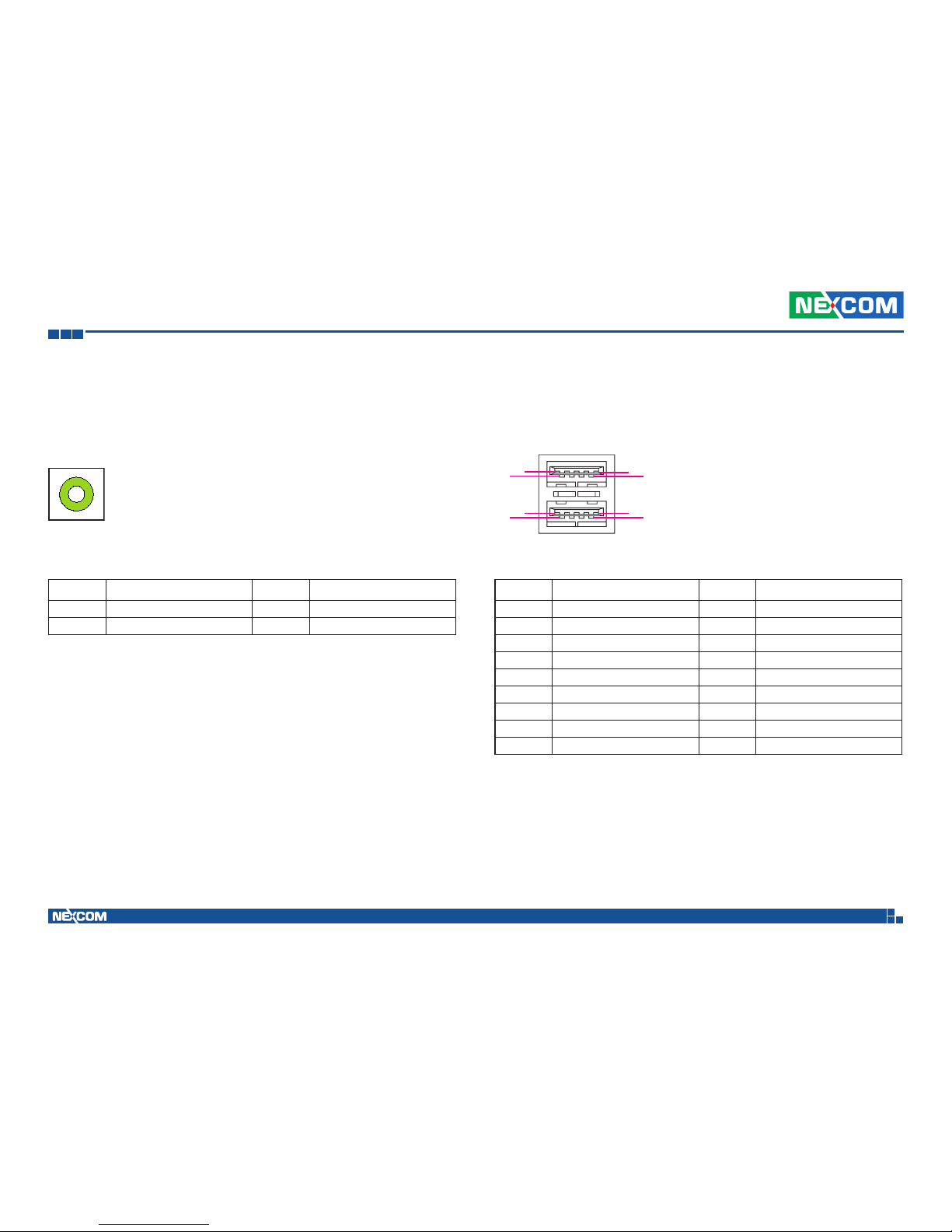

Mic-in Connector

Connector number: 10

12

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

Pin Definition Pin Definition

22 FRONT OUT RIGHT 23 GND 24 FRONT OUT DETECT 25 FRONT LIFT

Line-out Connector

Connector number: 11

Dual USB 3.1 Port

Connector number: 12

9

1

10 13

1418

4

5

Pin Definition Pin Definition

1 5V 2 USB_5N

3 USB_5P 4 GND

5 USB3_RX5N 6 USB3_RX5P

7 GND 8 USB3_TX5N

9 USB3_TX5P 10 5V 11 USB_6N 12 USB_6P 13 GND 14 USB3_RX6N 15 USB3_RX6P 16 GND 17 USB3_TX6N 18 USB3_TX6P

13

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

Dual USB 3.1 Port

Connector number: 13

9

1

10 13

1418

4

5

CAN/DIO Multiport Connector

Connector number: 14

Pin Definition Pin Definition

1 CAN H 2 ODOMETER

3 GPO3 4 GPI1

5 GPO0 6 CAN L

7 DIRECTION 8 GND

9 GPI2 10 GPO1 11 CAN GND 12 GND 13 GPI3 14 GPO2 15 GPI0

5 1

15

1115

Pin Definition Pin Definition

1 5V 2 USB_3N 3 USB_3P 4 GND 5 USB3_RX3N 6 USB3_RX3P 7 GND 8 USB3_TX3N

9 USB3_TX3P 10 5V 11 USB_4N 12 USB_4P 13 GND 14 USB3_RX4N 15 USB3_RX4P 16 GND 17 USB3_TX4N 18 USB3_TX4P

14

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

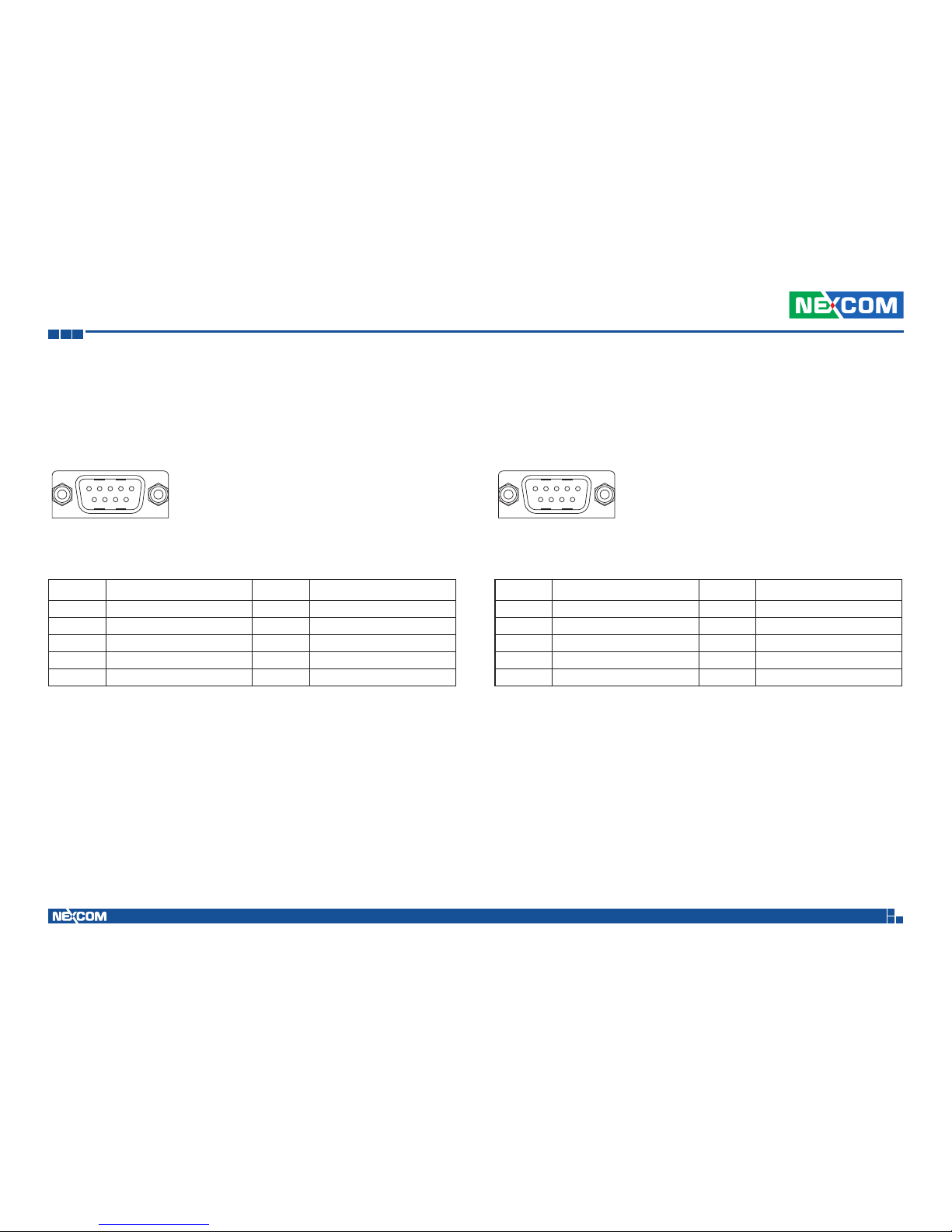

COM1 RS232 Connector

Connector number: 15

COM3 RS-232/RS422/RS485 Connector

Connector number: 16

Pin Definition Pin Definition

1 GND 2 DTR1

3 TXD1 4 RXD1

5 DCD1 6 RI1

7 CTS1 8 RTS1

9 DSR1

Pin Definition Pin Definition

1 RS232 DCD#/RS422 TX- 2 RS232 RX/RS422 TX+ 3 RS232 TX/RS422 RX+ 4 RS232 DTR#/RS422 RX5 RS232 DCD#/RS422 TX- 6 GND 7 DSR# 8 RTS# 9 CTS#

1 5

1

659

1 5

1

659

15

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

COM2 RS232 Connector

Connector number: 17

DC Out Connector

Connector number: 18

Pin Definition Pin Definition

1 GND 2 DTR2

3 TXD2 4 RXD2

5 DCD2 6 RI2

7 CTS2 8 RTS2

9 DSR2

1 5

Pin Definition Pin Definition

1 RESET BUTTON## 2 SLEEP BUTTON## 3 GND 4 GND 5 RS232 TX 6 RS232 RX 7 POWER BUTTON# 8 12V

1

659

14

58

16

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

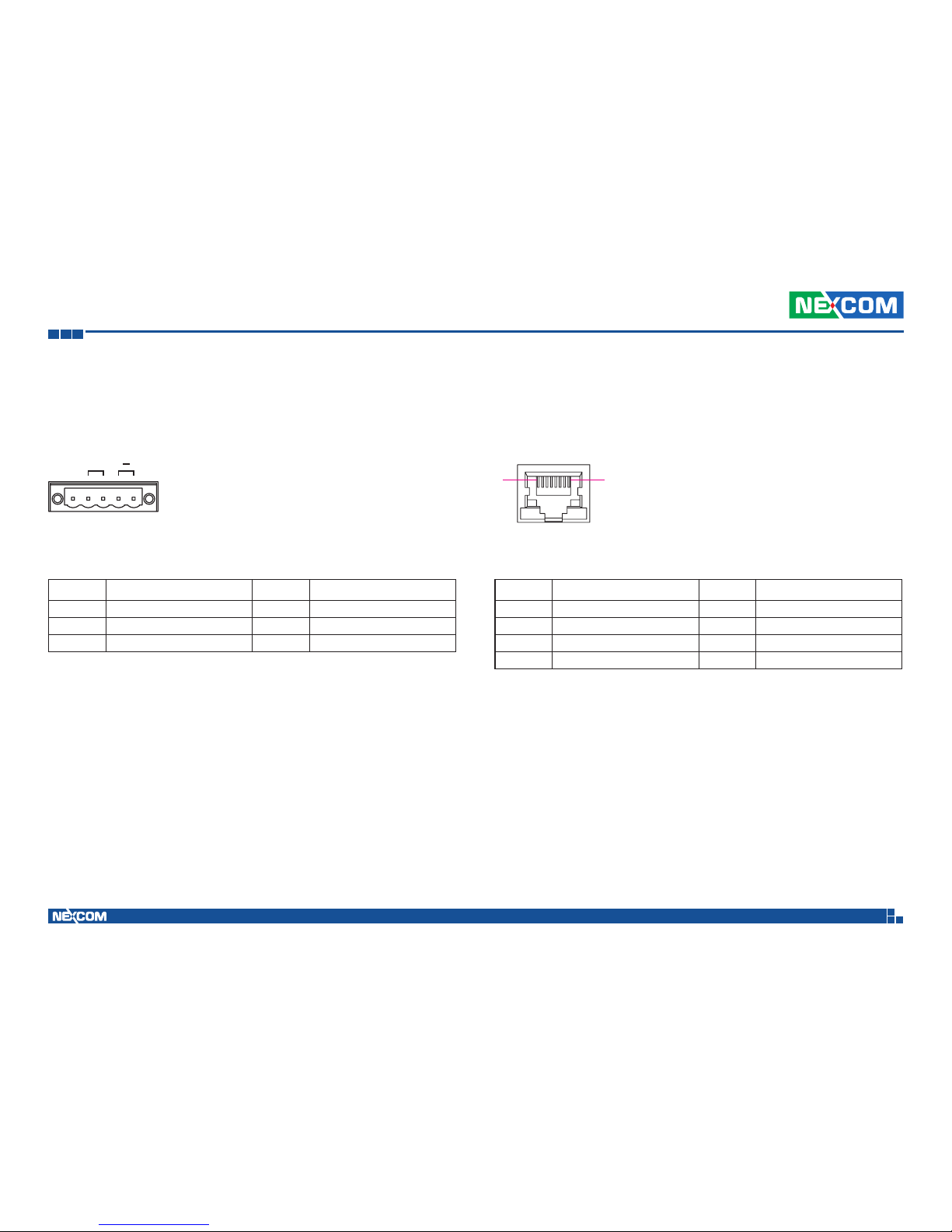

9V-36V DC Power Input

Connector number: 19

Pin Definition Pin Definition

1 GND 2 GND

3 VIN 4 VIN

5 IGNITION

+

1

I

5

1

8

LAN Port

Connector number: 20

Pin Definition Pin Definition

1 LAN_MDI_0P_R 2 LAN_MDI_0N_R 3 LAN_MDI_1P_R 4 LAN_MDI_1N_R 5 LAN_MDI_2P_R 6 LAN_MDI_2N_R 7 LAN_MDI_3P_R 8 LAN_MDI_3N_R

17

Chapter 2: External Connectors Pinout Description

ATC 8010 User Manual

PoE1 to PoE4 Ports

Connector number: 21

Pin Definition Pin Definition

1 LANX_MDI_0P 2 LANX_MDI_0N

3 LANX_MDI_1P 4 LANX_MDI_2P

5 LANX_MDI_2N 6 LANX_MDI_1N

7 LANX_MDI_3P 8 LANX_MDI_3N

Red ‘X’ denotes the port number.

PoE5 to PoE8 Ports

Connector number: 22

Pin Definition Pin Definition

1 LANX_MDI_0P 2 LANX_MDI_0N 3 LANX_MDI_1P 4 LANX_MDI_2P 5 LANX_MDI_2N 6 LANX_MDI_1N 7 LANX_MDI_3P 8 LANX_MDI_3N

Red ‘X’ denotes the port number.

1

8

1

8

18

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

ChaPter 3: JumPers and swItChes

This chapter describes how to set the jumpers on the ATC 8010 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

19

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

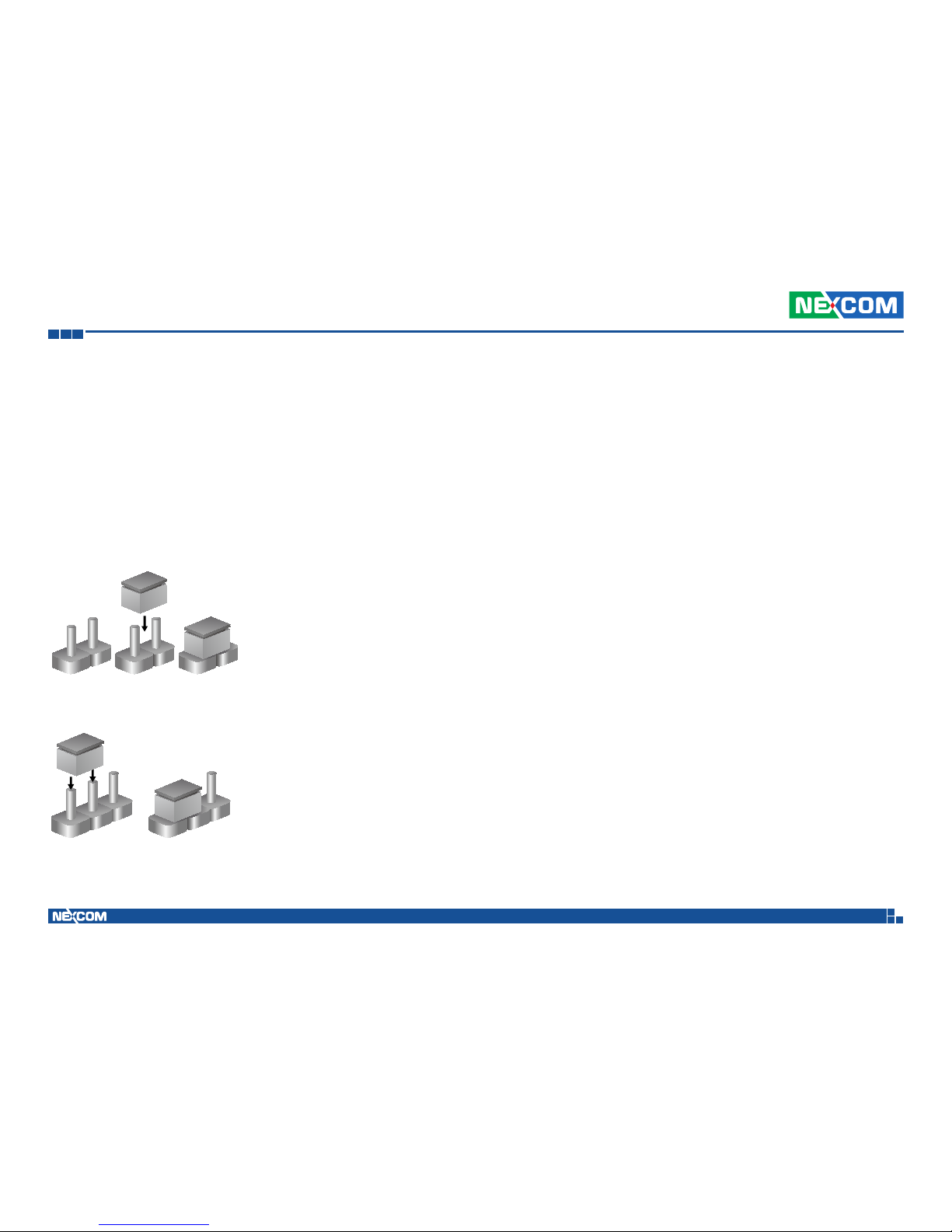

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

1

2

3

1

2

3

20

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

ATC 8010 System Components

The ATC 8010 consists of a motherboard and PoE board. This chapter describes the location and pinout assignment of the jumpers and connectors on each component.

Top View

Locations of the Jumpers and Connectors for the Motherboard

SW6

CN13

CN9

SW5

J6 J10 J8

CN8

J11

JP6

JP2 JP3

JP5

J4

J1

J3

J2

SW1

SW4

CN10

CN11

CN12

IDE1

21

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

Bottom View

JP7

J9

22

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

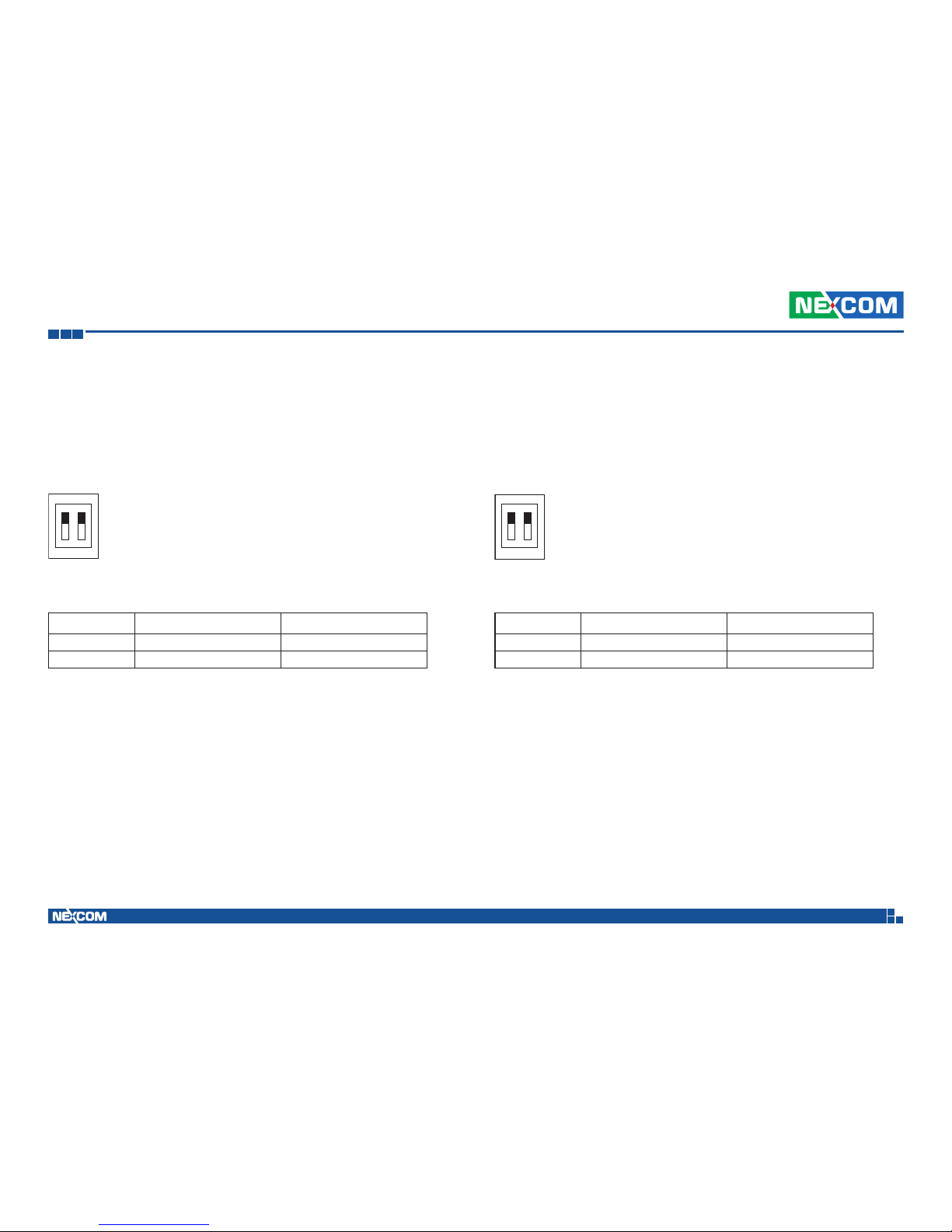

DIP Switch Settings

RTC Clear Selection

Connector location: SW5

SW RTC (Pin1) SRTC/ME (Pin2)

OFF Normal Normal

ON Clear CMOS Clear ME

SW RTC (Pin1) SRTC/ME (Pin2)

1~2 ON 120 OHM 1~2 ON

1~2 OFF Non 1~2 OFF

CAN Bus Impedance Control

Connector location: SW1

1

O

N

2

1

O

N

2

23

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

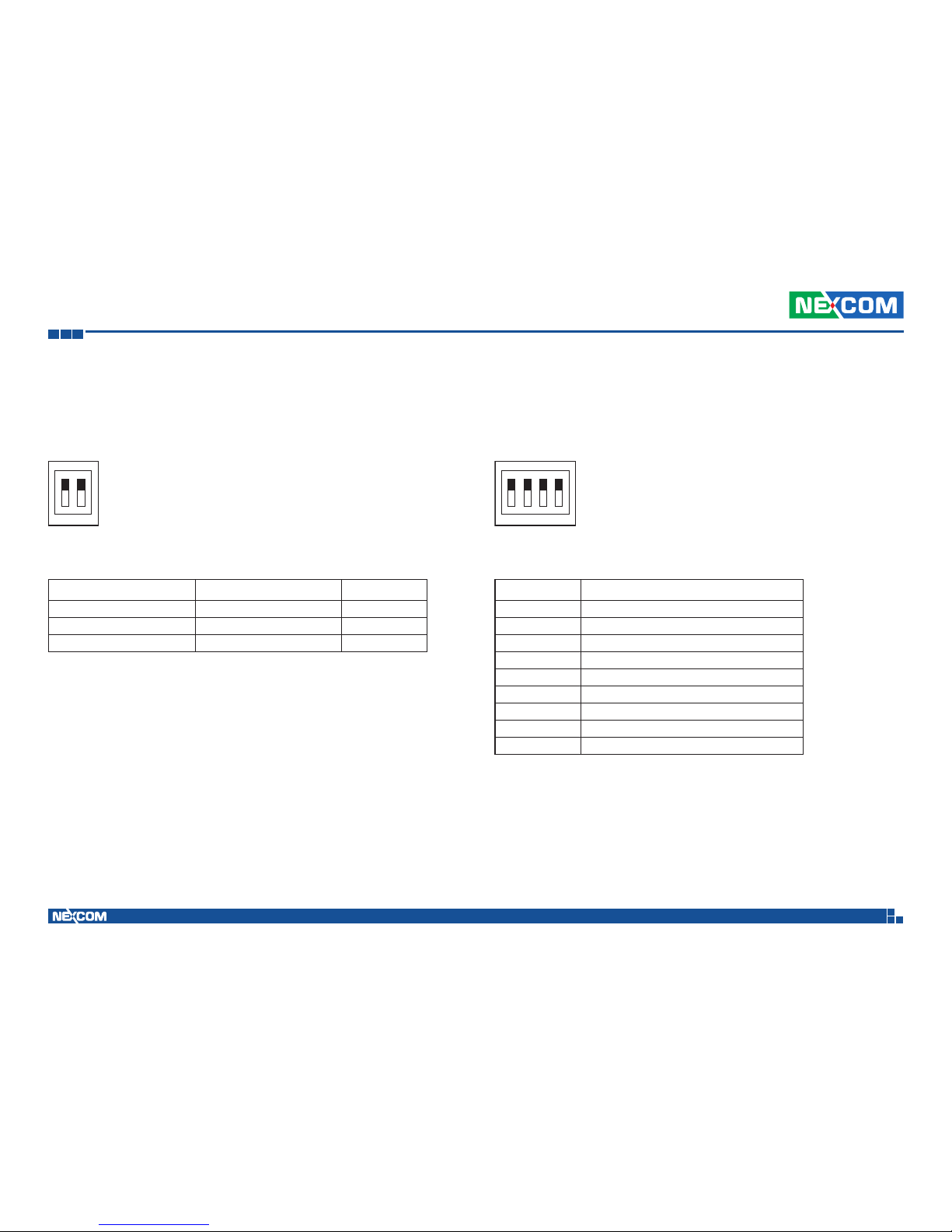

Input Voltage Setup Selection

Connector location: SW4

1

O

N

2

POWERSW (Pin1) 12V24V (Pin2) Result

OFF OFF 12V OFF ON 24V

ON ON 9~36V

LVDS Resolution Control

Connector location: SW6

1

O

N

234

SW [3:0] Function

0000 800 x 600 18-bit Single Port 0001 1024 x 768 18-bit Single Port 0010 1024 x 768 24-bit Single Port 0011 1280 x 768 18-bit Single Port 0100 1280 x 800 18-bit Single Port 0101 1280 x 960 18-bit Single Port 0110 800 x 480 18-bit Single Port 0111 1366 x 768 18-bit Single Port 1000 1366 x 768 24-bit Single Port

24

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

Internal Connectors

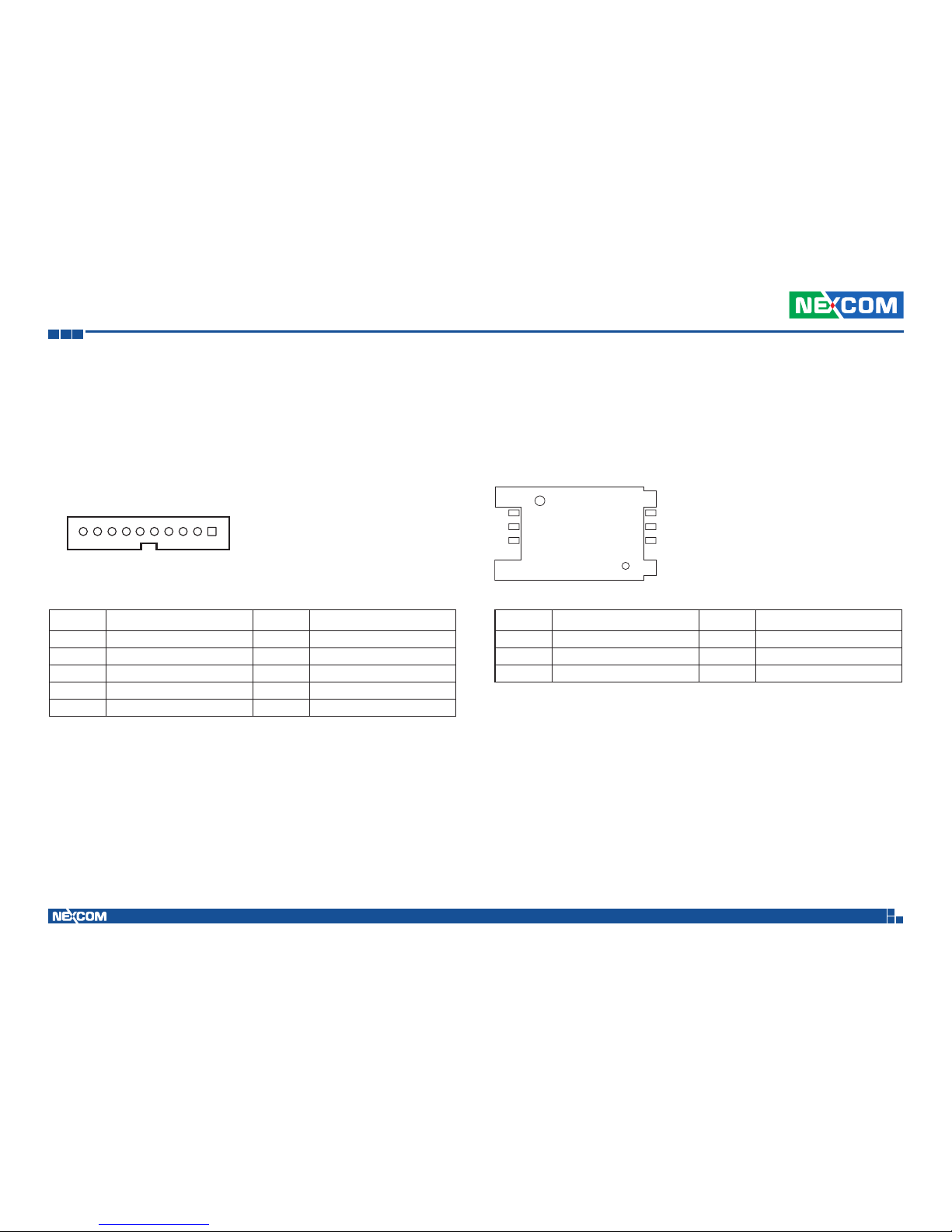

COM1 RS232 DB9 Connector

Connector size: 1 x 10 = 10-pin header (1.0mm) Connector location: J11

110

SIM Card Slot

Connector location: IDE1

Pin Definition Pin Definition

1 GND 2 GND

3 CTS1 4 DSR1

5 DTR1 6 RXD1

7 RI1 8 RTS1

9 TXD1 10 DCD1

Pin Definition Pin Definition

C1 UIM_PWR C5 NC C2 UIM_RST C6 UIM_DAT C3 UIM_CLK C7 NC

C5 C6 C7

C1 C2 C3

25

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

1 6

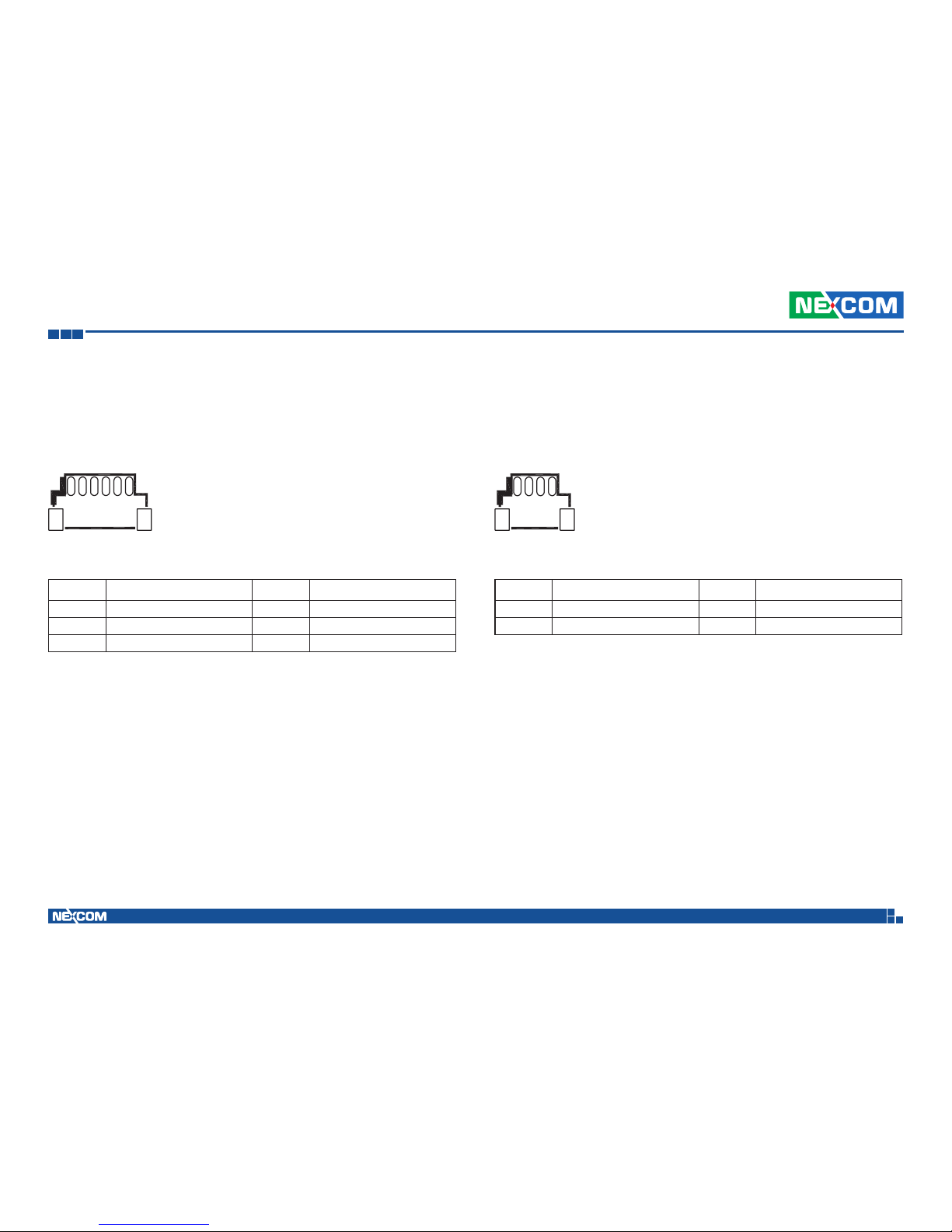

GPS Wire to Board Connector

Connector size: 1 x 6 = 6-pin header Connector location: J2

GPS Wire to Board Connector

Connector size: 1 x 4 = 4-pin header Connector location: J1

Pin Definition Pin Definition

1 3.3V 2 GPS LED

3 TX 4 RX

5 GND 6 3.3V

Pin Definition Pin Definition

1 GND 2 NC 3 ODOMETER 4 DIRECTION

1 4

26

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

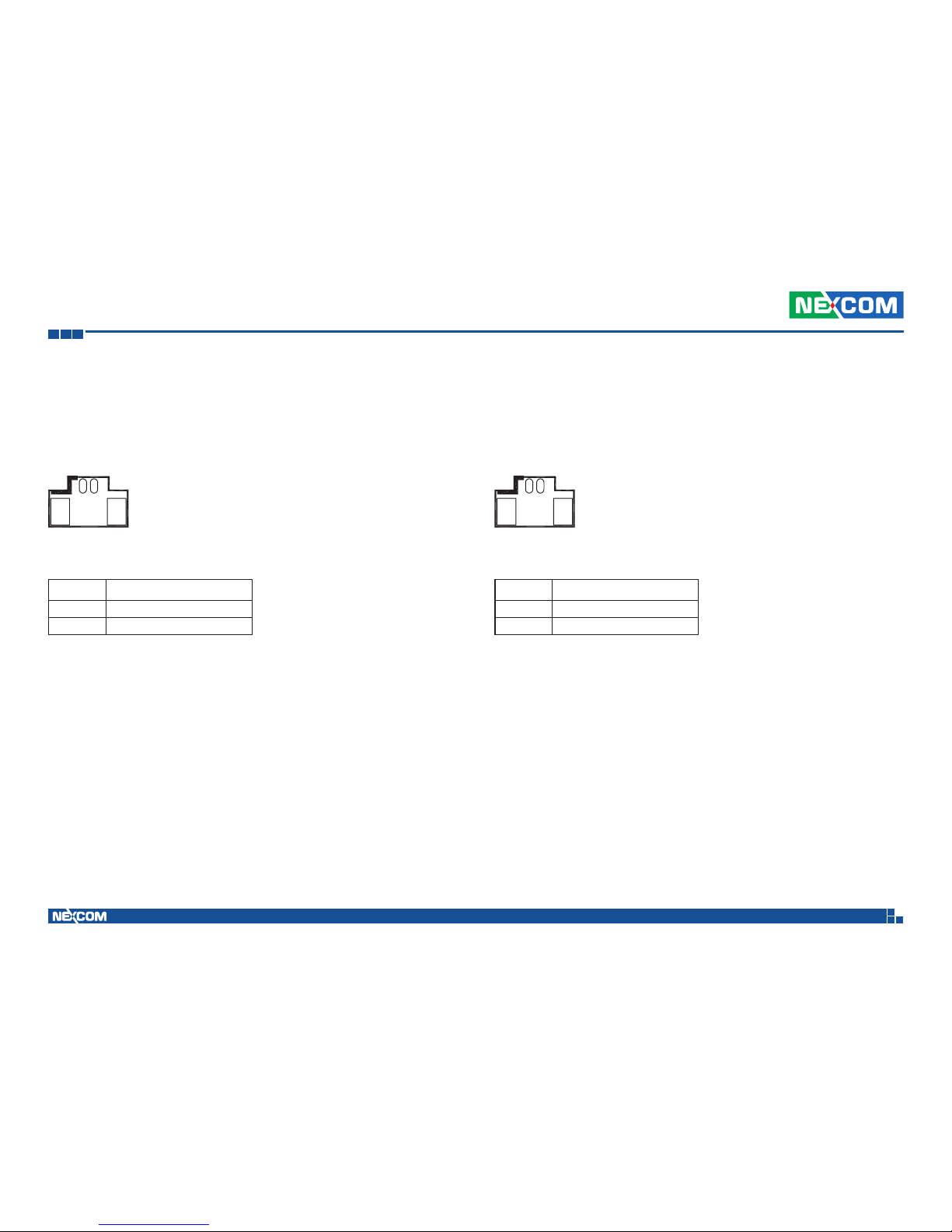

GPS Battery Connector

Connector size: 1 x 2 = 2-pin header Connector location: J3

RTC Battery Connector

Connector size: 1 x 2 = 2-pin header Connector location: J6

Pin Definition

1 GND

2 VBAT

Pin Definition

1 GND 2 VBAT

1 12 2

27

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

6 1

RTC Battery Connector

Connector size: 1 x 6 = 6-pin header Connector location: CN13

Pin Definition Pin Definition

1 GND 2 FAN1 CONTROL

3 FAN1 SPEED 4 GND

5 FAN2 SPEED 6 FAN2 CONTROL

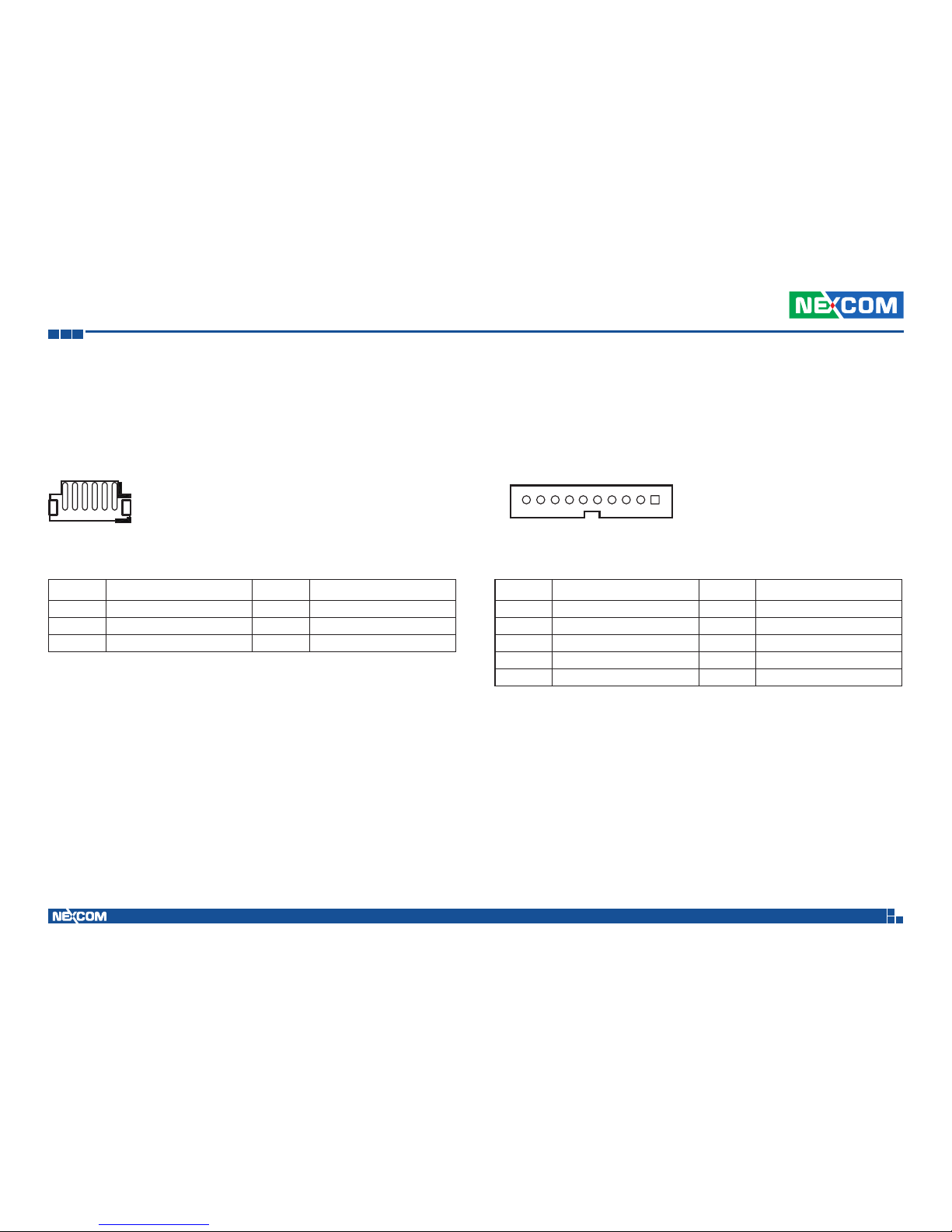

Debug 80 Port Connector

Connector size: 1 x 10 = 10-pin header (1.0mm) Connector location: J4

110

Pin Definition Pin Definition

1 GND 2 PCIRST# 3 33M_CLK 4 LPC_FRAME# 5 LPC_AD3 6 LPC_AD2 7 LPC_AD1 8 LPC_AD0 9 VCC3 10 VCC3

28

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

USB Connectors (Reserved)

Connector size: 1 x 4 = 4-pin header (1.0mm) Connector location: J8 and J10

Pin Definition Pin Definition

1 VCC 2 D-

3 D+ 4 GND

1 4

CAN-MCU Update Port

Connector size: 1 x 6 = 6-pin header (2.54mm) Connector location: JP6

Pin Definition Pin Definition

1 3.3V 2 SWDIO 3 SWDCLK 4 SWO 5 RESET# 6 GND

16

29

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

13

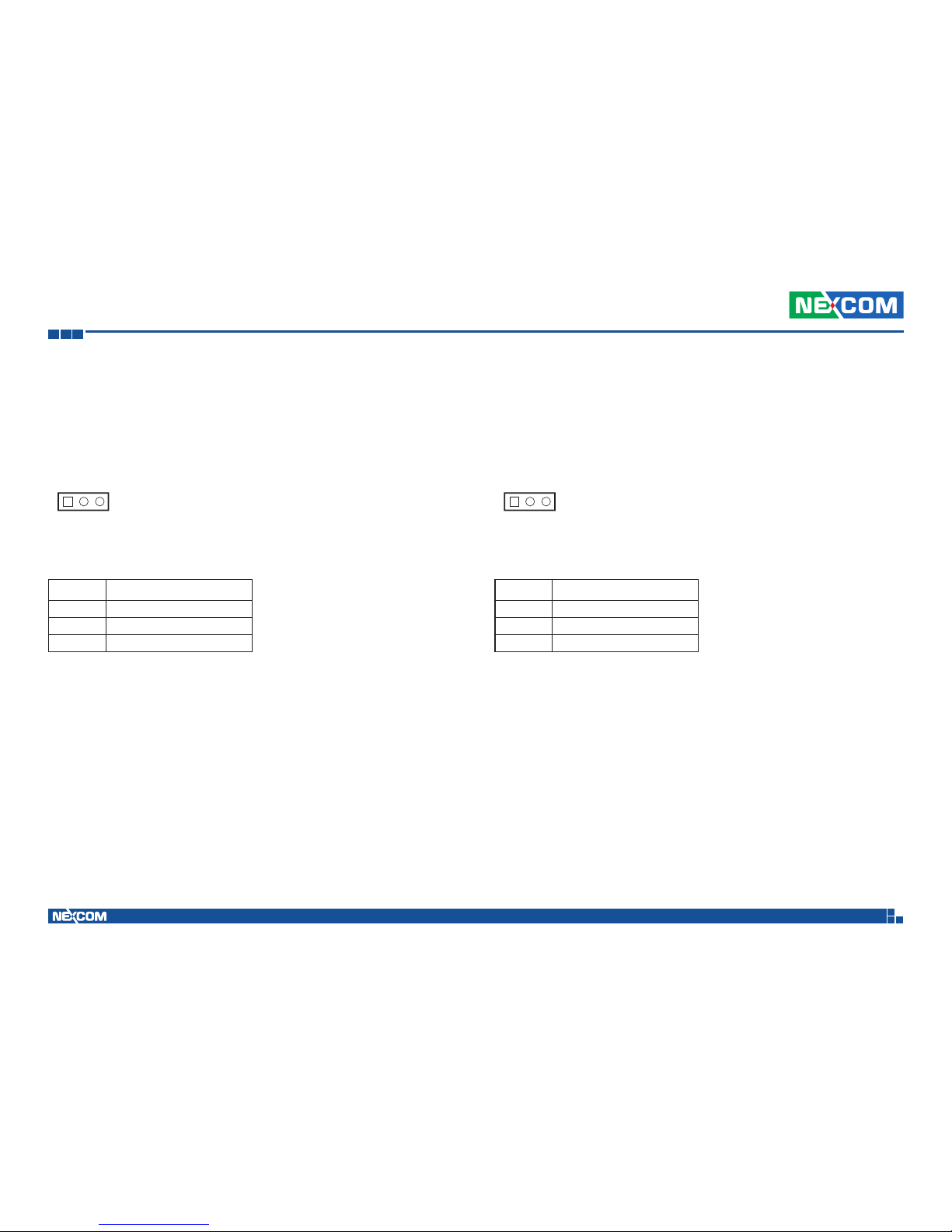

CAN-MCU Debug Port

Connector size: 1 x 3 = 3-pin header (2.54mm) Connector location: JP3

MCU Debug Port

Connector size: 1 x 3 = 3-pin header (2.54mm) Connector location: JP2

Pin Definition

1 TX

2 RX

3 GND

Pin Definition

1 TX 2 RX 3 GND

30

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

28

17

MCU Download Port

Connector size: 2 x 4 = 8-pin header (1.27mm) Connector location: JP5

Pin Definition Pin Definition

1 3.3V 2 MCU_TRST

3 MCU_TCK 4 MCU_TDO

5 MCU_RST 6 MCU_TDI

7 MCU_TMS 8 GND

31

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

Mini-PCIe Connector

Connector location: CN8

1 2

51 52

Pin Definition Pin Definition

1 NC 2 +V3.3_MINI_2

3 NC 4 GND

5 NC 6 +V1.5S_MINI_2

7 CLKREQ#2 8 NC

9 GND 10 NC 11 MINICARD2_CN 12 NC 13 MINICARD2_CP 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 MINIPCIE2_DIS# 21 GND 22 MINIPCIE2_RST# 23 PCIE_RXP17_SATA_RXP4_R 24 +V3.3_MINI_2 25 PCIE_RXN17_SATA_RXN4_R 26 GND

Pin Definition Pin Definition

27 GND 28 +V1.5S_MINI_2 29 GND 30 W_SM2_C 31 PCIE_TXN17_SATA_TXN4_C 32 W_SM2_D 33 PCIE_TXP17_SATA_TXP4_C 34 GND 35 GND 36 USB_10N_T 37 GND 38 USB_10P_T 39 +V3.3_MINI_2 40 GND 41 +V3.3_MINI_2 42 NC 43 GND 44 MINIPCIE2_WLAN_LED#_R 45 NC 46 NC 47 NC 48 +V1.5S_MINI_2 49 NC 50 GND 51 SSD4_DETECT 52 +V3.3_MINI_2

32

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

Mini-PCIe Connector

Connector location: CN9

1 2

51 52

Pin Definition Pin Definition

1 NC 2 +V3.3_MINI_3

3 NC 4 GND

5 NC 6 +V1.5S_MINI_3

7 CLKREQ#3 8 NC

9 GND 10 NC 11 PCIE_CN3 12 NC 13 PCIE_CP3 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 MINIPCIE3_DIS# 21 GND 22 MINIPCIE3_RST# 23 PE_RX18N_R 24 +V3.3_MINI_3 25 PE_RX18P_R 26 GND

Pin Definition Pin Definition

27 GND 28 +V1.5S_MINI_3 29 GND 30 W_SM3_C 31 PE_TX18N_C 32 W_SM3_D 33 PE_TX18P_C 34 GND 35 GND 36 USB_11N_T 37 GND 38 USB_11P_T 39 +V3.3_MINI_3 40 GND 41 +V3.3_MINI_3 42 NC 43 GND 44 MINIPCIE3_WLAN_LED#_R 45 NC 46 NC 47 NC 48 +V1.5S_MINI_3 49 NC 50 GND 51 MBT_DIS#_R 52 +V3.3_MINI_3

33

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

Mini-PCIe Connector

Connector location: CN11

1 2

51 52

Pin Definition Pin Definition

1 NC 2 +3.3V

3 NC 4 GND

5 NC 6 +1.5V

7 PCIE CLOCK REQUEST# 8 NC

9 GND 10 NC 11 PCIE_CLKN3 12 NC 13 PCIE_CLKP3 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 PCIE3 DISABLE# 21 GND 22 PCIE3 RESET# 23 PCIE_RXP3 24 +3.3V 25 PCIE_RXN3 26 GND

Pin Definition Pin Definition

27 GND 28 +1.5V 29 GND 30 SMB_CLK 31 PCIE_TXN3 32 SMB_DATA 33 PCIE_TXP3 34 GND 35 GND 36 USB_5N 37 GND 38 USB_5P 39 +3.3V 40 GND 41 +3.3V 42 NC 43 GND 44 PCIE3_WLAN_LED# 45 NC 46 NC 47 NC 48 +1.5V 49 NC 50 GND 51 BT DISABLE# 52 +3.3V

34

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

75 74

12

Pin Definition Pin Definition

1 CONFIG3 2 3.3V

3 GND 4 3.3V

5 GND 6 POWER_OFF#

7 USB_9P_T 8 W1_DIS#

9 USB_9N_T 10 MINICARD1_WWAN_LED#

11 NC 20 NC 21 CONFIG0 22 NC 23 SMS_RI_3.5G_R 24 NC 25 NC 26 W2_DIS# 27 GND 28 NC 29 USB3_RXN9_T 30 SW2_RST 31 USB3_RXP9_T 32 SW2_CLK 33 GND 34 SW2_DAT 35 USB3_TXN9_T 36 SW2_PWR 37 USB3_TXP9_T 38 NC 39 GND 40 NC 41 NC 42 NC

Pin Definition Pin Definition

43 NC 44 NC 45 GND 46 NC 47 NC 48 NC 49 NC 50 NC 51 GND 52 NC 53 NC 54 NC 55 NC 56 SMB_DATA 57 GND 58 SMB_CLK 59 NC 60 NC 61 NC 62 NC 63 NC 64 NC 65 NC 66 NC 67 RESET# 68 NC 69 CONFIG1 70 3.3V 71 GND 72 3.3V 73 GND 74 3.3V 75 CONFIG2

M.2 B-Key Connector

Connector location: CN10

35

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

75 74

12

Pin Definition Pin Definition

1 CONFIG3 2 3.3V

3 GND 4 3.3V

5 GND 6 POWER_OFF#

7 USB_7P_T 8 W1_DIS#

9 USB_7N_T 10 LTE_LED_PH

11 NA 20 NA 21 CONFIG0 22 NA 23 NA 24 NA 25 NA 26 W2_DIS# 27 GND 28 NA 29 USB3_PXN7_T 30 SW1_RST 31 USB3_PXP7_T 32 SW1_CLK 33 GND 34 SW1_DAT 35 USB3_TXN7_T 36 SW1_PWR 37 USB3_TXP7_T 38 NA 39 GND 40 NA 41 NA 42 NA

Pin Definition Pin Definition

43 NA 44 NA 45 GND 46 NA 47 NA 48 NA 49 NA 50 NA 51 GND 52 NA 53 NA 54 PEWAKE# 55 NA 56 SM1_D 57 GND 58 SM1_C 59 NA 60 NA 61 NA 62 NA 63 NA 64 NA 65 NA 66 NA 67 RST# 68 SUSCLK_R 69 CONFIG1 70 3.3V 71 GND 72 3.3V 73 GND 74 3.3V 75 CONFIG2

M.2 B-Key Connector

Connector location: CN12

36

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

Pin Definition Pin Definition

1 GND 2 VIN_M

3 GND 4 VIN_M

5 GND 6 VIN_M

7 GND 8 VIN_M

9 GND 10 VIN_M

11 GND 12 VIN_M 13 GND 14 VIN_M 15 GND 16 VIN_M 17 NC 18 NC 19 NC 20 NC 21 GND 22 V3.3ALW 23 MCU_I2C1_SCL 24 V3.3ALW 25 MCU_I2C1_SDA 26 EXP_ID_1 27 GND 28 EXP_ID_2 29 PCH_SMB_CLK 30 EXP_ID_3 31 PCH_SMB_DATA 32 EXP_ID_4 33 GND 34 SLP_S3# 35 VCC3_POK 36 SLP_S5# 37 VCC_EN 38 EXP_POE_POK 39 MB_MCU_PSE_PWREN 40 WAKE_ON_LAN_EN

Pin Definition Pin Definition

41 MB_MCU_PSEA_RST 42 LAN_WAEK_N 43 MB_MCU_PSEB_RST 44 PLTRST#_POE 45 IO_USB_PWR_EN 46 GND 47 LAN_POE_LED0 48 LAN10G_ACTIVE_LED0 49 LAN_POE_LED1 50 LAN_ACTIVE_LED1 51 LAN_POE_LED2 52 LAN_ACTIVE_LED2 53 LAN_POE_LED3 54 LAN_ACTIVE_LED3 55 LAN_POE_LED4 56 LAN_ACTIVE_LED4 57 LAN_POE_LED5 58 LAN_ACTIVE_LED5 59 LAN_POE_LED6 60 LAN_ACTIVE_LED6 61 LAN_POE_LED7 62 LAN_ACTIVE_LED7 63 POE_PW_ERR# 64 V3P3_LAN1 65 NC 66 LAN_ACTIVE_LED8 67 POE_INSERT# 68 GND 69 SIO_AGND 70 USB_13N 71 POE_THER 72 USB_13P 73 GND 74 GND 75 USB_12N 76 USB_14N 77 USB_12P 78 USB_14P 79 GND 80 GND

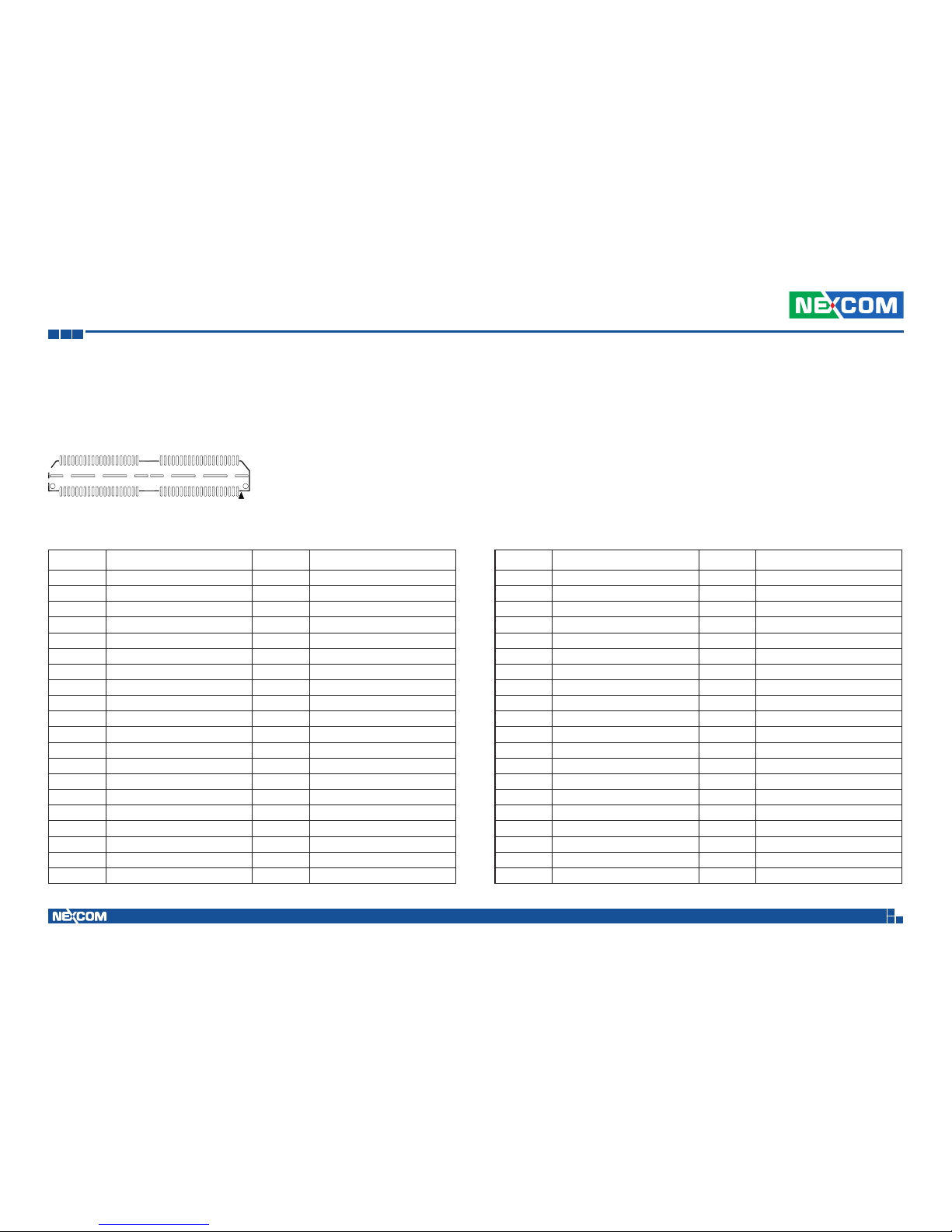

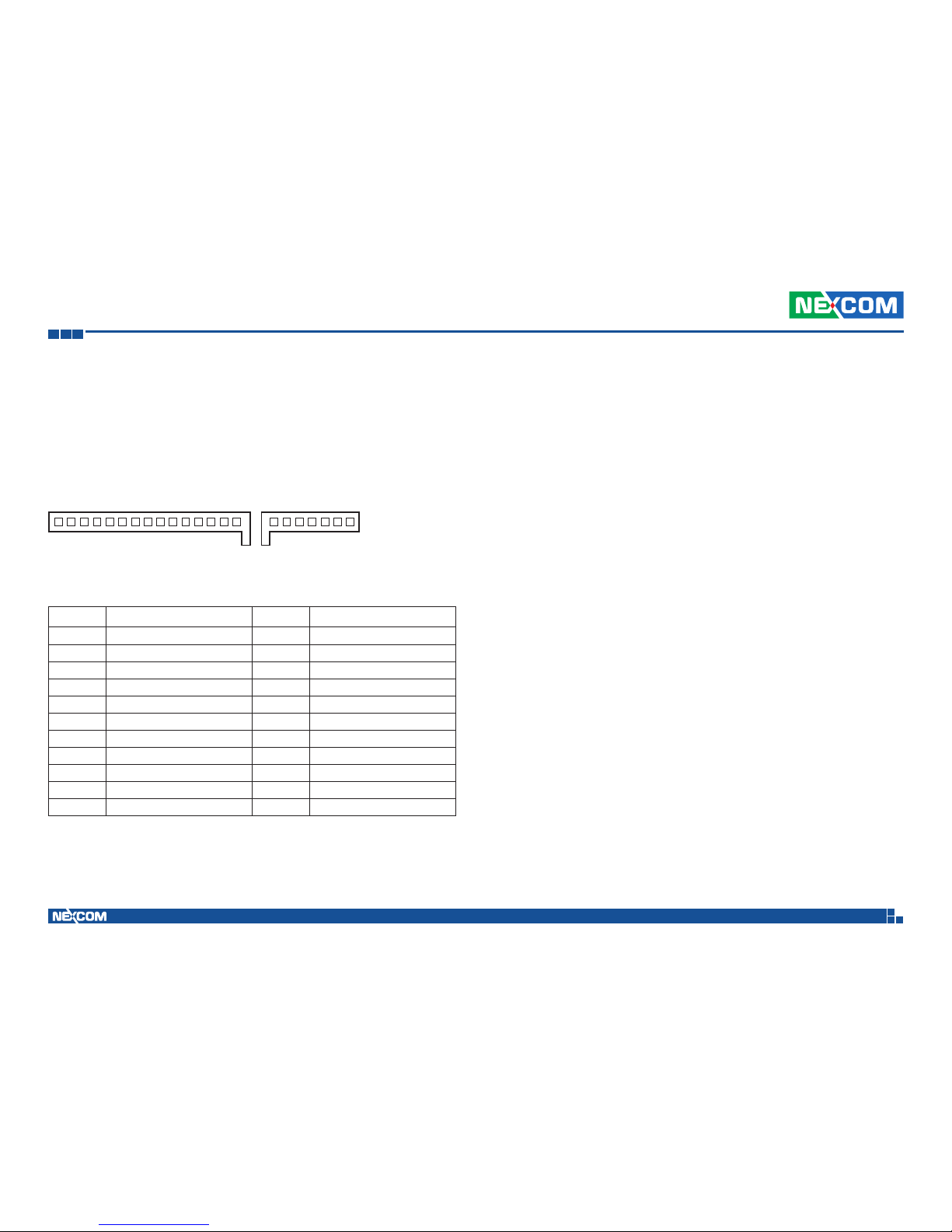

PoE Power & Low Speed Signal Connector

Connector location: JP7

1

280

79

37

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

Pin Definition Pin Definition

A1 PCIE_RXP5 A2 PCIE_TXP5 A3 PCIE_RXN5 A4 PCIE_TXN5 A5 GND A6 GND A7 PCIE_RXP6 A8 PCIE_TXP6 A9 PCIE_RXN6 A10 PCIE_TXN6

A11 GND A12 GND A13 PCIE_RXP7 A14 PCIE_TXP7 A15 PCIE_RXN7 A16 PCIE_TXN7 A17 GND A18 GND A19 PCIE_RXP8 A20 PCIE_TXP8 A21 PCIE_RXN8 A22 PCIE_TXN8 A23 GND A24 GND A25 PCIE_RXP14 A26 PCIE_TXP14 A27 PCIE_RXN14 A28 PCIE_TXN14 A29 GND A30 GND A31 PCIE_RXP15 A32 PCIE_TXP15 A33 PCIE_RXN15 A34 PCIE_TXN15 A35 GND A36 GND A37 PCIE_RXP16 A38 PCIE_TXP16 A39 PCIE_RXN16 A40 PCIE_TXN16

Pin Definition Pin Definition

B1 PCIE_RXP21 B2 PCIE_TXP21 B3 PCIE_RXN21 B4 PCIE_TXN21 B5 GND B6 GND B7 PCIE_RXP22 B8 PCIE_TXP22

B9 PCIE_RXN22 B10 PCIE_TXN22 B11 GND B12 GND B13 PCIE_RXP23 B14 PCIE_TXP23 B15 PCIE_RXN23 B16 PCIE_TXN23 B17 GND B18 GND B19 PCIE_RXP24 B20 PCIE_TXP24 B21 PCIE_RXN24 B22 PCIE_TXN24 B23 GND B24 GND B25 PCIE_CLKP5 B26 PCIE_CLKP14 B27 PCIE_CLKN5 B28 PCIE_CLKN14 B29 GND B30 GND B31 SATA_TXP0B B32 SATA_TXP0A B33 SATA_TXN0B B34 SATA_TXN0A B35 GND B36 GND B37 SATA_RXN0B B38 SATA_RXN0A B39 SATA_RXP0B B40 SATA_RXP0A

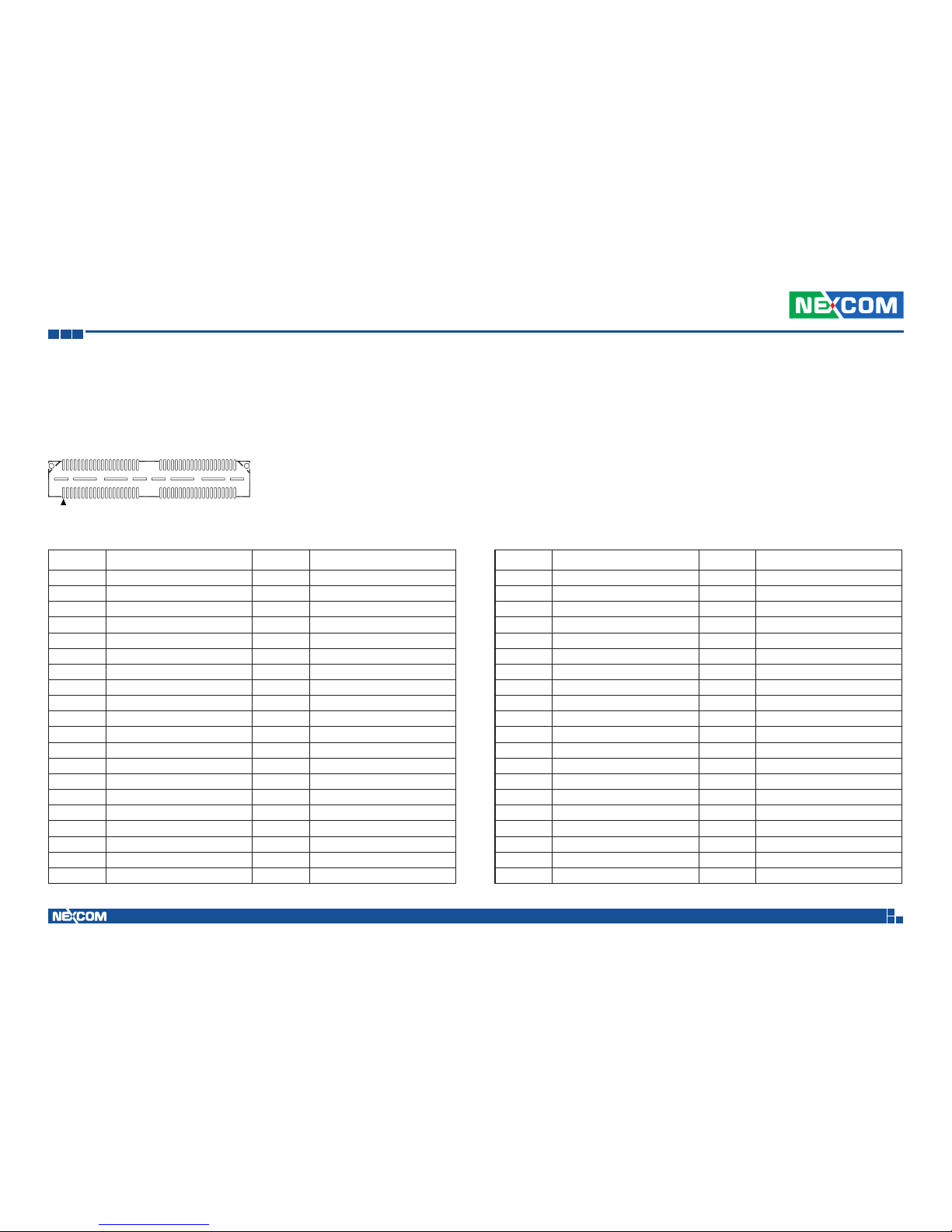

PoE High Speed Signal Connector

Connector location: J9

A1 A39 B1

B2A2 A40 B40

B39

38

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

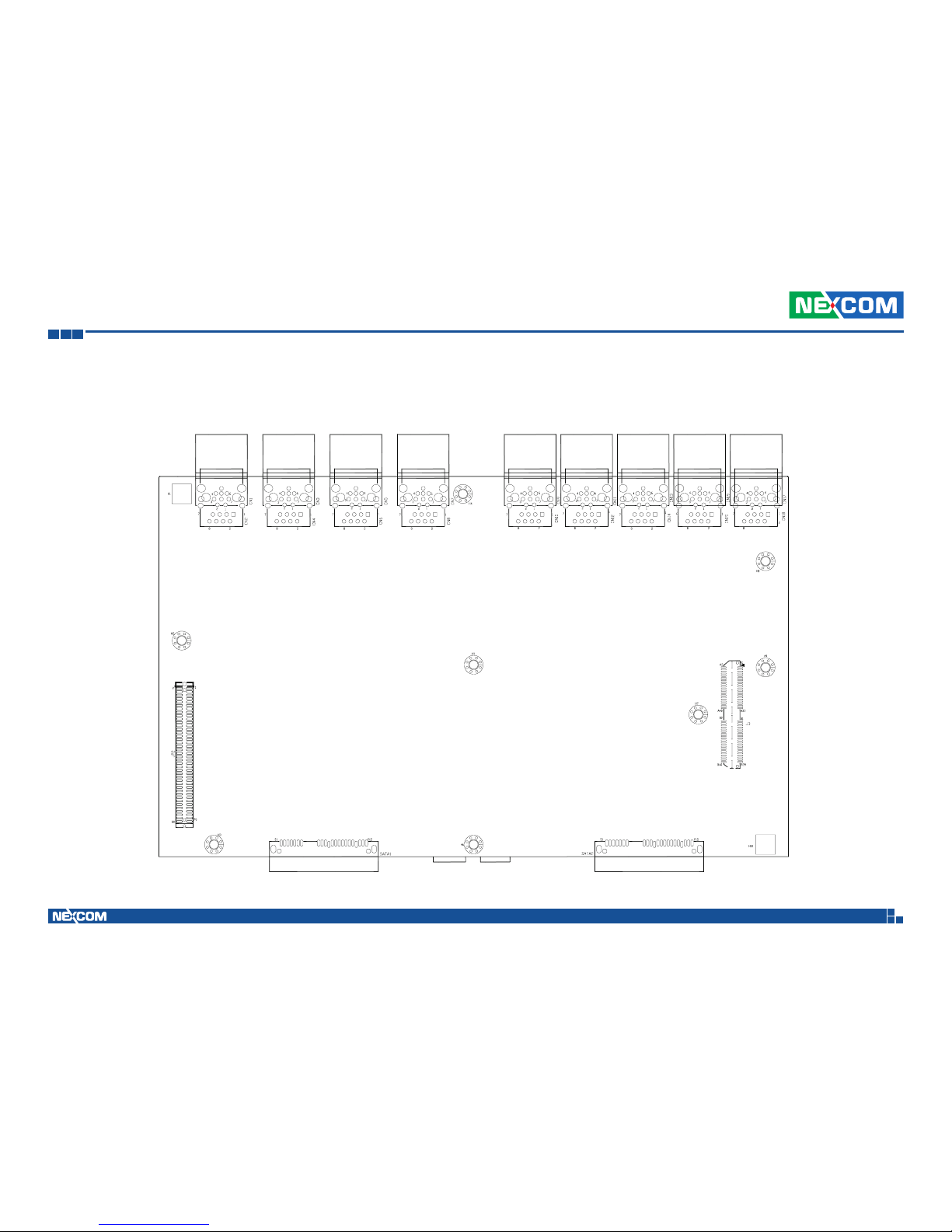

Locations of the Jumpers and Connectors for the PoE Expansion Module (VIOB-POE8-03)

Top View

JP2

J3

SATA

1S

ATA2

39

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

Internal Connectors

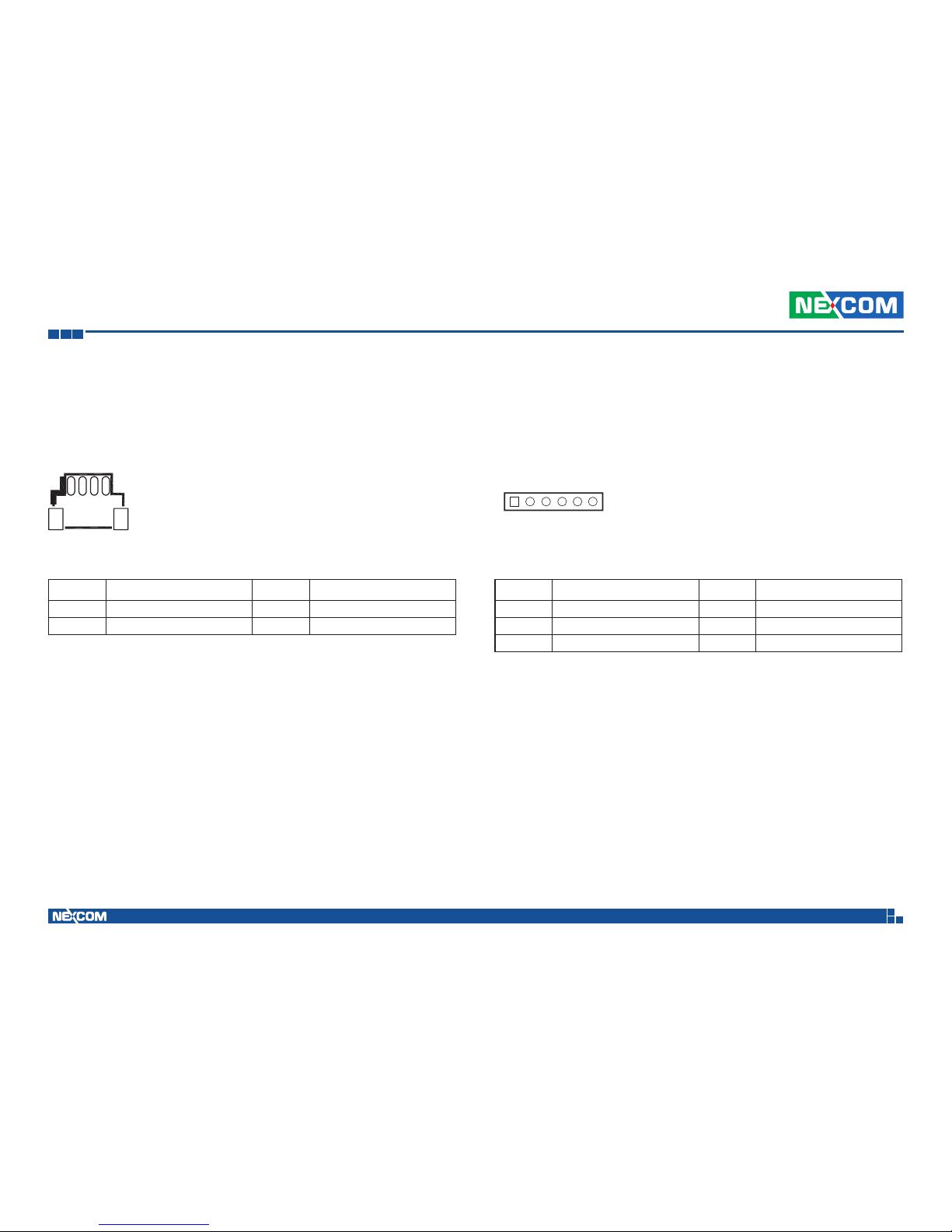

SATA Connectors (7-pin and 15-pin)

Connector type: Standard Serial ATA 7P and 15P Connector location: SATA1 & SATA2

Pin Definition Pin Definition

S1 GND S2 SATA_TXP S3 SATA_TXN S4 GND S5 SATA_RXN S6 SATA_RXP S7 GND P1 NC P2 NC P3 NC P4 GND P5 GND P6 GND P7 VCC5

P8 VCC5 P9 VCC5 P10 GND P11 NC P12 GND P13 NC P14 NC P15 NC

S1P15

40

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

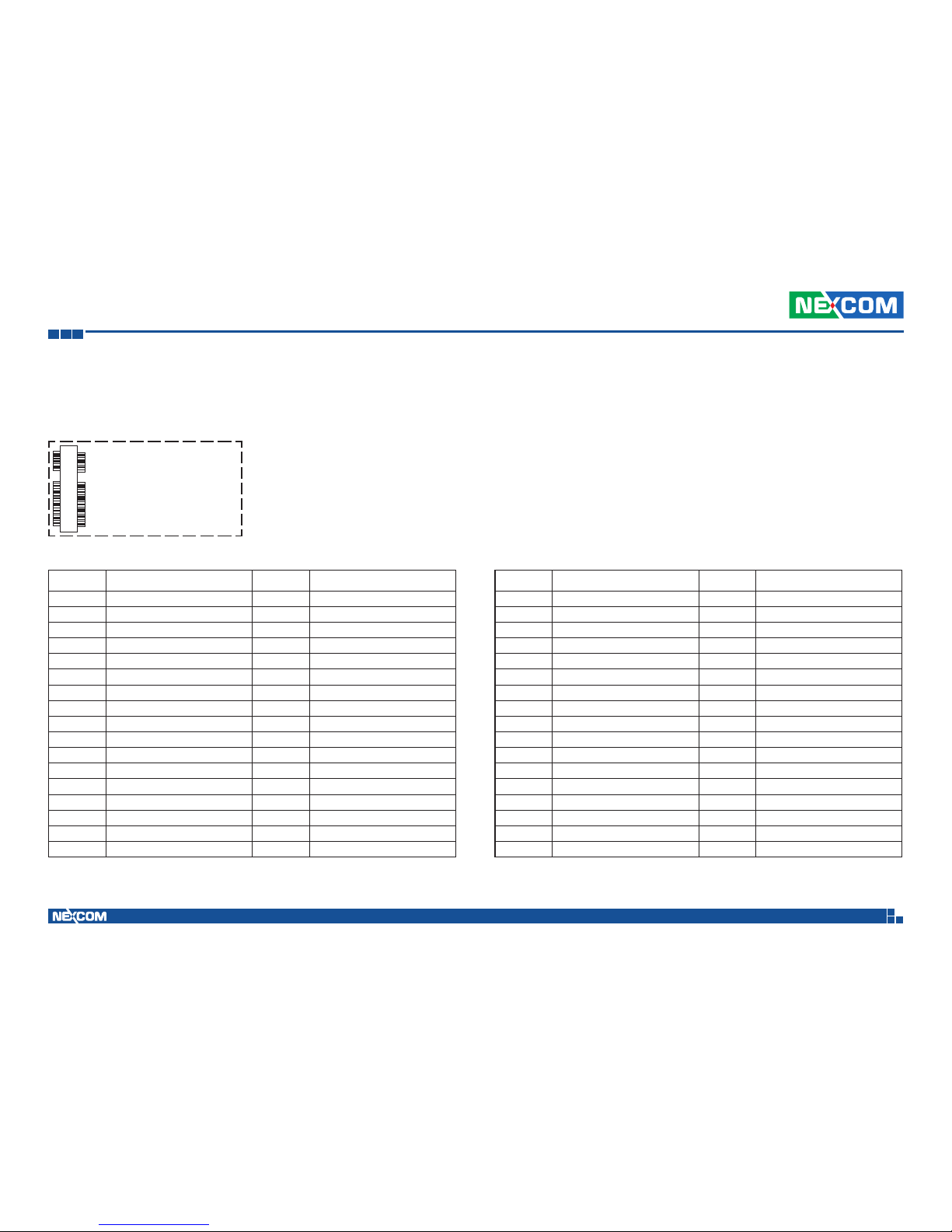

Pin Definition Pin Definition

1 VIN_M(9-36V) 2 GND 3 VIN_M(9-36V) 4 GND 5 VIN_M(9-36V) 6 GND 7 VIN_M(9-36V) 8 GND

9 VIN_M(9-36V) 10 GND 11 VIN_M(9-36V) 12 GND 13 VIN_M(9-36V) 14 GND 15 VIN_M(9-36V) 16 GND 17 NC 18 NC 19 NC 20 NC 21 +V3.3ALW 22 GND 23 +V3.3ALW 24 MCU_I2C3_SCL_M 25 EXP_ID_1 26 MCU_I2C3_SDA_M 27 EXP_ID_2 28 GND 29 EXP_ID_3 30 SMB_CLK 31 EXP_ID_4 32 SMB_DATA 33 PM_SLP_S3# 34 GND 35 PM_SLP_S5# 36 VCC3_POK 37 EXP_POE_ALLPOK 38 VCC_EN 39 WAKE_ON_LAN_EN 40 MB_MCU_PSE_PWREN

Pin Definition Pin Definition

41 LAN_WAEK_N 42 MB_MCU_PSEA_RST 43 PMU_PLTRST# 44 MB_MCU_PSEB_RST 45 GND 46 IO_USB_PWR_EN 47 LAN_10G_ACT# 48 POE1_LED# 49 LAN1_1G_ACT# 50 POE2_LED# 51 LAN2_1G_ACT# 52 POE3_LED# 53 LAN3_1G_ACT# 54 POE4_LED# 55 LAN4_1G_ACT# 56 POE5_LED# 57 LAN5_1G_ACT# 58 POE6_LED# 59 LAN6_1G_ACT# 60 POE7_LED# 61 LAN7_1G_ACT# 62 POE8_LED# 63 V3P3_LAN1 64 POE_ERRLED# 65 NC 66 NC 67 GND 68 GND 69 USB_13N 70 X550_THERM-DN 71 USB_13P 72 X550_THERM-DP 73 GND 74 GND 75 USB_14N 76 USB_15N 77 USB_14P 78 USB_15P 79 GND 80 GND

Low Speed Board to Board Connector

Connector location: JP2

1

280

79

41

Chapter 3: Jumpers and Switches

ATC 8010 User Manual

Pin Definition Pin Definition

A1 PCIE_RXP5 A2 PCIE_TXP5 A3 PCIE_RXN5 A4 PCIE_TXN5 A5 GND A6 GND A7 PCIE_RXP6 A8 PCIE_TXP6

A9 PCIE_RXN6 A10 PCIE_TXN6 A11 GND A12 GND A13 PCIE_RXP7 A14 PCIE_TXP7 A15 PCIE_RXN7 A16 PCIE_TXN7 A17 GND A18 GND A19 PCIE_RXP8 A20 PCIE_TXP8 A21 PCIE_RXN8 A22 PCIE_TXN8 A23 GND A24 GND A25 PCIE_RXP14 A26 PCIE_TXP14 A27 PCIE_RXN14 A28 PCIE_TXN14 A29 GND A30 GND A31 PCIE_RXP15 A32 PCIE_TXP15 A33 PCIE_RXN15 A34 PCIE_TXN15 A35 GND A36 GND A37 PCIE_RXP16 A38 PCIE_TXP16 A39 PCIE_RXN16 A40 PCIE_TXN16

Pin Definition Pin Definition

B1 PCIE_RXP21 B2 PCIE_TXP21 B3 PCIE_RXN21 B4 PCIE_TXN21 B5 GND B6 GND B7 PCIE_RXP22 B8 PCIE_TXP22

B9 PCIE_RXN22 B10 PCIE_TXN22 B11 GND B12 GND B13 PCIE_RXP23 B14 PCIE_TXP23 B15 PCIE_RXN23 B16 PCIE_TXN23 B17 GND B18 GND B19 PCIE_RXP24 B20 PCIE_TXP24 B21 PCIE_RXN24 B22 PCIE_TXN24 B23 GND B24 GND B25 PCIE_CLKP5 B26 PCIE_CLKP14 B27 PCIE_CLKN5 B28 PCIE_CLKN14 B29 GND B30 GND B31 SATA_TXP1 B32 SATA_TXP0 B33 SATA_TXN1 B34 SATA_TXN0 B35 GND B36 GND B37 SATA_RXP1 B38 SATA_RXP0 B39 SATA_RXN1 B40 SATA_RXN0

High Speed Board to Board Connector

Connector location: J3

A1

A39B1

B2

A2A40

B40

B39

42

Chapter 4: System Setup

ATC 8010 User Manual

ChaPter 4: system setuP

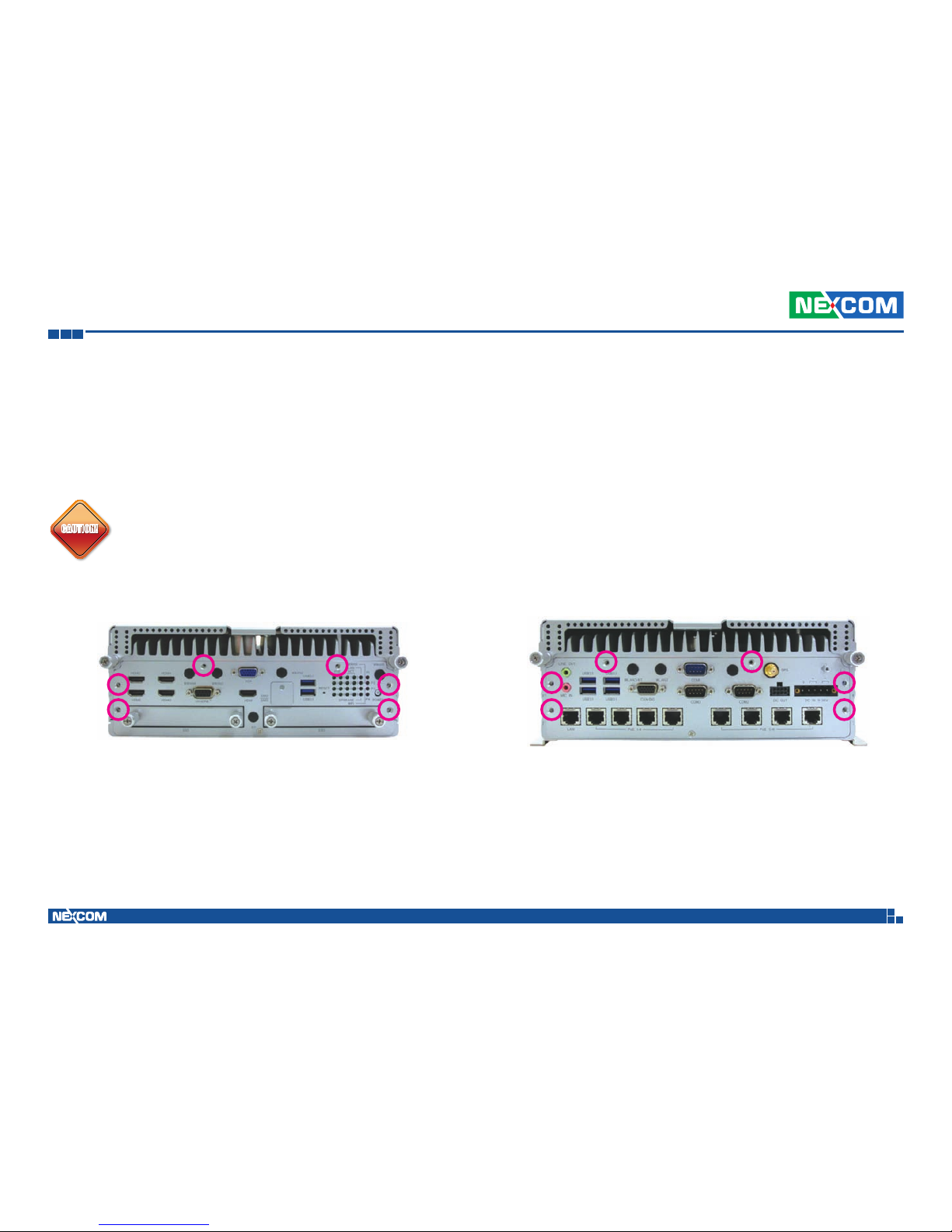

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

CAUTION!

CAUTION!CAUTION!

1. Remove the screws on the front panel. 2. Remove the screws on the rear panel.

43

Chapter 4: System Setup

ATC 8010 User Manual

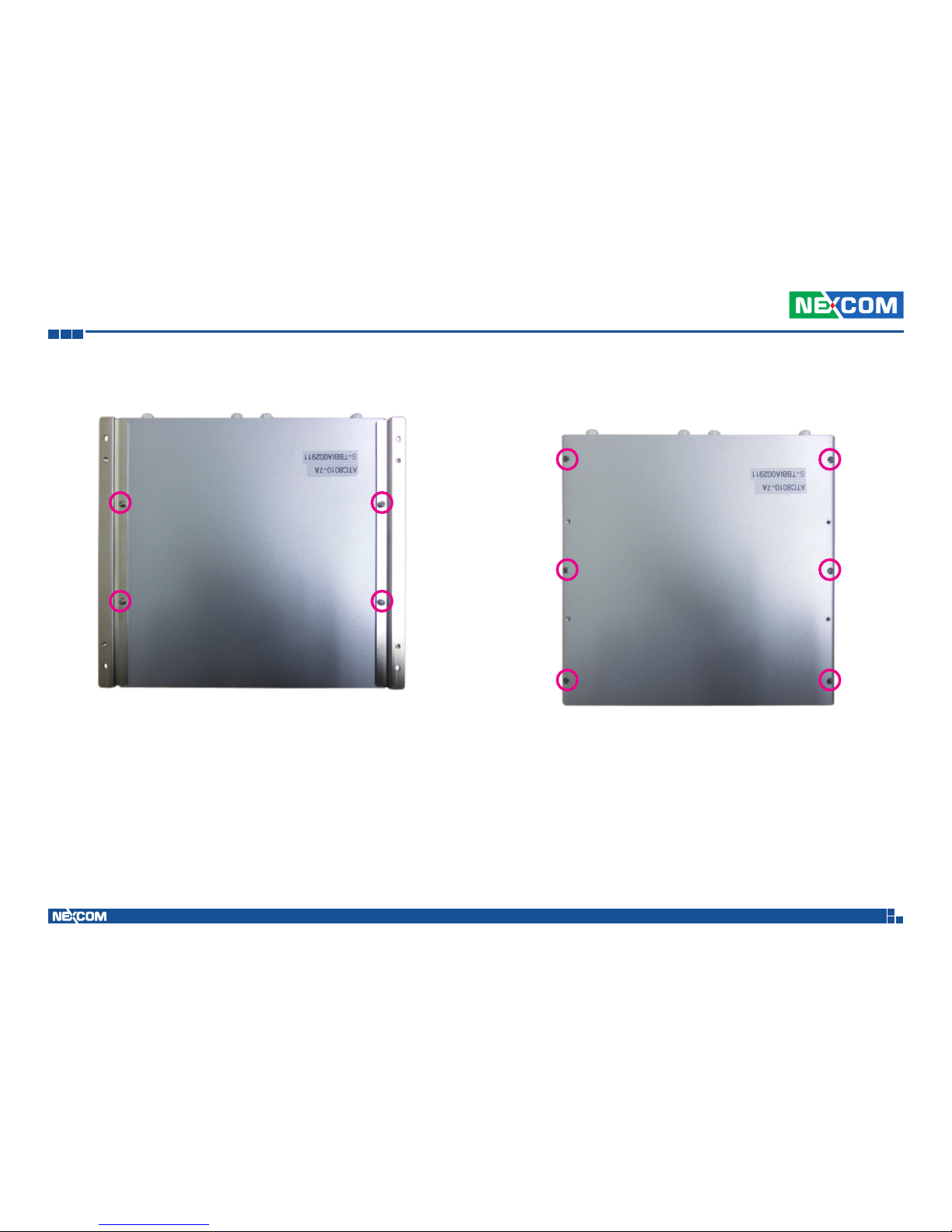

3. Remove the mounting bracket screws on the bottom of the enclosure. 4. After removing the brackets, loosen the screws on the bottom then remove the chassis top cover.

44

Chapter 4: System Setup

ATC 8010 User Manual

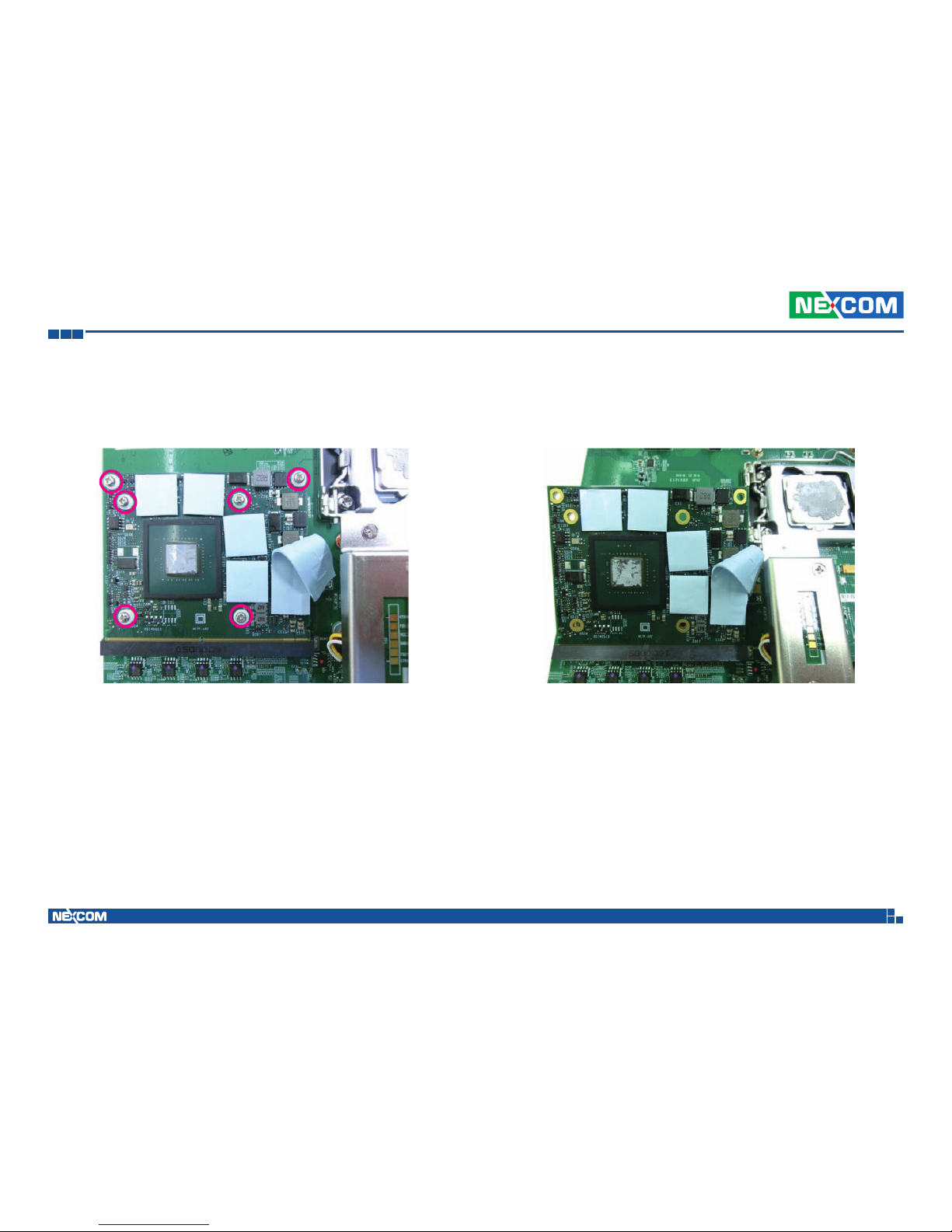

1. Remove the screws securing the MXM module. 2. Remove the MXM module from the socket.

Removing the MXM Module

45

Chapter 4: System Setup

ATC 8010 User Manual

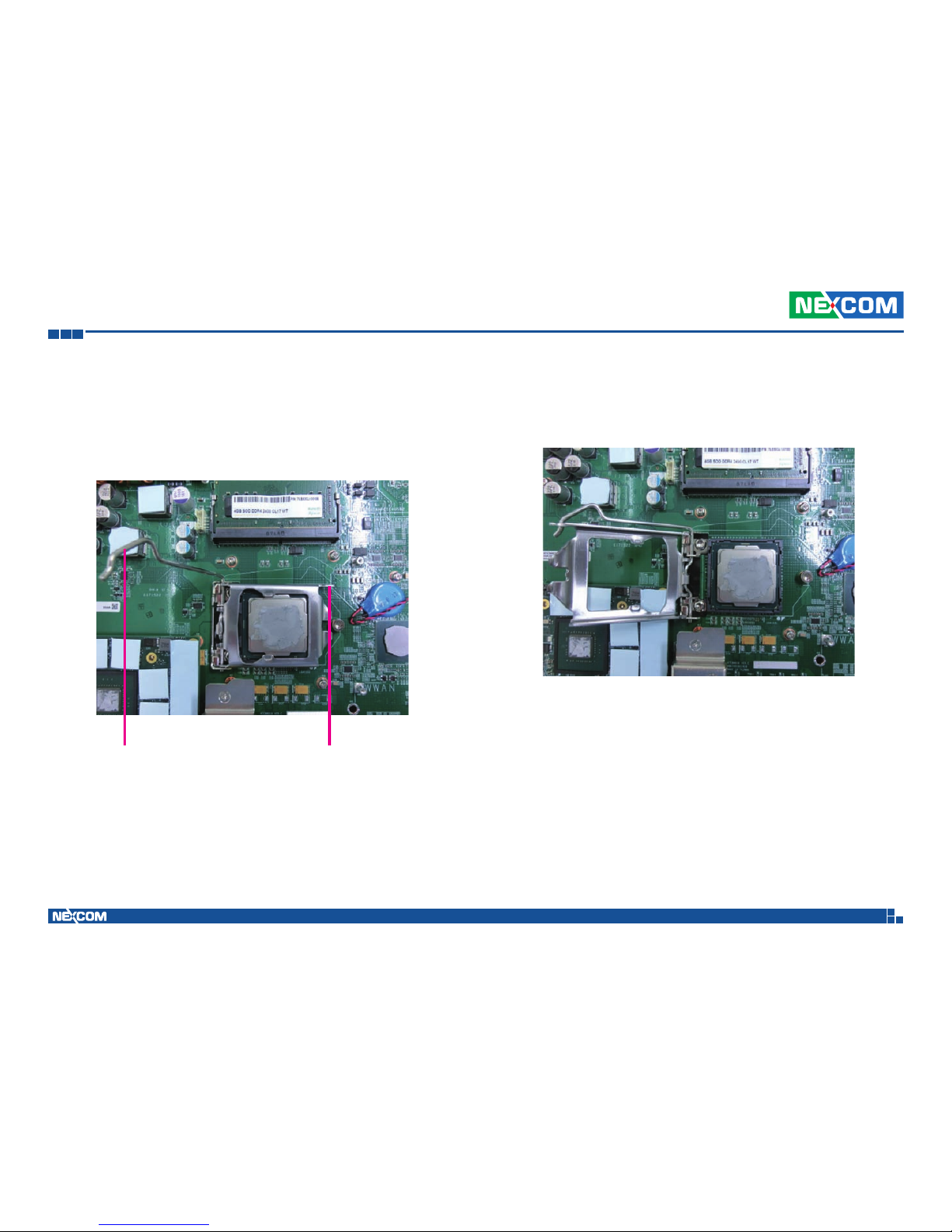

1. Locate the CPU socket and unlock the socket by pushing the load lever

down, moving it sideways until it is released from the retention tab; then lift the load lever up.

2. Lift the load plate up and remove the CPU from the socket.

Removing the CPU

Load Lever Retention Tab

46

Chapter 4: System Setup

ATC 8010 User Manual

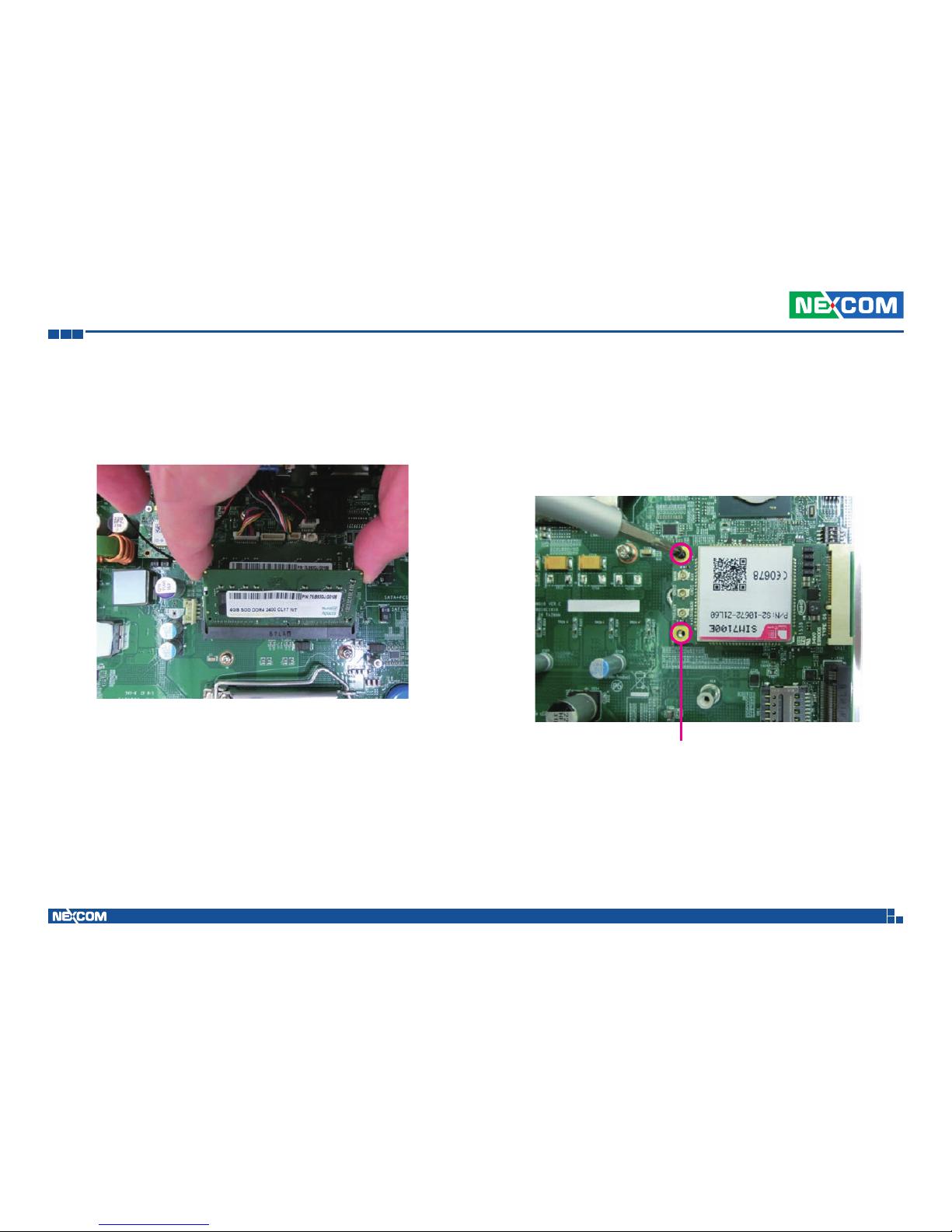

1. Push the ejector tabs which are at the ends of the socket outward. Then

lift up the module and remove it from the socket.

Removing the Memory Module Installing a WWAN Module (Mini-PCIe)

1. Locate the WWAN Mini PCI Express slot (CN11). Insert the module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot. Then fasten screws into the mounting holes to secure the module.

Mounting

Screws

47

Chapter 4: System Setup

ATC 8010 User Manual

Installing a WWAN Module (M.2)

Mounting

Screw

1. Locate the M.2 slot (CN10). Insert the module into the M.2 slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot. Then fasten a screw into the mounting hole to secure the module.

Installing a WLAN Module (Half Mini-PCIe)

Mounting

Screw

1. Locate the WLAN Mini PCI Express slot (CN9). Insert the module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot. Then fasten a screw into the mounting hole to secure the module.

48

Chapter 4: System Setup

ATC 8010 User Manual

1. Remove the SIM card cover.

Installing a SIM Card

2. Insert the SIM card into the SIM card slot.

3. Close the cover and secure it to the original position.

49

Chapter 4: System Setup

ATC 8010 User Manual

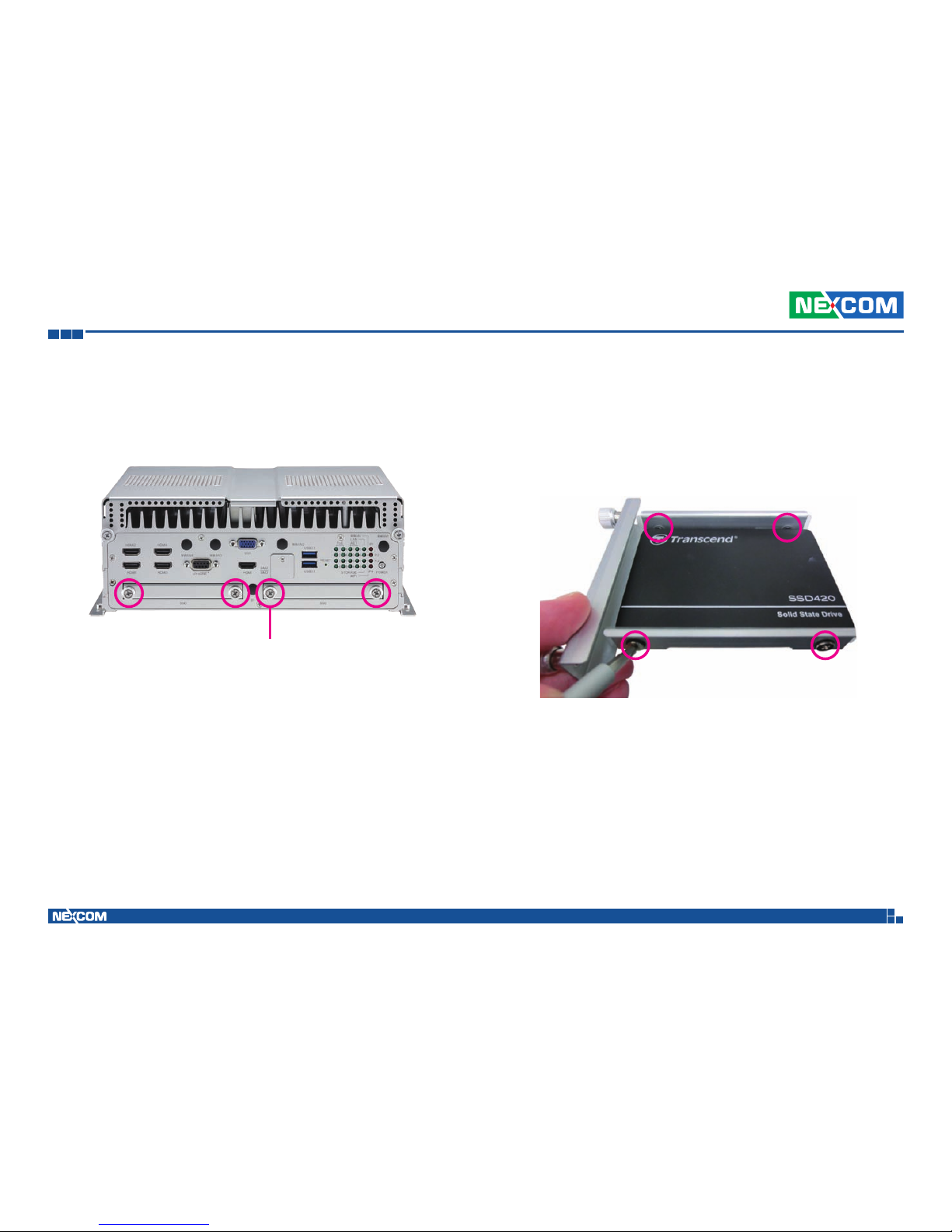

1. The SSD/HDD bays on the front are used to install 2.5” hard drives. Loosen the thumb screws and remove the cover.

Installing a SSD/HDD Drive

Thumb Screws

2. Place the storage drive into the drive bay with the SATA data and power connector facing towards the end. Align the storage drive’s mounting holes with the mounting holes on the drive bay, and use the provided screws to secure the storage drive in place.

50

Chapter 4: System Setup

ATC 8010 User Manual

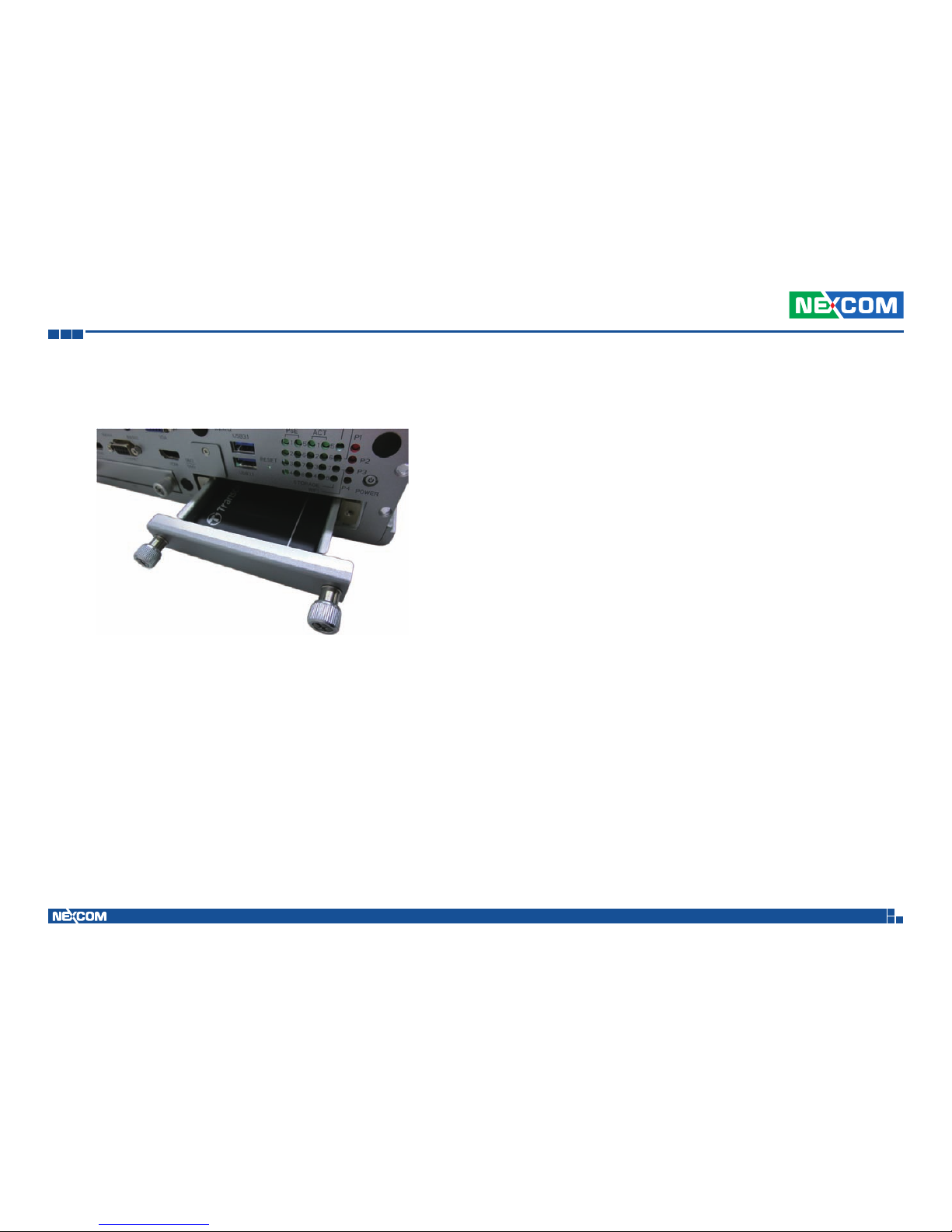

3. Insert the drive bay back to its original position and secure the thumb screws.

51

Chapter 4: System Setup

ATC 8010 User Manual

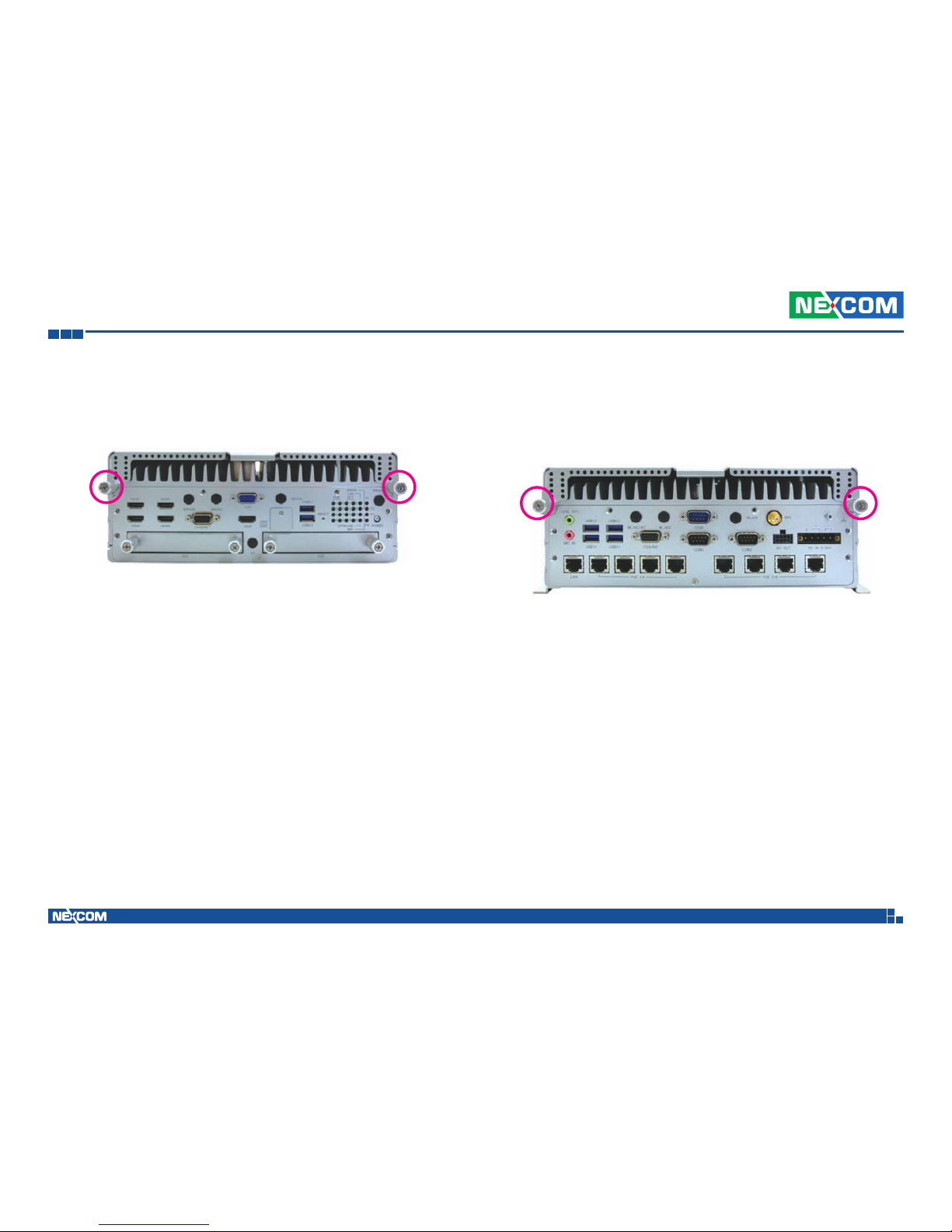

1. Loosen the thumb screws on the front panel. 2. Loosen the thumb screws on the rear panel. The fan kit can be removed

from the top cover.

Replacing the System Fan

52

Chapter 4: System Setup

ATC 8010 User Manual

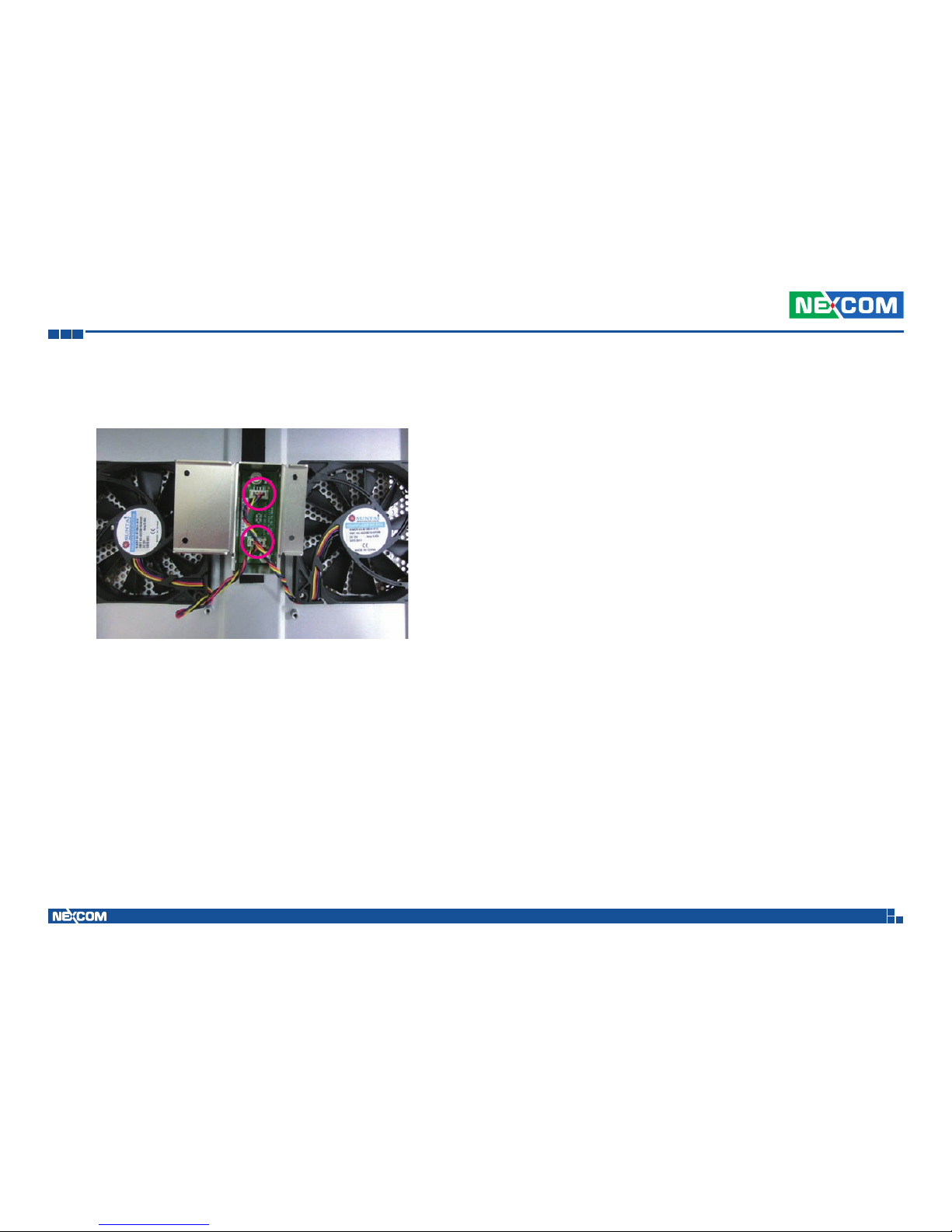

3. On the top cover, loosen the mounting screws of the fan kit that will be replaced.

4. Turn to the back side of the top cover and loosen the screws on the cover for the fan cable connectors.

53

Chapter 4: System Setup

ATC 8010 User Manual

5. Turn to the back of the fan cable cover and remove the fan cable connector that will be replaced. Then proceed to install the new fan kit.

54

Appendix A: Software Demo Utility for I/O Ports of Function Control

ATC 8010 User Manual

aPPendIx a: software demo utIlIty for I/o Ports of funCtIon Control

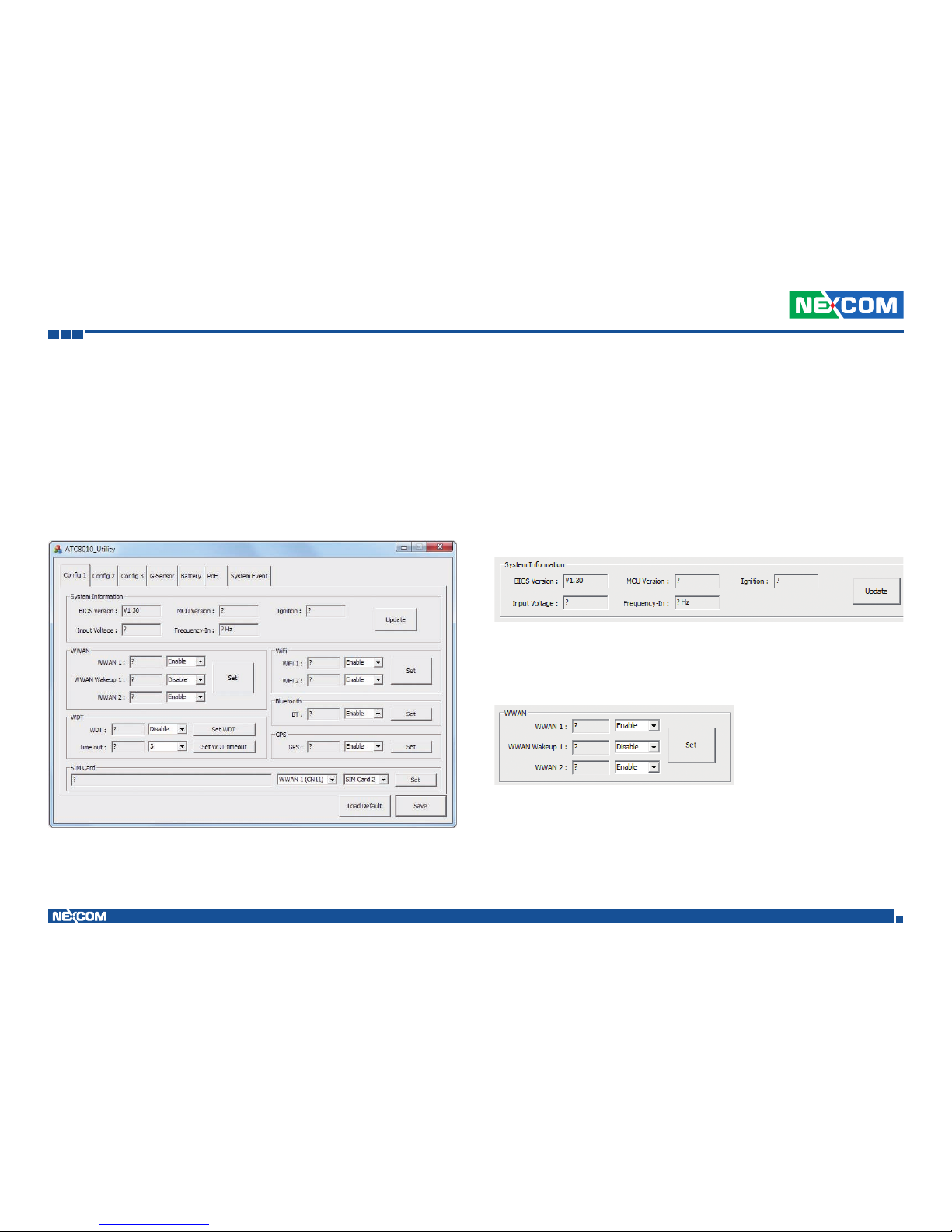

Menu Screen

1. Config1

1.1 System Information

Displays basic information of the system.

1.2 WWAN

Enables or disables the WWAN function and the wake-up function.

55

Appendix A: Software Demo Utility for I/O Ports of Function Control

ATC 8010 User Manual

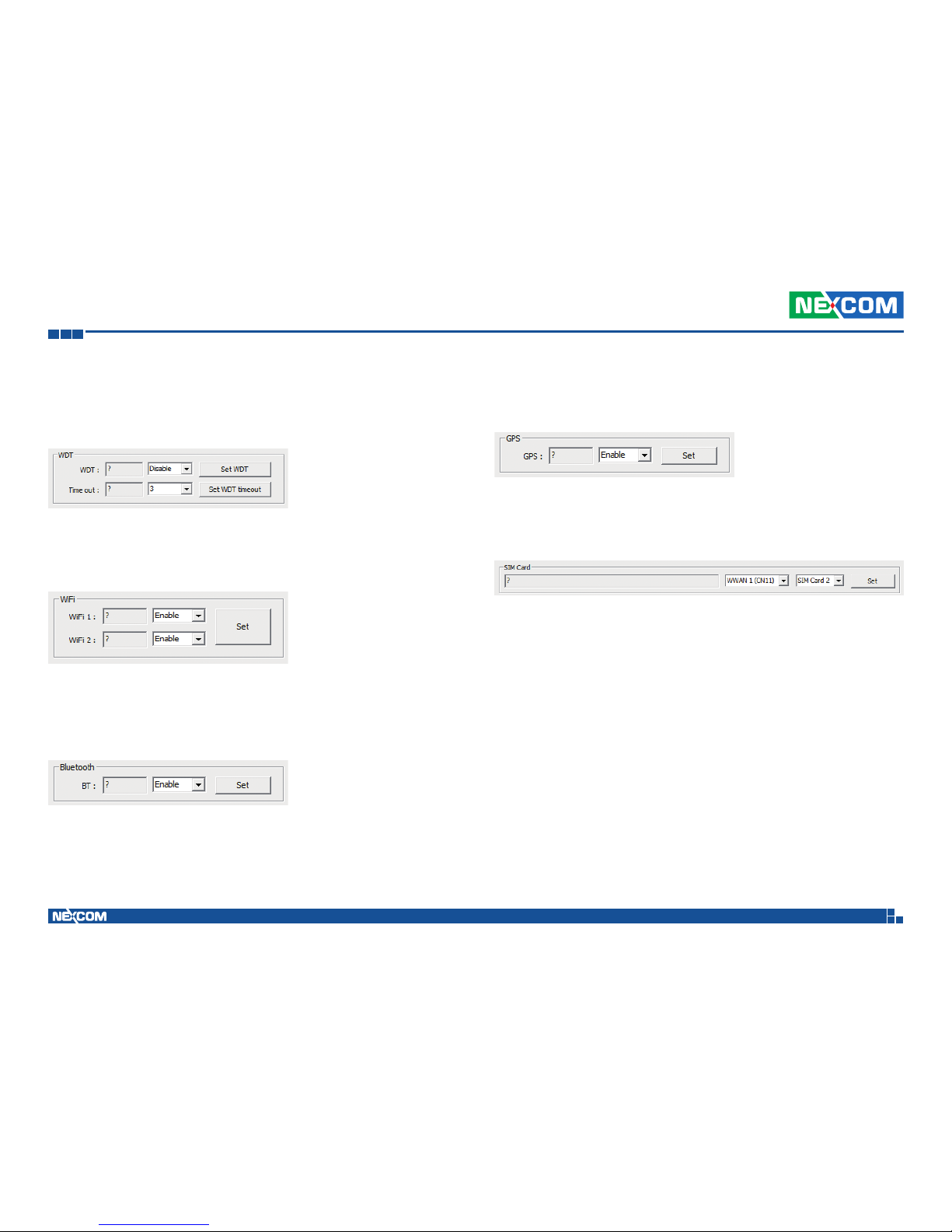

1.4 WiFi

Enables or disables the WiFi function.

1.5 Bluetooth

Enables or disables the Bluetooth function.

1.6 GPS

Enables or disables the GPS function.

1.3 WDT

Enables or disables the watchdog function. WDT timeout timer can be configured.

1.7 SIM Card

Selects the SIM Card for WWAN.

56

Appendix A: Software Demo Utility for I/O Ports of Function Control

ATC 8010 User Manual

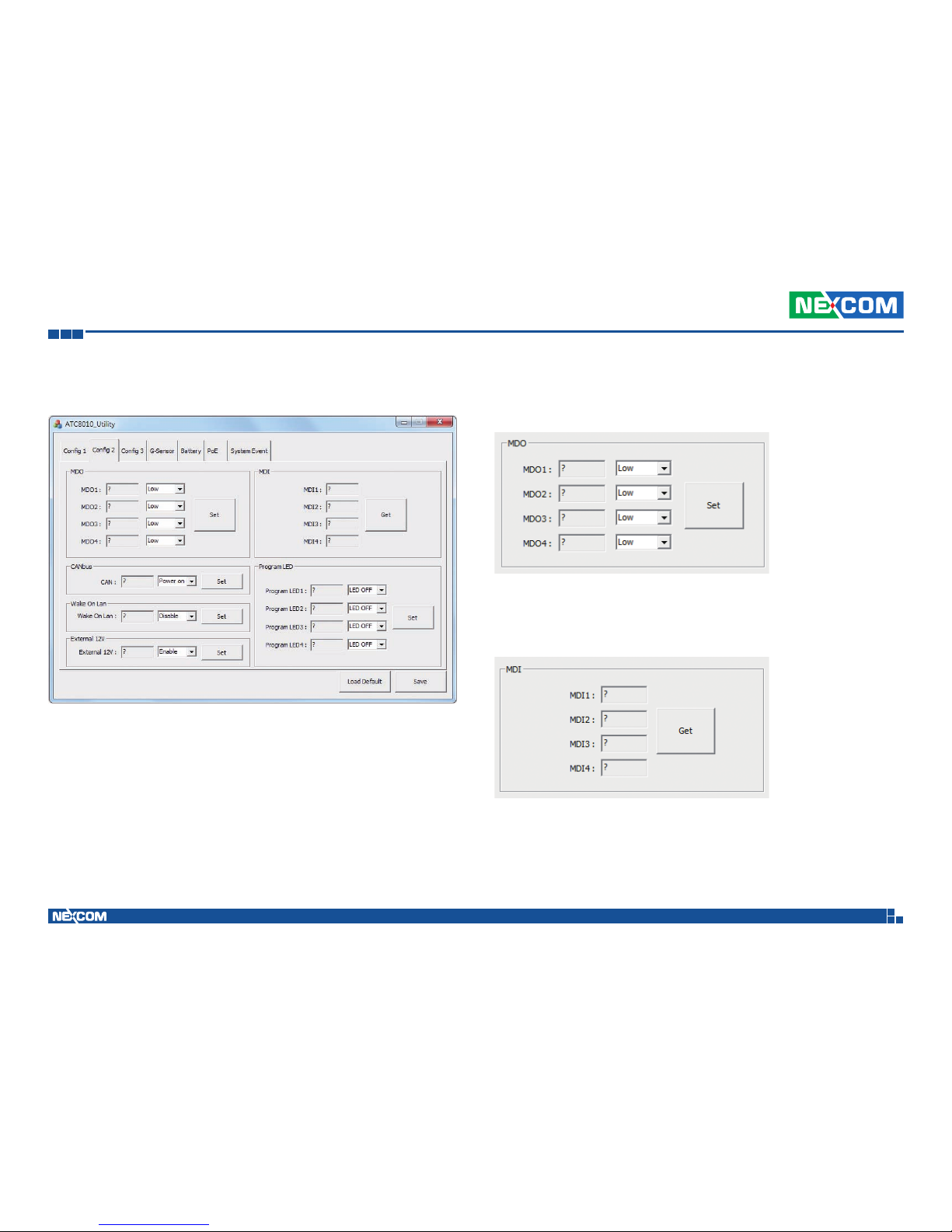

2. Config2

2.1 GPO

Configures GPO as high voltage level or low voltage level.

2.2 GPI

Reads the status (voltage level) of GPI.

57

Appendix A: Software Demo Utility for I/O Ports of Function Control

ATC 8010 User Manual

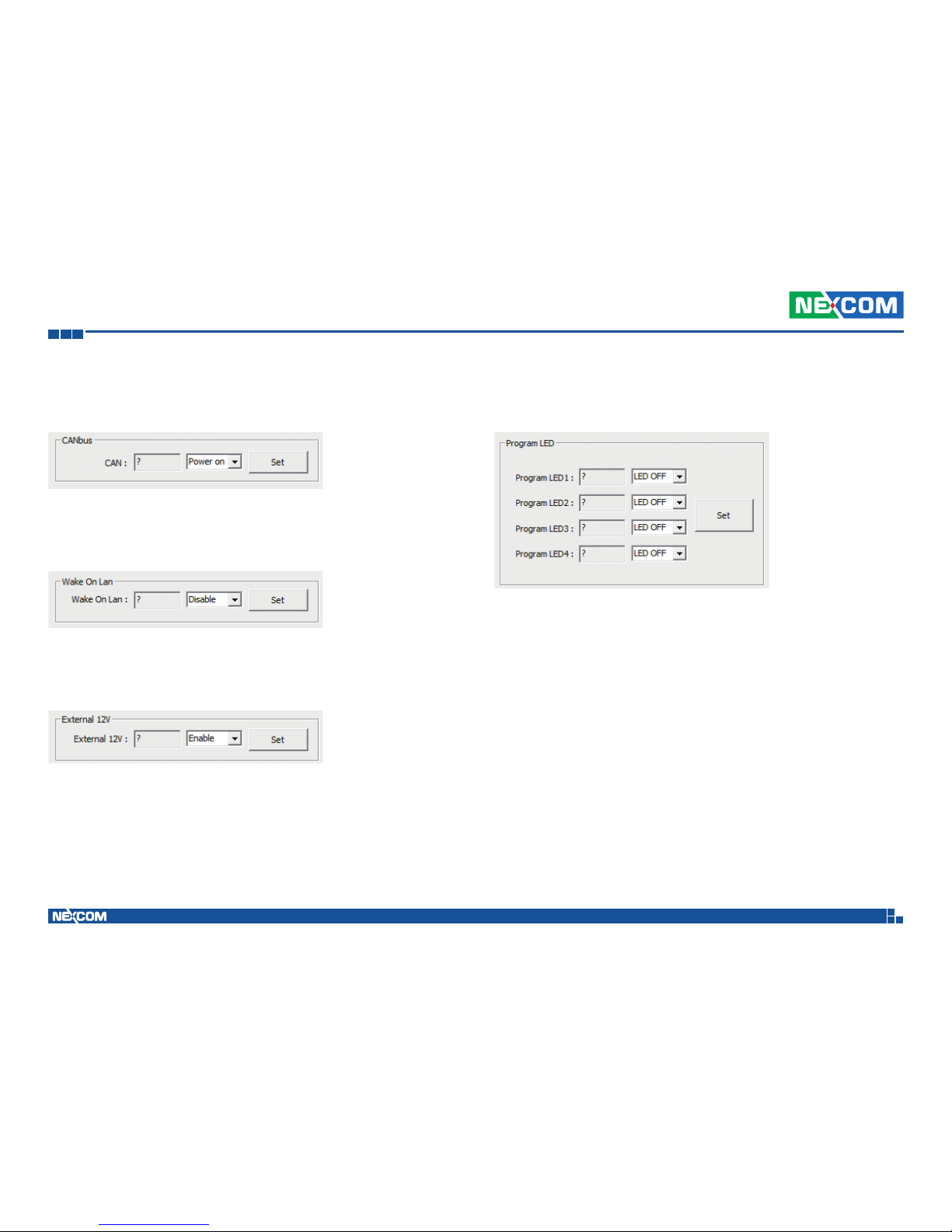

2.3 CAN Bus

Enables or disables the CAN Bus function.

2.4 Wake On LAN

Enables or disables the Wake On LAN function on LAN.

2.5 External 12V

Enables or disables the 12VDC power output.

2.6 Programmable LED

Turns On/Off LED light.

58

Appendix A: Software Demo Utility for I/O Ports of Function Control

ATC 8010 User Manual

3. Config3

3.1 Low Battery Voltage Protection

Enables or disables low battery voltage protection function. Once it is enabled, one of 4 types of voltage levels can be selected.

3.2 Power Type

Shows one of the following power types for input voltage:

• 12VDC

• 24VDC

• 9~36VDC

3.3 Delay On/Off Timer

Enables or disables the Delay On/Off function. Once this function is enabled, the delay timer can be configured.

3.4 RTC Wake Up Timer

Enables or disables the RTC Wake Up function. Once this function is enabled, the timer can be configured.

59

Appendix A: Software Demo Utility for I/O Ports of Function Control

ATC 8010 User Manual

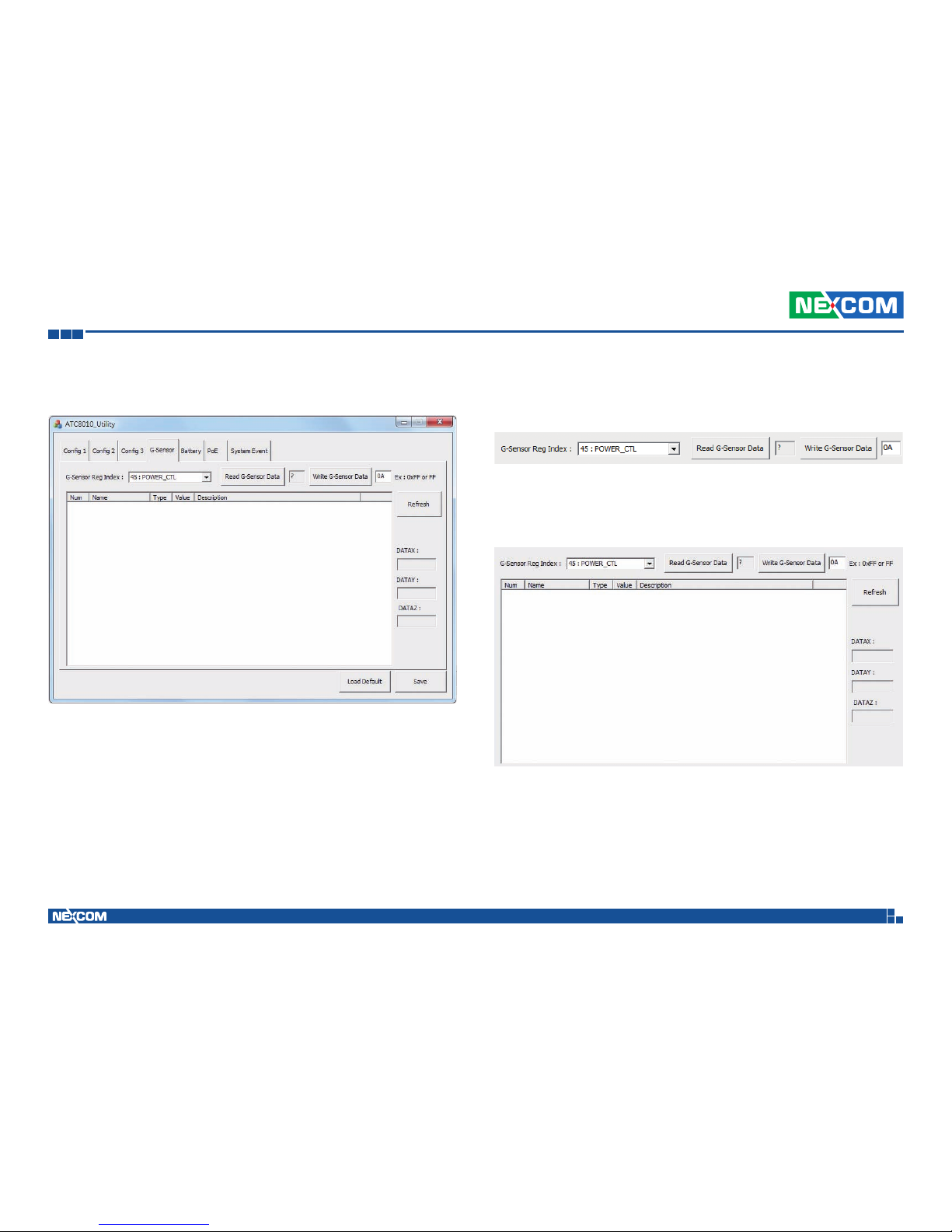

4. G-Sensor

4.1 G-Sensor Registers

Selects the registers inside G-Sensor to read or write the data.

4.2 Register Table

Shows the value of all registers in G-Sensor, once the Refresh button is pressed.

60

Appendix A: Software Demo Utility for I/O Ports of Function Control

ATC 8010 User Manual

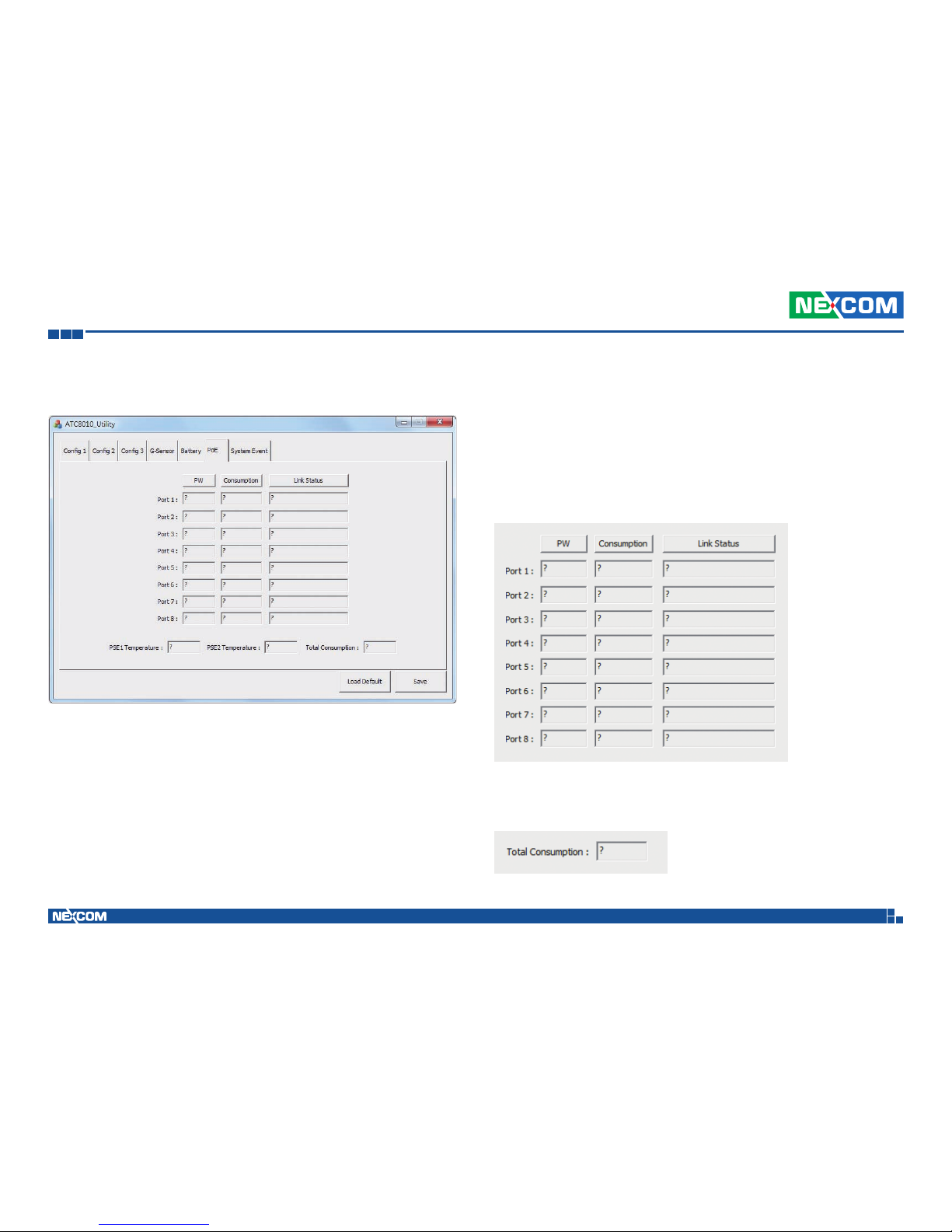

5. PoE

5.1 PoE

Shows the status of PoE power output.

5.2 Output (W)

Shows the power output of each PoE port.

5.3 Link Status

Shows the status of PoE link.

5.4 Total Output (W)

Shows the total power output of all PoE ports.

61

Appendix A: Software Demo Utility for I/O Ports of Function Control

ATC 8010 User Manual

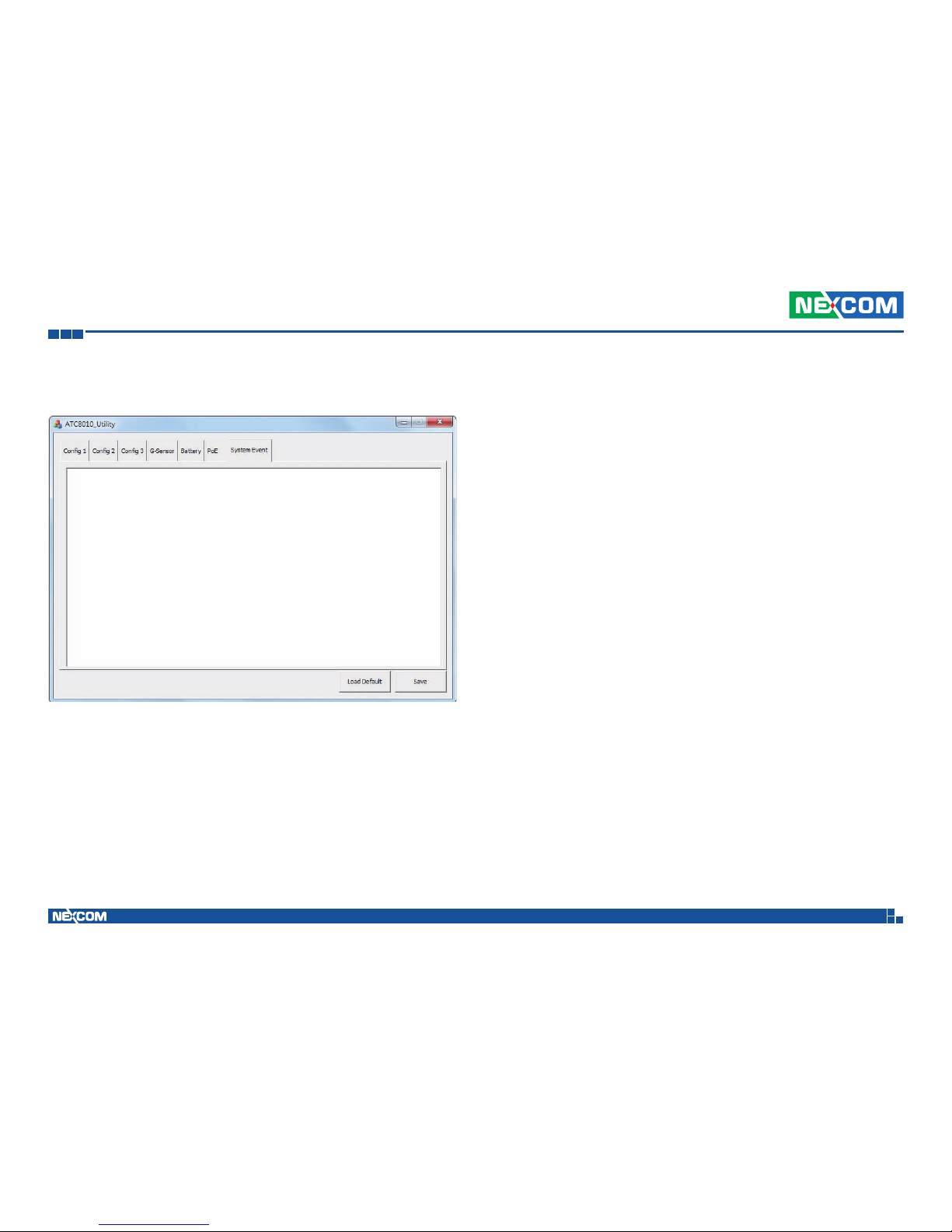

6. System Event

The System Event tab shows the following alarm messages:

1. Over voltage alarm

2. Lower voltage alarm

3. Over temperature alarm

4. Lower temperature alarm

5. Fan error alarm
