NEXCOM APPC 1230T User Manual

NEXCOM International Co., Ltd.

Industrial Computing Solutions

Applied Panel PC APPC 1230T/1231T/1235T/1530T/1531T/1730T/ 1731T/1930T/1931T

User Manual

NEXCOM International Co., Ltd.

Published December 2012

www.nexcom.com

Content

Contents

Preface

Copyright .............................................................................................. v

Disclaimer ............................................................................................... v

Acknowledgements ................................................................................ v

Regulatory Compliance Statements ......................................................... v

Declaration of Conformity ....................................................................... v

RoHS Compliance .................................................................................. vi

Warranty and RMA ................................................................................vii

Safety Information ................................................................................. ix

Installation Recommendations ................................................................ ix

Safety Precautions ................................................................................... x

Technical Support and Assistance ........................................................... xi

Conventions Used in this Manual ........................................................... xi

Global Service Contact Information ........................................................xii

Package Contents ................................................................................. xiv

Ordering Information ............................................................................xvi

Chapter 1: Product Introduction

APPC 1230T/1231T/1235T ...................................................................... 1

Specifications .......................................................................................... 2

APPC 1530T/1531T .................................................................................4

Specifications .......................................................................................... 5

APPC 1730T/1731T .................................................................................7

Specifications .......................................................................................... 8

APPC 1930T/1931T ...............................................................................10

Specifications ........................................................................................ 11

Knowing Your APPC Series ...................................................................13

Rear Top ............................................................................................ 13

Rear Bottom ...................................................................................... 14

Rear (APPC 1230T/1235T/1530T/1730T/1930T only) ..........................15

Rear (APPC 1231T/1531T/1731T/1931T only) ....................................16

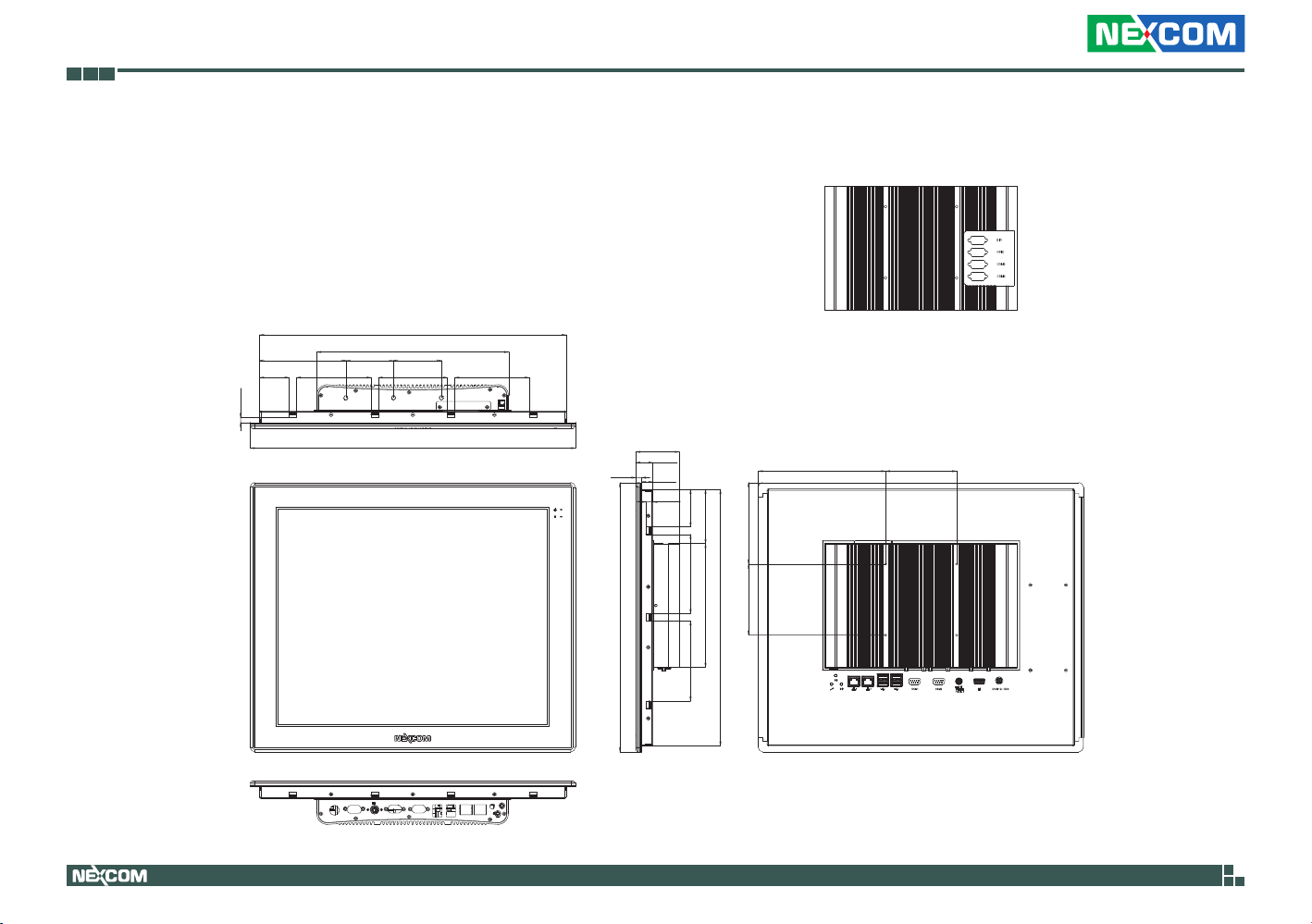

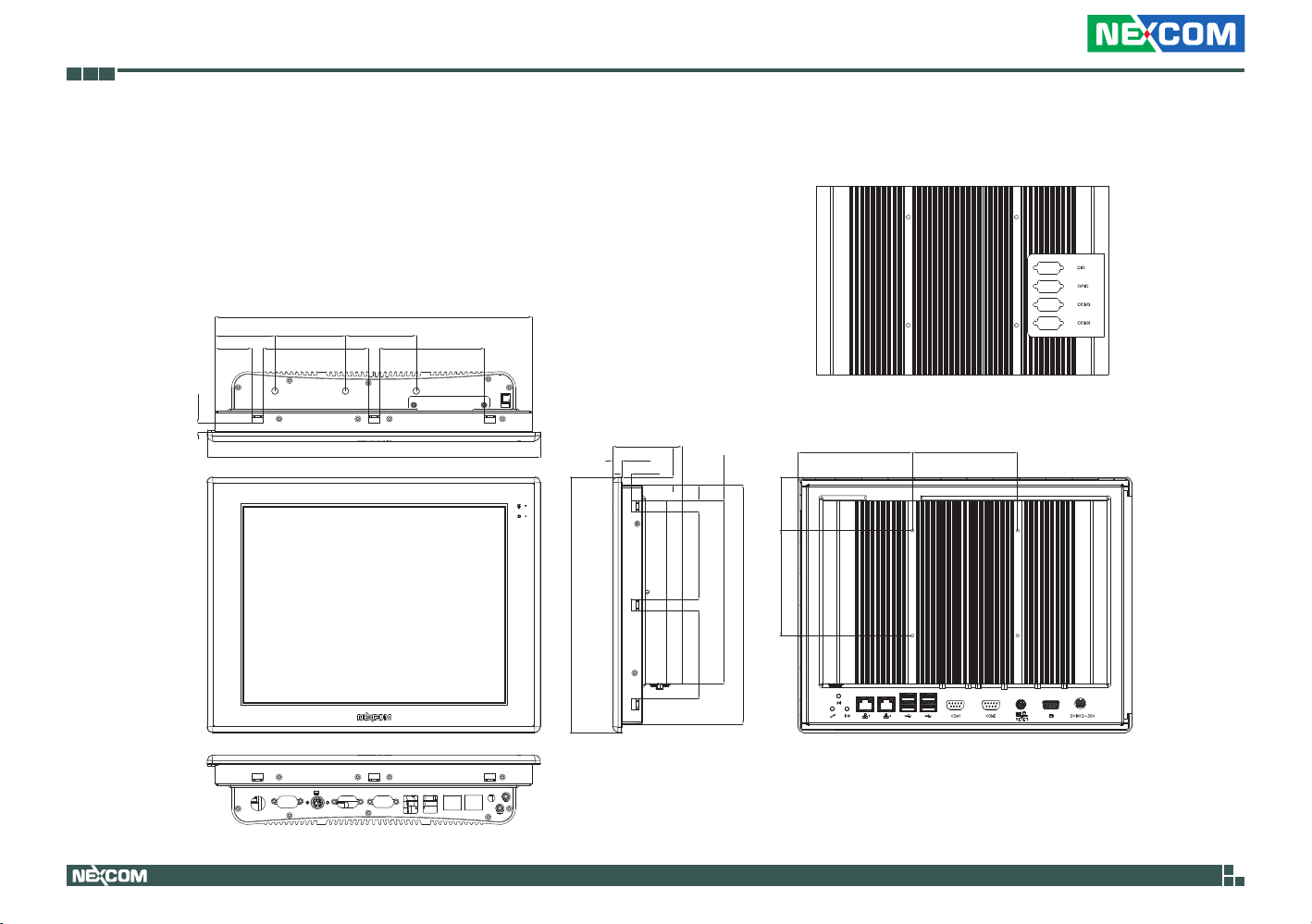

Mechanical Dimensions .........................................................................17

APPC 1230T/1231T/1235T ................................................................17

Mechanical Dimensions .........................................................................18

APPC 1530T/1531T ...........................................................................18

Mechanical Dimensions .........................................................................19

APPC 1730T/1731T ...........................................................................19

Mechanical Dimensions .........................................................................20

APPC 1930T/1931T ...........................................................................20

Chapter 2: Jumpers and Connectors

Before You Begin ..................................................................................21

Precautions ..........................................................................................21

Jumper Settings ....................................................................................22

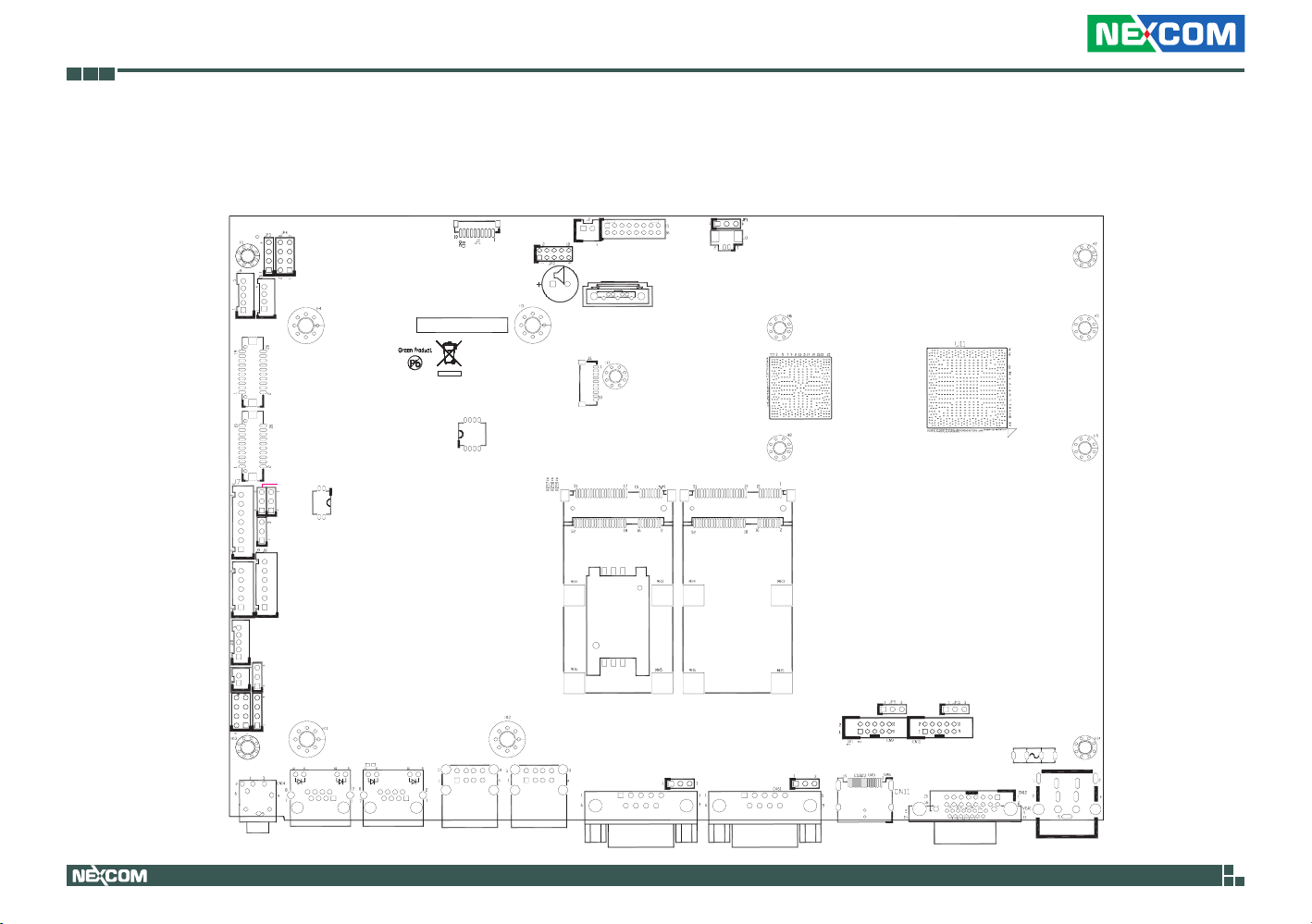

Locations of the Jumpers and Connectors ............................................. 23

Top View ...........................................................................................23

Bottom View .....................................................................................24

Jumpers and DIP Switch Settings ........................................................... 25

CMOS Clear Select ............................................................................25

AT/ATX Selection ...............................................................................25

Dimming Type Select .........................................................................26

ii

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Content

Dimming Signal Level Select ..............................................................26

Panel Resolution Select ...................................................................... 27

LCD Panel VDD Power Select ............................................................. 28

Touch 4/5 Wire Select ........................................................................ 28

COM1 RI Pin Power Select ................................................................. 29

COM2 RI Pin Power Select ................................................................. 29

COM3 RI Pin Power Select ................................................................. 30

COM4 RI Pin Power Select ................................................................. 30

Connector Pin Definitions .....................................................................31

External I/O Interface ......................................................................... 31

12V-30V DC Power Input ...............................................................31

VGA Port .......................................................................................31

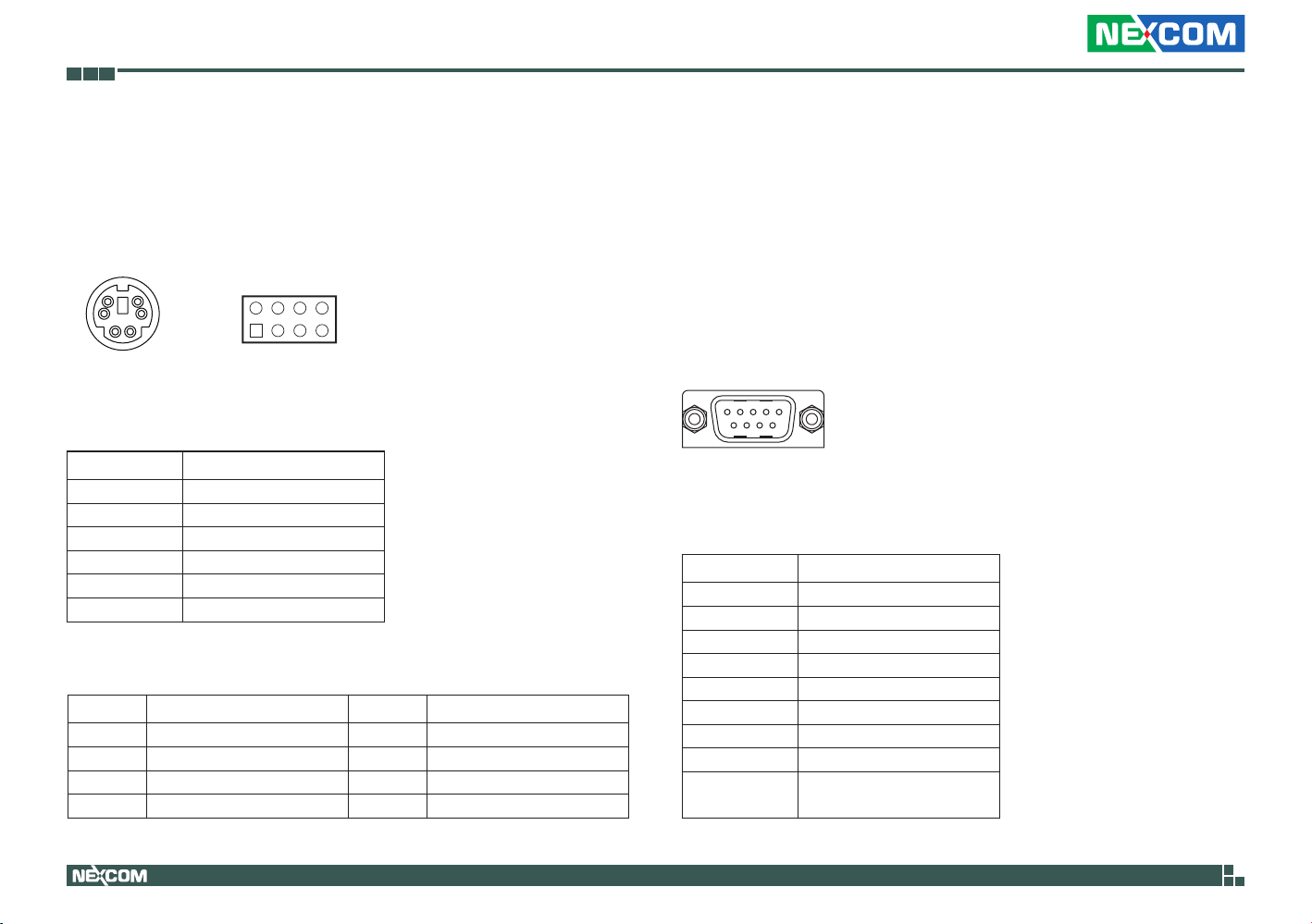

PS/2 Keyboard/Mouse Port .............................................................32

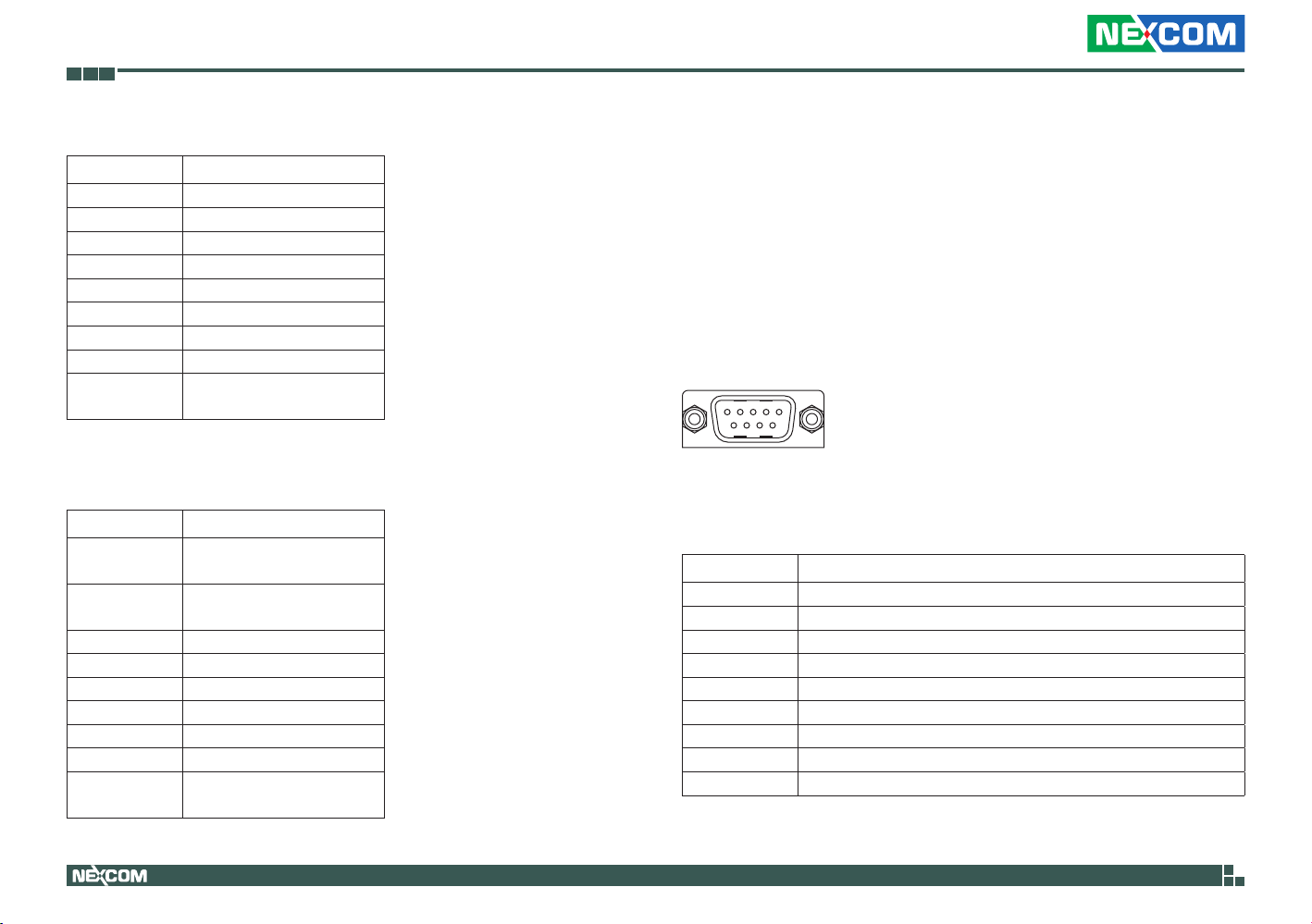

COM2 Port: Serial Port RS232/422/485 ..........................................32

COM1 Port: Serial Port RS232/422/485 ..........................................33

COM3 Port and Connector: Serial Port RS232 ................................34

COM4 Port and Connector: Serial Port RS232 ................................35

USB Ports ....................................................................................... 35

LAN2 Port ......................................................................................36

LAN1 Port ......................................................................................36

Line-out Jack .................................................................................. 37

Internal Connectors ........................................................................... 38

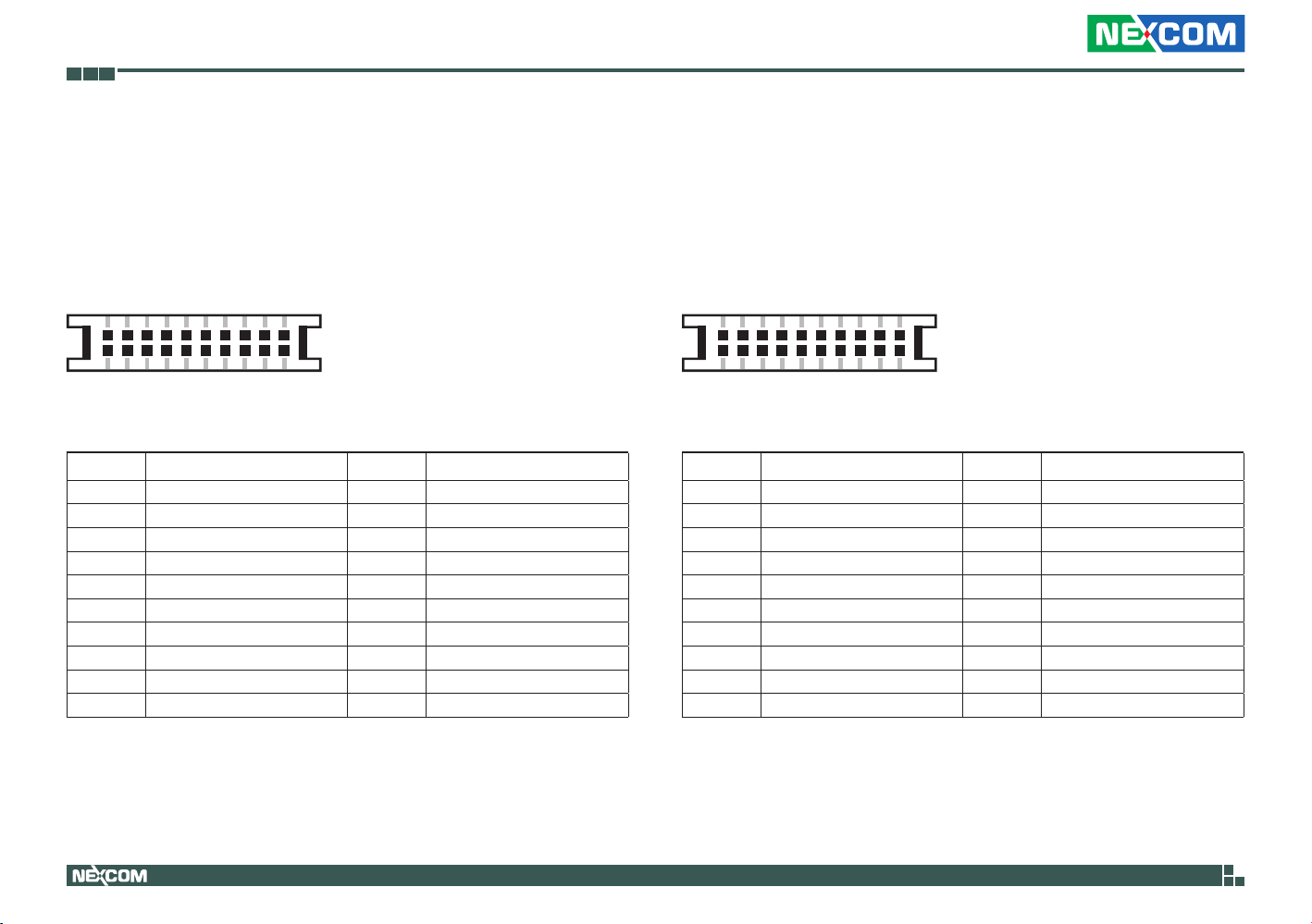

LVDS Channel 1 .............................................................................38

LVDS Channel 2 .............................................................................38

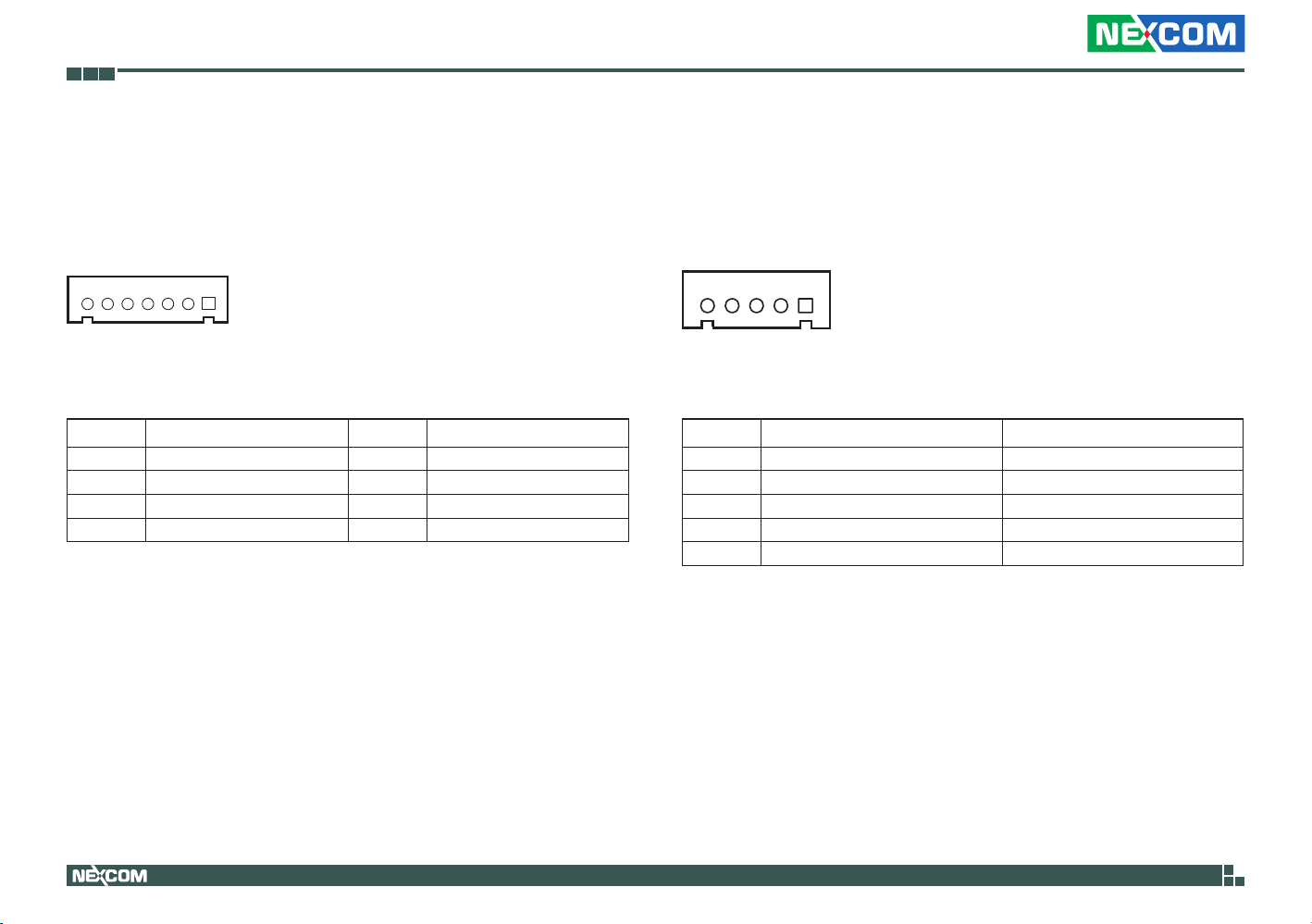

Panel Backlight Connector .............................................................39

Touch Sensor Connector ................................................................39

USB Connector ..............................................................................40

Bluetooth Connector ......................................................................40

SATA Connector .............................................................................41

SATA DOM Power Connector ............................................................41

Line-in/Mic-in Connector ...................................................................42

Speaker-out Connector ......................................................................42

GPIO Connector ................................................................................43

DIO Connector ..................................................................................44

Power/HDD LED Indicator Connector ................................................. 45

Backlight Control Input Connector ....................................................45

Dimming Control Button Connector ..................................................46

SIM Card Slot .................................................................................46

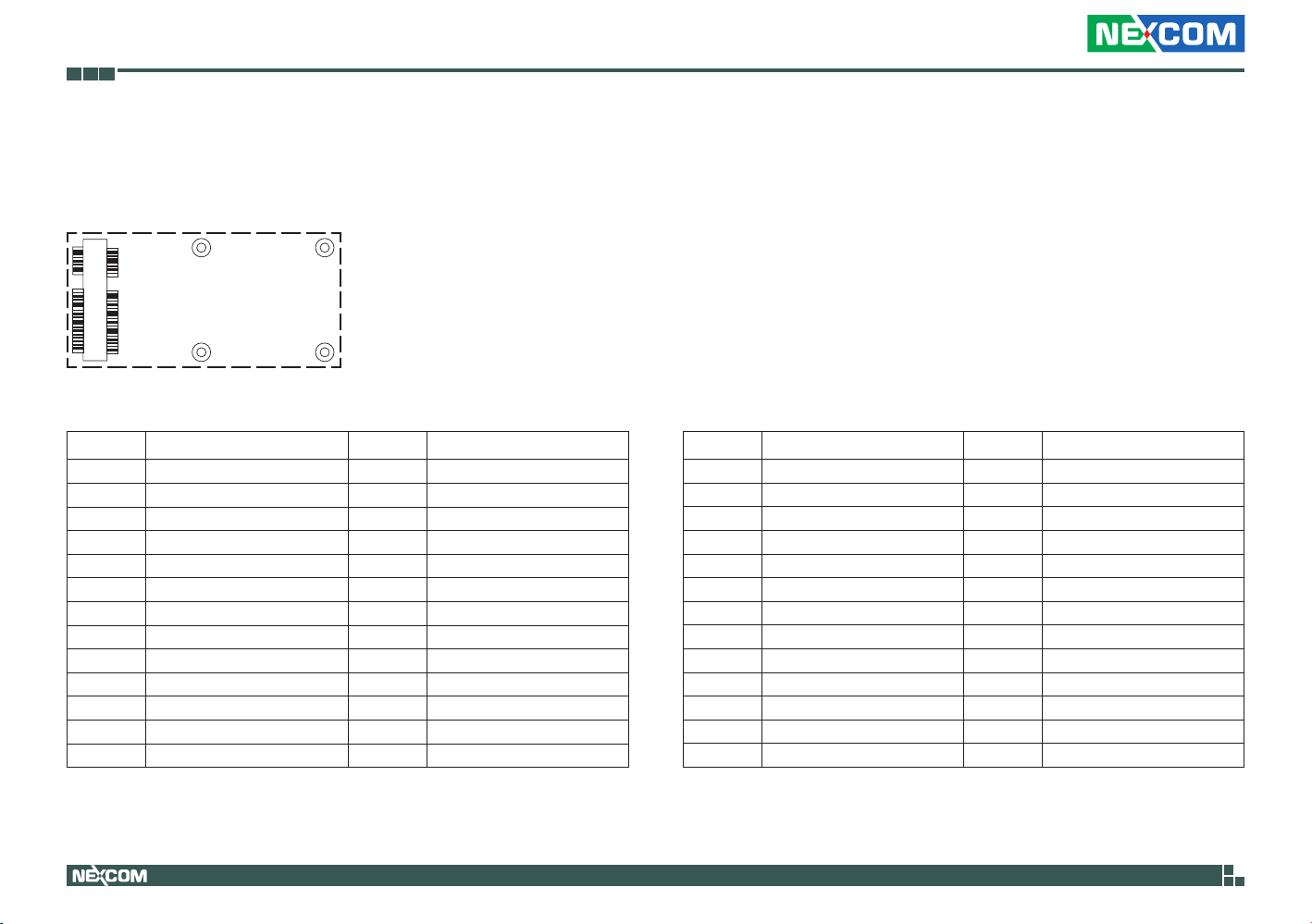

Mini-PCIe Slot ................................................................................47

Mini-PCIe Slot ................................................................................48

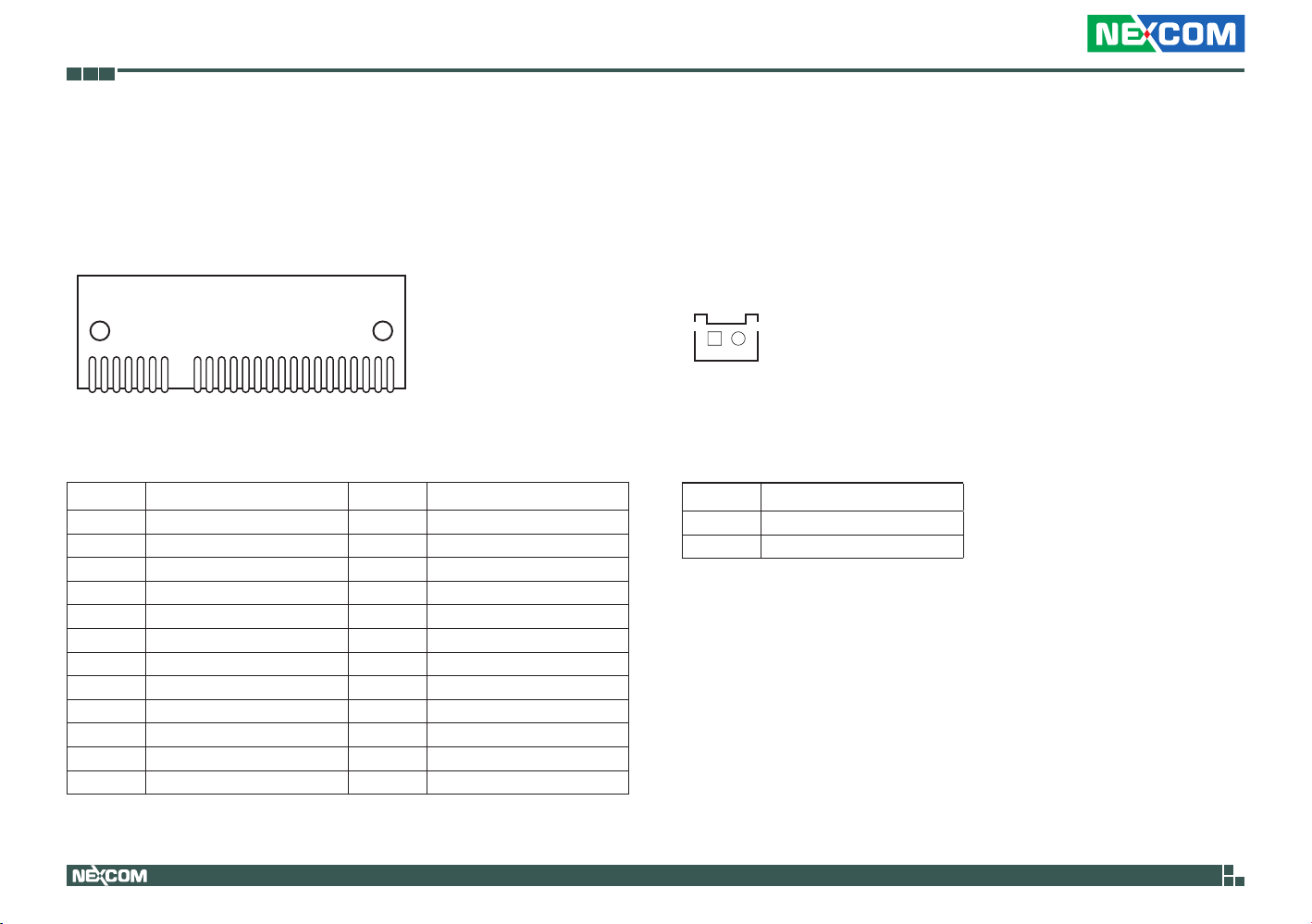

CFast Card Slot ..............................................................................49

Power Button Connector ................................................................49

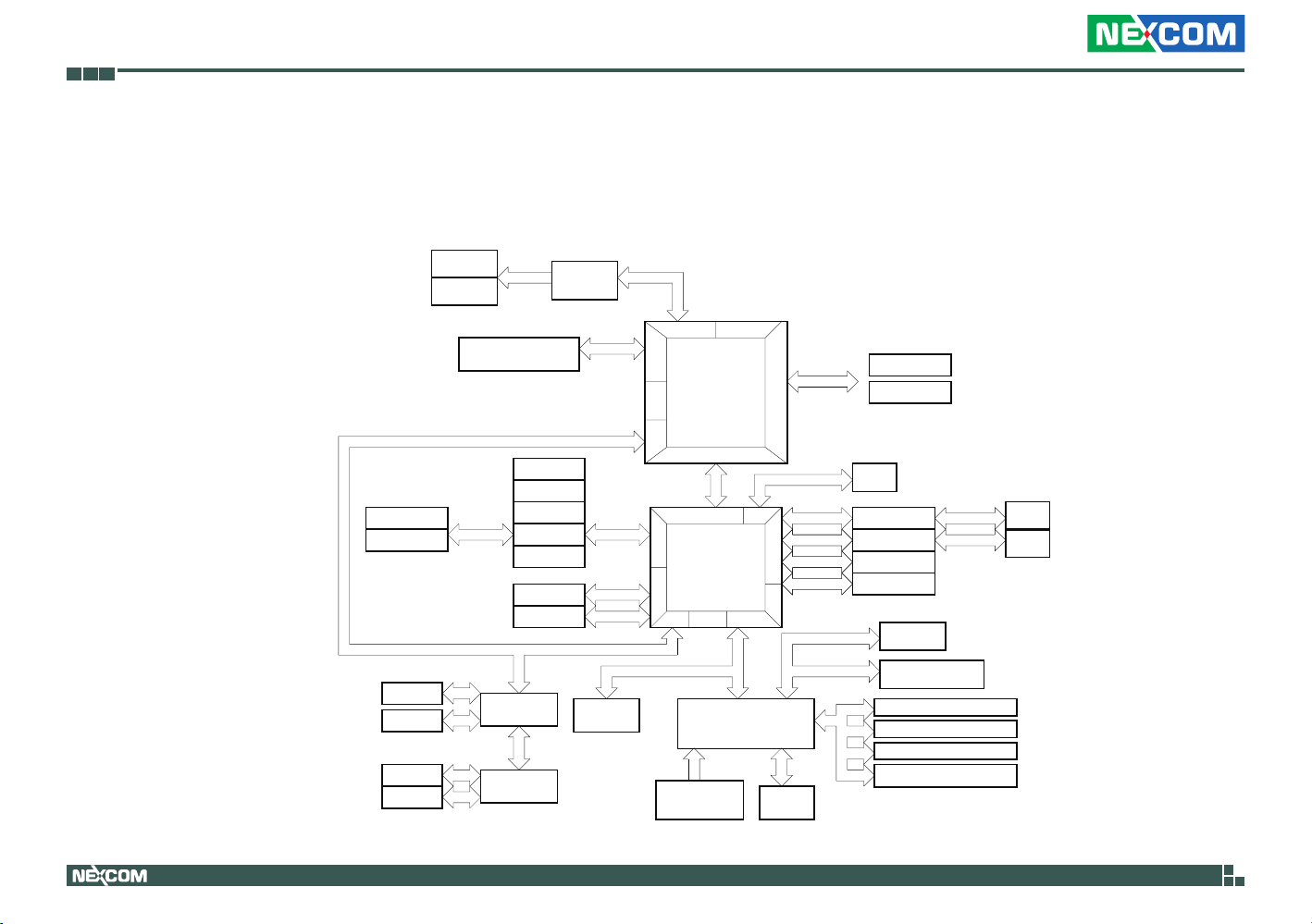

Block Diagram ......................................................................................50

APPC 1930T/APPC 1730T/APPC 1530T/APPC 1230T/APPC 1235T .....50

Block Diagram ......................................................................................51

APPC 1931T/APPC 1731T/APPC 1531T/APPC 1231T .........................51

Chapter 3: System Setup

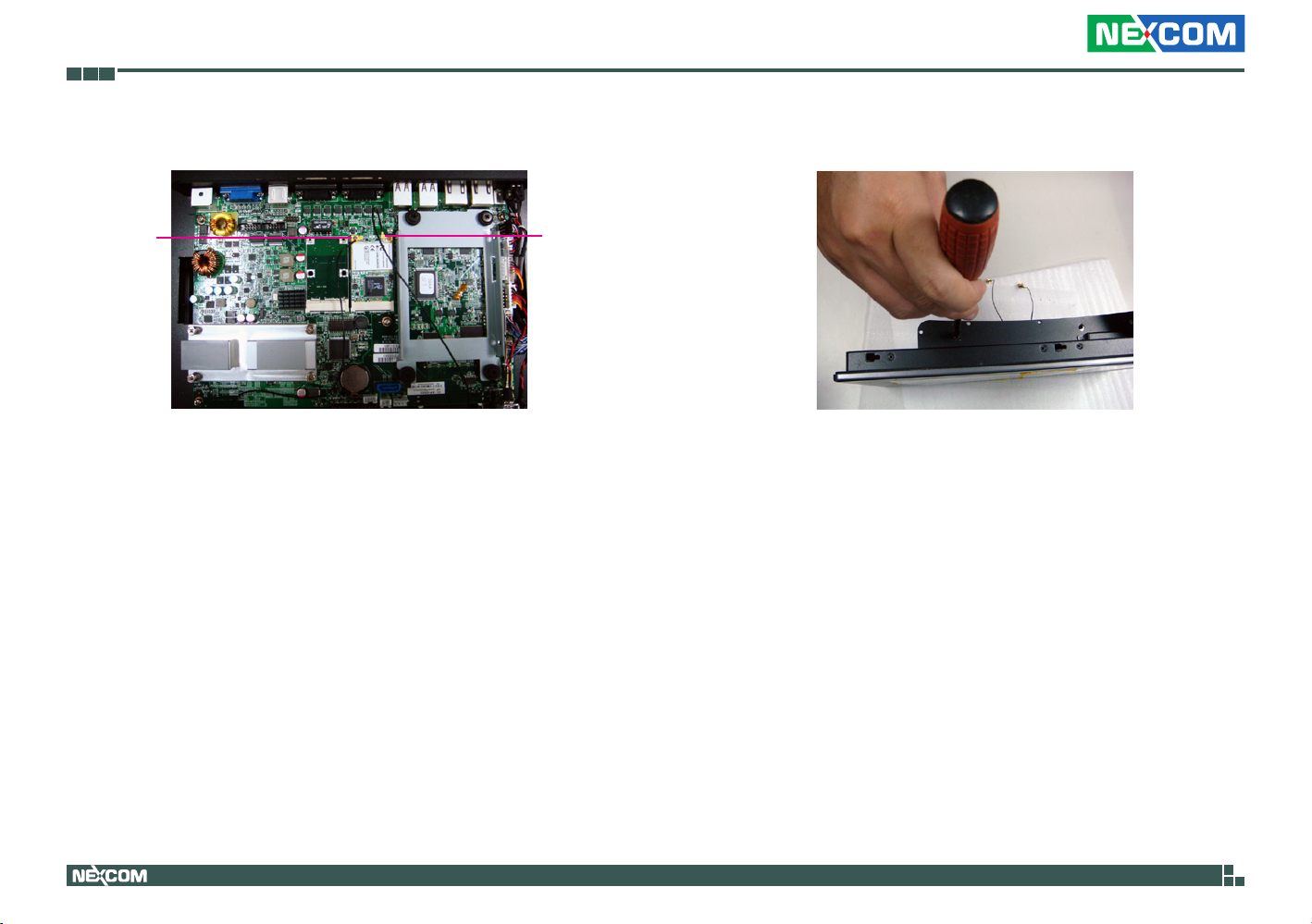

Installing a SATA Hard Drive .................................................................52

Installing a CFast Card ..........................................................................56

Installing a SODIMM .............................................................................58

Installing a SATA DOM ..........................................................................61

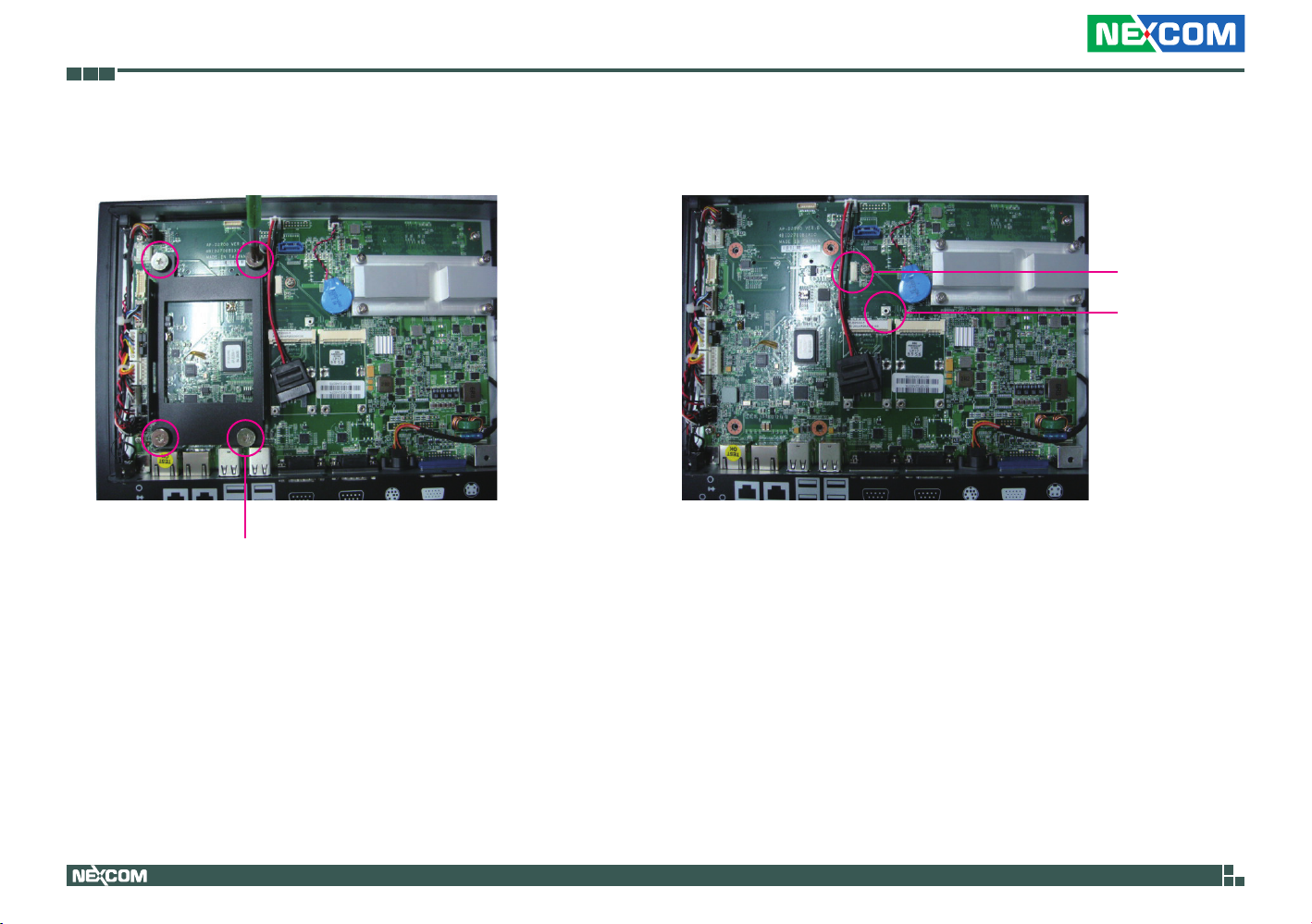

Installing a Mini PCIe Module ................................................................ 65

Installing the Half-Size Mini PCIe Module ...........................................67

Installing the Full-Size Mini PCIe Module ............................................68

Installing a Bluetooth Module ...............................................................72

Placing Panel Mount Hole Blocks ........................................................... 76

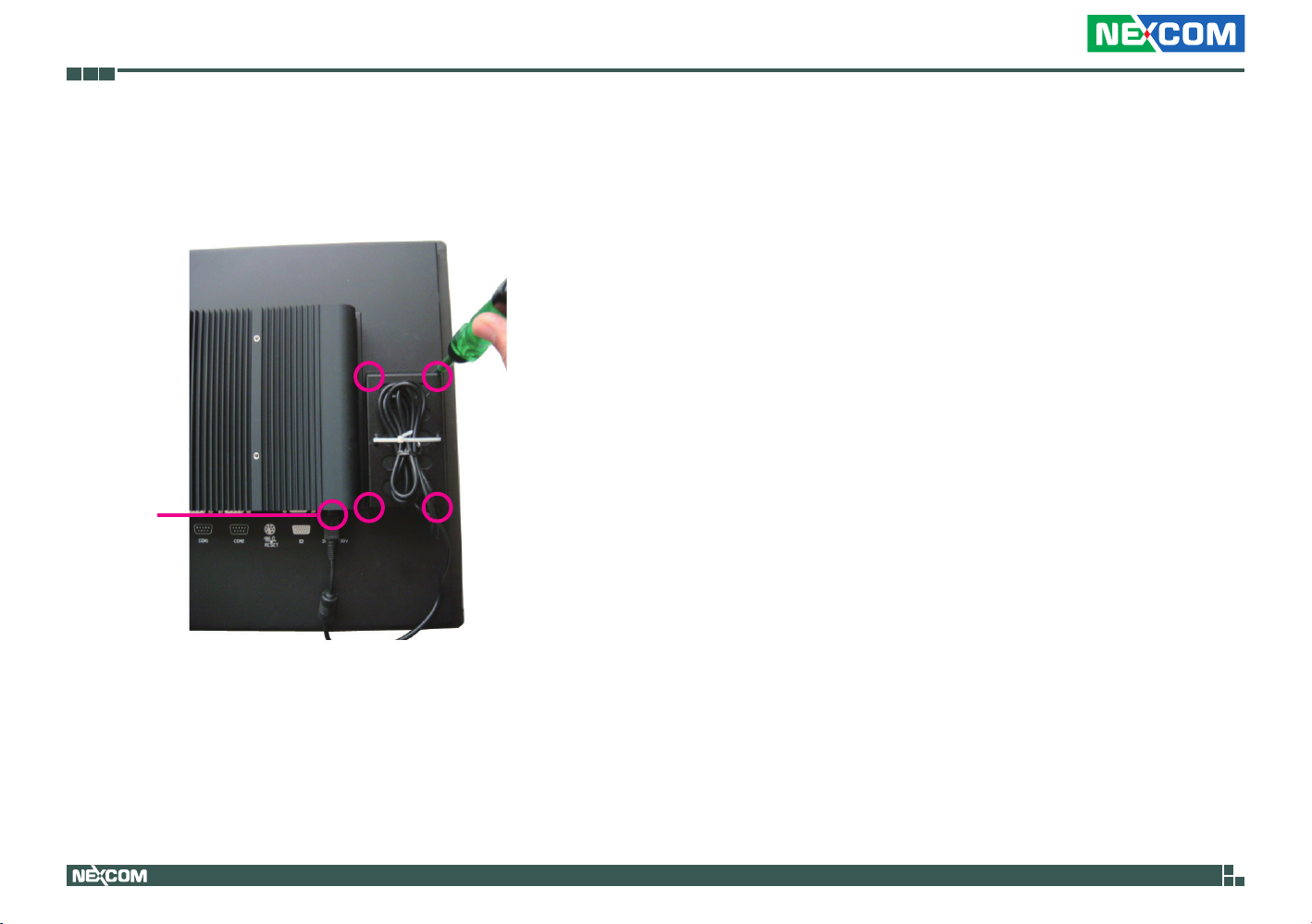

Installing the Power Adapter Bracket ..................................................... 78

Plugging the DC Power Cable ............................................................... 82

Panel Mounting ....................................................................................83

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 85

iii

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Content

When to Configure the BIOS .................................................................85

Default Configuration ........................................................................... 86

Entering Setup ...................................................................................... 86

Legends ................................................................................................ 86

BIOS Setup Utility .................................................................................. 88

Main .................................................................................................88

Advanced .......................................................................................... 90

Chipset ..............................................................................................99

Boot ................................................................................................ 102

Security ...........................................................................................104

Save & Exit ......................................................................................104

Appendix A: GPI/O Programming Guide.............106

Appendix B: Digital I/O Programming Guide......108

Appendix C: Watchdog Programming Guide......110

Appendix D: Power Consumption.......................112

Appendix E: Troubleshooting..............................114

iv

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

v

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

This publication, including all photographs, illustrations and software, is protected under international copyright

laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vii

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

viii

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

ix

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

x

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com.tw

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 www.nexcom.com.tw Japan

NEXCOM Japan

9F, Tamachi Hara Bldg.,4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China NEXCOM China

2F, Block 4, Venus Plaza, Building 21, ZhongGuanCun Software Park, No.8, Dongbeiwang West Road, Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 1505, Greenland He Chuang Bldg., No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

Nanjing Office

Hall C, Block 17, Tian Xing Cui Lang Bldg., No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 Email: sales@nexcom.cn www.nexcom.cn

Shenzhen Office

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China Tel: +86-755-833 7203 Fax: +86-755-833 7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/1805,Mingze Liwan, No.519 South Luoshi Rd,Hongshan District, Wuhan,430070,China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

xii

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Europe

France NEXCOM France

La Grande Arche-Paroi Nord 92044 Paris La Défense France Tel: +33 (0) 1 40 90 33 35 Fax: +33 (0) 1 40 90 31 01 Email: sales.fr@nexcom.eu www.nexcom.eu

Germany

NEXCOM GmbH Leopoldstraße Business Centre, Leopoldstraße 244, 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 Email: sales.de@nexcom.eu www.nexcom.eu

Italy

NEXCOM ITALIA S.r.l Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

xiii

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

Package Contents

Before continuing, verify that the package you received is complete. Your package should have all the items listed in the table.

APPC 1930T/APPC 1931T APPC 1730T/APPC 1731T

Item Description Qty

1 PS/2 Y Cable 1 2 Panel Mount Kit 14 3 Driver CD 1 4 Touch Pen 1 5 DC Power Cable 1 6 Flat Head for HDD Installation 4 7 Panel Mount Hole Block 14

APPC 1530T/APPC 1531T APPC 1230T/APPC 1231T/APPC 1235T

Item Description Qty

1 PS/2 Y Cable 1 2 Panel Mount Kit 12 3 Driver CD 1 4 Touch Pen 1 5 DC Power Cable 1 6 Flat Head for HDD Installation 4 7 Panel Mount Hole Block 12

Item Description Qty

1 PS/2 Y Cable 1 2 Panel Mount Kit 12 3 Driver CD 1 4 Touch Pen 1 5 DC Power Cable 1 6 Flat Head for HDD Installation 4 7 Panel Mount Hole Block 12

Item Description Qty

1 PS/2 Y Cable 1 2 Panel Mount Kit 12 3 Driver CD 1 4 Touch Pen 1 5 DC Power Cable 1 6 Flat Head for HDD Installation 4 7 Panel Mount Hole Block 12

Note: Package contents may vary depending on your country region, some items may be optional. Please contact your local distributor for more information.

xiv

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Preface

PS/2 Y Cable

Panel Mount Kit

(APPC 1930T/APPC 1931T)

Panel Mount Hole Block

(APPC 1730T/APPC 1731T/APPC 1530T/APPC 1531T/

APPC 1230T/APPC 1231T/APPC 1235T)

Panel Mount Kit

(APPC 1730T/APPC 1731T/APPC 1530T/APPC 1531T/

APPC 1230T/APPC 1231T/APPC 1235T)

Touch PenDriver CD

xv

DC Power Cable Flat Head Screw

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Panel Mount Hole Block

(APPC 1930T/APPC1 931T)

Preface

Ordering Information

The following information below provides ordering information for Applied Panel PC series.

• Barebone

APPC 1930T (P/N: 10IA1930T00X0)

– 19” SXGA LED Backlight Touch Panel PC, Intel® Atom™ D2550

1.86 GHz, touch screen, 1GB DDR3, 2x RS232/422/485

APPC 1931T (P/N: 10IA1931T00X0)

– 19” SXGA LED Backlight Touch Panel PC, Intel® Atom™ D2550

1.86 GHz, touch screen, 1GB DDR3, 2x RS232/422/485 and 4/4 DI/O with isolated protection, 2x RS232, 2x2 GPI/O, Brightness adjustment buttons

APPC 1730T (P/N: 10IA1730T00X0)

– 17” SXGA CCFL Backlight Touch Panel PC, Intel® Atom™ D2550

1.86 GHz, touch screen, 1GB DDR3, 2x RS232/422/485

APPC 1731T (P/N: 10IA1731T00X0)

– 17” SXGA CCFL Backlight Touch Panel PC, Intel® Atom™ D2550

1.86 GHz, touch screen, 1GB DDR3, 2x RS232/422/485 and 4/4 DI/O with isolated protection, 2x RS232, 2x2 GPI/O, Brightness adjustment buttons

APPC 1530T (P/N: 10IA1530T00X0)

– 15” XGA LED Backlight Touch Panel PC, Intel® Atom™ D2550

1.86 GHz, touch screen, 1GB DDR3, 2x RS232/422/485

APPC 1531T (P/N: 10IA1531T00X0)

– 15” XGA LED Backlight Touch Panel PC, Intel® Atom™ D2550

1.86 GHz, touch screen, 1GB DDR3, 2x RS232/422/485 and 4/4 DI/O with isolated protection, 2x RS232, 2x2 GPI/O, Brightness adjustment buttons

APPC 1230T (P/N: 10IA1230T00X0)

– 12.1” SVGA LED Backlight Touch Panel PC, Intel® Atom™ D2550

1.86 GHz, touch screen, 1GB DDR3, 2x RS232/422/485

APPC 1231T (P/N: 10IA1231T00X0)

– 12.1” SVGA LED Backlight Touch Panel PC, Intel® Atom™ D2550

1.86 GHz, touch screen, 1GB DDR3, 2x RS232/422/485 and 4/4 DI/O with isolated protection, 2x RS232, 2x2 GPI/O, Brightness adjustment buttons

APPC 1235T (P/N: 10IA1235T00X0)

– 12.1” XGA LED Backlight Touch Panel PC, Intel® Atom™ D2550

1.86 GHz, touch screen, 1GB DDR3, 2x RS232/422/485

• Optional

12V, 60W AC/DC power adapter w/o power cord (P/N: 7400060016X00)

xvi

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

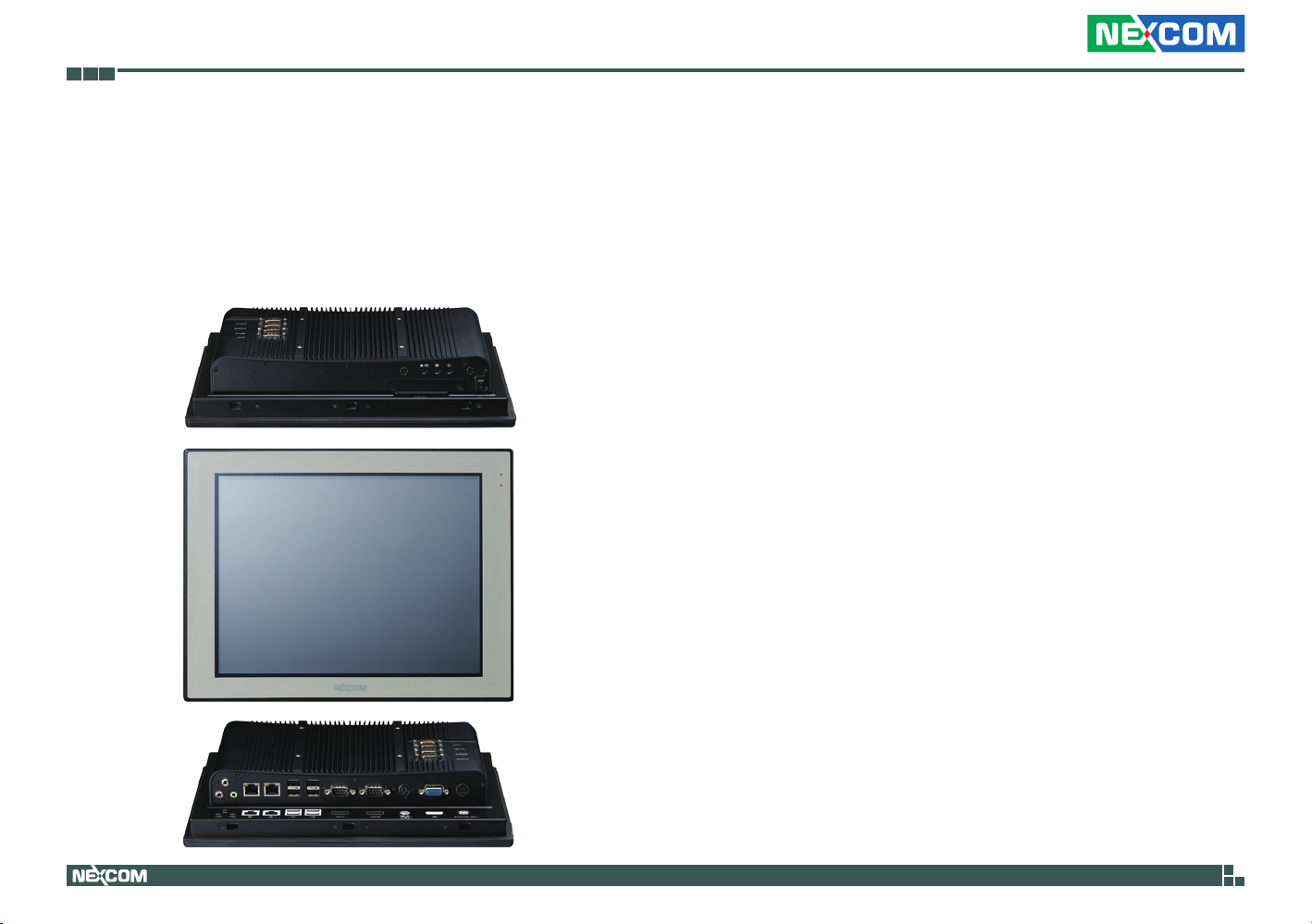

APPC 1230T/1231T/1235T

Overview

Key Features

▪ 4:3 12.1” SVGA Fanless LED Panel Computer (APPC 1230T/1231T)

▪ 4:3 12.1” XGA Fanless LED Panel Computer (APPC 1235T)

▪ Intel® Atom™ D2550, Dual Core, Low Consumption CPU

▪ Flush Panel by 5-wire Touch Screen

▪ Dual GbE/ 2nd display-VGA/ Line-in/ Line-out/ MIC-in/ PS2 KB/MS

▪ USB x4/ 2x mini-PCIe sockets/ 1x CFast/ 2x RS232/ 422/ 485

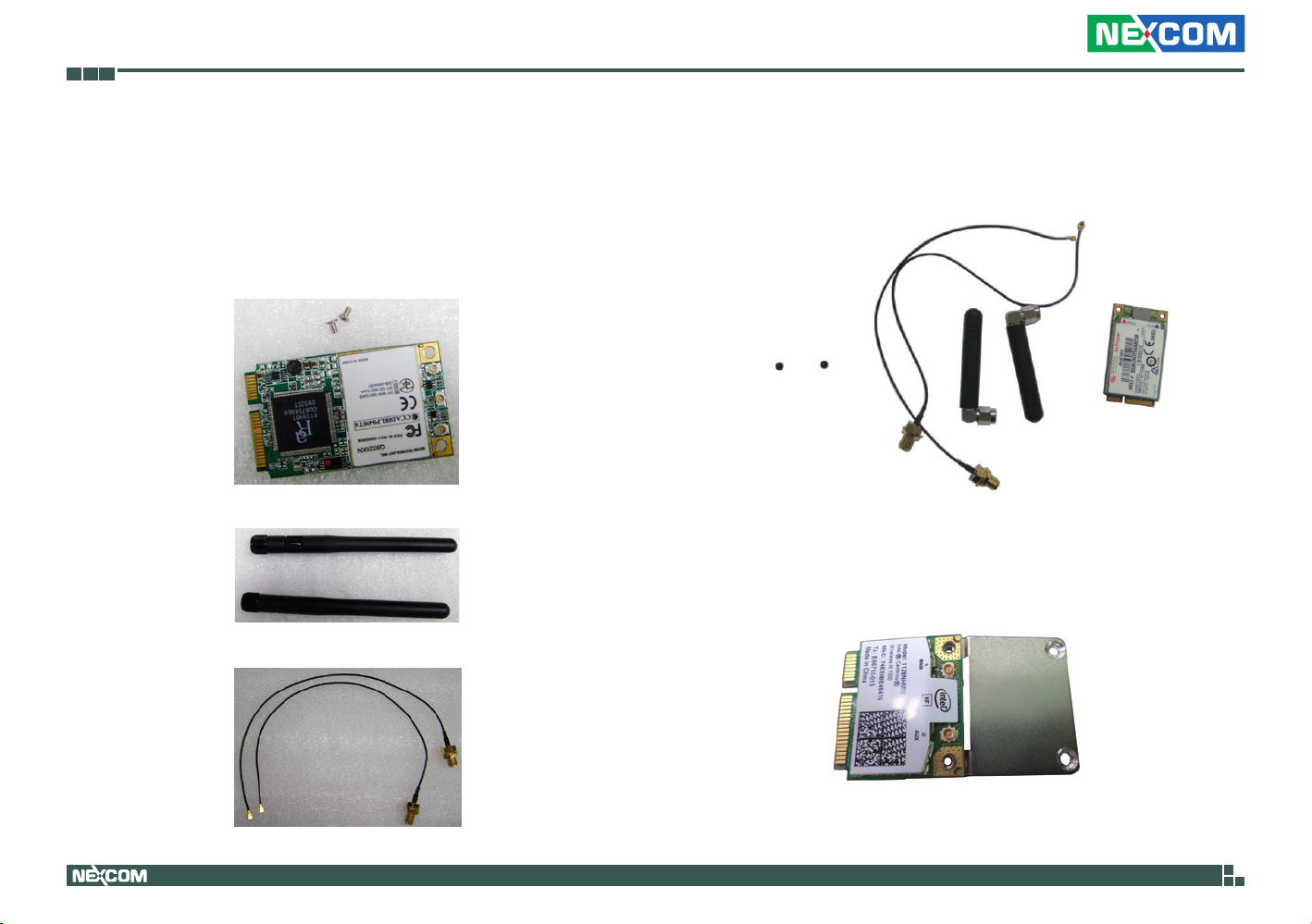

▪ Optional 3.5G/ Wi-Fi Module / 2.5”HDD/ 2x COMs / GPIO / DIO

▪ DDR3 1GB/ 2.5” HDD Bracket

▪ IP65 Compliant Front Panel

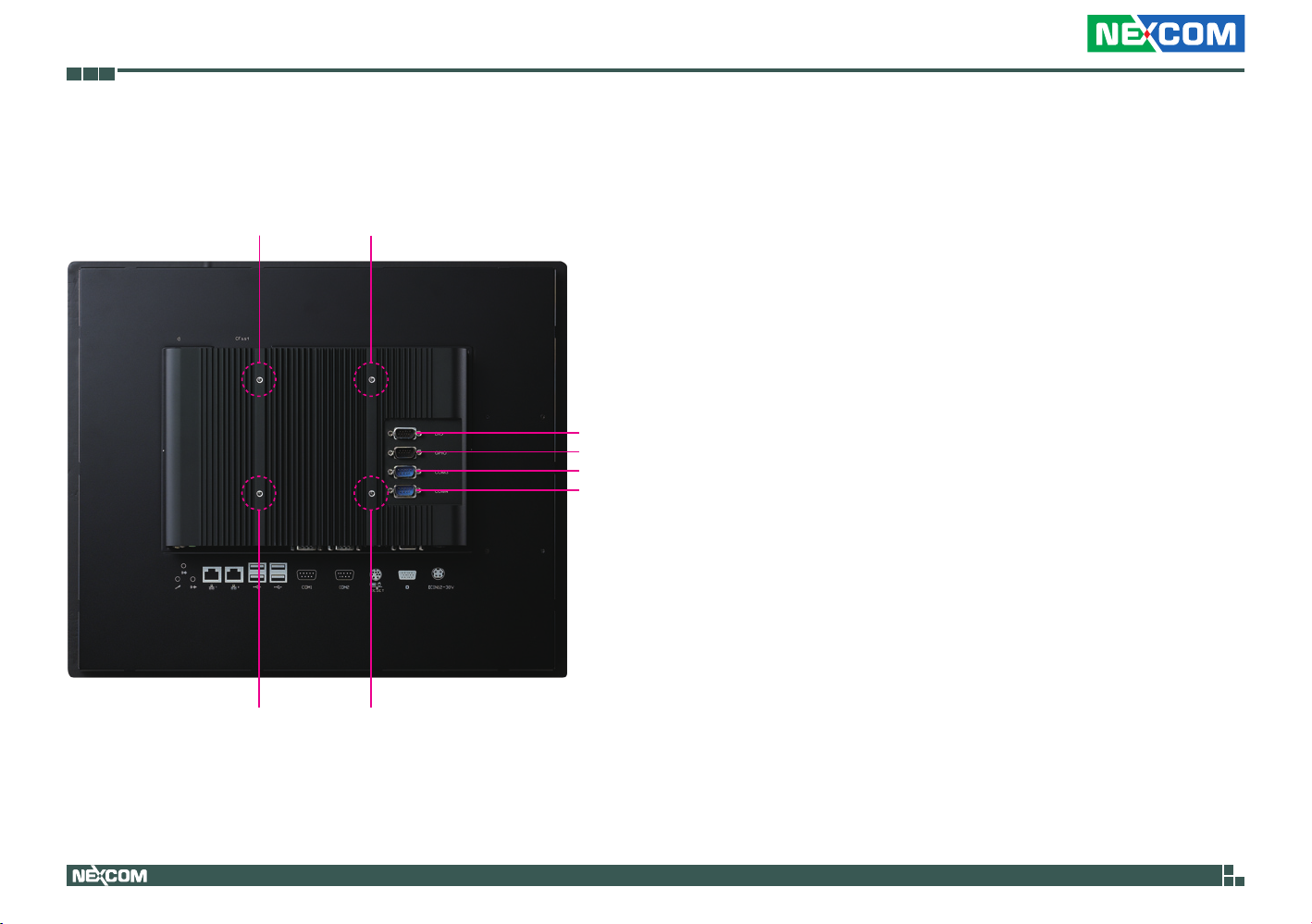

▪ Mounting Support: Panel/ Wall/ Stand/ VESA 100mm x 100mm

▪ Wide Range Power Input 12V~30V DC

1

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

Specifications

Panel

APPC 1230T/ APPC 1231T

▪ LED Size: 12.1”, 4:3 ▪ Resolution: SVGA 800x600 ▪ Luminance: 450cd/m2 ▪ Contrast ratio: 700 ▪ LCD color: 16.2M ▪ Viewing Angle: 65(U), 75(D), 80(L), 80(R) ▪ Backlight: LED

APPC 1235T

▪ LED Size: 12.1”, 4:3 ▪ Resolution: XGA 1024x768 ▪ Luminance: 500cd/m2 ▪ Contrast ratio: 700 ▪ LCD color: 16.2M ▪ Viewing Angle: 80(U), 80(D), 80(L), 80(R) ▪ Backlight: LED

Touch Screen

▪ 5-wire resistive (flush panel type) ▪ Light transmission: 80% ▪ Interface: USB

System

▪ CPU: On-board Intel® Atom™ Dual Core processor D2550, 1.86GHz,1M

L2 Cache

▪ BIOS: AMI BIOS

▪ System chipset: Intel® NM10 Express chipset ▪ System memory: 2x 204-pin DDR3 SO-DIMM socket, 1G DDR3 (Default),

support up to 4GB DDR3-800/1066, Non-ECC and un-buffered

▪ Storage Device:

– 1x external locked CFast socket – 1x hard drive bay: optional 1x 2.5” SATA HDD or 1x SATA DOM

▪ Watchdog timer: Watchdog timeout can be programmed by software

from 1 second to 255 seconds and from 1 minute to 255 minutes

(Tolerance 15% under room temperature 25°C) ▪ H/W status monitor: Monitoring system temperature, and voltage ▪ Expansion: 2x mini-PCIe sockets

(support optional Wi-Fi or 3.5G module)

▪ Panel backlight control button: Increase brightness / decrease brightness

/ Backlight On/Off (For APPC1231T only)

Rear I/O

▪ Ethernet: 2x RJ45 ▪ 2nd display VGA port: 1x DB15 ▪ Audio port: 1x Line out; 1x Line in; 1x MIC-in ▪ USB: 4x USB 2.0 ▪ PS2 keyboard/ mouse ▪ Power switch / Reset button ▪ COM #1: RS232/422/485 w/RI or 5V selection ▪ COM #2: RS232/422/485 w/RI or 12V selection

2

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

For APPC1231T only DIO w/ 2.5kv isolated:

4x Digital Input (Source type)

– Input Voltage (Dry Contact): Logic 0: Close to GND – Logic 1: Open – Input Voltage: Logic 0: 3V max – Logic 1: +5V ~ +30V

4x Digital Output (Sink type)

– Output Voltage: 3.6V ~ 5V

– Sink current: 200 mA max. per channel ▪ GPIO: 2x digital in / 2x digital out ▪ COM #1: RS232/422/485 w/ 2.5kv isolated ▪ COM #2: RS232/422/485 w/ 2.5kv isolated ▪ COM #3: RS232 w/ RI or 5V selection ▪ COM #4: RS232 w/ RI or 12V selection

Audio

▪ AC97 codec: Realtek ALC886-GR ▪ Audio interface: Line out/Line in/MIC-in Audio Jack

Ethernet

▪ LAN chip: dual Intel® 82574L Gigabit LAN ▪ Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

▪ Power input: 12V~ 30V DC ▪ Power adapter: Optional AC to DC power adaptor (+12V, 60W) ▪ Vibration:

– IEC 68 2-64 (w/ HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (CFast Operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

▪ Shock:

– IEC 68 2-27

– HDD: 20G@wall mount, half sine, 11ms ▪ Operating temperature: -5°C to 60°C ▪ Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing

Limits to be at 90% RH at max 50°C

▪ Dimension: 317 x 243 x 65.89mm ▪ Weight: 3.9 Kg

Certifications

▪ CE approval ▪ FCC Class A

Mechanical & Environment

▪ Color: pantone black\RAL 15 00 front bezel w/ Pantone 400C\RAL

090 80 10 metal style membrane

▪ IP protection: IP65 front ▪ Mounting: panel/ wall/ stand/ VESA 100mm x 100mm

3

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

APPC 1530T/1531T

Key Features

▪ 4:3 15” XGA Fanless LED Panel Computer

▪ Intel® Atom™ D2550, Dual Core, Low Consumption CPU

▪ Flush Panel by 5-wire Touch Screen

▪ Dual GbE/ 2nd display-VGA/ Line-in/ Line-out/ MIC-in/ PS2 KB/MS

▪ USB x4/ 2x mini-PCIe sockets/ 1x CFast/ 2x RS232/ 422/ 485

▪ Optional 3.5G / Wi-Fi Module / 2.5”HDD / 2x COMs / GPIO / DIO

▪ DDR3 1GB / 2.5” HDD Bracket

▪ IP65 Compliant Front Panel

▪ Mounting Support: Panel/ Wall/ Stand/ VESA 100mm x 100mm

▪ Wide Range Power Input 12V ~ 30V DC

4

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

Specifications

Panel

▪ LED Size: 15”, 4:3 ▪ Resolution: XGA 1024x768 ▪ Luminance: 400cd/m2 ▪ Contrast ratio: 700 ▪ LCD color: 16.2M ▪ Viewing Angle: 60(U), 80(D), 80(L), 80(R) ▪ Backlight: LED

Touch Screen

▪ 5-wire resistive (flush panel type) ▪ Light transmission: 80% ▪ Interface: USB

System

▪ CPU: On-board Intel® Atom™ Dual Core processor D2550, 1.86GHz,

1M L2 Cache ▪ BIOS: AMI BIOS ▪ System chipset: Intel® NM10 Express chipset ▪ System memory: 2x 204-pin DDR3 SO-DIMM socket, 1G DDR3 (Default),

support up to 4GB DDR3-800/1066, Non-ECC and un-buffered ▪ Storage Device:

– 1x external locked CFast socket – 1x hard drive bay: optional 1x 2.5” SATA HDD or 1x SATA DOM

▪ Watchdog timer: Watchdog timeout can be programmed by software

from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)

▪ H/W status monitor: Monitoring system temperature, and voltage ▪ Expansion: 2x mini-PCIe sockets

(support optional WiFi or 3.5G module)

▪ Panel backlight control button: Increase brightness / decrease

brightness / Backlight On/Off (For APPC1531T only)

Rear I/O

▪ Ethernet: 2x RJ45 ▪ 2nd display VGA port: 1x DB15 ▪ Audio port: 1x Line out; 1x Line in; 1x MIC-in ▪ USB: 4x USB 2.0 ▪ PS2 keyboard/ mouse ▪ Power switch ▪ Reset button ▪ COM #1: RS232/422/485 w/RI or 5V selection ▪ COM #2: RS232/422/485 w/RI or 12V selection

For APPC1531T only

▪ DIO w/ 2.5kv isolated:

4x Digital Input (Source type)

– Input Voltage (Dry Contact): Logic 0: Close to GND – Logic 1: Open – Input Voltage: Logic 0: 3V max

– Logic 1: +5V ~ +30V

4x Digital Output (Sink type)

– Output Voltage: 3.6V ~ 5V – Sink current: 200 mA max. per channel

5

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

▪ GPIO: 2x digital in/ 2x digital out ▪ COM #1: RS232/422/485 w/ 2.5kv isolated ▪ COM #2: RS232/422/485 w/ 2.5kv isolated ▪ COM #3: RS232 w/ RI or 5V selection ▪ COM #4: RS232 w/ RI or 12V selection

Audio

▪ AC97 codec: Realtek ALC886-GR ▪ Audio interface: Line out/Line in/MIC-in Audio Jack

Ethernet

▪ LAN chip: dual Intel® 82574L Gigabit LAN ▪ Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Mechanical & Environment

▪ Color: pantone black\RAL 15 00 front bezel w/ Pantone 400C\RAL

090 80 10 metal style membrane ▪ IP protection: IP65 front ▪ Mounting: panel/ wall/ stand/ VESA 100mm x 100mm ▪ Power input: 12V~ 30V DC ▪ Power adapter: Optional AC to DC power adaptor (+12V, 60W) ▪ Vibration:

IEC 68 2-64 (w/ HDD)

– 1Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (CFast Operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

▪ Shock:

– IEC 68 2-27 – HDD: 20G@wall mount, half sine, 11ms

▪ Operating temperature: -5°C to 60°C

▪ Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing

Limits to be at 90% RH at max 50°C

▪ Dimension: 384.37 x 309.95 x 63.2 mm ▪ Weight: 5 Kg

Certifications

▪ CE approval ▪ FCC Class A

6

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

APPC 1730T/1731T

Key Features

▪ 4:3 17” SXGA Fanless Panel Computer

▪ Intel® Atom™ D2550, Dual Core, Low Consumption CPU

▪ Flush Panel by 5-wire Touch Screen

▪ Dual GbE/ 2nd display-VGA/ Line-in/ Line-out/ MIC-in/ PS2 KB/MS

▪ USB x4/ 2x mini-PCIe sockets/ 1x CFast/ 2x RS232/ 422/ 485

▪ Optional 3.5G / Wi-Fi Module / 2.5”HDD / 2x COMs / GPIO / DIO

▪ DDR3 1GB / 2.5” HDD Bracket

▪ IP65 Compliant Front Panel

▪ Mounting Support: Panel/ Wall/ Stand/ VESA 100mm x 100mm

▪ Wide Range Power Input 12V~ 30V DC

7

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

Specifications

Panel

▪ LED Size: 17”, 4:3 ▪ Resolution: SXGA 1280x1024 ▪ Luminance: 380cd/m2 ▪ Contrast ratio: 1000 ▪ LCD color: 16.7M ▪ Viewing Angle: 80(U), 80(D), 85(L), 85(R) ▪ Backlight: CCFL

Touch Screen

▪ 5-wire resistive (flush panel type) ▪ Light transmission: 81% ▪ Interface: USB

System

▪ CPU: On-board Intel® Atom™ Dual Core processor D2550, 1.86GHz,

1M L2 Cache ▪ BIOS: AMI BIOS ▪ System chipset: Intel® NM10 Express chipset ▪ System memory: 2x 204-pin DDR3 SO-DIMM socket, 1G DDR3 (Default),

support up to 4GB DDR3-800/1066, Non-ECC and un-buffered ▪ Storage Device:

– 1x external locked CFast socket – 1x hard drive bay: optional 1x 2.5” SATA HDD or 1x SATA DOM

▪ Watchdog timer: Watchdog timeout can be programmed by

software from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)

▪ H/W status monitor: Monitoring system temperature, and voltage

▪ Expansion: 2x mini-PCIe sockets

(support optional Wi-Fi or 3.5G module)

▪ Panel backlight control button: Increase brightness / decrease

brightness / Backlight On/Off (For APPC1731T only)

Rear I/O

▪ Ethernet: 2x RJ45 ▪ 2nd display VGA port: 1x DB15 ▪ Audio port: 1x Line out; 1x Line in; 1x MIC-in ▪ USB: 4x USB 2.0 ▪ PS2 keyboard/ mouse ▪ Power switch ▪ Reset button ▪ COM #1: RS232/422/485 w/RI or 5V selection ▪ COM #2: RS232/422/485 w/RI or 12V selection

For APPC1731T only

▪ DIO w/ 2.5kv isolated:

4x Digital Input (Source type)

– Input Voltage (Dry Contact): Logic 0: Close to GND – Logic 1: Open – Input Voltage: Logic 0: 3V max – Logic 1: +5V ~ +30V

4x Digital Output (Sink type)

– Output Voltage: 3.6V ~ 5V – Sink current: 200 mA max. per channel

8

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

▪ GPIO: 2x digital in/ 2x digital out ▪ COM #1: RS232/422/485 w/ 2.5kv isolated ▪ COM #2: RS232/422/485 w/ 2.5kv isolated ▪ COM #3: RS232 w/ RI or 5V selection ▪ COM #4: RS232 w/ RI or 12V selection

Audio

▪ AC97 codec: Realtek ALC886-GR ▪ Audio interface: Line out/Line in/MIC-in Audio Jack

Ethernet

▪ LAN chip: dual Intel® 82574L Gigabit LAN ▪ Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Mechanical & Environment

▪ Color: pantone black\RAL 15 00 front bezel w/ Pantone 400C\RAL

090 80 10 metal style membrane ▪ IP protection: IP65 front ▪ Mounting: panel/ wall/ stand/ VESA 100mm x 100mm ▪ Power input: 12V~ 30V DC ▪ Power adapter: Optional AC to DC power adaptor (+12V, 60W) ▪ Vibration:

– IEC 68 2-64 (w/ HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (CFast Operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

▪ Shock:

– IEC 68 2-27 – HDD: 20G@wall mount, half sine, 11ms

▪ Operating temperature: -5°C to 50°C ▪ Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing

Limits to be at 90% RH at max 50°C

▪ Dimension: 410.4 x 340.4 x 75.79 mm ▪ Weight: 6.6 Kg

Certifications

▪ CE approval ▪ FCC Class A

9

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

APPC 1930T/1931T

Key Features

▪ 4:3 19” SXGA Fanless LED Panel Computer

▪ Intel® Atom™ D2550, Dual Core, Low Consumption CPU

▪ Flush Panel by 5-wire Touch Screen

▪ Dual GbE/ 2nd display-VGA/ Line-in/ Line-out/ Mic-in/ PS2 KB/MS

▪ USB x4/ 2x mini-PCIe sockets/ 1x CFast/ 2x RS232/ 422/ 485

▪ Optional 3.5G / Wi-Fi Module / 2.5”HDD / 2x COMs / GPIO / DIO

▪ DDR3 1GB / 2.5” HDD Bracket

▪ IP65 Compliant Front Panel

▪ Mounting Support: Panel/ Wall/ Stand/ VESA 100mm x 100mm

▪ Wide Range Power Input 12V~ 30V DC

10

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

Specifications

Panel

▪ LED Size: 19”, 4:3 ▪ Resolution: SXGA 1280x1024 ▪ Luminance: 350cd/m2 ▪ Contrast ratio: 1000 ▪ LCD color: 16.7M ▪ Viewing Angle: 80(U), 80(D), 85(L), 85(R) ▪ Backlight: LED

Touch Screen

▪ 5-wire resistive (flush panel type) ▪ Light transmission: 81% ▪ Interface: USB

System

▪ CPU: On-board Intel® Atom™ Dual Core processor D2550, 1.86GHz,

1M L2 Cache ▪ BIOS: AMI BIOS ▪ System chipset: Intel® NM10 Express chipset ▪ System memory: 2x 204-pin DDR3 SO-DIMM socket, 1G DDR3 (Default),

support up to 4GB DDR3-800/1066, Non-ECC and un-buffered ▪ Storage Device:

– 1x external locked CFast socket – 1x hard drive bay: optional 1x 2.5” SATA HDD or 1x SATA DOM

▪ Watchdog timer: Watchdog timeout can be programmed by

software from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)

▪ H/W status monitor: Monitoring system temperature, and voltage

▪ Expansion: 2x mini-PCIe sockets

(support optional WiFi or 3.5G module)

▪ Panel backlight control button: Increase brightness / decrease

brightness / Backlight On/Off (For APPC1931T only)

Rear I/O

▪ Ethernet: 2x RJ45 ▪ 2nd display VGA port: 1x DB15 ▪ Audio port: 1x Line out; 1x Line in; 1x MIC-in ▪ USB: 4x USB 2.0 ▪ PS2 keyboard/ mouse ▪ Power switch ▪ Reset button ▪ COM #1: RS232/422/485 w/RI or 5V selection ▪ COM #2: RS232/422/485 w/RI or 12V selection

For APPC1931T only

▪ DIO w/ 2.5kv isolated:

4x Digital Input (Source type)

– Input Voltage (Dry Contact): Logic 0: Close to GND – Logic 1: Open – Input Voltage: Logic 0: 3V max – Logic 1: +5V ~ +30V

4x Digital Output (Sink type)

– Output Voltage: 3.6V ~ 5V – Sink current: 200 mA max. per channel

11

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

▪ GPIO: 2x digital in/ 2x digital out ▪ COM #1: RS232/422/485 w/ 2.5kv isolated ▪ COM #2: RS232/422/485 w/ 2.5kv isolated ▪ COM #3: RS232 w/ RI or 5V selection ▪ COM #4: RS232 w/ RI or 12V selection

Audio

▪ AC97 codec: Realtek ALC886-GR ▪ Audio interface: Line out/Line in/MIC-in Audio Jack

Ethernet

▪ LAN chip: dual Intel® 82574L Gigabit LAN ▪ Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Mechanical & Environment

▪ Color: pantone black\RAL 15 00 front bezel w/ Pantone 400C\RAL

090 80 10 metal style membrane ▪ IP protection: IP65 front ▪ Mounting: panel/ wall/ stand/ VESA 100mm x 100mm ▪ Power input: 12V~ 30V DC ▪ Power adapter: Optional AC to DC power adaptor (+12V, 60W) ▪ Vibration:

– IEC 68 2-64 (w/ HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (CFast Operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

▪ Shock:

– IEC 68 2-27 – HDD: 20G@wall mount, half sine, 11ms

▪ Operating temperature: -5°C to 50°C ▪ Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing

Limits to be at 90% RH at max 50°C

▪ Dimension: 457.64 x 379.24 x 61.25 mm ▪ Weight: 6.5 Kg

Certifications

▪ CE approval ▪ FCC Class A

12

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

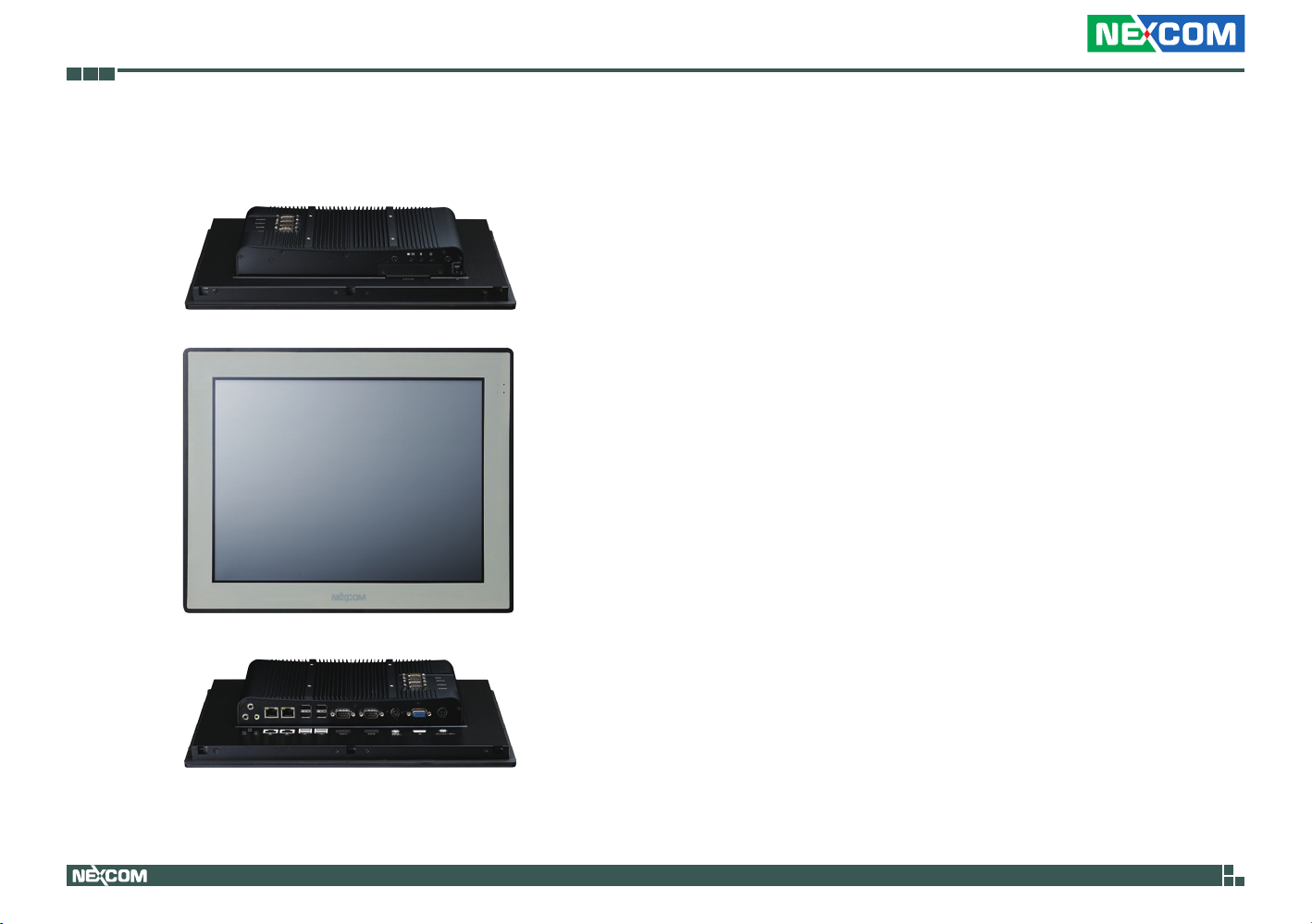

Knowing Your APPC Series

Rear Top

Antenna holes

Panel mounting hole

Backlight on/off

CFast

Increase Brightness

Decrease Brightness

Power switch

Panel mounting hole

Antenna holes for optional 3.5G/ WiFi/ Bluetooth

The 3 external antenna holes are used to mount and connect optional 3.5G/ WiFi/ Bluetooth antennas.

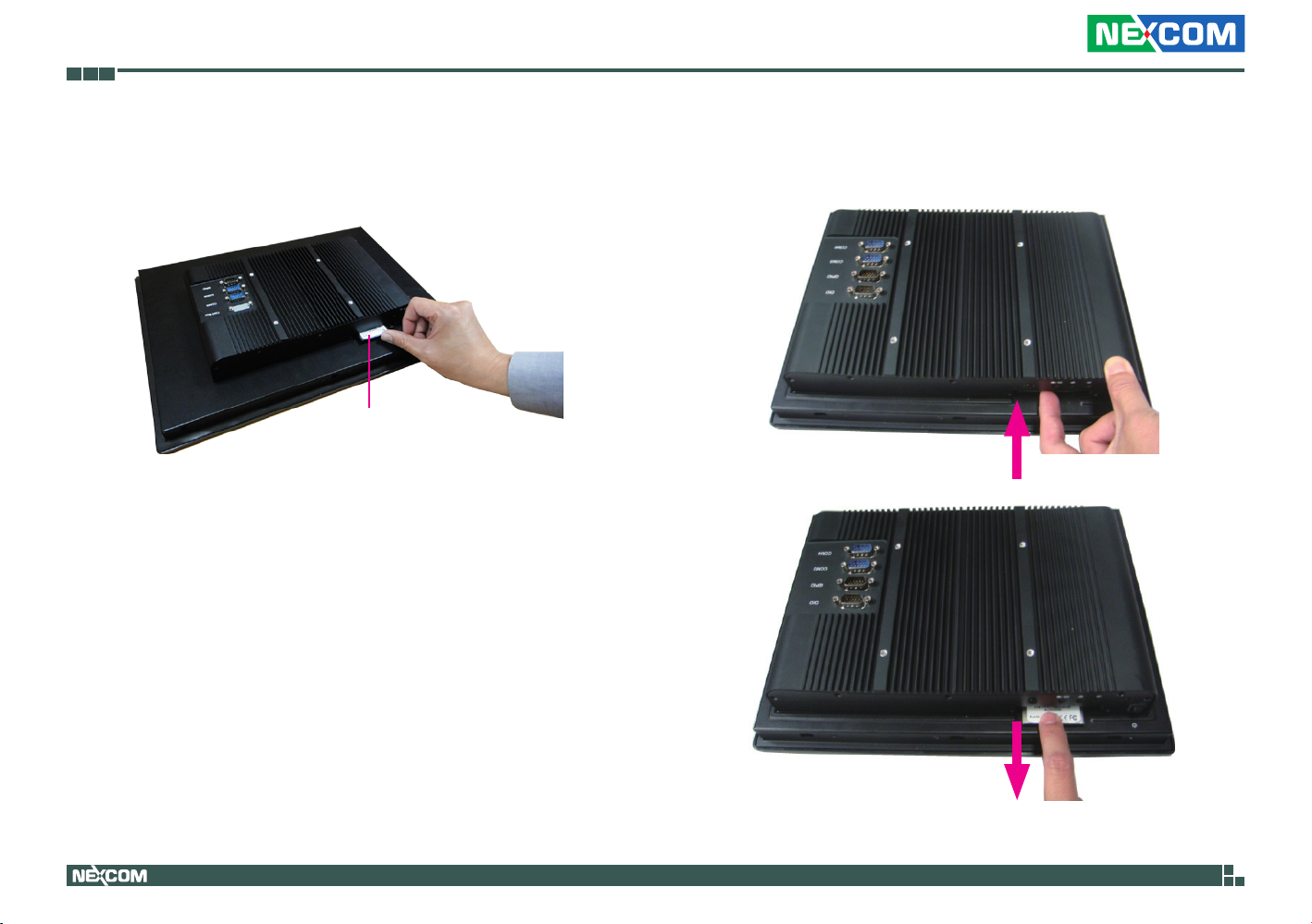

CFast Card Socket

Used to insert a CFast card.

Power Switch

Press to power-on or power-off the panel PC.

Panel Backlight Control Buttons

(APPC1231T/ APPC1531T APPC1731T/ APPC1931T only)

Backlight On/Off

Press to turn-on or turn-off the display

Increase Brightness

Press to increase brightness of the screen.

Decrease Brightness

Press to decrease brightness of the screen.

13

8 brightness level available: 30%, 40%, 50%, 60%, 70%, 80%, 90% and 100%

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

Rear Bottom

Line-outLine-in COM 2USB

Mic-inMic-in

LAN 1

LAN 2

COM 1

PS/2 KB/MS

Reset

VGA 12V-30V

DC Input

Line-in

Used to connect an audio device as sound source.

Mic-in

Used to connect an external microphone.

Line-out

Used to connect a headphone or a speaker.

LAN 1 and LAN 2

Used to connect the system to a local area network. LAN1 supports Wake up on LAN.

USB

Used to connect USB 2.0/1.1 devices.

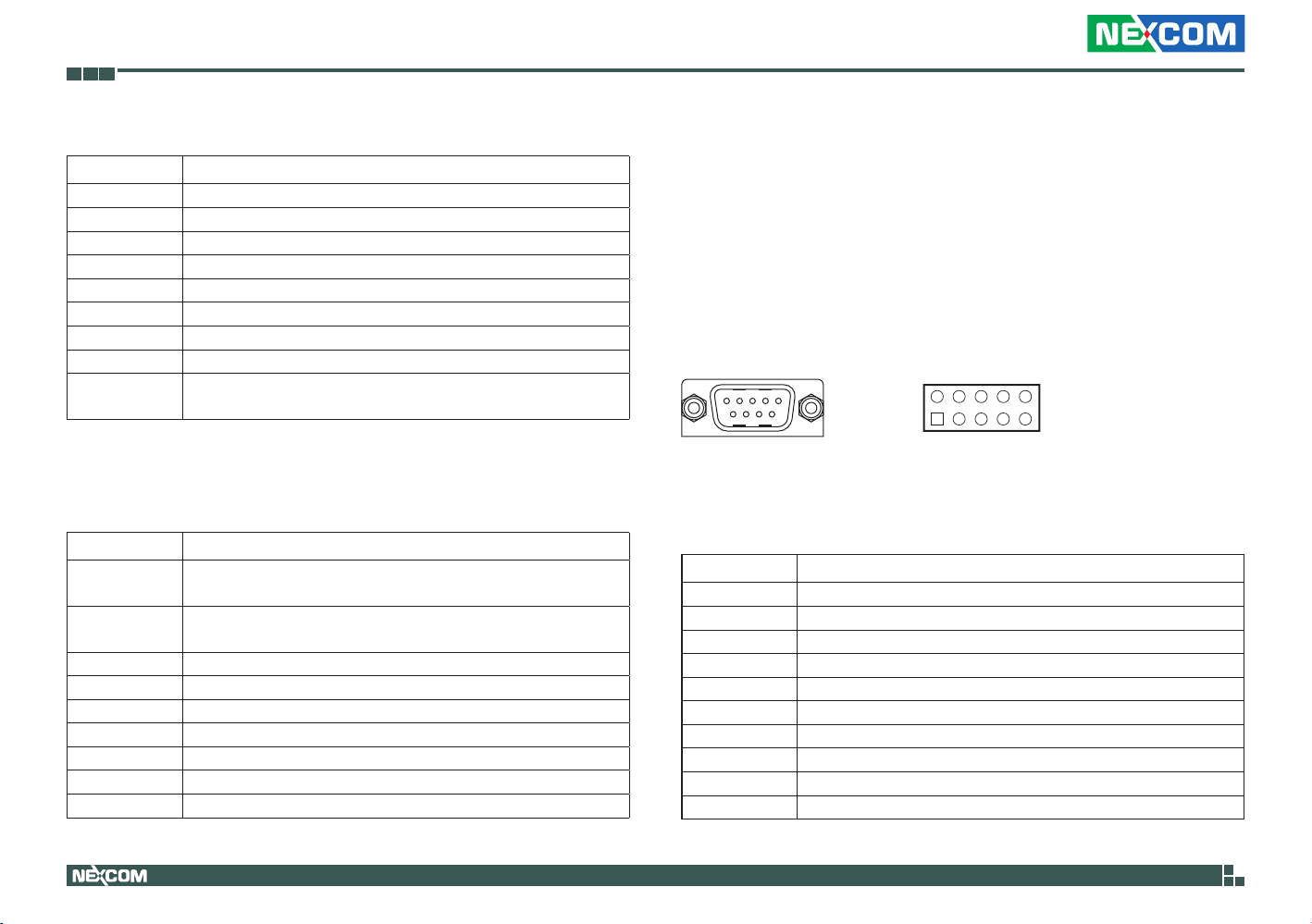

COM 1 and COM 2

These COM ports support RS232/422/485 compatible series device by BIOS setting. COM1 of APPC 1230T/1235T/1530T/1730T/1930T supports 5V or RI by Jumper setting. COM2 of APPC 1230T/1235T/1530T/1730T/1930T supports 12V or RI by Jumper setting. APPC 1231T/1531T/1731T/1931T have 2.5kV isolated protection.

PS/2 KB/MS

Used to connect a PS/2 keyboard and a PS/2 mouse

Reset Button

Press this button to restart the system.

VGA

Used to connect an analog VGA monitor.

12V-30V DC Input

Used to plug a DC power cord.

14

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

Rear (APPC 1230T/1235T/1530T/1730T/1930T only)

VESA Mounting Hole

VESA Mounting Holes

These are mounting holes for VESA mount (100x100mm)

15

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

Rear (APPC 1231T/1531T/1731T/1931T only)

VESA Mounting HoleVESA Mounting Hole

DIO GPIO COM3 COM4

DIO

The digital I/O connector support 4 isolated protection digital input channels and 4 isolated protection digital output channels. Isolation voltage: 2500 VDC

DI: 4x Digital Input (Source Type)

– Input Voltage (Dry Contact) Logic 0: Close to GND Logic 1: Open

– Input Voltage (Wet Contact) Logic 0: 3V max. Logic 1: +5V-+30VDC

4x Digital Output (Sink Type)

– Output Voltage: Typical 24VDC, 30VDC max. Logic 0: 0-0.6VDC Logic 1: 3.6-5VDC

– Sink Current: 200mA max. per channel

GPIO

The GPIO connector supports 2 digital input and 2 digital output.

COM3 and COM4

These COM ports support RS232 compatible serial devices. COM3 supports 5V or RI by Jumper setting. COM4 supports 12V or RI by Jumper setting.

VESA Mounting Holes

These are mounting holes for VESA mount (100x100mm).

16

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

APPC 1230T/1231T/1235T

301.73

67.2367.2256.90

100.2534.86

8.80

317

100.25

65.89

8.50

8.80

7.62

1583.1384.37

14.78

50.95100

108.68

100

243

17

173.90

227.76

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

APPC 1530T/1531T

7.41

8.80

366.32

67.2289.26

67.23

384.37

160160

63.20 7

19.20

142.27 100

309.95

56.09

10.40

60

70.3570.35

77.70100

292.20

18

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

APPC 1730T/1731T

56.40

11.80

67.22

392.40

134.45

410.42

338.92

6.00

75.79

38.90

270.00

100.00

271.34

19

181.90

322.38

100.00

173.90

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 1: Product Introduction

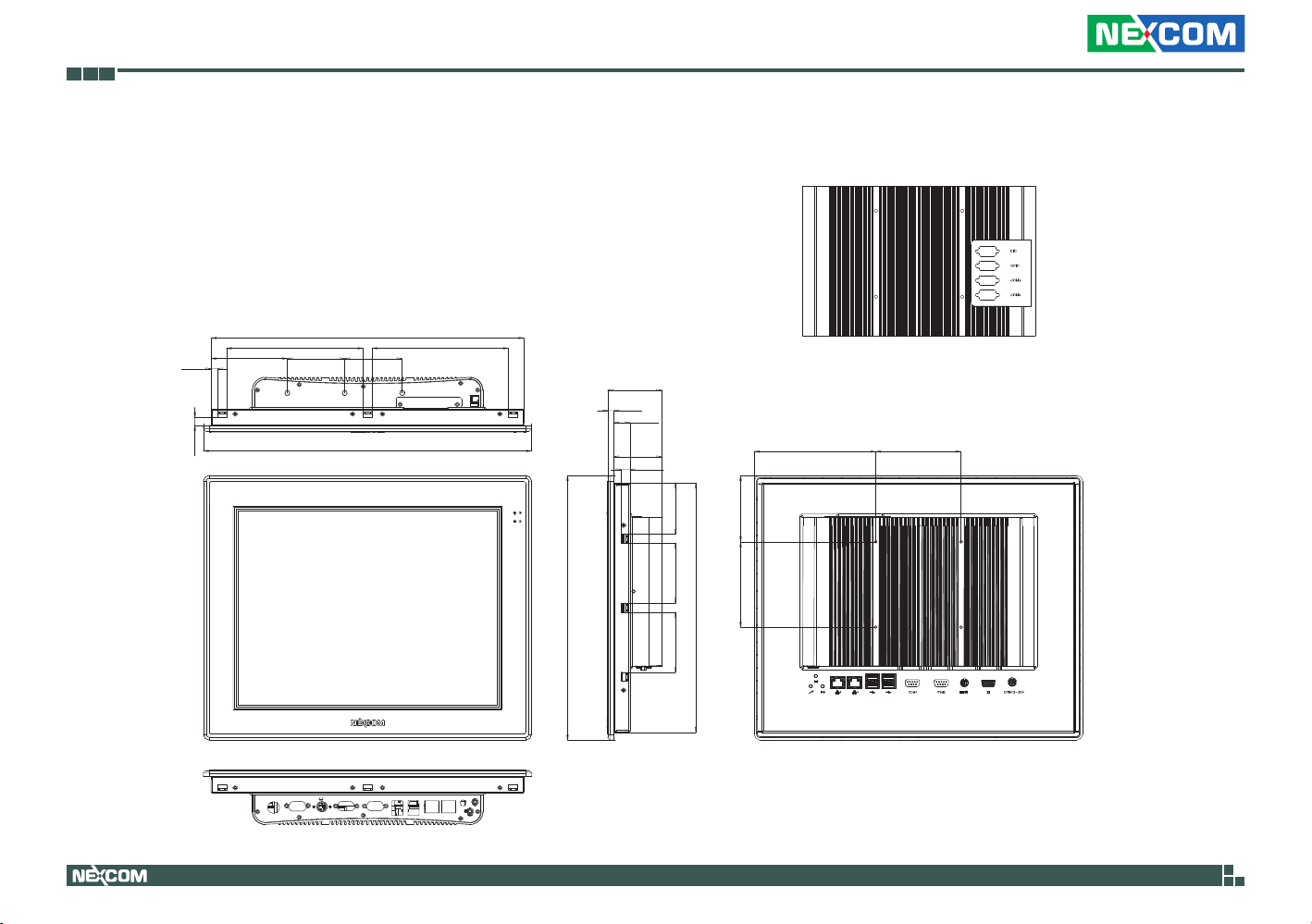

Mechanical Dimensions

APPC 1930T/1931T

121.32

41.49

104.50

6.90

431.34

270.36

97.35

67.2367.22

104.50

457.64

8.10

379.24

61.25

24.25

16.15

10.15

20

52.90111.52111.52

76.38

174.32

100179.30

114.89100

361.34

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the motherboard. Note that information in this chapter applies to APPC 1230T/ 1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic

components. Humid environments tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation. Use correct screws and do not over tighten screws.

21

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

22

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

JP1

Locations of the Jumpers and Connectors

Top View

CN2

JP4

J4

J5

CN4

CN5

JP2

SW1

J2

CN3

J6

JP5

JP6

SW2

J8

LAN2LAN1

JP11

J7

JP7

J9

J10

JP8

J11

J12

CN14

CN6

CN8

USB2USB1

CN15

23

JP12

CN7

CN16

JP13

JP9 JP10

CN9 CN10

CN13

VGA1

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

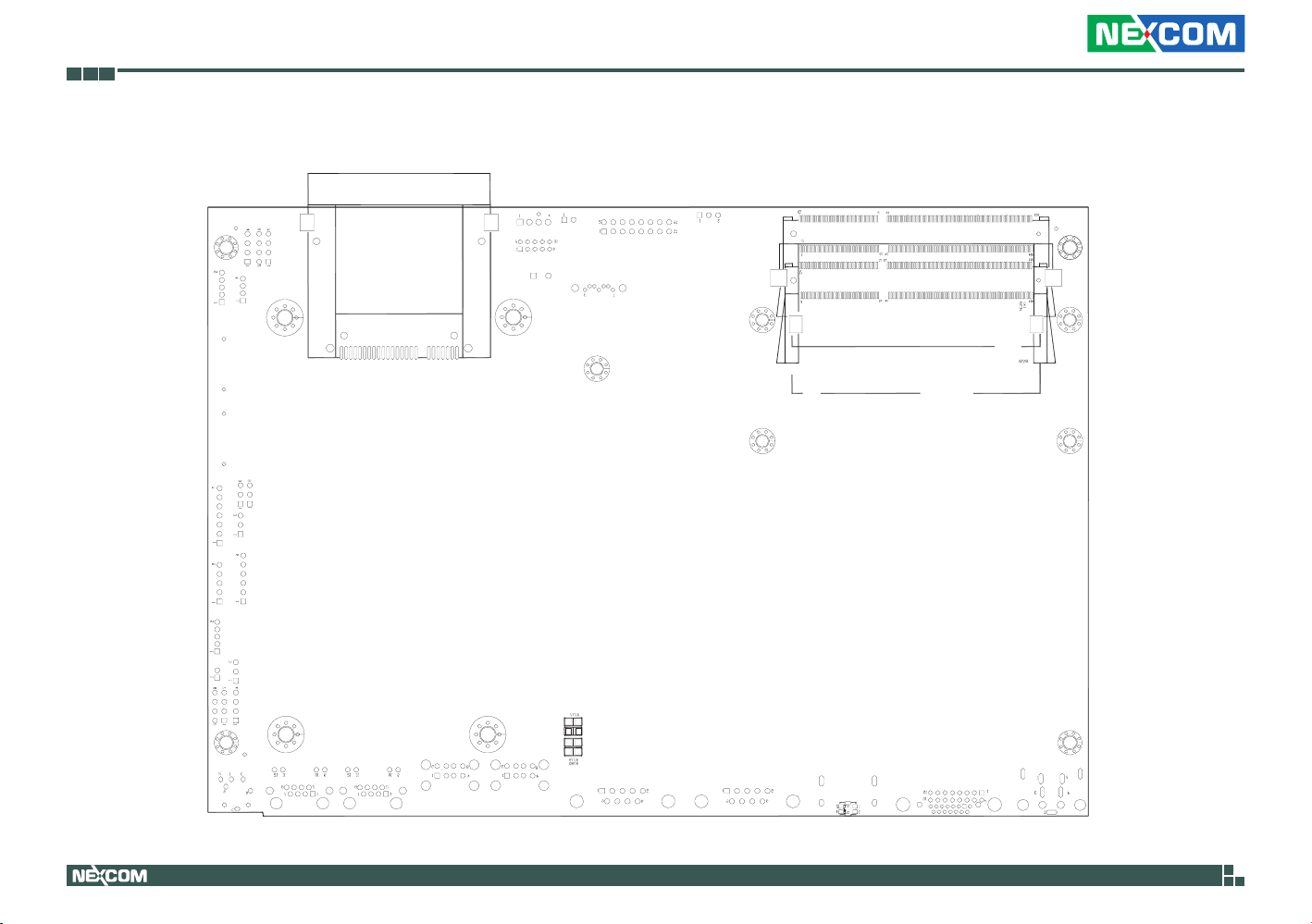

Bottom View

DDR3 SODIMM

DIMM1

DIMM2

CFast card socket

24

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

Jumpers and DIP Switch Settings

CMOS Clear Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP1

1 3 1 3

Pin Settings

1-2 On Normal 2-3 On Clear BIOS

1-2 On: default

Pin Definition

1 NC 2 RTC Power 3 GND

AT/ATX Selection

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP8

Pin Settings

1-2 On AT Mode 2-3 On ATX Mode

2-3 On: default

Pin Definition

1 AUTO (AT MODE) 2 PWRBT In 3 Manual ( ATX MODE)

25

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

Dimming Type Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: SW2

N

O

1

2

SW2-1 SW2-2 Settings Model

On Off PWM Mode

Off On Analog Mode

Default: PWM

APPC1230T APPC1231T APPC1235T APPC1530T APPC1531T APPC1930T APPC1931T APPC1730T APPC1731T

Dimming Signal Level Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP6

1 3

Pin Settings Model

1-2 On 3.3V

2-3 On 5V

Pin Definition

1 VCC3 2 Power for Dimming 3 VCC5

APPC1230T APPC1231T APPC1235T APPC1930T APPC1931T APPC1530T APPC1531T APPC1730T APPC1731T

26

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

Panel Resolution Select

Connector type: 4-pin On/Off Switch Connector location: SW1

N

O

3

1

SW1-1 SW1-2 SW1-3 SW1-4 Resolution/Color/Backlight On Model

ON ON ON ON 800 x 600/6 bits/High

OFF OFF OFF ON 800 x 600/8 bits/High

OFF ON ON ON 1024 x 768/6 bits/High

ON OFF ON ON 1024 x768/8 bits/High

OFF OFF ON ON 1280 x 1024/8 bits/Low

ON OFF OFF ON 1280 x 1024/8 bits/High

ON OFF OFF OFF 1920 x 1080/8 bits/High

4

2

APPC1230T APPC1231T

APPC1235T APPC1530T APPC1531T APPC1730T APPC1731T APPC1930T APPC1931T

27

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

LCD Panel VDD Power Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP5

1 3

Pin Settings Model

1-2 On 3.3V

2-3 On 5V

1-2 On: default

Pin Definition

1 VCC3 2 Power for VDD 3 VCC5

APPC1230T APPC1231T APPC1235T APPC1530T APPC1531T APPC1730T APPC1731T APPC1930T APPC1931T

Touch 4/5 Wire Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP7

1 3

Pin Settings

1-2 On 5 wire 2-3 On 4 wire

1-2 On: default

28

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

COM1 RI Pin Power Select

(APPC 1230T/APPC 1235T/APPC 1530T/APPC 1730T/APPC 1930T only)

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP12

1 3

Pin Settings

1-2 On RING 2-3 On +5V

1-2 On: default

Pin Definition

1 SP1_RI 2 SP1_PSRI 3 VCC5

COM2 RI Pin Power Select

(APPC 1230T/APPC 1235T/APPC 1530T/APPC 1730T/APPC 1930T only)

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP13

1 3

Pin Settings

1-2 On RING 2-3 On +12V

1-2 On: default

Pin Definition

1 SP2_RI 2 SP2_PSRI 3 +12V

29

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

COM3 RI Pin Power Select

(APPC 1231T/APPC 1531T/APPC 1731T/APPC 1931T only)

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP9

1 3

Pin Settings

1-2 On RING 2-3 On +5V

1-2 On: default

Pin Definition

1 SP3_RI 2 SP3_PSRI 3 VCC5

COM4 RI Pin Power Select

(APPC 1231T/APPC 1531T/APPC 1731T/APPC 1931T only)

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP10

1 3

Pin Settings

1-2 On RING 2-3 On +12V

1-2 On: default

Pin Definition

1 SP4_RI 2 SP4_PSRI 3 12V

30

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

12

34

5

Connector Pin Definitions

External I/O Interface

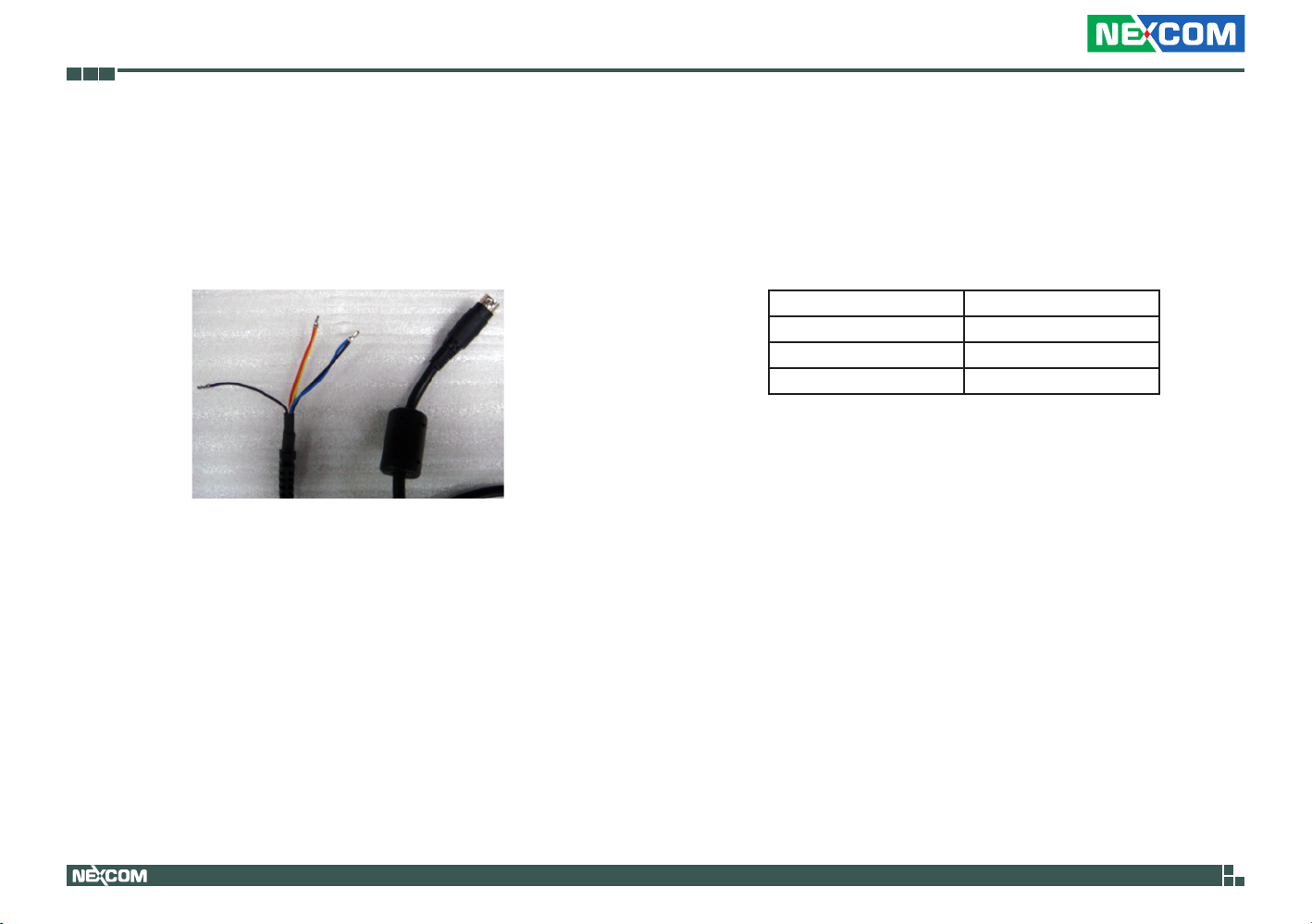

12V-30V DC Power Input

Connector type: DC 4-pin DIN power jack with shield Connector location: CN13

Pin Settings

1 DC+ 2 DC+ 3 DC4 DC5 GND

VGA Port

Connector type: DB-15 port, 15-pin D-Sub Connector location: VGA1

Pin Definition Pin Definition

1 Red 9 +5V 2 Green 10 GND 3 Blue 11 N/C 4 N/C 12 DDC Data 5 GND 13 HSYNC 6 GND 14 VSYNC 7 GND 15 DDC Clock 8 GND

31

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

17

28

PS/2 Keyboard/Mouse Port

Connector type: PS/2, Mini-DIN-6, 2.0mm pitch 2x4 8-pin header, 2.54mm pitch Connector location: JP4

56

34

12

External Connector

Pin Settings

1 KB_DATA 2 MS_DATA 3 GND 4 VCC5 5 KB_CLK 6 MS_CLK

Internal Connector

Pin Definition Pin Definition

1 VCC5 2 VCC5 3 KB_DATA 4 MS_DATA 5 KB_CLK 6 MS_CLK 7 GND 8 GND

COM2 Port: Serial Port RS232/422/485

APPC 1230T/APPC 1235T/APPC 1530T/APPC 1730T/APPC 1930T (Ring or +12V Power for Pin 9) APPC 1231T/APPC 1531T/APPC 1731T/APPC 1931T (Isolation protection with RS232/422/485)

Connector type: 9-pin D-Sub Connector location: CN16

RS232

Pin Definition

1 COM2_DCD 2 COM2_RXD 3 COM2_TXD 4 COM2_DTR 5 COM2_GND 6 COM2_DSR 7 COM2_RTS 8 COM2_CTS

9

COM2_RI (Could be a

+12V Power Pin)

32

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

RS422

Pin Definition

1 COM2_TXD2 COM2_TXD+ 3 COM2_RXD+ 4 COM2_RXD5 COM2_GND 6 COM2_RTS7 COM2_RTS+ 8 COM2_CTS+

9

COM2_CTS- (Could be a

RS485

Pin Definition

1

2

3 Reserve 4 Reserve 5 Reserve 6 Reserve 7 Reserve 8 Reserve

9

Reserve (Could be a

+12V Power Pin)

COM2_TXD-

COM2_RXDCOM2_TXD+ COM2_RXD+

+12V Power Pin)

COM1 Port: Serial Port RS232/422/485

APPC 1230T/APPC 1235T/APPC 1530T/APPC 1730T/APPC 1930T (Ring or +5V Power for Pin 9) APPC 1231T/APPC 1531T/APPC 1731T/APPC 1931T (Isolation protection with RS232/422/485)

Connector type: 9-pin D-Sub Connector location: CN15

RS232

Pin Definition

1 COM1_DCD: Data Carrier Detect 2 COM1_RXD: Receive Data 3 COM1_TXD: Transmit Data 4 COM1_DTR: Data Terminal Ready 5 COM1_GND 6 COM1_DSR: Data Set Ready 7 COM1_RTS: Request To Send 8 COM1_CTS: Clear To Send 9 COM1_RI: Ring Indicator (Could be a +5V Power Pin)

33

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

19

21

RS422

Pin Definition

1 COM1_TXD-: Transmit Data Negative 2 COM1_TXD+: Transmit Data Positive 3 COM1_RXD+: Receive Data Positive 4 COM1_RXD-: Receive Data Negative 5 COM1_GND 6 COM1_RTS-: Request To Send Negative 7 COM1_RTS+: Request To Send Positive 8 COM1_CTS+: Clear To Send Positive

9

COM1_CTS-: Clear To Send Negative (Could be a +5V

Power Pin)

RS485

Pin Definition

1

2

COM1_TXD-: Transmit Data Negative

COM1_RXD-: Receive Data Negative COM1_TXD+: Transmit Data Positive

COM1_RXD+: Receive Data Positive 3 Reserve 4 Reserve 5 Reserve 6 Reserve 7 Reserve 8 Reserve 9 Reserve (Could be a +5V Power Pin)

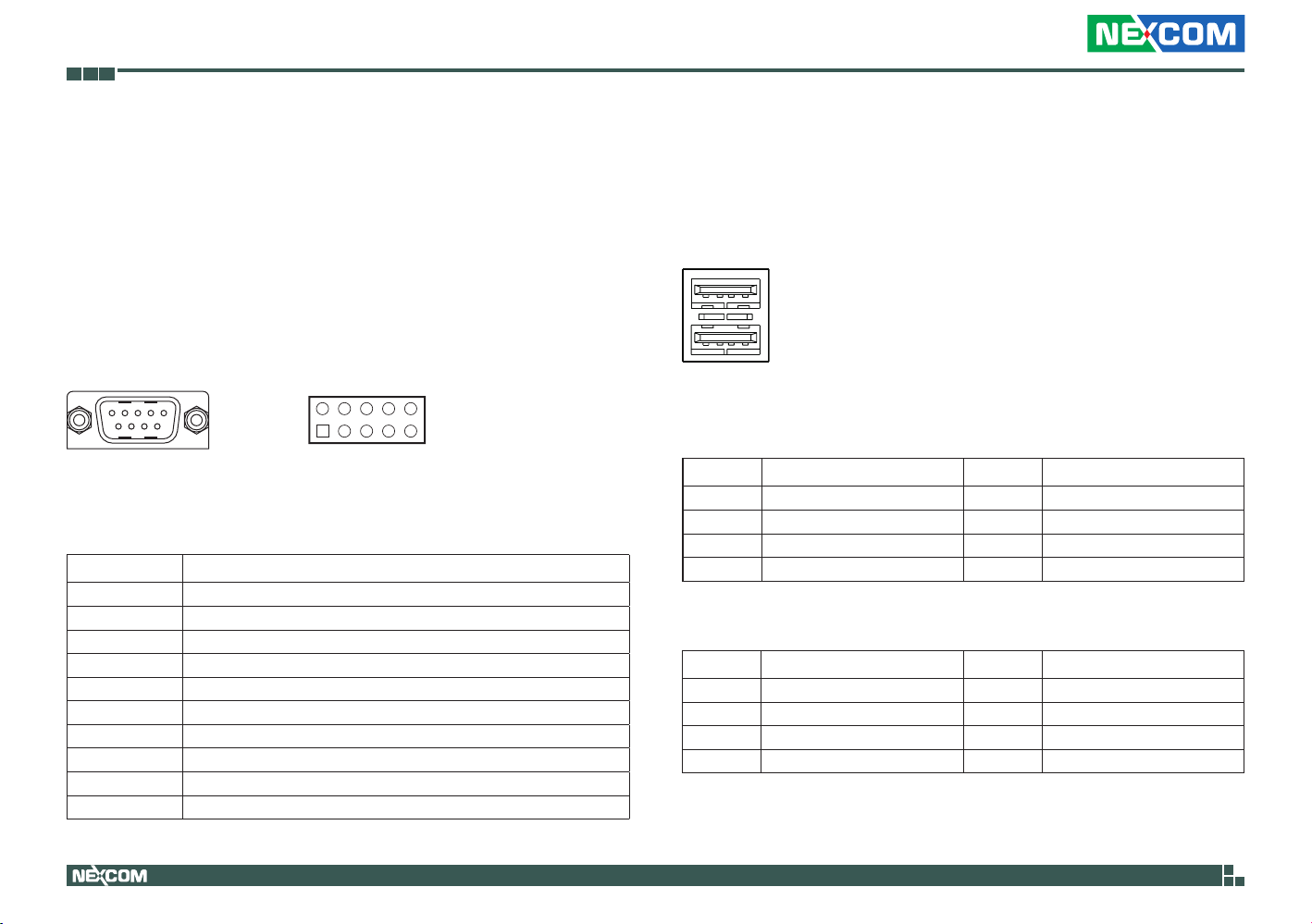

COM3 Port and Connector: Serial Port RS232

APPC 1231T/APPC 1531T/APPC 1731T/APPC 1931T Only (Ring or +5V Power for Pin 9)

Connector type: 9-pin D-Sub 2x5 10-pin header, 2.0mm pitch Connector location: CN9

0

RS232

Pin Definition

1 COM3_DCD 2 COM3_RXD 3 COM3_TXD 4 COM3_DTR 5 COM3_GND 6 COM3_DSR 7 COM3_RTS 8 COM3_CTS 9 COM3_RI (Could be a +5V Power Pin)

10 GND

34

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

19

21

COM4 Port and Connector: Serial Port RS232

APPC 1231T/APPC 1531T/APPC 1731T/APPC 1931T Only (Ring or +12V Power for Pin 9)

Connector type: 9-pin D-Sub 2x5 10-pin header, 2.0mm pitch Connector location: CN10

0

RS232

Pin Definition

1 COM4_DCD 2 COM4_RXD 3 COM4_TXD 4 COM4_DTR 5 COM4_GND 6 COM4_DSR 7 COM4_RTS 8 COM4_CTS 9 COM4_RI (Could be a +12V Power Pin)

10 GND

USB Ports

Connector type: Dual USB port Connector location: USB1 and USB2

USB1

Pin Definition Pin Definition

1 VCC5 5 VCC5 2 USB0- 6 USB13 USB0+ 7 USB1+ 4 GND 8 GND

USB2

Pin Definition Pin Definition

1 VCC5 5 VCC5 2 USB2- 6 USB33 USB2+ 7 USB3+ 4 GND 8 GND

35

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

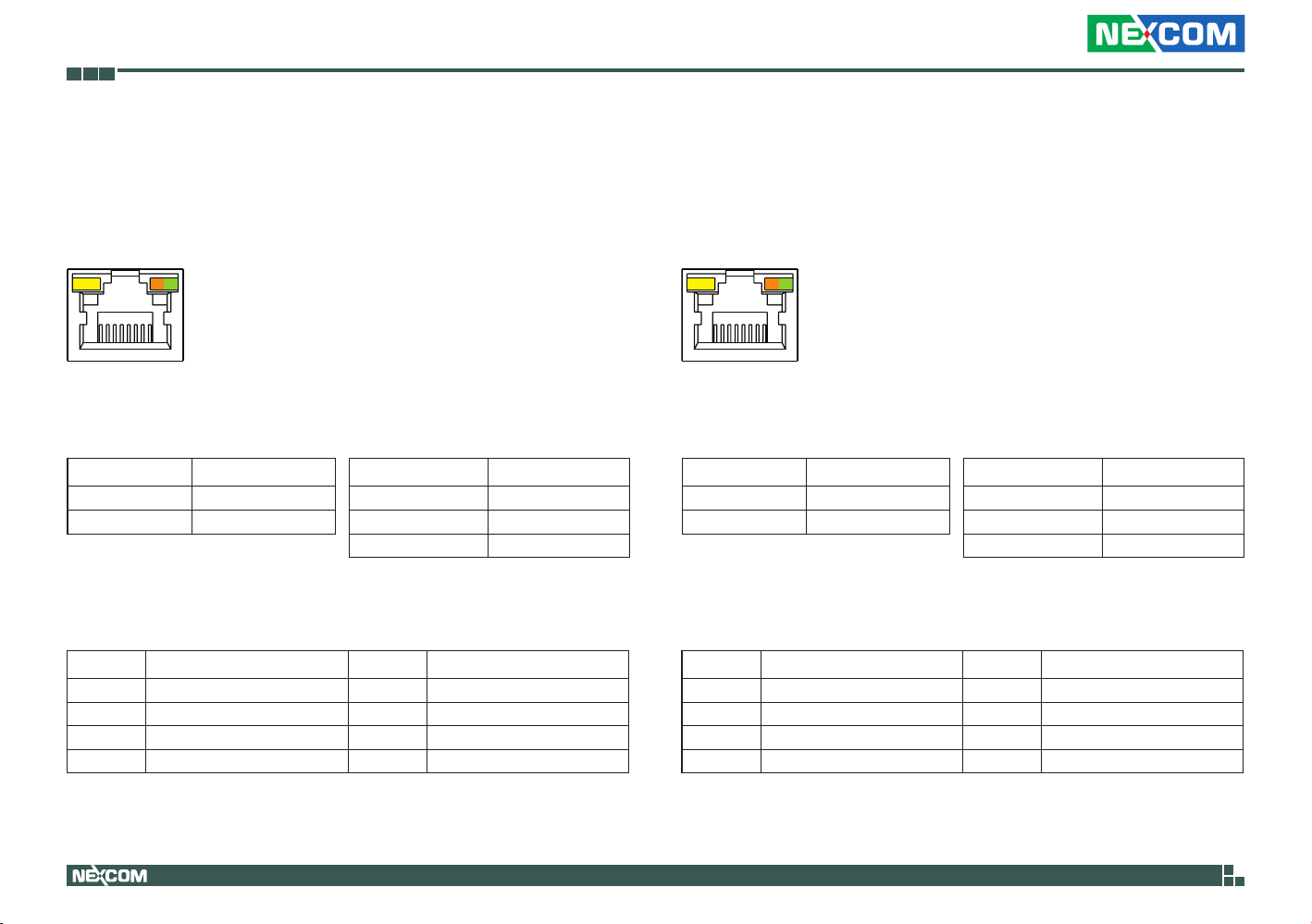

LAN2 Port

Connector type: RJ45 port with LEDs Connector location: LAN2

LAN1 Port

Support Wake on LAN (WOL)

Connector type: RJ45 port with LEDs Connector location: LAN1

ACT LINK ACT LINK

Act Status

Yellow blinking Data activity

Off No activity

Link Status

Steady green 1000M link

Steady orange 100M link

Act Status

Yellow blinking Data activity

Off No activity

Off 10M or no link

Pin Definition Pin Definition

1 LAN2M0+ 5 LAN2M22 LAN2M0- 6 LAN2M13 LAN2M1+ 7 LAN2M3+ 4 LAN2M2+ 8 LAN2M3-

Pin Definition Pin Definition

1 LAN1M0+ 5 LAN1M22 LAN1M0- 6 LAN1M13 LAN1M1+ 7 LAN1M3+ 4 LAN1M2+ 8 LAN1M3-

Link Status

Steady green 1000M link

Steady orange 100M link

Off 10M or no link

36

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

Line-out Jack

Connector type: 3.5mm Earphone Jack Connector location: CN14

Pin Definition

1 LOUT_R 2 JD 3 NC 4 LOUT_L 5 GND 6 GND

37

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

11 22

Internal Connectors

LVDS Channel 1

Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN5

9 0

Pin Definition Pin Definition

1 NC 11 LVDS_CLK1+(Odd) 2 NC 12 LVDS_DAT1-(Odd) 3 VDD 13 LVDS_CLK1-(Odd) 4 LVDS_DAT0+(Odd) 14 GND 5 LVDS_DAT3+(Odd) 15 GND 6 LVDS_DAT0-(Odd) 16 +12V 7 LVDS_DAT3-(Odd) 17 LVDS_DAT2+(Odd) 8 VDD 18 +12V 9 GND 19 LVDS_DAT2-(Odd)

10 LVDS_DAT1+(Odd) 20 GND

LVDS Channel 2

Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN4

9 0

Pin Definition Pin Definition

1 NC 11 LVDS_CLK2+(Even) 2 NC 12 LVDS_DAT5-(Even) 3 VDD 13 LVDS_CLK2-(Even) 4 LVDS_DAT4+(Even) 14 GND 5 LVDS_DAT7+(Even) 15 GND 6 LVDS_DAT4-(Even) 16 +12V 7 LVDS_DAT7-(Even) 17 LVDS_DAT6+(Even) 8 VDD 18 +12V 9 GND 19 LVDS_DAT6-(Even)

10 LVDS_DAT5+(Even) 20 GND

38

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

71

51

Panel Backlight Connector

Connector type: 1x7 7-pin header JST, 2.5mm pitch Connector location: J7

Pin Definition Pin Definition

1 VCC5 5 GND 2 12V 6 GND 3 12V 7 BKLEN 4 BKCTRL

Touch Sensor Connector

Connector type: 1x5 5-pin header JST, 2.5mm pitch Connector location: J9

Pin 4-wire 5-wire

1 Left LL (L) 2 Top UL (Y) 3 N/A Sense (S) 4 Right LR (X) 5 Bottom UR (H)

39

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

61

USB Connector

Connector type: 1x6 6-pin header JST, 2.5mm pitch Connector location: J8

Pin Definition

1 +5V 2 HUBUSB DM13 HUBUSB DP1+ 4 HUBUSB DM25 HUBUSB DP2+ 6 GND

Bluetooth Connector

Connector type: 1x10 10-pin header, 1.0mm pitch Connector location: J6

110

Pin Definition Pin Definition

1 GND 6 NC 2 HUBUSB_DP3+ 7 NC 3 HUBUSB_DM3- 8 3.3V 4 NC 9 NC 5 NC 10 GND

40

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

SATA Connector

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN3

1 7

Pin Definition

1 GND 2 TX0+ 3 TX04 GND 5 RX06 RX0+ 7 GND

SATA DOM Power Connector

Connector type: 1x2 2-pin header, JST 2.5mm pitch Connector location: J2

1

Pin Definition

2

1 +5V 2 GND

41

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

17

28

14

Line-in/Mic-in Connector

Connector type: 2x4 8-pin header, 2.54mm pitch Connector location: JP11

Line-in Mic-in

Pin Definition Pin Definition

1 LINE IN_LP 2 MIC_L3 3 LINE IN_JD 4 MIC_JD 5 GND 6 GND 7 LINE IN_RP 8 MIC_R3

Speaker-out Connector

Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: J12

Pin Definition

1 OUT-L+ 2 OUT-L3 OUT-R+ 4 OUT-R-

42

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

19

21

GPIO Connector

(APPC1931T/APPC1721T/APPC1531T/APPC1231T only)

Connector type: 2x5 10-pin header, 2.0mm pitch DB15 male 10-pin Connector location: JP2

1 5

0

6 10

Internal Connector

Pin Definition Pin Definition

1 +5V 2 GND 3 GPIO22 (GPO) 4 GPIO20 (GPI) 5 GPIO23 (GPO) 6 GPIO21 (GPI) 7 NC 8 NC 9 NC 10 NC

External Connector

Pin Definition Pin Definition

1 +5V 2 GPIO20 (GPI) 3 GPIO21 (GPI) 4 NC 5 NC 6 GND 7 GPIO22 (GPO) 8 GPIO23 (GPO) 9 NC 10 NC

43

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

11

21

DIO Connector

Connector type: 2x8 16-pin header, 2.0mm pitch DB15 male 15-pin Connector location: CN2

1 5

6

5

11 15

Internal Connector External Connector

Pin Definition Pin Definition

1 DI1 2 DO1 3 DI2 4 DO2 5 DI3 6 DO3 7 DI4 8 DO4

9 NC 10 NC 11 COM 12 NC 13 GND 14 GND 15 GND 16 GND

DI1~DI4: Isolated digital input pins

DO1~DO4: Isolated digital output pins

COM: Common pin for connecting inductive loads of isolated output channels DO1~DO4

GND: Isolated ground

44

Pin Definition Pin Definition

1 DI1 2 DI2 3 DI3 4 DI4 5 GND 6 COM 7 NC 8 NC

9 DO1 10 DO2 11 DO3 12 DO4 13 GND 14 GND 15 GND

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

51

Power/HDD LED Indicator Connector

Connector type: 1x5 5-pin header JST, 2.0mm pitch Connector location: J10

Pin Definition

1 HDD_GND 2 HDD_PWR 3 PWR_GND 4 5VSB 5 VCC5

Backlight Control Input Connector

Connector type: 1x4 4-pin header JST, 2.0mm pitch Connector location: J5

14

Pin Definition

1 GND

2 Tact Switch input

3 PIR IN

4 VCC3

45

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

51

Dimming Control Button Connector

Connector type: 1x5 5-pin header JST, 2.0mm pitch Connector location: J4

Pin Definition

1 GND 2 Decreased input 3 Increased input 4 Light sensor input 5 VCC3

SIM Card Slot

Connector location: CN8

C3 C2 C1

Pin Definition Pin Definition

C1 UIM_PWR C5 GND C2 UIM_RST C6 UIM_VCCP C3 UIM_CLK C7 UIM_DAT

C7 C6 C5

46

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

12

Mini-PCIe Slot

Connector location: CN6

51 52

Pin Definition Pin Definition

1 WAKE0# 2 +3.3V_MINI 3 NC 4 GND 5 NC 6 +1.5V_MINI 7 PCIE_CLKREQ 8 SIM_PWR

9 GND 10 SIM_DAT 11 GPP_CLK1- 12 SIM_CLK 13 GPP_CLK1+ 14 SIM_RST 15 GND 16 SIM_VCCP 17 NC 18 GND 19 NC 20 MINICARD1_DIS# 21 GND 22 PCIE_RST# 23 PCIE_RX2- 24 +3.3V_MINI 25 PCIE_RX2+ 26 GND

47

Pin Definition Pin Definition

27 GND 28 +1.5V_MINI 29 GND 30 SMB_CLK 31 PCIE_TX3- 32 SMB_DAT 33 PCIE_TX3+ 34 GND 35 GND 36 USB637 GND 38 USB6+ 39 +3.3V_MINI 40 GND 41 +3.3V_MINI 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 +1.5V_MINI 49 NC 50 GND 51 NC 52 +3.3V_MINI

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

12

Mini-PCIe Slot

Connector location: CN7

51 52

Pin Definition Pin Definition

1 WAKE0# 2 +3.3V_MINI

3 NC 4 GND

5 NC 6 +1.5V_MINI

7 NC 8 NC

9 GND 10 NC 11 GPP_CLK1- 12 NC 13 GPP_CLK1+ 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 MINICARD1_DIS# 21 GND 22 PCIE_RST# 23 PCIE_RX2- 24 +3.3V_MINI 25 PCIE_RX2+ 26 GND

48

Pin Definition Pin Definition

27 GND 28 +1.5V_MINI 29 GND 30 SMB_CLK 31 PCIE_TX3- 32 SMB_DAT 33 PCIE_TX3+ 34 GND 35 GND 36 USB637 GND 38 USB6+ 39 +3.3V_MINI 40 GND 41 +3.3V_MINI 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 +1.5V_MINI 49 NC 50 GND 51 NC 52 +3.3V_MINI

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

CFast Card Slot

Connector type: Standard CFast connector Connector location: J13

S7 PC17PC1S1

Pin Definition Pin Definition

S1 GND PC6 NC S2 SATA_TX1+ PC7 GND S3 SATA_TX1- PC8 CFAST_LED1_C S4 GND PC9 CFAST_LED2_C S5 SATA_RX1- PC10 NC S6 SATA_RX1+ PC11 NC S7 GND PC12 NC

PC1 CFAST_CDI PC13 VCC3 PC2 GND PC14 VCC3 PC3 NC PC15 GND PC4 NC PC16 GND PC5 NC PC17 CFAST_CDO

Power Button Connector

Connector type: 1x2 2-pin header, JST 2.0 mm pitch Connector location: J11

1

Pin Definition

2

1 PWRBT 2 GND

49

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

Block Diagram

APPC 1930T/APPC 1730T/APPC 1530T/APPC 1230T/APPC 1235T

BQ.E3661.2!Cmpdl!Ejbhsbn

Qbofm!23/2#!TWHB!911!Y!711

Qbofm!23/2#!YHB!2135!Y!879

Qbofm!26#!YHB!2135!Y!879

Qbofm!28#!TYHB!2391!Y!2135

Qbofm!2:#!TYHB!2391!Y!2135

A!Nbyjnvn!sftpmvujpo;2:31!Y!2191

1.2!.!Joufsobm!dpoofdups

3.!Cmvf!uppui

MWET!DPO

WHB!EC26Qjo!)Tmjn!uzqf* Dp.mbzpvu!xjui!CPY!IFBEFS

A!Nbyjnvn!sftpmvujpo;2:11!+!2311

1.2!.!Sfbs

3.4.!Sfbs

5.!Qfonvou!Upvdi!

Dpouspmmfs

epxo!tusfbn

6.!VTC!IVC!25!

HFOFTZT!HM961

7.8!.!Njoj!Dbse

TBUB1!IEE

)EPN!Tvqqpsu*

TBUB2!DGBTU

DI8622 EQ!up!MWET

WHB

IEB`TEJ2

VTC!3/1

TBUB!Hfo3

Ejtqmbz!Qpsu

WHB

MWET

JIEB

!!!!DfebsWjfx! !Evbm!Dpsf!DQV EY21/2!Hsbqijdt! !EES4.91102177

66:!cbmmt

33+33nn

ENJ

y5!ENJ

5!Mboft

3HC0t

ENJ

Ujhfs!Qpjou

QDI!ON21

VTC!3/1!)9*

471!cbmmt

28+28nn

TBUB!)3*

Qbhf!29.31

EEJ!QPSU1EEJ!QPSU2

EES4!91102177

TQJ

QDJ.F!+2)5*

QDJ!43

MQDIEB MDJ

QDJf!y2

EES4!TP.EJNN

EES4

2!Tmpu

EES4!TP.EJNN

3!Tmpu

A!Nbyjnvn!5HCzuft

TQJ!3NC

Qbhf!32

MBO!93685M

Qbhf!36

MBO!93685M

Qbhf!38

Njoj!QDJF

XJGJ

Njoj!QDJF

4H

Qbhf!3:

Qbhf!41

Hjhb!MBO

SK56

XPM!Tvqqpsu

SK56

NJD.JO

Mjof.jo

IFBE!QIPOF

TQFBLFS

Bvejp!Dpefd BMD997

!!!BNQ UQT7158B5SICS

IEB`TEJ1

91!qpsu

MQD!Cvt

Uifsnbm!Tfotps!+3 Wpmubhft!+5 GBO!+2

50

Tvqfs!J0P

JUF9894

QT3!LC0NT

ST.34305330596

DPN2

ST.34305330596

DPN3

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 2: Jumpers and Connectors

Block Diagram

APPC 1931T/APPC 1731T/APPC 1531T/APPC 1231T

BQ.E3661.2T!Cmpdl!Ejbhsbn

ofm!23/2#!TWHB!911!Y!711

Qb

Qbofm!23/2#!YHB!2135!Y!879

Qbofm!26#!YHB!2135!Y!879

Qbofm!28#!TYHB!2391!Y!2135

Qbofm!2:#!TYHB!2391!Y!2135

A!Nbyjnvn!sftpmvujpo;2:31!Y!2191

1.2!.!Joufsobm!dpoofdups

3.!Cmvf!uppui

MWET!DPO

WHB!EC26Qjo!)Tmjn!uzqf* Dp.mbzpvu!xjui!CPY!IFBEFS

A!Nbyjnvn!sftpmvujpo;2:11!+!2311

1.2!.!Sfbs

3.4.!Sfbs

5.!Qfonvou!Upvdi!

Dpouspmmfs

epxo!tusfbn

6.!VTC!IVC!25!

HFOFTZT!HM961

7.8!.!Njoj!Dbse

TBUB1!IEE

)EPN!Tvqqpsu*

TBUB2!DGBTU

DI8622 EQ!up!MWET

WHB

IEB`TEJ2

VTC!3/1

TBUB!Hfo3

Ejtqmbz!Qpsu

WHB

MWET

JIEB

!!!!DfebsWjfx! !Evbm!Dpsf!DQV EY21/2!Hsbqijdt! !EES4.91102177

66:!cbmmt

33+33nn

ENJ

y5!ENJ 5!Mboft

3HC0t

ENJ

Ujhfs!Qpjou

QDI!ON21

VTC!3/1!)9*

471!cbmmt

28+28nn

TBUB!)3*

Qbhf!29.31

EEJ!QPSU1EEJ!QPSU2

EES4!TP.EJNN

EES4

EES4!91102177

QDJf!y2

TQJ

QDJf!y2

QDJ.F!+2)5*

QDJf!y2

QDJ!43

MQDIEB MDJ

2!Tmpu

EES4!TP.EJNN

3!Tmpu

A!Nbyjnvn!5HCzuft

TQJ!3NC

Qbhf!32

MBO!93685M

Qbhf!36

MBO!93685M

Qbhf!38

Njoj!QDJF

XJGJ

Njoj!QDJF

4H

HQJP3JO03PVU

Qbhf!3:

Qbhf!41

Hjhb!MBO

SK56

XPM!Tvqqpsu

SK56

NJD.JO

Mjof.jo

IFBE!QIPOF

TQFBLFS

B

Bvejp!Dpefd BMD997

!!!BNQ UQT7158B5SICS

IEB`TEJ1

91!qpsu

MQD!Cvt

Uifsnbm!Tfotps!+3 Wpmubhft!+5 GBO!+2

Tvqfs!J0P

JUF9894

QT3!LC0NT

51

!EJP!5JO05PVU!JTPMBUJPO

DPN2

DPN3

DPN4

DPN5

ST.34305330596

ST.343

!JTPMBUJPO

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

CAUTION!

Chapter 3: System Setup

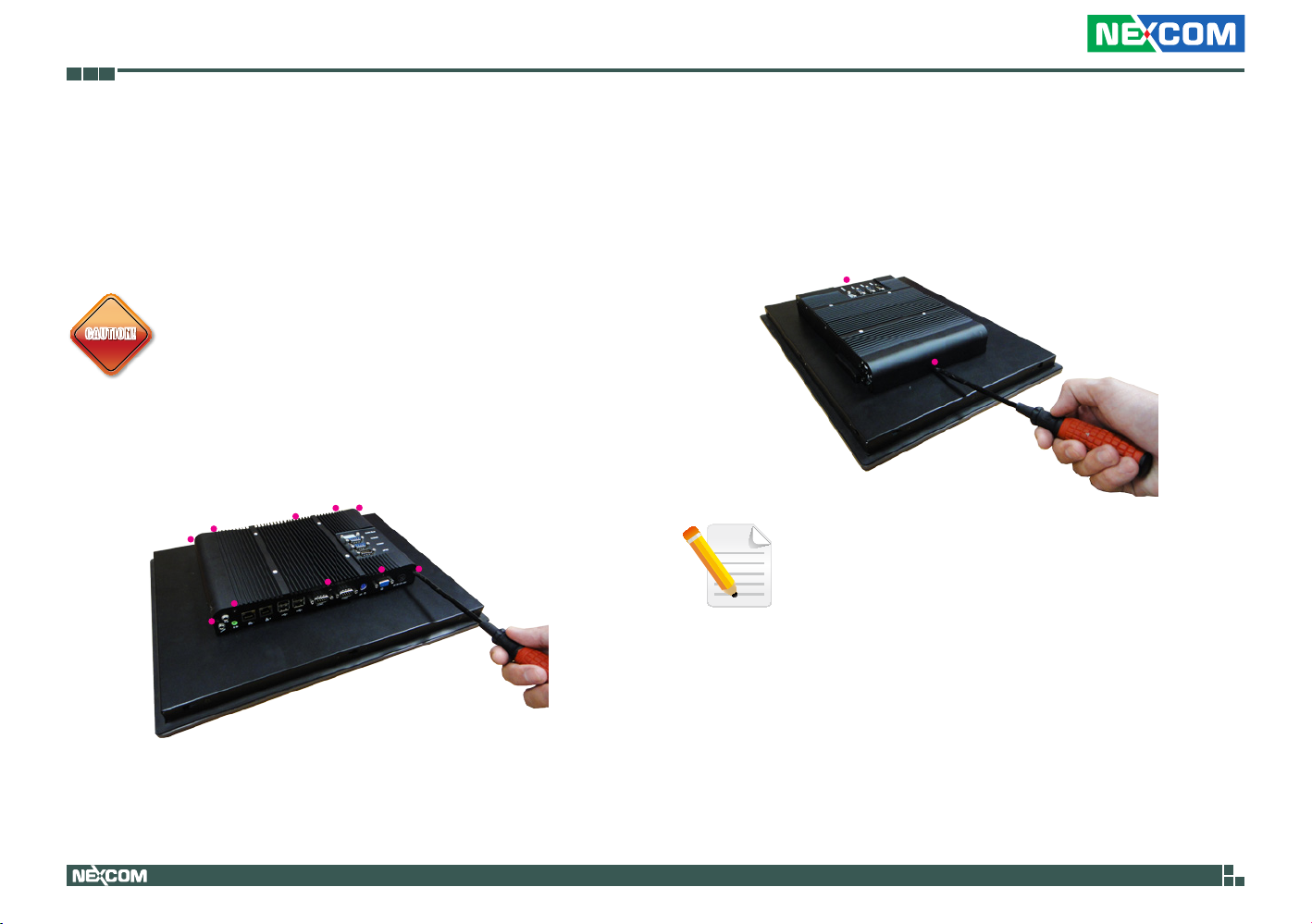

Installing a SATA Hard Drive

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

1. Remove the mounting screws around the chassis cover and then remove the cover.

is off and disconnected from the power sources to prevent electric shock or system damage.

The dots denote the locations of the screws.

52

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

2. Remove the mounting screws of the drive bay.

3. Remove the drive bay. The drive bay is used to hold a SATA hard drive.

Mounting screw

SATA power cable and SATA cable

53

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

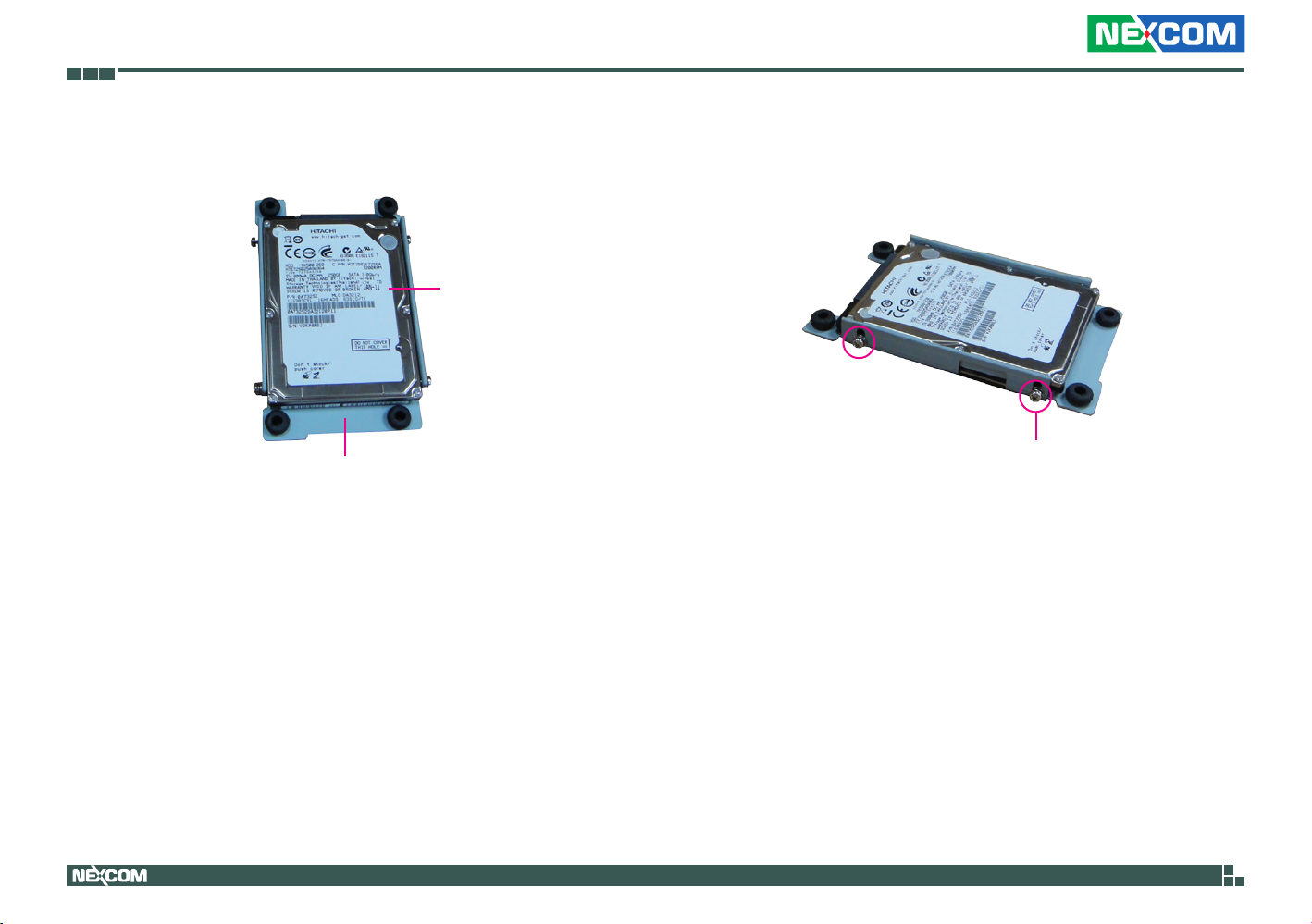

4. Place the SATA hard drive on the drive bay.

Drive bay

5. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bay and then use the provided mounting screws to secure the drive in place.

SATA drive

Mounting screw

54

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

6. Place the SATA drive in the chassis and then use the provided mounting screws to secure the drive in the chassis.

Connect the SATA data cable and SATA power cable to the

connectorson the SATA drive.

SATA drive

SATA data cable

SATA power cable

55

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

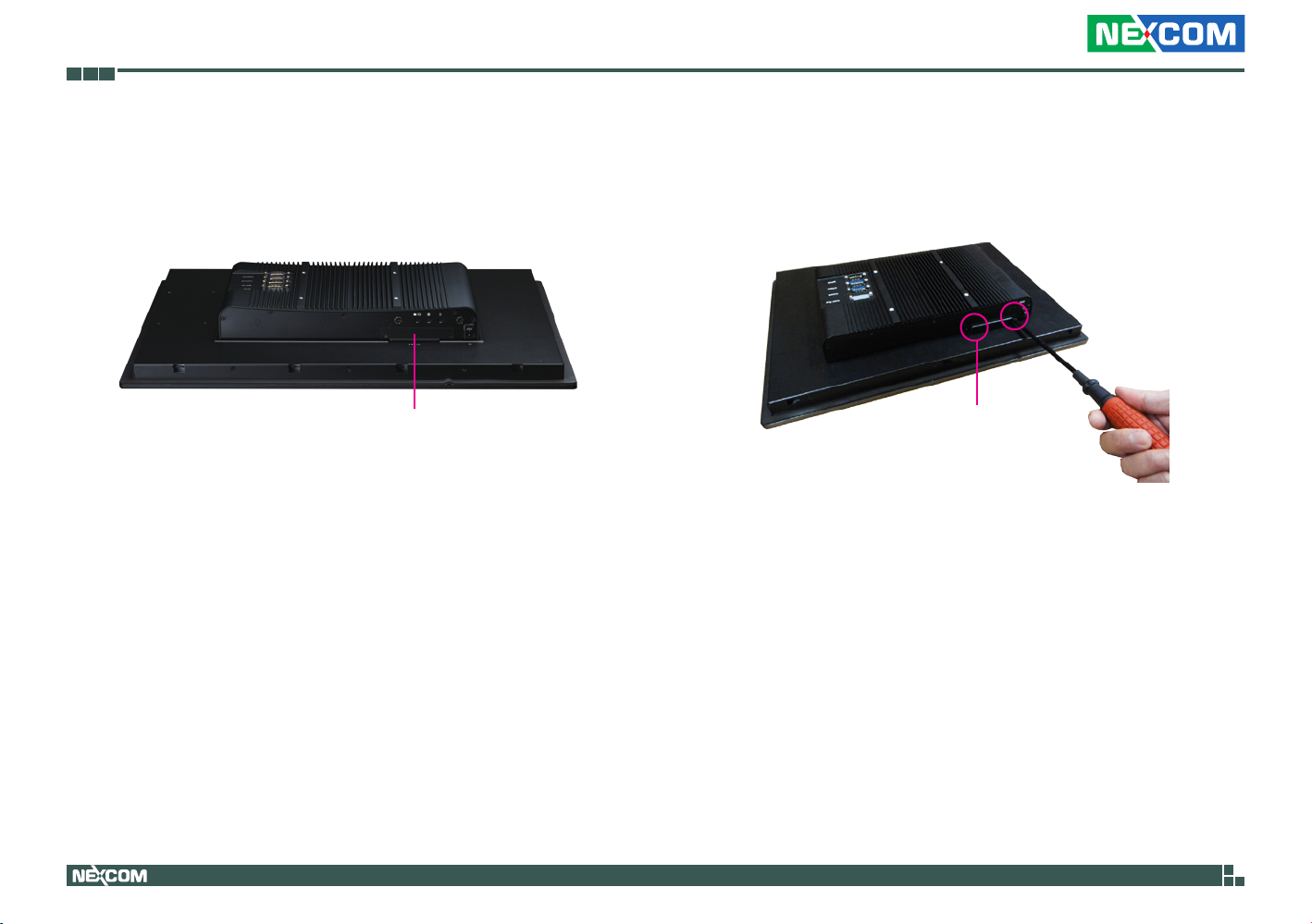

Installing a CFast Card

1. The CFast card socket is located on the rear top side of the chassis.

CFast card socket

2. Remove the mounting screws of the CFast socket’s cover.

Mounting screw

56

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

3. With the CFast card’s label facing up, insert the card until it is completely seated in the socket.

CFast card

4. Push the CFast card to remove the CFast card.

57

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

Installing a SODIMM

1. Remove the mounting screws around the chassis cover and then remove the cover.

58

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

2. Remove the mounting screws on the metal support plate.

3. Gently lift the motherboard support plate upwards and locate the SODIMM socket underneath.

59

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

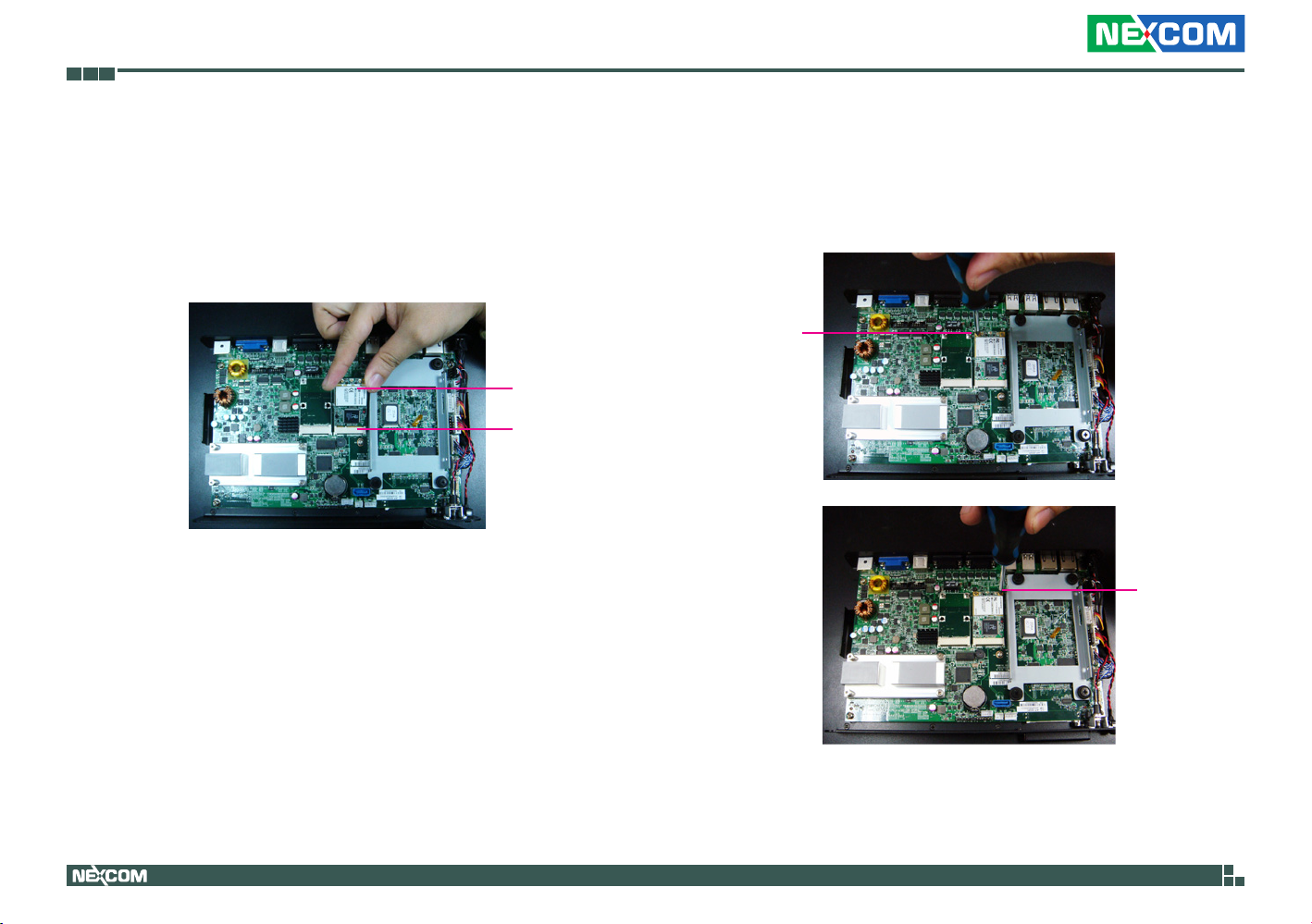

4. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips into the socket. The gold-plated connector on the edge of the module will almost completely disappear inside the socket.

5. Push the module down until the clips on both sides of the socket lock into position. You will hear a distinctive “click”, indicating the module is correctly locked into position.

SODIMM

SODIMM socket

Note:

1. If only one SO DIMM is installed, please install to the one closest to the panel.

2. The maximum RAM size is 4G (2x 2G or 1x 4G)

60

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

Installing a SATA DOM

1. Remove the drive bay bracket. The SATA connector is readily accessible upon removing the bracket.

SATA connector

2. Remove the screw.

61

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

3. The SATA DOM package includes a supporting stud. The stud is used to stabilize the SATA DOM module.

Supporting stud

Cable

4. Install the supporting stud. Make sure the stud is fastened in place.

SATA DOM

62

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

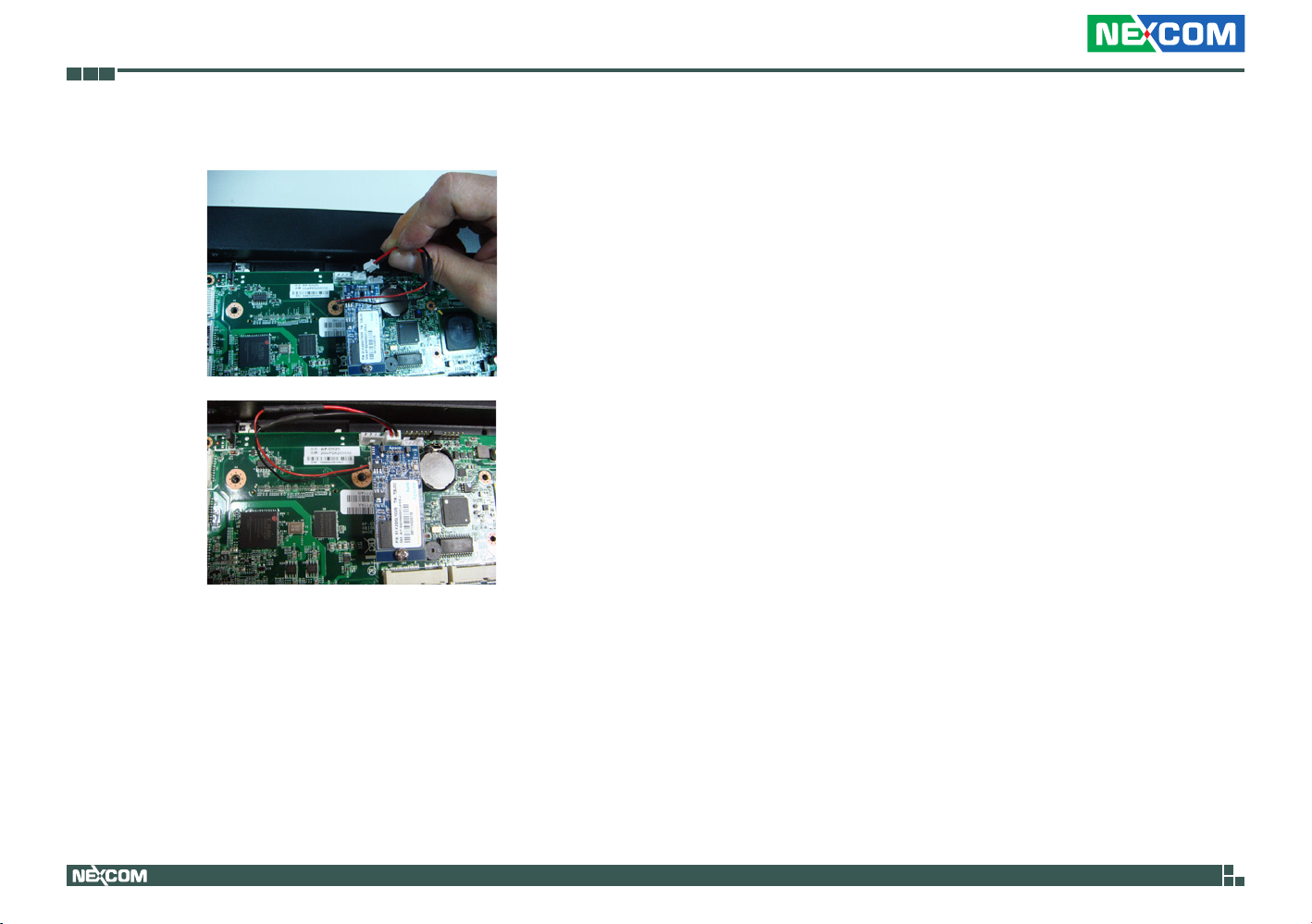

5. Connect one end of the provided cable to the connector on the module.

Cable

Connector on the module

6. Install the module to the SATA port via the connector at the solder side of the module and then secure the module using the mounting screw you removed in step 2.

SATA DOM

Mounting screw

63

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

7. Connect the other end of the cable to the connector on the board.

64

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

Installing a Mini PCIe Module

The Mini PCIe module package includes the following items:

RALINK 802.11b/g/n 2T3R wireless mini card module kit QCOM:Q802XKN

Mini PCIe Module

Antennas

3.5G module kit Sierra Wireless MC8790V

802.11b/g QN-MU-A0028 wireless mini card module kit

INTEL112.BNHMWG

RF Cables

65

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

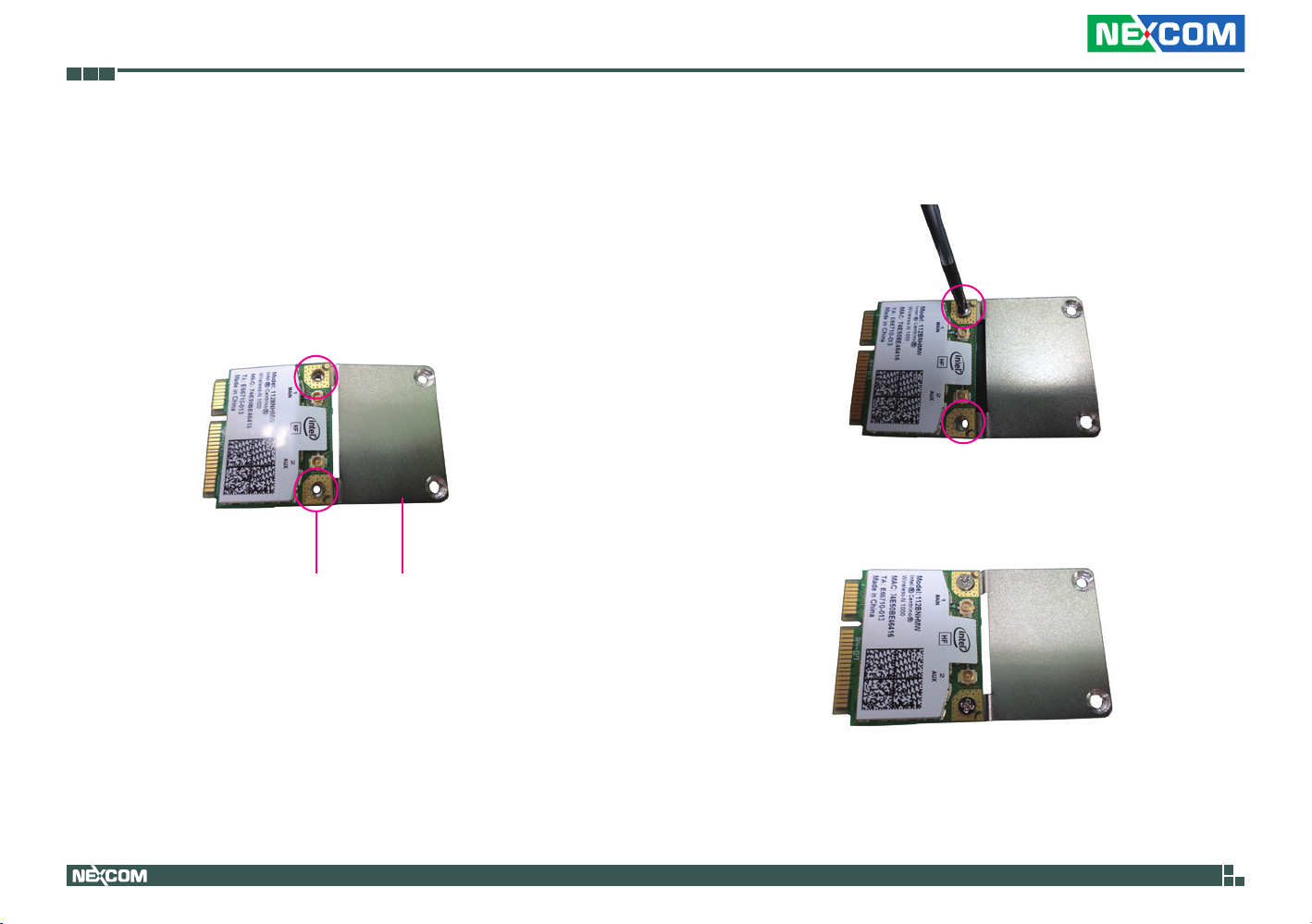

If you are installing the 802.11b/g QN-MU-A0028 wireless mini card module (half-size), before proceeding with the installation, please assemble the Wi-Fi module bracket first by following the instructions below:

1. Align the mounting holes on the Wi-Fi mini card module to the mounting holes on the Wi-Fi module bracket.

Wi-Fi module bracketMounting holes

2. Tighten screws onto the mounting holes to secure the bracket.

66

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

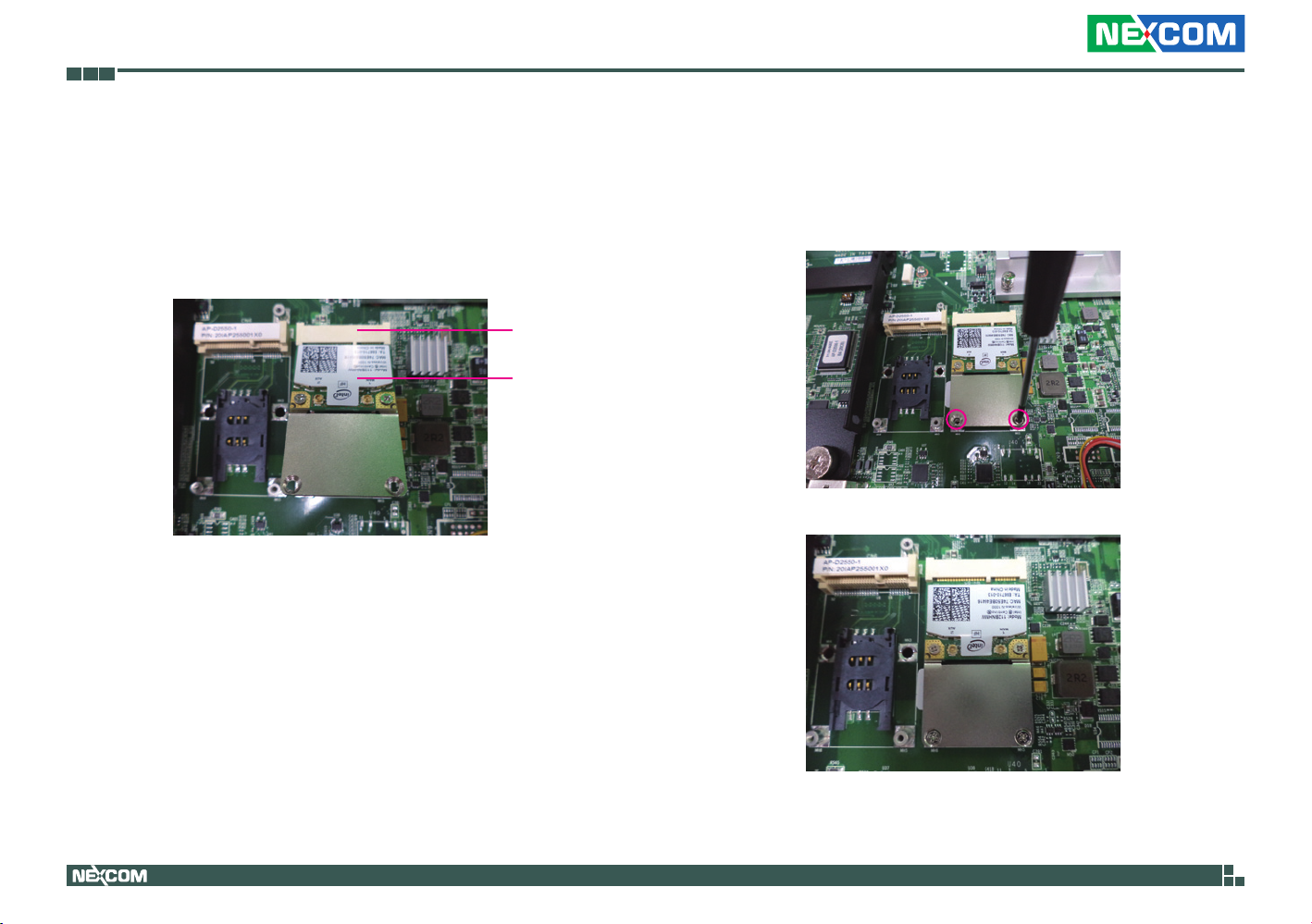

Installing the Half-Size Mini PCIe Module

1. Insert the Mini PCIe module into the Mini PCIe slot at a 45 degrees

angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

Mini PCIe slot

Mini PCIe module

2. Secure the module with mounting screws.

3. Please go to step 3 on page 69 to proceed.

67

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

Installing the Full-Size Mini PCIe Module

1. Insert the Mini PCIe module into the Mini PCIe slot at a 45 degrees

angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

Mini PCIe module

Mini PCIe slot

2. Secure the module with mounting screws.

Mounting

screw

Mounting screw

68

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

3. Attach one end of the RF cables onto the module.

RF cable

4. Push the antenna hole cover.

RF cable

69

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

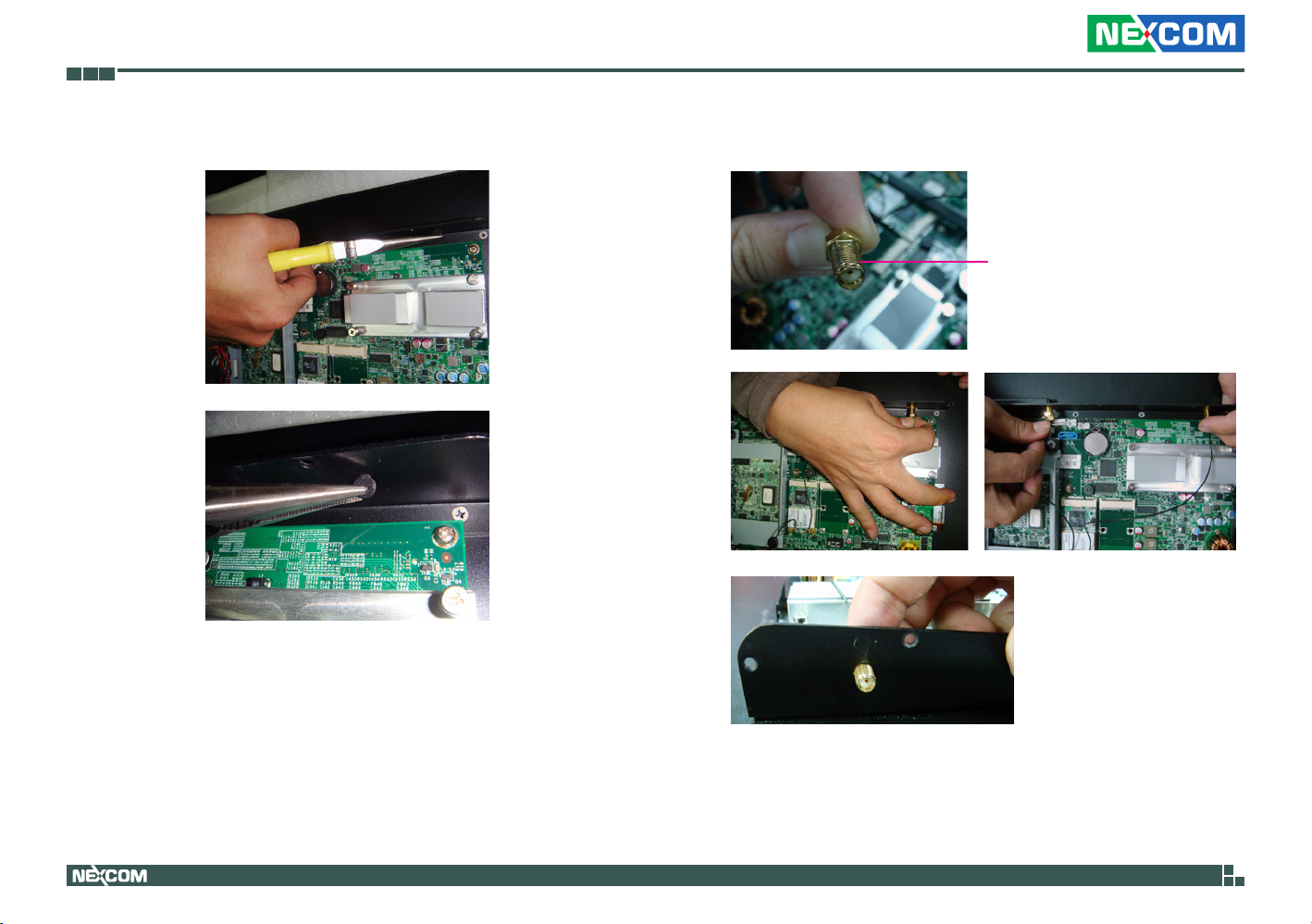

5. Remove the antenna hole covers. 6. Insert the antenna jack end of the cable through the antenna hole.

Antenna jack end of the cable

70

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

7. Insert the ring onto the antenna jack end of the cable.

Antenna jack

Ring

Antenna jack

Ring

8. Connect external antennas to the antenna jacks.

RF cable

Antenna

Mini PCIe module

Antenna

71

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

Installing a Bluetooth Module

The Bluetooth module package includes the following items:

Bluetooth module QCOMQBTM400-01(V7)

1. Remove the sticker on one side of the square rubber pad, then place that side on the back of the Bluetooth module.

Square rubber pad

Module’s backside

2. Connect the cable to the connector on the Bluetooth module.

72

Cable

Connector

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

3. Remove the mounting screws of the drive bay.

Mounting screw

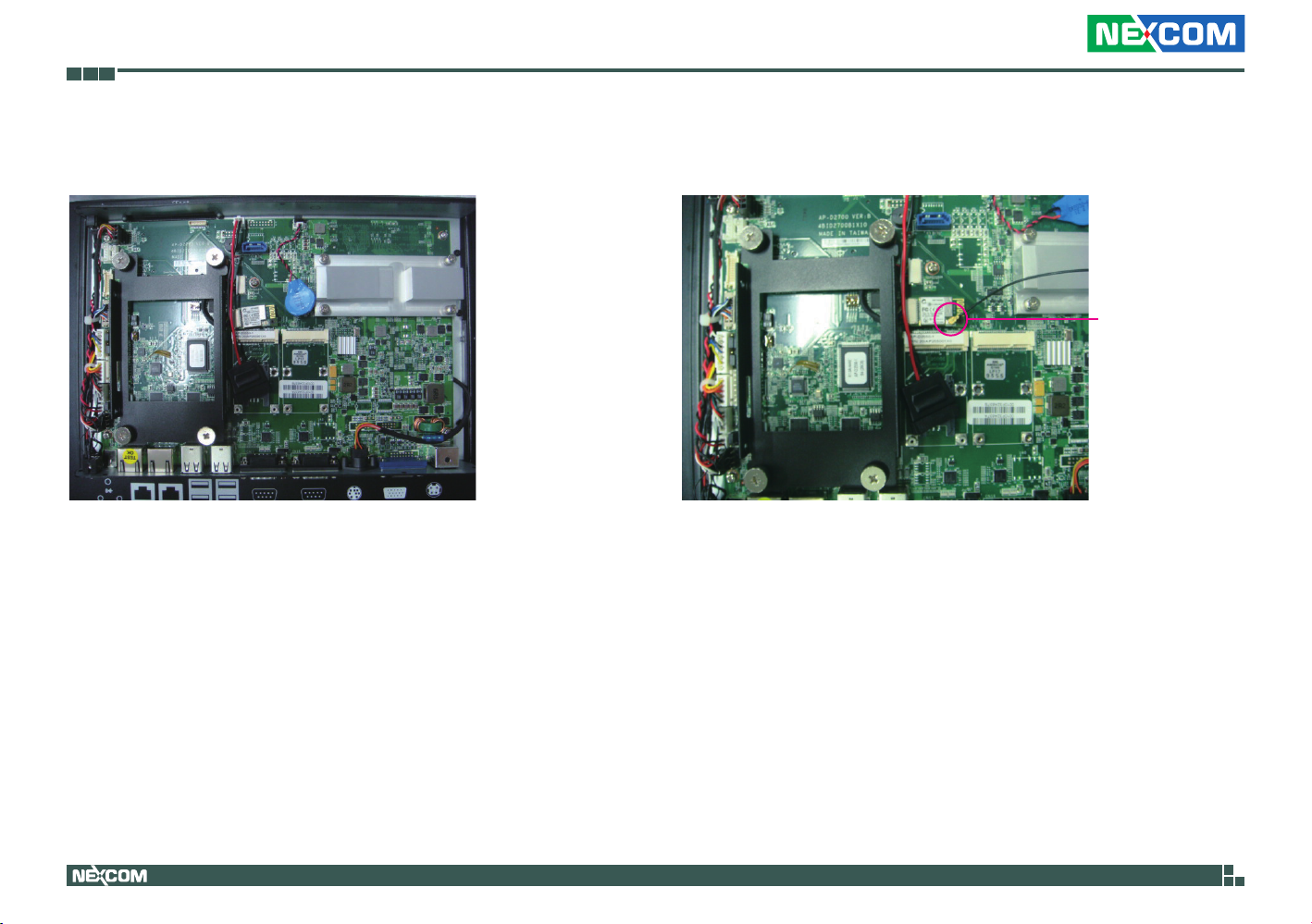

4. Remove the drive bay and locate the Bluetooth connector and mounting hole on the mainboard.

Bluetooth connector

Mounting hole

73

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

5. Remove the sticker on the square rubber pad

Sticker

Module’s backside

6. Align the mounting hole on the Bluetooth module to the mounting hole

on the mainboard, then tighten screws to secure it. Once the module is secured, connect the cable to the Bluetooth connector.

Bluetooth connector

Mounting hole

74

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

7. Install the drive bay back to its original position.

8. Attach one end of the RF cable onto the module.

Attach RF cable to the module

9. Mount the other end of the cable to the Bluetooth mounting hole located at the rear top panel of the chassis.

75

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

Placing Panel Mount Hole Blocks

The APPC series comes with panel mount hole blocks to cover the panel mount openings on the chassis to prevent dust invasion. You can also choose to cover the panel mount holes when VESA mount is used.

Panel Mount Hole Block

(APPC 1930T/APPC1 931T)

1. Locate the panel mount openings on the chassis.

Panel Mount Hole Block

(APPC 1730T/APPC 1731T/APPC 1530T/APPC 1531T/

APPC 1230T/APPC 1231T/APPC 1235T)

76

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

2. Insert the hole block into the opening until it is pushed in completely.

77

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

Installing the Power Adapter Bracket

(For APPC 193xT series only)

1. Locate the mounting screws for the bracket on the back side of the chassis.

2. Remove the mounting screws and store them in a safe place for later use.

78

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

3. Wire the power adapter cabling into the cable opening on the bracket, then place the adapter inside the bracket.

Cable opening

Power adapter cable

79

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

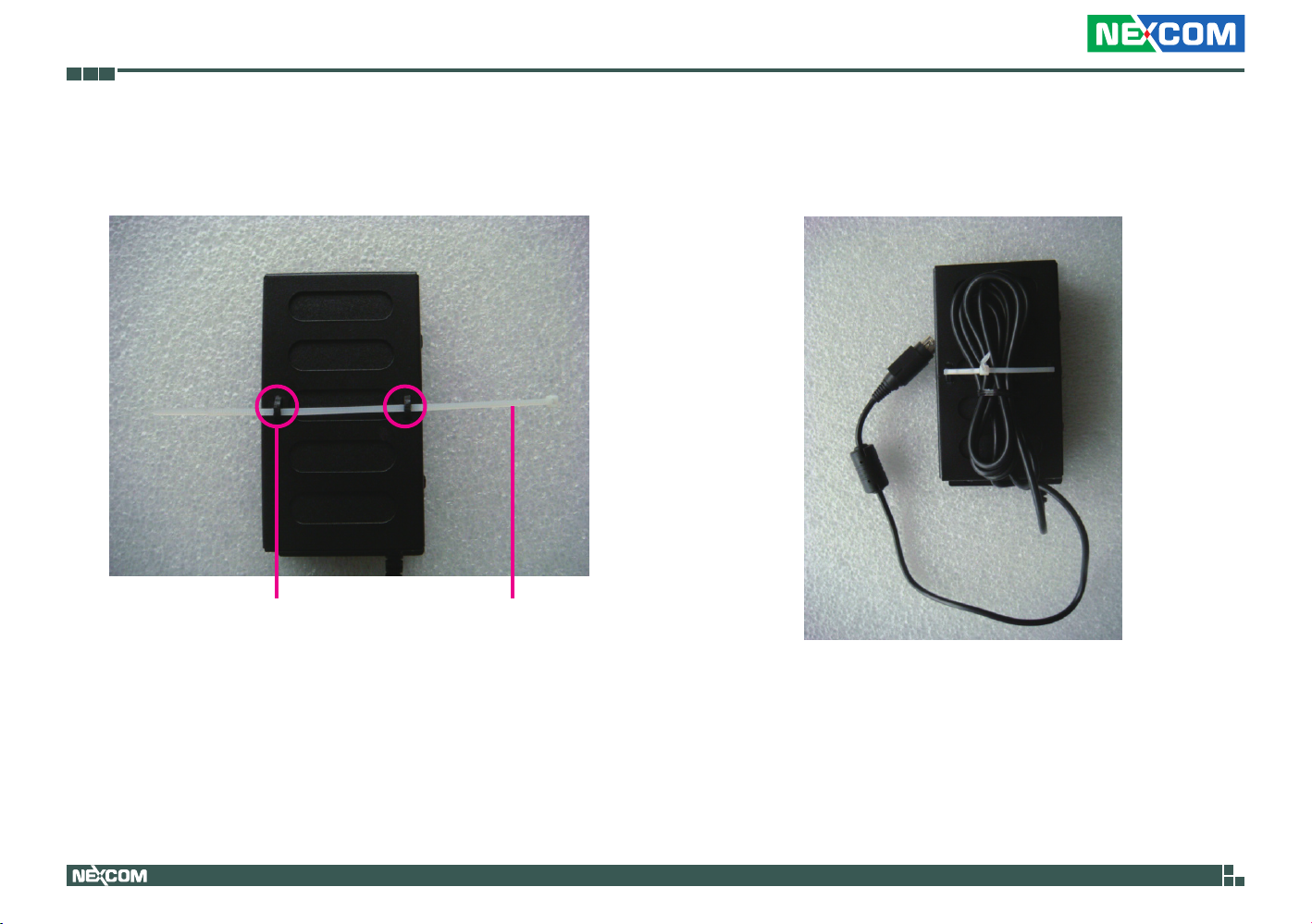

4. Turn the bracket over to the back side, and place the cable tie into the two tie mounts.

Cable tieTie mount

5. Wrap the power adapter cable, then secure the cable firmly by tying the cable tie.

80

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

6. With the bracket still facing backwards, align the mounting holes on the bracket to the mounting holes on the back of the chassis, then tighten screws to secure it. Once secured, plug the power adapter cable into the DC input.

DC input

81

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

Plugging the DC Power Cable

1. Plug the DC 4-pin DIN power jack (male) into the DC 4-pin DIN power jack (female) that is on the system.

2. The table below shows the pin definition of the cable.

Color Pin Definition

Black GND

Red&Yellow DC+

Blue&Black DC-

82

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

7mm

6mm

7mm

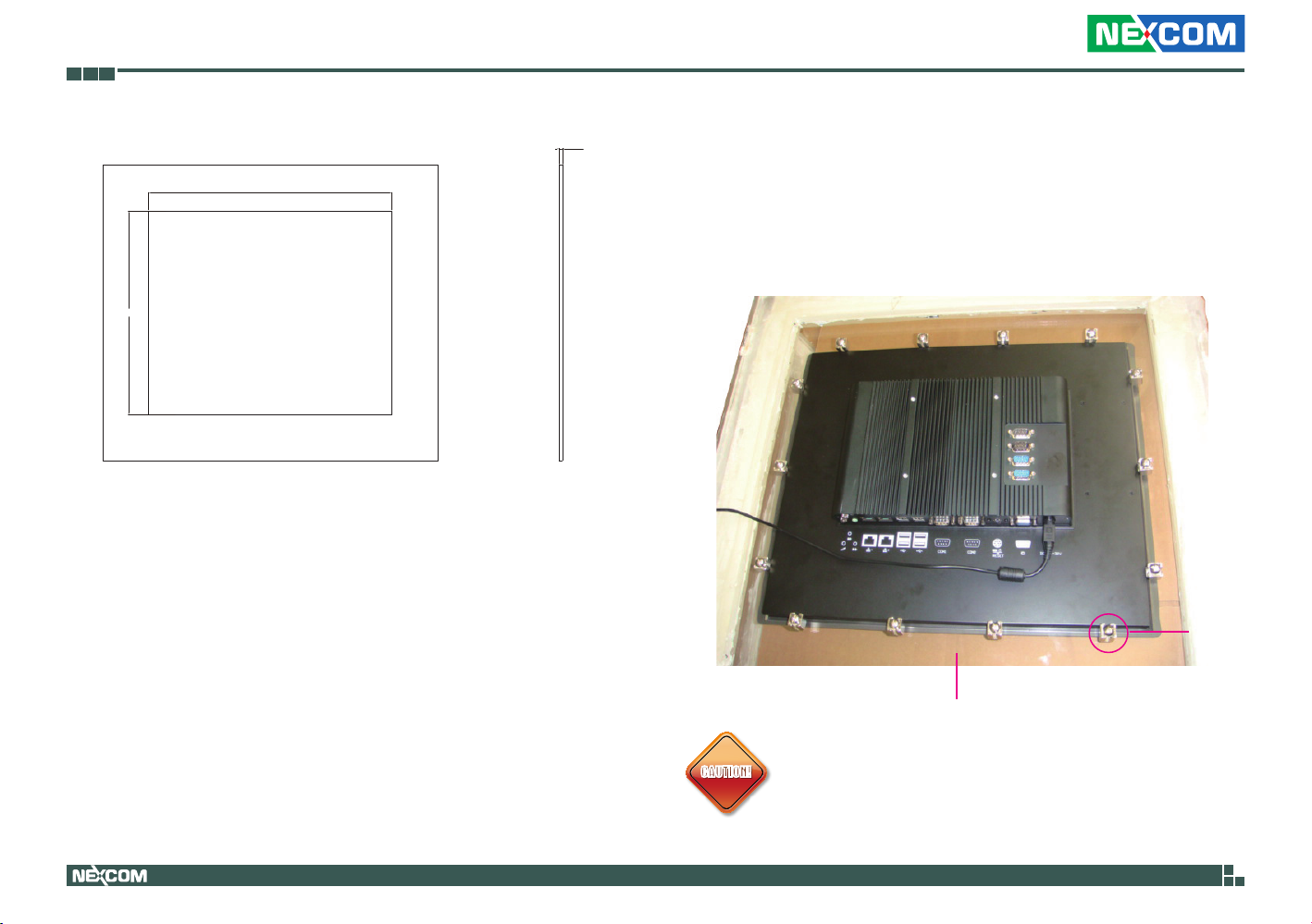

Panel Mounting

1. Select a place on the panel where you will mount the Panel PC.

371.00

2. Cut out a shape on the panel that corresponds to the Panel PC’s rear dimensions.

The thickness of the panel (e.g. steel board, plank, acrylic board, wall, etc.) where you will mount the Panel PC must not exceed 7mm for APPC 1230T/1231T/1235T/1730T/1731T, and 6mm for APPC 1530T/1531T/1930T/1931T. If the distance between the front bezel and panel mount hole is too wide, it will not fit the panel mount kit.

304.50

230.00

297.00

APPC 1530T/1531T

399.00

329.00

APPC 1230T/1231T/1235T

83

APPC 1730T/1731T

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual

Chapter 3: System Setup

CAUTION!

366.00

436.00

APPC 1930T/1931T

6mm

3. Slide the Panel PC through the hole until it is properly fitted against the panel.

4. Position the mounting clamps along the rear edges of the Panel PC. The first and second clamps must be positioned and secured diagonally prior to mounting the rest of the clamps. Tighten the clamp’s screw until it touches the panel.

Clamp

84

CAUTION!CAUTION!

Panel

Do not overtighten the screws to prevent damaging the Panel PC.

APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
