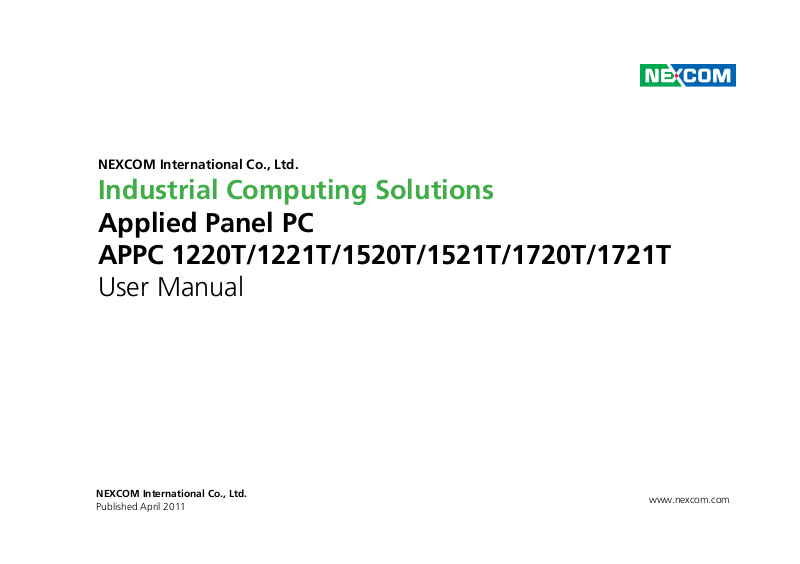

NEXCOM APPC 1220T User Manual

NEXCOM International Co., Ltd.

Industrial Computing Solutions

Applied Panel PC APPC 1220T/1221T/1520T/1521T/1720T/1721T

User Manual

NEXCOM International Co., Ltd.

Published April 2011

www.nexcom.com

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................ ix

Installation Recommendations ................................................................ ix

Safety Precautions ................................................................................... x

Technical Support and Assistance ........................................................... xi

Conventions Used in this Manual ........................................................... xi

Global Service Contact Information ........................................................xii

Package Contents ................................................................................. xiv

Ordering Information .............................................................................xv

Chapter 1: Product Introduction

APPC 1220T/1221T .................................................................................1

APPC 1520T/1521T .................................................................................4

APPC 1720T/1721T .................................................................................7

Getting to Know the APPC Series .......................................................... 10

Rear Top ........................................................................................... 10

Rear Bottom ..................................................................................... 11

Rear (APPC 1220T/1520T/1720T only) .............................................. 12

Rear (APPC 1221T/1521T/1721T only) .............................................. 13

Mechanical Dimensions .........................................................................14

Chapter 2: Jumpers And Connectors

Before You Begin ..................................................................................17

Precautions ...........................................................................................17

Jumper Settings ....................................................................................18

Locations of the Jumpers and Connectors ............................................. 19

Jumpers ................................................................................................ 21

Connectors Pin Definitions .................................................................... 24

External I/O Interface ........................................................................ 24

APPC 1210T/1211T/1510T/1511T ................................................ 24

VGA Port ..................................................................................... 24

PS/2 Keyboard/Mouse Port ...........................................................25

COM1 Port (Isolation with RS422/485) ......................................... 25

COM2 Port (Isolation with RS422/485) ......................................... 26

USB Ports ..................................................................................... 27

LAN1 Port .................................................................................... 28

LAN2 Port .................................................................................... 28

Line-out Jack ...............................................................................29

Internal Connectors .......................................................................... 30

Xilinx Programming Connector

(APPC 1720T/1721T/1520T/1521T only) ......................................30

Panel Backlight Connector ........................................................... 30

LVDS Panel Backlight Connector

(APPC 1220T/1221T only) ............................................................ 31

LVDS Panel Backlight Connector

(APPC 1720T/1721T/1520T/1521T only) ......................................31

LVDS Panel Backlight Connector

(APPC 1720T/1721T/1520T/1521T only) ......................................32

ii

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Contents

Power Button Connector .............................................................33

Reset Button ................................................................................ 33

SATA DOM Power Connector .......................................................34

SATA Power Connector ................................................................34

SATA Port ....................................................................................35

Touch Sensor Connector .............................................................. 35

USB Connector ............................................................................ 36

CompactFlash .............................................................................. 37

Power LED Connector .................................................................. 38

HDD Active LED Connector .......................................................... 38

Mini-PCIe Slots ............................................................................39

COM3 Connectors

(APPC 1721T/1521T/1221T only) .................................................40

COM4 Connectors

(APPC 1721T/1521T/1221T only) .................................................40

GPIO Connector ..........................................................................41

Line-in/Mic-in Connector..............................................................42

Speaker-out Connector ................................................................42

Block Diagram .................................................................................. 43

Chapter 3: System Setup

Installing a SATA Hard Drive ..................................................................47

Installing a CompactFlash Card .............................................................51

Installing a SODIMM .............................................................................53

Installing a SATA DOM ..........................................................................55

Installing a Mini PCIe Module ................................................................ 59

Plugging the DC Power Cable ............................................................... 64

Panel Mounting ....................................................................................65

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 67

When to Configure the BIOS .................................................................67

Entering Setup ...................................................................................... 68

BIOS Setup Utility .................................................................................. 69

Main ................................................................................................69

Advanced ......................................................................................... 70

Boot ................................................................................................. 80

Chipset ............................................................................................83

PCIPnP .............................................................................................85

Security ............................................................................................ 86

Exit ................................................................................................... 89

Appendix A: Watchdog Timer

WDT Programming Guide .....................................................................92

Watchdog Sample Code .......................................................................92

Appendix B: GPIO Programming Guide

J9 - GPIO Connector .............................................................................93

GPIO Programming Sample Code ..........................................................94

Appendix C: Power Consumption

Power Consumption Measurement .......................................................95

iii

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

APPC 1220T/1221T/1520T/1521T/1720T/1721T is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products

and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

1. NEXCOM makes products in accordance with the Industry standard and,

NEXCOM warrants that all her Industry-grade IPC and System products will be free from defect in neither material nor workmanship for twentyfour (24) months from the day of invoice issued.

2. For NEXCOM Panel PC product lines (the APPC, MPPC series), they are

also guaranteed against defect in materials and workmanship for the period of twenty-four (24) months in their motherboard design. For 3rd party parts, it follows with original suppliers’ standard: 12 months for battery pack and LCD, 24 months for adaptor / add on modules (including GSM module, RFID module, and antenna).

3. If NEXCOM determines customer’s warranty claim is valid, NEXCOM will

repair or replace product(s) without additional charge for parts and labor. An extended Warranty Program will extend the warranty period of the product accordingly.

Warranty Coverage

The warranty applies only to products manufactured or distributed by NEXCOM and her subsidiaries. This warranty covers all the products/shipments except for:

1. Any claimed defect, products that have been repaired or modified by

persons who have not been authorized by NEXCOM or, products which

have been subjected to misuse, abuse, accident, improper installation, or usage not in accordance with the product instruction. NEXCOM assumes no liability as a consequence of such events under the term of this warranty.

One example is the replacement of Tablet’s or Hand-held’s LCD display

due to scratching stains or other degradation; these will not be covered under this warranty.

2. Damages caused by customers’ delivery/shipping of the product or, product failure resulted from electrical power/voltage shock, or, installation of parts/components which are not supplied/approved by NEXCOM in advance.

3. Third-party products:

a. Software, such as the device drivers,

b. External devices such as HDD, printer, scanner, mouse, LCD panel,

battery, and so on,

c. Accessory/parts that were not approved by NEXCOM and,

d. Accessory/parts were added to products after they were shipped

from NEXCOM.

vi

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

Product will be treated as “Out of Warranty “ if:

a. It expires the warranted 24 months period from the day it was pur-

chased.

b. It had been altered by persons other than an authorized NEXCOM service

person or, which have been subjected to misuse, abuse, accident, or improper installation.

c. It doesn’t have the original NEXCOM Serial Number labeling for NEX-

COM’s warranty period identification or, tracking.

RMA that NEXCOM has determined not to be covered by the warranty will be charged the NEXCOM Standard Repair Fee for the repairing. If a RMA is determined to be not repairable, customer will be notified and product(s) may be returned to customer at their request; a minimum service fee may be charged however.

NEXCOM Return Merchandise Authorization (RMA) Procedure

For the RMA (Return Merchandise Authorization) shipment, customer is responsible for packaging and shipping the product to the designated NEXCOM service sites, with shipping charges prepaid by the customer. The original NEXCOM shipping box should be used whenever possible. NEXCOM shall pay for the return of the product to the customer’s location. In case of expedited shipping request, an extra service charge shall be assessed and the customer is responsible for this extra return shipping charge.

1. Customers should enclose the “NEXCOM RMA Service Form” with the returned products.

2. Customers need to write down all the information related to the problem on the “ NEXCOM RMA Service Form “ when applying for the RMA service; information will help to understand the problem, including the fault description, on-screen messages, and pictures if possible.

3. Customers could send back the faulty product with or without the accessories and key parts such as the CPU and DIMM. If the key parts are included, please be noted clearly within the return form. NEXCOM takes no responsibility for the parts which are not listed in the return form.

4. Customers hold the responsibility to ensure that the packing of defective products is durable enough to be resistant against further damage due to the transportation; damage caused by transportation is treated as “ Out of Warranty “ under our Warranty specification.

5. RMA product(s) returned by NEXCOM to any location other than the customer registered delivery address will incur an extra shipping charge, the customer is responsible for paying the extra shipping charges, duties, and taxes of this shipment.

Product Repairing

1. NEXCOM will repair defective products covered under this limited warranty that are returned to NEXCOM; if products do prove to be defective, they will be repaired during their warranty period unless other warranty terms have been specified.

2. NEXCOM owns all parts removed from repaired products.

3. NEXCOM will use parts made by various manufacturers in performing the repair.

4. The repaired products will be warranted subjected to the original warranty coverage and period only.

5. For products returned as defective but, proved to be no defect/fault after the RMA process, NEXCOM reserves the right to claim for a NDF (No Defect Found) Service Charge.

vii

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

6. NEXCOM will issue RMA Report which included Repair Detailed Information to the customer when the defective products were repaired and returned.

7. In addition to the above, NEXCOM may authorize Independent/Thirdparty suppliers to repair the defective products for NEXCOM.

Out Of Warranty Service

There will be a service charge from NEXCOM for the “Out Of Warranty” product service; they are the Basic Diagnostic Service Fee and the Advanced Component Replacement Fee respectively. And, if the product can not be repaired, NEXCOM will either return the product to the customer or, just scrap it, followed by customer’s instruction.

1. Testing and Parts Replacement

NEXCOM will have the following Handling Charges for those OoW prod-

ucts that returned:

a. Basic Labor Cost and Testing Fee: as Table listed.

b. Parts Fee: NEXCOM will charge for main IC chipsets such as the N.B.,

S.B., Super-IO, LAN, Sound, Memory, and so on.

c. 3rd-party Device Fee: products replacement for CPU, DIMM, HDD,

Chassis, and UPS.

3. Out of Warranty “products will not be repaired without a signed PI from the customer, the agreement of the repair process.

Add-on card, 3rd Party Device and board level repair cost higher than

new product prices, customer can abandon to sign PI to repair and, please contact with sales to buy new products.

2. Out of Warranty product will have a three months warranty for the fixed issues. If the product failed with different problem within 3 months, they will still incur the service charge of “Out of Warranty”.

viii

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-

er. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

ix

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping

it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40 equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connect-

ing the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

o

C storage temperature as this may damage the

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

x

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

Global Service Contact Information

Headquarters Taiwan

18F, No. 716, Chung-Cheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan, R.O.C. Tel: +886-2-8228-0606 Fax: +886-2-8228-0501 http://www.nexcom.com.tw

USA

3758 Spinnaker Court, Fremont, CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com

France

Z.I. des Amandiers, 17, Rue des entrepreneurs 78420 Carrières sur Seine, France Tel: +33 (0)1 71 51 10 20 Fax: +33 (0)1 71 51 10 21 http://www.nexcom.eu

Germany

Leopoldstrase Business Centre, Leopoldstrase 244 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu

Italy

Via Gaudenzio Ferrari 29, 21047 Saronno (VA) Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu

United Kingdom

10 Vincent Avenue, Crownhill Business Centre Milton Keynes, Buckinghamshire, MK8 0AB United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu

xii

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

China-Beijing

Room 301, Block E, Power Creative Building, No. 1 Shangdi East Rd. Haidian Dist., Beijing, 100085, China Tel: +86-10-5885-6655 Fax: +86-10-5885-1066 http://www.nexcom.cn

China-Shanghai Office

Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd. Shanghai, 200063, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn

China-Nanjing Office

Room 1206, Hongde Building, No. 20 Yunnan Rd. Nanjing, 210018, China Tel: +86-25-8324-9606 Fax: +86-25-8324-9685 http://www.nexcom.cn

China-Shenzhen Office

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, China 518040 TEL: +86-755-833 27203 FAX: +86-755-833 27213 http://www.nexcom.cn

Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku Tokyo, Japan 108-0014 Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com

xiii

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Preface

PaCkage Contents

Before continuing, verify that the package you received is complete. Your package should have all the items listed in the table.

APPC 1220T/1221T/1520T/1521T APPC 1720T/1721T

Item Name Qty

1 PS/2 Y Cable 1

2 Panel Mount Kit 10

3 Driver CD 1

4 Touch Pen 1

5 DC Power Cable 1

6 Flat Head for HDD Installation 4

Item Name Qty

1 PS/2 Y Cable 1

2 Panel Mount Kit 12

3 Driver CD 1

4 Touch Pen 1

5 DC Power Cable 1

6 Flat Head for HDD Installation 4

PS/2 Y Cable Panel Mount Kit

APPC 1220T/1221T APPC 1520T/1521T

Panel Mount Kit

APPC 1720T/1721T

Driver CD Touch Pen DC Power Cable Flat Head for

xiv

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

HDD Installation

Preface

ordering information

The following provides ordering information for the Applied Panel PC series.

• Barebone

APPC 1220T (P/N: 10IA1220T00X0)

- 12.1” TFT LED Panel PC with Intel

®

Atom™ D525 1.8GHz, touch

screen, 1GB DDR3, COM#1/#2

APPC 1221T (P/N: 10IA1221T00X0)

- 12.1” TFT LED Panel PC with Intel

®

Atom™ D525 1.8GHz, touch screen, 1GB DDR3, COM#1/#2 w/ isolation, COM#3/#4, GPIO (CAN bus optional)

APPC 1520T (P/N: 10IA1520T00X0)

- 15” TFT LED Panel PC with Intel

®

Atom™ D525 1.8GHz, touch screen,

1GB DDR3, COM#1/#2

APPC 1521T (P/N: 10IA1521T00X0)

- 15” TFT LED Panel PC with Intel

®

Atom™ D525 1.8GHz, touch screen, 1GB DDR3, COM#1/#2 w/ isolation, COM#3/#4, GPIO (CAN bus optional)

APPC 1720T (P/N: 10IA1720T00X0)

- 17” TFT LED Panel PC with Intel

®

Atom™ D525 1.8GHz, touch screen,

1GB DDR3, COM#1/#2

APPC 1721T (P/N: 10IA1721T00X0)

- 17” TFT LED Panel PC with Intel

®

Atom™ D525 1.8GHz, touch screen, 1GB DDR3, COM#1/#2 w/ isolation, COM#3/#4, GPIO (CAN bus optional)

• Option

12V, 60W AC/DC power adapter w/o power cord

(P/N:7400060002X00)

xv

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt introduCtion

APPC 1220T/1221T

Overview

Key Features

• 4:3 12.1” Fanless LED Panel Computer

®

• Intel

• Full Flat 5-wire Touch Screen

• Dual GbE, 2nd Display VGA, Line-in, Line-out, Mic-in, PS/2 KB/MS

• 4 x USB, 2 x mini-PCIe, 1 x CF, 2 x RS232/422/485

• Optional Wi-Fi Module, 2.5” HDD, 2 x COMs, GPIO, CAN Bus

• DDR3 1GB, 2.5” HDD Bracket

• IP65 Compliant Front Panel

• Mounting Support: Panel/Wall/Stand/VESA 100mm x 100mm

• Wide Range Power Input: 12V~ 30V DC

Atom™ D525, Dual Core, Low Consumption CPU

1

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

• LED Size: 12.1”, 4:3

• Resolution: SVGA, 800x600

• Luminance: 350 cd/m2

• Contrast ratio: 300

• LCD color: 262K

• Viewing angle: 50(U), 60(D), 70(L), 70(R)

• Backlight: LED

• Touch screen: Full flat 5-wire resistive

• Touch light transmission: 80%

• Touch interface: USB

• CPU: Intel

®

Atom™ D525, 1.8GHz

• BIOS: AMI BIOS

• System chipset: Intel

®

ICH8M

• System memory: 1x 204-pin DDR3 SODIMM socket, 1G DDR3 (default), Supports up to 2GB DDR3 800, Non-ECC and Unbuffered

• SSD: one external locked CF socket by IDE; supports Type I/II CompactFlash card

• Hard drive bay: optional 2.5” SATA HDD or SATA DOM

• Watchdog timer: Watchdog timeout can be programmable by software

from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25

o

C)

• H/W status monitor: monitors system temperature and voltage

• Expansion: 2 x mini-PCIe sockets

• NEXCOM Xcare platform system management supported

Rear I/O

• CAN BUS (optional for APPC 1221T only)

• GPIO: 4 x digital in / 4 x digital out (APPC 1221T only)

• COM1: RS232/422/485 (APPC 1221T w/ 2.5kv isolated)

• COM2: RS232/422/485 (APPC 1221T w/ 2.5kv isolated)

• COM3 and COM4: RS232 (APPC 1221T only)

• Ethernet: 2 x RJ45

• 2nd display VGA port: 1 x DB15

• Audio port: 1 x Line-out, 1 x Line-in, 1 x Mic-in

• USB: 4 x USB 2.0

• PS2 keyboard/ mouse

• Power switch

• Reset button

Audio

• AC97 codec: Realtek ALC888

• Audio interface: Line-out, Line-in and Mic-in audio jacks

Ethernet

• LAN chip: Dual Intel 82574L Gigabit LAN

• Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Mechanical and Environment

• Color: Pantone black

• IP protection: IP65 front

• Mounting: Panel/Wall/Stand/VESA 100mm x 100mm

• Power input: 12V~30V DC

• Power adapter: Optional AC to DC power adapter (+12V, 60W)

2

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

• Vibration

- IEC 68 2-64 (w/ HDD)

- 0.5Grms @sine, 5~500Hz, 1hr/axis (HDD operating)

- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

• Shock

- IEC 68 2-27

- HDD: 20G@wall mount, half sine, 11ms

• Operating Temperature: -5°C to 50°C

• Storage temperature: -20 to 75°C

• Operating humidity: 10%~90% relative humidity, non-condensing

• Dimensions: 317 x 243 x 65mm

• Weight: 3.8kg

Certifications

• CE approval

• FCC Class A

3

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

APPC 1520T/1521T

Key Features

• 4:3 15” Fanless LED Panel Computer

®

• Intel

Atom™ D525, Dual Core, Low Consumption CPU

• Full Flat 5-wire Touch Screen

• Dual GbE, 2nd Display VGA, Line-in, Line-out, Mic-in, PS2 KB/ MS

• 4 x USB, 2 x mini-PCIe, 1 x CF, 2 x RS232/422/485

• Optional Wi-Fi Module, 2.5”HDD, 2 x COMs, GPIO, CAN Bus

• DDR3 1GB, 2.5” HDD Bracket

• IP65 Compliant Front Panel

• Mounting Support: Panel/Wall/Stand/VESA 100mm x 100mm

• Wide Range Power Input: 12V~ 30V DC

4

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

Specifications

Panel

• LED Size: 15”, 4:3

• Resolution: XGA 1024x768

• Luminance: 350cd/m2

• Contrast ratio: 500

• LCD color: 16.2M

• Viewing Angle: 65(U), 55(D), 65(L), 65(R)

• Backlight: LED

• Touch screen: Full Flat 5-wire resistive

• Touch light transmission: 80%

• Touch interface: USB

System

• CPU: Intel

®

Atom™ D525, 1.8GHz

• BIOS: AMI BIOS

• System chipset: Intel

®

ICH8M

• System memory: 1x 204-pin DDR3 SODIMM socket, 1G DDR3 (default), Supports up to 2GB DDR3 800, Non-ECC and Unbuffered

• SSD: one external locked CF socket by IDE; supports Type I/II CompactFlash card

• Hard drive bay: optional 2.5” SATA HDD or SATA DOM

• Watchdog timer: Watchdog timeout can be programmable by software

from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25

o

C)

• H/W status monitor: monitors system temperature and voltage

• Expansion: 2 x mini-PCIe sockets

• NEXCOM Xcare platform system management supported

Rear I/O

• CAN BUS (optional for APPC 1521T only)

• GPIO: 4 x digital in / 4 x digital out (APPC 1521T only)

• COM1: RS232/422/485 (APPC 1521T w/ 2.5kv isolated)

• COM2: RS232/422/485 (APPC 1521T w/ 2.5kv isolated)

• COM3 and COM4: RS232 (APPC 1521T only)

• Ethernet: 2 x RJ45

• 2nd display VGA port: 1 x DB15

• Audio port: 1 x Line-out, 1 x Line-in, 1 x Mic-in

• USB: 4 x USB 2.0

• PS2 keyboard/ mouse

• Power switch

• Reset button

Audio

• AC97 codec: Realtek ALC888

• Audio interface: Line-out, Line-in, Mic-in audio jacks

Ethernet

• LAN chip: Dual Intel 82574L Gigabit LAN

• Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Mechanical and Environment

• Color: Pantone black

• IP protection: IP65 front

• Mounting: Panel/Wall/Stand/VESA 100mm x 100mm

• Power input: 12V~30V

• Power adapter: Optional AC to DC power adapter (+12V, 60W)

5

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

• Vibration

- IEC 68 2-64 (w/ HDD)

- 0.5Grms @sine, 5~500Hz, 1hr/axis (HDD operating)

- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

• Shock

- IEC 68 2-27

- HDD: 20G@wall mount, half sine, 11ms

• Operating Temperature: -5°C to 50°C

• Storage temperature: -20 to 75°C

• Operating humidity: 10%~90% relative humidity, non-condensing

• Dimensions: 409 x 309 x 62.5mm

• Weight: 5.3kg

Certifications

• CE approval

• FCC Class A

6

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

APPC 1720T/1721T

Key Features

• 4:3 17” Fanless Panel Computer

®

• Intel

Atom™ D525, Dual Core, Low Consumption CPU

• Flush Panel by 5-wire Touch Screen

• Dual GbE, 2nd Display VGA, Line-in, Line-out, Mic-in, PS2 KB/ MS

• 4 x USB, 2 x mini-PCIe, 1 x CF, 2 x RS232/422/485

• Optional Wi-Fi Module, 2.5”HDD, 2 x COMs, GPIO, CAN Bus

• DDR3 1GB, 2.5” HDD Bracket

• IP65 Compliant Front Panel

• Mounting Support: Panel/Wall/Stand/VESA 100mm x 100mm

• Wide Range Power Input: 12V~ 30V DC

7

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

Specifications

Panel

• LED Size: 17”, 4:3

• Resolution: SXGA 1280x1024

• Luminance: 380cd/m2

• Contrast ratio: 1000

• LCD color: 16.7M

• Viewing Angle: 80(U), 80(D), 85(L), 85(R)

• Backlight: CCFL

• Touch screen: 5-wire resistive (flush panel type)

• Touch light transmission: 81%

• Touch interface: USB

System

• CPU: Intel

®

Atom™ D525, 1.8GHz

• BIOS: AMI BIOS

• System chipset: Intel

®

ICH8M

• System memory: 1x 204-pin DDR3 SODIMM socket, 1G DDR3 (default), Supports up to 2GB DDR3 800, Non-ECC and Unbuffered

• SSD: one external locked CF socket by IDE; supports Type I/II CompactFlash card

• Hard drive bay: optional 2.5” SATA HDD or SATA DOM

• Watchdog timer: Watchdog timeout can be programmable by software

from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25

o

C)

• H/W status monitor: monitors system temperature and voltage

• Expansion: 2 x mini-PCIe sockets

• NEXCOM Xcare platform system management supported

Rear I/O

• CAN BUS (optional for APPC 1721T only)

• GPIO: 4 x digital in / 4 x digital out (APPC 1721T only)

• COM1: RS232/422/485 (APPC 1721T w/ 2.5kv isolated)

• COM2: RS232/422/485 (APPC 1721T w/ 2.5kv isolated)

• COM3 and COM4: RS232 (APPC 1721T only)

• Ethernet: 2 x RJ45

• 2nd display VGA port: 1 x DB15

• Audio port: 1 x Line-out; 1 x Line-in; 1 x Mic-in

• USB: 4 x USB 2.0

• PS2 keyboard/ mouse

• Power switch

• Reset button

Audio

• AC97 codec: Realtek ALC888

• Audio interface: Line-out, Line-in, Mic-in audio jacks

Ethernet

• LAN chip: Dual Intel 82574L Gigabit LAN

• Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Mechanical and Environment

• Color: Pantone black

• IP protection: IP65 front

• Mounting: Panel/Wall/Stand/VESA 100mm x 100mm

• Power input: 12V~30V

• Power adapter: Optional AC to DC power adapter (+12V, 60W)

8

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

• Vibration

- IEC 68 2-64 (w/ HDD)

- 0.5Grms @sine, 5~500Hz, 1hr/axis (HDD operating)

- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

• Shock

- IEC 68 2-27

- HDD: 20G@wall mount, half sine, 11ms

• Operating Temperature: -5°C to 50°C

• Storage temperature: -20 to 75°C

• Operating humidity: 10%~90% relative humidity, non-condensing

• Dimensions: 410.4 x 340.4 x 75.79mm

• Weight: 6.3 kg

Certifications

• CE approval

• FCC Class A

9

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

Getting to Know the APPC Series

Rear Top

Reset

Panel mounting hole

Antenna holes for optional WiFi

CF card socket

Power switch

Antenna Holes for Optional WiFi

The 2 external antenna mounting holes are used to mount and connect optional WiFi antennas.

CF Card Socket

Used to insert a CompactFlash card.

Reset Button

Press this button to restart the system.

Panel mounting hole

Power Switch

Press to power-on or power-off the system.

Panel Mounting Hole

These are mounting holes for Panel Mount with panel mount kit.

10

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

Rear Bottom

PS/2 KB/MS

COM1

COM2

VGA

12V-30V DC Input

Line-in

Mic-in

Line-out

LAN1

USB

LAN2

Used to connect an audio device, such as a CD player.Used to connect a headphone or a speaker.

Used to connect an external microphone.

Used to connect the system to a local area network.

Used to connect USB 2.0/1.1 devices.

These COM ports support RS232/422/485 compatible serial devices. APPC 1221T/1521T/1721T are with 2.5kV isolation.

Used to connect a PS/2 keyboard and a PS/2 mouse via a cable.

Used to connect an analog VGA monitor.

Used to plug a DC power cord.

11

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

Rear (APPC 1220T/1520T/1720T only)

VESA mounting hole

VESA Mounting Holes

These are mounting holes for VESA mount.

VESA mounting hole

12

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

Rear (APPC 1221T/1521T/1721T only)

VESA mounting hole

CAN bus (optional)

COM3

COM4

GPIO

VESA mounting hole

CAN Bus (optional)

Used to connect CAN devices.

COM3 and COM4

These COM ports support RS232 compatible serial devices.

GPIO

General Purpose I/O for digital input/output control.

VESA Mounting Holes

These are mounting holes for VESA mount.

13

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

APPC 1220T/1221T

299,50

134,45

45,50

10,20

317,00

246,00

184,50

COM1 COM2 DC IN 12V~30V

21

RESET

243,00

65,00

28,00

8,00

28,55

100,00

173,90

225,65

183,30

270,00

100,00

14

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

APPC 1520T/1521T

43,00

9,50

257,60

134,45

389,50

409,00

334,70

RESET

62,50

25,50

6,20

100,00

289,50

173,90

309,00

COM1 COM2 DC IN 12V~30V

21

181,90

270,00

100,00

15

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 1: Product Introduction

APPC 1720T/1721T

56,40

11,80

271,34

134,45

392,40

410,42

338,92

RESET

340,42

75,79

38,90

6,00

100,00

173,90

181,90

322,38

270,00

100,00

COM1 COM2 DC IN 12V~30V

21

16

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes the jumpers and connectors on the motherboard. Note that information in this chapter applies to APPC 1220T/1221T/1520T/ 1521T/1720T/1721T.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the connections. It is recom-

mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power

is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-

tronic components. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are

working inside the case.

• If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the com-

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

• Use correct screws and do not over tighten screws.

17

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

18

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

Top View

JP8

CN1

CN2

CN3

JP6

JP7

JP9 J10

J1

JP5

FAN1

H2

3

1

20

19

12

R61

R63

R62

R64

19 20

CN2

1

2

20

19

CN3

1

R228

R227

2

M9

G

3

J4

6

JP6

5

1

J4

J5 J6

J7 J8

3

1

J5

9

6

1

R477

1

7

8

J10

JP9

2

1

H12

1

2

FB42

FB43

6

4

CN9

5

LAN1

TRPNMLKJHGFEDCBA

8

7

RN1

R103 R105 R108 R114 R118 R123

R132 R135

C155

2

1

LAN2

SWITCH1

R65

R66

R68

R67

R69

R73

R72

R75

R74

R71

R70

R77

R78

R76

R80

C55

C56

RN2

1

2

3 4

5

6

7

8 9

10

11

12

13

14

16

8

7

R79

C57

C59

C58

RN3

U8

789

64

65

102

103

C418

1

2

1

USB1

RN4

R81

123

R P

N

M L K J

H

G F E D

RN5

C B A

85

4

H3

SW1

R765 R766 R767

39

38

1

128

H11

5

14

USB2

CON1

1

CON1

C7

J3

7

AP-D525-D

4BI0D525A2X10

MADEIN TAIWAN

MH4

MH6

8

4

C27C8C30

51

1

C9

C28

1

J1

C10

1

C29

REV:C

H9

CN4

BZ1

15

69

JP3

BAT1

1517

COM1

JP1J3 BAT1

JP2JP4

6

1

3

JP1

JP4

2

1

51

2161852

MH3

MH4

MH5

MH6

L10

C381

1

JP2

2

11 9

51

15

6

H1

R9

R8

B

E

R18

R17

C

B

E

Q3

R534

C15

Q4

C

R24

H6

C40

C39

789

4

5

123

6

1011121314

15

16

A

B

C

D

E

F G

H

J

K

L

M

C90

N

P

R

T

U

V

W

Y

AA

AB

AC

AD

AE

AF

AG

AH

AJ

RN8

Q8

C162 C163

2161852

MH5

C380

2

J9

1

9

H

COM2

8

9

KM1

C

C351

U39

C359

CN6

U40

C373

2

1

10

12

C374

10

129

9

S

1

2

G

6

35

CN10

15

16

5

15

C37

U5

C48

C49

AL AK AJ AH

AG AE AD AC AB AA Y W V

C84

T P N M L K J H G F E

D C B A

2

1

H8

CN4

CN5

L7

CN7

G

1

2

6

11

3

1 2

3

H13

CN8

4

5

CN9

LAN1 LAN2 USB1 USB2 COM1

COM2

19

KM1

J9

CN6 CN7

VGA1

CN8

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Bottom View

CF card socket

3

1

50

26

3

6

5

1

3

1

9

6

1

7

8

2

1

3162

12 11 10

872

4

5

12 11 10

9

8

1

7

25

58

9

2

1

4

1

14

58

1

4

1

16

R545 R544

R738

1

6

41

R727 R725 CP8 CP7

R726

9

13

R737

5

C448

R542

C456

R541

C457

C453

C454

121

C459

2

C458

204

C455

R543

C452

C449

C450

C451

DIMM1

74 72

2

DDR3 SODIMM

203

C515

R721

R719

R720

R733

R734

R735

R736

R732

CP6CP5

51

9

6

C470

C612

R657

10

2

1

9

6

8

21

3

5

7173

R550 C471

C467

C464

C465

C466

C468

C469

C613

C614

10

2

1

9

15

16

1281

10314

5

15

4

13

72

9

1

C659

C660

C665

132

1

2

6

11

4

5

20

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Jumpers

RTC Clear

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP4

1

Pin Settings

1-2 On Normal

2-3 On CMOS Clear

1-2 On: default

Pin Definition

3

1 NC

2 RTC Power

3 GND

Power Type Select

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP5

1

Pin Definition

1-2 On AT Mode

2-3 On ATX Mode

2-3 On: default

Pin Definition

3

1 AUTO (AT MODE)

2 PWRBT In

3 Manual ( ATX MODE)

21

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

LCD Panel Power Select

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP6

1

1-2 On 3.3V

2-3 On 5V

1-2 On: default

Pin Definition

3

1 VCC3

2 Power for VDD

3 VCC5

Touch 4/5/8 Wire Select

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP8

1

Pin Definition

1-2 On 5 wire

2-3 On 4/8 wire

1-2 On: default

3

22

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Panel Resolution Select

Connector type: 8-pin On/Off Switch Connector location: SWITCH1

N

O

2345678

1

Model Resolution SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

APPC1220T APPC1221T

APPC1520T APPC1521T

APPC1720T APPC1721T

800x600 ON ON ON OFF OFF OFF OFF OFF

1024x768 OFF OFF ON OFF ON ON OFF OFF

1280x1024 OFF OFF OFF OFF ON ON ON OFF

23

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interface

12V-30V DC Power Input

Connector size: DC 4-pin DIN Power Jack with Shield Connector location: CN8

5

1 3

Pin Definition

1 DC+

2 DC+

3 DC-

4 DC-

5 GND

2 4

VGA Port

Connector type: DB-15 port, 15-pin D-Sub Connector location: VGA1

15

1115

Pin Definition Pin Definition

1 Red 9 +5V

2 Green 10 GND

3 Blue 11 N/C

4 N/C 12 DDC Data

5 GND 13 HSYNC

6 GND 14 VSYNC

7 GND 15 DDC Clock

8 GND 16 N/C

24

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

PS/2 Keyboard/Mouse Port

Connector type: PS/2, Mini-DIN-6, JST-2.0mm-M-180 Connector location: KM1

8 5

Pin Definition

6 3

2

1

1 KB_DATA

2 MS_DATA

3 GND

4 NC

5 VCC5

6 KB_CLK

7 NC

8 MS_CLK

COM1 Port (Isolation with RS422/485)

Connector type: DB-9 Connector location: COM1

1 5

6

9

RS232

Pin Definition Pin Definition

1 DCD#: Data Carrier Detect 2 RXD#: Receive Data

3 TXD: Transmit Data 4 DTR#: Data Terminal Ready

5 GND 6 DSR#: Data Set Ready

7 RTS#: Request To Send 8 CTS#: Clear To Send

9 RI#: Ring Indicator (could be a 5V

or 12V power pin)

RS422

Pin Definition Pin Definition

1 TXD-: Transmit Data Negative 2 TXD+: Transmit Data Positive

3 RXD+: Receive Data Positive 4 RXD-: Receive Data Negative

5 GND DCD#: Data Carrier Detect 6 RTS-: Request To Send Negative

7 RTS+: Request To Send Positive 8 CTS+: Clear to Send Positive

9 CTS-: Clear To Send Negative

(could be a 5V or 12V power pin)

25

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

RS485

Pin Definition Pin Definition

1 TXD-: Transmit Data Negative

RXD-: Receive Data Negative

3 Reserved 4 Reserved

5 Reserved 6 Reserved

7 Reserved 8 Reserved

9 Reserved (could be a 5V or 12V

power pin)

2 TXD+: Transmit Data Positive

RXD+: Receive Data Positive

COM2 Port (Isolation with RS422/485)

Connector type: DB-9 Connector location: COM2

1 5

6

9

RS232

Pin Definition Pin Definition

1 DCD#: Data Carrier Detect 2 RXD#: Receive Data

3 TXD: Transmit Data 4 DTR#: Data Terminal Ready

5 GND 6 DSR#: Data Set Ready

7 RTS#: Request To Send 8 CTS#: Clear To Send

9 RI#: Ring Indicator (could be a 5V

or 12V power pin)

RS422

Pin Definition Pin Definition

1 TXD-: Transmit Data Negative 2 TXD+: Transmit Data Positive

3 RXD+: Receive Data Positive 4 RXD-: Receive Data Negative

5 GND DCD#: Data Carrier Detect 6 RTS-: Request To Send Negative

7 RTS+: Request To Send Positive 8 CTS+: Clear to Send Positive

9 CTS-: Clear To Send Negative

(could be a 5V or 12V power pin)

26

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

RS485

Pin Definition Pin Definition

1 TXD-: Transmit Data Negative

RXD-: Receive Data Negative

3 Reserved 4 Reserved

5 Reserved 6 Reserved

7 Reserved 8 Reserved

9 Reserved (could be a 5V or 12V

power pin)

2 TXD+: Transmit Data Positive

RXD+: Receive Data Positive

USB Ports

Connector type: Dual USB port Connector location: USB1 and USB2

USB1

Pin Definition Pin Definition

1 VCC5 5 VCC5

2 USB0- 6 USB1-

3 USB0+ 7 USB1+

4 GND 8 GND

USB2

Pin Definition Pin Definition

1 VCC5 5 VCC5

2 USB2- 6 USB3-

3 USB2+ 7 USB3+

4 GND 8 GND

27

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

LAN1 Port

Connector type: RJ45 port with LEDs Connector location: LAN1

ActLink

Link Status

Green Always Lighted 1000M

Orange Always Lighted 100M

Off 10M or No Link

Pin Definition Pin Definition

1 MDI0+ 5 MDI2-

2 MDI0- 6 MDI1-

3 MDI1+ 7 MDI3+

4 MDI2+ 8 MDI3-

Act Status

Orange Blinking Data Activity

Off No Acitivity

LAN2 Port

Connector type: RJ45 port with LEDs Connector location: LAN2

Note: LAN2 supports Wake On LAN (WOL)

ActLink

Link Status

Green Always Lighted 1000M

Orange Always Lighted 100M

Off 10M or No Link

Pin Definition Pin Definition

1 MDI0+ 5 MDI2-

2 MDI0- 6 MDI1-

3 MDI1+ 7 MDI3+

4 MDI2+ 8 MDI3-

Act Status

Orange Blinking Data Activity

Off No Acitivity

28

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Line-out Jack

Connector type: 1x5 5-pin header, 2.0 mm pitch Connector location: CN9

Pin Definition

1 LOUT_R

2 JD

3 NC

4 LOUT_L

5 GND

6 GND

29

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

Xilinx Programming Connector (APPC 1720T/1721T/1520T/1521T only)

Connector type: 1x6 6-pin header, 2.54 mm pitch Connector location: JP7

1

Pin Definition

1 VCC3

2 GND

3 TCK

4 TDO

5 TDI

6 TMS

6

Panel Backlight Connector

Connector size: 1x6 6-pin JST, 2.54 mm pitch Connector location: J4

1

6

Pin Definition

1 BKCTRL

2 GND

3 12V

4 GND

5 BKLEN

6 VCC5

Pin 1 BKCTRL Functional Status

Percentage Voltage Level

100% 3.4V

80% 2.7V

60% 1.9V

40% 1.1V

30

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

LVDS Panel Backlight Connector (APPC 1220T/1221T only)

Connector type: 2x10 20-pin, LCD-1.25mm-M-180 Connector location: CN1 (from Pineview)

MH1

1

2

Pin Definition Pin Definition

1 NC 11 RXCLK+

2 NC 12 RX1-

3 VDD 13 RXCLK-

4 RX0+ 14 GND

5 NC 15 GND

6 RX0- 16 12V

7 NC 17 RX2+

8 VDD 18 12V

9 GND 19 RX2-

10 RX1+ 20 GND

19

20

MH2

LVDS Panel Backlight Connector (APPC 1720T/1721T/1520T/1521T only)

Connector type: 2x10 20-pin, LCD-1.25mm-M-180 Connector location: CN2 (from Xilinx)

MH1

1

2

Pin Definition Pin Definition

1 NC 11 RXCLK+ (ODD)

2 NC 12 RX1- (ODD)

3 VDD 13 RXCLK- (ODD)

4 RX0+ (ODD) 14 GND

5 RX3+ (ODD) 15 GND

6 RX0- (ODD) 16 12V

7 RX3- (ODD) 17 RX2+ (ODD)

8 VDD 18 12V

9 GND 19 RX2- (ODD)

10 RX1+ (ODD) 20 GND

19

20

MH2

31

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

LVDS Panel Backlight Connector (APPC 1720T/1721T/1520T/1521T only)

Connector type: 2x10 20-pin, LCD-1.25mm-M-180 Connector location: CN3 (from Xilinx)

MH1

1

19

2

Pin Definition Pin Definition

1 NC 11 RXCLK+ (EVEN)

2 NC 12 RX1- (EVEN)

3 VDD 13 RXCLK- (EVEN)

4 RX0+ (EVEN) 14 GND

5 RX3+ (EVEN) 15 GND

6 RX0- (EVEN) 16 12V

7 RX3+ (EVEN) 17 RX2+ (EVEN)

8 VDD 18 12V

9 GND 19 RX2- (EVEN)

10 RX1+ (EVEN) 20 GND

20

MH2

32

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Power Button Connector

Connector type: 1x2 2-pin header, JST 2.0 mm pitch Connector location: J7

1 2

Pin Definition

1 PWRBT

2 GND

Reset Button

Connector type: 1x2 2-pin header, 2.0 mm pitch Connector location: J8

1 2

Pin Definition

1 PWRBT

2 GND

33

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

SATA DOM Power Connector

Connector type: 1x2 2-pin header, JST 2.0 mm pitch Connector location: J1

1 2

Pin Definition

1 PWRBT

2 GND

SATA Power Connector

Connector type: 1x4 4-pin Wafer, 2.54 mm pitch Connector location: CON1

1

4

Pin Definition

1 +12V

2 GND

3 GND

4 VCC5

34

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

SATA Port

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: J3

1

Pin Definition

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

7

Touch Sensor Connector

Connector type: 1x9 9-pin boxed header, JST-2.0mm-M-180 Connector location: J5

9

8-Wire 4-Wire 5-Wire

9 Right Sense N/A N/A

8 Left Sense N/A N/A

7 Bottom Sense N/A N/A

6 Top Sense N/A Sense (S)

5 Right Excite Right LR (X)

4 Left Excite Left LL (L)

3 Bottom Excite Bottom UR (H)

2 Top Excite Top UL (Y)

1 GND GND GND

1

Touch Screen Lines

35

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

USB Connector

Connector size: 1x6 6-pin JST wafer, 2.54 mm pitch Connector location: J6

6

Pin Definition

1 +5V

2 USB4-

3 USB4+

4 USB5-

5 USB5+

6 GND

1

36

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

CompactFlash

Connector type: 1x50 50-pin with Ejector, CompactFlash Type 2 Connector location: IDE1

Pin Description Pin Description

1 GND 26 CF_DETECT

2 PD Data3 27 PD Data11

3 PD Data4 28 PD Data12

4 PD Data5 29 PD Data13

5 PD Data6 30 PD Data14

6 PD Data7 31 PD Data15

7 -PCS0 32 -PCS1

8 GND 33 N/C

9 GND 34 -PDIOR

10 GND 35 -PDIOW

11 GND 36 +5V

12 GND 37 IRQ14

13 +5V 38 +5V

14 GND 39 GND

Pin Description Pin Description

15 GND 40 N/C

16 GND 41 CF_RESET#

17 GND 42 +3.3V

18 PDAddress2 43 PDDREQ

19 PDAddress1 44 PDDACK

20 PDAddress0 45 IDE_ACT#

21 PDData0 46 N/C

22 PDData1 47 PD Data8

23 PDData2 48 PD Data9

24 N/C 49 PD Data10

25 GND 50 GND

37

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Power LED Connector

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP2

1

2

Pin Definition

1 +5V

2 GND

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP1

1

2

Pin Definition

1 +5V

2 HD_LED#

38

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Mini-PCIe Slots

Connector location: CN4 and CN5

2

51152

Pin Definition Pin Definition

1 WAKE0# 2 +V3.3_MINI

3 NC 4 GND

5 NC 6 +V1.5S_MINI

7 NC 8 NC

9 GND 10 NC

11 GPP_CLK0_N 12 NC

13 GPP_CLK0_P 14 NC

15 GND 16 NC

17 NC 18 GND

19 NC 20 MINICARD1_DIS#

21 GND 22 PCIE_RST#

23 PCIE_RX2N 24 +V3.3A_MINI

25 PCIE_RX2P 26 GND

27 GND 28 +V1.5S_MINI

29 GND 30 SMB_CLK

Pin Definition Pin Definition

31 PCIE_TX2N 32 SMB_DAT

33 PCIE_TX2P 34 GND

35 GND 36 USB_6N

37 GND 38 USB_6P

39 +V3.3A_MINI 40 GND

41 +V3.3A_MINI 42 NC

43 GND 44 NC

45 NC 46 NC

47 NC 48 +V1.5S_MINI

49 NC 50 GND

51 NC 52 +V3.3A_MINI

39

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

COM3 Connectors (APPC 1721T/1521T/1221T only)

Connector type: DB-9; 2x5 10-pin boxed header, 2.0 mm pitch Connector location: CN6

1 5

6

Pin Definition Pin Definition

1 COM3_DCD 6 COM3_DSR

2 COM3_RXD 7 COM3_RTS

3 COM3_TXD 8 COM3_CTS

4 COM3_DTR 9 COM3_RI

5 COM3_GND 10 COM3_GND

9

2 1

10

9

COM4 Connectors (APPC 1721T/1521T/1221T only)

Connector type: DB-9; 2x5 10-pin boxed header, 2.0 mm pitch Connector location: CN7

1 5

6

Pin Definition Pin Definition

1 COM4_DCD 6 COM4_DSR

2 COM4_RXD 7 COM4_RTS

3 COM4_TXD 8 COM4_CTS

4 COM4_DTR 9 COM4_RI

5 COM4_GND 10 COM4_GND

9

2 1

10

9

40

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

GPIO Connector 4 digital input and 4 digital output (APPC 1721T/1521T/1221T only)

Connector type: DB-15; 2x5 10-pin header, 2.0 mm-M-180 Connector location: J9

2

1

6

Pin Definition Pin Definition

1 +5V 2 GND

3 GPIO24 (GPO) 4 GPIO20 (GPI)

5 GPIO25 (GPO) 6 GPIO21 (GPI)

7 GPIO26 (GPO) 8 GPIO22 (GPI)

9 GPIO27 (GPO) 10 GPIO23 (GPI)

5

10

9

41

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Line-in/Mic-in Connector

Connector type: 2x4 8-pin header, 2.54 mm Connector location: JP9

2 1

Line-in

Pin Definition Pin Definition

1 LINE IN-LP 2 MIC1_L3

3 LINE IN -JD 4 MIC_JD

5 GND 6 GND

7 LINE IN-RP 8 MIC1_R3

Mic-in

8 7

Speaker-out Connector

Connector type: 1x4 4-pin header, 2.54 mm pitch Connector location: J10

1

Pin Definition

1 OUT-L+

2 OUT-L-

3 OUT-R+

4 OUT-R-

4

42

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

Block Diagram

APPC 1720T/1520T

43

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

APPC 1721T/1521T

44

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

APPC 1220T

45

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 2: Jumpers and Connectors

APPC 1221T

46

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

ChaPter 3: system setuP

Installing a SATA Hard Drive

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

1. Remove the mounting screws around the chassis cover and then remove the cover.

47

The dots denote the locations of the screws.

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

2. Remove the mounting screws of the drive bay. 3. Remove the drive bay. The drive bay is used to hold a SATA hard drive.

Mounting screw

SATA power cable and SATA cable

48

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

4. Place the SATA hard drive on the drive bay.

Drive bay

5. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bay and then use the provided mounting screws to secure the drive in place.

SATA drive

Mounting screw

49

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

6. Place the SATA drive in the chassis and then use the provided mounting screws to secure the drive in the chassis.

Connect the SATA data cable and SATA power cable to the connectors

on the SATA drive.

SATA drive

SATA power cable

50

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

Installing a CompactFlash Card

1. The CompactFlash card socket is located on the rear top side of the chassis.

CF card socket

2. Remove the mounting screws of the CompactFlash socket’s cover.

Mounting screw

51

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

3. With the CompactFlash card’s label facing up, insert the card until it is completely seated in the socket.

CompactFlash card

4. Push the Eject button to remove the CompactFlash card.

52

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

Installing a SODIMM

1. Remove the mounting screws around the panel and then remove the panel cover.

APPC 1220T/1221T

APPC 1520T/1521T

APPC 1720T/1721T

53

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

2. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips into the socket. The gold-plated connector on the edge of the module will almost completely disappear inside the socket.

3. Push the module down until the clips on both sides of the socket lock into position. You will hear a distinctive “click”, indicating the module is correctly locked into position.

SODIMM

SODIMM socket

54

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

Installing a SATA DOM

1. Remove the drive bay bracket. The SATA connector is readily accessible upon removing the bracket.

SATA connector

2. Remove the screw.

55

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

3. The SATA DOM package includes a supporting stud. The stud is used to stabilize the SATA DOM module.

Supporting stud

Cable

4. Install the supporting stud. Make sure the stud is fastened in place.

SATA DOM

56

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

5. Connect one end of the provided cable to the connector on the module.

Cable

Connector on the module

6. Install the module to the SATA port via the connector at the solder side of the module and then secure the module using the mounting screw you removed in step 2.

SATA DOM

Mounting screw

57

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

7. Connect the other end of the cable to the connector on the board.

58

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

Installing a Mini PCIe Module

1. The Mini PCIe module package includes the following items.

Mini PCIe Module

Antennas

2. Insert the Mini PCIe module into the Mini PCIe slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

Mini PCIe module

Mini PCIe slot

RF Cables

59

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

3. Secure the module with mounting screws.

Mounting

screw

Mounting screw

4. Attach one end of the RF cables onto the module.

RF cable

60

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

5. Push the antenna hole cover. 6. Remove the antenna hole covers.

61

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

7. Insert the antenna jack end of the cable through the antenna hole.

Antenna jack end of the cable

8. Insert the ring onto the antenna jack end of the cable.

Antenna jack

Ring

Antenna jack

Ring

62

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

9. Connect external antennas to the antenna jacks.

RF cable

Antenna

Mini PCIe module

Antenna

63

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

Plugging the DC Power Cable

1. Plug the DC 4-pin DIN power jack (male) into the DC 4-pin DIN power jack (female) that is on the system.

2. The table below shows the pin definition of the cable.

Color Pin Definition

Black GND

Red&Yellow DC+

Blue&Black DC-

64

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

Panel Mounting

1. Select a place on the panel where you will mount the Panel PC.

2. Cut out a shape on the panel that corresponds to the Panel PC’s rear dimensions.

The thickness of the panel (e.g. steel board, plank, acrylic board, wall,

etc.) where you will mount the Panel PC must not exceed 7mm. If the distance between the front bezel and panel mount hole is too wide, it will not fit the panel mount kit.

7

304,50

230,00

APPC 1220T/1221T

7

391,50

291,50

APPC 1550T/1551T

65

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 3: System Setup

329,00

399,00

APPC 1770T/1771T

7

3. Slide the Panel PC through the hole until it is properly fitted against the panel.

4. Position the mounting clamps along the rear edges of the Panel PC. The first and second clamps must be positioned and secured diagonally prior to mounting the rest of the clamps. Tighten the clamp’s screw until it touches the panel. Do not overtighten the screws to prevent damaging the Panel PC.

Clamp

Panel

5. The illustration below shows all clamps properly mounted.

66

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

ChaPter 4: Bios setuP

This chapter describes how to use the BIOS setup program for the APPC Series. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use ▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

▪ When changing the system configuration ▪ When a configuration error is detected by the system and you are

prompted to make changes to the Setup program

▪ When resetting the system clock ▪ When redefining the communication ports to prevent any conflicts ▪ When making changes to the Power Management configuration ▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

67

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of

beeps will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:

Legends

Key Function

Right and Left arrows Moves the highlight left or right to select a

menu.

Up and Down arrows Moves the highlight up or down between sub-

menus or fields.

<Esc> Exits to the BIOS Setup Utility.

+ (plus key) Scrolls forward through the values or options of

the highlighted field.

- (minus key) Scrolls backward through the values or options of the highlighted field.

Tab Selects a field.

<F1> Displays General Help.

<F10> Saves and exits the Setup program.

<Enter> Press <Enter> to enter the highlighted sub-

menu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

68

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Main

System Overview

AMIBIOS

Version : 08.00.15 Build Date : 04/01/11 ID : A525-002

Processor

Intel (R) Atom(TM) CPU D525 @ 1.80GHz Speed :1800MHz

System Memory

Size :1015MB

System Time

System Date

Advanced

BIOS SETUP UTILITY

Chipset

Boot

[14:06:01]

[Tue 04/12/2011]

Security

Use [ENTER], [TAB] or [SHIFT-TAB] to

select a eld.

Use [+] or [-] to

congure system Time.

← → Select Screen ↑↓ Select Item

+- Change Field

Tab Select Field F1 General Help F10 Save and Exit ESC Exit

ExitPCIPnP

Processor

Displays the detected processor information.

System Memory

Displays the detected system memory information.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

AMI BIOS

Displays the detected BIOS information.

69

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Main

Advanced Settings

WARNING: Setting wrong values in below sections may

u

u u u u

Onboard LAN 1 [Enabled] Onboard LAN 2 [Enabled] LAN Boot ROM [Disabled]

LVDS Mode Conguration [Mode 2]

cause system to malfunction.

IDE Conguration

USB Conguration ACPI Conguration SuperIO Conguration Hardware Health Conguration

IDE Configuration

This section is used to configure the IDE drives.

BIOS SETUP UTILITY

Chipset

Boot

Security

ExitPCIPnPAdvanced

Congure the IDE devices(s).

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

USB Configuration

This section is used to configure USB devices.

ACPI Configuration

This section is used to configure the ACPI function.

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Hardware Health Configuration

This section is used to configure the hardware monitoring events such as the temperature, fan speed and voltages.

Onboard LAN 1 and Onboard LAN 2

Enables or disables the onboard LAN.

LAN Boot ROM

Enable this field if you want to use the boot ROM (instead of a disk drive) to boot-up the system and access the local area network directly. If you wish to change the boot ROM’s settings, type the <Shift> and <F10> keys simultaneously when prompted during boot-up. Take note: you will be able to access the boot ROM’s program (by typing <Shift> + <F10>) only when this field is enabled.

70

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

LVDS Mode Configuration

Displays the LVDS mode from Xilinx. The BIOS will automatically detect the mode.

Mode 1 refers to APPC 1720T/1721T. Mode 2 refers to APPC 1520T/1521T.

LCD Mode Configuration

Mode Input Display Output Display

0 1280x800 Scaling mode for 1280x1024 48 bit

1 1280x1024 Bypass mode for 1280x1024 48 bit

2 Depends on Source solution Bypass mode for 24bit x2

3 Depends on Source solution Bypass mode for 18bit x2

71

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

IDE Configuration

This section is used to configure the IDE drives.

Advanced

IDE Conguration

ATA/IDE Conguration [Compatible]

Legacy IDE Channels [SATA Pri, PATA Sec]

u

Primary IDE Master : [Hitachi HTS54]

u

Secondary IDE Master : [Not Detected]

u

Third IDE Master : [Not Detected]

IDE Detect Time Out (Sec) [35]

BIOS SETUP UTILITY

Options

Disabled Compatible Enhanced

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

ATA/IDE Configuration

Sets the SATA device to Disabled, Compatible or Enhanced mode.

If you selected Compatible, the Legacy IDE Channels field will appear. The options are SATA Only, SATA Pri, PATA Sec, and PATA Only.

Primary IDE Master to Third IDE Master

When you enter the BIOS Setup Utility, the BIOS will auto detect the existing IDE devices then displays the status of the detected devices. To configure an IDE drive, move the cursor to a field then press <Enter>.

Advanced

Primary IDE Master

Device :Not Detected

Type

LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

BIOS SETUP UTILITY

[Auto]

[Auto] [Auto] [Auto] [Auto] [Auto] [Disabled]

Select the type of device connected to the system.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

If you selected Enhanced, the Configure SATA As field will appear. The option displayed is IDE. This will configure the Serial ATA drives as Parallel ATA physical storage device.

72

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Type

Selects the type of IDE drive connected to the system.

LBA/Large Mode

Auto The LBA mode will automatically be enabled, that is, if the

LBA mode was not previously disabled.

Disabled Disables the LBA mode.

Block (Multi-Sector Transfer)

Auto Data transfer to and from the device occurs multiple sectors at

a time.

Disabled Data transfer to and from the device occurs one sector at a

time.

PIO Mode

Selects the data transfer mode. PIO means Programmed Input/Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your drive.

DMA Mode

Selects the DMA mode.

Auto Automatically detects the DMA mode. SWDMAn SingleWord DMAn. MWDMAn MultiWord DMAn. UDMAn Ultra DMAn.

S.M.A.R.T.

The system board supports SMART (Self-Monitoring, Analysis and Reporting Technology) hard drives. SMART is a reliability prediction technology for ATA/IDE and SCSI drives. The drive will provide sufficient notice to the system or user to backup data prior to the drive’s failure. SMART is supported in ATA/33 or later hard drives. The options are Auto (default), Enabled and Disabled.

32Bit Data Transfer

Enables or disables 32-bit data transfer.

IDE Detect Time Out (Sec)

Selects the time out value for detecting ATA/ATAPI devices.

Auto The BIOS will automatically set the system according to your

hard disk drive’s timing.

Mode 0-4 You can select a mode that matches your hard disk drive’s

timing. Caution: Do not use the wrong setting or you will have drive errors.

73

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure USB devices.

Advanced

USB Conguration

Module Version - 2.24.3-13.4

USB Devices Enabled:

1 Keyboard

Legacy USB Support [Enabled]

USB 2.0 Controller Mode [FullSpeed] BIOS EHCI Hand-Off [Enabled] Hotplug USB FDD Support [Auto]

u

USB Mass Storage Device Conguration

BIOS SETUP UTILITY

Enables support for legacy USB. AUTO option disables legacy support if no USB devices are connected.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Legacy USB Support

Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.

If a PS/2 keyboard is not available and you need to use a USB keyboard to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.

USB 2.0 Controller Mode

Sets the USB 2.0 controller mode to HiSpeed (480 Mbps) or FullSpeed (12 Mbps).

BIOS EHCI Hand-Off

Enable this field when using operating systems without the EHCI hand-off support.

Hotplug USB FDD Support

Enables or disables the USB FDD function.

USB Mass Storage Device Configuration

Configures the USB mass storage class devices.

Advanced

USB Mass Storage Device Conguration

USB Mass Storage Reset Delay [20 Sec]

Device #1 USB Hotplug FDD

Emulation Type [Auto]

BIOS SETUP UTILITY

If Auto, USB devices less than 530MB will be emulated as Floppy and remaining as hard drive. Forced FDD option can be used to force a HDD formatted drive to boot as FDD (Ex. ZIP drive).

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

74

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Device #1

Displays the connected device.

Emulation Type

Auto USB devices that are less than 530MB will be emulated as

a floppy drive and the remaining as hard drives.

Forced FDD Forces an HDD formatted drive to boot as FDD (e.g. ZIP

drive) Floppy The USB device will be emulated as a floppy drive. CDROM The USB device will be emulated as a CD-ROM drive. Hard Disk The USB device will be emulated as a hard disk drive.

ACPI Configuration

This section is used to configure the ACPI configuration.

Advanced

ACPI Settings

ACPI Aware O/S [Yes]

ACPI APIC Support [Enabled] APIC ACPI SCI IRQ [Disabled]

BIOS SETUP UTILITY

Enable/Disable ACPI support for operating system.

ENABLE: If OS supports ACPI.

DISABLE: If OS does not support ACPI.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

ACPI Aware OS

Enables or disables the ACPI function of the operating system.

ACPI APIC Support

Enables or disables the ACPI APIC function.

APIC ACPI SCI IRQ

Enables or disables the APIC ACPI SCI IRQ.

75

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8]

Serial Port1 IRQ [4] Serial Port1 Frequency Mode [RS232] Serial Port2 Address [2F8] Serial Port2 IRQ [3] Serial Port2 Frequency Mode [RS232] Serial Port3 Address [3E8] Serial Port3 IRQ [11] Serial Port4 Address [2E8] Serial Port4 IRQ [10]

BIOS SETUP UTILITY

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Serial Port1 Address to Serial Port4 Address

3F8, 3E8, 2E8 Allows you to manually select an I/O address for the on

board serial port.

Disabled Disables the onboard serial port.

Serial Port1 IRQ to Serial Port4 IRQ

These fields are used to select an IRQ for the onboard serial port 3, 4, 10 or 11.

Serial Port1 Frequency Mode

Advanced

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3]

Serial Port1 Frequency Mode [RS232]

Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232] Serial Port3 Address [3E8] Serial Port3 IRQ [10] Serial Port4 Address [2E8] Serial Port4 IRQ [11]

BIOS SETUP UTILITY

Options

RS232

RS422 RS485

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

This field is used to select the frequency mode of serial port 1. The options are RS232, RS422 and RS485.

76

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

If you selected RS485 in the “Serial Port1 Frequency Mode”, the “Serial Port1 Frequency Select” field will appear prompting you to select the frequency setting. The options are 115200 bps and 921600 bps.

Advanced

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port1 Frequency Mode [RS232]

Serial Port1 Frequency Select [115200 bps]

Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232] Serial Port2 Frequency Select [ Serial Port3 Address Serial Port3 IRQ Serial Port4 Address Serial Port4 IRQ

BIOS SETUP UTILITY

Options

115200 bps

921600 bps

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

77

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Serial Port2 Frequency Mode

Advanced

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port1 Frequency Mode [RS232] Serial Port2 Address [2F8] Serial Port2 IRQ [4]

Serial Port2 Frequency Mode [RS232]

Serial Port3 Address [3E8] Serial Port3 IRQ [10] Serial Port4 Address [2E8] Serial Port4 IRQ [11]

BIOS SETUP UTILITY

Options

RS232

RS422 RS485

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

This field is used to select the frequency mode of serial port 2. The options are RS232, RS422 and RS485.

If you selected RS422 or RS485 in the “Serial Port1 Frequency Mode” and/or “Serial Port2 Frequency Mode” field, the “Serial Port1 Frequency Select” and/or “Serial Port2 Frequency Select” field will appear prompting you to select the frequency setting. The options are 115200 bps and 921600 bps.

Advanced

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port1 Frequency Mode [RS232] Serial Port1 Frequency Select [115200 bps] Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232]

Serial Port2 Frequency Select [

Serial Port3 Address Serial Port3 IRQ Serial Port4 Address Serial Port4 IRQ

BIOS SETUP UTILITY

Options

115200 bps

921600 bps

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

78

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Hardware Health Configuration

HW Health Function

This field is used to enable or disable the hardware monitoring events such as temperature, fan speed and voltages.

Advanced

Hardware Health Conguration

HW Health Function [Enabled]

CPU Temperature : 29oC/84oF System Temperature : 27oC/80oF

FAN1 Speed : : N/A

CPU Core : 1.136 V +3.3V : 3.189 V +5.00V : 4.878 V +12.0V : 11.704 V

BIOS SETUP UTILITY

Enables Hardware Health Monitoring Device.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

CPU Temperature and System Temperature

Detects and displays the current temperature of the CPU, chipset and the internal temperature of the system.

CPU Core to +12.0V

Detects and displays the output voltages.

Fan1 Speed

Detects and displays the current fan speed in RPM (Revolutions Per Minute).

79

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Boot

Main

Boot Settings

u

Boot Settings Conguration

u

Boot Device Priority

u

Removable Drives

Boot Settings Configuration

This section is used to configure settings during system boot.

Boot Device Priority

This section is used to select the boot priority sequence of the devices.

Removable Drives

BIOS SETUP UTILITY

Chipset

Boot

Security

ExitPCIPnPAdvanced

Congure settings during system boot.

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Boot Settings Configuration

This section is used to configure settings during system boot.

BIOS SETUP UTILITY

Boot

Boot Settings Conguration

Quick Boot [Enabled]

Quiet Boot [Disabled] Bootup Num-Lock [On] PS/2 Mouse Support [Enabled] System Keyboard [Present] Hit ‘DEL’ Message Display [Enabled] Interrupt 19 Capture [Disabled]

Allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Quick Boot

When Enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

This section is used to select the boot priority sequence of the hard disk drives.

80

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Bootup Num-Lock

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

PS/2 Mouse Support

Enables or disables the PS/2 mouse.

System Keyboard

Detects the presence or absence of the system keyboard.

Hit ‘DEL’ Message Display

When enabled, the system displays the “Press DEL to run Setup” message during POST.

Interrupt 19 Capture

When enabled, it allows the optional ROM to trap interrupt 19.

Boot Device Priority

This section is used to select the boot priority sequence of all available devices.

BIOS SETUP UTILITY

Boot

Boot Device Priority

1st Boot Device [USB:USB Hotplug FD]

Species the boot sequence from the available devices.

A device enclosed in parenthesis has been disabled in the corresponding type menu.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

1st Boot Device

The BIOS will boot the operating system according to the sequence of the drive selected.

81

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Removable Drives

This section is used to select the boot priority sequence of the removable drives.

Boot

BIOS SETUP UTILITY

Removable Drives

1st Drive [USB:USB Hotplug FD]

Species the boot sequence from the available devices.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

82

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

Chipset

This section is used to configure the system based on the specific features of the chipset.

Setting incorrect field values may cause the system to malfunction.

BIOS SETUP UTILITY

Main Advanced

Advanced Chipset Settings

WARNING: Setting wrong values in below sections may cause system

u

to malfunction.

North Bridge Conguration

South Bridge Conguration

Boot Security

Chipset

Exit

Congure North Bridge features.

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

North Bridge Configuration

BIOS SETUP UTILITY

Chipset

North Bridge Chipset Conguration

PCI MMIO Allocation: 4GB to 3072MB

Internal Graphics Mode Select [Enabled, 8MB]

PEG Port Conguration

DVMT Mode Select [DVMT Mode]

DVMT/FIXED Memory [256MB]

Boot Display Device [CRT + LVDS] Flat Panel Type [1024x768 18bit S]

LVDS Backlight Control [100%]

Options

Fixed Mode DVMT Mode

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

DVMT Mode Select

Selects the DVMT mode.

DVMT/Fixed Memory

This field is used to select the graphics memory size used by DVMT/Fixed mode. The options are 128MB, 256MB and Maximum DVMT.

LVDS Backlight Control

Configures the LVDS backlight. The options are 40%, 60%, 80% and 100%.

83

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

South Bridge Configuration

BIOS SETUP UTILITY

Chipset

South Bridge Chipset Conguration

USB Functions [10 USB Ports]

USB 2.0 Controller [Enabled]

HDA Controller [Enabled] SMBUS Controller [Enabled]

Restore on AC Power Loss [Power Off] Power Type [ATX]

PCIE Ports Conguration

Mini PCIE Port1 [Auto]

Mini PCIE Port2 [Auto]

Options

Disabled

2 USB Ports

4 USB Ports 6 USB Ports 8 USB Ports 10 USB Ports

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

USB Functions

Enables or disables the selected USB ports. The options are 2 USB Ports, 4 USB Ports, 6 USB Ports, 8 USB Ports and 10 USB Ports.

USB 2.0 Controller

This field is used to enable or disable the Enhanced Host Controller Interface controller.

SMBUS Controller

Enables or disables the SMBUS controller.

Restore On AC Power Loss

Power Off When power returns after an AC power failure, the system’s

power is off. You must press the Power button to power-on the system.

Power On When power returns after an AC power failure, the system will

automatically power-on.

Last State When power returns after an AC power failure, the system

will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Power Type

Selects the type of power supply. The options are AT and ATX.

Mini PCIE Port1 and Mini PCIE Port2

Configures the Mini PCIE ports.

HDA Controller

Enables or disables the onboard audio.

84

APPC 1220T/1221T/1520T/1521T/1720T/1721T User Manual

Chapter 4: BIOS Setup

PCIPnP

This section is used to configure settings for PCI/PnP devices.

Setting incorrect field values may cause the system to malfunction.

Main

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

Plug & Play O/S [No]

PCI Latency Timer [64]

IRQ3 [Available] IRQ4 [Available] IRQ5 [Available] IRQ6 [Available] IRQ7 [Available] IRQ9 [Available] IRQ10 [Available] IRQ11 [Available] IRQ14 [Available] IRQ15 [Available]

Plug & Play O/S

Yes Configures Plug and Play (PnP) devices that are not required to boot in

a Plug and Play supported operating system.

No The BIOS configures all the devices in the system.

BIOS SETUP UTILITY

Chipset

Boot

Security

NO: let the BIOS congure all the devices in the system. YES: lets the operating system congure Plug and Play (PnP) devices not required for boot if your system has a Plug and Play operating system.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

ExitPCIPnPAdvanced

PCI Latency Timer

This feature is used to select the length of time each PCI device will control the bus before another takes over. The larger the value, the longer the PCI device can retain control of the bus. Since each access to the bus comes with an initial delay before any transaction can be made, low values for the PCI Latency Timer will reduce the effectiveness of the PCI bandwidth while higher values will improve it.

IRQ3 to IRQ15

Available The specified IRQ is available for PCI/PnP devices. Reserved The specified IRQ is reserved for Legacy ISA devices.

85
