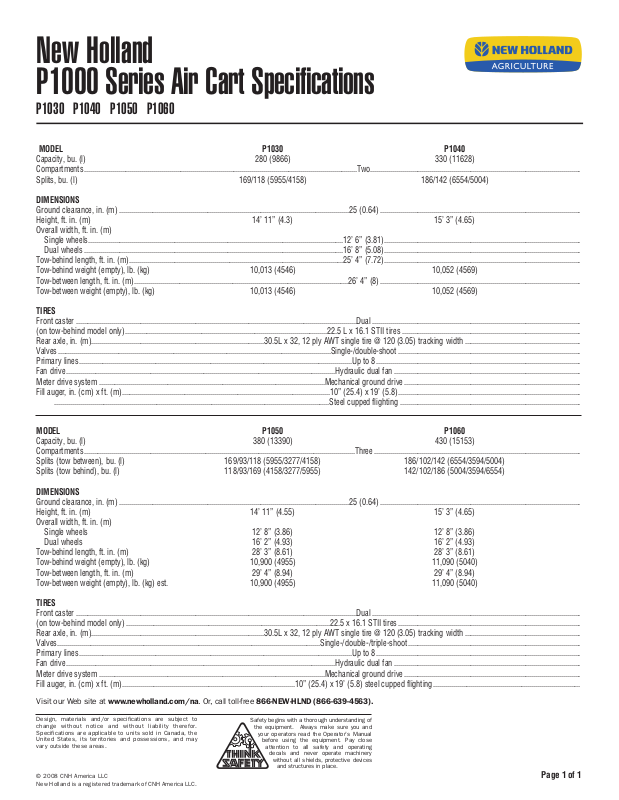

P1000 Series Air Cart Specifications
P1030 P1040 P1050 P1060
MODEL P1030 P1040
apacity, bu. (l) 280 (9866) 330 (11628)
C
Compartments...........................................................................................................................................Two...........................................................................................................
Splits, bu. (l) 169/118 (5955/4158) 186/142 (6554/5004)
DIMENSIONS
Ground clearance, in. (m) .....................................................................................................................25 (0.64) ......................................................................................................
Height, ft. in. (m) 14’ 11” (4.3) 15’ 3” (4.65)
Overall width, ft. in. (m)
Single wheels..................................................................................................................................12’ 6” (3.81)....................................................................................................
Dual wheels ....................................................................................................................................16’ 8” (5.08)....................................................................................................
Tow-behind length, ft. in. (m).............................................................................................................25’ 4” (7.72)....................................................................................................
Tow-behind weight (empty), lb. (kg) 10,013 (4546) 10,052 (4569)
Tow-between length, ft. in. (m).............................................................................................................26’ 4” (8) ......................................................................................................
Tow-between weight (empty), lb. (kg) 10,013 (4546) 10,052 (4569)
TIRES
Front caster ...............................................................................................................................................Dual ..........................................................................................................
(on tow-behind model only).......................................................................................................22.5 L x 16.1 STII tires ...........................................................................................
Rear axle, in. (m)........................................................................................30.5L x 32, 12 ply AWT single tire @ 120 (3.05) tracking width ...........................................................
Valves...........................................................................................................................................Single-/double-shoot.............................................................................................
Primary lines...........................................................................................................................................Up to 8 ........................................................................................................
Fan drive.........................................................................................................................................Hydraulic dual fan ...............................................................................................
Meter drive system ...................................................................................................................Mechanical ground drive..........................................................................................
Fill auger, in. (cm) x ft. (m)..........................................................................................................10” (25.4) x 19’ (5.8).............................................................................................
............................................................................................................................................Steel cupped flighting ............................................................................................
MODEL P1050 P1060
Capacity, bu. (l) 380 (13390) 430 (15153)
Compartments..........................................................................................................................................Three .........................................................................................................
Splits (tow between), bu. (l) 169/93/118 (5955/3277/4158) 186/102/142 (6554/3594/5004)
Splits (tow behind), bu. (l) 118/93/169 (4158/3277/5955) 142/102/186 (5004/3594/6554)
DIMENSIONS
Ground clearance, in. (m) .....................................................................................................................25 (0.64) ......................................................................................................
Height, ft. in. (m) 14’ 11” (4.55) 15’ 3” (4.65)
Overall width, ft. in. (m)
Single wheels 12’ 8” (3.86) 12’ 8” (3.86)
Dual wheels 16’ 2” (4.93) 16’ 2” (4.93)
Tow-behind length, ft. in. (m) 28’ 3” (8.61) 28’ 3” (8.61)
Tow-behind weight (empty), lb. (kg) 10,900 (4955) 11,090 (5040)
Tow-between length, ft. in. (m) 29’ 4” (8.94) 29’ 4” (8.94)
Tow-between weight (empty), lb. (kg) est. 10,900 (4955) 11,090 (5040)
TIRES
Front caster ...............................................................................................................................................Dual ..........................................................................................................
(on tow-behind model only) ........................................................................................................22.5 x 16.1 STII tires.............................................................................................
Rear axle, in. (m)........................................................................................30.5L x 32, 12 ply AWT single tire @ 120 (3.05) tracking width ...........................................................
Valves......................................................................................................................................Single-/double-/triple-shoot........................................................................................
Primary lines...........................................................................................................................................Up to 8 ........................................................................................................
Fan drive.........................................................................................................................................Hydraulic dual fan ...............................................................................................
Meter drive system ...................................................................................................................Mechanical ground drive..........................................................................................
Fill auger, in. (cm) x ft. (m)........................................................................................10” (25.4) x 19’ (5.8) steel cupped flighting...........................................................................
Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).
Design, materials and/o r spe cifications ar e sub ject to
chan ge w ithout no tice and with out liabi lity ther efor.
Specificat ions are applicable to units sold in Canada, the
United Stat es, its territo ries and possessio ns, and may
var y ou tside these areas .
© 2008 CNH America LLC
New Holland is a regis tered trad emark of CNH America LLC.
Safety begins with a thorough understanding of
the equipment. Always make sure you and
your operators read the Operator’s Manual
before using the equipment. Pay close
attention to all safety and operating
decals and never operate machinery
without all shields, protective devices
and structures in place.
