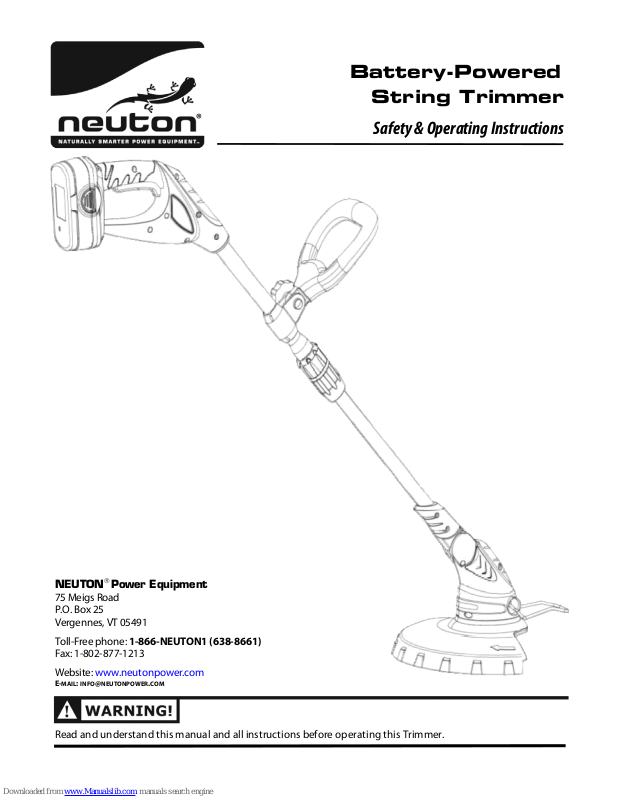

Neuton Battery-Powered String Trimmer Installation Manual

Battery-Powered

String Trimmer

Safety & Operating Instructions

®

NEUTON

Power Equipment

75 Meigs Road
P.O. Box 25
Vergennes, VT 05491

Toll-Free phone: 1-866-NEUTON1 (638-8661)
Fax: [phone]

Website: www.neutonpower.com

E-MAIL: [e-mail]

Read and understand this manual and all instructions before operating this Trimmer.

l

Table of Contents

Chapter 1: Important Safety Considerations.................................................................................................................................................................................2

Chapter 2: Unpacking, Assembling and Charging the Battery Pack on your String Trimmer ....................................................................................4

Chapter 3: Operating Your NEUTON Battery-Powered String Trimmer..............................................................................................................................6

Chapter 4: Troubleshooting Your NEUTON Battery-Powered String Trimmer.................................................................................................................8

Chapter 5: Parts List, Schematic Diagram, and Warranty .........................................................................................................................................................8

Conventions used in this Manual

This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.

This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.

This information is important in the proper use of your tool. Failure to follow this instruction could result in damage to your tool or property.

Tip: This is a helpful hint to guide you in getting the most out of your NEUTON Battery-Powered String Trimmer.

NOTE: This information may be helpful to you in using your Trimmer.

Neuton Inc. reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the purchaser. The
descriptions and specifications contained in this manual were in effect at printing. Equipment described within this manual may be optional.
Some illustrations may not be applicable to your equipment.

NEUTON Battery-Powered String Trimmer Product Specifications

Motor

Input 18V DC

Controls

ON/OFF One (1) Trigger Switch w/Lock-Off Button
Handles Rubber Molded Adjustable/Telescopic Handles

Trimmer Housing

Material Injected Polypropylene
Weight 5.3 lbs. (including Battery)

Trimming

Cutting Width 12 inches
String Speed 8,500 RPM
Line .065", Semi-Automatic Feed
Edging function Yes

Battery Pack

Voltage 18V DC, 1.7 AH
Battery Pack Charger Included with Trimmer. 18V Charger, plugs into standard electrical outlet
Charge Time 5-6 Hours to recharge
Replacement Easy to snap-in and out of Trimmer housing

Chapter 1: Important Safety Considerations

We want you to enjoy years of safe and productive use from your NEUTON Battery-Powered String Trimmer. We do not want you
injured, so please take a few moments to read the following instructions for safely operating your new Tool.
Take a moment to study the following labels and make a note of their location before you operate the Trimmer. Replace damaged or
missing safety and information labels immediately.

WARNING Label near Trimmer Head

2 www.neutonpower.com

Battery Charger WARNING Labe

Battery Pack

WARNING Label

Protecting Yourself and Those around You

• Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the Trimmer and the

activity of trimming. Never assume that children will remain where you last saw them.

• Never allow bystanders, or pets in your work area when operating the Trimmer. The Cutting Cord on the NEUTON Battery-Powered String

Trimmer can throw sticks, small stones, gravel, and bits of debris over long distances.

Stop the tool if anyone enters the area.

• Only allow responsible individuals who have a thorough understanding of these instructions to operate the Trimmer. Never allow children

to operate the tool.

• If you are ever unsure about an action you are about to take, please do not do it.

Dressing Appropriately

• Always wear protective goggles or safety glasses with side shields that are marked to comply with ANSI Z87.1 standard when using your

NEUTON Battery-Powered String Trimmer to protect your eyes from possible thrown debris.

• We recommend the use of ear protectors or earplugs rated for at least 20 DBA to protect your hearing.

• Wear shoes with non-slip treads when using the Trimmer. If you have safety shoes, wear them. Do not use the Trimmer while barefoot or

wearing sandals with exposed toes or heels.

• We recommend wearing long pants and rubber gloves while using this tool.

Preparing to Use Your Trimmer

• Read, understand, and follow all instructions on the Trimmer and in the manual. Be thoroughly familiar with the control and the proper use

of the Trimmer before starting.

• Thoroughly inspect the area where you will be using the Trimmer, and remove all wire, sticks, and any other foreign objects which could

become entangled in or thrown by the Trimmer Cord. Be particularly careful to avoid any wire bent outwardly into the path of the tool, such
as barbs at the base of a chain link fence.

Operating Your Trimmer Safely

• Do not use your NEUTON Battery-Powered String Trimmer for any job other than the intended use.

• Avoid unintentional starting - don't carry the NEUTON Battery-Powered String Trimmer with your finger on the ON/OFF Switch.

• Do not put any part of your body near the Trimming Cord when operating. Keep both hands on the Handles.

• Remove the Battery Pack when inspecting, cleaning, or clearing any jammed material from the Trimmer Guard.

• Never pick up or hold the Trimmer by the Cutting Cord or Guard.

• Be aware that the Cutting Cord will coast to a stop after releasing the ON/OFF Trigger; it does not stop immediately.

• Do not operate the Trimmer in gaseous or explosive atmospheres. Motors in these tools normally spark, and the sparks might ignite fumes.

• Do not operate the Trimmer near electrical wires.

• Never over reach and keep proper footing and balance at all times.

• Do not force the Trimmer - it will do the job better and with less likelihood of a risk of injury when cutting at its own rate.

• Never operate the Trimmer in the rain.

• Watch out for traffic when operating near roadways.

• Operate only in daylight or in an area well lit by artificial light.

• Do not operate the tool when you are tired or under the influence of medication, drugs, or alcohol.

• If the Trimmer vibrates abnormally, stop the motor, remove the Battery Pack, and inspect the tool for any damage. Check for alignment of

moving parts, binding of moving parts, breakage of parts, mounting and any other condition that may affect its operation. Repair the
damage before restarting and operating the Trimmer. Note: Excessive vibration is generally a sign of trouble.

• Do not operate the Trimmer if it does not start normally or stop normally with the ON/OFF Switch.

•

Never use the Trimmer with a damaged or missing Guard.

• If you strike or entangle with an object, stop the Trimmer immediately. Check for damage and have any damage repaired before further

operation is attempted. Do not operate with a broken Hub or Spool.

NEUTON Battery-Powered String Trimmer -

Safety & Operating Instructions

3
