Reference Manual for the RangeMax Wireless Router WPN824

NETGEAR, Inc.

4500 Great America Parkway

Santa Clara, CA 95054 USA

202-10072-01 March 2005

202-10072-01, March 2005

© 2005 by NETGEAR, Inc. All rights reserved. March 2005.

Trademarks

NETGEAR is a trademark of Netgear, Inc.

Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation.

Other brand and product names are registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

EN 55 022 Declaration of Conformance

This is to certify that the RangeMax Wireless Router WPN824 is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22).

Bestätigung des Herstellers/Importeurs

Es wird hiermit bestätigt, daß das RangeMax Wireless Router WPN824 gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung.

Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.

Certificate of the Manufacturer/Importer

It is hereby certified that the RangeMax Wireless Router WPN824 has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions.

Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations.

ii

202-10072-01, March 2005

Voluntary Control Council for Interference (VCCI) Statement

This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas.

When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling.

Customer Support

Refer to the Support Information Card that shipped with your RangeMax Wireless Router WPN824.

World Wide Web

NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer

or Netscape are required.

Product and Publication Details

Model Number:

WPN824

Publication Date:

March 2005

Product Family:

router

Product Name:

RangeMax Wireless Router WPN824

Home or Business Product:

Home

Language:

English

Publication Part Number:

202-10072-01

iii

202-10072-01, March 2005

iv

202-10072-01, March 2005

Contents

Chapter 1

About This Manual

Audience, Scope, Conventions, and Formats ................................................................

1-1

How to Use This Manual ................................................................................................

1-2

How to Print this Manual .................................................................................................

1-3

Chapter 2



Introduction



Key Features ..................................................................................................................

2-1

RangeMax™ Multi-In, Multi-Out (MIMO) Technology ..............................................

2-2

802.11g Wireless Networking ...................................................................................

2-2

A Powerful, True Firewall with Content Filtering ......................................................

2-3

Security ....................................................................................................................

2-3

Autosensing Ethernet Connections with Auto Uplink ...............................................

2-4

Extensive Protocol Support ......................................................................................

2-4

Easy Installation and Management ..........................................................................

2-5

Maintenance and Support ........................................................................................

2-5

NETGEAR Related Products ..........................................................................................

2-6

Package Contents ..........................................................................................................

2-6

The Router’s Front Panel .........................................................................................

2-6

The Router’s Rear Panel .........................................................................................

2-7

A Road Map for ‘How to Get There From Here’ .............................................................

2-8

Chapter 3



Connecting the Router to the Internet



Prepare to Install Your Wireless Router ..........................................................................

3-1

First, Use the Smart Wizard to Configure the Wireless Router ......................................

3-2

Now, Set Up a Computer for Wireless Connectivity .......................................................

3-3

Troubleshooting Tips ......................................................................................................

3-4

Overview of How to Access the Wireless Router ...........................................................

3-5

Contents

v

202-10072-01, March 2005

How to Log On to the Wireless Router After



Configuration Settings Have Been Applied ..............................................................

3-6

How to Bypass the Configuration Assistant .............................................................

3-8

How to Manually Configure Your Internet Connection ....................................................

3-9

Using the Smart Setup Wizard .....................................................................................

3-11

NETGEAR Product Registration, Support, and Documentation ...................................

3-12

Chapter 4



Wireless Configuration



Observe Performance, Placement, and Range Guidelines ............................................

4-1

Implement Appropriate Wireless Security ......................................................................

4-2

Understanding Wireless Settings ...................................................................................

4-4

Information to Gather Before Changing Basic Wireless Settings .............................

4-7

Default Factory Settings ...........................................................................................

4-8

How to Set Up and Test Basic Wireless Connectivity ..............................................

4-8

How to Configure WEP ..........................................................................................

4-10

How to Configure WPA-PSK Wireless Security ............................................................

4-12

How to Restrict Wireless Access by MAC Address ......................................................

4-13

Chapter 5



Content Filtering



Content Filtering Overview .............................................................................................

5-1

Blocking Access to Internet Sites ...................................................................................

5-2

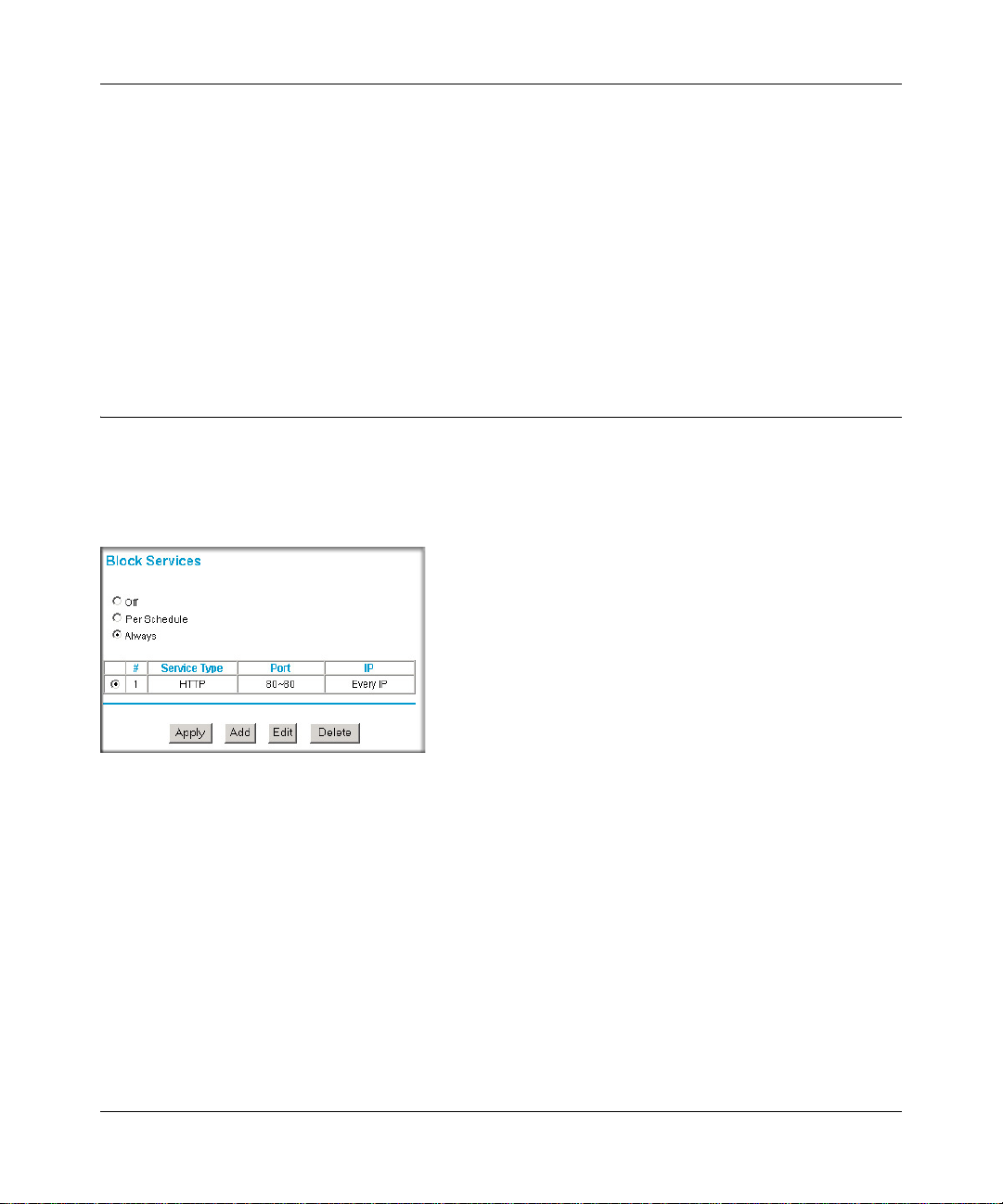

Blocking Access to Internet Services .............................................................................

5-3

Configuring a User Defined Service .........................................................................

5-4

Configuring Services Blocking by IP Address Range ..............................................

5-5

Scheduling When Blocking Will Be Enforced .................................................................

5-5

Viewing Logs of Web Access or Attempted Web Access ...............................................

5-6

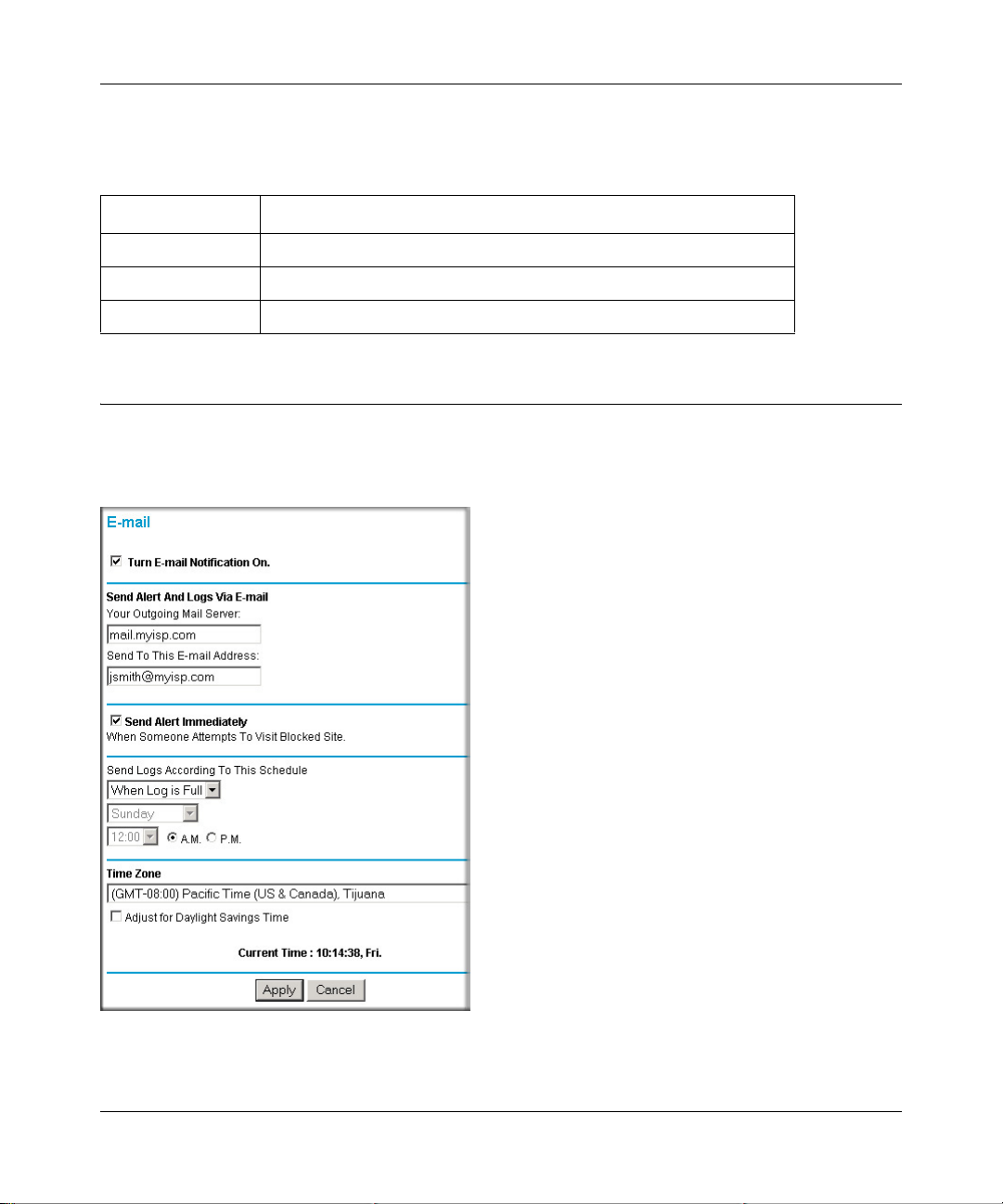

Configuring E-Mail Alert and Web Access Log Notifications ..........................................

5-7

Chapter 6



Maintenance



Viewing Wireless Router Status Information ...................................................................

6-1

Viewing a List of Attached Devices .................................................................................

6-5

Configuration File Management .....................................................................................

6-6

Restoring and Backing Up the Configuration ...........................................................

6-6

Erasing the Configuration .........................................................................................

6-7

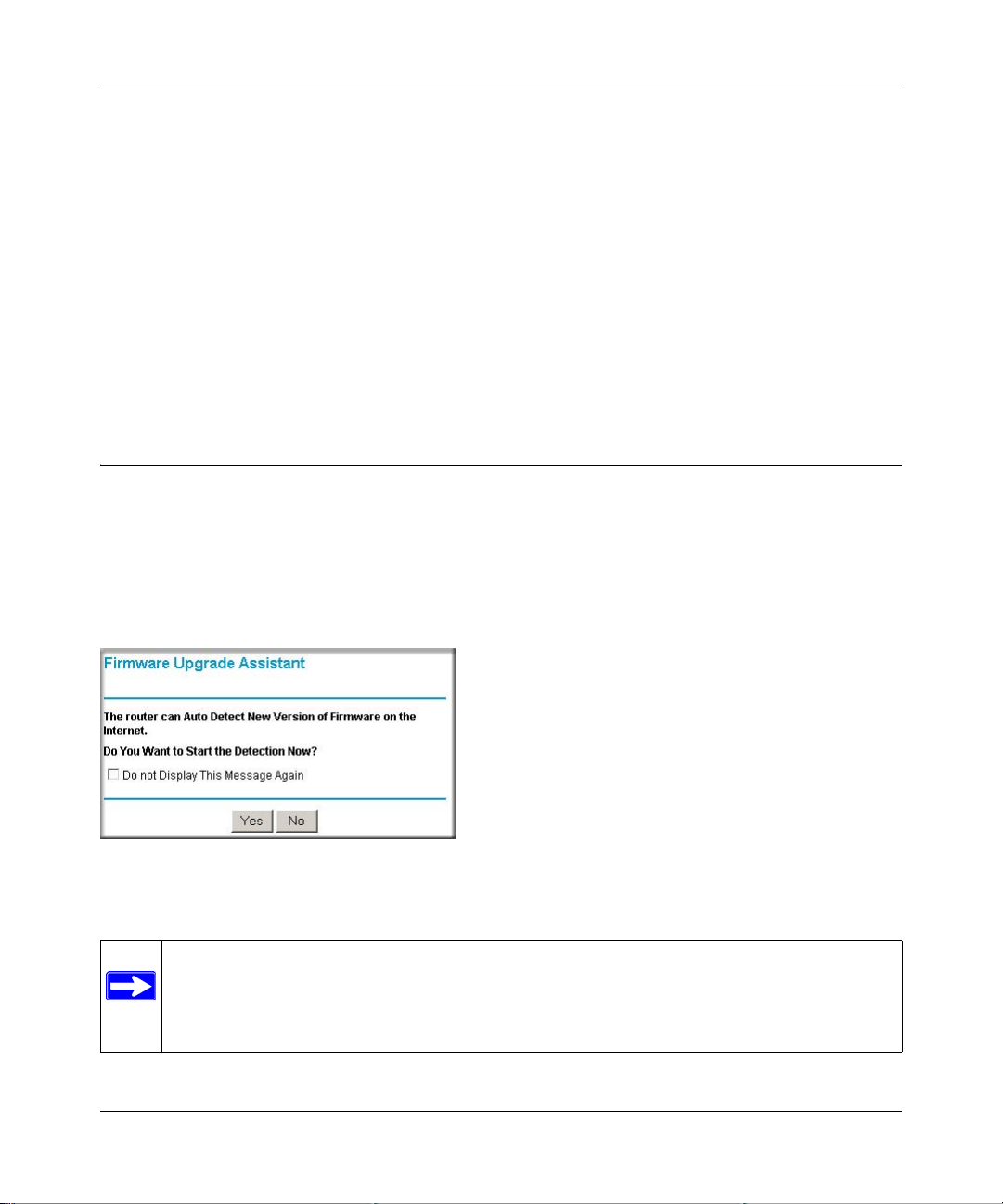

Upgrading the Router Software ......................................................................................

6-7

Changing the Administrator Password ...........................................................................

6-9

vi

Contents

202-10072-01, March 2005

Chapter 7

Troubleshooting

Basic Functioning ...........................................................................................................

7-1

Power Light Not On ..................................................................................................

7-1

Lights Never Turn Off ...............................................................................................

7-2

LAN or WAN Port Lights Not On ..............................................................................

7-2

Troubleshooting the Web Configuration Interface ..........................................................

7-3

Troubleshooting the ISP Connection ..............................................................................

7-4

Troubleshooting a TCP/IP Network Using a Ping Utility .................................................

7-5

Testing the LAN Path to Your Router .......................................................................

7-5

Testing the Path from Your Computer to a Remote Device .....................................

7-6

Restoring the Default Configuration and Password ........................................................

7-7

Problems with Date and Time .........................................................................................

7-8

Chapter 8



Advanced Configuration of the Router



Configuring Advanced Wireless Settings .......................................................................

8-1

Wireless Card Access List .......................................................................................

8-3

Wireless Card Access Setup ....................................................................................

8-4

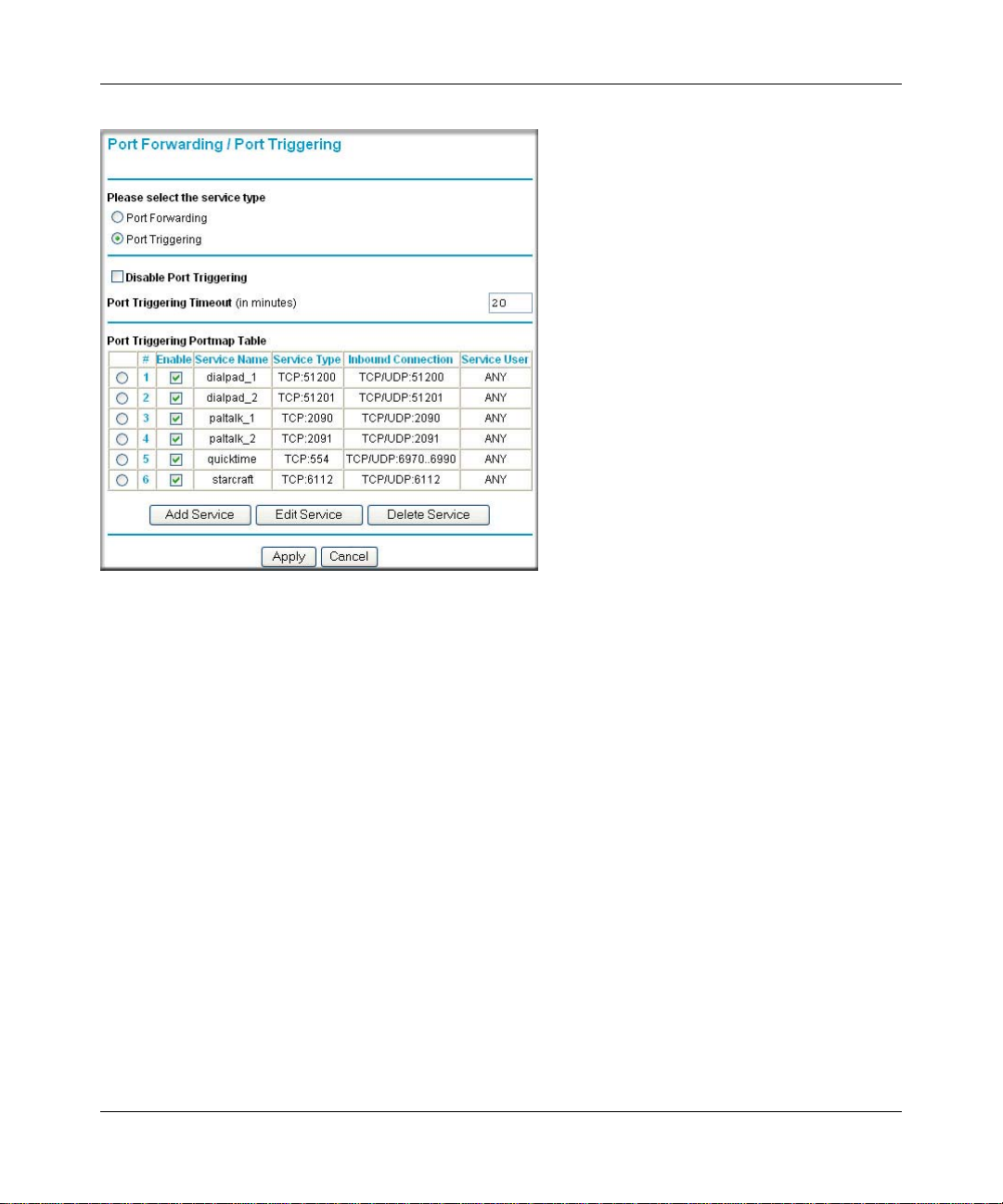

Configuring Port Triggering and Port Forwarding ...........................................................

8-5

Configuring Port Forwarding to Local Servers ................................................................

8-8

Adding a Custom Service .........................................................................................

8-9

Editing or Deleting a Port Forwarding Entry ...........................................................

8-10

Local Web and FTP Server Example .....................................................................

8-10

Multiple Computers for Half Life, KALI or Quake III Example ................................

8-10

Configuring the WAN Setup Options ............................................................................

8-11

Connect Automatically, as Required ......................................................................

8-11

Disabling the SPI Firewall ......................................................................................

8-12

Setting Up a Default DMZ Server ...........................................................................

8-12

Responding to Ping on Internet WAN Port .............................................................

8-12

Setting the MTU Size .............................................................................................

8-13

Using the LAN IP Setup Options ..................................................................................

8-13

Configuring LAN TCP/IP Setup Parameters ..........................................................

8-14

Using the Router as a DHCP server ......................................................................

8-15

Using Address Reservation ....................................................................................

8-16

Using a Dynamic DNS Service .....................................................................................

8-16

Contents

vii

202-10072-01, March 2005

Configuring Static Routes .............................................................................................

8-17

Enabling Remote Management Access .......................................................................

8-19

Using Universal Plug and Play (UPnP) ........................................................................

8-20

Appendix A



Technical Specifications



Appendix B



Network, Routing, Firewall, and Basics



Related Publications ......................................................................................................

B-1

Basic Router Concepts ..................................................................................................

B-1

What is a Router? ...................................................................................................

B-1

Routing Information Protocol ...................................................................................

B-2

IP Addresses and the Internet .......................................................................................

B-2

Netmask ..................................................................................................................

B-4

Subnet Addressing ..................................................................................................

B-4

Private IP Addresses ...............................................................................................

B-7

Single IP Address Operation Using NAT .......................................................................

B-7

MAC Addresses and Address Resolution Protocol .................................................

B-8

Related Documents .................................................................................................

B-9

Domain Name Server ..............................................................................................

B-9

IP Configuration by DHCP ...........................................................................................

B-10

Internet Security and Firewalls ....................................................................................

B-10

What is a Firewall? ................................................................................................

B-10

Stateful Packet Inspection ...............................................................................

B-11

Denial of Service Attack ..................................................................................

B-11

Ethernet Cabling ...........................................................................................................

B-11

Category 5 Cable Quality ......................................................................................

B-12

Inside Twisted Pair Cables ....................................................................................

B-13

Uplink Switches, Crossover Cables, and MDI/MDIX Switching ............................

B-14

Appendix C



Preparing Your Network



What You Need To Use a Router with a Broadband Modem .........................................

C-1

Cabling and Computer Hardware ............................................................................

C-1

Computer Network Configuration Requirements ....................................................

C-1

Internet Configuration Requirements ......................................................................

C-2

Where Do I Get the Internet Configuration Parameters? ........................................

C-2

viii

Contents

202-10072-01, March 2005

Record Your Internet Connection Information .........................................................

C-3

Preparing Your Computers for TCP/IP Networking .......................................................

C-3

Configuring Windows 95, 98, and Me for TCP/IP Networking .......................................

C-4

Install or Verify Windows Networking Components .................................................

C-4

Enabling DHCP to Automatically Configure TCP/IP Settings



in Windows 95B, 98, and Me ..................................................................................

C-6

Selecting Windows’ Internet Access Method ..........................................................

C-8

Verifying TCP/IP Properties ....................................................................................

C-8

Configuring Windows NT4, 2000 or XP for IP Networking ............................................

C-9

Install or Verify Windows Networking Components .................................................

C-9

DHCP Configuration of TCP/IP in Windows XP, 2000, or NT4 .............................

C-10

DHCP Configuration of TCP/IP in Windows XP ...................................................

C-10

DHCP Configuration of TCP/IP in Windows 2000 ................................................

C-12

DHCP Configuration of TCP/IP in Windows NT4 ..................................................

C-15

Verifying TCP/IP Properties for Windows XP, 2000, and NT4 ..............................

C-17

Configuring the Macintosh for TCP/IP Networking ......................................................

C-18

MacOS 8.6 or 9.x ..................................................................................................

C-18

MacOS X ...............................................................................................................

C-18

Verifying TCP/IP Properties for Macintosh Computers .........................................

C-19

Verifying the Readiness of Your Internet Account .......................................................

C-20

Are Login Protocols Used? ...................................................................................

C-20

What Is Your Configuration Information? ..............................................................

C-20

Obtaining ISP Configuration Information for Windows Computers .......................

C-21

Obtaining ISP Configuration Information for Macintosh Computers .....................

C-22

Restarting the Network ................................................................................................

C-23

Appendix D



Wireless Networking Basics



Wireless Networking Overview ......................................................................................

D-1

Infrastructure Mode .................................................................................................

D-1

Ad Hoc Mode (Peer-to-Peer Workgroup) ................................................................

D-2

Network Name: Extended Service Set Identification (ESSID) ................................

D-2

Authentication and WEP Data Encryption .....................................................................

D-2

802.11 Authentication ..............................................................................................

D-3

Open System Authentication ...................................................................................

D-3

Shared Key Authentication ......................................................................................

D-4

Overview of WEP Parameters ................................................................................

D-5

Contents

ix

202-10072-01, March 2005

Key Size ..................................................................................................................

D-6

WEP Configuration Options ....................................................................................

D-7

Wireless Channels .........................................................................................................

D-7

WPA and WPA2 Wireless Security ................................................................................

D-8

How Does WPA Compare to WEP? ........................................................................

D-9

How Does WPA Compare to WPA2 (IEEE 802.11i)? ............................................

D-10

What are the Key Features of WPA and WPA2 Security? ....................................

D-10

WPA/WPA2 Authentication: Enterprise-level User



Authentication via 802.1x/EAP and RADIUS ..................................................

D-12

WPA/WPA2 Data Encryption Key Management .............................................

D-14

Is WPA/WPA2 Perfect? .........................................................................................

D-16

Product Support for WPA/WPA2 ...........................................................................

D-16

Supporting a Mixture of WPA, WPA2, and WEP



Wireless Clients is Discouraged .....................................................................

D-16

Changes to Wireless Access Points ...............................................................

D-17

Changes to Wireless Network Adapters .........................................................

D-17

Changes to Wireless Client Programs ............................................................

D-18

Glossary

x

Contents

202-10072-01, March 2005

Chapter 1

About This Manual

This chapter describes the intended audience, scope, conventions, and formats of this manual.

Audience, Scope, Conventions, and Formats

This reference manual assumes that the reader has basic to intermediate computer and Internet skills. However, basic computer network, Internet, firewall, and VPN technologies tutorial information is provided in the Appendices and on the Netgear website.

This guide uses the following typographical conventions:

Table 1-1.

Typographical Conventions







italics



Emphasis, books, CDs, URL names







bold



User input







fixed



Screen text, file and server names, extensions, commands, IP addresses

This guide uses the following formats to highlight special messages:

Note: This format is used to highlight information of importance or special interest.

This manual is written for the WPN824 router according to these specifications:

Table 1-2.

Manual Scope









Product Version



RangeMax Wireless Router WPN824





Manual Publication Date

March 2005







Note: Product updates are available on the NETGEAR, Inc. Web site at

http://kbserver.netgear.com/products/WPN824.asp.

About This Manual

1-1

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

How to Use This Manual

The HTML version of this manual includes the following:

Buttons, and , for browsing forwards or backwards through the manual one page at a time

A button that displays the table of contents and an button. Double-click on a link in the table of contents or index to navigate directly to where the topic is described in the manual.

A button to access the full NETGEAR, Inc. online knowledge base for the product model.

Links to PDF versions of the full manual and individual chapters.

1-2

About This Manual

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

How to Print this Manual

To print this manual you can choose one of the following several options, according to your needs.

Printing a Page in the HTML View.

Each page in the HTML version of the manual is dedicated to a major topic. Use the Print button on the browser toolbar to print the page contents.

Printing a Chapter.

Use the PDF of This Chapter link at the top left of any page.

Click the PDF of This Chapter link at the top right of any page in the chapter you want to print. The PDF version of the chapter you were viewing opens in a browser window.

Note: Your computer must have the free Adobe Acrobat reader installed in order to view and print PDF files. The Acrobat reader is available on the Adobe Web site at http://www.adobe.com.

Click the print icon in the upper left of the window.

Tip: If your printer supports printing two pages on a single sheet of paper, you can save paper and printer ink by selecting this feature.

Printing the Full Manual.

Use the Complete PDF Manual link at the top left of any page.

Click the Complete PDF Manual link at the top left of any page in the manual. The PDF version of the complete manual opens in a browser window.

Click the print icon in the upper left of the window.

Tip: If your printer supports printing two pages on a single sheet of paper, you can save paper and printer ink by selecting this feature.

About This Manual

1-3

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

1-4

About This Manual

202-10072-01, March 2005

Chapter 2

Introduction

Congratulations on your purchase of the NETGEAR® RangeMax Wireless Router WPN824. The WPN824 router provides connection for multiple computers to the Internet through an external broadband access device (such as a cable modem or DSL modem) that is normally intended for use by a single computer. This chapter describes the features of the NETGEAR RangeMax Wireless Router WPN824.

Key Features

Note: This manual provides information on the complete features as of the date of publication. Earlier versions of this product may not have all the features presented in this manual. Go to http://kbserver.netgear.com/products/WPN824.asp where you will find product firmware updates for your WPN824.

The RangeMax Wireless Router WPN824 with 4-port switch connects your local area network (LAN) to the Internet through an external access device such as a cable modem or DSL modem.

The WPN824 router provides you with multiple Web content filtering options, plus browsing activity reporting and instant alerts via e-mail. Parents and network administrators can establish restricted access policies based on time-of-day, Web site addresses and address keywords, and share high-speed cable/DSL Internet access for up to 253 computers. In addition to the Network Address Translation (NAT) feature, the built-in firewall protects you from hackers.

With minimum setup, you can install and use the router within minutes.

The WPN824 router provides the following features:

RangeMax™ Multi-In, Multi-Out (MIMO) technology

802.11g wireless networking, with the ability to operate in 802.11g-only, 802.11-turbo-g-only, or 802.11b+g modes.

Easy, Web-based setup for installation and management.

Content Filtering and Site Blocking Security.

Introduction

2-1

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Built in 4-port 10/100 Mbps Switch.

Ethernet connection to a wide area network (WAN) device, such as a cable modem or DSL modem.

Extensive Protocol Support.

Login capability.

Front panel LEDs for easy monitoring of status and activity.

Flash memory for firmware upgrades.

RangeMax™ Multi-In, Multi-Out (MIMO) Technology

Netgear’s RangeMax Multi-In, Multi-Out (MIMO) technology provides ten times more coverage than standard 802.11g alone by eliminating “dead spots” in your area of coverage where you use your wireless computers. Your whole house or office suite now becomes a “hot spot” without requiring any range extenders, repeaters, or external antennas. RangeMax maintains your high speed throughout your home, not just when you are close to your router.

RangeMax is an advanced Smart MIMO (Multi-In, Multi-Out) technology that uses seven internal antennas. RangeMax constantly surveys your home environment for physical barriers and interference and adjusts the wireless signal to compensate for these performance blockers.

For example, if you carry your laptop from the family room to the bedroom, RangeMax automatically senses the change and selects from over 100 possible antenna configurations to deliver you the fastest, clearest connection so that everyone can enjoy consistently high-speed connections, everywhere in your house with no drop-outs and no dead spots.

RangeMax is also 100% compatible with your existing 802.11b/g products (i.e., 802.11b, 802.11g, Centrino, and SuperG™ wireless clients) and boosts their range and speed by up to 50%.

802.11g Wireless Networking

The WPN824 router includes an 802.11g wireless access point, providing continuous, high-speed 108 Mbps access between your wireless and Ethernet devices. The access point provides:

802.11g wireless networking at up to 108 Mbps.

802.11g wireless networking, with the ability to operate in 802.11g-only, 802.11b-only, or 802.11g and b modes, providing backwards compatibility with 802.11b devices or dedicating the wireless network to the higher bandwidth 802.11g devices.

64-bit and 128-bit WEP encryption security.

WEP keys can be generated manually or by passphrase.

2-2

Introduction

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

WPA-PSK support. Support for Wi-Fi Protected Access (WPA) data encryption which provides strong data encryption and authentication based on a pre-shared key.

Wireless access can be restricted by MAC address.

Wireless network name broadcast can be turned off so that only devices that have the network name (SSID) can connect.

A Powerful, True Firewall with Content Filtering

Unlike simple Internet sharing NAT routers, the WPN824 is a true firewall, using stateful packet inspection to defend against hacker attacks. Its firewall features include:

Denial of Service (DoS) protection.

Automatically detects and thwarts DoS attacks such as Ping of Death, SYN Flood, LAND Attack, and IP Spoofing.

Blocks unwanted traffic from the Internet to your LAN.

Blocks access from your LAN to Internet locations or services that you specify as off-limits.

Logs security incidents.

The WPN824 will log security events such as blocked incoming traffic, port scans, attacks, and administrator logins. You can configure the router to E-mail the log to you at specified intervals. You can also configure the router to send immediate alert messages to your E-mail address or E-mail pager whenever a significant event occurs.

The WPN824 prevents objectionable content from reaching your computers. The router allows you to control access to Internet content by screening for keywords within Web addresses. You can configure the router to log and report attempts to access objectionable Internet sites.

Security

The WPN824 router is equipped with several features designed to maintain security, as described in this section.

Computers Hidden by NAT

NAT opens a temporary path to the Internet for requests originating from the local network. Requests originating from outside the LAN are discarded, preventing users outside the LAN from finding and directly accessing the computers on the LAN.

Introduction

2-3

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Port Forwarding with NAT

Although NAT prevents Internet locations from directly accessing the computers on the LAN, the router allows you to direct incoming traffic to specific computers based on the service port number of the incoming request, or to one designated “DMZ” host computer. You can specify forwarding of single ports or ranges of ports.

Autosensing Ethernet Connections with Auto Uplink

With its internal 4-port 10/100 switch, the WPN824 can connect to either a 10 Mbps standard Ethernet network or a 100 Mbps Fast Ethernet network. Both the LAN and WAN interfaces are autosensing and capable of full-duplex or half-duplex operation.

The router incorporates Auto UplinkTM technology. Each Ethernet port will automatically sense whether the Ethernet cable plugged into the port should have a ‘normal’ connection such as to a computer or an ‘uplink’ connection such as to a switch or hub. That port will then configure itself to the correct configuration. This feature also eliminates the need to worry about crossover cables, as Auto Uplink will accommodate either type of cable to make the right connection.

Extensive Protocol Support

The WPN824 router supports the Transmission Control Protocol/Internet Protocol

(TCP/IP) and Routing Information Protocol (RIP). For further information about TCP/IP, refer to Appendix B, “Network, Routing, Firewall, and Basics.”

IP Address Sharing by NAT

The WPN824 router allows several networked computers to share an Internet account using only a single IP address, which may be statically or dynamically assigned by your Internet service provider (ISP). This technique, known as NAT, allows the use of an inexpensive single-user ISP account.

Automatic Configuration of Attached computers by DHCP

The WPN824 router dynamically assigns network configuration information, including IP, gateway, and domain name server (DNS) addresses, to attached computers on the LAN using the Dynamic Host Configuration Protocol (DHCP). This feature greatly simplifies configuration of computers on your local network.

DNS Proxy

When DHCP is enabled and no DNS addresses are specified, the router provides its own address as a DNS server to the attached computers. The router obtains actual DNS addresses from the ISP during connection setup and forwards DNS requests from the LAN.

2-4

Introduction

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

PPP over Ethernet (PPPoE)

PPPoE is a protocol for connecting remote hosts to the Internet over a DSL connection by simulating a dial-up connection. This feature eliminates the need to run a login program such as Entersys or WinPOET on your computer.

Easy Installation and Management

You can install, configure, and operate the RangeMax Wireless Router WPN824 within minutes after connecting it to the network. The following features simplify installation and management tasks:

Browser-based management

Browser-based configuration allows you to easily configure your router from almost any type of personal computer, such as Windows, Macintosh, or Linux. A user-friendly Setup Wizard is provided and online help documentation is built into the browser-based Web Management Interface.

Smart Wizard

The WPN824 router Smart Wizard automatically senses the type of Internet connection, asking you only for the information required for your type of ISP account.

Firmware Update

The WPN824 router can be updated if a newer version of firmware is available. This lets you take advantage of product enhancements for your WPN824 as soon as they become available.

Visual monitoring

The WPN824 router’s front panel LEDs provide an easy way to monitor its status and activity.

Maintenance and Support

NETGEAR offers the following features to help you maximize your use of the WPN824 router:

Flash memory for firmware upgrades.

Free technical support seven days a week, twenty-four hours a day, for 90 days from the date of purchase.

Introduction

2-5

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

NETGEAR Related Products

NETGEAR products related to the RangeMax Wireless Router WPN824 are as follows:

RangeMax Wireless USB 2.0 Adapter (WPN111)

RangeMax Wireless PCI Adapter (WPN311)

RangeMax Wireless PC Card (WPN511)

Package Contents

The product package should contain the following items:

RangeMax Wireless Router WPN824.

AC power adapter.

Vertical stand.

Category 5 (CAT5) Ethernet cable.

Keep the

repair.



Test

Wireless



LAN Port 4





Introduction

Reference Manual for the RangeMax Wireless Router WPN824

You can use the status lights to verify connections. Viewed from left to right, the table below describes the lights on the front panel of the router.

Table 2-1.

Status Light Descriptions







Label

Activity

Description







Power

On Green Solid

Power is supplied and the router it has passed its diagnostic test.



Off

Power is not supplied to the router.

Test

On

The unit is performing the power on self test diagnostic.



Off

The unit successfully completed the power on self test diagnostic.

Wireless

On

The Wireless port is initialized and the wireless feature is enabled.



Off

The wireless feature is turned off or there is a problem.

Internet

On

The Internet port has detected a link with an attached device.



Blink

Data is being transmitted or received by the Internet port.

LAN

On (Green)

The LAN (local area network) port has detected link with a 100 Mbps



Blink (Green)

device.



Data is being transmitted or received at 100 Mbps.



On (Amber)

The Local port has detected link with a 10 Mbps device.



Blink (Amber)

Data is being transmitted or received at 10 Mbps.



Off

No link is detected on this port.

The Router’s Rear Panel

The rear panel of the WPN824 router contains the items listed below.

LEDs to show which

antenna is on



4

3

2

1

Reset













Seven integrated





















Button











antennas inside













Power

4 LAN Ports



Internet Port



Figure 1-2: WPN824 Rear Panel





















Introduction









2-7

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Viewed from left to right, the rear panel contains the following features:

AC power adapter outlet for 12 V DC @ 1A output, 22W maximum

Four Local (LAN) 10/100 Mbps Ethernet ports for connecting the router to the local computers

Internet (WAN) Ethernet port for connecting the router to a cable or DSL modem

Factory Default Reset push button for Restoring the Default Configuration and Password

A Road Map for ‘How to Get There From Here’

The introduction and adoption of any new technology can be a difficult process. Broadband Internet service is considered so useful that more and more people want to set up networks in their home to share a broadband connection. Wireless technology has removed one of the barriers to networking—running wires. It allows more people to try networking while at the same time exposes them to the inherent complexity of networking. General networking concepts, setup, and maintenance can be difficult to understand. In addition, wireless technology adds issues, such as range, interference, signal quality, and security to the picture.

To help overcome potential barriers to successfully using home networks, the table below identifies how to accomplish such things as connecting to a wireless network, assuring appropriate security measures are taken, browsing the Internet through your wireless connection, exchanging files with other computers and using printers in the combined wireless and wired network.

Table 2-1.

A Road Map for How to Get There From Here















If I Want To?

What Do I Do?

What’s Needed?

How Do I?















Set up a

1.

Set up the

• A wireless network

To set up the WPN824, see



wireless



RangeMax

• A computer within the

Chapter 3, “Connecting the



network



Wireless Router

operating range of the

Router to the Internet” and follow







WPN824

wireless network. For

the instructions provided.







guidelines about the range







2.

Identify the wireless







of wireless networks, see

To learn about wireless







network name







“Observe Performance,

networking technology, see







(SSID) and, if used,







Placement, and Range

Appendix 4, “Wireless







the wireless







Guidelines” on page 4-1”.

Configuration” for a general







security settings.









introduction.





3. Set up the wireless









computers with the











settings from step











1.































2-8







Introduction

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Table 2-1.

A Road Map for How to Get There From Here (continued)





















If I Want To?

What Do I Do?

What’s Needed?

How Do I?















Protect my

1.

Assure that the

• A wireless network WEP or

To learn about wireless



wireless



wireless network

WPA security enabled.

networking security, see



connection



has security

• Wireless networking

“Wireless Networking Basics” on



from snooping,



features enabled.

equipment that supports

page D-1.



hacking, or







2.

Configure my

WEP or WPA, such as the





information





WPN824.







WPN824 with the

To use WEP security features,



theft.













security settings of



see “Implement Appropriate















the wireless



Wireless Security” on page 4-2







network.



and configure your WPN824





3.

Use Windows



accordingly.







security features.











Note: Secure Internet sites such as banks and online merchants use encryption security built into browsers



like Internet Explorer and Netscape. Any wireless networking security features you might implement are in



addition to those already in place on secure Internet sites.

















Share

1.

Use the Windows

• Windows computers (wired

Windows Domain settings are



Windows PC



Printers and Fax

and wireless) I am using to

usually managed by corporate



files and



features to locate

connect to the network

computer support groups.



printers at



available printers in

need to be configured with

Windows Workgroup settings



home in a



the combined

the Windows Client and



combined



File and Print Sharing.

are commonly managed by





wireless and wired



wireless and



• Windows computers (wired

individuals who want to set up





network in your



wired network.



and wireless) I am using to

small networks in their homes, or





home.







connect to the network

small offices.





2.

Use the Windows





need to be configured with





Note: For



Add a Printer

For assistance with setting up





the same Windows





wizard to add



sharing files and







Workgroup or Domain

Windows networking, refer to the





access to a network



printers on other







settings as the other

PC Networking Tutorial on the





printer from the PC



types of







Windows computers in the

NETGEAR RangeMax Wireless





you are using to



computers like







combined wireless and

Router WPN824 Resource CD





wirelessly connect



Macintosh or







wired network.

and the Help information





to the network.



Linux, refer to







• Any Windows networking

provided in the Windows system



3.

From the File menu



the product





of an application

security access rights such

you are using.



documentation







as login user name/







such as Microsoft





that came with



For assistance with setting up





password that have been





Word, use the Print



those







assigned in the Windows

printers in Windows, refer to the





Setup feature to



computers.







network must be provided

Help and Support information





direct your print













when Windows prompts for

that comes with the version of







output to the printer







such information.

the Windows operating systems







in the network.







• If so-called Windows ‘peer’

you are using.

















networking is being used,











the printer needs to be











enabled for sharing.

















Introduction







2-9

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

2-10

Introduction

202-10072-01, March 2005

Chapter 3

Connecting the Router to the Internet

This chapter describes how to set up the router on your local area network (LAN) and connect to the Internet. You will find out how to configure your RangeMax Wireless Router WPN824 for Internet access using the Setup Wizard, or how to manually configure your Internet connection.

Follow these instructions to set up your router.

Prepare to Install Your Wireless Router

Observe the wireless placement and range guidelines in “Observe Performance, Placement, and Range Guidelines” on page 4-1.

For Cable Modem Service: When you perform the wireless router setup steps be sure to use the computer you first registered with your cable ISP.

For DSL Service: You may need information such as the DSL login name/e-mail address and password in order to complete the wireless router setup.

Before proceeding with the wireless router installation, familiarize yourself with the contents of the NETGEAR RangeMax Wireless Router WPN824 Resource CD, especially this manual and the animated tutorials for configuring networking on PCs.

Connecting the Router to the Internet

3-1

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

First, Use the Smart Wizard to Configure the Wireless Router

Insert the Resource CD in the CD drive of your PC. The following screen appears. Click Setup and follow the prompts.

Figure 3-1: NETGEAR Smart Wizard installation assistant

3-2

Connecting the Router to the Internet

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Now, Set Up a Computer for Wireless Connectivity

You are now connected to the Internet and the wireless feature of the wireless router is enabled! Next, configure your wireless computer.

1. CONFIGURE THE COMPUTERS WIRELESS ADAPTER SETTINGS

:LUHOHVV$GDSWHU LQ D 1RWHERRN &RPSXWHU

Figure 3-2: Configure wireless computer

NETGEAR, Inc. wireless adapters display a list of available wireless networks, and, when wireless security is disabled, you simply choose yours from the list and connect.

For a non-NETGEAR wireless adapter, configure it to match your settings exactly. If you changed the default Network Name (SSID), be sure to use the correct Network Name (SSID) you set in the wireless router.

WIRELESS FEATURE

DEFAULT SETTING

Network Name (SSID)

NETGEAR





WEP Security

Disabled





Warning: The Network Name (SSID) is case sensitive. Typing nETgear will not work.

2. VERIFY WIRELESS CONNECTIVITY

Verify wireless connectivity. Connect to the Internet or log in to the wireless router from a computer with a wireless adapter. For wireless connectivity problems, see “Troubleshooting Tips” on page 3-4.

You are now wirelessly connected to the Internet! Implement wireless security according to the instructions in “Implement Appropriate Wireless Security” on page 4-2.

Connecting the Router to the Internet

3-3

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Troubleshooting Tips

Here are some tips for correcting simple problems you may have.

Be sure to restart your network in this sequence:

1) Turn off the modem, wireless router, and computer; 2) Turn on the modem, wait two minutes; 3) Turn on the wireless router and wait 1 minute; 4) Turn on the computer.

Make sure the Ethernet cables are securely plugged in.

The Internet status light on the wireless router will be lit if the Ethernet cable to the wireless router from the modem is plugged in securely and the modem and wireless router are turned on.

For each powered on computer connected to the wireless router with a securely plugged in Ethernet cable, the corresponding wireless router LAN port status light will be lit. The label on the bottom of the wireless router identifies the number of each LAN port.

Make sure the wireless settings in the computer and router match exactly.

The Wireless Network Name (SSID) and WEP settings of the router and wireless computer must match exactly.

Make sure the network settings of the computer are correct.

LAN and wirelessly connected computers must be configured to obtain an IP address automatically via DHCP. Please see Appendix C, “Preparing Your Network” or the animated tutorials on the CD for help with this.

Some cable modem ISPs require you to use the MAC address of the computer registered on the account. If so, in the Router MAC Address section of the Basic Settings menu, select “Use this Computer’s MAC Address.” The router will then capture and use the MAC address of the computer that you are now using. You must be using the computer that is registered with the ISP. Click Apply to save your settings. Restart the network in the correct sequence.

Check the router status lights to verify correct router operation.

If the Power light does not turn solid green within 2 minutes after turning the router on, reset the router according to the instructions in “Restoring the Default Configuration and Password” on page 7-7.

If the Wireless light does not come on, verify that the wireless feature is turned on according to the instructions in “Understanding Wireless Settings” on page 4-4.

3-4

Connecting the Router to the Internet

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Overview of How to Access the Wireless Router

The table below describes how you access the wireless router, depending on the state of the wireless router.

Table 3-1.

Ways to access the router









Router State



Access Options

Description

Factory Default



Automatic Access via

Any time a browser is opened on any computer connected to





the Smart Wizard

the wireless router, the wireless router will

Note: The wireless

Configuration

automatically connect to that browser and display the

Assistant

Configuration Assistant welcome page.

router is supplied



There is no need to enter the wireless router URL in the

in the factory





default state. Also,



browser, or provide the login user name and password.

the factory default







Manually enter a URL

You can bypass the Smart Wizard Configuration Assistant

state is restored





to bypass the Smart

feature by typing

when you use the

Wizard Configuration

http://www.routerlogin.net/basicsetting.htm

factory reset button.

Assistant

in the browser address bar and clicking Enter. You will not be

See “Restoring the



prompted for a user name or password.

Default













Configuration and



This will enable you to manually configure the wireless router

Password” on page





even when it is in the factory default state. When manually

7-7 for more









configuring the router, you must complete the configuration

information on this





by clicking Apply when finished entering your settings. If you

feature.









do not do so, a browser on any PC connected to the router













will automatically display the router's Configuration Assistant







Welcome page rather than the browser’s home page.

Configuration



Enter the standard

Connect to the wireless router by typing either of these URLs

Settings Have



URL to access the

in the address field of your browser, then click Enter:

Been Applied



wireless router

http://www.routerlogin.net







http://www.routerlogin.com







The wireless router will prompt you to enter the user name of







admin and the password. The default password is password.













Enter the IP address

Connect to the wireless router by typing the IP address of the





of the wireless

wireless router in the address field of your browser, then click





router to access the

Enter. 192.168.1.1 is the default IP address of the wireless





wireless router.

router. The wireless router will prompt you to enter the user







name of admin and the password. The default password is







password.











Connecting the Router to the Internet

3-5

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

How to Log On to the Wireless Router After

Configuration Settings Have Been Applied

1.Connect to the wireless router by typing http://www.routerlogin.net in the address field of your browser, then click Enter.

Figure 3-3: Login address

2.For security reasons, the router has its own user name and password. When prompted, enter admin for the router user name and password for the router password, both in lower case letters. To change the password, see “Changing the Administrator Password” on page 6-9.

Note: The router user name and password are not the same as any user name or password you may use to log in to your Internet connection.

Figure 3-4: Login window

Once you have entered your user name and password, your Web browser should find the WPN824 router and display the home page as shown in below.

3-6

Connecting the Router to the Internet

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Figure 3-5: Login result: WPN824 home page

The browser will then display the WPN824 settings home page.

When the wireless router is connected to the Internet, click the Knowledge Base or the Documentation link under the Web Support menu to view support information or the documentation for the wireless router.

Connecting the Router to the Internet

3-7

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

If you do not click Logout, the wireless router will wait 5 minutes after there is no activity before it automatically logs you out.

How to Bypass the Configuration Assistant

1.When the wireless router is in the factory default state, type http://www.routerlogin.net/basicsetting.htm in the address field of your browser, then click

Enter.

When the wireless router is in the factory default state, a user name and password are not required.

2.The browser will then display the WPN824 settings home page shown in “Login result: WPN824 home page” on page 3-7.

If you do not click Logout, the wireless router will wait 5 minutes after there is no activity before it automatically logs you out.

3-8

Connecting the Router to the Internet

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

How to Manually Configure Your Internet Connection

You can manually configure your router using the menu below, or you can allow the Setup Wizard to determine your configuration as described in the previous section.

ISP Does Not Require Login

ISP Does Require Login

Figure 3-6: Browser-based configuration Basic Settings menus

You can manually configure the router using the Basic Settings menu shown in Figure 3-6 using these steps:

1.Connect to the wireless router by typing http://www.routerlogin.net in the address field of your browser, then click Enter.

Connecting the Router to the Internet

3-9

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

2.For security reasons, the wireless router has its own user name and password. When prompted, enter admin for the router user name and password for the router password, both in lower case letters.

3.Click Basic Settings on the Setup menu.

4.If your Internet connection does not require a login, click No at the top of the Basic Settings menu and fill in the settings according to the instructions below. If your Internet connection does require a login, click Yes, and skip to step 5.

a.Enter your Account Name (may also be called Host Name) and Domain Name.

These parameters may be necessary to access your ISP’s services such as mail or news servers.

b.Internet IP Address:

If your ISP has assigned you a permanent, fixed (static) IP address for your computer, select “Use static IP address”. Enter the IP address that your ISP assigned. Also enter the netmask and the Gateway IP address. The Gateway is the ISP’s router to which your router will connect.

c.Domain Name Server (DNS) Address:

If you know that your ISP does not automatically transmit DNS addresses to the router during login, select “Use these DNS servers” and enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is available, enter it also.

Note: If you enter an address here, restart the computers on your network so that these settings take effect.

d.Router’s MAC Address:

This section determines the Ethernet MAC address that will be used by the router on the Internet port. Some ISPs will register the Ethernet MAC address of the network interface card in your computer when your account is first opened. They will then only accept traffic from the MAC address of that computer. This feature allows your router to masquerade as that computer by “cloning” its MAC address.

To change the MAC address, select “Use this Computer’s MAC address.” The router will then capture and use the MAC address of the computer that you are now using. You must be using the one computer that is allowed by the ISP. Or, select “Use this MAC address” and type it in here.

e.Click Apply to save your settings.

5.If your Internet connection does require a login, fill in the settings according to the instructions below. Select Yes if you normally must launch a login program such as Enternet or WinPOET in order to access the Internet.

3-10

Connecting the Router to the Internet

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Note: After you finish setting up your router, you will no longer need to launch the ISP’s login program on your computer in order to access the Internet. When you start an Internet application, your router will automatically log you in.

a.Select your Internet service provider from the drop-down list.

Figure 3-7: Basic Settings ISP list

Note: Not all ISPs are listed here. The ones on this list have special requirements.

b.The screen will change according to the ISP settings requirements of the ISP you select.

c.Fill in the parameters for your Internet service provider.

d.Click Apply to save your settings. Click the Test button to verify you have Internet access.

Using the Smart Setup Wizard

You can use the Smart Setup Wizard to assist with manual configuration or to verify the Internet connection. The Smart Setup Wizard is not the same as the Smart Wizard configuration assistant (as illustrated in Figure 3-1) that only appears when the router is in its factory default state. After you configure the wireless router, the Smart Wizard configuration assistant will not appear again.

To use the Smart Setup Wizard to assist with manual configuration or to verify the Internet connection settings, follow this procedure.

1.Connect to the wireless router by typing http://www.routerlogin.net in the address field of your browser, then click Enter.

Connecting the Router to the Internet

3-11

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

2.For security reasons, the router has its own user name and password. When prompted, enter admin for the router user name and password for the router password, both in lower case letters. To change the password, see “Changing the Administrator Password” on page 6-9.

Note: The router user name and password are not the same as any user name or password you may use to log in to your Internet connection.

Once you have entered your user name and password, your Web browser should find the WPN824 router and display the home page as shown in “Login result: WPN824 home page” on page 3-7.

3.Click Setup Wizard on the upper left of the main menu.

4.Click Next to proceed. Input your ISP settings, as needed.

5.At the end of the Setup Wizard, click the Test button to verify your Internet connection. If you have trouble connecting to the Internet, use the Troubleshooting Tips “Troubleshooting Tips” on page 3-4 to correct basic problems, or refer to Chapter 7, “Troubleshooting.”

NETGEAR Product Registration, Support, and Documentation

Register your product at http://www.NETGEAR.com/register. Registration is required before you can use our telephone support service.

Product updates and Web support are always available by going to:

http://kbserver.netgear.com/products/WPN824.asp.

Documentation is available on the CD and at

http://kbserver.netgear.com/documentation/WPN824.asp.

When the wireless router is connected to the Internet, click the Knowledge Base or the Documentation link under the Web Support menu to view support information or the documentation for the wireless router.

3-12

Connecting the Router to the Internet

202-10072-01, March 2005

Chapter 4

Wireless Configuration

This chapter describes how to configure the wireless features of your WPN824 router. In planning your wireless network, you should consider the level of security required. You should also select the physical placement of your firewall in order to maximize the network speed. For further information on wireless networking, refer to Appendix D, “Wireless Networking Basics.

Observe Performance, Placement, and Range Guidelines

The operating distance or range of your wireless connection can vary significantly based on the physical placement of the wireless firewall. The latency, data throughput performance, and notebook power consumption of wireless adapters also vary depending on your configuration choices.

Note: Failure to follow these guidelines can result in significant performance degradation or inability to wirelessly connect to the router. For complete range/ performance specifications, please see Appendix A, “Technical Specifications.”

For best results, place your firewall:

Near the center of the area in which your computers will operate.

In an elevated location such as a high shelf where the wirelessly connected computers have line-of-sight access (even if through walls).

Away from sources of interference, such as computers, microwaves, and 2.4 GHz cordless phones.

Away from large metal surfaces.

The time it takes to establish a wireless connection can vary depending on both your security settings and placement. WEP connections can take slightly longer to establish. Also, WEP and WPA-PSK \encryption can consume more battery power on a notebook computer.

Wireless Configuration

4-1

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

When used on a metallic surface, MIMO units must be oriented vertically to ensure proper operation:

Figure 4-1: Vertical orientation required on metallic surfaces

Implement Appropriate Wireless Security

Note: Indoors, computers can connect over 802.11b/g wireless networks at ranges of up to 300 feet. Such distances can allow for others outside of your immediate area to access your network.

Unlike wired network data, your wireless data transmissions can be received well beyond your walls by anyone with a compatible adapter. For this reason, use the security features of your wireless equipment. The WPN824 router provides highly effective security features which are covered in detail in this chapter. Deploy the security features appropriate to your needs.

4-2

Wireless Configuration

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Wireless Data

Security Options

Range: up to 300 foot radius

1) Open system: easy but no security

WPN824

2)MAC access list: no data security

3)WEP: security but some performance impact

4)WPA-PSK: very strong security

Figure 4-2: WPN824 wireless data security options

There are several ways you can enhance the security of your wireless network.

Restrict Access Based on MAC address. You can restrict access to only trusted computers so that unknown computers cannot wirelessly connect to the WPN824. MAC address filtering adds an obstacle against unwanted access to your network, but the data broadcast over the wireless link is fully exposed.

Turn Off the Broadcast of the Wireless Network Name SSID. If you disable broadcast of the SSID, only devices that have the correct SSID can connect. This nullifies the wireless network ‘discovery’ feature of some products such as Windows XP, but the data is still fully exposed to a determined snoop using specialized test equipment like wireless sniffers.

WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP Shared Key authentication and WEP data encryption will block all but the most determined eavesdropper.

WPA-PSK. Wi-Fi Protected Access, Pre-Shared Key (WPA-PSK) data encryption provides strong data security. WPA-PSK will block eavesdropping. Because this is a new standard, wireless device driver and software availability may be limited.

Turn Off the Wired LAN. If you disable the wireless LAN, wireless devices cannot communicate with the router at all. You might choose to turn off the wireless the LAN when you are away and the others in the household all use wired connections.

Wireless Configuration

4-3

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Understanding Wireless Settings

To configure the Wireless settings of your firewall, click the Wireless link in the main menu of the browser interface. The Wireless Settings menu will appear, as shown below.

Figure 4-3: Wireless Settings menu

Name (SSID). The SSID is also known as the wireless network name. Enter a value of up to 32 alphanumeric characters. In a setting where there is more than one wireless network, different wireless network names provide a means for separating the traffic. Any device you want to participate in a particular wireless network will need to use this SSID for that network. The WPN824 default SSID is: NETGEAR.

Region. This field identifies the region where the WPN824 can be used. It may not be legal to operate the wireless features of the wireless router in a region other than one of those identified in this field.

Note: The region selection feature may not be available in all countries.

Channel. This field determines which operating frequency will be used. It should not be necessary to change the wireless channel unless you notice interference problems with another nearby access point. For more information on the wireless channel frequencies please refer to “Wireless Channels” on page D-7.

4-4

Wireless Configuration

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Mode. This field determines which data communications protocol will be used. You can select “g only,” “b only,” or “g and b.” “g only” dedicates the WPN824 to communicating with the higher bandwidth 802.11g wireless devices exclusively. “b only” dedicates the WPN824 to communicating with the higher bandwidth 802.11b wireless devices exclusively. The “g and b” mode provides backward compatibility with the slower 802.11b wireless devices while still enabling 802.11g communications.

Security Options. These options are the wireless security features you can enable. The table below identifies the various basic wireless security options. A full explanation of these standards is available in Appendix D, “Wireless Networking Basics.”

Table 4-1.

Basic Wireless Security Options





Field

Description





Automatic

No wireless security.





WEP

WEP offers the following options:



• Open System



With Open Network Authentication and 64or 128-bit WEP Data Encryption, the WPN824



does perform 64or 128-bit data encryption but does not perform any authentication.



• Shared Key



Shared Key authentication encrypts the SSID and data.



Choose the Encryption Strength (64or 128-bit data encryption). Manually enter the key



values or enter a word or group of printable characters in the Passphrase box. Manually



entered keys are case sensitive but passphrase characters are not case sensitive.



Note: Not all wireless adapter configuration utilities support passphrase key generation.



• Auto

WPA-PSK

WPA-Pre-shared Key does perform authentication, uses 128-bit data encryption and



dynamically changes the encryption keys making it nearly impossible to circumvent.



Enter a word or group of printable characters in the Password Phrase box. These characters



are case sensitive.



Note: Not all wireless adapter configuration utilities support WPA. Furthermore, client software



is required on the client. Windows XP and Windows 2000 with Service Pack 3 do include the



client software that supports WPA. Nevertheless, the wireless adapter hardware and driver



must also support WPA.

Wireless Configuration

4-5

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

To configure the advanced wireless settings of your firewall, click the Wireless Setup link in the Advanced section of the main menu of the browser interface. The Wireless Settings menu will appear, as shown below.

Figure 4-4: Advanced Wireless Settings menu

Allow Broadcast of Name (SSID). If you disable broadcast of the SSID, only devices that have the correct SSID can connect. Disabling SSID broadcast nullifies the wireless network ‘discovery’ feature of some products such as Windows XP.

Enable Wireless Access Point. If you disable the wireless access point, wireless devices cannot connect to the WPN824.

Wireless Card Access List. When the Trusted PCs Only radio button is selected, the WPN824 checks the MAC address of the wireless station and only allows connections to computers identified on the trusted computers list.

4-6

Wireless Configuration

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Information to Gather Before Changing Basic Wireless Settings

Before customizing your wireless settings, print this form and record the following information. If you are working with an existing wireless network, the person who set up or is responsible for the network will be able to provide this information. Otherwise, you will choose the settings for your wireless network. Either way, record the settings for your wireless network in the spaces below.

Wireless Network Name (SSID): ______________________________ The SSID, identifies the wireless network. You can use up to 32 alphanumeric characters. The SSID is case sensitive. The SSID in the wireless adapter card must match the SSID of the wireless router. In some configuration utilities (such as in Windows XP), the term “wireless network name” is used instead of SSID.

If WEP Authentication is Used. Circle one: Open System, Shared Key, or Auto.

Note: If you select Shared Key, the other devices in the network will not connect unless they are set to Shared Key as well and are configured with the correct key.

WEP Encryption key size. Choose one: 64-bit or 128-bit. Again, the encryption key size must be the same for the wireless adapters and the wireless router.

Data Encryption (WEP) Keys. There are two methods for creating WEP data encryption keys. Whichever method you use, record the key values in the spaces below.

Passphrase method. ______________________________ These characters are case sensitive. Enter a word or group of printable characters and click the Generate Keys button. Not all wireless devices support the passphrase method.

Manual method. These values are not case sensitive. For 64-bit WEP, enter 10 hex digits (any combination of 0-9 or a-f). For 128-bit WEP, enter 26 hex digits.

Key 1: ___________________________________

Key 2: ___________________________________

Key 3: ___________________________________

Key 4: ___________________________________

If WPA-PSK Authentication is Used.

Passphrase: ______________________________ These characters are case sensitive. Enter a word or group of printable characters. When you use WPA-PSK, the other devices in the network will not connect unless they are set to WPA-PSK as well and are configured with the correct Passphrase.

Use the procedures described in the following sections to configure the WPN824. Store this information in a safe place.

Wireless Configuration

4-7

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Default Factory Settings

When you first receive your WPN824, the default factory settings are shown below. You can restore these defaults with the Factory Default Restore button on the rear panel. After you install the WPN824 router, use the procedures below to customize any of the settings to better meet your networking needs.

FEATURE

DEFAULT FACTORY SETTINGS





Wireless Access Point

Enabled





Wireless Access List (MAC Filtering)

All wireless stations allowed





SSID broadcast

Enabled





SSID

NETGEAR





11b/g RF Channel

6





Mode

Auto 108





Authentication Type

Automatic





WEP

Disabled





DHCP Server

Enabled





DHCP range

192.168.1.2 to 192.168.1.254





How to Set Up and Test Basic Wireless Connectivity

Note: If you use a wireless computer to configure WPA settings, you will be disconnected when you click Apply. Reconfigure your wireless adapter to match the new settings or access the wireless router from a wired computer to make any further changes.

Follow the instructions below to set up and test basic wireless connectivity. Once you have established basic wireless connectivity, you can enable security settings appropriate to your needs.

1.Log in to the WPN824 firewall at its default LAN address of http://www.routerlogin.net (or http://192.168.1.1) with its default user name of admin and default password of password, or using whatever LAN address and password you have set up.

4-8

Wireless Configuration

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

2. Click Wireless Settings in the main menu of the WPN824 firewall.

Figure 4-5: Wireless Settings menu

3.Choose a suitable descriptive name for the wireless network name (SSID). In the SSID box, enter a value of up to 32 alphanumeric characters. The default SSID is NETGEAR.

Note: The SSID is case sensitive; NETGEAR is not the same as nETgear. Also, the SSID of any wireless access adapters must match the SSID you configure in the RangeMax Wireless Router WPN824. If they do not match, you will not get a wireless connection to the WPN824.

4.Set the Region. Select the region in which the wireless interface will operate.

5.Set the Channel. The default channel is 11.

This field determines which operating frequency will be used. It should not be necessary to change the wireless channel unless you notice interference problems with another nearby wireless router or access point. Select a channel that is not being used by any other wireless networks within several hundred feet of your firewall. For more information on the wireless channel frequencies please refer to “Wireless Channels” on page D-7.

6.For initial configuration and test, leave the Wireless Card Access List set to “Everyone” and the Encryption Strength set to “Disabled.”

7.Click Apply to save your changes.

Wireless Configuration

4-9

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Note: If you are configuring the firewall from a wireless computer and you change the firewall’s SSID, channel, or security settings, you will lose your wireless connection when you click on Apply. You must then change the wireless settings of your computer to match the firewall’s new settings.

8.Configure and test your computers for wireless connectivity.

Program the wireless adapter of your computers to have the same SSID and channel that you configured in the router. Check that they have a wireless link and are able to obtain an IP address by DHCP from the firewall.

Warning: The Network Name (SSID) is case sensitive. If NETGEAR is the Network Name (SSID) in your wireless router, you must enter NETGEAR in your computer's wireless settings. Typing nETgear will not work.

Once your computers have basic wireless connectivity to the firewall, you can configure the advanced wireless security functions of the firewall.

How to Configure WEP

To configure WEP data encryption, follow these steps:

Note: If you use a wireless computer configure WEP settings, you will be disconnected when you click on Apply. You must then either configure your wireless adapter to match the wireless router WEP settings or access the wireless router from a wired computer to make any further changes.

1.Log in to the WPN824 firewall at its default LAN address of http://www.routerlogin.net with its default user name of admin and default password of password, or using whatever LAN address and password you have set up.

2.Click Wireless Settings in the main menu of the WPN824 firewall.

3.From the Security Options menu, select WEP. The WEP options display.

4-10

Wireless Configuration

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

4. Select the Authentication Type and Encryptions strength from the drop-down lists.

Figure 4-6. Wireless Settings encryption menu

5.You can manually or automatically program the four data encryption keys. These values must be identical on all computers and Access Points in your network.

Automatic - Enter a word or group of printable characters in the Passphrase box and click the Generate button. The passphrase is case sensitive; NETGEAR is not the same as nETgear. The four key boxes will be automatically populated with key values.

Manual - Enter ten hexadecimal digits (any combination of 0-9, a-f, or A-F). These entries are not case sensitive; AA is the same as aa.

Select which of the four keys will be active.

Please refer to “Authentication and WEP Data Encryption” on page D-2 for a full explanation of each of these options, as defined by the IEEE 802.11 wireless communication standard.

6. Click Apply to save your settings.

Wireless Configuration

4-11

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

How to Configure WPA-PSK Wireless Security

Note: Not all wireless adapters support WPA. Furthermore, client software is also required. Windows XP and Windows 2000 with service pack 3 do include WPA support. Nevertheless, the wireless adapter hardware and driver must also support WPA. For instructions on configuring wireless computers or PDAs for WPA-PSK security, consult the documentation for the product you are using.

To configure WPA-PSK, follow these steps:

1.Click Security Settings in the Setup section of the main menu and select WPA-PSK for the Security Type.

Figure 4-7: WPA Settings menu

2.Enter a word or group of 8-63 printable characters in the Password Phrase box.

3.Click Apply to save your settings.

4-12

Wireless Configuration

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

How to Restrict Wireless Access by MAC Address

To restrict access based on MAC addresses, follow these steps:

1.Log in to the WPN824 firewall at its default LAN address of http://www.routerlogin.net with its default user name of admin and default password of password, or using whatever LAN address and password you have set up.

Note: When configuring the firewall from a wireless computer whose MAC address is not in the Trusted PC list, if you select Turn Access Control On, you will lose your wireless connection when you click on Apply. You must then access the wireless router from a wired computer or from a wireless computer which is on the access control list to make any further changes.

2.Click Advanced Wireless Setup in the main menu of the WPN824 firewall.

3.From the Wireless Settings menu, click Setup Access List to display the Wireless Access menu shown below.

Figure 4-8: Wireless Card Access List Setup

Wireless Configuration

4-13

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

4.Click Add to add a wireless device to the wireless access control list. The Available Wireless Cards list displays.

5.Click the Turn Access Control On check box.

6.Then, either select from the list of available wireless cards the WPN824 has found in your area, or enter the MAC address and device name for a device you plan to use. You can usually find the MAC address printed on the wireless adapter.

Note: You can copy and paste the MAC addresses from the firewall’s Attached Devices menu into the MAC Address box of this menu. To do this, configure each wireless computer to obtain a wireless link to the firewall. The computer should then appear in the Attached Devices menu.

7.Click Add to add this wireless device to the Wireless Card Access List. The screen changes back to the list screen. Repeat these steps for each additional device you wish to add to the list.

8.Be sure to click Apply to save your wireless access control list settings.

Now, only devices on this list will be allowed to wirelessly connect to the WPN824.

4-14

Wireless Configuration

202-10072-01, March 2005

Chapter 5

Content Filtering

This chapter describes how to use the content filtering features of the RangeMax Wireless Router WPN824 to protect your network. These features can be found by clicking on the Content Filtering heading in the Main Menu of the browser interface.

Content Filtering Overview

The RangeMax Wireless Router WPN824 provides you with Web content filtering options, plus browsing activity reporting and instant alerts via e-mail. Parents and network administrators can establish restricted access policies based on time of day, Web addresses and Web address keywords. You can also block Internet access by applications and services, such as chat or games.

To configure these features of your router, click on the subheadings under the Content Filtering heading in the Main Menu of the browser interface. The subheadings are described below:

Content Filtering

5-1

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Blocking Access to Internet Sites

The WPN824 router allows you to restrict access based on Web addresses and Web address keywords. Up to 255 entries are supported in the Keyword list. The Block Sites menu is shown in Figure 5-1 below:

Figure 5-1: Block Sites menu

To enable keyword blocking, select either “Per Schedule” or “Always”, then click Apply. If you want to block by schedule, be sure that a time period is specified in the Schedule menu.

To add a keyword or domain, type it in the Keyword box, click Add Keyword, then click Apply.

To delete a keyword or domain, select it from the list, click Delete Keyword, then click Apply.

Keyword application examples:

If the keyword “XXX” is specified, the URL <http://www.badstuff.com/xxx.html> is blocked.

5-2

Content Filtering

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

If the keyword “.com” is specified, only Web sites with other domain suffixes (such as .edu or

.gov) can be viewed.

If you wish to block all Internet browsing access during a scheduled period, enter the keyword “.” and set the schedule in the Schedule menu.

To specify a Trusted User, enter that PC’s IP address in the Trusted User box and click Apply.

You may specify one Trusted User, which is a PC that will be exempt from blocking and logging. Since the Trusted User will be identified by an IP address, you should configure that PC with a fixed IP address.

Blocking Access to Internet Services

The WPN824 router allows you to block the use of certain Internet services by PCs on your network. This is called services blocking or port filtering. The Block Services menu is shown below:

Figure 5-2: Block Services menu

Services are functions performed by server computers at the request of client computers. For example, Web servers serve Web pages, time servers serve time and date information, and game hosts serve data about other players’ moves. When a computer on your network sends a request for service to a server computer on the Internet, the requested service is identified by a service or port number. This number appears as the destination port number in the transmitted IP packets. For example, a packet that is sent with destination port number 80 is an HTTP (Web server) request.

To enable service blocking, select either Per Schedule or Always, then click Apply. If you want to block by schedule, be sure that a time period is specified in the Schedule menu.

Content Filtering

5-3

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

To specify a service for blocking, click Add. The Add Services menu will appear, as shown below:

Figure 5-3: Add Services menu

From the Service Type list, select the application or service to be allowed or blocked. The list already displays several common services, but you are not limited to these choices. To add any additional services or applications that do not already appear, select User Defined.

Configuring a User Defined Service

To define a service, first you must determine which port number or range of numbers is used by the application. The service numbers for many common protocols are defined by the Internet Engineering Task Force (IETF) and published in RFC1700, “Assigned Numbers.” Service numbers for other applications are typically chosen from the range 1024 to 65535 by the authors of the application. This information can usually be determined by contacting the publisher of the application or from user groups of newsgroups.

Enter the Starting Port and Ending Port numbers. If the application uses a single port number, enter that number in both boxes.

If you know that the application uses either TCP or UDP, select the appropriate protocol. If you are not sure, select Both.

5-4

Content Filtering

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Configuring Services Blocking by IP Address Range

Under “Filter Services For”, you can block the specified service for a single computer, a range of computers (having consecutive IP addresses), or all computers on your network.

Scheduling When Blocking Will Be Enforced

The WPN824 router allows you to specify when blocking will be enforced. The Schedule menu is shown below:

Figure 5-4: Schedule menu

Use this schedule for blocking content. Check this box if you wish to enable a schedule for Content Filtering. Click Apply.

Days to Block. Select days to block by checking the appropriate boxes. Select Everyday to check the boxes for all days. Click Apply.

Time of Day to Block. Select a start and end time in 23:59 format. Select All day for 24 hour blocking. Click Apply.

Be sure to select your Time Zone in the E-Mail menu.

Content Filtering

5-5

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Viewing Logs of Web Access or Attempted Web Access

The log is a detailed record of what Web sites you have accessed or attempted to access. Up to 128 entries are stored in the log. Log entries will only appear when keyword blocking is enabled, and no log entries will be made for the Trusted User. An example is shown below:

Figure 5-5: Logs menu

Log entries are described in Table 5-1

Table 5-1.

Log entry descriptions









Field



Description











Number



The index number of the content filter log entries. 128 entries







are available numbered from 0 to 127. The log will keep the







record of the latest 128 entries.











Date and Time



The date and time the log entry was recorded.











Source IP



The IP address of the initiating device for this log entry.











Action



This field displays whether the access was blocked or allowed.















The name or IP address of the Web site or newsgroup visited or







attempted to access.



















5-6



Content Filtering

202-10072-01, March 2005





Reference Manual for the RangeMax Wireless Router WPN824







Log action buttons are described in Table 5-2

Table 5-2.

Log action buttons









Field



Description











Refresh



Click this button to refresh the log screen.











Clear Log



Click this button to clear the log entries.











Send Log



Click this button to E-mail the log immediately.











Configuring E-Mail Alert and Web Access Log Notifications

In order to receive logs and alerts by E-mail, you must provide your E-mail information in the E-Mail menu, shown below:

Figure 5-6: Email menu

Content Filtering

5-7

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Turn e-mail notification on

Check this box if you wish to receive e-mail logs and alerts from the router.

Your outgoing mail server

Enter the name of your ISP’s outgoing (SMTP) mail server (such as mail.myISP.com). You may be able to find this information in the configuration menu of your e-mail program. If you leave this box blank, log and alert messages will not be sent via e-mail.

Send to this e-mail address

Enter the e-mail address to which logs and alerts are sent. This e-mail address will also be used as the From address. If you leave this box blank, log and alert messages will not be sent via e-mail.

You can specify that logs are automatically sent to the specified e-mail address with these options:

Send alert immediately

Check this box if you would like immediate notification of attempted access to a blocked site.

Send logs according to this schedule

Specifies how often to send the logs: Hourly, Daily, Weekly, or When Full.

Day for sending log

Specifies which day of the week to send the log. Relevant when the log is sent weekly or daily.

Time for sending log

Specifies the time of day to send the log. Relevant when the log is sent daily or weekly.

If the Weekly, Daily or Hourly option is selected and the log fills up before the specified period, the log is automatically e-mailed to the specified e-mail address. After the log is sent, the log is cleared from the router’s memory. If the router cannot e-mail the log file, the log buffer may fill up. In this case, the router overwrites the log and discards its contents.

The WPN824 router uses the Network Time Protocol (NTP) to obtain the current time and date from one of several Network Time Servers on the Internet. In order to localize the time for your log entries, you must specify your Time Zone:

Time Zone

Select your local time zone. This setting will be used for the blocking schedule and for time-stamping log entries.

Daylight Savings Time

Check this box if your time zone is currently under daylight savings time.

5-8

Content Filtering

202-10072-01, March 2005

Chapter 6

Maintenance

This chapter describes how to use the maintenance features of your RangeMax Wireless Router WPN824. These features can be found by clicking on the Maintenance heading in the Main Menu of the browser interface.

Viewing Wireless Router Status Information

The Router Status menu provides status and usage information. From the Main Menu of the browser interface, click on Maintenance, then select Router Status to view the System Status screen, shown below.

Figure 6-1: Router Status screen

Maintenance

6-1

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

This screen shows the following parameters:

Table 6-1.

Wireless Router Status Fields







Field



Description







Account Name



This field displays the Host Name assigned to the router.





Firmware Version

This field displays the router firmware version.







Internet Port



These parameters apply to the Internet (WAN) port of the router.

MAC Address

This field displays the Media Access Control address being used by the





Internet (WAN) port of the router.

IP Address



This field displays the IP address being used by the Internet (WAN) port





of the router. If no address is shown, the router cannot connect to the





Internet.

DHCP



If set to None, the router is configured to use a fixed IP address on the





WAN.





If set to Client, the router is configured to obtain an IP address





dynamically from the ISP.

IP Subnet Mask

This field displays the IP Subnet Mask being used by the Internet (WAN)





port of the router.

DNS



This field displays the Domain Name Server addresses being used by





the router.







LAN Port



These parameters apply to the Local (LAN) port of the router.

MAC Address

This field displays the Media Access Control address being used by the





LAN port of the router.

IP Address



This field displays the IP address being used by the Local (LAN) port of





the router. The default is 192.168.1.1

IP Subnet Mask

This field displays the IP Subnet Mask being used by the Local (LAN)





port of the router. The default is 255.255.255.0

DHCP



Identifies if the router’s built-in DHCP server is active for the LAN





attached devices.

6-2

Maintenance

202-10072-01, March 2005





Reference Manual for the RangeMax Wireless Router WPN824









Table 6-1.

Wireless Router Status Fields









Field



Description











Wireless Port



These parameters apply to the Wireless port of the router.



MAC Address

This field displays the Media Access Control address being used by the







Wireless port of the router.



Name (SSID)



This field displays the wireless network name (SSID) being used by the







wireless port of the router. The default is NETGEAR.



Region



This field displays the geographic region where the router being used. It







may be illegal to use the wireless features of the router in some parts of







the world.



Channel



Identifies the channel of the wireless port being used. See “Wireless







Channels” on page D-7 for the frequencies used on each channel.



Click on the “Connection Status” button to display the connection status, as shown below.

Figure 6-2: Connection Status screen

This screen shows the following statistics:.

Table 6-2:

Connection Status Items







Item



Description







IP Address



The WAN (Internet) IP Address assigned to the router.







Subnet Mask



The WAN (Internet) Subnet Mask assigned to the router.













Maintenance

6-3

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Table 6-2:

Connection Status Items







Item



Description







Default Gateway



The WAN (Internet) default gateway the router communicates with.







DHCP Server



The IP address of the DHCP server which provided the IP configuration addresses.







DNS Server



The IP address of the DNS server which provides network name to IP address





translation.







Lease Obtained



When the DHCP lease was obtained.







Lease Expires



When the DHCP lease was expires.







Release



Click the Release button to release the DHCP lease.







Renew



Click the Renew button to renew the DHCP lease.







Click on the “Show Statistics” button to display router usage statistics, as shown below.

Figure 6-3: Router Statistics screen

This screen shows the following statistics:

Table 6-3:

Router Statistics Items







Item



Description







Port



The statistics for the WAN (Internet) and LAN (local) ports. For each port, the screen





displays:

Status



The link status of the port.

TxPkts



The number of packets transmitted on this port since reset or manual clear.

RxPkts



The number of packets received on this port since reset or manual clear.

Collisions



The number of collisions on this port since reset or manual clear.

Tx B/s



The current transmission (outbound) bandwidth used on the WAN and LAN ports.







6-4



Maintenance

202-10072-01, March 2005





Reference Manual for the RangeMax Wireless Router WPN824







Table 6-3:

Router Statistics Items







Item



Description







Rx B/s



The current reception (inbound) bandwidth used on the WAN and LAN ports.

Up Time



The amount of time since the router was last restarted.

Up Time



The time elapsed since this port acquired the link.

Poll Interval



Specifies the intervals at which the statistics are updated in this window. Click on Stop





to freeze the display.

Set Interval



Enter a time and click the button to set the polling frequency.







Stop



Click the Stop button to freeze the polling information.







Viewing a List of Attached Devices

The Attached Devices menu contains a table of all IP devices that the router has discovered on the local network. From the Main Menu of the browser interface, under the Maintenance heading, select Attached Devices to view the table, shown below.

Figure 6-4: Attached Devices menu

For each device, the table shows the IP address, NetBIOS Host Name (if available), and Ethernet MAC address. Note that if the router is rebooted, the table data is lost until the router rediscovers the devices. To force the router to look for attached devices, click the Refresh button.

Maintenance

6-5

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Configuration File Management

The configuration settings of the WPN824 router are stored within the router in a configuration file. This file can be saved (backed up) to a user’s PC, retrieved (restored) from the user’s PC, or cleared to factory default settings.

From the Main Menu of the browser interface, under the Maintenance heading, select the Settings Backup heading to bring up the menu shown below.

Figure 6-5: Settings Backup menu

Three options are available, and are described in the following sections.

Restoring and Backing Up the Configuration

The Restore and Backup options in the Settings Backup menu allow you to save and retrieve a file containing your router’s configuration settings.

To save your settings, click the Backup button. Your browser will extract the configuration file from the router and will prompt you for a location on your PC to store the file. You can give the file a meaningful name at this time, such as pacbell.cfg.

To restore your settings from a saved configuration file, enter the full path to the file on your PC or click the Browse button to browse to the file. When you have located it, click the Restore button to send the file to the router. The router will then reboot automatically.

Warning: Do not interrupt the reboot process.

6-6

Maintenance

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Erasing the Configuration

It is sometimes desirable to restore the router to original default settings. This can be done by using the Erase function, which will restore all factory settings. After an erase, the router’s username will be admin, the password will be password, the LAN IP address will be 192.168.1.1, and the router's DHCP server will be enabled.

To erase the configuration, click the Erase button.

To restore the factory default configuration settings without knowing the login password or IP address, you must use the Default Reset button on the rear panel of the router. See “Restoring the Default Configuration and Password” on page 7-7.

Upgrading the Router Software

Tip: To ensure you are always using the latest firmware, enable the Firmware Upgrade Assistant feature so that the router will automatically detect a new version of the firmware on the Internet and alert you to its availability.

This screen appears at login unless you check Do Not Display This Message Again and click Yes.

Figure 6-6: Firmware Upgrade Assistant menu

Note: Before upgrading the router software, use the router backup utility to save your configuration settings. Any router upgrade will revert the router settings back to the factory defaults. After completing the upgrade, you can restore your settings from the backup.

Maintenance

6-7

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

The routing software of the WPN824 router is stored in FLASH memory, and can be upgraded as new software is released by NETGEAR. Upgrade files can be downloaded from the NETGEAR Web site. If the upgrade file is compressed (.ZIP file), you must first extract the file before sending it to the router. The upgrade file can be sent to the router using your browser.

Note: The Web browser used to upload new firmware into the WPN824 router must support HTTP uploads. NETGEAR recommends using Microsoft Internet Explorer or Netscape Navigator 3.0 or above.

From the Main Menu of the browser interface, under the Maintenance heading, select the Router Upgrade link display the menu shown below.

Figure 6-7: Router Upgrade menu

To upload new firmware:

1.Download and unzip (if the download file is a .zip file) the new software file from NETGEAR.

2.In the Router Upgrade menu, click the Browse button and browse to the location of the upgrade file

3.Click Upload.

Note: When uploading software to the WPN824 router, it is important not to interrupt the Web browser by closing the window, clicking a link, or loading a new page. If the browser is interrupted, it may corrupt the software. When the upload is complete, your router will automatically restart. The upgrade process will typically take about one minute.

In some cases, you may need to reconfigure the router after upgrading.

6-8

Maintenance

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Changing the Administrator Password

Note: Before changing the router password, use the router backup utility to save your configuration settings. If after changing the password, you forget the new password you assigned, you will have to reset the router back to the factory defaults to be able to log in using the default password of password. This means you will have to restore all the router configuration settings. If you ever have to reset the router back to the factory defaults, you can restore your settings from the backup.

The default password for the router’s Web Configuration Manager is password. NETGEAR recommends that you change this password to a more secure password.

From the Main Menu of the browser interface, under the Maintenance heading, select Set Password to bring up the menu shown below.

Figure 6-8: Set Password menu

To change the password, first enter the old password, then enter the new password twice. Click Apply.

Maintenance

6-9

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

6-10

Maintenance

202-10072-01, March 2005

Chapter 7

Troubleshooting

This chapter gives information about troubleshooting your RangeMax Wireless Router WPN824. After each problem description, instructions are provided to help you diagnose and solve the problem.

Basic Functioning

After you turn on power to the router, the following sequence of events should occur: 1. When power is first applied, verify that the Power light is on.

2.After approximately 10 seconds, verify that:

a.The power light is solid green.

b.The LAN port lights are lit for any local ports that are connected.

c.The Internet port light is lit.

If a port’s light is lit, a link has been established to the connected device. If a LAN port is connected to a 100 Mbps device, verify that the port’s light is green. If the port is 10 Mbps, the light will be amber.

If any of these conditions does not occur, refer to the appropriate following section.

Power Light Not On

If the Power and other lights are off when your router is turned on:

Make sure that the power cord is properly connected to your router and that the power supply adapter is properly connected to a functioning power outlet.

Check that you are using the 12 V DC 1A power adapter supplied by NETGEAR for this product.

If the error persists, you have a hardware problem and should contact technical support.

Troubleshooting

7-1

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Lights Never Turn Off

When the router is turned on, the lights turns on for about 10 seconds and then turn off. If all the lights stay on, there is a fault within the router.

If all lights are still on one minute after power up:

Cycle the power to see if the router recovers.

Clear the router’s configuration to factory defaults. This will set the router’s IP address to 192.168.1.1. This procedure is explained in “Restoring the Default Configuration and Password” on page 7-7.

If the error persists, you might have a hardware problem and should contact technical support.

LAN or WAN Port Lights Not On

If either the LAN lights or Internet light do not light when the Ethernet connection is made, check the following:

Make sure that the Ethernet cable connections are secure at the router and at the hub or workstation.

Make sure that power is turned on to the connected hub or workstation.

Be sure you are using the correct cable:

When connecting the router’s Internet port to a cable or DSL modem, use the cable that was supplied with the cable or DSL modem. This cable could be a standard straight-through Ethernet cable or an Ethernet crossover cable.

7-2

Troubleshooting

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Troubleshooting the Web Configuration Interface

If you are unable to access the router’s Web Configuration interface from a computer on your local network, check the following:

Check the Ethernet connection between the computer and the router as described in the previous section.

Make sure your computer’s IP address is on the same subnet as the router. If you are using the recommended addressing scheme, your computer’s address should be in the range of 192.168.1.2 to 192.168.1.254. Refer to “Verifying TCP/IP Properties” on page C-8 or “Verifying TCP/IP Properties for Macintosh Computers” on page C-19 to find your computer’s IP address. Follow the instructions in Appendix C to configure your computer.

Note: If your computer’s IP address is shown as 169.254.x.x: Recent versions of Windows and MacOS will generate and assign an IP address if the computer cannot reach a DHCP server. These auto-generated addresses are in the range of 169.254.x.x. If your IP address is in this range, check the connection from the computer to the router and reboot your computer.

If your router’s IP address has been changed and you don’t know the current IP address, clear the router’s configuration to factory defaults. This will set the router’s IP address to 192.168.1.1. This procedure is explained in “Restoring the Default Configuration and Password” on page 7-7.

Make sure your browser has Java, JavaScript, or ActiveX enabled. If you are using Internet Explorer, click Refresh to be sure the Java applet is loaded.

Try quitting the browser and launching it again.

Make sure you are using the correct login information. The factory default login name is admin and the password is password. Make sure that CAPS LOCK is off when entering this information.

If the router does not save changes you have made in the Web Configuration Interface, check the following:

When entering configuration settings, be sure to click the APPLY button before moving to another menu or tab, or your changes are lost.

Click the Refresh or Reload button in the Web browser. The changes may have occurred, but the Web browser may be caching the old configuration.

Troubleshooting

7-3

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Troubleshooting the ISP Connection

If your router is unable to access the Internet, you should first determine whether the router is able to obtain a WAN IP address from the ISP. Unless you have been assigned a static IP address, your router must request an IP address from the ISP. You can determine whether the request was successful using the Web Configuration Manager.

To check the WAN IP address:

1.Launch your browser and select an external site such as www.netgear.com

2.Access the Main Menu of the router’s configuration at http://www.routerlogin.net.

3.Under the Maintenance heading, select Router Status

4.Check that an IP address is shown for the WAN Port

If 0.0.0.0 is shown, your router has not obtained an IP address from your ISP.

If your router is unable to obtain an IP address from the ISP, you may need to force your cable or DSL modem to recognize your new router by performing the following procedure:

1.Turn off power to the cable or DSL modem.

2.Turn off power to your router.

3.Wait five minutes and reapply power to the cable or DSL modem.

4.When the modem’s lights indicate that it has reacquired sync with the ISP, reapply power to your router.

5.Then restart your computer.

If your router is still unable to obtain an IP address from the ISP, the problem may be one of the following:

Your ISP may require a login program.

Ask your ISP whether they require PPP over Ethernet (PPPoE) or some other type of login.

If your ISP requires a login, you may have incorrectly set the login name and password.

Your ISP may check for your computer's host name.

Assign the computer Host Name of your ISP account as the Account Name in the Basic Settings menu.

Your ISP only allows one Ethernet MAC address to connect to Internet, and may check for your computer’s MAC address. In this case:

7-4

Troubleshooting

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Inform your ISP that you have bought a new network device, and ask them to use the router’s MAC address.

OR

Configure your router to spoof your computer’s MAC address. This can be done in the Basic Settings menu. Refer to “How to Bypass the Configuration Assistant” on page 3-8.

If your router can obtain an IP address, but your computer is unable to load any Web pages from the Internet:

Your computer may not recognize any DNS server addresses.

A DNS server is a host on the Internet that translates Internet names (such as www addresses) to numeric IP addresses. Typically your ISP will provide the addresses of one or two DNS servers for your use. If you entered a DNS address during the router’s configuration, reboot your computer and verify the DNS address as described in “Install or Verify Windows Networking Components” on page C-9. Alternatively, you may configure your computer manually with DNS addresses, as explained in your operating system documentation.

Your computer may not have the router configured as its TCP/IP gateway.

If your computer obtains its information from the router by DHCP, reboot the computer and verify the gateway address as described in “Install or Verify Windows Networking Components” on page C-9.

Troubleshooting a TCP/IP Network Using a Ping Utility

Most TCP/IP terminal devices and routers contain a ping utility that sends an echo request packet to the designated device. The device then responds with an echo reply. Troubleshooting a TCP/IP network is made very easy by using the ping utility in your computer or workstation.

Testing the LAN Path to Your Router

You can ping the router from your computer to verify that the LAN path to your router is set up correctly.

To ping the router from a running Windows 95 or later:

1.From the Windows toolbar, click on the Start button and select Run.

2.In the field provided, type Ping followed by the IP address of the router, as in this example:

ping 192.168.1.1

Troubleshooting

7-5

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

3. Click on OK.

You should see a message like this one:

Pinging <IP address> with 32 bytes of data

If the path is working, you see this message:

Reply from < IP address >: bytes=32 time=NN ms TTL=xxx

If the path is not working, you see this message:

Request timed out

If the path is not functioning correctly, you could have one of the following problems:

Wrong physical connections

Make sure the LAN port LED is on. If the LED is off, follow the instructions in “LAN or WAN Port Lights Not On” on page 7-2.

Check that the corresponding Link LEDs are on for your network interface card and for the hub ports (if any) that are connected to your workstation and router.

Wrong network configuration

Verify that the Ethernet card driver software and TCP/IP software are both installed and configured on your computer or workstation.

Verify that the IP address for your router and your workstation are correct and that the addresses are on the same subnet.

Testing the Path from Your Computer to a Remote Device

After verifying that the LAN path works correctly, test the path from your computer to a remote device. From the Windows run menu, type:

PING -n 10 <IP address>

where <IP address> is the IP address of a remote device such as your ISP’s DNS server.

If the path is functioning correctly, replies as in the previous section are displayed. If you do not receive replies:

Check that your computer has the IP address of your router listed as the default gateway. If the IP configuration of your computer is assigned by DHCP, this information will not be visible in your computer’s Network Control Panel. Verify that the IP address of the router is listed as the default gateway as described in “Install or Verify Windows Networking Components” on page C-9.

7-6

Troubleshooting

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Check to see that the network address of your computer (the portion of the IP address specified by the netmask) is different from the network address of the remote device.

Check that your cable or DSL modem is connected and functioning.

If your ISP assigned a host name to your computer, enter that host name as the Account Name in the Basic Settings menu.

Your ISP could be rejecting the Ethernet MAC addresses of all but one of your computers. Many broadband ISPs restrict access by only allowing traffic from the MAC address of your broadband modem, but some ISPs additionally restrict access to the MAC address of a single computer connected to that modem. If this is the case, you must configure your router to “clone” or “spoof” the MAC address from the authorized computer. Refer to “How to Bypass the Configuration Assistant” on page 3-8.

Restoring the Default Configuration and Password

This section explains how to restore the factory default configuration settings, changing the router’s administration password to password and the IP address to 192.168.1.1. You can erase the current configuration and restore factory defaults in two ways:

Use the Erase function of the router (see “Erasing the Configuration” on page 6-7).

Use the Default Reset button on the rear panel of the router. Use this method for cases when the administration password or IP address is not known.

To restore the factory default configuration settings without knowing the administration password or IP address, you must use the Default Reset button on the rear panel of the router.

1.Press and hold the Default Reset button until the power light blinks on (about 10 seconds).

2.Release the Default Reset button and wait for the router to reboot.

If the wireless router fails to restart or the power light continues to blink or turns solid amber, the unit may be defective. If the error persists, you might have a hardware problem and should contact technical support.

Troubleshooting

7-7

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Problems with Date and Time

The E-Mail menu in the Content Filtering section displays the current date and time of day. The WPN824 router uses the Network Time Protocol (NTP) to obtain the current time from one of several Network Time Servers on the Internet. Each entry in the log is stamped with the date and time of day. Problems with the date and time function can include:

Date shown is January 1, 2000. Cause: The router has not yet successfully reached a Network Time Server. Check that your Internet access settings are configured correctly. If you have just completed configuring the router, wait at least five minutes and check the date and time again.

Time is off by one hour. Cause: The router does not automatically sense Daylight Savings Time. In the E-Mail menu, check or uncheck the box marked “Adjust for Daylight Savings Time”.

7-8

Troubleshooting

202-10072-01, March 2005

Chapter 8

Advanced Configuration of the Router

This chapter describes how to configure the advanced features of your RangeMax Wireless Router WPN824. These features can be found under the Advanced heading in the Main Menu of the browser interface.

.

Note: If you are unfamiliar with networking and routing, refer to Appendix B, “Network, Routing, Firewall, and Basics,” to become more familiar with the terms and procedures used in this chapter.

Configuring Advanced Wireless Settings

Click on Wireless Settings under the Advanced Heading in the Main Menu to invoke the Advanced Wireless Settings screen:

Figure 8-1: Advanced Wireless Settings page

Advanced Configuration of the Router

8-1

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Warning: The Wireless Router is already configured with the optimum settings. Do not alter these settings unless directed by NETGEAR support. Incorrect settings may disable the Wireless Router unexpectedly.

Program the advanced wireless settings as follows:

Enable Wireless Router Radio—The Wireless Access Point Router of this router can be enabled or disabled to allow wireless access. The wireless icon on the front of the router will also display the current status of the Wireless Access Point to let you know if it is disabled or enabled. If Enabled, wireless stations will be able to access the Internet. If Disabled, wireless stations will not be able to access the Internet.

Enable SSID Broadcast—If Enabled, the Wireless Router SSID will broadcast its name (SSID) to all Wireless Stations. Stations which have no SSID (or a "null" value) can then adopt the correct SSID for connections to this Access Point.

Fragmentation Threshold, CTS/RTS Threshold, Preamble Mode—These settings are reserved for wireless testing and advanced configuration only. Do not change these settings.

108Mbps Settings

Disable Advanced 108Mbps Features—If Disabled, the Wireless Router will disable data compression, packet bursting and large frame support.

Enable Adaptive Radio—The Adaptive Radio (AR) feature is an option that is available when the wireless settings is switched to the Dynamic 108 mode. When the Adaptive Radio feature is set to "Enable", the Dynamic 108 mode will rate down automatically to the standard 802.11g (11g or 11b) mode and operate at 54Mbps date rate or below when it senses any other neighboring wireless networks that is using an adjacent wireless channel. It will step up to a maximum data rate of 108Mbps when it senses that no other neighboring wireless networks are using adjacent channels. As the NETGEAR 108Mbps Wireless Products provide minimum interference to neighboring networks, the default setting for the Adaptive Radio feature is set to "Disable".

Enable eXtended Range—Enable eXtended Range - eXtended Range (XR) Technology provides significantly longer range than basic 802.11 by maintaining connectivity when signals are made faint when passing through dense walls, floors, or other barriers. XR products require no additional configuration by end-users and are fully interoperable with standard 802.11 technologies.

Wireless Card Access List—By default, any wireless PC that is configured with the correct SSID will be allowed access to your wireless network. For increased security, you can restrict access to the wireless network to only allow specific PCs based on their MAC addresses.

8-2

Advanced Configuration of the Router

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Wireless Card Access List

The Wireless Card Access Setup page displays a list of wireless PCs that will be allowed to connect to the router based on their MAC addresses. These wireless PCs must also have the correct SSID and WEP settings configured on the Wireless Settings page to access the wireless network.

From the Wireless Settings menu, click the Setup Access List button to display the Wireless Access List menu:

Figure 8-2: Wireless Card Access List screen

Program the wireless card access list as follows:

Turn Access Control On

a.Click the check box to Turn Access Control On and enable the restricting of wireless PCs by their MAC addresses.

b.Click the Apply button to save changes and return to the Wireless Settings page.

Note: If Turn Access Control On is enabled and the Access Control List is blank; then all wireless PCs will be unable to connect to your wireless network.

To Set Up The Access Control List:

a.Click the Add button to go to the Access Setup menu (see Figure 8-3). This menu displays a list of currently active wireless cards and their Ethernet MAC addresses.

b.If the desired PC appears in the list, you can click the radio button of that PC to capture its MAC address; otherwise, you can manually enter the MAC address of the authorized PC. The MAC address can usually be found on the bottom of the wireless device.

c.If no Device Name appears, you can type a descriptive name for the PC that you are adding.

Advanced Configuration of the Router

8-3

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

d.When you have finished entering the MAC address, return to the Wireless Access List menu by clicking the Add button.

Note: Repeat steps a - d for each wireless PC.

e.Click the Turn Access Control On box to enable Access Control.

f.Click the Apply button to save changes and return to the Wireless Settings page.

Wireless Card Access Setup

The Wireless Card Access Setup screen is invoked by clicking Add on the Wireless Card Access List menu (see “Wireless Card Access List“ on page 8-3):

Figure 8-3: Wireless Card Access Setup screen

Program the Wireless Card Access Setup menu as follows:

Available Wireless Cards—The Available Wireless Cards list displays any available wireless PCs and their MAC addresses.

If the wireless PC appears in the Available Wireless Cards list, you can click on the radio button of that PC to capture its MAC address. If your wireless PC is not displayed, make sure that the PC is configured correctly, and then click on the Refresh button to update the available list of wireless PCs. If the wireless PC is still not displayed, then follow the instructions below on how to manually setup the wireless PC's MAC address.

Wireless Card Entry—If no wireless PCs appears in the Available Wireless Cards list, you can manually enter the Device Name and MAC address of the authorized wireless PC.

8-4

Advanced Configuration of the Router

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Note: The MAC address is a twelve character key containing the characters 0-9, A-F only and separated by colons (e.g., 00:09:AB:CD:EF:01) that can usually be found on the bottom of the wireless device.

Configuring Port Triggering and Port Forwarding

Port Triggering is an advanced feature that can be used to easily enable gaming and other internet applications. Port Forwarding is typically used to enable similar functionality, but it is static and has some limitations.

Note: If you use applications such as multi-player gaming, peer-to-peer connections, real time communications such as instant messaging, or remote assistance (a feature in Windows XP), you should also enable UPnP according to the instructions at “Using Universal Plug and Play (UPnP)“ on page 8-20.

Port Triggering opens an incoming port temporarily and does not require the server on the internet to track your IP address if it is changed by DHCP, for example.

Port Triggering monitors outbound traffic. When the router detects traffic on the specified outbound port, it remembers the IP address of the computer that sent the data and triggers the incoming port. Incoming traffic on the triggered port is then forwarded to the triggering computer.

Using the Port Triggering page, you can make local computers or servers available to the Internet for different services (for example, FTP or HTTP), to play Internet games (like Quake III), or to use Internet applications (like CUseeMe).

Port Forwarding is designed for FTP, Web Server or other server based services. Once port forwarding is set up, request from Internet will be forwarded to the proper server. On the contrary, port triggering will only allow request from Internet after a designated port is 'triggered'. Port triggering applies to chat and Internet games.

Advanced Configuration of the Router

8-5

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Figure 8-4: Port Triggering Menu

Note: If Disable Port Triggering box is checked after configuring port triggering, port triggering will be disabled but any port triggering configuration information you added to the router will be retained even though it will not be used.

Port Triggering Timeout—Enter a value up to 9999 minutes. The Port Triggering Timeout value controls the inactivity timer for the designated inbound port(s). The inbound port(s) will be closed when the inactivity timer expires.

For Internet Games or Applications—Before starting, you'll need to know which service, application or game you'll be configuring. Also, you'll need to have the outbound port (triggering port) address for this game or application.

8-6

Advanced Configuration of the Router

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Follow these steps to set up a computer to play Internet games or use Internet applications: 1. Click Add.

Figure 8-5: Add Port Trigger Menu

2.Enter a service name in the Service Name box.

3.Under Service User, selecting Any (default) will allow this service to be used by everyone in your network. Otherwise, select Single address and enter the IP address of one computer to restrict the service to a particular computer.

4.Select the Service Type.

5.Enter the outbound port number in Triggering Port box.

6.Enter the inbound connection port information such as Connection Type, Starting Port and Ending Port boxes. This information can be obtained from the game or applications manual or support Web site.

7.Click Apply to save your changes.

Advanced Configuration of the Router

8-7

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Configuring Port Forwarding to Local Servers

Although the router causes your entire local network to appear as a single machine to the Internet, you can make a local server (for example, a Web server or game server) visible and available to the Internet. This is done using the Port Forwarding menu. From the Main Menu of the browser interface, under Advanced, click on Port Forwarding to view the port forwarding menu, shown below.

Figure 8-6: Port Forwarding Menu

Use the Port Forwarding menu to configure the router to forward incoming protocols to computers on your local network. In addition to servers for specific applications, you can also specify a Default DMZ Server to which all other incoming protocols are forwarded. The DMZ Server is configured in the WAN Setup menu as discussed in “Configuring the WAN Setup Options“ on page 8-11.

Before starting, you'll need to determine which type of service, application or game you'll provide and the IP address of the computer that will provide each service. Be sure the computer’s IP address never changes. To configure port forwarding to a local server:

Note: To assure that the same computer always has the same IP address, use the reserved IP address feature of your WPN824 router. See “Using Address Reservation“ on page 8-16 for instructions on how to use reserved IP addresses.

8-8

Advanced Configuration of the Router

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

1.From the Service & Game box, select the service or game that you will host on your network. If the service does not appear in the list, refer to the following section, “Adding a Custom Service”.

2.Enter the IP address of the local server in the corresponding Server IP Address box.

3.Click the Add button.

Adding a Custom Service

To define a service, game or application that does not appear in the Services & Games list, you must determine what port numbers are used by the service. For this information, you may need to contact the manufacturer of the program that you wish to use. When you have the port number information, follow these steps:

1. Click the Add Custom Service button.

Figure 8-7: Ports - Custom Services Menu

2.Type the service name in the Service Name box.

3.Type the beginning port number in the Starting Port box.

If the application uses only a single port; type the same port number in the Ending Port box.

If the application uses a range of ports; type the ending port number of the range in the Ending Port box.

4.Type the IP address of the computer in the Server IP Address box.

5.Click Apply to save your changes.

Advanced Configuration of the Router

8-9

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Editing or Deleting a Port Forwarding Entry

To edit or delete a Port Forwarding entry, follow these steps.

1.In the table, select the button next to the service name.

2.Click Edit or Delete.

Local Web and FTP Server Example

If a local computer with a private IP address of 192.168.1.33 acts as a Web and FTP server, configure the Ports menu to forward HTTP (port 80) and FTP (port 21) to local address 192.168.1.33

In order for a remote user to access this server from the Internet, the remote user must know the IP address that has been assigned by your ISP. If this address is 172.16.1.23, for example, an Internet user can access your Web server by directing the browser to http://172.16.1.23. The assigned IP address can be found in the Maintenance Status Menu, where it is shown as the WAN IP Address.

Some considerations for this application are:

If your account’s IP address is assigned dynamically by your ISP, the IP address may change periodically as the DHCP lease expires.

If the IP address of the local computer is assigned by DHCP, it may change when the computer is rebooted. To avoid this, you can manually configure the computer to use a fixed address.

Local computers must access the local server using the computers’ local LAN address (192.168.1.33 in this example). Attempts by local computers to access the server using the external IP address (172.16.1.23 in this example) will fail.

Multiple Computers for Half Life, KALI or Quake III Example

To set up an additional computer to play Half Life, KALI or Quake III:

1.Click the button of an unused port in the table.

2.Select the game again from the Services/Games list.

3.Change the beginning port number in the Start Port box.

For these games, use the supplied number in the default listing and add +1 for each additional computer. For example, if you've already configured one computer to play Hexen II (using port 26900), the second computer's port number would be 26901, and the third computer would be 26902.

8-10

Advanced Configuration of the Router

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

4.Type the same port number in the End Port box that you typed in the Start Port box.

5.Type the IP address of the additional computer in the Server IP Address box.

6.Click Apply.

Some online games and videoconferencing applications are incompatible with NAT. The WPN824 router is programmed to recognize some of these applications and to work properly with them, but there are other applications that may not function well. In some cases, one local computer can run the application properly if that computer’s IP address is entered as the default in the PORTS Menu. If one local computer acts as a game or videoconferencing host, enter its IP address as the default.

Configuring the WAN Setup Options

The WAN Setup options let you configure a DMZ server, change the MTU size and enable the wireless router to respond to a Ping on the WAN port. These options are discussed below.

Figure 8-8: WAN Setup menu.

Connect Automatically, as Required

Normally, this option should be checked to enable it. An Internet connection will be made automatically after each timeout, whenever Internet-bound traffic is detected. This provides connection on demand and is potentially cost-saving in places in Europe for example where Internet services charge by the minute.

Advanced Configuration of the Router

8-11

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

If disabled, you must connect manually, using the “Connection Status” button on the Router Status screen. This manual connection will stay up all the time without time outs.

Disabling the SPI Firewall

The SPI (Stateful Inspection) Firewall protects your LAN against Denial of Service attacks. This should only be disabled in special circumstances.

Setting Up a Default DMZ Server

The default DMZ server feature is helpful when using some online games and videoconferencing applications that are incompatible with NAT. The router is programmed to recognize some of these applications and to work properly with them, but there are other applications that may not function well. In some cases, one local computer can run the application properly if that computer’s IP address is entered as the default DMZ server.

Note: DMZ servers pose a security risk. A computer designated as the default DMZ server loses much of the protection of the firewall, and is exposed to exploits from the Internet. If compromised, the DMZ server can be used to attack your network.

Incoming traffic from the Internet is normally discarded by the router unless the traffic is a response to one of your local computers or a service that you have configured in the Ports menu. Instead of discarding this traffic, you can have it forwarded to one computer on your network. This computer is called the Default DMZ Server.

The WAN Setup menu, shown below lets you configure a Default DMZ Server.

To assign a computer or server to be a Default DMZ server, follow these steps:

1.Click WAN Setup link on the Advanced section of the main menu.

2.Type the IP address for that server. To remove the default DMZ server, replace the IP address numbers with all zeros.

3.Click Apply.

Responding to Ping on Internet WAN Port

If you want the router to respond to a 'ping' from the Internet, click the ‘Respond to Ping on Internet WAN Port’ check box. This should only be used as a diagnostic tool, since it allows your router to be discovered. Don't check this box unless you have a specific reason to do so.

8-12

Advanced Configuration of the Router

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Setting the MTU Size

The normal MTU (Maximum Transmit Unit) value for most Ethernet networks is 1500 Bytes, 1492 Bytes for PPPoE connections, or 1436 for PPTP connections. For some ISPs you may need to reduce the MTU. But this is rarely required, and should not be done unless you are sure it is necessary for your ISP connection.

Any packets sent through the router that are larger than the configured MTU size will be repackaged into smaller packets to meet the MTU requirement. To change the MTU size:

1.Under MTU Size, enter a new size between 64 and 1500.

2.Click Apply to save the new configuration.

Using the LAN IP Setup Options

Another feature category under the Advanced heading is LAN IP Setup. This menu allows configuration of LAN IP services such as DHCP and RIP. From the Main Menu of the browser interface, under Advanced, click on LAN IP Setup to view the LAN IP Setup menu, shown below.

Figure 8-9: LAN IP Setup Menu

Advanced Configuration of the Router

8-13

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Configuring LAN TCP/IP Setup Parameters

The router is shipped preconfigured to use private IP addresses on the LAN side, and to act.as a DHCP server. The router’s default LAN IP configuration is:

LAN IP addresses—192.168.1.1

Subnet mask—255.255.255.0

These addresses are part of the IETF-designated private address range for use in private networks, and should be suitable in most applications. If your network has a requirement to use a different IP addressing scheme, you can make those changes in this menu.

The LAN IP parameters are:

IP Address

This is the LAN IP address of the router.

IP Subnet Mask

This is the LAN Subnet Mask of the router. Combined with the IP address, the IP Subnet Mask allows a device to know which other addresses are local to it, and which must be reached through a gateway or router.

RIP Direction

RIP (Router Information Protocol) allows a router to exchange routing information with other routers. The RIP Direction selection controls how the router sends and receives RIP packets. Both is the default.

When set to Both or Out Only, the router will broadcast its routing table periodically.

When set to Both or In Only, it will incorporate the RIP information that it receives.

When set to None, it will not send any RIP packets and will ignore any RIP packets received.

RIP Version

This controls the format and the broadcasting method of the RIP packets that the router sends. (It recognizes both formats when receiving.) By default, this is set for RIP-1.

RIP-1 is universally supported. RIP-1 is probably adequate for most networks, unless you have an unusual network setup.

RIP-2 carries more information. RIP-2B uses subnet broadcasting.

8-14

Advanced Configuration of the Router

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Note: If you change the LAN IP address of the router while connected through the browser, you will be disconnected. You must then open a new connection to the new IP address and log in again.

Using the Router as a DHCP server

By default, the router will function as a DHCP (Dynamic Host Configuration Protocol) server, allowing it to assign IP, DNS server, and default gateway addresses to all computers connected to the router's LAN. The assigned default gateway address is the LAN address of the router. IP addresses will be assigned to the attached computers from a pool of addresses specified in this menu. Each pool address is tested before it is assigned to avoid duplicate addresses on the LAN.

For most applications, the default DHCP and TCP/IP settings of the router are satisfactory. See “IP Configuration by DHCP” on page B-10 for an explanation of DHCP and information about how to assign IP addresses for your network.

If another device on your network will be the DHCP server, or if you will manually configure the network settings of all of your computers, clear the ‘Use router as DHCP server’ check box. Otherwise, leave it checked.

Specify the pool of IP addresses to be assigned by setting the Starting IP Address and Ending IP Address. These addresses should be part of the same IP address subnet as the router’s LAN IP address. Using the default addressing scheme, you should define a range between 192.168.1.2 and 192.168.1.253, although you may wish to save part of the range for devices with fixed addresses.

The router will deliver the following parameters to any LAN device that requests DHCP:

An IP Address from the range you have defined

Subnet Mask

Gateway IP Address (the router’s LAN IP address)

Primary DNS Server (if you entered a Primary DNS address in the Basic Settings menu; otherwise, the router’s LAN IP address)

Secondary DNS Server (if you entered a Secondary DNS address in the Basic Settings menu

Advanced Configuration of the Router

8-15

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Using Address Reservation

When you specify a reserved IP address for a computer on the LAN, that computer will always receive the same IP address each time it access the router’s DHCP server. Reserved IP addresses should be assigned to servers that require permanent IP settings.

To reserve an IP address:

1.Click the Add button.

2.In the IP Address box, type the IP address to assign to the computer or server. (choose an IP address from the router’s LAN subnet, such as 192.168.1.X)

3.Type the MAC Address of the computer or server.

(Tip: If the computer is already present on your network, you can copy its MAC address from the Attached Devices menu and paste it here.)

4.Click Apply to enter the reserved address into the table.

Note: The reserved address will not be assigned until the next time the computer contacts the router's DHCP server. Reboot the computer or access its IP configuration and force a DHCP release and renew.

To edit or delete a reserved address entry:

1.Click the button next to the reserved address you want to edit or delete.

2.Click Edit or Delete.

Using a Dynamic DNS Service

If your network has a permanently assigned IP address, you can register a domain name and have that name linked with your IP address by public Domain Name Servers (DNS). However, if your Internet account uses a dynamically assigned IP address, you will not know in advance what your IP address will be, and the address can change frequently. In this case, you can use a commercial dynamic DNS service, who will allow you to register your domain to their IP address, and will forward traffic directed at your domain to your frequently-changing IP address.

Note: If your ISP assigns a private WAN IP address (such as 192.168.x.x or 10.x.x.x), the dynamic DNS service will not work because private addresses will not be routed on the Internet.

8-16

Advanced Configuration of the Router

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

The router contains a client that can connect to many popular dynamic DNS services. You can select one of these services and obtain an account with them. Then, whenever your ISP-assigned IP address changes, your router will automatically contact your dynamic DNS service provider, log in to your account, and register your new IP address.

From the Main Menu of the browser interface, under Advanced, click on Dynamic DNS. To configure Dynamic DNS:

1.Register for an account with one of the dynamic DNS service providers whose names appear in the ‘Select Service Provider’ box. For example, for dyndns.org, go to www.dyndns.org.

2.Select the Use a dynamic DNS service check box.

3.Select the name of your dynamic DNS Service Provider.

4.Type the Host Name (or domain name) that your dynamic DNS service provider gave you.

5.Type the User Name for your dynamic DNS account.

6.Type the Password (or key) for your dynamic DNS account.

7.If your dynamic DNS provider allows the use of wildcards in resolving your URL, you may select the Use wildcards check box to activate this feature.

For example, the wildcard feature will cause *.yourhost.dyndns.org to be aliased to the same IP address as yourhost.dyndns.org

8.Click Apply to save your configuration.

Configuring Static Routes

Static Routes provide additional routing information to your router. Under normal circumstances, the router has adequate routing information after it has been configured for Internet access, and you do not need to configure additional static routes. You must configure static routes only for unusual cases such as multiple routers or multiple IP subnets located on your network.

From the Main Menu of the browser interface, under Advanced, click on Static Routes to view the Static Route menu, shown below.

Advanced Configuration of the Router

8-17

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Figure 8-10: Static Route Summary Table

To add or edit a Static Route:

1. Click the Add button to open the Add/Edit Menu, shown below.

Figure 8-11. Static Route Entry and Edit Menu

2.Type a route name for this static route in the Route Name box under the table. (This is for identification purposes only.)

3.Select Private if you want to limit access to the LAN only. The static route will not be reported in RIP.

4.Select Active to make this route effective.

5.Type the Destination IP Address of the final destination.

6.Type the IP Subnet Mask for this destination.

If the destination is a single host, type 255.255.255.255.

7.Type the Gateway IP Address, which must be a router on the same LAN segment as the router.

8-18

Advanced Configuration of the Router

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

8.Type a number between 1 and 15 as the Metric value.

This represents the number of routers between your network and the destination. Usually, a setting of 2 or 3 works, but if this is a direct connection, set it to 1.

9.Click Apply to have the static route entered into the table.

As an example of when a static route is needed, consider the following case:

Your primary Internet access is through a cable modem to an ISP.

You have an ISDN router on your home network for connecting to the company where you are employed. This router’s address on your LAN is 192.168.1.100.

Your company’s network is 134.177.0.0.

When you first configured your router, two implicit static routes were created. A default route was created with your ISP as the gateway, and a second static route was created to your local network for all 192.168.1.x addresses. With this configuration, if you attempt to access a device on the 134.177.0.0 network, your router will forward your request to the ISP. The ISP forwards your request to the company where you are employed, and the request will likely be denied by the company’s firewall.

In this case you must define a static route, telling your router that 134.177.0.0 should be accessed through the ISDN router at 192.168.1.100. The static route would look like Figure 8-11.

In this example:

The Destination IP Address and IP Subnet Mask fields specify that this static route applies to all 134.177.x.x addresses.

The Gateway IP Address fields specifies that all traffic for these addresses should be forwarded to the ISDN router at 192.168.1.100.

A Metric value of 1 will work since the ISDN router is on the LAN.

Private is selected only as a precautionary security measure in case RIP is activated.

Enabling Remote Management Access

Using the Remote Management page, you can allow a user or users on the Internet to configure, upgrade and check the status of your WPN824 router.

Advanced Configuration of the Router

8-19

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Note: Be sure to change the router's default configuration password to a very secure password. The ideal password should contain no dictionary words from any language, and should be a mixture of letters (both upper and lower case), numbers, and symbols. Your password can be up to 30 characters.

To configure your router for Remote Management:

1.Select the Turn Remote Management On check box.

2.Specify what external addresses will be allowed to access the router’s remote management.

Note: For enhanced security, restrict access to as few external IP addresses as practical.

a.To allow access from any IP address on the Internet, select Everyone.

b.To allow access from a range of IP addresses on the Internet, select IP address range. Enter a beginning and ending IP address to define the allowed range.

c.To allow access from a single IP address on the Internet, select Only this computer. Enter the IP address that will be allowed access.

3.Specify the Port Number that will be used for accessing the management interface.

Web browser access normally uses the standard HTTP service port 80. For greater security, change the remote management Web interface to a custom port by entering that number in the box provided. Choose a number between 1024 and 65535, but do not use the number of any common service port. The default is 8080, which is a common alternate for HTTP.

4.Click Apply to have your changes take effect.

Note: When accessing your router from the Internet, you will type your router's WAN IP address into your browser's Address (in IE) or Location (in Netscape) box, followed by a colon (:) and the custom port number. For example, if your external address is 134.177.0.123 and you use port number 8080, you must enter http://134.177.0.123:8080 in your browser.

Using Universal Plug and Play (UPnP)

Universal Plug and Play (UPnP) helps devices, such as Internet appliances and computers, access the network and connect to other devices as needed. UPnP devices can automatically discover the services from other registered UPnP devices on the network.

8-20

Advanced Configuration of the Router

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Figure 8-12. UPnP Menu

From the Main Menu of the browser interface, under Advanced, click on UPnP. Set up UPnP according to the guidelines below.

Turn UPnP On: UPnP can be enabled or disabled for automatic device configuration. The default setting for UPnP is enabled. If disabled, the router will not allow any device to automatically control the resources, such as port forwarding (mapping), of the router.

Note: If you use applications such as multi-player gaming, peer-to-peer connections, real time communications such as instant messaging, or remote assistance (a feature in Windows XP), you should enable UPnP.

Advertisement Period: The Advertisement Period is how often the router will broadcast its UPnP information. This value can range from 1 to 1440 minutes. The default period is 30 minutes. Shorter durations will ensure that control points have current device status at the expense of additional network traffic. Longer durations may compromise the freshness of the device status but can significantly reduce network traffic.

Advertisement Time To Live: The time to live for the advertisement is measured in hops (steps) for each UPnP packet sent. The time to live hop count is the number of steps a broadcast packet is allowed to propagate for each UPnP advertisement before it disappears. The number of hops can range from 1 to 255. The default value for the advertisement time to live is 4 hops, which should be fine for most home networks. If you notice that some devices are not being updated or reached correctly, then it may be necessary to increase this value a little.

Advanced Configuration of the Router

8-21

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

UPnP Portmap Table: The UPnP Portmap Table displays the IP address of each UPnP device that is currently accessing the router and which ports (Internal and External) that device has opened. The UPnP Portmap Table also displays what type of port is opened and if that port is still active for each IP address.

8-22

Advanced Configuration of the Router

202-10072-01, March 2005

Appendix A

Technical Specifications

This appendix provides technical specifications for the RangeMax Wireless Router WPN824.

Network Protocol and Standards Compatibility

Data and Routing Protocols:

TCP/IP, RIP-1, RIP-2, DHCP



PPP over Ethernet (PPPoE)

Power Adapter



North America:

120V, 60 Hz, input

United Kingdom, Australia:

240V, 50 Hz, input

Europe:

230V, 50 Hz, input

Japan:

100V, 50/60 Hz, input

All regions (output):

12 V DC @ 1A output, 22W maximum

Physical Specifications



Dimensions:

28 x 175 x 119 mm (1.1 x 6.89 x 4.68 in.)

Weight:

0.3 kg (0.66 lb)

Environmental Specifications



Operating temperature:

0° to 40° C (32º to 104º F)

Operating humidity:

90% maximum relative humidity, noncondensing

Electromagnetic Emissions



Meets requirements of:

FCC Part 15 Class B



VCCI Class B



EN 55 022 (CISPR 22), Class B



C-Tick N10947

Interface Specifications



LAN:

10BASE-T or 100BASE-Tx, RJ-45

WAN:

10BASE-T or 100BASE-Tx, RJ-45

Technical Specifications

A-1

202-10072-01, March 2005

Reference Manual for the RangeMax Wireless Router WPN824

Wireless



Radio Data Rates

1, 2, 5.5, 6, 9, 12, 18, 24, 36, 48, 54, and 108 Mbps



Auto Rate Sensing

Frequency

2.4-2.5Ghz

Data Encoding:

802.11b: Direct Sequence Spread Spectrum (DSSS)



802.11g: Orthogonal Frequency Division Multiplexing (OFDM)

Maximum Computers Per Wireless

Limited by the amount of wireless network traffic generated by each

Network:

node. Typically 30-70 nodes.

Operating Frequency Ranges:

2.412~2.462 GHz (US) 2.457~2.462 GHz (Spain)



2.412~2.484 GHz (Japan)2.457~2.472 GHz (France)



2.412~2.472 GHz (Europe ETSI)

802.11 Security:

40-bits (also called 64-bits) and 128-bits WEP and WPA-PSK









A-2

Technical Specifications

202-10072-01, March 2005
