Netgear MS108EUP User guide

User Manual

8-port Ultra60 PoE++ Multi-Gigabit (2.5G)
Ethernet Plus Switch

Model MS108EUP

NETGEAR, Inc.

350 E. Plumeria DriveDecember 2021
San Jose, CA 95134, USA202-12564-01

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Support and Community

Visit netgear.com/support to get your questions answered and access the latest
downloads.

You can also check out our NETGEAR Community for helpful advice at
community.netgear.com.

Regulatory and Legal

Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français
canadien à https://www.netgear.com/support/download/.

(If this product is sold in Canada, you can access this document in Canadian French at
https://www.netgear.com/support/download/.)

For regulatory compliance information including the EU Declaration of Conformity, visit
https://www.netgear.com/about/regulatory/.

See the regulatory compliance document before connecting the power supply.

For NETGEAR’s Privacy Policy, visit https://www.netgear.com/about/privacy-policy.

By using this device, you are agreeing to NETGEAR’s Terms and Conditions at
https://www.netgear.com/about/terms-and-conditions. If you do not agree, return the
device to your place of purchase within your return period.

Do not use this device outdoors. The PoE source is intended for intra building connection
only.

Applicable to 6 GHz devices only: Only use the device indoors. The operation of 6 GHz
devices is prohibited on oil platforms, cars, trains, boats, and aircraft, except that
operation of this device is permitted in large aircraft while flying above 10,000 feet.
Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or
communications with unmanned aircraft systems.

Trademarks

© NETGEAR, Inc., NETGEAR, and the NETGEAR Logo are trademarks of NETGEAR, Inc.
Any non-NETGEAR trademarks are used for reference purposes only.

Revision History

CommentsPublish DatePublication Part

Number

202-12564-01

First publication.December

2021

2

Contents

Chapter 1 Hardware

Related documentation.......................................................................8

Switch package contents.....................................................................8

Supported switch models....................................................................8

LEDs........................................................................................................8

Switch label.........................................................................................10

Safety instructions and warnings......................................................11

Chapter 2 Install and Access the Switch in Your Network

Set up the switch in your network and power on the switch.........15

Discover the switch's IP address to access its device UI................15

Discover the IP address and access the switch..........................16

Use the NETGEAR Switch Discovery Tool to discover the

switch's IP address and access the device UI........................16

Assign a fixed IP address to the switch.......................................17

Set a fixed IP address for the switch through a network

connection..................................................................................18

Assign a fixed IP address by connecting directly to the switch

off-network.................................................................................19

Change the language of the device UI............................................21

Change the switch password............................................................21

Register the switch..............................................................................22

Chapter 3 Optimize the Switch Performance

Set the quality of service mode and port rate limits......................24

Use port-based quality of service and set port priorities..........24

Use 802.1P/DSCP quality of service............................................25

Manage broadcast filtering and set port storm control rate

limits.................................................................................................26

Manage individual port settings.......................................................27

Set rate limits for a port.................................................................27

Manage flow control for a port.....................................................28

Change the speed for a port or disable a port..........................29

Add or change the name label for a port...................................30

3

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Chapter 4 Use VLANS for Traffic Segmentation

VLAN overview....................................................................................33

Activate the Basic Port-Based VLAN mode and assign VLANs.....34

Manage advanced port-based VLANs.............................................35

Activate the Advanced Port-Based VLAN Mode........................35

Create an advanced port-based VLAN.......................................36

Change an advanced port-based VLAN.....................................37

Delete an advanced port-based VLAN.......................................39

Manage basic 802.1Q VLANs...........................................................39

Activate the Basic 802.1Q VLAN mode.......................................40

Create a basic 802.1Q VLAN and assign ports as members....41

Assign the port mode in a basic 802.1Q VLAN configuration..42

Change a basic 802.1Q VLAN......................................................44

Delete a basic 802.1Q VLAN........................................................45

Manage advanced 802.1Q VLANs...................................................45

Activate the advanced 802.1Q VLAN mode..............................46

Create an advanced 802.1Q VLAN.............................................47

Change an advanced 802.1Q VLAN...........................................48

Specify a port PVID for an advanced 802.1Q VLAN..................50

Set an existing advanced 802.1Q VLAN as the voice VLAN and

adjust the CoS value......................................................................51

Change the OUI table for the voice VLAN..................................52

Delete an advanced 802.1Q VLAN..............................................53

Deactivate a port-based or 802.1Q VLAN mode and delete all

VLANs...................................................................................................54

Chapter 5 Manage the Switch in Your Network

Manage NETGEAR Switch Discovery Protocol...............................57

Set up link aggregation.....................................................................57

Make a link aggregation connection...........................................58

Set up a static link aggregation group........................................58

Set up a dynamic link aggregation group..................................59

Enable a link aggregation group.................................................61

Manage multicast...............................................................................62

Manage IGMP snooping...............................................................62

Enable a VLAN for IGMP snooping..............................................63

Manage blocking of unknown multicast addresses..................63

Manage IGMPv3 IP header validation.........................................64

Set up a static router port for IGMP snooping...........................65

Change the IP address of the switch................................................66

Reenable the DHCP client of the switch..........................................67

4

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Chapter 6 Maintain and Monitor the Switch

Update the firmware on the switch..................................................69

Manage the configuration file...........................................................70

Back up the switch configuration.................................................70

Restore the switch configuration..................................................71

Return the switch to its factory default settings..............................72

Use the RESET button to reset the switch...................................72

Use the device UI to reset the switch...........................................73

Control access to the device UI........................................................73

HTTP and HTTPS management access............................................74

Configure HTTP access settings...................................................75

Browser security message with HTTPS access...........................76

Configure HTTPS access settings................................................76

Manage certificates for HTTPS access.........................................78

Transfer an SSL certificate from a TFTP server for HTTPS

access..............................................................................................78

Delete certificates for HTTPS access...........................................79

Change or lift access restrictions to the switch...............................80

Manage the DoS prevention mode..................................................81

Manage the power saving mode......................................................82

Control the port LEDs........................................................................83

Change the switch device name.......................................................83

View system information....................................................................84

Date and time settings.......................................................................84

Configure the system time manually...........................................85

Configure the SNTP client mode.................................................85

Configure an SNTP server.............................................................87

Enable system time to synchronize with an SNTP server..........88

Configure daylight saving time....................................................89

View daylight saving time status..................................................90

View switch connections....................................................................91

View the status of a port....................................................................91

Power over Ethernet...........................................................................92

PoE considerations for switches that support PoE, PoE+ or

PoE++..............................................................................................92

PoE++ and PoE+ overview...........................................................93

Monitor PD health..........................................................................93

Manage uninterrupted PoE..........................................................94

Power cycle the PoE ports............................................................95

Manage an individual PoE port....................................................96

Display PoE port status..................................................................98

Configure a PoE schedule............................................................99

Edit or disable a PoE schedule..................................................100

5

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Chapter 7 Diagnostics and Troubleshooting

Test cable connections....................................................................103

Resolve a subnet conflict to access the switch.............................103

PoE troubleshooting suggestions..................................................104

Enable or disable loop prevention................................................105

Enable port mirroring......................................................................106

View or clear the port statistics.......................................................106

Chapter 8 Factory Default Settings and Technical Specifications

Factory default settings...................................................................109

Technical specifications...................................................................110

Model MS108EUP technical specifications..............................110

Appendix A Additional Switch Discovery and Access Information

Access the switch from any computer...........................................112

6

1

Hardware

This user manual describes how you can use the device user interface (UI) to configure
and manage NETGEAR Multi-Gigabit Ethernet Plus Switches.

This chapter covers the following topics:

• Related documentation

• Switch package contents

• Supported switch models

• LEDs

• Switch label

• Safety instructions and warnings

Note:

This user manual complements the installation guide that came with your switch.

•
You can also download the installation guide by visiting

netgear.com/support/download/.

For more information about the topics covered in this manual, visit the support

•
website at netgear.com/support

Firmware updates with new features and bug fixes are made available from time to

•
time at netgear.com/support/download/. You can manually check for, and download,

new firmware. If the features or behavior of your product do not match what is
described in this guide, see the latest firmware release notes for your switch model.

7

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Related documentation

Related documentation is available at netgear.com/support/download/:

Installation guide

•

Data sheet

•

Switch package contents

The package contains the switch, AC power adapter (power cable localized to the
country of sale), wall-mount installation kit, rubber feet, and installation guide.

Supported switch models

This manual describes the 8-Port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch
Model MS108EUP.

LEDs

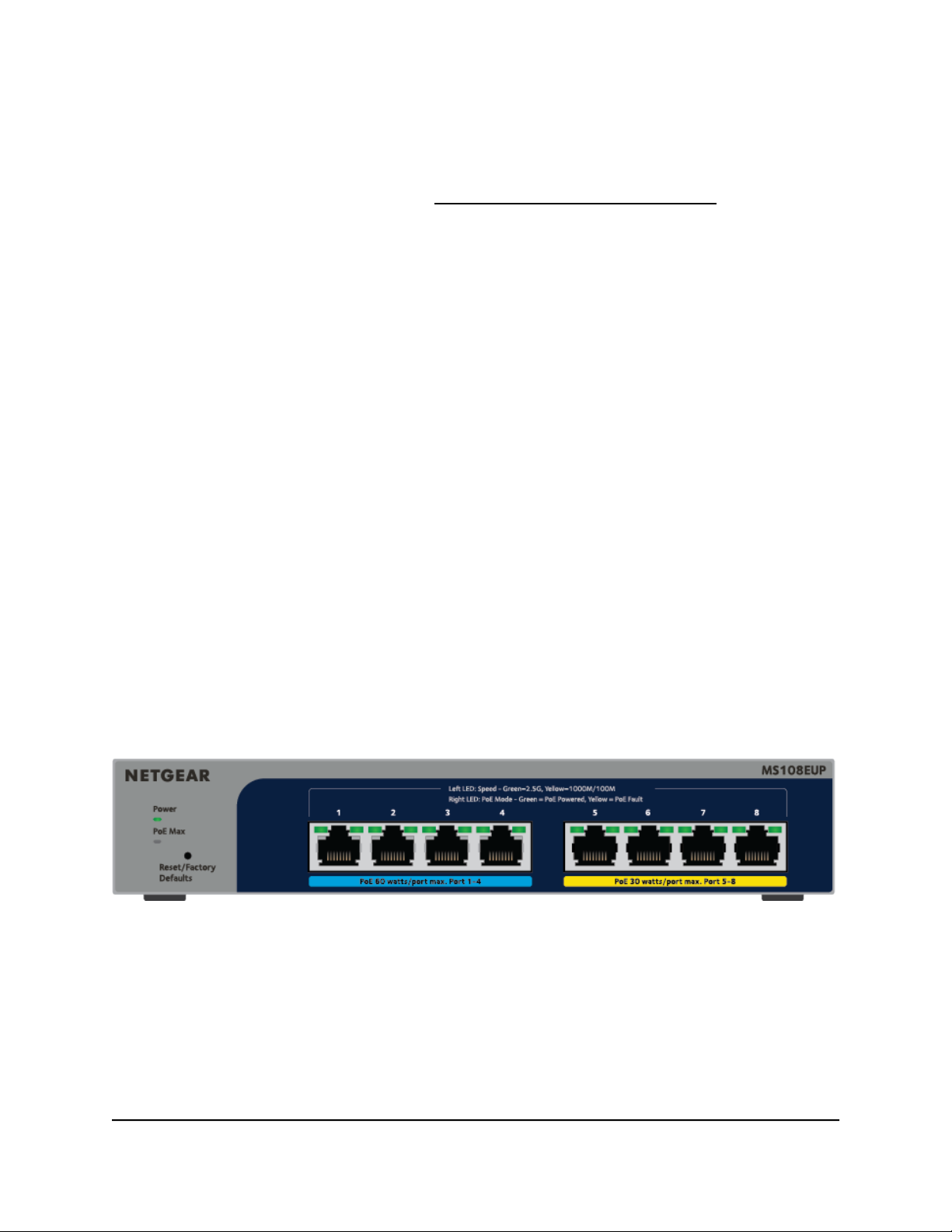

This section describes the LED designations. The port LEDs are located above the ports.

Ports 1 through 4 are 60W PoE++ ports, and ports 5-8 are 30W PoE+ ports.

User Manual8Hardware

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Table 1. LEDs on the front panel

DescriptionLED

Power

PoE Max
(Status of switch's PoE
budget)

Solid green: The switch is powered on and operating normally.
Off: Power is not supplied to the switch.

Off: Sufficient (more than 7W of) PoE power is available.
Solid yellow: Less than 7W of PoE power is available.
Blinking yellow: At least once during the previous two minutes, less than 7W of PoE

power was available.

User Manual9Hardware

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Table 1. LEDs on the front panel (Continued)

DescriptionLED

Left port

Right port

Solid green: 2.5 Gbps link on this port.
Blinking green: 2.5 Gbps activity on this port.
Solid yellow: 1000 Mbps or 100 Mbps link on this port.
Blinking yellow: 1000 Mbps or 100 Mbps activity on this port.
Off: No link is detected on this port.

Solid green: The port is delivering PoE power.
Off: The port is not delivering PoE power.
Solid yellow: A PoE fault occurred.

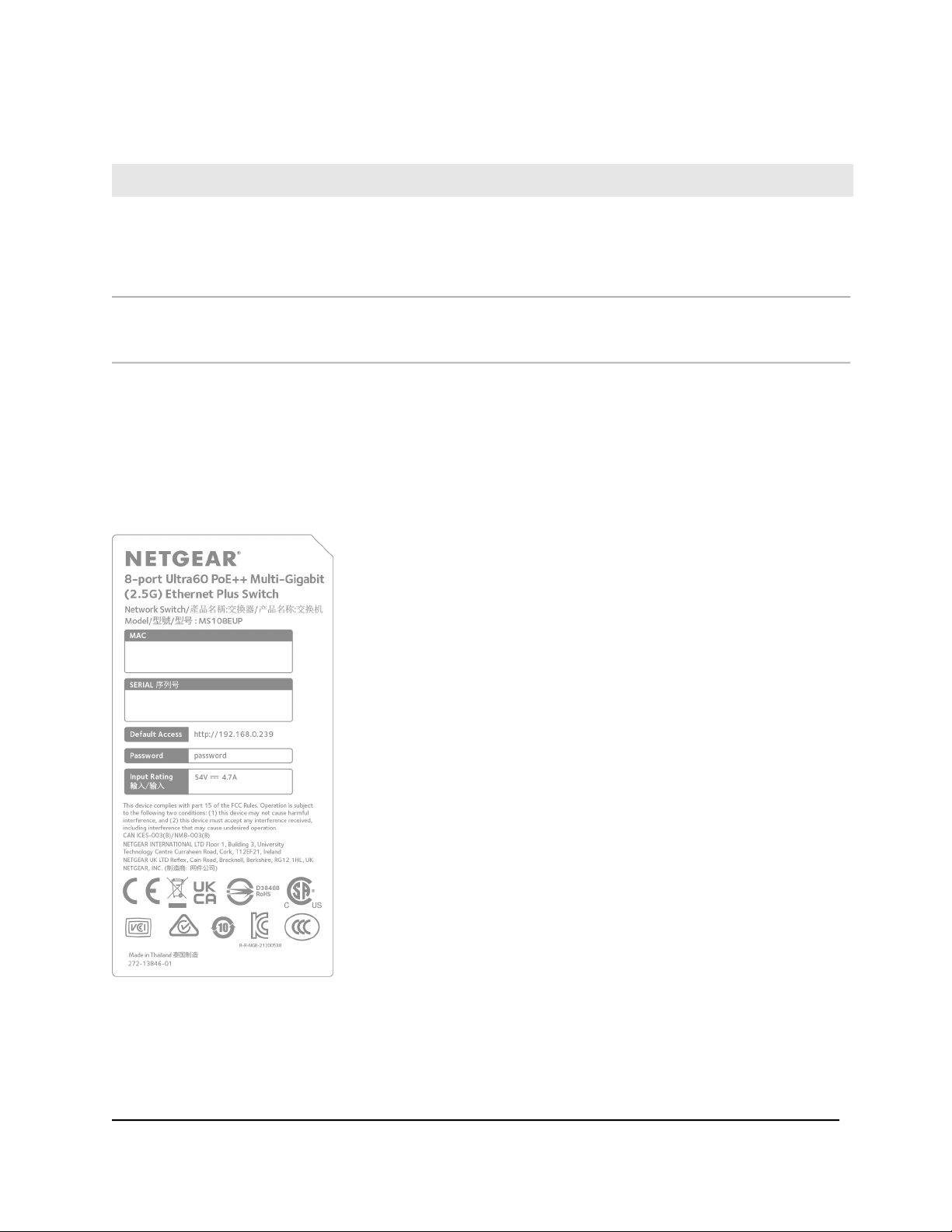

Switch label

The switch label on the bottom panel of the switch shows the serial number, MAC
address, and default login information of the switch.

User Manual10Hardware

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Safety instructions and warnings

Use the following safety guidelines to ensure your own personal safety and to help
protect your system from potential damage.

To reduce the risk of bodily injury, electrical shock, fire, and damage to the equipment,
observe the following precautions:

This product is designed for indoor use only in a temperature-controlled and

•
humidity-controlled environment. Note the following:

-

For more information about the environment in which this product must operate,
see the environmental specifications in the appendix or the data sheet.

-

If you want to connect the product to a device located outdoors, the outdoor
device must be properly grounded and surge protected, and you must install an
Ethernet surge protector inline between the indoor product and the outdoor
device. Failure to do so can damage the product.

-

Before connecting the product to outdoor cables or devices, see
https://kb.netgear.com/000057103 for additional safety and warranty information.

Failure to follow these guidelines can result in damage to your NETGEAR product,
which might not be covered by NETGEAR’s warranty, to the extent permissible by
applicable law.

Observe and follow service markings:

•

- Do not service any product except as explained in your product documentation.

Some devices should never be opened.

-

If applicable to your product, opening or removing covers that are marked with
the triangular symbol with a lightning bolt can expose you to electrical shock.
We recommend that only a trained technician services components inside these
compartments.

If any of the following conditions occur, unplug the product from the power outlet,

•
and then replace the part or contact your trained service provider:

- Depending on your product, the power adapter, power adapter cable, power

cable, extension cable, or plug is damaged.

-

An object fell into the product.

- The product was exposed to water.

- The product was dropped or damaged.

-

The product does not operate correctly when you follow the operating
instructions.

User Manual11Hardware

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Keep the product away from radiators and heat sources. Also, do not block cooling

•
vents.

Do not spill food or liquids on your product components, and never operate the

•
product in a wet environment. If the product gets wet, see the appropriate section
in your troubleshooting guide, or contact your trained service provider.

Do not push any objects into the openings of your product. Doing so can cause fire

•
or electric shock by shorting out interior components.

Use the product only with approved equipment.

•

If applicable to your product, allow the product to cool before removing covers or

•
touching internal components.

Operate the product only from the type of external power source indicated on the

•
electrical ratings label. If you are not sure of the type of power source required,
consult your service provider or local power company.

To avoid damaging your system, if your product uses a power supply with a voltage

•
selector, be sure that the selector is set to match the power at your location:

-

115V, 60 Hz in most of North and South America and some Far Eastern countries
such as South Korea and Taiwan

- 100V, 50 Hz in eastern Japan and 100V, 60 Hz in western Japan

-

230V, 50 Hz in most of Europe, the Middle East, and the Far East

Be sure that attached devices are electrically rated to operate with the power available

•
in your location.

Depending on your product, use only a supplied power adapter or approved power

•
cable:

If your product uses a power adapter:

-

If you were not provided with a power adapter, contact your local NETGEAR
reseller.

-

The power adapter must be rated for the product and for the voltage and current
marked on the product electrical ratings label.

If your product uses a power cable:

-

If you were not provided with a power cable for your system or for any
AC-powered option intended for your system, purchase a power cable approved
for your country.

-

The power cable must be rated for the product and for the voltage and current
marked on the product electrical ratings label. The voltage and current rating of
the cable must be greater than the ratings marked on the product.

User Manual12Hardware

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

To help prevent electric shock, plug the system and peripheral power cables into

•
properly grounded power outlets.

If applicable to your product, the peripheral power cables are equipped with

•
three-prong plugs to help ensure proper grounding. Do not use adapter plugs or

remove the grounding prong from a cable. If you must use an extension cable, use
a three-wire cable with properly grounded plugs.

Observe extension cable and power strip ratings. Make sure that the total ampere

•
rating of all products plugged into the extension cable or power strip does not

exceed 80 percent of the ampere ratings limit for the extension cable or power strip.

To help protect your system from sudden, transient increases and decreases in

•
electrical power, use a surge suppressor, line conditioner, or uninterruptible power
supply (UPS).

Position system cables, power adapter cables, or power cables carefully. Route

•
cables so that they cannot be stepped on or tripped over. Be sure that nothing rests
on any cables.

Do not modify power adapters, power adapter cables, power cables or plugs. Consult

•
a licensed electrician or your power company for site modifications.

Always follow your local and national wiring rules.

•

User Manual13Hardware

2

Install and Access the Switch in Your Network

This chapter describes how you can install the switch in your network, get an IP address
for the switch, and use the IP address to access the switch's device UI so you can set up,
manage, and monitor the switch.

The chapter contains the following sections:

• Set up the switch in your network and power on the switch

• Discover the switch's IP address to access its device UI

• Change the language of the device UI

• Change the switch password

• Register the switch

14

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Set up the switch in your network and power on the switch

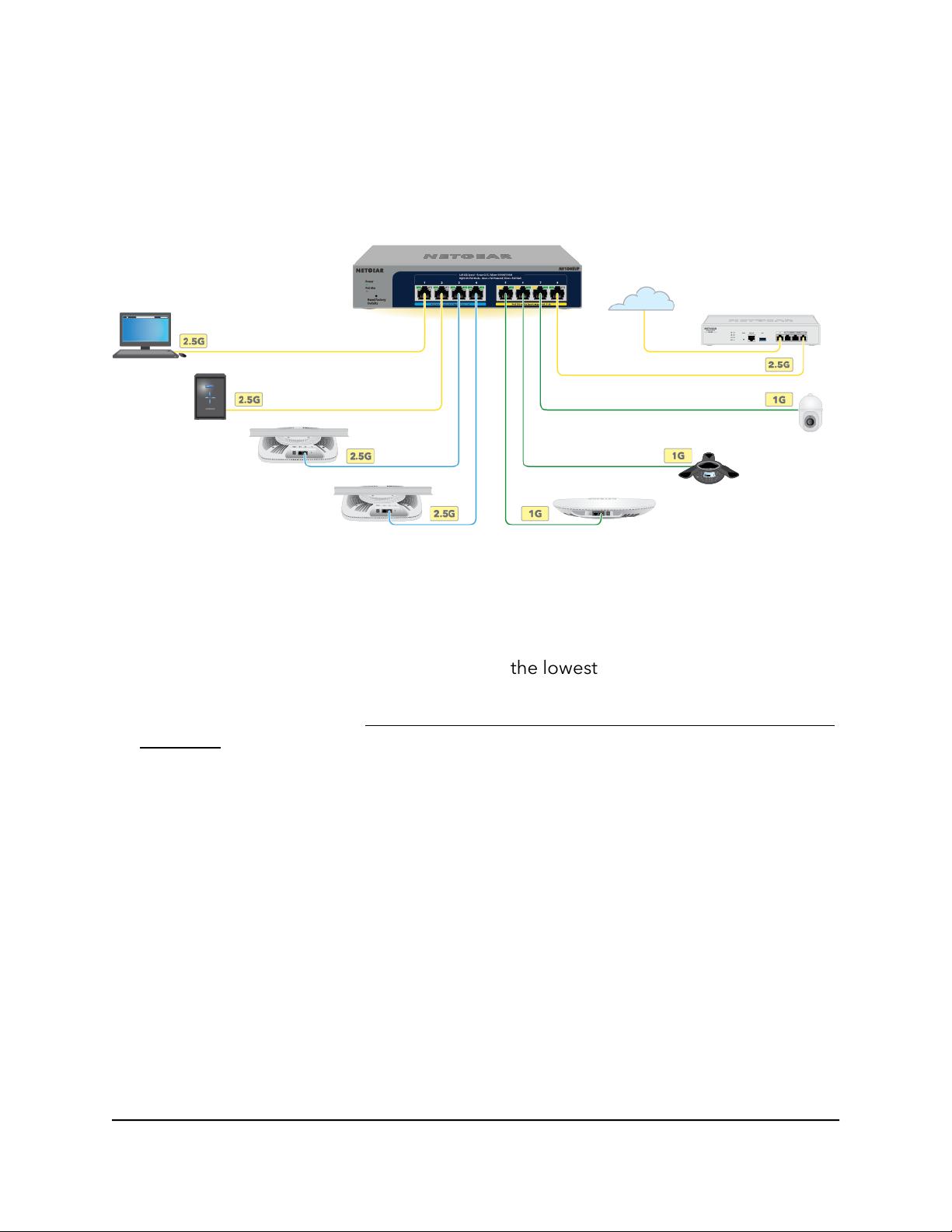

Figure 1. Example connections

To set up the switch in your network and power on the switch:

1. Connect any port on the switch to a LAN port on a router that is connected to the
Internet.

2. On the switch, connect your PoE devices to the lowest number ports, starting with
port 1, and then connect any non-PoE devices.

For more information, see PoE considerations for switches that support PoE, PoE+
or PoE++ on page 92.

3. Connect the power adapter to the switch and plug the power adapter into an
electrical outlet.

The power LED lights, and the port LEDs for connected devices light.

Discover the switch's IP address to access its device UI

Use a computer and a web browser to access the device UI so you can configure and
manage the switch. Choose one of the following methods to discover the switch's IP

User Manual15Install and Access the Switch in

Your Network

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

address in your network, and then use the IP address to access the device UI of the
switch:

Use the NETGEAR Switch Discovery Tool to discover the switch's IP address and

•
access the device UI on page 16.

Assign a fixed IP address to the switch on page 17.

•

Discover the IP address and access the switch

By default, the switch is configured to receive an IP address from a DHCP server (or a
router that functions as a DHCP server) in your network.

If you prefer to set a fixed (static) IP address on the switch, see Assign a fixed IP address
to the switch on page 17.

Use the NETGEAR Switch Discovery Tool to discover the switch's IP address and access the device UI The NETGEAR Switch Discovery Tool (NSDT)

discovers the switch in your network so you can access the device UI of the switch from
a web browser.

To install the NSDT, discover the switch in your network, access the switch, and
discover the switch IP address:

1. Download the NSDT by visiting
netgear.com/support/product/netgear-switch-discovery-tool.aspx.

Download the version for your operating system.

2.

Temporarily disable the firewall, Internet security, antivirus programs, or all of these
on the computer that you are using to configure the switch.

3.

Unzip the NSDT files, and double-click the .exe or .dmg file (for example,

NETGEAR+Switch+Discovery+Tool+Setup+1.2.103.exe or
NetgearSDT-V1.2.103.dmg) to install the program on your computer.

Depending on your computer setup, the installation process might add the NETGEAR
Switch Discovery Tool icon to the dock of your Mac or the desktop of your

Windows-based computer.

4. Reenable the security services on your computer.

5. Power on the switch.
The DHCP server assigns the switch an IP address.

6. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection. The computer and the switch must be on

the same Layer 2 network.

7. Open the NSDT.

Your Network

User Manual16Install and Access the Switch in

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

If the NETGEAR Switch Discovery Tool icon is in the dock of your Mac or on the
desktop of your Windows-based computer, click or double-click the icon to open
the program.

The initial page displays a menu and a button.

8. From the Choose a connection menu, select the network connection that allows
the NSDT to access the switch.

9. Click the Start Searching button.
The NSDT displays a list of switches that it discovers on the selected network.

For each switch, the tool displays the IP address.

10.

To access the device UI of the switch, click the ADMIN PAGE button.
The login page of the device UI opens.

11. Enter the switch password.
The default password is password. The password is case-sensitive.

The HOME page displays.

The right pane (or, depending on the size of your browser window, the middle pane)
shows the IP address that is assigned to the switch.

Tip: You can copy and paste the IP address into a new shortcut or bookmark it for
quick access on your computer or mobile device. However, if you restart the switch,
a dynamic IP address (assigned by a DHCP server) might change the IP address, and
the bookmark might no longer link to the login page for the switch. When you restart
the switch, you must repeat this procedure so that you can discover the new IP
address of the switch in the network and update your bookmark accordingly. You
can also set up a fixed (static) IP address for the switch (see Assign a fixed IP address
to the switch on page 17) to make sure that the new bookmark always links to the
login page for the switch, even after you restart the switch.

Assign a fixed IP address to the switch

By default, the switch is configured to automatically receive an IP address from a DHCP
server (or a router that functions as a DHCP server) in your network. However, certain
events can cause the DHCP server to issue a new IP address to the switch, so if you need
the switch to persistently have the same IP address, you can assign a fixed (static) IP
address to the switch. For example, you may want to attach a shared device such as a

Your Network

User Manual17Install and Access the Switch in

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

printer or file server, configure port forwarding, or set up the switch so you can connect
remotely from a mobile device.

To change the IP address of the switch, use one of the following methods:

Connect to the switch through the network: If the switch and your computer are

•
connected to the same network, you can change the IP address of the switch through
a network connection (see Set a fixed IP address for the switch through a network
connection on page 18).

Connect directly to the switch: If you cannot connect to the switch over a network

•
connection, you can change the IP address of the switch by using an Ethernet cable
to connect a directly to the switch (see Assign a fixed IP address by connecting
directly to the switch off-network on page 19).

Set a fixed IP address for the switch through a network connection If

the switch and your computer are connected to the same network, you can set a fixed
IP address on the switch through a network connection.

To disable the DHCP client of the switch and change the IP address of the switch
to a fixed IP address by using a network connection:

1.

Open a web browser from a computer that is connected to the same network as the
switch.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the switch password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.
The HOME page displays.

The right pane (or, depending on the size of your browser window, the middle pane)
shows the IP address that is assigned to the switch.

4. Select IP Address (DHCP On).
The button bar in the DHCP section displays green because the DHCP client of the

switch is enabled.

5. Click the button in the DHCP section.
The button bar displays gray, indicating that the DHCP client of the switch is disabled,

and the IP address fields become editable.

6.

Enter the fixed (static) IP address that you want to assign to the switch and the
associated subnet mask and gateway IP address.

You can also either leave the address in the IP Address field as it is (with the IP
address that was issued by the DHCP server) or change the last three digits of the
IP address to an unused IP address.

User Manual18Install and Access the Switch in

Your Network

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

7.

Write down the complete fixed IP address.
You can bookmark it later.

8. Click the APPLY button.
Your settings are saved. Your switch web session is disconnected when you change

the IP address.

9.

If the login page does not display, enter the new IP address of the switch in the
address field of your web browser.

The login page displays.

10. For easy access to the device UI, bookmark the page on your computer.

Assign a fixed IP address by connecting directly to the switch off-network If you cannot connect to the switch over a network connection, you can

use an Ethernet cable to connect your computer directly to the switch, and then you
can set the IP address of the switch.

To disable the switch's DHCP client and change the IP address of the switch to a
fixed IP address through a direct connection:

1.

Connect an Ethernet cable from your computer to an Ethernet port on the switch.

2.

Change the IP address of your computer to be in the same subnet as the default IP
address of the switch.

The default IP address of the switch is 192.168.0.239 and, to connect to it, your
computer's IP address must be on the same subnet (192.168.0.x).

The method to change your computer's IP address depends on the operating system
of your computer.

3.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

4.

Enter 192.168.0.239 as the IP address of the switch.
The login page displays.

5. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

The right pane (or, depending on the size of your browser window, the middle pane)
shows the IP address that is assigned to the switch.

6. Select IP Address (DHCP On).

Your Network

User Manual19Install and Access the Switch in

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

The button bar in the DHCP section displays green because the DHCP client of the
switch is enabled.

7. Click the button in the DHCP section.
The button bar displays gray, indicating that the DHCP client of the switch is disabled,

and the IP address fields become editable.

8.

Enter the fixed (static) IP address that you want to assign to the switch and the
associated subnet mask and gateway IP address.

9.

Write down the complete fixed IP address.
You can bookmark it later.

10. Click the APPLY button.
Your settings are saved. Your switch web session disconnects when you change the

IP address.

11.

Disconnect the switch from your computer and install the switch in your network.
For more information, see Set up the switch in your network and power on the switch

on page 15.

12. Restore your computer to its original IP address.

13.

Verify that you can connect to the switch with its new IP address:
a.

Open a web browser from a computer that is connected to the same network as
the switch.

b. Enter the new IP address that you assigned to the switch.

The login page displays.

c. Enter the switch password.

The password is the one that you specified the first time that you logged in. The
password is case-sensitive.
The HOME page displays.

Your Network

User Manual20Install and Access the Switch in

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Change the language of the device UI

By default, the Language option of the device UI is set to Auto so that the switch can
automatically detect the language. However, you can select a specific language to
display in the UI.

To change the language of the device UI:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. On the SYSTEM INFO menu, Language option, select a language.

5. Click the APPLY button.
A pop-up warning window opens.

6. Click the YES button.
Your settings are saved and the language changes.

Change the switch password

The default password to access the device UI of the switch is password. We recommend
that you change this password to a more secure password. The ideal password contains
no dictionary words from any language and contains uppercase and lowercase letters,
numbers, and symbols. It can be up to 20 characters.

To change the switch password:

1.

Open a web browser from a computer that is connected to the same network as the
switch or to the switch directly through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
The login page displays.

3. Enter the switch password.
The default password is password. The password is case-sensitive.

Your Network

User Manual21Install and Access the Switch in

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.

5.

From the menu on the left, select CHANGE PASSWORD.
The CHANGE PASSWORD page displays.

6.

In the Current Password field, type the current password for the switch.

7.

Type the new password in the New Password field and in the Retype New Password
field.

8. Click the APPLY button.
Your settings are saved. Keep the new password in a secure location so that you can

access the switch in the future.

Register the switch

Registering the switch allows you to receive email alerts and streamlines the technical
support process. You can log in to your NETGEAR account at my.netgear.com to register
your switch, or you can also register the switch through the device UI, in which case the
switch must be connected to the Internet.

To register the switch through the device UI:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.

5.

From the menu on the left, select PRODUCT REGISTRATION.
The PRODUCT REGISTRATION page displays.

6. Click the REGISTER button.
The switch contacts the registration server.

7. Follow the onscreen process to register the switch.

Your Network

User Manual22Install and Access the Switch in

3

Optimize the Switch Performance

This chapter describes how you can optimize the performance of the switch and contains
the following sections:

• Set the quality of service mode and port rate limits

• Manage individual port settings

23

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Set the quality of service mode and port rate limits

You can manually set the Quality of Service (QoS) modes to manage traffic:

Port-based QoS mode: Lets you set the priority (low, normal, medium, high, or

•
critical) for individual port numbers and lets you set rate limits for incoming and

outgoing traffic for individual ports. If broadcast filtering is enabled, you can also
set the storm control rate for incoming traffic for individual ports.

802.1P/DSCP QoS mode: Applies pass-through prioritization that is based on

•
tagged packets and lets you set rate limits for incoming and outgoing traffic for
individual ports. If broadcast filtering is enabled, you can also set the storm control
rate for incoming traffic for individual ports.
This QoS mode applies only to devices that support 802.1P and Differentiated
Services Code Point (DSCP) tagging. For devices that do not support 802.1P and
DSCP tagging, ports are not prioritized, but the configured rate limit is still applied.

You can limit the rate of traffic on a port, including incomine or outgoing traffic, or both,
to prevent the port and the device that is attached to it from taking up too much
bandwidth on the switch. Rate limiting, which you can set for individual ports in either
of these QoS modes, simply means that the switch slows down all traffic on the port so
that traffic does not exceed the limit that you set for that port. If you set the rate limit on
a port too low, you might notice degraded video stream quality, sluggish response
times during online activity, and other problems.

Use port-based quality of service and set port priorities

802.1P/DSCP is the default QoS mode on the switch, but you can also set port-based

QoS.
For each port, you can set the priority for both ingress (incoming) and egress (outgoing)
traffic. The switch services traffic from ports with a critical priority before traffic from
ports with a high, medium, normal, or low priority. Similarly, the switch services traffic
from ports with a high priority before traffic from ports with a medium or low priority.
If severe network congestion occurs, the switch might drop packets with a low priority.

You also can set port rate limits (the same feature) as part of the QoS configuration on
the switch (see Set rate limits for a port on page 27).

To use the port-based QoS mode and set the priority and rate limits for ports:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.

User Manual24Optimize the Switch

Performance

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

If the selection from the QoS Mode menu is 802.1P/DSCP, do the following to
change the selection to Port-Based:

a. From the QoS Mode menu, select Port-Based.

A pop-up warning window opens.

b. Click the CONTINUE button.

The pop-up window closes.

6.

To set the port priorities, do the following:
a. Click the PRIORITY tab.

b. Click the purple pencil icon.

The EDIT PRIORITY page displays.

c.

For each port for which you want to set the priority, select Low, Normal, Medium,
High, or Critical from the individual menu for the port.
The default selection is Medium (P4).

d. Click the APPLY button.

Your settings are saved and the EDIT PRIORITY page closes.

Use 802.1P/DSCP quality of service

In the 802.1P/DSCP QoS mode, the switch uses the 802.1P or DSCP information in the
header of an incoming packet to prioritize the packet. With this type of QoS, you cannot
control the port prioritization on the switch because the device that sends the traffic
(that is, the packets) to the switch prioritizes the traffic. However, you can set the rate
limits for individual ports on the switch.

The switch accepts traffic on a port at the rate (the speed of the data transfer) that you
set for incoming traffic on that port. The switch transmits traffic from a port at the rate
that you set for outgoing traffic on that port. You can select each rate limit as a predefined
data transfer threshold from 512 Kbps to 512 Mbps.

Performance

User Manual25Optimize the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

To use 802.1P/DSCP QoS mode and set the rate limits for ports:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

If the selection from the QoS Mode menu is Port-Based, do the following to change
the selection to 802.1P/DSCP:

a.

From the QoS Mode menu, select 802.1P/DSCP.
A pop-up warning window opens.

b. Click the CONTINUE button.

The pop-up window closes.

Note: For information about broadcast filtering, see Manage broadcast filtering
and set port storm control rate limits on page 26.

Manage broadcast filtering and set port storm control rate limits

A broadcast storm is a massive transmission of broadcast packets that are forwarded
to every port on the switch. If they are not blocked, broadcast storm packets can delay
or halt the transmission of other data and cause problems. However, you can block
broadcast storms on the switch.

You can also set storm control rate limits for each port. Storm control measures the
incoming broadcast, multicast, and unknown unicast frame rates separately on each
port, and discards the frames if the rate that you set for the port is exceeded. By default,
no storm control rate limit is set for a port. You can select each storm control rate limit
as a predefined data transfer threshold from 512 Kbps to 512 Mbps.

Performance

User Manual26Optimize the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

To manage broadcast filtering and set the storm control rate limits for ports:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

If the selection from the QoS Mode menu is not the QoS mode that you want to
configure, do the following to change the QoS mode:

a.

From the QoS Mode menu, select Port-Based or 802.1P/DSCP.
A pop-up warning window opens.

b. Click the CONTINUE button.

The pop-up window closes and the QoS mode is changed.

6. Click the Broadcast Filtering button.
When broadcast filtering is enabled, the button bar displays green.

7. Click the APPLY button.
Broadcast filtering is enabled. The STORM CONTROL RATE tab displays next to

the RATE LIMITS tab.

Manage individual port settings

For each individual port, you can set the port priority, set rate limits for incoming and
outgoing traffic, set the port speed (by default, the speed is set automatically), enable
flow control, and change the port name label.

Set rate limits for a port

You can limit the rate of incoming (ingress) traffic, outgoing (egress) traffic, or both on
a port to prevent the port (and the device that is attached to it) from taking up too much
bandwidth on the switch. Rate limiting simply means that the switch slows down all
traffic on a port so that traffic does not exceed the limit that you set for that port. If you

User Manual27Optimize the Switch

Performance

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

set the rate limit on a port too low, you might, for example, see degraded video stream
quality, sluggish response times during online activity, and other problems.

You also can set port rate limits (the same feature) as part of the QoS configuration on
the switch (see Use port-based quality of service and set port priorities on page 24).

Note: If you set a port rate limit, the actual rate might fluctuate, depending on the type
of traffic that the port is processing.

To set rate limits for ingress and egress traffic on a port:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

The PORT STATUS pane displays on the right or the bottom of the HOME page,
depending on the size of your browser window.

A port that is in use shows as CONNECTED. A port that is not in use shows as
AVAILABLE.

4. Select the port.
The pane displays detailed information about the port.

5. Select the port.
The pane displays port settings.

6. From the Ingress Rate Limit menu, Egress Rate Limit menu, or both, select the rate
in Kbps or Mbps.

The default selection is No Limit.

7. Click the APPLY button.
Your settings are saved.

Manage flow control for a port

IEEE 802.3x flow control works by pausing a port if the port becomes oversubscribed
(that is, the port receives more traffic than it can process) and dropping all traffic for
small bursts of time during the congestion condition.

User Manual28Optimize the Switch

Performance

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

You can enable or disable flow control for an individual port. By default, flow control is
disabled for all ports.

To manage flow control for a port:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The user

name and password are case-sensitive.

The HOME page displays.

The PORT STATUS pane displays on the right or the bottom of the HOME page,
depending on the size of your browser window.

A port that is in use shows as CONNECTED. A port that is not in use shows as
AVAILABLE.

4. Select the port.
The pane displays detailed information about the port.

5. Select the port.
The pane displays port settings.

6.

In the Flow Control section, enable or disable flow control by clicking the button.
When flow control is enabled, the button bar displays green.

7. Click the APPLY button.
Your settings are saved.

Change the speed for a port or disable a port

By default, the port speed on all ports is set automatically (that is, the setting is Auto)
after the switch determines the speed using autonegotiation with the linked device. We
recommend that you leave the Auto setting for the ports. However, you can select a
specific port speed for each port, or disable a port by shutting it down manually.

To change the speed for a port or disable a port:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

User Manual29Optimize the Switch

Performance

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

The PORT STATUS pane displays on the right or the bottom of the HOME page,
depending on the size of your browser window.

A port that is in use shows as CONNECTED. A port that is not in use shows as
AVAILABLE.

4. Select the port.
The pane displays port settings.

5.

Select one of the following options from the Speed menu:

Auto: The port speed is set automatically after the switch determines the speed

•

using autonegotiation with the linked device. This is the default setting.

Disable: The port is shut down (blocked).

•

100M Full: The port is forced to function at 100 Mbps with full-duplex.

•

1G Full: The port is forced to function at 1 Gbps with full-duplex.

•

2.5G Full: The port is forced to function at 2.5 Gbps with full-duplex.

•

6. Click the APPLY button.
Your settings are saved.

Add or change the name label for a port

You can add or change a name label for a port. Name labels are for your reference only,
and do not affect port behavior.

To add or change a name label for a port:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

Performance

User Manual30Optimize the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

The PORT STATUS pane displays on the right or the bottom of the HOME page,
depending on the size of your browser window.

A port that is in use shows as CONNECTED. A port that is not in use shows as
AVAILABLE.

4. Select the port.
The pane displays detailed information about the port.

5.

In the Port Name field, type a name label for the port.
The name label can be from 1 to 16 characters.

6. Click the APPLY button.
Your settings are saved.

Performance

User Manual31Optimize the Switch

4

Use VLANS for Traffic Segmentation

This chapter describes how you can use VLANs to segment traffic on the switchj, and
contains these sections:

• VLAN overview

• Activate the Basic Port-Based VLAN mode and assign VLANs

• Manage advanced port-based VLANs

• Manage basic 802.1Q VLANs

• Manage advanced 802.1Q VLANs

• Deactivate a port-based or 802.1Q VLAN mode and delete all VLANs

32

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

VLAN overview

Virtual LANs (VLANs) consist of networked devices that are grouped logically into
separate networks. You can group ports on a switch to create a virtual network consisting
of the devices connected to the ports.

You can group ports in VLANs using either port-based or 802.1Q criteria:

Port-based VLANs: Assign ports to virtual networks. Ports with the same VLAN ID

•
are placed in the same VLAN. This feature provides an easy way to partition a network
into private subnetworks.

If the switch is the only switch in your network and you do not need a VLAN to function
across multiple network devices (such as a router, another switch, a WiFi AP, or any
network device that supports VLANs), we recommend that you use a port-based
VLAN. If you need a single VLAN on a single port (other than the uplink port), use
the basic port-based VLAN configuration. If you need multiple VLANs on a single
port, use the advanced port-based VLAN configuration.
The switch supports the following port-based VLAN modes:

-

Basic Port-Based VLAN: In a basic port-based VLAN configuration, ports with
the same VLAN ID are placed into the same VLAN. Except for the uplink port,
you can assign each port to a single VLAN only. The number of VLANs is limited
to the number of ports on the switch.

-

Advanced Port-Based VLAN: In an advanced port-based VLAN configuration,
ports with the same VLAN ID are also placed into the same VLAN, but you can
assign a single port to multiple VLANs.

802.1Q VLANs: Create virtual networks using the IEEE 802.1Q standard. 802.1Q

•
uses a VLAN tagging system to determine which VLAN an Ethernet frame belongs
to. To use an 802.1Q VLAN that is set up on another device, you must know the
VLAN ID.

If you need a VLAN to function across multiple network devices (such as a router,
another switch, a WiFi AP, or any network device that supports VLANs), we
recommend that you use an 802.1Q VLAN. If you do not need to customize tagging
on a single port and you do not need a voice VLAN, use the basic 802.1Q VLAN
configuration. If you do need to customize tagging on a single port or you do need
a voice VLAN, use the advanced 802.1Q VLAN configuration.
The switch supports the following 802.1Q VLAN modes:

-

Basic 802.1Q VLAN: In a basic 802.1Q VLAN configuration, VLAN 1 is added to
the switch and all ports function in access mode as members of VLAN 1. You can
change the mode for a port to trunk mode, you can add more VLANs, and you
can assign a different VLAN to a port. A port that functions in access mode can
belong to a single VLAN only and does not tag the traffic that it processes. A port

Segmentation

User Manual33Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

that functions in trunk mode automatically belongs to all VLANs on the switch
and tags the traffic that it processes.

-

Advanced 802.1Q VLAN: In an advanced 802.1Q VLAN configuration, VLAN 1
is added to the switch and all ports are untagged members of VLAN 1. You can
tag ports, untag ports, exclude ports, add more VLANs, assign a different VLAN
to a port, manage port PVIDs, and manage a voice VLAN.

The following table provides an overview of VLAN features that are supported on the
switch.

Table 2. Supported VLAN modes for the MS108EUP

VLAN Feature

VLANs

single port

Basic
Port-Based VLAN

Advanced
Port-Based VLAN

Basic

802.1Q VLAN

Advanced

802.1Q VLAN

646488Total number of

YesYes (trunk port only)NoNoEgress tagging

YesYes (trunk port only)YesNoMultiple VLANs on a

YesNoNoNoVoice VLAN

Activate the Basic Port-Based VLAN mode and assign VLANs

By default, all types of VLANs are disabled on the switch.

When you activate the Basic Port-Based VLAN mode, all VLANs are added to the switch,
and all ports are made members of VLAN 1. This is the default VLAN in the Basic
Port-Based VLAN mode.

In the Basic Port-Based VLAN mode, you can assign each port (other than the uplink
port) to a single VLAN only.

To activate the Basic Port-Based VLAN mode and assign VLANs:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.

User Manual34Use VLANS for Traffic

Segmentation

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

The password is the one that you specified the first time that you logged in. The
password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The Quality of Service (QOS) page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

6. In the Basic Port-Based VLAN section, click the ACTIVATE MODE button.
A pop-up window opens, informing you that the current VLAN settings will be lost.

7. Click the CONTINUE button.
Your settings are saved and the pop-up window closes. By default, all VLANs are

added and each port is a member of VLAN 1.

8.

To assign one or more ports to other VLANs, do the following:
a.

For each port that you want to assign to another VLAN, select a VLAN ID from
the VLAN menu for the individual port.
Each port can be assigned to a single VLAN only. However, for the port that you
want to use as the uplink port to the Internet connection or a server, select All
from the VLAN menu for the individual port.

b. Click the APPLY button.

Your settings are saved.

Manage advanced port-based VLANs

In an advanced port-based VLAN configuration, ports with the same VLAN ID are placed
into the same VLAN, but you can assign a single port to multiple VLANs.

For more information about port-based VLANs, see the following sections:

• Activate the Advanced Port-Based VLAN Mode

• Create an advanced port-based VLAN

• Change an advanced port-based VLAN

• Delete an advanced port-based VLAN

Activate the Advanced Port-Based VLAN Mode

By default, all types of VLANs are disabled on the switch.

Segmentation

User Manual35Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

When you activate the Advanced Port-Based VLAN mode, VLAN 1 is added to the switch
and all ports are made members of VLAN 1. This is the default VLAN in the Advanced
Port-Based VLAN mode.

To activate the Advanced Port-Based VLAN mode:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

6. In the Advanced Port-Based VLAN section, click the ACTIVATE MODE button.
A pop-up window opens, informing you that the current VLAN settings will be lost.

7. Click the CONTINUE button.
Your settings are saved and the pop-up window closes. By default, VLAN 1 is added

and all ports are members of VLAN 1.

Create an advanced port-based VLAN

An advanced port-based VLAN configuration lets you create VLANs and assign ports
on the switch to a VLAN. The number of VLANs is limited to the number of ports on the
switch. In an advanced port-based VLAN configuration, one port can be a member of
multiple VLANs.

By default, all ports are members of VLAN 1, but you can change the VLAN assignment.

To create an advanced port-based VLAN and assign ports as members:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

User Manual36Use VLANS for Traffic

Segmentation

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

If you did not yet activate the Advanced Port-Based VLAN mode, see Activate the
Advanced Port-Based VLAN Mode on page 35.

6. In the Advanced Port-Based VLAN section, click the ADD VLAN button.

7.

Specify the settings for the new VLAN:

VLAN Name. Enter a name from 1 to 14 characters.

•

VLAN ID. Enter a number from 1 to the total number of ports on the switch.

•

Ports. Select the ports that you want to include in the VLAN through a combination

•

of the following actions:

-

Click the icon for an unselected port to add the port to the VLAN.

-

Click the icon for a selected port to remove the port from the VLAN.

- Click the Select All link to add all ports to the VLAN.

-

Click the Remove All link to remove all selected ports from the VLAN.

The icon for a selected port displays purple.

Note: If ports are members of the same link aggregation group (LAG), you must
assign them to the same VLAN. For more information, see Set up a static link
aggregation group on page 58.

8. Click the APPLY button.
Your settings are saved. The new VLAN is added to the VLAN table, which shows

the port members for each VLAN.

Change an advanced port-based VLAN

You can change the settings for an existing advanced port-based VLAN.

Segmentation

User Manual37Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

To change an advanced port-based VLAN:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

6. In the Advanced Port-Based VLAN section, click the VLAN that you want to change
(you can click anywhere in the row for the VLAN) and click the EDIT button.

The Advanced Port-Based VLAN pane displays.

7.

Change the settings for the VLAN:

VLAN Name. Enter a name from 1 to 14 characters.

•

You cannot change the VLAN ID. If you need to change the VLAN ID, delete the
VLAN and create a new VLAN with another VLAN ID.

Ports. Select the ports that you want to include in the VLAN through a combination

•

of the following actions:

-

Click the icon for an unselected port to add the port to the VLAN.

-

Click the icon for a selected port to remove the port from the VLAN.

- Click the Select All link to add all ports to the VLAN.

-

Click the Remove All link to remove all selected ports from the VLAN.

The icon for a selected port displays purple.

Note: If ports are members of the same LAG, you must assign them to the same
VLAN.

8. Click the APPLY button.
Your settings are saved. The modified VLAN shows in the VLAN table.

Segmentation

User Manual38Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Delete an advanced port-based VLAN

You can delete an advanced port-based VLAN that you no longer need. You cannot
delete the default VLAN.

Note: If you deactivate the basic or advanced port-based VLAN mode, all port-based
VLANs are deleted.

To delete an advanced port-based VLAN:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

6. In the Advanced Port-Based VLAN section, click the VLAN that you want to delete
(you can click anywhere in the row for the VLAN).

7. Click the DELETE button.
Your settings are saved. The VLAN is deleted.

Manage basic 802.1Q VLANs

In a basic 802.1Q VLAN configuration, VLAN 1 is added to the switch and all ports
function in access mode as members of VLAN 1. You can change the mode for a port
to trunk mode, you can add more VLANs, and you can assign a different VLAN to a port.

After you activate the Basic 802.1Q VLAN mode, you can create VLANs, assign the
VLANs to ports that function in access mode, and assign the trunk mode, which carries
traffic for all VLANs.

User Manual39Use VLANS for Traffic

Segmentation

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

For more information about basic 802.1Q VLANs, see the following sections:

• Activate the Basic 802.1Q VLAN mode

• Create a basic 802.1Q VLAN and assign ports as members

• Assign the port mode in a basic 802.1Q VLAN configuration

• Change a basic 802.1Q VLAN

• Delete a basic 802.1Q VLAN

Activate the Basic 802.1Q VLAN mode

By default, all types of VLANs are disabled on the switch.

When you activate the Basic 802.1Q VLAN mode, VLAN 1 is added to the switch and
all ports function in access mode (rather than trunk mode) as untagged members of
VLAN 1. This is the default VLAN in the Basic 802.1Q VLAN mode.

To activate the Basic 802.1Q VLAN mode:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

6. In the Basic 802.1Q VLAN section, click the ACTIVATE MODE button.
A pop-up window opens, informing you that the current VLAN settings will be lost.

7. Click the CONTINUE button.
Your settings are saved and the pop-up window closes. By default, VLAN 1 is added.

For information about adding VLANs, see Create a basic 802.1Q VLAN and assign
ports as members on page 41.

For all ports, the default selection from the Mode menu is Access. For more
information about access mode and trunk mode, see Assign the port mode in a basic

802.1Q VLAN configuration on page 42.

User Manual40Use VLANS for Traffic

Segmentation

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

8.

If you already determined which ports must function in trunk mode, for those ports,
select Trunk (uplink) from the Mode menu.

9. Click the SAVE button.
Your settings are saved.

Create a basic 802.1Q VLAN and assign ports as members

A basic 802.1Q VLAN configuration lets you create VLANs and assign ports on the switch
to a VLAN. A port that functions in access mode can be a member of a single VLAN
only. The number of VLANs is limited to the number of ports on the switch. You can
assign a VLAN ID number in the range of 1–4093.

To create a basic 802.1Q VLAN and assign ports as members:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

If you did not yet activate the Basic 802.1Q VLAN mode, see Activate the Basic

802.1Q VLAN mode on page 40.

By default, the Port Configuration tab is selected and the 802.1Q-BASED PORT
CONFIGURATION pane displays.

6.

To add a VLAN and then assign ports as members of the VLAN, do the following:
a. Click the Edit VLAN button.

The 802.1Q-BASED VLAN CONFIGURATIONS (BASIC MODE) pane displays.

b. Click the ADD VLAN button.

The BASIC 802.1Q VLAN pop-up window opens.

c.

In the VLAN Name field, enter a name from 1 to 14 characters.

d.

In the VLAN ID field, enter a number from 1 to 4093.

Segmentation

User Manual41Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

e. Click the APPLY button.

Your settings are saved. The new VLAN shows in the 802.1Q-BASED VLAN
CONFIGURATIONS (BASIC MODE) pane.

f.

Click the Port Configuration tab.
The 802.1Q PORT CONFIGURATIONS pane displays

g.

For each port that you want to make a member of the new VLAN, select the VLAN
from the VLAN menu for the individual port.

Note: If ports are members of the same LAG, you must assign them to the same
VLAN.

7.

For a port that functions in access mode, to add a VLAN by using the VLAN menu
for the individual port, do the following:

a.

From the VLAN menu for the individual port, select Add VLAN.
The BASIC 802.1Q VLAN pop-up window opens.

b.

In the VLAN Name field, enter a name from 1 to 14 characters.

c.

In the VLAN ID field, enter a number from 1 to 4093.

d. Click the APPLY button.

The pop-up window closes. The VLAN is added as a possible selection in the
VLAN menu for each individual port.

e.

For each port that you want to make a member of the new VLAN, select the VLAN
from the VLAN menu for the individual port.

Note: If ports are members of the same LAG, you must assign them to the same
VLAN.

8. Click the SAVE button.
Your settings are saved.

Note: For information about assigning the port mode, see Assign the port mode
in a basic 802.1Q VLAN configuration on page 42.

Assign the port mode in a basic 802.1Q VLAN configuration

In an 802.1Q VLAN configuration, you can assign one of the following port modes:

Access mode. A port that functions in access mode can belong to a single VLAN

•
only, and does not tag the traffic that it processes. You would typically use access

User Manual42Use VLANS for Traffic

Segmentation

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

mode for a port that is connected to an end device such as a gaming device, media
device, or computer. When a port that functions in access mode receives data that
is untagged, the data is delivered normally. When a port that functions in access
mode receives data that is tagged for a VLAN other than the one the port belongs
to, the data is discarded.

Trunk mode. A port that functions in trunk mode automatically belongs to all VLANs

•
on the switch and tags the traffic that it processes. You would typically use trunk
mode for a port that is connected to another network device. For example, you
would assign trunk mode for an uplink to another switch or router and for a downlink
to a WiFi access point.

To assign the port mode:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

If you did not yet activate the Basic 802.1Q VLAN mode, see Activate the Basic

802.1Q VLAN mode on page 40.

By default, the Port Configuration tab is selected and the 802.1Q-BASED PORT
CONFIGURATION pane displays.

6.

For each individual port that you want to change, from the Mode menu, select either
Trunk (uplink) to let the port function in trunk mode or Access to let the port function
in access mode.

If you place a port in trunk mode, the selection from the VLAN menu changes to All
because all VLANs must be supported on a trunk port.

7. Click the SAVE button.
Your settings are saved.

Segmentation

User Manual43Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Change a basic 802.1Q VLAN

You can change an existing basic 802.1Q VLAN.

To change a basic 802.1Q VLAN:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.
By default, the Port Configuration tab is selected and the 802.1Q-BASED PORT

CONFIGURATION pane displays.

6.

To change the name for the VLAN, do the following:
a. Click the Edit VLAN button.

The 802.1Q-BASED VLAN CONFIGURATIONS (BASIC MODE) pane displays.

b.

Click the VLAN that you want to change (you can click anywhere in the row for
the VLAN).

c. Click the EDIT button.

The BASIC 802.1Q VLAN pop-up window opens.

d. Change the VLAN name.

You cannot change the VLAN ID. If you need to change the VLAN ID, delete the
VLAN and create a new VLAN with another VLAN ID.

e. Click the APPLY button.

Your settings are saved. The modified VLAN shows in the 802.1Q-BASED VLAN
CONFIGURATIONS (BASIC MODE) pane.

7.

To change the membership of the VLAN, for each port that you want to make a
member, select the VLAN from the VLAN menu for the individual port in the

802.1Q-BASED PORT CONFIGURATION pane.

8. Click the SAVE button.

Segmentation

User Manual44Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Your settings are saved.

Delete a basic 802.1Q VLAN

You can delete a basic 802.1Q VLAN that you no longer need. You cannot delete the
default VLAN.

Note: If you deactivate the Basic 802.1Q VLAN mode, all 802.1Q VLANs are deleted.

To delete a basic 802.1Q VLAN:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

6. Click the Edit VLAN button.
The 802.1Q-BASED VLAN CONFIGURATIONS (BASIC MODE) pane displays.

7. Click the VLAN that you want to delete.
You can click anywhere in the row for the VLAN

8. Click the DELETE button.
Your settings are saved. The VLAN is deleted.

Manage advanced 802.1Q VLANs

In an advanced 802.1Q VLAN configuration, VLAN 1 is added to the switch and all ports
are untagged members of VLAN 1. Advanced 802.1Q VLANs provide you with most
configuration options: You can tag ports, untag ports, exclude ports, add more VLANs,

User Manual45Use VLANS for Traffic

Segmentation

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

assign a different VLAN to a port, manage port PVIDs, and manage a voice VLAN,
including the OUI table.

For more information about advanced 802.1Q VLANs, see the following sections:

• Activate the advanced 802.1Q VLAN mode

• Create an advanced 802.1Q VLAN

• Change an advanced 802.1Q VLAN

• Specify a port PVID for an advanced 802.1Q VLAN

• Set an existing advanced 802.1Q VLAN as the voice VLAN and adjust the CoS value

• Change the OUI table for the voice VLAN

• Delete an advanced 802.1Q VLAN

Activate the advanced 802.1Q VLAN mode

By default, all types of VLANs are disabled on the switch.

When you activate the Advanced 802.1Q VLAN mode, VLAN 1 is added to the switch
and all ports function as untagged members of VLAN 1. This is the default VLAN in the
Advanced 802.1Q VLAN mode.

In an advanced 802.1Q VLAN configuration, you can set up VLANs to which you can
add tagged or untagged ports. Port tagging allows a port to be associated with a
particular VLAN and allows the VLAN ID tag to be added to data packets that are sent
through the port. The tag identifies the VLAN that must receive the data. You can also
manage the VLAN IDs (PVIDs) of the ports (see Specify a port PVID for an advanced

802.1Q VLAN on page 50).

To activate the Advanced 802.1Q VLAN mode and manage port tagging for the
default VLAN:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

Segmentation

User Manual46Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

6. In the Advanced 802.1Q VLAN section, click the ACTIVATE MODE button.
A pop-up window opens, informing you that the current VLAN settings will be lost.

7. Click the CONTINUE button.
Your settings are saved and the pop-up window closes. By default, VLAN 1 is added

and all ports are made untagged members of VLAN 1.

For information about creating an advanced 802.1Q VLAN, see Create an advanced

802.1Q VLAN on page 47.

8.

To change the port tagging for the default VLAN (VLAN 1), do the following:
a.

In the table, click 1 or Default (you can click anywhere in the row for VLAN 1).

b. Click the EDIT button.

c.

Select the port tags and whether ports are members of the VLAN through a
combination of the following actions:

T: Make the port a tagged member of the VLAN.

•

U: Make the port an untagged member of the VLAN.

•

E: Exclude the port from the VLAN.

•

Tag All: Make all ports tagged members of the VLAN.

•

Untag All: Make all ports untagged members of the VLAN.

•

Exclude All: Exclude ports from the VLAN.

•

d. Click the APPLY button.

Your settings are saved.

Create an advanced 802.1Q VLAN

In an advanced 802.1Q VLAN configuration, you can set up VLANs to which you can
add tagged or untagged ports. Port tagging allows a port to be associated with a
particular VLAN and allows the VLAN ID tag to be added to data packets that are sent
through the port. You can create a total of 64 advanced 802.1Q VLANs for these switches.

To create an advanced 802.1Q VLAN and assign ports as tagged or untagged
members:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.

User Manual47Use VLANS for Traffic

Segmentation

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

The password is the one that you specified the first time that you logged in. The
password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

If you did not yet activate the Advanced 802.1Q VLAN mode, see Activate the
advanced 802.1Q VLAN mode on page 46.

6. In the right pane, click the ADD VLAN button.
The Advanced 802.1Q VLAN pane displays.

7.

Specify the VLAN settings and assign ports as tagged or untagged members:
a.

In the VLAN Name field, enter a name from 1 to 14 characters.

b.

In the VLAN ID field, enter a number from 1 to 4093.

c.

Use a combination of the following options to select port tags and set whether
ports are members of the VLAN:

T: Make the port a tagged member of the VLAN.

•

U: Make the port an untagged member of the VLAN.

•

E: Exclude the port from the VLAN.

•

Tag All: Make all ports tagged members of the VLAN.

•

Untag All: Make all ports untagged members of the VLAN.

•

Exclude All: Exclude ports from the VLAN.

•

Note: If ports are members of the same LAG, you must assign them to the same
VLAN.

8. Click the APPLY button.
Your settings are saved. The new VLAN shows in the Advanced 802.1Q VLAN pane.

Change an advanced 802.1Q VLAN

You can change the settings for an existing advanced 802.1Q VLAN.

Segmentation

User Manual48Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

To change an advanced 802.1Q VLAN:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

6. In the table in the right pane, click the VLAN that you want to change (you can click
anywhere in the row for the VLAN).

7. Click the EDIT button.

8. Change the VLAN settings as needed:

In the VLAN Name field, enter a name from 1 to 14 characters.

•

You cannot change the VLAN ID. If you need to change the VLAN ID, delete the
VLAN and create a new VLAN with another VLAN ID.

Use a combination of the following options to select port tags and set whether

•

ports are members of the VLAN:

-

T: Make the port a tagged member of the VLAN.

-

U: Make the port an untagged member of the VLAN.

-

E: Exclude the port from the VLAN.

-

Tag All: Make all ports tagged members of the VLAN.

-

Untag All: Make all ports untagged members of the VLAN.

-

Exclude All: Exclude ports from the VLAN.

9. Click the APPLY button.
Your settings are saved. The modified VLAN shows in the Advanced 802.1Q VLAN

pane.

User Manual49Use VLANS for Traffic

Segmentation

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Specify a port PVID for an advanced 802.1Q VLAN

A default port VLAN ID (PVID) is a VLAN ID tag that the switch assigns to incoming data
packets that are not already addressed (tagged) for a particular VLAN. For example, if
you connect a computer to port 6 of the switch and you want it to be a part of VLAN 2,
add port 6 as a member of VLAN 2 and set the PVID of port 6 to 2. This configuration
automatically adds a PVID of 2 to all data that the switch receives from the computer
and makes sure that the data from the computer on port 6 can be seen only by other
members of VLAN 2. You can assign only one PVID to a port.

Note: If you did not yet create an advanced 802.1Q VLAN, all ports are assigned PVID 1
and you cannot assign another PVID to a port. In this situation, first create an advanced

802.1Q VLAN (see Create an advanced 802.1Q VLAN on page 47).

To assign a PVID to a port:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

If you did not yet activate the Advanced 802.1Q VLAN mode, see Activate the
advanced 802.1Q VLAN mode on page 46.

6. In PVID Table section in the right pane, click the PVID Table link.
The Port and VLAN IDs pane displays.

7.

Click the icon for a port.
A menu displays. The menu lets you select a PVID for the port.

8. From the menu, select a VLAN ID and name.
You can select only a VLAN that the selected port is a member of.

9. Click the APPLY button.

Segmentation

User Manual50Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Your settings are saved. The Port and VLAN IDs pane displays again. The VLAN ID
that is assigned as the PVID displays with an asterisk (*) next to the port.

10. Click the BACK button.
The Advanced 802.1Q VLAN pane displays.

Set an existing advanced 802.1Q VLAN as the voice VLAN and adjust the CoS value

The switch can support a single advanced 802.1Q VLAN as the voice VLAN to facilitate
voice over IP (VoIP) traffic. Because a voice VLAN might require a single port to join to
multiple VLANs as an untagged member, you can set up a voice VLAN only as an
advanced 802.1Q VLAN. For information about creating an advanced 802.1Q VLAN,
see Create an advanced 802.1Q VLAN on page 47.

A port that is a member of the voice VLAN sends all its voice packets through the voice
VLAN, but other types of packets (for example, data packets) that come in on the port
are forwarding according to the PVID setting on the port.

The default Class of Service (CoS) value for the voice VLAN is 6, which you can adjust
to any value from 0 (the lowest priority) to 7 (the highest priority). The voice VLAN CoS
value applies to all traffic on the voice VLAN. You can set the default VLAN (VLAN 1) as
the voice VLAN.

To set an existing advanced 802.1Q VLAN as the voice VLAN and adjust the CoS
value for the voice VLAN:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

If you did not yet activate the Advanced 802.1Q VLAN mode, see Activate the
advanced 802.1Q VLAN mode on page 46.

Segmentation

User Manual51Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

6. In the table in the right pane, click the VLAN that you want to make the voice VLAN.
You can click anywhere in the row to select the VLAN.

7. Click the EDIT button.

8. In the Voice VLAN section, enable the voice VLAN toggle. green.
When the voice VLAN is enabled, the button is on the right and the toggle bar

displays green.

9.

From the Class of Service menu, select a CoS value.
A value of 0 is the lowest priority and a value of 7 is the highest priority. The default

value is 6.

For information about viewing and changing the OUI settings, see Change the OUI
table for the voice VLAN on page 52.

10. Click the APPLY button.
Your settings are saved. The voice VLAN shows in the Advanced 802.1Q VLAN pane

with a telephone icon.

Change the OUI table for the voice VLAN

For the voice VLAN, the switch supports default Organizationally Unique Identifiers
(OUI), which are associated with VoIP phones of specific manufacturers. All traffic received
on voice VLAN ports from VoIP phones with a listed OUI is forwarded on the voice VLAN.

You can add, change, and remove OUIs, including the default OUIs. The maximum
number of OUI entries in the table is 15. The first 3 bytes of the MAC address contain
a manufacturer identifier, and the last 3 bytes contain a unique station ID. You must add
an OUI prefix in the format AA:BB:CC.

You can add a new OUI, change an existing OUI, and delete an OUI that you no longer
need.

To change the OUI table for the voice VLAN:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

Segmentation

User Manual52Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

6. In the table in the right pane, click Advanced 802.1Q VLAN.

7. Click the EDIT button.

8. In the OUI Table section, click the OUI Settings link.
The Voice VLAN pane displays and shows the OUI table.

9.

To add a new OUI, do the following:
a. Click the ADD OUI button.

The OUI Entry page displays.

b. Enter the new OUI and description.

c. Click the APPLY button.

Your settings are saved.

10.

To change an existing OUI, do the following:
a. Select the OUI that you want to change and click the EDIT button.

b. Change the OUI, the description, or both.

c. Click the APPLY button.

Your settings are saved.

11. To delete an OUI that you no longer need, select the OUI and click the DELETE
button.

Your settings are saved and the OUI is deleted.

12. Click the BACK button.
The Advanced 802.1Q VLAN pane displays and shows the voice VLAN settings.

13. Click the APPLY button.
Your settings are saved.

Delete an advanced 802.1Q VLAN

You can delete an advanced 802.1Q VLAN that you no longer need. You cannot delete
the default VLAN. You cannot delete a VLAN that is in use as the PVID for a port either.
You must first remove the VLAN as the PVID for the port before you can delete the VLAN.

User Manual53Use VLANS for Traffic

Segmentation

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Note: If you deactivate the Advanced 802.1Q VLAN mode, all 802.1Q VLANs are

deleted.

To delete an advanced 802.1Q VLAN:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

6. In the table in the right pane, click the VLAN that you want to delete (you can click
anywhere in the row for the VLAN).

7. Click the DELETE button.
Your settings are saved. The VLAN is deleted.

Deactivate a port-based or 802.1Q VLAN mode and delete all VLANs

If you activated the Basic Port-Based VLAN mode, Advanced Port-Based VLAN mode,
Basic 802.1Q VLAN mode, or Advanced 802.1Q VLAN mode, you can deactivate the
VLAN mode and delete the default VLAN and all other VLANs.

To deactivate a VLAN mode and delete all VLANs:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.

Segmentation

User Manual54Use VLANS for Traffic

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

The password is the one that you specified the first time that you logged in. The
password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select VLAN.
The VLAN page displays.

6. In the NO VLANs section, click the ACTIVATE MODE button.
A pop-up window opens, informing you that the current VLAN settings will be lost.

7. Click the CONTINUE button.
Your settings are saved, the pop-up window closes, and all VLANs are deleted.

Segmentation

User Manual55Use VLANS for Traffic

5

Manage the Switch in Your Network

This chapter describes how you can manage the switch in your network.

The chapter contains the following sections:

• Manage NETGEAR Switch Discovery Protocol

• Set up link aggregation

• Manage multicast

• Change the IP address of the switch

• Reenable the DHCP client of the switch

56

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Manage NETGEAR Switch Discovery Protocol

A NETGEAR device or application that supports NETGEAR Switch Discovery Protocol
(NSDP) can discover the switch in the network so that you can find the switch IP address
and log in to the device UI of the switch. NSDP is enabled by default. You can disable
NSDP for security reasons.

To manage NSDP:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.

5.

From the menu on the left, select SWITCH DISCOVERY.
The SWITCH DISCOVERY page displays.

6. Enable or disable NSDP by clicking the button in the NSDP section.
When NSDP is enabled, the button bar displays green.

7. Click the APPLY button.
Your settings are saved.

Set up link aggregation

Link aggregation on the switch allows you to combine multiple Ethernet ports into a
single logical link. Network devices treat the link aggregation group (LAG) as a single
link, which increases throughput, fault tolerance, or both, between devices. Depending
on how link aggregation is set up in your network, the LAG supports either increased
bandwidth (a larger pipe) or fault tolerance (if one port fails, another one takes over).

The switch supports 4 LAGs with up to four ports each, which means that one LAG can
support a link of up to 4 x 2.5Gbps, or a total of 10Gbps.

User Manual57Manage the Switch in Your

Network

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Make a link aggregation connection

Before you make a physical link aggregation connection to another network device
(usually a router or another switch) that also supports link aggregation, you must first
set up a LAG on the switch. If you do not, the LAG cannot take effect. Whether a LAG
on the switch functions to support increased bandwidth or fault tolerance depends on
the LAG configuration on the other network device.

All ports that participate in a LAG (that is, the ports on both devices) must use the same
speed, full duplex mode, and flow control setting. For information about changing these
settings on the switch, see Manage individual port settings on page 27.

To make link aggregation connections between the switch and another network
device:

Using Ethernet cables, connect each port that must be a member of the LAG on the
switch to each port that must be a member of the same LAG on another network
device.

The port numbers on the other network device do not matter as long as:

The ports on the other network device are members of the same LAG.

•

The LAG consists of the same total number of ports.

•

The ports use the same speed, full duplex mode, and flow control setting as the

•

ports in the LAG on the switch.

Set up a static link aggregation group

Set up a static link aggregation group (LAG) to combine multiple Ethernet links into a
single logical link between two networked devices.

For a LAG to function, you must:

Set up the LAG on the switch, as described in this task.

•

Connect the ports that must be members of the LAG on the switch to the ports that

•
must be members of the LAG on another device in your network (see Make a link
aggregation connection on page 58).

Enable the LAG on the switch (see Enable a link aggregation group on page 61) and

•
on the connected device.

To set up a link aggregation group on the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch or to the switch directly through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
The login page displays.

User Manual58Manage the Switch in Your

Network

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select LAG.
The LAG page displays.

6.

Click the tab for the LAG that you want to configure.
The text in the tab for the selected LAG displays green.

7.

To add ports to the LAG, click the icons for the ports that you want to add (from 1
to 8).

The icon for a selected port displays purple.

A LAG must consist of at least two ports.

8.

Verify that the Static/LACP toggle button is on the Static setting.
By default, static LAG is enabled, so that the button displays on the left side of the

toggle bar, and the toggle bar displays white.

9. Click the APPLY button.
Your settings are saved.

Set up a dynamic link aggregation group

Set up a dynamic link aggregation group (LAG) to combine multiple Ethernet links into
a single logical link between two networked devices. Dynamic LAGs use Link Aggregation
Control Protocol (LACP), which helps to prevent errors in the LAG setup.

For a LAG to function you must:

Make sure that all ports that participate in the LAG (that is, the ports on both devices)

•
use the same speed, duplex mode, and flow control setting (see Manage individual

port settings on page 27 for information about changing these settings on the switch).

Set up a physical link aggregation connection (see Make a link aggregation

•
connection on page 58).

Network

User Manual59Manage the Switch in Your

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Select the ports on the switch that will participate in the LAG, as described in this

•
task.

Enable the LAG on the switch and on the connected network device.

•

To set up a dynamic LAG on the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS (quality of service) page displays.

5.

From the menu on the left, select LAG.
The LAG page displays.

6.

Click the tab for the LAG that you want to configure.
The text in the tab for the selected LAG displays green.

7.

To add ports to the LAG, click the icons for the ports that you want to add (from 1
to 8).

The icon for a selected port displays purple.

A LAG must consist of at least two ports.

8.

To enable a dynamic LAG, click the Static/LACP toggle.
When the LAG is set up as a dynamic LAG, the toggle button displays on the right

side of the toggle bar, and the bar displays green.

9. Click the APPLY button.
Your settings are saved.

Now that the LAG ports are selected, you must set up the physical link aggregation
connection. For more information, see Make a link aggregation connection on page

58.

Network

User Manual60Manage the Switch in Your

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Enable a link aggregation group

After you set up a link aggregation group (see Set up a dynamic link aggregation group
on page 59) and make a physical link aggregation connection (see Make a link
aggregation connection on page 58), you can enable the link aggregation group.

Note: You must also enable the LAG on the physically connected network device.

To enable a LAG on the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select LAG.
The LAG page displays.

6. Click the LAG that you want to enable.
A green check mark displays for the selected LAG.

7. Click to enable the Disable/Enable toggle.
When the LAG is enabled, the toggle button moves right and the toggle bar displays

green.

8.

Click the Static/LACP toggle if you want to use LACP.
If you select LACP, the toggle button moves right and the toggle bar displays green.

9. Click to select the LAG ports.
A selected port displays purple.

10. Click the APPLY button.
Your settings are saved.

Network

User Manual61Manage the Switch in Your

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Manage multicast

Multicast IP traffic is traffic that is destined to a host group. Host groups are identified
by Class D IP addresses, which range from 224.0.0.0 to 239.255.255.255.

Internet Group Management Protocol (IGMP) snooping allows the switch to forward
multicast traffic intelligently. Based on the IGMP query and report messages, the switch
forwards traffic only to the ports that request multicast traffic, rather than to all ports,
which could affect network performance.

IGMP snooping helps to optimize multicast performance and is especially useful for
bandwidth-intensive IP multicast applications such as online media streaming
applications.

Manage IGMP snooping

IGMP snooping is enabled by default. Under some circumstances you might want to
temporarily disable IGMP snooping.

To manage IGMP snooping:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select MULTICAST.
The MULTICAST page displays.

6. Enable or disable IGMP snooping by clicking the toggle in the IGMP Snooping
section.

When IGMP snooping is enabled, the toggle bar displays green.

7. Click the APPLY button.
Your settings are saved.

Network

User Manual62Manage the Switch in Your

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Enable a VLAN for IGMP snooping

You can enable IGMP for a VLAN only if you enabled a port-based VLAN mode or an

802.1Q VLAN mode (see Use VLANS for Traffic Segmentation on page 32.

To enable IGMP snooping for a VLAN:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select MULTICAST.
The MULTICAST page displays.

6.

In the VLAN ID Enabled for IGMP Snooping section, enter a VLAN ID in the field.
If you enabled either a port-based VLAN mode or an 802.1Q VLAN mode, the default

VLAN for IGMP snooping is VLAN 1.

7. Click the APPLY button.
Your settings are saved.

Manage blocking of unknown multicast addresses

As a way to limit unnecessary multicast traffic, you can block multicast traffic from
unknown multicast addresses. If you do this, the switch forwards multicast traffic only
to ports in the multicast group that the switch learned through IGMP snooping. By
default, multicast traffic from unknown addresses is allowed.

To manage blocking of unknown multicast addresses:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.

User Manual63Manage the Switch in Your

Network

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

The password is the one that you specified the first time that you logged in. The
password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS (Quality of Service) page displays.

5.

From the menu on the left, select MULTICAST.
The MULTICAST page displays.

6.

Enable or disable the blocking of unknown multicast traffic by clicking the button in
the Block Unknown Multicast Address section.

When the blocking of unknown multicast traffic is enabled, the button bar displays
green.

7. Click the APPLY button.
Your settings are saved.

Manage IGMPv3 IP header validation

You can enable IGMPv3 IP header validation so that the switch inspects whether IGMPv3
packets conform to the IGMPv3 standard. By default, IGMPv3 IP header validation is
disabled. If IGMPv3 IP header validation is enabled, IGMPv3 messages must include a
time-to-live (TTL) value of 1 and a type of service (ToS) byte of 0xC0 (Internetwork
Control). In addition, the router alert IP option (9404) must be set.

Note: If IGMPv3 IP header validation is enabled, the switch does not drop IGMPv1 and
IGMPv2 traffic, but processes this traffic normally.

To manage IGMPv3 IP header validation:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

Network

User Manual64Manage the Switch in Your

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

5.

From the menu on the left, select MULTICAST.
The MULTICAST page displays.

6. Enable or disable IGMPv3 IP header validation by clicking the button in the Validate
IGMPv3 IP Header section.

When IGMPv3 IP header validation is enabled, the button bar displays green.

7. Click the APPLY button.
Your settings are saved.

Set up a static router port for IGMP snooping

If your network does not include a device that sends IGMP queries, the switch cannot
discover the router port dynamically. (The router port is a port on a device in the network
that performs IGMP snooping in the network.) In this situation, select one port on the
switch as the dedicated static router port for IGMP snooping, allowing all IGMP Join
and Leave messages in the network to be forwarded to this port.

To set up a static router port for IGMP snooping:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SWITCHING.
The QOS page displays.

5.

From the menu on the left, select MULTICAST.
The MULTICAST page displays.

6.

From the menu in the IGMP Snooping Static Router Port section, select a specific
port as the router port or select Any to let IGMP Join and Leave messages be sent
to every port on the switch.

Typically, the uplink port (that is, the port that is connected to your router or to the
device that provides your Internet connection) serves as the router port.

7. Click the APPLY button.

User Manual65Manage the Switch in Your

Network

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Your settings are saved.

Change the IP address of the switch

By default, the switch receives an IP address from a DHCP server (or a router that
functions as a DHCP server) in your network.

To disable the DHCP client of the switch and change the IP address of the switch
to a fixed IP address:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select IP Address (DHCP On).
The IP address fields display, but you cannot change them yet. The toggle bar in the

DHCP section displays green because the DHCP client of the switch is enabled.

5. Click the button in the DHCP section.
The toggle bar displays gray, indicating that the DHCP client of the switch is disabled,

and you can now change the IP address fields.

6.

Enter the fixed (static) IP address that you want to assign to the switch, and the
associated subnet mask and gateway IP address.

7. Click the APPLY button.
A message displays to confirm that the IP address changed.

Changing the IP address of the switch disconnects your web session and you must
log back in to the device UI.

Network

User Manual66Manage the Switch in Your

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Reenable the DHCP client of the switch

If you disabled the DHCP client of the switch and set the switch to a fixed (static) IP
address, you can reverse the situation.

To reenable the DHCP client on the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select IP Address (Fixed IP).
The toggle bar in the DHCP section displays gray because the DHCP client of the

switch is disabled.

5. Click the toggle in the DHCP section.
The toggle bar displays green, indicating that the DHCP client of the switch is

enabled. You can no longer change the IP address fields.

6. Click the APPLY button.
A message displays to confirm that the IP address settings changed.

The switch receives an IP address from a DHCP server (or a router that functions as
a DHCP server) in your network. If the IP address of the switch changes, your web
session disconnects, and you must log back in to the device UI.

Network

User Manual67Manage the Switch in Your

6

Maintain and Monitor the Switch

This chapter describes how you can maintain and monitor the switch, and contains these
sections:

• Update the firmware on the switch

• Manage the configuration file

• Return the switch to its factory default settings

• Control access to the device UI

• HTTP and HTTPS management access

• Change or lift access restrictions to the switch

• Manage the DoS prevention mode

• Manage the power saving mode

• Control the port LEDs

• Change the switch device name

• View system information

• Date and time settings

• View switch connections

• View the status of a port

• Power over Ethernet

68

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Update the firmware on the switch

The switch firmware does not update automatically, so you must update it manually.
You can manually check for the latest firmware version, download the firmware, and
upload it to the switch.

CAUTION: Always read the release notes before updating the switch's firmware.

To manually check for new switch firmware and update the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.
The CONFIGURATION FILE page displays.

5.

From the menu on the left, select FIRMWARE.
The FIRMWARE page displays. The page also shows the UPDATE FIRMWARE section.

The FIRMWARE VERSION displays the current firmware version of the switch.

6.

To check if new firmware is available, click the netgear.com link in the FIRMWARE
section.

A NETGEAR web page opens.

7. Click the Downloads button.

8.

If new firmware is available, download the firmware file to your computer.
If the file does not end in .bin or .image, you might need to unzip the file. For

example, if the file ends in .rar, you must unzip the file.

9.

In the FIRMWARE UPDATE section, click the purple file icon, navigate to the firmware
file that you just downloaded, and select the file.

10. Click the UPDATE button.
A pop-up window displays a warning and the firmware update process starts.

User Manual69Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

WARNING: Do not interrupt the network connection or power to the switch during

the firmware update process. Do not disconnect any Ethernet cables or power off
the switch until the firmware update process and switch reboot are complete. Doing
so can damage the switch.

Your switch web session is disconnected and you must log back in to the device UI.

Manage the configuration file

The switch stores its configuration settings in a configuration file. You can back up your
switch's configuration settings by saving the configuration file to your computer. Later,
if you need to restore your settings, you can load the saved configuration file from your
computer to the switch.

Back up the switch configuration

You can save a copy of the switch's current configuration settings to your computer so
that you can restore the configuration settings from this backup file later if needed.

To back up the configuration settings switch of the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.
The RESTORE FULL CONFIGURATIONS page displays.

5. Click the BACKUP tab.
The BACKUP FULL CONFIGURATIONS page displays.

6. Click the BACKUP button.

7.

Follow the directions in your browser to save the file.
The default name of the backup file is based on the switch model, for example:

MS108EUP.cfg.

User Manual70Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Restore the switch configuration

If you saved a back up of the switch's configuration file, you can load this file from your
computer on to the switch to restore the configuration.

To restore the configuration settings of the switch from a back up file:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.
The RESTORE FULL CONFIGURATIONS page displays.

5.

Click the purple file icon, navigate to the saved configuration file, and select it.
The name of the saved configuration file is based on the switch model, for example:

MS108EUP.cfg.

The RESTORE button is now the APPLY CONFIGURATION button.

6. Click the APPLY CONFIGURATION button.
A pop-up window displays a warning.

7. Click the CONTINUE button.
The configuration is uploaded to the switch.

WARNING: Do not interrupt the network connection or power to the switch during

the restoration process. Do not disconnect any Ethernet cables or power off the
switch until the restoration process and switch reboot are complete. Doing so can
damage the switch.

Your switch web session is disconnected and you must log back in to the device UI.

User Manual71Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Return the switch to its factory default settings

You can reset the switch to return it to factory default settings, using either the RESET
button on the front of the switch, or the reset function in the device UI. If you have lost
the password and cannot access the switch, you must use the RESET button.

After you reset the switch to factory default settings, the password is password and the
switch’s DHCP client is enabled. For more information, see Factory default settings on
page 109.

Use the RESET button to reset the switch

You can use the RESET button to return the switch to its factory default settings.

CAUTION: This process erases all settings that you configured on the switch.

To reset the switch to factory default settings:

1.

On the front of the switch, locate the recessed RESET button.

2.

Using a straightened paper clip, press and hold the RESET button for more than
10 seconds or until all port LEDs start blinking red.

3. Release the RESET button.
All port LEDs blink red five times and the configuration is reset to factory default

settings. When the reset is complete, the switch reboots. This process takes about
one minute.

WARNING: Do not interrupt the network connection or power to the switch during

the reset process. Do not disconnect any Ethernet cables or power off the switch
until the reset process and switch reboot are complete. Doing so can damage the
switch.

User Manual72Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Use the device UI to reset the switch

CAUTION: This process erases all settings that you configured on the switch.

To reset the switch to factory default settings using the device UI:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.

5.

From the menu on the left, select FACTORY DEFAULT.
The FACTORY DEFAULT page displays.

6. Click the RESTORE DEFAULT SETTINGS button.
A warning pop-up window opens.

7. Click the CONTINUE button.
The switch is reset to factory default settings and reboots.

WARNING: Do not interrupt the network connection or power to the switch during

the reset process. Do not disconnect any Ethernet cables or power off the switch
until the reset process and switch reboot are complete. Doing so can damage the
switch.

Control access to the device UI

You can control which IP address or IP addresses are allowed to access the switch
through the device UI for management purposes.

To control management access to the device UI:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.

User Manual73Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.

5.

From the menu on the left, select ACCESS CONTROL.
The ACCESS CONTROL page displays any allowed IP addresses.

6. Click the ADD button.

7.

Specify the IP address or IP addresses to allow:

IP Address. Enter a single IP address or a network IP address.

•

Enter a network IP address in the format x.x.x.0, for example, 192.168.100.0.

Mask. If you enter a single IP address, enter 255.255.255.255 as the mask. If

•

you enter a network IP address, enter 255.255.255.0 as the mask.

Note: First add the IP address of the computing device that you are using to
configure the switch so you can ensure your own access to the switch UI.

8. Click the APPLY button.
Your settings are saved.

9. To enter more IP addresses, repeat the previous three steps.

HTTP and HTTPS management access

You can configure HTTP and HTTPS to allow management access to the switch's device
UI on a web browser. You can enable one or both options.

HTTP is the default, and is simpler to use. You can use HTTP to log in to the device

•
UI from within the same network subnet.

HTTPS is more secure, but requires a dedicated HTTPS port. You can enable this

•
option when you want to provide network administrators with remote management

access to the switch. You might want to generate an SSL certificate before you enable
HTTPS so that you can avoid seeing a browser security message every time you use
HTTPS to log into the device UI.

User Manual74Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

For each option, you can set the maximum time that a management login session can
remain idle before it times out, and set the maximum number of concurrent management
sessions.

Configure HTTP access settings

You can choose to enable or disable web access to the switch's device UI through HTTP,
set the session timeout, and maximum number of HTTP sessions. HTTP is enabled by
default.

To configure the HTTP access settings:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select SETTINGS > WEB ACCESS.
The HTTP Configuration page displays. Set one or more of the following options.

5. Click the Admin Mode toggle to enable or disable remote access via HTTP.
When this setting is enabled, the button displays on the right side of the toggle, and

the toggle bar turns green.

6.

In the HTTP Session Timeout (Minutes) field, type the number of minutes that a
session can be idle before the session times out.

The default is 30. The range is 0 to 60.

7.

In the Maximum Number of HTTP Sessions field, set the number of concurrent
sessions allowed.

You can set a number from 1 to 4. For example, if you manage your home office or
small business network yourself, you might set this to 1. The default is 4.

8. When your settings are complete, click the APPLY button.
Your settings are applied.

User Manual75Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Browser security message with HTTPS access

After you enable HTTPS access and you attempt to access the device UI, your browser
might display a security message that your connection is not private or not secure, or
that a problem with the security certificate occurred. You can safely dismiss this message.

Note: To avoid encountering a security message again, you can configure an SSL
certificate. For more information, see Manage certificates for HTTPS access on page

78.

If a security message displays, you cannot proceed but must take one of the following
actions, depending on the browser that you are using:

Google Chrome: Google Chrome displays this message: Your connection is

•

not private. Click the ADVANCED link. Then, click the Proceed to x.x.x.x
(unsafe) link, where x.x.x.x represents the IP address of the switch.

Apple Safari: Apple Safari displays this message: This connection is not private.

•

Click the Show Details button. Then, click the Visit This Website link. If another
popup displays, click the Visit Website button. If another pop-up window displays
to let you confirm changes to your certificate trust settings, enter your Mac user
name and password, and then click the Update Setting button.

Mozilla Firefox: Mozilla Firefox displays this message: Your connection is not

•

secure. Click the ADVANCED button. Then, click the Add Exception button. In
the pop-up window that displays, click the Confirm Security Exception button.

Microsoft Edge: Microsoft Edge displays this message or a similar warning:

•

There is a problem with this website’s security certificate. Select Details >
Go on to the webpage.

Microsoft Internet Explorer: Microsoft Internet Explorer displays this message:

•

There is a problem with this website’s security certificate. Click Continue to
this website (not recommended).

Note: For information on installing a security certificate on the switch, see Manage

certificates for HTTPS access on page 78 and Transfer an SSL certificate from a TFTP
server for HTTPS access on page 78.

Configure HTTPS access settings

You can choose to enable or disable web access to the switch's device UI through HTTPS
for remote network administration. You must select the HTTPS port you want to use for

User Manual76Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

remote access, set the session timeout, and maximum number of HTTPS sessions. HTTPS
is disabled by default.

Note: Secure HTTP (HTTPS) enables the transmission of HTTP over an encrypted Secure
Sockets Layer (SSL) or Transport Layer Security (TLS) connection. When you manage
the switch over the device UI, HTTPS can help ensure that communication between the
management system and the switch is protected from eavesdroppers and
man-in-the-middle attacks. The hash algorithms that SSL uses are MD5 and SHA-1.

Note: You can download SSL certificates only when HTTPS is disabled.

To configure the HTTPS access settings:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select SETTINGS > WEB ACCESS > HTTPS CONFIGURATION.
The HTTPS Configuration page displays. Set the following options.

5. Click the Admin Mode button to enable or disable remote access via HTTPS.
When this setting is enabled, the button displays on the right side of the slide, and

the slide turns green.

6.

In the HTTPS Port field, type in the number of the port.
The default is port 443, or you can set a number in the range from 1025 to 65535.

7.

In the HTTPS Session Timeout (Minutes) field, type the number of minutes that a
session can be inactive before it times out.

The default is 30. The range is 0 to 60.

8.

In the Maximum Number of HTTPS Sessions field, set the number of concurrent
sessions allowed.

The default is 4. The range is 1 to 4.

9. When your settings are complete, click the APPLY button.
Your settings are applied.

User Manual77Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Manage certificates for HTTPS access

You can manage certificates for HTTPS access. After you generate and install a valid
certificate, browser security messages no longer display.

Note: HTTPS must be disabled before you can generate a certificate. For more
information, see Configure HTTPS access settings on page 76.

To generate an SSL certificate:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

Select SETTINGS > WEB ACCESS > Certificate Configuration.

5.

In the Certificate Management section, click the Generate Certificates radio button.

6. Click the APPLY button.
The Certificate Generation Status field displays Certificate generation in progress.

When the certificate is generated, the Certificate Present field displays Yes.

You can now enable HTTPS.

Transfer an SSL certificate from a TFTP server for HTTPS access

You can transfer an SSL certificate from a Trivial File Transfer Protocol (TFTP) server to
the switch for HTTPS access. After you install a valid certificate, browser security messages
no longer display.

To accept HTTPS connections from a device, the switch requires a public key certificate.
You can generate a certificate externally (for example, offline) and transfer it to the

User Manual78Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

switch. Before you transfer a file from a TFTP server to the switch, the following conditions
must be met:

The file that you transfer from a TFTP server is on the server in the appropriate

•
directory.

The file is in the correct format.

•

The switch contains a path to the TFTP server.

•

Note: HTTPS must be enbled before you can install a certificate from a TFTP server.
For more information, see Configure HTTPS access settings on page 76.

To transfer an SSL certificate from a TFTP server to the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

Select SETTINGS > WEB ACCESS > Certificate Configuration.

5.

In the Certificate Update menu, TFTP Server IP address field, type in the IP address.

6.

In the Remote File Path field, type in the path to the PEM file on the TFTP server.

7.

In the Remote File Name field, type in the PEM file name, including the .pem
extension.

8.

Select the Start File Transfer check box.

9. Click the APPLY button.
The Certificate Generation Status field displays Certificate generation in progress.

When the certificate is generated, the Certificate Present field displays Yes.

You can now enable HTTPS.

Delete certificates for HTTPS access

You can delete previously created certificates for HTTPS access.

Note: You must disable HTTPS before you can delete a certificate. For more information,
see Configure HTTPS access settings on page 76.

User Manual79Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

To delete an SSL certificate:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

Select SETTINGS > WEB ACCESS > Certificate Configuration.
The Cerificate Management page displays.

5.

Click the Delete Certificates radio button.

6. Click the APPLY button.
The Certificate Generation Status field displays No certificate generation in progress.

When the certificate is deleted, the Certificate Present field displays No.

Change or lift access restrictions to the switch

If you set up IP addresses that are allowed to access the switch through the device UI
for management purposes, you can remove one or more IP addresses, or you can
remove all IP addresses to lift the access restrictions.

If you lift access restrictions, any IP address can access the device UI of the switch. (The
user still must enter a password to access the device UI.)

To change or lift access restrictions to the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.

User Manual80Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

5.

From the menu on the left, select ACCESS CONTROL.
The ACCESS CONTROL page displays.

6. Click the IP address that you want to remove.
The DELETE button displays.

7. Click the DELETE button.
The IP address is removed from the list, and access to the switch's device UI from

the IP address is blocked.

8. To remove more IP addresses, repeat steps 6 and 7.

CAUTION: If you remove all IP addresses, all access restrictions are removed and

any IP address can access the device UI of the switch.

Manage the DoS prevention mode

You can enable the Denial of Service (DoS) prevention mode so that the switch
automatically blocks malicious packets. By default, this mode is disabled.

To manage the DoS prevention mode:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.

5.

From the menu on the left, select DOS PREVENTION.
The DOS PREVENTION page displays.

6. Enable or disable the DoS prevention mode by clicking the button.
When the DoS prevention mode is enabled, the button bar displays green.

7. Click the APPLY button.
Your settings are saved.

User Manual81Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Manage the power saving mode

The power saving mode enables the IEEE 802.3az Energy Efficient Ethernet (EEE)
function, cable length power saving, and link-up and link-down power saving:

IEEE 802.3az: Combines the Energy Efficient Ethernet (EEE) 802.3 MAC sublayer

•
with the 100BASE-TX, 1000BASE-T, and 10GBASE-T physical layers to support
operation in Low Power Idle (LPI) mode. When LPI mode is enabled, systems on

both sides of the link can disable portions of their functionality and save power during
periods of low link utilization.

Short cable power saving: Dynamically detects and adjusts power that is required

•
for the detected cable length.

Link-down power saving: Reduces the power consumption considerably when the

•
network cable is disconnected. When the network cable is reconnected, the switch

detects an incoming signal and restores normal power.

By default, the power saving mode is disabled.

To manage the power saving mode on the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4.

From the menu at the top of the page, select SETTINGS.

5.

From the menu on the left, select POWER SAVING.
The POWER SAVING pop-up window opens.

6. Enable or disable the power saving mode by clicking the button.
When the power saving mode is enabled, the button bar displays green.

7. Click the APPLY button.
Your settings are saved.

User Manual82Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Control the port LEDs

You can turn the port LEDs on the switch on and off by using the device UI.

By default, a port LED lights when you connect a powered-on device to the port. When
the switch functions with its LEDs off, we refer to it as Stealth Mode.

To control the port LEDs through the device UI:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select Port LEDs.
The Port LEDs button displays.

5. Disable or enable the port LEDs by clicking the button.
When the port LEDs are enabled, the button bar displays green. When the ports

LEDs are disabled (Stealth Mode), the button bar displays gray.

6. Click the APPLY button.
Your settings are saved.

Change the switch device name

By default, the device name of the switch is the same as the model number. This device
name shows in, for example, in Windows Explorer and Bonjour. You can change the
device name, which can be up to 20 characters.

To change the device name of the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.

User Manual83Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

The password is the one that you specified the first time that you logged in. The
password is case-sensitive.

The HOME page displays.

4.

In the SYSTEM INFO menu Switch Name field, enter a new name for the switch.

5. Click the APPLY button.
Your settings are saved.

View system information

You can view basic information about the switch, such as the firmware version, switch
name, MAC address, serial number, and model number. You can also view or edit the
language, or check for firmware updates.

To view basic information about the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

Date and time settings

You can set the system time manually, or enable Simple Network Time Protocol (SNTP)
to allow the switch to automatically synchronize its internal clock with the time provided
by an SNTP server.

If you want to automate SNTP time syncing, you must configure the SNTP client mode,
configure one or more SNTP servers, and then enable system time syncing.

User Manual84Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Configure the system time manually

To set the system time manually:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. In the SYSTEM TIME section, click the down arrow to expand the menu.
The system time options display.

5. Select Local on the toggle.
The button displays on the left side of the toggle, and the toggle bar turns gray.

6.

Click in the Date field and select the date from the pop-up menu.
The date field displays the date that you set.

7.

Click in the Time field and select the time from the pop-up menu.
The time field displays the time that you set.

8. Click the APPLY button.
Your settings are saved.

The current system date and time display next to the menu icon.

Configure the SNTP client mode

You can configure the SNTP client mode as unicast or broadcast.

Note: Automated time syncing depends on the switch knowing how to contact your
SNTP servers, and then activating automated time syncing. For more information, see
Configure an SNTP server on page 87 and Enable system time to synchronize with an
SNTP server on page 88.

To enable SNTP client mode and configure it for unicast or broadcast:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.

User Manual85Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select Settings > SNTP
The SNTP options display.

5.

Click the SNTP Configuration tab.
The SNTP Configuration options display.

6.

Under Client Mode, select the mode of operation of the SNTP client:

Broadcast: If there is a time server on your network, then you can enable

•

broadcast. The SNTP client on the switch listens for time packets that the server
broadcasts to the network.
If you enable this option, skip steps 6 through10.

Note: We recommend that the broadcast client mode be enabled only by
professional network admins or installers with an advanced understanding of
network security.

Unicast: The SNTP client sends a request to a external public SNTP server, or a

•

pool of time servers, such as an SNTP server provided by your ISP. The SNTP
server responds with the time, and the switch calculates and sets the local system
time by factoring in the round-trip and local time zone offset relative to the SNTP
server time, which is usually in UTC (equivalent to Greenwich Meridian Time).
The default value is Unicast.

7.

If the SNTP client mode is Unicast, use the SNTP Server Configuration page to add
the IP address or DNS name of one or more SNTP servers for the switch to poll.

For more information, see Configure an SNTP server on page 87.

8.

In the Port field, specify the local UDP port on which the SNTP client receives server
packets.

The allowed range is 1025 to 65535 and 123. The default value is 123. When the
default value is configured, the actual client port value used in SNTP packets is
assigned by the switch.

9.

In the Unicast Poll Interval field, specify the number of seconds between unicast
poll requests expressed as a power of 2. The allowed range is 6 to 10. The default
value is 6.

User Manual86Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

10.

In the Unicast Poll Timeout field, specify the number of seconds to wait for an SNTP
response to a unicast poll request.

The allowed range is 1 to 30. The default value is 5.

11.

In the Unicast Poll Retry field, specify the number of times to retry a unicast poll
request to an SNTP server after the first time-out before the switch attempts to use
the next configured server.

The allowed range is 0 to 10. The default value is 2.

12. Click the APPLY button.
Your settings are saved.

Configure an SNTP server

You can enable automatic syncing of system time after you configure at least one SNTP
server providing you also:

Configure the SNTP client mode to use either a public SNTP server, or a clock and

•
SNTP server within your own network. For more information, see Configure the SNTP

client mode on page 85.

Activate automated time management. For more information, see Enable system

•
time to synchronize with an SNTP server on page 88.

To configure an SNTP server:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select Settings > SNTP
The SNTP options display.

5.

Click the SNTP Server Configuration tab.

6. Click the purple Add button.
The SNTP server configuration menu options display.

7. From the Server Type menu, select either IPv4 or DNS.

User Manual87Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

8.

In the Address field, enter the address in the format compatible with Server Type.

9.

In the Port field, enter the number of the port to use for UDP transmissions: 123, or
1025 to 36465.

For unicast transmissions between the SNTP client and an external SNTP server, this
port must be open in the firewall to allow access.

When the SNTP client mode is broadcast, only allow the internal SNTP server to
access the port.

10.

In the Priority field, set a priority from 1 to 3, with the lowest number assigned to
the preferred SNTP server.

11.

In the Version field, set the SNTP version from 1 to 4.

12. Click the APPLY button.
Your settings are saved.

The SNTP server information displays in a table.

Enable system time to synchronize with an SNTP server

The local system time on the switch can be set to sync with an SNTP server when the
following conditions are met:

The SNTP client mode is configured.

•

The switch can contact a configured SNTP server.

•

For more information, see Configure an SNTP server on page 87

To enable system time to synchronize with SNTP server time:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. In the SYSTEM TIME section, click the down arrow to expand the menu.
The system time options display.

5. Click the SNTP button to turn it green.

6. From the Time Zone menu, select the time zone in which the switch operates.

User Manual88Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

7. Click the APPLY button.
Your settings are saved.

The current system date and time display next to the menu icon.

Configure daylight saving time

To set the system time manually:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select Settings > SNTP
The SNTP options display.

5.

Click the Daylight Saving (DST) Configuration tab.
The Daylight Saving configuration options display.

6.

In the Daylight Saving (DST) Configuration section, click the radio button for your
preferred option.

a.

Disable: Daylight Saving is disabled by default.

b.

Recurring: Manually configure the yearly recurrence of the daylight savings
schedule for your location, including the start and end of the recurrence, the
amount of time offset, and the time zone.

Week: Select the week that daylight savings begins or ends.

•

Day: Select the day of the week that daylight savings begins or ends.

•

Month: Select the month in which daylight savings begins or ends.

•

Hours: Select the daylight savings time offset in hours.

•

Minutes: Select the daylight savings time offset in hours, for example, 30

•
minutes.

Zone: Select the time zone for your location.

•

c. Recurring EU: Set the time zone to your EU location.

User Manual89Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Fields display the start and end days and offset times for your zone.

d. Recurring USA: Set the time zone to your US location.

Fields display the start and end days and offset times for your zone.

e. Nonrecurring:

Month: Select the month in which daylight savings begins or ends.

•

Date: Select the date in which daylight savings begins or ends.

•

Year: Select the year for which you want to add a daylight savings time

•
schedule.

Hours: Select the daylight savings time offset in hours.

•

Minutes: Select the daylight savings time offset in hours, for example, 30

•
minutes.

Zone: Select the time zone for your location.

•

7. Click the APPLY button.

Your settings are saved.

The current system date and time display next to the menu icon.

View daylight saving time status

To set the system time manually:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select Settings > SNTP
The SNTP options display.

5. Click the Daylight Saving (DST) Status tab.

User Manual90Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

The following fields display:

Daylight Saving (DST): Displays the type of daylight setting enabled.

•

Begins At: Displays the scheduled settings for the start of the daylight savings

•

period.

Ends At: Displays the scheduled settings for the end of the daylight savings

•

period.

Offset (in Minutes): Displays the daylight savings time offset in minutes.

•

Zone: Select the time zone for your location.

•

Daylight Saving (DST) in Effect: Indicates whether the daylight savings offset

•

is currently being applied to system time.

View switch connections

You can see the number of connections that are established on the switch.

To see the number of connections on the switch:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The user

name and password are case-sensitive.

The HOME page displays.

The switch connections show in the upper left of the page.

View the status of a port

You can view the port status and drill down for details about the port.

To view the status of a port:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

User Manual91Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

The PORT STATUS pane displays on the right or the bottom of the HOME page,
depending on the size of your browser window.

A port that is in use shows as CONNECTED. A port that is not in use shows as
AVAILABLE.

4. To view details about a port, select the port.
The pane displays detailed information about the port.

For information about setting rate limits for incoming and outgoing traffic, setting
the port priority (if the QoS mode on the switch is port-based), setting the port speed
(by default, the speed is set automatically), enabling flow control, and changing the
port name label, see Manage individual port settings on page 27.

Power over Ethernet

You can manage Power over Ethernet (PoE) on the switch by turning the uninterrupted
PoE feature on or off, and perform power cycling to reset one or more PSE ports. You
can also view port status, and manage PoE settings for each Ethernet port.

PoE considerations for switches that support PoE, PoE+ or PoE++

A switch that supports PoE, PoE+, or PoE++ prioritizes the PoE power that it supplies
in ascending port order (that is, from the lowest-numbered port to the highest-numbered
port), up to its total power budget.

If the power requirements for the attached powered devices (PDs) exceed the total
power budget of the switch, the PD on the highest-numbered port is disabled to make
sure that the PDs that are connected to the higher-priority, lower numbered ports are
supported first.

Just because a PD is listed as an 802.3af PoE, 802.3at PoE+, or 802.3bt powered device
does not necessarily mean that it requires the maximum power limit of the specification.
Many PDs require less power, allowing all PoE+ ports to be active simultaneously.

User Manual92Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

PoE++ and PoE+ overview

Model MS108EUP provides up to 60W PoE++ (IEEE 802.3bt) to each PoE++ port (1–4),
and up to 30W PoE+ (IEEE 802.3at) to each PoE+ port (5–8). The maximum PoE power
budget across all active PoE++ and PoE+ ports is 230W.

The PoE++ and PoE+ power supplied by the switch is prioritized in ascending port
order (from port 1 to port 8), with a total power budget of 230W across all active PoE+
ports.

The following table shows the standard power ranges, calculated with the maximum
cable length of 328 feet (100 meters). If a device receives insufficient PoE power from
the switch, consider using a shorter cable.

Table 3. PoE classes and PoE power allocations

Power Delivered to the DeviceMaximum Power

0.44W–13.0W15.4WDefault power (full)PoE, PoE+, and PoE++0

0.44W–3.84W4.0WVery low powerPoE, PoE+, and PoE++1

3.84W–6.49W7.0WLow powerPoE, PoE+, and PoE++2

6.49W–13.0W15.4WMid powerPoE, PoE+, and PoE++3

13.0W–25.5W30.0WHigh powerPoE+ and PoE++4

25.5W–40.0W45.0WUltra high powerPoE++5

40.0W–51.0W60.0WUltra high powerPoE++6

Class

Class DescriptionCompatible PoE StandardDevice

Supplied by the Switch

Monitor PD health

You can use PD health monitoring to test the health of a PD that is connected to a PoE
port. You can enable automated ping tests that check for connection faults, and you
can restart PoE power to the PD.

Note: Wait a few minutes after attaching the PD before you start the PD health monitor.

To display the status of the PD:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

User Manual93Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select POE > PD HEALTH MONITORING.
The PD Health Monitoring page displays.

5. Click the port where the PD that you want to test is connected.
When the port is selected, the port button displays solid purple.

6.

Click the PD Health Monitoring button to enable the feature.
When enabled, the button bar displays green.
A status message displays to confirm whether the PD Health Monitor is ready.
The PD IP Address field displays the IP address of the PD.

7.

In the Ping Time Interval field, enter the time interval in seconds for the ping test.
The default value is 60 seconds.

8.

Click to enable or disable the If an error occurs while the PD Health Monitor is
running, restart the PoE toggle.

When enabled, the button displays on the right of the toggle, and the toggle bar
displays green.

9.

Click to enable or disable the If the Restart Count is over 5 then disable PoE
option. If you want to use a different count value, select 10 or 20 from the menu.

The option is disabled by default, with the count set to 5.

10. When your settings are complete, click the APPLY button.
The ping test on the PD begins.

Total Count: The number of ping tests conducted.

Failure Count: The number of tests where the ping failed to complete.

Restart Count: The number of times that the PoE port was reset.

Manage uninterrupted PoE

If you enable the uninterrupted PoE feature, the switch continues to provide PoE power
to any attached PDs while the switch is rebooting, even if it is rebooting after a regular

User Manual94Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

firmware update. By default, the uninterrupted PoE feature is disabled, so that the switch
stops providing PoE power while it is rebooting.

Even with the feature enabled, the switch temporarily stops providing PoE in the following
situations:

The switch reboots because you reset it to factory default settings.

•

The switch reboots because you installed updated firmware that changed

•
configuration options, the chip driver, or the default PoE settings.

To managed the uninterrupted PoE feature:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select POE.
The Power over Ethernet (PoE) page displays.

5. Click the button to enable or disable Uninterrupted PoE.

Disabled: The button bar displays gray, and the button is positioned on the left.
Enabled: The button bar displays green, and the button is positioned on the right.

Power cycle the PoE ports

You can use the Power Cycle Ports feature to forcibly reset one or more PoE ports.

To power cycle PoE ports through the device UI:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

User Manual95Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

4. Select POE.
The Power over Ethernet (PoE) page displays.

5.

In the Power Cycle Ports section, click the port number icon for every port that you
want to reset.

When a port is selected, the port number icon displays solid purple.

6. When all the ports that you want to power cycle are selected, click the APPLY button.
PoE on the selected ports is forcibly reset.

Manage an individual PoE port

You can manage the settings on an individual PoE port.

To select a PoE port and configure the settings:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select POE.
The Power over Ethernet (PoE) page displays.

5. On the SETTING menu, click the port number to open the port settings menu.
The port settings display.

6. Click the EDIT button.
The PoE port options display.

User Manual96Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

7.

Choose any of the following options to manage the PoE settings on the port:
a. Port Power.

Enable: The port's ability to deliver PoE power is enabled. This is the default

•
setting.

Disable: The port’s ability to deliver PoE power is disabled.

•

b. Power Mode .

802.3af: The port is powered in, and limited to, the IEEE 802.3af mode. A

•
PD that requires IEEE 802.3at or IEEE 802.3bt power will not receive power
when IEEE 802.3af mode is selected.

Legacy: The port is powered using high-inrush current, which is used by

•
legacy PDs that require more than 15W to power up.

Pre-802.3at: The port is initially powered in the IEEE 802.3af mode and,

•
before 75 msec pass, changes to high power IEEE 802.3at mode. Select this
mode for a PD that does not perform Layer 2 classification, or if the switch
performs 2-event Layer 1 classification.

802.3at: The port is powered in the IEEE 802.3at mode and is backward

•
compatible with IEEE 802.3af. In this mode, if the switch detects that the

attached PD requests more power than IEEE 802.3af, but is not an IEEE 802.3at
Class 4 device, the PD does not receive power from the port.

Pre-802.3bt: The port supports Class 4 devices that use 4-pair PoE (4PPoE)

•
to receive power higher than 30W but that are not compliant with IEEE 802.3bt.

The port also supports the IEEE 802.3at and IEEE 802.3af modes.

Pre-802.3bt(max power): The port supports Class 4 devices that use 4-pair

•
PoE (4PPoE) to receive power higher than 30W but that are not compliant

with IEEE 802.3bt. The port also supports the IEEE 802.3at and IEEE 802.3af
modes.

802.3bt-Type3: The port supports the IEEE 802.3bt Type 3 mode, the IEEE

•

802.3at mode, and the IEEE 802.3af mode.

c. Power Limit (W)

For ports 1-4, the default is 60.0W. For ports 5-8, the default is 30.0W.

d.

Port Priority: Select the priority for the port in relation to other ports if the total
power that the switch is capable of delivering exceeds the total power budget.

Low: Low priority. This is the default setting.

•

High: High priority.

•

Critical: Critical priority.

•

User Manual97Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

e. Power Limit Type.

Class: The power limit automatically adjusts based on the class of PD.

Detection Type.

f.

Legacy: The port performs legacy detection.

•

IEEE802: The port performs a 4-point resistive detection. This is the default

•
setting.

4pt 802.3af + Legacy: The port performs a 4-point resistive detection, and

•
if required, continues with legacy detection.

8. When your settings are complete, click the APPLY button.

Your settings are applied to the PoE port.

Display PoE port status

You can display the PoE port status, including the amount of power delivered to the
PD, and the fault status.

To display the PoE port status through the device UI:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select POE.
The Power over Ethernet (PoE) page displays.

5. Click on STATUS.
The port numbers display, including the Class and Status of each PoE port.

6. Select the port that you want to view.
Port status information displays:

Output Voltage (V): The voltage that is delivered to the PD in volts.

•

Output Current (mA): The current that is delivered to the PD in milliamps.

•

User Manual98Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Temperature: The temperature in degrees Celcius.

•

Fault Status: The error description when the PoE port is in a fault state:

•

- No Error: The port is not in any error state and can provide power.

-

MPS Absent: The port detected the absence of the main power supply,
preventing the port from providing power.

-

Short: The port detected a short circuit condition, preventing the port from
providing power.

- Overload: The PD that is connected to the port attempts to draw more power

than allowed by the port’s settings, preventing the port from providing power
at all.

-

Power Denied: The port was denied power because of a shortage of power
or because of an administrative condition. In this condition, the port cannot
provide power.

-

Startup Failure: The PD that is connected to the port failed to start up. In this
condition, the port does not provide power.

-

Over Voltage: The port was denied power because of a over-voltage lockout.

-

Under Voltage: The port was denied power because of an under-voltage
lockout.

-

Thermal Shutdown: The port detected a thermal temperature fault,
preventing the port from providing power.

Output Power (W): The power that is delivered to the PD in watts.

•

Configure a PoE schedule

You can create a PoE schedule for a single port, or for multiple ports.

PoE schedules are repeated weekly during the selected time range.

•

On dates that are not included in a PoE schedule range, individual port settings

•
apply. For more information see Manage an individual PoE port on page 96.

To set up and enable a PoE schedule for one or multiple ports:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.

User Manual99Maintain and Monitor the Switch

8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

The password is the one that you specified the first time that you logged in. The
password is case-sensitive.

The HOME page displays.

4. Select POE > POE SCHEDULE.
The POE SCHEDULE page displays.

5. Click the toggle to select Apply to single port or Apply to multiple ports.

6. Click one or more ports.
When a port is selected, the port button displays solid purple.

7.

Click the Start Date field and select the date from the pop-up menu.
Your start date displays. You must select both a start and an end date.

8.

Click the End Date field and select the date from the pop-up menu.
Your end date displays. You must select both a start and an end date.

9.

For each day of the week that you want to schedule PoE, use the sliders to set one
or two the ranges.

Green indicates that PoE is enabled. The start and end times for each selected range
display.

10. When your settings are complete, click the APPLY button.
The schedule is enabled.

Edit or disable a PoE schedule

To edit the or disable a PoE schedule:

1.

Open a web browser from a computer that is connected to the same network as the
switch, or connected directly to the switch through an Ethernet cable.

2. Enter the IP address that is assigned to the switch.
A login window opens.

3. Enter the device management password.
The password is the one that you specified the first time that you logged in. The

password is case-sensitive.

The HOME page displays.

4. Select POE > POE SCHEDULE.
The POE SCHEDULE page displays.

5.

If your configured schedule applied to a single port and you want to apply it to more
than one port, click the toggle to select Apply to Multiple Ports.

User Manual100Maintain and Monitor the Switch
