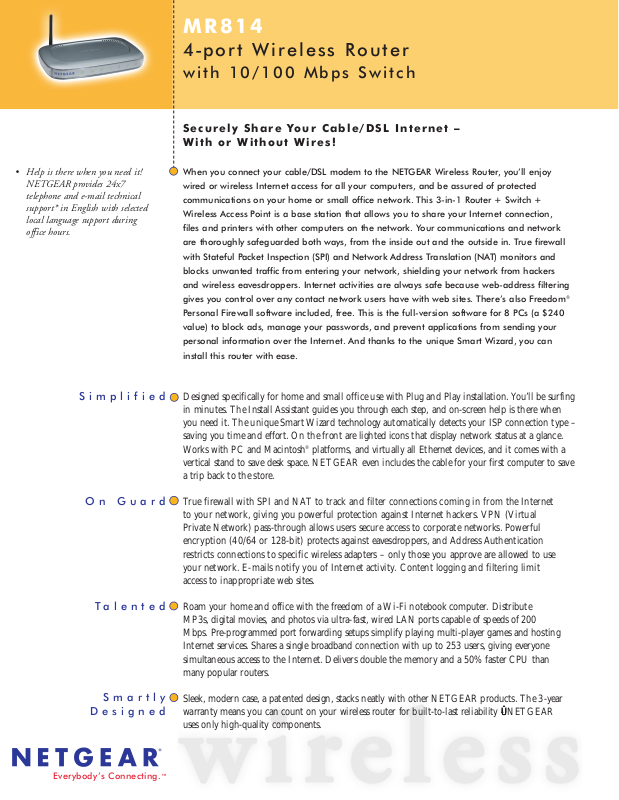

NETGEAR MR814 User Manual

MR814

4-port Wireless Router

with 10/100 Mbps Switch

Securely Share Your Cable/DSL Internet – With or Without Wires!

When you connect your cable/DSL modem to the NETGEAR Wireless Router, you’ll enjoy

wired or wireless Internet access for all your computers, and be assured of protected

communications on your home or small office network. This 3-in-1 Router + Switch +

Wireless Access Point is a base station that allows you to share your Internet connection,

files and printers with other computers on the network. Your communications and network

are thoroughly safeguarded both ways, from the inside out and the outside in. True firewall

with Stateful Packet Inspection (SPI) and Network Address Translation (NAT) monitors and

blocks unwanted traffic from entering your network, shielding your network from hackers

and wireless eavesdroppers. Internet activities are always safe because web-address filtering

gives you control over any contact network users have with web sites. There’s also Freedom

Personal Firewall software included, free. This is the full-version software for 8 PCs (a $240

value) to block ads, manage your passwords, and prevent applications from sending your

personal information over the Internet. And thanks to the unique Smart Wizard, you can

install this router with ease.

Designed specifically for home and small office use with Plug and Play installation. You’ll be surfing in minutes. The Install Assistant guides you through each step, and on-screen help is there when you need it. The unique Smart Wizard technology automatically detects your ISP connection type – saving you time and effort. On the front are lighted icons that display network status at a glance. Works with PC and Macintosh®platforms, and virtually all Ethernet devices, and it comes with a vertical stand to save desk space. NETGEAR even includes the cable for your first computer to save a trip back to the store.

True firewall with SPI and NAT to track and filter connections coming in from the Internet to your network, giving you powerful protection against Internet hackers. VPN (Virtual Private Network) pass-through allows users secure access to corporate networks. Powerful encryption (40/64 or 128-bit) protects against eavesdroppers, and Address Authentication restricts connections to specific wireless adapters – only those you approve are allowed to use your network. E-mails notify you of Internet activity. Content logging and filtering limit access to inappropriate web sites.

Roam your home and office with the freedom of a Wi-Fi notebook computer. Distribute MP3s, digital movies, and photos via ultra-fast, wired LAN ports capable of speeds of 200 Mbps. Pre-programmed port forwarding setups simplify playing multi-player games and hosting Internet services. Shares a single broadband connection with up to 253 users, giving everyone simultaneous access to the Internet. Delivers double the memory and a 50% faster CPU than many popular routers.

Sleek, modern case, a patented design, stacks neatly with other NETGEAR products. The 3-year warranty means you can count on your wireless router for built-to-last reliability ÛÛ- NETGEAR uses only high-quality components.

Simplified

On Guard

Talented

Smartly

Designed

Everybody’s Connecting.

™

• Help is there when you need it! NETGEAR provides 24x7 telephone and e-mail technical support* in English with selected local language support during office hours.

Desktop PC with

MA111 802.11b Wireless USB Adapter

PDA with

MA701 802.11b Wireless Compact Flash Card

Notebook PC with

MA521 802.11b Wireless PC Card

Cable/DSL modem

MR814 802.11b Wireless Router

Desktop PC with

FA311 Ethernet Card

Printer with

PS101 Mini Print Server

Internet

Notebook PC with

MA111 802.11b Wireless USB Adapter

4500 Great America Parkway Santa Clara, CA 95054 USA Phone: 1-888-NETGEAR (638-4327) E-mail: info@NETGEAR.com www.NETGEAR.com

, the Netgear logo, The Gear Guy, Everybody's connecting and Auto Uplink are trademarks or registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Microsoft, Windows and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Freedom

is a registered trademark of ZeroKnowledge Systems. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved.

* Free basic installation support provided for 90 days from date of purchase; optional premium support available.

D-MR814v2-1

• Environmental Specifications:

- Operating Temperature: 0 to 40°C

(32 to 104° F)

- Storage Temperature: -20 to 70°C (-4 to 158° F)

- Operating Relative Humidity: 90% noncondensing

- Acoustic noise: 0 dB

• Physical Specifications:

- Dimensions: 175 x 118 x 28 mm

6.9 x 4

.7 x 1.1 in)

- Weight: 0.3 kg (0.7 lb)

• Certifications:

- FCC Part 15, Class B (PD5LMWP200)

- Canada RSS-210 (3970104534A)

- UL, CSA

- CE

• Warranty:

- NETGEAR 3-year warranty

System Requirements:

- Broadband (cable, DSL) Internet service and

modem with Ethernet RJ-45 connector

- Ethernet adapter and cable OR 2.4 GHz Wireless adapter for each computer

- Windows

95, 98, Me, NT, 2000, XP, Mac®OS,

NetWare®, UNIX®, Linux

- Internet Explorer 5.0 or Netscape®4.7 or higher

- Windows 98, Me, 2000, or XP for Freedom‚

PC software

Package Contents:

- Wireless Router MR814

- Resource CD with Install Assistant and FREE

Freedom® PC software

- LAN cable

- Power adapter

- Installation guide

- Warranty card

- Support information card

Technical Specifications:

• Standards Capability:

- IEEE 802.3i 10BASE-T

- IEEE 802.3u 100BASE-TX

- IEEE 802.3x Flow Control

• Application Support:

- Works with most Internet applications,

including: QUAKE®, Half-Life®, StarCraft®, Unreal Tournament®, AOL®Instant Messenger™, Microsoft Messenger

• Functions:

- Smart Wizard to automatically detect ISP type,

Port Range Forwarding, Exposed Host (DMZ), URL Content Filtering, E-mail Alerts, Wireless MAC Address Authentication

• Routing Protocols:

- Static & Dynamic Routing with TCP/IP, VPN

pass-through (IPSec, PPTP, L2TP), NAT, PPPoE, DHCP (client & server)

• Interface Specifications:

- Internet/WAN: 10 Mbps Ethernet, RJ-45

- LAN: 4 ports @ 10/100 Mbps (auto-sensing)

Ethernet, RJ-45

- Wireless:

- Network Speeds: 1, 2, 5.5, 11 Mbps with

Auto-fallback support

- Modulation Type: Direct Sequence Spread Spectrum (DSSS)

- Encryption: Hardware-based 40/64-bit & 128-bit WEP encryption

- Frequency Band: 2.4 GHz

- Standards Capability: 802.11b

- Antenna: 2 dBi

• Lighted Status Icons:

- Power, Test, Internet, Wireless, and LAN

(connection, activity, and speed)

• Power Adapter:

- 12 V DC .08 A, plug is localized to country of sale

in North America, Australia, Europe, United Kingdom, Japan

• Average Power Consumption:

- 5-6 W
