Netgear MBR1210 User Guide
Mobile Broadband 11n Wireless Router MBR1210
User Guide
ENGLISH
Routeur sans fil MBR1210 11n
350 East Plumeria Drive
San Jose, CA 95134
USA
October 2010
202-10734-03
v1.0
à haut débit mobile
Guide d’utilisation
FRANÇAIS
Mobile Broadband 11n Wireless Router MBR1210 User Manual
©2010 NETGEAR, Inc. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means without the written permission of NETGEAR, Inc.
Technical Support
Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online,
visit us at http://support.netgear.com.
Phone (US & Canada only): 1-888-NETGEAR
Phone (Other Countries): See Support information card.
Trademarks
NETGEAR, the NETGEAR logo, ReadyNAS, ProSafe, Smart Wizard, Auto Uplink, X-RAID2, and NeoTV are
trademarks or registered trademarks of NETGEAR, Inc. Microsoft, Windows, Windows NT, and Vista are
registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or
trademarks of their respective holders.
Statement of Conditions
To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes
to the products described in this document without notice. NETGEAR does not assume any liability that may occur
due to the use, or application of, the product(s) or circuit layout(s) described herein.
Revision History
Publication Part Number Version Publish Date Comments
202-10734-03 v1.0 October 2010 First publication
2 |
Table of Contents
ENGLISH
Chapter 1 Connecting to the Internet
Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Router Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Router Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Router Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Router Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Log In to Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Access the Configuration Assistant after Installation . . . . . . . . . . . . . . . . .13
Manually Configure Your Internet Settings. . . . . . . . . . . . . . . . . . . . . . . . . 14
Broadband Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Mobile Broadband Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Ethernet Broadband Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Chapter 2 Wireless Network Configuration
Planning Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Wireless Placement and Range Guidelines . . . . . . . . . . . . . . . . . . . . . .25
Wireless Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Manually Configure Your Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . 27
Configuring WEP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Configuring WPA, WPA2, or WPA + WPA2 . . . . . . . . . . . . . . . . . . . . . . 30
Use Push 'N' Connect (WPS) to Configure Your Wireless Network. . . . . .31
WPS Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
WPS PIN Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Add Wireless Computers That Do Not Support WPS. . . . . . . . . . . . . . . 34
SIM Card PIN Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
SIM Card Modem Unlock Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Chapter 3 Content Filtering
Viewing, Selecting, and Saving Logged Information . . . . . . . . . . . . . . . . . 38
Log Message Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

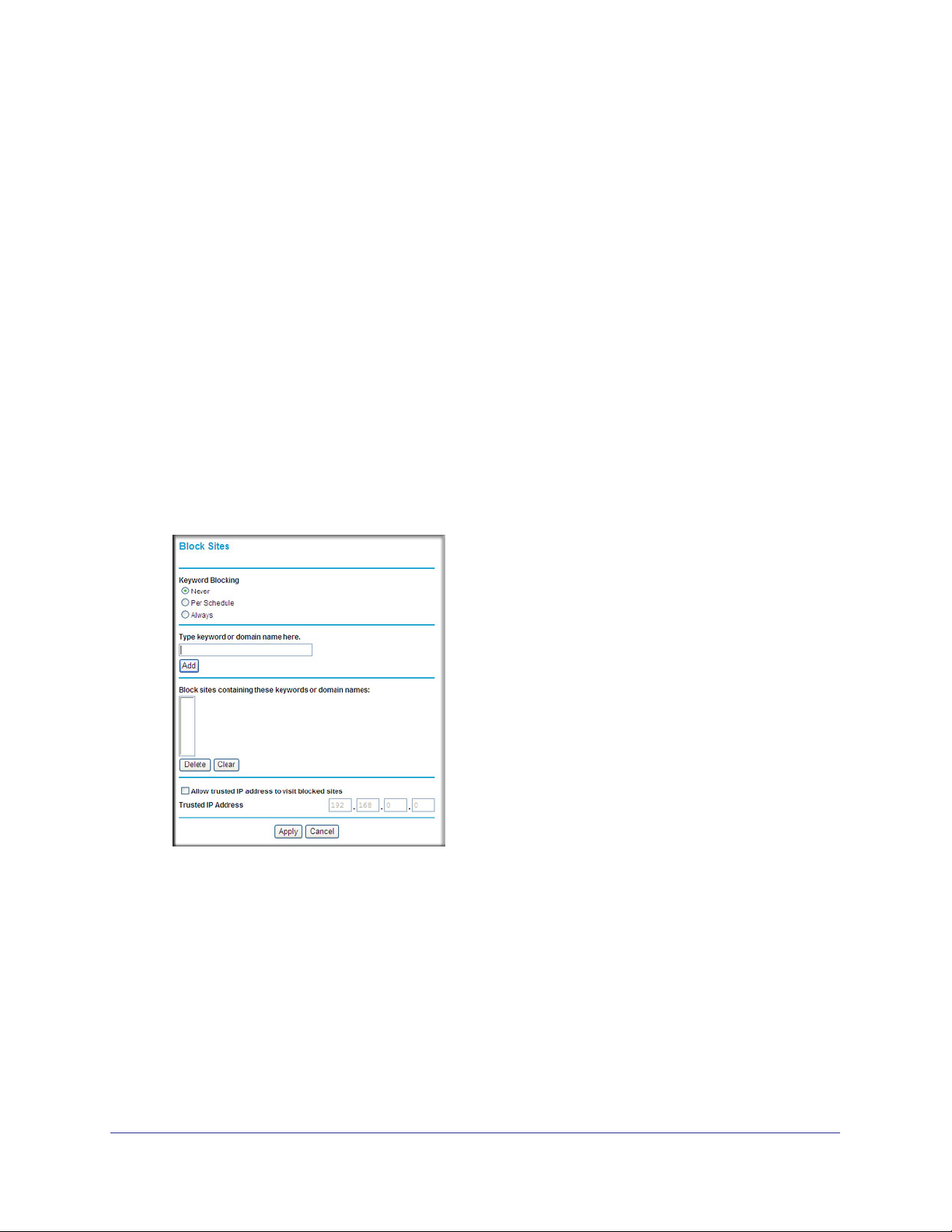

Blocking Sites and Keywords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Blocking Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

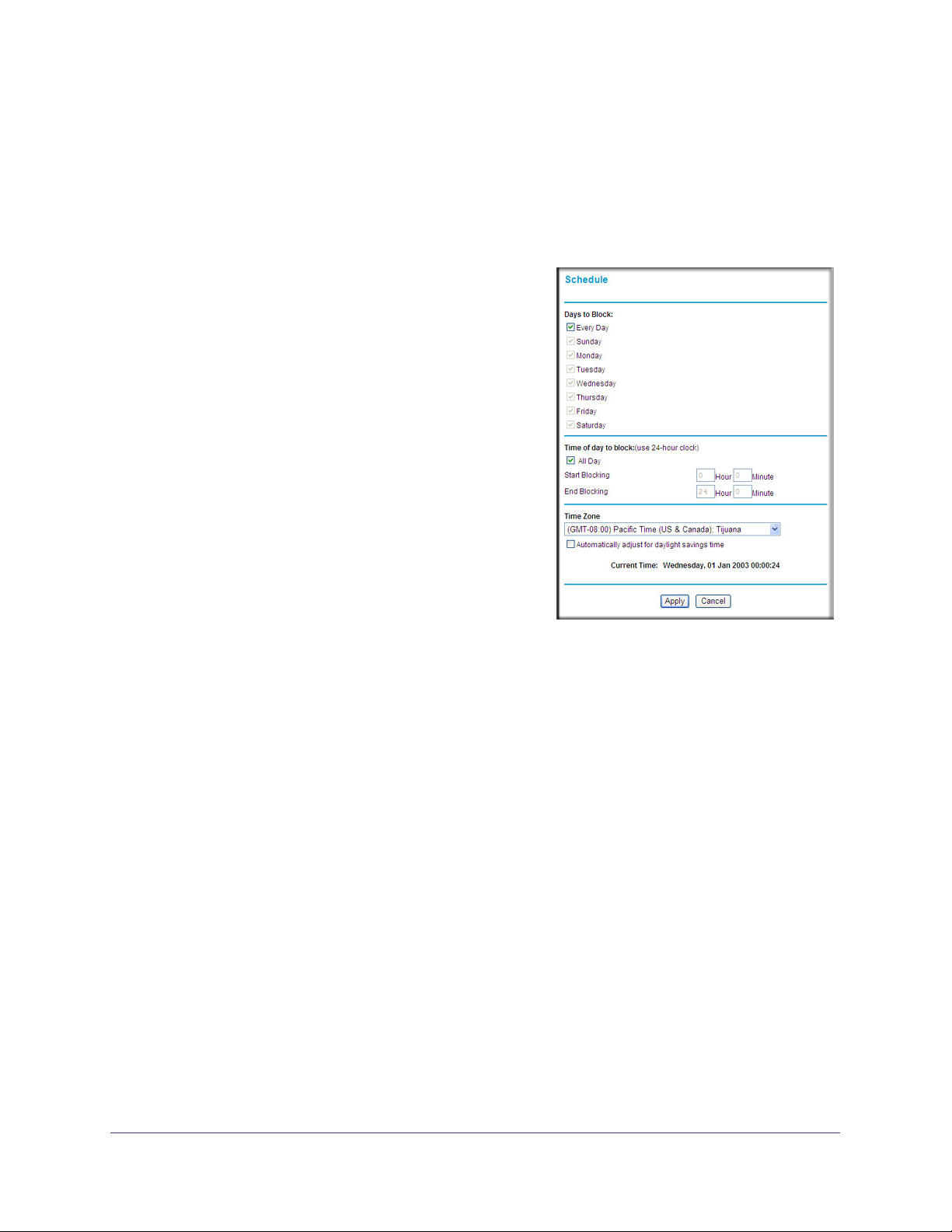

Scheduling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Setting Your Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Scheduling Firewall Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

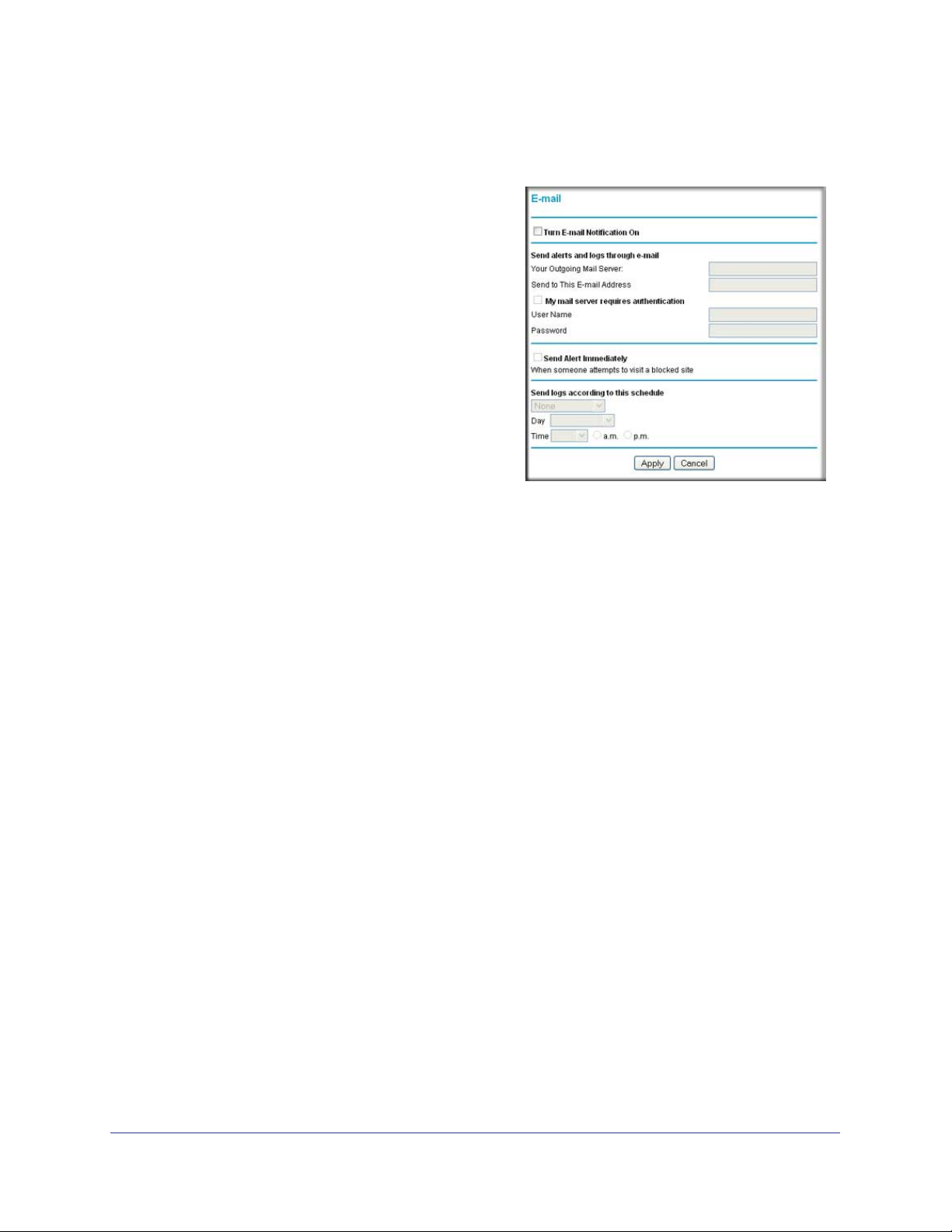

Enabling Security Event Email Notification. . . . . . . . . . . . . . . . . . . . . . . . .45
Chapter 4 Managing Your Network
Table of Contents | 3
Mobile Broadband 11n Wireless Router MBR1210 User Manual

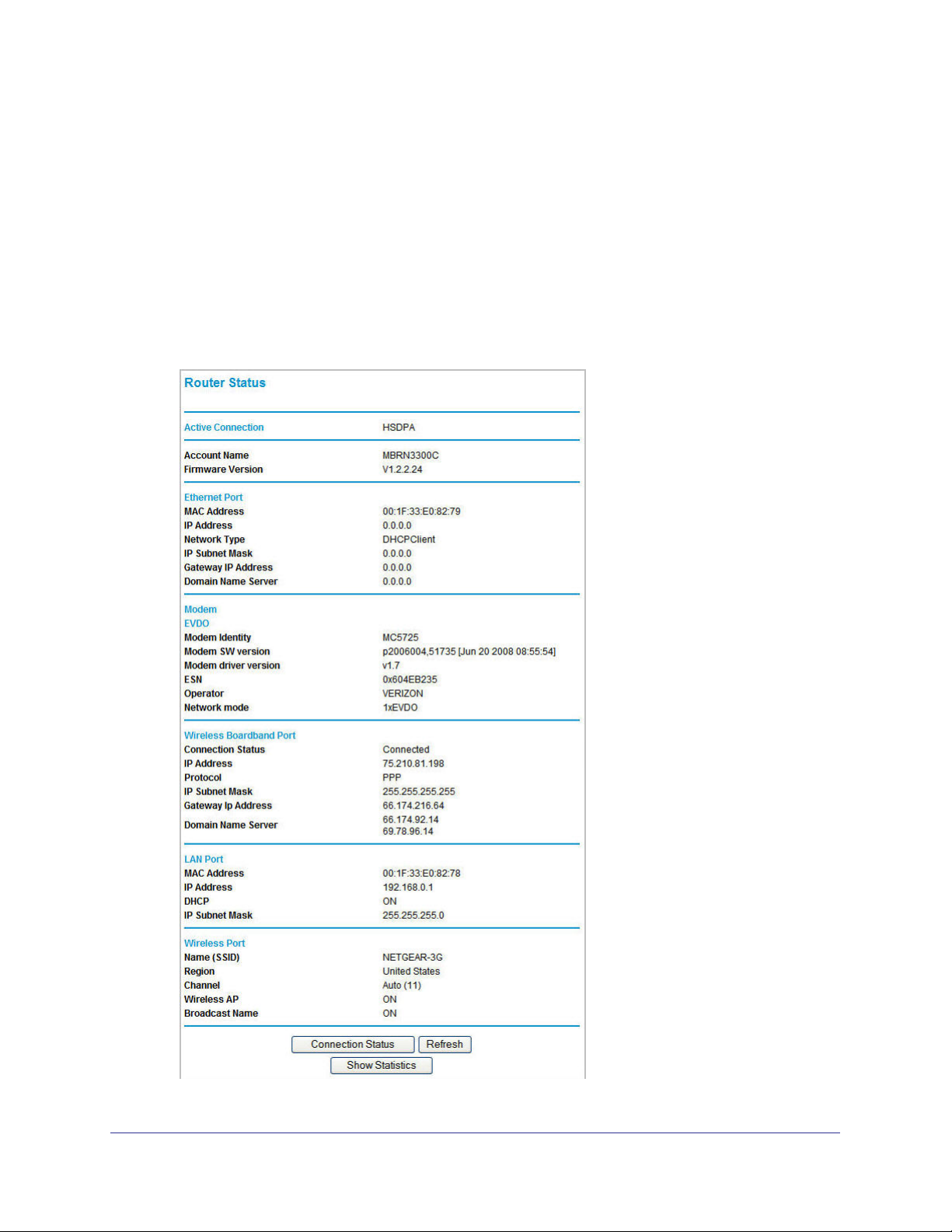

Router Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Showing Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Connection Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Viewing Attached Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Backing Up, Restoring, or Erasing Your Settings. . . . . . . . . . . . . . . . . . . . 52
Backing Up the Configuration to a File. . . . . . . . . . . . . . . . . . . . . . . . . . 52
Restoring the Configuration from a File . . . . . . . . . . . . . . . . . . . . . . . . .52
Erasing the Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Protecting Access to Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Changing the Built-In Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Changing the Administrator Login Time-Out . . . . . . . . . . . . . . . . . . . . . 55

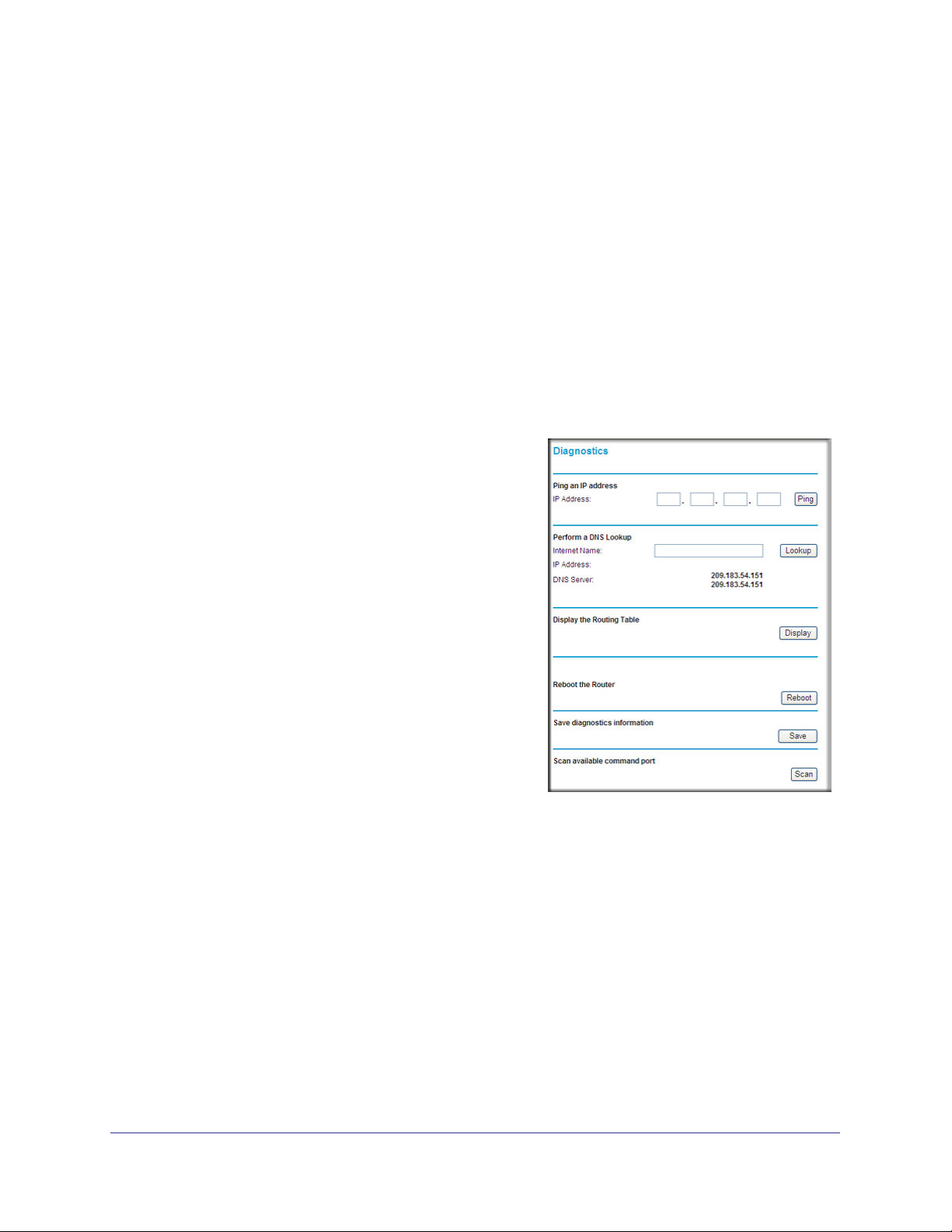

Running Diagnostic Utilities and Rebooting the Router . . . . . . . . . . . . . . .56
Upgrading the Router Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Chapter 5 Advanced
SIM Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

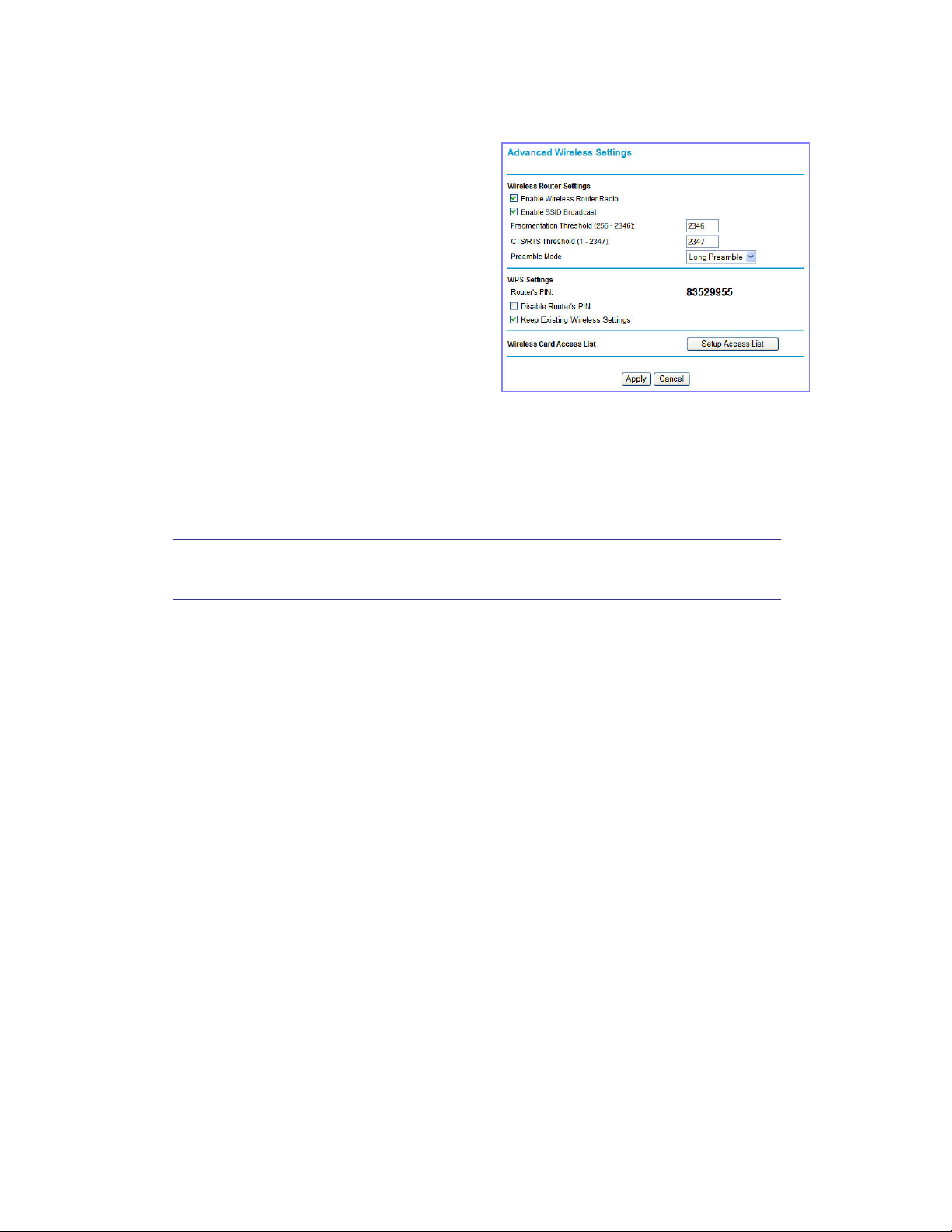

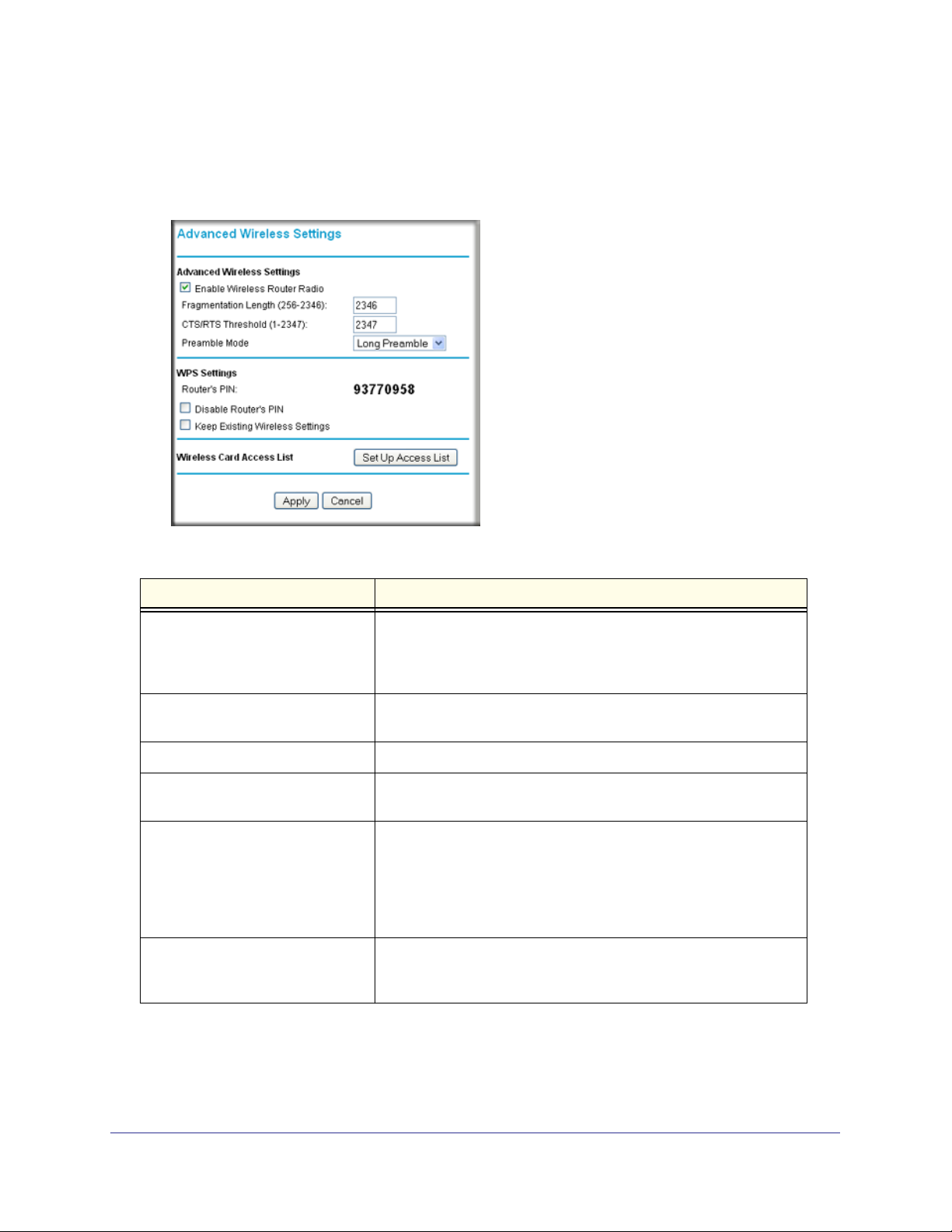

Advanced Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Wireless Station Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Restricting Access by MAC Address . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Wireless Repeating Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

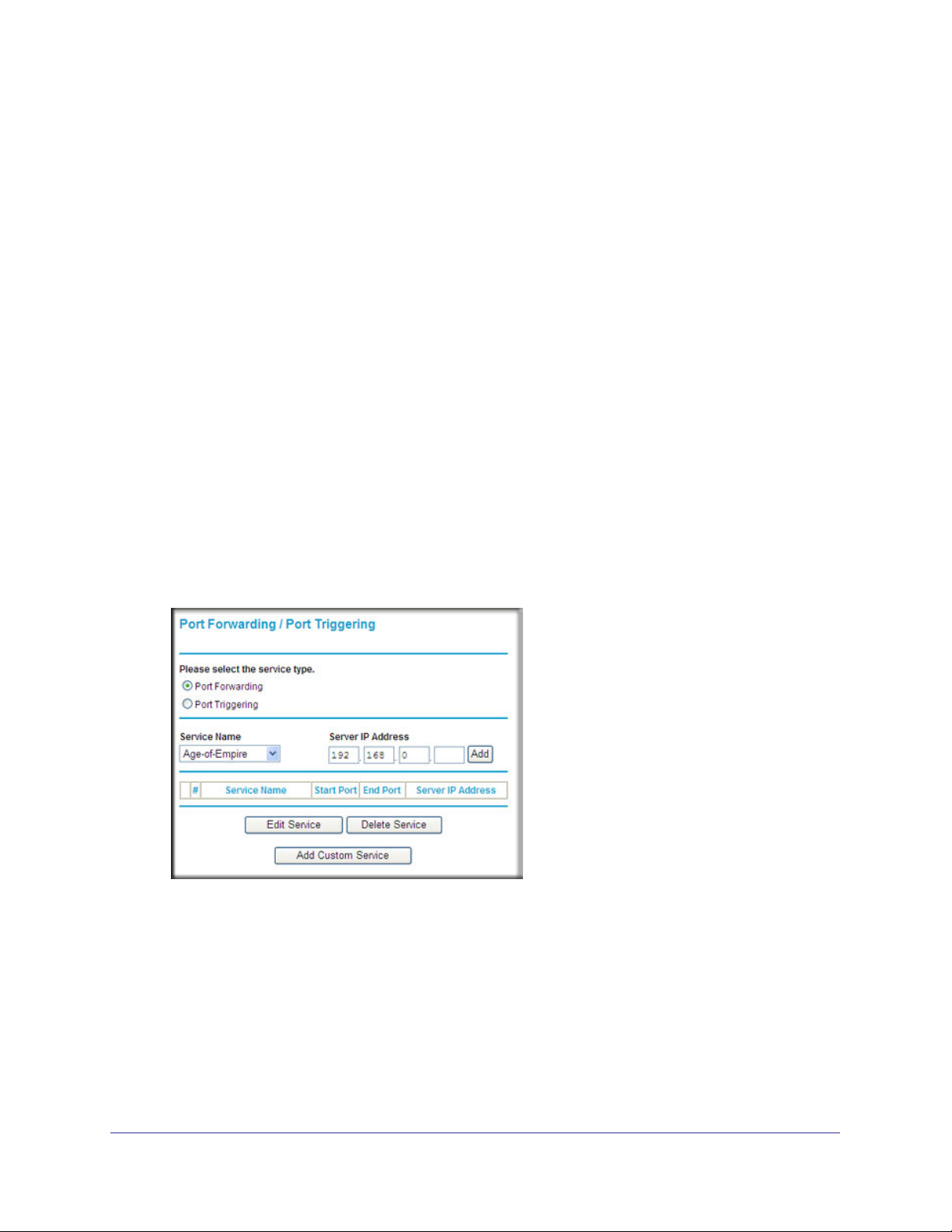

Port Forwarding and Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Port Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

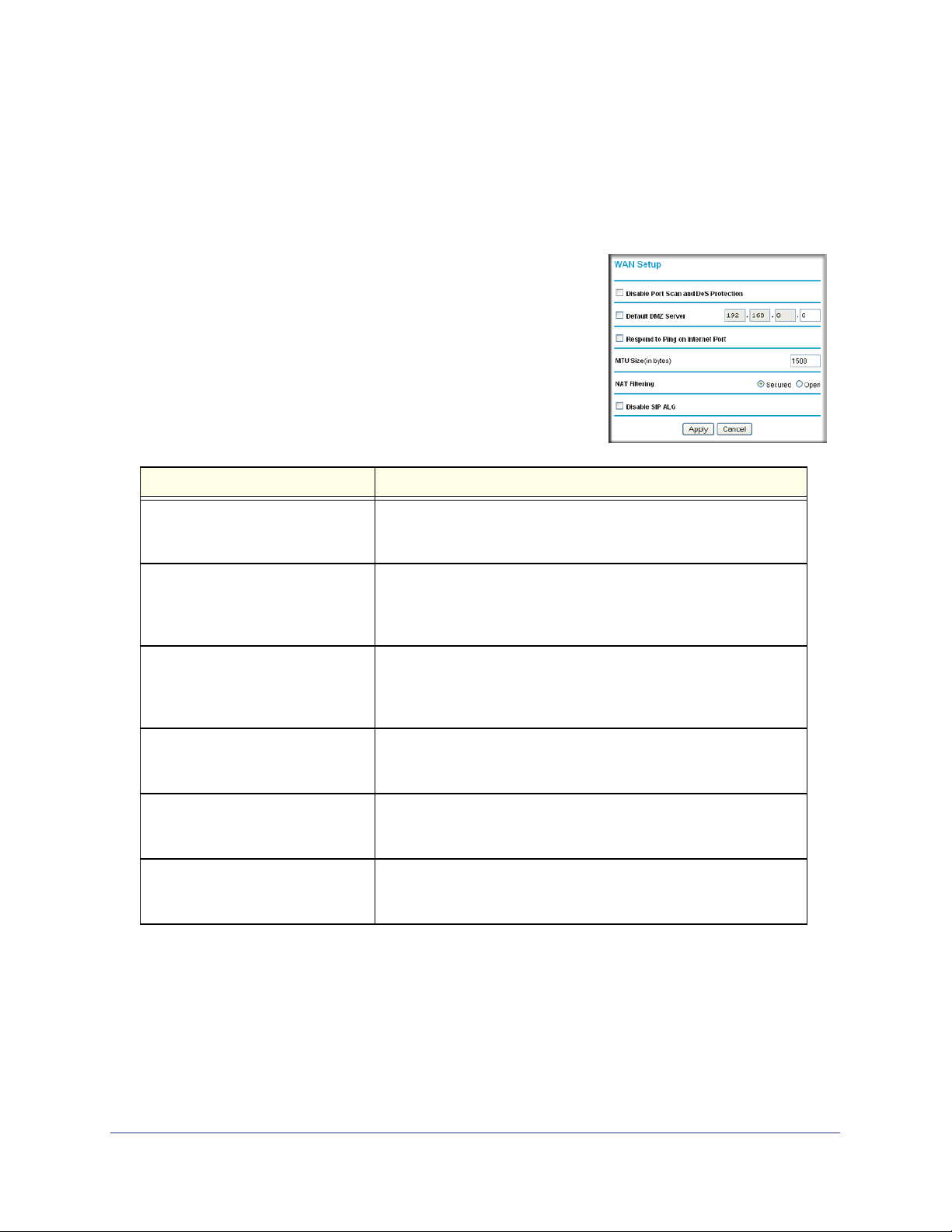

WAN Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Setting Up a Default DMZ Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
LAN Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
DHCP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Reserved IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
QoS Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
QoS Priority Rule List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
QoS Priority Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

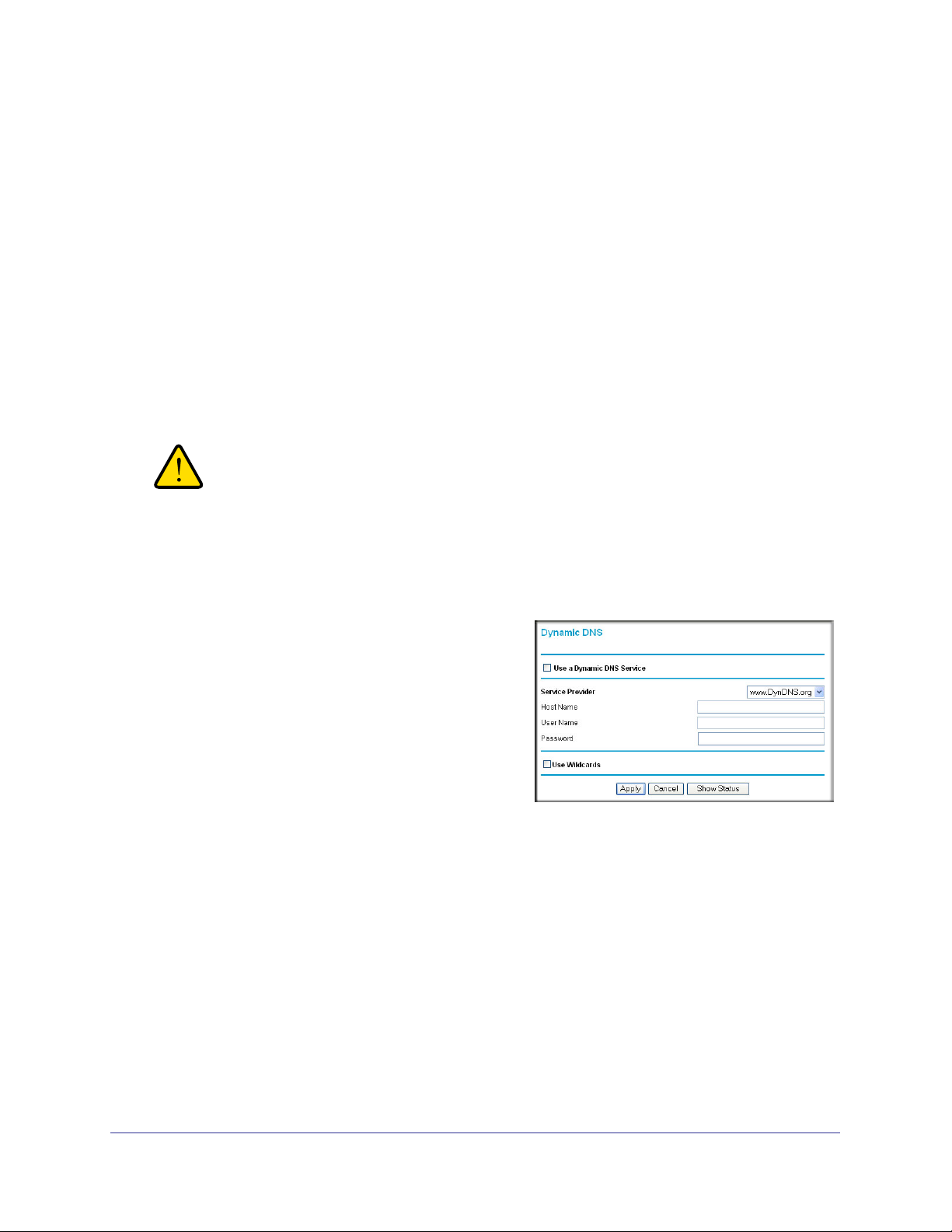

Dynamic DNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Using Static Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Static Route Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Enabling Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Universal Plug and Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Traffic Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
4 | Table of Contents
Chapter 6 Troubleshooting
Basic Functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Troubleshooting Access to the Router Main Menu . . . . . . . . . . . . . . . . . .85
Troubleshooting the ISP Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Connecting to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Troubleshooting Internet Browsing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Troubleshooting a TCP/IP Network Using the Ping Utility . . . . . . . . . . . . . 88
Testing the LAN Path to Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Testing the Path from Your Computer to a Remote Device . . . . . . . . . . 89
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Problems with Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Restoring the Default Configuration and Password . . . . . . . . . . . . . . . . . .90
Appendix A Supplemental Information
Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Appendix B Compliance Notification
Index
Table of Contents | 5
1. Connecting to the Internet
This chapter describes how to configure your Routeur sans fil MBR1210 11n à haut débit mobile
Internet connection.
• Hardware Features
• Log In to Your Router
• Access the Configuration Assistant after Installation
• Manually Configure Your Internet Settings
Note: For help with installation, see the Mobile Broadband 11n Wireless
Router MBR1210 Installation Guide.
1
Chapter 1. Connecting to the Internet | 6
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Hardware Features
This section outlines the physical aspects of your Mobile Broadband 11n Wireless Router.
Router Stand
Since the Mobile Broadband 11n Wireless Router is a vertical-only device, use the stand to
position your router upright.
1. Insert the tabs on the stand into the slot on the bottom of your router.
2. Place your router near an AC power outlet in a location where you can connect the cables
you need for your home network.
The router must also be located where you can receive a strong mobile broadband signal
while indoors if you are planning to connect to the Internet using mobile broadband.
Figure 1.
Chapter 1. Connecting to the Internet | 7
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Router Front Panel
The router front panel contains control buttons and status LEDs. Use the LEDs to verify
status and connections.
WPS
Mobile Broadband/Wi-Fi On/Off
Power
Internet
Wi-Fi
LAN
Ethernet WAN
2G/3G
Signal Quality
Figure 2.
Table 1 describes each LED and button located on the front panel of the router.
Table 1. LED Descriptions
LED Activity Description
WPS
Press the WPS button to open a 2-minute window for the router to connect with other
WPS-enabled devices. For more information about this function, see Use Push 'N' Connect
(WPS) to Configure Your Wireless Network on page 32.
Wi-Fi
8 | Chapter 1. Connecting to the Internet
This button can be used to control the WiFi radio or both the WiFi radio and mobile broadband
radio. Use the router interface to select the options. The default is set for Wi-Fi radio only.
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Table 1. LED Descriptions
LED Activity Description
Power Solid green The router is turned on and operating normally.
Solid amber POST (power-on self-test) in progress.
Off Power is not supplied to the router.
Internet Port
Wi-Fi
LAN Ports
WAN Port
Solid green There is an Internet session.
Solid amber Traffic meter limit has been reached, traffic is blocked.
Blinking green Data is being transmitted over the Internet connection.
Blinking amber Traffic meter limit has been reached, but traffic not blocked.
Blinking green and amber Failover from WAN to Mobile Broadband.
Off No Internet connection detected.
Solid blue The Wi-Fi local port is initialized.
Blinking blue Data is being transmitted or received over the Wi-Fi link.
Off The wireless access point is turned off.
Solid green The local Ethernet ports have detected wired links with PCs.
Blinking Data is being transmitted or received.
Off No link is detected on these ports.
Solid green The Ethernet WAN port has detected an active link.
Blinking Data is being transmitted or received.
Off No link is detected on these ports.
2G/3G
Signal Quality
Restore Factory
Settings
Solid blue Indicates the router is in 3G+ coverage.
Solid green Indicates the router is in 2G coverage.
Off No coverage is detected.
Solid blue Excellent coverage detected.
Solid green Good coverage detected.
Solid amber Marginal coverage detected.
Off No coverage detected.
Locate the small hole outlined in red on the back of the router. Insert a paperclip into the hole
and push for 6 seconds. Depressing the reset button causes the LED to blink briefly. After the
button is held down for more than 6 seconds, the LED will flash AMBER, and then turn green
as the router resets to the factory defaults. See
Chapter 1. Connecting to the Internet | 9
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Router Back Panel
The back panel of the router contains port connections.
Connector for optional external antenna
WAN port
Ethernet LAN ports
Slot for SIM card (if required by ISP)
Power On/Off button
Power adapter input
Router Label
The label on the left side of the router shows the router’s MAC address, serial number,
security PIN, IMEI or ESN number, and factory default login information. It also contains the
SSID and passphrase that is unique to each router.
Direction of SIM card insertion
Router label
Restore
Factory
Settings:
Press for
6 seconds.
with unique
SSID and
passphrase
Router information
- Default access address
- Default user name and password
- Security PIN
- IMEI or ESN number
- Serial number
- MAC address
10 | Chapter 1. Connecting to the Internet
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Log In to Your Router
When you first connect to your router during installation, a Setup Wizard displays. For help
using the Setup Wizard to configure your Internet and wireless network, see the Mobile
Broadband 11n Wireless Router MBR1210 Installation Guide.
After the initial configuration, you can use your Web browser to log in to the router to view or
change its settings. Links to Knowledge Base and documentation are also available on the
router main menu.
Note: Your computer must be configured for DHCP. For help configuring
DHCP, refer to the documentation that came with your computer, or
see the link to the online document in Preparing Your Network in
Appendix A.
When you have logged in, if you do not click Logout, after 5 minutes of no activity the router
automatically logs you out.
To log in to the router:
1. Type http://www.routerlogin.net in the address field of your browser, and then press
enter to display the login window.
2. Enter admin for the user name and your password (or the default, password).
For information about how to change the password, see Changing the Built-In Password
on page 55.
Note: If you do not remember your password, you can restore the router to
its factory default settings, which will reset the password. See
Factory Default Settings on page 93.
Chapter 1. Connecting to the Internet | 11
Mobile Broadband 11n Wireless Router MBR1210 User Manual
3. If the router has not been configured, the Smart Wizard screen displays. After the router has
been configured, one of the following screens appears:
• Firmware Upgrade Assistant screen. After initial setup, the Firmware Upgrade
Assistant screen displays unless the Check for Updated Firmware Upon Log-in
check box is cleared.
Note: You can disable this automatic checking and updating feature during
future log ins by clearing the Check for Updated Firmware Upon
Log-in check box, but NETGEAR recommends that you keep this
feature enabled to ensure your router is using the latest updated
firmware.
• Router Status screen. The Router Status screen displays the current router
connection status. See Router Status on page 48.
4. You can use different methods to configure your router.
• Select Setup Wizard from the router menu to set up your Internet connection and
wireless network configuration. See Access the Configuration Assistant after
Installation on page 14.
• You can manually configure the router settings. See Manually Configure Your Internet
Settings on page 15.
12 | Chapter 1. Connecting to the Internet
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Access the Configuration Assistant after Installation
1. Log in to the router as described in Log In to Your Router on page 12.
The Configuration Assistant opens.
2. Click Next.
The Configuration Assistant prompts you to set up your Internet connection and wireless
network as described in the Mobile Broadband 11n Wireless Router MBR1210
Installation Guide.
a. Select your Internet connection mode:
• Use Ethernet first and if fail use mobile broadband connection
• Always use mobile broadband connection
• Always use Ethernet connection
b. Click Next.
c. Select your country and then your Internet Service Provider.
d. Click Done.
Chapter 1. Connecting to the Internet | 13
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Manually Configure Your Internet Settings
For you to connect to the network, an active broadband service account is required. Contact
your ISP for your user name, password, and the network name. You must also configure
some or all of the settings described in the following sections, depending on how you have
chosen to connect to the Internet:
• Broadband Settings on page 15.
• Mobile Broadband Settings on page 17 (not required if using Ethernet connection only).
• Ethernet Broadband Settings on page 19 (not required if using mobile broadband
connection only).
Broadband Settings
To manually configure your broadband Internet settings:
1. Log in to the router as described in Log In to Your Router on page 12.
2. From the main menu, select Broadband Settings.
14 | Chapter 1. Connecting to the Internet
Mobile Broadband 11n Wireless Router MBR1210 User Manual
3. Adjust the settings as needed based on your Internet connection. The fields in this screen
are described in Table 2.
4. The following buttons are available:
• Apply. Apply the changes that you made.
• Cancel. Discard changes.
Table 2. Internet Connection Settings
Fields and Check Boxes Description
Internet Connection Mode The choices are:
• Always use an Ethernet connection (default)
• Use Ethernet first and if it fails use mobile broadband connection
• Always use mobile broadband connection
Failover Detection Method
Retry Interval is
Failover after
Resume after
1
Enter the retry interval.
1
Enter how many retry attempts to make before failing over.
1
Enter how long to wait for primary link is stabilized before resuming to
1
Select the failover method and enter the related information:
• DNS lookup using WAN DNS Server
• Perform a DNS lookup by a hostname
• Ping this IP address
use the primary link.
Enable Hardware link detection Enter when to failover when the Ethernet link is dropped. This is
independent of the DNS / Ping detection methods.
1 This field is available only when the Internet Connection Mode is Use Ethernet first and if fail use 3G mobile
connection.
Chapter 1. Connecting to the Internet | 15
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Mobile Broadband Settings
To manually configure your mobile broadband Internet settings:
1. Log in to the router as described in Log In to Your Router on page 12.
2. From the main menu, select Mobile Broadband Settings.
3. Adjust the settings as needed based on your Internet connection. The fields in this screen
are described in Table 3.
4. Available buttons are:
• Connect. Manually connect to the network.
• Disconnect. Disconnect from the current network.
• Apply. Apply the changes that you made.
• Cancel. Discard changes.
• Refresh. Update the connection status
16 | Chapter 1. Connecting to the Internet
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Table 3. Settings
Fields and Check Boxes Description
User Name Internet account login user name.
Password Internet account password for authentication.
Country Select your country from the drop-down list.
Internet Service Provider Select your Internet Service Provider from the drop-down list.
Access Number The remote site's phone number.
PIN code Pin code of the SIM card, where applicable.
APN Access point name.
PDP type Select the type of packet data protocol:
• IP
• PDP-IP
• PPP
• PPP-IP
Connect automatically at startup When this check box is selected, the modem automatically connects
to the network when powered up. This should be selected after login
information is provided.
Reconnect automatically when
connection is lost
Roaming automatically When this check box is checked, the unit might roam to any available
Use internal antenna If this check box is selected, the router will use the internal antenna
Wireless Button Configuration Select the option to determine the behavior of the WPS push button
When this check box is selected, the modem will attempt to
reconnect to the network when the connection is lost. Under normal
situations, this setting should be selected.
operator in range and might incur roaming charges.
rather than the external antenna.
on the front panel when pressed.
• Control Wi-Fi Only : Pressing the push button toggles the Wi-Fi
function. If Wi-Fi is turned on, pressing the push button turns off the
Wi-Fi. Pressing it again will turn on the Wi-Fi. This function is
available only if the Wi-Fi function is enabled. The Wireless
Broadband function is unaffected.
• Control Both Wi-Fi and Wireless Broadband: Pressing the push
button toggles both the Wi-Fi function and wireless broadband at
the same time. If Wi-Fi is turned on, pressing the push button turns
off the Wi-Fi. At the same time, the wireless broadband connection
is disconnected. If you press the push button again, Wi-Fi is turned
on and the router attempts to re-establish the wireless broadband
connection. Depending on the coverage, wireless broadband
coverage might or might not be connected successfully.
Connection status Current WAN port status.
Chapter 1. Connecting to the Internet | 17
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Ethernet Broadband Settings
To manually configure your Ethernet Broadband Internet settings:
1. Log in to the router as described in Log In to Your Router on page 12.
2. From the main menu, select Ethernet Broadband Settings.
The following question displays at the top of the screen:
Select the option based on the type of account you have with your ISP.
• If you need to enter login information every time you connect to the Internet, or you
have a PPPoE account with your ISP, select Yes.
• Otherwise, select No.
Then fill out the appropriate screen.
For details, see:
step a, Login required on page 20
or
step b, Login not required on page 22.
Note: If you have installed PPP software such as WinPoET (from
Earthlink) or Enternet (from PacBell), then you have PPPoE. Select
Yes. After selecting Yes and configuring your router, you do not
need to run the PPP software on your PC to connect to the Internet.
18 | Chapter 1. Connecting to the Internet
Mobile Broadband 11n Wireless Router MBR1210 User Manual
a. Login required
Adjust the settings as needed based on your Internet connection. The fields in this
screen are described in Table 4.
Table 4. Ethernet Broadband Settings When Login Required
Fields and Checkboxes Description
Internet Service Provider Select the service provided by your ISP.
• Other (PPPoE) is the most common.
• PPTP is used in Austria and other European countries.
• Telstra BigPond is for Australia only.
Login This is usually the name that you use in your email address. For example,
if your main mail account is JerAB@ISP.com, then put JerAB in this field.
Some ISPs (such as Mindspring, Earthlink, and T-DSL) require that you
use your full email address when you log in. If your ISP requires your full
email address, then type it in the Login field.
Chapter 1. Connecting to the Internet | 19
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Table 4. Ethernet Broadband Settings When Login Required
Fields and Checkboxes Description
Password Type the password that you use to log in to your ISP.
Service Name (If Required) If your ISP provided a service name, enter it here. Otherwise, this can be
left blank.
Connection Mode Set the connection mode to Dial on Demand, Always On, or Manually
Connect.
• With the default setting, Dial on Demand , a PPPoE connection
automatically starts when there is outbound traffic to the Internet, and it
automatically terminates if the connection is idle based on the value in
the Idle Timeout field.
• When the connection mode is set to Always On, the PPPoE
connection automatically starts when the computer boots up, but the
connection does not time out. The router will keep trying to bring up the
connection if it is disconnected for some reason.
• If you select Manually Connect, you must go to the Router Status
screen and click the Connect button to connect to the Internet. The
manual connection does not time out, and you have to click the
Disconnect button on the Router Status screen to disconnect it.
Idle Timeout (In Minutes) An idle Internet connection will be terminated after this time period. If this
value is zero (0), then the router will keep the connection alive by
reconnecting immediately whenever the connection is lost.
Internet IP Address If you log in to your service or your ISP did not provide you with a fixed IP
address, the router finds an IP address for you automatically when you
connect. Select Get Dynamically from ISP.
If you have a fixed (static, permanent) IP address, your ISP has provided
you with an IP address. Select Use Static IP Address and type in the IP
address.
Domain Name Server
(DNS) Address
The DNS server is used to look up site addresses based on their names.
• If your ISP gave you one or two DNS addresses, select Use These
DNS Servers and type the primary and secondary addresses.
• Otherwise, select Get Automatically From ISP .
Note: If you get “Address not found” errors when you go to a website, it is
likely that your DNS servers are not set up correctly. You should contact
your ISP to get DNS server addresses.
20 | Chapter 1. Connecting to the Internet
Mobile Broadband 11n Wireless Router MBR1210 User Manual
b. Login not required
Adjust the settings as needed based on your Internet connection. The fields in this
screen are described in Table 5.
Chapter 1. Connecting to the Internet | 21
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Table 5. Ethernet Broadband Settings Fields When Login Not Required
Fields and Check Boxes Description
Account Name (If Required) This is also known as the host name or system name.
For most users, type your account name or user name in this field. For
example, if your main mail account is JerAB@ISP.com, then put JerAB
in this field.
If your ISP has given you a specific host name, then type it (for
example, CCA7324-A).
Domain Name (If Required) For most users, you can leave this field blank, unless required by your
ISP. You can type the domain name of your ISP. For example, if your
ISP's mail server is mail.xxx.yyy.zzz, you would type xxx.yyy.zzz as the
domain name.
If you have a domain name given to you by your ISP, type it in this field.
(For example, Earthlink Cable might require a host name of home, and
Comcast sometimes supplies a domain name.)
If you have a cable modem, this is usually the workgroup name.
Internet IP Address If you log in to your service or your ISP did not provide you with a fixed
IP address, the router finds an IP address for you automatically when
you connect. Select Get Dynamically From ISP.
If you have a fixed (or static IP) address, your ISP has provided you
with the required information. Select Use Static IP Address and type
the IP address, subnet mask and gateway IP address into the correct
fields.
For example:
• IP Address. 24.218.156.183
• Subnet Mask . 255.255.255.0
• Gateway IP Address . 24.218.156.1
Domain Name Server (DNS)
Address
Router MAC Address Your computer's local address is its unique address on your network.
The DNS server is used to look up site addresses based on their
names.
• If your ISP gave you one or two DNS addresses, select Use These
DNS Servers and type the primary and secondary addresses.
• Otherwise, select Get Automatically From ISP .
Note: If you get “Address not found” errors when you go to a website, it
is likely that your DNS servers are not set up correctly. You should
contact your ISP to get DNS server addresses.
This is also referred to as the computer's MAC (Media Access Control)
address.
• Usually, select Use Default MAC Address .
• If your ISP requires MAC authentication, then select either Use
Computer MAC Address to disguise the router's MAC address with
the computer's own MAC address, or Use This MAC Address to
manually type the MAC address for a different computer.
The format for the MAC address is XX:XX:XX:XX:XX:XX. This value
might be changed if Use Computer MAC Address is selected once a
value has already been set in the Use This MAC Address selection.
22 | Chapter 1. Connecting to the Internet
Mobile Broadband 11n Wireless Router MBR1210 User Manual
3. The following buttons are available:
• Apply. Apply the changes that you made.
• Cancel. Discard changes.
• Test. Connect to the NETGEAR website. If you connect successfully, your settings
work, and you can click Logout to exit these screens.
Chapter 1. Connecting to the Internet | 23
2. Wireless Network Configuration
For a wireless connection, the SSID, (also known as the wireless network name), and the
wireless security settings must be the same for the router and wireless computers or wireless
adapters. NETGEAR strongly recommends that you use wireless security.
The router is pre-configured with WPA-PSK/WPA2-PSK mixed mode and uses a unique SSID
and passphrase. This information is printed on the label on the bottom of the router. Use this
information to setup your WiFi computer and devices.
This chapter addresses the following:
• Planning Your Wireless Network
• Manually Configure Your Wireless Settings
• Use Push 'N' Connect (WPS) to Configure Your Wireless Network
Note: Computers can connect wirelessly at a range of several hundred
feet. If you do not use wireless security, this can allow others outside
your immediate area to access your network.
2
Chapter 2. Wireless Network Configuration | 24
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Planning Your Wireless Network
For compliance and compatibility between similar products in your area, the operating
channel and region must be set correctly.
To configure the wireless network, you can either specify the wireless settings, or you can
use Wi-Fi Protected Setup (WPS) to automatically set the SSID and implement WPA/WPA2
security.
• To manually configure the wireless settings, you must know the following:
- SSID. The default SSID for the router is NETGEAR-3G.
- The wireless mode (802.11n, 802.11g, or 802.11b) that each wireless adapter
supports.
- Wireless security option. To successfully implement wireless security, check each
wireless adapter to determine which wireless security option it supports.
See Manually Configure Your Wireless Settings on page 28.
• Push 'N' Connect (WPS) implements WPA/WPA2 wireless security on the router and your
wireless computer or device at the same time. The wireless computer or device must be
compatible with WPS.
See Use Push 'N' Connect (WPS) to Configure Your Wireless Network on page 32.
Wireless Placement and Range Guidelines
The range of your wireless connection can vary significantly based on the physical placement
of the router. The latency, data throughput performance, and notebook power consumption of
wireless adapters also vary depending on your configuration choices.
For best results, place your router according to the following guidelines:
• Near the center of the area in which your computers will operate.
• In an elevated location, such as a high shelf, where the wirelessly connected computers
have line-of-sight access (even if through walls).
• Away from sources of interference, such as microwave ovens, and 2.4 GHz cordless
phones (see Interference Reduction Table on page 100).
• Away from large metal surfaces.
• Put the antenna in a vertical position to provide the best side-to-side coverage. Put the
antenna in a horizontal position to provide the best up-and-down coverage.
• If using multiple access points, it is better if adjacent access points use different radio
frequency channels to reduce interference. The recommended channel spacing between
adjacent access points is 5 channels (for example, use Channels 1 and 6, or 6 and 11).
The time it takes to establish a wireless connection can vary depending on both your security
settings and placement. WEP connections can take slightly longer to establish. Also, WEP
encryption can consume more battery power on a notebook computer.
Chapter 2. Wireless Network Configuration | 25
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Wireless Security Options
Indoors, computers can connect over 802.11n wireless networks at a maximum range of up
to 300 feet. Such distances can allow others outside your immediate area to access your
network.
Unlike wired network data, your wireless data transmissions can extend beyond your walls
and can be received by anyone with a compatible adapter. For this reason, use the security
features of your wireless equipment. The Mobile Broadband 11n Wireless Router provides
highly effective security features, which are covered in detail in this chapter. Deploy the
security features appropriate to your needs.
Each router is preconfigured for WPA-PSK/WPA2-PSK mixed-mode, and comes with a
unique SSID and passphrase for each router.
There are several ways you can enhance the security of your wireless network:
Figure 1. Wireless Security
• Restrict access based on MAC address. You can allow only trusted PCs to connect so
that unknown PCs cannot wirelessly connect to the router. Restricting access by MAC
address adds an obstacle against unwanted access to your network, but the data
broadcast over the wireless link is fully exposed.
• Turn off the broadcast of the wireless network name (SSID). If you disable broadcast
of the SSID, only devices that have the correct SSID can connect. This nullifies wireless
network “discovery” feature of some products, such as Windows XP, but the data is still
exposed.
• WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP
Shared Key authentication and WEP data encryption block all but the most determined
eavesdropper. This data encryption mode has been superseded by WPA-PSK and
WPA2-PSK.
• WPA-PSK (TKIP), WPA2-PSK (AES). Wi-Fi Protected Access (WPA) using a pre-shared
key to perform authentication and generate the initial data encryption keys. The very
strong authentication along with dynamic per frame re-keying of WPA makes it virtually
impossible to compromise.
For more information about wireless technology, click the link to the online document
Wireless Networking Basics in Appendix A.
26 | Chapter 2. Wireless Network Configuration
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Manually Configure Your Wireless Settings
Note: If you use a wireless computer to change the wireless network
name (SSID) or wireless security, you will be disconnected when
you click Apply. To avoid this occurrence, connect your computer
directly to the router with an Ethernet cable while you are making
changes.
To view or manually configure the wireless settings:
1. Log in to the router as described in Log In to Your Router on page 12.
2. Select Wireless Settings from the main menu.
The settings for this screen are explained in
Table 6.
3. Select the region in which the router will
operate.
4. For initial configuration and test, leave the other
settings unchanged.
5. To save your changes, click Apply.
6. Configure and test your computers for wireless
connectivity.
Set up your wireless computers with the
same SSID and wireless security settings as your router. Check that they have a wireless
link and are able to obtain an IP address by DHCP from the router. If there is interference,
adjust the channel.
Table 1.
Settings Description
Wireless
Network
Name (SSID) The SSID is also known as the wireless network name. Enter a
32-character (maximum) name in this field. This field is
case-sensitive.
When there is more than one wireless network, SSIDs provide a
means for separating the traffic. To join a network, a wireless
computer or device must use the SSID.
Region The location where the router is used.
Channel The wireless channel used by the gateway. The default is Auto.
Do not change the channel unless you experience interference
(shown by lost connections or slow data transfers). If this happens,
you might need to try different channels to see which works best.
Mode The default is Up to 145 Mbps.
Chapter 2. Wireless Network Configuration | 27
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Table 1.
Settings Description
Security Options None Use this setting to establish wireless connectivity before
implementing wireless security. NETGEAR strongly recommends that
you implement wireless security.
WEP Use encryption keys and data encryption for data security. You can
select 64-bit or 128-bit encryption. See Configuring WEP on page 29.
WPA-PSK (TKIP) Allow only computers configured with WPA to connect to the router.
See Configuring WPA, WPA2, or WPA + WPA2 on page 31.
WPA2-PSK (AES) Allow only computers configured with WPA2 to connect to the router.
See Configuring WPA, WPA2, or WPA + WPA2 on page 31.
WPA-PSK (TKIP) +
WPA2-PSK (AES)
Allow computers configured with either WPA-PSK or WPA2-PSK
security to connect to the router. See Configuring WPA, WPA2, or
WPA + WPA2 on page 31.
Configuring WEP
Note: If you use a wireless computer to configure wireless security
settings, you will be disconnected when you click Apply.
Reconfigure your wireless computer to match the new settings, or
access the router from a wired computer to make further changes.
To configure WEP data encryption:
1. Log in to the router as described in Log In to Your Router on page 12.
2. From the main menu, select Wireless Settings to display the Wireless Settings screen.
28 | Chapter 2. Wireless Network Configuration
Mobile Broadband 11n Wireless Router MBR1210 User Manual
3. In the Security Options section, select the WEP
(Wired Equivalent Privacy) radio button:
4. Select the Authentication Type setting:
Automatic, Open System, or Shared Key. The
default is Open System.
Note: The authentication is separate from the
data encryption. You can select authentication
that requires a shared key, but still leaves data
transmissions unencrypted. Security is stronger
if you use both the Shared Key and WEP
encryption settings.
5. Select the Encryption Strength setting:
• 64-bit. Enter 10 hexadecimal digits (any
combination of 0–9, a–f, or A–F).
• 128-bit. Enter 26 hexadecimal digits (any combination of 0–9, a–f, or A–F).
6. Enter the encryption keys. You can manually or automatically program the four data
encryption keys. These values must be identical on all computers and access points in your
network:
• Passphrase. To use a passphrase to generate the keys, enter a passphrase, and
click Generate. This automatically creates the keys. Wireless stations must use the
passphrase or keys to access the router.
Note: Not all wireless adapters support passphrase key generation.
• Key 1
–Key4. These values are not case-sensitive. You can manually enter the four
data encryption keys. These values must be identical on all computers and access
points in your network. Enter 10 hexadecimal digits (any combination of 0
–F).
A
–9, a–f, or
7. Select which of the four keys will be the default.
Data transmissions are always encrypted using the default key. The other keys can be
used only to decrypt received data. The four entries are disabled if WPA-PSK or WPA
authentication is selected.
8. Click Apply to save your settings.
Chapter 2. Wireless Network Configuration | 29
Mobile Broadband 11n Wireless Router MBR1210 User Manual
Configuring WPA, WPA2, or WPA + WPA2
Both WPA and WPA2 provide strong data security. WPA with TKIP is a software
implementation that can be used on Windows systems with Service Pack 2 or later; WPA2
with AES is a hardware implementation; see your device documentation before implementing
it. Consult the product documentation for your wireless adapter for instructions for configuring
WPA settings.
Note: If you use a wireless computer to configure wireless security
settings, you will be disconnected when you click Apply. If this
happens, reconfigure your wireless computer to match the new
settings, or access the router from a wired computer to make further
changes.
To configure WPA or WPA2 in the router:
1. Log in to the router as described in Log In to Your Router on page 12.
2. Select Wireless Settings from the main menu.
3. On the Wireless Setting screen, select the radio button for the WPA or WPA2 option of your
choice.
4. For WPA-PSK or WPA2-PSK, enter the passphrase.
5. To save your settings, click Apply.
30 | Chapter 2. Wireless Network Configuration
Loading...
