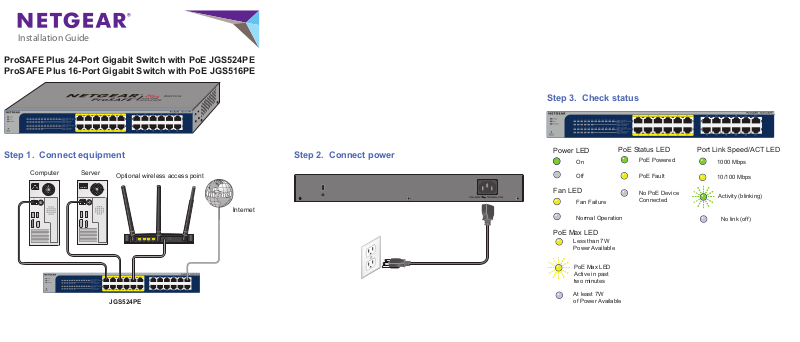

Installation Guide
ProSAFE Plus 24-Port Gigabit Switch with PoE JGS524PE
ProSAFE Plus 16-Port Gigabit Switch with PoE JGS516PE
Step 2. Connect power
Step 3. Check status
On
Off
Power LED
Activity (blinking)
No link (off)
1000 Mbps
Port Link Speed/ACT LED
10/100 Mbps
Step 1. Connect equipment
Fan LED
Fan Failure
Normal Operation
At least 7W
of Power Available
PoE Max LED
Less than 7W
Power Available
PoE Max LED
Active in past
two minutes
PoE Status LED
PoE Powered
PoE Fault
No PoE Device
Connected
JGS524PE
Internet
Computer Server
Optional wireless access point
July 2013
NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered
trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other
countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved.
For indoor use only in all EU countries and Switzerland.
NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134 USA
Set up the Switch Configuration Utility
Plus switches are plug and play.You can install a configuration utility to select
additional options to manage and customize the switch for your network. This utility
is on the resource CD that was shipped with the switch.
Note: The configuration utility is installed on your computer and is only supported
on Windows.
Install the configuration utility:
1. Insert the resource CD into a computer that is connected to the switch.
2. Click Install ProSafe Plus Utility and follow the prompts to install the program.
The switch configuration utility is installed in the program directory of your
computer and a ProSafe Plus Utility icon is placed on your desktop.
Configure the switch:
1. Double-click the ProSafe Plus Utility icon.
The configuration home screen displays a list of plus switches that it discovers
on the local network.
2. Select the switch that you want to configure.
You are asked to enter the password for the switch.
3. Enter the switch’s password in the password field.
The switch’s default password is password.
4. Use the utility to configure the switch.
For a description of plus features, see the ProSafe Plus Switch Configuration
Utility User Guide. You can access the user guide through links on the Help tab
of the utility or on the resource CD.
Specifications
Specification Description
Network interface RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-T
Network cable Category 5e (Cat 5e) or better Ethernet cable
Ports JGS516PE: 16
JGS524PE: 24
Power JGS516PE: 100-240 VAC 50-60Hz, 1.5A maximum
JGS524PE: 100-240 VAC 50/60Hz, 2.5A maximum
PoE Power Budget JGS516PE supports PoE function: 15.4W per port for 1~8 ports
Total maximum power: 85W
JGS524PE supports PoE function: 15.4W per port for 1~12 ports
Total maximum power: 100W
Power consumption JGS516PE: 110W maximum with PoE
JGS524PE: 123W maximum with PoE
Weight JGS516PE: 1.674 kg (3.69 lb)
JGS524PE: 1.843 kg (4.06 lb)
Dimensions
(W x D x H)
328 mm x 169 mm x43.2 mm
(12.91 in. x 6.65 in. x 1.7 in.)
Operating
temperature
0–50° C (32–122° F)
Operating humidity 10%–90% relative humidity, noncondensing
Electromagnetic
compliance
KC Class A, CCC Class A, FCC part 15 Class A, CE Class A, CTick Class A, VCCI Class A
Safety agency
approvals
Commercial UL listed (UL 60950-1), CB
Support
Thank you for selecting NETGEAR products.
After installing your device, locate the serial number on the label of your product and
use it to register your product at https://my.netgear.com.
You must register your product before you can use NETGEAR telephone support.
NETGEAR recommends registering your product through the NETGEAR website.
For product updates and web support, visit http://support.netgear.com.
NETGEAR recommends that you use only the official NETGEAR support resources.
For the current EU Declaration of Conformity, visit
http://support.netgear.com/app/answers/detail/a_id/11621/.
CAN ICES-3 (A)/NMB-3(A)
