Netgear GSM7224P-100NES Quick Start Guide

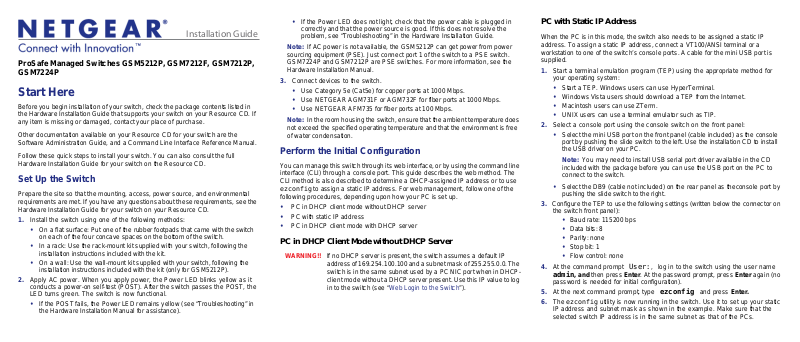

Installation Guide
ProSafe Managed Switches GSM5212P, GSM7212F, GSM7212P,
GSM7224P
Start Here
Before you begin installation of your switch, check the package contents listed in
the Hardware Installation Guide that supports your switch on your Resource CD. If
any item is missing or damaged, contact your place of purchase.
Other documentation available on your Resource CD for your switch are the
Software Administration Guide, and a Command Line Interface Reference Manual.
Follow these quick steps to install your switch. You can also consult the full
Hardware Installation Guide for your switch on the Resource CD.
Set Up the Switch
Prepare the site so that the mounting, access, power source, and environmental
requirements are met. If you have any questions about these requirements, see the
Hardware Installation Guide for your switch on your Resource CD.
1. Install the switch using one of the following methods:
• On a flat surface: Put one of the rubber footpads that came with the switch
on each of the four concave spaces on the bottom of the switch.
• In a rack: Use the rack-mount kit supplied with your switch, following the
installation instructions included with the kit.
• On a wall: Use the wall-mount kit supplied with your switch, following the
installation instructions included with the kit (only for GSM5212P).
2. Apply AC power. When you apply power, the Power LED blinks yellow as it
conducts a power-on self-test (POST). After the switch passes the POST, the
LED turns green. The switch is now functional.
• If the POST fails, the Power LED remains yellow (see “Troubleshooting” in
the Hardware Installation Manual for assistance).
• If the Power LED does not light, check that the power cable is plugged in
correctly and that the power source is good. If this does not resolve the
problem, see “Troubleshooting” in the Hardware Installation Guide.
Note: If AC power is not available, the GSM5212P can get power from power
sourcing equipment (PSE). Just connect port 1 of the switch to a PSE switch.
GSM7224P and GSM7212P are PSE switches. For more information, see the
Hardware Installation Manual.
3. Connect devices to the switch.
• Use Category 5e (Cat5e) for copper ports at 1000 Mbps.
• Use NETGEAR AGM731F or AGM732F for fiber ports at 1000 Mbps.
• Use NETGEAR AFM735 for fiber ports at 100 Mbps.
Note: In the room housing the switch, ensure that the ambient temperature does
not exceed the specified operating temperature and that the environment is free
of water condensation.
Perform the Initial Configuration
You can manage this switch through its web interface, or by using the command line
interface (CLI) through a console port. This guide describes the web method. The
CLI method is also described to determine a DHCP-assigned IP address or to use
ezconfig to assign a static IP address. For web management, follow one of the
following procedures, depending upon how your PC is set up.
• PC in DHCP client mode without DHCP server
• PC with static IP address
• PC in DHCP client mode with DHCP server
PC in DHCP Client Mode without DHCP Server
WARNING!! If no DHCP server is present, the switch assumes a default IP
address of 169.254.100.100 and a subnet mask of 255.255.0.0. The
switch is in the same subnet used by a PC NIC port when in DHCPclient mode without a DHCP server present. Use this IP value to log
in to the switch (see “Web Login to the Switch”).
PC with Static IP Address
When the PC is in this mode, the switch also needs to be assigned a static IP
address. To assign a static IP address, connect a VT100/ANSI terminal or a
workstation to one of the switch’s console ports. A cable for the mini USB port is
supplied.
1. Start a terminal emulation program (TEP) using the appropriate method for
your operating system:
• Start a TEP. Windows users can use HyperTerminal.
• Windows Vista users should download a TEP from the Internet.
• Macintosh users can use ZTerm.
• UNIX users can use a terminal emulator such as TIP.
2. Select a console port using the console switch on the front panel:
• Select the mini USB port on the front panel (cable included) as the console
port by pushing the slide switch to the left. Use the installation CD to install
the USB driver on your PC.
Note: You may need to install USB serial port driver available in the CD
included with the package before you can use the USB port on the PC to
connect to the switch.
• Select the DB9 (cable not included) on the rear panel as theconsole port by
pushing the slide switch to the right.
3. Configure the TEP to use the following settings (written below the connector on
the switch front panel):
• Baud rate: 115200 bps
• Data bits: 8
• Parity: none
• Stop bit: 1
• Flow control: none
4. At the command prompt User:, log in to the switch using the user name
admin, and then press Enter. At the password prompt, press Enter again (no
password is needed for initial configuration).
5. At the next command prompt, type ezconfig and press Enter.
6. The ezconfig utility is now running in the switch. Use it to set up your static
IP address and subnet mask as shown in the example. Make sure that the
selected switch IP address is in the same subnet as that of the PCs.
User:admin
Password:
(switch) >ezconfig
NETGEAR EZ Configuration Utility
-------------------------------Hello and Welcome!
This utility will walk you thru assigning the IP address for the switch
management CPU. It will allow you to save the changes at the end. After
the session, simply use the newly assigned IP address to access the Web
GUI using any public domain Web browser.
Admin password not defined. Do you want to change the password? (Y/N/Q) n
The 'enable' password required for switch configuration via the command
line interface is currently not configured. Do you wish to change it (Y/N/Q)? n
Assigning an IP address to your switch management
Current IP Address Configuration
--------------------------------
IP Address Assignment Mode: DHCP
IP Address: 0.0.0.0
Subnet mask: 0.0.0.0
Would you like to assign an IP address now? (Y/D/N/Q/?)? y
IP Address: 10.10.10.1
Network mask: 255.255.255.0
Do you want to assign switch name and location information (Y/N/Q)? n
There are changes detected, do you wish to save the changes permanently (Y/N)? y
The configuration changes have been saved successfully.
Please enter 'show running-config' to see the final configuration.
Thanks for using EzConfig!
7. Use this IP value to log in to the switch (see Web Login to the Switch).
For information about how to perform extensive CLI management, see both the CLI
Reference Manual for your switch and the Software Administration Guide.
2. Find the switch IP address assigned by the DHCP server.
a. Perform steps 1 through 3 of the procedure PC with Static IP Address.
b. Type the show network command, and press Enter. A screen displays
that shows the active switch IP address.
c. Use this IP address to log in to the switch through its web management
interface (see Web Login to the Switch).
Web Login to the Switch
Use the appropriate IP address for your configuration to manage your switch
through its web interface.
1. Type http://<ipaddress> into the URL field of your browser. A screen similar to
the following displays.
2. Type admin for the user name, and leave the password field blank.
3. Click Login. The System Information screen display. You can now navigate
from this point to configure your switch.
Technical Support
Thank you for selecting NETGEAR products.
After installing your device, locate the serial number on the label of your product and
use it to register your product at http://www.NETGEAR.com/register. Registration is
required before you can use the telephone support service. Registration through the
website is strongly recommended.
Go to http://kbserver.netgear.com for product updates and Web support. For
warranty and regional customer support information, see the Resource CD that
came with your product.
For complete DoC please visit the NETGEAR EU Declarations of Conformity
website at: http://kb.netgear.com/app/answers/detail/a_id/11621/.
For GNU General Public License (GPL) related information, please visit
http://support.netgear.com/app/answers/detail/a_id/2649.
WARNING!!
Do not stack equipment, or place equipment in tight spaces, or in drawers. Be
sure your equipment is surrounded by at least 2 inches of air space.
PC in DHCP Client Mode with DHCP Server
By default, the switch is configured as a DHCP client to obtain its IP address from a
DHCP server in the connected network. You need to access the switch from the
serial console port.
1. Make sure that the switch is connected to a DHCP server.
