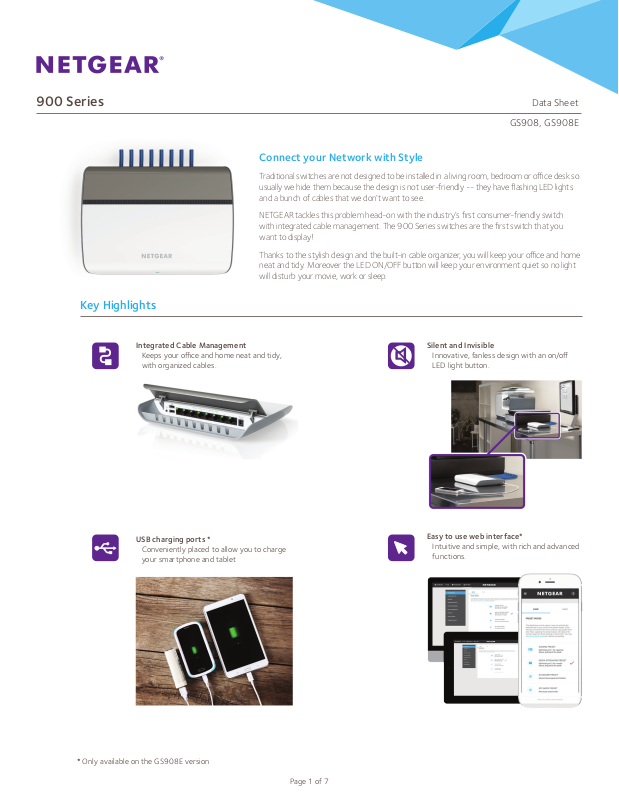

900 Series Data Sheet
GS908, GS908E
Connect your Network with Style
Traditional switches are not designed to be installed in a living room, bedroom or oce desk so
usually we hide them because the design is not user-friendly -- they have flashing LED lights
and a bunch of cables that we don’t want to see.
NETGEAR tackles this problem head-on with the industry’s first consumer-friendly switch
with integrated cable management. The 900 Series switches are the first switch that you
want to display!
Thanks to the stylish design and the built-in cable organizer, you will keep your oce and home
neat and tidy. Moreover the LED ON/OFF button will keep your environment quiet so no light
will disturb your movie, work or sleep.
Key Highlights
Integrated Cable Management
Keeps your oce and home neat and tidy,
with organized cables.
USB charging ports *
Conveniently placed to allow you to charge
your smartphone and tablet
Silent and Invisible
Innovative, fanless design with an on/o
LED light button.
Easy to use web interface*
Intuitive and simple, with rich and advanced
functions.
* Only available on the GS908E version
Page 1 of 7
900 Series Data Sheet
GS908, GS908E
Hardware at a Glance
Model Name Form-Factor
GS908
GS908E
Desktop/
Wall-Mount
Desktop/
Wall-Mount
GS908 front
•Power LED
Gigabit
Copper Ports
8 Yes
8 Yes
Power & Port
LED
LEDs USB Charging ports
Power, Port
Link/Speed/Activity
Power, Port
Link/Speed/Activity
Not applicable No 0 (silent)
10W maximum per port
20W maximum total
GS908 rear
•8 x 1G RJ-45 Ports
•External Power Adapter
•LED ON/OFF switch
•Power OFF/ON switch
2-port
Auto-Diagnostics
LED
Yes 0 (silent)
Fans
GS908E front
• Power/Auto-Diagnostics LED
Soware at a Glance
Model Name Management VLANs IGMP
GS908 Unmanaged No N/A Yes N/A N/A Yes
GS908E Web Managed
Port-Based/
802.1Q
IGMP Multicast Yes
IEEE
(802.3az)
Auto-EEE
Page 2 of 7
GS908E rear
•8 x 1G RJ-45 Ports
•External Power Adapter
•LED ON/OFF switch
•2x USB ports
QoS Port Trunking
Port-Based/
IEEE 802.1p
Jumbo Frame
Support
Yes Yes
900 Series Data Sheet
GS908, GS908E
Example Application
GS908 in a Home Environment
Router Internet GS908 switch
Uplink
DVD PLAYER
ON/STANDBY
P-SCAN
OPEN?CLOSE PLAY STOP
PROGRESSIVE SCAN
POWER
Sample Connections
Why the 900 Series switches are ideal for Home and Business Users
Plug-and-play: Automatic connectivity to your router or modem of 7 additional wired connections. No need for an IT expert!
Sleek and Stylish Design: The round shape and slim design will match any decor, and our lightweight housing allows the switch to be
mounted anywhere
Integrated Cable Management: Clean up your network with style -- No more messy cables!! Our integrated cable management will
keep your oce and home neat & tidy with no more tangled cables causing an unsightly mess.
Silent and invisible: Don’t allow a blinking light to disturb your movie, work or sleep. Just push the LED ON/OFF button and any
flashing lights will be turned o; also the fanless design keeps the switch silent.
Page 3 of 7
900 Series Data Sheet
GS908, GS908E
Technical Specifications
PRODUCT GS908 GS908E
1G RJ-45 ports 8 8
2-port
USB Charging Ports N/A
LED ON/OFF Button Yes Yes
PERFORMANCE SPECIFICATIONS
Bandwidth 16 G bps
Priority queues 4
Priority queuing Weighted Round Robin (WRR)
MAC Address database size
(48-bit MAC addresses)
Multicast groups 128
Packet forwarding rate (64 byte packet size) 11.9 Mfp s
Speed/Latency
Jumbo frame support Up to 9K packet size
Acoustic noise level @ 25°C 0
POWER/ENERGY EFFICENCY
802.1p-based QoS/CoS Supported Yes
Auto Power Down Yes
Short Cable Detection/Power Saving Yes
Max power (worst case, all ports used,
line-rate trac)
QUALITY OF SERVICE (QOS)
Port-based rate limiting N/A Ingress and egress
Port-based QoS N/A Yes
IEEE 802.1p COS N/A Yes
IPv4 DSCP N/A Yes
Port Rate Limiting Rates N/A
Pre-Defined Port Priority Queues N/A Critical/High/Medium/Low
Weighted Round Robin (WRR) N/A Yes
Strict priority queue technology N/A No
3.1W maximum
4K
10Mbps:<76.9s
100Mbps:<9.1s
1000Mbps:<2.7s
1/2/5/8/16/32/64/128/256/512 Mbit/s
10W maximum per port
20W maximum total
3.3W maximum (no USB charging)
26.3W maximum (with USB charging)
512 kbit/s
Page 4 of 7
900 Series Data Sheet
GS908, GS908E
PRODUCT GS908 GS908E
VLANS
VLAN (# Supported) N/A 64
Port-based VLAN N/A Yes
IEEE 802.1Q VLAN Tagging N/A Yes
L2 SERVICES - MULTICAST FILTERING
IGMP snooping (v1, v2, and v3) N/A Yes
IGMP snooping querier N/A No
Block unknown multicast N/A Yes
Static multicast router port N/A Yes
L3 SERVICES - DHCP
DHCP client N/A Yes
LINK AGGREGATION
Static Manual L AGs (Port Trunking) N/A Yes
# of Static LAGs / # of members in each LAG N/A 2 LAGs with maximum 4 members in each LAG
LEDS
Per port Speed, Link, Activity
Per device Power Power (Blue), Auto-Diagnostics (Amber)
PHYSICAL SPECIFICATIONS
Dimensions (W x D x H)
Weight
POWER CONSUMPTION
Power Supply
Max power (worst case, all ports used,
line-rate trac)
Min power (link-down standby) 1.5W minimum 1.6W minimum (no USB charging)
Heat Dissipation (max and min)
Fan(s) Fanless
ENVIRONMENTAL SPECIFICATIONS
Operating
Operating temperature 0° to 40°C (32° to 104°F)
Humidity 90% maximum relative humidity (RH), non-condensing
Altitude 10,000 (3,000 m) maximum
Storage
Storage temperature –20° to 70°C (– 4° to 158°F)
Humidity 95% maximum relative humidity (RH), non-condensing
Altitude 10,000 (3,000 m) maximum
3.1W maximum
5.1 BTU/hr minimum
10.4 BTU/hr maximum
AC Power Adapter, 100-240VAC, 50-60Hz
234 x 164 x 33mm
(9.22 x 6.46 x 1.29in)
0.37kg
(0.81lb)
Adapter is localized to country of sale
3.3W maximum (no USB charging)
26.3W maximum (with USB charging)
5.4 BTU/hr minimum (no USB charging)
89.8 BTU/hr maximum (with USB charging)
Page 5 of 7
900 Series Data Sheet
GS908, GS908E
ELECTROMAGNETIC EMISSIONS AND IMMUNITY
Certifications 47 CFR FCC Part 15, Subpart B, Class B
ICES-003:2016 Issue 6, Class B
ANSI C63.4:2014
EN 55022:2010 + AC:2011, Class A
EN 55024:2010
EN 61000-3-2:2014, Class A
EN 610 0-3-3:2013
AS/NZS CISPR 22:2009 + A1:2010, Class B
VCCI V-3/2015.04, Class A
V-4/2012.4
Russia EAC mark
CNS 13 438
Electromagnetic Compliance (Class A or B) Class B
SAFETY
Certifications CB mark, commercial
IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013
UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07
EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
AS/NZS 60950.1:2015
Russia EAC mark
WARRANTY AND SUPPORT
Industry-leading 3 year warranty
90-day complimentary technical support following purchase from a NETGEAR authorized reseller
Page 6 of 7
900 Series Data Sheet
GS908, GS908E
Ordering Information
PACKAGE CONTENT
All Models GS908 or GS908E Gigabit Ethernet Switch
Cable retention strap
Wall-mounting kit
AC power adapter
Quick install guide
ORDERING INFORMATION
GS9 08-10 0N A S North America and Latin America
GS9 08-10 0PES Europe
GS9 08-10 0U K S United Kingdom
GS9 08-10 0JPS Japan
GS908-100AUS Australia and New Zealand
GS908-100PRS China
GS908E-100NAS North America and Latin America
GS908E-100PES Europe
GS908E-100UKS United Kingdom
GS908E-100JPS Japan
GS908E-100AUS Australia and New Zealand
NETGEAR and the NETGEAR Logo are trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand names mentioned herein are for identification purposes only and may be
trademarks of their respective holder(s). Information is subject to change without notice. © 2017 NETGEAR , Inc. All rights reserved.
NETGEAR, Inc. 350 E. Plumeria Drive, San Jose, CA 95134-1911 USA, 1-888-NETGEAR (638-4327), E-mail: info@NETGEAR.com, www.NETGEAR.com
D-GS908/GS908E-0
Page 7 of 7
