RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
NETGEAR, Inc.
350 E. Plumeria Drive
San Jose, CA 95134 USA
202-10463-03
v1.0
January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
©2010 by NETGEAR, Inc. All rights reserved.
Product Registration, Support, and Documentation
Register your product at http://www.NETGEAR.com/register. Registration is required before you can use our telephone
support service. Product updates and Web support are always available by going to:
http://www.netgear.com/support.
Setup documentation is available on the CD, on the support website, and on the documentation website. When the
wireless router is connected to the Internet, click the Knowledgebase or the Documentation link under Web Support in
the main menu to view support information.
Trademarks
NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of
NETGEAR. Inc. in the United States and/or other countries. Microsoft, Windows, and Windows NT are registered
trademarks and Windows Vista is a trademark of Microsoft Corporation. Other brand and product names are registered
trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
Certificate of the Manufacturer/Importer
It is hereby certified that the RangeMax Dual Band Wireless-N Modem Router has been suppressed in accordance with
the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for
example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please
refer to the notes in the operating instructions.
Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market
and has been granted the right to test the series for compliance with the regulations.
Bestätigung des Herstellers/Importeurs
Es wird hiermit bestätigt, daß das RangeMax Dual Band Wireless-N Modem Router gemäß der im BMPT-AmtsblVfg
243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte
(z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der
Betriebsanleitung.
Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt
gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.
v1.0, January 2010
ii
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Regulatory Compliance Information
This section includes user requirements for operating this product in accordance with National laws for usage of radio
spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result
in unlawful operation and adverse action against the end-user by the applicable National regulatory authority
Note: This product’s firmware limits operation to only the channels allowed in a particular Region or
Country. Therefore, all options described in this user's guide may not be available in your version of
the product.
Europe – EU Declaration of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the
European Union (1999/5/EC). This equipment meets the following conformance standards:
EN300 328, EN301 893, EN301 489-17, EN60950
A printed copy of the EU Declaration of Conformity certificate for this product is provided in the
DGND3300 product package.
Europe – Declaration of Conformity in Languages of the European Community
Cesky [Czech] NETGEAR Inc. tímto prohlašuje, že tento Radiolan je ve shode se základními
požadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES.
Dansk
[Danish]
Deutsch
[German]
Eesti
[Estonian]
English Hereby, NETGEAR Inc., declares that this Radiolan is in compliance with the essential
Español
[Spanish]
Ελληνική
[Greek]
Undertegnede NETGEAR Inc. erklærer herved, at følgende udstyr Radiolan overholder
de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Hiermit erklärt NETGEAR Inc., dass sich das Gerät Radiolan in Übereinstimmung mit
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
Käesolevaga kinnitab NETGEAR Inc. seadme Radiolan vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
requirements and other relevant provisions of Directive 1999/5/EC.
Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR Inc. ΔΗΛΩΝΕΙ ΟΤΙ Radiolan ΣΥΜΜΟΡΦΩΝΕΤΑΙ
ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ
ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
iii
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Français
[French]
Italiano [Italian] Con la presente NETGEAR Inc. dichiara che questo Radiolan è conforme ai requisiti
Latviski
[Latvian]
Lietuvių
[Lithuanian]
Nederlands
[Dutch]
Malti [Maltese] Hawnhekk, NETGEAR Inc., jiddikjara li dan Radiolan jikkonforma mal-htigijiet
Magyar
[Hungarian]
Polski [Polish] Niniejszym NETGEAR Inc. oświadcza, że Radiolan jest zgodny z zasadniczymi
Português
[Portuguese]
Slovensko
[Slovenian]
Par la présente NETGEAR Inc. déclare que l'appareil Radiolan est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Ar šo NETGEAR Inc. deklarē, ka Radiolan atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Šiuo NETGEAR Inc. deklaruoja, kad šis Radiolan atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
Hierbij verklaart NETGEAR Inc. dat het toestel Radiolan in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Alulírott, NETGEAR Inc. nyilatkozom, hogy a Radiolan megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
NETGEAR Inc. declara que este Radiolan está conforme com os requisitos essenciais
e outras disposições da Directiva 1999/5/CE.
NETGEAR Inc. izjavlja, da je ta Radiolan v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
Suomi
[Finnish]
Svenska
[Swedish]
Íslenska
[Icelandic]
Norsk
[Norwegian]
NETGEAR Inc. týmto vyhlasuje, _e Radiolan spĺňa základné po_iadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
NETGEAR Inc. vakuuttaa täten että Radiolan tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Härmed intygar NETGEAR Inc. att denna Radiolan står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
Hér með lýsir NETGEAR Inc. yfir því að Radiolan er í samræmi við grunnkröfur og aðrar
kröfur, sem gerðar eru í tilskipun 1999/5/EC.
NETGEAR Inc. erklærer herved at utstyret Radiolan er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
iv
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
FCC Requirements for Operation in the United States
FCC Information to User
This product does not contain any user serviceable components and is to be used with approved antennas only. Any
product changes or modifications will invalidate all applicable regulatory certifications and approvals
FCC Guidelines for Human Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC Declaration Of Conformity
We NETGEAR, Inc., 4500 Great America Parkway, Santa Clara, CA 95054, declare under our sole responsibility that
the model DGND3300 RangeMax Dual Band Wireless-N Modem Router complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.
FCC Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following methods:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
RangeMax Dual Band Wireless-N Modem Router
Tested to Comply
with FCC Standards
Modifications made to the product, unless expressly approved by NETGEAR, Inc., could void the user's right to operate
the equipment.
v
FOR HOME OR OFFICE USE
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications
Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic,
building materials and construction, and network overhead, lower actual data throughput rate.
Product and Publication Details
Model Number: DGND3300
Publication Date: January 2010
Product Family: Modem Router
Product Name: RangeMax Dual Band Wireless-N Modem Router
Home or Business Product: Home
Language: English
Publication Part Number: 202-10463-03
Version: v1.0
v1.0, January 2010
vi
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Contents
About This Manual
Conventions and Formats .................................................................................................. i
Revision History ..................................................................................................................ii
Chapter 1
Configuring Your Internet Connection - - - - - - - - - - - - - - - - - - - - - - - - 1-1
Using the Setup Manual .................................................................................................1-1

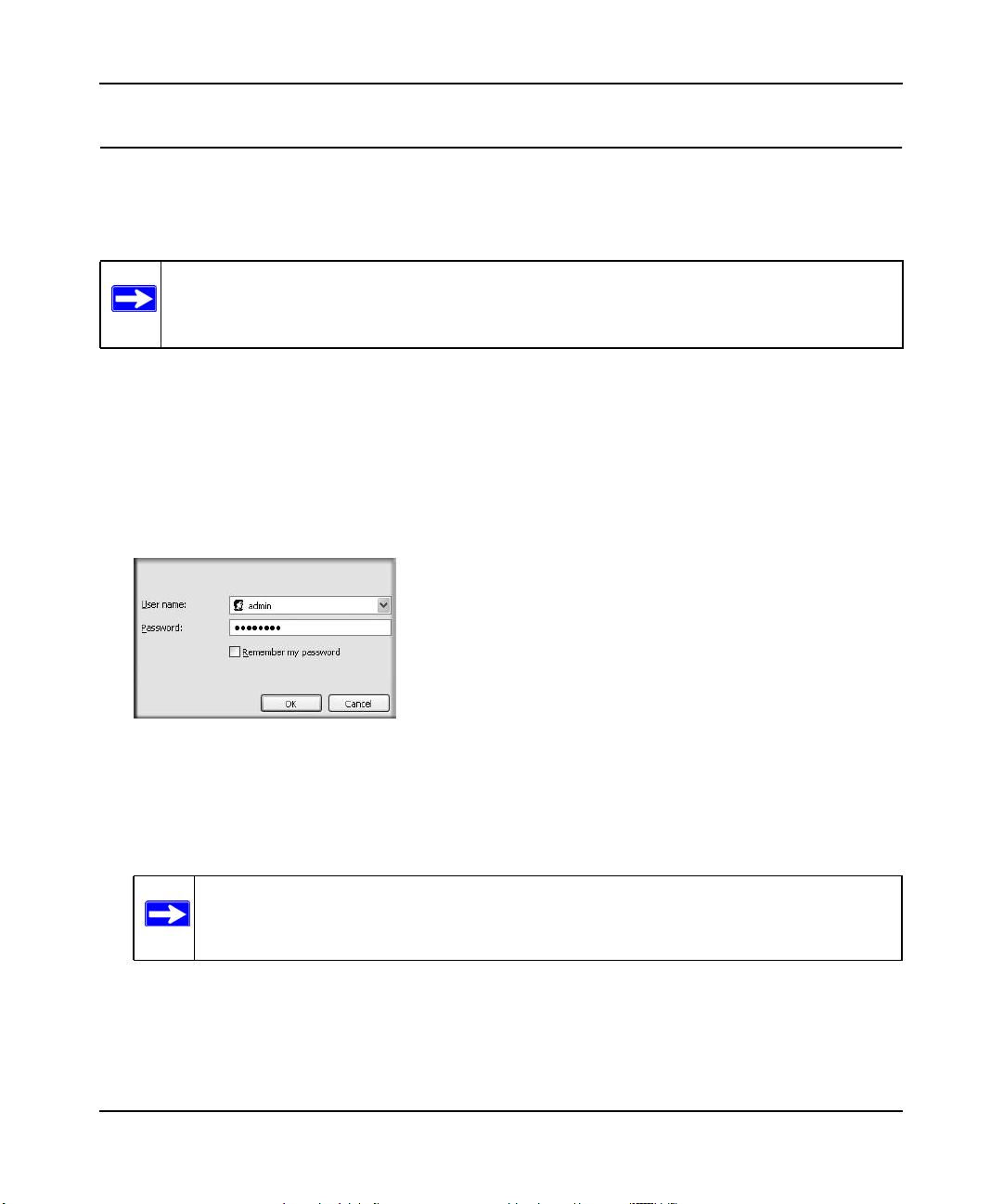

Logging In to Your Modem Router .................................................................................1-2

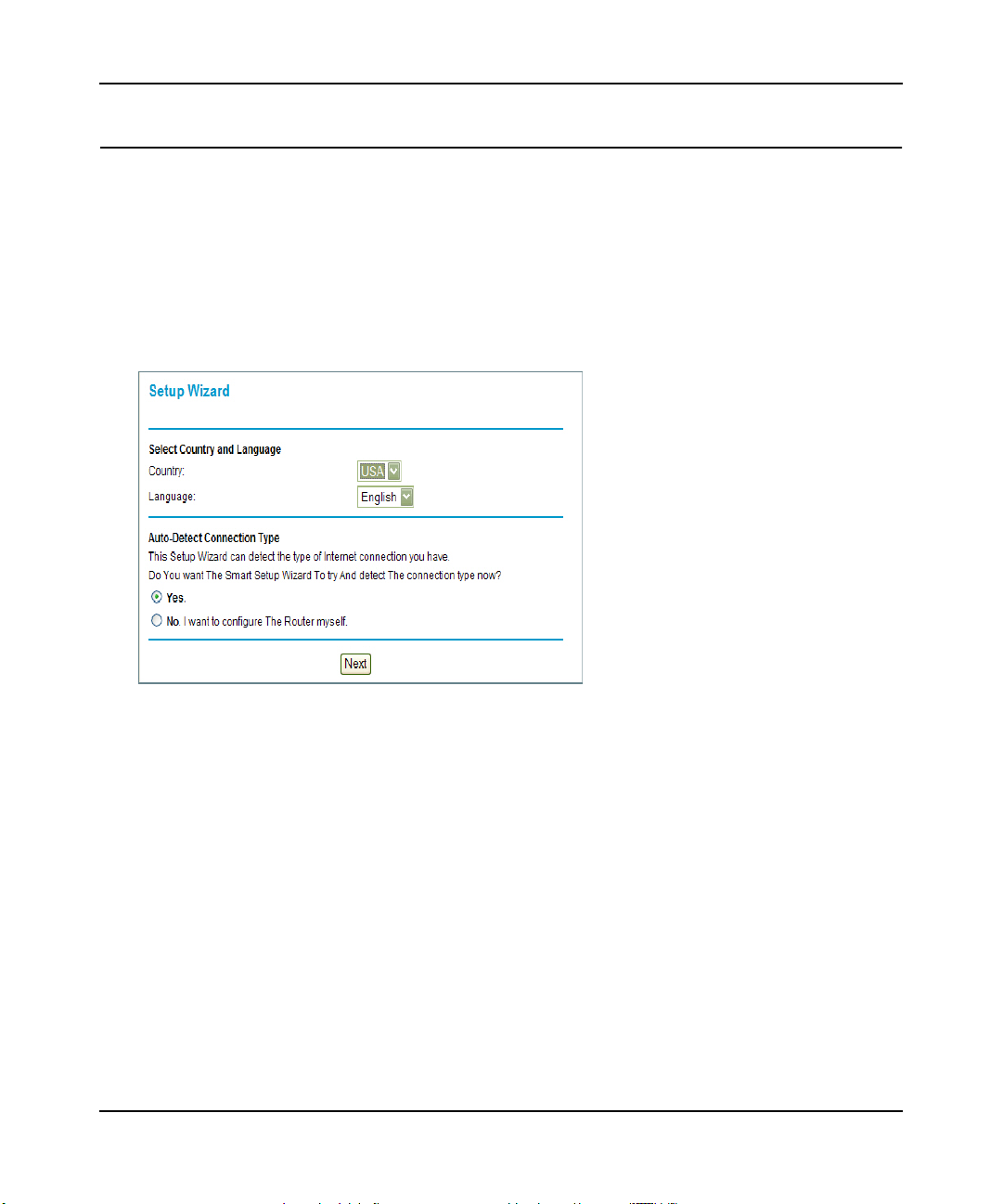

Using the Setup Wizard ..................................................................................................1-4
Viewing or Manually Configuring Your ISP Settings .......................................................1-5
Configuring ADSL Settings .............................................................................................1-9
Chapter 2
Safeguarding Your Network- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1
Planning Your Wireless Network ....................................................................................2-2
Wireless Placement and Range Guidelines .............................................................2-3
Wireless Security Options ........................................................................................2-3

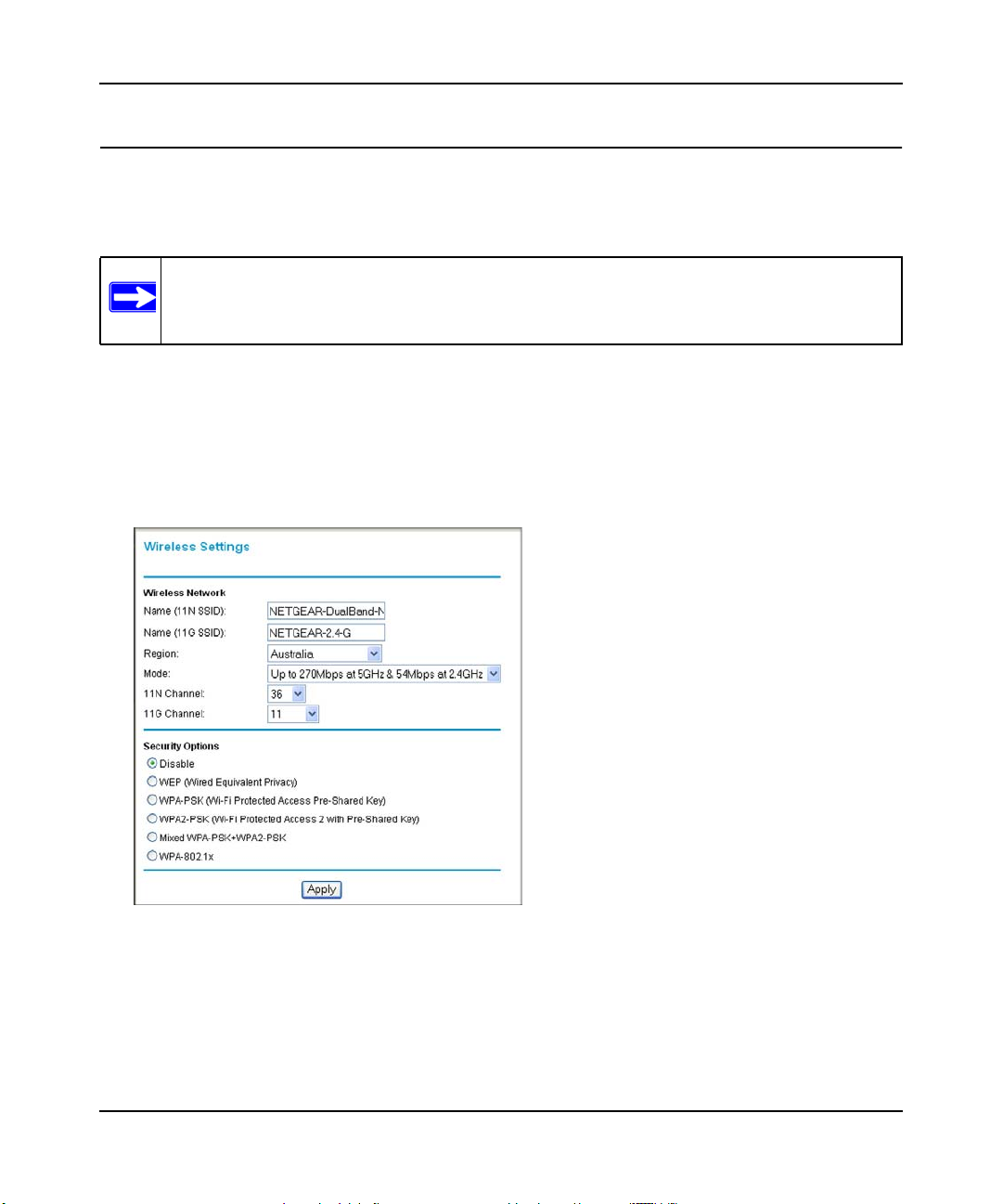

Manually Configuring Your Wireless Settings ................................................................2-5

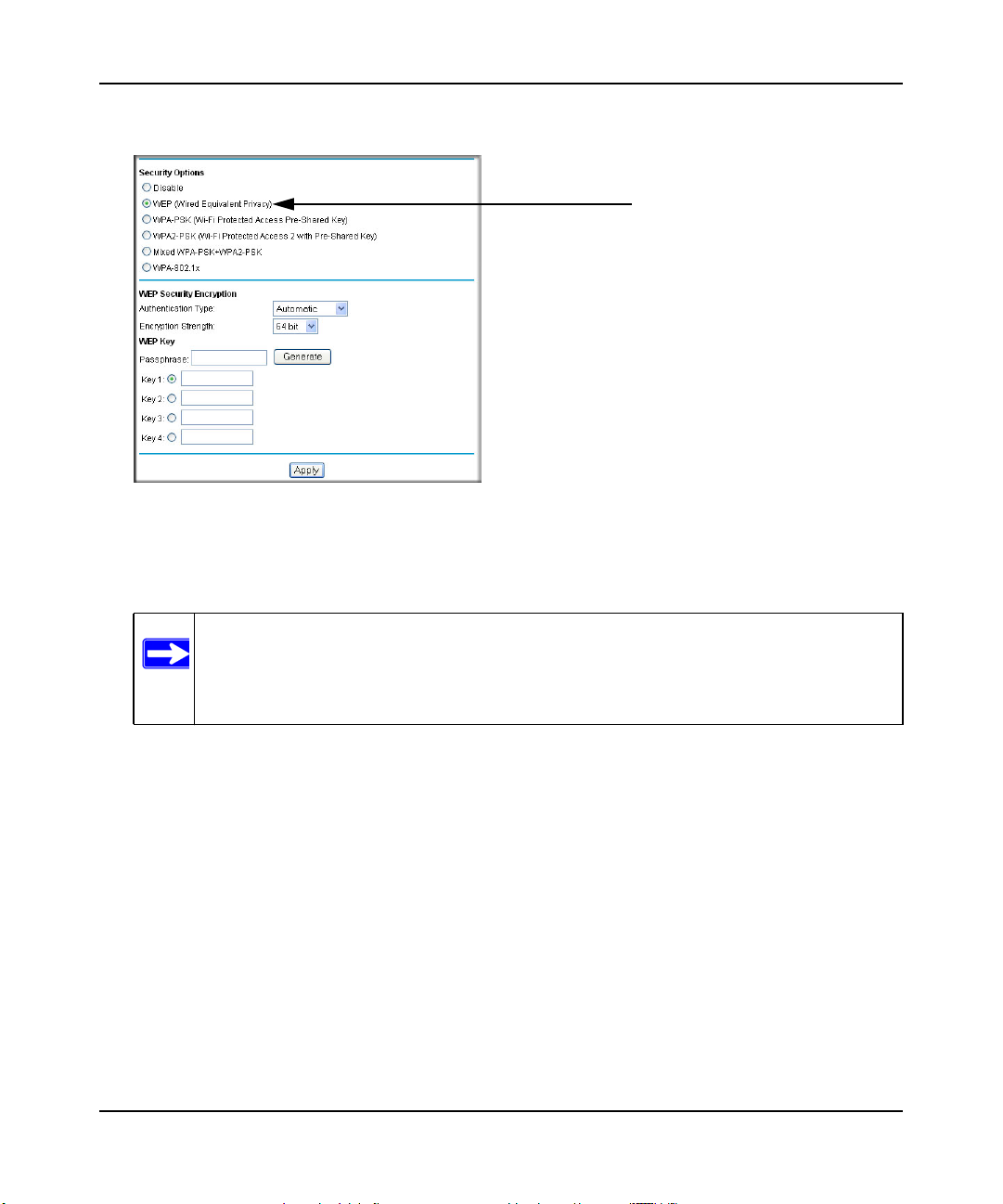

Configuring WEP Wireless Security ...............................................................................2-7
Configuring WPA, WPA2, or Mixed WPA2 + WPA Wireless Security ...................2-10
Using Push 'N' Connect (WPS) to Configure Your Wireless Network ..........................2-12
Using a WPS Button to Add a WPS Client .............................................................2-12
Using PIN Entry to Add a WPS Client ....................................................................2-15
Configuring Advanced WPS Settings .....................................................................2-17
Connecting Additional Wireless Client Devices After WPS Setup ................................2-18
Adding More WPS Clients ......................................................................................2-18
Adding Both WPS and Non-WPS Clients ..............................................................2-19
Restricting Access to Your Modem Router ...................................................................2-20
Wireless Guest Networks .............................................................................................2-22
Live Parental Controls ..................................................................................................2-24
v1.0, January 2010
ii
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Chapter 3
Protecting Your Network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1
Protecting Access to Your Modem Router .....................................................................3-2
Changing the Built-In Password ...............................................................................3-2
Restricting Access by MAC Address ..............................................................................3-3
Blocking Access to Internet Sites ...................................................................................3-5
Firewall Rules .................................................................................................................3-7
Port Forwarding ............................................................................................................3-10
Adding a Pre-set Port Forwarding Rule .................................................................3-11
Adding a Custom Port Forwarding Rule .................................................................3-12
Port Triggering ..............................................................................................................3-13
Blocking Access to Internet Services ...........................................................................3-15
Scheduling Blocking .....................................................................................................3-17
Viewing Logs of Web Access or Attempted Web Access .............................................3-18
Configuring E-mail Alert and Web Access Log Notifications ........................................3-19
Setting the Time ...........................................................................................................3-21
Chapter 4
Managing Your Network- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-1
Upgrading the Firmware .................................................................................................4-2
Manually Check for Firmware Upgrades ..................................................................4-3
Viewing Modem Router Status Information ....................................................................4-4
Connection Status ....................................................................................................4-7
Statistics ...................................................................................................................4-8
Viewing a List of Attached Devices ................................................................................4-9
Managing the Configuration File ...................................................................................4-10
Backing Up and Restoring the Configuration .........................................................4-10
Erasing the Configuration .......................................................................................4-11
Running Diagnostic Utilities and Rebooting the Modem Router ...................................4-12
Enabling Remote Management Access .......................................................................4-13
Traffic Meter .................................................................................................................4-15
Chapter 5
USB Storage- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-1
USB Drive Requirements ...............................................................................................5-2
File Sharing Scenarios ...................................................................................................5-3
Sharing Photos with Friends and Family ..................................................................5-3
iii
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Storing Files in a Central Location for Printing .........................................................5-3
Sharing Large Files with Colleagues ........................................................................5-4
USB Storage Basic Settings ...........................................................................................5-5
Editing a Network Folder ................................................................................................5-7
Configuring USB Storage Advanced Settings ................................................................5-8
Creating a Network Folder ............................................................................................5-10
Unmounting a USB Drive .............................................................................................5-11
Specifying Approved USB Devices ..............................................................................5-12
Connecting to the USB Drive from a Remote Computer ..............................................5-13
Locating the Internet Port IP Address ....................................................................5-13
Accessing the Router’s USB Drive Remotely Using FTP ......................................5-13
Connecting to the USB Drive with Microsoft Network Settings ....................................5-14
Enabling File and Printer Sharing ..........................................................................5-14
Chapter 6
Customizing Your Network Settings - - - - - - - - - - - - - - - - - - - - - - - - - 6-1
Using the LAN Setup Options .........................................................................................6-2
Using the Modem Router as a DHCP Server ...........................................................6-5
Address Reservation ................................................................................................6-5
Using a Dynamic DNS Service .......................................................................................6-7
Configuring the WAN Setup Options ..............................................................................6-9
Setting Up a Default DMZ Server ...........................................................................6-11
Setting up Quality of Service (QoS) ..............................................................................6-12
Editing or Deleting an Existing QoS Policy ............................................................6-16
Configuring Static Routes .............................................................................................6-17
Wireless Repeating (Also Called WDS) .......................................................................6-19
Wireless Repeating Function .................................................................................6-21
Setting Up the Base Station ...................................................................................6-21
Setting Up a Repeater Unit ....................................................................................6-22
Chapter 7
Fine-Tuning Your Network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-1
Common Connection Types ...........................................................................................7-2
Assessing Your Speed Requirements ............................................................................7-4
Optimizing Your Network Bandwidth ..............................................................................7-5
Optimizing Wireless Performance ..................................................................................7-6
Changing the MTU Size .................................................................................................7-8
v1.0, January 2010
iv
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Universal Plug and Play ...............................................................................................7-10
Appendix A
Troubleshooting- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A-1
Quick Tips ...................................................................................................................... A-2
Troubleshooting with the LEDs ...................................................................................... A-3
Cannot Access the Modem Router Menu ...................................................................... A-5
Cannot Access the Internet ........................................................................................... A-6
Checking the Configuration ..................................................................................... A-6
Checking the WAN IP Address ............................................................................... A-6
Troubleshooting a Network Using the Ping Utility ......................................................... A-8
Testing the LAN Path to Your Router ...................................................................... A-8
Testing the Path from Your Computer to a Remote Device .................................... A-9
Problems with Date and Time ..................................................................................... A-10
Wireless Connectivity .................................................................................................. A-10
Viewing Available Networks ........................................................................................ A-11
Appendix B
Default Configuration and Technical Specifications - - - - - - - - - - - - - - - - - B-1
Restoring the Factory Configuration Settings ................................................................ B-1
Using the Restore Factory Settings Button ............................................................. B-1
Technical Specifications ................................................................................................ B-3
Appendix C
Related Documents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - C-1
Index - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - i
v
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
About This Manual
The user manual provides information for configuring the features of the NETGEAR® RangeMax
Dual Band Wireless-N Modem Router beyond initial configuration settings. Initial configuration
instructions can be found in the Setup Manual. You should have basic to intermediate computer
and Internet skills.
Conventions and Formats
The conventions, formats, and scope of this manual are described in the following paragraphs:
Typographical Conventions. This manual uses the following typographical conventions:
Italic Emphasis, books, CDs, file and server names, extensions
Bold User input, IP addresses, GUI screen text
Fixed Command prompts, CLI text, code
italic URL links
Formats. This manual uses the following formats to highlight special messages:
Note: This note highlights information of importance or special interest.
Tip: This note highlights a procedure that will save time or resources.
Warning: This note warns against a malfunction or damage to the equipment.
Danger: This safety warning warns against personal injury or death.
-i
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Scope. This manual is written for the Dual Band Wireless-N Modem Router For more information
about network, Internet, firewall, and VPN technologies, see the links to the NETGEAR website in
Appendix C, “Related Documents.”
Note: Product updates are available on the NETGEAR, Inc. website at
http://www.netgear.com/support.
Revision History
NETGEAR is constantly searching for ways to improve its products and documentation. The
following table indicates any changes that might have been made since the Dual Band Wireless-N
Modem Router was introduced.
Part Number
202-10463-02 v1.1 January
202-10463-02 v1.0 September
202-10463-01 v1.0 March 2009 Original publication.
Version
Number
Date Description
Traffic meter feature added.
2010
USB features added.
2009
v1.0, January 2010
-ii
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Chapter 1
Configuring Your Internet Connection
This chapter describes how to configure your Dual Band Wireless-N Modem Router Internet
connection. When you install your modem router using the Resource CD as described in the Dual
Band Wireless-N Modem Router Installation Guide, these settings are configured automatically
for you. This chapter provides instructions on how to log in to the modem router for further
configuration.
Note: NETGEAR recommends that Windows OS users use the Smart Wizard™ on the
Resource CD for initial configuration
Setup Manual on the Resource CD.
This chapter includes:
• “Using the Setup Manual”
• “Logging In to Your Modem Router” on page 1-2
• “Using the Setup Wizard” on page 1-4
• “Viewing or Manually Configuring Your ISP Settings” on page 1-5
• “Configuring ADSL Settings” on page 1-9
. Mac and Linux OS users should access the
Using the Setup Manual
For first-time installation of your wireless modem router, refer to the Setup Manual. The Setup
Manual explains how to launch the NETGEAR Smart Wizard on the Resource CD to step you
through the procedure to connect your modem router and computers. The Smart Wizard will assist
you in configuring your wireless settings and enabling wireless security for your network. After
initial configuration using the Setup Manual, you can use the information in this Reference
Manual to configure additional features of your wireless modem router.
For installation instructions in a language other than English, see the language options on the
Resource CD.
1-1 Configuring Your Internet Connection
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Logging In to Your Modem Router
You can log in to the modem router to view or change its settings. Links to the Knowledge
Base and documentation are also available on the modem router main menu.
Note: Your computer must be configured for DHCP. For help with configuring DHCP,
see the documentation that came with your computer or see the link to the online
document in “Preparing Your Network” in Appendix C.
When you have logged in, if you do not click Logout, the modem router waits for 5 minutes after
no activity before it automatically logs you out.
To log in to the modem router:
1. Type http://www./routerlogin.net, or http://www.routerlogin.com, or the modem router’s LAN
IP address (default is 192.168.0.1) in the address field of your browser, and then press Enter. A
login window displays:
Figure 1-1
2. Enter admin for the modem router user name and your password (or the default, password
For information about how to change the password, see “Changing the Built-In Password” on
page 3-2.
Note: The modem router user name and password are not the same as any other user
name or password you might use to log in to your Internet connection.
If the modem router has never been configured, the Smart Wizard screen displays. After the
modem router has been configured, the Firmware Upgrade assistant will appear. See “Using
the Setup Wizard” on page 1-4.
Configuring Your Internet Connection 1-2
v1.0, January 2010
).
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual

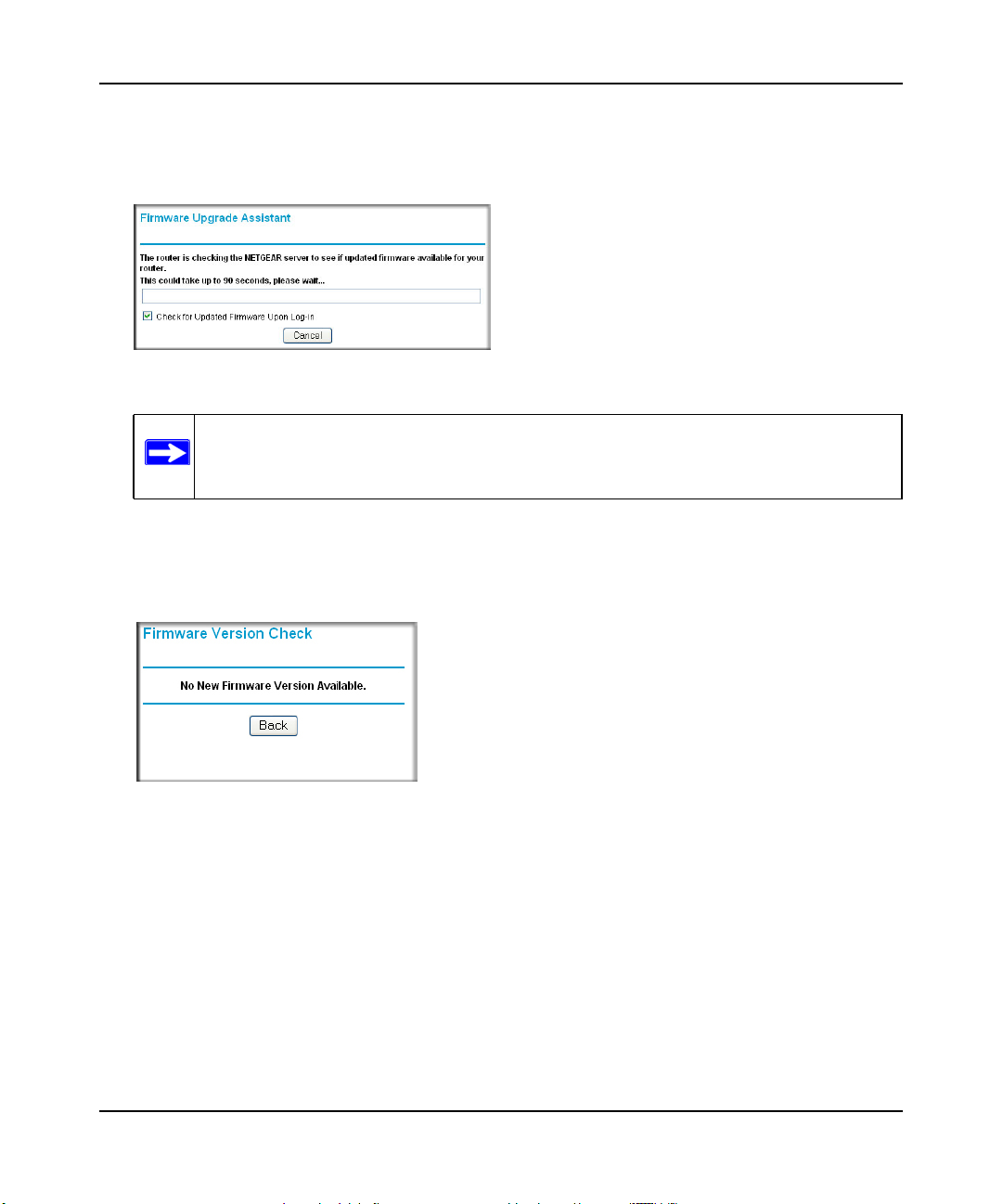

• Checking for Firmware Updates screen. After the initial configuration, the Firmware
Update screen displays unless you previously cleared the Check for Updated Firmware
Upon Log-in check box.
Figure 1-2
Note: If the modem router is not configured (is in its factory default state) when you
log in, the Setup Wizard displays. See “Using the Setup Wizard” on page 1-4.
If the modem router discovers a newer version of the firmware, you are asked if you want to
upgrade to the new firmware (see “Upgrading the Firmware” on page 4-2 for details). If no
new firmware is available, the following message displays.
Figure 1-3
• Router Status screen. The Router Status screen displays if the modem router has not been
configured yet or has been reset to its factory default settings. See “Viewing Modem Router
Status Information” on page 4-4.
You can use the Setup Wizard to automatically detect your Internet connection as described in
“Using the Setup Wizard” on page 1-4, or you can bypass the Setup Wizard and manually
configure your Internet connection as described in “Viewing or Manually Configuring Your
ISP Settings” on page 1-5.
1-3 Configuring Your Internet Connection
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Using the Setup Wizard
You can manually configure your Internet connection using the Basic Settings screen, or you can
allow the Setup Wizard to detect your Internet connection. The Setup Wizard searches your
Internet connection for servers and protocols to determine your ISP configuration. This feature is
not the same as the Smart Wizard on the Resource CD that is used for installation.
To use the Setup Wizard:
1. To go to the Setup Wizard screen, from the top of the main menu, select Setup Wizard.
Figure 1-4
2. Select Yes for the Auto-Detect Connection Type, and then click Next to proceed.
3. Enter your ISP settings, as needed.
4. At the end of the Setup Wizard, click Test to verify your Internet connection. If you have
trouble connecting to the Internet, see Appendix A, “Troubleshooting.”
Configuring Your Internet Connection 1-4
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Viewing or Manually Configuring Your ISP Settings
To view or configure the basic settings:
1. Log in to the modem router as described in “Logging In to Your Modem Router” on page 1-2.
2. Select Basic Settings from the modem router menu to display the Basic Settings screen:
Figure 1-5
3. Select Yes or No depending on whether your ISP requires a login. This selection changes the
fields available on the Basic Settings screen.
• Yes. If your ISP requires a login, select the encapsulation method. Enter the login name. If
you want to change the login time-out, enter a new value in minutes.
• No. If your ISP does not require a login, enter the account name, if required, and the
domain name, if required.
4. Enter the settings for the IP address and DNS server. If you enter or change a DNS address,
restart the computers on your network so that these settings take effect.
1-5 Configuring Your Internet Connection
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
5. If no login is required, you can specify the MAC Address setting.
6. Click Apply to save your settings.
7. Click Test to test your Internet connection. If the NETGEAR website does not appear within
one minute, refer to.
When your Internet connection is working, you do not need to launch the ISP’s login program on
your computer to access the Internet. When you start an Internet application, your modem router
automatically logs you in
The fields displayed depend on whether or not your Internet connection requires a login.
ISP does not require login
ISP does require login
Figure 1-6
Configuring Your Internet Connection 1-6
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Table 1-1. Basic Settings Screen
Settings Description
Does Your ISP Require a Login? • Yes
•No
These fields
appear only if
no login is
required.
These fields
appear only if
your ISP
requires a
login.
Internet IP Address • Get Dynamically from ISP. Your ISP uses DHCP to assign your IP
Domain Name Server (DNS)
Address
Account Name
(If required)
Domain Name
(If required)
Login The login name provided by your ISP. This is often an e-mail address.
Password The password that you use to log ISP.
Service Name If your ISP provided a Service Name, enter it here.
Idle Timeout (In
minutes)
Enter the account name provided by your ISP. This might also be
called the host name.
Enter the domain name provided by your ISP.
If you want to change the Internet login time-out, enter a new value in
minutes. This determines how long the modem router keeps the
Internet connection active after there is no Internet activity from the
LAN. Entering an Idle Timeout value of 0 (zero) means never log out.
address. Your ISP automatically assigns these addresses.
• Use Static IP Address. Enter the IP address that your ISP
assigned. Also enter the IP subnet mask and the gateway IP
address. The gateway is the ISP’s modem router to which your
modem router will connect.
• Use IP Over ATM (PoA). This option is only available if your ISP
does not require a log in.
The DNS server is used to look up site addresses based on their
names.
• Get Automatically from ISP. Your ISP uses DHCP to assign your
DNS servers. Your ISP automatically assigns this address.
• Use These DNS Servers. If you know that your ISP does not
automatically transmit DNS addresses to the modem router during
login, select this option, and enter the IP address of your ISP’s
primary DNS server. If a secondary DNS server address is
available, enter it also.
1-7 Configuring Your Internet Connection
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Table 1-1. Basic Settings Screen
Settings Description
NAT (Net Address Translation) NAT automatically assigns private IP addresses (10.1.1.x) to LAN-
connected devices.
• Enable. Usually NAT is enabled.
• Disable. This disables NAT, but leaves the firewall active. Disable
NAT only if you are sure that you do not require it. When NAT is
disabled, only standard routing is performed by this router.
Classical routing lets you directly manage the IP addresses that the
modem router uses. Classical routing should be selected only by
experienced users
• Disable firewall. This disables the firewall in addition to disabling
NAT. With the firewall disabled, the protections usually provided to
your network are disabled.
This field
appears only
if your ISP
does not
require a
login.
Router MAC
Address
Your computer’s local address is its unique address on your network.
This is also referred to as the computer’s MAC (Media Access
Control) address.
• Use Default MAC Address. This is the usual setting.
• Use Computer MAC address. If your ISP requires MAC
authentication, you can use this setting to disguise the modem
router’s MAC address with the computer’s own MAC address.
• Use This MAC Address. If your ISP requires MAC authentication,
you can manually type the MAC address for a different computer.
The format for the MAC address is XX:XX:XX:XX:XX:XX.
a. Disabling NAT reboots the modem router and resets its configuration settings to the factory defaults. Disable NAT only if you
plan to install the modem router in a setting where you will be manually administering the IP address space on the LAN side
of the router.
a
Configuring Your Internet Connection 1-8
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Configuring ADSL Settings
Note: For information about how to install ADSL filters, see the Setup Manual.
NETGEAR recommends that you use the Setup Wizard to automatically detect and configure your
ADSL settings. This usually works fine. However, if you have technical experience and are sure of
the multiplexing method and virtual circuit number for the virtual path identifier (VPI) and virtual
channel identifier (VCI), you can specify those settings here.
Note: NETGEAR recomments using the Setup Wizard to select the correct country to
optimize detection of the ADSL settings.
If your ISP provided you with a multiplexing method or VPI/VCI number, then enter the setting:
1. From the main menu, select ADSL Settings to display the ADSL Settings screen.
Figure 1-7
a. In the Multiplexing Method drop-down list, select LLC-based or VC-based.
b. For the VPI, type a number between 0 and 255. The default is 8.
c. For the VCI, type a number between 32 and 65535. The default is 35.
d. Click Apply.
1-9 Configuring Your Internet Connection
v1.0, January 2010
Chapter 2
Safeguarding Your Network
For a wireless connection, the SSID, also called the wireless network name, and the wireless
security setting must be the same for
adapters. NETGEAR strongly recommends that you use wireless security.
Warning: Computers can connect wirelessly at a range of several hundred feet. This can
allow others outside of your immediate area to access your network.
This chapter includes:
• “Planning Your Wireless Network
• “Manually Configuring Your Wireless Settings” on page 2-5
• “Using Push 'N' Connect (WPS) to Configure Your Wireless Network” on page 2-12
• “Connecting Additional Wireless Client Devices After WPS Setup” on page 2-18
• “Restricting Access to Your Modem Router” on page 2-20
the modem router and wireless computers or wireless
• “Wireless Guest Networks” on page 2-22
• “Live Parental Controls” on page 2-24
v1.0, January 2010
2-1
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Planning Your Wireless Network
For compliance and compatibility between similar products in your area, the operating channel
and region must be set correctly.
To configure the wireless network, you can either specify the wireless settings, or you can use WiFi Protected Setup (WPS) to automatically set the SSID and implement WPA/WPA2 security.
• To manually configure the wireless settings, you must know the following:
– SSID. The default 11N SSID for the modem router is NETGEAR-DualBand-N. The
default 11G SSID is NETGEAR-2.4-G.
– The wireless mode (802.11g, or 802.11b) that each wireless adapter supports.
– Wireless security option. To successfully implement wireless security, check each
wireless adapter to determine which wireless security option it supports.
See “Manually Configuring Your Wireless Settings” on page 2-5.
• Push 'N' Connect (WPS) automatically implements wireless security on the modem router
while, at the same time, allowing you to automatically implement wireless security on any
WPS-enabled devices (such as wireless computers and wireless adapter cards). You activate
WPS by pressing a WPS button on the modem router, clicking an onscreen WPS button, or
entering a PIN number. This generates a new SSID and implements WPA/WPA2 security.
Note: NETGEAR’s Push 'N' Connect feature is based on the Wi-Fi Protected Setup
(WPS) standard (for more information, see http://www.wi-fi.org). All other WiFi-certified and WPS-capable products should be compatible with NETGEAR
products that implement Push 'N' Connect.
To set up your wireless network using the WPS feature:
– Use the modem router dome, which works as a WPS button (there is also an onscreen
WPS button), or enter the PIN of the wireless device.
– Make sure that all wireless computers and wireless adapters on the network are
Wi-Fi
certified and WPA or WPA2 capable, and that they support WPS configuration.
See “Using Push 'N' Connect (WPS) to Configure Your Wireless Network” on page 2-12.
Safeguarding Your Network 2-2
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Wireless Placement and Range Guidelines
The range of your wireless connection can vary significantly based on the physical placement of
the modem router. The latency, data throughput performance, and notebook power consumption of
wireless adapters also vary depending on your configuration choices.
For best results, place your modem router according to the following guidelines:
• Near the center of the area in which your PCs will operate.
• In an elevated location such as a high shelf where the wirelessly connected PCs have line-ofsight access (even if through walls).
• Away from sources of interference, such as PCs, microwave ovens, and 2.4 GHz cordless
phones.
• Away from large metal surfaces.
• Put the antenna in a vertical position to provide the best side-to-side coverage. Put the antenna
in a horizontal position to provide the best up-and-down coverage.
• If using multiple access points, it is better if adjacent access points use different radio
frequency channels to reduce interference. The recommended channel spacing between
adjacent access points is 5 channels (for example, use Channels 1 and 6, or 6 and 11).
The time it takes to establish a wireless connection can vary depending on both your security
settings and placement. WEP connections can take slightly longer to establish. Also, WEP
encryption can consume more battery power on a notebook computer.
Wireless Security Options
Indoors, computers can connect over 802.11g wireless networks at a maximum range of up to 300
feet. Such distances can allow for others outside your immediate area to access your network.
Unlike wired network data, your wireless data transmissions can extend beyond your walls and
can be received by anyone with a compatible adapter. For this reason, use the security features of
your wireless equipment. The Dual Band Wireless-N Modem Router provides highly effective
security features which are covered in detail in this chapter. Deploy the security features
appropriate to your needs.
2-3 Safeguarding Your Network
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
There are several ways you can enhance the security of your wireless network:
Wireless data
1) Open system: easy but no security.
2) WEP: security, but some performance impact.
3) WPA-PSK: strong security.
4) WPA2-PSK: very strong security.
Figure 2-1
• WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP Shared
Key authentication and WEP data encryption block all but the most determined eavesdropper.
This data encryption mode has been superseded by WPA-PSK and WPA2-PSK.
• WPA-PSK (TKIP), WPA2-PSK (AES). Wi-Fi Protected Access (WPA) using a pre-shared
key to perform authentication and generate the initial data encryption keys. The very strong
authentication along with dynamic per frame re-keying of WPA makes it virtually impossible
to compromise.
For more information about wireless technology, see the link to the online document in “Wireless
Networking Basics” in Appendix C.
Safeguarding Your Network 2-4
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Manually Configuring Your Wireless Settings
You can view or manually configure the wireless settings for the modem router in the Wireless
Settings screen. If you want to make changes, make sure to note the current settings first.
Note: If you use a wireless computer to change the wireless network name (SSID) or
wireless security settings, you will be disconnected when you click Apply. To
avoid this, use a computer with a wired connection to access the modem router.
To view or manually configure the wireless settings:
1. Log in to the modem router at its default LAN address of http://192.168.0.1 with its default
user name of admin, and default password of password, or using whatever user name,
password, and LAN address you have chosen for the modem router.
2. Select Wireless Settings from the main menu to display the Wireless Settings screen:
Figure 2-2
The settings for this screen are explained in Table 2-1 on page 2-6.
3. Select the region in which the modem router will operate.
4. For initial configuration and test, leave the other settings unchanged.
2-5 Safeguarding Your Network
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
5. To save your changes, click Apply.
6. Configure and test your computers for wireless connectivity.
Program the wireless adapter of your computers to have the same SSID and wireless security
settings as your modem router. Check that they have a wireless link and are able to obtain an
IP address by DHCP from the modem router. If there is interference, adjust the channel.
Table 2-1. Wireless Settings
Settings Description
Name (11N SSID)
Name (11G SSID)
Region The location where the router is used.
Mode Specify which 802.11 data communications protocol is used. You can select one
11 N Channel
11 G Channel
This is the wireless network name. Enter a 32-character (maximum) name in this
field. This field is case-sensitive.
In a setting where there is more than one wireless network, different wireless
network names provide a means for separating the traffic. Any device that you
want to participate in a wireless network must use the SSID.
of the following modes:
• Up to 270 Mbps at 2.4 GHz. Performance mode, using channel expansion to
achieve the 270 Mbps data rate. The Dual Band Wireless-N Modem Router
uses the channel you selected as the primary channel and expands to the
secondary channel (primary channel +4 or –4) to achieve a 40 MHz frame-byframe bandwidth. The Dual Band Wireless-N Modem Router detects channel
usage and disables frame-by-frame expansion if the expansion would result in
interference with the data transmission of other access points or clients.
• Up to 270 Mbps at 5 GHz and 54 Mbps at 2.4 GHz. This is the default mode,
which is recommended.
• Up to 130 Mbps at 2.4 GHz. Neighbor friendly mode, for reduced interference
with neighboring wireless networks. Provides two transmission streams with
different data on the same channel at the same time, but also allows 802.11b
and 802.11g wireless devices.
• Up to 130 Mbps at 5 GHz and 54 Mbps at 2.4 GHz. Legacy mode, for
compatibility with the slower 802.11b and 802.11g wireless devices.
The wireless channel fields determine the operating frequency used for the 11N
or 11G wireless networks. Do not change the wireless channel unless you
experience interference (shown by lost connections or slow data transfers). If
this happens, you might need to experiment with different channels to see which
is the best.
Safeguarding Your Network 2-6
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
Table 2-1. Wireless Settings (continued)
Settings Description
Security Options • Disable. You can use this setting to establish wireless connectivity before
implementing wireless security. NETGEAR strongly recommends that you
implement wireless security.
• WEP (Wired Equivalent Privacy). Use encryption keys and data encryption
for data security. Select 64-bit or 128-bit encryption. See “Configuring WEP
Wireless Security.
• WPA-PSK (WiFi Protected Access Pre-Shared Key). Allow only computers
configured with WPA to connect to the modem router.
• WPA2-PSK Wi-Fi Protected Access with 2 Pre-Shared Keys). Allow only
computers configured with WPA2 to connect to the modem router.
• Mixed WPA-PSK + WPA2-PSK. Allow computers configured with either WPAPSK or WPA2-PSK security to connect to the modem router.
• WPA-802.1x.
• For WPA or WPA2 configuration, see “Configuring WPA, WPA2, or Mixed
WPA2 + WPA Wireless Security” on page 2-10.
WPA2-PSK Security
Encryption
Network Key (8-63 characters).
Configuring WEP Wireless Security
Note: If you use a wireless computer to configure wireless security settings, you will be
disconnected when you click Apply. Reconfigure your wireless computer to match
the new settings, or access the modem router from a wired computer to make
further changes.
To configure WEP data encryption:
1. Log in to the modem router at its default LAN address of http://192.168.0.1 with its default
user name of admin, and default password of password, or using whatever user name,
password, and LAN address you have chosen for the modem router.
2. From the main menu, select Wireless Settings to display the Wireless Settings screen.
2-7 Safeguarding Your Network
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
3. In the Security Options section, select the WEP radio button:
Figure 2-3
4. Select the Authentication Type: Automatic, Open System, or Shared Key. The default is
Open System.
Note: The authentication scheme is separate from the data encryption. You can select
an authentication scheme that requires a shared key but still leaves the data
transmissions unencrypted. If you require strong security, use both the Shared
Key and WEP encryption settings.
5. Select the Encryption Strength setting:
• WEP 64-bit encryption. Enter 10 hexadecimal digits (any combination of 0–9, a–f, or
A–F).
• WEP 128-bit encryption. Enter 26 hexadecimal digits (any combination of 0–9, a–f, or
A–F).
6. Enter the encryption keys. You can manually or automatically program the four data
encryption keys. These values must be identical on all computers and access points in your
network:
Safeguarding Your Network 2-8
v1.0, January 2010
RangeMax Dual Band Wireless-N Modem Router DGND3300 User Manual
• Passphrase. To use a passphrase to generate the keys, enter a passphrase, and click
Generate. This automatically creates the keys. Wireless stations must use the passphrase
or keys to access the modem router.
Note: Not all wireless adapters support passphrase key generation.
• Key 1-Key4. These values are not case-sensitive. You can manually enter the four data
encryption keys. These values must be identical on all computers and access points in your
network. Enter 10 hexadecimal digits (any combination of 0
–9, a–f, or A–F).
7. Select which of the four keys will be the default.
Data transmissions are always encrypted using the default key. The other keys can be used
only to decrypt received data. The four entries are disabled if WPA-PSK or WPA
authentication is selected.
8. Click Apply to save your settings.
2-9 Safeguarding Your Network
