Netgear DC112A User Guide

Download

AirCard® Smart Cradle

Model DC112A User Manual

January 2015

202-11417-01

350 East Plumeria Drive

San Jose, CA 95134

USA

AirCard Smart Cradle

Support

Contact NETGEAR at 1 800 17 22 44 for technical support.

Compliance

For regulatory compliance information, visit http://www.netgear.com/about/regulatory.

See the regulatory compliance document before connecting the power supply.

Trademarks

Chapter 1 Hardware Setup

Chapter 2 Connect to the AirCard Smart Cradle

Unpack Your AirCard Smart Cradle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Attach the External WiFi Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Dock the Mobile Hotspot in the Smart Cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Undock the Mobile Hotspot from the Smart Cradle . . . . . . . . . . . . . . . . . . . . . . 13

Position the Smart Cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Install Your Smart Cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Connect to the AirCard Smart Cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Wired Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

WiFi Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Types of Logins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Change the Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Access the AirCard Smart Cradle with NETGEAR genie Apps. . . . . . . . . . . . . . . 19

Chapter 3 Internet Setup

Manage a Mobile Hotspot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Use a WAN Internet Connection with Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Specify the Broadband Failover Detection Method. . . . . . . . . . . . . . . . . . . . . . . 23

Manually Set Up the Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Specify an Internet Connection Without a Login. . . . . . . . . . . . . . . . . . . . . . . 24

Specify an Internet Connection That Uses a Login . . . . . . . . . . . . . . . . . . . . . 25

Specify WAN Ethernet IPv6 Internet Connections. . . . . . . . . . . . . . . . . . . . . . . . 27

Requirements for Entering IPv6 Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Use Auto Detect for an IPv6 Internet Connection. . . . . . . . . . . . . . . . . . . . . . 29

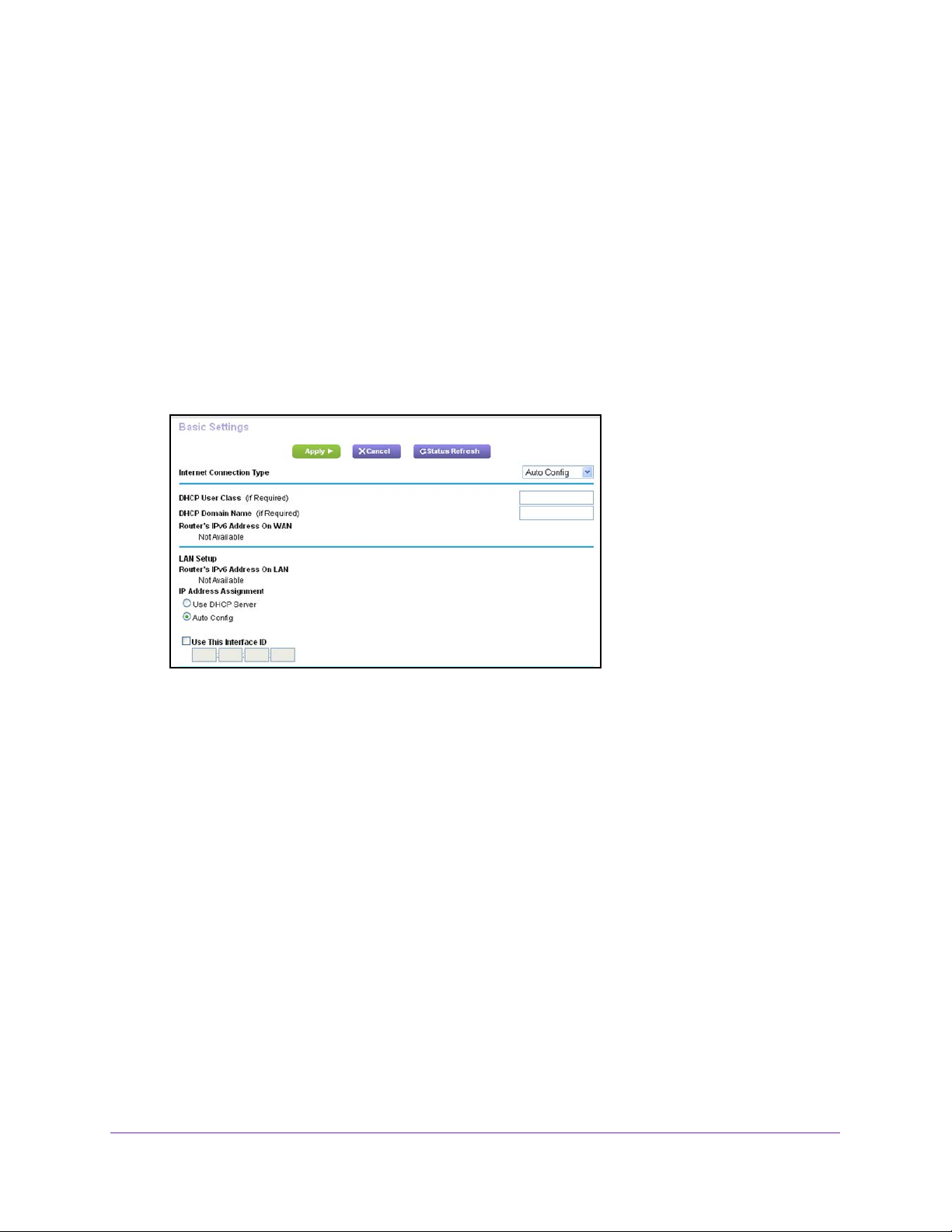

Use Auto Config for an IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . 30

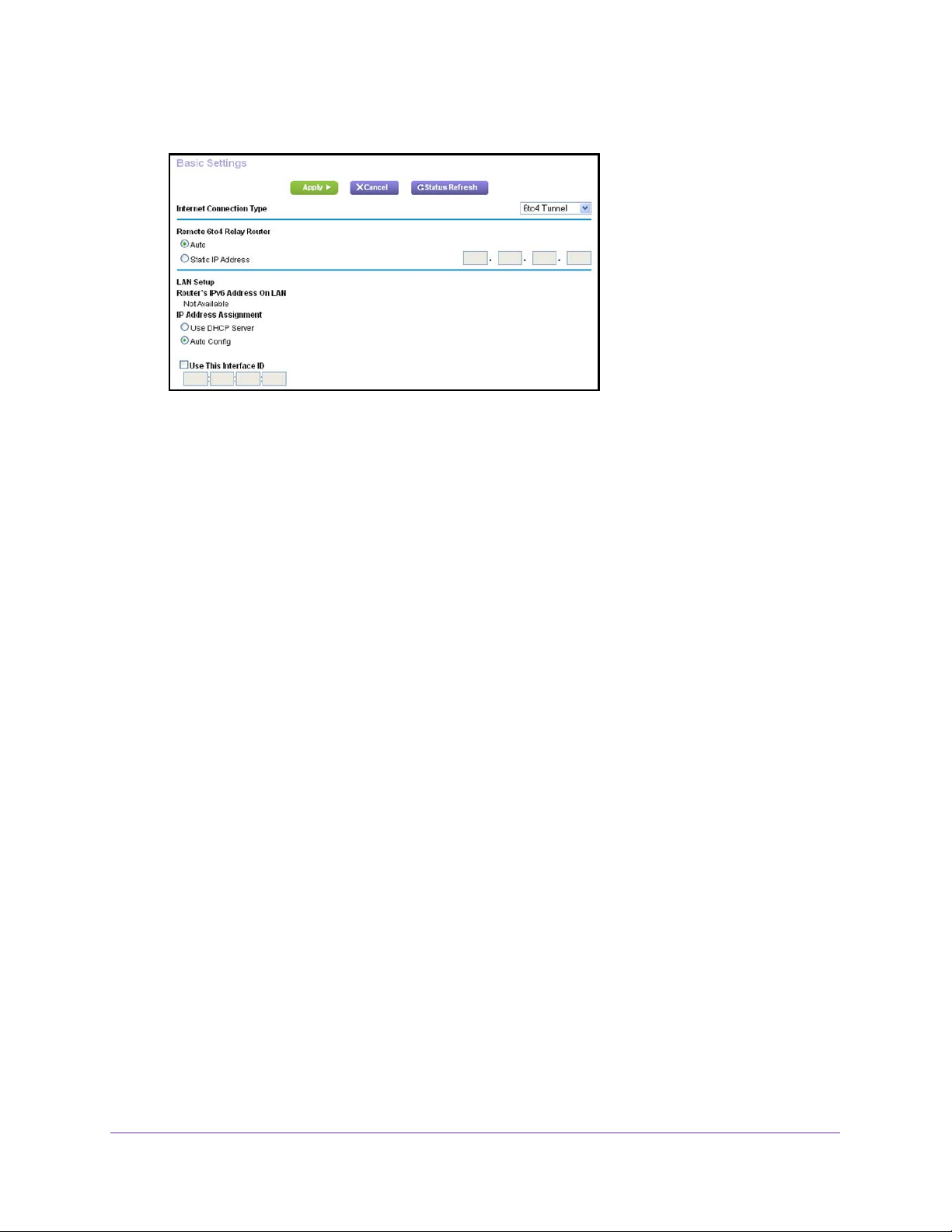

Set Up an IPv6 6to4 Tunnel Internet Connection . . . . . . . . . . . . . . . . . . . . . . 32

Set Up an IPv6 Pass Through Internet Connection . . . . . . . . . . . . . . . . . . . . . 33

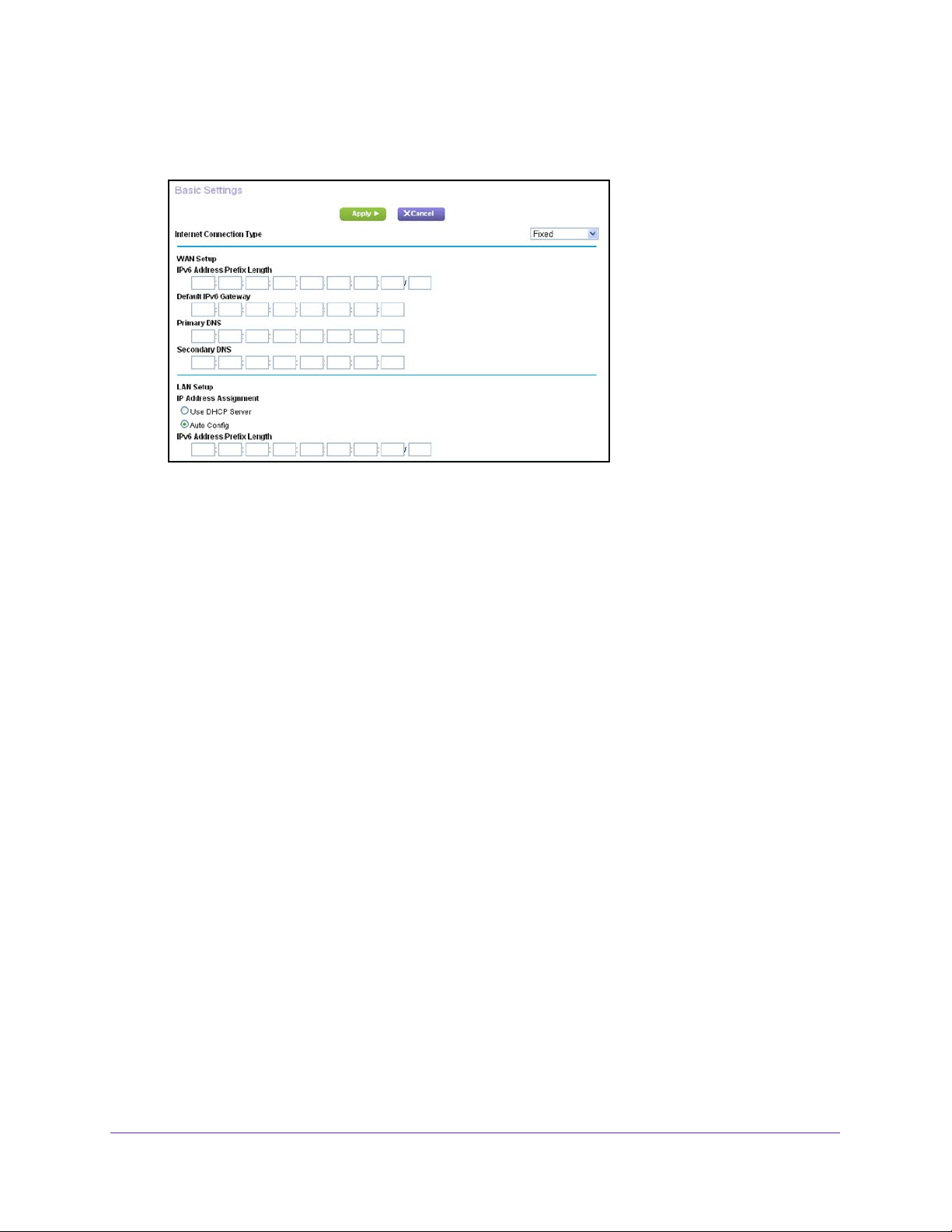

Set Up an IPv6 Fixed Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

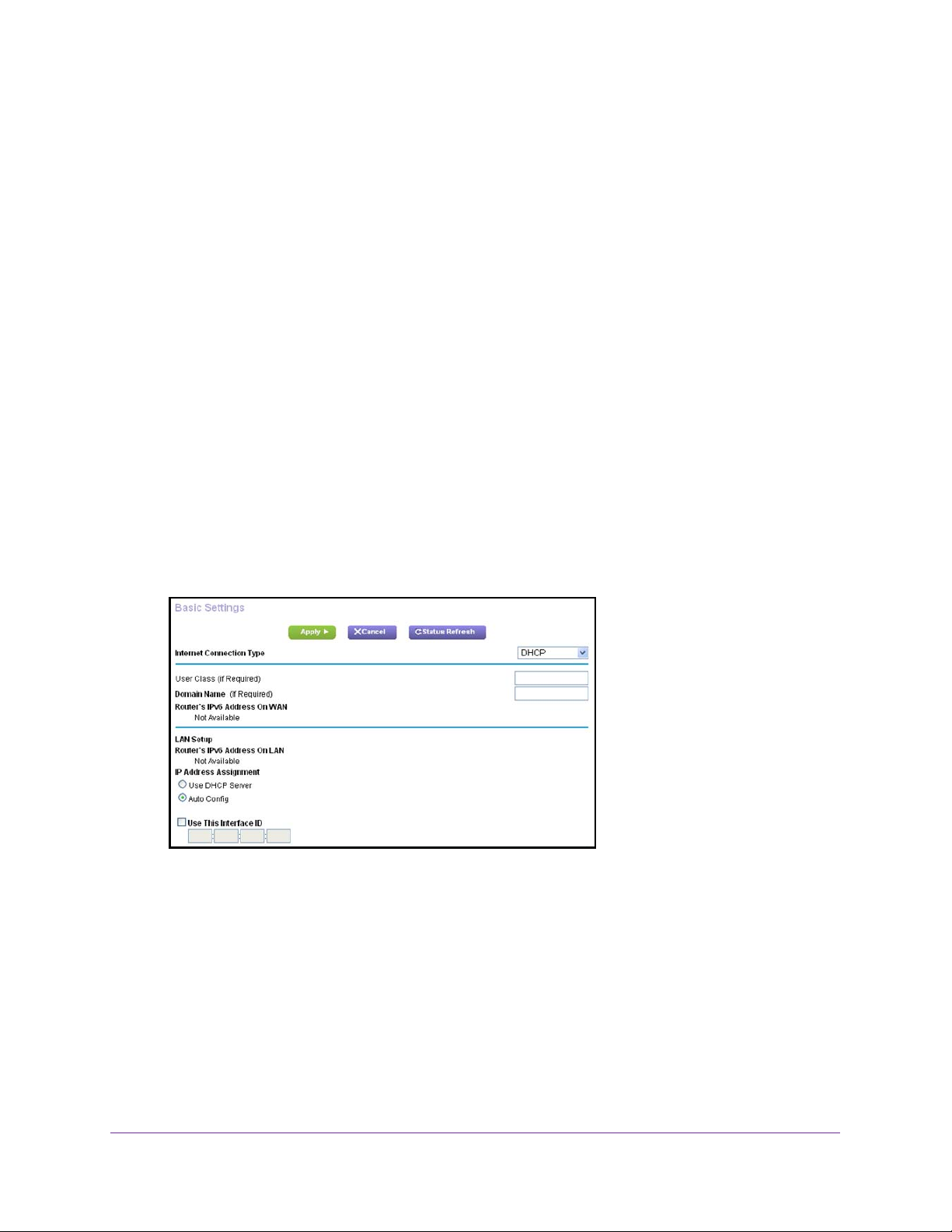

Set Up an IPv6 DHCP Internet Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

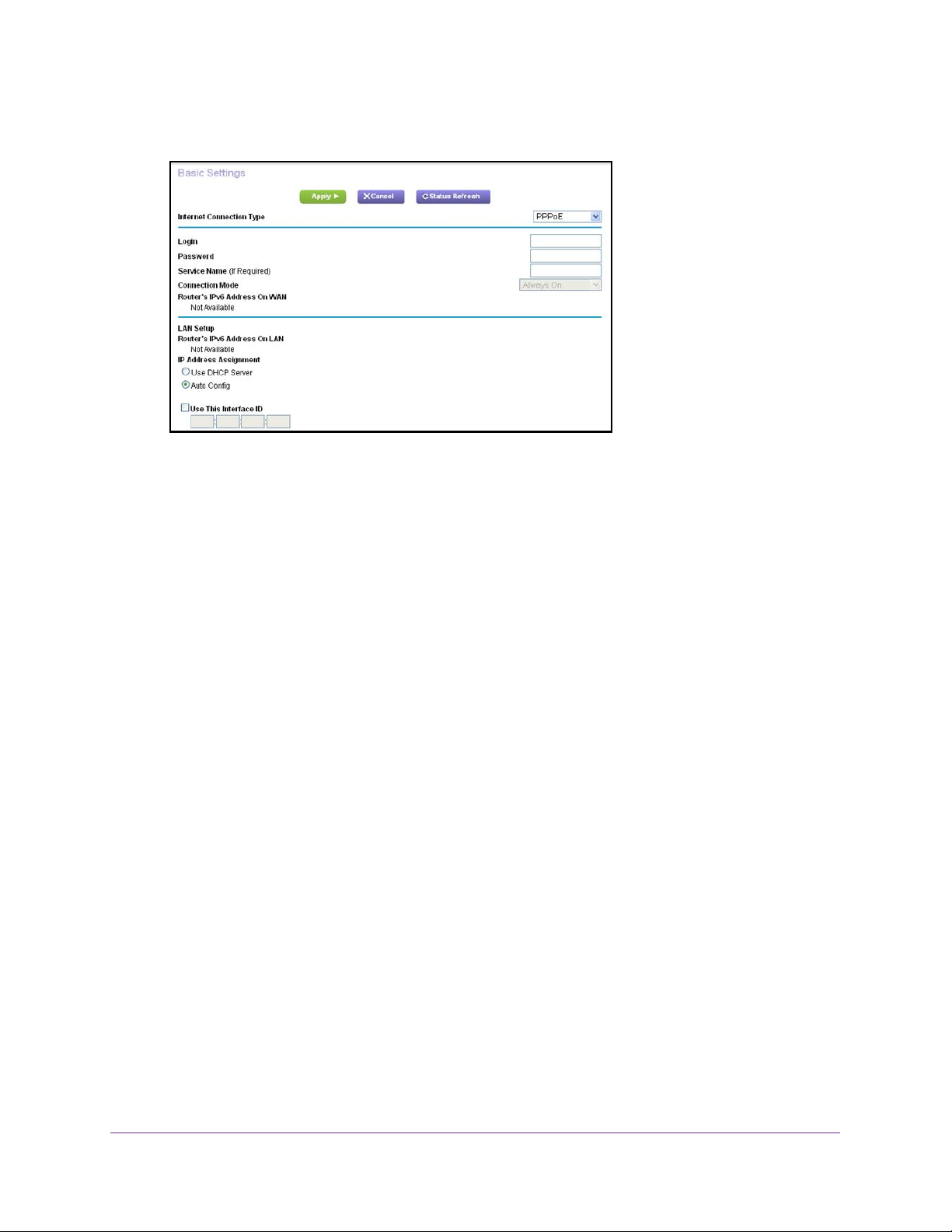

Set Up an IPv6 PPPoE Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Change the MTU Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

AirCard Smart Cradle

Chapter 4 Control Internet Access

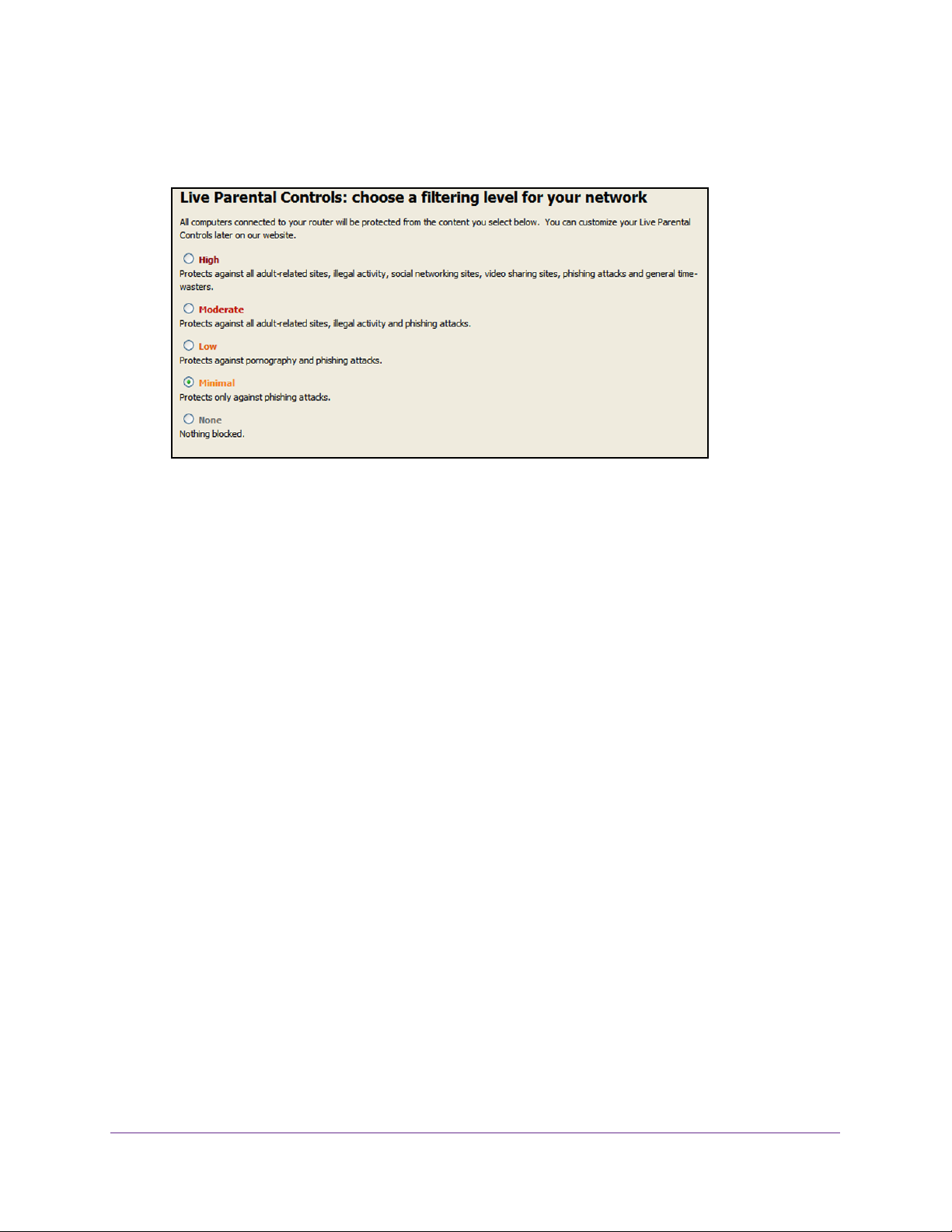

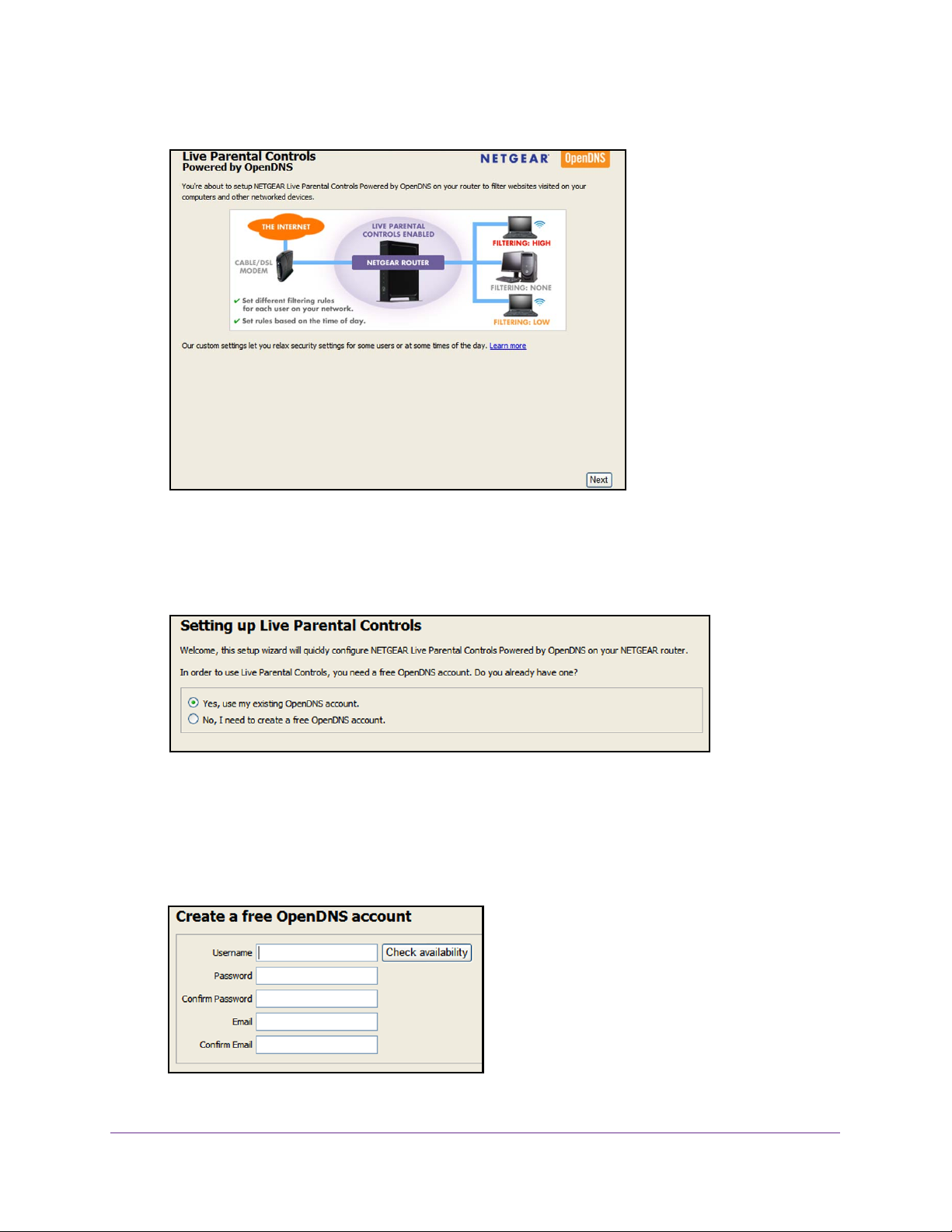

Set Up Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

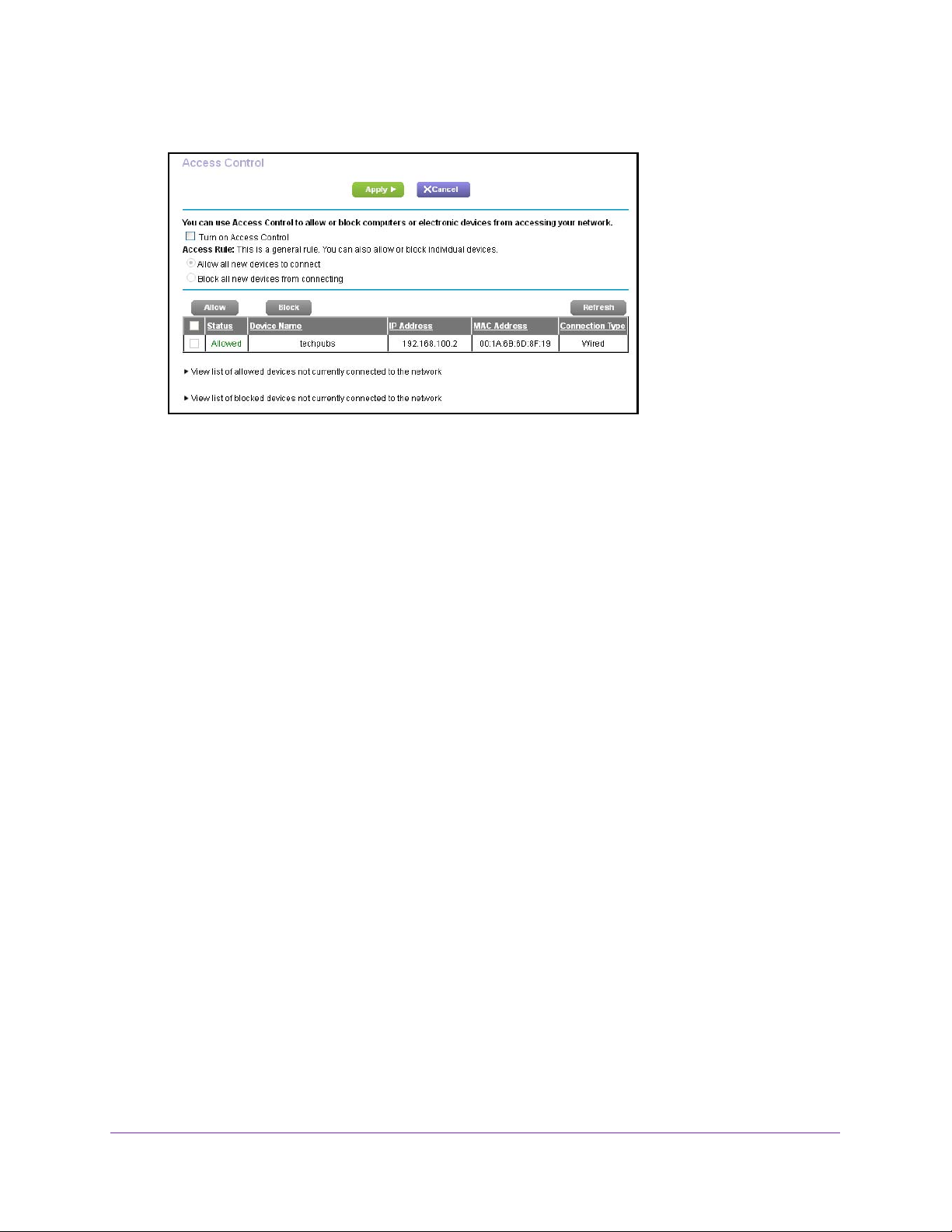

Allow or Block Access to Your Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Manage Network Access Control Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

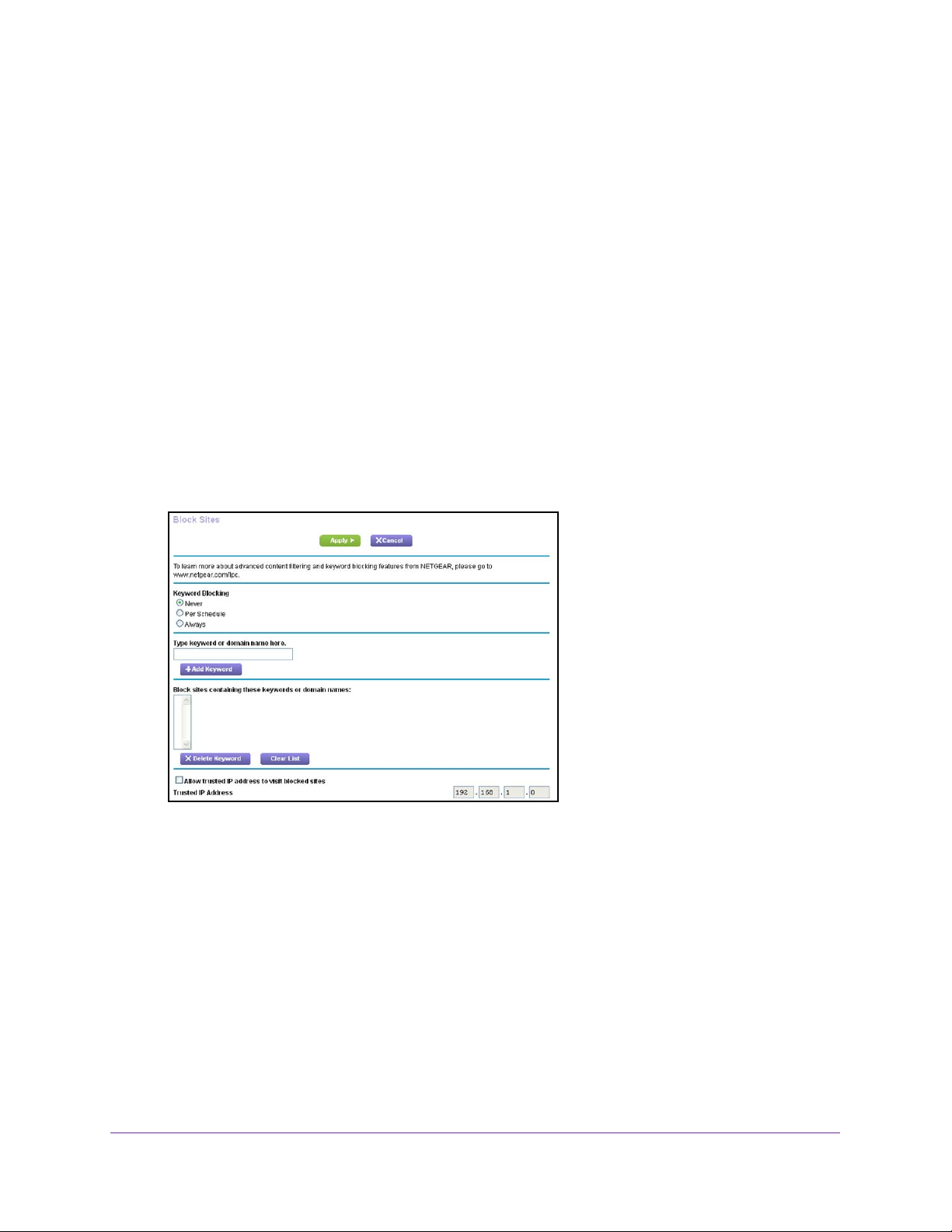

Use Keywords to Block Internet Sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Delete Keywords from the List to Be Blocked . . . . . . . . . . . . . . . . . . . . . . . . . 48

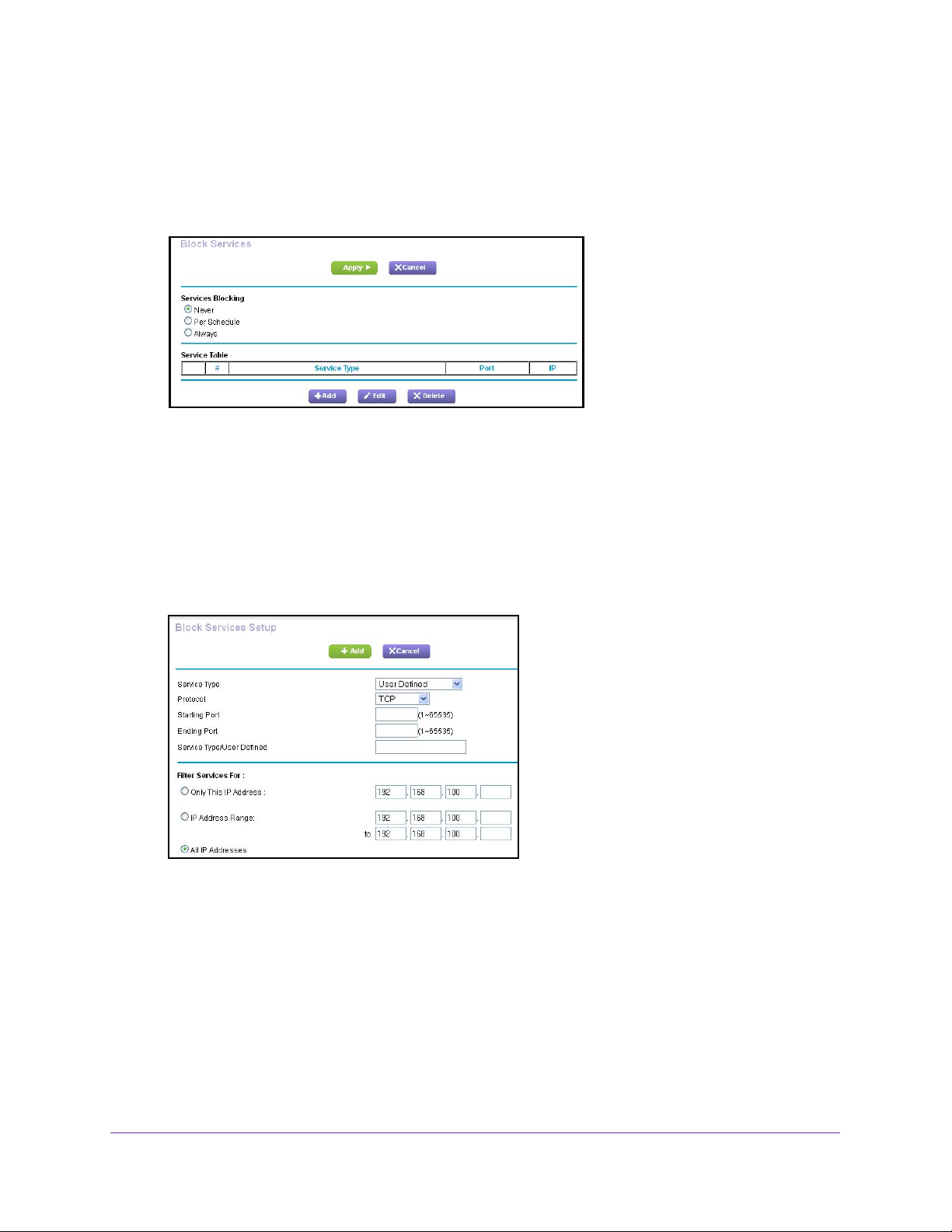

Block Services from the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

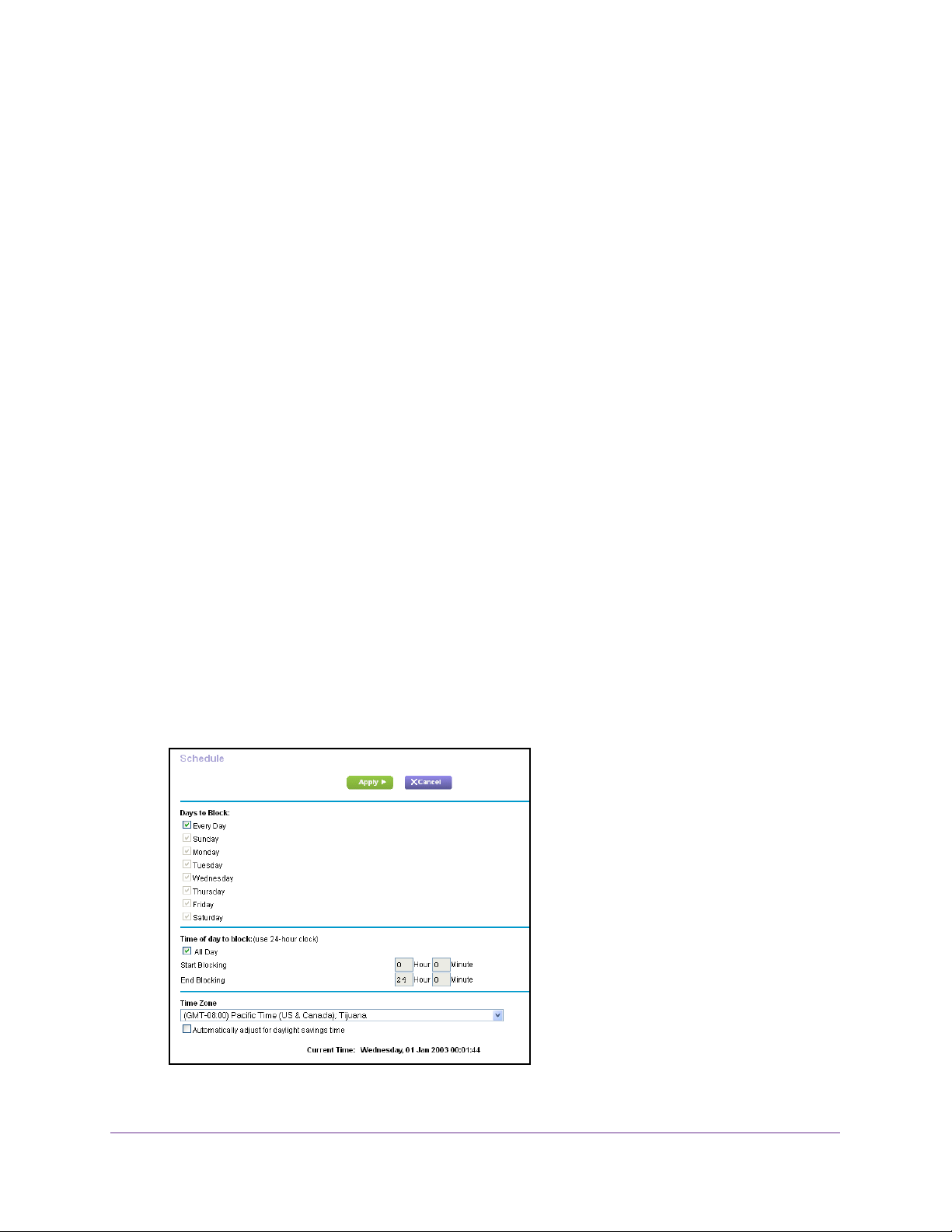

Schedule When to Block Internet Sites and Services. . . . . . . . . . . . . . . . . . . . . . 50

Avoid Blocking on a Trusted Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

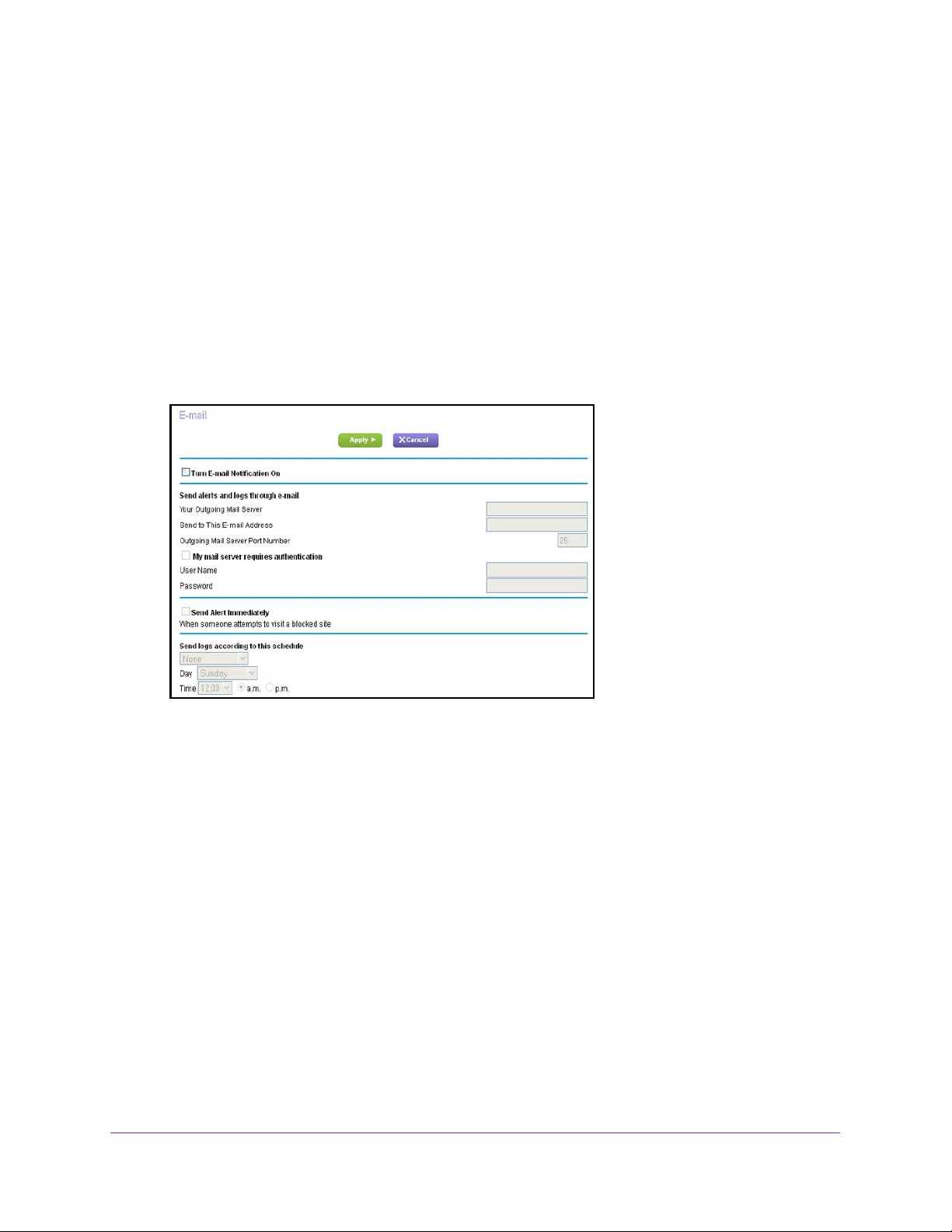

Set Up Security Event Email Notifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Set Up Port Forwarding to a Local Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Add a Custom Port Forwarding Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Edit a Port Forwarding Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Delete a Port Forwarding Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Application Example: Make a Local Web Server Public. . . . . . . . . . . . . . . . . . 56

How the Cradle Implements the Port Forwarding Rule. . . . . . . . . . . . . . . . . . 57

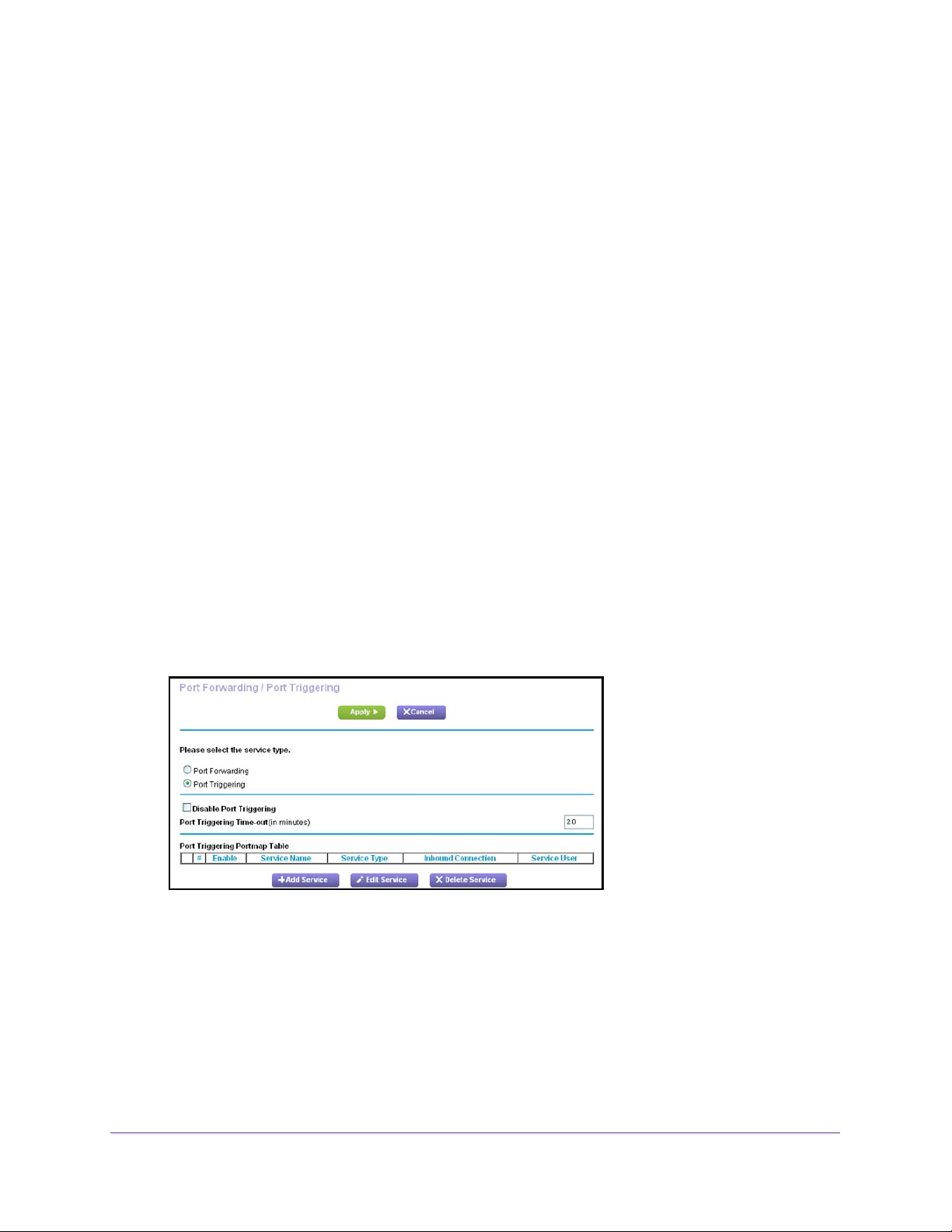

Set Up Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

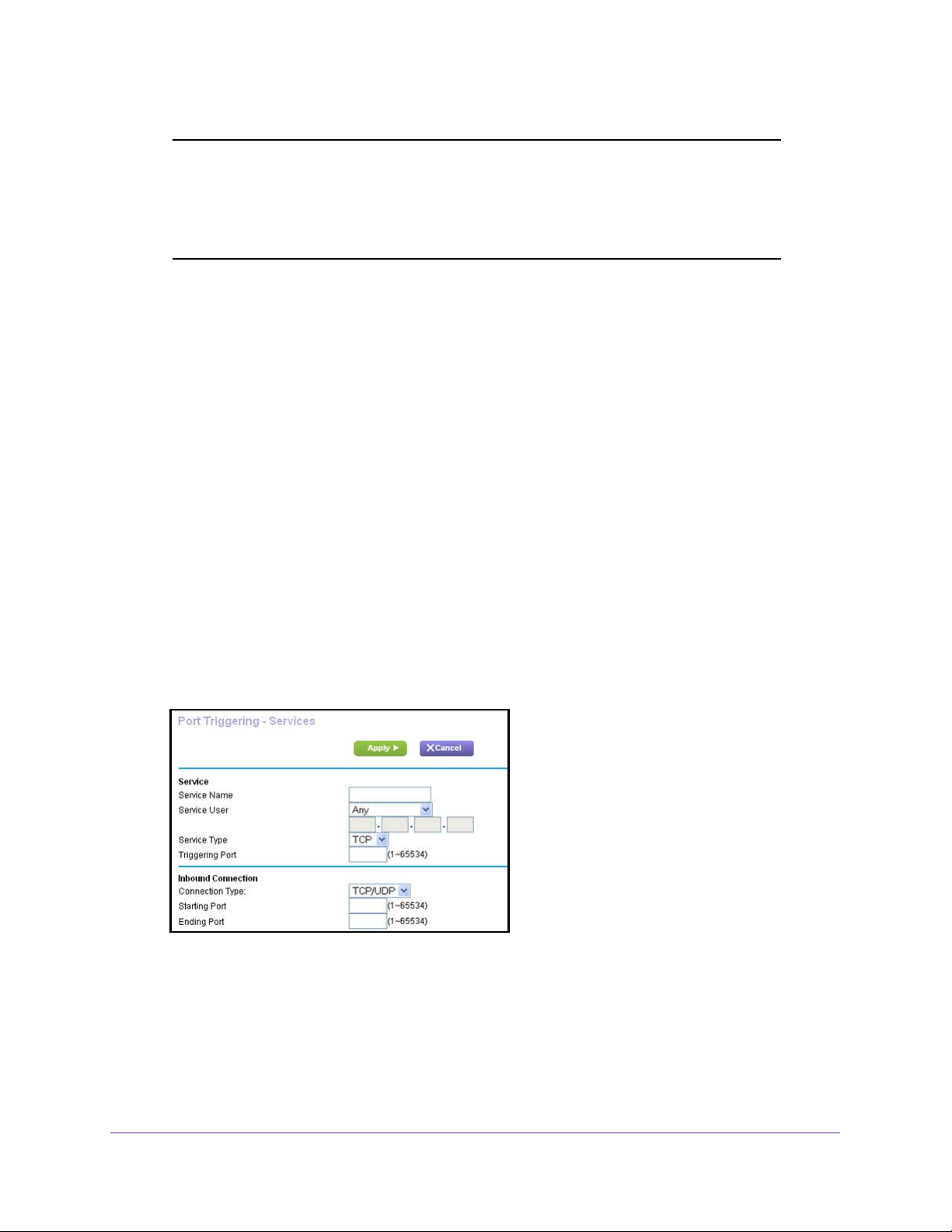

Add a Port Triggering Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Enable Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Application Example: Port Triggering for Internet Relay Chat . . . . . . . . . . . . 60

Chapter 5 Optimize Performance

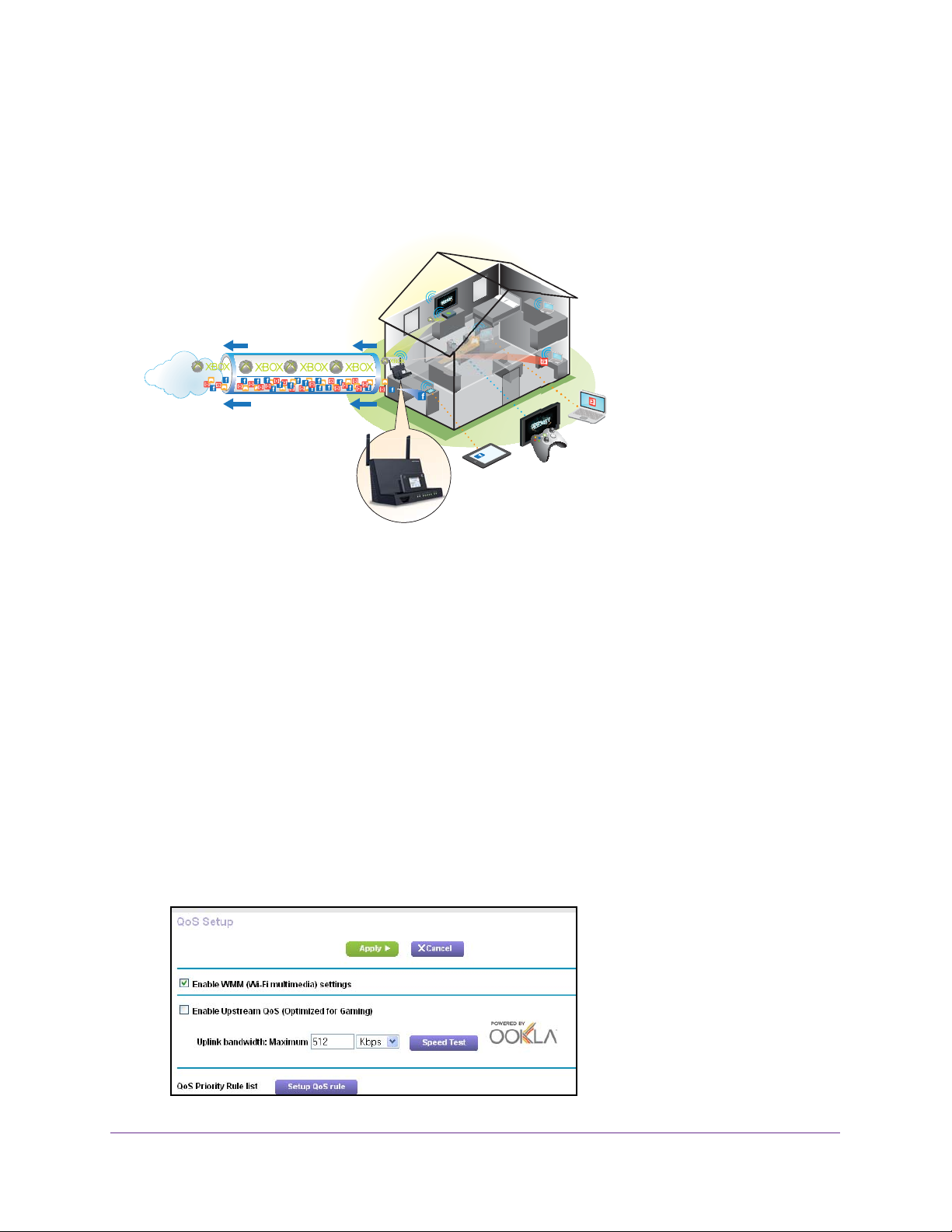

Optimize Internet Gaming with Upstream QoS . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Add QoS Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

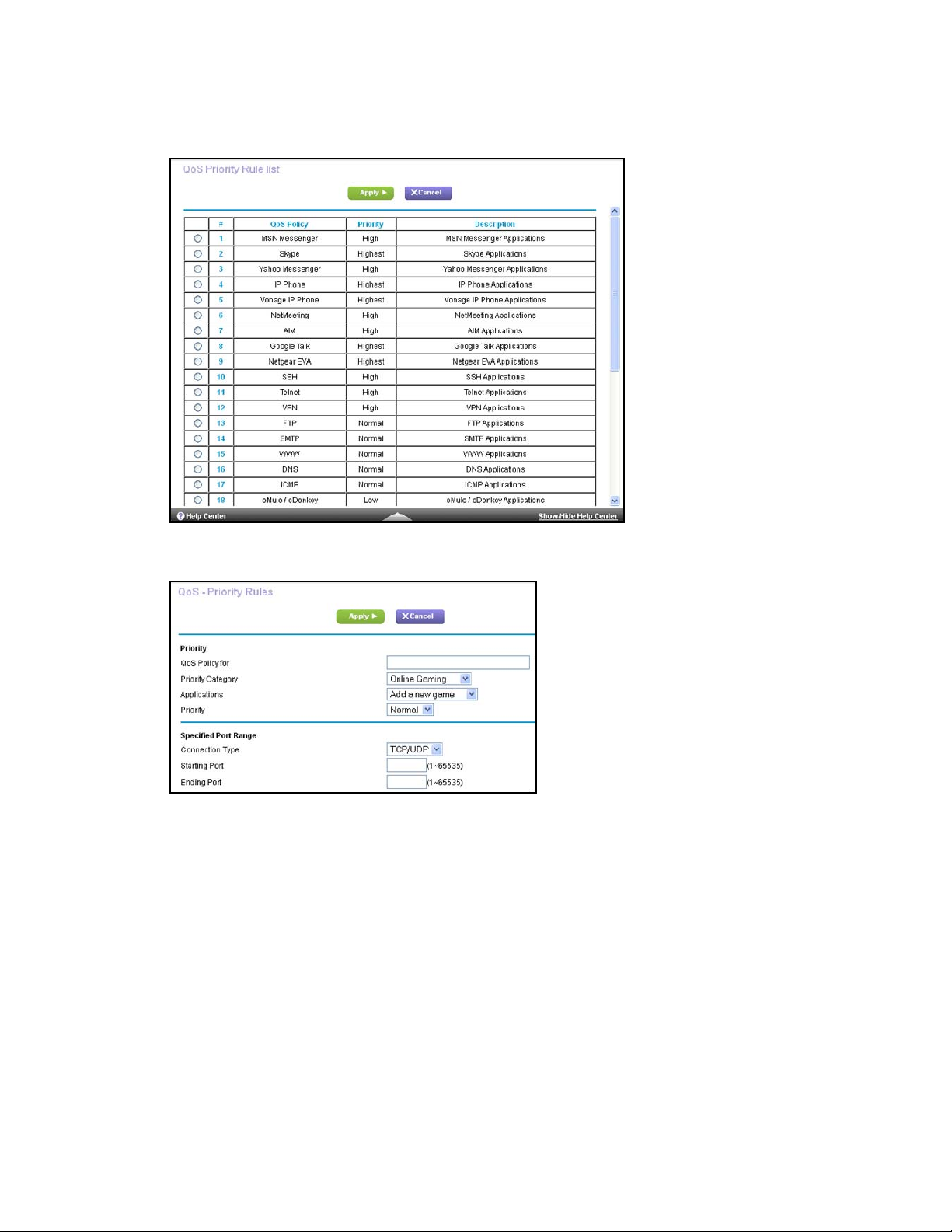

Set Up QoS for Applications and Online Gaming . . . . . . . . . . . . . . . . . . . . . . . 63

Set Up QoS for a LAN Port on the AirCard Smart Cradle . . . . . . . . . . . . . . . . 65

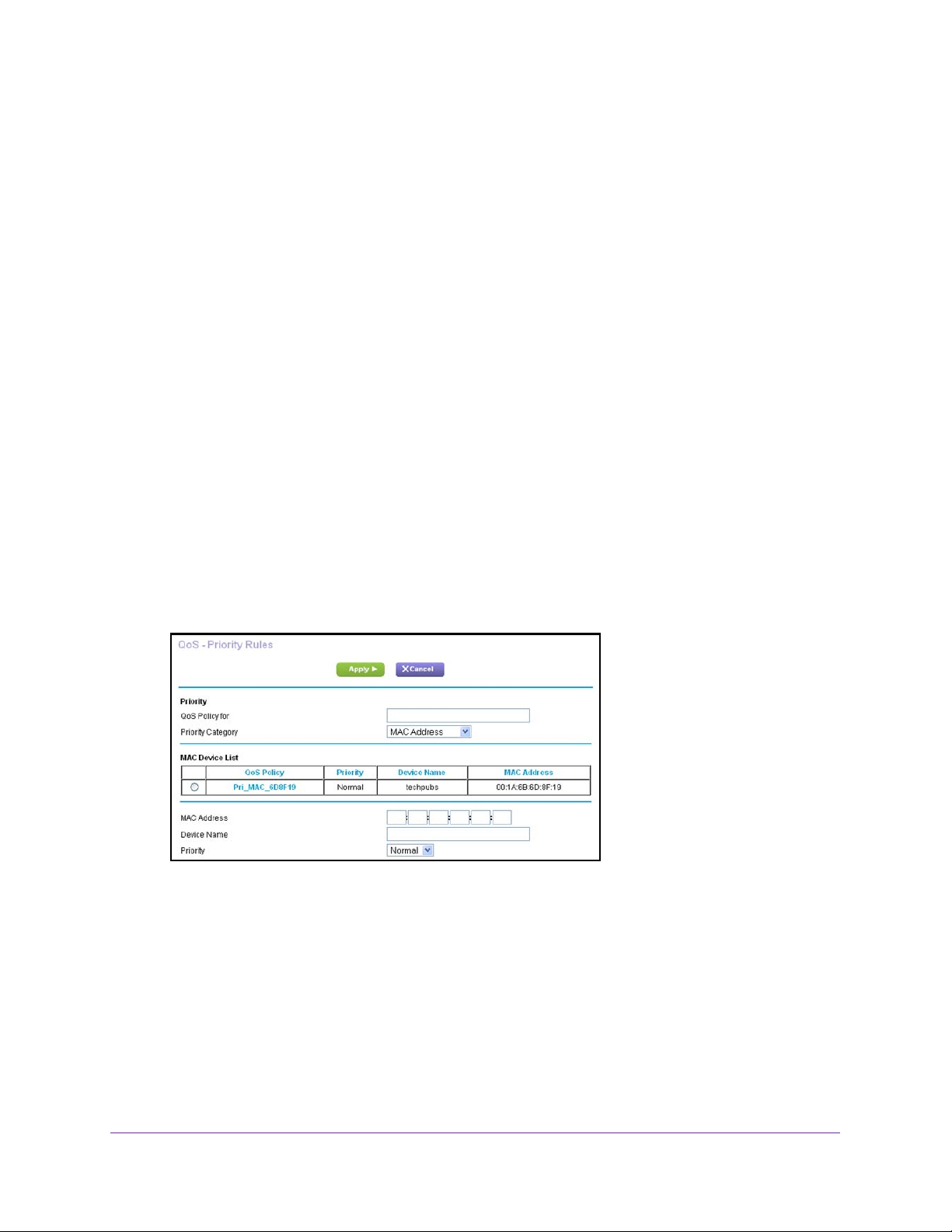

Set Up QoS for a MAC Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Edit an Upstream QoS Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Delete an Upstream QoS Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Improve Network Connections with Universal Plug and Play. . . . . . . . . . . . . . . 68

Wi-Fi Multimedia Quality of Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Chapter 6 Network Settings

View WAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Set Up the AirCard Smart Cradle as a Default DMZ Server . . . . . . . . . . . . . . . . 72

Configure DMZ on an AirCard Mobile Hotspot. . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Change the Cradle’s Device Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

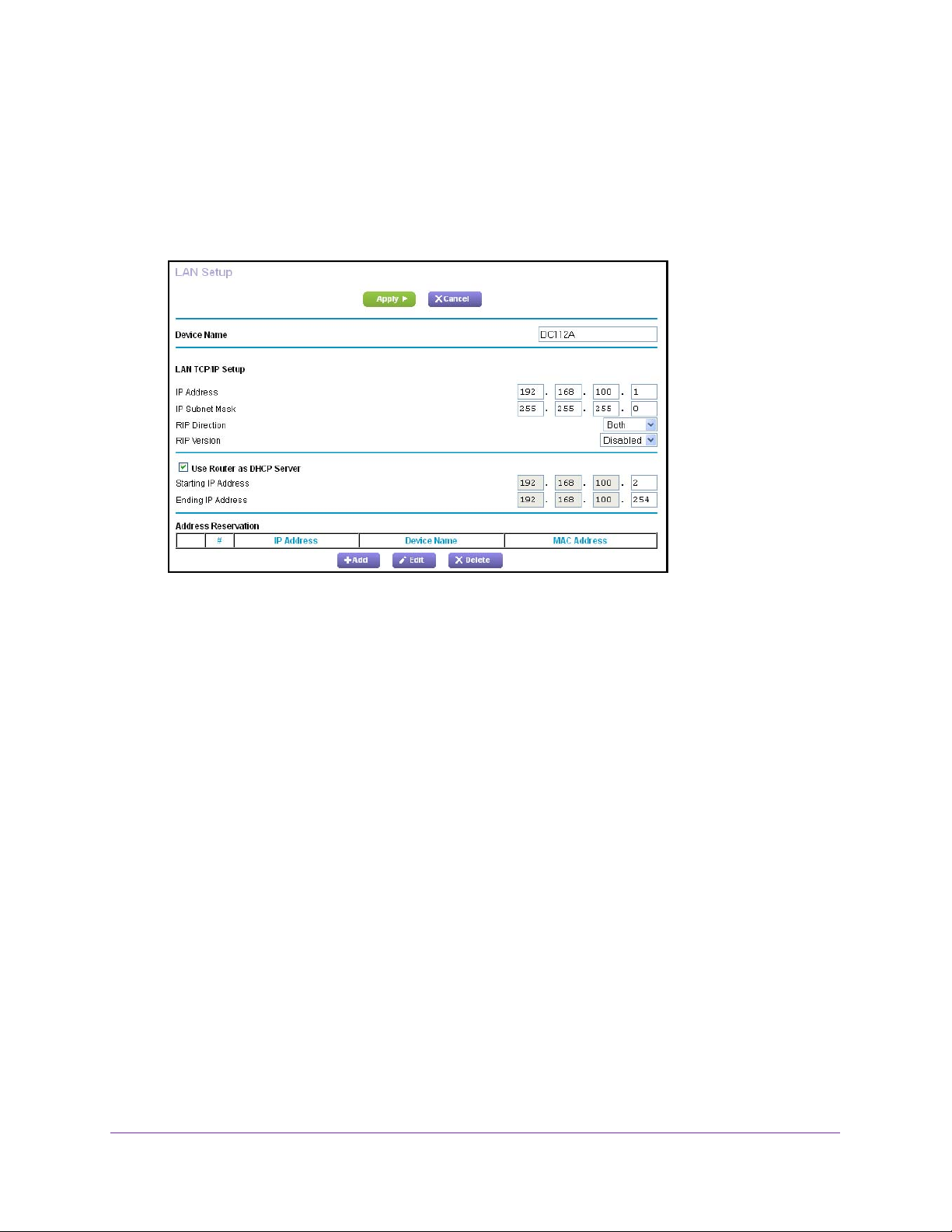

Change the LAN TCP/IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Specify the IP Addresses That the Cradle Assigns . . . . . . . . . . . . . . . . . . . . . . . . 76

Disable the DHCP Server Feature in the Cradle . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Reserve LAN IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Reserve an IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Edit a Reserved IP Address Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Delete a Reserved IP Address Entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Use the WPS Wizard for WiFi Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

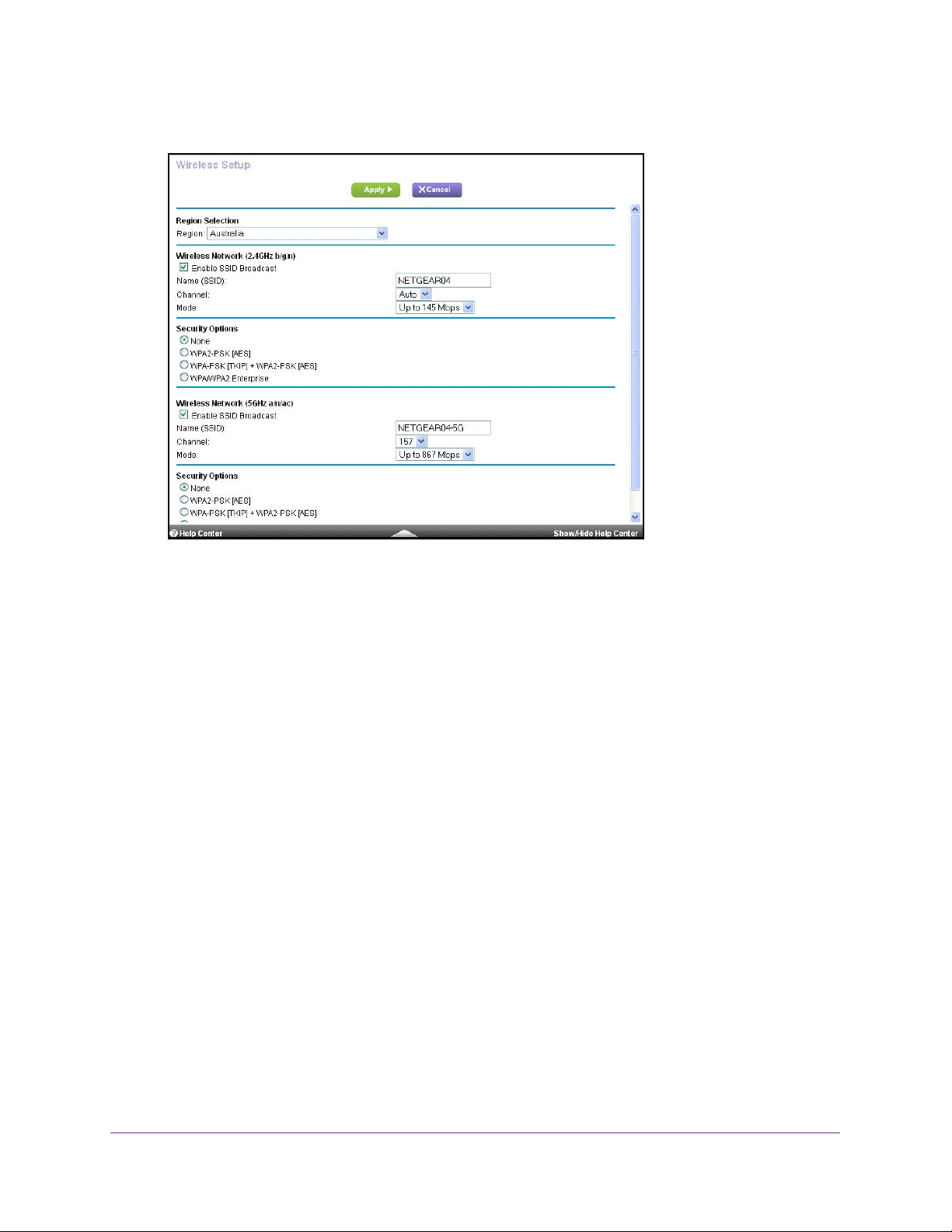

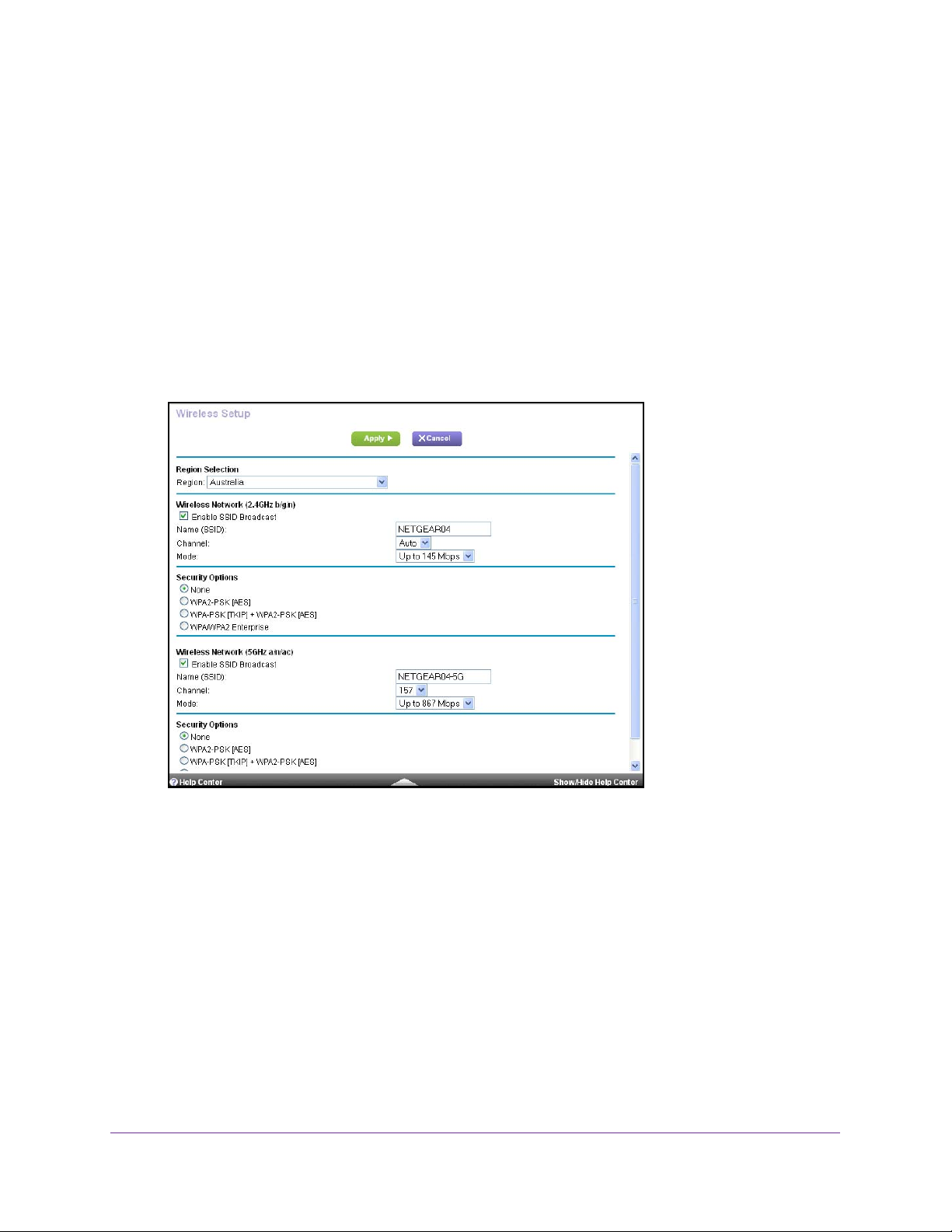

Specify Basic WiFi Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

AirCard Smart Cradle

Change the WiFi Data Speed Rate Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

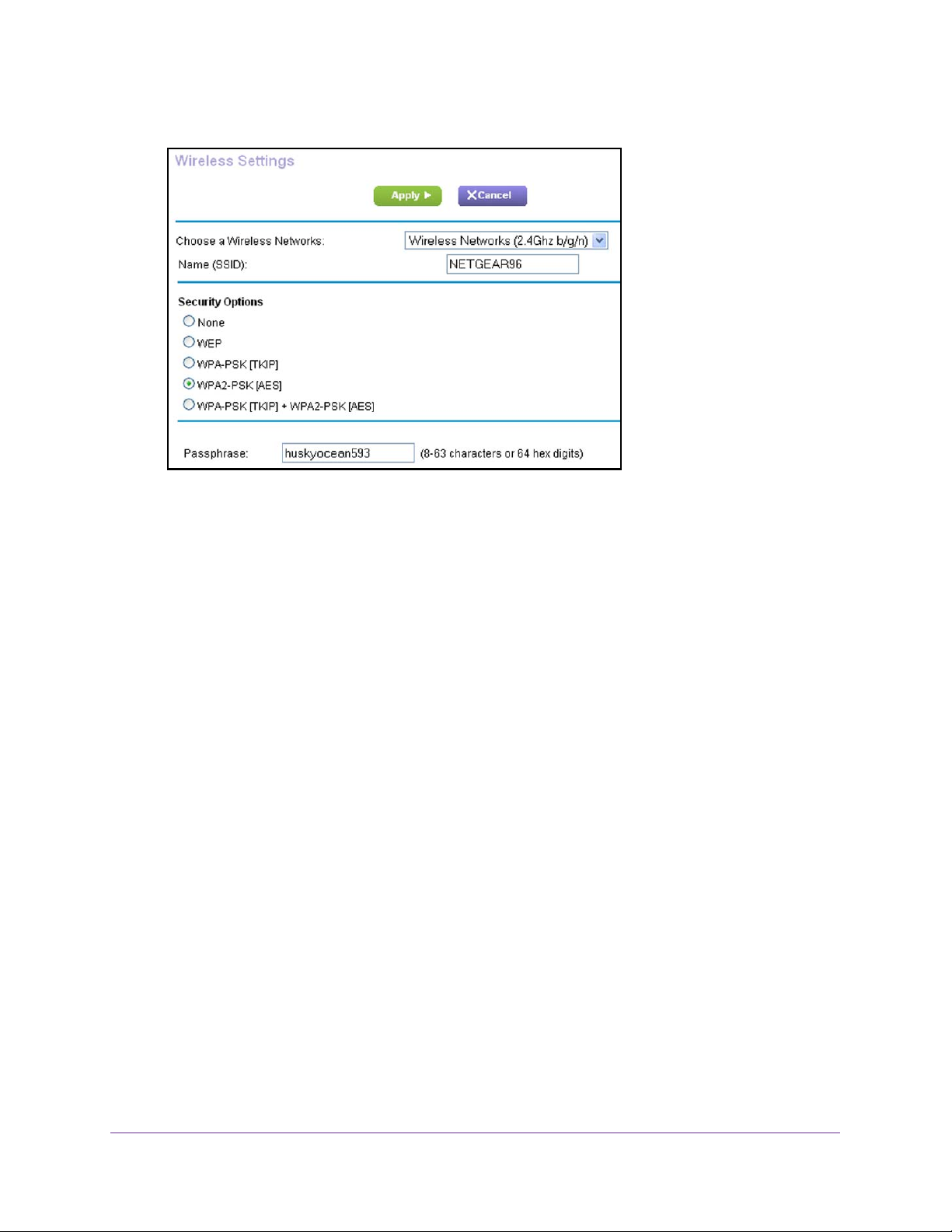

Change the WiFi Password or Security Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

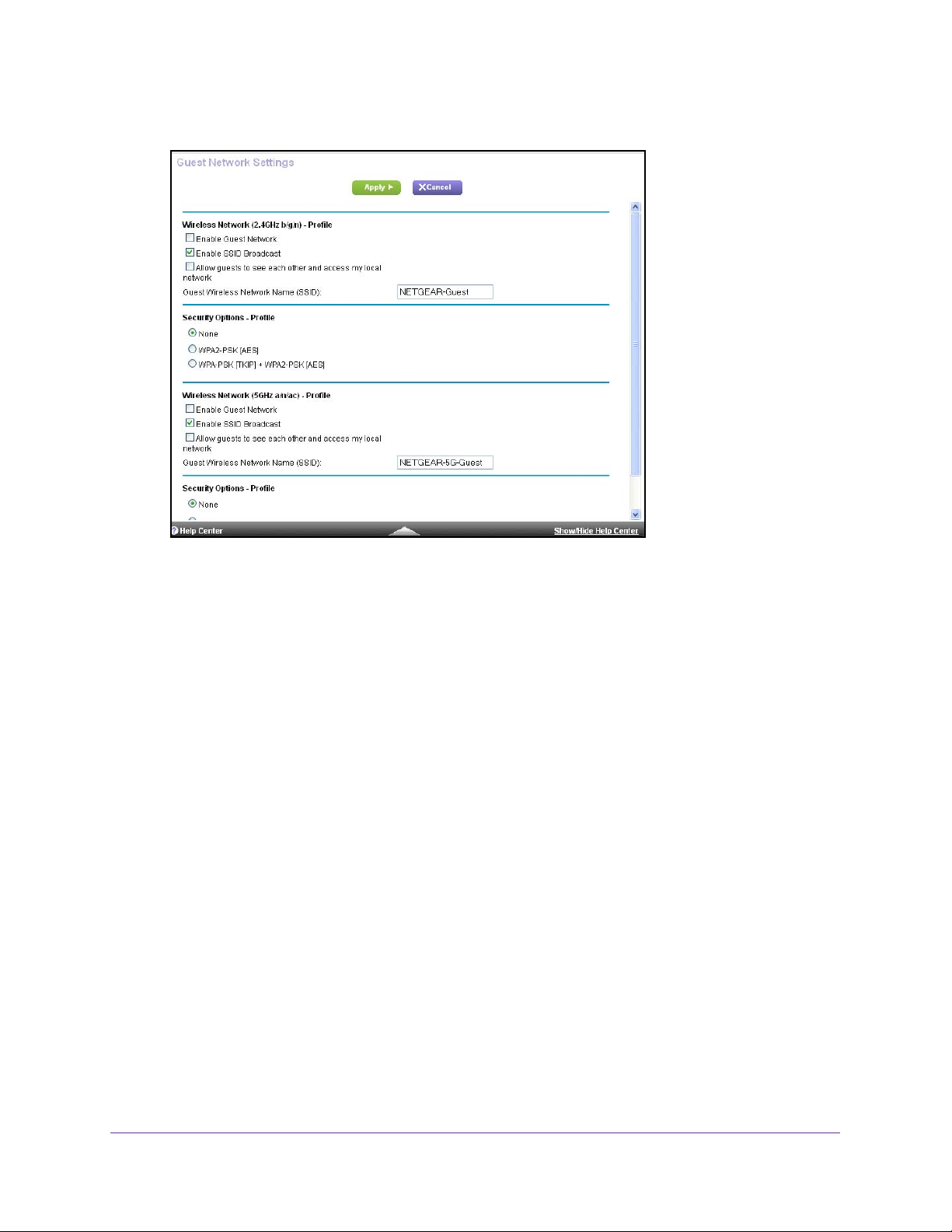

Set Up a Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

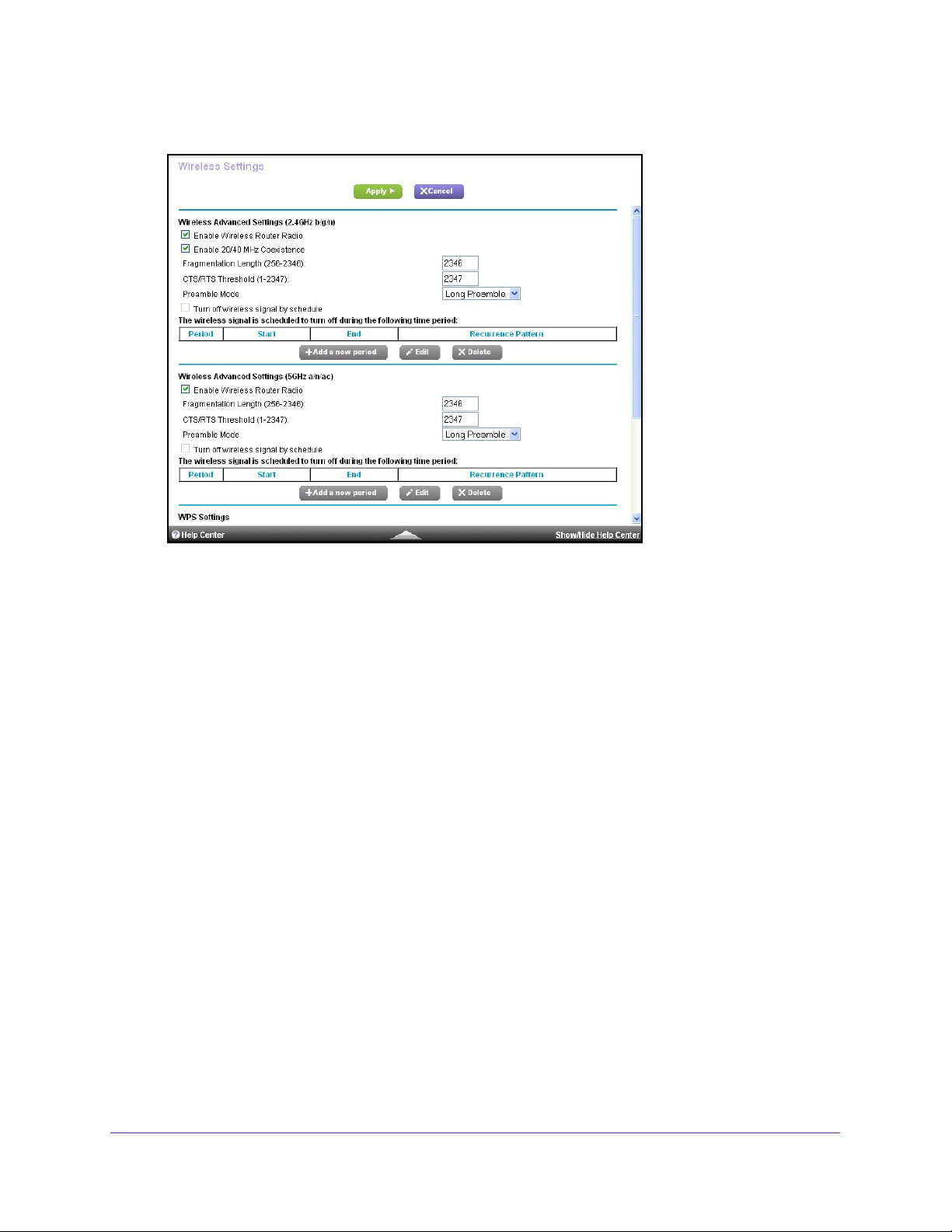

Control the Wireless Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

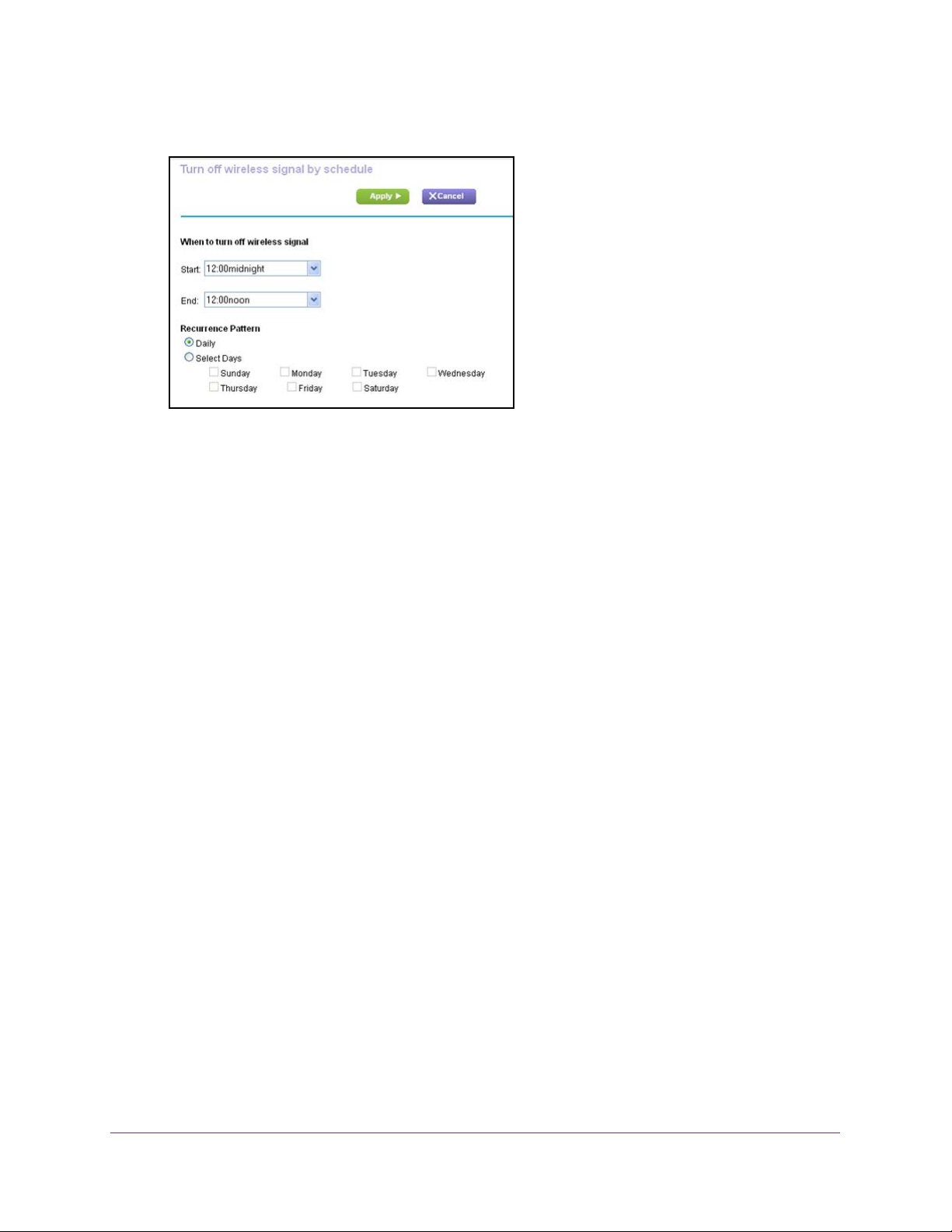

Set Up a Wireless Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Specify WPS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

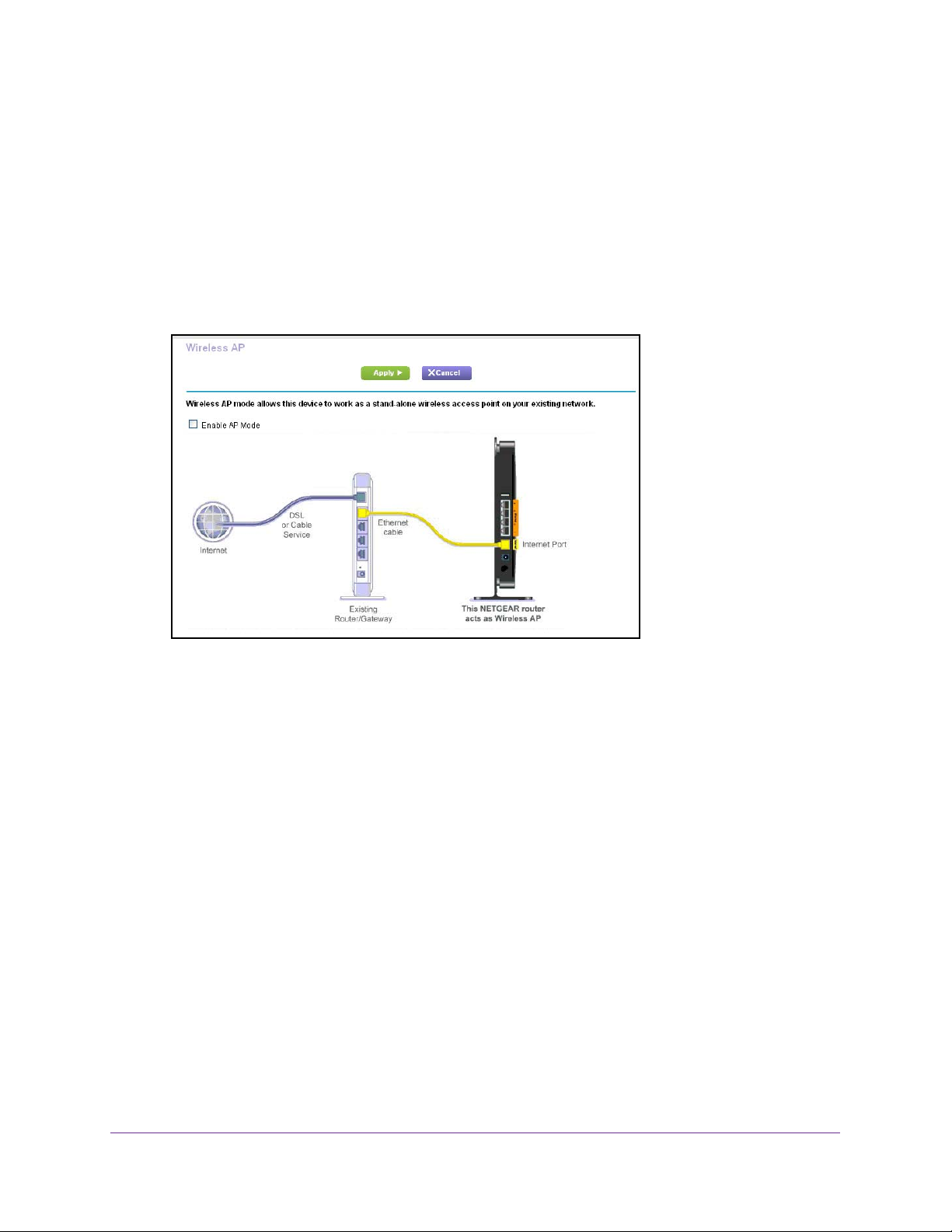

Use the Smart Cradle as a Wireless Access Point . . . . . . . . . . . . . . . . . . . . . . . . . 89

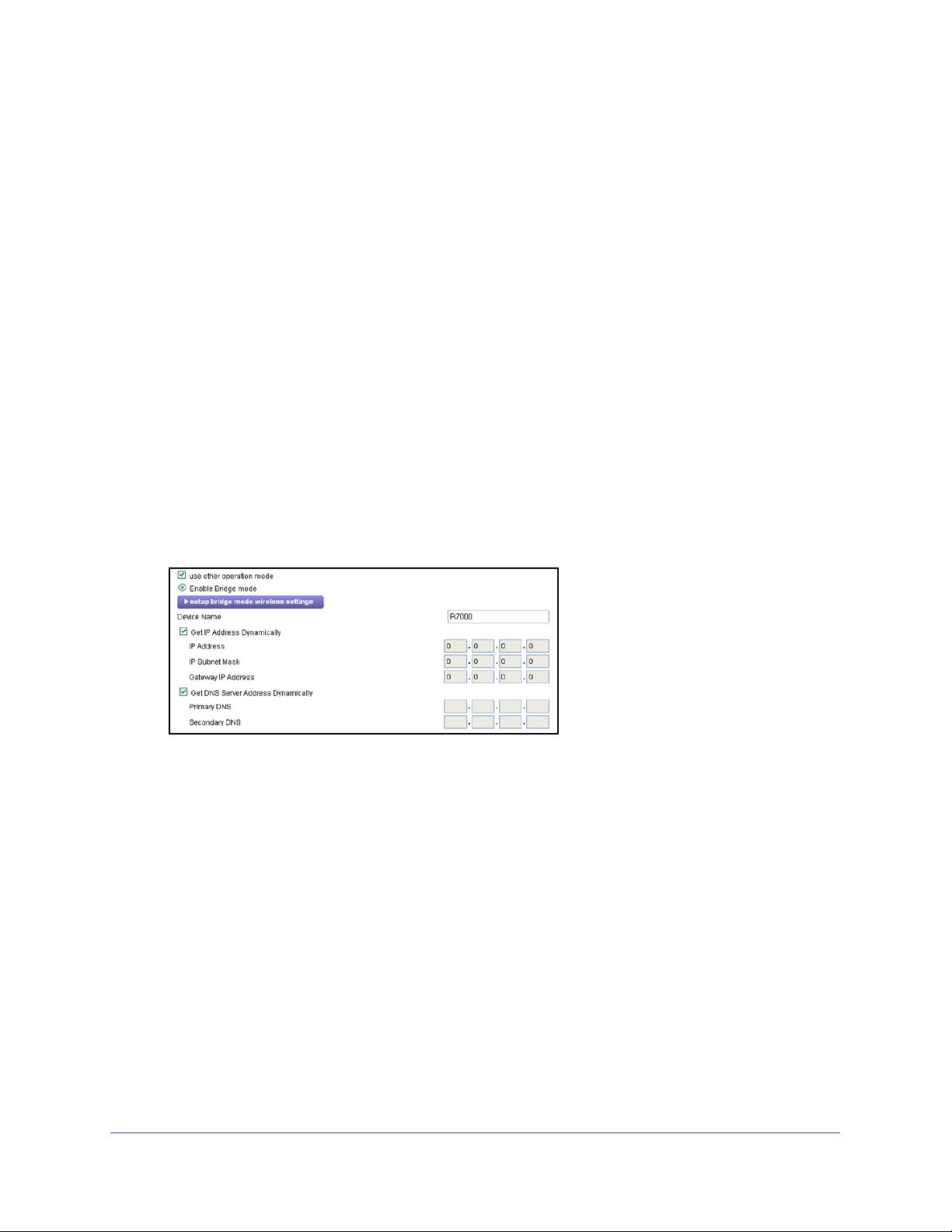

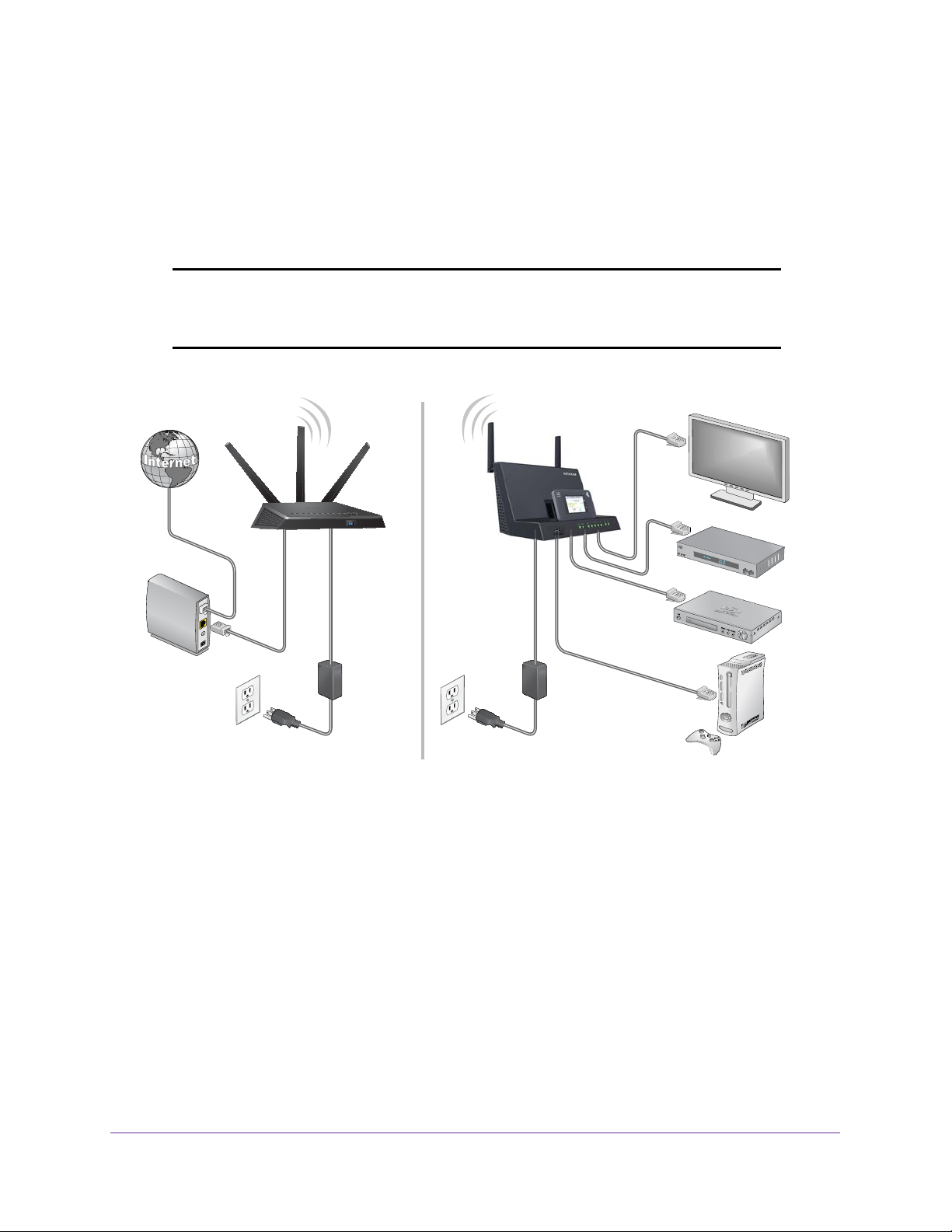

Set Up the AirCard Smart Cradle in Bridge Mode. . . . . . . . . . . . . . . . . . . . . . . . . 91

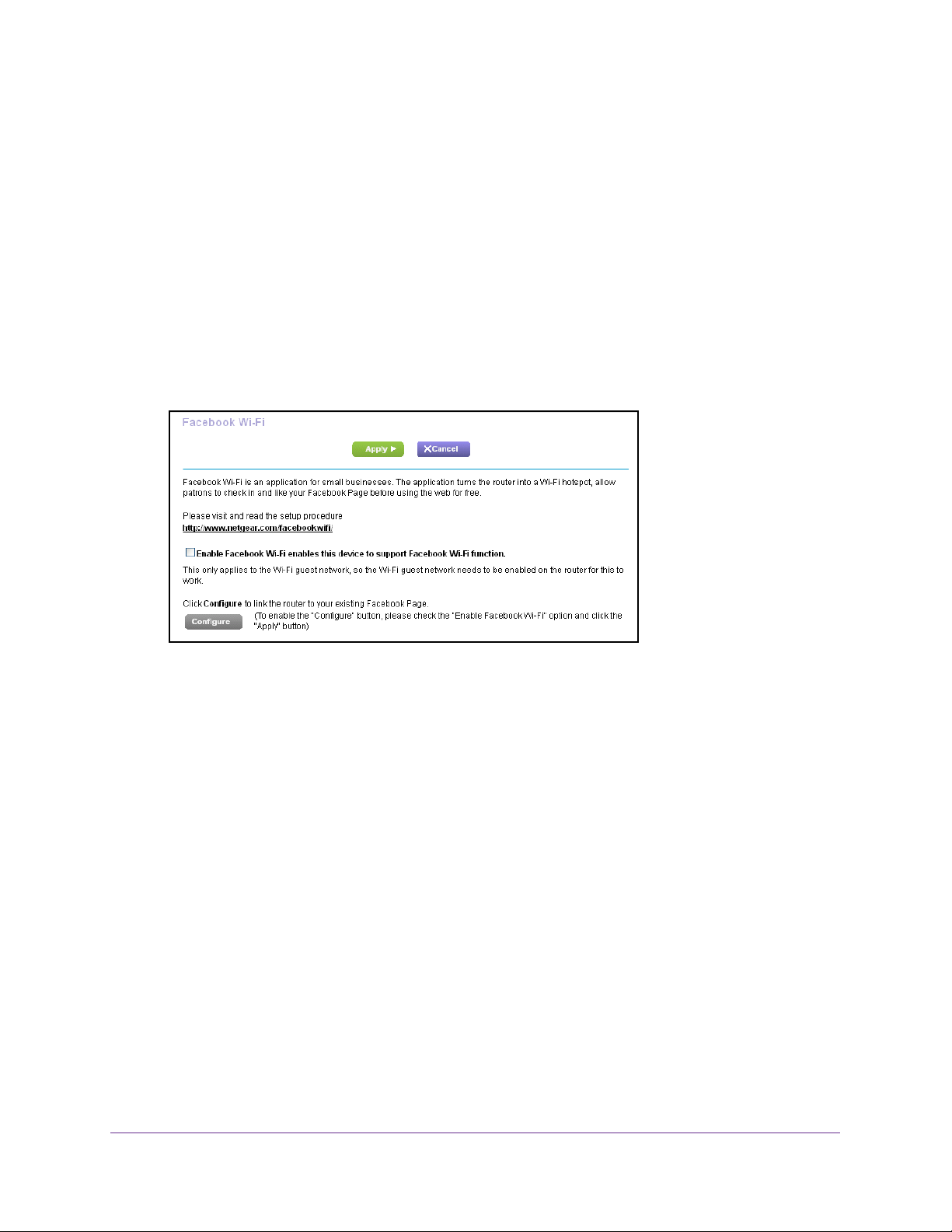

Set Up a Facebook WiFi Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Chapter 7 Manage the AirCard Smart Cradle

Update the AirCard Smart Cradle Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

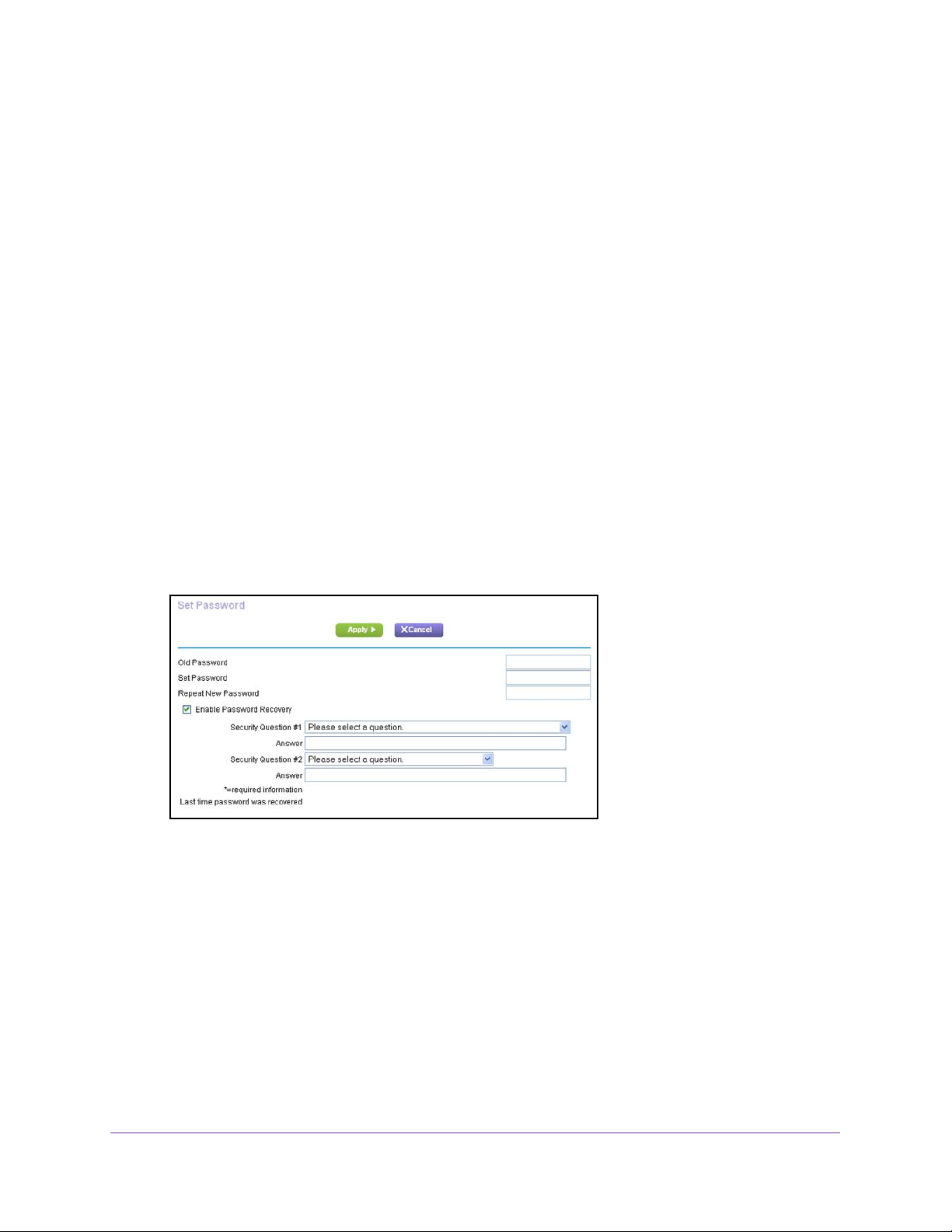

Change the admin Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Recover the admin Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

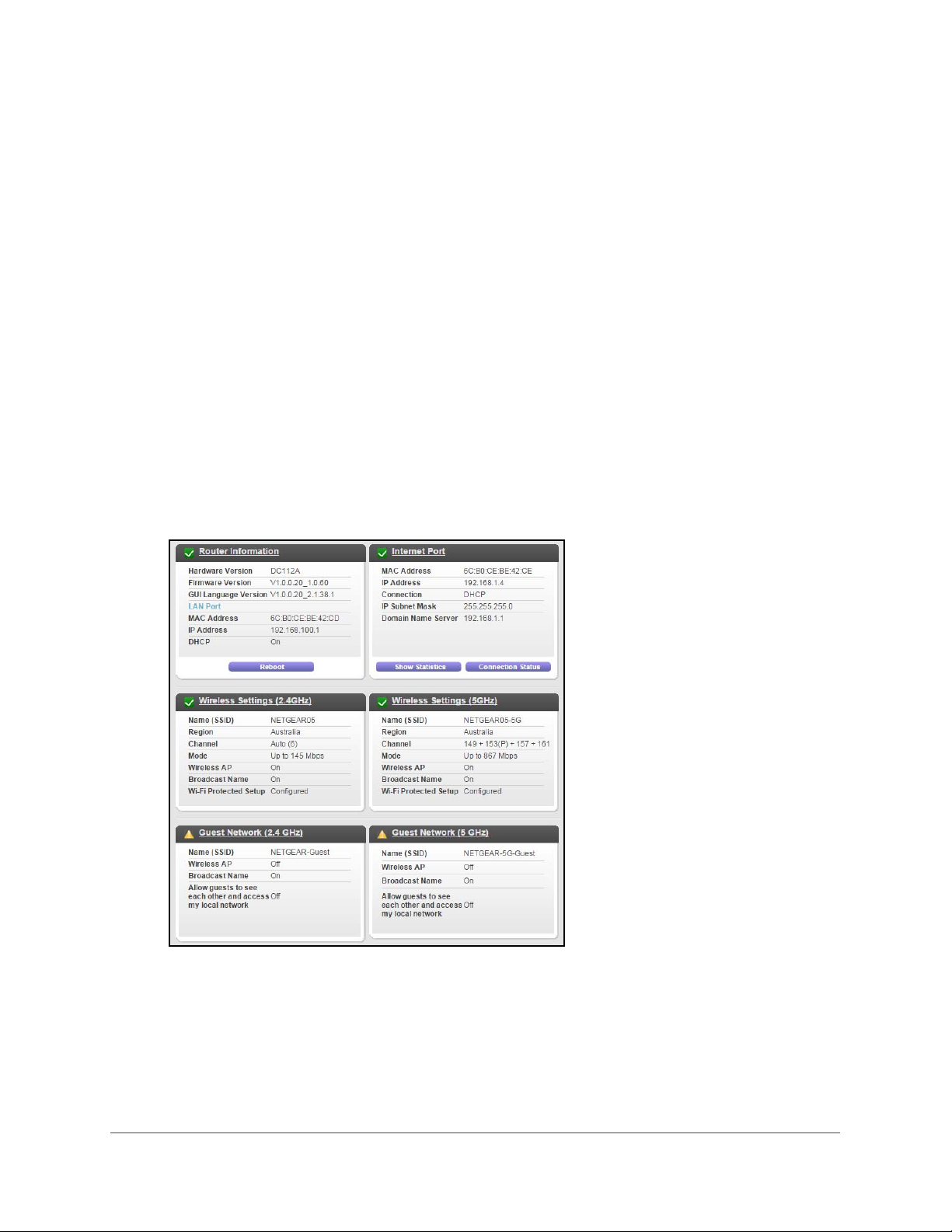

View AirCard Smart Cradle Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Display Internet Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Check the Internet Connection Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Manage the AirCard Smart Cradle Configuration File . . . . . . . . . . . . . . . . . . . . 103

Back Up Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Restore Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Erase the Current Configuration Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

View and Customize Log Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Custom Static Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Set Up a Static Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Edit a Static Route. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Delete a Static Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

View Devices Currently Connected to the AirCard Smart Cradle . . . . . . . . . . 108

Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

Monitor Internet Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Set Up the AirCard Smart Cradle to Respond to Pings on the Internet Port . 112

Chapter 8 Share a USB Device Attached to the AirCard Smart Cradle

USB Device Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Access a USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Back Up Windows Computers with ReadySHARE Vault . . . . . . . . . . . . . . . . . . . 117

Back Up Mac Computers with Time Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Set Up a USB Hard Drive on a Mac. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Prepare to Back Up a Large Amount of Data . . . . . . . . . . . . . . . . . . . . . . . . . 118

Use Time Machine to Back Up onto a USB Hard Drive . . . . . . . . . . . . . . . . .118

Control Access to the USB Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Use FTP Within the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

View Network Folders on a USB Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Add a Network Folder on a USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Edit a Network Folder on a USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123

Approve USB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Safely Remove a USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

AirCard Smart Cradle

Chapter 9 Access USB Devices Through the Internet

Access USB Devices Through the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Set Up FTP Access Through the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Access USB Devices Through the Internet with FTP . . . . . . . . . . . . . . . . . . . . . 130

Your Personal FTP Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Dynamic DNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Set Up a New Dynamic DNS Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Specify a DNS Account That You Already Use . . . . . . . . . . . . . . . . . . . . . . . . 133

Change the Dynamic DNS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Set Up Your Personal FTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Chapter 10 Share a USB Printer

Install the Printer Driver and Cable the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . 136

Download the ReadySHARE Printer Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Install the ReadySHARE Printer Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Use the Shared Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

View or Change the Status of a Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Use the Scan Feature of a Multifunction USB Printer . . . . . . . . . . . . . . . . . . . . 140

Change NETGEAR USB Control Center Settings . . . . . . . . . . . . . . . . . . . . . . . . . 141

Chapter 11 Troubleshooting

Troubleshoot with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Standard LED Behavior When the AirCard Smart Cradle is Powered On . . 145

Power LED Is Off or Blinking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Power LED Stays Amber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

LEDs Never Turn Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Internet LED Is Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

WiFi LEDs Are Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Cannot Log In to the Cradle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Cannot Access the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Troubleshoot PPPoE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Troubleshoot Internet Browsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Changes Not Saved . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Cellular Network Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

WiFi Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Troubleshoot Your Network Using the Ping Utility . . . . . . . . . . . . . . . . . . . . . . . 150

Test the LAN Path to Your Smart Cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Test the Path from Your Computer to a Remote Device. . . . . . . . . . . . . . . . 151

Appendix A Supplemental Information

Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

1. Hardware Setup

The AirCard Smart Cradle allows you to transform your AirCard mobile hotspot into a powerful

L TE router by combining the benefits of a home router and a WiFi signal booster. It charges your mobile hotspot battery, boosts the mobile hotspot’s 4G/3G signal, extends WiFi coverage, and expands your mobile hotspot connection to both wired and wireless devices. This AirCard Smart Cradle can also be used as a standalone 802.11ac dual-band WiFi router.

Figure 1. AirCard Smart Cradle in a home

This chapter covers the following topics:

• Unpack Your AirCard Smart Cradle

• Front Panel

• Rear Panel

• Attach the External WiFi Antennas

• Dock the Mobile Hotspot in the Smart Cradle

• Undock the Mobile Hotspot from the Smart Cradle

• Position the Smart Cradle

• Install Your Smart Cradle

AirCard Smart Cradle

Unpack Your AirCard Smart Cradle

Your package contains the following items.

External WiFi antennas (2)

AirCard Smart Cradle

Power adapter (appearance varies by region)

Figure 2. Package contents

Front Panel

A USB port, an adjustable holder for the mobile hotspot, and the status LEDs and are located

on the front of the cradle.

Adjustable holder for the mobile hotspot

USB 3.0 port

LEDs

Figure 3. Smart Cradle USB port and LEDs

You can slide the adjustable holder forward to secure your mobile hotspot when it is docked.

Hardware Setup

Table 1. LED descriptions

LED Description

AirCard Smart Cradle

Power

USB port

Internet

Ethernet ports 1–4

2.4 GHz Wireless

• Solid amber. The cradle is booting.

• Blinking amber.

• Solid green.

• Blinking green.

technical support

• Off. Power is not supplied to the cradle.

• Solid green. A USB device is connected and is ready.

• Solid red.

• Off. No USB device is connected or someone clicked the Safely Remove Hardware

button, and it is now safe to remove the attached USB device.

• Solid green. The Internet connection is ready.

• Solid amber.

• Off.

• Solid green. A powered-on device is connected to this Ethernet port.

• Off. No device is connected to this Ethernet port.

• Solid green. The 2.4 GHz WiFi radio is operating.

• Blinking. The

• Off. The

The Smart Cradle does not detect a docked mobile hotspot.

WiFi radio is off.

The firmware is upgrading, or someone pressed the Reset button.

The cradle powered on and ready.

The firmware is corrupted. Contact your Internet service provider for

A USB device is connected but unrecognized.

The cradle is not connected to the Internet.

cradle is in WPS mode.

5 GHz WiFi

• Solid green. The 5 GHz WiFi radio is operating.

• Blinking. The

• Off. The

cradle is in WPS mode.

WiFi radio is off.

Hardware Setup

AirCard Smart Cradle

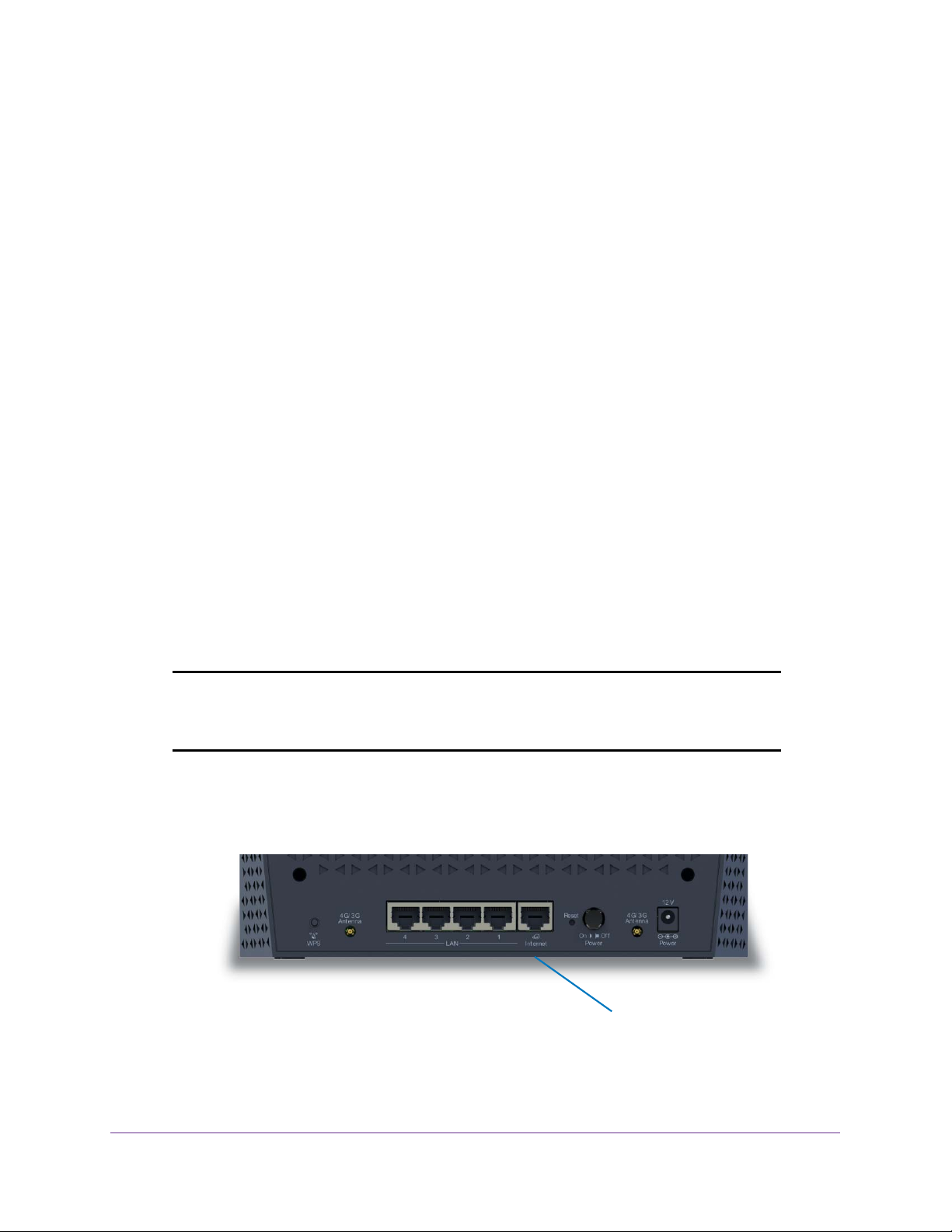

Rear Panel

The rear panel connections and buttons are shown in the following figure.

WPS button button input

Figure 4. Cradle rear panel

TS-9 antenna connector button

LAN ports 1–4

port

ResetEthernet Internet Power

Power On/Off

TS-9 antenna connector

Pressing the WPS button lets you add a computer or WiFi device to the WiFi network without typing the WiFi network password (security key). For more information about WPS, see

Connect to the AirCard Smart Cradle on page 17.

Pressing the Reset button restores the factory settings. For more information about the factory settings, see Factory Settings on page 154.

Attach the External WiFi Antennas

For the best WiFi performance, attach both antennas.

 To attach the external WiFi antennas:

1. Align the antennas with the

antenna posts on the Smart Cradle.

2. Attach the antennas on the

threaded antenna posts, ensuring that the connection is secure.

3. Adjust the antenna positions so

that they point straight up.

Hardware Setup

AirCard Smart Cradle

Dock the Mobile Hotspot in the Smart Cradle

 To dock the mobile hotspot in the Smart Cradle:

1. Slide the antenna covers on the bottom of the mobile hotspot to the open position.

2. Slide the Smart Cradle’s plastic holder back to allow enough room for the mobile hotspot.

3. Dock the mobile hotspot in the Smart Cradle.

Docking the mobile hotspot for the first time aligns the connectors, so the unit might be stif

f going in and out.

Hardware Setup

AirCard Smart Cradle

4. Slide the plastic holder forward to secure the mobile hotspot.

Note: A gap of up to 1.5 mm between the plastic holder and the mobile

hotspot is normal. Do not try to push the holder forward to fill the gap.

When the Smart Cradle detects your mobile hotspot’s Internet connection, the Internet LED lights green and the Smart Cradle uses the mobile hotspot’

s Internet connection.

The mobile hotspot must have an active Internet service account. When your mobile hotspot detects that it is docked, the mobile hotspot LCD and home

page indicate that it is docked in the Smart Cradle.

The mobile hotspot uses the Smart Cradle’s more powerful internal 3G/4G antennas for better network coverage and charges itself through the Smart Cradle.

The mobile hotspot disables its WiFi signal so that you can connect to the Smart Cradle’s stronger WiFi signal.

Note: Some hotspots require a firmware update before they automatically

disable WiFi when docked. If your mobile hotspot broadcasts its WiFi signal when docked, manually set up your mobile hotspot to disable WiFi.

See the mobile hotspot user guide for more information.

Hardware Setup

AirCard Smart Cradle

Undock the Mobile Hotspot from the Smart Cradle

 To undock the mobile hotspot from the Smart Cradle:

1. Lift the mobile hotspot out of the

Smart Cradle. Docking the mobile hotspot for the first

time aligns the connectors, so the unit might be stiff going in and out.

2. If the mobile hotspot is dif

wiggle it side to side to disconnect it from the AirCard Smart Cradle.

When you remove the mobile hotspot from the Smart Cradle, the Smart Cradle loses its Internet connection, but it can be used as a WiFi router enables its own WiFi again after being undocked so that you can connect to the mobile hotspot WiFi.

ficult to lift, gently

. The mobile hotspot

AirCard

Position the Smart Cradle

The cradle lets you access your network anywhere within the operating range of your wireless network. However, the operating distance or range of your wireless connection can vary significantly depending on the physical placement of your cradle. For example, the thickness and number of walls the wireless signal passes through can limit the range.

Additionally , other wireless access points in and around your home might af fect your cradle’ s signal. Wireless access points are routers, repeaters, WiFi range extenders, and any other devices that emit a wireless signal for network access.

 Position your cradle according to the following guidelines:

Position your cradle according to the following guidelines:

• Place your cradle near the center of the area where your computers and other devices

operate, and within line of sight to your wireless devices.

• Make sure that the cradle is within reach of an

for wired computers.

• Place the cradle in an elevated location, minimizing the number walls and ceilings

between the cradle and your other devices.

• Place the cradle away from electrical devices such as these:

- Ceiling fans

- Home security systems

- Microwaves

Hardware Setup

AC power outlet and near Ethernet cables

AirCard Smart Cradle

- Computers

- Base of a cordless phone

- 2.4 GHz cordless phone

• Place the cradle away from large metal surfaces, large glass surfaces, and insulated

walls such as these:

- Solid metal doors

- Aluminum studs

- Fish tanks

- Mirrors

- Brick

- Concrete

Install Your Smart Cradle

 To install your cradle:

1. Place the cradle in your preferred location.

2. Connect the Smart Cradle’s power adapter and plug it into an electrical outlet.

The Power LED lights green within one minute. If the Power LED does not light, press the Power On/Off button on the rear panel of the cradle.

The cradle’s internal fan turns on momentarily when the cradle is powering up and then turns off.

Note: After power up, the cradle’s internal fan turns on only when the cradle

senses high temperatures of 40C (104

° F) or higher. This might happen

during continuous high-data rate transmissions or if the cradle is in a warm location. The fan protects the mobile hotspot and the cradle from high temperatures. Once the mobile hotspot and cradle temperatures return to lower levels, the fan switches off.

3. Dock the mobile hotspot in the cradle.

See Dock the Mobile Hotspot in the Smart Cradle on page 11

4. Check the cradle’s Internet LED.

When the cradle detects your mobile hotspot’s Internet connection, the Internet LED lights green and the Smart Cradle uses the mobile hotspot’s Internet connection. The mobile hotspot Internet service account must be active.

When your mobile hotspot detects that it is docked, the mobile hotspot LCD and home page indicate that it is docked in the Smart Cradle. The mobile hotspot uses the Smart Cradle’s more powerful internal 3G/4G antennas for better network coverage and charges itself through the Smart Cradle.

Hardware Setup

AirCard Smart Cradle

The mobile hotspot disables its WiFi signal so that you can connect to the cradle’s stronger WiFi signal.

Note: Some hotspots require a firmware update before they automatically

disable WiFi when docked. If your mobile hotspot broadcasts its WiFi signal when docked, manually set up your mobile hotspot to disable WiFi when USB is connected.

See the mobile hotspot user guide for more information.

5. Connect to the Smart Cradle’s WiFi network.

On your computer or WiFi device, find and connect to the WiFi network name on the Smart Cradle label

Hardware Setup

2. Connect to the AirCard Smart

Cradle

This chapter covers the following topics:

• Connect to the AirCard Smart Cradle

• Types of Logins

• Change the Language

• Log In to the AirCard Smart Cradle

• Access the AirCard Smart Cradle with NETGEAR genie Apps

AirCard Smart Cradle

Connect to the AirCard Smart Cradle

You can connect to the cradle’s network through a wired or WiFi connection. If you set up your computer to use a static IP address, change the settings so that it uses Dynamic Host Configuration Protocol (DHCP).

Wired Connection

You can connect your computer to the cradle using the supplied Ethernet cable and join the cradle’s local area network (LAN).

 To connect your computer to the cradle with an Ethernet cable:

1. Make sure that power is supplied to the cradle (its Power LED is lit).

2. Connect an Ethernet cable to an Ethernet port on your computer.

3. Connect the other end of the Ethernet cable to one of the numbered Ethernet ports.

Your computer connects to the local area network (LAN). A message might display on your computer screen to notify you that an Ethernet cable is connected.

WiFi Connection

You can connect to the cradle’s WiFi network with Wi-Fi Protected Setup (WPS) or you can find and select the WiFi network.

 To use WPS to connect to the WiFi network:

1. Make sure that power is supplied to the cradle (its Power LED is lit).

2. Check the WPS instructions for your computer or wireless device.

3. Press the WPS button on the cradle.

4. Within two minutes, on your computer or WiFi device, press its WPS button or follow its

instructions for WPS connections. Your computer or wireless device connects to the WiFi network.

 To find and select the WiFi network:

1. Make sure that power is supplied to the cradle (its Power LED is lit).

2. On your computer or wireless device, find and select the WiFi network.

The WiFi network name is on the cradle’s label.

3. Join the WiFi network and enter the WiFi password.

The password is on the cradle’s label. Your wireless device connects to the WiFi network.

Connect to the AirCard Smart Cradle

AirCard Smart Cradle

Types of Logins

Separate types of logins serve different purposes. It is important that you understand the difference so that you know which login to use.

Types of logins:

• Mobile broadband account login. The login that your ISP gave you at the time of

purchase logs you in to your Internet service. Your service provider gave you this login information in a letter or some other way. If you cannot find this login information, contact your service provider.

• WiFi network key or password. Your cradle is preset with a unique wireless network

name (SSID) and password for wireless access. This information is on the cradle label.

• Cradle login.This logs you in to the cradle interface from a web browser as admin.

Change the Language

By default, the language is set as Auto.

 To change the language:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. In the upper right corner, select a language from the list.

5. When prompted, click the OK button to confirm this change.

The screen refreshes with the language that you selected.

Log In to the AirCard Smart Cradle

You can log in to the cradle to view or change its settings.

 To log in to the AirCard Smart Cradle:

1. Connect a computer to the Smart Cradle:

• For a WiFi connection, on your computer or WiFi device, find and connect to the WiFi

network name on the Smart Cradle label.

Connect to the AirCard Smart Cradle

AirCard Smart Cradle

• For a wired connection, use an Ethernet cable to connect a computer to an Ethernet

LAN port on the rear panel of the Smart Cradle.

2. Launch a web browser.

3. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1

A login prompt displays.

4. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

Access the AirCard Smart Cradle with NETGEAR genie Apps

The genie app is the easy dashboard for managing, monitoring, and repairing your home network. The genie app can help you with the following:

• Automatically repair common wireless network problems.

• Easily manage cradle features like Live Parental Controls, guest access, Internet traffic

meter, speed test, and more.

 To use the genie app to access the cradle:

1. Visit the NETGEAR genie web page at www.NETGEAR.com/genie.

2. Follow the onscreen instructions to install the app on your smartphone, tablet, or computer.

3. Launch the genie app.

The genie app dashboard screen displays.

Connect to the AirCard Smart Cradle

3. Internet Setup

This chapter covers the following topics:

• Manage a Mobile Hotspot

• Use a WAN Internet Connection with Failover

• Specify the Broadband Failover Detection Method

• Manually Set Up the Internet Connection

• Specify WAN Ethernet IPv6 Internet Connections

• Change the MTU Size

AirCard Smart Cradle

Manage a Mobile Hotspot

When you use a web browser to log in to the AirCard Smart Cradle, you can open a tab in the browser to configure a mobile hotspot. The mobile hotspot must be docked in the Smart Cradle.

 To manage a mobile hotspot:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

4. Select Hotspot Manager.

The mobile hotspot’s web-based home page opens in a new tab. For more information, see the user manual for your mobile hotspot. link on the hotspot’s home page.

The default password is password. The user name and

To view the hotspot’s user manual, click the

Use a WAN Internet Connection with Failover

You can set up the Smart Cradle to use a WAN Internet connection and to failover to your mobile hotspot’s Internet connection if the WAN connection goes offline.

Figure 5. Smart Cradle using an Ethernet WAN Internet connection

Internet Setup

AirCard Smart Cradle

 To set up a WAN Internet connection with backup failover to your mobile hotspot:

1. Use an Ethernet cable to connect your modem with Internet service to the Internet port

on the rear panel of the Smart Cradle.

Internet port

2. Launch a web browser from a computer or wireless device that is connected to the Smart

Cradle.

3. In the address field of the browser

, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

4. Enter the cradle user name and password.

The user name is admin.

password are case-sensitive. The BASIC Home screen displays.

5. Select Internet.

The default password is password. The user name and

6. In the Internet source section, select the Failover Mode - WAN as a primary and Mobile

Hotspot as backup radio button.

7. Click the Apply button.

Internet Setup

AirCard Smart Cradle

Your settings are saved. If the mobile broadband connection is not working, the Smart Cradle will attempt to access the Internet through the modem that is connected to its Internet port.

Specify the Broadband Failover Detection Method

You can specify how the Smart Cradle verifies broadband Internet connectivity. By default, the Smart Cradle uses DNS lookup using a WAN DNS server.

 To change the broadband failover detection method:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

4. Select Advanced > Setup > Broadband Settings.

5. To use DNS lookup by host name, select the DNS lookup by a hostname radio button and

type the host name in the field.

6. T

o use ping, do the following:

a. Select the Ping this IP address radio button. b. T

ype the IP address in the field.

c. Complete the fields to specify the retry interval and failover after values.

7. Click the Apply button.

The default password is password. The user name and

Your settings are saved.

Internet Setup

AirCard Smart Cradle

Manually Set Up the Internet Connection

You can view or change the cradle’s Internet connection settings.

Specify an Internet Connection Without a Login

 To specify the Internet connection settings:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin.

password are case-sensitive. The BASIC Home screen displays.

4. Select Internet.

The default password is password. The user name and

By default, in the Internet source section, the Only use mobile broadband (wireless network provider) radio button is selected. With this setting, the cradle only uses your mobile hotspot’s Internet connection.

5. In the Internet source section, select a radio button for an Ethernet W

6. For the Does your Internet connection require a login? setting, leave the No radio button

selected.

Internet Setup

AN Internet connection.

AirCard Smart Cradle

7. If your Internet connection requires an account name or host name, type it in the Account

Name (If Required) field.

8. If your Internet connection requires a domain name, type it in the Domain Name (If

Required) field.

For the other sections in this screen, the default settings usually work, but you can change them.

9. Select an Internet IP Address radio button:

• Get Dynamically from ISP. Your ISP uses DHCP to assign your IP address. Your ISP

automatically assigns these addresses.

• Use Static IP Address. Enter the IP address, IP subnet mask, and the gateway IP

address that your ISP assigned. The gateway is the ISP gateway to which your cradle connects.

10. Select a Domain Name Server (DNS) Address radio button:

• Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your

ISP automatically assigns this address.

• Use These DNS Servers. If you know that your ISP requires specific servers, select

this option. Enter the IP address of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it also.

11. Select a Router MAC Address radio button:

• Use Default Address. Use the default MAC address.

• Use Computer MAC Address. The cradle captures and uses the MAC address of the

computer that you are now using. You must use the one computer that the ISP allows.

• Use This MAC Address. Enter the MAC address that you want to use.

12. Click the Apply button.

Your settings are saved.

13. Click the Test button to test your Internet connection.

If the NETGEAR website does not display within one minute, see Chapter 1 1,

T roubleshooting.

Specify an Internet Connection That Uses a Login

 To view or change the basic Internet setup:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

Internet Setup

The BASIC Home screen displays.

4. Select Internet.

AirCard Smart Cradle

Scroll to view more settings

By default, in the Internet source section, the Only use mobile broadband (wireless network provider) radio button is selected. With this setting, the cradle only uses your

mobile hotspot’s Internet connection.

5. In the Internet source section, select a radio button for an Ethernet W

6. In the Does your Internet connection require a login? section, select the Ye

AN Internet connection.

s radio button.

The screen adjusts.

7. In the Internet Service Provider list, select the encapsulation method:

PPPoE, PPTP, or L2TP.

8. In the Login field, enter the login name your ISP gave you.

This login name is often an email address.

9. In the Password field, type the password that you use to log in to your Internet service.

10. If your ISP requires a service name, type it in the Service Name (if Required) field.

11. In the Connection Mode list, select Always

12. T

o change the number of minutes until the Internet login times out, in the Idle Timeout (In

On, Dial on Demand, or Manually Connect.

minutes) field, type the number of minutes.

This is how long the cradle keeps the Internet connection active when no one on the network is using the Internet connection.

A value of 0 (zero) means never log out.

13. Select an Internet IP Address radio button:

• Get Dynamically from ISP.

Your ISP uses DHCP to assign your IP address. Your ISP

automatically assigns these addresses.

Internet Setup

AirCard Smart Cradle

• Use Static IP Address. Enter the IP address, IP subnet mask, and the gateway IP

address that your ISP assigned. The gateway is the ISP gateway to which your cradle connects.

14. Select a Domain Name Server (DNS) Address radio button:

• Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your

ISP automatically assigns this address.

• Use These DNS Servers. If you know that your ISP requires specific servers, select

this option. Enter the IP address of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it also.

15. Select a Router MAC Address radio button:

• Use Default Address. Use the default MAC address.

• Use Computer MAC Address. The cradle captures and uses the MAC address of the

computer that you are now using. You must use the one computer that the ISP allows.

• Use This MAC Address. Enter the MAC address that you want to use.

16. Click the Apply button.

Your settings are saved.

17. Click the Test button to test your Internet connection.

If the NETGEAR website does not display within one minute, see Chapter 1 1,

T roubleshooting.

Specify WAN Ethernet IPv6 Internet Connections

Some Internet service providers (ISPs) and carriers support IPv6 Internet connections. You can set up the cradle to use an IPv6 pass through connection, but this setting requires some additional configuration options.

Before you set up the cradle to use an IPv6 Internet connection, read this section so that you understand how this connection is implemented. The cradle IPv6 pass through Internet connection works as follows:

• Your existing IPv4 connection and setup continue to operate as normal.

• Your LAN and WiFi clients obtain IPv6 addresses using AutoConfig (Neighbor Discovery

Protocol) directly from your docked mobile hotspot.

• The cradle acts as a bridge for IPv6 only, so your existing firewall and parental controls

are not enforced.

• Your IPv4 NAT, firewall, and parental controls still operate as normal.

• You can use failover mode with IPv6, but your IPv6 pass through selection is used for

both WAN Internet as well as mobile broadband for IPv6. This means that you must test IPv6 to make sure that it works with your WAN Internet and the pass through setting, so it can operate in WAN Internet mode before falling back to Mobile Broadband.

Internet Setup

AirCard Smart Cradle

Future cradle software releases will allow other IPv6 settings for mobile broadband connection besides pass through, and allow configuration of IPv6 on WAN Internet independent of the mobile broadband setting.

To use a WAN Ethernet Internet connection, you must select an Internet source option in the Internet Setup screen that includes Ethernet WAN. See

Use a WAN Internet Connection with

Failover on page 21.

Note: To use a docked mobile hotspot with IPv6 data connection, the IPv6

Internet Connection T ype should be set as Pass Through. See

Set Up

an IPv6 Pass Through Internet Connection on page 33.

You can set up an IPv6 Internet connection if genie does not detect it automatically.

 To set up an IPv6 Internet connection:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The Basic Settings screen displays.

5. In the Internet Connection Type list, select the IPv6 connection type:

• If your ISP did not provide details, select IPv6 Tunnel.

• If you are not sure, select Auto Detect so that the cradle detects the IPv6 type that is

in use.

• If your Internet connection does not use PPPoe or DHCP, or is not fixed, but is IPv6,

select Auto Config.

Your Internet service provider (ISP) can provide this information. For more information about IPv6 Internet connection, see the following sections:

• Use Auto Detect for an IPv6 Internet Connection on page 29

• Use Auto Config for an IPv6 Internet Connection on page 30

• Set Up an IPv6 6to4 Tunnel Internet Connection on page 32

• Set Up an IPv6 Pass Through Internet Connection on page 33

• Set Up an IPv6 Fixed Internet Connection on page 34

Internet Setup

AirCard Smart Cradle

• Set Up an IPv6 DHCP Internet Connection on page 36

• Set Up an IPv6 PPPoE Internet Connection on page 37

6. Click the Apply button.

Your changes take effect.

Requirements for Entering IPv6 Addresses

IPv6 addresses are denoted by eight groups of hexadecimal quartets that are separated by colons. You can reduce any four-digit group of zeros within an IPv6 address to a single zero or omit it. The following errors invalidate an IPv6 address:

• More than eight groups of hexadecimal quartets

• More than four hexadecimal characters in a quartet

• More than two colons in a row

Use Auto Detect for an IPv6 Internet Connection

 To set up an IPv6 Internet connection through auto detection:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection Type list, select Auto Detect.

Internet Setup

AirCard Smart Cradle

The screen adjusts:

The cradle automatically detects the information in the following fields:

• Connection T

• Router

’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired

ype. This field indicates the connection type that is detected.

for the cradle’s WAN (or Internet) interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_) under the IPv6 address. If no address is acquired, the field displays Not Available.

• Router

’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired

for the cradle’s LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_) under the IPv6 address. If no address is acquired, the field displays Not Available.

6. Select an IP

• Use DHCP Server.

Address Assignment radio button:

This method passes more information to LAN devices, but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config.

This is the default setting.

This setting specifies how the cradle assigns IPv6 addresses to the devices on your home network (the LAN).

7. (Optional) Select the Use This Interface ID check box and specify the interface ID to be

used for the IPv6 address of the cradle’

s LAN interface.

If you do not specify an ID here, the cradle generates one automatically from its MAC address.

8. Click the Apply button.

Your settings are saved.

Use Auto Config for an IPv6 Internet Connection

 To set up an IPv6 Internet connection through auto configuration:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

Internet Setup

AirCard Smart Cradle

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection T

The screen adjusts:

ype list, select Auto Config.

The cradle automatically detects the information in the following fields:

• Router

’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired

• Router

’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired

6. (Optional) In the DHCP User Class (If Required) field, enter a host name.

Most people can leave this field blank, but if your ISP gave you a specific host name, enter it here.

7. (Optional) In the DHCP Domain Name (If Required) field, enter a domain name.

You can type the domain name of your IPv6 ISP. Do not enter the domain name for the IPv4 ISP here. For example, if your ISP’

s mail server is mail.xxx.yyy .zzz, type xxx.yyy.zzz as the domain name. If your ISP provided a domain name, type it in this field. For example, Earthlink Cable might require a host name of home, and Comcast sometimes supplies a domain name.

Internet Setup

AirCard Smart Cradle

8. Select an IP Address Assignment radio button:

• Use DHCP Server. This method passes more information to LAN devices but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config. This is the default setting.

This setting specifies how the cradle assigns IPv6 addresses to the devices on your home network (the LAN).

9. (Optional) Select the Use This Interface ID check box and specify the interface ID to be

used for the IPv6 address of the cradle’s LAN interface. If you do not specify an ID here, the cradle generates one automatically from its MAC

address.

10. Click the Apply button.

Your settings are saved.

Set Up an IPv6 6to4 Tunnel Internet Connection

The remote relay gateway is the gateway to which your cradle creates a 6to4 tunnel. Make sure that the IPv4 Internet connection is working before you apply the 6to4 tunnel settings for the IPv6 connection.

 To set up an IPv6 Internet connection by using a 6to4 tunnel:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection Type list, select 6to4 Tunnel.

Internet Setup

AirCard Smart Cradle

The screen adjusts:

The cradle automatically detects the information in the Router’s IPv6 Address on LAN field. This field shows the IPv6 address that is acquired for the cradle’s LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_) under the IPv6 address. If no address is acquired, the field displays Not Available.

6. Select

• Auto.

• Static IP

7. Select

• Use DHCP Server.

• Auto Config.

This setting specifies how the cradle assigns IPv6 addresses to the devices on your home network (the LAN).

8. (Optional) Select the Use This Interface ID check box and specify the interface ID to be

used for the IPv6 address of the cradle’ If you do not specify an ID here, the cradle generates one automatically from its MAC

address.

9. Click the Apply button.

Your settings are saved.

an IP Address Assignment radio button:

Your cradle uses any remote relay gateway that is available on the Internet.

This is the default setting.

Address. Enter the static IPv4 address of the remote relay gateway. Your

IPv6 ISP usually provides this address.

an IP Address Assignment radio button:

This method passes more information to LAN devices but some

IPv6 systems might not support the DHCv6 client function.

This is the default setting.

s LAN interface.

Set Up an IPv6 Pass Through Internet Connection

In pass-through mode, the cradle works as a Layer 2 Ethernet switch with two ports (LAN and WAN Ethernet ports) for IPv6 packets. The cradle does not process any IPv6 header packets.

Internet Setup

AirCard Smart Cradle

Note: To use a docked mobile hotspot with IPv6 data connection, the IPv6

Internet connection type should be set as pass through. Before you set up this connection, see

Specify WAN Ethernet IPv6 Internet

Connections on page 27 so that you understand how the connection

is implemented.

 To set up a pass-through IPv6 Internet connection:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection Type list, select Pass Through.

The screen adjusts, but no additional fields display.

6. Click the Apply button.

Your settings are saved.

Set Up an IPv6 Fixed Internet Connection

 To set up a fixed IPv6 Internet connection:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

Internet Setup

AirCard Smart Cradle

5. In the Internet Connection Type list, select Fixed.

The screen adjusts:

6. Configure the fixed IPv6 addresses for the WAN connection:

• IPv6 Address/Prefix

Length. The IPv6 address and prefix length of the cradle WAN

interface.

• Default IPv6 Gateway .

The IPv6 address of the default IPv6 gateway for the cradle’s

WAN interface.

• Primary DNS Server.

The primary DNS server that resolves IPv6 domain name

records for the cradle.

• Secondary DNS Server.

The secondary DNS server that resolves IPv6 domain

name records for the cradle.

Note: If you do not specify the DNS servers, the cradle uses the DNS servers

that are configured for the IPv4 Internet connection on the Internet Setup screen. (See Manually Set Up the Internet Connection on page 24.)

7. Select

• Use DHCP Server.

an IP Address Assignment radio button:

This method passes more information to LAN devices but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config.

This is the default setting.

This setting specifies how the cradle assigns IPv6 addresses to the devices on your home network (the LAN).

8. In the IPv6 Address/Prefix

Length fields, specify the static IPv6 address and prefix length

of the cradle’s LAN interface. If you do not specify an ID here, the cradle generates one automatically from its MAC

address.

9. Click the Apply button.

Internet Setup

AirCard Smart Cradle

Your settings are saved.

Set Up an IPv6 DHCP Internet Connection

 To set up an IPv6 Internet connection with a DHCP server:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection T

The screen adjusts:

ype list, select DHCP.

The cradle automatically detects the information in the following fields:

• Router

’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired

• Router

’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired

6. (Optional) In the User Class (If Required) field, enter a host name.

Internet Setup

AirCard Smart Cradle

Most people can leave this field blank, but if your ISP gave you a specific host name, enter it here.

7. (Optional) In the Domain Name (If Required) field, enter a domain name.

You can type the domain name of your IPv6 ISP. Do not enter the domain name for the IPv4 ISP here. For example, if your ISP’s mail server is mail.xxx.yyy.zzz, type xxx.yyy.zzz as the domain name. If your ISP provided a domain name, type it in this field.

8. Select an IP Address Assignment radio button:

• Use DHCP Server. This method passes more information to LAN devices but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config. This is the default setting.

This setting specifies how the cradle assigns IPv6 addresses to the devices on your home network (the LAN).

9. (Optional) Select the Use This Interface ID check box and specify the interface ID to be

used for the IPv6 address of the cradle’s LAN interface. If you do not specify an ID here, the cradle generates one automatically from its MAC

address.

10. Click the Apply button.

Your settings are saved.

Set Up an IPv6 PPPoE Internet Connection

 To set up a PPPoE IPv6 Internet connection:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection Type list, select PPPoE.

Internet Setup

AirCard Smart Cradle

The screen adjusts:

The cradle automatically detects the information in the following fields:

• Router

’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired

• Router

’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired

6. In the Login field, enter the login information for the ISP connection.

This is usually the name that you use in your email address. For example, if your main mail account is JerAB@ISP

.com, you would type JerAB in this field. Some ISPs (like Mindspring, Earthlink, and T-DSL) require that you use your full email address when you log in. If your ISP requires your full email address, type it in this field.

7. In the Password field, enter the password for the ISP connection.

8. In the Service Name field, enter a service name.

If your ISP did not provide a service name, leave this field blank.

Note: The default setting of the Connection Mode list is Always On to

provide a steady IPv6 connection. The cradle never terminates the connection. If the connection is terminated, for example, when the modem is turned off, the cradle attempts to reestablish the connection immediately after the PPPoE connection becomes available again.

9. Select an IP

Address Assignment radio button:

• Use DHCP Server.

IPv6 systems might not support the DHCv6 client function.

• Auto Config.

This method passes more information to LAN devices but some

This is the default setting.

Internet Setup

AirCard Smart Cradle

This setting specifies how the cradle assigns IPv6 addresses to the devices on your home network (the LAN).

10. (Optional) Select the Use This Interface ID check box and specify the interface ID to be

used for the IPv6 address of the cradle’s LAN interface. If you do not specify an ID here, the cradle generates one automatically from its MAC

address.

11. Click the Apply button.

Your settings are saved.

Change the MTU Size

The maximum transmission unit (MTU) is the largest data packet a network device transmits. When one network device communicates across the Internet with another, the data packets travel through many devices along the way. If a device in the data path uses a lower MTU setting than the other devices, the data packets must be split or “fragmented” to accommodate the device with the smallest MTU.

The best MTU setting for NETGEAR equipment is often the default value. In some situations, changing the value fixes one problem but causes another. Leave the MTU unchanged unless one of these situations occurs:

• You experience problems connecting to your ISP or other Internet service, and the

technical support of the ISP. These web-based applications might require an MTU change:

- A secure website that does not open, or displays only part of a web page

- Yahoo email

- MSN portal

- America Online’s DSL service

• You use VPN and experience severe performance problems.

• You used a program to optimize MTU for performance reasons and now you are

experiencing connectivity or performance problems.

Note: An incorrect MTU setting can cause Internet communication

problems. For example, you might not be able to access certain websites, frames within websites, secure login pages, or FTP or POP servers.

 To change the MTU size:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

Internet Setup

AirCard Smart Cradle

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Setup > WAN Setup.

5. In the MTU Size field, enter a value from 64 to 1500.

6. Click the Apply button.

Your settings are saved.

If you suspect an MTU problem, a common solution is to change the MTU to 1400. If you are willing to experiment, you can gradually reduce the MTU from the maximum value of 1500 until the problem goes away applications.

Table 2. Common MTU sizes

MTU Application

1500 The largest Ethernet packet size. This setting is typical for connections that do not use

1492 Used in PPPoE environments. 1472 Maximum size to use for pinging. (Larger packets are fragmented.) 1468 Used in some DHCP environments. 1460 Usable by AOL if you do not send or receive large email attachments, for example. 1436 Used in PPTP environments or with VPN. 1400 Maximum size for AOL DSL. 576 Typical value to connect to dial-up ISPs.

PPPoE or VPN and is the default value for the cradle.

. The following table describes common MTU sizes and

Internet Setup

4. Control Internet Access

This chapter covers the following topics:

• Set Up Parental Controls

• Allow or Block Access to Your Network

• Use Keywords to Block Internet Sites

• Block Services from the Internet

• Schedule When to Block Internet Sites and Services

• Avoid Blocking on a Trusted Computer

• Set Up Security Event Email Notifications

• Set Up Port Forwarding to a Local Server

• Set Up Port Triggering

AirCard Smart Cradle

Set Up Parental Controls

The first time that you select Parental Controls from the BASIC Home screen, your browser goes to the Live Parental Controls website, where you can learn more about Live Parental Controls and download the application.

 To set up Live Parental Controls:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

password are case-sensitive. The BASIC Home screen displays.

4. Select Parental Controls.

If your Internet connection is working, the browser automatically goes online and displays the Parental Controls web page.

5. Click either the W

6. Follow the onscreen instructions to download and install the NETGEAR Live Parental

Controls management utility

indows Users or Mac Users button.

The default password is password. The user name and

, enter http://netgear.cradle or http://192.168.100.1.

Control Internet Access

AirCard Smart Cradle

After installation, Live Parental Controls automatically starts.

7. Click the Next button.

8. Read the note, and click the Next button again to proceed.

Because Live Parental Controls uses free OpenDNS accounts, you are prompted to log in or create a free account.

9. Select the radio button that applies to you:

• If you already created an OpenDNS account, leave the Ye

s radio button selected.

• If you did not yet create an OpenDNS account, select the No radio button.

10. Click the Next button.

If you are creating an account, the following screen displays:

Control Internet Access

AirCard Smart Cradle

11. Complete the fields and click the Next button.

After you log on or create your account, the filtering level screen displays:

12. Select a filtering level and click the Next button.

The Setup is complete screen displays.

13. Click the T

Parental controls are now set up for the Smart Cradle. The BASIC Home screen shows Parental Controls as Enabled.

ake me to the status screen button.

Allow or Block Access to Your Network

You can use access control to block or allow access to your network.

 To set up access control:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

password are case-sensitive. The BASIC Home screen displays.

The default password is password. The user name and

, enter http://netgear.cradle or http://192.168.100.1.

Control Internet Access

AirCard Smart Cradle

4. Select ADVANCED > Security > Access Control.

5. Select the Turn on Access Control check box.

You must select this check box before you can specify an access rule and use the Allow and Block buttons. When this check box is cleared, all devices are allowed to connect, even if the device is in the blocked list.

6. Select an access rule:

• Allow all new devices to connect. With this setting, if you add a new device, it can

access your network.

You don’t need to enter its MAC address in this screen.

• Block all new devices from connecting. With this setting, if you add a new device,

before it can access your network, you must enter its MAC address for an Ethernet connection and its MAC address for a WiFi connection in the allowed list.

The access rule does not affect previously blocked or allowed devices. It applies only to devices joining your network in the future after you apply these settings.

7. T

o view allowed or blocked devices that are not connected, click the following links:

iew list of allowed devices not currently connected to the network

• V

iew list of blocked devices not currently connected to the network

The list displays.

8. T

o allow the computer or device that you’re currently using to continue to access the

network, select the check box next to your computer or device, and click the Allow button.

9. Click the Apply button.

Your changes take effect.

Control Internet Access

AirCard Smart Cradle

Manage Network Access Control Lists

You can use access control to block or allow access to your network.

 To manage devices that are allowed or blocked:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Security > Access Control.

5. Click the View list of allowed devices not currently connected to the network link.

The list displays.

6. Select the check box for a device.

7. Use the Add button, Edit button, and Remove from the List button as needed.

8. Click the Apply button.

Your changes take effect.

Control Internet Access

AirCard Smart Cradle

Use Keywords to Block Internet Sites

Y ou can use keywords to block certain Internet sites from your network. You can use blocking all the time or based on a schedule.

 To block Internet sites:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

4. Select ADV

5. Select a keyword blocking option:

• Per Schedule.

Schedule When to Block Internet Sites and Services on page 50.)

• Always.

ANCED > Security > Block Sites.

Turn on keyword blocking according to a schedule that you set. (See

Turn on keyword blocking all the time, independent of the Schedule screen.

The default password is password. The user name and

6. In the T

to block. For example:

• Specify XXX to block http://www

• Specify .com if you want to allow only sites with domain suf

• Enter a period (.) to block all Internet browsing access.

7. Click the Add Keyword button.

ype keyword or domain name here field, enter a keyword or domain that you want

.badstuff.com/xxx.html.

Control Internet Access

fixes such as .edu or .gov.

AirCard Smart Cradle

The keyword is added to the keyword list. The keyword list supports up to 32 entries.

8. Click the Apply button.

Keyword blocking takes effect.

Delete Keywords from the List to Be Blocked

 To delete keywords from the list:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Security > Block Sites.

5. Do one of the following:

• To delete a single word, select it and click the Delete Keyword button.

The keyword is removed from the list.

• To delete all keywords on the list, click the Clear List button.

All keywords are removed from the list.

6. Click the Apply button.

Your changes are saved.

Block Services from the Internet

You can block Internet services on your network based on the type of service. You can block the services all the time or based on a schedule.

 To block services:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

Control Internet Access

AirCard Smart Cradle

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select

ADVANCED > Security > Block Services.

5. Specify when to block the services:

o block the services all the time, select the Always radio button.

• T

o block the services based on a schedule, select the Per Schedule radio button.

For information about how to specify the schedule, see Schedule When to Block

Internet Sites and Services on page 50.

6. Click the Add button.

The Block Services Setup screen displays:

7. To add a service that is in the Service Type list, select the application or service.

The settings for this service automatically display in the fields.

8. T

o add a service or application that is not the list, select User Defined and do the following:

a. If you know that the application uses either

TCP or UDP, select the appropriate

protocol; otherwise, select TCP/UDP (both).

b. Enter the starting port and ending port numbers.

If the service uses a single port number, enter that number in both fields. To find out which port numbers the service or application uses, you can contact the publisher of the application, ask user groups or newsgroups, or search on the Internet.

Control Internet Access

AirCard Smart Cradle

9. Select a filtering option:

• Only This IP

• IP Address

addresses on your network.

• All lP

10. Click the Add button.

Your changes are saved.

Addresses. Block services for all computers on your network.

Address. Block services for a single computer.

Range. Block services for a range of computers with consecutive IP

Schedule When to Block Internet Sites and Services

When you schedule blocking, the same schedule is used to block sites and to block services. For information about how to specify what you want the cradle to block, see Use Keywords to

Block Internet Sites on page 47 and Block Services from the Internet on page 48.

 To schedule blocking:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Security > Schedule.

The default password is password. The user name and

, enter http://netgear.cradle or http://192.168.100.1.

5. Specify when to block keywords and services:

Control Internet Access

AirCard Smart Cradle

• Days to Block. Select the check box for each day that you want to block the

keywords or select the Every Day check box, which automatically selects the check boxes for all days.

• Time of Day to Block. Select a start and end time in 24-hour format, or select All

Day for 24-hour blocking.

6. Select your time zone from the list.

7. If you live in a region that observes daylight saving time, select the Automatically adjust

for daylight savings time check box.

8. Click the Apply button.

Your settings are saved.

Avoid Blocking on a Trusted Computer

You can exempt one trusted computer from blocking. The computer you exempt must be assigned a fixed IP address. You can use the reserved IP address feature to specify the IP address. See

Reserve LAN IP Addresses on page 78.

 To specify a trusted computer:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Security > Block Sites.

5. Scroll down and select the Allow trusted IP address to visit blocked sites check box.

6. In the Trusted IP Address field, enter the IP address of the trusted computer.

7. Click the Apply button.

Your changes are saved.

Set Up Security Event Email Notifications

The cradle can email you its logs of its activity. The log records cradle activity and security events such as attempts to access blocked sites or services.

Control Internet Access

AirCard Smart Cradle

 To set up email notifications:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Security > E-mail.

5. Select the Turn Email Notification On check box.

6. In the Y

our Outgoing Mail Server field, enter the name of your ISP outgoing (SMTP) mail

server (such as mail.myISP.com). You might be able to find this information in the configuration screen of your email

program. If you leave this field blank, log and alert messages are not sent.

7. In the Send to This E-mail

Address field, type the email address to which logs and alerts

are to be sent. This email address is also used for the From address. If this field is blank, log and alert

messages are not sent.

8. If your outgoing email server requires authentication, select the My Mail Server requires

authentication check box and do the following: a. In the User Name field, type the user name for the outgoing email server b. In the Password field, type the password for the outgoing email server

9. (Optional) Select the Send Alerts

Immediately check box.

Email alerts are sent immediately when someone attempts to visit a blocked site.

Control Internet Access

AirCard Smart Cradle

10. To send logs based on a schedule, specify these settings:

• From Send logs according to this schedule list, select the schedule type.

• From the Day list, select the day.

• From the Time list, select the time, and select the am or pm radio button.

11. Click the Apply button.

Your settings are saved. Logs are sent automatically according to the schedule that you set. If the log fills before

the specified time, it is sent. After the log is sent, it is cleared from the cradle memory. If the cradle cannot email the log and the log buffer fills, the cradle overwrites the log.

Set Up Port Forwarding to a Local Server

If your home network includes a server, you can allow certain types of incoming traffic to reach the server. For example, you might want to make a local web server, FTP server, or game server visible and available to the Internet.

The cradle can forward incoming traffic with specific protocols to computers on your local network. You can specify the servers for applications and you can also specify a default DMZ server to which the cradle forwards all other incoming protocols.

 To forward specific incoming protocols:

1. Decide which type of service, application, or game you want to provide.

2. Find the local IP address of the computer on your network that will provide the service.

You can usually find this information by contacting the publisher of the application or user groups or news groups.

The server computer must always use the same IP address. Assign the server computer a reserved IP address. See

3. Launch a web browser from a computer or wireless device that is connected to the Smart

Cradle.

4. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

5. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

Reserve LAN IP Addresses on page 78.

The BASIC Home screen displays.

Control Internet Access

AirCard Smart Cradle

6. Select ADVANCED > Advanced Setup > Port Forwarding/Port Triggering.

7. Leave the Port Forwarding radio button selected as the service type.

8. From the Service Name list, select the service name.

If the service that you want to add is not in the list, create a custom service. See Add a

Custom Port Forwarding Service on page 54.

9. In the Server IP

Address field, enter the IP address of the computer that will provide the

service.

10. Click the Add button.

The service displays in the list.

Add a Custom Port Forwarding Service

 To add a custom service:

1. Find out which port number or range of numbers the application uses.

You can usually find this information by contacting the publisher of the application or user groups or news groups.

2. Launch a web browser from a computer or wireless device that is connected to the Smart

Cradle.

3. In the address field of the browser

A login prompt displays.

4. Enter the cradle user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

, enter http://netgear.cradle or http://192.168.100.1.

The BASIC Home screen displays.

5. Select ADV

ANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering screen displays.

6. Leave the Port Forwarding radio button selected as the service type.

Control Internet Access

AirCard Smart Cradle

7. Click the Add Custom Service button.

8. In the Service Name field, enter a descriptive name.

9. In the Protocol list, select the protocol.

If you are unsure, select TCP/UDP.

10. In the External Port Range field, enter the port range.

If the application uses a single port, enter that port number.

11. Specify the internal ports by one of these methods:

• Leave the Use the same port range for Internal port check box selected.

• T

ype the port numbers in the Internal Port Range fields.

12. In the Internal IP address field, type the IP addressor select the radio button for an attached

device listed in the table.

13. Click the Apply button.

The service is now in the list on the Port Forwarding/Port Triggering screen.

Edit a Port Forwarding Service

 To edit a port forwarding entry:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

, enter http://netgear.cradle or http://192.168.100.1.

The BASIC Home screen displays.

4. Select ADV

ANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering screen displays.

Control Internet Access

AirCard Smart Cradle

5. Leave the Port Forwarding radio button selected as the service type.

6. In the table, select the radio button next to the service name.

7. Click the Edit Service button.

The Ports - Custom Services screen displays.

8. Change the settings as needed:

9. Click the Apply button.

Your changes are saved.

Delete a Port Forwarding Entry

 To delete a port forwarding entry:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering screen displays.

5. Select the Port Forwarding radio button as the service type.

6. In the table, select the radio button next to the service name.

7. Click the Delete Service button.

The service is deleted.

Application Example: Make a Local Web Server Public

If you host a web server on your local network, you can use port forwarding to allow web requests from anyone on the Internet to reach your web server.

 To make a local web server public:

1. Assign your web server either a fixed IP address or a dynamic IP address using DHCP

address reservation. In this example, your cradle always gives your web server an IP address of

192.168.100.33.

2. In the Port Forwarding/Port Triggering screen, configure the cradle to forward the HTTP

service to the local address of your web server at 192.168.100.33.

Control Internet Access

AirCard Smart Cradle

HTTP (port 80) is the standard protocol for web servers.

3. (Optional) Register a host name with a Dynamic DNS service and specify that name in the

Dynamic DNS screen of the cradle. Dynamic DNS makes it much easier to access a server from the Internet because you

can type the name in the Internet browser. Otherwise, you must know the IP address that the ISP assigned, which typically changes.

How the Cradle Implements the Port Forwarding Rule

The following sequence shows the effects of a port forwarding rule:

1. When you type the URL www.example.com in your browser, the browser sends a web

page request message with the following destination information:

• Destination address. The IP address of www.example.com, which is the address of

your cradle.

• Destination port number. 80, which is the standard port number for a web server

process.

2. Your cradle receives the message and finds your port forwarding rule for incoming port 80

traffic.

3. The cradle changes the destination in the message to IP address 192.168.100.123 and

sends the message to that computer.

4. Your web server at IP address 192.168.100.123 receives the request and sends a reply

message to your cradle.

5. Your cradle performs Network Address Translation (NAT) on the source IP address, and

sends the reply through the Internet to the computer or wireless device that sent the web page request.

Set Up Port Triggering

Port triggering is a dynamic extension of port forwarding that is useful in these cases:

• An application must use port forwarding to more than one local computer (but not

simultaneously).

• An application must open incoming ports that are different from the outgoing port.

With port triggering, the cradle monitors traffic to the Internet from an outbound “trigger” port that you specify. For outbound traffic from that port, the cradle saves the IP address of the computer that sent the traffic. The cradle temporarily opens the incoming port or ports that you specify in your rule and forwards that incoming traffic to that destination.

Port forwarding creates a static mapping of a port number or range of ports to a single local computer. Port triggering can dynamically open ports to any computer when needed and close the ports when they are no longer needed.

Control Internet Access

AirCard Smart Cradle

Note: If you use applications such as multiplayer gaming, peer-to-peer

connections, real-time communications such as instant messaging, or remote assistance (a feature in Windows XP), enable Universal Plug and Play (UPnP). See Improve Network Connections with Universal

Plug and Play on page 68.

Add a Port Triggering Service

 To add a port triggering service:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering screen displays.

5. Select the Port T

riggering radio button.

6. Click the Add Service button.

7. In the Service Name field, type a descriptive service name.

8. From the Service User list, select a user option:

• Any (the default) allows any computer on the Internet to use this service.

• Single address restricts the service to a particular computer

9. From the Service T

ype list, select TCP or UDP or TCP/UDP (both).

If you are not sure, select TCP/UDP.

Control Internet Access

AirCard Smart Cradle

10. In the Triggering Port field, enter the number of the outbound traffic port that will open the

inbound ports.

11. Complete the Connection T

ype, Starting Port, and Ending Port fields.

12. Click the Apply button.

The service is now in the Portmap table. You must enable port triggering before the cradle uses port triggering. See Enable Port Triggering on page 59.

Enable Port Triggering

 To enable port triggering:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering screen displays.

5. Select the Port T

riggering radio button.

6. Clear the Disable Port Triggering check box.

If this check box is selected, the cradle does not use port triggering even if you use specified port triggering settings.

7. In the Port T

riggering Timeout field, enter a value up to 9999 minutes.

This value controls how long the inbound ports stay open when the cradle detects no activity

. This value is required because the cradle cannot detect when the application

terminates.

Control Internet Access

AirCard Smart Cradle

Application Example: Port Triggering for Internet Relay Chat

Some application servers, such as FTP and IRC servers, send replies to multiple port numbers. Using port triggering, you can tell the cradle to open more incoming ports when a particular outgoing port starts a session.

An example is Internet Relay Chat (IRC). Your computer connects to an IRC server at

destination port 6667. The IRC server not only responds to your originating source port but also sends an “identify” message to your computer on port 1 13. Using port triggering, you can tell the cradle, “When you initiate a session with destination port 6667, you must also allow incoming traffic on port 1 13 to reach the originating computer .” The following sequence shows the effects of this port triggering rule:

1. You open an IRC client program to start a chat session on your computer.

2. Your IRC client composes a request message to an IRC server using a destination port

number of 6667, the standard port number for an IRC server process. Your computer then sends this request message to your cradle.

3. Your cradle creates an entry in its internal session table describing this communication

session between your computer and the IRC server. Your cradle stores the original information, performs Network Address Translation (NAT) on the source address and port, and sends this request message through the Internet to the IRC server.

4. Noting your port triggering rule and observing the destination port number of 6667, your

cradle creates another session entry to send any incoming port 113 traffic to your computer.

5. The IRC server sends a return message to your cradle using the NAT-assigned source port

(for example, port 33333) as the destination port and sends an “identify” message to your cradle with destination port 113.

6. When your cradle receives the incoming message to destination port 33333, it checks its

session table to see if a session is active for port number 33333. Finding an active session, the cradle restores the original address information replaced by NAT and sends this reply message to your computer.

7. When your cradle receives the incoming message to destination port 113, it checks its

session table and finds an active session for port 113 associated with your computer. The cradle replaces the message’s destination IP address with your computer’s IP address and forwards the message to your computer.

8. When you finish your chat session, your cradle eventually senses a period of inactivity in the

communications. The cradle then removes the session information from its session table and incoming traffic is no longer accepted on port numbers 33333 or 113.

Control Internet Access

5. Optimize Performance

This chapter contains the following sections:

• Optimize Internet Gaming with Upstream QoS

• Add QoS Rules

• Improve Network Connections with Universal Plug and Play

• Wi-Fi Multimedia Quality of Service

AirCard Smart Cradle

Optimize Internet Gaming with Upstream QoS

Upstream Quality of Service (QoS) assigns high priority to Internet traffic from your console gaming system.

High priority trac

Internet

Best eort trac

Figure 6. Upstream QoS assigns high priority to gaming traffic from your gaming console

Best practice is for only gamers to enable the Upstream QoS feature. If you do not game and you turn on this feature, some applications might not perform as well as usual.

 To enable upstream QoS:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Setup > QoS Setup.

Optimize Performance

AirCard Smart Cradle

5. Select the Enable Upstream QoS (Optimized for Gaming) check box.

6. Specify the maximum uplink bandwidth for your Internet connection:

• If you know what your uplink bandwidth is, type it in the Uplink bandwidth Maximum

field.

• If you are not sure, click the Speedtest button.

Speedtest verifies the upstream speed of your Internet connection. The Uplink bandwidth Maximum field displays the result of the test.

7. Click the Apply button.

The cradle assigns a high priority to Internet traffic from your gaming devices to the Internet.

Add QoS Rules

You can give prioritized Internet access to the following types of traffic:

• Specific applications

• Specific online games

• Individual Ethernet LAN ports of the cradle

• A specific device by MAC address

To specify prioritization of traffic, create a policy for the type of traffic and add the policy to the QoS Policy table in the QoS Setup screen. For convenience, the QoS Policy table lists many common applications and online games that can benefit from QoS handling.

Set Up QoS for Applications and Online Gaming

 To create a QoS policy for applications and online games:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Setup > QoS Setup.

The QoS Setup screen displays.

Optimize Performance

5. Click the Setup QoS rule button.

AirCard Smart Cradle

6. To add a priority rule, scroll down to the bottom of the QoS Setup screen and click the Add

Priority Rule button.

7. In the QoS Policy for field, type the name of the application or game.

8. From the Priority Category list, select either Applications or Online Gaming.

A list of applications or games displays.

9. Scroll and select Add a New

10. If prompted, in the Connection T

Application, or Add a New Game, as applicable.

ype list, select either TCP, UDP, or TCP/UDP (both).

Specify the port number or range of port numbers that the application or game uses.

11. From the Priority list, select the priority for Internet access for this traf

fic relative to other

applications and traffic. The options are Low, Normal, High, and Highest.

12. Click the Apply button.

The rule is saved.

Optimize Performance

AirCard Smart Cradle

Set Up QoS for a LAN Port on the AirCard Smart Cradle

 To create a QoS policy for a device connected to one of the cradle’s LAN ports:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Setup > QoS Setup.

The QoS Setup screen displays.

5. Select the T

urn Internet Access QoS On check box.

6. Click the Setup QoS Rule button.

The QoS Priority Rule list displays.

7. Scroll down and click the Add Priority Rule button.

The QoS - Priority Rules screen displays.

8. From the Priority Category list, select Ethernet LAN Port.

9. From the QoS Policy for list, select the LAN port.

10. From the Priority list, select the priority for Internet access for this port’

other applications. The options are Low, Normal, High, and Highest.

11. Click the Apply button.

The rule is saved in the QoS Policy list.

Optimize Performance

s traffic relative to

AirCard Smart Cradle

Set Up QoS for a MAC Address

 To create a QoS policy for traffic from a specific MAC address:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Setup > QoS Setup.

The QoS Setup screen displays.

5. Click the Setup QoS Rule button.

The QoS Priority Rule list displays.

6. Scroll down and click the Add Priority Rule button.

The QoS Priority Rules screen displays.

7. From the Priority Category list, select MAC Address.

8. If the device is in the MAC Device List, select its radio button.

The information from the MAC Device List populates the policy name, MAC Address, and Device Name fields. If the device is not in the MAC Device List, click the Refresh button. If it still does not display

, complete these fields.

9. From the Priority list, select Highest.

This is the priority for Internet access for this device’s traffic relative to other applications and traf

fic. The options are Low, Normal, High, and Highest.

10. Click the Apply button.

Optimize Performance

AirCard Smart Cradle

This rule is saved.

Edit an Upstream QoS Policy

 To edit a QoS policy:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Setup > QoS Setup.

The QoS Setup screen displays.

5. Click the Setup QoS Rule button.

The QoS Priority Rules screen displays.

6. Select the radio button for the QoS policy.

7. Scroll down and click the Edit button

8. Change the policy settings.

9. Click the Apply button.

Your changes are saved.

Delete an Upstream QoS Policy

 To delete a QoS policy:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Setup > QoS Setup.

The QoS Setup screen displays.

Optimize Performance

AirCard Smart Cradle

5. Click the Setup QoS Rule button.

The QoS Priority Rules screen displays.

6. Select the radio button for the QoS policy.

7. Click the Delete button.

The QoS Policy is removed from the list.

Improve Network Connections with Universal Plug and Play

Universal Plug and Play (UPnP) helps devices, such as Internet appliances and computers, access the network and connect to other devices as needed. UPnP devices can automatically discover the services from other registered UPnP devices on the network.

If you use applications such as multiplayer gaming, peer-to-peer connections, or real-time communications such as instant messaging or remote assistance (a feature in Windows XP), enable UPnP.

 To enable Universal Plug and Play:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > UPnP.

The UPnP screen displays.

5. Select the Turn UPnP On check box.

By default, this check box is selected. UPnP for automatic device configuration can be enabled or disabled. If the Turn UPnP On check box is cleared, the Smart Cradle does not allow any device to automatically control router resources, such as port forwarding.

6. Type the advertisement period in minutes.

The advertisement period specifies how often the Smart Cradle broadcasts its UPnP information. This value can range from 1 to 1440 minutes. The default period is 30 minutes. Shorter durations ensure that control points receive current device status at the expense of more network traffic. Longer durations can compromise the freshness of the device status, but can significantly reduce network traffic.

Optimize Performance

AirCard Smart Cradle

7. Type the advertisement time to live in hops.

The time to live for the advertisement is measured in hops (steps) for each UPnP packet sent. Hops are the steps a packet takes between routers. The number of hops can range from 1 to 255. The default value for the advertisement time to live is 4 hops, which should be fine for most home networks. If you notice that some devices are not being updated or reached correctly, it might be necessary to increase this value.

8. Click the Apply button.

The UPnP Portmap Table displays the IP address of each UPnP device that is accessing the Smart Cradle and which ports (internal and external) that device has opened. The UPnP Portmap Table also displays what type of port is open and whether that port is still active for each IP address.

9. To refresh the information in the UPnP Portmap Table, click the Refresh button.

Wi-Fi Multimedia Quality of Service

Wi-Fi Multimedia Quality of Service (WMM QoS) prioritizes wireless voice and video traffic over the WiFi link. WMM QoS is automatically enabled for the cradle.

WMM QoS prioritizes wireless data packets from different applications based on four access categories: voice, video, best effort, and background. For an application to receive the benefits of WMM QoS, WMM must be enabled in the AirCard Smart Cradle and the client running that application. Legacy applications that do not support WMM and applications that do not require QoS are assigned to the best effort category, which receives a lower priority than voice and video.

 To disable WMM QoS:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Setup > QoS Setup.

The QoS Setup screen displays.

5. Clear the Enable WMM (Wi-Fi multimedia) settings (2.4 GHz b/g/n) check box.

6. Clear the Enable WMM (Wi-Fi multimedia) settings (5 GHz b/g/n) check box.

7. Click the Apply button.

Your changes are saved.

Optimize Performance

6. Network Settings

This chapter covers the following topics:

• View WAN Settings

• Set Up the AirCard Smart Cradle as a Default DMZ Server

• Configure DMZ on an AirCard Mobile Hotspot

• Change the Cradle’s Device Name

• Change the LAN TCP/IP Settings

• Specify the IP Addresses That the Cradle Assigns

• Disable the DHCP Server Feature in the Cradle

• Reserve LAN IP Addresses

• Use the WPS Wizard for WiFi Connections

• Specify Basic WiFi Settings

• Change the WiFi Password or Security Level

• Set Up a Guest Network

• Control the Wireless Radios

• Set Up a Wireless Schedule

• Specify WPS Settings

• Use the Smart Cradle as a Wireless Access Point

• Set Up the AirCard Smart Cradle in Bridge Mode

• Set Up a Facebook WiFi Guest Network

AirCard Smart Cradle

View WAN Settings

Y ou can view or configure wide area network (W AN) settings for the Internet port. You can set up a DMZ (demilitarized zone) server, change the maximum transmit unit (MTU) size, and enable the cradle to respond to a ping to its WAN (Internet) port.

 To view the WAN settings:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle. In the address field of the browser, enter http://netgear

A login prompt displays.

2. Enter the cradle user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

3. Select ADV

ANCED > Setup > WAN Setup.

The default password is password. The user name and

.cradle or http://192.168.100.1.

The following settings display:

• Disable Port Scan and DoS Protection. DoS protection protects your LAN against

denial of service attacks such as Syn flood, Smurf others. Select this check box only in special circumstances.

• Default DMZ Server.

games or videoconferencing, but it makes the firewall security less effective. See Set

Up the AirCard Smart Cradle as a Default DMZ Server on page 72.

• Respond to Ping on Internet Port. This

Use this feature only as a diagnostic tool or for a specific reason.

• Disable IGMP Proxying. IGMP proxying allows a computer on the local area network

(LAN) to receive the multicast traf need this feature, you can select this check box to disable it.

This feature is sometimes helpful when you are playing online

feature allows your cradle to be discovered.

fic it is interested in from the Internet. If you do not

Network Settings

Attack, Ping of Death, and many

AirCard Smart Cradle

• MTU Size (in bytes). The normal MTU (maximum transmit unit) value for most

Ethernet networks is 1500 bytes, or 1492 bytes for PPPoE connections. Change the MTU only if you are sure that it is necessary for your ISP connection. See

MTU Size on page 39.

• NAT Filtering. Network Address Translation (NAT) determines how the cradle

processes inbound traffic. Secured NAT protects computers on the LAN from attacks from the Internet but might prevent some Internet games, point-to-point applications, or multimedia applications from working. Open NAT provides a much less secured firewall but allows almost all Internet applications to work.

4. Click the Apply button.

Your changes are saved.

Change the

Set Up the AirCard Smart Cradle as a Default DMZ Server

The default DMZ server feature is helpful when you are using some online games and videoconferencing applications that are incompatible with Network Address Translation (NAT). The cradle is programmed to recognize some of these applications and to work correctly with them, but other applications might not function well. In some cases, one local computer can run the application correctly if the IP address for that computer is entered as the default DMZ server.

WARNING:

DMZ servers pose a security risk. A computer designated as the default DMZ server loses much of the protection of the firewall and is exposed to exploits from the Internet. If compromised, the DMZ server computer can be used to attack other computers on your network.

The cradle usually detects and discards incoming traffic from the Internet that is not a response to one of your local computers or a service that you configured in the Port Forwarding/Port Triggering screen. Instead of discarding this traffic, you can specify that the cradle forwards the traffic to one computer on your network. This computer is called the default DMZ server.

 To set up a default DMZ server:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

Network Settings

AirCard Smart Cradle

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Setup > WAN Setup.

The WAN Setup screen displays.

5. Select the Default DMZ Server check box.

6. Type the IP address.

7. Click the Apply button.

Your change takes effect.

Configure DMZ on an AirCard Mobile Hotspot

The mobile hotspot must be docked in the Smart Cradle.

 To use your browser to configure DMZ on a mobile hotspot:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter 192.168.1.1.

A login prompt displays.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The Home screen displays.

4. Select Settings > Network > Router.

5. Scroll down to DMZ.

6. Select the DMZ Enabled On radio button.

7. In DMZ address field type 192.168.1.4.

This is the default IP address assigned by the mobile hotspot to cradle.

8. Click the Submit button.

The cradle reboots. The cradle is on the mobile hotspot DMZ.

Network Settings

AirCard Smart Cradle

Change the Cradle’s Device Name

The cradle’s device name is DC112A. This device name displays in the file manager when you browse your network.

 To change the cradle’s device name:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Setup > LAN Setup.

The LAN Setup screen displays.

5. In the Device Name field, type a new name.

6. Click the Apply button.

Your change is saved.

Change the LAN TCP/IP Settings

The cradle is preconfigured to use private IP addresses on the LAN side and to act as a DHCP server. The cradle’s default LAN IP configuration is as follows:

• LAN IP address. 192.168.1.1

• Subnet mask. 255.255.255.0

These addresses are part of the designated private address range for use in private networks and are suitable for most applications. If your network requires a different IP addressing scheme, you can change these settings.

You might want to change these settings if you need a specific IP subnet that one or more devices on the network use, or if competing subnets on your network use the same IP scheme.

 To change the LAN TCP/IP settings:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

Network Settings

AirCard Smart Cradle

3. Enter the cradle user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Setup > LAN Setup.

5. In the IP Address field, type the IP address.

6. In the IP Subnet Mask, type the subnet mask of the cradle.

The IP address and subnet mask identify which addresses are local to a specific device and which must be reached through a gateway or cradle.

7. Change the RIP settings.

Router Information Protocol (RIP) allows the cradle to exchange routing information with other routers.

a. In the RIP Direction list, select one of the following:

• Both.

The cradle broadcasts its routing table periodically and incorporates

information that it receives.

• Out Only.

• In Only.

b. In the RIP V

• Disabled.

• RIP-1.

The cradle broadcasts its routing table periodically.

The cradle incorporates the RIP information that it receives. ersion list, select one of the following:

This is the default setting.

This format is universally supported. It is adequate for most networks,

unless your network setup is unusual.

• RIP-2.

This format carries more information. Both RIP-2B and RIP-2M send the routing data in RIP-2 format. RIP-2B uses subnet broadcasting. RIP-2M uses multicasting.

8. Click the Apply button.

Network Settings

AirCard Smart Cradle

Your changes are saved. If you changed the LAN IP address of the cradle, you are disconnected when this change

takes ef

9. To reconnect, close your browser, relaunch it, and log in to the cradle.

fect.

Specify the IP Addresses That the Cradle Assigns

By default, the cradle acts as a Dynamic Host Configuration Protocol (DHCP) server. The cradle assigns IP, DNS server, and default gateway addresses to all computers connected to the LAN. The assigned default gateway address is the LAN address of the cradle.

These addresses must be part of the same IP address subnet as the cradle’s LAN IP address. Using the default addressing scheme, define a range between 192.168.100.2 and

192.168.100.254, although you can save part of the range for devices with fixed addresses.

 To specify the pool of IP addresses that the cradle assigns:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Setup > LAN Setup.

The default password is password. The user name and

, enter http://netgear.cradle or http://192.168.100.1.

5. Make sure that the Use Router as DHCP Server check box is selected.

Network Settings

AirCard Smart Cradle

6. Specify the range of IP addresses that the cradle assigns:

a. In the Starting IP Address field, type the lowest number in the range.

This IP address must be in the same subnet as the cradle.

b. In the Ending IP Address field, type the number at the end of the range of IP

addresses. This IP address must be in the same subnet as the cradle.

7. Click the Apply button.

Your settings are saved.

The cradle delivers the following parameters to any LAN device that requests DHCP:

• An IP address from the range that you define

• Subnet mask

• Gateway IP address (the cradle’s LAN IP address)

• DNS server IP address (the cradle’s LAN IP address)

Disable the DHCP Server Feature in the Cradle

By default, the cradle acts as a DHCP server. The cradle assigns IP, DNS server, and default gateway addresses to all computers connected to the LAN. The assigned default gateway address is the LAN address of the cradle.

You can use another device on your network as the DHCP server or specify the network settings of all your computers.

 To disable the DHCP server feature in the cradle:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Setup > LAN Setup.

The Lan Setup screen displays.

5. Clear the Use Router as DHCP Server check box.

6. Click the Apply button.

7. (Optional) If this service is disabled and no other DHCP server is on your network, set your

computer IP addresses manually so that they can access the cradle.

Network Settings

AirCard Smart Cradle

Reserve LAN IP Addresses

When you specify a reserved IP address for a computer on the LAN, that computer always receives the same IP address each time it accesses the cradle’s DHCP server. Assign reserved IP addresses to computers or servers that require permanent IP settings.

Reserve an IP Address

 To reserve an IP address:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Setup > LAN Setup.

The LAN Setup screen displays.

5. In the Address Reservation section, click the Add button.

The Address Reservation screen displays.

6. In the IP Address field, type the IP address to assign to the computer or server.

Choose an IP address from the cradle’s LAN subnet, such as 192.168.100.x.

7. Type the MAC address of the computer or server.

Tip: If the computer is already on your network, you can copy its MAC

address from the Attached Devices screen and paste it here.

8. Click the Apply button.

The reserved address is entered into the table.

The reserved address is not assigned until the next time the computer contacts the cradle’s DHCP server. Reboot the computer, or access its IP configuration and force a DHCP release and renew.

Network Settings

AirCard Smart Cradle

Edit a Reserved IP Address Entry

 To edit a reserved IP address entry:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Setup > LAN Setup.

The LAN Setup screen displays.

5. Select the radio button next to the reserved address.

6. Click the Edit button.

The Address Reservation screen displays.

7. Change the settings.

8. Click the Apply button.

Your changes are saved.

Delete a Reserved IP Address Entry

 To delete a reserved IP address entry:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Setup > LAN Setup.

The LAN Setup screen displays.

5. Select the radio button next to the reserved address.

6. Click the Delete button.

The address is removed.

Network Settings

AirCard Smart Cradle

Use the WPS Wizard for WiFi Connections

The WPS Wizard helps you add a wireless computer or device to your WiFi network without typing the WiFi password.

 To use the WPS Wizard:

1. Launch an Internet browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1

A login screen displays.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > WPS Wizard.

A note explaining WPS displays.

5. Click the Next button.

6. Select a setup method:

• Push button. Click the WPS button on this screen.

• PIN Number. The screen adjusts. Enter the client security PIN and click the Next

button.

7. Within two minutes, go to the client device and use its WPS software to connect to the WiFi

network. The WPS process automatically sets up your wireless computer with the network

password when it connects. The cradle WPS screen displays a confirmation message.

Specify Basic WiFi Settings

The cradle WiFi network name (SSID), network key (password), and security option (encryption protocol) are preset in the factory . You can find the preset SSID and password on the cradle label. The preset SSID and password are uniquely generated for every device to protect and maximize your wireless security.

You don’t need to change your preset security settings. If you change your preset security settings, make a note of the new settings and store it in a safe place where you can easily find it.

If you use a WiFi connection when you change the SSID or other wireless security settings, you are disconnected when you click the Apply button. T o avoid this problem, use a computer with a wired connection to access the cradle.

Network Settings

AirCard Smart Cradle

 To specify basic wireless settings:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

, enter http://netgear.cradle or http://192.168.100.1

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

4. Select W

ireless.

The default password is password. The user name and

You can specify the settings for the 2.4 GHz band and for the 5 GHz bands.

5. In the Region list, select your region.

In some locations, you cannot change this setting.

6. T

o control the SSID broadcast, select or clear the Enable SSID Broadcast check box.

When this check box is selected, the cradle broadcasts its network name (SSID) so that it displays when you scan for local WiFi networks on your computer or wireless device.

7. T

o change the network name (SSID), type a new name in the Name (SSID) field.

The name can be up to 32 characters long and it is case-sensitive. The default SSID is randomly generated and is on the cradle’

s label. If you change the name, make sure to

write down the new name and keep it in a safe place.

Network Settings

AirCard Smart Cradle

8. To change the wireless channel, select a number in the Channel list.

In some regions, not all channels are available. Do not change the channel unless you experience interference (shown by lost connections or slow data transfers). If this happens, experiment with different channels to see which is the best.

When you use multiple access points, it is better if adjacent access points use different channels to reduce interference. The recommended channel spacing between adjacent access points is four channels (for example, use Channels 1 and 5, or 6 and 10).

9. Click the Apply button.

Your settings are saved. If you connected wirelessly to the network and you changed the SSID, you are

disconnected from the network.

10. Make sure that you can connect wirelessly to the network with its new settings.

If you cannot connect wirelessly, check the following:

• Is your computer or wireless device connected to another wireless network in your

area? Some wireless devices automatically connect to the first open network without wireless security that they discover.

• Is your computer or wireless device trying to connect to your network with its old

settings (before you changed the settings)? If so, update the wireless network selection in your computer or wireless device to match the current settings for your network.

Change the WiFi Data Speed Rate Settings

The data rate for high-speed transmissions is commonly specified in megabits per second (Mbps). By default, the cradle is set to operate with up to 600 Mbps in the 2.4 GHz WiFi band and up to 1,300 Mbps in the two 5 GHz WiFi bands. You can select slower settings.

 To change the WiFi Mbps settings:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

Network Settings

4. Select Wireless.

AirCard Smart Cradle

5. For the 2.4 GHz WiFi band, in the Wireless Network (2.4 GHz b/gn/n) section, select a

setting from the Mode list. Up to 300 Mbps is the default setting.

6. For the 5 GHz WiFi band, in the Wireless Network 5 GHz a/n/ac section, select a setting

from the Mode list. Up to 867 Mbps is the default setting, which allows 802.1

devices to join the network.

7. Click the Apply button.

Your settings are saved.

1ac and 802.11a wireless

Change the WiFi Password or Security Level

Your cradle comes with preset WPA2 or WPA security. The password that you enter to connect to your network is unique to your cradle and is on the cradle label. Best practice is to use the preset security, but you can change the settings. do not disable security.

 To change the WPA settings:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

Network Settings

AirCard Smart Cradle

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select Wireless.

The Wireless Setup screen displays.

5. Under Security Options, select a radio button for a security option.

The WPA2 option uses the newest standard for the strongest security, but some older computers and wireless devices cannot use WPA2. By default, the WPA-PSK [TKIP] + WPA2-PSK [AES] radio button is selected so that new or old computers and wireless devices can connect to the WiFi network by using either WPA2 or WPA security.

The Passphrase field displays.

6. In the Passphrase field, enter the network key (password).

It is a text string from 8 to 63 characters.

7. Write down the new password and keep it in a secure place for future reference.

8. Click the Apply button.

Your changes are saved.

Set Up a Guest Network

Guest networks allows visitors at your home to use the Internet without using your wireless security key. You can add a guest network for the 2.4 GHz WiFi band and for each of the two

5.0 GHz WiFi bands.

 To set up a guest network:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

Network Settings

4. Select Guest Network.

AirCard Smart Cradle

5. Scroll to the section for the guest WiFi network that you want to set up.

The default guest wireless network names (SSIDs) are as follows:

• NETGEAR-Guest is for the 2.4 GHz WiFi band.

• NETGEAR-5G-Guest is for the 5 GHz WiFi band.

6. Select any of the following wireless settings:

• Enable Guest Network. When this check box is selected, the guest network is

enabled, and guests can connect to your network using the SSID of this profile.

• Enable SSID Broadcast. If this check box is selected, the wireless access point

broadcasts its name (SSID) to all wireless stations. Stations with no SSID can adopt the correct SSID for connections to this access point.

• Allow guest to see each other and access my local network. If this check box is

selected, anyone who connects to this SSID can access your local network, not just your Internet connection.

7. Give the guest network a name.

The guest network name is case-sensitive and can be up to 32 characters. You then manually configure the wireless devices in your network to use the guest network name in addition to the main SSID.

8. Select a radio button for a security option.

The WPA2 option uses the newest standard for the strongest security, but some older computers and wireless devices cannot use it. Best practice is to select the WP

A-PSK

[TKIP] + WP A2-PSK [AES] radio button. This setting protects your WiFi network and lets

Network Settings

AirCard Smart Cradle

computers and wireless devices can connect to the WiFi network by using either WP A2 or WPA security.

9. Click the Apply button.

Your Smart Cradle settings are saved.

Control the Wireless Radios

The cradle’s internal wireless radios broadcast signals in the 2.4 GHz and 5 GHz range. By default, the radios are on so that you can connect wirelessly to the cradle. When the wireless radios are off, you can still use an Ethernet cable for a LAN connection to the cradle.

You can log in to the cradle and enable or disable the wireless radios. You can also turn the WiFi radios off and on based on a schedule. (See

 To enable or disable the wireless radios:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

Set Up a Wireless Schedule on page 87).

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

Network Settings

AirCard Smart Cradle

4. Select ADVANCED > Advanced Setup > Wireless Settings.

5. In the 2.4 GHz and 5 GHz sections, select or clear the Enable Wireless Radio check

boxes. Clearing these check boxes turns off the WiFi feature of the cradle for each band.

6. Click the Apply button.

Set Up a Wireless Schedule

You can turn off the wireless signal from your cradle at times when you do not need a wireless connection. For example, you might turn it off for the weekend if you leave town.

 To set up the wireless schedule:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the user name and password.

The user name is admin. password are case-sensitive.

The default password is password. The user name and

, enter http://netgear.cradle or http://192.168.100.1.

The BASIC Home screen displays.

4. Select ADV

The Advanced Wireless Settings screen displays.

ANCED > Advanced Setup > Wireless Settings.

Network Settings

AirCard Smart Cradle

5. Click the Add a new period button.

6. Use the lists, radio buttons, and check boxes to set up a period during which you want to

turn off the wireless signal.

7. Click the Apply button.

The Advanced Wireless Settings screen displays.

8. Select the T

9. Click the Apply button.

Your settings are saved.

urn off wireless signal by schedule check box to activate the schedule.

Specify WPS Settings

Wi-Fi Protected Setup (WPS) lets you join the WiFi network without typing the WiFi password.

 To specify WPS Settings:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

password are case-sensitive.

The default password is password. The user name and

, enter http://netgear.cradle or http://192.168.100.1.

The BASIC Home screen displays.

4. Select ADV

The Wireless Setup screen displays.

ANCED > Advanced Setup > Wireless Settings.

Network Settings

AirCard Smart Cradle

The Router’s PIN field displays the PIN that you use on a registrar (for example, from the Network Explorer on a Vista Windows computer) to configure the cradle’s wireless settings through WPS.

5. (Optional) Select or clear the Enable Router

’s PIN check box.

The PIN function might temporarily be disabled when the cradle detects suspicious attempts to break into the cradle’

s wireless settings by using the cradle’s PIN through WPS. You can manually enable the PIN function by selecting the Enable Router’s PIN check box.

6. (Optional) Select or clear the Keep Existing W

By default, the Keep Existing W

ireless Settings check box is selected. Best practice is

ireless Settings check box.

to leave this check box selected. If you clear this check box, the next time a new wireless client uses WPS to connect to

the cradle, the cradle wireless settings change to an automatically generated random SSID and security key.

7. Click the Apply button.

Your changes are saved.

Use the Smart Cradle as a Wireless Access Point

You can set up the cradle to run as an access point (AP) on the same local network as another router.

Note: When you use the cradle as a wireless AP, the cradle charges the

mobile hotspot, but does not use the mobile hotspot’s wireless broadband Internet connection.

 To set up the router as an AP:

1. Use an Ethernet cable to connect the Internet port of the cradle to a LAN port in the

router

Cable this port to a LAN port on a router

2. Launch an Internet browser from a computer or wireless device that is connected to the

Smart Cradle.

Network Settings

AirCard Smart Cradle

3. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

4. Enter the router user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

5. Select ADV

ANCED > Advanced Setup > Wireless AP.

6. Select the Enable AP Mode check box.

7. Scroll down and select the radio button for the IP address setting that you want to use:

• Get dynamically from existing router. The other router on the network assigns an

IP address to this router while this router is in AP mode.

• Enable fixed IP settings on this device (not recommended). Use this setting if you

want to manually assign a specific IP address to this router while it is in

AP mode.

Using this option effectively requires advanced network experience.

Note: To avoid interference with other routers or gateways in your network,

NETGEAR recommends that you use different wireless settings on each router. You can also turn off the wireless radio on the other router or gateway and use the DC112A only for wireless client access.

8. Click the Apply button.

The IP address of the router changes, and you are disconnected.

9. In the address field of the browser

, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

Network Settings

AirCard Smart Cradle

Set Up the AirCard Smart Cradle in Bridge Mode

You can use your cradle in bridge mode to connect multiple devices wirelessly at the faster

802.11ac speed. You need another router in your network with an Ethernet Internet connection.

Note: When you use the cradle in bridge mode, the cradle charges the

mobile hotspot, but does not use the mobile hotspot’s wireless broadband Internet connection.

Smart WiFi Router

Figure 7. Cradle in bridge mode with an 802.11ac WiFi connection

AirCard Smart Cradle in bridge mode

Installing your cradle as a bridge offers the following benefits:

• T

ake advantage of gigabit WiFi speeds on current devices.

• Use Gigabit WiFi for applications like video and gaming.

• Connect multiple devices like NAS, Smart

TV , NeoTV, Blu-ray player , and game consoles

at gigabit WiFi speeds using a WiFi link.

• A

void the need for separate WiFi adapters for each device.

For example, you can install your router in a room like a home office that has your Etherent W

AN Internet connection, then set up the cradle in bridge mode. Place the cradle in a different room that has your home entertainment center. Cable the cradle to your Smart TV, DVR, game console or Blu-ray player, and use its 802.11ac WiFi connection to the router.

Network Settings

AirCard Smart Cradle

 To set up bridge mode:

1. Make a note of the WiFi settings of the router to which the cradle will connect.

You need to know the SSID, WiFi security mode, WiFi password, and operating frequency (either 2.4 GHz or 5 GHz).

2. Launch a web browser from a computer or WiFi device that is connected to the Smart

Cradle.

3. In the address field of the browser

, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

4. Enter the user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

5. Select ADV

ANCED > Advanced Setup > Wireless Settings.

6. Scroll down and select the Use other operation mode check box and the Enable Bridge

mode radio button.

The screen adjusts.

Network Settings

AirCard Smart Cradle

7. Click the setup bridge mode wireless settings button.

8. Specify the settings of the other cradle to which this cradle will connect.

a. Select the wireless network frequency (2.4 GHz or 5 GHz).

For 802.11ac mode, select 5 GHz.

b. In the Name (SSID) field, enter the wireless network name (SSID). c. In the Security Option section, select a radio button. d. If prompted, type the passphrase (the WiFi password that you use to connect

wirelessly to the other router).

9. Click the Apply button.

The settings for the other router are saved and the Advanced Wireless Settings screen displays.

10. Click the Apply button on the

Your changes take effect.

Advanced Wireless Settings screen.

Set Up a Facebook WiFi Guest Network

Facebook WiFi turns your Smart Cradle into a WiFi mobile hotspot, prompting customers searching for WiFi to check in and like your Facebook page before using the web for free. (This does not work on a personal Facebook page.) Facebook WiFi opens the door to building closer relationships with your customers by sharing offers and announcements, boosting engagement on your Facebook page, and accessing aggregate insights about your customer base.

You must set up a guest network before you set up Facebook WiFi. See Set Up a Guest

Network on page 84.

Network Settings

AirCard Smart Cradle

 To set up Facebook WiFi:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

, enter http://netgear.cradle or http://192.168.100.1

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Advanced Setup > Facebook WiFi.

5. Select the Enable Facebook WiFi check box.

6. Click the Apply button.

Your settings are saved.

7. Click the Configure button.

The Facebook Login screen displays.

8. Log in to your Facebook business account.

The Facebook WiFi Configuration screen displays.

9. Select a Facebook business page from the Select a Page list.

10. T

o allow customers to skip check-in, select the Skip check-in link radio button.

If you select this radio button, customers can check in to your Facebook business page or skip the check-in.

11. T

o allow customers to access your business WiFi by entering a WiFi code, select the

Require Wi-Fi code radio button and type a WiFi code in the field that displays. If you select this radio button, customers can check in to your Facebook business page or

skip the check-in by using the WiFi code.

Network Settings

AirCard Smart Cradle

Note: The WiFi code is different from your guest network passphrase. If you

select this radio button, you must give customers the WiFi code for them to use your business WiFi.

12. From the Session Length list, select a length of time that you want to allow your customers

to be able to access your business WiFi after they check in.

13. To add terms of service to your Facebook check-in screen, select the Terms of Service

check box and type your terms of service.

14. Click the Save Settings button.

Facebook WiFi is enabled.

Network Settings

7. Manage the AirCard Smart Cradle

This chapter covers the following topics:

• Update the AirCard Smart Cradle Firmware

• Change the admin Password

• Recover the admin Password

• View AirCard Smart Cradle Status

• Manage the AirCard Smart Cradle Configuration File

• View and Customize Log Information

• Custom Static Routes

• View Devices Currently Connected to the AirCard Smart Cradle

• Remote Management

• Monitor Internet Traffic

• Set Up the AirCard Smart Cradle to Respond to Pings on the Internet Port

AirCard Smart Cradle

Update the AirCard Smart Cradle Firmware

The cradle firmware (routing software) is stored in flash memory. You might see a message at the top of the genie screens when new firmware is available. You can respond to that message to update the firmware or you can check to see if new firmware is available, and to update your product. (Visit

 To check for new firmware and update your cradle:

1. Launch a web browser from a computer that is connected to the Smart Cradle.

Best practice is to use the provided Ethernet cable to connect your computer to an Ethernet LAN port on the cradle

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

http://support.netgear.com.)

The BASIC Home screen displays.

4. Select Advanced > Administration > Router Update.

The Router Update screen displays.

5. Click the Check button.

The cradle finds new firmware information if any is available and displays a message asking if you want to download and install it.

6. Click the Yes button.

The cradle locates and downloads the firmware and begins the update.

WARNING:

To avoid the risk of corrupting the firmware, do not interrupt the update. For example, do not close the browser, click a link, or load a new page. Do not turn off the cradle.

When the upload is complete, your cradle restarts. The update process typically takes about one minute. Read the new firmware release notes to find out if you must reconfigure the cradle after updating.

Manage the AirCard Smart Cradle

AirCard Smart Cradle

Change the admin Password

You can change the default password that is used to log in to the cradle with the user name admin. This password is not the one that you use for WiFi access.

Be sure to change the password for the user name admin to a secure password. The ideal password contains no dictionary words from any language and contains uppercase and lowercase letters, numbers, and symbols. It can be up to 30 characters.

 To set the password for the user name admin:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin.

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

5. Type the old password, and type the new password twice.

6. T

o be able to recover the password, select the Enable Password Recovery check box.

Best practice is to enable password recovery.

7. Click the Apply button.

ANCED > Administration > Set Password.

The default password is password. The user name and

Your changes take effect.

Manage the AirCard Smart Cradle

AirCard Smart Cradle

Recover the admin Password

Best practice is to enable password recovery if you change the password for the cradle user name admin. Then you can recover the password if it is forgotten. This recovery process is supported in Internet Explorer, Firefox, and Chrome browsers but not in the Safari browser.

 To set up password recovery:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser, enter http://netgear.cradle or http://192.168.100.1.

A login prompt displays.

3. Enter the cradle user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Administration > Set Password.

The Set Password screen displays.

5. Select the Enable Password Recovery check box.

6. Select two security questions and provide answers to them.

7. Click the Apply button.

Your changes are saved.

 To recover your password:

1. In the address field of your browser, type http://netgear.cradle.

A login screen displays.

2. Click the Cancel button.

If password recovery is enabled, you are prompted to enter the serial number of the cradle.

The serial number is on the product label.

3. Enter the serial number of the cradle.

4. Click the Continue button.

A screen displays requesting the answers to your security questions.

5. Enter the saved answers to your security questions.

6. Click the Continue button.

A screen displays your recovered password.

7. Click the Login again button.

Manage the AirCard Smart Cradle

AirCard Smart Cradle

A login screen displays.

8. With your recovered password, log in to the cradle.

View AirCard Smart Cradle Status

 To view cradle status and usage information:

1. Launch a web browser from a computer or wireless device that is connected to the

Smart Cradle.

2. In the address field of the browser

A login prompt displays.

3. Enter the cradle user name and password.

, enter http://netgear.cradle or http://192.168.100.1.

The user name is admin.

password are case-sensitive. The BASIC Home screen displays.

4. Click the ADV

ANCED tab.

The default password is password. The user name and

5. For information about the displayed settings, click the Show/Hide Help Center link at the

bottom of the screen.

Manage the AirCard Smart Cradle

100

Netgear DC112A User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

AirCard® Smart Cradle

Contents

1. Hardware Setup

Unpack Your AirCard Smart Cradle

Front Panel

Rear Panel

Attach the External WiFi Antennas

Dock the Mobile Hotspot in the Smart Cradle

Undock the Mobile Hotspot from the Smart Cradle

Position the Smart Cradle

Install Your Smart Cradle

• Connect to the AirCard Smart Cradle

Connect to the AirCard Smart Cradle

Wired Connection

WiFi Connection
