NEFF N17HH20N0A Specifications Sheet

Warming drawer

Warming drawer with 29 cm installation height - perfect for a
coordinated kitchen look

√ Push&Pull Function

Features

Technical Data

Built-in / Free-standing : Built-in
Color / Material Front : Stainless steel
Maximum number of plates : 40
Maximum number of espresso cups : 192
Dimensions of the product (mm) : 290 x 596 x 548
Required niche size for installation (HxWxD) : 290 x 560 x 550
EAN code : 4242004184638
Electrical connection rating (W) : 810
Current (A) : 10
Voltage (V) : 220-240
Frequency (Hz) : 50; 60
Plug type : AU plug

'!2E20AE-biegdi!

N17HH20N0A

1/3

Warming drawer
N17HH20N0A

Features

Heating Functions

●

Heating plate made of toughened glass

●

Temperature control with 4 levels: 40 °C - 80 °C (glass surface
temperature)

●

Suitable for:

- Pre-warming of crockery

- Keeping drinks and food warm

- Dough proving

- Defrosting

- Slow cooking

Convenience

●

Cavity volume: 52 net usable litres

●

Max weight up to 25 kg

●

Max. loading espresso cups: 192 PC or Max. loading plates: 40 PC

●

Telescopic pull-out drawer

●

290 mm height

●

Push&Pull opening mechanism

Technical Info

●

Length of mains cable: 150 cm

●

Connected load: 0.81 kW

●

Appliance dimensions (HxWxD): 290 mm x 596 mm x 548 mm

●

Installation dimensions (HxWxD): 290 mm x 560 mm - 568 mm x
550 mm

●

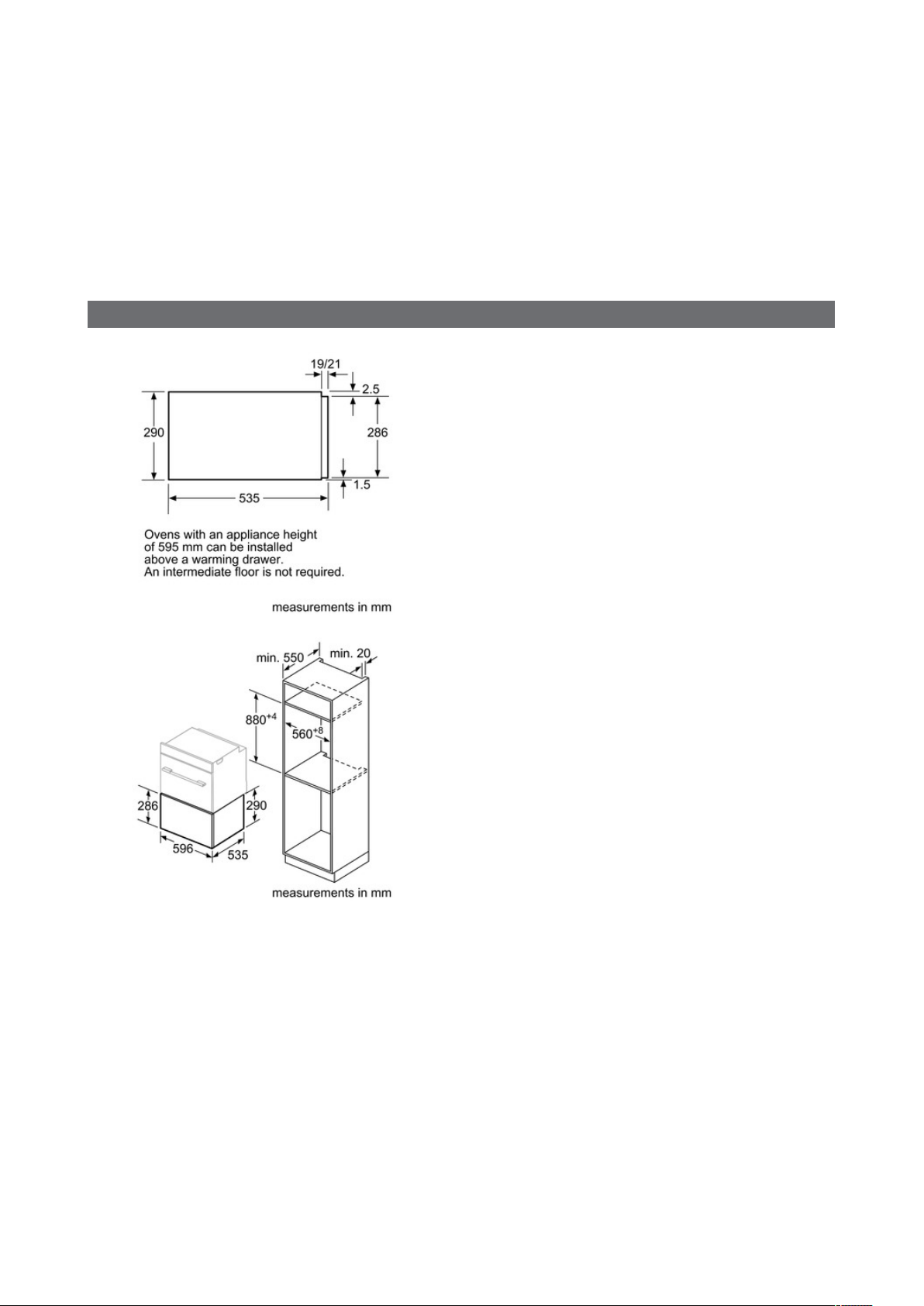

Please reference the built-in dimensions provided in the
installation drawing

2/3
