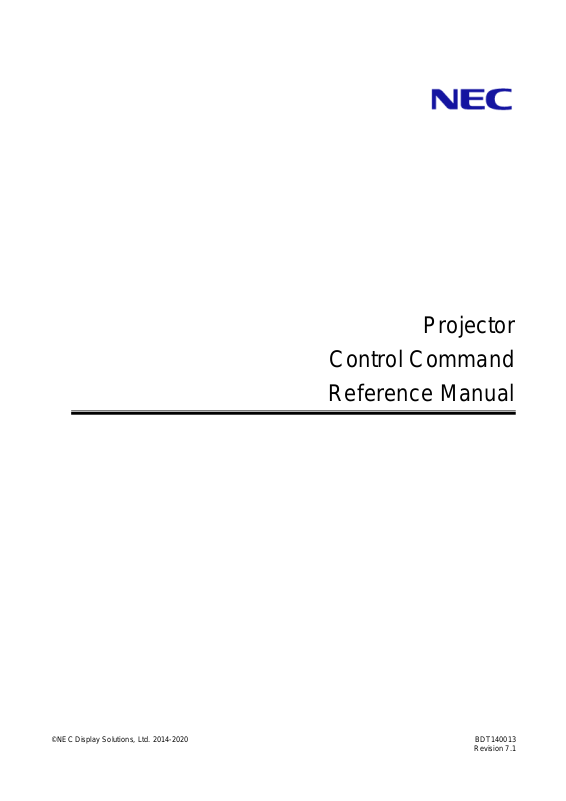

NEC Projector User Manual

Projector

Control Command

Reference Manual

©NEC Display Solutions, Ltd. 2014-2020 BDT140013 Revision 7.1

Introduction

This manual describes the commands used to control an NEC-made projector from a PC or other external device. A projector can be controlled by exchanging commands with an external device connected via a serial port or network. The manual assumes basic knowledge of projectors. For inf o rmati on about the functions of the model i n use a nd how to adjust the device, see the operation manual of the projector .For information about the connection between the projector and an external device, see "1 Connecting an External Device" (page 5). Connect an external device as appropriate for the usage environment of the projector.

Models for which the control commands are available

See the Appendix "Connecting an External Device".

Conventions

For information about how commands and responses are expressed in this manual, see "2.1 Understanding command details" (page 10).

NOTES

1. The acts of disclosure, duplication, and modification of part or whole contents in this reference manual without permission are prohibited.

2. The contents of this reference manual are subject to change without notice.

3. Great care has been taken in the preparation of this reference manual; however, should you notice any questionable points, errors or omissions, please contact us.

4. Notwithstanding article 3 . N EC will not be responsible for any clai ms on lo ss of profit or other matters deeme d to result from using this reference manual.

©NEC Display Solutions, Ltd. 2014-2020 2

1. Connecting an External Device

This chapter describes how to connect the projector to an external device and communication conditions.

1.1 Connection interfac e

The projector can be connected to a PC or other external device using the methods mentioned below. For information about the connection method supported by the model in use, see the Appendix "Connecting an External Device".

・Connection using a serial port ・Connection via a network

Connection using a serial port

This method connects a PC and the projector using a serial cable (cross cable). Connect the serial cable to the PC CONTROL port of the projector. The pin assignment of the serial cable is shown below.

Pin number Projector External device

1 (Not used) (Not used) 2 RxD TxD 3 TxD RxD 4 (Not used) (Not used) 5 GND GND 6 (Not used) (Not used) 7 RTS CTS 8 CTS RTS 9 (Not used) (Not used)

©NEC Display Solutions, Ltd. 2014-2020 5

Connection via a network

Information

・ Before connecting an external device via a network, check with the network administrator. ・ Some models cannot receive commands in standby mode. See Appendix "Standby Mode setting for receiving

commands".

 Connection using a wired LAN

This method connects a PC and the projector using a LAN cable. For information about the type of LAN cable to be used (straight or cross), contact the network administrator. The pin assignment of the LAN port is shown below.

Pin number Function Description

1 TD+ Transmit Data (+) 2 TD- Transmit Data (-) 3 RD+ Receive Data (+) 4

－

Not used 5 6 RD- Receive Data (-)

7 8

－

－－

Not used

 Connection using a wireless LAN

This method connects a PC via a wireless LAN by connecting a wireless LAN unit to the projector. For information about the available wireless LAN units, see the operation manual of the model in use.

©NEC Display Solutions, Ltd. 2014-2020 6

1.2 Communication conditions

For information about the connection methods available for the model in use, see the Appendix "Connecting an External Device".

Serial connection

The RS-232C-compliant communication method is supported. Specify the communication settings of the software used to send and receive commands, as shown below.

Item Detail Baud rate 115200/38400/19200/9600/4800 bps Data length 8 bits Parity bit None Stop bit 1 bit Communication mode Full duplex

LAN connection

 Wired LAN

Item Detail

Data rate Auto switchable (10/100 Mbps) Supported standard IEEE802.3 (10BASE-T)

IEEE802.3u (100BASE-TX, Auto-Negotiation)

 Wireless LAN

See the operation manual of the wireless LAN unit to be used.

 Port number

Use TCP port number "7142" for sending and receiving commands.

©NEC Display Solutions, Ltd. 2014-2020 7

2. Command List

Gets the selected profile number of the reference lens

Command Description Page to

009. ERROR STATUS REQUEST Gets information about errors occurring in the projector. 13

015. POWER ON Turns on the power of the projector. 15

016. POWER OFF Turns off the power of the projector. 16

018. INPUT SW CHANGE Switches the input terminal or entry list. 17

020. PICTURE MUTE ON Turns the picture mute on. 19

021. PICTURE MUTE OFF Turns the picture mute off. 20

022. SOUND MUTE ON Turns the sound mute on. 21

023. SOUND MUTE OFF Turns the sound mute off. 22

024. ONSCREEN MUTE ON Turns the onscreen mute on. 23

025. ONSCREEN MUTE OFF Turns the onscreen mute off. 24 030-1. PICTURE ADJUST Adjusts the picture. 25 030-2. VOLUME ADJUST Adjusts the sound volume. 27 030-12. ASPECT AD JUST Adjusts the aspect. 29 030-15. OTHER ADJUST Adjusts the various gains. 30

037. INFORMATION REQUEST Gets the information of the projector. 32 037-3. FILTER USAGE INFORMATION REQUEST Gets filter usage information such as usage time. 33 037-4. LAMP INFORMATION REQUEST 3 Gets lamp information such as usage time and remaining life. 34 037-6. CARBON SAVINGS INFORMATION REQUEST Gets the Carbon Saving values on t he projector. 36

050. REMOTE KEY CODE Sends the key code for remote control. 38

051. SHUTTER CLOSE Closes the lens shutter. 40

052. SHUTTER OPEN Opens the lens shutter. 41

053. LENS CONTROL Adjusts the lens position. 42 053-1. LENS CONTROL REQUEST Gets adjusted values of the lens position. 44 053-2. LENS CONTROL 2 Adjusts the lens position. 46 053-3. LENS MEMORY CONTROL Controls the lens memory. 48 053-4. REFERENCE LENS MEMORY CONTROL Controls the reference lens memory. 50 053-5. LENS MEMORY OPTION REQUEST Gets the value set for the lens memory. 52 053-6. LENS MEMORY OPTION SET Sets the lens memory. 53 053-7. LENS INFORMATION REQUEST Gets information about the lens of the projector. 55 053-10. LENS PROFILE SET Selects the profile number of the reference lens memory. 56 053-11. LENS PROFILE REQUEST

memory.

060-1. GAIN PARAMETER REQUEST 3 Gets adjusted values of the picture, volume, and backlight. 58

see

57

©NEC Display Solutions, Ltd. 2014-2020 8

Command Description Page to

Gets the information about the operation status of the

see 078-1. SETTING REQU EST Gets information of the projector. 60 078-2. RUNNING STATUS REQUEST

078-3. INPUT STATUS REQUEST

078-4. MUTE STATUS REQUEST Gets the mute status of the projector. 64 078-5. MODEL NAME REQUEST Gets the model name of the projector. 66 078-6. COVER STATUS REQUEST Get s t he status of the mirror cover or lens cover. 67

079. FREEZE CONTROL Controls whether to turn the freeze function on or off. 68

084. INFORMATION STRING REQUEST Gets information strings (English) displayed on the projector. 69 097-8. ECO MODE REQUEST Gets the value set for the eco mode. 70 097-45. LAN PROJECTOR NAME REQUEST Gets the projector name. 71 097-155. LAN MAC ADD R ESS STATU S REQUEST2 Gets the MAC address of the projector. 72 097-198. PIP/PICTURE BY PICTURE REQUEST

097-243-1. EDGE BLENDING MODE REQUEST Gets the val ue set for the edge blending. 75 098-8. ECO MODE SET Sets the eco mode. 76 098-45. LAN PROJECTOR NAME SET Sets the projector name. 77 098-198. PIP/PICTURE BY PICTURE SET Sets the picture in picture or picture by picture. 78 098-243-1. EDGE BLENDING MODE SET Sets the edge blending. 80 305-1. BASE MODEL TYPE REQUEST Gets the base model type of the projector. 81 305-2. SERIAL NUMBER REQUEST Gets the serial number of the projector. 82 305-3. BASIC INFORMATION REQUEST Gets the operation status of the projector. 83 319-10. AUDIO SELECT SET Sets the audio select. 85

projector. Gets the information about the input signal status of the

projector.

Gets the value set for the picture in picture and picture by picture.

61

62

73

©NEC Display Solutions, Ltd. 2014-2020 9

2.1 Understanding comma nd de t a ils

In this manual, commands and responses are expressed as follows.

20h 88h <ID1> <ID2> 0Ch <DATA01> - <DATA12> <CKS>

Command/response A series of strings enclosed in a frame represents a command or response (in

Parameter A character string in italic enclosed in brackets represents a parameter.

hexadecimal notation).

For information about the parameters that are c ommon to the control commands (ID1, ID2, CKS, LEN, ERR1, and ERR2), see "2.2 Parameters" (page 10). For information about those parameters whose content varies from command to command (DATA), see the description of the relevant command.

2.2 Parameters

The parameters that are used in the control commands are listed below.

Parameter name Description

ID1 Control ID The value of the "control ID" set for the projector is used.

ID2 Model code This varies depending on the model in use.

CKS Checksum The checksum is calculated as follows.

① Add all prec edi ng byt es of data. ② Use the value of the low-order one byte (eight bits) of the addition

result obtained in ① as th e checksum .

LEN Data length This indicates the data length of the data part (DATA??) following LEN (in

DATA?? Variable length data This varies depending on the character st ring stored.

ERR1 ERR2

Response error The cause of an error is represented by a combination of error codes.

bytes).

For information about error codes, see "2.4 Error code list" (page 12).

Example of checksum calculation

20h 81h 01h 60h 01h 00h <CKS>

① Add all the data preceding the checksum.

"20h + 81h + 01h + 60h + 01h + 00h = 103h"

② Use the low-order one byte "03h" of the addition result obtained in ① as the checksum.

©NEC Display Solutions, Ltd. 2014-2020 10

2.3 Responses

After a command is sent to the projector, its result is returned as a response. How a response is returned differs depending on the execution result of the command.

When the execution of a command succeeds

When the command does not request data, a response is returned with no data part. When the command requests data, a response is returned with data added to data parts.

When the execution of a command fails

A response is returned with the cause of the failed command execution indicated in <ERR1> and <ERR2>.

(Example) POWER ON

 Command

02h 00h 00h 00h 00h 02h

 Response

A2h 00h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 11

2.4 Error code list

The following table lists the combinations of error codes (ERR1 and ERR2) and describes the error indicated by each combination.

ERR1 ERR2 Error description

00h 00h The command cannot be recognized. 00h 01h The command is not supported by the model in use. 01h 00h The specified value is invalid. 01h 01h The specified input terminal is invalid. 01h 02h The specified language is invalid. 02h 00h Memory allocation error 02h 02h Memory in use 02h 03h The specified value cannot be set. 02h 04h Forced onscreen mute on 02h 06h Viewer error 02h 07h No signal 02h 08h A test pattern or filer is displayed. 02h 09h No PC card is inserted. 02h 0Ah Memory operation error 02h 0Ch An entry list is displayed. 02h 0Dh The command cannot be accepted because the power is off. 02h 0Eh The command execution failed. 02h 0Fh There is no authority necessary for the operation. 03h 00h The specified gain number is incorrect. 03h 01h The specified gain is invalid. 03h 02h Adjustment failed.

©NEC Display Solutions, Ltd. 2014-2020 12

3. Command details

3.1 [ 009. ERROR STA T U S REQUEST ]

Gets information about errors occurr in g in the projector.

Command

00h 88h 00h 00h 00h 88h

Response

 When the command succeeds

20h 88h <ID1> <ID2> 0Ch <DATA01> - <DATA12> <CKS>

 When the command fails

A0h 88h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

Data part

 DATA1 - DATA12 .............. Error information is provided. A bit set to "0" indicates that the data is normal, and a bit

set to "1" indicates an error. For an error information list, see the next page.

©NEC Display Solutions, Ltd. 2014-2020 13

) usage time

Temperature error (temperature

Lamp 2 in a replacement

Item

DATA01 Error status (1)

Bit0 Cover error Bit4 Fan error Bit1 Temperature error (bi-metallic

Bit2 None (fixed to 0) Bit6 Lamp (or lamp 1) off

Bit3 Fan error Bit7 Lamp (or lamp 1) in a replac ement

DATA02 Error status (2)

Bit0

Bit1 Formatter error Bit5 None (fixed to 0) Bit2 Lamp 2 off Bit6 None (fixed to 0) Bit3 None (fixed to 0) Bit7 Refer to the extend status.

DATA03 Error status (3)

Bit0 None (fixed to 0) Bit4 Lamp (or lamp 1) data error Bit1 FPGA error Bit5 Mirror cover error Bit2

Bit3 Lamp (or lamp 1) not present Bit7

DATA04 Error status (4)

Bit0 Lamp 2 not present Bit4 None (fixed to 0) Bit1 Lamp 2 data error Bit5 Ballast communication error Bit2 Temperature error due to dust Bit6 Iris calibration error

Bit3 Foreign matter sensor error Bit7 The l ens is not inst al l ed properly. DATA05 - 08 Reserved for the system DATA09 Extended status

Bit0 The portrait cover side is up Bit4 None (fixed to 0)

Bit1 The interlock switch is open. Bit5 None (fixed to 0)

Bit2 System error has occurred.

Bit3 System error has occurred

DATA10 - 12 Reserved for the system

strip)

Lamp (or lamp 1 exceeded the limit

sensor)

(Slave CPU)

(Formatter)

Description

Bit5 Power error

or backlight off

moratorium

Bit4 None (fixed to 0)

Bit6

moratorium Lamp 2 usage time exceeded the

limit

Bit6 None (fixed to 0)

Bit7 None (fixed to 0)

©NEC Display Solutions, Ltd. 2014-2020 14

3.2 [ 015. POWER ON ]

Turns on the power of the projector.

Information

While this command is turning on the power, no other command can be accepted.

Command

02h 00h 00h 00h 00h 02h

Response

 When the command succeeds

22h 00h <ID1> <ID2> 00h <CKS>

 When the command fails

A2h 00h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 15

3.3 [ 016. POWER OFF ]

Turns off the power of the projector.

Information

While this command is turning off the power (including the cooling time), no other command can be accepted.

Command

02h 01h 00h 00h 00h 03h

Response

 When the command succeeds

22h 01h <ID1> <ID2> 00h <CKS>

 When the command fails

A2h 01h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 16

3.4 [ 018. INPUT SW CHANGE ]

Switches the input termina l or entry list.

Command

02h 03h 00h 00h 02h 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Input terminal

Information

For the values of input terminal, see the Appendix "Supplementary Information by Command".

 Command example

The following command switches the input ter m ina l to a video port (DATA01: 06h).

02h 03h 00h 00h 02h 01h 06h 0Eh

©NEC Display Solutions, Ltd. 2014-2020 17

Response

 When the command succeeds

22h 03h <ID1> <ID2> 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Execution result

 When the command fails

A2h 03h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

00h Ended successfully. FFh Ended with an error (no signal switch is made).

©NEC Display Solutions, Ltd. 2014-2020 18

3.5 [ 020. PICTURE MUTE ON ]

Turns the picture mute on.

Information

If any of the following operations is done, the pic ture mut e is turned off.

・ Input terminal switch ・ Video signal switch

Command

02h 10h 00h 00h 00h 12h

Response

 When the command succeeds

22h 10h <ID1> <ID2> 00h <CKS>

 When the command fails

A2h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 19

3.6 [ 021. PICTURE MUTE OFF ]

Turns the picture mute off.

Command

02h 11h 00h 00h 00h 13h

Response

 When the command succeeds

22h 11h <ID1> <ID2> 00h <CKS>

 When the command fails

A2h 11h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 20

3.7 [ 022. SOUND MUTE ON ]

Turns the sound mute on.

Information

If any of the following operations is done, the sou nd mute is turned of f .

・ Input terminal switch ・ Video signal switch ・ Sound volume adjustment

Command

02h 12h 00h 00h 00h 14h

Response

 When the command succeeds

22h 12h <ID1> <ID2> 00h <CKS>

 When the command fails

A2h 12h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 21

3.8 [ 023. SOUND MUTE OFF ]

Turns the sound mute off.

Command

02h 13h 00h 00h 00h 15h

Response

 When the command succeeds

22h 13h <ID1> <ID2> 00h <CKS>

 When the command fails

A2h 13h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 22

3.9 [ 024. ONSCREEN MUTE ON ]

Turns the onscreen mute on.

Information

If any of the following operations is done, the onscreen mute is turned off.

・ Input terminal switch ・ Video signal switch

Command

02h 14h 00h 00h 00h 16h

Response

 When the command succeeds

22h 14h <ID1> <ID2> 00h <CKS>

 When the command fails

A2h 14h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 23

3.10 [ 025. ONSCREEN MUTE OFF ]

Turns the onscreen mute off.

Command

02h 15h 00h 00h 00h 17h

Response

 When the command succeeds

22h 15h <ID1> <ID2> 00h <CKS>

 When the command fails

A2h 15h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 24

3.11 [ 030-1. PICTURE ADJUST ]

Adjusts the picture.

Command

03h 10h 00h 00h 05h <DATA01> FFh <DATA02> - <DATA04> <CKS>

Data part

Item Description

DATA01 Adjustment target

00h Brightness 01h Contrast 02h Color 03h Hue 04h Sharpness

DATA02 Adjustment mode

00h Specify an absolute value

01h Specify a relative value DATA03 Adjustment value (low-order 8 bits) DATA04 Adjustment value (high-order 8 bits)

 Command example

① The following command sets brightness to "10".

03h 10h 00h 00h 05h 00h FFh 00h 0Ah 00h 21h

② The following command sets brightness to "-10".

03h 10h 00h 00h 05h 00h FFh 00h F6h FFh 0Ch

©NEC Display Solutions, Ltd. 2014-2020 25

Response

 When the command succeeds

23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 DATA02

 When the command fails

A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

Execution result

0000h Ended successfully.

Other than 0000h Ended with an error.

©NEC Display Solutions, Ltd. 2014-2020 26

3.12 [ 030-2. VOLUME ADJUST ]

Adjusts the sound volume.

Command

03h 10h 00h 00h 05h 05h 00h <DATA01> - <DATA03> <CKS>

Data part

Item Description

DATA01 Adjustment mode

00h Specify an absolute value

01h Specify a relative value DATA02 Adjustment value (low-order 8 bits) DATA03 Adjustment value (high-order 8 bits)

 Command example

The following command set the sound volume to "10".

03h 10h 00h 00h 05h 05h 00h 00h 0Ah 00h 27h

©NEC Display Solutions, Ltd. 2014-2020 27

Response

 When the command succeeds

23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 DATA02

 When the command fails

A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

Execution result

0000h Ended successfully.

Other than 0000h Ended with an error.

©NEC Display Solutions, Ltd. 2014-2020 28

3.13 [ 030-12. ASPECT ADJUST ]

Adjusts the aspect.

Command

03h 10h 00h 00h 05h 18h 00h 00h <DATA01> 00h <CKS>

Data part

Item Description

DATA01 Value set for the aspect

Information

For information about the values set for the aspect, see the Appendix "Supplementary Information by Command".

Response

 When the command succeeds

23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 DATA02

Execution result

0000h Ended successfully.

Other than 0000h Ended with an error.

 When the command fails

A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 29

3.14 [ 030-15. OTHER ADJUST ]

Adjusts the various gains.

Command

03h 10h 00h 00h 05h <DATA01> - <DATA05> <CKS>

Data part

Item Description

DATA01 DATA02

DATA03 Adjustment mode

DATA04 Adj ustment value (low-order 8 bits) DATA05 Adj ustment value (high-order 8 bits)

DATA01 DATA02 Adjustment target

96h FFh L AMP ADJUS T / LIGHT ADJU ST

00h Specify an absolute value

01h Specify a relative value

©NEC Display Solutions, Ltd. 2014-2020 30

Response

 When the command succeeds

23h 10h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 DATA02

 When the command fails

A3h 10h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

Execution result

0000h Ended successfully.

Other than 0000h Ended with an error.

©NEC Display Solutions, Ltd. 2014-2020 31

3.15 [ 037. INFORMATION REQUEST ]

Gets the information of the projector.

Command

03h 8Ah 00h 00h 00h 8Dh

Response

 When the command succeeds

23h 8Ah <ID1> <ID2> 62h <DATA01> - <DATA98> <CKS>

Data part

Item Description DATA01 - 49 Projector name (NUL: termination character string). DATA50 - 82 Reserved for the system DATA83 - 86 Lamp usage time (seconds) DATA87 - 90 Filter usage time (seconds) DATA91 - 98 Reserved for the system

 When the command fails

A3h 8Ah <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

 Response examp le

When the lamp usage time is18000 seconds (5 hours)

23h 8Ah <ID1> <ID2> 62h <DATA01> - <DATA82> 50h 46h 00h 00h <DATA87> - <DATA98> <CKS>

Lamp usage time (DATA83 – DATA86) = 18000 / 3600 = 5 hours

Information

While th e usage time can be obtained in one-second units, the information is updated at one-minute interv a ls.

©NEC Display Solutions, Ltd. 2014-2020 32

3.16 [ 037-3. FILTER USAGE INFORMATION REQUES T ]

Gets filter usage information such as usage time.

Command

03h 95h 00h 00h 00h 98h

Response

 When the command succeeds

23h 95h <ID1> <ID2> 08h <DATA01> - <DATA08> <CKS>

Data part

Item Description DATA01 - 04 Filter usage time (seconds) DATA05 - 08 Filter alarm start time (seconds)

Information

If no time is defined, "-1" is returned.

 When the command fails

A3h 95h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 33

3.17 [ 037-4. LAMP INFORMATION REQUEST 3 ]

Gets lamp usage information such as usage time or remaining life . W hen the ec o mod e is en ab led, t he va lue s in t he obtained information reflect the eco mode.

Command

03h 96h 00h 00h 02h <DATA01> <DATA02> <CKS>

Data part

Item Description DATA01 Target

00h Lamp 1 01h Lamp 2

DATA02 Content

01h Lamp usage time (seconds) 04h Lamp remaining life (%)

Information

"01h" (Lamp 2) in DATA01 is effective only for two-lamp projector models.

 Command example

The following command gets the lamp usage time.

03h 96h 00h 00h 02h 00h 01h 9Ch

©NEC Display Solutions, Ltd. 2014-2020 34

Response

 When the command succeeds

23h 96h <ID1> <ID2> 06h <DATA01> - <DATA06> <CKS>

Data part

Item Description DATA01 Target

00h Lamp 1 01h Lamp 2

DATA02 Content

01h Lamp usage time (seconds) 04h Lamp remaining life (%)

DATA03 - 06 Obtained information

 When the command fails

A3h 96h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

 Response examp le

When the lamp usage time is18000 seconds (5 hours)

23h 96h <ID1> <ID2> 06h 00h 01h 50h 46h 00h 00h <CKS>

Lamp usage time (DATA03 - DATA06) = 18000 / 3600 = 5 hours

Information

・ While the lamp usage time can be obtained in one-second units, the information is updated at one-minute

intervals.

・ If the lamp replacement deadline is exceeded, a negative value is returned as the lamp remaining life (%).

©NEC Display Solutions, Ltd. 2014-2020 35

3.18 [ 037-6. CARBON SAVINGS INFORMATION REQUEST ]

Gets the Carbon Saving values on the projector.

Command

03h 9Ah 00h 00h 01h <DATA01> <CKS>

Data part

Item Description DATA01 Target

00h Total Carbon Savings 01h Carbon S avings during operation

©NEC Display Solutions, Ltd. 2014-2020 36

Response

 When the command succeeds

23h 9Ah <ID1> <ID2> 09h <DATA01> - <DATA09> <CKS>

Data part

Item Description DATA01 Target

DATA02 - 05 Carbon Savings (Kilogram Maximum: 99999[kg]) DATA06 - 09 Carbon Savings (Mil l i gram Maximum:999999[mg])

 When the command fails

00h Total Carbon Savings 01h Carbon S avings during operation

A3h 9Ah <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

 Response examp le

When the Carbon Savings value is 2460.06375[kg].

23h 9Ah <ID1> <ID2> 09h 00h 9Ch 90h 00h 00h 06h F9h 00h 00h <CKS>

©NEC Display Solutions, Ltd. 2014-2020 37

3.19 [ 050. REMOTE KEY CODE ]

Sends the key code for remote control.

Command

02h 0Fh 00h 00h 02h <DATA01> <DATA02> <CKS>

Data part

Item Description DATA01

DATA02

Key code (WORD type) For the combinations of key codes, see Table "Key code list".

Key code DATA01 DATA02 Key name

2 02h 00h POWER ON 3 03h 00h POWER OFF 5 05h 00h AUTO 6 06h 00h MENU 7 07h 00h UP 8 08h 00h DOWN

9 09h 00h RIGHT 10 0Ah 00h LEFT 11 0Bh 00h ENTER 12 0Ch 00h EXIT 13 0Dh 00h HELP 15 0Fh 00h MAG NIFY UP 16 10h 00h MAGNIFY DOWN 19 13h 00h MUTE 41 29h 00h PICTURE 75 4Bh 00h COMPUTER1 76 4Ch 00h COMPUTER2 79 4Fh 00h VIDEO1 81 51h 00h S-VIDEO1

132 84h 00h VOLUME UP 133 85h 00h VOLUME DOWN 138 8Ah 00h FREEZE 163 A3h 00h ASPECT

©NEC Display Solutions, Ltd. 2014-2020 38

Key code DATA01 DATA02 Key name

215 D7h 00h SOURCE 238 EEh 00h LA MP MO D E /ECO

 Command example

The following command sends the key code "AUTO".

02h 0Fh 00h 00h 02h 05h 00h 18h

Response

 When the command succeeds

22h 0Fh <ID1> <ID2> 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Execut i on result

 When the command fails

A2h 0Fh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

00h Ended successfully.

FFh Ended with an error.

©NEC Display Solutions, Ltd. 2014-2020 39

3.20 [ 051. SHUTTER CLOSE ]

Closes the lens shutter.

Command

02h 16h 00h 00h 00h 18h

Response

 When the command succeeds

22h 16h <ID1> <ID2> 00h <CKS>

 When the command fails

A2h 16h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 40

3.21 [ 052. SHUTTER OPEN ]

Opens the lens shutter.

Command

02h 17h 00h 00h 00h 19h

Response

 When the command succeeds

22h 17h <ID1> <ID2> 00h <CKS>

 When the command fails

A2h 17h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 41

3.22 [ 053. LENS CONTROL ]

Adjusts the lens position.

Command

02h 18h 00h 00h 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Target

00h Zoom 01h Focus 02h Lens S hift (H) 03h Lens Shift (V)

DATA02 Content

00h Stop 01h Drives for 1 second in the direction of plus 02h Drives for 0.5 second in the direction of plus 03h Drives for 0.25 second in the direction of plus

7Fh Drives i n the direct i on of plus

81h Drives i n the direct i on of minus FDh Drives for 0.25 second in the direction of minus FEh Drives for 0.5 second in the direction of minus FFh Drives for 1 second in the direction of minus

Information

After sending "7Fh" (Drives in the direction of plus) or "81h" (Drives in the direction of minus) in DATA02, you can stop driving lens by sending "00h".

©NEC Display Solutions, Ltd. 2014-2020 42

Response

 When the command succeeds

22h 18h <ID1> <ID2> 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Execut i on result

 When the command fails

A2h 18h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

00h E nded successfully. FFh Ended with an error.

Information

While th e lens is being driven, you can control the lens position without a stop by issuing the same command.

©NEC Display Solutions, Ltd. 2014-2020 43

3.23 [ 053-1. LENS CONTROL REQUEST ]

Gets adjusted values of the lens position.

Command

02h 1Ch 00h 00h 02h <DATA01> 00h <CKS>

Data part

Item Description

DATA01 Target

00h Zoom

01h Focus

02h Lens S hift (H)

03h Lens Shift (V)

©NEC Display Solutions, Ltd. 2014-2020 44

Response

 When the command succeeds

22h 1Ch <ID1> <ID2> 08h <DATA01> 00h <DATA02> - <DATA07> <CKS>

Data part

Item Description

DATA01 Target

00h Zoom

01h Focus

02h Lens Shift (H)

03h Lens Shift (V)

DATA02 Upper limit of the adjustment range (low-order 8 bits) DATA03 Upper limit of the adjustment range (high-order 8 bits) DATA04 Lower limit of the adjustment range (low-order 8 bits) DATA05 Lower limit of the adjustment range (high-order 8 bits) DATA06 Current value (low-order 8 bits) DATA07 Current value (high-order 8 bits)

 When the command fails

A2h 1Ch <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 45

3.24 [ 053-2. LENS CONTROL 2 ]

Adjusts the lens position.

Command

02h 1Dh 00h 00h 04h <DATA01> - <DATA04> <CKS>

Data part

Item Description

DATA01 Target

00h Zoom

01h Focus

02h Lens S hift (H)

03h Lens Shift (V) FFh Stop

DATA02

DATA03 Adj ustment value (low-order 8 bits) DATA04 Adj ustment value (high-order 8 bits)

Adjustment mode

00h S pecify an absolute value

02h Spec ify a rel ative value

Information

If specifying “Stop” in DATA01, the Adjustment mode and Adjustment value are not referenced.

©NEC Display Solutions, Ltd. 2014-2020 46

Response

 When the command succeeds

22h 1Dh <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Target

00h Zoom

01h Focus

02h Lens S hift (H)

03h Lens Shift (V) FFh Stop

DATA02

Adjustment mode

00h S pecify an absolute value

02h Spec ify a rel ative value

 When the command fails

A2h 1Dh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 47

3.25 [ 053-3. LENS MEMORY CONTROL ]

Controls the lens memory.

Information

See [ 053-4. REFERENCE LENS MEMORY CONTROL ] for controlling the reference lens memory.

Command

02h 1Eh 00h 00h 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Operation

00h MOVE

01h STORE

02h RESET

©NEC Display Solutions, Ltd. 2014-2020 48

Response

 When the command succeeds

22h 1Eh <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Operation

00h MOVE

01h STORE

02h RESET

DATA02 Execut i on result

00h E nded successfully. FFh Ended with an error.

 When the command fails

A2h 1Eh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 49

3.26 [ 053-4. REFERENCE LENS MEMORY CONTROL ]

Controls the reference lens memory.

Information

・ See [ 053-3. LENS MEMORY CONTROL ] for controlling the lens memory. ・ This command controls the profile number specified in [053-10 LENS PROFILE SET ].

Command

02h 1Fh 00h 00h 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Operation

00h MOVE

01h STORE

02h RESET

©NEC Display Solutions, Ltd. 2014-2020 50

Response

 When the command succeeds

22h 1Fh <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Operation

00h MOVE

01h STORE

02h RESET

DATA02 Execut i on result

00h E nded successfully. FFh Ended with an error.

 When the command fails

A2h 1Fh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 51

3.27 [ 053-5. LENS MEMORY OPTION REQUEST ]

Gets the value set for the lens memory.

Command

02h 20h 00h 00h 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Target

00h L O AD BY SIGNAL

01h F O RCE D MUT E

Response

 When the command succeeds

22h 20h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Target

DATA02 Setting value

 When the command fails

00h L O AD BY SIGNAL

01h F O RCE D MUT E

00h OFF

01h ON

A2h 20h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 52

3.28 [ 053-6. LENS MEMORY OPTION SET ]

Sets the lens memory.

Command

02h 21h 00h 00h 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Target

00h L O AD BY SIGNAL

01h F O RCE D MUT E

DATA02 Setting value

00h OFF

01h ON

©NEC Display Solutions, Ltd. 2014-2020 53

Response

 When the command succeeds

22h 21h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Target

00h L O AD BY SIGNAL

01h F O RCE D MUT E

DATA02 Execut i on result

00h E nded successfully.

01h E nded with an error.

 When the command fails

A2h 21h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 54

3.29 [ 053-7. LENS INFORMATION REQUEST ]

Gets information about the lens of the projector.

Command

02h 22h 00h 00h 01h 00h 25h

Response

 When the command succeeds

22h 22h <ID1> <ID2> 02h 00h <DATA01> <CKS>

Data part

Item Description

DATA01 Target

Bit0 Lens memory Bit4 Lens Shift (V)

Bit1 Zoom Bit5 Reserved for the system

Bit2 Focus Bit6 Reserved for the system

Bit3 Lens Shift (H) Bit7 Reserved for the system

 When the command fails

0 Stop 0 Stop 1 During operation 1 During operation

0 Stop 1 During operation

A2h 22h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 55

3.30 [ 053-10. LENS PROFILE SET ]

Selects the profile number of the reference lens memory.

Command

02h 27h 00h 00h 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Profile number

00h P rofile 1

01h P rofile 2

Response

 When the command succeeds

22h 27h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Profile number

00h P rofile 1

01h P rofile 2

DATA02 Execut i on result

00h E nded successfully.

01h E nded with an error.

 When the command fails

A2h 27h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 56

3.31 [ 053-11. LENS PROFILE REQUEST ]

Gets the selected profile number of the reference lens memory.

Command

02h 28h 00h 00h 00h 2Ah

Response

 When the command succeeds

22h 28h <ID1> <ID2> 02h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Profile number

DATA02 Reserved f or the system

 When the command fails

A2h 28h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

00h P rofile 1

01h P rofile 2

©NEC Display Solutions, Ltd. 2014-2020 57

3.32 [ 060-1. GAIN PARAMETER REQUEST 3 ]

Gets adjusted values of the picture, volume, and so on.

Command

03h 05h 00h 00h 03h <DATA01> 00h 00h <CKS>

Data part

Item Description

DATA01 Adj ust ed val ue nam e

00h PICTURE / BRIGHTNESS

01h PICTURE / CONTRAST

02h PICTURE / COLOR

03h PICTURE / HUE

04h PICTURE / SHARPNESS

05h VOLUME

96h LAMP ADJUST / LIGHT ADJUST

 Command example

The following command gets the adjusted value of the picture (brightness).

03h 05h 00h 00h 03h 00h 00h 00h 0Bh

©NEC Display Solutions, Ltd. 2014-2020 58

Response

 When the command succeeds

23h 05h <ID1> <ID2> 10h <DATA01> - <DATA16> <CKS>

Data part

Item Description

DATA01 Adjusted value status

00h Di s pl ay not possi bl e

01h A dj ustment not possible

02h A dj ustment possible FFh The specified gain does not exist.

DATA02 Upper limit of the adjustment range (low-order 8 bits) DATA03 Upper limit of the adjustment range (high-order 8 bits) DATA04 Lower limit of the adjustment range (low-order 8 bits) DATA05 Lower limit of the adjustment range (high-order 8 bits) DATA06 Defaul t value (low-order 8 bits) DATA07 Defaul t value (high-order 8 bits) DATA08 Current value (low-order 8 bits) DATA09 Current value (high-order 8 bits) DATA10 Wide adjustment width (low-order 8 bits) DATA11 Wide adjustment width (high-order 8 bits) DATA12 Narro w adjustment width (low-order 8 bits) DATA13 Narro w adjustment width (high-order 8 bits) DATA14 Whether the default value is valid or invalid

00h T he def aul t value is invalid.

01h T he def aul t value is valid.

DATA15 DATA16

Reserved for the system

 When the command fails

A3h 05h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 59

3.33 [ 078-1. SETTING REQUEST ]

Gets information of the projector.

Command

00h 85h 00h 00h 01h 00h 86h

Response

 When the command succeeds

20h 85h <ID1> <ID2> 20h <DATA01> - <DATA32> <CKS>

Data part

Item Description DATA01 - 03 Base model type DATA04 Sound function

00h Not avai l abl e 01h Available

DATA05 Profile number

00h Not avai l abl e 01h Clock function 02h Sleep timer function 03h Clock function and Sleep timer function

DATA06 - 32 Reserved for the system

Information

For the values of the base model types, see the Appendix "Supplementary Information by Command".

 When the command fails

A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 60

3.34 [ 078-2. RUNNING STATUS REQUEST ]

Gets the information about the operation status of the projector.

Command

00h 85h 00h 00h 01h 01h 87h

Response

 When the command succeeds

20h 85h <ID1> <ID2> 10h <DATA01> - <DATA16> <CKS>

Data part

Item Description DATA01 - 02 Reserved for the system DATA03 Power status

00h Standby FFh Not supported 01h Power on

DATA04 Cooling process

00h Not executed FFh Not supported 01h During execution

DATA05 Power On/Off process

00h Not executed FFh Not supported 01h During execution

DATA06 Operation status

00h Standby (Sleep) 0Fh Standby (Power saving) 04h Power on 10h Network standby 05h Cooling FFh Not supported 06h Standby (error)

DATA07 - 16 Reserved for the system

－－

 When the command fails

A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 61

3.35 [ 078-3. INPUT STATUS REQUEST ]

Gets the information about the input signal status of the projector.

Command

00h 85h 00h 00h 01h 02h 88h

Response

 When the command succeeds

20h 85h <ID1> <ID2> 10h <DATA01> - <DATA16> <CKS>

Data part

Item Description DATA01 Signal switch process

00h Not executed FFh Not supported 01h During execution

DATA02 Signal list number

00h –

C7h

DATA03 Selection signal type 1

01h 1 04h 4 02h 2 05h 5 03h 3

DATA04 Selection signal type 2

01h COMPUTER 20h DVI-D 02h VIDEO 21h HDMI 03h S-VIDEO 22h DisplayPort 04h COMPONENT 23h VIEWER(6-10) 05h Reserved for the system FFh Not Source Input 07h VIEWER(1-5)

Signal list number - 1 FFh Not supported

－－

― －

©NEC Display Solutions, Ltd. 2014-2020 62

Item Description DATA05 Signal list type

00h Default FFh Not supported 01h User

DATA06 Test pattern display

00h Not displayed FFh Not support ed

01h Displayed DATA07 - 08 Reserved for the system DATA09 Content displayed

00h Video signal displayed 03h Test pattern displayed

01h No signal 04h LAN displayed

02h Viewer displayed FFh Not supported DATA10 - 16 Reserved for the system

－－

Information

・ A value which is "1" smaller than a practical value will be returned as a signal list number. For finding out a

practical number, add "1" to the returned value.

・ For information about the Selection signal type, see the Appendix "Supplementary Information by

Command".

 When the command fails

A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

 Response example

When the signal list number is10.

20h 85h <ID1> <ID2> 10h <DATA01> 09h <DATA03> - <DATA16> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 63

3.36 [ 078-4. MUTE STATUS REQUEST ]

Gets the mute status of the projector.

Command

00h 85h 00h 00h 01h 03h 89h

Response

 When the command succeeds

20h 85h <ID1> <ID2> 10h <DATA01> - <DATA16> <CKS>

Data part

Item Description

DATA01 Picture mute

DATA02 Sound mute

DATA03 Onscreen mute

00h Off 01h On

FFh Not supported

00h Off 01h On

FFh Not supported

00h Off 01h On

FFh Not supported

©NEC Display Solutions, Ltd. 2014-2020 64

Item Description

DATA04 Forc ed onscreen mute

DATA05 Ons creen display

DATA06 - 16 Reserved f or the system

 When the command fails

A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

00h Off 01h On

FFh Not supported

00h Not di splayed 01h Displayed

FFh Not supported

©NEC Display Solutions, Ltd. 2014-2020 65

3.37 [ 078-5. MODEL NAME REQUEST ]

Gets the model name of the projector.

Command

00h 85h 00h 00h 01h 04h 8Ah

Response

 When the command succeeds

20h 85h <ID1> <ID2> 20h <DATA01> - <DATA32> <CKS>

Data part

Item Description

DATA01 - 32 Model name (NUL: termination character string)

 When the command fails

A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 66

3.38 [ 078-6. COVER STATUS REQUEST ]

Gets the status of the mirror cover or lens cover.

Command

00h 85h 00h 00h 01h 05h 8Bh

Response

 When the command succeeds

20h 85h <ID1> <ID2> 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Status

 When the command fails

A0h 85h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

00h Normal (cover opened) 01h Cover c l osed

©NEC Display Solutions, Ltd. 2014-2020 67

3.39 [ 079. FREEZE CONTROL ]

Controls whether to turn the freeze function on or off.

Command

01h 98h 00h 00h 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Operation

01h Turns the freeze function on. 02h Turns the freeze function off.

Response

 When the command succeeds

21h 98h <ID1> <ID2> 01h <DATA01> <CKS>

Data part

Item Description

DATA01 Execut i on result

00h E nded successfully. 01h E nded with an error.

 When the command fails

A1h 98h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 68

3.40 [ 084. INFORMATI O N S TRING REQUEST ]

Gets the information strings (English) displayed on the projector.

Command

00h D0h 00h 00h 03h 00h <DATA01> 01h <CKS>

Data part

Item Description

DATA01 Information type

03h Hori zont al s ynchronous frequency 04h Vertical synchronous frequency

Response

 When the command succeeds

20h D0h <ID1> <ID2> LEN <DATA01> 01h <DATA02> - <DATA??> <CKS>

Data part

Item Description

DATA01 Information type

03h Horizontal synchronous frequency

04h Vertical synchronous frequency DATA02 Label/information string length (excluding NUL characters) DATA03 - ?? Label/information strings (NUL: termination character string)

 When the command fails

A0h D0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 69

3.41 [ 097-8. ECO MODE REQUEST ]

Gets the value set for the eco mode.

Information

Depending on the projector, the value for the "Light mode" or "Lamp mode" will be returned.

Command

03h B0h 00h 00h 01h 07h BBh

Response

 When the command succeeds

23h B0h <ID1> <ID2> 02h 07h <DATA01> <CKS>

Data part

Item Description

DATA01 Value set for the eco mode

Information

For information about the values set for the eco mode, see the Appendix "Supplementary Information by Command".

 When the command fails

A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 70

3.42 [ 097-45. LAN PROJECTOR NAME REQUEST ]

Gets the projector name.

Command

03h B0h 00h 00h 01h 2Ch E0h

Response

 When the command succeeds

23h B0h <ID1> <ID2> 12h 2Ch <DATA01> - <DATA17> <CKS>

Data part

Item Description

DATA01 - 17 Projector name (NUL: termination character string)

 When the command fails

A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 71

3.43 [ 097-155. LAN MAC ADDRESS STATUS REQUEST2 ]

Gets the MAC address of the pr oje ctor.

Command

03h B0h 00h 00h 02h 9Ah 00h 4Fh

Response

 When the command succeeds

23h B0h <ID1> <ID2> 08h 9Ah 00h <DATA01> - <DATA06> <CKS>

Data part

Item Description

DATA01 - 06 MAC address

 When the command fails

A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

 Response examp le

When the MAC address of the projector is "01h-23h-45h-67h-89h-ABh", the following response is returned.

23h B0h <ID1> <ID2> 08h 9Ah 00h 01h 23h 45h 67h 89h ABh <CKS>

©NEC Display Solutions, Ltd. 2014-2020 72

3.44 [ 097-198. PIP/PICTURE BY PICTURE REQUEST ]

Gets the value set for the picture in picture and picture by pictur e.

Command

03h B0h 00h 00h 02h C5h <DATA01> <CKS>

Data part

Item Description

DATA01 Target

00h MODE

01h START POSITION

02h SUB INPUT / SUB INPUT 1

09h SUB INPUT 2

0Ah SUB INPUT 3

©NEC Display Solutions, Ltd. 2014-2020 73

Response

 When the command succeeds

23h B0h <ID1> <ID2> 03h C5h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Target

00h MODE

01h START POSITION

02h SUB INPUT / SUB INPUT 1

09h SUB INPUT 2

0Ah SUB INPUT 3

DATA02 Setting value (when DATA01 is 00h "MODE")

00h PIP

01h PICTURE BY PICTURE

Setting value (when DATA01 is 01h "START PO SITION")

00h TOP-LEFT

01h TOP-RIGHT

02h BOTTOM-LEFT

03h BOTTOM-RIGHT

Sub input setting value (when DATA 01 is 02h "SUB INPUT / SUB INPUT 1") Sub input setting value (when DATA 01 is 09h "SUB INPUT 2") Sub input setting value (when DATA 01 is 0Ah "SUB INPUT 3")

Information

For the values of the Sub input setting value, see the Appendix "Supplementary Information by Command".

 When the command fails

A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 74

3.45 [ 097-243-1. EDGE BLENDING MODE REQUEST ]

Gets the value set for the edge blending.

Command

03h B0h 00h 00h 02h DFh 00h 94h

Response

 When the command succeeds

23h B0h <ID1> <ID2> 03h DFh 00h <DATA01> <CKS>

Data part

Item Description

DATA01 Setting value

 When the command fails

A3h B0h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

00h OFF

01h ON

©NEC Display Solutions, Ltd. 2014-2020 75

3.46 [ 098-8. ECO MODE SET ]

Sets the eco mode.

Information

Depending on the projector, the "Light mode" or "Lamp mode" will be set.

Command

03h B1h 00h 00h 02h 07h <DATA01> <CKS>

Item Description

DATA01 Value set for the eco mode

Information

For information about the values set for the eco mode, see the Appendix "Supplementary Information by Command".

Response

 When the command succeeds

23h B1h <ID1> <ID2> 02h 07h <DATA01> <CKS>

Data part

Item Description

DATA01 Execution result

00h Ended successfully. 01h Ended with an error.

 When the command fails

A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 76

3.47 [ 098-45. LAN PROJECTOR NAME SET ]

Sets the projector name.

Command

03h B1h 00h 00h 12h 2Ch <DATA01> - <DATA16> 00h <CKS>

Data part

Item Description

DATA01 - 16 Projector name (up to 16 bytes)

Response

 When the command succeeds

23h B1h <ID1> <ID2> 02h 2Ch <DATA01> <CKS>

Data part

Item Description

DATA01 Execution result

 When the command fails

A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

00h Ended successfully. 01h Ended with an error.

©NEC Display Solutions, Ltd. 2014-2020 77

3.48 [ 098-198. PIP/PICTURE BY PICTURE SET ]

Sets the picture in picture or picture by picture.

Command

03h B1h 00h 00h 03h C5h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Target

00h MODE

01h START POSITION

02h SUB INPUT / SUB INPUT 1

09h SUB INPUT 2

0Ah SUB INPUT 3

DATA02 Setting value (when DATA01 is 00h "Mode")

00h PIP

01h PICTURE BY PICTURE

Setting value (when DATA01 is 01h "START PO SITION")

00h TOP-LEFT

01h TOP-RIGHT

02h BOTTOM-LEFT

03h BOTTOM-RIGHT

Sub input setting value (when DATA 01 is 02h "SUB INPUT / SUB INPUT 1") Sub input setting value (when DATA 01 is 09h "SUB INPUT 2") Sub input setting value (when DATA 01 is 0Ah "SUB INPUT 3")

Information

For the values of the Sub input setting value, see the Appendix "Supplementary Information by Command".

©NEC Display Solutions, Ltd. 2014-2020 78

Response

 When the command succeeds

23h B1h <ID1> <ID2> 03h C5h <DATA01> <DATA02> <CKS>

Data part

Item Description

DATA01 Target

00h MODE

01h START POSITION

02h SUB INPUT / SUB INPUT 1

03h SUB INPUT 2

04h SUB INPUT 3 DATA02 Execut i on result

00h E nded successfully.

01h E nded with an error.

 When the command fails

A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 79

3.49 [ 098-243-1. EDGE BLENDING MODE SET ]

Sets the edge blending.

Command

03h B1h 00h 00h 03h DFh 00h <DATA01> <CKS>

Data part

Item Description

DATA01 Setting value

00h 00h

01h 01h

Response

 When the command succeeds

23h B1h <ID1> <ID2> 03h DFh 00h <DATA01> <CKS>

Data part

Item Description

DATA01 Execut i on result

00h E nded successfully.

01h E nded with an error.

 When the command fails

A3h B1h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 80

3.50 [ 305-1. BASE MODEL TYPE REQUEST ]

Gets the base model type of the projector.

Command

00h BFh 00h 00h 01h 00h C0h

Response

 When the command succeeds

20h BFh <ID1> <ID2> 10h 00h <DATA01> - <DATA15> <CKS>

Data part

Item Description

DATA01 DATA02

DATA03 - 11 Model name (NUL: termination character string) DATA12

DATA13 DATA14

DATA15

Information

For the values of the base model types, see the Appendix "Supplementary Information by Comma nd".

 When the command fails

A0h BFh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

Base model type

Reserved for the system

©NEC Display Solutions, Ltd. 2014-2020 81

3.51 [ 305-2. SERIAL NUMBER REQUEST ]

Gets the serial number of the projector.

Command

00h BFh 00h 00h 02h 01h 06h C8h

Response

 When the command succeeds

20h BFh <ID1> <ID2> 12h 01h 06h <DATA01> - <DATA16> <CKS>

Data part

Item Description

DATA01 - 16 Serial number (NUL: termination character string)

 When the command fails

A0h BFh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 82

3.52 [ 305-3. BASIC INFORMATION REQUEST ]

Gets the basic information about the operation status of the projector.

Command

00h BFh 00h 00h 01h 02h C2h

Response

 When the command succeeds

20h BFh <ID1> <ID2> 10h 02h <DATA01> - <DATA15> <CKS>

Data part

Item Description

DATA01 Operation status

00h Standby (Sleep) 06h Standby (error) 04h Power on 0Fh Standby (Power saving) 05h Cooling 10h Network standby

DATA02 Content displayed

00h Video signal displayed 04h LAN displayed 01h No signal 05h Test pattern (user) displayed 02h Viewer displayed 10h Signal being switched 03h Test patt ern displ ayed

DATA03 Selection signal type 1

01h 1 04h 4 02h 2 05h 5 03h 3

－－

©NEC Display Solutions, Ltd. 2014-2020 83

Item Description

DATA04 Selection signal type 2

01h COMPUTER 20h DVI-D 02h VIDEO 21h HDMI 03h S-VIDEO 22h DisplayPort 04h COMPONENT 23h VIEWER(6-10) 05h Reserved for the system FFh Not Source Input 07h VIEWER(1-5)

DATA05 Display signal type (effective only when DATA04 is 02h or 03h)

00h NTSC3.58 09h NTSC3.58 SQZ 01h NTSC4.43 0Ah COMPONENT(60Hz) 02h PAL 0Bh COMPONENT(50Hz) 03h PAL60 0Ch Unknown 04h SECAM 0Dh NTSC 05h B/W60 0Eh PAL-M 06h B/W50 0Fh PAL-L 07h PALNM FFh Not Video Input 08h NTSC3.58 LBX

― －

DATA06 Video mute

00h Off 01h On

DATA07 Sound mute

00h Off 01h On

DATA08 Onscreen mute

00h Off 01h On

DATA09 Freeze status

00h Off 01h On

DATA10 - 15 Reserved for the system

Information

For information about which parameters are supported, see the Appendix "Supplementary Information by Command".

 When the command fails

A0h BFh <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 84

3.53 [ 319-10. AUDIO SELECT SET ]

The terminal specified in

Sets the audio select.

Command

03h C9h 00h 00h 03h 09h <DATA01> <DATA02> <CKS>

Data part

Item Description DATA01 Input terminal DATA02 Setting value

00h

DATA01

01h BNC

02h COMPUTER

－－

Information

For the values of input terminal, see the Appendix "Supplementary Information by Command".

©NEC Display Solutions, Ltd. 2014-2020 85

Response

 When the command succeeds

23h C9h <ID1> <ID2> 03h 09h <DATA01> <DATA02> <CKS>

Data part

Item Description DATA01 Input terminal DATA02 Execution result

00h Ended successfully. 01h Ended with an error.

Information

For the values of input terminal, see the Appendix "Supplementary Information by Command".

 When the command fails

A3h C9h <ID1> <ID2> 02h <ERR1> <ERR2> <CKS>

©NEC Display Solutions, Ltd. 2014-2020 86

4. Revision History

Revision Date Description

7.1 April 16, 2020 Corrected the descriptions [037]

7.0 July 6, 2018 Updated the supported command [097-198], [098-198], [319-10]

6.1 May 29, 2017 Corrected the descriptions [053-3], [053-4]

6.0 December 6, 2016 Added the supported commands [051], [052]

5.0 January 6, 2016 Added the Copyright on all pages.

4.0 December 11, 2015 Corrected the supported command [053-6]

3.0 June 16, 2015 Added the supported command [030-15] Updated the supported command [060-1]

2.0 May 29, 2015 Added the supported commands [030-12], [037], [037-6], [053], [053-1], [053-2], [053-3], [053-4], [053-5], [053-6], [053-7],

[053-10], [053-11], [078-1], [078-2], [078-3], [078-4], [078-5], [097-198], [097-243-1], [098-8], [098-198], [098-243-1], [319-10]

Updated the supported command [009]

1.0 August 22, 2014 First version

©NEC Display Solutions, Ltd. 2014-2020 87

Projector Control Command

Reference Manual

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-V311W / NP-V281W / NP-V311X

NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-VE303X / NP-VE303

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

NP-PA1004UL / NP-PA804UL

NP-PX1005QL

NP-PX1004UL NP-PX750U / NP-PX700W / NP-PX800X

NP-PX651X / NP-PX581W

NP-PX620X / NP-PX550W

NP-PX602UL / NP-PX602WL

NP-U321H

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP-PX2000UL

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X /

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W /

NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W / NP-ME360X / NP-ME310X / NP-ME270X

NP-P554U / NP-P474U / NP-P554W / NP-P474W / NP-P604X / NP-P605UL / NP-P525UL / NP-P525WL

NP-P502HL / NP-P502WL NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-P420X / NP-P350X / NP-P350W

NP-PE401H

NP-PA803UL / NP-PA653UL

NP-PA853W / NP-PA703W / NP-PA903X

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-PH3501QL / NP-PH2601QL

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

Revision

Date

Description

Reference

Supported models

Projector Control Command Reference Manual Appendixes

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X /

NP-M260XS / NP-M300WS / NP-M260WS

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W / NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

This is the supplemental document to the principal. Please refer to the principal about detailed information including precautions.

No.BDT140014

Revision History

20.0 April 16, 2020

Added the supported models.

Corrected the error. "Input terminal" Modified Model name from NPPH1005QL to NP-PX1005QL.

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS / NP-M300WS / NP-M260WS

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS /

NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X

NP-P603X / NP-P523X / NP-PE523X

NP-P502H / NP-P502W / NP-P452H / NP-P452W

NP-PA803U / NP-PA723U / NP-PA653U /

7.1 NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X

NP-PX803UL

NP-V230 / NP-V260R

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS /

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

©NEC Display Solutions, Ltd. 2014-2020

1

NP-PX1005QL

NP-PX803UL

NP-PX750U / NP-PX700W / NP-PX800X

NP-PX651X / NP-PX581W

NP-PX620X / NP-PX550W

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-PH3501QL / NP-PH2601QL

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

NP-PX602UL / NP-PX602WL

NP-U321H

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X /

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W /

NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W / NP-ME360X / NP-ME310X / NP-ME270X

NP-P554U / NP-P474U / NP-P554W / NP-P474W / NP-P604X / NP-P525UL / NP-P525WL

NP-P502HL / NP-P502WL NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-P420X / NP-P350X / NP-P350W

NP-PE401H

NP-PA803UL / NP-PA653UL

NP-PA853W / NP-PA703W / NP-PA903X

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W /

NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X

NP-ME360X / NP-ME310X / NP-ME270X

NP-P554U / NP-P474U / NP-P554W / NP-P474W / NP-P604X /

NP-P605UL / NP-P525UL / NP-P525WL

NP-P502HL / NP-P502WL NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-P420X / NP-P350X / NP-P350W

NP-PE401H

NP-PA803UL / NP-PA653UL

NP-PA853W / NP-PA703W / NP-PA903X

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-PH3501QL / NP-PH2601QL

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-V311W / NP-V281W / NP-V311X

NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-V230 / NP-V260R

NP-VE303X / NP-VE303

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

NP-PX1005QL

NP-PX750U / NP-PX700W / NP-PX800X

NP-PX651X / NP-PX581W

NP-PX620X / NP-PX550W

NP-PX602UL / NP-PX602WL

NP-U321H

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP-P603X / NP-P523X / NP-PE523X

NP-P502H / NP-P502W / NP-P452H / NP-P452W

NP-PA803U / NP-PA723U / NP-PA653U /

19.0 September 30, 2019

Added the supported models.

7.0 NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X

NP-PX1004UL NP-PX803UL

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS / NP-M300WS / NP-M260WS

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS /

NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

18.0 April 24, 2019

Added the supported models.

NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X

NP-P603X / NP-P523X / NP-PE523X

NP-P502H / NP-P502W / NP-P452H / NP-P452W

NP-PA803U / NP-PA723U / NP-PA653U /

7.0 NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X

NP-PX1004UL

©NEC Display Solutions, Ltd. 2014-2020

2

NP-V311W / NP-V281W / NP-V311X

NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-V230 / NP-V260R

NP-VE303X / NP-VE303

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

NP-P525UL / NP-P525WL

NP-PX750U / NP-PX700W / NP-PX800X

NP-PX651X / NP-PX581W

NP-PX620X / NP-PX550W

NP-PX602UL / NP-PX602WL

NP-U321H

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-V311W / NP-V281W / NP-V311X

NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-VE303X / NP-VE303

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

17.0 March 27, 2019

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X /

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W / NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W / NP-ME360X / NP-ME310X / NP-ME270X

NP-P554U / NP-P474U / NP-P554W / NP-P474W / NP-P604X /

NP-P502HL / NP-P502WL NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-P420X / NP-P350X / NP-P350W

NP-PE401H

NP-PA803UL / NP-PA653UL

NP-PA853W / NP-PA703W / NP-PA903X

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-PH3501QL / NP-PH2601QL

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

NP-PH3501QL / NP-PH2601QL

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X /

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W /

NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W / NP-ME360X / NP-ME310X / NP-ME270X

NP-P554U / NP-P474U / NP-P554W / NP-P474W / NP-P604X /

NP-P502HL / NP-P502WL NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-P420X / NP-P350X / NP-P350W

NP-PE401H

NP-PA803UL / NP-PA653UL

NP-PA853W / NP-PA703W / NP-PA903X

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

Added the supported models.

NP-V230 / NP-V260R

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS / NP-M300WS / NP-M260WS

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X

NP-P603X / NP-P523X / NP-PE523X

NP-P502H / NP-P502W / NP-P452H / NP-P452W

NP-PA803U / NP-PA723U / NP-PA653U /

7.0 NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W /

NP-PA721X / NP-PA621X

NP-PX1004UL NP-PX803UL

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS / NP-M300WS / NP-M260WS

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS /

NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X

NP-P603X / NP-P523X / NP-PE523X

NP-P502H / NP-P502W / NP-P452H / NP-P452W

Added the supported models.

Corrected the error.

16.0 July 6, 2018

"3. Supported Command List" NP-PA803UL / NP-PA653UL does NOT support the following command. 　037-3. FILTER USAGE INFORMATION REQUEST

NP-PA803U / NP-PA723U / NP-PA653U /

7.0 NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X

3

NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-VE303X / NP-VE303

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

NP-PX651X / NP-PX581W

NP-PX620X / NP-PX550W

NP-PX602UL / NP-PX602WL

NP-U321H

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-V311W / NP-V281W / NP-V311X

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

NP-PX1004UL NP-PX750U / NP-PX700W / NP-PX800X

15.1 January 17, 2018

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X /

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W /

NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-VE303X / NP-VE303

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-V230 / NP-V260R

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X /

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W / NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W / NP-ME360X / NP-ME310X / NP-ME270X

NP-P502HL / NP-P502WL NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-PX750U / NP-PX700W / NP-PX800X

NP-P554U / NP-P474U / NP-P554W / NP-P474W / NP-P604X / NP-PX620X / NP-PX550W

NP-PX602UL / NP-PX602WL

NP-U321H

NP-P420X / NP-P350X / NP-P350W

NP-PE401H

NP-PA803UL / NP-PA653UL

NP-PA853W / NP-PA703W / NP-PA903X

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

NP-PA721X / NP-PA621X

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

NP-PX803UL

NP-V311W / NP-V281W / NP-V311X

NP-PX651X / NP-PX581W

NP-U300X / NP-U250X / NP-U310W / NP-U260W

Corrected the error.

■Selection signal type 078-3. INPUT STATUS REQUEST 305-3. BASIC INFORMATION REQUEST Model name : NP-PA803UL / NP-PA653UL NP-PA803U / NP-PA723U / NPPA653U / NP-PA853W / NPPA703W / NP-PA903X Input terminal : HDBaseT

NP-PX803UL

NP-V230 / NP-V260R

6.1

Same as Revision 15.0.

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS / NP-M300WS / NP-M260WS

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

15.0 November 10, 2017

Added the supported models.

NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X

NP-P603X / NP-P523X / NP-PE523X

NP-P502H / NP-P502W / NP-P452H / NP-P452W

NP-PA803U / NP-PA723U / NP-PA653U /

6.1 NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W /

NP-PX1004UL

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS / NP-M300WS / NP-M260WS

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS /

4

NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-VE303X / NP-VE303

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

NP-PX651X / NP-PX581W

NP-PX620X / NP-PX550W

NP-PX602UL / NP-PX602WL

NP-U321H

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-V311W / NP-V281W / NP-V311X

NP-PX750U / NP-PX700W / NP-PX800X

NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W / NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X

NP-ME360X / NP-ME310X / NP-ME270X

NP-P554U / NP-P474U / NP-P554W / NP-P474W / NP-P604X /

NP-P603X / NP-P523X / NP-PE523X

NP-P502HL / NP-P502WL NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-P420X / NP-P350X / NP-P350W

NP-PE401H

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

NP-PA803U / NP-PA723U / NP-PA653U /

NP-PX602UL / NP-PX602WL

NP-U321H

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-V311W / NP-V281W / NP-V311X

NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-VE303X / NP-VE303

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X /

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W /

NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W / NP-ME360X / NP-ME310X / NP-ME270X

NP-P502HL / NP-P502WL NP-P502H / NP-P502W / NP-P452H / NP-P452W

NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-P420X / NP-P350X / NP-P350W

NP-PE401H

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

NP-PX803UL

NP-PX750U / NP-PX700W / NP-PX800X

NP-PX651X / NP-PX581W

NP-PX620X / NP-PX550W

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X /

NP-M260XS / NP-M300WS / NP-M260WS

13.1

Same as Revision 13.0.

6.1

Updated the Reference number.

May 15, 2017

NP-PA803U / NP-PA723U / NP-PA653U /

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

NP-PX803UL

NP-P502H / NP-P502W / NP-P452H / NP-P452W

14.0 July 3, 2017

Added the supported models.

NP-PA853W / NP-PA703W / NP-PA903X

6.1 NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W /

NP-PA721X / NP-PA621X

NP-V230 / NP-V260R

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS / NP-M300WS / NP-M260WS

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS /

NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

13.0 January 11, 2017

Added the supported models.

Added the following commands in sheet "3. Supported Command List".

051. LENS MUTE ON (SHUTTER CLOSE)

052. LENS MUTE OFF (SHUTTER OPEN)

NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X

NP-PA853W / NP-PA703W / NP-PA903X

6.0 NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W /

NP-PA721X / NP-PA621X

NP-V230 / NP-V260R

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS /

5

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W /

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS /

NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

NP-ME360X / NP-ME310X / NP-ME270X

NP-P502HL / NP-P502WL NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-P420X / NP-P350X / NP-P350W

NP-PE401H

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

NP-PX803UL

NP-PX750U / NP-PX700W / NP-PX800X

NP-PX651X / NP-PX581W

NP-PX620X / NP-PX550W

NP-U321H

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

NP-VE303X / NP-VE303

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X /

NP-M260XS / NP-M300WS / NP-M260WS

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W / NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

NP4100 / NP4100W

NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X / NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-PX651X / NP-PX581W

NP-PX620X / NP-PX550W

NP-PX602UL / NP-PX602WL

NP-U321H

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

NP-PX803UL

NP-PX750U / NP-PX700W / NP-PX800X

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W /

NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W

NP-ME360X / NP-ME310X / NP-ME270X

NP-P502HL / NP-P502WL NP-P502H / NP-P502W / NP-P452H / NP-P452W

NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-P420X / NP-P350X / NP-P350W

NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W /

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-V311W / NP-V281W / NP-V311X

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-V311W / NP-V281W / NP-V311X

NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-V230 / NP-V260R

NP-VE303X / NP-VE303

NP-PX602UL / NP-PX602WL

NP-PE401H

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X

NP-P502H / NP-P502W / NP-P452H / NP-P452W

12.0 October 25, 2016

Added the supported models.

NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W /

5.0

NP-PA721X / NP-PA621X

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS / NP-M300WS / NP-M260WS

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS /

NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS

11.0 February 29, 2016

Added the supported models. Corrected [Aspect] sheet.

("WIDE ZOOM" is enabled by the WXGA model, and "LETTERBOX" is enabled by a XGA model about M403 / M402 / UM351 Series.)

NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X

5.0

NP-V230 / NP-V260R

NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS /

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS

6

Added the Copyright on all pages.

NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-V230 / NP-V260R

NP-PX651X / NP-PX581W

NP-PX620X / NP-PX550W

NP-PH1400U

NP-PH1202HL / NP-PH1002HL

NP-PH1000U

NP-PX803UL

NP-PX750U / NP-PX700W / NP-PX800X

NP-PX602UL / NP-PX602WL

NP-U321H

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP-ME360X / NP-ME310X / NP-ME270X

NP-P502HL / NP-P502WL

NP-P502H / NP-P502W / NP-P452H / NP-P452W

NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X

NP-P420X / NP-P350X / NP-P350W

NP-PE401H

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U

NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X / NP-UM352W

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-V311W / NP-V281W / NP-V311X

10.0 February 17, 2016

9.0 January 6, 2016

8.0 December 21, 2015

December 11, 2015

7.0

6.0 S

eptember 28, 2015

Added the supported models. (Added the models supported at Revision1.0)

Added the supported models.

NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X

5.0

Same as Revision 8.0. NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W /

NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS NP-P502HL / NP-P502WL NP-P502H / NP-P502W / NP-P452H / NP-P452W NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

4.0

NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X NP-PH1202HL / NP-PH1002HL NP-PX651X / NP-PX581W NP-PX602UL / NP-PX602WL NP-PX803UL NP-U321H NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W / NP-UM352W NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS NP-P502HL / NP-P502WL NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W /

4.0 NP-PA721X / NP-PA621X

NP-PH1202HL / NP-PH1002HL NP-PX651X / NP-PX581W NP-PX602UL / NP-PX602WL NP-PX803UL NP-U321H NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W / NP-UM352W NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS NP-P502HL / NP-P502WL NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X /

3.0

NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X NP-PH1202HL / NP-PH1002HL NP-PX651X / NP-PX581W NP-PX602UL / NP-PX602WL NP-U321H NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W / NP-UM352W NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

7

3.0

June 16, 2015

Added the supported command.

3.0

Same as Revision 2.0.

5.0 August 7, 2015

4.0 August 3, 2015

2.0 May 29, 2015

1.0 August 22, 2014 First version 1.0

Added the supported models.

Added the supported models. Corrected [3. Supported Command List ] sheet. (NP-U321H : "024. ONSCREEN MUTE ON" command is not supported.)

Changed the supported models.

Added the supported commands.

3.0

2.0

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS / NP-M323HS / NP-M303HS NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X NP-PH1202HL / NP-PH1002HL NP-PX651X / NP-PX581W NP-PX602UL / NP-PX602WL NP-U321H NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W / NP-UM352W NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W / NP-M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X NP-PH1202HL / NP-PH1002HL NP-PX651X / NP-PX581W NP-PX602UL / NP-PX602WL NP-U321H NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W / NP-UM352W NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H

NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X NP-PH1202HL / NP-PH1002HL NP-PX651X / NP-PX581W NP-PX602UL / NP-PX602WL NP-U321H NP-UM301X / NP-UM301W / NP-UM361X / NP-UM351W / NP-UM352W

NP4100 / NP4100W NP-M420X / NP-M420XV / NP-M350X / NP-M300X / NP-M260X / NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS / NP-M300WS / NP-M260WS NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M322X / NP-M282X / NP-M322W / NP-M352WS / NP-M302WS / NP-M332XS NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W NP-ME360X / NP-ME310X / NP-ME270X NP-P501X / NP-P451X / NP-P451W / NP-P401W / NP-PE501X NP-P420X / NP-P350X / NP-P350W NP-PE401H NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X / NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U NP-PH1400U NP-PH1000U NP-PX750U / NP-PX700W / NP-PX800X NP-PX620X / NP-PX550W NP-U300X / NP-U250X / NP-U310W / NP-U260W NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W NP-V311W / NP-V281W / NP-V311X NP-V300X / NP-V260X / NP-V300W / NP-V260W / NP-V230X / NP-V260 / NP-V230 / NP-V260R NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

8

1. Connecting an External Device

Input terminal

[097-8. ECO MODE REQUES T]

Contents

10

2. Standby Mode setting for receiving commands

3. Supported Command List

4. Supplementary Information by Command

[018. INPUT SW CHANGE]

Aspect 23

[030-12. ASPECT ADJUST]

Eco mode 25

[098-8. ECO MODE SET]

Base model type 26

[078-1. SETTING REQUEST] [305-1. BASE MODEL TYPE REQUEST]

Selection signal type 30

[078-3. INPUT STATUS RE QUEST] [305-3. BASIC INFORMATION REQUEST]

Sub input 36

[097-198. PIP/PICTURE B Y PICTURE REQUEST] [098-198. PIP/PICTURE B Y PICTURE SET]

Audio Select 38

[319-10. AUDIO SELECT SE T]

11

12

18

9

1. Connecting an External Device

○ : Supported

－ : Not supported

■Projector

NP4100 / NP4100W

NP-M420X / NP-M420XV

NP-M300WS / NP-M260WS

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W /

NP-M323HS / NP-M303HS

NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M302WS / NP-M332XS

NP-P502HL / NP-P502WL NP-P502H / NP-P502W / NP-P452H / NP-P452W

NP-PA803UL / NP-PA653UL NP-PA853W / NP-PA703W / NP-PA903X

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W / NP-PA722X / NP-PA622X

NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621X

NP-PX803UL

NP-U321H

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X NP-UM352W

Serial port

4800bps 9600bps 19200bps 38400bps 115200bps

○ ○ ○ ○ － ○ －

Wireless LAN unitLAN portModel name

NP-M350X / NP-M300X / NP-M260X / NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS /

NP-M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS /

NP-M322X / NP-M282X / NP-M322W / NP-M352WS /

NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W /

NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X NP-ME360X / NP-ME310X / NP-ME270X NP-P554U / NP-P474U / NP-P554W / NP-P474W / NP-P604X /

NP-P603X / NP-P523X / NP-PE523X NP-P605UL / NP-P525UL / NP-P525WL

NP-P501X / NP-P451X / NP-P451W / NP-P401W NP-P420X / NP-P350X / NP-P350W NP-PE501X NP-PE401H NP-PA1004UL / NP-PA804UL

NP-PA803U / NP-PA723U / NP-PA653U /

NP-PA600X / NP-PA500X / NP-PA550W / NP-PA500U NP-PH3501QL / NP-PH2601QL NP-PH1400U NP-PH1202HL / NP-PH1002HL NP-PH1000U NP-PX2000UL NP-PX1005QL NP-PX1004UL

NP-PX750U / NP-PX700W / NP-PX800X NP-PX651X / NP-PX581W NP-PX620X / NP-PX550W NP-PX602UL / NP-PX602WL

NP-U300X / NP-U250X / NP-U310W / NP-U260W

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H NP-V311W / NP-V281W / NP-V311X NP-V300X / NP-V260X / NP-V300W / NP-V260W NP-V230X / NP-V260 / NP-V230 / NP-V260R NP-VE303X / NP-VE303 NP-VE281X / NP-VE280X / NP-VE281 / NP-VE280

○ ○ ○ ○ － ○ ○

○ ○ ○ －－－－

○ ○ ○ ○ － ○ ○

○ ○ ○ ○ －－－

－－－ ○ － ○ －

○ ○ ○ ○ ○ ○ －

○ ○ ○ ○ ○ ○ ○

○ ○ ○ ○ ○ ○ －

○ ○ ○ ○ ○ ○ ○

○ ○ ○ ○ ○ ○ －

○ ○ ○ ○ ○ ○ ○

－ ○ －－－ ○ －

○ ○ ○ ○ ○ ○ －

○ ○ ○ ○ ○ ○ ○

－ ○ ○ ○ － ○ －

○ ○ ○ ○ － ○ －

○ ○ ○ ○ ○ ○ －

－－－ ○ － ○ －

○ ○ ○ ○ － ○ ○

－－－ ○ － ○ －

○ ○ ○ ○ － ○ －

○ ○ ○ ○ －－－

－－－ ○ －－－

○ ○ ○ ○ －－－

10

2. Standby Mode setti ng f or receiving commands

The Standby Mode setting that can receive commands is different depending on the model.

Target command: "015. POWER ON"

■Projector

NP-M420X / NP-M420XV

NP-M300WS / NP-M260WS

NP-M403X / NP-M363X / NP-M323X / NP-M283X / NP-M403W /

NP-M323HS / NP-M303HS

NP-M402W / NP-M362W / NP-M402X / NP-M362X / NP-M302WS / NP-M332XS

NP-P502HL / NP-P502WL NP-P502H / NP-P502W / NP-P452H / NP-P452W

NP-PA803UL / NP-PA653UL NP-PA853W / NP-PA703W / N P-PA903X

NP-PA722X / NP-PA622 X

NP-PA621U / NP-PA521U / NP-PA671W / NP-PA571W / NP-PA721X / NP-PA621 X

NP-PX803UL

NP-UM351W / NP-UM301W / NP-UM361X / NP-UM301X NP-UM352W

NP-V332X / NP-V332W / NP-V302X / NP-V302W / NP-V302H NORMAL, NETWORK STANDBY NETWORK STANDBY

NP-V311W / NP-V281W / NP-V311X NORMAL, POWER-SAVING NORMAL

Setting of the Standby Mode

Please see the table below.

Model name When connected using a serial cable When connected using via a wired LAN

NP4100 / NP4100W Normal Normal

NP-M350X / NP-M300X / NP-M260X / NP-M230X / NP-M300W / NP-M260W / NP-M350XS / NP-M300XS / NP-M260XS /

NP-M363W / NP-M323W / NP-M333XS / NP-M353WS / NP-M303WS / NP-M403H / NP-M323H / NP-M353HS /

NP-M322X / NP-M282X / NP-M322W / NP-M352WS /

NP-M361X / NP-M311X / NP-M271X / NP-M311W / NP-M271W NORMAL, POWER-SAVING NORMAL NP-ME401W / NP-ME361W / NP-ME331W / NP-ME301W /

NP-ME401X / NP-ME361X / NP-ME331X / NP-ME301X NP-ME360X / NP-ME310X / NP-ME270X NORMAL, POWER-SAVING

NP-P554U / NP-P474U / NP-P554W / NP-P474W / NP-P604X / NP-P603X / NP-P523 X / NP-PE523X

NP-P605UL / NP-P525UL / NP-P525WL NORMAL, NETWORK STANDBY, SLEEP NETWORK STANDBY, SLEEP

NP-P501X / NP-P451X / NP-P451W / NP-P401W NORMAL, POWER-SAVING, NETWORK STANDBY NORMAL, NETWORK STANDBY NP-P420X / NP-P350X / NP-P350W NORMAL, POWER-SAVING NORMAL NP-PE501X NORMAL, POWER-SAVING NP-PE401H NORMAL NORMAL NP-PA1004UL / NP-PA804UL OFF, ON OFF, ON

NP-PA803U / NP-PA723U / NP-PA653U /

NP-PA622U / NP-PA522U / NP-PA672W / NP-PA572W /

NP-PA600X / NP-PA500 X / NP-PA550W / NP-PA500U NORMAL, POWER-SAVING, NETWOR K STANDBY NORMAL, NETWORK STANDBY NP-PH1400U NORMAL, POWER-SAVING, NETWOR K STANDBY NORMAL, NETWORK STANDBY NP-PH1202HL / NP-PH1002HL NORMAL, NETWORK STANDBY NETWORK STANDBY NP-PH1000U NORMAL, POWER-SAVING, NETWOR K STANDBY NORMAL, NETWORK STANDBY

※ NP-PX2000UL STANDBY POWER O N STANDBY POWER ON

NP-PX1005QL NORMAL, SLEEP NO RMAL, SLEEP NP-PX1004UL

NP-PX750U / NP-PX700W / NP-PX800X NORMAL, POWER-SAVING, NETWORK STANDBY NORMAL, NETWORK STANDBY NP-PX651X / NP-PX581 W NORMAL, NETWORK STANDBY NETWORK STANDBY NP-PX620X / NP-PX550 W Normal Normal NP-PX602UL / NP-PX602WL NORMAL, NETWORK STANDBY NETWORK STANDBY NP-U321H NORMAL, NETWORK STANDBY NETWORK STANDBY NP-U300X / NP-U250X / NP-U310W / NP-U260W Normal Normal

NP-UM330X / NP-UM280X / NP-UM330W / NP-UM280W NORMAL, POWER-SAVING NORMAL

NORMAL, POWER-SAVING NORMAL

NORMAL, NETWORK STANDBY NETWORK STANDBY

NORMAL, SLEEP NORMAL, SLEEP

NORMAL, HTBaseT STANDBY HTBaseT STANDBY

NORMAL, NETWORK STANDBY NETWORK STANDBY

NP-V300X / NP-V260X / NP-V300W / NP-V260W NORMAL, PO WER-SAVING NORMAL NP-V230X / NP-V260 / NP-V230 / NP-V260R NORMAL, POWER-SAVING NP-VE281X / NP-VE280 X / NP-VE281 / NP-VE280 NORMAL, POWER-SAVING

※ The following models use a different menu item name. ・NP-PX2000UL: STANDBY POWER

11

3. Supported Command List

○ : Supported

－ : Not supported

■Projector

NP4100

NP-M420X

NP-M403X

NP-M402W

NP-M361X

NP-M350XS

021. PICTURE MUTE O FF

009. ERROR STATUS REQUEST

015. POWER ON

016. POWER OFF

018. INPUT SW CHANGE

020. PICTURE MUTE O N

022. SOUND MUTE ON

023. SOUND MUTE OFF

024. ONSCREEN MUTE O N

025. ONSCREEN MUTE O FF 030-1. PICTURE A DJUST 030-2. VOLUME ADJUST 030-12. ASPECT ADJUST 030-15. OTHER ADJUST

037. INFORMATION REQ UE S T 037-3. FILTER US A G E INFO RMA TION REQUEST 037-4. LAMP INFORMA TION REQUEST 3

037-6. CARBON SAVINGS INFORMATION REQUEST

050. REMOTE KEY CODE

051. LENS MUTE ON (SHUTTER CLOSE) －－－－－－－

052. LENS MUTE OFF (SHUTTER OPEN) －－－－－－－

053. LENS CONTRO L 053-1. LENS CONTROL REQUEST 053-2. LENS CONTROL 2 053-3. LENS MEMORY CONTROL 053-4. REFERENCE L E NS ME MO RY CO NTROL 053-5. LENS MEMORY OPTION REQUEST 053-6. LENS MEMORY OPTION SET 053-7. LENS INFORMA TION REQUEST 053-10. LENS PROFILE SET 053-11. LENS PROFILE REQUEST 060-1. GAIN PARAMETER REQUEST 3 078-1. SETTING REQUEST 078-2. RUNNING STA TUS REQUEST

078-3. INPUT STATUS REQUEST 078-4. MUTE STATUS REQUEST 078-5. MODEL NAME REQUEST 078-6. COVER STATUS REQUEST

079. FREEZE CONTRO L

084. INFORMATION STRING REQUEST 097-8. ECO MODE REQUEST 097-45. LAN PROJECTOR NAME REQUEST 097-155. LAN MAC ADDRESS STATUS REQUEST2 097-198. PIP/PICTURE BY PICTURE REQUEST 097-243-1. EDGE BLENDING MODE REQUEST 098-8. ECO MODE SET 098-45. LAN PROJECTOR NAME SET 098-198. PIP/PICTURE BY PICTURE SET 098-243-1. EDGE BLENDING MODE SET 305-1. BASE MODEL TYPE REQUEST 305-2. SERIAL NUMBER REQUEST

305-3. BASIC INFORMA TION REQUEST 319-10. AUDIO SELECT SET

Command

NP4100W

(firmware

version

1.02 or later)

○ ○ ○ ○ ○ ○ ○

○ ○ － ○ ○ ○ ○

○ ○ ○ ○ ○ ○ ○

○ －－ ○ ○ －－

○ ○ ○ ○ ○ ○ ○

○ ○ － ○ ○ ○ ○

－－－ ○ ○ －－

－－－－－－－

－－－ ○ ○ －－

－ ○ ○ －－ ○ ○

○ ○ ○ ○ ○ ○ ○

－－－ ○ ○ －－

－ ○ ○ ○ ○ ○ ○

－－－－－－

－－－－－－－

○ －－－－－－

－－－ ○ ○ －－

－ ○ ○ ○ ○ ○ －

○ ○ ○ ○

－ ○ ○ ○ ○ ○ ○

○ ○ ○ ○ ○ ○ ○

－ ○ ○ ○ ○ ○ ○

－－－－－－－

－－－ ○ ○ －－

－ ○ ○ ○ ○ ○ ○

－－－－－－－

○ ○ ○ ○ ○ ○ ○

－－－－－－－

NP-M350X NP-M300X NP-M260X

NP-M230X NP-M300W NP-M260W

NP-M420XV

NP-M363X NP-M323X

NP-M283X NP-M403W NP-M363W NP-M323W

NP-M333XS NP-M353WS NP-M303WS

NP-M403H

NP-M323H NP-M353HS NP-M323HS NP-M303HS

NP-M362W

NP-M402X NP-M362X NP-M322X NP-M282X

NP-M322W NP-M352WS NP-M302WS

NP-M332XS

○ ○ ○

NP-M311X

NP-M271X NP-M311W NP-M271W

NP-M300XS

NP-M260XS NP-M300WS NP-M260WS

－

12

3. Supported Command List

○ : Supported

－ : Not supported

■Projector

021. PICTURE MUTE O FF

NP-ME401W

NP-ME360X

NP-P554U

NP-P605UL

NP-P502HL

NP-P501X

NP-P420X

○(Ver. 2.00 or later)

009. ERROR STATUS REQUEST

015. POWER ON

016. POWER OFF

018. INPUT SW CHANGE

020. PICTURE MUTE O N

022. SOUND MUTE ON

023. SOUND MUTE OFF

024. ONSCREEN MUTE O N

025. ONSCREEN MUTE O FF 030-1. PICTURE A DJUST 030-2. VOLUME ADJUST 030-12. ASPECT ADJUST 030-15. OTHER ADJUST

037. INFORMATION REQ UE S T 037-3. FILTER US A G E INFO RMA TION REQUEST 037-4. LAMP INFORMA TION REQUEST 3 037-6. CARBON SAVINGS INFORMATION REQUEST

050. REMOTE KEY CODE

051. LENS MUTE ON (SHUTTER CLOSE)

052. LENS MUTE OFF (SHUTTER OPEN)

053. LENS CONTRO L 053-1. LENS CONTROL REQUEST 053-2. LENS CONTROL 2 053-3. LENS MEMORY CONTROL 053-4. REFERENCE L E NS ME MO RY CO NTROL 053-5. LENS MEMORY OPTION REQUEST 053-6. LENS MEMORY OPTION SET 053-7. LENS INFORMA TION REQUEST 053-10. LENS PROFILE SET 053-11. LENS PROFILE REQUEST 060-1. GAIN PARAMETER REQUEST 3 078-1. SETTING REQUEST 078-2. RUNNING STA TUS REQUEST 078-3. INPUT STATUS REQUEST 078-4. MUTE STATUS REQUEST 078-5. MODEL NAME REQUEST 078-6. COVER STATUS REQUEST

079. FREEZE CONTRO L

084. INFORMATION STRING REQUEST 097-8. ECO MODE REQUEST 097-45. LAN PROJECTOR NAME REQUEST 097-155. LAN MAC ADDRESS STATUS REQUEST2 097-198. PIP/PICTURE BY PICTURE REQUEST 097-243-1. EDGE BLENDING MODE REQUEST 098-8. ECO MODE SET 098-45. LAN PROJECTOR NAME SET 098-198. PIP/PICTURE BY PICTURE SET 098-243-1. EDGE BLENDING MODE SET 305-1. BASE MODEL TYPE REQUEST 305-2. SERIAL NUMBER REQUEST 305-3. BASIC INFORMA TION REQUEST 319-10. AUDIO SELECT SET

Command

NP-ME361W NP-ME331W NP-ME301W NP-ME401X NP-ME361X NP-ME331X NP-ME301X

NP-ME310X NP-ME270X

○ ○ ○ ○ ○ ○ ○

－－－－ ○ －－

○ ○ ○ ○ ○ ○ ○

○ － ○ ○ ○ －－

－－－ ○ －－－

○ － ○ ○ ○ －－

○ ○ ○ －－ ○ ○

○ ○ ○ ○ ○ ○ ○

○ － ○ ○ ○ －－

○ ○ ○ ○ ○ ○ ○

－

－－－－－－－

○ － ○ ○ －－－

○ － ○ ○ ○ －－

－－－ ○ － ○ ○

○ ○

○ ○ ○ ○ ○ ○ ○

○ － ○ ○ ○ ○ ○

－－－ ○ －－－

－－－－－－－

○ － ○ ○ ○ －－

○ － ○ ○ ○ ○ ○

－－－ ○ －－－

－－－－－－－

○ ○ ○ ○ ○ ○ ○

○ ○ ○

○ － ○

－－－－－－

NP-P474U NP-P554W NP-P474W

NP-P604X

NP-P603X

NP-P523X

NP-PE523X

NP-P525UL NP-P525WL

○ ○ ○ ○ ○

NP-P502WL

NP-P502H

NP-P502W

NP-P452H

NP-P452W

○

○ ○ ○

○ －－

NP-P451X NP-P451W NP-P401W

NP-P350X

NP-P350W

13

NEC Projector User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Models for which the control commands are available

Conventions

NOTES

Contents

1. Connecting an External Device

1.1 Connection interfac e

Connection using a serial port

Connection via a network

 Connection using a wired LAN

 Connection using a wireless LAN

1.2 Communication conditions

Serial connection

LAN connection

 Wired LAN

 Wireless LAN

 Port number

2. Command List

2.1 Understanding comma nd de t a ils

2.2 Parameters

Example of checksum calculation

2.3 Responses

When the execution of a command succeeds

When the execution of a command fails

 Command

 Response

2.4 Error code list

3. Command details

3.1 [ 009. ERROR STA T U S REQUEST ]

Command

Response

 When the command succeeds

 When the command fails

Data part

3.2 [ 015. POWER ON ]

Command

Response

 When the command succeeds

 When the command fails

3.3 [ 016. POWER OFF ]

Command

Response

 When the command succeeds

 When the command fails

3.4 [ 018. INPUT SW CHANGE ]

Command

Data part

 Command example

Response

 When the command succeeds

Data part

 When the command fails

3.5 [ 020. PICTURE MUTE ON ]

Command

Response

 When the command succeeds

 When the command fails

3.6 [ 021. PICTURE MUTE OFF ]

Command

Response

 When the command succeeds

 When the command fails

3.7 [ 022. SOUND MUTE ON ]

Command

Response

 When the command succeeds

 When the command fails

3.8 [ 023. SOUND MUTE OFF ]

Command

Response

 When the command succeeds

 When the command fails

3.9 [ 024. ONSCREEN MUTE ON ]

Command

Response

 When the command succeeds
