NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas Pg 1
Distance Charts and Formulas Pg 1-2
Ceiling Mount/Desktop Installation Pg 3-4
Lens Shift Adjustable Range Pg 5
Cabinet Dimensions (Front, Top, Left, Right, Back) Pg 6
Cabinet Dimensions (Bottom) Pg 7
Optional Lens Dimensions Pg 8-9
Optional Mount Dimensions Pg 10-11
Ventilation Requirements Pg 12
Input Panel and Button Panel Pg 13
Control Codes Pg 14
Product Description
Type: 3 chip DMD Reflection Type Dimensions: 25.7”(W) x 13.1”(H) x 27.6”(D)
0.96 in. 2x LVDS DMD Weight: 87.1 lbs. / 39.5kg
Resolution: 1920 x 1200 (16:10)
Brightness: PH1000U: 11,000 Lumens
Fan Noise: PH1000U: 43 dB / 39dB @ 1 meter PH1400U: 14,000 Lumens
Power Consumption: PH1000U: 1100W (max) BTU’s: PH1000U: 3754 BTU/hour
PH1400U: 1215W (max) PH1400U: 4146 BTU/hour
Network Ready, integrated wired and wireless adapter
Powered: Horizontal & Vertical Lens Shift, Zoom, Focus
Lens Specifications
NP25FL: Throw Ratio: ~ 0.67:1 Focal Length: 14.6mm NP28ZL: Throw Ratio: 2.56 -4.16:1 Focal Length: 52.4 – 85.3mm
Screen Sizes: 77”-215” F/#: 2.5 Screen Sizes: 100-500” F/#: 2.5
NP26ZL: Throw Ratio: 1.39 - 1.87:1 Focal Length: 28.9 – 38.9mm NP29ZL: Throw Ratio: 4.16 – 6.96:1 Focal Length: 84.9 – 142mm
Screen Sizes: 100-500” F/#: 2.5 ___ ______ Screen Sizes: 100-500” F/#: 2.5
NP27ZL: Throw Ratio: 1.87. – 2.56:1 Focal Length: 39.0 – 53.4mm NP32ZL: Throw Ratio: 0.9 – 1.1:1 Focal Length: 19.4 – 23.3mm
Screen Sizes: 100-500” F/#: 2.5 Screen Sizes: 70-600” F#: Wide - 2.5
Tele – 2.7
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table..
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary 5%.
Formulas: 16:10 Aspect Ratio (PH1000U—WUXGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas: Definitions: 16:10 Screen Formulas
NP25FL: C = 0.707W – 3.15 W = Image Width W = H x 16/10
NP26ZL: C(Wide) = 1.395W – 3.676 ------ C(Tele) = 1.877W – 3.592 H = Image Height (size) H = W x 10/16
NP27ZL: C(Wide) = 1.883W – 3.425 ------ C(Tele) = 2.576W – 3.425 C = Throw distance Screen Diagonal = W x 18.868/16
NP28ZL: C(Wide) = 2.530W + 7.750 ------ C(Tele) = 4.112W + 7.469 16:9 Screen Formulas
NP29ZL: C(Wide) = 4.092W + 9.770 ------ C(Tele) = 6.850W + 9.699 W = H x 16/9
NP32ZL: C(Wide) = 0.927W - 2.671 ------ C(Tele) = 1.115W - 2.671 H = W x 9/16
Screen Diagonal = W x 18.358/16
www.necdisplay.com PH1000U/PH1400U Page 1 of 14
PH1400U: 48 dB / 44dB @ 1 meter
Rear Lens
NP25FL
Diagonal
Width(W)
Height (H) 0.67:1
inches inches inches inches
30 25 16 - - - - 31.8 - 44.2 44.5 - 62.1 72.1 112.1 113.9 184.0
40 34 21 20.83 - - - 43.6 - 60.1 60.4 - 84.0 93.6 146.9 148.6 242.1
60 51 32 32.82 - - - 67.3 - 91.9 92.4 - 127.6 136.5 - 216.7 218.0 358.2
67 57 36 37.02 - - - 75.6 - 103.1 103.6 - 142.9 151.5 - 241.1 242.3 398.9
72 61 38 40.02 53.9 - 65.4 81.5 - 111.0 111.5 - 153.9 162.2 - 258.5 259.6 427.9
84 71 45 47.21 63.4 - 76.8 95.7 - 130.1 130.7 - 180.1 188.0 - 300.4 301.3 - 497.6
90 76 48 50.81 68.1 - 82.4 102.8 - 139.7 140.3 - 193.2 200.8 - 321.3 322.1 - 532.5
100 85 53 56.80 75.9 - 91.9 114.6 - 155.6 156.3 - 215.0 222.3 - 356.2 356.8 - 590.6
120 102 64 68.79 91.7 - 110.8 138.3 - 187.4 188.2 - 258.7 265.2 - 425.9 426.2 - 706.8
150 127 79 86.78 115.2 - 139.2 173.8 - 235.2 236.1 - 324.2 329.6 - 530.5 530.3 - 881.0
180 153 95 104.77 138.8 - 167.5 209.3 - 282.9 284.0 - 389.8 393.9 - 635.1 634.4 - 1055.3
210 178 111 - 162.4 - 195.9 244.7 - 330.7 331.9 - 455.3 458.3 - 739.7 738.5 - 1229.5
240 204 127 - 186.0 - 224.3 280.2 - 378.4 379.8 - 520.8 522.7 - 844.3 842.6 - 1403.8
270 229 143 - 209.6 - 252.6 315.7 - 426.2 427.7 - 586.4 587.0 - 948.9 946.7 - 1578.1
300 254 159 - 233.2 - 281.0 351.2 - 473.9 475.6 - 651.9 651.4 - 1053.6 1050.8 - 1752.3
400 339 212 - 311.8 - 375.5 469.5 - 633.1 635.3 - 870.4 865.9 - 1402.3 1397.8 - 2333.2
500 424 265 - 390.4 - 470.1 587.8 - 792.3 795.0 - 1088.8 1080.5 1751.0 1744.8 - 2914.1
Screen Size (16:10)
2.56-4.16:1
NP32ZL
NP26ZL
NP27ZL
NP28ZL
1.87-2.56-1
0.9-1.1:1
1.39-1.87:1
Zoom Lenses
inches
inches
NP29ZL
4.16-6.96:1
inches
inches
inches
Rear Lens
NP25FL
Diagonal
Width(W)
Height (H) 0.67:1
inches inches inches inches
29 25 15 - - - - 31.8 - 44.2 44.5 - 62.1 72.1 - 112.1 113.9 183.96
43 37 21 23.24 - - - 48.4 - 66.5 66.9 - 92.7 102.2 - 161.0 162.5 - 265.43
65 57 32 37.07 - - - 75.7 - 103.2 103.7 - 143.1 151.7 - 241.4 242.6 - 399.39
73 64 36 42.10 56.7 - 68.7 85.6 - 116.5 117.1 - 161.4 169.7 - 270.6 271.7 - 448.1
78 68 38 44.61 60.0 - 72.7 90.6 - 123.2 123.8 - 170.6 178.7 - 285.3 286.2 - 472.45
92 80 45 53.41 71.5 - 86.5 107.9 - 146.6 147.2 - 202.7 210.2 - 336.4 337.1 - 557.7
98 85 48 57.18 76.4 - 92.5 115.4 - 156.6 157.3 - 216.4 223.6 - 358.4 359.0 - 594.23
108 94 53 63.47 84.7 - 102.4 127.8 - 173.3 174.0 - 239.3 246.1 - 394.9 395.3 - 655.12
131 114 64 77.29 102.8 - 124.2 155.0 - 210.0 210.8 - 289.7 295.6 - 475.3 475.3 - 789.08
161 140 79 96.14 127.5 - 153.9 192.2 - 260.0 261.0 - 358.4 363.1 - 585.0 584.5 - 971.74
194 169 95 116.25 153.9 - 185.6 231.9 - 313.4 314.6 - 431.6 435.0 - 701.9 700.9 - 1166.6
226 197 111 - 180.3 - 217.4 271.6 - 366.8 368.2 - 504.9 507.0 - 818.9 817.3 - 1361.4
259 226 127 - 206.6 - 249.1 311.3 - 420.2 421.7 - 578.2 579.0 - 935.9 933.7 - 1556.3
292 254 143 - 233.0 - 280.8 351.0 - 473.6 475.3 - 651.5 650.9 - 1052.8 1050.0 - 1751.1
324 283 159 - 259.4 - 312.5 390.6 - 527.0 528.8 - 724.7 722.9 - 1169.8 1166.4 - 1946
400 349 212 - 320.9 - 386.5 483.2 - 651.5 653.7 - 895.6 890.7 - 1442.6 1437.9 - 2400.3
500 436 265 - 401.5 - 483.5 604.5 - 814.8 817.6 1119.7 1110.8 - 1800.3 1793.9 - 2996.3
NP29ZL
4.16-6.96:1
inches
Zoom Lenses
inches
inches
0.9-1.1:1
1.39-1.87-1
inches
inches
Screen Size (16:9)
2.56-4.16:1
NP32ZL
NP26ZL
NP27ZL
NP28ZL
1.87-2.56:1
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
Distance Chart for popular 16:10 Screens (WUXGA)
Distance Chart for popular 16:9 Screens (1080p)
www.necdisplay.com PH1000U/PH1400U Page 2 of 14
Shift Range
Screen Bottom
Screen Top
Screen Center
Screen Center
Shift Range
Screen Bottom
Screen Top
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
Ceiling Mount Installation
Desktop Installation
www.necdisplay.com PH1000U/PH1400U Page 3 of 14
Screen Center
C
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
Note: Lens Shift Feature is not available to NP25FL. This lens should only be used for “zero degree”/”no-offset” applications. See
below
www.necdisplay.com PH1000U/PH1400U Page 4 of 14
PH1000U/PH1400U Installation Guide
Lens Shift Range for Desktop and Ceiling Mount
Application
The diagram below shows the location of the image
position in the lens. The lens can be shifted within
the shaded area as shown using the normal
projection position as a starting point.
Note: Lens shift feature is not available with
NP25FL (rear lens). NP25FL should be used only
for “zero degree” / “no-offset” applications.
Note: Projector is set out of the box at maximum
lens shift, which is how it is depicted above.
(W: width of projected image, H: height of projected
image)
CEILING FRONT
DESKTOP FRONT
VERTICAL
VERTICAL
HORIZONTAL
Desktop and Ceiling Mount Rev 1.1
Lens Shift Adjustable Range
www.necdisplay.com PH1000U/PH1400U Page 5 of 14
NEC Display Solutions of America, Inc.
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
Cabinet Dimensions
The following diagrams show the cabinet dimensions for the PH1000U.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown without lens
www.necdisplay.com PH1000U/PH1400U Page 6 of 14
3-M8*L12(Max.)
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
Cabinet Dimensions
www.necdisplay.com PH1000U/PH1400U Page 7 of 14
NP25FL
NP27ZL
NP26ZL
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
Optional Lens Dimensions
www.necdisplay.com PH1000U/PH1400U Page 8 of 14
NP28ZL
NP29ZL
NP32ZL
6.65
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
Optional Lens Dimensions (Continued)
www.necdisplay.com PH1000U/PH1400U Page 9 of 14
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
Optional Mount Dimensions (PH1000CM)
www.necdisplay.com PH1000U/PH1400U Page 10 of 14
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
PH1000U/PH1400U with Optional Mount (PH1000CM)
www.necdisplay.com PH1000U/PH1400U Page 11 of 14
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1

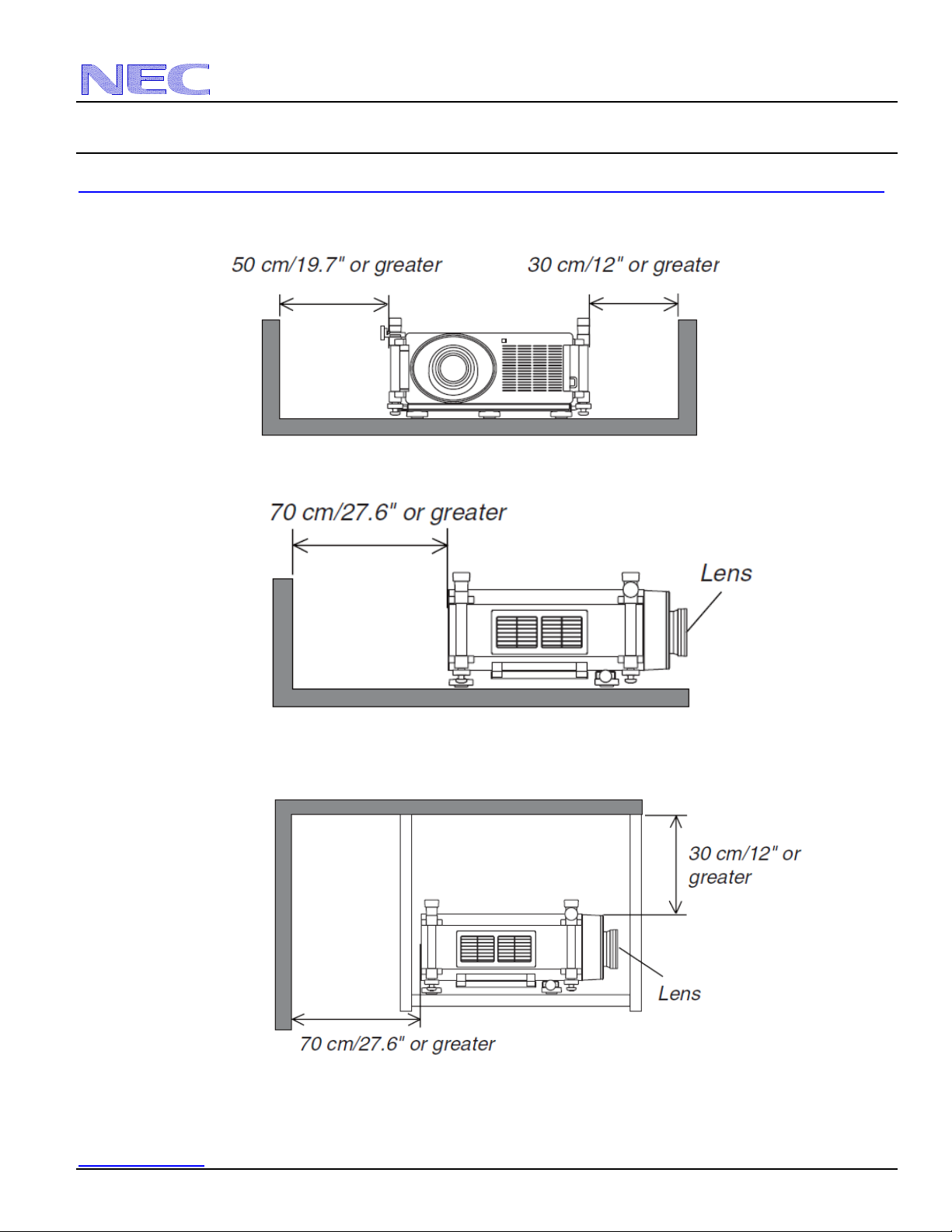

Ventilation Requirements
If there are walls on both sides of the projector :
If there’s a wall behind the projector :
For ceiling mounting :
www.necdisplay.com PH1000U/PH1400U Page 12 of 14
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
Input Panel
Button Panel
www.necdisplay.com PH1000U/PH1400U Page 13 of 14
NEC Display Solutions of America, Inc.
PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount Rev 1.1
PC Control Codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT COMPUTER 1 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT COMPUTER 2 02H 03H 00H 00H 02H 01H 02H 0AH
INPUT SELECT COMPUTER 3 02H 03H 00H 00H 02H 01H 03H 0BH
INPUT SELECT HDMI 02H 03H 00H 00H 02H 01H 1AH 22H
INPUT SELECT DisplayPort 02H 03H 00H 00H 02H 01H 1BH 23H
INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H
INPUT SELECT VIEWER 02H 03H 00H 00H 02H 01H 1FH 27H
INPUT SELECT NETWORK 02H 03H 00H 00H 02H 01H 20H 28H
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
Cable Connection
Communication Protocol:
Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)
Data Length: 8 bits
Parity: No Parity
Stop Bit: One bit
X on/off: None
Communications: Full duplex
PC Control Connector (D-Sub 9P)
Note 1 : Pins 1, 4, 6, and 9 are used inside the projector.
Note 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
Note 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
www.necdisplay.com PH1000U/PH1400U Page 14 of 14
