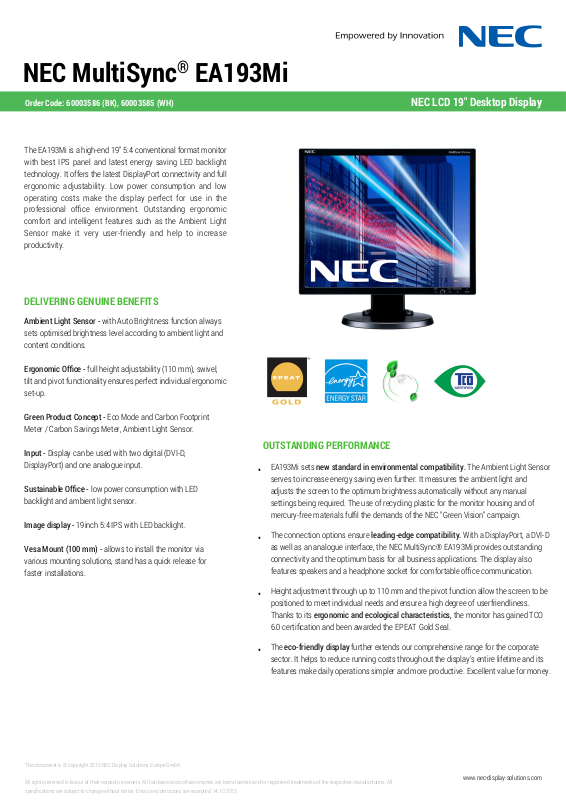

NEC MultiSync® EA193Mi
Order Code: 60003586 (BK), 60003585 (WH)
The EA193Mi is a high-end 19" 5:4 conventional format monitor
with best IPS panel and latest energy saving LED backlight
technology. It offers the latest DisplayPort connectivity and full
ergonomic adjustability. Low power consumption and low
operating costs make the display perfect for use in the
professional office environment. Outstanding ergonomic
comfort and intelligent features such as the Ambient Light
Sensor make it very user-friendly and help to increase
productivity.
DELIVERING GENUINE BENEFITS
Ambient Light Sensor - with Auto Brightness function always
sets optimised brightness level according to ambient light and
content conditions.
Ergonomic Office - full height adjustability (110 mm), swivel,
tilt and pivot functionality ensures perfect individual ergonomic
set-up.
NEC LCD 19" Desktop Display
Green Product Concept - Eco Mode and Carbon Footprint
Meter / Carbon Savings Meter, Ambient Light Sensor.
Input - Display can be used with two digital (DVI-D,
DisplayPort) and one analogue input.
Sustainable Office - low power consumption with LED
backlight and ambient light sensor.
Image display - 19inch 5:4 IPS with LED backlight.
Vesa Mount (100 mm) - allows to install the monitor via
various mounting solutions, stand has a quick release for
faster installations.
OUTSTANDING PERFORMANCE
EA193Mi sets new standard in environmental compatibility. The Ambient Light Sensor
•
serves to increase energy saving even further. It measures the ambient light and
adjusts the screen to the optimum brightness automatically without any manual
settings being required. The use of recycling plastic for the monitor housing and of
mercury-free materials fulfil the demands of the NEC "Green Vision" campaign.
The connection options ensure leading-edge compatibility. With a DisplayPort, a DVI-D
•
as well as an analogue interface, the NEC MultiSync® EA193Mi provides outstanding
connectivity and the optimum basis for all business applications. The display also
features speakers and a headphone socket for comfortable office communication.
Height adjustment through up to 110 mm and the pivot function allow the screen to be
•
positioned to meet individual needs and ensure a high degree of userfriendliness.
Thanks to its ergonomic and ecological characteristics, the monitor has gained TCO
6.0 certification and been awarded the EPEAT Gold Seal.
The eco-friendly display further extends our comprehensive range for the corporate
•
sector. It helps to reduce running costs throughout the display’s entire lifetime and its
features make daily operations simpler and more productive. Excellent value for money.
This document is © copyright 2013 NEC Display Solutions Europe GmbH.
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All
specifications are subject to change without notice. Errors and omissions are excepted. 14.10.2013
www.nec-display-solutions.com
NEC MultiSync® EA193Mi
Technical Specification NEC MultiSync® EA193Mi
DISPLAY
Panel Technology
IPS TFT with W-LED backlight
Screen Size [inch/cm]
19 / 48.2
Screen Aspect Ratio
5:4
Pixel Pitch [mm]
0.293
Brightness (typ.) [cd/m2]
250
Contrast Ratio (typ.)
1000:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]
6
Colours [Mio.]
16.77
SYNCHRONISATION RATE
Horizontal Frequency [kHz]
31.5 - 81.1
Vertical Frequency [Hz]
56 - 75
RESOLUTION
Optimum Resolution
1280 x 1024 at 60 Hz
Supported
1280 x 960; 1280 x 768; 1280 x 720; 1152 x 870; 1152 x 864; 1024 x 768; 832 x
624; 800 x 600; 720 x 400; 640 x 480
CONNECTIVITY
Digital
1 x DVI-D (with HDCP); 1 x DisplayPort
Analog
1 x mini D-sub 15 pin
ELECTRICAL
Power Consumption on Mode [W]
14 (typ.); 10 (Eco Mode); 18 (max.)
Power Savings Mode [W]
0.35
Power Supply
100-120 V/220-240 V; 0.45 A/0.25 A; integrated power supply
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]
+5 to +35
Operating Humidity [%]
20 to 80
ERGONOMICS
Height adjustable Stand [mm]
110
Screen Tilt [°]
-5 to 20
Screen Tilt / Swivel [°]
-45 to 45
Screen Rotate [°]
0 to 90 (landscape to portrait mode)
MECHANICAL
Bezel Width [mm]
15
Dimensions (W x H x D) [mm]
408 x 386.4 x 213.9; Without stand: 408 x 338 x 65
Weight [kg]
6; Without stand: 4
VESA Mounting [mm]
100 x 100
ADDITIONAL FEATURES
Colour Versions
Silver Front Bezel; White Back Cabinet; Black Front Bezel, Black Back Cabinet
Cable Management
yes
Kensington security slot
yes
Plug and Play
VESA DDC/CI; DDC2B/2Bi; EDID Standard
Audio
1W + 1W (De-activateable)
Adjust Functions
Auto Adjust; Brightness; Colour Temperature Control; Contrast; DV Mode;
EcoMode; Fine Adjust (analog); Intelligent Power Management; Language Select;
LED Brightness; Monitor Information; NTAA (Non-Touch-Auto-Adjustment); OnScreen-Display (OSD) lock-out; Power-Off Timer; sRGB
Shipping Content
Monitor; Power Cable; Sales Office List; User Manual
Signal Cable: VGA - VGA; DVI-D - DVI-D
Safety and Ergonomics
Energy Star 6.0; EPEAT™ Gold; CE; ErP; TCO 6.0; TÜV Ergonomics; TÜV GS; FCC
Class B; PCT/Gost; UL/C-UL or CSA; ISO 9241-307 (pixel failure class I); MPR II/
MPR III; RoHS
Warranty
3 years warranty incl. backlight
SPECIAL CHARACTERISTICS
19" (5:4) Highly efficient IPS panel with LED backlight saves more
than 30% energy, Ambient light sensor for optimized brightness
levels, Carbon Footprint Meter, Carbon Savings Meter, Energy Star
6.0, ErgoDesign®: Height adjustable stand (110 mm) with 90°
Pivot features, NaViSet®and NaViSet®Administrator compatible,
sRGB Support, TORO™ Design, Windows 7 compatible, Windows 8
compatible
Energy Efficiency LED backlight technology
Ecological
Standards
Energy Star 6.0; EPEAT Gold; ErP
compliant; RoHS compliant; TCO 6.0
