Navman R300 User Manual [pt]

1-1

R300

NAVMAN

English 1-3

Deutsch 2-1

Français 3-1

Italiano 4-1

Espana 5-1

Português 6-1

1-2

R300

NAVMAN

1-3

R300

NAVMAN

English

USER GUIDE

R300 – English

1-4

R300

NAVMAN

Navman’s GPS Sport.Tool 300 series provides an affordable and reliable way to track and store a variety of personal performance indicators.

Please read this guide carefully and familiarize yourself with the interface and functions, as well as the intended use and limitations of the Navman R300 GPS Sport.Tool.

This product complies with CE, FCC, Canada 210, and C-Tick regulations.

Operation is subject to the following two conditions: (1) this device may not cause interference (2) this device must accept any interference, including interference that may cause undesired operation of the device.

WARNING: Entering information or handling the Navman Sport.Tool while moving is unsafe and may cause you to be distracted or fail to observe safe practices necessary to avoid death, serious injury, collisions or accidents to you or others. Use the memory functions to review data when you are not moving.

CAUTION: The Navman R300 GPS Sport.Tool is intended for recreational use only. Do not use this product for obtaining measurements that require professional or industrial precision. Consult your physician before starting or changing any exercise programs.

Welcome

1-5

R300

NAVMAN

Content

R300 – Content

1.0 General information 1-6

1.1 Checklist 1-6

1.2 Care and maintenance 1-6

1.3 Water resistance 1-6

1.4 Altitude measurement 1-6

1.5 Changing the battery 1-7

2.0 Navman R300 interface 1-8

2.1 Button functions 1-8

2.2 Display screen 1-8

3.0 Getting started 1-9

3.1 Be outdoors 1-9

3.2 Fit the R300 1-9

3.3 Startup 1-9

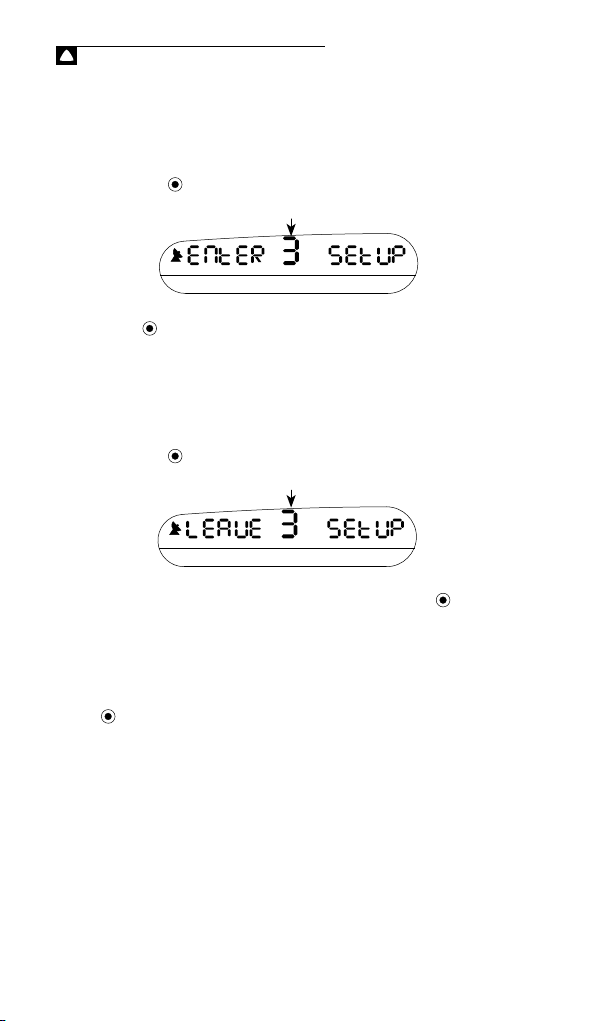

3.3.1 Enter setup 1-10

3.3.2 Start normal operation 1-10

4.0 Setup 1-11

4.1 Setting options 1-11

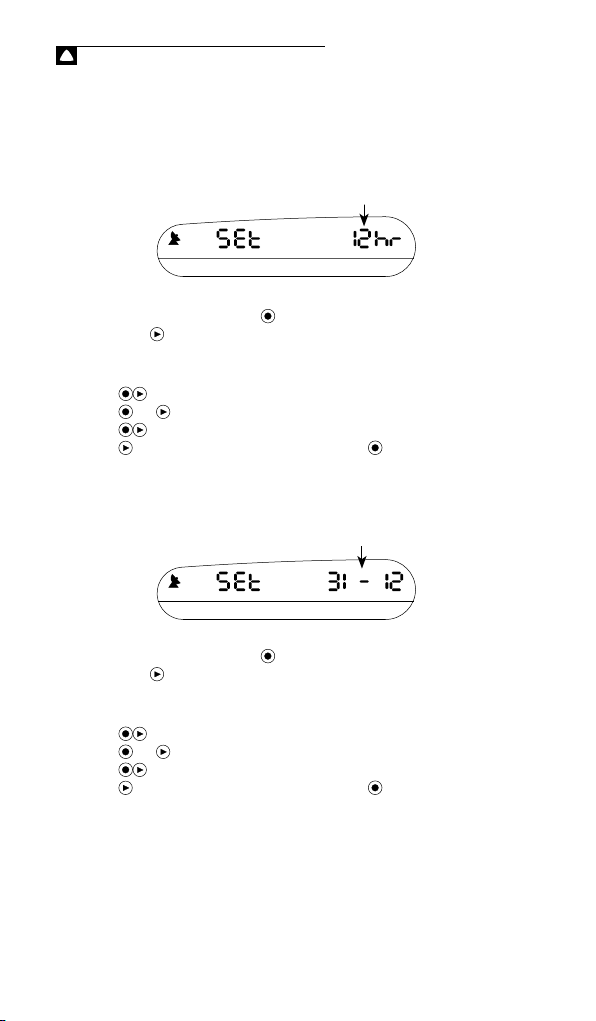

4.1.1 Set time format 1-12

4.1.2 Set date format 1-12

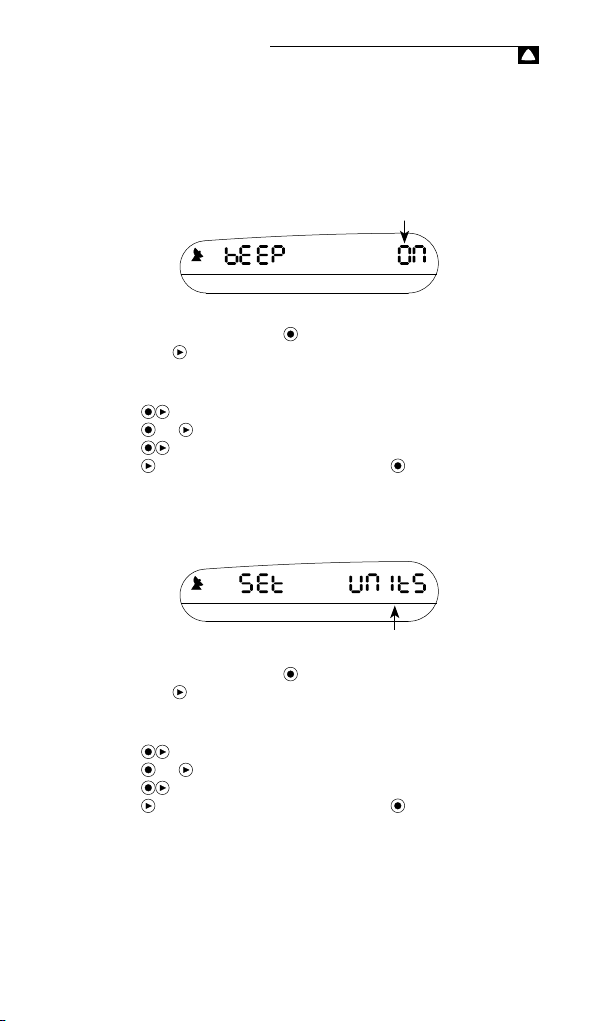

4.1.3 Set button beep status 1-13

4.1.4 Set weight units 1-13

4.1.5 Edit user weight 1-14

4.1.6 Set energy units 1-14

4.1.7 Set speed units 1-15

4.1.8 Set offset (set local time) 1-16

4.1.9 Editing settings (overview) 1-17

5.0 Normal operation 1-18

5.1 Modes 1-18

5.1.1 Speed mode 1-19

5.1.2 Speed (Average) mode 1-19

5.1.3 Speed (Maximum) mode 1-20

5.1.4 Odometer/Altitude mode 1-20

5.1.5 Calories mode 1-21

5.1.6 Zone mode 1-21

5.1.6.1 Zone (Minimum) 1-22

5.1.6.2 Zone (Maximum) 1-22

5.1.7 Clock mode 1-23

5.1.8 Timer mode 1-24

5.1.9 Timer recall mode 1-24

5.1.10 Mode operation (overview) 1-25

6.0 Restoring default settings 1-26

7.0 Glossary 1-27

8.0 Copyright 1-27

9.0 Additional warnings, disclaimers, and limitations on liability 1-28

1-6

R300

NAVMAN

1.0 General information

1.1 Checklist

The R300 package should contain the following items:

• Navman R300 GPS Sport.Tool

• armband

• quick guide

• user guide

• 1 x AA battery

• registration card

1.2 Care and maintenance

Do not attempt to disassemble the R300; there are no user serviceable components in this product.

The R300 is of robust design. However, care should be taken to protect from shocks or extreme heat.

Clean using only a soft cloth with mild soap and warm water. Do not use abrasive cleaning materials or products. We recommend rinsing the R300 with fresh water after any exposure to salt water.

CAUTION: Please ensure battery cover is in place during cleaning.

Store the R300 away from direct sunlight or extreme heat sources. (Remove battery before storing for an extended period.)

1.3 Water resistance

The Navman R300 GPS Sport.Tool is water resistant.

1.4 Altitude measurement

Due to the nature of GPS, inaccurate altitude measurements can sometimes be observed. Altitude readings should be viewed as indicative measurements only.

R300 – General information

1-7

R300

NAVMAN

1.5 Changing the battery

Always shut down the R300 before changing the battery.

Note: All system settings, and the calculated data that was stored at the last controlled shutdown*, are retained when the battery is removed. This information persists indeﬁnitely until updated or reset.

If battery power becomes low during operation the battery icon is displayed.

For best performance: General use = Alkaline Below 5 oC = NiMH

constant = low power ﬂashing = approx. 5 min before automatic shutdown**

* Press and hold

to perform a controlled shutdown. ** When battery power becomes too low to continue operation, a controlled shutdown is automatically executed (current data is saved).

R300 – General information

battery icon

1. Turn D-ring anti-clockwise and slide enclosure cover down to open battery enclosure.

2. Insert battery with «

» end as indicated inside enclosure.

3. Replace enclosure cover (ensuring lugs at the bottom of the cover are aligned with slots in the enclosure surround), turn D-ring clockwise to seal.

1-8

R300

NAVMAN

2.1 Button functions

There are two control buttons,

and

. These buttons are pressed separately or together to turn the unit on and off, cycle through modes, and select mode options.

Throughout this guide the button icons are used as follows:

= press this button = press this button = press both buttons together

Note: where it is required to press and HOLD buttons, a countdown begins. To perform the required action continue to hold until the counter reaches zero; if you release the button sooner the action will not be performed.

2.2 Display screen

The illustration above shows the complete display capability of the R300. Only a sub-set of these elements appear at any time during operation.

The upper screen section displays the antenna and battery

icons, as well as all values and units. The lower screen section displays the mode icons and the setup icon (SYSTEM SET).

Mode Icons

2.0 Navman R300 interface

R300 – Interface

Clock

Timer

Timer recall

Speed

Speed (Average)

Speed (Maximum)

Odometer/Altitude

Calories

Zone settings

8 7

2 3

Cal

ZONE

SET

SYSTEM

SET

kmmi PM mftkcalkJ kg lb

MAXMIN

LAP

PACE

km/hmph

RCL

MAX AVG

RCL

AVG

MAX

8 7

2 3

Cal

ZONE

SET

1-9

R300

NAVMAN

3.1 Be outdoors

The R300 is not intended for operation indoors or under water

as it uses Global Positioning System (GPS) satellites to get

time and date information, and to calculate distance and

speed. For best results, always use the R300 outdoors with an

unobstructed view of the sky.

3.2 Fit the R300

The R300 is designed to be worn on the left upper arm. The

easiest way to ﬁt the unit is to feed the strap through the

fastener to create a loose enclosure. Then slide your left arm

through the enclosure and tighten the strap after the unit is in a

comfortable position.

3.3 Startup

Press and hold

to turn the power on and enter setup, OR

press

to turn the power on and start normal operation.

First start may take up to 80 seconds to get all the satellite data

Flashing = seeking GPS data Constant = GPS data obtained

3.0 Getting started

R300 – Getting started

Always enter setup ﬁrst if you wish to change settings. To enter setup after starting normal operation, you will need to shut down and re-start the unit.

�
