D 7050
Direct Digital Network Amplier
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
Owner’s Manual
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ
SAVE THESE INSTRUCTIONS FOR LATER USE.
FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE AUDIO
EQUIPMENT.
1 Read instructions - All the safety and operating instructions should be read
before the product is operated.
2 Retain instructions - The safety and operating instructions should be retained
for future reference.
3 Heed Warnings - All warnings on the product and in the operating instructions
should be adhered to.
4 Follow Instructions - All operating and use instructions should be followed.
5 Cleaning - Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Clean only with a dry cloth.
6 Attachments - Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
7 Water and Moisture - Do not use this product near water-for example, near a
bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a
swimming pool; and the like.
8 Accessories - Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury to a child or adult,
and serious damage to the product. Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold with the product. Any mounting
of the product should follow the manufacturer’s instructions, and should use a
mounting accessory recommended by the manufacturer.
9 A product and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the product and
cart combination to overturn.
10 Ventilation - Slots and openings in the cabinet are provided for ventilation and
to ensure reliable operation of the product and to protect it from overheating, and
these openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer’s instructions have been
adhered to.
11 Power Sources - This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your product dealer or local power company. The
primary method of isolating the amplier from the mains supply is to disconnect
the mains plug. Ensure that the mains plug remains accessible at all times. Unplug
the AC power cord from the AC outlet if the unit will not be used for several
months or more.
12 Grounding or Polarization - This product may be equipped with a polarized
alternating current line plug (a plug having one blade wider than the other). This
plug will t into the power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the plug. If the plug
should still fail to t, contact your electrician to replace your obsolete outlet. Do
not defeat the safety purpose of the polarized plug.
13 Power Cord Protection - Power supply cords should be routed so that they
are not likely to be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience receptacles, and the
point where they exit from the product.
14 Outdoor Antenna Grounding - If an outside antenna or cable system is
connected to the product, be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information
with regard to proper grounding of the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer’s attention to Section 820-40
of the NEC which provides guidelines for proper grounding and, in particular, species
that the cable ground shall be connected to the grounding system of the building, as
close to the point of cable entry as practical.
15 Lightning - For added protection for this product during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable system. This will prevent damage
to the product due to lightning and power line surges.
16 Power Lines - An outside antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits, or where it can
fall into such power lines or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such power lines or circuits
as contact with them might be fatal.
17 Overloading - Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of re or electric shock.
18 Object and Liquid Entry - Never push objects of any kind into this product
through openings as they may touch dangerous voltage points or short-out parts
that could result in a re or electric shock. Never spill liquid of any kind on the
product.
WARNING: THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING
OR SPLASHING, AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHOULD NOT BE PLACED ON THE APPARATUS. AS WITH ANY ELECTRONIC
PRODUCTS, USE CARE NOT TO SPILL LIQUIDS INTO ANY PART OF THE
SYSTEM. LIQUIDS CAN CAUSE A FAILURE AND/OR A FIRE HAZARD.
19 Damage Requiring Service - Unplug this product from the wall outlet and refer
servicing to qualied service personnel under the following conditions:
a) When the power supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualied technician to
restore the product to its normal operation.
e) If the product has been dropped or damaged in any way.
f) when the product exhibits a distinct change in performance-this indicates a
need for service.
20 Replacement Parts - When replacement parts are required, be sure the
service technician has used replacement parts specified by the manufacturer
or have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
21 Safety Check - Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks to determine that the product is in
proper operating condition.
22 Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling
only as recommended by the manufacturer.
23 Heat - The product should be situated away from heat sources such as radiators,
heat registers, stoves or other products (including ampliers) that produce heat.
24 Headphones - Excessive sound pressure form earphones and headphones can
cause hearing loss.
2
IMPORTANT SAFETY INSTRUCTIONS
25 Battery Disposal - When disposing of used batteries, please comply with
governmental regulations or environmental public instruction’s rules that apply
in your country or area. Batteries (battery pack or batteries installed) must not be
exposed to excessive heat such as sunshine, re or the like.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Its operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
DÉCLARATION DE LA FCC
Cet appareil est conforme à la section 15 des réglementations de la FCC. Le
fonctionnement de l’appareil est sujet aux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences néfastes, et
(2) cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de
provoquer un fonctionnement indésirable.
IC STATEMENT
This device complies with Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
DECLARATION DE L’IC
Cet appareil s’accorde avec Industrie Canada licence-exempte RSS standard. Le
fonctionnement de l’appareil est sujet aux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences néfastes, et
(2) cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de
provoquer un fonctionnement indésirable.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
CAUTION REGARDING PLACEMENT
To maintain proper ventilation, be sure to leave a space around the unit (from the
largest outer dimensions including projections) that is equal to or greater than shown
below.
Left and Right Panels: 10 cm
Rear Panel: 10 cm
Top Panel: 10 cm
NOTES ON ENVIRONMENTAL PROTECTION
At the end of its useful life, this product must not be disposed of with
regular household waste but must be returned to a collection point for
the recycling of electrical and electronic equipment. The symbol on the
product, user’s manual and packaging, point this out.
The materials can be reused in accordance with their markings.
Through re-use, recycling of raw materials or other forms of recycling of old products,
you are making an important contribution to the protection of our environment. Your
local administrative oce can advise you of the responsible waste disposal point.
INFORMATION ABOUT COLLECTION AND DISPOSAL OF WASTE BATTERIES
DIRECTIVE 2006/66/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL
OF EUROPEAN UNION FOR EUROPEAN CUSTOMERS ONLY
Batteries bearing any of these symbols indicate that
they should be treated as “separate collection” and not
as municipal waste. It is encouraged that necessary
measures are implemented to maximize the separate
collection of waste batteries and to minimize the disposal
of batteries as mixed municipal waste.
End-users are exhorted not to dispose waste batteries
as unsorted municipal waste. In order to achieve a high
level of recycling waste batteries, discard waste batteries
separately and properly through an accessible collection
point in your vicinity. For more information about collection and recycling of waste
batteries, please contact your local municipality, your waste disposal service or the
point of sale where you purchased the items.
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN
EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE
PRODUCT’S ENCLOSURE THAT MAYBE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS
INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
CAUTION
Changes or modications to this equipment not expressly approved by NAD
Electronics for compliance could void the user’s authority to operate this equipment.
By ensuring compliance and conformance to proper disposal of waste batteries,
potential hazardous eects on human health is prevented and the negative impact of
batteries and waste batteries on the environment is minimized, thus contributing to
the protection, preservation and quality improvement of the environment.
RECORD YOUR MODEL NUMBER NOW, WHILE YOU CAN SEE IT
The model and serial number of your new D7050 are located on the back of the
cabinet. For your future convenience, we suggest that you record these numbers here:
Model no: ......................................
Serial no.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited
Copyright 2013, NAD Electronics International, a division of Lenbrook Industries Limited
3
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ
INTRODUCTION
GETTING STARTED
UNPACKING AND SETUP
WHAT’S IN THE BOX
Packed with your D7050 you will nd:
• Detachable mains power cord
• Remote control with 3V CR2025 battery
• Eight pieces of dome-shaped feet
• Quick Setup Guide
SAVE THE PACKAGING
Please save the box and all the packaging in which your D7050 arrived.
Should you move or otherwise need to transport your D7050, this is by
far the safest container in which to do so. We’ve seen too many otherwise
perfect components damaged in transit for lack of a proper shipping
carton, so please: Save that box!
QUICK SETUP
This simple guide will help you get started with your D7050.
Place the D7050 on a rm, level surface. Do not place the unit on a soft
surface like a carpet.
Make all the connections to your D7050 with the unit unplugged from
the mains power source. It is also advisable to power down or unplug all
associated components while making or breaking any signal or AC power
connections.
1 Using applicable connectors (not supplied), connect source devices to
corresponding input sockets of D7050.
S/PDIF sources $ OPTICAL 1, OPTICAL 2, COAXIAL 1, COAXIAL 2
Analog sources $ AUX 1, AUX 2
iOS device $ DOCK
Other sources $ AirPlay, Bluetooth, Computer
2 Using applicable connectors (not supplied), connect the digital audio
input and analog audio input ports to the corresponding audio input
sockets of other devices like receivers, ampliers, audio processors or
music system.
3 Connect corresponding end of the mains power cord to the AC mains
input of the D7050 and the plug connected to a mains power source.
4 With all applicable sources hooked up with D 7050 and powered up,
press (Standby) to switch ON the D7050 from standby mode.
5 Start listening to your preferred Source by repeatedly pressing “S”
to cycle through the Sources (COAXIAL 1, COAXIAL 2, OPTICAL 1,
OPTICAL2, COMPUTER, AIRPLAY, DOCK and BT) and select desired
Source. Rotate volume control to adjust audio level.
4
IDENTIFICATION OF CONTROLS
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
1
6 7 8 9
2
3
4
5
1 (STANDBY)
• With the corresponding end of the mains power cord connected
to the AC mains input of the D7050 and the plug connected to a
mains power source, press (Standby) to switch ON the D7050
from standby mode. The Standby indicator will turn from amber to
bright/white color. Pressing (Standby) again turns the unit back
to standby mode.
IMPORTANT NOTE
The D 7050 will automatically go to standby mode if there is no user
interface interaction within 30 minutes.
2 VOLUME
• Adjust audio level by turning clockwise or counterclockwise.
3 S (SOURCE)
• Rotate to select desired Source.
AUDIO OUT
R
WPS/JBRESET
LAN
COMPUTER
L
COAXIAL
+12V
TRIGGER
IN
1
DIGITAL AUDIO INPUT
2
OPTICAL
21
SPEAKERS
RIG HT
LEF T
100-240V 50/60Hz
10 11 12 13 14 15
7 WPS/JB
• Use to setup wireless network connection.
8 AUDIO OUT
• These output terminals have dual function. They are used either as
PRE OUT or SUBWOOFER terminals.
• Always turn OFF the D 7050 and associated external devices before
connecting or disconnecting anything to the AUDIO OUT sockets.
PRE OUT
• The AUDIO OUT sockets can be used to drive an additional amplier.
Use a dual RCA cable to connect AUDIO OUT to the corresponding
analog audio input of compatible devices such as ampliers,
receivers or other applicable devices.
• AUDIO OUT will be aected by the D 7050’s volume control settings.
Rotate the VOLUME control to adjust the output level of the AUDIO
OUT sockets.
4 DISPLAY
• Illuminate the selected or active Source (COAXIAL1, COAXIAL2,
OPTICAL1, OPTICAL2, COMPUTER, AIRPLAY, DOCK, BT) and current
audio level.
• Display follows the orientation of the unit - vertical and horizontal
view as shown on the front cover.
IMPORTANT NOTE
Display shall temporarily turn o if there is no user interface interaction
within 5 minutes. Restore display by sending a remote control
command or rotating any of the controls.
5 PHONES
• A 3.5 mm stereo jack socket is supplied for headphone listening.
• Specially designed low noise headphone circuitry can accommodate a
wide range of phones, even 600 Ohm studio models.
• Ensure that the volume control is turned to minimum (fully
counterclockwise) before connecting or disconnecting
headphones. Listening at high levels can damage your hearing.
• Inserting a headphone jack into this socket automatically switches
o the loudspeakers.
6 RESET
• Restore factory default settings.
SUBWOOFER
• Use a dual RCA cable to connect AUDIO OUT to the low level input
of a powered subwoofer.
• Low frequency information up to 200Hz is sent to the connected
subwoofer via AUDIO OUT.
9 +12V TRIGGER IN
• Connect this +12V Trigger input to the remote device’s
corresponding +12V DC output jack using a mono cable with
3.5mm male plug. The controlling device must be equipped with a
+12V trigger output to use this feature.
10 LAN
• LAN connection must be setup for wired connection to be
established. Set up a Wired Ethernet broadband router with
broadband internet connection. Your router or home network
should have a built-in DHCP server to consummate the connection.
• Using a standard straight-through Ethernet cable (not supplied),
connect one end of the Ethernet cable to the LAN port of your wired
Ethernet broadband router and the other end to D 7050’s LAN port.
5
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ
IDENTIFICATION OF CONTROLS
11 DOCK
• Applicable for direct playback only of iOS device. Using applicable
Apple USB connector, connect your iOS device to this input.
• Allow direct charging of smartphone or android devices using
applicable connector (not supplied)
12 COMPUTER
• Asynchronous USB 24 bit/96 kHz input assures lowest jitter for best
musical performance.
• Using Type A to Type B cable connector (not supplied), interface
computer audio to this asynchronous Type B USB input to directly
stream 24/96 PCM content from your PC or MAC.
• Ensure that the Sound or Audio device setting of your computer is
set to “NAD USB Audio”.
MINIMUM PC SYSTEM REQUIREMENT
Microsoft Windows XP Service Pack 2 or higher, Microsoft Windows 7
FOR MAC USERS
Minimum Mac OS X Snow Leopard (version 10.6) and later versions
NOTE
Download and install to your PC the NAD USB Audio driver from the
Manuals/Downloads tab of the NAD web address http://nadelectronics.
com/products/digital-music/D-7050-Direct-Digital-Network-Amplier.
13 DIGITAL AUDIO INPUT
(COAXIAL1, COAXIAL 2, OPTICAL1, OPTICAL 2)
• Connect to the corresponding optical or coaxial digital output of
sources such as CD or BD/DVD players, digital cable box, digital
tuners and other applicable components.
IMPORTANT NOTE
The digital audio input is 24/96 capable and can accept PCM audio
signal only. Ensure that the digital audio output of your source is set to
PCM before connecting to the digital audio input of D7050.
14 SPEAKERS
• Connect the right speaker to the terminals marked “R +” and “R-”
ensuring that the “R+” is connected to the “+” terminal on your
loudspeaker and the “R-” is connected to the loudspeaker’s “-”
terminal. Connect the left speaker to the terminals marked “L +”
and “L-” ensuring that the “L+” is connected to the “+” terminal on
your loudspeaker and the “L-” is connected to the loudspeaker’s “-”
terminal.
15 AC MAINS INPUT
• The D 7050 comes supplied with a separate detachable mains
power cord. Before connecting the plug to the mains power source,
ensure that it is rmly connected to the D 7050’s AC Mains input
socket rst.
• Always disconnect the mains power plug from the mains power
source rst, before disconnecting the cable from the D 7050’s AC
Mains input socket.
6
IDENTIFICATION OF CONTROLS
REMOTE CONTROL
1
3
2
5
1 ON: Switch D7050 from Standby mode to operating mode.
2 OFF: Switch D7050 to standby mode.
3 +/- : Increase or decrease audio level.
4 t u : Select source.
5 Applicable for Airplay mode and for Tuner Controls of NAD products
with Tuner section
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
BATTERY INSERTION PROCEDURE
1 Insert a hooked tip into the battery door release hole.
4
AIRPLAY MODE
]: Pause or resume playback of current song; if applicable, pause or
resume broadcast.
For Apple devices, allow 10 seconds delay before pressing ] again to
resume playback.
9: Skip backward to previous song; if applicable, scan backward
through current broadcast.
0: Skip forward to next song; if applicable, scan forward through
current broadcast.
TUNER CONTROLS (Not applicable for D7050; Applicable for
NAD products with Tuner section)
9 0: Step up or down Presets.
]: Select through applicable Tuner bands.
3 Place the supplied CR2025 battery into the tray. Ensure the "+" symbol is
facing upwards.
2 Slide out the battery tray.
4 Slide the tray back until it clicks into place.
7
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ
OTHER FEATURES

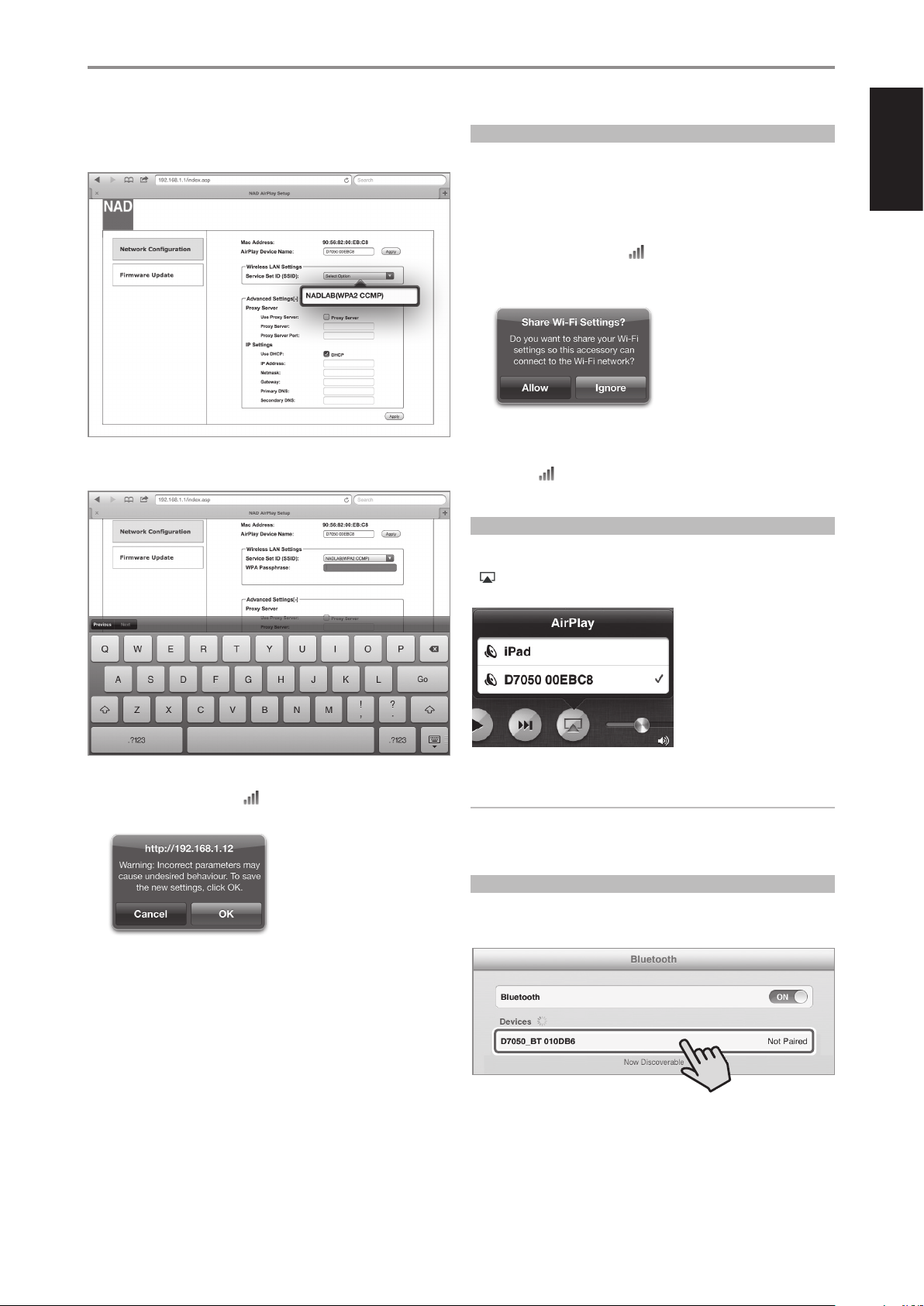

CONNECT AIRPLAY
AirPlay lets you stream music from your AirPlay-enabled device to the
D7050. The AirPlay-enabled device and the D7050 must be in the same
network to send and receive streaming audio with AirPlay. This connection
could be wired, using Ethernet cable, or wireless.
SETTING UP NETWORK CONNECTION
The D7050 can be connected to a network using any of the following
methods
A Wired connection
B Wireless connection
C Share Wi-Fi setting
Start playback of your device after successful network connection using any
of the above methods.
WIRED CONNECTION
Network connection using Ethernet broadband connection. Set up a Wired
Ethernet broadband router with broadband internet connection. Your
router or home network should have a built-in DHCP server to consummate
the connection.
1 Using a standard straight-through Ethernet cable, connect one end
of the Ethernet cable (not supplied) to the LAN port of your wired
Ethernet broadband router and the other end to D7050’s LAN port.
2 Connection is established when a solid signal strength bar indicator
appears in the upper right corner of the D7050 display.
It is advisable that wired connection is utilized when possible. Wired
connection is less likely to have “drop-out” or range problem and not
vulnerable to interference or eavesdropping.
WIRELESS CONNECTION
Wireless (WiFi) broadband router with broadband internet connection
is required for wireless connection to be established. D7050 can be
connected wirelessly via two methods
A WPS key pairing
B Access point mode
ACCESS POINT MODE
The D7050 can act as an Access Point (AP) enabling it to connect to a wired
network wirelessly.
1 Press and hold WPS button located at the real panel of D7050 for
about 3 seconds and then release it. A ashing signal strength bar
indicator appears in the upper right corner of the D7050 display.
2 Using your iOS device (iPad is used here for reference), select among
the list of available network connections the unique network ID (D7050
00EBC8 in this example) of your D7050.
^
3 Launch Safari and enter http://192.168.1.1. The NAD AirPlay Setup
menu window will appear. While at Network Conguration section,
select Select Option at Service Set ID (SSID).
WPS KEY PAIRING
1 Short press the WPS button located at the real panel of D7050. Press
also the corresponding WPS button in your router. A ashing signal
strength bar indicator appears in the upper right corner of the
D7050 display.
2 The D7050 will attempt to detect the WPS signal from the router and
establish a wireless connection.
3 Wireless connection is established when the ashing signal bar
indicator turns to solid bar.
8
OTHER FEATURES
4 Select your local network from the drop down SSID list - NADLAB
(WPA2 CCMP) in this example.
5 Type the WPA Passphrase (if it is password protected) of your local
network in the eld provided and then select Go to join in.
SHARE WIFI SETTINGS
WiFi connection can also be achieved by directly connecting your iOS
device to the DOCK input of the D7050. Follow below procedure for
automatic network detection and connection.
1 Using applicable Apple USB cable (not supplied), connect iOS device to
DOCK input at the rear panel of D7050 to share WiFi settings.
2 Short press WPS button located at the real panel of D7050. A ashing
signal strength bar indicator appears in the upper right corner of
the D7050 display.
3 A Share Wi-Fi Settings notice will pop-up.
4 Select Allow to complete sharing of WiFi settings.
5 Wireless connection is established when the ashing signal bar
indicator turns to solid bar. Upon successful WiFi sharing, you can
disconnect the iOS device from the D7050.
AIRPLAY PLAYBACK
After your AirPlay-enabled device and D7050 are connected to the same
network, the Airplay source will detect the D7050. Select the AirPlay icon
( ) that appears in the application display and select the unique ID of
your D7050 (D7050 00EBC8 in the example below).
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
6 A Warning notice will pop-up. Select OK to save the new settings. The
ashing signal bar indicator turns to solid bar. Your iOS device (iPad)
is now interfaced with the D7050.
7 Return to the Wi-Fi settings of your iOS (iPad) device and ensure that it
is set to the same network setting as above (NADLAB).
Audio from your AirPlay-enabled device will be streamed to the D7050.
IMPORTANT NOTE
When a connected Airplay source is activated to broadcast or playback
a song, the D7050 will immediately switch to Airplay source mode
regardless of the current source.
CONNECT TO BLUETOOTH DEVICE
Pair Bluetooth device with the unique device ID of D7050 (D7050 BT
010DB6 in this example). Start playback of Bluetooth device upon
successful pairing.
9
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ
OTHER FEATURES
DLNA
The Digital Living Network Alliance (DLNA) is a cross-industry organization
of consumer electronics, computing industry and mobile device
companies. DLNA provides consumers with easy sharing of digital media
through a wired or wireless network in the home.
PLAYBACK SHARED CONTENTS
The D7050 supports DLNA playback of music content from your PC,
MAC, NAS or other media server over a home network. Below is a sample
method of sharing and streaming of music content using Windows Media
Player (WMA) with Windows 7. The method shown should be about the
same for other operating systems. Check with your operating system’s
corresponding procedure for items that need further clarity or instructions.
1 Check network connection and setting. Ensure that the D7050 is
connected to the same network as those of the PC, MAC, NAS or other
media server you want to access their contents.
2 Open WMA. Check if media streaming is turned on. Click “Stream” from
the menu bar and then click “Turn on (home) media streaming”. “Turn
on (home) media streaming” won't be available on the Stream menu if
streaming is already turned on.
3 After turning on media streaming, select desired song from the library.
Right click the desired song, select “Play to” and then assign to “D7050AP
xxxxxx”.
4 D7050 will automatically switch to “DLNA” source mode and initiate
playback of selected song.
^
^
IMPORTANT NOTES
• When DLNA playback is initiated, the D7050 will immediately switch to
DLNA source mode regardless of the current source.
• “DLNA” as a source mode for D7050 will manifest only if le sharing and
streaming of music content is established.
10
FEET INSTALLATION GUIDE
184,5
58,0
185,8
185,8
184,5
58,0
185,8
The dome-shaped feet are supplied for optional installation. There are
two ways of installing the feet as per suggested methods below. You may
generate a template for proper placement of the feet.
OTHER FEATURES
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
NOTE
Ensure that with the feet installed, the D 7050 is stable, balanced and
will not tip over.
11
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ
SPECIFICATIONS
AUDIO SPECIFICATIONS
Rated power at 4 ohms 50W
Signal-to-Noise ratio (A-weighted) ≥ 90 dB
Crosstalk (1 kHz) ≥ 85dB
Crosstalk (10 kHz) ≥ 70 dB
Frequency response (20 Hz – 96 kHz) 0 dB to - 0.3 dB
Total Harmonic Distortion ≤ 0.004 %
IMD (SMPTE) 0.02 %
IMD (CCIF) 0.003 %
GENERAL SPECIFICATIONS
Standby power ≤ 0.5W
Supports bit rate/sample rate up to 24/192
Unit dimensions
W x H x D (Gross)
Shipping weight 3.3 kg (7.3 lbs)
NAD SHALL NOT BE HELD LIABLE FOR ANY TECHNICAL OR USER INTERFACE DISCREPANCIES IN THIS MANUAL. THE D 7050 OWNER’S MANUAL MAY BE
SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. CHECK OUT WWW.NADELECTRONICS.COM FOR THE LATEST VERSION OF THE D 7050 OWNER’S MANUAL.
70 x 235 x 275 mm
2 / x 9 / x 10 / inches
12
ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
13
www.NADelectronics.com
©2013 NAD ELECTRONICS INTERNATIONAL
A DIVISION OF LENBROOK INDUSTRIES LIMITED
All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited.
No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
While every effort has been made to ensure the contents are accurate at the time of publication, features and specifications may be subject to change without prior notice.
D7050_ENG_OM_ V12 OCT 2013
