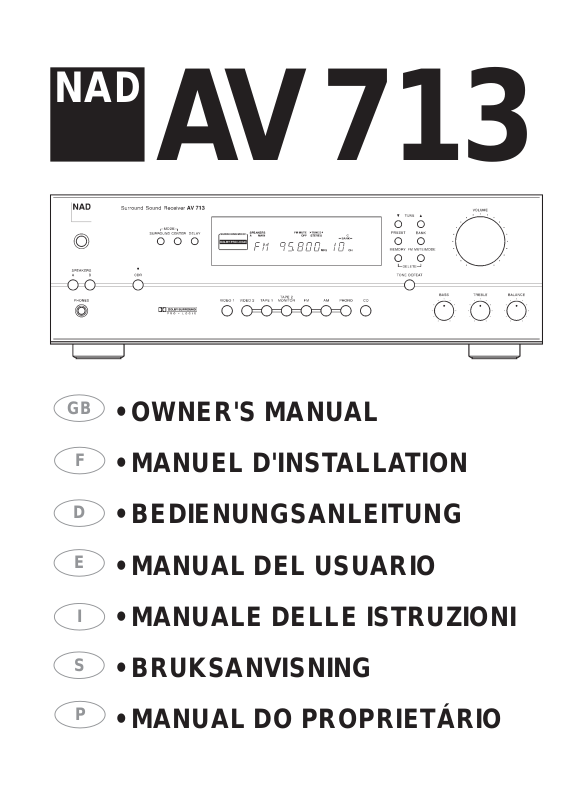

NAD 713 User Manual

GB

F

D

E

I

S

P

NA

D

AV 713

• OWNER'S MANUAL

• MANUEL D'INSTALLATION

• BEDIENUNGSANLEITUNG

• MANUAL DEL USUARIO

• MANUALE DELLE ISTRUZIONI

• BRUKSANVISNING

• MANUAL DO PROPRIETÁRIO

Warning: To reduce the risk of fire or electric shock, do not expose this
unit to rain or moisture.

The graphic symbol of a lightning flash with an arrow point within a trian-

gle signifies that there is dangerous voltage within the unit and it

poses a hazard to anyone removing the cover to gain access to the

interior of the unit. Only qualified service personnel should

make any such attempt.

The graphic symbol of an exclamation point within an equilateral trian-

gle warns a user of the device that it is necessary to refer to the

instruction manual and its warnings for proper operation of the unit.

Do not place this unit on an unstable cart, stand or tripod,
bracket or table. The unit may fall, causing serious injury to a
child or adult and serious damage to the unit. Use only with a
cart, stand, tripod, bracket or table recommended by the man­ufacturer or sold with the unit. Any mounting of the device on a
wall or ceiling should follow the maufacturer’s instructions and
should use a mounting accessory recommended by the manu­facturer.

An appliance and cart combination should be moved with care. Quick stops,
excessive force and uneven surfaces may cause the appliance and cart combi­nation to overturn.

Read and follow all the safety and operating instructions before connecting or
using this unit. Retain this notice and the owner’s manual for future reference.

All warnings on the unit and in it’s operating instructions should be adhered to.
Do not use this unit near water; for example, near a bath tub, washbowl, kitchen

sink, laundry tub, in a wet basement or near a swimming pool.
The unit should be installed so that its location or position does not interfere with

its proper ventilation. For example, it should not be situated on a bed, sofa, rug
or similar surface that may block the ventilation openings; or placed in a built-in
installation, such as a bookcase or cabinet, that may impede the flow of air
through its ventilation openings.

The unit should be situated from heat sources such as radiators, heat registers,
stoves or other devices (including amplifiers) that produce heat.

The unit should be connected to a power supply outlet only of the voltage and
frequency marked on its rear panel.

The power supply cord should be routed so that it is not likely to be walked on or
pinched, especially near the plug, convenience receptacles, or where the cord
exits from the unit.

Unplug the unit from the wall outlet before cleaning. Never use benzine, thinner
or other solvents for cleaning. Use only a soft damp cloth.

The power supply cord of the unit should be unplugged from the wall outlet when
it is to be unused for a long period of time.

Care should be taken so that objects do not fall, and liquids are not spilled into
the enclosure through any openings.

This unit should be serviced by qualified service personnel when:
A. The power cord or the plug has been damaged; or

B. Objects have fallen, or liquid has been spilled into the unit; or
C. The unit has been exposed to rain or liquids of any kind; or
D. The unit does not appear to operate normally or exhibits a marked change in
performance; or
E. The device has been dropped or the enclosure damaged.

DO NOT ATTEMPT SERVICING OF THIS UNIT YOURSELF.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

Upon completion of any servicing or repairs, request the service shop’s assur­ance that only Factory Authorized Replacement Parts with the same characteris­tics as the original parts have been used, and that the routine safety checks
have been performed to guarantee that the equipment is in safe operating condi­tion.
REPLACEMENT WITH UNAUTHORIZED PARTS MAY RESULT IN FIRE,
ELECTRIC SHOCK OR OTHER HAZARDS.

ATTENTION

POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILIER
CETTE FICHE POLARISEE AVEC UN PROLONGATEUR, UNE
PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT,
SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS
EN LAISSER AUCUNE PARTIE A DECOUVERT.

CAUTION

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.

If an indoor antenna is used (either built into the set or installed separately),
never allow any part of the antenna to touch the metal parts of other electrical
appliances such as a lamp, TV set etc.

CAUTION

POWER LINES

Any outdoor antenna must be located away from all power lines.

OUTDOOR ANTENNA GROUNDING

If an outside antenna is connected to your tuner or tuner-preamplifier, be sure
the antenna system is grounded so as to provide some protection against volt­age surges and built-up static charges. Section 810 of the National Electrical
Code, ANSI/NFPA No. 70-1984, provides information with respect to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding conductors, location of antenna dis­charge unit, connection to grounding electrodes and requirements for the
grounding electrode.

a. Use No. 10 AWG (5.3mm2) copper, No. 8 AWG (8.4mm2) aluminium, No. 17
AWG (1.0mm2) copper-clad steel or bronze wire, or larger, as a ground wire.
b. Secure antenna lead-in and ground wires to house with stand-off insulators
spaced from 4-6 feet (1.22 - 1.83 m) apart.
c. Mount antenna discharge unit as close as possible to where lead-in enters
house.
d. Use jumper wire not smaller than No.6 AWG (13.3mm2) copper, or the equiva­lent, when a separate antenna-grounding electrode is used. see NEC Section
810-21 (j).

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL
CODE INSTRUCTIONS CONTAINED IN ARTICLE 810 - RADIO AND TELEVI­SION EQUIPMENT.

NOTE TO CATV SYSTEM INSTALLER: This reminder is provided to
call the CATV system installer’s attention to Article 820-22 of the
National Electrical Code that provides guidelines for proper grounding
and, in particular, specifies that the ground cable ground shall be con­nected to the grounding system of the building, as close to the point of
cable entry as practical.

NA

D

2

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

ATTENTION:

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

ATTENTION: AFIN DEVITER UN CHOC ELECTRIQUE, ET LES CONSEQUENCES GRAVES QUI

POURRAIENT EN RESULTER, TENTEZ PAS D'OUVRIR L'APPAREIL ET DE TOUCHER AUX

COMPOSANTS INTERNES SANS LA PRESENCE D'UNE SERVICE PERSONNEL.

THE FOLLOWING PRECAUTIONS AND SAFETY INSTRUCTIONS

ARE REQUIREMENTS OF UL AND CSA SAFETY REGULATIONS

NA

D

3

REAR PANEL CONNECTIONS

FRONT PANEL CONTROLS

FIGURE 1.

FIGURE 2.

FIGURE 3.

REMOTE CONTROL

15ms

1

5m

s

15m

s

2

0ms

25m

s

30m

s

30

ms

30m

s

0

5

10

15 20 25

30 35

5

10

15

20

25

30

35

40

40

DISTANCE FROM FRONT SPEAKERS

USABLE SPEAKER PLACEMENT RANGE WITH

XXms DELAY TIME

25ms

20ms

15ms

10ms

15ms

15ms

15ms

5ms

HAAS EFFECT
DIFFERENTIAL
ARRIVAL TIME

PREFERRED

DISTANCE FROM REAR SPEAKERS (FEET)

ACCEPTABLE

NOT RECOMMENDED

DOLBY DELAY

NOTES ON INSTALLATION.

Your AV 713 should be placed on a firm, level sur­face. Avoid placing the unit in direct sunlight, near
sources of heat and damp or in poorly ventilated posi­tions.

Switch the unit to standby before making any con­nections. The phono connectors on your AV 713 are
colour coded for convenience. Red and white are
Right and Left audio, yellow is composite (line) video
and orange for NAD-Link.

Use high quality leads and connectors for optimum
performance and reliability of connection. Audio
phono leads will function correctly for video signals,
although it is recommended to use dedicated video
leads where possible. Ensure that leads and connec­tors are not damaged in any way and all connectors
are firmly pushed home.

For best performance use quality speaker leads of
at least 16 gauge or more thickness.

If the unit is not going to be used for some time,
disconnect the plug from the AC socket.

Should water get into your AV 713, shut off the
power to the unit and remove the plug from the AC
socket. Have the unit inspected by a qualified service
technician before attempting to use it again.

Do not remove the cover, there are no user-ser­viceable parts inside.

Use a dry soft cloth to clean the unit. If necessary,
lightly dampen the cloth with soapy water. Do not use
solutions containing benzol or other volatile agents.

REAR PANEL CONNECTIONS

1. PHONO INPUT

Input for turntable phono cartridges. Connect the
twin phono leads from the turntable to this input. If the
turntable signal lead includes a separate single
ground lead, connect it to the earth terminal close to
the phono input on your AV 713. This input is suitable
for moving magnet phono cartridges only.

2. CD INPUT

Input for CD player (analogue audio signal) or other
line-level signal source. Use a twin phono-to-phono
lead to connect the CD player left and right ‘Audio
Outputs’ to this input.

3. TAPE 1

Connections for analogue recording and playback
to an audio tape recorder of any type, such as a cas­sette, reel-reel, DAT, MD or DCC. Using twin phono­to-phono leads, connect to the left and right ‘Audio
Output’ of the tape machine to the TAPE 1 PLAY
connectors for playback. Connect the left and right
‘Audio Input’ of the tape machine to the TAPE 1 REC
connectors for recording.

4. TAPE 2

Connections for analogue recording and playback
to a second audio tape recorder of any type. Using
twin phono-to-phono leads, connect to the left and
right ‘Audio Output’ of the tape machine to the TAPE
2 PLAY connectors for playback. Connect the left
and right ‘Audio Input’ of the tape machine to the
TAPE 2 REC connectors for recording.

5. VIDEO 1

Inputs for the audio playback from a VCR or other
video device such as a stereo TV, satellite or cable
TV receiver or a Laser Disc. Using twin phono-to­phono leads, connect to the left and right ‘Audio Out’
of the VCR/TV/LD/satellite receiver to these inputs.
These audio inputs are used in conjunction with the
composite (line) video inputs marked VIDEO 1.
VIDEO 1 is used for playback only, use VCR 2 if you
want to connect a VCR for recording and playback
through the AV 713.

6. VIDEO 2

Connections for the audio recording and playback
to a VCR or other video recorder. Using twin phono­to-phono leads, connect to the left and right ‘Audio
Out’ of the VCR to the VIDEO 2 IN connectors for
playback. Connect the left and right ‘Audio In’ of the
VCR to the VIDEO 2 OUT connectors for recording.
These audio inputs are used in conjunction with the
composite (line) video inputs marked VIDEO 2 IN
and the video outputs marked VIDEO 2 OUT.

7. MONO OUT

Additional line output for connection to a sub-bass
speaker system with its own power amplifier.

This socket provides an unfiltered mono signal and
is active when SPEAKERS A is selected on the front
panel.

8. GROUND TERMINAL

The ground terminal provides a convenient point to
attach earth or ground cables from other electronic
equipment connected to your AV 713.

9. AM ANTENNA

An AM loop antenna is supplied with the AV 713
and is required for AM reception. Connections are
either coaxial or clip terminals. Open the clip terminal
lever and insert the wire from the antenna. Closing
the lever will lock the wire in place (see fig 1). Test
various positions for the antenna, but always ensure
the loop is placed vertically for best reception. Placing
the antenna close to large metal items such as metal
shelves or radiators may interfere with reception (see
fig 2).

10. FM ANTENNA

A ribbon wire FM antenna is included and should
be connected to the FM connector at the rear of the
unit using the ‘balun’ adapter supplied. (see fig 3) The
ribbon aerial should be mounted on a vertical surface
and placed so that it forms a ‘T’.

NA

D

6

GB

NAD AV 713 SURROUND SOUND RECEIVER

GB

Experiment with placement of the antenna to find
the position that gives the best signal strength and
lowest background noise. An inadequate FM signal
normally results in high levels of hiss, especially in
stereo, and interference from external electrical
sources. In areas of poor FM reception, the tuner
section’s performance can be improved by using an
externally mounted FM antenna. A qualified aerial
installer will be able to advise and fit a recommended
aerial for your reception conditions.

11. SOFT CLIPPING

When an amplifier is driven beyond it’s specified
power output, a hard distorted sound can be heard on
very loud sounds. This is caused by the amplifier cut­ting off or ‘hard clipping’ the peaks of sound that it
was not designed to reproduce. The NAD Soft
Clipping circuit gently limits the output of the system
to minimize audible distortion if the amplifier is over­driven.

If your listening involves moderate power levels you
may leave the Soft Clipping switch off. If you are like­ly to play at high levels that exceed the amplifier’s
power capability, then switch Soft Clipping on.

12. VIDEO 1

Connection for the Line (Composite) video signal
input for VIDEO 1. Using a phono lead, connect the
‘Video Out’ of the VCR, TV, Laser Disc or
satellite/cable unit. VIDEO 1 can be used for video
playback only. Use VIDEO 2 if you want to connect a
VCR for recording and playback through the AV 713.

13. VIDEO 2

Connection for the Line (Composite) video signal
input for VIDEO 2. Using a phono lead, connect the
‘Video Out’ of the VCR to VIDEO 2 IN for playback.
Connect VIDEO 2 OUT to the ‘Video In’ of the VCR to
copy video signals from VIDEO 1.

14. MONITOR VIDEO OUTPUT

Composite (line) video output for connecting a TV
or Video Monitor to view video sources connected to
VIDEO 1 or VIDEO 2. Using a phono lead, connect
the ‘Video Line In’ on the TV or monitor to the MONI­TOR VIDEO OUTPUT. This output can also be used
as an additional recording output if required. Video
monitoring must then be done via the output of the
video recorder.

15. FRONT SPEAKERS A

These are the amplifier outputs for the front speak­ers normally located in the main listening room.

These speaker outputs are switched on and off by
using the SPEAKER A button on the front panel.

Connect the right speaker to the terminals market
‘R +’ and ‘R-’ ensuring that the ‘R+’ is connected to
the ‘+’ terminal on your loudspeaker and the ‘R-’ is
connected to the loudspeaker’s ‘-’ terminal. Connect
the terminals marked ‘L+’ and ‘L-’ to the left speaker
in the same way.

Always use heavy duty (16 gauge or thicker)

stranded wire to connect loudspeakers to your AV

713.
The high current binding post terminals can be

used as a socket for speaker cables ending with 4mm
plugs or as a screw terminal for cables terminating in
spade or pin connectors or for cables with bare wire
ends.

4mm (BANANA) CONNECTORS. These should be

soldered or securely screwed to the speaker cables
before inserting into the sockets. The terminals are
3/4” (19mm) apart so they will accept standard dual­banana plugs.

SPADE CONNECTORS. These should be slotted

under the terminal’s screw bushing, which is then
tightened down. Ensure the connector is tightly
secured and there is no danger of bare metal from
spade connectors touching the back panel or another
connector, as this may cause damage.

Bare wires and pin connects should be inserted

into the hole in the shaft of the terminal. Unscrew the
speaker terminal’s plastic bushing until the hole in the
screw shaft is revealed. Insert the pin or bare cable
end into the hole and secure the cable by tightening
down the terminal’s bushing (see fig 4).

To avoid any danger of bare metal from the speak-

er cables touching the back panel or another connec­tor, ensure that there is only 1/2” (1.27 cm) of bare
cable or pin and no loose strands of speaker wire

CAUTION: Any speaker used on the AV 713

should have a minimum impedance of 4 ohms.

16. FRONT SPEAKERS B

These are the amplifier outputs for the front speak-

ers normally located in the secondary listening area
(such as a dining room or kitchen).

These speaker outputs are switched on and off by

using the SPEAKER B button on the front panel.

Connect the right speaker to the terminals marked

‘R +’ and ‘R-’ ensuring that the ‘R+’ is connected to
the ‘+’ terminal on your loudspeaker and the ‘R-’ is
connected to the loudspeaker’s ‘-’ terminal. Connect
the terminals marked ‘L+’ and ‘L-’ to the left speaker
in the same way.

The high current binding post terminals can either

be used as a socket for speaker cables ending with
4mm plugs or as a screw terminal for cables terminat­ing in spade or pin connectors or with bare wire.

17. CENTER SPEAKER

This connects the center loudspeaker that is used

when the AV 713 is operated in Dolby Pro-Logic
mode. Connect the ‘Centre +’ to the ‘+’ terminal on
your center loudspeaker and the ‘Center -’ to the
loudspeaker’s ‘-’ terminal.

Strip 8mm of insulation from the end of the speaker

cable and twist the bare wires so that there are no
loose strands. Open the clip terminal lever and insert
the wire. Closing the lever will lock the wire in place.
These speakers operate in conjunction with Front
Speakers A and are switched on and off by using the
SPEAKER A button on the front panel.

NA

D

7

18. REAR SPEAKERS

This connects the rear loudspeakers that are used
when the AV 713 is operated in Dolby Pro-Logic or
Hall modes. Connect the right rear speaker to the ter­minals market ‘R +’ and ‘R-’ ensuring that the ‘R+’ is
connected to the ‘+’ terminal on your loudspeaker and
the ‘R-’ is connected to the loudspeaker’s ‘-’ terminal.
Connect the terminals marked ‘L+’ and ‘L-’ to the left
speaker in the same way. These clip terminals oper­ate in the same way as the Center Speaker terminals.
These speakers operate in conjunction with Front
Speakers A and are switched on and off by using the
SPEAKER A button on the front panel.

19. NAD-LINK IN OUT

The NAD-Link connector is used to pass com­mands from the remote control to and from other
units fitted with NAD-Link connectors. This allows
centralised control of a complete system or gives sys­tem control from more than one room. To function
with other units, connect the AV 713’s NAD-Link OUT
to NAD-Link IN on the other unit. NAD-Link connec­tors can be daisy-chained, IN to OUT, so that a whole
system can be controlled from the remote control
facilities of one unit.

A single NAD-Link connection from a hi-fi system in
a second room will allow remote control of Multi
Room systems.

20. AC OUTLETS (Australian and US ver­sions only)

The AC power cords of other units in the audio sys­tem can be connected directly to the AV 713’s
switched AC outlets. When the AV 713 is switched
off, power to the units connected to these outlets will
be also switched off .

The switched AC outlets should be used with units
with a COMBINED power consumption of no more
than 120 Watts (1 Amp) for U.S. version and 100
Watts for European version.

21. AC POWER CORD CONNECTOR

After you have completed all connections to the
amplifier, plug the AC line cord into a “live” wall sock­et or into a heavy-duty extension cord which can be
connected to a wall socket.

FRONT PANEL CONTROLS.
POWER, SPEAKERS AND HEADPHONE

FUNCTIONS.

1. POWER

The green standby indicator shows that power is
being supplied to the AV 713, but the system is cur­rently off. Pressing the power switch turns the unit on
and supplies power to the switched AC outlets. The
display panel will indicate AV 713’s current settings.

Pressing the power switch again will turn the AV
713 back into Standby mode. In Standby, the AV 713

stores the current input and mode settings in a non­volatile memory and re-selects these modes when it
is next switched on. The AV 713 also uses the non­volatile memory to store pre-set information, both for
the tuner and for the Dolby Pro Logic set-up, so that
these are not lost when the unit is switched to stand­by or disconnected from the AC supply for up to two
weeks, after two weeks the Memory is lost). During
normal operation the standby indicator lights to show
when a signal is being received from the Remote
Control.

CAUTION: When in standby, power is still supplied
to the AV 713. Disconnect the AV 713 from the AC
outlet when it is not being used for long periods of
time.

2. SPEAKERS A B

The SPEAKER A and B buttons select which of the
two loudspeaker systems are active. Pressing
SPEAKER A will switch on the speakers in the main
listening room, including front left, centre and right
speakers and surrounds. Pressing SPEAKER B will
switch on the stereo pair of speakers used in the sec­ondary listening area and switches off Speaker set A.
It will also place the AV 713 into Stereo mode, auto­matically cancelling Pro-Logic or Hall modes. The
Display Panel shows which speakers are currently
selected. Only one set of speakers can be used at
any time.

3. HEADPHONE SOCKET

A 1/4” stereo jack socket is supplied for headphone
listening. The socket has its own amplifier which will
drive conventional headphones of any impedance. It
takes its signal from the front left and right channels
and works on all inputs, although any surround mode
will be heard as two channel stereo. The volume and
tone and balance controls are operative for head­phone listening. Use a suitable adapter to connect
headphones with other types of connectors such as

3.5mm stereo ‘personal stereo’ jack plugs. Warning:
Listening at high levels can damage your hearing.

VOLUME, BALANCE AND TONE
FUNCTIONS

4. VOLUME

The VOLUME control adjusts the overall loudness
of the signals being fed to the loudspeakers. The
VOLUME control does not affect recordings made
using the Tape or Video line outputs.

5. BASS & TREBLE CONTROLS

The AV 713 is fitted with BASS and TREBLE tone
controls to adjust the overall tonality of your system.

The 12 o’clock position is ‘flat’ with no boost or cut
and a detent indicates this position. Rotate the con­trol clockwise to increase the amount of Bass or
Treble. Rotate the control anti-clockwise to decrease
the amount of Bass or Treble. These controls affect
the Left and Right front speakers only. In Pro Logic or
Hall modes, the Center and Surround speakers main­tain a ‘flat’ response, regardless of the tone control

NA

D

8

GB

GB

settings. The Tone controls do not affect recordings
made using the Tape or Video line outputs.

6. BALANCE

The BALANCE control adjusts the relative levels of
the Left and Right front speakers. The 12 o’clock
position provides equal level to the Left and Right
channels. A detent indicates this position.

Rotating the control clockwise moves the balance
towards the right. Rotating the control anti-clockwise
moves the balance to the left. The BALANCE control
does not affect recordings made using the Tape or
VCR line outputs.

7. TONE DEFEAT

The TONE DEFEAT switch by-passes the tone
control section of the AV 713. If the Tone Controls
are not normally used and left in the 12 o’clock posi­tion, then it is advisable to switch out the Tone
Control section altogether by using this switch. In the
‘out’ position, the Tone Control circuits are active,
pushing the TONE DEFEAT switch in bypasses the
Tone Control section. The Display Panel indicates
when Tone Defeat is on.

INPUT AND MONITOR SELECTORS

8. VIDEO 1, VIDEO 2, TAPE 1, TAPE 2

MONITOR, FM, AM, PHONO, CD

These buttons select the active input to the AV 713
and the signal sent to the loudspeakers and the
Tape, Video 2 and TV monitor outputs.

The name of the Input and Surround Mode will be
shown in the Display Panel.

VIDEO 1

Selects the signal from stereo TV/Satellite/Cable
receiver or Laser Disc connected to VIDEO 1 as the
active input.

VIDEO 2

Selects the VCR connected to VIDEO 2 as the
active input. Video 1 or 2 is shown in the Display
Panel when these are selected

TAPE 1

Selects Tape 1 as the active input.

TAPE 2 MONITOR

Selects the signal from output of the Tape 2 tape
machine. TAPE 2 MONITOR feeds the signal directly
to the AV 713’s main amplifiers and does not override
the current input selection. If the CD is the active
input when TAPE MONITOR is selected, then the
CD signal will continue to be sent to the recording
outputs of TAPE 1, TAPE 2 and VIDEO 2, whilst the
Tape 2 signal will be heard on the loudspeakers and
headphones. T-2 Monitor will be shown in the Display
Panel when TAPE 2 MONITOR has been selected.

FM

Selects FM radio. This is also automatically select­ed when an FM Preset is selected.

AM

Selects AM radio. This is also automatically select­ed when an AM Preset is selected.

PHONO

Selects the turntable phono cartridge as the active

input.

CD

Selects the CD as the active input.

SURROUND AND CDR FUNCTIONS

9. SURROUND

The SURROUND button selects the AV 713’s sur­round mode. Pressing the SURROUND button pages
through the three modes: DOLBY PRO-LOGIC, HALL
and BY-PASS (normal Stereo)

DOLBY PRO-LOGIC decodes the surround sound
signals encoded in movie sound tracks from video or
TV. To decode correctly, the video or TV signal must
be of a Dolby Surround or Dolby Stereo soundtrack
and coming from a stereo VCR, TV or satellite/cable
receiver.

HALL mode produces a surround sound effect from
a normal stereo source such as a CD or FM radio.

BY-PASS switches to normal Stereo operation.

The selected mode is displayed in the main area of
the Display Panel for 3 seconds and is continuously
shown in Surround Mode area of the Display Panel.

As an additional convenience feature, your AV 713
memorizes which surround mode you have used with
the given input selection. When you next select that
input, your AV 713 will automatically choose the
same Surround mode again. If you normally use
Dolby Pro-Logic mode on the Video 1 and Video 2
inputs, Hall Mode on FM, and By-Pass (Stereo) on
the others, pressing the Input Selector will automati­cally default to the right Surround mode without hav­ing to separately press the Surround Mode button.

10. CENTER

Selects the type of centre speaker used on the
main speaker (SPEAKER A) system. Pressing the
CENTER button pages through the three options:
NORMAL, PHANTOM and WIDEBAND.

NORMAL mode is used when the center speaker is
smaller than the front left and right speakers. This
mode produces a true center image with the very low
frequencies (below 70Hz) filtered out.

WIDEBAND mode is used when the center speaker
is the same type as the front left and right speakers.
This mode produces a true center image with a full
frequency range and no low frequency filtering.

PHANTOM mode is used when there is no center
speaker. The AV 713 places the center information
equally on the left and right front speakers so produc­ing a ‘Phantom’ central sound image.

The selected Center Mode is displayed for 3 sec­onds in the main area of the Display Panel. It is
stored in the AV 713’s memory and will be automati­cally recalled each time the unit is switched on. This
function can be altered only when the AV 713 is in
DOLBY PRO-LOGIC Mode.

NA

D

9

11. DELAY

Selects the amount of delay applied to the surround
speakers when the AV 713 is used in DOLBY PRO­LOGIC or HALL modes.

Pressing the DELAY button steps the Delay times
in 5mS steps from 5mS to 30mS for Hall mode and
from 15mS to 30mS for Dolby Pro-Logic mode.
Separate delay times can be stored for DOLBY PRO­LOGIC and HALL modes and are held in the AV
713’s memory. They are automatically recalled each
time the DOLBY PRO-LOGIC or HALL mode is
selected. This function can be altered only when the
AV 713 is in DOLBY PRO-LOGIC or HALL Mode.
(see: SETTING UP THE SURROUND SYSTEM)

12. CDR

The AV 713 features the CONTROLLED DYNAMIC
RANGE (CDR) circuit, which is used for listening at
lower levels. This is a sophisticated dynamics con­troller that selectively raises the level of the quieter
parts of the soundtrack, whilst leaving the louder
parts unaltered.

Using CDR at lower listening levels (e.g. late at
night), the apparent dynamics of the soundtrack can
be maintained, without the dialogue becoming too
quiet to hear clearly.

The button indicator illuminates when CDR is
active.

TUNER.

8. AM and FM INPUT

Press the AM or FM button to switch the AV 713 to
the required tuner operation. The Display Panel
shows the frequency of the tuned station and which
Preset and Preset bank (if any) is selected.

13. TUNE Ò Ú

For tuning to the required station and to select Preset
stations. There are two tuning modes: Manual and
Search. Pressing the button repeatedly increases or
decreases the tuning frequency in 50kHz steps in FM
and 10kHz (or 9kHz for Europe) steps in AM.

Search. Holding the button down for more than 1/2
second puts the tuner section into Search mode. It
will search through the tuning frequencies and stop
when it finds a broadcast station. When a station is
captured, the TUNED indicator will show in the
Display Panel. Search functions for FM only.

14. PRESET

Press PRESET to recall or program a Preset radio
station. The 30 Presets can be AM or FM stations
and are stored in three Preset Banks, which can con­tain up to 10 Preset stations. The Preset number is
shown in the Display Panel.

15. BANK

Press BANK to switch between the three banks (A,
B or C) of tuner presets. For convenience you could
use two Banks for FM stations and one Bank for AM,
although a mix of FM and AM stations can be stored

in any single Bank of presets. The selected Bank is
shown in the Display Panel.

16. MEMORY

Used for storing new Preset stations.

17. FM MUTE/MODE

Switches the FM tuner section between Mute
On/Stereo and Mute Off/Mono operation. In normal
(FM MUTE ON) operation,during the tuning process
the tuner will mute when there is little or no signal
present, giving silence until a station with a reason­ably strong signal is found. Pressing FM
MUTE/MODE will switch off the mute function so that
very weak stations can be located. FM MUTE OFF
also switches off the FM stereo function.

When a stereo FM signal is being received, your
AV 713 will automatically switch to Stereo FM opera­tion, which will be shown by STEREO indicator in the
Display Panel. Weak stereo signals may have a high
level of background hiss. Switching the AV 713 to FM
MUTE OFF will switch the tuner to mono and cancel
the background noise.

The status of the FM MUTE function is shown in
the Display Panel.

FINDING AND STORING AM & FM
STATIONS

You can use the Manual tune to select a known
station’s frequency or Search mode to automatically
look for stations that are transmitting in your area,
and then use the MEMORY button to store them into
the AV 713’s memory.

First select the AM or the FM band using the AM or
FM Input buttons. Press TUNE Ò Ú buttons for 1/2
second to start the tuner searching through the fre­quency band. When the tuner finds a broadcast sig­nal of adequate strength, the automatic search stops
at that station. To store that station as a Preset, press
the MEMORY button. The MEMORY and PRESET
indicator and preset number lights flash for 8 seconds
or whilst you are entering Preset information.

Press the BANK button to select which Bank of
Presets you wish to store the station. Press the
TUNE ÒÚ buttons to select which Preset number you
wish to assign to the station. The current Preset num­ber is shown in the Display Panel.

Press the MEMORY button again to store the sta­tion’s frequency as the chosen Preset. The AV 713
will then revert to normal operation.

The Preset information will be held in the AV 713’s
memory until you actively clear the Preset.

RECALLING PRESET STATIONS.

To recall any of the Preset stations press the PRE­SET button. The Preset Indicator will light and the
most recently used tuner Preset will be recalled. To
select another Preset station, first select the Bank
that the station is stored in by pressing the BANK but­ton. Then press TUNE Ö Ú to page through the avail­able settings until the required Preset number is

NA

D

10

GB

GB

shown in the Display Panel. The AV 713 only pages
through Presets that are tuned to stations and will
skip past empty Presets.

CLEARING PRESETS.

First select the Preset station. Hold down the MEM­ORY button and press the FM MUTE/MODE button.
The Preset number will then disappear from the
Display Panel and the Preset will be emptied.

SLEEP AND MUTE FUNCTIONS

Buttons for the SLEEP and MUTE functions only
appear on the Remote control.

SLEEP

Press SLEEP to make the AV 713 automatically
switch off after a preset number of minutes. Pressing
the SLEEP button once will set the sleep time to 90
minutes, after which the AV 713 will automatically
switch off into Standby mode. Sleep mode and the
Sleep delay is shown on the Display Panel. To adjust
the Sleep Delay, hold down the SLEEP button. This
will reduce the sleep time in 10 minute increments, as
shown in the Display Panel. To cancel the Sleep
mode, continue pressing the SLEEP button until the
source name appears in the Display Panel. Pressing
the POWER button will also cancel the Sleep mode.

MUTE

Press the MUTE Button to temporarily switch off
the sound to the speakers and headphones. Audio
Mute indicator will flash in the Display Panel when the
unit is in Mute mode. Press MUTE again to restore
sound

SETTING UP THE SURROUND SYSTEM.

To work at its best, the output levels of the AV
713’s surround facilities need to be adjusted so that
there is an even balance of sound from all the speak­ers in the system. The Delay time for the Surround
speakers also needs to be correctly set for your nor­mal listening position.

The adjustment of speaker levels is done using the
Test and Speaker Level adjust functions on the
Remote Control.

It is important first to correctly phase all the speak­ers in the system. Check that the positive (+) termi­nals of the amplifier speaker outputs are connected to
the positive (+) connector on the each of the speak­ers.

Before starting the set-up procedure, ensure that
the CENTER Mode is set correctly for your speaker
configuration. TONE DEFEAT should be ON and the
BALANCE control set to the position normally used
for stereo sources (usually the 12 o’clock position).

USING TEST TO SET UP THE SURROUND
SYSTEM LEVELS.

With the speakers connected and the VOLUME
turned down to zero, select DOLBY PRO LOGIC
MODE, SPEAKER A and press TEST on the Remote
Control. This generates a test signal that is fed to
each of the speaker channels in turn (left, center,
right and surround), so that each can be adjusted for

equal loudness at your listening position. The Display
Panel shows which speaker is being fed with the test
signal.

Turn the VOLUME up until the signal is moderately
loud through the left and right speakers. When the
Test signal reaches the Center speaker, press the
CENTER VOLUME ÒÚ buttons on the Remote
Control to adjust the Center speaker’s loudness so
that it matches the levels being produced by the left
and right speakers. The relative level of the Center
channel is shown in the Display Panel and can be
changed in dB steps. Below -20dB the increments
become progressively coarser.

When you have finished adjusting the level of the
Center channel, the Test signal will automatically
continue switching between the speakers. If you are
unhappy with your initial setting, repeat the procedure
until the levels match.

Repeat the operation to set the surround speaker
level using the REAR VOLUME ÒÚ buttons on the
Remote Control. The adjustment will affect the level
of both surround speakers simultaneously.

A more accurate adjustment can be made using a
sound level meter, if available. Set the meter to ‘Slow’
and ‘C-weighted’ modes and re-check the settings
with the meter placed in several different positions in
the general listening area.

If a Sub-Woofer is used on the system, adjust the
Sub-Woofer’s level control so that it is audible, but
does not dominate the sound. Sub-Woofer levels can
be later fine-tuned using programme material.

SETTING THE SURROUND DELAY.

Because the Surround speakers are usually closer
to the listener than the Front speakers, there is a ten­dency for the ear to localise sounds to the rear,
because the ear takes most notice of the sounds that
arrive at the head first. To resolve this problem, the
Dolby Pro Logic circuit includes a Surround delay.
This ensures sound coming from the surround speak­ers always arrives at the listener’s ears after the
sound from the front speakers.

The exact amount of delay required depends on
the relative distances between the Front and sur­round speakers and the listening position in the room.

First make a note of the distance between the sur­round speakers and the listening position. Now make
a note of the distance between the front speakers
and the listening area. Use the graph below and note
where the two distances intersect. This will give the
recommended Delay setting.

To adjust the Delay setting, put the AV 713 into
Dolby Pro Logic mode and press DELAY on the front
panel or the Remote Control. Continue pressing
DELAY until the correct value is shown in the Display
Panel.

Level and Delay settings are stored in the AV 713’s
memory. They are automatically recalled when the
unit is switched on.

For your reference, use the boxes overleaf to make
a note of your settings. If they are accidentally
altered, you can reset them without having to run the
Test procedure.

NA

D

11

REMOTE CONTROL

The RC713 Remote Control handles all the key
functions of the AV 713 and has additional controls to
remotely operate NAD Cassette and CD machines. It
will operate up to a distance of 16ft (5m).

The subsidiary mode, and set-up functions have
black buttons. Power and Record (for an associated
NAD cassette deck) are in red.

Refer to previous sections of the manual for
descriptions of individual functions.

POWER Switches the AV 713 between On and
Standby.

SURROUND MODE Selects Dolby Pro-Logic, Hall or
By-Pass modes.

SLEEP Sets the AV 713 into SLEEP mode.
TAPE 1 Selects Tape 1 as the active input.
TAPE 2 Selects Tape 2 monitor.
TUNER Selects Tuner as the active input.
PHONO Selects Phono as the active input.
CD Selects CD as the active input.
VIDEO 1 Selects VIDEO1 as the active input.
VIDEO 2 Selects VIDEO 2 as the active input.
TUNER GROUP Selects a Tuner Preset Bank
PRESET Ô  Selects a Tuner Preset
CASSETTE DECK CONTROL (for use with NAD

Cassette Deck)
DECK A, DECK B (When only one Tape deck is con-

nected, use Deck B controls)
Ô Reverse Play
 Forward Play
∑II Record & Pause
n Stop
Ô Rewind
 Fast Forward

CD PLAYER CONTROL (for use with NAD CD
Player)

DISC Next disc. (for NAD CD changers)

 Play
II Pause
n Stop
IÔ Previous Track
I Next Track.

DELAY To set Delay time.
TEST Starts the Surround Set-up Test procedure.
MUTE Mutes all audio.
CENTER VOLUME ÒÚ Adjusts the relative level of

the Center channel speaker.
REAR VOLUME ÒÚ Adjusts the relative level of the

Surround speakers.

VOLUME ÒÚ Increases or decreases the Volume
setting, using the motorised front panel Volume con­trol.

BATTERIES

Alkaline batteries are recommended for maximum
operating life. The two AA (R6) batteries are con­tained in the battery compartment at the rear of the
Remote Control. When replacing batteries, check that
they have been put in the right way round, as shown
on the base of the battery compartment.

APPENDIX

A SHORT GUIDE TO SURROUND
SOUND.

Since the middle of the 1970’s, film companies
have been making movies in increasing numbers in
Dolby Stereo, the four channel surround sound sys­tem available in most movie theaters today.

Fortunately it is a simple operation to take the film’s
Dolby Stereo soundtrack and place it on a stereo
VHS video tape, Laser Disc or Video-CD. The sound
track does require some conversion for home use,
and the domestic version of Dolby Stereo is called
Dolby Surround.

Today, most video copies of movies also contain
this surround information originally designed for the
movie theater. As well as videos, Dolby Surround is
also being used on TV programmes and on music
CDs, and all of these can be decoded using your AV

713.

Unlike the quadraphonic systems which tried to
produce pin-point sounds coming from all directions,
Dolby Surround is designed to give you a clear front
image with the Surrounds filling the room with atmos­pheric sound.

For best results, the Surround loudspeakers should
not beam the sound directly at the listener. One way
of achieving this is to use ‘dipole’ Surround speakers
which aim the sound down the walls rather than
directly into the room. An alternative is to use stan­dard small loudspeakers for Surrounds, but not to
point them directly at the listening position. It is
always worth experimenting with various Surround
speaker positions to see which works best in your
room.

SPEAKER PLACEMENT

Placement of the speakers in a Pro-Logic surround
system plays an important role in the performance of
the system.

NA

D

12

GB

Date: SURROUND CENTER DELAY (ms)
PRO-LOGIC
HALL

GB

FRONT SPEAKERS

The front speakers should be placed with the left
and right speakers evenly spaced either side of the
TV screen. The centre speaker should be placed
underneath or above the TV monitor so that dialogue
is localised close to the TV image.

SURROUND SPEAKERS

The surround speakers are used to create a diffuse
room-filling atmospheres rather than pin-point sound
effects. Surround speakers should be wall or shelf
mounted fairly high up either on the side walls, rear
wall or in the rear corners. Speakers can be mounted
facing sideways or upwards to increase the diffusing
effect by bouncing the sound off the walls and ceiling
before it reaches the listener.

SUB-WOOFER

The very low frequency sounds produced by the
sub-woofer are difficult to localise so the Sub-woofer
can be placed virtually anywhere in the room. Placing
Sub-woofers against walls or in corners will increase
the amount of bass produced in the room.

WHY HAVE A CENTER SPEAKER?

The Dolby Pro Logic decoder produces three sepa­rate outputs for the Front signals - left, center and
right. On most soundtracks, the sound effects and
music are spread across all three front channels but
the dialogue is mainly fed to the center channel only.

Using a separate center channel speaker will allow
the dialogue to cut through even the biggest sound
effects and musical scores. Having the sound spread
across three front speakers also stabilises the stereo
image, making the usable listening area much bigger.

If you are using the AV 713 with only two front
speakers, setting the CENTER mode to PHANTOM
will place the center information on both the left and
right speakers. This creates the impression of a cen­ter channel sound source.

For best results, you should consider using a cen­ter speaker. Ideally it should be the same type as the
left and right speakers, although there are now many
new speakers, such as the NAD 808CC, which are
specifically designed as center channel add-ons for
existing stereo systems.

CAUTION: Ensure that any speaker that is to be
used near a TV or monitor is of the magnetically
shielded type (see loudspeaker’s instruction manual).
Unshielded speakers used too close to a TV or moni­tor may cause colour distortions of the TV picture. (It
is not normally possible to modify an unshielded
speaker to work very close to a TV or monitor).

WHY HAVE A SUB-WOOFER?

Many film soundtracks rely heavily on very low fre­quency sound effects which are difficult for normal hi­fi speakers to reproduce. To faithfully reproduce
these low frequencies you can use a specially
designed low frequency loudspeaker with its own
built-in amplifier. Because it is difficult to hear which
direction very low frequencies are coming from, you

only normally need one sub-woofer and this can be
placed virtually anywhere in the room. The MONO
output of the AV 713 is designed specifically to drive
a sub-woofer system.

SPEAKER PHASE

In a home theatre system it is important that the
three front speakers are all in phase compared to
each other. Incorrect phase will produce a poor
stereo image and an apparent lack of bass. If you are
using speakers all from one manufacturer and power
amplifiers all from one manufacturer then to ensure
correct phasing of the system, just make sure that all
the red + connectors on the power amplifier speaker
outputs are connected to the red + connector on the
loudspeaker.

If you are using a mix of amplifiers or speakers
from different manufacturers, or using amplifiers in
‘bridge’ mode, then it is possible that the phase can
be internally reversed in the some of the amplifiers or
speakers, so you must check for correct phase by lis­tening.

To check phase by listening, set the AV 713 to
DOLBY PRO LOGIC and MUTE OFF and select a
FM radio station. This will give you the same sound
on all three front speakers. Disconnect the surround
speakers and the right front speaker. A stable sound
image should be heard as though it comes from a
single point between the centre and left front speak­ers. If the signal sounds diffuse and not as though it
is coming from a single point in space, reverse the
connections to the center loudspeaker. The signal
should now appear to come from a single point
between the left and centre speakers.

Reconnect the right front speaker and disconnect
the left front speaker and repeat the procedure for the
right and center front speakers, changing the connec­tion only on the right front speaker if the phase needs
correction.

Surrounds will normally be in phase with each other
if they have been correctly connected.

There is no absolute rule regarding the relative
phase between the front speakers and the surround
speaker pair or the Sub-Woofer (if used). Connecting
these using the red + connector from the amplifier to
the red + connector on the speakers should produce
correct results. But in some rooms reversing the con­nections may produce a noticeable increase in bass
response or an improvement in overall stereo
imagery, so you may wish to experiment with revers­ing the connections on both the surrounds or revers­ing the connections to the sub-woofer.

SYSTEM EXAMPLES

The AV 713 can be used at the heart of a broad
range of surround sound systems. Here are two pos­sible systems configurations; one basic and one
advanced.

A SIMPLE SET-UP USING THE AV 713.

This system uses the AV 713 with a video,
turntable, CD, cassette deck and TV stereo front
speakers and surrounds such as the NAD 805RC.

NA

D

13

The turntable, CD and Cassette deck are connect­ed to PHONO, CD and TAPE 1 (IN & OUT) respec­tively.

The VCR machine is connected to VIDEO 2, as it
will be used for playback-only through the system,
with video recording from the VCR’s internal tuner.

The TV’s Video Line Input is connected to MONI­TOR.

Since there are Surrounds but no Center channel
speaker, the CENTER mode is set to PHANTOM

A MORE COMPLEX SET-UP USING THE
AV 713.

This set-up uses the AV 713 as the center-piece of
a sophisticated Home Theater system. As well as the
standard audio sources, this system has also a VCR,
a Laser Disc player or a games console connected as
A/V sources. The MONO output is connected to a
self-powered sub-woofer. The AV 713 is also con­nected to a second audio system in another room.

The turntable, CD and Cassette deck are connect­ed to PHONO, CD and TAPE 1 (IN & OUT) respec­tively.

The playback only Laser Disc/Games console is
connected to the VIDEO 1 audio and video inputs.

The VCR machine is connected to VCR2 which has
audio/video INPUTS and OUTPUTS to enable
recording from the other video sources.

The TAPE 2 output is connected via high quality
phono leads to the Aux Input on the hi-fi system in
the second room, feeding a hi-fi system in a second
room, which uses the amplifier’s NAD-Link to send
remote control information back to the AV 713. The
NAD-Link OUT connector on the second hi-fi amplifi­er is connected to NAD-Link IN on the AV 713 so that
it can be remotely controlled from the second room.

The TV’s Video Line Input is connected to MONI­TOR.

NA

D

14

GB

GB

NA

D

15

TROUBLESHOOTING

NO SOUND

Power AC lead unplugged or power not switched on. Check AC lead.
Tape Monitor on De-select Tape Monitor mode.
Speakers not selected Select speakers A or B
Mute on. Switch off Mute.
Internal fuse blown. Consult dealer.

NO SOUND ONE CHANNEL

Balance control not centered. Center Balance control.
Speaker not properly connected or damaged. Check connections and speakers.
Input or speakers leads disconnected or damaged. Check leads and connections.

DOLBY PRO LOGIC AND HALL MODES INOPERATIVE

Speaker B selected Select Speaker set A.

NO SOUND ON SURROUND CHANNELS

A surround mode has not be selected. Select Dolby Pro Logic or Hall modes.
Sound source is in Mono. Test system with known stereo or Dolby Surround

material.
Speakers not properly connected or damaged. Check speakers and connections.
Surround level set too low Increase surround level

NO SOUND ON CENTER CHANNELS

Phantom Center mode has been selected. Select Normal or Wide modes.
By-Pass mode has been selected Select Dolby Pro-Logic or Hall modes
Center level set too low Increase center level

WEAK BASS/ DIFFUSE STEREO IMAGE

Speakers wired out of phase. Check connections to all speakers in the system.

TEST SIGNAL POSITION DOES NOT MATCH
TEST SIGNAL INDICATOR LIGHTS.

Speakers connected to the wrong outputs. Check connections to all amplifier and speaker

channels.

REMOTE CONTROL NOT WORKING

Batteries flat or incorrectly inserted. Check or replace batteries.
IR transmitter or receiver window obstructed. Remove obstruction.

TUNER NOISE

Hiss - Weak signal. Check station tuning. Adjust or replace antenna.
Distortion - Multipath signals. Check station tuning. Adjust or replace antenna.
Whistles or buzzes on FM & AM: Interference from other Check station tuning. Switch off or move the
electrical sources - computers, games consoles. source of the electrical noise.
Whistles or buzzes on AM: Interference from fluorescent Check station tuning. Adjust or replace AM
lighting or electrical motors. antenna.

NA

D

32

NAD ELECTRONICS LTD

LONDON

© 1995. AV 713 I.M. PRINTED IN MALAYSIA

Power Amplifier Section

Power Output into 8Ω
Stereo Mode 60 W (14 dBW)
(Min. power per channel, 20Hz-20kHz,
both channels driven, with no more
than rated distortion)
Front L/R and Center Channels 50W
Rear Channels 15W
Dynamic power output (Front) 8 ohms: 70W (18 dBW)

4 ohms: 110W (19 dBW)

Continuous Power output 8 ohms: 60W

4 ohms: 60W
THD 20Hz-20kHz 0.08 % (Front)
IM distortion 0.08% (Front)
Damping factor 60 at 8Ω (Front)
Input sensitivity and Impedance: Phono: 2.5mV

Line: 150mV, 2.2k ohms

Video: 1Vp-p, 2.2k ohms
Output level and Impedance Output: 150mV, 2.2k ohms

Pre Out: 1V, 2.2k ohms

(Subwoofer)

Video: 1Vp-p, 75 ohms
Phono Oveload 1kHz, 0.5% THD 120mV RMS
Frequency response 5Hz to 50kHz ±0.8dB
RIAA Deviation 20Hz- 20kHz ±0.8dB
Tone control Bass: ±10dB at 100Hz

Treble: ±10dB at 10Hz
Signal/Noise ratio, A weighted Phono: 80dB

CD/Tape: 100dB

Muting: -40dB

FM Tuner Section

Usable Sensitivity Mono: 11.2dBf, 1.0µV
75 ohms IHF Stereo: 17.2 dBf, 2.0 µV
50dB Quieting Sensitivity Mono: 18.2 dBf, 2.2µV
75 Ω Stereo: 38.2 dBf, 22µV
Capture ratio 90dB
Signal to Noise Ratio (IHF) Mono: 73dB

Stereo: 67dB
Alternate channel attenuation Mono: 55dB (IHF)
Selectivity DIN ±300kHz, 40kHz Devi. 50dB
AM Suppresion ratio 50dB
THD Mono: 0.15%

Stereo: 0.25%
Frequency Response 30-15kHz ±1.5dB
Stereo Separation 45dB at 1kHz

30dB at 100-10kHz

AM Tuner Section

Usable Sensitivity 30µV
Image rejection ratio 40dB

IF rejection ratio 40dB
Signal to Noise ratio (IHF) 40dB
THD 0.7%

Remote Control

Power, Master Volume Up/Down, Mute, Sleep, Surround Mode,
Delay Time, Test Tone, Center Volume Up/Down, Rear Volume
Up/ Down, Input Selector (CD, Phono, Tuner, Tape 1, Tape 2,
Video 1, Video 2)
Deck A/B: (Play, Reverse Play, Stop, Record/Pause, Fast
Forward, Rewind)
CD: (Play, Pause, Stop, Disc, Skip Forward/Back)
Tuner: (Bank, Preset Up/Down)

Physical Specification

Dimensions in mm (W x H x D) 435 x 145 x 330
Net weight 9.3kg
Shipping weight 10.5kg

SPECIFICATION - NAD AV 713 SURROUND SOUND RECEIVER
