RAPIDDOC™ SMARTBACK

NOTES BEFORE INSTALLING: Do not overtighten screws. Using excessive force when tightening screws can damage the threads on

devices and damage product.

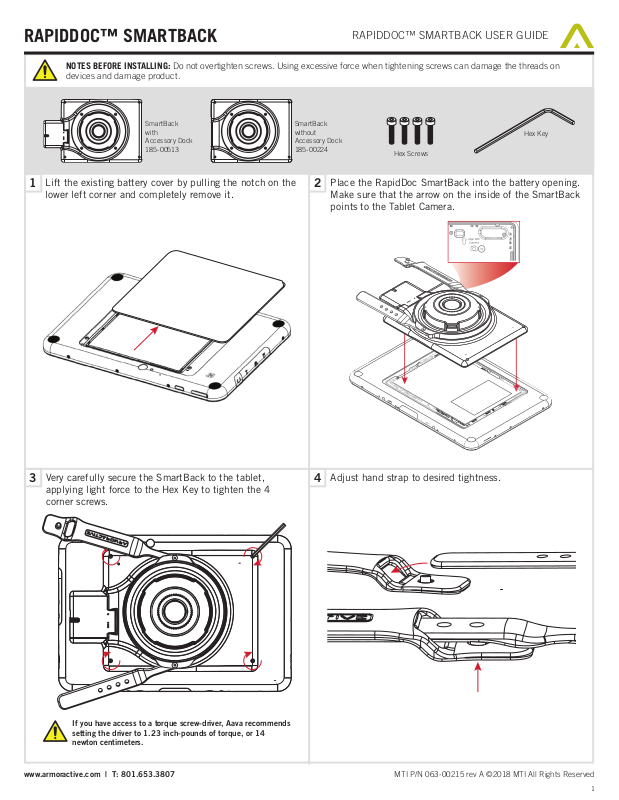

RAPIDDOC™ SMARTBACK USER GUIDE

SmartBack with Accessory Dock 185-00513

Lift the existing battery cover by pulling the notch on the

1 2

SmartBack without Accessory Dock 185-00224

lower left corner and completely remove it.

Hex Key

Hex Screws

Place the RapidDoc SmartBack into the battery opening. Make sure that the arrow on the inside of the SmartBack points to the Tablet Camera.

Very carefully secure the SmartBack to the tablet, applying light force to the Hex Key to tighten the 4 corner screws.

If you have access to a torque screw-driver, Aava recommends setting the driver to 1.23 inch-pounds of torque, or 14 newton centimeters.

Adjust hand strap to desired tightness.

Overview

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE

Materials in Box

185-00282

Power Supply

Alcohol Wipes (10)

003-0056-00

Red Handle Tool

RapidDoc Kiosk

Cable Access

C.A. Cover

(Minimal Cables)

(C.A.)

Security Screws (2)

C.A. Cover (No Cables)

Mounting Screws (4)

Mounting Plate

185-00605

Access Card (5)

185-00528 Through-Hole Mounting Accessory (Sold separately)

Authorization Card

If lost or

stolen, contact

customer

service for

replacement.

Nut

Adhesive

Pad

Threaded

Pipe

Screws (5)

REMOVING THE LID

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE

Lift up the front of the lid (above the ArmorActive logo).

REPLACING THE LID

Tuck the RFID cable into the void in the base and

place the lid on the kiosk base.

Slide the lid back, using care when removing the lid as

not to damage the RFID cable.

Slide the lid into place and press down on the lid.

CABLE ACCESS COVER INSTALLATION

With the lid off of the kiosk base, place the Cable

1 2

Access Cover into the opening from the inside.

Press until it clicks into place.

Cut-away side view

VHB MOUNTING

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE

Clean the surface you are mounting on with the Alcohol

wipes included in the box. Peel the ﬁ lm on the VHB on the bottom of the kiosk.

BASEPLATE MOUNTING

Using the mounting screws, place the mounting plate in

the desired location. See Page 7 for a Mounting Plate drill template.

Place in desired location and ﬁ rmly press down for full

adhesive contact. Allow 24 hours for full VHB adhesion.

Place the kiosk by lining up the opening on the bottom of

the kiosk with the teeth on the mounting plate.

Lock the kiosk into place by rotating it counter

clockwise on the plate.

Secure the kiosk to the mounting plate using the two

security screws and the Red Handle Tool.

THROUGH-HOLE MOUNTING

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE

NOTE: The Through-Hole Mounting Accessory is sold separately. Peel the ﬁlm on the included adhesive pad

and adhere it to the underside of the mounting plate.

Place the assembly into a pre-drilled hole 3” wide.

Attach the threaded pipe to the mounting plate with the 5 included screws.

Secure into place by twisting the nut over the threaded

pipe.

3”

Place the kiosk by lining up the opening on the bottom of

the kiosk with the teeth on the mounting plate. Lock the kiosk into place by rotating it counter clockwise on the plate.

Secure the kiosk to the mounting plate using the two

security screws and the Red Handle Tool.

CABLE ROUTING

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE

1. Through Hole Cable Routing

2. Table Top Cable Routing

3. Six USB Ports (Pro version only)

4. Ethernet (Pro version only)

5. Power

REMOVING THE ENCLOSURE (OR TABLET) VIA RFID

Place the RFID Access Card until the base clicks. NOTE:

1 2

Do not grab the tablet until after you hear the click.

Remove the tablet using one hand on the bottom left or right hand corner.

REMOVING THE ENCLOSURE (OR TABLET) MANUALLY

Insert the Red Handle Tool into the security screw hole

1 2

at the side of the RapidDoc base-disk under the tablet. Turn the Red Handle Tool clockwise until resistance is felt (about halfway) and hold. NOTE: Do not grab the

tablet until after you twist the Red Handle Tool.

While holding the Red Handle Tool, remove the tablet using one hand on the bottom left or right hand corner.

LED Indicators

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE

Tablet RemovedTablet Docked Tablet Ready For Removal

Access Card Registration

Dock the tablet and wait for the light to turn green. Place the authorization card on the base of the kiosk.

If the case is docked:

If the case is removed:

If no Access Card is detected, the Base will return to

normal condition waiting for registered Access Card to unlock the Base.

Access Card Registration

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE

The base can register a maximum of 20 Access cards.

Example:

ACCESS005

ACCESS004

ACCESS003

ACCESS002

ACCESS001

NOTE: The above grid is a conceptual visual representation of

the Electronic Register.

If a card is lost or stolen:

Example:

ACCESS005

If a 21st card is registered, the ﬁrst registered card will be deregistered.

Example:

ACCESS006

ACCESS005

ACCESS004

ACCESS003

ACCESS002

Take any of the remaining access cards and register it 20 consecutive times:

Example:

ACCESS001

ACCESS004

ACCESS003

ACCESS002

ACCESS001

Then re-register the remaining cards plus the new one

ordered through Customer Service. Example:

Example:

ACCESS006

ACCESS005

ACCESS004

ACCESS002

ACCESS001

IF AUTHORIZATION CARD IS LOST OR STOLEN,

CONTACT CUSTOMER SERVICE FOR REPLACEMENT.

ACCESS001

FCC Statement

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE

Federal Communication Commission interference statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference and

2. this device must accept any interference received, including interference that may cause undesired operation

RF Exposure Warning

The equipment complies with RF exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

You are cautioned that changes or modiﬁcations not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

MOUNTING PLATE TEMPLATE

RAPIDDOC™ TABLET KIOSK INSTALLATION GUIDE

Print this document at 100% (or ‘Actual Size’) to assist in placing the RapidDoc Mounting Plate.

FRONT

Drill Hole

3.9376 in

3” hole for Optional

Through-Hole

Mounting Accessory

3.9376 in
