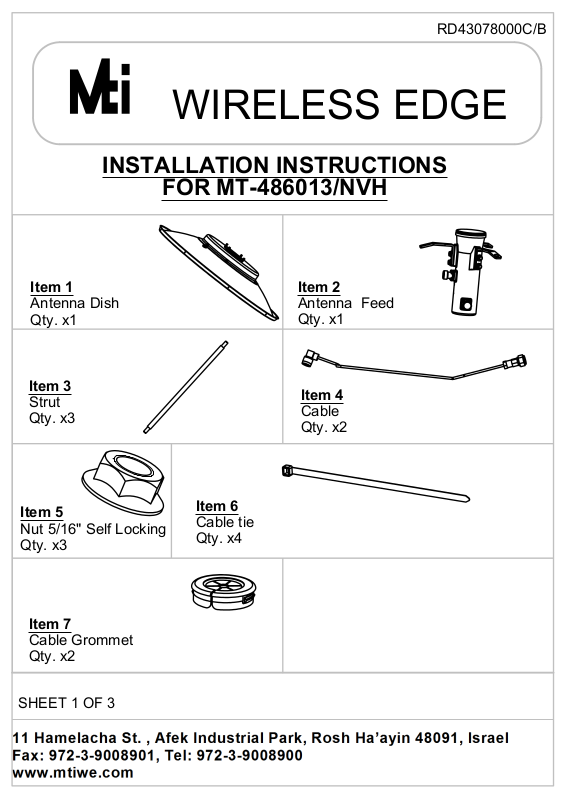

RD43078000C/B
WIRELESS EDGE
INSTALLATION INSTRUCTIONS
FOR MT-486013/NVH

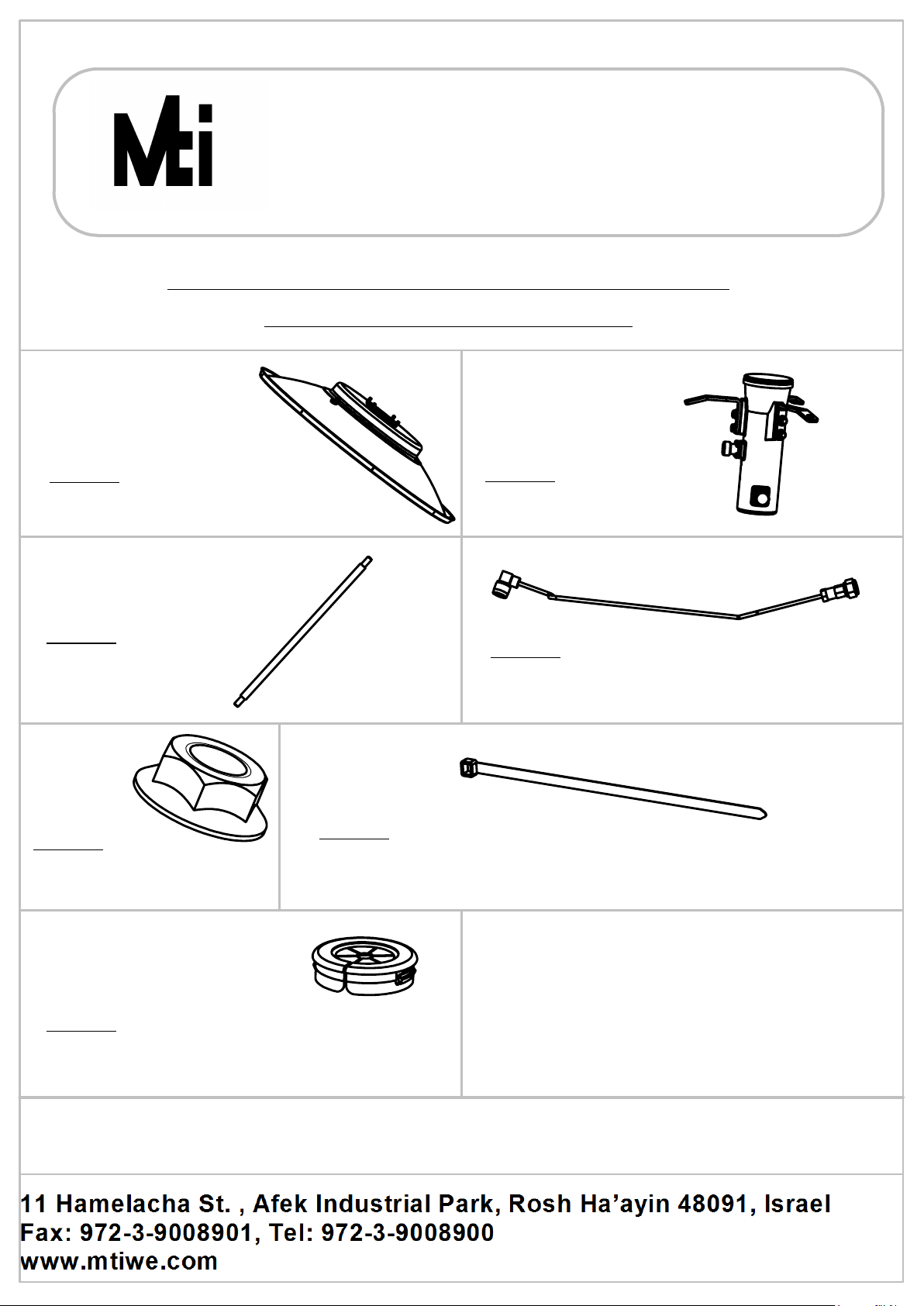

Item 1
Antenna Dish
Qty. x1
Item 3
Strut
Qty. x3
Item 5
Nut 5/16" Self Locking
Qty. x3
Item 2
Antenna Feed
Qty. x1
Item 4
Cable
Qty. x2
Item 6
Cable tie
Qty. x4
Item 7
Cable Grommet
Qty. x2
SHEET 1 OF 3
Page 2

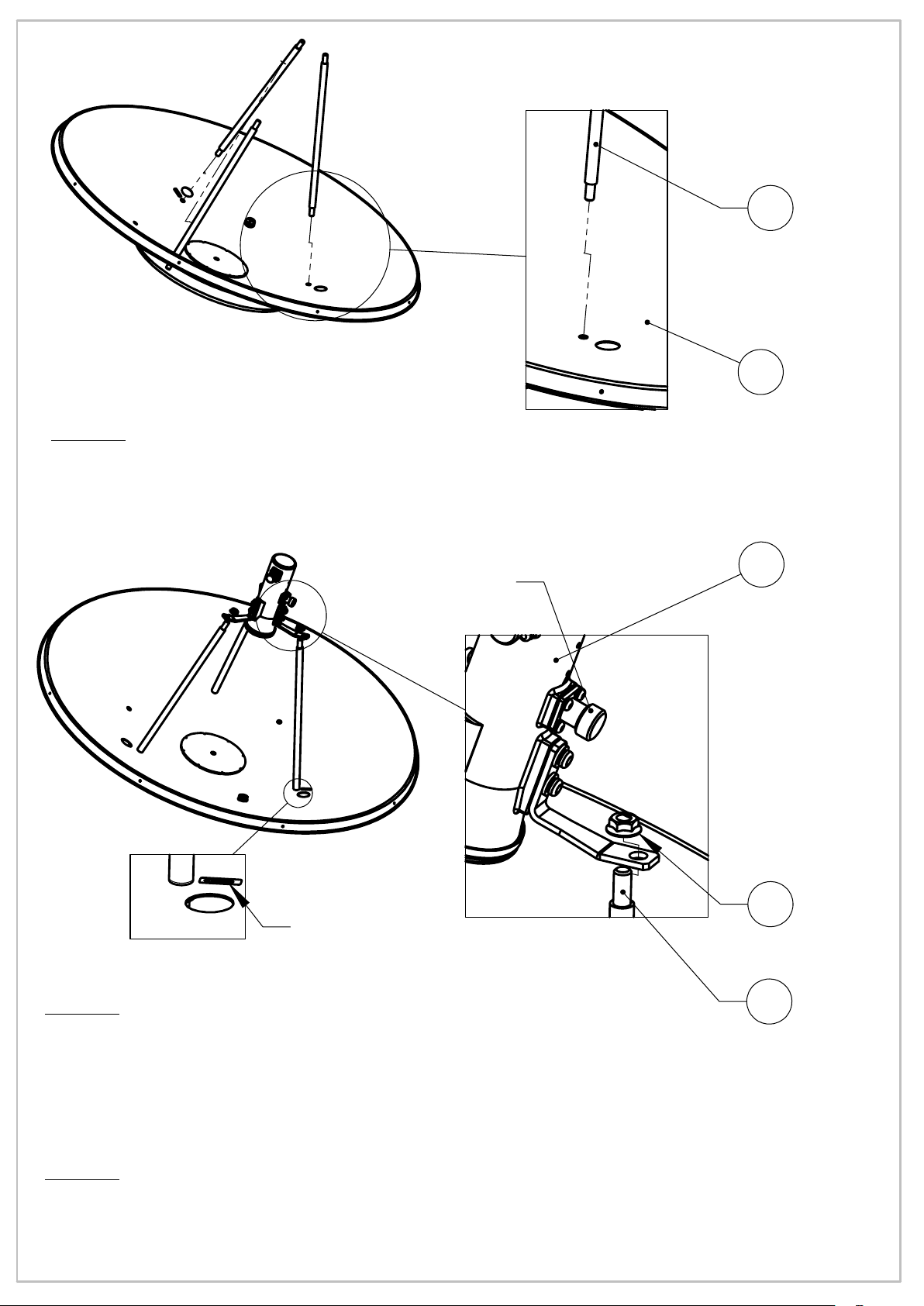

Step 1
Screw Struts items (3) to the Antenna Dish item (1)
Tighten by firm hand force.
RD43078000C/B
3x
3
1
Vertical Pole
2
Connector
3x
Arrow
3x
Step 2
Attach Antenna Feed item (2) to the Struts items (3).
Assemble Feed while vertical pole connector (Marked "V")
indicates to Arrow note direction labeled on Dish, using items (5)
as shown.Use tightening torque force of 71kg-cm.
5
3
Step 3
Attach Mounting Kit to the pole and to Antenna, according to
Installation Instructions to be found inside Mounting Kit Package.
SHEET 2 OF 3
Page 3
RD43078000C/B
2x
4
2x
7
4x
6
1

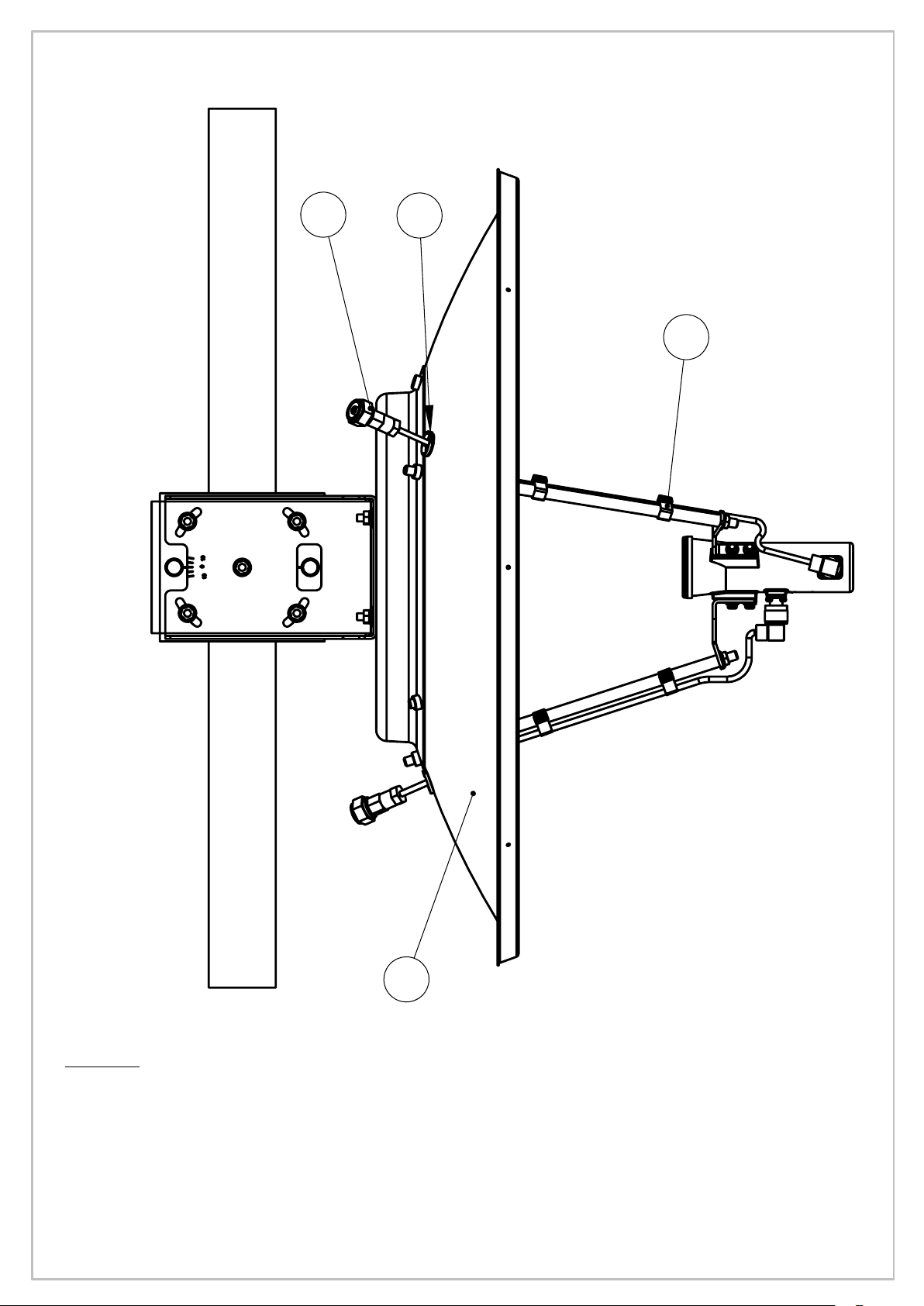

Step 4
Insert the two Cable's Right Angle connectors items (4) through the holes
in the Dish,towords the Horn.Using 20mm open wrench ,connect the
Right Angle's Connectors to the Connectors on the Feed. Attach cable with
Cable Ties items (6) to strut nearby. Assemble Cable Grommets items (7)
on the cables (insertion from the dish concaved side)
and place them firmly in the Dish holes.
SHEET 3 OF 3
