MTI MT-386004N User Manual

RD43345100C/A

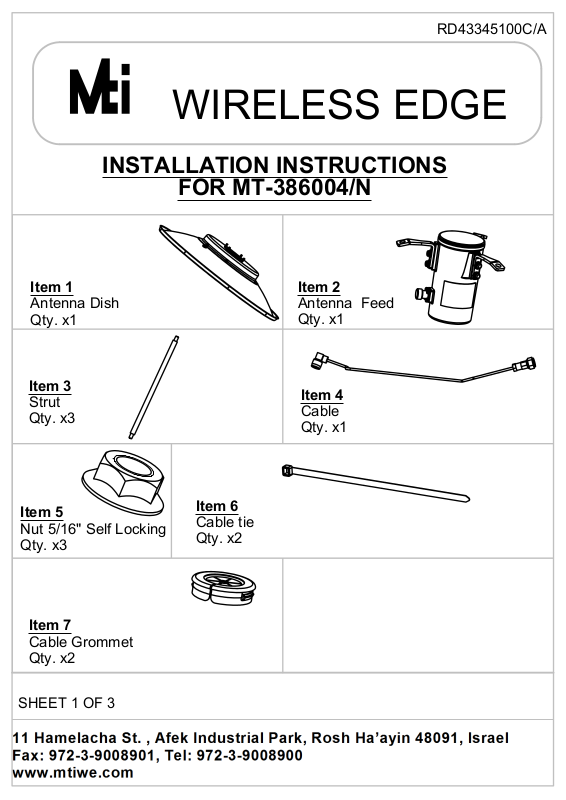

WIRELESS EDGE

INSTALLATION INSTRUCTIONS

FOR MT-386004/N

Item 1

Antenna Dish
Qty. x1

Item 3

Strut
Qty. x3

Item 5

Nut 5/16" Self Locking
Qty. x3

Item 2

Antenna Feed
Qty. x1

Item 4

Cable
Qty. x1

Item 6

Cable tie
Qty. x2

Item 7

Cable Grommet
Qty. x2

SHEET 1 OF 3

Step 1

Screw Struts items (3) to the Antenna Dish item (1)
Tighten by firm hand force.

RD43345100C/A

3x

3

1x

1

2

Connector

3x

5

3x

3

Arrow

Step 2

Attach Antenna Feed item (2) to the Struts items (3).
Assemble Feed connector indicates to Arrow note direction labeled on Dish,
using items (5) as shown.Use tightening torque force of 71kg-cm.

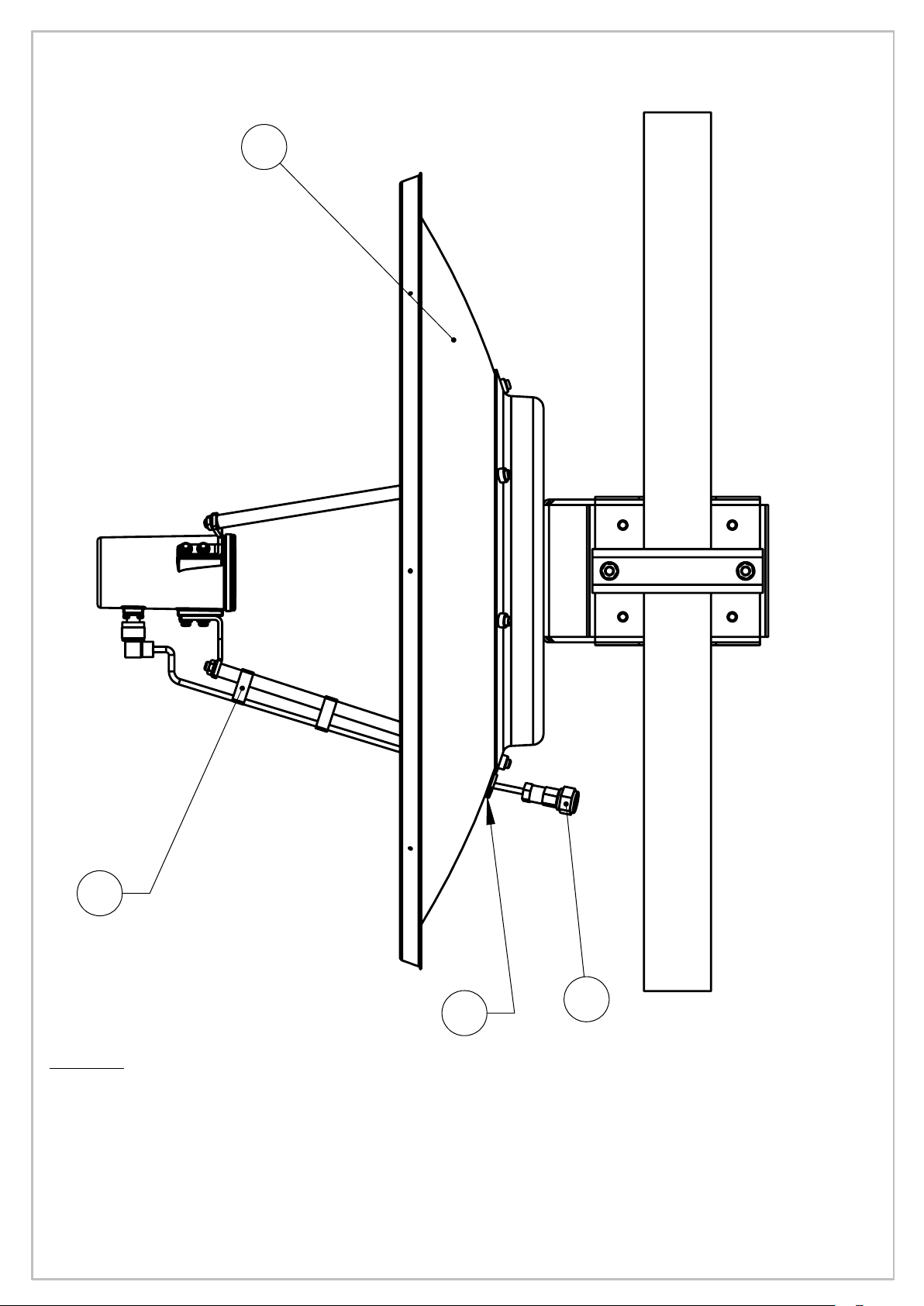

Step 3

Attach Mounting Kit to the pole and to Antenna, according to
Installation Instructions to be found inside Mounting Kit Package.

SHEET 2 OF 3
