Step: 1
Bolt 5/16"x1-3/8" UNC Spring Washer 5/16"
D
Flat Washer 5/16" 6 PL.
Azimuth Adjustment Bolt 5/16
1
Grease
C
Hex Nut 5/16 UNC

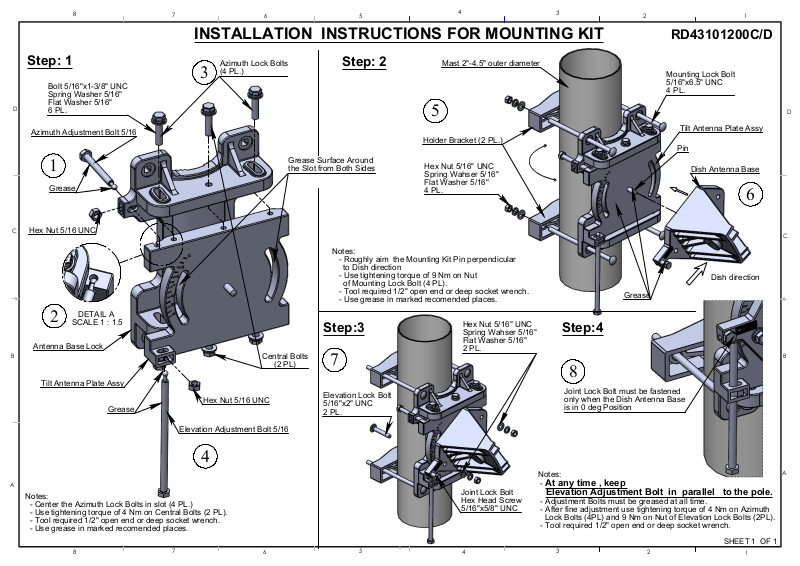

INSTALLATION INSTRUCTIONS FOR MOUNTING KIT
Azimuth Lock Bolts (4 PL.)
3
Step: 2
Mast 2"-4.5" outer diameter
5
Holder Bracket (2 PL.)
Grease Surface Around the Slot from Both Sides
Hex Nut 5/16" UNC Spring Wahser 5/16" Flat Washer 5/16" 4 PL.
RD43101200C/D
Mounting Lock Bolt 5/16"x6.5" UNC 4 PL.
D
Tilt Antenna Plate Assy
Pin
Dish Antenna Base
6
C
Notes:
- Roughly aim the Mounting Kit Pin perpendicular to Dish direction
- Use tightening torque of 9 Nm on Nut of Mounting Lock Bolt (4 PL).
- Tool required 1/2" open end or deep socket wrench.
- Use grease in marked recomended places.
2
Antenna Base Lock
B
DETAIL A
SCALE 1 : 1.5
Central Bolts
(2 PL)
Step:3
7
Hex Nut 5/16" UNC Spring Wahser 5/16" Flat Washer 5/16" 2 PL.
Step:4
Grease
Dish direction
B
8
Tilt Antenna Plate Assy
Joint Lock Bolt must be fastened only when the Dish Antenna Base is in 0 deg Position
Grease
Hex Nut 5/16 UNC
Elevation Adjustment Bolt 5/16
Elevation Lock Bolt 5/16"x2" UNC 2 PL.
A
Notes:
- Center the Azimuth Lock Bolts in slot (4 PL.)
- Use tightening torque of 4 Nm on Central Bolts (2 PL).
- Tool required 1/2" open end or deep socket wrench.
- Use grease in marked recomended places.
8
7
4
Notes:
At any time , keep
-
Joint Lock Bolt Hex Head Screw 5/16"x5/8" UNC
6
5
4
Elevation Adjustment Bolt in parallel to the pole.
- Adjustment Bolts must be greased at all time.
- After fine adjustment use tightening torque of 4 Nm on Azimuth Lock Bolts (4PL) and 9 Nm on Nut of Elevation Lock Bolts (2PL).
- Tool required 1/2" open end or deep socket wrench.
SHEET 1 OF 1
3
2
1
A
