WIRELESS EDGE
WIRELESS EDGE
WIRELESS EDGEWIRELESS EDGE

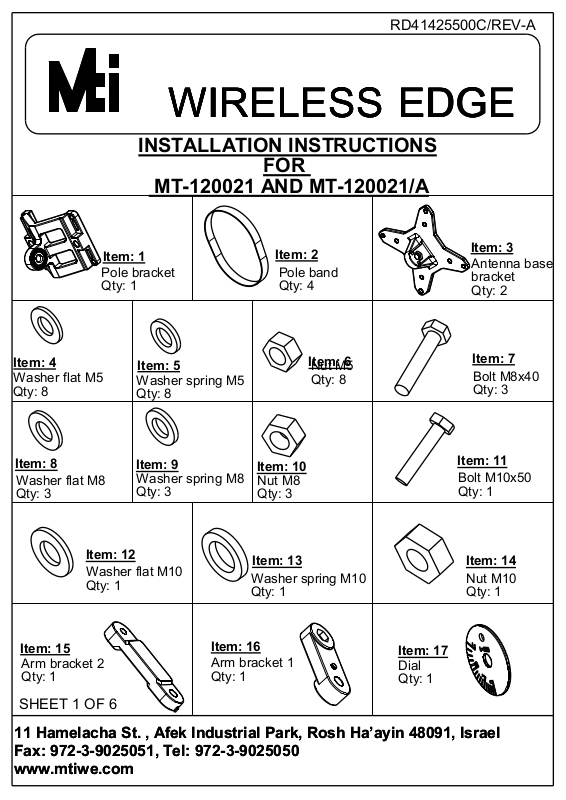

INSTALLATION INSTRUCTIONS
FOR
MT-120021 AND MT-120021/A
Item: 4
Washer flat M5
Qty: 8
Item: 8
Washer flat M8
Qty: 3
Item: 1
Pole bracket
Qty: 1
Item: 5
Washer spring M5
Qty: 8
Item: 9
Washer spring M8
Qty: 3
Item: 2
Pole band
Qty: 4
Item: 10
Nut M8
Qty: 3
Item: 6
Nut M5
Qty: 8
Item: 3
Antenna base
bracket
Qty: 2
Item: 7
Bolt M8x40
Qty: 3
Item: 11
Bolt M10x50
Qty: 1
Item: 12
Washer flat M10
Qty: 1
Item: 15
Arm bracket 2
Qty: 1
SHEET 1 OF 6
Fax: 972-3-9025051, Tel: 972-3-9025050
Fax: 972-3-9025051, Tel: 972-3-9025050
www.mtiwe.com
www.mtiwe.com
Item: 16
Arm bracket 1
Qty: 1
Item: 13
Washer spring M10
Qty: 1
Item: 14
Nut M10
Qty: 1
Item: 17
Dial
Qty: 1
x4
11 Hamelacha St
. ,
Afek Industrial Park, Rosh
Ha’ayin
48091
, Israel
11 Hamelacha St
. ,
Afek Industrial Park, Rosh
Ha’ayin
48091
, Israel
x4
x4
RD41425500C/REV-A
WIRELESS EDGE
WIRELESS EDGE
WIRELESS EDGEWIRELESS EDGE
ANTENNA
3
4
5
6
x4
x4
x4
SHEET 2 OF 6
Fax: 972-3-9025051, Tel: 972-3-9025050
Fax: 972-3-9025051, Tel: 972-3-9025050
www.mtiwe.com
www.mtiwe.com
4
5
6
3
STEP 1
Attach items 3 to the back of antenna
using hardware items 4 ,5 and 6 as shown.
RD41425500C/REV-A
11 Hamelacha St
. ,
Afek Industrial Park, Rosh
Ha’ayin
48091
, Israel
11 Hamelacha St
. ,
Afek Industrial Park, Rosh
Ha’ayin
48091
, Israel
WIRELESS EDGE
WIRELESS EDGE
WIRELESS EDGEWIRELESS EDGE
14
13
12
B
15
17
2
7
16
2
11
1
10
8
9

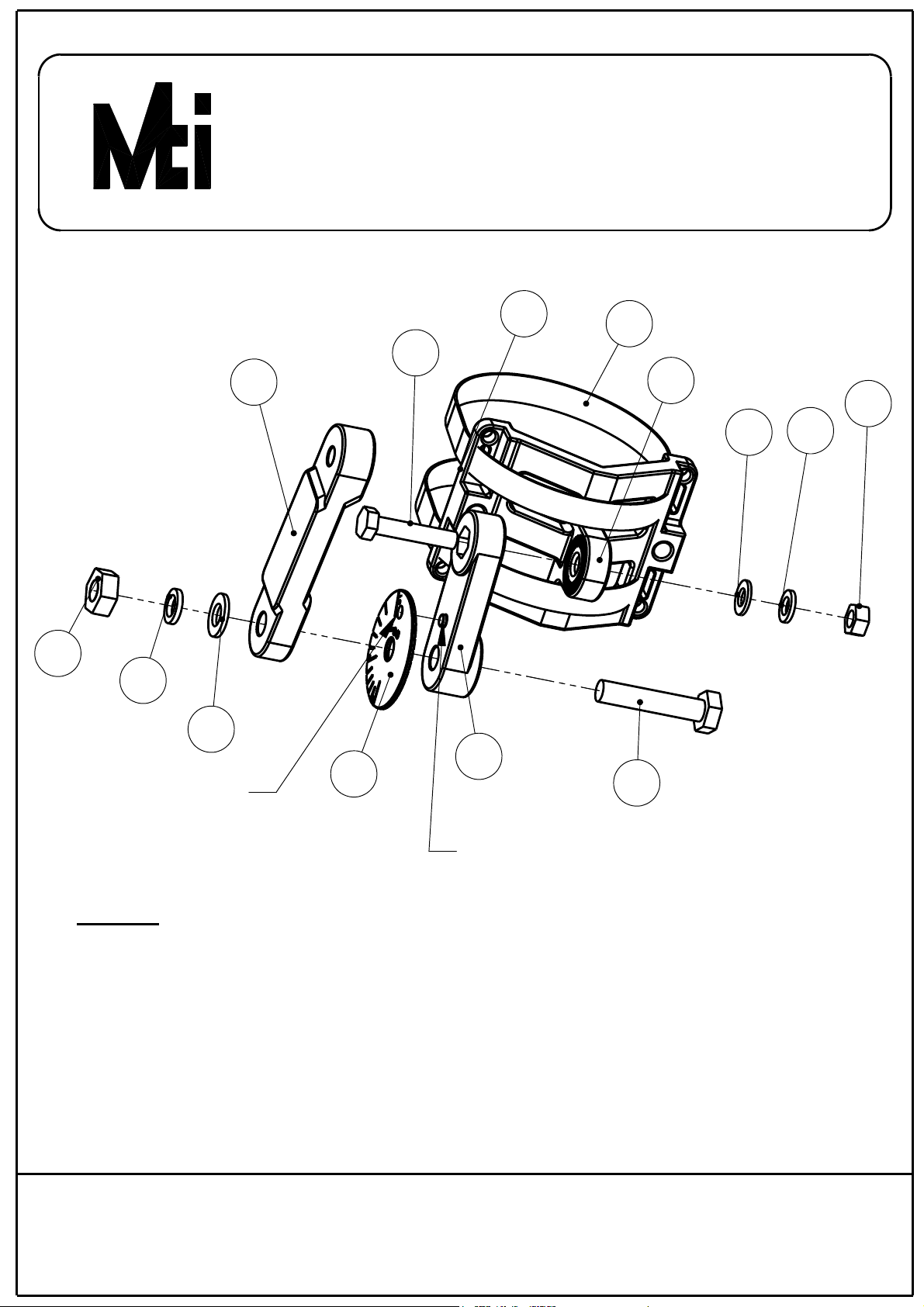

STEP 2
Insert 2 bands, item 2 , into part 1 as shown.
Do not fasten the bands.
Connect bracket item 16 to clamp item 1 using hardware
Items 7, 8, 9 and 10. do not tighten the nut.
Connect dial item 17 and bracket item 15, as shown,
using hardware items 11, 12, 13 and 14 .
Do not tighten the nut.
SHEET 3 OF 6
Fax: 972-3-9025051, Tel: 972-3-9025050
Fax: 972-3-9025051, Tel: 972-3-9025050
www.mtiwe.com
www.mtiwe.com
A
RD41425500C/REV-A
11 Hamelacha St
. ,
Afek Industrial Park, Rosh
Ha’ayin
48091
, Israel
11 Hamelacha St
. ,
Afek Industrial Park, Rosh
Ha’ayin
48091
, Israel
WIRELESS EDGE
WIRELESS EDGE
WIRELESS EDGEWIRELESS EDGE
7 8 9 10
3
15

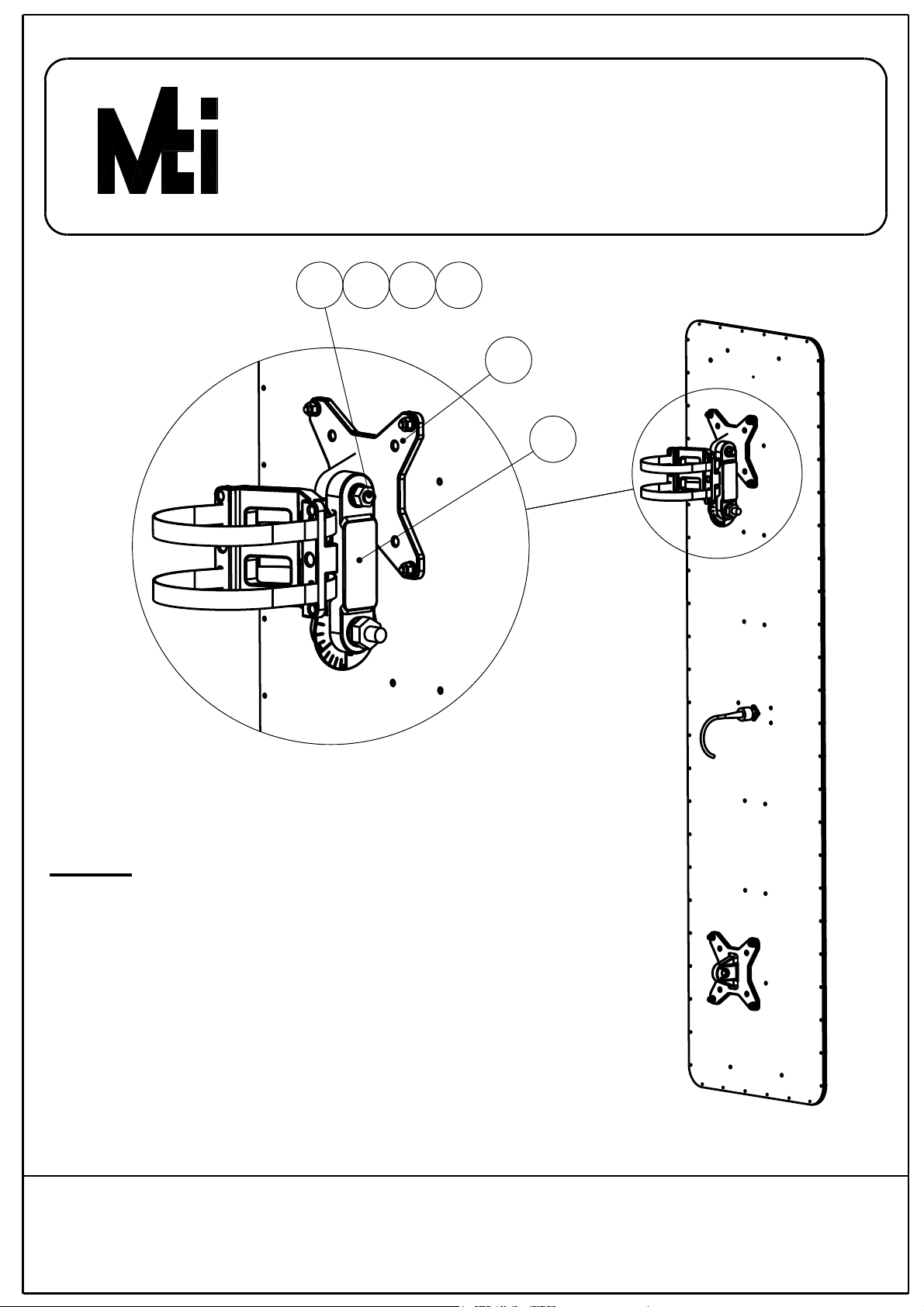

STEP 3
Connect the module, assembled in step 2,
with bracket item 15 to the top bracket
item 3 on the antenna, as shown, using hardware
items 7, 8, 9 and 10.
Do not tighten the nut.
SHEET 4 OF 6
Fax: 972-3-9025051, Tel: 972-3-9025050
Fax: 972-3-9025051, Tel: 972-3-9025050
www.mtiwe.com
www.mtiwe.com
RD41425500C/REV-A
11 Hamelacha St
. ,
Afek Industrial Park, Rosh
Ha’ayin
48091
, Israel
11 Hamelacha St
. ,
Afek Industrial Park, Rosh
Ha’ayin
48091
, Israel
WIRELESS EDGE
WIRELESS EDGE
WIRELESS EDGEWIRELESS EDGE
1
POLE
2
1
3
7
8
9

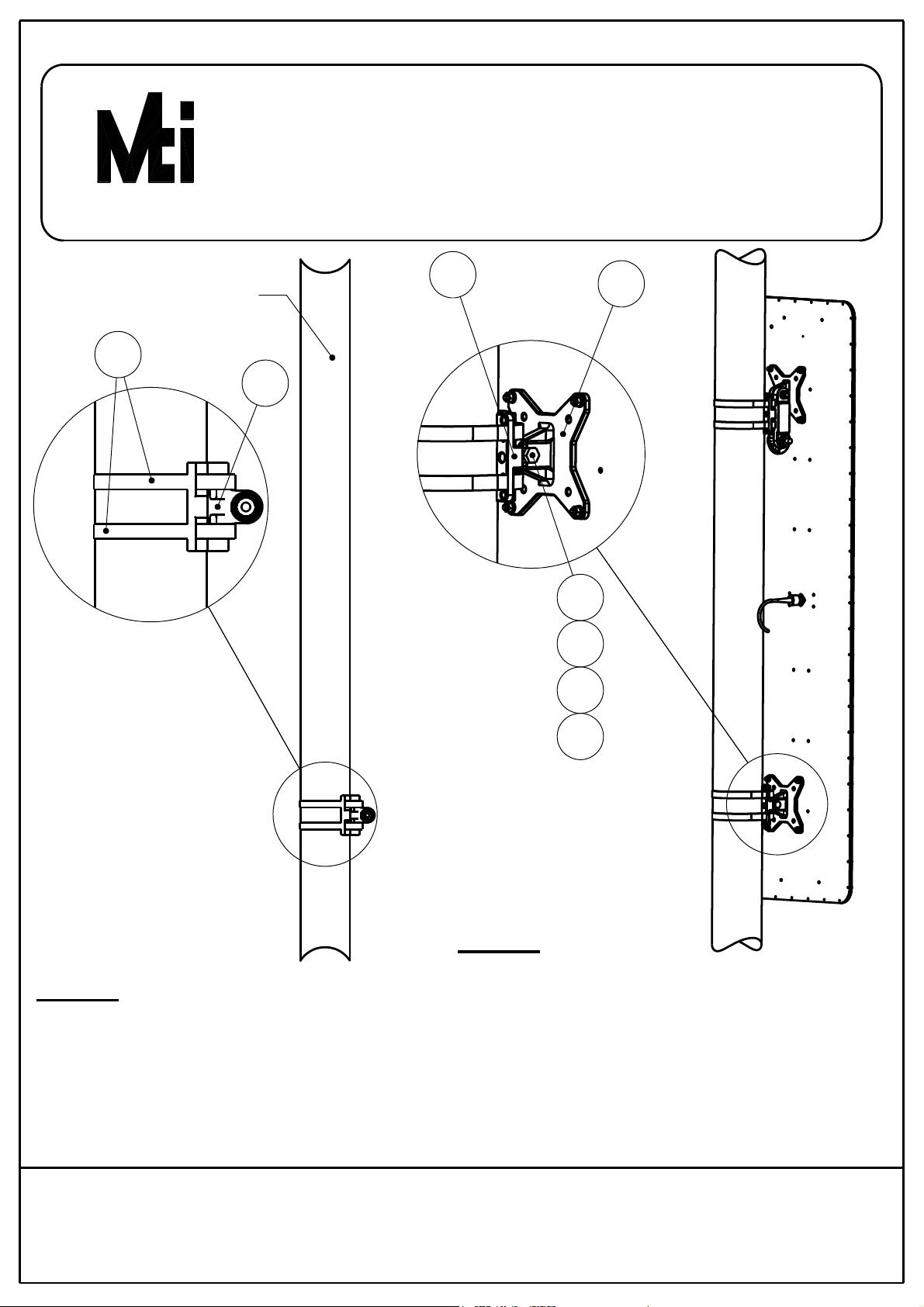

STEP 4
Connect bracket item 1
to pole using bands item 2.
Use tightening torque of 7Nm.
SHEET 5 OF 6
10
STEP 5
Connect bottom bracket item 3
on antenna to bracket 1 on pole
using hardware items 7, 8, 9 and 10.
Do not tighten the nut.
Connect the top part of antenna
to pole by tightening the two bands
items 2 around the pole.
Use tightening torque of 7Nm
Fax: 972-3-9025051, Tel: 972-3-9025050
Fax: 972-3-9025051, Tel: 972-3-9025050
www.mtiwe.com
www.mtiwe.com
RD41425500C/REV-A
11 Hamelacha St
. ,
Afek Industrial Park, Rosh
Ha’ayin
48091
, Israel
11 Hamelacha St
. ,
Afek Industrial Park, Rosh
Ha’ayin
48091
, Israel
WIRELESS EDGE
WIRELESS EDGE
WIRELESS EDGEWIRELESS EDGE
11
7
7
T
i
l
t
A
ng
l
e
7

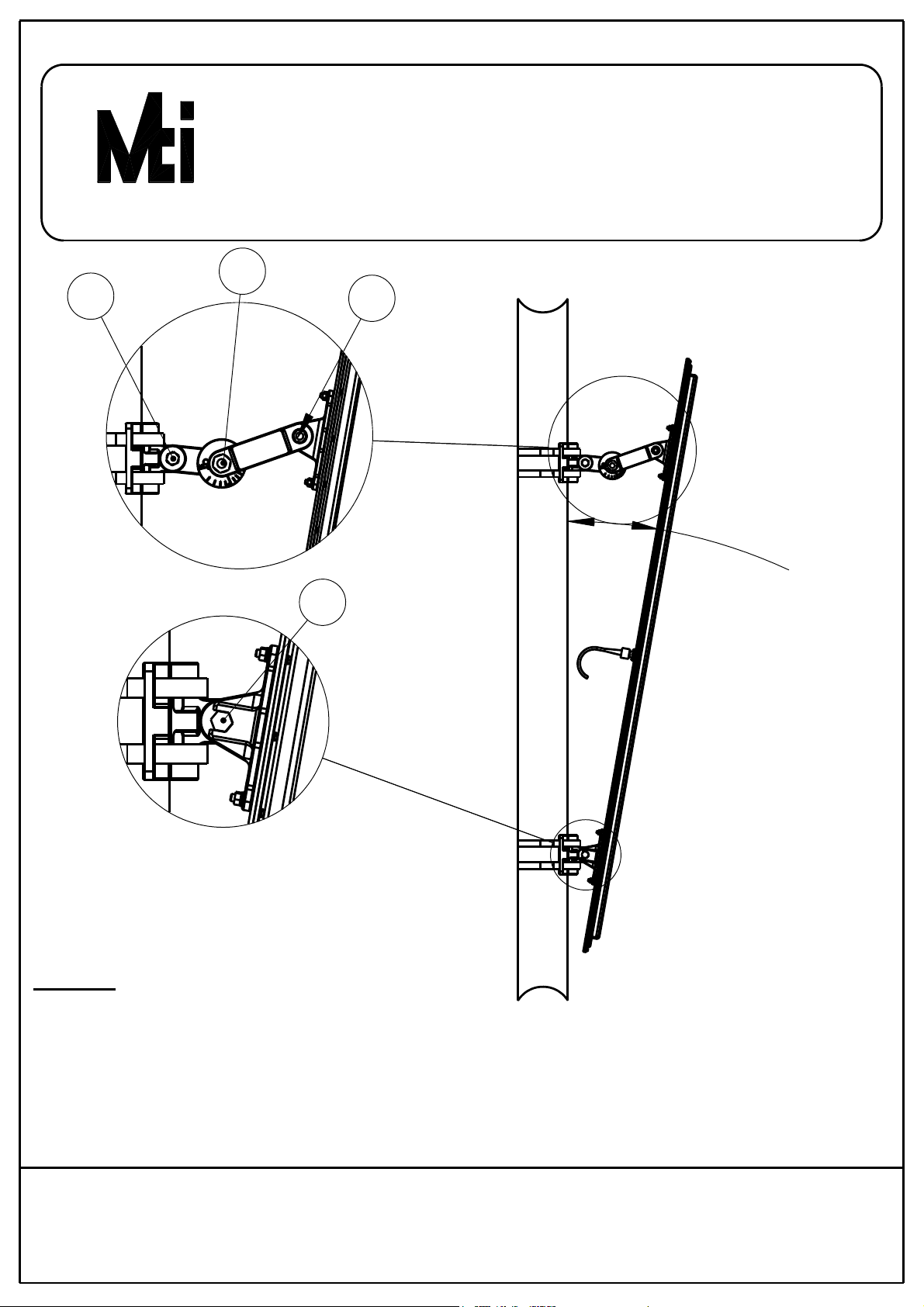

STEP 6
Align the antenna tilt by stretching the top
mount and reading the angle on the "dial", item 17 .
Tighten bolts item 7 with torque of 24Nm,
bolt item 11 with torque of 50Nm .
SHEET 6 OF 6
