MTI MT-120018C User Manual

RD41298500C/REV-H

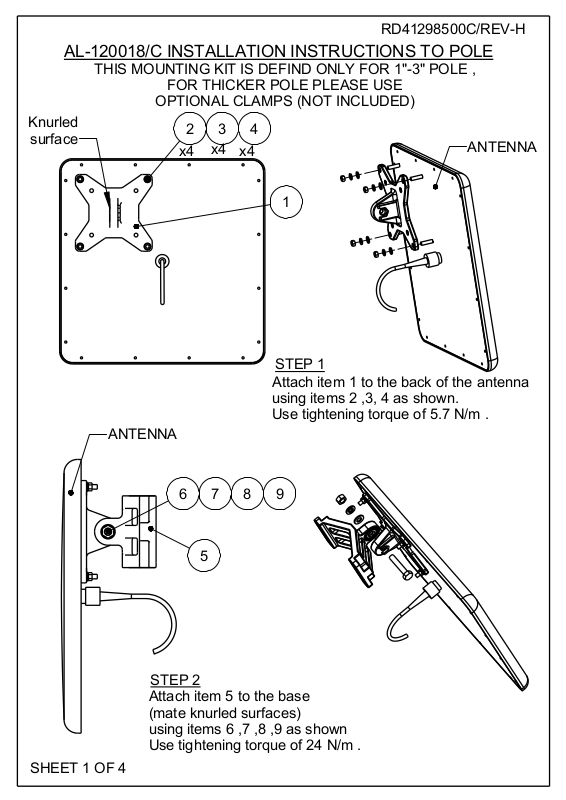

AL-120018/C INSTALLATION INSTRUCTIONS TO POLE

THIS MOUNTING KIT IS DEFIND ONLY FOR 1"-3" POLE ,

FOR THICKER POLE PLEASE USE

OPTIONAL CLAMPS (NOT INCLUDED)

Knurled

surface

2 3 4

x4

x4

x4

ANTENNA

1

STEP 1

Attach item 1 to the back of the antenna
using items 2 ,3, 4 as shown.
Use tightening torque of 5.7 N/m .

ANTENNA

STEP 2

Attach item 5 to the base

6 7 8 9

5

SHEET 1 OF 4

(mate knurled surfaces)
using items 6 ,7 ,8 ,9 as shown
Use tightening torque of 24 N/m .

ANTENNA

RD41298500C/REV-H

STEP 3

x2

11 7 8

For pole 1 3/4"-3"

x2

or

x2

12

10

Tighten the antenna to the pole , using item 10,
screws, and washers items 11 ,7 ,8 as shown.
Use tightening torque of 14 N/m .

Installation Kit

ITEM DESCRIPTION QTY

1 Base ant. 1
2Washer flat M5 4
3 Washer spring M5 4
4Nut M5 4
5 Clamp 1
6 Screw hex head M8x40 1
7Washer flat M8 3
8 Washer spring M8 3
9Nut M8 1

10 Clamp 1

10

11 Screw hex head M8x40

(for 1 3/4”-2 ¼” dia pole)

12 Screw hex head M8x70

(for 2 ¼”-3” dia pole)

SHEET 2 OF 4

2

2

For pole 1"- 1 3/4"
