MSI MS-98I8 Datasheet
Specifications
Processor
CPU
Intel
®
Celeron® Processor N3160, QC, 6W
Intel
®
Celeron® Processor N3010, DC, 4W
Frequency
N3160, 1.6 GHz up to 2.24 GHz
N3010, 1.04 GHz up to 2.24 GHz
L2 Cache 2MB
CPU Type BGA
Chipset Integrated in SoC
BIOS AMI
Memory
Technology Single-channel DDR3L 1600MHz
Max. Capacity Up to 8GB
Socket 1 x 204-pin SO-DIMM
Display
Controller Intel® HD Graphics
Graphic Memory
Shared system memory up to 1.7 GB
SDRAM
LVDS Dual Channel 18/24-bit
HDMI 1
DisplayPort 1
Multiple Display 3 independent displays
Display Interface
LVDS up to 1920 x 1200 @60Hz
HDMI up to 2560 x 1600 @60Hz;
up to 3840 x 2160 @30Hz
DP1.1a up to 2560 x 1600 @60Hz;
up to 3840 x 2160 @30Hz
Ethernet
Controller 2 x Realtek® RTL8111G GbE LAN
Audio
Controller
Realtek® ALC887-VD2-CG HD Audio
Codec
Super I/O
Controller Fintek F81866AD-I
H/W Monitor
Watchdog Timer 256-level Watchdog Timer
Smart Fan Yes
TPM
Controller Pin header
I/O Interface
USB
2 x USB 2.0 (2 x internal)
4 x USB 3.0 (4 x rear)
Serial
4 x COM ports (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~4: RS-232

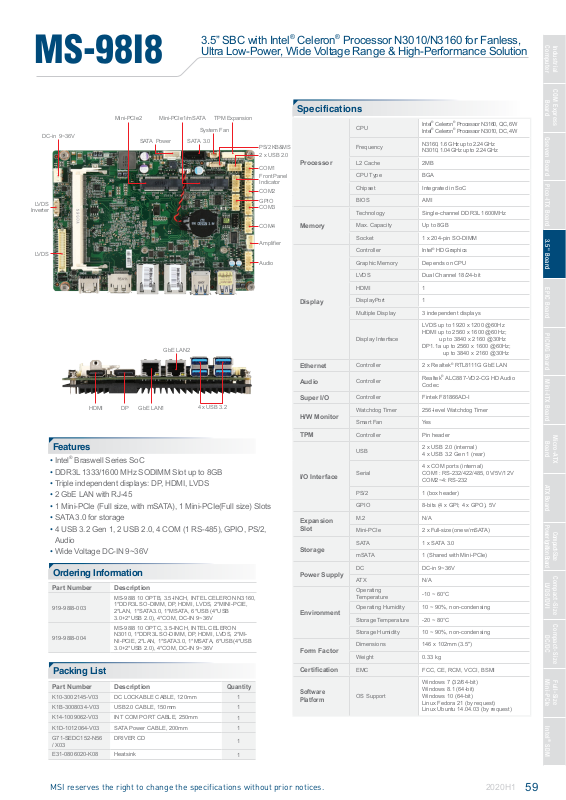

MS-98I8
3.5” SBC with Intel® Celeron® Processor N3010/N3160 for
High-Performance, Low-Power & Fanless Solution
MS-98I8
Mini-PCIe2
DC-in 9~36V
LVDS
Inverter
LVDS
DPHDMI
Features
• Intel® Braswell Series SoC
• DDR3L 1333/1600 MHz SODIMM Slot up to 8GB
• Triple independent displays: DP, HDMI, LVDS
• 2 GbE LAN with RJ-45
• 1 Mini-PCIe (Full size, with mSATA), 1 Mini-PCIe(Full size) Slots
• SATA 3.0 for storage
• 4 USB 3.2 Gen 1, 2 USB 2.0, 4 COM (1 RS-485), GPIO, PS/2,
Audio
• Wide Voltage DC-IN 9~36V
Ordering Information
Part Number Description
MS-98I8 10 OPTB, 3.5-INCH, INTEL CELERON N3160,
919-98I8-003
919-98I8-004
Packing List
Part Number Description
K10-3002145-V03 DC LOCKABLE CABLE, 120mm
K1B-3008034-V03 USB2.0 CABLE, 150mm
K14-1009062-V03 INT COM PORT CABLE, 250mm
K1D-1012064-V03 SATA Power CABLE, 200mm
G71-SEDC152-N56
/ X03
E31-0806020-K08 Heatsink
MSI reserves the right to change the specifications without prior notices.
1*DDR3L SO-DIMM, DP, HDMI, LVDS, 2*MINI-PCIE,
2*LAN, 1*SATA3.0, 1*MSATA, 6*USB (4*USB
3.0+2*USB 2.0), 4*COM, DC-IN 9~36V
MS-98I8 10 OPTC, 3.5-INCH, INTEL CELERON
N3010, 1*DDR3L SO-DIMM, DP, HDMI, LVDS, 2*MINI-PCIE, 2*LAN, 1*SATA3.0, 1*MSATA, 6*USB(4*USB
3.0+2*USB 2.0), 4*COM, DC-IN 9~36V
DRIVER CD
SATA Power
GbE LAN1
3.5” SBC with Intel® Celeron® Pr
ocessor N3010/N3160 for Fanless,
Ultra Low-Power, Wide Voltage Range & High-Performance Solution
TPM ExpansionMini-PCIe1/mSATA
System Fan
SATA 3.0
GbE LAN2
4 x USB 3.2
4 x USB3.0
PS/2 KB&MS
2 x USB 2.0
COM1
Front Panel
Indicator
COM2
GPIO
COM3
COM4
Amplier
Audio
Quantity
1
1
1
1
1
1
Specifications
Processor
Memory
Display
Ethernet
Audio
Super I/O
H/W Monitor
TPM
I/O Interface
Expansion
Slot
Storage
Power Supply
Environment
Form Factor
Certication
Software
Platform
®
Celeron® Processor N3160, QC, 6W
CPU
Frequency
L2 Cache 2MB
CPU Type BGA
Chipset Integrated in SoC
BIOS AMI
Technology Single-channel DDR3L 1600MHz
Max. Capacity Up to 8GB
Socket 1 x 204-pin SO-DIMM
Controller Intel
Graphic Memory Depends on CPU
LVDS Dual Channel 18/24-bit
HDMI 1
DisplayPort 1
Multiple Display 3 independent displays
Display Interface
Controller 2 x Realtek
Controller
Controller Fintek F81866AD-I
Watchdog Timer 256-level Watchdog Timer
Smart Fan Yes
Controller Pin header
USB
Serial
PS/2 1 (box header)
GPIO 8-bits (4 x GPI; 4 x GPO), 5V
M.2 N/A
Mini-PCIe 2 x Full-size (one w/mSATA)
SATA 1 x SATA 3.0
mS ATA 1 (Shared with Mini-PCIe)
DC DC-in 9~36V
ATX N/A
Operating
Temperature
Operating Humidity 10 ~ 90%, non-condensing
Storage Temperature -20 ~ 80°C
Storage Humidity 10 ~ 90%, non-condensing
Dimensions 146 x 102mm (3.5")
Weight 0.33 kg
EMC FCC, CE, RCM, VCCI, BSMI
OS Support
Intel
Intel® Celeron® Processor N3010, DC, 4W
N3160, 1.6 GHz up to 2.24 GHz
N3010, 1.04 GHz up to 2.24 GHz
®
HD Graphics
LVDS up to 1920 x 1200 @60Hz
HDMI up to 2560 x 1600 @60Hz;
up to 3840 x 2160 @30Hz
DP1.1a up to 2560 x 1600 @60Hz;
up to 3840 x 2160 @30Hz
Realtek
Codec
2 x USB 2.0 (internal)
4 x USB 3.2 Gen 1 (rear)
4 x COM ports (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2~4: RS-232
-10 ~ 60°C
Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 (64-bit)
Linux Fedora 21 (by request)
Linux Ubuntu 14.04.03 (by request)
®
RTL8111G GbE LAN
®
ALC887-VD2-CG HD Audio
2020H1
