MSI MS-98F5 User Manual

MS-98F5

(v1.x) Industrial Computer Board

i

Preface Industrial Computer Board

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR INTER­NATIONAL. We take every care in the preparation of this document, but no guar­antee is given as to the correctness of its contents. Our products are under con­tinual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

MSI® is a registered trademark of Micro-Star Int’l Co.,Ltd.

￭

NVIDIA® is a registered trademark of NVIDIA Corporation.

￭

AMD® is a registered trademark of AMD Corporation.

￭

Intel® is a registered trademark of Intel Corporation.

￭

Windows

￭

AMI® is a registered trademark of Advanced Micro Devices, Inc.

￭

Award® is a registered trademark of Phoenix Technologies Ltd.

￭

Realtek® is a registered trademark of Realtek Semiconductor Corporation.

￭

®

is a registered trademark of Microsoft Corporation.

Revision History

Revision Date

V1.0 2014/03

Technical Support

If a problem arises with your system and no solution can be obtained from the
user’s manual, please contact your place of purchase or local distributor. Alterna­tively, please try the following help resources for further guidance.

Visit the MSI website for technical guide, BIOS
updates, driver updates, and other information:

http://www.msi.com/service/download/

Contact our technical sta󰘯 at:

http://support.msi.com/

ii

Safety Instructions

Always read the safety instructions carefully.

￭

Keep this User’s Manual for future reference.

￭

Keep this equipment away from humidity.

￭

Lay this equipment on a reliable flat surface before setting it up.

￭

The openings on the enclosure are for air convection hence protects the

￭

equipment from overheating. DO NOT COVER THE OPENINGS.

Make sure the voltage of the power source and adjust properly 110/220V

￭

before connecting the equipment to the power inlet.

Place the power cord such a way that people can not step on it. Do not place

￭

anything over the power cord.

Always Unplug the Power Cord before inserting any add-on card or mod

￭

ule.

All cautions and warnings on the equipment should be noted.

￭

Never pour any liquid into the opening that could damage or cause electrical

￭

shock.

If any of the following situations arises, get the equipment checked by ser

￭

vice personnel:

The power cord or plug is damaged.

◯

Liquid has penetrated into the equipment.

◯

The equipment has been exposed to moisture.

◯

The equipment does not work well or you can not get it work according

◯

to User’s Manual.

The equipment has dropped and damaged.

◯

The equipment has obvious sign of breakage.

◯

DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDI-

￭

TIONED, STORAGE TEMPERATURE ABOVE 60oC (140oF), IT MAY DAM­AGE THE EQUIPMENT.

-

-

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.

警告使用者:
這是甲類資訊產品，在居住的環境中使用時，可能會造成無線電干擾，在這種情

況下，使用者會被要求採取某些適當的對策。

iii

Preface Industrial Computer Board

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH
Regulation (Regulation EC No. 1907/2006 of the European Parliament and the
Council), MSI provides the information of chemical substances in products at:

http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be
disposed of as unsorted household waste. Please use the
public collection system to return, recycle, or treat them in
compliance with the local regulations.

Taiwan:

For better environmental protection, waste batteries should
be collected separately for recycling or special disposal.

California, USA:

The button cell battery may contain perchlorate material and requires special
handling when recycled or disposed of in California.

For further information please visit:

http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer.

iv

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device
is in compliance with the essential safety requirements and other
relevant provisions set out in the European Directive.

FCC-A Radio Frequency Interference Statement

This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to
correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

this device may not cause harmful interference, and

1)

this device must accept any interference received, including interference that

2)
may cause undesired operation.

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and
Electronic Equipment, Directive 2002/96/EC, which takes effect on
August 13, 2005, products of “electrical and electronic equipment”
cannot be discarded as municipal waste anymore and manufacturers
of covered electronic equipment will be obligated to take back such products at
the end of their useful life. MSI will comply with the product take back require­ments at the end of life of MSI-branded products that are sold into the EU. You
can return these products to local collection points.

v

Preface Industrial Computer Board

Contents

Copyright Notice ............................................................................................ ii

Trademarks ................................................................................................... ii

Revision History

Technical Support

Safety Instructions

Chemical Substances Information

Battery Information

CE Conformity

FCC-A Radio Frequency Interference Statement

WEEE Statement .......................................................................................... v

1. Overview.......................................................................................1-1

Mainboard Specifications ...........................................................................1-2

Mainboard Layout

2. Hardware Setup ...........................................................................2-1

Memory ......................................................................................................2-3

Power Supply .............................................................................................2-4

Rear Panel I/O ...........................................................................................2-5

Connector ...................................................................................................2-7

Jumper .....................................................................................................2-14

Slot ...........................................................................................................2-16

3. BIOS Setup ...................................................................................3-1

Entering Setup ...........................................................................................3-2

The Menu Bar ............................................................................................3-4

Main

...........................................................................................................3-5

Advanced ...................................................................................................3-6

Boot .......................................................................................................... 3-12

Security

Chipset

.....................................................................................................3-17

Power .......................................................................................................3-18

Save & Exit

Appendix WDT & GPIO ...................................................................A-1

WDT Sample Code ................................................................................... A-2

GPIO ......................................................................................................... A-3

............................................................................................ ii

.......................................................................................... ii

.........................................................................................iii

............................................................... iv

....................................................................................... iv

............................................................................................... v

......................................... v

......................................................................................1-4

....................................................................................................3-13

...............................................................................................3-20

vi

1 Overview

Thank you for choosing the MS-98F5, an excellent industrial computer
board.

With low power and low profile design, the MS-98F5 accommodates the
Intel® Celeron® Processor D/M Series and supports up to 2 DDR3L 1333
MHz SO-DIMM slots to provide the maximum of 8GB memory capacity.

In the entry-level and mid-range market segment, MS-98F5 provides
a high-performance solution for today’s front-end and general purpose
workstation, as well as in the future.

1-1-1

Overview Industrial Computer Board

Mainboard Specications

Processor

Intel Celeron Processor D/M Series■

Memory

Max 2 DDR3L 1333 MHz SO-DIMM slots

■

Supports the maximum of 8GB

■

LAN

Max 2 Realtek 8111G Gigabit Fast Ethernet controllers■

SATA

1 SATA 3Gb/s port

■

1 mSATA slot (shared with Mini-PCIe slot)

■

Audio

Realtek ALC887 audio codec

■

2 audio jacks

■

1 front audio pin header

■

1 amplifier pin header

■

Graphics

Graphics integrated in Intel processor

■

1 VGA port

■

1 LVDS connector

■

Rear Panel I/O

1 RS-232 serial port

■

1 VGA port

■

4 USB 2.0 ports

■

Max 2 Gigabit LAN jacks

■

2 flexible audio ports

■

1-2

Onboard Pin Headers/ Connectors/ Jumpers

1 SATA 3Gb/s port

■

1 CPU fan connector

■

1 SATA power connector

■

1 DC power connector

■

1 TPM pin header

■

5 RS-232 serial port connectors

■

1 parallel port connector

■

1 GPIO pin header

■

1 front panel pin header

■

1 front audio pin header

■

1 amplifier pin header

■

1 mouse/keyboard connector

■

1 LVDS connector

■

1 chassis intrusion pin header

■
1 clear CMOS jumper

■

1 LVDS power jumper

■

1 serial port power jumper

■
1 AT/ATX select jumper

■

Slot

1 PCIe x1 slot

■

1 Mini-PCIe slot

■

Form Factor

Mini-ITX form factor: 170mm x 170mm ■

Environmental

Operating Temperature: 0oC ~ 60oC

■

Storage Temperature: -20oC ~ 80oC

■

Humidity: 10% ~ 90% RH, Non-Condensing

■

1-3

Overview Industrial Computer Board

Mainboard Layout

LVDS Power
Jumper

Back Panel

COM Port
Voltage
Jumper

Keyboard/
Mouse
Connector

LVDS
Connector

Chassis Intrusion
Pin Header

SO-DIMM Slot

GPIO Pin Header

COM Port
Connector

Parallel Port
Connector

AT/ATX
Jumper

Clear CMOS

Jumper

CPU Fan

Connector

Amplier Pin

Header

Front Audio

Pin Header

PCIe Slot

Mini-PCIe Slot

Serial Port USB 2.0

VGA Port LAN

USB 2.0 Pin
Header

Front Panel

Pin Header

USB 2.0

Port

SATA Port

SATA Power
Connector

Port

Port

Line-Out

Mic-In

CPU

TPM Pin
Header

DC Power
Connector

1-4

2 Hardware Setup

This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the com
ponents and follow the installation procedures. For some components, if
you install in the wrong orientation, the components will not work prop­erly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

-

2-2-1

Hardware Setup Industrial Computer Board

Components Reference Guide

Memory ..............................................................................................2-3

Power Supply ....................................................................................2-4

System Power Connector: JPWR1 ............................................................2-4

SATA Power Connector: JPW1 ..................................................................2-4

Rear Panel I/O ...................................................................................2-5

Connector ..........................................................................................2-7

Fan Power Connector: CPUFAN1 ..............................................................2-7

GPIO Pin Header: JGPIO1

Serial ATA Connector: SATA1

Front Panel Connector: JFP1 .....................................................................2-9

LVDS Connector: JLVDS1 .........................................................................2-9

USB 2.0 Connector: JUSB1, JUSB2 ........................................................ 2-10

Serial Port Connector: COM2 ~ COM6

TPM Module Connector: JTPM1 .............................................................. 2-11

Audio Amplifier Pinheader: JAMP1

Front Audio Connector: JAUD1

Chassis Intrusion Pin Header:

Keyboard/Mouse Connector: JKBMS1 ....................................................2-13

Parallel Port Connector: JLPT1 ................................................................2-13

Jumper.............................................................................................2-14

Clear CMOS Jumper: JCMOS1 ...............................................................2-14

AT/ATX Select Jumper: JATX1 .................................................................2-14

Serial Port Power Jumper: JCOMP1

Backlight Header & LVDS Power Jumper: JLCD1

Slot ...................................................................................................2-16

PCIe (Peripheral Component Interconnect Express) Slot ........................ 2-16

Mini-PCIe (Peripheral Component Interconnect Express) Slot

........................................................................2-8

....................................................................2-8

....................................................2-10

.......................................................... 2-12

................................................................ 2-12

JCASE1 ...................................................2-13

........................................................2-15

................................... 2-15

................2-16

2-2

Memory

The SO-DIMM slot is intended for memory modules.

1. Locate the SO-DIMM slot. Align
the notch on the DIMM with the
key on the slot and insert the
DIMM into the slot.

2. Push the DIMM gently down­wards until the slot levers click
and lock the DIMM in place.

3. To uninstall the DIMM, flip the slot levers outwards and the DIMM will be
released instantly.

Important

You can barely see the golden finger if the DIMM is properly inserted in the
DIMM slot.

2-3

Hardware Setup Industrial Computer Board

Power Supply

System Power Connector: JPWR1

This connector allows you to connect a power supply. To connect the power sup­ply, make sure the plug of the power supply is inserted in the proper orientation
and the pins are aligned. Then push down the plug firmly into the connector.

SATA Power Connector: JPW1

This connector is used to provide power to SATA devices.

Important

Make sure that all power connectors are connected to the power supply to ensure
stable operation of the motherboard.

2-4

Rear Panel I/O

Line-Out

Serial Port USB 2.0

RS-232 Serial Port



VGA Port LAN

USB 2.0

Port

Port

Port

Mic-In

The serial port is a 16550A high speed communications port that sends/ receives
16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to
the connector.

RS-232

PIN SIGNAL DESCRIPTION

1

VGA Port



2
3
4
5
6
7
8
9

DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
VCC_COM1

Data Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
Signal Ground
Data Set Ready
Request To Send
Clear To Send
Voltage select setting by jumper

The DB15-pin female connector is provided for monitor.

USB 2.0 Port



The USB (Universal Serial Bus) port is for attaching USB devices such as key­board, mouse, or other USB-compatible devices.

2-5

Hardware Setup Industrial Computer Board

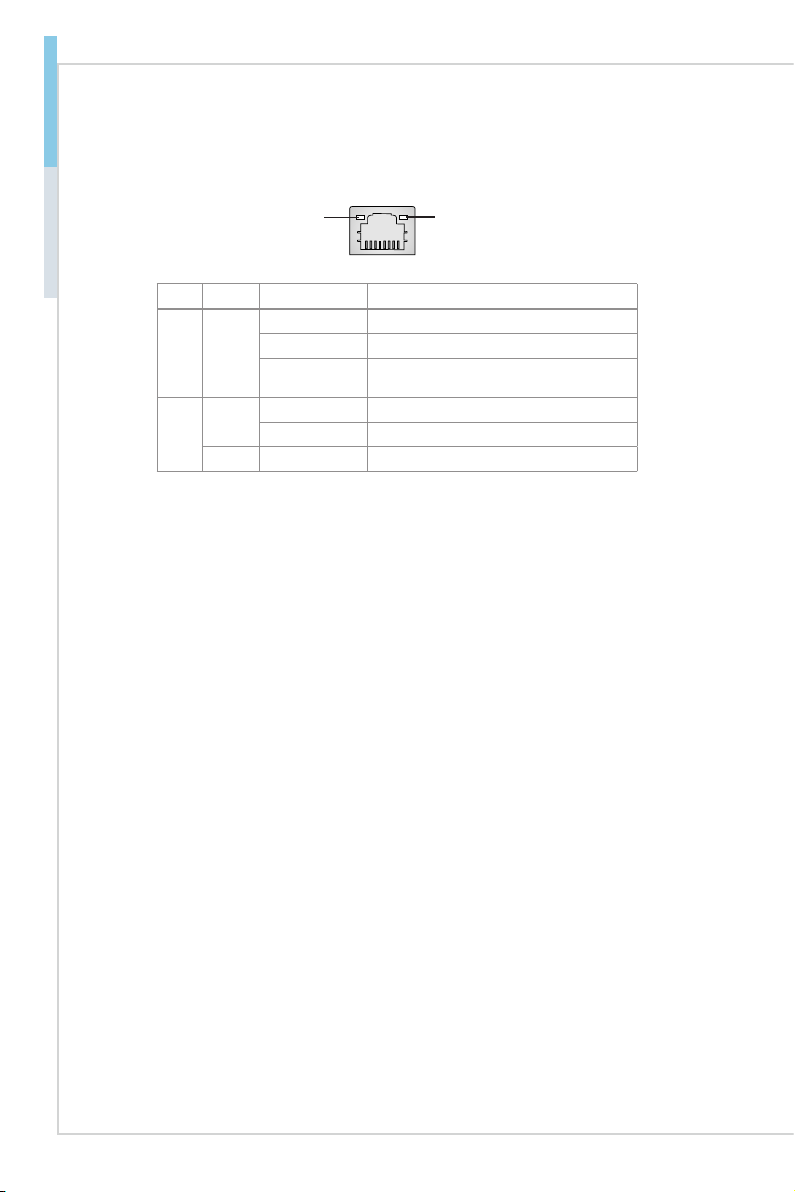

LAN Jack



The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN).
You can connect a network cable to it.

Yellow Green/ Orange

LED Color LED State Condition

Left Yellow Off LAN link is not established.

On (steady state) LAN link is established.

On (blinking) The computer is communicating with another

Right

Green Off 10 Mbit/sec data rate is selected.

On 100 Mbit/sec data rate is selected.

Orange On 1000 Mbit/sec data rate is selected.

computer on the LAN.

Audio Ports



These audio connectors are used for audio devices. It is easy to differentiate
between audio effects according to the color of audio jacks.

Line-Out (Green) - Line Out, is a connector for speakers or headphones.

■

Mic (Pink) - Mic, is a connector for microphones.

■

2-6

Connector

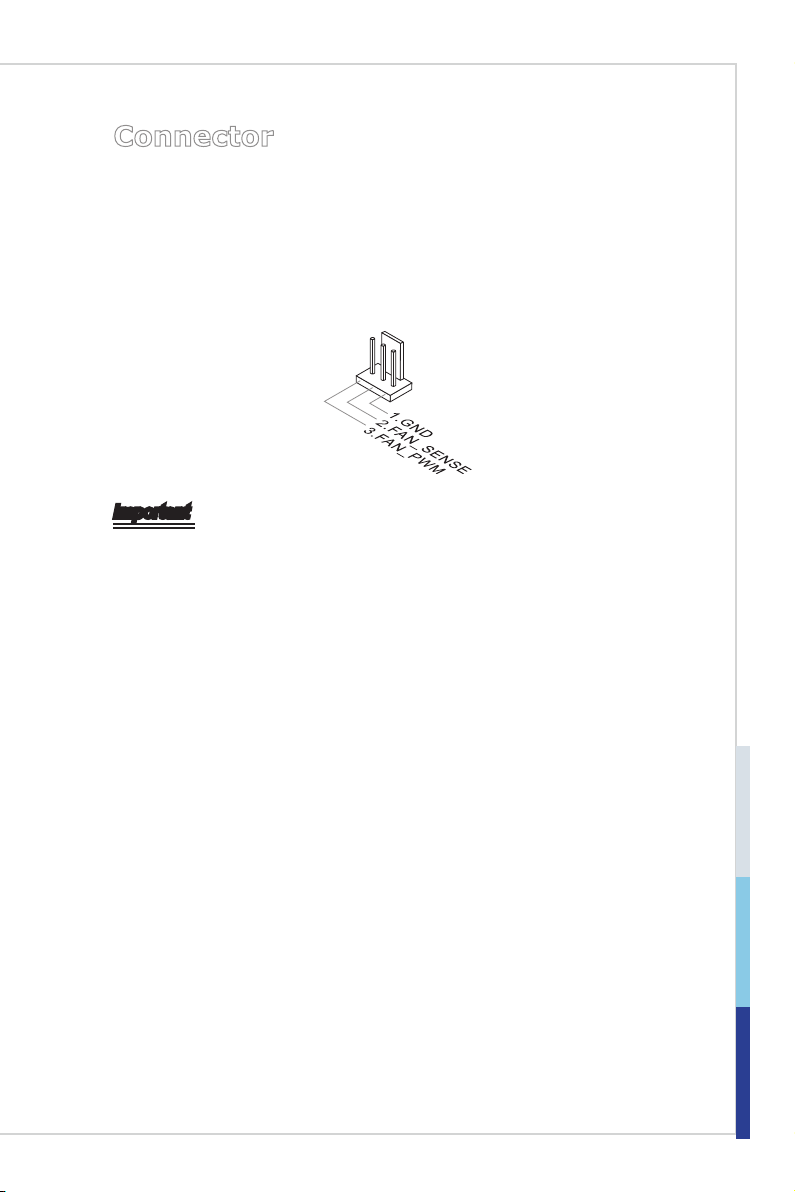

Fan Power Connector: CPUFAN1

The fan power connectors support system cooling fan with +12V. When con­necting the wire to the connectors, always note that the red wire is the positive
and should be connected to the +12V; the black wire is Ground and should be
connected to GND. If the motherboard has a System Hardware Monitor chipset
onboard, you must use a specially designed fan with speed sensor to take advan­tage of the CPU fan control.

Important

Please refer to the recommended CPU fans at processor’s o󰘲cial website or
consult the vendors for proper CPU cooling fan.

2-7

Hardware Setup Industrial Computer Board

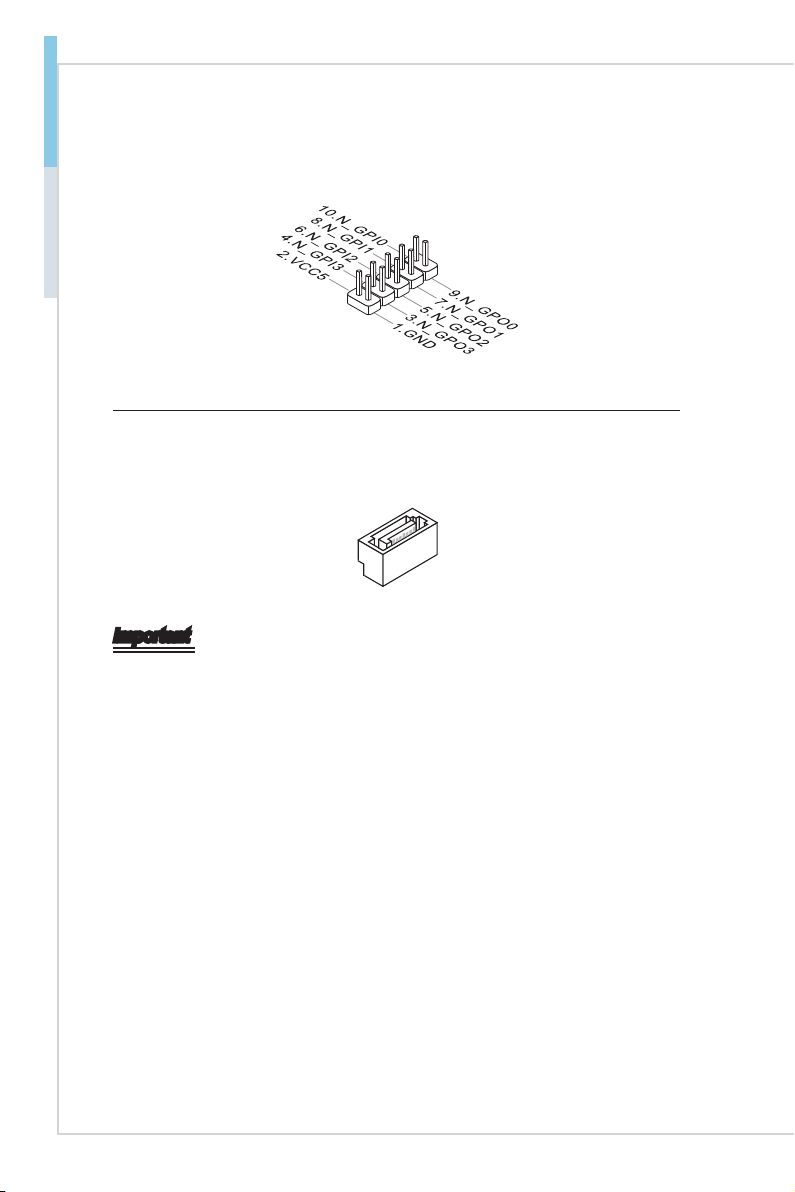

GPIO Pin Header: JGPIO1

This connector is provided for the General-Purpose Input/Output (GPIO) periph­eral module.

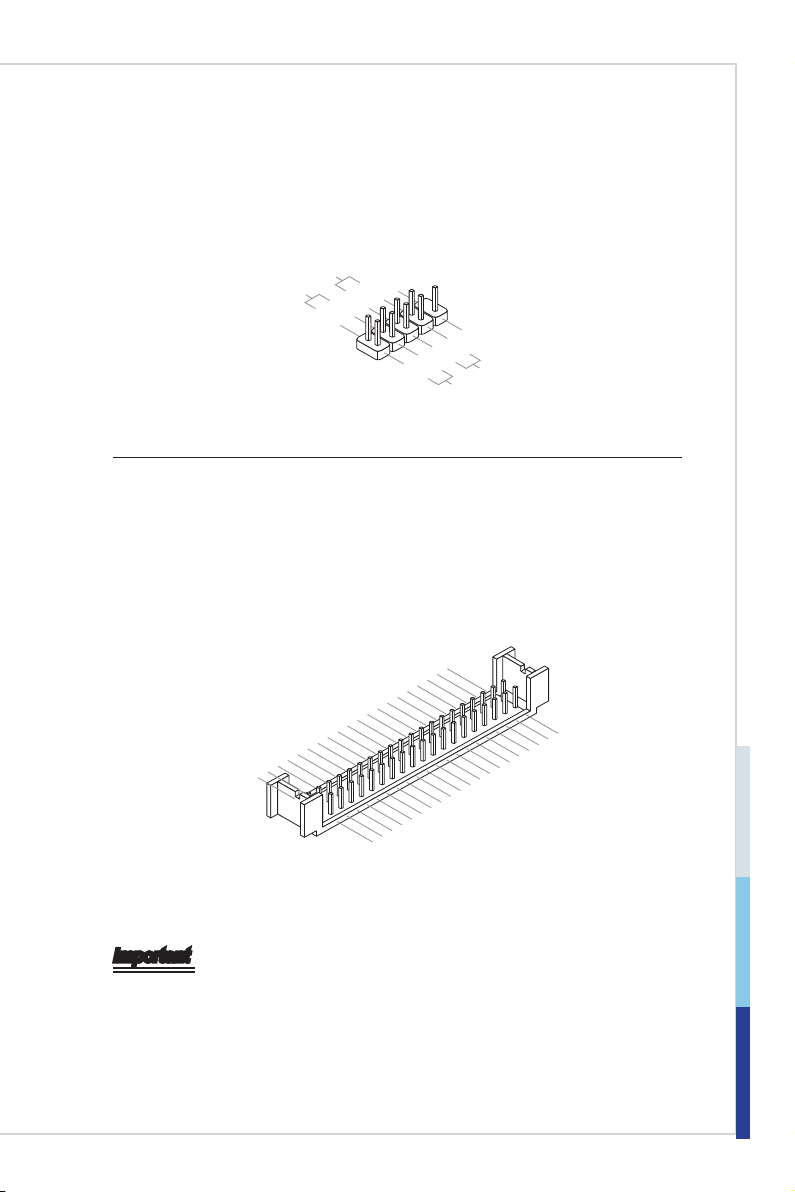

Serial ATA Connector: SATA1

This connector is a high-speed Serial ATA interface port. Each connector can
connect to one Serial ATA device.

Important

Please do not fold the SATA cable into a 90-degree angle. Otherwise, data loss
may occur during transmission.

2-8

Front Panel Connector: JFP1

1.
+

3.

-

10 .N o

Pi

n

5.

­Re se t

S

wi t

c

h

HD D

LE

D

P

ow er

S

wi tc h

P

ow er

LE

D

7.
+

9. Re se rv e

d

8.

-

6.
+

4.

-

2.
+

39.
LV

D

SB_CLK

#

27.
LV

D

SB_DA

TA

#1

25.
LV

D

SB_DA

TA

1

23.GN

D

21.
LV

D

SA_DA

TA

#3

19.
LV

D

SA_DA

TA

3

17.GN

D

15.

LV

D

SA_DA

TA

#1

13.
LV

D

SA_DA

TA

1

11

.L

VDS_BLON

9.L_BKL

T_CTRL#

7.
LV

DS_DDC_CLK

5.LCD_VDD

3.LCD_VDD

1.+12V

40.

LVD

SA_CLK

#

28.
LV

D

SB_DA

TA

#0

26.

LV

D

SB_DA

TA

0

24.GN

D

22.
LV

D

SA_DA

TA

#2

20.

LV

D

SA_DA

TA

2

18.GN

D

16.
LV

D

SA_DA

TA

#0

14.

LV

D

SA_DA

TA

0

12.
LV

DS_DETECT#_ C

10.
LV

DS_VDD_E

N

8.
LV

DS_DDC_DA

TA

6.LCD_VDD

4.+12V

2.+12V

37.
LV

DSB_CLK

35.GN

D

33.

LV

D

SB_DA

TA

#3

31.
LV

D

SB_DA

TA

3

29.GN

D

38.
LV

D

SA_CLK

36.GN

D

34.
LV

D

SB_DA

TA

#2

32.
LV

D

SB_DA

TA

2

30.GN

D

This front panel connector is provided for electrical connection to the front panel
switches & LEDs and is compliant with Intel Front Panel I/O Connectivity Design
Guide.

LVDS Connector: JLVDS1

The LVDS (Low Voltage Differential Signal) connector provides a digital interface
typically used with flat panels. After connecting an LVDS interface flat panel to
the JLVDS1, be sure to check the panel datasheet and set the LVDS jumper to
proper power voltage.

Important

Pin 12 is a detect pin. When using a customized LVDS cable, pin 12 should be a
signal ground with a low impedance. Otherwise, LVDS will not function.

2-9

Hardware Setup Industrial Computer Board

1. VC
C

3. US B0

-

10 .N C

5. US B0

+

7

.G ro un d

9. No
Pi

n

8

.G ro un d

6. US B1 +

4. US B1 -

2. VC
C

8. CT
S

3. TX
D

1. DC D

6. DS
R

5. GN
D

4. DT
R

7.
RT

S

2. RX
D

9. RI

USB 2.0 Connector: JUSB1, JUSB2

This connector, compliant with Intel I/O Connectivity Design Guide, is ideal for con­necting high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.

Important

Note that the pins of VCC and GND must be connected correctly to avoid possible
damage.

Serial Port Connector: COM2 ~ COM6

This connector is a 16550A high speed communications port that sends/receives 16
bytes FIFOs. You can attach a serial device to it.

PIN SIGNAL DESCRIPTION

1

DCD

2

RXD

3

TXD

4

DTR

5

GND

6

DSR

7

RTS

8

CTS

9

RI

Data Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
Signal Ground
Data Set Ready
Request To Send
Clear To Send
Ring Indicate

2-10

TPM Module Connector: JTPM1

10.N o

Pi

n

14.G ro un d

8.5V
P

ower

12.G ro un d

6.Se ri al

IR

Q

4.3. 3V

P

ower

2.3V
Stan db y

p

ower

1.LP
C C

loc

k

3.LP
C R

eset

5.LP
C a

ddre s

s & d

at

a p

in0

7.LP
C a

ddre s

s & d

at

a p

in1

9.LP
C a

ddre s

s & d

at

a p

in2

11

.LPC

a

ddre s

s & d

at

a p

in3

13.L P
C F

rame

This connector connects to a TPM (Trusted Platform Module) module (optional).
Please refer to the TPM security platform manual for more details.

2-11

Hardware Setup Industrial Computer Board

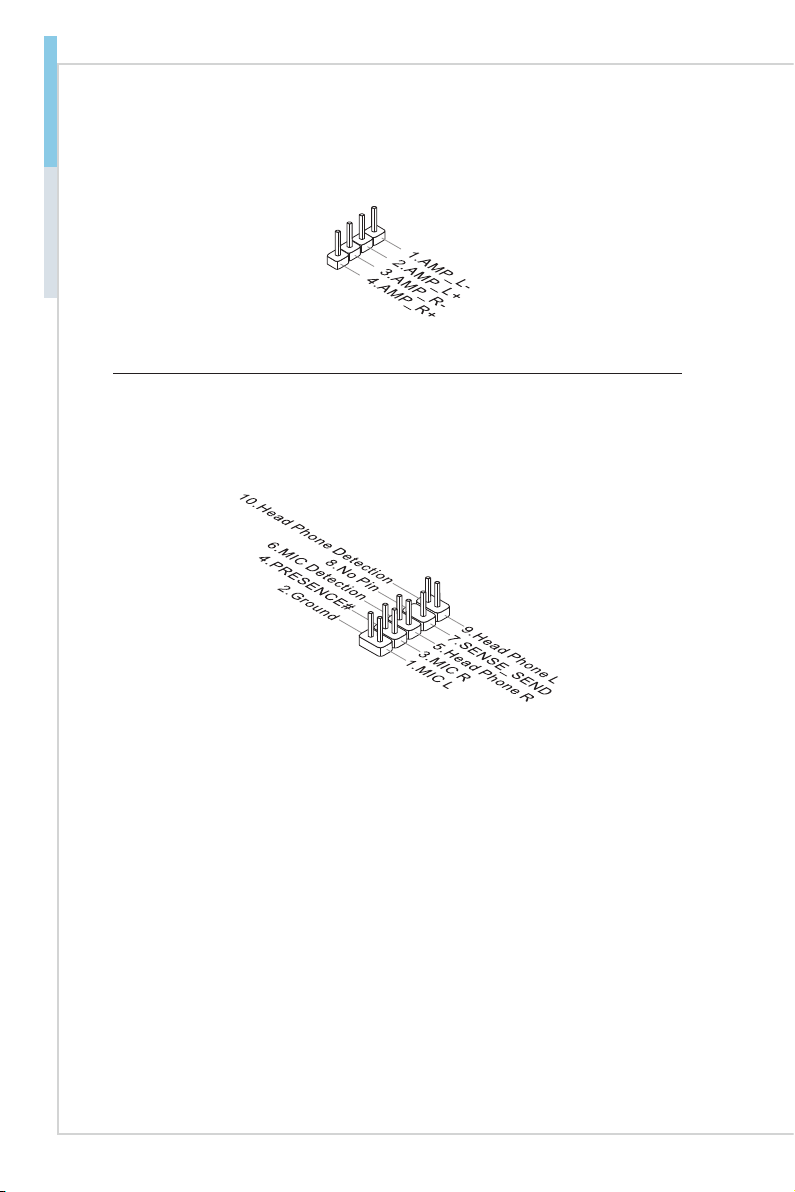

Audio Amplifier Pinheader: JAMP1

The JAMP1 is used to connect audio amplifiers to enhance audio performance.

Front Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with
Intel Front Panel I/O Connectivity Design Guide.

2-12

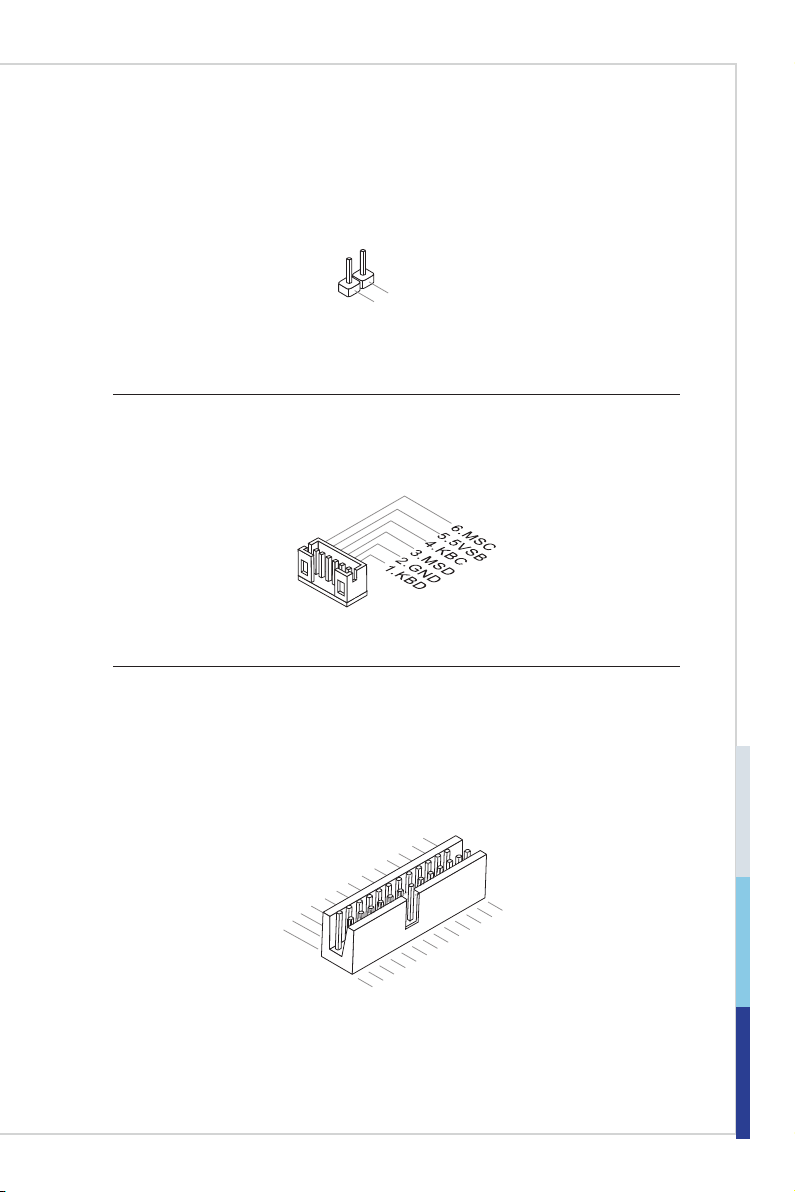

Chassis Intrusion Pin Header: JCASE1

1

.

C

I

N

T

R

U

2

.

G

r

o

u

n

d

1.RSTB

#

3.PRND0

5.PRND1

7.PRND2

9.PRND3

11

.PRND4

13.PRND 5

15.PRND 6

17.PRND 7

19.ACK#

21.BUSY

23.PE

25.SLCT

10.Grou nd

14.Grou nd

8.LPT_S LI N

#

12.Grou nd

6.PINIT #

4.ERR#

2.AFD#

24.Grou nd

22.Grou nd

26.No

Pin

20.Grou nd

18.Grou nd

16.Grou nd

This connector connects to the chassis intrusion switch cable. If the computer
case is opened, the chassis intrusion mechanism will be activated. The system
will record this intrusion and a warning message will flash on screen. To clear the
warning, you must enter the BIOS utility and clear the record.

Keyboard/Mouse Connector: JKBMS1

This connector is provided to connect a keyboard and a mouse.

Parallel Port Connector: JLPT1

The mainboard provides a 26-pin header for connection to an optional parallel
port bracket. The parallel port is a standard printer port that supports Enhanced
Parallel Port (EPP) and Extended Capabilities Parallel Port (ECP) mode.

2-13

Hardware Setup Industrial Computer Board

Jumper

Important

Avoid adjusting jumpers when the system is on; it will damage the motherboard.

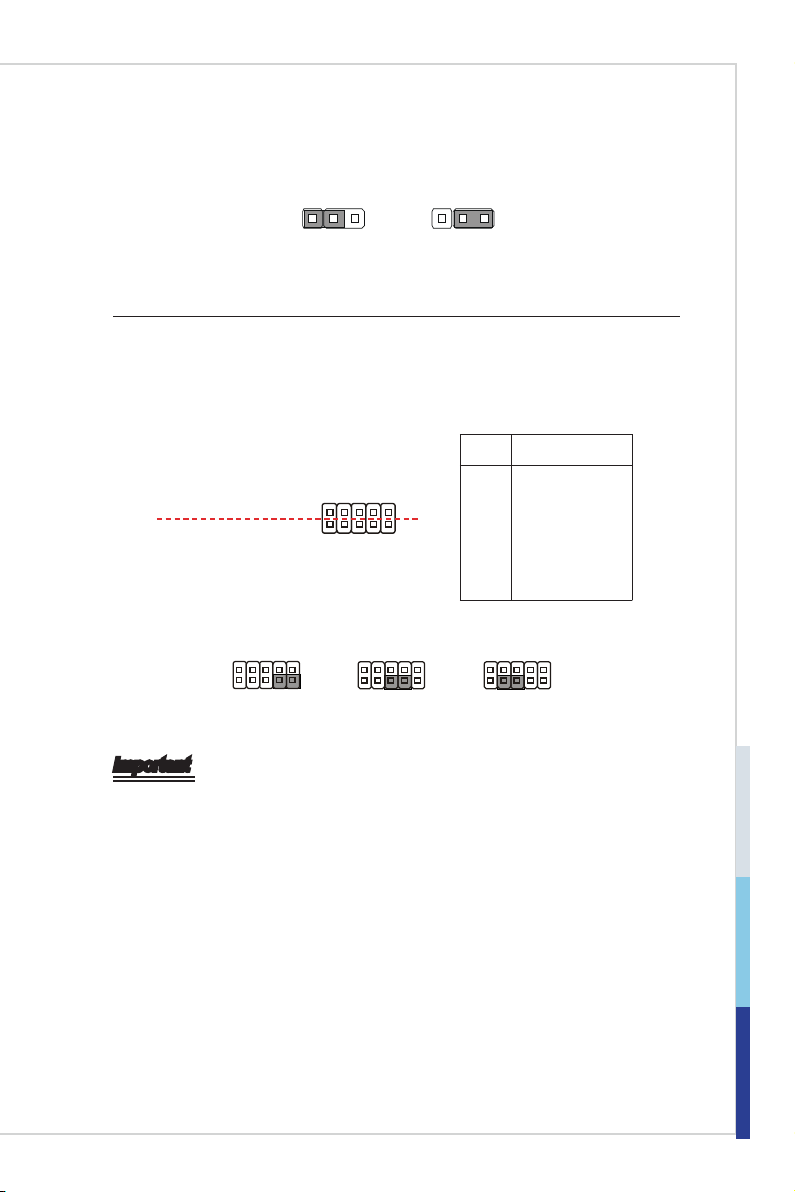

Clear CMOS Jumper: JCMOS1

There is a CMOS RAM onboard that has a power supply from an external battery
to keep the data of system configuration. With the CMOS RAM, the system can
automatically boot OS every time it is turned on. If you want to clear the system
configuration, set the jumper to clear data.

1 1

Normal Clear CMOS

Important

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to
1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage
the motherboard.

AT/ATX Select Jumper: JATX1

This jumper allows users to select between AT and ATX power.

1 1

ATX AT

2-14

Serial Port Power Jumper: JCOMP1

This jumper specifies the operation voltage of the COM1 serial port.

11

+5V +12V

Backlight Header & LVDS Power Jumper: JLCD1

The backlight connector is provided for LCD backlight options while the LVDS
power jumper allows users to select the operation voltage of the LVDS flat
panel.

PIN SIGNAL

1

VCC5

Backlight Connector

LVDS Power Jumper

10

9

1
2

3
5
7
9

L_BKLTCTL
INV_ON
GND
+12V

VCC5

1

9

2

10

VCC3

1

9

2

10

1
2

VCC3

10

9

Important

Pin 2, 4, 6, 8 are panel power voltage select pins while pin 1, 3, 5, 7 are inverter
voltage and control pins.

2-15

Hardware Setup Industrial Computer Board

Slot

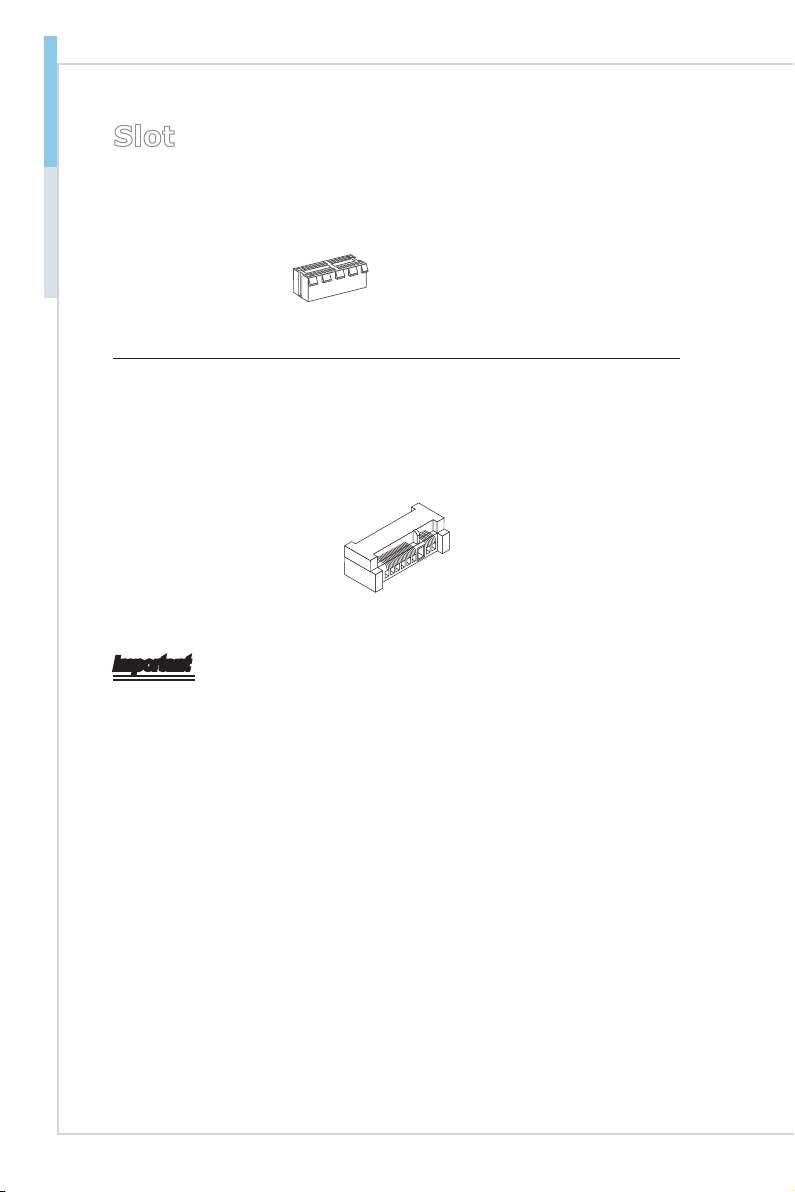

PCIe (Peripheral Component Interconnect Express) Slot

The PCI Express slot supports PCIe interface expansion cards.

PCIe x1 slot

Mini-PCIe (Peripheral Component Interconnect Express) Slot

The Mini-PCIe slot is provided for wireless LAN card, TV tuner card, Robson
NAND Flash card and mSATA devices.

Important

When adding or removing expansion cards, make sure that you unplug the power
supply first. Meanwhile, read the documentation for the expansion card to config­ure any necessary hardware or software settings for the expansion card, such as
jumpers, switches or BIOS configuration.

2-16

3 BIOS Setup

This chapter provides information on the BIOS Setup program and allows
users to configure the system for optimal use.

Users may need to run the Setup program when:

An error message appears on the screen at system startup and re-

■

quests users to run SETUP.
Users want to change the default settings for customized features.

■

Important

Please note that BIOS update assumes technician-level experience.

•

As the system BIOS is under continuous update for better system

•
performance, the illustrations in this chapter should be held for
reference only.

2-3-1

BIOS Setup Industrial Computer Board

Entering Setup

Power on the computer and the system will start POST (Power On Self Test)
process. When the message below appears on the screen, press <DEL> or <F2>
key to enter Setup.

Press <DEL> or <F2> to enter SETUP

If the message disappears before you respond and you still wish to enter Setup,
restart the system by turning it OFF and On or pressing the RESET button. You
may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <De­lete> keys.

Important

The items under each BIOS category described in this chapter are under
continuous update for better system performance. Therefore, the description may
be slightly different from the latest BIOS and should be held for reference only.

3-2

Control Keys

← → Select Screen

↑ ↓ Select Item

Enter Select

+ - Change Option

F1

F7 Previous Values

F9 Optimized Defaults

F10 Save & Exit

Esc Exit

General Help

Getting Help

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use

the arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted

setup function is displayed at the bottom of the screen.

Sub-Menu

If you find a right pointer symbol appears to the left of certain fields that means
a sub-menu can be launched from this field. A sub-menu contains additional op-

tions for a field parameter. You can use arrow keys ( ↑↓ ) to highlight the field

and press <Enter> to call up the sub-menu. Then you can use the control keys to
enter values and move from field to field within a sub-menu. If you want to return
to the main menu, just press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this
screen from any menu by simply pressing <F1>. The Help screen lists the ap­propriate keys to use and the possible selections for the highlighted item. Press
<Esc> to exit the Help screen.

3-3

BIOS Setup Industrial Computer Board

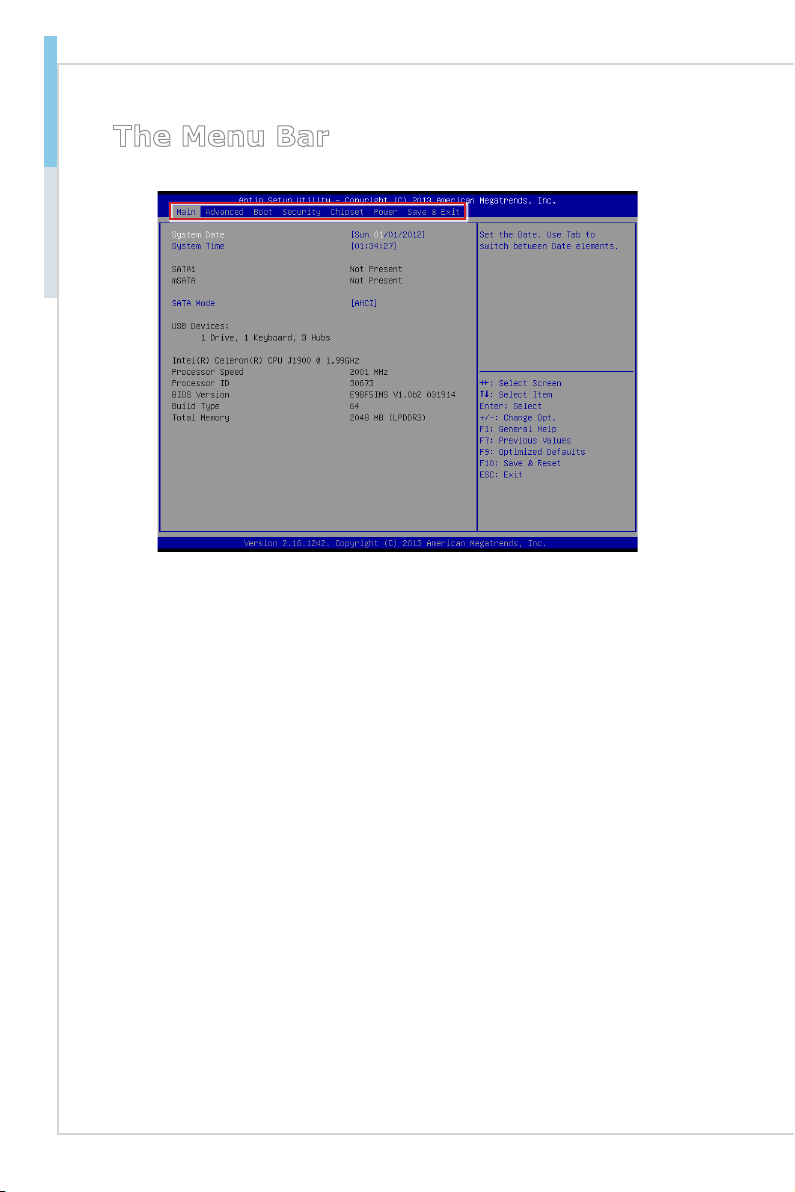

The Menu Bar

Main

▶

Use this menu for basic system configurations, such as time, date, etc.

Advanced

▶

Use this menu to set up the items of special enhanced features.

Boot

▶

Use this menu to specify the priority of boot devices.

Security

▶

Use this menu to set supervisor and user passwords.

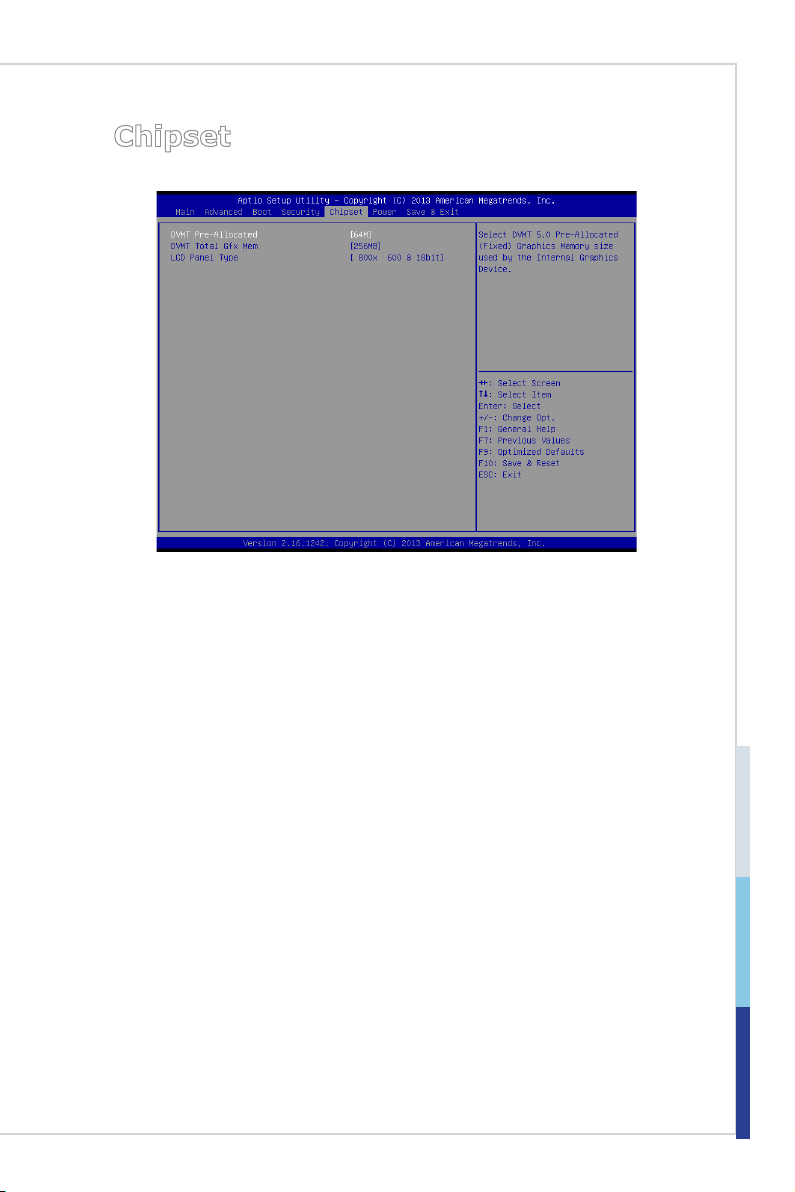

Chipset

▶

This menu controls the advanced features of the onboard chipsets.

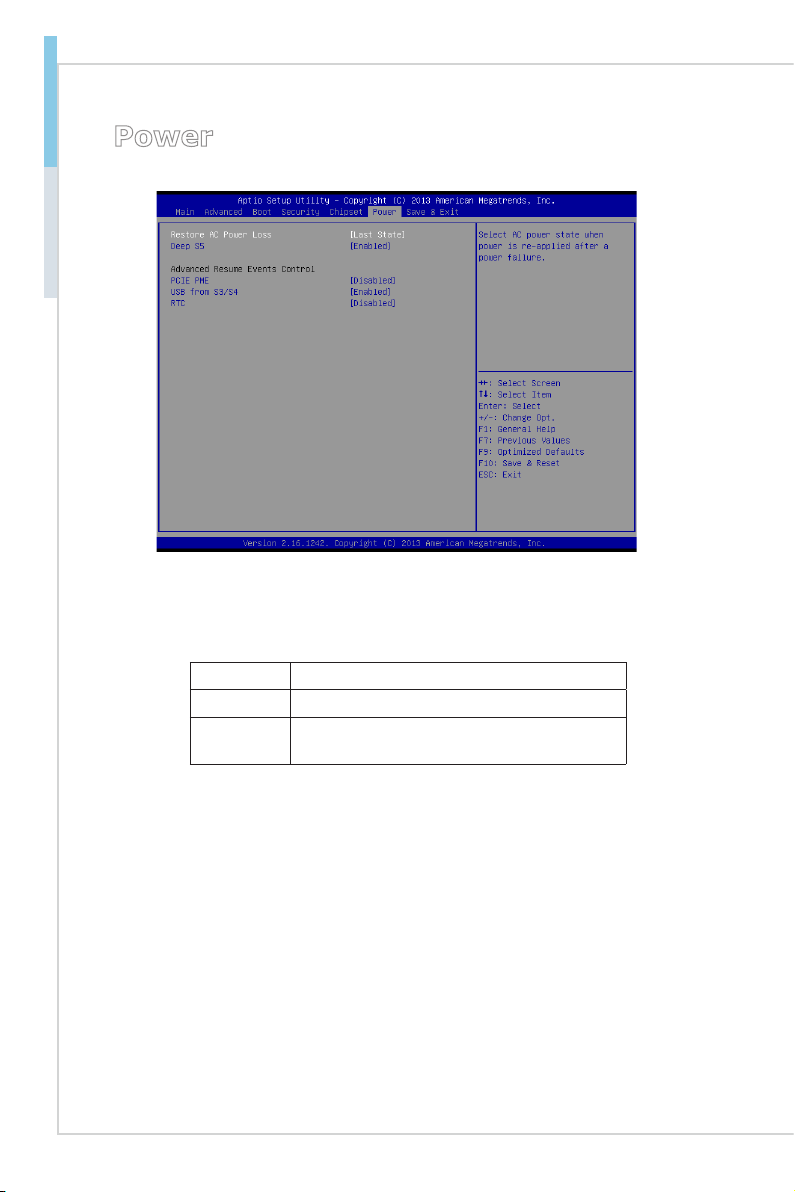

Power

▶

Use this menu to specify your settings for power management.

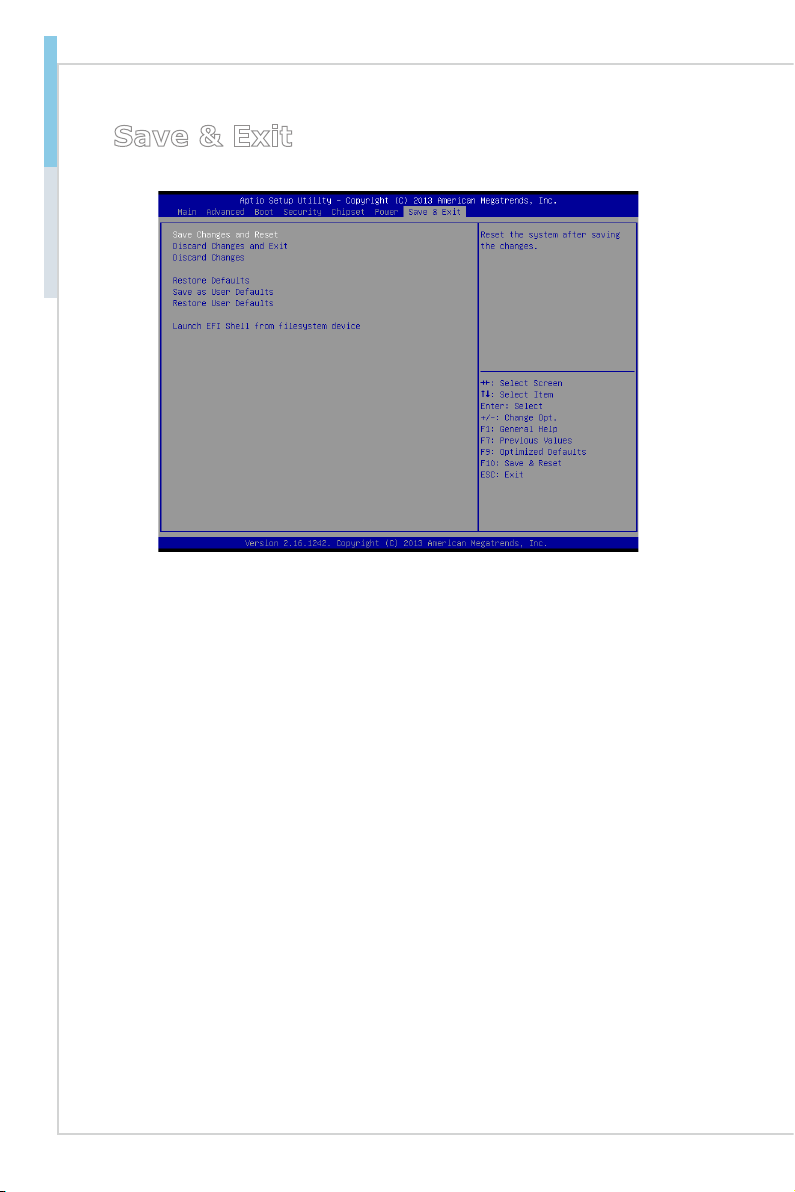

Save & Exit

▶

This menu allows you to load the BIOS default values or factory default settings
into the BIOS and exit the BIOS setup utility with or without changes.

3-4

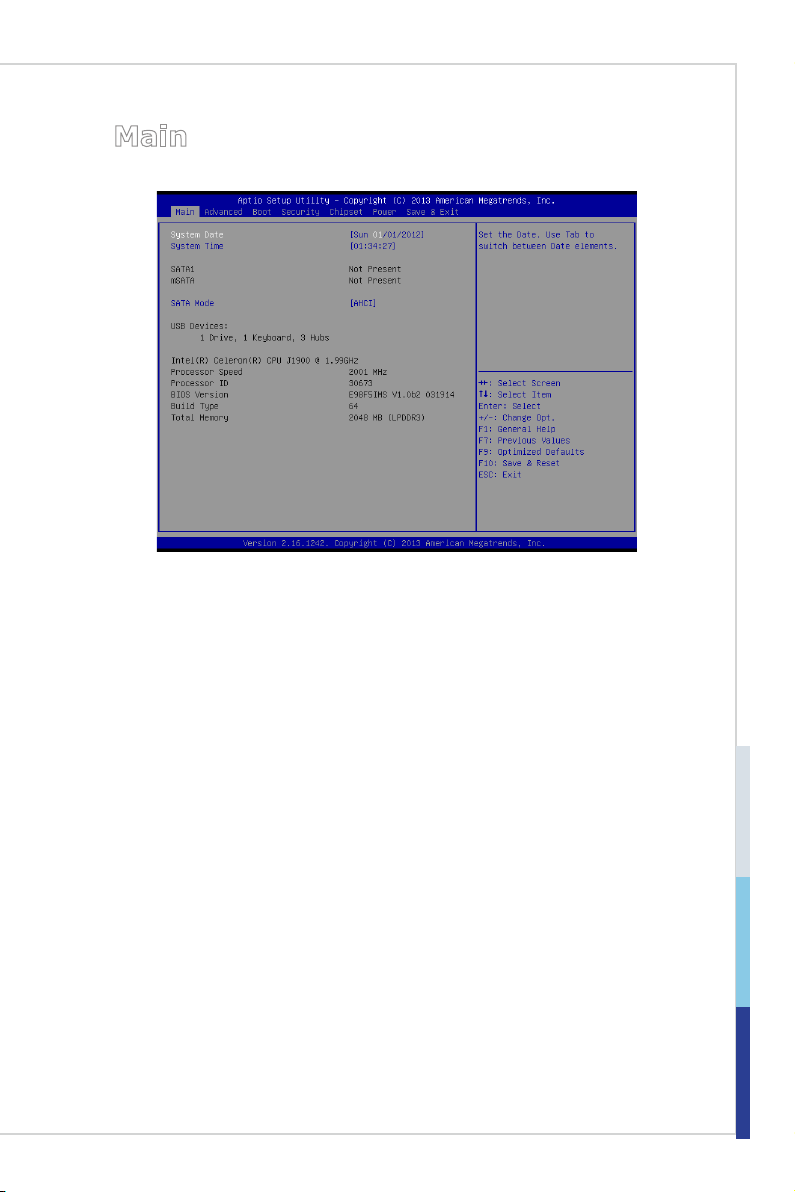

Main

System Date

▶

This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>.

System Time

▶

This setting allows you to set the system time. The time format is <Hour> <Minute> <Second>.

SATA Mode

▶

This setting specifies the SATA controller mode.

3-5

BIOS Setup Industrial Computer Board

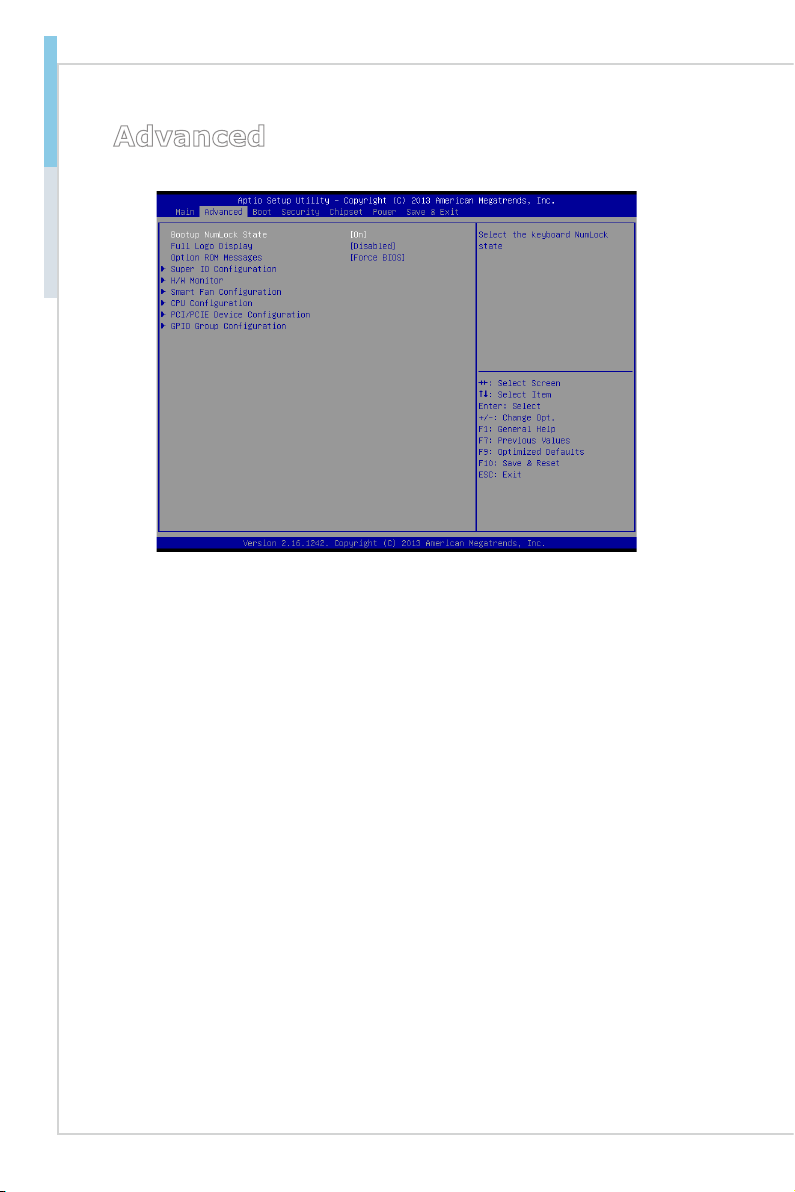

Advanced

Bootup NumLock State

▶

This setting is to set the Num Lock status when the system is powered on. Setting
to [On] will turn on the Num Lock key when the system is powered on. Setting to
[Off] will allow users to use the arrow keys on the numeric keypad.

Full Logo Display

▶

This BIOS feature determines if the BIOS should hide the normal POST mes
sages with the motherboard or system manufacturer’s full-screen logo.

When it is enabled, the BIOS will display the full-screen logo during the boot-up
sequence, hiding normal POST messages.

When it is disabled, the BIOS will display the normal POST messages, instead
of the full-screen logo.

Please note that enabling this BIOS feature often adds 2-3 seconds of delay to
the booting sequence. This delay ensures that the logo is displayed for a suf
ficient amount of time. Therefore, it is recommended that you disable this BIOS
feature for a faster boot-up time.

Option ROM Messages

▶

This item is used to determine the display mode when an optional ROM is ini
tialized during POST. When set to [Force BIOS], the display mode used by AMI
BIOS is used. Select [Keep Current] if you want to use the display mode of op­tional ROM.

-

-

-

3-6

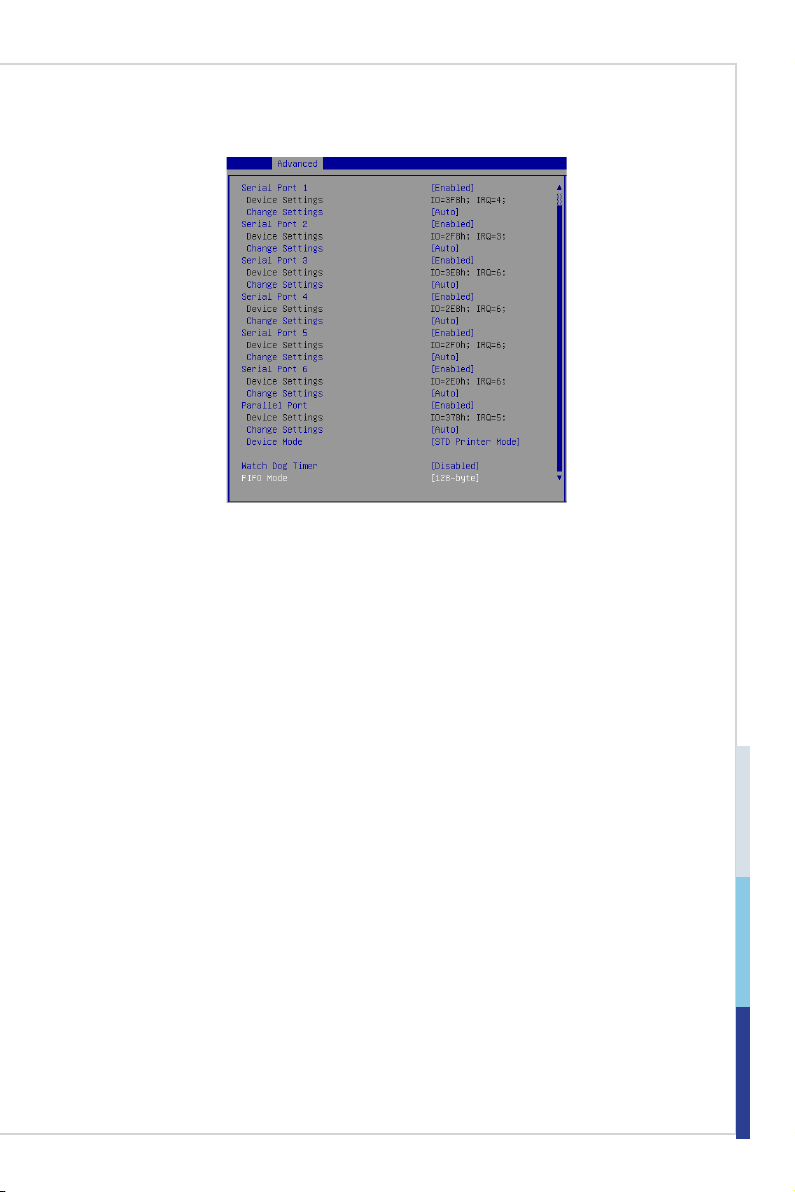

Super IO Configuration

▶

Serial Port 1/ 2/ 3/ 4/ 5/ 6

▶

This setting enables/disables the specified serial port.

Change Settings

▶

This setting is used to change the address & IRQ settings of the specified
serial port.

Parallel Port

▶

This setting enables/disables the parallel port.

Change Settings

▶

This setting is used to change the address & IRQ settings of the parallel
port.

Device Mode

▶

Select an operation mode for the parallel port.

Watch Dog Timer

▶

You can enable the system watch-dog timer, a hardware timer that generates
a reset when the software that it monitors does not respond as expected each
time the watch dog polls it.

FIFO Mode

▶

This setting controls the FIFO data transfer mode.

3-7

BIOS Setup Industrial Computer Board

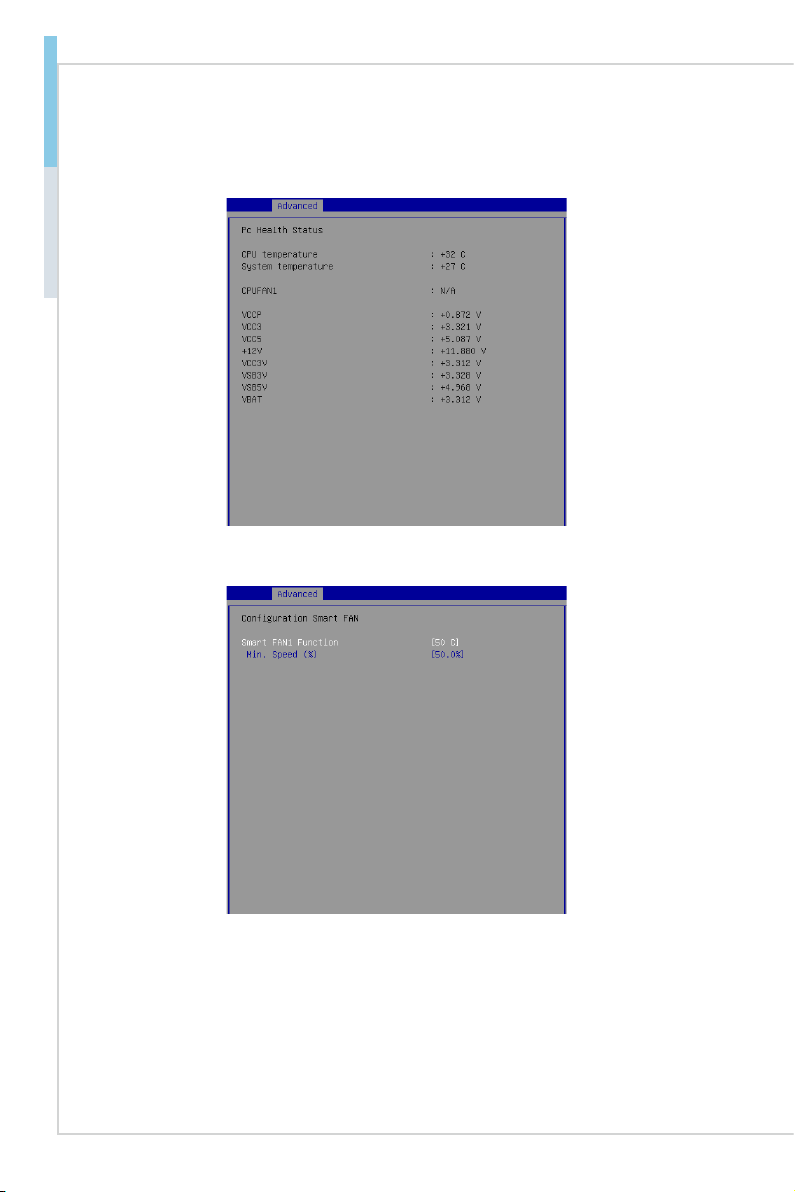

H/W Monitor

▶

These items display the current status of all monitored hardware devices/
components such as voltages, temperatures and all fans’ speeds.

Smart Fan Configuration

▶

Smart FAN1 Function

▶

These settings enable/disable the Smart Fan function. Smart Fan is an excel
lent feature which will adjust the CPU/system fan speed automatically de­pending on the current CPU/system temperature, avoiding the overheating to
damage your system.

Min. Speed (%)

▶

This setting selects the minimum percentage of 12V that the fan needs to
start spinning.

3-8

-

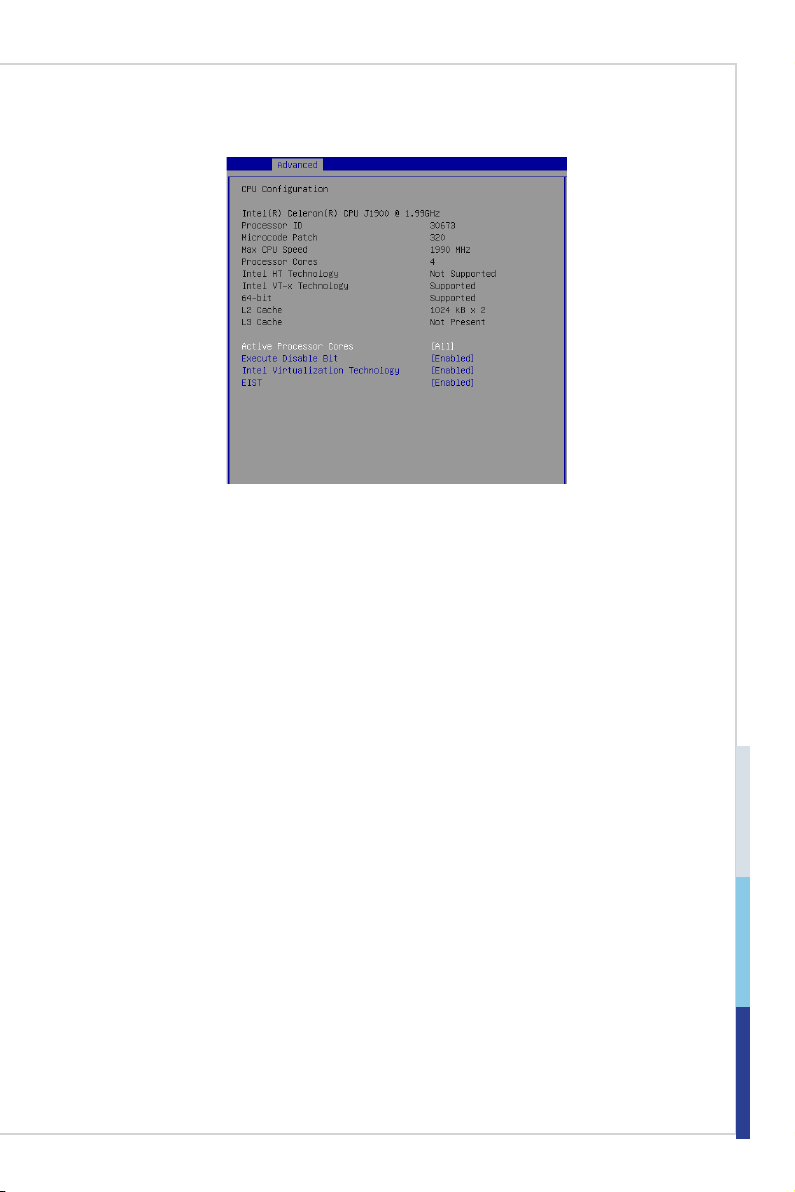

CPU Configuration

▶

Active Processor Cores

▶

This setting specifies the number of active processor cores.

Execute Disable Bit

▶

Intel’s Execute Disable Bit functionality can prevent certain classes of mali
cious “buffer overflow” attacks when combined with a supporting operating
system. This functionality allows the processor to classify areas in memory by
where application code can execute and where it cannot. When a malicious
worm attempts to insert code in the buffer, the processor disables code execu­tion, preventing damage or worm propagation.

Intel Virtualization Technology

▶

Virtualization enhanced by Intel Virtualization Technology will allow a platform
to run multiple operating systems and applications in independent partitions.
With virtualization, one computer system can function as multiple “Virtual” sys
tems.

EIST

▶

EIST (Enhanced Intel SpeedStep Technology) allows the system to dynami
cally adjust processor voltage and core frequency, which can result in de­creased average power consumption and decreased average heat produc­tion. When disabled, the processor will return the actual maximum CPUID
input value of the processor when queried.

-

-

-

3-9

BIOS Setup Industrial Computer Board

PCI/PCIE Device Configuration

▶

PCI Latency Timer

▶

This item controls how long each PCI device can hold the bus before another
takes over. When set to higher values, every PCI device can conduct trans
actions for a longer time and thus improve the effective PCI bandwidth. For
better PCI performance, you should set the item to higher values.

USB 2.0 (EHCI) Support

▶

This setting disables/enables the USB EHCI controller. The Enhanced Host
Controller Interface (EHCI) specification describes the register-level interface
for a Host Controller for the Universal Serial Bus (USB) Revision 2.0.

Legacy USB Support

▶

Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating
system that does not support or have any USB 1.1/2.0 driver installed, such
as DOS and SCO Unix.

Audio Controller

▶

This setting enables/disables the onboard audio controller.

Launch OnBoard LAN OpROM

▶

These settings enable/disable the initialization of the onboard/onchip LAN
Boot ROM during bootup. Selecting [Disabled] will speed up the boot proc
ess.

-

-

3-10

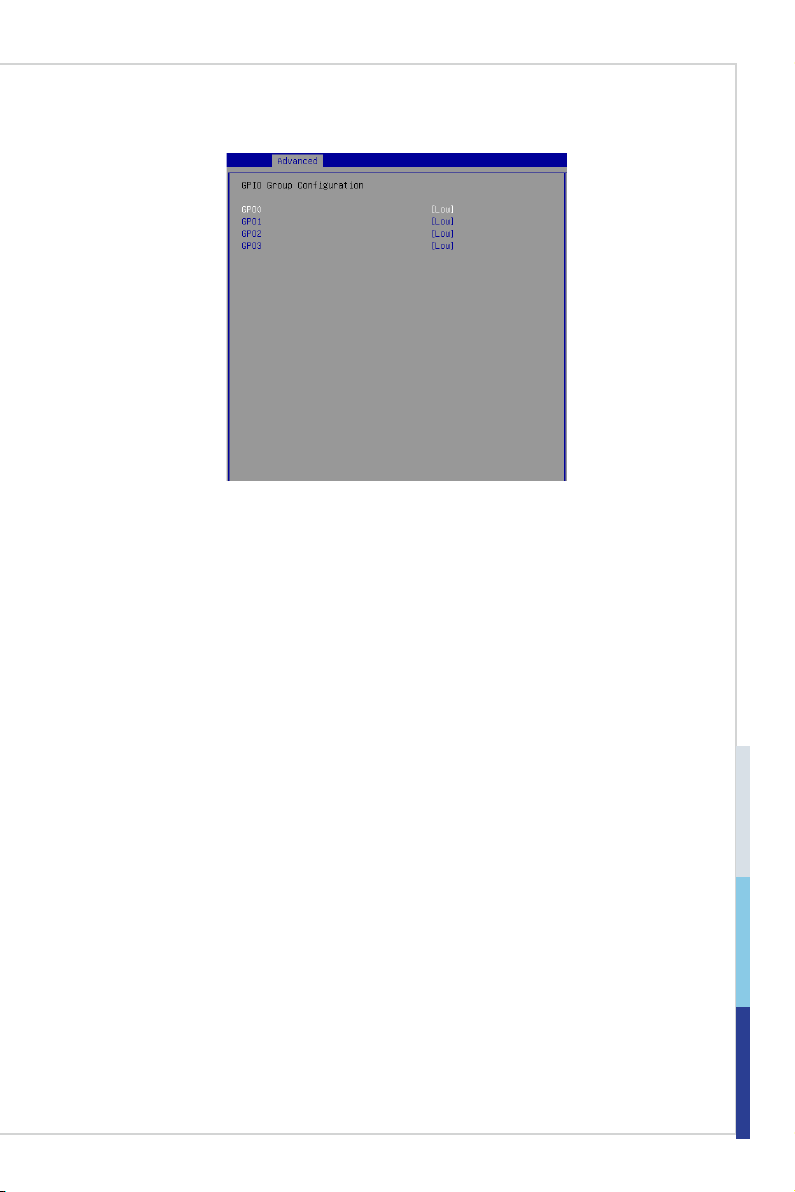

GPIO Group Configuration

▶

GPO0 ~ GPO3

▶

These settings control the operation mode of the specified GPIO.

3-11

BIOS Setup Industrial Computer Board

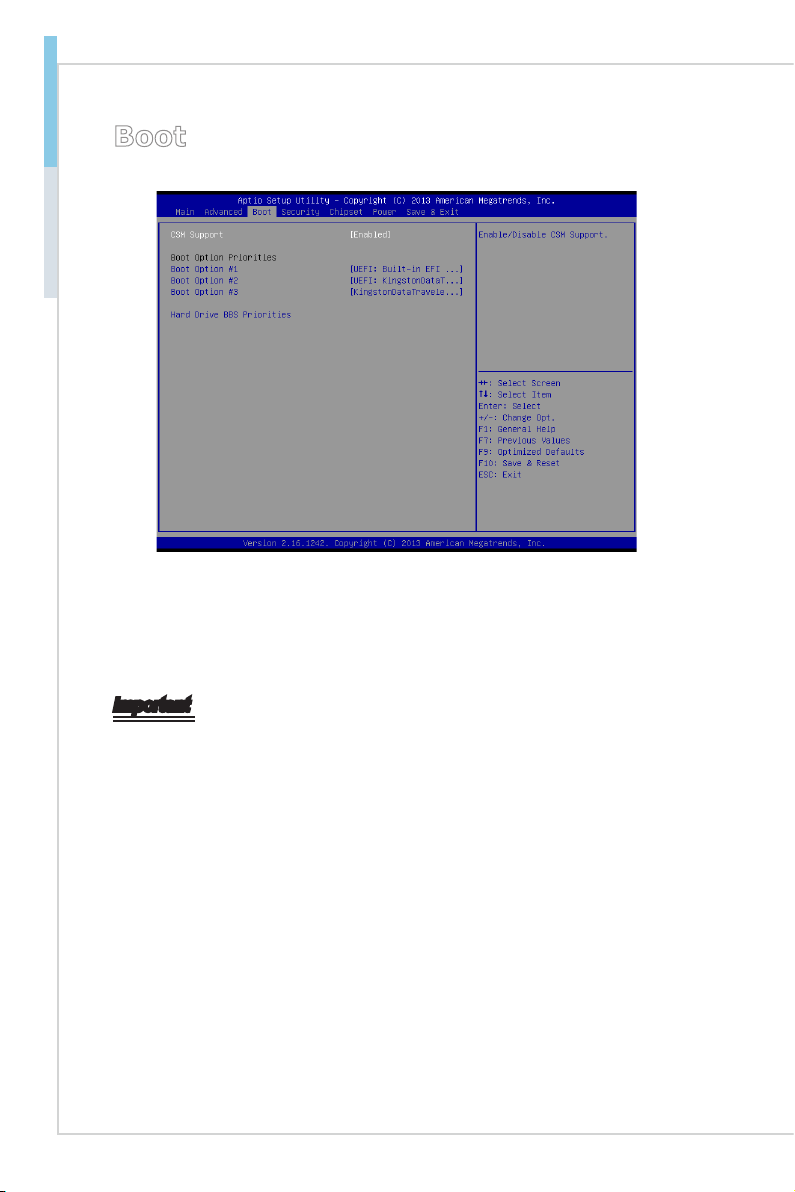

Boot

CSM Support

▶

This setting enables/disables the support for Compatibility Support Module, a
part of the Intel Platform Innovation Framework for EFI providing the capability to
support legacy BIOS interfaces.

Important

If the Operating System is going to boot in UEFI mode, disable CSM Support to
speed up the boot process.

Boot Option Priorities

▶

This setting allows users to set the sequence of boot devices where BIOS at
tempts to load the disk operating system.

Hard Drive BBS Priorities

▶

This setting allows users to set the priority of the specified devices. First press

<Enter> to enter the sub-menu. Then you may use the arrow keys ( ↑↓ ) to select

the desired device, then press <+>, <-> or <PageUp>, <PageDown> key to move
it up/down in the priority list.

3-12

-

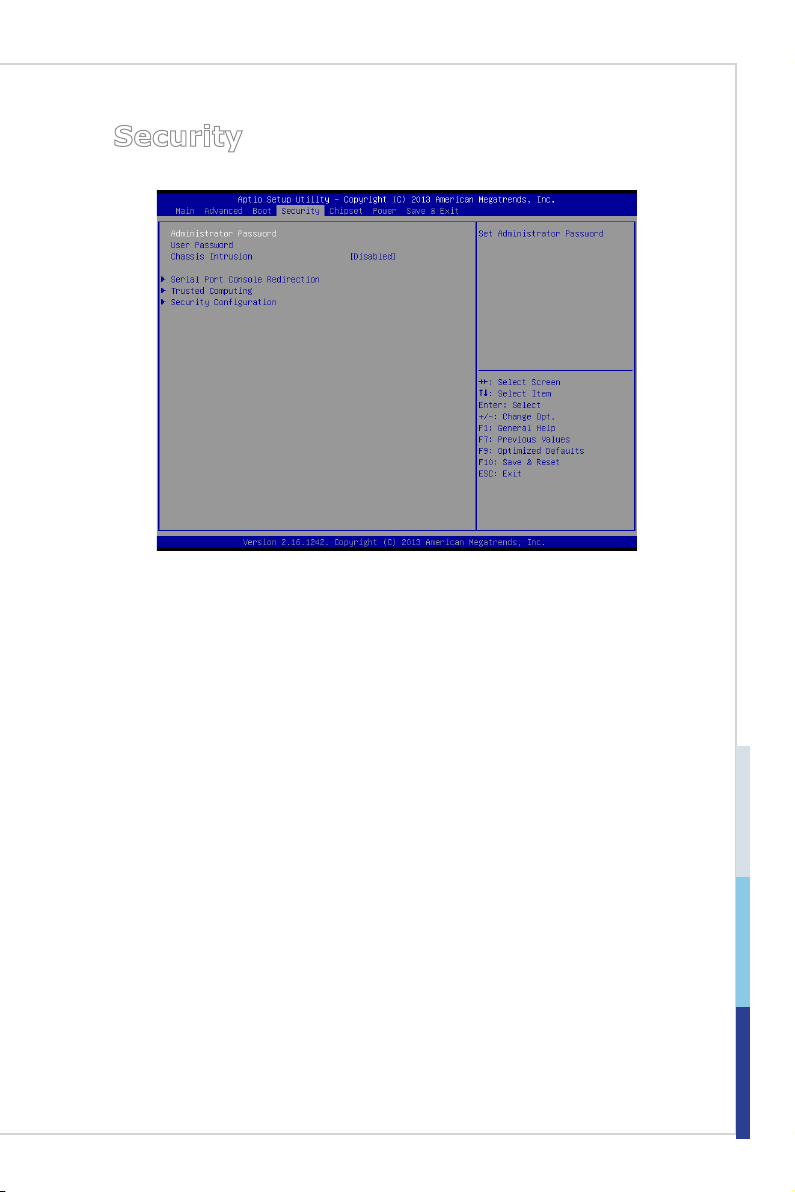

Security

Administrator Password

▶

Administrator Password controls access to the BIOS Setup utility.

User Password

▶

User Password controls access to the system at boot and to the BIOS Setup
utility.

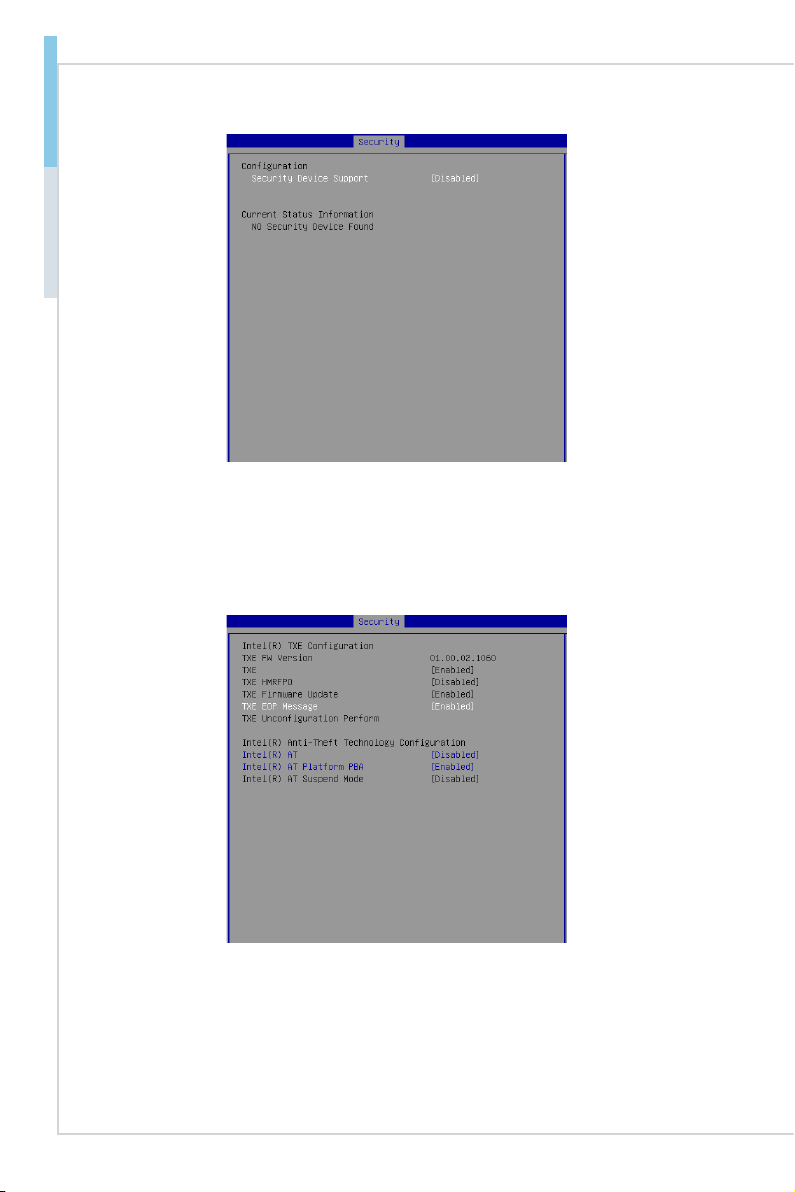

Chassis Intrusion

▶

The field enables or disables the feature of recording the chassis intrusion status
and issuing a warning message if the chassis is once opened.

3-13

BIOS Setup Industrial Computer Board

Serial Port Console Redirection

▶

Console Redirection

▶

Console Redirection operates in host systems that do not have a monitor and
keyboard attached. This setting enables/disables the operation of console re
direction. When set to [Enabled], BIOS redirects and sends all contents that
should be displayed on the screen to the serial COM port for display on the
terminal screen. Besides, all data received from the serial port is interpreted
as keystrokes from a local keyboard.

Console Redirection Settings

▶

-

3-14

Terminal Type

▶

To operate the system’s console redirection, you need a terminal supporting
ANSI terminal protocol and a RS-232 null modem cable connected between
the host system and terminal(s). This setting specifies the type of terminal
device for console redirection.

Bits per second, Data Bits, Parity, Stop Bits

▶

This setting specifies the transfer rate (bits per second, data bits, parity,
stop bits) of Console Redirection.

Flow Control

▶

Flow control is the process of managing the rate of data transmission be
tween two nodes. It’s the process of adjusting the flow of data from one
device to another to ensure that the receiving device can handle all of the
incoming data. This is particularly important where the sending device is ca­pable of sending data much faster than the receiving device can receive it.

VT-UTF8 Combo Key Support

▶

This setting enables/disables the VT-UTF8 combination key support for
ANSI/VT100 terminals.

Recorder Mode, Resolution 100x31

▶

These settings enable/disable the recorder mode and the resolution
100x31.

Legacy OS Redirection Resolution

▶

This setting specifies the redirection resolution of legacy OS.

Putty Keypad

▶

PuTTY is a terminal emulator for Windows. This setting controls the nu
meric keypad for use in PuTTY.

Redirection After BIOS POST

▶

This setting determines whether or not to keep terminals?console redirec
tion running after the BIOS POST has booted.

-

-

-

3-15

BIOS Setup Industrial Computer Board

Trusted Computing

▶

Security Device Support

▶

This setting enables/disables BIOS support for security device. When set to
[Disable], the OS will not show security device. TCG EFI protocol and INT1A
interface will not be available.

Security Configuration

▶

Intel(R) TXE Configuration

▶

Intel Trusted Execution Technology provides highly scalable platform security
in physical and virtual infrastructures.

Intel(R) Anti-Theft Technology Configuration

▶

Intel Anti-Theft Technology is hardware-based technology that can lock a lost
or stolen system so that personal confidential information is protected and
inaccessible by unauthorized users.

3-16

Chipset

DVMT Pre-Allocated

▶

This setting defines the DVMT pre-allocated memory. Pre-allocated memory is
the small amount of system memory made available at boot time by the system
BIOS for video. Pre-allocated memory is also known as locked memory. This is
because it is "locked" for video use only and as such, is invisible and unable to be

used by the operating system.

DVMT Total Gfx Mem

▶

This setting specifies the memory size for DVMT.

LCD Panel Type

▶

This setting allows you to set the resolution of the LCD display.

3-17

BIOS Setup Industrial Computer Board

Power

Restore AC Power Loss

▶

This setting specifies whether your system will reboot after a power failure or
interrupt occurs. Available settings are:

[Power Off] Leaves the computer in the power off state.

[Power On] Leaves the computer in the power on state.

[Last State] Restores the system to the previous status

before power failure or interrupt occurred.

Deep S5

▶

The setting enables/disables the Deep S5 power saving mode. S5 is almost
the same as G3 Mechanical Off, except that the PSU still supplies power, at
a minimum, to the power button to allow return to S0. A full reboot is required.
No previous content is retained. Other components may remain powered so the
computer can “wake” on input from the keyboard, clock, modem, LAN, or USB
device.

3-18

** Advanced Resume Events Control **

PCIE PME

▶

This field specifies whether the system will be awakened from power saving
modes when activity or input signal of onboard PCIE PME is detected.

USB from S3/S4

▶

The item allows the activity of the USB device to wake up the system from S3/S4
sleep state.

RTC

▶

When [Enabled], your can set the date and time at which the RTC (real-time
clock) alarm awakens the system from suspend mode.

3-19

BIOS Setup Industrial Computer Board

Save & Exit

Save Changes and Reset

▶

Save changes to CMOS and reset the system.

Discard Changes and Exit

▶

Abandon all changes and exit the Setup Utility.

Discard Changes

▶

Abandon all changes.

Restore Defaults

▶

Use this menu to load the default values set by the motherboard manufacturer
specifically for optimal performance of the motherboard.

Save as User Defaults

▶

Save changes as the user’s default profile.

Restore User Defaults

▶

Restore the user’s default profile.

Launch EFI Shell from filesystem device

▶

This setting helps to launch the EFI Shell application from one of the available file
system devices.

3-20

Appendix

WDT & GPIO

This appendix provides the sample codes of WDT (Watch Dog Timer)
and GPIO (General Purpose Input/ Output).

2-A-1

WDT & GPIO Industrial Computer Board

SIO_INDEX_Port equ 04Eh
SIO_DATA_Port equ 04Fh
SIO_UnLock_Value equ 087h
SIO_Lock_Value equ 0AAh
WatchDog_LDN equ 007h
WDT_UNIT equ 60h ;60h=second, 68h=minute, 40h=Disabled Watchdog timer
WDT_Timer equ 30 ;ex. 30 seconds

Sample code:
;Enable config mode
mov dx, SIO_INDEX_Port
mov al, SIO_UnLock_Value
out dx, al
jmp short $+2 ;Io_delay
jmp short $+2 ;Io_delay
out dx, al
;Change to WDT
mov dx, SIO_INDEX_Port
mov al, 07h
out dx, al
mov dx, SIO_DATA_Port
mov al, WatchDog_LDN
out dx, al
;Acive WDT
mov dx, SIO_INDEX_Port
mov al, 30h
out dx, al
mov dx, SIO_DATA_Port
in al, dx
or al, 01h
out dx, al
;set timer
mov dx, SIO_INDEX_Port
mov al, 0F6h
out dx, al
mov dx, SIO_DATA_Port

mov al, WDT_Timer

out dx, al
;set UINT
mov dx, SIO_INDEX_Port
mov al, 0F5h
out dx, al
mov dx, SIO_DATA_Port

mov al, WDT_UNIT

out dx, al
;enable reset
mov dx, SIO_INDEX_Port
mov al, 0FAh
out dx, al
mov dx, SIO_DATA_Port
in al, dx
or al, 01h
out dx, al
;close config mode
mov dx, SIO_INDEX_Port
mov al, SIO_Lock_Value
out dx, al

WDT Sample Code

A-2

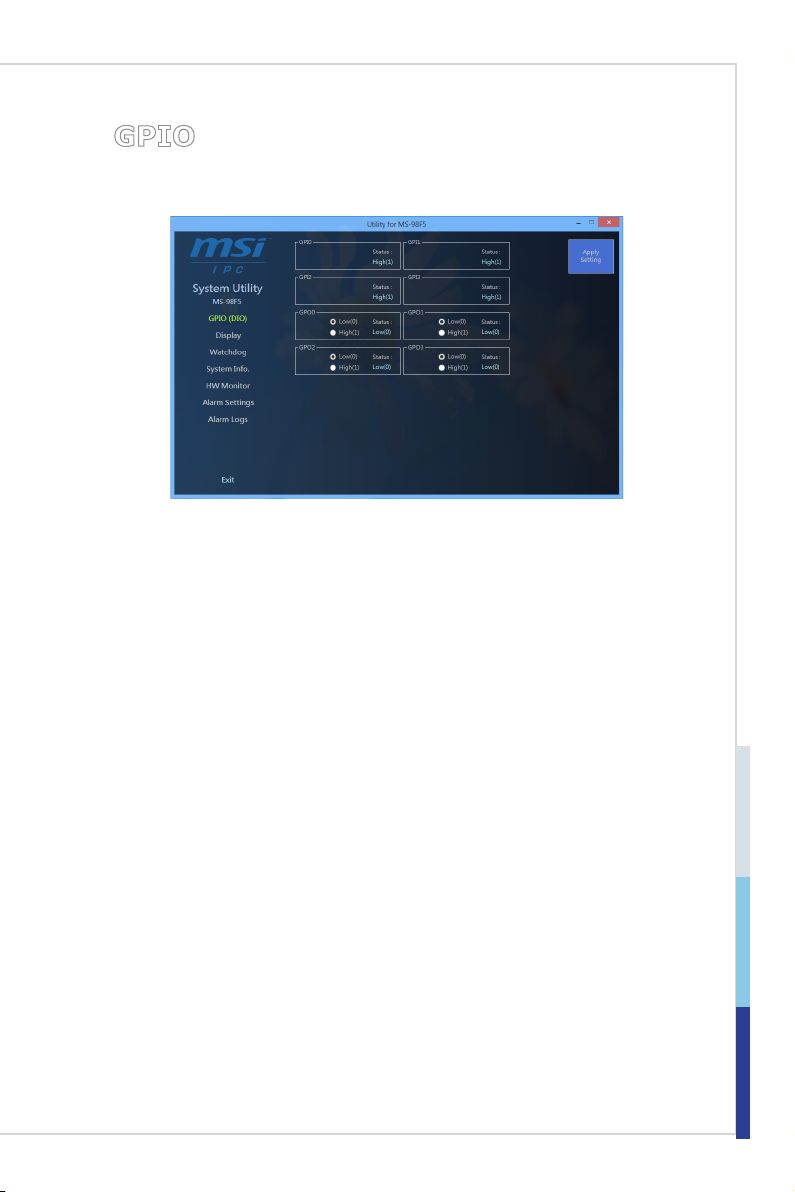

GPIO

A GPIO control tool is provided in the driver CD.

GPI0 ~ GPI3: display GPI0 to GPI3 status

GPO0 ~ GPO3: display GPO0 to GPO3 status and setting (output high or low)

Apply Setting: Settings will be applied after clicking on this button.

A-3
