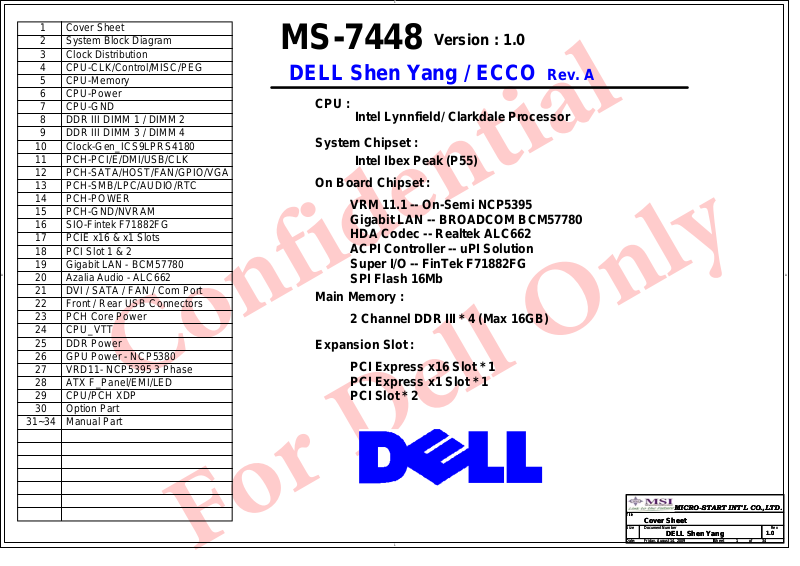

MSI MS-7448 Schematics

Confidential

For Dell Only

1

Cover Sheet

2 System Block Diagram

Clock Distribution

3

CPU-CLK/Control/MISC/PEG

4 5

CPU-Memory CPU-Power

6 7

CPU-GND

8

DDR III DIMM 1 / DIMM 2

9

DDR III DIMM 3 / DIMM 4 10 11 12 13 14 15 16 17 18

A A

19 20 21 22 23 24 25 26 27 28 29 30 Option Part

31~34 Manual Part

Clock-Gen_ICS9LPRS4180

PCH-PCI/E/DMI/USB/CLK

PCH-SATA/HOST/FAN/GPIO/VGA

PCH-SMB/LPC/AUDIO/RTC

PCH-POWER

PCH-GND/NVRAM

SIO-Fintek F71882FG

PCIE x16 & x1 Slots

PCI Slot 1 & 2

Gigabit LAN - BCM57780

Azalia Audio - ALC662

DVI / SATA / FAN / Com Port

Front / Rear USB Connectors

PCH Core Power

CPU_VTT

DDR Power

GPU Power - NCP5380

VRD11- NCP5395 3 Phase

ATX F_Panel/EMI/LED

CPU/PCH XDP

MS-7448

DELL Shen Yang / ECCO

CPU :

Intel Lynnfield/ Clarkdale Processor

System Chipset :

Intel Ibex Peak (P55)

On Board Chipset :

VRM 11.1 -- On-Semi NCP5395 Gigabit LAN -- BROADCOM BCM57780 HDA Codec -- Realtek ALC662 ACPI Controller -- uPI Solution Super I/O -- FinTek F71882FG SPI Flash 16Mb

Main Memory :

2 Channel DDR III * 4 (Max 16GB)

Expansion Slot :

PCI Express x16 Slot * 1 PCI Express x1 Slot * 1 PCI Slot * 2

Version : 1.0

Rev. A

MICRO-START INT'L CO.,LTD.

Title

Cover Sheet

Size Document Number Rev

Date: Sheet

Date: Sheet of

1

Date: Sheet of

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

1.0

of

134Friday, August 14, 2009

Confidential

For Dell Only

5

4

3

2

1

D D

PCIE

16X

SLOT

For H57 Only

C C

REAR IO USB X 6 (0-5)

DVI-I Connector

DVI (Port B)

VGA

INTEL

LGA 1156

DMI X4

IBEXPEAK

DDRIII 1066,1333

128bit

DDRIII 1066,1333

PCIE X1 SLOT

UNBUFFERED DDRIII DIMM1

UNBUFFERED DDRIII DIMM2

DDRIII FIRST LOGICAL DIMM

BROADCOM BCM57780

UNBUFFERED DDRIII DIMM3

UNBUFFERED DDRIII DIMM4

DDRIII SECOND LOGICAL DIMM

PCH

USB-3USB-4USB-5

B B

FRONT IO USB X 6 (6-11)

USB-10USB-11

USB-6

USB-2

USB-7

USB-1

USB-8 USB-9

USB-0

SPI ROM

USB 2.0

SPI I/F

HD AUDIO I/F

SATA II 0~3

SATA#4 Re-Driver eSATA

HD AUDIO ALC662

SATA#0 SATA#1 SATA#2

Reserve

SATA#3

PCI SLOT #1 & 2

PCI BUS

KBD MOUSE COM

SIO F71882FG

3

COM PORT

MICRO-START INT'L CO.,LTD.

Title

Block Diagram

Size Document Number Rev

Date: Sheet

Date: Sheet of

2

Date: Sheet of

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

1

of

234Friday, August 14, 2009

1.0

A A

5

4

Confidential

For Dell Only

5

D D

4

3

PROCESSOR

2

1

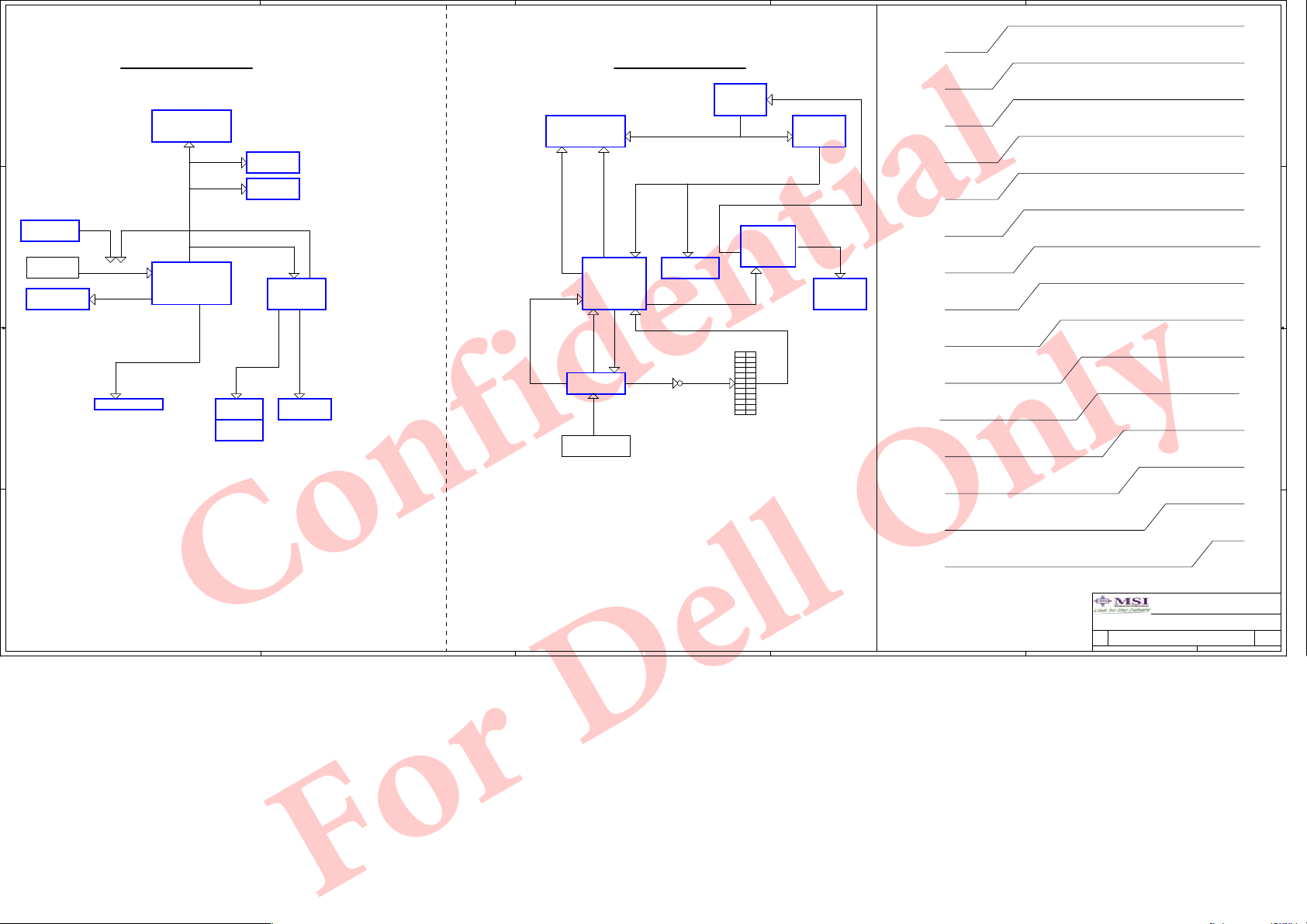

Host 133MHz

C C

Host 133MHz

SATA 100MHz

DOT 96MHz

B B

CK505

DMI 100MHz

REF 14.318MHz

Ibex Peak

DMI 100MHz

PCIE GENII 100MHz

PCIE 100MHz

PCI 33MHz

PCIE 100MHz

PCI 33MHz

PCIE x16 SLOT

PCIE x1 SLOT

PCI SLOT

LOM

SIO

SIO 48MHz

A A

5

4

SIO

MICRO-START INT'L CO.,LTD.

Title

Clock Distribution

Size Document Number Rev

Date: Sheet of

3

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

1

of

334Friday, August 14, 2009

1.0

Confidential

For Dell Only

5

CPU1E

AA7

BCLK[0]

AA6

BCLK[0]*

AA3

PEG_CLK

AA4

PEG_CLK*

Y8

BCLK[1]*

AA8

BCLK[1]

AF37

TDI_M

AF38

TD0_M

AF34

RSTIN*

AH36

VCCPWRGOOD_1

AH35

VCCPWRGOOD_0

AG37

VTTPWRGOOD

AH37

SM_DRAMPWROK

AG35

PECI

AG39

CATERR*

AH34

PROCHOT*

AF35

THERMTRIP*

AH39

PM_SYNC

AB5

PM_EXT_TS[0]*

AB4

PM_EXT_TS[1]*

B11

COMP2

C11

COMP3

AG1

SM_RCOMP[0]

AD1

SM_RCOMP[1]

AE1

SM_RCOMP[2]

AF2

COMP1

AF36

COMP0

AK38

SKTOCC*

E8

CFG0

G8

CFG1

E10

CFG2

F10

CFG3/PEG_LANE_REVERSAL

H10

CFG4

H9

CFG5

E9

CFG6

F9

CFG7

G12

CFG8

H12

CFG9

K10

CFG10

K8

CFG11

J12

CFG12

L8

CFG13

K9

CFG14

K12

CFG15

H7

CFG16

L11

CFG17

J10

GFX_DPRSLPVR/RSVD

5 OF 12

TP23TP23

R139R139 R141R141

CPU_VTT

R110 X_0R0402R110 X_0R0402

TP36TP36

CPU_133M_P_R CPU_133M_N_R

H_TDO_TDI_M

CPURST# PROC_PWROK VCCP_PWRGD

PM_EXT_TS0 PM_EXT_TS1

TP_GFX_DPRSLPVR

CLK133M_CPU_P11 CLK133M_CPU_N11

CK_DMI_P11 CK_DMI_N11

D D

CPU_PWRGD13,29

C C

H_MCP_CFG1 H_MCP_CFG2 H_MCP_CFG5

B B

H_MCP_CFG6

H_MCP_CFG7 H_MCP_CFG3 H_MCP_CFG4 H_MCP_CFG15 H_MCP_CFG0

CLK133M_CPU_P CLK133M_CPU_N CK_DMI_P CK_DMI_N

CPU_VTT

H_VTTPWRGD24,27 MEM_PWRGD13

H_PECI12,16

H_THERMTRIP#12

PM_SYNC12

R282 20R1%0402R282 20R1%0402 R268 20R1%0402R268 20R1%0402

R275 100R1%0402R275 100R1%0402 R285 24.9R1%0402R285 24.9R1%0402 R272 130R1%0402R272 130R1%0402

R273 49.9R1%0402R273 49.9R1%0402 R145 49.9R1%0402R145 49.9R1%0402

SKTOCC#16

1

2

3

4

5

6

7

8

R293 X_1.5KR0402R293 X_1.5KR0402 R291 X_1.5KR0402R291 X_1.5KR0402 R292 X_1.5KR0402R292 X_1.5KR0402 R290 X_1.5KR0402R290 X_1.5KR0402 R270 X_1.5KR0402R270 X_1.5KR0402

TP47TP47 TP45TP45 TP48TP48

TP43TP43 TP50TP50 TP44TP44 TP49TP49

TP46TP46 TP51TP51

R133

R133 X_49.9R1%0402

X_49.9R1%0402

H_VTTPWRGD MEM_PWRGD

H_PECI H_CATERR# H_PROCHOT# H_THERMTRIP# PM_SYNC

RN4

RN4 X_8P4R-1.5KR

X_8P4R-1.5KR

R278R278 R279R279

H_COMP2 H_COMP3

SM_RCOMP0 SM_RCOMP1 SM_RCOMP2

H_COMP1 H_COMP0 SKTOCC#

H_MCP_CFG0 H_MCP_CFG1 H_MCP_CFG2 H_MCP_CFG3 H_MCP_CFG4 H_MCP_CFG5

H_MCP_CFG6 H_MCP_CFG7 H_MCP_CFG8 H_MCP_CFG9 H_MCP_CFG10

H_MCP_CFG11 H_MCP_CFG12 H_MCP_CFG13 H_MCP_CFG14 H_MCP_CFG15 H_MCP_CFG16 H_MCP_CFG17

4

VID[0]/MSID[0] VID[1]/MSID[1] VID[2]/MSID[2] VID[3]/MSID[3] VID[4]/MSID[4] VID[5]/MSID[5]

VID[6] VID[7]

PSI*

GFX_VR_EN

GFX_IMON/RSVD

GFX_VID[0] GFX_VID[1] GFX_VID[2] GFX_VID[3] GFX_VID[4] GFX_VID[5] GFX_VID[6]

FC_AE38

VTT_SELECT

FC_AG40

VCC_SENSE VSS_SENSE VTT_SENSE

VSS_SENSE_VTT

VAXG_SENSE

VSSAXG_SENSE

ISENSE

TDO TCK

TMS

TRST* PRDY*

PREQ*

DBR*

BCLK_ITP*

BCLK_ITP

TAPPWRGOOD

RESET_OBS*

BPM[0]* BPM[1]* BPM[2]* BPM[3]* BPM[4]* BPM[5]* BPM[6]* BPM[7]*

MISC

TDI

U40 U39 U38 U37 U36 U35 U34 U33 AG38

F12 F6 G10 B12 E12 E11 C12 G11 J11

AE38 AF39 AG40

T35 T34 AE35 AE36

A13 B13

T40

AM38 AM37 AN37 AN40 AM39

AJ38 AK37 AL40 AK40 AK39 AK34 AL39

AL33 AL32 AK33 AK32 AM31 AL30 AK30 AK31

H_VID0 H_VID1 H_VID2 H_VID3 H_VID4 H_VID5 H_VID6 H_VID7 VCCP_PSI#

GFX_VR_EN GFX_VID0

GFX_VID1 GFX_VID2 GFX_VID3 GFX_VID4 GFX_VID5 GFX_VID6

TP_MCP_VCCVTT_VID0 VTT_SELECT TP_MCP_VCCVTT_VID2

CPU_VCC_SENSE CPU_VSS_SENSE CPU_VTT_SENSE CPU_VTT_SENSE_RTN

CPU_GFX_VCC_SENSE CPU_GFX_VSS_SENSE

VCCP_IMON

CPU_TDO CPU_TDI CPU_TCK CPU_TMS CPU_TRST#

XDP_CPU_PRDY# XDP_CPU_PREQ# FP_RST# XDP_CPU_BCLK_N XDP_CPU_BCLK_P XDP_CPU_PWRGD CPU_RESET_OUT#

XDP_CPU_BPM_N0 XDP_CPU_BPM_N1 XDP_CPU_BPM_N2 XDP_CPU_BPM_N3 XDP_CPU_BPM_N4 XDP_CPU_BPM_N5 XDP_CPU_BPM_N6 XDP_CPU_BPM_N7

Demo Board NC

GFX_VR_EN 26 GFX_VID0 26

GFX_VID1 26 GFX_VID2 26 GFX_VID3 26 GFX_VID4 26 GFX_VID5 26 GFX_VID6 26

CPU_GFX_VCC_SENSE 26 CPU_GFX_VSS_SENSE 26

H_VID[7..0] 27

VCCP_PSI# 27

TP26TP26

VTT_SELECT 24

TP24TP24

CPU_VCC_SENSE 27 CPU_VSS_SENSE 27 CPU_VTT_SENSE 24 CPU_VTT_SENSE_RTN 24

VCCP_IMON 27

CPU_TDO 29 CPU_TDI 29 CPU_TCK 29 CPU_TMS 29 CPU_TRST# 29

XDP_CPU_PRDY# 29 XDP_CPU_PREQ# 29

FP_RST# 13,28,29

XDP_CPU_BCLK_N 29

XDP_CPU_BCLK_P 29 XDP_CPU_PWRGD 29 CPU_RESET_OUT# 29

TP25TP25 TP27TP27 TP20TP20 TP18TP18 TP22TP22 TP21TP21 TP28TP28 TP19TP19

3

EXP_A_RXP_017 EXP_A_RXN_017 EXP_A_RXP_117 EXP_A_RXN_117 EXP_A_RXP_217 EXP_A_RXN_217 EXP_A_RXP_317 EXP_A_RXN_317 EXP_A_RXP_417 EXP_A_RXN_417 EXP_A_RXP_517 EXP_A_RXN_517 EXP_A_RXP_617 EXP_A_RXN_617 EXP_A_RXP_717 EXP_A_RXN_717 EXP_A_RXP_817 EXP_A_RXN_817 EXP_A_RXP_917

EXP_A_RXN_917 EXP_A_RXP_1017 EXP_A_RXN_1017 EXP_A_RXP_1117 EXP_A_RXN_1117 EXP_A_RXP_1217 EXP_A_RXN_1217 EXP_A_RXP_1317 EXP_A_RXN_1317 EXP_A_RXP_1417 EXP_A_RXN_1417 EXP_A_RXP_1517 EXP_A_RXN_1517

DMI_RX011 DMI_RX0#11 DMI_RX111 DMI_RX1#11 DMI_RX211 DMI_RX2#11 DMI_RX311 DMI_RX3#11

FDI_FSYNC012 FDI_LSYNC012

FDI_FSYNC112 FDI_LSYNC112

FDI_INT12

DMI_RX0 DMI_RX0# DMI_RX1 DMI_RX1# DMI_RX2 DMI_RX2# DMI_RX3 DMI_RX3#

FDI_FSYNC0 FDI_LSYNC0

FDI_FSYNC1 FDI_LSYNC1

FDI_INT

C9 D9 B8 C8 A7 A6 B6 C6 A5 B5 B4 C4 C3 D3 D2 E2 E1 F1 G3 G2 G1 H1

J3 J2

J1 K1 L2 L3 P3 P4 T3 T4

R1 T1 U3 U2 U1 V1

W3 W2

2

CPU1C

PEG_RX[0] PEG_RX[0]* PEG_RX[1] PEG_RX[1]* PEG_RX[2] PEG_RX[2]* PEG_RX[3] PEG_RX[3]* PEG_RX[4] PEG_RX[4]* PEG_RX[5] PEG_RX[5]* PEG_RX[6] PEG_RX[6]* PEG_RX[7] PEG_RX[7]* PEG_RX[8] PEG_RX[8]* PEG_RX[9] PEG_RX[9]* PEG_RX[10] PEG_RX[10]* PEG_RX[11] PEG_RX[11]* PEG_RX[12] PEG_RX[12]* PEG_RX[13] PEG_RX[13]* PEG_RX[14] PEG_RX[14]* PEG_RE[15] PEG_RX[15]*

DMI_RX[0] DMI_RX[0]* DMI_RX[1] DMI_RX[1]* DMI_RX[2] DMI_RX[2]* DMI_RX[3] DMI_RX[3]*

CPU1D

AC4 AD4

AC3 AD3

AC2

FDI_FSYNC[0] FDI_LSYNC[0]

DISPLAY

DISPLAY LINK

LINK

FDI_FSYNC[1] FDI_LSYNC[1]

FDI_INT

4 OF 12

PEG_TX[0]

PEG_TX[0]*

PEG_TX[1]

PEG_TX[1]*

PEG_TX[2]

PEG_TX[2]*

PEG_TX[3]

PEG_TX[3]*

PEG_TX[4]

PEG_TX[4]*

PEG_TX[5]

PEG_TX[5]*

PEG_TX[6]

PEG_TX[6]*

PEG_TX[7]

PEG_TX[7]*

PEG_TX[8]

PEG

PEG_TX[8]*

PEG_TX[9] PEG_TX[9]* PEG_TX[10]

PEG_TX[10]*

PEG_TX[11]

PEG_TX[11]*

PEG_TX[12]

PEG_TX[12]*

PEG_TX[13]

PEG_TX[13]*

PEG_TX[14]

PEG_TX[14]*

PEG_TX[15]

PEG_TX[15]*

DMI_TX[0]

DMI_TX[0]*

DMI_TX[1]

DMI_TX[1]*

DMI_TX[2]

DMI_TX[2]*

DMI

DMI_TX[3]

DMI_TX[3]*

PEG_ICOMPI

PEG_ICOMPO

PEG_RCOMPO

PEG_RBIAS

3 OF 12

VDDIO

FDI_TX[0]

FDI_TX[0]*

FDI_TX[1]

FDI_TX[1]*

FDI_TX[2]

FDI_TX[2]*

FDI_TX[3]

FDI_TX[3]*

FDI_TX[4]

FDI_TX[4]*

FDI_TX[5]

FDI_TX[5]*

FDI_TX[6]

FDI_TX[6]*

FDI_TX[7]

FDI_TX[7]*

1

C7 D7 E7 E6 E5 F5 F3 F4 G6 G5 H4 H3 F7 G7 J6 J5 K3 K4 H8 J8 L6 L5 M4 M3 K7 L7 N6 N5 M8 N8 R5 R6

DMI_TX0

L1

DMI_TX0#

M1

DMI_TX1

N3

DMI_TX1#

N2

DMI_TX2

N1

DMI_TX2#

P1

DMI_TX3

R2

DMI_TX3#

R3

D11 C10 B10 A11

FDI_TX0

U6

FDI_TX0#

U5

FDI_TX1

V4

FDI_TX1#

V3

FDI_TX2

U8

FDI_TX2#

U7

FDI_TX3

W8

FDI_TX3#

W7

FDI_TX4

W5

FDI_TX4#

W4

FDI_TX5

R8

FDI_TX5#

R7

FDI_TX6

Y4

FDI_TX6#

Y3

FDI_TX7

Y6

FDI_TX7#

Y5

GRCOMP

R269 49.9R1%0402R269 49.9R1%0402

GRBIAS

EXP_A_TXP_0 17 EXP_A_TXN_0 17 EXP_A_TXP_1 17 EXP_A_TXN_1 17 EXP_A_TXP_2 17 EXP_A_TXN_2 17 EXP_A_TXP_3 17 EXP_A_TXN_3 17 EXP_A_TXP_4 17 EXP_A_TXN_4 17 EXP_A_TXP_5 17 EXP_A_TXN_5 17 EXP_A_TXP_6 17 EXP_A_TXN_6 17 EXP_A_TXP_7 17 EXP_A_TXN_7 17 EXP_A_TXP_8 17 EXP_A_TXN_8 17 EXP_A_TXP_9 17 EXP_A_TXN_9 17 EXP_A_TXP_10 17 EXP_A_TXN_10 17 EXP_A_TXP_11 17 EXP_A_TXN_11 17 EXP_A_TXP_12 17 EXP_A_TXN_12 17 EXP_A_TXP_13 17 EXP_A_TXN_13 17 EXP_A_TXP_14 17 EXP_A_TXN_14 17 EXP_A_TXP_15 17 EXP_A_TXN_15 17

DMI_TX0 11 DMI_TX0# 11 DMI_TX1 11 DMI_TX1# 11 DMI_TX2 11 DMI_TX2# 11 DMI_TX3 11 DMI_TX3# 11

R281

R281 750R1%0402

750R1%0402

FDI_TX0 12 FDI_TX0# 12 FDI_TX1 12 FDI_TX1# 12 FDI_TX2 12 FDI_TX2# 12 FDI_TX3 12 FDI_TX3# 12

FDI_TX4 12 FDI_TX4# 12 FDI_TX5 12 FDI_TX5# 12 FDI_TX6 12 FDI_TX6# 12 FDI_TX7 12 FDI_TX7# 12

CFG HL

0

SEE PEG CONFIG TABLE RSVD

1

RSVD

2

NORM

3

DISABLE

4

RSVD

5

A A

67RSVD

REVERSED ENABLED

RSVD

15 RSVD

DESCRIPTION PEG SEL0 PEG SEL1 PEG SEL2 PEG LANE REVERSAL DP PRESENCE

ENGINEERING EXPERIMENT ENGINEERING EXPERIMENT

5

PEG CONFIG TABLE

SEL2 SEL1 SEL0

1

1 1

1 1 X 16 0 2 X 8

4

1

PCIE CONFIG

H_THERMTRIP# H_PROCHOT# H_CATERR# CPU_TRST#

XDP_CPU_PRDY# CPU_TMS CPU_TDI PM_SYNC H_PECI CPURST# CPU_RESET_OUT# CPU_TCK

Demo Board Empty

1 3 5 7

R147 X_51R0402R147 X_51R0402 R76 X_51R0402R76 X_51R0402 R77 X_51R0402R77 X_51R0402 R131 X_51R0402R131 X_51R0402 R144 X_51R0402R144 X_51R0402 R146 X_51R0402R146 X_51R0402 R80 X_51R0402R80 X_51R0402 R94 X_51R0402R94 X_51R0402

RN2

RN2 8P4R-51R0402

8P4R-51R0402

2 4 6 8

CPU_VTT

3

PLTRST#13,16,29

R136 X_1.3KR1%0402R136 X_1.3KR1%0402

C71

C0.1u16Y0402

CPURST#

R135

R135 X_665R1%0402

X_665R1%0402

Follow Intel MOW, reverve for CPU Reset. - 2/10

PLTRST#13,16,29

2

CPU_VTT

3VSB

R19

10KR0402

R4 10KR0402R4 10KR0402

Title

Size Document Number Rev

Date: Sheet of

Date: Sheet

CE

B

Q2

Q2 N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

MICRO-START INT'L CO.,LTD.

CPU-CNTL/CLK/MISC

DELL Shen Yang

CE

B

1

R18

R18 150R0402

150R0402

CPURST#

Q1

Q1 N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

434Friday, August 14, 2009

1.0

of

Confidential

For Dell Only

5

CPU1A

MEM_MA_ADD[15..0]8

D D

MEM_MA_WE_L8 MEM_MA_CAS_L8 MEM_MA_RAS_L8

MEM_MA_BANK08 MEM_MA_BANK18 MEM_MA_BANK28

MEM_MA_CS_L08 MEM_MA_CS_L18 MEM_MA_CS_L28 MEM_MA_CS_L38

MEM_MA_CKE08 MEM_MA_CKE18 MEM_MA_CKE28 MEM_MA_CKE38

MEM_MA_ODT08 MEM_MA_ODT18 MEM_MA_ODT28

C C

B B

MEM_MA_ODT38

MEM_MA_CLK_H08 MEM_MA_CLK_L08 MEM_MA_CLK_H18 MEM_MA_CLK_L18 MEM_MA_CLK_H28 MEM_MA_CLK_L28 MEM_MA_CLK_H38 MEM_MA_CLK_L38

DDR3_DRAMRST#8,9

MEM_MA_ADD0 MEM_MA_ADD1 MEM_MA_ADD2 MEM_MA_ADD3 MEM_MA_ADD4 MEM_MA_ADD5 MEM_MA_ADD6 MEM_MA_ADD7 MEM_MA_ADD8 MEM_MA_ADD9 MEM_MA_ADD10 MEM_MA_ADD11 MEM_MA_ADD12 MEM_MA_ADD13 MEM_MA_ADD14 MEM_MA_ADD15

MEM_MA_WE_L MEM_MA_CAS_L MEM_MA_RAS_L

MEM_MA_BANK0 MEM_MA_BANK1 MEM_MA_BANK2

MEM_MA_CS_L0 MEM_MA_CS_L1 MEM_MA_CS_L2 MEM_MA_CS_L3

MEM_MA_CKE0 MEM_MA_CKE1 MEM_MA_CKE2 MEM_MA_CKE3

MEM_MA_ODT0 MEM_MA_ODT1 MEM_MA_ODT2 MEM_MA_ODT3

MEM_MA_CLK_H0 MEM_MA_CLK_L0 MEM_MA_CLK_H1 MEM_MA_CLK_L1 MEM_MA_CLK_H2 MEM_MA_CLK_L2 MEM_MA_CLK_H3 MEM_MA_CLK_L3

DDR3_DRAMRST#

A A

AW18

AW14

AW13 AW12

AW11

AW24

AW10

AW23

AY15 AV15 AU15

AY13 AV14

AU14 AT19

AU13 AU24

AT11 AR10

AT22 AU22 AT20

AV20 AU19 AU12

AV21 AU21

AU23 AU10 AV10

AY10 AV23

AV24 AY24

AR22 AR21 AP18 AN18 AN21 AP21 AP19 AN19

AK22 AM22 AL23 AK23

AL10 AM10

AP10 AN10 AR11 AP11

AK11 AM11

AV8

AK9 AL9

SA_MA[0] SA_MA[1] SA_MA[2] SA_MA[3] SA_MA[4] SA_MA[5] SA_MA[6] SA_MA[7] SA_MA[8] SA_MA[9] SA_MA[10] SA_MA[11] SA_MA[12] SA_MA[13] SA_MA[14] SA_MA[15]

SA_WE* SA_CAS* SA_RAS*

SA_BA[0] SA_BA[1] SA_BA[2]

SA_CS[0]* SA_CS[1]* SA_CS[2]* SA_CS[3]*

SA_CKE[0] SA_CKE[1] SA_CKE[2] SA_CKE[3]

SA_ODT[0] SA_ODT[1] SA_ODT[2] SA_ODT[3]

SA_CK[0] SA_CK[0]* SA_CK[1] SA_CK[1]* SA_CK[2] SA_CK[2]* SA_CK[3] SA_CK[3]*

SM_DRAMRST*

SA_CS[4]* SA_CS[5]* SA_CS[6]* SA_CS[7]*

SA_DQS[8] SA_DQS[8]*

SA_ECC_CB[0] SA_ECC_CB[1] SA_ECC_CB[2] SA_ECC_CB[3] SA_ECC_CB[4] SA_ECC_CB[5] SA_ECC_CB[6] SA_ECC_CB[7]

DDR_A

1 OF 12

SA_DQS[0]

SA_DQS[0]*

SA_DM[0] SA_DQ[0]

SA_DQ[1] SA_DQ[2] SA_DQ[3] SA_DQ[4] SA_DQ[5] SA_DQ[6] SA_DQ[7]

SA_DQS[1]

SA_DQS[1]*

SA_DM[1] SA_DQ[8]

SA_DQ[9] SA_DQ[10] SA_DQ[11] SA_DQ[12] SA_DQ[13] SA_DQ[14] SA_DQ[15]

SA_DQS[2]

SA_DQS[2]*

SA_DM[2] SA_DQ[16]

SA_DQ[17] SA_DQ[18] SA_DQ[19] SA_DQ[20] SA_DQ[21] SA_DQ[22] SA_DQ[23]

SA_DQS[3]

SA_DQS[3]*

SA_DM[3] SA_DQ[24]

SA_DQ[25] SA_DQ[26] SA_DQ[27] SA_DQ[28] SA_DQ[29] SA_DQ[30] SA_DQ[31]

SA_DQS[4]

SA_DQS[4]*

SA_DM[4] SA_DQ[32]

SA_DQ[33] SA_DQ[34] SA_DQ[35] SA_DQ[36] SA_DQ[37] SA_DQ[38] SA_DQ[39]

SA_DQS[5]

SA_DQS[5]*

SA_DM[5] SA_DQ[40]

SA_DQ[41] SA_DQ[42] SA_DQ[43] SA_DQ[44] SA_DQ[45] SA_DQ[46] SA_DQ[47]

SA_DQS[6]

SA_DQS[6]*

SA_DM[6] SA_DQ[48]

SA_DQ[49] SA_DQ[50] SA_DQ[51] SA_DQ[52] SA_DQ[53] SA_DQ[54] SA_DQ[55]

SA_DQS[7]

SA_DQS[7]*

SA_DM[7] SA_DQ[56]

SA_DQ[57] SA_DQ[58] SA_DQ[59] SA_DQ[60] SA_DQ[61] SA_DQ[62] SA_DQ[63]

AK3 AJ3 AJ2

AH1 AJ4 AL2 AL1 AG2 AH2 AK1 AK2

AP2 AP3 AN1

AN3 AN2 AR3 AR2 AM3 AM2 AP1 AR4

AU4 AU3 AU1

AT4 AU2 AW3 AW4 AT3 AT1 AV2 AV4

AY6 AW6 AV6

AW5 AY5 AU8 AY8 AU5 AV5 AV7 AW7

AR28 AT29 AN29

AN27 AT28 AP28 AP30 AN26 AR27 AR29 AN30

AV32 AW32 AW31

AU30 AU31 AV33 AU34 AV30 AW30 AU33 AW33

AW36 AV35 AU35

AW35 AY35 AV37 AU37 AY34 AW34 AV36 AW37

AR39 AR38 AT38

AT39 AT40 AN38 AN39 AU38 AU39 AP39 AP40

4

MEM_MA_DQS_H0 MEM_MA_DQS_L0 MEM_MA_DM0

MEM_MA_DATA0 MEM_MA_DATA1 MEM_MA_DATA2 MEM_MA_DATA3 MEM_MA_DATA4 MEM_MA_DATA5 MEM_MA_DATA6 MEM_MA_DATA7

MEM_MA_DQS_H1 MEM_MA_DQS_L1 MEM_MA_DM1

MEM_MA_DATA8 MEM_MA_DATA9 MEM_MA_DATA10 MEM_MA_DATA11 MEM_MA_DATA12 MEM_MA_DATA13 MEM_MA_DATA14 MEM_MA_DATA15

MEM_MA_DQS_H2 MEM_MA_DQS_L2 MEM_MA_DM2

MEM_MA_DATA16 MEM_MA_DATA17 MEM_MA_DATA18 MEM_MA_DATA19 MEM_MA_DATA20 MEM_MA_DATA21 MEM_MA_DATA22 MEM_MA_DATA23

MEM_MA_DQS_H3 MEM_MA_DQS_L3 MEM_MA_DM3

MEM_MA_DATA24 MEM_MA_DATA25 MEM_MA_DATA26 MEM_MA_DATA27 MEM_MA_DATA28 MEM_MA_DATA29 MEM_MA_DATA30 MEM_MA_DATA31

MEM_MA_DQS_H4 MEM_MA_DQS_L4 MEM_MA_DM4

MEM_MA_DATA32 MEM_MA_DATA33 MEM_MA_DATA34 MEM_MA_DATA35 MEM_MA_DATA36 MEM_MA_DATA37 MEM_MA_DATA38 MEM_MA_DATA39

MEM_MA_DQS_H5 MEM_MA_DQS_L5 MEM_MA_DM5

MEM_MA_DATA40 MEM_MA_DATA41 MEM_MA_DATA42 MEM_MA_DATA43 MEM_MA_DATA44 MEM_MA_DATA45 MEM_MA_DATA46 MEM_MA_DATA47

MEM_MA_DQS_H6 MEM_MA_DQS_L6 MEM_MA_DM6

MEM_MA_DATA48 MEM_MA_DATA49 MEM_MA_DATA50 MEM_MA_DATA51 MEM_MA_DATA52 MEM_MA_DATA53 MEM_MA_DATA54 MEM_MA_DATA55

MEM_MA_DQS_H7 MEM_MA_DQS_L7 MEM_MA_DM7

MEM_MA_DATA56 MEM_MA_DATA57 MEM_MA_DATA58 MEM_MA_DATA59 MEM_MA_DATA60 MEM_MA_DATA61 MEM_MA_DATA62 MEM_MA_DATA63

MEM_MA_DQS_H0 8 MEM_MA_DQS_L0 8 MEM_MA_DM0 8

MEM_MA_DQS_H1 8 MEM_MA_DQS_L1 8 MEM_MA_DM1 8

MEM_MA_DQS_H2 8 MEM_MA_DQS_L2 8 MEM_MA_DM2 8

MEM_MA_DQS_H3 8 MEM_MA_DQS_L3 8 MEM_MA_DM3 8

MEM_MA_DQS_H4 8 MEM_MA_DQS_L4 8 MEM_MA_DM4 8

MEM_MA_DQS_H5 8 MEM_MA_DQS_L5 8 MEM_MA_DM5 8

MEM_MA_DQS_H6 8 MEM_MA_DQS_L6 8 MEM_MA_DM6 8

MEM_MA_DQS_H7 8 MEM_MA_DQS_L7 8 MEM_MA_DM7 8

MEM_MA_DATA[63..0] 8

3

MEM_MB_ADD[15..0]9

MEM_MB_WE_L9 MEM_MB_CAS_L9 MEM_MB_RAS_L9

MEM_MB_BANK09 MEM_MB_BANK19 MEM_MB_BANK29

MEM_MB_CS_L09 MEM_MB_CS_L19 MEM_MB_CS_L29 MEM_MB_CS_L39

MEM_MB_CKE09 MEM_MB_CKE19 MEM_MB_CKE29 MEM_MB_CKE39

MEM_MB_ODT09 MEM_MB_ODT19 MEM_MB_ODT29 MEM_MB_ODT39

MEM_MB_CLK_H09 MEM_MB_CLK_L09 MEM_MB_CLK_H19 MEM_MB_CLK_L19 MEM_MB_CLK_H29 MEM_MB_CLK_L29 MEM_MB_CLK_H39 MEM_MB_CLK_L39

MEM_MB_ADD0 MEM_MB_ADD1 MEM_MB_ADD2 MEM_MB_ADD3 MEM_MB_ADD4 MEM_MB_ADD5 MEM_MB_ADD6 MEM_MB_ADD7 MEM_MB_ADD8 MEM_MB_ADD9 MEM_MB_ADD10 MEM_MB_ADD11 MEM_MB_ADD12 MEM_MB_ADD13 MEM_MB_ADD14 MEM_MB_ADD15

MEM_MB_WE_L MEM_MB_CAS_L MEM_MB_RAS_L

MEM_MB_BANK0 MEM_MB_BANK1 MEM_MB_BANK2

MEM_MB_CS_L0 MEM_MB_CS_L1 MEM_MB_CS_L2 MEM_MB_CS_L3

MEM_MB_CKE0 MEM_MB_CKE1 MEM_MB_CKE2 MEM_MB_CKE3

MEM_MB_ODT0 MEM_MB_ODT1 MEM_MB_ODT2 MEM_MB_ODT3

MEM_MB_CLK_H0 MEM_MB_CLK_L0 MEM_MB_CLK_H1 MEM_MB_CLK_L1 MEM_MB_CLK_H2 MEM_MB_CLK_L2 MEM_MB_CLK_H3 MEM_MB_CLK_L3

TP34TP34

AU20 AU18 AV18 AU17 AY18 AV17

AW17

AU16 AT17 AY16

AY25 AW16 AW15 AW28

AY12

AV11

AU26 AW27 AW26

AU25 AW25

AV12

AY27 AW29

AV26

AV29

AU27

AU29

AV27

AU28

AR17

AR16

AT15

AR15

AN17

AN16

AR19

AR18

AM23 AM24

AL24

AK24

AR14

AR13

AR12

AT13

AN15

AP14 AM12

AN12

AN14

AP13

AW8

AY9 AU9 AV9

CPU1B

SB_MA[0] SB_MA[1] SB_MA[2] SB_MA[3] SB_MA[4] SB_MA[5] SB_MA[6] SB_MA[7] SB_MA[8] SB_MA[9] SB_MA[10] SB_MA[11] SB_MA[12] SB_MA[13] SB_MA[14] SB_MA[15]

SB_WE* SB_CAS* SB_RAS*

SB_BA[0] SB_BA[1] SB_BA[2]

SB_CS[0]* SB_CS[1]* SB_CS[2]* SB_CS[3]*

SB_CKE[0] SB_CKE[1] SB_CKE[2] SB_CKE[3]

SB_ODT[0] SB_ODT[1] SB_ODT[2] SB_ODT[3]

SB_CK[0] SB_CK[0]* SB_CK[1] SB_CK[1]* SB_CK[2] SB_CK[2]* SB_CK[3] SB_CK[3]*

SB_CS[4]* SB_CS[5]* SB_CS[6]* SB_CS[7]*

SB_DQS[8] SB_DQS[8]*

SB_ECC_CB[0] SB_ECC_CB[1] SB_ECC_CB[2] SB_ECC_CB[3] SB_ECC_CB[4] SB_ECC_CB[5] SB_ECC_CB[6] SB_ECC_CB[7]

DDR_B

2 OF 12

2

MEM_MB_DQS_H0

SB_DQS[0]

SB_DQS[0]*

SB_DM[0] SB_DQ[0]

SB_DQ[1] SB_DQ[2] SB_DQ[3] SB_DQ[4] SB_DQ[5] SB_DQ[6] SB_DQ[7]

SB_DQS[1]

SB_DQS[1]*

SB_DM[1] SB_DQ[8]

SB_DQ[9] SB_DQ[10] SB_DQ[11] SB_DQ[12] SB_DQ[13] SB_DQ[14] SB_DQ[15]

SB_DQS[2]

SB_DQS[2]*

SB_DM[2] SB_DQ[16]

SB_DQ[17] SB_DQ[18] SB_DQ[19] SB_DQ[20] SB_DQ[21] SB_DQ[22] SB_DQ[23]

SB_DQS[3]

SB_DQS[3]*

SB_DM[3] SB_DQ[24]

SB_DQ[25] SB_DQ[26] SB_DQ[27] SB_DQ[28] SB_DQ[29] SB_DQ[30] SB_DQ[31]

SB_DQS[4]

SB_DQS[4]*

SB_DM[4] SB_DQ[32]

SB_DQ[33] SB_DQ[34] SB_DQ[35] SB_DQ[36] SB_DQ[37] SB_DQ[38] SB_DQ[39]

SB_DQS[5]

SB_DQS[5]*

SB_DM[5] SB_DQ[40]

SB_DQ[41] SB_DQ[42] SB_DQ[43] SB_DQ[44] SB_DQ[45] SB_DQ[46] SB_DQ[47]

SB_DQS[6]

SB_DQS[6]*

SB_DM[6] SB_DQ[48]

SB_DQ[49] SB_DQ[50] SB_DQ[51] SB_DQ[52] SB_DQ[53] SB_DQ[54] SB_DQ[55]

SB_DQS[7]

SB_DQS[7]*

SB_DM[7] SB_DQ[56]

SB_DQ[57] SB_DQ[58] SB_DQ[59] SB_DQ[60] SB_DQ[61] SB_DQ[62] SB_DQ[63]

AF4 AE5 AE4

AD7 AD6 AH8 AJ8 AC7 AC6 AF5 AE6

AH6 AJ5 AH4

AG5 AH7 AK6 AL4 AG6 AG4 AJ7 AK7

AN6 AM6 AM7

AL6 AN5 AP6 AR5 AL5 AM4 AN7 AP5

AR8 AP8 AT7

AT6 AR7 AR9 AM8 AN8 AR6 AL8 AT9

AT25 AR24 AN24

AN23 AP23 AR25 AR26 AT23 AP22 AP25 AT26

AP32 AR32 AN32

AT32 AP31 AR33 AM32 AT31 AR31 AR34 AT33

AR36 AR37 AM33

AR35 AT36 AN33 AP36 AP34 AT35 AN34 AP37

AL37 AM36 AK35

AL35 AM35 AJ36 AJ37 AN35 AM34 AJ35 AL36

MEM_MB_DQS_L0 MEM_MB_DM0

MEM_MB_DATA0 MEM_MB_DATA1 MEM_MB_DATA2 MEM_MB_DATA3 MEM_MB_DATA4 MEM_MB_DATA5 MEM_MB_DATA6 MEM_MB_DATA7

MEM_MB_DQS_H1 MEM_MB_DQS_L1 MEM_MB_DM1

MEM_MB_DATA8 MEM_MB_DATA9 MEM_MB_DATA10 MEM_MB_DATA11 MEM_MB_DATA12 MEM_MB_DATA13 MEM_MB_DATA14 MEM_MB_DATA15

MEM_MB_DQS_H2 MEM_MB_DQS_L2 MEM_MB_DM2

MEM_MB_DATA16 MEM_MB_DATA17 MEM_MB_DATA18 MEM_MB_DATA19 MEM_MB_DATA20 MEM_MB_DATA21 MEM_MB_DATA22 MEM_MB_DATA23

MEM_MB_DQS_H3 MEM_MB_DQS_L3 MEM_MB_DM3

MEM_MB_DATA24 MEM_MB_DATA25 MEM_MB_DATA26 MEM_MB_DATA27 MEM_MB_DATA28 MEM_MB_DATA29 MEM_MB_DATA30 MEM_MB_DATA31

MEM_MB_DQS_H4 MEM_MB_DQS_L4 MEM_MB_DM4

MEM_MB_DATA32 MEM_MB_DATA33 MEM_MB_DATA34 MEM_MB_DATA35 MEM_MB_DATA36 MEM_MB_DATA37 MEM_MB_DATA38 MEM_MB_DATA39

MEM_MB_DQS_H5 MEM_MB_DQS_L5 MEM_MB_DM5

MEM_MB_DATA40 MEM_MB_DATA41 MEM_MB_DATA42 MEM_MB_DATA43 MEM_MB_DATA44 MEM_MB_DATA45 MEM_MB_DATA46 MEM_MB_DATA47

MEM_MB_DQS_H6 MEM_MB_DQS_L6 MEM_MB_DM6

MEM_MB_DATA48 MEM_MB_DATA49 MEM_MB_DATA50 MEM_MB_DATA51 MEM_MB_DATA52 MEM_MB_DATA53 MEM_MB_DATA54 MEM_MB_DATA55

MEM_MB_DQS_H7 MEM_MB_DQS_L7 MEM_MB_DM7

MEM_MB_DATA56 MEM_MB_DATA57 MEM_MB_DATA58 MEM_MB_DATA59 MEM_MB_DATA60 MEM_MB_DATA61 MEM_MB_DATA62 MEM_MB_DATA63

MEM_MB_DQS_H0 9 MEM_MB_DQS_L0 9 MEM_MB_DM0 9

MEM_MB_DQS_H1 9 MEM_MB_DQS_L1 9 MEM_MB_DM1 9

MEM_MB_DQS_H2 9 MEM_MB_DQS_L2 9 MEM_MB_DM2 9

MEM_MB_DQS_H3 9 MEM_MB_DQS_L3 9 MEM_MB_DM3 9

MEM_MB_DQS_H4 9 MEM_MB_DQS_L4 9 MEM_MB_DM4 9

MEM_MB_DQS_H5 9 MEM_MB_DQS_L5 9 MEM_MB_DM5 9

MEM_MB_DQS_H6 9 MEM_MB_DQS_L6 9 MEM_MB_DM6 9

MEM_MB_DQS_H7 9 MEM_MB_DQS_L7 9 MEM_MB_DM7 9

1

MEM_MB_DATA[63..0] 9

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

CPU-Memory

DELL Shen Yang

1

1.0

of

534Friday, August 14, 2009

Confidential

For Dell Only

5

4

3

2

1

CPU1F

CPU

A23

VCC

A24

VCC

A26

VCC

A27

VCC

A33

VCC

A35

VCC

A36

VCC

A38

VCC_NCTF

D D

C C

B B

A A

B23 B25 B26 B28 B29 B31 B32 B34 B35 B37 B38 C23 C24 C25 C27 C28 C30 C31 C33 C34 C36 C37 C39 C40 D23 D24 D26 D27 D29 D30 D32 D33 D35 D36 D38 D39 E22 E23 E25 E26 E28 E29 E31 E32 E34 E35 E37 E38 E40 F21 F22 F24 F25 F27 F28 F30 F31 F33 F34 F36 F37 F39 F40 G20 G21 G23 G24 G26 G27 G29 G30 G32 G33 G35 G36 G38 G39 H19 H20 H22 H23 H25

VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC_NCTF VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC

VCC

POWER

VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC

6 OF 12

VCCPVCCP

H26 H28 H29 H31 H32 H34 H35 H37 H38 H40 J18 J19 J21 J22 J24 J25 J27 J28 J30 J31 J33 J34 J36 J37 J39 J40 K17 K18 K20 K21 K23 K24 K26 K27 K29 K30 K32 K33 K35 K36 K38 K39 L17 L19 L20 L22 L23 L25 L26 L28 L29 L31 L32 L34 L35 L37 L38 L40 M17 M19 M21 M22 M24 M25 M27 M28 M30 M33 M34 M36 M37 M39 M40 N33 N35 N36 N38 N39 P33 P34 P35 P36 P37 P38 P39 P40 R33 R34 R35 R36 R37 R38 R39 R40

CPU_VTT

VCC1_8

AA33 AA34 AA35 AA36 AA37 AA38 AC33 AC34 AC35 AC36 AC37 AC38 AC39 AC40 AD33 AD34 AD35 AD36 AD37 AD38 AD39 AD40 AE33 AE34 AE39 AE40 AF33 AG33 AJ31 AJ32

AJ21 AJ25 AJ27 AJ29 AK20 AK21 AL20 AL21

AC8

AE8 AJ17 AJ19 AK19

AC5 AJ23

AG8

AF8

AF7

V33 V34 V35 V36 V37 V38 V39 V40 Y33 Y34 Y35 Y36 Y37 Y38

CPU1G

VTT_01 VTT_02 VTT_03 VTT_04 VTT_05 VTT_06 VTT_07 VTT_08 VTT_09 VTT_10 VTT_11 VTT_12 VTT_13 VTT_14 VTT_15 VTT_16 VTT_17 VTT_18 VTT_19 VTT_20 VTT_21 VTT_22 VTT_23 VTT_24 VTT_25 VTT_26 VTT_27 VTT_28 VTT_29 VTT_30 VTT_31 VTT_32 VTT_33 VTT_34 VTT_35 VTT_36 VTT_37 VTT_38 VTT_39 VTT_40 VTT_41 VTT_42 VTT_43 VTT_44 VTT_45 VTT_46 VTT_47 VTT_48 VTT_49 VTT_50 VTT_51 VTT_52 VTT_53 VTT_54 VTT_55 VTT_56 VTT_57 VTT_58

VTT_60

VCCPLL_01 VCCPLL_02 VCCPLL_03

CPU

POWER

7 OF 12

+CPU_GFX

M14 M15 M16

VCC1_8

A14 A15 A17 A18 B14 B15 B17 B18 C14 C15 C17 C18 C20 C21 D14 D15 D17 D18 D20 D21 E14 E15 E17 E18 E20 F14 F15 F17 F18 F19 G14 G15 G17 G18 H14 H15 H17 J14 J15 J16 K14 K15 K16 L14 L15 L16

CPU1H

VAXG_01 VAXG_02 VAXG_03 VAXG_04 VAXG_05 VAXG_06 VAXG_07 VAXG_08 VAXG_09 VAXG_10 VAXG_11 VAXG_12 VAXG_13 VAXG_14 VAXG_15 VAXG_16 VAXG_17 VAXG_18 VAXG_19 VAXG_20 VAXG_21 VAXG_22 VAXG_23 VAXG_24 VAXG_25 VAXG_26 VAXG_27 VAXG_28 VAXG_29 VAXG_30 VAXG_31 VAXG_32 VAXG_33 VAXG_34 VAXG_35 VAXG_36 VAXG_37 VAXG_38 VAXG_39 VAXG_40 VAXG_41 VAXG_42 VAXG_43 VAXG_44 VAXG_45 VAXG_46 VAXG_47 VAXG_48 VAXG_49

C478

C478 C22u6.3X50805

C22u6.3X50805

+CPU_GFX Decoupling

+CPU_GFX

C188

C188 22uF/6.3V/X5R/0805

22uF/6.3V/X5R/0805

+CPU_GFX

C194

C194 22uF/6.3V/X5R/0805

22uF/6.3V/X5R/0805

VTT_61 VTT_62 VTT_63 VTT_64 VTT_65 VTT_66

CPU

POWER

8 OF 12

T6 T7 T8 V7 V8 AB7

VCCP

C173

C173 X_C1u16X5

X_C1u16X5

C198

C198 22uF/6.3V/X5R/0805

22uF/6.3V/X5R/0805

C476

C476 22uF/6.3V/X5R/0805

22uF/6.3V/X5R/0805

CPU_VTT

C155

C155 X_C1u16X5

X_C1u16X5

CPU_VTT

VCC_DDR

C127

C127 X_C1u16X5

X_C1u16X5

C209

C209 22uF/6.3V/X5R/0805

22uF/6.3V/X5R/0805

C473

C473 22uF/6.3V/X5R/0805

22uF/6.3V/X5R/0805

CPU1I

L10

VTT_67

M10

VTT_68

M11

VTT_69

M9

VTT_70

N7

VTT_71

P6

VTT_72

P7

VTT_73

P8

VTT_74

T2

VTT_75

V2

VTT_76

V6

VTT_77

W1

VTT_78

W6

VTT_79

AJ11

VDDQ_01

AJ13

VDDQ_02

AJ15

VDDQ_03

AT10

VDDQ_04

AT18

VDDQ_05

AT21

VDDQ_06

AU11

VDDQ_07

AV13

VDDQ_08

AV16

VDDQ_09

AV19

VDDQ_10

AV22

VDDQ_11

AV25

VDDQ_12

AV28

VDDQ_13

AW9

VDDQ_14

AY11

VDDQ_15

AY14

VDDQ_16

AY17

VDDQ_17

AY23

VDDQ_18

AY26

VDDQ_19

C120

C120 X_C1u16X5

X_C1u16X5

C189

C189 22uF/6.3V/X5R/0805

22uF/6.3V/X5R/0805

9 OF 12

C105

C105 X_C1u16X5

X_C1u16X5

CPU

POWER

+1.5V_DDR3-Decoupling

VCC_DDR

C190

C191

C22u6.3X50805

CPU SOCKET CAVITY CAPS

C22u6.3X50805

X_C22u6.3X50805

C22u6.3X50805

X_C22u6.3X50805

C191 X_C22u6.3X50805

X_C22u6.3X50805

CPU_VTT

C137

C136

C22u6.3X50805

CPU_VTT

C192

C181

C181 X_C22u6.3X50805

X_C22u6.3X50805

CPU SOCKET CAVITY CAPS

VCCP

C472

C471

C471 C22u6.3X50805

C22u6.3X50805

VCCP

C135

C179

C179 C22u6.3X50805

C22u6.3X50805

VCCP

C167

C151

C22u6.3X50805

VCCP

C149

C150

X_C22u6.3X50805

PLACE ALL 08056 CAPS INSIDE CPU SOCKET CAVITY

+CPU_VTT Decoupling

C152

C152 C22u6.3X50805

C22u6.3X50805

C180

C180 X_C22u6.3X50805

X_C22u6.3X50805

C153

C153 C22u6.3X50805

C22u6.3X50805

C169

C169 X_C22u6.3X50805

X_C22u6.3X50805

+CPU_VCCP-Decoupling

C470

C470 C22u6.3X50805

C22u6.3X50805

C178

C178 C22u6.3X50805

C22u6.3X50805

C166

C166 C22u6.3X50805

C22u6.3X50805

C148

C148 X_C22u6.3X50805

X_C22u6.3X50805

C468

C468 C22u6.3X50805

C22u6.3X50805

C177

C177 C22u6.3X50805

C22u6.3X50805

C165

C165 C22u6.3X50805

C22u6.3X50805

C134

C134 X_C22u6.3X50805

X_C22u6.3X50805

C477

C477 C4.7u10X51206-RH

C4.7u10X51206-RH

C168

C168 X_C22u6.3X50805

X_C22u6.3X50805

C469

C469 C22u6.3X50805

C22u6.3X50805

C176

C176 C22u6.3X50805

C22u6.3X50805

C164

C164 C22u6.3X50805

C22u6.3X50805

C133

C133 X_C22u6.3X50805

X_C22u6.3X50805

C474

C474 C4.7u10X51206-RH

C4.7u10X51206-RH

C475

C475 X_C4.7u10X51206-RH

X_C4.7u10X51206-RH

C132

C132 X_C22u6.3X50805

X_C22u6.3X50805

MICRO-START INT'L CO.,LTD.

Title

CPU-Power

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

1

of

634Friday, August 14, 2009

1.0

Confidential

For Dell Only

5

4

3

2

1

CPU1J

A16

VSS

A25

VSS

A28

VSS

A34

VSS

AB33 AB34 AB35 AB36 AB37 AB38 AB39 AB40

AC1 AD5 AD8

AE37

AF40

AG34 AG36

AG7

AH3 AH33 AH38

AH5

AJ12 AJ14 AJ16 AJ18 AJ20 AJ22 AJ24 AJ26 AJ28 AJ30 AJ33 AJ34 AJ40

AK10 AK17 AK36

AL11 AL13 AL16 AL19 AL22 AL25 AL28

AL31 AL34 AL38

AM1

AM40

AM5

AM9 AN13 AN20 AN22 AN25 AN28 AN31 AN36

AN4

AN9 AP12 AP15 AP16 AP17 AP20 AP24 AP26 AP27 AP29 AP33

A37 AA5 AB3

AB6 AB8

AE3 AE7

AF1 AF6

AJ1

AJ6 AJ9

AK4 AK5 AK8

AL3

AL7

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

D D

C C

B B

AP35

VSS

AP38

VSS

AP4

VSS

AP7

VSS

AP9

VSS

AR1

VSS

AR20

VSS

AR23

VSS

AR30

VSS

AR40

VSS

AT12

VSS

AT14

VSS

AT16

VSS

AT2

VSS

AT24

VSS

AT27

VSS

AT30

VSS

AT34

VSS

AT37

VSS

AT5

VSS

AT8

VSS

AU32

VSS

AU36

VSS

AU6

VSS

AU7

VSS

AV3

VSS

AV31

VSS

AV34

VSS

AV38

VSS

AY33

VSS

AY36

VSS

AY4

VSS

AY7

VSS

B16

VSS

B24

VSS

B27

VSS

B30

VSS

B33

VSS

B36

VSS

B7

VSS

B9

VSS

C13

VSS

C16

VSS

C19

VSS

C22

VSS

C26

VSS

C29

VSS

C32

VSS

C35

VSS

C38

VSS

C5

VSS

D10

VSS

D12

VSS

D13

VSS

D16

VSS

D19

VSS

D22

VSS

D25

VSS

D28

VSS

D31

VSS

D34

VSS

D37

VSS

D4

VSS

D40

VSS

D5

VSS

D6

VSS

D8

VSS

E13

VSS

E16

VSS

E19

VSS

E21

VSS

E24

VSS

E27

VSS

E3

VSS

E30

VSS

E33

VSS

E36

VSS

E39

VSS

E4

VSS

F11

VSS

F13

VSS

F16

VSS

F2

VSS

F20

VSS

F23

VSS

F26

VSS

F29

VSS

F32

VSS

F35

VSS

F38

VSS

G13 G16 G19 G22 G25 G28 G31 G34 G37

G40 H11

H13 H16 H18

H21 H24 H27 H30 H33 H36 H39

K11 K13 K19

K22 K25 K28 K31 K34 K37 K40

M13 M18

M20 M23 M26 M29 M32 M35 M38

N34 N37

N40

CPU1K

F8

VSS VSS VSS VSS VSS VSS

CGC_TP_NCTF VSS VSS VSS VSS

G4

VSS VSS

G9

VSS VSS VSS VSS VSS

H2

VSS VSS VSS VSS VSS VSS VSS VSS

H5

VSS

H6

VSS

J13

VSS

J17

VSS

J20

VSS

J23

VSS

J26

VSS

J29

VSS

J32

VSS

J35

VSS

J38

VSS

J4

VSS

J7

VSS

J9

VSS VSS VSS VSS

K2

VSS VSS VSS VSS VSS VSS VSS VSS

K5

VSS

K6

VSS

L13

VSS

L18

VSS

L21

VSS

L24

VSS

L27

VSS

L30

VSS

L33

VSS

L36

VSS

L39

VSS

L4

VSS

L9

VSS VSS VSS

M2

VSS VSS VSS VSS VSS VSS VSS VSS

M5

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

RSVD_NCTF

RSVD_NCTF RSVD_NCTF RSVD_NCTF RSVD_NCTF RSVD_NCTF RSVD_NCTF RSVD_NCTF RSVD_NCTF

RSVD_NCTF RSVD_NCTF

M6 M7

N4 P2

P5

R4 T33 T36 T37 T38

T5

U4

V5

VSS VSS VSS VSS VSS

VSS VSS

RSVD RSVD RSVD RSVD

RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD

RSVD RSVD

RSVD RSVD RSVD RSVD

VSS

RSVD RSVD

RSVD RSVD RSVD RSVD

RSVD RSVD RSVD RSVD RSVD RSVD

W33 W34 W35 W36 W37 B39 W38 Y7

AM14 AM13 AK15 AK16

AM25 AL29 AM30 AK29 AK28 AM29 AM28 AL27 AK27 AM26 AM27 AL26 AK26

AK25 AN11

L12 M12

AM21 AM20 AM19 AM18 T39

AL18 AK18

AM15 AM16 AL15 AL14

AL17 AM17 AK14 AK13 AL12 AK12

AY3

C2 D1 AY37 AW38 AV1 AW2 AV39 AU40

A4 B3

TP_CGC DIMM_VREFA

TP_MCP_AN11

R156R156

TP_MCP_AY3

TP_MCP_C2 TP_MCP_D1 TP_MCP_AY37 TP_MCP_AW38 TP_MCP_AV1 TP_MCP_AW2 TP_MCP_AV39 TP_MCP_AU40

TP_MCP_A4 TP_MCP_B3

NOTE:R286,R274 STUFFED,IF DDR3 DIMM VREFDQ OPTION 2 UNSTUFFED.

VREF_DQ_B

TP31TP31

VREF_DQ_A

R286 0R0402R286 0R0402 R274 0R0402R274 0R0402

close to DIMM

FOLLOW DDR3 DIMM VREFDQ Platform Design Guide Change Option 3

TP35TP35

TP37TP37

TP2TP2 TP3TP3 TP33TP33 TP32TP32 TP39TP39 TP38TP38 TP30TP30 TP29TP29

TP40TP40 TP41TP41

DIMM_VREFB

AF3 AG3

AD2 AE2

AH40

AJ39

CPU1L

A12

SA_DIMM_VREFDQ SB_DIMM_VREFDQ

RSVD RSVD RSVD RSVD RSVD

NC/SPARE

12 OF 12

GND

10 OF 12

A A

10 OF 12

5

4

11 OF 12

GND

MICRO-START INT'L CO.,LTD.

Title

CPU-GND

Size Document Number Rev

Date: Sheet

Date: Sheet of

3

2

Date: Sheet of

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

1

of

734Friday, August 14, 2009

1.0

Confidential

For Dell Only

5

4

3

2

1

DDRIII DIMM_A1 DDRIII DIMM_A2

167

NC/TEST4

VSS

229

79

48

RSVD

FREE1

DM1/DQS10 NC/DQS10# DM2/DQS11 NC/DQS11# DM3/DQS12 NC/DQS12# DM4/DQS13 NC/DQS13# DM5/DQS14 NC/DQS14# DM6/DQS15 NC/DQS15# DM7/DQS16 NC/DQS16# DM8/DQS17 NC/DQS17#

VSS

232

235

187

FREE249FREE3

A10/AP

DQS0# DQS1# DQS2# DQS3# DQS4# DQS5# DQS6# DQS7# DQS8#

DM0/DQS9 NC/DQS9#

RESET#

CK1(NU)

CK1#(NU)

VREFDQ VREFCA

VSS

MEC1

239

MEC1

VCC3

C61 C0.1u16Y0402C61 C0.1u16Y0402

198

MEM_MA_ADD0

188

A0

MEM_MA_ADD1

181

A1

FREE4

MEM_MA_ADD2

61

A2

MEM_MA_ADD3

180

A3

MEM_MA_ADD4

59

A4

MEM_MA_ADD5

58

A5

MEM_MA_ADD6

178

A6

MEM_MA_ADD7

56

A7

MEM_MA_ADD8

177

A8

MEM_MA_ADD9

175

A9

MEM_MA_ADD10

70

MEM_MA_ADD11

55

A11

MEM_MA_ADD12

174

A12

MEM_MA_ADD13

196

A13

MEM_MA_ADD14

172

A14

MEM_MA_ADD15 MEM_MA_ADD15

171

A15

39

CB0

40

CB1

45

CB2

46

CB3

158

CB4

159

CB5

164

CB6

165

CB7

MEM_MA_DQS_H0

7

DQS0

MEM_MA_DQS_L0

6

MEM_MA_DQS_H1

16

DQS1

MEM_MA_DQS_L1

15

MEM_MA_DQS_H2

25

DQS2

MEM_MA_DQS_L2

24

MEM_MA_DQS_H3

34

DQS3

MEM_MA_DQS_L3

33

MEM_MA_DQS_H4

85

DQS4

MEM_MA_DQS_L4

84

MEM_MA_DQS_H5

94

DQS5

MEM_MA_DQS_L5

93

MEM_MA_DQS_H6

103

DQS6

MEM_MA_DQS_L6

102

MEM_MA_DQS_H7

112

DQS7

MEM_MA_DQS_L7

111 43

DQS8

42

MEM_MA_DM0

125 126

MEM_MA_DM1

134 135

MEM_MA_DM2

143 144

MEM_MA_DM3

152 153

MEM_MA_DM4

203 204

MEM_MA_DM5

212 213

MEM_MA_DM6

221 222

MEM_MA_DM7

230 231 161 162

MEM_MA_ODT0

195

ODT0

MEM_MA_ODT1

77

ODT1

MEM_MA_CKE0

50

CKE0

MEM_MA_CKE1

169

CKE1

MEM_MA_CS_L0

193

CS0#

MEM_MA_CS_L1

76

CS1#

MEM_MA_BANK0

71

BA0

MEM_MA_BANK1

190

BA1

MEM_MA_BANK2

52

BA2

MEM_MA_WE_L

73

WE#

MEM_MA_RAS_L

192

RAS#

MEM_MA_CAS_L

74

CAS#

DDR3_DRAMRST#

168

MEM_MA_CLK_H0

184

CK0

MEM_MA_CLK_L0

185

CK0#

MEM_MA_CLK_H1

63

MEM_MA_CLK_L1

64

VREF_DQ_A

1

VREF_CA_A

67

SMBCLK_DDR

118

SCL

SMBDATA_DDR

238

SDA

237

SA1

117

SA0

MEC2

MEC3

DDEIII-240_BLUE-R

DIMM1(CHANNEL-A)

MEC2

MEC3

ADDRESS = 0:0 [SA1:SA0]

C0.1u16Y0402

MEM_MA_ADD[15..0] 5

MEM_MA_DQS_H0 5 MEM_MA_DQS_L0 5 MEM_MA_DQS_H1 5 MEM_MA_DQS_L1 5 MEM_MA_DQS_H2 5 MEM_MA_DQS_L2 5 MEM_MA_DQS_H3 5 MEM_MA_DQS_L3 5 MEM_MA_DQS_H4 5 MEM_MA_DQS_L4 5 MEM_MA_DQS_H5 5 MEM_MA_DQS_L5 5 MEM_MA_DQS_H6 5 MEM_MA_DQS_L6 5 MEM_MA_DQS_H7 5 MEM_MA_DQS_L7 5

MEM_MA_DM0 5 MEM_MA_DM1 5 MEM_MA_DM2 5 MEM_MA_DM3 5 MEM_MA_DM4 5 MEM_MA_DM5 5 MEM_MA_DM6 5 MEM_MA_DM7 5

MEM_MA_ODT0 5 MEM_MA_ODT1 5 MEM_MA_CKE0 5 MEM_MA_CKE1 5 MEM_MA_CS_L0 5 MEM_MA_CS_L1 5 MEM_MA_BANK0 5 MEM_MA_BANK1 5 MEM_MA_BANK2 5

MEM_MA_WE_L 5 MEM_MA_RAS_L 5 MEM_MA_CAS_L 5 DDR3_DRAMRST# 5,9

MEM_MA_CLK_H0 5 MEM_MA_CLK_L0 5 MEM_MA_CLK_H1 5 MEM_MA_CLK_L1 5

C143

SMBCLK_DDR9 SMBDATA_DDR9

3

C251

C251 C0.1u16Y0402

C0.1u16Y0402

SMBCLK_DDR SMBDATA_DDR

MEM_MA_DATA0 MEM_MA_DATA1 MEM_MA_DATA2 MEM_MA_DATA3 MEM_MA_DATA4 MEM_MA_DATA5 MEM_MA_DATA6 MEM_MA_DATA7 MEM_MA_DATA8 MEM_MA_DATA9 MEM_MA_DATA10 MEM_MA_DATA11 MEM_MA_DATA12 MEM_MA_DATA13 MEM_MA_DATA14 MEM_MA_DATA15 MEM_MA_DATA16 MEM_MA_DATA17 MEM_MA_DATA18 MEM_MA_DATA19 MEM_MA_DATA20 MEM_MA_DATA21 MEM_MA_DATA22 MEM_MA_DATA23 MEM_MA_DATA24 MEM_MA_DATA25 MEM_MA_DATA26 MEM_MA_DATA27 MEM_MA_DATA28 MEM_MA_DATA29 MEM_MA_DATA30 MEM_MA_DATA31 MEM_MA_DATA32 MEM_MA_DATA33 MEM_MA_DATA34 MEM_MA_DATA35 MEM_MA_DATA36 MEM_MA_DATA37 MEM_MA_DATA38 MEM_MA_DATA39 MEM_MA_DATA40 MEM_MA_DATA41 MEM_MA_DATA42 MEM_MA_DATA43 MEM_MA_DATA44 MEM_MA_DATA45 MEM_MA_DATA46 MEM_MA_DATA47 MEM_MA_DATA48 MEM_MA_DATA49 MEM_MA_DATA50 MEM_MA_DATA51 MEM_MA_DATA52 MEM_MA_DATA53 MEM_MA_DATA54 MEM_MA_DATA55 MEM_MA_DATA56 MEM_MA_DATA57 MEM_MA_DATA58 MEM_MA_DATA59 MEM_MA_DATA60 MEM_MA_DATA61 MEM_MA_DATA62 MEM_MA_DATA63

R206 33R0402R206 33R0402 R211 33R0402R211 33R0402

VCC5

VCC_DDR

54

DIMM1

3

DQ0

VDD51VDD DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

1 2 5 4 3

107

U13

VCC BUS_SEL SCL SDA GND

X_uP6262

VDD57VDD60VDD62VDD65VDD66VDD69VDD72VDD75VDD78VDD

VSS

110

113

116

119

OUT1 OUT2 OUT3

4 9

10 122 123 128 129

12

13

18

19 131 132 137 138

21

22

27

28 140 141 146 147

30

31

36

37 149 150 155 156

81

82

87

88 200 201 206 207

90

91

96

97 209 210 215 216

99 100 105 106 218 219 224 225 108 109 114 115 227 228 233 234

2 5

8 11 14 17 20 23 26 29 32 35 38 41 44 47 80 83 86 89 92 95 98

101 104

170

173

176

179

VDD

DDR3

VSS

121

124

127

130

133

136

139

142

145

148

151

VREF_DQ_A

8 7 6

MEM_MA_DATA[63..0]5

D D

C C

B B

UPI VOLTAGE CONSOLE

VREF_CA_A

C139

C139 C0.1u16Y0402

C0.1u16Y0402

UPI VOLTAGE CONSOLE

VREF_DQ_A

C247

C247 C0.1u16Y0402

C0.1u16Y0402

MEM_MA_DATA[63..0]

R188 1KR1%0402R188 1KR1%0402

R190

R190 1KR1%0402

1KR1%0402

R320 1KR1%0402R320 1KR1%0402

R310

R310 1KR1%0402

1KR1%0402

MEM_MA_DATA0 MEM_MA_DATA1 MEM_MA_DATA2 MEM_MA_DATA3 MEM_MA_DATA4 MEM_MA_DATA5 MEM_MA_DATA6 MEM_MA_DATA7 MEM_MA_DATA8 MEM_MA_DATA9 MEM_MA_DATA10 MEM_MA_DATA11 MEM_MA_DATA12 MEM_MA_DATA13 MEM_MA_DATA14 MEM_MA_DATA15 MEM_MA_DATA16 MEM_MA_DATA17 MEM_MA_DATA18 MEM_MA_DATA19 MEM_MA_DATA20 MEM_MA_DATA21 MEM_MA_DATA22 MEM_MA_DATA23 MEM_MA_DATA24 MEM_MA_DATA25 MEM_MA_DATA26 MEM_MA_DATA27 MEM_MA_DATA28 MEM_MA_DATA29 MEM_MA_DATA30 MEM_MA_DATA31 MEM_MA_DATA32 MEM_MA_DATA33 MEM_MA_DATA34 MEM_MA_DATA35 MEM_MA_DATA36 MEM_MA_DATA37 MEM_MA_DATA38 MEM_MA_DATA39 MEM_MA_DATA40 MEM_MA_DATA41 MEM_MA_DATA42 MEM_MA_DATA43 MEM_MA_DATA44 MEM_MA_DATA45 MEM_MA_DATA46 MEM_MA_DATA47 MEM_MA_DATA48 MEM_MA_DATA49 MEM_MA_DATA50 MEM_MA_DATA51 MEM_MA_DATA52 MEM_MA_DATA53 MEM_MA_DATA54 MEM_MA_DATA55 MEM_MA_DATA56 MEM_MA_DATA57 MEM_MA_DATA58 MEM_MA_DATA59 MEM_MA_DATA60 MEM_MA_DATA61 MEM_MA_DATA62 MEM_MA_DATA63

VCC_DDR

UPI VOLTAGE CONSOLE(3+1)

A A

2.083325V

0x66:RH=18K,RL=13K

R209 X_13KR1%0402R209 X_13KR1%0402

SMBCLK SMBDATA

5

VCC5

R208

X_18KR1%0402

R204R204 R210R210

182

183

186

189

VDD

VSS

154

157

160

163

VREF_CA_B

4

VCC3

VTT_DDR

191

194

197

120

240

53

236

68

VTT

VDD

VSS

166

VTT

VDD

VDDSPD

NC/PAR_IN

NC/ERR_OUT

VSS

199

202

205

208

211

214

217

220

223

226

VCC_DDR VCC3

54

DIMM3

3

DQ0

VDD51VDD DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

VSS

107

110

VDD57VDD60VDD62VDD65VDD66VDD69VDD72VDD75VDD78VDD

VSS

113

116

119

SMBCLK 10,13,17,25,29 SMBDATA 10,13,17,25,29

4 9

10 122 123 128 129

12

13

18

19 131 132 137 138

21

22

27

28 140 141 146 147

30

31

36

37 149 150 155 156

81

82

87

88 200 201 206 207

90

91

96

97 209 210 215 216

99 100 105 106 218 219 224 225 108 109 114 115 227 228 233 234

2 5

8 11 14 17 20 23 26 29 32 35 38 41 44 47 80 83 86 89 92 95 98

101 104

170

173

176

179

VDD

DDR3

VSS

121

124

127

130

133

136

139

142

145

148

151

2

VTT_DDR

182

183

186

189

191

194

197

236

VDD

VDDSPD

VSS

154

157

160

163

166

199

202

205

208

79

167

120

240

53

48

187

198

68

MEM_MA_ADD0

VTT

RSVD

NC/TEST4

NC/PAR_IN

NC/ERR_OUT

VSS

211

214

217

220

223

226

229

232

188

A0

MEM_MA_ADD1

181

A1

FREE1

FREE249FREE3

FREE4

MEM_MA_ADD2

61

A2

MEM_MA_ADD3

180

A3

MEM_MA_ADD4

59

A4

MEM_MA_ADD5

58

A5

MEM_MA_ADD6

178

A6

MEM_MA_ADD7

56

A7

MEM_MA_ADD8

177

A8

MEM_MA_ADD9

175

A9

MEM_MA_ADD10

70

A10/AP

MEM_MA_ADD11

55

A11

MEM_MA_ADD12

174

A12

MEM_MA_ADD13

196

A13

MEM_MA_ADD14

172

A14

171

A15

39

CB0

40

CB1

45

CB2

46

CB3

158

CB4

159

CB5

164

CB6

165

CB7

MEM_MA_DQS_H0

7

DQS0

MEM_MA_DQS_L0

6

DQS0# DQS1# DQS2# DQS3# DQS4# DQS5# DQS6# DQS7# DQS8#

DM0/DQS9

NC/DQS9# DM1/DQS10 NC/DQS10# DM2/DQS11 NC/DQS11# DM3/DQS12 NC/DQS12# DM4/DQS13 NC/DQS13# DM5/DQS14 NC/DQS14# DM6/DQS15 NC/DQS15# DM7/DQS16 NC/DQS16# DM8/DQS17 NC/DQS17#

RESET#

CK1(NU)

CK1#(NU)

VREFDQ VREFCA

VSS

MEC1

235

239

MEC1

Title

Size Document Number Rev

Date: Sheet of

Date: Sheet

MEM_MA_DQS_H1

16

DQS1

MEM_MA_DQS_L1

15

MEM_MA_DQS_H2

25

DQS2

MEM_MA_DQS_L2

24

MEM_MA_DQS_H3

34

DQS3

MEM_MA_DQS_L3

33

MEM_MA_DQS_H4

85

DQS4

MEM_MA_DQS_L4

84

MEM_MA_DQS_H5

94

DQS5

MEM_MA_DQS_L5

93

MEM_MA_DQS_H6

103

DQS6

MEM_MA_DQS_L6

102

MEM_MA_DQS_H7

112

DQS7

MEM_MA_DQS_L7

111 43

DQS8

42

MEM_MA_DM0

125 126

MEM_MA_DM1

134 135

MEM_MA_DM2

143 144

MEM_MA_DM3

152 153

MEM_MA_DM4

203 204

MEM_MA_DM5

212 213

MEM_MA_DM6

221 222

MEM_MA_DM7

230 231 161 162

MEM_MA_ODT2

195

ODT0

MEM_MA_ODT3

77

ODT1

MEM_MA_CKE2

50

CKE0

MEM_MA_CKE3

169

CKE1

MEM_MA_CS_L2

193

CS0#

MEM_MA_CS_L3

76

CS1#

MEM_MA_BANK0

71

BA0

MEM_MA_BANK1

190

BA1

MEM_MA_BANK2

52

BA2

MEM_MA_WE_L

73

WE#

MEM_MA_RAS_L

192

RAS#

MEM_MA_CAS_L

74

CAS#

DDR3_DRAMRST#

168

MEM_MA_CLK_H2

184

CK0

MEM_MA_CLK_L2

185

CK0#

MEM_MA_CLK_H3

63

MEM_MA_CLK_L3

64

VREF_DQ_A

1

VREF_CA_A

67

SMBCLK_DDR

118

SCL

SMBDATA_DDR

238

SDA

237

SA1

117

SA0

MEC2

MEC3

MEC2

MEC3

DDR3 Chanel-A DIMM1/2

VCC3

C0.1u16Y0402

DDEIII-240_PINK-R

DIMM2(CHANNEL-A) ADDRESS = 0:1 [SA1:SA0]

DELL Shen Yang

C0.1u16Y0402

MICRO-START INT'L CO.,LTD.

1

MEM_MA_ODT2 5 MEM_MA_ODT3 5 MEM_MA_CKE2 5 MEM_MA_CKE3 5 MEM_MA_CS_L2 5 MEM_MA_CS_L3 5

MEM_MA_CLK_H2 5 MEM_MA_CLK_L2 5 MEM_MA_CLK_H3 5 MEM_MA_CLK_L3 5

C147

C250

C250 C0.1u16Y0402

C0.1u16Y0402

834Friday, August 14, 2009

1.0

of

Confidential

For Dell Only

5

4

3

2

1

DDRIII DIMM_B1 DDRIII DIMM_B2

VCC_DDR

MEM_MB_DATA[63..0]5

54

DIMM2

MEM_MB_DATA0

D D

C C

B B

VREF_CA_B

VREF_DQ_B

VREF_CA_B

C156

C156 C0.1u16Y0402

C0.1u16Y0402

VREF_DQ_B

C252

C252 C0.1u16Y0402

C0.1u16Y0402

R196

R196 1KR1%0402

1KR1%0402

R307

R307 1KR1%0402

1KR1%0402

VCC_DDR

R197 1KR1%0402R197 1KR1%0402

VCC_DDR

R303 1KR1%0402R303 1KR1%0402

MEM_MB_DATA1 MEM_MB_DATA2 MEM_MB_DATA3 MEM_MB_DATA4 MEM_MB_DATA5 MEM_MB_DATA6 MEM_MB_DATA7 MEM_MB_DATA8 MEM_MB_DATA9 MEM_MB_DATA10 MEM_MB_DATA11 MEM_MB_DATA12 MEM_MB_DATA13 MEM_MB_DATA14 MEM_MB_DATA15 MEM_MB_DATA16 MEM_MB_DATA17 MEM_MB_DATA18 MEM_MB_DATA19 MEM_MB_DATA20 MEM_MB_DATA21 MEM_MB_DATA22 MEM_MB_DATA23 MEM_MB_DATA24 MEM_MB_DATA25 MEM_MB_DATA26 MEM_MB_DATA27 MEM_MB_DATA28 MEM_MB_DATA29 MEM_MB_DATA30 MEM_MB_DATA31 MEM_MB_DATA32 MEM_MB_DATA33 MEM_MB_DATA34 MEM_MB_DATA35 MEM_MB_DATA36 MEM_MB_DATA37 MEM_MB_DATA38 MEM_MB_DATA39 MEM_MB_DATA40 MEM_MB_DATA41 MEM_MB_DATA42 MEM_MB_DATA43 MEM_MB_DATA44 MEM_MB_DATA45 MEM_MB_DATA46 MEM_MB_DATA47 MEM_MB_DATA48 MEM_MB_DATA49 MEM_MB_DATA50 MEM_MB_DATA51 MEM_MB_DATA52 MEM_MB_DATA53 MEM_MB_DATA54 MEM_MB_DATA55 MEM_MB_DATA56 MEM_MB_DATA57 MEM_MB_DATA58 MEM_MB_DATA59 MEM_MB_DATA60 MEM_MB_DATA61 MEM_MB_DATA62 MEM_MB_DATA63

DIMM2

3

DQ0

VDD51VDD DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

VDD57VDD60VDD62VDD65VDD66VDD69VDD72VDD75VDD78VDD

VSS

107

110

113

116

119

VSS

4 9

10 122 123 128 129

12

13

18

19 131 132 137 138

21

22

27

28 140 141 146 147

30

31

36

37 149 150 155 156

81

82

87

88 200 201 206 207

90

91

96

97 209 210 215 216

99 100 105 106 218 219 224 225 108 109 114 115 227 228 233 234

2 5

8 11 14 17 20 23 26 29 32 35 38 41 44 47 80 83 86 89 92 95 98

101 104

170

173

176

179

VDD

DDR3

VSS

121

124

127

130

133

136

139

142

145

148

151

VCC3

VTT_DDR

182

183

186

189

191

194

197

236

VDD

VDDSPD

VSS

154

157

160

163

166

199

202

205

208

79

167

120

240

53

48

187

198

68

MEM_MB_ADD0

VTT

RSVD

NC/TEST4

NC/PAR_IN

NC/ERR_OUT

VSS

211

214

217

220

223

226

229

232

188

A0

181

A1

FREE1

FREE249FREE3

FREE4

61

A2

180

A3

59

A4

58

A5

178

A6

56

A7

177

A8

175

A9

70

A10/AP

55

A11

174

A12

196

A13

172

A14

171

A15

39

CB0

40

CB1

45

CB2

46

CB3

158

CB4

159

CB5

164

CB6

165

CB7

7

DQS0

6

DQS0#

16

DQS1

15

DQS1#

25

DQS2

24

DQS2#

34

DQS3

33

DQS3#

85

DQS4

84

DQS4#

94

DQS5

93

DQS5#

103

DQS6

102

DQS6#

112

DQS7

111

DQS7#

43

DQS8

42

DQS8#

125

DM0/DQS9

126

NC/DQS9#

134

DM1/DQS10

135

NC/DQS10#

143

DM2/DQS11

144

NC/DQS11#

152

DM3/DQS12

153

NC/DQS12#

203

DM4/DQS13

204

NC/DQS13#

212

DM5/DQS14

213

NC/DQS14#

221

DM6/DQS15

222

NC/DQS15#

230

DM7/DQS16

231

NC/DQS16#

161

DM8/DQS17

162

NC/DQS17#

195

ODT0

77

ODT1

50

CKE0

169

CKE1

193

CS0#

76

CS1#

71

BA0

190

BA1

52

BA2

73

WE#

192

RAS#

74

CAS#

168

RESET#

184

CK0

185

CK0#

63

CK1(NU)

64

CK1#(NU)

1

VREFDQ

67

VREFCA

118

SCL

238

SDA

237

SA1

117

SA0

VSS

MEC1

MEC2

MEC3

DDEIII-240_BLUE-R

235

239

DIMM3(CHANNEL-B)

MEC1

MEC2

MEC3

ADDRESS = 1:0 [SA1:SA0]

MEM_MB_ADD1 MEM_MB_ADD2 MEM_MB_ADD3 MEM_MB_ADD4 MEM_MB_ADD5 MEM_MB_ADD6 MEM_MB_ADD7 MEM_MB_ADD8 MEM_MB_ADD9 MEM_MB_ADD10 MEM_MB_ADD11 MEM_MB_ADD12 MEM_MB_ADD13 MEM_MB_ADD14

MEM_MB_DQS_H0 MEM_MB_DQS_L0 MEM_MB_DQS_H1 MEM_MB_DQS_L1 MEM_MB_DQS_H2 MEM_MB_DQS_L2 MEM_MB_DQS_H3 MEM_MB_DQS_L3 MEM_MB_DQS_H4 MEM_MB_DQS_L4 MEM_MB_DQS_H5 MEM_MB_DQS_L5 MEM_MB_DQS_H6 MEM_MB_DQS_L6 MEM_MB_DQS_H7 MEM_MB_DQS_L7

MEM_MB_DM0 MEM_MB_DM1 MEM_MB_DM2 MEM_MB_DM3 MEM_MB_DM4 MEM_MB_DM5 MEM_MB_DM6 MEM_MB_DM7

MEM_MB_ODT0 MEM_MB_ODT1 MEM_MB_CKE0 MEM_MB_CKE1 MEM_MB_CS_L0 MEM_MB_CS_L1 MEM_MB_BANK0 MEM_MB_BANK1 MEM_MB_BANK2

MEM_MB_WE_L MEM_MB_RAS_L MEM_MB_CAS_L DDR3_DRAMRST#

MEM_MB_CLK_H0 MEM_MB_CLK_L0 MEM_MB_CLK_H1 MEM_MB_CLK_L1

VREF_DQ_B VREF_CA_B VREF_CA_B SMBCLK_DDR SMBCLK_DDR SMBDATA_DDR

VCC3

C0.1u16Y0402

MEM_MB_ADD[15..0] 5

MEM_MB_DQS_H0 5 MEM_MB_DQS_L0 5 MEM_MB_DQS_H1 5 MEM_MB_DQS_L1 5 MEM_MB_DQS_H2 5 MEM_MB_DQS_L2 5 MEM_MB_DQS_H3 5 MEM_MB_DQS_L3 5 MEM_MB_DQS_H4 5 MEM_MB_DQS_L4 5 MEM_MB_DQS_H5 5 MEM_MB_DQS_L5 5 MEM_MB_DQS_H6 5 MEM_MB_DQS_L6 5 MEM_MB_DQS_H7 5 MEM_MB_DQS_L7 5

MEM_MB_DM0 5 MEM_MB_DM1 5 MEM_MB_DM2 5 MEM_MB_DM3 5 MEM_MB_DM4 5 MEM_MB_DM5 5 MEM_MB_DM6 5 MEM_MB_DM7 5

MEM_MB_ODT0 5 MEM_MB_ODT1 5 MEM_MB_CKE0 5 MEM_MB_CKE1 5 MEM_MB_CS_L0 5 MEM_MB_CS_L1 5 MEM_MB_BANK0 5 MEM_MB_BANK1 5 MEM_MB_BANK2 5

MEM_MB_WE_L 5 MEM_MB_RAS_L 5 MEM_MB_CAS_L 5 DDR3_DRAMRST# 5,8

MEM_MB_CLK_H0 5 MEM_MB_CLK_L0 5 MEM_MB_CLK_H1 5 MEM_MB_CLK_L1 5

C142

C246

C246 C0.1u16Y0402

C0.1u16Y0402

VCC_DDR

C193

C0.1u16Y0402

MEM_MB_DATA0 MEM_MB_DATA1 MEM_MB_DATA2 MEM_MB_DATA3 MEM_MB_DATA4 MEM_MB_DATA5 MEM_MB_DATA6 MEM_MB_DATA7 MEM_MB_DATA8 MEM_MB_DATA9 MEM_MB_DATA10 MEM_MB_DATA11 MEM_MB_DATA12 MEM_MB_DATA13 MEM_MB_DATA14 MEM_MB_DATA15 MEM_MB_DATA16 MEM_MB_DATA17 MEM_MB_DATA18 MEM_MB_DATA19 MEM_MB_DATA20 MEM_MB_DATA21 MEM_MB_DATA22 MEM_MB_DATA23 MEM_MB_DATA24 MEM_MB_DATA25 MEM_MB_DATA26 MEM_MB_DATA27 MEM_MB_DATA28 MEM_MB_DATA29 MEM_MB_DATA30 MEM_MB_DATA31 MEM_MB_DATA32 MEM_MB_DATA33 MEM_MB_DATA34 MEM_MB_DATA35 MEM_MB_DATA36 MEM_MB_DATA37 MEM_MB_DATA38 MEM_MB_DATA39 MEM_MB_DATA40 MEM_MB_DATA41 MEM_MB_DATA42 MEM_MB_DATA43 MEM_MB_DATA44 MEM_MB_DATA45 MEM_MB_DATA46 MEM_MB_DATA47 MEM_MB_DATA48 MEM_MB_DATA49 MEM_MB_DATA50 MEM_MB_DATA51 MEM_MB_DATA52 MEM_MB_DATA53 MEM_MB_DATA54 MEM_MB_DATA55 MEM_MB_DATA56 MEM_MB_DATA57 MEM_MB_DATA58 MEM_MB_DATA59 MEM_MB_DATA60 MEM_MB_DATA61 MEM_MB_DATA62 MEM_MB_DATA63

VCC_DDR VCC3

54

DIMM4

3

DQ0

VDD51VDD DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

VDD57VDD60VDD62VDD65VDD66VDD69VDD72VDD75VDD78VDD

VSS

107

110

113

116

119

VSS

4 9

10 122 123 128 129

12

13

18

19 131 132 137 138

21

22

27

28 140 141 146 147

30

31

36

37 149 150 155 156

81

82

87

88 200 201 206 207

90

91

96

97 209 210 215 216

99 100 105 106 218 219 224 225 108 109 114 115 227 228 233 234

2 5

8 11 14 17 20 23 26 29 32 35 38 41 44 47 80 83 86 89 92 95 98

101 104

170

173

176

179

VDD

DDR3

VSS

121

124

127

130

133

136

139

142

145

148

151

VTT_DDR

182

183

186

189

191

194

197

236

VDD

VDDSPD

VSS

154

157

160

163

166

199

202

205

208

79

167

120

240

53

48

187

198

68

MEM_MB_ADD0

VTT

RSVD

NC/TEST4

NC/PAR_IN

NC/ERR_OUT

VSS

211

214

217

220

223

226

229

232

188

A0

181

A1

FREE1

FREE249FREE3

FREE4

61

A2

180

A3

59

A4

58

A5

178

A6

56

A7

177

A8

175

A9

70

A10/AP

55

A11

174

A12

196

A13

172

A14

171

A15

39

CB0

40

CB1

45

CB2

46

CB3

158

CB4

159

CB5

164

CB6

165

CB7

7

DQS0

6

DQS0#

16

DQS1

15

DQS1#

25

DQS2

24

DQS2#

34

DQS3

33

DQS3#

85

DQS4

84

DQS4#

94

DQS5

93

DQS5#

103

DQS6

102

DQS6#

112

DQS7

111

DQS7#

43

DQS8

42

DQS8#

125

DM0/DQS9

126

NC/DQS9#

134

DM1/DQS10

135

NC/DQS10#

143

DM2/DQS11

144

NC/DQS11#

152

DM3/DQS12

153

NC/DQS12#

203

DM4/DQS13

204

NC/DQS13#

212

DM5/DQS14

213

NC/DQS14#

221

DM6/DQS15

222

NC/DQS15#

230

DM7/DQS16

231

NC/DQS16#

161

DM8/DQS17

162

NC/DQS17#

195

ODT0

77

ODT1

50

CKE0

169

CKE1

193

CS0#

76

CS1#

71

BA0

190

BA1

52

BA2

73

WE#

192

RAS#

74

CAS#

168

RESET#

184

CK0

185

CK0#

63

CK1(NU)

64

CK1#(NU)

1

VREFDQ

67

VREFCA

118

SCL

238

SDA

237

SA1

117

SA0

VSS

MEC1

MEC2

MEC3

DDEIII-240_PINK-R

235

239

DIMM4(CHANNEL-B)

MEC1

MEC2

MEC3

ADDRESS = 1:1 [SA1:SA0]

MEM_MB_ADD1 MEM_MB_ADD2 MEM_MB_ADD3 MEM_MB_ADD4 MEM_MB_ADD5 MEM_MB_ADD6 MEM_MB_ADD7 MEM_MB_ADD8 MEM_MB_ADD9 MEM_MB_ADD10 MEM_MB_ADD11 MEM_MB_ADD12 MEM_MB_ADD13 MEM_MB_ADD14 MEM_MB_ADD15MEM_MB_ADD15

MEM_MB_DQS_H0 MEM_MB_DQS_L0 MEM_MB_DQS_H1 MEM_MB_DQS_L1 MEM_MB_DQS_H2 MEM_MB_DQS_L2 MEM_MB_DQS_H3 MEM_MB_DQS_L3 MEM_MB_DQS_H4 MEM_MB_DQS_L4 MEM_MB_DQS_H5 MEM_MB_DQS_L5 MEM_MB_DQS_H6 MEM_MB_DQS_L6 MEM_MB_DQS_H7 MEM_MB_DQS_L7

MEM_MB_DM0 MEM_MB_DM1 MEM_MB_DM2 MEM_MB_DM3 MEM_MB_DM4 MEM_MB_DM5 MEM_MB_DM6 MEM_MB_DM7

MEM_MB_ODT2 MEM_MB_ODT3 MEM_MB_CKE2 MEM_MB_CKE3 MEM_MB_CS_L2 MEM_MB_CS_L3 MEM_MB_BANK0 MEM_MB_BANK1 MEM_MB_BANK2

MEM_MB_WE_L MEM_MB_RAS_L MEM_MB_CAS_L DDR3_DRAMRST#

MEM_MB_CLK_H2 MEM_MB_CLK_L2 MEM_MB_CLK_H3 MEM_MB_CLK_L3

VREF_DQ_B

SMBDATA_DDR

VCC3

MEM_MB_ODT2 5 MEM_MB_ODT3 5 MEM_MB_CKE2 5 MEM_MB_CKE3 5 MEM_MB_CS_L2 5 MEM_MB_CS_L3 5

MEM_MB_CLK_H2 5 MEM_MB_CLK_L2 5 MEM_MB_CLK_H3 5 MEM_MB_CLK_L3 5

C0.1u16Y0402

C144

C242

C242 C0.1u16Y0402

C0.1u16Y0402

A A

SMBCLK_DDR SMBDATA_DDR

5

4

3

SMBCLK_DDR 8 SMBDATA_DDR 8

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Date: Sheet of

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

DDR3 Chanel-B DIMM3/4

DELL Shen Yang

1

1.0

of

934Friday, August 14, 2009

Confidential

For Dell Only

5

D D

L17

L17 X_150L800mA-150_0805-RH

VCC3

C C

X_150L800mA-150_0805-RH

CP11CP11

C334

C10u10Y0805

L20

L20 X_150L800mA-150_0805-RH

X_150L800mA-150_0805-RH

CP12CP12

C351

C351 C0.1u16Y0402

C0.1u16Y0402

C340

C340 C0.1u16Y0402

C0.1u16Y0402

C333

C333 C0.1u16Y0402

C0.1u16Y0402

C355

C355 C0.1u16Y0402

C0.1u16Y0402

C329

C329 C0.1u16Y0402

C0.1u16Y0402

C365

C365 C0.1u16Y0402

C0.1u16Y0402

C350

C350 C0.1u16Y0402

C0.1u16Y0402

4

VCC3_CLK1

C364

C364 C0.1u16Y0402

C0.1u16Y0402

VCC3_CLK2

3

VCC3

R366

4.7KR0402

CLK133M_CLKGEN_OUT0#11

CLK133M_CLKGEN_OUT011

SMBCLK8,13,17,25,29 SMBDATA8,13,17,25,29

VCC3_CLK1

R365R365 R364R364

VCC3_CLK1 XOUT XIN

VCC3_CLK1

18

19 20 21 22

23 24

25 26 27 28

32 31 30

U22

RESET#

VDDCPU CPUC_LR CPUT_LR GNDCPU

SCLK SDATA

VDDREF X2 X1 GNDREF

GND GND VDD

GND

9LRS4180AKLFT_MLF32-RH

33

VTTPWRG/PD#

DOT96T_LR

DOT96C_LR

VDDPCIEX GNDPCIEX

PCIEC_LR

PCIEXT_LR

VDDSATA

SATA_LR

SATAC_LR

USB48M/FSLA

REF/FSLC

VDD

VDD96 GND96

VDDA

AGND

FSLB

2

1 2

3 5 6 7

12 13 14 15

9 10 11

16 17

4 8 29

VCC3_CLK1

R399 1KR0402R399 1KR0402

VCC3_CLK2

VCC3_CLK1

VCC3_CLK2

FSLA FSLB FSLC

R411 33R0402R411 33R0402 R398 33R0402R398 33R0402

VRM_GD 13,25,27

CLK96M_DOT_P 11 CLK96M_DOT_N 11

2/10 Modified.

CLK100M_DMI_IN_N 11 CLK100M_DMI_IN_P 11

CLK100M_SATA_P 11 CLK100M_SATA_N 11

SIO_48M 16

CLK14M_PCH 11

1

Y1

14.318MHZ16P_D-RH

1 2

X_4.7KR0402

FSLC FSLB FSLA

4.7KR0402

XOUT

XIN

R390

R389

VCC3

R410

R410 X_4.7KR0402

X_4.7KR0402

R401

4.7KR0402

R412

4.7KR0402

R400

R400 X_4.7KR0402

X_4.7KR0402

2

MICRO-START INT'L CO.,LTD.

Title

CLOCK GEN SILEGO ICS9LPRS4180

Size Document Number Rev

Date: Sheet of

Date: Sheet

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

10 34Friday, August 14, 2009

1

1.0

of

C338 C22p50NC338 C22p50N

C346 C22p50NC346 C22p50N

B B

CLOCK EMI CAPS: DEFAULT EMPTY

SIO_48M CLK14M_PCH

A A

5

4

C374 X_C10p50N0402C374 X_C10p50N0402 C363 X_C10p50N0402C363 X_C10p50N0402

3

Confidential

For Dell Only

5

PE4_TX17 PE4_TX#17

D D

PE1_LAN_TX19 PE1_LAN_TX#19

PE4_RX17 PE4_RX#17 PE0_CLK 17

PE1_LAN_RX19 PE1_LAN_RX#19

DMI_RX34 DMI_RX3#4 DMI_RX24 DMI_RX2#4 DMI_RX14 DMI_RX1#4

C C

B B

A A

DMI_RX04 DMI_RX0#4

DMI_TX34 DMI_TX3#4 DMI_TX24 DMI_TX2#4 DMI_TX14 DMI_TX1#4 DMI_TX04 DMI_TX0#4

FRAME#18

DEVSEL#18

PERR#18 SERR#18

PCI_PME#18

PCH_PCIRST#18

PREQ#318 PREQ#218 PREQ#118 PREQ#018 PIRQ#A18 PIRQ#B18 PIRQ#C18 PIRQ#D18 PIRQ#E18 PIRQ#F18 PIRQ#G18 PIRQ#H18

STOP#18 LOCK#18 PAR18

IRDY#18 TRDY#18

PGNT#313 PGNT#213 PGNT#118 PGNT#018

C311 C0.1u16X0402C311 C0.1u16X0402 C309 C0.1u16X0402C309 C0.1u16X0402

DMI_RX3 DMI_RX3# DMI_RX2 DMI_RX2# DMI_RX1 DMI_RX1# DMI_RX0 DMI_RX0#

DMI_TX3 DMI_TX3# DMI_TX2 DMI_TX2# DMI_TX1 DMI_TX1# DMI_TX0 DMI_TX0#

FRAME# DEVSEL# IRDY# TRDY# STOP# LOCK# PAR PERR# SERR# PCI_PME# CK_PCH_33M_FB

R439 33R0402R439 33R0402

PGNT#3 PGNT#2 PGNT#1 PGNT#0 PREQ#3 PREQ#2 PREQ#1 PREQ#0 PIRQ#A PIRQ#B PIRQ#C PIRQ#D PIRQ#E PIRQ#F PIRQ#G PIRQ#H

5

PCI_RST#

TX1_P TX1_N

AK12

AH11 AL11 AH10

AK11

AW5

AT11

AP12

AW4

J12 K12 D10 D11 H11 G11 G12 H12

L14 K14 G14 H14 G16 H16 D17 D18

B8

C7 B11 A12

C9

D8 B13 C12 D13 D14 C14 B15 A16 B17 C16 D15

K24

L24 G24 H24

F22 G22 H22

J22

H18 G18 D20 E20 C19 B20 B18 A19

AL7 AT6 AP7 AL6 AN8

AP6 AT4 AV6

AM3 BA9 AK6

AH8 AY4

AP4 AT8 AR4

BA5 AU8 AH7

PCH1A

PETP8 PETN8 PETP7 PETN7 PETP6 PETN6 PETP5 PETN5 PETP4 PETN4 PETP3 PETN3 PETP2 PETN2 PETP1 PETN1

PERP8 PERN8 PERP7 PERN7 PERP6 PERN6 PERP5 PERN5 PERP4 PERN4 PERP3 PERN3 PERP2 PERN2 PERP1 PERN1

DMI3TXP DMI3TXN DMI2TXP DMI2TXN DMI1TXP DMI1TXN DMI0TXP DMI0TXN

DMI3RXP DMI3RXN DMI2RXP DMI2RXN DMI1RXP DMI1RXN DMI0RXP DMI0RXN

IBEX_0

PCH1B

FRAME_N DEVSEL_N IRDY_N TRDY_N STOP_N PLOCK_N PAR PERR_N SERR_N PME_N PCICLK PCIRST_N GNT3_N_GPIO55 GNT2_N_GPIO53 GNT1_N_GPIO51 GNT0_N REQ3_N_GPIO54 REQ2_N_GPIO52 REQ1_N_GPIO50 REQ0_N PIRQA_N PIRQB_N PIRQC_N PIRQD_N PIRQE_N_GPIO2 PIRQF_N_GPIO3 PIRQG_N_GPIO4 PIRQH_N_GPIO5

IBEX_0

IBEXPEAK_A

DMI PCI-E

IBEXPEAK_A

PCI

2 OF 9

OC7_N_GPIO14

USB

OC6_N_GPIO10

OC5_N_GPIO9 OC4_N_GPIO43 OC3_N_GPIO42 OC2_N_GPIO41 OC1_N_GPIO40 OC0_N_GPIO59

USBRBIAS_N

DMI_IRCOMP

DMI_ZCOMP

1 OF 9

C_BE_N<3> C_BE_N<2> C_BE_N<1> C_BE_N<0>

USBP13P USBP13N USBP12P USBP12N USBP11P USBP11N USBP10P USBP10N

USBRBIAS

AD<31> AD<30> AD<29> AD<28> AD<27> AD<26> AD<25> AD<24> AD<23> AD<22> AD<21> AD<20> AD<19> AD<18> AD<17> AD<16> AD<15> AD<14> AD<13> AD<12> AD<11> AD<10>

AD<9>

AD<8>

AD<7>

AD<6>

AD<5>

AD<4>

AD<3>

AD<2>

AD<1>

AD<0>

USBP9P USBP9N USBP8P USBP8N USBP7P USBP7N USBP6P USBP6N USBP5P USBP5N USBP4P USBP4N USBP3P USBP3N USBP2P USBP2N USBP1P USBP1N USBP0P USBP0N

AN11 AH12 AN6 AK7 AN7 AL9 AV10 AL4 AT2 AL2 AT5 AL10 AY8 AM4 AM11 AM2 AN3 AU1 AP2 AU3 AR8 AW7 AR3 AW9 AV7 AR9 AV8 AP9 AY10 AU6 AP11 AT9

AW10 AP5 AY6 AV3

BA16 AY17 AL18 AK18 AT20 AR20 AV18 AV17 AN20 AM20 AY18 BA19 AW19 AV20 AL20 AK20 AW21 AY20 AV22 AV21 AP22 AR22 AY22 AW23 AY24 BA23 AY25 AW25

AM30 AL30 AL28 AP31 AP30 AK28 AT30 AT31

AV15 AY15

D21 C21

4

USBP11 USBN11 USBP10 USBN10 USBP9 USBN9 USBP8 USBN8 USBP7 USBN7 USBP6 USBN6 USBP5 USBN5 USBP4 USBN4 USBP3 USBN3 USBP2 USBN2 USBP1 USBN1 USBP0 USBN0

XDP_USB_OC#7 XDP_USB_OC#6 XDP_USB_OC#5 XDP_USB_OC#4 XDP_USB_OC#3 XDP_USB_OC#2 XDP_USB_OC#1 XDP_USB_OC#0

USBRBIAS

DMI_COMP

XDP_USB_OC#7 XDP_USB_OC#6 XDP_USB_OC#5 XDP_USB_OC#4 XDP_USB_OC#3 XDP_USB_OC#2 XDP_USB_OC#1 XDP_USB_OC#0

For PCH XDP

AD31 AD30 AD29 AD28 AD27 AD26 AD25 AD24 AD23 AD22 AD21 AD20 AD19 AD18 AD17 AD16 AD15 AD14 AD13 AD12 AD11 AD10 AD9 AD8 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0

C_BE#3 C_BE#2 C_BE#1 C_BE#0

4

USBP11 22 USBN11 22 USBP10 22 USBN10 22 USBP9 22 USBN9 22 USBP8 22 USBN8 22 USBP7 22 USBN7 22 USBP6 22 USBN6 22 USBP5 22 USBN5 22 USBP4 22 USBN4 22 USBP3 22 USBN3 22 USBP2 22 USBN2 22 USBP1 22 USBN1 22 USBP0 22 USBN0 22

R514R514 R513R513 R515R515 R521R521 R522R522 R523R523 R524R524 R525R525

R492 22.6R1%0402R492 22.6R1%0402

PCH_1P05

R337 49.9R1%0402R337 49.9R1%0402

RN15 X_8P4R-0R0402RN15 X_8P4R-0R0402

1 3 5 7 1 3 5 7

RN16 X_8P4R-0R0402RN16 X_8P4R-0R0402

AD[31..0]

C_BE#[3..0]

2 4 6 8 2 4 6 8

USB_OCP#6

USB_OCP#5 22 USB_OCP#4 22 USB_OCP#3 22 USB_OCP#2 22 USB_OCP#1 22 USB_OCP#0 22

XDP_USB_OC#_7 29 XDP_USB_OC#_6 29 XDP_USB_OC#_5 29 XDP_USB_OC#_4 29 XDP_USB_OC#_3 29 XDP_USB_OC#_2 29 XDP_USB_OC#_1 29 XDP_USB_OC#_0 29

AD[31..0] 18

C_BE#[3..0] 18

3VSB

CK_P_33M_PCI218 CK_P_33M_PCI118

R509

R509 10KR0402

10KR0402

3

PCH1C

PCH_1P05

R394

90.9R1%0402

CLK100M_DMI_IN_P10 CLK100M_DMI_IN_N10

CLK100M_SATA_P10 CLK100M_SATA_N10

CLK96M_DOT_P10 CLK96M_DOT_N10

R395 39R0402R395 39R0402 R431 39R0402R431 39R0402 R426 39R0402R426 39R0402

CLK14M_PCH10

TP10TP10

TP11TP11 TP53TP53

TP54TP54

LPC_PCLK16

CLK133M_CLKGEN_OUT010 CLK133M_CLKGEN_OUT0#10

XCLK_RCOMP

CK_P_33M_PCI4 PCH_PCLK3 PCH_PCLK2 PCH_PCK1 TP_CLK33M_PCI0

TP_CLKOUTFLEX3 TP_CLKOUTFLEX2

TP_CLKOUTFLEX0

XTAL_25M_PCH_OUT XTAL_25M_PCH_IN

CLK133M_CLKGEN_OUT0 CLK133M_CLKGEN_OUT0#

CLK100M_SATA_P CLK100M_SATA_N

CLK96M_DOT_P CLK96M_DOT_N

CLK100M_DMI_IN_P CLK100M_DMI_IN_N

CLK14M_PCH

PCICLK LOOPBACK

CK_P_33M_PCI4 CK_PCH_33M_FB

AA3

AD12

AD9 AF9 AD7 AF6

AL3 AB6 AK1

AD10

Y4 Y2

Y31

Y32

Y35

Y34

AL22

AM22

G20 H20

AF7

R381 51R0402R381 51R0402

BOOT DEVICE

LPC

PCH1C

XCLK_RCOMP

CLKOUT_PCI<4> CLKOUT_PCI<3> CLKOUT_PCI<2> CLKOUT_PCI<1> CLKOUT_PCI<0>

CLKOUTFLEX3_GPIO67 CLKOUTFLEX2_GPIO66 CLKOUTFLEX1_GPIO65 CLKOUTFLEX0_GPIO64

XTAL25_IN XTAL25_OUT

CLKIN_HCLK_P CLKIN_HCLK_N

CLKIN_SATA_P_CKSSCD_P CLKIN_SATA_N_CKSSCD_N

CLKIN_DOT96P CLKIN_DOT96N

CLKIN_DMI_P CLKIN_DMI_N

REF14CLKIN

IBEX_0

IBEXPEAK_A

CLOCK

CLOCK_IN

GNT1 GNT0

000

2

CLKOUT_HCLK0_P_CLKOUT_PCIE8_P CLKOUT_HCLK0_N_CLKOUT_PCIE8_N

CLKOUT_PCIE_P<7>

CLKOUT_PCIE_N<7>

CLKOUT_PCIE_P<6>

CLKOUT_PCIE_N<6>

CLKOUT_PCIE_P<5>

CLKOUT_PCIE_N<5>

CLKOUT_PCIE_P<4>

CLKOUT_PCIE_N<4>

CLKOUT_PCIE_P<3>

CLKOUT_PCIE_N<3>

CLKOUT_PCIE_P<2>

CLKOUT_PCIE_N<2>

CLKOUT_PCIE_P<1>

CLKOUT_PCIE_N<1>

CLKOUT_PCIE_P<0>

CLKOUT_PCIE_N<0>

CLKOUT_PEG_A_P CLKOUT_PEG_A_N

CLKOUT_PEG_B_P CLKOUT_PEG_B_N

CLKOUT_DP_P_CLKOUT_HCLK1_0P CLKOUT_DP_N_CLKOUT_HCLK1_0N

CLKOUT_DMI_P CLKOUT_DMI_N

3 OF 9

XTAL_25M_PCH_OUT

R397

X_1MR0402

XTAL_25M_PCH_IN

K38 L38

T6 T7

TP_CLKOUT_PCIE_P6

V4

TP_CLKOUT_PCIE_N6

U4 Y9 Y8 P6 P7 M10 M9 M7 M6 T9 T10 W1 V2

Y7 Y6

V8 V7

H38 H37

J41 H40

X_C10p50N0402

C360 X_C27p50N0402C360 X_C27p50N0402

Y2

Y2 X_25MHZ18P_D-1

X_25MHZ18P_D-1

1 2

C372 X_C27p50N0402C372 X_C27p50N0402

C496

CK_P_33M_PCI1 CK_P_33M_PCI2

C497

C497 X_C10p50N0402

X_C10p50N0402

CLK133M_CPU_P 4 CLK133M_CPU_N 4

TP7TP7 TP8TP8

CK_100M_LAN 19 CK_100M_LAN# 19

PE0_CLK# 17

PEA_CLK 17 PEA_CLK# 17

TP5TP5 TP4TP4

CK_DMI_P 4 CK_DMI_N 4

1

PCI SPI

111

WEAK INTERNAL PULLUPS ON GNT#

PGNT#1

R445 X_1KR0402R445 X_1KR0402

PGNT#0

R438 X_1KR0402R438 X_1KR0402

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Date: Sheet

Date: Sheet of

3

2

Date: Sheet of

MICRO-START INT'L CO.,LTD.

IBEXPEAK-PCIE/DMI/USB/CLK

DELL Shen Yang

1

11 34Friday, August 14, 2009

1.0

of

Confidential

For Dell Only

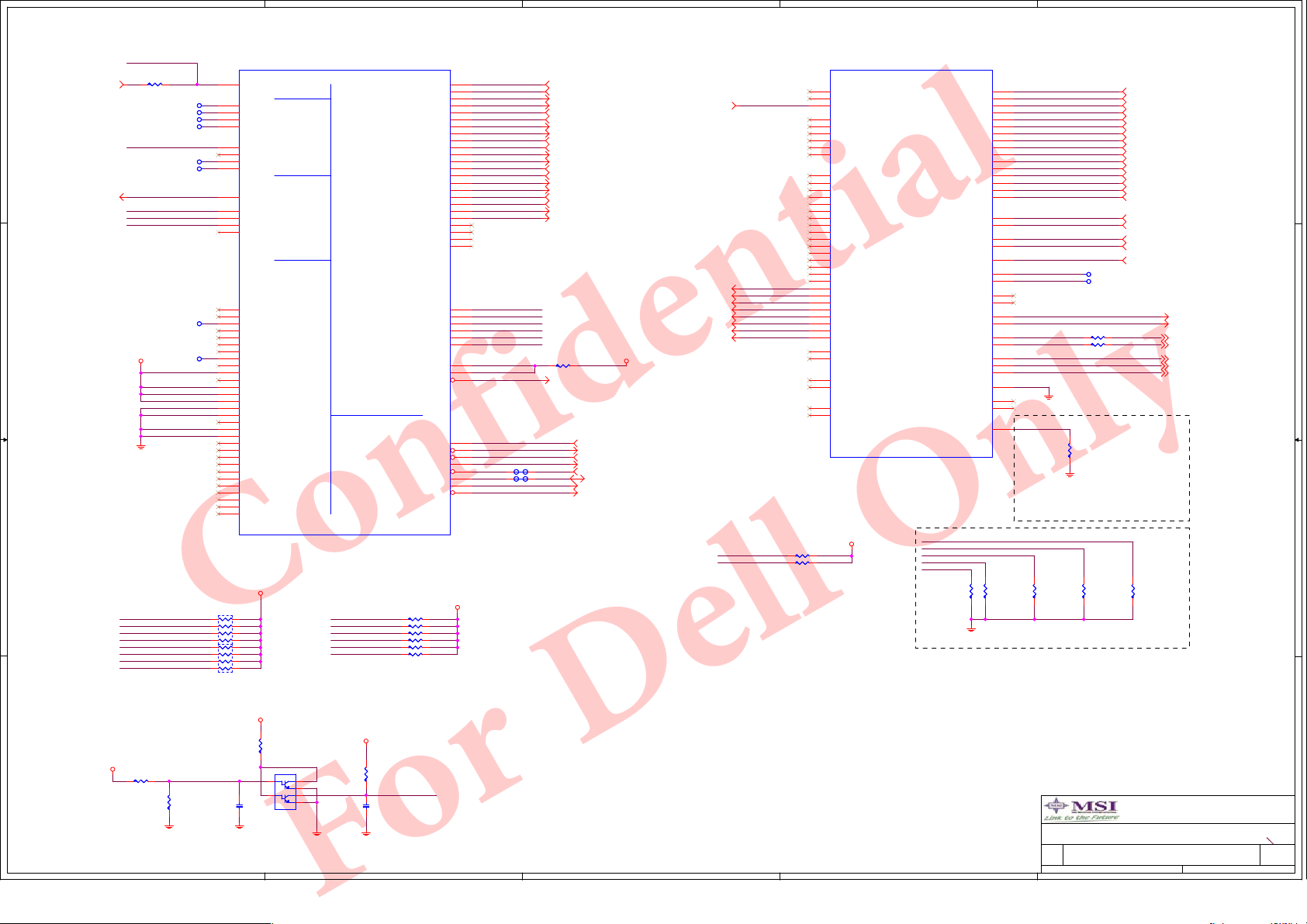

5

4

3

2

1

MEPWROK

PWRGD_3V13,25,29

D D

PCH_INTVRMEM13

C C

B B

R620 0R0402R620 0R0402

TP17TP17 TP61TP61 TP58TP58 TP14TP14

PCH_GPIO7

TP57TP57 TP16TP16

PCH_INTVRMEM SCLOCK

PCH_GPIO38 PCH_GPIO39

TP13TP13

TP56TP56

SATA5GP_PU SATA1GP_PU SATA4GP_PU SATA0GP_PU SATA2GP_PU SERIRQ SATA_LED# SATA3GP_PU

PCH1D

AL33

AY13

AW12

AR12 BA12

AY11 AV11

AL14

AW11

AW31

AN41

AM38

AL39

AG38

BA41

AY1

AU39

AT24 AR24 AH35 AN36 AK35 AH30

AF16

AF15 AE16 AD16 AB16

Y12 Y11 V34 V11 V10 T13 T12

P9 P13 P12 P10 L18 K18 J20 A41

A3

IBEX_0

RN7

8P4R-10KR0402

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

RN9

8P4R-10KR0402

MEPWROK

PWM_3 PWM_2 PWM_1 PWM_0

TACH3_GPIO7 TACH2_GPIO6 TACH1_GPIO1 TACH0_GPIO17

INTVRMEN SCLOCK_GPIO22

SLOAD_GPIO38 SDATAOUT0_GPIO39 SDATAOUT1_GPIO48

RSVD_29 RSVD_28 RSVD_27 RSVD_26 RSVD_25 SLP_DSW_N_RSVD_24 RSVD_23 RSVD_22 RSVD_21 RSVD_20 RSVD_19 RSVD_18 RSVD_17 RSVD_16 RSVD_15 RSVD_14 RSVD_13 RSVD_12 RSVD_11 RSVD_10 RSVD_09 RSVD_08 RSVD_07 RSVD_06 RSVD_05 RSVD_04 RSVD_03 RSVD_02 RSVD_01 RSVD_00

VCC3

IBEXPEAK_A

FAN

SATAHOST

GPIO

4 OF 9

A20GATE KBRST# PCH_GPIO7 PCH_GPIO39 SCLOCK PCH_GPIO38

SATA0RXN

SATA0RXP SATA0TXN SATA0TXP

SATA1RXN

SATA1RXP SATA1TXN SATA1TXP

SATA2RXN

SATA2RXP SATA2TXN SATA2TXP

SATA3RXN

SATA3RXP SATA3TXN SATA3TXP

SATA4RXN

SATA4RXP SATA4TXN SATA4TXP

SATA5RXN

SATA5RXP SATA5TXN SATA5TXP

SATA5GP_GPIO49 SATA4GP_GPIO16 SATA3GP_GPIO37 SATA2GP_GPIO36 SATA1GP_GPIO19 SATA0GP_GPIO21

SATAICOMPI

SATAICOMPO

SATALED_N

A20GATE

INIT3_3V_N

RCIN_N SERIRQ

THRMTRIP_N

PECI

SST

PMSYNC_N

R415 10KR0402R415 10KR0402 R446 10KR0402R446 10KR0402 R498 10KR0402R498 10KR0402 R427 10KR0402R427 10KR0402 R447 10KR0402R447 10KR0402 R434 4.7KR0402R434 4.7KR0402

VCC3

W41 V40 U38 V38 Y38 Y37 AB36 AB35 AD36 AD35 AB31 AB32 AC41 AC39 AB37 AB38 AF41 AE40 AD38 AE38 AF35 AF34 AD33 AD32

AG40 AH39 AR38 AK39 AH38 AJ37

T39 T41 AN39

AG37 AR39 AM40 AL40 C38 D36 AN31 C37

SATA_RX#0 SATA_RX0 SATA_TX#0 SATA_TX0 SATA_RX#1 SATA_RX1 SATA_TX#1 SATA_TX1 SATA_RX#2 SATA_RX2 SATA_TX#2 SATA_TX2 SATA_RX#3 SATA_RX3 SATA_TX#3 SATA_TX3 SATA_RX#4 SATA_RX4 SATA_TX#4 SATA_TX4

SATA5GP_PU SATA4GP_PU SATA3GP_PU SATA2GP_PU SATA1GP_PU SATA0GP_PU

SATA_COMP SATA_LED#

R349R349 R348R348

R404 37.4R1%0402-RHR404 37.4R1%0402-RH

A20GATE INIT3_3V# KBRST# SERIRQ

SST_CTL PM_SYNC

SATA_RX#0 21 SATA_RX0 21

SATA_TX#0 21

SATA_TX0 21 SATA_RX#1 21 SATA_RX1 21

SATA_TX#1 21

SATA_TX1 21 SATA_RX#2 21 SATA_RX2 21

SATA_TX#2 21

SATA_TX2 21 SATA_RX#3 21 SATA_RX3 21

SATA_TX#3 21

SATA_TX3 21 SATA_RX#4 21 SATA_RX4 21

SATA_TX#4 21

SATA_TX4 21

SATA_LED# 28

A20GATE 16

INIT3_3V# 13

KBRST# 16

SERIRQ 16

H_THERMTRIP# 4

H_PECI 4,16 SST_CTL 16 PM_SYNC 4

DVI_C_HPD_DP16,21

DVI_C_TXP321 DVI_C_TXN321 DVI_C_TXP221 DVI_C_TXN221 DVI_C_TXP121 DVI_C_TXN121 DVI_C_TXP021 DVI_C_TXN021

PCH_1P05PCH_1P05

DVI_C_HPD_DP

DVI_C_TXP3 DVI_C_TXN3 DVI_C_TXP2 DVI_C_TXN2 DVI_C_TXP1 DVI_C_TXN1 DVI_C_TXP0 DVI_C_TXN0

DVI_C_CTRLCLK DVI_C_CTRLDATA

R609 X_2.2KR0402R609 X_2.2KR0402 R610 X_2.2KR0402R610 X_2.2KR0402

PCH1F

H2

DDPD_HPD

J3

DDPC_HPD

J1

DDPB_HPD

K4

DDPD_AUXP

L4

DDPD_AUXN

L9

DDPC_AUXP

L10

DDPC_AUXN

M1

DDPB_AUXP

L2

DDPB_AUXN

F9

DDPD_TXP<3>

G9

DDPD_TXN<3>

F8

DDPD_TXP<2>

G8

DDPD_TXN<2>

D6

DDPD_TXP<1>

D7

DDPD_TXN<1>

C5

DDPD_TXP<0>

B6

DDPD_TXN<0>

D3

DDPC_TXP<3>

D2

DDPC_TXN<3>

B4

DDPC_TXP<2>

C4

DDPC_TXN<2>

F2

DDPC_TXP<1>

G3

DDPC_TXN<1>

E3

DDPC_TXP<0>

F4

DDPC_TXN<0>

G4

DDPB_TXP<3>

H4

DDPB_TXN<3>

H6

DDPB_TXP<2>

F6

DDPB_TXN<2>

K11

DDPB_TXP<1>

J11

DDPB_TXN<1>

K10

DDPB_TXP<0>

J8

DDPB_TXN<0>

M3

SDVO_INTP

N4

SDVO_ININ

N2

SDVO_STALLP

P3

SDVO_STALLN

L6

SDVO_TVCLKINP

L7

SDVO_TVCLKINN

IBEX_0

VCC3

IBEXPEAK_A

DISPLAY

6 OF 9

FDI_INT FDI_FSYNC0 FDI_LSYNC0 FDI_FSYNC1 FDI_LSYNC1

FDI_RXP<7> FDI_RXN<7> FDI_RXP<6> FDI_RXN<6> FDI_RXP<5> FDI_RXN<5> FDI_RXP<4> FDI_RXN<4> FDI_RXP<3> FDI_RXN<3> FDI_RXP<2> FDI_RXN<2> FDI_RXP<1> FDI_RXN<1> FDI_RXP<0> FDI_RXN<0>

FDI_LSYNC<1> FDI_LSYNC<0>

FDI_FSYNC<1> FDI_FSYNC<0>

FDI_INT

DDPC_CTRLCLK

DDPC_CTRLDATA

DDPD_CTRLCLK

DDPD_CTRLDATA

SDVO_CTRLCLK

SDVO_CTRLDATA

CRT_HSYNC CRT_VSYNC

CRT_RED

CRT_GREEN

CRT_BLUE

CRT_IRTN

CRT_DDC_CLK

CRT_DDC_DATA

CRT_IREF

R346

1KR0402

FDI_TX7

B34

FDI_TX7#

C33

FDI_TX6

B32

FDI_TX6#

A33

FDI_TX5

B31

FDI_TX5#

C30

FDI_TX4

J31

FDI_TX4#

K31

FDI_TX3

G31

FDI_TX3#

F31

FDI_TX2

D32

FDI_TX2#

D31

FDI_TX1

G30

FDI_TX1#

H30

FDI_TX0

J30

FDI_TX0#

K30

FDI_LSYNC1

D35

FDI_LSYNC0

C35

FDI_FSYNC1

E36

FDI_FSYNC0

E34

FDI_INT

B36

DDPC_CLK

AB10

DDPC_DATA

AB11 AB7

AB9

DVI_C_CTRLCLK

AB13

DVI_C_CTRLDATA

AB12

VGA_HSYNC

AD4

VGA_VSYNC

AD3 AC1

AC3 AB2

AB4 AG2

AG4

VGA_ DACSET

AE2

VGA DACSET RESISTORS CLOSE TO MCH(500 MILS TO MCH BALLS)

R342

R347

R347 1KR0402

1KR0402

While FDI disable, Install R346, R347, R342, R341, R343.

R342 1KR0402

1KR0402

TP15TP15 TP42TP42

R421 33R0402R421 33R0402 R417 33R0402R417 33R0402

R423

R423 1KR0402

1KR0402

R341

R341 1KR0402

1KR0402

FDI_TX7 4 FDI_TX7# 4 FDI_TX6 4 FDI_TX6# 4 FDI_TX5 4 FDI_TX5# 4 FDI_TX4 4 FDI_TX4# 4 FDI_TX3 4 FDI_TX3# 4 FDI_TX2 4 FDI_TX2# 4 FDI_TX1 4 FDI_TX1# 4 FDI_TX0 4 FDI_TX0# 4

FDI_LSYNC1 4 FDI_LSYNC0 4

FDI_FSYNC1 4 FDI_FSYNC0 4

FDI_INT 4

R343

R343 1KR0402

1KR0402

DVI_C_CTRLCLK 21 DVI_C_CTRLDATA 21

HSYNC 21 VSYNC 21

VGA_R 21 VGA_G 21 VGA_B 21

3VSB

R623

R623 X_33KR0402

A A

PCH_1P05

R621 X_30.1KR1%0402R621 X_30.1KR1%0402

X_301KR1%0402

5

R622

C499

X_C0.47u6.3X50402

X_33KR0402

Q59

6

2

1

5

3 4

X_NN-CMKT3904_SOT363-6-RH

3VSB

R624

R624 X_5.6KR1%0402

X_5.6KR1%0402

C500

C500 X_C100p16X0402

X_C100p16X0402

MEPWROK

4

MICRO-START INT'L CO.,LTD.

Title

IBEXPEAK-SATA/HOST/FAN/GPIO

Size Document Number Rev

Date: Sheet of

3

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

1

of

12 34Friday, August 14, 2009

1.0

Confidential

For Dell Only

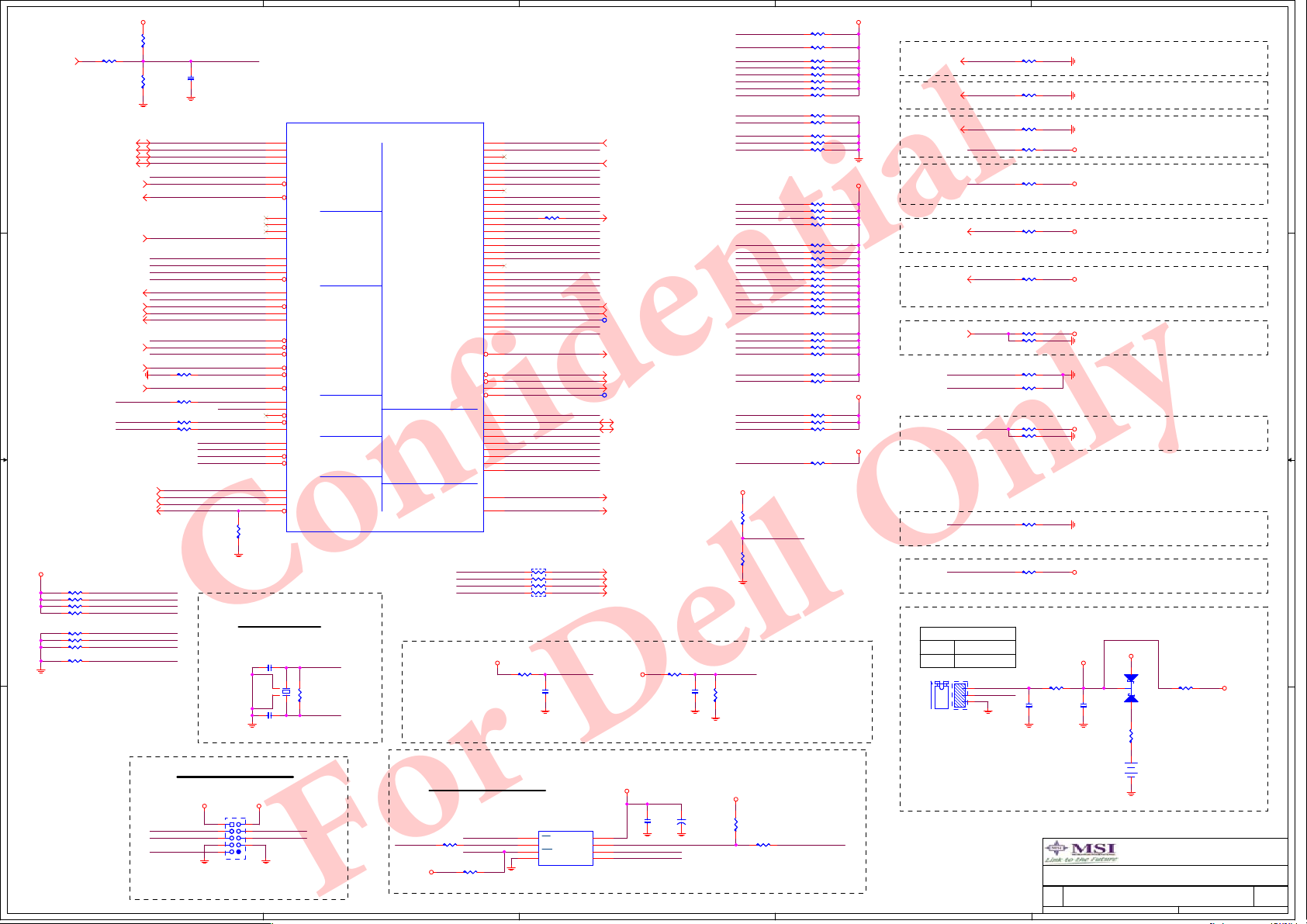

5

3VSB

R470

R470 X_10KR0402

R474 0R0402R474 0R0402

VRM_GD10,25,27

D D

LPC_AD316 LPC_AD216 LPC_AD116 LPC_AD016

LPC_DRQ#016

LPC_FRAME#16

AZ_SDIN020

CPU_PWRGD4,29

PWRBTN#16,29

PWRGD_3V12,25,29

MEM_PWRGD4

C C

PCH_JTAGTCK29 PCH_JTAGTMS29 PCH_JTAGTDI29

3VSB

B B

A A

R460 200R0402R460 200R0402 R450 200R0402R450 200R0402 R429 200R0402R429 200R0402 R437 20KR0402-2R437 20KR0402-2

R459 100R0402R459 100R0402 R449 100R0402R449 100R0402 R436 100R0402R436 100R0402

R422 51R0402R422 51R0402

X_10KR0402

R467

R467 X_10KR0402

X_10KR0402

WAKE#17,19

RSMRST#16

FP_RST#4,28,29

SPI_MOSI_F

SPI_CS0_F# SPI_CLK_F

PCH_JTAGTDO PCH_JTAGTDI PCH_JTAGTMS PCH_JTAGRST#

PCH_JTAGTDO PCH_JTAGTDI PCH_JTAGTMS

PCH_JTAGTCK

PCH_SYSPWROK

C408

C408 X_C0.1u16Y0402

X_C0.1u16Y0402

LPC_AD3 LPC_AD2 LPC_AD1 LPC_AD0

LDRQ1# LPC_DRQ#0

LPC_FRAME#

AZ_SDIN0

AZ_SDOUT_R AZ_BITCLK_R AZ_SYNC_R AZ_RST#_R

CPU_PWRGD PCH_SYSPWROK PWRBTN# PWRGD_3V MEM_PWRGD

RI# WAKE# INTR_ALERT#

RSMRST#

R485 10KR0402R485 10KR0402

FP_RST#

R379 15R0402R379 15R0402

R387 0R0402R387 0R0402 R378 0R0402R378 0R0402

PCH_JTAGTCK PCH_JTAGTMS PCH_JTAGTDI PCH_JTAGRST#

32.768KHZ12.5P_D-LF

SPI DEBUG PROT

Close to SPI ROM

VCC3 VCC3

SPI_MISO_F SPI_MOSI_F SPI_CS0_F#

SPI_HOLD#

1 2 3 4 5 7 8 9

AM16

AL16 AK16 AT12

AP14

AL12 AR14

AN16 AU13 AP18 AV13

AP16

AW14

AU15 AV14

B38 AT38 AK36

AM24 AW32

AT33 AR33 AN24

AL24

AY31

SPI_MOSI SPI_MISO

SPI_CS#_PCH SPI_CLK_PCH SMBDATA

RTCX1 RTCX2 RTCRST# SRTCRST#

AL38

AW30

BA30 AK24 AP28

AK33

AL34 AL36 AL35

R444

R444 10KR0402

10KR0402

RTC Block

Close to PCH

C418 C18p50NC418 C18p50N

Y4

C429 C18p50NC429 C18p50N

JSPI1

SPI_CLK_F

6

H2X5[1]_BLACK-RH

T34

V30

T32 V32 V31

3

4

PCH1E

LAD_3 LAD_2 LAD_1 LAD_0

LDRQ1_N_GPIO23 LDRQ0_N

LFRAME_N

HDA_SDIN<3> HDA_SDIN<2> HDA_SDIN<1> HDA_SDIN<0>

HDA_SDOUT HDA_BIT_CLK HDA_SYNC HDA_RST_N

CPUPWRGD SYS_PWROK PWRBTN_N PWROK DRAMPWROK

RI_N WAKE_N INTRUDER_N

RSMRST_N LAN_RST_N

SYSY_RESET_N SPI_MOSI

SPI_MISO SPI_CS1_N SPI_CS0_N SPI_CLK

RTCX1 RTCX2 RTCRST_N SRTCRST_N

JTAGTCK JTAGTMS JTAGTDI JTAGRST_N

IBEX_0

RTCX1

12

R508

R508 10MR

10MR

RTCX2

5

4

IBEXPEAK_A

LAN_PHY_PWR_CTRL_GPIO12

PCIECLKRQ1_N_GPIO18 PCIECLKRQ2_N_GPIO20

PCIECLKRQ3_N_GPIO25

LPC

PCIECLKRQ4_N_GPIO26

SUS_PWR_ACK_GPIO30

SATACLKREQ_N_GPIO35

PCIECLKRQ5_N_GPIO44 PCIECLKRQ6_N_GPIO45

AUDIOSPIRTC

PCIECLKRQ7_N_GPIO46 PEG_A_CLKRQ_N_GPIO47 PEG_B_CLKRQ_N_GPIO56

SUS_STAT_N_GPIO61

PCIECLKRQ0_N_GPIO73

SMBALERT_N_GPIO11

SML0ALERT_N_GPIO60

SML1ALERT_N_GPIO74

SMB

5 OF 9

SPI_MISO

VCC3

4

BMBUSY_N_GPIO0

GPIO8

GPIO13 GPIO15

MEM_LED_GPIO24

GPIO27 GPIO28

SLP_LAN_N_GPIO29

ACPRESENT_GPIO31

GPIO32 GPIO33

STP_PCI_N_GPIO34

GPIO57

SUSCLK_GPIO62

GPIO72

PLTRST_N

SLP_S3_N SLP_S4_N

SLP_S5_N_GPIO63

SLP_M_N

SMBCLK

SMBDATA

SML0CLK

SML0DATA

SML1CLK_GPIO58

SML1DATA_GPIO75

SPKR

JTAGTDO

AZ_SDOUT_R AZ_SYNC_R AZ_RST#_R AZ_BITCLK_R

SPI FLASH ROM

Place close to SB.

SPI_CS0_F#

R360

R360 15R0402

15R0402

SPI_MISO_F SPI_WP#

R336 2.2KR0402R336 2.2KR0402

AK41 AK30 AU34 AR16 AY36 AM39 AP38 AR34 AP33 AW37 AP37 AV40 BA35 AT37 AP40 AJ40 AT16 AT40 AR41 AW38 AV36 AP36 AV39 AW35 AL32 AK31 AH31 AY34 AN35

AV34

AV35 AP35 AU36 AT36

AL31 AV32 AM31 BA33 AW33 AT34 AY32 AV31 AR31

AJ38 AN34

1 3 5 7

8P4R-33R0402

R504

R504 20KR0402-2

20KR0402-2

BM_BUSY# PCH_GPIO8

SIO_PME# SPI_HOLD_GPO# PCH_GP18 PCH_GP20

PCICLKRQ3# PCICLKRQ4# PCH_GPIO27

R484 0R0402R484 0R0402

PCH_GPIO29 SUS_PWR_ACK PCH_GPI31 SPI_WP# PCH_GPIO33 STP_PCI#

PCH_GPI44 PCH_GPI45 PCH_GPI46 PCH_GPI47 PCH_GPI56 USB_DET1 USB_DET2 SUSCLK PCH_GPI72 PCIECLKRQ0#

PLTRST#

SLP_S3# SLP_S4# SLP_S5# SLP_M

PCH_SMBALERT# SMBCLK

PCH_SML0ALERT# SMLINK0_CLK SMLINK0_DATA PCH_SML1ALERT# PCH_SML1CLK PCH_SML1DATA

SPKR PCH_JTAGTDO

RN14

2 4 6 8

SRTCRST#

C417

C417 C1u16Y

C1u16Y

U19

1

CS

VCC

2

SO/SIO1

HOLD#

3

WP/ACC

SCLK

4

GND

SI/SIO0

MX25L1605DM2I-12G-RH

BM_BUSY# 29

SIO_PME# 16

USB_MODE 22,29

USB_DET1 22 USB_DET2 22

TP55TP55

PLTRST# 4,16,29

SLP_S3# 16,23,24,25 SLP_S4# 25,28 SLP_S5# 25

TP60TP60

SMBCLK 8,10,17,25,29 SMBDATA 8,10,17,25,29

SPKR 28 PCH_JTAGTDO 29PCH_JTAGRST#29

AZ_SDOUT 20 AZ_SYNC 20 AZ_RST# 20 AZ_BITCLK 20

VCC5_SB

VCC3

8

SPI_HOLD#

7

SPI_CLK_F

6

SPI_MOSI_F

5

3

R516 4.7KR0402R516 4.7KR0402

C433

X_C1u16Y

C330

C330 C0.1u16Y0402

C0.1u16Y0402

+

12

3

EC45

EC45 CD10u16EL5

CD10u16EL5

LDRQ1# LPC_DRQ#0 SMBCLK

SMBDATA PCH_GP20 PCH_GP18 BM_BUSY# FP_RST#

PCIECLKRQ0# PCH_GP20

PCH_GPI46 PCH_GPI47 PCH_GPIO33

SUS_PWR_ACK SIO_PME# PCH_GPI31 PCH_GPI56

WAKE# PCH_SML1CLK PCH_SML1DATA PCH_SML0ALERT# SMLINK0_CLK SMLINK0_DATA PCH_SMBALERT# RI# PCH_SML1ALERT# PCIECLKRQ0# PCH_GPI44

USB_MODE PCH_GPIO29 PCICLKRQ3# PCICLKRQ4#

PCH_GPI45 STP_PCI#

USB_DET1 USB_DET2 PCH_GPI72

INTR_ALERT#

VCC_DDR

RSMRST#

R517

R517 10KR0402

10KR0402

VCC3

R353

2.2KR0402

2.2KR0402 R362

R362 X_0R0402

X_0R0402

R490 X_10KR0402R490 X_10KR0402 R491 X_10KR0402R491 X_10KR0402 R482 2.2KR0402R482 2.2KR0402

R477 2.2KR0402R477 2.2KR0402 R456 X_10KR0402R456 X_10KR0402 R452 10KR0402R452 10KR0402 R428 10KR0402R428 10KR0402 R435 10KR0402R435 10KR0402

R606 X_10KR0402R606 X_10KR0402 R605 X_10KR0402R605 X_10KR0402

R454 10KR0402R454 10KR0402 R461 10KR0402R461 10KR0402 R501 X_1KR0402R501 X_1KR0402

R458 100KR0402R458 100KR0402 R500 10KR0402R500 10KR0402 R448 10KR0402R448 10KR0402 R480 10KR0402R480 10KR0402

R469 1KR0402R469 1KR0402 R486 10KR0402R486 10KR0402 R488 10KR0402R488 10KR0402 R489 10KR0402R489 10KR0402 R493 4.7KR0402R493 4.7KR0402 R483 4.7KR0402R483 4.7KR0402 R442 10KR0402R442 10KR0402 R473 10KR0402R473 10KR0402 R487 10KR0402R487 10KR0402 R457 X_10KR0402R457 X_10KR0402 R468 10KR0402R468 10KR0402

R494 10KR0402R494 10KR0402 R464 10KR0402R464 10KR0402 R466 10KR0402R466 10KR0402 R476 10KR0402R476 10KR0402

R481 10KR0402R481 10KR0402 R462 10KR0402R462 10KR0402

R465 10KR0402R465 10KR0402 R463 10KR0402R463 10KR0402 R478 10KR0402R478 10KR0402

R505 1MR0402R505 1MR0402

R496

1.1KR1%0402

MEM_PWRGD

demo board Used

R495

R495 3KR1%0402

3KR1%0402

SPI_HOLD_GPO#

VCC3

3VSB

VBAT

2

REQUIRED STRAPS

PGNT#211

PGNT#311

INIT3_3V#12

AZ_SDOUT_R

AZ_SYNC_R

NVR_ALE15

NVR_CLE15

PCH_INTVRMEM12

PCH_GPIO27 SPI_MOSI

SPI_HOLD_GPO#

PCH_GPIO8

SPKR

JBAT1 Clear CMOS

CMOS CLEAR JUMPER

Normal

1 - 2 2 - 3 Clear CMOS

JBAT1

1 2

G

N31-1030151+N33-1020271-RH

2

3

PGNT#2

PGNT#3

INIT3_3V#

RTCRST#

1

R497 X_1KR0402R497 X_1KR0402

R440 X_1KR0402R440 X_1KR0402

R453 X_1KR0402R453 X_1KR0402

R507 X_1KR0402R507 X_1KR0402

R506 X_1KR0402R506 X_1KR0402

R352 X_10KR0402R352 X_10KR0402

R351 X_10KR0402R351 X_10KR0402

R503 390KR0402R503 390KR0402 R499 X_1KR0402R499 X_1KR0402

R441 X_1KR0402R441 X_1KR0402 R388 X_1KR0402R388 X_1KR0402

R475 10KR0402R475 10KR0402 R472 X_1KR0402R472 X_1KR0402

R455 X_1KR0402R455 X_1KR0402

R424 X_1KR0402R424 X_1KR0402

R374

R374 20KR0402-2

20KR0402-2

C347

C1u16X5

Title

Size Document Number Rev

Date: Sheet of

Date: Sheet

DMI AC COUPLING FULL VOLTAGE MODE WHEN SAMPLED LOW

A16 SWAP OVERRIDE OVERRIDE IF SAMPLED LOWT

3VSB

OD PLL VR SUPPLY SEL

3VSB

1.8V SUPPLY WHEN LOW

1.5V SUPPLY WHEN HI

DANBURY (ANTI-THEFT) TECHNOLOGY

+V_NAND

ENABLE WHEN SAMPLED HIGH

DMI TERMINATION VOLTAGE

+V_NAND

AC COUP: TX/RX TO VCC IF SAMPLED HIGH DC COUP: HALF SWING IF SAMPLED LOW

INTEGRATED 1.05V SUS VRM ENABLE

VBAT

SUS VRM ENABLE WHEN SAMPLED HIGH

TLS CONFIDENTIALITY DISABLE

3VSB

DISABLED WHEN SAMPLED LOW

CLOCK VALIDATION STRAP EMPTY JUMPER FOR BUFFER THROUGH MODE

STUFF TO ENABLE NO-REBOOT OPTION AT

VCC3

POWER-UP (CONFIGURATION STRAPPING)

3VSB

VBATVBAT

C367

BAT-2P-RH-1

IBEXPEAK-SMB/LPC/AUDIO/RTC

Y

D22

D22 S-BAT54C_SOT23

S-BAT54C_SOT23

X

R375

R375 1KR0402

1KR0402

12

1

R403 1KR0402R403 1KR0402

Z

BAT1

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

VBAT0

1.0

of

13 34Friday, August 14, 2009

Confidential

For Dell Only

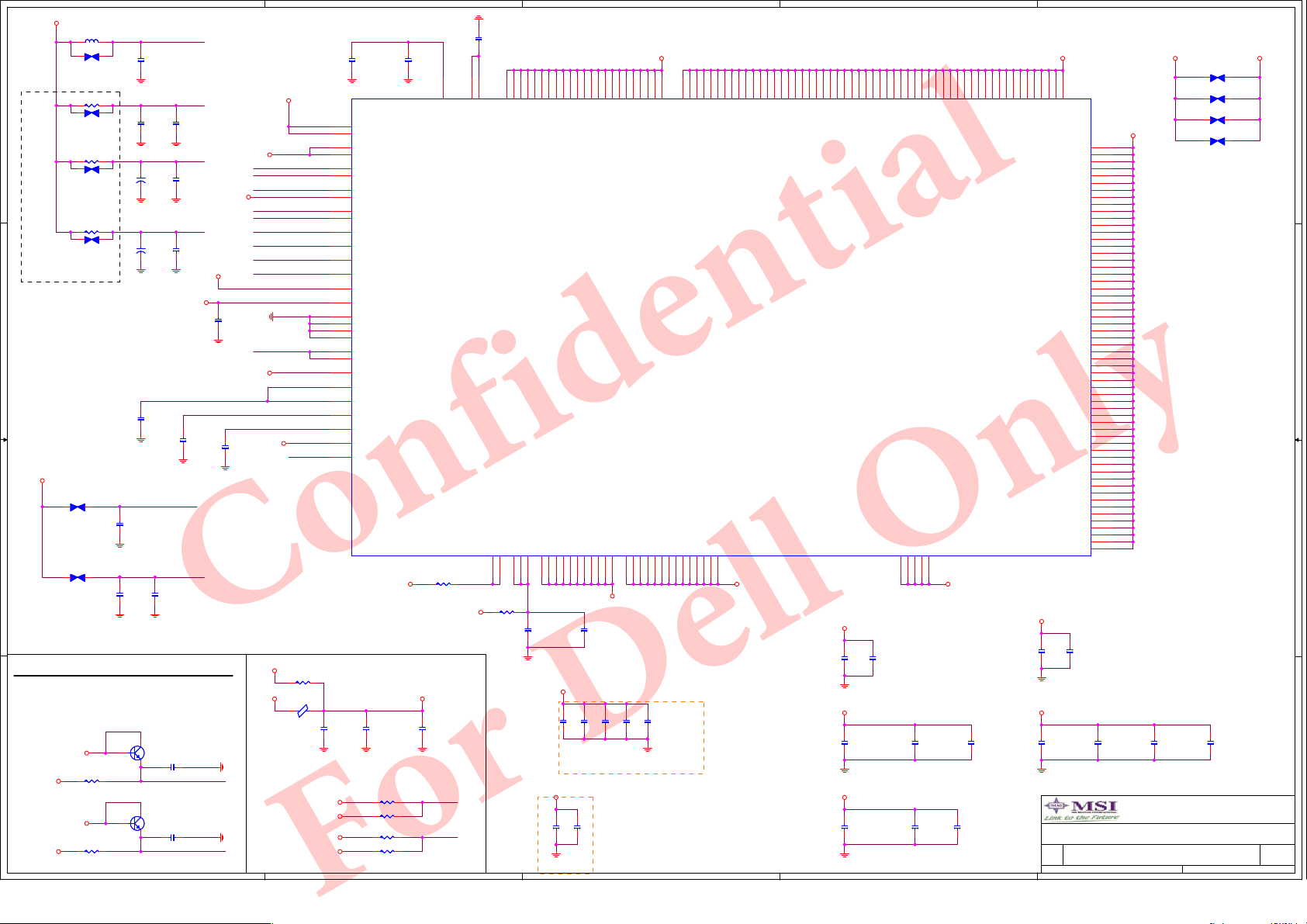

PCH_1P05

L11

L11 X_1u50mA_0805-RH

X_1u50mA_0805-RH

CP8CP8

D D

Change to 10UH if VCCA_DPLLA/VCCA_DPLLB has noise issue.

C C

PCH_1P05

B B

R413 X_0R0805R413 X_0R0805

CP13CP13

R340 X_0R0805R340 X_0R0805

CP10CP10

CD220u6.3EL11.5-RH

R339 X_0R0805R339 X_0R0805

CP9CP9

CD220u6.3EL11.5-RH

CP31CP31

CP32CP32

X_C10u6.3X50805-RH-3

5

C314

C314 X_C10u6.3X50805-RH-3

X_C10u6.3X50805-RH-3

C383

X_C10u6.3X50805-RH-3

VCCA_DPLLA

+

12

EC44

VCCA_DPLLB

+

12

EC43

C411

C0.1u16X0402

DMI PLL FILTER

VCCAPLLEXP

C313

C313 X_C10u6.3X50805-RH-3

X_C10u6.3X50805-RH-3

SATA PLL FILTER

VCCSATA_PLL_PCH

C362

VCCFDIPLL

VCCACLK

CPU_VTT

C379

C361

C361 C1u6.3X50402-1

C1u6.3X50402-1

C368

C368 C1u6.3X50402-1

C1u6.3X50402-1

C344

C344 C1u6.3X50402-1

C1u6.3X50402-1

+3.3V_DAC

C343

C343 C1u6.3X50402-1

C1u6.3X50402-1

PCH_1P05

Demo board 1.1 change

C380

C0.1u16X0402

CPU_VTT

C318

C318 C0.1u16Y0402

C0.1u16Y0402

VBAT

VRTC_INT VCCSST VCCSUS

C0.1u16X0402

VCC3

5VREF 5VREF_SUS

VCCACLK

VCCA_DPLLA VCCA_DPLLB

VCCXCK VCCSATA_PLL_PCH VCCAPLLEXP VCCFDIPLL

VCCPLL

3VSB

VCCXCK

C373

AE27

AD27

AW16

AY29 AY38 BA39

AH33

AF30 AJ18

A39 B39

AN1

AA1 AF1

R2 T1

C3 P41 A21 A37 V20 A23 C23

P22 B22 P23

L40 L39

C2

5VREF & 5VREF_SUS Sequencing Circuit

V5REF must be powered up beforeVCC3 or after VCC3 within 0.7V. Also,V5REF must power down after VCC3 or before VCC3 within 0.7V. This rule is also applies to V5REF_SUS and 3VSB. However,the 3VSB is derived from the 5VSB on the power supply thru a voltage regulator and therefore,they can satisfy the requirement.

CE

Q43

R451 100R0402R451 100R0402

R502 100R0402R502 100R0402

B

N-MMBT3904_NL_SOT23

CE

Q44

B

N-MMBT3904_NL_SOT23

5

C398 C1u6.3X50402-1C398 C1u6.3X50402-1

5VREF

C416 C0.1u16Y0402C416 C0.1u16Y0402

5VREF_SUS

A A

VCC3

VCC5

3VSB

VCC5_SB

PCH_1P05

VCC3

C10u6.3X50805-RH-3

Near ball AF1

R608 X_0R0805R608 X_0R0805

FB6 0R0805FB6 0R0805

C389

PCH_1P05

VCC1_8

PCH_1P05

VCC1_8

4

C377

C0.1u16X0402

PCH1G

IBEXPEAK_A

VCC3_3_11 VCC3_3_12

V_CPU_IO_1 V_CPU_IO_0

V5REF V5REF_SUS

VCCA_CLK VCCA_DAC

VCCA_DPLLA VCCA_DPLLB

VCCADMI_VRM VCC_SATA_PLL VCCA_PLL_EXP VCC_FDI_PLL VCCAUX_PDV VCC_DMI VSS

VSS VSS VSS

VCCVRM VCCVRM

VCCRTC VCCRTCEXT VCCRTCEXT_NCTF VCCSST VCCSUS VCCSUSHDA VCCXCKPLL

7 OF 9

IBEX_0

VCC3

C387

C387 C0.01u16X0402

C0.01u16X0402

R358 X_0R0402R358 X_0R0402 R357 0R0402R357 0R0402

R377 X_0R0402R377 X_0R0402 R373 0R0402R373 0R0402

4

VCCDSW

R393 0R0402R393 0R0402

+3.3V_DAC

AF27

VCCDSW

+V_NAND

C384

C384 C0.1u16X0402

C0.1u16X0402

VCCXCK

VCCPLL

C494

C494 C0.1u16X0402

C0.1u16X0402

Y22

Y20

VCCLAN

R382 0RR382 0R

N40

VCCME3_3_1

N38

AA15

VCCME3_3_0

AA16

VCCME1_05_00

P30

AF13

AF10

AF8

AE15

AD15

AD13

Y19

Y18

Y16

Y15

AB15

AA18

VCCME1_05_13

VCCME1_05_12

VCCME1_05_11

VCCME1_05_10

VCCME1_05_09

VCCME1_05_08

VCCME1_05_07

VCCME1_05_06

VCCME1_05_05

VCCME1_05_04

VCCME1_05_03

VCCME1_05_02

VCCME1_05_01

VCCNAND_2

VCCNAND_1

VCCNAND_0

VCC3_3_10A9VCC3_3_9

VCC3_3_8

VCC3_3_7

VCC3_3_6

VCC3_3_5

VCC3_3_4

VCC3_3_3

VCC3_3_2

U40

BA3

AY3

AW1

C354

C354 C0.1u16Y0402

C0.1u16Y0402

AV2

AJ16

AK14

C353

C353 C0.1u16Y0402

C0.1u16Y0402

AJ14

M41

M39

PCH decoupling cap

PCH_1P05

C480 C22u6.3X50805C480 C22u6.3X50805

C482 C4.7u10X50805C482 C4.7u10X50805

PCH_1P05_IO

C484 C0.1u16X0402C484 C0.1u16X0402

bottom side

C485 C0.1u16X0402C485 C0.1u16X0402

AH1

AG5

VCCME1_05_14

VCC3_3_1

AH18

AH16

VCC3

C483 C1u16X5C483 C1u16X5

AH4

AH3

VCCME1_05_17

VCCME1_05_16

VCCME1_05_15

VCC3_3_0

VCCPUSB_13

BA26

C479 C0.1u16X0402C479 C0.1u16X0402

3

PCH_1P05

AJ4

AJ2

AH13

AH6

VCCME1_05_21

VCCME1_05_20

VCCME1_05_19

VCCME1_05_18

VCCPUSB_12

VCCPUSB_11

VCCPUSB_10

VCCPUSB_09

AY27

AV27

AV25

AW26

bottom side

C481 C0.1u16X0402C481 C0.1u16X0402

3

AJ5

B24

VCCIO_00

VCCME1_05_22

VCCPUSB_08

VCCPUSB_07

VCCPUSB_06

VCCPUSB_05

AT26

AU27

AU26

AR26

H26

G26

F26

D25

D24

C25

C24

B25

VCCIO_08

VCCIO_07

VCCIO_06

VCCIO_05

VCCIO_04

VCCIO_03

VCCIO_02

VCCIO_01

POWER

VCCPUSB_04

VCCPUSB_03

VCCPUSB_02

VCCPUSB_01

VCCPUSB_00

AL26

AP26

AK26

AN26

AM26

K26

J26

VCCIO_10

VCCIO_09

M18

M16

L26

VCCIO_12

VCCIO_11

M24

M22

M20

VCCIO_15

VCCIO_14

VCCIO_13

C0.1u16Y0402

N18

N16

M26

VCCIO_18

VCCIO_17

VCCIO_16

P15

N20

VCCIO_21

VCCIO_20

VCCIO_19

C428

CPU_VTT

P16

N24

N22

VCCIO_22

VCCIO_24

VCCIO_23

3VSB

C310

C310 C4.7u10X50805

C4.7u10X50805

VCC3

C413

C413 C4.7u10X50805

C4.7u10X50805

P19

P18

N26

VCCIO_26

VCCIO_25

Y26

AT28

T19

VCCIO_30

VCCIO_29

VCCIO_28

VCCIO_27

C409

C409 C0.1u16Y0402

C0.1u16Y0402

2

AA27

Y36

VCCIO_31

VCCIO_32

VCCSUS3_3_0

VCCSUS3_3_1

AW39

AW40

2

Y29

V36

V29

T37

VCCIO_33

VCCIO_34

VCCIO_35

VCCIO_36

VCCSUS3_3_2

VCCSUS3_3_3

VCCSUS3_3_4

AY40

BA40

AV29

C312

C312 C0.1u16Y0402

C0.1u16Y0402

C415

C415 C1u16X5

C1u16X5

T36

T30

T29

VCCIO_37

VCCIO_38

3VSB3VSB

R40

R38

R37

P39

VCCIO_39

VCCIO_40

VCCIO_41

VCCIO_42

C317

C317 C0.1u16Y0402

C0.1u16Y0402

C323

C323 C0.1u16Y0402

C0.1u16Y0402

P38

U15

T15

VCCIO_43

VCCIO_44

VCCIO_45

VCCIO_46

C0.1u16Y0402

1

PCH_1P05 PCH_1P05_IOPCH_1P05_IO

AJ22

AH23

AH22

AH20

V15

AA26

U19

P24

VCCIO_47

VCCIO_48

VCCIO_49

VCCIO_50

VCCIO_51

VCCIO_52

VCCIO_53

VCCIO_54

VCC1_05_57 VCC1_05_56 VCC1_05_55 VCC1_05_54 VCC1_05_53 VCC1_05_52 VCC1_05_51 VCC1_05_50 VCC1_05_49 VCC1_05_48 VCC1_05_47 VCC1_05_46 VCC1_05_45 VCC1_05_44 VCC1_05_43 VCC1_05_42 VCC1_05_41 VCC1_05_40 VCC1_05_39 VCC1_05_38 VCC1_05_37 VCC1_05_36 VCC1_05_35 VCC1_05_34 VCC1_05_33 VCC1_05_32 VCC1_05_31 VCC1_05_30 VCC1_05_29 VCC1_05_28 VCC1_05_27 VCC1_05_26 VCC1_05_25 VCC1_05_24 VCC1_05_23 VCC1_05_22 VCC1_05_21 VCC1_05_20 VCC1_05_19 VCC1_05_18 VCC1_05_17 VCC1_05_16 VCC1_05_15 VCC1_05_14 VCC1_05_13 VCC1_05_12 VCC1_05_11 VCC1_05_10 VCC1_05_09 VCC1_05_08 VCC1_05_07 VCC1_05_06 VCC1_05_05 VCC1_05_04 VCC1_05_03 VCC1_05_02 VCC1_05_01 VCC1_05_00

VBAT

C414

VCC3

C393

C393 C0.1u16Y0402

C0.1u16Y0402

Title

IBEXPEAK-POWER

Size Document Number Rev

Date: Sheet

Date: Sheet of

PCH_1P05

Y24 Y23 V26 V24 V23 U26 U23 U22 U20 T27 T26 T24 T23 T22 T20 P29 P27 P26 N28 M28 L28 K28 J28 H28 G28 F28 E29 E27 E26 D29 D28 D27 C28 C26 B29 B27 AF24 AF23 AF22 AF20 AF19 AE26 AE24 AE23 AE22 AE20 AE19 AE18 AD26 AD23 AD20 AD18 AB26 AB24 AA24 AA23 A28 A26

C419

C419 X_C1u16X5

X_C1u16X5

C386

C386 C0.1u16Y0402

C0.1u16Y0402

DELL Shen Yang

C381

C381 C0.1u16Y0402

C0.1u16Y0402

MICRO-START INT'L CO.,LTD.

CP24CP24

CP25CP25

CP26CP26

CP30CP30

1

C369

C369 C0.1u16Y0402

C0.1u16Y0402

of

14 34Friday, August 14, 2009

1.0

Confidential

For Dell Only

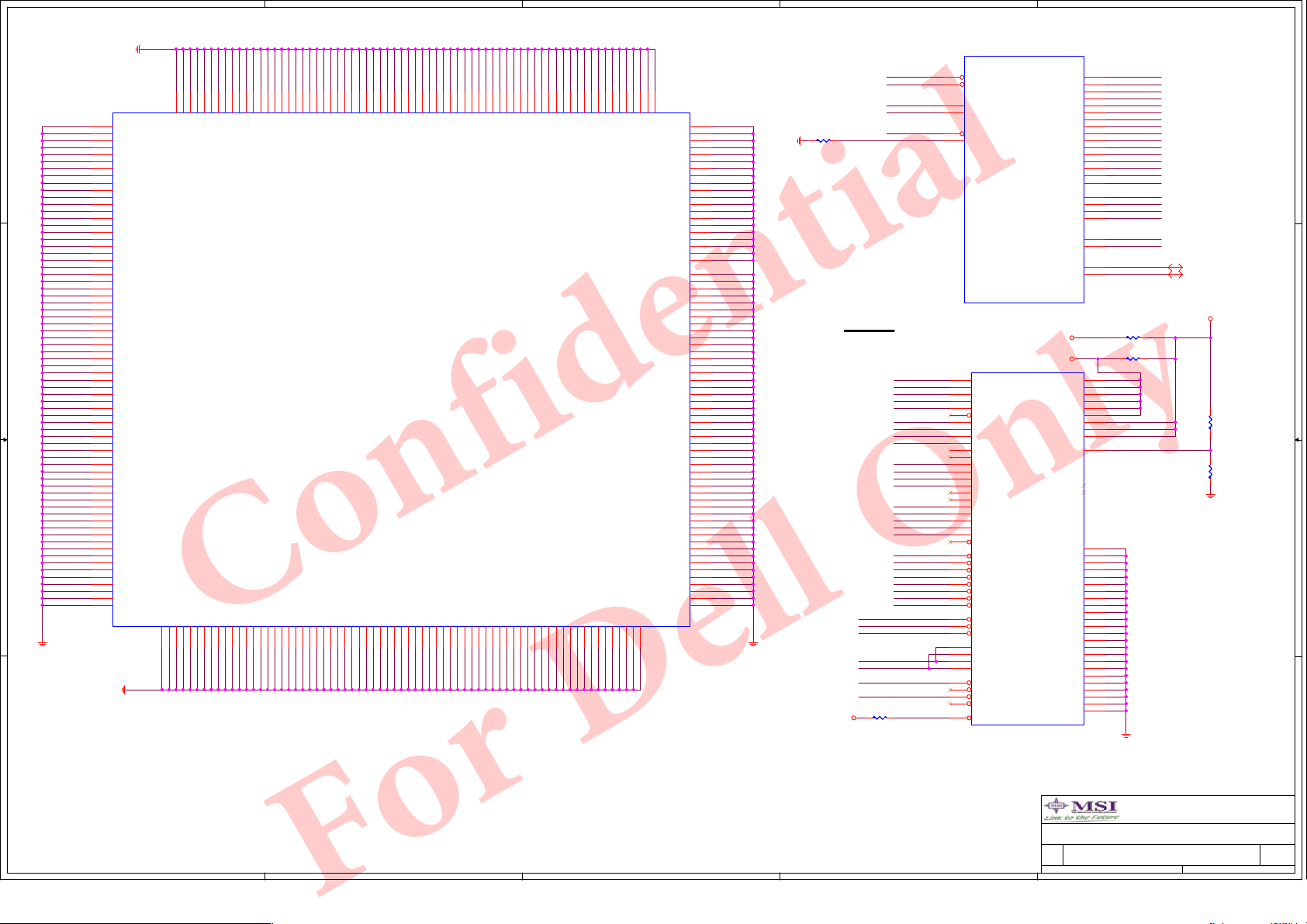

5

AA19

AA20

AA22

AA38

AA39

AA4

AA41

AB18

AB19

AB20

AB22

AB23

AB27

AB29

AB30

AB33

AB34

AB40

AB5

AB8

AC37

AC5

AN30

VSS_119

VSS_48

AD11

VSS_118

VSS_117

VSS_116

VSS_115

VSS_114

VSS_47

VSS_46

VSS_45

VSS_44

VSS_43

AN5

AR1

AP20

AP24

AN37

AR11

PCH1H

D D

C C

B B

PCH1H

C1

VSS_275

C10

VSS_274

C11

VSS_273

C17

VSS_272

C18

VSS_271

C31

VSS_270

C32

VSS_269

C39

VSS_268

C41

VSS_267

D22

VSS_266

D34

VSS_265

D37

VSS_264

D39

VSS_263

E1

VSS_262

E12

VSS_261

E13

VSS_260

E15

VSS_259

E16

VSS_258

E19

VSS_257

E22

VSS_256

E23

VSS_255

E30

VSS_254

E33

VSS_253

E37

VSS_252

E4

VSS_251

E5

VSS_250

E6

VSS_249

E8

VSS_248

E9

VSS_247

F11

VSS_246

F12

VSS_245

F14

VSS_244

F16

VSS_243

F18

VSS_242

F20

VSS_241

F24

VSS_240

F30

VSS_239

F34

VSS_238

F5

VSS_237

G1

VSS_236

G34

VSS_235

G38

VSS_234

G39

VSS_233

G41

VSS_232

H31

VSS_231

H5

VSS_230

H7

VSS_229

H9

VSS_228

J14

VSS_227

J16

VSS_226

J18

VSS_225

J24

VSS_224

J37

VSS_223

J39

VSS_222

J5

VSS_221

J6

VSS_220

J7

VSS_219

K16

VSS_218

K2

VSS_217

K20

VSS_216

K22

VSS_215

K3

VSS_214

K32

VSS_213

K39

VSS_212

K40

VSS_211

L11

VSS_210

L12

VSS_209

L16

VSS_208

L20

VSS_207

IBEX_0

VSS_137A5VSS_136A7VSS_135

VSS_134

VSS_133

VSS_132

VSS_131

VSS_130

VSS_129

VSS_128

VSS_127

VSS_126

VSS_125

VSS_124

VSS_123

VSS_122

VSS_121

IBEXPEAK_A

8 OF 9

VSS_68

VSS_67

VSS_66

VSS_65

VSS_64

VSS_63

VSS_62

VSS_61

VSS_60

VSS_59

VSS_58

VSS_57

AK3

AK5

AK22

AK32

AK34

AK37

VSS_56

AL8

AK8

AK9

AM10

AM12

AM14

AM18

VSS_120

VSS_55

VSS_54

VSS_53

VSS_52

VSS_51

VSS_50

VSS_49

AN12

AN14

AN18

AN22

AN28

AM28

AM32

VSS_113

VSS_42

4

AD19

AD2

AD22

AD24

AD29

AD30

AD31

AD34

AD39

AD40

AD6

AD8

AE3

AE39

AE4

AF11

AF12

AF18

AF26

AF29

AF3

AF31

AF32

AF33

AF36

AF37

AF39

AF5

AH15

AH19

AH24

AH26

AH27

AH29

AH32

AH34

VSS_112

VSS_111

VSS_110

VSS_109

VSS_108

VSS_107

VSS_106

VSS_105

VSS_104

VSS_103

VSS_102

VSS_101

VSS_100

VSS_099

VSS_098

VSS_097

VSS_096

VSS_095

VSS_094

VSS_093

VSS_092

VSS_091

VSS_090

VSS_089

VSS_088

VSS_087

VSS_086

VSS_085

VSS_084

VSS_083

VSS_082

VSS_081

VSS_080

VSS_079

VSS_078

VSS_077

GND

VSS_41

VSS_40

VSS_39

VSS_38

VSS_37

VSS_36

VSS_35

VSS_34

VSS_33

VSS_32

VSS_31

VSS_30

VSS_29

VSS_28

VSS_27

VSS_26

VSS_25

VSS_24

VSS_23

VSS_22

VSS_21

VSS_20

VSS_19

VSS_18

VSS_17

VSS_16

VSS_15

VSS_14

VSS_13

VSS_12

VSS_11

VSS_10

VSS_09B2VSS_08

VSS_07

VSS_06

B10

B40

AV5

AU5

AT14

AT18

AT22

AR18

AR28

AR30

AU12

AU16

AU19

AU20

AU22

AU23

AU29

AU9

AU30

AV24

AU33

AU37

AU38

AU41

AW3

AV28

AW17

AW18

AW24

AW28

B41

AY2

BA1

AY41

AW41

AH36

BA14

VSS_076

VSS_05

3

AH41

AH9

AJ20

AJ24

AJ26

AJ28

AK10

L22

VSS_206

L3

VSS_205

VSS_070

VSS_069

VSS_204 VSS_203 VSS_202 VSS_201 VSS_200 VSS_199 VSS_198 VSS_197 VSS_196 VSS_195 VSS_194 VSS_193 VSS_192 VSS_191 VSS_190 VSS_189 VSS_188 VSS_187

VSS_185 VSS_184 VSS_183 VSS_182 VSS_181 VSS_180 VSS_179 VSS_178 VSS_177 VSS_176 VSS_175 VSS_174 VSS_173 VSS_172 VSS_171 VSS_170 VSS_169 VSS_168 VSS_167 VSS_166 VSS_165 VSS_164 VSS_163 VSS_162 VSS_161 VSS_160 VSS_159 VSS_158 VSS_157 VSS_156 VSS_155 VSS_154 VSS_153 VSS_152 VSS_151 VSS_150 VSS_149 VSS_148 VSS_147 VSS_146 VSS_145 VSS_144 VSS_143 VSS_142 VSS_141 VSS_140 VSS_139 VSS_138

L30 L31 L32 L34 L8 M11 M12 M14 M33 M37 M5 M8 N14 N37 N5 P1 P11 P20

P31 P34 P4 P8 R4 R5 T11 T16 T18 T3 T35 T5 T8 U16 U18 U2 U24 U27 U3 U39 V12 V13 V16 V18 V19 V22 V27 V3 V33 V35 V39 V6 V9 W3 W37 W39 W5 Y10 Y13 Y27 Y30 Y33 Y40 Y5 A14 A30 A35 A40

VSS_075

VSS_074

VSS_073

VSS_072

VSS_071

VSS_04

VSS_03

VSS_02

VSS_01

VSS_00

BA2

BA7

BA21

BA28

BA37

R350 32.4R1%0402-RHR350 32.4R1%0402-RH

ONFI

+V_NAND

NVR_ALE NVR_CLE

R471

X_10KR0402

2

NV_WR#_1 NV_WR#_0

NV_CK_1 NV_CK_0

NV_RB# NV_RCOMP

NV_DATA_0 NV_DATA_1 NV_DATA_2 NV_DATA_3 NV_DQS#_0

NV_DATA_4 NV_DATA_5 NV_DATA_6 NV_DATA_7

NV_DATA_8 NV_DATA_9 NV_DATA_10 NV_DATA_11

NV_DATA_12 NV_DATA_13 NV_DATA_14 NV_DATA_15 NV_DQS#_1

NV_CE#_0 NV_CE#_1 NV_CE#_0 NV_CE#_1 NV_CE#_2 NV_CE#_3 NV_CE#_2 NV_CE#_3

NV_WR#_0 NV_WR#_1 NV_RB#

NV_CK_0 NV_CK_1

NV_WP#

J35 J36

F38

M31

M32

L36

45 46 10

12 13 51 52 15 16 28 29 67 68 63 64 34 35 73 74 32 31

24 22 25 61

37 43 76

21 60 54

19 18 58 57

49 48 71 70

55

PCH1I

IBEXPEAK_A

NV_WR_N<1> NV_WR_N<0>

NV_CK<1> NV_CK<0>

NV_RB_N NV_RCOMP

9 OF 9

NVRAM1

6

DQ0

7

DQ1 DQ2 DQ3 DQS_0

9

DQS_N_0 DQ4 DQ5 DQ6 DQ7 RFU_0 RFU_1 DQ8 DQ9 DQ10 DQ11 RFU_2 RFU_3 DQ12 DQ13 DQ14 DQ15 DQS_1 DQS_N_1

CE_N_0 CE_N_1 CE_N_2 CE_N_3

4

CE_N_4 CE_N_5 CE_N_6 CE_N_7

WR_N_0 WR_N_1 RB_N

ALE_0 CLE_0 ALE_1 CLE_1

CK_0/WE_N_0 CK_N_0 CK_1/WE_N_1 CK_N_1

WP_N

NV_IO_15 NV_IO_14 NV_IO_13 NV_IO_12 NV_IO_11 NV_IO_10 NV_IO_09 NV_IO_08 NV_IO_07 NV_IO_06 NV_IO_05 NV_IO_04 NV_IO_03 NV_IO_02 NV_IO_01 NV_IO_00

NV_CE_N_3 NV_CE_N_2 NV_CE_N_1 NV_CE_N_0

NV_DQS_N<1> NV_DQS_N<0>

NV_ALE NV_CLE

IBEX_0

VCC1_8

VCC3

VCC_0 VCC_1 VCC_2 VCC_3 VCC_4

VCC_5 VCCQ_0 VCCQ_1 VCCQ_2

VREF

MEC1 MEC2

GND_0 GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8

GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23

X_DIMM-78P#_BLACK-RH

F33 D40 G33 E39 F37 H33 F36 M30 M34 M36 L33 M35 P33 T31 P35 T33

E41 P32 H35 H36

F40 P36

J34 L35

1 2 3 40 41 42 38 39 78

77

MEC1 MEC2

5 8 11 14 17 20 23 26 27 30 33 36 44 47 50 53 56 59 62 65 66 69 72 75

NV_DATA_15 NV_DATA_14 NV_DATA_13 NV_DATA_12 NV_DATA_11 NV_DATA_10 NV_DATA_9 NV_DATA_8 NV_DATA_7 NV_DATA_6 NV_DATA_5 NV_DATA_4 NV_DATA_3 NV_DATA_2 NV_DATA_1 NV_DATA_0

NV_CE#_3 NV_CE#_2 NV_CE#_1 NV_CE#_0

NV_DQS#_1 NV_DQS#_0

NVR_ALE NVR_CLE

R368 0RR368 0R

R370 X_0RR370 X_0R

VREF_NAND

1

NVR_ALE 13 NVR_CLE 13

+V_NAND

R376

R376 X_10KR1%0402

X_10KR1%0402

R372

R372 X_10KR1%0402

X_10KR1%0402

A A

MICRO-START INT'L CO.,LTD.

Title

IBEXPEAK-GND/NVRAM

Size Document Number Rev

Date: Sheet

Date: Sheet of

5

4

3

2

Date: Sheet of

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

1

of

15 34Friday, August 14, 2009

1.0

Confidential

For Dell Only

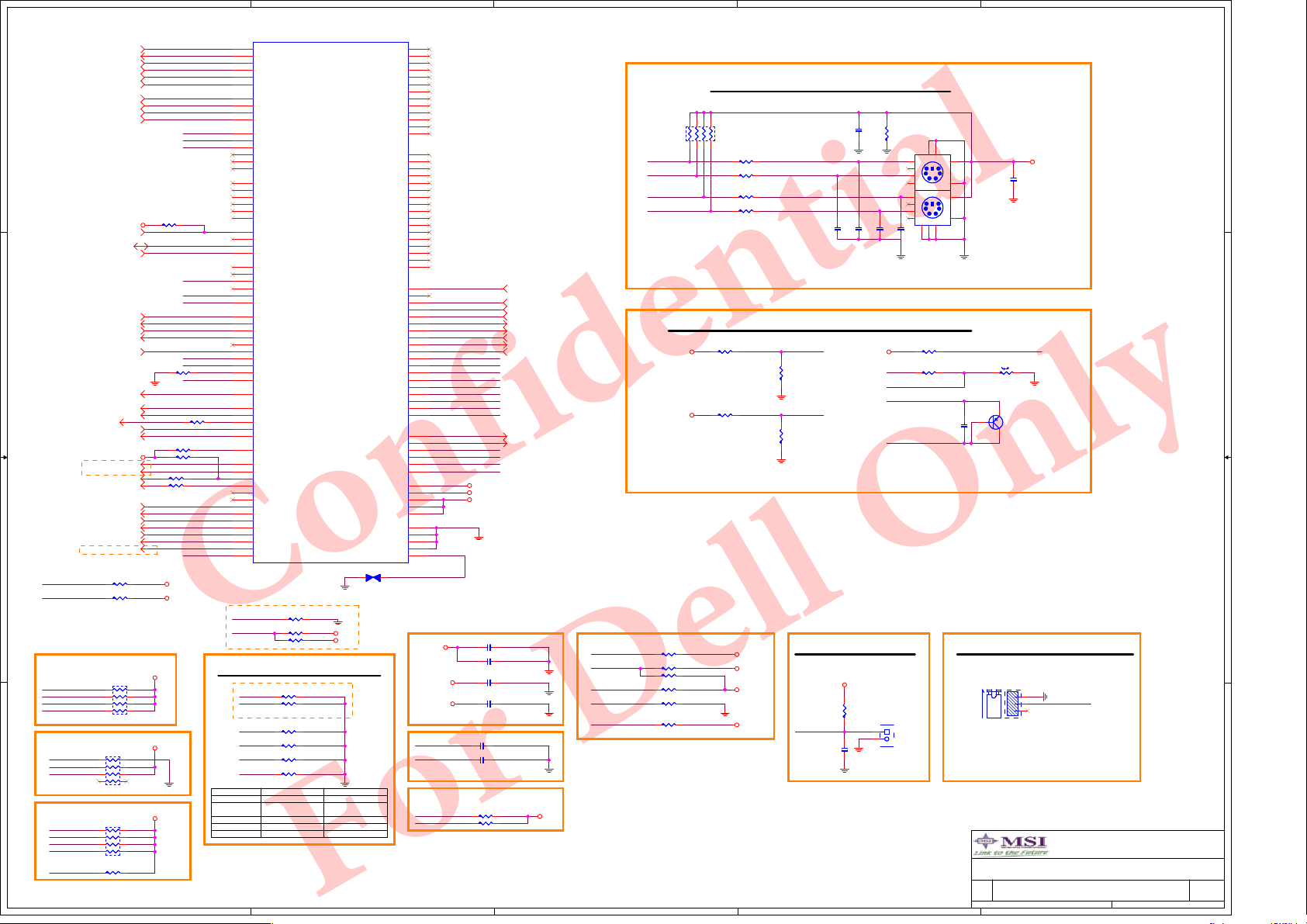

5

U17

LPC Interface

PLTRST#4,13,29

LPC_DRQ#013

SERIRQ12

LPC_FRAME#13

LPC_PCLK11

SIO_48M10 LPC_AD013

LPC_AD113 LPC_AD213

D D

C C

Pull-up to 3VSB in page.27

Pull-up to 5VSB in page.13

B B

DVI_C_HPD_DP USB_DET3

LPC_AD313

SKTOCC#4

SST_CTL12

H_PECI4,12

CPU-FAN21

CPU-FAN_CTL21

SYS-FAN121

SYS-FAN1_CTL21

DVI_C_HPD_DP12,21

SIO_PME#13 BOARD_ID128

BOARD_ID028

LOW_PWR19

USB_DET322

LED_CTL28

LED_VSB28

LED_VCC28 PLTRST_BUS1#17 PLTRST_BUS2#19

ATX_PWROK25,28 SIO_PWROK25

PSIN#28

PWRBTN#13,29

SLP_S3#13,23,24,25 PS_ON#28 RSMRST#13

R301 X_4.7KR0402R301 X_4.7KR0402 R618 10KR0402R618 10KR0402

VCC3

LOW_PWR

VCC3

RCFG0 RCFG1 RCFG2

R312 X_1KR0402R312 X_1KR0402

SST_CTL

5V_SIO +12V_SIO

VCORE_SIO

DVI_C_HPD_DP

D3+ D2+

R295 0R0402R295 0R0402

VREF

BOARD_ID1 BOARD_ID0

R597 0R0402R597 0R0402

USB_DET3

R306 1KR0402R306 1KR0402 R305 1KR0402R305 1KR0402

R304 33R0402R304 33R0402 R302 33R0402R302 33R0402

SIO_PWROK

COPEN#

VCC3

3VSB

LPC Pull High Resister

LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3

RCFG2

2

RCFG1

4

RCFG0

6 8

A A

Non used COM2

DCD2

2

RI2

4

CTS2#

6

DSR2#

8

SIN2

R296 4.7KR0402R296 4.7KR0402

VCC3

1

2

3

4

5

6

7

8

RN58P4R-8.2KR0402-1 RN58P4R-8.2KR0402-1

VCC3

1 3 5 7

RN68P4R-4.7KR0402 RN68P4R-4.7KR0402

VCC3

1 3 5 7

RN38P4R-4.7KR0402 RN38P4R-4.7KR0402

5

U17

29

LRESET#

30

LDRQ#

31

SERIRQ

32

LFRAME#

38

PCICLK

39

CLKIN

33

LAD0

34

LAD1

35

LAD2

36

LAD3

47

VIDIN5/OUT5/SID

46

VIDIN4/OUT4

45

VIDIN3/OUT3

44

VIDIN2/OUT2

43

VIDIN1/OUT1

42

VIDIN0/OUT0

54

VIDOUT5/GP5/SIC

53

VIDOUT4/GP4

52

VIDOUT3/GP3

51

VIDOUT2/GP2

50

VIDOUT1/GP1

49

VIDOUT0/GP0

55

SLOTOCC#/GP66

56

GP7/Turbo#/WDTRST#

57

VSI/SST

58

VSO/PECI

93

VIN6

94

VIN5

95

VIN4

96

VIN3

97

VIN2

98

Vcore(VIN1)

21

FANIN1

22

FAN_CTL1

23

FANIN2

24

FAN_CTL2

25

FANIN3/GP40

26

FAN_CTL3/GP41

89

D3+

90

D2+

91

D1+(CPU)

92

VREF

79

PME#

59

GP25/GP10/SPI_SLK

60

FANIN4/GP11/SPI_CS0#/FAN_CTL4

61

GP12/SPI_MISO

62

FANCTL1_1/GP13/SPI_MOSI/BEEP

63

GP14/FWH_DIS_WDTRST#/SPI_CSI#

67

OVT#

64

GP15/LED_VSB/ALERT#

65

GP16/LED_VCC/Turbo2#

74

PCIRST1#/GP20

75

PCIRST2#/GP21

76

PCIRST3#/GP22

77

GP23/RSTCON#

78

ATXPG_IN/GP24

84

PWROK/GP32

80

PWSIN#/GP26

81

PWSOUT#/GP27

82

S3#/GP30

83

PSON#/GP31

85

RSMRST#/GP33

87

COPEN#

F71882FG-RH

SST_CTL

R315 100KR0402R315 100KR0402

SIO_PWROK

R298 1KR0402R298 1KR0402 R615 X_1KR0402R615 X_1KR0402

Boot Setup Strapping

DTRB#

R276 1KR0402R276 1KR0402

SOUTB

R289 X_1KR0402R289 X_1KR0402

Select LPC or SPI debug port

DTRA#

R265 X_1KR0402R265 X_1KR0402

RTSA#

R264 1KR0402R264 1KR0402

RTSB#

R280 X_1KR0402R280 X_1KR0402

SOUTA

R263 X_1KR0402R263 X_1KR0402

RTSB#

RTSA# SOUTA SOUTB DTRA#

PWM FAN LINEAR FAN PIN49-54=VID_OUT PIN42-47=VIDIN

4E / 4F

SPI_DISABLE FAN Start Duty 60%

4

DENSEL#

DSKCHG#

GP42/IRTX GP43/IRRX

DTR1#/FAN60_100

RTS1#/VIDOUT_TRAP

SOUT1/Config4E_2E

DTR2#/FWH_TRAP

RTS2#/HPWM_DC

SOUT2/SPI_TRAP

AGND(D_)

CP7 X_COPPERCP7 X_COPPER

3VSB

VCC3

StuffDon't Stuff

PIN49-54=GPIO PIN42-47=VIDIN/OUT

2E / 2F

SPI_ENABLE

FAN Start Duty 100%

4

7 17

INDEX#

8

MOA#

9

DRVA#

11

DIR#

12

STEP#

10

WDATA#

14

WGATE#

16

TRK0#

18

WPT#

15

RDATA#

13

HDSEL#

19

100

SLCT

101

PE

102

BUSY

103

ACK#

104

SLIN#

105

INIT#

106

ERR#

107

AFD#

108

STB#

109

PD0

110

PD1

111

PD2

112

PD3

113

PD4

114

PD5

115

PD6

116

PD7

27 28 118

DCD1#

119

RI1#

120

CTS1#

121 122 123

DSR1#

124 125

SIN1

126

DCD2

127

RI2#

128

CTS2#

1 2 3

DSR2#

5 6

SIN2

66

GPIO17

40

KBRST#

41

AG20

69

KDATA

70

KCLK

71

MDAT

72

MCLK

68

VSB

86

VBAT

4

VCC

37

VCC

99

VCC

20

GND

48

GND

73

GND

117

GND

88

THERMDC

VCC3

3VSB

VBAT0

Please cloce to Super I/O

LPC_PCLK VREF

Board ID

BOARD_ID0 BOARD_ID1

DTRA# RTSA#

SOUTA DCD2

RI2 CTS2# DTRB# RTSB# DSR2# SOUTB SIN2 PAS_DET#

KBDATA KBCLK MSDAT MSCLK

3VSB VBAT0 VCC3

C230 C0.1u16Y0402C230 C0.1u16Y0402 C245 C0.1u16Y0402C245 C0.1u16Y0402

C243 C0.1u16Y0402C243 C0.1u16Y0402

C240 C0.1u16Y0402C240 C0.1u16Y0402

C249 X_C10p50N0402C249 X_C10p50N0402 C233 C0.1u16Y0402C233 C0.1u16Y0402

R318 4.7KR0402R318 4.7KR0402 R317 4.7KR0402R317 4.7KR0402

FP_AUD_DET# 20 DCDA# 21

RIA# 21 CTSA# 21

DTRA# 21 RTSA# 21

DSRA# 21

SOUTA 21

SINA 21

KBRST# 12 A20GATE 12

3VSB

3

PS_ON# SKTOCC#

PWRBTN# H_PECI

PAS_DET#

3

2

PS2 KEYBOARD & MOUSE CONNECTOR

246

MSDAT MSCLK

KBDATA KBCLK

135

8

RN1

RN1 8P4R-2.7KR0402

8P4R-2.7KR0402

7

FB2 0RFB2 0R FB3 0RFB3 0R

FB4 0RFB4 0R FB5 0RFB5 0R

C180p50N0402

C7

X_C0.1u16Y0402

MS_DT MS_CK

KB_DT KB_CK

C22

C16

C180p50N0402

Voltage and Temperture H/W Monitor Block

R284 200KR1%0402R284 200KR1%0402

+12V VCCP

R288 200KR1%0402R288 200KR1%0402

VCC5

R299 4.7KR0402R299 4.7KR0402 R314 X_2MR0402R314 X_2MR0402

R313 2MR0402R313 2MR0402 R300 4.7KR0402R300 4.7KR0402 R316 100KR0402R316 100KR0402

R319 1KR0402R319 1KR0402

VCC5_SB

VBAT0

3VSB

+12V_SIO

R283

R283 20KR1%0402

20KR1%0402

5V_SIO

R287

R287 47KR1%0402-RH

47KR1%0402-RH

Chasiss Intrusion

VBAT0

R297

R297 2MR0402

C238

2MR0402

1 2

X_H1X2M_BLACK-RH

2

COPEN#

C1000p50X0402

C35

VREF D3+ D2+

THERMDC

JCI1

R16

R16 1KR0402

1KR0402

JKBMS1

JKBMS1 CONN-KB_MS

CONN-KB_MS

16

17

7

8 11 12

MS

1

2

5

6

KB

131415

C28

C28 C180p50N0402

C180p50N0402

R277 10KR1%0402R277 10KR1%0402

R294 X_10KR1%0402R294 X_10KR1%0402

C234

C2200p50X0402

1

10

9 4

3

RT3 X_10KRT1%-RHRT3 X_10KRT1%-RH

B

5VUSB_SVCC2

C1

C1 C0.1u16Y0402

C0.1u16Y0402

VCORE_SIO

Q35

Q35 P-PMBS3906_SOT23-RH

P-PMBS3906_SOT23-RH

C E

PASSWORD DETECTION

JPA1

1

PAS_DET#

2

G

3

N31-1030151+N33-1020271-RH

PAS_DET# 1-2 Short: Clear password 1-2 Open: -

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Date: Sheet

Date: Sheet of

MICRO-START INT'L CO.,LTD.

Super I/O - F71882FG

DELL Shen Yang

16 34Friday, August 14, 2009

1

of

1.0

Confidential

For Dell Only

5

4

3

2

1

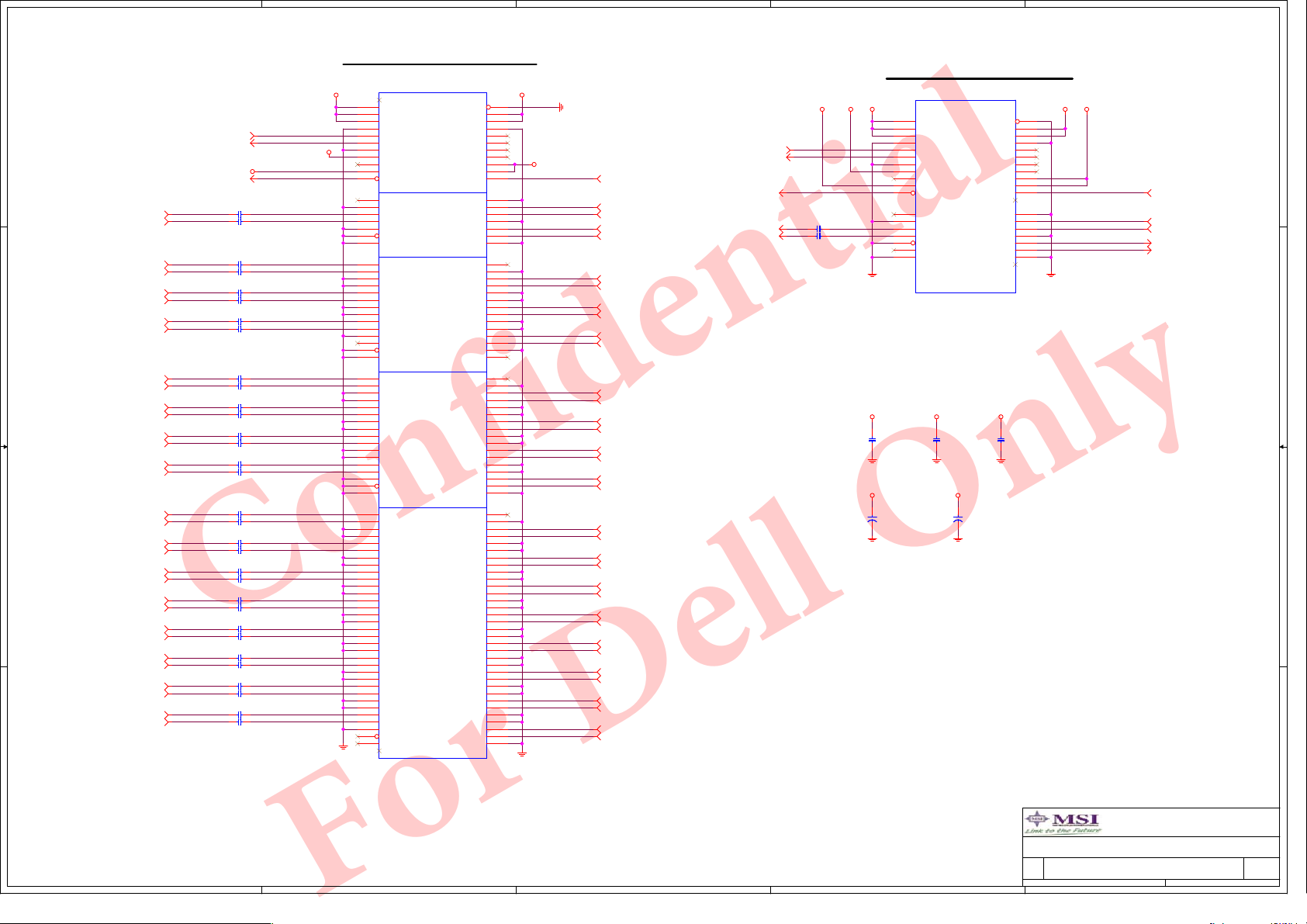

PCI_EXPRESS X16 SLOT

PCI_E1

+12V +12V

D D

SMBCLK8,10,13,25,29

SMBDATA8,10,13,25,29

EXP_A_TXP_04 EXP_A_TXN_04

EXP_A_TXP_14 EXP_A_TXN_14

EXP_A_TXP_24 EXP_A_TXN_24

EXP_A_TXP_34

C C

B B

A A

EXP_A_TXN_34

EXP_A_TXP_44 EXP_A_TXN_44

EXP_A_TXP_54 EXP_A_TXN_54

EXP_A_TXP_64 EXP_A_TXN_64

EXP_A_TXP_74 EXP_A_TXN_74

EXP_A_TXP_84 EXP_A_TXN_84

EXP_A_TXP_94 EXP_A_TXN_94

EXP_A_TXP_104 EXP_A_TXN_104

EXP_A_TXP_114 EXP_A_TXN_114

EXP_A_TXP_124 EXP_A_TXN_124

EXP_A_TXP_134 EXP_A_TXN_134

EXP_A_TXP_144 EXP_A_TXN_144

EXP_A_TXP_154 EXP_A_TXN_154

EXP_A_TXP_0 EXP_A_TXN_0

EXP_A_TXP_1 EXP_A_TXN_1

EXP_A_TXP_2 EXP_A_TXN_2

EXP_A_TXP_3 EXP_A_TXN_3

EXP_A_TXP_4 EXP_A_TXN_4

EXP_A_TXP_5 EXP_A_TXN_5

EXP_A_TXP_6 EXP_A_TXN_6

EXP_A_TXP_7 EXP_A_TXN_7

EXP_A_TXP_8 EXP_A_TXN_8

EXP_A_TXP_9 EXP_A_TXN_9

EXP_A_TXP_10 EXP_A_TXN_10

EXP_A_TXP_11 EXP_A_TXN_11

EXP_A_TXP_12 EXP_A_TXN_12

EXP_A_TXP_13 EXP_A_TXN_13

EXP_A_TXP_14 EXP_A_TXN_14

EXP_A_TXP_15 EXP_A_TXN_15

SMBCLK SMBDATA

3VSB

WAKE#

WAKE#13,19

C259 C0.1u16X0402C259 C0.1u16X0402 C258 C0.1u16X0402C258 C0.1u16X0402

C260 C0.1u16X0402C260 C0.1u16X0402 C261 C0.1u16X0402C261 C0.1u16X0402

C262 C0.1u16X0402C262 C0.1u16X0402 C263 C0.1u16X0402C263 C0.1u16X0402

C264 C0.1u16X0402C264 C0.1u16X0402 C265 C0.1u16X0402C265 C0.1u16X0402

C266 C0.1u16X0402C266 C0.1u16X0402 C267 C0.1u16X0402C267 C0.1u16X0402

C268 C0.1u16X0402C268 C0.1u16X0402 C269 C0.1u16X0402C269 C0.1u16X0402

C270 C0.1u16X0402C270 C0.1u16X0402 C271 C0.1u16X0402C271 C0.1u16X0402

C272 C0.1u16X0402C272 C0.1u16X0402 C273 C0.1u16X0402C273 C0.1u16X0402

C274 C0.1u16X0402C274 C0.1u16X0402 C275 C0.1u16X0402C275 C0.1u16X0402

C276 C0.1u16X0402C276 C0.1u16X0402 C277 C0.1u16X0402C277 C0.1u16X0402

C278 C0.1u16X0402C278 C0.1u16X0402 C279 C0.1u16X0402C279 C0.1u16X0402

C280 C0.1u16X0402C280 C0.1u16X0402 C281 C0.1u16X0402C281 C0.1u16X0402

C282 C0.1u16X0402C282 C0.1u16X0402 C283 C0.1u16X0402C283 C0.1u16X0402

C284 C0.1u16X0402C284 C0.1u16X0402 C285 C0.1u16X0402C285 C0.1u16X0402

C286 C0.1u16X0402C286 C0.1u16X0402 C287 C0.1u16X0402C287 C0.1u16X0402

C288 C0.1u16X0402C288 C0.1u16X0402 C289 C0.1u16X0402C289 C0.1u16X0402

VCC3

EXP_A_TXP_0_C EXP_A_TXN_0_C

EXP_A_TXP_1_C EXP_A_TXN_1_C

EXP_A_TXP_2_C EXP_A_TXN_2_C

EXP_A_TXP_3_C EXP_A_TXN_3_C

EXP_A_TXP_4_C EXP_A_TXN_4_C

EXP_A_TXP_5_C EXP_A_TXN_5_C

EXP_A_TXP_6_C EXP_A_TXN_6_C

EXP_A_TXP_7_C EXP_A_TXN_7_C

EXP_A_TXP_8_C EXP_A_TXN_8_C

EXP_A_TXP_9_C EXP_A_TXN_9_C

EXP_A_TXP_10_C EXP_A_TXN_10_C

EXP_A_TXP_11_C EXP_A_TXN_11_C

EXP_A_TXP_12_C EXP_A_TXN_12_C

EXP_A_TXP_13_C EXP_A_TXN_13_C

EXP_A_TXP_14_C EXP_A_TXN_14_C

EXP_A_TXP_15_C EXP_A_TXN_15_C

PCI_E1

X2

B1

12V#B1

B2

12V#B2

B3

RSVD#B3

B4

GND

B5

SMCLK

B6

SMDAT

B7

GND

B8

3.3V#B8

B9

JTAG1

B10

3.3VAUX

B11

WAKE#

B12

RSVD#B12

B13

GND

B14

HSOP0

B15

HSON0

B16

GND

B17

PRSNT2#

B18

GND

B19

HSOP1

B20

HSON1

B21

GND

B22

GND

B23

HSOP2

B24

HSON2

B25

GND

B26

GND

B27

HSOP3

B28

HSON3

B29

GND

B30

RSVD#B30

B31

PRSNT2##B31

B32

GND

B33

HSOP4

B34

HSON4

B35

GND

B36

GND

B37

HSOP5

B38

HSON5

B39

GND

B40

GND

B41

HSOP6

B42

HSON6

B43

GND

B44

GND

B45

HSOP7

B46

HSON7

B47

GND

B48

PRSNT2##B48

B49

GND

B50

HSOP8

B51

HSON8

B52

GND

B53

GND

B54

HSOP9

B55

HSON9

B56

GND

B57

GND

B58

HSOP10

B59

HSON10

B60

GND

B61

GND

B62

HSOP11

B63

HSON11

B64

GND

B65

GND

B66

HSOP12

B67

HSON12

B68

GND

B69

GND

B70

HSOP13

B71

HSON13

B72

GND

B73

GND

B74

HSOP14

B75

HSON14

B76

GND

B77

GND

B78

HSOP15

B79

HSON15

B80

GND

B81

PRSNT2##B81

B82

RSVD#B82

X1

SLOT-PCI164P_BLUE-2PITCH-RH

PRSNT1#

12V#A3

GND JTAG2 JTAG3 JTAG4 JTAG5

3.3V

3.3V#A10 PWRGD

GND

REFCLK+

REFCLK-

GND HSIP0 HSIN0

GND

RSVD

GND HSIP1 HSIN1

GND

GND HSIP2 HSIN2

GND

GND HSIP3 HSIN3

GND

RSVD#A32

RSVD#A33

GND HSIP4 HSIN4

GND

GND HSIP5 HSIN5

GND

GND HSIP6 HSIN6

GND

GND HSIP7 HSIN7

GND

RSVD#A50

GND HSIP8 HSIN8

GND

GND HSIP9 HSIN9

GND

HSIP10 HSIN10

GND

HSIP11 HSIN11

GND

HSIP12 HSIN12

GND

HSIP13 HSIN13

GND

HSIP14 HSIN14

GND

HSIP15 HSIN15

GND

A1 A2

12V

A3 A4 A5 A6 A7 A8 A9 A10 A11

A12 A13 A14 A15 A16 A17 A18

A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32

A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49

A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 A69 A70 A71 A72 A73 A74 A75 A76 A77 A78 A79 A80 A81 A82

VCC3

PLTRST_BUS1#

PEA_CLK PEA_CLK#

EXP_A_RXP_0 EXP_A_RXN_0

EXP_A_RXP_1 EXP_A_RXN_1

EXP_A_RXP_2 EXP_A_RXN_2

EXP_A_RXP_3 EXP_A_RXN_3

EXP_A_RXP_4 EXP_A_RXN_4

EXP_A_RXP_5 EXP_A_RXN_5

EXP_A_RXP_6 EXP_A_RXN_6

EXP_A_RXP_7 EXP_A_RXN_7

EXP_A_RXP_8 EXP_A_RXN_8

EXP_A_RXP_9 EXP_A_RXN_9

EXP_A_RXP_10 EXP_A_RXN_10

EXP_A_RXP_11 EXP_A_RXN_11

EXP_A_RXP_12 EXP_A_RXN_12

EXP_A_RXP_13 EXP_A_RXN_13

EXP_A_RXP_14 EXP_A_RXN_14

EXP_A_RXP_15 EXP_A_RXN_15

PLTRST_BUS1# 16

PEA_CLK 11 PEA_CLK# 11

EXP_A_RXP_0 4 EXP_A_RXN_0 4

EXP_A_RXP_1 4 EXP_A_RXN_1 4

EXP_A_RXP_2 4 EXP_A_RXN_2 4

EXP_A_RXP_3 4 EXP_A_RXN_3 4

EXP_A_RXP_4 4 EXP_A_RXN_4 4

EXP_A_RXP_5 4 EXP_A_RXN_5 4

EXP_A_RXP_6 4 EXP_A_RXN_6 4

EXP_A_RXP_7 4 EXP_A_RXN_7 4

EXP_A_RXP_8 4 EXP_A_RXN_8 4

EXP_A_RXP_9 4 EXP_A_RXN_9 4

EXP_A_RXP_10 4 EXP_A_RXN_10 4

EXP_A_RXP_11 4 EXP_A_RXN_11 4

EXP_A_RXP_12 4 EXP_A_RXN_12 4

EXP_A_RXP_13 4 EXP_A_RXN_13 4

EXP_A_RXP_14 4 EXP_A_RXN_14 4

EXP_A_RXP_15 4 EXP_A_RXN_15 4

SMBCLK8,10,13,25,29

SMBDATA8,10,13,25,29

WAKE#13,19

PE4_TX11 PE4_TX#11

SMBCLK SMBDATA

C327 C0.1u16X0402C327 C0.1u16X0402 C326 C0.1u16X0402C326 C0.1u16X0402

PCI EXPRESS x1-PORT

PCI_E2

B1

12V

B2

12V

B3

12V

B4

GND

B5

SMCLK

B6

SMDATA

B7

GND

B8

3.3V

B9

JTAG1

B10

3.3VAUX

B11

WAKE_#

B12

RSVD

B13

GND

B14

HSOP0+

B15

HSOP0-

B16

GND

B17

PRSNT2_#

B18

GND

SLOT-PCIEx1_BLACK-R

+12V VCC3 3VSB

C290

C290 C0.1u16Y0402

C0.1u16Y0402

+12V VCC3

+

12

EC41

EC41 CD470u16EL11.5-RH

CD470u16EL11.5-RH

C291

C291 C0.1u16Y0402

C0.1u16Y0402

+

12

EC42

EC42 CD470u16EL11.5-RH

CD470u16EL11.5-RH

PRSNT1_#

GND JTAG2 JTAG3 JTAG4 JTAG5

3.3V

PWRGD

GND

REFCLK+

REFCLK-

GND

HSIP0+

HSIP0-

GND

A1 A2

12V

A3

12V

A4 A5 A6 A7 A8 A9 A10 A11 X1

X1

A12 A13 A14 A15 A16 A17 A18 X2

X2

C294

C294 C0.1u16Y0402

C0.1u16Y0402

+12VVCC33VSB +12V VCC3

PLTRST_BUS1#

PLTRST_BUS1# 16

PE0_CLK 11 PE0_CLK# 11

PE4_RX 11 PE4_RX# 11

MICRO-START INT'L CO.,LTD.

Title

PCIE x16, x1

Size Document Number Rev

Date: Sheet

Date: Sheet of

5

4

3

2

Date: Sheet of

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

1

of

17 34Friday, August 14, 2009

1.0

Confidential

For Dell Only

5

4

3

2

1

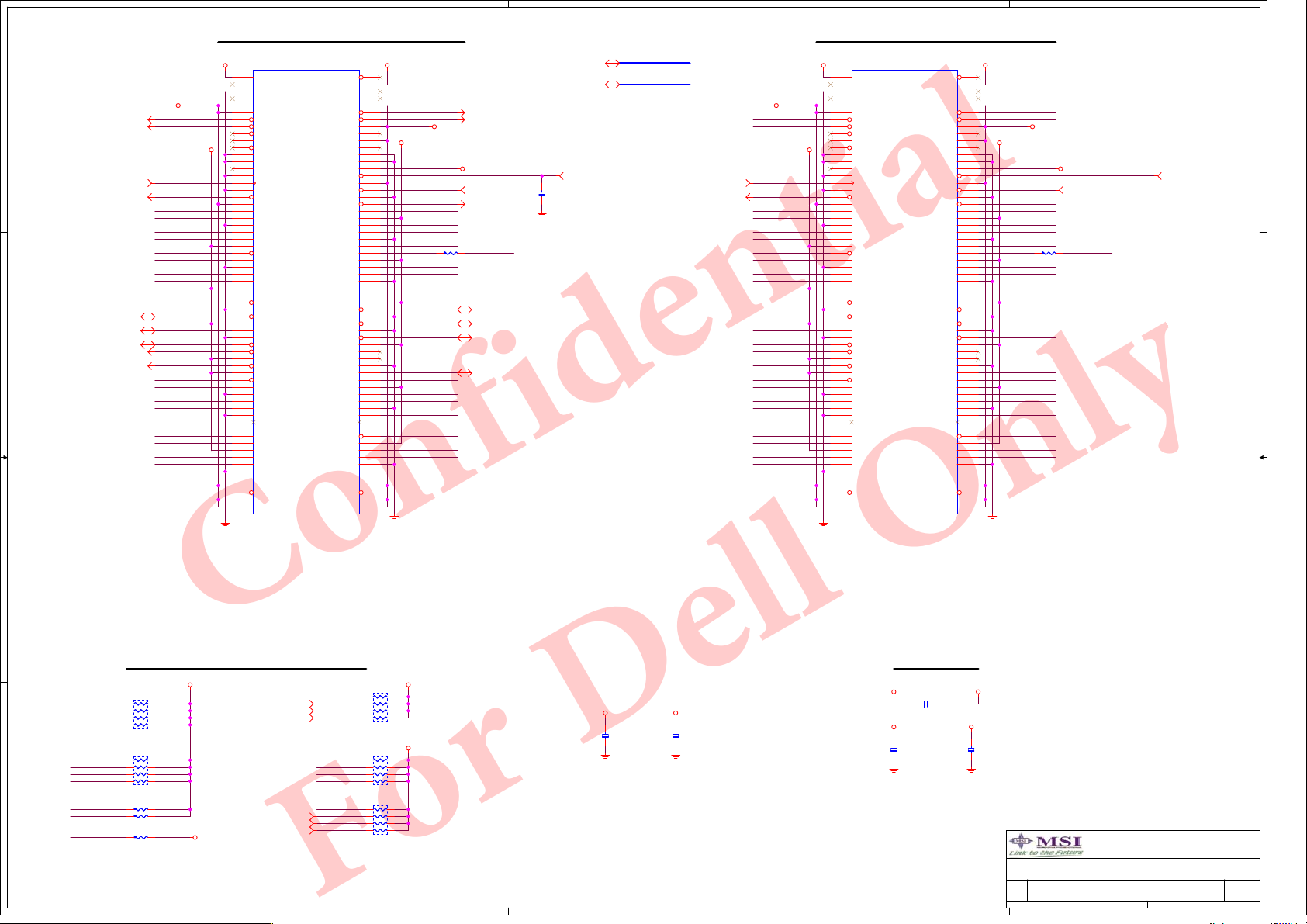

PCI SLOT 1 (PCI VER: 2.2 COMPLY)

-12V

PCI1

B1

-12V

B2

TCK

B3

GND

B4

TDO

VCC3

B5

+5V

B6

+5V

B7

INTB#

B8

INTD#

B9

PRSNT#1

B10

RESERVED#B10

B11

PRSNT#2

B12

GND

B13

GND

B14

RESERVED#B14

B15

GND

B16

CLK

B17

GND

B18

REQ#

B19

+5V(I/O)#B19

B20

AD31

B21

AD29

B22

GND

B23

AD27

B24

AD25

B25

+3.3V

B26

C/BE#3

B27

AD23

B28

GND

B29

AD21

B30

AD19

B31

+3.3V

B32

AD17

B33

C/BE#2

B34

GND

B35

IRDY#

B36

+3.3V

B37

DEVSEL#

B38

GND

B39

LOCK#

B40

PERR#

B41

+3.3V

B42

SERR#

B43

+3.3V

B44

C/BE#1

B45

AD14

B46

GND

B47

AD12

B48

AD10

B49

GND

X1

B52

AD8

B53

AD7

B54

+3.3V

B55

AD5

B56

AD3

B57

GND

B58

AD1

B59

+5V(I/O)#B59

B60

ACK64#

B61

+5V

B62

+5V

SLOT-PCI120_Blue-RH

RESERVED

+5V(I/O)

RESERVED#A11

3.3VAUX

+5V(I/O)#A16

FRAME#

SMBCLK SMBDAT

+5V(I/O)#A59

REQ64#

VCC5

D D

C C

PIRQ#D11

CK_P_33M_PCI111

PREQ#011

IRDY#11

DEVSEL#11

LOCK#11

PERR#11 SERR#11

PIRQ#B PIRQ#D

PREQ#0 AD31

AD29 AD27

AD25 C_BE#3

AD23 AD21

AD19 AD17

C_BE#2 IRDY# DEVSEL# LOCK#

PERR# SERR# C_BE#1

AD14 AD12

AD10

AD8 AD7

AD5 AD3

AD1 ACK#64

TRST#

+12V

TMS

INTA# INTC#

GND

GND RST# GNT#

GND PME# AD30 +3.3V AD28 AD26

GND AD24

IDSEL

+3.3 AD22 AD20

GND AD18 AD16 +3.3V

GND

TRDY#

GND

STOP#

+3.3V

GND

PAR AD15 +3.3V AD13 AD11

GND

AD9

C/BE#0

+3.3V

AD6

AD4

GND

AD2

AD0

+12V

A1 A2 A3 A4

TDI

A5

+5V

A6 A7 A8

+5V

A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 X2

X2

A52 A53 A54 A55 A56 A57 A58 A59 A60 A61

+5V

A62

+5V

VCC3

PIRQ#A PIRQ#C

VCC5

PCH_PCIRST# PGNT#0 PCI_PME#

AD30 AD28

AD26 AD24

ID1

R433 330R0402R433 330R0402

AD22 AD20

AD18 AD16

FRAME# TRDY# STOP#

PAR AD15

AD13 AD11

AD9

C_BE#0 AD6

AD4 AD2

AD0 REQ#64

PIRQ#A 11 PIRQ#C 11PIRQ#B11

3VSB

PGNT#0 11

PCI_PME# 11

AD16

FRAME# 11 TRDY# 11 STOP# 11

PAR 11

AD[31..0]11

C_BE#[3..0]11

PCH_PCIRST# 11

C394

C394 X_C10p50N0402

X_C10p50N0402

EMI

IDSEL = AD16 MASTER = PREQ#0

B B

PIRQ#A

AD[31..0]

C_BE#[3..0]

VCC5

PIRQ#C PIRQ#A

CK_P_33M_PCI211

PREQ#111

PREQ#1 AD31

AD29 AD27

AD25 C_BE#3

AD23 AD21

AD19 AD17

C_BE#2 IRDY# DEVSEL# LOCK#

PERR# SERR# C_BE#1

AD14 AD12

AD10

AD8 AD7

AD5 AD3

AD1 ACK#64

PCI SLOT 2 (PCI VER: 2.2 COMPLY)

VCC3

-12V

PCI2

B1

-12V

B2

TCK

B3

GND

B4

TDO

B5

+5V

B6

+5V

B7

INTB#

B8

INTD#

B9

PRSNT#1

B10

RESERVED#B10

B11

PRSNT#2

B12

GND

B13

GND

B14

RESERVED#B14

B15

GND

B16

CLK

B17

GND

B18

REQ#

B19

+5V(I/O)#B19

B20

AD31

B21

AD29

B22

GND

B23

AD27

B24

AD25

B25

+3.3V

B26

C/BE#3

B27

AD23

B28

GND

B29

AD21

B30

AD19

B31

+3.3V

B32

AD17

B33

C/BE#2

B34

GND

B35

IRDY#

B36

+3.3V

B37

DEVSEL#

B38

GND

B39

LOCK#

B40

PERR#

B41

+3.3V

B42

SERR#

B43

+3.3V

B44

C/BE#1

B45

AD14

B46

GND

B47

AD12

B48

AD10

B49

GND

X1

B52

AD8

B53

AD7

B54

+3.3V

B55

AD5

B56

AD3

B57

GND

B58

AD1

B59

+5V(I/O)#B59

B60

ACK64#

B61

+5V

B62

+5V

SLOT-PCI120_Blue-RH

IDSEL = AD17 MASTER = PREQ#1 PIRQ#B

RESERVED

+5V(I/O)

RESERVED#A11

3.3VAUX

+5V(I/O)#A16

FRAME#

SMBCLK

SMBDAT

C/BE#0

+5V(I/O)#A59

REQ64#

TRST#

+12V

TMS

INTA# INTC#

GND

GND RST# GNT#

GND

PME#

AD30 +3.3V AD28 AD26

GND AD24

IDSEL

+3.3 AD22 AD20

GND AD18 AD16 +3.3V

GND

TRDY#

GND

STOP#

+3.3V

GND

PAR AD15 +3.3V AD13 AD11

GND

AD9

+3.3V

AD6 AD4

GND

AD2 AD0

+5V +5V

+12V

A1 A2 A3 A4

TDI

A5

+5V

A6 A7 A8

+5V

A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 X2

X2

A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62

VCC3

PIRQ#B PIRQ#D

VCC5

PCH_PCIRST# PGNT#1 PCI_PME#

AD30 AD28

AD26 AD24

ID2

R512 330R0402R512 330R0402

AD22 AD20

AD18 AD16

FRAME# TRDY# STOP#

PAR AD15

AD13 AD11

AD9

C_BE#0 AD6

AD4 AD2

AD0 REQ#64

3VSB

PGNT#1 11

AD17

PCH_PCIRST# 11

PCI PULL-UP / DOWN RESISTORS

RN12

FRAME# IRDY# TRDY# DEVSEL#

STOP# LOCK# PERR# SERR#

A A

REQ#64 ACK#64

PCI_PME#

RN12

1 3 5 7

8P4R-8.2KR0402-1

RN13

1 3 5 7

8P4R-8.2KR0402-1

8P4R-8.2KR0402-1 R430 8.2KR0402R430 8.2KR0402

R479 8.2KR0402R479 8.2KR0402

R432 X_4.7KR0402R432 X_4.7KR0402

5

VCC3 VCC3

2 4 6 8

3VSB

PREQ#211 PIRQ#H11 PIRQ#E11

PIRQ#F11 PREQ#311 PIRQ#G11

PREQ#1 PREQ#2 PIRQ#H PIRQ#E

PIRQ#B PIRQ#A PIRQ#C PIRQ#D

PREQ#0 PIRQ#F PREQ#3 PIRQ#G

RN11

1

2

3

4

5

6

7

8

8P4R-8.2KR0402-1

VCC3

RN8

1

2

3

4

5

6

7

8

8P4R-8.2KR0402-1

RN10

1

2

3

4

5

6

7

8

8P4R-8.2KR0402-1

4

VCC5

C396

C396 C0.1u16Y0402

C0.1u16Y0402

VCC3

C395

C395 C0.1u16Y0402

C0.1u16Y0402

3

EMI CAPs

VCC5

C486 C0.1u16Y0402C486 C0.1u16Y0402

VCC5 +12V

C487

C487 C0.1u16Y0402

C0.1u16Y0402

2

VCC3

C492

C492 C0.1u16Y0402

C0.1u16Y0402

MICRO-START INT'L CO.,LTD.

Title

PCI Slot

Size Document Number Rev

Date: Sheet of

Date: Sheet

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

1

1.0

of

18 34Friday, August 14, 2009

Confidential

For Dell Only

5

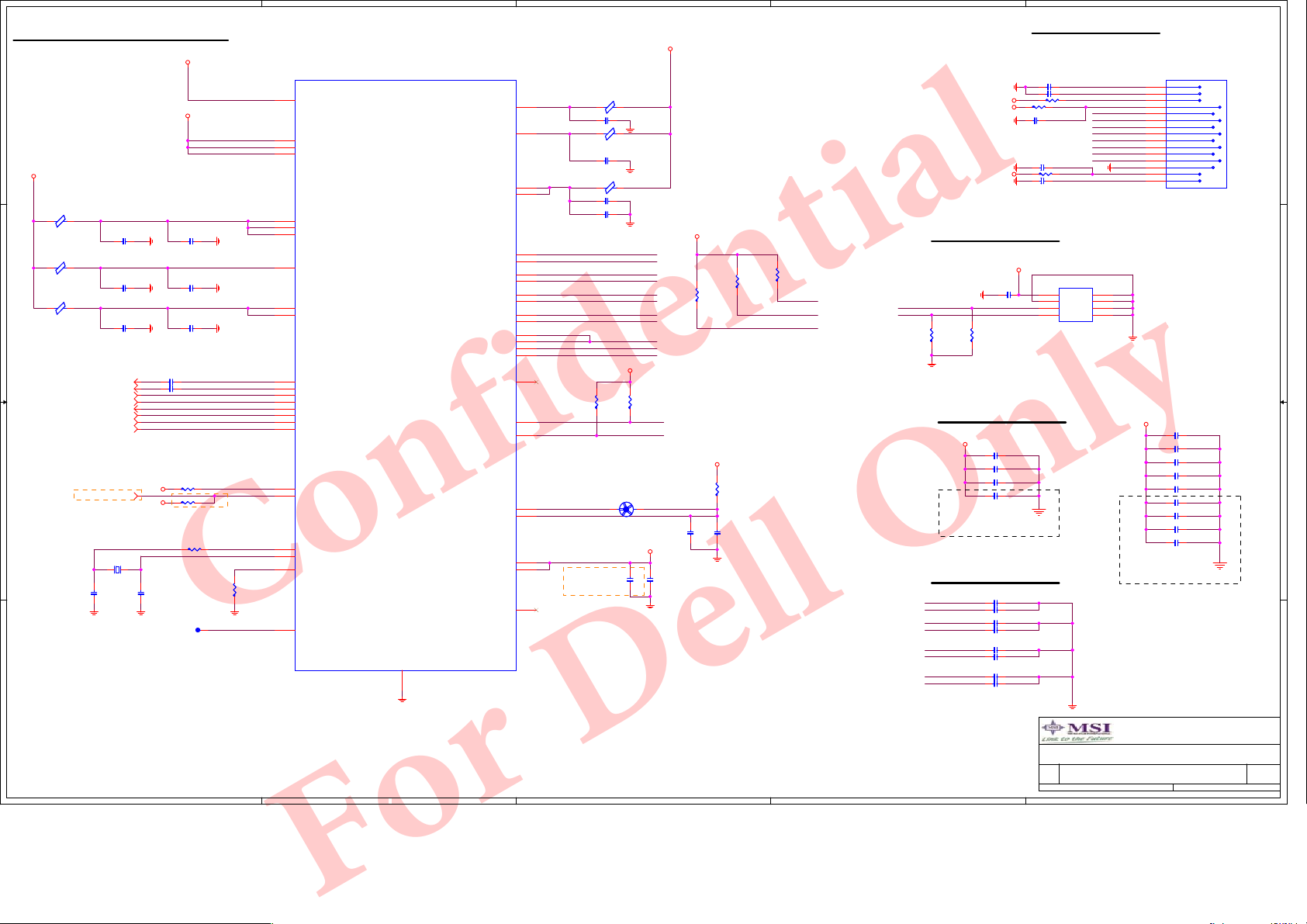

Gigabit LAN BCM57780

3VSB

U20

42

D D

VLAN12

L12

C331

C4.7u10X50805-RH

PE1_LAN_RX11

PE1_LAN_RX#11

PE1_LAN_TX11 PE1_LAN_TX#11

PLTRST_BUS2#16 CK_100M_LAN11 CK_100M_LAN#11

LOW_PWR16

1 2

25MHZ18P_D-1

C331

C320

C324

WAKE#13,17

Y3

600L200mA-450

L15

600L200mA-450

L16

C C

B B

A A

L16

600L200mA-450

Control by Super IO GPIO

C376

C27p50N0402

VLAN12

C306

C0.1u16Y0402

C315

C0.1u16Y0402

C336

C0.1u16Y0402

Reserve

TP6TP6

PE1_RXP_C PE1_RXN_C

LOW_PWR

R338

1.24KR1%0402-1

C339 C0.1u16X0402C339 C0.1u16X0402 C345 C0.1u16X0402C345 C0.1u16X0402

R369 1KR0402R369 1KR0402

VCC3

R386 X_1KR0402R386 X_1KR0402

3VSB

R405 200R0402R405 200R0402

C382

C382 C27p50N0402

C27p50N0402

VDDO

6

VDDC

15

VDDC

41

VDDC

27

AVDDL

33

AVDDL

39

AVDDL

24

GPHY_PLLVDDL

18

PCIE_PLLVDDL

21

PCIE_PLLVDDL

17

PCIE_TXD_P

16

PCIE_TXD_N

22

PCIE_RXD_P

23

PCIE_RXD_N

4

WAKE#

2

PERST#

20

PCIE_REFCLK_P

19

PCIE_REFCLK_N

40

VMAIN_PRSNT

1

LOW_PWR

13

XTALO

12

XTALI

26

RDAC

3

CLK_REQ#

4

BCM57780

7mm x 7mm

48-Pin QFN

Package Body

GND

49

BIASVDDH

XTALVDDH

AVDDH AVDDH

TRD3_N TRD3_P

TRD2_N TRD2_P

TRD1_N TRD1_P

TRD0_N TRD0_P

LINKLED#

SPD100LED# SPD1000LED# TRAFFICLED#

MODE

EECLK

EEDATA

SR_LX

SR_VFB

SR_VDDP

SR_VDD

VREGPNP_CTL

BCM57780A0KMLG-A0-RH

25

14

30 36

37 38

35 34

31 32

29 28

48 47 46 45

5

44 43

11 8

10 9

Place close to the SR_VDDP

7

L13 600L200mA-450L13 600L200mA-450

C305 C0.1u16Y0402C305 C0.1u16Y0402

L18 600L200mA-450L18 600L200mA-450

C352 C0.1u16Y0402C352 C0.1u16Y0402

L14 600L200mA-450L14 600L200mA-450 C307 C0.1u16Y0402C307 C0.1u16Y0402 C316 C0.1u16Y0402C316 C0.1u16Y0402

TR_D3TR_D3+

TR_D2TR_D2+

TR_D1TR_D1+

TR_D0TR_D0+

100_10_LED#100_10_LED# 1G_LED# TR_LED#

R380

1KR0402

EECLK EEDATA

CHOKE7 CH-4.7u1.7A90mS-RHCHOKE7 CH-4.7u1.7A90mS-RH

1 2

C4.7u10X50805-RH

C349

3

3VSB

R392

R392 1KR0402

1KR0402

C0.1u16Y0402

3VSB

C308

C308 C0.1u16Y0402

C0.1u16Y0402

3VSB

C357

3VSB

2

3VSB

VLAN12

3VSB

LAN EEPROM

R384

R384 10KR0402

10KR0402

R385

R385 10KR0402

10KR0402 U23

R596

R596 10KR0402

10KR0402

1G_LED#

100_10_LED#

TR_LED#

EECLK EEDATA

R383

R383 X_1KR0402

X_1KR0402

C370

C0.1u25Y0402-RH

R402

R402 X_1KR0402

X_1KR0402

Bypass CAPs

3VSB

VLAN12

R4080RR408 0R

C366

C366 C10u10Y0805

C10u10Y0805

C358 C0.1u16Y0402C358 C0.1u16Y0402 C359 C0.1u16Y0402C359 C0.1u16Y0402 C337 C0.1u16Y0402C337 C0.1u16Y0402 C297 C0.1u16Y0402C297 C0.1u16Y0402

For Broadcom suggestion

EMI SUGGESTION

TR_D0+

C303 X_C0.1u16Y0402C303 X_C0.1u16Y0402

TR_D0-

C302 X_C0.1u16Y0402C302 X_C0.1u16Y0402

TR_D1+

C300 X_C0.1u16Y0402C300 X_C0.1u16Y0402

TR_D1-

C301 X_C0.1u16Y0402C301 X_C0.1u16Y0402

TR_D2+

C299 X_C0.1u16Y0402C299 X_C0.1u16Y0402

TR_D2-

C298 X_C0.1u16Y0402C298 X_C0.1u16Y0402

TR_D3+

C325 X_C0.1u16Y0402C325 X_C0.1u16Y0402

TR_D3-

C322 X_C0.1u16Y0402C322 X_C0.1u16Y0402

LAN Connector

VCC WP SCL

U23

VSS4SDA

A0 A1 A2

1G_LED# 100_10_LED#

LPWR TR_D0+ TR_D0TR_D1+ TR_D1TR_D2+ TR_D2TR_D3+ TR_D3-

TR_LED#

1 2 3

C229 C0.01u16X0402C229 C0.01u16X0402 C232 C0.01u16X0402C232 C0.01u16X0402 R154 100R0402R154 100R0402

R143 X_0R0402R143 X_0R0402 C231 C0.1u16Y0402C231 C0.1u16Y0402

C225 C0.01u16X0402C225 C0.01u16X0402 R271 330R0402R271 330R0402 C227 C0.01u16X0402C227 C0.01u16X0402

3VSB

8 7 6 5

24LC02BTI-SN-RH

1

LAN_USB1B

OR-

15

GR-

13

GR/OR+

14

PWR

6

TD1+

2

TD1-

3

TD2+

4

TD2-

5

TD3+

7

TD3-

8

TD4+

9

TD4-

10

GND

1

YELLOW+

12

YELLOW-

11

RJ45_USBX2_LEDX2-RH

VLAN12

C348 C0.1u16Y0402C348 C0.1u16Y0402 C356 C0.1u16Y0402C356 C0.1u16Y0402 C392 C0.1u16Y0402C392 C0.1u16Y0402 C390 C0.1u16Y0402C390 C0.1u16Y0402 C388 C0.1u16Y0402C388 C0.1u16Y0402 C295 C4.7u10X50805-RHC295 C4.7u10X50805-RH C319 C0.1u16Y0402C319 C0.1u16Y0402 C342 C0.1u16Y0402C342 C0.1u16Y0402 C391 C0.1u16Y0402C391 C0.1u16Y0402

For Broadcom suggestion

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

LAN - BCM57780

DELL Shen Yang

1

19 34Friday, August 14, 2009

1.0

of

Confidential

For Dell Only

5

4

3

2

1

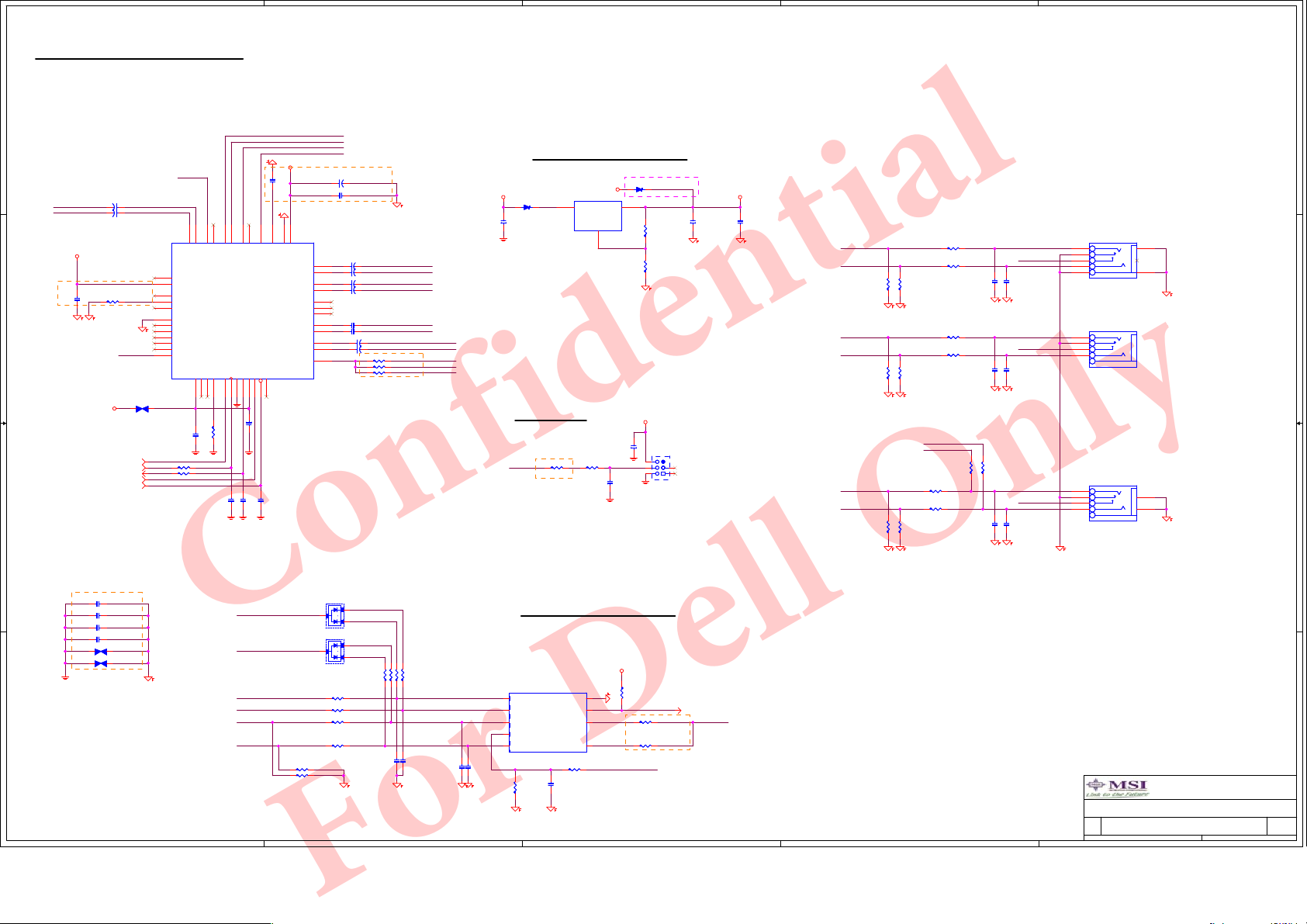

Azalia Codec - ALC662

D D

MIC1-VREFO-R LINE2_VREF MIC2-VREFO MIC1-VREFO-L

+5VR

30

31

29

MIC2-VREFO

LINE2-VREFO

C440 C10u6.3X50805-RH-3C440 C10u6.3X50805-RH-3

C439 C22p50N0402C439 C22p50N0402

C438 X_C22p50N0402C438 X_C22p50N0402

28

NC2

MIC1-VREFO-L

12

C435 C10u6.3X50805-RH-3C435 C10u6.3X50805-RH-3

25

27

26

VREF

AVSS1

AVDD1

LINE1-R

LINE1-L

MIC1-R MIC1-L

CD-R CD-G CD-L

MIC2-R MIC2-L

LINE2-R

LINE2-L SenseA

ALC662-GR-B1-RH

C436

C436 X_C0.01u16X0402

X_C0.01u16X0402

+

EC48 CD100u16EL5-RH

1 2

C434 C0.1u16Y0402C434 C0.1u16Y0402

Close to codec

+

EC51 CD10u16EL5

24

1 2

+

EC52 CD10u16EL5

23

1 2

+

EC46 CD10u16EL5

22

1 2

+

EC47 CD10u16EL5

21

1 2

20 19 18

C431 C4.7u10X50805C431 C4.7u10X50805

17

C432 C4.7u10X50805C432 C4.7u10X50805

16

+

EC61 CD100u16EL5-RH

15

1 2

+

EC60 CD100u16EL5-RH

14

1 2

SENSEA

R519 5.1KR1%0402R519 5.1KR1%0402

13

R518 20KR1%0402R518 20KR1%0402 R520 10KR1%0402R520 10KR1%0402

Close to codec

LINE1-R LINE1-L

MIC1-R MIC1-L

MIC2-R MIC2-L

LINE2-R LINE2-L

FRONT-JD MIC1-JD LINE1-JD

+12V

C407

C0.1u16Y0402

ALC662 only support SPDIFOUT

SENSE_B

+

LINE-OUTL LINE-OUTR

+5VR

C446

C10u6.3X50805-RH-3

C446

C10u6.3X50805-RH-3

C C

B B

+

EC53 CD10u16EL5

12

+

EC55 CD10u16EL5

12

Close to codec

R557 20KR1%0402R557 20KR1%0402

SPDIFO1

VCC3

CP15 X_COPPERCP15 X_COPPER

AZ_SDOUT13 AZ_BITCLK13

AZ_SDIN013

AZ_SYNC13 AZ_RST#13

U25

37

NC5

38

AVDD2

39

SURR-L

40

JDREF

41

SURR-R

42

AVSS2

43

CENTER

44

LFE

45

NC4

46

NC3

47

EAPD

48

SPDIFO

C0.1u16Y0402

R535 33R0402R535 33R0402 R533 22R0402R533 22R0402

C437

36

35

34

32

33

NC1

SenseB

FRONT-L

FRONT-R

MIC1-VREFO-R

DVDD-CORE1GPIO02GPIO13DVSS-CORE4SDATA-OUT5BITCLK6DVSS-IO7SDATA-IN8DVDD-IO9SYNC10RESET#11BEEP-IN

R541 0R0402R541 0R0402

AUDIO CODE REGULATORS

Trace Width 30mils.

D24

A C

S-SM5817A[SN]_DO214AC

U24

VIN3VOUT

LT1087S_SOT89

VCC5_SB

2

ADJ

1

A C

Vout=1.25(R1+R2)/R1=5.3V

SPDIF OUT

C455

C0.1u16Y0402

EMI

SPDIFO1 SPDIFO_R

R573 0RR573 0R

C0.1u16Y0402

R574 10R0402R574 10R0402

C454

C100p50N0402

D25

D25 X_S-SM5817A[SN]_DO214AC

X_S-SM5817A[SN]_DO214AC

C430

C430 C0.1u16Y0402

R510

R510 100R1%0402

100R1%0402

R511

R511 324R1%0402

324R1%0402

VCC5

JSP1

6

H2X3[5]M_BLACK-RH

C0.1u16Y0402

34 12

+5VR

C412

C412 C10u6.3X50805-RH-3

C10u6.3X50805-RH-3

LINE1-L

LINE1-R

22KR0402

LINE-OUTL

LINE-OUTR

22KR0402

MIC1-L

MIC1-R

22KR0402

R322

R330

R328

R311

R311 22KR0402

22KR0402

R332

R332 22KR0402

22KR0402

R327 75R0402R327 75R0402

R324 75R0402R324 75R0402

R323

R323 22KR0402

22KR0402

R321 75R0402R321 75R0402

R309 75R0402R309 75R0402

ESD-SFI0402ML080C-LF-RH

R329 75R0402R329 75R0402

R331 75R0402R331 75R0402

ESD-SFI0402ML080C-LF-RH

MIC1-VREFO-R MIC1-VREFO-L

R326

4.7KR0402

ESD-SFI0402ML080C-LF-RH

C253

C256

C255

R325

4.7KR0402

LINE1-JD

C248

C248 ESD-SFI0402ML080C-LF-RH

ESD-SFI0402ML080C-LF-RH

FRONT-JD

C257

C257 ESD-SFI0402ML080C-LF-RH

ESD-SFI0402ML080C-LF-RH

MIC1-JD

C254

C254 ESD-SFI0402ML080C-LF-RH

ESD-SFI0402ML080C-LF-RH

JAUDIO1A

13 12 11 10

3

JACK-AUDIOX3F_PK/GR/BU-RH-8

JAUDIO1B

9 8 7 6

JACK-AUDIOX3F_PK/GR/BU-RH-8

JAUDIO1C

5 4 2 1

JACK-AUDIOX3F_PK/GR/BU-RH-8

15 14 16

17 18

Note the placement need to avoid noise.

D32

C410 C0.1u16Y0402C410 C0.1u16Y0402 C241 C0.1u16Y0402C241 C0.1u16Y0402 C292 C0.1u16Y0402C292 C0.1u16Y0402

C397 C0.1u16Y0402C397 C0.1u16Y0402 CP16 X_COPPERCP16 X_COPPER CP23 X_COPPERCP23 X_COPPER

A A

5

MIC2-VREFO

LINE2_VREF

MIC2-L MIC2-R LINE2-R

LINE2-L

Z

X_4.7KR0402

R565 22KR0402R565 22KR0402 R563 22KR0402R563 22KR0402

D32

X Y

S-BAT54A_SOT23

S-BAT54A_SOT23 D30

D30

X Y

X_S-BAT54A_SOT23

R562

X_4.7KR0402

R594 1KR0402R594 1KR0402 R586 1KR0402R586 1KR0402 R564 75R0402R564 75R0402

R566 75R0402R566 75R0402

R580

C465

C100p50N0402

4

R585

4.7KR0402

C461

C461 C100p50N0402

C100p50N0402

R592

4.7KR0402

C449

C457

C457 C100p50N0402

C100p50N0402

HDA Front Panel

JAUD1

MIC

MIC MICPWR

MICPWR FLINE_OUTR

FLINE_OUTR

6

HPON

4

FLINE_OUTL LINE NEXT L

R576

R576 0R0402

0R0402

GND

PRESENCE#

LINE NEXT R

H2X5[3]M_YELLOW-RH

R575 X_47R0402R575 X_47R0402

C456

C456 X_C1000p50X0402

X_C1000p50X0402

910 78 5

12

MIC2-JD

LINE2-JD

VCC3

R577

R577 10KR0402

10KR0402

R540 20KR1%0402R540 20KR1%0402

R534 39.2KR1%0402R534 39.2KR1%0402

Close to codec

SENSE_B

3

FP_AUD_DET# 16

SENSE_B

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Custom

Date: Sheet

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

Azalia Codec - ALC662

Dell TianHe Mini Tower 1.0

1

20 34Friday, August 14, 2009

of

Confidential

For Dell Only

5

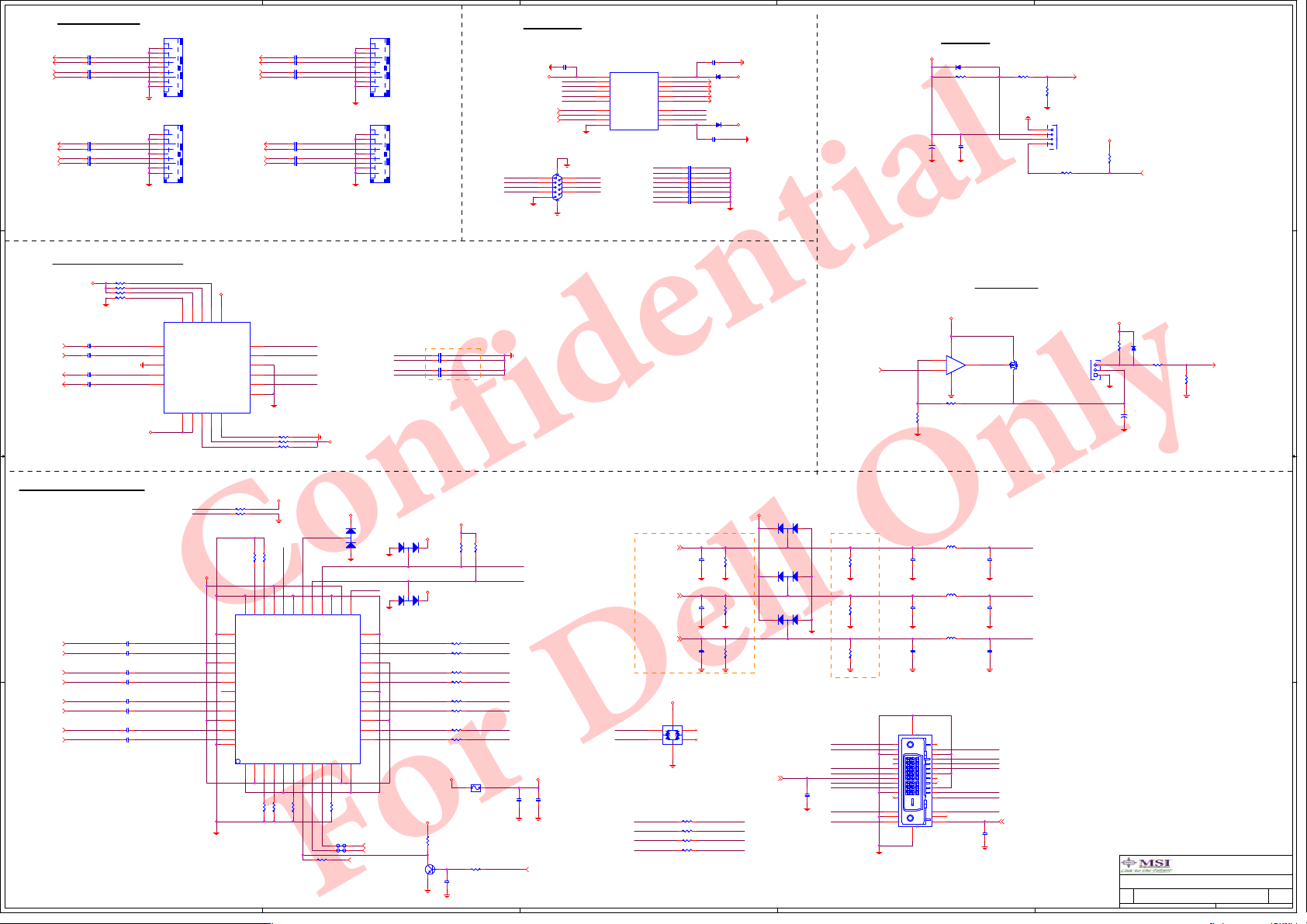

SATA Connector

SATA_RX012 SATA_RX#012

SATA_TX#012 SATA_TX012

D D

C402 C0.01u16X0402C402 C0.01u16X0402 C401 C0.01u16X0402C401 C0.01u16X0402

C400 C0.01u16X0402C400 C0.01u16X0402 C399 C0.01u16X0402C399 C0.01u16X0402

C427 C0.01u16X0402C427 C0.01u16X0402

SATA_RX312

C426 C0.01u16X0402C426 C0.01u16X0402

SATA_RX#312

C425 C0.01u16X0402C425 C0.01u16X0402 C424 C0.01u16X0402C424 C0.01u16X0402

SATA_TX312

SATA0 - BLUE SATA1 - BLACK

SATA1

GND

8 7

RX+

S_RX0 S_RX#0

S_TX#0 S_TX0

S_RX3 S_RX#3

S_TX#3 S_TX3

6

RX-

5

GNDGND

4

TX-

3

TX+

2

GND

1

GND

9

SATA7PM_BLUE-P-RH-1

SATA4

GND

8 7

RX+

6

RX-

5

GNDGND

4

TX-

3

TX+

2

GND

1

GND

9

SATA7PM_BLACK-P-RH

SATA_RX112 SATA_RX#112

SATA_TX#112 SATA_TX112

C406 C0.01u16X0402C406 C0.01u16X0402 C405 C0.01u16X0402C405 C0.01u16X0402

C404 C0.01u16X0402C404 C0.01u16X0402 C403 C0.01u16X0402C403 C0.01u16X0402

C423 C0.01u16X0402C423 C0.01u16X0402

SATA_RX212

C422 C0.01u16X0402C422 C0.01u16X0402

SATA_RX#212

C421 C0.01u16X0402C421 C0.01u16X0402

SATA_TX#212SATA_TX#312

C420 C0.01u16X0402C420 C0.01u16X0402

SATA_TX212

S_RX1 S_RX#1

S_TX#1 S_TX1

S_RX2 S_RX#2

S_TX#2 S_TX2

4

SATA2

GND

8 7

RX+

6

RX-

5

GNDGND

4

TX-

3

TX+

2

GND

1

GND

9

SATA7PM_BLACK-P-RH

SATA2 - WHITESATA3 - BLACK

SATA3

GND

8 7

RX+

6

RX-

5

GNDGND

4

TX-

3

TX+

2

GND

1

GND

9

SATA7PM_WHITE-P-RH

Serial Port

NDCDA# NSINA NSOUTA NDTRA

C122 X_C0.1u16Y0402C122 X_C0.1u16Y0402

VCC5

RTSA#16 DTRA#16 SOUTA16

1 2 3 4 5

NRIA NCTSA# NDSRA# NSINA NDCDA#

RTSA# DTRA# SOUTA

1011

NDSRA#

6

NRTSA

7

NCTSA#

8

NRIA

9

COM1

COM1 DSUB-COMM_GREEN-RH-5

DSUB-COMM_GREEN-RH-5

U10

20

VCC

2

RA1

3

RA2

4

RA3

7

RA4

9

RA5

16

DA1

15

DA2

13

DA3

11

GND

AZ75232GSTR-E1_SSOP20-RH

3

VDD RY1 RY2 RY3 RY4 RY5

DY1 DY2 DY3 VSS

1 19 18 17 14 12

5 6 8 10

NRTSA NDSRA# NCTSA# NRIA NDCDA# NSOUTA NSINA NDTRA

+12V_COM

-12V_COM

C121 X_C0.1u16Y0402C121 X_C0.1u16Y0402

RIA# CTSA# DSRA# SINA DCDA#

NRTSA NDTRA NSOUTA

C163 X_C0.1u16Y0402C163 X_C0.1u16Y0402

C140 C180p50N0402C140 C180p50N0402 C131 C180p50N0402C131 C180p50N0402 C126 C180p50N0402C126 C180p50N0402 C123 C180p50N0402C123 C180p50N0402 C162 C180p50N0402C162 C180p50N0402 C159 C180p50N0402C159 C180p50N0402 C154 C180p50N0402C154 C180p50N0402 C146 C180p50N0402C146 C180p50N0402

1N4148W-F_SOD123-RH

D14

AC

+12V

RIA# 16 CTSA# 16 DSRA# 16 SINA 16 DCDA# 16

D16

A C

-12V

1N4148W-F_SOD123-RH

2

CD100u16EL5-RH

+12V

EC6

CPU Fan

D7 BAS32L_LL34D7 BAS32L_LL34

AC

R72 4.7KR0402R72 4.7KR0402

+

12

C56

C56 C0.1u16Y0402

C0.1u16Y0402

R62 27KR0402R62 27KR0402

To SIO pin 21

R55

R55 10KR0402

10KR0402

CPUFAN

1 2

MEC1

3 4

BH1X4B_WHITE-RH-2

R53 200R0402R53 200R0402

CPU-FAN 16

1

VCC5

R39

R39 1KR0402

1KR0402

CPU-FAN_CTL 16

To SIO pin 22

eSATA Re-Driver (Optional)

AUTOPW_EN

R179 X_4.7KR0402R179 X_4.7KR0402

VCC3

C C

C110 X_C0.01u16X0402C110 X_C0.01u16X0402

SATA_TX412

C111 X_C0.01u16X0402C111 X_C0.01u16X0402

SATA_TX#412

C112 X_C0.01u16X0402C112 X_C0.01u16X0402

SATA_RX#412

C113 X_C0.01u16X0402C113 X_C0.01u16X0402

SATA_RX412

R178 X_4.7KR0402R178 X_4.7KR0402 R176 X_4.7KR0402R176 X_4.7KR0402 R174 X_0R0402R174 X_0R0402

S_TX4 S_TX#4

S_RX#4 S_RX4

VCC3

B_EQ A_EQ A_BST#

1 2 3 4 5

U8

A_INp A_INn GND B_OUTn B_OUTp

VCC3

18

19

20

16

17

VDD

B_EQ

A_EQ

A_BST#

A_OUTp

AUTOPW_EN

A_OUTn

THERMPAD

A_PRE9B_RST#

B_PRE

EN7VDD

8

6

10

GND B_INn B_INp

X_PS8511BU8X_PS8511B

B_BST# A_PRE B_PRE

15 14 13 12 11 21

SATA_TX4_C SATA_TX#4_C

SATA_RX#4_C SATA_RX4_C

R182 X_0R0402R182 X_0R0402 R181 X_4.7KR0402R181 X_4.7KR0402 R180 X_4.7KR0402R180 X_4.7KR0402

VCC3

SATA_TX4_C SATA_TX#4_C

SATA_RX#4_C SATA_RX4_C

Close to Rear I/O

C103 X_C0.01u16X0402C103 X_C0.01u16X0402 C107 X_C0.01u16X0402C107 X_C0.01u16X0402

C115 X_C0.01u16X0402C115 X_C0.01u16X0402 C114 X_C0.01u16X0402C114 X_C0.01u16X0402

SYS-FAN1_CTL16

R83

3.9KR1%0402

+12VIN

3

+

2

-

4 8

R73 10KR0402R73 10KR0402

System Fan

1

U4A

LM358D_SOIC8

Q17

G

P-P06P03LCG_SOT89-3-RH

D S

BH1X3B_BROWN-RH

4.7KR0402

SYSFAN1

R67

3 2 1

+12VIN

+

12

D6 BAS32L_LL34D6BAS32L_LL34

A C

R71 27KR0402R71 27KR0402

EC5

EC5 CD100u16EL5-RH

CD100u16EL5-RH

R81

R81 10KR0402

10KR0402

SYS-FAN1 16

To SIO pin 23

DVI-I Connector (Optional)

B B

DVI_C_TXN3

DVI_C_TXN312

DVI_C_TXP3

DVI_C_TXP312

DVI_C_TXN2

DVI_C_TXN212

DVI_C_TXP2

DVI_C_TXP212

DVI_C_TXN1

DVI_C_TXN112

DVI_C_TXP1

DVI_C_TXP112

DVI_C_TXN0

DVI_C_TXN012

DVI_C_TXP0

DVI_C_TXP012

A A

- Stuff for X00 verification.

DVI_DDC_EN DVI_OE#

VCC3

C86 X_C0.1u16X0402C86 X_C0.1u16X0402 C83 X_C0.1u16X0402C83 X_C0.1u16X0402

C81 X_C0.1u16X0402C81 X_C0.1u16X0402 C79 X_C0.1u16X0402C79 X_C0.1u16X0402

C76 X_C0.1u16X0402C76 X_C0.1u16X0402 C74 X_C0.1u16X0402C74 X_C0.1u16X0402

C73 X_C0.1u16X0402C73 X_C0.1u16X0402 C70 X_C0.1u16X0402C70 X_C0.1u16X0402

DVI_C_TX_N3 DVI_C_TX_P3

DVI_C_TX_N2 DVI_C_TX_P2

DVI_C_TX_N1 DVI_C_TX_P1

DVI_C_TX_N0 DVI_C_TX_P0

5

VCC3

R160 X_10KR1%0402R160 X_10KR1%0402 R157 X_0R0402R157 X_0R0402

R162 X_1KR0402R162 X_1KR0402

R161 X_1KR0402R161 X_1KR0402

DVI_DDC_EN

35

32

33

EQ_034EQ_1

R128 X_1KR1%0402R128 X_1KR1%0402

VDD

R127 X_1KR1%0402R127 X_1KR1%0402

31

GND

DDC_EN

R126 X_1KR1%0402R126 X_1KR1%0402

36

U6

GND

37

GND

38

IN_D1-

39

IN_D1+

40

VDD

41

IN_D2-

42

IN_D2+

43

GND

44

IN_D3-

45

IN_D3+

46

VDD

47

IN_D4-

48

IN_D4+

49

GND

GND1VDD2OC_03OC_14GND5OC_26HPD_SOURCE#7SDA_SOURCE8SCL_SOURCE9OC_310VDD11GND

HDMI_HOT_DET

28

29

30

SCL_SINK

SDA_SINK

HPD_SINK

R616R616 R617R617

R125 X_0R0402R125 X_0R0402

27

GND

R129 X_1KR1%0402R129 X_1KR1%0402

Z

26

VDD

OUT_D1-

OUT_D1+

OUT_D2-

OUT_D2+

OUT_D3-

OUT_D3+

OUT_D4-

OUT_D4+

VCC5

Y

D12

D12 X_1PS226_SOT23

X_1PS226_SOT23

X

DVI_OE#

25

OE#

24

GND

23 22 21

VDD

20 19 18

GND

17 16 15

VDD

14 13

X_PI3VDP411LSTZDE-RH

12

DVI_C_CTRLCLK 12 DVI_C_CTRLDATA 12

DVI_C_HPD_DP 12,16

X_N-MMBT3904_NL_SOT23

D8

X

X_1PS226_SOT23

Z

D10

X

X_1PS226_SOT23

DVI_DATA_CLK_DN DVI_DATA_CLK_DP

DVI_DATA0_DN DVI_DATA0_DP

DVI_DATA1_DN DVI_DATA1_DP

DVI_DATA2_DN DVI_DATA2_DP

Q18

4

DVI_PWR

VCC5

Y

VCC5

Y

VCC3

R124

R124 X_10KR0402

X_10KR0402

CE

R159

R158

X_2.2KR0402

DVI_DDC_CLK_R

DVI_DDC_DATA_R

DVI_TXC-

R152 X_22R0402R152 X_22R0402

DVI_TXC+

R151 X_22R0402R151 X_22R0402

DVI_TXD0-

R150 X_22R0402R150 X_22R0402

DVI_TXD0+

R149 X_22R0402R149 X_22R0402

DVI_TXD1-

R148 X_22R0402R148 X_22R0402

DVI_TXD1+

R142 X_22R0402R142 X_22R0402

DVI_TXD2-

R140 X_22R0402R140 X_22R0402

DVI_TXD2+

R134 X_22R0402R134 X_22R0402

VCC5 DVI_PWR

F1

1 2

X_F-MICROSMD110

X_C0.1u16Y0402

R108 X_10KR0402R108 X_10KR0402

B

C64

C64 X_C0.1u16Y0402

X_C0.1u16Y0402

DVI_PWR

C84

C87

C87 X_C10u10Y0805

X_C10u10Y0805

DVI_C_HPD_DP 12,16

VSYNC HSYNC

VCC5

D13

D13 X_1PS226_SOT23

X_1PS226_SOT23

YZX

VGA_R VGA_RED

VGA_R12

C378

R416

VGA_G12

VGA_B12

X_C10p50N0402

R416 X_150R0402

X_150R0402

VGA_G

C375

R414

R414 X_150R0402

X_150R0402

VGA_B

R409

C371

X_150R0402

D11

D11 X_1PS226_SOT23

X_1PS226_SOT23

YZX

D9

D9 X_1PS226_SOT23

X_1PS226_SOT23

YZX

PLACE CLOSE TO VGA CONNECTOR, WITHIN 750 MIL OF PIN

R170

R170 X_150R0402

X_150R0402

R169

R169 X_150R0402

X_150R0402

R166

R166 X_150R0402

X_150R0402

C95

C95 X_C3.3p25N0402

X_C3.3p25N0402

C92

C92 X_C3.3p25N0402

X_C3.3p25N0402

C90

C90 X_C3.3p25N0402

X_C3.3p25N0402

Close to PCH within 250 mils.

VCC5

U7

52

X_ESD-IP4220U7X_ESD-IP4220

DVI_TXCDVI_TXD0DVI_TXD1DVI_TXD2-

3

614

R601 X_150R0402R601 X_150R0402 R602 X_150R0402R602 X_150R0402 R603 X_150R0402R603 X_150R0402 R604 X_150R0402R604 X_150R0402

3

VSYNC

VSYNC12

X_C10p50N0402

DVI_TXD0+ DVI_TXD1+ DVI_TXD2+

DVI_TXD2DVI_TXD2+

DVI_DDC_CLK_R DVI_DDC_DATA_R

DVI_TXD1DVI_TXD1+

C97

VGA_RED VGA_GREEN

2526

MEC1MEC2

DVI1

1 2 3 4 5 6 7 8

9 10 11 12

C1 C5 C6 C2

2

L3 X_0.15u300mAL3X_0.15u300mA

L2 X_0.15u300mAL2X_0.15u300mA

L1 X_0.15u300mAL1X_0.15u300mA

13 14 15

HDMI_HOT_DET

16 17 18 19 20 21 22 23 24

C3 C4

X_DVI30P_WHITE-RH

DVI_PWR

DVI_TXD0DVI_TXD0+

DVI_TXC+ DVI_TXC-

VGA_BLUE

HSYNCDVI_TXC+

C93

C93 X_C3.3p25N0402

X_C3.3p25N0402

VGA_GREEN

C91

C91 X_C3.3p25N0402

X_C3.3p25N0402

VGA_BLUE

C89

C89 X_C3.3p25N0402

X_C3.3p25N0402

HSYNC 12

C99

C99 X_C10p50N0402

X_C10p50N0402

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Date: Sheet

MICRO-START INT'L CO.,LTD.

SATA & Fan Control & COM

DELL Shen Yang

1

of

21 34Friday, August 14, 2009

of

21 34Friday, August 14, 2009

of

21 34Friday, August 14, 2009

1.0

Confidential

For Dell Only

5

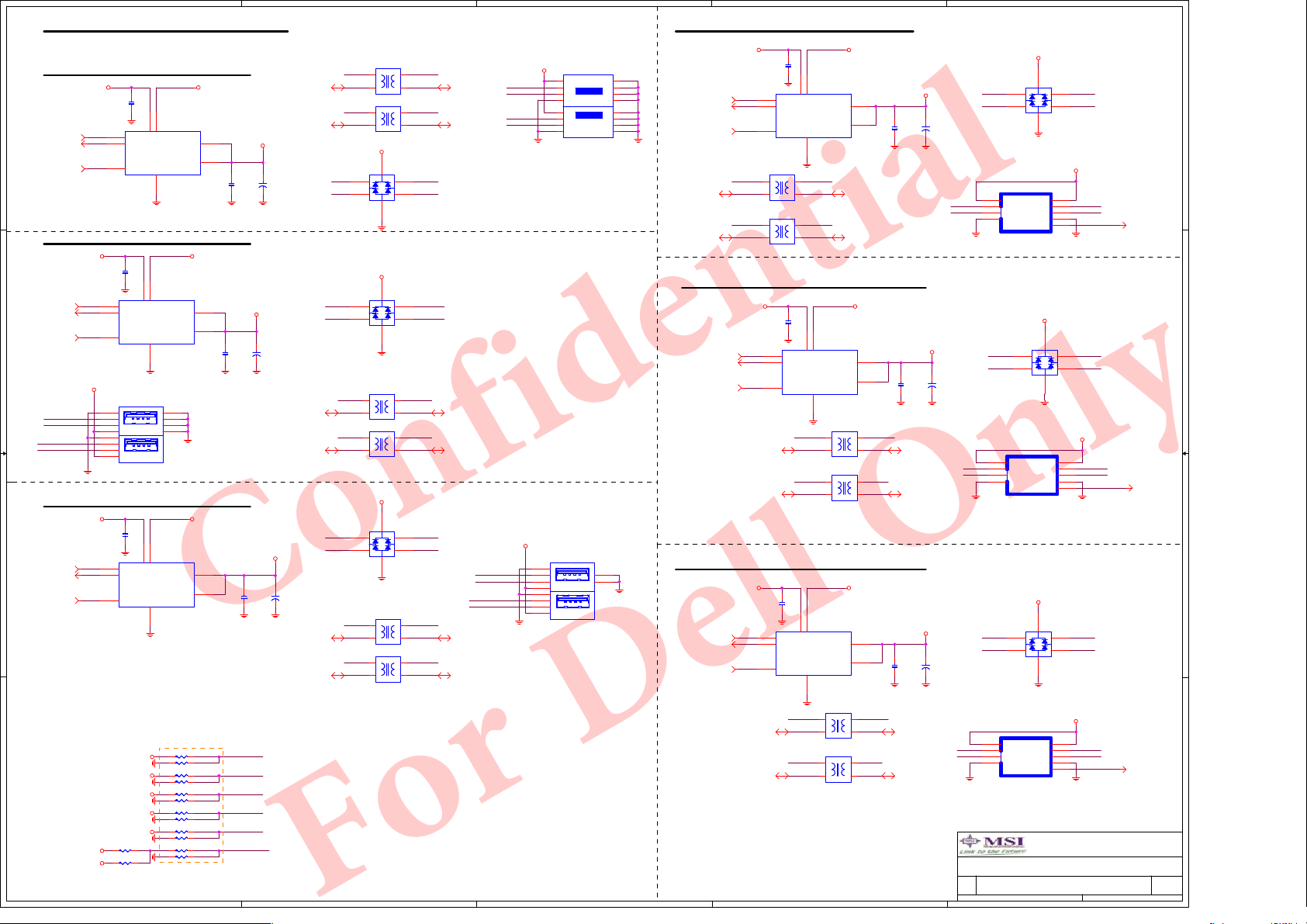

Front Panel and Rear I/O USB Connector

Rear USB Connnector For USB Port 0 / 1

VCC5

C235

C0.1u16Y0402

D D

C0.1u16Y0402

1

U16

USB_EN#25

USB_OCP#011

USB_MODE13,29

5

S3#

6

OC#

5VCC

4

EN

VCC5_SB

2

7

VOUT

5VSB

8

VOUT

GND

UP7533AM8_SOT23-8-RH

3

C0.1u16Y0402

C228

5VUSB_SVCC1

+

12

EC36

EC36 CD470u16EL11.5

CD470u16EL11.5

Rear USB Connnector For USB Port 2 / 3

VCC5

C183

C0.1u16Y0402

1

U11

5VUSB_SVCC2

5

S3#

6

OC#

5VCC

4

EN

USB1A

8 17 7

5

6 5

THIRD

4 3

1

2 1

DOWN

USBAX4M_BLACK-RH-3

USB_EN#25

USB_OCP#111

USB_MODE13,29

C C

SBD2+ SBD2-

SBD3+ SBD3-

VCC5_SB

2

VOUT

5VSB

VOUT

GND

UP7533AM8_SOT23-8-RH

3

C0.1u16Y0402

18 19 20

5VUSB_SVCC2

7

8

C182

+

12

EC30

EC30 CD470u16EL11.5

CD470u16EL11.5

Rear USB Connnector For USB Port 4 / 5

VCC5

C184

C0.1u16Y0402

1

U12

B B

USB_EN#25

USB_OCP#211

USB_MODE13,29

5

S3#

6

OC#

5VCC

4

EN

VCC5_SB

2

VOUT

5VSB

VOUT

GND

UP7533AM8_SOT23-8-RH

3

7

8

C0.1u16Y0402

C185

5VUSB_SVCC6

+

12

EC31

EC31 CD470u16EL11.5

CD470u16EL11.5

2/10 Modified.

5

R266 27KR0402R266 27KR0402 R267 51KR0402R267 51KR0402

R202 27KR0402R202 27KR0402 R199 51KR0402R199 51KR0402

R201 27KR0402R201 27KR0402 R200 51KR0402R200 51KR0402

R590 27KR0402R590 27KR0402 R582 51KR0402R582 51KR0402

R584 27KR0402R584 27KR0402 R583 51KR0402R583 51KR0402

R549 27KR0402R549 27KR0402 R550 51KR0402R550 51KR0402

5VUSB_SVCC1

5VUSB_SVCC2

A A

5VUSB_SVCC3

VCC5_SB

5VUSB_SVCC6

5VUSB_SVCC4

5VUSB_SVCC5

R547 0R0402R547 0R0402 R548 X_0R0402R548 X_0R0402

USB_OCP#0

USB_OCP#1

USB_OCP#2

USB_OCP#3

USB_OCP#4

USB_OCP#5

4

L8

SBD0+

4 1

CMC-L12-1218014-RH

CMC-L12-1218014-RH L9

L9

SBD1+

4 1

CMC-L12-1218014-RH

5VUSB_SVCC1

D21

SBD1+ SBD1-

SBD3- SBD2-

SBD4-

52

6

4

1

3

ESD-IP4220

5VUSB_SVCC2

D18

52

6

4

1

3

ESD-IP4220

L7

SBD3+

SBD2+

SBD5+ SBD5-

SBD4+

4

1

CMC-L12-1218014-RH

CMC-L12-1218014-RH L6

L6

4

1

CMC-L12-1218014-RH

5VUSB_SVCC6

D17

52

6

1

ESD-IP4220

L5

4 1

CMC-L12-1218014-RH

CMC-L12-1218014-RH L4

L4

4 1

CMC-L12-1218014-RH

4

3 2

4 3

3 2

SBD3-

SBD2-

SBD0-

SBD1-

SBD2+SBD3+

SBD4-

SBD0+ SBD0-

SBD5+SBD4+ SBD5-

3

2

1

Front Panel USB Connnector For USB Port 6 / 7

5VUSB_SVCC1

LAN_USB1A

16

PWR

USBN0 11USBP011

USBN1 11USBP111

SBD0SBD0+

SBD1SBD1+

PWR

17

USB-

18

USB+

19

GND

20

PWR

21

USB-

22

USB+

23

GND

RJ45_USBX2_LEDX2-RH

UP

DOWN

24

GND

25

GND

26

GND

27

GND

28

GND

29

GND

30

GND

31

GND

VCC5

C458

C0.1u16Y0402

1

U30

SBD6+

SBD7+

5

S3#

6

OC#

4

EN

L21

3

4

2

1

CMC-L12-1218014-RH

CMC-L12-1218014-RH L24

L24

3

4

2

1

CMC-L12-1218014-RH

5VCC

USB_EN#25

USB_OCP#311

USB_MODE13,29

VCC5_SB

2

7

VOUT

5VSB

GND

3

SBD6-

SBD7-

8

VOUT

C0.1u16Y0402

UP7533AM8_SOT23-8-RH

USBN6 11USBP611

USBN7 11USBP711

C467

5VUSB_SVCC4

+

12

5VUSB_SVCC4

D28

SBD6+ SBD7+

6

SBD6-

1

EC54

EC54 CD470u16EL11.5

CD470u16EL11.5

JUSB1

VCC1VCC

SBD6- SBD7-

USB0-3USB1USB0+5USB1+ GND7GND

USBOC

H2X5[2]M_BLUE-RH

52

AOZ8902CIL

4

SBD7-

3

5VUSB_SVCC4

2 4

SBD7+SBD6+

6 8 10

USB_DET1

USB_DET1 13

Front Panel USB Connnector For USB Port 8 / 9

VCC5

C462

C0.1u16Y0402

1

U29

USB_EN#25

USB_OCP#411

USB_MODE13,29

USBN3 11USBP311

USBN2 11USBP211

5VUSB_SVCC6

USB1B

SBD4+ SBD4-

SBD5+ SBD5-

USBN5 11USBP511

USBN4 11USBP411

16 15

13

14 13

UP

12 11

9

10

9

SECOND

USBAX4M_BLACK-RH-3

21 22

3

Front Panel USB Connnector For USB Port 10 / 11

USB_EN#25

USB_OCP#511

USB_MODE13,29

5

S3#

6

OC#

5VCC

4

EN

SBD9+ SBD9-

SBD8+

VCC5

C447

C0.1u16Y0402

2

1

U27

5

S3#

6

OC#

5VSB

5VCC

4

EN

GND

3

SBD10+

USBP1011 USBN10 11

SBD11+ SBD11-

USBP1111

VCC5_SB

2

7

VOUT

5VSB

8

VOUT

GND

C0.1u16Y0402

UP7533AM8_SOT23-8-RH

3

L23

3

4

2

1

CMC-L12-1218014-RH

CMC-L12-1218014-RH L26

L26

3

4

2

1

CMC-L12-1218014-RH

VCC5_SB

7

VOUT

8

VOUT

C0.1u16Y0402

UP7533AM8_SOT23-8-RH

L25

SBD10-

3

4

2

1

CMC-L12-1218014-RH

CMC-L12-1218014-RH L22

L22

3

4

2

1

CMC-L12-1218014-RH

2

SBD8-

C463

C466

5VUSB_SVCC5

USBN9 11USBP911

USBN8 11USBP811

5VUSB_SVCC3

12

USBN11 11

5VUSB_SVCC5

D29

SBD9+

+

12

EC58

EC58 CD470u16EL11.5

CD470u16EL11.5

+

EC59

EC59 CD470u16EL11.5

CD470u16EL11.5

SBD9-

SBD8-

SBD10+ SBD10-

SBD11-

SBD11+

Title

Front / Rear USB Connectors

Size Document Number Rev

Date: Sheet of

Date: Sheet

52

USBOC

52

4 3

AOZ8902CIL

5VUSB_SVCC5

2 4 6 8 10

4 3

AOZ8902CIL

5VUSB_SVCC3

2 4 6 8 10

1

SBD8+ SBD8-

SBD11+ SBD11-

SBD10SBD10+

USB_DET3

SBD9SBD9+SBD8+

USB_DET2

6 1

JUSB2

VCC1VCC USB0-3USB1USB0+5USB1+ GND7GND

H2X5[9]M_WHITE-RH

5VUSB_SVCC3

D27

6 1

JUSB3

VCC1VCC USB0-3USB1USB0+5USB1+ GND7GND

USBOC

H2X5[9]M_GREEN-RH

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

22 34Friday, August 14, 2009

USB_DET2 13

USB_DET3 16

1.0

of

Confidential

For Dell Only

5

4

3

2

1

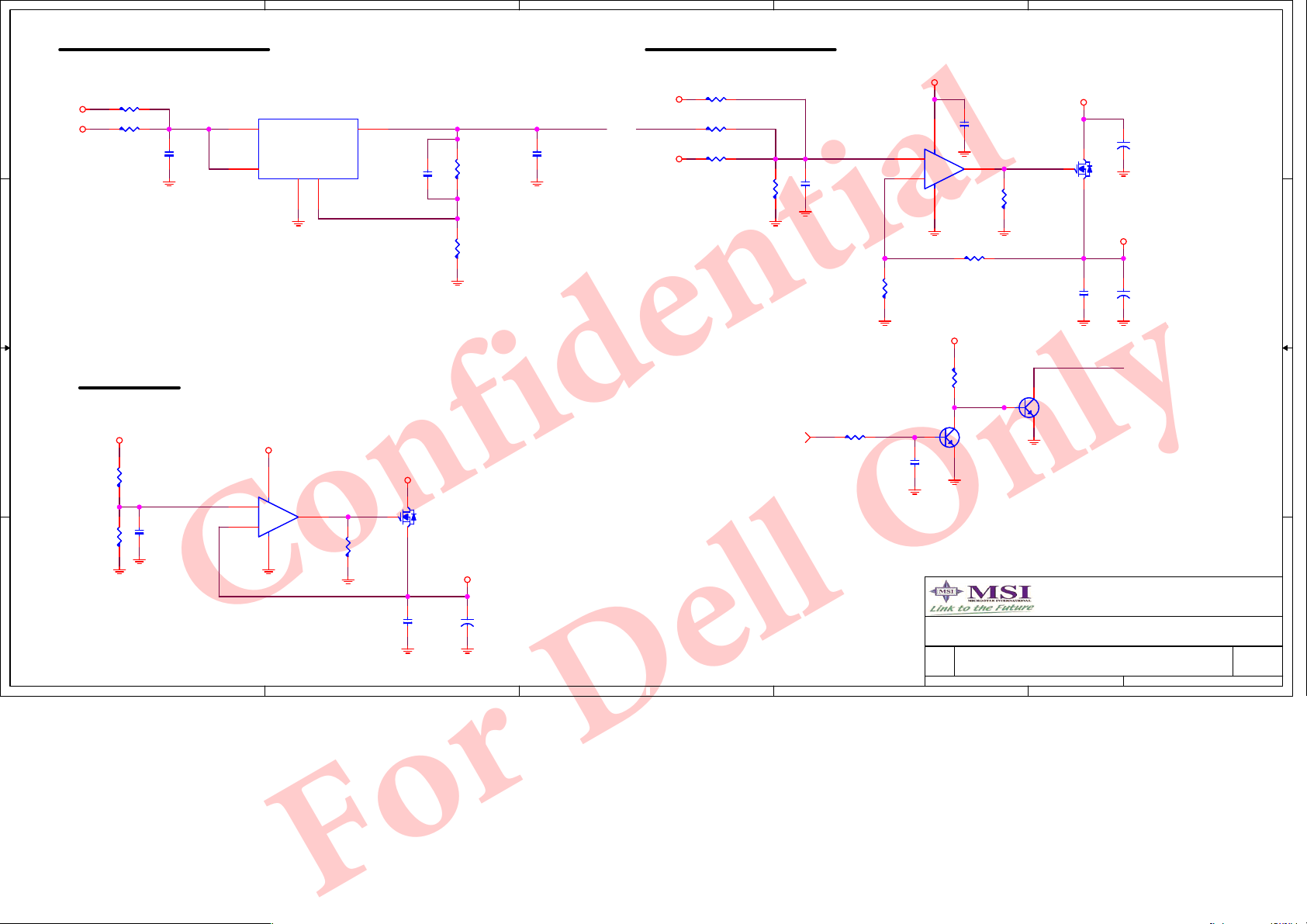

1.8V Reference Power

D D

C C

B B

X_12.1KR1%0402

R155 X_0RR155 X_0R

3VSB

R443 0RR443 0R

VCC3

C1u6.3X50402-1

1.8V VSFR

3VSB

R359

R356

X_15KR1%0402

C341

UP7707M5-00_SOT23-5-RH

1.5A

1_8VREF

C321

C321 X_C0.1u16Y0402

X_C0.1u16Y0402

U21

1

VIN

3

EN

+12V

5

+

6

-

4 8

VOUT

FB

GND

X_C0.1u16X0402-2

4

2

U18B

U18B LM358DR2G_SOIC8

LM358DR2G_SOIC8

7

R308

R308 20KR0402-2

20KR0402-2

5

R361

C328

VCC3

DS

Q36

Q36 N-APM3023NUC-TRL_TO252-RH

N-APM3023NUC-TRL_TO252-RH

G

R361 15KR1%0402

15KR1%0402

R363

R363 12KR1%0402-RH-1

12KR1%0402-RH-1

VCC1_8

1_8VREF 1_8VREF

C335

C335 C10u10Y0805

C10u10Y0805

PCH Core Power

0_9VREF

R354 X_0R0402R354 X_0R0402

R355 11KR1%0402R355 11KR1%0402

R345 X_33KR1%0402-RHR345 X_33KR1%0402-RH

3VSB

15.4KR1%0402

R344

SLP_S3#13,16,24,25

X_36KR1%0402-RH

1.05V - 6.5A

LM358DR2G_SOIC8

PCH_VREF

C304

C304 C0.1u16Y0402

C0.1u16Y0402

R334

R371 10KR0402R371 10KR0402

C0.1u16Y0402

C332

+12V

U18A

3

+

2

-

VCC5_SB

R367

10KR0402

B

C296

C296 C0.1u16Y0402

C0.1u16Y0402

1

4 8

R335 0R0402R335 0R0402

CE

Q39

N-MMBT3904_NL_SOT23

PCH_DRV

R333

R333 20KR0402-2

20KR0402-2

C0.1u16Y0402

CE

Q38

B

N-MMBT3904_NL_SOT23

VCC_DDR

DS

G

Q37

Q37 N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

C293

PCH_VREF

12

+

EC39

EC39 CD1000u63EL11.5-RH

CD1000u63EL11.5-RH

PCH_1P05

12

+

EC40

EC40 CD1000u63EL11.5-RH

CD1000u63EL11.5-RH

A A

C244

5

C244

C0.1u16Y0402

4

+

12

EC37

EC37 CD1000u63EL11.5-RH

CD1000u63EL11.5-RH

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Date: Sheet

Date: Sheet of

3

Date: Sheet of

2

MICRO-START INT'L CO.,LTD.

PCH Core Power

DELL Shen Yang

23 34Friday, August 14, 2009

1

1.0

of

Confidential

For Dell Only

5

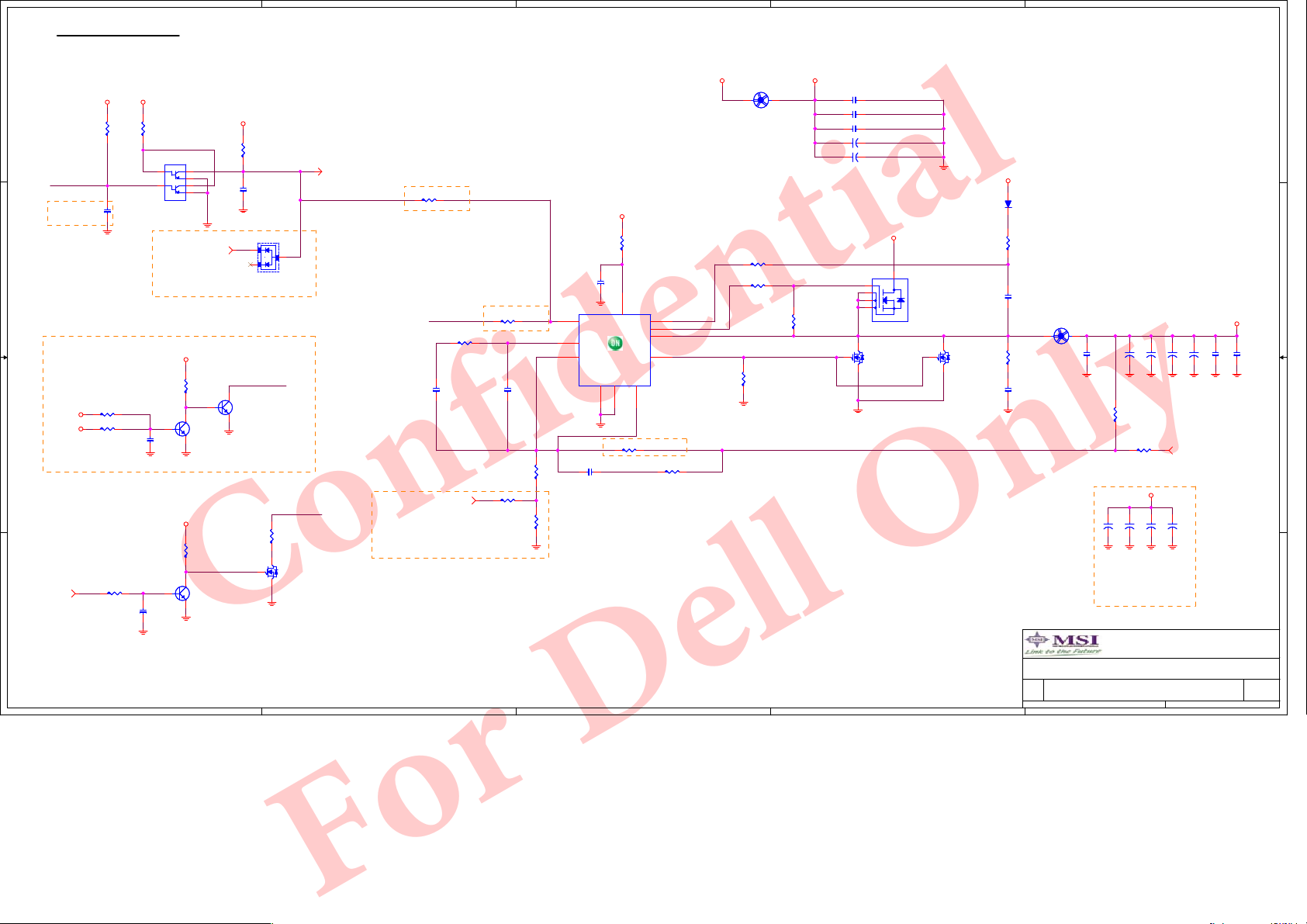

CPU VTT Power

1.1V - 30A - 29W

4

3

2

1

R43

R43 22KR1%0402-RH-1

22KR1%0402-RH-1

+12V_VTT

C36 C0.01u16X0402C36 C0.01u16X0402 C4 C0.1u16Y0402C4 C0.1u16Y0402 C26 C10u10Y0805C26 C10u10Y0805

+

EC1 CD270u16SO-RH-2

1 2

+

EC4 CD270u16SO-RH-2

1 2

Q11

4 3 2

R56

R56 X_10KR

X_10KR

1

N-NTMFS4841NHT1G_SO8-RH

DS

G

Q5

Q5 N-NTD4806NT4G

N-NTD4806NT4G

+12V_VTT

5

2

G

C0.22u25X-RH

DS

Q13

Q13 N-NTD4806NT4G

N-NTD4806NT4G

+12VIN

AC

D5

D5 BAS32L_LL34

BAS32L_LL34

R34

4.7R0805

C19

CHOKE3

CHOKE3 CH-0.5u40A0.81m-RH

CH-0.5u40A0.81m-RH

1 2

R40

2.2R0805

C24

C24 C2200p50X0402

C2200p50X0402

100R1%

Title

Size Document Number Rev

Date: Sheet

Date: Sheet of

DELL Shen Yang

EC8 CD820u2.5SO-RH-3+EC8 CD820u2.5SO-RH-3

C80 C10u10Y0805C80 C10u10Y0805

R57

+

12

MICRO-START INT'L CO.,LTD.

CPU VTT VR

12

+

R42 0RR42 0R

CPU_VTT

EC62 X_C220u2Sp-1+EC62 X_C220u2Sp-1

+

12

EC63 X_C220u2Sp-1+EC63 X_C220u2Sp-1

12

+

12

1

EC16 CD820u2.5SO-RH-3+EC16 CD820u2.5SO-RH-3

EC15 CD820u2.5SO-RH-3+EC15 CD820u2.5SO-RH-3

EC17 CD820u2.5SO-RH-3+EC17 CD820u2.5SO-RH-3

12

+

CPU_VTT_SENSE 4

EC64 CD820u2.5SO-RH-3+EC64 CD820u2.5SO-RH-3

+

12

+

EC9 CD820u2.5SO-RH-3+EC9 CD820u2.5SO-RH-3

24 34Friday, August 14, 2009

CPU_VTT

C78 C10u10Y0805C78 C10u10Y0805

of

C66 C0.1u16Y0402C66 C0.1u16Y0402

1.0

+12VIN

CHOKE1

CHOKE1 CH-1.2u15A1.7m-RH

3VSB

1KR0402

H_VTT_PWRGD

C0.1u16Y0402

PCH_1P05

VCC3

CPU_VTT

R22

NN-CMKT3904_SOT363-6-RH

C11

R87 1KR0402R87 1KR0402 R86 X_10KR0402R86 X_10KR0402

C57

X_C0.1u16Y0402

R64 1KR0402R64 1KR0402

C43

X_C0.1u16Y0402

5

R8 10KR0402R810KR0402

Q7

2 5

For Power Down Sequence

3VSB

R65

10KR0402

B

VCC5

R69

10KR0402

B

CPU_VTT

6 1 3 4

SLP_S3#13,16,23,25

CE

B

Q9

CE

Q9 N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

Q15

Q15 N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

Q14

Q14 N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

R50

R50 1KR0402

1KR0402

H_VTTPWRGD

C21

C21 C0.1u16Y0402

C0.1u16Y0402

D4

X Y

S-BAT54A_SOT23

EN_CPU_VTT

G

Z

FB_CPU_VTT

R52

R52 56KR1%0402

56KR1%0402

DS

Q10

N-2N7002_SOT23

H_VTTPWRGD 4,27

R14 X_0R0402R14 X_0R0402

C18

C0.015u16X0402

CPU_VTT_SENSE_RTN4

H_VTT_PWRGD

R36 15KR0402R36 15KR0402

C47p50N0402-RH

FB_CPU_VTT

R20 4.7KR0402R20 4.7KR0402

EN_CPU_VTT

C17

R26

13KR1%0402

R31 0RR31 0R

R270RR27

0R

C29

C1u16X-RH

U2

10

PGOOD

7

COMP/EN#

8

FB

C20 C4700p16X0402C20 C4700p16X0402

+12VIN

R58

2.2R0805

6

1

BOOT

3

UG

VCC

2

LX

4

LG

GND

GND_EP

VOS

NCP1589AMNTWG_DFN10-RH

5

9

11

R37 4.12KR1%0402-RHR37 4.12KR1%0402-RH

R33 75R1%0402R33 75R1%0402

VTT_BOOT VTT_HG VTT_PHASE

VTT_LG

4

3

D D

C C

B B

VTT_SELECT4

A A

CH-1.2u15A1.7m-RH

1 2

R21 1R0805R21 1R0805

R35 2.2R0805R35 2.2R0805

Confidential

For Dell Only

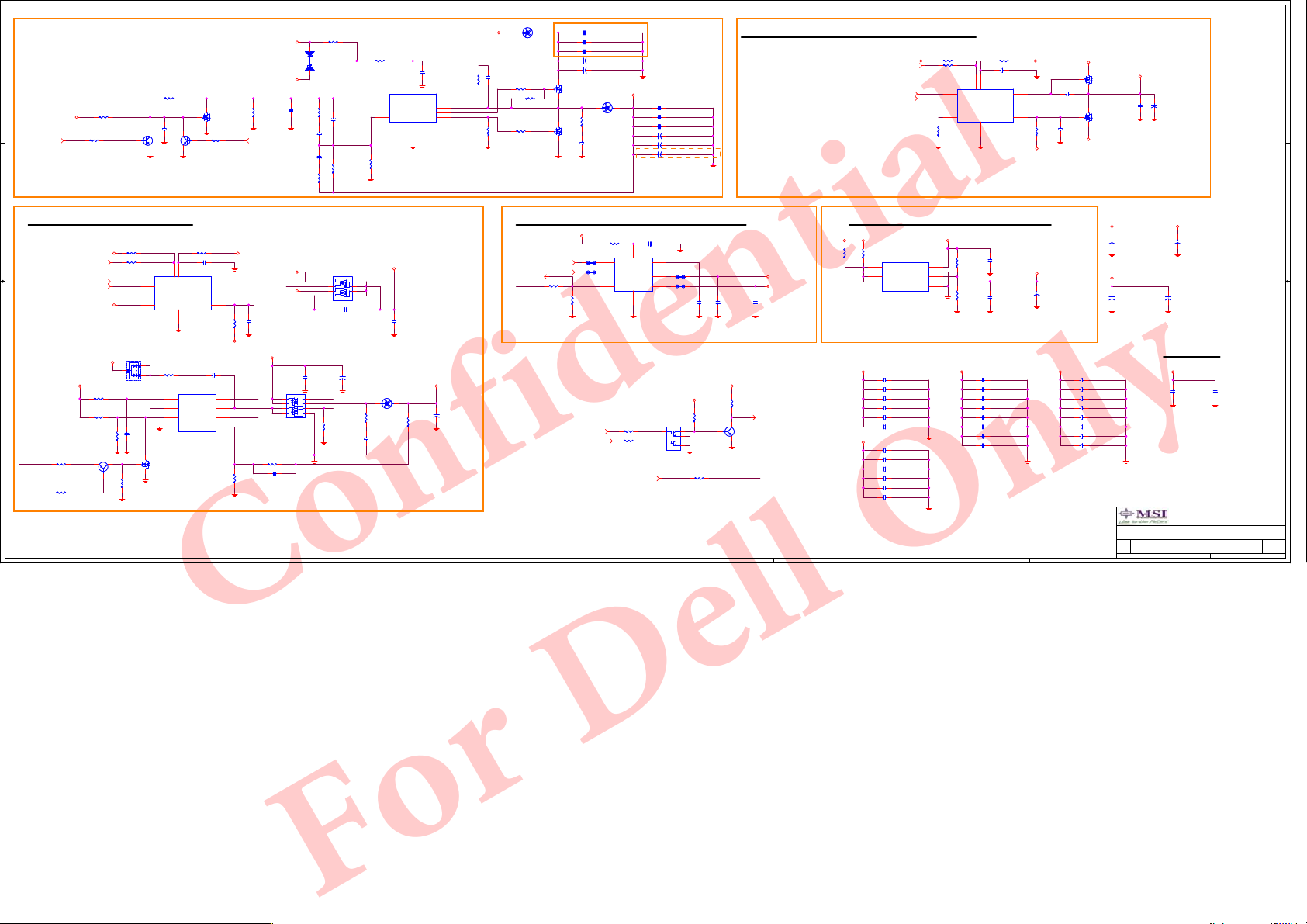

5

4

3

2

1

R1670R R1670R

G

R1530R R1530R

G

SMBCLK8,10,13,17,29 SMBDATA8,10,13,17,29

R221

R221 200KR0402

200KR0402

C82 C0.01u16X0402C82 C0.01u16X0402 C68 C0.1u16Y0402C68 C0.1u16Y0402 C67 C10u10Y0805C67 C10u10Y0805

+

EC11 CD470u6.3SO-RH

1 2

+

EC10 CD470u6.3SO-RH

1 2

DS

Q23

Q23 N-P0903BD_TO252

N-P0903BD_TO252

CHOKE4

1 2

CH-1.1u27A1.7m-RH

CH-1.1u27A1.7m-RH R164

R164

N-P70N02LDG_TO252-3-RH

DS

2.2R0805

Q24

C85

C85 C3300p50X0402

C3300p50X0402

VCC5_SB

R215 10R0402R215 10R0402

R214R214 R213R213

R228

R228 56KR1%0402

56KR1%0402

VRM_GD10,13,27 ATX_PWROK16,28

Close Q30.D

VCC_DDR

C109 C0.1u16Y0402C109 C0.1u16Y0402 C138 C10u10Y0805C138 C10u10Y0805 C106 C10u10Y0805C106 C10u10Y0805

EC23 CD1800u6.3EL20-RH-2

1 2

EC28 CD1800u6.3EL20-RH-2

1 2

EC25 X_CD1000u63EL11.5-RH

1 2

C_P3_5_D8_H8

C200

C200 C0.1u16Y0402

C0.1u16Y0402

1

U14

3

SCL

1.5V

5VSB

4

SDA

0.9V

8

1.2V

EN

GND

2

UP6264AMA8_SOT23-8-RH

R396 4.7KR0402R396 4.7KR0402 R391 20KR0402-2R391 20KR0402-2

NN-CMKT3904_SOT363-6-RH

SIO_PWROK16

+

7

6 5

RAM_VREF

R234R234 R233R233

C0.1u16Y0402

Q40

C212

3VSB

652 1 3 4

R420 X_0R0402R420 X_0R0402

DDRIII Regulator Power Source

C215

C215 C0.1u16Y0402

C0.1u16Y0402

Please close to IC pin 5, 6, 7

VCC3

R407

4.7KR0402

R406

4.7KR0402

CE

Q41

B

N-MMBT3904_NL_SOT23

PWRGD_3V

0_9VREF 1_2VREF

C214

C214 X_C0.1u16Y0402

X_C0.1u16Y0402

PWRGD_3V 12,13,29

5V - 5.8A - 29W

R130 510R0402R130 510R0402

VCC5

R137 10KR0402R137 10KR0402

ATX_PWROK16,28

U5

REFIN VOUT

U5

S3#55VSB_DRV

6

S5#

4

MODE

R109

R109 0R0402

0R0402

VCC_DDR

R29

R29 1KR1%0402

1KR1%0402

1

VIN

2

GND

3 4 9

GND

R30

R30 1KR1%0402

1KR1%0402

SLP_S3#13,16,23,24 SLP_S5#13

DDRIII Termination Power

3VSBVCC5_SB

R2

R1

X_0R0402R2X_0R0402

0R0402R10R0402

U1

8

NC3

7

NC2

6

VCNTL

5

NC1

UP7711U8_PSOP8-RH

DDRIII I/O power decoulping caps.

VTT_DDR

C32 C0.1u16Y0402C32 C0.1u16Y0402

C45 C0.1u16Y0402C45 C0.1u16Y0402

C44 C0.1u16Y0402C44 C0.1u16Y0402

C52 C0.1u16Y0402C52 C0.1u16Y0402

C53 C0.1u16Y0402C53 C0.1u16Y0402

C50 C0.1u16Y0402C50 C0.1u16Y0402

C51 C0.1u16Y0402C51 C0.1u16Y0402

C34 C0.1u16Y0402C34 C0.1u16Y0402

C31 C0.1u16Y0402C31 C0.1u16Y0402

C33 C0.1u16Y0402C33 C0.1u16Y0402

C46 C0.1u16Y0402C46 C0.1u16Y0402

C54 C0.1u16Y0402C54 C0.1u16Y0402

VCC_DDR VCC_DDR

R132 10R0402R132 10R0402 C69 C0.1u16Y0402C69 C0.1u16Y0402

1

2

7

5VSB

5VCC

8

5VCC_DRV

GND

UP7501M8_SOT23-8-RH

3

0.75V - 1.5A - 1.125W

C9 C0.1u16Y0402C9C0.1u16Y0402

C8

C8 X_C0.1u16Y0402

X_C0.1u16Y0402

C108 C0.01u16X0402C108 C0.01u16X0402 C124 C0.1u16Y0402C124 C0.1u16Y0402 C157 C0.1u16Y0402C157 C0.1u16Y0402 C104 C0.1u16Y0402C104 C0.1u16Y0402 C172 C1u6.3X50402-1C172 C1u6.3X50402-1 C160 C1u6.3X50402-1C160 C1u6.3X50402-1 C101 C10u10Y0805C101 C10u10Y0805 C102 C10u10Y0805C102 C10u10Y0805

5VSBDRV1

5VDRV1

+12V

VTT_DDR

VCC5_SB

+

12

C10

C10 C0.018u16X0402-RH

C0.018u16X0402-RH

C59

R91

C0.022u16X0402-RH

1.5KR-RH

EC2

EC2 CD1000u63EL11.5-RH

CD1000u63EL11.5-RH

VCC5_SB

G

Q4

P-P06P03LCG_SOT89-3-RH

D S

DS

X_C0.1u16Y0402

G

Q12

N-APM3023NUC-TRL_TO252-RH

VCC5

C175 C0.01u16X0402C175 C0.01u16X0402 C125 C0.1u16Y0402C125 C0.1u16Y0402 C158 C0.1u16Y0402C158 C0.1u16Y0402 C170 C0.1u16Y0402C170 C0.1u16Y0402 C161 C1u6.3X50402-1C161 C1u6.3X50402-1 C128 C1u6.3X50402-1C128 C1u6.3X50402-1 C197 C10u10Y0805C197 C10u10Y0805 C196 C10u10Y0805C196 C10u10Y0805

VCC3

+

12

EC49

EC49 CD1000u63EL11.5-RH

CD1000u63EL11.5-RH

VCC5

+

12

EC50

EC50 CD1000u63EL11.5-RH

CD1000u63EL11.5-RH

C42

5VDIMM

+

12

EC3

EC3 X_CD1000u63EL11.5-RH

X_CD1000u63EL11.5-RH

VCC5_SB

+

12

+

12

EC21

EC21 X_CD1000u63EL11.5-RH

X_CD1000u63EL11.5-RH

EMI CAPs

VCC_DDR

C493

C493 C0.1u16Y0402

C0.1u16Y0402

EC38

EC38 CD1000u63EL11.5-RH

CD1000u63EL11.5-RH

C491

C491 C0.1u16Y0402

C0.1u16Y0402

1 2

DDR_BOOTDDR_VREF

1

DDR_PHASE

8

DDR_HG

2

DDR_LG

4

+

12

EC56

EC56 CD470u16EL11.5

CD470u16EL11.5

R1840RR184

0R

42.2KR1%0402

5VDIMM

CHOKE2

CHOKE2 CH-1.2u15A1.7m-RH

CH-1.2u15A1.7m-RH

C116

C116 C1u25X0805-RH

C1u25X0805-RH

R168

R168 10KR0402

10KR0402

R163

USB_EN#22

5VDRV1

R194 X_0RR194 X_0R

R186

C0.1u16Y0402

ATX_PWROK 16,28SLP_S4#13,28

C448

C448 C0.022u16X0402-RH

C0.022u16X0402-RH

6107_UG

PHASE

6107_LG

R559 4.7KR0402R559 4.7KR0402 C445 X_C0.1u16X0402-2C445 X_C0.1u16X0402-2

5VDIMM

S-BAT54C_SOT23

+12V

C119

X_C3300p50X0402

X_C0.01u16X0402

VCC5

5VDRV2

VCC5_SB

5VSBDRV2

5VDUAL

Q54

871

NN-P07D03LV_SO8-RH

D15

R187

X_2.2R0402

C130

C141

R191

X_0R0402

Y

Z

X

C441

C441 C10u10Y0805

C10u10Y0805

6107_UG PHASE

3456

6107_LG

2

C129

C129 X_C3300p50X0402

X_C3300p50X0402

R193

3.01KR1%0402

Q55

871 2 3

6 4 5

NP-P5003QVG_SOIC8-RH

NP-P5003QVG_SOIC8-RH C459 C0.018u16X0402-RHC459 C0.018u16X0402-RH

+

12

EC57

EC57 CD470u16EL11.5

CD470u16EL11.5

R595

R595 X_10KR1%0402

X_10KR1%0402

R192 2.2R0805R192 2.2R0805

5

U9

7

Vref

VCC

6

FB

GND

3

R189

12.1KR1%0402

5VDUAL

C442

C442 C0.1u25Y

C0.1u25Y

CHOKE8 CH-3.3u7A6.0m-RHCHOKE8 CH-3.3u7A6.0m-RH

1 2

R587

R593

2.2R0805

2.2R0805 0R0402

0R0402

C464

C464 C3300p50X0402

C3300p50X0402

C145

C145 C1u25X0805-RH

C1u25X0805-RH

BOOT

PHASE

UG LG

UP6103S8_SOP8-RH

3VSB

DDRIII 1.5V Power

D D

VCC5_SB

C C

3.3V Standby Power Regulator reference Voltage

B B

5VDUAL

5VSBDRV2

R546 4.7KR0402R546 4.7KR0402

P-PMBS3906_SOT23-RH

R558 10KR0402R558 10KR0402

5VDRV2

A A

1.5V - 16A - 29W

RAM_VREF

R173 1KR0402R173 1KR0402

R171 1KR0402R171 1KR0402

N-MMBT3904_NL_SOT23

R183 3.01KR1%0402R183 3.01KR1%0402

CE

B

Q27

C100

CE

C0.1u16Y0402

DS

G

R177 20KR0402-2R177 20KR0402-2

B

Q28

Q28 N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

3.3V - 0.95A - 3.1W

U26

S3#55VSB_DRV

6

S5#

4

MODE

X

R551 0R0402R551 0R0402

Y

DS

Q56

Q56 N-2N7002_SOT23

N-2N7002_SOT23

R542 10R0402R542 10R0402 C443 C0.1u16X0402-2C443 C0.1u16X0402-2

1

2

5VSB

5VCC

5VCC_DRV

GND

UP7501M8_SOT23-8-RH

3

C444 C0.1u16X0402-2C444 C0.1u16X0402-2

U28

5

UGATE

VCC

1

BOOT

PHASE

7

LGATE

POK/EN

3

GND

UP6107M8_SOT23-8-RH

FB

R554 510R0402R554 510R0402

VCC5 VCC5_SB

R560 10KR0402R560 10KR0402

ATX_PWROK16,28

SLP_S3#13,16,23,24 SLP_S5#13

VCC5_SB

5VDUAL

D31

Z

S-BAT54A_SOT23

R591 2.2R0805R591 2.2R0805

R589 10KR0402R589 10KR0402

R588

C460

X_10KR0402

C460 C1u6.3X50402-1

C1u6.3X50402-1

Q52

G

CE

B

R579

R579 20KR1%0402

20KR1%0402

12.1KR1%0402

Q30

Q30 N-2N7002_SOT23

N-2N7002_SOT23

5VSBDRV2

7

5VDRV2

8

R581

1KR1%

+12V

2 8 4 6

R578

1.5KR-RH

5

4

3

2

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Date: Sheet

MICRO-START INT'L CO.,LTD.

DDR Power

DELL Shen Yang

1

25 34Friday, August 14, 2009

of

1.0

Confidential

For Dell Only

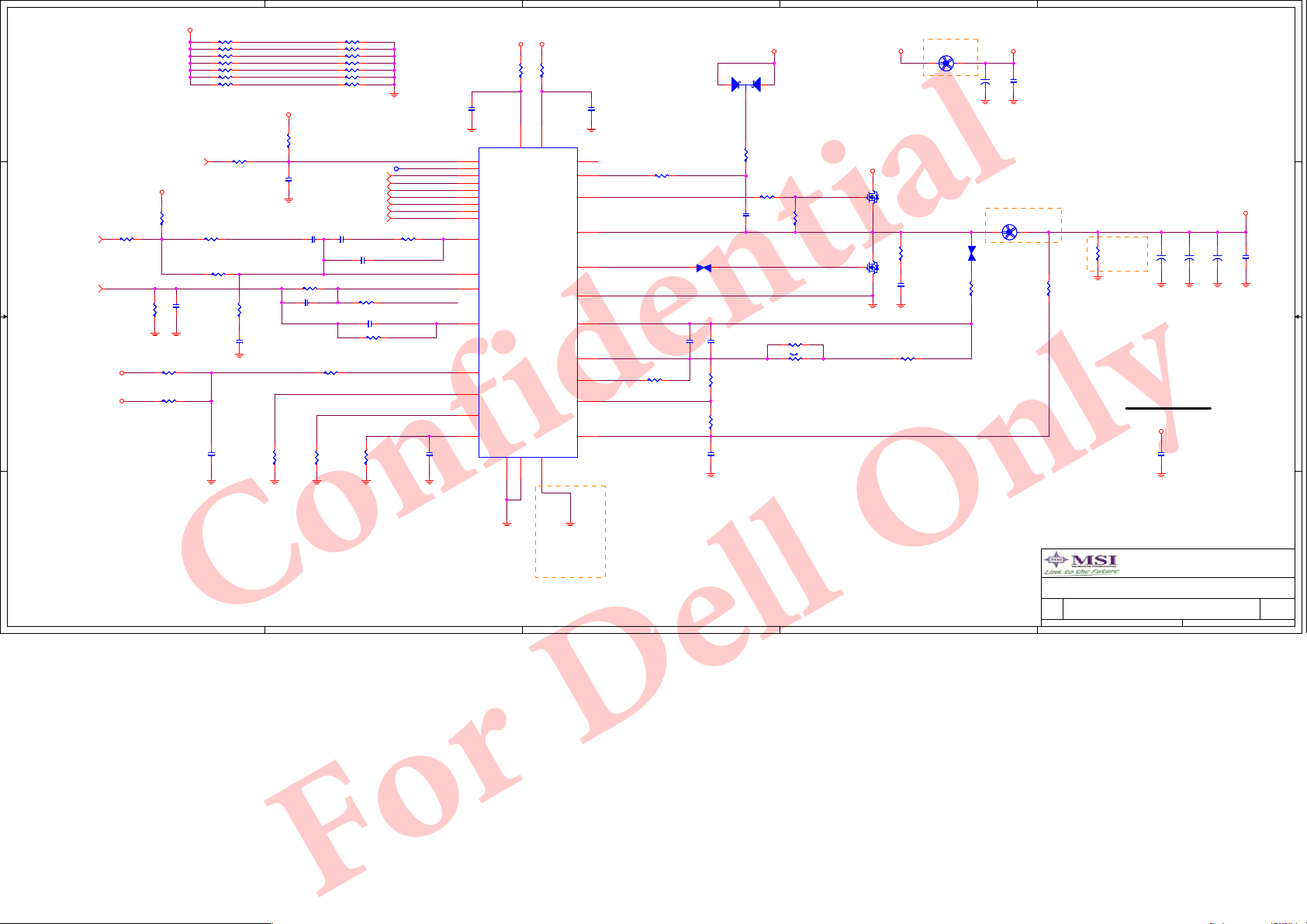

5

CPU_VTT

R232 X_680R0402-RHR232 X_680R0402-RH R237 X_680R0402-RHR237 X_680R0402-RH R240 X_680R0402-RHR240 X_680R0402-RH R245 X_680R0402-RHR245 X_680R0402-RH R248 X_680R0402-RHR248 X_680R0402-RH R251 X_680R0402-RHR251 X_680R0402-RH

GFX_VR_EN4

R217

R217 X_100R0402

X_100R0402

GFX_FB_R

C204

C204 X_C1000p50X0402

X_C1000p50X0402

R255 X_680R0402-RHR255 X_680R0402-RH

R222 X_0R0402R222 X_0R0402

X_C0.1u16X0402

R219 X_0R0402R219 X_0R0402

R216 X_1KR0402R216 X_1KR0402

C216

X_80.6KR1%0402

GFX_RAMP_R

D D

+CPU_GFX

CPU_GFX_VCC_SENSE4

C C

CPU_GFX_VSS_SENSE4

B B

R218 X_0R0402R218 X_0R0402

CPU_GFX_VSS_SENSE

+VIN_GFX

+12VIN

R220

X_0R0402

R243 X_1KR0402R243 X_1KR0402

R242 X_1KR0402R242 X_1KR0402

X_C1000p50X0402

GFX_VID0 GFX_VID1 GFX_VID2 GFX_VID3 GFX_VID4 GFX_VID5 GFX_VID6

VCC5

R229

X_1KR0402

C210

GFX_VCC_SENSE

X_C220p25N0402

R225 X_20R1%0402R225 X_20R1%0402 C207

C207

R611

R611 X_1KR0402

X_1KR0402

X_C0.1u16X0402-2

C498

C498 X_C6800p16X0402-RH

X_C6800p16X0402-RH

R230

R231 X_1KR0402R231 X_1KR0402 R236 X_1KR0402R236 X_1KR0402 R239 X_1KR0402R239 X_1KR0402 R244 X_1KR0402R244 X_1KR0402 R247 X_1KR0402R247 X_1KR0402 R250 X_1KR0402R250 X_1KR0402 R254 X_1KR0402R254 X_1KR0402

GFX_VID04 GFX_VID14 GFX_VID24 GFX_VID34 GFX_VID44 GFX_VID54 GFX_VID64

C203

C206

X_C470p50X0402

C205 X_C22p50N0402C205 X_C22p50N0402

R226 X_866R1%0402-RHR226 X_866R1%0402-RH

R246 X_402KR1%0402R246 X_402KR1%0402

R241

R241 X_174KR1%

X_174KR1%

4

X_C4.7u10X50805-RH

VR_6314_EN TP_VTT_PWRGD

TP1TP1

GFX_VID0 GFX_VID1 GFX_VID2 GFX_VID3 GFX_VID4 GFX_VID5 GFX_VID6

R224

X_20KR0402-2

GFX_IMON_U47

C208

X_C0.1u16X0402-2

R227 X_4.99KR1%0402R227 X_4.99KR1%0402

GFX_RAMP

GFX_IREF

GFX_RT

GFX_RPM

R235

R235 X_130KR1%0402-RH

X_130KR1%0402-RH

GFX_COMPGFX_COMP_R

GFX_FB GFX_FBRTN GFX_VCC

C213

C213 X_C0.1u16X0402-2

X_C0.1u16X0402-2

VCC5 VCC5

R261

X_2.2R0805

GFX_VCC GFX_PVCC

C221

24

U15

32

1 31 30 29 28 27 26 25

6

5

4

2

12

9

11

10

EN PWRGD VID1 VID2 VID3 VID4 VID5 VID6 VID7

COMP

FB FBRTN

IMON

RAMP

IREF

RT

RPM

VCC

GND

7

17

R260

R260 X_2.2R0805

X_2.2R0805

C223

C223 X_C4.7u10X50805-RH

X_C4.7u10X50805-RH

20

3

N/C

PVCC

DRVH

DRVL

PGND

CSFB

CSCOMP

LLINE

CSREF

PGND

X_NCP5380MNTXG_QFN32-RH

33

U47_BST

23

BST

U_G_GFX

22

PH_GFX

21

SW

L_G_GFX

19

18

CSFB_GFX

15

CSCOMP_GFX CSCOMP_R_GFX

16

ILIM_GFX

8

ILIM

LLINE_GFX

13

CSREF_GFX

14

3

R259 X_2.2R0805R259 X_2.2R0805

C219

X_C820p50X0402

R223 X_10KR0402R223 X_10KR0402

D19

Y

U47_BST_R

C222

X_C0.22u25X-RH

CP6CP6

C218

C218 X_C3300p50X0402

X_C3300p50X0402

R257

R257 X_0R0402

X_0R0402

R249

R249 X_1KR0402

X_1KR0402

C217

C217 X_C1000p50X0402

X_C1000p50X0402

VCC5

X

X_S-BAT54C_SOT23

Z

+5V_U47

R262

R262 X_4.7R0805

X_4.7R0805

R212 X_1R0805R212 X_1R0805

X_N-NTD4806NT4G_DPAK3-RH

R256 X_115KR1%0402-RHR256 X_115KR1%0402-RH

RT2 X_100KRT1%-RHRT2 X_100KRT1%-RH

U_G_GFX_R

R205

R205 X_10KR0402

X_10KR0402

Q33_G

2

+VIN_GFX

DS

Q34

G

X_N-NTD4809NT4G_DPAK3-RH

R258

DS

Q33

X_2.2R0805

G

X_2.2R0805

C224

C224 X_C2200p50X-RH

X_C2200p50X-RH

R253 X_174KR1%R253 X_174KR1%

CHOKE6

CHOKE6 X_CH-1.2u15A1.7m-RH

X_CH-1.2u15A1.7m-RH

1 2

R252

R252 X_82KR0402

X_82KR0402

+VIN_GFX+12VIN

C202 X_C10u16Y1206C202 X_C10u16Y1206

EC33 X_CD270u16SO-RH-2+EC33 X_CD270u16SO-RH-2

+

12

CHOKE5

CHOKE5 X_CH-1.1u27A1.7m-RH

X_CH-1.1u27A1.7m-RH

1 2

CP22CP22

R207

R207 X_10R0402

X_10R0402

R203

R203 X_1KR0402

X_1KR0402

Min. Load

1

EC34 X_CD820u2.5SO-RH-3+EC34 X_CD820u2.5SO-RH-3

+

12

EMI CAPs

+CPU_GFX

C495

C495 X_C0.1u16Y0402

X_C0.1u16Y0402

+

EC35 X_CD820u2.5SO-RH-3+EC35 X_CD820u2.5SO-RH-3

+

12

+CPU_GFX

EC32 X_CD820u2.5SO-RH-3+EC32 X_CD820u2.5SO-RH-3

C186 X_22uF/6.3V/X5R/0805C186 X_22uF/6.3V/X5R/0805

BOTTOM PAD CONNECT TO

A A

5

4

GND Through 6 VIAs

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Date: Sheet of

3

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

GPU Power - NCP5380

DELL Shen Yang

1

26 34Friday, August 14, 2009

1.0

of

Confidential

For Dell Only

5

4

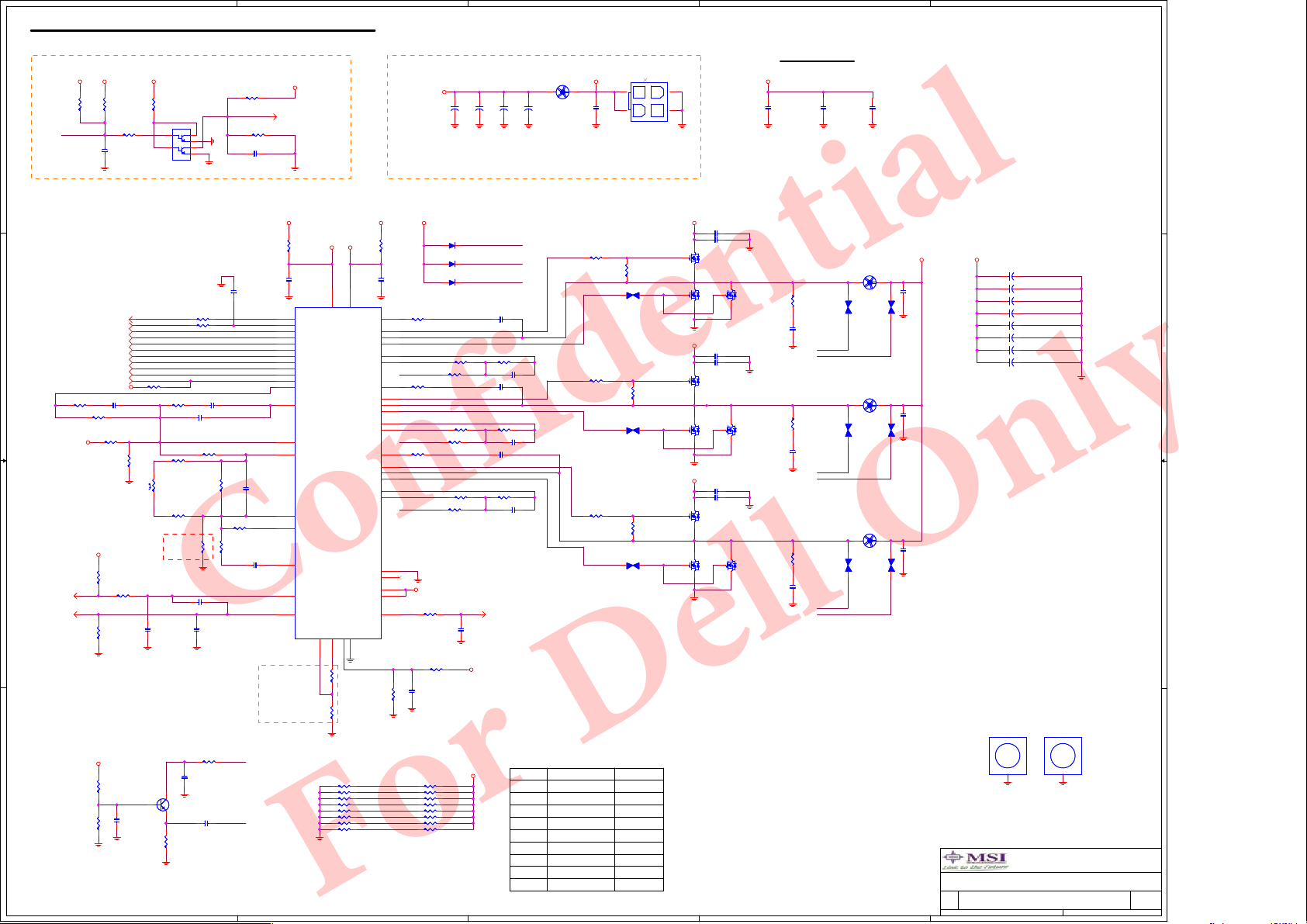

Voltage Regular Module (VRD11.1)

3

2

1

Level Shift CPU Core Power Input

CPU_VTT

VCCP

R12

1KR0402

D D

C C

1KR0402

VRM_PGD_R

R85

R85 12R0402

12R0402

5VCC

H_VTTPWRGD4,24

VCCP_PSI#4

R84 1KR1%0402R84 1KR1%0402

R75 X_100KR0402R75 X_100KR0402

X_100KR0402

X02: ON-Semi suggests to add for IMON.

VCCP

R93

B B

CPU_VCC_SENSE4

CPU_VSS_SENSE4

A A

R93

100R0402

R88

100R0402

R5

9.09KR1%0402

R6

1KR0402R61KR0402

5VCC

3VSB

R11

R11 X_4.7KR0402

X_4.7KR0402

R10

4.7KR0402

4.7KR0402 C6

C6 X_C0.1u16Y0402

X_C0.1u16Y0402

VRM_GD10,13,25

H_VID04 H_VID14 H_VID24 H_VID34 H_VID44 H_VID54 H_VID64 H_VID74

CPU_VTT

C55

C55 C1000p50X0402

C1000p50X0402

R74

R90 0R0402R90 0R0402

R7 10KR0402R710KR0402

2 5

Q3

Q3 NN-CMKT3904_SOT363-6-RH

NN-CMKT3904_SOT363-6-RH

VRM_GD H_VTTPWRGD VTT_ENABLE

R115 2KR0402R115 2KR0402

C3

C3 C0.1u16X0402

C0.1u16X0402

R9 X_0R0402R9 X_0R0402 R28 0R0402R28 0R0402

R82

4.12KR1%0402

4.12KR1%0402 C49 C22p50N0402-1C49 C22p50N0402-1

R70 2.8KR1%0402R70 2.8KR1%0402

R68 620R1%0402R68 620R1%0402

RT1

4.7KRT

R60 1KR1%0402R60 1KR1%0402

R619

X_51KR0402

C60 X_C0.01u16X0402C60 X_C0.01u16X0402

C62

C62 X_C0.1u16X0402

X_C0.1u16X0402

CE

N-MMBT3904_NL_SOT23

B

Q6

R13

R13 33KR0402

33KR0402

6 1 3 4

C48

C48 C1800p50X0402

C1800p50X0402

R66

1KR0402

R61 510R1%0402R61 510R1%0402

C58

C58 X_C0.1u16X0402

X_C0.1u16X0402

R51

51KR0402

C23

C23 C150p25N0402

C150p25N0402

C12

0.033u16X0402-RH-2

R17 1KR0402R17 1KR0402

R3 100KR0402R3 100KR0402

C2 C0.1u16Y0402C2 C0.1u16Y0402

C25

C25 X_C0.1u16Y0402

X_C0.1u16Y0402

VRM_PGD_R H_VID0

H_VID1 H_VID2 H_VID3 H_VID4 H_VID5 H_VID6 H_VID7 VCCP_PSI#

COMP

VFB

C41

C41 C22p50N0402-1

C22p50N0402-1

R59

R59 470R0402

470R0402

C38

C0.01u16X0402

VFB

COMP

VCC3

VRM_GD 10,13,25

R32

2.2R0805

C27

C27 C4.7u6.3X5

C4.7u6.3X5

U3

34

VR_RDY

33

EN

3

VID0

4

VID1

5

VID2

6

VID3

7

VID4

8

VID5

9

VID6

10

VID7

2

PSI

16

DIFFOUT

17

COMP

18

VFB

19

DROOP

20

VDFB

21

CSSUM

22

DAC

14

VSP

15

VSN

R104

17.4KR1%0402-HF

11KR1%0402

5VCC

12VCCP

24

VCC

ILIM12ROSC

23

11

R105

R95 1KR0402R95 1KR0402R5 R96 X_1KR0402R96 X_1KR0402 R97 X_1KR0402R97 X_1KR0402 R98 X_1KR0402R98 X_1KR0402 R99 1KR0402R99 1KR0402 R100 X_1KR0402R100 X_1KR0402 R101 1KR0402R101 1KR0402 R102 1KR0402R102 1KR0402

+12VINVCC5

R15

R15 1R0805

1R0805

C40

C40 C4.7u25X50805-RH

C4.7u25X50805-RH

40

37

BST1

VCCP

38

TG1

39

SWN1

36

BG1

32

CS1N

31

CS1P

44

BST2

43

TG2

42

SWN2

41

BG2

30

CS2N

29

CS2P

48

BST3

47

TG3

46

SWN3

1

BG3

28

CS3N

27

CS3P

35

G4

45

DRVON

26

CS4N

25

CS4P

13

IMON

12VMON

PAD_GND

NCP5395TMNR2G_QFN48-RH

49

R54

1.2KR0402-RH

H_VID0 H_VID1 H_VID2 H_VID3 H_VID4 H_VID5 H_VID6 H_VID7

VIN

12VCCP

D3

A C

D1 1N4148W-F_SOD123-RHD1 1N4148W-F_SOD123-RH

A C

D2 1N4148W-F_SOD123-RHD2 1N4148W-F_SOD123-RH

A C

R38 2.2R0805R38 2.2R0805

CS1N CS1+

CS1

R23 2.2KR1%0402R23 2.2KR1%0402

R89 2.2R0805R89 2.2R0805

CS2N CS2+

R47 0R0402R47 0R0402

CS2

R24 2.2KR1%0402R24 2.2KR1%0402

R106 2.2R0805R106 2.2R0805

CS3N CS3+

R49 0R0402R49 0R0402

CS3

R25 2.2KR1%0402R25 2.2KR1%0402

VCCP

R92

330R0402

R41

10KR0402

C30

C30 X_C0.1u16X0402

X_C0.1u16X0402

R116 X_1KR0402R116 X_1KR0402 R117 1KR0402R117 1KR0402 R118 1KR0402R118 1KR0402 R119 1KR0402R119 1KR0402 R120 X_1KR0402R120 X_1KR0402 R121 1KR0402R121 1KR0402 R122 X_1KR0402R122 X_1KR0402 R123 X_1KR0402R123 X_1KR0402

EC18 CD1000u16EL20-RH-2+EC18 CD1000u16EL20-RH-2

EC7 CD1000u16EL20-RH-2+EC7 CD1000u16EL20-RH-2

12

+

1N4148W-F_SOD123-RH

12VCCP1

12VCCP2

12VCCP3

12VCCP1

C37 C0.22u25X-RHC37 C0.22u25X-RH

R44 X_100KR0402R44 X_100KR0402

C13 C0.22u25X-RHC13 C0.22u25X-RH

12VCCP2

C47 C0.22u25X-RHC47 C0.22u25X-RH

R46 X_100KR0402R46 X_100KR0402

C14 C0.22u25X-RHC14 C0.22u25X-RH

12VCCP3

C63 C0.22u25X-RHC63 C0.22u25X-RH

R48 X_100KR0402R48 X_100KR0402

C15 C0.22u25X-RHC15 C0.22u25X-RH

VCCP_IMON 4

C65

C65 C1u16X5

C1u16X5

+12VIN

CPU_VTT

12

+

COIL1

CH-1.2u18A3m

EC20 CD1000u16EL20-RH-2+EC20 CD1000u16EL20-RH-2

EC26 CD1000u16EL20-RH-2+EC26 CD1000u16EL20-RH-2

12

+

POWER ON CONFIGURATION TABLE

H_VID0 H_VID1 H_VID2 H_VID3 H_VID4 H_VID5 H_VID6 H_VID7 PSI#

+12VIN

3

12

C5

X_C0.01u16X0402

FUNCTION DEFAULT

MSI0 MSI1 MSI2 IMON CONFIG0 IMON CONFIG1 IMON CONFIG3 RESERVED VRD SELECT RESERVED

4

R138 1R0805R138 1R0805

R175 1R0805R175 1R0805

R198 1R0805R198 1R0805

12V

JPWR1

JPWR1 PWRCONN4P_NATURAL

PWRCONN4P_NATURAL

R107

R107 10KR

10KR

CP2CP2

N-P75N02LDG_TO252

R172

R172 10KR

10KR

CP4CP4

N-P75N02LDG_TO252

R195

R195 10KR

10KR

CP5CP5

N-P75N02LDG_TO252

LOW LOW

5

GND GND

1

2

VIN

C77 C10u16Y1206C77 C10u16Y1206 C75 C1u16X5C75 C1u16X5

DS

Q19

G

N-NTD4809NT4G_DPAK3-RH

DS

G

DS

G

Q16

Q8

N-P75N02LDG_TO252

VIN

C98 C10u16Y1206C98 C10u16Y1206 C96 C1u16X5C96 C1u16X5R45 0R0402R45 0R0402

DS

Q26

Q26 N-NTD4809NT4G_DPAK3-RH

N-NTD4809NT4G_DPAK3-RH

DS

G

Q22

Q25

N-P75N02LDG_TO252

VIN

C174 C10u16Y1206C174 C10u16Y1206 C171 C1u16X5C171 C1u16X5

DS

Q32

Q32 N-NTD4809NT4G_DPAK3-RH

N-NTD4809NT4G_DPAK3-RH

DS

G

Q31

Q29

N-P75N02LDG_TO252

5

4

3

+12VIN

C488

C488 C0.1u16Y0402

C0.1u16Y0402

EMI CAPs

C489

C489 C0.1u16Y0402

C0.1u16Y0402

R63

2.2R1%0805

C39

C39 C2200p16X0402

C2200p16X0402

CS1 CS1N

R165

2.2R1%0805

C88

C88 C2200p16X0402

C2200p16X0402

CS2 CS2N

R185

2.2R1%0805

C118

C118 C2200p16X0402

C2200p16X0402

CS3 CS3N

2

COIL2

CH-0.25u40A0.65m

CP17CP17

COIL3

CH-0.25u40A0.65m

CP18CP18

COIL4

CH-0.25u40A0.65m

CP20CP20

C490

C490 C0.1u16Y0402

C0.1u16Y0402

12

CP3CP3

12

CP19CP19

12

CP21CP21

VCCP

C117 C10u10Y0805C117 C10u10Y0805

C72 C10u10Y0805C72 C10u10Y0805

C94 C10u10Y0805C94 C10u10Y0805

VCCP

+

EC22 CD820u2.5SO-RH-3

1 2

+

EC14 CD820u2.5SO-RH-3

1 2

+

EC13 CD820u2.5SO-RH-3

1 2

+

EC24 CD820u2.5SO-RH-3

1 2

+

EC29 CD820u2.5SO-RH-3

1 2

+

EC27 CD820u2.5SO-RH-3

1 2

+

EC19 X_CD820u2.5SO-RH-3

1 2

+

EC12 X_CD820u2.5SO-RH-3

1 2

OSCON Capacitors

MH9

MH9 X_MH-1

X_MH-1

(PTH)

Title

Size Document Number Rev

Date: Sheet

Date: Sheet of

VRD11- NCP5395 3 Phase

DELL Shen Yang

MH10

MH10 X_MH-1

X_MH-1

(PTH)

1

MICRO-START INT'L CO.,LTD.

1

Core Power Output cap.

1.0

of

27 34Friday, August 14, 2009

Confidential

For Dell Only

5

4

3

2

1

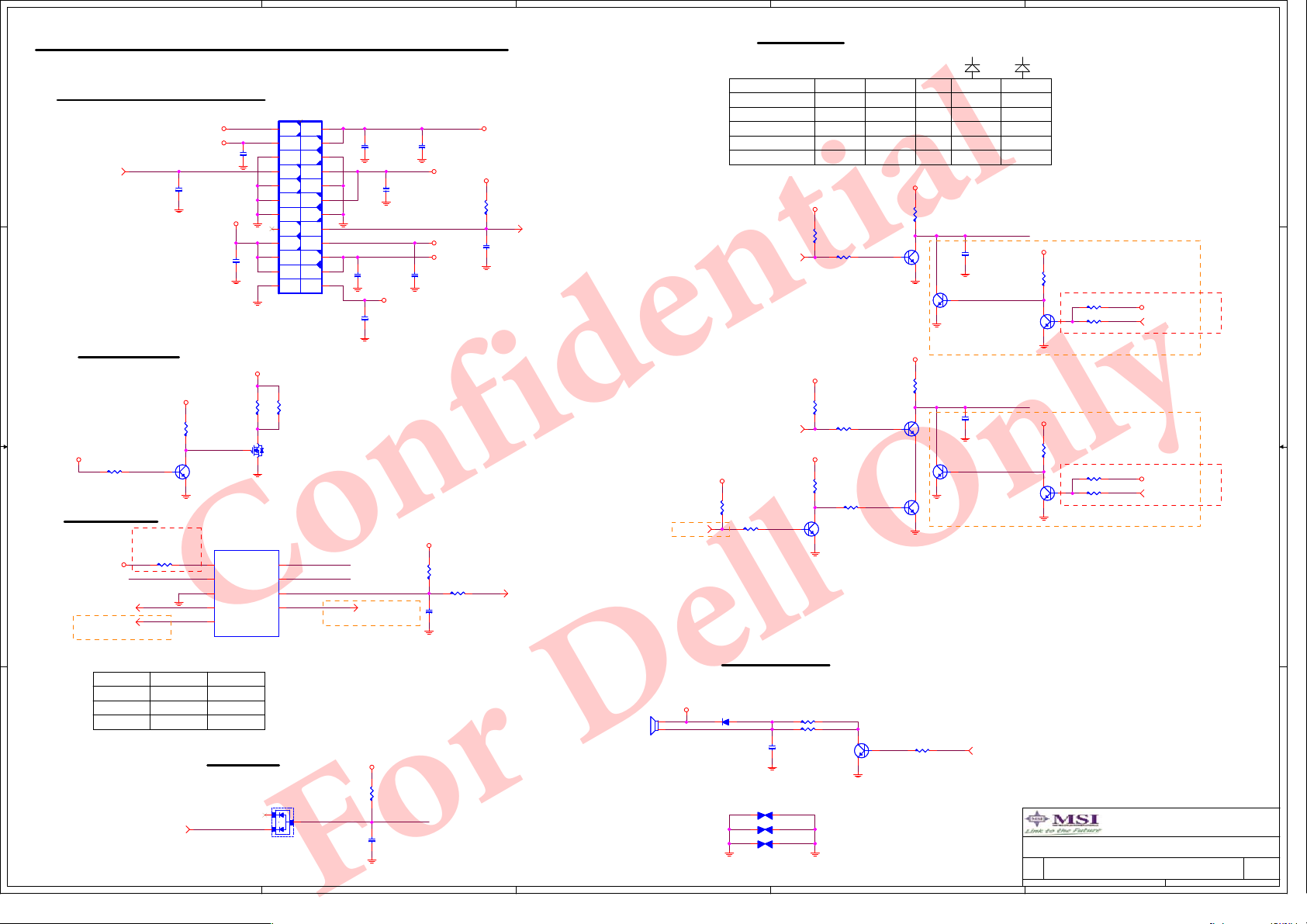

ATX Power Connector / Front Panel / LED

24 Pin ATX Power Connector

25

JPWR2

D D

PS_ON#16

has pull-hi resistor in P.16

C C

VCC3

-12V

C237

C0.1u16Y0402

C226

C226 X_C1000p50X0402

X_C1000p50X0402

VCC5

C199

C0.1u16Y0402

Dummy Load

VCC3

VCC5

R572 X_4.7KR0402R572 X_4.7KR0402

VCC5_SB

CE

Q50

B

X_N-MMBT3904_NL_SOT23

X_10R1206

R555

R555 X_8.2KR0402

X_8.2KR0402

G

R556

DS

Front Panel

X02: Change R561 from 220R to 470R. ME request.

B B

Pull-up in page.16

R561 470RR561 470R

VCC5

HDDLED SUS_LED

FP_RST#4,13,29

BOARD_ID116

JFP1

1

HDD+

3

HDDRESET-5PWSW+

7

RESET+

9

NC

H2X5[10]M_BLACK-RH

PLED SLED

PWSW-

JPWR2

13

3.3V

25

14

3.3V

-12V

15

GND

16

5V

P_ON

17

GND

18

5V

GND

19

GND

20

POK

-5V

21

5VSB

5V

22

+12V

5V

23

+12V

5V GND243.3V

PWRCONN24P_CREAM-RH-1

R543

R543 X_10R1206

X_10R1206

Q51

X_N-2N7002_SOT23

PWR_LED

2 4

PWRSW+

6 8

1 2

C236

C236 C0.1u16Y0402

C0.1u16Y0402

3 4 5 6 7 8 9 10 11 12

Pull-up in page.16

C220

C220 C0.1u16Y0402

C0.1u16Y0402

C195

C195 C0.1u16Y0402

C0.1u16Y0402

VCC3

C239

C239 C0.1u16Y0402

C0.1u16Y0402

BOARD_ID0 16

C187

C187 C0.1u16Y0402

C0.1u16Y0402

VCC5

VCC5_SB +12V

C201

C201 C0.1u16Y0402

C0.1u16Y0402

3VSB

R569

4.7KR0402

4.7KR0402 R568 33R0402R568 33R0402

C453

C453 C0.1u16Y0402

C0.1u16Y0402

VCC3

VCC5

R238

R238 10KR0402

10KR0402

C211

C211 X_C0.1u16Y0402

X_C0.1u16Y0402

ATX_PWROK 16,25

PSIN# 16

3VSB

R538

1KR0402

LED_CTL16

Power LED

S4/S5

S0

S1/S3

Failure to Post

No Post

LED_VSB16

LED_VCC16

R539 4.7KR0402R539 4.7KR0402

LED_VSB LED_VCC

Blinking Blinking

3VSB

R544

1KR0402

R545 4.7KR0402R545 4.7KR0402

3VSB

R570

1KR0402

R571 4.7KR0402R571 4.7KR0402

3VSB

R537

1KR0402

CE

Q49

B

N-MMBT3904_NL_SOT23

HH LH

H L

HH

VCC5_SB

R567

330R0402

N-MMBT3904_NL_SOT23

R536 4.7KR0402R536 4.7KR0402 N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

B

R553

330R0402

Q48

B

Q46

B

VCC5_SB

LED_CTL

L L L L H

CE

Q53

CE

Q57

N-MMBT3904_NL_SOT23

CE

Q45

N-MMBT3904_NL_SOT23

CE

BLUE

AMBER

PWR_LED SUS_LED

LL

HL Blinking

Blinking

L

H HL

PWR_LED

C450

C0.1u16Y0402

B

N-MMBT3904_NL_SOT23

C452

C0.1u16Y0402

B

N-MMBT3904_NL_SOT23

SUS_LED

Q58

Q47

VCC5_SB

S5/S4: low

R599

R599 1KR0402

1KR0402

R607 4.7KR0402R607 4.7KR0402

CE

R600 X_4.7KR0402R600 X_4.7KR0402

B

X02: Fix abnormal LED behavior.

S5/S4: low

R527

R527 1KR0402

1KR0402

R598 4.7KR0402R598 4.7KR0402

CE

R526 X_4.7KR0402R526 X_4.7KR0402

B

X02: Fix abnormal LED behavior.

VCC_DDR

SLP_S4# 13,25

VCC_DDR

SLP_S4# 13,25

Buzzer Circuit

No Cable H H

Shen-Yang

ECCO

A A

BOARD_ID0 BOARD_ID1

L

SATA_LED#12

has pull-hi resistor in P.12

5

L

H

HDD LED

D26

X

Z

Y

S-BAT54A_SOT23

VCC5

R552

R552 X_10KR0402

X_10KR0402

C451

C451 X_C0.1u16Y0402

X_C0.1u16Y0402

HDDLED

4

BZ1

BUZZER-LF

3

VCC5

D23

1 2

AC

1N4148W-F_SOD123-RH

CP27 X_COPPERCP27 X_COPPER CP28 X_COPPERCP28 X_COPPER CP29 X_COPPERCP29 X_COPPER

R419 220R0402R419 220R0402 R418 220R0402R418 220R0402

C385

C385 C0.1u16Y0402

C0.1u16Y0402

CE

Q42

N-MMBT3904_NL_SOT23

R425 2.2KR0402R425 2.2KR0402

B

2

SPKR 13

Title

ATX Connector / Front Panel / LED

Size Document Number Rev

Date: Sheet

Date: Sheet of

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

1

28 34Friday, August 14, 2009

1.0

of

Confidential

For Dell Only

5

4

3

2

1

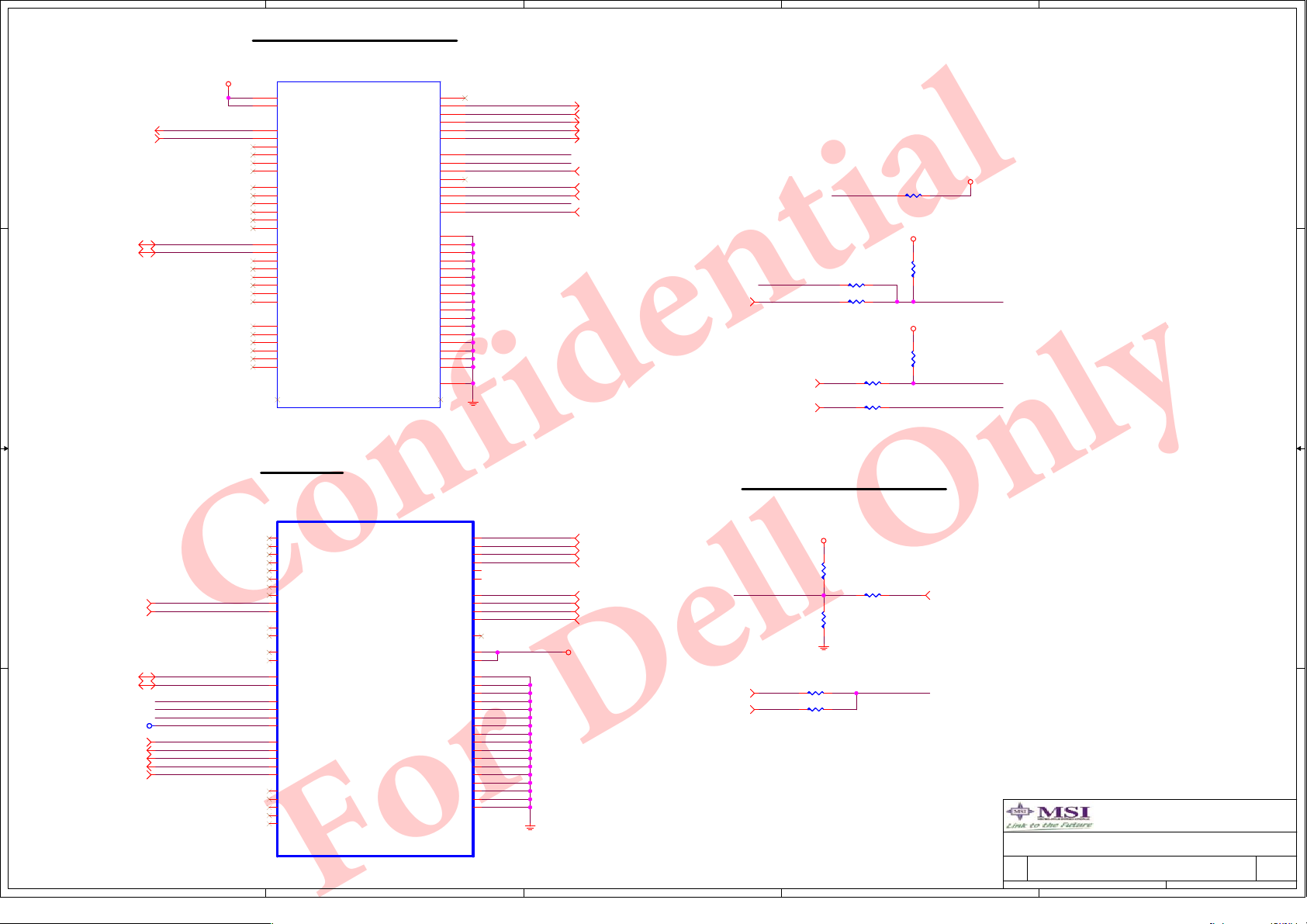

Reserve debug port 5020

JXDP1

CPU_VTT

D D

C C

XDP_CPU_PREQ#4

SMBDATA8,10,13,17,25 SMBCLK8,10,13,17,25

JXDP1

43

VCC_OBS_AB

44

VCC_OBS_CD

3

OBSFN_A0

5

OBSFN_A1

9

OBSDATA_A_0

11

OBSDATA_A_1

15

OBSDATA_A_2

17

OBSDATA_A_3

21

OBSFN_B0

23

OBSFN_B1

27

OBSDATA_B_0

29

OBSDATA_B_1

33

OBSDATA_B_2

35

OBSDATA_B_3

51

SDA

53

SCL

4

OBSFN_C0

6

OBSFN_C1

10

OBSDATA_C_0

12

OBSDATA_C_1

16

OBSDATA_C_2

18

OBSDATA_C_3

22

OBSFN_D_0

24

OBSFN_D_1

28

OBSDATA_D_0

30

OBSDATA_D_1

34

OBSDATA_D_2

36

OBSDATA_D_3

61

X_BTB60PF-RH

TCK1 TCK0

TDO

TRSTn

TMS

HOOK0 HOOK1 HOOK2 HOOK3

ITPCLK/HOOK4

ITPCLKB/HOOK5

RESETB/HOOK6

DBRB/HOOK7

GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND

GND18_XDP_PRESENTB

55

CPU_TCK

57

CPU_TDO

52

CPU_TRST#

54

CPU_TDI

56

TDI

62

58 39

41 45 47 40 42 46 48

1 7 13 19 25 31 37 49 59 2 8 14 20 26 32 38 50

60 62

CPU_TMS XDP_PWRGD

XDP_PLTRST# XDP_CPU_PWRGD

XDP_CPU_CLK_P XDP_CPU_CLK_N XDP_CPURST# FP_RST#

CPU_TCK 4

CPU_TDO 4

CPU_TRST# 4 CPU_TDI 4 CPU_TMS 4XDP_CPU_PRDY#4

XDP_CPU_PWRGD 4 XDP_CPU_BCLK_P 4

XDP_CPU_BCLK_N 4 FP_RST# 4,13,28

CPU_VTT

CPU_TDO

R78 51R0402R78 51R0402

PLACE NEAR XDP CONNECTOR

CPU_VTT

R112

R112 X_1.5KR0402

CPU_VTT

X_1.5KR0402

XDP_PWRGD

R114

R114 X_3.3KR0402

X_3.3KR0402

XDP_PLTRST#

XDP_CPURST#

XDP_CPU_PWRGD

CPU_PWRGD4,13

PLTRST#4,13,16

CPU_RESET_OUT#4

R103 X_0R0402R103 X_0R0402 R111 1KR0402R111 1KR0402

R113 1KR0402R113 1KR0402

R79 1KR0402R79 1KR0402

PCH XDP

PCH XDP PWRGD/RESET

DBG1

<HP-BOM>

10

TP_0

12

TP_1

16

TP_2

B B

USB_MODE13,22

BM_BUSY#13

SMBDATA8,10,13,17,25 SMBCLK8,10,13,17,25

PCH_JTAGTDO13

PCH_JTAGTDI13 PCH_JTAGTMS13 PCH_JTAGTCK13

A A

PCH_JTAGRST#13

TP62TP62

5

PCH_XDP_PWRGD PCH_XDP_RST# FP_RST#

PCH_JTAGTDO PCH_JTAGTDI PCH_JTAGTMS PCH_JTAGTCK

18

TP_3

28

TP_4

30

TP_5

34

TP_6

36

TP_7

4

TP_8

6

TP_9

40

XDP_H_CLK_DP

42

XDP_H_CLK_DN

45

100M_CLK_DP

47

100M_CLK_DN

51

SDA

53

SCL

39

PWRGOOD

46

RESET#

48

DBR#

41

TESTINB

52

TDO

56

TDI

58

TMS

57

TCK

54

TRST#

21

NC

22

NC

23

NC

24

NC

55

NC

X_XDP_PCH

BPM1_0#/TP_13 BPM1_1#/TP_12 BPM1_2#/TP_11 BPM1_3#/TP_10

BPM2_0#/TP_17 BPM2_1#/TP_16 BPM2_2#/TP_15 BPM2_3#/TP_14

XDP_PRESENT#

4

PROC_VTT PROC_VTT

BPM1_4# BPM1_5#

GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND

17 15 11 9 5 3

35 33 29 27

60 43

44 1

2 7 8 13 14 19 20 25 26 31 32 37 38 49 50 59

XDP_USB_OC#_3 11 XDP_USB_OC#_2 11 XDP_USB_OC#_1 11 XDP_USB_OC#_0 11

XDP_USB_OC#_7 11 XDP_USB_OC#_6 11 XDP_USB_OC#_5 11 XDP_USB_OC#_4 11

3VSB

PCH_XDP_PWRGD

PLTRST#4,13,16

PWRBTN#13,16

3

3VSB

R530

1.5KR0402-1

R528

R528 X_0R0402

X_0R0402

R531 X_0R0402R531 X_0R0402 R532 1KR0402R532 1KR0402

R529 X_1KR0402R529 X_1KR0402

PCH_XDP_RST#

PWRGD_3V 12,13,25

2

MICRO-START INT'L CO.,LTD.

Title

CPU/PCH XDP

Size Document Number Rev

Date: Sheet

Date: Sheet of

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

29 34Friday, August 14, 2009

1

1.0

of

Confidential

For Dell Only

5

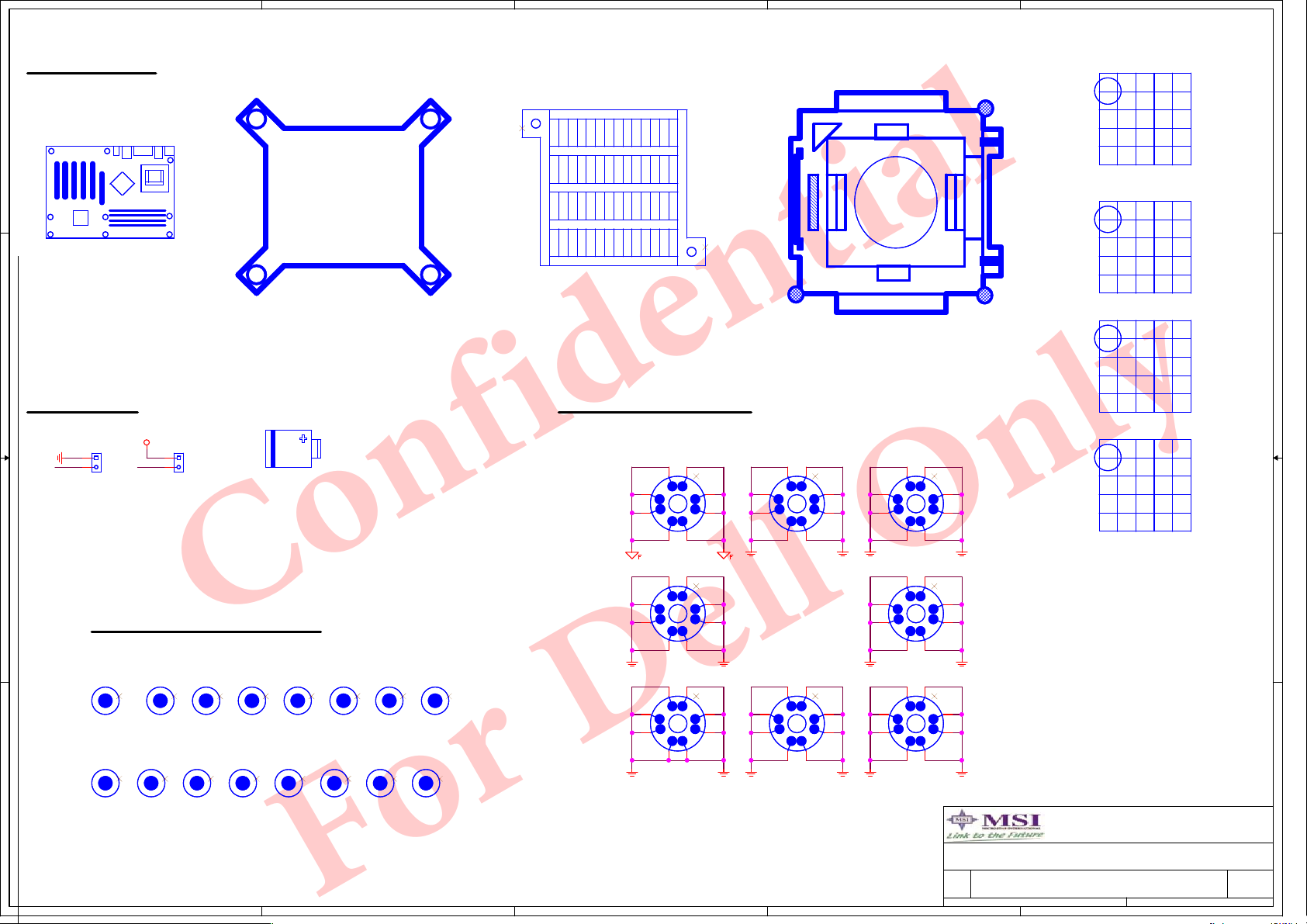

Manual Parts

D D

PCB2

P30-074480C-G37

PCB

P30-074480C-G37 P30-074480C-E55 P30-074480C-E48

C C

XU1_X2

XU1_X2 CPU RETENTION BACKPLATE

CPU RETENTION BACKPLATE

4

U3_X1

MEC1

HS-0401634-RH

3

XU1_X1

XU1_X1 CPU SOCKET

CPU SOCKET

MEC2

2

ME2_1

LGA1156

Ginway

ME2_2

Ginway

Ginway ME2_3

ME2_3

1

Simulation

VBAT-S1

VCC5

SIP1

SIP2

X_PIN1*2

B B

Optics Orientation Holes

SIP1

SIM1SIM2

X_PIN1*2

VBAT-S1

BAT-BCR2032P-RH

Optical Fiducial Marks-120

FM13

FM9

FM15

FM9

X_FM

FM4

X_OPTICS

FM2

X_FM

FM6

X_OPTICS

X_FM

FM3

X_OPTICS

FM16

FM12

X_FM

FM8

A A

X_OPTICS

FM16

X_FM

Optical Fiducial Marks-100

FM7

FM10

X_OPTICS

FM11

FM13

X_FM

FM14

X_OPTICS

FM1

X_FM

FM5

X_OPTICS

5

4

PCB Mounting Holes

Mounting Holes

MH7

MH2

MH3

7 6

981

2 3

X_MH001

5

4

981

2 3

X_MH001

5

4

981

2 3

X_MH001

5

4

3

MH1

MH5

Ginway

Ginway ME2_4

ME2_4

981

7 6

X_MH001

5

4

981

7 6

X_MH001

5

4

MH8

MH6

MH4

7 6

2 3

981

2 3

X_MH001

5

4

981

2 3

X_MH001

5

4

981

2 3

X_MH001

5

4

MICRO-START INT'L CO.,LTD.

Title

Manual Parts & Option Parts

Size Document Number Rev

Date: Sheet of

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

DELL Shen Yang

Ginway

1.0

of

30 34Friday, August 14, 2009

1

Confidential

For Dell Only

5

4

3

2

1

ATX POWER 2X24pin

+5VSB

D D

Clock-Gen ICS9LPRS4180

3.3V - ??mA

+12V+5V +3.3V

ATX 2X2pin

+12V

NCP5395

VCCP

VRD11.1

3-Phase Switch

NCP1589

CPU VTT

1.1V Switch 30A

NCP5380NCP5380

GFX Power

GFX Switch 20A

LGA1156-CPU

V Core - 80A

1.1V CPU VTT - 30A

1.5V VCC_DDR - 2.8A VCC_GFX - 15A VCC_1.8V VCCPLL (<0.8A) - <0.8A

UP7501

5VDUAL

5V Switch

LAN BCM57780

3.3V_SB I/O & LED

C C

1.2V AVDD - ??mA

- ??mA

UP6107

VCC3_SB

Linear

3A3.3V Switch

VCC1_8

Linear 1.5A

Ibex Peak PCH(5.5W TDP)

1.05V Core: - 6.5A

UP7501

5VDIMM

5V PWM

PCI Express x16 slot

+12V +3.3Vaux

B B

+3.3Vaux +3.3V - 3.0A

(wake) (no wake) - 20mA

- 5.5 A

- 375mA

UP7533 X5UP7533

USB Power

5V

UP6103

VCC_DDR

1.5V 20A

Switch

UP7711

VTT_DDR

Linear

0.75V

0.75A

Linear

PCH Core Power

Linear 6.5A

1.05V

PCI Express x 1 slot

PS2

+5V

USB x10

(S0,S1) (S3)+5V

- 345mA(S0,S1)

- 2.0mA(S3)+5V

- 5.0A+5V

- 20mA

+3.3V

(wake)+3.3Vaux (no wake)

- 0.5 A+12V

- 375mA

- 20mA+3.3Vaux

- 3.0A

VCCCORE,VCCIO,VCCDMI,VccAPLLEXP, VccSATAPALL,VccADPLLA,VccADPLLB

V1.8 S0:VCCVRM,VCCPNAND

3.3V Vcc3_3 V5 s0: V5REF V5 s0: V5REF_SUS

VccSus3_3

VTT:V_CPU_IO

1.05V VCCME:VCCME,VCCLAN,

3.3V VccSusHDA VCCRTC

3.3V VccHDA

- ?mA

DDRIII x4 & TERMINATOR

1.5V VCC_DDR -1.8A*4=7.2A(S0,S1)

3V

Battery

- 1A0.75V VTT_DDR

PCI slot x2

+3.3Vaux (wake) +3.3Vaux

A A

+3.3V - 7.6A

(no wake)

- 375mA

- 20mA

- 5.0A

- 0.5A

Title

Size Document Number Rev

Date: Sheet

Date: Sheet of

5

4

3

2

Date: Sheet of

MICRO-START INT'L CO.,LTD.

Power Delivery

DELL Shen Yang

1

1.0

of

31 34Friday, August 14, 2009

Confidential

For Dell Only

5

4

3

2

1

12V

RESET MAP

D D

Intel 1156 Processor

PLTRST#

ICS 9LPRS4180

C C

RESET SW

ALC 662 HD Codec

B B

WDRST#

FP_RST#

AC_RST#

PCIRST#

PCI Slot 1 & 2

PLTRST#

PCH

RSMRST#

WDRST#

PCIE X16 Slot PCIE X1 Slot

CPU XDP

PCH XDP

LPC SIO F71882FG

PLTRST_BU1#

LAN BCM57780

SIO_ATX_OK

PLTRST_BU2#

DRAMPER_OK

Intel LGA1156 Processor

PWRBTIN#

Front Panel

PWROK MAP

VTT_GD signal must be delayed 1~10ms after VTT_FSB for proper clock/cpu function ready

CPU_PWRGD

PCH

SLP_S3#

LPC I/O

PWRBTIN

VTT NCP1589

VTT_GD VTT_GD

VRM_GD

VREF_1_8_EN

UPI

SLG8XP518T

SLP_S3#

PWR_OK

PS_ON#

POWER CONN

VRD 11.1 NCP5395

DDR_EN

DDR UP6103

5V

3.3V

5VDRV1

VCC_1_8REF

PCH_1_8

PCH_Core(1.05V)

CPU_VTT

DDR_EN

VCC_DDR

CPU_VTT_PWG

CPU_VCCP

VRM_PWG

ATX_POK(SIO_ATX_POK)

PL_RST PCI_RST

A A

MICRO-START INT'L CO.,LTD.

Reset Map & PWROK Map

DELL Shen Yang

1

1.0

32 34Friday, August 14, 2009

5

4

3

2

Title

Size Document Number Rev

Date: Sheet of

Confidential

For Dell Only

5

4

3

2

1

PCH

GPIO

GPIO[0] GPIO[1] GPIO[5:2] GPIO[7:6] GPIO[8]

D D

GPIO[9] GPIO[10] GPIO[11] GPIO[12] GPIO[13] GPIO[14] GPIO[15] GPIO[16] GPIO[17] GPIO[18] GPIO[19] GPIO[20] GPIO[21] GPIO[22] GPIO[23] GPIO[24] GPIO[25] GPIO[26]

C C

GPIO[27] GPIO[28] GPIO[29] GPIO[30] GPIO[31] GPIO[32] GPIO[33] GPIO[34] GPIO[35] GPIO[36] GPIO[37] GPIO[38] GPIO[39] GPIO[43:40] GPIO[44] GPIO[45] NativeResume GPIO[46] Resume Native GPIO[47] Resume 3.3VPEG_A_CLKRQ#

B B

GPIO[48] GPIO[49] GPIO[50] GPIO[51] GPIO[52] GPIO[53] GPIO[54] GPIO[55] GPIO[56] GPIO[57] GPIO[58] GPIO[59] GPIO[60]

Alt Func

BMBUSY# TACH1 PIRQ[H:E]# TACH[3:2] unmuxed OC5# OC6# SMBALERT#

LAN_PHY_PWR_CTRL

unmuxed OC7# unmuxed SATA4GP TACH0 PCIECLKRQ1# SATA1GP PCIECLKRQ2# SATA0GP SCLOCK LDRQ1# unmuxed PCIECLKRQ3# PCIECLKRQ4# unmuxed unmuxed SLP_LAN#

SUS_PWR_DN_ACK

ACPRESENT unmuxed unmuxed STP_PCI# SATACLKREQ# SATA2GP SATA3GP SLOAD SDATAOUT0 Core OC[4:1]# PCIECLKRQ5# NativeI/O Resume 3.3V PCIECLKRQ6# 3.3V PCIECLKRQ7# 3.3V

SDATAOUT1 GPI SATA5GP GPI3.3V REQ1# GNT1# REQ2# GNT2# REQ3# GNT3# PEG_B_CLKRQ# unmuxed SML1CLK I/O Resume 3.3V Native OC#0

SML0ALERT# I/O Resume 3.3V Native GPIO[61] SUS_STAT# I/O Resume 3.3V Native GPIO[62] SUSCLK I/O Resume 3.3V Native GPIO[63] SLP_S5# I/O Resume 3.3V Native GPIO[64:67] CLKOUTFLEX I/O Core 3.3V Native GPIO[72] unmuxed I/O Resume 3.3V Native

A A

GPIO[73] PCIECLKRQ0# I/O Resume 3.3V Native GPIO[74] GPIO[75]

SML1ALERT# I/O Resume 3.3V Native

SML1DATA I/O Resume 3.3V Native

I/O/NC

I/O I/O I/OD I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O

Power

Core Core Core Core Resume Resume Resume Resume Resume Resume Resume Resume Core Core Core Core Core Core Core Core Resume Resume Resume Resume Resume Resume Resume Resume Core GPO Core Core Core Core Core Core

Resume

Tol

3.3V

3.3V 5V

3.3V

Default

GPI GPI GPI GPI GPO Native Native Native GPI GPI Native GPO GPI GPI Native GPI Native GPI GPI Native GPO Native Native GPO GPO GPI GPI GPI

GPO GPI GPO GPI GPI GPI GPI Native

I/O I/O I/O I/O

Core

I/O

Core

I/O

Core Core

I/O

Core

I/O I/O

Core

I/O

Core 5V Native

I/O

Core Native

I/O

Resume

I/O

Resume

Native

3.3V

5V

Native Native

3.3V 5V

Native

3.3V

Native

3.3V

Native

3.3V GPI

I/O Resume 3.3V Native

Signal Name

BM_BUSY# NC PIRQ#[H:E] NC NC USB_OCP#5 USB_OCP#6

Pull-Hi

NC SIO_PME# USB_OCP#7 NC

Pull-Hi

NC

Pull-Hi Pull-Hi Pull-Hi Pull-Hi Pull-Hi

NC NC

Pull-Hi Pull-Hi

NC

USB_MODE

NC

Pull-Hi Pull-Hi

SPI_WP# NC

Pull-Hi

NC

Pull-Hi Pull-Hi Pull-Hi Pull-Hi

USB_OCP#[1:4]

Pull-Hi Pull-Hi Pull-Hi Pull-Hi

NC

Pull-Hi

PREQ#1 PGNT#1 PREQ#2 PGNT#2 PREQ#3 PGNT#3

Pull-Hi

USB_DET1

Pull-Hi

USB_OCP#0

Pull-Hi

USB_DET2

NC SLP_S5# NC

USB_DET3

PCIECLKRQ0#

Pull-Hi Pull-Hi

SIO(F71882)

PIN NAME NOTESUSAGE

GPIO[5:0] GPIO6 GPIO7 GPIO10 GPIO11 GPIO12 GPIO13 GPIO14 GPIO15 GPIO16 GPIO17 GPIO20 GPIO21 GPIO22 GPIO23 GPIO24 GPIO26 GPIO27 GPIO30 GPIO31 GPIO32 GPIO33 GPIO40 GPIO41 GPIO42 GPIO43

UNUSED

SKTOCC#

UNUSED

BOARD_ID1 BOARD_ID0 LOW_PWR

UNUSED UNUSED

LED_VSB LED_VCC PAS_DET#

PLTRST_BUS1# PLTRST_BUS2#

UNUSED UNUSED

ATX_PWROK PSIN# PWRBTN# SLP_S3# PSON# SIO_PWROK RSMRST#

UNUSED

DVI_C_HPD_DP FP_AUD_DET#

UNUSED

Input/Output

INPUT

OUTPUT OUTPUT INPUT OUTPUT OUTPUT

INPUT INPUT OUTPUT INPUT OUTPUT OUTPUT OUTPUT

INPUT

DDR-III DIMM Config.

DIMM 1 DIMM 2 DIMM 3 DIMM 4

ADDRESSDEVICE

00 01 10 11

CLOCK

MEM_MA_CLK_H0/L0 MEM_MA_CLK_H2/L2 MEM_MA_CLK_H3/L3 MEM_MB_CLK_H0/L0 MEM_MB_CLK_H1/L1 MEM_MB_CLK_H2/L2 MEM_MB_CLK_H3/L3

PCI Config.

DEVICE

PCI Slot 1 PREQ#0

PCI Slot 2

MCP1 INT Pin

PIRQ#A PIRQ#B PIRQ#C PIRQ#D PIRQ#B PIRQ#C PIRQ#D PIRQ#A

REQ#/GNT#

PGNT#0

PREQ#1 PGNT#1

PCI RESET BUFFER1 PCI RESET BUFFER2

ATX POWER OK INPUT FRONT PANNEL POWER BUTTON POWER BUTTON BUFFER OUT

OUTPUT FOR ATX POWER ON RESERVE FOR PWRGD_3V

FRONT AUDIO CABLE DETECTION

MEM_MA_CLK_H1/L1

IDSEL

AD16

AD17 CK_P_33M_PCI3

CLOCK

CK_P_33M_PCI1

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

Date: Sheet of

5

4

3

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

GPIO setting & PCI Routing

DELL Shen Yang

1

1.0

of

33 34Friday, August 14, 2009

Confidential

For Dell Only

5

X00

2/9 Modification:

1. Change R130 from 1k ohm to 4.7k ohm. - P.24

2. Stuff C326. - P.24

3. Reserve R211 to connect H_VTTPWRGD and U121.10. - P.24

4. Change R202 from 4.12k ohm to 4.32k ohm. - P.24

5. Reserve EC22 and EC23 for CPU_VTT. - P.24

6. Change U5 from 8MB to 32MB. - P.13

7. Change pin header color to conform Dell's requirement.

8. Add USB_DET1 and USB_DET2 for USB detect function(R373, R375 pull-up to 3VSB). - P.13, 22

D D

2/10 Modification:

1. Stuff R879. P.13

2. Remove R937 and modify JPA1.1 connect to GND. - P.16

3. Add Board_ID1. - P.16, 27

4. Reserve CPU Reset control circuit. – P.4

5. Exchange U122 pin14 and pin15. – P.10

6. Modify USB_OC voltage from 5V to 3.3V. – P.22

7. Modify strapping of SPI_MOSI(R447) to pull-down(there isn’t TMP function). – P.13

8. Stuff R158(Disable ME Mode). – P.13

9. Modify strapping of PCH_GPIO27 to pull-up. – P.13

10. Change RN6 from 4.7k ohm to 2.7k ohm. – P.16

11. Don’t stuff R932(Disable SIO_SPI). – P.16

12. Don’t stuff R936(FAN start duty 60%). – P.16

13. Change R457 & R456 from 5% to 1%. – P.25

14. Change power source of SPI ROM from 3VSB to VCC3. – P.13

15. Modify PS2 power from 5VUSB_SVCC6 to 5VUSB_SVCC2. - P.16

2/11 Modification:

1. Modify 3VSB power solution to switch circuit. - P.25

2. Modify PSI ligth loading circuit. - P.26

3. Modify CPU Power solution. - P.27

4. Add GPU Power solution. - P.26

5. Add DVI function. - P.21

C C

6. Add NAND Flash. - P.15

2/12 Modification:

1. Add re-driver IC for eSATA. - P.21

2. Add Q127 for DVI hot-plug deatect. - P.21

3. Don't stuff R816, R817 and C736(reserve for PCH_SYSPWROK). - P.13

4. Add +CPU_GFX Decoupling Capacitors.

5. Add SPDIF pin header. - P.20

6. Change U17 to UPI7711. - P.25

7. Add JUSB3. - P.22

2/13 Modification:

1. Change CHOKE3 to 1.1uH. - P.26

2. Change SYSFAN power source to +12VIN. - P.21

3. Reserve pull-up resistor R63 for H_VTT_PWRGD. - P.24

4. Change R393 to 69.8k ohm. - P.24

5. Add C333 for CPU_VTT. - P.24

6. Reserve C245, don't stuff. - P.26

7. Swap pin of RN13, RN16 and RN56

2/16 Modification:

1. Add C120 (0.1uF) for PCHI.AF27. - P.14

2. Change R975 to 100 ohm. - P.14

3. Change C795 to 1uF. - P.14

B B

4. Remove PCH_GPIO27 pull-up resistor(R124). - P.13

5. Reserve pull-down resistor(R124) for SPI_HOLD_CPO#. - P.13

6. Remove SPI_MOSI pull-down resistor(R447). - P.13

7. Modify XCLK_RCOMP pull-up to PCH_1P05. - P.11

8. VCCLAN connect to GND. - P.14

9. VCC_ME3p3 connect to VCC3. - P.14

10. Modify U1.8 to connector VREF_DQ_A. - P.8

11. Add C51(22uF) for PCH_1P05. - P.14

12. Add C85 for VCC_DDR. - P.9

2/17 Modification:

1. Change C250 from 3300pF to 4700pF. - P.26

2. Change DVI connector to DVI-I and add RGB. - P.21

3. Change DVI to port B. - P.12

4. Reserve EC27 for CPU_VTT. - P.24

5. Change footprint of R115, R116 and R121 to 0805. - P.24

2/18 Modification:

1. Change LAN from RTL8111DL to BCM57780. - P.19

2. Reserve dummy load circuit. - P.28

3. Add power LED control circuit. - P.29

2/23 Modification:

1. Change capacitor of EMI suggestion to 0.1uF/0402. - P.19

2. Remove FB1 and CP1. - P.16

A A

3. Modify footprint of eSATA re-driver IC. - P.21

2/24 Modification:

1. Add CP24, CP25 and CP26 for separate PCH VccCore and VccIO power rail. - P.14

2/25 Modification:

1. Remove LAN VMAIN_PWR GPIO control signal. - P.19

2. Change JSPI power from 3VSB to VCC3. - P.13

3. Reserve R352. - P.13

5

4

3

2/26 Modification:

1. Don't stuff R103, R112, R114, R528, R529 and R531 - P.29

2. Rename JUSB1, 2, 3. - P.22

3. Add LED control circuit. - P.28

4. Change R163 to 42.2kohm. - P.25

5. Change R595 to 10kohm. - P.25

6. Remove 5V_CTL circuit. - P.25

2/27 Modification:

1. Add CP27, CP28 and CP29 for EMI solution. - P.28

2. Add R601, R602, R603 and R604 for DVI bridge. - P.21

3. Add C488, C489 and C490 for +12VIN to GND. - P.27

4. Add C495 for +CPU_GFX to GND. - P.26

5. Add C493 and C491 for VCC_DDR to GND. - P.25

6. Add C492 for +12V to GND. - P.18

7. Add C487 for VCC5 to GND. - P.18

8. Add C486 for VCC3 to VCC5. - P.18

9. Add C496 for CK_P_33M_PCI1. - P.11

10. Remove TP44, TP45, TP49, TP50, TP12 and TP15 for layout routing. - P11

11. Remove R443 and stuff R444. - P.13

12. Add C497 for CK_P_33M_PCI2. - P.11

13. Chagne the SIM1 from GND to VCC5. - P.30

3/2 Modification:

1. Change R316 to 100kohm. - P.16

2. Reserve pull-down resistor for board ID detect. - P.16

3/3 Modification:

1. Remove board ID detect pull-down resistor. - P.16

2

1

X01

4/1 Modification:

1. Swap U28 pin7 and pin6. - P.25

2. Reserver R595, don't stuff. - P.25

3. Stuff 1k ohm for R22. - P.24

4. Reserve pull-down resistor for PCIECLKRQ0 & PCIECLKRQ2. - P.13

4/7 Modification:

1. Change R109 to 0 ohm.

2. Remove EC3.

3. Change FP_RST# pull-up voltage to VCC3.

4. Change U21 power source to VCC3.

5. Add DRAM_RST control circuit.

6. Change LAN connector to conform to DELL behavior.

7. Modify BOM of CPU core power, CPU VTT and GPU power by vendor suggestions.

MICRO-START INT'L CO.,LTD.

Title

Size Document Number Rev

4

3

2

Size Document Number Rev

Date: Sheet of

Date: Sheet

MICRO-START INT'L CO.,LTD.

Revision History

DELL Shen Yang

1

1.0

of

34 34Friday, August 14, 2009

MSI MS-7448 Schematics

Specifications and Main Features

Frequently Asked Questions

User Manual
