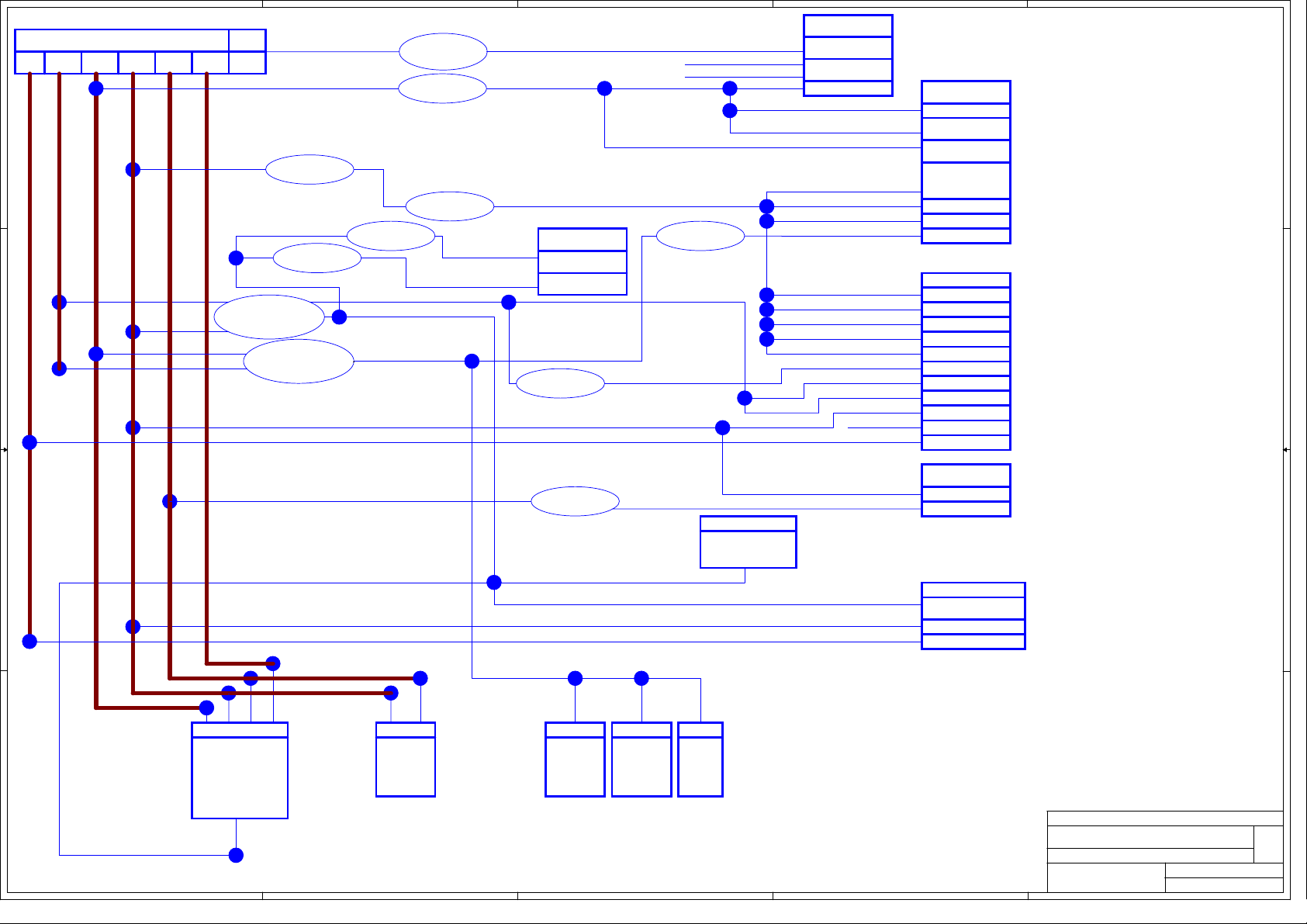

MSI MS-7217 Schematics 0b

5

4

3

2

1

UNBUFFERED DDR
DIMM1,2

184-PIN DDR FIRST LOGICAL DIMM

UNBUFFERED DDR
DIMM3,4

184-PIN DDR SECOND LOGICAL DIMM

7

8

128bit

DDR200,266,333,400

DDR200,266,333,400

MSI-7217

DESKTOP RS482

DESKTOP ATHLON64

939-Pin uFCPGA 939

DESKTOP SB450

D D

5,6,9

HyperTransport LINK0

LINK0
16x16

ATI NB

External Clock Generator

ICS951412

VGA CON

PCIE X 16
PCIE X 1

C C

USB-6USB-7

USB-4

USB-3

14

15

CRT

PCIE

21

USB-1USB-2USB-5

USB-0

2424242424242424

PCI BUS

B B

VT6307
1394

31

RTL8110C/SB
10/100/1000

27

PCI SLOT 1/2

23

HyperTransport LINK0 CPU I/F

INTEGRATED GRAPHICS

2X PCI Express Link

USB 2.0

10,11,12

2X PCIE

ATI SB

USB2.0 (4+4)
SATA
AC97 2.2
ATA 66/100
ACPI 1.1
LPC I/F
INT RTC
PCI/PCI BDGE

16,17,18,19,20

S-VIDEO

COMPOSITE

AC LINK

SATA Link

ATA 66/100

S-VIDEO

COMPOSITE

SATA Port #1~#4

IDE1
IDE2

AC97 CODEC
ALC655/ AZALIA
ALC880

26

25

25

LPC I/F

Board Stack-up

1/2 oz. Cu plus
plating

Solder
Mask

PREPREG 4.7mils

A A

Solder
Mask

CORE 47mils

PREPREG 4.7mils

5

1/2 oz. Cu plus
plating

1 oz. Cu Power
Plane

1 oz. Cu Ground
Plane

K8 CORRE POWER

RS480 CORE & PCIE
POWER
& NB,SB POWER
SEQUENCE

ACPI MS6
CONTROLLER &
DDR MEMORY POWER

4

13

SMSC LPC SIO DME 1737

22

FLASH
BIOS

22

29

FAN

FLOPPY

28

LPT

24 15

15

3

SERIAL
PORTS

CONTROL

30

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

01.BLOCK DIAGRAM

01.BLOCK DIAGRAM

01.BLOCK DIAGRAM

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

136

136

136

Rev

Rev

Rev

0B

0B

0B

of

of

of

PCI_AD20PCI_AD20

5

4

3

2

1

SB400

GPIO Pin

GPIO 0
GPIO 1

D D

GPIO 2
GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
GPIO 8
GPIO 9
GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14
GPIO 15 I/O(MAIN)
GPIO 16

C C

GPIO 17
GPIO 18
GPIO 19
GPIO 20
GPIO 21
GPIO 22
GPIO 23
GPIO 24
GPIO 25
GPIO 26
GPIO 27
GPIO 28
GPIO 29
GPIO 30
GPIO 31

B B

GPIO 32
GPIO 33
GPIO 34
GPIO 35
GPIO 36

Type

I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
OD(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(RESUME)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)

I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
OD(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)
I/O(MAIN)

Function

LDT_PG

Unused, Pull-Up

SPKR
CLEAR PASSWARD
CLEAR CMOS

Unused, Pull-Up
Unused, Pull-Down
Unused, Pull-Up
Unused, Pull-Down
Unused, Pull-Down

THERM_ALERT#

ATADET0
ATADET1
REQ5
GNT5
SIDE_D0
SIDE_D1
SIDE_D2
SIDE_D3
SIDE_D4
SIDE_D5
SIDE_D6
SIDE_D7
SIDE_D8
SIDE_D9
SIDE_D10
SIDE_D11
SIDE_D12
SIDE_D13
SIDE_D14
SIDE_D15
REQ6
GNT6
INTE
INTF
INTG
INTH

PCI Config.

DEVICE

MCP1 INT Pin

REQ#/GNT#

IDSEL

PIRQE

PCI Slot 1

PIRQF
PIRQG

PCI_REQ#0
PCI_GNT#0

PCI_AD16

PIRQH
PIRQF

PCI Slot 2

PIRQG
PIRQH

PCI_REQ#1
PCI_GNT#1

PCI_AD17

PIRQE

LAN

1394

PIRQE

PIRQF

PCI_REQ#3
PCI_GNT#3

PCI_REQ#4
PCI_GNT#4

PCI_AD19

PCI_AD20

LPC PCICLK5

SIO PCICLK6

CLOCK

PCICLK0

PCICLK1

PCICLK3

PCICLK4

PCI RESET DEVICE

Signals
SLOT_RST#
DEV_RST# SIO,LAN,1394,LPC
HD_RST# Primary, Scondary IDE
PCI_RST# SB

Target

PCI slot 1-2

JUMPER SETTING

JCMOS1

JAUD1

(1-2)NORMAL
(5-6)
(9-10)

W/O
FRONT
AUDIO

(2-3)CLEAR

WITH FRONT
AUDIO

W83627THF-E SIO

GPIO Pin

GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14
GPIO 15
GPIO 16
GPIO 17
GPIO 20
GPIO 21
GPIO 22
GPIO 23
GPIO 24
GPIO 25
GPIO 26
GPIO 30
GPIO 31
GPIO 32
GPIO 33
GPIO 34
GPIO 35
GPIO 37
GPIO 40
GPIO 41
GPIO 42
GPIO 43
GPIO 44
GPIO 45
GPIO 46
GPIO 47
GPIO 50
GPIO 51
GPIO 52
GPIO 53
GPIO 54
GPIO 55

Type

I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD
I/OD

I/O
I/O
I/O
I/O
I/O
I/O

VSET0
VSET1

Reserved
Reserved

Unused

VSET2

Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused
Unused

PULL UP
SLP_S3#

Unused
Unused

BIOS_WP#

Unused

PWRBTIN
SB_PWBTIN#

Unused
Unused
Unused
Unused
Unused
Unused

Function

GPM0 I/O(RESUME) USB_OC#1
GPM1 I/O(RESUME)

I/O(RESUME)GPM2

GPM3 I/O(RESUME)

I/O(RESUME)GPM4

GPM5 I/O(RESUME)

I/O(RESUME)GPM6

GPM7

USB_OC#1
USB_OC#1
USB_OC#2
USB_OC#2
AZ_RESET#

Unused, Pull-Up

SYS_RESETI/O(RESUME)

SIO ADDR

H: 0x04E

L: 0x02E

(DEFAULT)

JBAT1
JREC1

(1-2)NORMAL (2-3)CLEAR
(1-2)

Normal Mode

(2-3)
Safe Mode

(open)Auto
Recovery

A A

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

02.GPIO & JUMP PINS

02.GPIO & JUMP PINS

02.GPIO & JUMP PINS

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

236

236

236

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

ATX P/S WITH 1A STBY CURRENT

VBAT

D D

C C

5VSB
+/-5%

5V
+/-5%

3.3V
+/-5%

12V
+/-5%

CPU
PW

-12V

12V

+/-5%

+/-5%

+3.3VSB REGULATOR
ACPI CONTROLLER

+5VSB REGULATOR
ACPI CONTROLLER

VCC 2.5V
REGULATOR

2.5V VDDR
REGULATOR

4

VRM SW
REGULATOR

VDD 1.2V SW
REGULATOR

1.8V
REGULATOR

1.25V VTT_DDR
REGULATOR

VTT_DDR_SUS (S0,S1,S3)

VCC_DDR(S0,S1,S3)

+3V_Dual (S0, S1, S3, S4, S5)

+5V_Dual (S0, S1, S3)

CPU_VCORE (S0, S1)

VDDA_1V2 (S0, S1)

+1.8V_S0 (S0, S1)

DDR400 DIMMs

VTT_DDR 2A

VDD MEM 8.52A

1.8V STB LDO
REGULATOR

3

VTT_DDR_SUS (S0,S1,S3)
VCC_DDR(S0,S1,S3)

VDDQ 1.8V
REGULATOR

+1.8VSB (S0, S1, S3, S4, S5)

+3.3V (S0, S1)

2

ATHLON 64

VDDCORE

0.8-1.55V 80A
DDR400 MEM I/F

VTT 2A, VDD 2A
VLDT 1.2V 0.5A

VDDHT

PCIE_VDD12

VCC_NB (S0, S1)

LVDDR18

PCIE_VDD18

VDD18

+1.8VDUAL_SPMEM(S0,S1,S3)

+1.8V_S3 (S0,S1,S3)

NB RS482

VDDHT 1.2V 0.5A
PCI-E CORE

&VCO 2.25A
NB CORE VDDC

1.0-1.2V 5A

PLL & DAC-Q 0.1A

PCI-E I/O 750mA

LVDS 1.8V 100mA

SIDE PORT MEM I/F 2A

SB SB450

X4 PCI-E 0.8A
ATA I/O 0.2A
ATA PLL 0.01A
PCI-E PVDD 80mA
SB CORE 0.6A

1.8V S5 PW 0.22A

3.3V S5 PW 0.01A
USB CORE I/O 0.2A

3.3V I/O 0.45A

1.8V USB
RTCVCC

1

AC97 CODEC

5VAA LDO
REGULATOR

+5VR (S0, S1)

3.3V CORE 0.3A
5V ANALOG 0.1A

ENTHERNET

3.3V 0.5A (S0, S1)

B B

3.3V 0.1A (S0,S1,S3)

SUPER I/O

+3V SD 0.01A
+3V 0.1A
VBAT

PCI Slot (per slot)

5V

3.3V

A A

12V

3.3Vaux

-12V

5.0A

7.6A

0.5A

0.375A

0.1A

X16 PCIE

3.3V
12V

3.0A

5.5A

USB X4 FR USB X4 RL

VDD
5VDual

VDD
5VDual

2.0A 2.0A

+3.3VDUAL (S0, S1, S3)

5

4

2XPS/2

5VDual

1.0A

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

03.POWER DELIVERY CHART

03.POWER DELIVERY CHART

03.POWER DELIVERY CHART

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

3

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

336

336

336

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

D D

4

3

2

1

PCI CLKFB

DIMM1,3 DIMM2,4

3 PAIR MEM CLK

3 PAIR MEM CLK

C C

ATHLON 64 FX
LGA939 PACKAGE

3 PAIR MEM CLK

3 PAIR MEM CLK

1 PAIR CPU CLK

200MHZ

14.318MHZ OSC INPUT

EXTERNAL
CLK GEN.

1PAIR NB CLK

66MHZ

NB-OSC

14.318MHZ

NB PCIE CLK

100MHZ

SB PCIE CLK

100MHZ

PCIE CLK

100MHZ

PCIE CLK

100MHZ

ATI RS482

TVCLKIN

PCIE GFX SLOT - 16 LANES

PCIE GPP SLOT 0 - 1 LANE

SB-OSC

14.318MHZ

14.318MHZ OSC INPUT
(OPTION)

ATI SB

SB450

PCI CLK

33MHZ

AC97_BITCLK

PCI CLK

33MHZ

PCI CLK

33MHZ

PCI CLK

33MHZ

PCI CLK

33MHZ

PCI CLK

33MHZ

SIO_CLK

14.318MHZ

PCI SLOT0

PCI SLOT1

1394

ETHERNET
PCI 100/10

SUPER IO
DME1737

AC97 CODEC

KB_CLK

MS_CLK

14.318MHZ

25MHZ OSC INPUT

KEYBOARD

MOUSE

B B

A A

5

14.318MHZ OUTPUT

14.318MHZ OUTPUT

PCIE CLK

100MHZ

USB CLK

48MHZ OSC INPUT FOR USB

4

3

48MHZ

(OPTION)

32.768KHZ OSC INPUT

25MHZ OSC INPUT FOR SATA

RTC_CLK

32.768KHZ

TCPA CONN.

2

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

04.CLOCK DISTRIBUTION

04.CLOCK DISTRIBUTION

04.CLOCK DISTRIBUTION

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

436

436

436

Rev

Rev

Rev

0B

0B

0B

of

of

of

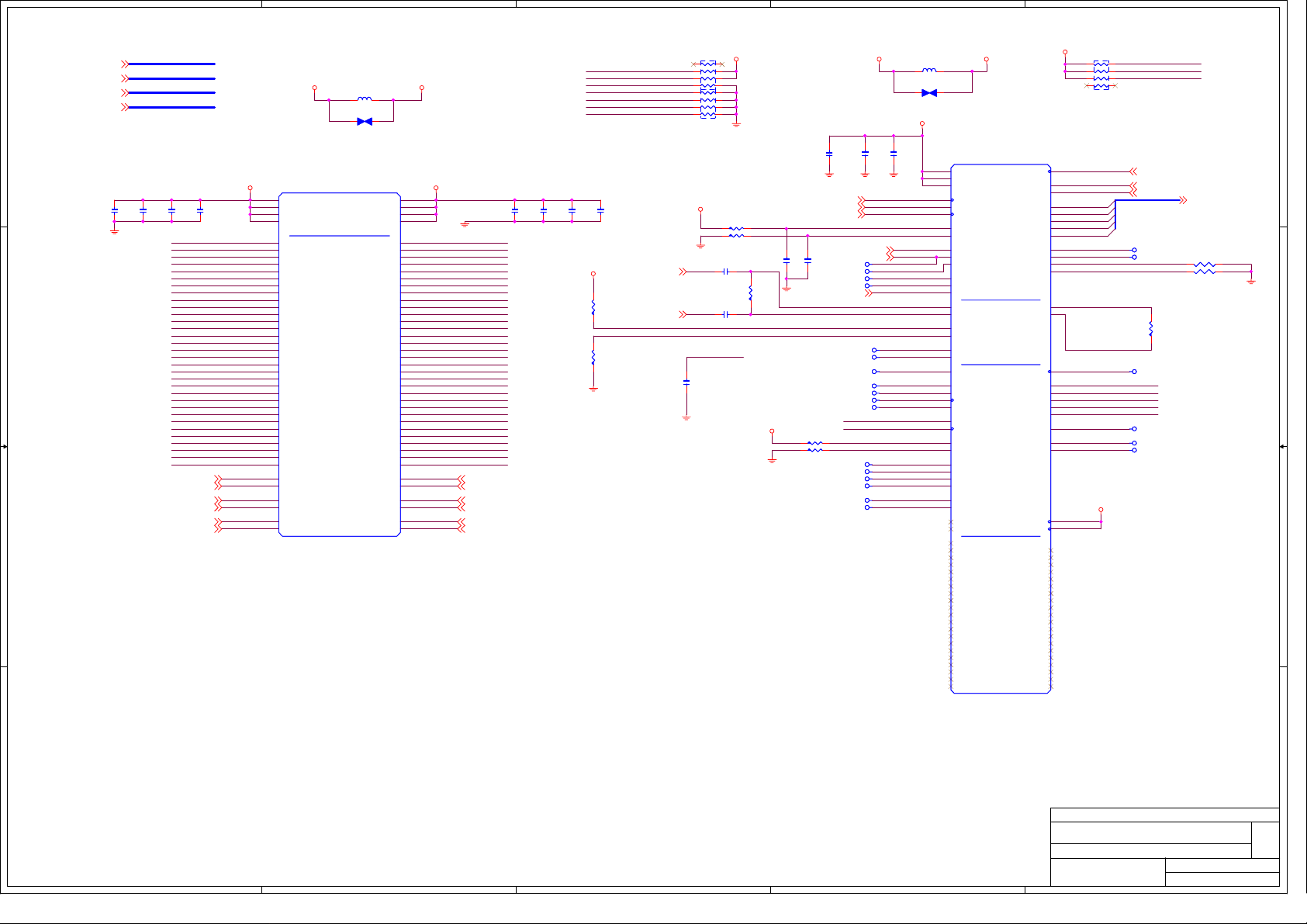

5

4

3

2

1

CPU1D

CPU1D

THERMDA
THERMDC

VID4
VID3
VID2
VID1
VID0

BP3
BP2
BP1
BP0

FBCLKOUT_H

FBCLKOUT_L

DBREQ_L

SCANCLK2
SCANCLK1

SCANEN

TDO

SCANOUT_H

SCANOUT_L

PROGEN1_L
PROGEN0_L

FREE22
FREE23
FREE24
FREE25
FREE26
FREE27
FREE28
FREE29
FREE30
FREE31
FREE32
FREE33
FREE34
FREE35
FREE36
FREE37
FREE38
FREE39
FREE40
FREE41

VCC2_5

AG10
AJ2

AJ1
A13

A12
C12
A11
A10

C13
E9
B13
C10

F13
E13

A6
AG9

AH6
AF10
AH10
AJ10

AG8
V5

U5

AL14
A14

AL9
AL10
AL11
AL12
C22
C28
D8
D11
D12
D29
E21
E22
G15
N27
T25
T29
U28
C11
AG15
AH12

THERMDA_CPU
THERMDC_CPU

DBREQ_L

RN4

RN4

78
56
34
12

8P4R-680R

8P4R-680R

CPU_THRIP#

VID4
VID3
VID2
VID1

CPU_NC_C13
CPU_NC_E9
CPU_STRAP_LO_B13
CPU_STRAP_LO_C10

CPU_FBCLKOUT_H

CPU_FBCLKOUT_L

CPU_STRAP_LO_AG9
CPU_STRAP_LO_AH6
CPU_STRAP_LO_AF10
CPU_STRAP_LO_AH10
CPU_STRAP_LO_AJ10

TDO
CPU_NC_V5

CPU_NC_U5

VTT_DDR

CPU_THRIP# 29
THERMDA_CPU 22

THERMDC_CPU 22

LDT_RST#
LDT_PG
LDTSTOP#

TP10TP10
TP13TP13

R53

R53

80.6R1%

80.6R1%

TP2TP2

TP23TP23

TP16TP16
TP15TP15

VID[0..4] 13

R46 680RR46 680R
R45 680RR45 680R

RN29

RN29
8P4R-680R

8P4R-680R

VCC2_5 VDDA25VDDA_25

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

RN28

RN28
8P4R-680R

8P4R-680R

VCC1_2HT_OUT

R63 44.2R1%R63 44.2R1%
R48 44.2R1%R48 44.2R1%

C60

C60

C38

C1000P50X

C1000P50X

R52

R52

169R1%

169R1%

CPUCLKIN#

VCC1_2HT_OUT

C38

C1000P50X

C1000P50X

CPUCLKIN

R65 49.9R1%R65 49.9R1%
R69 49.9R1%R69 49.9R1%

C40

C40

C3900P50X

C3900P50X

C35

C35

C3900P50X

C3900P50X

VDDIOSENSE

C23

C23
X_C0.22U10X

X_C0.22U10X

C30

C30

C4.7U16Y1206

C4.7U16Y1206

LDT_RST#16
LDT_PG16
LDTSTOP#11,16

COREFB+13

COREFB-13

TP1TP1
TP14TP14
TP17TP17
TP18TP18

VDDIOSENSE29

CPU_STRAP_HI_E11
CPU_STRAP_LO_F11

TP11TP11
TP4TP4

TP7TP7

TP19TP19
TP21TP21
TP20TP20
TP22TP22

CPU_STRAP_HI_AJ12
CPU_STRAP_HI_AF12

CPU_STRAP_LO_T4HT_CADIN_L1

TP3TP3
TP12TP12
TP5TP5
TP8TP8

TP6TP6
TP9TP9

L1

L1

2 1

X_80L2_50_0805

X_80L2_50_0805

1 2

CP3CP3

VDDA25

C39

C39

C34

C34

C0.01U50X

C0.01U50X

C0.22U16X

C0.22U16X

LDT_RST#
LDT_PG
LDTSTOP#

CPU_L0_REF1
CPU_L0_REF0 VID0

CPU_CORESENSE
CPU_VDDIOFB_H
CPU_VDDIOFB_L

VDDIOSENSE

CPU_NC_C5
CPU_NC_A5

CPU_DBRDY

CPU_TCK
CPU_TRST_L
CPU_TDI

CPU_STRAP_HI_T3

CPU_NC_A4
CPU_NC_D4
CPU_NC_B4
CPU_NC_C4

CPU_NC_C7
CPU_NC_C6

COREFB+
COREFB-

AA24
AE13

AG6
AG7

AJ12
AF12

AE22

AG22

AH8

AH29

AJ22
AJ28

AK3
AK4
AK6

AK8
AK10
AK12

C3
B3
A3

F8
E8
B6

D1
C1

E5
E6
E7

Y24

A8
B8

E11
F11

C5
A5

B11

AF8
AJ9

T3
T4

A4
D4
B4
C4

C7
C6

AL8
AL7

AJ4
AJ5
AJ6
AJ7
AJ8

AL3
AL4
AL5
AL6

VDDA3
VDDA2
VDDA1

RESET_L
PWROK
LDTSTOP_L

L0_REF1
L0_REF0

COREFB_H
COREFB_L
CORESENSE

VDDIOFB_H
VDDIOFB_L
VDDIOSENSE

CLKIN_H
CLKIN_L

BYPASSCLK_H
BYPASSCLK_L

PLLCHRZ_H
PLLCHRZ_L

DBRDY
TMS

TCK
TRST_L
TDI

SINGLECHAIN
BURNIN_L

SCANIN_H
SCANIN_L

ANALOG3
ANALOG2
ANALOG1
ANALOG0

DIG_T
ANALOG_T

RSVD_SMBUSC
RSVD_SMBUSD

FREE1
FREE2
FREE3
FREE4

MISC

MISC

FREE5
FREE6
FREE7
FREE8
FREE9
FREE10
FREE11
FREE12
FREE13
FREE14
FREE15
FREE16
FREE17
FREE18
FREE19
FREE20
FREE21

THERMTRIP_L

SCANSHIFTENB

SCANSHIFTEN

X_C0.22U16X

X_C0.22U16X

C56

C56

20:5:5:20

20:5:5:20

HT_CADIN_H[15..0]
HT_CADIN_L[15..0]
HT_CADOUT_H[15..0]
HT_CADOUT_L[15..0]

VCCA_1V2

X_80L2_50_0805

X_80L2_50_0805

2 1

VCC1_2HT

L5

L5

1 2

CP7CP7

VCC1_2HT

AG4
AG3
AG1
AG2

HT_CADOUT_H15

V4

HT_CADOUT_L15

V3

HT_CADOUT_H14

Y5

HT_CADOUT_L14

W5

HT_CADOUT_H13

Y4

HT_CADOUT_L13

Y3

HT_CADOUT_H12

AB5

HT_CADOUT_L12

AA5

HT_CADOUT_H11

AD5

HT_CADOUT_L11

AC5

HT_CADOUT_H10

AD4

HT_CADOUT_L10

AD3

HT_CADOUT_H9

AF5

HT_CADOUT_L9

AE5

HT_CADOUT_H8

AF4

HT_CADOUT_L8

AF3

HT_CADOUT_H7

V1

HT_CADOUT_L7

U1

HT_CADOUT_H6

W2

HT_CADOUT_L6

W3

HT_CADOUT_H5 CPU_TMS

Y1

HT_CADOUT_L5

W1

HT_CADOUT_H4

AA2

HT_CADOUT_L4

AA3

HT_CADOUT_H3

AC2

HT_CADOUT_L3

AC3

HT_CADOUT_H2

AD1

HT_CADOUT_L2

AC1

HT_CADOUT_H1

AE2

HT_CADOUT_L1

AE3

HT_CADOUT_H0

AF1

HT_CADOUT_L0

AE1
AB4

AB3
AB1

AA1
U2

U3

C58

C58
X_C0.22U16X

X_C0.22U16X

VCC1_2HT_OUT

E2
E1
F1
F2

R5
T5
P3
P4
N5
P5
M3
M4
K3
K4

J5
K5
H3
H4
G5
H5
R3
R2
N1
P1
N3
N2

L1
M1

J1
K1

J3

J2
G1
H1
G3
G2

L5
M5

L3

L2
R1

T1

VLDT_06
VLDT_05
VLDT_02
VLDT_01

L0_CADIN_H15
L0_CADIN_L15
L0_CADIN_H14
L0_CADIN_L14
L0_CADIN_H13
L0_CADIN_L13
L0_CADIN_H12
L0_CADIN_L12
L0_CADIN_H11
L0_CADIN_L11
L0_CADIN_H10
L0_CADIN_L10
L0_CADIN_H9
L0_CADIN_L9
L0_CADIN_H8
L0_CADIN_L8
L0_CADIN_H7
L0_CADIN_L7
L0_CADIN_H6
L0_CADIN_L6
L0_CADIN_H5
L0_CADIN_L5
L0_CADIN_H4
L0_CADIN_L4
L0_CADIN_H3
L0_CADIN_L3
L0_CADIN_H2
L0_CADIN_L2
L0_CADIN_H1
L0_CADIN_L1
L0_CADIN_H0
L0_CADIN_L0

L0_CLKIN_H1
L0_CLKIN_L1

L0_CLKIN_H0
L0_CLKIN_L0

L0_CTLIN_H0
L0_CTLIN_L0

X_C0.22U16X

X_C0.22U16X

C50

C50

C46

C46

X_C0.22U16X

X_C0.22U16X

HT_CADIN_H15
HT_CADIN_L15
HT_CADIN_H14
HT_CADIN_L14
HT_CADIN_H13
HT_CADIN_L13
HT_CADIN_H12
HT_CADIN_L12
HT_CADIN_H11
HT_CADIN_L11
HT_CADIN_H10
HT_CADIN_L10
HT_CADIN_H9
HT_CADIN_L9
HT_CADIN_H8
HT_CADIN_L8
HT_CADIN_H7
HT_CADIN_L7
HT_CADIN_H6
HT_CADIN_L6
HT_CADIN_H5
HT_CADIN_L5
HT_CADIN_H4
HT_CADIN_L4
HT_CADIN_H3
HT_CADIN_L3
HT_CADIN_H2
HT_CADIN_L2
HT_CADIN_H1

HT_CADIN_H0
HT_CADIN_L0

HT_CLKIN_H110
HT_CLKIN_L110

HT_CLKIN_L010

HT_CTLIN_H010 HT_CTLOUT_H0 10

HT_CTLIN_L010

CPU1A

CPU1A

L0_CADOUT_H15

L0_CADOUT_L15

L0_CADOUT_H14

L0_CADOUT_L14

L0_CADOUT_H13

L0_CADOUT_L13

L0_CADOUT_H12

L0_CADOUT_L12

L0_CADOUT_H11

L0_CADOUT_L11

L0_CADOUT_H10

L0_CADOUT_L10

L0_CADOUT_H9

L0_CADOUT_L9

L0_CADOUT_H8

L0_CADOUT_L8

L0_CADOUT_H7

L0_CADOUT_L7

L0_CADOUT_H6

L0_CADOUT_L6

L0_CADOUT_H5

L0_CADOUT_L5

L0_CADOUT_H4

L0_CADOUT_L4

L0_CADOUT_H3

L0_CADOUT_L3

L0_CADOUT_H2

L0_CADOUT_L2

L0_CADOUT_H1

L0_CADOUT_L1

L0_CADOUT_H0

L0_CADOUT_L0
L0_CLKOUT_H1

L0_CLKOUT_L1
L0_CLKOUT_H0

L0_CLKOUT_L0
L0_CTLOUT_H0

L0_CTLOUT_L0

VLDT 0

VLDT 0

VLDT_08
VLDT_07
VLDT_04
VLDT_03

C0.22U16X

C0.22U16X

HT_CLKOUT_H1 10
HT_CLKOUT_L1 10

HT_CLKOUT_H0 10HT_CLKIN_H010
HT_CLKOUT_L0 10

HT_CTLOUT_L0 10

C0.22U16X

C0.22U16X

C102

C102

C105

C105

C0.22U16X

C0.22U16X

20:5:5:20

20:5:5:20

R49

R49
820R1%

820R1%

R50

R50
820R1%

820R1%

C100

C100

VCC_DDR

CPU_STRAP_HI_AF12
CPU_STRAP_HI_AJ12
CPU_STRAP_LO_AH10
CPU_STRAP_LO_AJ10
CPU_STRAP_LO_AF10
CPU_STRAP_LO_AH6
CPU_STRAP_LO_AG9

C96

C96
C0.22U16X

C0.22U16X

CPU_CLK14

CPU_CLK#14

HT_CADIN_H[15..0]10
HT_CADIN_L[15..0]10

HT_CADOUT_H[15..0]10

D D

C C

B B

HT_CADOUT_L[15..0]10

A A

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

05.ATHLON64 HT I/F CTRL & DEBUG

05.ATHLON64 HT I/F CTRL & DEBUG

05.ATHLON64 HT I/F CTRL & DEBUG

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

536

536

536

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

4

3

2

1

VDD_VTT_SUS_CPU is connected to the VDD_VTT_SUS power
supply through the package or on the die. It is only connected
on the board to decoupling near the CPU package.

VDDR_VREF

MBA_A17
MBA_A07

MRAS_A#7
MCAS_A#7

MWE_A#7

VTT_DDR

CPU_VTT_SENSE

MEM_ZN
MEM_ZP

MCS_1H#1
MCS_1H#0
MCS_1L#1
MCS_1L#0

MCS_2H#1
MCS_2H#0
MCS_2L#1
MCS_2L#0

MEM_CKED
MEM_CKEC
MEM_CKEB
MEM_CKEA

MA_A13
MA_A12
MA_A11
MA_A10
MA_A9
MA_A8
MA_A7
MA_A6
MA_A5
MA_A4
MA_A3
MA_A2
MA_A1
MA_A0

MBA_A1
MBA_A0

MWE_A#

AG14
AK14

AJ14

AH14

AF13
AF15

AE15

AL29
AJ29

AG28

AF29
AL28

AJ30
AG27
AE26

AF23

W25
AC27

AD27

AF27
AE28

B14
C14
D14
E14

F15

C25
B25
E25
G24

C26
E28
V27
F29
H25
G28
J26
J25
L27
L28
N26
P25
U25

MA_A13
MA_A12
MA_A11
MA_A10
MA_A9
MA_A8
MA_A7
MA_A6
MA_A5
MA_A4
MA_A3
MA_A2
MA_A1
MA_A0

MA_B13
MA_B12
MA_B11
MA_B10
MA_B9
MA_B8
MA_B7
MA_B6
MA_B5
MA_B4
MA_B3
MA_B2
MA_B1
MA_B0

VTT6
VTT7
VTT8
VTT1

VTT5
VTT4
VTT3
VTT2

MEMVREF
VTT_SENSE
MEMZN

MEMZP
MEMCS_1H_L1

MEMCS_1H_L0
MEMCS_1L_L1
MEMCS_1L_L0

MEMCS_2H_L1
MEMCS_2H_L0
MEMCS_2L_L1
MEMCS_2L_L0

MEMCKED
MEMCKEC
MEMCKEB
MEMCKEA

MEMADDA13
MEMADDA12
MEMADDA11
MEMADDA10
MEMADDA9
MEMADDA8
MEMADDA7
MEMADDA6
MEMADDA5
MEMADDA4
MEMADDA3
MEMADDA2
MEMADDA1
MEMADDA0

MEMBANKA1
MEMBANKA0

MEMRASA_L
MEMCASA_L
MEMWEA_L

DDR: CMD/CTRL/CLK

DDR: CMD/CTRL/CLK

Athlon 64 939 Processor

CPU1B

CPU1B

MEMCLK_1H_H2

MEMCLK_1H_L2

MEMCLK_1H_H1

MEMCLK_1H_L1

MEMCLK_1H_H0

MEMCLK_1H_L0
MEMCLK_1L_H2
MEMCLK_1L_L2
MEMCLK_1L_H1
MEMCLK_1L_L1
MEMCLK_1L_H0
MEMCLK_1L_L0

MEMCLK_2H_H2

MEMCLK_2H_L2

MEMCLK_2H_H1

MEMCLK_2H_L1

MEMCLK_2H_H0

MEMCLK_2H_L0
MEMCLK_2L_H2
MEMCLK_2L_L2
MEMCLK_2L_H1
MEMCLK_2L_L1
MEMCLK_2L_H0
MEMCLK_2L_L0

MEMADDB13
MEMADDB12
MEMADDB11
MEMADDB10

MEMADDB9
MEMADDB8
MEMADDB7
MEMADDB6
MEMADDB5
MEMADDB4
MEMADDB3
MEMADDB2
MEMADDB1
MEMADDB0

MEMBANKB1
MEMBANKB0

MEMRASB_L
MEMCASB_L

MEMWEB_L

MEMRESET_L

X_C22P50N0402C522 X_C22P50N0402C522
X_C22P50N0402C479 X_C22P50N0402C479
X_C22P50N0402C480 X_C22P50N0402C480
X_C22P50N0402C512 X_C22P50N0402C512
X_C22P50N0402C481 X_C22P50N0402C481
X_C22P50N0402C486 X_C22P50N0402C486
X_C22P50N0402C483 X_C22P50N0402C483
X_C22P50N0402C492 X_C22P50N0402C492
X_C22P50N0402C489 X_C22P50N0402C489
X_C22P50N0402C497 X_C22P50N0402C497
X_C22P50N0402C501 X_C22P50N0402C501
X_C22P50N0402C505 X_C22P50N0402C505
X_C22P50N0402C510 X_C22P50N0402C510
X_C22P50N0402C511 X_C22P50N0402C511

X_C22P50N0402C135 X_C22P50N0402C135
X_C22P50N0402C57 X_C22P50N0402C57
X_C22P50N0402C59 X_C22P50N0402C59
X_C22P50N0402C83 X_C22P50N0402C83
X_C22P50N0402C62 X_C22P50N0402C62
X_C22P50N0402C65 X_C22P50N0402C65
X_C22P50N0402C64 X_C22P50N0402C64
X_C22P50N0402C69 X_C22P50N0402C69
X_C22P50N0402C67 X_C22P50N0402C67
X_C22P50N0402C71 X_C22P50N0402C71
X_C22P50N0402C73 X_C22P50N0402C73
X_C22P50N0402C75 X_C22P50N0402C75
X_C22P50N0402C77 X_C22P50N0402C77
X_C22P50N0402C81 X_C22P50N0402C81

AL22
AL23
A22
A23
R31
R30
AH23
AG23
D23
E23
R27
R26

AJ21
AH21
C21
D21
T31
U31
AF21
AE21
G21
G22
T27
U27

AK23
A26
A29
W30
C29
E29
D31
G29
F31
J31
K31
N28
N30
U29

Y31
AE30

AG30
AK29
AH31

D19

MA_B13
MA_B12
MA_B11
MA_B10
MA_B9
MA_B8
MA_B7
MA_B6
MA_B5
MA_B4
MA_B3
MA_B2
MA_B1
MA_B0

MBA_B1
MBA_B0

MRAS_B#MRAS_A#
MCAS_B#MCAS_A#
MWE_B#

MCS_2H#1
MCS_2H#0
MCS_2L#1
MCS_2L#0

MCS_1H#1
MCS_1H#0
MCS_1L#1
MCS_1L#0

MBA_A1
MBA_A0
MBA_B1
MBA_B0

MEM_CKED
MEM_CKEC
MEM_CKEB
MEM_CKEA

MRAS_A#
MCAS_A#
MWE_A#
MRAS_B#
MCAS_B#
MWE_B#

MCLK_1H2 8
MCLK_1H#2 8
MCLK_1H1 8
MCLK_1H#1 8
MCLK_1H0 8
MCLK_1H#0 8
MCLK_1L2 7
MCLK_1L#2 7
MCLK_1L1 7
MCLK_1L#1 7
MCLK_1L0 7
MCLK_1L#0 7

MCLK_2H2 8
MCLK_2H#2 8
MCLK_2H1 8
MCLK_2H#1 8
MCLK_2H0 8
MCLK_2H#0 8
MCLK_2L2 7
MCLK_2L#2 7
MCLK_2L1 7
MCLK_2L#1 7
MCLK_2L0 7
MCLK_2L#0 7

MBA_B1 8
MBA_B0 8

MRAS_B# 8
MCAS_B# 8
MWE_B# 8

DIMM2

DIMM1

DIMM4

DIMM3

DIMM2
DIMM4

X_C22P50N0402C117 X_C22P50N0402C117
X_C22P50N0402C108 X_C22P50N0402C108
X_C22P50N0402C521 X_C22P50N0402C521
X_C22P50N0402C517 X_C22P50N0402C517

X_C22P50N0402C115 X_C22P50N0402C115
X_C22P50N0402C111 X_C22P50N0402C111
X_C22P50N0402C520 X_C22P50N0402C520
X_C22P50N0402C518 X_C22P50N0402C518

X_C22P50N0402C513 X_C22P50N0402C513
X_C22P50N0402C514 X_C22P50N0402C514
X_C22P50N0402C84 X_C22P50N0402C84
X_C22P50N0402C97 X_C22P50N0402C97

X_C22P50N0402C51 X_C22P50N0402C51
X_C22P50N0402C47 X_C22P50N0402C47
X_C22P50N0402C478 X_C22P50N0402C478
X_C22P50N0402C477 X_C22P50N0402C477

X_C22P50N0402C515 X_C22P50N0402C515
X_C22P50N0402C519 X_C22P50N0402C519
X_C22P50N0402C516 X_C22P50N0402C516
X_C22P50N0402C104 X_C22P50N0402C104
X_C22P50N0402C114 X_C22P50N0402C114
X_C22P50N0402C106 X_C22P50N0402C106

CPU1C

MDQ_B[0..63]8 MDQ_A[0..63] 7

D D

C C

B B

MDQM_B[0..7]8

MDQS_B[0..7]8

A A

MDQ_B63
MDQ_B62
MDQ_B61
MDQ_B60
MDQ_B59
MDQ_B58
MDQ_B57
MDQ_B56
MDQ_B55
MDQ_B54
MDQ_B53
MDQ_B52
MDQ_B51
MDQ_B50
MDQ_B49
MDQ_B48
MDQ_B47
MDQ_B46
MDQ_B45
MDQ_B44
MDQ_B43
MDQ_B42
MDQ_B41
MDQ_B40
MDQ_B39
MDQ_B38
MDQ_B37
MDQ_B36
MDQ_B35
MDQ_B34
MDQ_B33
MDQ_B32
MDQ_B31
MDQ_B30
MDQ_B29
MDQ_B28
MDQ_B27
MDQ_B26
MDQ_B25
MDQ_B24
MDQ_B23
MDQ_B22
MDQ_B21
MDQ_B20
MDQ_B19
MDQ_B18
MDQ_B17
MDQ_B16
MDQ_B15
MDQ_B14
MDQ_B13
MDQ_B12
MDQ_B11
MDQ_B10
MDQ_B9
MDQ_B8
MDQ_B7
MDQ_B6
MDQ_B5
MDQ_B4
MDQ_B3
MDQ_B2
MDQ_B1
MDQ_B0

MDQM_B7
MDQM_B6
MDQM_B5
MDQM_B4
MDQM_B3
MDQM_B2
MDQM_B1
MDQM_B0

MDQS_B7
MDQS_B6
MDQS_B5
MDQS_B4
MDQS_B3
MDQS_B2
MDQS_B1
MDQS_B0

AJ15
AL16
AL18
AL19
AL15
AK15
AK17
AJ17

AH19

AL21
AJ23
AL25

AK19

AJ19
AL24

AK25

AJ25
AL26

AG29

AF31
AH25

AL27
AJ31

AG31

AE31
AD31
AB31
AA29
AE29
AC28
AC31
AA30

AA31

W29

W28
W31

AL17
AK21
AK27
AC29

AH15

AL20

AJ27
AC30

M31
H31

G31

G30
C31

C27
D25

C30

C23

C19
D17
C15

C17
D15

N31
N29

R29

U30

L30

L31
L29
J28

E30

E31
B27

A27
B23

A20
B19
A25
A24

A19
B17
A15

A18

B15

P31
V31

J30
B29
B21
A16

J29
A28
A21
A17

MEMDATA127
MEMDATA126
MEMDATA125
MEMDATA124
MEMDATA123
MEMDATA122
MEMDATA121
MEMDATA120
MEMDATA119
MEMDATA118
MEMDATA117
MEMDATA116
MEMDATA115
MEMDATA114
MEMDATA113
MEMDATA112
MEMDATA111
MEMDATA110
MEMDATA109
MEMDATA108
MEMDATA107
MEMDATA106
MEMDATA105
MEMDATA104
MEMDATA103
MEMDATA102
MEMDATA101
MEMDATA100
MEMDATA99
MEMDATA98
MEMDATA97
MEMDATA96
MEMDATA95
MEMDATA94
MEMDATA93
MEMDATA92
MEMDATA91
MEMDATA90
MEMDATA89
MEMDATA88
MEMDATA87
MEMDATA86
MEMDATA85
MEMDATA84
MEMDATA83
MEMDATA82
MEMDATA81
MEMDATA80
MEMDATA79
MEMDATA78
MEMDATA77
MEMDATA76
MEMDATA75
MEMDATA74
MEMDATA73
MEMDATA72
MEMDATA71
MEMDATA70
MEMDATA69
MEMDATA68
MEMDATA67
MEMDATA66
MEMDATA65
MEMDATA64

MEMCHECK15
MEMCHECK14
MEMCHECK13
MEMCHECK12
MEMCHECK11
MEMCHECK10
MEMCHECK9
MEMCHECK8

MEMDM_UP8
MEMDM_UP7
MEMDM_UP6
MEMDM_UP5
MEMDM_UP4
MEMDM_UP3
MEMDM_UP2
MEMDM_UP1
MEMDM_UP0

MEMDQS_UP8
MEMDQS_UP7
MEMDQS_UP6
MEMDQS_UP5
MEMDQS_UP4
MEMDQS_UP3
MEMDQS_UP2
MEMDQS_UP1
MEMDQS_UP0

CPU1C

DDR: DATA

DDR: DATA

MEMCHECK7
MEMCHECK6
MEMCHECK5
MEMCHECK4
MEMCHECK3
MEMCHECK2
MEMCHECK1
MEMCHECK0

MEMDM_LO8
MEMDM_LO7
MEMDM_LO6
MEMDM_LO5
MEMDM_LO4
MEMDM_LO3
MEMDM_LO2
MEMDM_LO1
MEMDM_LO0

MEMDQS_LO8
MEMDQS_LO7
MEMDQS_LO6
MEMDQS_LO5
MEMDQS_LO4
MEMDQS_LO3
MEMDQS_LO2
MEMDQS_LO1
MEMDQS_LO0

Athlon 64 939 Processor

MEMDATA63
MEMDATA62
MEMDATA61
MEMDATA60
MEMDATA59
MEMDATA58
MEMDATA57
MEMDATA56
MEMDATA55
MEMDATA54
MEMDATA53
MEMDATA52
MEMDATA51
MEMDATA50
MEMDATA49
MEMDATA48
MEMDATA47
MEMDATA46
MEMDATA45
MEMDATA44
MEMDATA43
MEMDATA42
MEMDATA41
MEMDATA40
MEMDATA39
MEMDATA38
MEMDATA37
MEMDATA36
MEMDATA35
MEMDATA34
MEMDATA33
MEMDATA32
MEMDATA31
MEMDATA30
MEMDATA29
MEMDATA28
MEMDATA27
MEMDATA26
MEMDATA25
MEMDATA24
MEMDATA23
MEMDATA22
MEMDATA21
MEMDATA20
MEMDATA19
MEMDATA18
MEMDATA17
MEMDATA16
MEMDATA15
MEMDATA14
MEMDATA13
MEMDATA12
MEMDATA11
MEMDATA10

MEMDATA9
MEMDATA8
MEMDATA7
MEMDATA6
MEMDATA5
MEMDATA4
MEMDATA3
MEMDATA2
MEMDATA1
MEMDATA0

AE16
AG17
AG18
AE18
AJ16
AG16
AE17
AJ18
AJ20
AE20
AE23
AG24
AG19
AE19
AJ24
AE24
AG25
AE25
AD25
AC25
AF25
AJ26
AE27
AD29
AB25
AB27
AA28
Y25
AC26
AB29
AA27
Y27
N25
M25
K27
K25
M29
M27
K29
J27
H27
G27
D27
F25
H29
G26
E26
G25
G23
F23
C20
F19
E24
C24
G19
E19
E18
G17
E16
E15
G18
C18
G16
C16

Y29
W27
P27
R25
W26
V25
R28
P29

V29
AF17
AG21
AH27
AA25
L26
F27
G20
E17

U26
AH17
AG20
AG26
AA26
L25
E27
E20
F17

MDQ_A63
MDQ_A62
MDQ_A61
MDQ_A60
MDQ_A59
MDQ_A58
MDQ_A57
MDQ_A56
MDQ_A55
MDQ_A54
MDQ_A53
MDQ_A52
MDQ_A51
MDQ_A50
MDQ_A49
MDQ_A48
MDQ_A47
MDQ_A46
MDQ_A45
MDQ_A44
MDQ_A43
MDQ_A42
MDQ_A41
MDQ_A40
MDQ_A39
MDQ_A38
MDQ_A37
MDQ_A36
MDQ_A35
MDQ_A34
MDQ_A33
MDQ_A32
MDQ_A31
MDQ_A30
MDQ_A29
MDQ_A28
MDQ_A27
MDQ_A26
MDQ_A25
MDQ_A24
MDQ_A23
MDQ_A22
MDQ_A21
MDQ_A20
MDQ_A19
MDQ_A18
MDQ_A17
MDQ_A16
MDQ_A15
MDQ_A14
MDQ_A13
MDQ_A12
MDQ_A11
MDQ_A10
MDQ_A9
MDQ_A8
MDQ_A7
MDQ_A6
MDQ_A5
MDQ_A4
MDQ_A3
MDQ_A2
MDQ_A1
MDQ_A0

MDQM_A7
MDQM_A6
MDQM_A5
MDQM_A4
MDQM_A3
MDQM_A2
MDQM_A1
MDQM_A0

MDQS_A7
MDQS_A6
MDQS_A5
MDQS_A4
MDQS_A3
MDQS_A2
MDQS_A1
MDQS_A0

C4.7U10Y0805

C4.7U10Y0805

MDQM_A[0..7] 7

MDQS_A[0..7] 7

VTT_DDR

R43

R43

15R1%1206

15R1%1206

R44

R44

15R1%1206

15R1%1206

C107

C107

VCC_DDR

C1000P50X

C1000P50X

C194

C194
C100P50N

C100P50N

VDDR_VREF

C482

C482

VCC_DDR

R376

R376

34.8R1%

34.8R1%

CPU_VTT_SENSE29

R375

R375

34.8R1%

34.8R1%

C37

C37
C0.1U25Y

C0.1U25Y

MA_A[13..0]7 MA_B[13..0] 8

MCS_1H#18
MCS_1H#08
MCS_1L#17
MCS_1L#07

MCS_2H#18
MCS_2H#08
MCS_2L#17
MCS_2L#07

MEM_CKED8
MEM_CKEC8
MEM_CKEB7
MEM_CKEA7

DIMM1
DIMM3

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

06.ATHLON64 DDR MEMORY I/F

06.ATHLON64 DDR MEMORY I/F

06.ATHLON64 DDR MEMORY I/F

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

636

636

636

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

4

3

2

1

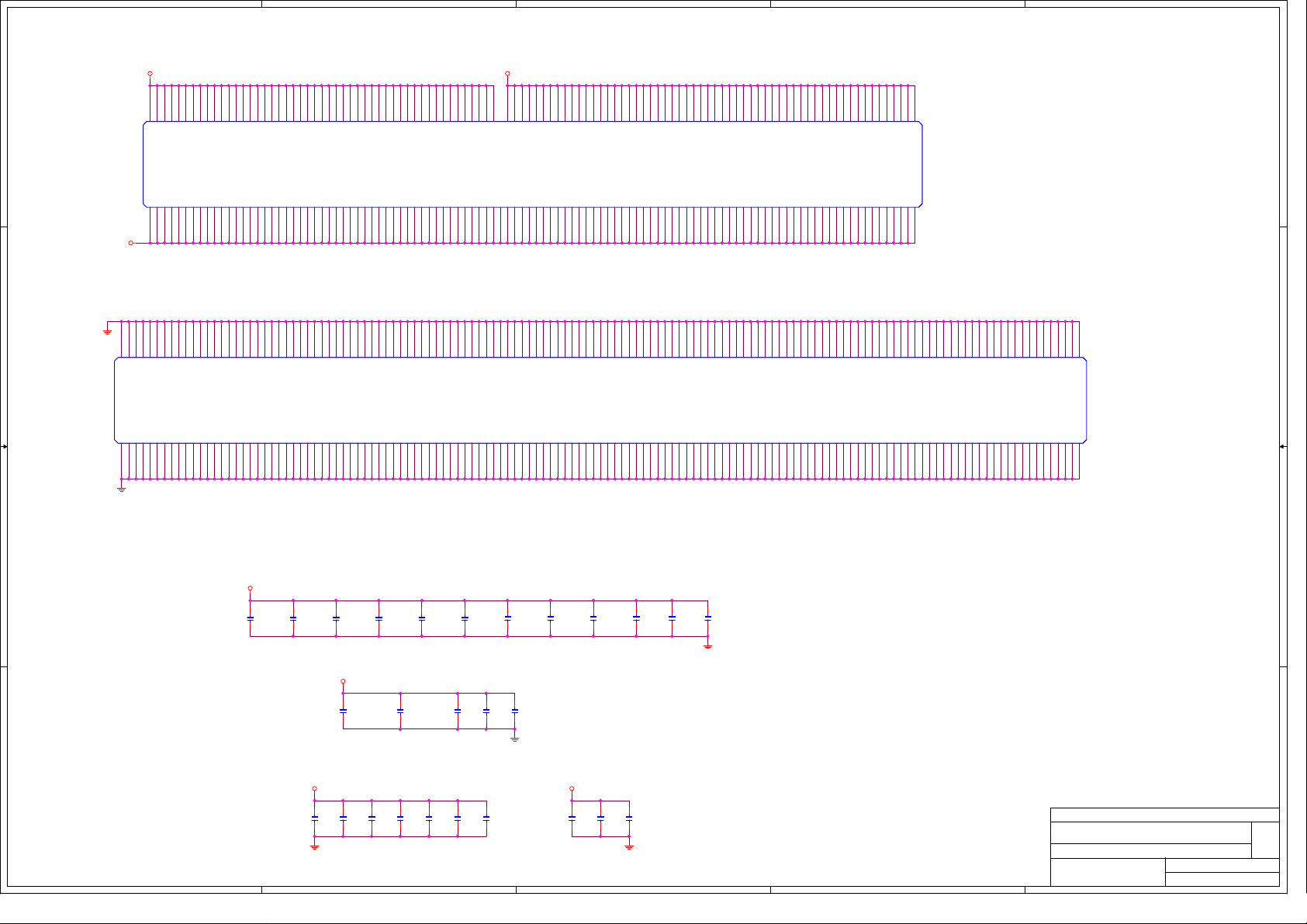

DDR Terminational Resisitors

DDR DIMM1

DIMM1

MA_A[13..0]6

D D

MCS_1L#06
MCS_1L#16

MRAS_A#6
MCAS_A#6

MDQS_A[0..7]6

C C

MDQM_A[0..7]6

MEM_CKEA6

SMB_CLK8,14,17,21,22,28,29

SMB_DATA8,14,17,21,22,28,29

B B

A A

MCLK_1L16

MCLK_1L#16

MCLK_1L06

MCLK_1L#06

MCLK_1L26

MCLK_1L#26

MA_A0
MA_A1
MA_A2
MA_A3
MA_A4
MA_A5
MA_A6 MRAS_A#
MA_A7
MA_A8
MA_A9
MA_A10
MA_A11
MA_A12
MA_A13

MBA_A0

MBA_A06

MBA_A1

MBA_A16

MCS_1L#0
MCS_1L#1

MRAS_A#
MCAS_A#
MWE_A#

MWE_A#6

MDQS_A0
MDQS_A1
MDQS_A2
MDQS_A3
MDQS_A4

MDQS_A6
MDQS_A7

MDQM_A0
MDQM_A1
MDQM_A2
MDQM_A3
MDQM_A4
MDQM_A5
MDQM_A6
MDQM_A7

MEM_CKEA

SMB_CLK
SMB_DATA

VCC_DDR

VCC_DDR

5

DIMM1

48

SIGNALS

SIGNALS

A0

43

A1

41

A2

130

A3

37

A4

32

A5

125

A6

29

A7

122

A8

27

A9

141

A10/AP

118

A11

115

A12/NC

167

A13/NC

59

BA0

52

BA1

113

NC/BA2

157

CS0#

158

CS1#

71

NC/CS2#

163

NC/CS3#

154

RAS#

65

CAS#

63

WE#

5

DQS0

14

DQS1

25

DQS2

36

DQS3

56

DQS4

67

DQS5

78

DQS6

86

DQS7

47

DQS8

97

DQM0/DQS9

107

DQM1/DQS10

119

DQM2/DQS11

129

DQM3/DQS12

149

DQM4/DQS13

159

DQM5/DQS14

169

DQM6/DQS15

177

DQM7/DQS16

140

DQM8/DQS17

44

MECC0

45

MECC1

49

MECC2

51

MECC3

134

MECC4

135

MECC5

142

MECC6

144

MECC7

21

CKE0

111

CKE1

92

SCL

91

SDA

181

SA0

182

SA1

183

SA2

16

CK0/NC

17

CK0#/NC

137

CK1/CK0

138

CK1#/CK0#

76

CK2/NC

75

CK2#/NC

82

ID_VDD

184

SPD_VDD

7

VDD

38

VDD

46

VDD

70

VDD

85

VDD

108

VDD

120

VDD

148

VDD

168

VDD

81

GND

89

GND

93

GND

100

GND

116

GND

124

GND

132

GND

139

GND

145

GND

152

GND

160

GND

176

GND

DIMM-184_green

DIMM-184_green

ADDR.=1010000B

POWER

POWER

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63

VREF

FETEN/NC

NC/RESET#

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

MDQ_A0

2

MDQ_A1

4

MDQ_A2

6

MDQ_A3

8

MDQ_A4

94

MDQ_A5

95

MDQ_A6

98

MDQ_A7

99

MDQ_A8

12

MDQ_A9

13

MDQ_A10

19

MDQ_A11

20

MDQ_A12

105

MDQ_A13

106

MDQ_A14

109

MDQ_A15

110

MDQ_A16

23

MDQ_A17

24

MDQ_A18

28

MDQ_A19

31

MDQ_A20

114

MDQ_A21

117

MDQ_A22

121

MDQ_A23

123

MDQ_A24

33

MDQ_A25

35

MDQ_A26

39

MDQ_A27

40

MDQ_A28

126

MDQ_A29

127

MDQ_A30

131

MDQ_A31

133

MDQ_A32

53

MDQ_A33MDQS_A5

55
57

MDQ_A35

60

MDQ_A36

146

MDQ_A37

147

MDQ_A38

150

MDQ_A39

151

MDQ_A40

61

MDQ_A41

64

MDQ_A42

68

MDQ_A43

69

MDQ_A44

153

MDQ_A45

155

MDQ_A46

161

MDQ_A47

162

MDQ_A48

72

MDQ_A49

73

MDQ_A50

79

MDQ_A51

80

MDQ_A52

165

MDQ_A53

166

MDQ_A54

170

MDQ_A55

171

MDQ_A56

83

MDQ_A57

84

MDQ_A58

87

MDQ_A59

88

MDQ_A60

174

MDQ_A61

175

MDQ_A62

178

MDQ_A63

179
9

NC

101

NC

102

NC

173

NC

1
90

WP

103
10

15
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180

3
11
18
26
34
42
50
58
66
74

4

DDR_VREF1

C475

C475

C100P50N

C100P50N

VCC_DDR

MDQ_A[0..63] 6

VCC_DDR

VCC_DDR

VTT_DDR

R40

R40
75R1%

75R1%

R28

R28
75R1%

75R1%

CB46

CB46
C0.1U10X0402

C0.1U10X0402
CB49

CB49
C0.1U10X0402

C0.1U10X0402
CB54

CB54
C0.1U10X0402

C0.1U10X0402
CB56

CB56
C1000P50X0402

C1000P50X0402
CB60

CB60
C0.1U10X0402

C0.1U10X0402

VCC_DDR

MCS_2L#06
MCS_2L#16

MEM_CKEB6

MCLK_2L16

MCLK_2L#16

MCLK_2L06

MCLK_2L#06

MCLK_2L26

MCLK_2L#26

C80

C80
X_C4.7U10X1206

X_C4.7U10X1206
C22

C22
X_C4.7U10X1206

X_C4.7U10X1206
C190

C190
X_C4.7U10X1206

X_C4.7U10X1206
C87

C87
X_C4.7U10X1206

X_C4.7U10X1206

SMB_CLK
SMB_DATA

VCC_DDR

VCC_DDR

VCC_DDR

MA_A0
MA_A1
MA_A2
MA_A3
MA_A4
MA_A5
MA_A6
MA_A7
MA_A8
MA_A9
MA_A10
MA_A11
MA_A12
MA_A13

MBA_A0
MBA_A1

MCS_2L#0
MCS_2L#1

MRAS_A#
MCAS_A#
MWE_A#

MDQS_A0
MDQS_A1
MDQS_A2
MDQS_A3
MDQS_A4
MDQS_A5
MDQS_A6
MDQS_A7

MDQM_A0
MDQM_A1
MDQM_A2
MDQM_A3
MDQM_A4
MDQM_A5
MDQM_A6
MDQM_A7

48
43
41

130

37
32

125

29

122

27
141
118
115
167

59

52
113

157
158

71
163

154

65

63

14

25

36

56

67

78

86

47

97
107
119
129
149
159
169
177
140

44

45

49

51
134
135
142
144

21
111

92

91
181

182
183

16

17
137
138

76

75

82
184

38

46

70

85
108
120
148
168

81

89

93
100
116
124
132
139
145
152
160
176

3

DDR DIMM3

DIMM3

DIMM3

SIGNALS

SIGNALS

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/NC
A13/NC

BA0
BA1
NC/BA2

CS0#
CS1#
NC/CS2#
NC/CS3#

RAS#
CAS#
WE#

5

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8

DQM0/DQS9
DQM1/DQS10
DQM2/DQS11
DQM3/DQS12
DQM4/DQS13
DQM5/DQS14
DQM6/DQS15
DQM7/DQS16
DQM8/DQS17

MECC0
MECC1
MECC2
MECC3
MECC4
MECC5
MECC6
MECC7

CKE0
CKE1

SCL
SDA

SA0
SA1
SA2

CK0/NC
CK0#/NC
CK1/CK0
CK1#/CK0#
CK2/NC
CK2#/NC

POWER

POWER

ID_VDD
SPD_VDD

7

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

DIMM-184_purple

DIMM-184_purple

ADDR.=1010010B

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63

VREF

FETEN/NC

NC/RESET#

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

MDQ_A40

MDQ_A0

2

MDQ_A1

4

MDQ_A2

6

MDQ_A3

8

MDQ_A4

94

MDQ_A5

95

MDQ_A6

98

MDQ_A7

99

MDQ_A8

12

MDQ_A9

13

MDQ_A10

19

MDQ_A11

20

MDQ_A12

105

MDQ_A13

106

MDQ_A14

109

MDQ_A15

110

MDQ_A16

23

MDQ_A17

24

MDQ_A18

28

MDQ_A19

31

MDQ_A20

114

MDQ_A21

117

MDQ_A22

121

MDQ_A23

123

MDQ_A24

33

MDQ_A25

35

MDQ_A26

39

MDQ_A27

40

MDQ_A28

126

MDQ_A29

127

MDQ_A30

131

MDQ_A31

133

MDQ_A32

53

MDQ_A33

55

MDQ_A34

57

MDQ_A35

60

MDQ_A36

146

MDQ_A37

147

MDQ_A38

150

MDQ_A39

151

MDQ_A40

61

MDQ_A41

64

MDQ_A42

68

MDQ_A43

69

MDQ_A44

153

MDQ_A45

155

MDQ_A46

161

MDQ_A47

162

MDQ_A48

72

MDQ_A49

73

MDQ_A50

79

MDQ_A51

80

MDQ_A52

165

MDQ_A53

166

MDQ_A54

170

MDQ_A55

171

MDQ_A56

83

MDQ_A57

84

MDQ_A58

87

MDQ_A59

88

MDQ_A60

174

MDQ_A61

175

MDQ_A62

178

MDQ_A63

179
9

NC

101

NC

102

NC

173

NC

DDR_VREF2

1
90

WP

103
10

15
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180

3
11
18
26
34
42
50
58
66
74

MCLK_1L26
MCLK_1L16
MCLK_1L06 MCLK_1L#0 6

MCLK_2L26
MCLK_2L16
MCLK_2L06

DDR_VREF2

VCC_DDR

C473

C473

C1000P50X

C1000P50X

VCC_DDR

VTT_DDR

VCC_DDR

CB76

CB76
C0.22U16X

C0.22U16X
CB82

CB82
C100P50N

C100P50N
CB105

CB105
C0.1U25Y

C0.1U25Y
CB106

CB106
C0.1U25Y

C0.1U25Y

R83 120RR83 120R
R374 120RR374 120R
R377 120RR377 120R

R84 120RR84 120R
R373 120RR373 120R
R378 120RR378 120R

DECOUPLING CAPACITORS

CB107

CB107
C0.1U25Y

C0.1U25Y
CB91

CB91
C100P50N

C100P50N
CB73

CB73
C0.1U25Y

C0.1U25Y
CB108

CB108
C0.1U25Y

C0.1U25Y

C125

C125
C0.1U25Y

C0.1U25Y

VCC_DDR

2

MDQ_A44
MDQ_A35
MBA_A0
MDQ_A41
MWE_A#
MDQ_A45

MDQ_A42
MDQS_A5
MDQM_A5
MCS_2L#1
MDQ_A48
MDQ_A47
MDQ_A43
MDQ_A46
MA_A13
MDQ_A53
MDQ_A49
MDQ_A52
MDQ_A55
MDQ_A54
MDQS_A6
MDQM_A6
MDQ_A61
MDQ_A60
MDQ_A51
MDQ_A50
MDQ_A62
MDQM_A7
MDQ_A57
MDQ_A56
MDQ_A59
MDQ_A58
MDQ_A63
MDQS_A7MDQ_A34

MA_A1
MA_A2

MCS_1L#1
MCAS_A#
MCS_1L#0
MCS_2L#0

VTT_DDR

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

CB45

CB45
X_C0.1U10X0402

X_C0.1U10X0402
CB104

CB104
X_C0.1U25Y

X_C0.1U25Y
CB13

CB13
C100P50N

C100P50N
CB35

CB35
C100P50N

C100P50N
CB40

CB40
C100P50N

C100P50N
CB51

CB51
C100P50N

C100P50N
CB61

CB61
C100P50N

C100P50N
CB93

CB93
C0.1U25Y

C0.1U25Y
CB69

CB69
C0.1U25Y

C0.1U25Y

VTT_DDR

RN81

RN81
8P4R-47R0402

8P4R-47R0402

RN82

RN82
8P4R-47R0402

8P4R-47R0402

RN84

RN84
8P4R-47R0402

8P4R-47R0402

RN85

RN85
8P4R-47R0402

8P4R-47R0402

RN86

RN86
8P4R-47R0402

8P4R-47R0402

RN87

RN87
8P4R-47R0402

8P4R-47R0402

RN88

RN88
8P4R-47R0402

8P4R-47R0402

RN89

RN89
8P4R-47R0402

8P4R-47R0402

RN90

RN90
8P4R-47R0402

8P4R-47R0402

RN77

RN77
8P4R-47R0402

8P4R-47R0402

RN83

RN83
8P4R-47R0402

8P4R-47R0402

MCLK_1L#2 6
MCLK_1L#1 6

MCLK_2L#2 6
MCLK_2L#1 6
MCLK_2L#0 6

CB6

CB6
C0.1U10X0402

C0.1U10X0402
CB43

CB43
C0.1U10X0402

C0.1U10X0402
CB47

CB47
C0.1U10X0402

C0.1U10X0402
CB50

CB50
C0.1U10X0402

C0.1U10X0402

Title

Title

Title

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

MDQ_A1

1 2

MDQ_A5

3 4

MDQ_A0

5 6

MDQ_A4

7 8

MDQ_A2

1 2

MDQ_A6

3 4

MDQS_A0

5 6

MDQM_A0

7 8

MDQ_A8

1 2

MDQ_A12

3 4

MDQ_A3

5 6

MDQ_A7

7 8

MDQM_A1

1 2

MDQS_A1

3 4

MDQ_A9

5 6

MDQ_A13

7 8

MDQ_A11

1 2

MDQ_A10

3 4

MDQ_A15

5 6

MDQ_A14

7 8

MDQS_A2

1 2

MDQ_A21

3 4

MDQ_A17

5 6

MDQ_A16

7 8

MDQ_A18

1 2

MA_A9

3 4

MDQM_A2

5 6

MA_A11

7 8
1 2

MA_A8

3 4

MA_A7

5 6

MDQ_A22

7 8

MA_A6

1 2

MA_A5

3 4

MDQ_A19

5 6

MDQ_A23

7 8

MA_A12

1 2

MDQ_A20

3 4

MEM_CKEB

5 6

MEM_CKEA

7 8

MDQ_A25

1 2

MDQ_A29

3 4

MDQ_A28

5 6

MDQ_A24

7 8

MDQ_A31

1 2

MDQ_A27

3 4

MDQ_A26

5 6

MDQ_A30

7 8

MDQ_A32

1 2

MBA_A1

3 4

MA_A10

5 6

MA_A0

7 8

MDQS_A4

1 2

MDQ_A33

3 4

MDQ_A37

5 6

MDQ_A36

7 8

MDQ_A39

1 2

MDQ_A38

3 4

MDQ_A34

5 6

MDQM_A4

7 8

MA_A3

1 2

MA_A4

3 4

MDQM_A3

5 6

MDQS_A3

7 8

VTT_DDR

CB11

CB11
C0.1U10X0402

C0.1U10X0402
CB14

CB14
C0.1U10X0402

C0.1U10X0402
CB16

CB16
C0.1U10X0402

C0.1U10X0402
CB5

CB5
X_C1U16Y0805

X_C1U16Y0805
CB19

CB19
C0.1U10X0402

C0.1U10X0402
CB21

CB21
C0.1U10X0402

C0.1U10X0402
CB23

CB23
C0.1U10X0402

C0.1U10X0402
CB28

CB28
C0.1U10X0402

C0.1U10X0402
CB30

CB30
C0.1U10X0402

C0.1U10X0402
CB32

CB32
C0.1U10X0402

C0.1U10X0402
CB90

CB90
X_C1U16Y0805

X_C1U16Y0805
CB37

CB37
C0.1U10X0402

C0.1U10X0402
CB39

CB39
C0.1U10X0402

C0.1U10X0402

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

07.FIRST LOGICAL DDR DIMM

07.FIRST LOGICAL DDR DIMM

07.FIRST LOGICAL DDR DIMM

MS-7217

MS-7217

MS-7217

1

VTT_DDR

RN64

RN64
8P4R-47R0402

8P4R-47R0402

RN65

RN65
8P4R-47R0402

8P4R-47R0402

RN66

RN66
8P4R-47R0402

8P4R-47R0402

RN67

RN67
8P4R-47R0402

8P4R-47R0402

RN68

RN68
8P4R-47R0402

8P4R-47R0402

RN70

RN70
8P4R-47R0402

8P4R-47R0402

RN71

RN71
8P4R-47R0402

8P4R-47R0402

RN72

RN72
8P4R-47R0402

8P4R-47R0402

RN73

RN73
8P4R-47R0402

8P4R-47R0402

RN69

RN69
8P4R-47R0402

8P4R-47R0402

RN74

RN74
8P4R-47R0402

8P4R-47R0402

RN76

RN76
8P4R-47R0402

8P4R-47R0402

RN78

RN78
8P4R-47R0402

8P4R-47R0402

RN79

RN79
8P4R-47R0402

8P4R-47R0402

RN80

RN80
8P4R-47R0402

8P4R-47R0402

RN75

RN75
8P4R-47R0402

8P4R-47R0402

VCC_DDR

VTT_DDR

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

736

736

736

CB8

CB8
C0.1U10X0402

C0.1U10X0402
CB10

CB10
C0.1U10X0402

C0.1U10X0402
CB12

CB12
C0.1U10X0402

C0.1U10X0402
CB15

CB15
C0.1U10X0402

C0.1U10X0402
CB17

CB17
C0.1U10X0402

C0.1U10X0402
CB20

CB20
C0.1U10X0402

C0.1U10X0402
CB24

CB24
C1000P50X0402

C1000P50X0402
CB27

CB27
C0.1U10X0402

C0.1U10X0402
CB29

CB29
C0.1U10X0402

C0.1U10X0402
CB33

CB33
C0.1U10X0402

C0.1U10X0402
CB83

CB83
X_C1U16Y0805

X_C1U16Y0805
CB36

CB36
C0.1U10X0402

C0.1U10X0402
CB42

CB42
C0.1U10X0402

C0.1U10X0402

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

4

3

2

1

SYSTEM MEMORY

DDR DIMM2 DDR DIMM4

DIMM2

DIMM2

48

A0

43

A1

41

A2

130

A3

37

A4

32

A5

125

A6

29

A7

122

A8

27

A9

141

A10/AP

118

A11

115

A12/NC

167

A13/NC

59

BA0

52

BA1

113

NC/BA2

157

CS0#

158

CS1#

71

NC/CS2#

163

NC/CS3#

154

RAS#

65

CAS#

63

WE#

5

DQS0

14

DQS1

25

DQS2

36

DQS3

56

DQS4

67

DQS5

78

DQS6

86

DQS7

47

DQS8

97

DQM0/DQS9

107

DQM1/DQS10

119

DQM2/DQS11

129

DQM3/DQS12

149

DQM4/DQS13

159

DQM5/DQS14

169

DQM6/DQS15

177

DQM7/DQS16

140

DQM8/DQS17

44

MECC0

45

MECC1

49

MECC2

51

MECC3

134

MECC4

135

MECC5

142

MECC6

144

MECC7

21

CKE0

111

CKE1

92

SCL

91

SDA

181

SA0

182

SA1

183

SA2

16

CK0/NC

17

CK0#/NC

137

CK1/CK0

138

CK1#/CK0#

76

CK2/NC

75

CK2#/NC

82

ID_VDD

184

SPD_VDD

7

VDD

38

VDD

46

VDD

70

VDD

85

VDD

108

VDD

120

VDD

148

VDD

168

VDD

81

GND

89

GND

93

GND

100

GND

116

GND

124

GND

132

GND

139

GND

145

GND

152

GND

160

GND

176

GND

DIMM-184_green

DIMM-184_green

SIGNALS

SIGNALS

POWER

POWER

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63

VREF

FETEN/NC

NC/RESET#

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

MBA_B06
MBA_B16

MWE_B#6

SMB_CLK7,14,17,21,22,28,29

SMB_DATA7,14,17,21,22,28,29

VCC_DDR

VCC_DDR

VCC_DDR

MA_B0
MA_B1
MA_B2

MA_B4
MA_B5
MA_B6
MA_B7
MA_B8
MA_B9
MA_B10
MA_B11
MA_B12
MA_B13

MBA_B0
MBA_B1

MCS_1H#0
MCS_1H#1

MRAS_B#
MCAS_B#
MWE_B#

MDQS_B0
MDQS_B1
MDQS_B2
MDQS_B3
MDQS_B4
MDQS_B5
MDQS_B6
MDQS_B7

MDQM_B0
MDQM_B1

MDQM_B3
MDQM_B4
MDQM_B5
MDQM_B6
MDQM_B7

MEM_CKEC

MA_B[13..0]6

D D

MCS_1H#06
MCS_1H#16

MRAS_B#6
MCAS_B#6

MDQS_B[0..7]6

C C

MDQM_B[0..7]6

MEM_CKEC6

B B

MCLK_1H16

MCLK_1H#16

MCLK_1H06

MCLK_1H#06

MCLK_1H26

MCLK_1H#26

A A

MDQ_B0

2

MDQ_B1

4

MDQ_B2

6

MDQ_B3

8

MDQ_B4

94

MDQ_B5

95

MDQ_B6

98

MDQ_B7

99

MDQ_B8

12

MDQ_B9

13

MDQ_B10

19

MDQ_B11

20

MDQ_B12

105

MDQ_B13

106

MDQ_B14

109

MDQ_B15

110

MDQ_B16

23

MDQ_B17

24

MDQ_B18

28

MDQ_B19

31

MDQ_B20

114

MDQ_B21

117

MDQ_B22

121

MDQ_B23

123

MDQ_B24

33

MDQ_B25

35

MDQ_B26

39

MDQ_B27

40

MDQ_B28

126

MDQ_B29

127

MDQ_B30

131

MDQ_B31

133

MDQ_B32

53

MDQ_B33

55

MDQ_B34

57

MDQ_B35

60

MDQ_B36

146

MDQ_B37

147

MDQ_B38

150

MDQ_B39

151

MDQ_B40MDQM_B2

61

MDQ_B41

64

MDQ_B42

68

MDQ_B43

69

MDQ_B44

153

MDQ_B45

155

MDQ_B46

161

MDQ_B47

162

MDQ_B48

72

MDQ_B49

73

MDQ_B50

79

MDQ_B51

80

MDQ_B52

165

MDQ_B53

166

MDQ_B54

170

MDQ_B55

171

MDQ_B56

83

MDQ_B57

84

MDQ_B58

87

MDQ_B59

88

MDQ_B60

174

MDQ_B61

175

MDQ_B62

178

MDQ_B63

179
9

NC

101

NC

102

NC

DDR_VREF1

173

NC

1
90

WP

103
10

15
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180

3
11
18
26
34
42
50
58
66
74

C476

C476
C0.1U25Y

C0.1U25Y

VCC_DDR

MDQ_B[0..63] 6

MCS_2H#06
MCS_2H#16

MEM_CKED6

MCLK_2H16

MCLK_2H#16

MCLK_2H06

MCLK_2H#06

MCLK_2H26

MCLK_2H#26

MEM_CKED

SMB_CLK
SMB_DATA

VCC_DDR

VCC_DDR

VCC_DDR

MA_B0
MA_B1
MA_B2
MA_B3
MA_B4
MA_B5
MA_B6
MA_B7
MA_B8
MA_B9
MA_B10
MA_B11
MA_B12
MA_B13

MBA_B0
MBA_B1

MCS_2H#0
MCS_2H#1

MRAS_B#
MCAS_B#
MWE_B#

MDQS_B0
MDQS_B1
MDQS_B2
MDQS_B3
MDQS_B4
MDQS_B5
MDQS_B6
MDQS_B7

MDQM_B0
MDQM_B1
MDQM_B2
MDQM_B3
MDQM_B4
MDQM_B5
MDQM_B6
MDQM_B7

ADDR.=1010001B

5

4

DIMM4

DIMM4

48

SIGNALS

SIGNALS

A0

43

A1

41

A2

130

A3

37

A4

32

A5

125

A6

29

A7

122

A8

27

A9

141

A10/AP

118

A11

115

A12/NC

167

A13/NC

59

BA0

52

BA1

113

NC/BA2

157

CS0#

158

CS1#

71

NC/CS2#

163

NC/CS3#

154

RAS#

65

CAS#

63

WE#

5

DQS0

14

DQS1

25

DQS2

36

DQS3

56

DQS4

67

DQS5

78

DQS6

86

DQS7

47

DQS8

97

DQM0/DQS9

107

DQM1/DQS10

119

DQM2/DQS11

129

DQM3/DQS12

149

DQM4/DQS13

159

DQM5/DQS14

169

DQM6/DQS15

177

DQM7/DQS16

140

DQM8/DQS17

44

MECC0

45

MECC1

49

MECC2

51

MECC3

134

MECC4

135

MECC5

142

MECC6

144

MECC7

21

CKE0

111

CKE1

92

SCL

91

SDA

181

SA0

182

SA1

183

SA2

16

CK0/NC

17

CK0#/NC

137

CK1/CK0

138

CK1#/CK0#

76

CK2/NC

75

CK2#/NC

82

ID_VDD

184

SPD_VDD

7

VDD

38

VDD

46

VDD

70

VDD

85

VDD

108

VDD

120

VDD

148

VDD

168

VDD

81

GND

89

GND

93

GND

100

GND

116

GND

124

GND

132

GND

139

GND

145

GND

152

GND

160

GND

176

GND

DIMM-184_purple

DIMM-184_purple

ADDR.=1010011B

3

POWER

POWER

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63

VREF

FETEN/NC

NC/RESET#

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

MDQ_B0

2

MDQ_B1

4

MDQ_B2

6

MDQ_B3

8

MDQ_B4

94

MDQ_B5

95

MDQ_B6

98

MDQ_B7

99

MDQ_B8

12

MDQ_B9

13

MDQ_B10

19

MDQ_B11

20

MDQ_B12

105

MDQ_B13

106

MDQ_B14

109

MDQ_B15

110

MDQ_B16

23

MDQ_B17

24

MDQ_B18

28

MDQ_B19

31

MDQ_B20

114

MDQ_B21

117

MDQ_B22

121

MDQ_B23

123

MDQ_B24

33

MDQ_B25

35

MDQ_B26

39

MDQ_B27

40

MDQ_B28

126

MDQ_B29

127

MDQ_B30

131

MDQ_B31

133

MDQ_B32

53

MDQ_B33

55

MDQ_B34

57

MDQ_B35

60

MDQ_B36

146

MDQ_B37

147

MDQ_B38

150

MDQ_B39

151

MDQ_B40

61

MDQ_B41

64

MDQ_B42

68

MDQ_B43

69

MDQ_B44

153

MDQ_B45

155

MDQ_B46

161

MDQ_B47

162

MDQ_B48

72

MDQ_B49

73

MDQ_B50

79

MDQ_B51

80

MDQ_B52

165

MDQ_B53

166

MDQ_B54

170

MDQ_B55

171

MDQ_B56

83

MDQ_B57

84

MDQ_B58

87

MDQ_B59

88

MDQ_B60

174

MDQ_B61

175

MDQ_B62

178

MDQ_B63

179
9

NC

101

NC

102

NC

173

NC

1
90

WP

103
10

15
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180

3
11
18
26
34
42
50
58
66
74

DDR_VREF2

DDR_VREF2

C474

C474

C0.1U25Y

C0.1U25Y

VCC_DDR

VCC_DDR

R36

R36
75R1%

75R1%

R37

R37
75R1%

75R1%

MCLK_1H26
MCLK_1H16

MCLK_2H26
MCLK_2H16
MCLK_2H06

2

R80 120RR80 120R
R55 120RR55 120R
R71 120RR71 120R

R81 120RR81 120R
R51 120RR51 120R
R72 120RR72 120R

VTT_DDR

VTT_DDR

VCC_DDR

DDR Terminational Resisitors

MRAS_B#

1 2

MDQ_B45
MWE_B#
MDQ_B41
MCS_2H#1
MDQM_B5
MDQS_B5
MDQ_B42
MDQ_B46
MDQ_B43
MDQ_B47
MDQ_B52
MDQ_B48
MDQ_B49
MDQ_B53
MA_B13
MDQ_B54
MDQM_B6
MDQS_B6
MDQ_B55
MDQ_B50
MDQ_B60
MDQ_B51
MDQ_B61
MDQ_B56
MDQ_B57
MDQM_B7
MDQS_B7
MDQ_B62
MDQ_B63
MDQ_B58
MDQ_B59
MA_B2

MA_B1
MDQS_B2
MA_B11
MDQM_B2
MA_B9
MDQS_B3
MA_B4
MDQM_B3
MA_B3
MCS_2H#0
MCS_1H#0
MCAS_B#
MCS_1H#1

3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

MCLK_1H#2 6
MCLK_1H#1 6
MCLK_1H#0 6MCLK_1H06

MCLK_2H#2 6
MCLK_2H#1 6
MCLK_2H#0 6

RN34

RN34
8P4R-47R0402

8P4R-47R0402

RN36

RN36
8P4R-47R0402

8P4R-47R0402

RN37

RN37
8P4R-47R0402

8P4R-47R0402

RN38

RN38
8P4R-47R0402

8P4R-47R0402

RN39

RN39
8P4R-47R0402

8P4R-47R0402

RN40

RN40
8P4R-47R0402

8P4R-47R0402

RN41

RN41
8P4R-47R0402

8P4R-47R0402

RN42

RN42
8P4R-47R0402

8P4R-47R0402

RN27

RN27
8P4R-47R0402

8P4R-47R0402

RN18

RN18
8P4R-47R0402

8P4R-47R0402

RN25

RN25
8P4R-47R0402

8P4R-47R0402

RN35

RN35
8P4R-47R0402

8P4R-47R0402

DECOUPLING CAPACITORS

VTT_DDR VTT_DDR

CB58

CB58
C0.1U10X0402

C0.1U10X0402
CB63

CB89

CB89
C0.1U10X0402

C0.1U10X0402
CB38

CB38
C0.1U10X0402

C0.1U10X0402

CB57

CB57
C0.1U10X0402

C0.1U10X0402
CB65

CB65
C0.1U10X0402

C0.1U10X0402

CB63
C0.1U10X0402

C0.1U10X0402
CB64

CB64
C0.1U10X0402

C0.1U10X0402
CB92

CB92
X_C1U16Y0805

X_C1U16Y0805
CB67

CB67
C100P16X0402

C100P16X0402
CB70

CB70
C0.1U10X0402

C0.1U10X0402
CB72

CB72
C0.1U10X0402

C0.1U10X0402
CB75

CB75
C0.1U10X0402

C0.1U10X0402
CB78

CB78
C68P10N0402

C68P10N0402
CB80

CB80
C0.1U10X0402

C0.1U10X0402
CB85

CB85
C0.1U10X0402

C0.1U10X0402
CB87

CB87
C0.1U10X0402

C0.1U10X0402
CB7

CB7
X_C1U16Y0805

X_C1U16Y0805

VCC_DDR

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

08.SECOND LOGICAL DDR DIMM

08.SECOND LOGICAL DDR DIMM

08.SECOND LOGICAL DDR DIMM

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

MDQ_B0
MDQ_B4
MDQ_B5
MDQ_B1
MDQM_B0
MDQ_B6
MDQS_B0
MDQ_B2
MDQ_B7MA_B3
MDQ_B3
MDQ_B12
MDQ_B8
MDQ_B9
MDQ_B13
MDQM_B1
MDQS_B1

MDQ_B14
MDQ_B15
MDQ_B10
MEM_CKEC
MDQ_B11
MEM_CKED
MDQ_B20
MA_B12
MDQ_B16
MDQ_B17
MDQ_B21
MDQ_B18
MDQ_B22
MA_B7
MA_B8
MDQ_B23
MDQ_B19
MA_B5
MA_B6
MDQ_B24
MDQ_B28
MDQ_B29
MDQ_B25
MDQ_B26
MDQ_B30
MDQ_B27
MDQ_B31
MA_B0
MA_B10
MBA_B1
MDQ_B32
MDQ_B36
MDQ_B37
MDQS_B4
MDQ_B33
MDQM_B4
MDQ_B34
MDQ_B38
MDQ_B39
MBA_B0
MDQ_B35
MDQ_B44
MDQ_B40

MS-7217

MS-7217

MS-7217

1

1 2

RN5

RN5

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN6

RN6

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN7

RN7

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN10

RN10

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN12

RN12

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN14

RN14

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN16

RN16

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN20

RN20

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN21

RN21

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN22

RN22

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN26

RN26

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN30

RN30

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN31

RN31

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN32

RN32

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8
1 2

RN33

RN33

3 4

8P4R-47R0402

8P4R-47R0402

5 6
7 8

CB66

CB66
C0.1U10X0402

C0.1U10X0402
CB68

CB68
C0.1U10X0402

C0.1U10X0402
CB71

CB71
C0.1U10X0402

C0.1U10X0402
CB74

CB74
C0.1U10X0402

C0.1U10X0402
CB77

CB77
C0.1U10X0402

C0.1U10X0402
CB79

CB79
C0.1U10X0402

C0.1U10X0402
CB81

CB81
C0.1U10X0402

C0.1U10X0402
CB84

CB84
C0.1U10X0402

C0.1U10X0402
CB86

CB86
C0.1U10X0402

C0.1U10X0402
CB53

CB53
C0.1U10X0402

C0.1U10X0402
CB88

CB88
C0.1U10X0402

C0.1U10X0402
CB62

CB62
C0.1U10X0402

C0.1U10X0402
CB9

CB9
C0.1U10X0402

C0.1U10X0402

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

836

836

836

VTT_DDRVTT_DDR

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

VCORE VCC_DDR

R11

R13

R15

R17

R19

R21

T10

T12

T14

T16

T18

T20

U11

U13

U15

U17

U19

U21

D D

VDD109

VDD110

VDD111

VDD112

VDD113

VDD114

VDD115T2VDD116T6VDD117T8VDD118

VDD119

VDD120

VDD121

VDD122

VDD123

VDD124U4VDD125U7VDD126U9VDD127

VDD128

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VDD7

VDD8

VDD9

VDD10

VDD11

VDD12

VDD13

VDD14

VDD15

VDD16

VDD17

VDD18

VDD19

VDD20

AA4

AA7

AA9

VCORE

AB6

AA11

AB8

AA13

AA15

AA17

AA19

AA21

AC9

AB10

AB12

AB14

AB16

AB18

AB20

AC11

AC13

V10

VDD129

VDD130

VDD131

VDD132

VDD133V6VDD134V8VDD135

VDD21

VDD22

VDD23

VDD24

VDD25

VDD26

VDD27

AD2

AD6

AD8

AC15

AC17

AC19

AD10

4

AD30

AF30

AH30

V12

V14

V16

V18

V20

W11

W13

W15

W17

W19

W21

Y10

Y12

Y14

Y16

Y18

Y20

AA23

AB22

AB24

AB30

AC21

AC23

VDDIO1

VDDIO2

VDDIO3

VDDIO4

VDDIO5

VDD136

VDD137

VDD138

VDD139

VDD140

VDD141W7VDD142W9VDD143

VDD144

VDD145

VDD146

VDD147

VDD148

VDD149Y2VDD150Y6VDD151Y8VDD152

VDD153

VDD154

VDD155

VDD156

VDD157

VDD28

VDD29

VDD30

VDD31

VDD32

VDD33

VDD34

VDD35

VDD36

VDD37

VDD38

VDD39

VDD40

VDD41B5VDD42

VDD43

VDD44

VDD45G7VDD46G9VDD47

VDD48

VDD49H2VDD50H6VDD51H8VDD52

B10

B12

D10

G11

AE4

AE7

AE9

AK5

AK7

AK9

AJ11

AE11

AD12

AD14

AD16

AD18

AK11

G13

VDDIO6

VDD53

VDD54

VDD55

VDD56

H10

H12

H14

H16

H18

AD20

AD22

VDDIO7

VDDIO8

VDD57J4VDD58J7VDD59J9VDD60

AK16

AD24

VDDIO9

VDDIO10

VDDIO11

VDDIO12

VDD61

VDD62

J11

J13

J15

J17

3

AK18

AK20

AK22

AK24

AK26

AK28

AK30

B16

B18

B20

B22

B24

B26

B28

B30

D30

F30

H20

H22

H24

H30

J21

J23

K22

K24

K30

L23

M22

M24

M30

N23

P22

P24

P30

R23

T22

VDDIO13

VDDIO14

VDDIO15

VDDIO16

VDDIO17

VDDIO18

VDDIO19

VDDIO20

VDDIO21

VDDIO22

VDDIO23

VDDIO24

VDDIO25

VDDIO26

VDDIO27

VDDIO28

VDDIO29

VDDIO30

VDDIO31

VDDIO32

VDDIO33

VDDIO34

VDDIO35

VDDIO36

VDDIO37

VDDIO38

VDDIO39

VDDIO40

VDDIO41

VDDIO42

VDDIO43

VDDIO44

VDDIO45

VDDIO46

VDDIO47

VDDIO48

VDD63

VDD64

VDD65K6VDD66K8VDD67

VDD68

VDD69

VDD70

VDD71

VDD72

VDD73L7VDD74L9VDD75

VDD76

VDD77

VDD78

VDD79

VDD80

VDD81M2VDD82M6VDD83M8VDD84

VDD85

VDD86

VDD87

VDD88

VDD89

VDD90N4VDD91N7VDD92N9VDD93

VDD94

VDD95

VDD96

VDD97

VDD98

J19

K10

K12

L11

L13

L15

L17

L19

K14

K16

K18

K20

L21

M10

M12

M14

N11

N13

N15

N17

N19

M16

M18

M20

N21

T24

T30

VDDIO49

VDDIO50

VDD99P6VDD100P8VDD101

P10

2

U23

V22

V24

V30

W23

Y22

Y30

CPU1E

CPU1E

VDDIO51

VDDIO52

VDDIO53

VDDIO54

VDDIO55

VDDIO56

VDDIO57

VDDIO58

VDD102

VDD103

VDD104

VDD105

VDD106

VDD107R7VDD108

POWER

POWER

R9

P12

P14

P16

P18

P20

1

C C

B B

A A

H23

H26

VSS136

VSS137

VSS1A7VSS2A9VSS3

H28

AA6

5

J10

J12

J14

J16

J18

J20

J22

J24

K11

K13

K15

K17

K19

K21

K23

K26

K28

L10

L12

L14

L16

L18

L20

L22

L24

M11

M13

M15

M17

M19

M21

M23

M26

M28

N10

N12

N14

N16

N18

N20

N22

N24

P11

P13

P15

P17

P19

P21

P23

P26

P28

R10

R12

R14

R16

R18

R20

R22

R24

T11

T13

T15

T17

T19

T21

T23

T26

T28

U10

U12

U14

U16

U18

U20

U22

U24

V11

V13

V15

V17

V19

V21

V23

V26

V28

W10

W12

W14

W16

W18

W20

W22

W24

Y11

Y13

Y15

Y17

Y19

Y21

Y23

Y26

Y28

CPU1F

CPU1F

VSS138

VSS139J6VSS140J8VSS141

VSS142

VSS143

VSS144

VSS145

VSS146

VSS147

VSS148

VSS149K2VSS150K7VSS151K9VSS152

VSS153

VSS154

VSS155

VSS156

VSS157

VSS158

VSS159

VSS160

VSS161L4VSS162L6VSS163L8VSS164

VSS165

VSS166

VSS167

VSS168

VSS169

VSS170

VSS171

VSS172M7VSS173M9VSS174

VSS175

VSS176

VSS177

VSS178

VSS179

VSS180

VSS181

VSS182

VSS183N6VSS184N8VSS185

VSS186

VSS187

VSS188

VSS189

VSS190

VSS191

VSS192

VSS193P2VSS194P7VSS195P9VSS196

VSS197

VSS198

VSS199

VSS200

VSS201

VSS202

VSS203

VSS204

VSS205R4VSS206R6VSS207R8VSS208

VSS209

VSS210

VSS211

VSS212

VSS213

VSS214

VSS215

VSS216T7VSS217T9VSS218

VSS219

VSS220

VSS221

VSS222

VSS223

VSS224

VSS225

VSS226

VSS227U6VSS228U8VSS229

VSS230

VSS231

VSS232

VSS233

VSS234

VSS235

VSS236

VSS237V2VSS238V7VSS239V9VSS240

VSS241

VSS242

VSS243

VSS244

VSS245

VSS246

VSS247

VSS248

VSS249W4VSS250W6VSS251W8VSS252

VSS253

VSS254

VSS255

VSS256

VSS257

VSS258

VSS259

VSS260Y7VSS261Y9VSS262

VSS263

VSS264

VSS265

VSS266

VSS267

VSS268

VSS269

VSS270

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16

VSS17

VSS18

VSS19

VSS20

VSS21

VSS22

VSS23

VSS24

VSS25

VSS26

VSS27

VSS28

VSS29

VSS30

VSS31

VSS32

VSS33

VSS34

VSS35

VSS36

VSS37

VSS38

VSS39

VSS40

VSS41

VSS42

VSS43

VSS44

VSS45

VSS46

VSS47

VSS48

VSS49

VSS50

VSS51

VSS52

VSS53

VSS54

VSS55

VSS56

VSS57

VSS58

VSS59

VSS60

VSS61

VSS62

VSS63

VSS64

VSS65

VSS66

VSS67

VSS68

VSS69

VSS70

VSS71

VSS72

VSS73

VSS74

VSS75

VSS76

VSS77

VSS78

VSS79

VSS80

VSS81

VSS82

VSS83

VSS84

VSS85

AA8

VSS86B7VSS87B9VSS88C2VSS89C8VSS90C9VSS91D2VSS92D3VSS93D5VSS94D6VSS95D7VSS96D9VSS97

AF2

AF6

AF7

AB2

AB7

AA10

AA12

AA14

AB9

AA16

AA18

AA20

AA22

AB11

AB13

AB15

AC4

AB17

AC6

AB19

AB21

AB23

AB26

AB28

AC10

AC12

AD7

AC14

AD9

AC16

AC18

AC20

AC22

AC24

AD11

AD13

AD15

AE6

AD17

AE8

AD19

AD21

AD23

AD26

AD28

AF9

AF11

AF14

AF16

AF20

AF22

AE10

AE12

AE14

AF24

AH1

AH2

AH3

AH4

AH5

AH7

AG5

AF26

AF28

AG11

AG13

AG12

AH9

AH11

AH13

AH16

AJ3

AJ13

AL13

AH18

AH20

AK13

AH22

AH24

AH26

AH28

VSS98

VSS99

VSS100

VSS101

VSS102

VSS103

VSS104

VSS105E3VSS106E4VSS107

VSS108

VSS109

VSS110F5VSS111F6VSS112F7VSS113F9VSS114

VSS115

VSS116

VSS117

VSS118

VSS119

VSS120

VSS121

VSS122

VSS123G4VSS124G6VSS125G8VSS126

VSS127

VSS128H7VSS129H9VSS130

VSS131

VSS132

VSS133

VSS134

VSS135

GROUND

F10

F12

F14

F16

F18

F22

F24

F26

E10

D13

D16

D18

D20

D22

E12

D24

D26

D28

G12

F28

G10

G14

GROUND

H11

H13

H15

H17

H19

H21

Bottomside Decoupling

VCORE

C0.22U16X

C22U6.3X1206

C22U6.3X1206

C508

C508

C487

C487

C22U6.3X1206

C22U6.3X1206

C4.7U10Y0805

C4.7U10Y0805

VCC_DDR

C0.22U16X

C0.22U16X

C22U6.3X1206

C22U6.3X1206

C502

C502

VCC_DDR

C507

C507

C0.22U16X

C0.22U16X

C22U6.3X1206

C22U6.3X1206

C509

C509

C0.22U16X

C0.22U16X

C148

C148

C22U6.3X1206

C22U6.3X1206

C484

C484

C4.7U10Y0805

C4.7U10Y0805

C506

C506

C103

C103

C4.7U10Y0805

C4.7U10Y0805

4

C494

C494

C0.22U16X

C0.22U16X

C499

C499

C4.7U10Y0805

C4.7U10Y0805

C488

C488

C496

C496

C22U6.3X1206

C22U6.3X1206

C485

C485

C0.22U16X

C0.22U16X

C493

C493

C4.7U10Y0805

C4.7U10Y0805

C0.22U16X

C0.22U16X

C491

C491

C42

C42

C164

C164
C0.22U16X

C0.22U16X

C503

C503
C4.7U10Y0805

C4.7U10Y0805

C0.22U16X

C0.22U16X

C0.22U16X

C495

C495

VTT_DDR

C25

C25

C4.7U10Y0805

C4.7U10Y0805

C500

C500

C100P50N

C100P50N

C184

C184

C0.22U16X

C0.22U16X

C31

C31
C0.22U16X

C0.22U16X

C504

C504

3

C0.22U16X

C0.22U16X

C498

C498

C490

C490
C0.22U16X

C0.22U16X

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

09.ATHLON64 PWR & GND

09.ATHLON64 PWR & GND

09.ATHLON64 PWR & GND

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

936

936

936

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

U12C

U12C

AF17

MEM_A0

AK17
AH16
AF16

AJ22

AJ21
AH20
AH21
AK19
AH19

AJ17

C128C0.47U16Y C128C0.47U16Y
C169C0.47U16Y C169C0.47U16Y

X_1KR

X_1KR

SMEM_VREF

AG16
AG17
AH17

AJ18
AG26

AJ29
AE21
AH24
AH12
AG13

AH8
AE8

AF25
AH30
AG20

AJ25
AH13
AF14

AG8

AG25
AH29
AF21
AK25

AJ12
AF13

AK7

AE17
AH18
AE18

AJ19
AF18

AK16

AJ16

AE28

AJ20

AK20

AJ15

AJ14

AJ7

AF9

AJ4

D D

IDCKP32

Stuff for RS480

L16

L16

+1.8V_S0

0R0805

0R0805

IDCKN32

5

R113

R113

R3901KR R3901KR

MPVDD_PLL MBM_COMPP

C162 C1U10YC162 C1U10Y

+1.8V_S0

C C

R114

R114
1KR

1KR

SMEM_VREF

R115

R115
1KR

1KR

+1.8V_S0

B B

A A

MEM_A1
MEM_A2
MEM_A3
MEM_A4
MEM_A5
MEM_A6
MEM_A7
MEM_A8
MEM_A9
MEM_A10
MEM_A11
MEM_A12
MEM_A13
MEM_A14

MEM_DM0
MEM_DM1
MEM_DM2
MEM_DM3
MEM_DM4
MEM_DM5
MEM_DM6
MEM_DM7

MEM_DQS0P
MEM_DQS1P
MEM_DQS2P
MEM_DQS3P
MEM_DQS4P
MEM_DQS5P
MEM_DQS6P
MEM_DQS7P

MEM_DQS0N
MEM_DQS1N
MEM_DQS2N
MEM_DQS3N
MEM_DQS4N
MEM_DQS5N
MEM_DQS6N
MEM_DQS7N

MEM_RAS#
MEM_CAS#
MEM_WE#
MEM_CS#
MEM_CKE

MEM_CKP
MEM_CKN

MEM_CAP1
MEM_CAP2

MEM_VMODE

MEM_VREF
MPVDD

MPVSS

PART 3 OF 6

PART 3 OF 6

MEM_A I/F

MEM_A I/F

4

AF28

MEM_DQ0

AF27

MEM_DQ1

AG28

MEM_DQ2

AF26

MEM_DQ3

AE25

MEM_DQ4

AE24

MEM_DQ5

AF24

MEM_DQ6

AG23

MEM_DQ7

AE29

MEM_DQ8

AF29

MEM_DQ9

AG30

MEM_DQ10

AG29

MEM_DQ11

AH28

MEM_DQ12

AJ28

MEM_DQ13

AH27

MEM_DQ14

AJ27

MEM_DQ15

AE23

MEM_DQ16

AG22

MEM_DQ17

AF23

MEM_DQ18

AF22

MEM_DQ19

AE20

MEM_DQ20

AG19

MEM_DQ21

AF20

MEM_DQ22

AF19

MEM_DQ23

AH26

MEM_DQ24

AJ26

MEM_DQ25

AK26

MEM_DQ26

AH25

MEM_DQ27

AJ24

MEM_DQ28

AH23

MEM_DQ29

AJ23

MEM_DQ30

AH22

MEM_DQ31

AK14

MEM_DQ32

AH14

MEM_DQ33

AK13

MEM_DQ34

AJ13

MEM_DQ35

AJ11

MEM_DQ36

AH11

MEM_DQ37

AJ10

MEM_DQ38

AH10

MEM_DQ39

AE15

MEM_DQ40

AF15

MEM_DQ41

AG14

MEM_DQ42

AE14

MEM_DQ43

AE12

MEM_DQ44

AF12

MEM_DQ45

AG11

MEM_DQ46

AE11

MEM_DQ47

AJ9

MEM_DQ48

AH9

MEM_DQ49

AJ8

MEM_DQ50

AK8

MEM_DQ51

AH7

MEM_DQ52

AJ6

MEM_DQ53

AH6

MEM_DQ54

AJ5

MEM_DQ55

AG10

MEM_DQ56

AF11

MEM_DQ57

AF10

MEM_DQ58

AE9

MEM_DQ59

AG7

MEM_DQ60

AF8

MEM_DQ61

AF7

MEM_DQ62

AE7

MEM_DQ63

MEM_COMPP
MEM_COMPN

AH5
AD30

ATI-RS482-215RFA4ALA12FK-A12

ATI-RS482-215RFA4ALA12FK-A12

4

Don't stuff for
RS480 and RX480

R128

R128

MBM_COMPN

R93

R93

MDA33 32
MDA34 32
MDA35 32
MDA36 32
MDA37 32
MDA38 32
MDA39 32

MDA48 32
MDA49 32
MDA50 32
MDA51 32
MDA52 32
MDA53 32
MDA54 32
MDA55 32

X_49.9R1%

X_49.9R1%
X_49.9R1%

X_49.9R1%

VCC2_5

3

HT_CADOUT_H[15..0]5
HT_CADOUT_L[15..0]5

HT_CLKOUT_H15
HT_CLKOUT_L15

HT_CLKOUT_H05
HT_CLKOUT_L05

HT_CTLOUT_H05
HT_CTLOUT_L05

VCCA_1V2

GFX_RX0P21
GFX_RX0N21
GFX_RX1P21
GFX_RX1N21
GFX_RX2P21
GFX_RX2N21
GFX_RX3P21
GFX_RX3N21
GFX_RX4P21
GFX_RX4N21
GFX_RX5P21
GFX_RX5N21
GFX_RX6P21
GFX_RX6N21
GFX_RX7P21
GFX_RX7N21
GFX_RX8P21
GFX_RX8N21
GFX_RX9P21
GFX_RX9N21
GFX_RX10P21
GFX_RX10N21
GFX_RX11P21
GFX_RX11N21
GFX_RX12P21
GFX_RX12N21
GFX_RX13P21
GFX_RX13N21
GFX_RX14P21
GFX_RX14N21
GFX_RX15P21
GFX_RX15N21

GPP_RX0P21

A_RX0P16
A_RX0N16

A_RX1P16
A_RX1N16

3

HT_CADOUT_H15
HT_CADOUT_L15
HT_CADOUT_H14
HT_CADOUT_L14
HT_CADOUT_H13
HT_CADOUT_L13
HT_CADOUT_H12
HT_CADOUT_L12
HT_CADOUT_H11
HT_CADOUT_L11
HT_CADOUT_H10
HT_CADOUT_L10
HT_CADOUT_H9
HT_CADOUT_L9
HT_CADOUT_H8
HT_CADOUT_L8

HT_CADOUT_H7
HT_CADOUT_L7
HT_CADOUT_H6
HT_CADOUT_L6
HT_CADOUT_H5
HT_CADOUT_L5
HT_CADOUT_H4
HT_CADOUT_L4
HT_CADOUT_H3
HT_CADOUT_L3
HT_CADOUT_H2
HT_CADOUT_L2
HT_CADOUT_H1
HT_CADOUT_L1
HT_CADOUT_H0
HT_CADOUT_L0

R102 49.9R1%R102 49.9R1%
R106 49.9R1%R106 49.9R1%

R132 10KR1%R132 10KR1%
R137 8.25KR1%R137 8.25KR1%

HT_RXCALP

D8
D7
D5
D4

E4

F4
G5
G4
H4

J4
H5
H6
G1
G2

K5
K4

L4
M4
N5
N4

P4
R4

P5

P6

P2
R2

T5

T4
U4

V4
W1
W2

AE1
AE2

AB2

AC2
AB5

AB4

Y4

AA4

AG1

AH1
AC5

AC6
AH3

AJ3

U12A

U12A

T26

HT_RXCAD15P

R26

HT_RXCAD15N

U25

HT_RXCAD14P

U24

HT_RXCAD14N

V26

HT_RXCAD13P

U26

HT_RXCAD13N

W25

HT_RXCAD12P

W24

HT_RXCAD12N

AA25

HT_RXCAD11P

AA24

HT_RXCAD11N

AB26

HT_RXCAD10P

AA26

HT_RXCAD10N

AC25

HT_RXCAD9P

AC24

HT_RXCAD9N

AD26

HT_RXCAD8P

AC26

HT_RXCAD8N

R29

HT_RXCAD7P

R28

HT_RXCAD7N

T30

HT_RXCAD6P

R30

HT_RXCAD6N

T28

HT_RXCAD5P

T29

HT_RXCAD5N

V29

HT_RXCAD4P

U29

HT_RXCAD4N

Y30

HT_RXCAD3P

W30

HT_RXCAD3N

Y28

HT_RXCAD2P

Y29

HT_RXCAD2N

AB29

HT_RXCAD1P

AA29

HT_RXCAD1N

AC29

HT_RXCAD0P

AC28

HT_RXCAD0N

Y26

HT_RXCLK1P

W26

HT_RXCLK1N

W29

HT_RXCLK0P

W28

HT_RXCLK0N

P29

HT_RXCTLP

N29

HT_RXCTLN

D27

HT_RXCALN

E27

HT_RXCALP

U12B

U12B

GFX_RX0P
GFX_RX0N
GFX_RX1P
GFX_RX1N
GFX_RX2P
GFX_RX2N
GFX_RX3P
GFX_RX3N
GFX_RX4P
GFX_RX4N
GFX_RX5P
GFX_RX5N
GFX_RX6P
GFX_RX6N
GFX_RX7P
GFX_RX7N
GFX_RX8P
GFX_RX8N
GFX_RX9P
GFX_RX9N
GFX_RX10P
GFX_RX10N
GFX_RX11P
GFX_RX11N
GFX_RX12P
GFX_RX12N
GFX_RX13P
GFX_RX13N
GFX_RX14P
GFX_RX14N
GFX_RX15P
GFX_RX15N

GPP_RX0P/SB_RX2P
GPP_RX0N/SB_RX2N

GPP_RX1P/SB_RX3P
GPP_RX1N/SB_RX3N

GPP_RX2P
GPP_RX2N

GPP_RX3P
GPP_RX3N

SB_RX0P
SB_RX0N

SB_RX1P
SB_RX1N

PCE_ISET
PCE_TXISET

ATI-RS482-215RFA4ALA12FK-A12

ATI-RS482-215RFA4ALA12FK-A12

PART 2 OF 6

PART 2 OF 6

PCIE I/F TO SLOT

PCIE I/F TO SLOT

PCIE I/F TO SB

PCIE I/F TO SB

2

PART 1OF6

PART 1OF6

GFX_TX10P
GFX_TX10N
GFX_TX11P
GFX_TX11N
GFX_TX12P
GFX_TX12N
GFX_TX13P
GFX_TX13N
GFX_TX14P
GFX_TX14N
GFX_TX15P
GFX_TX15N

PCIE I/F TO VIDEO

PCIE I/F TO VIDEO

GPP_TX0P/SB_TX2P

GPP_TX0N/SB_TX2N

GPP_TX1P/SB_TX3P

GPP_TX1N/SB_TX3N

2

GFX_TX0P
GFX_TX0N
GFX_TX1P
GFX_TX1N
GFX_TX2P
GFX_TX2N
GFX_TX3P
GFX_TX3N
GFX_TX4P
GFX_TX4N
GFX_TX5P
GFX_TX5N
GFX_TX6P
GFX_TX6N
GFX_TX7P
GFX_TX7N
GFX_TX8P
GFX_TX8N
GFX_TX9P
GFX_TX9N

GPP_TX2P
GPP_TX2N

GPP_TX3P
GPP_TX3N

SB_TX0P

SB_TX0N

SB_TX1P

SB_TX1N

PCE_PCAL

PCE_NCAL

HT_TXCAD15P
HT_TXCAD15N
HT_TXCAD14P
HT_TXCAD14N
HT_TXCAD13P
HT_TXCAD13N
HT_TXCAD12P
HT_TXCAD12N
HT_TXCAD11P
HT_TXCAD11N
HT_TXCAD10P
HT_TXCAD10N

HT_TXCAD9P
HT_TXCAD9N
HT_TXCAD8P
HT_TXCAD8N

HT_TXCAD7P
HT_TXCAD7N
HT_TXCAD6P
HT_TXCAD6N
HT_TXCAD5P
HT_TXCAD5N
HT_TXCAD4P
HT_TXCAD4N
HT_TXCAD3P
HT_TXCAD3N
HT_TXCAD2P
HT_TXCAD2N
HT_TXCAD1P
HT_TXCAD1N
HT_TXCAD0P
HT_TXCAD0N

HT_TXCLK1P
HT_TXCLK1N

HT_TXCLK0P
HT_TXCLK0N

HT_TXCTLP
HT_TXCTLN

HT_TXCALP
HT_TXCALN

HYPER TRANSPORT CPU I/F

HYPER TRANSPORT CPU I/F

ATI-RS482-215RFA4ALA12FK-A12

ATI-RS482-215RFA4ALA12FK-A12

A7
B7
B6
B5
A5
A4
B3
B2
C1
D1
D2
E2
F2
F1
H2
J2
J1
K1
K2
L2
M2
M1
N1
N2
R1
T1
T2
U2
V2
V1
Y2
AA2

AD2
AD1

AA1
AB1

Y5
Y6

W5
W4

AF2
AG2

AC4
AD4

R163 150R1%R163 150R1%

AH2

R134 82R1%R134 82R1%

AJ2

VCCA_1V2

SB_TX0P_C
SB_TX0N_C

SB_TX1P_C
SB_TX1N_C

HT_CADIN_H15

R24

HT_CADIN_L15

R25

HT_CADIN_H14

N26

HT_CADIN_L14

P26

HT_CADIN_H13

N24

HT_CADIN_L13

N25

HT_CADIN_H12

L26

HT_CADIN_L12

M26

HT_CADIN_H11

J26

HT_CADIN_L11

K26

HT_CADIN_H10

J24

HT_CADIN_L10

J25

HT_CADIN_H9

G26

HT_CADIN_L9

H26

HT_CADIN_H8

G24

HT_CADIN_L8

G25

HT_CADIN_H7

L30

HT_CADIN_L7

M30

HT_CADIN_H6

L28

HT_CADIN_L6

L29

HT_CADIN_H5

J29

HT_CADIN_L5

K29

HT_CADIN_H4

H30

HT_CADIN_L4

H29

HT_CADIN_H3

E29

HT_CADIN_L3

E28

HT_CADIN_H2

D30

HT_CADIN_L2

E30

HT_CADIN_H1

D28

HT_CADIN_L1

D29

HT_CADIN_H0

B29

HT_CADIN_L0

C29
L24

L25
F29

G29
M29

M28

HT_TXCALPHT_RXCALN

B28

HT_TXCALN

A28

GFX_TX0P 21
GFX_TX0N 21
GFX_TX1P 21
GFX_TX1N 21
GFX_TX2P 21
GFX_TX2N 21
GFX_TX3P 21
GFX_TX3N 21
GFX_TX4P 21
GFX_TX4N 21
GFX_TX5P 21
GFX_TX5N 21
GFX_TX6P 21
GFX_TX6N 21
GFX_TX7P 21
GFX_TX7N 21
GFX_TX8P 21
GFX_TX8N 21
GFX_TX9P 21
GFX_TX9N 21
GFX_TX10P 21
GFX_TX10N 21
GFX_TX11P 21
GFX_TX11N 21
GFX_TX12P 21
GFX_TX12N 21
GFX_TX13P 21
GFX_TX13N 21
GFX_TX14P 21
GFX_TX14N 21
GFX_TX15P 21
GFX_TX15N 21

C205 C0.1U16XC205 C0.1U16X
C204 C0.1U16XC204 C0.1U16X

C201 C0.1U16XC201 C0.1U16X

C207 C0.1U16XC207 C0.1U16X

Title

Title

Title

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

1

R96100R1% R96100R1%

GPP_TX0P 21
GPP_TX0N 21GPP_RX0N21

C202 C0.1U16XC202 C0.1U16X

C206 C0.1U16XC206 C0.1U16X

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

10.RS480-HT LINK0 I/F

10.RS480-HT LINK0 I/F

10.RS480-HT LINK0 I/F

MS-7217

MS-7217

MS-7217

1

HT_CADIN_H[15..0] 5
HT_CADIN_L[15..0] 5

HT_CLKIN_H1 5
HT_CLKIN_L1 5

HT_CLKIN_H0 5
HT_CLKIN_L0 5

HT_CTLIN_H0 5
HT_CTLIN_L0 5

A_TX0P 16
A_TX0N 16

A_TX1P 16
A_TX1N 16

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

10 36

10 36

10 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

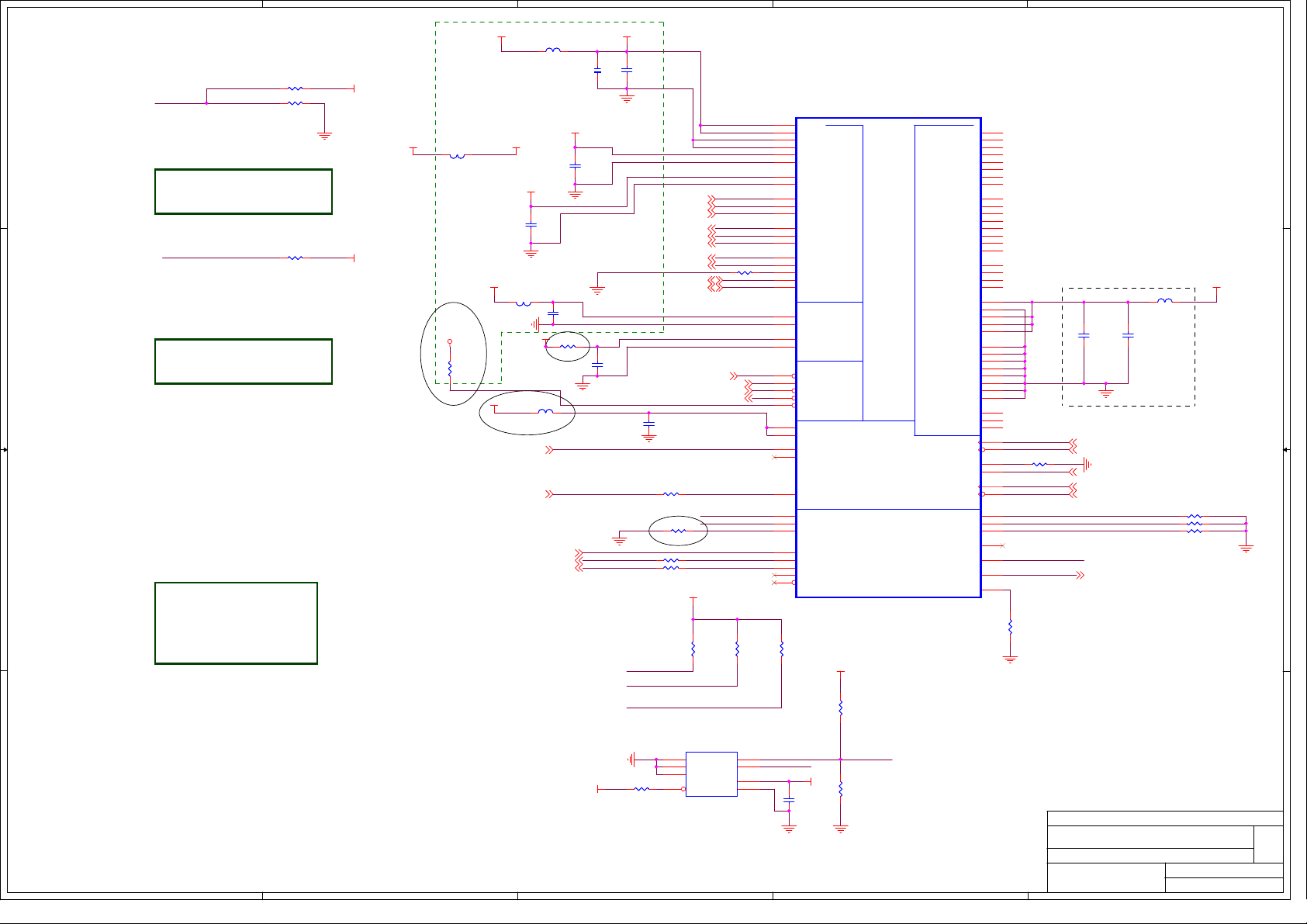

ATI has internal pull up

LOAD_ROM#

D D

LOAD_ROM#:LOAD ROM STRAP ENABLE strap

R123 X_3KRR123 X_3KR

R122 X_3KRR122 X_3KR

High, LOAD ROM STRAP DISABLE
Low, LOAD ROM STRAP ENABLE

ATI has internal pull up

SPMEM_EN#

C C

SPMEM_EN#:SIDE PORT MEMORY ENABLE strap

High, SIDE PORT MEMORY DISABLE

R127 X_3KRR127 X_3KR

Low, SIDE PORT MEMORY ENABLE

B B

DAC VDD (2.5V)

AVDD
AVDDDI DIGITAL VDD (1.8V)
DAC2 BANDGAP REF (1.8V)
PLLVDD PLL VDD (1.8V)
HTPVDD HT PLL VDD (1.2V)

+3.3V

+3.3V

4

+1.8V_S0

L11 0RL11 0R

+1.8V_S0

R129

R129

4.7KR

4.7KR

+3.3V

AVDDQ

C1U10Y

C1U10Y

+1.8V_S0

+3.3V

NB_OSC_14M14

C144

C144

L17 0RL17 0R

L10

L10
_240L300m_350

_240L300m_350

X_C10U10Y0805

X_C10U10Y0805

+1.8V_S0

AVDDQ

(1.8V)

C159

C159
C1U10Y

C1U10Y

+1.8V_S0

R389 150R1%R389 150R1%

L19 _240L300m_350L19 _240L300m_350

TVCLKIN21

BMREQ#16,17
I2C_CLK21,32
I2C_DATA21

3

AVDD

C927

C927

C151

C151
C1U10Y

C1U10Y

C527

C527
C1U10Y

C1U10Y

TVCLKIN

I2C_CLK STRP_DATA

I2C_DATA

Stuff for RS480 and
don't stuff for RX480

C139

C139
C1U10Y

C1U10Y

COUT21
YOUT21

COMPOUT21

R15
G15
B15

VSYNC#15

HSYNC#15

ALLOW_LDTSTOP16

+3.3V

PCI_E_RST#16,21,32

NB_PWRGD29,31

LDTSTOP#5,16

I2C_CLK_NB
I2C_DATA_NB

R131

R131

4.7KR

4.7KR

R100 680R1%R100 680R1%

SPMEM_EN#

LOAD_ROM#

DFT_GPIO2

DAC_SCL15

DAC_SDAT15

C167

C167
C1U10Y

C1U10Y

R136 X_0RR136 X_0R

R116 X_3KR1%R116 X_3KR1%

R130 0RR130 0R
R126 0RR126 0R

I2C_CLK_NB
I2C_DATA_NB

DDC_DATA

R125

R125

4.7KR

4.7KR

U12D

U12D

B27

AVDD1

C27

AVDD2

D26

AVSSN1

D25

AVSSN2

C24

AVDDDI

B24

AVSSDI

E24

AVDDQ

D24

AVSSQ

B25

C

A25

Y

A24

COMP

C25

RED

A26

GREEN

B26

BLUE

A11

DACVSYNC

B11

DACHSYNC

C26

RSET

1%

E11

DACSCL

F11

DACSDA

A14

PLLVDD

B14

PLLVSS

M23

HTPVDD

L23

HTPVSS

D14

SYSRESET#

B15

POWERGOOD

B12

LDTSTOP#

C12

ALLOW_LDTSTOP

AH4

SUS_STAT#

H13

VDDR3_1

H12

VDDR3_2

A13

OSCIN

B13

OSCOUT

B9

TVCLKIN

F12

DFT_GPIO0/RSV

E13

DFT_GPIO1/RSV

D13

DFT_GPIO2/RSV

F10

BMREQb

C10

I2C_CLK

C11

I2C_DATA

AF4

THERMALDIODE_P

AE4

THERMALDIODE_N

ATI-RS482-215RFA4ALA12FK-A12

ATI-RS482-215RFA4ALA12FK-A12

R888

R888

2KR

2KR

+3.3V

R135

R135

2

PART 4 OF 6

PART 4 OF 6

CRT/TVOUT

CRT/TVOUT

PLL PWR

PLL PWR

PM

PM

CLOCKs

CLOCKs

DFT_GPIO3/RSV
DFT_GPIO4/RSV
DFT_GPIO5/RSV

MIS.

MIS.

2KR

2KR

RESERVED1
RESERVED2
RESERVED3
RESERVED4
RESERVED5
RESERVED6
RESERVED7
RESERVED8

RESERVED9
RESERVED10
RESERVED11
RESERVED12
RESERVED13
RESERVED14
RESERVED15
RESERVED16

RESERVED17
RESERVED18
RESERVED19
RESERVED20

VDD18_E18

VSS_F17
VDD18_E19
VDD18_G20
VDD18_H20

VSS_G19

VSS_E20

VSS_F20

VSS_H18
VSS_G18

VSS_F19

VSS_H19

VSS_F18

GPIO3
GPIO2
GPIO4

GFX_CLKP
GFX_CLKN

HTTSTCLK
HTREFCLK

SB_CLKP
SB_CLKN

TMDS_HPD

STRP_DATA

DDC_DATA

TESTMODE

D18
C18
B19
A19
D19
C19
D20
C20

B16
A16
D16
C16
B17
A17
E17
D17

B20
A20
B18
C17

E18
F17
E19
G20
H20

G19
E20
F20
H18
G18
F19
H19
F18

E14
F14
F13

B8
A8

R380 10KRR380 10KR

P23
N23

E8
E7

C13
C14
C15

A10
E10
B10
E12

Stuff for RS480 and
don't stuff for RX480

C153

C153
C1U10Y

C1U10Y

NBSRCCLK 14
NBSRCCLK# 14

HTREFCLK 14
SBLINKCLK 14

SBLINKCLK# 14

DFT_GPIO3
DFT_GPIO4
DFT_GPIO5

DDC_DATA

R124

R124

4.7KR

4.7KR

DDC_DATA 32

C531

C531
C15P50N

C15P50N

1

+1.8V_S0

L130RL13

0R

R121X_0R R121X_0R
R117X_0R R117X_0R
R120X_0R R120X_0R

U15

U15

1

A0

2

A1

3

A A

+3.3V

R148 X_2KRR148 X_2KR

A2

7

WP

X__AT24C04N-10SI-2.7

X__AT24C04N-10SI-2.7

PROTO

SDA

SCL

VCC

GND

5

I2C_CLK

6
8

4

C374

C374
C0.1U25Y

C0.1U25Y

For EMI

NOTE: Provide access to STRAP_DATA and I2C_CLK pins
is MANDATORY.

5

4

3

+3.3V

STRP_DATA

R157

R157
X_2KR

X_2KR

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

11.RS480-VIDEO I/F & CLKGEN

11.RS480-VIDEO I/F & CLKGEN

11.RS480-VIDEO I/F & CLKGEN

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

11 36

11 36

11 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

VSSA22

AA3

AB3

AD3

AE3

AF3

AB7

VSSA31

VSS31

T24

F26

VSSA32M5VSSA33

VSS32

VSSA34G3VSSA35B4VSSA36P7VSSA37

VSS33

VSS34

VSS35

D11

H11

W27

AD25

AA5

VSSA38C9VSSA39C7VSSA40J5VSSA41R6VSSA42J3VSSA43

VSS36

VSS37

VSS38

VSS39

VSS40

H17

H10

H16

H14

AE5

AA6

T3

VSSA1R5VSSA2

VSSA3V5VSSA4N3VSSA5F7VSSA6F5VSSA7R3VSSA8

VSS3

AD27

VSSA9

VSSA10M6VSSA11C5VSSA12F8VSSA13M8VSSA14Y8VSSA15V3VSSA16C3VSSA17W3VSSA18K8VSSA19D3VSSA20C6VSSA21

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

VSS10E9VSS11

Y24

D15

G15

G14

G13

AC27

VSS12D9VSS13

VSS14

G11

AD9

VSS15

F16

VSS16

G30

AB28

VSS17

VSS18

AB25

VSS19

D12

VSS20

AD24

VSSA22A2VSSA23

VSS21

VSS22

G17

AA28

VSSA24P8VSSA25J6VSSA26C8VSSA27

VSS23

VSS24

VSS25

VSS26

Y23

Y27

R19

AC9

VSSA28V8VSSA29F3VSSA30

VSS27

VSS28

F25

C28

G16

VSS29

VSS30

B30

D D

PAR 6 OF 6

PAR 6 OF 6

VSS1

VSS2

G10

G12

AD29

VSS41

E16

D10

AD5

VSSA44D6VSSA45C4VSSA46K3VSSA47

VSS42

VSS43

VSS44

F15

E15

4

AB8

VSSA48T7VSSA49Y7VSSA50

VSS45

VSS46

V14

U15

VSS47

R15

AD6

T14

VSSA51K7VSSA52H7VSSA53M3VSSA54V6VSSA55H8VSSA56C2VSSA57

VSS48

VSS49

VSS50

VSS51

VSS52

VSS53

VSS54

T16

V12

P14

N15

N13

U17

VSSA59

AG3

AJ1

VSSA58L6VSSA59

VSSA60M7VSSA61V7VSSA62F6VSSA63E6VSSA64U5VSSA65U6VSSA66E5VSSA67L5VSSA68

VSS55

VSS56

VSS57

VSS58

VSS59

VSS60

VSS61

T12

P12

P18

R17

R13

W13

W17

VSS62

V18

VSS63

M18

VSS64

U13

VSS65

N17

T8

W15

F28

H28

VSS113

VSS114

GROUND

GROUND

VSS66

VSS67

VSS68

VSS69

VSS70

VSS71

VSS72

T18

V16

P16

M14

M12

M16

M24

J28

VSS115

N19

K28

VSS116

VSS117

VSS73

U19

AC16

T23

L27

VSS118

VSS119

VSS74

VSS75

AC23

AG18

3

M27

VSS120

VSS76

VSS77

AD8

AD11

H24

N28

VSS122

VSS123

VSS78

VSS79

AD13

AD16

P25

P28

VSS124

VSS125

VSS80

VSS81

AD19

AD23

E26

K25

VSS126

VSS127

VSS82

VSS83

AG5

AG6

U28

V25

VSS128

VSS129

VSS84

VSS85

AD17

AG21

V28

R23

VSS130

VSS131

VSS86

VSS87

AG15

AG12

VSS132

VSS88

VSS89

AF30

AG24

VSS90

VSS91

AG9

VSS92

AC19

VSS93

AG27

VSS94

AC11

VSS95

AD7

VSS96

AJ30

VSS97

AC21

VSS98

AK5

VSS99

AK10

VSS100

AC13

AD21

VSS101

VSS102

AK22

AK29

VSS103

VSS104

W19

AE26

VSS105

VSS106

AE27

VSS107

T27

R27

VSS108

VSS109

AD28

2

U12F

U12F
ATI-RS482-215RFA4ALA12FK-A12

ATI-RS482-215RFA4ALA12FK-A12

VSS110

VSS111

VSS112

F24

F27

G28

1

NB RS480 POWER STATES

Power Signal

VDDHT
VDDR,VDDRCK
VDD18
VDDC
VDDA18
VDDA12

AVDDDI
PLLVDD
HTPVDD
VDDR3
LPVDD
LVDDR18

S1

S3

S0

ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON

S4/S5

OFF

ON

OFF

ON

OFF

OFF

ON

OFF

OFF

ON

OFF

OFF

ON

OFF

OFF

ON

OFF

OFF

ON

OFFAVDD

OFF

ON

OFF

OFF

ON

OFF

OFF

ON

OFF

OFF

ON

OFF

OFF

ON

OFF

OFF

ON

OFF

OFF

LVDDR25 OFFON ON OFF OFF

G3

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

C541

C541

C160

C160
C1U10Y

C1U10Y

C1U10Y

C1U10Y

VSS89

EMI
04/11/12
PCB
Ver:100

C545

C545

C100P50N

C100P50N

C1U10Y

C1U10Y

VCCA_1V2

EMI
04/11/12
PCB
Ver:100

VCCA_1V2

C540

C540

C529

C529

C203

C203

C10U10Y1206

C10U10Y1206

C100P50N

C100P50N

C208

C208
C1U10Y

C1U10Y

C542

C542

C538

C538

C533

C533
C100P50N

C100P50N

C100P50N

C100P50N

+1.8V_S0VDDA18

L20 X__240L300m_350L20 X__240L300m_350

1 2

CP11CP11

For EMI

C10U10Y1206

C10U10Y1206

C528

C528

C535

C535
C1U10Y

C1U10Y

THE CAPS SHOULD PLACE UNDER
NB, ALL GND USE COPPER FLOOD
TOGETHER, AND NB POWER VIA
TREAT AS SAME.

C532

C532
C1U10Y

C1U10Y

C539

C539
C1U10Y

C1U10Y

C543

C543
C10U10Y1206

C10U10Y1206

C537

C537
C1U10Y

C1U10Y

EMI
04/11/12
PCB
Ver:100

2

PUT DECOUPLING CAPS ON THE TOP, CLOSE
TO BALLS

C150

C150
C1U10Y

C1U10Y

VDDA12_13

VSSA22
VDDA18_13

VSSA59
VDDHT30

VSS30
VDDHT31

VSS89

Via hole please put in chip end

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

12.RS480-POWER

12.RS480-POWER

12.RS480-POWER

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

C209

C209
C10U10Y1206

C10U10Y1206

C187

C187
C10U10Y1206

C10U10Y1206

C133

C133
C10U10Y1206

C10U10Y1206

C129

C129
C10U10Y1206

C10U10Y1206

MS-7217

MS-7217

MS-7217

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

1

12 36

12 36

12 36

of

of

of

Rev

Rev

Rev

0B

0B

0B

C109

C109
C1U10Y

C1U10Y

C149

C149
C1U10Y

C1U10Y

C173

C173
X_C1U10Y

X_C1U10Y

C140

C140
C1U10Y

C1U10Y

C163

C163
C1U10Y

C1U10Y

VSS30

C526

C526
C1U10Y

C1U10Y

R97 0R0805R97 0R0805

C165

C165
C1U10Y

C1U10Y

EMI
04/11/12
PCB
Ver:100

C534

C534
C1U10Y

C1U10Y

VDDHT30
VDDHT31

VDD18

C536

C536
C15P50N

C15P50N

VCCA_1V2

C C

VCCA_1V2

EMI
04/11/12
PCB
Ver:100

C525

C525

C10U10Y1206

C10U10Y1206

C183

C183
C1U10Y

C1U10Y

C181

C181
C1U10Y

C1U10Y

Stuff for RS480 and
don't stuff for RX480

+1.8V_S0

B B

A A

C530

C530

X_C10U10Y1206

X_C10U10Y1206

C524

C524
C1U10Y

C1U10Y

+1.8V_S0

L18 X__240L300m_350L18 X__240L300m_350

1 2

CP9CP9

C147

C147

C143

C1U10Y

C1U10Y

EMI
04/11/12
PCB
Ver:100

C143
C1U10Y

C1U10Y

C161

C161

X_C1U10Y

X_C1U10Y

C523

C523
C1U10Y

C1U10Y

5

U12E

U12E

N27

VDD_HT1

U27

VDD_HT2

V27

VDD_HT3

G27

VDD_HT4

V24

VDD_HT5

H27

VDD_HT6

K24

VDD_HT7

AB24

VDD_HT8

P27

VDD_HT9

J27

VDD_HT10

AA27

VDD_HT11

K27

VDD_HT12

P24

VDD_HT13

AB27

VDD_HT14

AB23

VDD_HT15

V23

VDD_HT16

G23

VDD_HT17

E23

VDD_HT18

W23

VDD_HT19

K23

VDD_HT20

J23

VDD_HT21

H23

VDD_HT22

U23

VDD_HT23

AA23

VDD_HT24

D23

VDD_HT25

F23

VDD_HT26

C23

VDD_HT27

B23

VDD_HT28

A23

VDD_HT29

A29

VDD_HT30

AC30

VDD_HT31

AK23

VDD_MEM1

AK28

VDD_MEM2

AK11

VDD_MEM3

AK4

VDD_MEM4

AE30

VDD_MEM5

AC14

VDD_MEM6

AD12

VDD_MEM7

AC18

VDD_MEM8

AC20

VDD_MEM9

AD10

VDD_MEM10

AD14

VDD_MEM11

AD15

VDD_MEM12

AD20

VDD_MEM13

AC10

VDD_MEM14

AD18

VDD_MEM15

AC12

VDD_MEM16

AD22

VDD_MEM17

AC22

VDD_MEM18

AH15

VDD_MEMCK

H15

VDD_18_1

AC17

VDD_18_2

AC15

VDD_18_3

B21

VDD_CORE47

C21

VDD_CORE46

A22

VDD_CORE45

B22

VDD_CORE44

C22

VDD_CORE43

F21

VDD_CORE42

F22

VDD_CORE41

E21

VDD_CORE40

G21

VDD_CORE39

ATI-RS482-215RFA4ALA12FK-A12

ATI-RS482-215RFA4ALA12FK-A12

4

PART 5 OF 6

PART 5 OF 6

VDDA_12_14

VDDA_12_1
VDDA_12_2
VDDA_12_3
VDDA_12_4
VDDA_12_5
VDDA_12_6
VDDA_12_7
VDDA_12_8

VDDA_12_9
VDDA_12_10
VDDA_12_11
VDDA_12_12
VDDA_12_13

VDDA_18_1

VDDA_18_2

VDDA_18_3

VDDA_18_4

VDDA_18_5

VDDA_18_6

VDDA_18_7

VDDA_18_8

VDDA_18_9
VDDA_18_10
VDDA_18_11
VDDA_18_12
VDDA_18_13
VDD_CORE1
VDD_CORE2
VDD_CORE3
VDD_CORE4
VDD_CORE5
VDD_CORE6
VDD_CORE7
VDD_CORE8
VDD_CORE9

VDD_CORE10
VDD_CORE11
VDD_CORE12
VDD_CORE13
VDD_CORE14
VDD_CORE15
VDD_CORE16
VDD_CORE17
VDD_CORE18
VDD_CORE19
VDD_CORE20
VDD_CORE21
VDD_CORE22
VDD_CORE23
VDD_CORE24
VDD_CORE25
VDD_CORE26
VDD_CORE27
VDD_CORE28
VDD_CORE29
VDD_CORE30
VDD_CORE31
VDD_CORE32
VDD_CORE33
VDD_CORE34
VDD_CORE35

POWER

POWER

VDD_CORE36
VDD_CORE37
VDD_CORE38

H9
AA7
G9
U8
N7
N8
U7
F9
AA8
G8
G7
J8
J7
B1
AG4
R8
AC8
AC7
AF6
AE6
L8
W8
W7
L7
R7
AF5
AK2
N16
M13
M15
W16
N18
P19
N12
P15
N14
M17
T19
G22
R12
P13
R14
V19
R18
U16
U12
T13
U14
T17
U18
E22
R16
V13
T15
P17
W18
D22
W12
V15
W14
V17
M19
H22
H21
D21

VDDA12_13

C15P50N

C15P50N

VDDA18_13

C100P50N

C100P50N

C544

C544

EMI
04/11/12
PCB
Ver:100

3

5

4

3

2

1

+5V +5V

+5V+5V

R805

R805

D D

VRM_PWRGD29

VCORE_EN29

Differential
10/10/5/10/10

C C

B B

R807

R807

4.7KR

4.7KR

R811

R811

2.7KR

2.7KR

COREFB+5

COREFB-5

VCORE

1KR

1KR

C606

C606
C0.1U25Y

C0.1U25Y

R820

R820
51R

51R

R822

R822
51R

51R

VID[0..4]5

C614

C614
X_C1000P50X

X_C1000P50X

R814

R814

5.1KR1%

5.1KR1%

R817 1KRR817 1KR

R825 X_150KRR825 X_150KR

+5V

+10mV
OFFSET

R832 3.4KR1%R832 3.4KR1%

R837 16.5KR1%R837 16.5KR1%

C625 C0.047U16XC625 C0.047U16X

C100P50NC610 C100P50NC610

R829

R829
200KR

200KR

C620

C620

C0.01U50X

C0.01U50X

VID4
VID3
VID2
VID1
VID0

C607

C607
C0.1U25Y

C0.1U25Y

C5600P50XC608 C5600P50XC608

R826

R826
15KR1%

15KR1%

C0.01U50X

C0.01U50X

S-1N5817_DO214AC

S-1N5817_DO214AC

U912

U912

_ISL6566CR_QFN40

_ISL6566CR_QFN40

38

VID4

39

VID3

40

VID2

1

VID1

2

VID0

3

DACSEL/VID5

35

PGOOD

37

ENLL

8

COMP

9

FB

10

VDIFF

12

VSEN

11

RGND

6

OFST

36

FS

5

REF

C616

C616

4

VRM10

13

OCSET

14

ICOMP

15

ISUM

16

IREF

R838 11KR1%R838 11KR1%
R839 11KR1%R839 11KR1%
R840 11KR1%R840 11KR1%

D22

D22

R804

R804

X_4.7R0805

X_4.7R0805

C602

C602

C4.7U10Y0805

C4.7U10Y0805

7

VCC

GND

41

33

PVCC1
BOOT1

UGATE1

PHASE1

LGATE1

PVCC2
BOOT2

UGATE2

PHASE2

LGATE2

PVCC3
BOOT3

UGATE3

PHASE3

LGATE3

BOTTOM PAD CONNECT TO GND
THROUGH 10vias

ISEN1

ISEN2

ISEN3

R808 2.2R1%R808 2.2R1%

30

C0.1U50X0805

C0.1U50X0805

31

29

32

R812 2.2KRR812 2.2KR

34

24

R818 2.2R1%R818 2.2R1%

26

27

28

25

R823 1.8KR1%R823 1.8KR1%

23

18

R830 2.2R1%R830 2.2R1%

21

20

22

19

R834 1.8KR1%R834 1.8KR1%

17

C605

C605

C613

C613

C619

C619

+12VA

4.7R0805

4.7R0805

C1U16X0805

C1U16X0805

+12VA

4.7R0805

4.7R0805

C1U16X0805

C1U16X0805

C0.1U50X0805

C0.1U50X0805

+12VA

4.7R0805

4.7R0805

C1U16X0805

C1U16X0805

C0.1U50X0805

C0.1U50X0805

R806

R806

C604

C604

R810 1R0805R810 1R0805

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

R816

R816

C611

C611

R819

R819
10KR

10KR

R821 1R0805R821 1R0805

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

R827

R827
X_10KR

X_10KR

R828

R828

C617

C617

R833 1R0805R833 1R0805

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

R836

R836

X_10KR

X_10KR

VIN

R809

R809
10KR

10KR

DS

Q5

Q5

G

N-IPD09N03LA_TO252-LF

N-IPD09N03LA_TO252-LF

Q3

Q3

DS

G

R815

R815
X_10KR

X_10KR

VIN

DS

Q10

Q10

G

N-IPD09N03LA_TO252-LF

N-IPD09N03LA_TO252-LF

Q8

Q8

DS

G

VIN

R831

R831
10KR

10KR

DS

Q14

Q14

G

N-IPD09N03LA_TO252-LF

N-IPD09N03LA_TO252-LF

Q13

Q13

DS

G

C603

C603

C1U16X0805

C1U16X0805

Q2

G

C612

C612

C1U16X0805

C1U16X0805

Q7

G

C618

C618

C1U16X0805

C1U16X0805

Q12

Q12

G

DS

DS

DS

N-IPD06N03LA_TO252Q2N-IPD06N03LA_TO252

N-IPD06N03LA_TO252Q7N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

R813

R813

2.2R0805

2.2R0805

C609

C609
C1000P50X

C1000P50X

R824

R824

2.2R0805

2.2R0805

C615

C615

C1000P50X

C1000P50X

R835

R835

2.2R0805

2.2R0805

C621

C621
C1000P50X

C1000P50X

X_C0.1U25Y

X_C0.1U25Y

CH-0.8U35A

CH-0.8U35A
CHOK1

CHOK1

CH-0.8U35A

CH-0.8U35A
CHOK2

CHOK2

CHOK3

CHOK3
CH-0.8U35A

CH-0.8U35A

VIN

C595

C595

.CD1500U6.3EL20

.CD1500U6.3EL20

C1U16X0805

C1U16X0805

C596

C596

C0.01U50X

C0.01U50X

+12VA

C622

C622

C597

C597
X_C0.1U25Y

X_C0.1U25Y

CT11

CT11

.CD1500U6.3EL20

.CD1500U6.3EL20

CT3

CT3

_C10U16X51206

_C10U16X51206

+5V

C598

C598
X_C0.1U25Y

X_C0.1U25Y

VCORE

0.8V~1.55V/80A

X_.CD1500U6.3EL20

X_.CD1500U6.3EL20

CT12

CT12

.CD1500U6.3EL20

.CD1500U6.3EL20

CT2

CT2

X_.CD1500U6.3EL20

.CD1500U6.3EL20

.CD1500U6.3EL20

COIL1 CH-1.2U18ACOIL1 CH-1.2U18A

C623

C623

X_.CD1500U6.3EL20

CT14

CT14

.CD1500U16EL20

.CD1500U16EL20

+

+

C599

C599
X_C0.1U25Y

X_C0.1U25Y

X_.CD1500U6.3EL20

X_.CD1500U6.3EL20

CT10

CT10

CT5

CT5

.CD1500U16EL20

.CD1500U16EL20
CT8

CT8

C600

C600
X_C0.1U25Y

X_C0.1U25Y

CT9

CT9

CT6

CT6
.CD1500U6.3EL20

.CD1500U6.3EL20

+

+

CT15

CT15

.CD1500U16EL20

.CD1500U16EL20

C601

C601
X_C0.1U25Y

X_C0.1U25Y

CT7

CT7

X_.CD1500U6.3EL20

X_.CD1500U6.3EL20

.CD1500U16EL20

.CD1500U16EL20

+

+

CT4

CT4

+

+

PH1

PH1

112

HS-0500261-K08

HS-0500261-K08

PH2

PH2

112

HS-0500261-K08

HS-0500261-K08

PH3

PH3

112

HS-0500261-K08

HS-0500261-K08

CT13

CT13

.CD1500U6.3EL20

.CD1500U6.3EL20

VIN

C624

C624
C2.2U16X1206-1

C2.2U16X1206-1

2

2

2

+12VA

C626

C626

X_C0.01U50X

X_C0.01U50X

A A

5

4

3

2

JPW1

JPW1

3

4

PWR-2X2M

PWR-2X2M

Title

Title

Title

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

1

GND

12V

2

GND

12V

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

13.K8 PWM ISL6566CR

13.K8 PWM ISL6566CR

13.K8 PWM ISL6566CR

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

13 36

13 36

13 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

4

3

2

1

+3.3V

L28

L28
28L900m_100_0805

28L900m_100_0805

D D

C C

CLK_VDD

C301

C301

EC29

EC29

X_C10U16EL

X_C10U16EL

1- PLACE ALL THE SERIES TERMINATION
RESISTORS AS CLOSE AS U300 AS POSSIBLE

C0.1U25Y

C0.1U25Y

C300

C300
C0.1U25Y

C0.1U25Y

C319

C319
C0.1U25Y

C0.1U25Y

C303

C303
C0.1U25Y

C0.1U25Y

C360

C360
C0.1U25Y

C0.1U25Y

C352

C352
C0.1U25Y

C0.1U25Y

2- ROUTE ALL CPUCLK/#, NBSRCCLK/#, GPPCLK/# AS DIFFERENT PAIR RULE
3- PUT DECOUPLING CAPS CLOSE TO U300

POWER PIN

+3.3V

L26 28L900m_100_0805L26 28L900m_100_0805

C337

Parallel Resonance Crystal

NB_OSC_14M11

C291

C291
X_C33P50N

X_C33P50N

R213 33RR213 33R

C337

12

Y3

Y3

C22P50N

C22P50N
C355

C355

12

_14.318MHZ16P_D

_14.318MHZ16P_D

C22P50N

C22P50N

21

C367

C367
C4.7U10Y0805

C4.7U10Y0805

C351

C351
C1U10Y

C1U10Y

R250

R250
X_1MR

X_1MR

SMB_CLK7,8,17,21,22,28,29

SMB_DATA7,8,17,21,22,28,29

OSC14M_REFOUT

Ioh = 5 * Iref
(2.32mA)
Voh = 0.71V @ 60 ohm

CLK_VDD

CP18CP18

1 2
1 2

CP16CP16

R217

R217
475R1%

475R1%

1%

U21

U21

43

VDDCPU

14

VDDSRC3

21

VDDSRC2

32

VDDSRC1

35

VDD_SRC0

51

VDD_PCI

3

VDD48

48

VDDHTT

56

VDDREF

5

GND1

55

GND2

36

GNDSRC0

31

GNDSRC1

26

GNDSRC2

20

GNDSRC3

15

GNDSRC4

49

GNDPCI

46

GNDHTT

42

GNDCPU

1

X1

2

X2

6

NC

7

SCLK

8

SDATA

52

REF2

37

IREF

11

CLKREQB#

10

CLKREQA#

ICS951412AG_TSSOP56

ICS951412AG_TSSOP56

VDDA
GNDA

CPUCLK8T0
CPUCLK8C0
CPUCLK8T1
CPUCLK8C1

SRCCLKT7

SRCCLKC7

SRCCLKT6

SRCCLKC6

SRCCLKT5

SRCCLKC5

SRCCLKT4

SRCCLKC4

SRCCLKT3

SRCCLKC3

SRCCLKT2

SRCCLKC2

SRCCLKT1

SRCCLKC1

SRCCLKT0

SRCCLKC0

SEL75#/100/PCICLK0

FS0/REF0
FS1/REF1

USB_48MHz

HTTCLK0

C592

C592
C10P50N

C10P50N

GPPCLK0
GPPCLK0#
SBSRCCLK
SBSRCCLK#
GFXCLK
GFXCLK#

NBSRCCLK#NBSRCCLK#_R
NBSRCCLK
SBLINKCLK#SBLINKCLK#_R

SBLINKCLK

R223

R223

X_2.2KR

X_2.2KR

+3.3V

C593

C593
C10P50N

C10P50N

R270 49.9R1%R270 49.9R1%
R271 49.9R1%R271 49.9R1%

RN50

RN50

RN44 49.9_8P4RRN44 49.9_8P4R

CLK_VDD

R212

R212

R226

R226

10KR

10KR

10KR

10KR

R210

R210

X_2.2KR

X_2.2KR

7 8
5 6
3 4
1 2
7 8
5 6
3 4
1 2

R269

R269
10KR

10KR

R257

R257

X_2.2KR

X_2.2KR

49.9_8P4R

49.9_8P4R

R224 22RR224 22R
R225 22RR225 22R

C304

C304

X_C33P50N

X_C33P50N

CPU_CLK 5
CPU_CLK# 5

CLK FREQ

R1000 33R1000 33

C298

C298

X_C33P50N

X_C33P50N

AC97_CLK 26
SB_OSC_14M 17

SIO_CLK_14M 22

CLK_VDDA

C302

C302

C0.1U25Y

C0.1U25Y

39
38

CPUCLK_EXT_R

45

CPUCLK#_EXT_R

44
41
40

12
13
16
17
18
19

GPPCLK0_R

22

GPPCLK0#_R

23

SBSRCCLK_R

24

SBSRCCLK#_R

25

GFXCLK_R

27

GFXCLK#_R

28

NBSRCCLK_R

30

NBSRCCLK#_R

29

SBLINKCLK_R

34

SBLINKCLK#_R

33
50

AC97_CLK_R

54

SIO_CLK_R

53
9

FS2

USBCLK_EXT_R

4

HTREFCLK_R

47

R215 15RR215 15R
R216 15RR216 15R

R258 33RR258 33R
R259 33RR259 33R

7 8
5 6
3 4

RN49 8P4R-33RRN49 8P4R-33R

1 2

NBSRCCLK_R
SBLINKCLK_R

R256 33RR256 33R
R214 33RR214 33R

EC20

EC20
X_C10U16EL

X_C10U16EL

RN45 8P4R-33RRN45 8P4R-33R

USBCLK_EXT 17

HTREFCLK 11

R206

R206

51.1R1%

51.1R1%

L21

L21
28L900m_100_0805

28L900m_100_0805

7 8
5 6
3 4
1 2

B B

GFXCLK
GFXCLK#

OVERLAP COMMON PADS FOR DUAL-OP
RESISTORS

EXT CLK FREQUENCY SELECT TABLE(MHZ)

FS2

0 0 0
0 0 1

0 1 0
0 1 1
1 0 0
1 0 1
1 1 1

A A

5

CPUFS1

Hi-Z
X

180.00

220.00

100.00

133.33

200.00

SRCCLK

HTTFS0 PCI

[2:1]

Hi-Z Hi-Z100.00 Reserved

100.00

100.00

36.56 73.12

100.00

66.66 33.33

100.00

66.66 33.33

100.00

66.66 33.33 Normal HAMMER operation

100.00

USB

COMMENT

48.00

48.00

48.00

48.00

48.00

48.00

Reserved
Reserved
Reserved
Reserved
Reserved

X/6X/3

30.0060.00

48.00

4

3

NBSRCCLK
NBSRCCLK#

SBSRCCLK
SBSRCCLK#

SBLINKCLK
SBLINKCLK#

GPPCLK0
GPPCLK0#

2

GFXCLK 21
GFXCLK# 21

NBSRCCLK 11
NBSRCCLK# 11

SBSRCCLK 16
SBSRCCLK# 16

SBLINKCLK 11
SBLINKCLK# 11

GPPCLK0 21
GPPCLK0# 21

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

14.EXTERNAL CLOCK GENERATOR

14.EXTERNAL CLOCK GENERATOR

14.EXTERNAL CLOCK GENERATOR

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

1

14 36

14 36

14 36

of

of

of

Rev

Rev

Rev

0B

0B

0B

5

+5V

R953

R953

+3VR

220R1206

220R1206

D D

D31

D31

5mA

A C

Z-TZMC3V3_SOD80C

Z-TZMC3V3_SOD80C

DAC_SDAT11

+5V
+3VR

+3VR

+3VR

N-2N7002_SOT23

N-2N7002_SOT23

8P4R-2.7KR

8P4R-2.7KR

Q9

Q9

5VDDCCL

N-2N7002_SOT23

N-2N7002_SOT23

Q11

Q11

5VDDCDA

RN23

RN23

5VDDCCL

12

5VDDCDA

34

DAC_SCL

56

DAC_SDAT

78

4

HSYNC#11DAC_SCL11

VSYNC#11

HSYNC#

VSYNC#

PARALLAL PORT

R82 10KRR82 10KR

U40_1

+5V

C89 X_C0.1U25YC89 X_C0.1U25Y

1 2

53

1

4

2

U8

U8

AHCT1G08GV_SOT23-5-LF

AHCT1G08GV_SOT23-5-LF

+5V

C101 X_C0.1U25YC101 X_C0.1U25Y

1 2

53

1

4

2

U10

U10

AHCT1G08GV_SOT23-5-LF

AHCT1G08GV_SOT23-5-LF

3

5V_HSYNC

5V_VSYNC

2

1

close VGA connector

R11

R79

R79

75R1%

75R1%

G11

R78

R78

75R1%

75R1%

B11

R77

R77

75R1%

75R1%

3

3

3

+3.3V

2

D8

D8
1PS226_SOT23

1PS226_SOT23

1

+3.3V

2

D7

D7
1PS226_SOT23

1PS226_SOT23

1

+3.3V

2

D6

D6
1PS226_SOT23

1PS226_SOT23

1

L4 0.12U300m-1L4 0.12U300m-1

C94

C94
X_C3.3P50N

X_C3.3P50N

1 2

L3 0.12U300m-1L3 0.12U300m-1

C91

C91
X_C3.3P50N

X_C3.3P50N

1 2

L2 0.12U300m-1L2 0.12U300m-1

C88

C88
X_C3.3P50N

X_C3.3P50N

1 2

1 2

1 2

1 2

C95

C95

C22P50N

C22P50N

C93

C93

C22P50N

C22P50N

C92

C92

C22P50N

C22P50N

RPE PE

RPE22
RBUSY22
RACK#22

C C

RSLIN#22
RINIT#22

RERR#22

RAFD#22
RSTB#22

RSLCT22

PRD[0..7]22

B B

7 8

RBUSY BUSY

5 6

RACK# ACK#

3 4

PRD7 PRND7

1 2

RN8 8P4R-33RRN8 8P4R-33R

PRD3
PRD4
PRD5
PRD6

RN13 8P4R-33RRN13 8P4R-33R

RSLIN#
PRD2
RINIT#
PRD1

RN15 8P4R-33RRN15 8P4R-33R

RAFD#
PRD0
RSTB# STB#

RN19 8P4R-33RRN19 8P4R-33R

RSLCT

1 2
3 4
5 6
7 8

7 8
5 6
3 4
1 2

1 2
3 4
5 6
7 8

R56 33RR56 33R

PRND3
PRND4
PRND5
PRND6

SLIN#
PRND2
PINIT#
PRND1

ERR#
AFD#
PRND0

SLCT

+5V

PRND6
PRND5
PRND4
PRND3
PE
BUSY
ACK#
PRND7

SLIN#
PRND2
PINIT#
PRND1
STB#RERR#
PRND0
AFD#
ERR#

SLCT

D5 BAS32L_LL34D5 BAS32L_LL34
C33 C0.1U25YC33 C0.1U25Y

5

1

5
2
3
4
6
7
8

10

9

10

5

1

5
2
3
4
6
7
8

10

9

10

R57 2.7KRR57 2.7KR

D4

RN11

RN11
10P8R-2.7KR

10P8R-2.7KR

RN17

RN17
10P8R-2.7KR

10P8R-2.7KR

1
2
3
4
6
7
8
9

1
2
3
4
6
7
8
9

PE
BUSY
ACK#
PRND7

PRND3
PRND4
PRND5
PRND6

PRND1
PINIT#
PRND2
SLIN#

ERR#
AFD#
PRND0
STB#

SLCT

C220P50N

C220P50N

7

8

CN5

CN5

5

6

8P4C-220P50N

8P4C-220P50N

3

4

1

2

1

2

CN6

CN6

3

4

8P4C-220P50N

8P4C-220P50N

5

6

7

8

1

2

CN7

CN7

3

4

8P4C-220P50N

8P4C-220P50N

5

6

7

8

1

2

CN8

CN8

3

4

8P4C-220P50N

8P4C-220P50N

5

6

7

8

C43

C43

STB#
PRND0
PRND1
PRND2
PRND3
PRND4
PRND5
PRND6
PRND7
ACK#
BUSY
PE
SLCT

51

LPT1A

LPT1A

52

CONN-LPT

CONN-LPT

AFD#

14

ERR#

15

PINIT#

16

SLIN#

17
18
19
20
21
22
23
24
25
48

5VDDCCL

5VDDCDA
5V_VSYNC
5V_HSYNC

RN24

RN24

8P4R-47R

8P4R-47R

1
2
3
4
5
6
7
8

9
10
11
12
13

+5V

12
34
56
78

FS2

FS2

_F-MICROSMD110

_F-MICROSMD110

135

246

C79 C0.1U25YC79 C0.1U25Y

7

CN9

CN9

X_8P4C-33P50N

X_8P4C-33P50N

8

VGA_15
VGA_14

VGA_9
VGA_13

VGA_12

15
10
14

9

13

8

12

7

11

6

JVGA1

JVGA1

CONN-VGA

CONN-VGA

17

5
4

VGA_B

3

VGA_G

2

VGA_R

1

16

SERIAL PORT 2

U3

CB1 C100P50NCB1 C100P50N

+5V

RTSB#22
DTRB#22
SOUTB22

RIB

1

NRTSB
NCTSB#
NDSRB#

NDTRB

A A

NSOUTB
NSINB
NDCDB#

5

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

20

RIB
NCTSB#
NDSRB#
NSINB
NDCDB#

RTSB#

16

DTRB#

15

SOUTB

13
11

CN4

CN4
8P4C-220P50N

8P4C-220P50N

CN3

CN3
8P4C-220P50N

8P4C-220P50N

U3

VCC

2

RIN1

3

RIN2

4

RIN3

7

RIN4

9

RIN5
DIN1

DIN2
DIN3
GND

GD75232_SSOP20

GD75232_SSOP20

V+
ROUT1
ROUT2
ROUT3
ROUT4
ROUT5

DOUT1
DOUT2
DOUT3

V-

NDCDB#
NSOUTB NDTRB

NRTSB
RIB

1
19
18
17
14
12

5
6
8
10

+12COM

-12COM

D10 1N4148SD10 1N4148S

C3 C100P50NC3 C100P50N

RIB#
CTSB#
DSRB#
SINB
DCDB#

NRTSB
NDTRB
NSOUTB

C12 C100P50NC12 C100P50N

D33 1N4148SD33 1N4148S

JCOM2

JCOM2

1 2
3 4
5 6
7 8
9

H2X5(10)_white

H2X5(10)_white

4

+12V

RIB# 22
CTSB# 22
DSRB# 22
SINB 22
DCDB# 22

-12V

NSINB
NDSRB#

NCTSB#

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

15.VGA CON.

15.VGA CON.

15.VGA CON.

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

3

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

15 36

15 36

15 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

32K_X1

C424

C424
C15P50N

C15P50N

C326

C326
C1U10Y

C1U10Y

ALLOW_LDTSTOP11

32K_X2

C548

C548
C1U10Y

C1U10Y

C549

C549
X_C1U10Y

X_C1U10Y

VCCA_1V2

PCIE_VDDR

C334

C334
X_C1U10Y

X_C1U10Y

R236

R236
X_1KR

X_1KR

C312

C312
X_C1U10Y

X_C1U10Y

VCCA_1V2

BMREQ#11,17

R235

R235
X_62R

X_62R

LDT_PG5

LDT_RST#5

21

Y5

Y5

32.768KHZ12.5P_D

32.768KHZ12.5P_D

R311

D D

C C

B B

A A

R311
20MR

20MR

C15P50N

C15P50N

+1.8V_S0

L23 X_28L900m_100_0805L23 X_28L900m_100_0805

+1.8V_S0

WIDE TRACE TO SHORT

L22 X_28L900m_100_0805L22 X_28L900m_100_0805

12

CP13CP13

C10U10Y1206

C10U10Y1206

C425

C425

12

CP14CP14

X_C10U10Y1206

X_C10U10Y1206

3 4

R312 20MRR312 20MR R318 22RR318 22R

PCIE_PVDD

C309

C309

C325

C325

C1U10Y

C1U10Y

C305

C305

C547

C547

X_C1U10Y

X_C1U10Y

5

C546

C546
C1U10Y

C1U10Y

PCI_E_RST#11,21,32

SBSRCCLK14
SBSRCCLK#14

A_RX0P10
A_RX0N10
A_RX1P10
A_RX1N10

PCIE_VDDR

C317

C317
X_C1U10Y

X_C1U10Y

PCI_INTE#23,28
PCI_INTF#23,33
PCI_INTG#23
PCI_INTH#23

4

R298

R298
10KR

150R1%

150R1%

32K_X1

32K_X2

10KR

A_RX0P_C
A_RX0N_C
A_RX1P_C
A_RX1N_C

AH8

M27
M30

N30
K30

H30

G30
M29

N29
M28
N28

K29
K28
G27

H27
G28
R30

R29
G26
P26
K26

P28
N26
P27

H28
H29

H26
G29

N27
M26
K27
P29
P30

AK7
AG5
AH5

AH6
AK6

AG7
AH7

C29
C28

B29
D29

B30
E28

E29
D25
E27
D27
D28

L27

L30
J30

F30

J29
J28

F26

L26

F29

F27
L29

J26
L28
J27

AJ8

AJ5
AJ6

B2

B1

A28

E4

F28

A_TX0P10
A_TX0N10
A_TX1P10
A_TX1N10

PCIE_PVDD

C323

C323
X_C1U10Y

X_C1U10Y

PCI_INTA#
PCI_INTB#
PCI_INTC#
PCI_INTD#

PCI_E_RST#

C331 C0.1U25XC331 C0.1U25X
C332 C0.1U25XC332 C0.1U25X
C329 C0.1U25XC329 C0.1U25X
C330 C0.1U25XC330 C0.1U25X

R237 150R1%R237 150R1%
R228

R228
R238 4.12KR1%R238 4.12KR1%

PCIE_VDDR

LDTSTOP#5,11

Note: Overlap common pads where
possible for dual-op resistors.

4

3

LENGTH OF (PCI_CLK9_R + PCI_CLK9_FB) SHOULD
MATCH THE AVERAGE OF THE OTHER SPCI_CLKS

U26A

U26A

A_RST#
PCIE_RCLKP

PCIE_RCLKN
PCIE_TX0P

PCIE_TX0N
PCIE_TX1P
PCIE_TX1N
PCIE_TX2P
PCIE_TX2N
PCIE_TX3P
PCIE_TX3N

PCIE_RX0P
PCIE_RX0N
PCIE_RX1P
PCIE_RX1N
PCIE_RX2P
PCIE_RX2N
PCIE_RX3P
PCIE_RX3N

PCIE_CALRP
PCIE_CALRN

PCIE_CALI
PCIE_PVDD
PCIE_VDDR_1

PCIE_VDDR_2
PCIE_VDDR_3
PCIE_VDDR_4
PCIE_VDDR_5
PCIE_VDDR_6
PCIE_VDDR_7
PCIE_VDDR_8
PCIE_VDDR_9

PCIE_VSS_1
PCIE_VSS_2
PCIE_VSS_3
PCIE_VSS_4
PCIE_VSS_5
PCIE_VSS_6
PCIE_VSS_7
PCIE_VSS_8
PCIE_VSS_9
PCIE_VSS_10
PCIE_VSS_11
PCIE_VSS_12
PCIE_VSS_13
PCIE_VSS_14
PCIE_VSS_15

CPU_STP#/DPSLP#
PCI_STP#
INTA#
INTB#
INTC#
INTD#
INTE#/GPIO33
INTF#/GPIO34
INTG#/GPIO35
INTH#/GPIO36

X1

X2

CPU_PG
INTR/LINT0
NMI/LINT1
INIT#
SMI#
SLP#/LDT_STP#
IGNNE#
A20M#
FERR#
STPCLK#/ALLOW_LDTSTP
LDT_PG/SSMUXSEL/GPIO0
DPRSLPVR
BMREQ#
LDT_RST#

ATI-SB450(218S4PASA12KS)-A12

ATI-SB450(218S4PASA12KS)-A12

SB400/450 SB

SB400/450 SB

Part 1 of 4

Part 1 of 4

PCI EXPRESS INTERFACE

PCI EXPRESS INTERFACE

PCI INTERFACE

PCI INTERFACE

REQ4#/PLL_BP33/PDMA_REQ1#

GNT3#/PLL_BP66/PDMA_GNT0#
GNT4#/PLL_BP50/PDMA_GNT1#

XTAL

XTAL

CPU

CPU

RTC

RTC

3

PCICLK0
PCICLK1
PCICLK2
PCICLK3
PCICLK4
PCICLK5
PCICLK6
PCICLK7
PCICLK8

PCI CLKS

PCI CLKS

PCICLK9

PCICLK_FB

PCIRST#
AD0/ROMA18
AD1/ROMA17
AD2/ROMA16
AD3/ROMA15
AD4/ROMA14
AD5/ROMA13
AD6/ROMA12
AD7/ROMA11

AD8/ROMA9

AD9/ROMA8
AD10/ROMA7
AD11/ROMA6
AD12/ROMA5
AD13/ROMA4
AD14/ROMA3
AD15/ROMA2
AD16/ROMD0
AD17/ROMD1
AD18/ROMD2
AD19/ROMD3
AD20/ROMD4
AD21/ROMD5
AD22/ROMD6
AD23/ROMD7

AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

CBE0#/ROMA10

CBE1#/ROMA1

CBE2#/ROMWE#

CBE3#

FRAME#

DEVSEL#/ROMA0

IRDY#

TRDY#/ROMOE#

PAR/ROMA19

STOP#
PERR#
SERR#

REQ0#

REQ1#

REQ5#/GPIO13
REQ6#/GPIO31

GNT5#/GPIO14
GNT6#/GPIO32

LPC

LPC

REQ2#

GNT0#

GNT1#

GNT2#

CLKRUN#

LOCK#

LAD0
LAD1
LAD2
LAD3

LFRAME#

LDRQ0#
LDRQ1#

SERIRQ

RTCCLK

VBAT

RTC_GND

REQ3#/PDMA_REQ0#

RTC_IRQ#/ACPWR_STRAP

PCI_CLK0_R

L4

PCI_CLK1_R

L3

PCI_CLK2_R

L2

PCI_CLK3_R

L1

PCI_CLK4_R

M4

PCI_CLK5_R

M3

PCI_CLK6_R

M2

PCI_CLK7_R PCI_CLK5_R

M1

PCI_CLK8_R

N4
N3
N2

AJ7
W3
Y2
W4
Y3
V1
Y4
V2
W2
AA4
V4
AA3
U1
AA2
U2
AA1
U3
T4
AC1
R2
AD4
R3
AD3
R4
AD2
P2
AE3
P3
AE2
P4
AF2
N1
AF1
V3
AB4
AC2
AE4
T3
AC4
AC3
T2
U4
T1
AB2
AB3
AF4
AF3
AG2
AG3
AH1
AH2
AH3
AJ2
AK2
AJ3
AK3
AG4
AH4
AJ4
AG1
AB1

AG25
AH25
AJ25
AH24
AG24
AH26
AG26

AK27

C2
F3

A2
A1

PCI_CLK9_R
PCI_CLK9_FB

LDRQ#0_SB
LDRQ#1_SB

PCIRST#

CP27CP27

1 2

R310 22RR310 22R

PCI_CLKRUN#

LAD0
LAD1
LAD2
LAD3

SERIRQ

C416

C416

C0.1U10X0402-1

C0.1U10X0402-1

PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31
PCI_CBE#0
PCI_CBE#1
PCI_CBE#2
PCI_CBE#3

SERIRQ 22

RTC_CLK 20

AUTO_ON# 20

C415

C415
C1U10Y

C1U10Y

PCI_CLK2_R
PCI_CLK3_R
PCI_CLK1_R
PCI_CLK0_R
PCI_CLK4_R
PCI_CLK6_R
PCI_CLK7_R

VBAT_SB

20mil

2

RN60

RN60
8P4R-22R

8P4R-22R

1 2
3 4
5 6
7 8

RN61

RN61

1 2
3 4

8P4R-22R

8P4R-22R

5 6
7 8

PCI_CLK8 20

C431 X_C100P100NC431 X_C100P100N

PCI_AD[31..0] 20,23,28,33

PCIRST#

R385

R385
10KR

10KR

PCI_CBE#[3..0] 23,28,33

PCI_FRAME# 23,28,33
PCI_DEVSEL# 23,28,33
PCI_IRDY# 23,28,33
PCI_TRDY# 23,28,33
PCI_PAR 23,28,33
PCI_STOP# 23,28,33
PCI_PERR# 23,28,33
PCI_SERR# 23,28
PCI_REQ#0 23
PCI_REQ#1 23
PCI_REQ#2 23
PCI_REQ#3 23,28
PCI_REQ#4 23,33
PCI_REQ#5 20,23

PCI_REQ#6 23
PCI_GNT#0 23
PCI_GNT#1 23

PCI_GNT#3 28
PCI_GNT#4 33

PCI_GNT#5 20

PCI_LOCK# 23

LAD0 22
LAD1 22
LAD2 22
LAD3 22
LFRAME# 20,22
LDRQ#0_SB 22

2

PCI_CLK2 20
PCI_CLK3 20,28
PCI_CLK1 23
PCI_CLK0 23
PCI_CLK4 20,33
PCI_CLK6 20,22
PCI_CLK7 20
PCI_CLK5 20,22

PCIRST# 29

C594

C594

X_C100P100N

X_C100P100N

PCI_CLKRUN#
LDRQ#0_SB

LDRQ#1_SB

PCI_INTC#
PCI_INTA#
PCI_INTB#
PCI_INTD#

LAD0
LAD1
LAD2
LAD3

SERIRQ

+3V_Dual

D36

D36
1N4148S

1N4148S

R958 1KRR958 1KR

Title

Title

Title

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

1

PCI_CLK3

PCI_CLK2

PCI_CLK0

PCI_CLK1

135

7

CN11

CN11

246

8

8P4C-10P50N

8P4C-10P50N

BAT1

BAT1

BAT-BCR2032P-RH

BAT-BCR2032P-RH

_N31-1030011+N33-1020031

_N31-1030011+N33-1020031

Normal --> 1-2

1
2

Clear CMOS -->2-3

3

JCMOS

JCMOS

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

16.SB400-PCI/CPU/LPC/RTC

16.SB400-PCI/CPU/LPC/RTC

16.SB400-PCI/CPU/LPC/RTC

PCI_CLK5

PCI_CLK6

PCI_CLK4

PCI_CLK7

135

7

CN10

CN10

246

8

8P4C-10P50N

8P4C-10P50N

RN63 8P4R-10KRRN63 8P4R-10KR

RN54 8P4R-8.2KRRN54 8P4R-8.2KR

RN48 8P4R-100KRRN48 8P4R-100KR

78
56
34
12

12
34
56
78

1 2
3 4
5 6
7 8

R252 8.2KRR252 8.2KR

20mil

MS-7217

MS-7217

MS-7217

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

1

PCI_CLK8

C438

C438

X_C10P50N

X_C10P50N

+3.3V

16 36

16 36

16 36

of

of

of

Rev

Rev

Rev

0B

0B

0B

5

+3.3V

R253

R253

R249

R249

2.2KR0402

2.2KR0402

2.2KR0402

2.2KR0402

4

3

2

1

NOTE: ONLY USE FUNDAMENTAL MODE CRYSTAL

U26D

U26D

Part 4 of 4

Part 4 of 4

USB_OC2#/FANOUT1/GPM2#

USB_OC6#/FAN_ALERT#/GEVENT6#

ACPI / WAKE UP EVENTS

ACPI / WAKE UP EVENTS

USB_OC7#/CASE_ALERT#/GEVENT7#

USB INTERFACE

USB INTERFACE

GPIOAC97 (NOT USED)

GPIOAC97 (NOT USED)

AC_BITCLKAZ_BITCLK

AZ_BITCLK_RAZ_BITCLK

AC_RST#AZ_RESET#

SDATA_IN_R
AZ_RESET#_RAZ_RESET#

SYS_RST#

AZ_BITCLK_R

AZ_SDATA_OUT_R

AZ_SYNC_R

AC_BITCLK
AC_DATA_OUT_R
AC_SDATA_IN0
AC_SDATA_IN1
AC_SDATA_IN2
AC_SYNC_R
AC_RST#

C6

TALERT#/TEMP_ALERT#/GPIO10

D5

BLINK/GPM6#

C4

PCI_PME#/GEVENT4#

D3

RI#/EXTEVNT0#

B4

SLP_S3#

E3

SLP_S5#

B3

PWR_BTN#

C3

PWR_GOOD

D4

SUS_STAT#

F2

TEST1

E2

TEST0

AJ26

GA20IN

AJ27

KBRST#

D6

SMBALERT#/THRMTRIP#/GEVENT2#

C5

LPC_PME#/GEVENT3#

A25

LPC_SMI#/EXTEVNT1#

D8

VOLT_ALERT#/S3_STATE/GEVENT5#

D7

SYS_RESET#/GPM7#

D2

WAKE#/GEVENT8#

D1

RSMRST#

A23

14M_X1/OSC

B23

14M_X2

AK24

SIO_CLK

B25

ROM_CS#/GPIO1

C25

GHI#/GPIO6

C23

VGATE/GPIO7

D24

AGP_STP#/GPIO4

D23

AGP_BUSY#/GPIO5

A27

FANOUT0/GPIO3

C24

SPKR/GPIO2

A26

SCL0/GPOC0#

B26

SDA0/GPOC1#

B27

DDC1_SCL/GPIO9

C26

DDC1_SDA/GPIO8

C27

DDC2_SCL/GPIO11

D26

DDC2_SDA/GPIO12

J2

NC1

K3

NC4

J3

NC3

K2

NC2

G1

AC_BITCLK

G2

AC_SDOUT

H4

AC_SDIN0

G3

AC_SDIN1

G4

AC_SDIN2

H1

AC_SYNC

H3

AC_RST#

H2

SPDIF_OUT

ATI-SB450(218S4PASA12KS)-A12

ATI-SB450(218S4PASA12KS)-A12

SB400/450 SB

SB400/450 SB

CLK / RST

CLK / RST

3

48M_X1/USBCLK

USB_VREFOUT

USB_OC0#/GPM0#
USB_OC1#/GPM1#

USB_OC3#/GPM3#
USB_OC4#/GPM4#
USB_OC5#/GPM5#

USB PWR

USB PWR

48M_X2

USB_RCOMP
USB_ATEST1

USB_ATEST0

USB_HSDP7+
USB_HSDM7-

USB_HSDP6+
USB_HSDM6-

USB_HSDP5+
USB_HSDM5-

USB_HSDP4+
USB_HSDM4-

USB_HSDP3+
USB_HSDM3-

USB_HSDP2+
USB_HSDM2-

USB_HSDP1+
USB_HSDM1-

USB_HSDP0+
USB_HSDM0-

AVDDTX_0
AVDDTX_1
AVDDTX_2

AVDDTX_3
AVDDRX_0
AVDDRX_1
AVDDRX_2
AVDDRX_3

AVDDC
AVSSC

AVSS_USB_1
AVSS_USB_2
AVSS_USB_3
AVSS_USB_4
AVSS_USB_5
AVSS_USB_6
AVSS_USB_7
AVSS_USB_8

AVSS_USB_9
AVSS_USB_10
AVSS_USB_11
AVSS_USB_12
AVSS_USB_13
AVSS_USB_14
AVSS_USB_15
AVSS_USB_16
AVSS_USB_17
AVSS_USB_18
AVSS_USB_19
AVSS_USB_20
AVSS_USB_21
AVSS_USB_22
AVSS_USB_23
AVSS_USB_24

USBCLK_EXT

A15
B15
C15
D16
C16
D15
B8
C8
C7
B7
B6
A6
B5
A5

A11
B11

A10
B10

A14
B14

A13
B13

A18
B18

A17
B17

A21
B21

A20
B20

C21
C18
D13
D10
D20
D17
C14
C11

A16
B16
A9

A12
A19
A22
B9
B12
B19
B22
C9
C10
C12
C13
C17
C19
C20
C22
D9
D11
D12
D14
D18
D19
D21
D22

AZ_RESET#_R

USB_RCOMP

C380

C380
X_C0.1U10X0402-1

X_C0.1U10X0402-1

AVDD_USB1

AVDD_USB2

+3.3V_AVDDC

2

USBCLK_EXT 14

USB_OCP#1 24

USBP7 24
USBN7 24

USBP6 24
USBN6 24

USBP5 24
USBN5 24

USBP4 24
USBN4 24

USBP3 24
USBN3 24

USBP2 24
USBN2 24

USBP1 24
USBN1 24

USBP0 24
USBN0 24

R277 11.8KR1%R277 11.8KR1%

USB_OCP#4 24

C414

C414
X_C0.1U10X0402-1

X_C0.1U10X0402-1

200mA

+3V_Dual

rating

L27 X_28L900m_100_0805L27 X_28L900m_100_0805

CP21CP21

L32 X_28L900m_100_0805L32 X_28L900m_100_0805

CP25CP25

Title

Title

Title

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

VISION DETECT

add in 0B

C361

C361

CP24CP24

12

MS-7217

MS-7217

MS-7217

+3V_Dual

C554

C554
C1U10Y

C1U10Y

AVDD_USB2

C557

C557
C1U10Y

C1U10Y

1

AVDD_USB1

Last Revision Date:

Last Revision Date:

Last Revision Date:
Sheet

Sheet

Sheet

N31-1030011+N33-1020031

N31-1030011+N33-1020031

1

R969 4.7KR0402R969 4.7KR0402

2
3

J2

J2

12

X_C10U10Y1206

X_C10U10Y1206

C383

C383

12

X_C10U10Y1206

X_C10U10Y1206

L30 X_28L900m_100_0805L30 X_28L900m_100_0805

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

17.SB400-ACPI/GPIO/AC97/USB

17.SB400-ACPI/GPIO/AC97/USB

17.SB400-ACPI/GPIO/AC97/USB

VISION_DET

C364

C364
C0.1U25Y

C0.1U25Y

C385

C385
C0.1U25Y

C0.1U25Y

+3.3V_AVDDC

C373

C373

C369

C369

C1U10Y

C1U10Y

C0.1U25Y

C0.1U25Y

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

17 36

17 36

17 36

of

of

of

Rev

Rev

Rev

0B

0B

0B

BMREQ#11,16

SMB_CLK
SMB_DATA

SUS_STAT#
RI#
SB_PWBTIN#
AC_RST#

A20GATE
KBRST#

THERM_ALERT#

AGP_BUSY#
GPIO1
LPC_SMI#

WAKE_UP#
SLP_S5#
LPC_PME#
SDATA_IN_R
SLP_S3#
PCI_PME#
SYS_RST#
S3_STATE

SMBALERT#

R301 X_4.7KR0402R301 X_4.7KR0402
R29 4.7KR0402R29 4.7KR0402

AC_SDATA_IN0
AC_SDATA_IN2
DDC1_SDA

DDC1_SCL
GPIO3

CHI#
GPIO7

AC_BITCLK
AC_SDATA_IN1
SB_TEST1
SB_TEST0

AZ_BITCLK_R
AZ_RESET#_R
AZ_SYNC_R

R324

R324

R247 10KR0402R247 10KR0402
R245 10KR0402R245 10KR0402

RN46 _8P4R-10KR0402-LFRN46 _8P4R-10KR0402-LF

BMREQ#

R920 8.2KR0402R920 8.2KR0402
R943 8.2KR0402R943 8.2KR0402
R944 8.2KR0402R944 8.2KR0402

RN57

RN57

_8P4R-10KR0402-LF

_8P4R-10KR0402-LF

R963 4.7KR0402R963 4.7KR0402
R964 4.7KR0402R964 4.7KR0402

R966 X_4.7KR0402R966 X_4.7KR0402
R965 X_4.7KR0402R965 X_4.7KR0402

R282 10KR0402R282 10KR0402

RN47 8P4R-4.7KR0402RN47 8P4R-4.7KR0402

5

12
34
56
78

R320

R320

RN58

RN58

78
56
34
12

+3V_Dual

78
56
34
12
78
56
34
12

10KR0402

10KR0402

8.2KR0402

8.2KR0402

12
34
56
78

78
56
34
12

+3.3V

+3V_Dual

RN53

RN53
8P4R-4.7KR0402

8P4R-4.7KR0402

RN52

RN52
8P4R-4.7KR0402

8P4R-4.7KR0402

+3.3V

_8P4R-10KR0402-LF

_8P4R-10KR0402-LF

+3V_Dual

THERM_ALERT#

R284 0R0402R284 0R0402

SIO_48M

SPKR30

R925 33R0402R925 33R0402

R1009 X_0R0402R1009 X_0R0402
RN103

RN103

12
34
56
78

X_8P4R-33R0402

X_8P4R-33R0402

R932 X_0RR932 X_0R

SDATA_IN_R
PCI_PME#
RI#

SB_PWBTIN#
SUS_STAT#

SB_TEST1
SB_TEST0
A20GATE
KBRST#
SMBALERT#
LPC_PME#
LPC_SMI#
S3_STATE

WAKE_UP#
RSMRST#

R841 33RR841 33R

GPIO1
CHI#
GPIO7
VISION_DET
AGP_BUSY#
GPIO3

DDC1_SCL
DDC1_SDA

AC_SYNC_RAZ_SYNC
AC_DATA_OUT_RAZ_SDATA_OUT

AC_SDATA_IN0SDATA_IN

PCIE_WAKE_UP#21

C627

C627

X_C220P50N

X_C220P50N

THERM_ALERT#

PCI_PME#23,28
SLP_S3#29

SLP_S5#29

SB_PWBTIN#

SB_PWRGD31

SMBALERT#22
LPC_PME#22
LPC_SMI#22

FP_RST#29,30,31

RSMRST#29

SB_OSC_14M14

SMB_CLK7,8,14,21,22,28,29
SMB_DATA7,8,14,21,22,28,29

PDMA6625
SDMA6625

AC_SDATA_OUT20

SPDIF_OUT20

FOR AC97

RN104 8P4R-33R0402RN104 8P4R-33R0402

AZ_BITCLK26

AZ_SDATA_OUT26

AZ_SDATA_OUT

AZ_SYNC26

AZ_RESET#26,27

AZ_SYNC AZ_SYNC_R

SDATA_IN

SDATA_IN26

FOR ALC880

12

AZ_SDATA_OUT_R

34
56
78

R933 0R0402R933 0R0402
R934 0R0402R934 0R0402

4

D D

C C

B B

A A

5

D D

SATA_TX0+_C25

SATA_TX0-_C25
SATA_RX0-_C25

SATA_RX0+_C25
SATA_TX1+_C25

SATA_TX1-_C25
SATA_RX1-_C25

SATA_RX1+_C25
SATA_TX2+_C25

SATA_TX2-_C25
SATA_RX2-_C25

SATA_RX2+_C25

C C

B B

C558

C558

C1U10Y

C1U10Y

+1.8V_S0

L25 X_28L900m_100_0805L25 X_28L900m_100_0805

12

CP20CP20

A A

L29 X_28L900m_100_0805L29 X_28L900m_100_0805

C382

C382
C1U10Y

C1U10Y

C357

C357

X_C10U10Y1206

X_C10U10Y1206

SATA_X1

SATA_X2

5

CP23CP23

12

C555

C555
C1U10Y

C1U10Y

R280

R280
10MR

10MR

C559

C559
C1U10Y

C1U10Y

+1.8V_ATA

C550

C550
C1U10Y

C1U10Y

C395 C27P50NC395 C27P50N

25MHZ18P_D-1

25MHZ18P_D-1

2 1

C392 C27P50NC392 C27P50N

X_C10U10Y1206

X_C10U10Y1206

Y4

Y4

SATA_TX3+_C25

SATA_TX3-_C25
SATA_RX3-_C25

SATA_RX3+_C25

L31 28L900m_100_0805L31 28L900m_100_0805

C556

C556

C560

C560

4

C1U10Y

C1U10Y

4

SATA_TX0+_C

SATA_TX0-_C
SATA_RX0-_C

SATA_RX0+_C
SATA_TX1+_C

SATA_TX1-_C
SATA_RX1-_C

SATA_RX1+_C
SATA_TX2+_C

SATA_TX2-_C
SATA_RX2-_C

SATA_RX2+_C
SATA_TX3+_C

SATA_TX3-_C
SATA_RX3-_C

SATA_RX3+_C

PLLVDD_ATA+1.8V_S0XTLVDD_ATA

C387

C387
C1U10Y

C1U10Y

PLACE SATA AC
COUPLING CAPS
CLOSE TO SB400

C356 C0.01U50XC356 C0.01U50X
C359 C0.01U50XC359 C0.01U50X

C363 C0.01U50XC363 C0.01U50X
C366 C0.01U50XC366 C0.01U50X

C365 C0.01U50XC365 C0.01U50X
C368 C0.01U50XC368 C0.01U50X

C372 C0.01U50XC372 C0.01U50X
C379 C0.01U50XC379 C0.01U50X

C396 C0.01U50XC396 C0.01U50X
C397 C0.01U50XC397 C0.01U50X

C398 C0.01U50XC398 C0.01U50X
C400 C0.01U50XC400 C0.01U50X

C399 C0.01U50XC399 C0.01U50X
C401 C0.01U50XC401 C0.01U50X

C405 C0.01U50XC405 C0.01U50X
C406 C0.01U50XC406 C0.01U50X

R2831KR1% R2831KR1%

C394

C394

X_C0.01U50X

X_C0.01U50X

SATAACT#30

PLLVDD_ATA
XTLVDD_ATA

+1.8V_ATA

SATA_TX0+
SATA_TX0-

SATA_RX0­SATA_RX0+

SATA_TX1+
SATA_TX1-

SATA_RX1­SATA_RX1+

SATA_TX2+
SATA_TX2-

SATA_RX2­SATA_RX2+

SATA_TX3+
SATA_TX3-

SATA_RX3­SATA_RX3+

SATA_CAL

SATA_X1
SATA_X2

SATAACT#

3

U26B

U26B

AK22

SATA_TX0+

AJ22

SATA_TX0-

AK21

SATA_RX0-

AJ21

SATA_RX0+

AK19

SATA_TX1+

AJ19

SATA_TX1-

AK18

SATA_RX1-

AJ18

SATA_RX1+

AK14

SATA_TX2+

AJ14

SATA_TX2-

AK13

SATA_RX2-

AJ13

SATA_RX2+

AK11

SATA_TX3+

AJ11

SATA_TX3-

AK10

SATA_RX3-

AJ10

SATA_RX3+

AJ15

SATA_CAL

AJ16

SATA_X1

AK16

SATA_X2

AK8

SATA_ACT#

AH15

PLLVDD_SATA

AH16

XTLVDD_SATA

AG10

AVDD_SATA_1

AG14

AVDD_SATA_2

AH12

AVDD_SATA_3

AG12

AVDD_SATA_4

AG18

AVDD_SATA_5

AG21

AVDD_SATA_6

AH18

AVDD_SATA_7

AG20

AVDD_SATA_8

AG9

AVSSP_SATA_1

AF10

AVSSP_SATA_2

AF11

AVSSP_SATA_3

AF12

AVSSP_SATA_4

AF13

AVSSP_SATA_5

AF14

AVSSP_SATA_6

AF15

AVSSP_SATA_7

AF16

AVSSP_SATA_8

AF17

AVSSP_SATA_9

AF18

AVSSP_SATA_10

AF19

AVSSP_SATA_11

AF20

AVSSP_SATA_12

AF21

AVSSP_SATA_13

AF22

AVSSP_SATA_14

AH9

AVSSP_SATA_15

AG11

AVSSP_SATA_16

AG15

AVSSP_SATA_17

AG17

AVSSP_SATA_18

AG19

AVSSP_SATA_19

AG22

AVSSP_SATA_20

AG23

AVSSP_SATA_21

AF9

AVSSP_SATA_22

AH17

AVSSP_SATA_23

AH23

AVSSP_SATA_24

AH13

AVSSP_SATA_25

AH20

AVSSP_SATA_26

AK9

AVSSP_SATA_27

AJ12

AVSSP_SATA_28

AK17

AVSSP_SATA_29

AK23

AVSSP_SATA_30

AH10

AVSSP_SATA_31

AJ23

AVSSP_SATA_32

ATI-SB450(218S4PASA12KS)-A12

ATI-SB450(218S4PASA12KS)-A12

3

SB400/450 SB

SB400/450 SB

Part 2 of 4

Part 2 of 4

SERIAL ATA

SERIAL ATA

SERIAL ATA POWER

SERIAL ATA POWER

PRIMARY ATA 66/100

PRIMARY ATA 66/100

SIDE_D0/GPIO15
SIDE_D1/GPIO16
SIDE_D2/GPIO17
SIDE_D3/GPIO18
SIDE_D4/GPIO19
SIDE_D5/GPIO20
SIDE_D6/GPIO21
SIDE_D7/GPIO22
SIDE_D8/GPIO23

SIDE_D9/GPIO24
SIDE_D10/GPIO25
SIDE_D11/GPIO26
SIDE_D12/GPIO27
SIDE_D13/GPIO28
SIDE_D14/GPIO29

SECONDARY ATA 66/100

SECONDARY ATA 66/100

SIDE_D15/GPIO30

AVSST_SATA_10

AVSST_SATA_11

AVSST_SATA_12

AVSST_SATA_13

PIDE_IORDY

PIDE_IRQ

PIDE_A0
PIDE_A1
PIDE_A2

PIDE_DACK#

PIDE_DRQ
PIDE_IOR#

PIDE_IOW#

PIDE_CS1#
PIDE_CS3#

PIDE_D0
PIDE_D1
PIDE_D2
PIDE_D3
PIDE_D4
PIDE_D5
PIDE_D6
PIDE_D7
PIDE_D8

PIDE_D9
PIDE_D10
PIDE_D11
PIDE_D12
PIDE_D13
PIDE_D14
PIDE_D15

SIDE_IORDY

SIDE_IRQ

SIDE_A0
SIDE_A1
SIDE_A2

SIDE_DACK#

SIDE_DRQ
SIDE_IOR#

SIDE_IOW#

SIDE_CS1#
SIDE_CS3#

AVSST_SATA_1
AVSST_SATA_2
AVSST_SATA_3
AVSST_SATA_4
AVSST_SATA_5
AVSST_SATA_6
AVSST_SATA_7
AVSST_SATA_8
AVSST_SATA_9

AD30
AE28
AD27
AC27
AD28
AD29
AE27
AE30
AE29
AC28
AC29

AF29
AF27
AG29
AH30
AH28
AK29
AK28
AH27
AG27
AJ28
AJ29
AH29
AG28
AG30
AF30
AF28

V29
T27
T28
U29
T29
V30
U28
W29
W30
R27
R28

V28
W28
Y30
AA30
Y28
AA28
AB28
AB27
AB29
AA27
Y27
AA29
W27
Y29
V27
U27

AG13
AH22
AK12
AH11
AJ17
AH14
AH19
AJ20
AH21
AJ9
AG16
AK15
AK20

2

SDIORDY#_R 25
SIRQII_R 25

SDACK#_R 25
SDREQ_R 25
SDIOR#_R 25
SDIOW#_R 25
SDCS1#_R 25
SDCS3#_R 25

2

PDIORDY#_R 25
SIRQI_R 25

PDA_R0
PDA_R1
PDA_R2

PDACK#_R 20,25
PDREQ_R 25
PDIOR#_R 25
PDIOW#_R 25
PDCS1#_R 25
PDCS3#_R 25

PDD_R0
PDD_R1
PDD_R2
PDD_R3
PDD_R4
PDD_R5
PDD_R6
PDD_R7
PDD_R8
PDD_R9
PDD_R10
PDD_R11
PDD_R12
PDD_R13
PDD_R14
PDD_R15

SDA_R0
SDA_R1
SDA_R2

SDD_R0
SDD_R1
SDD_R2
SDD_R3
SDD_R4
SDD_R5
SDD_R6
SDD_R7
SDD_R8
SDD_R9
SDD_R10
SDD_R11
SDD_R12
SDD_R13
SDD_R14
SDD_R15

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

18.SB400-SATA/IDE

18.SB400-SATA/IDE

18.SB400-SATA/IDE

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

1

PDA_R[2..0] 25

PDD_R[15..0] 25

SDA_R[2..0] 25

SDD_R[15..0] 25

MS-7217

MS-7217

MS-7217

Last Revision Date:

Last Revision Date:

Last Revision Date:
Sheet

Sheet

Sheet

1

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

of

of

of

18 36

18 36

18 36

Rev

Rev

Rev

0B

0B

0B

5

4

3

2

1

Place all the decoupling caps
on this sheet close to SB.

D13 S-1N5817_DO214ACD13 S-1N5817_DO214AC

A C

C413

C413
C1U10Y

C1U10Y

VCCA_1V2

C417

C417
C0.1U25Y

C0.1U25Y

AVDD_CK

C386

C386

C324

C324

C0.1U25Y

C0.1U25Y

C1U10Y

C1U10Y

+3V_Dual

C430

C430

+3.3V

C407

C407
C1U10Y

C1U10Y

C427

C427
C1U10Y

C1U10Y

+3.3V

+5V

R315 1KRR315 1KR

+1.8V_S0

D D

C C

B B

C551

C551
C1U10Y

C1U10Y

+1.8VSB

C553

C553

C0.1U25Y

C0.1U25Y

+1.8V_S0

L24 X_28L900m_100_0805L24 X_28L900m_100_0805

12

CP19CP19

C563

C563
C1U10Y

C1U10Y

C561

C561
C0.1U25Y

C0.1U25Y

C562

C562
C1U10Y

C1U10Y

C358

C358
C1U10Y

C1U10Y

C552

C552
C1U10Y

C1U10Y

AVDD_CK

C353

C353
C1U10Y

C1U10Y

C579

C579
C22U6.3X1206

C22U6.3X1206

C445

C445

X_C1U10Y

X_C1U10Y

C426

C426

X_C1U10Y

X_C1U10Y

C564

C564

C0.1U25Y

C0.1U25Y

C327

C327

X_C0.1U25Y

X_C0.1U25Y

C1U10Y

C1U10Y

+3.3V

+1.8V_S0

+3V_Dual

+1.8VSB

V5_VREF

C328

C328
C1U10Y

C1U10Y

U26C

U26C

A30
D30
E24
E25

U26
U30

V26
Y26

AA5

AA26

AB5

AC30

AD5

AD26

AE1
AE5

AE26

AF6

AF7
AF24
AF25

AK1

AK4
AK26
AK30

M12
M13
M18
M19

N12

N13

N18

N19

V12

V13

V18

V19

W12
W13
W18
W19

E10

E20

E21

E13

E14

E16

E17

C30

AG6

A24

B24

A29

B28

E11

E12

E15

E18

J5
K1
K5

N5

P5
R1
U5

V5

Y1

A3

A7

E6

E7

E1

F5

E9

A4

A8

C1

E5

E8

SB400/450 SB

SB400/450 SB

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VDDQ_10
VDDQ_11
VDDQ_12
VDDQ_13
VDDQ_14
VDDQ_15
VDDQ_16
VDDQ_17
VDDQ_18
VDDQ_19
VDDQ_20
VDDQ_21
VDDQ_22
VDDQ_23
VDDQ_24
VDDQ_25
VDDQ_26
VDDQ_27
VDDQ_28
VDDQ_29
VDDQ_30
VDDQ_31
VDDQ_32
VDDQ_33
VDDQ_34

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDD_10
VDD_11
VDD_12
VDD_13
VDD_14
VDD_15
VDD_16

S5_3.3V_1
S5_3.3V_2
S5_3.3V_3
S5_3.3V_4
S5_3.3V_5
S5_3.3V_6

S5_1.8V_1
S5_1.8V_2
S5_1.8V_3
S5_1.8V_4

USB_PHY_1.8V_1
USB_PHY_1.8V_2
USB_PHY_1.8V_3
USB_PHY_1.8V_4

CPU_PWR
V5_VREF
AVDDCK

AVSSCK
VSS_1

VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11

ATI-SB450(218S4PASA12KS)-A12

ATI-SB450(218S4PASA12KS)-A12

Part 3 of 4

Part 3 of 4

POWER

POWER

VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
VSS_58
VSS_59
VSS_60
VSS_61
VSS_62
VSS_63
VSS_64
VSS_65
VSS_66
VSS_67
VSS_68
VSS_69
VSS_70
VSS_71
VSS_72
VSS_73
VSS_74
VSS_75
VSS_76
VSS_77
VSS_78
VSS_79
VSS_80
VSS_81
VSS_82
VSS_83
VSS_84
VSS_85
VSS_86
VSS_87
VSS_88
VSS_89
VSS_90
VSS_91
VSS_92
VSS_93
VSS_94
VSS_95
VSS_96
VSS_97
VSS_98

E19
E22
E23
E26
E30
F1
F4
G5
H5
J1
J4
K4
L5
M5
P1
R5
R26
T5
T26
T30
W1
W5
W26
Y5
AB26
AB30
AC5
AC26
AD1
AF5
AF8
AF23
AF26
AG8
AJ1
AJ24
AJ30
AK5
AK25
M14
M15
M16
M17
N14
N15
N16
N17
P12
P13
P14
P15
P16
P17
P18
P19
R12
R13
R14
R15
R16
R17
R18
R19
T12
T13
T14
T15
T16
T17
T18
T19
U12
U13
U14
U15
U16
U17
U18
U19
V14
V15
V16
V17
W14
W15
W16
W17

A A

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

19.SB400-PWR & DECOUPLING

19.SB400-PWR & DECOUPLING

19.SB400-PWR & DECOUPLING

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

19 36

19 36

19 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

4

3

2

1

R335

R335
10KR0402

10KR0402

R350

R350
X_10KR0402

X_10KR0402

+3.3V +3.3V +3.3V+3V_Dual +3.3V+3.3V +3.3V+3.3V+3V_Dual+3.3V

R337

R337
10KR0402

10KR0402

R356

R356
X_10KR0402

X_10KR0402

R336

R336
10KR0402

10KR0402

R353

R353
X_10KR0402

X_10KR0402

R325

R325
X_10KR0402

X_10KR0402

R326

R326
10KR0402

10KR0402

R1005

R1005
X_10KR0402

X_10KR0402

R1006

R1006
10KR0402

10KR0402

+3.3V +3.3V

R319

R319

R334

R334

10KR0402

10KR0402

10KR0402

10KR0402

D D

PCI_CLK216

AUTO_ON#16

AC_SDATA_OUT17

RTC_CLK16

SPDIF_OUT17

PCI_CLK316,28
PCI_CLK416,33
PCI_CLK516,22
PCI_CLK616,22
PCI_CLK716
PCI_CLK816

LFRAME#16,22

R343

R343
X_10KR0402

X_10KR0402

R322

R322
X_10KR0402

X_10KR0402

R330

R330
X_10KR0402

X_10KR0402

R344

R344
10KR0402

10KR0402

R332

R332
10KR0402

10KR0402

R347

R347
X_10KR0402

X_10KR0402

R314

R314
X_10KR0402

X_10KR0402

R321

R321
10KR0402

10KR0402

R331

R331
X_10KR0402

X_10KR0402

R333

R333
10KR0402

10KR0402

R338

R338
X_10KR0402

X_10KR0402

R339

R339
10KR0402

10KR0402

ACPWRON

PCI_CLK5 PCI_CLK6

14MHz OSC
MODE

DEFAULT

14MHz XTAL
MODE

R306

R266

R266
X_10KR

X_10KR

R273

R273
X_10KR

X_10KR

R306
X_10KR

X_10KR

R308

R308
X_10KR

X_10KR

CPU I/F = K8

DEFAULT

CPU I/F = P4

R267

R267
X_10KR

X_10KR

R274

R274
10KR

10KR

PCI_CLK8

ROM TYPE
H,H = PCI ROM

H,L = PMC LPC ROM

L,H = NORMAL LPC ROM

DEFAULT

L,L = FWH ROM

+3.3V +3.3V+3.3V+3.3V +3.3V +3.3V+3.3V +3.3V+3.3V+3.3V

R288

R288
X_10KR

X_10KR

R289

R289
10KR

10KR

R300

R300
X_10KR

X_10KR

R297

R297
X_10KR

X_10KR

R272

R272
X_10KR

X_10KR

R255

R255
X_10KR

X_10KR

SPDIF_OUT

SIO 24MHz

SIO 48MHzAUTO

DEFAULT

ACPWRON

PULL
HIGH

C C

B B

Note: Overlap common
pads where possible for
dual-op resistors.

PULL
LOW

PDACK#_R18,25
PCI_AD3116,23,28,33
PCI_AD3016,23,28,33
PCI_AD2916,23,28,33
PCI_AD2816,23,28,33
PCI_AD2716,23,28,33
PCI_AD2616,23,28,33
PCI_AD2516,23,28,33
PCI_AD2416,23,28,33
PCI_AD2316,23,28,33

MANUAL
PWR ON

DEFAULT

PWR
ON

R231

R231
10KR0402

10KR0402

R239

R239
X_1KR0402

X_1KR0402

AC_SDOUT

USE
DEBUG
STRAPS

IGNORE
DEBUG
STRAPS

DEFAULT

R265

R265
X_10KR

X_10KR

R264

R264
X_10KR

X_10KR

RTC_CLK

INTERNAL
RTC

DEFAULT

EXTERNAL
RTC (NOT
SUPPORTED
W/ IT8712 )

PCI_CLK3 PCI_CLK7

S5 usb
wake up
enable

DEFAULT

S5 usb
wake up
disable

R299

R299
X_10KR

X_10KR

R290

R290
X_10KR

X_10KR

R279

R279
X_10KR

X_10KR

R276

R276
X_10KR

X_10KR

PCI_CLK4

48MHz OSC
MODE

DEFAULT

48MHz XTAL
MODE

FOR THERMTRIP

LFRAME#

HI : Enable thermtrip

LO : disable thermtrip

SB PCIE EEPROM STRAPS

+3.3V

For EMI

C376

C376

C0.1U25Y

C0.1U25Y

PCI_REQ#516,23

PCI_GNT#516

R351 X_1KR0402R351 X_1KR0402

U29

5
6

8
4

U29

A0

SDA

A1

SCL

A2

VCC

WP

GND

X__AT24C04N-10SI-2.7

X__AT24C04N-10SI-2.7

1
2
3

7

PDACK#

PULL
HIGH

PULL
LOW

A A

5

USE
SHORT
RESET

USE
LONG
RESET

DEFAULT

PCI_AD31

PLL CHARGE
PUMP CTRL
BIT 1 HI

DEFAULT

PLL CHARGE
PUMP CTRL
BIT 1 LO

PCI_AD30

PLL CHARGE
PUMP CTRL
BIT 0 HI

DEFAULT

PLL CHARGE
PUMP CTRL
BIT 0 LO

4

PLL VCO
CTRL BIT
1 HI

DEFAULT

PLL VCO
CTRL BIT
1 LO

PCI_AD28

PLL VCO
CTRL BIT
0 HI

DEFAULT

PLL VCO
CTRL BIT
0 LO

PCI_AD27 PCI_AD26

BYPASS
PCI PLL

USE PCI
PLL

DEFAULT

BYPASS
ACPI
BCLK

USE
ACPI
BCLK

DEFAULT

PCI_AD25PCI_AD29

BYPASS IDE
PLL

USE IDE
PLL

DEFAULT

3

PCI_AD24

USE
EEPROM
PCIE
STRAPS

USE DEFAULT
PCIE STRAPS

DEFAULT

PCI_AD23

USE USB
PLL

DEFAULT

BYPASS
USB PLL

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

20.SB400-STRAPS

20.SB400-STRAPS

20.SB400-STRAPS

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

20 36

20 36

20 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

3

+3.3V

+12V

PCIE16X1

PCIE16X1

A1

PRSNT1#

A2

+12V#A2

A3

+12V#A3

A4

GND#A4

A5

JTAG2

A6

JATG3

A7

JATG4

A8

JATG5

A9

+3.3V#A9

A10

+3.3V#A10

PCI_E_RST#11,16,32

C C

GFXCLK14
GFXCLK#14

GFX_RX0P10
GFX_RX0N10

GFX_RX1P10
GFX_RX1N10

GFX_RX2P10
GFX_RX2N10

GFX_RX3P10
GFX_RX3N10

GFX_RX4P10
GFX_RX4N10

GFX_RX5P10
GFX_RX5N10

GFX_RX6P10
GFX_RX6N10

GFX_RX7P10

B B

A A

GFX_RX7N10

GFX_RX8P10
GFX_RX8N10

GFX_RX9P10
GFX_RX9N10

GFX_RX10P10
GFX_RX10N10

GFX_RX11P10
GFX_RX11N10

GFX_RX12P10
GFX_RX12N10

GFX_RX13P10
GFX_RX13N10

GFX_RX14P10
GFX_RX14N10

GFX_RX15P10
GFX_RX15N10

A11
A12

A13
A14
A15
A16
A17
A18

A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32

A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82

PERST#
GND#A12

REFCLK+
REFCLK­GND#A15
PERp0
PERn0
GND#A18

RSVD#A19
GND#A20
PERp1
PERn1
GND#A23
GND#A24
PERp2
PERn2
GND#A27
GND#A28
PERp3
PERn3
GND#A31
RSVD#A32

RSVD#A33
GND#A34
PERp4
PERn4
GND#A37
GND#A38
PERp5
PERn5
GND#A41
GND#A42
PERp6
PERn6
GND#A45
GND#A46
PERp7
PERn7
GND#A49

RSVD#A50
GND#A51
PERp8
PERn8
GND#A54
GND#A55
PERp9
PERn9
GND#A58
GND#A59
PERp10
PERn10
GND#A62
GND#A63
PERp11
PERn11
GND#A66
GND#A67
PERp12
PERn12
GND#A70
GND#A71
PERp13
PERn13
GND#A74
GND#A75
PERp14
PERn14
GND#A78
GND#A79
PERp15
PERn15
GND#A82

Mechanical Key

Mechanical Key

PRSNT2#B17

End of the x1 Connector

End of the x1 Connector

PRSNT2#B31

End of the x4 Connector

End of the x4 Connector

PRSNT2#B48

End of the x8 Connector

End of the x8 Connector

PRSNT2#B81

+12V#B1
+12V#B2

RSVD#B3

GND#B4

SMCLK
SMDAT

GND#B7

+3.3V#B8

JTAG1

3.3Vaux
WAKE#

RSVD#B12

GND#B13

PETp0

PETn0

GND#B16
GND#B18

PETp1

PETn1
GND#B21
GND#B22

PETp2

PETn2
GND#B25
GND#B26

PETp3

PETn3
GND#B29

RSVD#B30

GND#B32

PETp4

PETn4
GND#B35
GND#B36

PETp5

PETn5
GND#B39
GND#B40

PETp6

PETn6
GND#B43
GND#B44

PETp7

PETn7
GND#B47

GND#B49

PETp8

PETn8
GND#B52
GND#B53

PETp9

PETn9
GND#B56
GND#B57

PETp10

PETn10
GND#B60
GND#B61

PETp11

PETn11
GND#B64
GND#B65

PETp12

PETn12
GND#B68
GND#B69

PETp13

PETn13
GND#B72
GND#B73

PETp14

PETn14
GND#B76
GND#B77

PETp15

PETn15
GND#B80

RSVD#B82

B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11

B12
B13
B14
B15
B16
B17
B18

B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32

B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82

+12V

SMB_CLK
SMB_DATA

Does Graphic need +3.3Vaux

PCIE_WAKE#_UP#

C236 C0.1U25YC236 C0.1U25Y

C235 C0.1U25YC235 C0.1U25Y

C237 C0.1U25YC237 C0.1U25Y

C238 C0.1U25YC238 C0.1U25Y

C239 C0.1U25YC239 C0.1U25Y

C240 C0.1U25YC240 C0.1U25Y

C241 C0.1U25YC241 C0.1U25Y

C242 C0.1U25YC242 C0.1U25Y

C243 C0.1U25YC243 C0.1U25Y

C244 C0.1U25YC244 C0.1U25Y

C245 C0.1U25YC245 C0.1U25Y

C246 C0.1U25YC246 C0.1U25Y

C247 C0.1U25YC247 C0.1U25Y

C248 C0.1U25YC248 C0.1U25Y

C249 C0.1U25YC249 C0.1U25Y

C250 C0.1U25YC250 C0.1U25Y

C251 C0.1U25YC251 C0.1U25Y

C252 C0.1U25YC252 C0.1U25Y

C253 C0.1U25YC253 C0.1U25Y

C254 C0.1U25YC254 C0.1U25Y

C255 C0.1U25YC255 C0.1U25Y

C256 C0.1U25YC256 C0.1U25Y

C257 C0.1U25YC257 C0.1U25Y

C258 C0.1U25YC258 C0.1U25Y

C259 C0.1U25YC259 C0.1U25Y

C260 C0.1U25YC260 C0.1U25Y

C261 C0.1U25YC261 C0.1U25Y

C262 C0.1U25YC262 C0.1U25Y

C263 C0.1U25YC263 C0.1U25Y

C264 C0.1U25YC264 C0.1U25Y

C265 C0.1U25YC265 C0.1U25Y

C266 C0.1U25YC266 C0.1U25Y

PLACE THESE CAP CLOSE
TO CONNECTOR

+12V+3.3V

+3.3V

+3V_Dual

SMB_CLK 7,8,14,17,22,28,29
SMB_DATA 7,8,14,17,22,28,29

GFX_TX0P 10
GFX_TX0N 10

I2C_CLK 11,32

GFX_TX1P 10
GFX_TX1N 10

GFX_TX2P 10
GFX_TX2N 10

GFX_TX3P 10
GFX_TX3N 10

I2C_DATA 11

GFX_TX4P 10
GFX_TX4N 10

GFX_TX5P 10
GFX_TX5N 10

GFX_TX6P 10
GFX_TX6N 10

GFX_TX7P 10
GFX_TX7N 10

TVCLKIN 11

GFX_TX8P 10
GFX_TX8N 10

GFX_TX9P 10
GFX_TX9N 10

GFX_TX10P 10
GFX_TX10N 10

GFX_TX11P 10
GFX_TX11N 10

GFX_TX12P 10
GFX_TX12N 10

GFX_TX13P 10
GFX_TX13N 10

GFX_TX14P 10
GFX_TX14N 10

GFX_TX15P 10
GFX_TX15N 10

+3V_Dual

PCIE_WAKE#_UP#

2

R399 0RR399 0R

PCI_E_RST#11,16,32

GPPCLK014
GPPCLK0#14

GPP_RX0P10
GPP_RX0N10

SPDIFO26

COMPOUT11

PCIE_WAKE_UP# 17

SPDIFO

COUT11

YOUT11

1

+12V +3.3V+3.3V +12V +3V_Dual

C346

C346
X_C0.1U25Y

X_C0.1U25Y

Not able to support Hot Plug

A1

PRSNT1#

A2

+12V#A2

A3

+12V#A3

A4

GND#A4

A5

JTAG2

A6

JATG3

A7

JATG4

A8

JATG5

A9

+3.3V#A9

A10

+3.3V#A10

A11

PERST#

Mechanical Key

GND#A12
REFCLK+
REFCLK­GND#A15
PERp0
PERn0
GND#A18

C316

C316
X_C0.1U25Y

X_C0.1U25Y

Mechanical Key

A12
A13
A14
A15
A16
A17
A18

PCIE1X1

PCIE1X1

+12V#B1
+12V#B2

RSVD#B3

GND#B4

SMCLK
SMDAT

GND#B7

+3.3V#B8

JTAG1

3.3Vaux
WAKE#

RSVD#B12

GND#B13

PETp0
PETn0

GND#B16

PRSNT2#B17

GND#B18

SLOT-PCI-E_white-1pitch

SLOT-PCI-E_white-1pitch

.CD470U16EL11.5

.CD470U16EL11.5

B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11

B12
B13
B14
B15
B16
B17
B18

EC22

EC22

PCIE_WAKE#_UP#

C345

C345
X_C0.1U25Y

X_C0.1U25Y

SPDIF OUT

R967 100RR967 100R

C745 C0.01U50XC745 C0.01U50X

R968

R968

220R

220R

C746

C746
560p/50V/6

560p/50V/6

close VGA connector

1 2

C

C576

C576

1 2

Y

C574

C574

1 2

C578

C578

C180P50N

C180P50N

C180P50N

C180P50N

C180P50N

C180P50N

COMP

R383

R383

75R1%

75R1%

R384

R384

75R1%

75R1%

R382

R382

75R1%

75R1%

3

3

3

+3.3V

2

D19

D19
1PS226_SOT23

1PS226_SOT23

1

+3.3V

2

D18

D18
1PS226_SOT23

1PS226_SOT23

1

+3.3V

2

D20

D20
1PS226_SOT23

1PS226_SOT23

1

L41 0.082U300mL41 0.082U300m

C575

C575
X_C3.3P50N

X_C3.3P50N

1 2

L40 0.082U300mL40 0.082U300m

C573

C573
X_C3.3P50N

X_C3.3P50N

1 2

L42 0.082U300mL42 0.082U300m

C577

C577
X_C3.3P50N

X_C3.3P50N

1 2

+12V+3.3V

C344

C344
X_C0.1U25Y

X_C0.1U25Y

J3

J3

_CONN-RCA_MINI

_CONN-RCA_MINI

Cable P/N:
K10-1002002-V03

JTV1

JTV1

4

4

5

H2X3(6)_black

H2X3(6)_black

SMB_CLK 7,8,14,17,22,28,29
SMB_DATA 7,8,14,17,22,28,29

GPP_TX0P 10
GPP_TX0N 10

+3V_Dual

C347

C347
X_C0.1U25Y

X_C0.1U25Y

1

2

7

6

6

8

345

345

9

6

4

5

3

1

1
225

3

3

C0.1U25Y

C0.1U25Y

C318

C318

C268

C268

C0.1U25Y

C0.1U25Y

C287

C287
C0.1U25Y

C0.1U25Y

3

C0.1U25Y

C0.1U25Y

C286

C286

C285

C285
C0.1U25Y

C0.1U25Y

C288

C288
C0.1U25Y

C0.1U25Y

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

21.PCIE X 16 & PCI3

21.PCIE X 16 & PCI3

21.PCIE X 16 & PCI3

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

2

http://www.msi.com.tw

1

MS-7217

MS-7217

MS-7217

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

21 36

21 36

21 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

+3.3V

R959

R959

AZALIA

4.7KR

4.7KR

GPIO16

AC97

R843 X_0RR843 X_0R

for Bios function use

IO_KBRST#

R1004 4.7KRR1004 4.7KR

IO_A20GATE#

R1003 4.7KRR1003 4.7KR

+3.3V

MSDAT#
MSCLK#
KBDAT#
KBCLK#

LPC SUPER I/O 47M997

U914

U914

26

PCI_RESET#

29

PCI_CLK

30

SER_IRQ

25

LDRQ#

24

LFRAME#

27

LPC_PD#

20

LAD0

21

LAD1

22

LAD2

23

LAD3

32

GP10

33

GP11

34

GP12

35

GP13

36

GP14

37

GP15

38

GP16

39

GP17

41

GP20/P17

46

GP25

47

GP26

55

FAN_CTL1/GP33

54

FAN_CTL2/GP32

52

FAN_TACH1/GP31

51

FAN_TACH2/GP30

48

LED1/GP60

49

LED2/GP61

45

SYSOPT/GP24

50

IO_SMI#/GP27

17

IO_PME#/GP42

28

DDRC/GP43

6

CLOCK32I

19

CLK_14M

44

VREF

53

VCC3

65

VCC3

93

VCC3

76

VSS

60

VSS

31

VSS

7

VSS

40

AVSS

18

VTR

59

MSCLK

58

MSDATA

57

KBCLK

56

KBDATA

63

KBRST#/GP36

64

A20M/GP37

102

HW_VCC

111

HW_VCC

121

HW_VCC

122

HW_VCC

114

D0+

113

D0-

D1+

123

D1+

D1-

124

D1-

103

SDA

104

SCLK

105

THERM#/A0/RESET#

LPC47M997/QFP128

LPC47M997/QFP128

Note:2n3904 should not be placed more than
8 inches away from dx+ and dx- pins on the
lpc 47M997

Q39

Q39

C924

2200p

2200p

C924

2N3904S

2N3904S

DRVDEN0/GP40
DRVDEN1/GP41

INDEX#

MTR#0

DS#1/GP21/P16

DS#0

MTR#1/GP22/P12

DIR#

STEP#
WDATA#
WGATE#

TRACK0#

WP#

RDATA#

HEAD#

DSKCHG#

PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7

SLCT
BUSY

ACK#

SLCTIN#

INIT#

ERR#

ALF#

STB#

IRRX2/GP34

IRTX2/GP35

RI#1

RXD1

CTS#1

DCD#1

DSR#1

TXD1
RTS#1
DTR#1

RI2#/GP50

RXD2/GP52/IRRX

CTS#2/GP56
DCD#2/GP51
DSR#2/GP54

TXD2/GP53/IRTX

RTS#2/GP55
DTR2#/GP57

HW_VSS
HW_VSS
HW_VSS
HW_VSS
HW_VSS
HW_VSS

VID0
VID1
VID2
VID3

VID4/12V_IN

+5V_IN
+3.3V_IN
+2.5V_IN

VCORE_IN

+1.8V_IN
+1.5V_IN

D1+

D1-

PE

104P

104P

SMB_DATA7,8,14,17,21,28,29

SMBALERT#17

R513 4.7KR513 4.7K

IO_AVCCIO_AVCC

SMB_CLK7,8,14,17,21,28,29

DEV_RST#

SERIRQ

MB_ID1
MB_ID2
MB_ID3

GPIO16

SIO_ADDR

CP58 X_CPCP58 X_CP

1 2

CB140

CB140
104P

104P

CB141 104PCB141 104P

MSCLK#
MSDAT#
KBCLK#
KBDAT#
IO_KBRST#
IO_A20GATE#

C925

C925
2200p

2200p

DEV_RST#28,29,33
PCI_CLK616,20

SERIRQ16

LDRQ#0_SB16

LFRAME#16,20

+3.3V

LAD016
LAD116
LAD216
LAD316

SYS-FANPWM230
CPU-FANPWM130

SYS-FANIO230
CPU-FANIO130

X_CP

X_CP

CP56

CP56

+3.3V

1 2
1 2

CP57

CP57

X_CP

X_CP

SIO_CLK_14M14

CB139

CB139

C926

C926
104P

104P

104P

104P

CP59 X_CPCP59 X_CP

1 2

+3V_Dual

FB22X_120_600mA FB22X_120_600mA

CP55X_CP CP55X_CP

CB137

CB137

CB138

CB138

104P

104P

THERMDA_CPU

THERMDC_CPU

LPC_SMI#17
LPC_PME#17

+3.3V

THERMDA_CPU5

THERMDC_CPU5

+5VSB

RN94

RN94

8P4R-10KR

8P4R-10KR

1 2

3 4

5 6

7 8

DRVDEN0

1
2

INDEX#

13

MOA#

3
42

DSA#

5
43

DIR#

8

STEP#

9

WDATA#

10

WGATE#

11

TRACK0#

14

FDD_WP#MB_ID0

15

RDATA#

16

HEAD#

12

DSKCHG#

4
68

69
70
71
72
73
74
75
77
78
79
80
67
66
81
82
83

BIOS_WP#

61
62

90
84
88
91
86
85
87
89

92
95
99
94
97
96
98
100

101
112
125
126
127
128

106
107
108
109
110

115
116
117
118
119
120

PRD0
PRD1
PRD2
PRD3
PRD4
PRD5
PRD6
PRD7

RSLCT 15
RPE 15
RBUSY 15
RACK# 15
RSLIN# 15
RINIT# 15
RERR# 15
RAFD# 15
RSTB# 15

RIB#

RIB# 15

SINB

SINB 15

CTSB#

CTSB# 15

DCDB#

DCDB# 15

DSRB#

DSRB# 15

SOUTB

SOUTB 15

RTSB#

RTSB# 15

DTRB#

DTRB# 15

+3.3V VCORE

+12V +5V VCC_DDR

PRD[0..7] 15

CTSB#

DSRB#
DCDB#
RIB#

+1.8V_S0

RN93

RN93

7 8
5 6
3 4
1 2

X_8P4R-4.7KR

X_8P4R-4.7KR

+5V

+3.3V

C630

C630

_C1U16Y50805/20%

_C1U16Y50805/20%

default is high

PRES4
PRES3
PRES2
PRES1

LPC INTERFACE DEBUG PORT

For Debug used , place close to FWH

PCI_CLK5 PCI_CK_33M_LPC_HDR

R392

R392
10R

10R

SUPER I/O STRAPPING RESISTOR

CPU-FANPWM1
SYS-FANPWM2

SIO_ADDR

SYSTEM ROM

U913

U913

1

LPC_RST#
PRES3
PRES2
PRES1
PRES0

BIOS_WP#
TBL#

LAD0
LAD1
LAD2

RN91

RN91

8P4R-1KR

8P4R-1KR

DEV_RST#
LAD0
LAD1
LAD2
LAD3
LFRAME#

+5V

12
34
56
78

VPP

2

RST#

3

FGPI3

4

FGPI2

5

FGPI1

6

FGPI0

7

WP#

8

TBL#

9

ID3

10

ID2

11

ID1

12

ID0

13

FWH0

14

FWH1

15

FWH2

16

GND

SST49LF004B-33-4C-NH

SST49LF004B-33-4C-NH

<Priority>

<Priority>

JLPC1

JLPC1

1 2
3 4
5
7 8

9
11 12
13 14

H2X7(10)_black-2pitch

H2X7(10)_black-2pitch

DSKCHG#

R5311KR531

1K

RN105

RN105

RDATA#

12

FDD_WP#

34

TRACK0#

56

INDEX#

78

1K_8P4R

1K_8P4R

+3.3V

R517 4.7KR517 4.7K
R518 4.7KR518 4.7K

R519 X_4.7KR519 X_4.7K
R520 4.7KR520 4.7K

6

IC(VIL)

+5V+3.3V +3.3V

SIO_ADDR
H: 0x04E

VCC
CLK

FGPI4
GNDA

VCCA

GND

VCC

INIT#

FWH4

RFU
RFU
RFU
RFU
RFU

FWH3

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17

R391

R391
10KR

10KR

JLPC_RST#

(DEFAULT)L: 0x02E

+3.3V

_C1U16Y50805/20%C628 _C1U16Y50805/20%C628

C629 C0.1U25YC629 C0.1U25Y

PCI_CLK5 16,20

PRES4

LPC_INIT#
LFRAME#

LAD3

PRES0

BIOS_WP#
TBL#
LPC_INIT#

LPC_RST#

R954 1KRR954 1KR
R955 1KRR955 1KR
R956 1KRR956 1KR
R957 1KRR957 1KR

+3.3V

R396

R396
1KR

1KR

3

D25

D25

S-BAT54A_SOT23

S-BAT54A_SOT23

FLOPPY DISK HEADER

FDD1

DRVDEN0

INDEX#
MOA#

DSA#
DIR#

STEP#
WDATA#
WGATE#
TRACK0#
FDD_WP#
RDATA#
HEAD#
DSKCHG#

Amethyst 0 0 1 0
AmethystM 0 0 1 1

FDD1

CONN-FDD(4)(5)(6)V

CONN-FDD(4)(5)(6)V

N32-2173021-H06

N32-2173021-H06

M/B Revision ID

MB_ID0

R523 X_10KR523 X_10K
R536 10KR536 10K

MB_ID1

R535 10KR535 10K
R532 X_10KR532 X_10K

MB_ID2

R537 X_10KR537 X_10K
R533 10KR533 10K

MB_ID3

R534 X_10KR534 X_10K
R538 10KR538 10K

ID3 ID2 ID1 ID0

+3.3V

2

1

12
34
56
78

910
1112
1314
1516
1718
1920
2122
2324
2526
2728
2930
3132
3334

DEV_RST# 28,29,33

JLPC_RST#

+3.3V
+3.3V
+3.3V
+3.3V

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

W83627THF LPC I/O / FWH

W83627THF LPC I/O / FWH

W83627THF LPC I/O / FWH

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

22 36

22 36

22 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

4

3

2

1

+3.3V

+5V

PCI1

PCI1

B1

-12V

B2

TCK

B3

D D

PCI_INTF#16,33
PCI_INTH#16

PCI_CLK016 PCI_CLK116

PCI_REQ#016 PCI_REQ#116

PCI_CBE#316,28,33

C C

B B

PCI_CBE#216,28,33
PCI_IRDY#16,28,33

PCI_DEVSEL#16,28,33

PCI_LOCK#16
PCI_PERR#16,28,33

PCI_SERR#16,28

PCI_CBE#116,28,33

PCI_AD31
PCI_AD29

PCI_AD27
PCI_AD25

PCI_AD23
PCI_AD21

PCI_AD19

PCI_AD14
PCI_AD12

PCI_AD10

PCI_AD8
PCI_AD7

PCI_AD5
PCI_AD3

PCI_AD1

GND

B4

TDO

B5

+5V

B6

+5V

B7

INTB#

B8

INTD#

B9

PRSNT1#

B10

RSVD2

B11

PRSNT2#

B12

GND

B13

GND

B14

RSVD5

B15

GND

B16

CLK

B17

GND

B18

REQ#

B19

+5V

B20

AD31

B21

AD29

B22

GND

B23

AD27

B24

AD25

B25

+3.3V

B26

C/BE3#

B27

AD23

B28

GND

B29

AD21

B30

AD19

B31

+3.3V

B32

AD17

B33

C/BE2#

B34

GND

B35

IRDY#

B36

+3.3V

B37

DEVSEL#

B38

GND

B39

LOCK#

B40

PERR#

B41

+3.3V

B42

SERR#

B43

+3.3V

B44

C/BE1#

B45

AD14

B46

GND

B47

AD12

B48

AD10

B49

GND

B52

AD8

B53

AD7

B54

+3.3V

B55

AD5

B56

AD3

B57

GND

B58

AD1

B59

+5V

B60

ACK64#

B61

+5V

B62

+5V

TRST#

+12V

TMS

+5V

INTA#

INTC#

+5V

RSVD1

+5V

RSVD3

GND
GND

RSVD4

RST#

+5V

GNT#

GND

RSVD6

AD30

+3.3V

AD28
AD26

GND

AD24

IDSEL#

+3.3V

AD22
AD20

GND
AD18
AD16

+3.3V

FRAME#

GND

TRDY#

GND

STOP#

+3.3V

SDONE

SBO#

GND

PAR

AD15

+3.3V

AD13
AD11

GND

AD9

C/BE0#

+3.3V

AD6
AD4

GND

AD2
AD0

+5V

REQ64#

+5V
+5V

A1
A2
A3
A4

TDI

A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

+3.3V

+3V_Dual

+5V

+12V-12V

PCI_INTE# 16,28
PCI_INTG# 16

PCIRST1# 29
PCI_GNT#0 16

PCI_AD30
PCI_AD28

PCI_AD26
PCI_AD24 PCI_AD24

IDSEL_1
PCI_AD22

PCI_AD20
PCI_AD18

PCI_AD16PCI_AD17

PCI_AD15
PCI_AD13

PCI_AD11
PCI_AD9

PCI_AD6
PCI_AD4

PCI_AD2
PCI_AD0

PCI_PME# 17,28

PCI_FRAME# 16,28,33
PCI_TRDY# 16,28,33
PCI_STOP# 16,28,33

PCI_PAR 16,28,33

PCI_CBE#0 16,28,33

PCI_INTG#
PCI_INTE#

PCI_AD31
PCI_AD29

PCI_AD27
PCI_AD25

PCI_CBE#3
PCI_AD23

PCI_AD21
PCI_AD19

PCI_AD17
PCI_CBE#2

PCI_IRDY#

PCI_DEVSEL#

PCI_LOCK#
PCI_PERR#

PCI_SERR#
PCI_CBE#1

PCI_AD14
PCI_AD12

PCI_AD10

PCI_AD8
PCI_AD7

PCI_AD5
PCI_AD3

PCI_AD1

+3.3V

+5V

-12V

PCI2

PCI2

B1

-12V

B2

TCK

B3

GND

B4

TDO

B5

+5V

B6

+5V

B7

INTB#

B8

INTD#

B9

PRSNT1#

B10

RSVD2

B11

PRSNT2#

B12

GND

B13

GND

B14

RSVD5

B15

GND

B16

CLK

B17

GND

B18

REQ#

B19

+5V

B20

AD31

B21

AD29

B22

GND

B23

AD27

B24

AD25

B25

+3.3V

B26

C/BE3#

B27

AD23

B28

GND

B29

AD21

B30

AD19

B31

+3.3V

B32

AD17

B33

C/BE2#

B34

GND

B35

IRDY#

B36

+3.3V

B37

DEVSEL#

B38

GND

B39

LOCK#

B40

PERR#

B41

+3.3V

B42

SERR#

B43

+3.3V

B44

C/BE1#

B45

AD14

B46

GND

B47

AD12

B48

AD10

B49

GND

B52

AD8

B53

AD7

B54

+3.3V

B55

AD5

B56

AD3

B57

GND

B58

AD1

B59

+5V

B60

ACK64#

B61

+5V

B62

+5V

TRST#

+12V

TMS

+5V

INTA#

INTC#

+5V

RSVD1

+5V

RSVD3

GND
GND

RSVD4

RST#

+5V

GNT#

GND

RSVD6

AD30

+3.3V

AD28
AD26

GND

AD24

IDSEL#

+3.3V

AD22
AD20

GND
AD18
AD16

+3.3V

FRAME#

GND

TRDY#

GND

STOP#

+3.3V

SDONE

SBO#

GND

PAR

AD15

+3.3V

AD13
AD11

GND

AD9

C/BE0#

+3.3V

AD6
AD4

GND

AD2
AD0
+5V

REQ64#

+5V
+5V

A1
A2
A3
A4

TDI

A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

+12V

+3.3V

+5V

+3V_Dual

PCI_INTF#
PCI_INTH#

PCIRST1# 29

PCI_PME#
PCI_AD30

PCI_AD28
PCI_AD26

IDSEL_2
PCI_AD22

PCI_AD20
PCI_AD18

PCI_AD16

PCI_FRAME#

PCI_TRDY#
PCI_STOP#

PCI_PAR
PCI_AD15

PCI_AD13
PCI_AD11

PCI_AD9

PCI_CBE#0
PCI_AD6

PCI_AD4
PCI_AD2

PCI_AD0

PCI_GNT#1 16

PCI_REQ#316,28
PCI_REQ#216

PCI_REQ#016

PCI_REQ#116
PCI_REQ#616

PCI_REQ#416,33
PCI_REQ#516,20

PCI_INTH#16
PCI_INTF#16,33
PCI_INTE#16,28
PCI_INTG#16

PCI_FRAME#16,28,33

PCI_IRDY#16,28,33

PCI_TRDY#16,28,33

PCI_DEVSEL#16,28,33

PCI_STOP#16,28,33
PCI_LOCK#16
PCI_PERR#16,28,33
PCI_SERR#16,28

RN62 8P4R-8.2KRRN62 8P4R-8.2KR

RN59 8P4R-8.2KRRN59 8P4R-8.2KR

RN51 8P4R-8.2KRRN51 8P4R-8.2KR

RN55 8P4R-8.2KRRN55 8P4R-8.2KR

RN56 8P4R-8.2KRRN56 8P4R-8.2KR

78
56
34
12
78
56
34
12
78
56
34
12

78
56
34
12
78
56
34
12

PCI PULL UPS

+3.3V

SLOT-PCI

PCI_AD[31..0]16,20,28,33

IDSEL_1

PCI_CBE#[3..0]16,28,33

A A

5

SLOT-PCI

PCI_CBE#0
PCI_CBE#1
PCI_CBE#2
PCI_CBE#3

IDSEL = AD16
MASTER = PREQ#0
PIRQ#A

X_C0.1U25Y

X_C0.1U25Y

4

C349

C349

C421

C421
X_C0.1U25Y

X_C0.1U25Y

+3.3V

+

+

EC28

EC28

X_.CD1000U6.3EL15

X_.CD1000U6.3EL15

EMI
04/11/12
PCB
Ver:100

+12V

EC32

EC32

X_.CD470U16EL11.5

X_.CD470U16EL11.5

+5V

C404

C404

C350

C350

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

EMI
04/11/12
PCB
Ver:100

+3.3V +5V

C390 X_C0.1U25YC390 X_C0.1U25Y

3

EC33

EC33

X_.CD470U16EL11.5

X_.CD470U16EL11.5

IDSEL_2PCI_AD16

SLOT-PCI

SLOT-PCI

R302 100RR302 100RR278 100RR278 100R

IDSEL = AD17
MASTER = PREQ#1
PIRQ#B

PCI_AD17

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

23.PCI SLOTS 1 & 2

23.PCI SLOTS 1 & 2

23.PCI SLOTS 1 & 2

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

23 36

23 36

23 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

E

D

C

POWER CIRCUIT FOR USB PORT 0,1,2,3 POWER CIRCUIT FOR USB PORT 4,5,6,7

B

A

C123

C123

SVCC1

C98

C98
C1000P50X

C1000P50X

FS4

FS4
F-MINISMDM260

+5VUSB_REAR +5VUSB_FRONT

120 mils 100 mils

4 4

F-MINISMDM260

R92

R92

C0.1U25Y

C0.1U25Y

27KR

USB_OCP#117 USB_OCP#417

27KR

R91

R91

51KR1%

51KR1%

FS5

FS5
F-MINISMDM260

F-MINISMDM260

R359

R359

27KR

27KR

R358

R358
51KR1%

51KR1%

SVCC2

FRONT USB CONNECTORNEAR USB CONNECTOR

C460

C460

C0.1U25Y

C0.1U25Y

REAR PANEL USB CONNECTOR FOR USB PORT 4,5

FRONT PANEL USB CONNECTOR FOR USB PORT 0,1

L34

L34
CMC-L02-9008014-T34

CMC-L02-9008014-T34

USBN417
USBP417

USBN517
USBP517

NEAR USB CONNECTOR

4 3

1 2

L33

L33
CMC-L02-9008014-T34

CMC-L02-9008014-T34

4 3

1 2

SBD4-SBD0­SBD4+

SBD5­SBD5+

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

SVCC2

+

+

.CD1000U10EL15

.CD1000U10EL15

JUSB1

JUSB1

SBD4- SBD5­SBD4+ SBD5+

1 2
3 4
5 6
7 8

10

H2X5(9)(10)_yellow

H2X5(9)(10)_yellow

EC37

EC37

C122

C122

C0.1U25Y

C0.1U25Y

SVCC1

SBD1-

SBD1+

SBD0+

+

+

EC5

EC5
.CD1000U10EL15

.CD1000U10EL15

LAN_USB1A

LAN_USB1A

5
6
7
8

UP

UP

1
2
3
4

DOWN

DOWN

CONN-RJ45_USBX2_LEDX2_black-3

CONN-RJ45_USBX2_LEDX2_black-3

23
24
25
26
27
28
29
30

USBP117

L14

CMC-L02-9008014-T34

CMC-L02-9008014-T34

3 3

USBN117

USBP017

CMC-L02-9008014-T34

CMC-L02-9008014-T34

USBN017

L14

<Priority>

<Priority>

<Priority>

<Priority>

4 3

L15

L15

4 3

NEAR USB CONNECTOR

1 2

1 2

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

2 2

SVCC1

L8

L8
CMC-L02-9008014-T34

CMC-L02-9008014-T34

<Priority>

USBN217

USBP217

USBN317

USBP317

1 1

1 2

L9

L9
CMC-L02-9008014-T34

CMC-L02-9008014-T34

<Priority>

<Priority>

4 3

1 2

NEAR USB CONNECTOR

<Priority>

4 3

SBD2­SBD2+
SBD3­SBD3+

I1394_USB1A

I1394_USB1A

5
6
7
8

UP

UP

1
2
3
4

DOWN

DOWN

_CONN-1394_USBX2

_CONN-1394_USBX2

N58-14M0011-S85

15
16
17
18
19
20
21
22

USBN617
USBP617

USBN717

USBP717

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

REAR PANEL USB CONNECTOR FOR USB PORT 6,7

E

D

C

FRONT PANEL USB CONNECTOR FOR USB PORT 2,3

L36

L36
CMC-L02-9008014-T34

CMC-L02-9008014-T34

4 3

1 2

L35

L35
CMC-L02-9008014-T34

CMC-L02-9008014-T34

4 3

1 2

NEAR USB CONNECTOR

SBD6- SBD7-

SBD6-

SBD6+

SBD6+
SBD7-

SBD7+

JUSB2

JUSB2

1 2
3 4
5 6
7 8

10

H2X5(9)(10)_yellow

H2X5(9)(10)_yellow

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

MICRO-STAR

MICRO-STAR

MSI

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

B

Date: Sheet

MICRO-STAR

24.USB CONNECTORS

24.USB CONNECTORS

24.USB CONNECTORS

MS-7217

MS-7217

MS-7217

SVCC2

C462

C462

C0.1U25Y

C0.1U25Y

SBD7+

0B

0B

0B

of

of

of

24 36Friday, September 02, 2005

24 36Friday, September 02, 2005

24 36Friday, September 02, 2005

A

5

D D

PDD_R[15..0]18

PDA_R[2..0]18

C C

PDD_R[15..0]

PDA_R[2..0]

PDD_R0
PDD_R1
PDD_R2
PDD_R3
PDD_R4
PDD_R5
PDD_R6
PDD_R7
PDD_R8
PDD_R9
PDD_R10
PDD_R11
PDD_R12
PDD_R13
PDD_R14
PDD_R15

PDA_R0
PDA_R1
PDA_R2

HDD_RST#29

PDREQ_R18

PDIOW#_R18
PDIOR#_R18

PDIORDY#_R18

PDACK#_R18,20

SIRQI_R18

PDCS1#_R18
PIDEACT#30

4

MATCH WHOLE IDE LINES (BEFORE AND
AFTER DAMPING RESISTORS) WITHIN

0.5"

3

All series termination should be placed close to IDE connector.

+3.3V

R104

R104
X_4.7KR

X_4.7KR

HDD_RST#

PDD_R7
PDD_R6 PDD_R9
PDD_R5

PDD_R3
PDD_R2
PDD_R1
PDD_R0

PDREQ_R
PDIOW#_R
PDIOR#_R
PDIORDY#_R
PDACK#_R
SIRQI_R

PDA_R1

PDA_R0
PDCS1#_R
PIDEACT#

R119 X_5.6KRR119 X_5.6KR

R189 33RR189 33R

R159 X_10KRR159 X_10KR

R99

R99
X_8.2KR

X_8.2KR

PRI IDE

IDE1

IDE1

1 2
3 4
5 6
7 8

9 10
11 12
13 14
15 16
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40

_CONN-IDE(20)V_blue

_CONN-IDE(20)V_blue

PCSEL

PDCS3#_R

PRIMARY EIDE
CONNECTOR

NOTE: PIN 20 ON CONNECTOR
SHOULD BE TAKEN OUT

PDD_R8
PDD_R10

PDD_R11PDD_R4
PDD_R12
PDD_R13
PDD_R14
PDD_R15

R108 470RR108 470R

PDA_R2

PDCS3#_R 18

C127

C127
X_C0.047U16X

X_C0.047U16X

R94

R94
100KR

100KR

2

PDMA66 17

SATA CONNECTOR

SATA3

SATA3

1

GND

2

HT+

3

HT-

4

GND

5

HR-

6

HR+

7

GND

CONN-SATA1P_orange

CONN-SATA1P_orange

N5N-07M0131-H06

N5N-07M0131-H06

SATA4

SATA4

1

GND

HT+

HT-

GND

HR­HR+
GND

CONN-SATA1P_orange

CONN-SATA1P_orange

N5N-07M0131-H06

N5N-07M0131-H06

SATA1

SATA1

GND

HT+

HT-

GND

HR­HR+
GND

CONN-SATA1P_orange

CONN-SATA1P_orange

N5N-07M0131-H06

N5N-07M0131-H06

SATA2

SATA2

GND

HT+

HT-

GND

HR­HR+
GND

CONN-SATA1P_orange

CONN-SATA1P_orange

N5N-07M0131-H06

N5N-07M0131-H06

2
3
4
5
6
7

1
2
3
4
5
6
7

1
2
3
4
5
6
7

SATA_TX1+_C
SATA_TX1-_C

SATA_RX1-_C
SATA_RX1+_C

SATA_TX0+_C

SATA_TX0-_C
SATA_RX0-_C

SATA_RX0+_C

SATA_TX2+_C
SATA_TX2-_C

SATA_RX2-_C

SATA_RX2+_C

SATA_TX3+_C
SATA_TX3-_C

SATA_RX3-_C

SATA_RX3+_C

1

SATA_TX0+_C 18
SATA_TX0-_C 18

SATA_RX0-_C 18
SATA_RX0+_C 18

SATA_TX1+_C 18
SATA_TX1-_C 18

SATA_RX1-_C 18
SATA_RX1+_C 18

SATA_TX2+_C 18
SATA_TX2-_C 18

SATA_RX2-_C 18
SATA_RX2+_C 18

SATA_TX3+_C 18
SATA_TX3-_C 18

SATA_RX3-_C 18
SATA_RX3+_C 18

+3.3V

R103

R103

X_4.7KR

X_4.7KR

B B

SDD_R[15..0]18

SDA_R[2..0]18

A A

5

SDD_R0
SDD_R1
SDD_R2
SDD_R3
SDD_R4
SDD_R5
SDD_R6
SDD_R7
SDD_R8
SDD_R9
SDD_R10
SDD_R11
SDD_R12
SDD_R13
SDD_R14
SDD_R15

SDA_R0
SDA_R1
SDA_R2

HDD_RST#29

SDREQ_R18

SDIOW#_R18
SDIOR#_R18

SDIORDY#_R18

SDACK#_R18

SIRQII_R18

SDCS1#_R18 SDCS3#_R 18

SIDEATC#30

HDD_RST#

SDD_R7
SDD_R6
SDD_R5
SDD_R4
SDD_R3
SDD_R2
SDD_R1
SDD_R0

SDREQ_R
SDIOW#_R
SDIOR#_R
SDIORDY#_R
SDACK#_R
SIRQII_R
SDA_R1
SDA_R0
SDCS1#_R
SIDEATC#

4

R118 X_5.6KRR118 X_5.6KR

R184 33RR184 33R

R169 X_10KRR169 X_10KR

R95

R95
X_8.2KR

X_8.2KR

SEC IDE

IDE2

IDE2

1 2
3 4
5 6
7 8

9 10
11 12
13 14
15 16
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40

CONN-IDE(20)V_white

CONN-IDE(20)V_white

SECONDARY EIDE
CONNECTOR

NOTE: PIN 20 ON CONNECTOR
SHOULD BE TAKEN OUT

3

SDD_R8
SDD_R9
SDD_R10
SDD_R11
SDD_R12
SDD_R13
SDD_R14
SDD_R15

SCSEL

SDA_R2

SDCS3#_R

R107 470RR107 470R

C141

C141

X_C0.047U16X

X_C0.047U16X

R98

R98
100KR

100KR

SDMA66 17

2

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

25.ATA 66/100 EIDE & SATA

25.ATA 66/100 EIDE & SATA

25.ATA 66/100 EIDE & SATA

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

25 36

25 36

25 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

SURRBACK_L
SURRBACK_R CENTER_OUT

Trace Width 20mils.

R897

R897

X_100KR0402

X_100KR0402

GPIO027

AZ_SDATA_OUT17

AZ_RESET#17,27

GPIO0

R926 0RR926 0R

X_C22P25N

X_C22P25N

C693 C0.1U25YC693 C0.1U25Y

C938

C938

R899 22R0402R899 22R0402

AZ_BITCLK17

SDATA_IN17
AZ_SYNC17

AUDIO CODE CD / AUX IN HEADERS

JCD1

JCD1

CDL

AUDIO-CDIN1X4

AUDIO-CDIN1X4

CD IN

1
2
3
4

CDGND
CDR

R947 47KR0402R947 47KR0402
R948 47KR0402R948 47KR0402
R949 47KR0402R949 47KR0402

X_47KR0402

X_47KR0402

SENSE_A

R950

R950

+3.3V

R951

R951

X_47KR0402

X_47KR0402

ALC880 CODEC

C682 X_C1U10YC682 X_C1U10Y
C684 X_C1U10YC684 X_C1U10Y

for ALC880

R962 X_0RR962 X_0R

SPDIF-IN
SPDIFO

SPDIFO21

C692

C692
C0.1U25Y

C0.1U25Y

1
2

XTALOUT

3
4

5
6
7
8

9
10
11
12

_(ALC880-H)

_(ALC880-H)

LINE2_L

LINE2_R

C711 C1U10YC711 C1U10Y
C712 C1U10YC712 C1U10Y
C713 C1U10YC713 C1U10Y

R952

R952

X_47KR0402

X_47KR0402

DVDD1
XTL_IN
XTL_OUT
DVSS1

SDATA_OUT
BIT_CLK
DVSS2
SDATA_IN
DVDD2
SYNC
RESET#
PC_BEEP

XTALIN

C696 C1U10YC696 C1U10Y

JD0

LFEO LFE_OUT

SURR_BR

CENO

SUR_O_L

40

43

SURR_BR

45

44

LFE-OUT

SURR_BL

CDLX
CDGNDX
CDRX

42

CEN-OUT

41

AVSS2

39

38

JDREF/JD3

SENSEB/FMIC1

SURR-OUTL

SURR-OUT-R

MIC1_REFR/FMIC2

MIC2_REF/AFILT2

L1_REFL/AFILT1

48

46

47

SPDIFI

SPDIFO

SENSEA13LINE2L/AUXL14LINE2R/AUXR15MIC2L/JD216MIC2R/JD117CD-L18CD-GND19CD-R20MIC1L21MIC2R22LIN1L23LIN1R

MIC2_L
MIC2_R

12
12
12

R889 20KR1%0402R889 20KR1%0402

C683 X_C1U10YC683 X_C1U10Y
C685 X_C1U10YC685 X_C1U10Y
C688 X_C1U10YC688 X_C1U10Y
C689 X_C1U10YC689 X_C1U10Y

for ALC880

37

U916

U916

36

FR-OUTR

35

FR-OUTL

AVDD2

L1_REFR

34
33

VREFOUT2

32
31

L2_REF/JD4

30
29

28

MIC1_REFL

27

VREF

26

AVSS1

25

AVDD1

24

LIN1R

C701 10u/10V/8C701 10u/10V/8

LIN1L

C702 10u/10V/8C702 10u/10V/8

MIC1_IN_R

C703 10u/10V/8C703 10u/10V/8

MIC1_IN_L

C704 10u/10V/8C704 10u/10V/8

LT1087S_SOT89

LT1087S_SOT89

SURR_OUTRSUR_O_R

SURR_OUTL

+5VR

CB109

CB109
C0.1U25Y

C0.1U25Y

1 2

FR_OUTR
FR_OUTL

SENSE_B

MIC1_VREFO_R

LINE2_VREFO
MIC2_VREFO

MIC1_VREFO_L

X_C1000P50X

X_C1000P50X

+5VR

C699

C699

C10U10Y0805

C10U10Y0805

1 2

CB110

CB110
C0.1U25Y

C0.1U25Y

MIC1_VREFO_L
MIC1_VREFO_R

AUDIO CODE REGULATORS

Trace Width 30mils.

U917

U917

C723C0.1U25Y C723C0.1U25Y

12

EC39 _CD100U16EL5

EC39 _CD100U16EL5

+

+

+

+

EC40 _CD100U16EL5

EC40 _CD100U16EL5

C697

C697

12

12

12

C698

C698
X_C1000P50X

X_C1000P50X

C700

C700
C0.1U25Y

C0.1U25Y

LINE1_1R
LINE1_1L

MIC1_R
MIC1_L

R900 2.2KR0402R900 2.2KR0402

R903 2.2KR0402R903 2.2KR0402

ADJ

ADJ

Vin

Vout

Vin

Vout

132 4

D28

D28

S-1N5817_DO214AC

S-1N5817_DO214AC

LINE_FOUTR

LINE_FOUTL

12

C695

C695

C1U10Y

C1U10Y

R904

R904

100R1%

100R1%

+12V

300R1%

300R1%

R905

R905

R898 10KR0402R898 10KR0402

+5VR

for ALC880

+5VSB

D37 S-1N5817_DO214ACD37 S-1N5817_DO214AC

+5VR

12

C714

C714

CB111

CB111

C4.7U10Y0805

C4.7U10Y0805

C0.1U25Y

C0.1U25Y

Rear audio jack

LINE1_1R27

LINE1_1L27

LINE_FOUTR27

LINE_FOUTL27

MIC1_R27

MIC1_L27

EMI Solution

SPDIN

SPDIN

1
2
3

BH1X3_black

BH1X3_black

LINE1_1R

LINE1_1L

LINE_FOUTR

LINE_FOUTL

MIC1_R

MIC1_L

DECOUPLING CAPACITOR

SPDIF

C686

C686
C100P50N

C100P50N

C100P50N

C100P50N

C705

C705

C100P50N

C100P50N

C681 C0.01U50XC681 C0.01U50X

R1007

R1007
75R

75R

FOR AZALIA

R927 0RR927 0R

C707

C707

C706

C706

C100P50N

C100P50N

+3.3V

R890

R890
10KR

10KR

R891 10RR891 10R

R893

R893
10KR

10KR

ALC880 JACK

R928 0RR928 0R

C708

C708

C709

C709

C710

C710

C100P50N

C100P50N

C100P50N

C100P50N

C100P50N

C100P50N

ALC880 JACK DETECT

SPDIF-IN

SPK_NEXT_R

SPK_NEXT_L

LINE1_JD

FRONT_JD

MIC1_JD

AUDIO1A

AUDIO1A

10
11
12
13
18

_JACK-EARX3-13P_bgp

_JACK-EARX3-13P_bgp

(Middle)

(Middle)

AUDIO1B

AUDIO1B

6
7
8
9

17

_JACK-EARX3-13P_bgp

_JACK-EARX3-13P_bgp

AUDIO1C

AUDIO1C

1
2
4
5
3

_JACK-EARX3-13P_bgp

_JACK-EARX3-13P_bgp

(Upper)

(Upper)

(Down)

(Down)

14
15
16

LFE_OUT
CENTER_OUT
SURRBACK_R
SURRBACK_L

J1

J1

X_H2X7(13)_black

LFE_OUT SURR_OUTR
CENTER_OUT
SURRBACK_R
SURRBACK_L

X_C100P50NC716 X_C100P50NC716

SURRBACK_JD

C719

C719

X_C100P50NC718 X_C100P50NC718

X_C100P50NC717 X_C100P50NC717

X_C100P50N

X_C100P50N

X_H2X7(13)_black

1 2
3 4
5
7 8
9 10

11 12

for ALC880

X_COPPER

X_COPPER

CP54

CP54

SURR_JD

6

CEN_JD

14

1 2

SURR_OUTL

C720

C720

X_C100P50N

X_C100P50N

C721

C721

X_C100P50N

X_C100P50N

SURR_OUTR
SURR_OUTL

CP53CP53

1 2

CB113

CB113

1 2

C0.1U25Y

C0.1U25Y

FOR ALC655 CLOCK

AC97_CLK14

CP52 X_COPPERCP52 X_COPPER

1 2

CB112

CB112

1 2

C0.1U25Y

C0.1U25Y

CB114

CB114

1 2

C0.1U25Y

C0.1U25Y

+3.3V

R340 X_10KRR340 X_10KR

C461 X_C0.01U50XC461 X_C0.01U50X
R355

R355

X_10KR

X_10KR

XTALIN

SENSE_A

C725

C725

X_C4.7U10Y0805

X_C4.7U10Y0805

R906 X_5.1KR1%R906 X_5.1KR1%
R908 10KR1%0402R908 10KR1%0402
R909 20KR1%0402R909 20KR1%0402

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

Date: Sheet

FRONT_JD
LINE1_JD
MIC1_JD

MSI

MICRO-STAR INt'L CO., LTD.

MICRO-STAR INt'L CO., LTD.

MICRO-STAR INt'L CO., LTD.

26.Azalia CODEC & Interanl SPK

26.Azalia CODEC & Interanl SPK

26.Azalia CODEC & Interanl SPK

MS-7217

MS-7217

MS-7217

0B

0B

26 36Friday, September 02, 2005

26 36Friday, September 02, 2005

26 36Friday, September 02, 2005

0B

of

of

of

ACER request
add ANTI-POP function
in 0B

5

4

3

2

1

LINE1_1R

RN106

D D

C C

MUTE

RN106

7 8
5 6
3 4
1 2

1K/4/8P4R

1K/4/8P4R

Q57

Q57
2N3904S

2N3904S

LINE1_1L

Q59

Q59
2N3904S

2N3904S

MIC1_L

Q62

Q62
2N3904S

2N3904S

MIC1_R

Q64

Q64
2N3904S

2N3904S

3 4

5 6

7 8

LINE1_1L 26

MIC1_L 26

MIC1_R 26

RN107

RN107

1 2

8P4R-33K/06

8P4R-33K/06

LINE1_1R 26

MUTE

RN108

RN108

7 8
5 6
3 4
1 2

1K/4/8P4R

1K/4/8P4R

Q58

Q58

2N3904S

2N3904S

Q60

Q60

2N3904S

2N3904S

1 2

3 4

5 6

7 8

LINE_FOUTR 26

RN109

RN109

8P4R-33K/06

8P4R-33K/06

LINE_FOUTL 26

darlington circuit

B B

Control by software driver and S/B GPIO.
GPIO#0 driver low at:

1).Initial state

2).Suspend to S1/ S3

3).Resume from S1/ S3.

AZ_RESET#17,26

GPIO026

A A

5

R998 1K/4R998 1K/4

R997

R997
10K/4

10K/4

R1008

R1008
1K/4

1K/4

2N3906S

2N3906S

4

+3.3V

R994

R994

10K/4

10K/4

2N3906S

2N3906S
Q68

Q68

R996 10K/4R996 10K/4

C936

C936

C937

C937
10u/10V/8

10u/10V/8

10u/10V/8

10u/10V/8

R995 0/4R995 0/4

Q66

Q66

Q67

C E

2N3906S

2N3906S

Q67

B

B

B

C E

C E

R999

R999

B

220K/4

220K/4

CE

MUTE

Q65

Q65

2N3906S

2N3906S

VCC3_SB

Control circuitControl line

MICRO-STAR INt'L CO., LTD.

MICRO-STAR INt'L CO., LTD.

MSI

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

3

2

Date: Sheet

MICRO-STAR INt'L CO., LTD.

ANTI-POP

ANTI-POP

ANTI-POP

MS-7174H1

MS-7174H1

MS-7174H1

1

of

of

of

27 36Friday, September 02, 2005

27 36Friday, September 02, 2005

27 36Friday, September 02, 2005

0B

0B

0B

5

C166

C166

XTAL1

C27P50N

C27P50N

Y1

Y1
25MHZ18P_D-1

25MHZ18P_D-1

C168

C168

XTAL2

C27P50N

D D

C27P50N

DVDD_A

VDD33

4

3.6KR1%

3.6KR1%

R146

R146

Stuff 10K for 93C56

R145 X_10KRR145 X_10KR

EE_CS
EE_SHCLK
EE_DIN
EE_DOUT

U13

U13

1

CS

2

SK

3

DI

4

DO

AT93C46-10SI-2.7-A

AT93C46-10SI-2.7-A

VCC
ORG

GND

3

VDD33

8
7

NC

6
5

2

VDD33

VDD33

for 8100C /8100S

R178

R178
0R0805

0R0805

VDD33

CP17 X_COPPERCP17 X_COPPER

1 2

R261 X_0R0805R261 X_0R0805

1

+3V_Dual

R868 2.49K for 8110S; 5.6k for 8100C

TR_D0+
TR_D0-

TR_D1+
TR_D1-

Reserved for 8110SB

R167 X_0RR167 X_0R

C C

+5V

PCI_INTE#16,23
DEV_RST#22,29,33

PCI_CLK316,20
PCI_GNT#316
PCI_REQ#316,23
PCI_PME#17,23

IDSEL = AD28

CTRL25

V_12P

R195 1KRR195 1KR
R192 15KRR192 15KR

PCI_AD31
PCI_AD30

PCI_AD29
PCI_AD28

MASTER = PREQ#2
PIRQ#E

B B

PCI_CBE#[0..3]16,23,33
PCI_AD[0..31]16,20,23,33

for 8100C use 0.1uF

C182

C182
C0.01U50X

C0.01U50X

C212

C212
C0.01U50X

C0.01U50X

A A

Place close to LAN-chip.

5

AVDDH

AVDDL

PCI_AD19

R154 49.9R1%R154 49.9R1%
R153 49.9R1%R153 49.9R1%

R161 49.9R1%R161 49.9R1%
R164 49.9R1%R164 49.9R1%

R144

R144

2.49KR1%

2.49KR1%

CTRL18/CTRL12

125

126

127

124

128

U17

U17

VSS

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

RSET

MDI0+/TX+

VDD18/NC

MDI0-/TX­AVDDL/AVDD33
VSS
MDI1+/RX+
MDI1-/RX­AVDDL/AVDD33
CTRL25
VSS/NC
AVDDH/NC
NC
NC/AVDD25
VSS/NC
MDI2+/NC
MDI2-/NC
AVDDL/NC
VSS
MDI3+/NC
MDI3-/NC
AVDDL/AVDD33
VSSPST
GND/NC
ISOLATEB
VDD18/NC
INTAB
VDD33
RSTB
CLK
GNTB
REQB
PMEB
VDD18/VDD25
AD31
AD30
GND
AD29
AD28
VSSPST

PCI_CBE#[0..3]
PCI_AD[0..31]

CTRL18/NC

AD2739AD2640VDD3341AD2542AD2443CBE3B44VDD18/NC45IDSEL46AD2347GND/NC48AD2249AD2150VSSPST51GND52AD2053VDD18/VDD2554AD1955VDD3356AD1857AD1758AD1659CBE2B60FRAMEB61GND/NC62IRDYB63VDD18/NC

PCI_AD27

PCI_AD26

PCI_AD25

PCI_AD24

R208 100RR208 100R

TR_D0+
TR_D0-

TR_D1+
TR_D1-

LAN_LINK_UP

118

120

116

121

122

119

117

123

VSS

VSS

PCI_CBE#3

LED0

XTAL1

XTAL2

GND/NC

VSSPST

AVDDH/NC

RTL8110SB

RTL8110SB

PCI_AD22

PCI_AD21

PCI_AD23

1- MDIO+ & MDIO- pairs should be
100-ohm differential impedance.
Route equal length and
symmetrically. Separate every
pairs.

4

LINK_100_C

115

LED1

VDD18/NC

VDD33

PCI_AD0

LINK_1000

113

112

110

111

114

LED2

EESK

GND/NC

LED3/NC

PCI_AD20

PCI_AD19

PCI_AD18

PCI_AD1

108

109

107

106

103

104

105

AD1

AD0

EEDI

EECS

EEDO

VDD33

VDD18/NC

PCI_AD17

PCI_AD16

PCI_CBE#2

LANWAKEUP

VDD18/VDD25

M66EN/NC

VDD18/VDD25

SMBDATA

SMBCLK

DEVSELB

CLKRUNB

64

AD2

VSSPST

GND

AD3
AD4
AD5
AD6

VDD33

AD7

CBE0B

VSSPST

AD8
AD9

AD10
AD11
AD12

VDD33

AD13
AD14

VSSPST

GND

AD15

CBE1B

PAR

SERRB

GND/NC

VDD33
PERRB
STOPB

TRDYB

VSSPST

DVDD

102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65

PCI_AD2

PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6

PCI_AD7
PCI_CBE#0

PCI_AD8
PCI_AD9

PCI_AD10
PCI_AD11
PCI_AD12

PCI_AD13
PCI_AD14

PCI_AD15
PCI_CBE#1

R194 X_33RR194 X_33R
R198 X_33RR198 X_33R

PCI_IRDY# 16,23,33
PCI_FRAME# 16,23,33

AVDDL

Reserved for EMI.

VDD33

R111

R111
330R

330R

R158

R158

X_0R

X_0R

LINK_1000
LINK_100_C

PCI_PAR 16,23,33
PCI_SERR# 16,23
SMB_DATA 7,8,14,17,21,22,29

SMB_CLK 7,8,14,17,21,22,29

PCI_PERR# 16,23,33

PCI_STOP# 16,23,33

PCI_DEVSEL# 16,23,33

PCI_TRDY# 16,23,33

R112

R112
330R

330R

LAN_LINK_UP

TR_D0+
TR_D0­TR_D1+
TR_D1-

C154

C154

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

3

C145

C145

C146

C146

C0.1U25Y

C0.1U25Y

C157

C157
C0.1U25Y

C0.1U25Y

+3V_Dual

C156 X_C0.1U25YC156 X_C0.1U25Y

LAN_USB1B

LAN_USB1B

AMBER+

AMBER+

19

AMBER-

AMBER-

20
13
18
12
17
11
16
10
15

9

14

GREEN+

GREEN+

21

GREEN-

GREEN-

22

CONN-RJ45_USBX2_LEDX2_black-3

CONN-RJ45_USBX2_LEDX2_black-3

R900RR90
0R

Reserved for 8100C use 0.1uF

EC21

EC21
X_C22U6.3EL

X_C22U6.3EL

NC

NC

TD1+

TD1+
TD1-

TD1­TD2+

TD2+
TD2-

TD2­TD3+

TD3+
TD3-

TD3­TD4+

TD4+
TD4-

TD4-

NC

NC

Q24

CTRL25

EC16

EC16
C22U6.3EL

C22U6.3EL

Q24

B

_P-2SB1197K(R)_SOT23-RH

_P-2SB1197K(R)_SOT23-RH

C E

DVDD_A

+

+

C172

C172

X_C0.1U25Y

X_C0.1U25Y

Place at pin 3,7,16,20

+

+

C189

C189

VDD33

Place at pin 26,41,56,71,84,94,107

C278

C278

X_C0.1U25Y

X_C0.1U25Y

+

+

EC25

EC25
X_C10U16EL

X_C10U16EL
C375

C375
C0.1U25Y

C0.1U25Y
C402

C402
X_C0.01U50X

X_C0.01U50X
C333

C333
X_C0.1U25Y

X_C0.1U25Y

2

C273

C273

C313

C313

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

C299

C299

C179

C179

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

R152

R152
80L3_100_0805

80L3_100_0805

C217

C217

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

C231

C231

C0.1U25Y

C0.1U25Y

DVDD

R177 0RR177 0R

Place at pin 24,32,45,54,64,78,99,110,116

C293

C293

C178

C178

X_C0.1U25Y

X_C0.1U25Y

C0.1U25Y

C0.1U25Y

AVDDL VDD33

R218

R218
80L3_100_0805

80L3_100_0805
C230

C230

X_C0.1U25Y

X_C0.1U25Y

C292

C292

X_C0.1U25Y

X_C0.1U25Y

EC24

EC24

C22U6.3EL

C22U6.3EL

C226

C226

C0.1U25Y

C0.1U25Y

C279

C279

C0.1U25Y

C0.1U25Y

+

+

C188

C188

C0.1U25Y

C0.1U25Y

C218

C218

C0.1U25Y

C0.1U25Y

C295

C295
X_C0.1U25Y

X_C0.1U25Y

C180

C180
C1U16Y

C1U16Y

V_12P

C223

C223
C0.1U25Y

C0.1U25Y

C277

C277

C0.1U25Y

C0.1U25Y

AVDDL AVDDHDVDD DVDDA V-12P

8100C

2.5V 2.5V 3.3V X 2.5V

8110S

1.8V 1.8V 2.5V 3.3V X

8110SB 1.2V 1.2V 2.5V 3.3V 3.3V

Giga-Lan 10/100-Lan

N58-22F0081-S42 N58-22F0061-S42

Link

Yellow
Blinking

Active

Orange
Green

100
10

None

19

20

Yellow

21

22

Green

MSI

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

Date: Sheet

N58-22F0061-F02

Link
Active
100
10

19

20

Yellow

Orange

21

22

Green

MICRO-STAR INt'L CO., LTD.

MICRO-STAR INt'L CO., LTD.

MICRO-STAR INt'L CO., LTD.

27.Realtek RTL8100C/8110SB

27.Realtek RTL8100C/8110SB

27.Realtek RTL8100C/8110SB

MS-7217

MS-7217

MS-7217

C282

C282

X_C0.1U25Y

X_C0.1U25Y

Yellow
Blinking
Green1000
None

1

C294

C294

C0.1U25Y

C0.1U25Y

C275

C275

C283

C283

C0.1U25Y

C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

0B

0B

28 36Friday, September 02, 2005

28 36Friday, September 02, 2005

28 36Friday, September 02, 2005

0B

of

of

of

5

4

3

2

1

+5VSB

R970

R203

+3V_Dual

D D

C C

THE TWO BLOCK CHOICE ONE
SUPPORT SYSTEM POWER
CONTROL

B B

VDIMM LINEAR OR PWM SELECT

A A

V1.0

R203

10KR

10KR

SLP_S3#17

R162 4.7KRR162 4.7KR

3VSB MODE SELECT

3VSB MODE
DUAL MOSFET

SINGLE MOSFET

VDIMM MODE

LINEAR REGULATOR

PWM REGULATOR

To CPU Copper trace width > 250mils , Fill
island behind DIMM > 400mils .

DDR_VTT 1. 25V

+3V_Dual

8
7
6
5

C86

C86
C0.1U16Y

C0.1U16Y

+3V_Dual

1
2

HDD_RST#

C228

C228
X_C22P50N

X_C22P50N

G

3VDLDEC#
PULL LOW
PULL HIGH

U9

U9

VREF2
ENABLE
VCNTL
BOOT_SEL

W83310DS_SOIC8

W83310DS_SOIC8

RSMRST#_1

C274

C274
X_C1U10Y

X_C1U10Y

53

4

U18

U18

_NC7SZ126_SOT23-5

_NC7SZ126_SOT23-5

T70-SZ12609-F01

T70-SZ12609-F01

+5VSB

R140

R140

4.7KR

4.7KR

D

S

EXTRAM
PULL LOW
PULL HIGH

VDDIOSENSE5

VCC_DDR

1

VIN

2

GND

3

VREF1

4

VOUT

9

GND

5

Q21

Q21

N-2N7002_SOT23

N-2N7002_SOT23

ATX_PSON#30

VDDIOSENSE

DDR TERMINATION

R74 100R1%R74 100R1%

12

+

+

PWR_LED30

RSMRST# 17

N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

FP_RST#17,30,31

PCIRST#16
HDD_RST#25
DEV_RST#22,28,33

VRM_PWRGD13

VCORE_EN13

1.25VREF

PCIRST1#23

VDDA_25

CLOSE TO CPU SOCKET CONNECT TO CPU

+5VSB

C195

C195
X_C10U10Y0805

X_C10U10Y0805

R30 X_51RR30 X_51R

.CD1000U6.3EL15

.CD1000U6.3EL15

R75

R75
100R1%

100R1%

12

12

EC4

EC4

EC3

EC3

EC8

EC8

+

+

+

+

.CD1000U6.3EL15

.CD1000U6.3EL15

.CD1000U6.3EL15

.CD1000U6.3EL15

R970

330R

330R

N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

+5VSB

SUS_LED30

Q25

Q25

+3V_Dual

+5V

R182

R182

4.7KR

4.7KR

1.25VREF

+3.3V

EC12

EC12

.CD100U16EL11

.CD100U16EL11

R139

R139

4.7KR

4.7KR

C193

C193
C0.1U25Y

C0.1U25Y

DDR AND DDR II VOLT SELECT

DDR 2.6V

VCC_DDR

N-P45N02LD_TO252

N-P45N02LD_TO252

+

+

EC2

EC2

R379

R379

X_51R

X_51R

C85

C85
C0.1U16Y

C0.1U16Y

.CD1000U6.3EL15

.CD1000U6.3EL15

Q28

Q28

R201

R201
249R1%

249R1%

+3.3V

R180

R180
330R

330R

+5V

C220 C4.7U10Y0805C220 C4.7U10Y0805

C219 C0.1U25YC219 C0.1U25Y

12

+

+

PS_IN#

DDRTYPE
PULL LOW
PULL HIGH

+

+

EC6

EC6

.CD1000U6.3EL15

.CD1000U6.3EL15

VTT_DDR

R200

R200
330R

330R

+5VSB

R187

R187

4.7KR

4.7KR

R176

R176
330R

330R

R174

R174
22R

22R

10
11

C224 C0.1U25YC224 C0.1U25Y

12

+5VSB

R156 4.7KRR156 4.7KR

VDIMM

VDIMM3.3

D

Q17

Q17

S

R141 75R1%R141 75R1%

+

+

EC11

EC11
.CD1000U6.3EL15

.CD1000U6.3EL15

CPU_VTT_SENSE 6

R188

R188
1KR

1KR

R186

R186
X_10KR

X_10KR

1
2
3
4
5
6
7
8
9

2.5V

1.8V

R191

R191

4.7KR

4.7KR

FP_RST#
PCIRST#
HDD_RST#
DEV_RST#
VDD_GD
VDD_EN

1.25VREF
VCC5
SLOT_RST#
VCC3

2.5VDDA
AGND0

G

4

+5VSB

R193

R193
X_1KR

X_1KR

R190

R190
10KR

10KR

47

48

PLED1/EXTRAM

PLED0/3VDLDEC#

PSIN#13PSOUT#14MEMBT15SS165VSB17DDRTYPE18VDIMM_LSEN19VDIMM_LDRV20VDIMM_HSEN21VDIMM_HDRV223VSB_SEN233VSB_DRV

C176 C0.22U16XC176 C0.22U16X

C192

C192
C0.1U25Y

C0.1U25Y

46

CPU_PWGD

R142

R142
75R1%

75R1%

45

44

CHIP_PWGD

42

43

I2C_CLK

I2C_DATA

+3.3V

RSMRST#_1
SLP_S5#
SLP_S3#RSMRST#_1
ATX_PWROK

+5VSB

C272

C272
C0.1U16Y

C0.1U16Y

U16

38

41

39

S3#40S5#

PWR_OK

RSMRST#

U16

37

GND

5VSB

C271 C0.1U25XC271 C0.1U25X

36

C1

35

C2

34

CHRPMP

33

AGND1

32

5VUSB_DRV

31

5V_DRV

30

VAGP_DRV

29

VAGP_SEN

28

WD_DET

27

1.2VLDT_DRV

26

1.2VLDT_SEN

25

TMP_FAULT#

R143

R143
680R

680R

24

_(MS-6-RBF)

_(MS-6-RBF)

VCC2_5

WATCHING DOG TIMER SELECT

WD_DET

PULL HIGH

5V_DRV

R196

R196
1KR

1KR

C276

C276
X_C1000P50X

X_C1000P50X

5VSB_DRV
5V_DRV

VDIMM3.3

G

PWM MODE

THESE OUTPUT AND INPUT PIN MUST
BE PULL HIGH

CPU_PWRGD 31
NB_PWRGD 11,31
SMB_CLK 7,8,14,17,21,22,28
SMB_DATA 7,8,14,17,21,22,28

SLP_S5# 17
SLP_S3# 17
ATX_PWROK 30

9VSB

CHARGE PUMP
VOLTAGE
OUTPUT

C233

C233

C1U16Y0805

C1U16Y0805

R160

R160
10KR

10KR

TIMER

C210

C210
X_C1000P50X

X_C1000P50X

THE VDIMM_HSEN IN LINEAR MODE

OFFPULL LOW
ON

+3V_Dual

Q19

Q19

1234

N-APM2054N_SOT89

N-APM2054N_SOT89

+

+

EC10

EC10

D

X_.CD1000U6.3EL15

X_.CD1000U6.3EL15

Q20

Q20

S

N-P45N02LD_TO252

N-P45N02LD_TO252

+3.3V

3

CPU_THRIP# 5

DDRTYPE

DDR
DDR II

CPU PWR_GD OUTPUT
CHIP PWR_GD OUTPUT
I2C BUS
I2C BUS
CONNECT TO SOUTH BRIDGE RSMRST# SIGNAL
SOUTH BRIDGE POWER CONTROL(SLP_S4# OR SUSB#) SIGNAL
SOUTH BRIDGE POWER CONTROL(SLP_S3# OR SUSC#) SIGNAL
ATX POWER OK INPUT

VDIMM_HSEN
VREF

2.0V

1.7V

C191

C191

EC27

EC27

12

X_C1000P50X

X_C1000P50X

+

+

8
7
6

8
7
6

VLDT_1V2

C185

C185
C1000P50X

C1000P50X

+5VSB

+5VUSB_REAR

+5VSB

+5VUSB_FRONT

Q16

Q16

1
2
3

+5V

4 5

NN-P07D03LV_SO8

NN-P07D03LV_SO8

Q35

Q35

1
2
3

+5V

4 5

NN-P07D03LV_SO8

NN-P07D03LV_SO8

C232 X__C2200P50X/20%C232 X__C2200P50X/20%
C158 X__C2200P50X/20%C158 X__C2200P50X/20%

C222

C222
C1000P50X

C1000P50X

R151 33RR151 33R

C186

C186
C1000P50X

C1000P50X

THE TWO MODE ONLY ONE MODE PRESENT

SINGLE MODE DUAL MODE

THIS MODE SELECT BY PIN
47 PULL HIGH 5VSB

3VSB REGULATE BY 5VSB AND VCC3

EC31

EC31

.CD1000U6.3EL15

.CD1000U6.3EL15

5V_DRV

+3.3V

Q33

Q33

1
2
3
4 5

NN-P07D03LV_SO8

NN-P07D03LV_SO8

+5VSB
8
7
6

12

+

+

EC34

EC34

NEED CLOSE TO MS6

2

3VDUAL

+3V_Dual

12

X_CD470U10EL11.5

X_CD470U10EL11.5

+

+

+

+

EC18

EC18
X_.CD1000U6.3EL15

X_.CD1000U6.3EL15

THIS MODE SELECT BY
PIN 47 PULL LOW

1.25VREF

CD470U10EL11-2

CD470U10EL11-2

1.25VREF

1.25VREF

X_C1000P50X

X_C1000P50X

C336

C336

1.25VREF

C290

C290
X_C1000P50X

X_C1000P50X

5
6

9VSB

3

+

+

1

2

-

-

4 8

U20A

U20A
LM358MX_SOIC8

LM358MX_SOIC8

VCC18_FB1

9VSB

84

3

+

+

1

2

-

-

U23A

U23A
LM358MX_SOIC8

LM358MX_SOIC8

VCC18_FB

9VSB

U20B

U20B
LM358MX_SOIC8

LM358MX_SOIC8

+

+

7

-

-

4 8

R233

R233
332R1%

332R1%

Title

Title

Title

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

VCC2_5

D

C270

C270
C0.1U25Y

VCC18_G1

G

R209 187R1%R209 187R1%
R207

R207
402R1%

402R1%

VCC18_G

R241 154R1%R241 154R1%
R244

R244
357R1%

357R1%

+3.3V

G

R234

R234

332R1%

332R1%

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

28.MS6 ACPI CONTROLLER

28.MS6 ACPI CONTROLLER

28.MS6 ACPI CONTROLLER

Q27

Q27
N-P45N02LD_TO252

N-P45N02LD_TO252

S

CB97

CB97
C1U10Y

C1U10Y

+3V_Dual

DS

G

CB98

CB98
C0.1U25Y

C0.1U25Y

D

Q29

Q29
N-P45N02LD_TO252

N-P45N02LD_TO252

S

CB94

CB94
C0.1U25Y

C0.1U25Y

MS-7217

MS-7217

MS-7217

Last Revision Date:

Last Revision Date:

Last Revision Date:
Sheet

Sheet

Sheet

1

C0.1U25Y

Q32

Q32
_N-NDS351AN_SOT23

_N-NDS351AN_SOT23

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

+1.8V_S0

+

+

EC23

EC23
.CD1000U6.3EL15

.CD1000U6.3EL15

C310

C310
C0.1U25Y

C0.1U25Y

+1.8VSB

+

+

EC26

EC26
_CD100U6.3EL11.5-RH

_CD100U6.3EL11.5-RH

VCC2_5

+

+

EC19

EC19
.CD1000U6.3EL11.5

.CD1000U6.3EL11.5

29 36

29 36

29 36

of

of

of

Rev

Rev

Rev

0B

0B

0B

5

4

3

2

1

Intel Front Panel

ATX CONNECTOR

+3.3V

-12V

CB25

CB25

C0.1U25Y

C0.1U25Y

CB44

CB44

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

C72

C72
C1000P50X

C1000P50X

-5V

CB55

CB55

+3.3V

ATX_PSON#

C131

C131
C0.1U25Y

C0.1U25Y

D D

+5V

C118

C118

C1000P50X

C1000P50X

C C

ATX_PSON#29

FAN CONTROL

CPU-FANPWM122

B B

SYS-FANPWM222

A A

CPU-FANPWM1

5

SYS-FANPWM2

R974 470/6R974 470/6

R985 X_470/6R985 X_470/6

1
2
3

GND

GND

U920

U920
NC7S0409/SOT23-5

NC7S0409/SOT23-5

T70-7SZ0409-T07

T70-7SZ0409-T07

1
2
3

GND

GND

U922

U922
X_NC7S0409/SOT23-5

X_NC7S0409/SOT23-5

T70-7SZ0409-T07

T70-7SZ0409-T07

ATX1

ATX1

13
14
15
16
17
18
19
20
21

+5V

22
23
24

PWR-2X12M

PWR-2X12M

POWER

POWER

3.3V

-12V
GND
PSON
GND
GND
GND

-5V
5V
5V
5V
GND

3.3V

3.3V

GND

GND

GND

POK

5VSB

DET

1
2
3
4

5V

5
6

5V

7
8
9
10

12V

11

12V

12

+3.3V

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

CB26

CB26
C0.1U25Y

C0.1U25Y

CB31

CB31

CB52

CB52

C0.1U25Y

C0.1U25Y

CB48

CB48
C0.1U25Y

C0.1U25Y

CB22

CB22
C0.1U25Y

C0.1U25Y

CB34

CB34

+5VSB
+12V

+3.3V

+5V

+5V

R76

R76

4.7KR

4.7KR

C90

C90
C1000P50X

C1000P50X

ATX_PWROK 29

HDD+

R372 330RR372 330R

+5V

R345 100RR345 100R

FP_RST#17,29,31

CPU FAN

VCC

VCC

+5V

5
4

+12V

R975 10K/6R975 10K/6

C929

C929

R978 33K/6R978 33K/6

U921A

U921A

LM358/SOIC8

LM358/SOIC8

0.1u/25V/6

0.1u/25V/6

R981 47K/6R981 47K/6

C931 0.01u/50V/6C931 0.01u/50V/6

C928

C928

R971

R971

X_0.1u/25V/6

X_0.1u/25V/6

270/6

270/6

3

+

+

2

-

-

4 8

1

C930 4700p/50V/6C930 4700p/50V/6

R979

R979
1K/6

1K/6

EC41

EC41

100u/16V/6*5

100u/16V/6*5

G

S

Q55

Q55

B1204_TO252/8A

B1204_TO252/8A

D

D02-B12040B-S03

D02-B12040B-S03

R980

R980
10K/6/1

10K/6/1

R972

R972

X_0/8

X_0/8

R973

R973

5.6K/6

5.6K/6

D34

D34

X_1N4148S

X_1N4148S

A C

CPU_FAN

CPU_FAN

3
2
1

BH1X3B_white-2

BH1X3B_white-2

CPU FAN1

R976 5.6K/6R976 5.6K/6

R977

R977

3.3K/6

3.3K/6

CPU-FANIO1 22

CPU FAN

+12V

SYS FAN1

R989

R989

3.3K/6

3.3K/6

2

SYS-FANIO2 22

VCC

VCC

+5V

5
4

R987 X_10K/6R987 X_10K/6

C933

C933

R990 X_33K/6R990 X_33K/6

U921B

U921B

LM358/SOIC8

LM358/SOIC8

4

5

X_0.1u/25V/6

X_0.1u/25V/6

6

R993 X_47K/6R993 X_47K/6

C935 X_0.01u/50V/6C935 X_0.01u/50V/6

C932

C932
X_0.1u/25V/6

X_0.1u/25V/6

R983

R983
X_270/6

X_270/6

+

+

-

-

4 8

C934 X_4700p/50V/6C934 X_4700p/50V/6

7

100u/16V/6*5

100u/16V/6*5

R991

R991
X_1K/6

X_1K/6

EC42

EC42

G

S

Q56

Q56

X_B1204_TO252/8A

X_B1204_TO252/8A

D

D02-B12040B-S03

D02-B12040B-S03

R992

R992
X_10K/6/1

X_10K/6/1

R984

R984

0/8

0/8

3

R986

R986

5.6K/6

5.6K/6

D35

D35

X_1N4148S

X_1N4148S

A C

R988 5.6K/6R988 5.6K/6

SYS_FAN

SYS_FAN

3
2
1

BH1X3B_white-2

BH1X3B_white-2

JFP1 H2X5(10)_blackJFP1 H2X5(10)_black

1

HDD+

3

HDD­RESET-5PWSW+

7

RESET+

9

NC

CB102

CB102
C0.1U25Y

C0.1U25Y

PIDEACT#25

SPKR17

2

PLED

4

SLED

6
8

PWSW-

IDE LED

SIDEATC#25

SATAACT#18

R982 2.2KRR982 2.2KR

N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

Q34

Q34

Title

Title

Title

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

R348

R348

2.2KR

2.2KR

PWR_LED
SUS_LEDHDDLED

PWRBTIN

+5V+5V

R349

R349

2.2KR

2.2KR

PWR_LED 29
SUS_LED 29

BUZZER

R327 220R0805R327 220R0805

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

29.ATX CONN & POWER

29.ATX CONN & POWER

29.ATX CONN & POWER

R961

R961

_10KR-1

_10KR-1

D16 S-BAT54A_SOT23D16 S-BAT54A_SOT23

1

2

1

2

MS-7217

MS-7217

MS-7217

+5VSB

C453

C453
C1U16Y0805

C1U16Y0805

HDDLED

3

3

D15

D15
S-BAT54A_SOT23

S-BAT54A_SOT23

D14 BAS32L_LL34D14 BAS32L_LL34
C446

C446
C0.1U25Y

C0.1U25Y

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

1

R960

R960

_1KR-1

_1KR-1

C744 X_C0.1U25YC744 X_C0.1U25Y

PWRBTIN

+5V

1
2

BZ1

BZ1

BUZZER

BUZZER

Rev

Rev

Rev

30 36

30 36

30 36

of

of

of

0B

0B

0B

5

4

3

2

1

+1.2V POWER

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

+5VSB

R197

R197
47KR

47KR

C70

C70

C455

C455

C0.1U25Y

C0.1U25Y

C0.1U16Y0402

C0.1U16Y0402

+3V_Dual

1
2

53

4

U19

U19

_S14_SOT23-5

_S14_SOT23-5

T70-7414F02-T07

T70-7414F02-T07

Q31

Q31

N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

C74

C74

C41

C41

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

C391

C391

C422

C422

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

Title

Title

Title

Document Number

Document Number

Document Number

SB_PWRGD 17

+3V_Dual

R204

R204

4.7KR

4.7KR

SB_PWRGD1

D12

D12

3

S-BAT54A_SOT23

S-BAT54A_SOT23

C565

C565

C213

C213

C152

C152

C0.1U25Y

C0.1U25Y

30. POWER REGULATOR

30. POWER REGULATOR

30. POWER REGULATOR

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

+5V +3.3v

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

MS-7217

MS-7217

MS-7217

+3V_Dual

R185

R185

4.7KR

4.7KR

1

2

C53

C53

C447

C447

C0.1U25Y

C0.1U25Y

C0.1U25Y

C0.1U25Y

C341 C0.1U25YC341 C0.1U25Y
C63 C0.1U25YC63 C0.1U25Y
C433 C0.1U25YC433 C0.1U25Y
C472 C0.1U25YC472 C0.1U25Y

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

31 36

31 36

31 36

1

CPU_PWRGD 29

FP_RST# 17,29,30

C569

C569

C568

C568

C423

C423

X_C0.1U25Y

X_C0.1U25Y

C0.1U25Y

C0.1U25Y

Rev

Rev

Rev

0B

0B

0B

of

of

of

X_C0.1U25Y

X_C0.1U25Y

R202

R202
220KR

220KR

X_C0.1U25Y

X_C0.1U25Y

C585

C585

X_C0.1U25Y

X_C0.1U25Y

+3V_Dual

53

1
2

C0.1U25YC9C0.1U25Y

C582

C582
X_C0.1U25Y

X_C0.1U25Y

4

U25

U25

_S14_SOT23-5

_S14_SOT23-5

T70-7414F02-T07

T70-7414F02-T07

Q26

Q26

N-MMBT3904_NL_SOT23

N-MMBT3904_NL_SOT23

C280

C280
C1U16Y

C1U16Y

EMI DECOUPLING CAP.

+5V

C403

C403

C377

+12V

VCORE

C466

C466

C0.1U25YC5C0.1U25Y

C175

C175

C0.1U25Y

C0.1U25Y

C44

C44

C0.1U25Y

C0.1U25Y

2

C377

C0.1U25Y

C0.1U25Y

C5

C171

C171

C0.1U25Y

C0.1U25Y

C113

C113
C0.1U25Y

C0.1U25Y

C99

C99
C0.1U25Y

C0.1U25Y

C284

C284

C9

C580

C580

C0.1U25Y

C0.1U25Y

C581

C581

X_C0.1U16Y0402

X_C0.1U16Y0402

CHOK5

CHOK5

+

+

CH-3.3U4A

+5V

+5V

BOOT
HDRV
PGND

ISEN

LDRV

VDD

VDDA

C946

C946

C0.1U25X

C0.1U25X

VTT_DDR+1.8V_S0VCCA_1V2+1.8V_S0

VTT_DDR+1.8V_S0

VCC_DDR

VCC_DDR

VCC_DDR

VCC_DDR

+12V

R133

R133
X_0R

X_0R

8
9
10
11
12
13
14

C225

C225

R170

R170

10R0805

10R0805

+5V

C0.1U10X0402

C0.1U10X0402

D11

D11

S-1N5817_DO214AC

S-1N5817_DO214AC

R149 4.7KR1%R149 4.7KR1%

CLOSE TO CHIP

C947

C947

C589

C589

C0.1U25Y

C0.1U25Y

C174

C174

X_C0.1U50Y

R150

R150

D D

5.11KR1%

5.11KR1%

C C

C0.1U25X

C0.1U25X

B B

+1.8V_S0

+1.8V_S0

A A

X_C0.1U50Y

R147

R147
X_33R

X_33R

R155 51KRR155 51KR

C211 X_C0.01U50XC211 X_C0.01U50X

+5V

+3.3V +12V

+5V

C940

C940

C0.1U25X

C0.1U25X

C734

C734

X_C0.1U25Y

X_C0.1U25Y

C737

C737

X_C0.1U25Y

X_C0.1U25Y

C739

C739

X_C0.1U25Y

X_C0.1U25Y

VLDT_1V2

C200

C200

_C2200P50X/20%

_C2200P50X/20%

R168 220RR168 220R

C0.1U25X

C0.1U25X

C939 C0.1U25XC939 C0.1U25X

C941

C941

C942

C942

C0.1U25X

C0.1U25X

VCCA_1V2

VCCA_1V2

5

R138

R138

49.9KR1%

49.9KR1%
U14

U14

7

ISET

6

REFIN

5

FB

4

COMP

3

SS

2

GND

1

C214

C214

POK

MS-6+_SOP14

MS-6+_SOP14

Add for EMI

VCCA_1V2 +12V +3.3V

C945

C945

C944

C944

C943

C943

C0.1U25X

C0.1U25X

+1.8V_S0 VTT_DDR

+1.8V_S0 VTT_DDR

+1.8V_S0

+1.8V_S0

+1.8V_S0

+1.8V_S0

C0.1U25X

C0.1U25X

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

C733

C733

X_C0.1U25Y

X_C0.1U25Y

C0.1U25X

C0.1U25X

C735

C735

C736

C736

C738

C738

C740

C740

C741

C741

C742

C742

C743

C743

MS-6+

MS-6+

C2.2U10X0805

C2.2U10X0805

1 2

C227

C227

X_C1000P50X

X_C1000P50X

1 2

C170 C0.22U16XC170 C0.22U16X

N-P50N03LD_TO252

N-P50N03LD_TO252

C234

C234

C2.2U10X0805

C2.2U10X0805

1 2

CP60CP60

1 2

CP61CP61

1 2

CP62CP62

1 2

CP63CP63

1 2

CP64CP64

+3.3V

C590

C590

C0.1U25Y

C0.1U25Y

4

CH-3.3U4A

EC14 .CD1000U16EL20

EC14 .CD1000U16EL20

+

+

EC15 .CD1000U16EL20

EC15 .CD1000U16EL20

DS

G

Q18

Q15

Q15

G

Q18

N-P50N03LD_TO252

N-P50N03LD_TO252

DS

CHOK4

CHOK4

1 2

CH-4.2U10A

CH-4.2U10A

R101

R101

4.7R

4.7R

C142

C142
C1000P50X

C1000P50X

+

+

EC13

EC13

.CD1800U6.3EL20

.CD1800U6.3EL20

Io X Rds(on) X 1.5 = Isen(72uA)
X Rsen

Id =25A
Rds(on)/10V = 10m ohm ~
12m ohm

Overcurrent (4.7K ohm)=

18.8A

VTT_DDR

C591

C591

C0.1U25Y

C0.1U25Y

C18

C18

C0.1U25Y

C0.1U25Y

C19

C19

C100P50N

C100P50N

C100P50N

C100P50N

+5VSB

C126

C126

C583

C583
X_C0.1U25Y

X_C0.1U25Y

VCC_DDR

C134

C134

X_C0.1U25Y

X_C0.1U25Y

SB_PWRGD1

VCCA_1V2

+

+

EC9

EC9

.CD1800U6.3EL20

.CD1800U6.3EL20

NB_PWRGD11,29

C567

C567

X_C0.1U25Y

X_C0.1U25Y

+5V

VCC_DDR

+5V

+5V

VCORE

VCORE VCC_DDR

+3.3V

C588 C0.1U25YC588 C0.1U25Y

+3.3V

VCC_DDR

C0.1U25Y

C0.1U25Y

C112

C112

X_C0.1U25Y

X_C0.1U25Y

C78

C78

X_C0.1U25Y

X_C0.1U25Y

C571

C571

C572

C572

C0.1U25Y

C0.1U25Y

C82

C82

C0.1U25Y

C0.1U25Y

3

X_C0.1U10X0402

X_C0.1U10X0402

C130

C130

C0.1U25Y

C0.1U25Y

R199 270KRR199 270KR

+3.3V

C584

C584

VCC2_5

C289

C289

X_C0.1U25Y

X_C0.1U25Y

5

Route traces with
100 Ohm Differential
Impedance

D D

MDA3910
MDA4810
MDA4910
MDA5110

MDA5010
MDA5210

MDA5310
MDA5410

C C

B B

RN97 8P4R-33R0402RN97 8P4R-33R0402

RN98 8P4R-33R0402RN98 8P4R-33R0402

MDA3710
MDA3810
IDCKN10
IDCKP10

MDA3310
MDA3410
MDA3510
MDA3610

MDA5510

PCI_E_RST#11,16,21

DDC_DATA11
I2C_CLK11,21

2-Layer FR4 PCB: 15 mil width, 6 mil space
4-Layer FR4 PCB: 10 mil width, 10 mil space
Keep GND at least 30 mil from traces

8P4R-33R0402

8P4R-33R0402

1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

R880 5.1KRR880 5.1KR

DDC_DATA
I2C_CLK

R_D4
R_D5
R_D1
R_D3

R_D2
R_D0
DE_D
HSYNC_D

1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

RN99

RN99

RN100 8P4R-33R0402RN100 8P4R-33R0402

R879 33RR879 33R

+3.3V

IDCKP_R

C0.1U25Y

C0.1U25Y

R_D7
R_D6

IDCKN_R

R_D11
R_D10
R_D9
R_D8
R_D7
R_D6
R_D5
R_D4
R_D3
R_D2
R_D1
R_D0

DE_D
HSYNC_D
VSYNC_D

U915

U915

11

IDCK-

12

IDCK+

5

D11

6

D10

7

D9

8

D8

9

D7

10

D6

13

D5

14

D4

15

D3

16

D2

17

D1

18

D0

19

DE

20

HSYNC

21

VSYNC

24

CTL3/A2

25

ISEL/RST

26

SDA/DKSKEW

27

SCL/CKSKEW

49

EPAD

_SiI 1162CS48

_SiI 1162CS48

TSSOP 48 pins with

<>

<>

ePad

C668

C668

C667

C667

C4.7U16Y1206

C4.7U16Y1206

42

TX2+

33

36

39

35

38

41

TX0-

TX1-

TX2-

TX0+

TX1+

TXC+

EDGE/HTPLG

VCC1

C669

C669
C1U25X0805

C1U25X0805

32

30

TXC-

EXT_SWING

PVCC1
PGND1
PGND2
PVCC2

AGND0
AVCC1
AGND1
AVCC2
AGND2

R870

R870

300R

300R

R871

R871

300R

300R

R872

R872

300R

300R

R873

R873

300R

300R

R875 383R1%R875 383R1%

PD

MSEN
GND0

VCC1

GND1

VCC2

GND2

VREF

4

C659

C659

C0.1U25Y

C0.1U25Y

C660

C660

C0.1U25Y

C0.1U25Y

C661

C661

C0.1U25Y

C0.1U25Y

C662

C662

C0.1U25Y

C0.1U25Y

44
47
48

1
3
4
22
23

28
29
45
46

31
34
37
40
43

2

TX2+

Keep these traces short and traight

TX2­TX1+

Put these 4 resistors and 4
capacitors close to the pins of
1162

TX1­TX0+

TX0­TXC+

TXC-

R877 0RR877 0R

VCC1

CP40

CP40

PVCC1

PVCC2

AVCC1

C665

C665

C664

C664

C4.7U10Y0805

+3.3V

R881

R881

4.75KR1%

4.75KR1%

C0.1U25Y

C0.1U25Y

C4.7U10Y0805

+3.3V

R878

R878

5.1KR

5.1KR

X_30L3_15_0805

X_30L3_15_0805

12

CP41CP41

CP43CP43

12

CP44 X_30L3_15_0805CP44 X_30L3_15_0805

1 2

R882

R882

C666

C666

1.78KR1%

1.78KR1%

C0.1U25Y

C0.1U25Y

1 2

3

I2C_CLK

+3.3V

R874

R874
X_2.2KR

X_2.2KR

1 2

DDC_DATA

DDCCLK
DDCDATA

+3.3V

TX0+

TX0­TX1+

TX1­TX2+

TX2­TXC+

TXC-

R876

R876
X_330R

X_330R

1 2

1 2

1 2

1 2

CP42

CP42
X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

<Priority>

<Priority>

4 3

CP45

CP45
X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

<Priority>

<Priority>

4 3

CP46

CP46
X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

<Priority>

<Priority>

4 3

CP47

CP47
X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

<Priority>

<Priority>

4 3

TX2­TX2+

TX1­TX1+

2

+3VR

Q48

Q48

N-2N7002_SOT23

N-2N7002_SOT23

+3VR

Q49

Q49

N-2N7002_SOT23

N-2N7002_SOT23

R945

R945
R946

R946

1 2

+5V

1 2

_1.5KR-LF

_1.5KR-LF
_1.5KR-LF

_1.5KR-LF

12

CP35CP35

CP36 X_80L700m_150CP36 X_80L700m_150

CHANGE TO 30S IF INSTALL

DDCCLK

12

CP37CP37

DATA3

VCC5
GND5

HPDET

DATA0
DATA0

SHIELD05

DATA5
DATA5

SHIELDCLK

Shell
Shell

DDCDATA

CLK
CLK

CP38 X_80L700m_150CP38 X_80L700m_150

CHANGE TO 30S IF INSTALL

CON1

CON1

1

DATA2

2

DATA2

3

SHIELD24

4

DATA4

5

DATA4

6

DDCCLK

7

DDCDATA

8

NC

9

DATA1

10

DATA1

11

SHIELD13

12

DATA3

_CONN-DVI(AD)_white

_CONN-DVI(AD)_white

1

DDCDATA
DDCCLK

+5V

FS8

FS8
_F-MICROSMD110

_F-MICROSMD110

+5V

CP39CP39

R883

R883

2.2KR

2.2KR

1 2

L43

L43
X_30L3_15_0805

X_30L3_15_0805

1 2

13
14
15
16

TX0-

17

TX0+

18
19
20
21
22

TXC+

23

TXC-

24
25
26

C663

C663
C0.1U25Y

C0.1U25Y

12

+

+

EC38

EC38

C10U16EL

C10U16EL

Dual
Diode
SOT23

VR1

C677

C677

1 2

X_C0.1U25Y

X_C0.1U25Y

VR1
X_LT1087S_SOT89

X_LT1087S_SOT89

VIN3VOUT

ADJ

1

C678

C678
X_C0.1U25Y

X_C0.1U25Y

1 2

+3.3V+3.3V

PVCCPVCC

4

CP48 30L3_15_0805CP48 30L3_15_0805

PVCC2

CP50 X_30L3_15_0805CP50 X_30L3_15_0805

C673

C671

C671

C0.1U25Y

C0.1U25Y

A A

C672

C672

C1U25X0805

C1U25X0805

C673
X_C4.7U10Y0805

X_C4.7U10Y0805

5

C674

C674

C0.1U25Y

C0.1U25Y

C679

C679
C0.1U25Y

C0.1U25Y

C675

C675

C1U25X0805

C1U25X0805

AVCC1

C680

C680
C1U25X0805

C1U25X0805

PVCC1

CP49 30L3_15_0805CP49 30L3_15_0805

CP51 X_30L3_15_0805CP51 X_30L3_15_0805

C676

C676
X_C4.7U10Y0805

X_C4.7U10Y0805

PVCC+5V

2

12

R886

R886
X_187R1%

X_187R1%

12

R887

R887
X_332R1%

X_332R1%

3

2

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

31.DVI CONNECTOR

31.DVI CONNECTOR

31.DVI CONNECTOR

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

32 36

32 36

32 36

Rev

Rev

Rev

0B

0B

0B

of

of

of

5

IEEE-1394

BUS_PWR

C470

C470
C0.1U25Y

C0.1U25Y

D D

+3.3V

C393

C393

X_C0.1U25Y

X_C0.1U25Y

D17

D17

S-MBRS340T3G_CASE403-03

S-MBRS340T3G_CASE403-03

C471

C471
C1000P50X

C1000P50X

C335

C335

C389

C0.1U25Y

C0.1U25Y

C389

C0.1U25Y

C0.1U25Y

P3VD P3VA

+12VBUS_PWR

C388

C388

C0.1U25Y

C0.1U25Y

C320

C320

C311

C311

X_C1U16Y0805

X_C1U16Y0805

C0.1U25Y

C0.1U25Y

NEAR EACH POWER PIN

C378

C378

C343

C0.1U25Y

C0.1U25Y

C343

X_C0.1U25Y

X_C0.1U25Y

FRONT 1394 PORT 1

FS6

FS6

F-SMD1812P150TF/24-RH

F-SMD1812P150TF/24-RH

BUS_PWR 1394_VCC2

TPBIAS1

R242

R242

R246

R246

54.9R1%

54.9R1%

54.9R1%

C C

B B

A A

54.9R1%

R232

R232

4.99KR1%

4.99KR1%
C314

C314

C270P50N

C270P50N

Place close to pin 97
(Less then 500 mils)

TPBIAS2

R254

R254

54.9R1%

54.9R1%

54.9R1%

54.9R1%

R260

R260

4.99KR1%

4.99KR1%

Place close to pin 111
(Less then 500 mils)

+3.3V

CP15CP15

FB7

FB7
X_120L800m_150_0805

X_120L800m_150_0805

CP29CP29

1 2

FB10 X_80L3_100_0805FB10 X_80L3_100_0805

R262

R262

C342

C342

C270P50N

C270P50N

P3VD

R230

R230

54.9R1%

54.9R1%
R240

R240

54.9R1%

54.9R1%

R248

R248

54.9R1%

54.9R1%
R251

R251

54.9R1%

54.9R1%

5

FB9 X_0RFB9 X_0R

C338

C338
C1U16Y

C1U16Y

TPA1+
TPA1­TPB1+
TPB1-

(T/S/S=7/10/10)

C354

C354
C1U16Y

C1U16Y

TPA2+
TPA2-

TPB2+
TPB2-

(T/S/S=7/10/10)

P3VA+3.3V

CP22CP22

FB8

FB8
X_120L800m_150_0805

X_120L800m_150_0805

CP28CP28

1 2

S-MBRS340T3G_CASE403-03

S-MBRS340T3G_CASE403-03

TPB1­TPB1+

TPA1­TPA1+

TPB2­TPB2+

TPA2- PTPA2­TPA2+

+12V

D9

D9

C339

C339
C0.1U25Y

C0.1U25Y

C348

C348

X_C0.1U25Y

X_C0.1U25Y

PTPB2+
1394_VCC2

FS3

FS3
F-SMD1812P150TF/24-RH

F-SMD1812P150TF/24-RH

PTPA1+
PTPA1­PTPB1+
PTPB1-

4

C362

C362
C0.1U25Y

C0.1U25Y

X_C0.1U25Y

X_C0.1U25Y

12

12

12

1 2

C100P50NCB59 C100P50NCB59

4

C315

C315
C0.1U25Y

C0.1U25Y

C371

C371

C340

C340

C0.1U25Y

C0.1U25Y

43

L6

L6

X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

43

L7

L7

X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

J1394_1

J1394_1

1 2
3 4
5 6
7 8

10

H2X5(9)_green

H2X5(9)_green

43

L39

L39

X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

L38

L38
X_CMC-L02-9008014-T34

X_CMC-L02-9008014-T34

4 3

PTPA2-PTPA2+
PTPB2-

1394_VCC2

I1394_USB1B

I1394_USB1B

9

PWR

14

TPA+

13

TPA-

12

TPB+

11

TPB-

10

GND

_CONN-1394_USBX2

_CONN-1394_USBX2

CB103

CB103

C0.1U25Y

C0.1U25Y

PTPB1­PTPB1+

PTPA1­PTPA1+

PTPB2­PTPB2+

PTPA2+

3

+3.3V

102

PCI_AD31
PCI_AD30
PCI_AD29
PCI_AD28
PCI_AD27
PCI_AD26
PCI_AD25
PCI_AD24
PCI_AD23
PCI_AD22
PCI_AD21
PCI_AD20
PCI_AD19
PCI_AD18
PCI_AD17
PCI_AD16
PCI_AD15
PCI_AD14
PCI_AD13
PCI_AD12
PCI_AD11
PCI_AD10
PCI_AD9
PCI_AD8
PCI_AD7
PCI_AD6
PCI_AD5
PCI_AD4
PCI_AD3
PCI_AD2
PCI_AD1
PCI_AD0

PCI_CBE#3
PCI_CBE#2
PCI_CBE#1
PCI_CBE#0

PCI_PAR16,23,28

PCI_FRAME#16,23,28

PCI_IRDY#16,23,28
PCI_TRDY#16,23,28
PCI_STOP#16,23,28

PCI_DEVSEL#16,23,28

PCI_REQ#416,23
PCI_GNT#416

PCI_PERR#16,23,28

PCI_INTF#16,23
PCI_CLK416,20
DEV_RST#22,28,29

PCI_PAR
PCI_FRAME#
PCI_IRDY#
PCI_TRDY#
PCI_STOP#
PCI_AD20
PCI_DEVSEL#
PCI_REQ#4
PCI_GNT#4
PCI_PERR#

PCI_INTF#
PCI_CLK4
DEV_RST#

PCI_AD[31..0]16,20,23,28
PCI_CBE#[3..0]16,23,28

R281

R281
100R

100R

97
98

99
100
101
104
105
106
109
110
112
116
117
118
119
120

5
6

7
10
11
12
13
14
17
18
19
21
22
23
27
28

107
122

4
15

3

123
124
126
128
108
127

96
95

2
91

93
92
37

AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD21
AD20
AD19
AD18
AD17
AD16
AD15
AD14
AD13
AD12
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0

CBE3#
CBE2#
CBE1#
CBE0#

PAR
FRAME#
IRDY#
TRDY#
STOP#
IDSEL
DEVSEL#
REQ#
GNT#
PERR#
INTA#

PCICLK
PCIRST#
PME#

PCI_AD[31..0]

PCI_CBE#[3..0]

94

113

VDD1

VSS1

103

125

VDD2

VSS2

111

8

VDD3

VSS3

121

20

VDD4

VSS4

1

33

VDD5

VSS5

9

VDD6

VSS6

16

2

114

VSS7

26

35

VDDC1

VDDC2

VSS8

VSS9

34

24

RAMVDD

GNDATX0

GNDARX0

GNDATX1

GNDARX1

59

64

82

69

68

PIRQ#C
IDSEL = AD20

P3VD P3VA

39

49

62

PVDD1

PVDD2

VDDATX0

RAMVSS

GNDATX2

GNDARX2

25

83

76

75

65

VDDATX1

VDDARX0

VSSC1

VSSC2

36

115

90

89

XTPBIAS0

VDDATX2

VDDARX2

VDDARX1

XTPBIAS1

XTPBIAS2

D6/CMCJMP

PHYRESET

CTL0/PC0JMP
CTL1/PC1JMP

D7/PC2JMP

LINKON/TSIJMP

LREQ/TSOJMP

LPS/CMC

SCL/EECK

SDA/EEDI

PGND1

PGND2

41

50

U22

U22

XTPA0P

XTPA0M

XTPB0P

XTPB0M

XTPA1P

XTPA1M

XTPB1P

XTPB1M

XTPA2P

XTPA2M

XTPB2P

XTPB2M

XCPS

XREXT

D5
D4
D3
D2
D1

D0
MODE0
MODE1

SCLK

NC

EEDO

EECS

XI

XO

_VT6307-CD

_VT6307-CD

B07-0630704-V01

B07-0630704-V01

74
73
72
71
70

81
80
79
78
77

88
87
86
85
84

63

R229 6.34KR1%R229 6.34KR1%

66

52

C306 C0.1U25YC306 C0.1U25Y

58
54

55
53

57
56
51
48
47

R221 4.7KRR221 4.7KR

46
45

I2C EEPROM ENABLE

44
43
42
40
38
67

32
31
30
29

60

R220

R220

61

1

TPBIAS1
TPA1+
TPA1­TPB1+
TPB1-

TPBIAS2
TPA2+
TPA2­TPB2+
TPB2-

BUS_PWR

R222 11KR1%R222 11KR1%
R227 1KR1%R227 1KR1%

C322 C47P50NC322 C47P50N

EECK
EEDI

C297 C12P50NC297 C12P50N
Y2

Y2

24.576MHZ16P_D

24.576MHZ16P_D

1MR

1MR

C296 C12P50NC296 C12P50N

1 2

P3VD

MASTER = PREQ4

1394-EEPROM 24C02

+3.3V

R263

R263

R268

X_2.7KR

X_2.7KR

EEDI
EECK

3

R268
X_2.7KR

X_2.7KR

R275

R275
510R

510R

U24

U24

3

A2

2

A1

1

A0

7

WP

5

SDA

6

SCL

_AT24C02N-10SI-2.5

_AT24C02N-10SI-2.5

GND

VCC

4

+3.3V

8

MSI

<OrgAddr1>

<OrgAddr1>

<OrgAddr1>
Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

2

Date: Sheet

MICRO-STAR

MICRO-STAR

MICRO-STAR

32.VIA VT-6307

32.VIA VT-6307

32.VIA VT-6307

MS-7217

MS-7217

MS-7217

1

0B

0B

33 36Friday, September 02, 2005

33 36Friday, September 02, 2005

33 36Friday, September 02, 2005

0B

of

of

of

5

2532

1

24

MLF32

8

D D

ISL6559

17

169

SUD70N02 & IRFR8103V

Top View

PCB1

PCB1

_

_

P00-072170B-E48

P00-072170B-E48

PCB size : 243.84mm*243.84mm
PCB color : Green
P00-072170B-E48,
P00-072170B-T39,

C C

BAT

BAT

+

+

N91-01F0011-L06

N91-01F0011-L06

BAT-2P_SO41

BAT-2P_SO41

BIOS1_X1

BIOS1_X1

PLCC-32

PLCC-32

EEPROM SOCKET

DPAK

1

Top View

競華
至卓

4

D

3

3

SOT23

G

1

2N7002

Top View Top View

S

2

4

2

ATX 12-V Plug

U12_1

U12_1

MSI

MSI

DDR

DDR

HEATSINK

HEATSINK

U26_1

U26_1

MSI

MSI

DDR

DDR

HEATSINK

HEATSINK

4

U7_1

3

U7_1

X_4x3cm-sticker

X_4x3cm-sticker

1

For SIO For 1394-chip

Mylar

Mylar

FM3

FM3

X

FM10

FM10

X

X_FM

X_FM

X_FM

X_FM

STK2

STK2

Mylar

Mylar

X_4x3cm-sticker

X_4x3cm-sticker

FM6

FM6

X

X_FM

X_FM

FM1

FM1

X

X_FM

X_FM

MH1

MH1

X_150 Drill / 300 Pad

X_150 Drill / 300 Pad

1
2
3

(NPTH)

(NPTH)

4

9

MH4

MH4

X_150 Drill / 300 Pad

X_150 Drill / 300 Pad

1
2
3

(NPTH)

(NPTH)

4

9

MH8

MH8
X_150 Drill / 300 Pad

X_150 Drill / 300 Pad

1
2
3

(NPTH)

(NPTH)

4

9

FM7

FM7

FM8

FM5

FM5

X

X_FM

X_FM

FM2

FM2

X

X_FM

X_FM

5
6
7
8

5
6
7
8

5
6
7
8

FM8

X

X

X_FM

X_FM

X_FM

X_FM

FM21

FM21

FM4

FM4

X

X

X_FM

X_FM

X_FM

X_FM

+5V

SIM1

FM9

FM9

X

X_FM

X_FM

FM22

FM22

X

X_FM

X_FM

MH2

MH2
X_150 Drill / 300 Pad

X_150 Drill / 300 Pad

1
2
3

(NPTH)

(NPTH)

4

9

MH5

MH5

X_150 Drill / 300 Pad

X_150 Drill / 300 Pad

1
2
3

(NPTH)

(NPTH)

4

9

MH6

MH6

X_150 Drill / 300 Pad

X_150 Drill / 300 Pad

1
2
3

(NPTH)

(NPTH)

4

9

3

Impedance Test

T1

T1

1
2

X_H1X2_black

X_H1X2_black

FM17

FM17

X

X_FM

X_FM

5
6
7
8

5
6
7
8

5
6
7
8

FM18

FM18

2

T2

T2

SIM2

FM20

FM20

FM19

FM19

X

X

X_FM

X_FM

X_FM

X_FM

FM15

FM15

FM14

FM14

X

X

X_FM

X_FM

X_FM

X_FM

MH3

MH3

X_150 Drill / 300 Pad

X_150 Drill / 300 Pad

1
2
3
4

MH7

MH7
X_150 Drill / 300 Pad

X_150 Drill / 300 Pad

1
2
3
4

1
2

X_H1X2_black

X_H1X2_black

Add for EMI
For new model : MS-7217 0A

X

X_FM

X_FM
FM16

FM16

X

X_FM

X_FM

5
6
7

(NPTH)

(NPTH)

8

9

5
6
7

(NPTH)

(NPTH)

8

9

VCORE VCC_DDR

C764 X_C0.1U25YC764 X_C0.1U25Y
C765 X_C0.1U25YC765 X_C0.1U25Y
C766 X_C0.1U25YC766 X_C0.1U25Y

C767 X_C0.1U25YC767 X_C0.1U25Y
C768 X_C0.1U25YC768 X_C0.1U25Y

VCC_DDR

C769 X_C0.1U25YC769 X_C0.1U25Y

+5V

C770 X_C0.1U25YC770 X_C0.1U25Y
C771 X_C0.1U25YC771 X_C0.1U25Y

+5VUSB_REAR

C772 X_C0.1U25YC772 X_C0.1U25Y
C773 X_C0.1U25YC773 X_C0.1U25Y
C774 X_C0.1U25YC774 X_C0.1U25Y
C775 X_C0.1U25YC775 X_C0.1U25Y
C776 X_C0.1U25YC776 X_C0.1U25Y

VTT_DDR

C747 X_C0.1U25YC747 X_C0.1U25Y
C748 X_C0.1U25YC748 X_C0.1U25Y
C749 X_C0.1U25YC749 X_C0.1U25Y
C750 X_C0.1U25YC750 X_C0.1U25Y

+3.3VVCC_DDR

+5V

C751 X_C0.1U25YC751 X_C0.1U25Y
C752 X_C0.1U25YC752 X_C0.1U25Y
C753 X_C0.1U25YC753 X_C0.1U25Y
C754 X_C0.1U25YC754 X_C0.1U25Y
C755 X_C0.1U25YC755 X_C0.1U25Y
C756 X_C0.1U25YC756 X_C0.1U25Y

VCC_DDR

C757 X_C0.1U25YC757 X_C0.1U25Y
C758 X_C0.1U25YC758 X_C0.1U25Y
C759 X_C0.1U25YC759 X_C0.1U25Y
C760 X_C0.1U25YC760 X_C0.1U25Y
C761 X_C0.1U25YC761 X_C0.1U25Y
C762 X_C0.1U25YC762 X_C0.1U25Y
C763 X_C0.1U25YC763 X_C0.1U25Y

1

B B

A A

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

33.Manual Parts

33.Manual Parts

33.Manual Parts

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

34 36

34 36

34 36

of

of

of

Rev

Rev

Rev

0B

0B

0B

5

D D

4

3

2

1

Option Parts

U911

U911
U903 X_5.6KR1%U903 X_5.6KR1%
U904 X_0R0805U904 X_0R0805

U905

C C

B B

U905

X_CONN-RJ45_USBX2_LEDX2_TX-3

X_CONN-RJ45_USBX2_LEDX2_TX-3

N58-22F0061-S42
N58-22F0061-F02

U906 X_C0.1U25YU906 X_C0.1U25Y
U907 X_C0.1U25YU907 X_C0.1U25Y
U908

U908

RTL8100C

RTL8100C

(10/100)

(10/100)

X_RTL8100C

X_RTL8100C

X_C0.01U50XU910 X_C0.01U50XU910

CONN-USBX2-8P_black

CONN-USBX2-8P_black

U921

U921

CODEC

CODEC

ALC655

ALC655

X_ALC655

X_ALC655

U922

U922

X_JACK-EARX3-13P

X_JACK-EARX3-13P

For 10/100 Lan option

FOR AUDIO

A A

Title

Title

Title

Document Number

Document Number

Document Number

5

4

3

2

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

34.Option Parts

34.Option Parts

34.Option Parts

MS-7217

MS-7217

MS-7217

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

http://www.msi.com.tw

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

35 36

35 36

35 36

1

Rev

Rev

Rev

0B

0B

0B

of

of

of

Schematic Change History

1.Change super I/O to SMSC 47M997 (page:22)

2.Add anti-pop function (page:27)

3.Add a 1x3 header for version detect (page:17)

4.connect +/- 12V to U3 (com2 buffer , page:15)

5.Change ddr slot color (page:07 & 08)

6.Codec chip change to version:H (page:26)

7.Change DVI connector to DVI-I (page:32)

D D

Layout Change History

A.ATi part
(i) SB

1.SATA_TX/RX should reference to GND

(ii) NB

1.The length of line segment of HT_CLKOUT_H/L0 & HT_CLKOUT_H/L1 increases 570mil

2.VDD_CORE should be isolated from VDD_HT and VDDA_12 to avoid noise coupling from them

3.Routed 15 mils wide from NB to 75R resistor (R,G,B signal)

B.AMD part

1.Space between CPU_FBCLK_L and CPU_STRAP_LO_B13 should be 20mil

2. Add test points for AMD validation

C C

5

4

3

2

1

B B

A A

Micro Star Restricted Secret

Micro Star Restricted Secret

Micro Star Restricted Secret

Title

Title

Title

35.Change List History

35.Change List History

35.Change List History

Document Number

Document Number

Document Number

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

Taipei Hsien, Taiwan

Taipei Hsien, Taiwan
http://www.msi.com.tw

http://www.msi.com.tw

5

4

3

2

http://www.msi.com.tw

MS-7217

MS-7217

MS-7217

1

Last Revision Date:

Last Revision Date:

Last Revision Date:

Friday, September 02, 2005

Friday, September 02, 2005

Friday, September 02, 2005

Sheet

Sheet

Sheet

36 36

36 36

36 36

of

of

of

Rev

Rev

Rev

0B

0B

0B
