Getting Started

Chapter 1

Getting Started

Congratulations for purchasing the Wind Nettop Series
(MS-6496). It is your best slim PC choice. With the fan­tastic appearance and ultra-small form factor, it can
easily be set anywhere. The feature packed platform
also gives you an exciting PC experience.

1-1

Wind Nettop Series

Front Panel

Standard Type

MS-6496A

MS-6496E

1-2

Slim Type

MS-6496B

Getting Started

MS-6496C

1-3

Wind Nettop Series

1. Optical Disk Drive (ODD) (Standard Type and Slim Type)

2. ODD LED

The ODD LED is on when CD/ DVD is read from or written to the optical disk drive.

3. Eject Button

Press the eject button to open and close the optical disk drive.

4. Power Button/ LED

Press the power button to turn the system on and off.

5. HDD LED

The HDD LED is on when data is read from or written to the hard disk drive.

6. Headphone (Green)

This is a connector for headphones or speakers.

7. Microphone (Pink)

This is a connector for microphones.

8. USB Port

The USB (Universal Serial Bus) port is for attaching USB devices such as mouse,
keyboard, printer, scanner, camera, PDA and other USB-compatible devices.

9. Card Reader Drive (Optional)

This card reader drive supports SD(HC), MMC, MS and XD. You can easily read
photos or other files on the memory card. Your digital cameras, DVs, MP3 players,
PDAs or other digital devices are highly compatible.

1-4

Getting Started

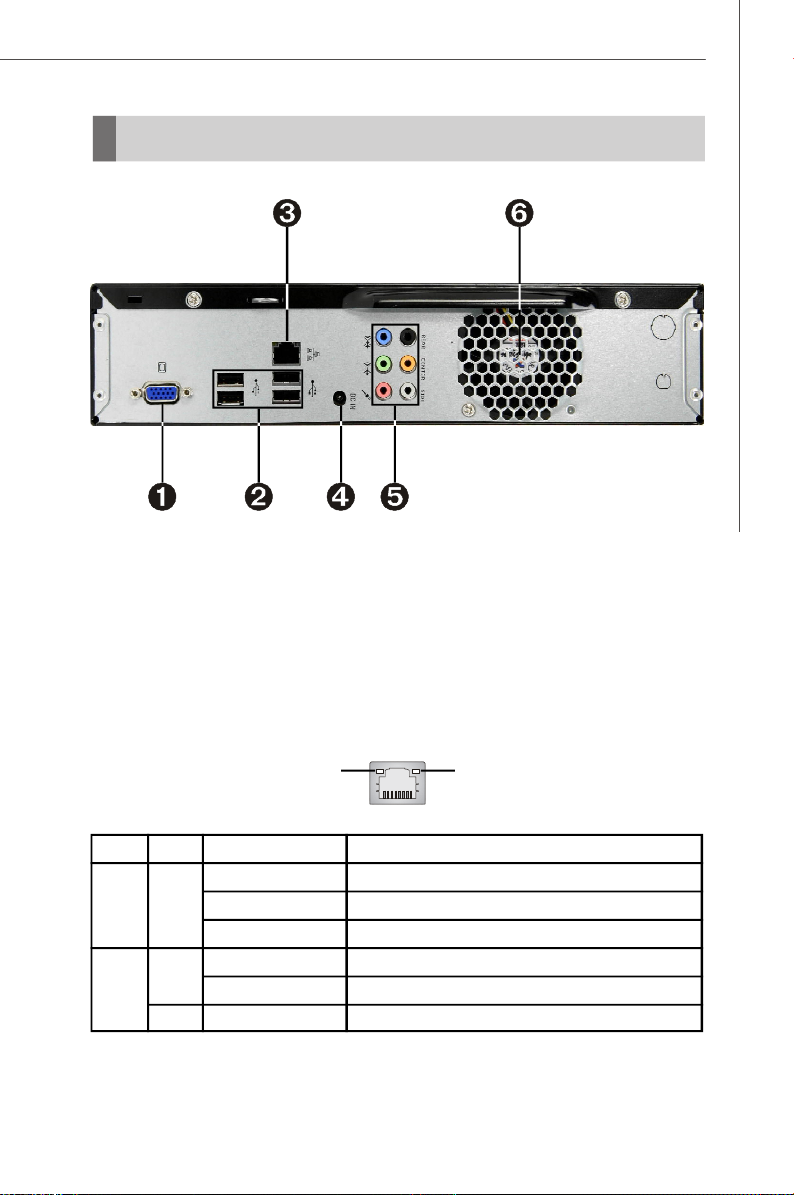

Back Panel

1. VGA Port (Output)

The DB15-pin female port is provided for monitor.

2. USB Port

The USB (Universal Serial Bus) port is provided for attaching USB devices such as
mouse, keyboard, printer, scanner, camera, PDA or other USB-compatible devices.

3. LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local Area Network
(LAN). You can connect a network cable to it.

Link IndicatorActivity Indicator

LED

Color LED State Condition

Off LAN link is not established.

Left

Right

On (steady state) LAN link is established.

Yellow

On (brighter & pulsing) The computer is communicating with another computer on the LAN.
Off 10 Mbit/ sec data rate is selected.

Green

On 100 Mbit/ sec data rate is selected.
On 1000 Mbit/ sec data rate is selected.

Orange

1-5

Wind Nettop Series

4. DC-In Jack

DC-IN, is used for power adapter.

5. Audio Jack

Line-In (Blue) - Line-In, is used for external CD player, tapeplayer or other audio

devices.

Line-Out (Green) - Line-Out, is used for speakers or headphones.
Mic (Pink) - Mic, is used for microphones.
RS-Out (Black) - Rear-Surround Out in 4/ 5.1/ 7.1 channel mode.
CS-Out (Orange) - Center/ Subwoofer Out in 5.1/ 7.1 channel mode.
SS-Out (Gray) - Side-Surround Out in 7.1 channel mode.

6. Ventilation Holes (for system fan)

* We suggest that you should connect the power adapter to the equipment first and

then to the socket-outlet for safety reason.

* It is normal that the spark occurs when you put the power adapter into the socket-

outlet.

1-6

Packing Contents

Getting Started

Wind Nettop Series

MSI Driver/ Utility CD User’s Guide

Stand Power Adapter

* Please contact us immediately if any of the items is damaged or missing.
* The pictures are for reference only and your packing contents may vary depending

on the model you purchased.

1-7

Realtek ALC888 Audio

Chapter 2

Realtek ALC888 Audio

The Realtek ALC888 provides 10-channel DAC that
simultaneously supports 7.1 sound playback and 2
channels of independent stereo sound output (multiple
streaming) through the Front-Out-Left and Front-Out­Right channels.

2-1

Wind Nettop Series

Installing the Realtek HD Audio Driver

You need to install the driver for Realtek ALC888 codec to function properly before
you can get access to 2-, 4-, 6-, 8- channel or 7.1+2 channel audio operations.
Follow the procedures described below to install the drivers for different operating
systems.

Installation for Windows 2000/XP/Vista

For Windows® 2000, you must install Windows® 2000 Service Pack4 or later before
installing the driver. For Windows® XP, you must install Windows® XP Service Pack1
or later before installing the driver.
The following illustrations are based on Windows® XP environment and could look
slightly different if you install the drivers in different operating systems.

1. Insert the application CD into the CD-ROM drive. The setup screen will auto-

matically appear.

2. Click Realtek HD Audio Driver.

Important

The HD Audio Configuration software utility is under continuous update
to enhance audio applications. Hence, the program screens shown here in

this section may be slightly different from the latest software utility and shall
be held for reference only.

2-2

Click here

Realtek ALC888 Audio

3. Click Next to install the Realtek High Definition Audio Driver.

Click here

4. Click Finish to restart the system.

Click here

Select this
option

2-3

Wind Nettop Series

Software Configuration

After installing the audio driver, you are able to use the 2-, 4-, 6- or 8- channel audio
feature now. Click the audio icon from the system tray at the lower-right corner of
the screen to activate the HD Audio Configuration. It is also available to enable the

audio driver by clicking the Realtek HD Audio Manager from the Control Panel.

Double click

2-4

Realtek ALC888 Audio

Sound Effect

Here you can select a sound effect you like from the Environment list.

Environment Simulation

You will be able to enjoy different sound experience by pulling down the arrow,
totally 23 kinds of sound effect will be shown for selection. Realtek HD Audio Sound
Manager also provides five popular settings “Stone Corridor” , “Bathroom”, “Sewer
pipe”, “Arena” and “Audio Corridor” for quick enjoyment.

You may choose the provided sound effects, and the equalizer will adjust automatically.
If you like, you may also load an equalizer setting or make an new equalizer setting to
save as an new one by using the “ Load EQ Setting” and “Save Preset” button,
click “Reset EQ Setting” button to use the default value, or click “Delete EQ Set-
ting” button to remove a preset EQ setting.

There are also other pre-set equalizer models for you to choose by clicking “Others”
under the Equalizer part.

2-5

Wind Nettop Series

Equalizer Selection

Equalizer frees users from default settings; users may create their owned preferred
settings by utilizing this tool.

10 bands of equalizer, ranging from 100Hz to 16KHz.

Save

The settings are saved
permanently for future
use

Enable / Disable

To disable, you can tem­porarily stop the sound
effect without losing the
settings

Delete

To delete the pre-saved settings which are created from previous steps.

Reset

10 bands of equalizer
would go back to the de­fault setting

Load

Whenever you would like to
use preload settings, simply
click this, the whole list will
be shown for your selection.

2-6

Realtek ALC888 Audio

Frequently Used Equalizer Setting

Realtek recognizes the needs that you might have. By leveraging our long experience
at audio field, Realtek HD Audio Sound Manager provides you certain optimized equal­izer settings that are frequently used for your quick enjoyment.

[How to Use It]
Other than the buttons “Pop” “Live” “Club” & “Rock” shown on the page, to pull down
the arrow in “Others”, you will find more optimized settings available to you.

Karaoke Mode

Karaoke mode brings Karaoke fun back home. Simply using the music you usually
play, Karaoke mode can help you eliminate the vocal of the song or adjust the key to
accommodate your range.

1.Vocal Cancellation: Single click on “ Voice Cancellation” , the vocal of the song would
be eliminated, while the background music is still in place, and you can be that
singer!

2.Key Adjustment: Using “Up / Down Arrow” to find a key which better fits your vocal
range.

Raise the key

Remove the
human voice

Lower the key

2-7

Wind Nettop Series

Mixer

In the Mixer part, you may adjust the volumes of the rear and front panels individually.

1. Adjust Volume

You can adjust the volume of the speakers that you pluged in front or rear panel by
select the Realtek HD Audio rear output or Realtek HD Audio front output
items.

Important

Before set up, please make sure the playback devices are well plugged in the
jacks on the rear or front panel. The Realtek HD Audio front output item
will appear after you pluging the speakers into the jacks on the front panel.

2. Multi-Stream Function

ALC888 supports an outstanding feature called Multi-Stream, which means you may
play different audio sources simultaneously and let them output respectively from the
indicated real panel or front panel. This feature is very helpful when 2 people are
using the same computer together for different purposes.

Click the button and the Mixer ToolBox menu will appear. Then check the Enable

playback multi-streaming and click OK to save the setup.

Important

You have to plug audio device into the jacks on the rear and front panel first
before enable the multi-stream function.

2-8

Realtek ALC888 Audio

When you are playing the first audio source (for example: use Windows Media
Player to play DVD/VCD), the output will be played from the rear panel, which is the
default setting.

Then you must to select the Realtek HD Audio front output from the scroll list
first, and use a different program to play the second audio source (for example: use
Winamp to play MP3 files). You will find that the second audio source (MP3 music) will
come out from the Line-Out audio jack of Front Panel.

2-9

Wind Nettop Series

3. Playback control

Playback device

Tool Mute

This function is to let you freely decide which ports to
output the sound. And this is essential when multi­streaming playback enabled.

- Realtek HD Audio Rear Output

- Realtek HD Audio Front Output

Mute

You may choose to mute single or multiple volume controls or to completely mute
sound output.

Tool

- Show the following volume controls

This is to let you freely decide which volume control items to be displayed.

- Advanced controls

- Enable playback multi-streaming
With this function, you will be able to have an audio chat with your friends via
headphone (stream 1 from front panel) while still have music (stream 2 from back
panel) in play. At any given period, you can have maximum 2 streams operating
simultaneously.

2-10

4. Recording control

Realtek ALC888 Audio

Tool Mute

Recording device

-Back Line in/Mic, Front Lin in

-Realtek HD Audio Input

Mute

You may choose to mute single or multiple volume controls or to completely mute
sound input.

Tool

- Show the following volume controls

This is to let you freely decide which volume control items to be displayed.

- Enable recording multi-streaming

Important

ALC888 allows you to record the CD, Line, Mic and Stereo Mix channels
simultaneously, frees you from mixing efforts. At any given period, you may
choose 1 of the following 4 channels to record.

2-11

Wind Nettop Series

Audio I/O

In this tab, you can easily configure your multi-channel audio function and speakers.
You can choose a desired multi-channel operation here.

a. Headphone for the common headphone
b. 2CH Speaker for Stereo-Speaker Output
c. 4CH Speaker for 4-Speaker Output
d. 6CH Speaker for 5.1-Speaker Output
e. 8CH Speaker for 7.1-Speaker Output

Speaker Configuration:

1. Plug the speakers in the corresponding jack.

2. Dialogue “ connected device” will pop up for your selection. Please select the
device you have plugged in.

- If the device is being plugged into the correct jack, you will be able to find the icon
beside the jack changed to the one that is same as your device.

- If not correct, Realtek HD Audio Manager will guide you to plug the device into the
correct jack.

2-12

Realtek ALC888 Audio

Connector Settings

Click to access connector settings.

Disable front panel jack detection (option)

Find no function on front panel jacks? Please check if front jacks on your system are
so-called AC’97 jacks. If so, please check this item to disable front panel jack detection.

Mute rear panel output when front headphone plugged in.

Enable auto popup dialogue, when device has been plugged in

Once this item checked, the dialog “Connected device” would automatically pop up
when device plugged in.

2-13

Wind Nettop Series

Test Speakers

You can select the speaker by clicking it to test its functionality. The one you select
will light up and make testing sound. If any speaker fails to make sound, then check
whether the cable is inserted firmly to the connector or replace the bad speakers

with good ones. Or you may click the auto test button to test the sounds of
each speaker automatically.

Center

Front Left

Side Left

Rear Left

Front Right

Side Right

Subwoofer

Rear Right

2-14

Realtek ALC888 Audio

Microphone

In this tab you may set the function of the microphone. Select the Noise Suppres­sion to remove the possible noise during recording, or select Acoustic Echo Can­cellation to cancel the acoustic echo druing recording.

Acoustic Echo Cancellation prevents playback sound from being recorded by

microphone together with your sound. For example, you might have chance to use
VOIP function through Internet with your friends. The voice of your friend will come
out from speakers (playback). However, the voice of your friend might also be
recorded into your microphone then go back to your friend through Internet. In that
case, your friend will hear his/her own voice again. With AEC(Acoustic Echo
Cancellation) enabled at your side, your friend can enjoy the benefit with less echo.

2-15

Wind Nettop Series

3D Audio Demo

In this tab you may adjust your 3D positional audio before playing 3D audio applica­tions like gaming. You may also select different environment to choose the most
suitable environment you like.

2-16

Realtek ALC888 Audio

Information

In this tab it provides some information about this HD Audio Configuration utility,
including Audio Driver Version, DirectX Version, Audio Controller & Audio Codec. You
may also select the language of this utility by choosing from the Language list.

Also there is a selection Show icon in system tray. Switch it on and an icon
will show in the system tray. Right-click on the icon and the Audio Accessories

dialogue box will appear which provides several multimedia features for you to take
advantage of.

2-17

Wind Nettop Series

Hardware Setup

Connecting the Speakers

When you have set the Multi-Channel Audio Function mode properly in the software
utility, connect your speakers to the correct phone jacks in accordance with the
setting in software utility.

n 2-Channel Mode for Stereo-Speaker Output
Refer to the following diagram and caption for the function of each phone jack on the
back panel when 2-Channel Mode is selected.

1 Line In
2 Line Out (Front channels)
3 MIC
4 No function
5 No function
6 No function

1

2

3

4

5

6

2-18

n 4-Channel Mode for 4-Speaker Output

Realtek ALC888 Audio

4-Channel Analog Audio Output

1 Line In
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear channels)
5 No function
6 No function

1

2

3

4

5

6

2-19

Wind Nettop Series

n 6-Channel Mode for 6-Speaker Output

1

2

3

6-Channel Analog Audio Output

1 Line In
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear channels)
5 Line Out (Center and Subwoofer channel)
6 No function

4

5

6

2-20

n 8-Channel Mode for 8-Speaker Output

Realtek ALC888 Audio

1

2

3

8-Channel Analog Audio Output

1 Line In
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear channels)
5 Line Out (Center and Subwoofer channel)
6 Line Out (Side channels)

4

5

6

Important

To enable 7.1 channel audio-out function on Vista operating system, you have to
install the Realtek Audio Driver. Or, the mainboard will support 5.1 channel
audio-out only.

2-21
